User guidePRO7 HEADSET SYSTEM

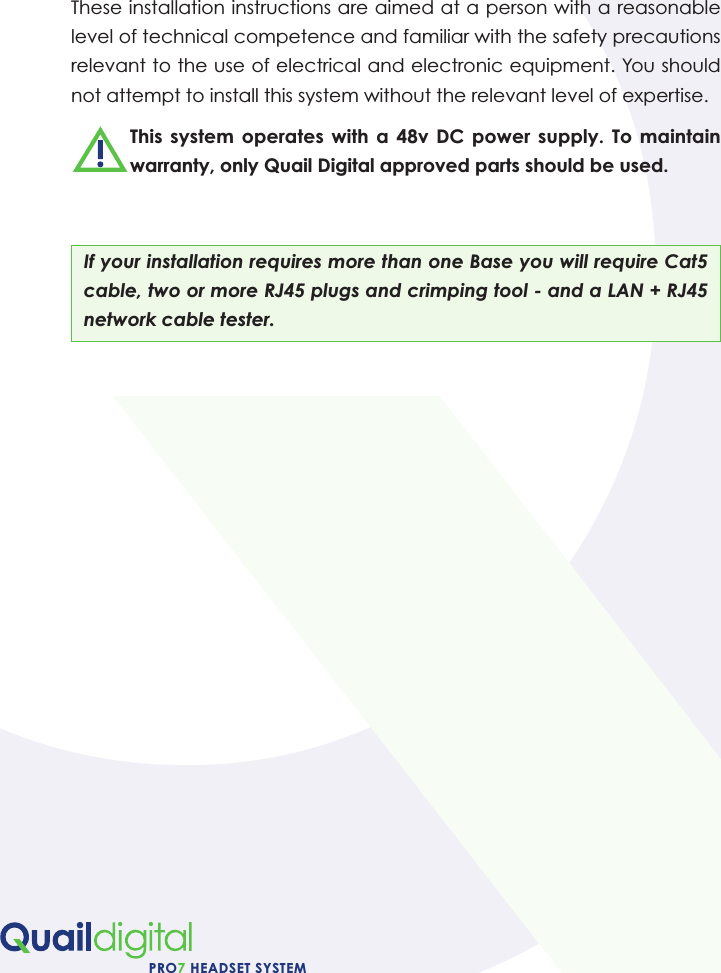

If your installation requires more than one Base you will require Cat5cable, two or more RJ45 plugs and crimping tool - and a LAN + RJ45network cable tester.These installation instructions are aimed at a person with a reasonablelevel of technical competence and familiar with the safety precautionsrelevant to the use of electrical and electronic equipment. You shouldnot attempt to install this system without the relevant level of expertise.This system operates with a 48v DC power supply. To maintainwarranty, only Quail Digital approved parts should be used.PRO7 HEADSET SYSTEM

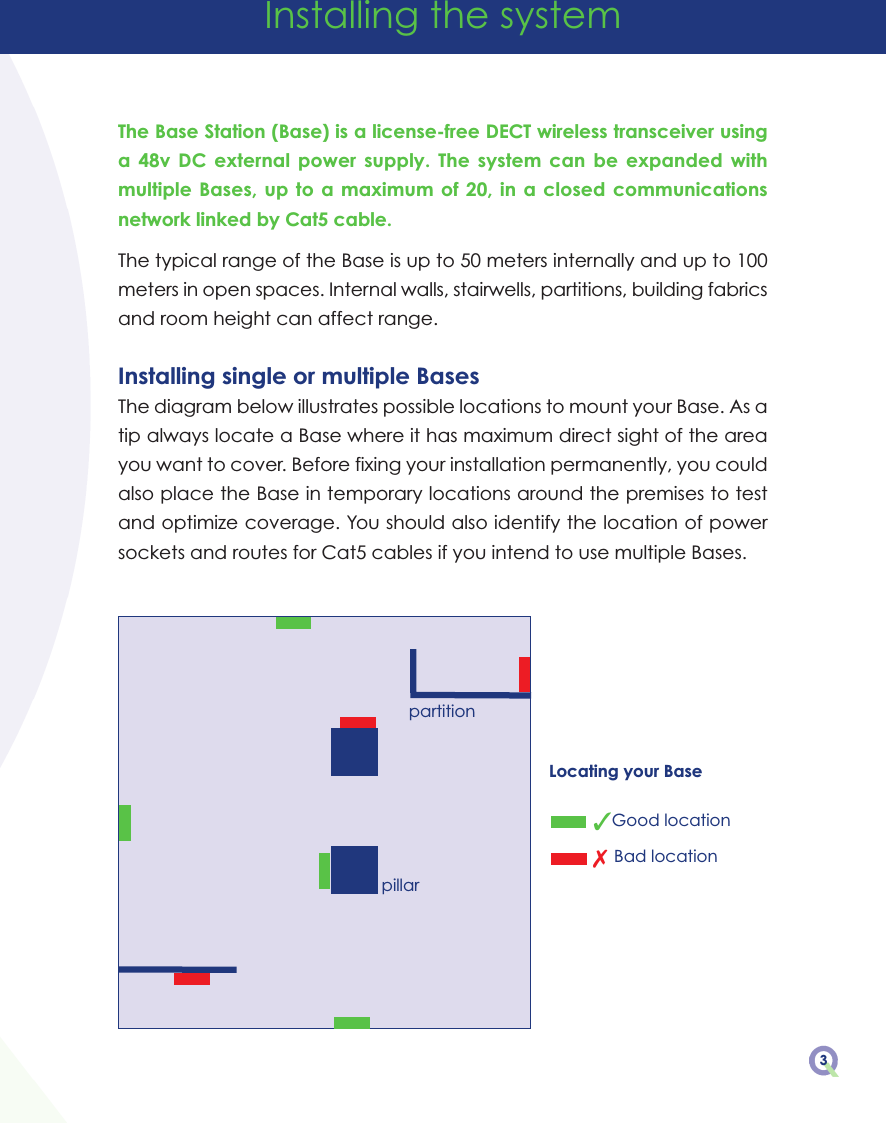

The Base Station (Base) is a license-free DECT wireless transceiver usinga 48v DC external power supply. The system can be expanded withmultiple Bases, up to a maximum of 20, in a closed communicationsnetwork linked by Cat5 cable.The typical range of the Base is up to 50 meters internally and up to 100meters in open spaces. Internal walls, stairwells, partitions, building fabricsand room height can affect range.Installing single or multiple BasesThe diagram below illustrates possible locations to mount your Base. As atip always locate a Base where it has maximum direct sight of the areayou want to cover. Before fixing your installation permanently, you couldalso place the Base in temporary locations around the premises to testand optimize coverage. You should also identify the location of powersockets and routes for Cat5 cables if you intend to use multiple Bases.Installing the system3Locating your Base3Good location7 Bad locationpartitionpillar

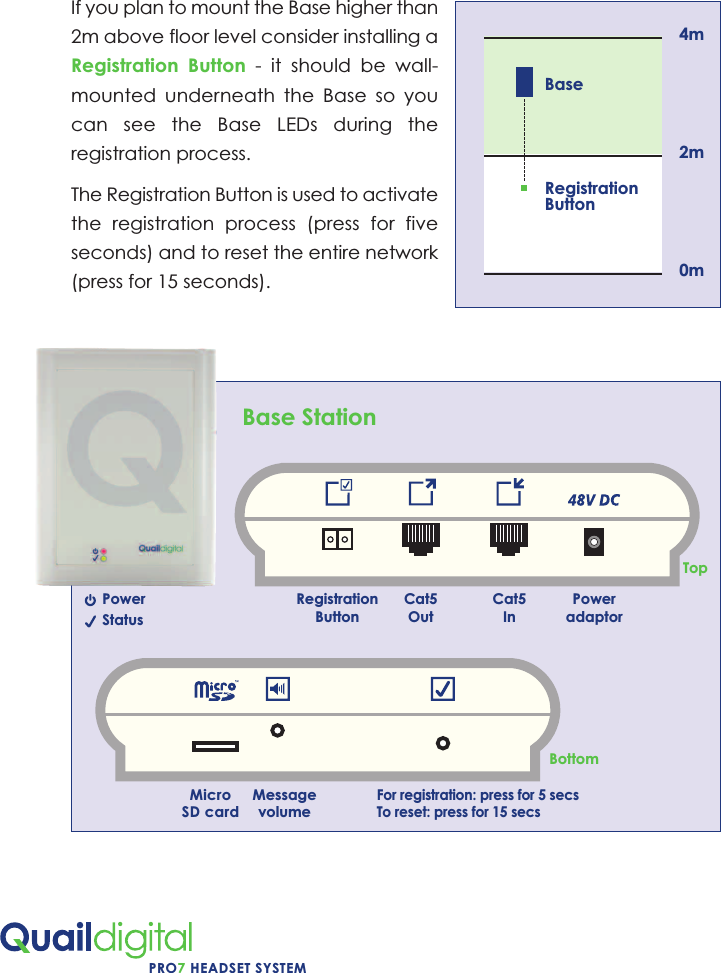

If you plan to mount the Base higher than2m above floor level consider installing aRegistration Button - it should be wall-mounted underneath the Base so youcan see the Base LEDs during theregistration process. The Registration Button is used to activatethe registration process (press for fiveseconds) and to reset the entire network(press for 15 seconds).PRO7 HEADSET SYSTEMRegistrationButtonCat5OutCat5InPoweradaptorMicroSD cardMessage volumeFor registration: press for 5 secsTo reset: press for 15 secs4m2m0mBaseRegistrationButtonPowerStatusBase StationBottomTop

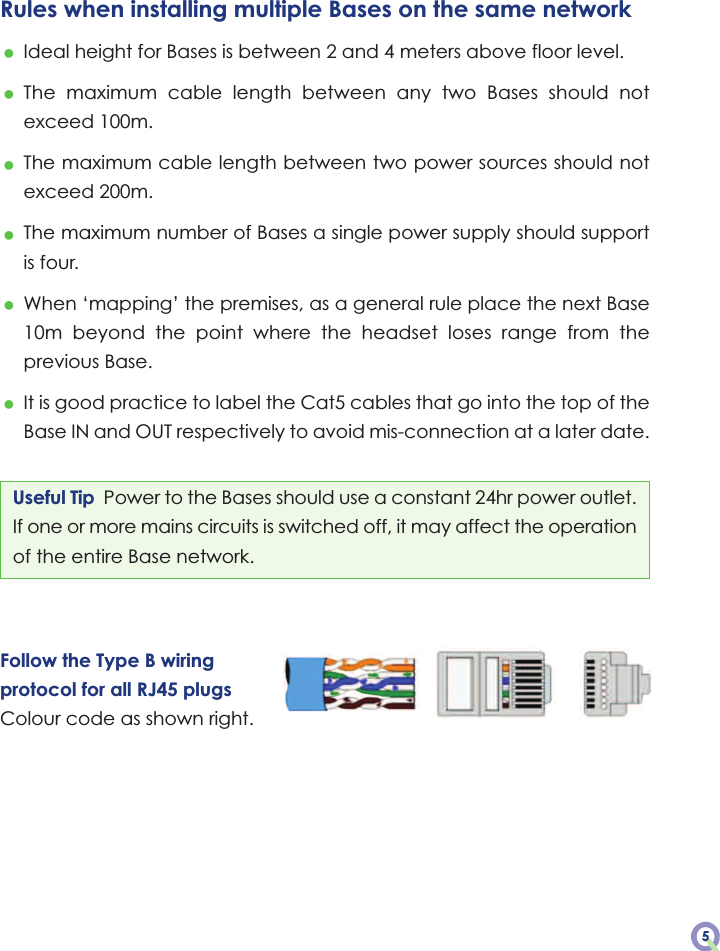

Useful Tip Power to the Bases should use a constant 24hr power outlet.If one or more mains circuits is switched off, it may affect the operationof the entire Base network.Follow the Type B wiringprotocol for all RJ45 plugsColour code as shown right.Rules when installing multiple Bases on the same network•Ideal height for Bases is between 2 and 4 meters above floor level.•The maximum cable length between any two Bases should notexceed 100m.•The maximum cable length between two power sources should notexceed 200m.•The maximum number of Bases a single power supply should supportis four.•When ‘mapping’ the premises, as a general rule place the next Base10m beyond the point where the headset loses range from theprevious Base.•It is good practice to label the Cat5 cables that go into the top of theBase IN and OUT respectively to avoid mis-connection at a later date.5

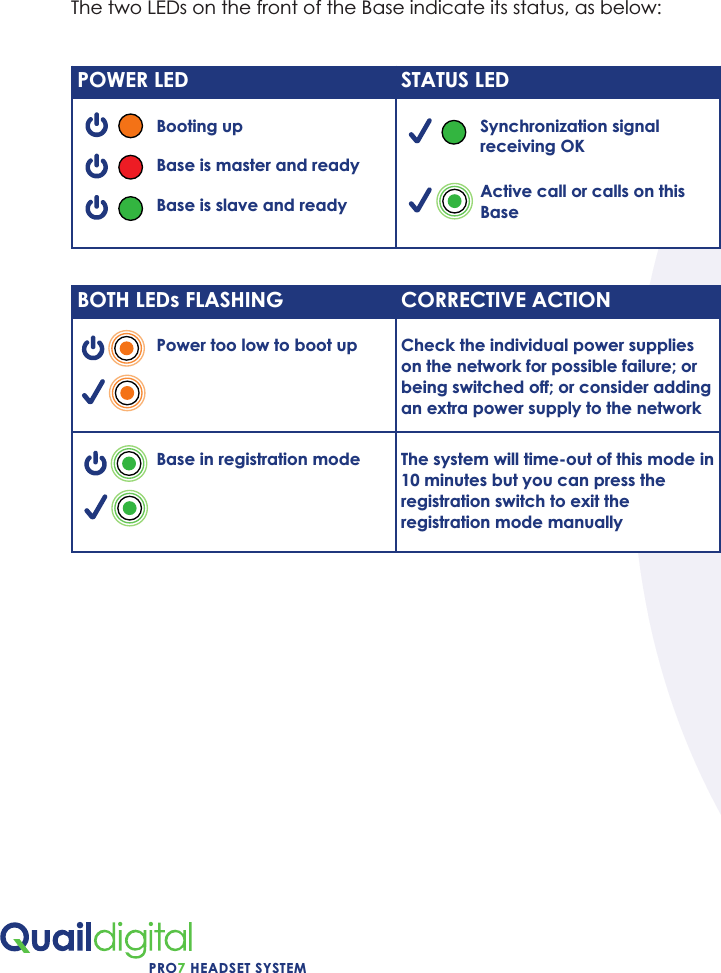

The two LEDs on the front of the Base indicate its status, as below:PRO7 HEADSET SYSTEMPOWER LED STATUS LEDBooting upBase is master and readyBase is slave and readySynchronization signalreceiving OKActive call or calls on thisBaseBOTH LEDs FLASHING CORRECTIVE ACTIONPower too low to boot up Check the individual power supplieson the network for possible failure; orbeing switched off; or consider addingan extra power supply to the networkBase in registration mode The system will time-out of this mode in10 minutes but you can press theregistration switch to exit theregistration mode manually

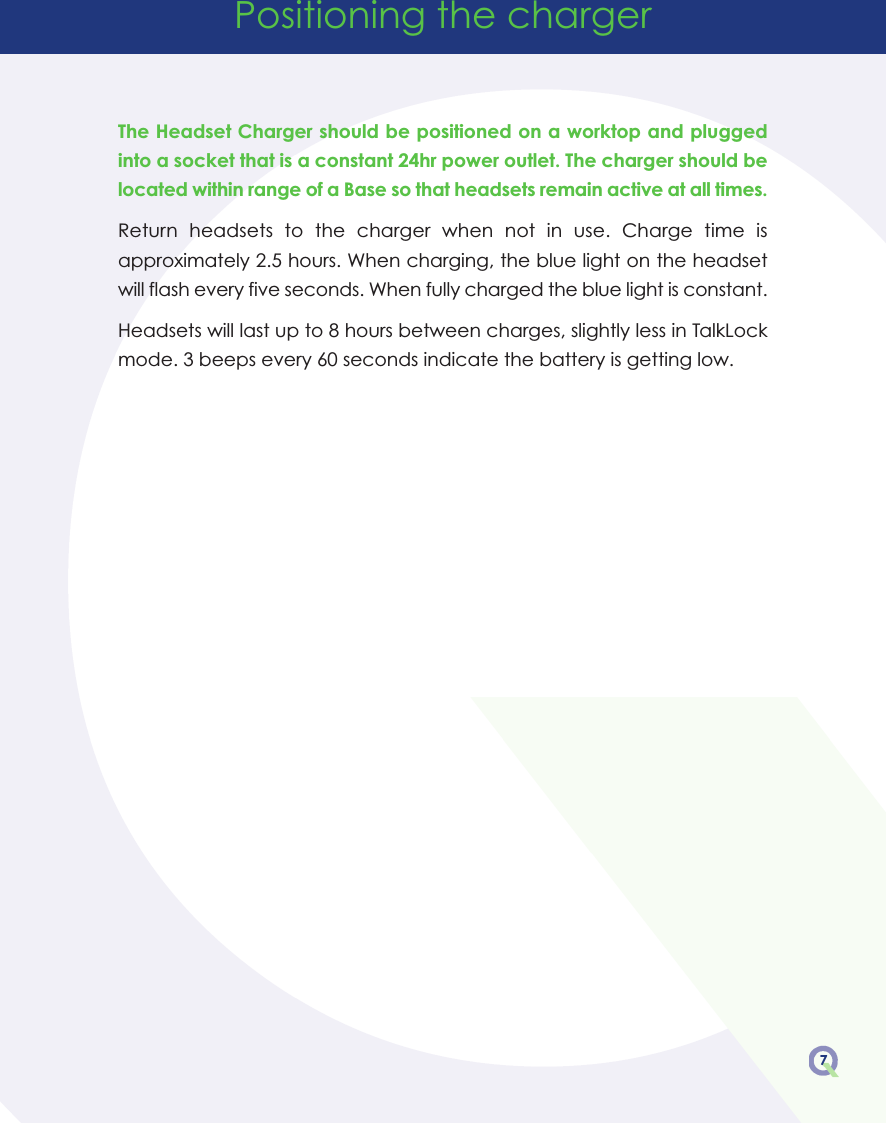

The Headset Charger should be positioned on a worktop and pluggedinto a socket that is a constant 24hr power outlet. The charger should belocated within range of a Base so that headsets remain active at all times.Return headsets to the charger when not in use. Charge time isapproximately 2.5 hours. When charging, the blue light on the headsetwill flash every five seconds. When fully charged the blue light is constant.Headsets will last up to 8 hours between charges, slightly less in TalkLockmode. 3 beeps every 60 seconds indicate the battery is getting low.Positioning the charger7
Each headset needs to be registered tothe system for the first time before use. Thesystem has the capacity for 30 headsets.To register one or more headsets, followthis procedure:1Make sure the new headset has acharged battery (blue LED flashes everyfive seconds).2Make sure all the headsets in use with thesystem are in range of the Base. If aheadset isn’t in range of the Base during theregistration process it will be deleted from the system.3Put the Base in ‘registration mode’ by pressing the Registration Buttonon the Base, or by pressing the wall-mounted Registration Button, forfive seconds. On the Base both LEDs should be flashing green.4Place the new headset to your ear, press the large silver button andvolume toggle down for three seconds. Wait for the bleeps to changetheir frequency and tone to one bleep every second.5A three second long bleep signifies successful registration. You mayalso hear a double bleep tone that will indicate it is ready to use.6As soon as a headset is registered, it is ready to use. Press theRegistration Button again to exit the registration process or leave it totime-out after 10 minutes.Registering and using headsetsPRO7 HEADSET SYSTEM

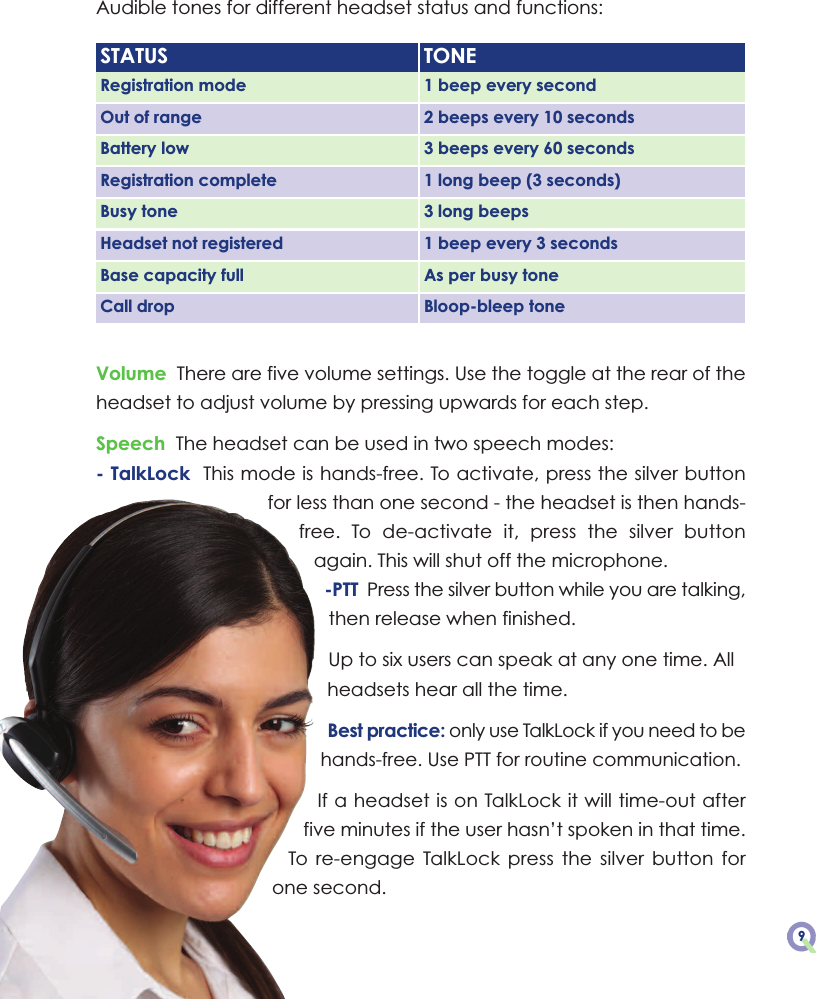

Volume There are five volume settings. Use the toggle at the rear of theheadset to adjust volume by pressing upwards for each step.Speech The headset can be used in two speech modes:- TalkLock This mode is hands-free. To activate, press the silver buttonfor less than one second - the headset is then hands-free. To de-activate it, press the silver buttonagain. This will shut off the microphone.-PTT Press the silver button while you are talking,then release when finished.Up to six users can speak at any one time. Allheadsets hear all the time.Best practice: only use TalkLock if you need to behands-free. Use PTT for routine communication.If a headset is on TalkLock it will time-out afterfive minutes if the user hasn’t spoken in that time.To re-engage TalkLock press the silver button forone second.Audible tones for different headset status and functions: STATUS TONERegistration mode 1 beep every secondOut of range 2 beeps every 10 secondsBattery low 3 beeps every 60 secondsRegistration complete 1 long beep (3 seconds)Busy tone 3 long beepsHeadset not registered 1 beep every 3 secondsBase capacity full As per busy toneCall drop Bloop-bleep tone9

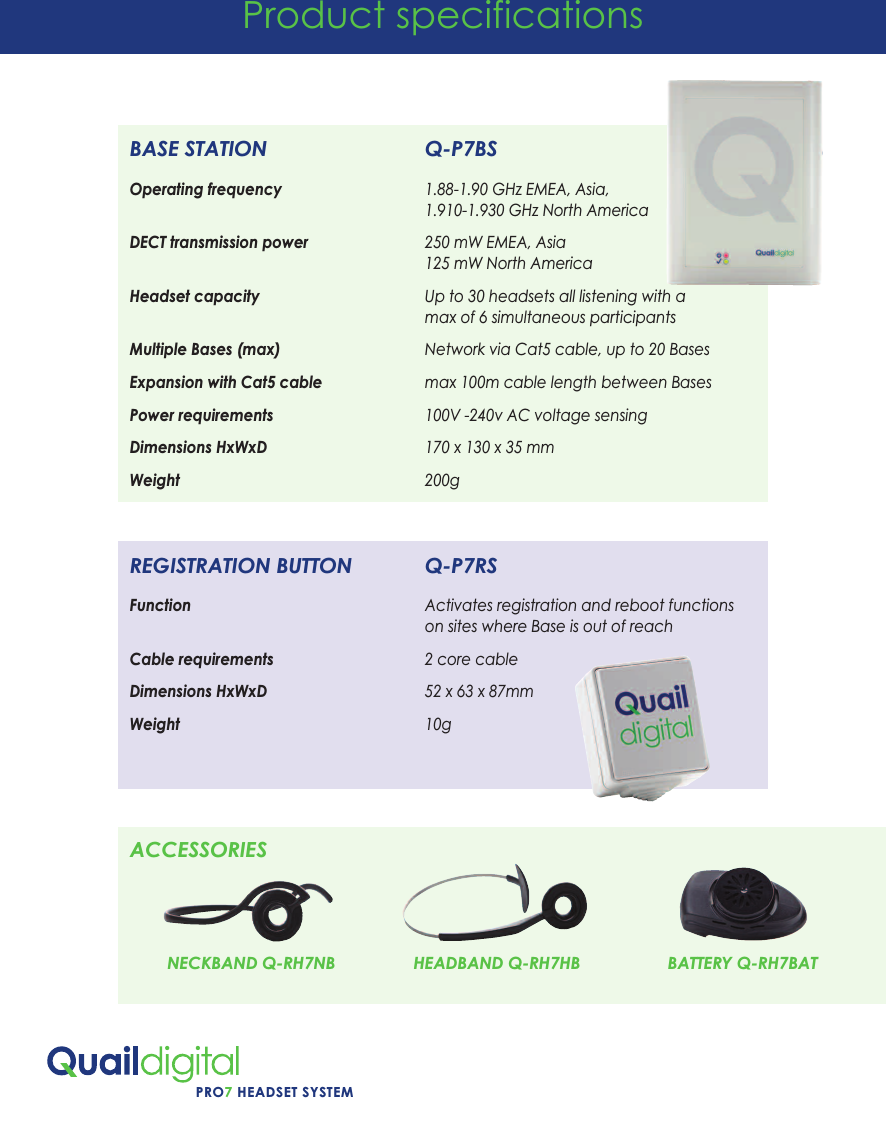

PRO7 HEADSET SYSTEMProduct specificationsBASE STATION Q-P7BSOperating frequency 1.88-1.90 GHz EMEA, Asia, 1.910-1.930 GHz North AmericaDECT transmission power 250 mW EMEA, Asia 125 mW North AmericaHeadset capacity Up to 30 headsets all listening with a max of 6 simultaneous participantsMultiple Bases (max) Network via Cat5 cable, up to 20 BasesExpansion with Cat5 cable max 100m cable length between BasesPower requirements 100V -240v AC voltage sensing Dimensions HxWxD 170 x 130 x 35 mmWeight 200gREGISTRATION BUTTON Q-P7RSFunction Activates registration and reboot functions on sites where Base is out of reachCable requirements 2 core cableDimensions HxWxD 52 x 63 x 87mmWeight 10gACCESSORIESNECKBAND Q-RH7NB HEADBAND Q-RH7HB BATTERY Q-RH7BAT

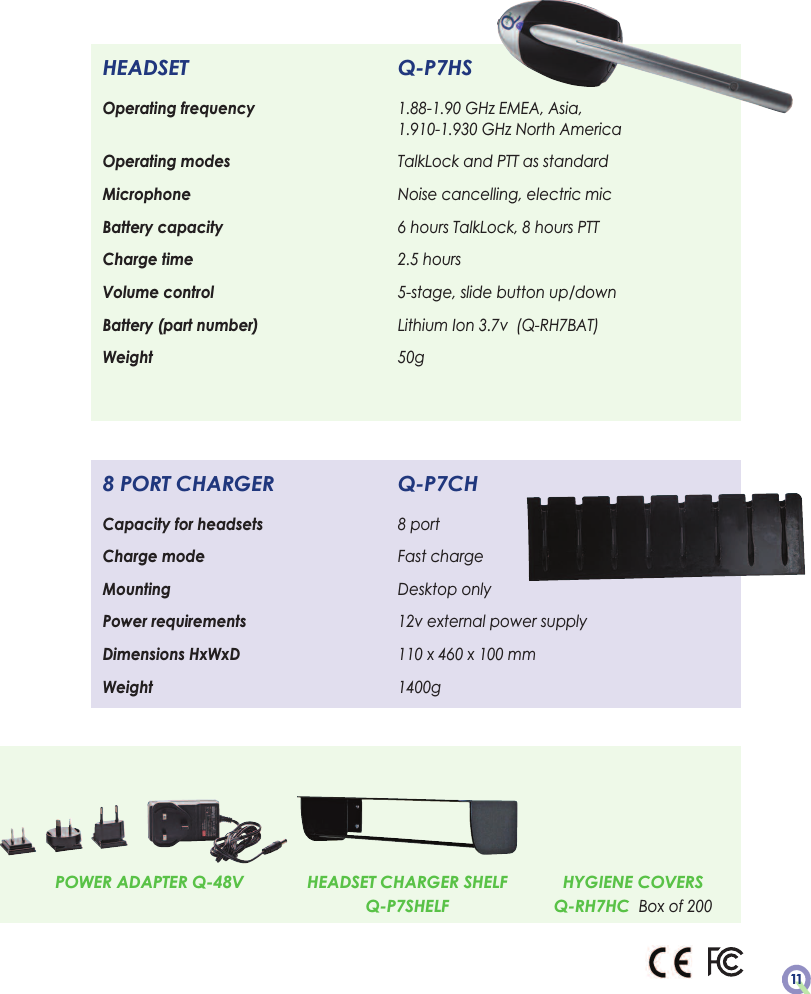

11HEADSET Q-P7HSOperating frequency 1.88-1.90 GHz EMEA, Asia, 1.910-1.930 GHz North AmericaOperating modes TalkLock and PTT as standardMicrophone Noise cancelling, electric micBattery capacity 6 hours TalkLock, 8 hours PTTCharge time 2.5 hoursVolume control 5-stage, slide button up/downBattery (part number) Lithium Ion 3.7v (Q-RH7BAT)Weight 50g8 PORT CHARGER Q-P7CHCapacity for headsets 8 portCharge mode Fast chargeMounting Desktop onlyPower requirements 12v external power supplyDimensions HxWxD 110 x 460 x 100 mmWeight 1400gPOWER ADAPTER Q-48V HEADSET CHARGER SHELF Q-P7SHELFHYGIENE COVERS Q-RH7HC Box of 200

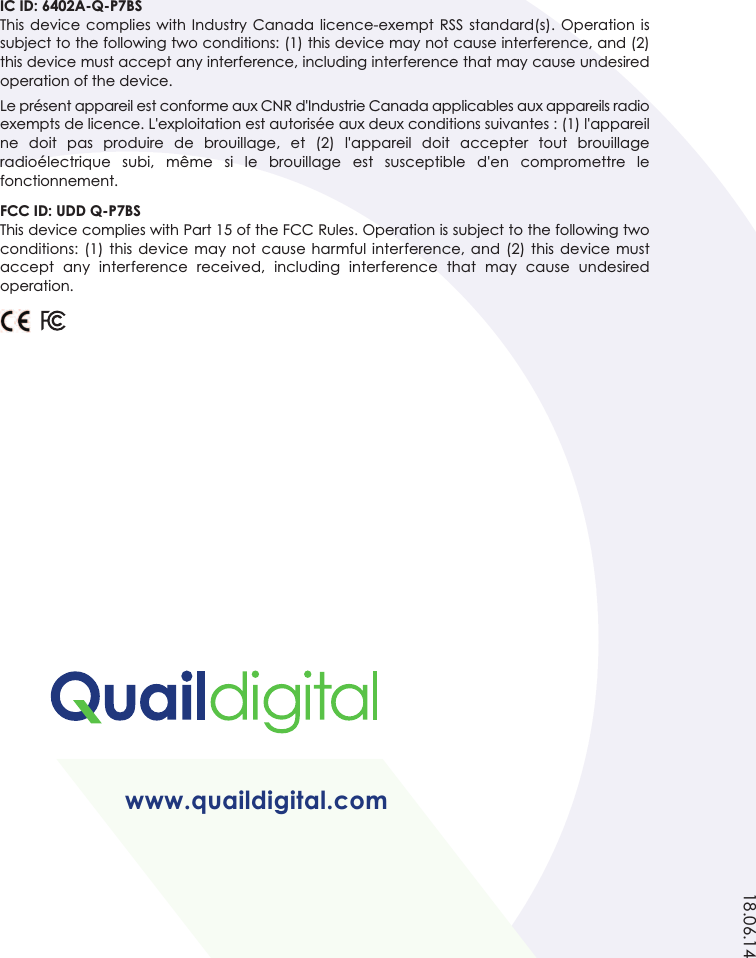

www.quaildigital.com18.06.14IC ID: 6402A-Q-P7BSThis device complies with Industry Canada licence-exempt RSS standard(s). Operation issubject to the following two conditions: (1) this device may not cause interference, and (2)this device must accept any interference, including interference that may cause undesiredoperation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareilne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillageradioélectrique subi, même si le brouillage est susceptible d'en compromettre lefonctionnement.FCC ID: UDD Q-P7BSThis device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesiredoperation.
