Quanzhou YANTON Electronics T-518 Two Way Radio User Manual

Quanzhou YANTON Electronics Co., Ltd. Two Way Radio Users Manual

User Manual

UserManualTwoWayRadioBrandName:YANTONModelName:T‐518FCCID:SV8T‐518

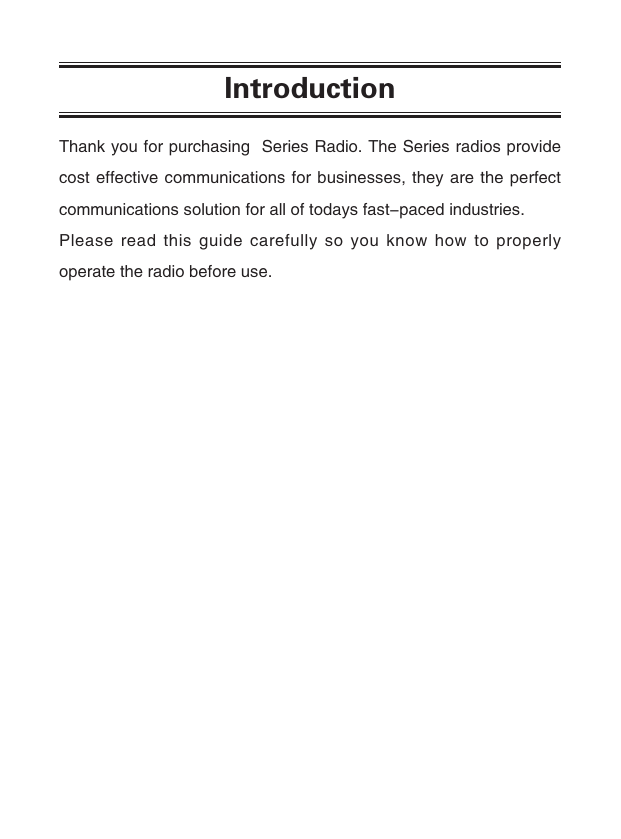

IntroductionThank you for purchasing Series Radio. The Series radios provide cost effective communications for businesses, they are the perfect communications solution for all of todays fast-paced industries.Please read this guide carefully so you know how to properly operate the radio before use.
Safety and General InformationImportant Information on Safe and Efficient Operation.Read This information Before Using Your Radio.The information provided in this document supersedes the general safety information contained in user guides published before.Transmit and Receive ProcedureYour two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedure: ◆ Transmit no more than 50% of the time. ◆ To transmit (talk), press the Push to Talk (PTT) button. ◆ To receive calls, release the PTT button.Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance).

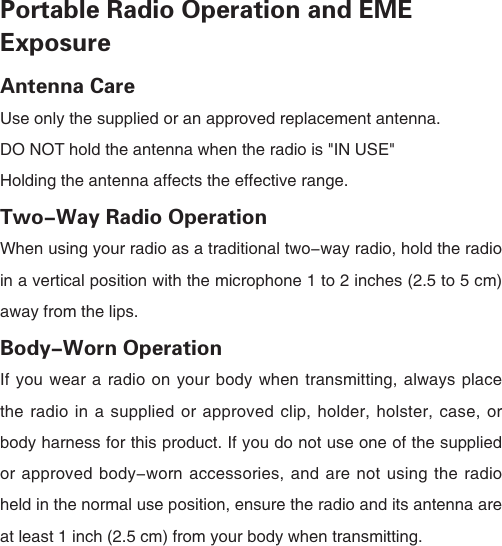

Portable Radio Operation and EME ExposureAntenna CareUse only the supplied or an approved replacement antenna.DO NOT hold the antenna when the radio is "IN USE"Holding the antenna affects the effective range.Two-Way Radio OperationWhen using your radio as a traditional two-way radio, hold the radio in a vertical position with the microphone 1 to 2 inches (2.5 to 5 cm) away from the lips.Body-Worn OperationIf you wear a radio on your body when transmitting, always place the radio in a supplied or approved clip, holder, holster, case, or body harness for this product. If you do not use one of the supplied or approved body-worn accessories, and are not using the radio held in the normal use position, ensure the radio and its antenna are at least 1 inch (2.5 cm) from your body when transmitting.

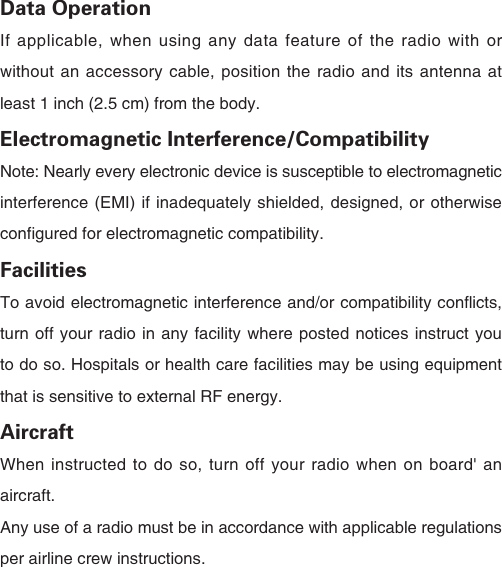

Data OperationIf applicable, when using any data feature of the radio with or without an accessory cable, position the radio and its antenna at least 1 inch (2.5 cm) from the body.Electromagnetic Interference/CompatibilityNote: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility.FacilitiesTo avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any facility where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.AircraftWhen instructed to do so, turn off your radio when on board' an aircraft.Any use of a radio must be in accordance with applicable regulations per airline crew instructions.

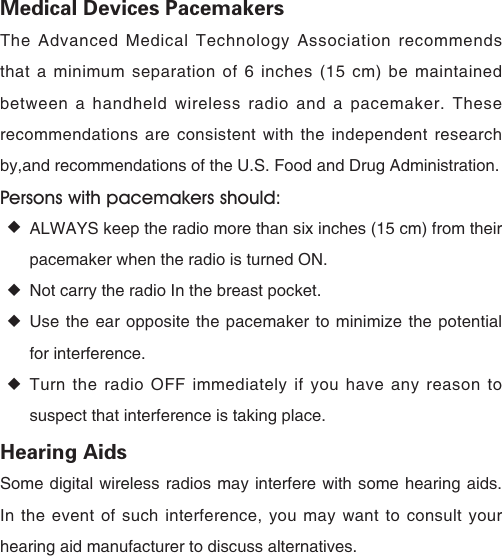

Medical Devices PacemakersThe Advanced Medical Technology Association recommends that a minimum separation of 6 inches (15 cm) be maintained between a handheld wireless radio and a pacemaker. These recommendations are consistent with the independent research by,and recommendations of the U.S. Food and Drug Administration.Persons with pacemakers should: ◆ALWAYS keep the radio more than six inches (15 cm) from their pacemaker when the radio is turned ON. ◆Not carry the radio In the breast pocket. ◆Use the ear opposite the pacemaker to minimize the potential for interference. ◆Turn the radio OFF immediately if you have any reason to suspect that interference is taking place.Hearing AidsSome digital wireless radios may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives.

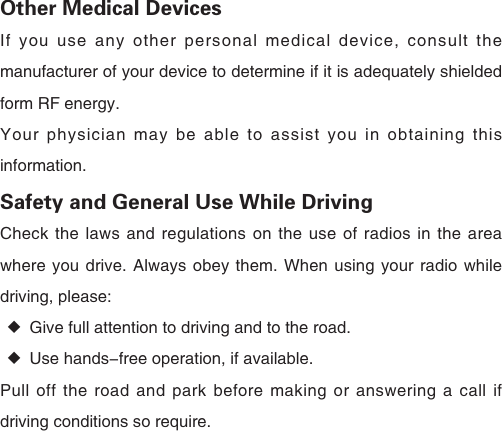

Other Medical DevicesIf you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded form RF energy.Your physician may be able to assist you in obtaining this information.Safety and General Use While DrivingCheck the laws and regulations on the use of radios in the area where you drive. Always obey them. When using your radio while driving, please: ◆Give full attention to driving and to the road. ◆Use hands-free operation, if available.Pull off the road and park before making or answering a call if driving conditions so require.

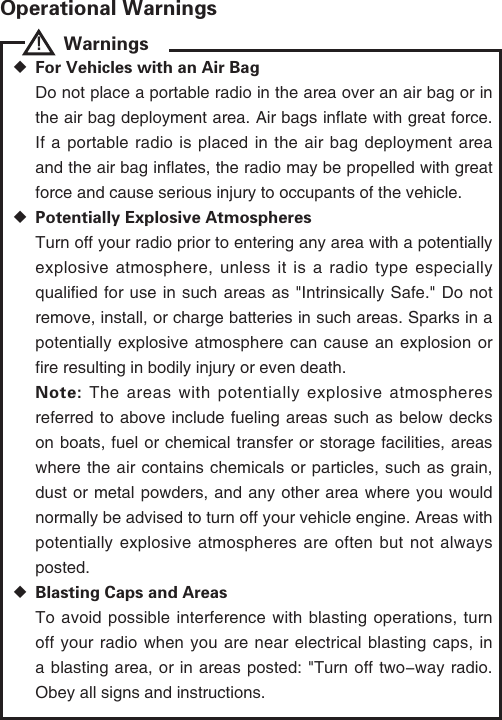

Operational Warnings! Warnings ◆For Vehicles with an Air BagDo not place a portable radio in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a portable radio is placed in the air bag deployment area and the air bag inflates, the radio may be propelled with great force and cause serious injury to occupants of the vehicle. ◆Potentially Explosive AtmospheresTurn off your radio prior to entering any area with a potentially explosive atmosphere, unless it is a radio type especially qualified for use in such areas as "Intrinsically Safe." Do not remove, install, or charge batteries in such areas. Sparks in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury or even death.Note: The areas with potentially explosive atmospheres referred to above include fueling areas such as below decks on boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine. Areas with potentially explosive atmospheres are often but not always posted. ◆Blasting Caps and AreasTo avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting caps, in a blasting area, or in areas posted: "Turn off two-way radio. Obey all signs and instructions.
Operational Cautions AntennasDo not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn can result.BatteriesAll batteries can cause property damage and/or bodily injury such as burns if a conductive material such as jewelry, keys, or beaded chains touch exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particulariy when placing it inside a pocket, purse, or other container with metal objects.

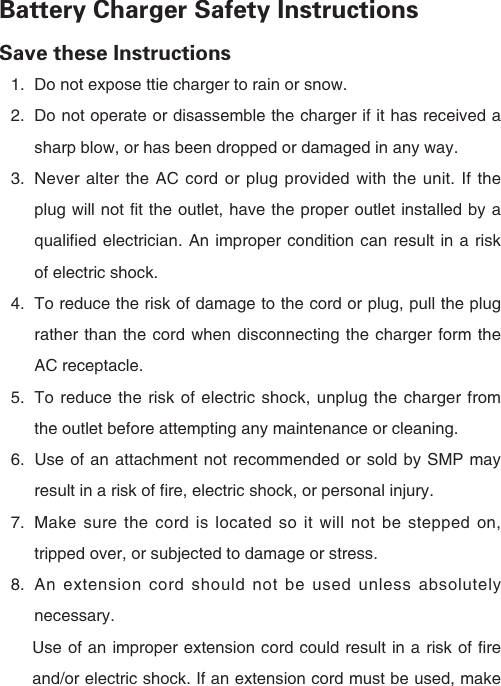

Battery Charger Safety InstructionsSave these Instructions1. Do not expose ttie charger to rain or snow.2. Do not operate or disassemble the charger if it has received a sharp blow, or has been dropped or damaged in any way.3. Never alter the AC cord or plug provided with the unit. If the plug will not fit the outlet, have the proper outlet installed by a qualified electrician. An improper condition can result in a risk of electric shock.4. To reduce the risk of damage to the cord or plug, pull the plug rather than the cord when disconnecting the charger form the AC receptacle.5. To reduce the risk of electric shock, unplug the charger from the outlet before attempting any maintenance or cleaning.6. Use of an attachment not recommended or sold by SMP may result in a risk of fire, electric shock, or personal injury.7. Make sure the cord is located so it will not be stepped on, tripped over, or subjected to damage or stress.8. An extension cord should not be used unless absolutely necessary.　　Use of an improper extension cord could result in a risk of fire 　　and/or electric shock. If an extension cord must be used, make

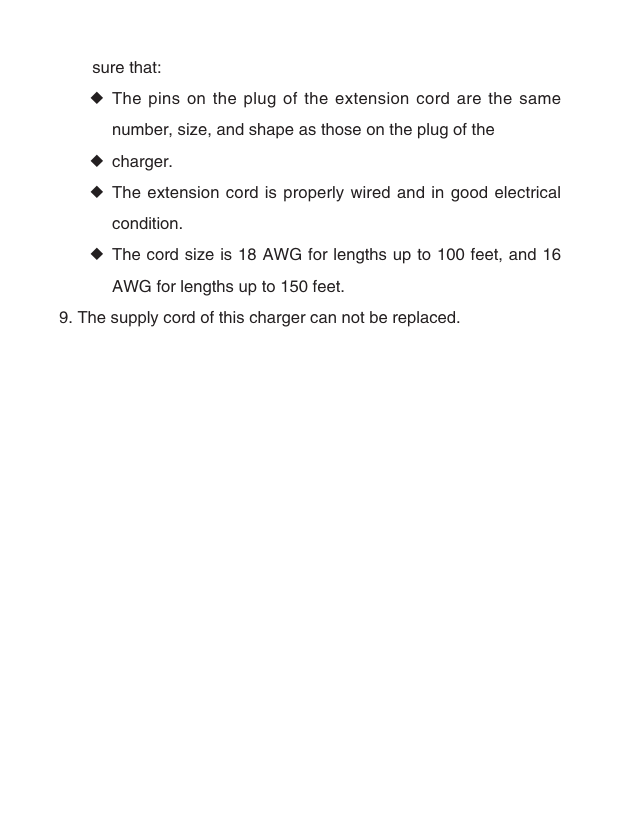

　　sure that: ◆The pins on the plug of the extension cord are the same number, size, and shape as those on the plug of the ◆charger. ◆The extension cord is properly wired and in good electrical condition. ◆The cord size is 18 AWG for lengths up to 100 feet, and 16 AWG for lengths up to 150 feet.9. The supply cord of this charger can not be replaced.

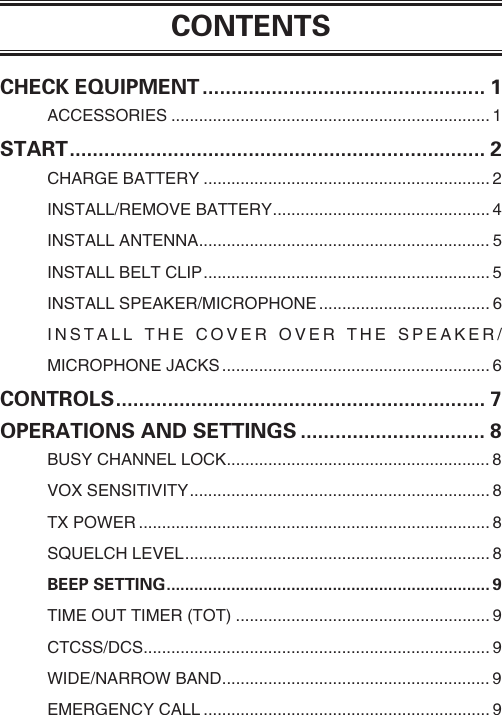

CONTENTSCHECK EQUIPMENT ................................................. 1ACCESSORIES ..................................................................... 1START ........................................................................ 2CHARGE BATTERY .............................................................. 2INSTALL/REMOVE BATTERY ............................................... 4INSTALL ANTENNA ............................................................... 5INSTALL BELT CLIP .............................................................. 5INSTALL SPEAKER/MICROPHONE .....................................6INSTALL THE COVER OVER THE SPEAKER/ MICROPHONE JACKS .......................................................... 6CONTROLS ................................................................ 7OPERATIONS AND SETTINGS ................................ 8BUSY CHANNEL LOCK ......................................................... 8VOX SENSITIVITY ................................................................. 8TX POWER ............................................................................ 8SQUELCH LEVEL .................................................................. 8BEEP SETTING ...................................................................... 9TIME OUT TIMER (TOT) ....................................................... 9CTCSS/DCS ........................................................................... 9WIDE/NARROW BAND .......................................................... 9EMERGENCY CALL .............................................................. 9

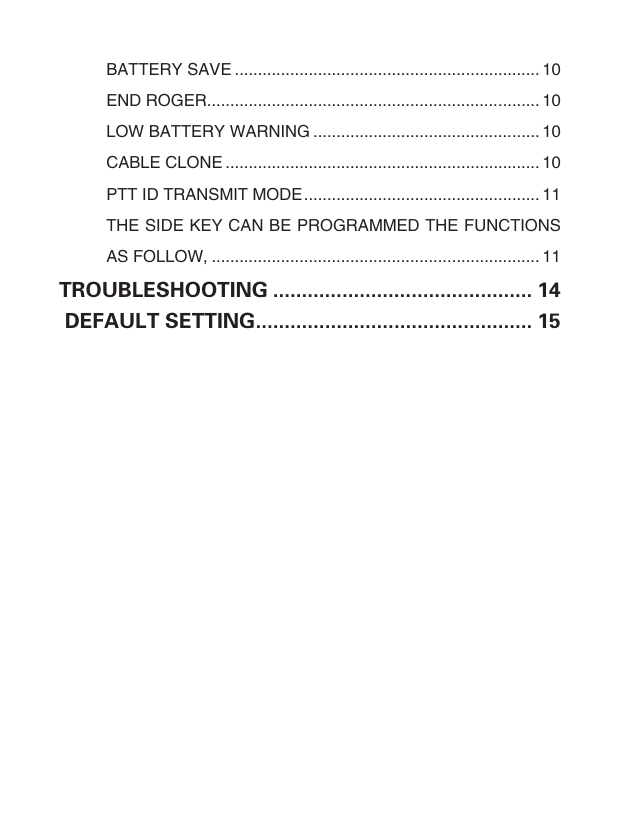

BATTERY SAVE .................................................................. 10END ROGER ........................................................................ 10LOW BATTERY WARNING ................................................. 10CABLE CLONE .................................................................... 10PTT ID TRANSMIT MODE ................................................... 11THE SIDE KEY CAN BE PROGRAMMED THE FUNCTIONS AS FOLLOW, ....................................................................... 11TROUBLESHOOTING ............................................. 14 DEFAULT SETTING ................................................ 15

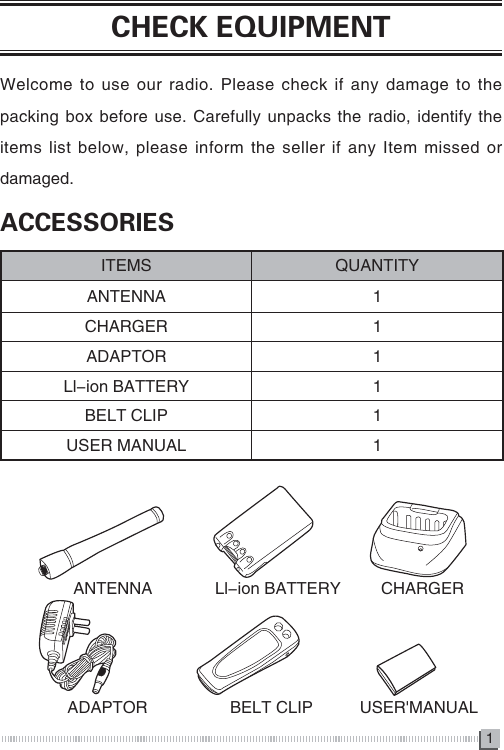

1CHECK EQUIPMENTWelcome to use our radio. Please check if any damage to the packing box before use. Carefully unpacks the radio, identify the items list below, please inform the seller if any Item missed or damaged.ACCESSORIESITEMS QUANTITYANTENNA 1CHARGER 1ADAPTOR 1Ll-ion BATTERY 1BELT CLIP 1USER MANUAL 1ANTENNA CHARGERADAPTORLl-ion BATTERYBELT CLIP USER'MANUAL

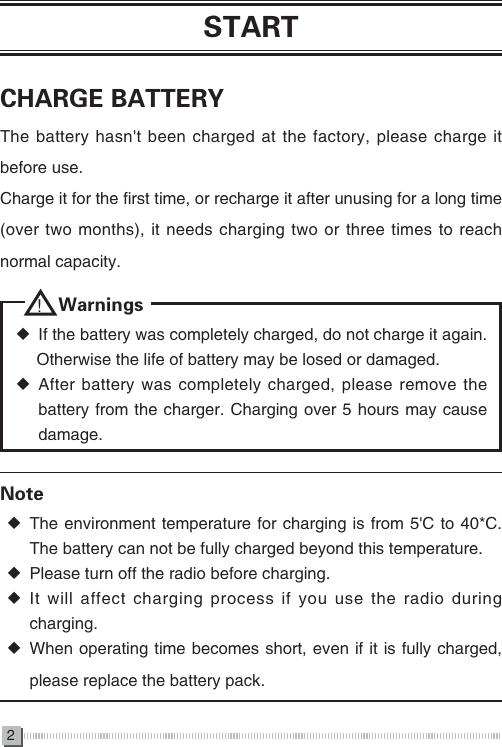

2STARTCHARGE BATTERYThe battery hasn't been charged at the factory, please charge it before use.Charge it for the first time, or recharge it after unusing for a long time (over two months), it needs charging two or three times to reach normal capacity.Note ◆The environment temperature for charging is from 5'C to 40*C. The battery can not be fully charged beyond this temperature. ◆Please turn off the radio before charging. ◆It will affect charging process if you use the radio during charging. ◆ When operating time becomes short, even if it is fully charged, please replace the battery pack. ！ Warnings ◆If the battery was completely charged, do not charge it again. Otherwise the life of battery may be losed or damaged. ◆After battery was completely charged, please remove the battery from the charger. Charging over 5 hours may cause damage.

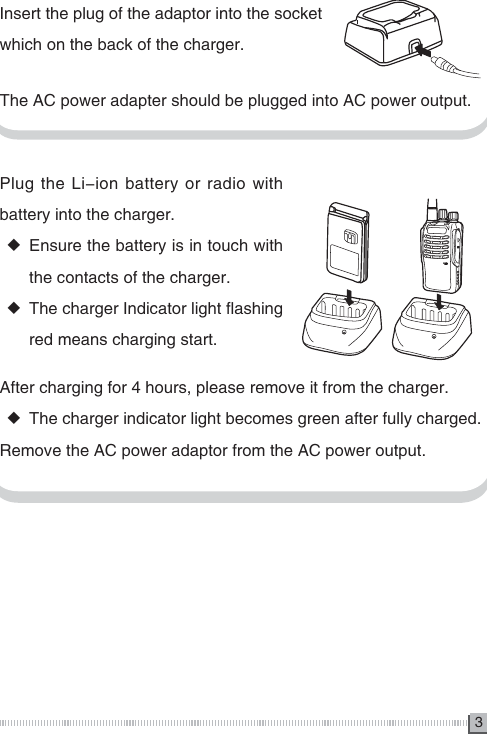

3Plug the Li-ion battery or radio with battery into the charger. ◆Ensure the battery is in touch with the contacts of the charger. ◆The charger Indicator light flashing red means charging start.Insert the plug of the adaptor into the socket which on the back of the charger.The AC power adapter should be plugged into AC power output.After charging for 4 hours, please remove it from the charger. ◆The charger indicator light becomes green after fully charged. Remove the AC power adaptor from the AC power output.MICMIC

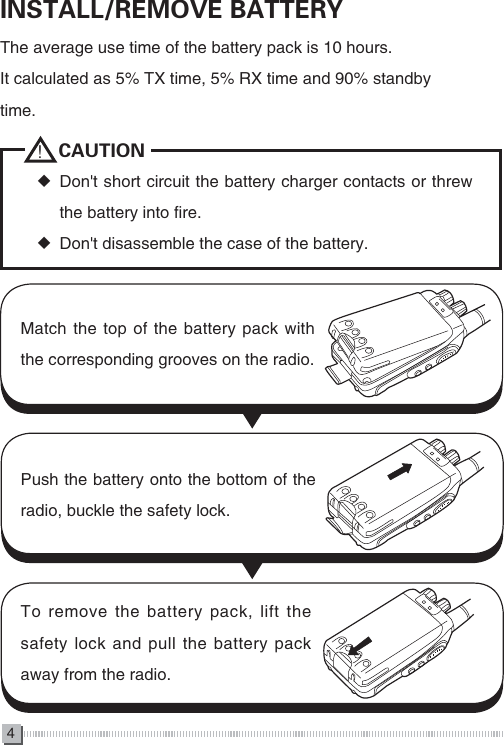

4INSTALL/REMOVE BATTERYThe average use time of the battery pack is 10 hours.It calculated as 5% TX time, 5% RX time and 90% standbytime. ！ CAUTION ◆Don't short circuit the battery charger contacts or threw the battery into fire. ◆Don't disassemble the case of the battery.Match the top of the battery pack with the corresponding grooves on the radio.Push the battery onto the bottom of the radio, buckle the safety lock.To remove the battery pack, lift the safety lock and pull the battery pack away from the radio.
5INSTALL ANTENNAHold the radio, screw the antenna into the connector on the top of the radio. Hold the antenna and turn it clockwise until being tight. Note:　　Don't use the antenna as handle, keychain or speaker/microphone hook, it will damage the antenna and affect the function of the radio.INSTALL BELT CLIPWhen necessary, you can install the belt clip to the back of the radio.Note:　　Without installing the belt clip, the 　　　　installing area will become hot due to 　　continuous communication or put in hot 　　environment.　　You should remove the belt clip first 　　　before disassemble the battery pack.AntennaBelt clilp ！ CAUTION ◆Please don't use glue to fix the screws of belt clip| otherwise it may ruin the housing!

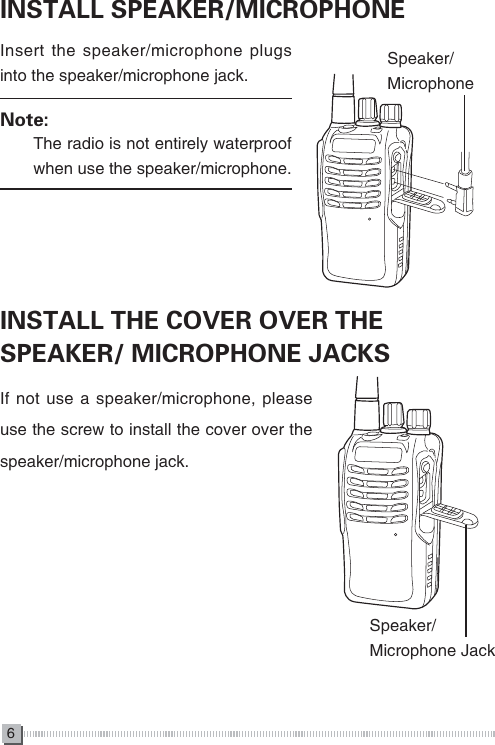

6INSTALL SPEAKER/MICROPHONEINSTALL THE COVER OVER THE SPEAKER/ MICROPHONE JACKSInsert the speaker/microphone plugs into the speaker/microphone jack.Note:　　The radio is not entirely waterproof 　　when use the speaker/microphone.If not use a speaker/microphone, please use the screw to install the cover over the speaker/microphone jack.Speaker/MicrophoneSpeaker/Microphone Jack

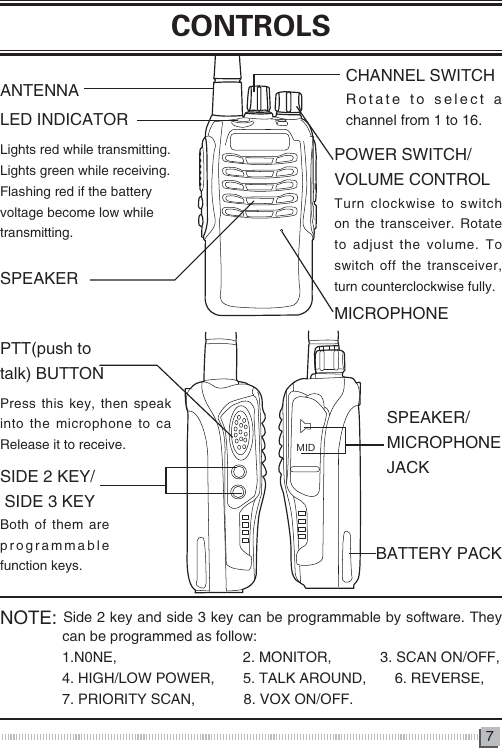

7ANTENNALED INDICATORLights red while transmitting. Lights green while receiving. Flashing red if the batteryvoltage become low while transmitting.SPEAKERPOWER SWITCH/ VOLUME CONTROLTurn clockwise to switch on the transceiver. Rotate to adjust the volume. To switch off the transceiver, turn counterclockwise fully.MICROPHONEPTT(push totalk) BUTTONPress this key, then speak into the microphone to ca Release it to receive.SIDE 2 KEY/ SIDE 3 KEYBoth of them are programmable function keys.SPEAKER/MICROPHONEJACKBATTERY PACKNOTE: Side 2 key and side 3 key can be programmable by software. They 　　　　 can be programmed as follow:　　　　 1.N0NE, 2. MONITOR, 3. SCAN ON/OFF,　　　　 4. HIGH/LOW POWER, 5. TALK AROUND, 6. REVERSE,　　　　 7. PRIORITY SCAN, 8. VOX ON/OFF. CONTROLSCHANNEL SWITCHRotate to select a channel from 1 to 16.MID

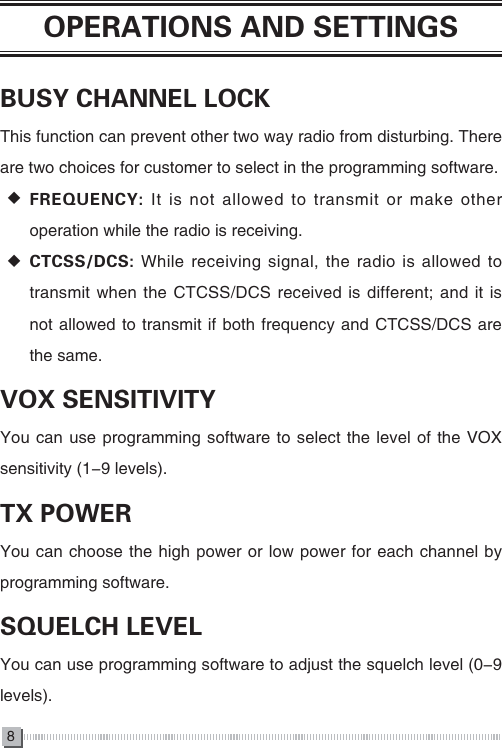

8OPERATIONS AND SETTINGSBUSY CHANNEL LOCKThis function can prevent other two way radio from disturbing. There are two choices for customer to select in the programming software. ◆FREQUENCY: It is not allowed to transmit or make other operation while the radio is receiving. ◆CTCSS/DCS: While receiving signal, the radio is allowed to transmit when the CTCSS/DCS received is different; and it is not allowed to transmit if both frequency and CTCSS/DCS are the same.VOX SENSITIVITYYou can use programming software to select the level of the VOX sensitivity (1-9 levels).TX POWERYou can choose the high power or low power for each channel by programming software.SQUELCH LEVELYou can use programming software to adjust the squelch level (0-9 levels).

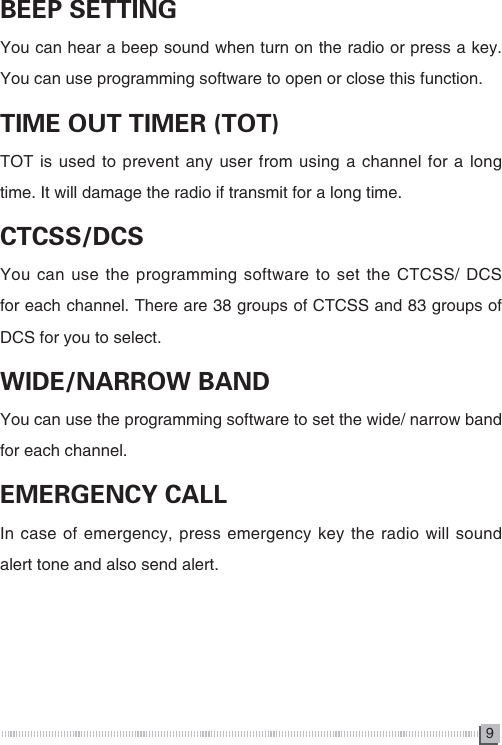

9BEEP SETTINGYou can hear a beep sound when turn on the radio or press a key. You can use programming software to open or close this function.TIME OUT TIMER (TOT)TOT is used to prevent any user from using a channel for a long time. It will damage the radio if transmit for a long time.CTCSS/DCSYou can use the programming software to set the CTCSS/ DCS for each channel. There are 38 groups of CTCSS and 83 groups of DCS for you to select.WIDE/NARROW BANDYou can use the programming software to set the wide/ narrow band for each channel.EMERGENCY CALLIn case of emergency, press emergency key the radio will sound alert tone and also send alert.
10BATTERY SAVEThis function can decrease power consumption when no signal is received, and no operation is performed. You can use programming software to open or close this function.END ROGERIt is very useful for hand free users to eliminate the End Roger Beep, You can use programming software to open or close this function.LOW BATTERY WARNINGLow battery warning alerts you that the battery should be recharged or replaced. While transmitting or receiving, the LED will blink red if the battery is low. Please replace the battery if "du du" tone sounds every 30 seconds.CABLE CLONEStep:1. Use cable to connect Master unit to slave unit, and turn on the slave unit. Press and hold programmable Side Key 2 to turn ON master unit, LED flash Orange twice.2. Press PTT of Master unit to transmit the data and Slave unit begin to receive data from Master unit3. During cable cloning Master unit blink red and Slave unit blink Green

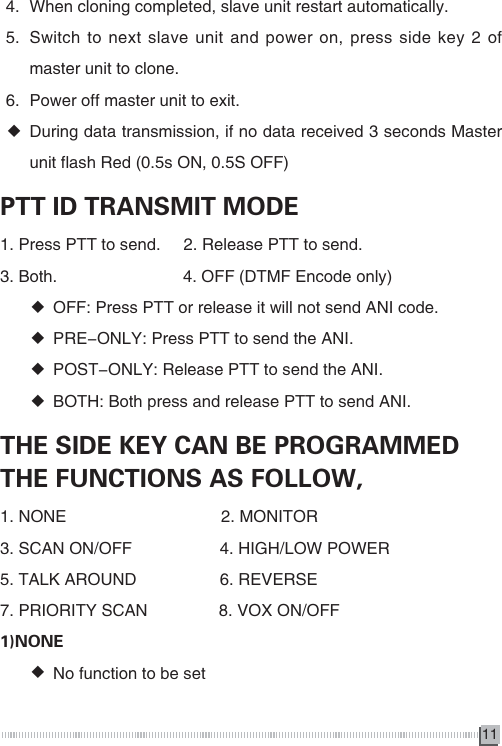

114. When cloning completed, slave unit restart automatically.5. Switch to next slave unit and power on, press side key 2 of master unit to clone.6. Power off master unit to exit. ◆During data transmission, if no data received 3 seconds Master unit flash Red (0.5s ON, 0.5S OFF)PTT ID TRANSMIT MODE1. Press PTT to send. 2. Release PTT to send.3. Both.　 　4. OFF (DTMF Encode only) ◆OFF: Press PTT or release it will not send ANI code. ◆PRE-ONLY: Press PTT to send the ANI. ◆POST-ONLY: Release PTT to send the ANI. ◆BOTH: Both press and release PTT to send ANI.THE SIDE KEY CAN BE PROGRAMMED THE FUNCTIONS AS FOLLOW,1. NONE　　　　　　　　　 2. MONITOR3. SCAN ON/OFF 　　　　　4. HIGH/LOW POWER5. TALK AROUND　　　　　6. REVERSE7. PRIORITY SCAN 　　　　8. VOX ON/OFF1)NONE ◆No function to be set
122)MONITOR ◆If press the monitor key, it can detect if the channel is busy, it can ignore all the interference codes temporarily and receive weak signal.3)SCAN ON/OFF ◆Scan ON: The radio will scan from the current channel. ◆Scan OFF: To press the side key again.You can exit.4)HIGH/ LOW POWER SWITCH ◆Press the key to switch High/Low Power Switch.5)TALK AROUND ◆Talk around allows you to communicate directly with other radios without the repeater. When using talk around, the transmitting frequency is same with receive frequency.　　　Press talk around key (programmed key) to enter this function 　　　and press it again to exit. 6)REVERSE ◆Transmitting frequency can reverse with receiving frequency.　　　Codes will reverse too. ◆Press frequency reverse key (programmed key) to enter this function and press it again to exit.7)PRIORITY SCAN ◆Set priority channel: open the programming software, and select the priority channel (1-16 optional). Suppose channel 6 was selected.

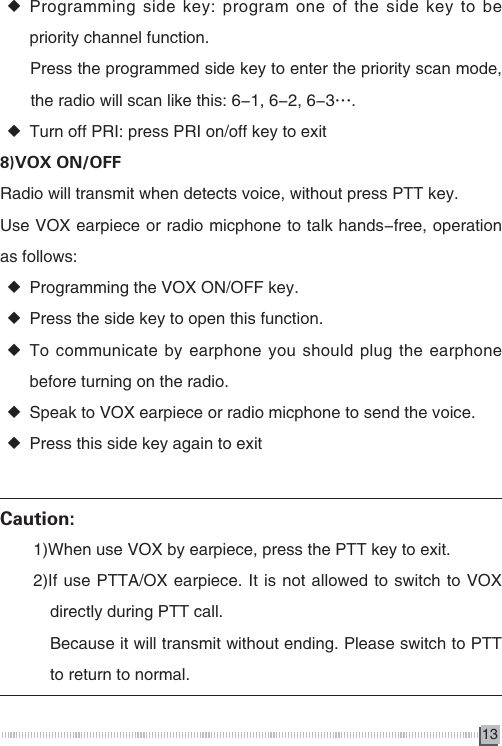

13 ◆Programming side key: program one of the side key to be priority channel function. Press the programmed side key to enter the priority scan mode, 　 the radio will scan like this: 6-1, 6-2, 6-3…. ◆Turn off PRI: press PRI on/off key to exit8)VOX ON/OFFRadio will transmit when detects voice, without press PTT key.Use VOX earpiece or radio micphone to talk hands-free, operation as follows: ◆Programming the VOX ON/OFF key. ◆Press the side key to open this function. ◆To communicate by earphone you should plug the earphone before turning on the radio. ◆Speak to VOX earpiece or radio micphone to send the voice. ◆Press this side key again to exitCaution:　　1)When use VOX by earpiece, press the PTT key to exit.　　2)If use PTTA/OX earpiece. It is not allowed to switch to VOX 　　　directly during PTT call.　　　Because it will transmit without ending. Please switch to PTT 　　　to return to normal.
14TROUBLESHOOTINGProblem SolutionNo Power ◆The battery pack may be dead. Recharge or replace it. ◆The battery pack may not be installed correctly. Remove it and install it again.Battery power dies shortly after charging ◆The battery pack life Is finished. Replace the battery pack with a new one.Cannot talk to or hear other members in your group ◆Make sure you are using the same frequency and CTCSS/ DCS tone as the other members in your group. ◆Other group members may be too far away. Make sure you are within the range of the other radios.Other voices (besides group members) are present on the channel. ◆Change the CTCSS/DCS tone. Be sure to change the CTCSS/ DCS on all radios in your group.

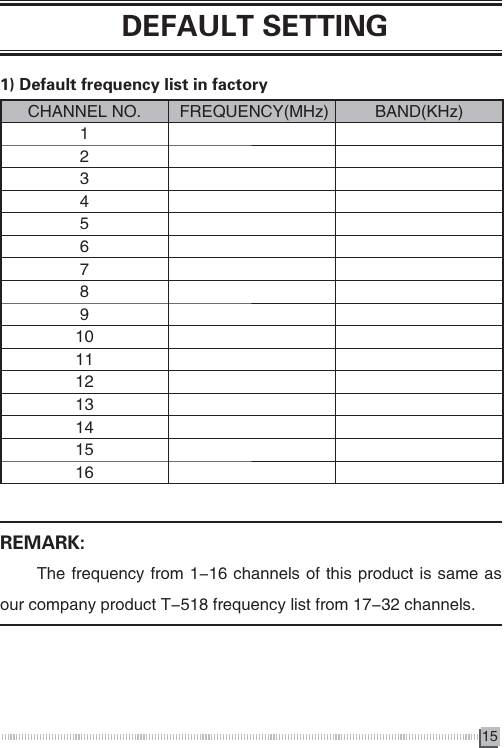

15 DEFAULT SETTING1) Default frequency list in factoryCHANNEL NO. FREQUENCY(MHz) BAND(KHz)12345678910111213141516REMARK: The frequency from 1-16 channels of this product is same as our company product T-518 frequency list from 17-32 channels.

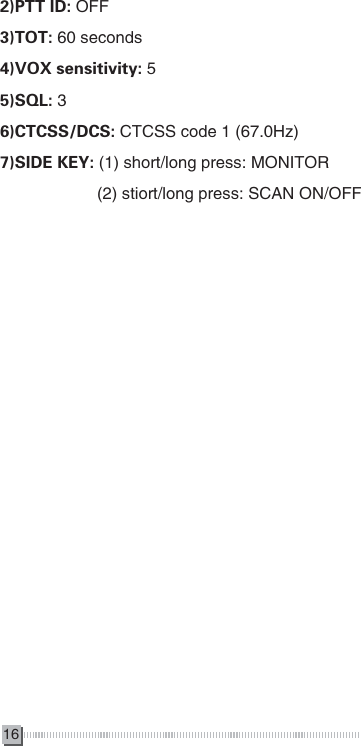

162)PTT ID: OFF3)TOT: 60 seconds4)VOX sensitivity: 55)SQL: 36)CTCSS/DCS: CTCSS code 1 (67.0Hz)7)SIDE KEY: (1) short/long press: MONITOR (2) stiort/long press: SCAN ON/OFF
