Queclink Wireless Solutions GL200 GPS Locator User Manual

Queclink Wireless Solutions Co.,Ltd GPS Locator Users Manual

Users Manual

GPS Locator GL200User ManualTRACGL200UM001Revision: 1.01

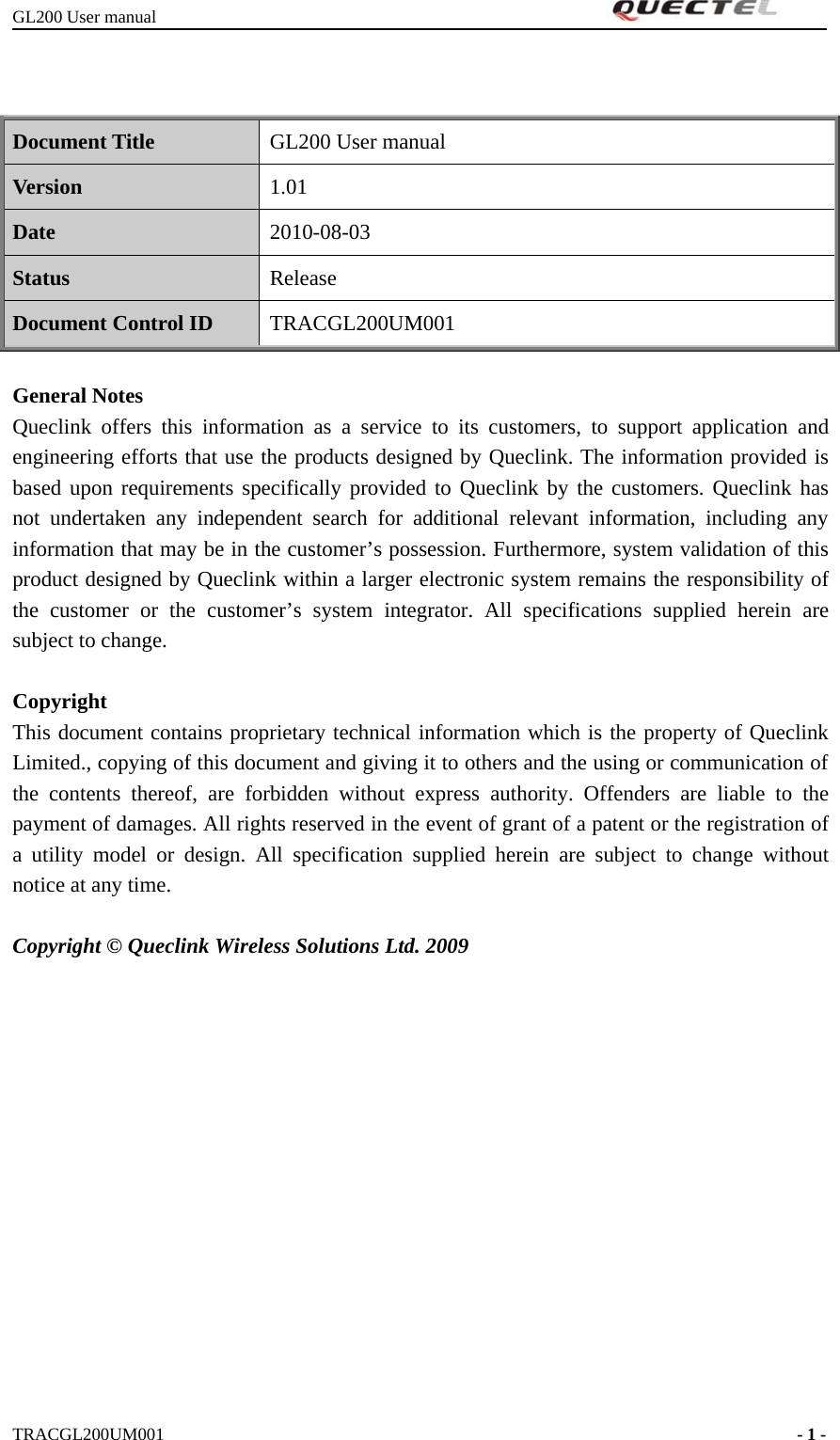

GL200 User manualTRACGL200UM001 -1-Document Title GL200 User manualVersion 1.01Date 2010-08-03Status ReleaseDocument Control ID TRACGL200UM001General NotesQueclink offers this information as a service to its customers, to support application andengineering efforts that use the products designed by Queclink. The information provided isbased upon requirements specifically provided to Queclink by the customers. Queclink hasnot undertaken any independent search for additional relevant information, including anyinformation that may be in the customer’s possession. Furthermore, system validation of thisproduct designed by Queclink within a larger electronic system remains the responsibility ofthe customer or the customer’s system integrator. All specifications supplied herein aresubject to change.CopyrightThis document contains proprietary technical information which is the property of QueclinkLimited., copying of this document and giving it to others and the using or communication ofthe contents thereof, are forbidden without express authority. Offenders are liable to thepayment of damages. All rights reserved in the event of grant of a patent or the registration ofa utility model or design. All specification supplied herein are subject to change withoutnotice at any time.Copyright © Queclink Wireless Solutions Ltd. 2009

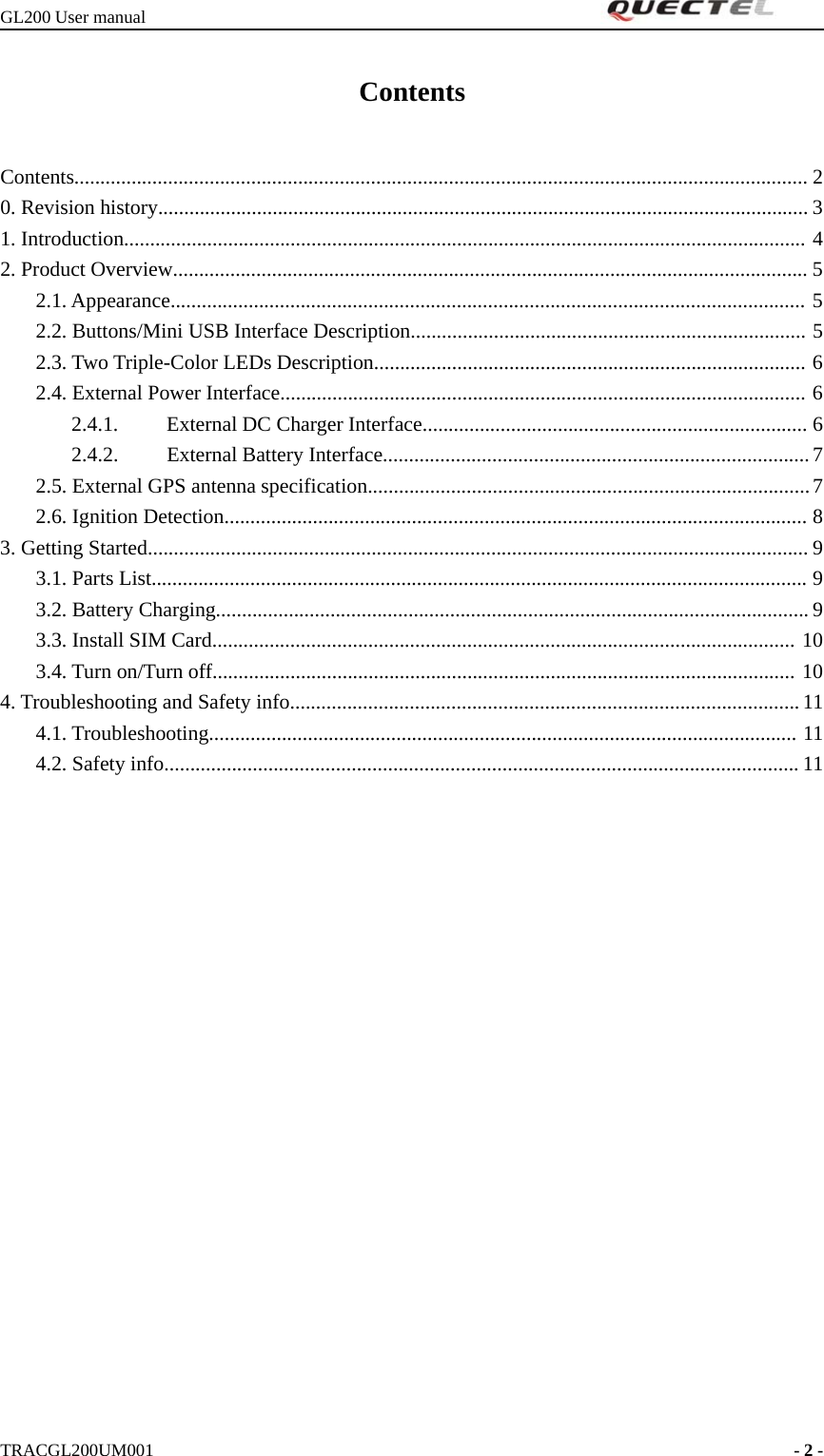

GL200 User manualTRACGL200UM001 -2-ContentsContents............................................................................................................................................. 20. Revision history............................................................................................................................. 31. Introduction................................................................................................................................... 42. Product Overview.......................................................................................................................... 52.1. Appearance.......................................................................................................................... 52.2. Buttons/Mini USB Interface Description............................................................................ 52.3. Two Triple-Color LEDs Description................................................................................... 62.4. External Power Interface..................................................................................................... 62.4.1. External DC Charger Interface.......................................................................... 62.4.2. External Battery Interface.................................................................................. 72.5. External GPS antenna specification.....................................................................................72.6. Ignition Detection................................................................................................................ 83. Getting Started............................................................................................................................... 93.1. Parts List.............................................................................................................................. 93.2. Battery Charging.................................................................................................................. 93.3. Install SIM Card................................................................................................................ 103.4. Turn on/Turn off................................................................................................................ 104. Troubleshooting and Safety info..................................................................................................114.1. Troubleshooting................................................................................................................. 114.2. Safety info.......................................................................................................................... 11

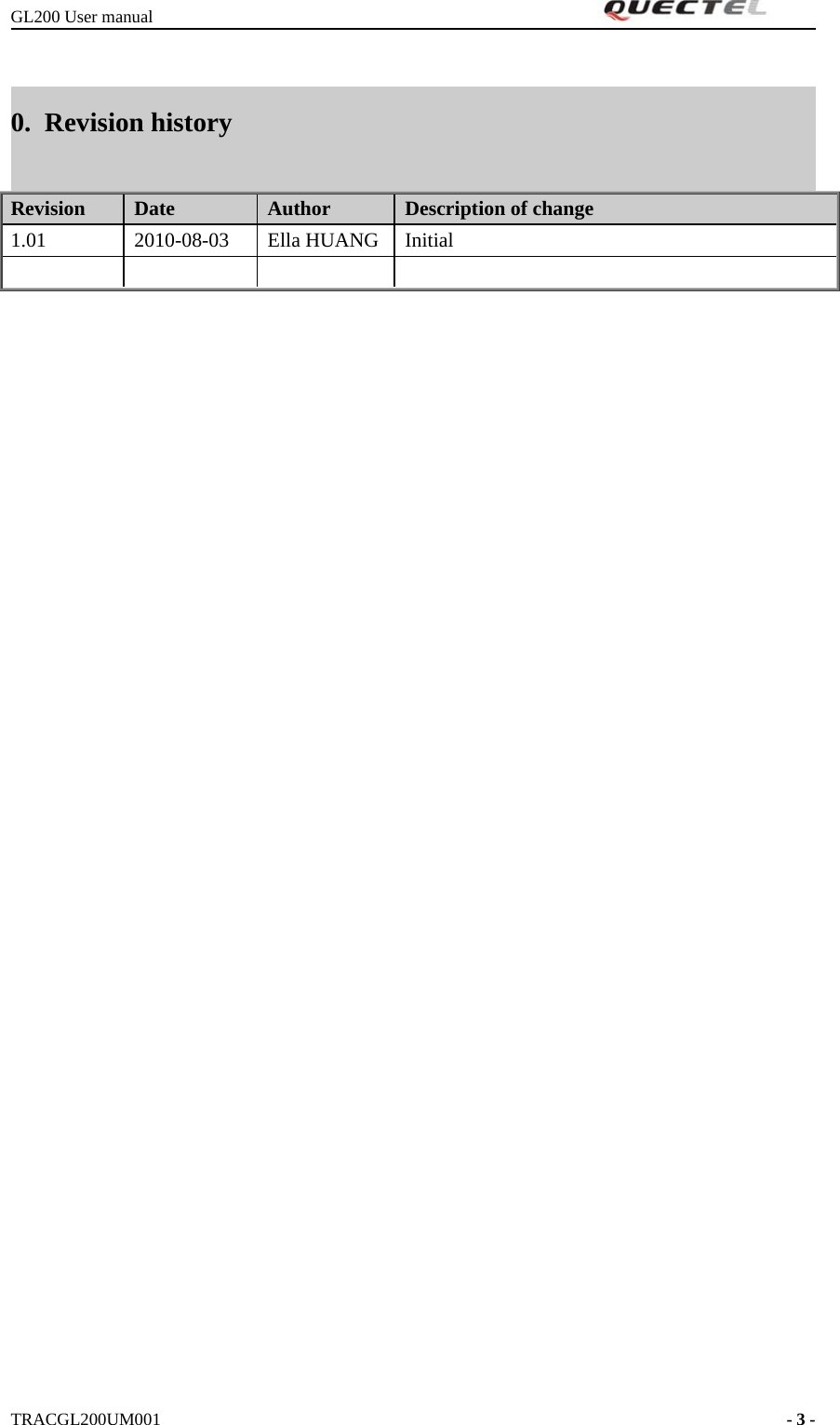

GL200 User manualTRACGL200UM001 -3-0. Revision historyRevision Date Author Description of change1.01 2010-08-03 Ella HUANG Initial
GL200 User manualTRACGL200UM001 -4-1. IntroductionGL200 is a powerful GPS locator which is designed for vehicle, pets and assets tracking.With superior receiving sensitivity, fast TTFF and GSM frequencies 850/1900. Its locationcan be real time or schedule tracked by backend server or specified terminals. Based onthe embedded @Track protocol, GL200 can communicate with the backend serverthrough GPRS/GSM network, and transfer reports of emergency, Geo-fencing, devicestatus and scheduled GPS position etc… Service provider is easy to setup their trackingplatform based on the functional @Track protocol.This device complies with part 22 and part 24 of the FCC rules. Operation is subject to thefollowing two conditions: (1) this device may not cause harmful interference (2) thisdevice must accept any interference, including interference that may cause undesiredoperation.
GL200 User manualTRACGL200UM001 -5-2. SpecificationGSM/GPS SpecificationsGPS Chipset uBlox All-In-One GPS Receiver Sensitive,Fast and AccurateSensitivityCold start -147dBmReacquisition -160dBmTracking -160dBmPosition Accuracy Autonomous: <2.5 mSBAS : 2.0 mTTFF (OpenSky)Cold start 29sWarm start <29sHot start <1sUser InterfacesMini USBConnectorInclude external power and UARTPower Button For power on and power off. Can bedisabled by the air interface protocol.Function Button For SOS alarm or quick setting ofGeo-Fence.Gerneral SpecificationsDimension 67.5mm* 40mm * 21mmWeight 60gBackup Battery Li-Polymer 1300 mAh , 3.7VStandby TIme Without reporting :300 to 400 Hours5 minutes reporting :100 to 150 Hours 10minutes reporting:150 to 200 HoursCharge Voltage 5V DCWater Resistance Follow IPX5 StandardFrequency Dual-Band:850/1900MHz
GL200 User manualTRACGL200UM001 -6-3. Product Overview3.1. Buttons/Mini USB Interface DescriptionButton /Mini USB Interface DescriptionPower Key zTurn on GL200zTurn off GL200 when without charging. (Ifpower key is enabled)Function Key zGeo-Fence modeLong press the key to enable/disableGeo-Fence ID0zGeo-Fence in current position modeLong press the key to enable/disableGeo-Fence ID0. If enable Geo-FenceID0, using the current position as thecentre of Geo-Fence 0.zSOS mode (default)Long press the key to active SOSalarmMini USB interface zConnect a 5V DC adapter can powerGL200 and charge the internal batteryzConnnet a 3.7V Li-ion or Li-Polymerbattery can power GL200zBackend server developer or administratorcan use the Data_Cable_M to configureGL2003.2. Two Triple-Color LEDs DescriptionThere are three LED in GL200, the description as following.Light Event StateGPS LED If “LED On” is not selected, and the LED will notworkaftertrunon30minutes.ClosedNo positioning requirements.NEMA check fail. Slow lightData invalid or no data.GPS is in fixing. Fast lightGPS has fixed. Ever-lightPWR LED If “LED On” is not selected, the LED will normallywork for 30 minutes before they are finally stopped.ClosedPower off.

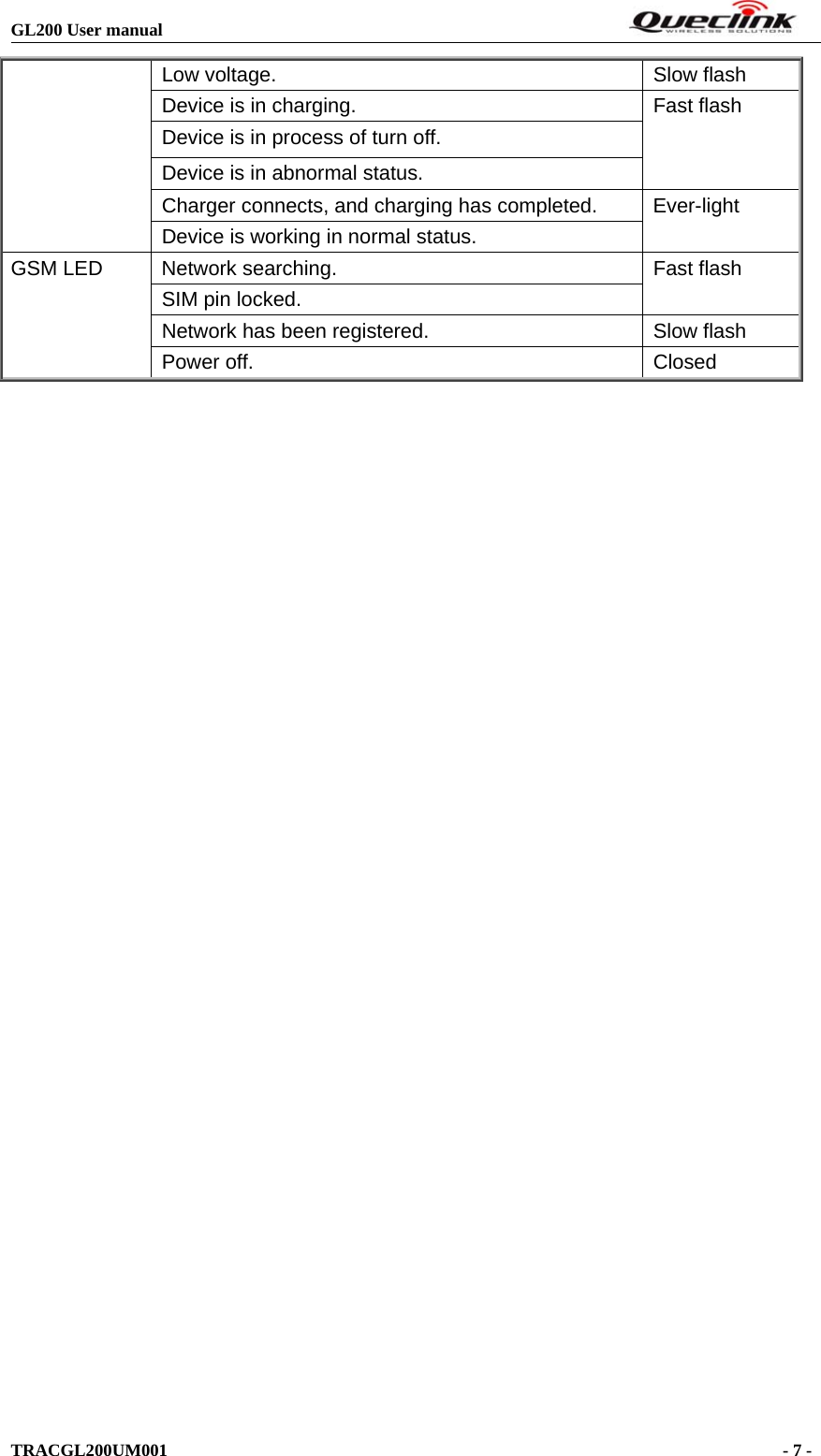

GL200 User manualTRACGL200UM001 -7-Low voltage. Slow flashDevice is in charging. Fast flashDevice is in process of turn off.Device is in abnormal status.Charger connects, and charging has completed. Ever-lightDevice is working in normal status.GSM LED Network searching. Fast flashSIM pin locked.Network has been registered. Slow flashPower off. Closed
GL200 User manualTRACGL200UM001 -8-4. Getting Started4.1. Parts ListzGL200 LocatorzAC-DC Power AdapterzMini-USB Data_Cable_M (Please note this data cable is only for backend serverdevelopers or administrators. It is not in the delivery list of GL200)4.2. Battery ChargingzPlease connect AC-DC power adapter with GL200.zInsert the AC-DC power adapter into the power socket.zDuring charging, the PWR LED is flashing fast. When the battery is full charged, the PWR LEDwill be Ever-light.zYou can also charge the battery by USB cable which connects GL200 with the PC.zCharging time is about 5 hours.Note: Before the first time using GL200, please full charge the battery.
GL200 User manualTRACGL200UM001 -9-4.3. Install SIM CardzFirst, open the cover of SIM card..zThen insert the SIM card into the slot of SIM card according to the direction shown.zFinally, cover the slot.4.4. Turn on/Turn offzTurn on:Method 1: Press the Power key at least 3 seconds and release it to turn on GL200. Atthe same time, PWR LED will light on.Method 2: Connect device to charger or external battery, and it will turn onautomatically, PWR LED will light on.zTurn off:Method 1: Press the power key at least 3 seconds; PWR LED will Fast flash and thenturn off, it indicates that GL200 is turned off. It is only valid to turn off when usinginternal battery. Please note the end-user can not power off GL200 when the power keyis disabled by protocol.Method 2: If using external battery, device will power turn-off when external batterydisconnect.
GL200 User manualTRACGL200UM001 -10-5. Troubleshooting and Safety info5.1. TroubleshootingTrouble Possible Reason SolutionAfter GL200 is turned on, theGSM LED flashes quicklyalways.The SIM card is not inserted. Please insert the SIM card intoGL200.The signal is too weak;GL200 can’t register to thenetwork.Please move GL200 into placewith good GSM coverage.Messages can’t be reported tothe backend server by GPRS.TheSIMcardinGL200doesn’t support GPRS.Try a GPRS supported SIMcard.APN is wrong. Some APNcan not visit the internetdirectly.Ask the network operator forthe right APN.The IP address or port of thebackend server is wrong.Make sure the IP address forthe backend server is anidentified address in theinternet.Unable to power off GL200. The function of power keywas disabled by AT+GTSFR.Enable the function of powerkey by AT+GTFKS.Unable to power off GL200 ifcharger connected or usingexternal battery.Disconnect charger or external,and try again.No response from UART whenconfigure GL200 throughUARTGL200 is in power savingmode.Remove the Data_Cable_M,and plug it in again. After thisoperation, GL200 will exitfrom power saving mode for 10seconds.GL200 can’t get successfulGPS fixing.The GPS signal is weak. Please move GL200 to a placewith open sky.It is better to let the top surfaceface to sky. (The same surfacewith indication LED)5.2. Safety infozPlease do not disassemble the device by yourself.zPlease do not put the device on the overheating or too humid place, avoid exposure to direct
GL200 User manualTRACGL200UM001 -11-sunlight. Too high temperature will damage the device or even cause the battery explosion.zPlease do not use GL200 on the airplane or near medical equipment.Queclink Wireless SolutionsRoom 501, Building 9, No.99 Tianzhou RoadShanghai, China 200233Tel: +86-21-51082965 Fax: +86-21-54451990
