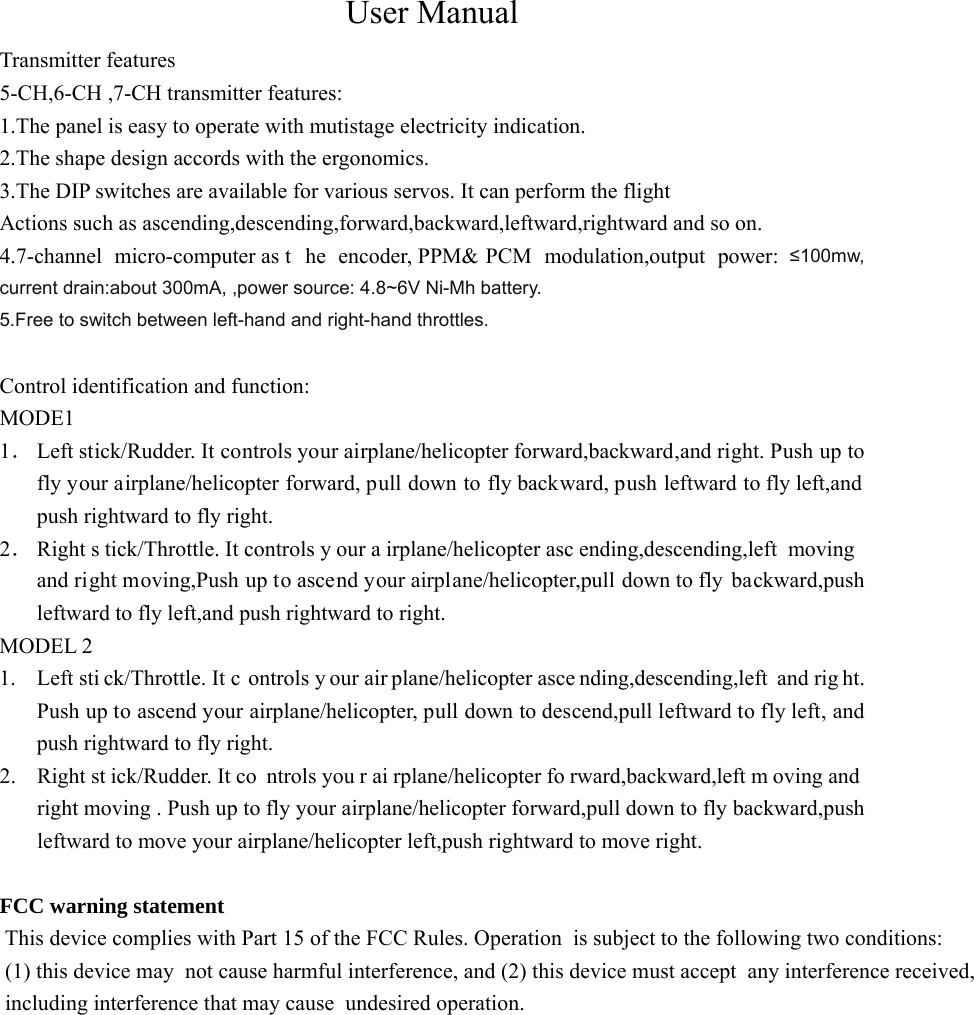

User Manual Transmitter features 5-CH,6-CH ,7-CH transmitter features: 1.The panel is easy to operate with mutistage electricity indication. 2.The shape design accords with the ergonomics. 3.The DIP switches are available for various servos. It can perform the flight Actions such as ascending,descending,forward,backward,leftward,rightward and so on. 4.7-channel micro-computer as t he encoder, PPM& PCM modulation,output power: ≤100mw, current drain:about 300mA, ,power source: 4.8~6V Ni-Mh battery. 5.Free to switch between left-hand and right-hand throttles. Control identification and function: MODE1 1． Left stick/Rudder. It controls your airplane/helicopter forward,backward,and right. Push up to fly your airplane/helicopter forward, pull down to fly backward, push leftward to fly left,and push rightward to fly right. 2． Right s tick/Throttle. It controls y our a irplane/helicopter asc ending,descending,left moving and right moving,Push up to ascend your airplane/helicopter,pull down to fly backward,push leftward to fly left,and push rightward to right. MODEL 2 1. Left sti ck/Throttle. It c ontrols y our air plane/helicopter asce nding,descending,left and rig ht. Push up to ascend your airplane/helicopter, pull down to descend,pull leftward to fly left, and push rightward to fly right. 2. Right st ick/Rudder. It co ntrols you r ai rplane/helicopter fo rward,backward,left m oving and right moving . Push up to fly your airplane/helicopter forward,pull down to fly backward,push leftward to move your airplane/helicopter left,push rightward to move right. FCC warning statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

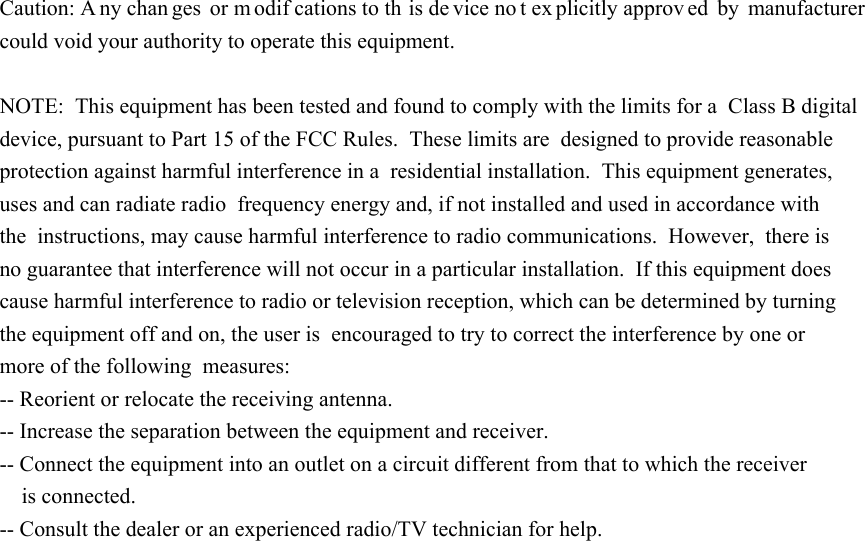

Caution: A ny chan ges or m odifcations to th is de vice no t ex plicitly approv ed by manufacturer could void your authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
