cyberJackUser manual®RFID universal
cyberJack® RFID universal manualContentForeword1 1Device description2 2.................................................................................................... 22.1 How to unpack and install the reader The functions of your chip card reader3 3.................................................................................................... 33.1 Device Manager .................................................................................................... 73.2 The function of secure PIN input .................................................................................................... 93.3 How to display revision .................................................................................................... 113.4 Module Management .................................................................................................... 133.5 How to switch off the RFID field .................................................................................................... 133.6 Integration of the cyberJack chip card reader in applications How to install the hardware on the PC4 14.................................................................................................... 144.1 How to install drivers under Windows .................................................................................................... 144.2 How to install the software components .................................................................................................... 174.3 How to install drivers under Linux ......................................................................................................................................................... 17Linux.deb 4.3.1.................................................................................................................................................. 17Description for ubuntu.................................................................................................................................................. 18Description for debian......................................................................................................................................................... 18Linux.rpm 4.3.2.................................................................................................... 194.4 Driver installation under Mac ......................................................................................................................................................... 19Mac OS X 4.4.1Safety notes5 22Support6 23Technical references7 24.................................................................................................... 247.1 LED functions .................................................................................................... 257.2 Technical operating environment .................................................................................................... 257.3 Security functions .................................................................................................... 277.4 Regulatory Notes Declaration of Conformity8 28.................................................................................................... 288.1 cyberJack RFID universal Index 29
Foreword11 ForewordDear customer,Thank you for choosing an RFID chip card reader from the cyberJack® RFID family of REINER SCT.The device was developed and manufactured with great care in Germany and will therefore support youreliably for many years. In the following we want to briefly inform you about the most important fields ofapplication of the cyberJack® RFID chip card reader.What is RFID?The Radio-Frequency Identification (RFID) Technology enables contactless communication between achip card and a reading device. The number of systems which support this radio technology isconstantly rising. For example: contactless payments using money or credit cards, time recording,access control, animal identification, merchandise and inventory management. Besides employee IDcards and the electronic passport, the new german ID card also communicates with the reading devicevia RFID. This state-of-the-art technology simplifies chip-card handling and enables them to be used in many newapplications.We wish you great success with your new deviceREINER SCT Reiner Kartengeräte GmbH & Co. KG Goethestraße 14 78120 FurtwangenGermanywww.reiner-sct.com V1.00 12.10.2012
cyberJack® RFID universal manual22 Device description2.1 How to unpack and install the readerUnpackingThe packaging contains1):cyberJack® RFID universalStand BaseUSB cableBrief instructions on how to install the deviceDriver CD1)Depending on the version and the source of supply, the contents may vary or there are additionalcomponents in the packaging.How to install cyberJack® RFID universalPlease remove the device and the USB cable supplied with it from the packaging and plug the USBcable into the socket on the rear of your cyberJack® RFID universal . The arrow on the small plugmust be visible to you. Then insert the USB cable into the cable duct in such manner that the cable isconducted to the rear or side. If you conduct the cable to the rear you can also use the other cableduct in the foot. Install the device in such manner that you always have all operating elements withinyour field of vision and you can easily operate the keyboard.Please pay attention that metallic or metallised conducting or aqueous materials below, or close to,the chip card reader may influence the chip card reader's characteristics for physical reasons.Therefore you must avoid operating the device close to such materials.This device is intended for use in an office or home environment.How to handle the cardsThe cyberJack® RFID universal can be used to read out both contact-type and contactless chipcards. Two separate slots for cards are provided for the purpose. The front slot is for the contact-typechip cards and the rear slot for the contactless chip cards.
The functions of your chip card reader33 The functions of your chip card reader3.1 Device ManagerThe cyberJack Device Manager is only available for the Windowsoperating system at the moment.After the restart please start the cyberJack Device Manager program, function test in the Start menuunder Start > Programs > REINER SCT cyberJack. When the Device Manager starts a registrationdialog is displayed to you. We recommend that you make use of the opportunity to register becauseyou will then always be informed about new developments which offer you even more benefit from yourcyberJack® .Test tabIf you have connected multiple chip card readers you can select the relevant chip card reader under (1).Take a random chip card (cash card, telephone card, insurance card etc.) and insert it completely intothe slit (half the length of the card disappears into the device) of the cyberJack® as indicated by thesymbol on the device and the [Start Test] button (2). Various tests are performed, thus checking if thecyberJack was installed correctly. If a fault occurs during the test you will find help under the Supporttab. Here you can immediately establish a connection to the Online Test wizard and send an error logto our Support.
cyberJack® RFID universal manual4Info tabIn the Info tab various operating and configuration states of the chip card reader and the componentsbelonging thereto are displayed.Update tab In Update you can check if you have the up-to-date driver status and firmware for the cyberJack® RFIDuniversal . By activating the link Check for new versions your Internet browser is started and aconnection to the REINER SCT Download server established. If your browser is not conveniently linkedto an RDT connection, please start it manually before checking for new versions. If there are newversions, you can update your system directly. For this purpose follow the menu navigation.Thereafter you can update the module management of your existing modules and the firmware of thechip card reader.Further information is available in the chapter Secure firmware download. 11
The functions of your chip card reader5Support tabVia Support you can contact the REINER SCT Support directly. For this purpose your current cyberJack® installation data and some important information regarding your PC configuration are determinedand sent to REINER SCT by e-mail. A member of our Support team will then contact you by e-mail ortelephone.PIN Dialog tabThe PIN dialog contains special functions which can be activated and certain special configurationsmade. Some of them are only needed on very rare occasions; therefore in case of doubt the factoryconfiguration should be retained.
cyberJack® RFID universal manual6Acoustic settings(1) Here you can choose whether pressing the key for the PIN input should generate a sound.(2) Tick here and the request for the PIN is given acoustically by a friendly voice.(3) Here you can adjust the display contrast of the chip card reader and hence obtain the optimalsetting for reading out the chip card reader display.(4) During PIN input you can darken the desktop by means of slide control. You can test the degree ofthe setting by means of the Test Setting button .Extras tabHere you can select the language for the Device Manager (1).In the case of some signature applications it may occur that our chip card readers are not identified.Then the old PS/SC reader names must be activated (2).

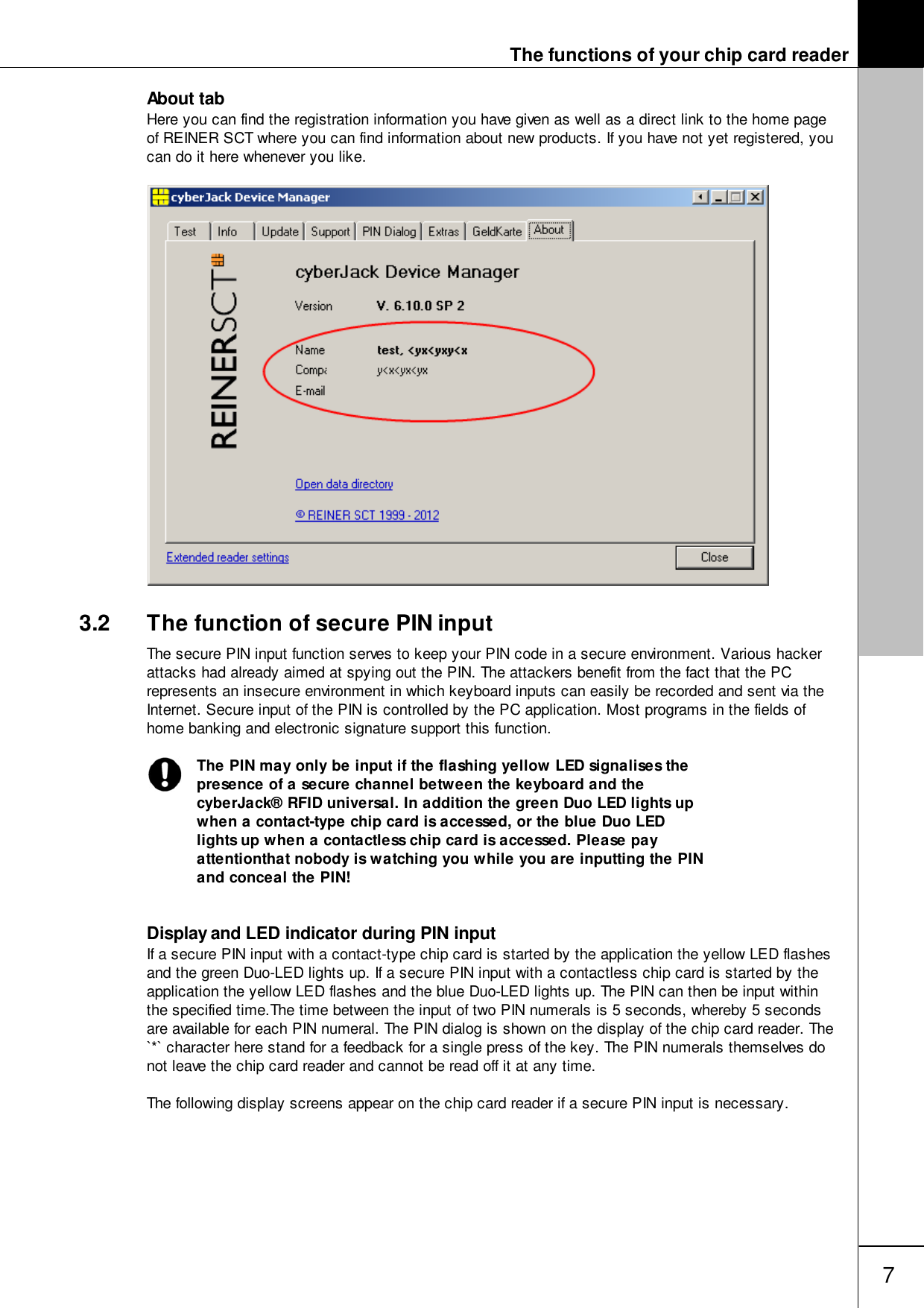

The functions of your chip card reader7About tabHere you can find the registration information you have given as well as a direct link to the home pageof REINER SCT where you can find information about new products. If you have not yet registered, youcan do it here whenever you like.3.2 The function of secure PIN inputThe secure PIN input function serves to keep your PIN code in a secure environment. Various hackerattacks had already aimed at spying out the PIN. The attackers benefit from the fact that the PCrepresents an insecure environment in which keyboard inputs can easily be recorded and sent via theInternet. Secure input of the PIN is controlled by the PC application. Most programs in the fields ofhome banking and electronic signature support this function. The PIN may only be input if the flashing yellow LED signalises thepresence of a secure channel between the keyboard and thecyberJack® RFID universal. In addition the green Duo LED lights upwhen a contact-type chip card is accessed, or the blue Duo LEDlights up when a contactless chip card is accessed. Please payattentionthat nobody is watching you while you are inputting the PINand conceal the PIN!Display and LED indicator during PIN inputIf a secure PIN input with a contact-type chip card is started by the application the yellow LED flashesand the green Duo-LED lights up. If a secure PIN input with a contactless chip card is started by theapplication the yellow LED flashes and the blue Duo-LED lights up. The PIN can then be input withinthe specified time.The time between the input of two PIN numerals is 5 seconds, whereby 5 secondsare available for each PIN numeral. The PIN dialog is shown on the display of the chip card reader. The`*` character here stand for a feedback for a single press of the key. The PIN numerals themselves donot leave the chip card reader and cannot be read off it at any time. The following display screens appear on the chip card reader if a secure PIN input is necessary.

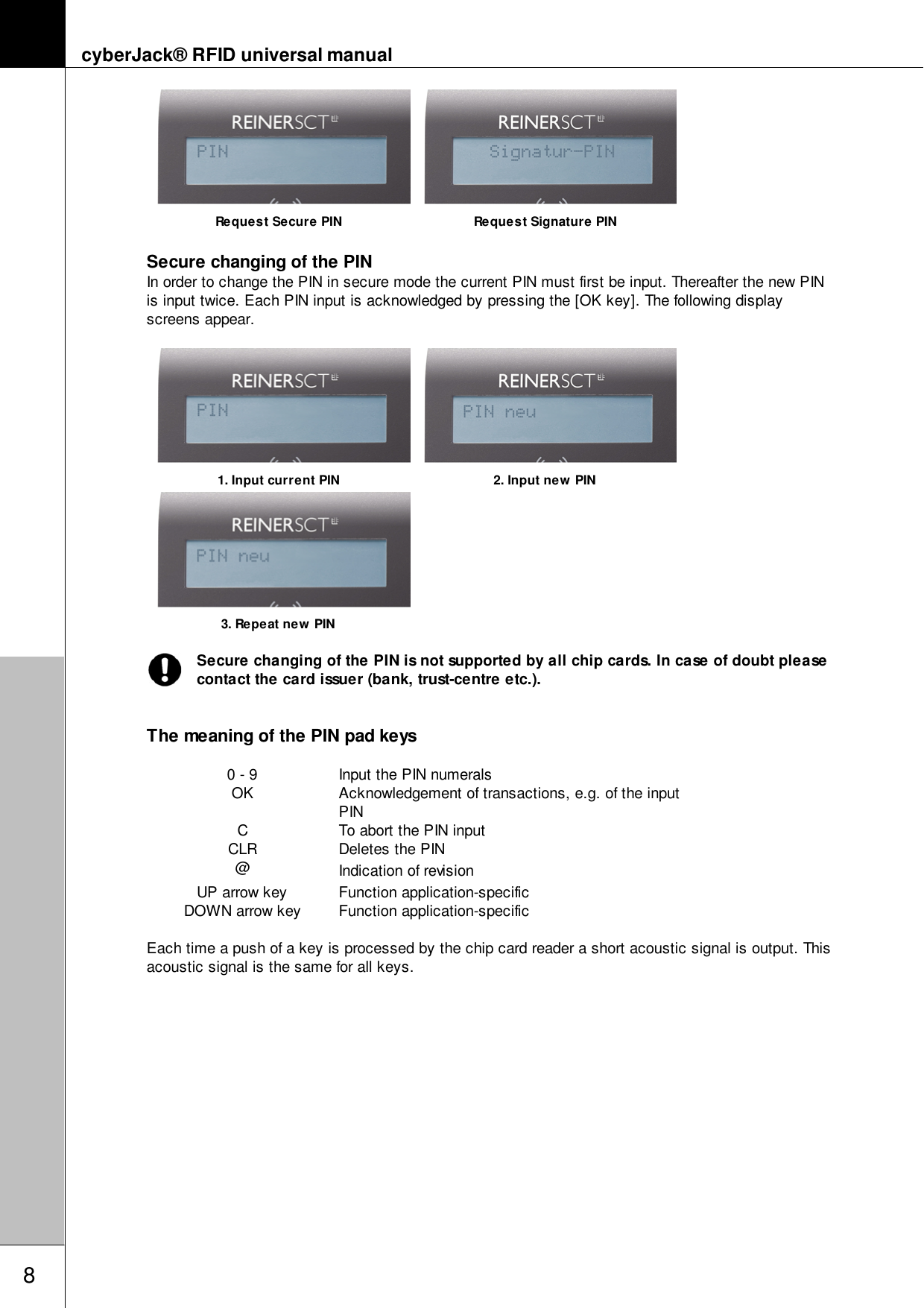

cyberJack® RFID universal manual8Request Secure PIN Request Signature PINSecure changing of the PINIn order to change the PIN in secure mode the current PIN must first be input. Thereafter the new PINis input twice. Each PIN input is acknowledged by pressing the [OK key]. The following displayscreens appear.1. Input current PIN 2. Input new PIN3. Repeat new PINSecure changing of the PIN is not supported by all chip cards. In case of doubt pleasecontact the card issuer (bank, trust-centre etc.). The meaning of the PIN pad keys0 - 9Input the PIN numeralsOKAcknowledgement of transactions, e.g. of the inputPINCTo abort the PIN inputCLRDeletes the PIN@Indication of revisionUP arrow keyFunction application-specificDOWN arrow keyFunction application-specificEach time a push of a key is processed by the chip card reader a short acoustic signal is output. Thisacoustic signal is the same for all keys.

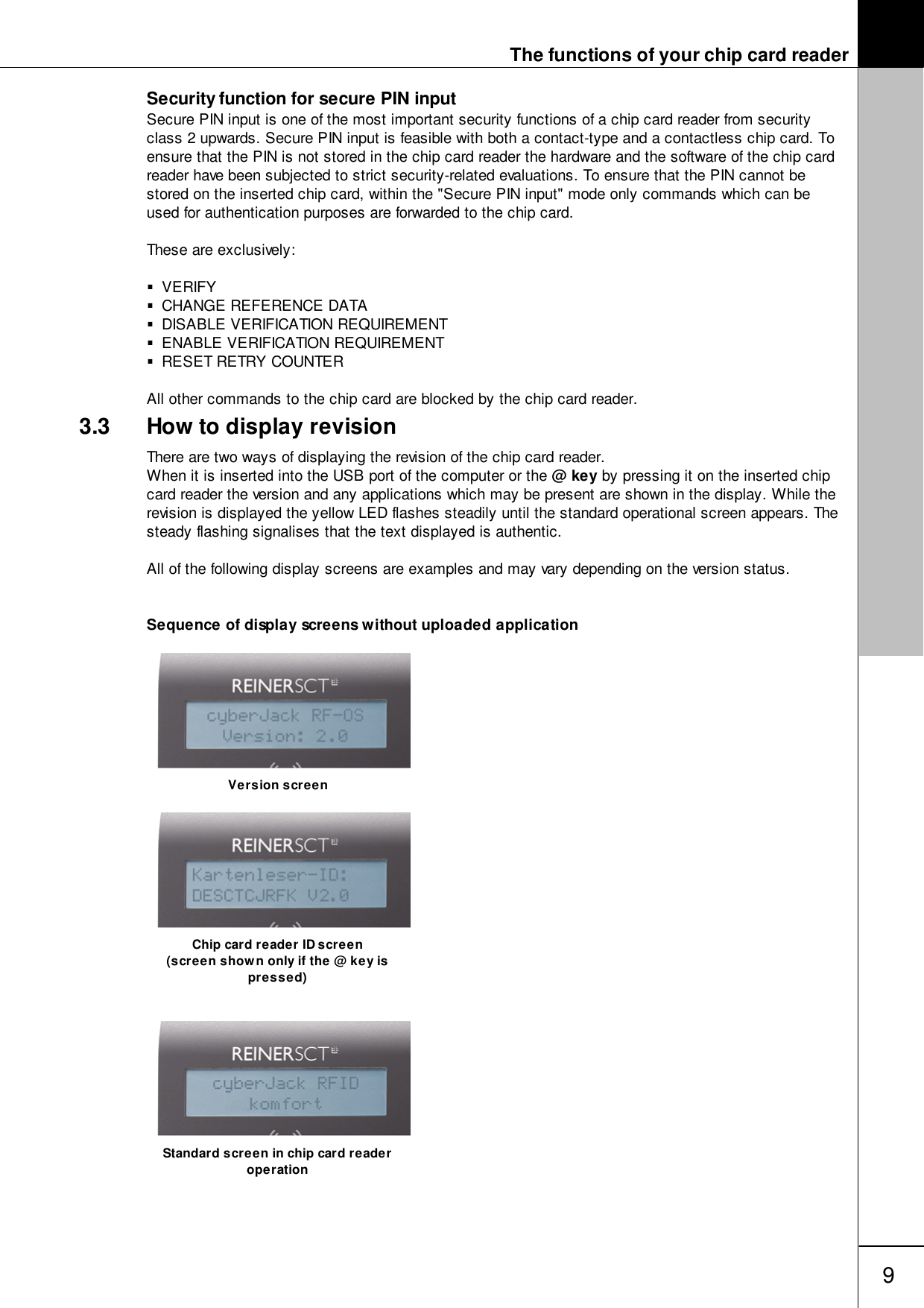

The functions of your chip card reader9Security function for secure PIN inputSecure PIN input is one of the most important security functions of a chip card reader from securityclass 2 upwards. Secure PIN input is feasible with both a contact-type and a contactless chip card. Toensure that the PIN is not stored in the chip card reader the hardware and the software of the chip cardreader have been subjected to strict security-related evaluations. To ensure that the PIN cannot bestored on the inserted chip card, within the "Secure PIN input" mode only commands which can beused for authentication purposes are forwarded to the chip card. These are exclusively:VERIFYCHANGE REFERENCE DATADISABLE VERIFICATION REQUIREMENTENABLE VERIFICATION REQUIREMENTRESET RETRY COUNTERAll other commands to the chip card are blocked by the chip card reader.3.3 How to display revisionThere are two ways of displaying the revision of the chip card reader. When it is inserted into the USB port of the computer or the @ key by pressing it on the inserted chipcard reader the version and any applications which may be present are shown in the display. While therevision is displayed the yellow LED flashes steadily until the standard operational screen appears. Thesteady flashing signalises that the text displayed is authentic.All of the following display screens are examples and may vary depending on the version status.Sequence of display screens without uploaded applicationVersion screenChip card reader ID screen(screen shown only if the @ key ispressed)Standard screen in chip card readeroperation
cyberJack® RFID universal manual10Sequence of display screens with uploaded applicationVersion screenChip card reader ID screen(screen shown only if the @ key ispressed)Screen for the uploaded application(screen shown only if the @ key ispressed)Screen for the revision of the uploadedapplication(screen shown only if the @ key ispressed)Standard screen with chip card reader inoperation with uploaded application

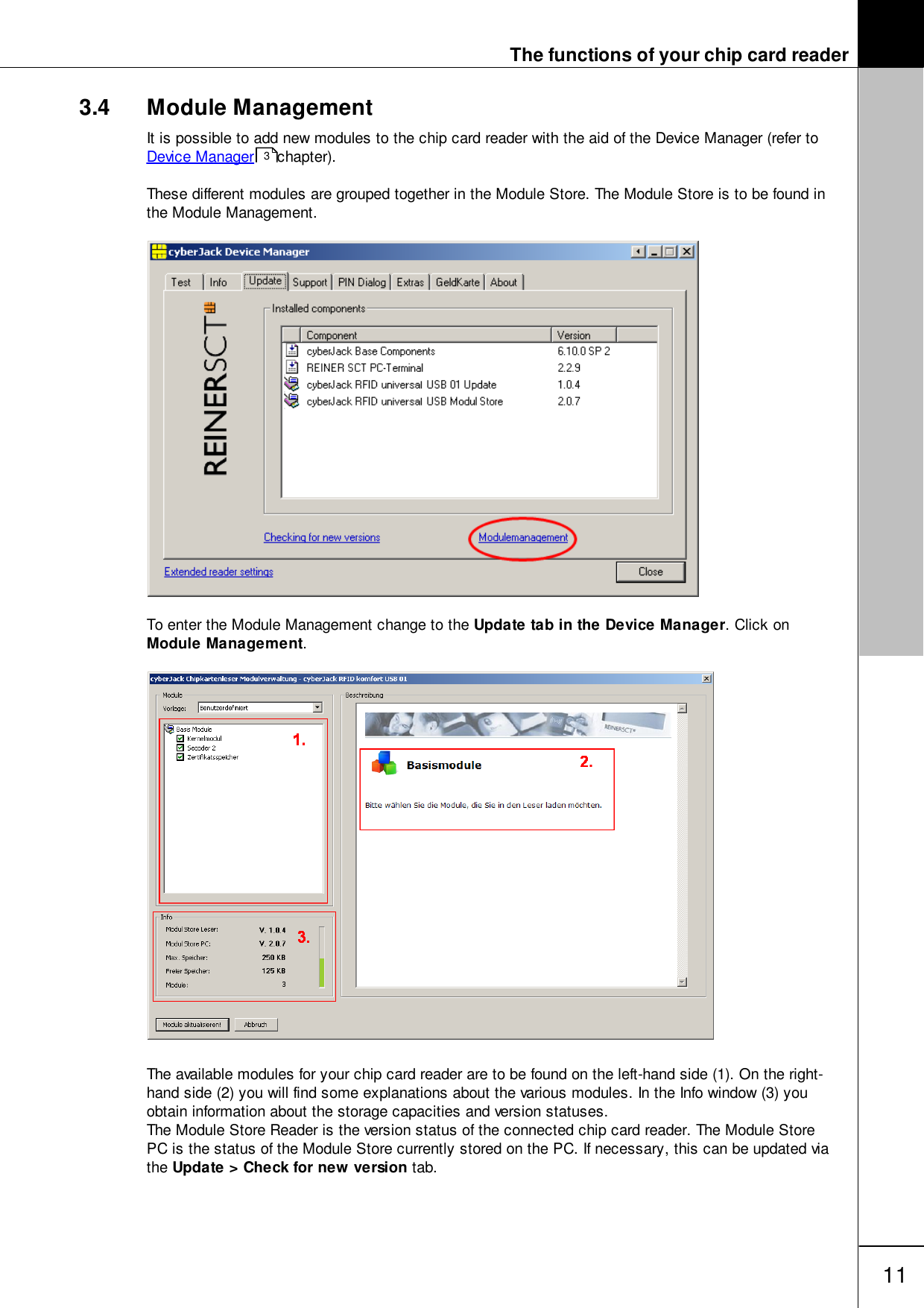

The functions of your chip card reader113.4 Module ManagementIt is possible to add new modules to the chip card reader with the aid of the Device Manager (refer to Device Manager chapter).These different modules are grouped together in the Module Store. The Module Store is to be found inthe Module Management.To enter the Module Management change to the Update tab in the Device Manager. Click onModule Management.The available modules for your chip card reader are to be found on the left-hand side (1). On the right-hand side (2) you will find some explanations about the various modules. In the Info window (3) youobtain information about the storage capacities and version statuses.The Module Store Reader is the version status of the connected chip card reader. The Module StorePC is the status of the Module Store currently stored on the PC. If necessary, this can be updated viathe Update > Check for new version tab.3

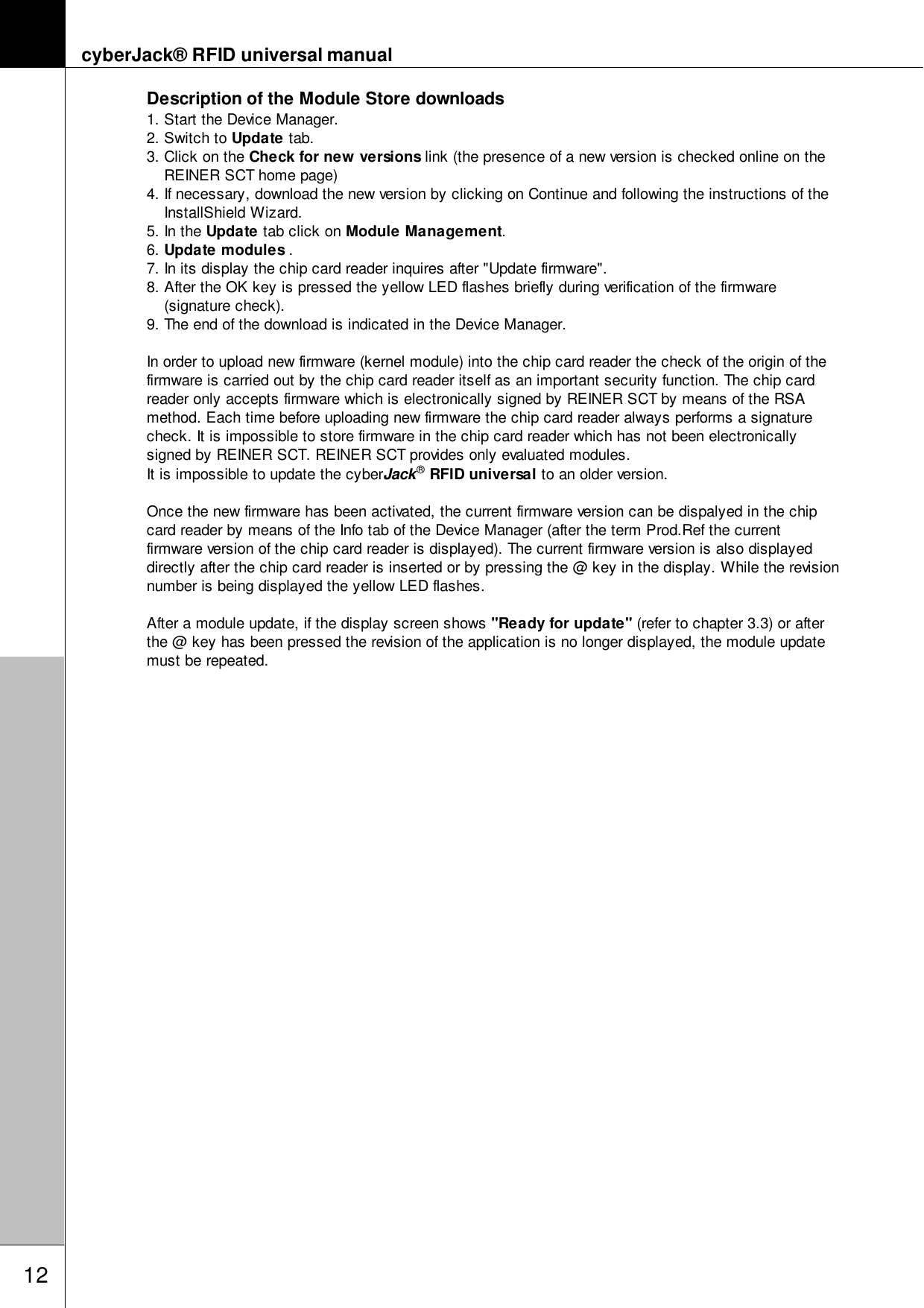

cyberJack® RFID universal manual12Description of the Module Store downloads1. Start the Device Manager.2. Switch to Update tab.3. Click on the Check for new versions link (the presence of a new version is checked online on theREINER SCT home page) 4. If necessary, download the new version by clicking on Continue and following the instructions of theInstallShield Wizard.5. In the Update tab click on Module Management.6. Update modules .7. In its display the chip card reader inquires after "Update firmware".8. After the OK key is pressed the yellow LED flashes briefly during verification of the firmware(signature check).9. The end of the download is indicated in the Device Manager.In order to upload new firmware (kernel module) into the chip card reader the check of the origin of thefirmware is carried out by the chip card reader itself as an important security function. The chip cardreader only accepts firmware which is electronically signed by REINER SCT by means of the RSAmethod. Each time before uploading new firmware the chip card reader always performs a signaturecheck. It is impossible to store firmware in the chip card reader which has not been electronicallysigned by REINER SCT. REINER SCT provides only evaluated modules. It is impossible to update the cyberJack® RFID universal to an older version. Once the new firmware has been activated, the current firmware version can be dispalyed in the chipcard reader by means of the Info tab of the Device Manager (after the term Prod.Ref the currentfirmware version of the chip card reader is displayed). The current firmware version is also displayeddirectly after the chip card reader is inserted or by pressing the @ key in the display. While the revisionnumber is being displayed the yellow LED flashes.After a module update, if the display screen shows "Ready for update" (refer to chapter 3.3) or afterthe @ key has been pressed the revision of the application is no longer displayed, the module updatemust be repeated.
The functions of your chip card reader133.5 How to switch off the RFID fieldYou can deactivate the RFID chip card reader field. This can be useful if, for example, you are usingonly contact-type cards. For this purpose you press the UP arrow key. You will see the status of the RFID field in the display.The RFID field is switched onThe RFID field is switched offTo change the field status press the DOWN arrow key. Change requestAcknowledge display screen using the OK key.The RFID is now switched off3.6 Integration of the cyberJack chip card reader in applicationsElectronic BankingAs a rule, integrating the chip card reader into the home banking application is very simple. Manyprograms already recognise the cyberJack® automatically. Some applications require that the CT-API-DLL be specified. This is the ctrsct32.dll for all devices of the cyberJack® family and is contained in theWindows system directory. Electronic signatureSoftware packages for the application of the electronic signature frequently use the PC/SC interface.The drivers are already incorporated in the operating system.Cash CardInformation on potential uses of the cash card are to be found on the Internet at www.reiner-sct.com/geldkarte-shops.

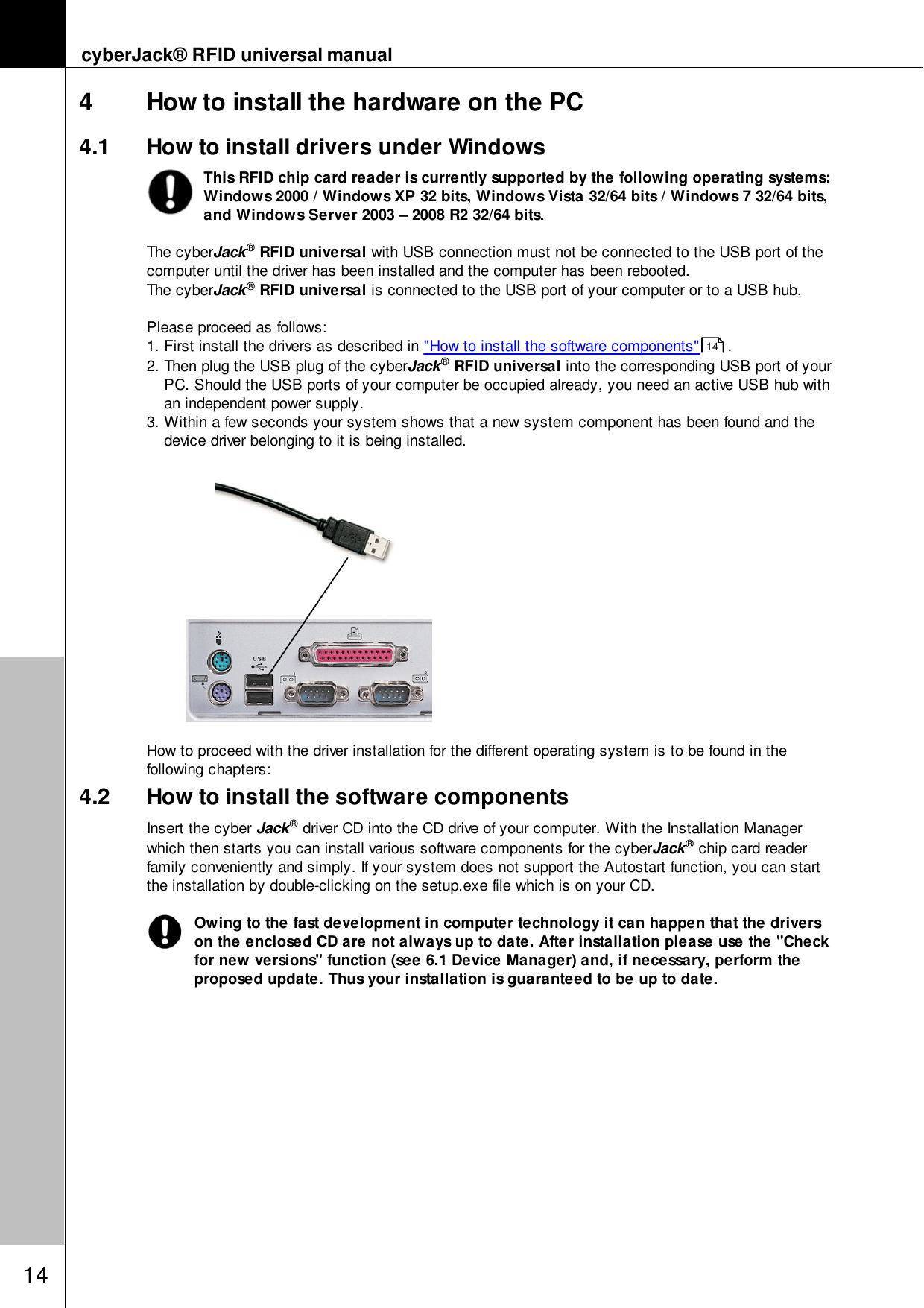

cyberJack® RFID universal manual144 How to install the hardware on the PC4.1 How to install drivers under WindowsThis RFID chip card reader is currently supported by the following operating systems:Windows 2000 / Windows XP 32 bits, Windows Vista 32/64 bits / Windows 7 32/64 bits,and Windows Server 2003 – 2008 R2 32/64 bits. The cyberJack® RFID universal with USB connection must not be connected to the USB port of thecomputer until the driver has been installed and the computer has been rebooted. The cyberJack® RFID universal is connected to the USB port of your computer or to a USB hub.Please proceed as follows:1. First install the drivers as described in "How to install the software components" .2. Then plug the USB plug of the cyberJack® RFID universal into the corresponding USB port of yourPC. Should the USB ports of your computer be occupied already, you need an active USB hub withan independent power supply.3. Within a few seconds your system shows that a new system component has been found and thedevice driver belonging to it is being installed.How to proceed with the driver installation for the different operating system is to be found in thefollowing chapters:4.2 How to install the software componentsInsert the cyber Jack® driver CD into the CD drive of your computer. With the Installation Managerwhich then starts you can install various software components for the cyberJack® chip card readerfamily conveniently and simply. If your system does not support the Autostart function, you can startthe installation by double-clicking on the setup.exe file which is on your CD.Owing to the fast development in computer technology it can happen that the driverson the enclosed CD are not always up to date. After installation please use the "Checkfor new versions" function (see 6.1 Device Manager) and, if necessary, perform theproposed update. Thus your installation is guaranteed to be up to date.14
How to install the hardware on the PC15The installation cyberJack® Base Components is absolutely necessary for operating the cyberJack®RFID universal chip card reader. They contain the system drivers. Moreover the Device Manager isinstalled with the device test, driver update and Online support functions.Press the button, [Start installation] in order to begin with the installtion of selected components. Ifmultiple software components are installed via the Installation Manager, a requisite reboot does nottake place until after the last of the components has been installed.If you want to install the cyber Jack® Base Components under Windows 2000/XP/2003Server/Vista, you must have Administrator rights. Remember that all programs must beclosed before you start with the installation. In the License Agreement window agree to the license agreements and click on the button [Continue].In the next step select your USB type of connection.
cyberJack® RFID universal manual16Select the driver for your chip card reader by clicking on the relevant box. Click on [Continue].Click on [Continue] if you want to install the program in the displayed folder. If you wish to install thefiles in a different folder, click on [Change] and select the desired path. Then select [Install] andinstallation of the drivers begins.When installation is completed the PC must be rebooted in order to activate the installed drivers.
How to install the hardware on the PC17In the Windows Start menu a new REINER SCT cyberJack folder is created with the menu items:cyberJack Device Manager, function test, REINER SCT on the Internet, Support Query and UpdateACS components.4.3 How to install drivers under LinuxThis RFID chip card reader is currently supported by the following operating systems:openSuSE-11.1-i586, openSuSE-11-1-x86_64, openSuSE-11-2-i586, openSuSE-11-2-x86_64, debian-500-i386, debian-500-amd64, ubuntu-9.04-desktop-i386, ubuntu-9.04-desktop-amd64, ubuntu-10.04.1-desktop-i386,ubuntu-10.04.1-desktop-amd64. 4.3.1 Linux.deb4.3.1.1 Description for ubuntuTo install the driver for the cyberJack® RFID universal you need an Internet connection. Do not plug in the chip card reader yet!Installation of the driver for the cyberJack® RFID universal is divided into two steps:a) How to install the PCSCD driver and its dependenciesb) Installation of the up-to-date driver for the cyberJack® RFID universalHow to proceed:1. Please first install the PCSCD driver with the aid of the package management system of yourdistribution.2. Then download the up-to-date driver to match your distribution and your processor at www.reiner-sct.com/treiber .3. Install this driver by means of a double click.4. Add your user of the cyberjack unit. To do so use the command usermod –aG cyberjack"username“ in the terminal input.5. Please reboot.6. Installation of the driver is now complete. Now you can plug the cyberJack® RFID universal into aUSB port on your computer and use it.Functions test: Place the logincard or the new electronic ID card on the connected chip card reader. Ifthe installation is correct the green light-emitting diode (LED) on the chip card reader lights up.Note: To use the cyberJack® RFID universal you require an application program and an RFID chipcard or the new electronic ID card.
cyberJack® RFID universal manual184.3.1.2 Description for debianTo install the driver for the cyberJack® RFID universal you need an Internet connection. Do not plug in the chip card reader yet!Installation of the driver for the cyberJack® RFID universal is divided into two steps:a) How to install the PCSCD driver and its dependenciesb) Installation of the up-to-date driver for the cyberJack® RFID universalHow to proceed:1. Please first install the PCSCD driver with the aid of the package management system of yourdistribution.2. Then download the up-to-date driver to match your distribution and your processor at www.reiner-sct.com/treiber .3. Install the driver by means of the following command in the terminal input.Command: dpkg -i (file name).deb4. Add your user of the cyberjack unit. To do so use the command usermod –aG cyberjack"username“ in the terminal input.Please note that these commands must be executed as root commands.5. Please reboot.6. Installation of the driver is now complete. Now you can plug the cyberJack® RFID universal into aUSB port on your computer and use it.Functions test: Place the logincard or the new electronic ID card on the connected chip card reader. Ifthe installation is correct the green light-emitting diode (LED) on the chip card reader lights up.Note: To use the cyberJack® RFID universal you require an application program and an RFID chipcard or the new electronic ID card.4.3.2 Linux.rpmDescription for SuSE LinuxTo install the driver for the cyberJack® RFID universal you need an Internet connection. Do not plug in the chip card reader yet!Installation of the driver for the cyberJack® RFID universal is divided into two steps:a) Installation of the PCSCD driver and its dependenciesb) Installation of the up-to-date driver for the cyberJack® RFID universalHow to proceed:1. Please first install the PCSCD driver with the aid of the package management system of yourdistribution.2. Then download the up-to-date driver to match your distribution and your processor at www.reiner-sct.com/treiber .3. Install this driver by means of a double click.4. Please reboot.5. Installation of the driver is now complete. Now you can plug the cyberJack® RFID universal into aUSB port on your computer and use it.Functions test: Place the logincard or the new electronic ID card on the connected chip card reader. Ifthe installation is correct the green light-emitting diode (LED) on the chip card reader lights up.Note: To use the cyberJack® RFID universal you require an application program and an RFID chipcard or the new electronic ID card.
How to install the hardware on the PC194.4 Driver installation under MacThis RFID chip card reader is currently supported by MAC OS X. You will find moreextensive information here.With this function the cyberJack® RFID universal is connected to the USB port of your computer or toa USB hub. Before you plug in the RFID chip card reader please read the followinginformation without fail!A driver installation is imperative for the cyberJack® RFID universal. How to proceed with the driver installation for the operating system is to be found in the followingchapter:Mac OS X4.4.1 Mac OS XTo install the driver for the cyberJack® RFID universal you need an Internet connection. Do not plug in the chip card reader yet!Download the driver for the cyberJack® RFID universal at www.reiner-sct.com/treiber and execute thedriver file by double-clicking it. You will now be guided through the installation.19
cyberJack® RFID universal manual20Click on the "Continue" button to start the driver installation.Click on the "Install" button".By inputting your user name and password you permit the driver to be installed. Please note that theuser must possess the rights for this.Installation of the driver is now complete.
How to install the hardware on the PC21Now you can plug the cyberJack® RFID universal into a USB port on your computer and use it.Functions test: Place the logincard or the new electronic ID card on the connected chip card reader. Ifthe installation is correct the green light-emitting diode (LED) on the chip card reader lights up.Note: To use the cyberJack® RFID universal you require an application program and an RFID chipcard or the new electronic ID card.
cyberJack® RFID universal manual225 Safety notesOrganisational safety measures: Make sure that unauthorised persons do not obtain access to the card reader. The reader must beoperated such that abuse is excluded.Make sure that the PC possesses suitable protective measures (such as a virus scanner, firewall)and manipulation by unauthorised persons is prevented.Each time the chip card reader is used, take care to check that the chip card reader and the securityfeatures (e.g. seal) are intact.Pay regard to the status of the device which is displayed to you via the LED (refer to the LEDfunctions chapter ).Follow the screens on the display through the process of secure PIN input (the so-called PIN dialog,refer to the Secure PIN input function chapter ). The safety of small childrenThe devices and accessories may contain small parts. Keep these out of reach for small children.General safety noteDo not put any foreign bodies in the card slot. On no account should you throw the device into a fire. Care and maintenanceYour device was developed and manufactured with great care and should also be treated with care. Thefollowing recommendations are to help you to ensure the long-term operation of your cyberJack® RFID:Do not use or keep the device industy or dirty environments. The movable parts and electroniccomponents may be damaged.Do not keep the device in hot environments. High temperatures can shorten the service life ofelectronic devices and distort certain plastics or make them melt.Do not keep the device in cold environments. When the device thereafter returns to its normaltemperature moisture may form inside it and damage the electronic circuits.Do not drop the device or expose it to blows or shocks and do not shake it. If handled roughly theelectronic circuits and mechanical fines inside the device may be damaged.Refrain from using any harsh chemicals, cleaning solutions or strong cleaning agents to clean thedevice.Do not paint the device. The paint can make the moving parts stick together and prevent it fromworking properly.Clean the display and housing with a soft, clean and dry cloth only.If a device is not working properly bring it to your institute or back to the specialist dealer where youbought it.Disposal of old electronic devicesThis symbol on the product, or its packaging, points out that it must not be disposed of with thedomestic waste. Instead bring it to a collection point for electronic devices which passes the producton for recycling. By disposing of this product correctly you are avoiding potential harm to theenvironment and health which can arise from its incorrect disposal. Besides, recycling materials sparesnatural resources. Detailed information about recycling this product can be obtained from theresponsible authority in your town or community or from waste disposal companies.247
Support236 SupportHelp in case of faultsIn case of faults which cannot be remedied by restarting your cyberJack® RFID (see chapter 4), pleasecontact our Service department via our homepage at www.reiner-sct.com ServiceYou have purchased a high quality REINER SCT product which is subject to strict quality control. Ifproblems should occur or you have questions regarding how to opeate the device you can always senda support query to our Service department at support@reiner-sct.com .WarrantyREINER SCT gives a 60-month warranty for the material and manufacture of the chip card reader fromthe time it is handed over. The purchaser is entitled to rectification of defects. Instead of rectification,REINER SCT can supply replacement devices. Replaced devices become the property of REINERSCT.The warranty lapses if the purchaser or an unauthorised third party interferes with it. Damage causedby improper treatment, operation, storage and force majeure or other external influences do not comeunder the warranty.Interface information for developersDevelopers who want to integrate the cyberJack® RFID chip card reader into their applications arewelcome to contact support@reiner-sct.com concerning their questions.

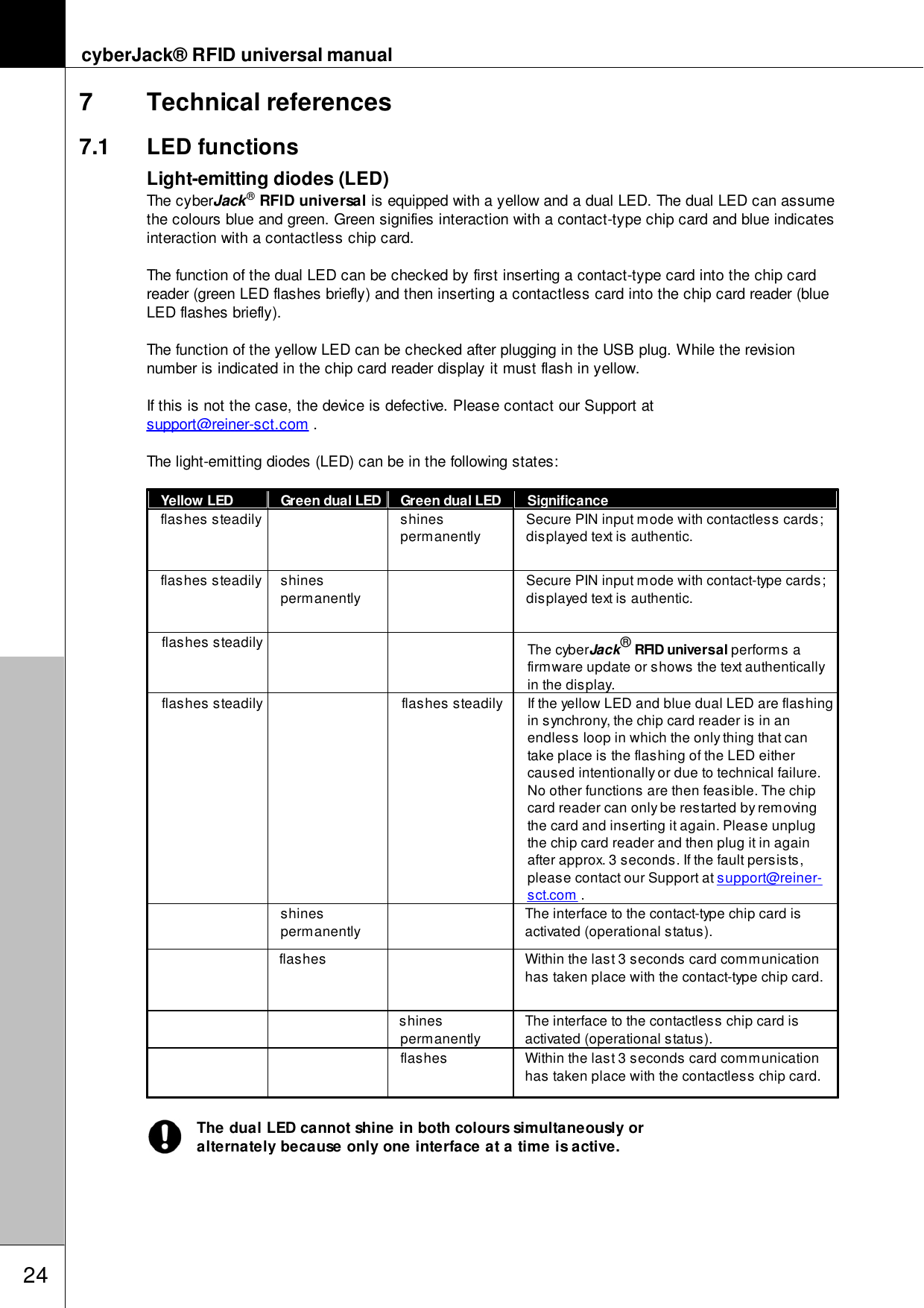

cyberJack® RFID universal manual247 Technical references7.1 LED functionsLight-emitting diodes (LED) The cyberJack® RFID universal is equipped with a yellow and a dual LED. The dual LED can assumethe colours blue and green. Green signifies interaction with a contact-type chip card and blue indicatesinteraction with a contactless chip card.The function of the dual LED can be checked by first inserting a contact-type card into the chip cardreader (green LED flashes briefly) and then inserting a contactless card into the chip card reader (blueLED flashes briefly).The function of the yellow LED can be checked after plugging in the USB plug. While the revisionnumber is indicated in the chip card reader display it must flash in yellow.If this is not the case, the device is defective. Please contact our Support at support@reiner-sct.com .The light-emitting diodes (LED) can be in the following states:Yellow LEDGreen dual LEDGreen dual LEDSignificanceflashes steadilyshinespermanentlySecure PIN input mode with contactless cards;displayed text is authentic.flashes steadilyshinespermanentlySecure PIN input mode with contact-type cards;displayed text is authentic.flashes steadilyThe cyberJack® RFID universal performs afirmware update or shows the text authenticallyin the display.flashes steadilyflashes steadilyIf the yellow LED and blue dual LED are flashingin synchrony, the chip card reader is in anendless loop in which the only thing that cantake place is the flashing of the LED eithercaused intentionally or due to technical failure.No other functions are then feasible. The chipcard reader can only be restarted by removingthe card and inserting it again. Please unplugthe chip card reader and then plug it in againafter approx. 3 seconds. If the fault persists,please contact our Support at support@reiner-sct.com .shinespermanentlyThe interface to the contact-type chip card isactivated (operational status).flashesWithin the last 3 seconds card communicationhas taken place with the contact-type chip card.shinespermanentlyThe interface to the contactless chip card isactivated (operational status).flashesWithin the last 3 seconds card communicationhas taken place with the contactless chip card.The dual LED cannot shine in both colours simultaneously oralternately because only one interface at a time is active.

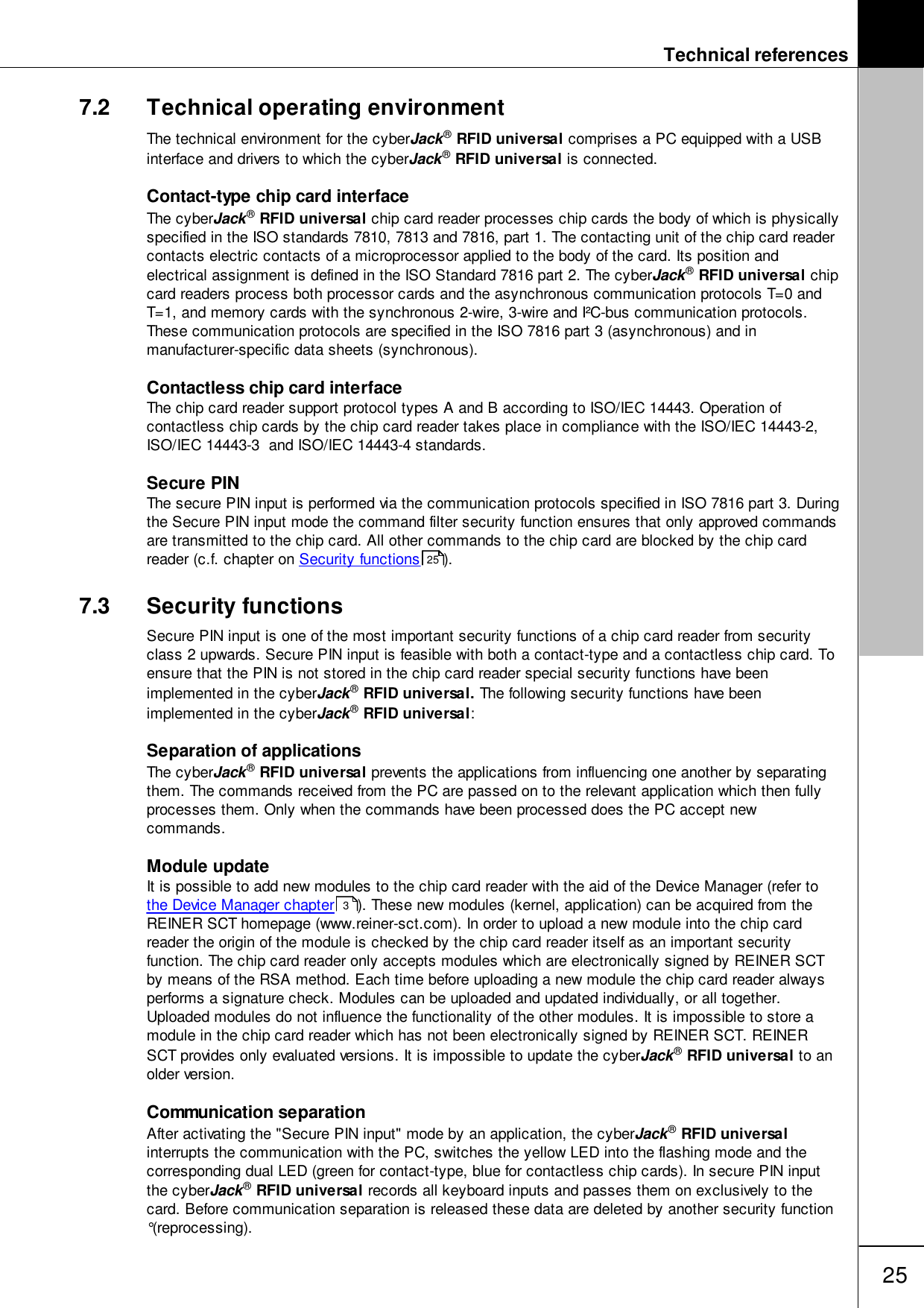

Technical references257.2 Technical operating environmentThe technical environment for the cyberJack® RFID universal comprises a PC equipped with a USBinterface and drivers to which the cyberJack® RFID universal is connected.Contact-type chip card interfaceThe cyberJack® RFID universal chip card reader processes chip cards the body of which is physicallyspecified in the ISO standards 7810, 7813 and 7816, part 1. The contacting unit of the chip card readercontacts electric contacts of a microprocessor applied to the body of the card. Its position andelectrical assignment is defined in the ISO Standard 7816 part 2. The cyberJack® RFID universal chipcard readers process both processor cards and the asynchronous communication protocols T=0 andT=1, and memory cards with the synchronous 2-wire, 3-wire and I²C-bus communication protocols.These communication protocols are specified in the ISO 7816 part 3 (asynchronous) and inmanufacturer-specific data sheets (synchronous). Contactless chip card interfaceThe chip card reader support protocol types A and B according to ISO/IEC 14443. Operation ofcontactless chip cards by the chip card reader takes place in compliance with the ISO/IEC 14443-2,ISO/IEC 14443-3 and ISO/IEC 14443-4 standards. Secure PIN The secure PIN input is performed via the communication protocols specified in ISO 7816 part 3. Duringthe Secure PIN input mode the command filter security function ensures that only approved commandsare transmitted to the chip card. All other commands to the chip card are blocked by the chip cardreader (c.f. chapter on Security functions ).7.3 Security functionsSecure PIN input is one of the most important security functions of a chip card reader from securityclass 2 upwards. Secure PIN input is feasible with both a contact-type and a contactless chip card. Toensure that the PIN is not stored in the chip card reader special security functions have beenimplemented in the cyberJack® RFID universal. The following security functions have beenimplemented in the cyberJack® RFID universal: Separation of applicationsThe cyberJack® RFID universal prevents the applications from influencing one another by separatingthem. The commands received from the PC are passed on to the relevant application which then fullyprocesses them. Only when the commands have been processed does the PC accept newcommands. Module updateIt is possible to add new modules to the chip card reader with the aid of the Device Manager (refer to the Device Manager chapter ). These new modules (kernel, application) can be acquired from theREINER SCT homepage (www.reiner-sct.com). In order to upload a new module into the chip cardreader the origin of the module is checked by the chip card reader itself as an important securityfunction. The chip card reader only accepts modules which are electronically signed by REINER SCTby means of the RSA method. Each time before uploading a new module the chip card reader alwaysperforms a signature check. Modules can be uploaded and updated individually, or all together.Uploaded modules do not influence the functionality of the other modules. It is impossible to store amodule in the chip card reader which has not been electronically signed by REINER SCT. REINERSCT provides only evaluated versions. It is impossible to update the cyberJack® RFID universal to anolder version. Communication separationAfter activating the "Secure PIN input" mode by an application, the cyberJack® RFID universalinterrupts the communication with the PC, switches the yellow LED into the flashing mode and thecorresponding dual LED (green for contact-type, blue for contactless chip cards). In secure PIN inputthe cyberJack® RFID universal records all keyboard inputs and passes them on exclusively to thecard. Before communication separation is released these data are deleted by another security function°(reprocessing).253

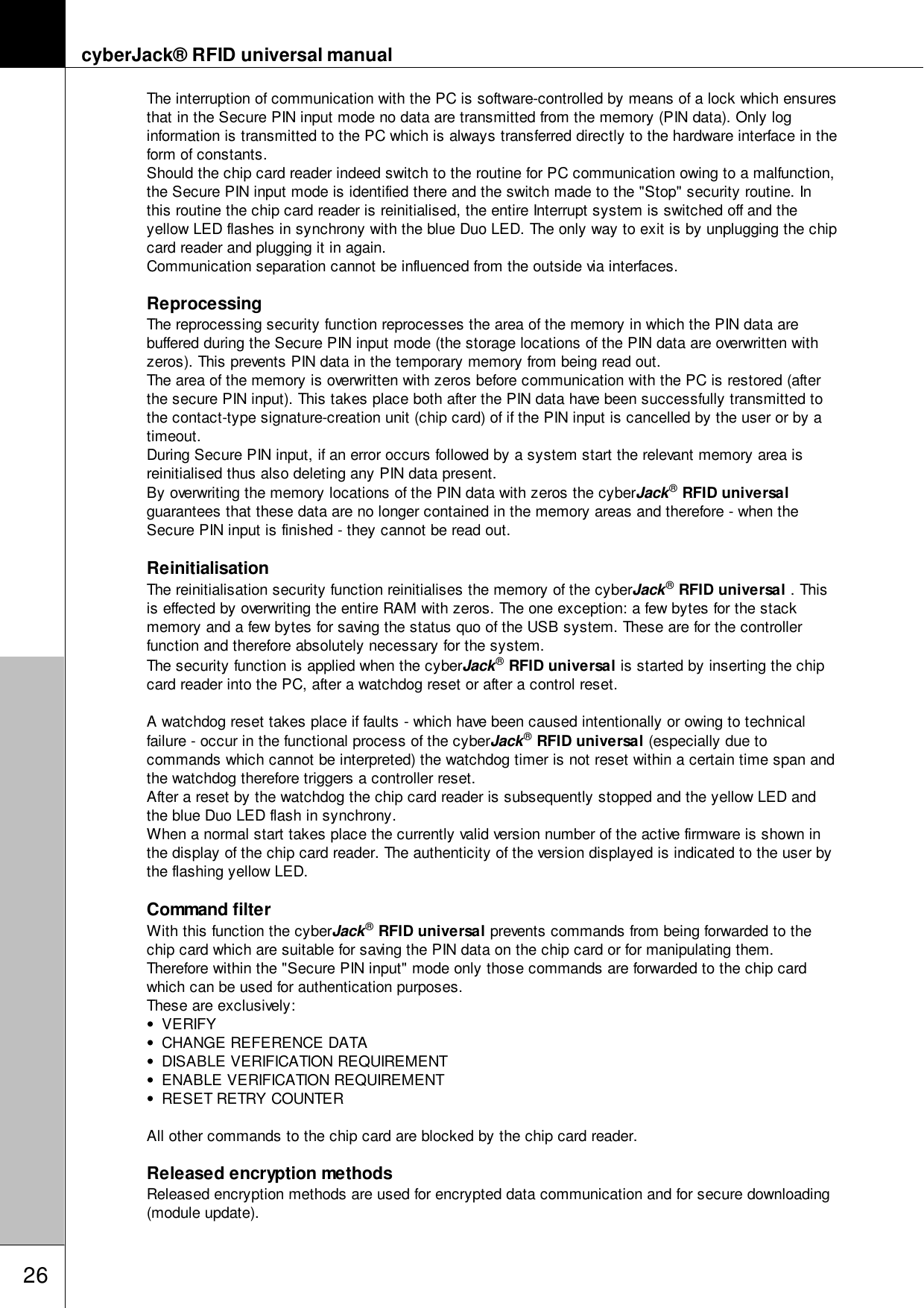

cyberJack® RFID universal manual26The interruption of communication with the PC is software-controlled by means of a lock which ensuresthat in the Secure PIN input mode no data are transmitted from the memory (PIN data). Only loginformation is transmitted to the PC which is always transferred directly to the hardware interface in theform of constants. Should the chip card reader indeed switch to the routine for PC communication owing to a malfunction,the Secure PIN input mode is identified there and the switch made to the "Stop" security routine. Inthis routine the chip card reader is reinitialised, the entire Interrupt system is switched off and theyellow LED flashes in synchrony with the blue Duo LED. The only way to exit is by unplugging the chipcard reader and plugging it in again.Communication separation cannot be influenced from the outside via interfaces. ReprocessingThe reprocessing security function reprocesses the area of the memory in which the PIN data arebuffered during the Secure PIN input mode (the storage locations of the PIN data are overwritten withzeros). This prevents PIN data in the temporary memory from being read out. The area of the memory is overwritten with zeros before communication with the PC is restored (afterthe secure PIN input). This takes place both after the PIN data have been successfully transmitted tothe contact-type signature-creation unit (chip card) of if the PIN input is cancelled by the user or by atimeout. During Secure PIN input, if an error occurs followed by a system start the relevant memory area isreinitialised thus also deleting any PIN data present. By overwriting the memory locations of the PIN data with zeros the cyberJack® RFID universalguarantees that these data are no longer contained in the memory areas and therefore - when theSecure PIN input is finished - they cannot be read out.ReinitialisationThe reinitialisation security function reinitialises the memory of the cyberJack® RFID universal . Thisis effected by overwriting the entire RAM with zeros. The one exception: a few bytes for the stackmemory and a few bytes for saving the status quo of the USB system. These are for the controllerfunction and therefore absolutely necessary for the system. The security function is applied when the cyberJack® RFID universal is started by inserting the chipcard reader into the PC, after a watchdog reset or after a control reset. A watchdog reset takes place if faults - which have been caused intentionally or owing to technicalfailure - occur in the functional process of the cyberJack® RFID universal (especially due tocommands which cannot be interpreted) the watchdog timer is not reset within a certain time span andthe watchdog therefore triggers a controller reset. After a reset by the watchdog the chip card reader is subsequently stopped and the yellow LED andthe blue Duo LED flash in synchrony. When a normal start takes place the currently valid version number of the active firmware is shown inthe display of the chip card reader. The authenticity of the version displayed is indicated to the user bythe flashing yellow LED.Command filter With this function the cyberJack® RFID universal prevents commands from being forwarded to thechip card which are suitable for saving the PIN data on the chip card or for manipulating them.Therefore within the "Secure PIN input" mode only those commands are forwarded to the chip cardwhich can be used for authentication purposes.These are exclusively:VERIFYCHANGE REFERENCE DATADISABLE VERIFICATION REQUIREMENTENABLE VERIFICATION REQUIREMENTRESET RETRY COUNTERAll other commands to the chip card are blocked by the chip card reader.Released encryption methodsReleased encryption methods are used for encrypted data communication and for secure downloading(module update).

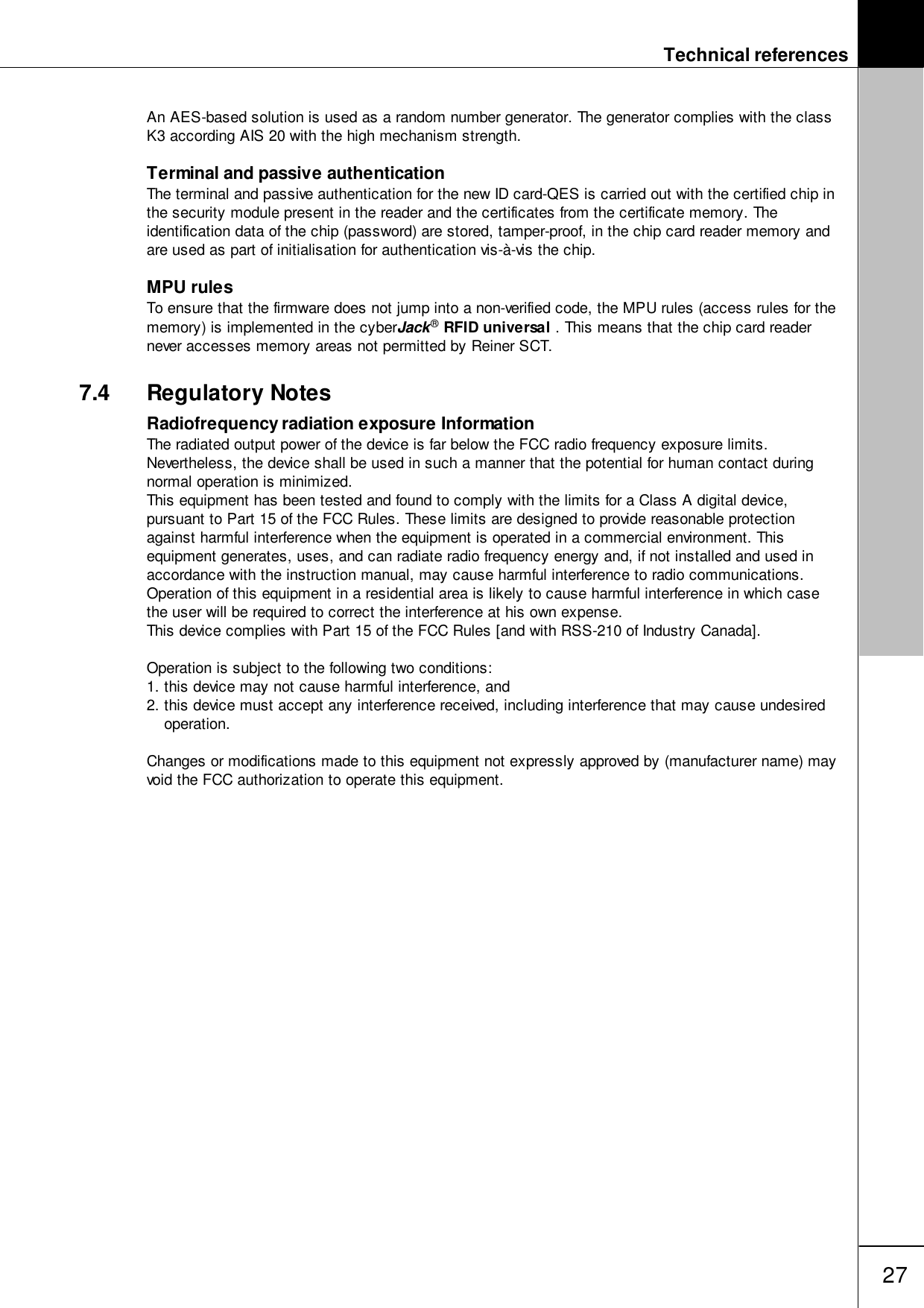

Technical references27An AES-based solution is used as a random number generator. The generator complies with the classK3 according AIS 20 with the high mechanism strength.Terminal and passive authenticationThe terminal and passive authentication for the new ID card-QES is carried out with the certified chip inthe security module present in the reader and the certificates from the certificate memory. Theidentification data of the chip (password) are stored, tamper-proof, in the chip card reader memory andare used as part of initialisation for authentication vis-à-vis the chip. MPU rulesTo ensure that the firmware does not jump into a non-verified code, the MPU rules (access rules for thememory) is implemented in the cyberJack® RFID universal . This means that the chip card readernever accesses memory areas not permitted by Reiner SCT.7.4 Regulatory NotesRadiofrequency radiation exposure InformationThe radiated output power of the device is far below the FCC radio frequency exposure limits.Nevertheless, the device shall be used in such a manner that the potential for human contact duringnormal operation is minimized.This equipment has been tested and found to comply with the limits for a Class A digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference when the equipment is operated in a commercial environment. Thisequipment generates, uses, and can radiate radio frequency energy and, if not installed and used inaccordance with the instruction manual, may cause harmful interference to radio communications.Operation of this equipment in a residential area is likely to cause harmful interference in which casethe user will be required to correct the interference at his own expense.This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada].Operation is subject to the following two conditions:1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesiredoperation.Changes or modifications made to this equipment not expressly approved by (manufacturer name) mayvoid the FCC authorization to operate this equipment.

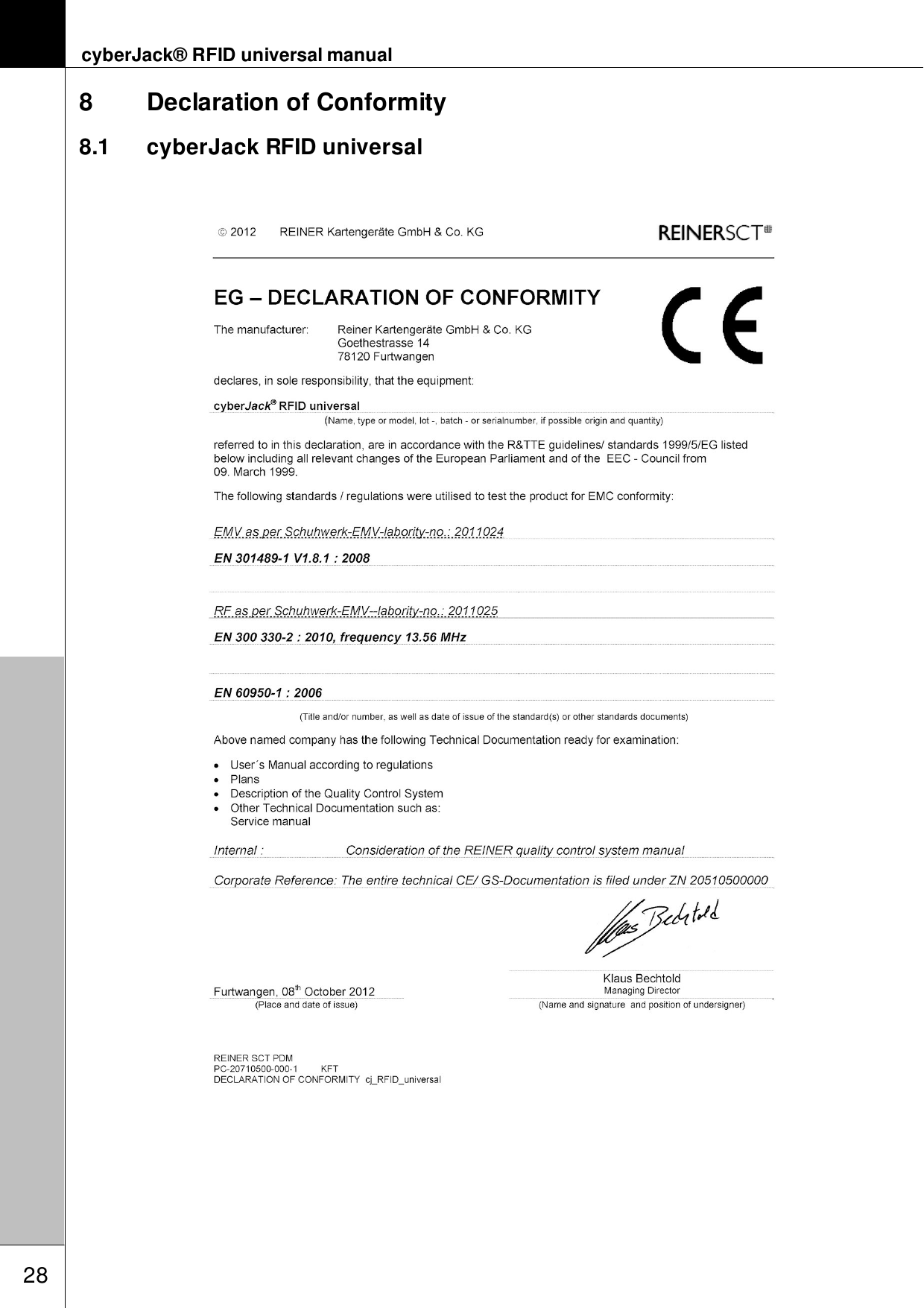

cyberJack® RFID universal manual288 Declaration of Conformity8.1 cyberJack RFID universal

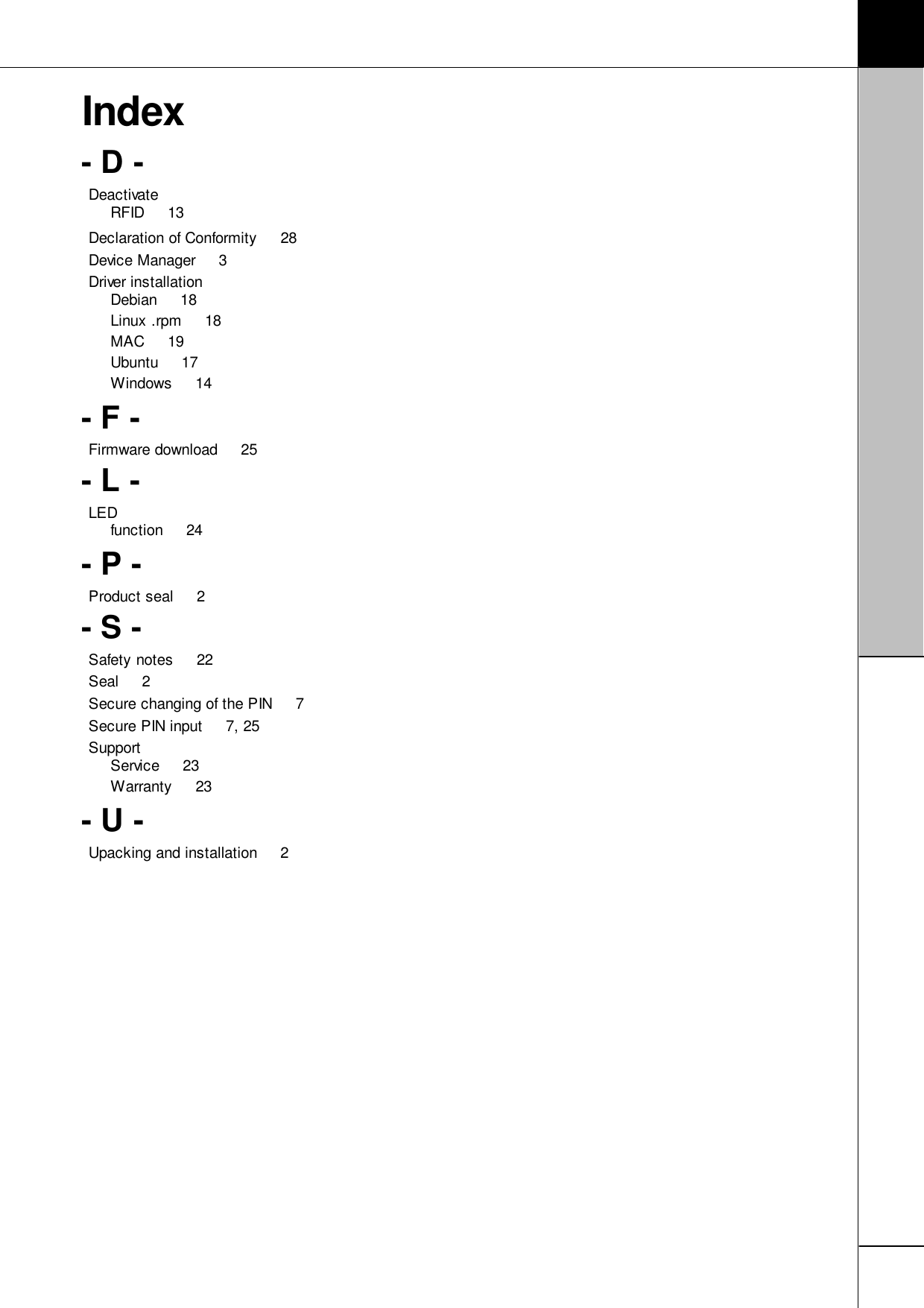

Index- D -Deactivate RFID 13Declaration of Conformity 28Device Manager 3Driver installation Debian 18Linux .rpm 18MAC 19Ubuntu 17Windows 14- F -Firmware download 25- L -LED function 24- P -Product seal 2- S -Safety notes 22Seal 2Secure changing of the PIN 7Secure PIN input 7, 25Support Service 23Warranty 23- U -Upacking and installation 2

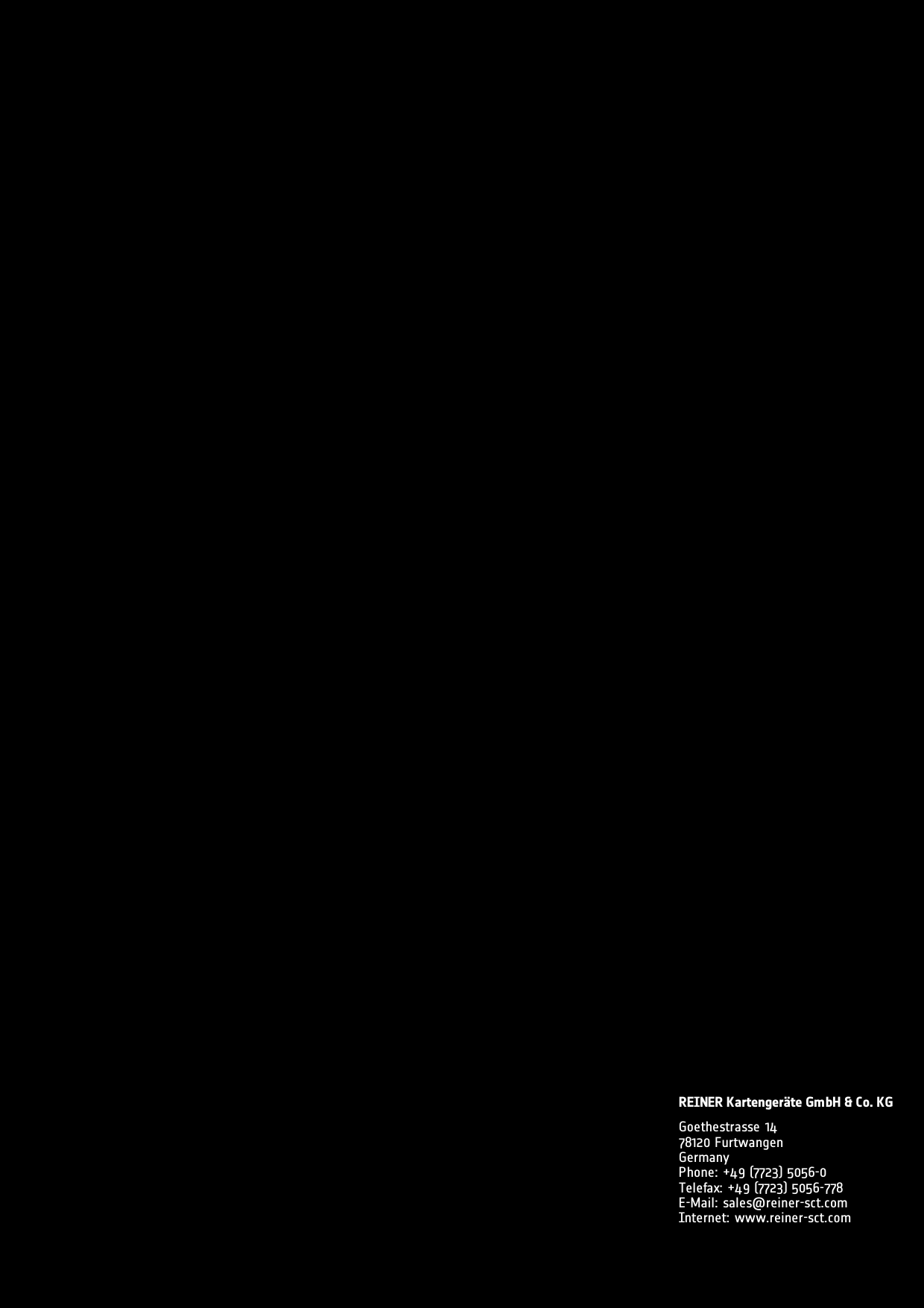

Goethestrasse 1478120 Furtwangen Germany Phone: +49 (7723) 5056-0Telefax: +49 (7723) 5056-778E-Mail: sales@reiner-sct.com Internet: www.reiner-sct.comREINER Kartengeräte GmbH & Co. KG
