RIFO TECHNOLOGY 02 WiFi Microcontroller Module User Manual Manual

RIFO TECHNOLOGY CO., LTD. WiFi Microcontroller Module Manual

Manual

____________________________________________________________________________________ WiFi Microcontroller Module Model : WiFi Microcontroller Module Part No : TC3200-S-ANT Version : V1.1 Date : 2017.08.23

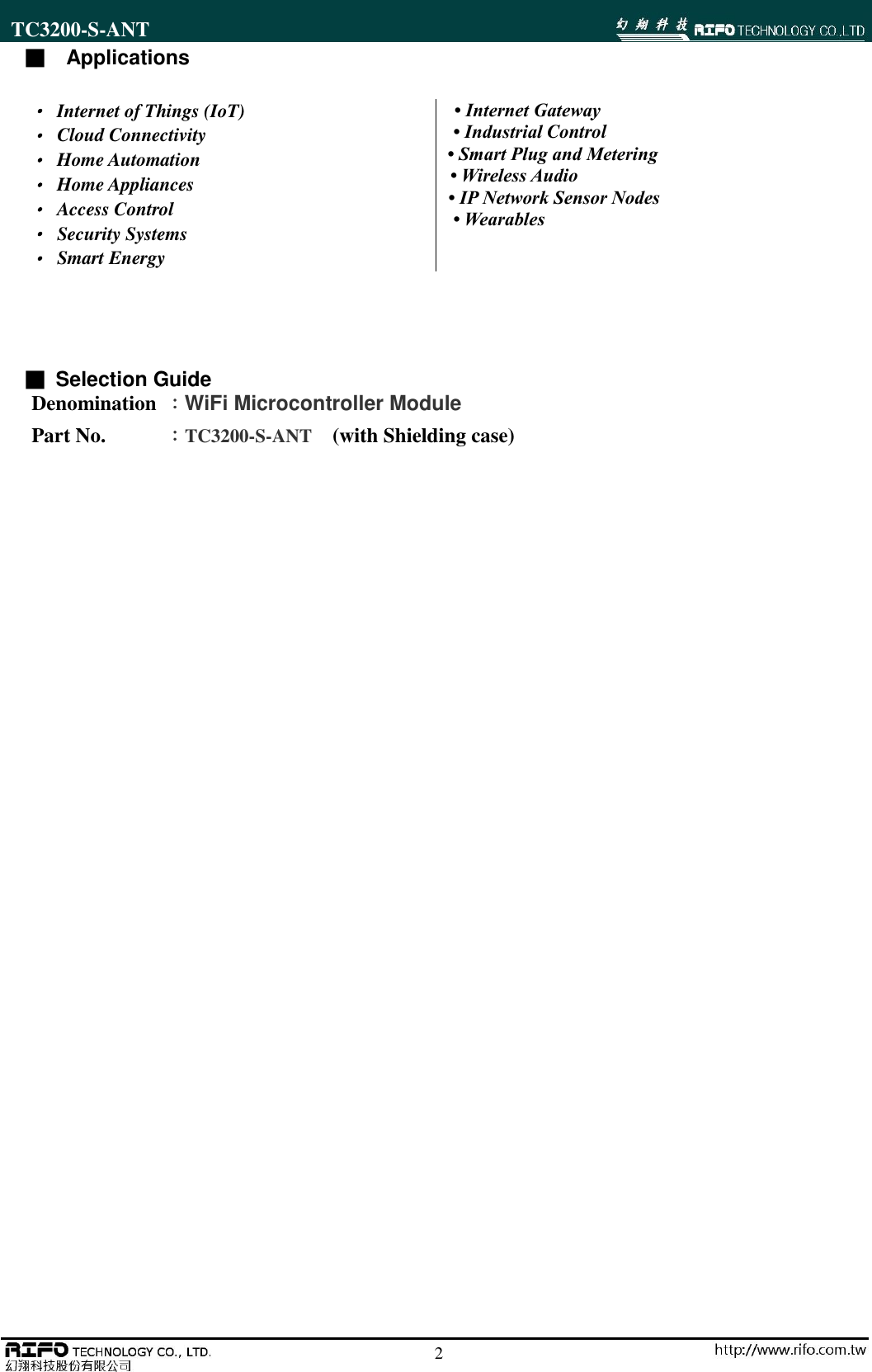

TC3200-S-ANT 2 ■ Applications ■ Selection Guide Denomination ：WiFi Microcontroller Module Part No. ：TC3200-S-ANT (with Shielding case) • Internet of Things (IoT) • Cloud Connectivity • Home Automation • Home Appliances • Access Control • Security Systems • Smart Energy • Internet Gateway • Industrial Control • Smart Plug and Metering • Wireless Audio • IP Network Sensor Nodes • Wearables

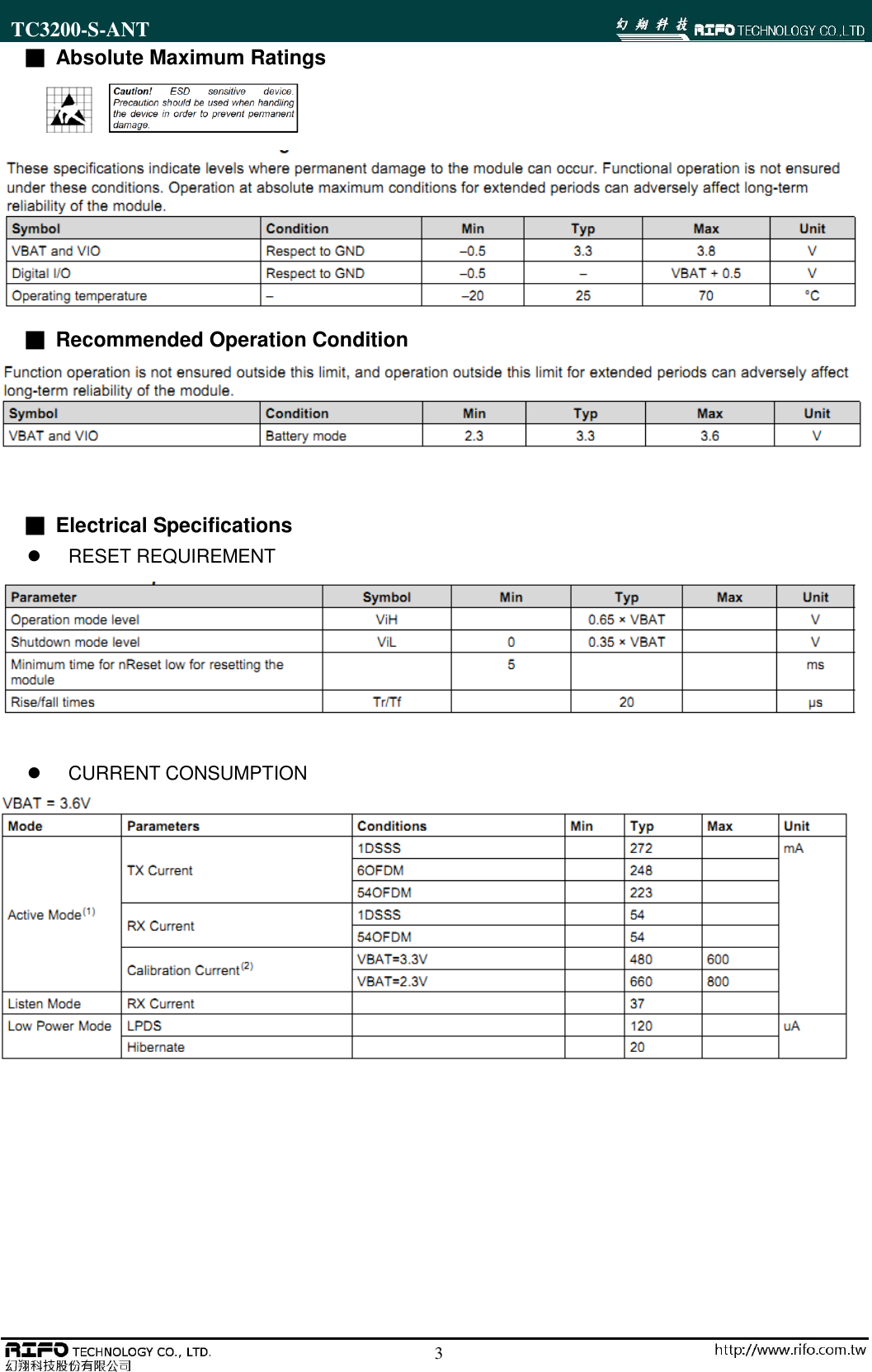

TC3200-S-ANT 3 ■ Absolute Maximum Ratings ■ Recommended Operation Condition ■ Electrical Specifications  RESET REQUIREMENT  CURRENT CONSUMPTION

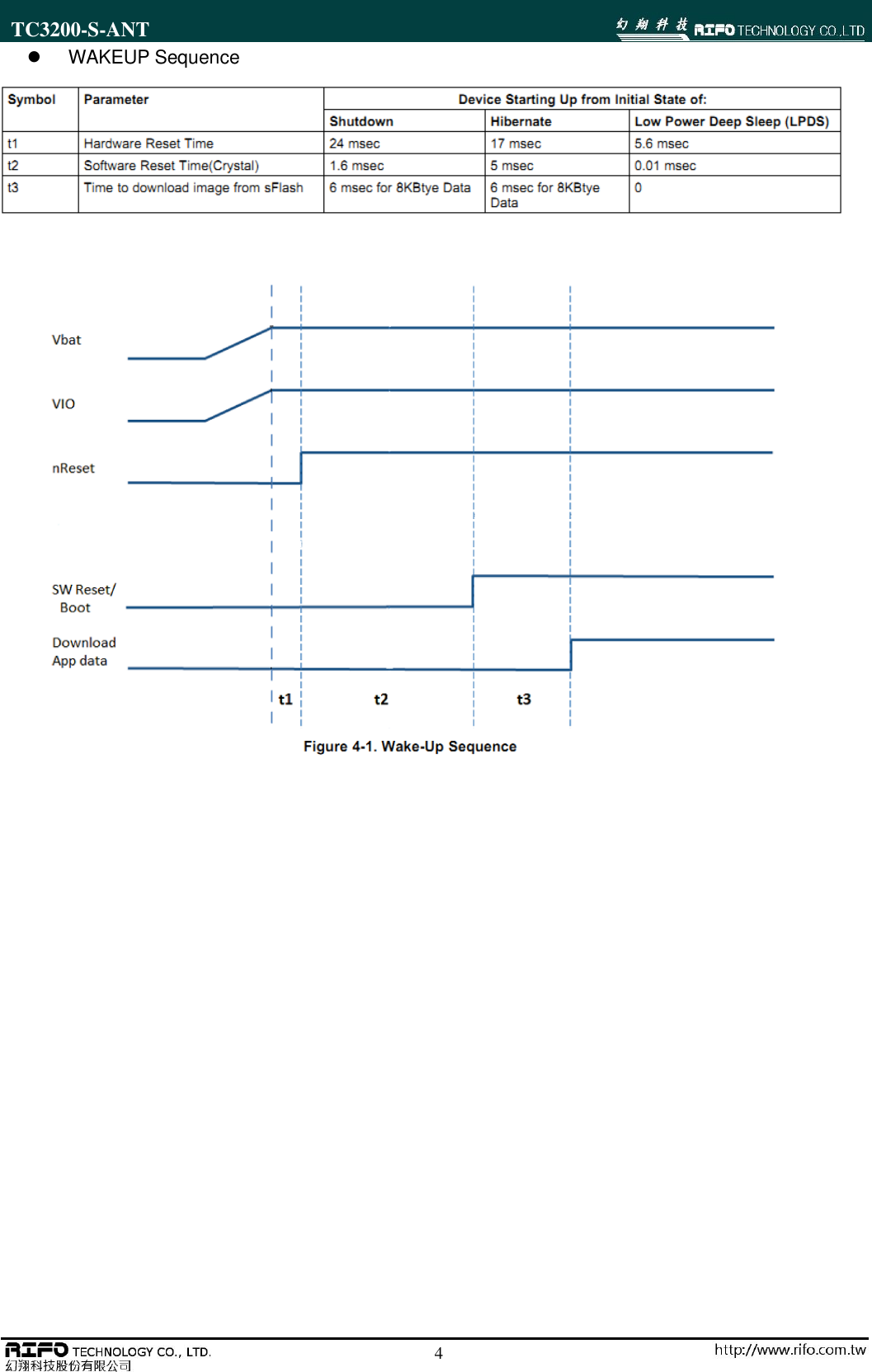

TC3200-S-ANT 4  WAKEUP Sequence

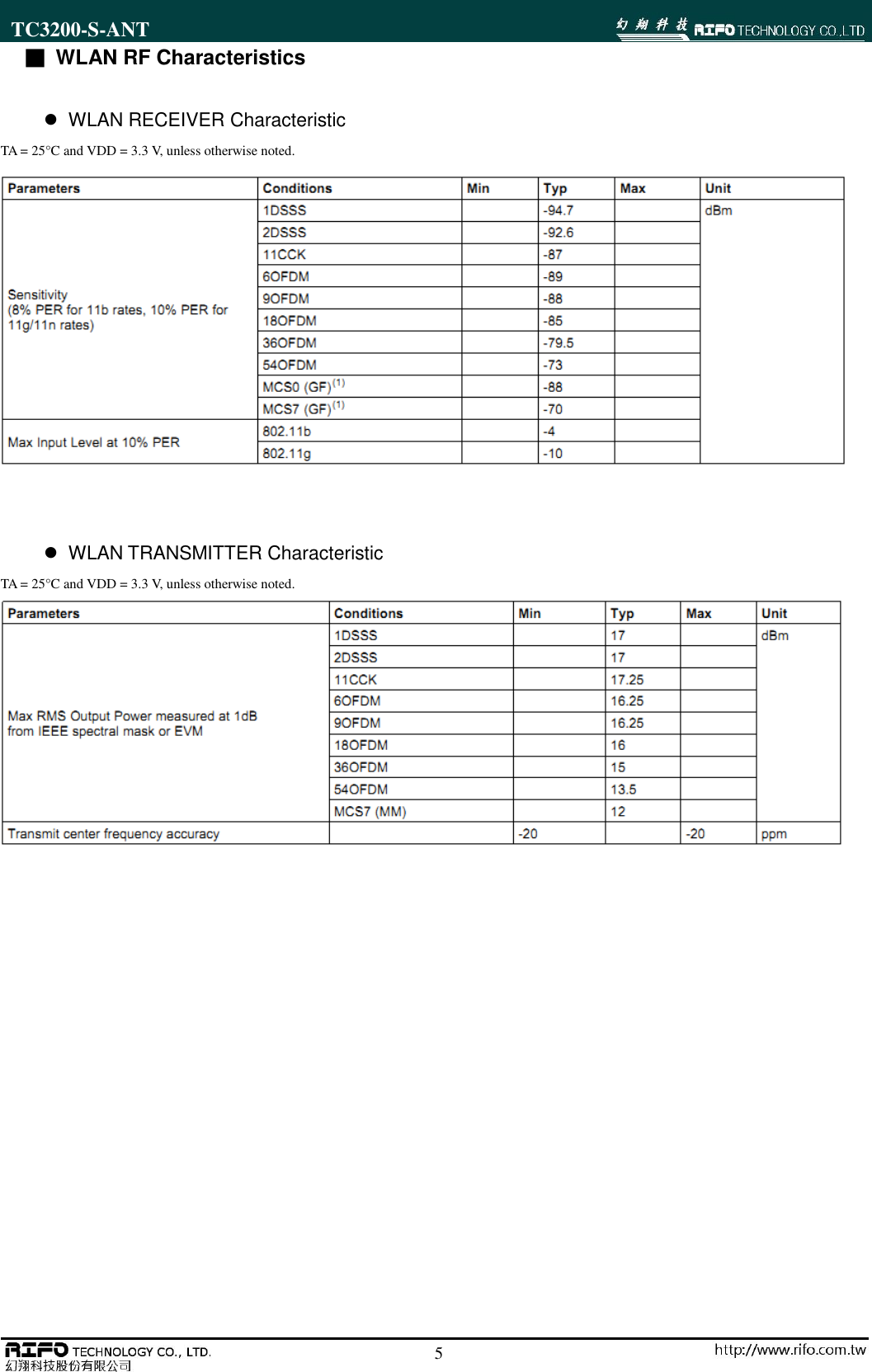

TC3200-S-ANT 5 ■ WLAN RF Characteristics  WLAN RECEIVER Characteristic TA = 25°C and VDD = 3.3 V, unless otherwise noted.  WLAN TRANSMITTER Characteristic TA = 25°C and VDD = 3.3 V, unless otherwise noted.

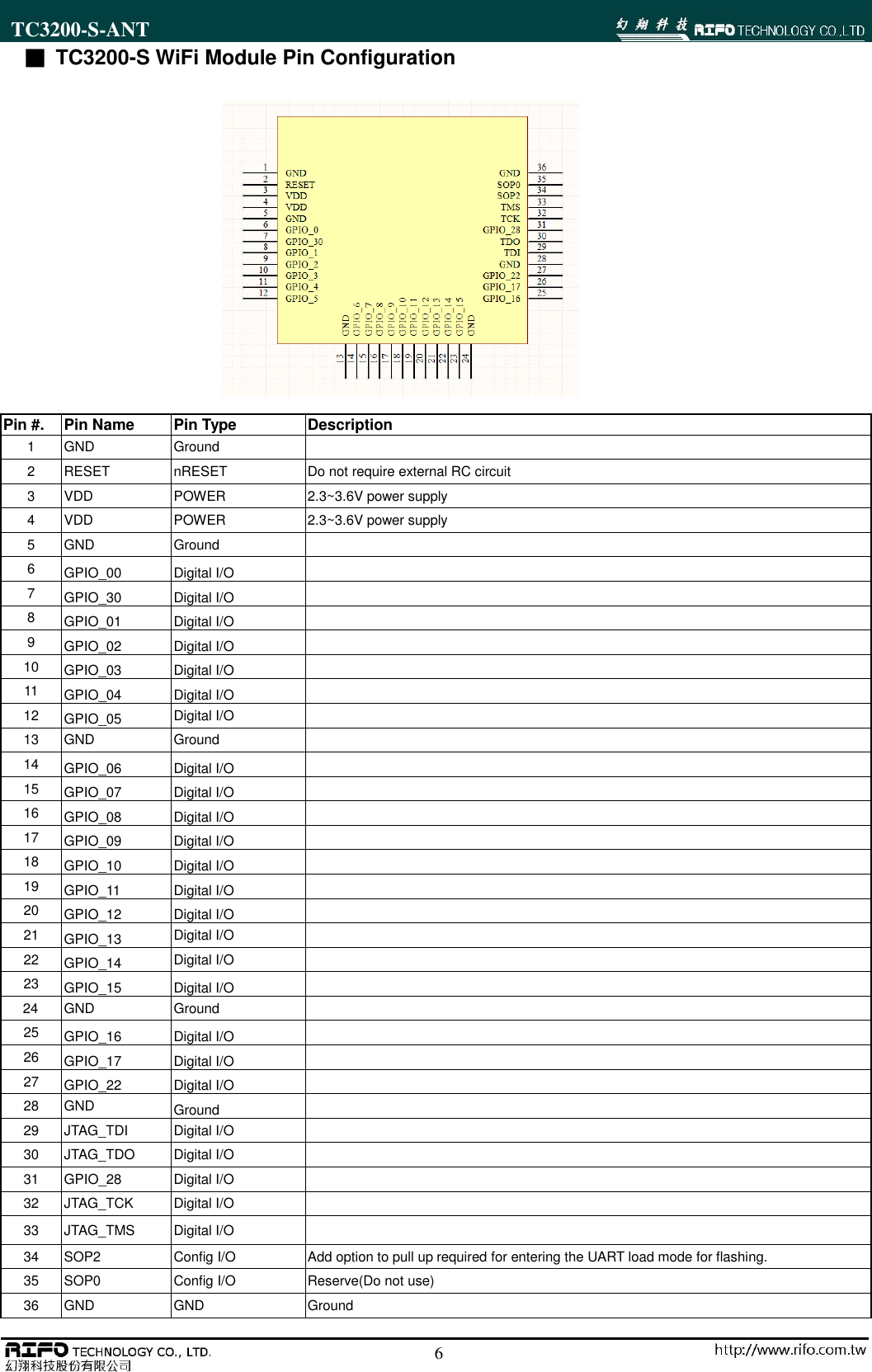

TC3200-S-ANT 6 ■ TC3200-S WiFi Module Pin Configuration Pin #. Pin Name Pin Type Description 1 GND Ground 2 RESET nRESET Do not require external RC circuit 3 VDD POWER 2.3~3.6V power supply 4 VDD POWER 2.3~3.6V power supply 5 GND Ground 6 GPIO_00 Digital I/O 7 GPIO_30 Digital I/O 8 GPIO_01 Digital I/O 9 GPIO_02 Digital I/O 10 GPIO_03 Digital I/O 11 GPIO_04 Digital I/O 12 GPIO_05 Digital I/O 13 GND Ground 14 GPIO_06 Digital I/O 15 GPIO_07 Digital I/O 16 GPIO_08 Digital I/O 17 GPIO_09 Digital I/O 18 GPIO_10 Digital I/O 19 GPIO_11 Digital I/O 20 GPIO_12 Digital I/O 21 GPIO_13 Digital I/O 22 GPIO_14 Digital I/O 23 GPIO_15 Digital I/O 24 GND Ground 25 GPIO_16 Digital I/O 26 GPIO_17 Digital I/O 27 GPIO_22 Digital I/O 28 GND Ground 29 JTAG_TDI Digital I/O 30 JTAG_TDO Digital I/O 31 GPIO_28 Digital I/O 32 JTAG_TCK Digital I/O 33 JTAG_TMS Digital I/O 34 SOP2 Config I/O Add option to pull up required for entering the UART load mode for flashing. 35 SOP0 Config I/O Reserve(Do not use) 36 GND GND Ground

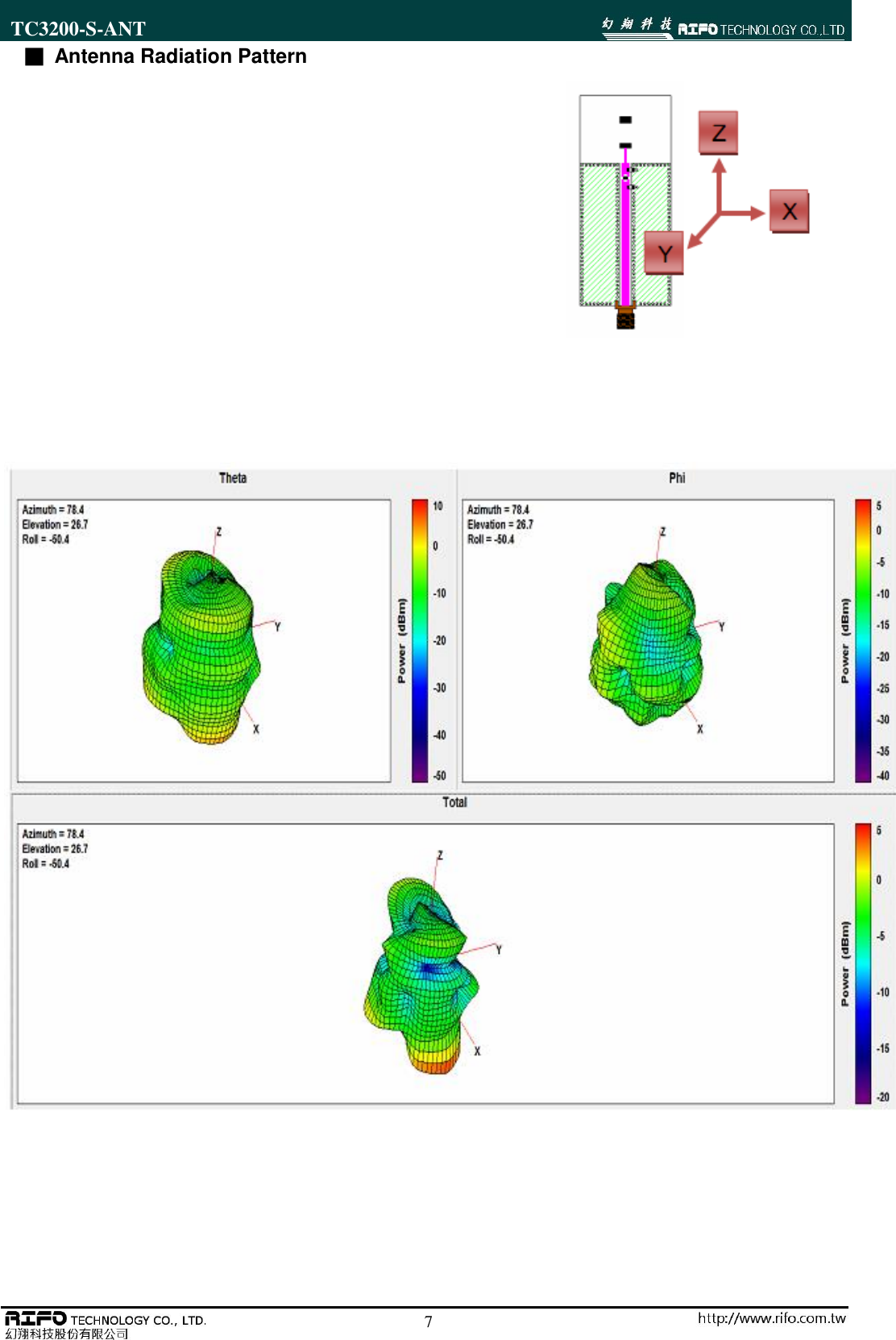

TC3200-S-ANT 7 ■ Antenna Radiation Pattern

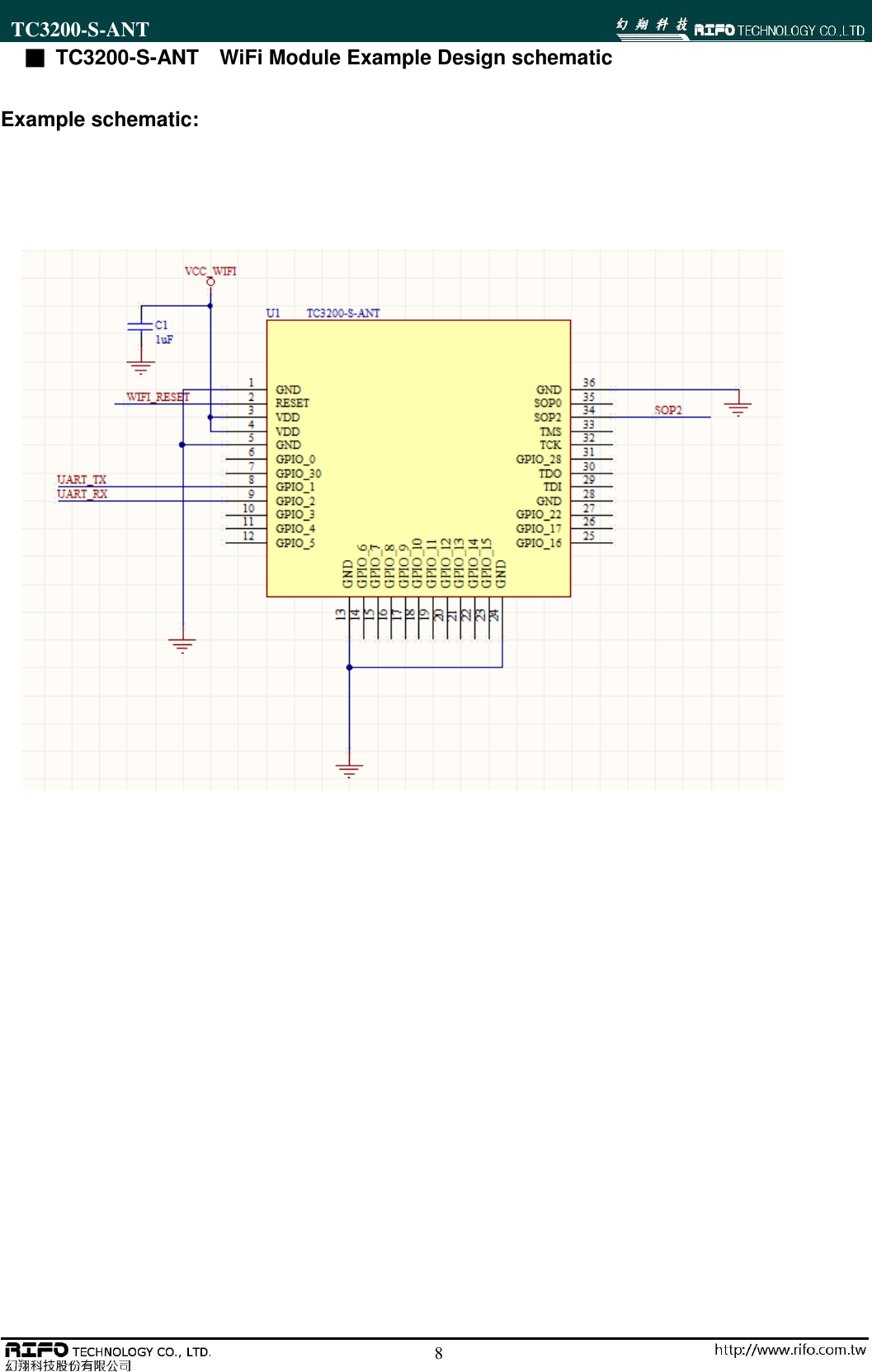

TC3200-S-ANT 8 ■ TC3200-S-ANT WiFi Module Example Design schematic Example schematic:

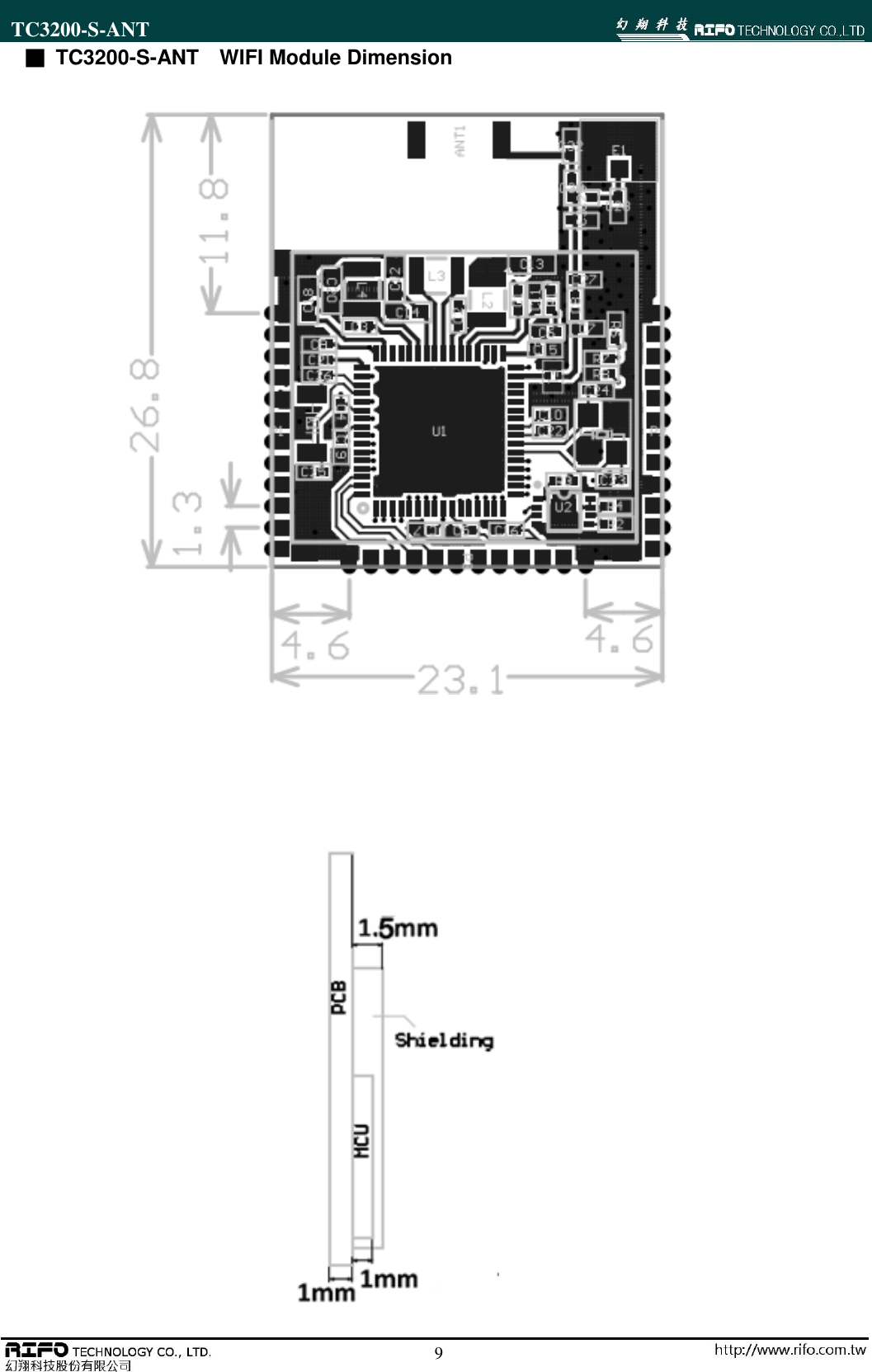

TC3200-S-ANT 9 ■ TC3200-S-ANT WIFI Module Dimension

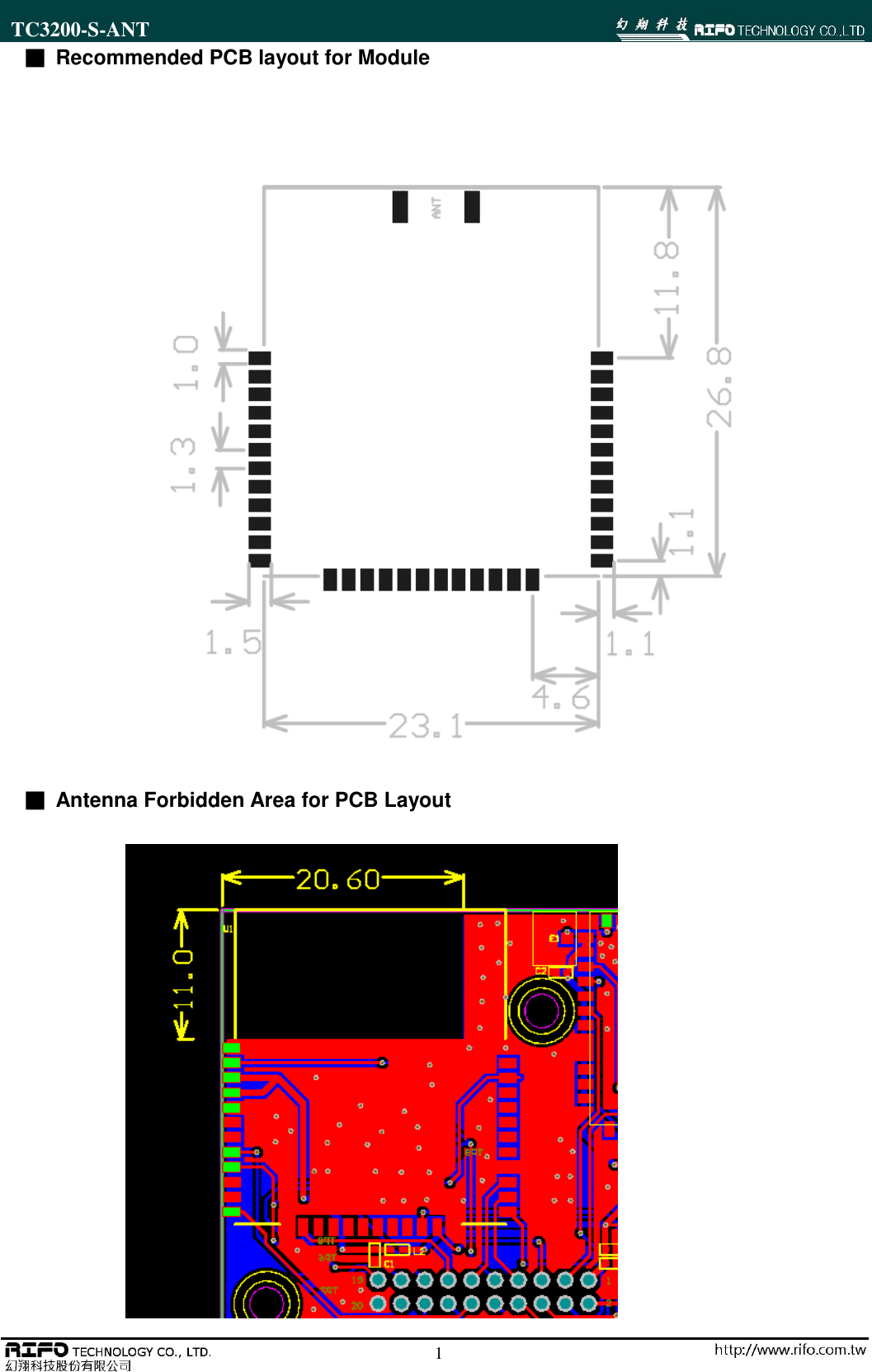

TC3200-S-ANT 10 ■ Recommended PCB layout for Module ■ Antenna Forbidden Area for PCB Layout

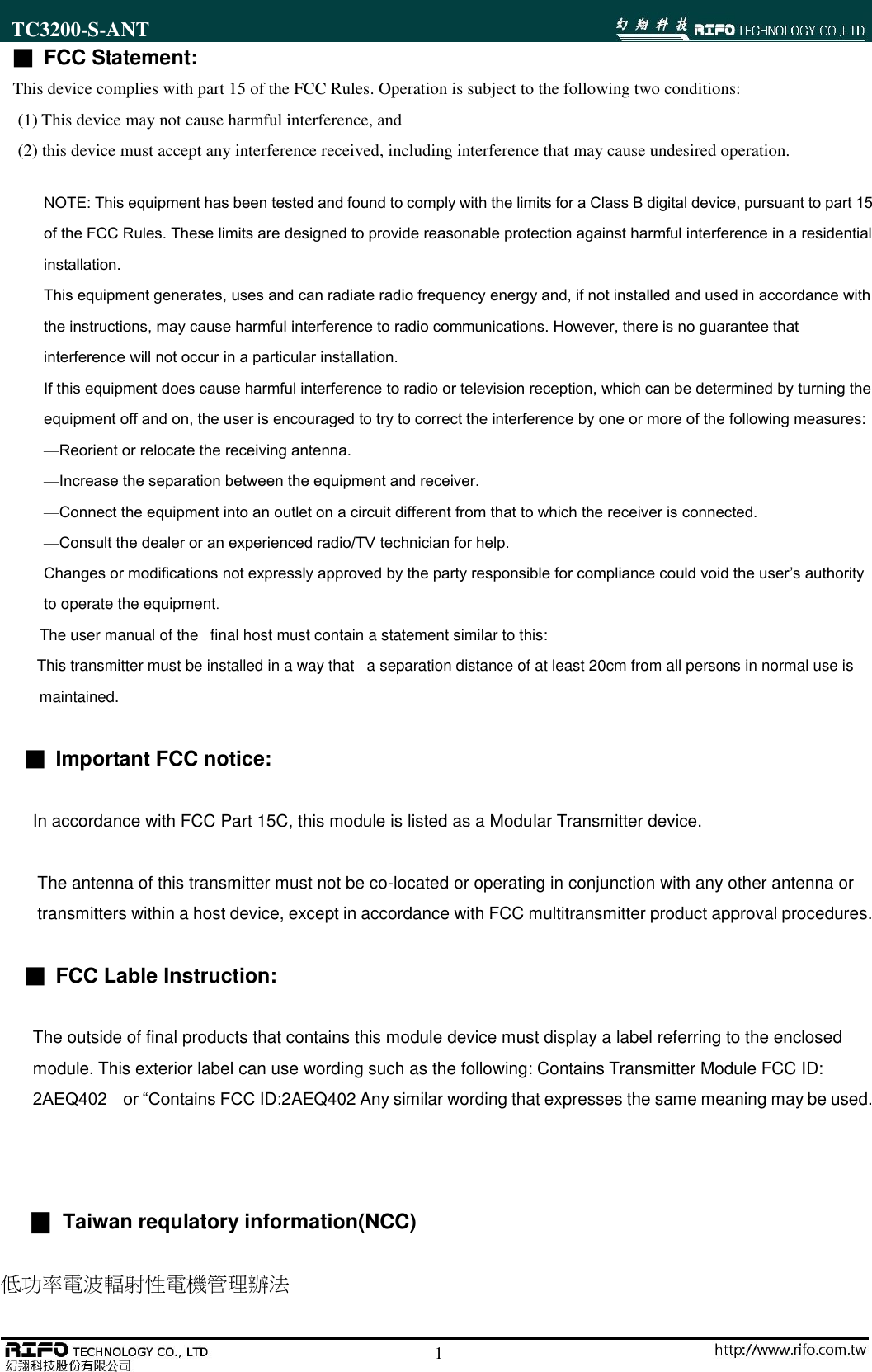

TC3200-S-ANT 11 ■ FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The user manual of the final host must contain a statement similar to this: This transmitter must be installed in a way that a separation distance of at least 20cm from all persons in normal use is maintained. ■ Important FCC notice: In accordance with FCC Part 15C, this module is listed as a Modular Transmitter device. The antenna of this transmitter must not be co-located or operating in conjunction with any other antenna or transmitters within a host device, except in accordance with FCC multitransmitter product approval procedures. ■ FCC Lable Instruction: The outside of final products that contains this module device must display a label referring to the enclosed module. This exterior label can use wording such as the following: Contains Transmitter Module FCC ID: 2AEQ402 or “Contains FCC ID:2AEQ402 Any similar wording that expresses the same meaning may be used. ▉ Taiwan requlatory information(NCC) 低功率電波輻射性電機管理辦法

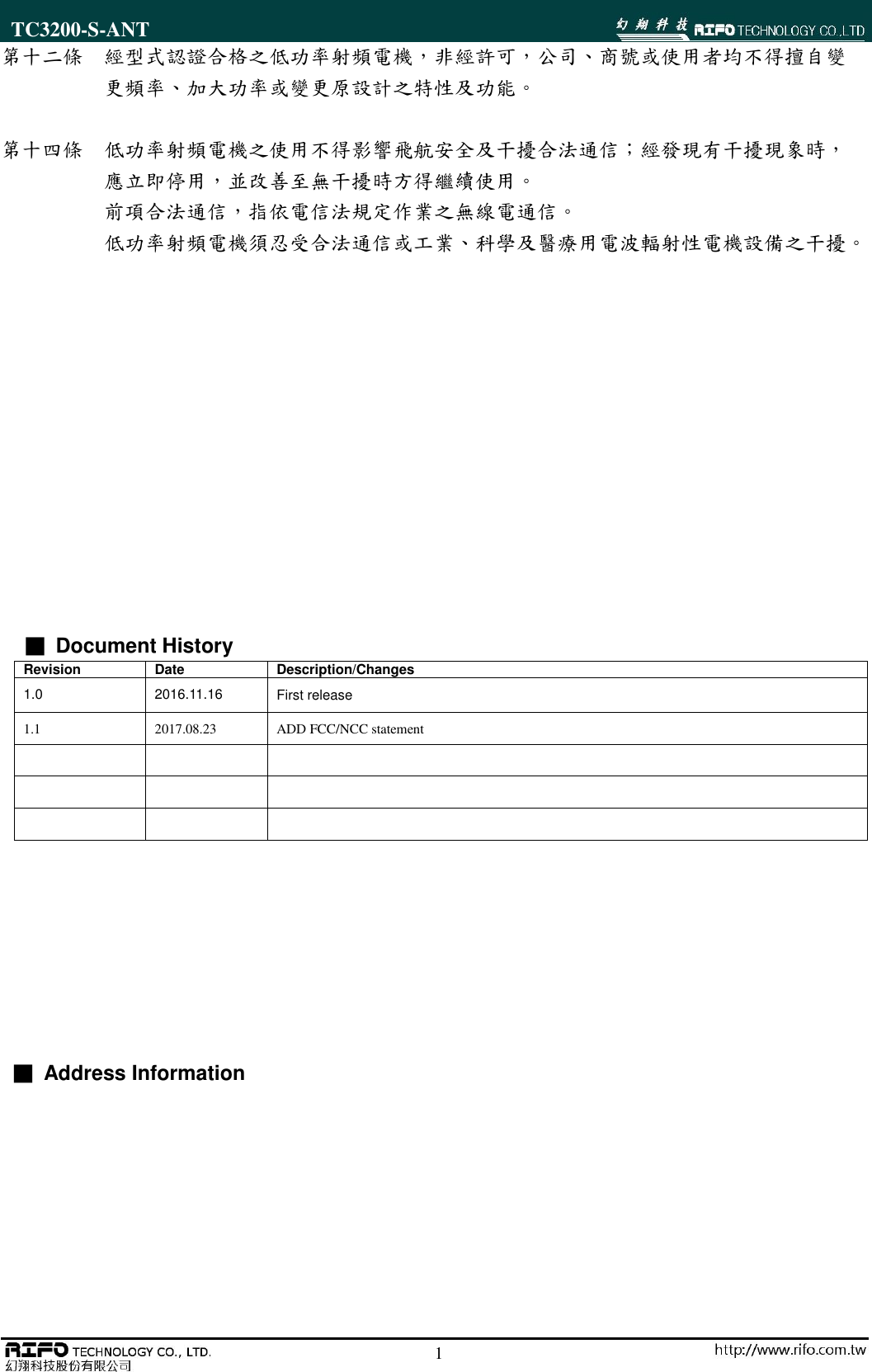

TC3200-S-ANT 12 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變 更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時， 應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 ■ Document History Revision Date Description/Changes 1.0 2016.11.16 First release 1.1 2017.08.23 ADD FCC/NCC statement ■ Address Information
TC3200-S-ANT 13
