Owners Manual Rev

USER'S GUIDEMotorcycleP/N: 87947-MCA-R10

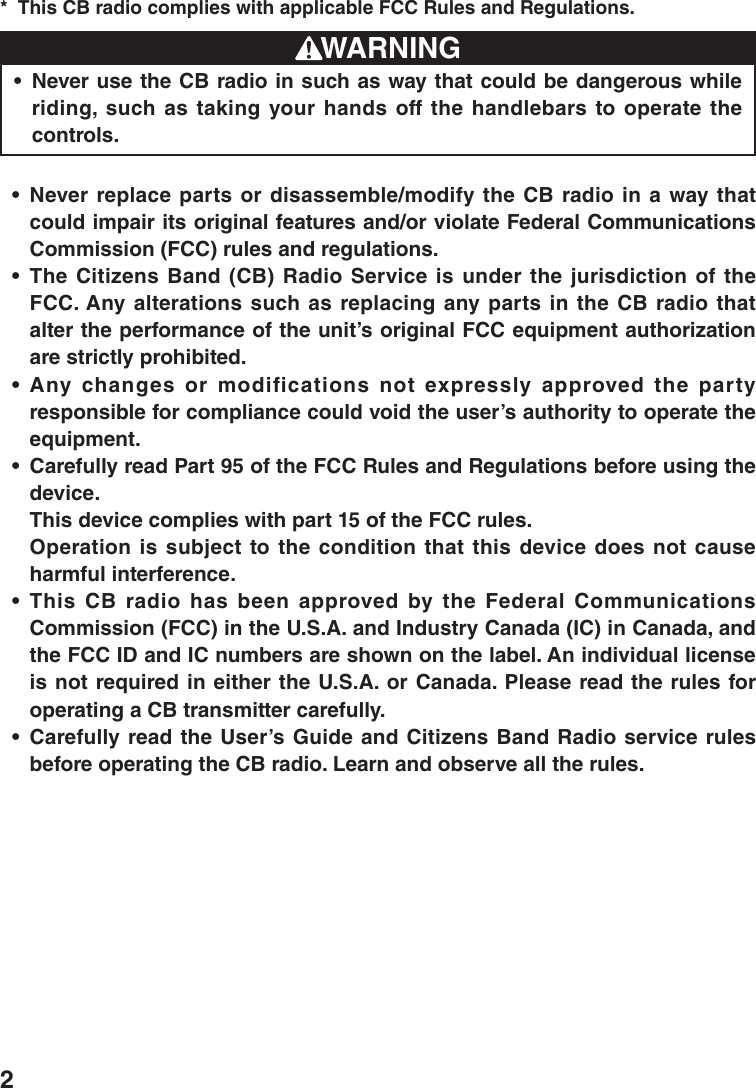

2This CB radio complies with applicable FCC Rules and Regulations.* WARNINGNever use the CB radio in such as way that could be dangerous while • riding, such as taking your hands off the handlebars to operate the controls.Never replace parts or disassemble/modify the CB radio in a way that • could impair its original features and/or violate Federal Communications Commission (FCC) rules and regulations.The Citizens Band (CB) Radio Service is under the jurisdiction of the • FCC. Any alterations such as replacing any parts in the CB radio that alter the performance of the unit’s original FCC equipment authorization are strictly prohibited.Any changes or modifications not expressly approved the party • responsible for compliance could void the user’s authority to operate the equipment.Carefully read Part 95 of the FCC Rules and Regulations before using the • device. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.This CB radio has been approved by the Federal Communications • Commission (FCC) in the U.S.A. and Industry Canada (IC) in Canada, and the FCC ID and IC numbers are shown on the label. An individual license is not required in either the U.S.A. or Canada. Please read the rules for operating a CB transmitter carefully.Carefully read the User’s Guide and Citizens Band Radio service rules • before operating the CB radio. Learn and observe all the rules.
3IntroductionCongratulations on your purchase of this Honda Genuine Accessory. This CB radio will enhance the enjoyment of riding your motorcycle.Before using this CB radio, read the User's Guide carefully. Following the instructions • in the guide will allow you to experience the full functionality of the radio.Store this guide on your motorcycle so that you can refer to it wherever required. • Make sure you read and understand the guide before you start using the transceiver as incorrect operation could be dangerous.You will be given a completed Warranty Card by the dealer who sold you your CB • radio. Check the details of the Warranty Card and keep it with the User's Guide.Notes on SafetyExplanation of safety labels, symbols, and instructionsThe User’s Guide should be kept with the motorcycle at all times.Listed below are examples of important safety labels, symbols, and instructions used in the User’s Guide indicating various levels of risk if the instructions are not properly followed.Guide for Notes and TipsNOTE : This sign gives notes and helpful information on the use of the CB radio.TIP(*): This sign gives additional information to the content.WARNINGYou CAN be KILLED or SERIOUSLY HURT if you don’t follow these instructions.Classification of Other Symbols This symbol indicates “Do not” with the detail depicted in the symbol (in this example, it means do not disassemble). This symbol indicates to pay close attention to the procedure.CAUTIONYou CAN be HURT if you don’t follow these instructions.

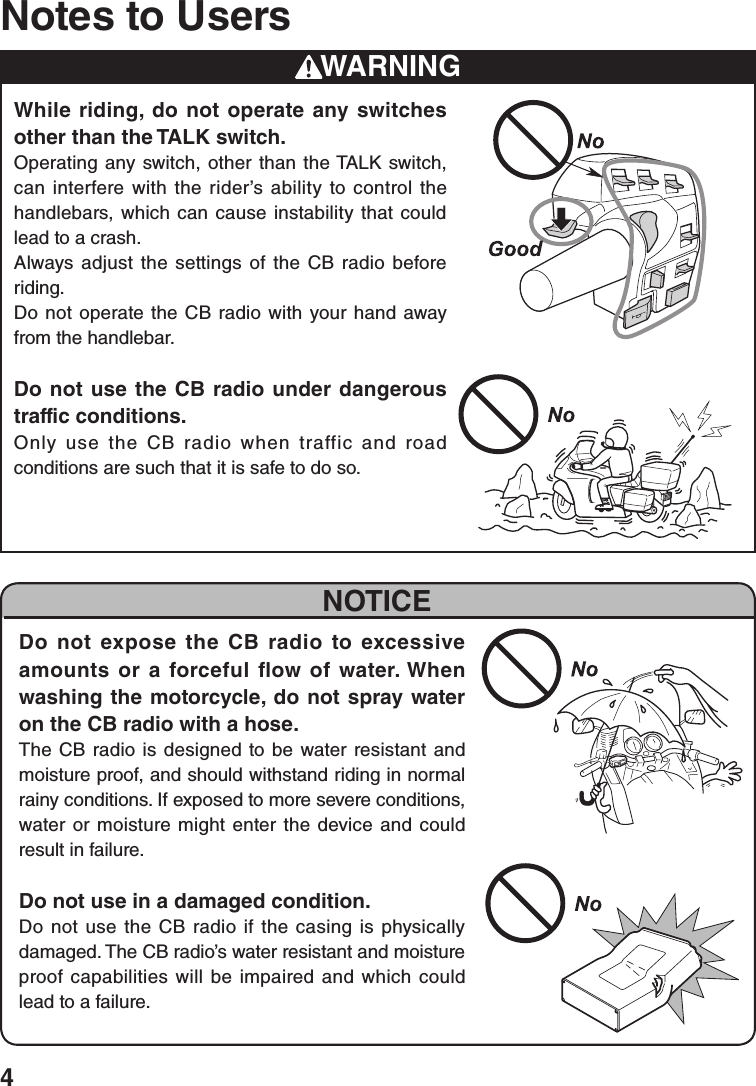

4Notes to UsersWARNINGWhile riding, do not operate any switches other than the TALK switch.Operating any switch, other than the TALK switch, can interfere with the rider’s ability to control the handlebars, which can cause instability that could lead to a crash.Always adjust the settings of the CB radio before riding.Do not operate the CB radio with your hand away from the handlebar.Do not use the CB radio under dangerous traffic conditions.Only use the CB radio when traffic and road conditions are such that it is safe to do so.NOTICEDo not expose the CB radio to excessive amounts or a forceful flow of water. When washing the motorcycle, do not spray water on the CB radio with a hose.The CB radio is designed to be water resistant and moisture proof, and should withstand riding in normal rainy conditions. If exposed to more severe conditions, water or moisture might enter the device and could result in failure.Do not use in a damaged condition.Do not use the CB radio if the casing is physically damaged. The CB radio’s water resistant and moisture proof capabilities will be impaired and which could lead to a failure.

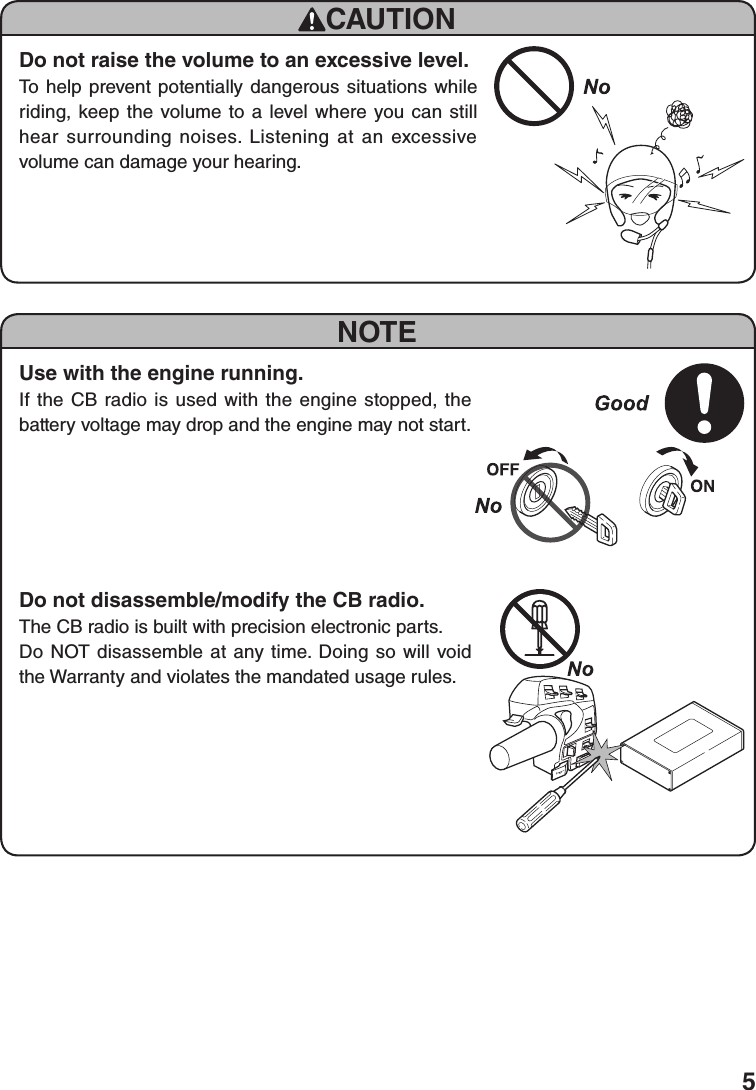

5NOTEUse with the engine running.If the CB radio is used with the engine stopped, the battery voltage may drop and the engine may not start.Do not disassemble/modify the CB radio.The CB radio is built with precision electronic parts.Do NOT disassemble at any time. Doing so will void the Warranty and violates the mandated usage rules.CAUTIONDo not raise the volume to an excessive level.To help prevent potentially dangerous situations while riding, keep the volume to a level where you can still hear surrounding noises. Listening at an excessive volume can damage your hearing.

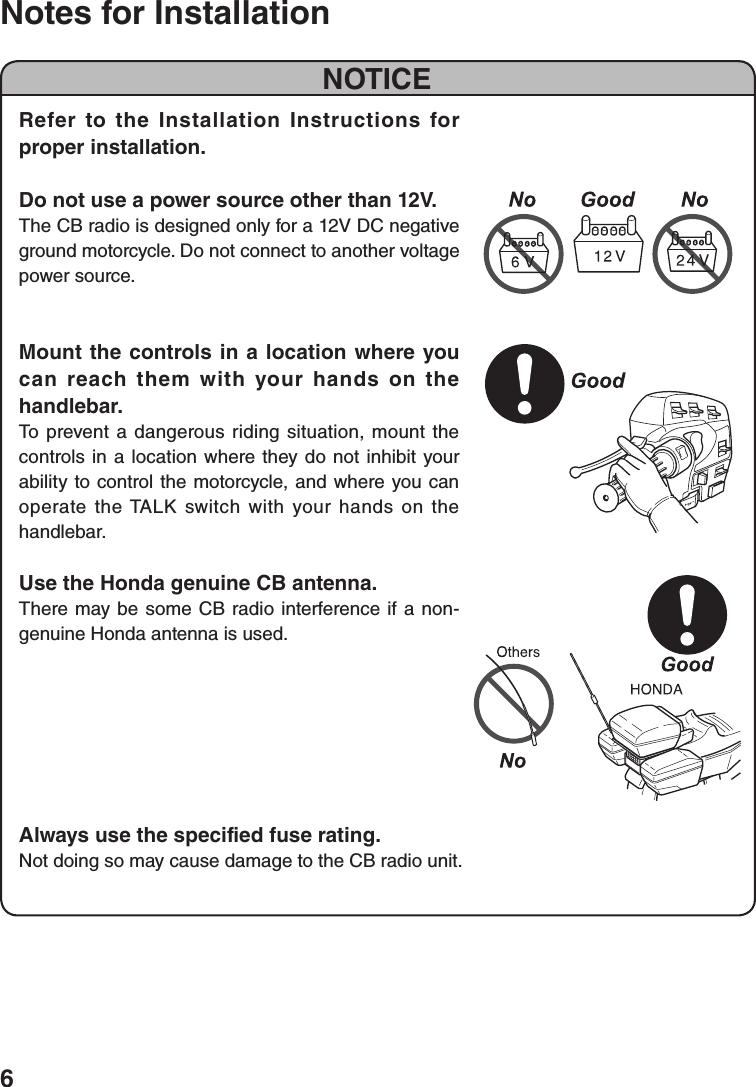

6Notes for InstallationNOTICERefer to the Installation Instructions for proper installation.Do not use a power source other than 12V.The CB radio is designed only for a 12V DC negative ground motorcycle. Do not connect to another voltage power source.Mount the controls in a location where you can reach them with your hands on the handlebar.To prevent a dangerous riding situation, mount the controls in a location where they do not inhibit your ability to control the motorcycle, and where you can operate the TALK switch with your hands on the handlebar.Use the Honda genuine CB antenna.There may be some CB radio interference if a non-genuine Honda antenna is used.Always use the specified fuse rating.Not doing so may cause damage to the CB radio unit.

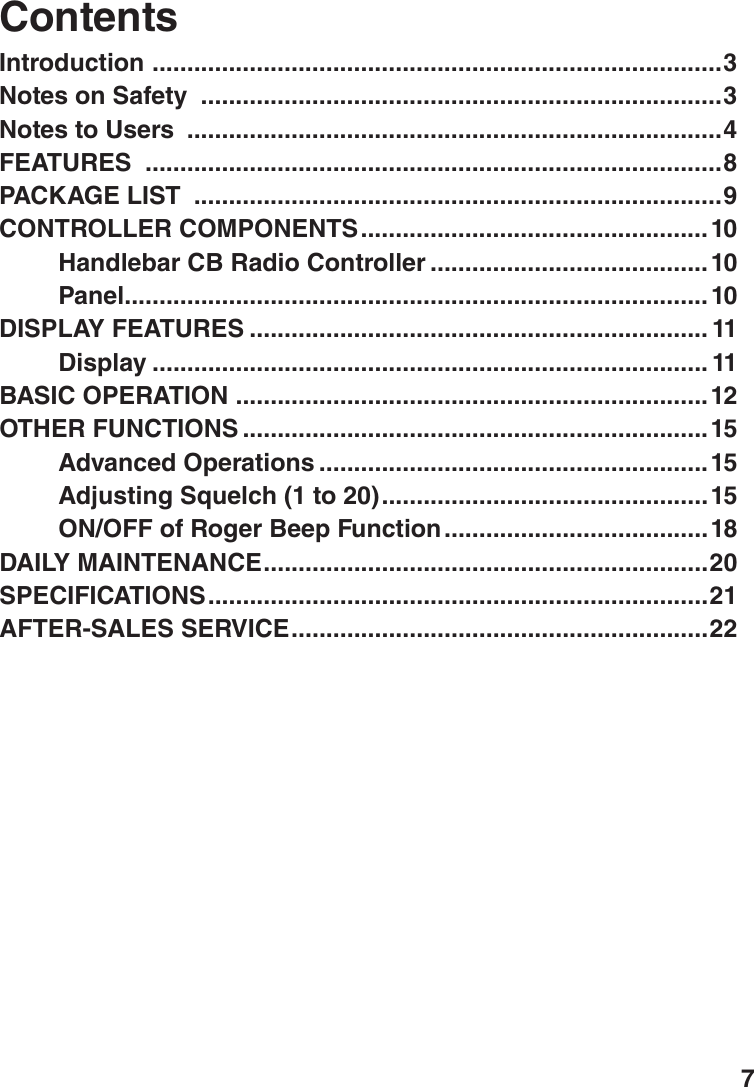

7Introduction ..................................................................................3Notes on Safety ...........................................................................3Notes to Users .............................................................................4FEATURES ...................................................................................8PACKAGE LIST ............................................................................9CONTROLLER COMPONENTS ..................................................10Handlebar CB Radio Controller ........................................ 10Panel ....................................................................................10DISPLAY FEATURES .................................................................. 11Display ................................................................................ 11BASIC OPERATION ....................................................................12OTHER FUNCTIONS ...................................................................15Advanced Operations ........................................................15Adjusting Squelch (1 to 20) ...............................................15ON/OFF of Roger Beep Function ......................................18DAILY MAINTENANCE ................................................................20SPECIFICATIONS ........................................................................21AFTER-SALES SERVICE ............................................................22Contents

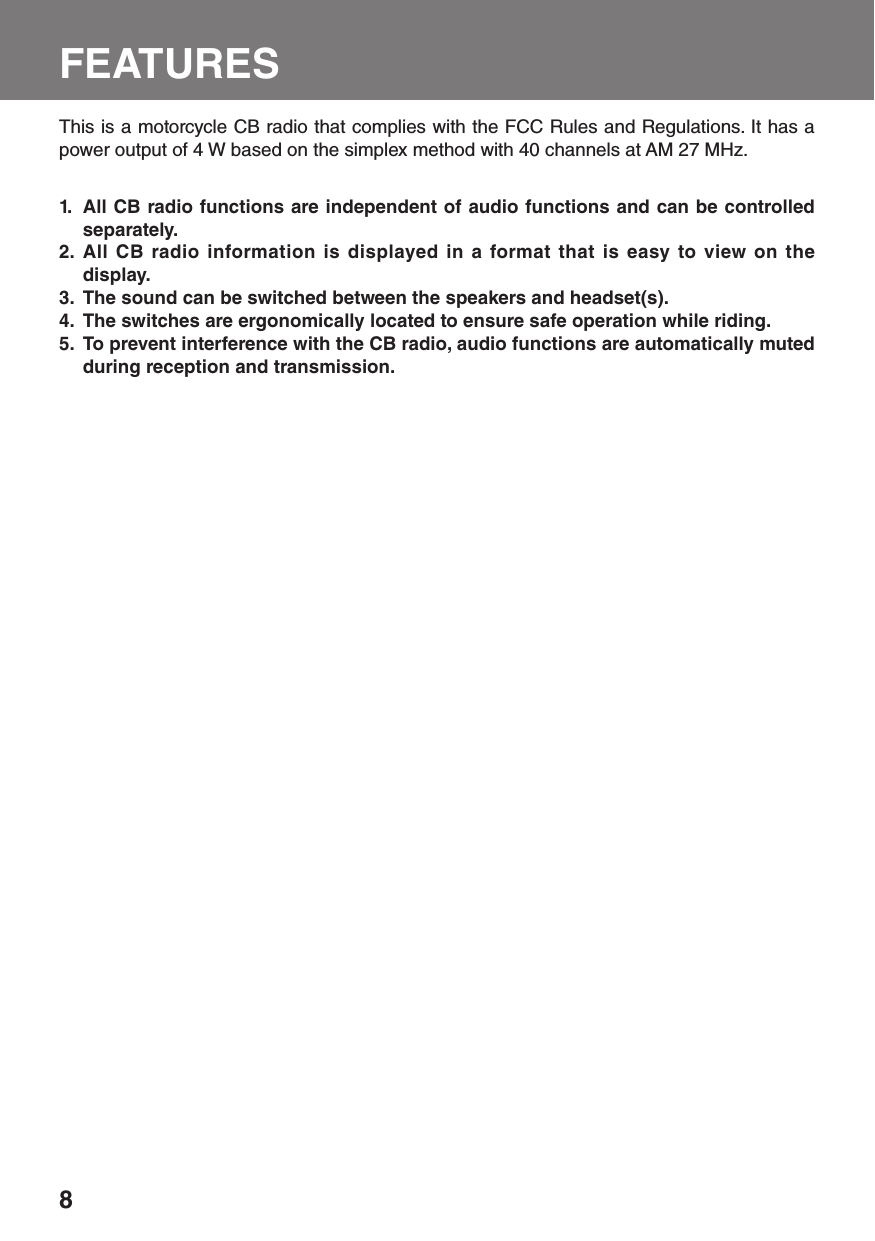

8FEATURESThis is a motorcycle CB radio that complies with the FCC Rules and Regulations. It has a power output of 4 W based on the simplex method with 40 channels at AM 27 MHz.All CB radio functions are independent of audio functions and can be controlled 1. separately.All CB radio information is displayed in a format that is easy to view on the 2. display.The sound can be switched between the speakers and headset(s).3. The switches are ergonomically located to ensure safe operation while riding.4. To prevent interference with the CB radio, audio functions are automatically muted 5. during reception and transmission.

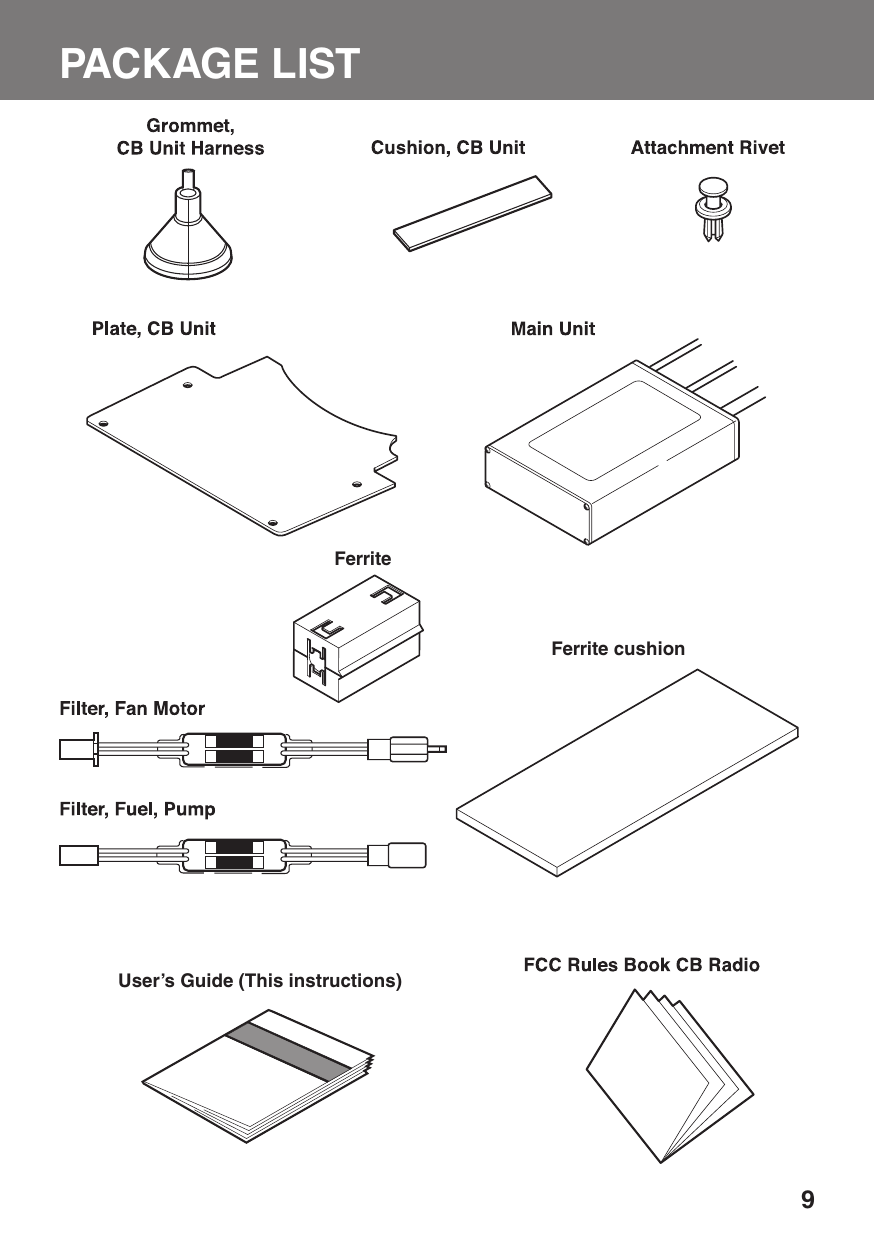

9PACKAGE LISTUser’s Guide (This instructions)FerriteFerrite cushion

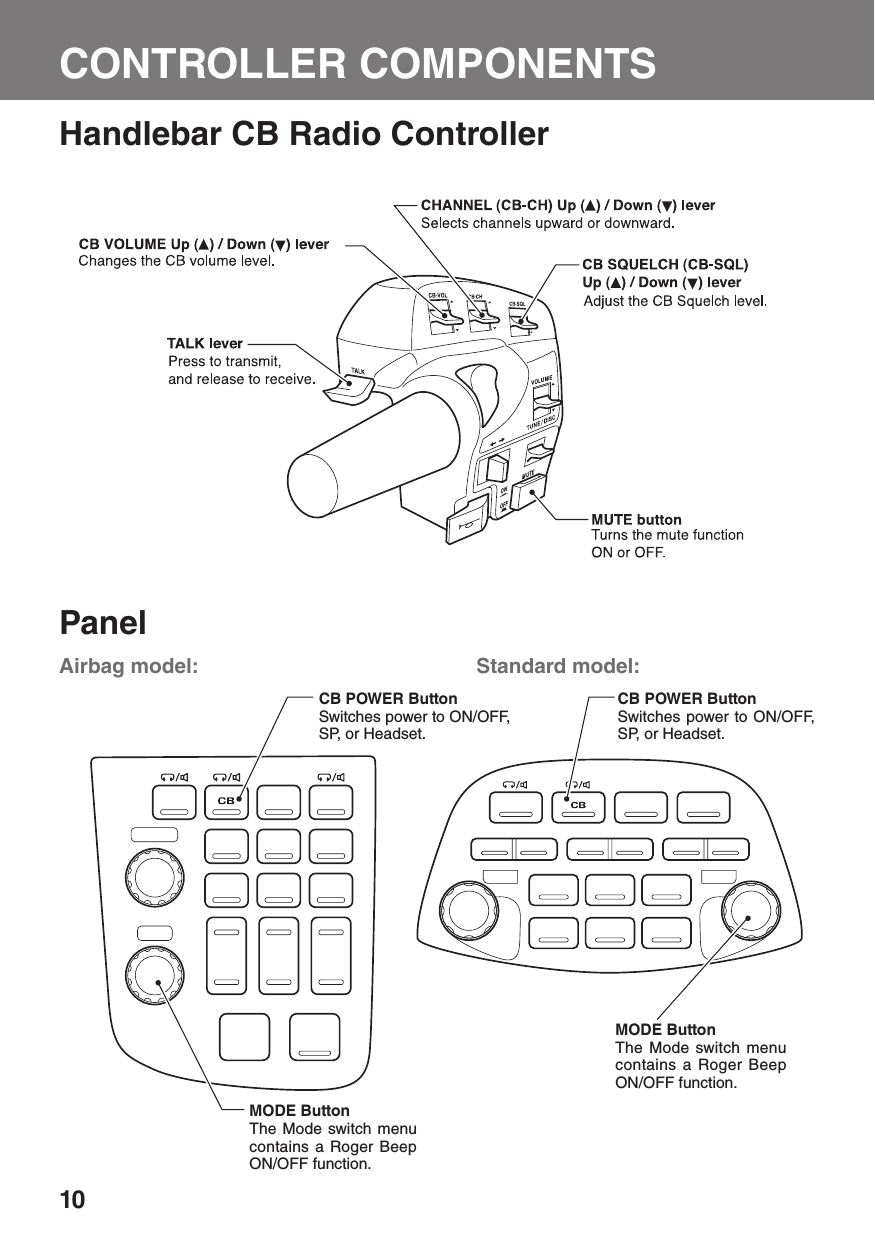

10CONTROLLER COMPONENTSHandlebar CB Radio ControllerPanelMODE ButtonThe Mode switch menu contains a Roger Beep ON/OFF function.MODE ButtonThe Mode switch menu contains a Roger Beep ON/OFF function.CB POWER ButtonSwitches power to ON/OFF, SP, or Headset.CB POWER ButtonSwitches power to ON/OFF, SP, or Headset.Airbag model: Standard model:
11DISPLAY FEATURESDisplayThe CB radio is normally set to automatically receive a signal.RX is displayed when a signal is received.No indication is made when there is no signal to receive.TX is displayed during transmission.Basic indicationsThe following icons are shown on the left side of the display when the CB radio is • operating.This icon indicates that the CB radio’s sound is being transmitted through the speakers.This icon indicates that the CB radio’s sound is being transmitted through the headset(s).Press the CB button on the switch panel located on the fuel tank, or right side fairing panel on airbag models, to switch the sound between the speakers and the headset(s). The displayed icon changes accordingly.CH indicates the currently used channel (frequency).RX and TX indicate reception and transmission, respectively.

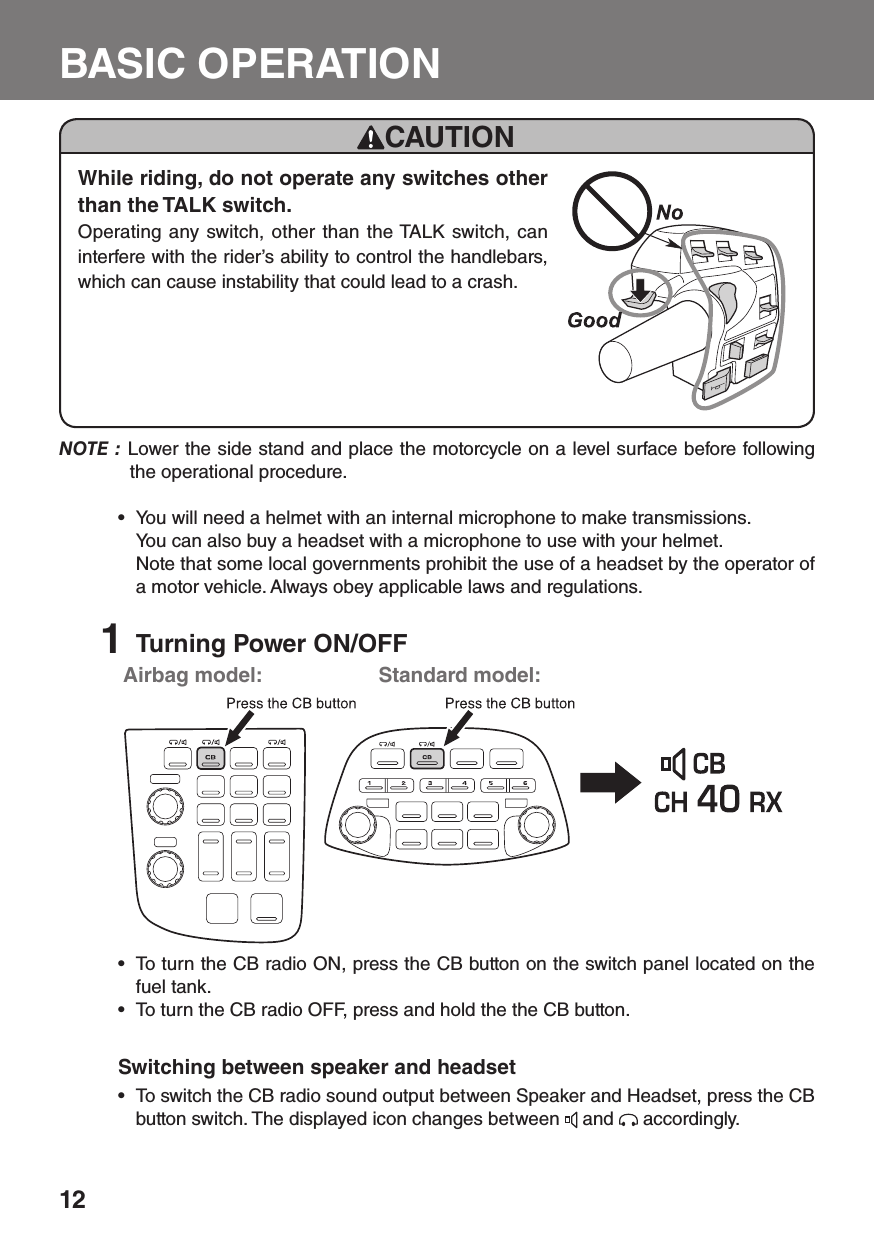

12BASIC OPERATIONTo turn the CB radio ON, press the CB button on the switch panel located on the • fuel tank. To turn the CB radio OFF, press and hold the the CB button.• Switching between speaker and headsetTo switch the CB radio sound output between Speaker and Headset, press the CB • button switch. The displayed icon changes between and accordingly.Airbag model: Standard model:NOTE : Lower the side stand and place the motorcycle on a level surface before following the operational procedure.You will need a helmet with an internal microphone to make transmissions.• You can also buy a headset with a microphone to use with your helmet. Note that some local governments prohibit the use of a headset by the operator of a motor vehicle. Always obey applicable laws and regulations.1 Turning Power ON/OFFCAUTIONWhile riding, do not operate any switches other than the TALK switch.Operating any switch, other than the TALK switch, can interfere with the rider’s ability to control the handlebars, which can cause instability that could lead to a crash.

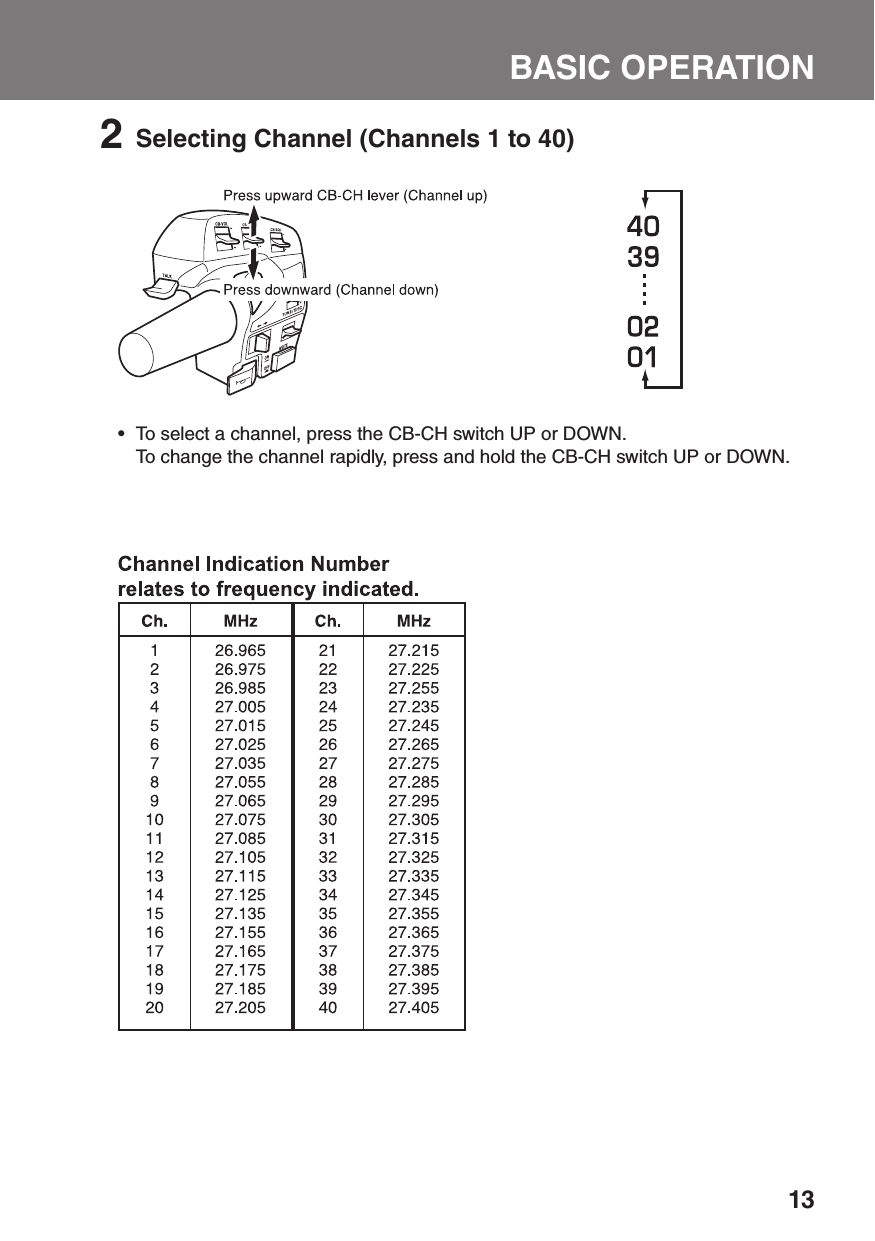

13BASIC OPERATION2 Selecting Channel (Channels 1 to 40)To select a channel, press the CB-CH switch UP or DOWN.• To change the channel rapidly, press and hold the CB-CH switch UP or DOWN.

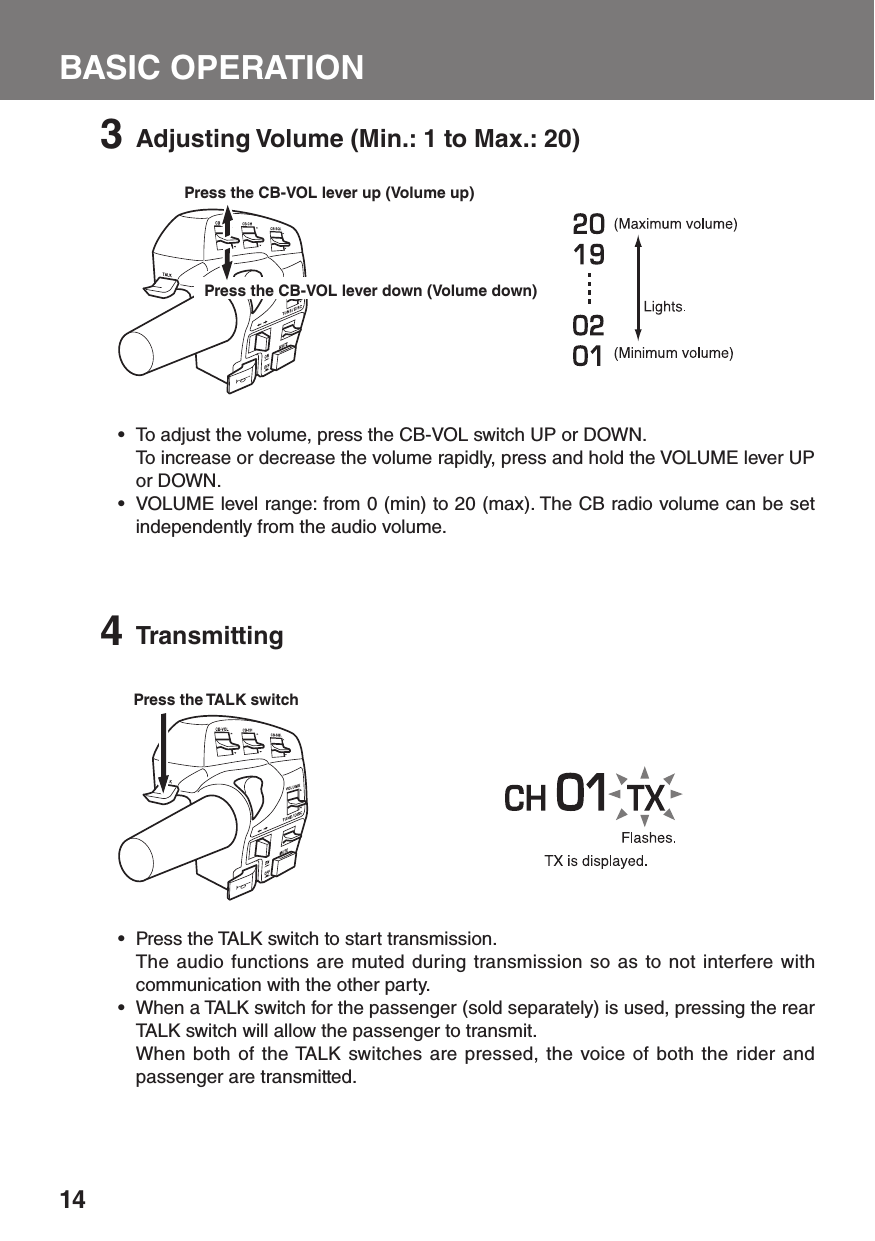

144 TransmittingBASIC OPERATION3 Adjusting Volume (Min.: 1 to Max.: 20)To adjust the volume, press the CB-VOL switch UP or DOWN.• To increase or decrease the volume rapidly, press and hold the VOLUME lever UP or DOWN.VOLUME level range: from 0 (min) to 20 (max). The CB radio volume can be set • independently from the audio volume.Press the TALK switch to start transmission.• The audio functions are muted during transmission so as to not interfere with communication with the other party.When a TALK switch for the passenger (sold separately) is used, pressing the rear • TALK switch will allow the passenger to transmit. When both of the TALK switches are pressed, the voice of both the rider and passenger are transmitted.Press the CB-VOL lever down (Volume down)Press the CB-VOL lever up (Volume up)Press the TALK switch

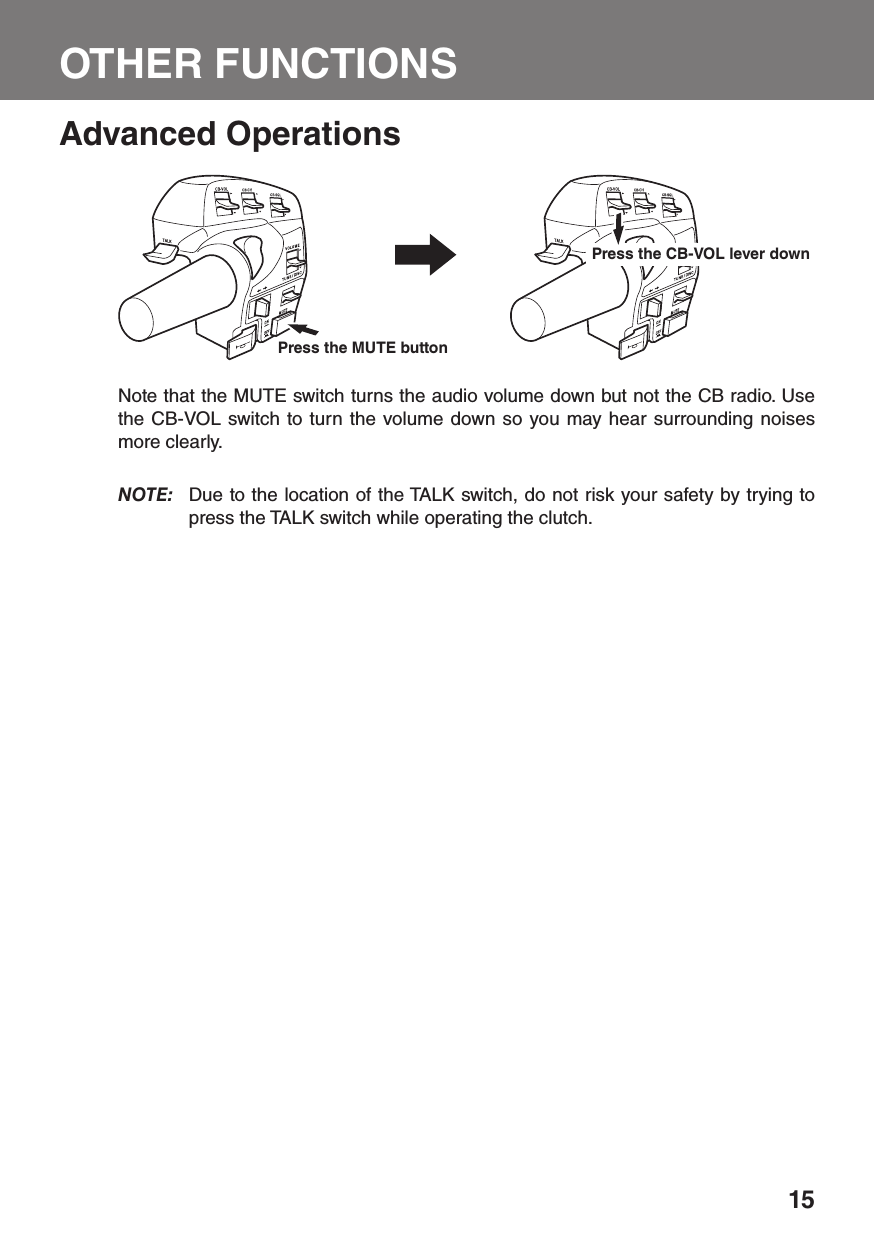

15OTHER FUNCTIONSAdvanced OperationsNote that the MUTE switch turns the audio volume down but not the CB radio. Use the CB-VOL switch to turn the volume down so you may hear surrounding noises more clearly.NOTE: Due to the location of the TALK switch, do not risk your safety by trying to press the TALK switch while operating the clutch.Press the MUTE buttonPress the CB-VOL lever down

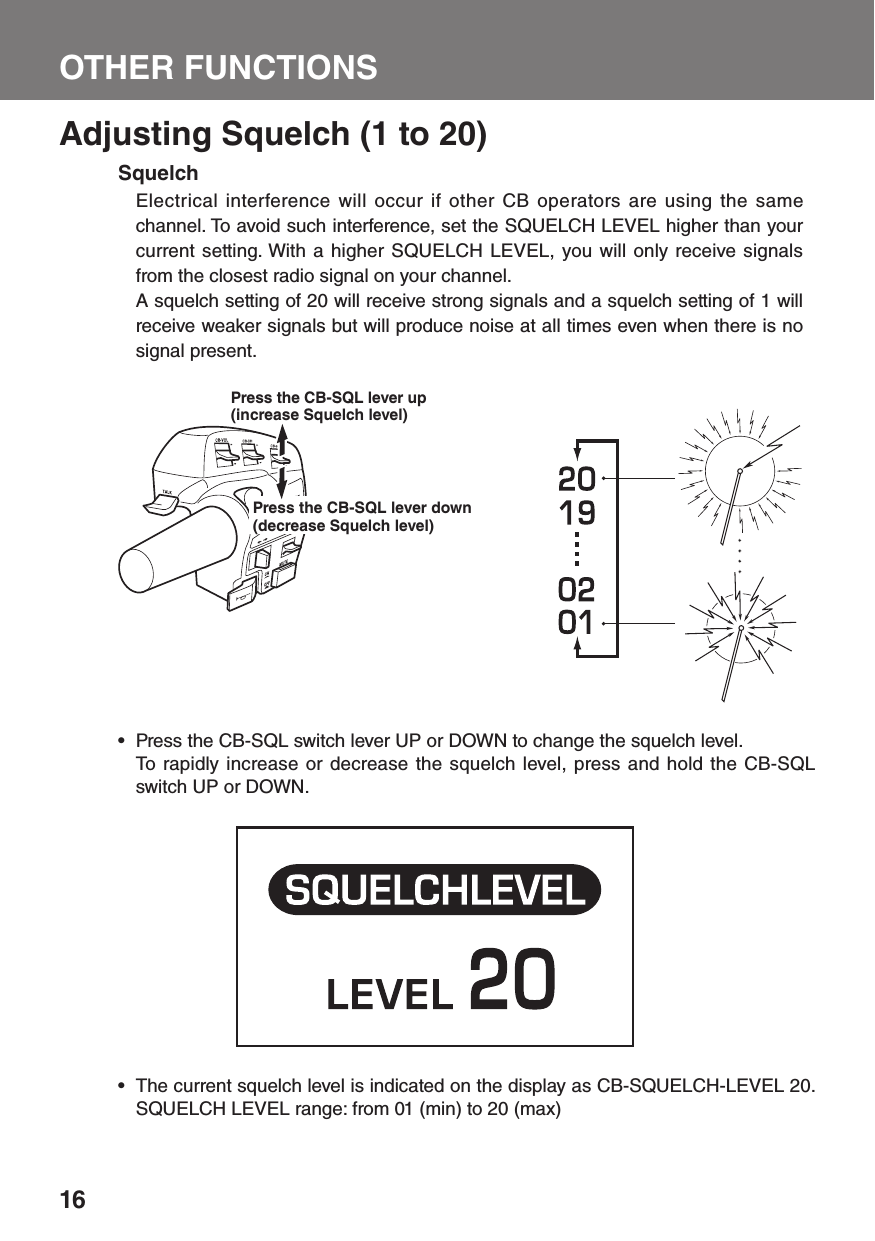

16OTHER FUNCTIONSAdjusting Squelch (1 to 20)SquelchElectrical interference will occur if other CB operators are using the same channel. To avoid such interference, set the SQUELCH LEVEL higher than your current setting. With a higher SQUELCH LEVEL, you will only receive signals from the closest radio signal on your channel.A squelch setting of 20 will receive strong signals and a squelch setting of 1 will receive weaker signals but will produce noise at all times even when there is no signal present.Press the CB-SQL switch lever UP or DOWN to change the squelch level. • To rapidly increase or decrease the squelch level, press and hold the CB-SQL switch UP or DOWN.The current squelch level is indicated on the display as CB-SQUELCH-LEVEL 20. • SQUELCH LEVEL range: from 01 (min) to 20 (max)Press the CB-SQL lever up (increase Squelch level)Press the CB-SQL lever down (decrease Squelch level)

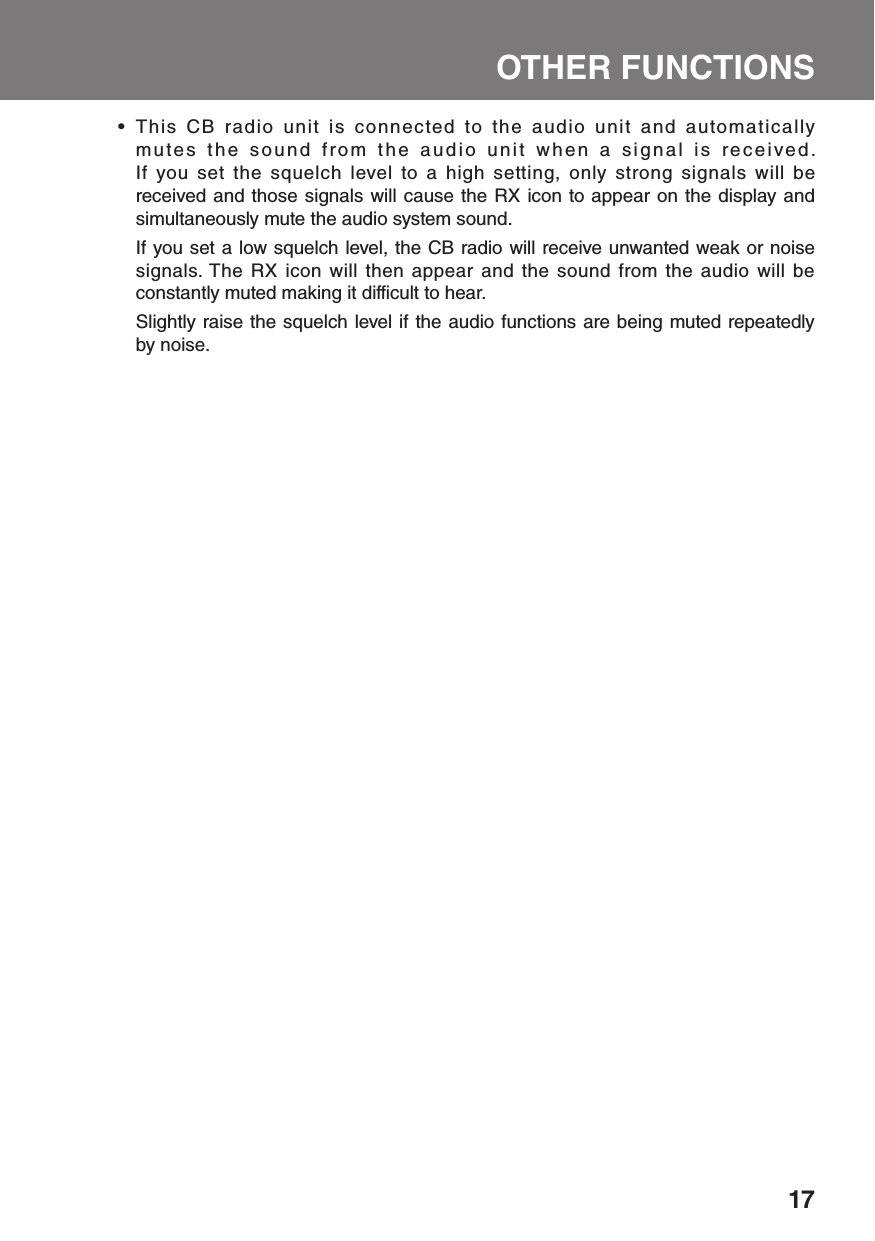

17OTHER FUNCTIONS• ThisCBradiounitisconnectedtotheaudiounitandautomaticallymutes the sound from the audio unit when a signal is received. If you set the squelch level to a high setting, only strong signals will be received and those signals will cause the RX icon to appear on the display and simultaneously mute the audio system sound. If you set a low squelch level, the CB radio will receive unwanted weak or noise signals. The RX icon will then appear and the sound from the audio will be constantly muted making it difficult to hear. Slightly raise the squelch level if the audio functions are being muted repeatedly by noise.

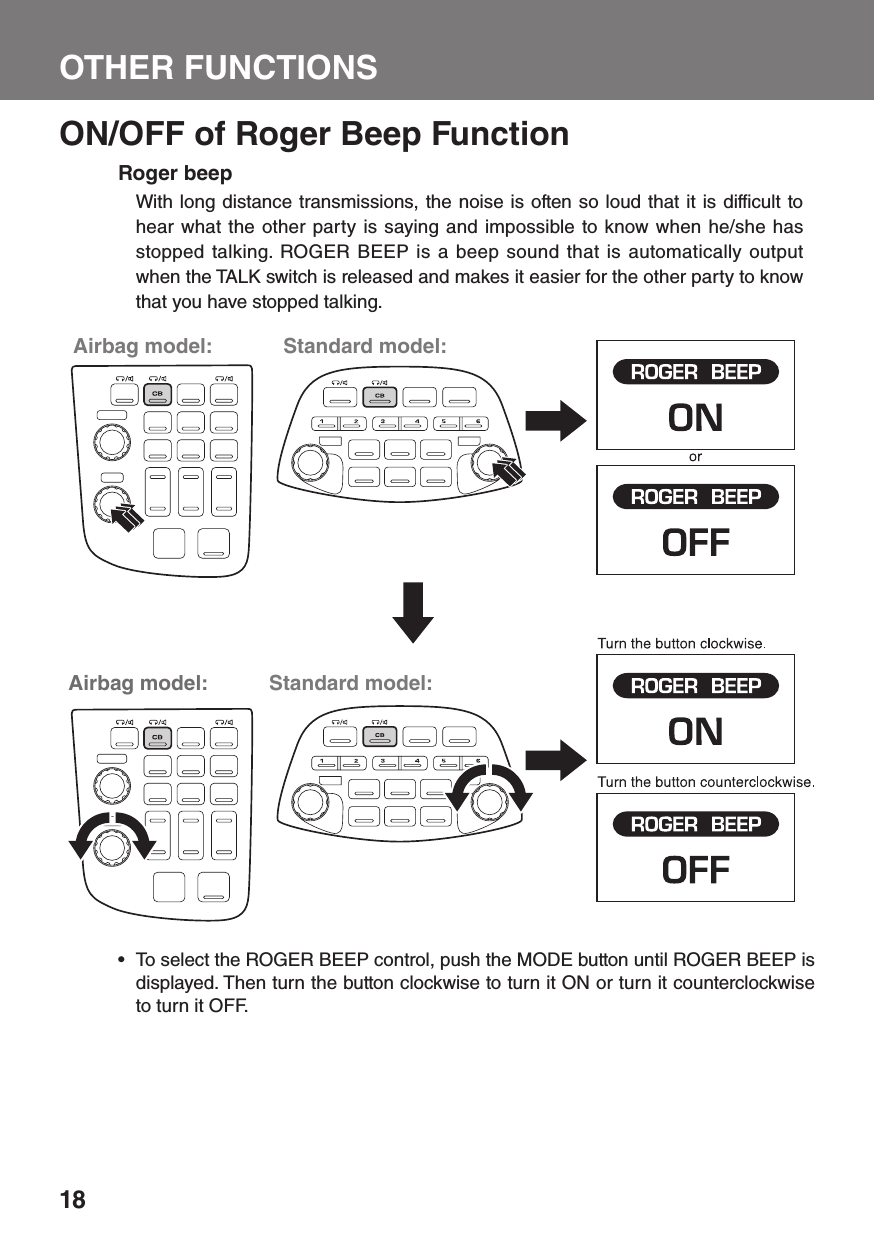

18OTHER FUNCTIONSON/OFF of Roger Beep FunctionRoger beepWith long distance transmissions, the noise is often so loud that it is difficult to hear what the other party is saying and impossible to know when he/she has stopped talking. ROGER BEEP is a beep sound that is automatically output when the TALK switch is released and makes it easier for the other party to know that you have stopped talking.To select the ROGER BEEP control, push the MODE button until ROGER BEEP is • displayed. Then turn the button clockwise to turn it ON or turn it counterclockwise to turn it OFF.Airbag model:Airbag model:Standard model:Standard model:

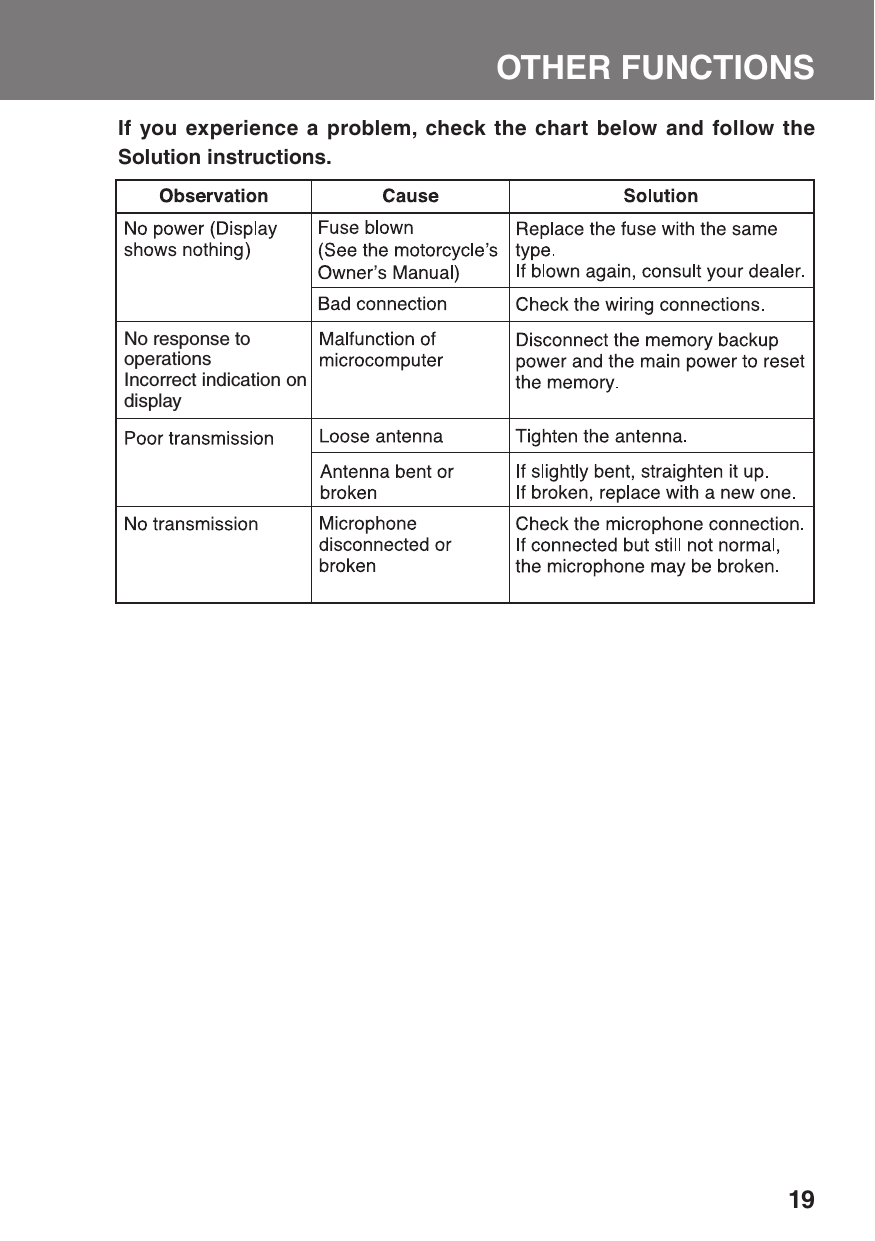

19OTHER FUNCTIONSIf you experience a problem, check the chart below and follow the Solution instructions.No response to operationsIncorrect indication on display

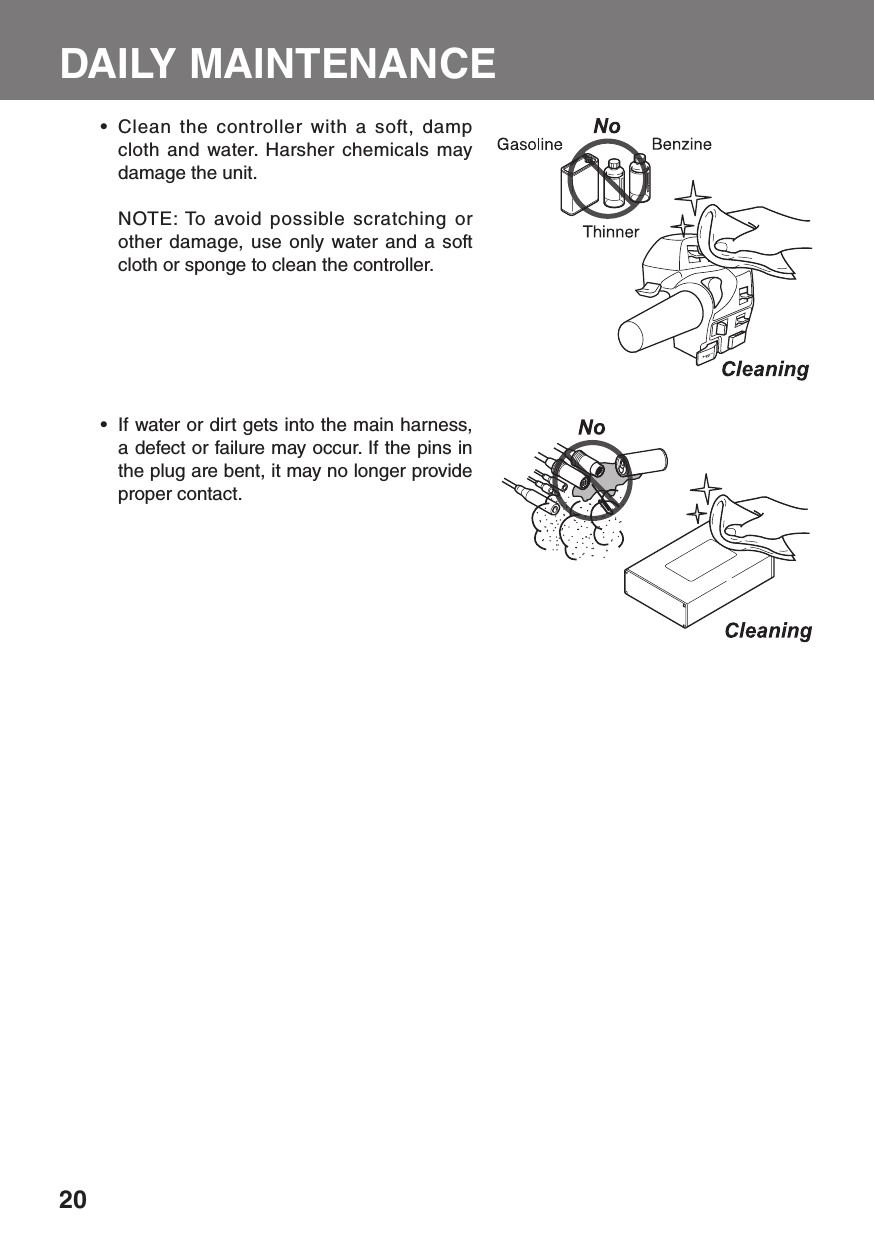

20DAILY MAINTENANCE Clean the controller with a soft, damp • cloth and water. Harsher chemicals may damage the unit. NOTE: To avoid possible scratching or other damage, use only water and a soft cloth or sponge to clean the controller.If water or dirt gets into the main harness, • a defect or failure may occur. If the pins in the plug are bent, it may no longer provide proper contact.

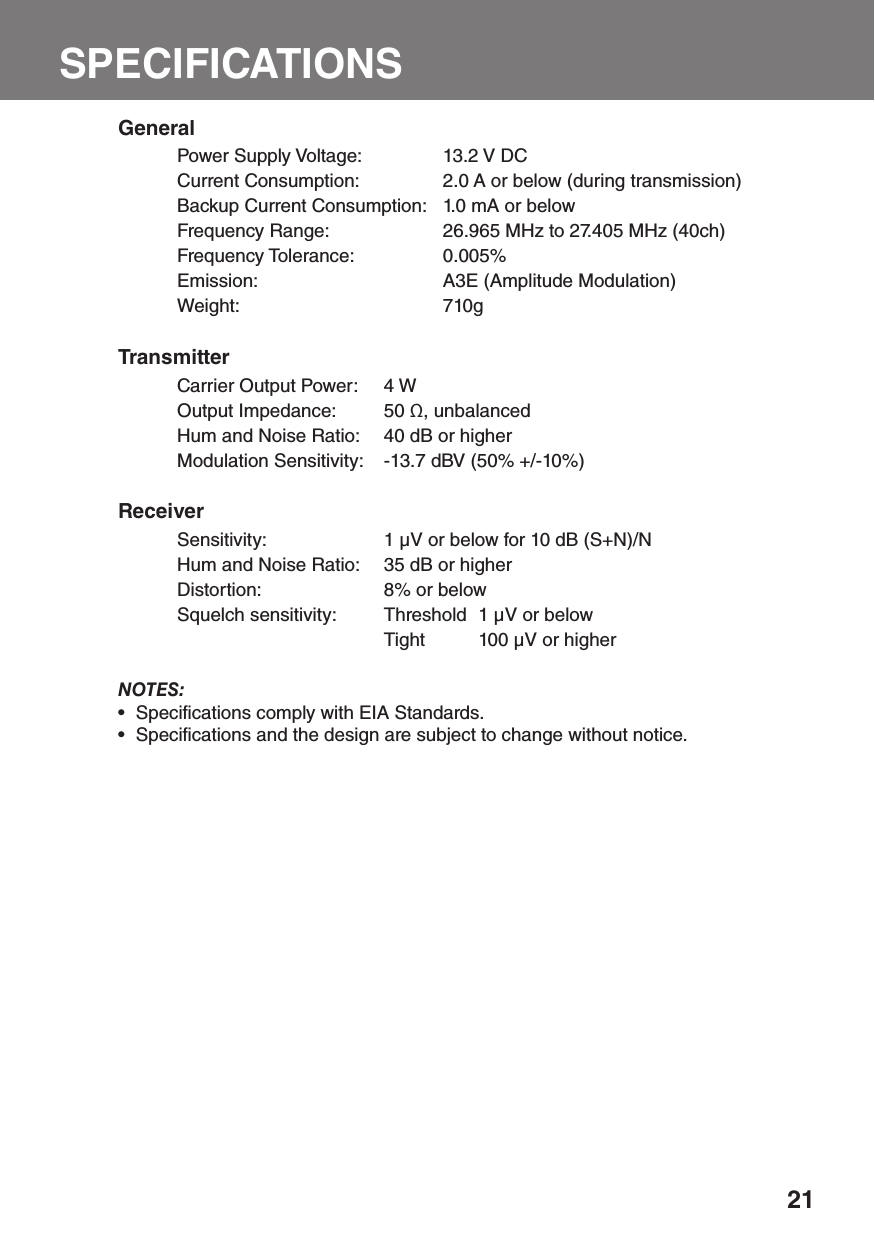

21SPECIFICATIONSGeneralPower Supply Voltage: 13.2 V DCCurrent Consumption: 2.0 A or below (during transmission)Backup Current Consumption: 1.0 mA or belowFrequency Range: 26.965 MHz to 27.405 MHz (40ch)Frequency Tolerance: 0.005%Emission: A3E (Amplitude Modulation)Weight: 710gTransmitterCarrier Output Power: 4 WOutput Impedance: 50 Ω, unbalancedHum and Noise Ratio: 40 dB or higherModulation Sensitivity: -13.7 dBV (50% +/-10%)ReceiverSensitivity: 1 μV or below for 10 dB (S+N)/NHum and Noise Ratio: 35 dB or higherDistortion: 8% or belowSquelch sensitivity: Threshold 1 μV or below Tight 100 μV or higherNOTES:Specifications comply with EIA Standards.• Specifications and the design are subject to change without notice.•

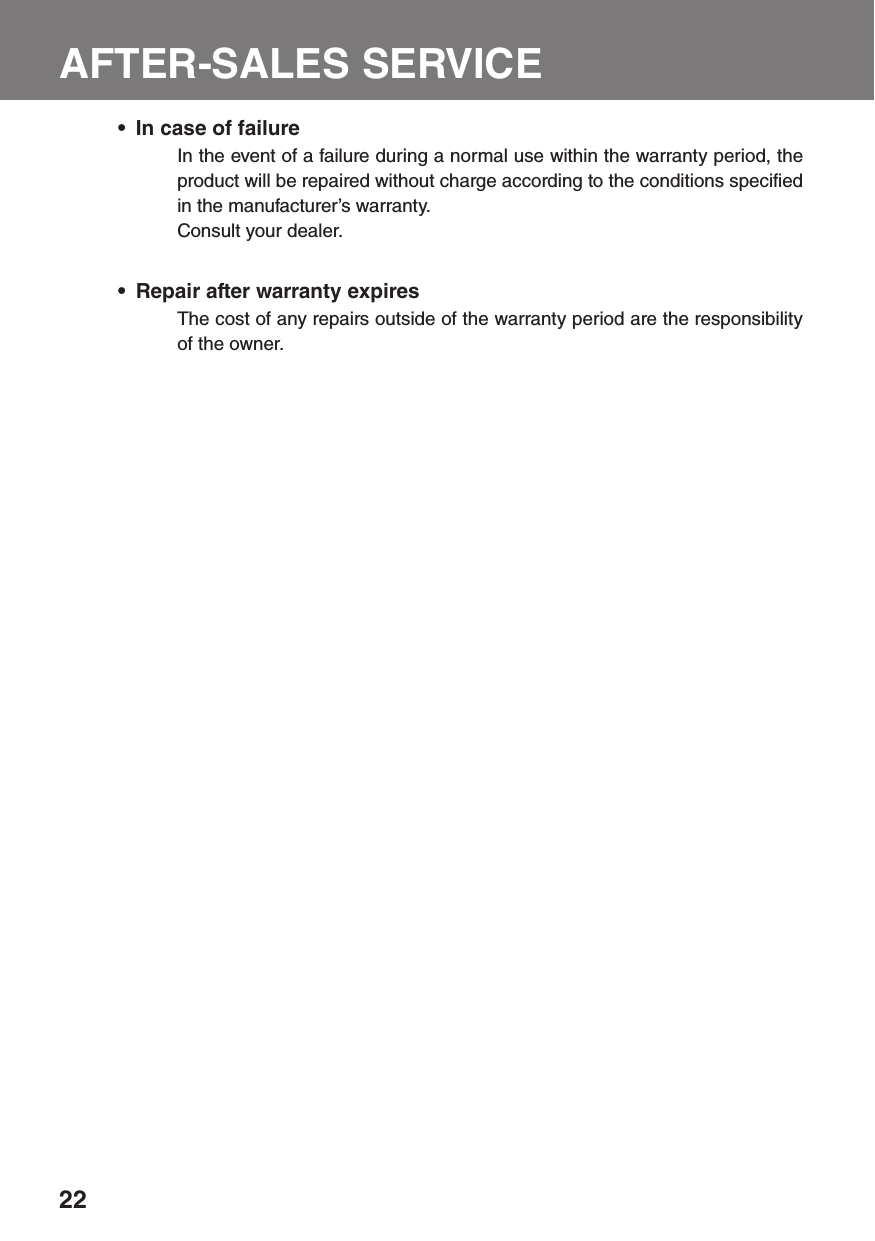

22AFTER-SALES SERVICEIn case of failure• In the event of a failure during a normal use within the warranty period, the product will be repaired without charge according to the conditions specified in the manufacturer’s warranty.Consult your dealer.Repair after warranty expires• The cost of any repairs outside of the warranty period are the responsibility of the owner.
23
All Rights Reserved. Printed in USAP/N: 87947-MCA-R10----------
