Appendix G: Manual

Please see the following pages.

RTI350

REMOTE WIRELESS TRIGGER & ILLUMINATOR

INSTRUCTION MANUAL

Table of Contents

I. RTI350 Overview ................................................................................ 1

II. HyperFireTM RTI350 Controls & Parts Diagram ............................... 2

III. Remote Quick Setup .......................................................................... 3

IV. Batteries & Controls .......................................................................... 4

V. Setup & Programming ....................................................................... 6

VI. Mounting Your Remote...................................................................... 9

VII. WalkTest and System Verification ................................................. 10

VIII. Additional Remote Options ............................................................. 13

IX. Troubleshooting ............................................................................... 14

X. Warranty, FCC, and Safety Information ......................................... 16

XI. Your Information and Warranty Registration ................................ 18

1 ©RECONYX, Inc.

RTI350 Overview

Congratulations on purchasing a RECONYXTM RTI350 Wireless Remote Trigger and

Illuminator. The HyperFire™ RTI350 is a state-of-the-art wireless Passive InfraRed

(PIR) motion detector, and a night time InfraRed (IR) lluminator that is enclosed in a

secure, rugged, and weather-resistant case.

The RTI350 communicates wirelessly with a Remote Enabled Security or

Professional series camera from RECONYXTM up to a range of 100ft.

The RTI350’s motion sensor and illuminator can be used either as a supplement to or

as a replacement for the camera’s motion sensor and illuminator.

In the case where you are using it as a supplement to the camera you will need to be

sure the front of the camera is not blocked, or at least the parts of the camera that

you are using (i.e. illuminator and/or motion detector).

In the case where you want to use the Remote’s illumination and motion sensing

capabilities rather than the camera’s, you should turn off these functions on the

camera to save power and ensure you get the results you expect. In this case the

Camera can then be hidden while exposing only the lens and the light sensor (to the

left of the lens). The Remote will serve as the trigger and illuminator in this scenario.

Contents of this package:

 HyperFireTM RTI350 Wireless Trigger and Illuminator

 Adjustable bungee cord for mounting

 This instruction manual

Other things you will need:

 HyperFireTM Professional or Security Camera; enabled for use with the RTI350

 12 AA Batteries

NOTE: The RTI350 must be run on either NiMH rechargeable batteries or

Energizer® 1.5V AA Ultimate Lithium batteries.

NOTE: If you have any questions or concerns relating to the operation or

functionality of your device, please read the FAQs or contact our

Technical Service Department through our website at

www.reconyx.com or by calling toll free 866-493-6064.

www.reconyx.com 2

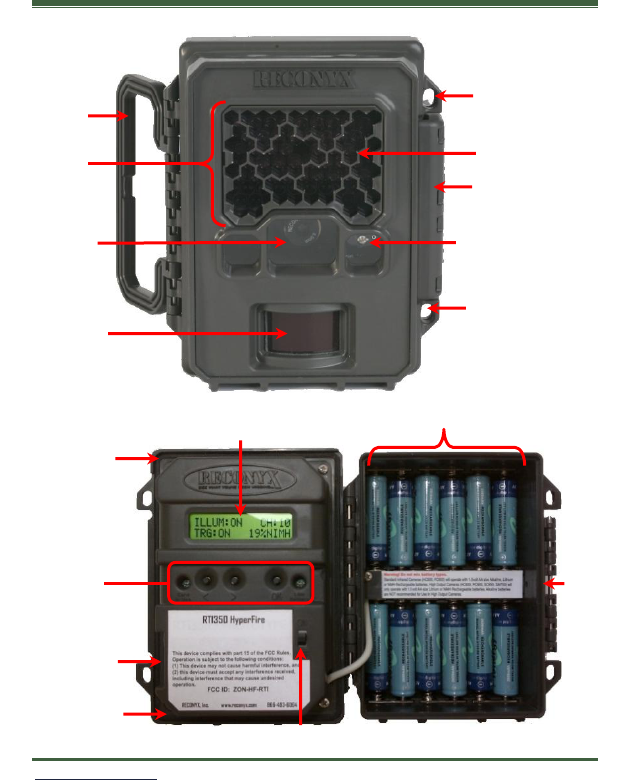

HyperFireTM RTI350 Controls & Parts Diagram

Infrared

Illuminator

Handle

PIR Motion

Detector

Padlock

Loop

Padlock

Loop

IR Mask

WalkTest Light

Latch

Backlit LCD

Status/Menu Panel

Battery

Bays

Weatherproof

Gasket

- In Use Light

- Left Menu Button

- Right Menu Button

- OK Button

- Low Battery Light

PIR

Sensitivity

WARRANTY

SEAL

On/Off Power

Switch

Breathable

Vent

Fake

Lens

3 ©RECONYX, Inc.

Remote Quick Setup

First Time Setup

The first time you turn on your RTI350, you will be asked to select what type of

batteries you are using (NIMH or Lithium).

Once this option is selected the Remote is ready for use with the default settings.

Default settings on the Remote unit are:

 Illuminator: On

 Trigger: On

 Channel: 1

Default settings for a Camera that is Remote Enabled are:

 Illuminator (on camera): On

 Trigger (on camera): On

 Receiver: On

 Transmitter: On

 Channel: 1

NOTE:

 The default settings for both devices are set so that the remote unit is

configured to be used as a supplement (in addition) to the Camera’s

capabilities.

 If you want to use the Remote as the only trigger and/or illuminator for the

Camera, you should turn off the trigger and/or illuminator on the camera.

 If you deploy the camera without the RTI350, you should turn off the

“receiver” and “transmitter” on the camera in order to conserve power.

The RTI350 will only function with a camera that has been

Remote enabled.

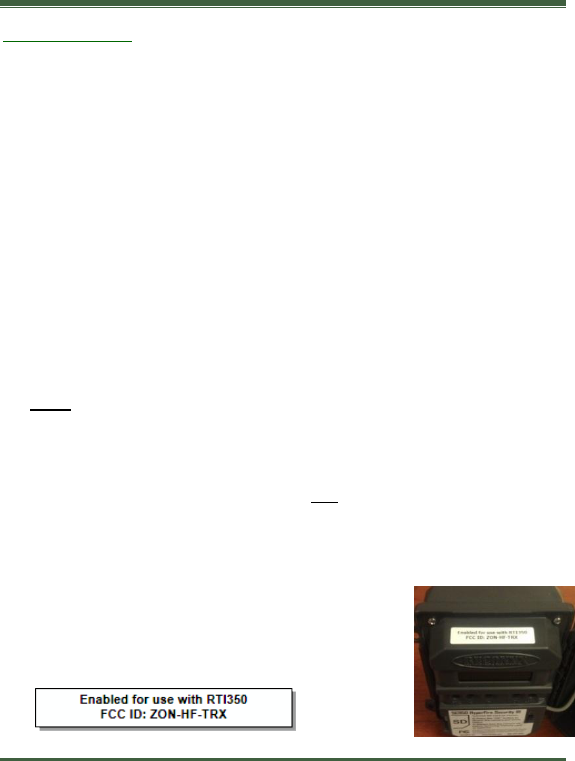

You can tell if your camera is Remote enabled by looking

for this sticker on the inside of your camera.

www.reconyx.com 4

Batteries & Controls

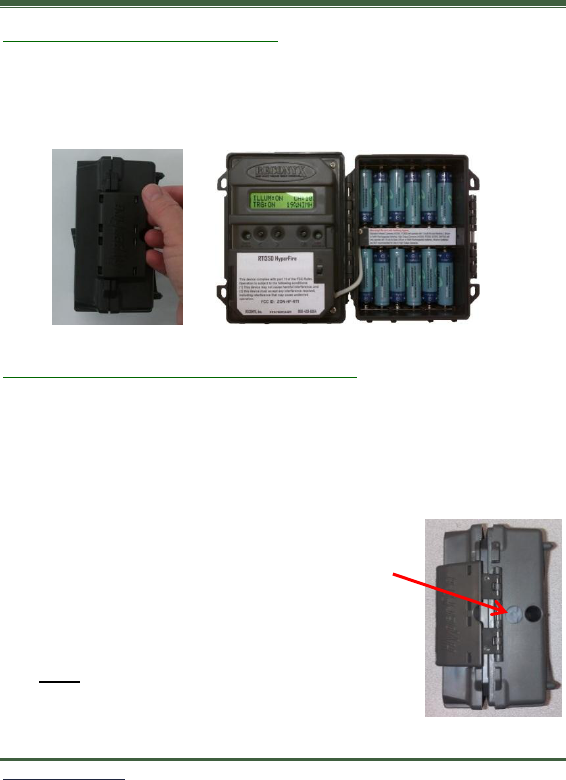

Accessing the Batteries & Controls

To install the batteries, your HyperFireTM RTI350 is easily opened using the latch on

the right side of the device. Grasp behind the latch and flip it toward the front. The

device will open like a book, allowing access to the batteries, memory card and

settings.

Weatherproof Enclosure and Breathable Vent

Although the RTI350 comes in a weatherproof enclosure, there are a few things to

know to maintain the remote.

 Each time you open your Remote it’s good practice to make sure the main

gasket is seated properly and no debris has gotten into the gasket channel. Also

be sure the latch is fully seated when closing your Remote to ensure a weather-

tight seal.

 There is also a breathable vent (pictured) underneath

the latch of the remote. This vent allows the case to

equalize the internal pressure with the outside

environment while preventing moisture from entering

the case.

NOTE: If the vent becomes damaged in any way,

contact Reconyx for a replacement to prevent damage

to your device.

5 ©RECONYX, Inc.

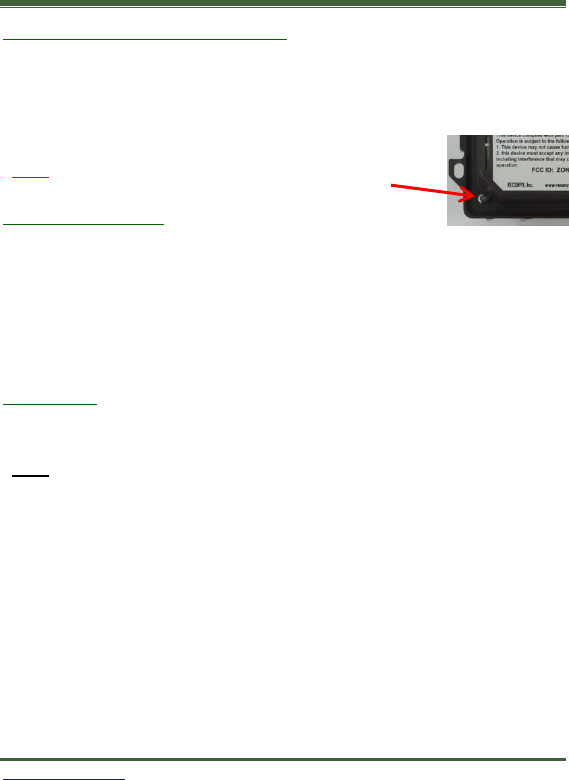

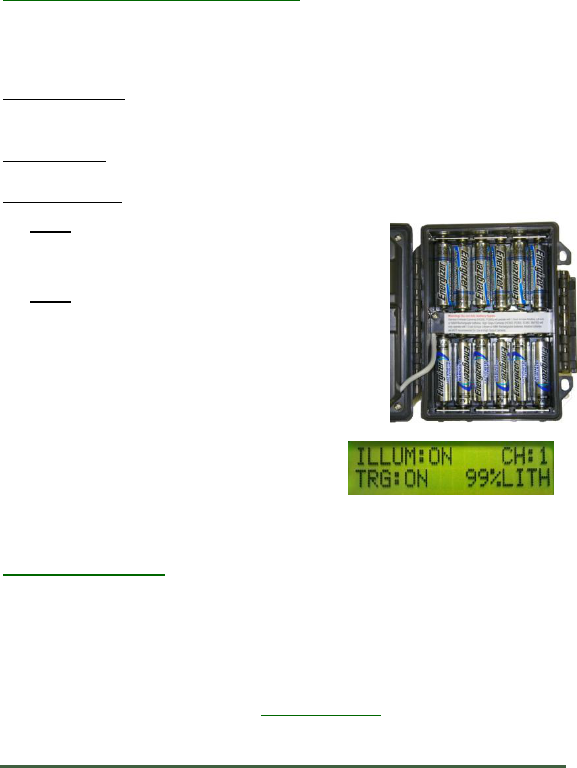

Battery Specifications and Installation

The RTI350 runs on twelve AA-cell batteries. We highly recommend using either

Energizer Ultimate Lithium batteries or high-quality NiMH Rechargeable batteries in

both your Camera and Remote.

Alkaline batteries: do not provide as much power as Lithium or NiMH batteries and

they are adversely affected by both hot and cold weather, so we do not recommend

using them in your RTI350.

NiMH batteries: will run at temperatures down to 0°F. High temperatures can reduce

run time of NiMH batteries by 50% or more.

Lithium batteries: will run well at high temperatures and down to -20°F.

NOTE: We strongly advise that you not attempt to

run alkaline batteries in the RTI350, as the

performance will be very poor.

NOTE: Be sure to load batteries in the proper

orientation (alternating positive/negative, six

in each battery bay).

Warning! Do not mix battery types! Damage to the

Remote can result and your warranty will be voided if

you mix battery types.

The Remote will display the status of multiple

battery types; be sure that the display is showing

the same type of battery that you are using. You

can change the battery type in the menu to either

Lithium (LITH) or Nickel-Metal Hydride (NIMH).

Battery Performance

Lithium batteries can last up to a year. However, because the Remote settings,

camera settings, subject activity, individual battery performance and temperature all

vary, there is no way to precisely predict the run time for any given set of batteries.

TIP: You can purchase 1.5V Lithium batteries as well as RECONYXTM certified NiMH

rechargeable batteries and chargers at www.reconyx.com.

www.reconyx.com 6

Setup & Programming

Turn your Remote on using the On/Off switch.

Press the << and >> buttons to scroll through settings, to select an option press the

OK button.

NOTE: If this is the first time you’ve used your Remote, it will automatically

display the Battery Type setup change option. Once you select the

correct battery type, your Remote is ready to use with the default

settings.

TIP: When powered on, the Remote will display

the current status; including Illuminator, Trigger,

Channel and Battery Percentage.

Default Settings

The RTI350 comes pre-programmed with factory default settings. By default the

Illuminator and Trigger are turned ON and the channel is set to 1.

If you wish to change your Remote’s settings you can do so easily at any time.

Changes are made using the control buttons and the LCD display. Once you make

selections, they are retained by the Remote; even when powered off or when the

batteries are removed, so that you don’t need to make selections again unless you

want to change something.

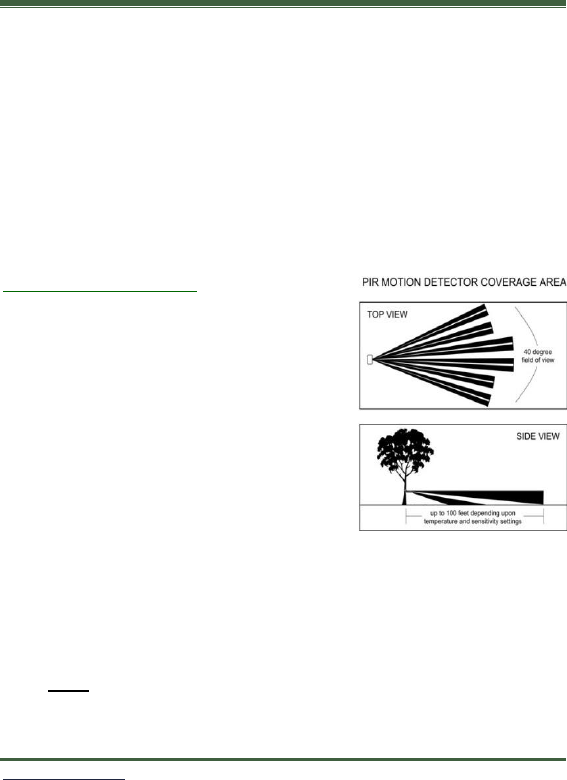

Motion Sensor Sensitivity Settings

The motion sensor sensitivity settings may be

adjusted to High/Medium/Low by moving the

white switch on the bottom left side of the

Remote.

NOTE: It is highly recommended to leave the

sensitivity setting on high, unless you

are getting an unusually high number

of false triggers.

Up = High

Center = Medium

Down = Low

7 ©RECONYX, Inc.

HYPERFIRE™ RTI350 Programming Menu

You can move through and select any of the menu options by pressing the << or >>

buttons to scroll, and the OK button when the menu or option you want to select is

displayed.

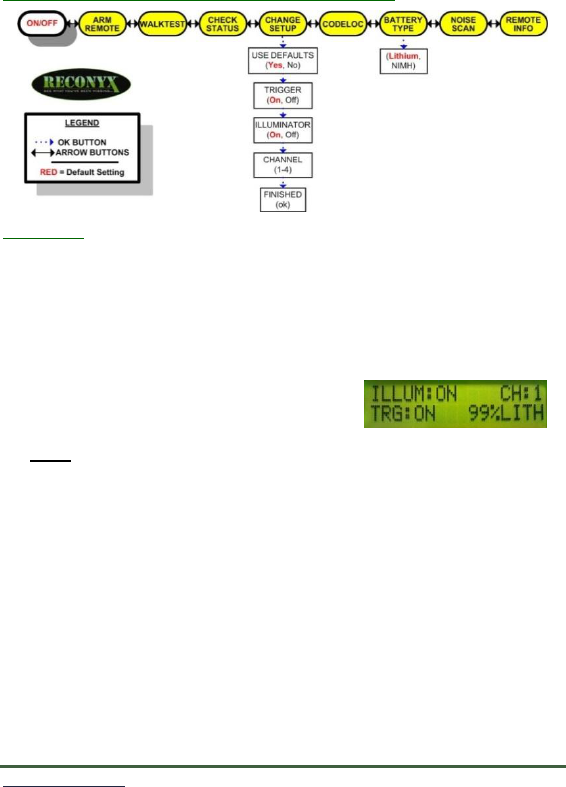

TIP: Use the “Programming Diagram” on the next page for a better understanding of

how the options are accessed on your HyperFire™RTI350.

The backlit LCD includes two lines of information. The

top line displays the menu option or setting you are

currently accessing; after you make a selection, it may

also display additional information. The bottom line displays the available options or

settings, and the selections you can choose from are always displayed between <>

brackets on the bottom line.

You can change your Remote settings any time you like, either prior to using the

Remote, or in the field. You can also check the current settings and the remaining

battery power by selecting “Check Status”.

NOTE: The camera and Remote will remember the settings even when shut off,

so you do not need to reconfigure the camera or Remote unless you

want to change its behavior.

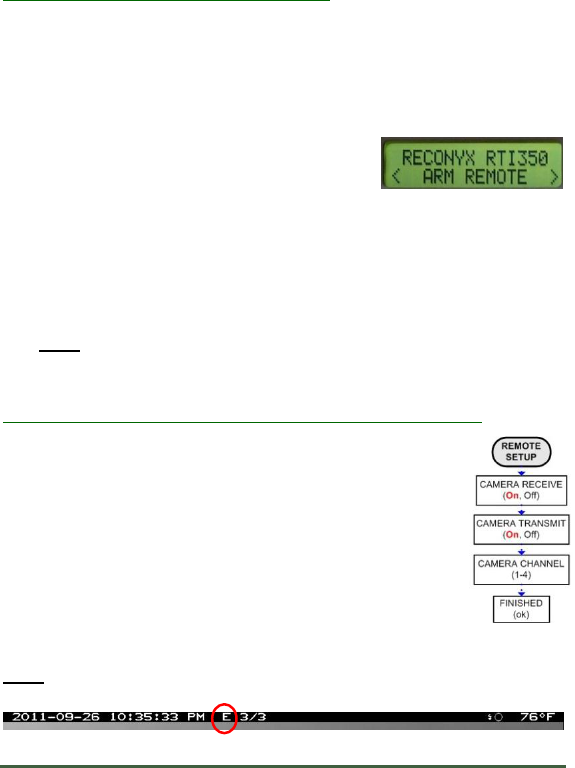

HYPERFIRE™ Camera Transceiver (TRX) Programming Menu

When your Camera is enabled for use with the RTI350, there will be

additional settings available in the advanced settings to control how

the camera interacts with the Remote.

These settings are accessible by selecting...

“CHANGE SETUP > ADVANCED > REMOTE SETUP”

Camera Receive - Allows the camera to receive trigger events from

the Remote unit(s).

Camera Transmit - Allows the camera to send illumination signals

to the Remote unit(s).

Camera Channel - Should be set to the same channel as the

Remote unit(s) you want to use with the camera.

NOTE: When the camera is triggered by the RTI350, the corresponding photo will

have an “E” in the top data band to indicate “External Trigger”

www.reconyx.com 8

HYPERFIRE™ RTI350 Remote Programming Menu

Menu Items

Arm Remote - When you select this option, your Remote will arm in ten seconds,

unless you cancel it before the countdown is complete by pressing the “OK” button.

WalkTest - The WalkTest mode on the Remote works in conjunction with the

WalkTest mode on the camera to allow you to set up, test, and verify your Camera

and Remote unit(s). Additional details are included on the following pages.

Check Status - When you select this option, your Remote will display:

 the on/off status of the trigger and illuminator

 the active channel on the remote

 the amount of battery power remaining

NOTE: The battery status shows the level for different types of batteries. If you

change battery type; be sure to change the “Battery Type” setting.

Change Setup - Allows you to use the default settings, and turn the trigger or

illuminator on/off as well as select the channel.

CodeLoc™ - Allows you to add, change or remove a four-digit security code to

prevent unauthorized use in the event of tampering or theft.

Battery Type - Allows you to select what type of batteries you are using to accurately

display the amount of power remaining.

Noise Scan - Allows you to check for interference caused by other devices running at

the same frequency. If you detect a high level of interference, you may experience

less then optimal performance (i.e. some trigger and/or illuminator commands may be

lost). Displays “Low”, “Medium”, or “High” and updates every 2 seconds.

Remote Info - Displays the firmware version number. You may need this information

when contacting RECONYX™ with questions about your Remote.

9 ©RECONYX, Inc.

Mounting Your Remote

The Remote (or multiple Remotes) should be mounted so that it is sensing motion

and/or illuminating within the field of view of the paired camera.

NOTE: If the illuminator is enabled on the Remote, it should be facing away from

the camera to avoid “blinding” the camera while it is taking night-time

images.

When the Remote senses motion it will send a signal to the camera to take a picture

whether or not the subject that triggered the Remote is in the field of view of the

camera.

The maximum range between the Remote and Camera is 100ft. However, it is

generally advantageous to place the camera as close to the subject as possible to get

higher quality photos.

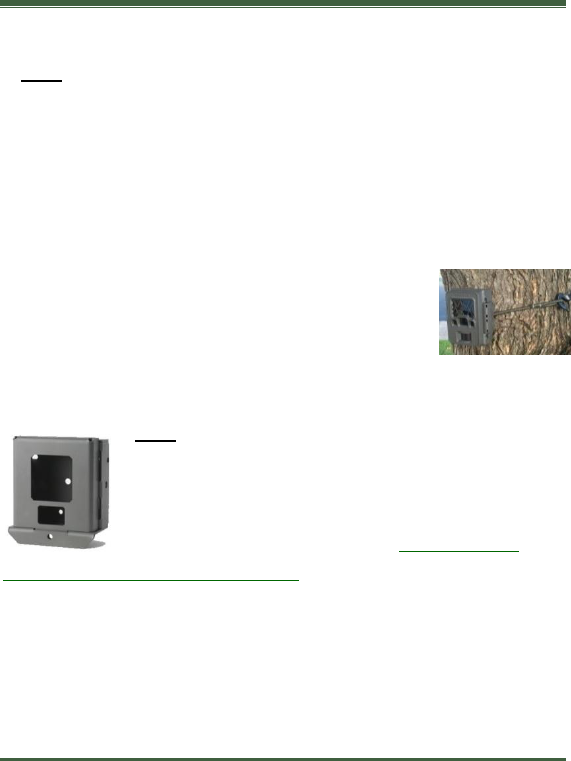

Mounting Remote with Adjustable Bungee Cord (included)

The Remote may be mounted using the included adjustable

bungee cord (pictured) or to a RECONYX™ VersaMount™,

ThunderBolt™, or camera tripod by utilizing the threaded insert

on the back of the Remote housing.

If you are concerned about someone seeing the Remote during daylight hours, you

can mount it a bit higher and angle it down a little more. Most people do not often look

up and therefore are less likely to notice the device if it is mounted a few feet higher.

NOTE: It is highly recommended that you use a theft deterrent

device such as a security box and/or a Master Python

Lock™ to help secure your camera and Remote

against possible theft when it is in the field.

TIP: You can purchase HyperFire™ compatible theft deterrent

cables, locks and security enclosures at www.reconyx.com

Using your Remote as a Functional Decoy

The HyperFireTMRTI350 Remote can be used as a functional decoy. The Remote can

be mounted in a location so it will detect motion and illuminate the scene at night,

while the camera is hidden in a different location with only the lens and light meter

exposed (see chart on page 12 regarding settings).

Since the RTI350 Remote has the appearance of a camera, the subject may know

they were under surveillance but will think that they have found the camera; while the

actual images are being stored on the hidden camera.

www.reconyx.com 10

WalkTest and System Verification

The WalkTest mode is simple to use, yet gives you a lot of information about your

system. The WalkTest will allow you to verify the aim of the Remote unit’s PIR

(Motion Detector) triggering zones, as well as allow you to verify systems settings,

communication, and functionality.

The WalkTest light is a red LED that is located to the right of the lens. It only blinks

when the device is in WalkTest mode or while arming. (It does not illuminate at any

other time).

TIP: If left in WalkTest mode, the Remote and Camera will automatically arm after 2

minutes with no motion events. This allows you to set up the Camera and Remote,

verify aim, check system settings, communications, and functionality as a system,

and then just walk away (knowing the entire system will arm itself 2 minutes later).

Using the “WalkTest” Mode

Learning to use the WalkTest mode is critical to

being as successful as possible with your

RECONYX™RTI350TM. The WalkTest mode allows

you to precisely determine your remote’s active

motion detection zones – ensuring your device is

aimed exactly where you want to capture activity.

1) Secure the Remote to a tree or other object

aiming it toward where you want it to capture

pictures.

2) Put Remote in “WalkTest” mode, and close the

unit.

3) Walk in front of the Remote where you expect to capture pictures. Every time the

red WalkTest light blinks it indicates that a motion event is taking place. If the

WalkTest light does not blink where you expect it to, adjust the aim or location.

4) If possible, set up the Remote so that no large trees or objects are in the main field

of view as it can adversely affect motion detection as well as night time illumination

range.

NOTE: All RECONYX™ Remotes and cameras will self-arm from the

“WalkTest” mode after a two minute period during which it does not

detect any motion events.

11 ©RECONYX, Inc.

Remote WalkTest (Standalone) – To verify that the remote is aimed correctly and is

sensing motion where you expect it to, by selecting “WalkTest” from the menu, and

pressing “OK”.

Walk in front of the remote where you expect it to sense motion. Just like with the

camera, if you are using the Remote unit PIR (motion detector), the WalkTest light

will blink once every time that motion is detected.

The WalkTest mode shows you exactly where the Remote’s active motion detection

zones are located. The tilt of the Remote is critical, as slight changes are magnified at

greater distances.

If the WalkTest light does not blink where you expect to capture motion, you should

adjust the aim of the remote and go through the WalkTest procedure again.

System WalkTest – When the Camera and Remote are both turned on, select

“WalkTest” on both devices to verify that they are communicating correctly and to

verify system settings.

1. Single Blink: signifies that the device (Remote or Camera) has detected

motion.

2. Double Blink: signifies that the device (Remote and/or Camera) has

received an “illuminator-on” command.

The table on the next page indicates what you should expect to see during System

WalkTest depending upon the various system settings (these entries are illustrative,

not exhaustive).

Unexpected Behavior During WalkTest

If you do not see the behavior you expect during WalkTest, check to be sure the

devices are within range and that there is not an excessive amount of interference.

You can check the amount of interference on the wireless frequency used by the

Camera and Remote by selecting “Noise Scan” on the Remote.

NOTE: The maximum range of the system is 100ft (~30 meters), although this

can be affected by placement height of the Remote and Camera (higher is

better) as well as terrain, buildings, vegetation etc.

When Deploying Two Separate Systems in the same Vicinity (i.e. two Remote

Enabled cameras and the associated Remote(s) within range of each other), be sure

to select different channels for each set of devices that you want to communicate with

each other. If too many devices are deployed in close proximity, you can get

interference from the various devices and you may miss some communication

packets even if the systems are set to different channels.

www.reconyx.com 12

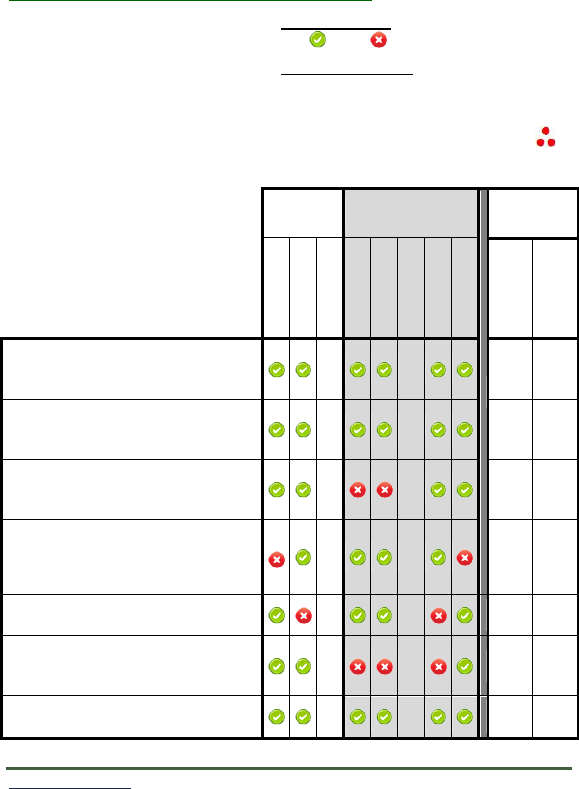

System WalkTest: Scenarios and Expected Results

Table Legend:

Device Settings

On: Off:

WalkTest Behavior

Single Blink (●) = Detects Motion

Double Blink (●●) = Illuminate

Single Blink followed by Double Blink ( )

Remote

Camera

WalkTest

Behavior

Trigger

Illuminator

Channel

Trigger

Illuminator

Channel

Transmit

Receive

Remote

Camera

Default Settings:

Remote Triggered,

both devices will Illuminate.

●

●●

Default Settings:

Camera Triggered,

both devices will illuminate.

●●

●

●●

Remote Trigger & Illuminator used

exclusively (Functional Decoy):

When you want to hide the camera.

●

●●

Using Remote as supplemental

Illuminator only:

Camera will Trigger and both

devices will illuminate.

●●

●

●●

Using both Triggers, but only camera

Illuminator. Remote triggered.

●

●●

Likely Error - Transmitter Off:

Remote triggered but

neither device will illuminate.

●

Likely Error - Channels mismatched:

Remote Triggered -No communication.

●

Additional Remote Options

IR Mask

If you need to clean the IR Array window, the IR Mask™ is easily removed by

carefully inserting a small screw driver in the left or right side to pry it out.

Warning: Be very careful not to scratch the IR Array window!

To replace the IR Mask™, carefully line up one side of the IR Mask™ with the IR

Array window. Then gently push on both sides until the IR Mask™ is completely

seated against the window and snaps into both sides.

The windows covering the IR Array, lens, WalkTest indicator and light meter, may all

be cleaned with glass cleaner or water using a soft non-abrasive cloth.

High Humidity Environments

We recommend using the moisture absorbing “desiccant system” available from

RECONYX™. The desiccant system is designed to absorb moisture that may get

trapped inside the Remote when the case is opened in humid conditions. It is not

intended to absorb water if the Remote is opened in a rain storm, for instance.

The desiccant system can be used in any HyperFire™ device. Additional desiccant

pellets are available for purchase at www.reconyx.com

Security Series Hardware Options

There are many custom hardware options available to suit your particular surveillance

need (additional costs may be associated).

Some custom hardware options available from RECONYX include…

 External Power Connectors

 Telephoto Lens (2X) – Standard on the SM750

 Camouflage Housing

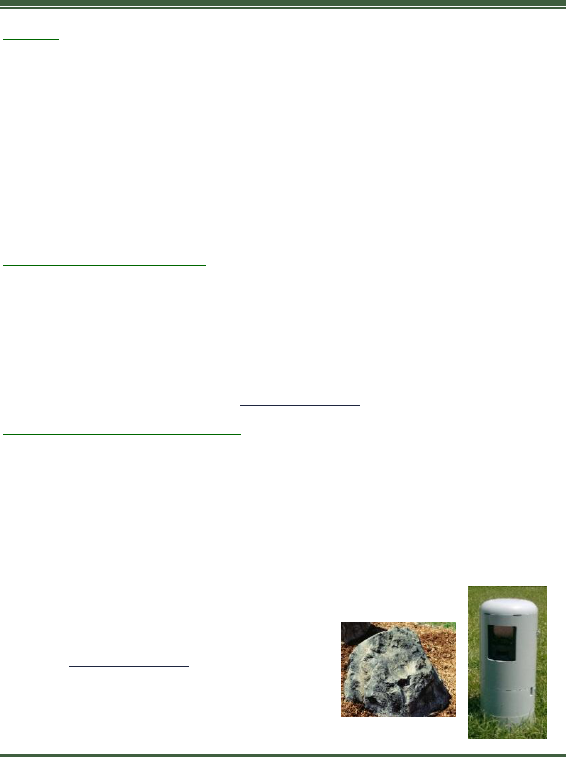

TIP: You can purchase HyperFire compatible

products for use in camouflaging your camera or

remote at www.reconyx.com. Products include a

modified Cable Box for use in in an

urban/suburban settings; or a fake rock to use in

suburban/rural settings.

www.reconyx.com 14

Troubleshooting

For answers to questions about your RECONYX™ HyperFireTM products that you

cannot find in this Instruction Manual, please check the RECONYX™ web site

(www.reconyx.com).

Limited Nighttime Range

If your nighttime range is less than expected, check to be sure your batteries are new

or fully charged. You can also change your camera’s night mode image setting to

Max Range. If using Max Range doesn’t resolve the problem, then try running either

NiMH rechargeable batteries or Energizer 1.5V AA Ultimate Lithium batteries.

Alkaline batteries cannot deliver enough amperage to power the illuminator

consistently at night.

The physical Camera and Remote setup is also important in getting good night time

images. If you aim the camera out over an open field where there is nothing within

range to reflect the Infrared energy back toward the camera, the images will appear

very dark (like shining a flashlight into outer space). The best night time images will

be captured when you have a backdrop of some sort that will reflect energy back

toward the camera (e.g. trees, tall grass, fence, building, hillside, etc).

False Triggers

If you seem to be getting false triggers, (i.e. the camera is taking pictures of nothing)

first put your Camera and Remote back to the default settings and try again. This will

ensure that you are running with known settings – with the motion detector ON at

HIGH sensitivity and with Time-Lapse turned OFF.

If, after going back to default setting, you still seem to be getting false triggers, check

the physical setup of your Camera and Remote. The sun should not be shining

directly on the face of the Camera or Remote, and the field of view should be cleared

of as much vegetation as possible. False triggers most often occur on sunny, breezy

days. Vegetation will soak up the sun’s energy and it will become warmer than the

ambient air temperature. Then, when the wind moves the vegetation, the motion

detector sees this and cannot distinguish it from a warm-blooded person or vehicle

moving in the scene. Careful planning, placement and setup of your Camera and

Remote will help to prevent false triggers.

Only as a LAST resort should you turn down your Remote or camera’s motion

sensitivity. This reduces your ability to detect movement of people, especially during

the summer.

Remote PIR (Motion Detector) Not Triggering

First put the Remote back to Default settings and try again. This will ensure that you

are running with known settings. Also check the PIR (motion detector) sensitivity; it

should be set at HIGH sensitivity. This is important, especially in the warmer months,

because as the background temperature approaches the temperature of the subject

of interest, the strength of the signal decreases and the range goes down

accordingly.

If you are still having trouble, please refer to the “Mounting and Aiming” section in

your camera’s instruction manual for detailed information, as well as using the

WalkTest mode. There are inactive zones that you need to be aware of so that you

don’t aim the inactive zone precisely where you want to detect motion. The RTI350

sensor zones are the same as the camera.

It is important to keep in mind that there are other factors that can also affect the

ability of your device to detect motion. Wind can have a detrimental effect. Body

heat can be quickly dispersed on a breezy day, making it more difficult to detect the

subject. Also movement directly toward and away from the device is less likely to

trigger the device than side-to-side movement. And, finally, if a subject is moving

very slowly, it will sometimes not produce a strong enough signal within the sensor to

trigger the device.

Cold Weather Problems

If your Remote or Camera shuts down in the cold, it may be too cold for the batteries.

Refer to “Battery Specifications” for recommended battery types.

Extreme cold weather may have an adverse effect on the LCD display; this does not

inhibit the Remote or Camera’s ability to function.

Battery Life Less than Expected

NiMH batteries have decreased life in hot weather. They will run the device, but they

will have decreased run time. It is not unusual to see battery life drop off 50% or

more when daytime temperatures are near 90˚ Fahrenheit or higher. This will not

damage your NiMH batteries; their charge just runs down faster.

If you notice that when your batteries run down the night time illumination decreases,

you should change your batteries sooner and be sure to use fresh Lithium or fully

charged NiMH batteries.

Reconyx HF-RTI Wireless Trigger and Illuminator for Digital Camera User Manual CERTIFICATE OF COMPLIANCE

Reconyx, Inc. Wireless Trigger and Illuminator for Digital Camera CERTIFICATE OF COMPLIANCE

User Manual

Navigation menu

Namespaces

Views

Navigation
