Remax RB-T11C RB-T11C User Manual

Shenzhen Remax Co., Ltd. RB-T11C

User Manual

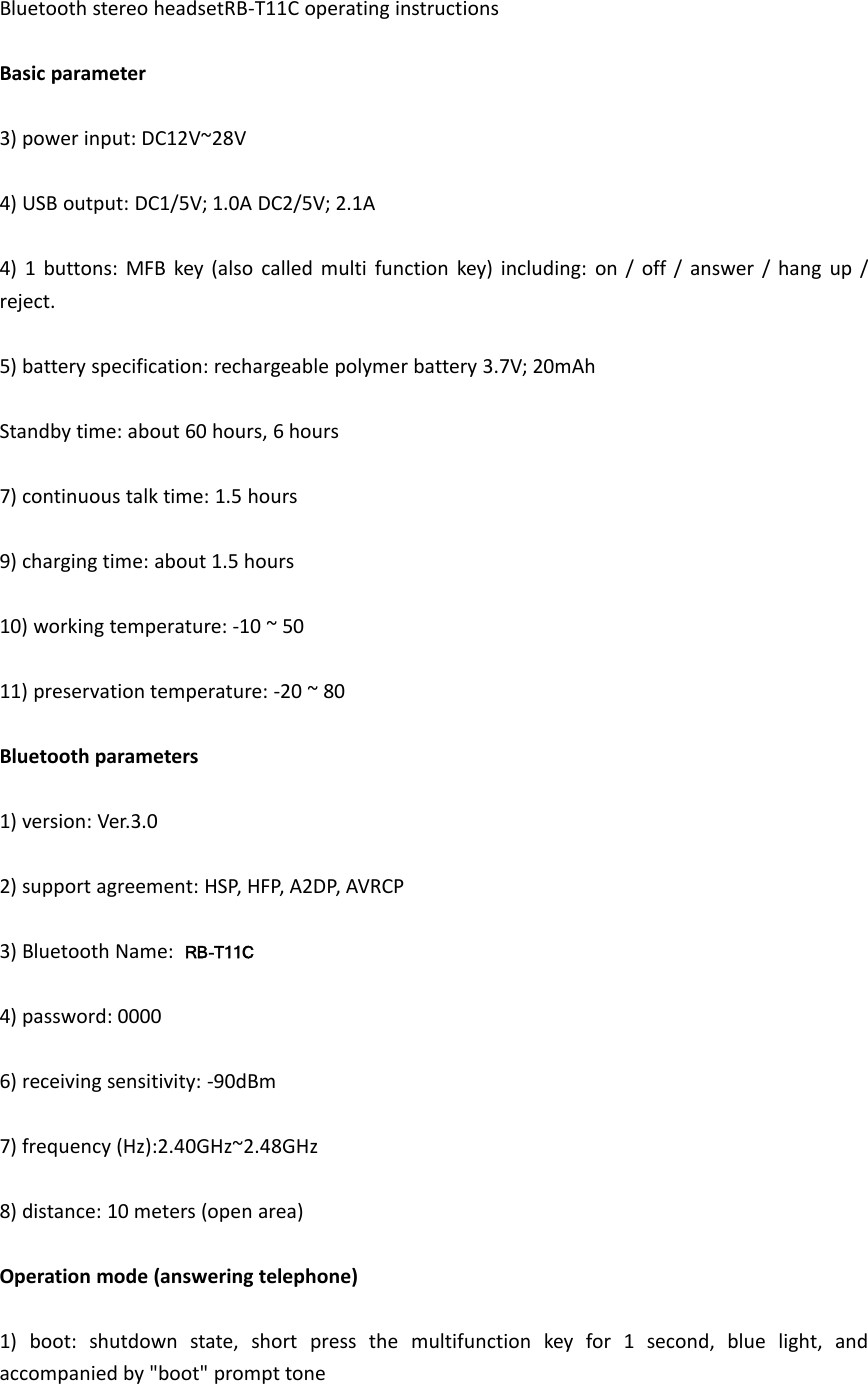

Bluetooth stereo headsetRB-T11C operating instructionsBasic parameter3) power input: DC12V~28V4) USB output: DC1/5V; 1.0A DC2/5V; 2.1A4) 1 buttons: MFB key (also called multi function key) including: on / off / answer / hang up /reject.5) battery specification: rechargeable polymer battery 3.7V; 20mAhStandby time: about 60 hours, 6 hours7) continuous talk time: 1.5 hours9) charging time: about 1.5 hours10) working temperature: -10 ~ 5011) preservation temperature: -20 ~ 80Bluetooth parameters1) version: Ver.3.02) support agreement: HSP, HFP, A2DP, AVRCP3) Bluetooth Name: ame::䁊4) password: 00006) receiving sensitivity: -90dBm7) frequency (Hz):2.40GHz~2.48GHz8) distance: 10 meters (open area)Operation mode (answering telephone)1) boot: shutdown state, short press the multifunction key for 1 second, blue light, andaccompanied by "boot" prompt tone

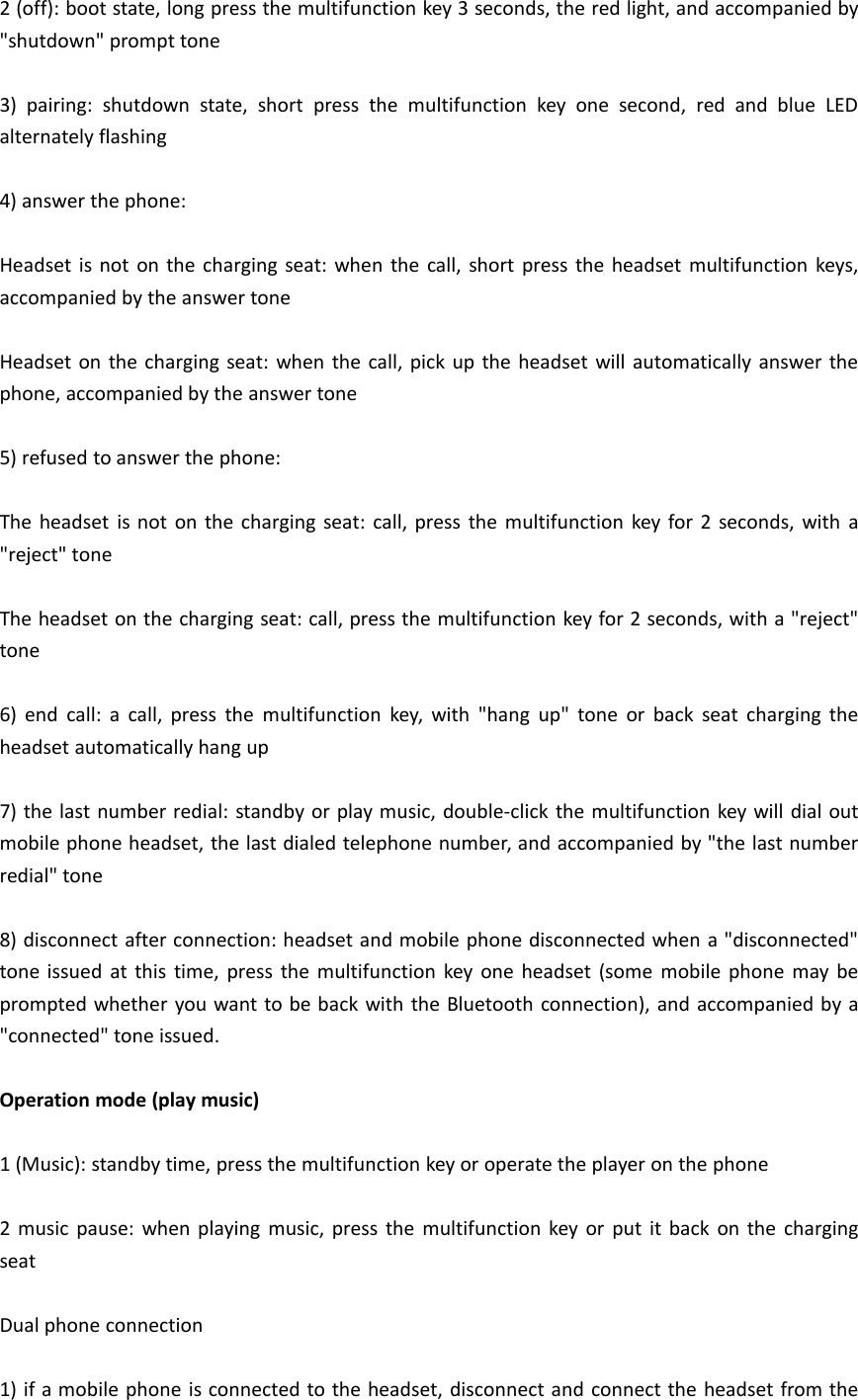

2 (off): boot state, long press the multifunction key 3 seconds, the red light, and accompanied by"shutdown" prompt tone3) pairing: shutdown state, short press the multifunction key one second, red and blue LEDalternately flashing4) answer the phone:Headset is not on the charging seat: when the call, short press the headset multifunction keys,accompanied by the answer toneHeadset on the charging seat: when the call, pick up the headset will automatically answer thephone, accompanied by the answer tone5) refused to answer the phone:The headset is not on the charging seat: call, press the multifunction key for 2 seconds, with a"reject" toneThe headset on the charging seat: call, press the multifunction key for 2 seconds, with a "reject"tone6) end call: a call, press the multifunction key, with "hang up" tone or back seat charging theheadset automatically hang up7) the last number redial: standby or play music, double-click the multifunction key will dial outmobile phone headset, the last dialed telephone number, and accompanied by "the last numberredial" tone8) disconnect after connection: headset and mobile phone disconnected when a "disconnected"tone issued at this time, press the multifunction key one headset (some mobile phone may beprompted whether you want to be back with the Bluetooth connection), and accompanied by a"connected" tone issued.Operation mode (play music)1 (Music): standby time, press the multifunction key or operate the player on the phone2 music pause: when playing music, press the multifunction key or put it back on the chargingseatDual phone connection1) if a mobile phone is connected to the headset, disconnect and connect the headset from the

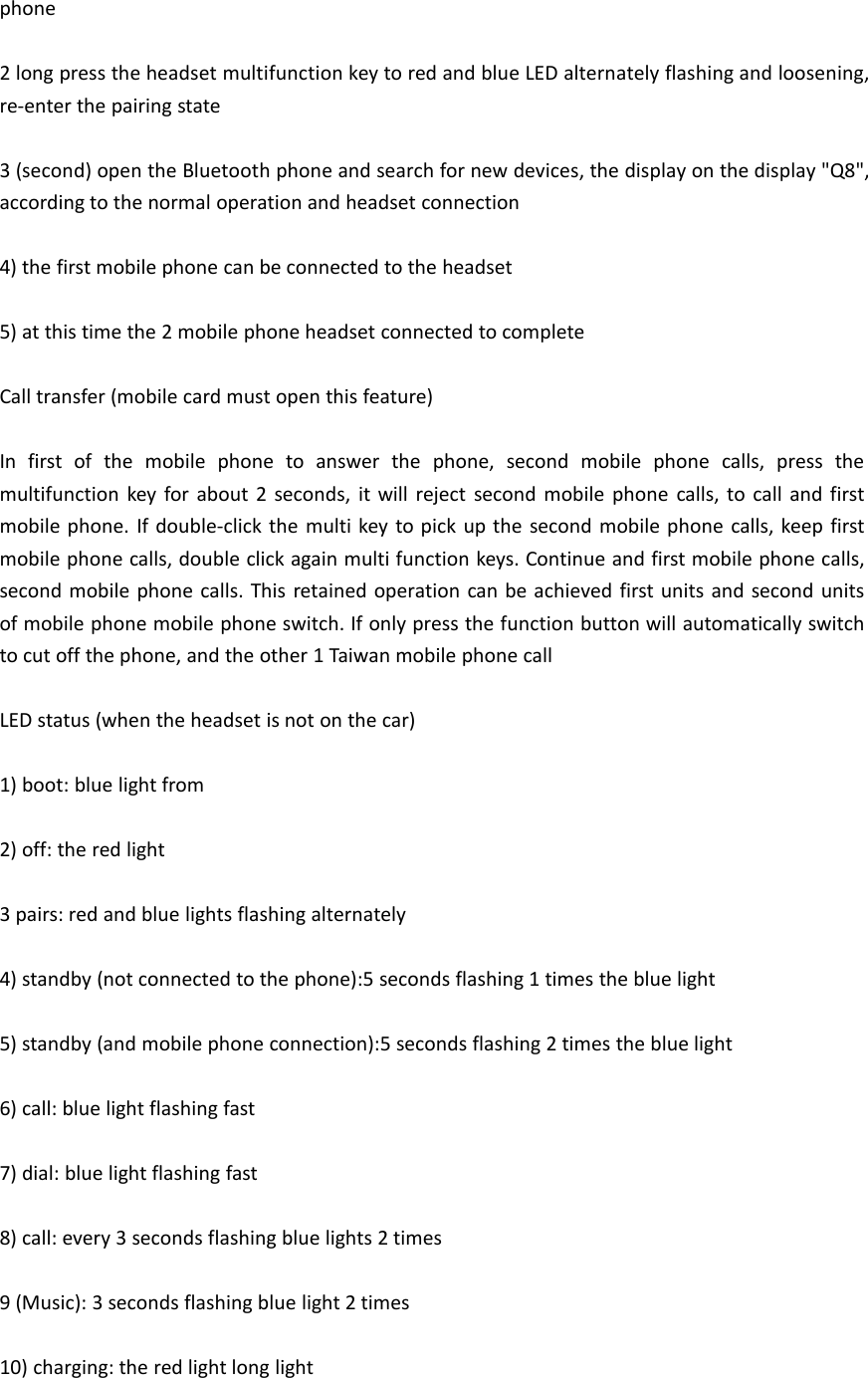

phone2 long press the headset multifunction key to red and blue LED alternately flashing and loosening,re-enter the pairing state3 (second) open the Bluetooth phone and search for new devices, the display on the display "Q8",according to the normal operation and headset connection4) the first mobile phone can be connected to the headset5) at this time the 2 mobile phone headset connected to completeCall transfer (mobile card must open this feature)In first of the mobile phone to answer the phone, second mobile phone calls, press themultifunction key for about 2 seconds, it will reject second mobile phone calls, to call and firstmobile phone. If double-click the multi key to pick up the second mobile phone calls, keep firstmobile phone calls, double click again multi function keys. Continue and first mobile phone calls,second mobile phone calls. This retained operation can be achieved first units and second unitsof mobile phone mobile phone switch. If only press the function button will automatically switchto cut off the phone, and the other 1 Taiwan mobile phone callLED status (when the headset is not on the car)1) boot: blue light from2) off: the red light3 pairs: red and blue lights flashing alternately4) standby (not connected to the phone):5 seconds flashing 1 times the blue light5) standby (and mobile phone connection):5 seconds flashing 2 times the blue light6) call: blue light flashing fast7) dial: blue light flashing fast8) call: every 3 seconds flashing blue lights 2 times9 (Music): 3 seconds flashing blue light 2 times10) charging: the red light long light
11) charging: blue light is bright12) low battery voltage: 5 seconds flash a red light, a 5 minute alarm, and accompanied by lowpower prompt toneLED status (when the headset is filled)1) when the car starts, the headset will automatically turn on the phone, the blue light flashes,the red light is always bright2) after the headset is not connected to the phone on the phone, 10 minutes after the automaticshutdown, the red light often3 pairs: red and blue lights flashing alternately4) standby (not connected to the phone):5 seconds flashing 1 times the blue light, red light isoften bright (headset is in charge)5) standby (and mobile phone connection):5 flash 2 times a blue light, red light is often bright(headset is in charge)6) call: red and blue lights flashing fast7) dial: red and blue lights flashing fast8) call: every 3 seconds flashing blue lights 2 times, red light is often bright (headset is in charge)9 when playing music: 3 seconds flashing blue light, red light (headset is in charge state) (2)10 charge: red light long (off) / red light is long, blue lights flashing (boot)11) charging: blue light long (off) / blue light flashing (on)Remarks：1) pairing time: 10 minutes, 10 minutes after the phone is not connected to the automaticshutdownWarning！changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.
