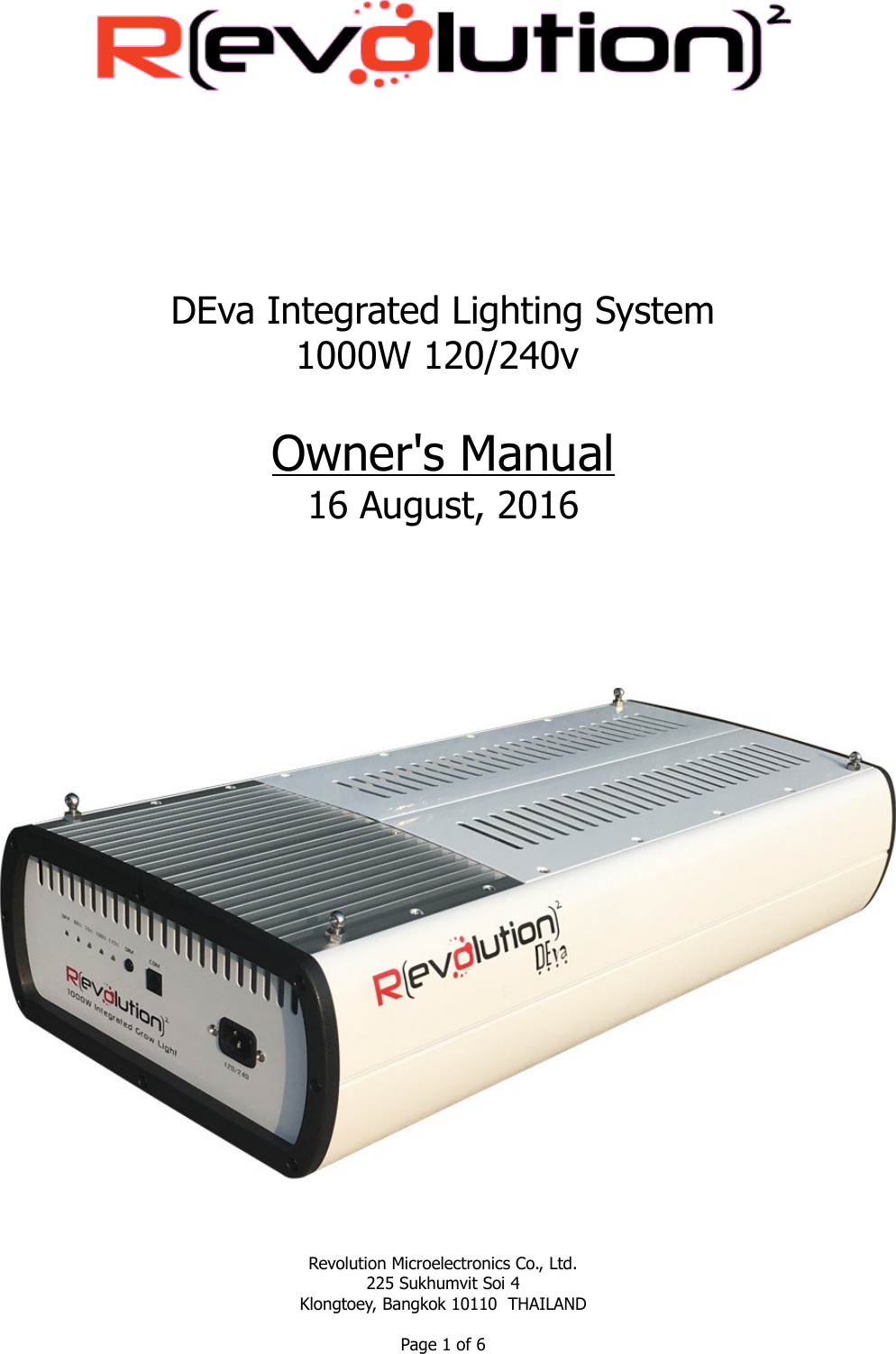

DEva Integrated Lighting System1000W 120/240v Owner's Manual16 August, 2016Revolution Microelectronics Co., Ltd.225 Sukhumvit Soi 4Klongtoey, Bangkok 10110 THAILANDPage 1 of 6

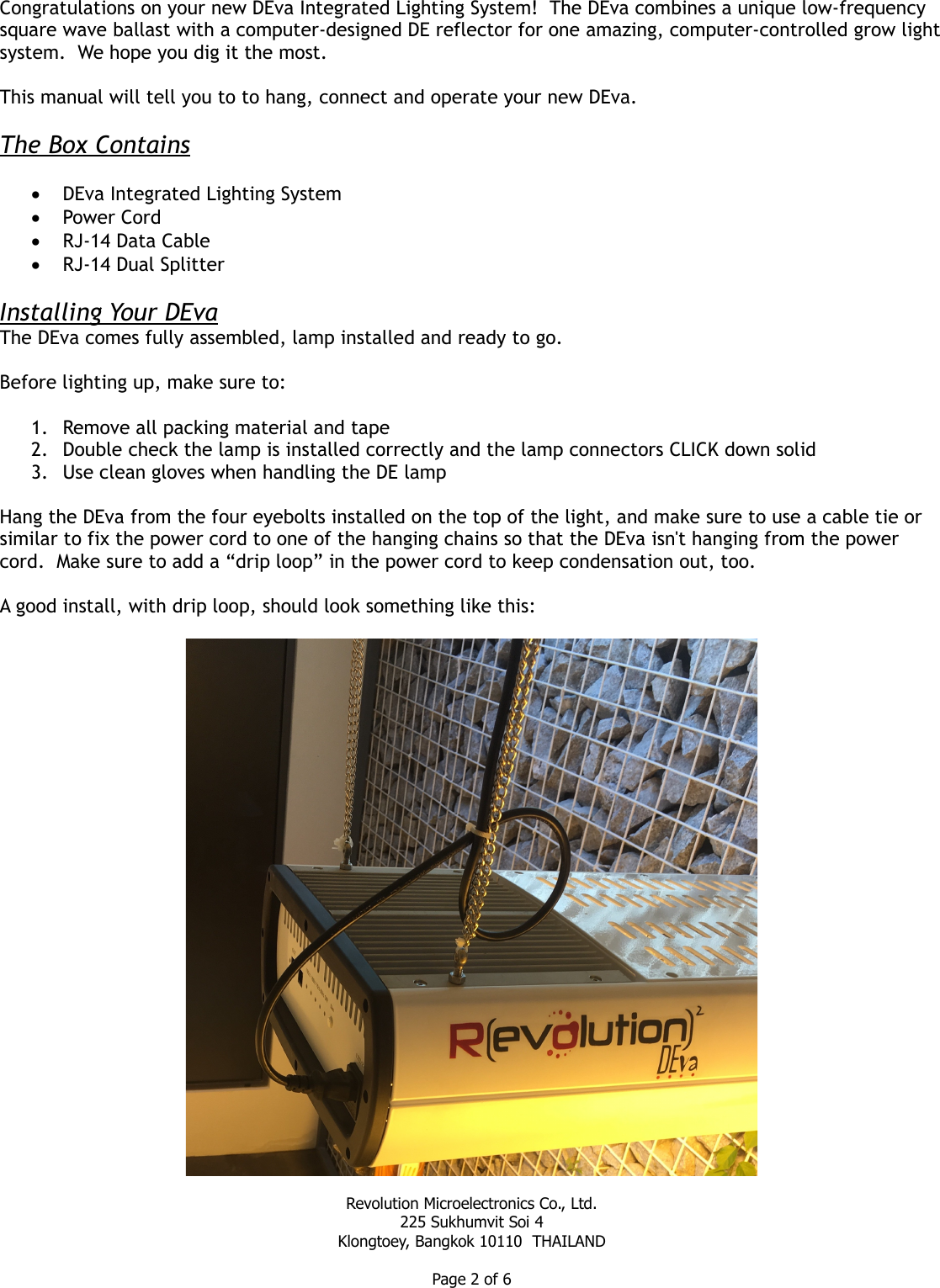

Congratulations on your new DEva Integrated Lighting System! The DEva combines a unique low-frequency square wave ballast with a computer-designed DE reflector for one amazing, computer-controlled grow lightsystem. We hope you dig it the most.This manual will tell you to to hang, connect and operate your new DEva.The Box ContainsDEva Integrated Lighting SystemPower CordRJ-14 Data CableRJ-14 Dual SplitterInstalling Your DEvaThe DEva comes fully assembled, lamp installed and ready to go. Before lighting up, make sure to:1. Remove all packing material and tape2. Double check the lamp is installed correctly and the lamp connectors CLICK down solid3. Use clean gloves when handling the DE lampHang the DEva from the four eyebolts installed on the top of the light, and make sure to use a cable tie or similar to fix the power cord to one of the hanging chains so that the DEva isn't hanging from the power cord. Make sure to add a “drip loop” in the power cord to keep condensation out, too.A good install, with drip loop, should look something like this:Revolution Microelectronics Co., Ltd.225 Sukhumvit Soi 4Klongtoey, Bangkok 10110 THAILANDPage 2 of 6

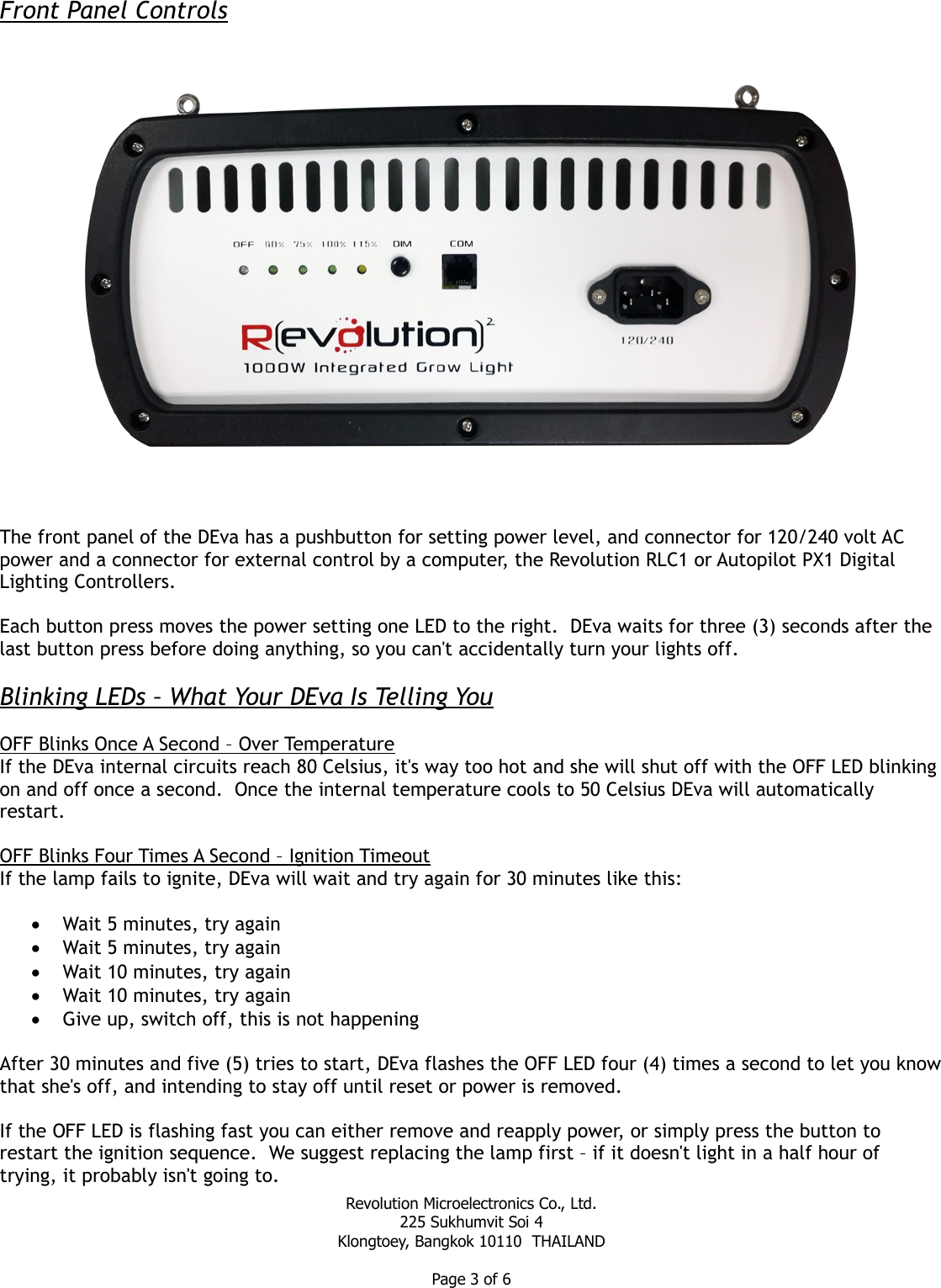

Front Panel ControlsThe front panel of the DEva has a pushbutton for setting power level, and connector for 120/240 volt AC power and a connector for external control by a computer, the Revolution RLC1 or Autopilot PX1 Digital Lighting Controllers.Each button press moves the power setting one LED to the right. DEva waits for three (3) seconds after the last button press before doing anything, so you can't accidentally turn your lights off. Blinking LEDs – What Your DEva Is Telling YouOFF Blinks Once A Second – Over TemperatureIf the DEva internal circuits reach 80 Celsius, it's way too hot and she will shut off with the OFF LED blinkingon and off once a second. Once the internal temperature cools to 50 Celsius DEva will automatically restart.OFF Blinks Four Times A Second – Ignition TimeoutIf the lamp fails to ignite, DEva will wait and try again for 30 minutes like this:Wait 5 minutes, try againWait 5 minutes, try againWait 10 minutes, try againWait 10 minutes, try againGive up, switch off, this is not happeningAfter 30 minutes and five (5) tries to start, DEva flashes the OFF LED four (4) times a second to let you knowthat she's off, and intending to stay off until reset or power is removed.If the OFF LED is flashing fast you can either remove and reapply power, or simply press the button to restart the ignition sequence. We suggest replacing the lamp first – if it doesn't light in a half hour of trying, it probably isn't going to.Revolution Microelectronics Co., Ltd.225 Sukhumvit Soi 4Klongtoey, Bangkok 10110 THAILANDPage 3 of 6

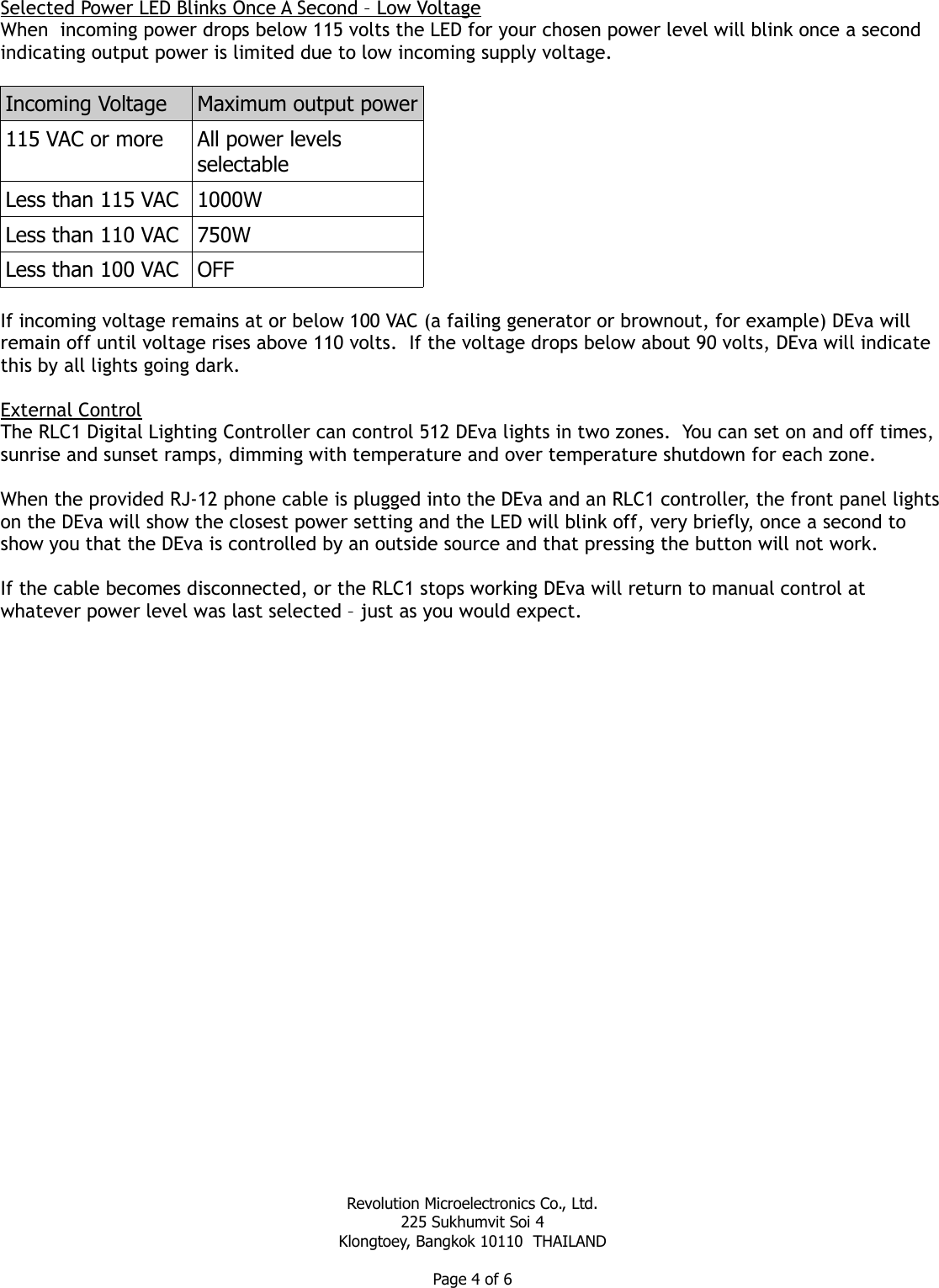

Selected Power LED Blinks Once A Second – Low VoltageWhen incoming power drops below 115 volts the LED for your chosen power level will blink once a second indicating output power is limited due to low incoming supply voltage.Incoming Voltage Maximum output power115 VAC or more All power levels selectableLess than 115 VAC 1000WLess than 110 VAC 750WLess than 100 VAC OFFIf incoming voltage remains at or below 100 VAC (a failing generator or brownout, for example) DEva will remain off until voltage rises above 110 volts. If the voltage drops below about 90 volts, DEva will indicate this by all lights going dark.External ControlThe RLC1 Digital Lighting Controller can control 512 DEva lights in two zones. You can set on and off times, sunrise and sunset ramps, dimming with temperature and over temperature shutdown for each zone.When the provided RJ-12 phone cable is plugged into the DEva and an RLC1 controller, the front panel lightson the DEva will show the closest power setting and the LED will blink off, very briefly, once a second to show you that the DEva is controlled by an outside source and that pressing the button will not work.If the cable becomes disconnected, or the RLC1 stops working DEva will return to manual control at whatever power level was last selected – just as you would expect.Revolution Microelectronics Co., Ltd.225 Sukhumvit Soi 4Klongtoey, Bangkok 10110 THAILANDPage 4 of 6

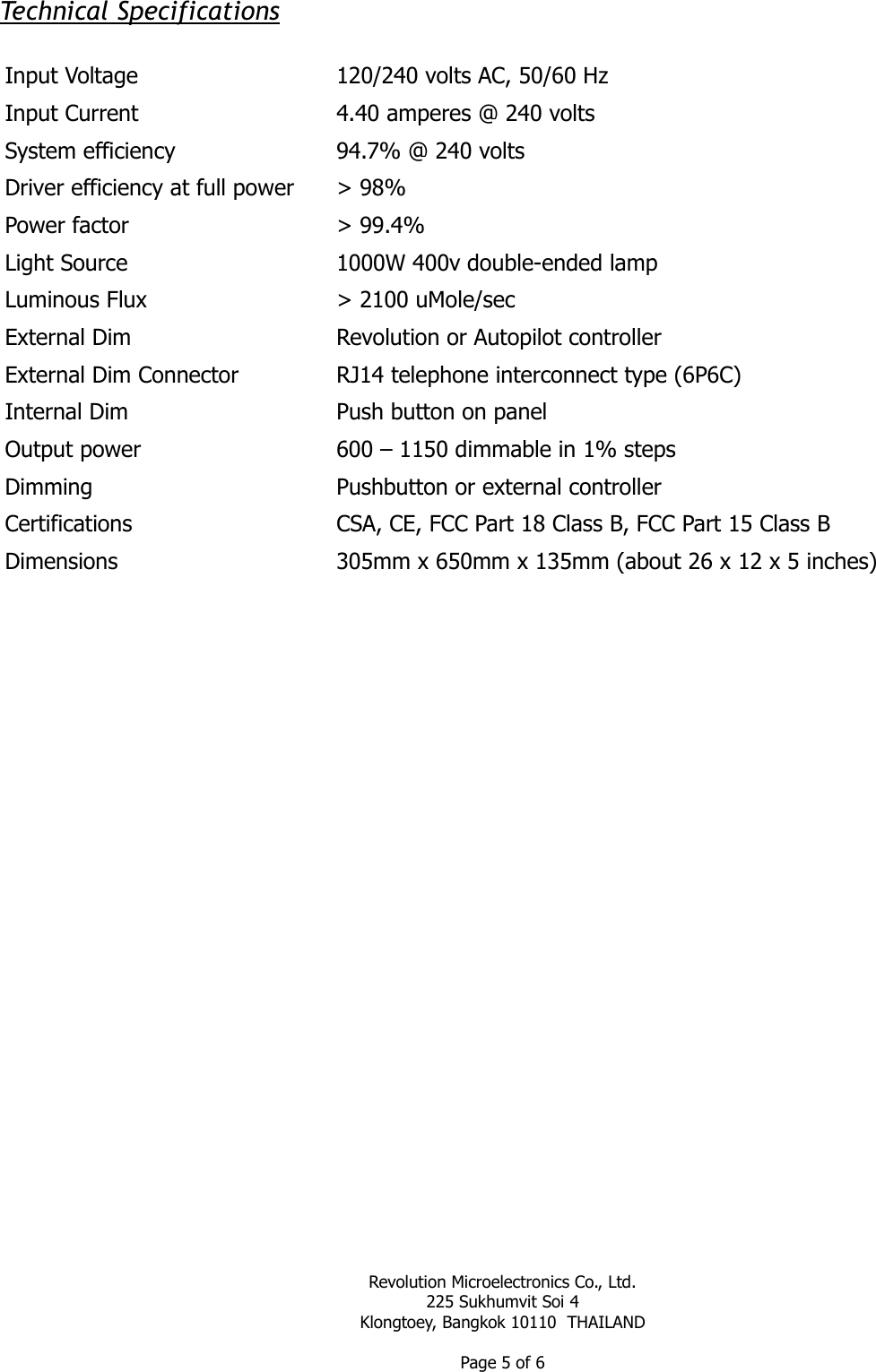

Technical SpecificationsInput Voltage 120/240 volts AC, 50/60 HzInput Current 4.40 amperes @ 240 voltsSystem efficiency 94.7% @ 240 voltsDriver efficiency at full power > 98%Power factor > 99.4%Light Source 1000W 400v double-ended lampLuminous Flux > 2100 uMole/secExternal Dim Revolution or Autopilot controllerExternal Dim Connector RJ14 telephone interconnect type (6P6C)Internal Dim Push button on panelOutput power 600 – 1150 dimmable in 1% stepsDimming Pushbutton or external controllerCertifications CSA, CE, FCC Part 18 Class B, FCC Part 15 Class BDimensions 305mm x 650mm x 135mm (about 26 x 12 x 5 inches)Revolution Microelectronics Co., Ltd.225 Sukhumvit Soi 4Klongtoey, Bangkok 10110 THAILANDPage 5 of 6
FCC Compliance StatementThe DEva Integrated Lighting System has been tested at FCC-certified laboratories in the United States and conforms to FCC's Part 18B Consumer standard for Industrial, Scientific, and Medical Equipment for both conducted and radiated emissions. Although not required by the FCC, the DEva has also been qualified in the same laboratory to pass FCC Part 15B, usually reserved for computers, pro audio, and similar consumer electronic devices.Given that all electronic equipment emits some RF energy, please note that compliance with these standards does not mean a zero level of emission, only a very low level of emission. The FCC requiresthat for safety we also state:This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz.This device complies with Part 18 of the FCC Rules.DEva 120/240 1000WFCC ID: 2AH86-DEVA1000WRevolution Microelectronics225 Sukhumvit Soi 4Klongtoey, Bangkok, 10110 ThailandRevolution Microelectronics Co., Ltd.225 Sukhumvit Soi 4Klongtoey, Bangkok 10110 THAILANDPage 6 of 6
