TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 1 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties WARNING: This printed document is an UNCONTROLLED COPY. The user must verify that it is the current revision prior to use. Issue and Author: 1 Department: Date: Signature: CC-DA/ECR4 16.12.2013 Frank Ernst Detailed description of modifications see page 2 Checked, Reviewed by: Department: Date: Signature: CC-DA/ECR1 Hansen CC-DA/ECR2 Stock CC-DA/ECR3 Kühnle CC-dA/ECR4 Gold CC-DA/PJ-RC Kühnle CC-DA/PJ-PAP Wilhelm CC-DA/ECR Customer : Bosch (internal) Platform : LRR4 Order Number Order Number Customer : 0 203 000 xxx add customer number for customer-version Offer Drawing : 0 265 A60 xxx System : HDI, ACC base, PCW, EBA, AEB Remarks : Part 5: Device marking, labeling and user manual phrases

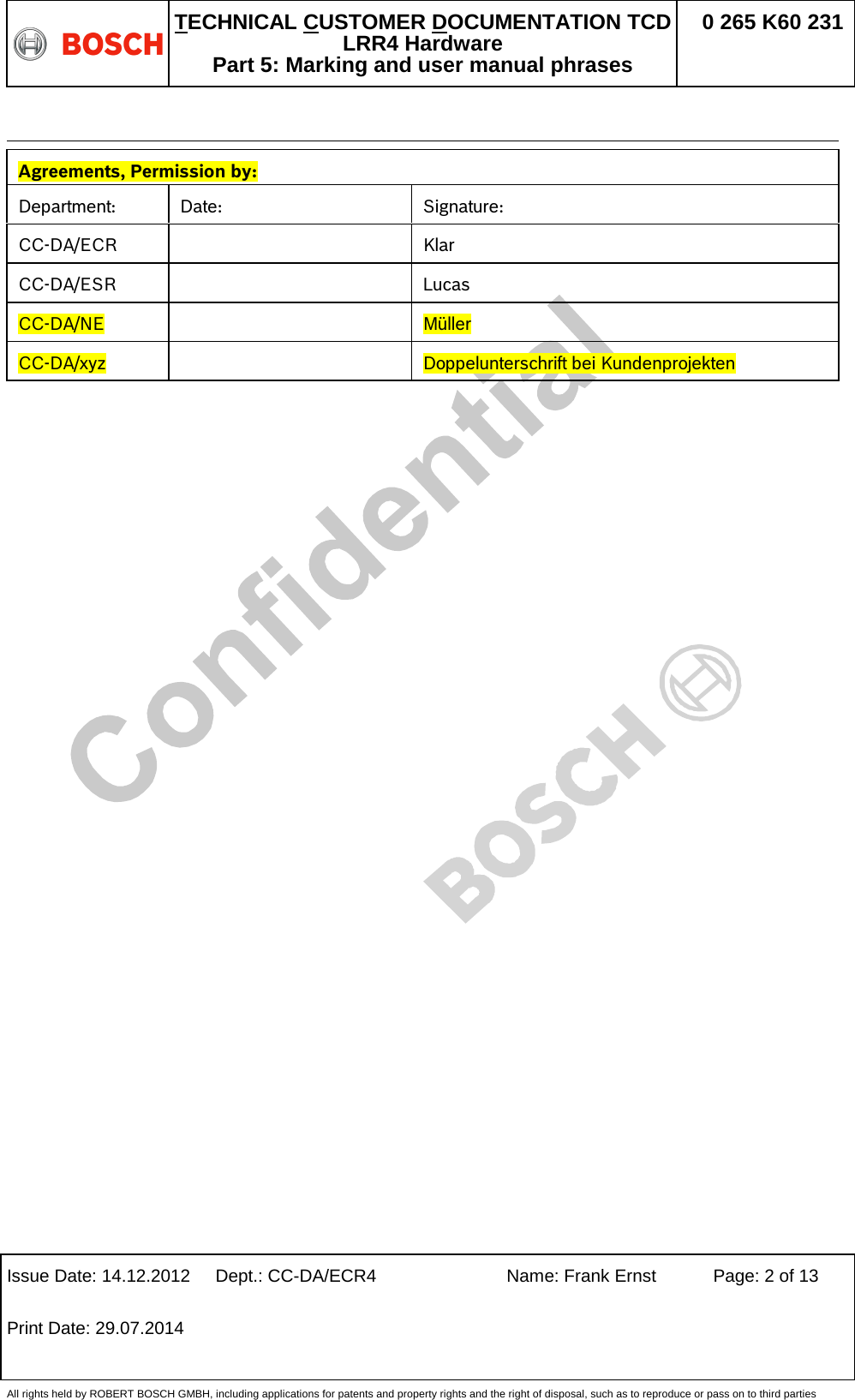

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 2 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties Agreements, Permission by: Department: Date: Signature: CC-DA/ECR Klar CC-DA/ESR Lucas CC-DA/NE Müller CC-DA/xyz Doppelunterschrift bei Kundenprojekten

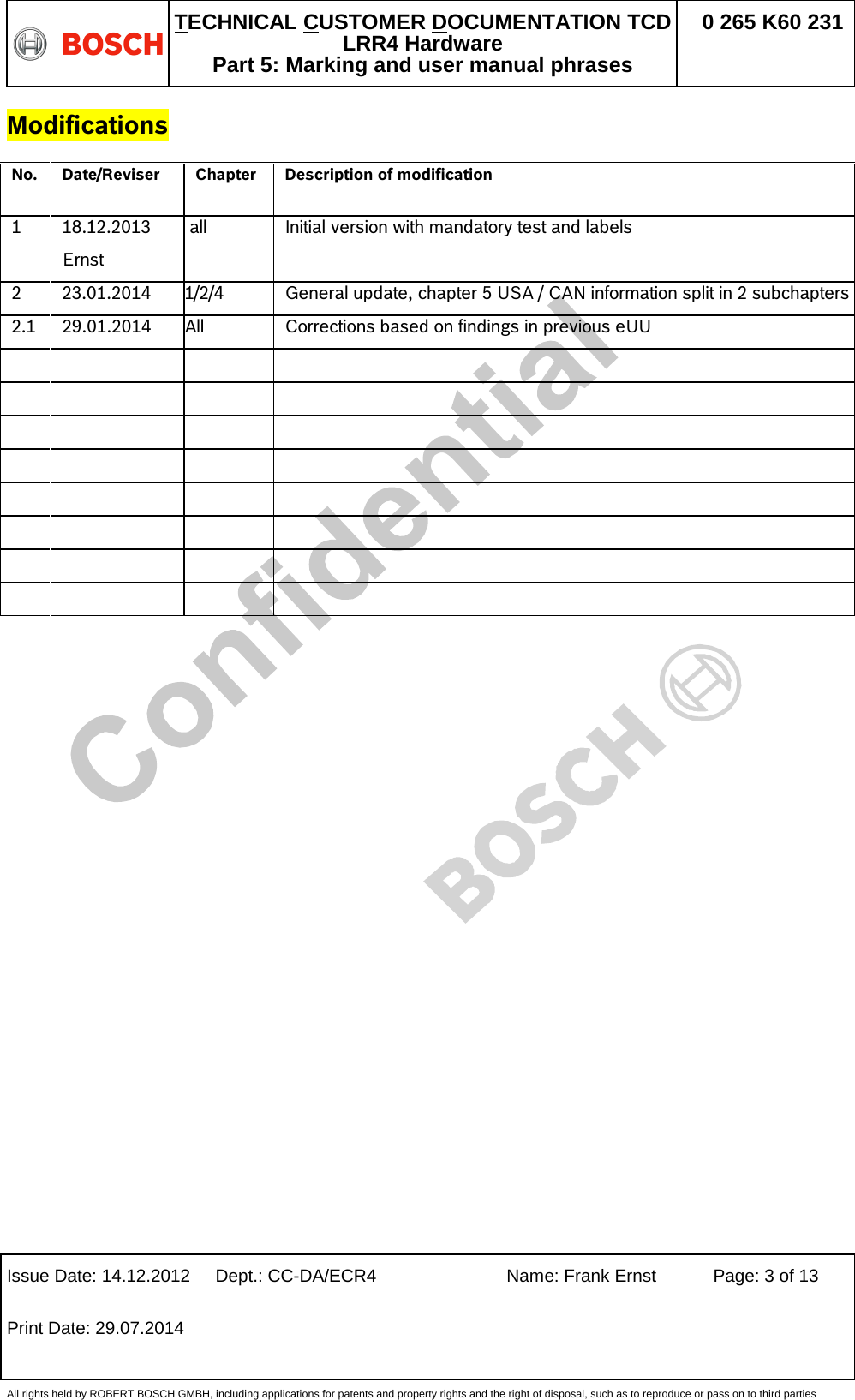

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 3 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties Modifications No. Date/Reviser Chapter Description of modification 1 18.12.2013 Ernst all Initial version with mandatory test and labels 2 23.01.2014 1/2/4 General update, chapter 5 USA / CAN information split in 2 subchapters 2.1 29.01.2014 All Corrections based on findings in previous eUU

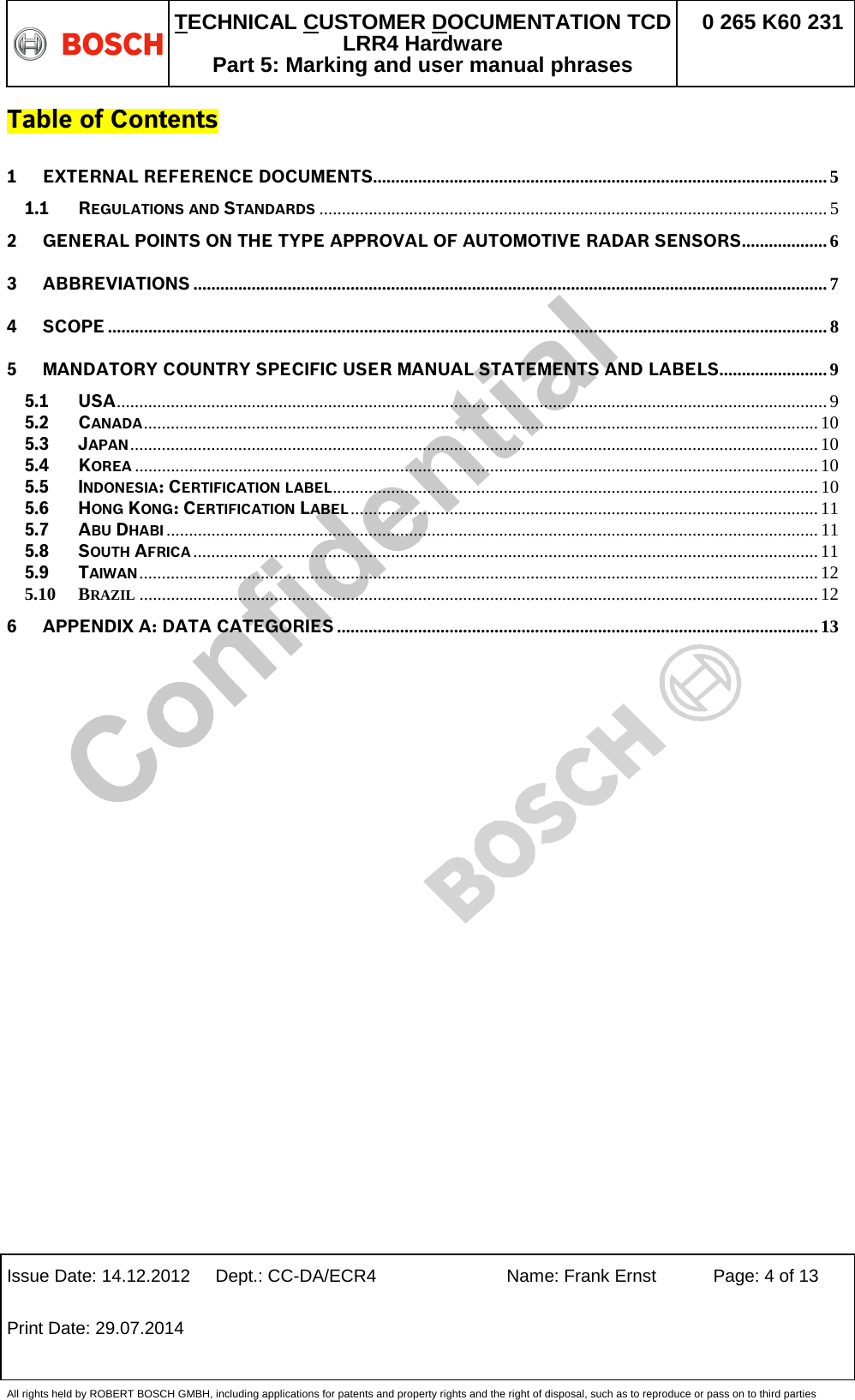

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 4 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties Table of Contents 1 EXTERNAL REFERENCE DOCUMENTS..................................................................................................... 5 1.1 REGULATIONS AND STANDARDS ................................................................................................................. 5 2 GENERAL POINTS ON THE TYPE APPROVAL OF AUTOMOTIVE RADAR SENSORS ................... 6 3 ABBREVIATIONS ............................................................................................................................................. 7 4 SCOPE ................................................................................................................................................................ 8 5 MANDATORY COUNTRY SPECIFIC USER MANUAL STATEMENTS AND LABELS ........................ 9 5.1 USA .............................................................................................................................................................. 9 5.2 CANADA ...................................................................................................................................................... 10 5.3 JAPAN ......................................................................................................................................................... 10 5.4 KOREA ........................................................................................................................................................ 10 5.5 INDONESIA: CERTIFICATION LABEL............................................................................................................ 10 5.6 HONG KONG: CERTIFICATION LABEL ........................................................................................................ 11 5.7 ABU DHABI ................................................................................................................................................. 11 5.8 SOUTH AFRICA ........................................................................................................................................... 11 5.9 TAIWAN ....................................................................................................................................................... 12 5.10 BRAZIL ....................................................................................................................................................... 12 6 APPENDIX A: DATA CATEGORIES ........................................................................................................... 13

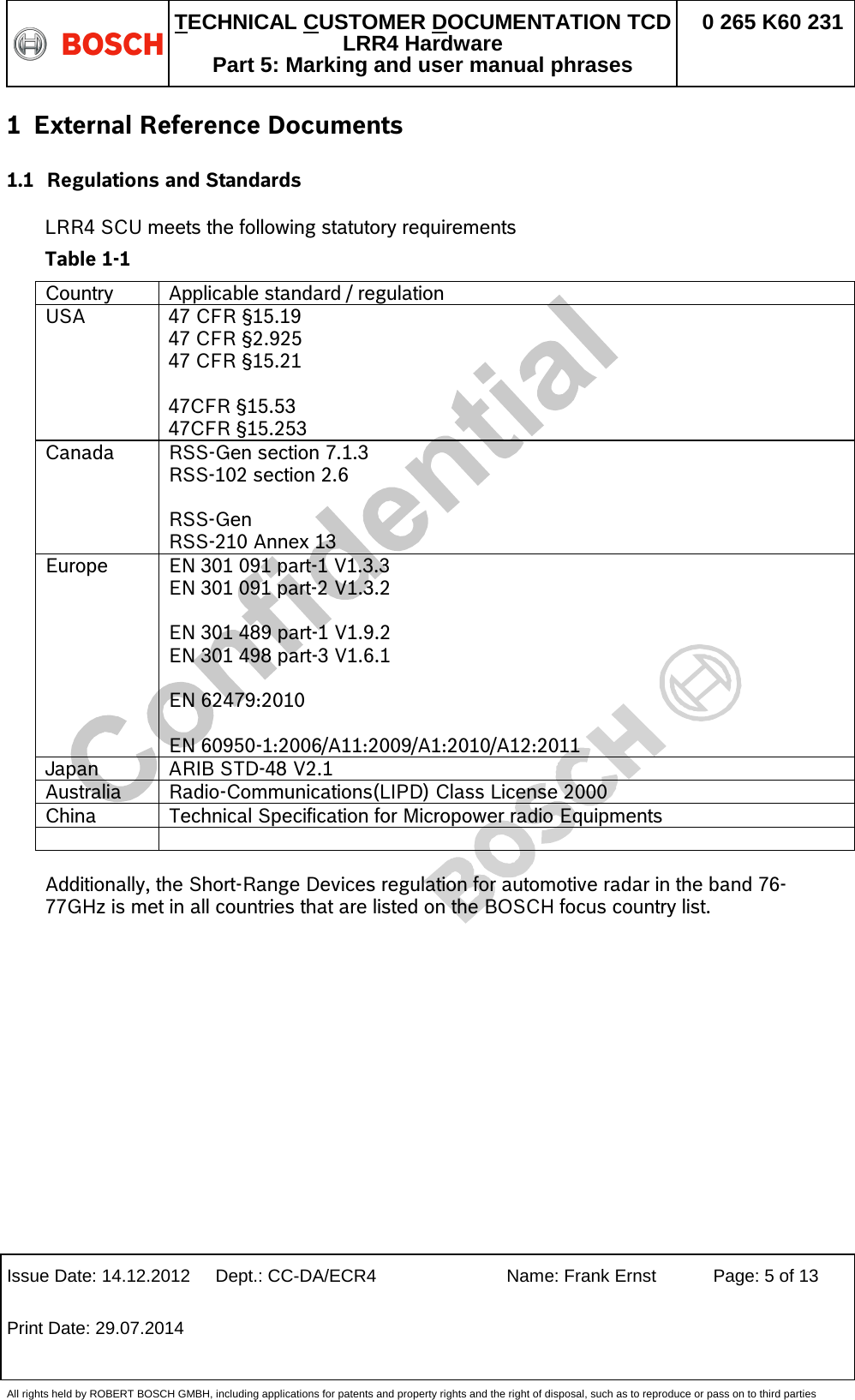

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 5 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties 1 External Reference Documents 1.1 Regulations and Standards LRR4 SCU meets the following statutory requirements Table 1-1 Country Applicable standard / regulation USA 47 CFR §15.19 47 CFR §2.925 47 CFR §15.21 47CFR §15.53 47CFR §15.253 Canada RSS-Gen section 7.1.3 RSS-102 section 2.6 RSS-Gen RSS-210 Annex 13 Europe EN 301 091 part-1 V1.3.3 EN 301 091 part-2 V1.3.2 EN 301 489 part-1 V1.9.2 EN 301 498 part-3 V1.6.1 EN 62479:2010 EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Japan ARIB STD-48 V2.1 Australia Radio-Communications(LIPD) Class License 2000 China Technical Specification for Micropower radio Equipments Additionally, the Short-Range Devices regulation for automotive radar in the band 76-77GHz is met in all countries that are listed on the BOSCH focus country list.

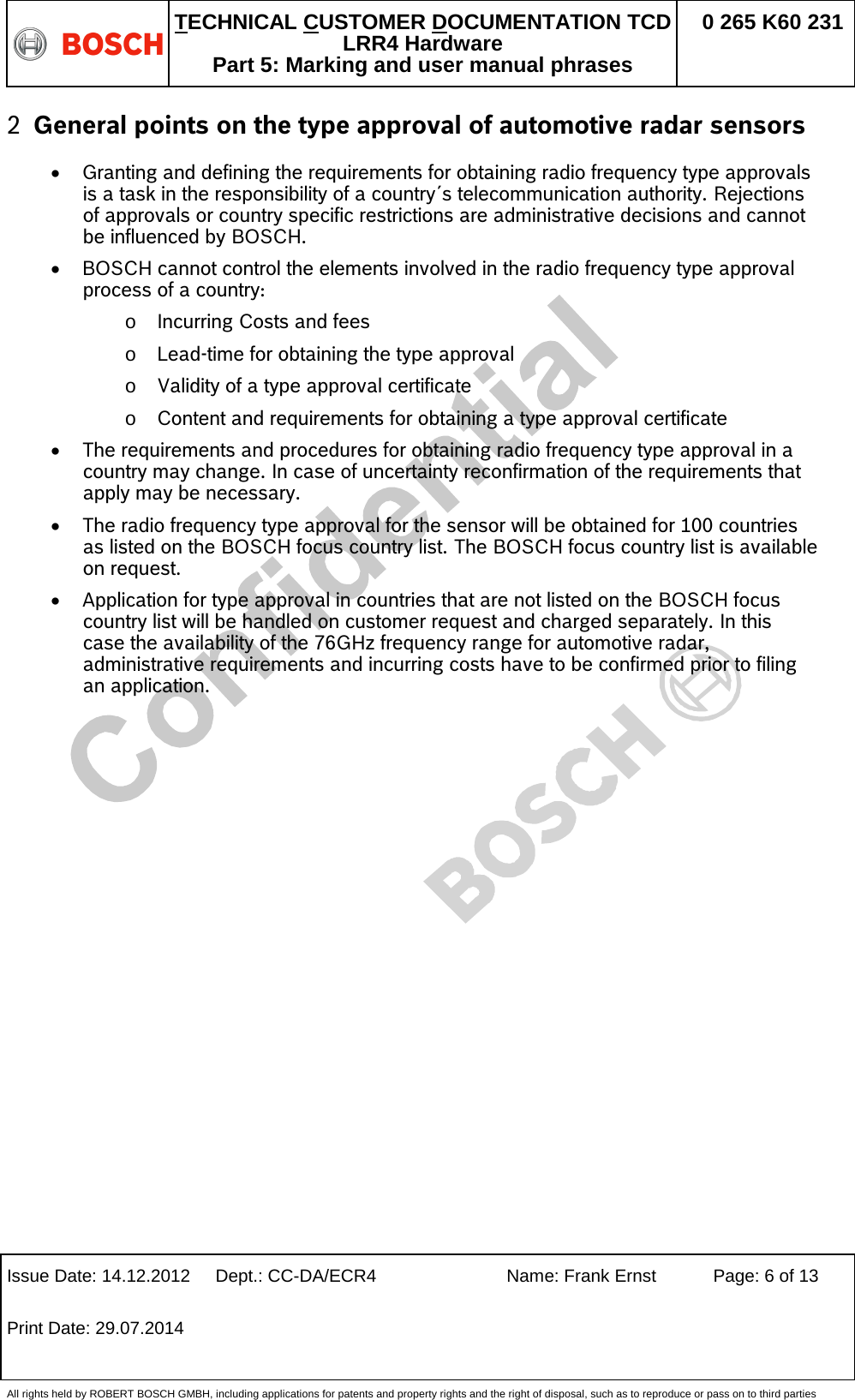

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 6 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties 2 General points on the type approval of automotive radar sensors • Granting and defining the requirements for obtaining radio frequency type approvals is a task in the responsibility of a country´s telecommunication authority. Rejections of approvals or country specific restrictions are administrative decisions and cannot be influenced by BOSCH. • BOSCH cannot control the elements involved in the radio frequency type approval process of a country: o Incurring Costs and fees o Lead-time for obtaining the type approval o Validity of a type approval certificate o Content and requirements for obtaining a type approval certificate • The requirements and procedures for obtaining radio frequency type approval in a country may change. In case of uncertainty reconfirmation of the requirements that apply may be necessary. • The radio frequency type approval for the sensor will be obtained for 100 countries as listed on the BOSCH focus country list. The BOSCH focus country list is available on request. • Application for type approval in countries that are not listed on the BOSCH focus country list will be handled on customer request and charged separately. In this case the availability of the 76GHz frequency range for automotive radar, administrative requirements and incurring costs have to be confirmed prior to filing an application.

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 7 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties 3 Abbreviations ARIB Association of Radio Industries and Businesses ASIL Automotive Safety Integrity Level CEPT European Conference of Postal and Telecommunications Administrations ECU Electronic Control Unit ETSI European Telecommunications Standards Institute FCC Federal Communications Commission OET FCC Office of Engineering and Technology LRR4 Long Range Radar 4th Generation SCU Sensor and Control Unit RSS Radio Standards Specification TCD Technical Customer Documentation

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 8 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties 4 Scope This document is part of a TCD, valid for LRR4 Radar-Sensors. The complete TCD consists of 5 Parts: Part 1: HW functions and function states (operation modes), functional characteristic values Part 2: Electrical, Mechanical, Climatic and Chemical Characteristics Part 3: Transport, assembly, start of operation and end of operation, storage, service, maintenance and recycling Part 4: Testing, test data and test methods Part 5: Marking and user manual phrases

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 9 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties 5 Mandatory Country Specific User Manual Statements and Labels The phrases and labels have to be included in a conspicuous location in the vehicle user manual and accurately reprinted as indicated in the following sub-chapters: 5.1 USA User manual statement according to §15.19: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. User manual statement according to §15.21: Changes or modifications made to this equipment not expressly approved by Robert BOSCH GmbH may void the FCC authorization to operate this equipment. User manual statement according to §15.105: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. RF Exposure Information according 2.1091 / 2.1093 / OET bulletin 65: Radiofrequency radiation exposure Information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

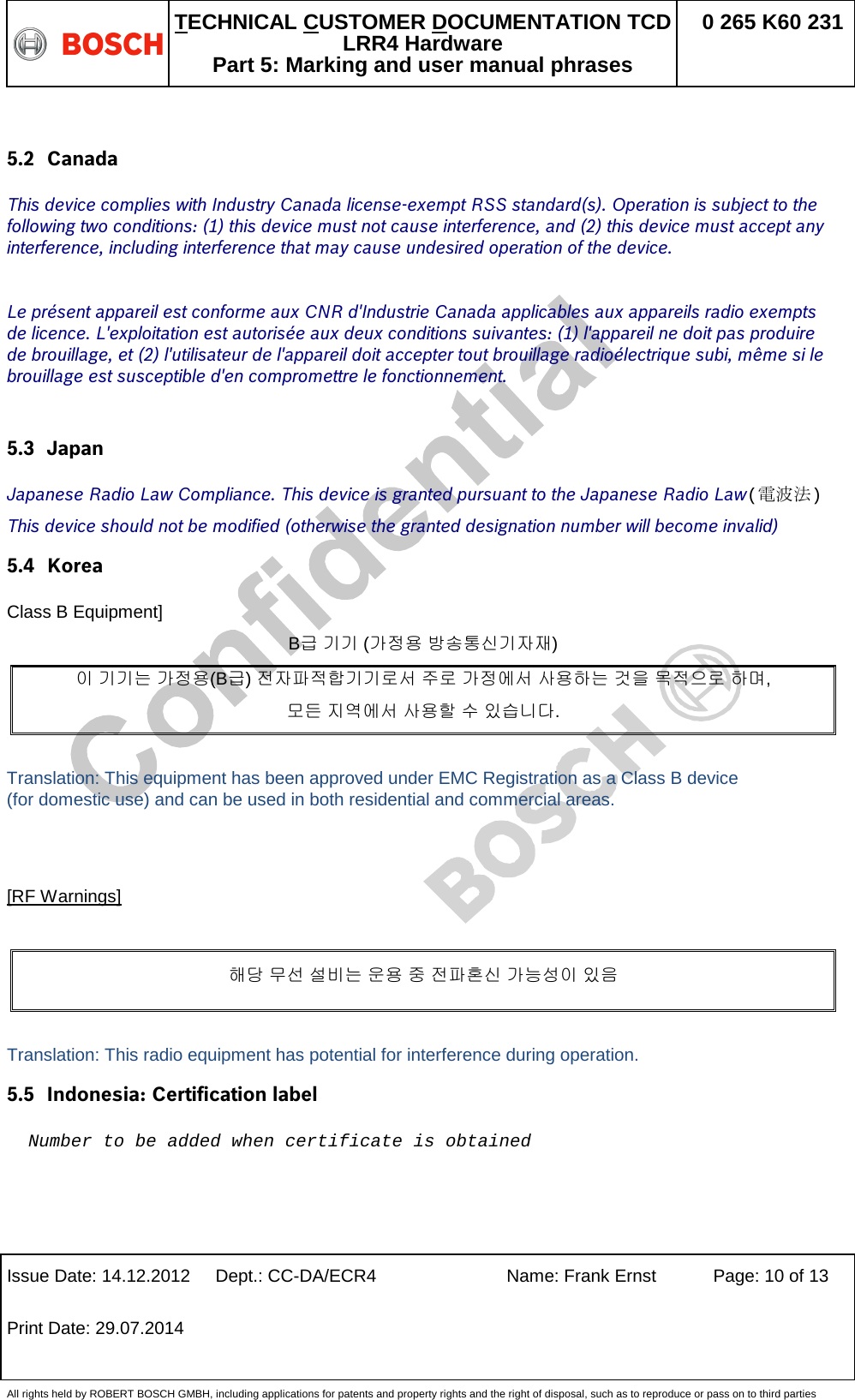

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 10 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties 5.2 Canada This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device must not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 5.3 Japan Japanese Radio Law Compliance. This device is granted pursuant to the Japanese Radio Law(電波法) This device should not be modified (otherwise the granted designation number will become invalid) 5.4 Korea Class B Equipment] B급 기기 (가정용 방송통신기자재) 이 기기는 가정용(B급) 전자파적합기기로서 주로 가정에서 사용하는 것을 목적으로 하며, 모든 지역에서 사용할 수 있습니다. Translation: This equipment has been approved under EMC Registration as a Class B device (for domestic use) and can be used in both residential and commercial areas. [RF Warnings] 해당 무선 설비는 운용 중 전파혼신 가능성이 있음 Translation: This radio equipment has potential for interference during operation. 5.5 Indonesia: Certification label Number to be added when certificate is obtained

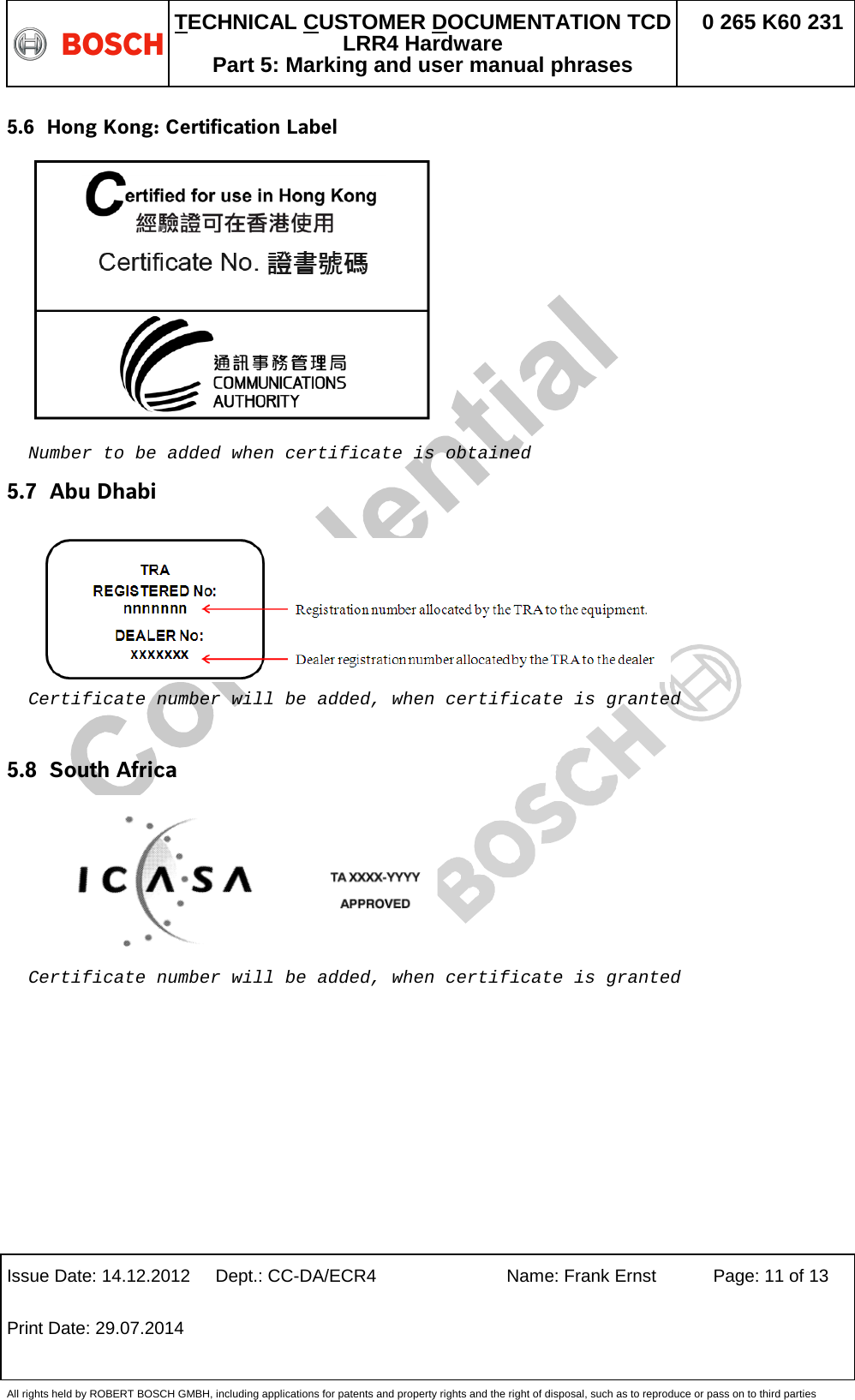

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 11 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties 5.6 Hong Kong: Certification Label Number to be added when certificate is obtained 5.7 Abu Dhabi Certificate number will be added, when certificate is granted 5.8 South Africa Certificate number will be added, when certificate is granted

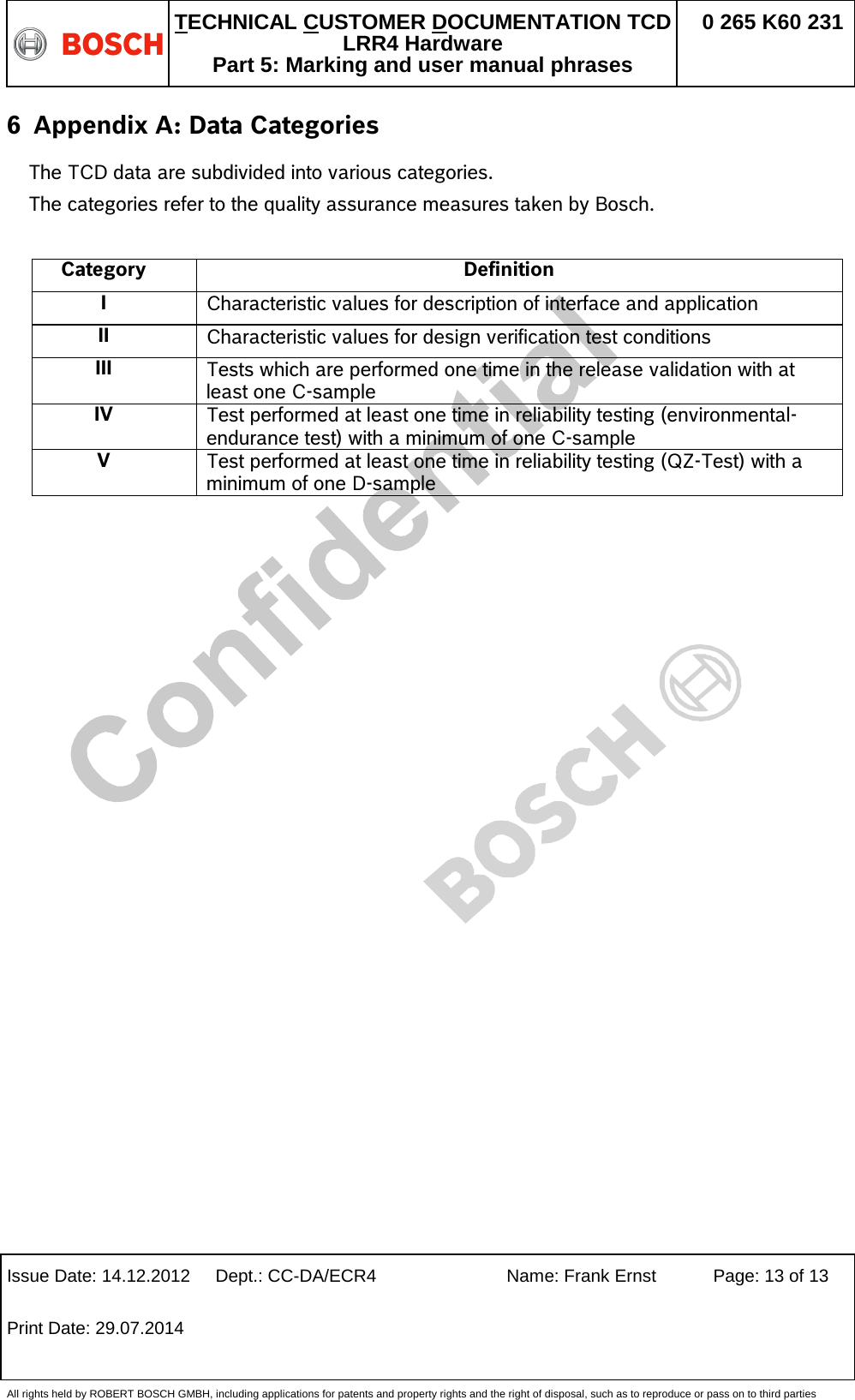

TECHNICAL CUSTOMER DOCUMENTATION TCD LRR4 Hardware Part 5: Marking and user manual phrases 0 265 K60 231 Issue Date: 14.12.2012 Dept.: CC-DA/ECR4 Name: Frank Ernst Page: 13 of 13 Print Date: 29.07.2014 All rights held by ROBERT BOSCH GMBH, including applications for patents and property rights and the right of disposal, such as to reproduce or pass on to third parties 6 Appendix A: Data Categories The TCD data are subdivided into various categories. The categories refer to the quality assurance measures taken by Bosch. Category Definition I Characteristic values for description of interface and application II Characteristic values for design verification test conditions III Tests which are performed one time in the release validation with at least one C-sample IV Test performed at least one time in reliability testing (environmental-endurance test) with a minimum of one C-sample V Test performed at least one time in reliability testing (QZ-Test) with a minimum of one D-sample
