Robertshaw Controls d b a Invensys Home Control Systems EMSM-101 vCon RF Meter User Manual TD2003

Robertshaw Controls Company d/b/a Invensys Home Control Systems vCon RF Meter TD2003

User Manual

TD2001 COPYRIGHT© 2002 INVENYS HOME CONTROL SYSTEMS 7/30/02vSR1Invensys vCon RF MeterGeneral InstructionsDescriptionThe vCon™ Single-Phase meter provides Form 2S-240V residential electronic metering with advanced sensor technology and integrated RF network communications capability. The meter displays accumulated electricity usage data on an easy-to-read LCD display, is compatible with industry requirements for mounting and device profile features, and can be dismantled without the use of hand tools. It is available in the industry standard Single-Phase meter Form 2S configuration, and is compliant with all applicable ANSI standards.The vCon meter is a member of the Invensys GoodWatts System family. This meter supports utility, service provider and end-user (home or business-owner) needs for automated utility measurement, data collection, control, notification, and usage management.Warning: Any work on, or near, energized meters, meter sockets, or other metering equipment can present a danger of electrical shock. All work on this product should be performed only by qualif9ed electricians and metering specialists in accordance with local utility safety practices, utility requirements, and procedures outlined in Chapter 14 of The Handbook for Electricity Metering (9th Edition). The information contained in this manual is intended to be an aid to qualified metering personnel. It is not intended to replace the extensive training necessary to handle metering equipment in a safe manner. Use extreme caution when servicing with power on.PrecautionsAll industry safety precautions must be observed during all phases of operation, service, and repair of the Invensys vCon RF Meter meter. Failure to comply with precautions or with specific warnings in this document violates safety standards of design, manufacture, and the intended use of the metering instrument. Invensys assumes no liability for the customer’s failure to comply with these requirements.Caution: This equipment is authorized for use under the United States Federal Communication Commission Rules and Regulations, Code of Federal Regulations Chapter 47 part 15 and must be installed in accordance with the instructions provided in this document. In accordance with FCC requirements, changes or modifications to this equipment that are not expressly approved by the party responsible for FCC compliance could void the user's authority to operate this equipment.FIGURE 1. Invensys vCon RF MeterNote: To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 20 cm (8 inches) is required between the antenna and all persons.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.

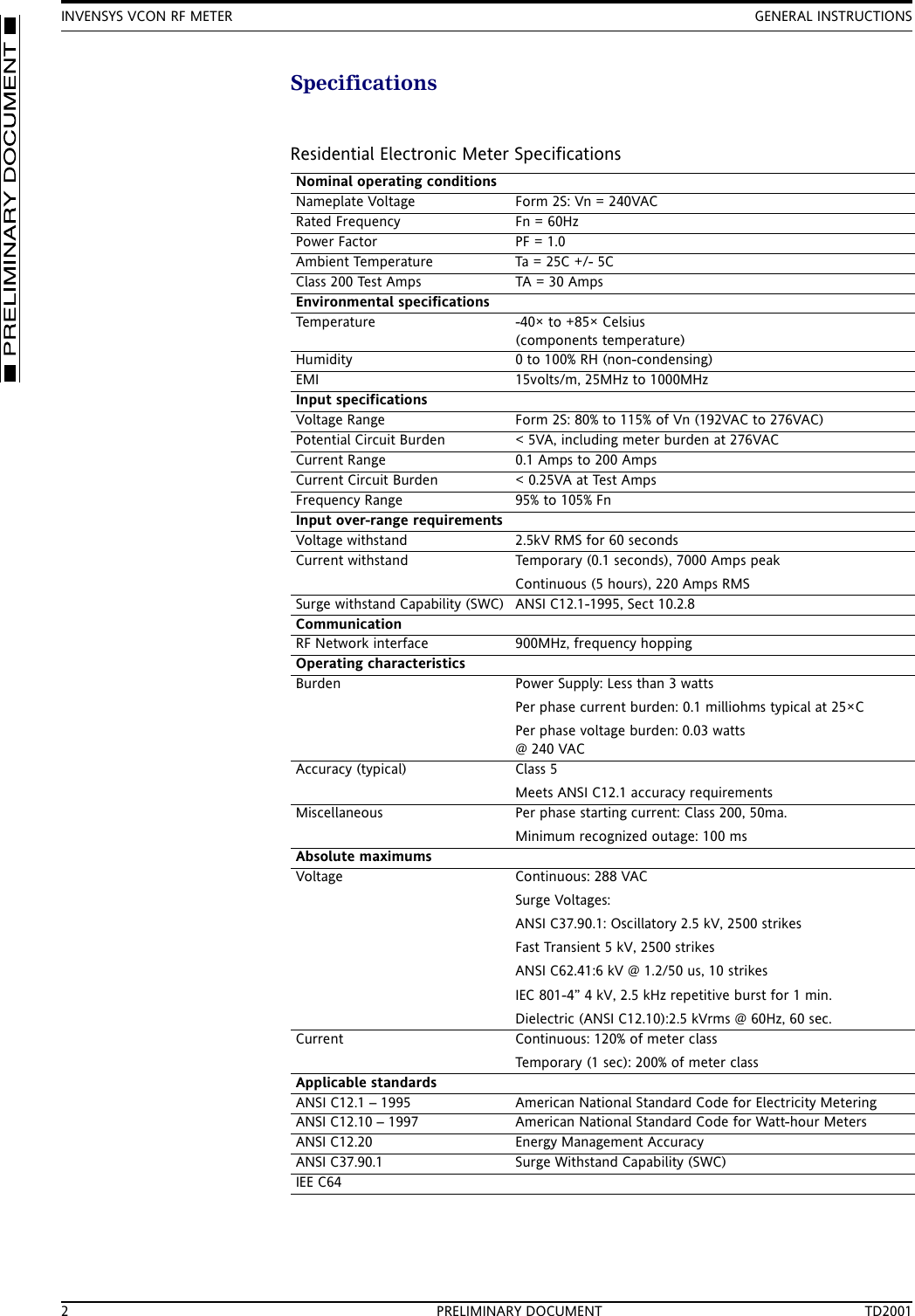

INVENSYS VCON RF METER GENERAL INSTRUCTIONS2 PRELIMINARY DOCUMENT TD2001SpecificationsResidential Electronic Meter SpecificationsNominal operating conditionsNameplate Voltage Form 2S: Vn = 240VACRated Frequency Fn = 60HzPower Factor PF = 1.0Ambient Temperature Ta = 25C +/- 5CClass 200 Test Amps TA = 30 AmpsEnvironmental specificationsTemperature -40× to +85× Celsius(components temperature)Humidity 0 to 100% RH (non-condensing)EMI 15volts/m, 25MHz to 1000MHzInput specificationsVoltage Range Form 2S: 80% to 115% of Vn (192VAC to 276VAC) Potential Circuit Burden < 5VA, including meter burden at 276VACCurrent Range 0.1 Amps to 200 AmpsCurrent Circuit Burden < 0.25VA at Test AmpsFrequency Range 95% to 105% FnInput over-range requirementsVoltage withstand  2.5kV RMS for 60 secondsCurrent withstand Temporary (0.1 seconds), 7000 Amps peakContinuous (5 hours), 220 Amps RMSSurge withstand Capability (SWC) ANSI C12.1-1995, Sect 10.2.8CommunicationRF Network interface 900MHz, frequency hoppingOperating characteristicsBurden Power Supply: Less than 3 wattsPer phase current burden: 0.1 milliohms typical at 25×C Per phase voltage burden: 0.03 watts @ 240 VACAccuracy (typical) Class 5Meets ANSI C12.1 accuracy requirementsMiscellaneous Per phase starting current: Class 200, 50ma.Minimum recognized outage: 100 msAbsolute maximumsVoltage Continuous: 288 VACSurge Voltages:ANSI C37.90.1: Oscillatory 2.5 kV, 2500 strikesFast Transient 5 kV, 2500 strikesANSI C62.41:6 kV @ 1.2/50 us, 10 strikesIEC 801-4” 4 kV, 2.5 kHz repetitive burst for 1 min.Dielectric (ANSI C12.10):2.5 kVrms @ 60Hz, 60 sec.Current Continuous: 120% of meter classTemporary (1 sec): 200% of meter classApplicable standardsANSI C12.1 – 1995 American National Standard Code for Electricity MeteringANSI C12.10 – 1997 American National Standard Code for Watt-hour MetersANSI C12.20 Energy Management AccuracyANSI C37.90.1 Surge Withstand Capability (SWC)IEE C64
GENERAL INSTRUCTIONS7/30/02 PRELIMINARY DOCUMENT 3
TD2001 INVENSYS VCON RF METER PRINTED IN U.S.A.© Invensys 2002All specifications are nominal and may change as design improvements are introduced. Invensys shall not be liable for damages resulting from mis-application or misuse of its products.Marks bearing ® and/or ™ are registered trademarks and trademarks of Invensys.Terms and product names in this document may be trademarks of others.
