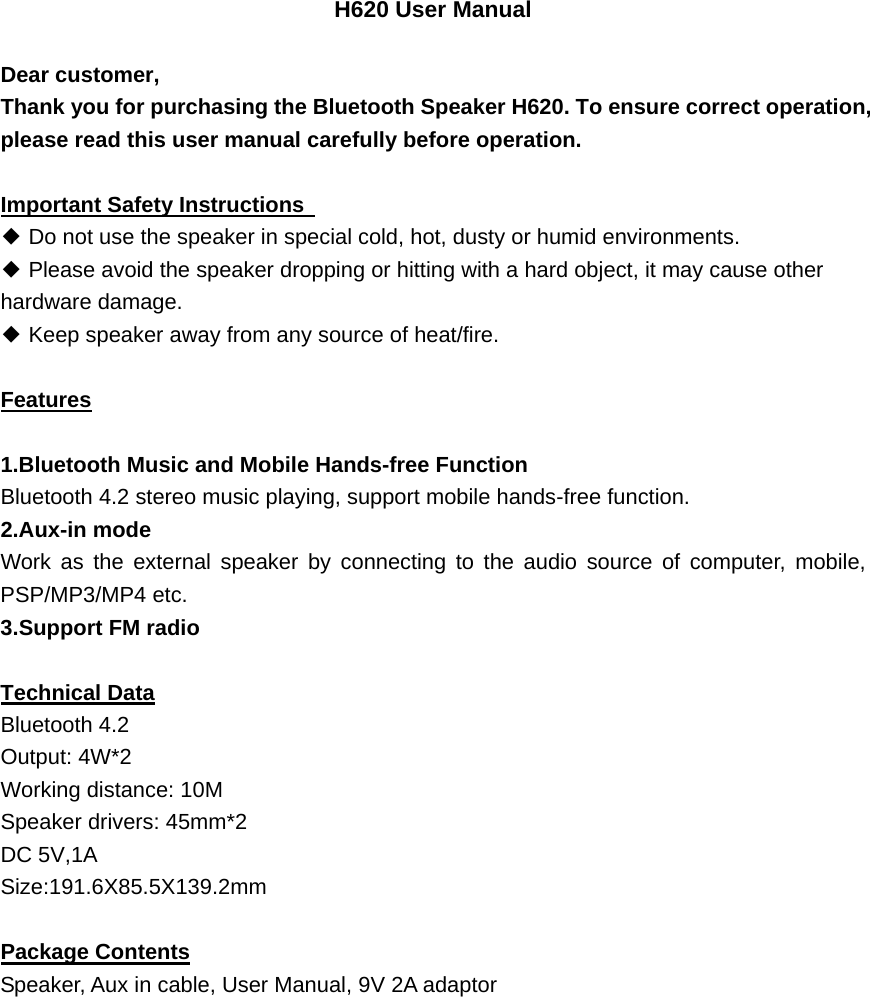

H620 User Manual Dear customer, Thank you for purchasing the Bluetooth Speaker H620. To ensure correct operation, please read this user manual carefully before operation. Important Safety Instructions ◆ Do not use the speaker in special cold, hot, dusty or humid environments. ◆ Please avoid the speaker dropping or hitting with a hard object, it may cause other hardware damage. ◆ Keep speaker away from any source of heat/fire. Features 1.Bluetooth Music and Mobile Hands-free Function Bluetooth 4.2 stereo music playing, support mobile hands-free function. 2.Aux-in mode Work as the external speaker by connecting to the audio source of computer, mobile, PSP/MP3/MP4 etc. 3.Support FM radio Technical Data Bluetooth 4.2 Output: 4W*2 Working distance: 10M Speaker drivers: 45mm*2 DC 5V,1A Size:191.6X85.5X139.2mm Package Contents Speaker, Aux in cable, User Manual, 9V 2A adaptor 

Slot and Keys 

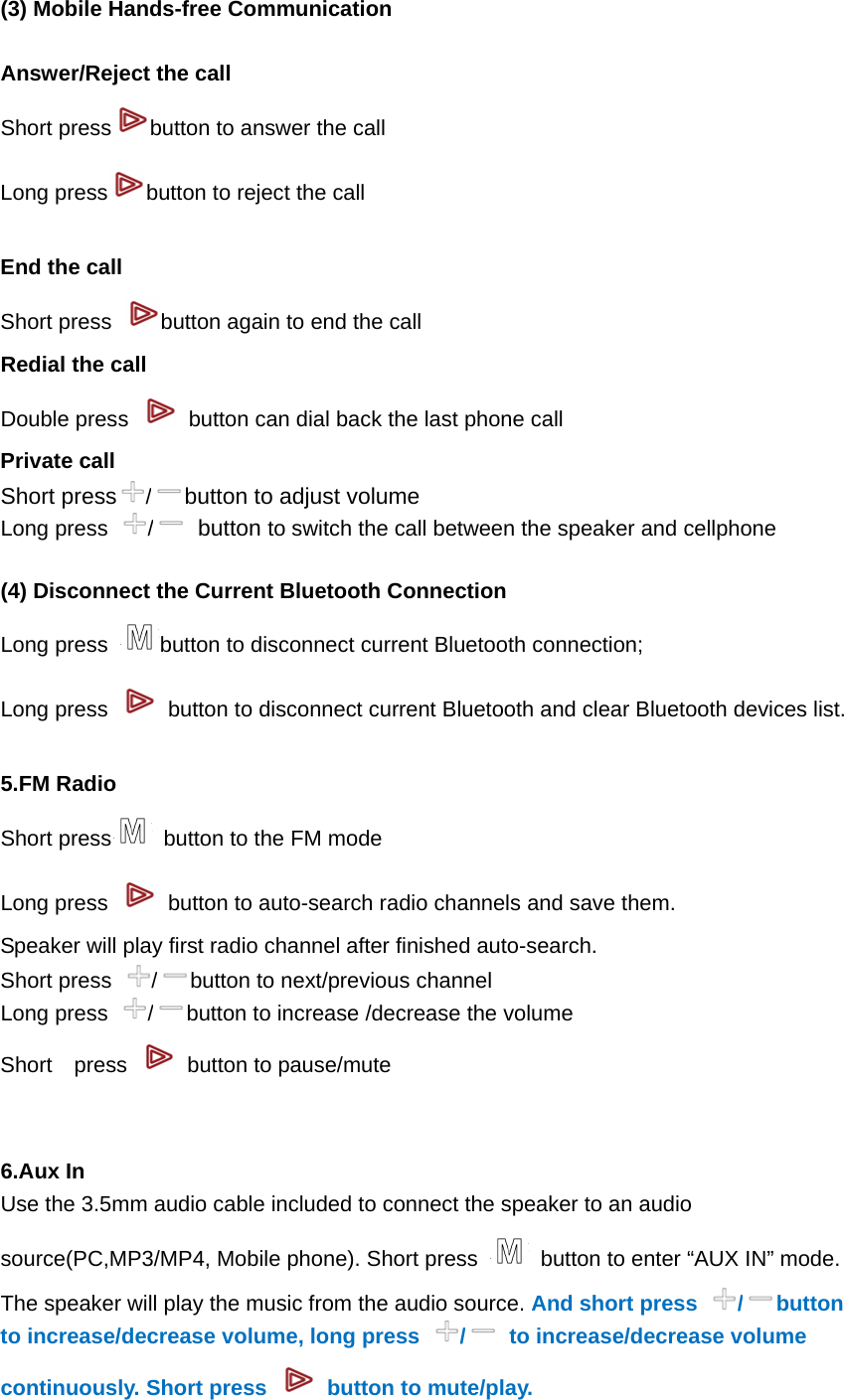

(3) Mobile Hands-free Communication Answer/Reject the call Short press button to answer the call Long press button to reject the call End the call Short press button again to end the call Redial the call Double press button can dial back the last phone call Private call Short press /button to adjust volume Long press / button to switch the call between the speaker and cellphone (4) Disconnect the Current Bluetooth Connection Long press button to disconnect current Bluetooth connection; Long press button to disconnect current Bluetooth and clear Bluetooth devices list. 5.FM Radio Short press button to the FM mode Long press button to auto-search radio channels and save them. Speaker will play first radio channel after finished auto-search. Short press /button to next/previous channel Long press /button to increase /decrease the volume Short press button to pause/mute 6.Aux In Use the 3.5mm audio cable included to connect the speaker to an audio source(PC,MP3/MP4, Mobile phone). Short press button to enter “AUX IN” mode. The speaker will play the music from the audio source. And short press / button to increase/decrease volume, long press / to increase/decrease volume continuously. Short press button to mute/play.

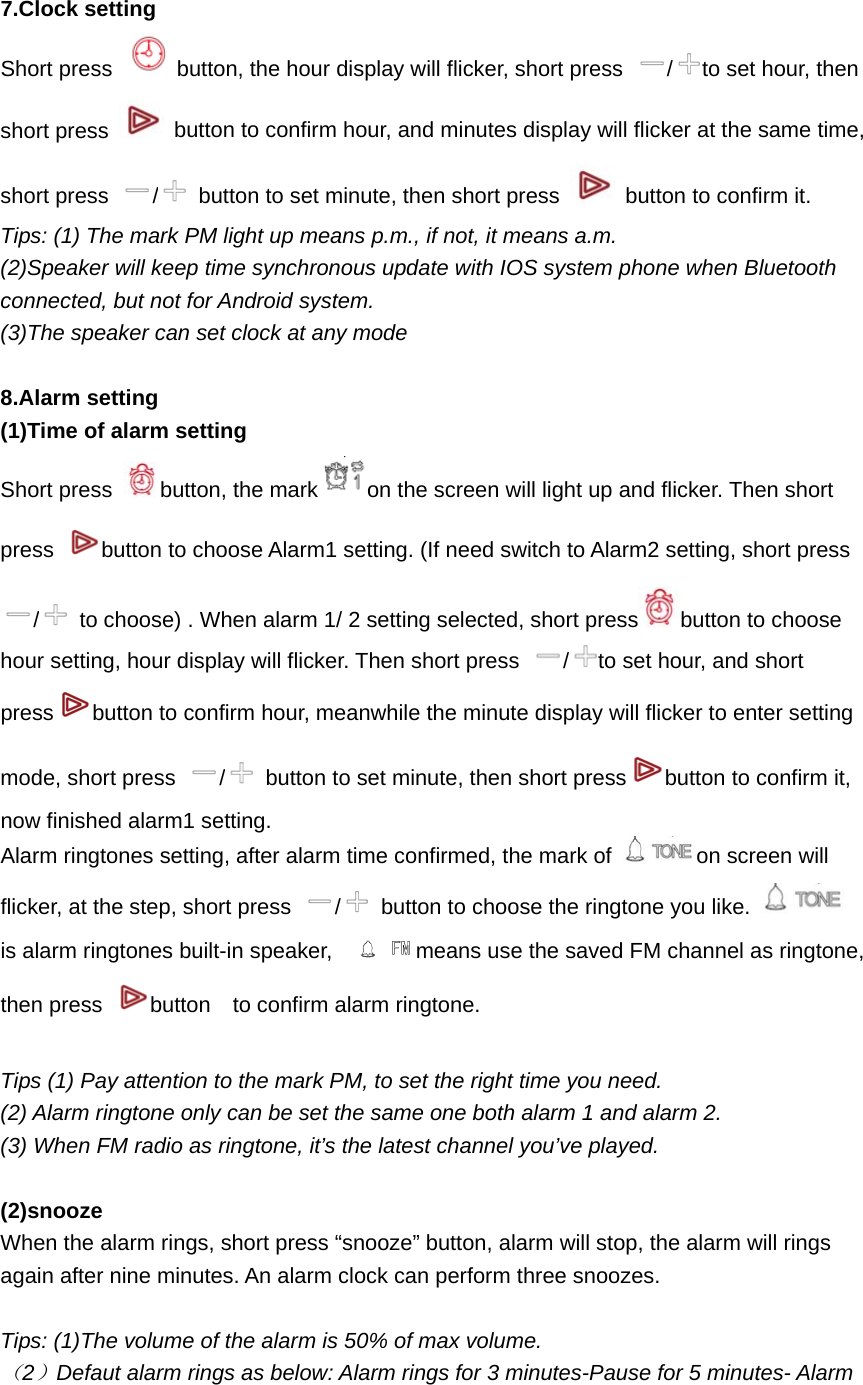

7.Clock setting Short press button, the hour display will flicker, short press /to set hour, then short press button to confirm hour, and minutes display will flicker at the same time, short press / button to set minute, then short press button to confirm it. Tips: (1) The mark PM light up means p.m., if not, it means a.m. (2)Speaker will keep time synchronous update with IOS system phone when Bluetooth connected, but not for Android system. (3)The speaker can set clock at any mode 8.Alarm setting (1)Time of alarm setting Short press button, the mark on the screen will light up and flicker. Then short press button to choose Alarm1 setting. (If need switch to Alarm2 setting, short press / to choose) . When alarm 1/ 2 setting selected, short press button to choose hour setting, hour display will flicker. Then short press /to set hour, and short press button to confirm hour, meanwhile the minute display will flicker to enter setting mode, short press / button to set minute, then short press button to confirm it, now finished alarm1 setting. Alarm ringtones setting, after alarm time confirmed, the mark of on screen will flicker, at the step, short press / button to choose the ringtone you like. is alarm ringtones built-in speaker, means use the saved FM channel as ringtone, then press button to confirm alarm ringtone. Tips (1) Pay attention to the mark PM, to set the right time you need. (2) Alarm ringtone only can be set the same one both alarm 1 and alarm 2. (3) When FM radio as ringtone, it’s the latest channel you’ve played. (2)snooze When the alarm rings, short press “snooze” button, alarm will stop, the alarm will rings again after nine minutes. An alarm clock can perform three snoozes. Tips: (1)The volume of the alarm is 50% of max volume. （2）Defaut alarm rings as below: Alarm rings for 3 minutes-Pause for 5 minutes- Alarm

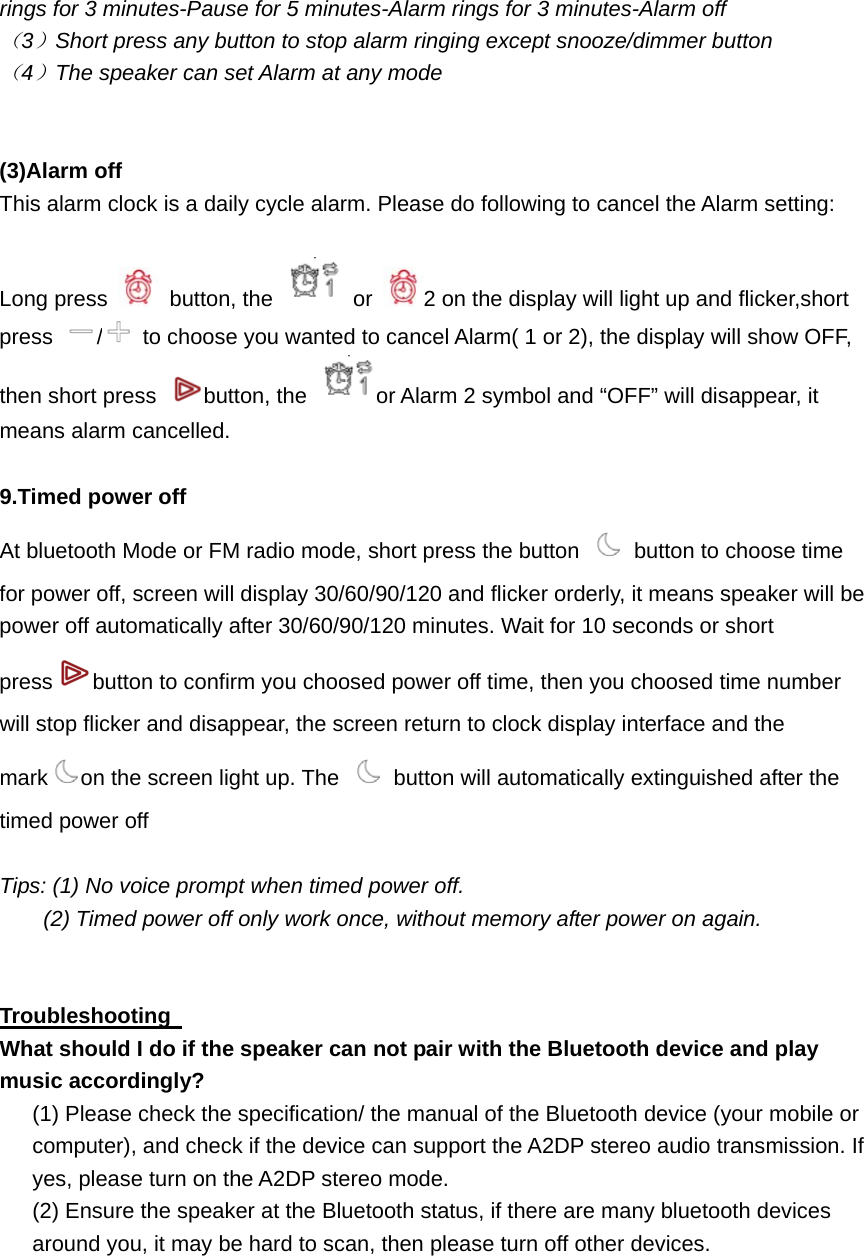

rings for 3 minutes-Pause for 5 minutes-Alarm rings for 3 minutes-Alarm off （3）Short press any button to stop alarm ringing except snooze/dimmer button （4）The speaker can set Alarm at any mode (3)Alarm off This alarm clock is a daily cycle alarm. Please do following to cancel the Alarm setting: Long press button, the or 2 on the display will light up and flicker,short press / to choose you wanted to cancel Alarm( 1 or 2), the display will show OFF, then short press button, the or Alarm 2 symbol and “OFF” will disappear, it means alarm cancelled. 9.Timed power off At bluetooth Mode or FM radio mode, short press the button button to choose time for power off, screen will display 30/60/90/120 and flicker orderly, it means speaker will be power off automatically after 30/60/90/120 minutes. Wait for 10 seconds or short press button to confirm you choosed power off time, then you choosed time number will stop flicker and disappear, the screen return to clock display interface and the mark on the screen light up. The button will automatically extinguished after the timed power off Tips: (1) No voice prompt when timed power off. (2) Timed power off only work once, without memory after power on again. Troubleshooting What should I do if the speaker can not pair with the Bluetooth device and play music accordingly? (1) Please check the specification/ the manual of the Bluetooth device (your mobile or computer), and check if the device can support the A2DP stereo audio transmission. If yes, please turn on the A2DP stereo mode. (2) Ensure the speaker at the Bluetooth status, if there are many bluetooth devices around you, it may be hard to scan, then please turn off other devices.

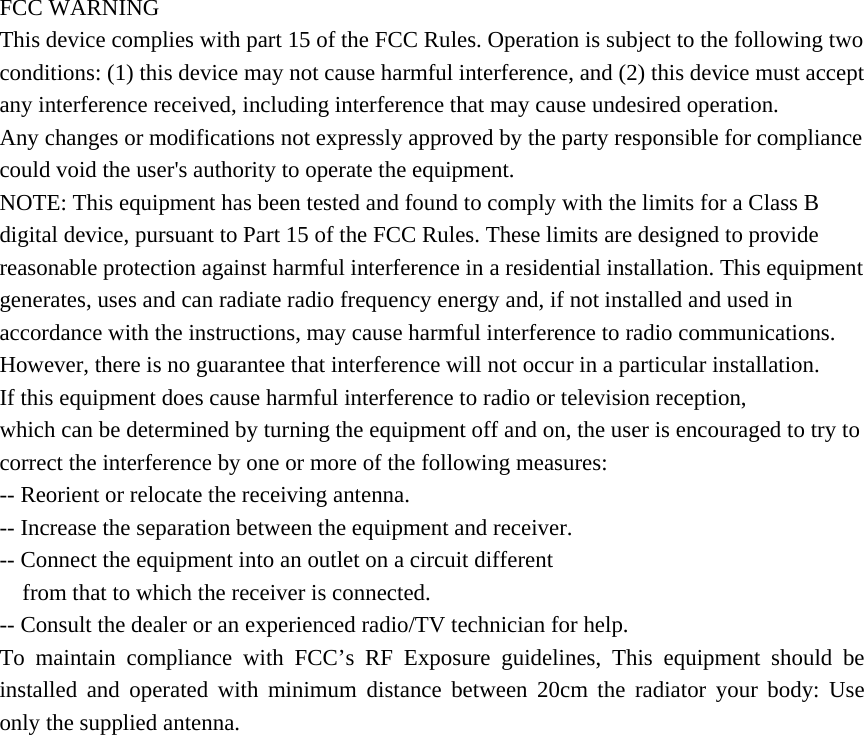

FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.
