   The CFIP Series Full Outdoor Unit Technical Description and Configuration Guide • Rev. 1.13  © SAF Tehnika A/S 2015 1   CFIP PhoeniX Series TDM/IP Split Mount System    Technical Description & Configuration Guide        SAF Tehnika JSC 2015

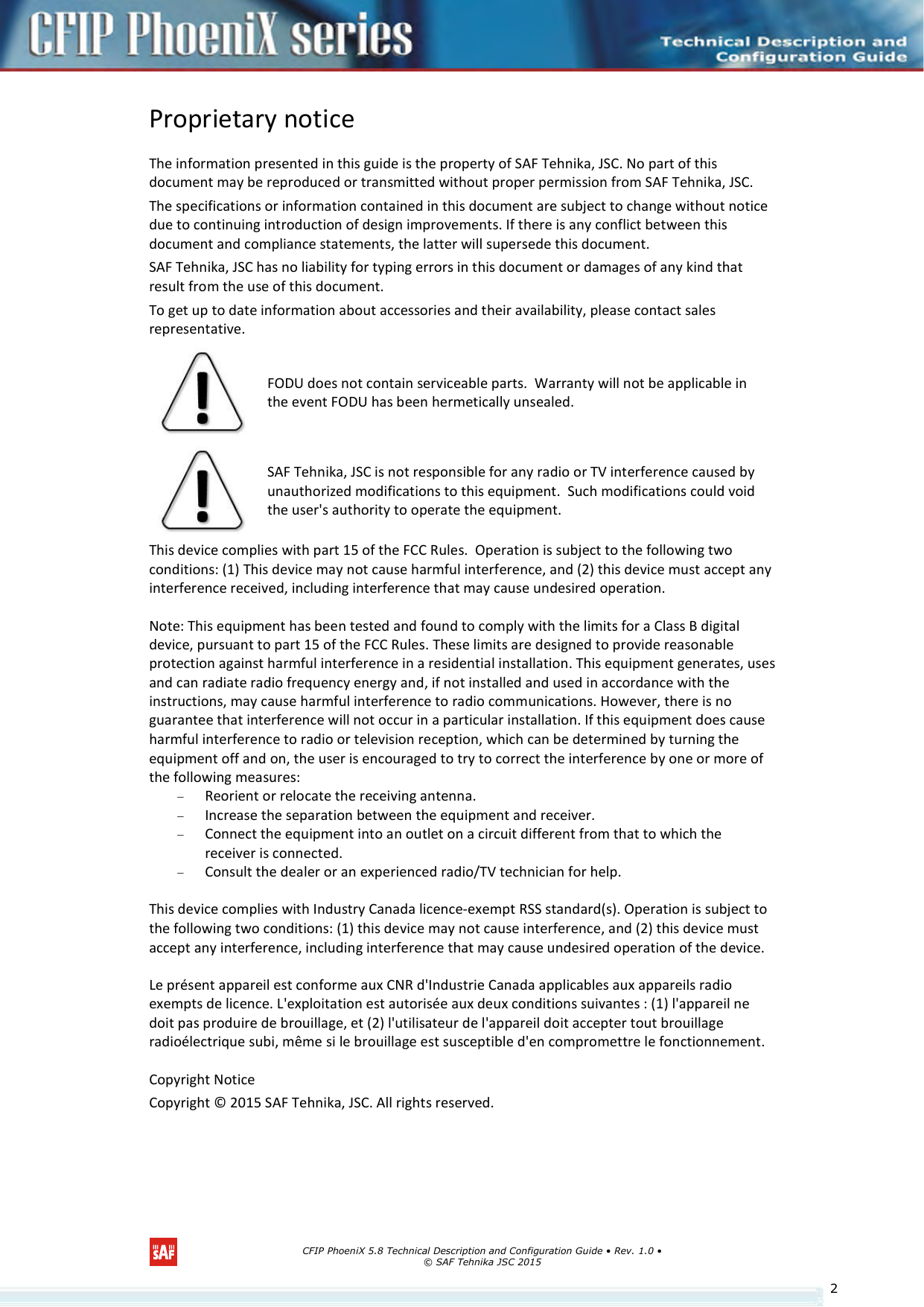

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   2Proprietary notice The information presented in this guide is the property of SAF Tehnika, JSC. No part of this document may be reproduced or transmitted without proper permission from SAF Tehnika, JSC. The specifications or information contained in this document are subject to change without notice due to continuing introduction of design improvements. If there is any conflict between this document and compliance statements, the latter will supersede this document. SAF Tehnika, JSC has no liability for typing errors in this document or damages of any kind that result from the use of this document. To get up to date information about accessories and their availability, please contact sales representative.  FODU does not contain serviceable parts.  Warranty will not be applicable in the event FODU has been hermetically unsealed.  SAF Tehnika, JSC is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.  Such modifications could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules.  Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Copyright Notice Copyright © 2015 SAF Tehnika, JSC. All rights reserved.

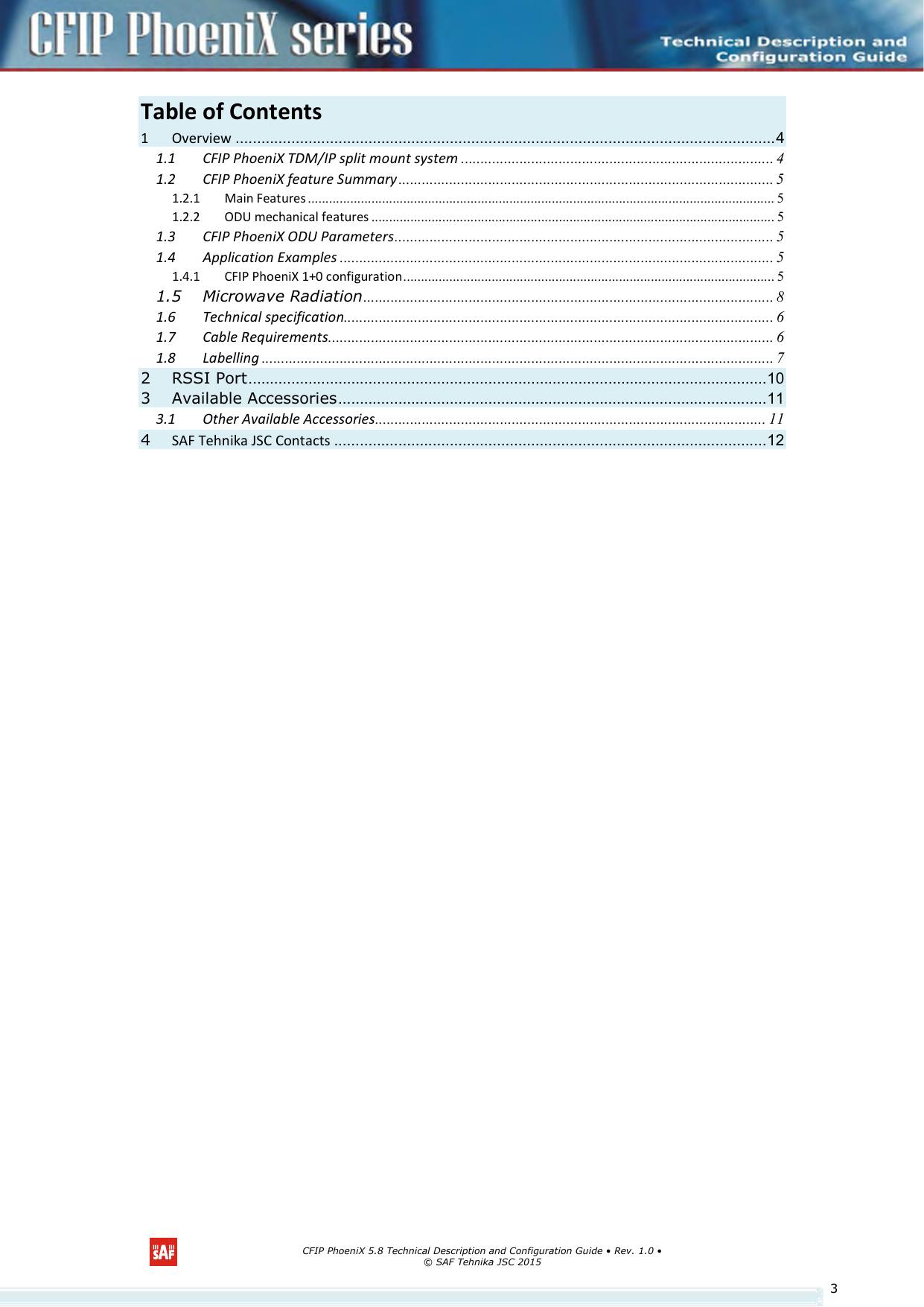

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   3Table of Contents               1 Overview .............................................................................................................................. 4 1.1 CFIP PhoeniX TDM/IP split mount system ................................................................................ 4 1.2 CFIP PhoeniX feature Summary ................................................................................................ 5 1.2.1 Main Features .................................................................................................................................... 5 1.2.2 ODU mechanical features .................................................................................................................. 5 1.3 CFIP PhoeniX ODU Parameters ................................................................................................. 5 1.4 Application Examples ............................................................................................................... 5 1.4.1 CFIP PhoeniX 1+0 configuration ......................................................................................................... 5 1.5 Microwave Radiation ......................................................................................................... 8 1.6 Technical specification.............................................................................................................. 6 1.7 Cable Requirements .................................................................................................................. 6 1.8 Labelling ................................................................................................................................... 7 2 RSSI Port ......................................................................................................................... 10 3 Available Accessories .................................................................................................... 11 3.1 Other Available Accessories.................................................................................................... 11 4 SAF Tehnika JSC Contacts ..................................................................................................... 12

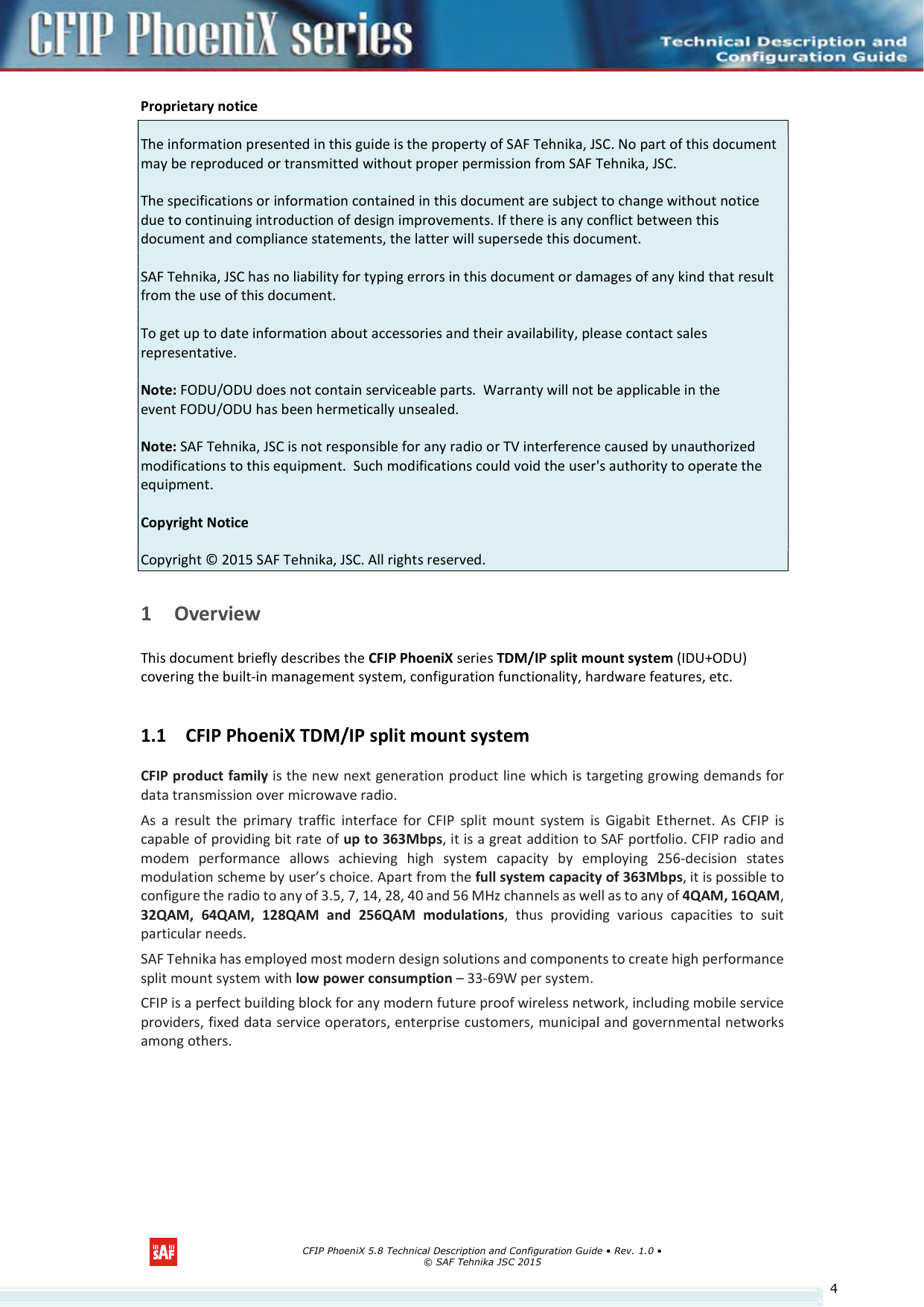

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   4Proprietary notice  The information presented in this guide is the property of SAF Tehnika, JSC. No part of this document may be reproduced or transmitted without proper permission from SAF Tehnika, JSC.  The specifications or information contained in this document are subject to change without notice due to continuing introduction of design improvements. If there is any conflict between this document and compliance statements, the latter will supersede this document.  SAF Tehnika, JSC has no liability for typing errors in this document or damages of any kind that result from the use of this document.  To get up to date information about accessories and their availability, please contact sales representative.  Note: FODU/ODU does not contain serviceable parts.  Warranty will not be applicable in the event FODU/ODU has been hermetically unsealed.  Note: SAF Tehnika, JSC is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.  Such modifications could void the user's authority to operate the equipment.  Copyright Notice  Copyright © 2015 SAF Tehnika, JSC. All rights reserved.  1 Overview This document briefly describes the CFIP PhoeniX series TDM/IP split mount system (IDU+ODU) covering the built-in management system, configuration functionality, hardware features, etc. 1.1 CFIP PhoeniX TDM/IP split mount system CFIP product family is the new next generation product line which is targeting growing demands for data transmission over microwave radio. As  a  result  the  primary  traffic  interface  for  CFIP  split  mount  system  is  Gigabit  Ethernet.  As  CFIP  is capable of providing bit rate of up to 363Mbps, it is a great addition to SAF portfolio. CFIP radio and modem  performance  allows  achieving  high  system  capacity  by  employing  256-decision  states modulation scheme by user’s choice. Apart from the full system capacity of 363Mbps, it is possible to configure the radio to any of 3.5, 7, 14, 28, 40 and 56 MHz channels as well as to any of 4QAM, 16QAM, 32QAM,  64QAM,  128QAM  and  256QAM  modulations,  thus  providing  various  capacities  to  suit particular needs. SAF Tehnika has employed most modern design solutions and components to create high performance split mount system with low power consumption – 33-69W per system. CFIP is a perfect building block for any modern future proof wireless network, including mobile service providers, fixed data service operators, enterprise customers, municipal and governmental networks among others.

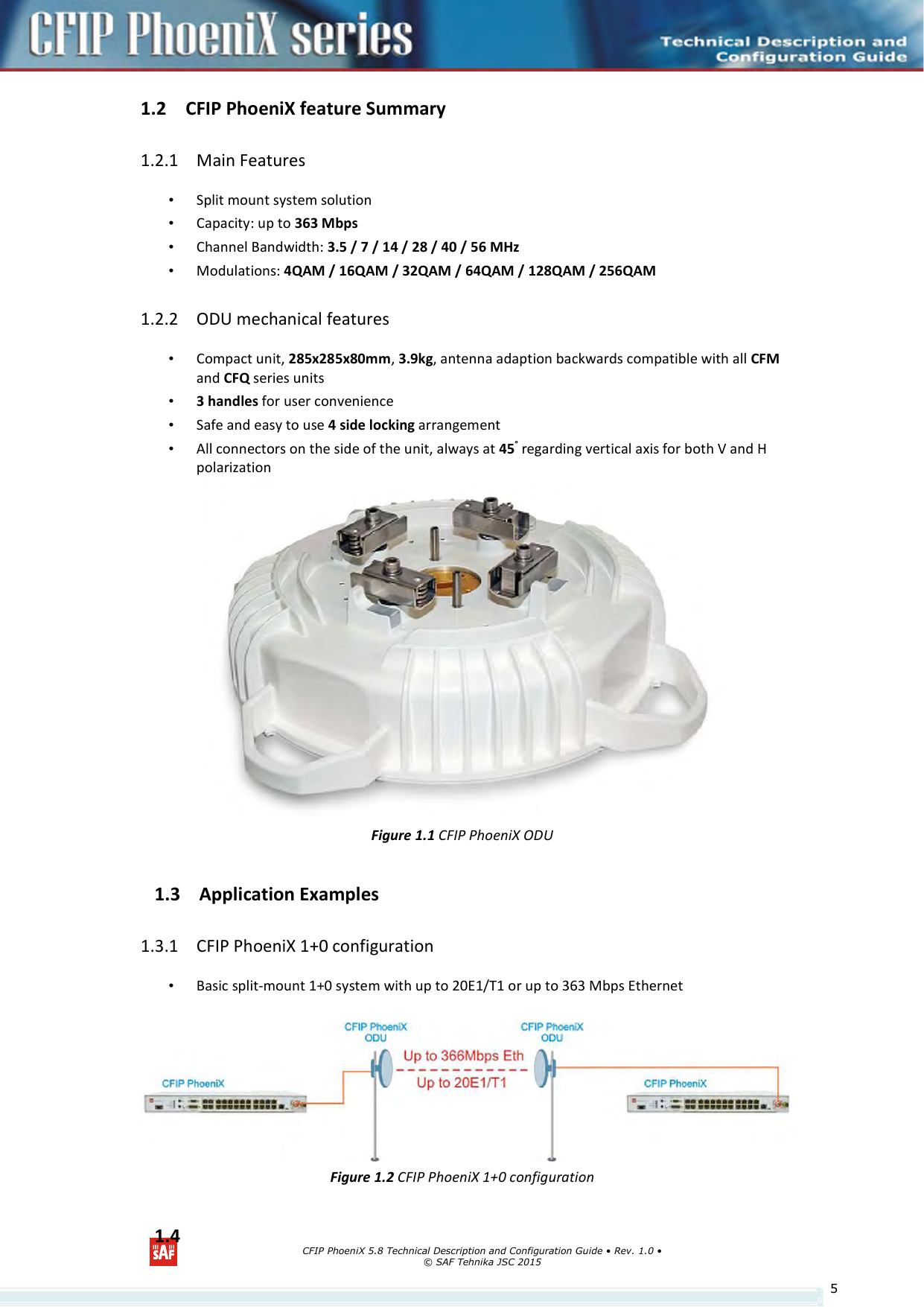

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   51.2 CFIP PhoeniX feature Summary  1.2.1 Main Features • Split mount system solution • Capacity: up to 363 Mbps • Channel Bandwidth: 3.5 / 7 / 14 / 28 / 40 / 56 MHz • Modulations: 4QAM / 16QAM / 32QAM / 64QAM / 128QAM / 256QAM 1.2.2 ODU mechanical features • Compact unit, 285x285x80mm, 3.9kg, antenna adaption backwards compatible with all CFM and CFQ series units • 3 handles for user convenience • Safe and easy to use 4 side locking arrangement • All connectors on the side of the unit, always at 45° regarding vertical axis for both V and H polarization  Figure 1.1 CFIP PhoeniX ODU 1.3 Application Examples 1.3.1 CFIP PhoeniX 1+0 configuration • Basic split-mount 1+0 system with up to 20E1/T1 or up to 363 Mbps Ethernet   Figure 1.2 CFIP PhoeniX 1+0 configuration 1.4

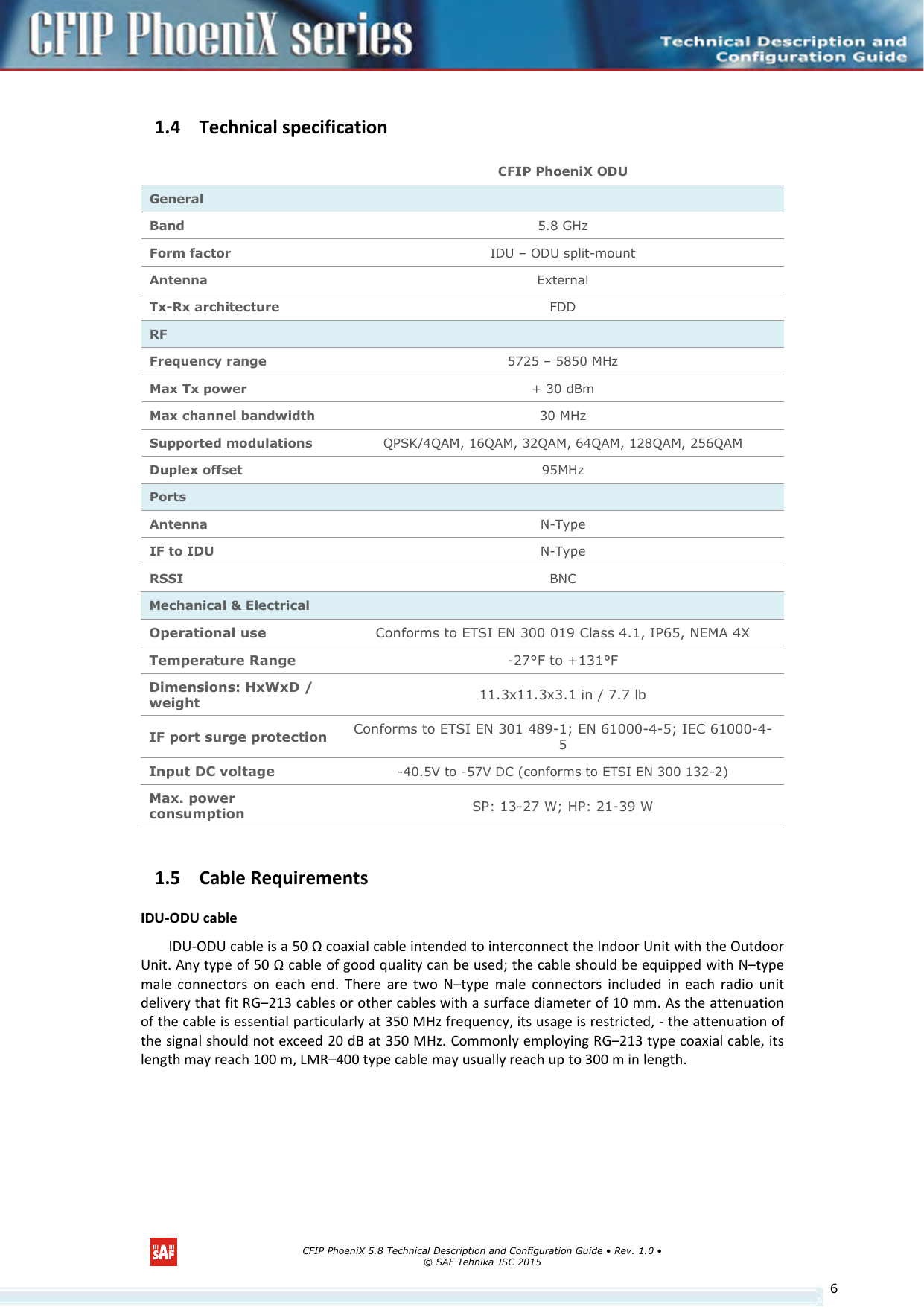

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   61.4 Technical specification   CFIP PhoeniX ODU General   Band  5.8 GHz Form factor  IDU – ODU split-mount Antenna  External Tx-Rx architecture  FDD RF   Frequency range  5725 – 5850 MHz Max Tx power  + 30 dBm Max channel bandwidth  30 MHz Supported modulations QPSK/4QAM, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM Duplex offset  95MHz Ports   Antenna  N-Type IF to IDU  N-Type RSSI  BNC Mechanical & Electrical Operational use Conforms to ETSI EN 300 019 Class 4.1, IP65, NEMA 4X Temperature Range -27°F to +131°F Dimensions: HxWxD / weight 11.3x11.3x3.1 in / 7.7 lb IF port surge protection Conforms to ETSI EN 301 489-1; EN 61000-4-5; IEC 61000-4-5 Input DC voltage -40.5V to -57V DC (conforms to ETSI EN 300 132-2) Max. power consumption SP: 13-27 W; HP: 21-39 W 1.5 Cable Requirements IDU-ODU cable IDU-ODU cable is a 50 Ω coaxial cable intended to interconnect the Indoor Unit with the Outdoor Unit. Any type of 50 Ω cable of good quality can be used; the cable should be equipped with N–type male  connectors  on  each  end.  There  are  two  N–type  male  connectors  included  in  each  radio  unit delivery that fit RG–213 cables or other cables with a surface diameter of 10 mm. As the attenuation of the cable is essential particularly at 350 MHz frequency, its usage is restricted, - the attenuation of the signal should not exceed 20 dB at 350 MHz. Commonly employing RG–213 type coaxial cable, its length may reach 100 m, LMR–400 type cable may usually reach up to 300 m in length.

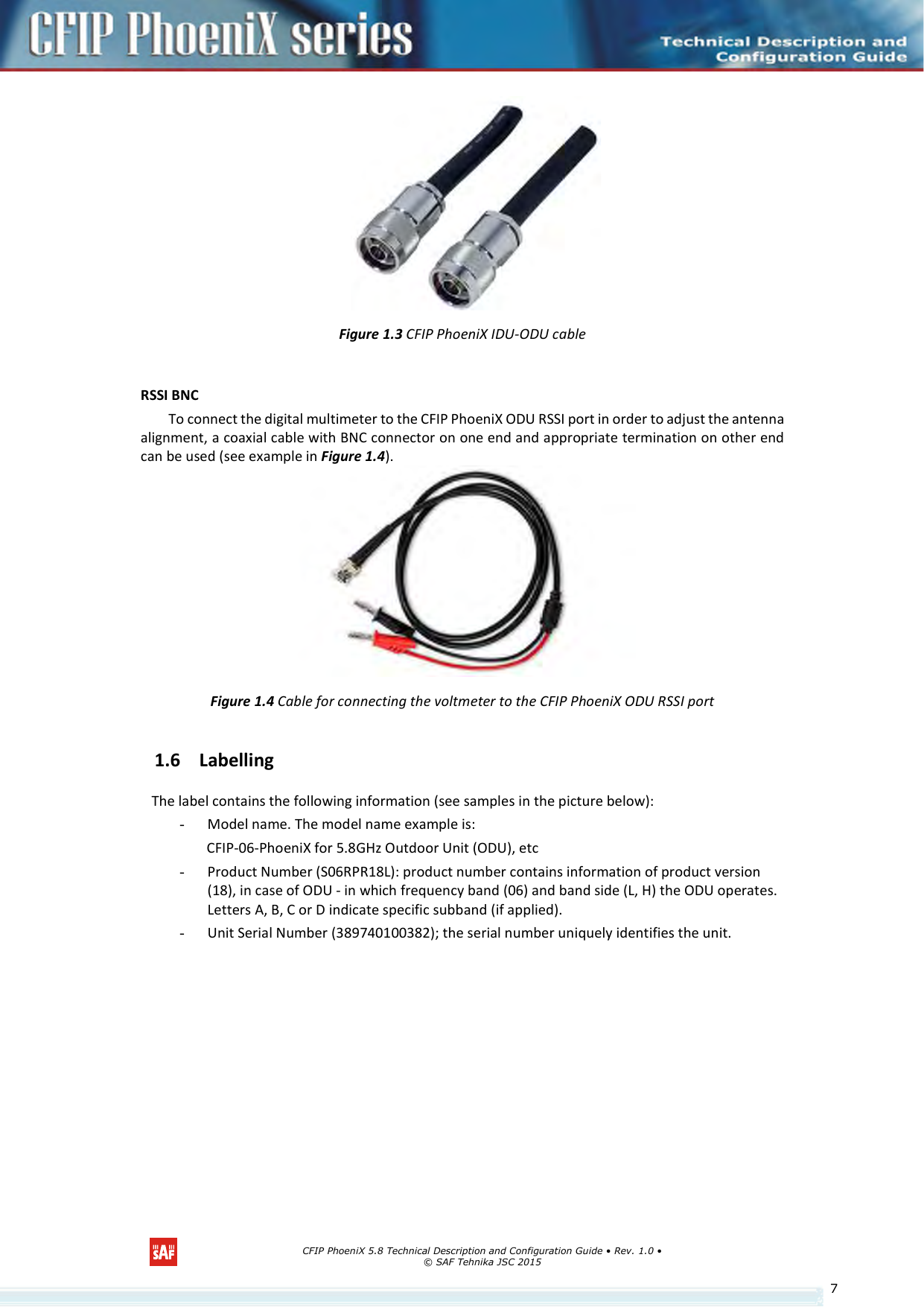

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   7 Figure 1.3 CFIP PhoeniX IDU-ODU cable  RSSI BNC To connect the digital multimeter to the CFIP PhoeniX ODU RSSI port in order to adjust the antenna alignment, a coaxial cable with BNC connector on one end and appropriate termination on other end can be used (see example in Figure 1.4).    Figure 1.4 Cable for connecting the voltmeter to the CFIP PhoeniX ODU RSSI port 1.6 Labelling The label contains the following information (see samples in the picture below): - Model name. The model name example is: CFIP-06-PhoeniX for 5.8GHz Outdoor Unit (ODU), etc - Product Number (S06RPR18L): product number contains information of product version (18), in case of ODU - in which frequency band (06) and band side (L, H) the ODU operates. Letters A, B, C or D indicate specific subband (if applied). - Unit Serial Number (389740100382); the serial number uniquely identifies the unit.

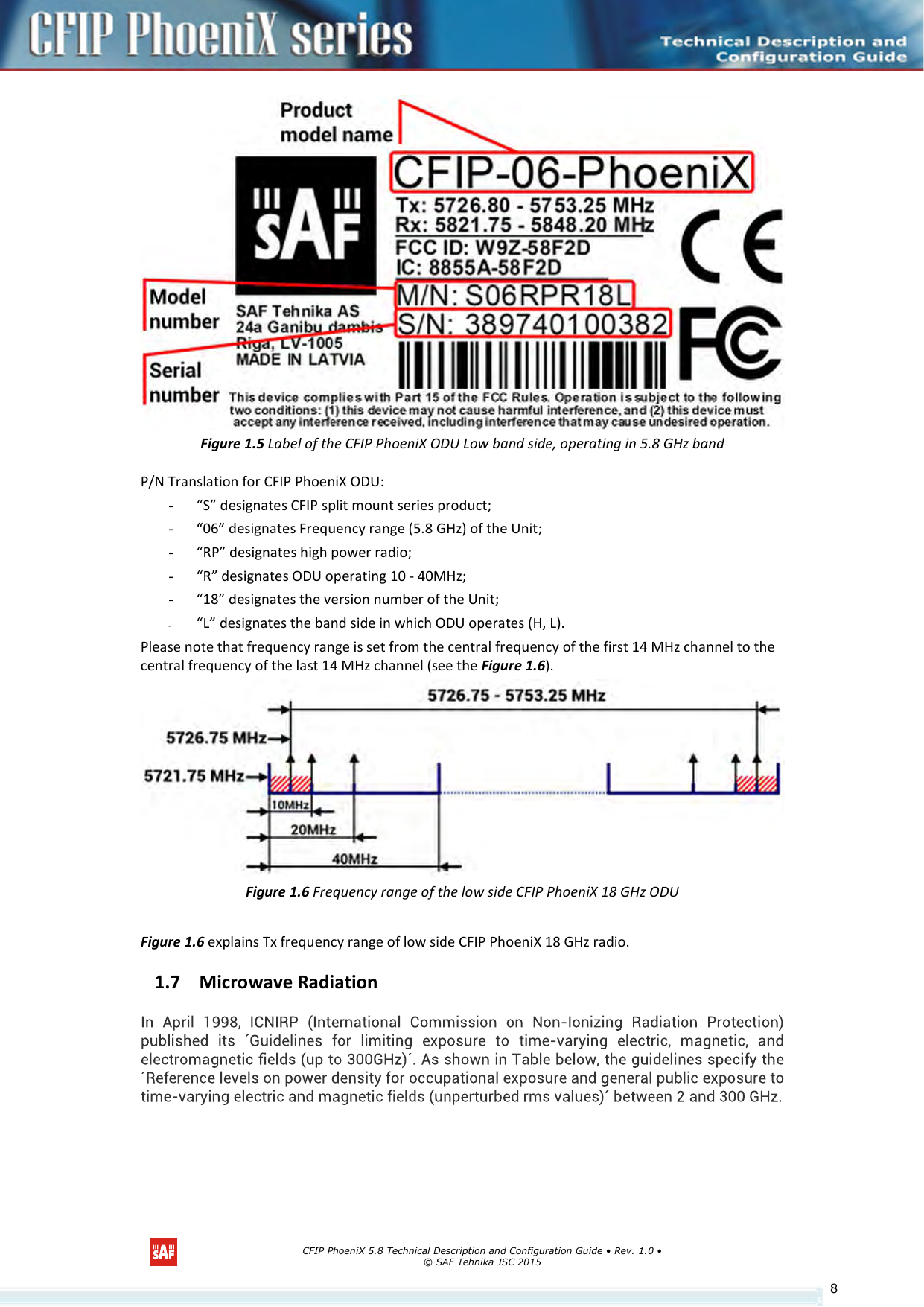

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   8 Figure 1.5 Label of the CFIP PhoeniX ODU Low band side, operating in 5.8 GHz band P/N Translation for CFIP PhoeniX ODU: - “S” designates CFIP split mount series product; - “06” designates Frequency range (5.8 GHz) of the Unit; - “RP” designates high power radio; - “R” designates ODU operating 10 - 40MHz;    - “18” designates the version number of the Unit; - “L” designates the band side in which ODU operates (H, L). Please note that frequency range is set from the central frequency of the first 14 MHz channel to the central frequency of the last 14 MHz channel (see the Figure 1.6).  Figure 1.6 Frequency range of the low side CFIP PhoeniX 18 GHz ODU  Figure 1.6 explains Tx frequency range of low side CFIP PhoeniX 18 GHz radio. 1.7 Microwave Radiation

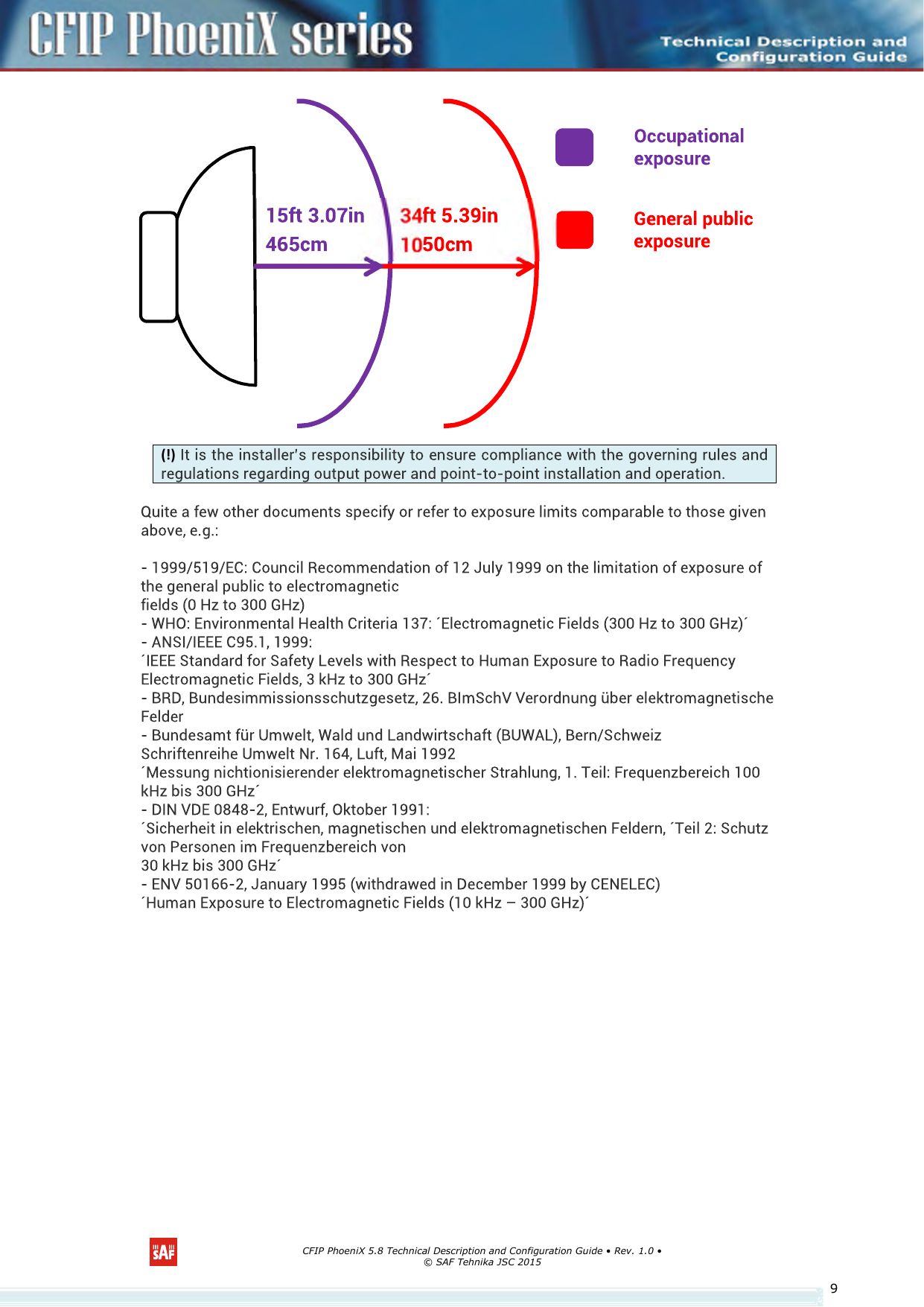

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   9   (!)

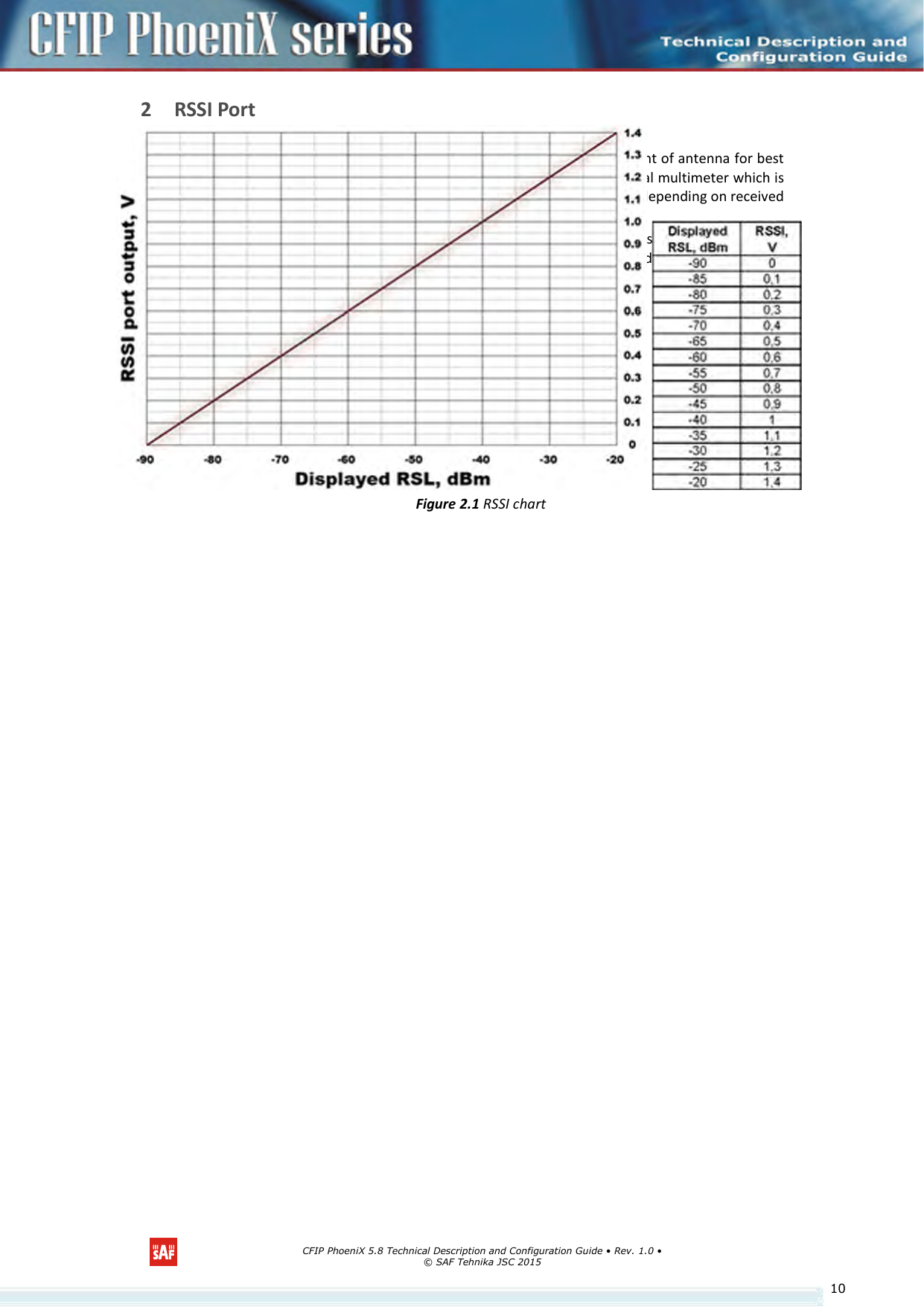

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   102 RSSI Port RSSI (Received Signal Strength Indicator) port is used to adjust the alignment of antenna for best performance (for both rough and fine adjustment); this can be done using digital multimeter which is connected to the RSSI port. The output of the RSSI port is DC voltage and varies depending on received signal level.  The  following  chart  and  table  shows  typical  relationship  of  the  received  signal  level  (Rx  level) displayed by CFIP vs. RSSI port output voltage (RSSI – Received Signal Strength Indicator). The RSSI port is located on ODU. The evaluated Rx level has the error +/-2 dB.   Typical RSSI=f(RSL) chart         Figure 2.1 RSSI chart

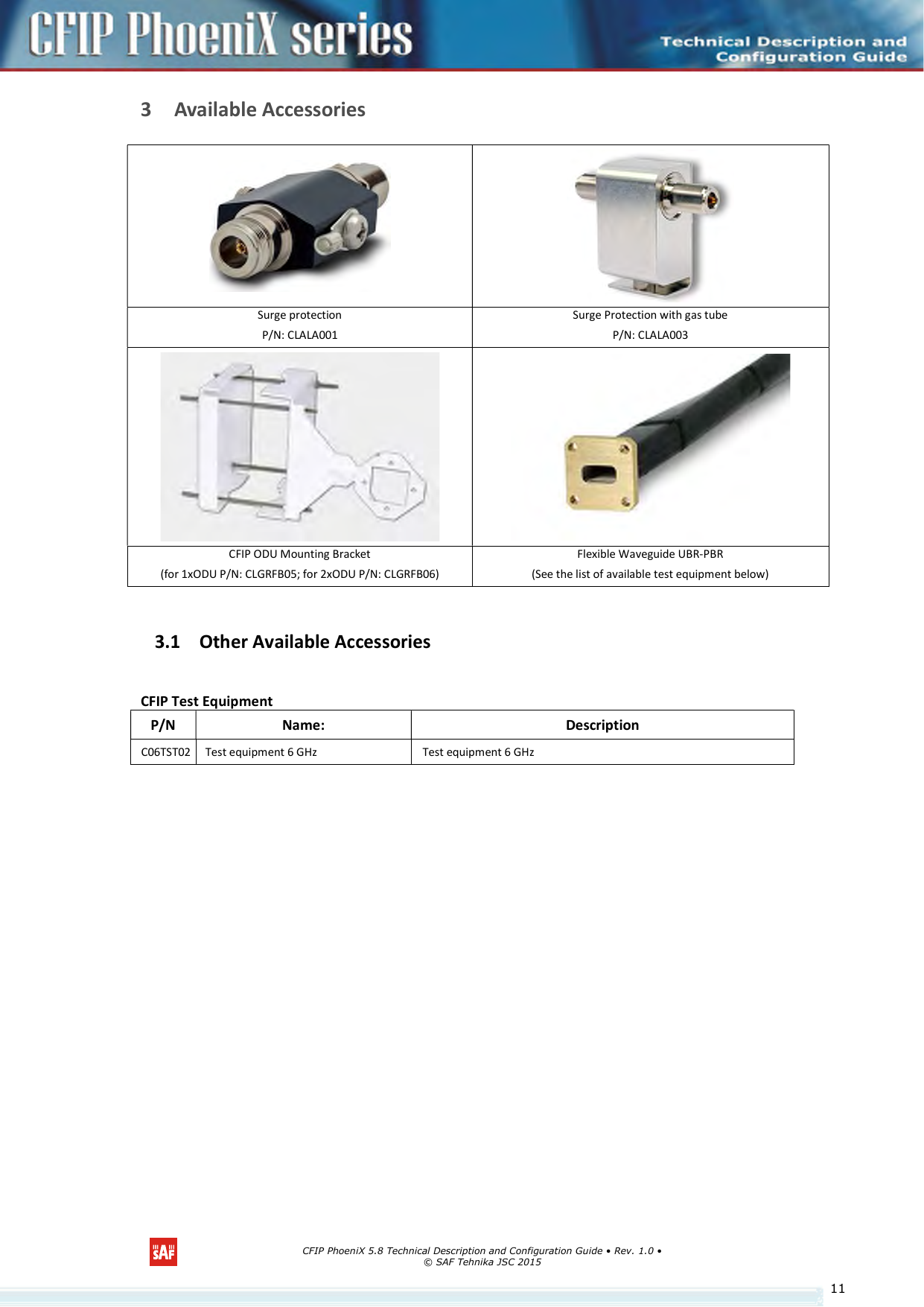

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   113 Available Accessories   Surge protection P/N: CLALA001 Surge Protection with gas tube  P/N: CLALA003   CFIP ODU Mounting Bracket (for 1xODU P/N: CLGRFB05; for 2xODU P/N: CLGRFB06) Flexible Waveguide UBR-PBR (See the list of available test equipment below)  3.1 Other Available Accessories  CFIP Test Equipment P/N  Name:  Description C06TST02 Test equipment 6 GHz  Test equipment 6 GHz

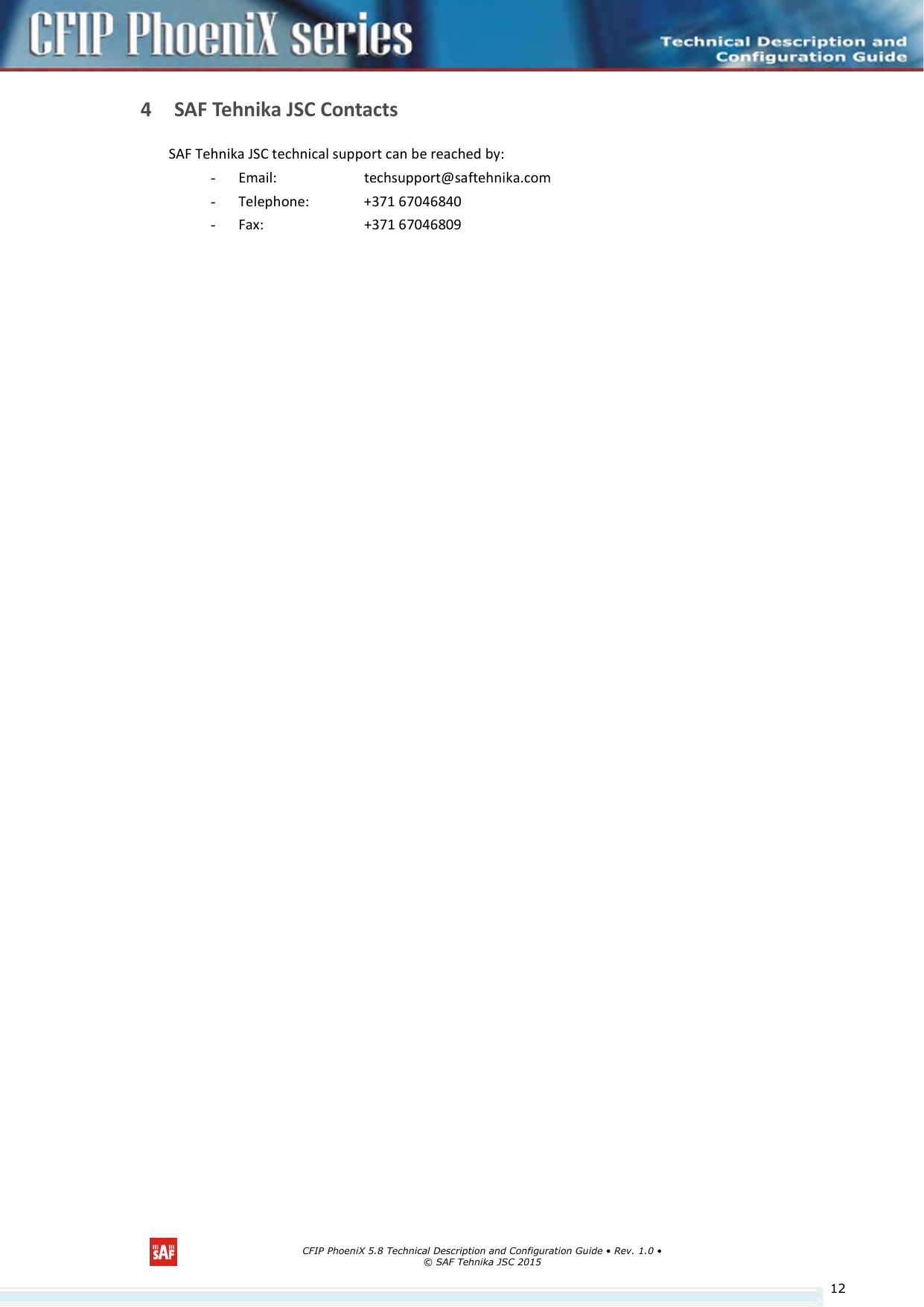

     CFIP PhoeniX 5.8 Technical Description and Configuration Guide • Rev. 1.0 • © SAF Tehnika JSC 2015   124 SAF Tehnika JSC Contacts SAF Tehnika JSC technical support can be reached by: - Email:     techsupport@saftehnika.com - Telephone:   +371 67046840 - Fax:    +371 67046809
