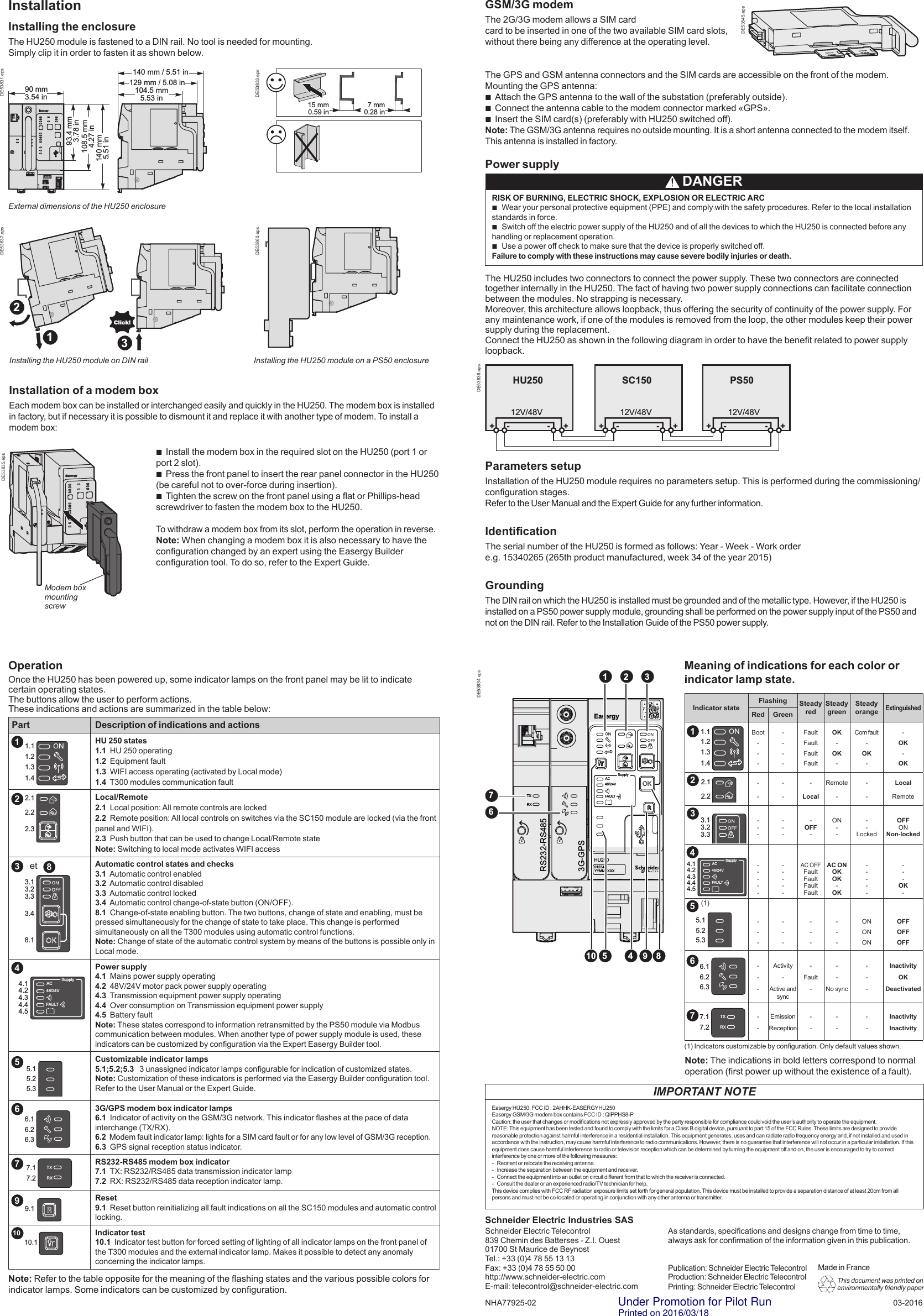

HU250MV electrical network managementEasergy T300 rangeControl and communication unitWARNINGRISK OF MATERIAL DAMAGE bDo not expose the device to conditions exceeding the electrical values specied in this document. bThe device should be installed horizontally in an electrical cabinet, in accordance with the local regulations in force. bThe product must be connected to the ground (DIN rail) to ensure compliance with electromagnetic compatibility (EMC) limits. bStandby protection should be provided in accordance with national and international cabling regulations. bAn appropriate electrical disconnecting device must be installed in the building in question. bUse only the type of connector supplied as an accessory for the HU250 module (product reference: EMS59010). bCheck that the connections correspond to the recommended cables before powering up the equipment. bUse appropriate tools to perform cabling on the connectors (suitable screwdriver, crimped end-pieces, etc.). bStrip the wires appropriates (not excessively) before connecting them to the connectors.Failure to comply with these instructions can cause material damage.DescriptionThe HU250 module of the Easergy T300 range is the communication gateway dedicated to remote control applications for T300 units.Port Characteristics Description3 Local communication Ethernet port10/100 Base-T RJ45 connectorEthernet port used for the link to an external device in the MV substation or for connection to a PC.Isolation: 2kVAC4 Remote communication Ethernet port10/100 Base-T RJ45 connectorEthernet port used for the remote link to the control center, via a modem or router.Isolation: 4kVAC5 Double Ethernet portsLAN 1 and 210/100 Base-T RJ45 connectorsDouble ports dedicated to internal communication between T300 modules.Isolation: 2kVAC10 Ethernet jumpers (Ref: EMS59528) provide as accessories allow the internal Ethernet connection between the modules HU250, SC150 and LV150.6 RS485 portFlair 23DMD0CommonD11RJ45 connector capable of including the following connections:RS485 (2-wire)1 2 3 4 D1 (B)5D0 (A)6 7 8 Port dedicated to internal Modbus communication with the Easergy PS50 power supply module or any other device communicating in Modbus protocolSpeed: up to 38400 baudIsolation: 2kVAC7 WiFi port Dual-band concurrent WiFi (2.4GHz/5GHz)Secure WiFi port for local connection of a PC, tablet or smartphone to: bThe T300’s embedded Web server; bThe Easergy Builder advanced conguration tool8 Expert USB port Mini USB connector Mini USB port dedicated to equipment maintenance (reserved for qualied personnel). Requires the installation of a specic driver.9 Host USB port B type USB connector Multi-purpose USB peripheralPort Characteristics Description10 Digital inputs Plug-in screw connectors:Digital inputs 11 Common (+24VDC)2Digital input 13Digital input 24 Digital input 35Digital input 4Digital inputs 21 Common (+24VDC)2Voltage presence3Door open4 Common (+24VDC)5Local6Remote8 digital inputs: b4 unallocated digital inputs (for free use) b4 dedicated digital inputs for: vvoltage presence (e.g. via the PS50 module) vconnection of a door open switch4321RemoteLocalDoor openV present65321DI1DI2DI3DI4 5411 Digital outputsPlug-in screw connector:Digital outputs1 DO12DO13DO24DO22 dry-contact digital outputs for free use.Breaking capacity: 2000VAMax. voltage: 60VDCMax. current: 2AIsolation: 2kVAC 12 Analog inputsPlug-in leaf-spring connector:PT1001 In12In23 Réf2 analog inputs for connection of PT100 temperature sensorsMeasurement: -55°C to 250°C (-67°F to 482°F)Resolution: 1°C (1°F)13 Indicator outputs Plug-in screw connector:Indicator lamps1 Indicator 12Common +5V3 Indicator 22 polarized indicator outputs for external indication outside the MV substation. These indicators can be assigned by conguration to fault detection indication (directional indication).Refer to the User Manual or the Expert Guide.Voltage delivered: 5VMax. current: 100 mANote: These outputs are polarized. Comply with the direction of connection, + and -123FAULT+3Indicator 1+1-2Indicator 214 Power supply Plug-in screw connectors:Power supply+ + Vdc (+12V to +48V)- 0V2 power supply connectors connected internally, facilitating serial connections and allowing looping of power supplies between the T300 modules.(see Power Supply section).Installation Guide3G/GSM786321GPS4912101113145DE53832.eps1234IMPORTANT NOTEOnly qualied personnel should carry out the installation, operation, servicing and maintenance of electrical equipment. Schneider Electric accepts no liability regarding any consequences of the use of this documentation.By qualied person is meant a technician who is competent regarding the construction, installation and operation of electrical equipment and is trained in safety procedures, and is therefore capable of detecting and preventing the risks involved.1The HU250 includes the following components:Port Characteristics Description1 2 Communication portsRS232/RS485: RJ45 connector including the following connections:RS2321TXD2RXD3 CTS4 DTR5DSR6RTS7DCD8 GNDRS485 (2-wire)1234 D1 (B)5D0 (A)678 GNDRS422 (4-wire)1 RXD0 (A’)2RXD1 (B’)34 TXD1 (B)5TXD0 (A)678 GND (C/C’)Customizable modem boxes including the following modems: bRS232/485: for the remote link to the control center. Speed: up to 38400 baud Isolation: 2kVAC b2G/3G: for the remote link to the control center. b2G/3G + GPS: for the remote link with the control center with GPS time synchronization. Note: The 2G/3G or 2G/3G + GPS modem can only be installed on port 1.2G/3GNETWORKFAULT RS232 RS4858765432112PT100123PT10012-48V123EXTEXTWARNINGRISK OF DAMAGE TO THE DEVICE bUse appropriate tightening torques for tightening connector screws (tightening torque values provided in this document). bThe HU250 module must be powered by a power supply of the SELV/PELV type (e.g. the PS50 is of the SELV/ PELV type). bThe supply voltage of the HU250 module must not exceed 60VDC.Failure to comply with the instruction may lead to risks of material damage.61 2345 1234534D01 12D02Xmm2N.m107 mm 0.276 in1.5 mm²15 AWG0.22-0.25 N.m 1.9-2.2 lb-in111312 8 mm 0.315 in0.14-0.5 mm² 26-20 AWG -14 7 mm 0.276 in1.5 mm²15 AWG0.5-0.6 N.m 4.4-5.3 lb-in12-48VETH1ETH2 Under Promotion for Pilot RunPrinted on 2016/03/18
Power supplyThe HU250 includes two connectors to connect the power supply. These two connectors are connected together internally in the HU250. The fact of having two power supply connections can facilitate connection between the modules. No strapping is necessary.Moreover, this architecture allows loopback, thus offering the security of continuity of the power supply. For any maintenance work, if one of the modules is removed from the loop, the other modules keep their power supply during the replacement.Connect the HU250 as shown in the following diagram in order to have the benet related to power supply loopback.As standards, specications and designs change from time to time, always ask for conrmation of the information given in this publication.Publication: Schneider Electric TelecontrolProduction: Schneider Electric TelecontrolPrinting: Schneider Electric TelecontrolSchneider Electric Telecontrol 839 Chemin des Batterses - Z.I. Ouest 01700 St Maurice de BeynostTel.: +33 (0)4 78 55 13 13Fax: +33 (0)4 78 55 50 00http://www.schneider-electric.comE-mail: telecontrol@schneider-electric.com 03-2016Schneider Electric Industries SASParameters setupInstallation of the HU250 module requires no parameters setup. This is performed during the commissioning/conguration stages.Refer to the User Manual and the Expert Guide for any further information.IdenticationThe serial number of the HU250 is formed as follows: Year - Week - Work ordere.g. 15340265 (265th product manufactured, week 34 of the year 2015)GroundingThe DIN rail on which the HU250 is installed must be grounded and of the metallic type. However, if the HU250 is installed on a PS50 power supply module, grounding shall be performed on the power supply input of the PS50 and not on the DIN rail. Refer to the Installation Guide of the PS50 power supply.Installing the HU250 module on DIN railExternal dimensions of the HU250 enclosureInstallationInstalling the enclosureThe HU250 module is fastened to a DIN rail. No tool is needed for mounting. Simply clip it in order to fasten it as shown below. bInstall the modem box in the required slot on the HU250 (port 1 or port 2 slot). bPress the front panel to insert the rear panel connector in the HU250 (be careful not to over-force during insertion). bTighten the screw on the front panel using a at or Phillips-head screwdriver to fasten the modem box to the HU250.To withdraw a modem box from its slot, perform the operation in reverse.Note: When changing a modem box it is also necessary to have the conguration changed by an expert using the Easergy Builder conguration tool. To do so, refer to the Expert Guide.GSM/3G modemThe 2G/3G modem allows a SIM cardcard to be inserted in one of the two available SIM card slots,without there being any difference at the operating level.The GPS and GSM antenna connectors and the SIM cards are accessible on the front of the modem. Mounting the GPS antenna: bAttach the GPS antenna to the wall of the substation (preferably outside). bConnect the antenna cable to the modem connector marked «GPS». bInsert the SIM card(s) (preferably with HU250 switched off).Note: The GSM/3G antenna requires no outside mounting. It is a short antenna connected to the modem itself. This antenna is installed in factory.OperationOnce the HU250 has been powered up, some indicator lamps on the front panel may be lit to indicate certain operating states.The buttons allow the user to perform actions.These indications and actions are summarized in the table below:Part Description of indications and actions HU 250 states1.1 HU 250 operating1.2 Equipment fault1.3 WIFI access operating (activated by Local mode)1.4 T300 modules communication fault Local/Remote2.1 Local position: All remote controls are locked2.2 Remote position: All local controls on switches via the SC150 module are locked (via the front panel and WIFI).2.3 Push button that can be used to change Local/Remote stateNote: Switching to local mode activates WIFI access Automatic control states and checks3.1 Automatic control enabled3.2 Automatic control disabled3.3 Automatic control locked3.4 Automatic control change-of-state button (ON/OFF).8.1 Change-of-state enabling button. The two buttons, change of state and enabling, must be pressed simultaneously for the change of state to take place. This change is performed simultaneously on all the T300 modules using automatic control functions.Note: Change of state of the automatic control system by means of the buttons is possible only in Local mode.Power supply4.1 Mains power supply operating4.2 48V/24V motor pack power supply operating4.3 Transmission equipment power supply operating4.4 Over consumption on Transmission equipment power supply4.5 Battery faultNote: These states correspond to information retransmitted by the PS50 module via Modbus communication between modules. When another type of power supply module is used, these indicators can be customized by conguration via the Expert Easergy Builder tool. Customizable indicator lamps5.1;5.2;5.3 3 unassigned indicator lamps congurable for indication of customized states.Note: Customization of these indicators is performed via the Easergy Builder conguration tool. Refer to the User Manual or the Expert Guide.3G/GPS modem box indicator lamps6.1 Indicator of activity on the GSM/3G network. This indicator ashes at the pace of data interchange (TX/RX).6.2 Modem fault indicator lamp: lights for a SIM card fault or for any low level of GSM/3G reception.6.3 GPS signal reception status indicator.RS232-RS485 modem box indicator7.1 TX: RS232/RS485 data transmission indicator lamp7.2 RX: RS232/RS485 data reception indicator lamp. Reset9.1 Reset button reinitializing all fault indications on all the SC150 modules and automatic control locking. Indicator test10.1 Indicator test button for forced setting of lighting of all indicator lamps on the front panel of the T300 modules and the external indicator lamp. Makes it possible to detect any anomaly concerning the indicator lamps.Note: Refer to the table opposite for the meaning of the ashing states and the various possible colors for indicator lamps. Some indicators can be customized by conguration.Note: The indications in bold letters correspond to normal operation (rst power up without the existence of a fault).Indicator stateFlashing Steady redSteady greenSteady orangeExtinguishedRed GreenBoot-------FaultFaultFaultFaultOK-OK-Com fault-OK--OK-OK-----LocalRemote---LocalRemote-------OFF-ON----LockedOFFONNon-locked----------AC OFFFaultFaultFaultFaultAC ONOKOK-OK--------OK- ------------ONONONOFFOFFOFF---Activity-Active and sync-Fault---No sync---InactivityOKDeactivated--EmissionReception------InactivityInactivity(1) Indicators customizable by conguration. Only default values shown.Meaning of indications for each color or indicator lamp state.93.4 mm3.78 in108.5 mm 4.27 in140 mm5.51 in129 mm / 5.08 in140 mm / 5.51 in90 mm3.54 in 104.5 mm5.53 inDE53831.epsMade in France15 mm0.59 in7 mm0.28 inDE53833.epsDE53834.epsEasergyAC48/24VSupplyHU250012345YYMMXXXX3G-GPSTXRXRS232-RS4851 2 34510 9 867FAULT1.11.21.31.42.12.22.33.13.23.33.48.1AC48/24VSupply4.14.24.34.44.5FAULT5.15.25.3DE53835.epsHU25012V/48VSC15012V/48VPS5012V/48V+- +-+-+-+-+-DE53836.epsInstallation of a modem boxEach modem box can be installed or interchanged easily and quickly in the HU250. The modem box is installed in factory, but if necessary it is possible to dismount it and replace it with another type of modem. To install a modem box:DE53837.epsDE53860.eps21Click!3138425712345696.16.26.37.17.2TXRX9.110.1et AC48/24VSupply4.14.24.34.44.5FAULT5.15.25.3766.16.26.37.17.2TXRX1.11.21.31.42.12.22.33.13.23.33.48.1(1)10DE53845.epsInstalling the HU250 module on a PS50 enclosure DANGERRISK OF BURNING, ELECTRIC SHOCK, EXPLOSION OR ELECTRIC ARC bWear your personal protective equipment (PPE) and comply with the safety procedures. Refer to the local installation standards in force. bSwitch off the electric power supply of the HU250 and of all the devices to which the HU250 is connected before any handling or replacement operation. bUse a power off check to make sure that the device is properly switched off.Failure to comply with these instructions may cause severe bodily injuries or death. This document was printed on environmentally friendly paperModem box mounting screwNHA77925-02IMPORTANT NOTEEasergy HU250, FCC ID : 2AHHK-EASERGYHU250Easergy GSM/3G modem box contains FCC ID : QIPPHS8-PCaution: the user that changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.This device complies with FCC RF radiation exposure limits set forth for general population. This device must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Under Promotion for Pilot RunPrinted on 2016/03/18
