SDMC TECHNOLOGY DV7905 Android OTT Box User Manual

Shenzhen SDMC Technology Co., Ltd Android OTT Box

User Manual

DV7905 Quick Reference Guide V1.0~1~Smart TV BoxQuick Reference GuidePlease do read user manual before you operate the TV box.

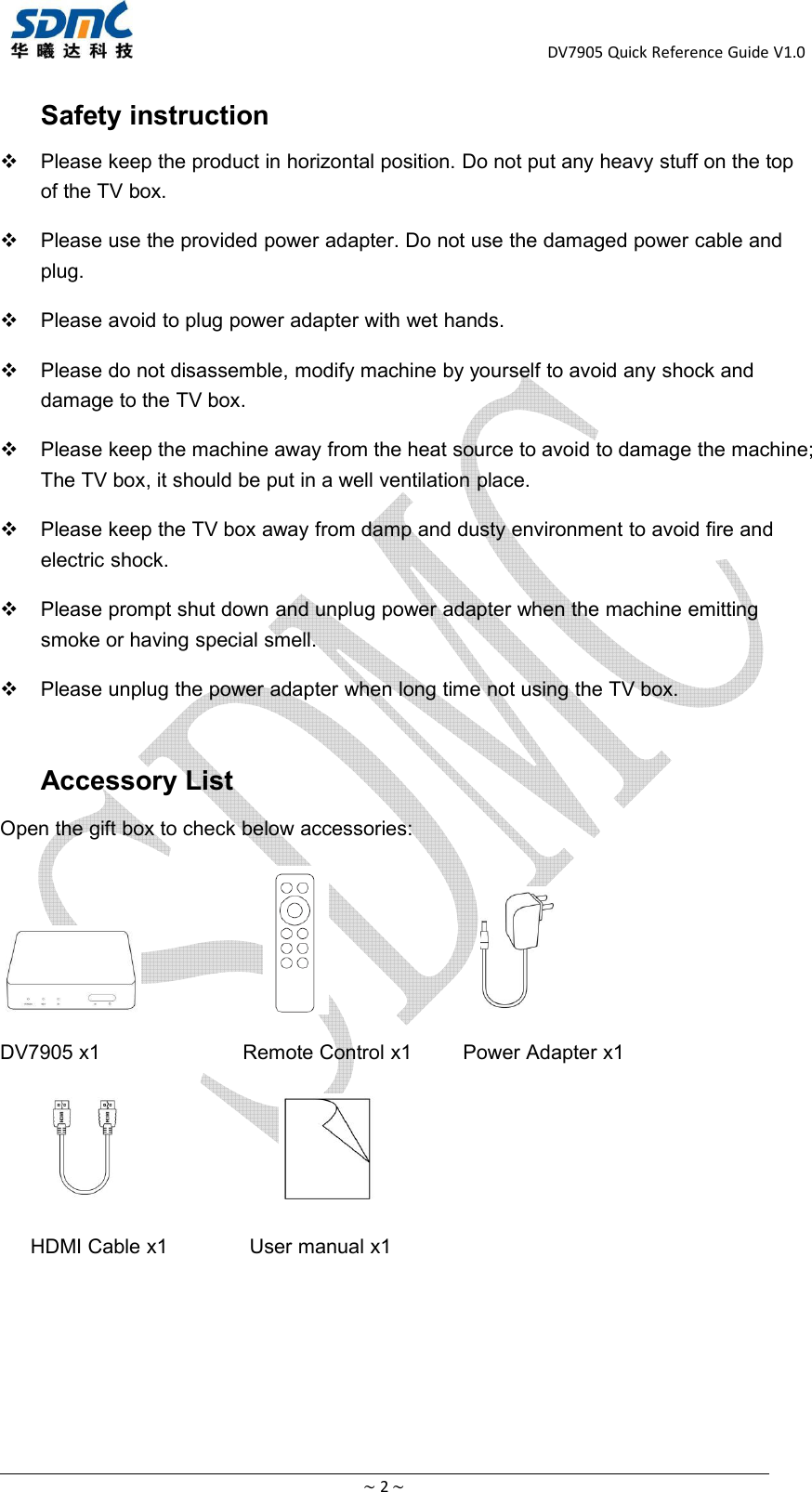

DV7905 Quick Reference Guide V1.0~2~Safety instructionPlease keep the product in horizontal position. Do not put any heavy stuff on the topof the TV box.Please use the provided power adapter. Do not use the damaged power cable andplug.Please avoid to plug power adapter with wet hands.Please do not disassemble, modify machine by yourself to avoid any shock anddamage to the TV box.Please keep the machine away from the heat source to avoid to damage the machine;The TV box, it should be put in a well ventilation place.Please keep the TV box away from damp and dusty environment to avoid fire andelectric shock.Please prompt shut down and unplug power adapter when the machine emittingsmoke or having special smell.Please unplug the power adapter when long time not using the TV box.Accessory ListOpen the gift box to check below accessories:DV7905 x1 Remote Control x1 Power Adapter x1HDMI Cable x1 User manual x1

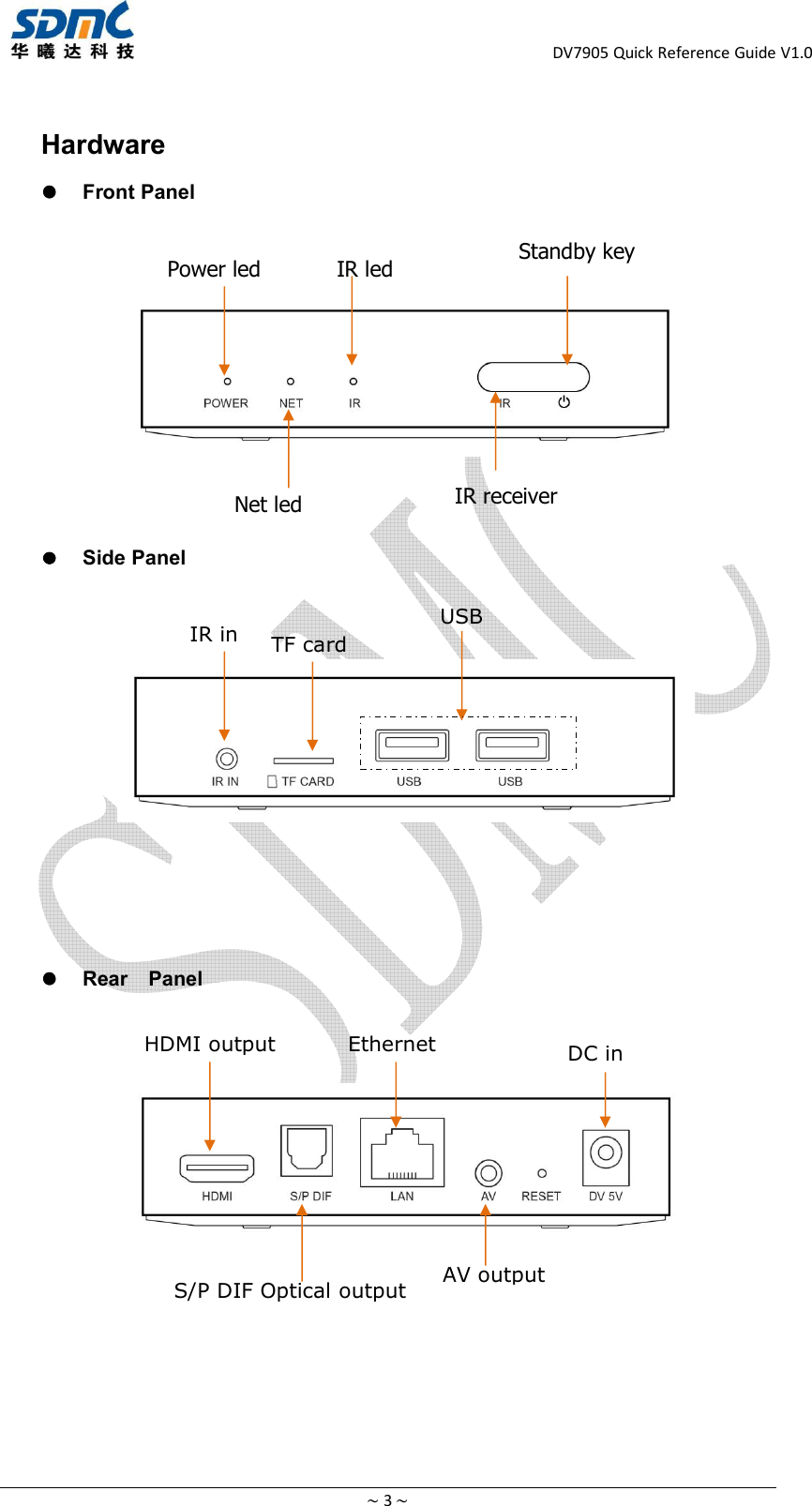

DV7905 Quick Reference Guide V1.0~3~HardwareFront PanelSide PanelRear PanelTFcardUSBHDMIoutputS/PDIFOpticaloutputEthernetAVoutputDCinIRinPowerledNetledIRledIRreceiverStandby key

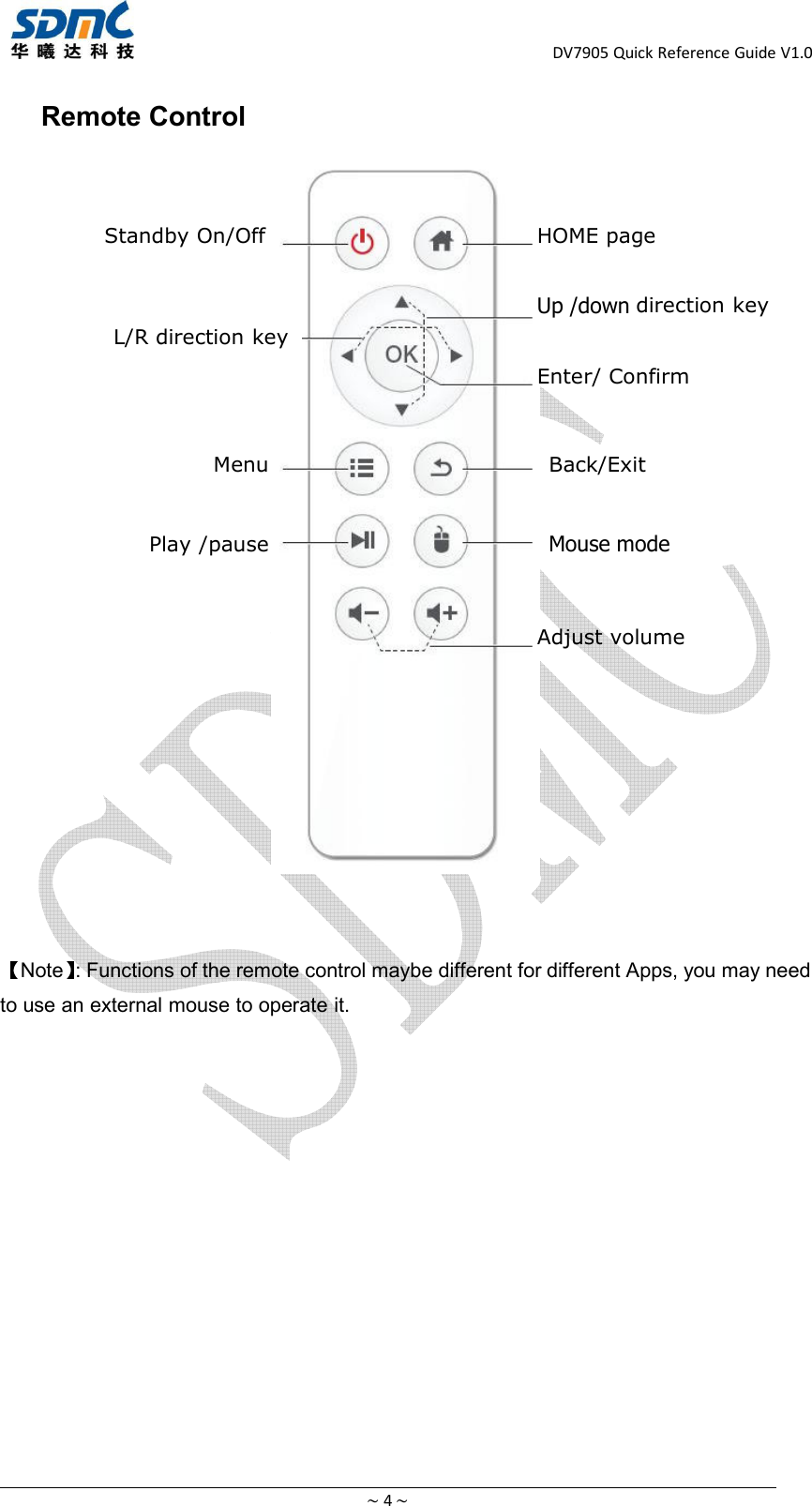

DV7905 Quick Reference Guide V1.0~4~Remote ControlNote : Functions of the remote control maybe different for different Apps, you may needto use an external mouse to operate it.HOME pageEnter/ ConfirmBack/ExitMousemodeAdjust volumeStandby On/OffUp /down direction keyL/R direction keyMenuPlay /pause

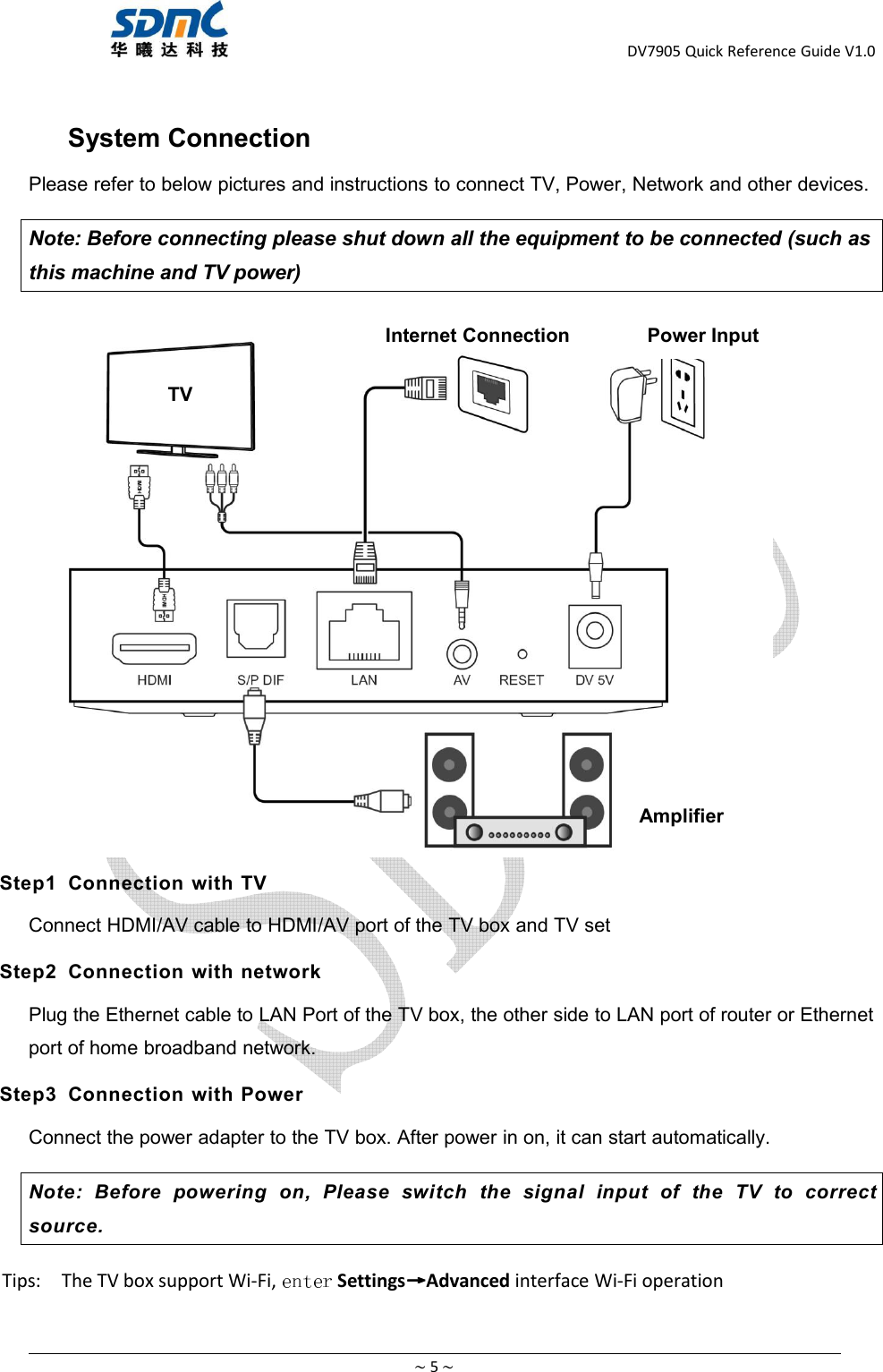

DV7905 Quick Reference Guide V1.0~5~System ConnectionPlease refer to below pictures and instructions to connect TV, Power, Network and other devices.Note: Before connecting please shut down all the equipment to be connected (such asthis machine and TV power)Step1 Connection with TVConnect HDMI/AV cable to HDMI/AV port of the TV box and TV setStep2 Connection with networkPlug the Ethernet cable to LAN Port of the TV box, the other side to LAN port of router or Ethernetport of home broadband network.Step3 Connection with PowerConnect the power adapter to the TV box. After power in on, it can start automatically.Note: Before powering on, Please switch the signal input of the TV to correctsource.Tips: The TV box support Wi-Fi, Settings Advanced interface Wi-Fi operationAmplifierTVPower InputInternetConnection

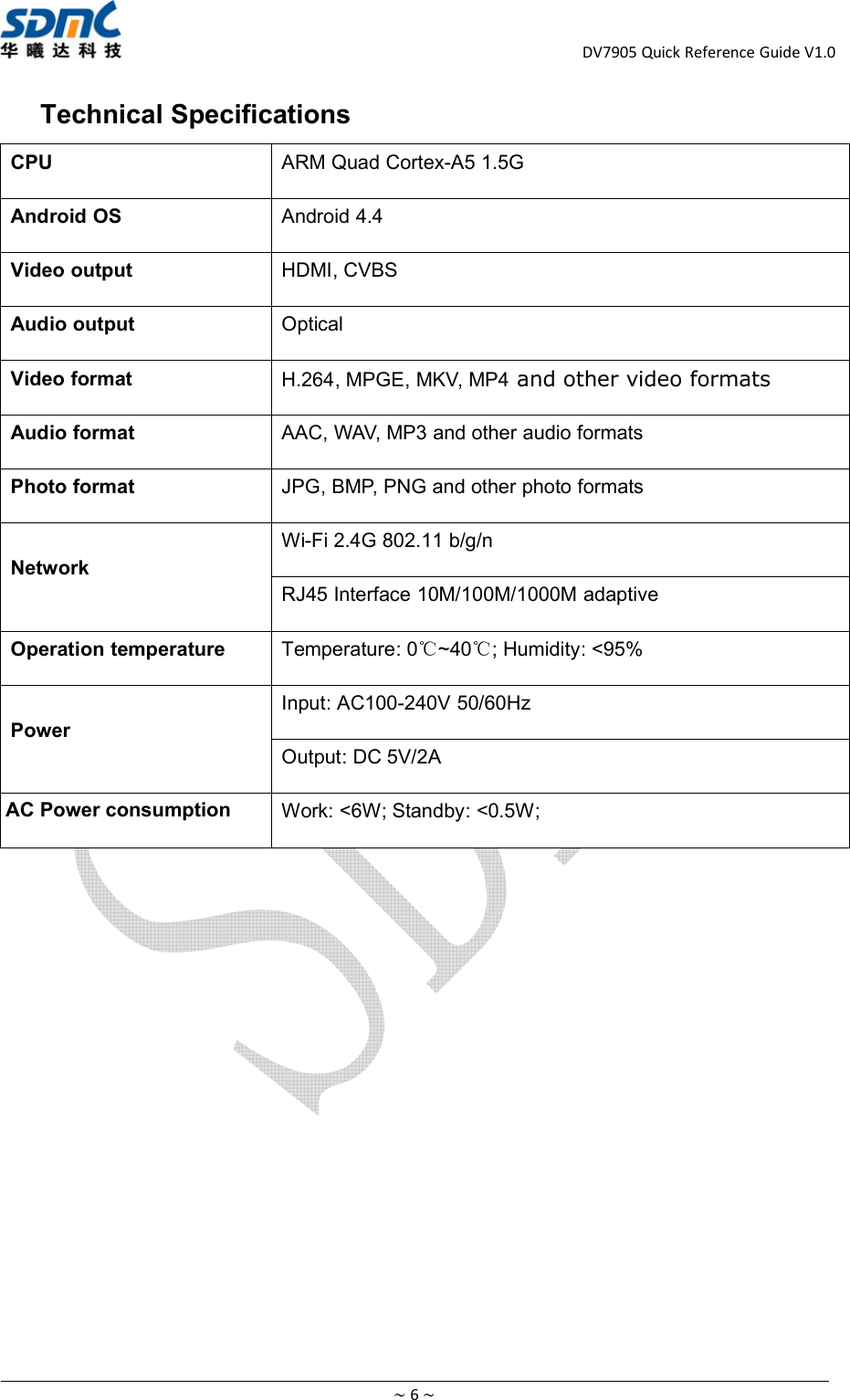

DV7905 Quick Reference Guide V1.0~6~Technical SpecificationsCPU ARM Quad Cortex-A5 1.5GAndroid OS Android 4.4Video output HDMI, CVBSAudio output OpticalVideo format H.264, MPGE, MKV, MP4 and other video formatsAudio format AAC, WAV, MP3 and other audio formatsPhoto format JPG, BMP, PNG and other photo formatsNetworkWi-Fi 2.4G 802.11 b/g/nRJ45 Interface 10M/100M/1000M adaptiveOperation temperature Temperature: 0 ~40 ; Humidity: <95%PowerInput: AC100-240V 50/60HzOutput: DC 5V/2APower consumption Work: <6W; Standby: <0.5W;AC Power consumption

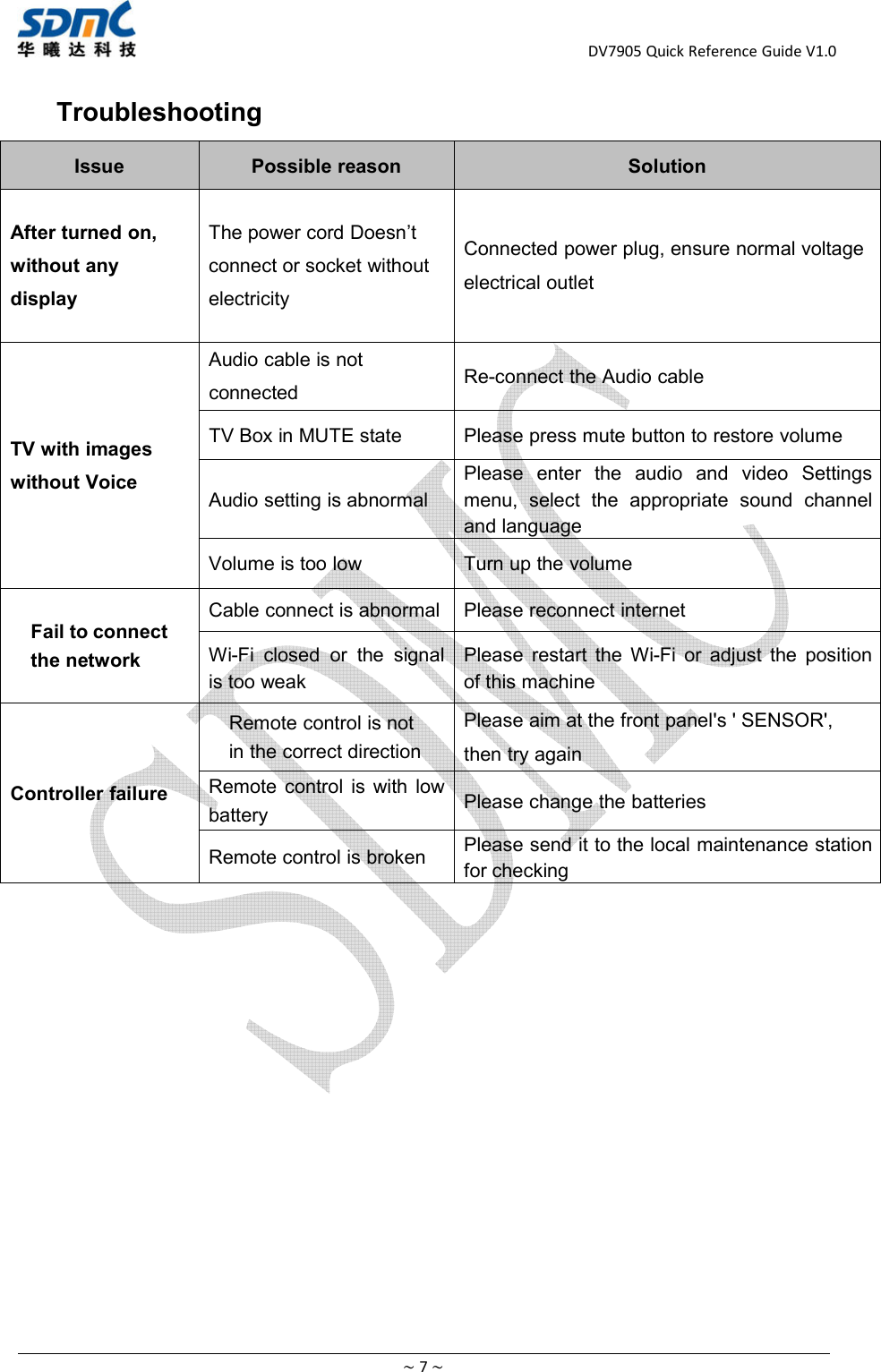

DV7905 Quick Reference Guide V1.0~7~TroubleshootingIssue Possible reason SolutionAfter turned on,without anydisplayThe power cord Doesn’tconnect or socket withoutelectricityConnected power plug, ensure normal voltageelectrical outletTV with imageswithout VoiceAudio cable is notconnected Re-connect the Audio cableTV Box in MUTE state Please press mute button to restore volumeAudio setting is abnormalPlease enter the audio and video Settingsmenu, select the appropriate sound channeland languageVolume is too low Turn up the volumeFail to connectthe networkCable connect is abnormal Please reconnect internetWi-Fi closed or the signalis too weakPlease restart the Wi-Fi or adjust the positionof this machineController failureRemote control is notin the correct directionPlease aim at the front panel's ' SENSOR',then try againRemote control is with lowbattery Please change the batteriesRemote control is broken Please send it to the local maintenance stationfor checking

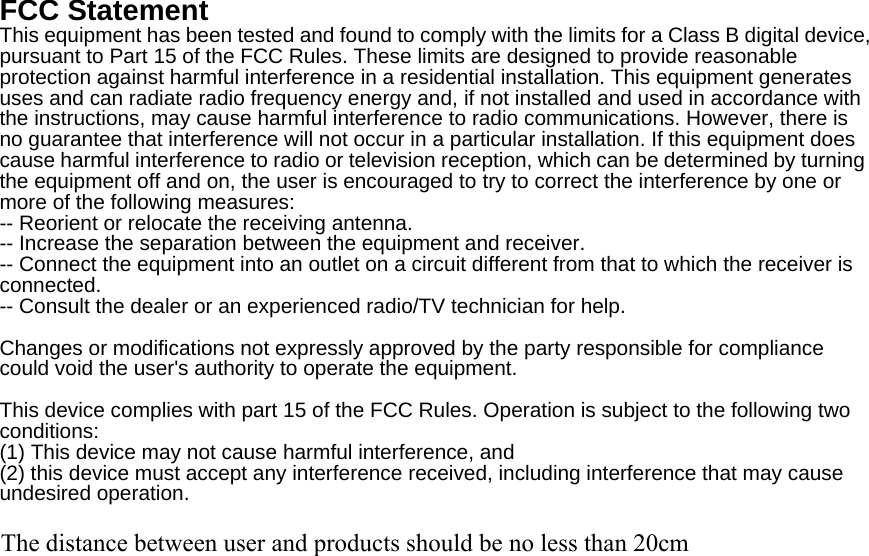

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The distance between user and products should be no less than 20cm
