SECOM TWSECOMOPC0050 Access Reader User Manual 20171201 OPC0050

TAIWAN SECOM CO., LTD. Access Reader 20171201 OPC0050

User Manual

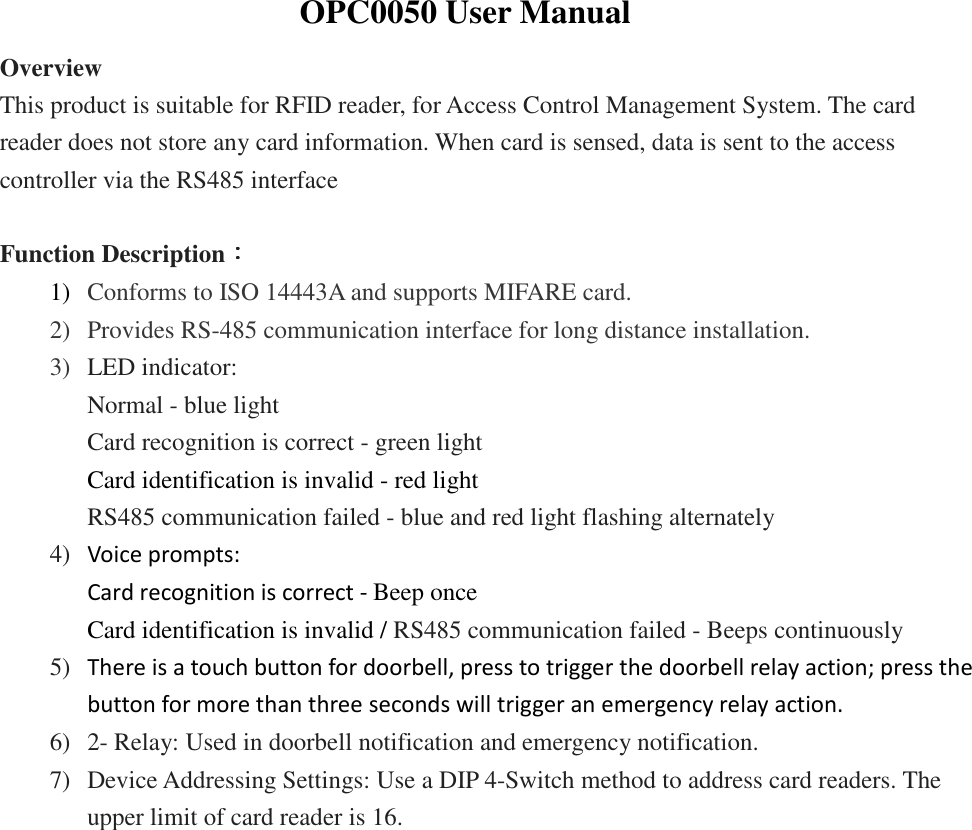

OPC0050 User Manual Overview This product is suitable for RFID reader, for Access Control Management System. The card reader does not store any card information. When card is sensed, data is sent to the access controller via the RS485 interface Function Description：：：： 1) Conforms to ISO 14443A and supports MIFARE card. 2) Provides RS-485 communication interface for long distance installation. 3) LED indicator: Normal - blue light Card recognition is correct - green light Card identification is invalid - red light RS485 communication failed - blue and red light flashing alternately 4) Voice prompts: Card recognition is correct - Beep once Card identification is invalid / RS485 communication failed - Beeps continuously 5) There is a touch button for doorbell, press to trigger the doorbell relay action; press the button for more than three seconds will trigger an emergency relay action. 6) 2- Relay: Used in doorbell notification and emergency notification. 7) Device Addressing Settings: Use a DIP 4-Switch method to address card readers. The upper limit of card reader is 16.

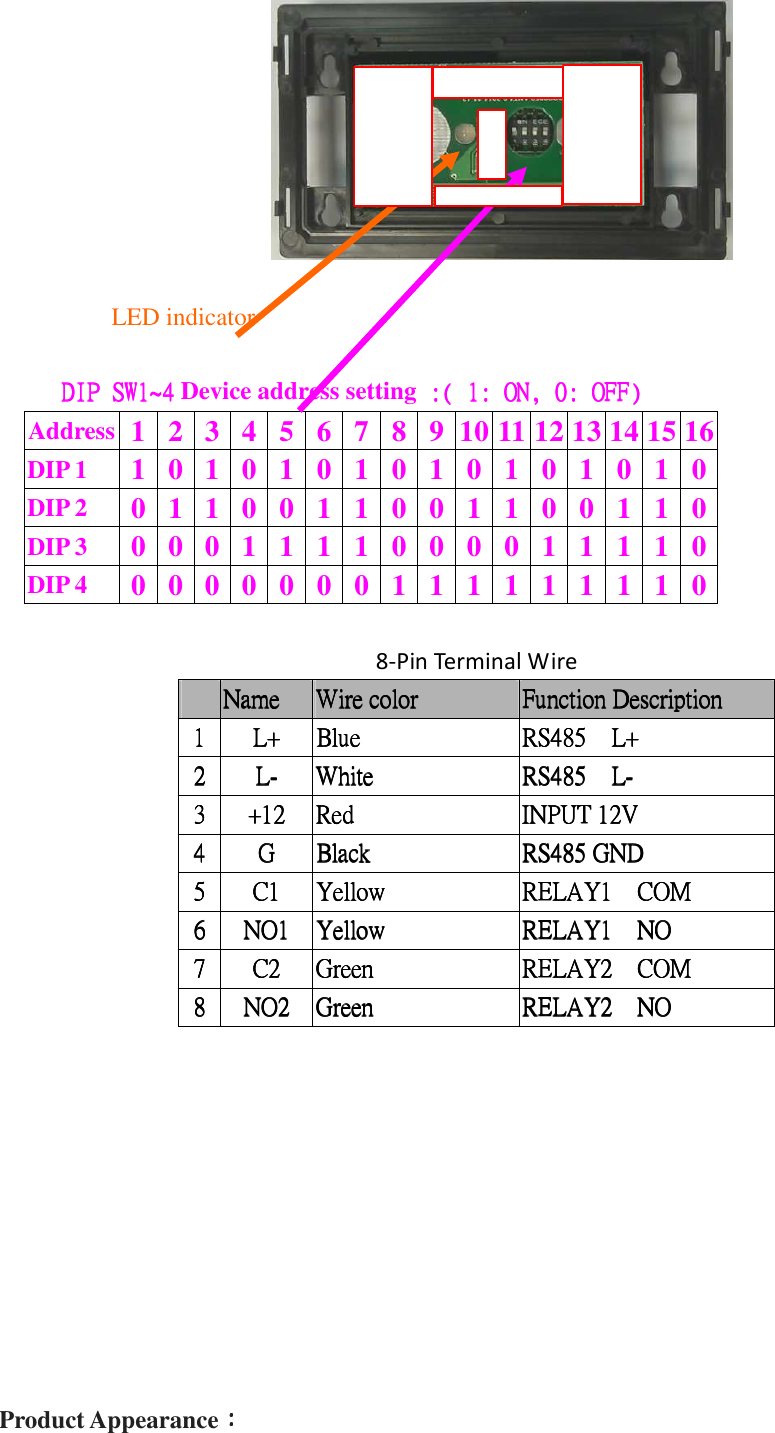

LED indicator DIP SW1~4DIP SW1~4DIP SW1~4DIP SW1~4 Device address setting :( 1: ON, 0: OFF) :( 1: ON, 0: OFF) :( 1: ON, 0: OFF) :( 1: ON, 0: OFF) Address 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 DIP 1 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 DIP 2 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 DIP 3 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 0 DIP 4 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 8-Pin Terminal Wire NameNameNameName Wire colorWire colorWire colorWire color Function DescriptionFunction DescriptionFunction DescriptionFunction Description 1111 L+L+L+L+ BlueBlueBlueBlue RSRSRSRS485 L+485 L+485 L+485 L+ 2222 LLLL---- WhiteWhiteWhiteWhite RSRSRSRS485 L485 L485 L485 L---- 3333 +12+12+12+12 RedRedRedRed INPUT INPUT INPUT INPUT 12V12V12V12V 4444 GGGG BlackBlackBlackBlack RS485 GNDRS485 GNDRS485 GNDRS485 GND 5555 C1C1C1C1 YellowYellowYellowYellow RELAY1 COMRELAY1 COMRELAY1 COMRELAY1 COM 6666 NO1NO1NO1NO1 YellowYellowYellowYellow RELAY1 NORELAY1 NORELAY1 NORELAY1 NO 7777 C2C2C2C2 GreenGreenGreenGreen RELAY2 COMRELAY2 COMRELAY2 COMRELAY2 COM 8888 NO2NO2NO2NO2 GreenGreenGreenGreen RELAY2 NORELAY2 NORELAY2 NORELAY2 NO Product Appearance：：：：

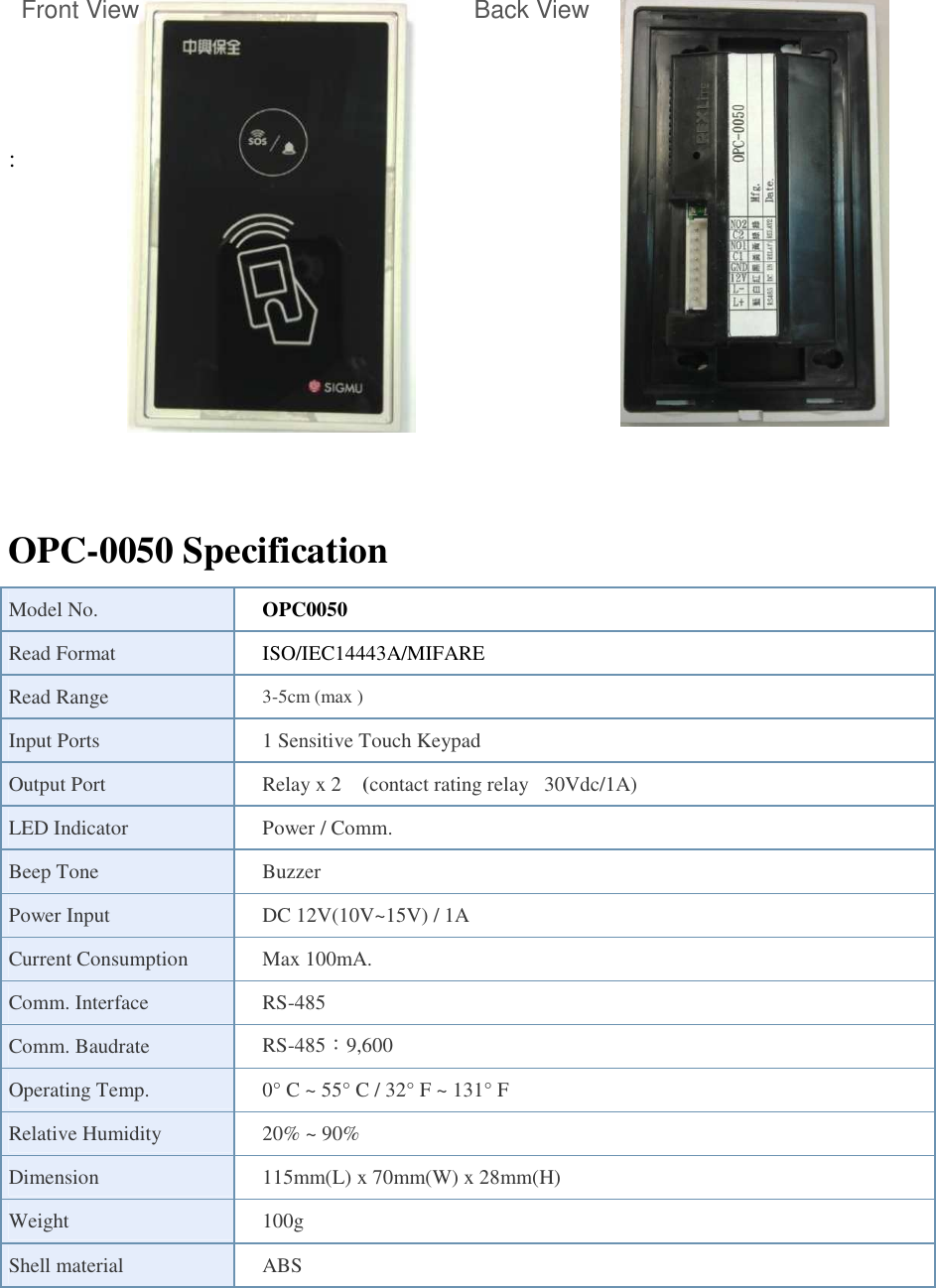

Front View Back View : OPC-0050 Specification Model No. OPC0050 Read Format ISO/IEC14443A/MIFARE Read Range 3-5cm (max ) Input Ports 1 Sensitive Touch Keypad Output Port Relay x 2 (contact rating relay 30Vdc/1A) LED Indicator Power / Comm. Beep Tone Buzzer Power Input DC 12V(10V~15V) / 1A Current Consumption Max 100mA. Comm. Interface RS-485 Comm. Baudrate RS-485：9,600 Operating Temp. 0° C ~ 55° C / 32° F ~ 131° F Relative Humidity 20% ~ 90% Dimension 115mm(L) x 70mm(W) x 28mm(H) Weight 100g Shell material ABS

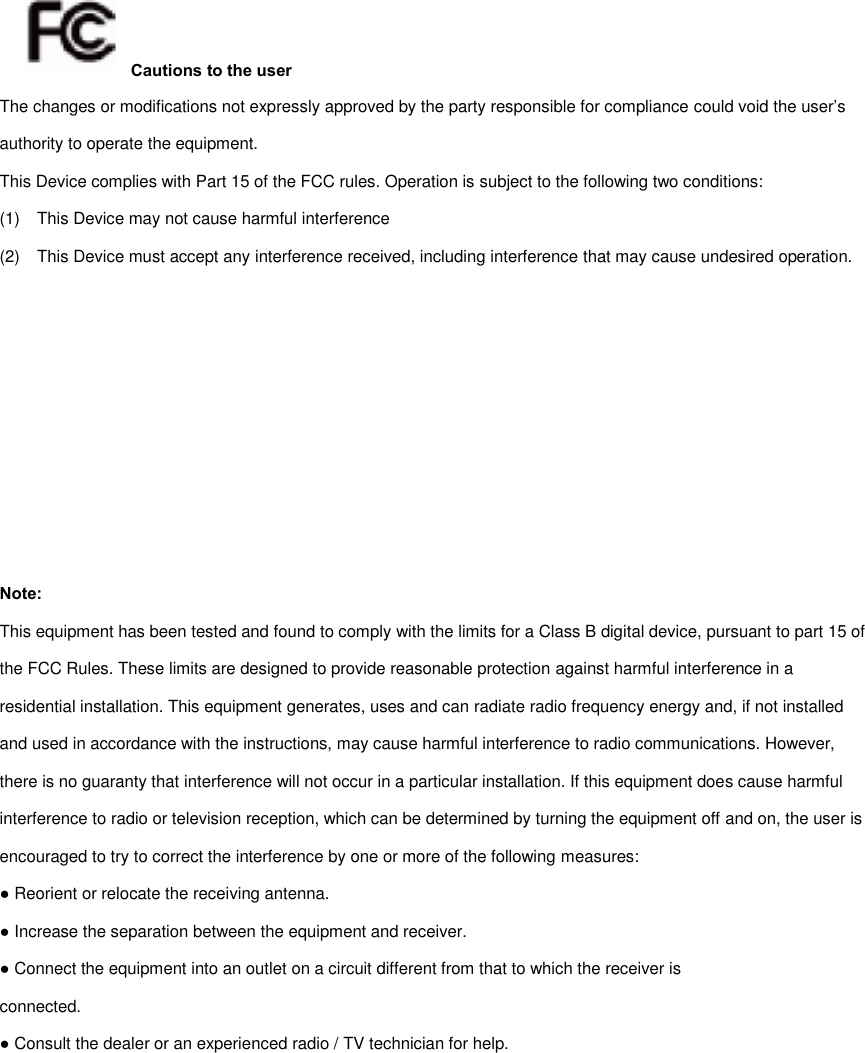

Cautions to the user The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This Device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This Device may not cause harmful interference (2) This Device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guaranty that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio / TV technician for help.
