SHARPVISION WT434 2.4 GHz Digital Image Transmission System User Manual Manual

SHARPVISION CO.,LTD. 2.4 GHz Digital Image Transmission System Manual

Manual

Operating Instructions2.4G digital wireless receiver/transmitterPleasee read this manual thoroughly before operating the unit,and keep it for future reference.V1.4

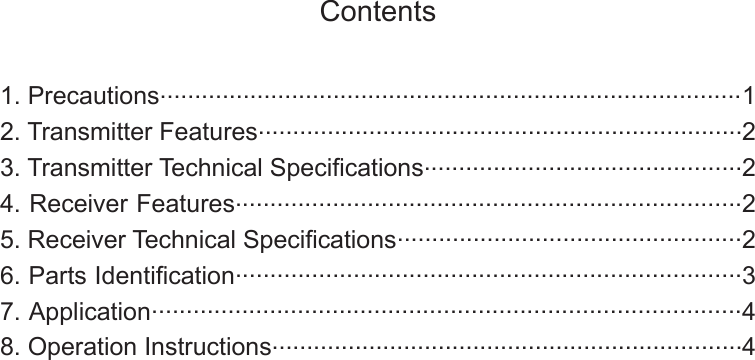

Contents1. Precautions....................................................................................12. Transmitter Features......................................................................23. Transmitter Technical Specications..............................................24. Receiver Features.........................................................................25. Receiver Technical Specications..................................................26. Parts Identication.........................................................................37. Application.....................................................................................48. Operation Instructions....................................................................4
- 1-1. PrecautionsStorage and Keeping1. Do not expose the device to excessive heat or cold.The storage temperature of this device is -30~+80OC,and the operating temperature is -20~+70OC.The humidity is Rh90﹪.2. Avoid dropping or striking this device.3. Avoid using this device in enclosed spaces,areas with excessive vibration or subject to severe impacts.4. Do not place cables where they may be pinched or stepped on.5. The device is designed to be water-resistant,but not for underwater application.Operating Precautions1. The device may be powered by a 12 or 24 volt automotive battery or vehicle electrical system.2. Make sure all cables are connected properly.Observe polarity.Improper cable connections may damage the device.Remove the power cable connections when you do not intend to use the unit.WarningHigh voltage is present within the device.The opening of the case should be by professionals.Special NoticeNever try to repair this device by yourself.In case of any problems,please turn off the device at once and notify our company or authorized dealer.MaintenanceRemove all cable connections from the device before cleaning the unit.21. Remove all the cable connections from the monitor before cleaning the unit.2. Use a mild household detergent and clean the unit with a slightly damp,soft cloth. Never use strong solvents such as thinner or benzine, as they might damage the finish of the device.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons.This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.You are cautioned that any changes or modifications not expressly approved in this manual could void your warrantee and neccessitate expensive repairs.CAUTIONThis symbol is intended to alert the user not to waste electrical and electronic equipment. Declaration of conformityThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.Maintenance11When auto dim is turned on in dark environment, OSD turns into dim mode for dim setting ; When auto dim is turned on / off in bright environment, OSD displaynormal mode. PICTUREDIM BRIGHTDIM CONTRASTDIM COLORVOLUMEAUTO DIMSCALE ADJUST40454050ONOFFPress to select SCALE ADJUST.PICTUREBRIGHTCONTRASTCOLORVOLUMEAUTO DIMSCALE ADJUST Press +/- to select or for scale adjustment↑↓. ↑↓ Exit menu and again press to display the grid line.If ↑↓ is selected, press +/- to adjust the scale up/down; I f Dim mode PICTUREAUTO DIMSCALE ADJUST BRIGHT CONTRAST COLORVOLUME505050ONOFFNormal mode 5050505050OFFOFFis selected,press+/-to adjust the scale left/right.↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓

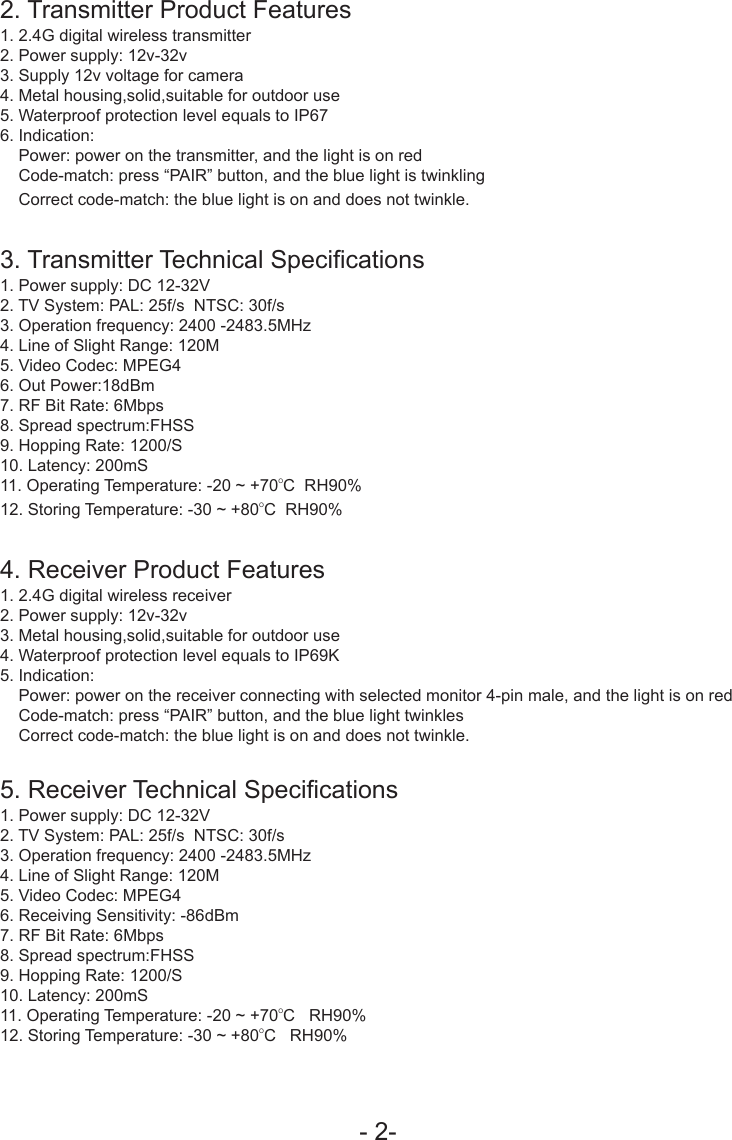

- 2-2. Transmitter Product Features1. 2.4G digital wireless transmitter2. Power supply: 12v-32v3. Supply 12v voltage for camera4. Metal housing,solid,suitable for outdoor use5. Waterproof protection level equals to IP676. Indication: Power: power on the transmitter, and the light is on red Code-match: press “PAIR” button, and the blue light is twinkling Correct code-match: the blue light is on and does not twinkle.3. Transmitter Technical Specications1. Power supply: DC 12-32V2. TV System: PAL: 25f/s NTSC: 30f/s3. Operation frequency: 2400 -2483.5MHz4. Line of Slight Range: 120M5. Video Codec: MPEG46. Out Power:18dBm7. RF Bit Rate: 6Mbps8. Spread spectrum:FHSS9. Hopping Rate: 1200/S10. Latency: 200mS11. Operating Temperature: -20 ~ +70OC RH90﹪12. Storing Temperature: -30 ~ +80OC RH90﹪4. Receiver Product Features 1. 2.4G digital wireless receiver2. Power supply: 12v-32v3. Metal housing,solid,suitable for outdoor use4. Waterproof protection level equals to IP69K5. Indication: Power: power on the receiver connecting with selected monitor 4-pin male, and the light is on red Code-match: press “PAIR” button, and the blue light twinkles Correct code-match: the blue light is on and does not twinkle.5. Receiver Technical Specications1. Power supply: DC 12-32V2. TV System: PAL: 25f/s NTSC: 30f/s3. Operation frequency: 2400 -2483.5MHz4. Line of Slight Range: 120M5. Video Codec: MPEG46. Receiving Sensitivity: -86dBm7. RF Bit Rate: 6Mbps8. Spread spectrum:FHSS9. Hopping Rate: 1200/S10. Latency: 200mS11. Operating Temperature: -20 ~ +70OC RH90﹪12. Storing Temperature: -30 ~ +80OC RH90﹪

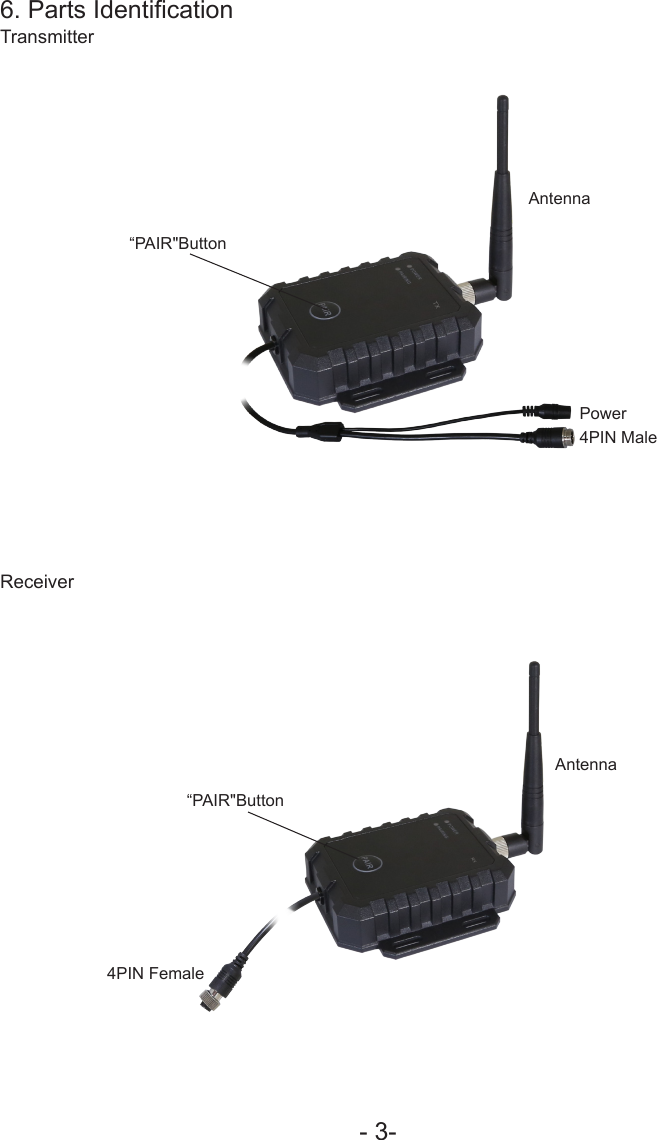

- 3-6. Parts IdenticationTransmitterReceiver“PAIR"Button“PAIR"ButtonAntennaAntennaPower4PIN Male4PIN Female

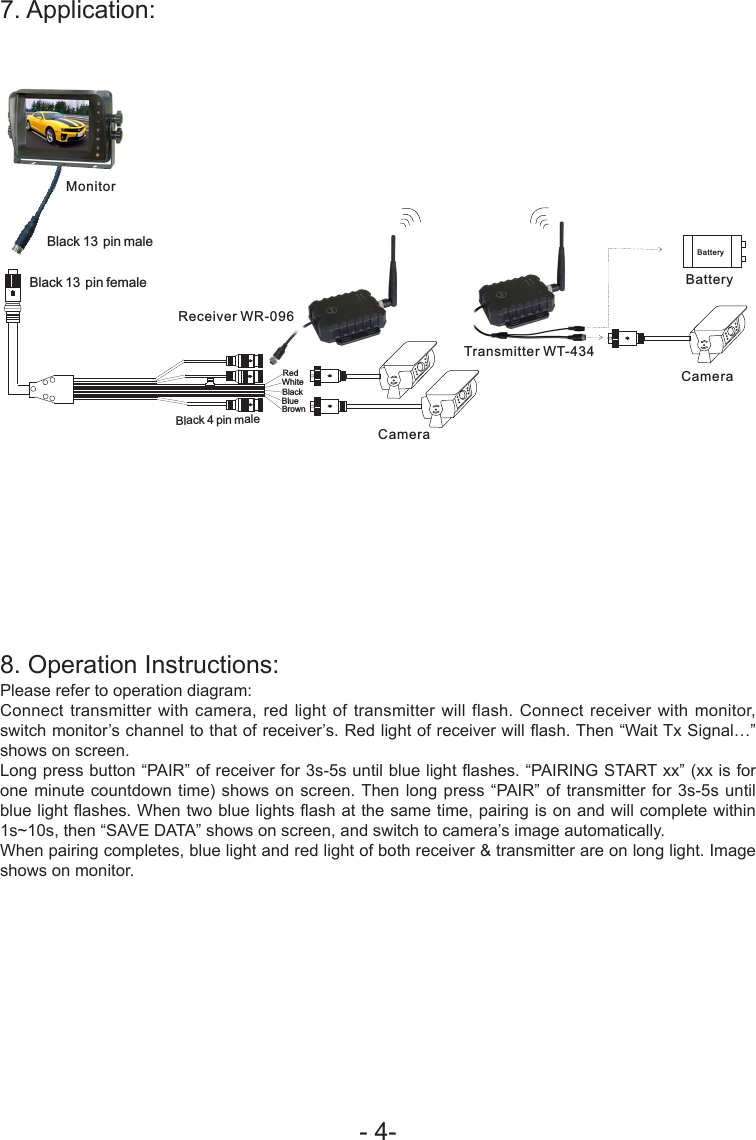

- 4-7. Application:8. Operation Instructions:Please refer to operation diagram:Connect transmitter with camera, red light of transmitter will flash. Connect receiver with monitor, switch monitor’s channel to that of receiver’s. Red light of receiver will ash. Then “Wait Tx Signal…” shows on screen. Long press button “PAIR” of receiver for 3s-5s until blue light ashes. “PAIRING START xx” (xx is for one minute countdown time) shows on screen. Then long press “PAIR” of transmitter for 3s-5s until blue light ashes. When two blue lights ash at the same time, pairing is on and will complete within 1s~10s, then “SAVE DATA” shows on screen, and switch to camera’s image automatically.When pairing completes, blue light and red light of both receiver & transmitter are on long light. Image shows on monitor.BlueBrownWhiteBlack 4 pin male BlackRed Black 13 pin female Black 13 pin male MonitorCameraBatteryBatteryCameraReceiver WR-096Transmitter WT-434

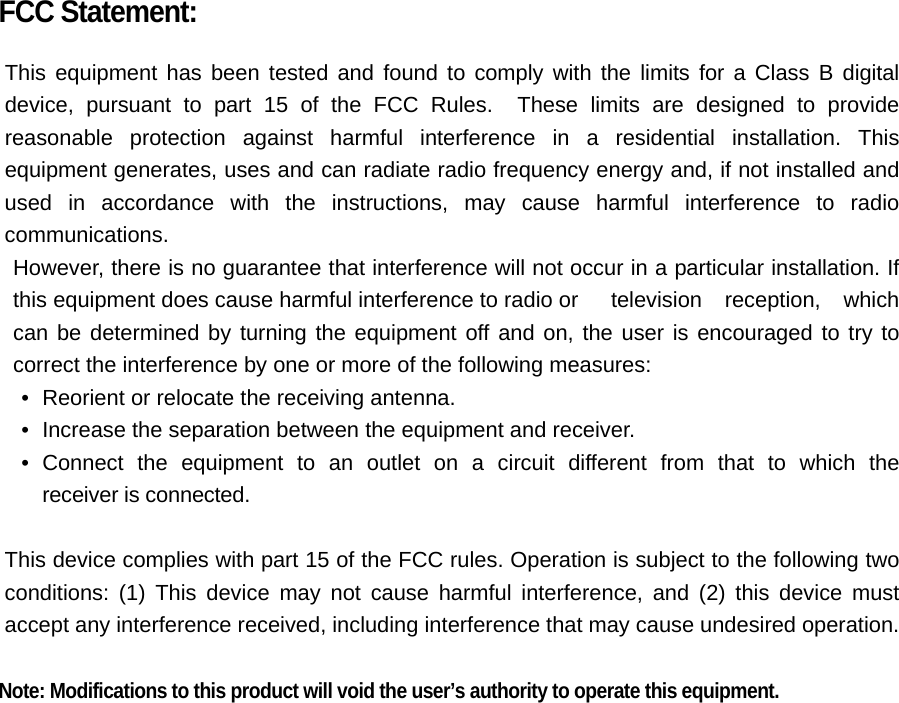

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modifications to this product will void the user’s authority to operate this equipment.
