SKY WING Communication Electronics SK-BH-M91 Bluetooth Headset User Manual Users manual

SKY WING Communication Electronics Co.,Ltd Bluetooth Headset Users manual

Users manual

User Manual Bluetooth Headset BH-M91

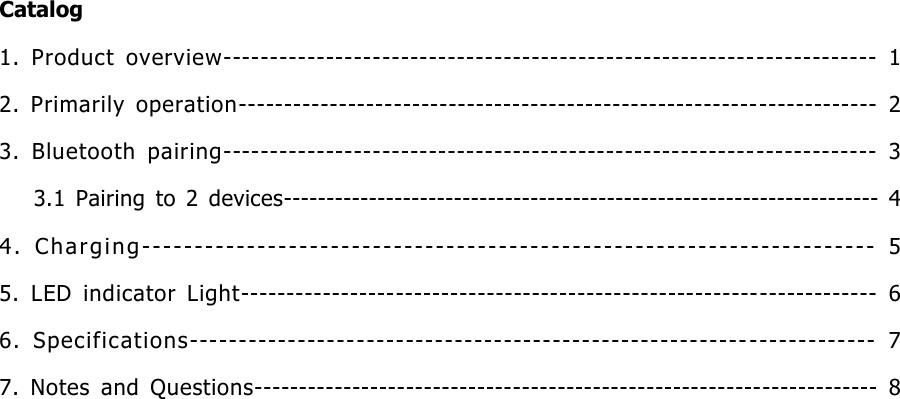

Catalog 1. Product overview---------------------------------------------------------------------- 1 2. Primarily operation---------------------------------------------------------------------- 2 3. Bluetooth pairing---------------------------------------------------------------------- 3 3.1 Pairing to 2 devices---------------------------------------------------------------------- 4 4. Ch ar gi ng ---------------------------------------------------------------------- 5 5. LED indicator Light---------------------------------------------------------------------- 6 6. Specifications---------------------------------------------------------------------- 7 7. Notes and Questions---------------------------------------------------------------------- 8
1.Product overview Packing list： A. BH-M91 Bluetooth headset 1 pcs B. Car charger 1 pcs C. Micro USB charging cable 1 pcs D. Bag 1 pcs E. Manual 1 pcs

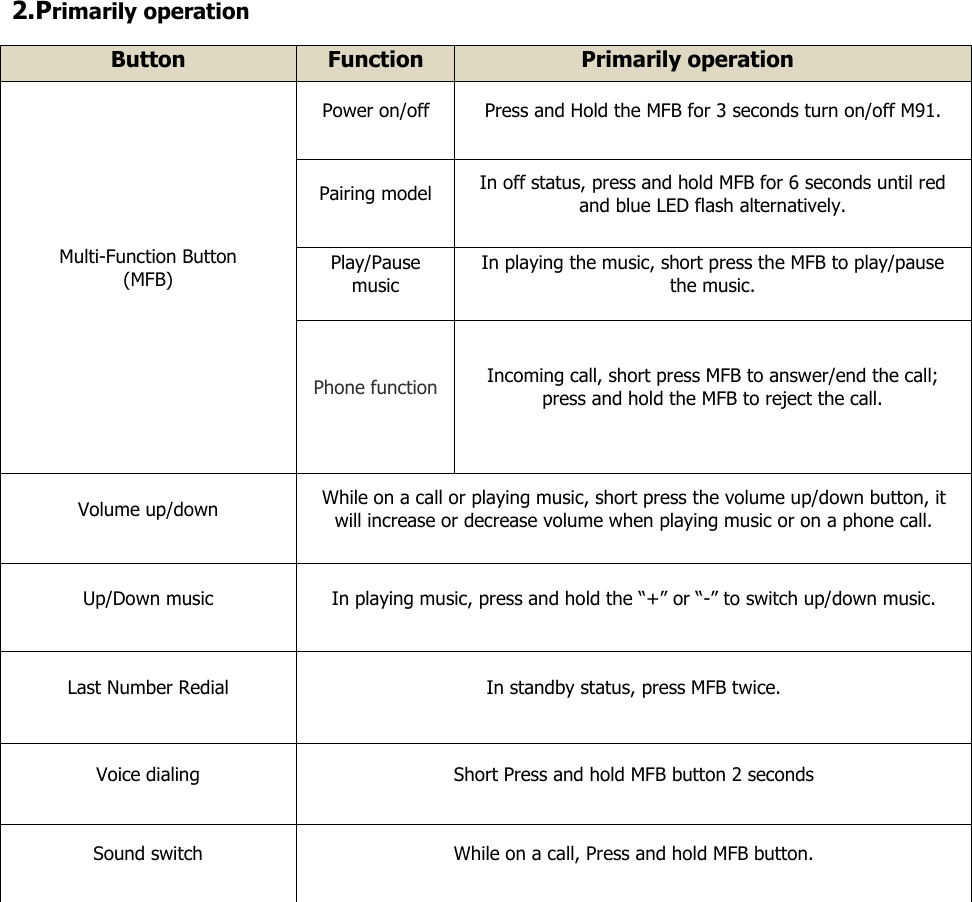

2.Primarily operation Button Function Primarily operation Multi-Function Button (MFB) Power on/off Press and Hold the MFB for 3 seconds turn on/off M91. Pairing model In off status, press and hold MFB for 6 seconds until red and blue LED flash alternatively. Play/Pause music In playing the music, short press the MFB to play/pause the music. Phone function Incoming call, short press MFB to answer/end the call; press and hold the MFB to reject the call. Volume up/down While on a call or playing music, short press the volume up/down button, it will increase or decrease volume when playing music or on a phone call. Up/Down music In playing music, press and hold the “+” or “-” to switch up/down music. Last Number Redial In standby status, press MFB twice. Voice dialing Short Press and hold MFB button 2 seconds Sound switch While on a call, Press and hold MFB button.
3 Bluetooth Pairing and connect A． In power off status, Press and hold Multi-function button 3 seconds to enter into pairing mode, blue and red LED flashes alternately. B． Turn on the phone’s Bluetooth function, search "BH-M91" Bluetooth device, click "BH-M91" to connect. After pairing connection successful, LED indicator Light turn to Blue ，and flashes once for three seconds , it can listen the music and phone via the headset.
3.1 One pairing two devices A．After pairing the first phone(computer, pad )，turn off the first connected phone’s Bluetooth function temporarily. B．Press and hold MFB to turn off M91. Then press and hold MFB 6 seconds to to enter into pairing mode blue and red LED flashes alternately . C．Open the second phone’s Bluetooth function, search "BH-M91" Bluetooth device, click "BH-M91" to connect. After pairing connection successful, LED indicator Light turn to Blue, and flashes slowly. D．Turn on the first phones’ Bluetooth function, found the history of “BH-M91” click and connect. ( some phones will automatic connection). Connection success is the implementation of one pairing two function. Pleas noted: the connection two phones could only have one to play music, need to pause or turn off the first one to play the second one.
4. Charging When the red LED Light flashes please charging immediately. It need about 2 hours to charging. When the red LED light out , it meats the battery is full. Charging connect. Please using standard USB charging cable, using the Micro’s port to connect the M91，USB port to connect the USB charger（car charger、travel charger、computer USB etc） Pleas noted： *When you don’t use BH-M91，Please charging at least once every 2 months.
5. LED indicator Status LED displayed Power on Blue LED flashes 3 times Power off Red LED flashes 3 times Pairing status Red and blue LED flashed alternately Unconnected standby status Blue LED flashes twice every 5 seconds Connected standby status Blue LED flashes once every 10 seconds Playing music status Blue LED flashes once every 10 seconds Call status Blue LED flashes once every 10 seconds Low voltage Red LED flashes Charging Solid Red Fully Charged Red LED turn off 6. Specifications Model BH-M91 Bluetooth version V4.1,ClassII Chip solution CSR BC8615 Operation frequency 2.402GHz-2.480GHz Standby time About 600 hours Talk/Play music time About 40 hours Charge time About 3 hours Supported profile A2DP1.2, AVRCP1.0, HFP 1.6, HSP 1.2 Multi-point connection Support (connect two phones) Pass code for supported Bluetooth headset, adapter, receiver, speaker etc 0000，1111，1234，8888 Battery type 400mAh rechargeable lithium battery Charging Supply 5VDC,100-240V AC adapter，≥500MA Operating temperature -10—55℃ Net weight About 135g Overall dimensions 387mm*191.25 mm*419.175 mm
7. Notes and Questions. A．One pairing two devices When connect with two devices, it just can playing one phone’s music. If you want to playing the other one, please pause or turn off the first one phone’s music. B．Power off automatically M91 will power off automatically when the Bluetooth no connect over 10 min. C． How to re-connect? Also how do to If it can’t re-connect. When BH-M91 connected successful with the Bluetooth device. It will re-connect automatically when the device turn on . If it can’t re-connect , please re-pair again. D. How to clean matching records？ In any status, press and hold “MFB” and ”mute button”. E. Matching pass code？ If there are some devices need to enter pass code, please to enter 0000 ( four zero ); 8888 (four eight) ; 1111(four one) or 1234. F.What is the charge voltage and current? What kind of equipment can be used? Met DC 5 voltage, 500mA, the car charger, travel charger, computer USB port and so on can charging to BH-M91.
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
