Navigation Bluetooth Hands-Free iPod® and MP3 compatible Back-up camera ready Play DVDs, Audio CDs, MP3 Discs Supports steering wheel controls Customizable backgrounds Satellite Radio ready Bluetooth Phonebook and favoritesMultimedia Navigation System Quick Start GuideENTERTAINMENT SYSTEMSChrysler Series

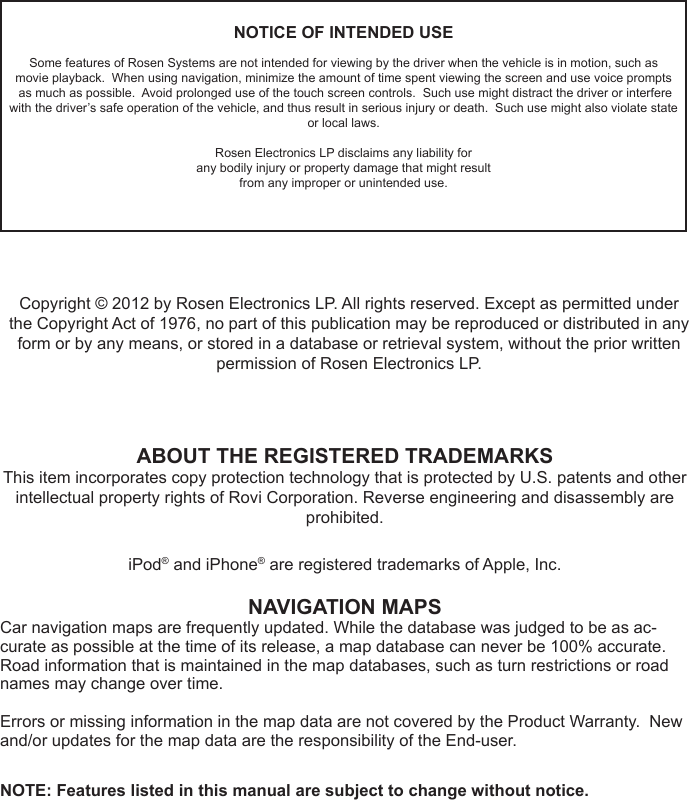

NOTICE OF INTENDED USESome features of Rosen Systems are not intended for viewing by the driver when the vehicle is in motion, such as movie playback. When using navigation, minimize the amount of time spent viewing the screen and use voice prompts as much as possible. Avoid prolonged use of the touch screen controls. Such use might distract the driver or interfere with the driver’s safe operation of the vehicle, and thus result in serious injury or death. Such use might also violate state or local laws.Rosen Electronics LP disclaims any liability forany bodily injury or property damage that might resultfrom any improper or unintended use.ABOUT THE REGISTERED TRADEMARKSThis item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.iPod® and iPhone® are registered trademarks of Apple, Inc.NAVIGATION MAPSCar navigation maps are frequently updated. While the database was judged to be as ac-curate as possible at the time of its release, a map database can never be 100% accurate. Road information that is maintained in the map databases, such as turn restrictions or road names may change over time.Errors or missing information in the map data are not covered by the Product Warranty. New and/or updates for the map data are the responsibility of the End-user.NOTE: Features listed in this manual are subject to change without notice.Copyright © 2012 by Rosen Electronics LP. All rights reserved. Except as permitted under the Copyright Act of 1976, no part of this publication may be reproduced or distributed in any form or by any means, or stored in a database or retrieval system, without the prior written permission of Rosen Electronics LP.

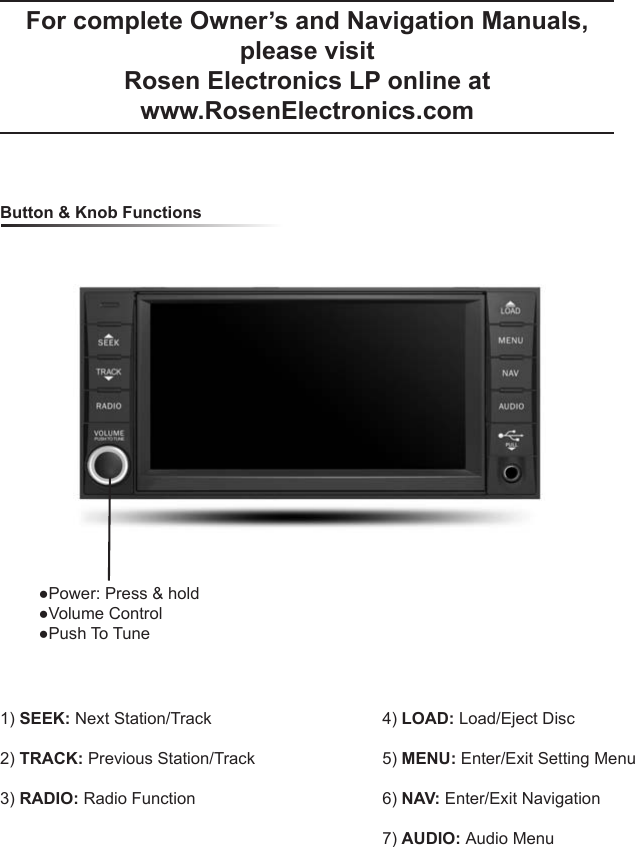

For complete Owner’s and Navigation Manuals, please visit Rosen Electronics LP online at www.RosenElectronics.com Button & Knob Functions1) SEEK: Next Station/Track2) TRACK: Previous Station/Track3) RADIO: Radio Function4) LOAD: Load/Eject Disc5) MENU: Enter/Exit Setting Menu6) NAV: Enter/Exit Navigation7) AUDIO: Audio Menu●Power: Press & hold●Volume Control●Push To Tune

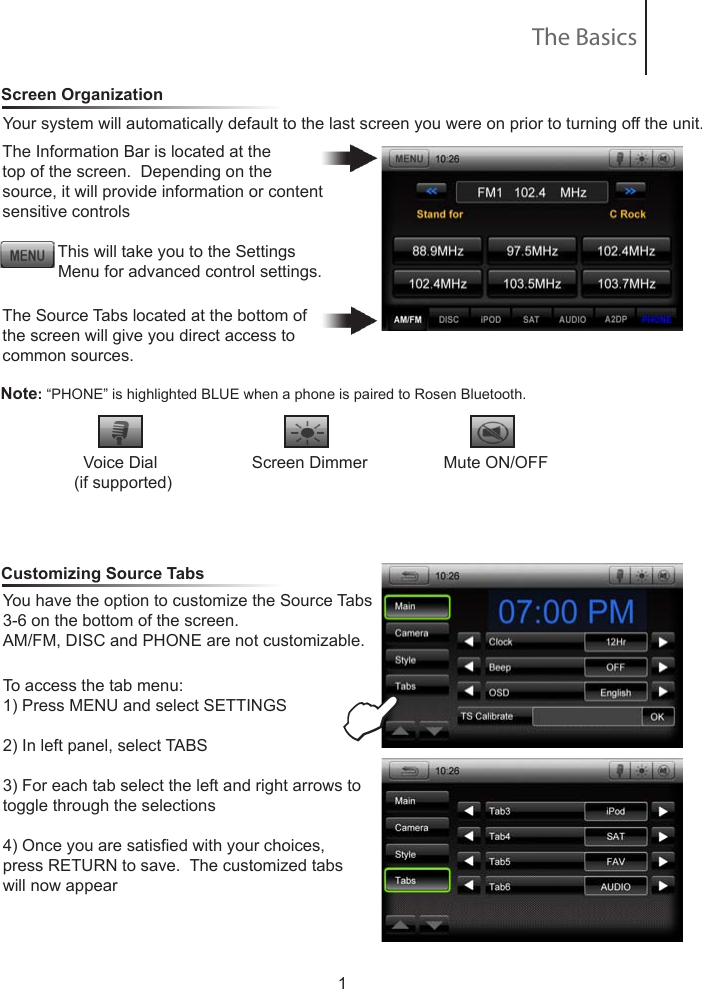

1Your system will automatically default to the last screen you were on prior to turning off the unit. The Information Bar is located at the top of the screen. Depending on the source, it will provide information or content sensitive controls This will take you to the Settings Menu for advanced control settings.The Source Tabs located at the bottom of the screen will give you direct access to common sources.Screen OrganizationNote: “PHONE” is highlighted BLUE when a phone is paired to Rosen Bluetooth.Customizing Source TabsYou have the option to customize the Source Tabs 3-6 on the bottom of the screen. AM/FM, DISC and PHONE are not customizable.To access the tab menu:1) Press MENU and select SETTINGS2) In left panel, select TABS3) For each tab select the left and right arrows to toggle through the selections4) Once you are satised with your choices, press RETURN to save. The customized tabs will now appear The Basics Voice Dial Screen Dimmer Mute ON/OFF (if supported) E

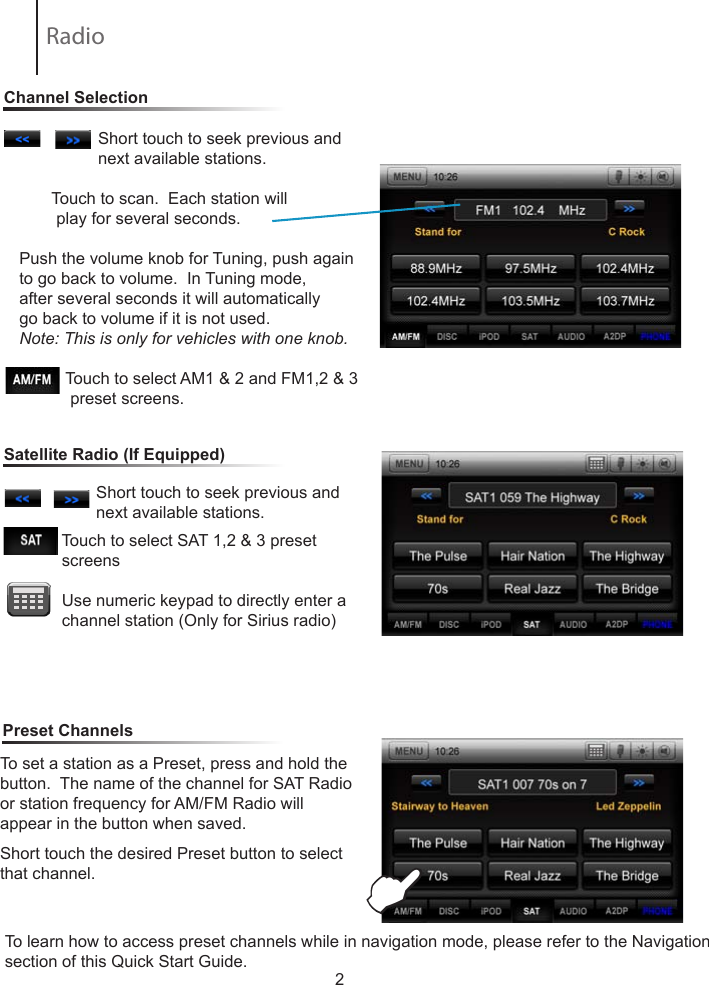

2 Short touch to seek previous and next available stations. Touch to scan. Each station will play for several seconds. Push the volume knob for Tuning, push again to go back to volume. In Tuning mode, after several seconds it will automatically go back to volume if it is not used.Note: This is only for vehicles with one knob. Touch to select AM1 & 2 and FM1,2 & 3 preset screens.To set a station as a Preset, press and hold the button. The name of the channel for SAT Radio or station frequency for AM/FM Radio willappear in the button when saved.Short touch the desired Preset button to select that channel. Touch to select SAT 1,2 & 3 preset screens Use numeric keypad to directly enter a channel station (Only for Sirius radio) Short touch to seek previous and next available stations. Channel SelectionSatellite Radio (If Equipped)Preset ChannelsERadio To learn how to access preset channels while in navigation mode, please refer to the Navigation section of this Quick Start Guide.

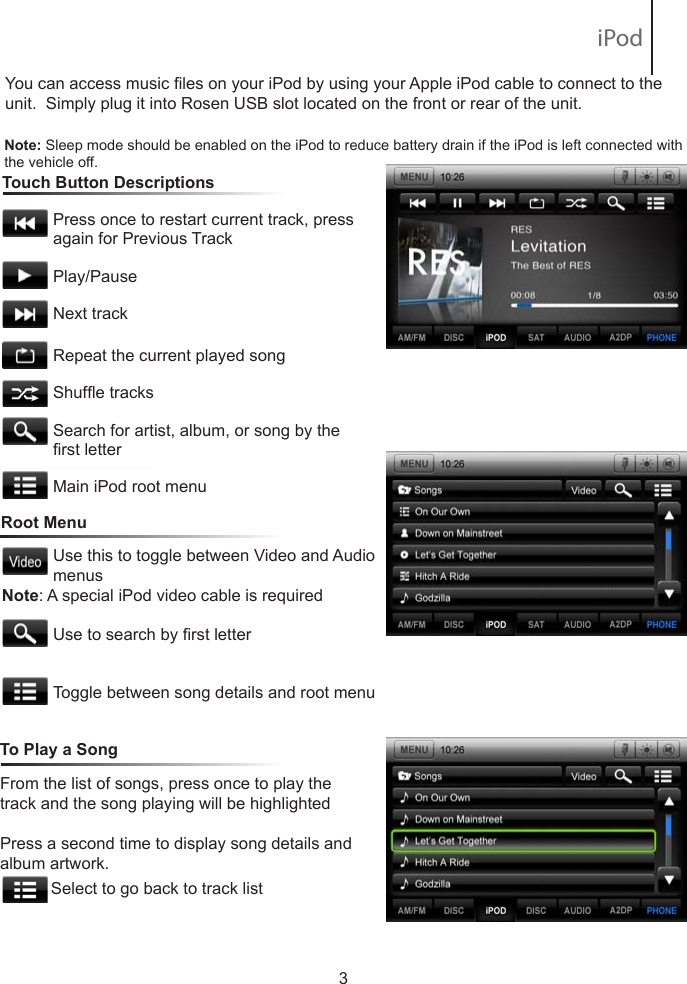

To learn how to access preset channels while in navigation mode, please refer to the Navigation section of this Quick Start Guide.You can access music les on your iPod by using your Apple iPod cable to connect to the unit. Simply plug it into Rosen USB slot located on the front or rear of the unit. Touch Button Descriptions Press once to restart current track, press again for Previous Track Play/Pause Next track Repeat the current played song Shufe tracks Search for artist, album, or song by the rst letter Main iPod root menu3Note: Sleep mode should be enabled on the iPod to reduce battery drain if the iPod is left connected with the vehicle off.Root MenuUse this to toggle between Video and Audio menusUse to search by rst letterToggle between song details and root menuFrom the list of songs, press once to play the track and the song playing will be highlightedPress a second time to display song details and album artwork. Select to go back to track list To Play a SongNote: A special iPod video cable is required iPod
4DVD Previous ChapterPlay/PauseNext ChapterShows information such as Chapter, Time Elapsed, etcMain DVD menuExit Menu and return to full screen DVD Settings menuLong Touch in DVD mode to show the DVD control screen. To return to full screen, either touch the image or leave the screen idle for several seconds.ECD Press once to restart current track, press again for Previous Track Play/Pause Next track Repeat the current played song Shufe tracks Search for artist, album, or song Main CD root menuCD/DVDNote: DVD video can only be viewed if parking brake is engaged.

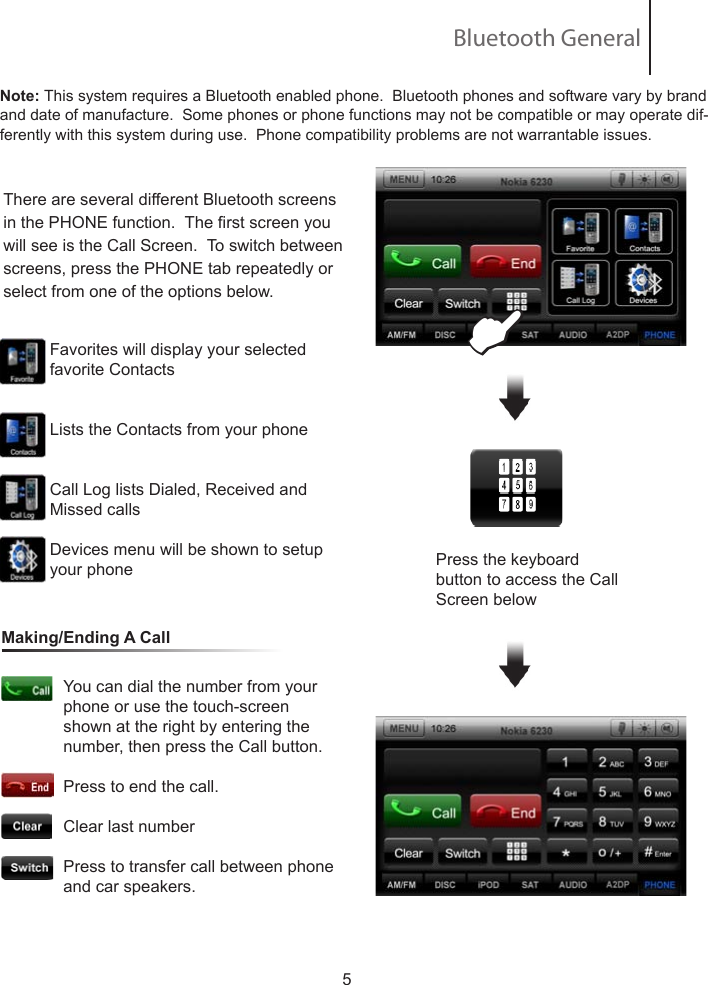

Note: This system requires a Bluetooth enabled phone. Bluetooth phones and software vary by brand and date of manufacture. Some phones or phone functions may not be compatible or may operate dif-ferently with this system during use. Phone compatibility problems are not warrantable issues.There are several different Bluetooth screens in the PHONE function. The rst screen you will see is the Call Screen. To switch between screens, press the PHONE tab repeatedly or select from one of the options below.5Favorites will display your selected favorite ContactsLists the Contacts from your phone Call Log lists Dialed, Received and Missed callsDevices menu will be shown to setup your phoneYou can dial the number from your phone or use the touch-screen shown at the right by entering the number, then press the Call button.Press to end the call.Clear last number Press to transfer call between phone and car speakers. Making/Ending A Call Press the keyboard button to access the Call Screen below Bluetooth GeneralENote: DVD video can only be viewed if parking brake is engaged.

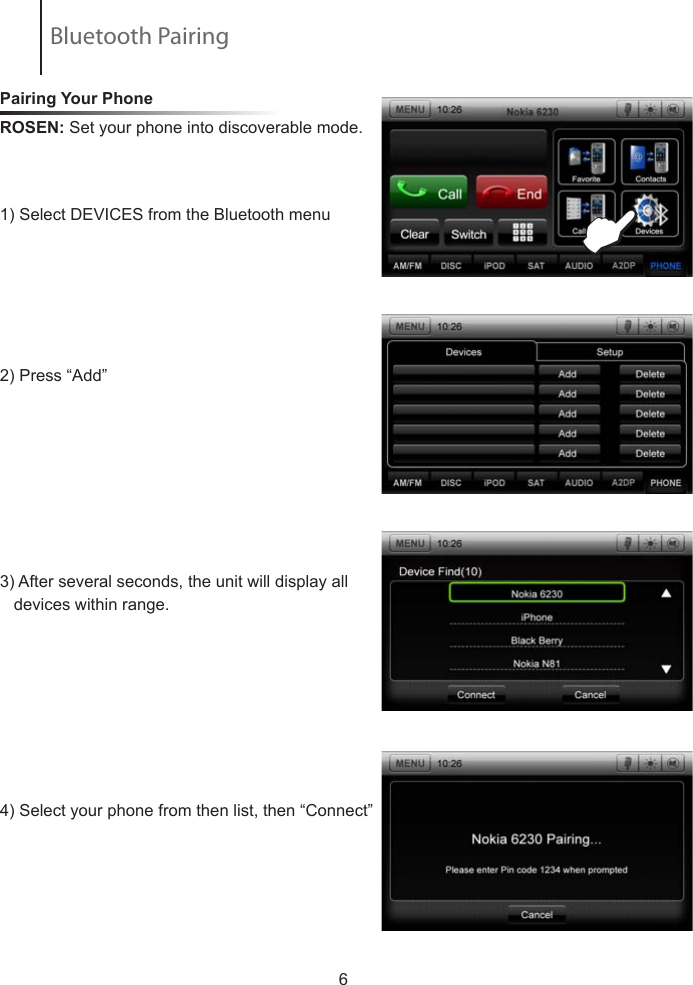

Pairing Your Phone ROSEN: Set your phone into discoverable mode. 1) Select DEVICES from the Bluetooth menu 2) Press “Add” 3) After several seconds, the unit will display all devices within range.4) Select your phone from then list, then “Connect” 6EBluetooth Pairing

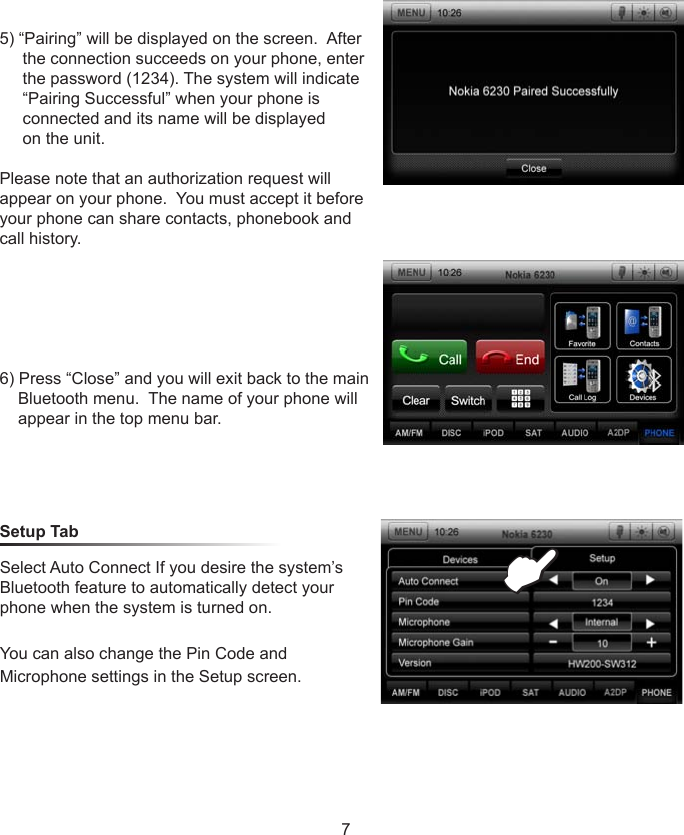

Select Auto Connect If you desire the system’s Bluetooth feature to automatically detect your phone when the system is turned on.You can also change the Pin Code and Microphone settings in the Setup screen.Setup Tab5) “Pairing” will be displayed on the screen. After the connection succeeds on your phone, enter the password (1234). The system will indicate “Pairing Successful” when your phone is connected and its name will be displayed on the unit. Please note that an authorization request will appear on your phone. You must accept it before your phone can share contacts, phonebook and call history.6) Press “Close” and you will exit back to the main Bluetooth menu. The name of your phone will appear in the top menu bar.E7

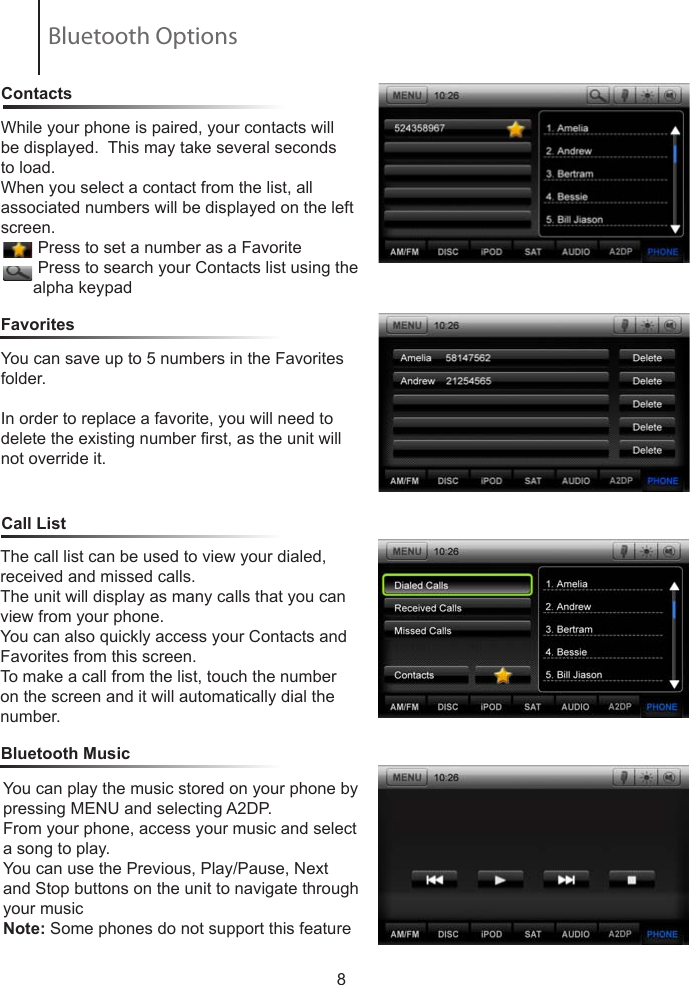

8ContactsCall ListFavoritesWhile your phone is paired, your contacts will be displayed. This may take several seconds to load.When you select a contact from the list, all associated numbers will be displayed on the left screen. Press to set a number as a Favorite Press to search your Contacts list using the alpha keypadYou can save up to 5 numbers in the Favorites folder.In order to replace a favorite, you will need to delete the existing number rst, as the unit will not override it.Bluetooth MusicThe call list can be used to view your dialed, received and missed calls.The unit will display as many calls that you can view from your phone.You can also quickly access your Contacts and Favorites from this screen.To make a call from the list, touch the number on the screen and it will automatically dial the number.You can play the music stored on your phone by pressing MENU and selecting A2DP.From your phone, access your music and select a song to play.You can use the Previous, Play/Pause, Next and Stop buttons on the unit to navigate through your musicNote: Some phones do not support this featureBluetooth Options

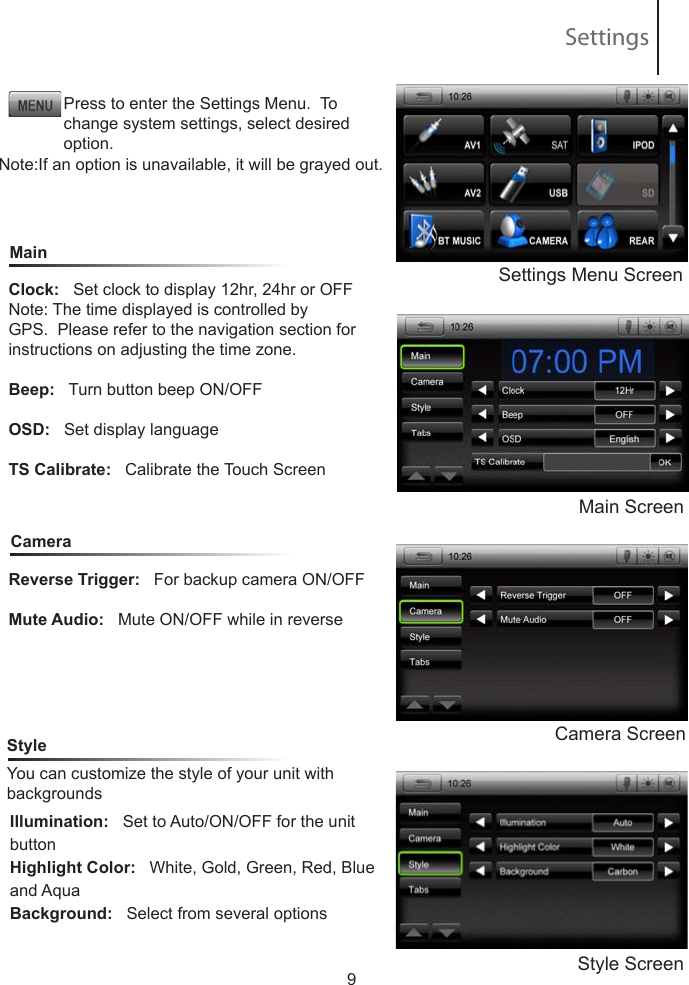

Press to enter the Settings Menu. To change system settings, select desired option. You can customize the style of your unit with backgroundsMainCameraStyleSettings Menu Screen9Main ScreenCamera ScreenStyle ScreenClock: Set clock to display 12hr, 24hr or OFFNote: The time displayed is controlled by GPS. Please refer to the navigation section for instructions on adjusting the time zone.Beep: Turn button beep ON/OFFOSD: Set display languageTS Calibrate: Calibrate the Touch ScreenReverse Trigger: For backup camera ON/OFFMute Audio: Mute ON/OFF while in reverseIllumination: Set to Auto/ON/OFF for the unit buttonHighlight Color: White, Gold, Green, Red, Blue and AquaBackground: Select from several options SettingsNote:If an option is unavailable, it will be grayed out.

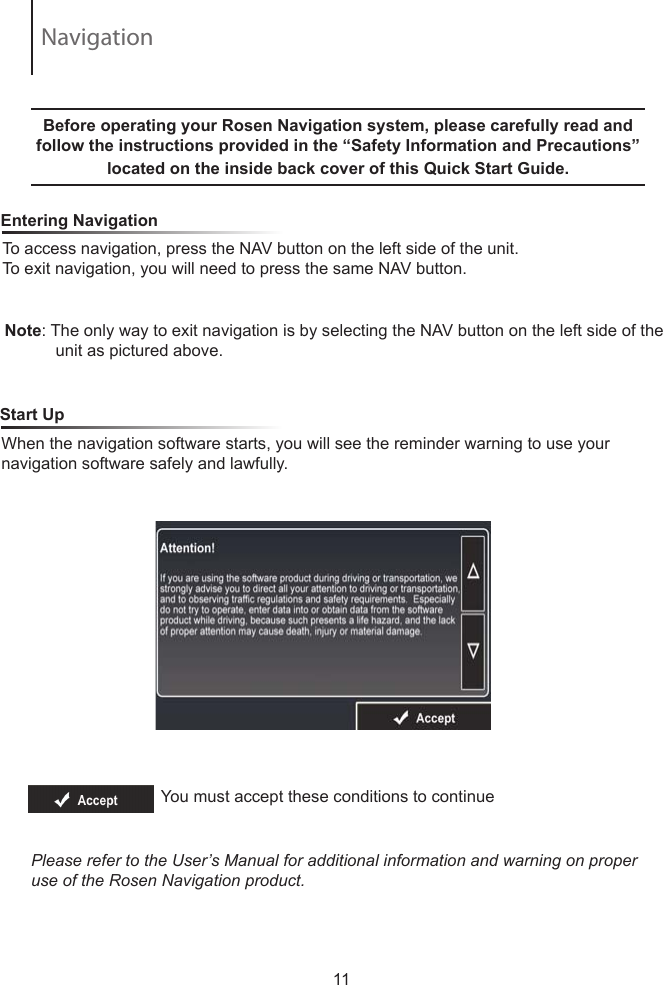

To access navigation, press the NAV button on the left side of the unit. To exit navigation, you will need to press the same NAV button. Entering NavigationNote: The only way to exit navigation is by selecting the NAV button on the left side of the unit as pictured above. Before operating your Rosen Navigation system, please carefully read and follow the instructions provided in the “Safety Information and Precautions” located on the inside back cover of this Quick Start Guide. When the navigation software starts, you will see the reminder warning to use your navigation software safely and lawfully. Start UpYou must accept these conditions to continue Please refer to the User’s Manual for additional information and warning on proper use of the Rosen Navigation product.11Navigation

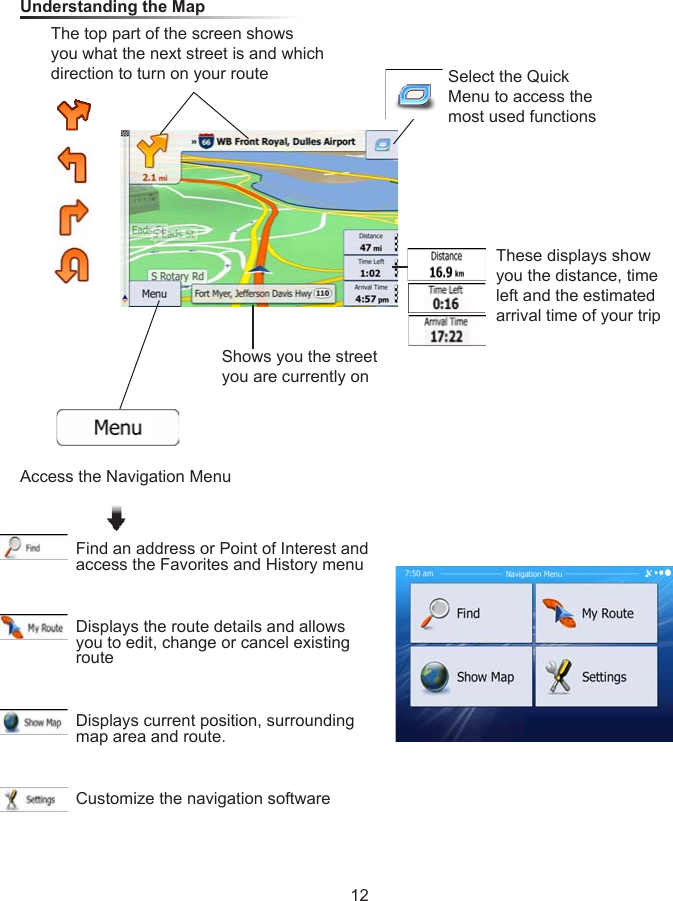

To access navigation, press the NAV button on the left side of the unit. To exit navigation, you will need to press the same NAV button. 11 12Understanding the Map Select the Quick Menu to access the most used functionsThese displays show you the distance, time left and the estimated arrival time of your tripThe top part of the screen shows you what the next street is and which direction to turn on your routeShows you the street you are currently onAccess the Navigation MenuFind an address or Point of Interest and access the Favorites and History menuDisplays the route details and allows you to edit, change or cancel existing routeDisplays current position, surrounding map area and route.Customize the navigation software

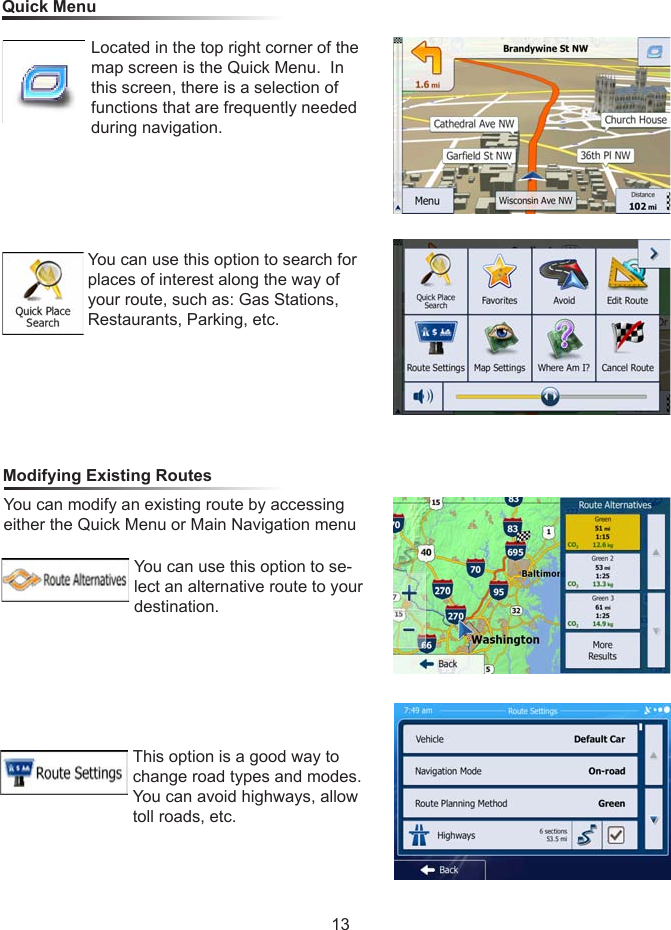

13Modifying Existing RoutesYou can modify an existing route by accessing either the Quick Menu or Main Navigation menuQuick Menu Located in the top right corner of the map screen is the Quick Menu. In this screen, there is a selection of functions that are frequently needed during navigation.You can use this option to search for places of interest along the way of your route, such as: Gas Stations, Restaurants, Parking, etc.You can use this option to se-lect an alternative route to your destination.This option is a good way to change road types and modes. You can avoid highways, allow toll roads, etc.

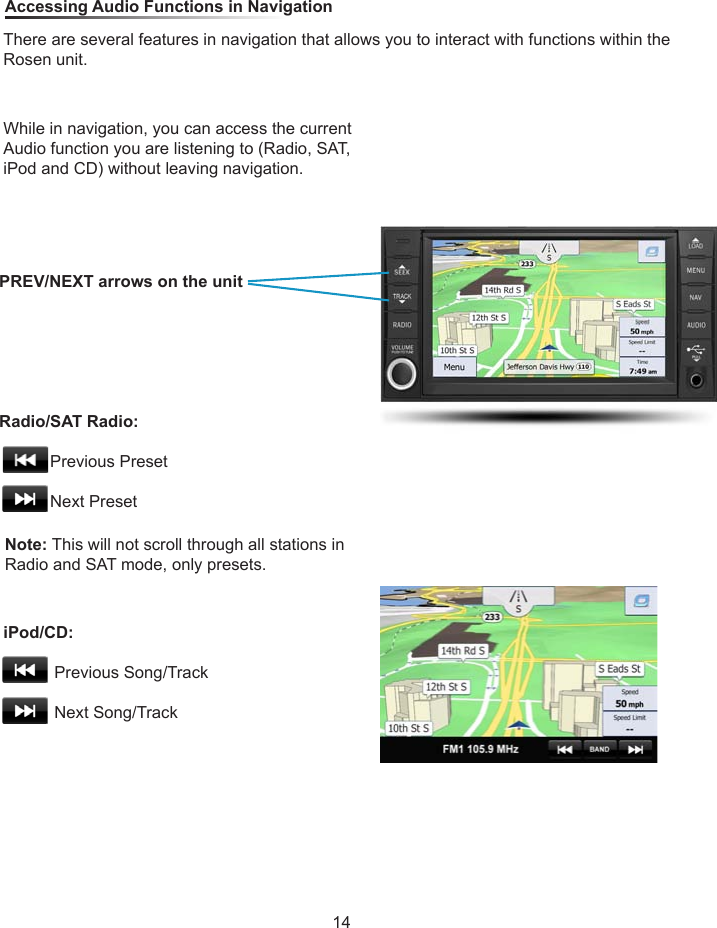

While in navigation, you can access the current Audio function you are listening to (Radio, SAT, iPod and CD) without leaving navigation.Note: This will not scroll through all stations in Radio and SAT mode, only presets. Accessing Audio Functions in NavigationThere are several features in navigation that allows you to interact with functions within the Rosen unit.PREV/NEXT arrows on the unitRadio/SAT Radio: Previous Preset Next PresetiPod/CD: Previous Song/Track Next Song/Track14

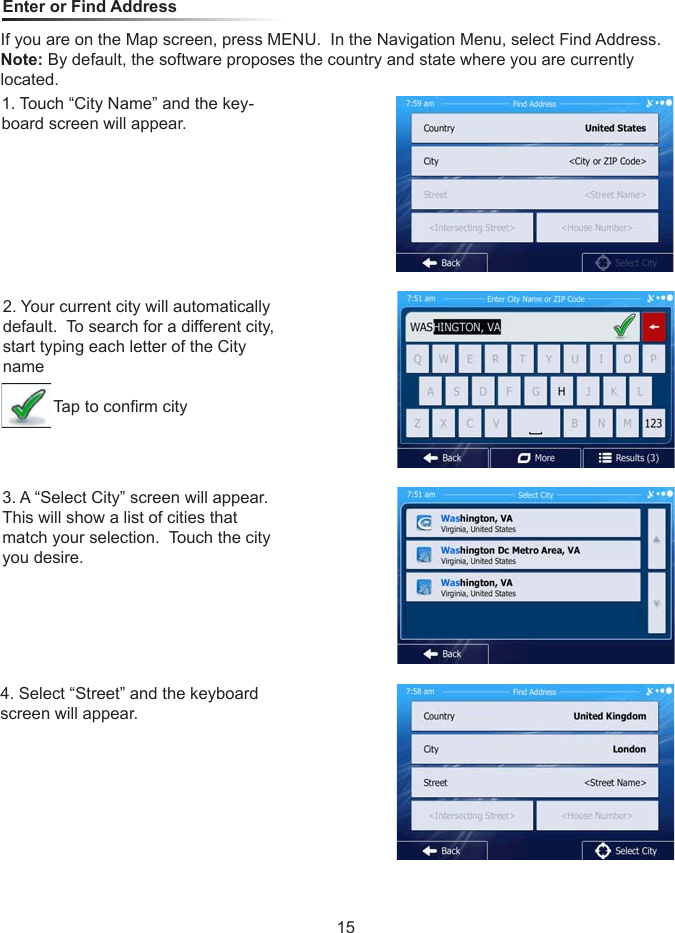

Enter or Find AddressIf you are on the Map screen, press MENU. In the Navigation Menu, select Find Address.Note: By default, the software proposes the country and state where you are currently located.1. Touch “City Name” and the key-board screen will appear.2. Your current city will automatically default. To search for a different city, start typing each letter of the City name Tap to conrm city3. A “Select City” screen will appear. This will show a list of cities that match your selection. Touch the city you desire.4. Select “Street” and the keyboard screen will appear.15

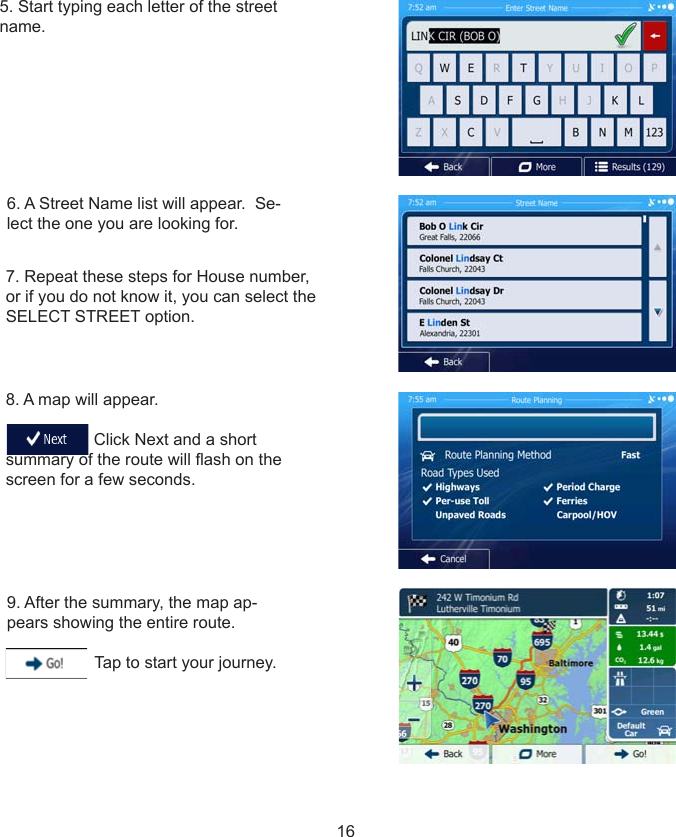

167. Repeat these steps for House number, or if you do not know it, you can select the SELECT STREET option.8. A map will appear. Click Next and a short summary of the route will ash on the screen for a few seconds.9. After the summary, the map ap-pears showing the entire route. Tap to start your journey.5. Start typing each letter of the street name.6. A Street Name list will appear. Se-lect the one you are looking for.

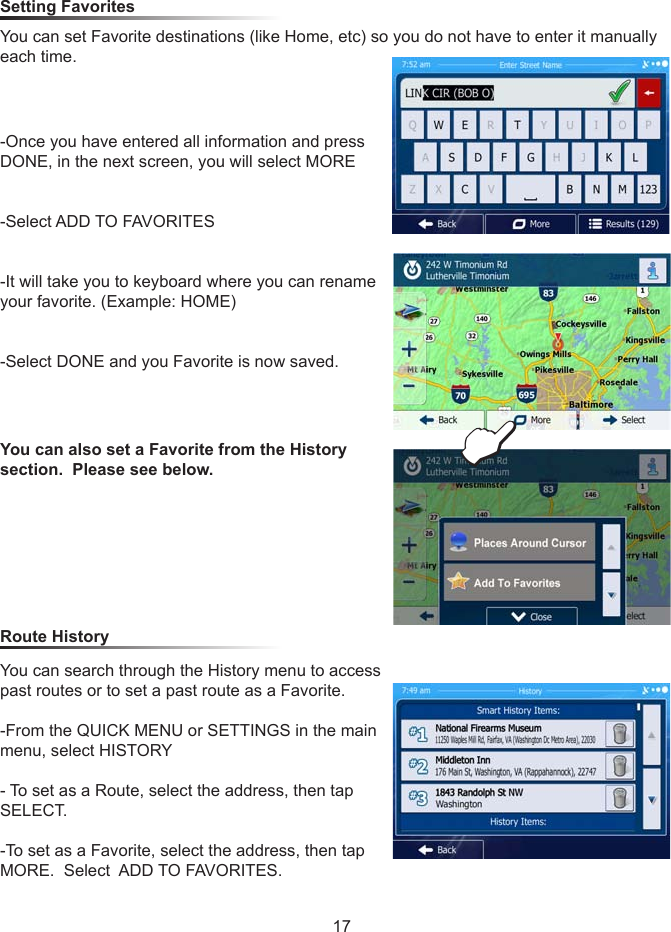

17Setting Favorites You can set Favorite destinations (like Home, etc) so you do not have to enter it manually each time. -Once you have entered all information and press DONE, in the next screen, you will select MORE-Select ADD TO FAVORITES-It will take you to keyboard where you can rename your favorite. (Example: HOME)-Select DONE and you Favorite is now saved. Route History You can also set a Favorite from the History section. Please see below.You can search through the History menu to access past routes or to set a past route as a Favorite.-From the QUICK MENU or SETTINGS in the main menu, select HISTORY- To set as a Route, select the address, then tap SELECT. -To set as a Favorite, select the address, then tap MORE. Select ADD TO FAVORITES.E

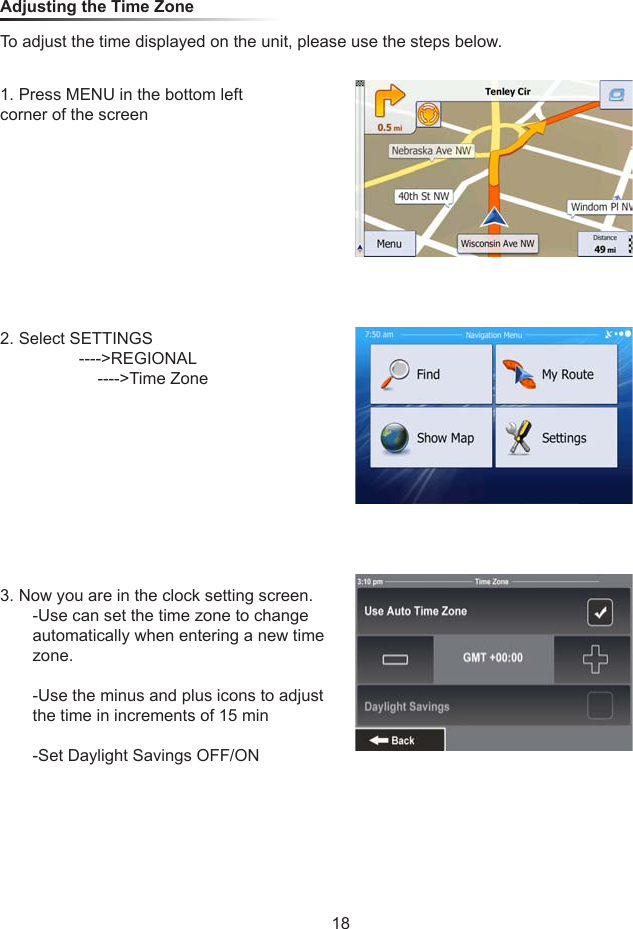

Adjusting the Time ZoneTo adjust the time displayed on the unit, please use the steps below.1. Press MENU in the bottom left corner of the screen2. Select SETTINGS ---->REGIONAL ---->Time Zone3. Now you are in the clock setting screen. -Use can set the time zone to change automatically when entering a new time zone. -Use the minus and plus icons to adjust the time in increments of 15 min -Set Daylight Savings OFF/ON18

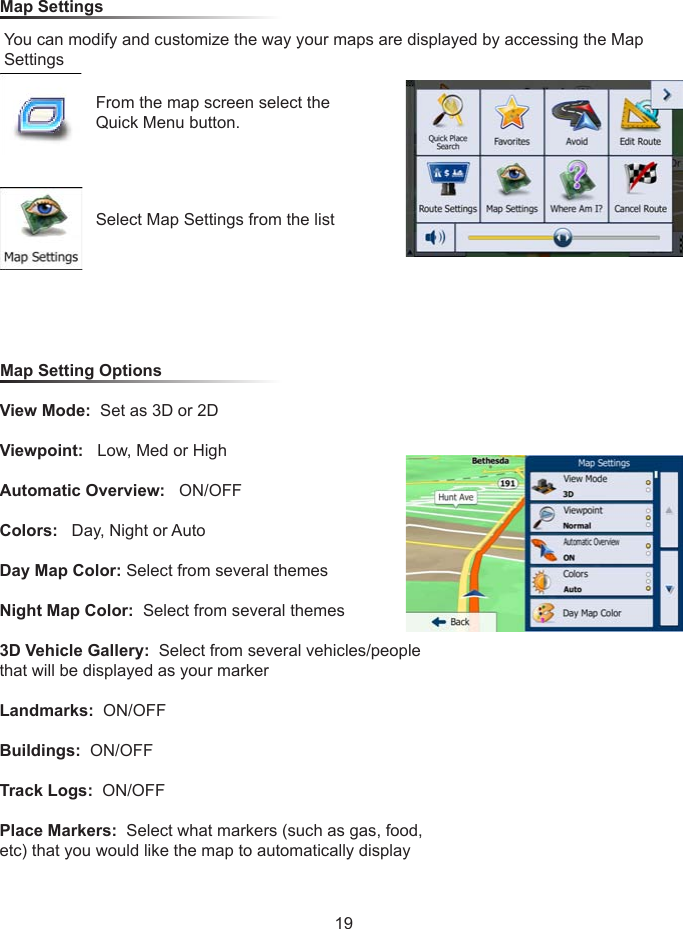

From the map screen select the Quick Menu button.Select Map Settings from the listMap Settings You can modify and customize the way your maps are displayed by accessing the Map SettingsMap Setting OptionsView Mode: Set as 3D or 2DViewpoint: Low, Med or HighAutomatic Overview: ON/OFFColors: Day, Night or AutoDay Map Color: Select from several themesNight Map Color: Select from several themes3D Vehicle Gallery: Select from several vehicles/people that will be displayed as your markerLandmarks: ON/OFFBuildings: ON/OFFTrack Logs: ON/OFFPlace Markers: Select what markers (such as gas, food, etc) that you would like the map to automatically display19

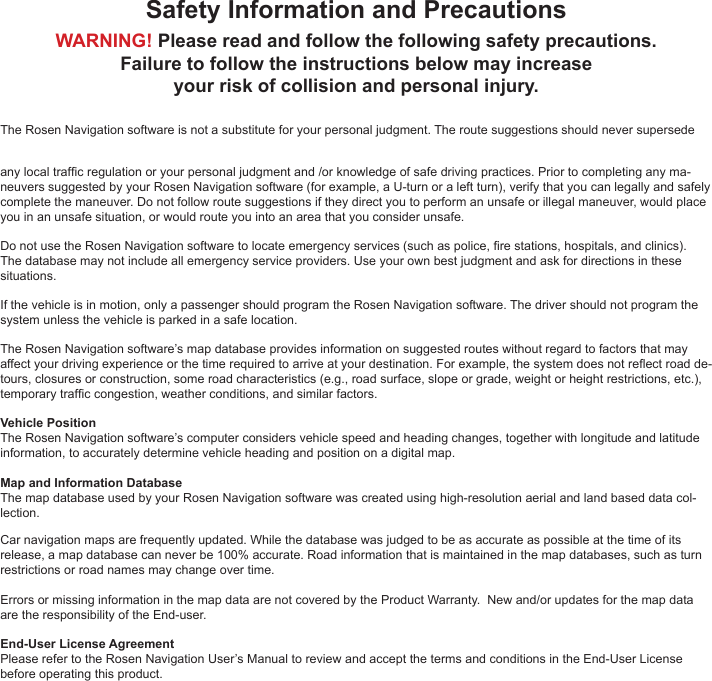

Safety Information and PrecautionsWARNING! Please read and follow the following safety precautions. Failure to follow the instructions below may increaseyour risk of collision and personal injury.The Rosen Navigation software is not a substitute for your personal judgment. The route suggestions should never supersede any local trafc regulation or your personal judgment and /or knowledge of safe driving practices. Prior to completing any ma-neuvers suggested by your Rosen Navigation software (for example, a U-turn or a left turn), verify that you can legally and safely complete the maneuver. Do not follow route suggestions if they direct you to perform an unsafe or illegal maneuver, would place you in an unsafe situation, or would route you into an area that you consider unsafe.Do not use the Rosen Navigation software to locate emergency services (such as police, re stations, hospitals, and clinics). The database may not include all emergency service providers. Use your own best judgment and ask for directions in these situations.If the vehicle is in motion, only a passenger should program the Rosen Navigation software. The driver should not program the system unless the vehicle is parked in a safe location.The Rosen Navigation software’s map database provides information on suggested routes without regard to factors that may affect your driving experience or the time required to arrive at your destination. For example, the system does not reect road de-tours, closures or construction, some road characteristics (e.g., road surface, slope or grade, weight or height restrictions, etc.), temporary trafc congestion, weather conditions, and similar factors.Vehicle PositionThe Rosen Navigation software’s computer considers vehicle speed and heading changes, together with longitude and latitude information, to accurately determine vehicle heading and position on a digital map. Map and Information DatabaseThe map database used by your Rosen Navigation software was created using high-resolution aerial and land based data col-lection.Car navigation maps are frequently updated. While the database was judged to be as accurate as possible at the time of its release, a map database can never be 100% accurate. Road information that is maintained in the map databases, such as turn restrictions or road names may change over time.Errors or missing information in the map data are not covered by the Product Warranty. New and/or updates for the map data are the responsibility of the End-user. End-User License Agreement Please refer to the Rosen Navigation User’s Manual to review and accept the terms and conditions in the End-User License before operating this product.

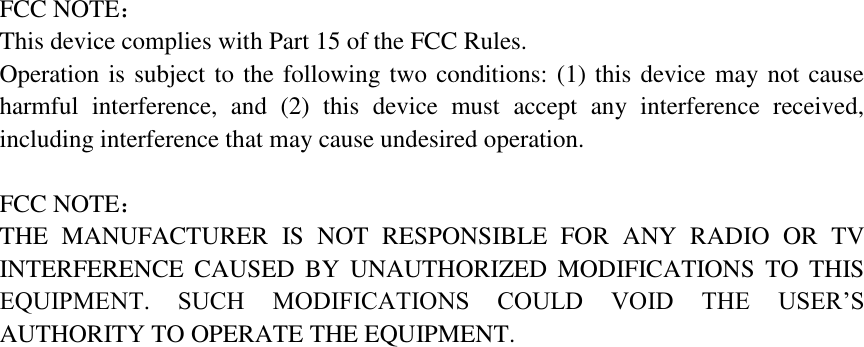

FCC NOTE： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC NOTE： THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
