SKYPINE ELECTRONICS SD9614SV CAR DVD ENTERTAINMENT CENTER (BLUETOOTH PORTION ONLY) User Manual SD 9614 SV

SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. CAR DVD ENTERTAINMENT CENTER (BLUETOOTH PORTION ONLY) SD 9614 SV

Contents

USERS MANUAL 1

INSTRUCTION MANUALEXD 7090Motorized 7"Touch Screen In-Dash Multimedia Disc Player EXONIC Mobile EntertainmentBuena Park,CA.90621 U.S.Awww.exonicmobile.com.In Car Audio，Sonic Excellence by Mobile Entertainment[ek-san-ik]meansʹ

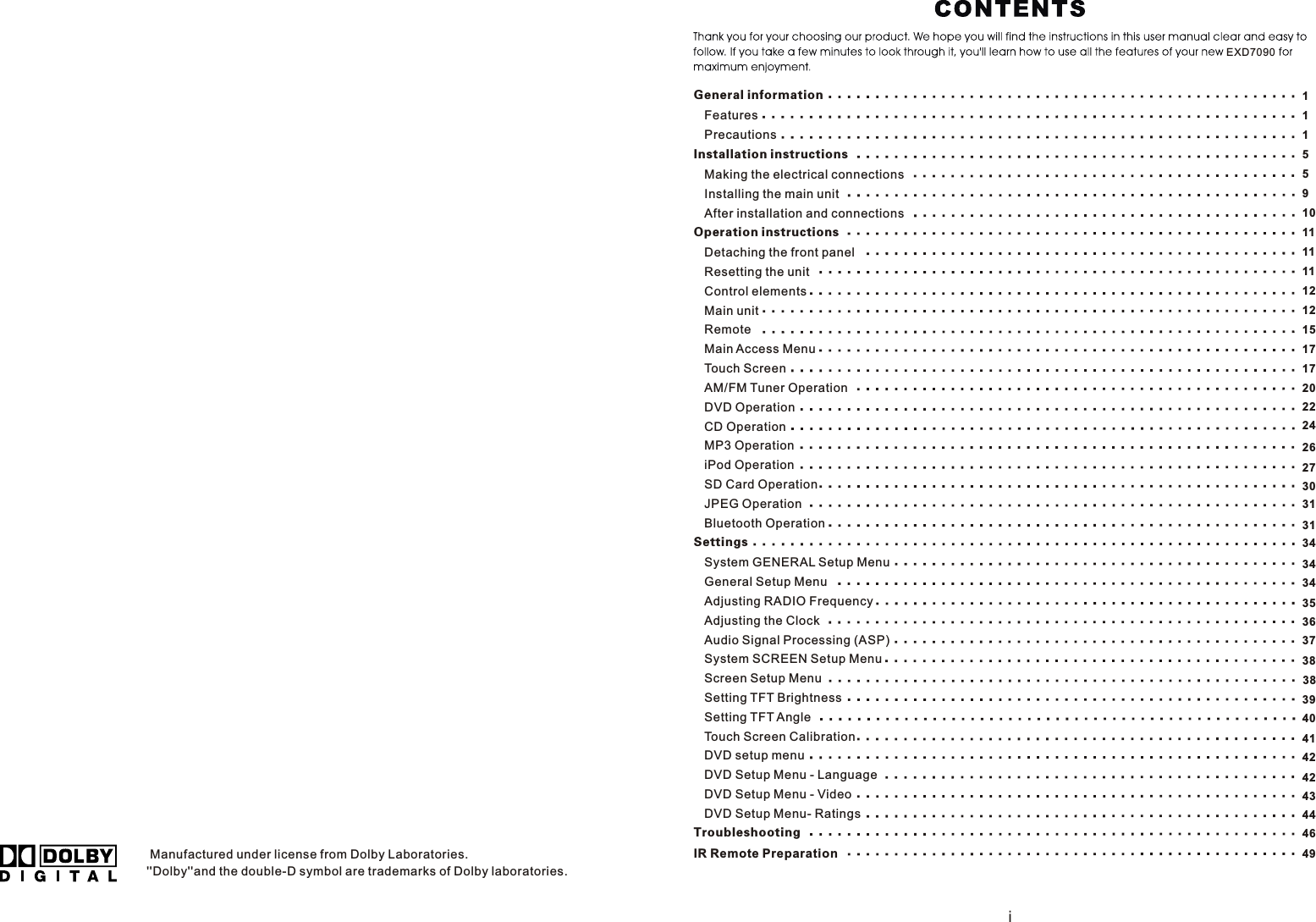

General information Features PrecautionsInstallation instructions Making the electrical connections Installing the main unit After installation and connectionsOperation instructions Detaching the front panel Resetting the unit Control elements Main unit Remote Main Access Menu Touch Screen AM/FM Tuner Operation DVD Operation CD Operation MP3 Operation iPod Operation SD Card Operation JPEG Operation Bluetooth OperationSettings System GENERAL Setup Menu General Setup Menu Adjusting RADIO Frequency Adjusting the Clock Audio Signal Processing (ASP) System SCREEN Setup Menu Screen Setup Menu Setting TFT Brightness Setting TFT Angle Touch Screen Calibration DVD setup menu DVD Setup Menu - Language DVD Setup Menu - Video DVD Setup Menu- RatingsTroubleshootingIR Remote Preparation Manufactured under license from Dolby Laboratories.''Dolby''and the double-D symbol are trademarks of Dolby laboratories.EXD709011155910111111121215171720222426273031313434343536373838394041424243444649

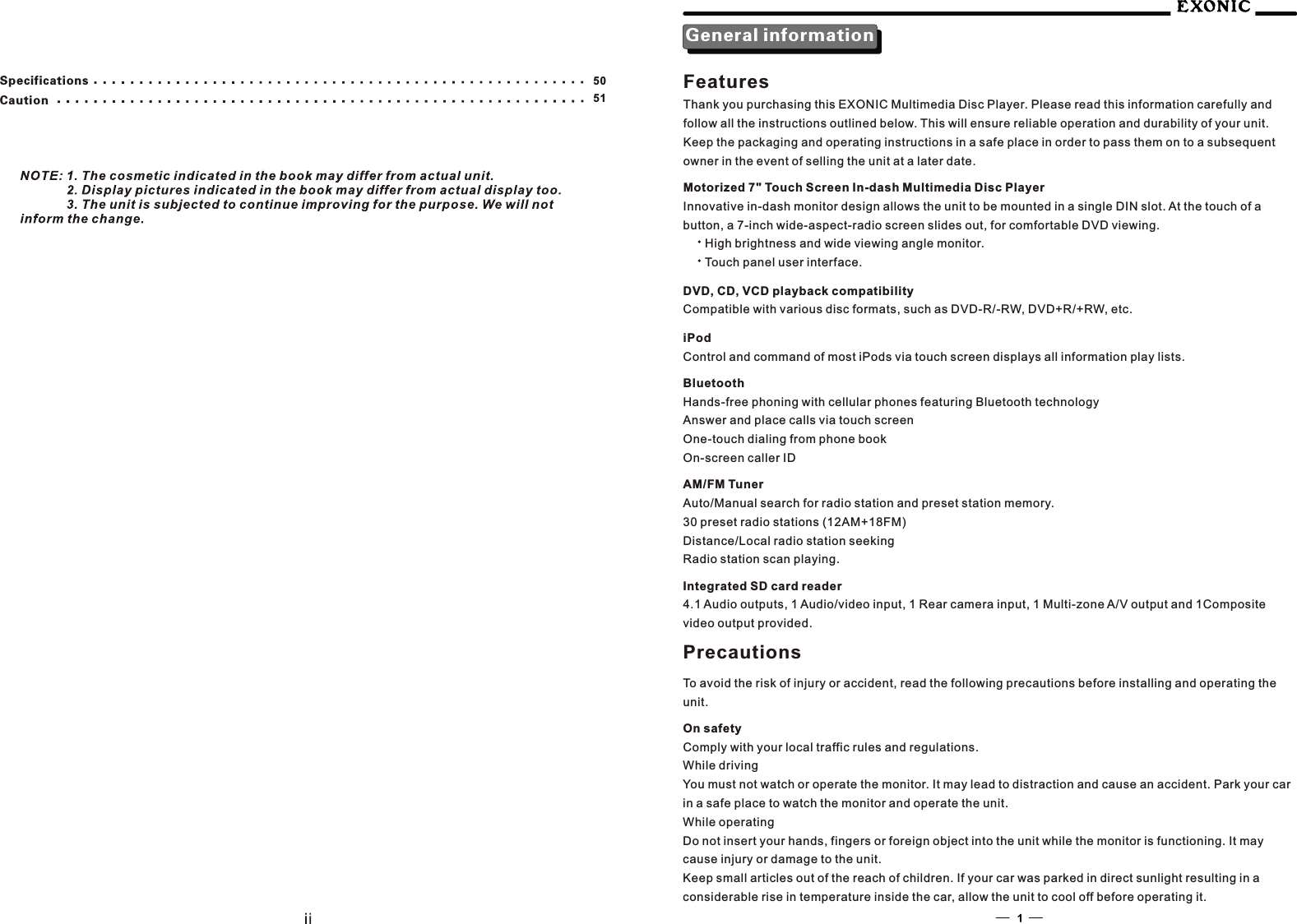

5150SpecificationsCautionGeneral informationFeaturesThank you purchasing this EXONIC Multimedia Disc Player. Please read this information carefully and follow all the instructions outlined below. This will ensure reliable operation and durability of your unit. Keep the packaging and operating instructions in a safe place in order to pass them on to a subsequent owner in the event of selling the unit at a later date.Motorized 7" Touch Screen In-dash Multimedia Disc PlayerInnovative in-dash monitor design allows the unit to be mounted in a single DIN slot. At the touch of a button, a 7-inch wide-aspect-radio screen slides out, for comfortable DVD viewing.High brightness and wide viewing angle monitor. Touch panel user interface. DVD, CD, VCD playback compatibilityCompatible with various disc formats, such as DVD-R/-RW, DVD+R/+RW, etc.iPodControl and command of most iPods via touch screen displays all information play lists.BluetoothHands-free phoning with cellular phones featuring Bluetooth technologyAnswer and place calls via touch screenOne-touch dialing from phone bookOn-screen caller IDAM/FM TunerAuto/Manual search for radio station and preset station memory.30 preset radio stations (12AM+18FM)Distance/Local radio station seekingRadio station scan playing.Integrated SD card reader4.1 Audio outputs, 1 Audio/video input, 1 Rear camera input, 1 Multi-zone A/V output and 1Composite video output provided.PrecautionsTo avoid the risk of injury or accident, read the following precautions before installing and operating the unit.On safetyComply with your local traffic rules and regulations.While drivingYou must not watch or operate the monitor. It may lead to distraction and cause an accident. Park your car in a safe place to watch the monitor and operate the unit.While operatingDo not insert your hands, fingers or foreign object into the unit while the monitor is functioning. It may cause injury or damage to the unit.Keep small articles out of the reach of children. If your car was parked in direct sunlight resulting in a considerable rise in temperature inside the car, allow the unit to cool off before operating it.
Preventing accidentsThe video pictures appear only after you park the car and set the parking brake.When the car starts moving, the video pictures automatically disappear for safety reasons, after displaying the following caution.Do not watch the monitor while driving. You may cause a traffic accident if your attention is distracted by the monitor. CAUTIONIT'S UNLAWFUL TO OPERATE A VEHICLE WHILE VIDEO IS DISPLAYED IN THE DRIVERS VIEWING AREA.ENGAGE EMERGENCY BRAKE TO ENJOY VIDEODo not use the System Setup feature while driving, or perform any other function which could divert your attention from the road.When you connect the back camera:When you drive, watch the surroundings carefully for your safety. Do not depend on the back camera exclusively.When backing up you car, be sure to look back for your safety.Do not touch the liquid crystal fluid if the LCD is damaged or broken. The liquid crystal fluid may be hazardous to your health or fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately.On installationDue to its technical nature, it is highly recommended that your EXONIC EXD 7090 is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.If you try to install this unit by yourself, refer to the supplied “Installation/Connections” manual and read it carefully. Make sure to install this unit properly.Improper installation may cause a short circuit.If the unit does not work properly, check the connections first （refer to the supplied “Installation/Connections” manual）. If everything in order, check the fuse.Replacing the fuseWhen replacing the fuse, be sure to use only a fuse of the same rating (ampere rating).Using a different fuse or bridging the contacts with wire is highly dangerous and can lead to serious damage.To prevent short circuits when replacing a fuse, disconnect the wiring harness first.Protect unit surface from damageDo not expose the unit surface to chemicals such as insecticide, hair spray, insect repellent, etc.Do not leave rubber or plastic materials in contact with the unit for along tine. Otherwise the finish of the unit may be impaired, or deformation may occur.When installing, be sure to turn the ignition key to the off position. Installing the unit while the ignition is on may cause battery drain or short circuit.When installing, be sure not to damage any car parts such as pipes, tubes, fuel tank or wiring by using a drill. It can cause a fire or an accident.Do not attempt to open or repair the device yourself. This work should be performed by an authorized service agent.Installing locationDo not install this unit where:The driver ’s view will be obstructed when the monitor is in either open or close position.The operation of the car or the airbag system will be obstructed.It will obstruct the operation of the vehicle, especially the steering wheel, shift lever or brake pedal. Moisture condensationWhen the temperature of the unit falls (as in winter), the liquid crystal inside the screen will become darker than usual. Normal brightness will return after using the monitor for a while.To maintain high sound qualityBe careful not to splash juice or other soft drinks onto the unit or discs.Playable discsThe following types of discs/files are compatible:CD-ROM (ISO), CD-R, CD-RW, DVD+R/RW, DVD-R/RWCD-DA, DVD Video MP3 dataJPG imagesThe following types of discs/files are not compatible:WMA files that are protected by DRM (Digital Rights Management)WMA lossless formatDiscs recorded with Track At Once or packet writingMP3 PRO formatMP3 playlistsWAV formatWMV formatAVI formatSome recordable DVDs and CDs may be incompatible with this unit, depending on media type and recording method. Notes:If you experience problems during installation, contact your nearest EXONIC dealer.If the unit malfunctions, reset the unit as described on page 11 first. If the problem still persists, contact your nearest EXONIC dealer.

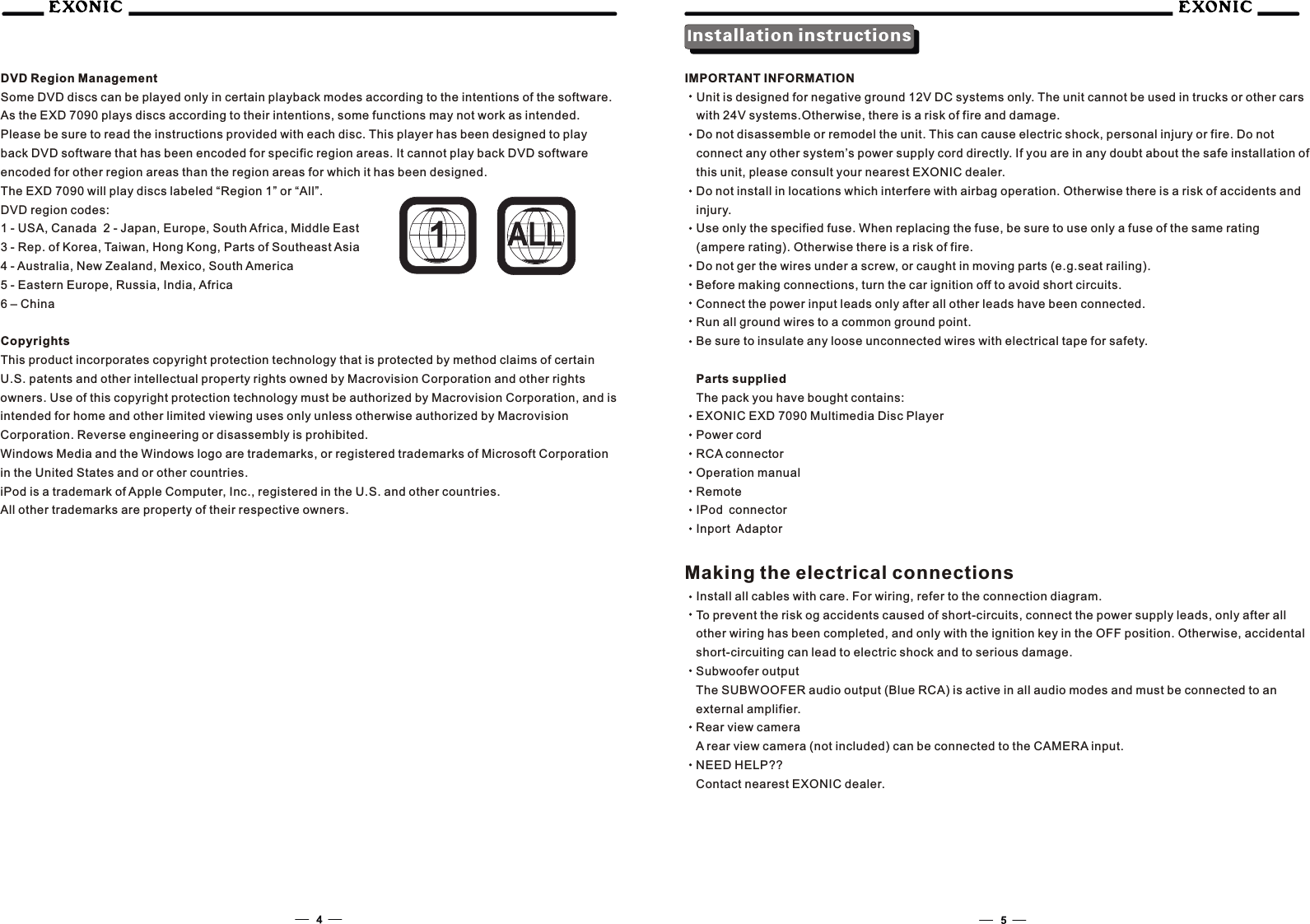

DVD Region ManagementSome DVD discs can be played only in certain playback modes according to the intentions of the software. As the EXD 7090 plays discs according to their intentions, some functions may not work as intended. Please be sure to read the instructions provided with each disc. This player has been designed to play back DVD software that has been encoded for specific region areas. It cannot play back DVD software encoded for other region areas than the region areas for which it has been designed.The EXD 7090 will play discs labeled “Region 1” or “All”.DVD region codes:1 - USA, Canada 2 - Japan, Europe, South Africa, Middle East3 - Rep. of Korea, Taiwan, Hong Kong, Parts of Southeast Asia4 - Australia, New Zealand, Mexico, South America5 - Eastern Europe, Russia, India, Africa6 – ChinaCopyrightsThis product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries.iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.All other trademarks are property of their respective owners.Installation instructionsIMPORTANT INFORMATIONUnit is designed for negative ground 12V DC systems only. The unit cannot be used in trucks or other cars with 24V systems.Otherwise, there is a risk of fire and damage.Do not disassemble or remodel the unit. This can cause electric shock, personal injury or fire. Do not connect any other system’s power supply cord directly. If you are in any doubt about the safe installation of this unit, please consult your nearest EXONIC dealer.Do not install in locations which interfere with airbag operation. Otherwise there is a risk of accidents and injury.Use only the specified fuse. When replacing the fuse, be sure to use only a fuse of the same rating (ampere rating). Otherwise there is a risk of fire.Do not ger the wires under a screw, or caught in moving parts (e.g.seat railing).Before making connections, turn the car ignition off to avoid short circuits.Connect the power input leads only after all other leads have been connected.Run all ground wires to a common ground point.Be sure to insulate any loose unconnected wires with electrical tape for safety.Parts suppliedThe pack you have bought contains:EXONIC EXD 7090 Multimedia Disc PlayerPower cordRCA connectorOperation manualRemoteIPod connectorInport AdaptorMaking the electrical connectionsInstall all cables with care. For wiring, refer to the connection diagram.To prevent the risk og accidents caused of short-circuits, connect the power supply leads, only after all other wiring has been completed, and only with the ignition key in the OFF position. Otherwise, accidental short-circuiting can lead to electric shock and to serious damage.Subwoofer outputThe SUBWOOFER audio output (Blue RCA) is active in all audio modes and must be connected to an external amplifier.Rear view cameraA rear view camera (not included) can be connected to the CAMERA input.NEED HELP??Contact nearest EXONIC dealer.

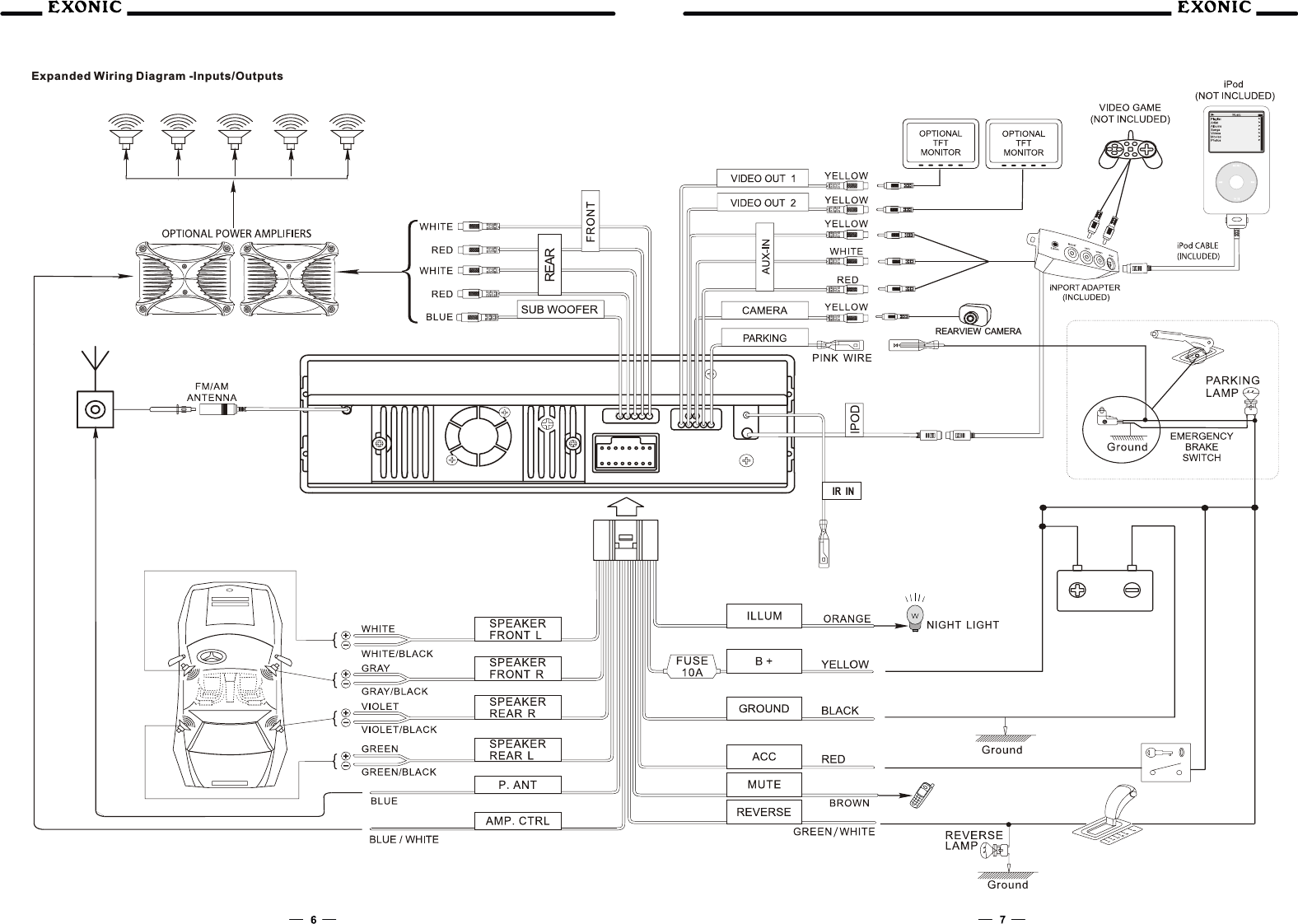

Expanded Wiring Diagram -Inputs/OutputsREARVIEW CAMERA

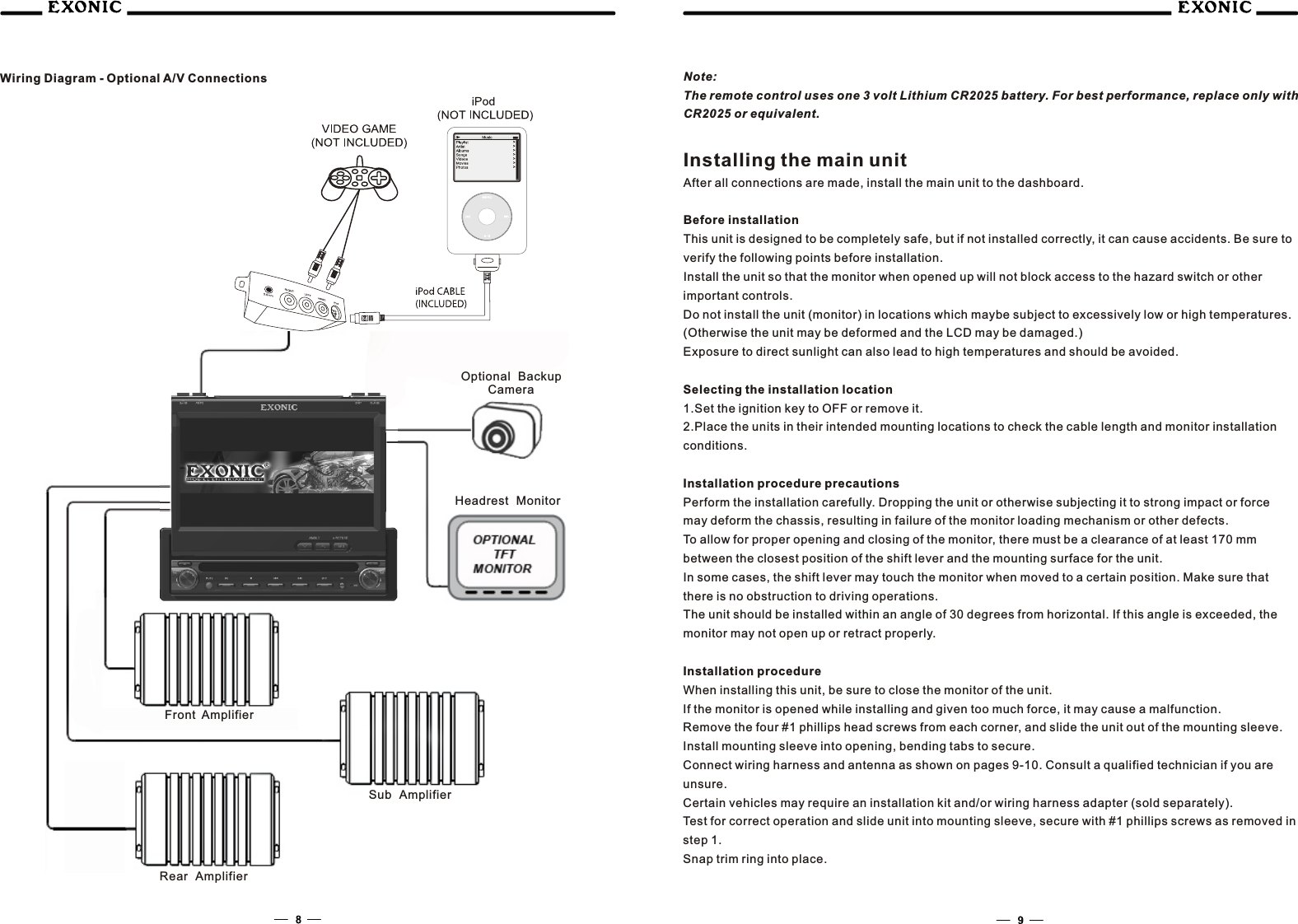

Note:The remote control uses one 3 volt Lithium CR2025 battery. For best performance, replace only with CR2025 or equivalent.Installing the main unitAfter all connections are made, install the main unit to the dashboard.Before installationThis unit is designed to be completely safe, but if not installed correctly, it can cause accidents. Be sure to verify the following points before installation.Install the unit so that the monitor when opened up will not block access to the hazard switch or other important controls.Do not install the unit (monitor) in locations which maybe subject to excessively low or high temperatures. (Otherwise the unit may be deformed and the LCD may be damaged.)Exposure to direct sunlight can also lead to high temperatures and should be avoided.Selecting the installation location1.Set the ignition key to OFF or remove it.2.Place the units in their intended mounting locations to check the cable length and monitor installation conditions.Installation procedure precautionsPerform the installation carefully. Dropping the unit or otherwise subjecting it to strong impact or force may deform the chassis, resulting in failure of the monitor loading mechanism or other defects.To allow for proper opening and closing of the monitor, there must be a clearance of at least 170 mm between the closest position of the shift lever and the mounting surface for the unit.In some cases, the shift lever may touch the monitor when moved to a certain position. Make sure that there is no obstruction to driving operations.The unit should be installed within an angle of 30 degrees from horizontal. If this angle is exceeded, the monitor may not open up or retract properly.Installation procedureWhen installing this unit, be sure to close the monitor of the unit.If the monitor is opened while installing and given too much force, it may cause a malfunction.Remove the four #1 phillips head screws from each corner, and slide the unit out of the mounting sleeve.Install mounting sleeve into opening, bending tabs to secure.Connect wiring harness and antenna as shown on pages 9-10. Consult a qualified technician if you are unsure.Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately).Test for correct operation and slide unit into mounting sleeve, secure with #1 phillips screws as removed in step 1.Snap trim ring into place.Wiring Diagram - Optional A/V ConnectionsFront AmplifierRear AmplifierSub AmplifierHeadrest MonitorOptional Backup Camera

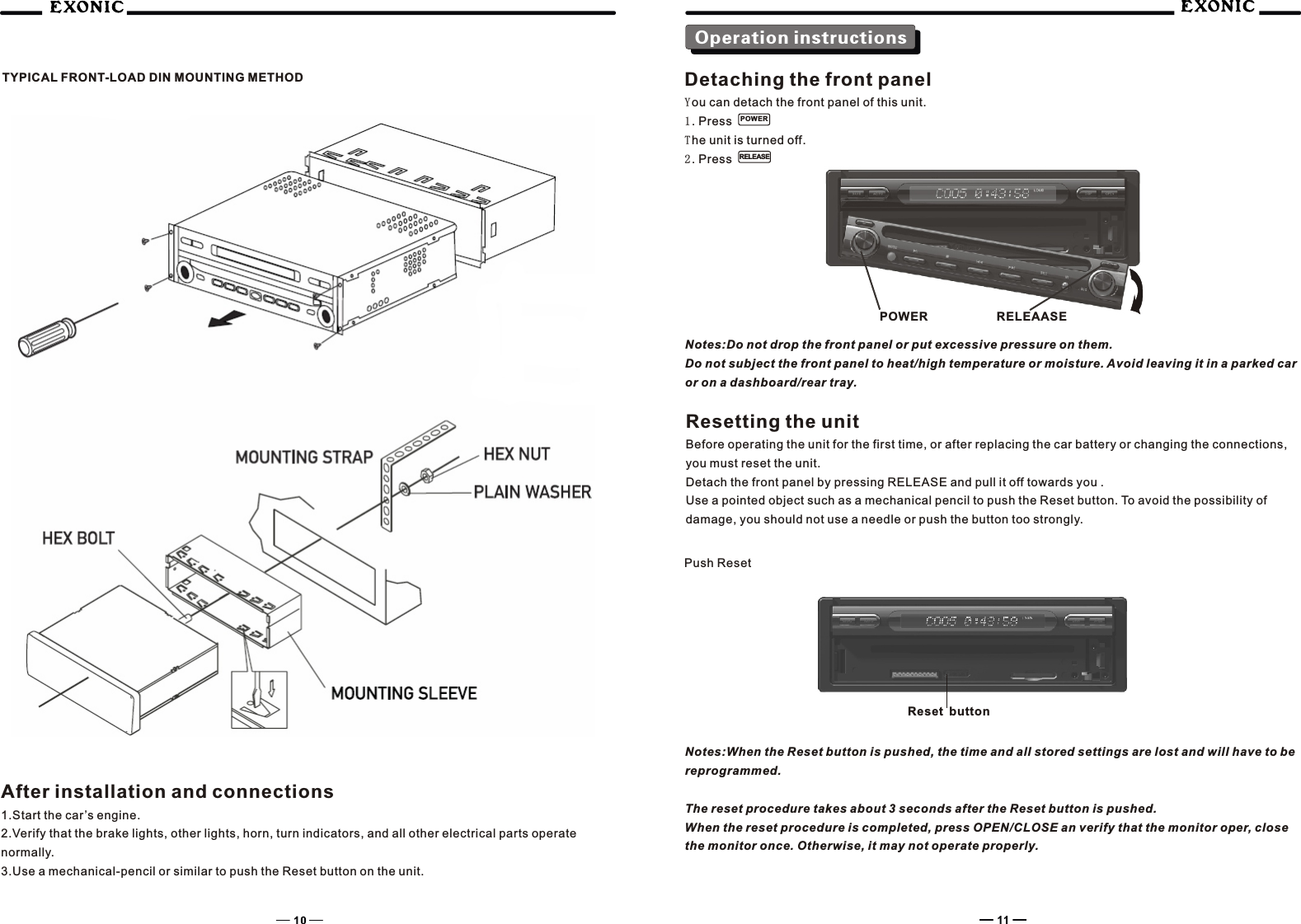

Operation instructionsTYPICAL FRONT-LOAD DIN MOUNTING METHODAfter installation and connections1.Start the car’s engine.2.Verify that the brake lights, other lights, horn, turn indicators, and all other electrical parts operate normally.3.Use a mechanical-pencil or similar to push the Reset button on the unit.Detaching the front panelYou can detach the front panel of this unit.1. Press The unit is turned off.2. Press POWERRELEASENotes:Do not drop the front panel or put excessive pressure on them.Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.Resetting the unitBefore operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit.Detach the front panel by pressing RELEASE and pull it off towards you .Use a pointed object such as a mechanical pencil to push the Reset button. To avoid the possibility of damage, you should not use a needle or push the button too strongly.Push ResetNotes:When the Reset button is pushed, the time and all stored settings are lost and will have to be reprogrammed.The reset procedure takes about 3 seconds after the Reset button is pushed.When the reset procedure is completed, press OPEN/CLOSE an verify that the monitor oper, close the monitor once. Otherwise, it may not operate properly.POWER RELEAASEReset button

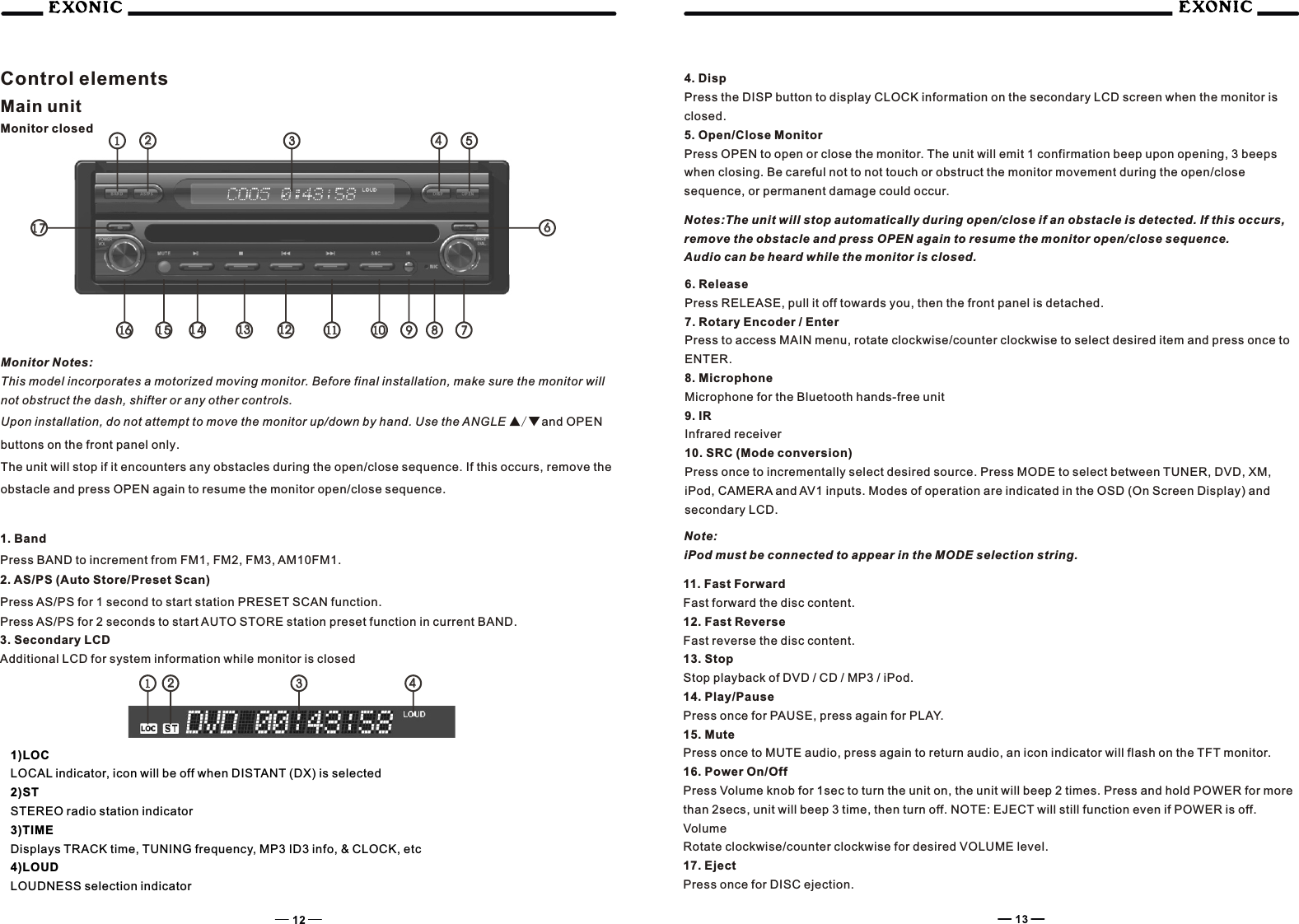

Control elementsMain unitMonitor closed1515141412121111101099887716161111222233334444551313661717Monitor Notes:This model incorporates a motorized moving monitor. Before final installation, make sure the monitor will not obstruct the dash, shifter or any other controls.Upon installation, do not attempt to move the monitor up/down by hand. Use the ANGLE ▲/ and OPEN ▼buttons on the front panel only.The unit will stop if it encounters any obstacles during the open/close sequence. If this occurs, remove the obstacle and press OPEN again to resume the monitor open/close sequence.1. BandPress BAND to increment from FM1, FM2, FM3, AM10FM1.2. AS/PS (Auto Store/Preset Scan)Press AS/PS for 1 second to start station PRESET SCAN function.Press AS/PS for 2 seconds to start AUTO STORE station preset function in current BAND.3. Secondary LCDAdditional LCD for system information while monitor is closed1)LOCLOCAL indicator, icon will be off when DISTANT (DX) is selected2)STSTEREO radio station indicator3)TIMEDisplays TRACK time, TUNING frequency, MP3 ID3 info, & CLOCK, etc4)LOUDLOUDNESS selection indicator4. DispPress the DISP button to display CLOCK information on the secondary LCD screen when the monitor is closed.5. Open/Close MonitorPress OPEN to open or close the monitor. The unit will emit 1 confirmation beep upon opening, 3 beeps when closing. Be careful not to not touch or obstruct the monitor movement during the open/close sequence, or permanent damage could occur.Notes:The unit will stop automatically during open/close if an obstacle is detected. If this occurs, remove the obstacle and press OPEN again to resume the monitor open/close sequence.Audio can be heard while the monitor is closed.6. ReleasePress RELEASE, pull it off towards you, then the front panel is detached.7. Rotary Encoder / EnterPress to access MAIN menu, rotate clockwise/counter clockwise to select desired item and press once to ENTER.8. MicrophoneMicrophone for the Bluetooth hands-free unit9. IRInfrared receiver10. SRC (Mode conversion)Press once to incrementally select desired source. Press MODE to select between TUNER, DVD, XM, iPod, CAMERA and AV1 inputs. Modes of operation are indicated in the OSD (On Screen Display) and secondary LCD. Note:iPod must be connected to appear in the MODE selection string.11. Fast ForwardFast forward the disc content.12. Fast ReverseFast reverse the disc content.13. StopStop playback of DVD / CD / MP3 / iPod.14. Play/PausePress once for PAUSE, press again for PLAY.15. MutePress once to MUTE audio, press again to return audio, an icon indicator will flash on the TFT monitor.16. Power On/OffPress Volume knob for 1sec to turn the unit on, the unit will beep 2 times. Press and hold POWER for more than 2secs, unit will beep 3 time, then turn off. NOTE: EJECT will still function even if POWER is off.VolumeRotate clockwise/counter clockwise for desired VOLUME level.17. EjectPress once for DISC ejection.

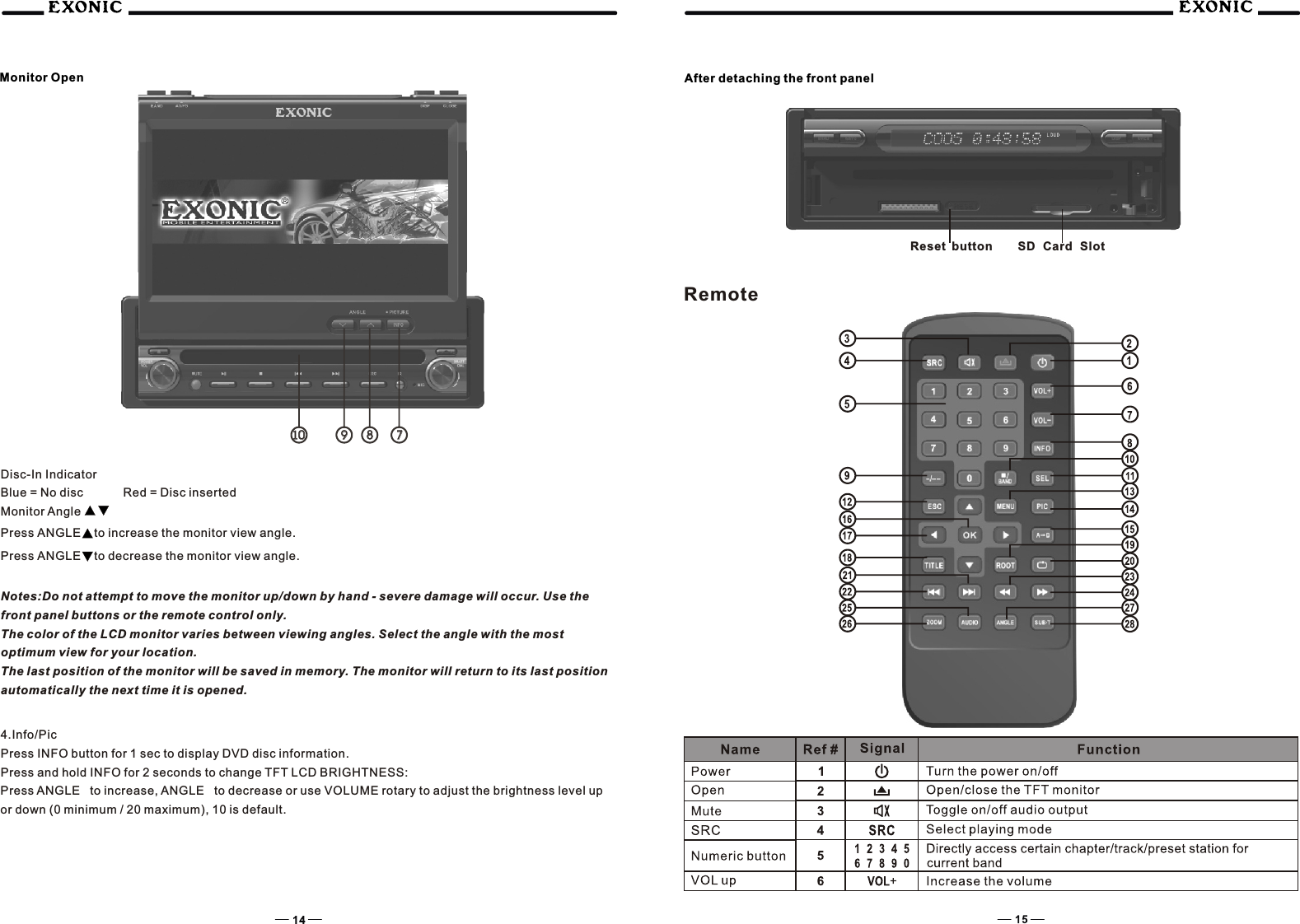

Monitor OpenDisc-In IndicatorBlue = No disc Red = Disc insertedMonitor AnglePress ANGLE to increase the monitor view angle.Press ANGLE to decrease the monitor view angle.Notes:Do not attempt to move the monitor up/down by hand - severe damage will occur. Use the front panel buttons or the remote control only.The color of the LCD monitor varies between viewing angles. Select the angle with the most optimum view for your location.The last position of the monitor will be saved in memory. The monitor will return to its last position automatically the next time it is opened.4.Info/PicPress INFO button for 1 sec to display DVD disc information.Press and hold INFO for 2 seconds to change TFT LCD BRIGHTNESS:Press ANGLE to increase, ANGLE to decrease or use VOLUME rotary to adjust the brightness level up or down (0 minimum / 20 maximum), 10 is default.After detaching the front panelRemote1010998877Reset button SD Card Slot

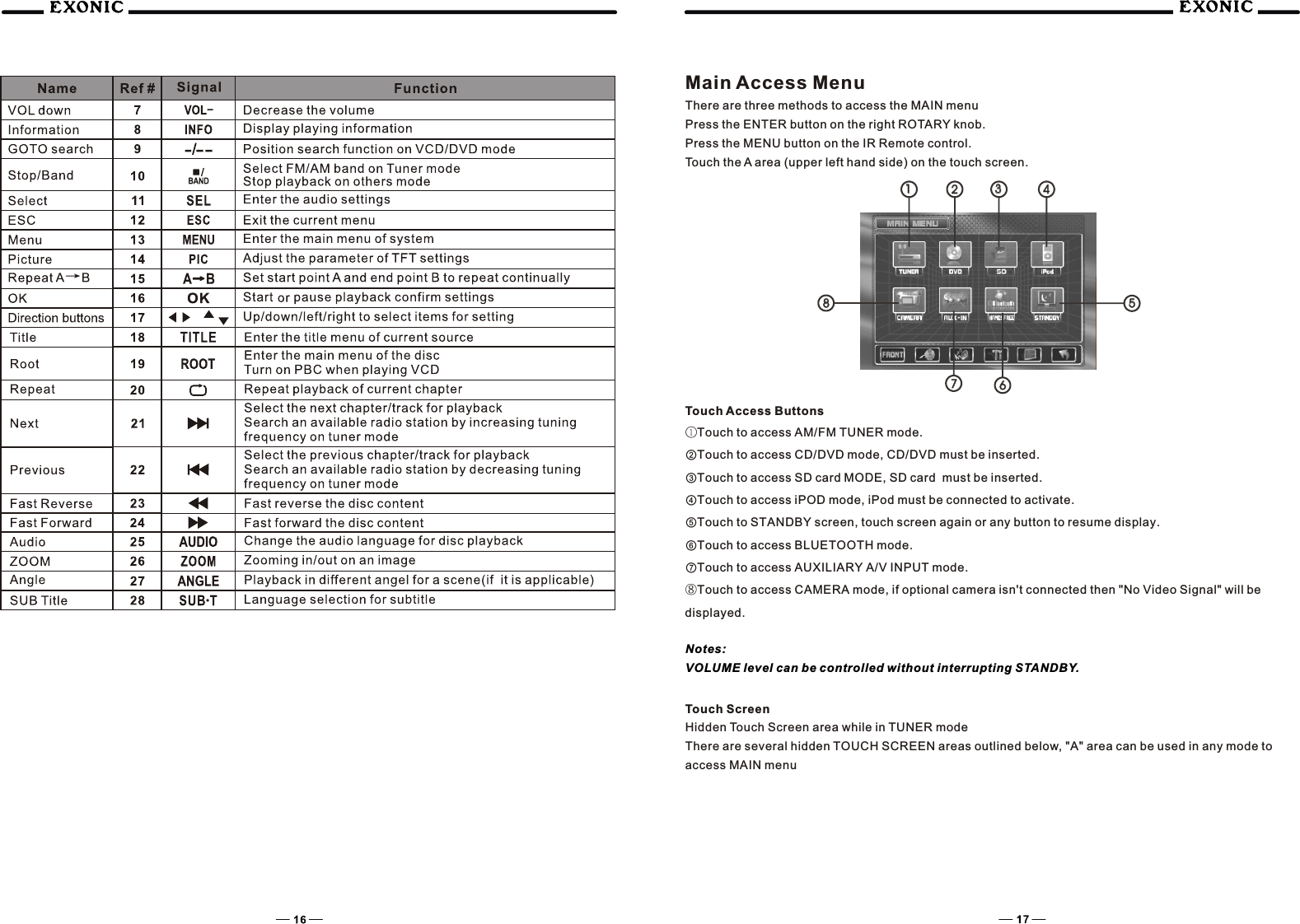

Main Access MenuThere are three methods to access the MAIN menuPress the ENTER button on the right ROTARY knob.Press the MENU button on the IR Remote control.Touch the A area (upper left hand side) on the touch screen.Touch Access Buttons①Touch to access AM/FM TUNER mode.②Touch to access CD/DVD mode, CD/DVD must be inserted.③Touch to access SD card MODE, SD card must be inserted.④Touch to access iPOD mode, iPod must be connected to activate.⑤Touch to STANDBY screen, touch screen again or any button to resume display.⑥Touch to access BLUETOOTH mode.⑦Touch to access AUXILIARY A/V INPUT mode.⑧Touch to access CAMERA mode, if optional camera isn't connected then "No Video Signal" will be displayed.Notes:VOLUME level can be controlled without interrupting STANDBY.Touch ScreenHidden Touch Screen area while in TUNER modeThere are several hidden TOUCH SCREEN areas outlined below, "A" area can be used in any mode to access MAIN menu7766885511223344

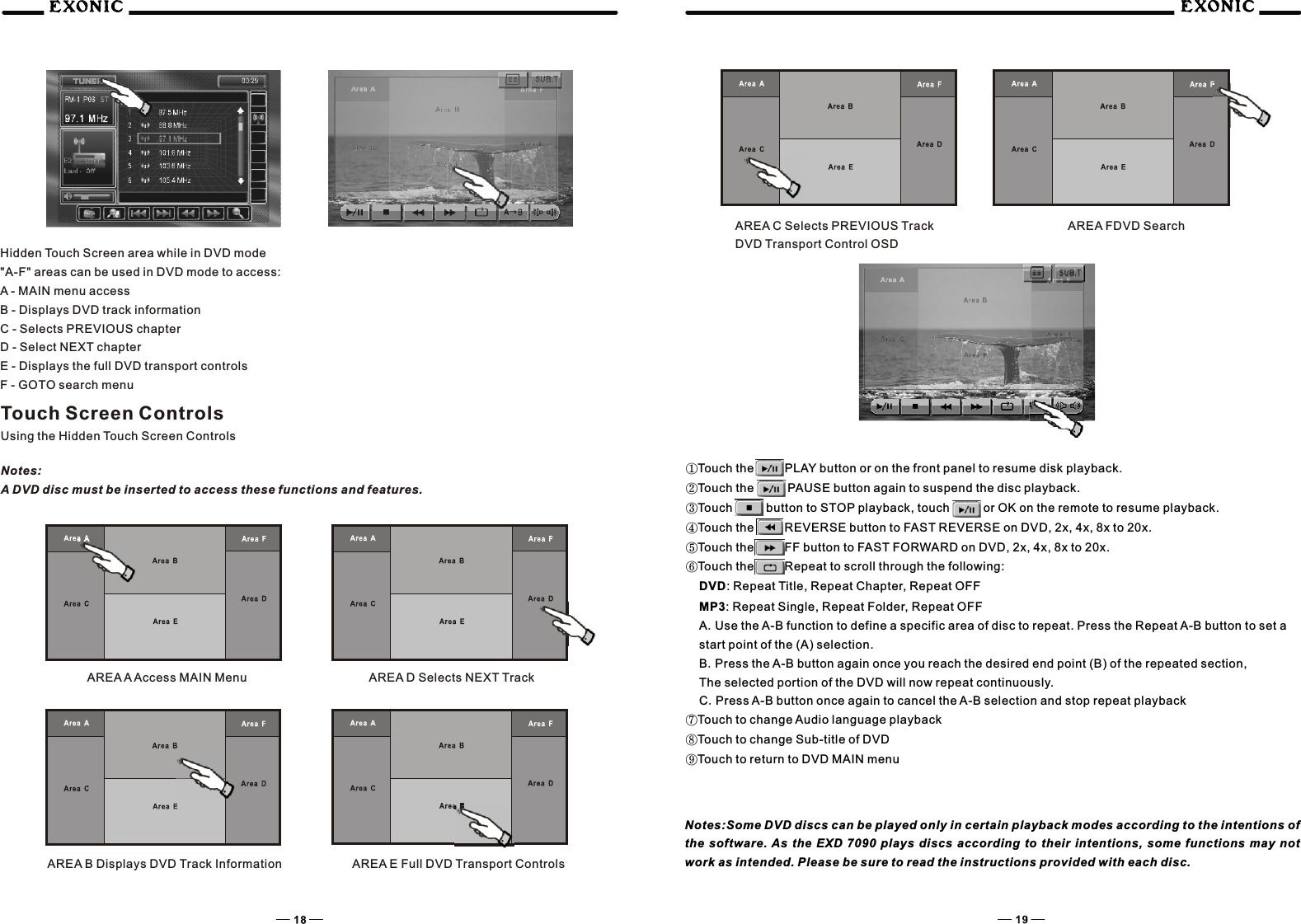

Hidden Touch Screen area while in DVD mode"A-F" areas can be used in DVD mode to access:A - MAIN menu accessB - Displays DVD track informationC - Selects PREVIOUS chapterD - Select NEXT chapterE - Displays the full DVD transport controlsF - GOTO search menuTouch Screen ControlsUsing the Hidden Touch Screen ControlsNotes:A DVD disc must be inserted to access these functions and features.AREA A Access MAIN Menu AREA D Selects NEXT TrackAREA B Displays DVD Track Information AREA E Full DVD Transport ControlsAREA C Selects PREVIOUS TrackDVD Transport Control OSDAREA FDVD Search①Touch the PLAY button or on the front panel to resume disk playback.②Touch the PAUSE button again to suspend the disc playback.③Touch button to STOP playback, touch or OK on the remote to resume playback.④Touch the REVERSE button to FAST REVERSE on DVD, 2x, 4x, 8x to 20x.⑤Touch the FF button to FAST FORWARD on DVD, 2x, 4x, 8x to 20x.⑥Touch the Repeat to scroll through the following:DVD: Repeat Title, Repeat Chapter, Repeat OFFMP3: Repeat Single, Repeat Folder, Repeat OFFA.Use the A-B function to define a specific area of disc to repeat. Press the Repeat A-B button to set a start point of the (A) selection.B.Press the A-B button again once you reach the desired end point (B) of the repeated section,The selected portion of the DVD will now repeat continuously.C.Press A-B button once again to cancel the A-B selection and stop repeat playback⑦Touch to change Audio language playback⑧Touch to change Sub-title of DVD⑨Touch to return to DVD MAIN menu Notes:Some DVD discs can be played only in certain playback modes according to the intentions of the software. As the plays discs according to their intentions, some functions may not work as intended. Please be sure to read the instructions provided with each disc.EXD 7090

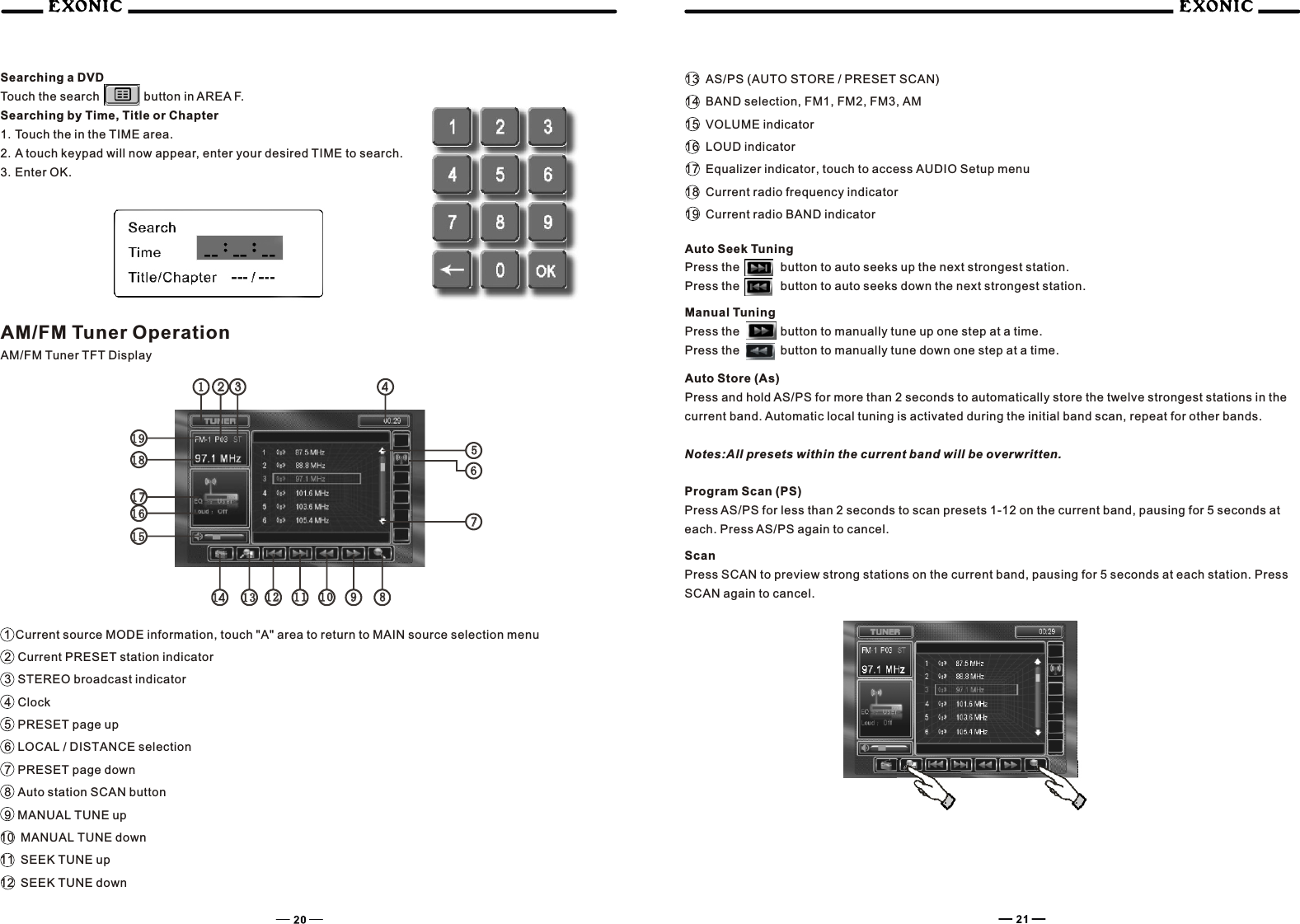

112233441313 1 212 1111 1 010 9988141415151616171718181919557766Searching a DVDTouch the search button in AREA F.Searching by Time, Title or Chapter1.Touch the in the TIME area.2.A touch keypad will now appear, enter your desired TIME to search.3.Enter OK. AM/FM Tuner OperationAM/FM Tuner TFT Display1 Current source MODE information, touch "A" area to return to MAIN source selection menu2 Current PRESET station indicator3 STEREO broadcast indicator4 Clock5 PRESET page up6 LOCAL / DISTANCE selection7 PRESET page down8 Auto station SCAN button9 MANUAL TUNE up10 MANUAL TUNE down11 SEEK TUNE up12 SEEK TUNE down13 AS/PS (AUTO STORE / PRESET SCAN)14 BAND selection, FM1, FM2, FM3, AM15 VOLUME indicator16 LOUD indicator17 Equalizer indicator, touch to access AUDIO Setup menu18 Current radio frequency indicator19 Current radio BAND indicatorAuto Seek TuningPress the button to auto seeks up the next strongest station.Press the button to auto seeks down the next strongest station.Manual TuningPress the button to manually tune up one step at a time. Press the button to manually tune down one step at a time. Auto Store (As)Press and hold AS/PS for more than 2 seconds to automatically store the twelve strongest stations in the current band. Automatic local tuning is activated during the initial band scan, repeat for other bands.Notes:All presets within the current band will be overwritten.Program Scan (PS)Press AS/PS for less than 2 seconds to scan presets 1-12 on the current band, pausing for 5 seconds at each. Press AS/PS again to cancel.ScanPress SCAN to preview strong stations on the current band, pausing for 5 seconds at each station. Press SCAN again to cancel.
