SMK FC007 Bluetooth Laser Mouse User Manual 01GB VGPBMS55 p65

SMK Corporation Bluetooth Laser Mouse 01GB VGPBMS55 p65

User manual

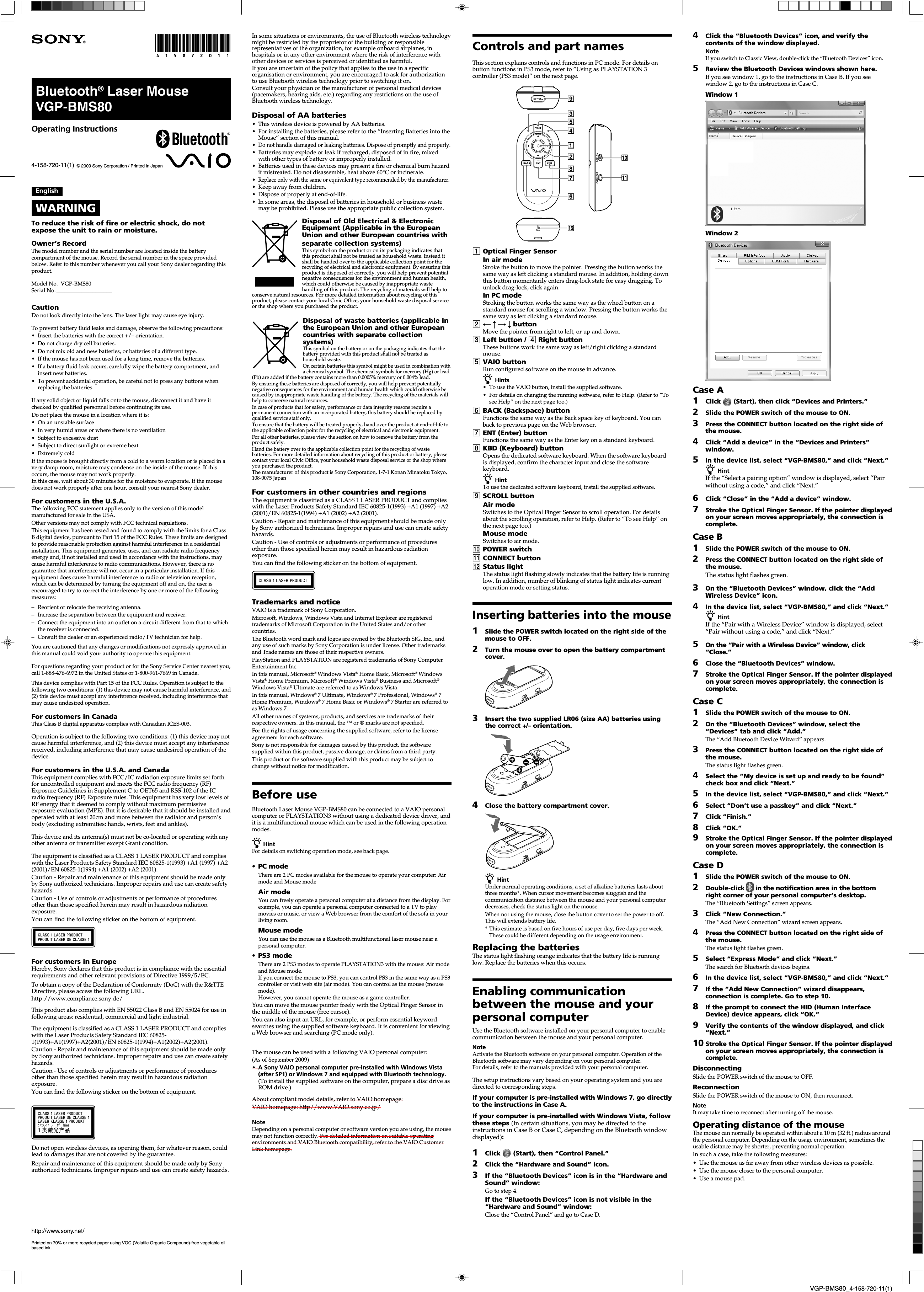

VGP-BMS80_4-158-720-11(1)In some situations or environments, the use of Bluetooth wireless technologymight be restricted by the proprietor of the building or responsiblerepresentatives of the organization, for example onboard airplanes, inhospitals or in any other environment where the risk of interference withother devices or services is perceived or identified as harmful.If you are uncertain of the policy that applies to the use in a specificorganisation or environment, you are encouraged to ask for authorizationto use Bluetooth wireless technology prior to switching it on.Consult your physician or the manufacturer of personal medical devices(pacemakers, hearing aids, etc.) regarding any restrictions on the use ofBluetooth wireless technology.Disposal of AA batteries• This wireless device is powered by AA batteries.•For installing the batteries, please refer to the “Inserting Batteries into theMouse” section of this manual.•Do not handle damaged or leaking batteries. Dispose of promptly and properly.•Batteries may explode or leak if recharged, disposed of in fire, mixedwith other types of battery or improperly installed.•Batteries used in these devices may present a fire or chemical burn hazardif mistreated. Do not disassemble, heat above 60°C or incinerate.•Replace only with the same or equivalent type recommended by the manufacturer.•Keep away from children.•Dispose of properly at end-of-life.• In some areas, the disposal of batteries in household or business wastemay be prohibited. Please use the appropriate public collection system.Disposal of Old Electrical & ElectronicEquipment (Applicable in the EuropeanUnion and other European countries withseparate collection systems)This symbol on the product or on its packaging indicates thatthis product shall not be treated as household waste. Instead itshall be handed over to the applicable collection point for therecycling of electrical and electronic equipment. By ensuring thisproduct is disposed of correctly, you will help prevent potentialnegative consequences for the environment and human health,which could otherwise be caused by inappropriate wastehandling of this product. The recycling of materials will help toconserve natural resources. For more detailed information about recycling of thisproduct, please contact your local Civic Office, your household waste disposal serviceor the shop where you purchased the product.Disposal of waste batteries (applicable inthe European Union and other Europeancountries with separate collectionsystems)This symbol on the battery or on the packaging indicates that thebattery provided with this product shall not be treated ashousehold waste.On certain batteries this symbol might be used in combination witha chemical symbol. The chemical symbols for mercury (Hg) or lead(Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.By ensuring these batteries are disposed of correctly, you will help prevent potentiallynegative consequences for the environment and human health which could otherwise becaused by inappropriate waste handling of the battery. The recycling of the materials willhelp to conserve natural resources.In case of products that for safety, performance or data integrity reasons require apermanent connection with an incorporated battery, this battery should be replaced byqualified service staff only.To ensure that the battery will be treated properly, hand over the product at end-of-life tothe applicable collection point for the recycling of electrical and electronic equipment.For all other batteries, please view the section on how to remove the battery from theproduct safely.Hand the battery over to the applicable collection point for the recycling of wastebatteries. For more detailed information about recycling of this product or battery, pleasecontact your local Civic Office, your household waste disposal service or the shop whereyou purchased the product.The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minatoku Tokyo,108-0075 JapanFor customers in other countries and regionsThe equipment is classified as a CLASS 1 LASER PRODUCT and complieswith the Laser Products Safety Standard IEC 60825-1(1993) +A1 (1997) +A2(2001)/EN 60825-1(1994) +A1 (2002) +A2 (2001).Caution - Repair and maintenance of this equipment should be made onlyby Sony authorized technicians. Improper repairs and use can create safetyhazards.Caution - Use of controls or adjustments or performance of proceduresother than those specified herein may result in hazardous radiationexposure.You can find the following sticker on the bottom of equipment.Trademarks and noticeVAIO is a trademark of Sony Corporation.Microsoft, Windows, Windows Vista and Internet Explorer are registeredtrademarks of Microsoft Corporation in the United States and/or othercountries.The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., andany use of such marks by Sony Corporation is under license. Other trademarksand Trade names are those of their respective owners.PlayStation and PLAYSTATION are registered trademarks of Sony ComputerEntertainment Inc.In this manual, Microsoft® Windows Vista® Home Basic, Microsoft® WindowsVista® Home Premium, Microsoft® Windows Vista® Business and Microsoft®Windows Vista® Ultimate are referred to as Windows Vista.In this manual, Windows® 7 Ultimate, Windows® 7 Professional, Windows® 7Home Premium, Windows® 7 Home Basic or Windows® 7 Starter are referred toas Windows 7.All other names of systems, products, and services are trademarks of theirrespective owners. In this manual, the ™ or ® marks are not specified.For the rights of usage concerning the supplied software, refer to the licenseagreement for each software.Sony is not responsible for damages caused by this product, the softwaresupplied within this product, passive damage, or claims from a third party.This product or the software supplied with this product may be subject tochange without notice for modification.Before useBluetooth Laser Mouse VGP-BMS80 can be connected to a VAIO personalcomputer or PLAYSTATION3 without using a dedicated device driver, andit is a multifunctional mouse which can be used in the following operationmodes.z HintFor details on switching operation mode, see back page.•PC modeThere are 2 PC modes available for the mouse to operate your computer: Airmode and Mouse modeAir modeYou can freely operate a personal computer at a distance from the display. Forexample, you can operate a personal computer connected to a TV to playmovies or music, or view a Web browser from the comfort of the sofa in yourliving room.Mouse modeYou can use the mouse as a Bluetooth multifunctional laser mouse near apersonal computer.•PS3 modeThere are 2 PS3 modes to operate PLAYSTATION3 with the mouse: Air modeand Mouse mode.If you connect the mouse to PS3, you can control PS3 in the same way as a PS3controller or visit web site (air mode). You can control as the mouse (mousemode).However, you cannot operate the mouse as a game controller.You can move the mouse pointer freely with the Optical Finger Sensor inthe middle of the mouse (free cursor).You can also input an URL, for example, or perform essential keywordsearches using the supplied software keyboard. It is convenient for viewinga Web browser and searching (PC mode only).EnglishWARNINGTo reduce the risk of fire or electric shock, do notexpose the unit to rain or moisture.Owner’s RecordThe model number and the serial number are located inside the batterycompartment of the mouse. Record the serial number in the space providedbelow. Refer to this number whenever you call your Sony dealer regarding thisproduct.Model No. VGP-BMS80Serial No.____________________CautionDo not look directly into the lens. The laser light may cause eye injury.To prevent battery fluid leaks and damage, observe the following precautions:•Insert the batteries with the correct +/– orientation.•Do not charge dry cell batteries.•Do not mix old and new batteries, or batteries of a different type.•If the mouse has not been used for a long time, remove the batteries.• If a battery fluid leak occurs, carefully wipe the battery compartment, andinsert new batteries.•To prevent accidental operation, be careful not to press any buttons whenreplacing the batteries.If any solid object or liquid falls onto the mouse, disconnect it and have itchecked by qualified personnel before continuing its use.Do not place the mouse in a location where it is:•On an unstable surface•In very humid areas or where there is no ventilation•Subject to excessive dust•Subject to direct sunlight or extreme heat•Extremely coldIf the mouse is brought directly from a cold to a warm location or is placed in avery damp room, moisture may condense on the inside of the mouse. If thisoccurs, the mouse may not work properly.In this case, wait about 30 minutes for the moisture to evaporate. If the mousedoes not work properly after one hour, consult your nearest Sony dealer.For customers in the U.S.A.The following FCC statement applies only to the version of this modelmanufactured for sale in the USA.Other versions may not comply with FCC technical regulations.This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses, and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:–Reorient or relocate the receiving antenna.–Increase the separation between the equipment and receiver.–Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.–Consult the dealer or an experienced radio/TV technician for help.You are cautioned that any changes or modifications not expressly approved inthis manual could void your authority to operate this equipment.For questions regarding your product or for the Sony Service Center nearest you,call 1-888-476-6972 in the United States or 1-800-961-7669 in Canada.This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference thatmay cause undesired operation.For customers in CanadaThis Class B digital apparatus complies with Canadian ICES-003.Operation is subject to the following two conditions: (1) this device may notcause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation of thedevice.For customers in the U.S.A. and CanadaThis equipment complies with FCC/IC radiation exposure limits set forthfor uncontrolled equipment and meets the FCC radio frequency (RF)Exposure Guidelines in Supplement C to OET65 and RSS-102 of the ICradio frequency (RF) Exposure rules. This equipment has very low levels ofRF energy that it deemed to comply without maximum permissiveexposure evaluation (MPE). But it is desirable that it should be installed andoperated with at least 20cm and more between the radiator and person’sbody (excluding extremities: hands, wrists, feet and ankles).This device and its antenna(s) must not be co-located or operating with anyother antenna or transmitter except Grant condition.The equipment is classified as a CLASS 1 LASER PRODUCT and complieswith the Laser Products Safety Standard IEC 60825-1(1993) +A1 (1997) +A2(2001)/EN 60825-1(1994) +A1 (2002) +A2 (2001).Caution - Repair and maintenance of this equipment should be made onlyby Sony authorized technicians. Improper repairs and use can create safetyhazards.Caution - Use of controls or adjustments or performance of proceduresother than those specified herein may result in hazardous radiationexposure.You can find the following sticker on the bottom of equipment.For customers in EuropeHereby, Sony declares that this product is in compliance with the essentialrequirements and other relevant provisions of Directive 1999/5/EC.To obtain a copy of the Declaration of Conformity (DoC) with the R&TTEDirective, please access the following URL.http://www.compliance.sony.de/This product also complies with EN 55022 Class B and EN 55024 for use infollowing areas: residential, commercial and light industrial.The equipment is classified as a CLASS 1 LASER PRODUCT and complieswith the Laser Products Safety Standard IEC 60825-1(1993)+A1(1997)+A2(2001)/EN 60825-1(1994)+A1(2002)+A2(2001).Caution - Repair and maintenance of this equipment should be made onlyby Sony authorized technicians. Improper repairs and use can create safetyhazards.Caution - Use of controls or adjustments or performance of proceduresother than those specified herein may result in hazardous radiationexposure.You can find the following sticker on the bottom of equipment.Do not open wireless devices, as opening them, for whatever reason, couldlead to damages that are not covered by the guarantee.Repair and maintenance of this equipment should be made only by Sonyauthorized technicians. Improper repairs and use can create safety hazards.Controls and part namesThis section explains controls and functions in PC mode. For details onbutton functions in PS3 mode, refer to “Using as PLAYSTATION 3controller (PS3 mode)” on the next page.935412876qsqa01Optical Finger SensorIn air modeStroke the button to move the pointer. Pressing the button works thesame way as left clicking a standard mouse. In addition, holding downthis button momentarily enters drag-lock state for easy dragging. Tounlock drag-lock, click again.In PC modeStroking the button works the same way as the wheel button on astandard mouse for scrolling a window. Pressing the button works thesame way as left clicking a standard mouse.2T R t r buttonMove the pointer from right to left, or up and down.3Left button / 4 Right buttonThese buttons work the same way as left/right clicking a standardmouse.5VAIO buttonRun configured software on the mouse in advance.z Hints•To use the VAIO button, install the supplied software.•For details on changing the running software, refer to Help. (Refer to “Tosee Help” on the next page too.)6BACK (Backspace) buttonFunctions the same way as the Back space key of keyboard. You canback to previous page on the Web browser.7ENT (Enter) buttonFunctions the same way as the Enter key on a standard keyboard.8KBD (Keyboard) buttonOpens the dedicated software keyboard. When the software keyboardis displayed, confirm the character input and close the softwarekeyboard.z HintTo use the dedicated software keyboard, install the supplied software.9SCROLL buttonAir modeSwitches to the Optical Finger Sensor to scroll operation. For detailsabout the scrolling operation, refer to Help. (Refer to “To see Help” onthe next page too.)Mouse modeSwitches to air mode.q; POWER switchqa CONNECT buttonqs Status lightThe status light flashing slowly indicates that the battery life is runninglow. In addition, number of blinking of status light indicates currentoperation mode or setting status.Inserting batteries into the mouse1Slide the POWER switch located on the right side of themouse to OFF.2Turn the mouse over to open the battery compartmentcover.3Insert the two supplied LR06 (size AA) batteries usingthe correct +/– orientation.4Close the battery compartment cover.Bluetooth® Laser MouseVGP-BMS80Operating Instructions© 2009 Sony Corporation / Printed in Japan4-158-720-11(1)Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)-free vegetable oilbased ink.4Click the “Bluetooth Devices” icon, and verify thecontents of the window displayed.NoteIf you switch to Classic View, double-click the “Bluetooth Devices” icon.5Review the Bluetooth Devices windows shown here.If you see window 1, go to the instructions in Case B. If you seewindow 2, go to the instructions in Case C.Window 1Window 2Case A1Click (Start), then click “Devices and Printers.”2Slide the POWER switch of the mouse to ON.3Press the CONNECT button located on the right side ofthe mouse.4Click “Add a device” in the “Devices and Printers”window.5In the device list, select “VGP-BMS80,” and click “Next.”z HintIf the “Select a pairing option” window is displayed, select “Pairwithout using a code,” and click “Next.”6Click “Close” in the “Add a device” window.7Stroke the Optical Finger Sensor. If the pointer displayedon your screen moves appropriately, the connection iscomplete.Case B1Slide the POWER switch of the mouse to ON.2Press the CONNECT button located on the right side ofthe mouse.The status light flashes green.3On the “Bluetooth Devices” window, click the “AddWireless Device” icon.4In the device list, select “VGP-BMS80,” and click “Next.”z HintIf the “Pair with a Wireless Device” window is displayed, select“Pair without using a code,” and click “Next.”5On the “Pair with a Wireless Device” window, click“Close.”6Close the “Bluetooth Devices” window.7Stroke the Optical Finger Sensor. If the pointer displayedon your screen moves appropriately, the connection iscomplete.Case C1Slide the POWER switch of the mouse to ON.2On the “Bluetooth Devices” window, select the“Devices” tab and click “Add.”The “Add Bluetooth Device Wizard” appears.3Press the CONNECT button located on the right side ofthe mouse.The status light flashes green.4Select the “My device is set up and ready to be found”check box and click “Next.”5In the device list, select “VGP-BMS80,” and click “Next.”6Select “Don’t use a passkey” and click “Next.”7Click “Finish.”8Click “OK.”z HintUnder normal operating conditions, a set of alkaline batteries lasts aboutthree months*. When cursor movement becomes sluggish and thecommunication distance between the mouse and your personal computerdecreases, check the status light on the mouse.When not using the mouse, close the button cover to set the power to off.This will extends battery life.*This estimate is based on five hours of use per day, five days per week.These could be different depending on the usage environment.Replacing the batteriesThe status light flashing orange indicates that the battery life is runninglow. Replace the batteries when this occurs.Enabling communicationbetween the mouse and yourpersonal computerUse the Bluetooth software installed on your personal computer to enablecommunication between the mouse and your personal computer.NoteActivate the Bluetooth software on your personal computer. Operation of theBluetooth software may vary depending on your personal computer.For details, refer to the manuals provided with your personal computer.The setup instructions vary based on your operating system and you aredirected to corresponding steps.If your computer is pre-installed with Windows 7, go directlyto the instructions in Case A.If your computer is pre-installed with Windows Vista, followthese steps (In certain situations, you may be directed to theinstructions in Case B or Case C, depending on the Bluetooth windowdisplayed):1Click (Start), then “Control Panel.”2Click the “Hardware and Sound” icon.3If the “Bluetooth Devices” icon is in the “Hardware andSound” window:Go to step 4.If the “Bluetooth Devices” icon is not visible in the“Hardware and Sound” window:Close the “Control Panel” and go to Case D.The mouse can be used with a following VAIO personal computer:(As of September 2009)•A Sony VAIO personal computer pre-installed with Windows Vista(after SP1) or Windows 7 and equipped with Bluetooth technology.(To install the supplied software on the computer, prepare a disc drive asROM drive.)About compliant model details, refer to VAIO homepage:VAIO homepage: http//www.VAIO.sony.co.jp/NoteDepending on a personal computer or software version you are using, the mousemay not function correctly. For detailed information on suitable operatingenvironments and VAIO Bluetooth compatibility, refer to the VAIO CustomerLink homepage.9Stroke the Optical Finger Sensor. If the pointer displayedon your screen moves appropriately, the connection iscomplete.Case D1Slide the POWER switch of the mouse to ON.2Double-click in the notification area in the bottomright corner of your personal computer’s desktop.The “Bluetooth Settings” screen appears.3Click “New Connection.”The “Add New Connection” wizard screen appears.4Press the CONNECT button located on the right side ofthe mouse.The status light flashes green.5Select “Express Mode” and click “Next.”The search for Bluetooth devices begins.6In the device list, select “VGP-BMS80,” and click “Next.”7If the “Add New Connection” wizard disappears,connection is complete. Go to step 10.8If the prompt to connect the HID (Human InterfaceDevice) device appears, click “OK.”9Verify the contents of the window displayed, and click“Next.”10 Stroke the Optical Finger Sensor. If the pointer displayedon your screen moves appropriately, the connection iscomplete.DisconnectingSlide the POWER switch of the mouse to OFF.ReconnectionSlide the POWER switch of the mouse to ON, then reconnect.NoteIt may take time to reconnect after turning off the mouse.Operating distance of the mouseThe mouse can normally be operated within about a 10 m (32 ft.) radius aroundthe personal computer. Depending on the usage environment, sometimes theusable distance may be shorter, preventing normal operation.In such a case, take the following measures:•Use the mouse as far away from other wireless devices as possible.•Use the mouse closer to the personal computer.•Use a mouse pad.

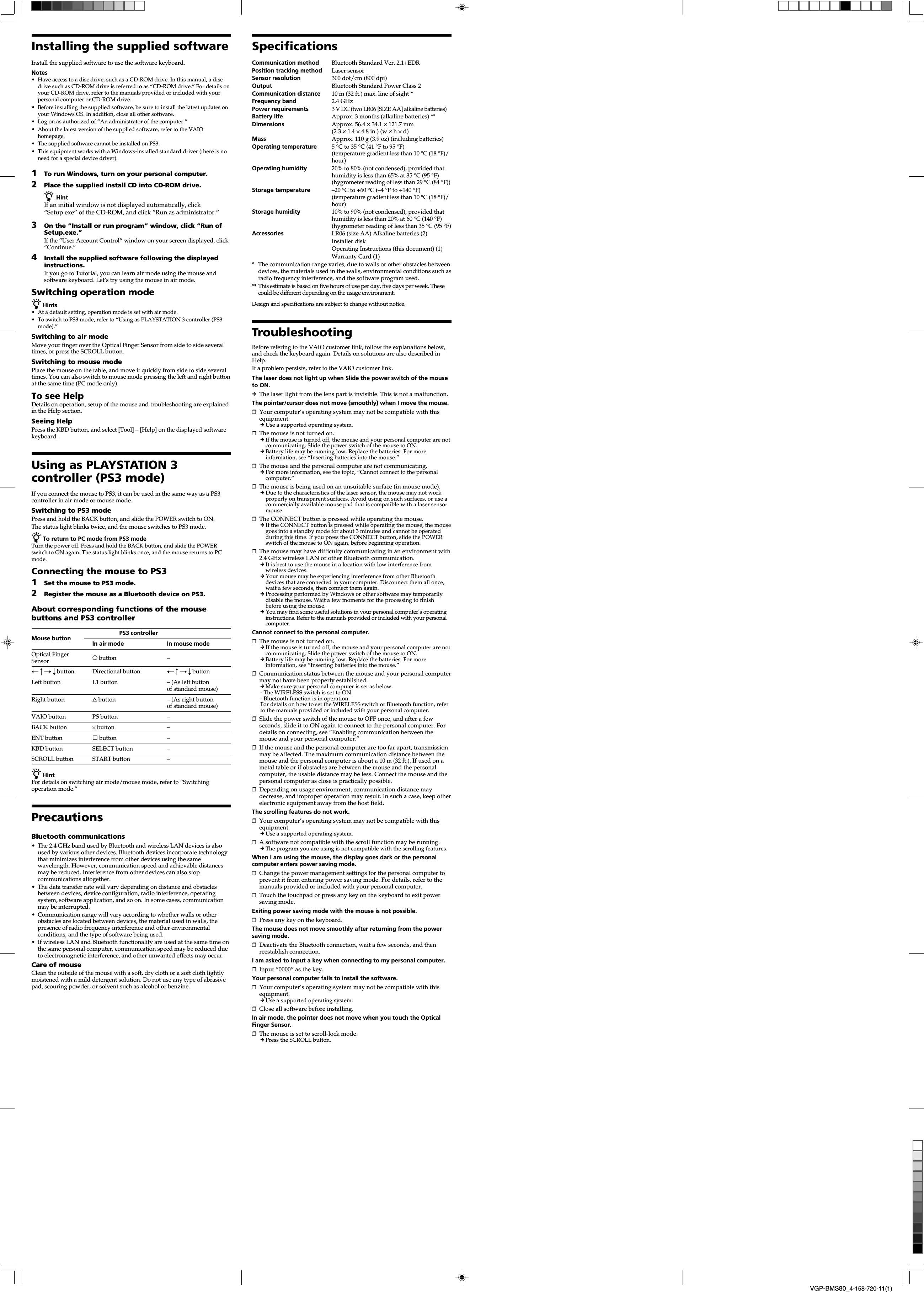

VGP-BMS80_4-158-720-11(1)Installing the supplied softwareInstall the supplied software to use the software keyboard.Notes•Have access to a disc drive, such as a CD-ROM drive. In this manual, a discdrive such as CD-ROM drive is referred to as “CD-ROM drive.” For details onyour CD-ROM drive, refer to the manuals provided or included with yourpersonal computer or CD-ROM drive.•Before installing the supplied software, be sure to install the latest updates onyour Windows OS. In addition, close all other software.•Log on as authorized of “An administrator of the computer.”•About the latest version of the supplied software, refer to the VAIOhomepage.•The supplied software cannot be installed on PS3.•This equipment works with a Windows-installed standard driver (there is noneed for a special device driver).1To run Windows, turn on your personal computer.2Place the supplied install CD into CD-ROM drive.z HintIf an initial window is not displayed automatically, click“Setup.exe” of the CD-ROM, and click “Run as administrator.”3On the “Install or run program” window, click “Run ofSetup.exe.”If the “User Account Control” window on your screen displayed, click“Continue.”4Install the supplied software following the displayedinstructions.If you go to Tutorial, you can learn air mode using the mouse andsoftware keyboard. Let’s try using the mouse in air mode.Switching operation modez Hints•At a default setting, operation mode is set with air mode.•To switch to PS3 mode, refer to “Using as PLAYSTATION 3 controller (PS3mode).”Switching to air modeMove your finger over the Optical Finger Sensor from side to side severaltimes, or press the SCROLL button.Switching to mouse modePlace the mouse on the table, and move it quickly from side to side severaltimes. You can also switch to mouse mode pressing the left and right buttonat the same time (PC mode only).To see HelpDetails on operation, setup of the mouse and troubleshooting are explainedin the Help section.Seeing HelpPress the KBD button, and select [Tool] – [Help] on the displayed softwarekeyboard.Using as PLAYSTATION 3controller (PS3 mode)If you connect the mouse to PS3, it can be used in the same way as a PS3controller in air mode or mouse mode.Switching to PS3 modePress and hold the BACK button, and slide the POWER switch to ON.The status light blinks twice, and the mouse switches to PS3 mode.z To return to PC mode from PS3 modeTurn the power off. Press and hold the BACK button, and slide the POWERswitch to ON again. The status light blinks once, and the mouse returns to PCmode.Connecting the mouse to PS31Set the mouse to PS3 mode.2Register the mouse as a Bluetooth device on PS3.About corresponding functions of the mousebuttons and PS3 controllerMouse button PS3 controllerIn air mode In mouse modeOptical Finger a button –SensorT R t r button Directional button T R t r buttonLeft button L1 button – (As left buttonof standard mouse)Right button f button – (As right buttonof standard mouse)VAIO button PS button –BACK button × button –ENT button s button –KBD button SELECT button –SCROLL button START button –z HintFor details on switching air mode/mouse mode, refer to “Switchingoperation mode.”PrecautionsBluetooth communications•The 2.4 GHz band used by Bluetooth and wireless LAN devices is alsoused by various other devices. Bluetooth devices incorporate technologythat minimizes interference from other devices using the samewavelength. However, communication speed and achievable distancesmay be reduced. Interference from other devices can also stopcommunications altogether.•The data transfer rate will vary depending on distance and obstaclesbetween devices, device configuration, radio interference, operatingsystem, software application, and so on. In some cases, communicationmay be interrupted.•Communication range will vary according to whether walls or otherobstacles are located between devices, the material used in walls, thepresence of radio frequency interference and other environmentalconditions, and the type of software being used.• If wireless LAN and Bluetooth functionality are used at the same time onthe same personal computer, communication speed may be reduced dueto electromagnetic interference, and other unwanted effects may occur.Care of mouseClean the outside of the mouse with a soft, dry cloth or a soft cloth lightlymoistened with a mild detergent solution. Do not use any type of abrasivepad, scouring powder, or solvent such as alcohol or benzine.SpecificationsCommunication method Bluetooth Standard Ver. 2.1+EDRPosition tracking method Laser sensorSensor resolution 300 dot/cm (800 dpi)Output Bluetooth Standard Power Class 2Communication distance 10 m (32 ft.) max. line of sight *Frequency band 2.4 GHzPower requirements 3 V DC (two LR06 [SIZE AA] alkaline batteries)Battery life Approx. 3 months (alkaline batteries) **Dimensions Approx. 56.4 × 34.1 × 121.7 mm(2.3 × 1.4 × 4.8 in.) (w × h × d)Mass Approx. 110 g (3.9 oz) (including batteries)Operating temperature 5 °C to 35 °C (41 °F to 95 °F)(temperature gradient less than 10 °C (18 °F)/hour)Operating humidity 20% to 80% (not condensed), provided thathumidity is less than 65% at 35 °C (95 °F)(hygrometer reading of less than 29 °C (84 °F))Storage temperature –20 °C to +60 °C (–4 °F to +140 °F)(temperature gradient less than 10 °C (18 °F)/hour)Storage humidity 10% to 90% (not condensed), provided thathumidity is less than 20% at 60 °C (140 °F)(hygrometer reading of less than 35 °C (95 °F)Accessories LR06 (size AA) Alkaline batteries (2)Installer diskOperating Instructions (this document) (1)Warranty Card (1)*The communication range varies, due to walls or other obstacles betweendevices, the materials used in the walls, environmental conditions such asradio frequency interference, and the software program used.** This estimate is based on five hours of use per day, five days per week. Thesecould be different depending on the usage environment.Design and specifications are subject to change without notice.TroubleshootingBefore refering to the VAIO customer link, follow the explanations below,and check the keyboard again. Details on solutions are also described inHelp.If a problem persists, refer to the VAIO customer link.The laser does not light up when Slide the power switch of the mouseto ON.cThe laser light from the lens part is invisible. This is not a malfunction.The pointer/cursor does not move (smoothly) when I move the mouse.❒Your computer’s operating system may not be compatible with thisequipment.cUse a supported operating system.❒The mouse is not turned on.cIf the mouse is turned off, the mouse and your personal computer are notcommunicating. Slide the power switch of the mouse to ON.cBattery life may be running low. Replace the batteries. For moreinformation, see “Inserting batteries into the mouse.”❒The mouse and the personal computer are not communicating.c For more information, see the topic, “Cannot connect to the personalcomputer.”❒The mouse is being used on an unsuitable surface (in mouse mode).c Due to the characteristics of the laser sensor, the mouse may not workproperly on transparent surfaces. Avoid using on such surfaces, or use acommercially available mouse pad that is compatible with a laser sensormouse.❒The CONNECT button is pressed while operating the mouse.c If the CONNECT button is pressed while operating the mouse, the mousegoes into a standby mode for about 3 minutes and cannot be operatedduring this time. If you press the CONNECT button, slide the POWERswitch of the mouse to ON again, before beginning operation.❒The mouse may have difficulty communicating in an environment with2.4 GHz wireless LAN or other Bluetooth communication.c It is best to use the mouse in a location with low interference fromwireless devices.c Your mouse may be experiencing interference from other Bluetoothdevices that are connected to your computer. Disconnect them all once,wait a few seconds, then connect them again.c Processing performed by Windows or other software may temporarilydisable the mouse. Wait a few moments for the processing to finishbefore using the mouse.c You may find some useful solutions in your personal computer’s operatinginstructions. Refer to the manuals provided or included with your personalcomputer.Cannot connect to the personal computer.❒The mouse is not turned on.c If the mouse is turned off, the mouse and your personal computer are notcommunicating. Slide the power switch of the mouse to ON.cBattery life may be running low. Replace the batteries. For moreinformation, see “Inserting batteries into the mouse.”❒Communication status between the mouse and your personal computermay not have been properly established.cMake sure your personal computer is set as below.- The WIRELESS switch is set to ON.- Bluetooth function is in operation.For details on how to set the WIRELESS switch or Bluetooth function, referto the manuals provided or included with your personal computer.❒Slide the power switch of the mouse to OFF once, and after a fewseconds, slide it to ON again to connect to the personal computer. Fordetails on connecting, see “Enabling communication between themouse and your personal computer.”❒If the mouse and the personal computer are too far apart, transmissionmay be affected. The maximum communication distance between themouse and the personal computer is about a 10 m (32 ft.). If used on ametal table or if obstacles are between the mouse and the personalcomputer, the usable distance may be less. Connect the mouse and thepersonal computer as close is practically possible.❒Depending on usage environment, communication distance maydecrease, and improper operation may result. In such a case, keep otherelectronic equipment away from the host field.The scrolling features do not work.❒Your computer’s operating system may not be compatible with thisequipment.cUse a supported operating system.❒A software not compatible with the scroll function may be running.cThe program you are using is not compatible with the scrolling features.When I am using the mouse, the display goes dark or the personalcomputer enters power saving mode.❒Change the power management settings for the personal computer toprevent it from entering power saving mode. For details, refer to themanuals provided or included with your personal computer.❒Touch the touchpad or press any key on the keyboard to exit powersaving mode.Exiting power saving mode with the mouse is not possible.❒Press any key on the keyboard.The mouse does not move smoothly after returning from the powersaving mode.❒Deactivate the Bluetooth connection, wait a few seconds, and thenreestablish connection.I am asked to input a key when connecting to my personal computer.❒Input “0000” as the key.Your personal computer fails to install the software.❒Your computer’s operating system may not be compatible with thisequipment.cUse a supported operating system.❒Close all software before installing.In air mode, the pointer does not move when you touch the OpticalFinger Sensor.❒The mouse is set to scroll-lock mode.cPress the SCROLL button.
