SMK FC015 ZigBee RF4CE-compatible RF receiver User Manual

SMK Corporation ZigBee RF4CE-compatible RF receiver

User Manual

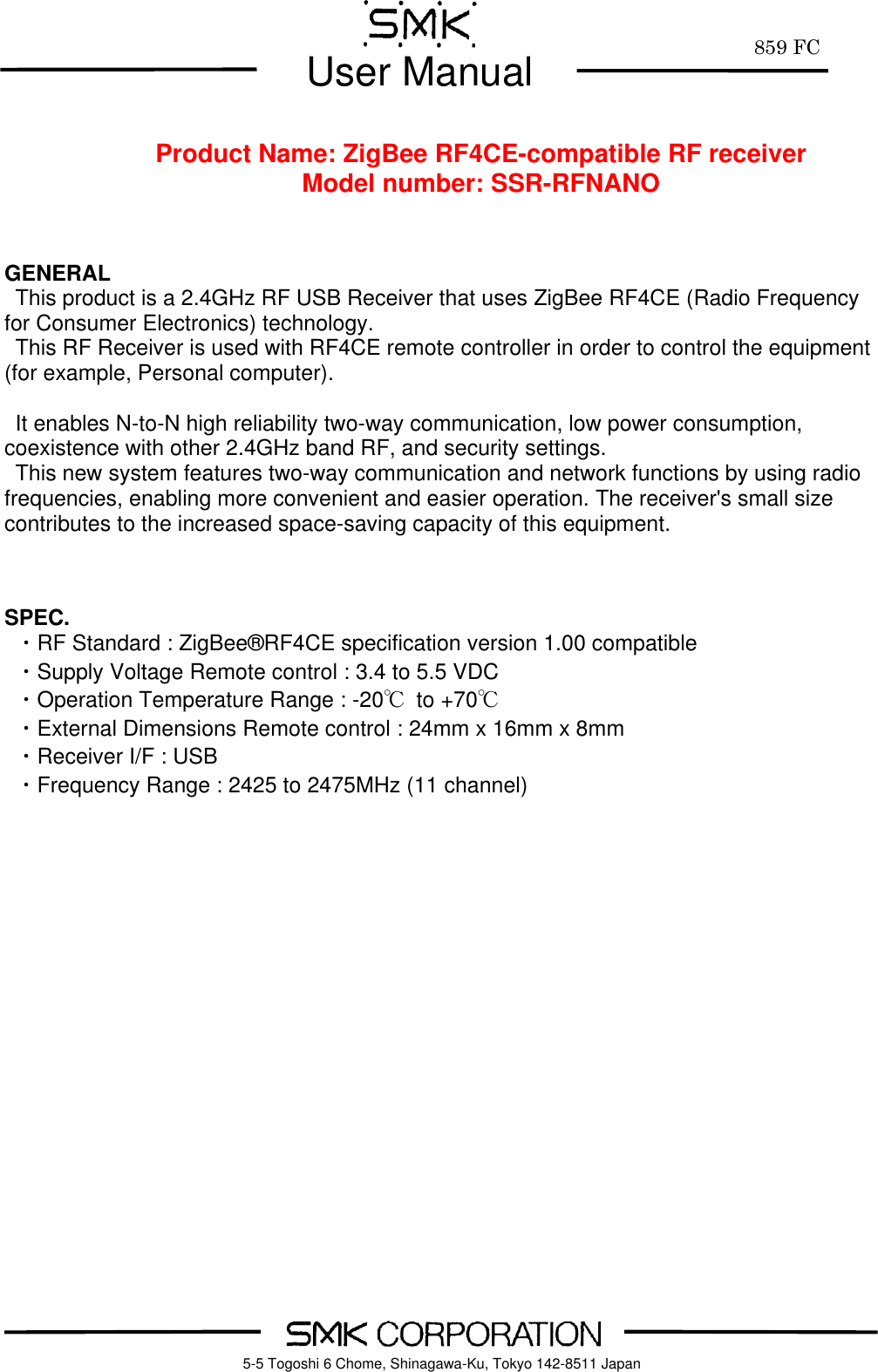

859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Product Name: ZigBee RF4CE-compatible RF receiver Model number: SSR-RFNANO GENERAL This product is a 2.4GHz RF USB Receiver that uses ZigBee RF4CE (Radio Frequency for Consumer Electronics) technology. This RF Receiver is used with RF4CE remote controller in order to control the equipment (for example, Personal computer). It enables N-to-N high reliability two-way communication, low power consumption, coexistence with other 2.4GHz band RF, and security settings. This new system features two-way communication and network functions by using radio frequencies, enabling more convenient and easier operation. The receiver's small size contributes to the increased space-saving capacity of this equipment. SPEC. ・RF Standard : ZigBee®RF4CE specification version 1.00 compatible ・Supply Voltage Remote control : 3.4 to 5.5 VDC ・Operation Temperature Range : -20℃ to +70℃ ・External Dimensions Remote control : 24mm x 16mm x 8mm ・Receiver I/F : USB ・Frequency Range : 2425 to 2475MHz (11 channel)

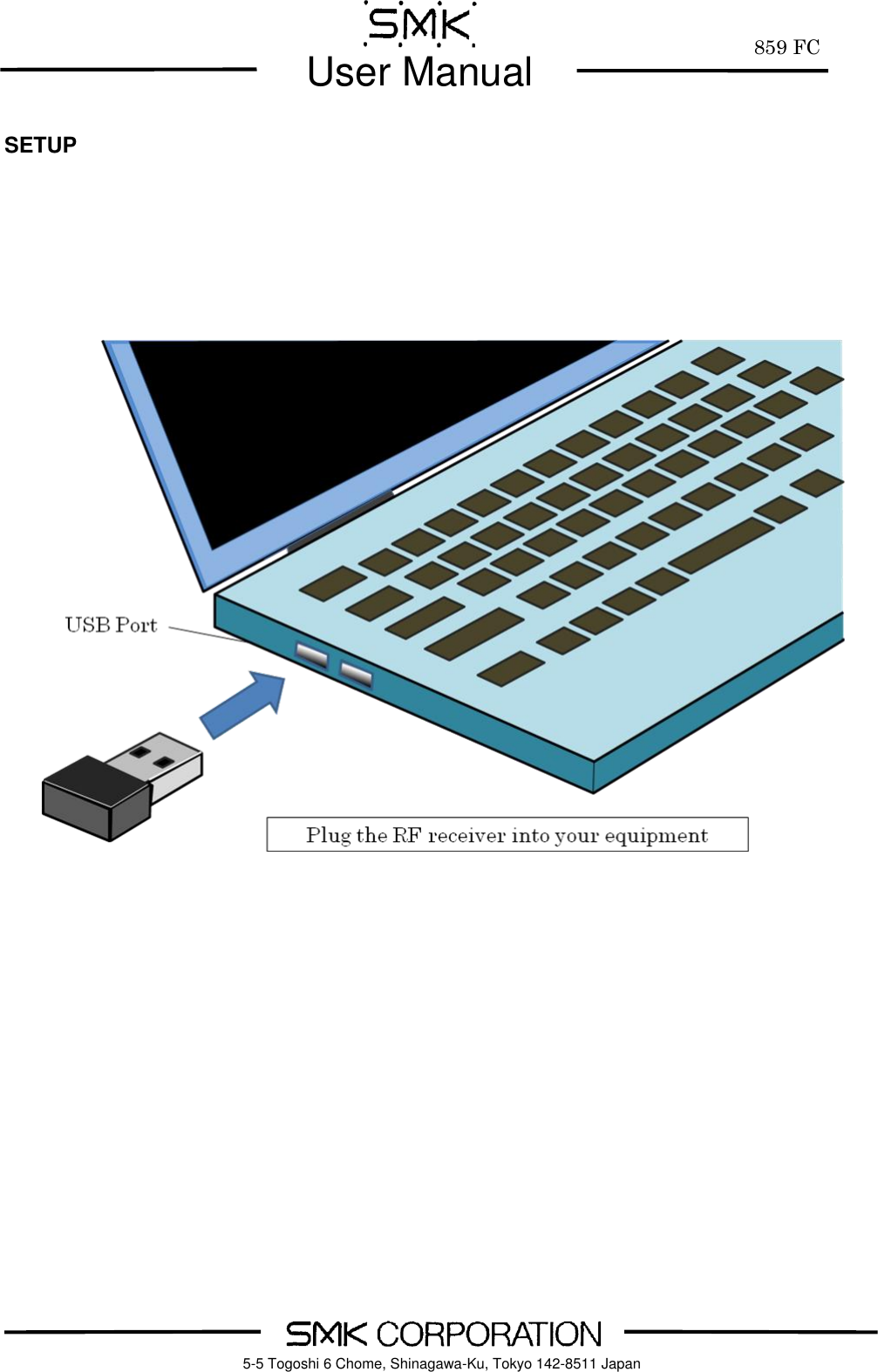

859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan SETUP

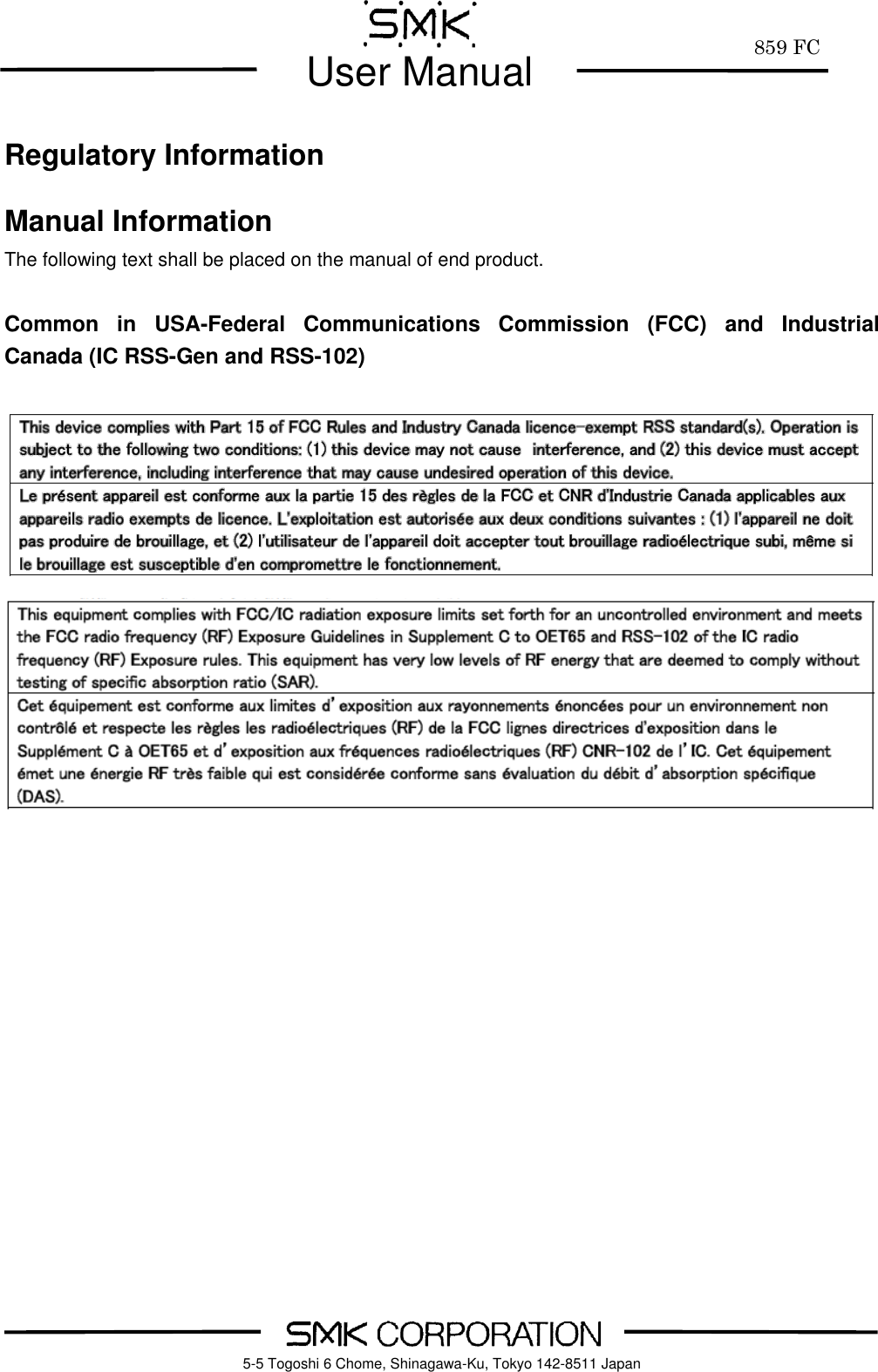

859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Regulatory Information Manual Information The following text shall be placed on the manual of end product. Common in USA-Federal Communications Commission (FCC) and Industrial Canada (IC RSS-Gen and RSS-102)

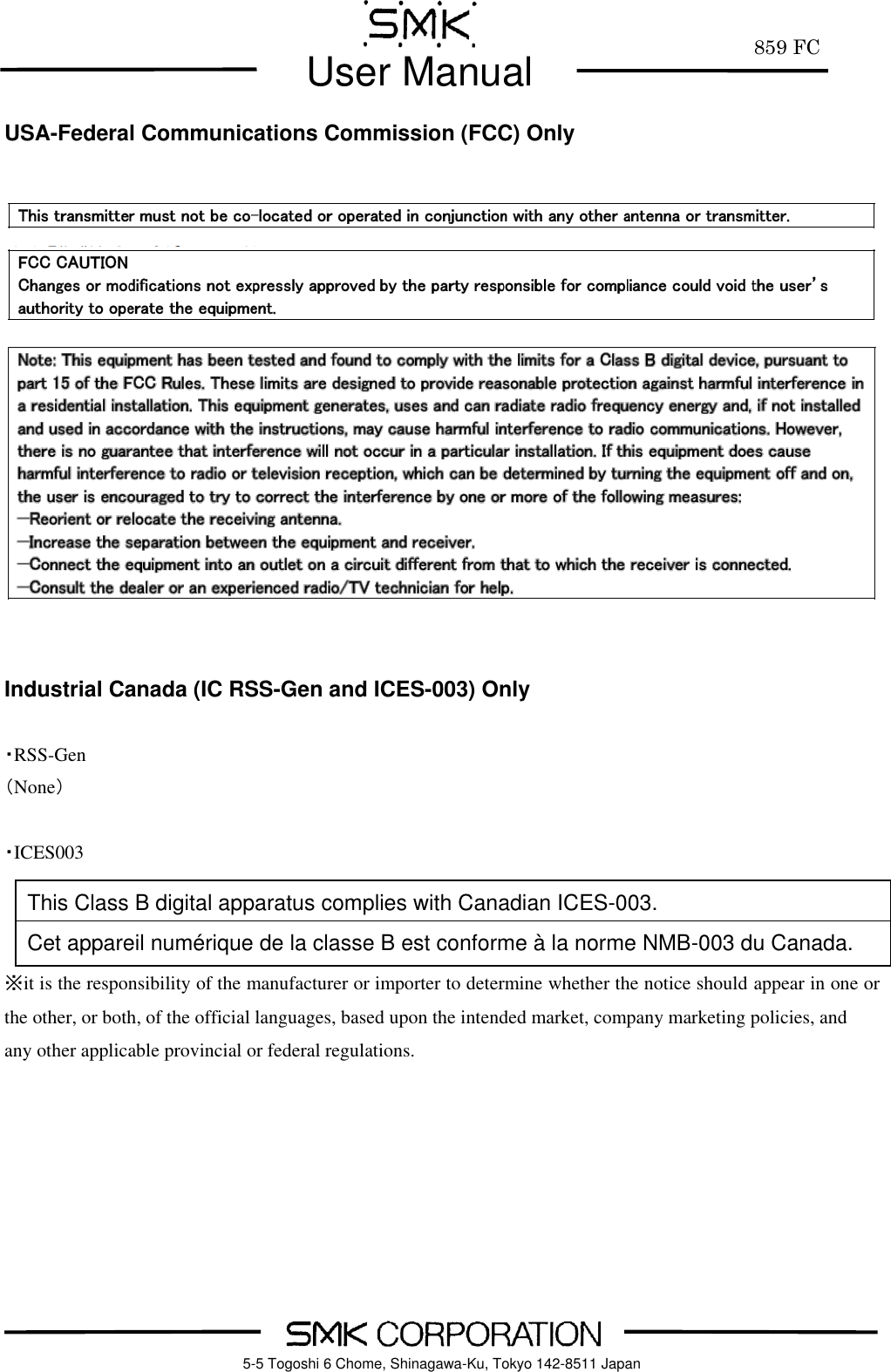

859 FC User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan USA-Federal Communications Commission (FCC) Only Industrial Canada (IC RSS-Gen and ICES-003) Only ・RSS-Gen （None） ・ICES003 ※it is the responsibility of the manufacturer or importer to determine whether the notice should appear in one or the other, or both, of the official languages, based upon the intended market, company marketing policies, and any other applicable provincial or federal regulations. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
