SQT Electronics SMK-78507GLMN 2.4GHz WIRELESS LASER MOUSE User Manual SM 507AGL H43 ADNS7530

Shenzhen SQT Electronics Co., Ltd. 2.4GHz WIRELESS LASER MOUSE SM 507AGL H43 ADNS7530

User Manual

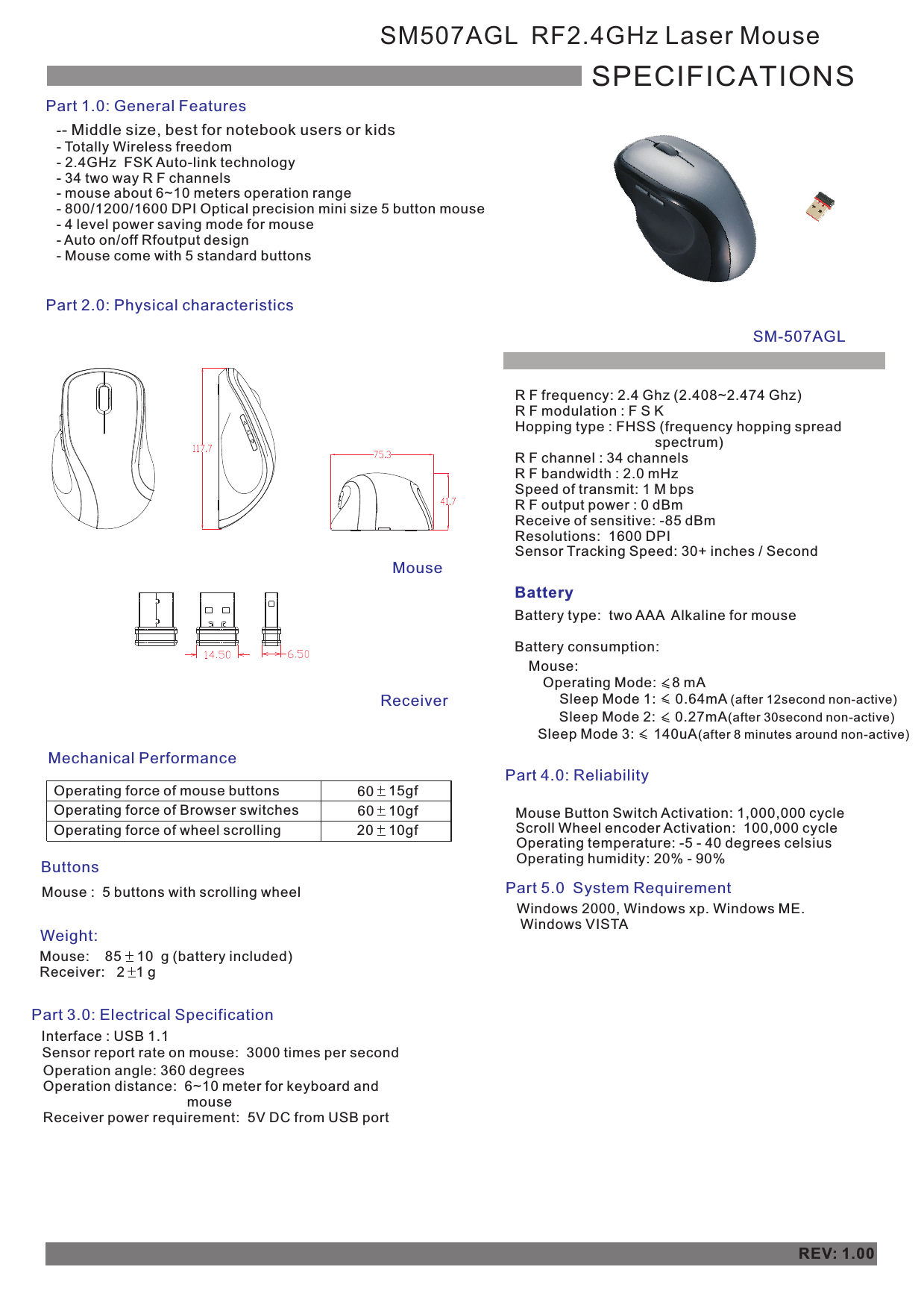

-- Totally Wireless freedom- 2.4GHz FSK Auto-link technology- 34 two way R F channels- mouse about 6~10 meters operation range- 800/1200/1600 DPI Optical precision mini size 5 button mouse- 4 level power saving mode for mouse- Auto on/off Rfoutput design- Mouse come with 5 standard buttons- Middle size, best for notebook users or kids SM507AGL RF2.4GHz Laser MouseSPECIFICATIONSPart 1.0: General FeaturesPart 2.0: Physical characteristics Mechanical PerformanceOperating force of mouse buttonsOperating force of Browser switchesOperating force of wheel scrolling60 15gf 10gf 20 10gf ButtonsMouse : 5 buttons with scrolling wheelWeight:Mouse: 85 10 g (battery included)Receiver: 2 1 g Part 3.0: Electrical SpecificationBatteryBattery type: two AAA Alkaline for mouse Battery consumption:Part 4.0: Reliability Mouse Button Switch Activation: 1,000,000 cycleScroll Wheel encoder Activation: 100,000 cycleOperating temperature: -5 - 40 degrees celsius Operating humidity: 20% - 90%REV: 1.00Part 5.0 System Requirement Windows 2000, Windows xp. Windows ME. Windows VISTAMouse:Sleep Mode 1: 0.64mA (after 12second non-active) Sleep Mode 2: 0.27mA(after 30second non-active) MouseReceiverSM-507AGL Interface : USB 1.1Sensor report rate on mouse: 3000 times per second Operation angle: 360 degreesOperation distance: 6~10 meter for keyboard and mouseReceiver power requirement: 5V DC from USB portR F frequency: 2.4 Ghz (2.408~2.474 Ghz)R F modulation : F S KHopping type : FHSS (frequency hopping spread spectrum)R F channel : 34 channelsR F bandwidth : 2.0 mHzSpeed of transmit: 1 M bpsR F output power : 0 dBmReceive of sensitive: -85 dBm Resolutions: 1600 DPISensor Tracking Speed: 30+ inches / Second60Sleep Mode 3: 140uA(after 8 minutes around non-active) Operating Mode: 8 mA
