Saab Defense and Security USA HGS2 HAND GRENADE SIMULATOR User Manual first

Saab Defense and Security USA LLC HAND GRENADE SIMULATOR first

User Guide

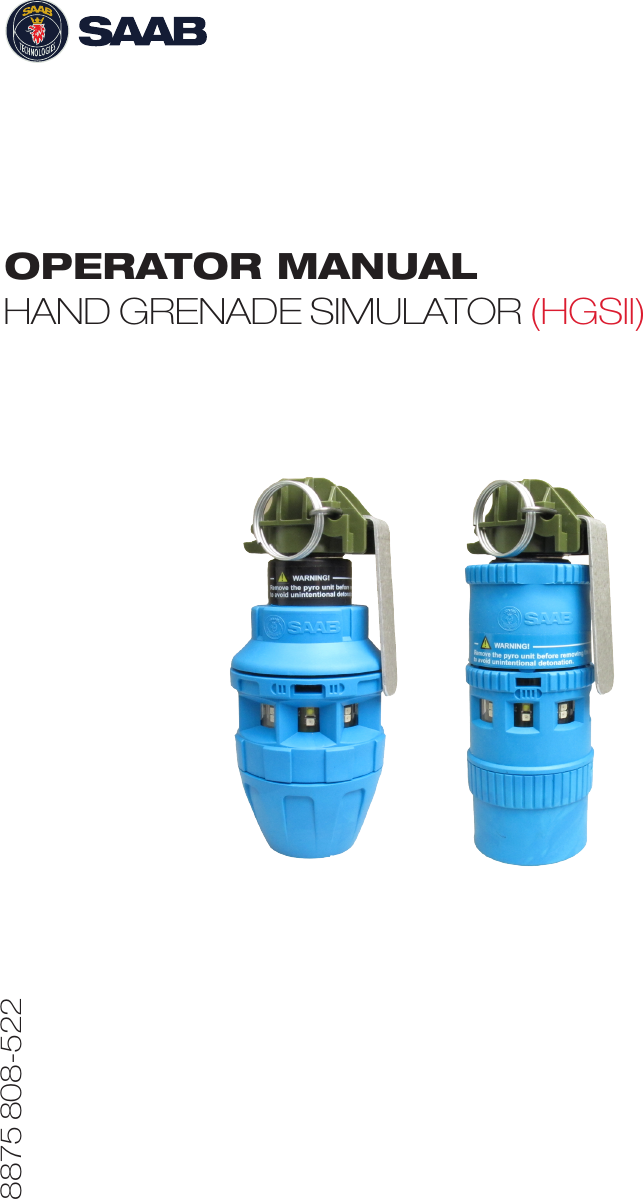

8875 808-522 OPERATOR MANUALHAND GRENADE SIMULATOR (HGSII)

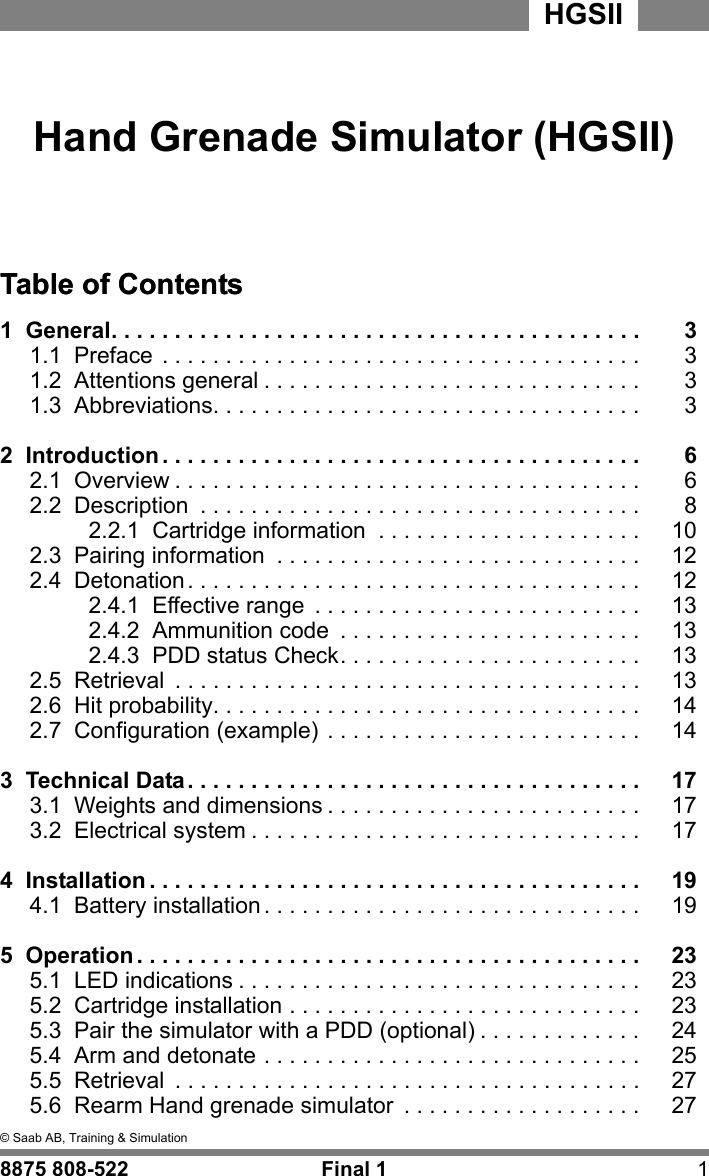

2© Saab AB, Training & SimulationHGSII8875 808-522 Final 1 1mm © Saab AB, Training & S imulation8875 808- 522Final 1Hand Grenade Simulator (HGSII)HGSII© Saab AB, Training & S imulationTable of Contents1 General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Table of Contents31.1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31.2 Attentions general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31.3 Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82.2.1 Cartridge information . . . . . . . . . . . . . . . . . . . . . 102.3 Pairing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122.4 Detonation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122.4.1 Effective range . . . . . . . . . . . . . . . . . . . . . . . . . . 132.4.2 Ammunition code . . . . . . . . . . . . . . . . . . . . . . . . 132.4.3 PDD status Check. . . . . . . . . . . . . . . . . . . . . . . . 132.5 Retrieval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132.6 Hit probability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142.7 Configuration (example) . . . . . . . . . . . . . . . . . . . . . . . . . 143 Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173.1 Weights and dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 173.2 Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194.1 Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235.1 LED indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235.2 Cartridge installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235.3 Pair the simulator with a PDD (optional) . . . . . . . . . . . . . 245.4 Arm and detonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255.5 Retrieval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275.6 Rearm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 27

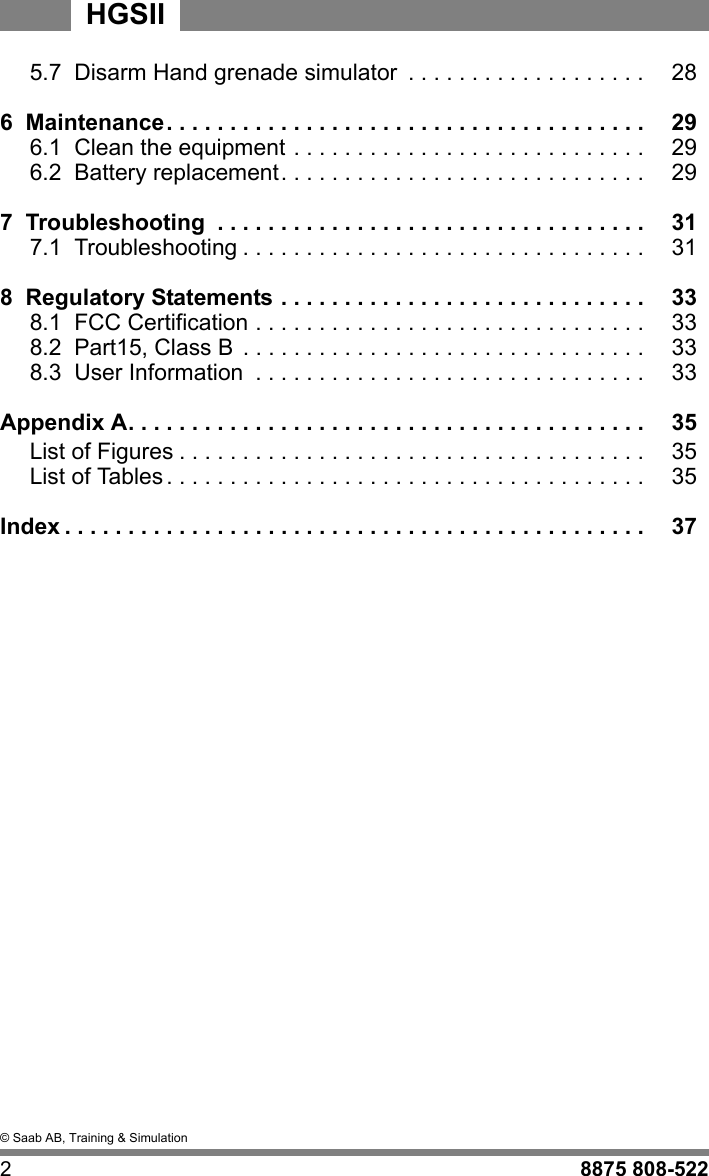

© Saab AB, Training & Simulation28875 808-522HGSII5.7 Disarm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 286 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296.1 Clean the equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296.2 Battery replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317.1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318 Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338.1 FCC Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338.2 Part15, Class B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338.3 User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Appendix A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35List of Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

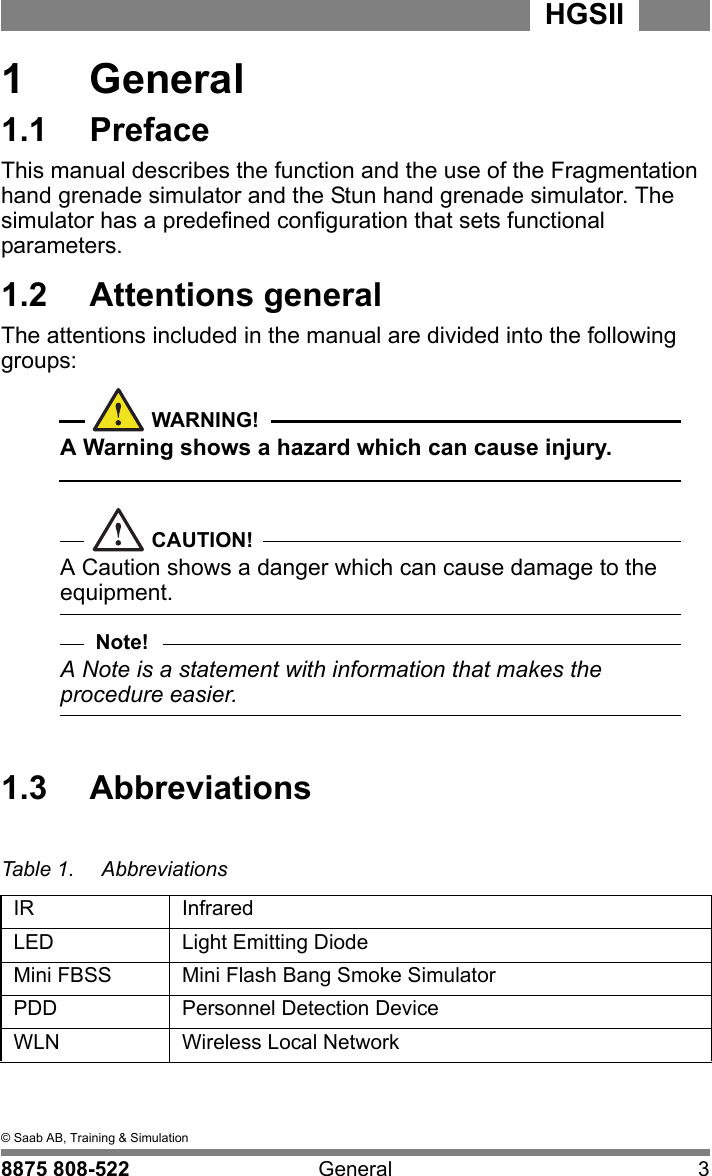

1 © Saab AB, Training & Simulation8875 808-522 General 3HGSII 1 General1.1 PrefaceThis manual describes the function and the use of the Fragmentation hand grenade simulator and the Stun hand grenade simulator. The simulator has a predefined configuration that sets functional parameters.1.2 Attentions generalThe attentions included in the manual are divided into the following groups:WARNING!A Warning shows a hazard which can cause injury.CAUTION!A Caution shows a danger which can cause damage to the equipment.Note!A Note is a statement with information that makes the procedure easier.1.3 AbbreviationsTable 1. AbbreviationsIR InfraredLED Light Emitting DiodeMini FBSS Mini Flash Bang Smoke SimulatorPDD Personnel Detection DeviceWLN Wireless Local Network
© Saab AB, Training & Simulation4 General 8875 808-522HGSII
1 © Saab AB, Training & Simulation8875 808-522 General 5HGSII

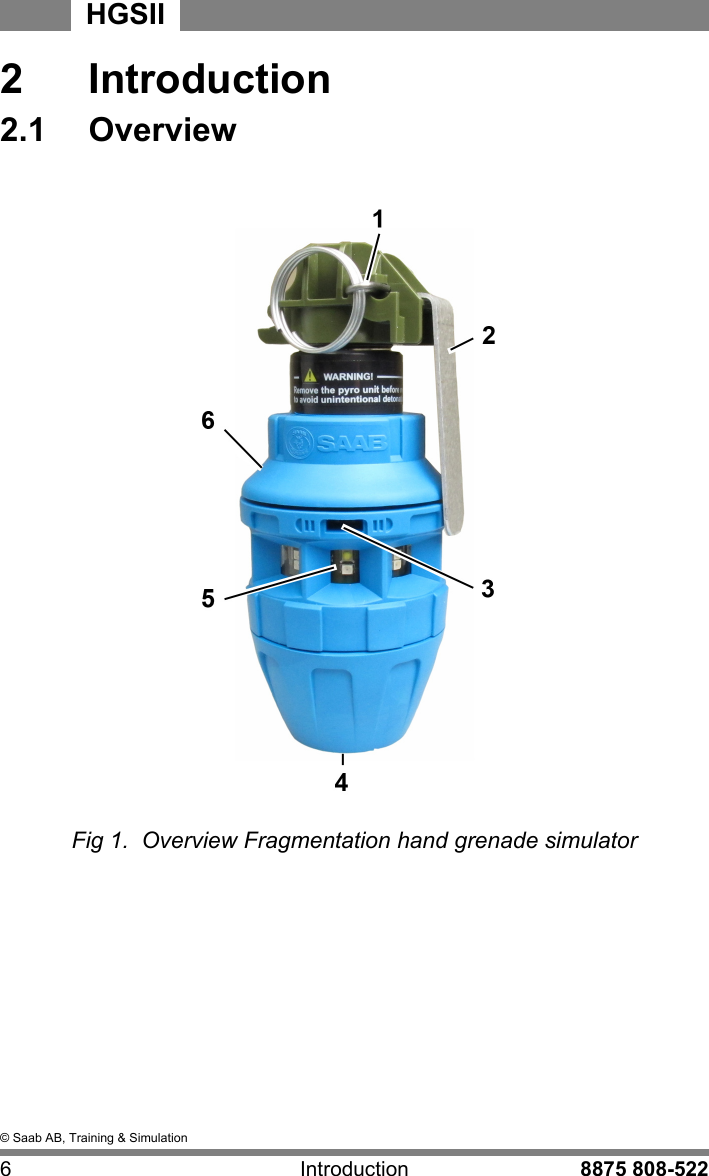

© Saab AB, Training & Simulation6 Introduction 8875 808-522HGSII2 Introduction2.1 OverviewFig 1. Overview Fragmentation hand grenade simulator
2 © Saab AB, Training & Simulation8875 808-522 Introduction 7HGSIIFig 2. Overview Stun hand grenade simulator1Safety pin 4Cartridge (Mini FBSS or Mini FBSS Buzzer (dummy)) (inside)2Safety lever 5LEDs flash at detonation and for retrieval3IR and config/setup interface + status LED6Battery (inside)

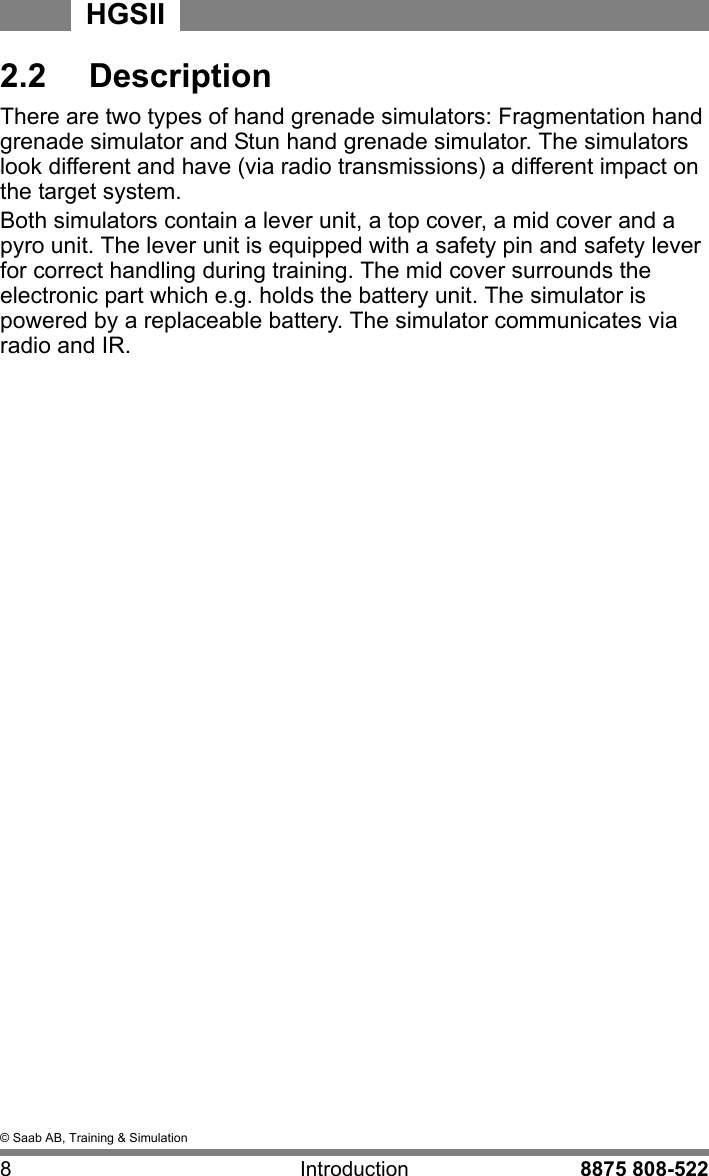

© Saab AB, Training & Simulation8 Introduction 8875 808-522HGSII2.2 DescriptionThere are two types of hand grenade simulators: Fragmentation hand grenade simulator and Stun hand grenade simulator. The simulators look different and have (via radio transmissions) a different impact on the target system. Both simulators contain a lever unit, a top cover, a mid cover and a pyro unit. The lever unit is equipped with a safety pin and safety lever for correct handling during training. The mid cover surrounds the electronic part which e.g. holds the battery unit. The simulator is powered by a replaceable battery. The simulator communicates via radio and IR.

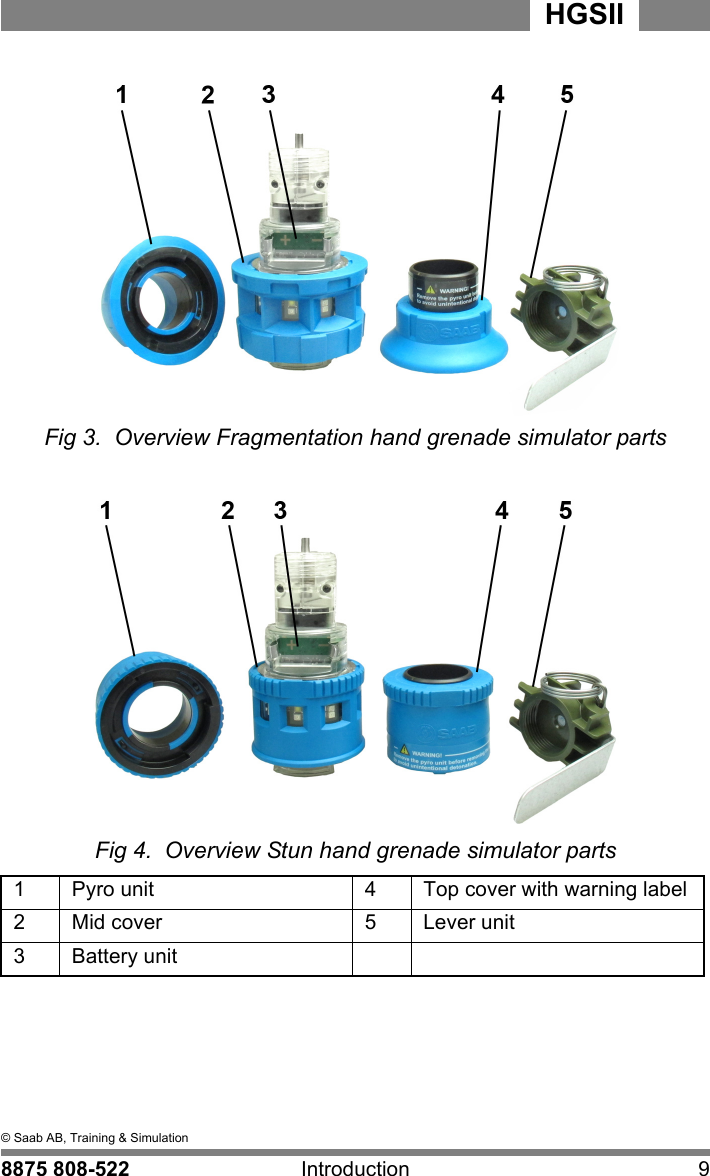

2 © Saab AB, Training & Simulation8875 808-522 Introduction 9HGSIIFig 3. Overview Fragmentation hand grenade simulator partsFig 4. Overview Stun hand grenade simulator parts1Pyro unit 4Top cover with warning label2Mid cover 5Lever unit3Battery unit

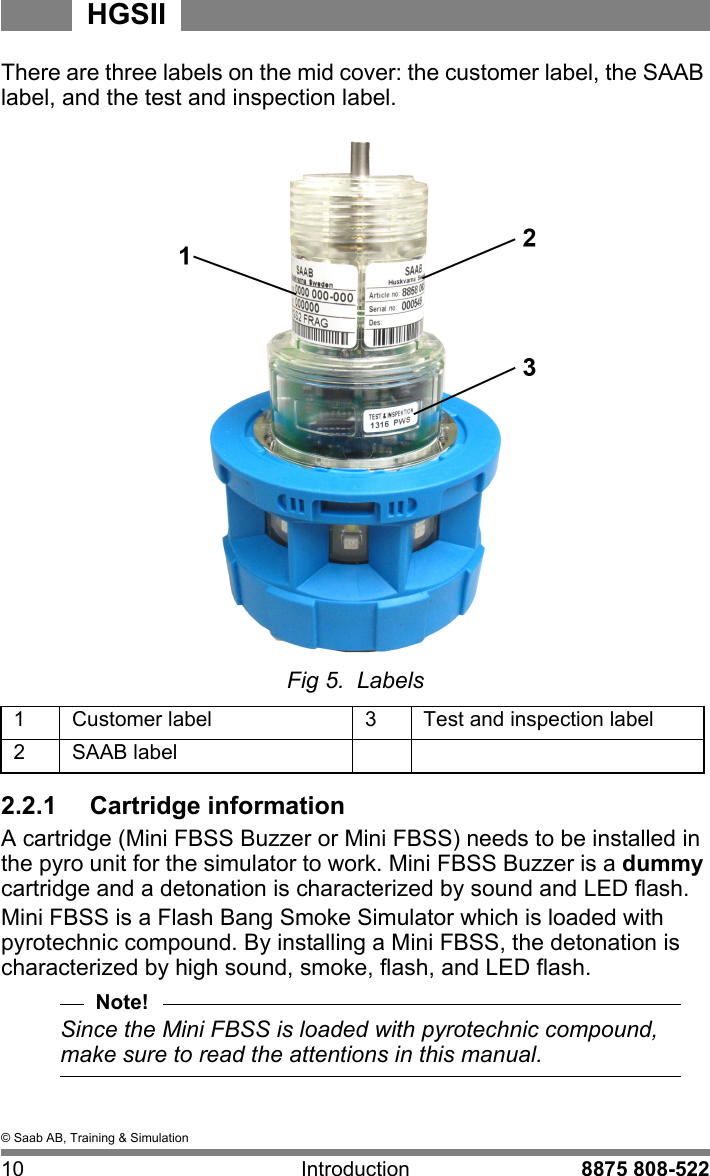

© Saab AB, Training & Simulation10 Introduction 8875 808-522HGSIIThere are three labels on the mid cover: the customer label, the SAAB label, and the test and inspection label.Fig 5. Labels1Customer label 3Test and inspection label2SAAB label2.2.1 Cartridge informationA cartridge (Mini FBSS Buzzer or Mini FBSS) needs to be installed in the pyro unit for the simulator to work. Mini FBSS Buzzer is a dummy cartridge and a detonation is characterized by sound and LED flash. Mini FBSS is a Flash Bang Smoke Simulator which is loaded with pyrotechnic compound. By installing a Mini FBSS, the detonation is characterized by high sound, smoke, flash, and LED flash.Note!Since the Mini FBSS is loaded with pyrotechnic compound, make sure to read the attentions in this manual.

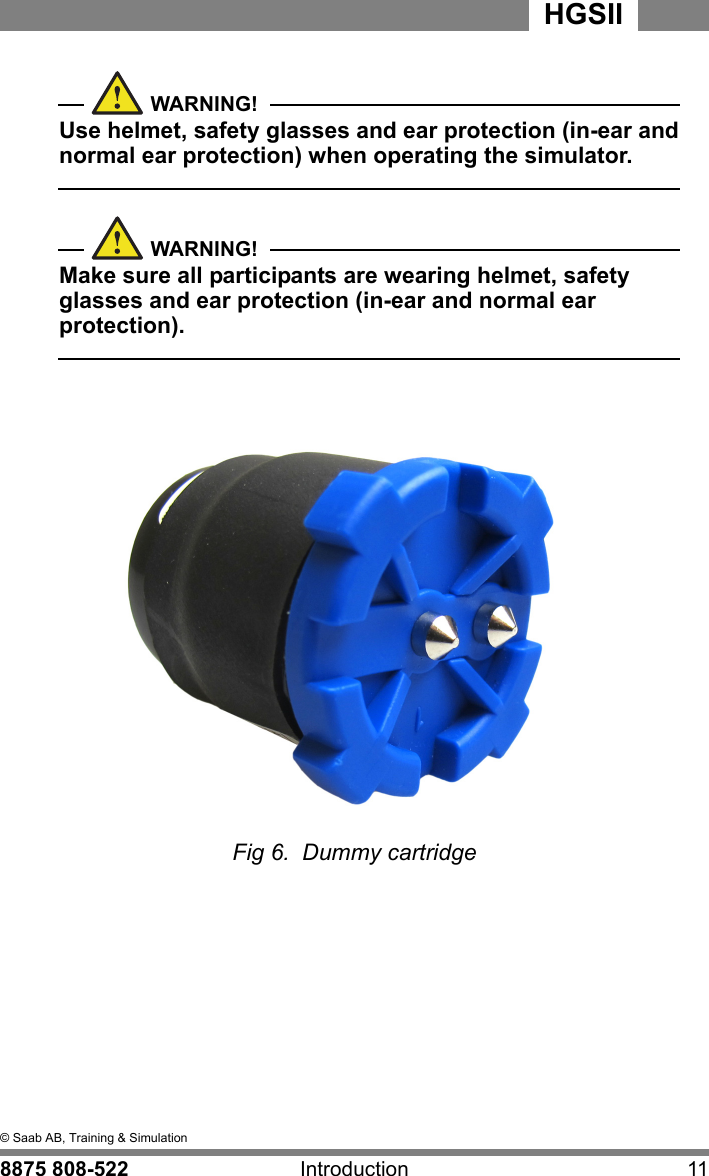

2 © Saab AB, Training & Simulation8875 808-522 Introduction 11HGSIIWARNING!Use helmet, safety glasses and ear protection (in-ear and normal ear protection) when operating the simulator. WARNING!Make sure all participants are wearing helmet, safety glasses and ear protection (in-ear and normal ear protection). Fig 6. Dummy cartridge

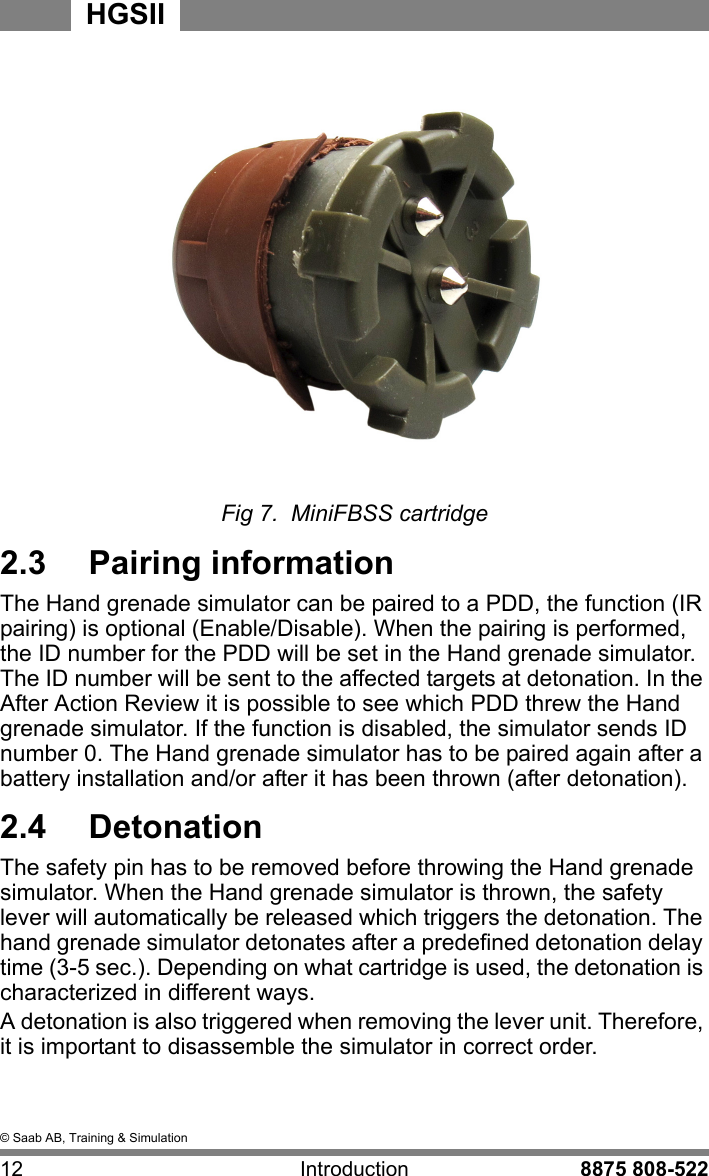

© Saab AB, Training & Simulation12 Introduction 8875 808-522HGSIIFig 7. MiniFBSS cartridge2.3 Pairing informationThe Hand grenade simulator can be paired to a PDD, the function (IR pairing) is optional (Enable/Disable). When the pairing is performed, the ID number for the PDD will be set in the Hand grenade simulator. The ID number will be sent to the affected targets at detonation. In the After Action Review it is possible to see which PDD threw the Hand grenade simulator. If the function is disabled, the simulator sends ID number 0. The Hand grenade simulator has to be paired again after a battery installation and/or after it has been thrown (after detonation).2.4 DetonationThe safety pin has to be removed before throwing the Hand grenade simulator. When the Hand grenade simulator is thrown, the safety lever will automatically be released which triggers the detonation. The hand grenade simulator detonates after a predefined detonation delay time (3-5 sec.). Depending on what cartridge is used, the detonation is characterized in different ways. A detonation is also triggered when removing the lever unit. Therefore, it is important to disassemble the simulator in correct order.
2 © Saab AB, Training & Simulation8875 808-522 Introduction 13HGSIIWARNING!Remove the pyro unit before removing the lever unit to avoid unintentional detonation. 2.4.1 Effective rangeThe effective range of the Hand Grenade Simulator is similar to that of a real grenade. This is achieved through short range radio transmissions from the simulator to target systems. As an option it is possible to send laser code messages as a complement to radio.2.4.2 Ammunition codeAt detonation, the Hand grenade simulator sends an ammunition code. Any target system that receives the message will evaluate and calculate the effect:• Targets close to the detonation will evaluate the hit effect according to a hit probability (high radio signal strength).• Targets further from the detonation will only get a sound effect (medium radio signal strength).• Targets far away from the detonation will not be affected (low radio signal strength).2.4.3 PDD status CheckWhen the safety lever is released, the Hand grenade simulator checks the status of the paired PDD (i.e. the one throwing the simulator). The function (PDD status check) is configurable (Enable/Disable). If the PDD is not OK or killed, the ammunition code transmission is inhibited. The detonation of the pyro is still performed.2.5 RetrievalA location indication on the simulator (LEDS flash white each 5 sec.) enables retrieval of the simulator. The location indication starts 30 sec. (configurable) after detonation and stops after a configurable duration of time (Time location indication).

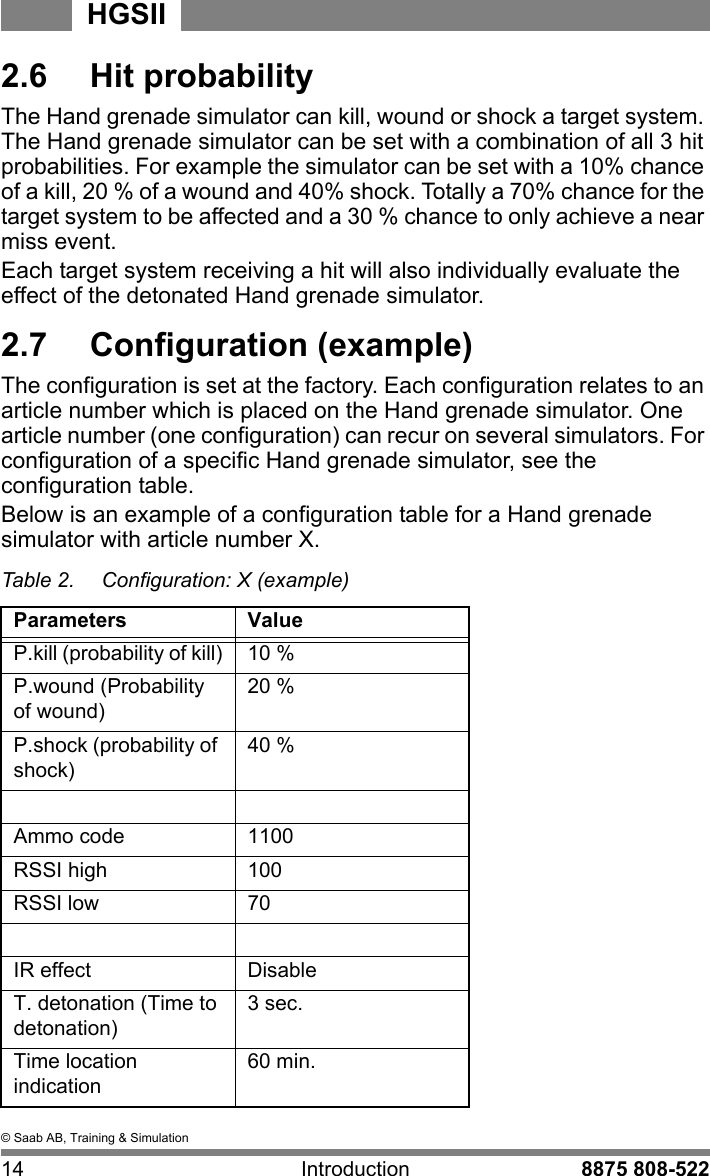

© Saab AB, Training & Simulation14 Introduction 8875 808-522HGSII2.6 Hit probabilityThe Hand grenade simulator can kill, wound or shock a target system. The Hand grenade simulator can be set with a combination of all 3 hit probabilities. For example the simulator can be set with a 10% chance of a kill, 20 % of a wound and 40% shock. Totally a 70% chance for the target system to be affected and a 30 % chance to only achieve a near miss event.Each target system receiving a hit will also individually evaluate the effect of the detonated Hand grenade simulator.2.7 Configuration (example)The configuration is set at the factory. Each configuration relates to an article number which is placed on the Hand grenade simulator. One article number (one configuration) can recur on several simulators. For configuration of a specific Hand grenade simulator, see the configuration table.Below is an example of a configuration table for a Hand grenade simulator with article number X.Table 2. Configuration: X (example)Parameters ValueP.kill (probability of kill) 10 %P.wound (Probability of wound)20 %P.shock (probability of shock)40 %Ammo code 1100RSSI high 100RSSI low 70IR effect DisableT. detonation (Time to detonation)3 sec.Time location indication60 min.

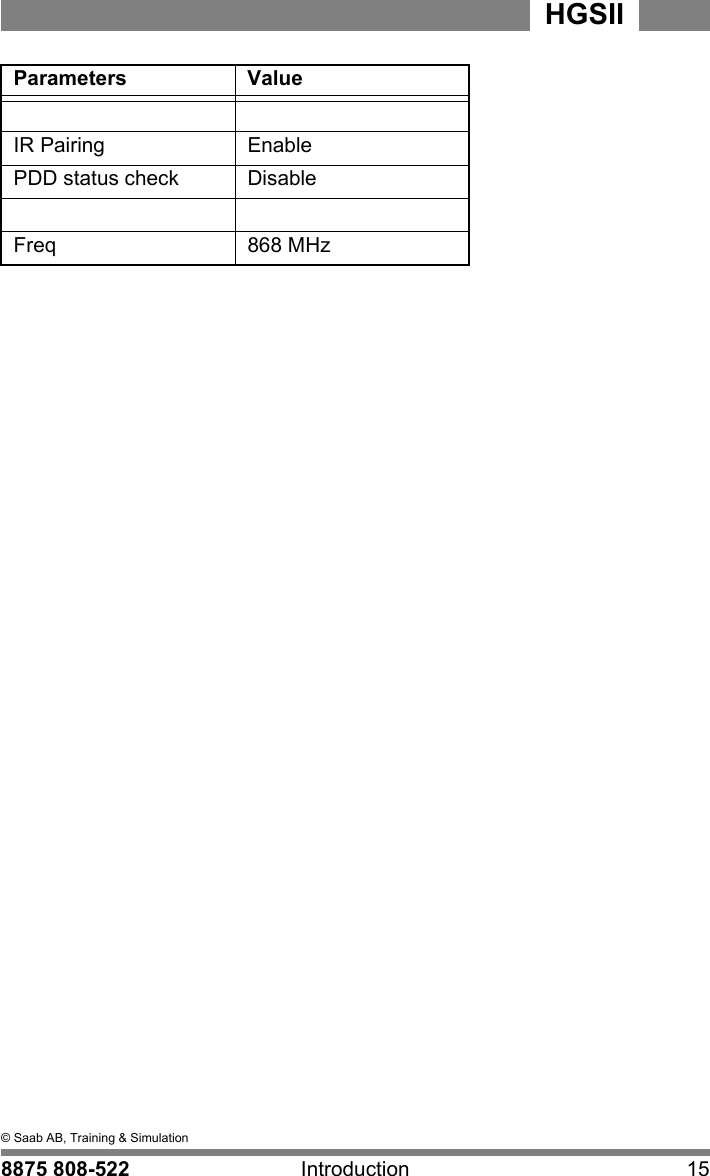

2 © Saab AB, Training & Simulation8875 808-522 Introduction 15HGSIIIR Pairing EnablePDD status check DisableFreq 868 MHzParameters Value
© Saab AB, Training & Simulation16 Introduction 8875 808-522HGSII
3 © Saab AB, Training & Simulation8875 808-522 Technical Data 17HGSII 3 Technical Data3.1 Weights and dimensionsTable 3. Weights and dimensionsUnit Length (mm)Width (mm)Height (mm)Weight (kg)Hand grenade simulator-ø 68 160 0.28Mini FBSS Buzzer (dummy)56 ø 28 - 34 -0.05Mini FBSS (pyrotechnic compound)56 ø 28 - 34 -0.053.2 Electrical systemTable 4. Electrical systemVariable ValueBattery type CR2 replaceable (>4 months and >50 detonations)
© Saab AB, Training & Simulation18 Technical Data 8875 808-522HGSII

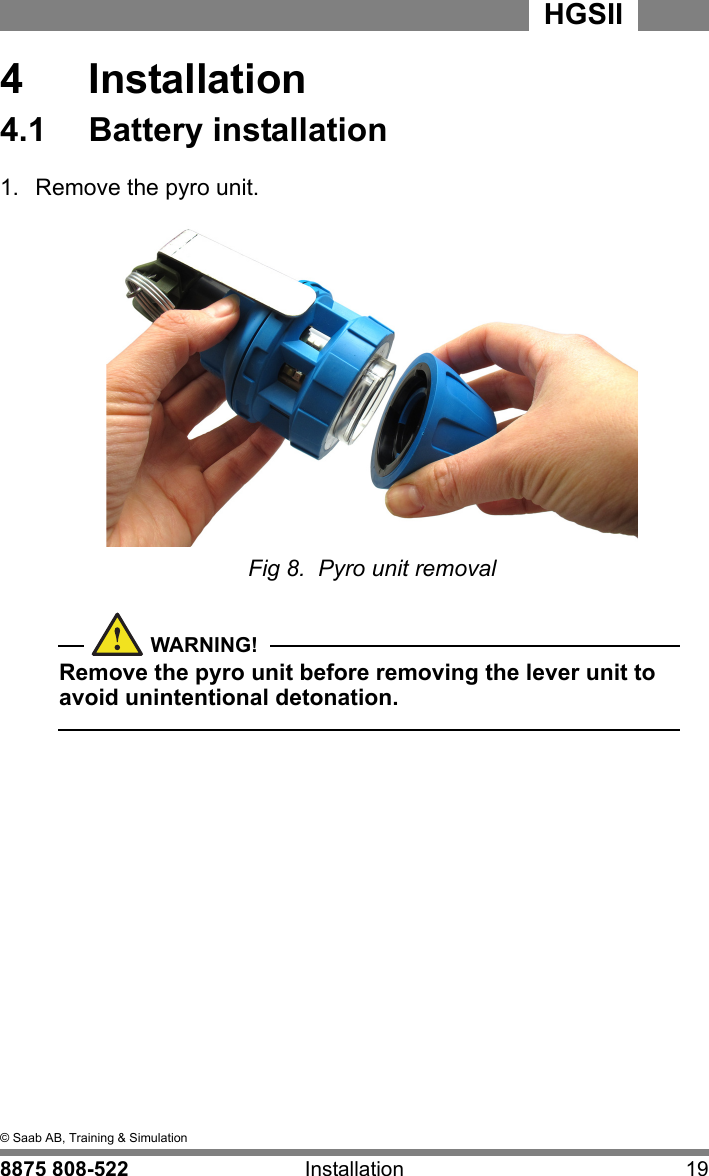

4 © Saab AB, Training & Simulation8875 808-522 Installation 19HGSII 4 Installation4.1 Battery installation1. Remove the pyro unit.Fig 8. Pyro unit removalWARNING!Remove the pyro unit before removing the lever unit to avoid unintentional detonation.

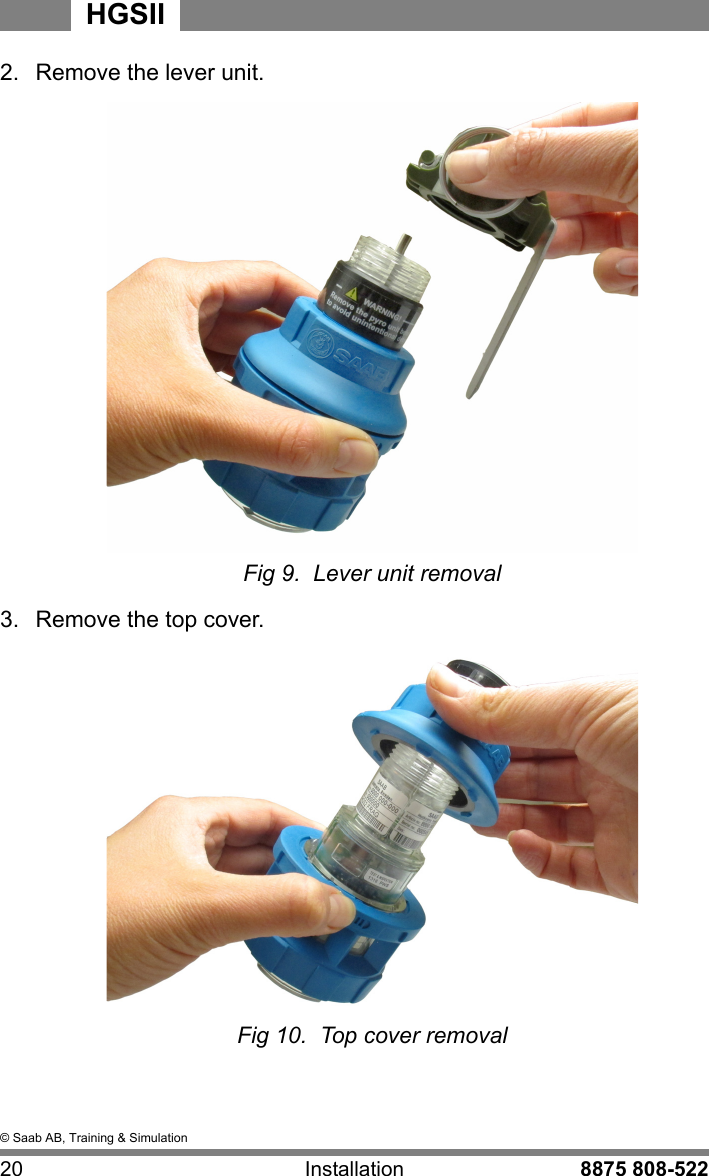

© Saab AB, Training & Simulation20 Installation 8875 808-522HGSII2. Remove the lever unit.Fig 9. Lever unit removal3. Remove the top cover.Fig 10. Top cover removal

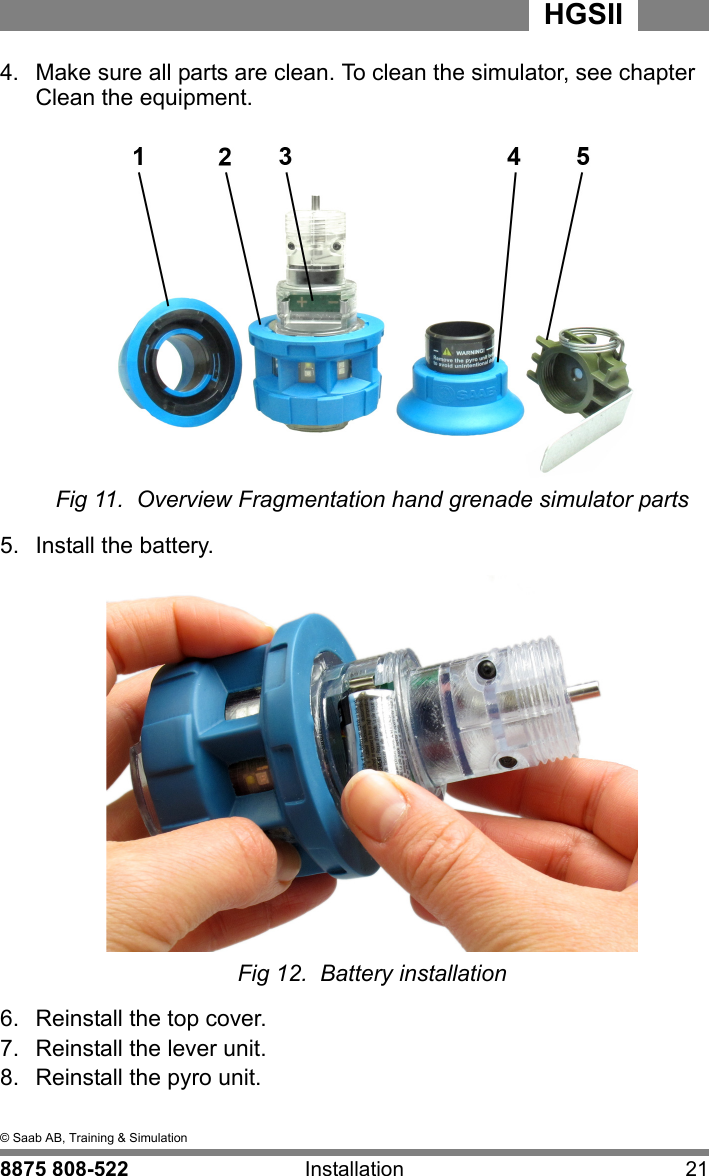

4 © Saab AB, Training & Simulation8875 808-522 Installation 21HGSII4. Make sure all parts are clean. To clean the simulator, see chapter Clean the equipment.Fig 11. Overview Fragmentation hand grenade simulator parts5. Install the battery.Fig 12. Battery installation6. Reinstall the top cover.7. Reinstall the lever unit.8. Reinstall the pyro unit.
© Saab AB, Training & Simulation22 Installation 8875 808-522HGSII

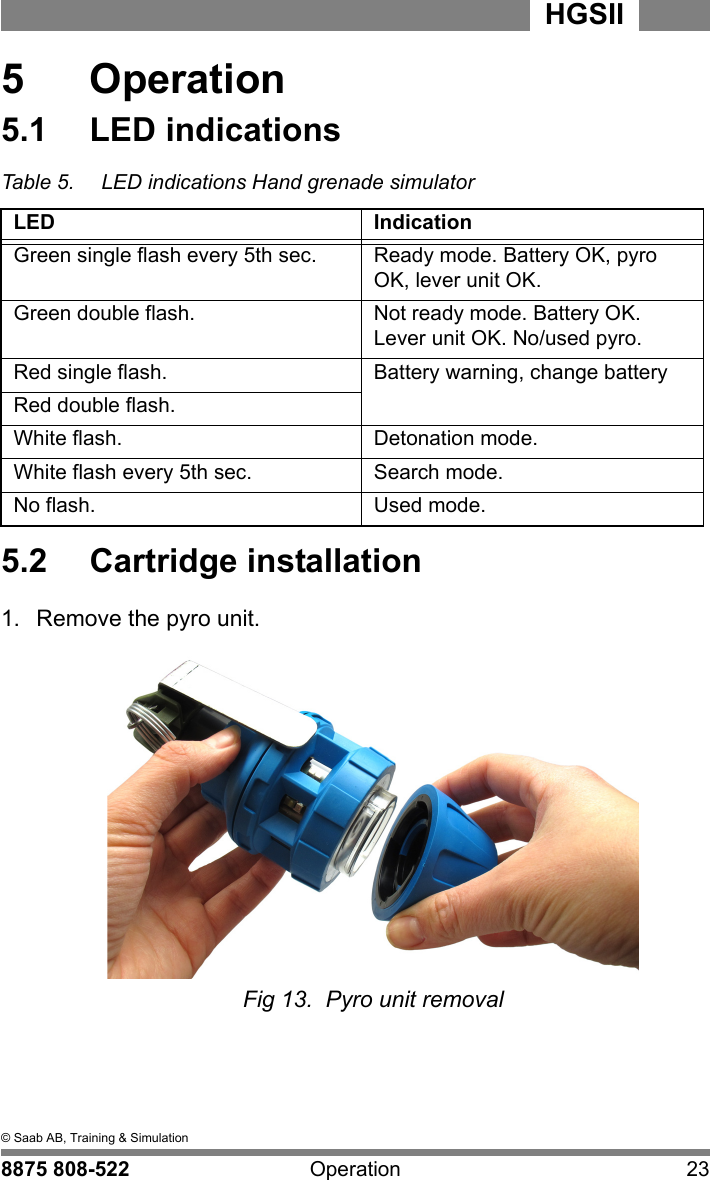

5 © Saab AB, Training & Simulation8875 808-522 Operation 23HGSII 5 Operation5.1 LED indicationsTable 5. LED indications Hand grenade simulatorLED IndicationGreen single flash every 5th sec. Ready mode. Battery OK, pyro OK, lever unit OK.Green double flash. Not ready mode. Battery OK. Lever unit OK. No/used pyro.Red single flash. Battery warning, change batteryRed double flash.White flash. Detonation mode.White flash every 5th sec. Search mode.No flash. Used mode.5.2 Cartridge installation1. Remove the pyro unit.Fig 13. Pyro unit removal

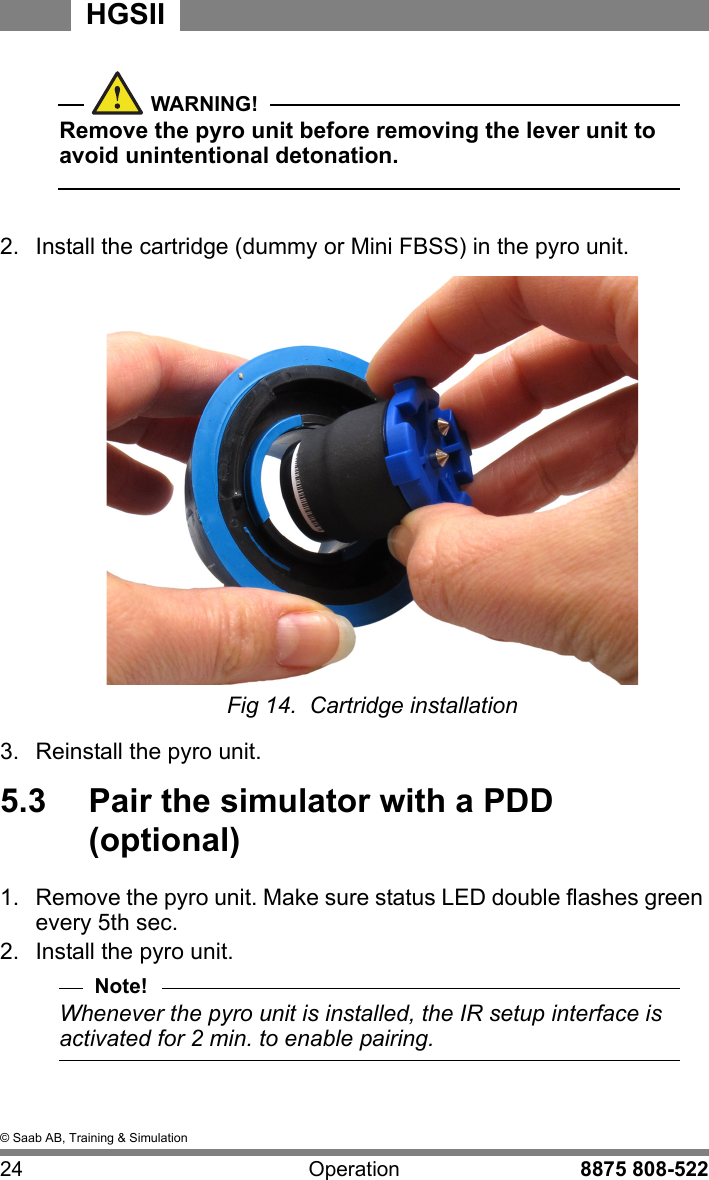

© Saab AB, Training & Simulation24 Operation 8875 808-522HGSIIWARNING!Remove the pyro unit before removing the lever unit to avoid unintentional detonation. 2. Install the cartridge (dummy or Mini FBSS) in the pyro unit.Fig 14. Cartridge installation3. Reinstall the pyro unit.5.3 Pair the simulator with a PDD (optional)1. Remove the pyro unit. Make sure status LED double flashes green every 5th sec.2. Install the pyro unit. Note!Whenever the pyro unit is installed, the IR setup interface is activated for 2 min. to enable pairing.

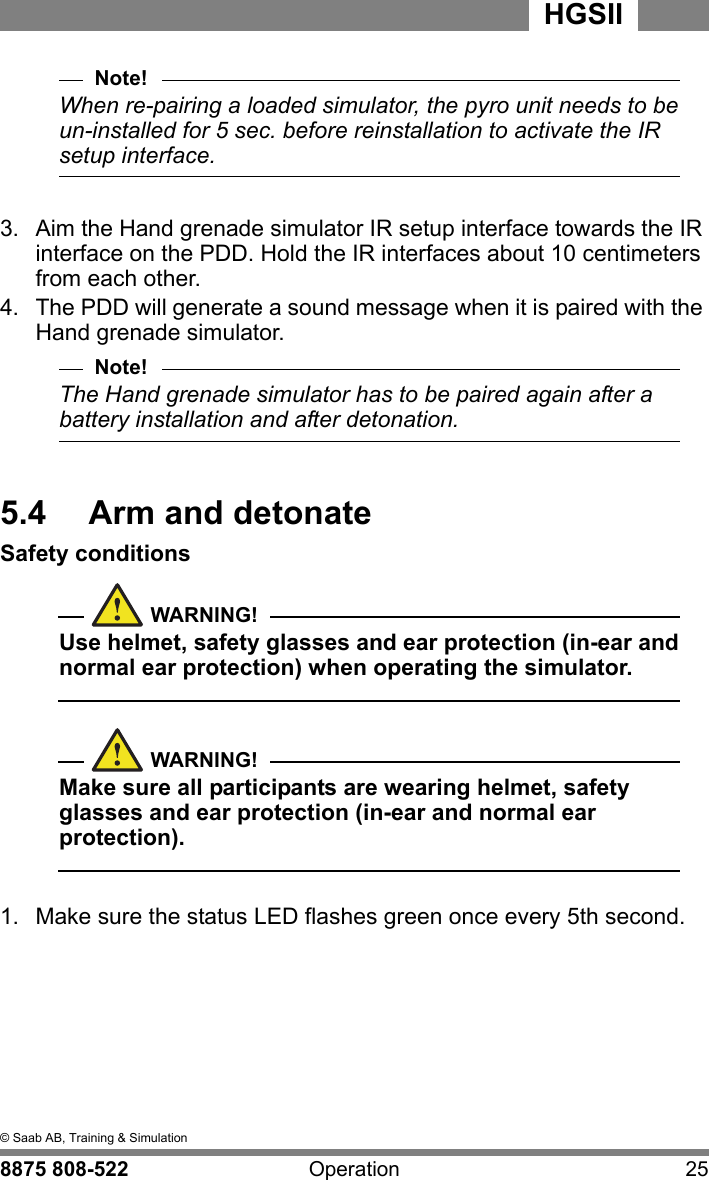

5 © Saab AB, Training & Simulation8875 808-522 Operation 25HGSIINote!When re-pairing a loaded simulator, the pyro unit needs to be un-installed for 5 sec. before reinstallation to activate the IR setup interface.3. Aim the Hand grenade simulator IR setup interface towards the IR interface on the PDD. Hold the IR interfaces about 10 centimeters from each other.4. The PDD will generate a sound message when it is paired with the Hand grenade simulator.Note!The Hand grenade simulator has to be paired again after a battery installation and after detonation.5.4 Arm and detonateSafety conditionsWARNING!Use helmet, safety glasses and ear protection (in-ear and normal ear protection) when operating the simulator. WARNING!Make sure all participants are wearing helmet, safety glasses and ear protection (in-ear and normal ear protection). 1. Make sure the status LED flashes green once every 5th second.

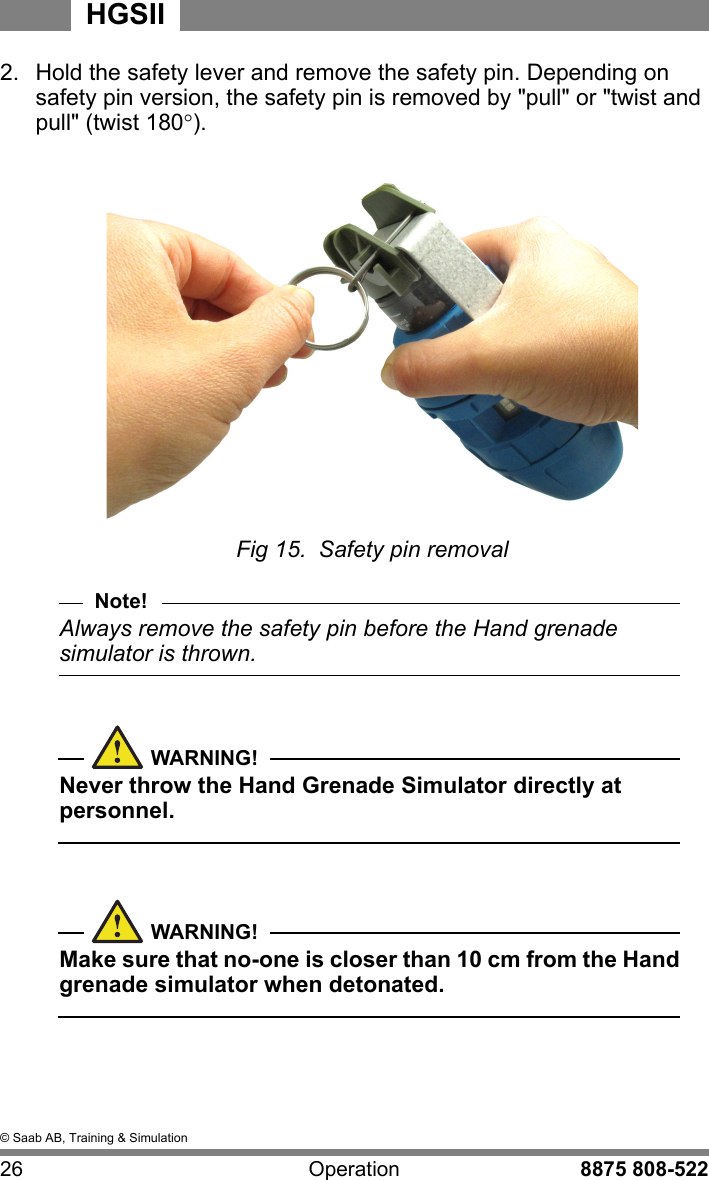

© Saab AB, Training & Simulation26 Operation 8875 808-522HGSII2. Hold the safety lever and remove the safety pin. Depending on safety pin version, the safety pin is removed by "pull" or "twist and pull" (twist 180).Fig 15. Safety pin removalNote!Always remove the safety pin before the Hand grenade simulator is thrown.WARNING!Never throw the Hand Grenade Simulator directly at personnel.WARNING!Make sure that no-one is closer than 10 cm from the Hand grenade simulator when detonated.

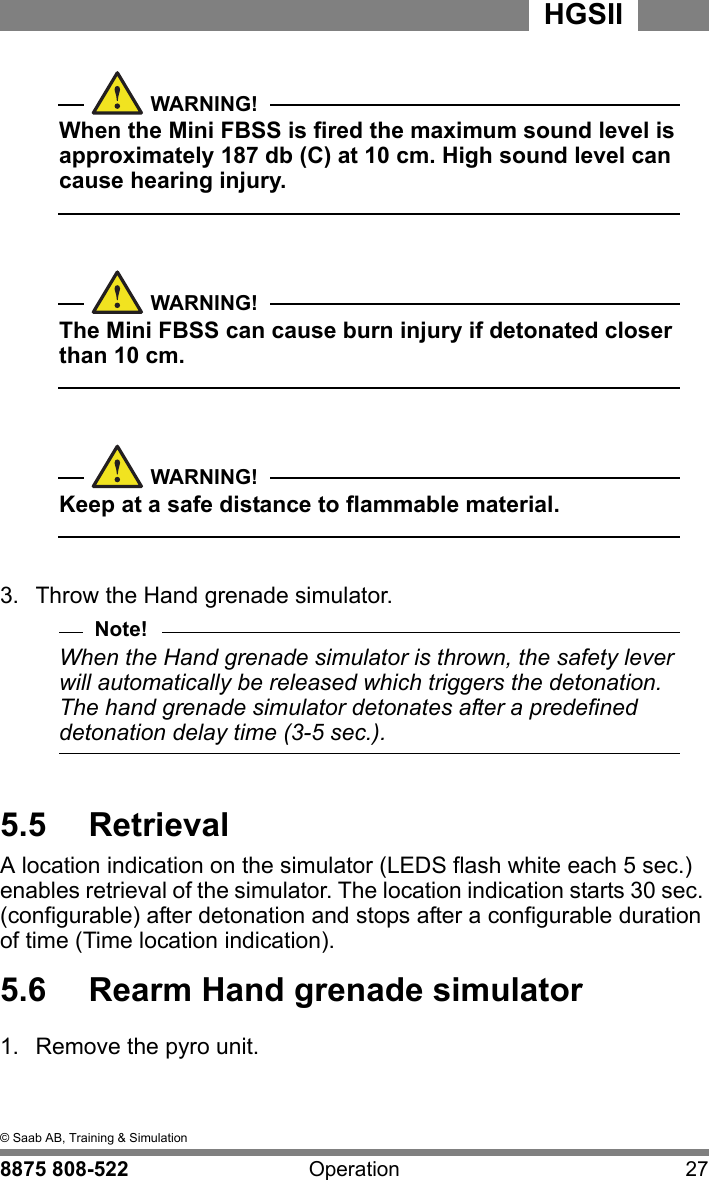

5 © Saab AB, Training & Simulation8875 808-522 Operation 27HGSIIWARNING!When the Mini FBSS is fired the maximum sound level is approximately 187 db (C) at 10 cm. High sound level can cause hearing injury. WARNING!The Mini FBSS can cause burn injury if detonated closer than 10 cm. WARNING!Keep at a safe distance to flammable material.3. Throw the Hand grenade simulator. Note!When the Hand grenade simulator is thrown, the safety lever will automatically be released which triggers the detonation. The hand grenade simulator detonates after a predefined detonation delay time (3-5 sec.).5.5 RetrievalA location indication on the simulator (LEDS flash white each 5 sec.) enables retrieval of the simulator. The location indication starts 30 sec. (configurable) after detonation and stops after a configurable duration of time (Time location indication).5.6 Rearm Hand grenade simulator1. Remove the pyro unit.

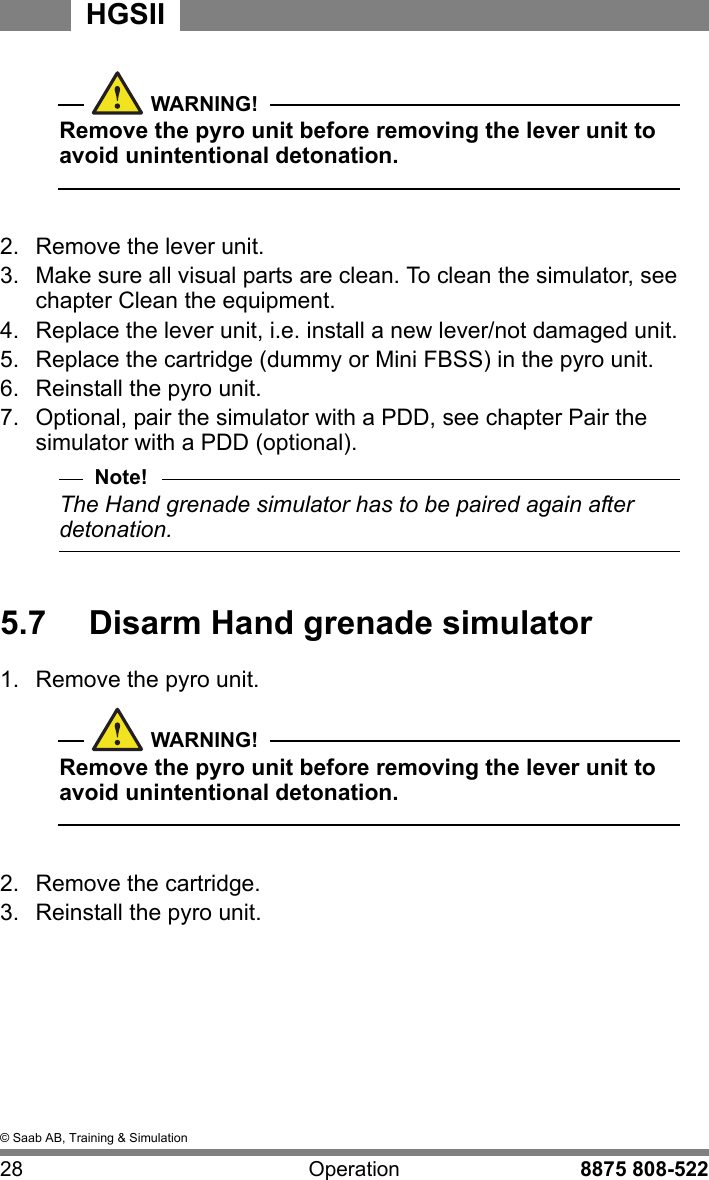

© Saab AB, Training & Simulation28 Operation 8875 808-522HGSIIWARNING!Remove the pyro unit before removing the lever unit to avoid unintentional detonation. 2. Remove the lever unit.3. Make sure all visual parts are clean. To clean the simulator, see chapter Clean the equipment.4. Replace the lever unit, i.e. install a new lever/not damaged unit.5. Replace the cartridge (dummy or Mini FBSS) in the pyro unit.6. Reinstall the pyro unit.7. Optional, pair the simulator with a PDD, see chapter Pair the simulator with a PDD (optional).Note!The Hand grenade simulator has to be paired again after detonation. 5.7 Disarm Hand grenade simulator1. Remove the pyro unit.WARNING!Remove the pyro unit before removing the lever unit to avoid unintentional detonation. 2. Remove the cartridge.3. Reinstall the pyro unit.

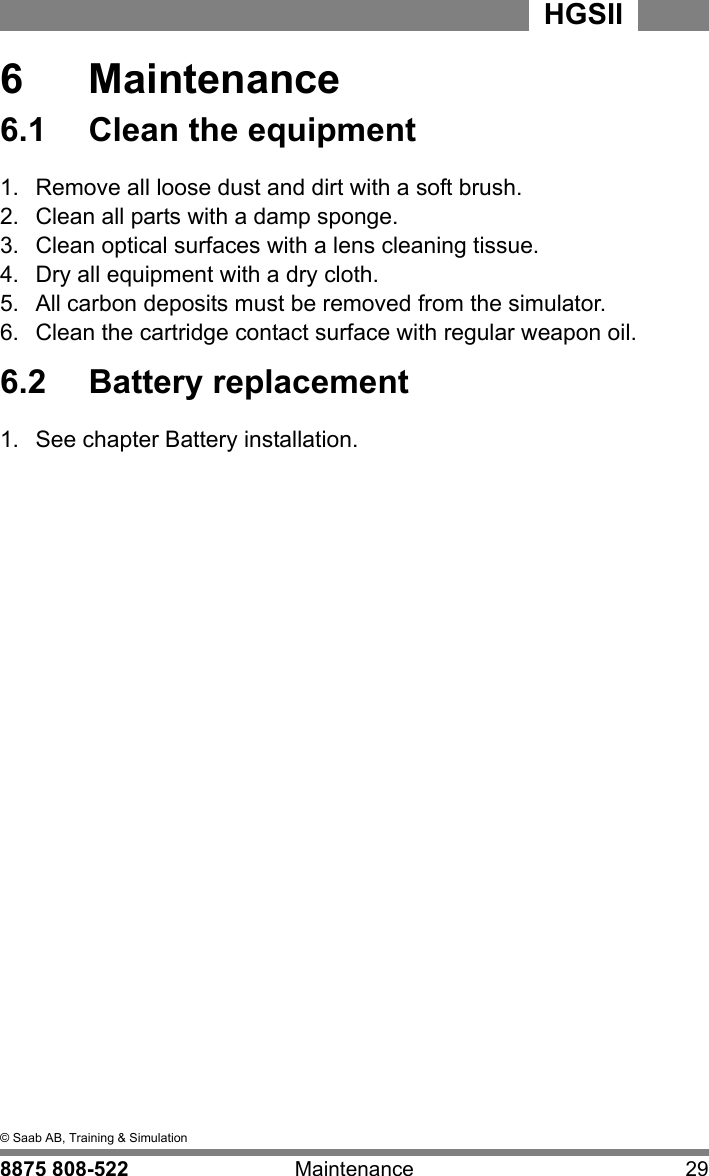

6 © Saab AB, Training & Simulation8875 808-522 Maintenance 29HGSII 6 Maintenance6.1 Clean the equipment1. Remove all loose dust and dirt with a soft brush. 2. Clean all parts with a damp sponge. 3. Clean optical surfaces with a lens cleaning tissue. 4. Dry all equipment with a dry cloth.5. All carbon deposits must be removed from the simulator.6. Clean the cartridge contact surface with regular weapon oil.6.2 Battery replacement1. See chapter Battery installation.
© Saab AB, Training & Simulation30 Maintenance 8875 808-522HGSII

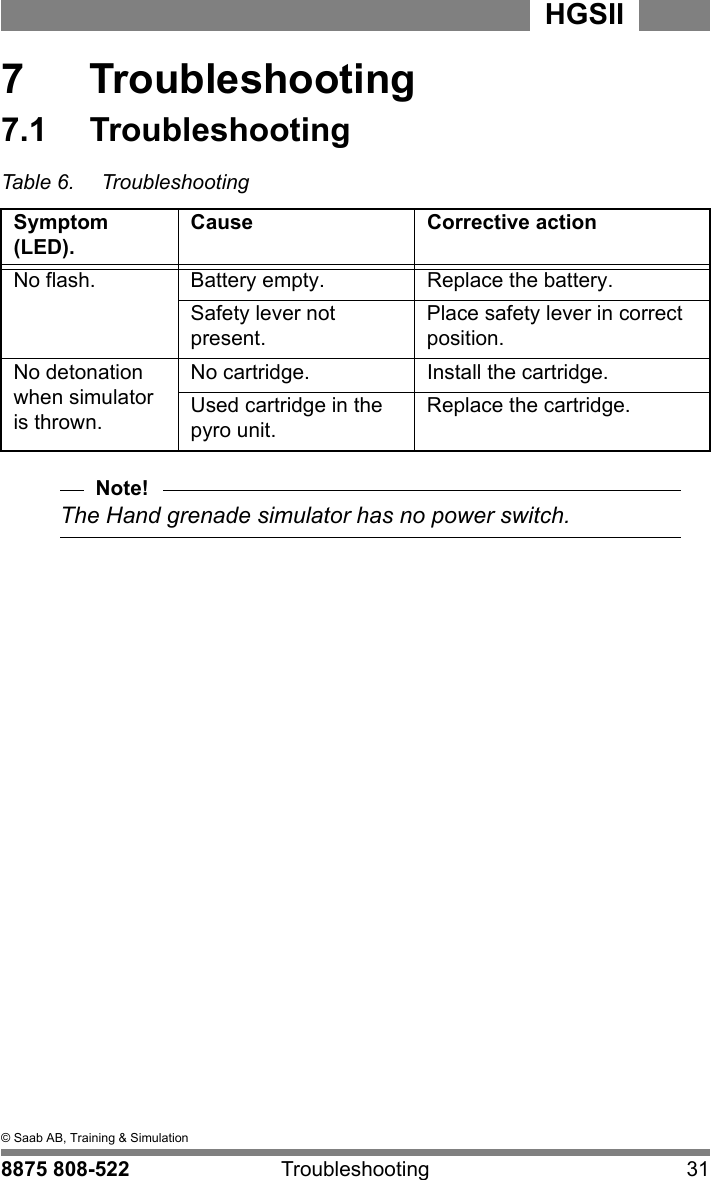

7 © Saab AB, Training & Simulation8875 808-522 Troubleshooting 31HGSII 7 Troubleshooting7.1 TroubleshootingTable 6. TroubleshootingSymptom (LED).Cause Corrective actionNo flash. Battery empty. Replace the battery.Safety lever not present.Place safety lever in correct position.No detonation when simulator is thrown.No cartridge. Install the cartridge.Used cartridge in the pyro unit.Replace the cartridge.Note!The Hand grenade simulator has no power switch.
© Saab AB, Training & Simulation32 Troubleshooting 8875 808-522HGSII

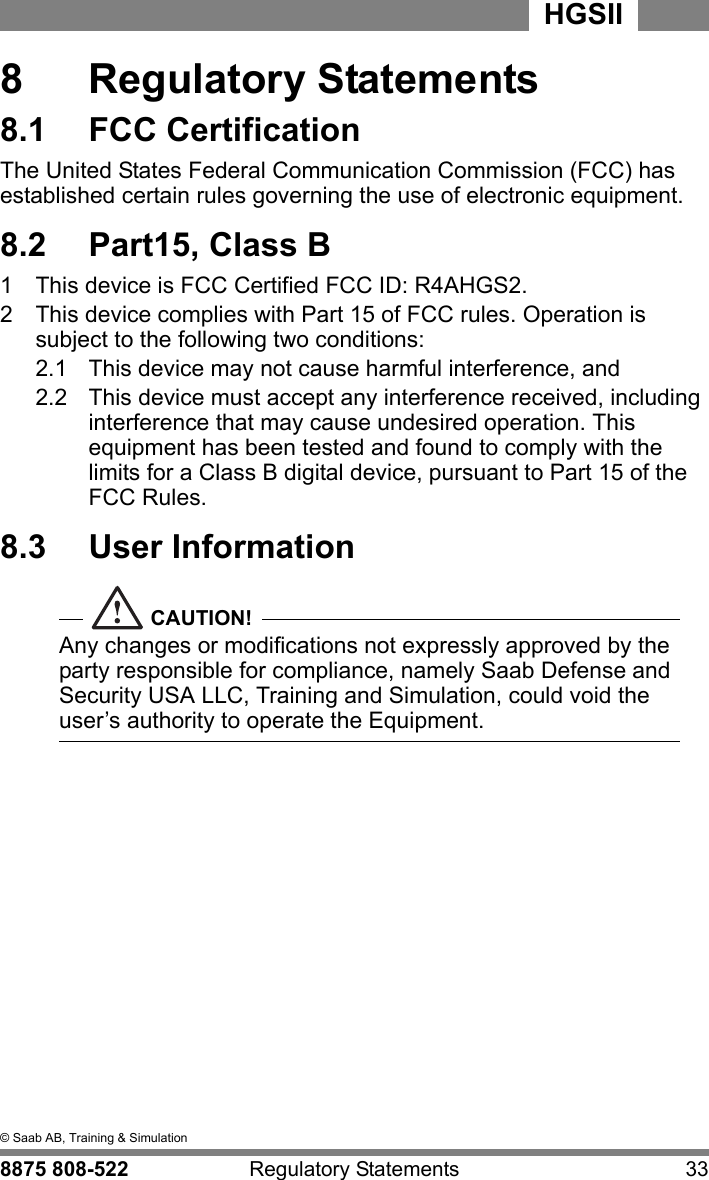

8 © Saab AB, Training & Simulation8875 808-522 Regulatory Statements 33HGSII 8 Regulatory Statements8.1 FCC CertificationThe United States Federal Communication Commission (FCC) has established certain rules governing the use of electronic equipment.8.2 Part15, Class B1 This device is FCC Certified FCC ID: R4AHGS2.2 This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:2.1 This device may not cause harmful interference, and2.2 This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.8.3 User InformationCAUTION!Any changes or modifications not expressly approved by the party responsible for compliance, namely Saab Defense and Security USA LLC, Training and Simulation, could void the user’s authority to operate the Equipment.

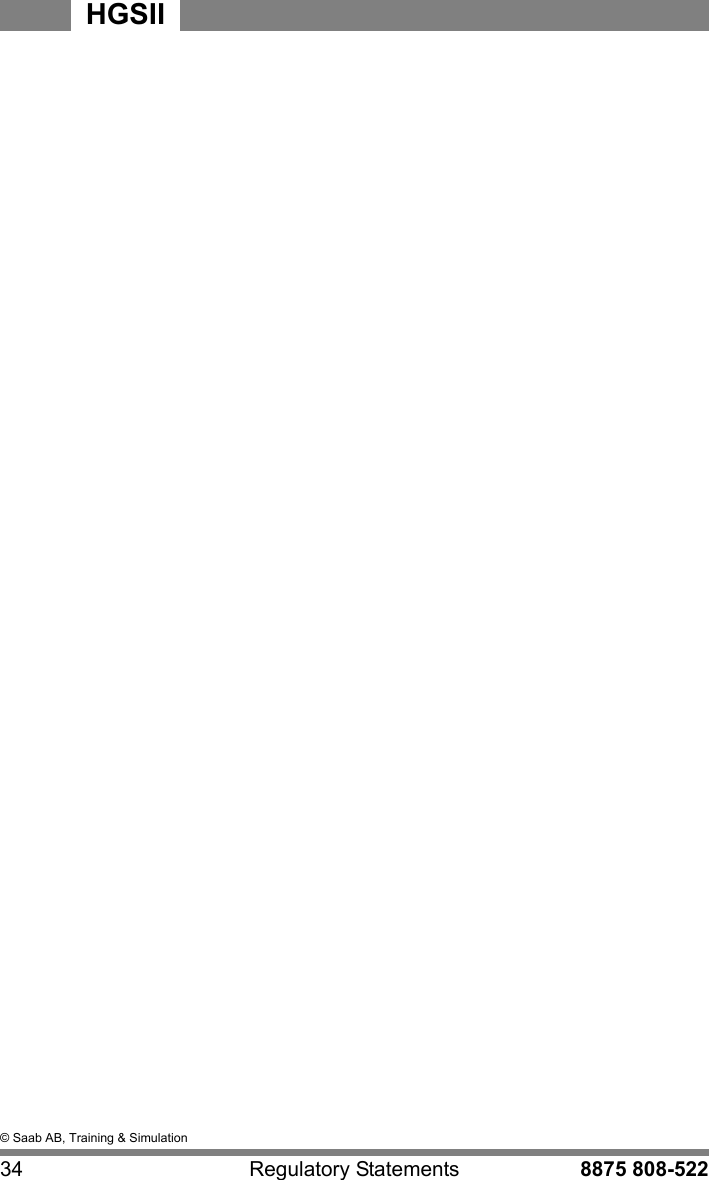

© Saab AB, Training & Simulation34 Regulatory Statements 8875 808-522HGSII

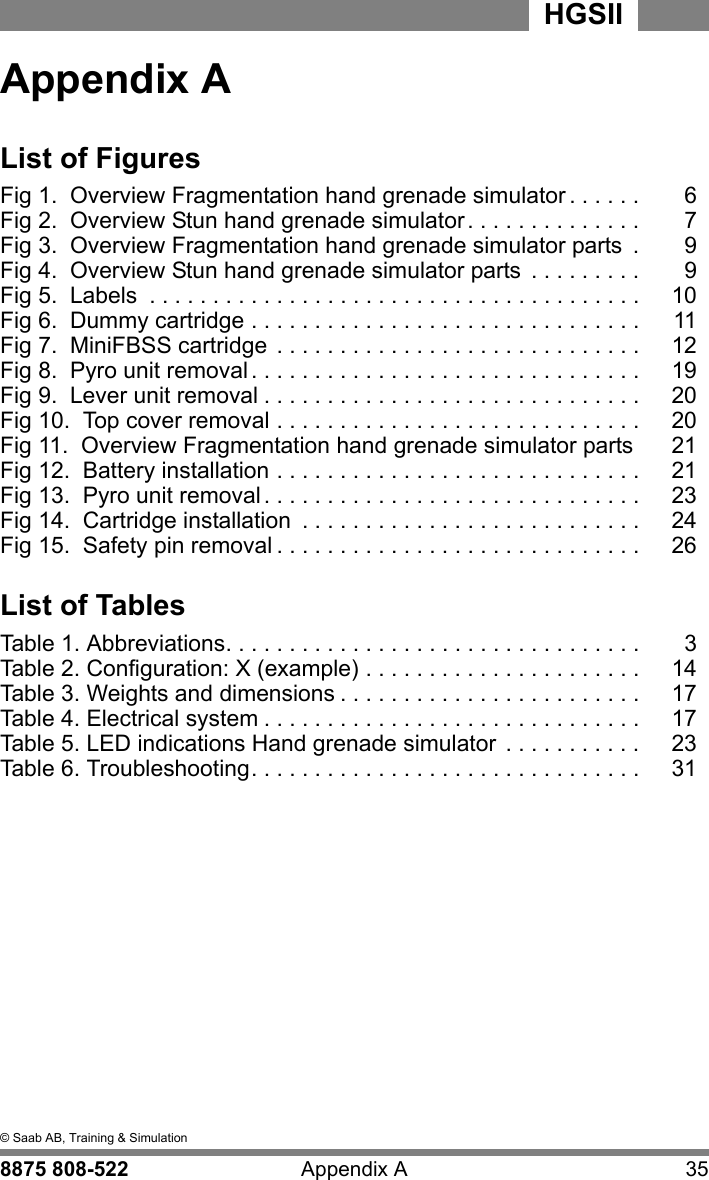

A© Saab AB, Training & Simulation8875 808-522 Appendix A 35HGSII AAppendix AList of FiguresFig 1. Overview Fragmentation hand grenade simulator . . . . . . 6Fig 2. Overview Stun hand grenade simulator. . . . . . . . . . . . . . 7Fig 3. Overview Fragmentation hand grenade simulator parts . 9Fig 4. Overview Stun hand grenade simulator parts . . . . . . . . . 9Fig 5. Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10Fig 6. Dummy cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Fig 7. MiniFBSS cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Fig 8. Pyro unit removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Fig 9. Lever unit removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Fig 10. Top cover removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Fig 11. Overview Fragmentation hand grenade simulator parts 21Fig 12. Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Fig 13. Pyro unit removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Fig 14. Cartridge installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Fig 15. Safety pin removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26List of TablesTable 1. Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Table 2. Configuration: X (example) . . . . . . . . . . . . . . . . . . . . . . 14Table 3. Weights and dimensions . . . . . . . . . . . . . . . . . . . . . . . . 17Table 4. Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Table 5. LED indications Hand grenade simulator . . . . . . . . . . . 23Table 6. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

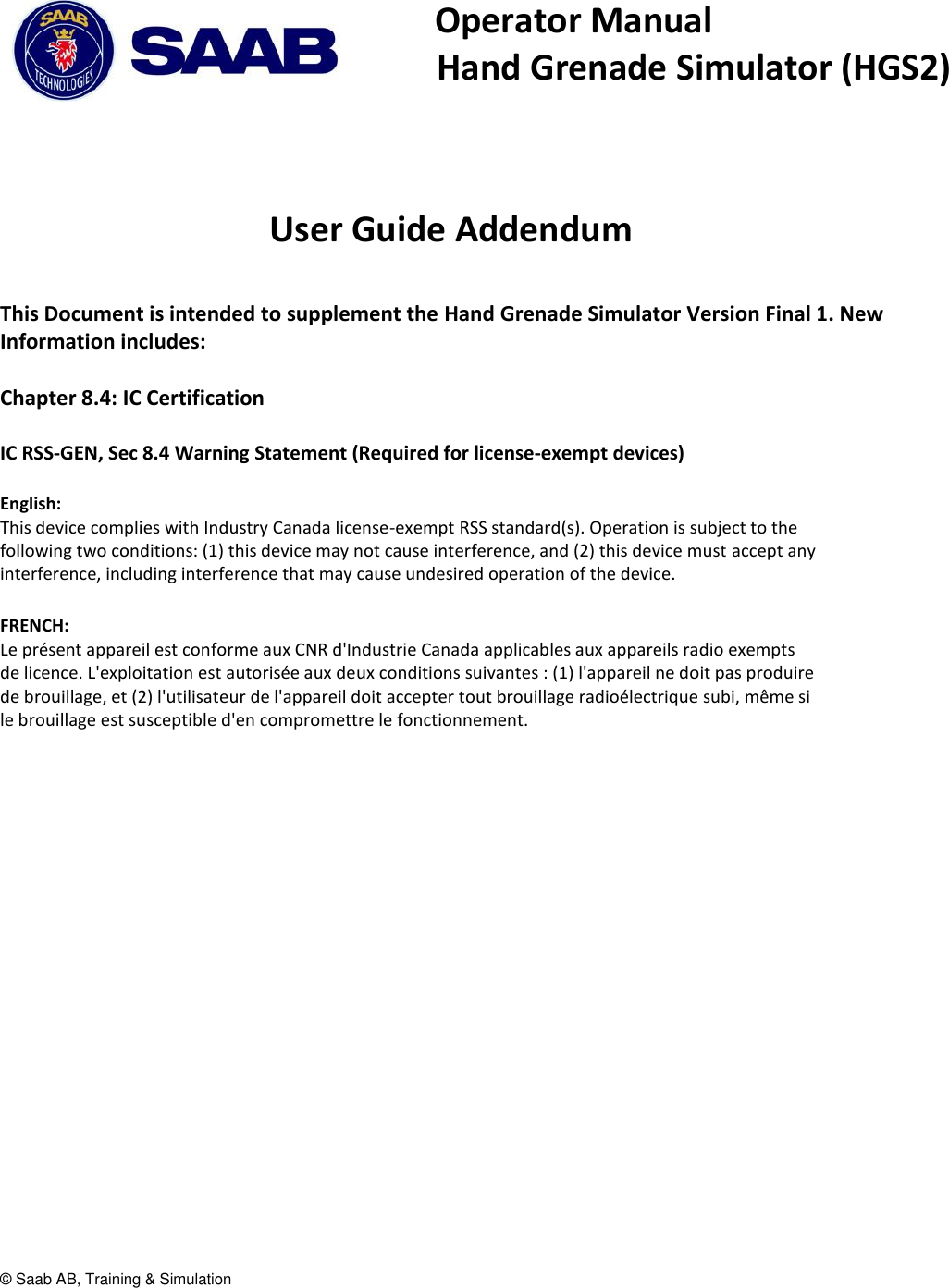

© Saab AB, Training & Simulation Operator Manual Hand Grenade Simulator (HGS2) User Guide Addendum This Document is intended to supplement the Hand Grenade Simulator Version Final 1. New Information includes: Chapter 8.4: IC Certification IC RSS-GEN, Sec 8.4 Warning Statement (Required for license-exempt devices) English: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. FRENCH: Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

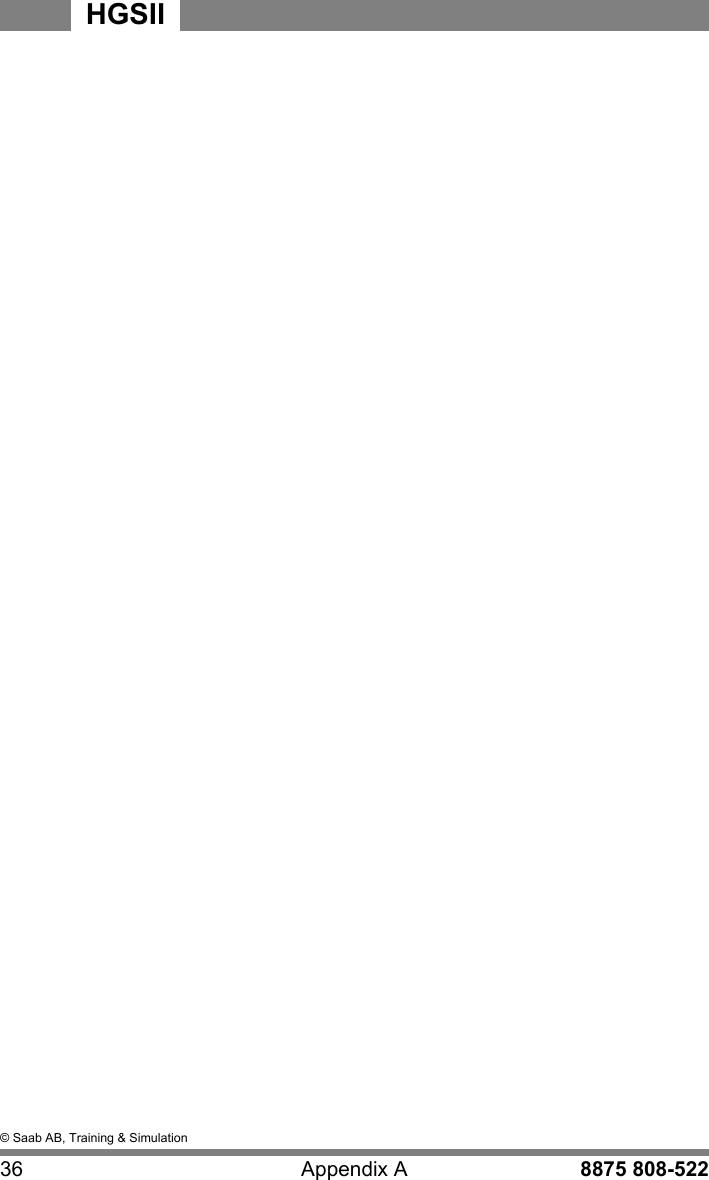

© Saab AB, Training & Simulation36 Appendix A 8875 808-522HGSII

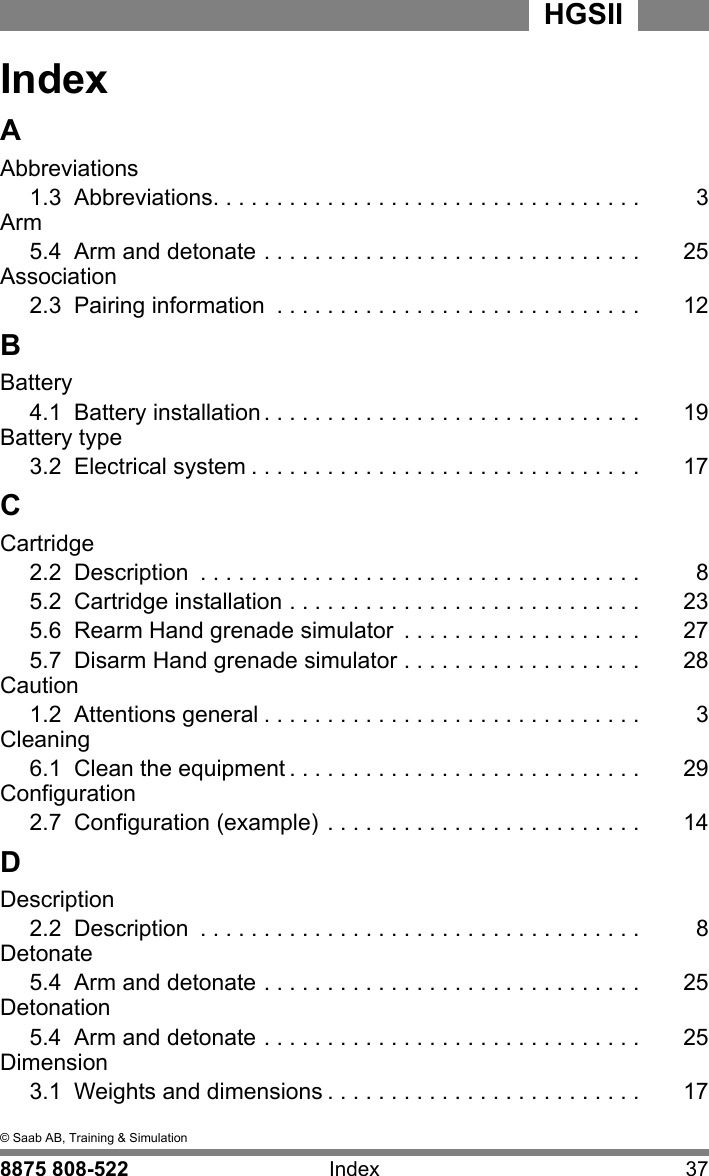

I© Saab AB, Training & Simulation8875 808-522 Index 37HGSII IIndexAAbbreviations1.3 Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Arm5.4 Arm and detonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Association2.3 Pairing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12BBattery4.1 Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Battery type3.2 Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17CCartridge2.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85.2 Cartridge installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235.6 Rearm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 275.7 Disarm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 28Caution1.2 Attentions general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Cleaning6.1 Clean the equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Configuration2.7 Configuration (example) . . . . . . . . . . . . . . . . . . . . . . . . . 14DDescription2.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Detonate5.4 Arm and detonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Detonation5.4 Arm and detonate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Dimension3.1 Weights and dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 17

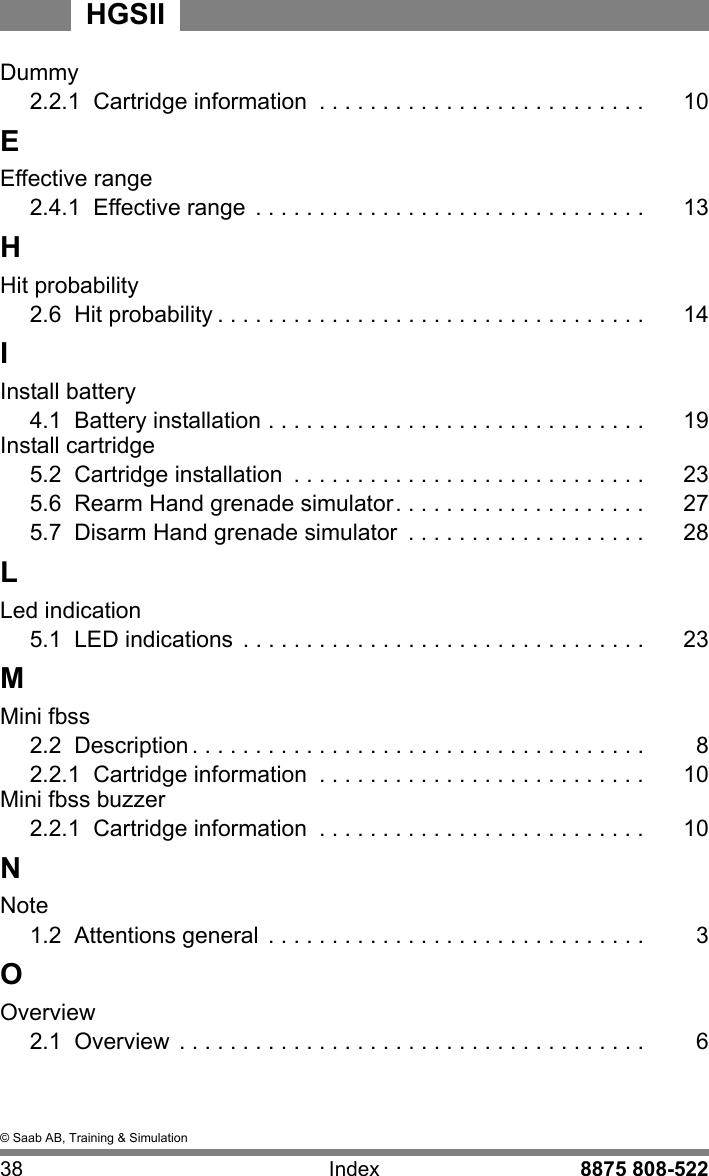

© Saab AB, Training & Simulation38 Index 8875 808-522HGSIIDummy2.2.1 Cartridge information . . . . . . . . . . . . . . . . . . . . . . . . . . 10EEffective range2.4.1 Effective range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13HHit probability2.6 Hit probability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14IInstall battery4.1 Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Install cartridge5.2 Cartridge installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235.6 Rearm Hand grenade simulator. . . . . . . . . . . . . . . . . . . . 275.7 Disarm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 28LLed indication5.1 LED indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23MMini fbss2.2 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82.2.1 Cartridge information . . . . . . . . . . . . . . . . . . . . . . . . . . 10Mini fbss buzzer2.2.1 Cartridge information . . . . . . . . . . . . . . . . . . . . . . . . . . 10NNote1.2 Attentions general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3OOverview2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
I© Saab AB, Training & Simulation8875 808-522 Index 39HGSIIPPairing2.3 Pairing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125.3 Pair the simulator with a PDD (optional) . . . . . . . . . . . . . 24Preface1.1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Pyrotechnic compound2.2.1 Cartridge information . . . . . . . . . . . . . . . . . . . . . . . . . . 10RRearm5.6 Rearm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 275.7 Disarm Hand grenade simulator . . . . . . . . . . . . . . . . . . . 28TTroubleshooting7.1 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31WWarning1.2 Attentions general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Weight3.1 Weights and dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 17

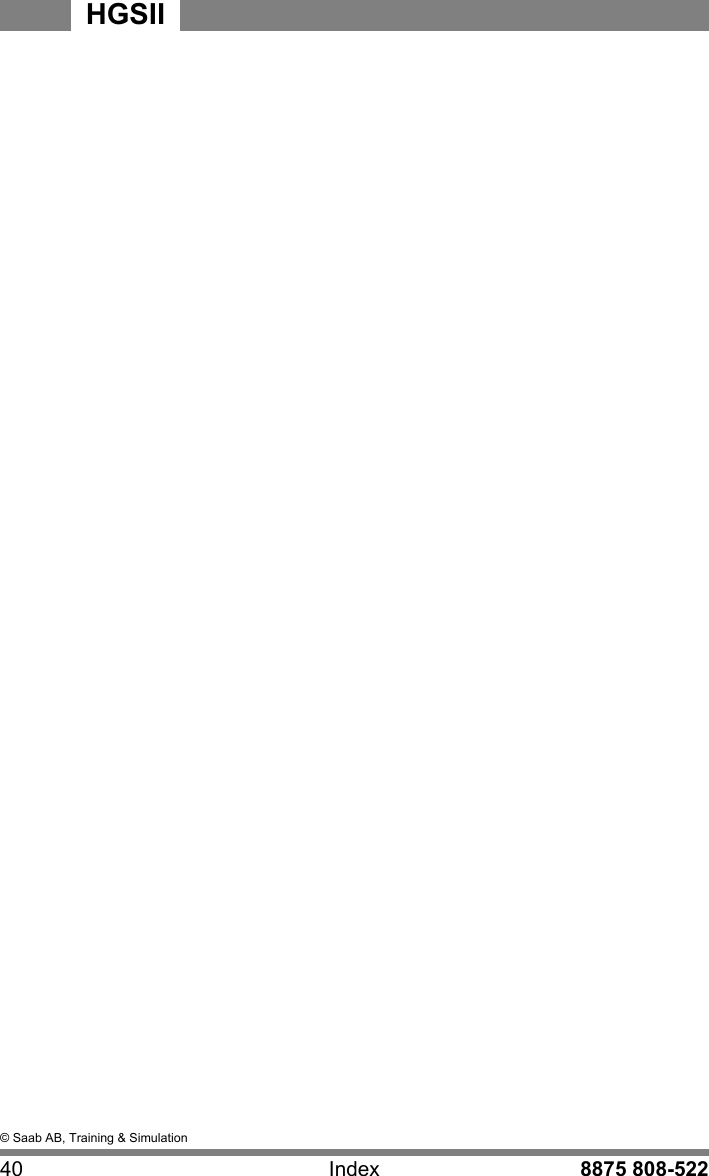

© Saab AB, Training & Simulation40 Index 8875 808-522HGSII
