Safety Technology 34080 Transmitter for use in a wireless alert system User Manual Rev

Safety Technology International, Inc. Transmitter for use in a wireless alert system Rev

Contents

User Manual Rev

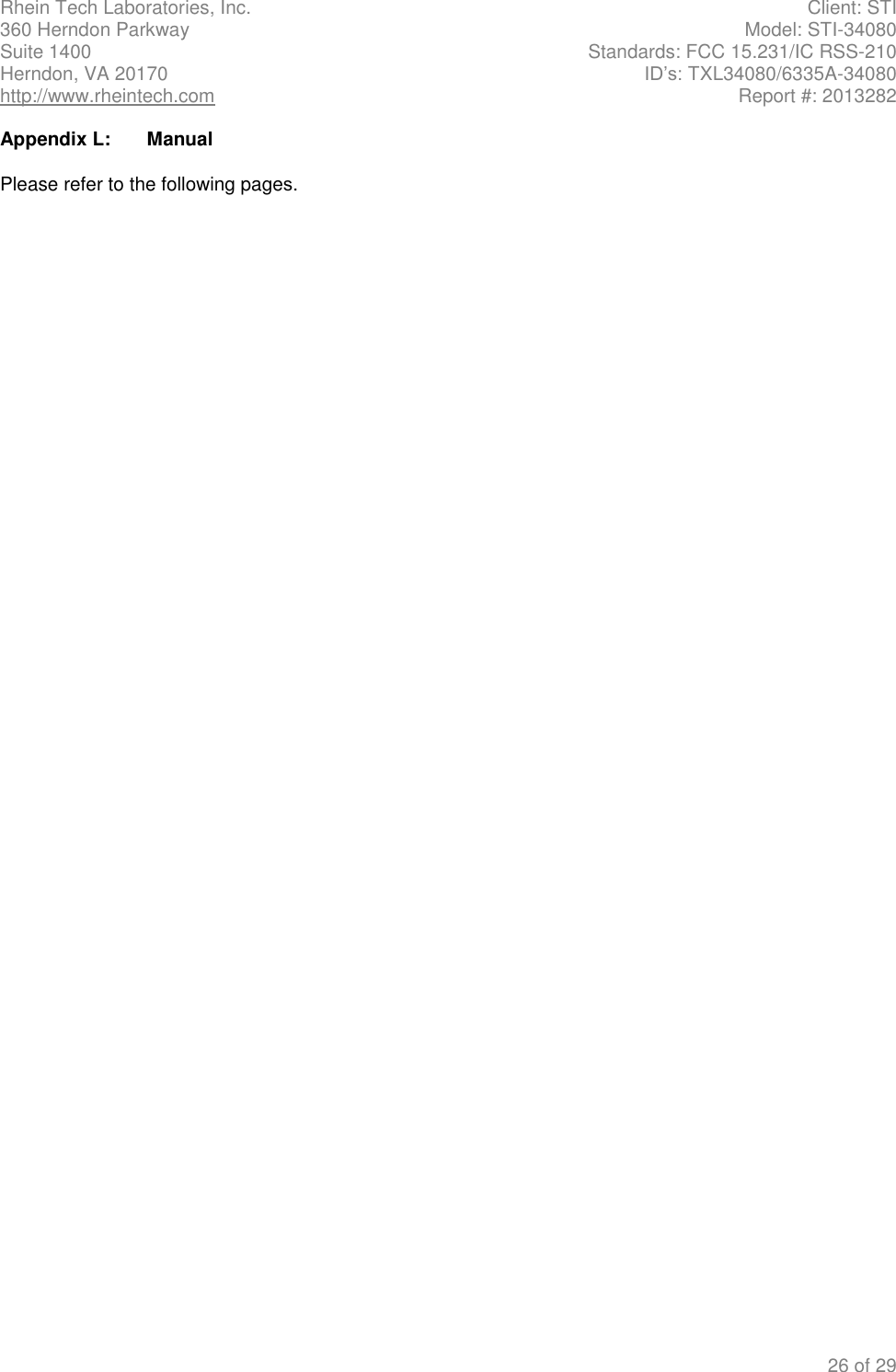

Rhein Tech Laboratories, Inc. Client: STI 360 Herndon Parkway Model: STI-34080 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34080/6335A-34080 http://www.rheintech.com Report #: 2013282 26 of 29 Appendix L: Manual Please refer to the following pages.

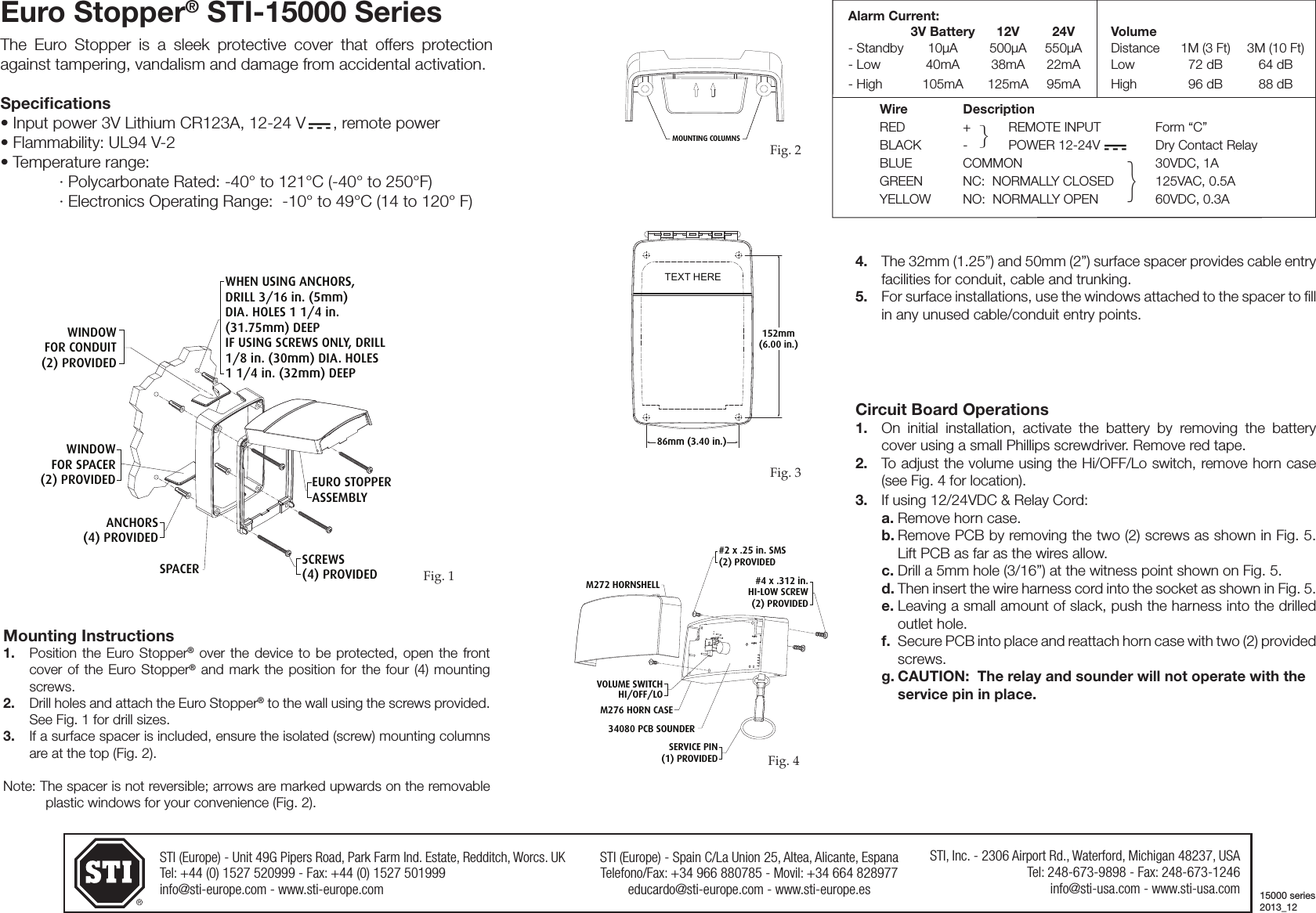

STI (Europe) - Unit 49G Pipers Road, Park Farm Ind. Estate, Redditch, Worcs. UKTel: +44 (0) 1527 520999 - Fax: +44 (0) 1527 501999info@sti-europe.com - www.sti-europe.comSTI (Europe) - Spain C/La Union 25, Altea, Alicante, EspanaTelefono/Fax: +34 966 880785 - Movil: +34 664 828977educardo@sti-europe.com - www.sti-europe.esSTI, Inc. - 2306 Airport Rd., Waterford, Michigan 48237, USATel: 248-673-9898 - Fax: 248-673-1246info@sti-usa.com - www.sti-usa.comEuro Stopper® STI-15000 SeriesThe Euro Stopper is a sleek protective cover that offers protection against tampering, vandalism and damage from accidental activation.Specifications• Input power 3V Lithium CR123A, 12-24 V , remote power• Flammability: UL94 V-2• Temperature range: · Polycarbonate Rated: -40° to 121°C (-40° to 250°F) · Electronics Operating Range: -10° to 49°C (14 to 120° F) Mounting Instructions1. Position the Euro Stopper® over the device to be protected, open the front cover of the Euro Stopper® and mark the position for the four (4) mounting screws.2. Drill holes and attach the Euro Stopper® to the wall using the screws provided. See Fig. 1 for drill sizes.3. If a surface spacer is included, ensure the isolated (screw) mounting columns are at the top (Fig. 2). Note: The spacer is not reversible; arrows are marked upwards on the removable plastic windows for your convenience (Fig. 2).WHEN USING ANCHORS,DRILL 3/16 in. (5mm) DIA. HOLES 1 1/4 in. (31.75mm) DEEPIF USING SCREWS ONLY, DRILL1/8 in. (30mm) DIA. HOLES1 1/4 in. (32mm) DEEPEURO STOPPERASSEMBLYSCREWS(4) PROVIDEDSPACERANCHORS(4) PROVIDEDWINDOWFOR SPACER(2) PROVIDEDWINDOWFOR CONDUIT(2) PROVIDED4. The 32mm (1.25”) and 50mm (2”) surface spacer provides cable entry facilities for conduit, cable and trunking. 5. For surface installations, use the windows attached to the spacer to ll in any unused cable/conduit entry points. MOUNTING COLUMNSFig. 1Fig. 286mm (3.40 in.)TEXT HERE152mm(6.00 in.)Circuit Board Operations1. On initial installation, activate the battery by removing the battery cover using a small Phillips screwdriver. Remove red tape.2. To adjust the volume using the Hi/OFF/Lo switch, remove horn case (see Fig. 4 for location).3. If using 12/24VDC & Relay Cord:a. Remove horn case. b. Remove PCB by removing the two (2) screws as shown in Fig. 5. Lift PCB as far as the wires allow.c. Drill a 5mm hole (3/16”) at the witness point shown on Fig. 5.d. Then insert the wire harness cord into the socket as shown in Fig. 5.e. Leaving a small amount of slack, push the harness into the drilled outlet hole.f. Secure PCB into place and reattach horn case with two (2) provided screws.g. CAUTION: The relay and sounder will not operate with the service pin in place.Fig. 3Alarm Current: 3V Battery 12V 24V Volume- Standby 10µA 500µA 550µA Distance 1M (3 Ft) 3M (10 Ft)- Low 40mA 38mA 22mA Low 72 dB 64 dB- High 105mA 125mA 95mA High 96 dB 88 dBWire Description RED + REMOTE INPUT Form “C”BLACK - POWER 12-24V Dry Contact RelayBLUE COMMON 30VDC, 1AGREEN NC: NORMALLY CLOSED 125VAC, 0.5AYELLOW NO: NORMALLY OPEN 60VDC, 0.3A15000 series2013_12}}SERVICE PIN(1) PROVIDEDM276 HORN CASE34080 PCB SOUNDER#4 x .312 in.HI-LOW SCREW(2) PROVIDED#2 x .25 in. SMS(2) PROVIDEDM272 HORNSHELLVOLUME SWITCHHI/OFF/LOFig. 4

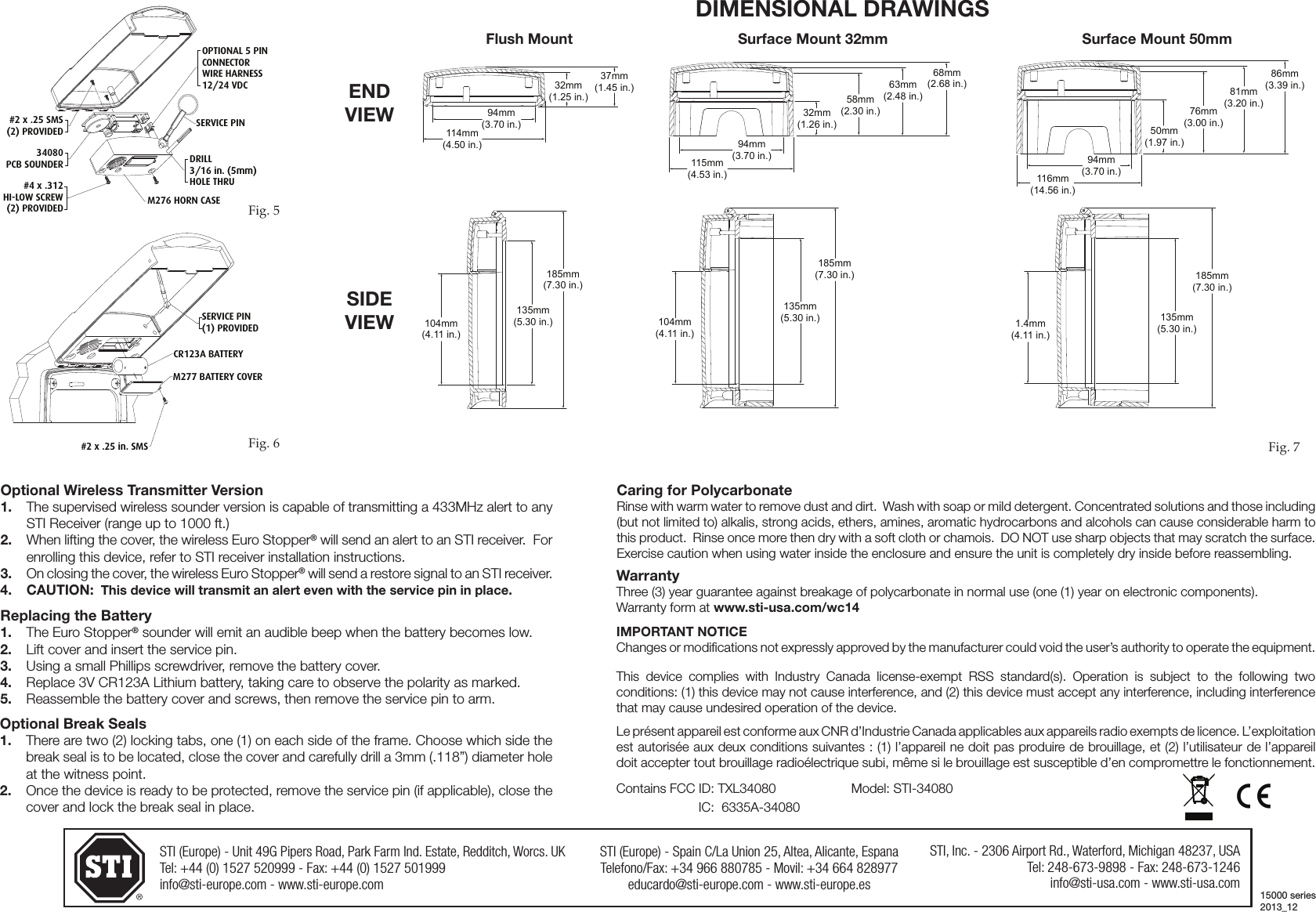

STI (Europe) - Unit 49G Pipers Road, Park Farm Ind. Estate, Redditch, Worcs. UKTel: +44 (0) 1527 520999 - Fax: +44 (0) 1527 501999info@sti-europe.com - www.sti-europe.comSTI (Europe) - Spain C/La Union 25, Altea, Alicante, EspanaTelefono/Fax: +34 966 880785 - Movil: +34 664 828977educardo@sti-europe.com - www.sti-europe.esSTI, Inc. - 2306 Airport Rd., Waterford, Michigan 48237, USATel: 248-673-9898 - Fax: 248-673-1246info@sti-usa.com - www.sti-usa.comSERVICE PIN(1) PROVIDED#2 x .25 in. SMSM277 BATTERY COVERCR123A BATTERYFig. 6Optional Wireless Transmitter Version1. The supervised wireless sounder version is capable of transmitting a 433MHz alert to any STI Receiver (range up to 1000 ft.)2. When lifting the cover, the wireless Euro Stopper® will send an alert to an STI receiver. For enrolling this device, refer to STI receiver installation instructions.3. On closing the cover, the wireless Euro Stopper® will send a restore signal to an STI receiver.4. CAUTION: This device will transmit an alert even with the service pin in place.Replacing the Battery1. The Euro Stopper® sounder will emit an audible beep when the battery becomes low.2. Lift cover and insert the service pin.3. Using a small Phillips screwdriver, remove the battery cover.4. Replace 3V CR123A Lithium battery, taking care to observe the polarity as marked.5. Reassemble the battery cover and screws, then remove the service pin to arm.Optional Break Seals1. There are two (2) locking tabs, one (1) on each side of the frame. Choose which side the break seal is to be located, close the cover and carefully drill a 3mm (.118”) diameter hole at the witness point.2. Once the device is ready to be protected, remove the service pin (if applicable), close the cover and lock the break seal in place.AABB 104mm(4.11 in.)185mm(7.30 in.)135mm(5.30 in.)32mm(1.25 in.)37mm(1.45 in.)94mm(3.70 in.)114mm(4.50 in.)CCDD 104mm(4.11 in.)135mm(5.30 in.)185mm(7.30 in.)32mm(1.26 in.)58mm(2.30 in.)63mm(2.48 in.)68mm(2.68 in.)94mm(3.70 in.)115mm(4.53 in.)CCDD 135mm(5.30 in.)185mm(7.30 in.)1.4mm(4.11 in.)50mm(1.97 in.)76mm(3.00 in.)81mm(3.20 in.)86mm(3.39 in.)94mm(3.70 in.)116mm(14.56 in.)AABB104mm(4.11 in.)185mm(7.30 in.)135mm(5.30 in.)32mm(1.25 in.)37mm(1.45 in.)94mm(3.70 in.)114mm(4.50 in.)CCDD 104mm(4.11 in.)135mm(5.30 in.)185mm(7.30 in.)32mm(1.26 in.)58mm(2.30 in.)63mm(2.48 in.)68mm(2.68 in.)94mm(3.70 in.)115mm(4.53 in.)CCDD 135mm(5.30 in.)185mm(7.30 in.)1.4mm(4.11 in.)50mm(1.97 in.)76mm(3.00 in.)81mm(3.20 in.)86mm(3.39 in.)94mm(3.70 in.)116mm(14.56 in.)AABB 104mm(4.11 in.)185mm(7.30 in.)135mm(5.30 in.)32mm(1.25 in.)37mm(1.45 in.)94mm(3.70 in.)114mm(4.50 in.)CCDD 104mm(4.11 in.)135mm(5.30 in.)185mm(7.30 in.)32mm(1.26 in.)58mm(2.30 in.)63mm(2.48 in.)68mm(2.68 in.)94mm(3.70 in.)115mm(4.53 in.)CCDD 135mm(5.30 in.)185mm(7.30 in.)1.4mm(4.11 in.)50mm(1.97 in.)76mm(3.00 in.)81mm(3.20 in.)86mm(3.39 in.)94mm(3.70 in.)116mm(14.56 in.)AABB 104mm(4.11 in.)185mm(7.30 in.)135mm(5.30 in.)32mm(1.25 in.)37mm(1.45 in.)94mm(3.70 in.)114mm(4.50 in.)CCDD104mm(4.11 in.)135mm(5.30 in.)185mm(7.30 in.)32mm(1.26 in.)58mm(2.30 in.)63mm(2.48 in.)68mm(2.68 in.)94mm(3.70 in.)115mm(4.53 in.)CCDD 135mm(5.30 in.)185mm(7.30 in.)1.4mm(4.11 in.)50mm(1.97 in.)76mm(3.00 in.)81mm(3.20 in.)86mm(3.39 in.)94mm(3.70 in.)116mm(14.56 in.)AABB 104mm(4.11 in.)185mm(7.30 in.)135mm(5.30 in.)32mm(1.25 in.)37mm(1.45 in.)94mm(3.70 in.)114mm(4.50 in.)CCDD 104mm(4.11 in.)135mm(5.30 in.)185mm(7.30 in.)32mm(1.26 in.)58mm(2.30 in.)63mm(2.48 in.)68mm(2.68 in.)94mm(3.70 in.)115mm(4.53 in.)CCDD 135mm(5.30 in.)185mm(7.30 in.)1.4mm(4.11 in.)50mm(1.97 in.)76mm(3.00 in.)81mm(3.20 in.)86mm(3.39 in.)94mm(3.70 in.)116mm(14.56 in.)AABB 104mm(4.11 in.)185mm(7.30 in.)135mm(5.30 in.)32mm(1.25 in.)37mm(1.45 in.)94mm(3.70 in.)114mm(4.50 in.)CCDD 104mm(4.11 in.)135mm(5.30 in.)185mm(7.30 in.)32mm(1.26 in.)58mm(2.30 in.)63mm(2.48 in.)68mm(2.68 in.)94mm(3.70 in.)115mm(4.53 in.)CCDD135mm(5.30 in.)185mm(7.30 in.)1.4mm(4.11 in.)50mm(1.97 in.)76mm(3.00 in.)81mm(3.20 in.)86mm(3.39 in.)94mm(3.70 in.)116mm(14.56 in.)Caring for PolycarbonateRinse with warm water to remove dust and dirt. Wash with soap or mild detergent. Concentrated solutions and those including (but not limited to) alkalis, strong acids, ethers, amines, aromatic hydrocarbons and alcohols can cause considerable harm to this product. Rinse once more then dry with a soft cloth or chamois. DO NOT use sharp objects that may scratch the surface. Exercise caution when using water inside the enclosure and ensure the unit is completely dry inside before reassembling.WarrantyThree (3) year guarantee against breakage of polycarbonate in normal use (one (1) year on electronic components).Warranty form at www.sti-usa.com/wc14IMPORTANT NOTICEChanges or modications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Contains FCC ID: TXL34080 Model: STI-34080Fig. 7DIMENSIONAL DRAWINGSSurface Mount 32mmFlush Mount Surface Mount 50mmOPTIONAL 5 PINCONNECTORWIRE HARNESS12/24 VDCSERVICE PIN#2 x .25 SMS(2) PROVIDED34080PCB SOUNDER#4 x .312HI-LOW SCREW(2) PROVIDED M276 HORN CASEDRILL3/16 in. (5mm)HOLE THRUFig. 5ENDVIEWSIDEVIEWIC: 6335A-3408015000 series2013_12
