Safety Technology 34701 Indoor Motion Detector, 433.92MHz User Manual

Safety Technology International, Inc. Indoor Motion Detector, 433.92MHz

User Manual

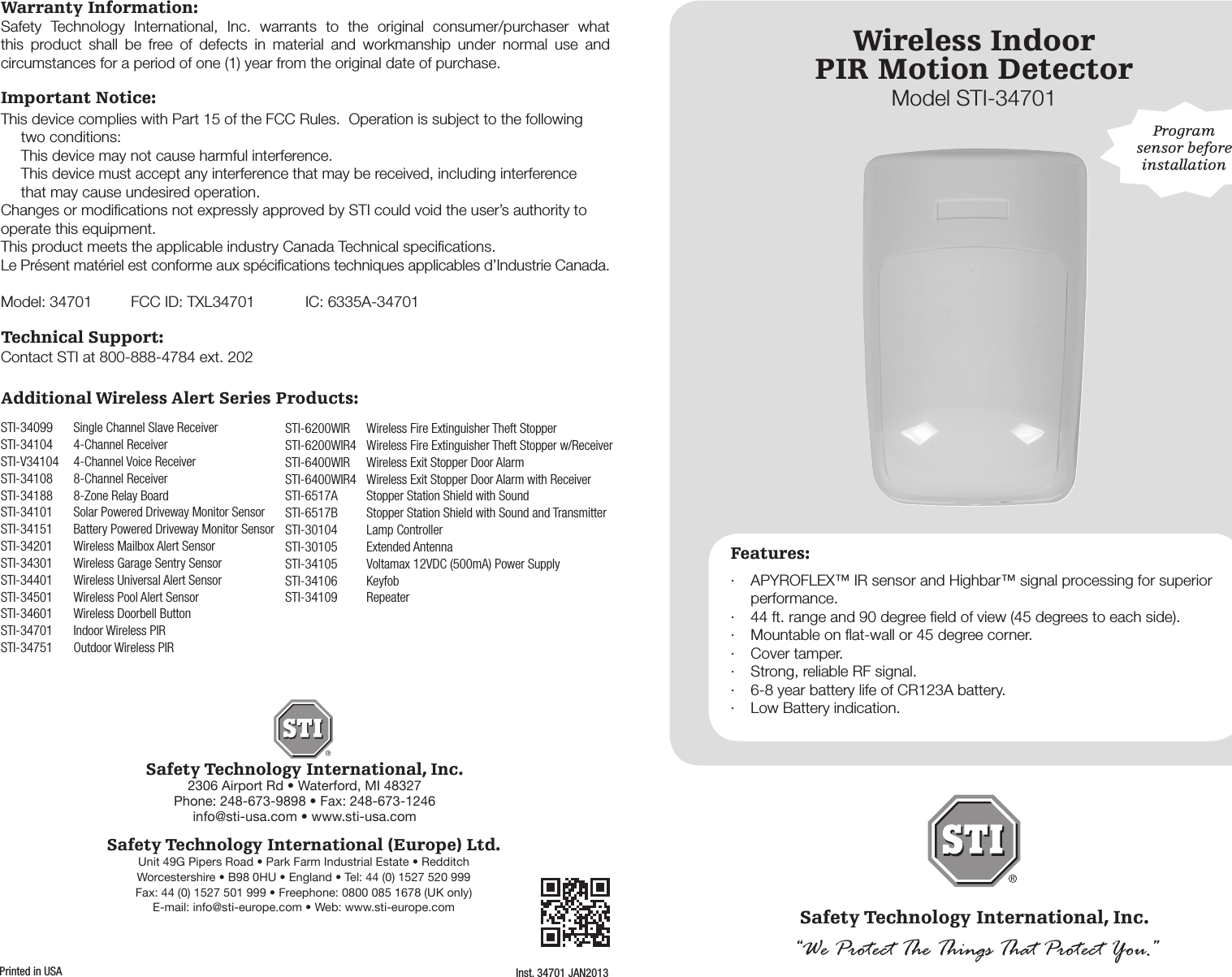

Wireless IndoorPIR Motion DetectorModel STI-34701Safety Technology International, Inc.“We Protect The Things That Protect You.”Features:· APYROFLEX™ IR sensor and Highbar™ signal processing for superior performance.· 44 ft. range and 90 degree field of view (45 degrees to each side).· Mountable on flat-wall or 45 degree corner.· Cover tamper.· Strong, reliable RF signal.· 6-8 year battery life of CR123A battery.· Low Battery indication.Program sensor before installationWarranty Information:Safety Technology International, Inc.2306 Airport Rd • Waterford, MI 48327Phone: 248-673-9898 • Fax: 248-673-1246info@sti-usa.com • www.sti-usa.comSafety Technology International (Europe) Ltd.Unit 49G Pipers Road • Park Farm Industrial Estate • RedditchWorcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)E-mail: info@sti-europe.com • Web: www.sti-europe.comInst. 34701 JAN2013Printed in USASafety Technology International, Inc. warrants to the original consumer/purchaser what this product shall be free of defects in material and workmanship under normal use and circumstances for a period of one (1) year from the original date of purchase.Important Notice:This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may be received, including interference that may cause undesired operation.Changes or modifications not expressly approved by STI could void the user’s authority to operate this equipment.This product meets the applicable industry Canada Technical specifications. Le Présent matériel est conforme aux spécifications techniques applicables d’Industrie Canada.Model: 34701 FCC ID: TXL34701 IC: 6335A-34701Technical Support:Contact STI at 800-888-4784 ext. 202Additional Wireless Alert Series Products:STI-34099 Single Channel Slave ReceiverSTI-34104 4-Channel ReceiverSTI-V34104 4-Channel Voice ReceiverSTI-34108 8-Channel ReceiverSTI-34188 8-Zone Relay BoardSTI-34101 Solar Powered Driveway Monitor SensorSTI-34151 Battery Powered Driveway Monitor SensorSTI-34201 Wireless Mailbox Alert SensorSTI-34301 Wireless Garage Sentry SensorSTI-34401 Wireless Universal Alert SensorSTI-34501 Wireless Pool Alert SensorSTI-34601 Wireless Doorbell ButtonSTI-34701 Indoor Wireless PIRSTI-34751 Outdoor Wireless PIRSTI-6200WIR Wireless Fire Extinguisher Theft StopperSTI-6200WIR4 Wireless Fire Extinguisher Theft Stopper w/ReceiverSTI-6400WIR Wireless Exit Stopper Door AlarmSTI-6400WIR4 Wireless Exit Stopper Door Alarm with ReceiverSTI-6517A Stopper Station Shield with SoundSTI-6517B Stopper Station Shield with Sound and TransmitterSTI-30104 Lamp ControllerSTI-30105 Extended AntennaSTI-34105 Voltamax 12VDC (500mA) Power SupplySTI-34106 KeyfobSTI-34109 Repeater

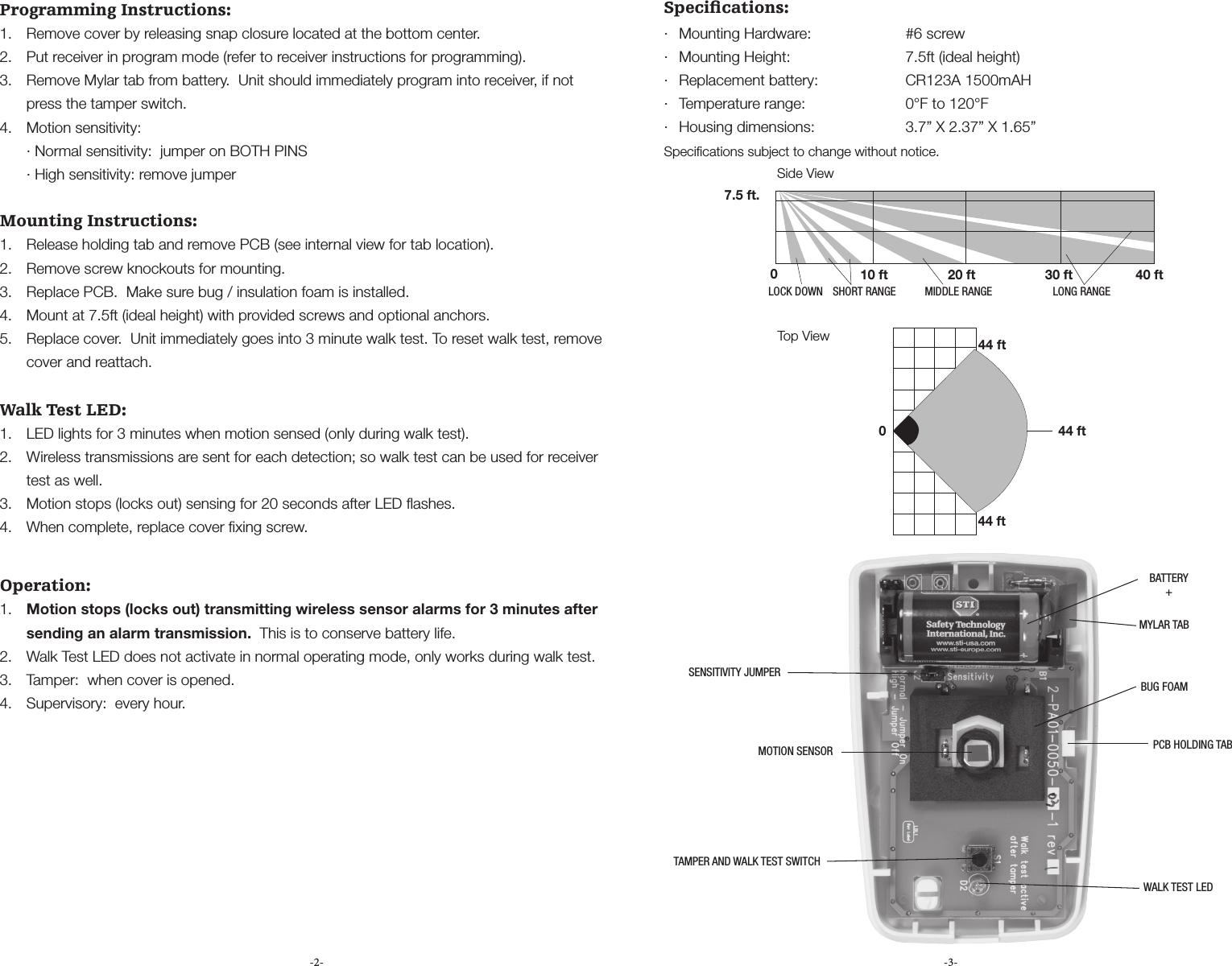

-2- -3-Programming Instructions:1. Remove cover by releasing snap closure located at the bottom center.2. Put receiver in program mode (refer to receiver instructions for programming).3. Remove Mylar tab from battery. Unit should immediately program into receiver, if not press the tamper switch.4. Motion sensitivity: · Normal sensitivity: jumper on BOTH PINS · High sensitivity: remove jumperMounting Instructions:1. Release holding tab and remove PCB (see internal view for tab location).2. Remove screw knockouts for mounting.3. Replace PCB. Make sure bug / insulation foam is installed.4. Mount at 7.5ft (ideal height) with provided screws and optional anchors.5. Replace cover. Unit immediately goes into 3 minute walk test. To reset walk test, remove cover and reattach.Walk Test LED:1. LED lights for 3 minutes when motion sensed (only during walk test). 2. Wireless transmissions are sent for each detection; so walk test can be used for receiver test as well.3. Motion stops (locks out) sensing for 20 seconds after LED flashes.4. When complete, replace cover fixing screw. Operation:1. Motion stops (locks out) transmitting wireless sensor alarms for 3 minutes after sending an alarm transmission. This is to conserve battery life.2. Walk Test LED does not activate in normal operating mode, only works during walk test.3. Tamper: when cover is opened.4. Supervisory: every hour.Specifications:· Mounting Hardware: #6 screw· Mounting Height: 7.5ft (ideal height)· Replacement battery: CR123A 1500mAH· Temperature range: 0°F to 120°F· Housing dimensions: 3.7” X 2.37” X 1.65”Specifications subject to change without notice.Side View7.5 ft.010 ft 20 ft 30 ft 40 ftLOCK DOWN SHORT RANGE MIDDLE RANGE LONG RANGE044 ft44 ft44 ftTop ViewBUG FOAMBATTERY+PCB HOLDING TABWALK TEST LEDTAMPER AND WALK TEST SWITCHMOTION SENSORSENSITIVITY JUMPERMYLAR TAB
