Safety Technology 34752 Outdoor Motion Detector, 433.92MHz User Manual

Safety Technology International, Inc. Outdoor Motion Detector, 433.92MHz

User Manual

Rhein Tech Laboratories, Inc. Client: STI 360 Herndon Parkway Model: STI-34752 Suite 1400 Standards: FCC 15.231/IC RSS-210 Herndon, VA 20170 ID’s: TXL34752/6335A-34752 http://www.rheintech.com Report #: 2014089 25 of 33 Appendix J: Manual Please refer to the following pages.

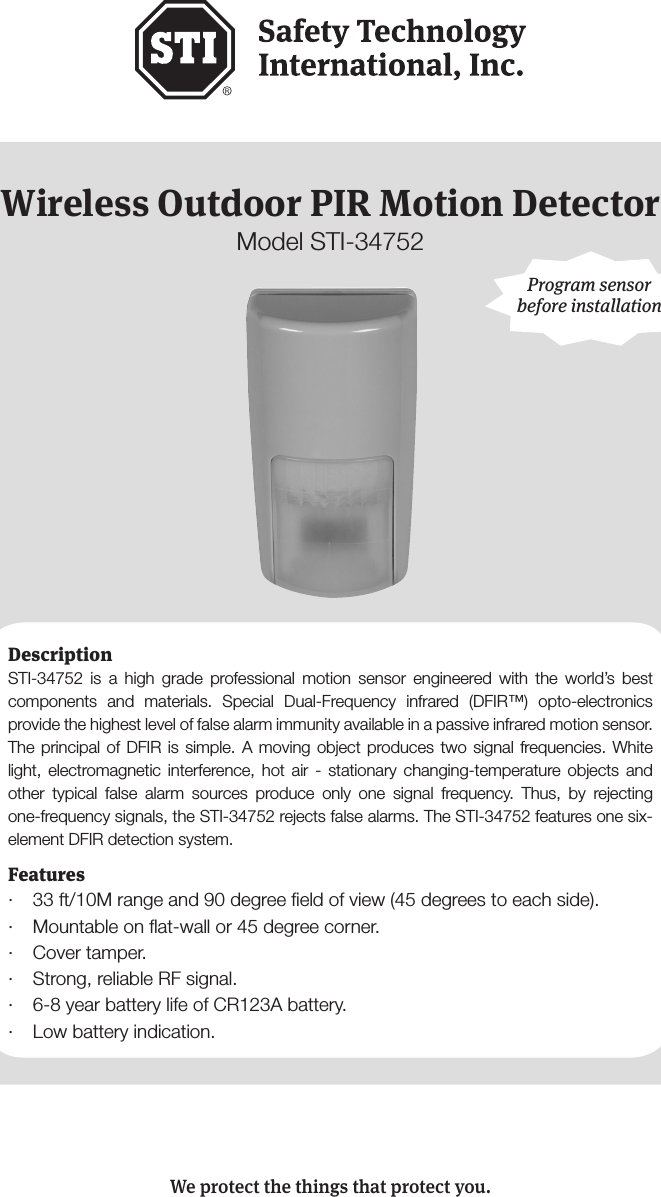

- 1 -Wireless Outdoor PIR Motion DetectorModel STI-34752Features· 33 ft/10M range and 90 degree field of view (45 degrees to each side).· Mountable on flat-wall or 45 degree corner.· Cover tamper. · Strong, reliable RF signal.· 6-8 year battery life of CR123A battery.· Low battery indication.Program sensor before installationWe protect the things that protect you.DescriptionSTI-34752 is a high grade professional motion sensor engineered with the world’s best components and materials. Special Dual-Frequency infrared (DFIR™) opto-electronics provide the highest level of false alarm immunity available in a passive infrared motion sensor. The principal of DFIR is simple. A moving object produces two signal frequencies. White light, electromagnetic interference, hot air - stationary changing-temperature objects and other typical false alarm sources produce only one signal frequency. Thus, by rejecting one-frequency signals, the STI-34752 rejects false alarms. The STI-34752 features one six-element DFIR detection system.

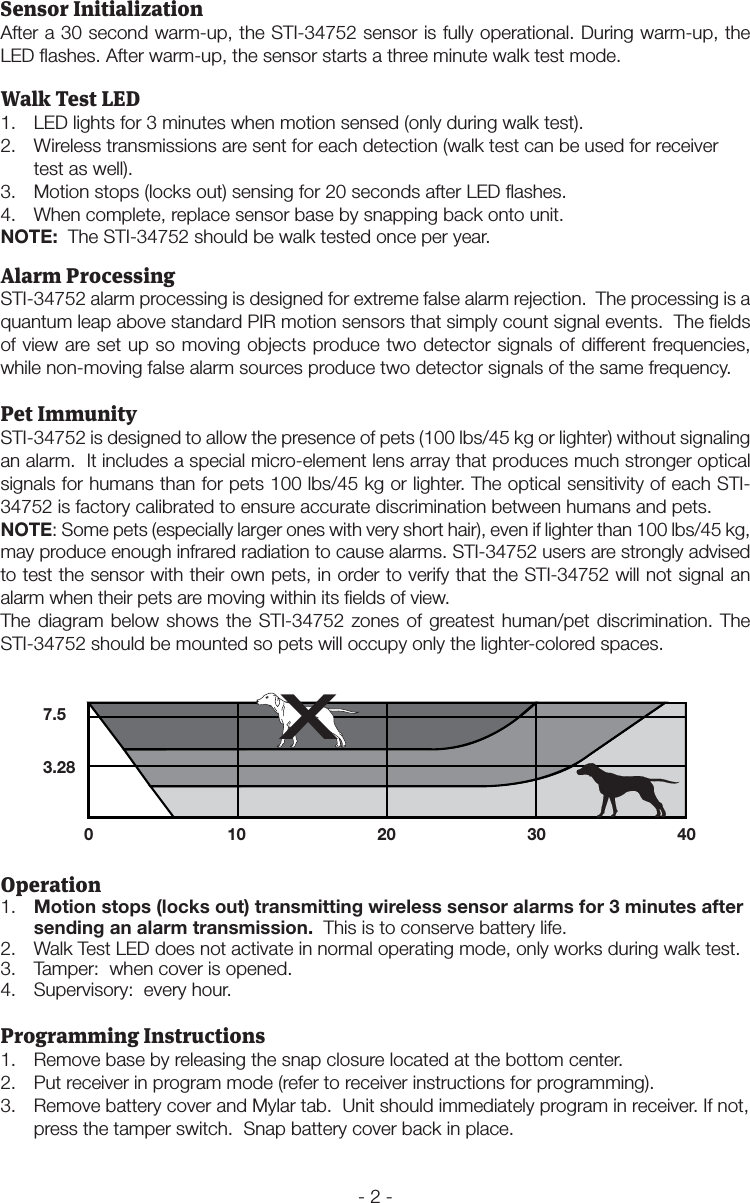

- 2 -Walk Test LED1. LED lights for 3 minutes when motion sensed (only during walk test).2. Wireless transmissions are sent for each detection (walk test can be used for receiver test as well).3. Motion stops (locks out) sensing for 20 seconds after LED flashes.4. When complete, replace sensor base by snapping back onto unit.NOTE: The STI-34752 should be walk tested once per year.Operation1. Motion stops (locks out) transmitting wireless sensor alarms for 3 minutes after sending an alarm transmission. This is to conserve battery life.2. Walk Test LED does not activate in normal operating mode, only works during walk test.3. Tamper: when cover is opened.4. Supervisory: every hour.Sensor InitializationAfter a 30 second warm-up, the STI-34752 sensor is fully operational. During warm-up, the LED flashes. After warm-up, the sensor starts a three minute walk test mode. Alarm ProcessingSTI-34752 alarm processing is designed for extreme false alarm rejection. The processing is a quantum leap above standard PIR motion sensors that simply count signal events. The fields of view are set up so moving objects produce two detector signals of different frequencies, while non-moving false alarm sources produce two detector signals of the same frequency.Pet ImmunitySTI-34752 is designed to allow the presence of pets (100 lbs/45 kg or lighter) without signaling an alarm. It includes a special micro-element lens array that produces much stronger optical signals for humans than for pets 100 lbs/45 kg or lighter. The optical sensitivity of each STI-34752 is factory calibrated to ensure accurate discrimination between humans and pets.NOTE: Some pets (especially larger ones with very short hair), even if lighter than 100 lbs/45 kg, may produce enough infrared radiation to cause alarms. STI-34752 users are strongly advised to test the sensor with their own pets, in order to verify that the STI-34752 will not signal an alarm when their pets are moving within its fields of view.The diagram below shows the STI-34752 zones of greatest human/pet discrimination. The STI-34752 should be mounted so pets will occupy only the lighter-colored spaces.7.53.280 10 20 30 40XProgramming Instructions1. Remove base by releasing the snap closure located at the bottom center.2. Put receiver in program mode (refer to receiver instructions for programming).3. Remove battery cover and Mylar tab. Unit should immediately program in receiver. If not, press the tamper switch. Snap battery cover back in place.

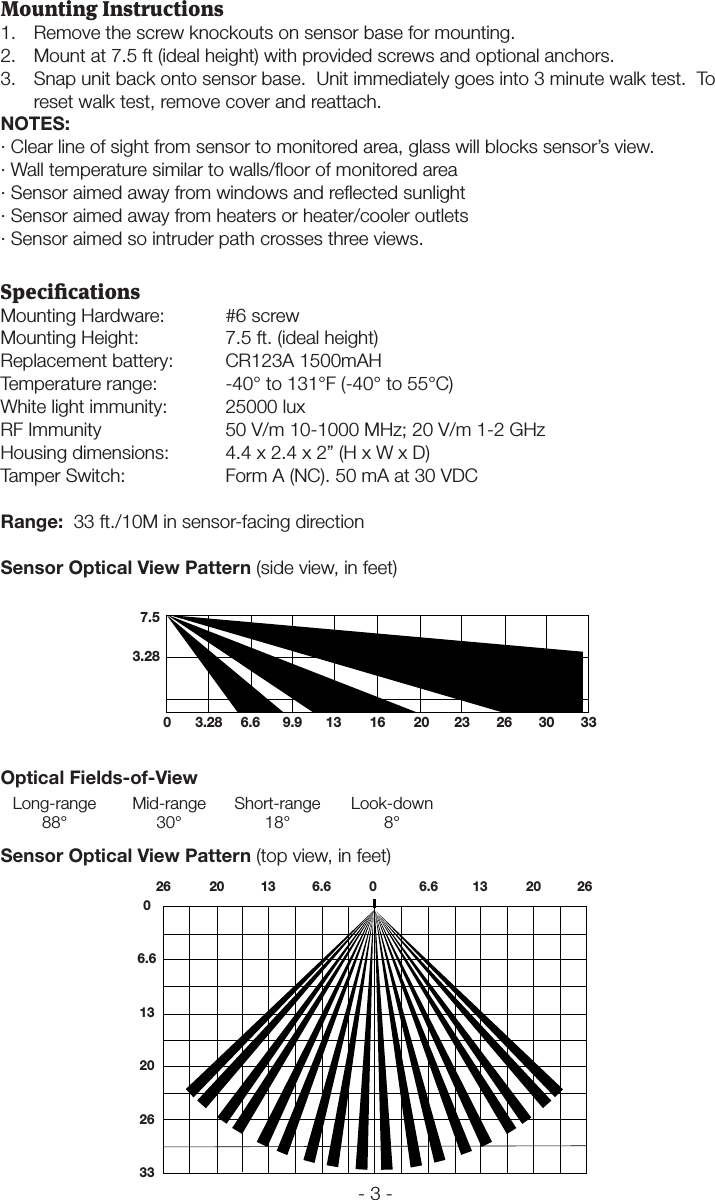

- 3 -Mounting Instructions1. Remove the screw knockouts on sensor base for mounting.2. Mount at 7.5 ft (ideal height) with provided screws and optional anchors.3. Snap unit back onto sensor base. Unit immediately goes into 3 minute walk test. To reset walk test, remove cover and reattach.NOTES:· Clear line of sight from sensor to monitored area, glass will blocks sensor’s view.· Wall temperature similar to walls/floor of monitored area· Sensor aimed away from windows and reflected sunlight· Sensor aimed away from heaters or heater/cooler outlets· Sensor aimed so intruder path crosses three views.SpecicationsMounting Hardware: #6 screwMounting Height: 7.5 ft. (ideal height)Replacement battery: CR123A 1500mAHTemperature range: -40° to 131°F (-40° to 55°C)White light immunity: 25000 luxRF Immunity 50 V/m 10-1000 MHz; 20 V/m 1-2 GHzHousing dimensions: 4.4 x 2.4 x 2” (H x W x D)Tamper Switch: Form A (NC). 50 mA at 30 VDCRange: 33 ft./10M in sensor-facing directionSensor Optical View Pattern (side view, in feet)0 3.28 6.6 9.9 13 16 20 23 26 30 337.53.28Optical Fields-of-View Long-range Mid-range Short-range Look-down 88° 30° 18° 8°Sensor Optical View Pattern (top view, in feet) 26 20 13 6.6 0 6.6 13 20 2606.613202633

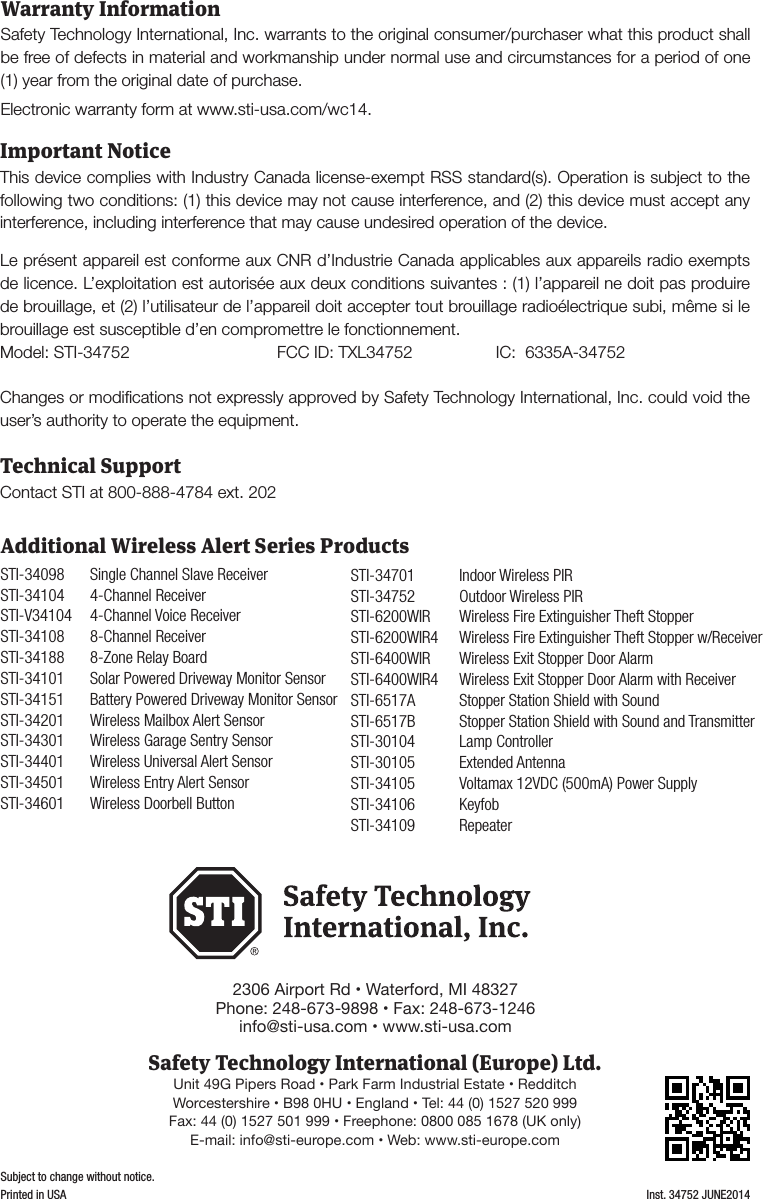

- 4 -Warranty InformationInst. 34752 JUNE2014Subject to change without notice.Printed in USASafety Technology International, Inc. warrants to the original consumer/purchaser what this product shall be free of defects in material and workmanship under normal use and circumstances for a period of one (1) year from the original date of purchase. Electronic warranty form at www.sti-usa.com/wc14.Important NoticeThis device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.Model: STI-34752 FCC ID: TXL34752 IC: 6335A-34752 Changes or modifications not expressly approved by Safety Technology International, Inc. could void the user’s authority to operate the equipment.Technical SupportContact STI at 800-888-4784 ext. 202STI-34098 Single Channel Slave ReceiverSTI-34104 4-Channel ReceiverSTI-V34104 4-Channel Voice ReceiverSTI-34108 8-Channel ReceiverSTI-34188 8-Zone Relay BoardSTI-34101 Solar Powered Driveway Monitor SensorSTI-34151 Battery Powered Driveway Monitor SensorSTI-34201 Wireless Mailbox Alert SensorSTI-34301 Wireless Garage Sentry SensorSTI-34401 Wireless Universal Alert SensorSTI-34501 Wireless Entry Alert SensorSTI-34601 Wireless Doorbell ButtonSTI-34701 Indoor Wireless PIRSTI-34752 Outdoor Wireless PIR STI-6200WIR Wireless Fire Extinguisher Theft StopperSTI-6200WIR4 Wireless Fire Extinguisher Theft Stopper w/ReceiverSTI-6400WIR Wireless Exit Stopper Door AlarmSTI-6400WIR4 Wireless Exit Stopper Door Alarm with ReceiverSTI-6517A Stopper Station Shield with SoundSTI-6517B Stopper Station Shield with Sound and TransmitterSTI-30104 Lamp ControllerSTI-30105 Extended AntennaSTI-34105 Voltamax 12VDC (500mA) Power SupplySTI-34106 KeyfobSTI-34109 RepeaterAdditional Wireless Alert Series Products2306 Airport Rd • Waterford, MI 48327Phone: 248-673-9898 • Fax: 248-673-1246info@sti-usa.com • www.sti-usa.comSafety Technology International (Europe) Ltd.Unit 49G Pipers Road • Park Farm Industrial Estate • RedditchWorcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)E-mail: info@sti-europe.com • Web: www.sti-europe.com
