Samsung Electronics Co CLX3305FW Laser Multi-funtion Printer User Manual Violet english

Samsung Electronics Co Ltd Laser Multi-funtion Printer Violet english

Contents

Users Manual 2

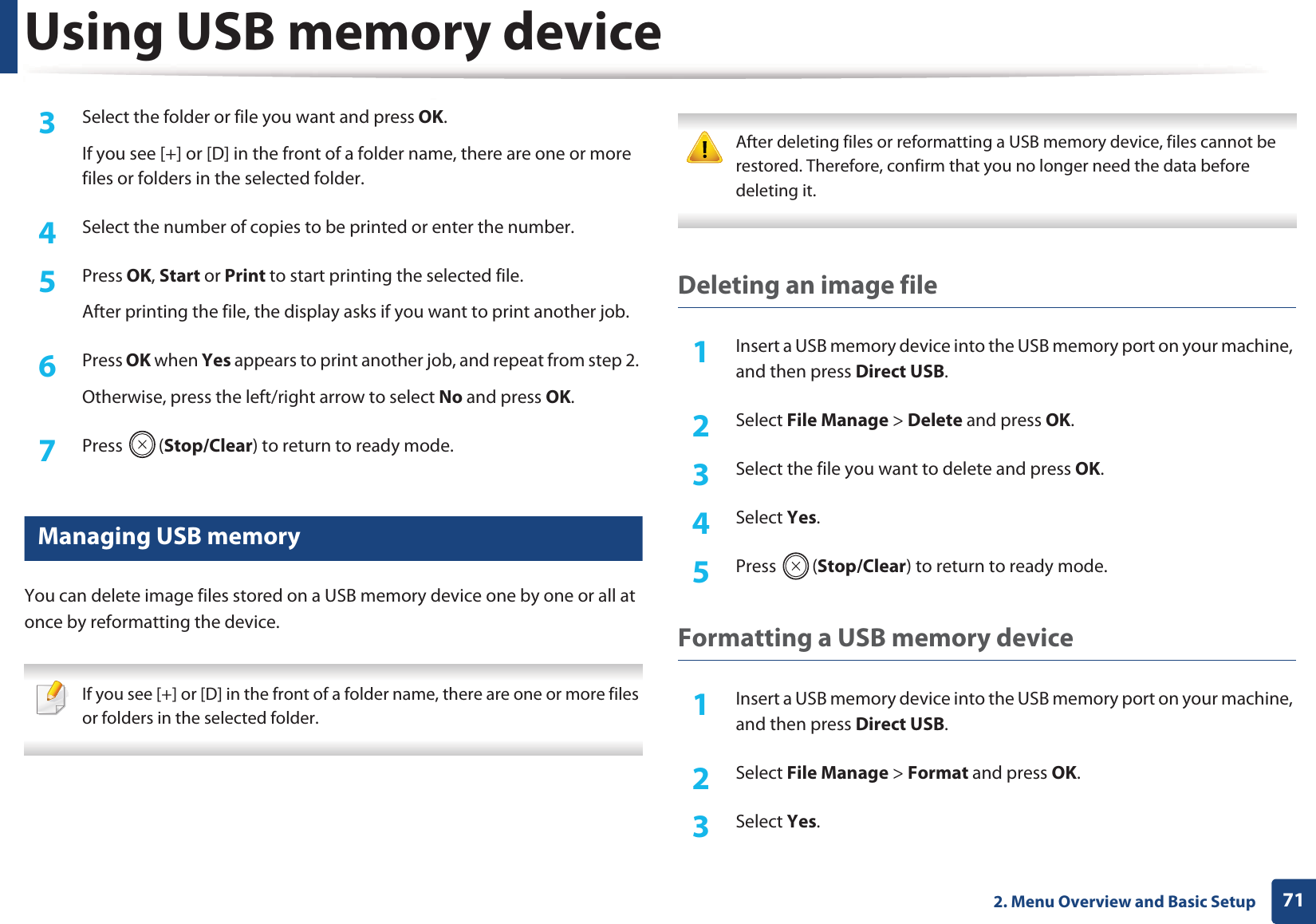

Using USB memory device712. Menu Overview and Basic Setup3 Select the folder or file you want and press OK.If you see [+] or [D] in the front of a folder name, there are one or more files or folders in the selected folder.4 Select the number of copies to be printed or enter the number.5 Press OK, Start or Print to start printing the selected file. After printing the file, the display asks if you want to print another job.6 Press OK when Yes appears to print another job, and repeat from step 2. Otherwise, press the left/right arrow to select No and press OK.7 Press (Stop/Clear) to return to ready mode.26 Managing USB memoryYou can delete image files stored on a USB memory device one by one or all at once by reformatting the device. If you see [+] or [D] in the front of a folder name, there are one or more files or folders in the selected folder. After deleting files or reformatting a USB memory device, files cannot be restored. Therefore, confirm that you no longer need the data before deleting it. Deleting an image file1Insert a USB memory device into the USB memory port on your machine, and then press Direct USB.2 Select File Manage > Delete and press OK.3 Select the file you want to delete and press OK.4 Select Yes.5 Press (Stop/Clear) to return to ready mode.Formatting a USB memory device1Insert a USB memory device into the USB memory port on your machine, and then press Direct USB.2 Select File Manage > Format and press OK.3 Select Yes.

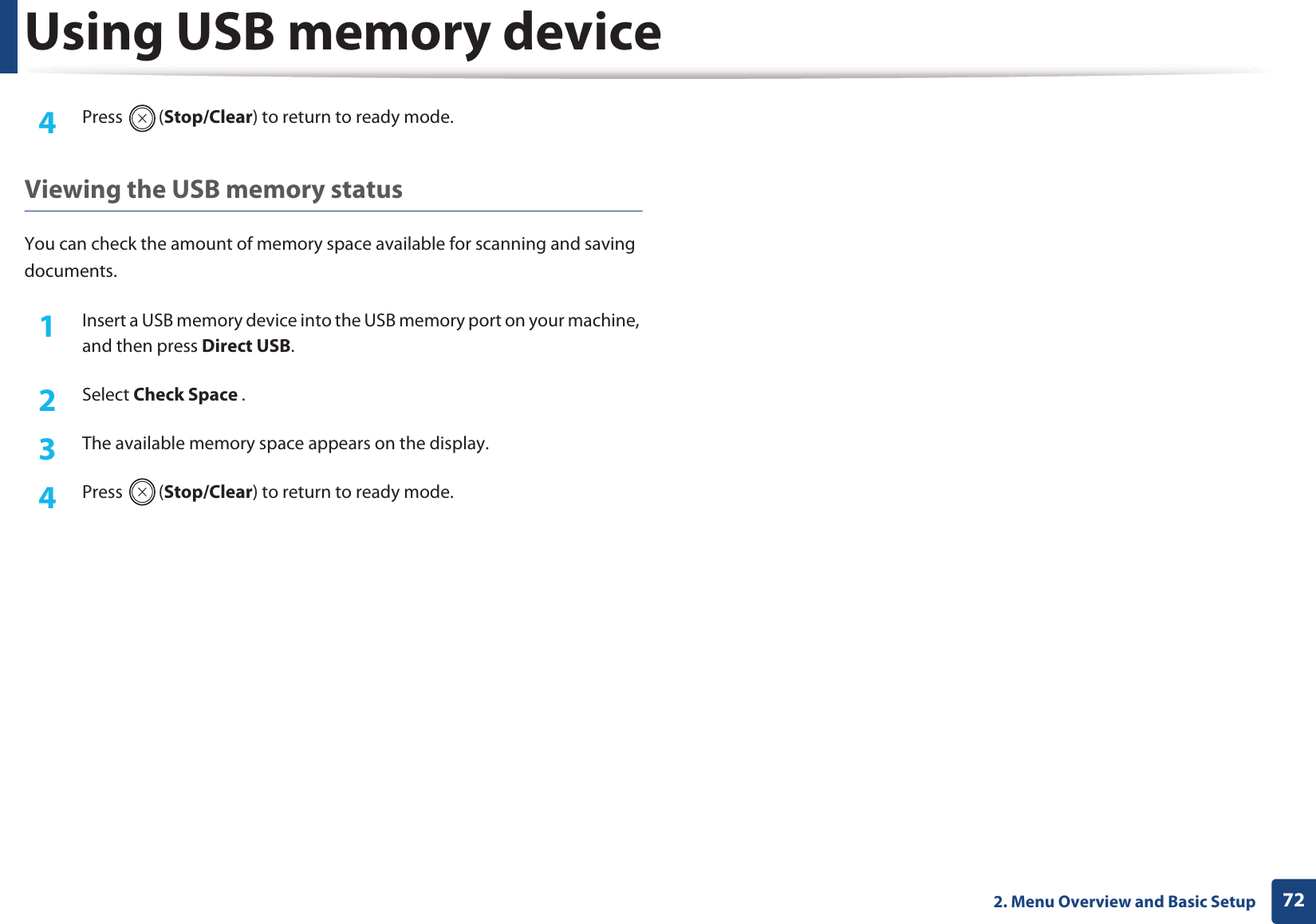

Using USB memory device722. Menu Overview and Basic Setup4 Press (Stop/Clear) to return to ready mode.Viewing the USB memory statusYou can check the amount of memory space available for scanning and saving documents.1Insert a USB memory device into the USB memory port on your machine, and then press Direct USB.2 Select Check Space .3 The available memory space appears on the display.4 Press (Stop/Clear) to return to ready mode.

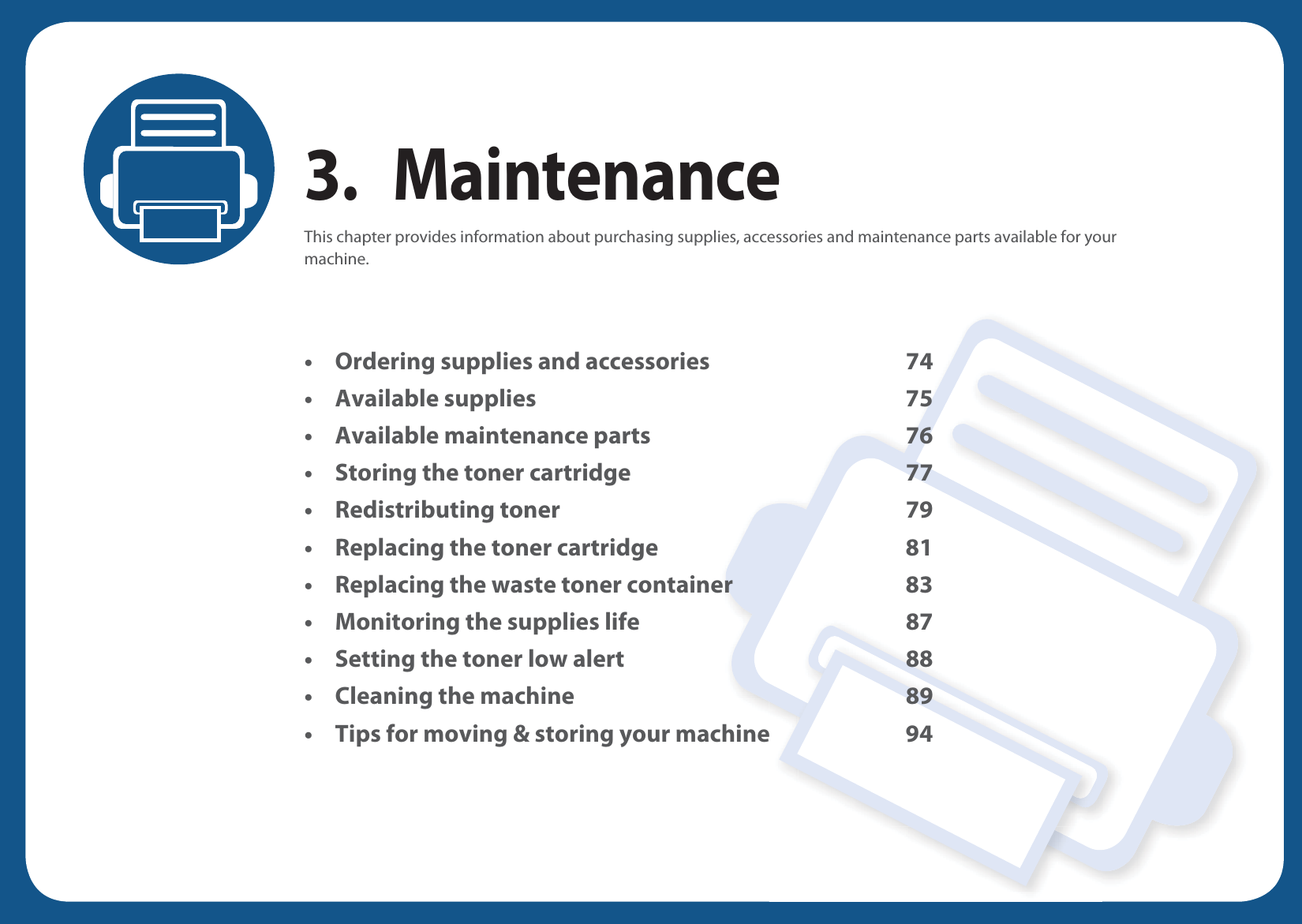

3. MaintenanceThis chapter provides information about purchasing supplies, accessories and maintenance parts available for your machine.• Ordering supplies and accessories 74• Available supplies 75• Available maintenance parts 76• Storing the toner cartridge 77• Redistributing toner 79• Replacing the toner cartridge 81• Replacing the waste toner container 83• Monitoring the supplies life 87• Setting the toner low alert 88• Cleaning the machine 89• Tips for moving & storing your machine 94

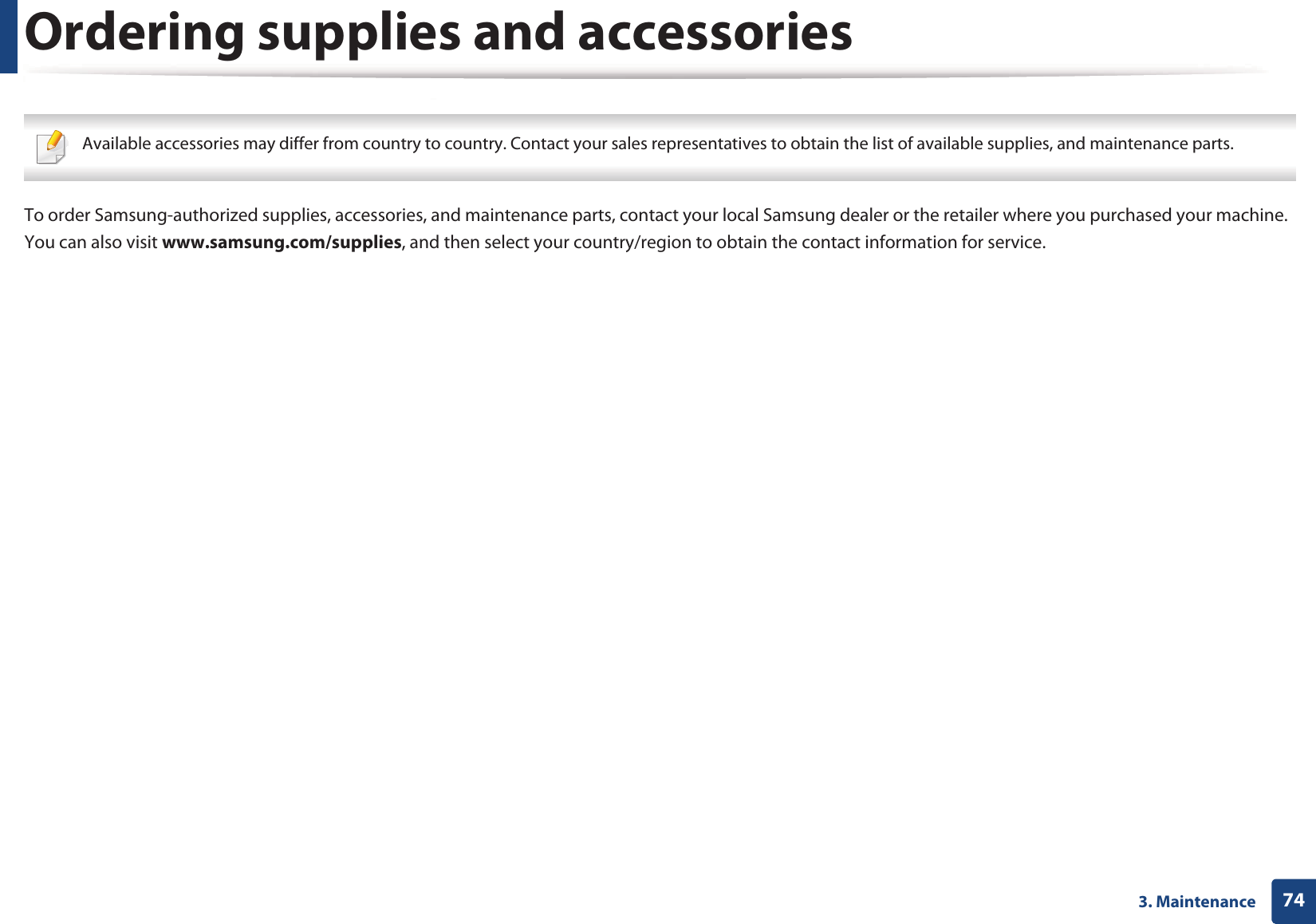

743. MaintenanceOrdering supplies and accessories Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available supplies, and maintenance parts. To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine. You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.

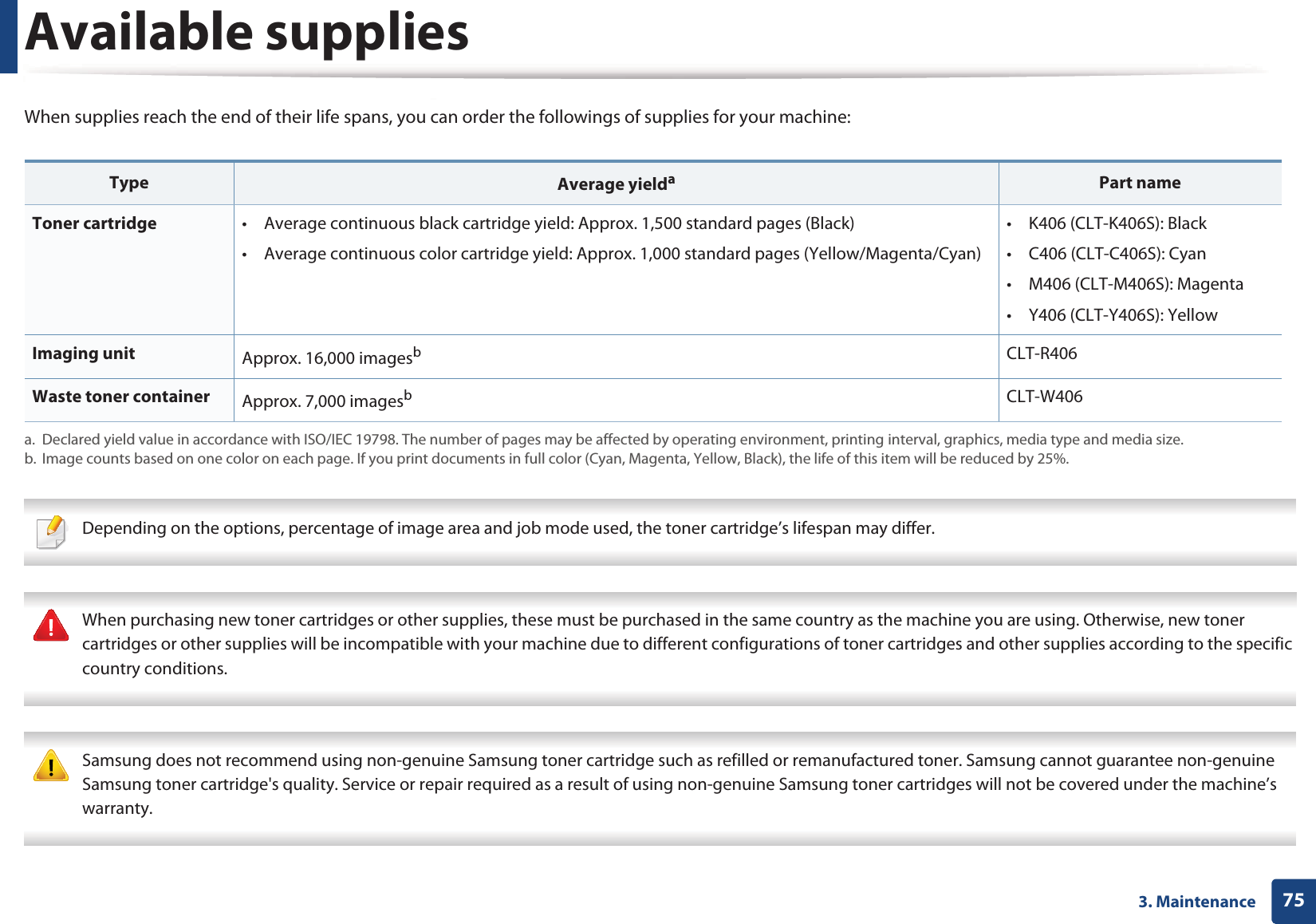

753. MaintenanceAvailable suppliesWhen supplies reach the end of their life spans, you can order the followings of supplies for your machine: Depending on the options, percentage of image area and job mode used, the toner cartridge’s lifespan may differ. When purchasing new toner cartridges or other supplies, these must be purchased in the same country as the machine you are using. Otherwise, new toner cartridges or other supplies will be incompatible with your machine due to different configurations of toner cartridges and other supplies according to the specific country conditions. Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot guarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine’s warranty. Type Average yieldaa. Declared yield value in accordance with ISO/IEC 19798. The number of pages may be affected by operating environment, printing interval, graphics, media type and media size.Part nameToner cartridge • Average continuous black cartridge yield: Approx. 1,500 standard pages (Black)• Average continuous color cartridge yield: Approx. 1,000 standard pages (Yellow/Magenta/Cyan)• K406 (CLT-K406S): Black• C406 (CLT-C406S): Cyan• M406 (CLT-M406S): Magenta• Y406 (CLT-Y406S): YellowImaging unit Approx. 16,000 imagesbb. Image counts based on one color on each page. If you print documents in full color (Cyan, Magenta, Yellow, Black), the life of this item will be reduced by 25%.CLT-R406Waste toner container Approx. 7,000 imagesbCLT-W406

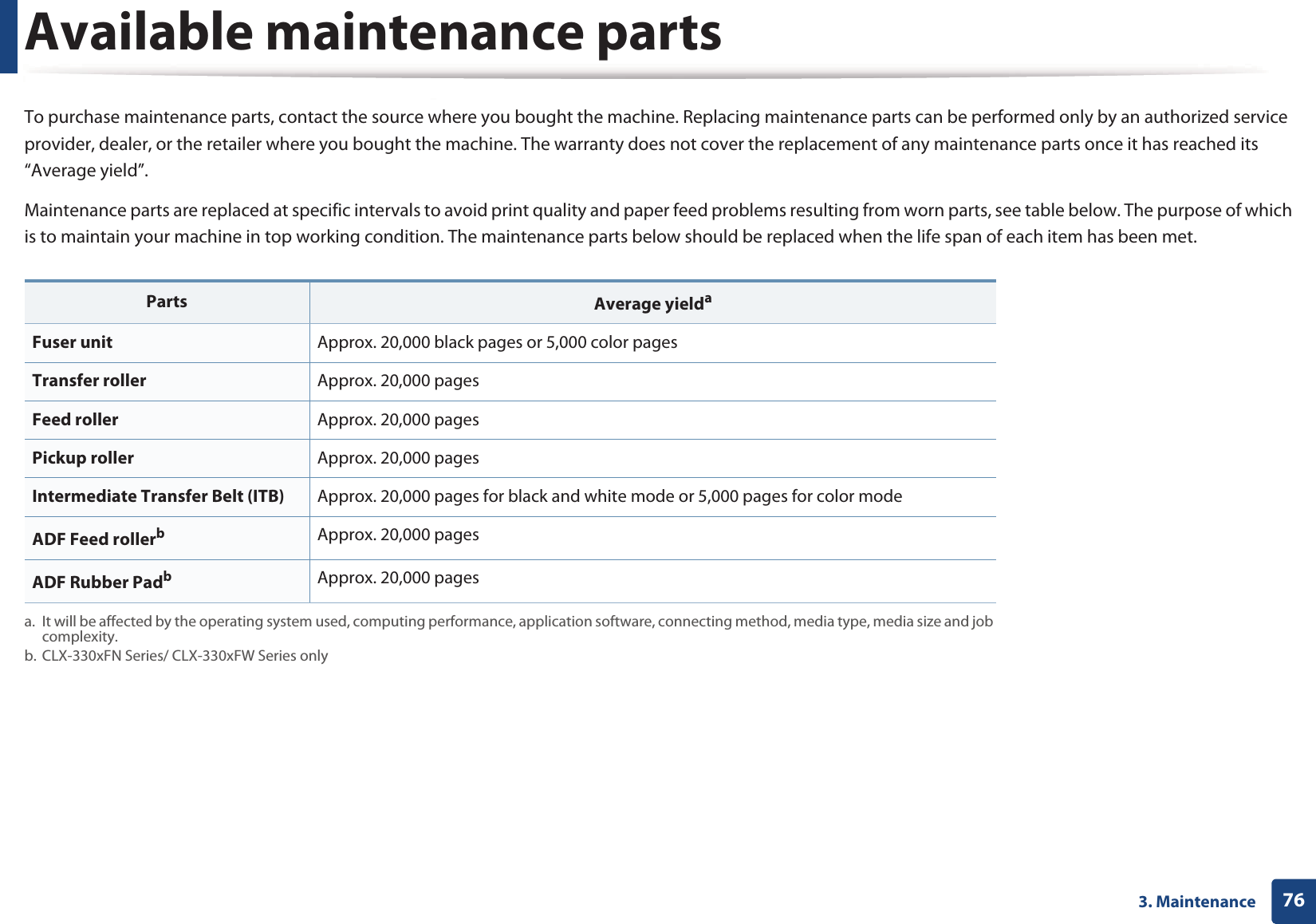

763. MaintenanceAvailable maintenance partsTo purchase maintenance parts, contact the source where you bought the machine. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. The warranty does not cover the replacement of any maintenance parts once it has reached its “Average yield”.Maintenance parts are replaced at specific intervals to avoid print quality and paper feed problems resulting from worn parts, see table below. The purpose of which is to maintain your machine in top working condition. The maintenance parts below should be replaced when the life span of each item has been met.Parts Average yieldaa. It will be affected by the operating system used, computing performance, application software, connecting method, media type, media size and job complexity.Fuser unit Approx. 20,000 black pages or 5,000 color pagesTransfer roller Approx. 20,000 pages Feed roller Approx. 20,000 pages Pickup roller Approx. 20,000 pagesIntermediate Transfer Belt (ITB) Approx. 20,000 pages for black and white mode or 5,000 pages for color modeADF Feed rollerbb. CLX-330xFN Series/ CLX-330xFW Series onlyApprox. 20,000 pages ADF Rubber PadbApprox. 20,000 pages

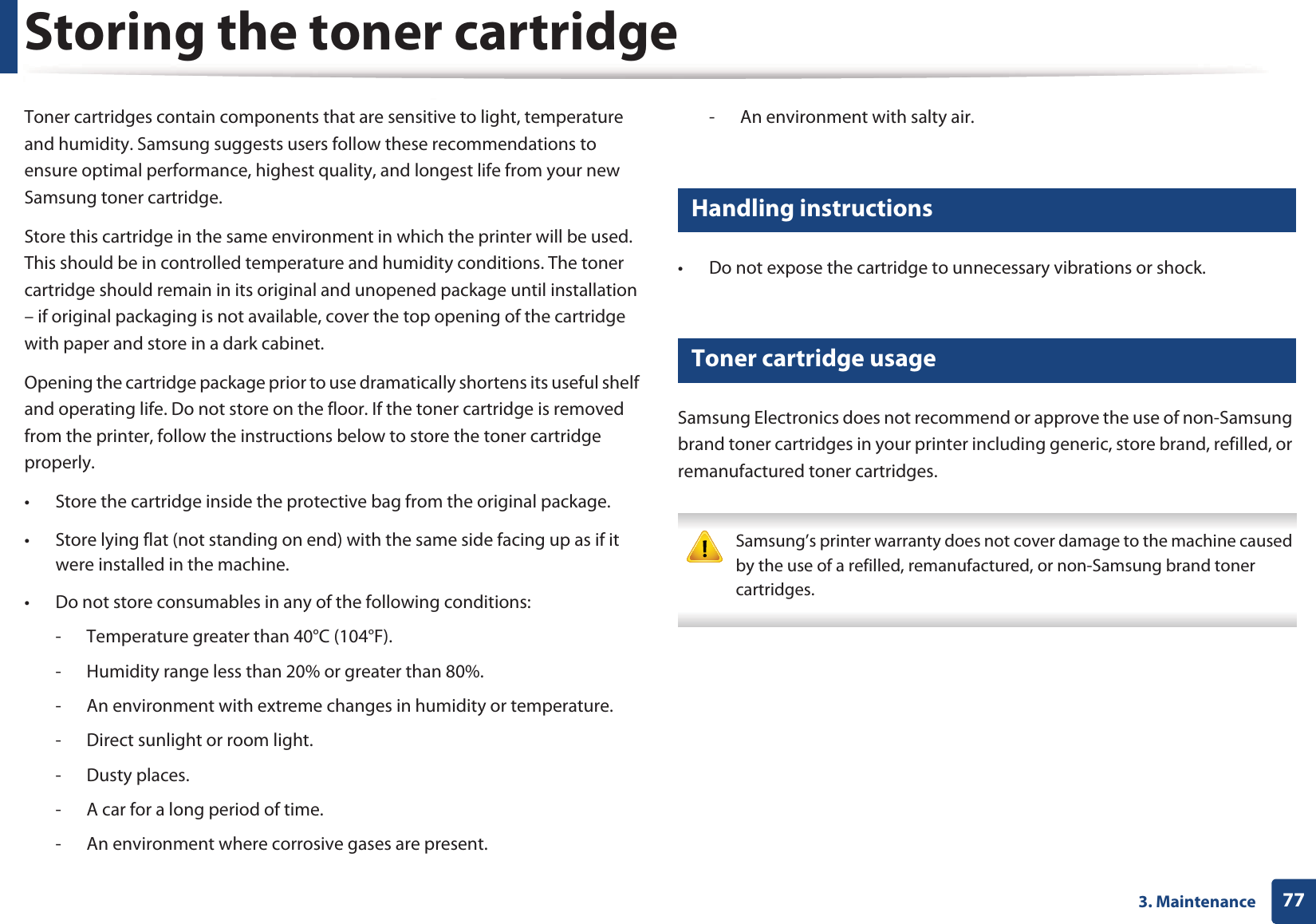

773. MaintenanceStoring the toner cartridgeToner cartridges contain components that are sensitive to light, temperature and humidity. Samsung suggests users follow these recommendations to ensure optimal performance, highest quality, and longest life from your new Samsung toner cartridge.Store this cartridge in the same environment in which the printer will be used. This should be in controlled temperature and humidity conditions. The toner cartridge should remain in its original and unopened package until installation – if original packaging is not available, cover the top opening of the cartridge with paper and store in a dark cabinet.Opening the cartridge package prior to use dramatically shortens its useful shelf and operating life. Do not store on the floor. If the toner cartridge is removed from the printer, follow the instructions below to store the toner cartridge properly.• Store the cartridge inside the protective bag from the original package. • Store lying flat (not standing on end) with the same side facing up as if it were installed in the machine.• Do not store consumables in any of the following conditions:- Temperature greater than 40°C (104°F).- Humidity range less than 20% or greater than 80%.- An environment with extreme changes in humidity or temperature.- Direct sunlight or room light.- Dusty places.- A car for a long period of time.- An environment where corrosive gases are present.- An environment with salty air.1 Handling instructions• Do not expose the cartridge to unnecessary vibrations or shock.2 Toner cartridge usageSamsung Electronics does not recommend or approve the use of non-Samsung brand toner cartridges in your printer including generic, store brand, refilled, or remanufactured toner cartridges. Samsung’s printer warranty does not cover damage to the machine caused by the use of a refilled, remanufactured, or non-Samsung brand toner cartridges.

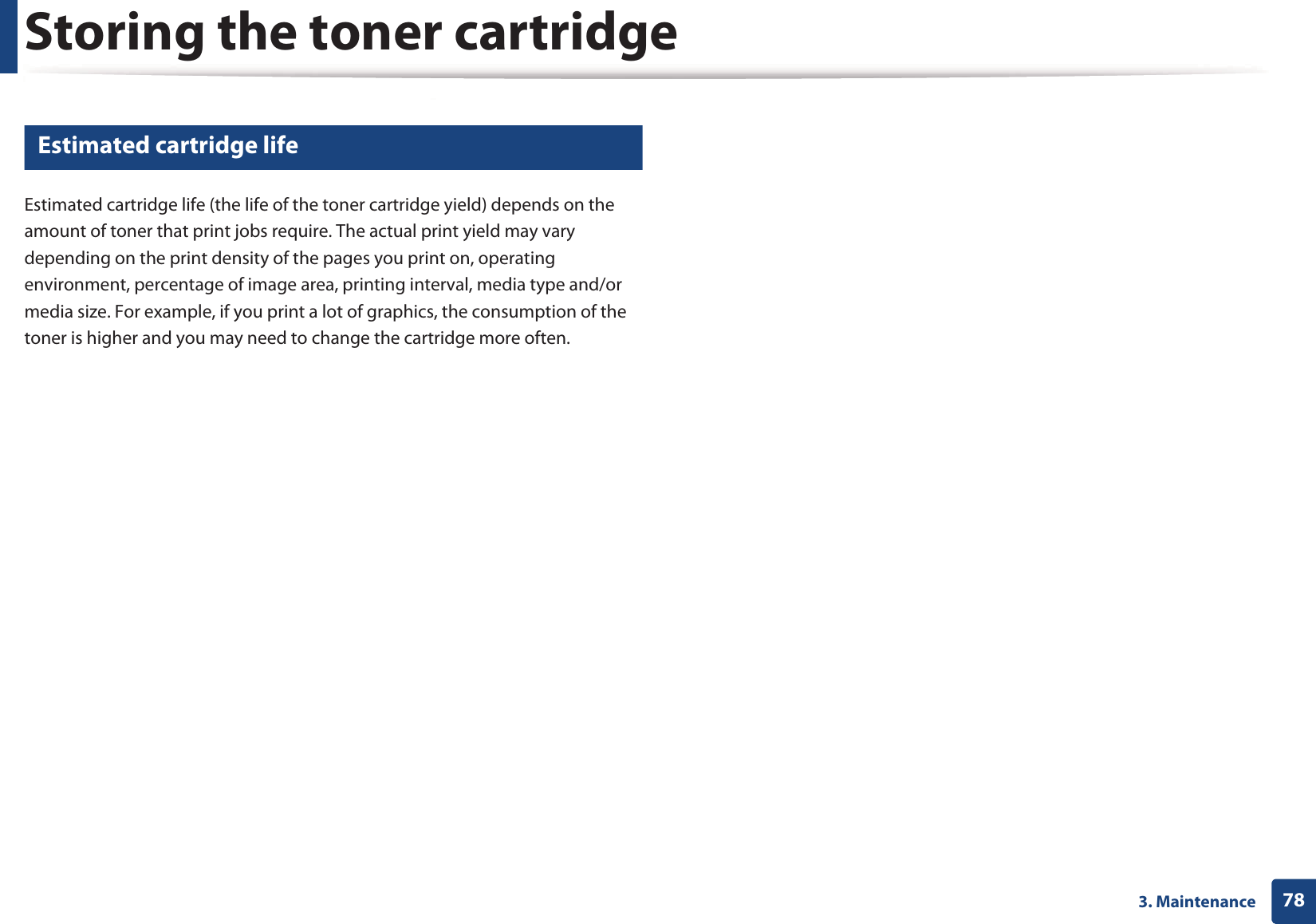

Storing the toner cartridge783. Maintenance3 Estimated cartridge lifeEstimated cartridge life (the life of the toner cartridge yield) depends on the amount of toner that print jobs require. The actual print yield may vary depending on the print density of the pages you print on, operating environment, percentage of image area, printing interval, media type and/or media size. For example, if you print a lot of graphics, the consumption of the toner is higher and you may need to change the cartridge more often.

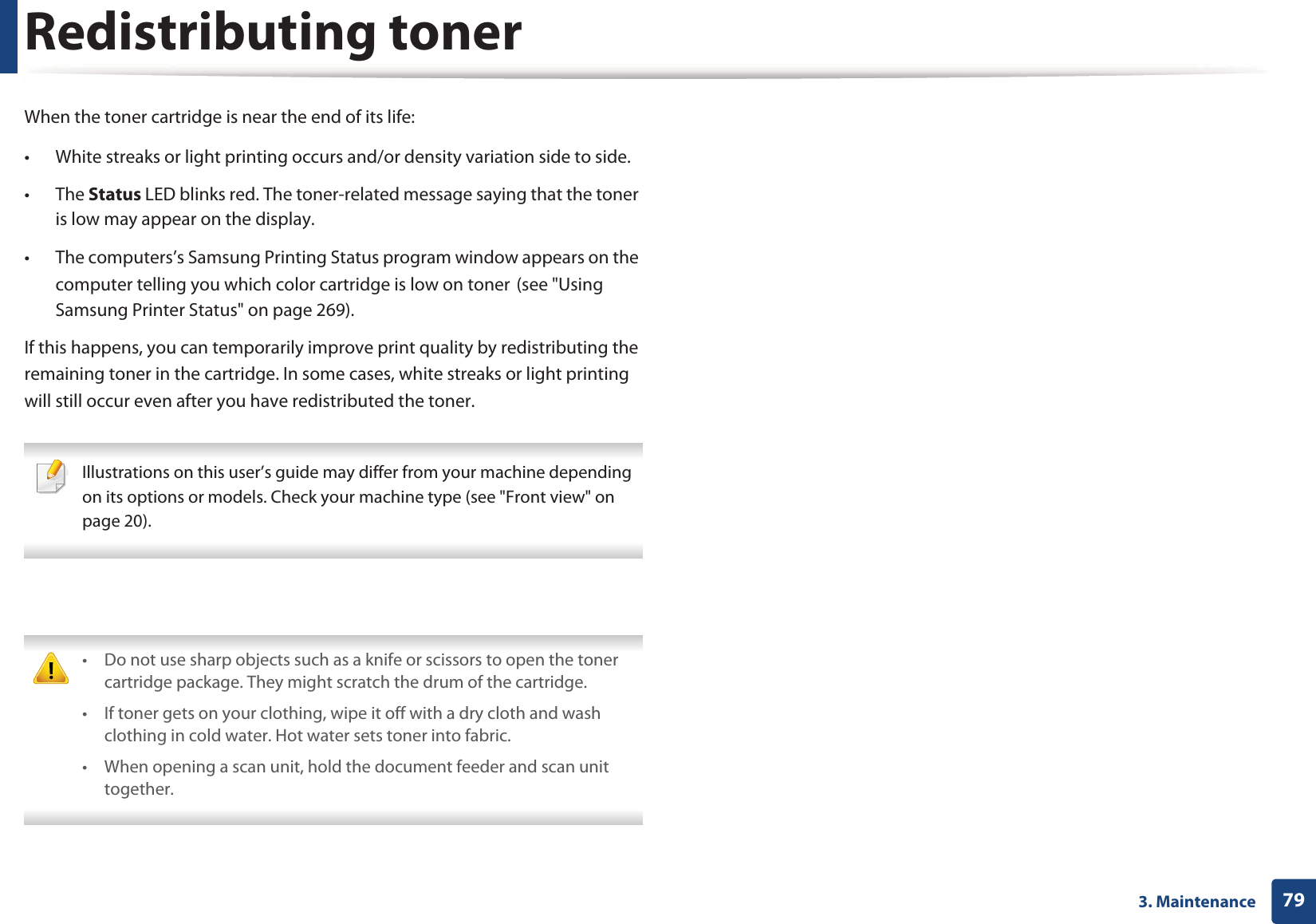

793. MaintenanceRedistributing tonerWhen the toner cartridge is near the end of its life:• White streaks or light printing occurs and/or density variation side to side. • The Status LED blinks red. The toner-related message saying that the toner is low may appear on the display. • The computers’s Samsung Printing Status program window appears on the computer telling you which color cartridge is low on tonerG(see "Using Samsung Printer Status" on page 269).If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20). • Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.• When opening a scan unit, hold the document feeder and scan unit together.

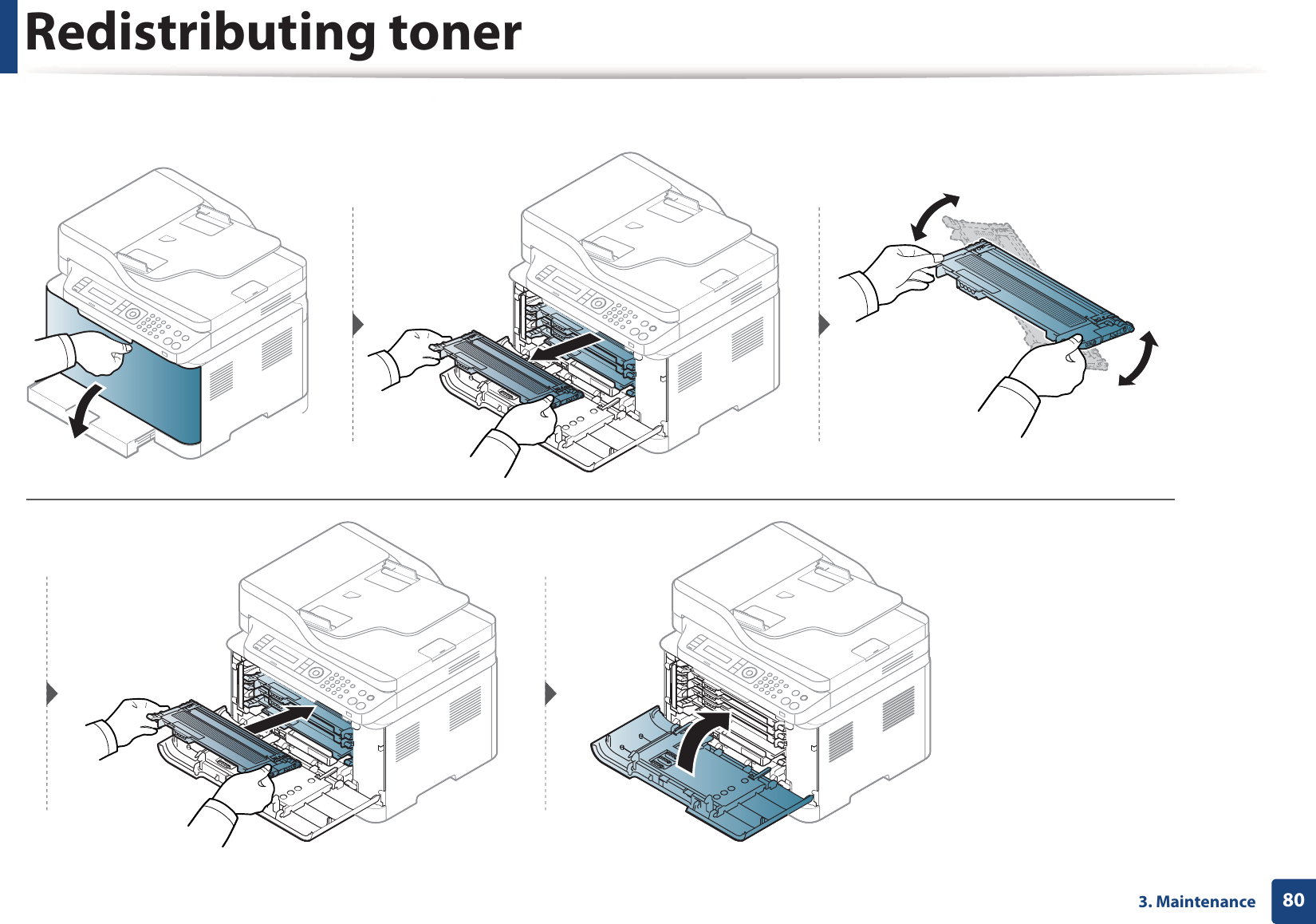

Redistributing toner803. Maintenance

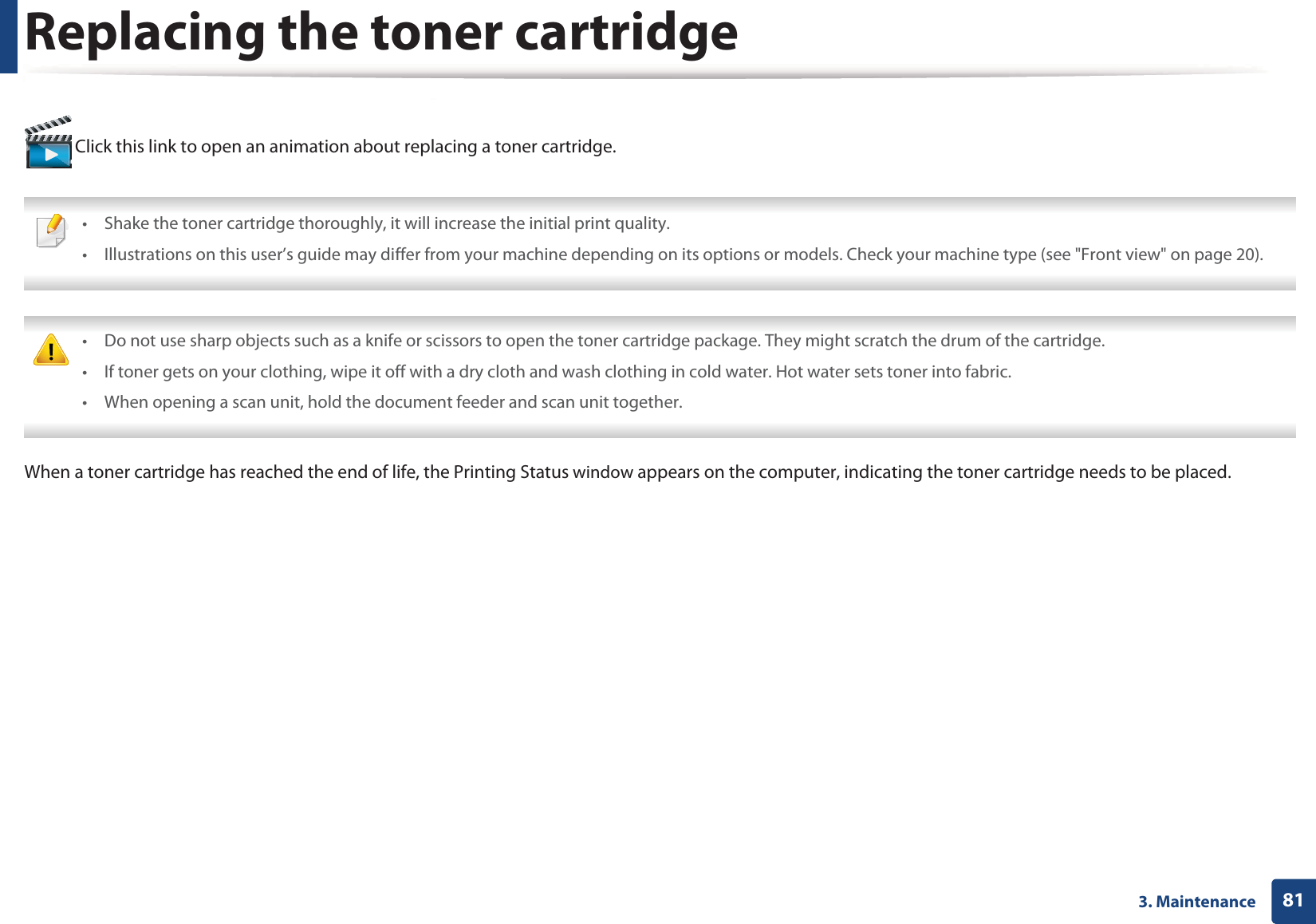

813. MaintenanceReplacing the toner cartridge Click this link to open an animation about replacing a toner cartridge. • Shake the toner cartridge thoroughly, it will increase the initial print quality.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20). • Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.• When opening a scan unit, hold the document feeder and scan unit together. When a toner cartridge has reached the end of life, the Printing Status window appears on the computer, indicating the toner cartridge needs to be placed.

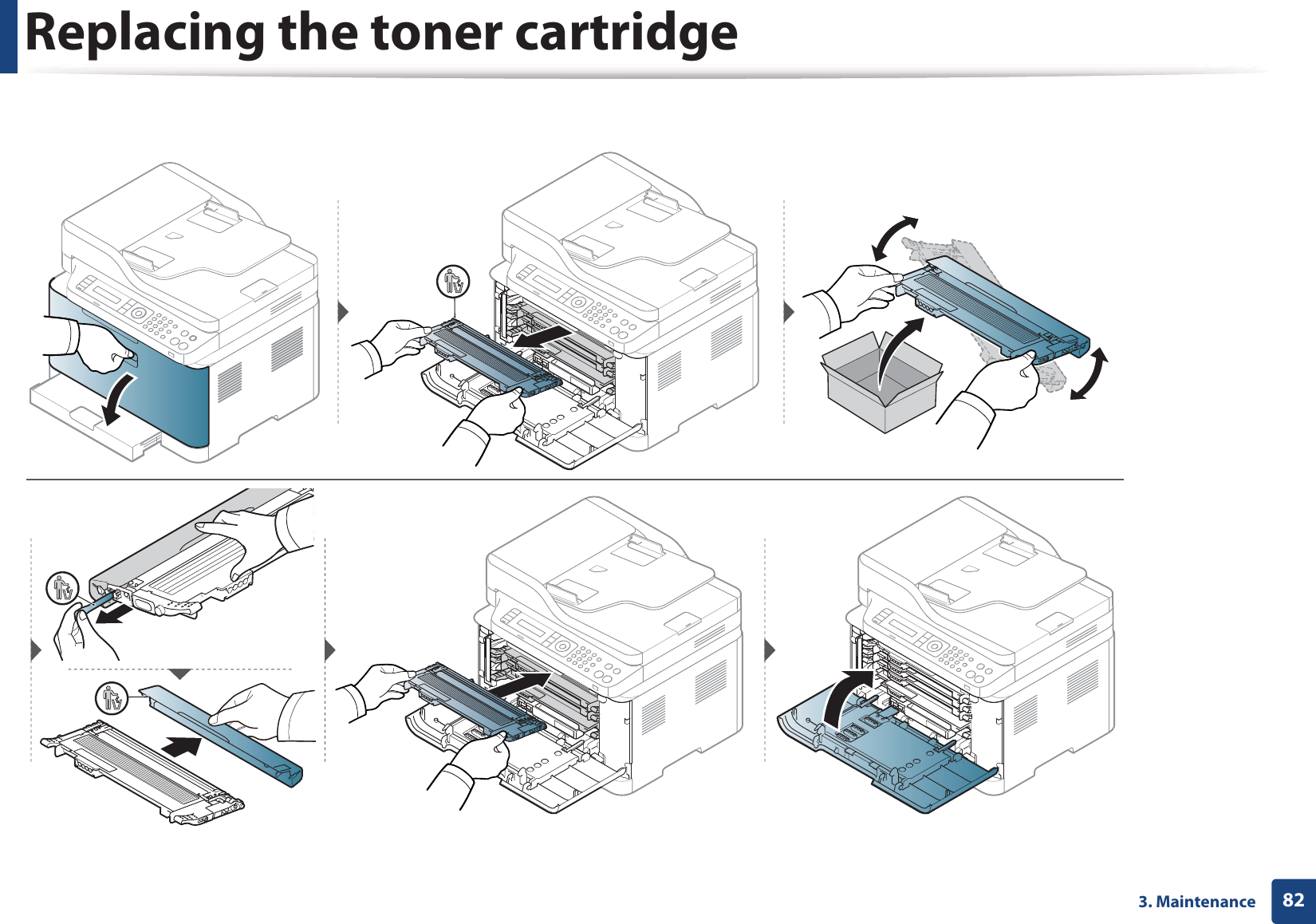

Replacing the toner cartridge823. Maintenance

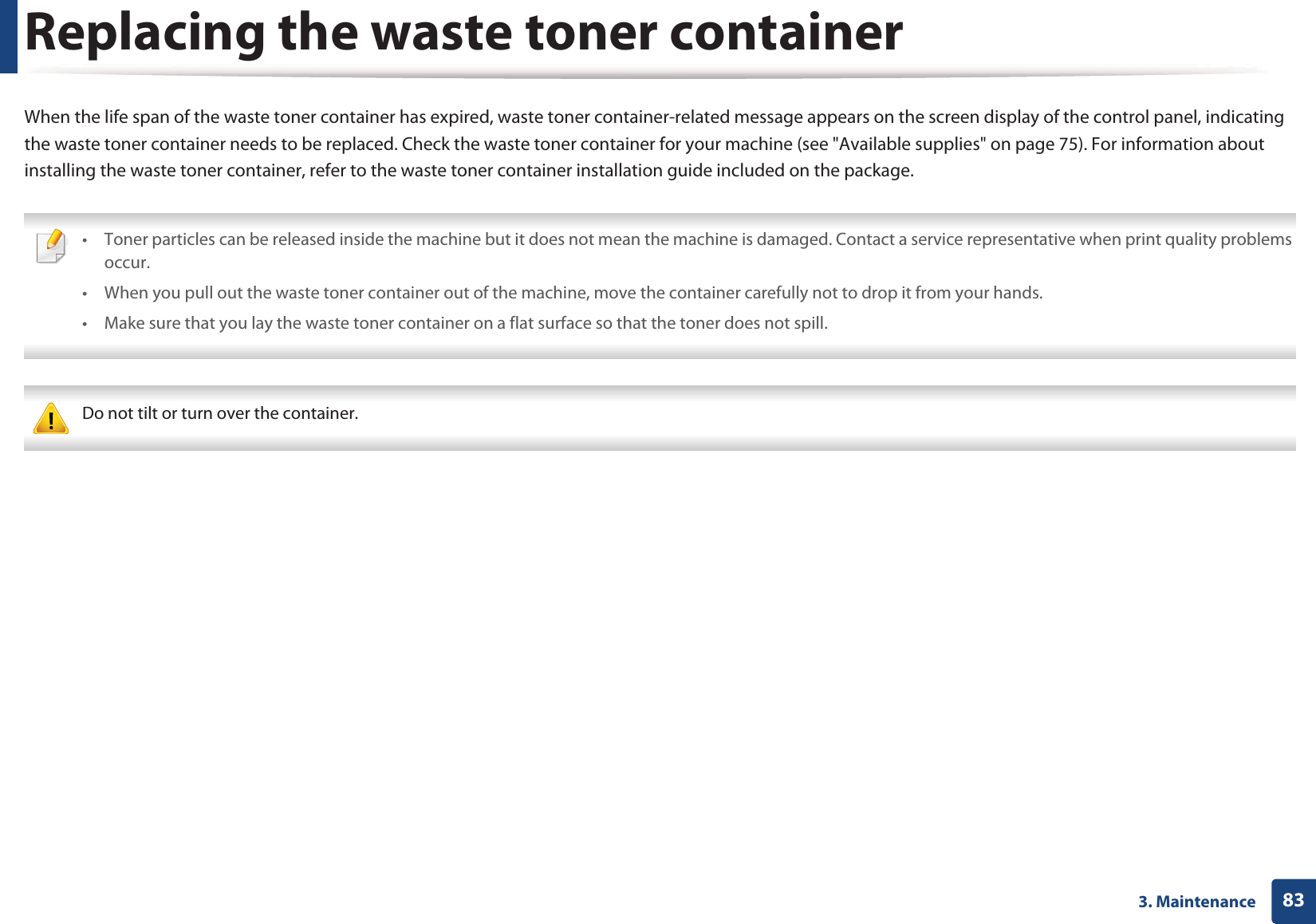

833. MaintenanceReplacing the waste toner containerWhen the life span of the waste toner container has expired, waste toner container-related message appears on the screen display of the control panel, indicating the waste toner container needs to be replaced. Check the waste toner container for your machine (see "Available supplies" on page 75). For information about installing the waste toner container, refer to the waste toner container installation guide included on the package. • Toner particles can be released inside the machine but it does not mean the machine is damaged. Contact a service representative when print quality problems occur.• When you pull out the waste toner container out of the machine, move the container carefully not to drop it from your hands.• Make sure that you lay the waste toner container on a flat surface so that the toner does not spill. Do not tilt or turn over the container.

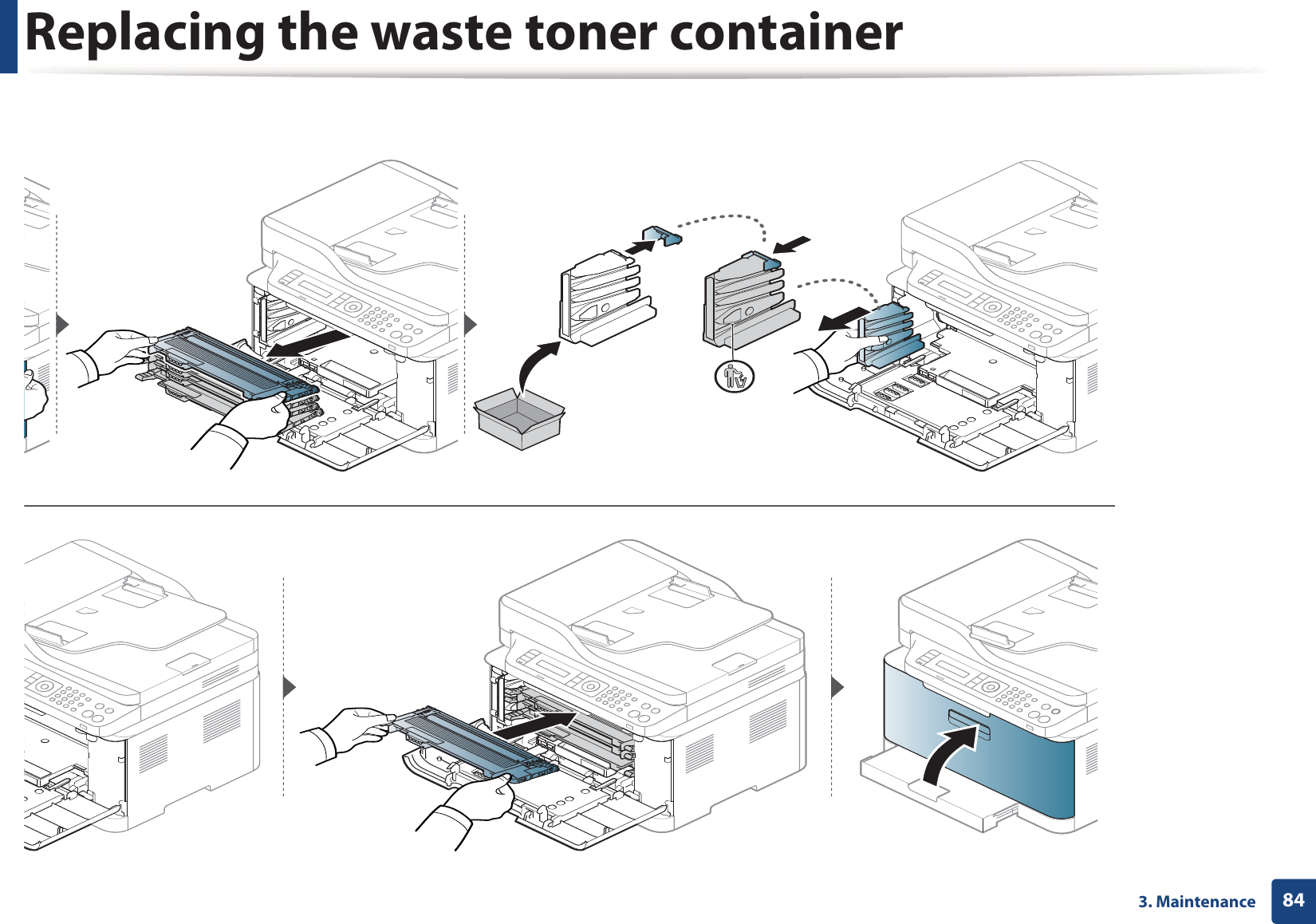

Replacing the waste toner container843. Maintenance

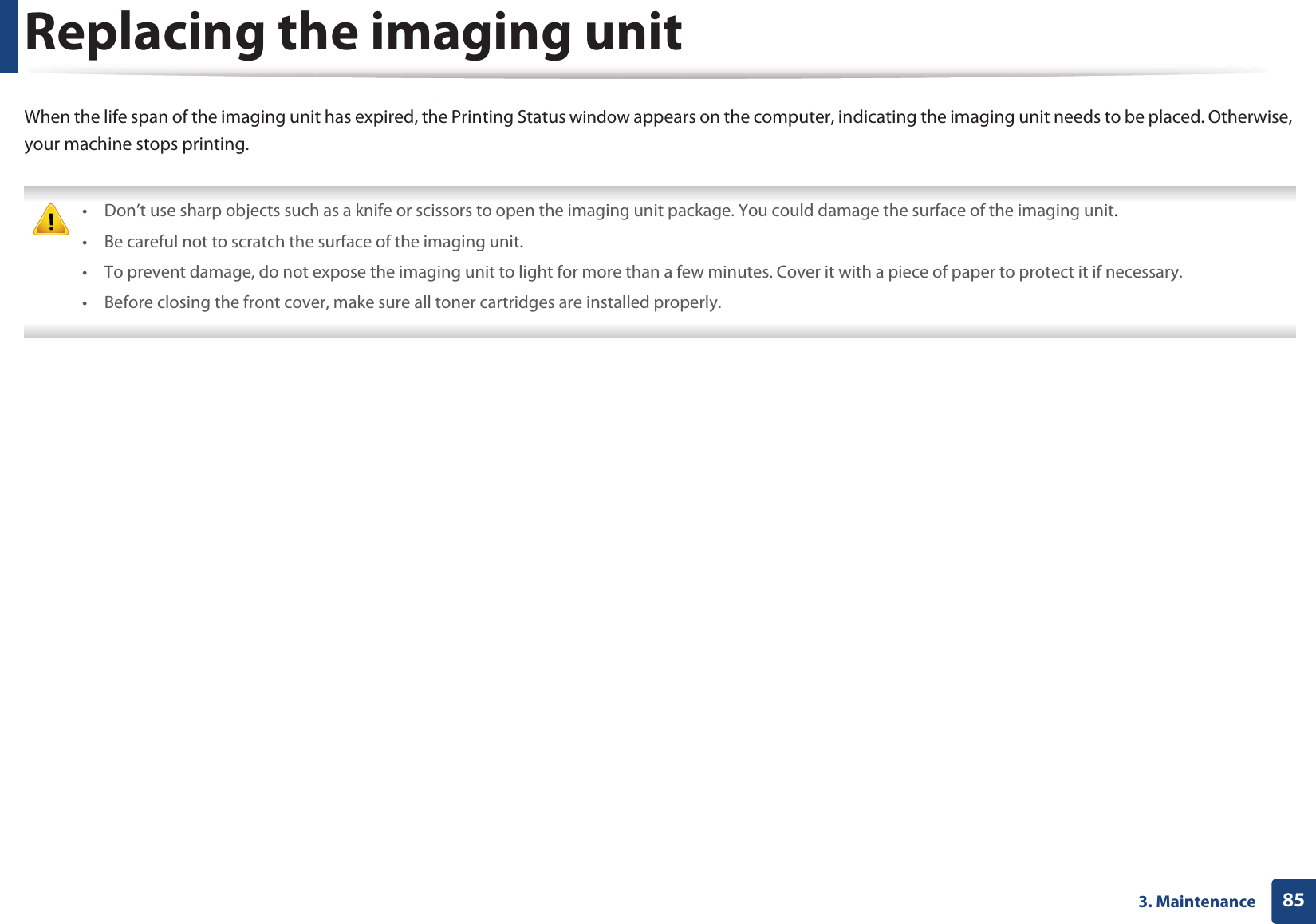

853. MaintenanceReplacing the imaging unitWhen the life span of the imaging unit has expired, the Printing Status window appears on the computer, indicating the imaging unit needs to be placed. Otherwise, your machine stops printing. • Don’t use sharp objects such as a knife or scissors to open the imaging unit package. You could damage the surface of the imaging unit.• Be careful not to scratch the surface of the imaging unit.• To prevent damage, do not expose the imaging unit to light for more than a few minutes. Cover it with a piece of paper to protect it if necessary.• Before closing the front cover, make sure all toner cartridges are installed properly.

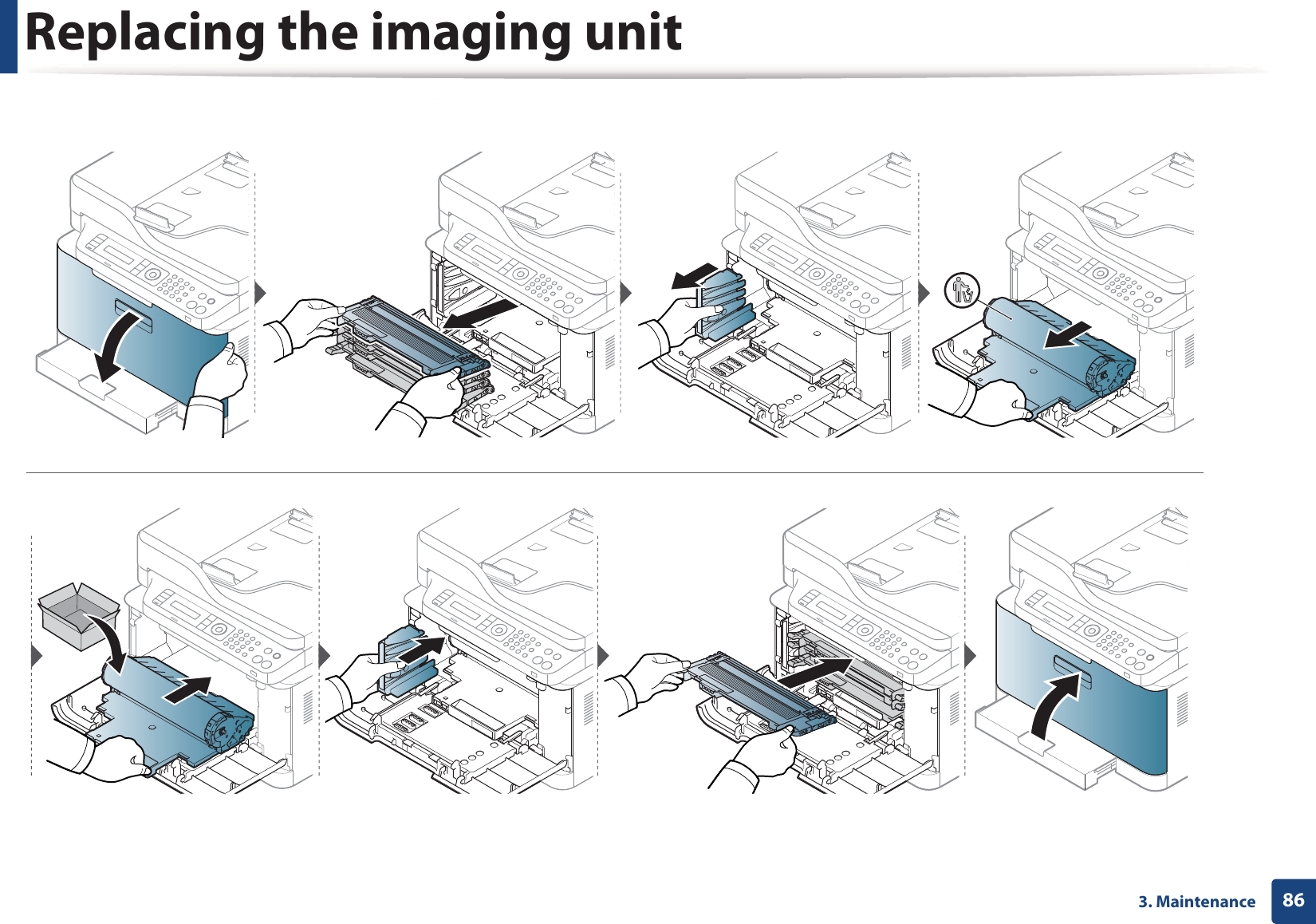

Replacing the imaging unit863. Maintenance

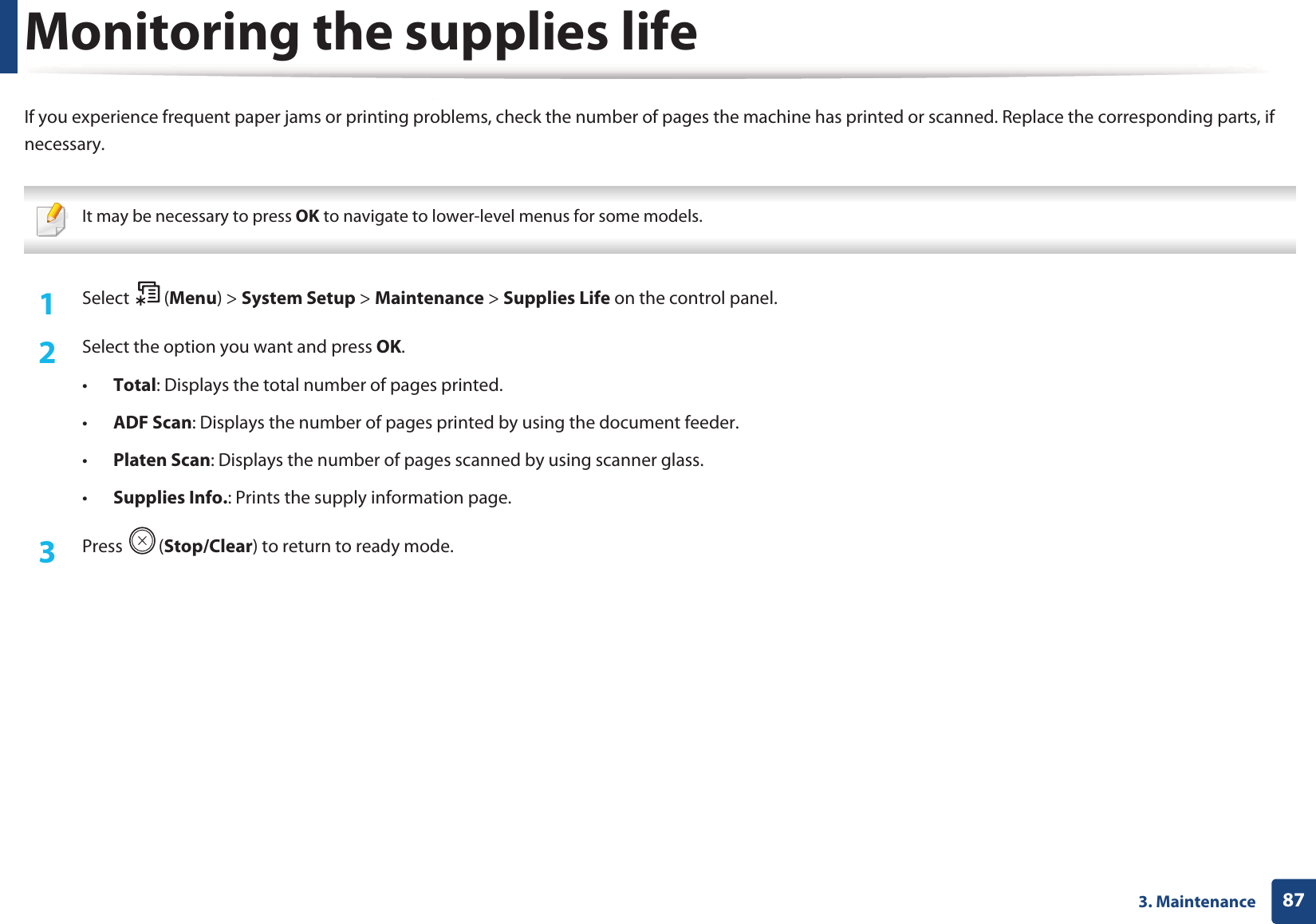

873. MaintenanceMonitoring the supplies lifeIf you experience frequent paper jams or printing problems, check the number of pages the machine has printed or scanned. Replace the corresponding parts, if necessary. It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) > System Setup > Maintenance > Supplies Life on the control panel.2 Select the option you want and press OK.•Total: Displays the total number of pages printed.•ADF Scan: Displays the number of pages printed by using the document feeder.•Platen Scan: Displays the number of pages scanned by using scanner glass.•Supplies Info.: Prints the supply information page.3 Press (Stop/Clear) to return to ready mode.

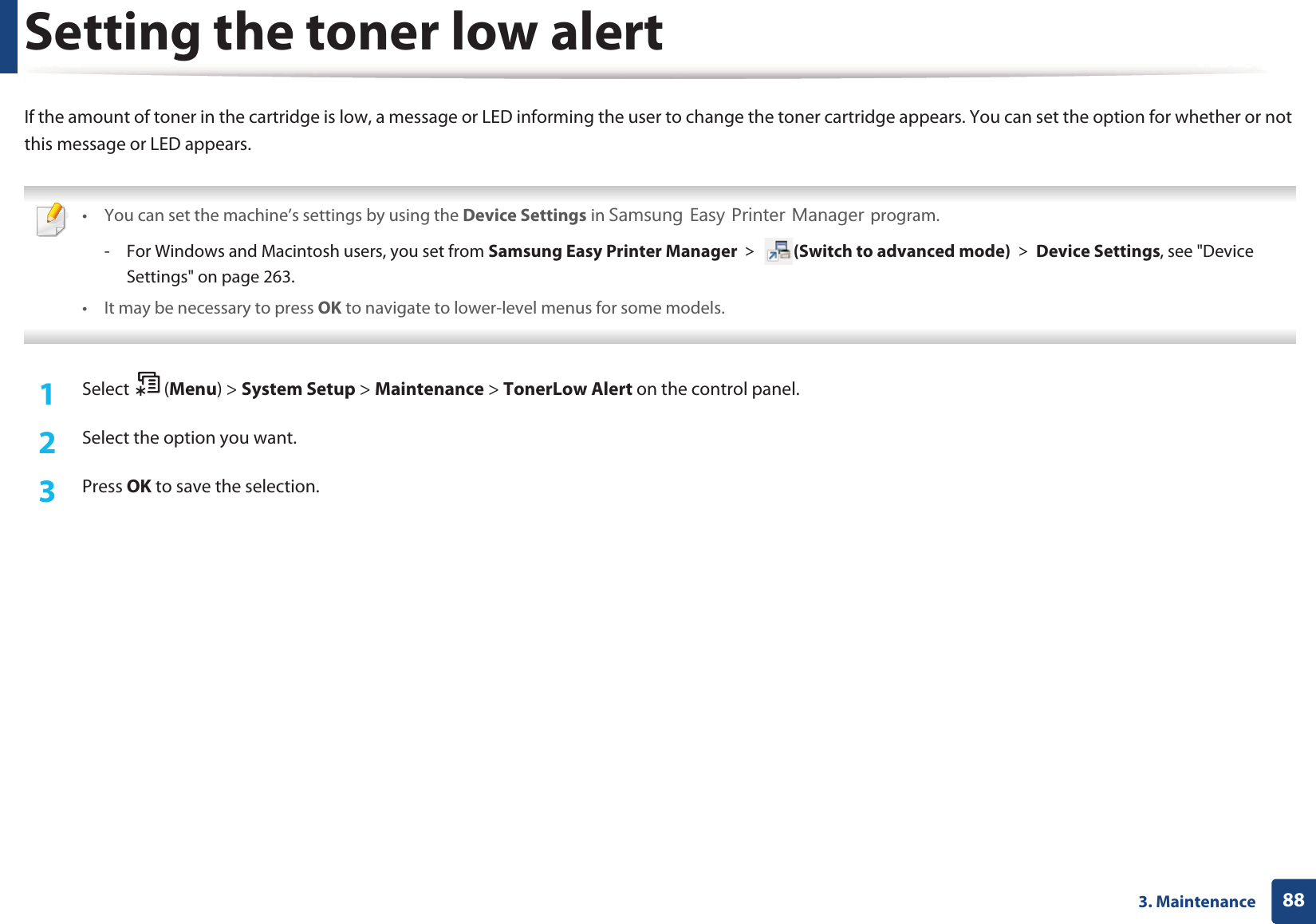

883. MaintenanceSetting the toner low alertIf the amount of toner in the cartridge is low, a message or LED informing the user to change the toner cartridge appears. You can set the option for whether or not this message or LED appears. • You can set the machine’s settings by using the Device Settings in 6DPVXQJ(DV\3ULQWHU0DQDJHUprogram.- For Windows and Macintosh users, you set from Samsung Easy Printer Manager! (Switch to advanced mode)!Device Settings, see "Device Settings" on page 263.• It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) > System Setup > Maintenance > TonerLow Alert on the control panel.2 Select the option you want.3 Press OK to save the selection.

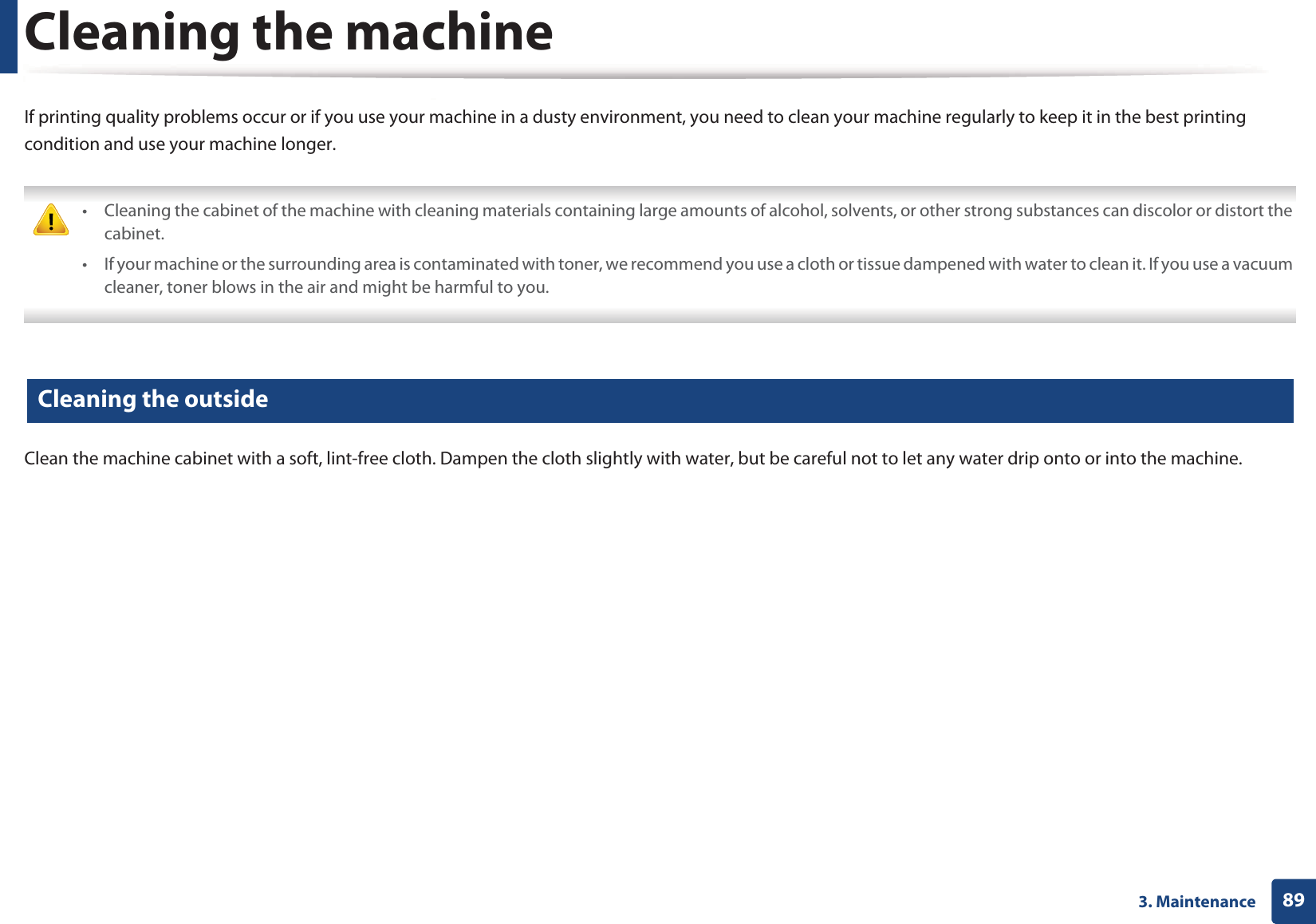

893. MaintenanceCleaning the machineIf printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer. • Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the cabinet. • If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you. 4 Cleaning the outsideClean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.

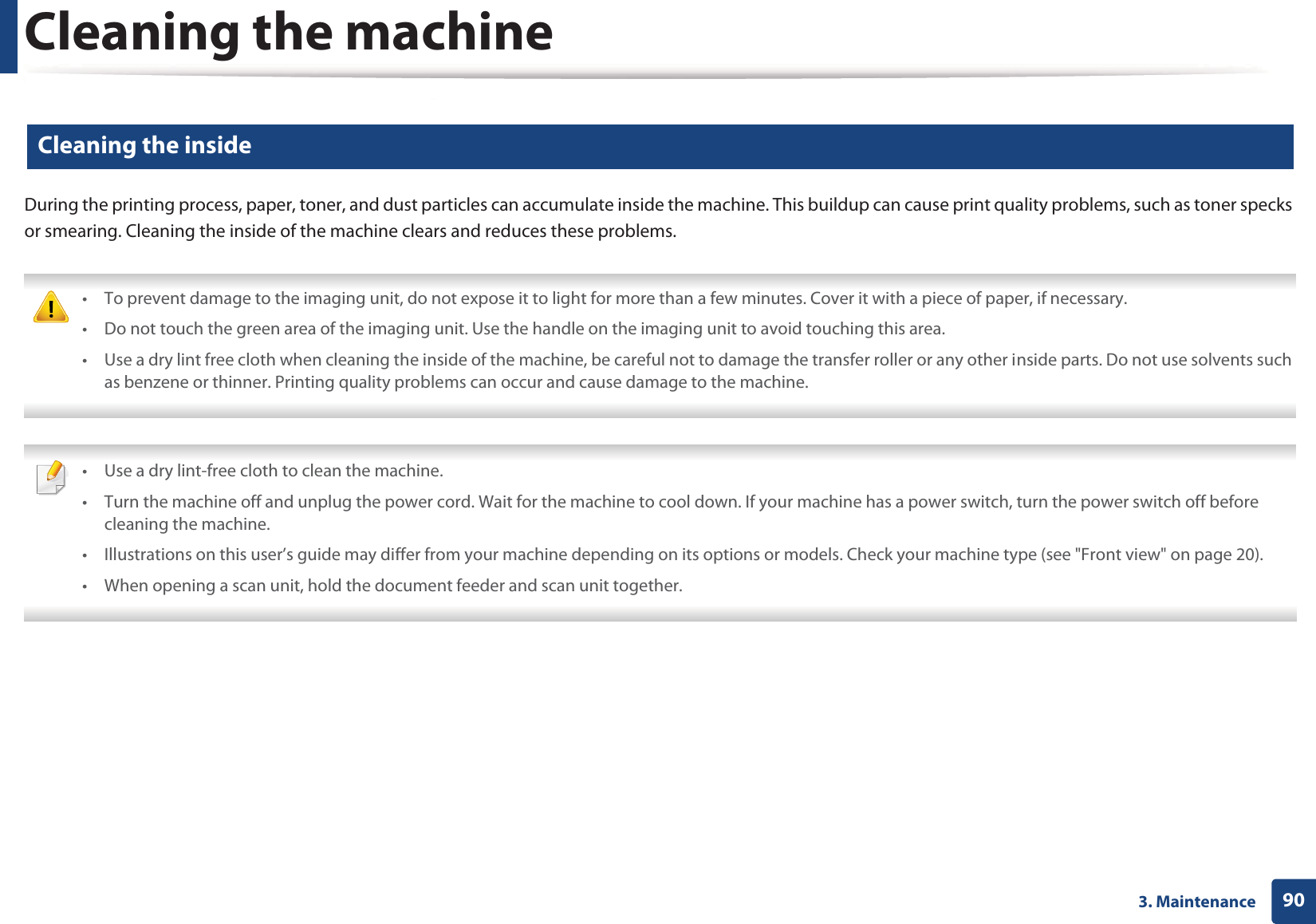

Cleaning the machine903. Maintenance5 Cleaning the insideDuring the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems. • To prevent damage to the imaging unit, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green area of the imaging unit. Use the handle on the imaging unit to avoid touching this area. • Use a dry lint free cloth when cleaning the inside of the machine, be careful not to damage the transfer roller or any other inside parts. Do not use solvents such as benzene or thinner. Printing quality problems can occur and cause damage to the machine. • Use a dry lint-free cloth to clean the machine.• Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).• When opening a scan unit, hold the document feeder and scan unit together.

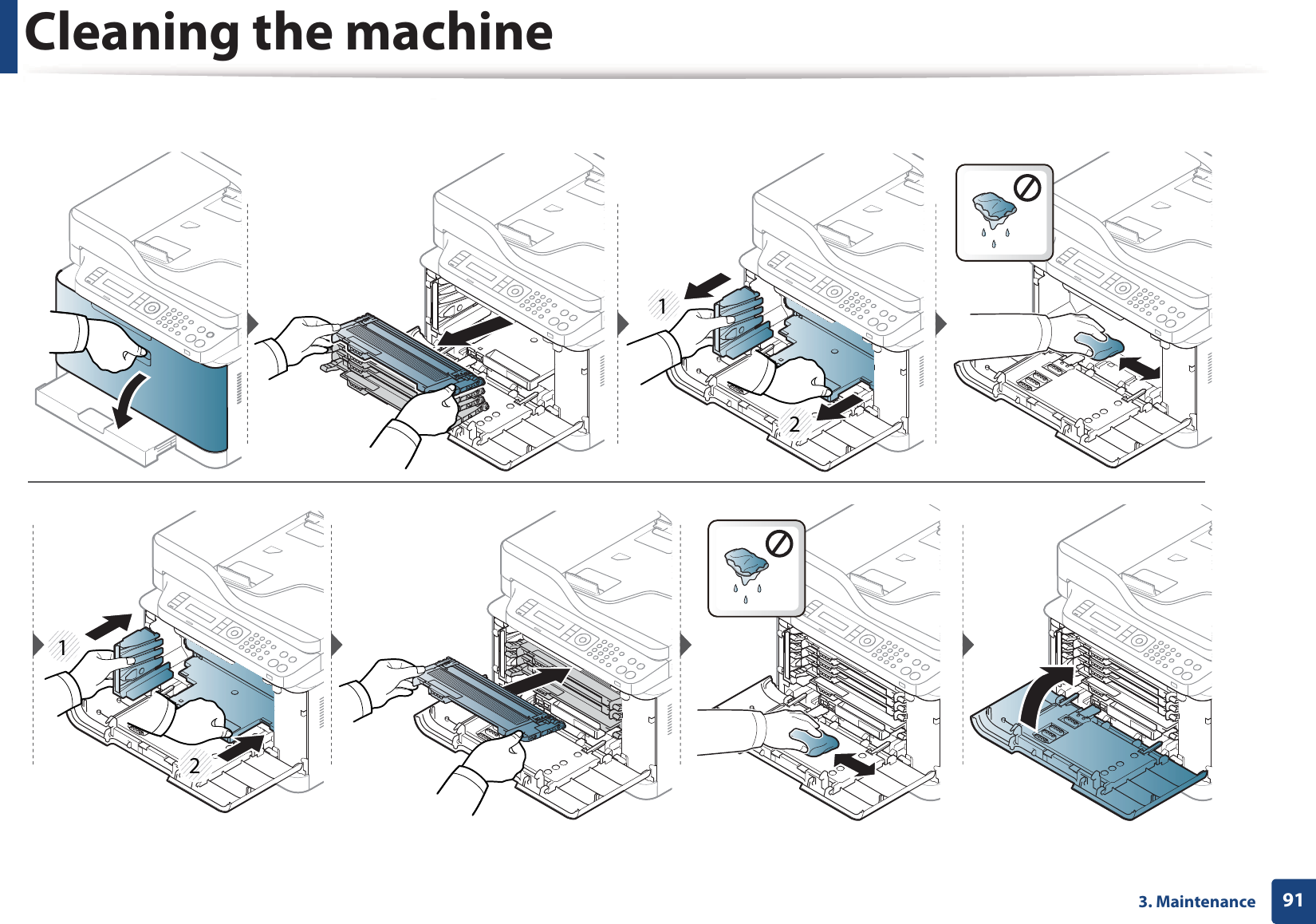

Cleaning the machine913. Maintenance1212

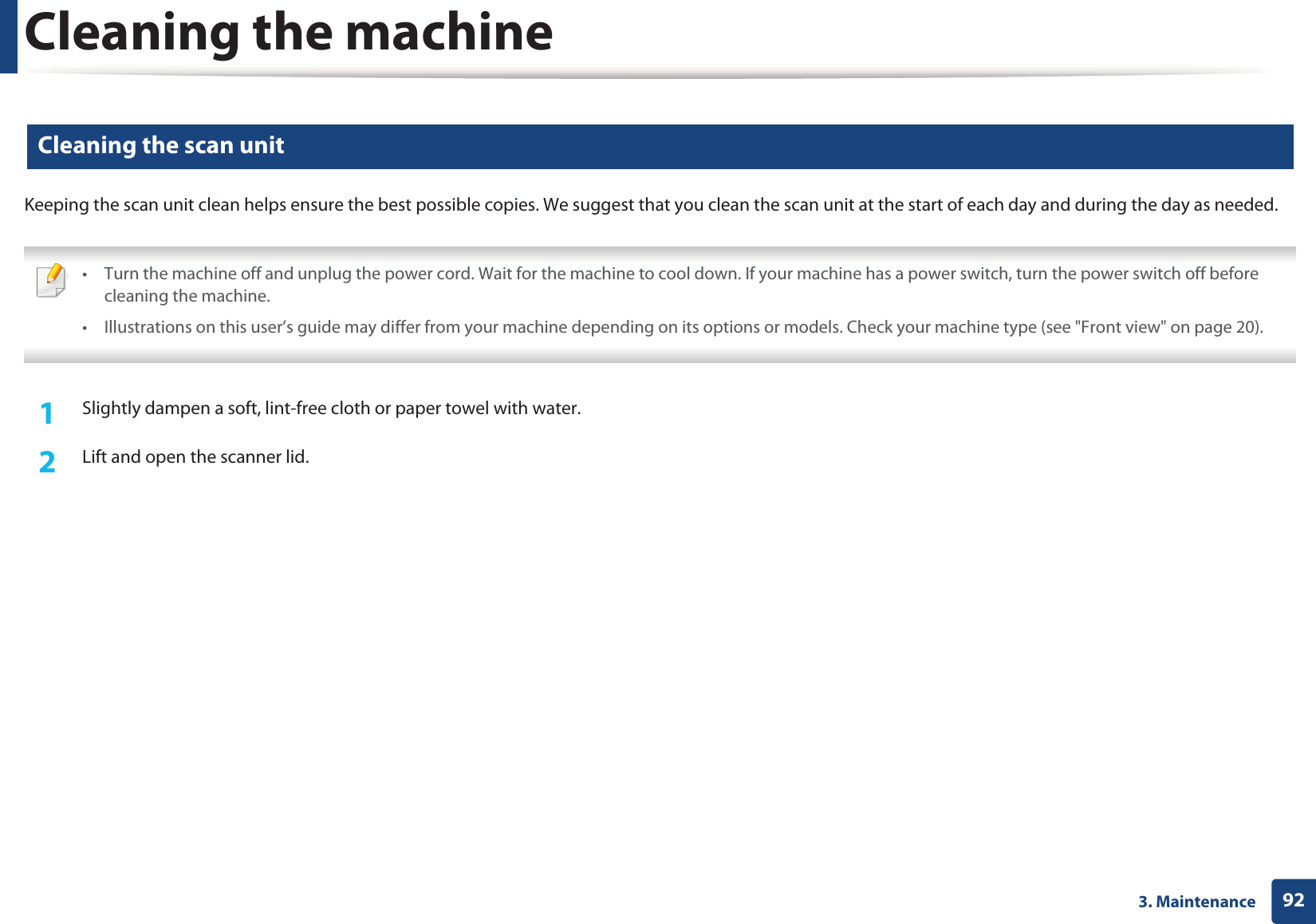

Cleaning the machine923. Maintenance6 Cleaning the scan unitKeeping the scan unit clean helps ensure the best possible copies. We suggest that you clean the scan unit at the start of each day and during the day as needed. • Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20). 1Slightly dampen a soft, lint-free cloth or paper towel with water.2 Lift and open the scanner lid.

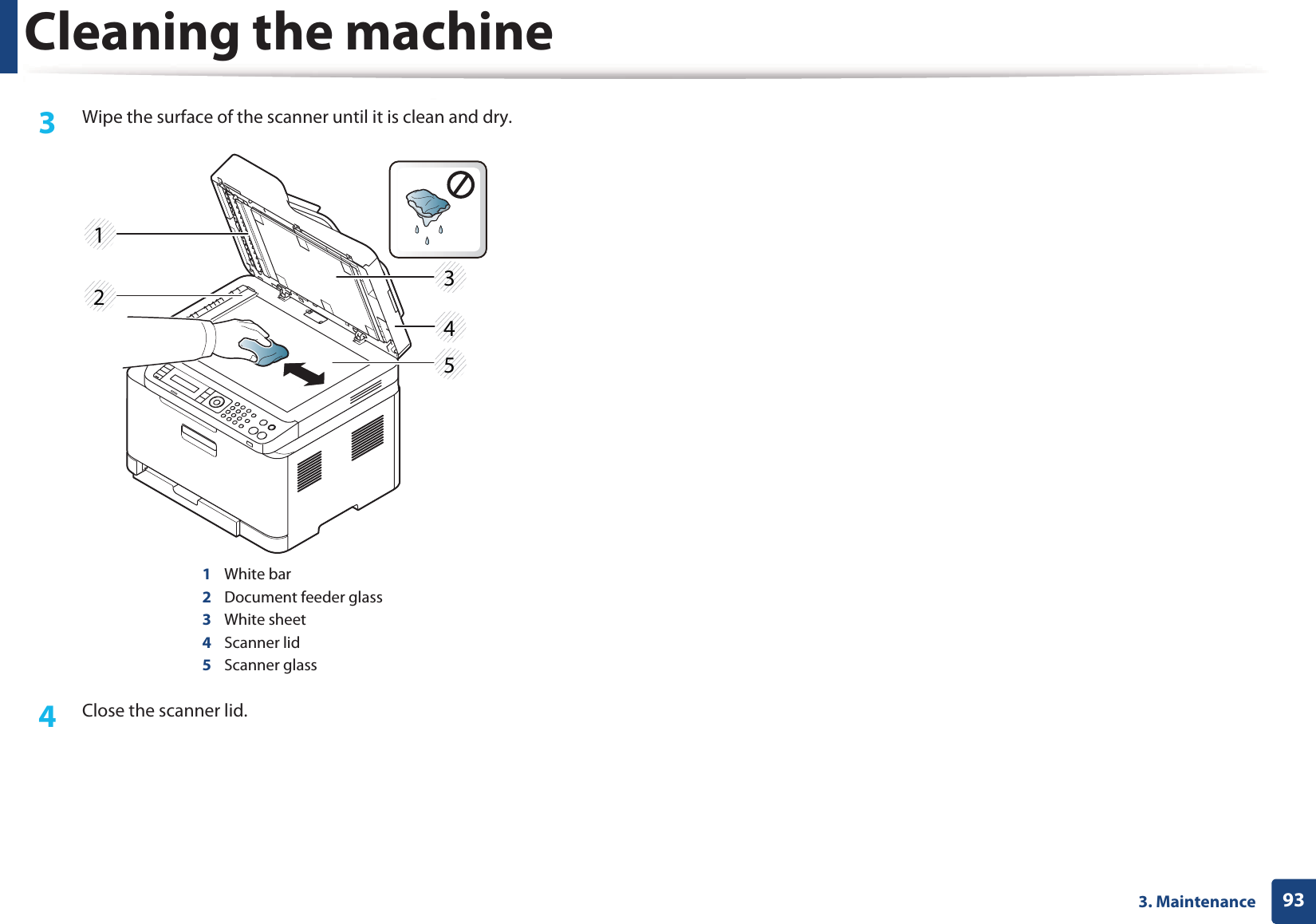

Cleaning the machine933. Maintenance3 Wipe the surface of the scanner until it is clean and dry.1White bar2Document feeder glass3White sheet4Scanner lid5Scanner glass4 Close the scanner lid.23415

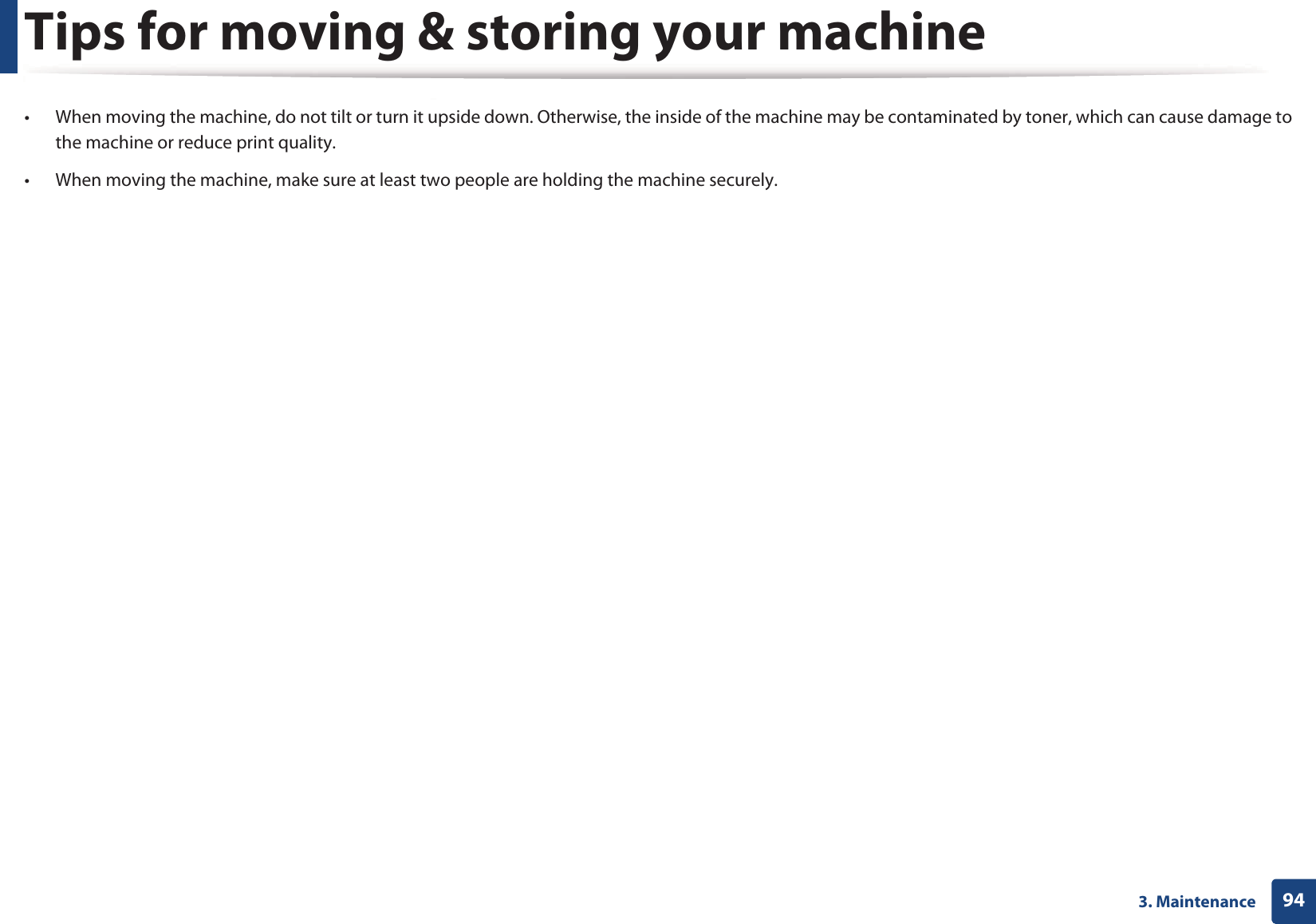

943. MaintenanceTips for moving & storing your machine• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to the machine or reduce print quality.• When moving the machine, make sure at least two people are holding the machine securely.

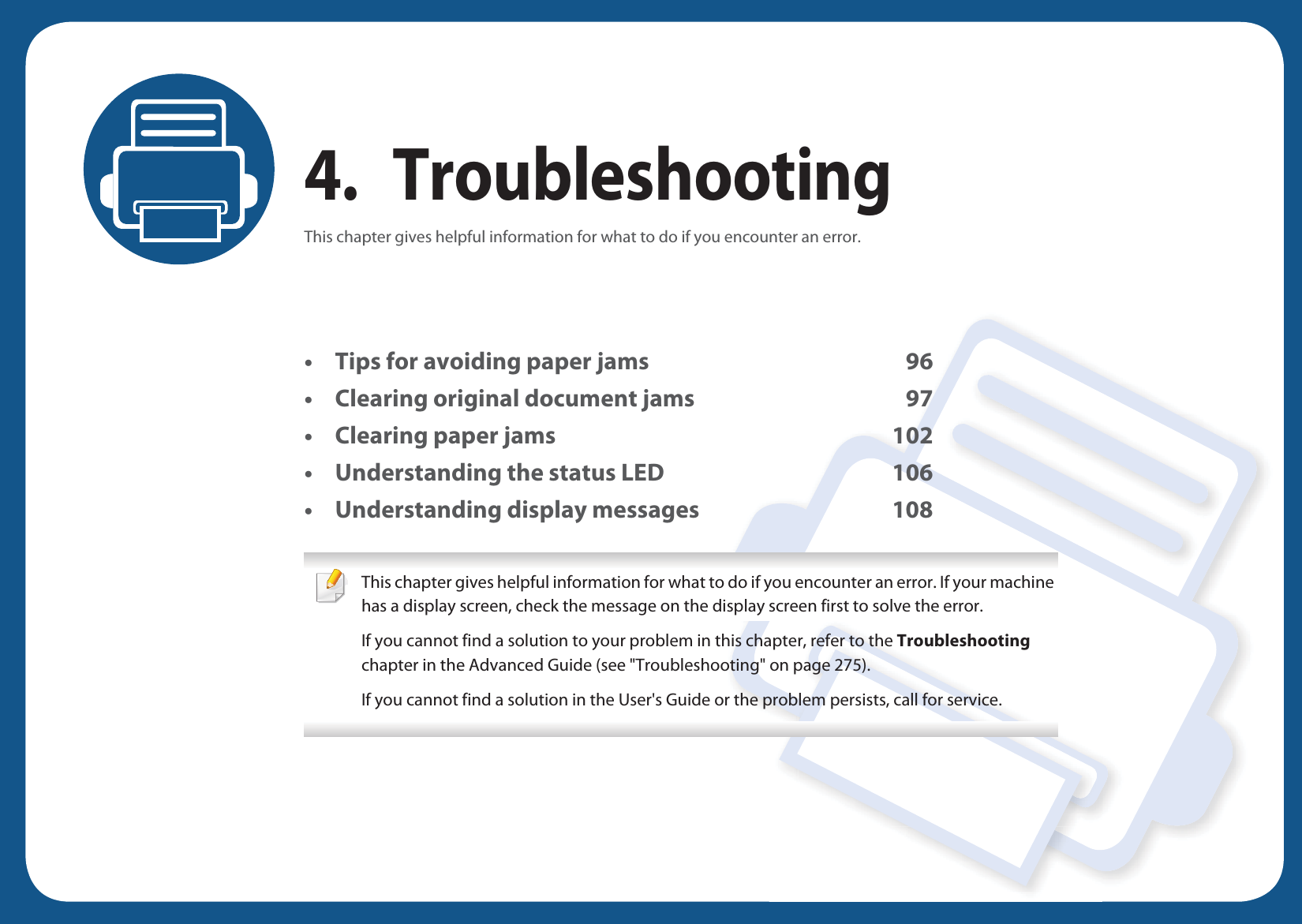

4. TroubleshootingThis chapter gives helpful information for what to do if you encounter an error.• Tips for avoiding paper jams 96• Clearing original document jams 97• Clearing paper jams 102• Understanding the status LED 106• Understanding display messages 108 This chapter gives helpful information for what to do if you encounter an error. If your machine has a display screen, check the message on the display screen first to solve the error.If you cannot find a solution to your problem in this chapter, refer to the Troubleshooting chapter in the Advanced Guide (see "Troubleshooting" on page 275).If you cannot find a solution in the User's Guide or the problem persists, call for service.

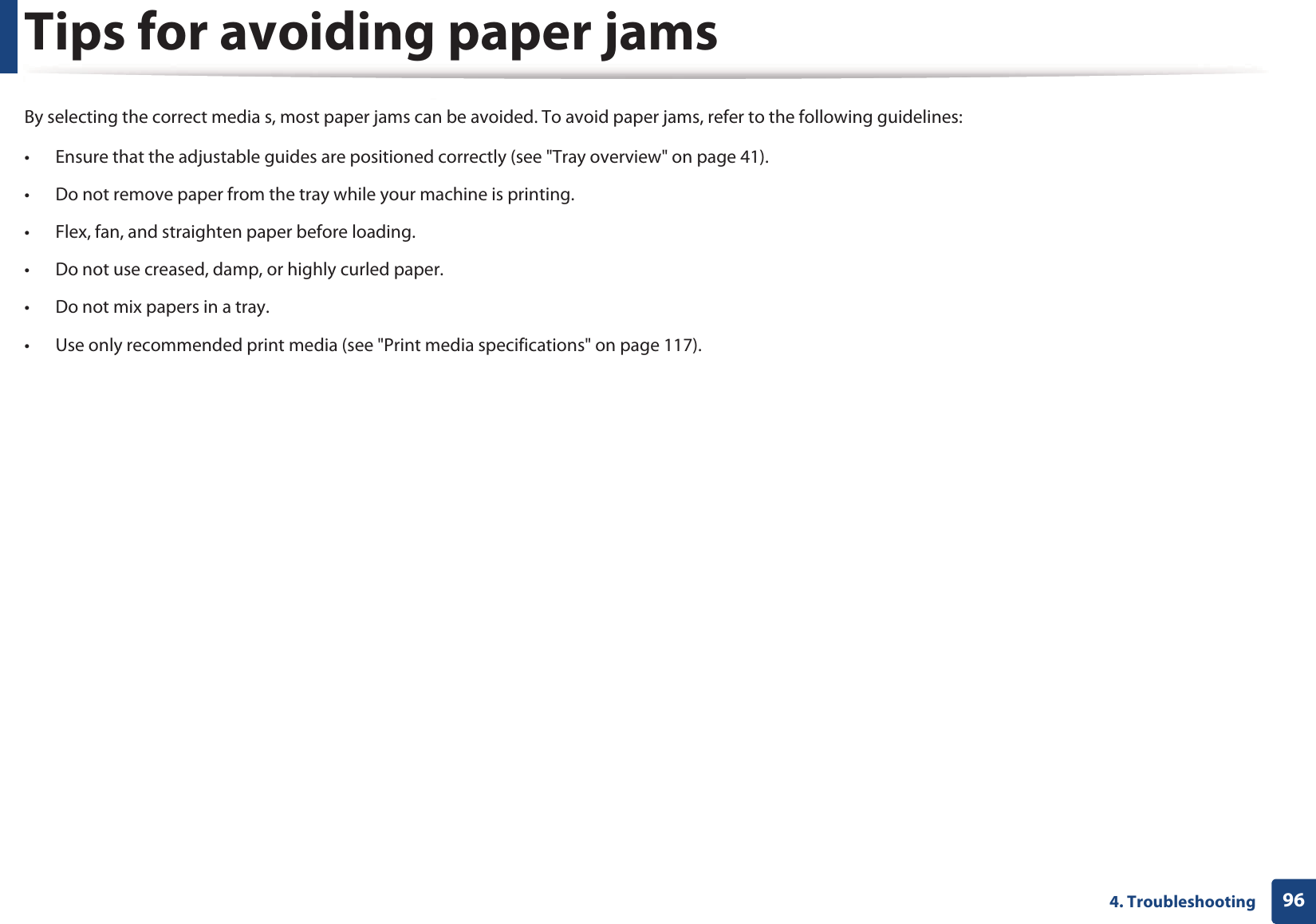

964. TroubleshootingTips for avoiding paper jamsBy selecting the correct media s, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 41).• Do not remove paper from the tray while your machine is printing.• Flex, fan, and straighten paper before loading. • Do not use creased, damp, or highly curled paper.• Do not mix papers in a tray.• Use only recommended print media (see "Print media specifications" on page 117).

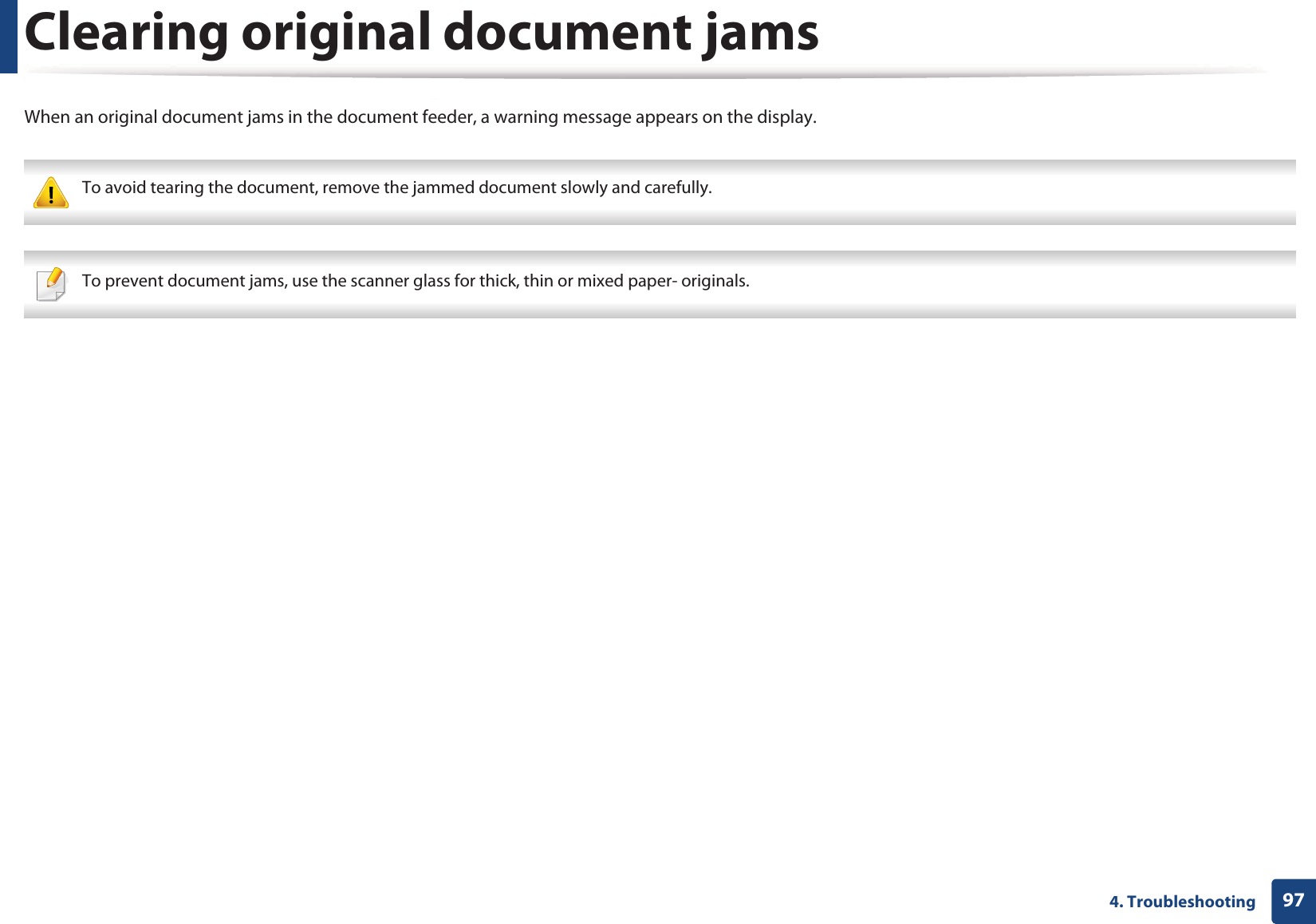

974. TroubleshootingClearing original document jamsWhen an original document jams in the document feeder, a warning message appears on the display. To avoid tearing the document, remove the jammed document slowly and carefully. To prevent document jams, use the scanner glass for thick, thin or mixed paper- originals.

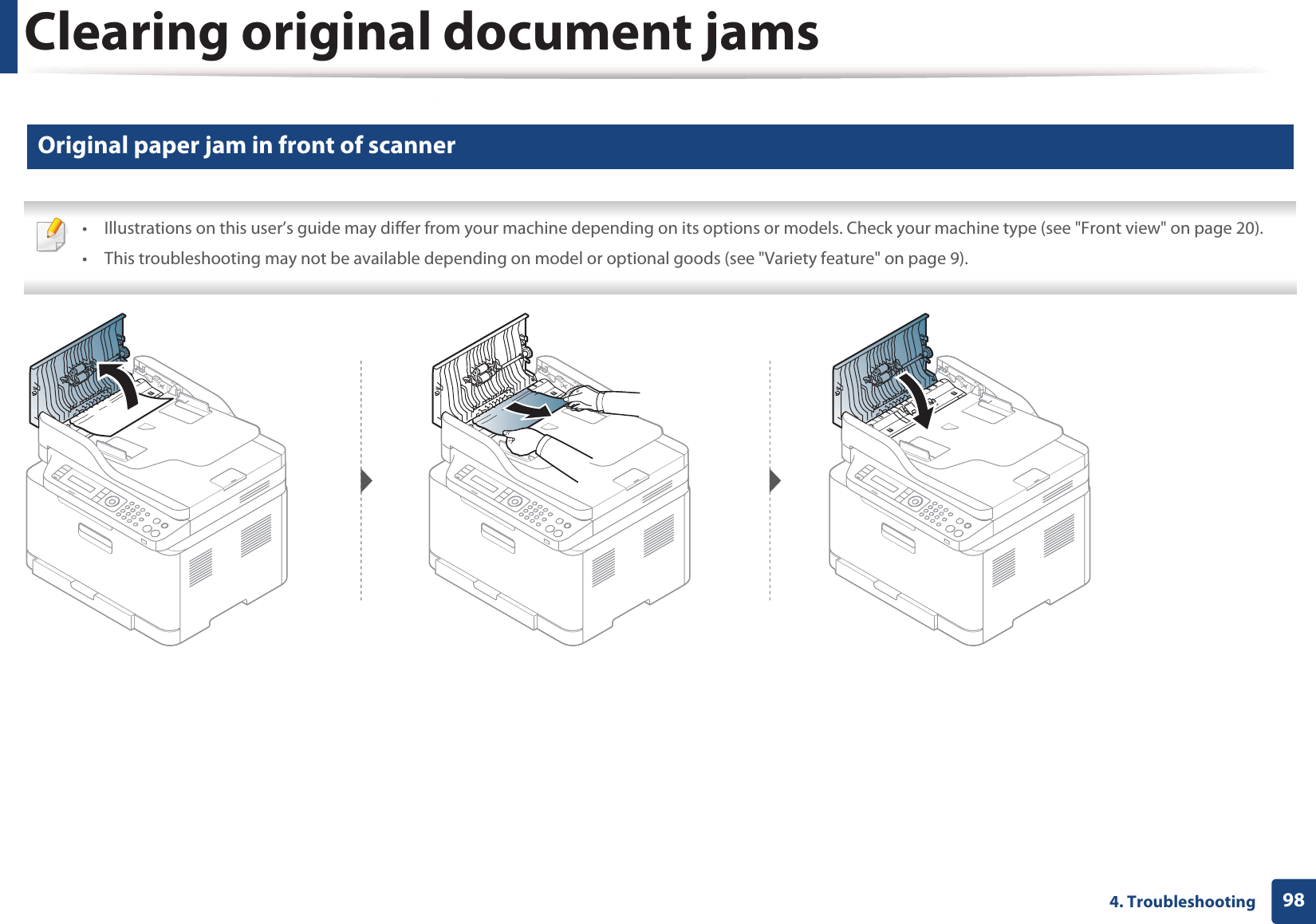

Clearing original document jams984. Troubleshooting1 Original paper jam in front of scanner • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).• This troubleshooting may not be available depending on model or optional goods (see "Variety feature" on page 9).

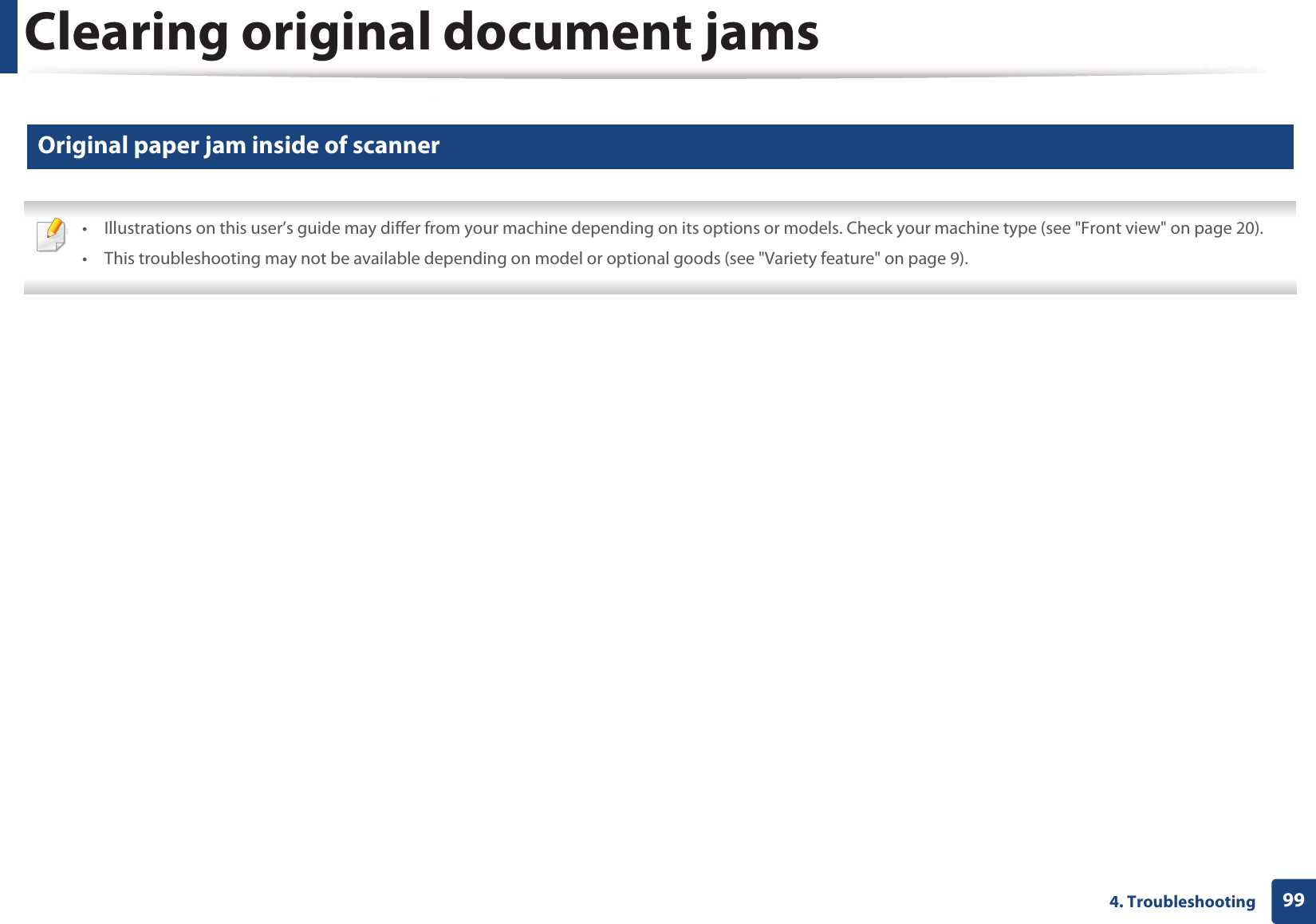

Clearing original document jams994. Troubleshooting2 Original paper jam inside of scanner • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).• This troubleshooting may not be available depending on model or optional goods (see "Variety feature" on page 9).

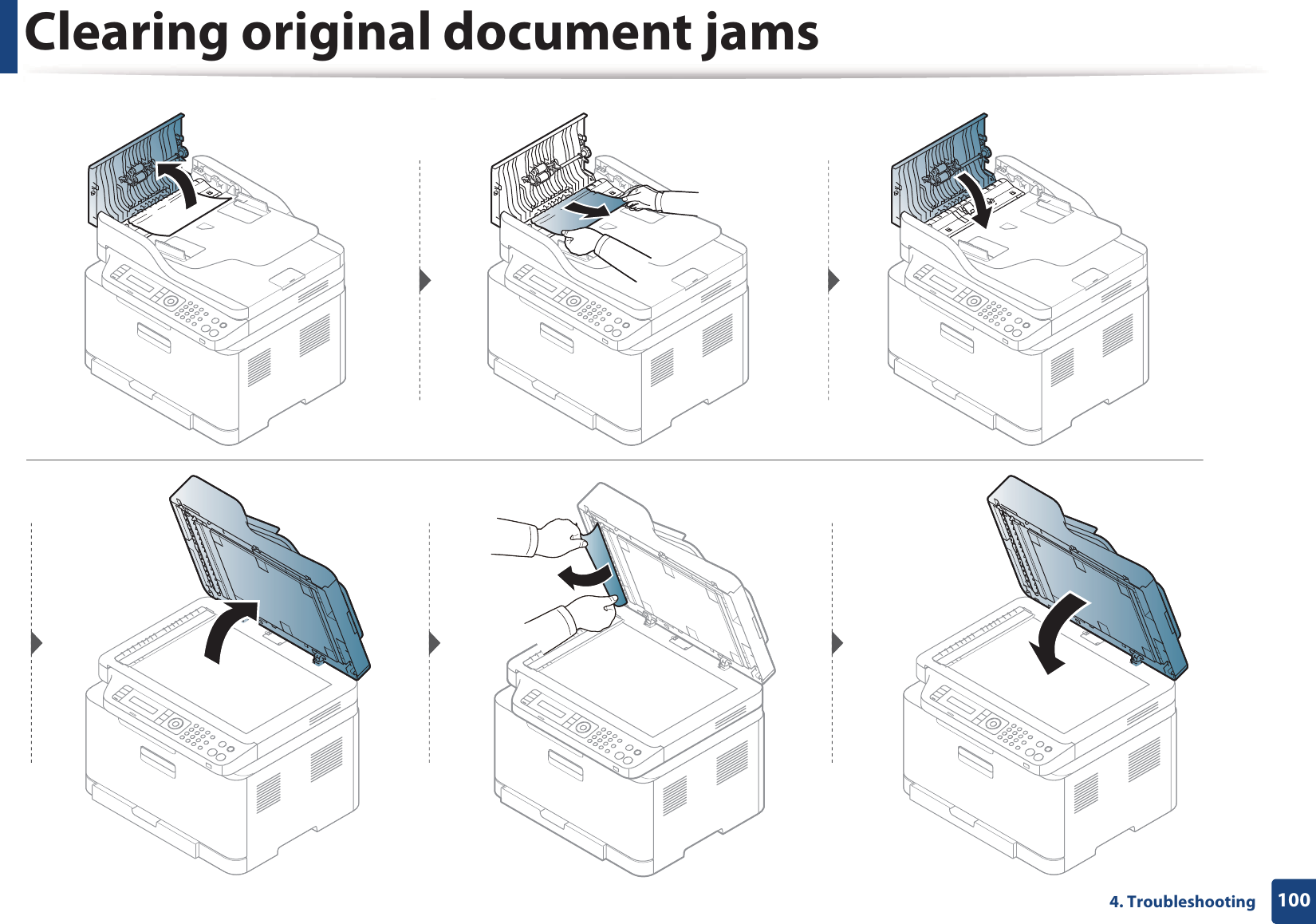

Clearing original document jams1004. Troubleshooting

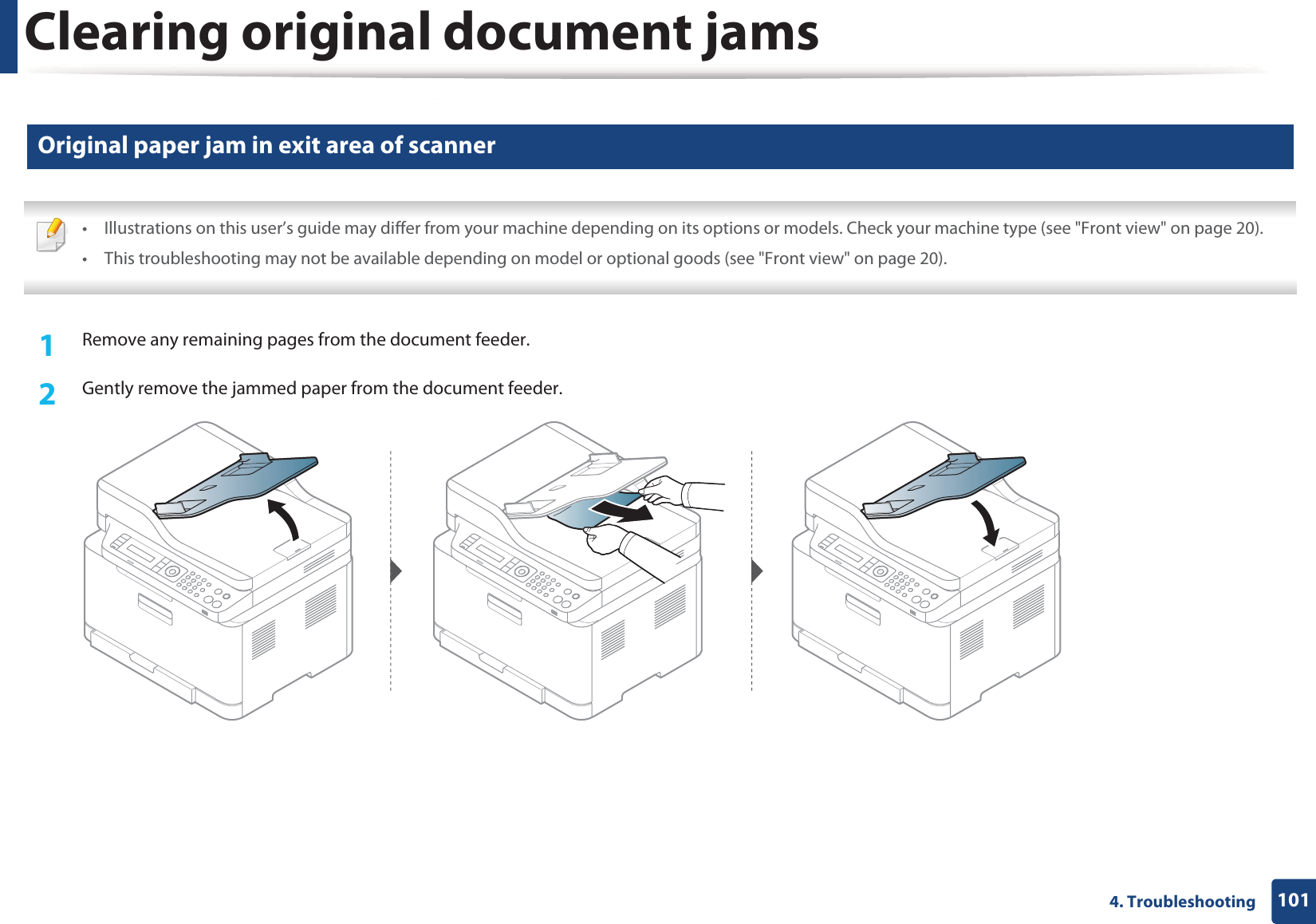

Clearing original document jams1014. Troubleshooting3 Original paper jam in exit area of scanner • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).• This troubleshooting may not be available depending on model or optional goods (see "Front view" on page 20). 1Remove any remaining pages from the document feeder.2 Gently remove the jammed paper from the document feeder.

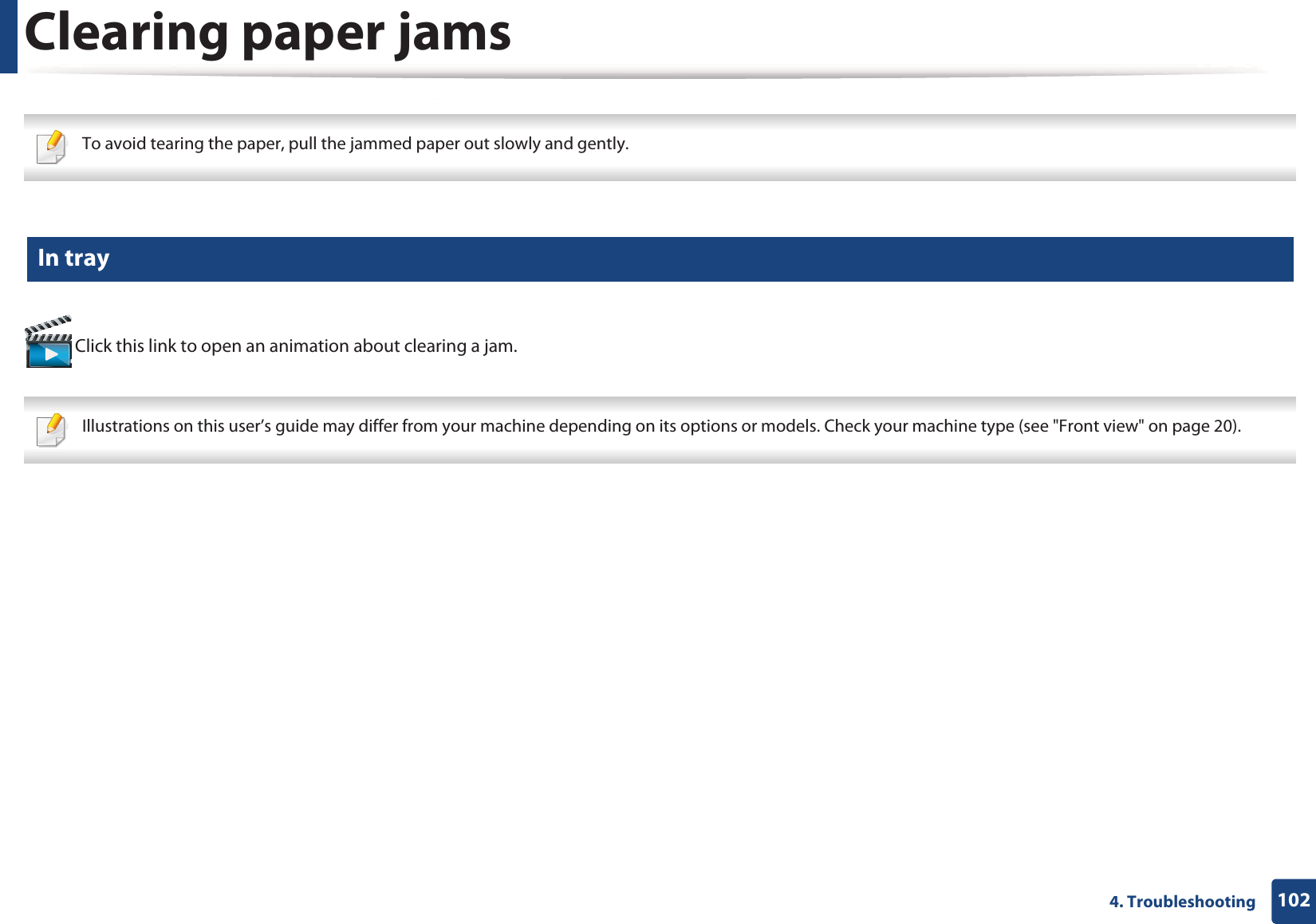

1024. TroubleshootingClearing paper jams To avoid tearing the paper, pull the jammed paper out slowly and gently. 4 In tray Click this link to open an animation about clearing a jam. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).

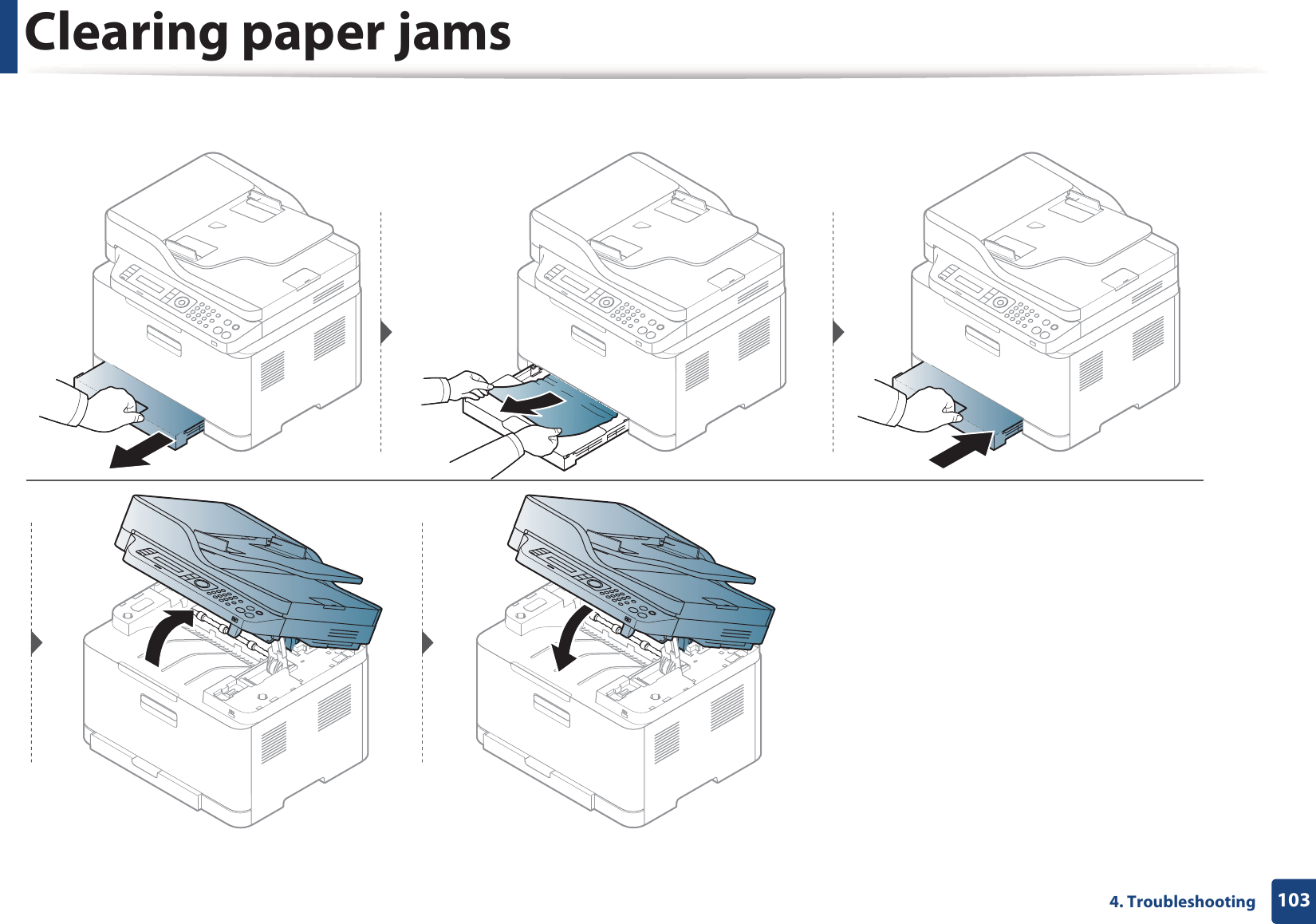

Clearing paper jams1034. Troubleshooting

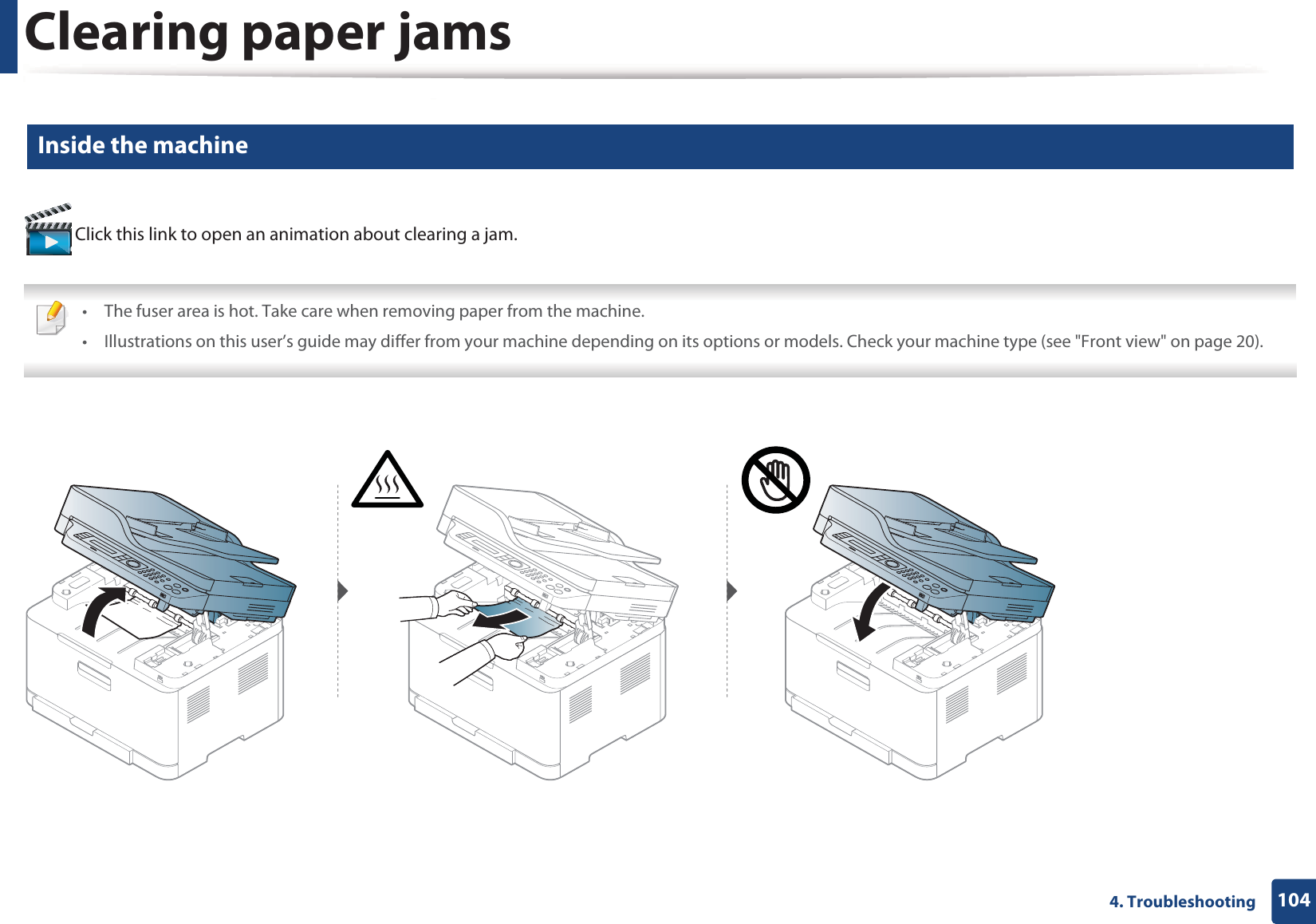

Clearing paper jams1044. Troubleshooting5 Inside the machine Click this link to open an animation about clearing a jam. • The fuser area is hot. Take care when removing paper from the machine.• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).

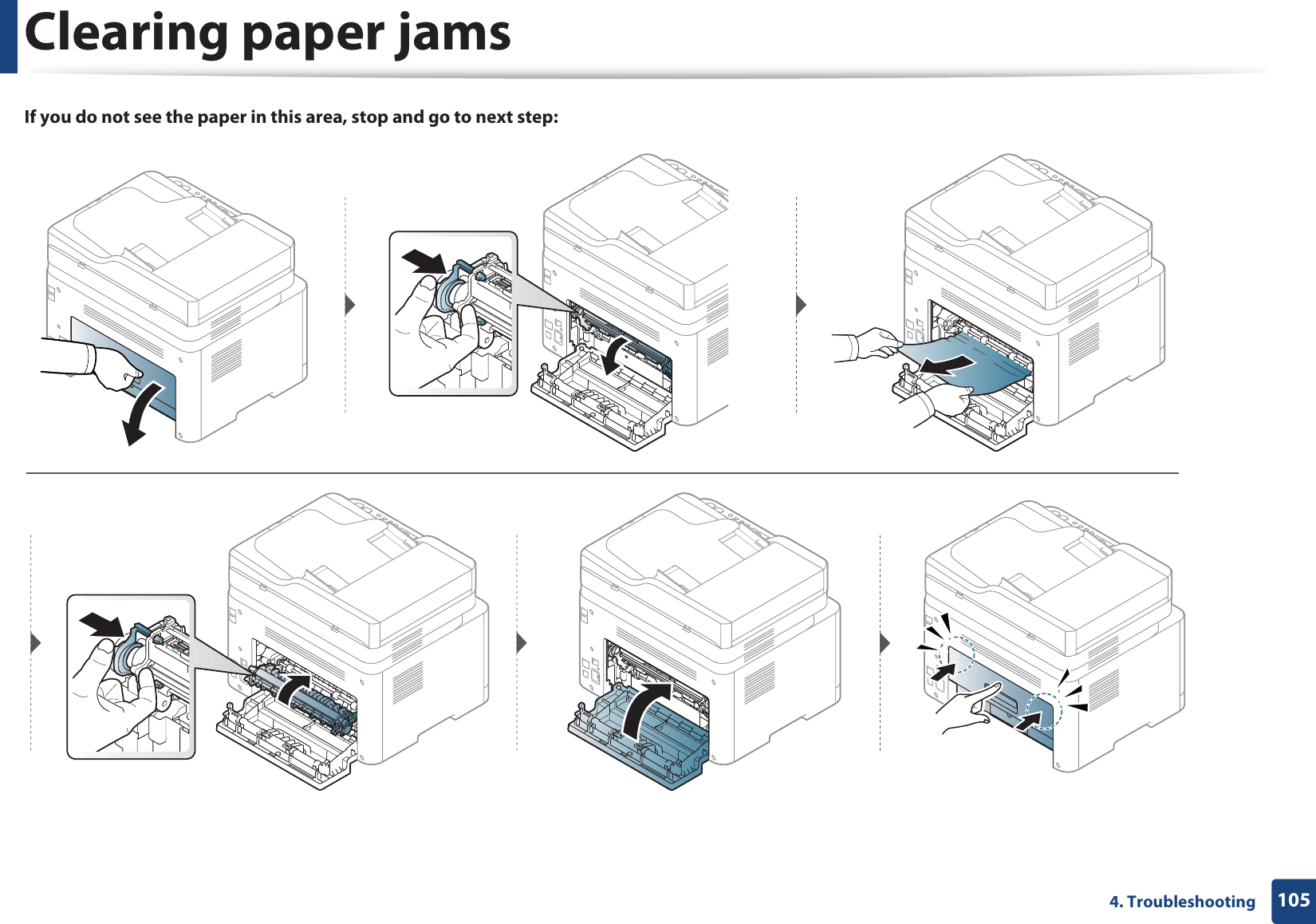

Clearing paper jams1054. TroubleshootingIf you do not see the paper in this area, stop and go to next step:

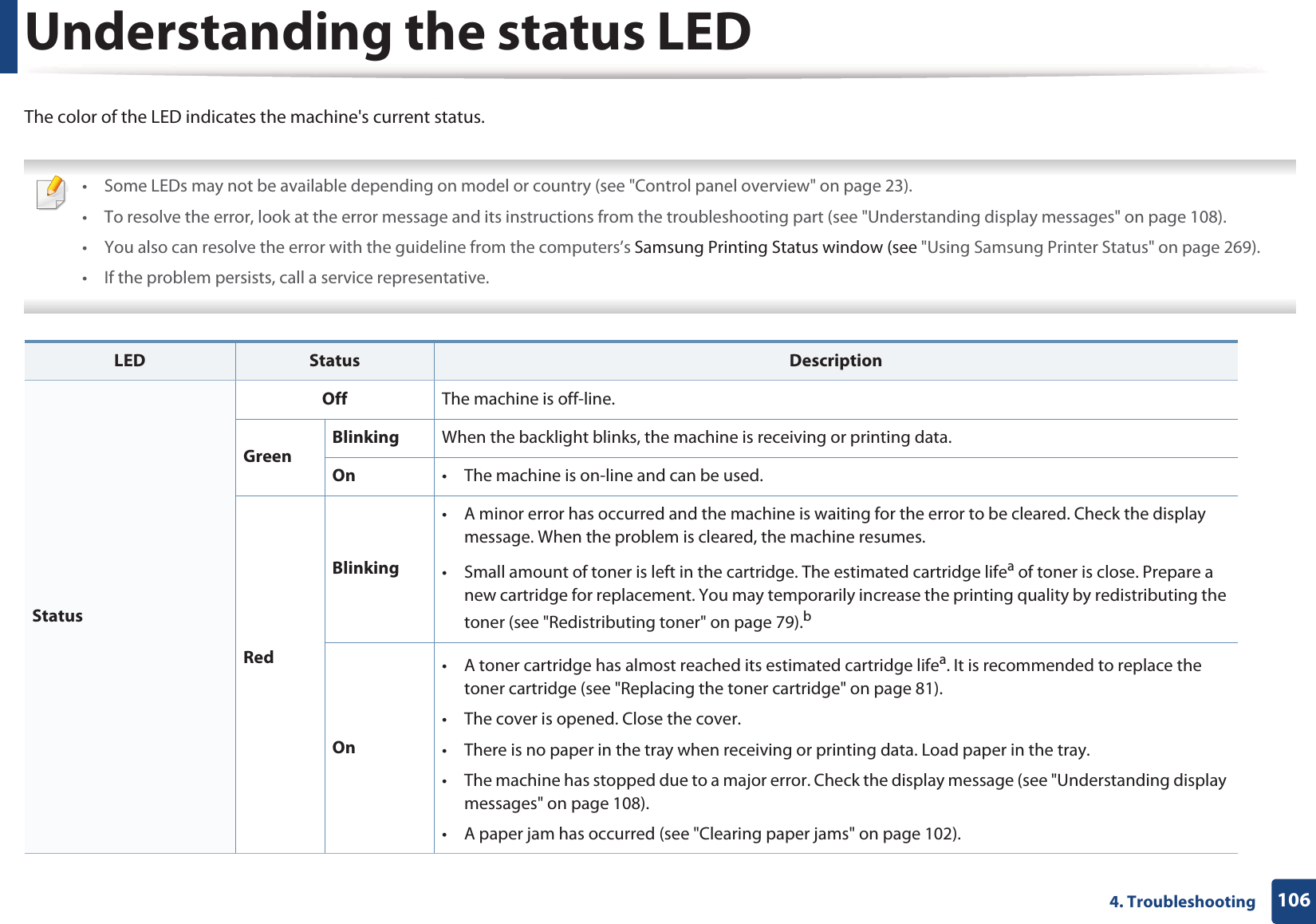

1064. TroubleshootingUnderstanding the status LEDThe color of the LED indicates the machine's current status. • Some LEDs may not be available depending on model or country (see "Control panel overview" on page 23).• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Understanding display messages" on page 108).• You also can resolve the error with the guideline from the computers’s Samsung Printing Status window (see "Using Samsung Printer Status" on page 269).• If the problem persists, call a service representative. LED Status DescriptionStatusOff The machine is off-line.GreenBlinking When the backlight blinks, the machine is receiving or printing data.On • The machine is on-line and can be used.RedBlinking• A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message. When the problem is cleared, the machine resumes.• Small amount of toner is left in the cartridge. The estimated cartridge lifea of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 79).bOn• A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 81).• The cover is opened. Close the cover.• There is no paper in the tray when receiving or printing data. Load paper in the tray. • The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 108). • A paper jam has occurred (see "Clearing paper jams" on page 102).

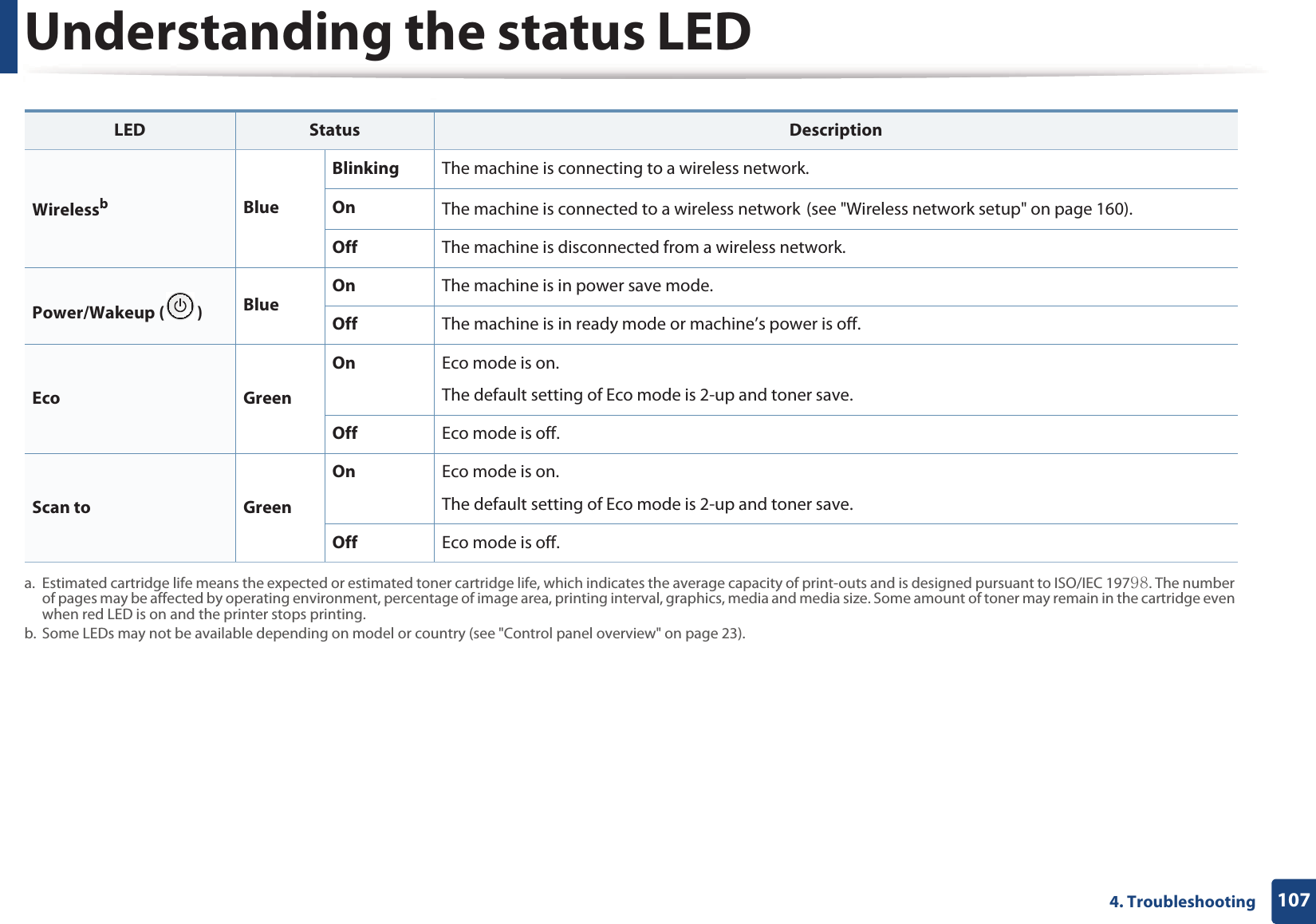

Understanding the status LED1074. Troubleshooting WirelessbBlueBlinking The machine is connecting to a wireless network.On The machine is connected to a wireless networkG(see "Wireless network setup" on page 160).Off The machine is disconnected from a wireless network.Power/Wakeup ( ) BlueOn The machine is in power save mode.Off The machine is in ready mode or machine’s power is off.Eco GreenOn Eco mode is on. The default setting of Eco mode is 2-up and toner save.Off Eco mode is off. Scan to GreenOn Eco mode is on. The default setting of Eco mode is 2-up and toner save.Off Eco mode is off. a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 197`_. The number of pages may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.b. Some LEDs may not be available depending on model or country (see "Control panel overview" on page 23).LED Status Description

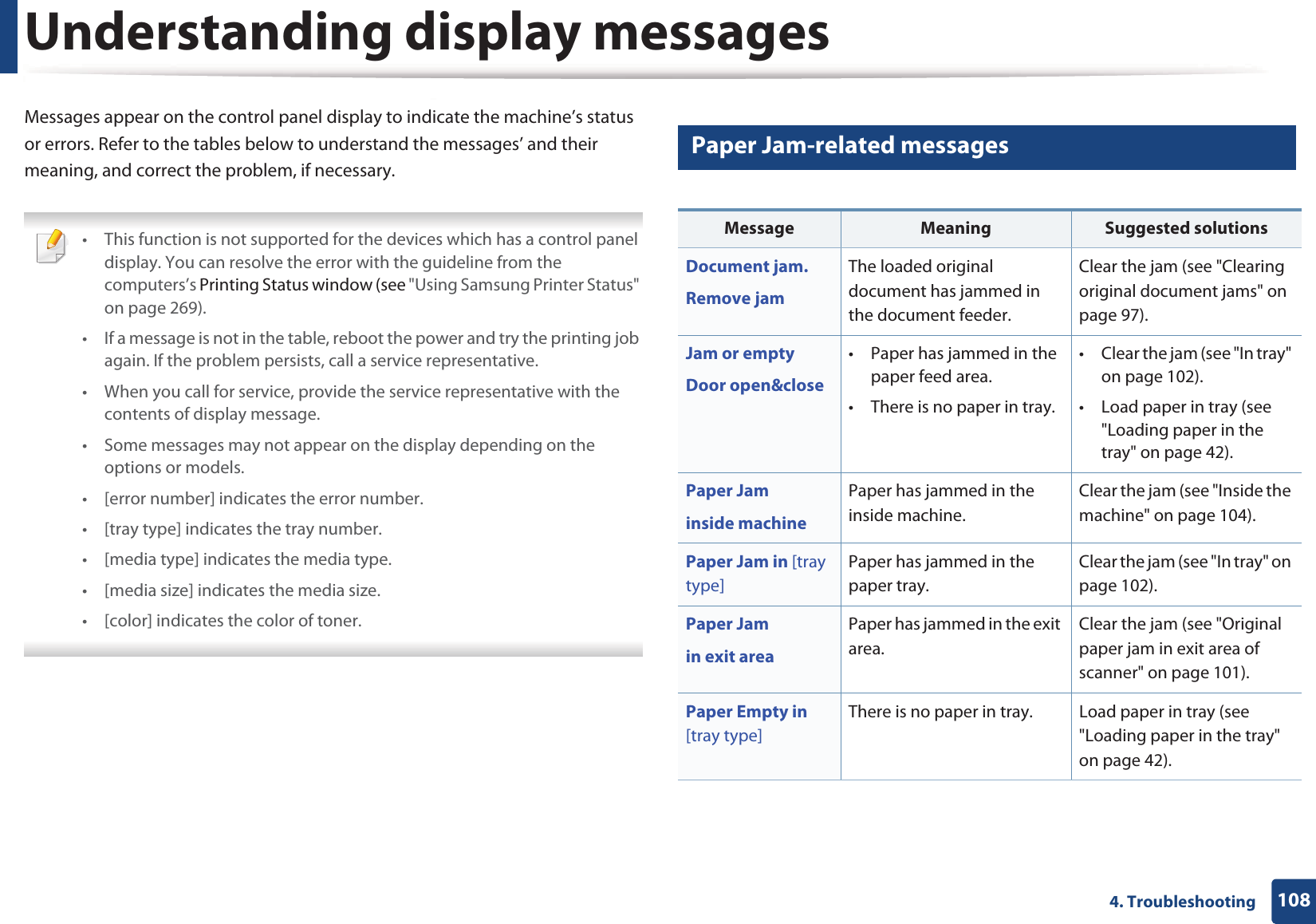

1084. TroubleshootingUnderstanding display messagesMessages appear on the control panel display to indicate the machine’s status or errors. Refer to the tables below to understand the messages’ and their meaning, and correct the problem, if necessary. • This function is not supported for the devices which has a control panel display. You can resolve the error with the guideline from the computers’s Printing Status window (see "Using Samsung Printer Status" on page 269).• If a message is not in the table, reboot the power and try the printing job again. If the problem persists, call a service representative.• When you call for service, provide the service representative with the contents of display message.• Some messages may not appear on the display depending on the options or models.• [error number] indicates the error number. • [tray type] indicates the tray number. • [media type] indicates the media type.• [media size] indicates the media size.• [color] indicates the color of toner. 6 Paper Jam-related messagesMessage Meaning Suggested solutionsDocument jam.Remove jamThe loaded original document has jammed in the document feeder.Clear the jam (see "Clearing original document jams" on page 97).Jam or emptyDoor open&close • Paper has jammed in the paper feed area.• There is no paper in tray.• Clear the jam (see "In tray" on page 102).• Load paper in tray (see "Loading paper in the tray" on page 42).Paper Jaminside machinePaper has jammed in the inside machine.Clear the jam (see "Inside the machine" on page 104).Paper Jam in [tray type]Paper has jammed in the paper tray.Clear the jam (see "In tray" on page 102).Paper Jamin exit areaPaper has jammed in the exit area.Clear the jam (see "Original paper jam in exit area of scanner" on page 101).Paper Empty in [tray type]There is no paper in tray. Load paper in tray (see "Loading paper in the tray" on page 42).

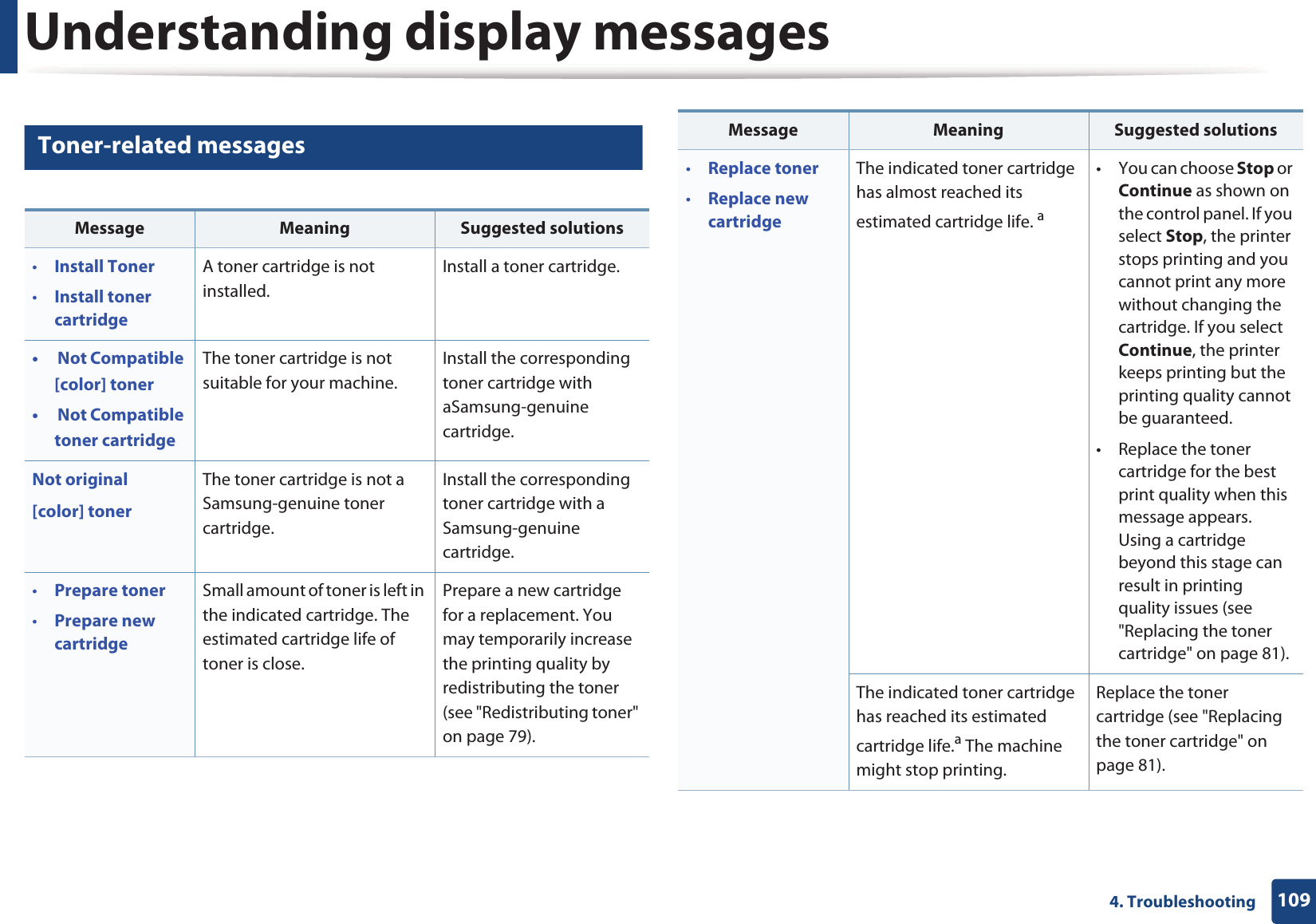

Understanding display messages1094. Troubleshooting7 Toner-related messagesMessage Meaning Suggested solutions•Install Toner•Install toner cartridgeA toner cartridge is not installed.Install a toner cartridge.• Not Compatible [color] toner• Not Compatible toner cartridgeThe toner cartridge is not suitable for your machine. Install the corresponding toner cartridge with aSamsung-genuine cartridge.Not original [color] tonerThe toner cartridge is not a Samsung-genuine toner cartridge.Install the corresponding toner cartridge with a Samsung-genuine cartridge.•Prepare toner•Prepare new cartridgeSmall amount of toner is left in the indicated cartridge. The estimated cartridge life of toner is close.Prepare a new cartridge for a replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 79).•Replace toner•Replace new cartridgeThe indicated toner cartridge has almost reached its estimated cartridge life. a• You can choose Stop or Continue as shown on the control panel. If you select Stop, the printer stops printing and you cannot print any more without changing the cartridge. If you select Continue, the printer keeps printing but the printing quality cannot be guaranteed.• Replace the toner cartridge for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the toner cartridge" on page 81).The indicated toner cartridge has reached its estimated cartridge life.a The machine might stop printing.Replace the toner cartridge (see "Replacing the toner cartridge" on page 81).Message Meaning Suggested solutions

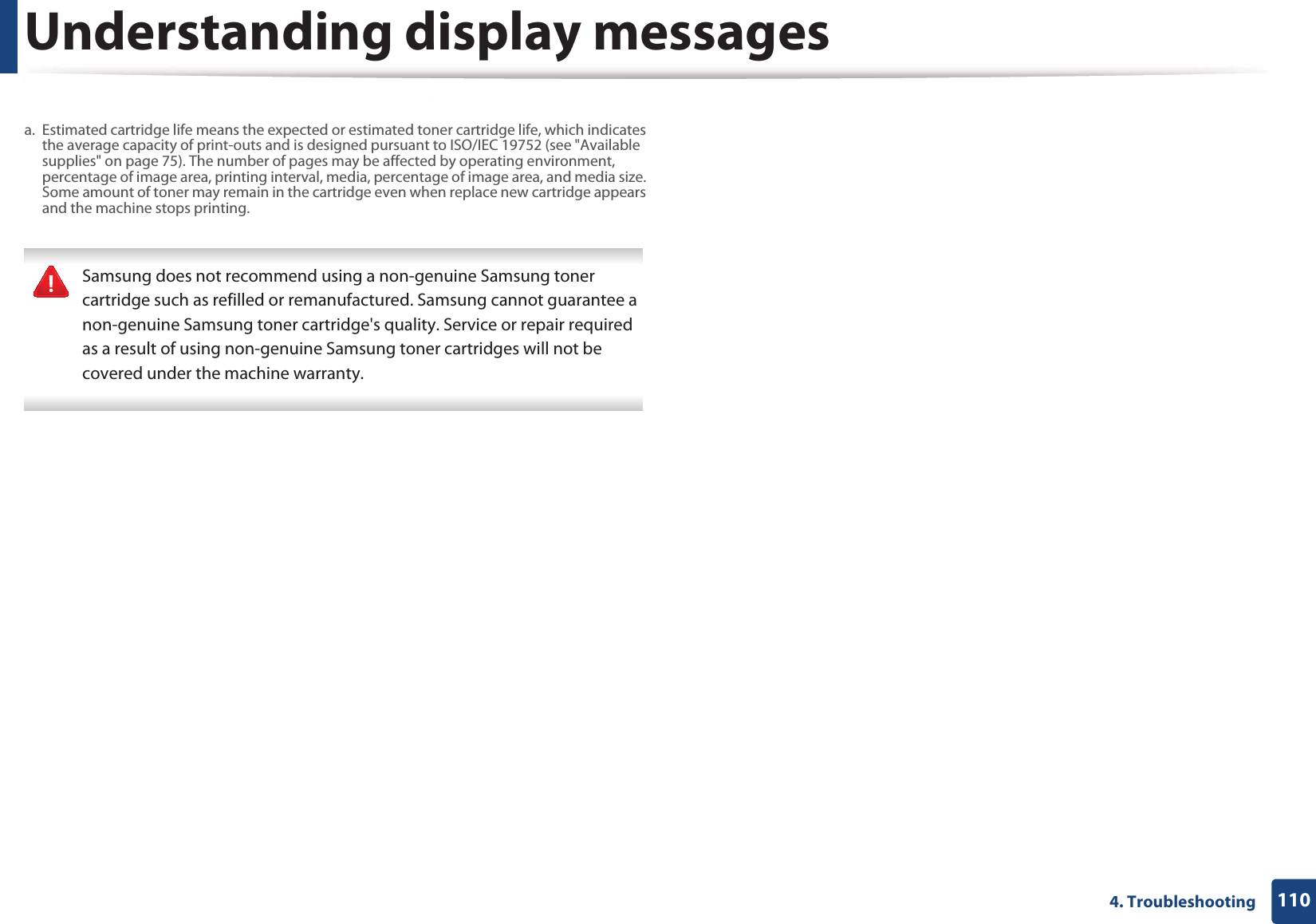

Understanding display messages1104. Troubleshooting Samsung does not recommend using a non-genuine Samsung toner cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty. a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752 (see "Available supplies" on page 75). The number of pages may be affected by operating environment, percentage of image area, printing interval, media, percentage of image area, and media size. Some amount of toner may remain in the cartridge even when replace new cartridge appears and the machine stops printing.

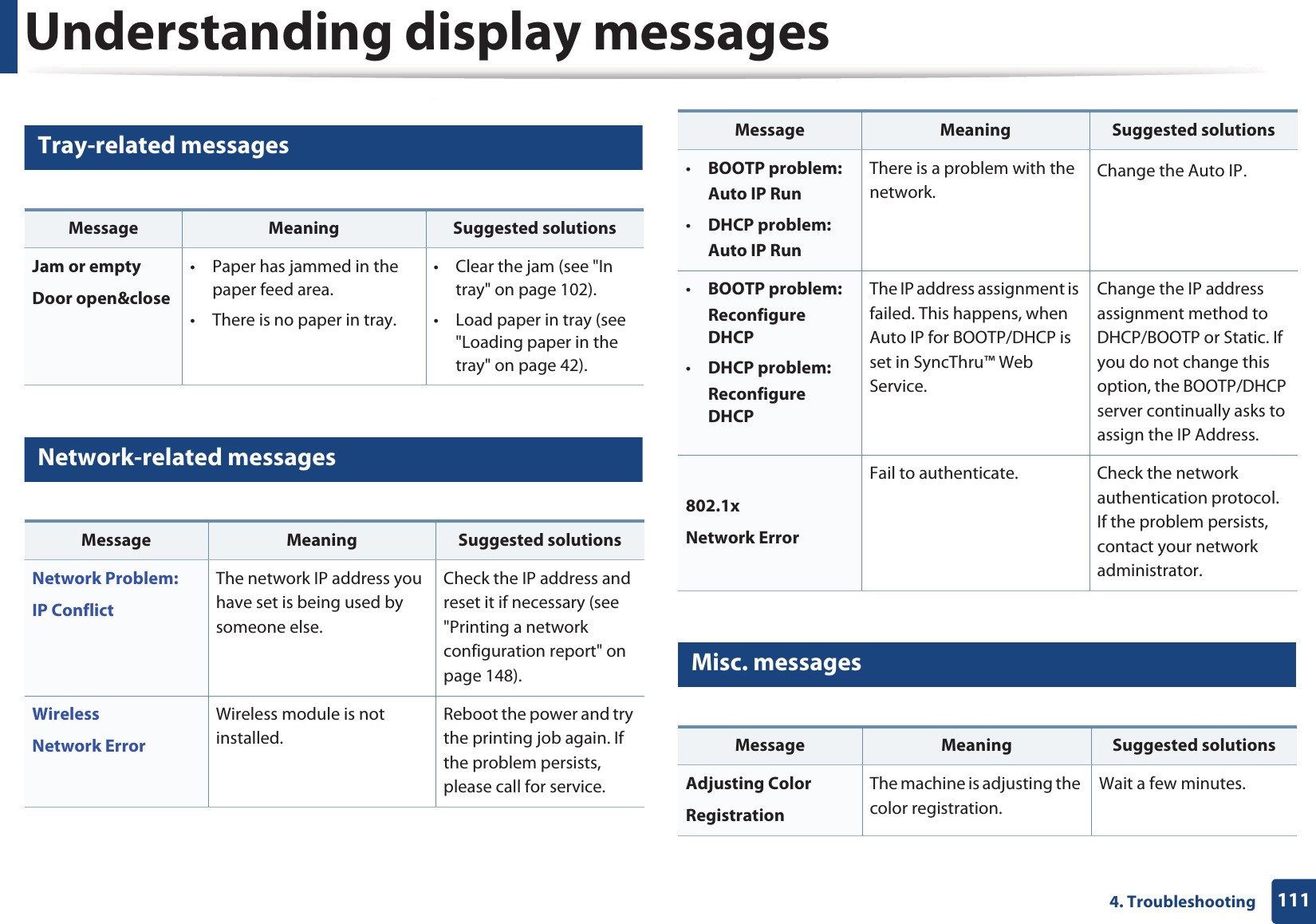

Understanding display messages1114. Troubleshooting8 Tray-related messages9 Network-related messages10 Misc. messagesMessage Meaning Suggested solutionsJam or emptyDoor open&close • Paper has jammed in the paper feed area.• There is no paper in tray.• Clear the jam (see "In tray" on page 102).• Load paper in tray (see "Loading paper in the tray" on page 42).Message Meaning Suggested solutionsNetwork Problem: IP ConflictThe network IP address you have set is being used by someone else. Check the IP address and reset it if necessary (see "Printing a network configuration report" on page 148).Wireless Network ErrorWireless module is not installed.Reboot the power and try the printing job again. If the problem persists, please call for service. •BOOTP problem:Auto IP Run•DHCP problem:Auto IP RunThere is a problem with the network.Change the Auto IPU•BOOTP problem:Reconfigure DHCP•DHCP problem:Reconfigure DHCPThe IP address assignment is failed. This happens, when Auto IP for BOOTP/DHCP is set in SyncThru™ Web Service.Change the IP address assignment method to DHCP/BOOTP or Static. If you do not change this option, the BOOTP/DHCP server continually asks to assign the IP Address.802.1x Network ErrorFail to authenticate. Check the network authentication protocol. If the problem persists, contact your network administrator.Message Meaning Suggested solutionsAdjusting ColorRegistrationThe machine is adjusting the color registration.Wait a few minutes.Message Meaning Suggested solutions

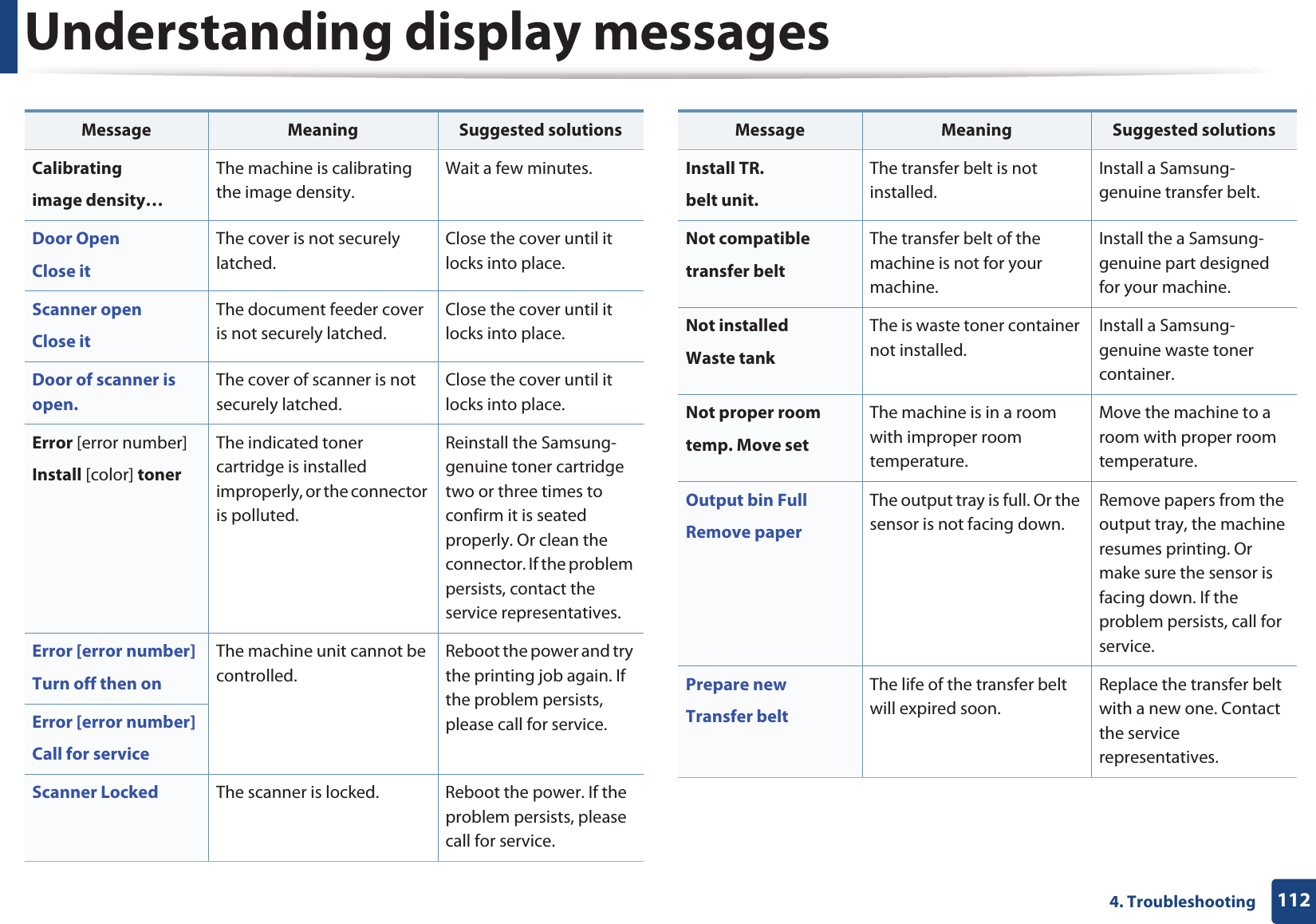

Understanding display messages1124. TroubleshootingCalibratingimage density…The machine is calibrating the image density. Wait a few minutes.Door OpenClose itThe cover is not securely latched.Close the cover until it locks into place. Scanner openClose itThe document feeder cover is not securely latched.Close the cover until it locks into place. Door of scanner is open.The cover of scanner is not securely latched.Close the cover until it locks into place. Error [error number]Install [color] tonerThe indicated toner cartridge is installed improperly, or the connector is polluted.Reinstall the Samsung-genuine toner cartridge two or three times to confirm it is seated properly. Or clean the connector. If the problem persists, contact the service representatives.Error [error number]Turn off then onThe machine unit cannot be controlled.Reboot the power and try the printing job again. If the problem persists, please call for service. Error [error number]Call for serviceScanner Locked The scanner is locked. Reboot the power. If the problem persists, please call for service.Message Meaning Suggested solutionsInstall TR.belt unit.The transfer belt is not installed.Install a Samsung-genuine transfer belt.Not compatibletransfer beltThe transfer belt of the machine is not for your machine.Install the a Samsung-genuine part designed for your machine.Not installedWaste tankThe is waste toner container not installed.Install a Samsung-genuine waste toner container.Not proper roomtemp. Move setThe machine is in a room with improper room temperature. Move the machine to a room with proper room temperature.Output bin FullRemove paperThe output tray is full. Or the sensor is not facing down.Remove papers from the output tray, the machine resumes printing. Or make sure the sensor is facing down. If the problem persists, call for service.Prepare newTransfer beltThe life of the transfer belt will expired soon.Replace the transfer belt with a new one. Contact the service representatives.Message Meaning Suggested solutions

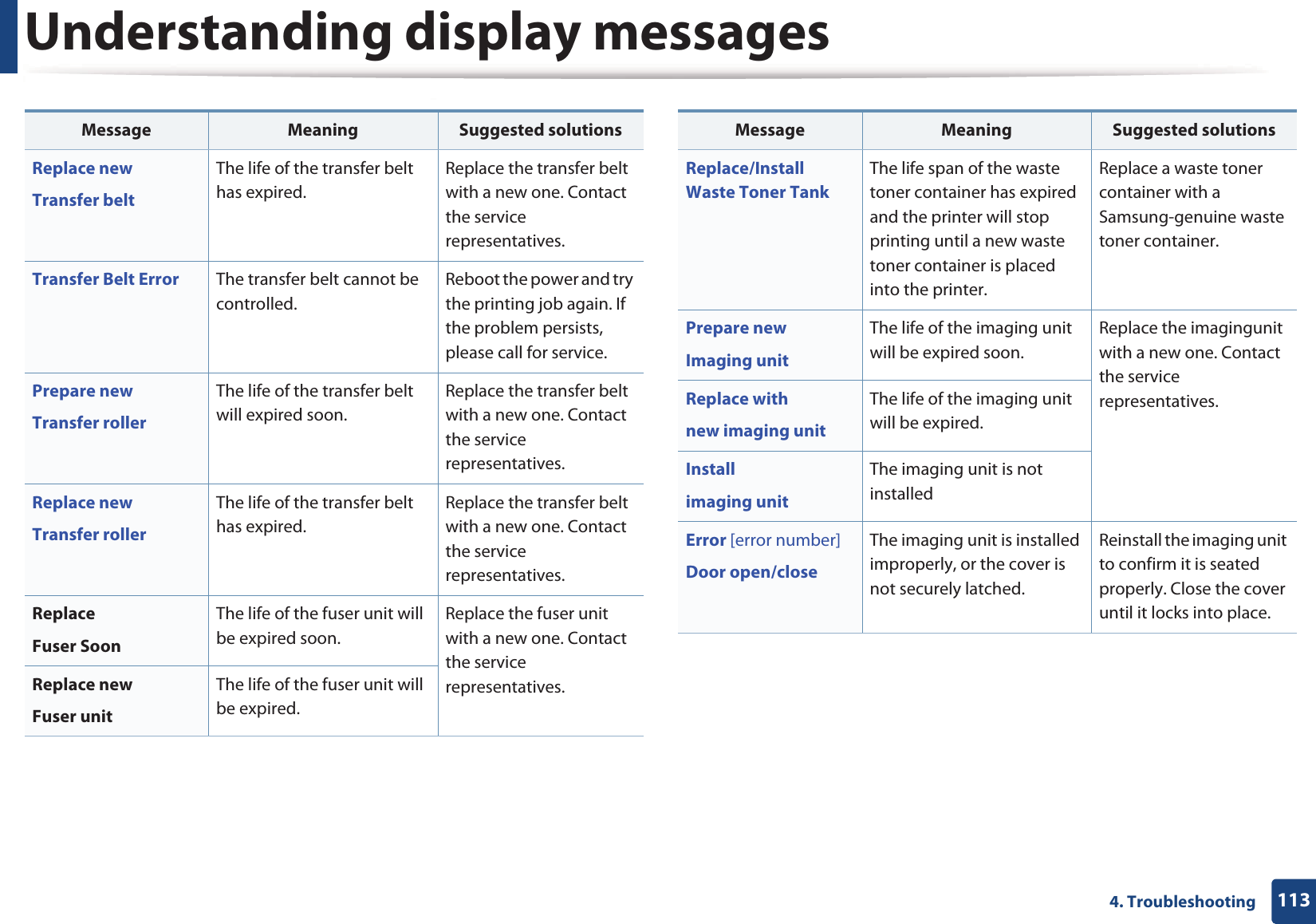

Understanding display messages1134. TroubleshootingReplace newTransfer beltThe life of the transfer belt has expired.Replace the transfer belt with a new one. Contact the service representatives.Transfer Belt Error The transfer belt cannot be controlled.Reboot the power and try the printing job again. If the problem persists, please call for service.Prepare newTransfer rollerThe life of the transfer belt will expired soon.Replace the transfer belt with a new one. Contact the service representatives.Replace newTransfer rollerThe life of the transfer belt has expired.Replace the transfer belt with a new one. Contact the service representatives.Replace Fuser SoonThe life of the fuser unit will be expired soon.Replace the fuser unit with a new one. Contact the service representatives.Replace newFuser unitThe life of the fuser unit will be expired.Message Meaning Suggested solutionsReplace/Install Waste Toner TankThe life span of the waste toner container has expired and the printer will stop printing until a new waste toner container is placed into the printer.Replace a waste toner container with a Samsung-genuine waste toner container.Prepare newImaging unitThe life of the imaging unit will be expired soon.Replace the imagingunit with a new one. Contact the service representatives.Replace withnew imaging unitThe life of the imaging unit will be expired.Installimaging unitThe imaging unit is not installedError [error number]Door open/closeThe imaging unit is installed improperly, or the cover is not securely latched.Reinstall the imaging unit to confirm it is seated properly. Close the cover until it locks into place.Message Meaning Suggested solutions

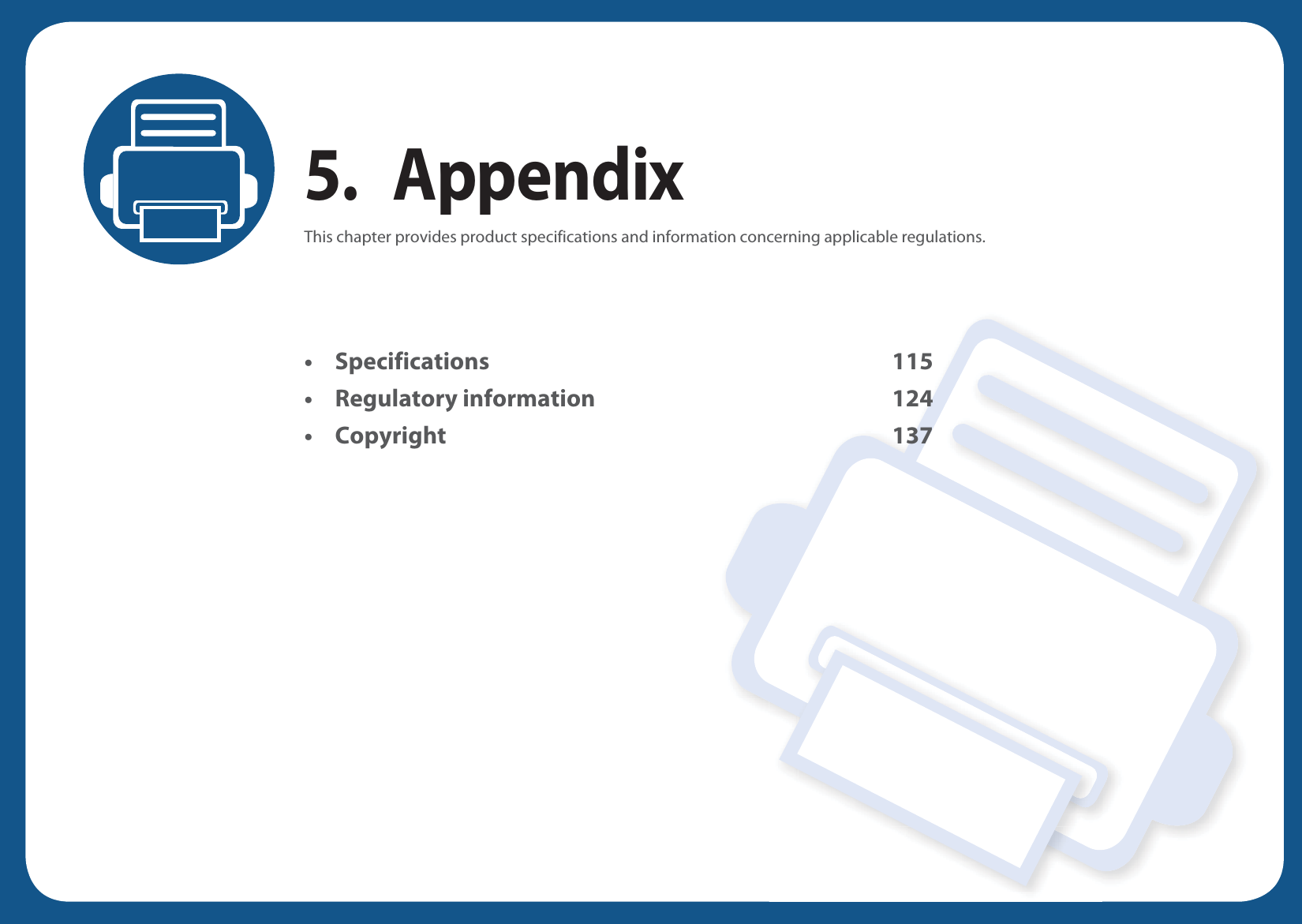

5. AppendixThis chapter provides product specifications and information concerning applicable regulations.• Specifications 115• Regulatory information 124• Copyright 137

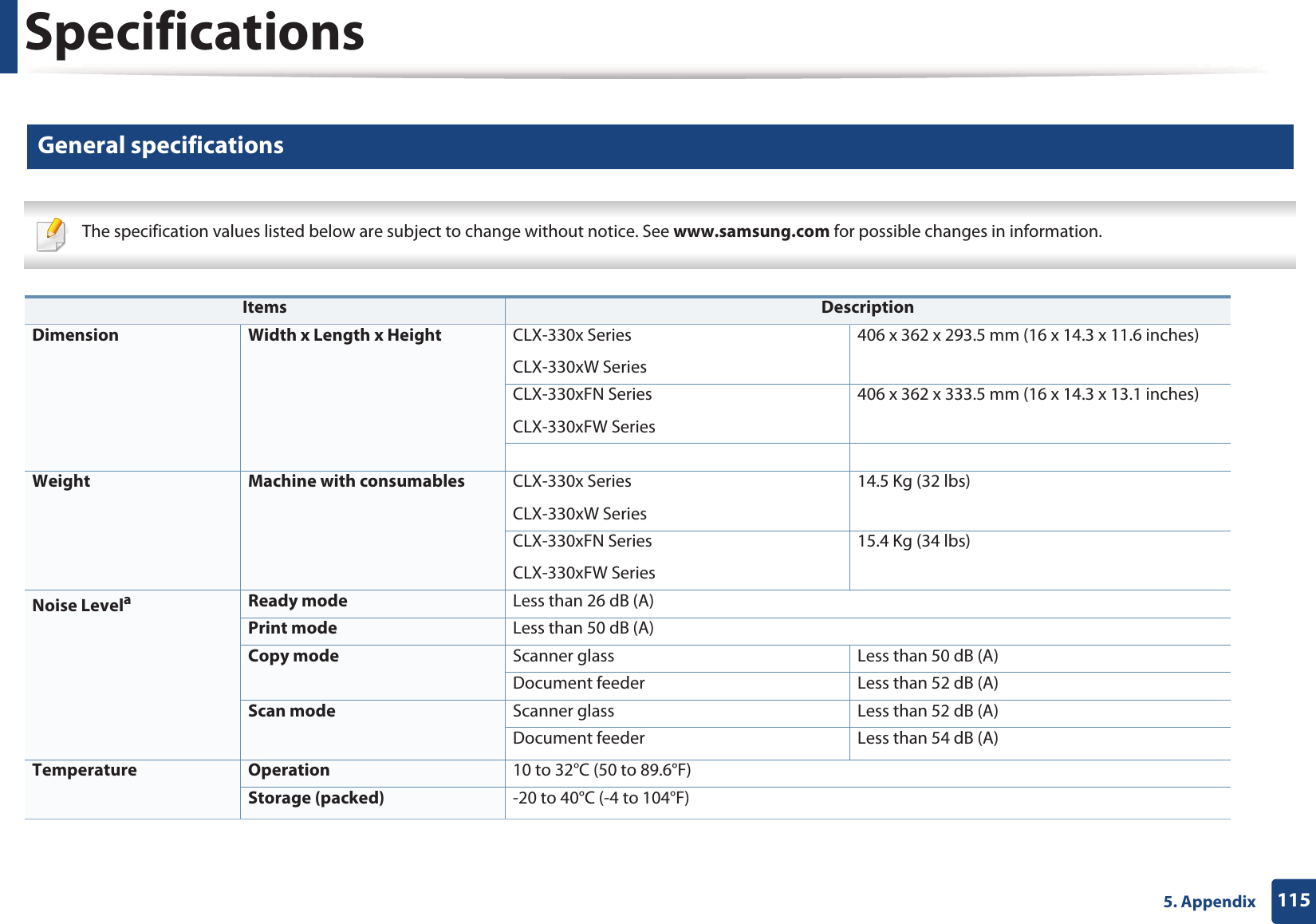

1155. AppendixSpecifications1 General specifications The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information. Items DescriptionDimension Width x Length x Height CLX-330x SeriesCLX-330xW Series406 x 362 x 293.5 mm (16 x 14.3 x 11.6 inches) CLX-330xFN SeriesCLX-330xFW Series406 x 362 x 333.5 mm (16 x 14.3 x 13.1 inches) Weight Machine with consumables CLX-330x SeriesCLX-330xW Series14.5 Kg (32 lbs)CLX-330xFN SeriesCLX-330xFW Series15.4 Kg (34 lbs)Noise LevelaReady mode Less than 26 dB (A)Print mode Less than 50 dB (A)Copy mode Scanner glass Less than 50 dB (A)Document feeder Less than 52 dB (A)Scan mode Scanner glass Less than 52 dB (A)Document feeder Less than 54 dB (A)Temperature Operation 10 to 32°C (50 to 89.6°F)Storage (packed) -20 to 40°C (-4 to 104°F)

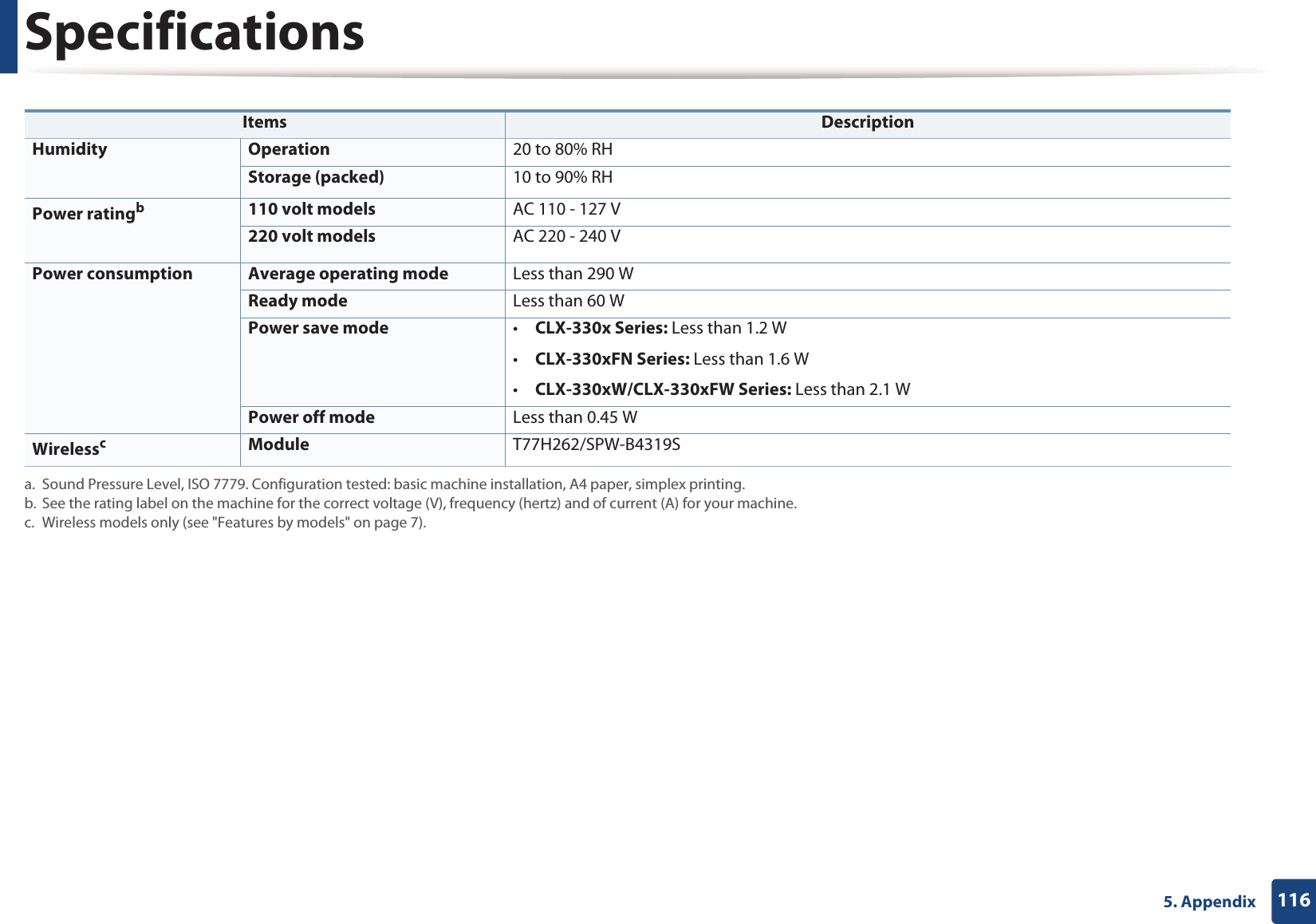

Specifications1165. Appendix Humidity Operation 20 to 80% RHStorage (packed) 10 to 90% RHPower ratingb110 volt models AC 110 - 127 V220 volt models AC 220 - 240 VPower consumption Average operating mode Less than 290 WReady mode Less than 60 WPower save mode •CLX-330x Series: Less than 1.2 W•CLX-330xFN Series: Less than 1.6 W•CLX-330xW/CLX-330xFW Series: Less than 2.1 WPower off mode Less than 0.45 WWirelesscModule T77H262/SPW-B4319Sa. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.b. See the rating label on the machine for the correct voltage (V), frequency (hertz) and of current (A) for your machine.c. Wireless models only (see "Features by models" on page 7).Items Description

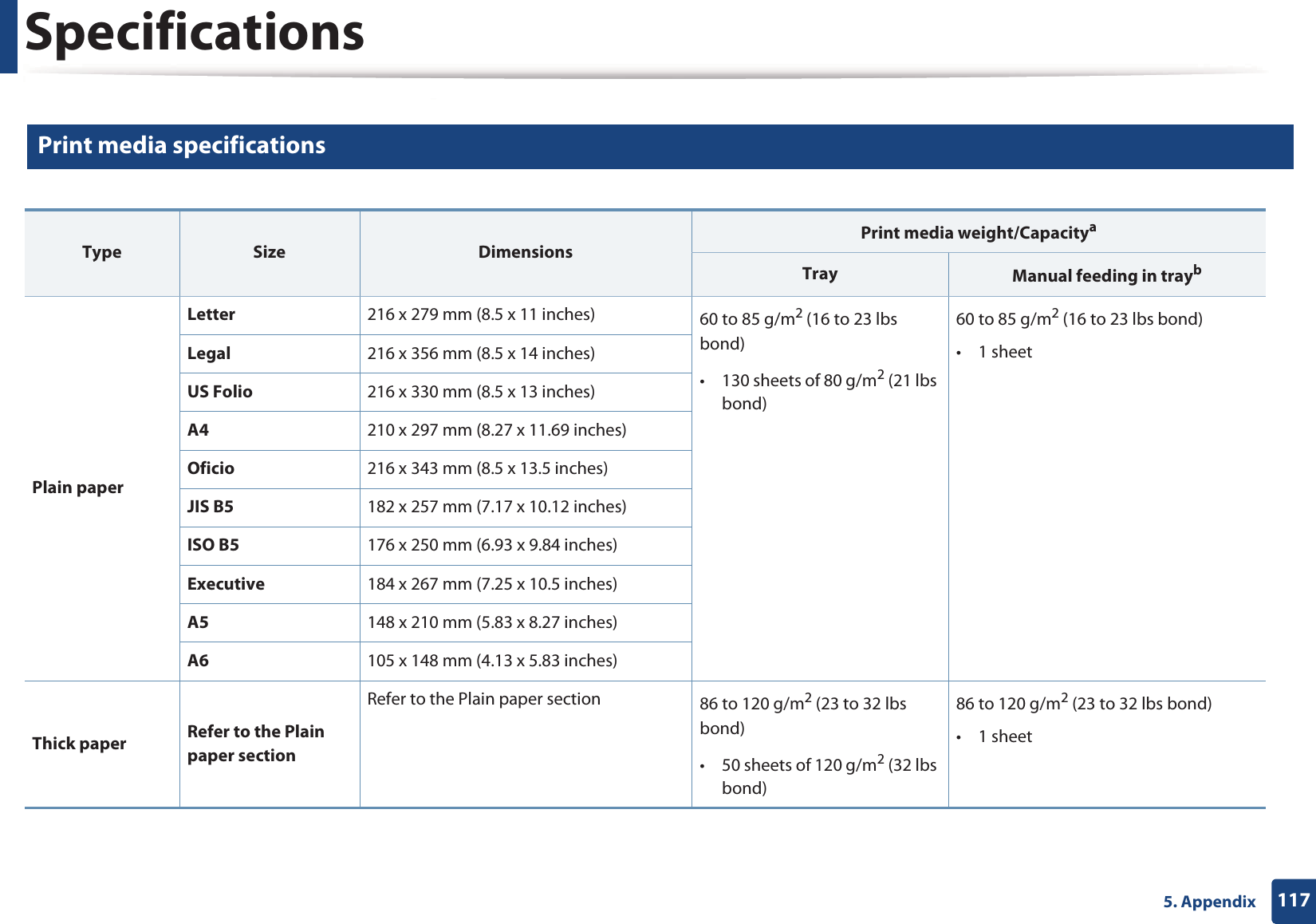

Specifications1175. Appendix2 Print media specifications Type Size DimensionsPrint media weight/CapacityaTray Manual feeding in traybPlain paperLetter 216 x 279 mm (8.5 x 11 inches) 60 to 85 g/m2 (16 to 23 lbs bond) • 130 sheets of 80 g/m2 (21 lbs bond)60 to 85 g/m2 (16 to 23 lbs bond) • 1 sheetLegal 216 x 356 mm (8.5 x 14 inches)US Folio 216 x 330 mm (8.5 x 13 inches)A4 210 x 297 mm (8.27 x 11.69 inches)Oficio 216 x 343 mm (8.5 x 13.5 inches)JIS B5 182 x 257 mm (7.17 x 10.12 inches)ISO B5 176 x 250 mm (6.93 x 9.84 inches) Executive 184 x 267 mm (7.25 x 10.5 inches)A5 148 x 210 mm (5.83 x 8.27 inches)A6 105 x 148 mm (4.13 x 5.83 inches)Thick paper Refer to the Plain paper section Refer to the Plain paper section 86 to 120 g/m2 (23 to 32 lbs bond)• 50 sheets of 120 g/m2 (32 lbs bond)86 to 120 g/m2 (23 to 32 lbs bond)• 1 sheet

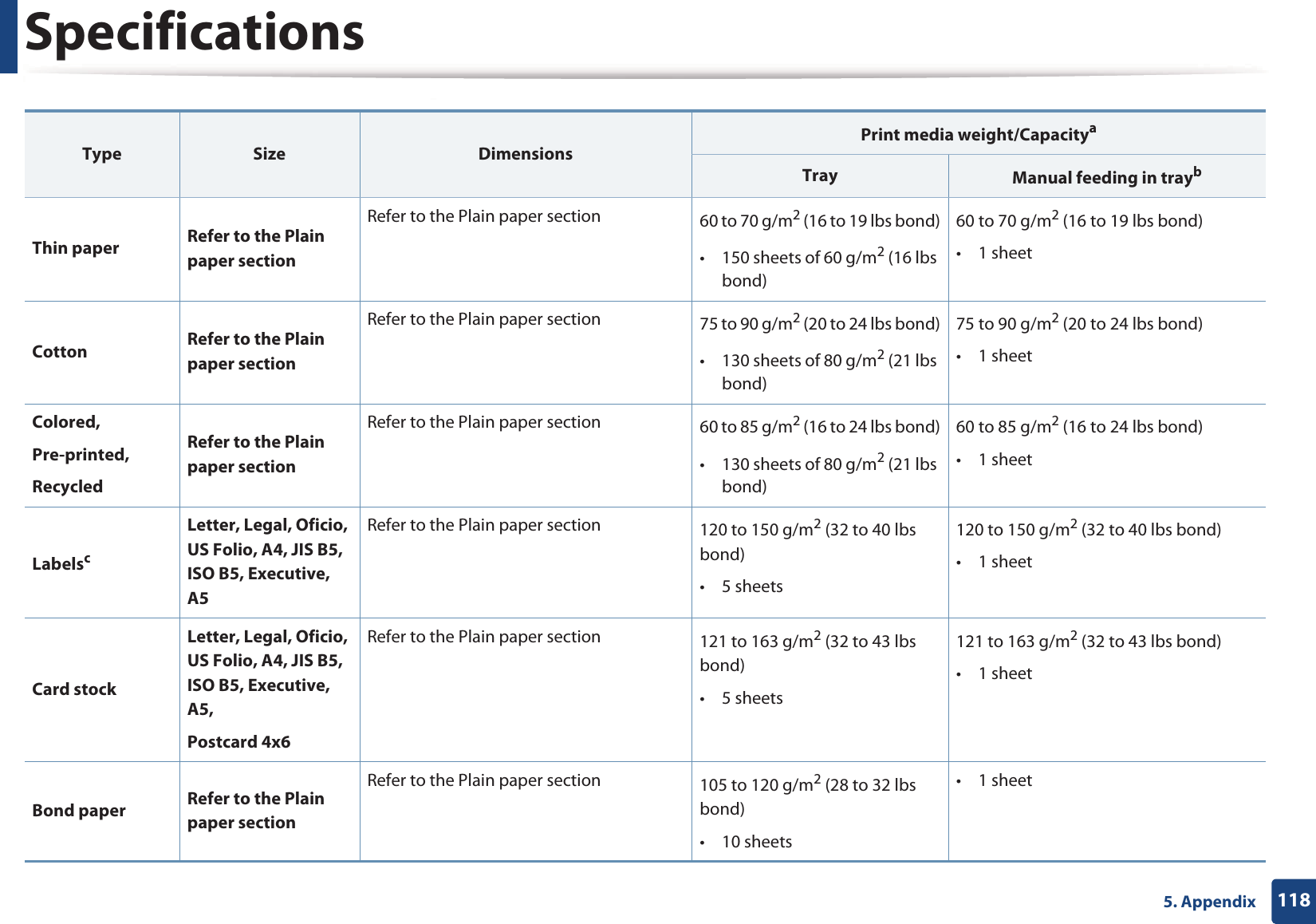

Specifications1185. AppendixThin paper Refer to the Plain paper section Refer to the Plain paper section 60 to 70 g/m2 (16 to 19 lbs bond)• 150 sheets of 60 g/m2 (16 lbs bond)60 to 70 g/m2 (16 to 19 lbs bond)• 1 sheetCotton Refer to the Plain paper section Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)• 130 sheets of 80 g/m2 (21 lbs bond)75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheetColored, Pre-printed, RecycledRefer to the Plain paper section Refer to the Plain paper section 60 to 85 g/m2 (16 to 24 lbs bond)• 130 sheets of 80 g/m2 (21 lbs bond)60 to 85 g/m2 (16 to 24 lbs bond)• 1 sheetLabelscLetter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lbs bond)• 5 sheets 120 to 150 g/m2 (32 to 40 lbs bond)• 1 sheetCard stockLetter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5,Postcard 4x6Refer to the Plain paper section 121 to 163 g/m2 (32 to 43 lbs bond)• 5 sheets121 to 163 g/m2 (32 to 43 lbs bond)• 1 sheetBond paper Refer to the Plain paper section Refer to the Plain paper section 105 to 120 g/m2 (28 to 32 lbs bond)• 10 sheets• 1 sheetType Size DimensionsPrint media weight/CapacityaTray Manual feeding in trayb

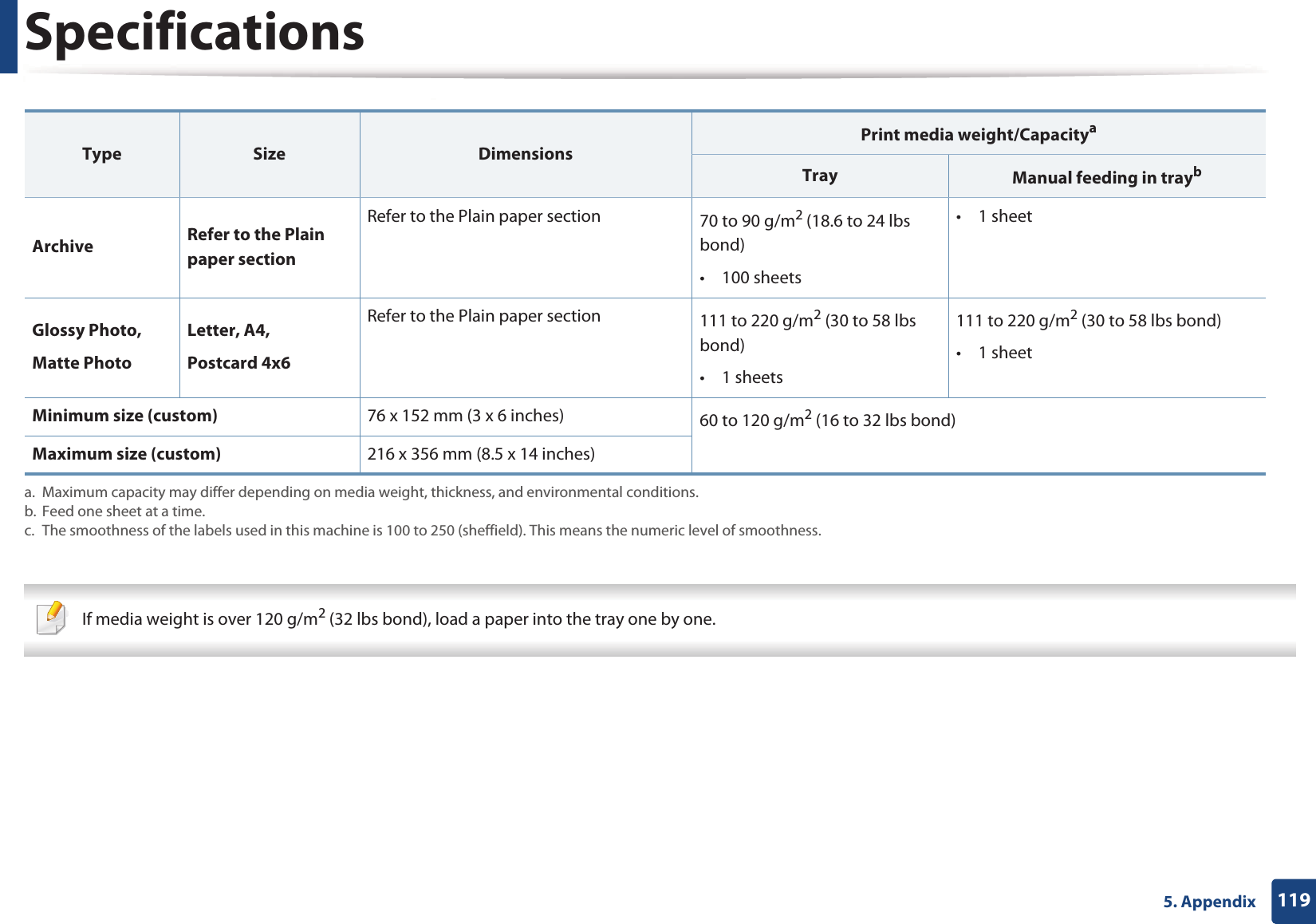

Specifications1195. Appendix If media weight is over 120 g/m2 (32 lbs bond), load a paper into the tray one by one. Archive Refer to the Plain paper section Refer to the Plain paper section 70 to 90 g/m2 (18.6 to 24 lbs bond)• 100 sheets• 1 sheetGlossy Photo, Matte PhotoLetter, A4,Postcard 4x6Refer to the Plain paper section 111 to 220 g/m2 (30 to 58 lbs bond)• 1 sheets111 to 220 g/m2 (30 to 58 lbs bond)• 1 sheetMinimum size (custom) 76 x 152 mm (3 x 6 inches) 60 to 120 g/m2 (16 to 32 lbs bond)Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions. b. Feed one sheet at a time.c. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.Type Size DimensionsPrint media weight/CapacityaTray Manual feeding in trayb

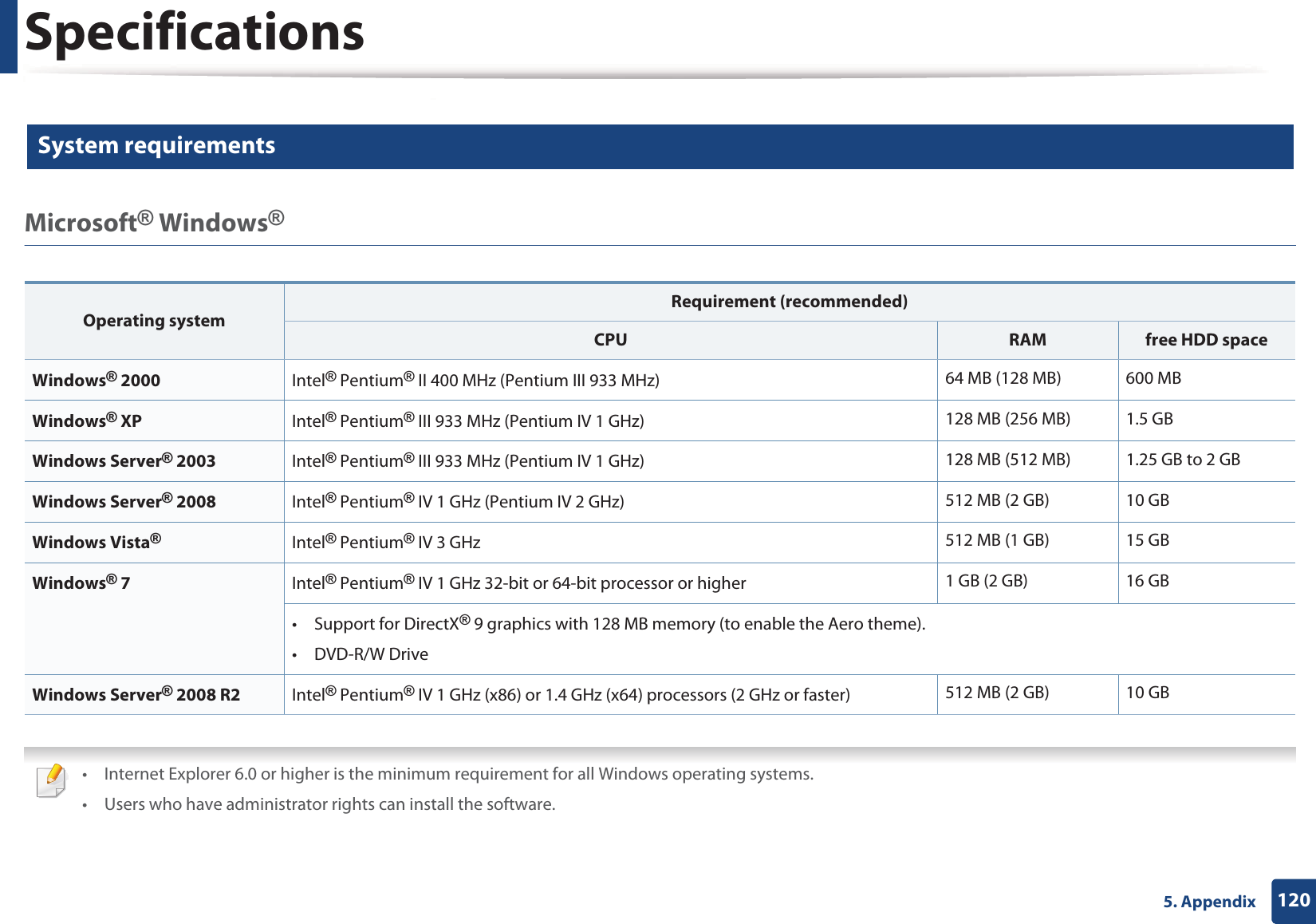

Specifications1205. Appendix3 System requirementsMicrosoft® Windows® • Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.• Users who have administrator rights can install the software.Operating systemRequirement (recommended)CPU RAM free HDD spaceWindows® 2000 Intel® Pentium® II 400 MHz (Pentium III 933 MHz) 64 MB (128 MB) 600 MBWindows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (256 MB) 1.5 GBWindows Server® 2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (512 MB) 1.25 GB to 2 GBWindows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GBWindows Vista®Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GBWindows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).•DVD-R/W DriveWindows Server® 2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GB

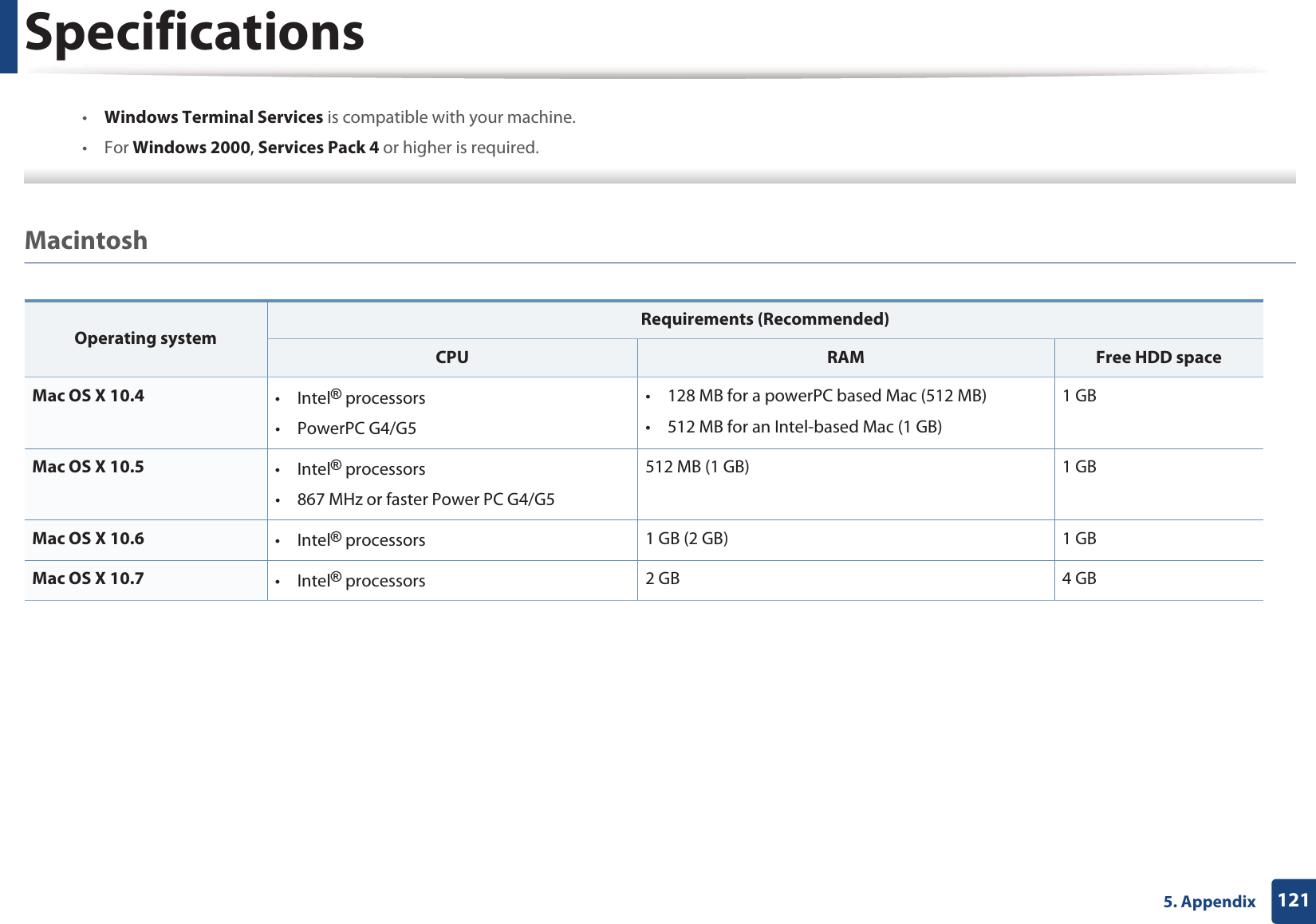

Specifications1215. Appendix•Windows Terminal Services is compatible with your machine.•For Windows 2000, Services Pack 4 or higher is required. Macintosh Operating systemRequirements (Recommended)CPU RAM Free HDD spaceMac OS X 10.4 •Intel® processors•PowerPC G4/G5• 128 MB for a powerPC based Mac (512 MB)• 512 MB for an Intel-based Mac (1 GB)1 GBMac OS X 10.5 •Intel® processors• 867 MHz or faster Power PC G4/G5512 MB (1 GB) 1 GBMac OS X 10.6 •Intel® processors 1 GB (2 GB) 1 GBMac OS X 10.7 •Intel® processors 2 GB 4 GB

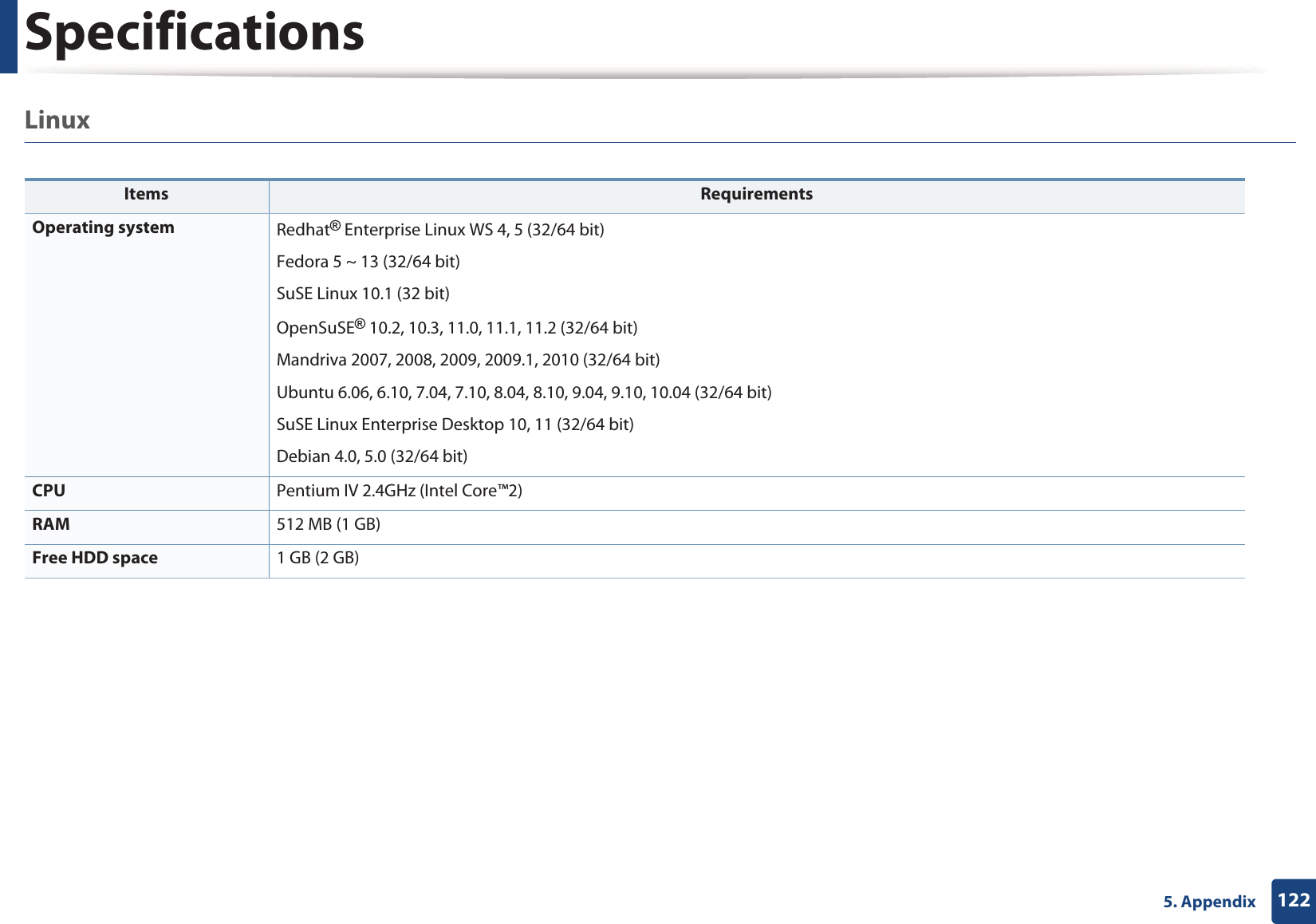

Specifications1225. AppendixLinux Items RequirementsOperating system Redhat® Enterprise Linux WS 4, 5 (32/64 bit)Fedora 5 ~ 13 (32/64 bit)SuSE Linux 10.1 (32 bit)OpenSuSE® 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit)Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit)Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit)SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)Debian 4.0, 5.0 (32/64 bit)CPU Pentium IV 2.4GHz (Intel Core™2)RAM 512 MB (1 GB)Free HDD space 1 GB (2 GB)

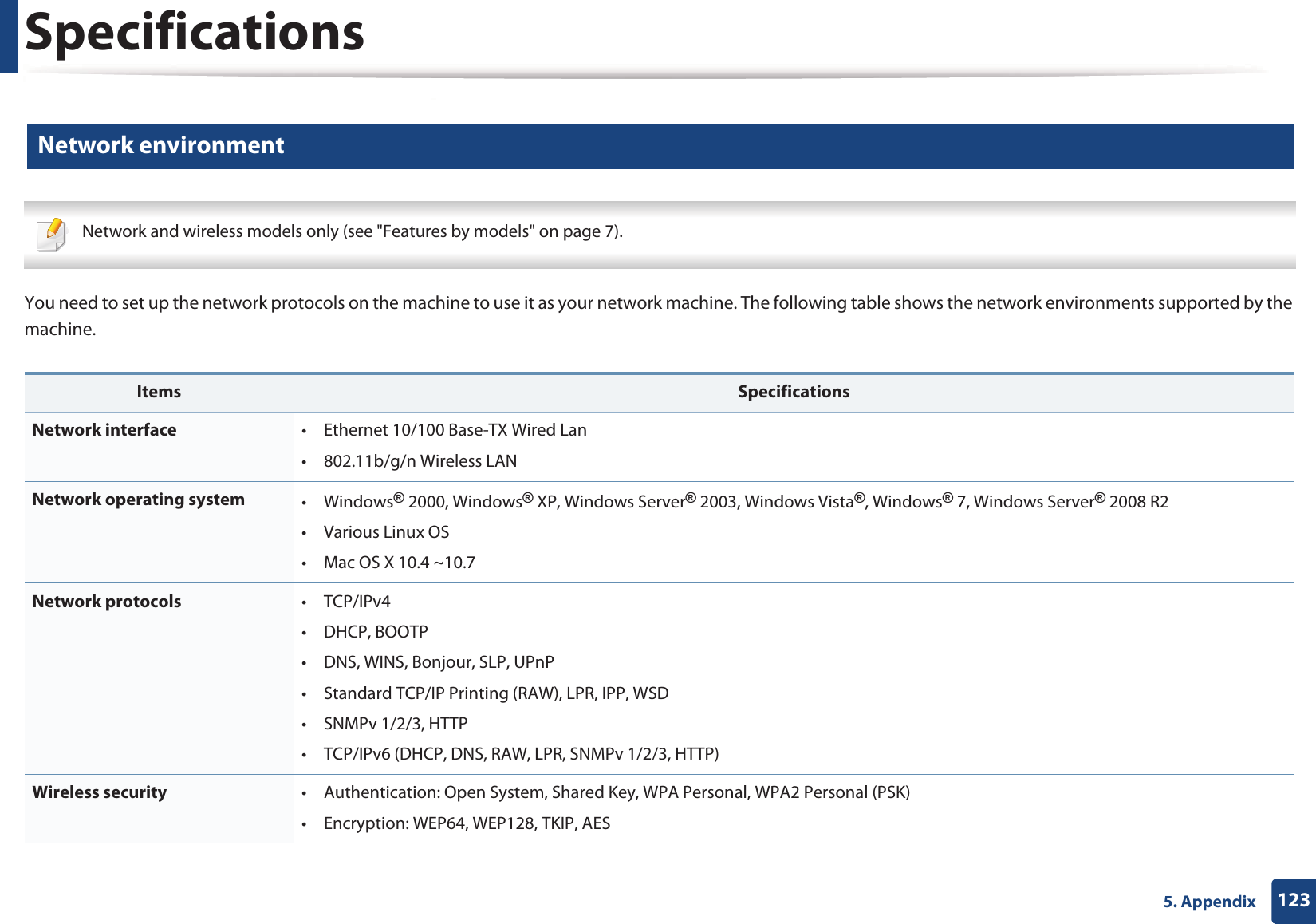

Specifications1235. Appendix4 Network environment Network and wireless models only (see "Features by models" on page 7). You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine. Items SpecificationsNetwork interface • Ethernet 10/100 Base-TX Wired Lan•802.11b/g/n Wireless LANNetwork operating system •Windows® 2000, Windows® XP, Windows Server® 2003, Windows Vista®, Windows® 7, Windows Server® 2008 R2•Various Linux OS• Mac OS X 10.4 ~10.7Network protocols •TCP/IPv4• DHCP, BOOTP• DNS, WINS, Bonjour, SLP, UPnP• Standard TCP/IP Printing (RAW), LPR, IPP, WSD• SNMPv 1/2/3, HTTP• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP)Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)• Encryption: WEP64, WEP128, TKIP, AES

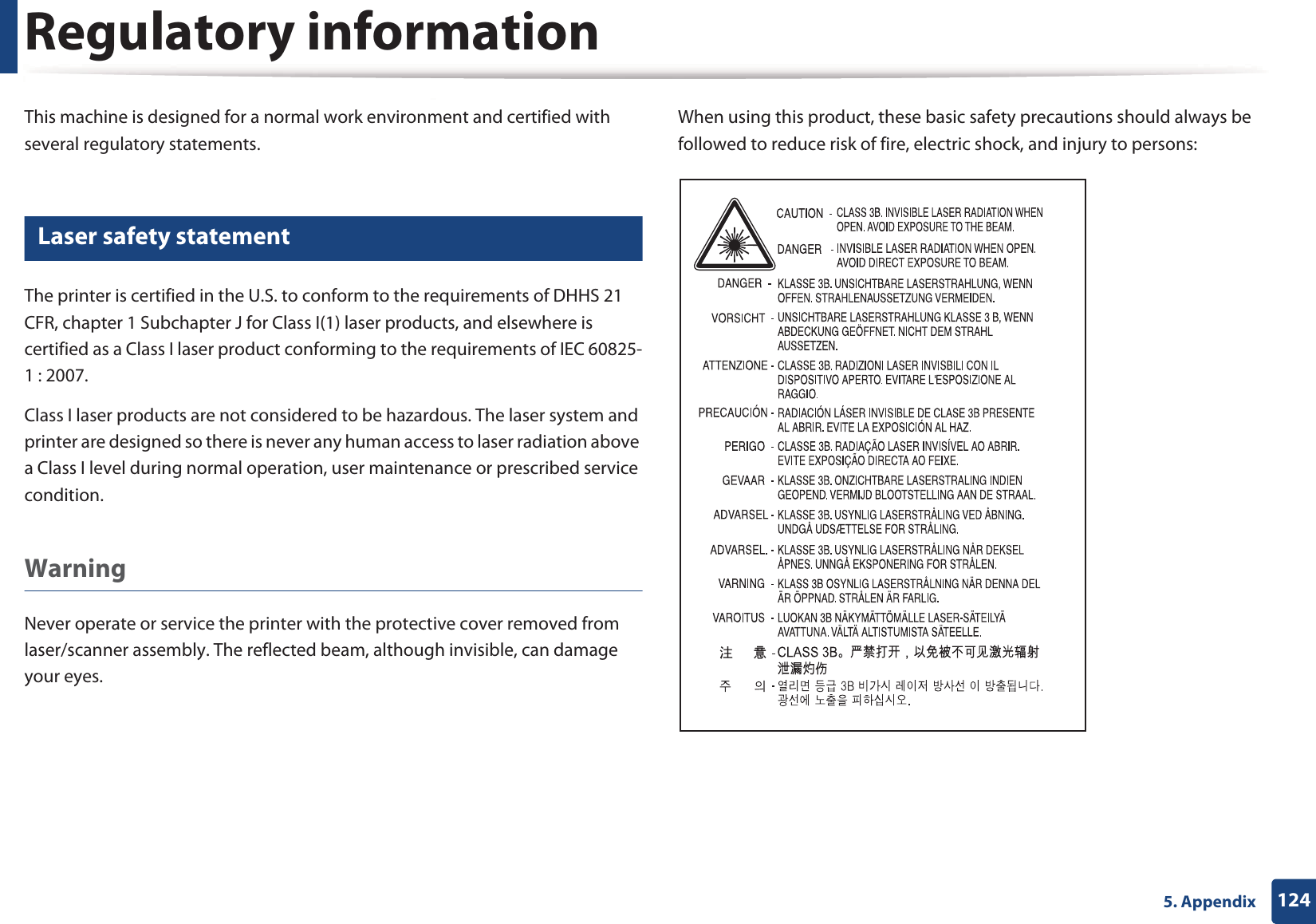

1245. AppendixRegulatory informationThis machine is designed for a normal work environment and certified with several regulatory statements.5 Laser safety statementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1 : 2007.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.Warning Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

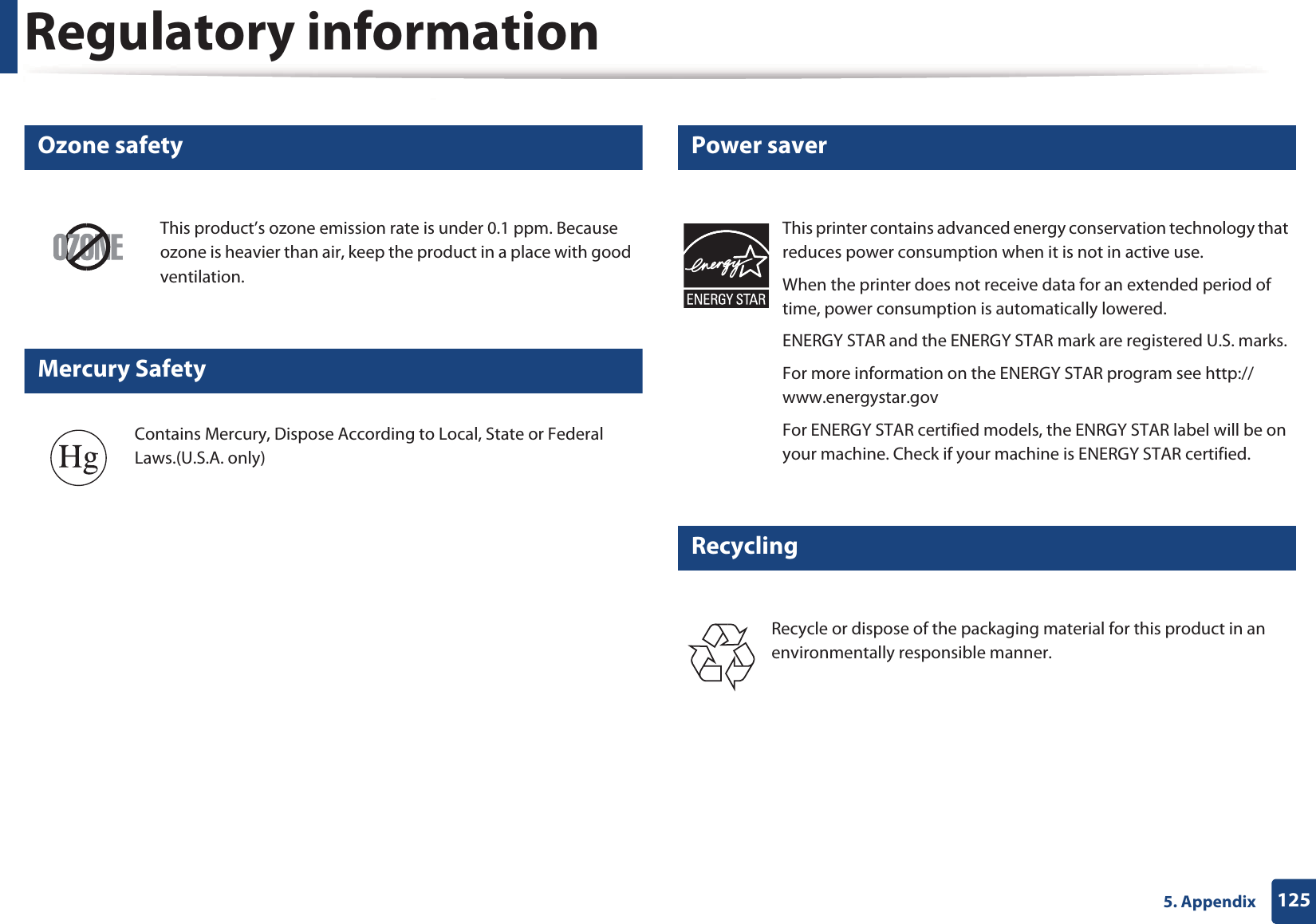

Regulatory information1255. Appendix6 Ozone safety7 Mercury Safety8 Power saver9 RecyclingThis product’s ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.Contains Mercury, Dispose According to Local, State or Federal Laws.(U.S.A. only)This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.govFor ENERGY STAR certified models, the ENRGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified.Recycle or dispose of the packaging material for this product in an environmentally responsible manner.

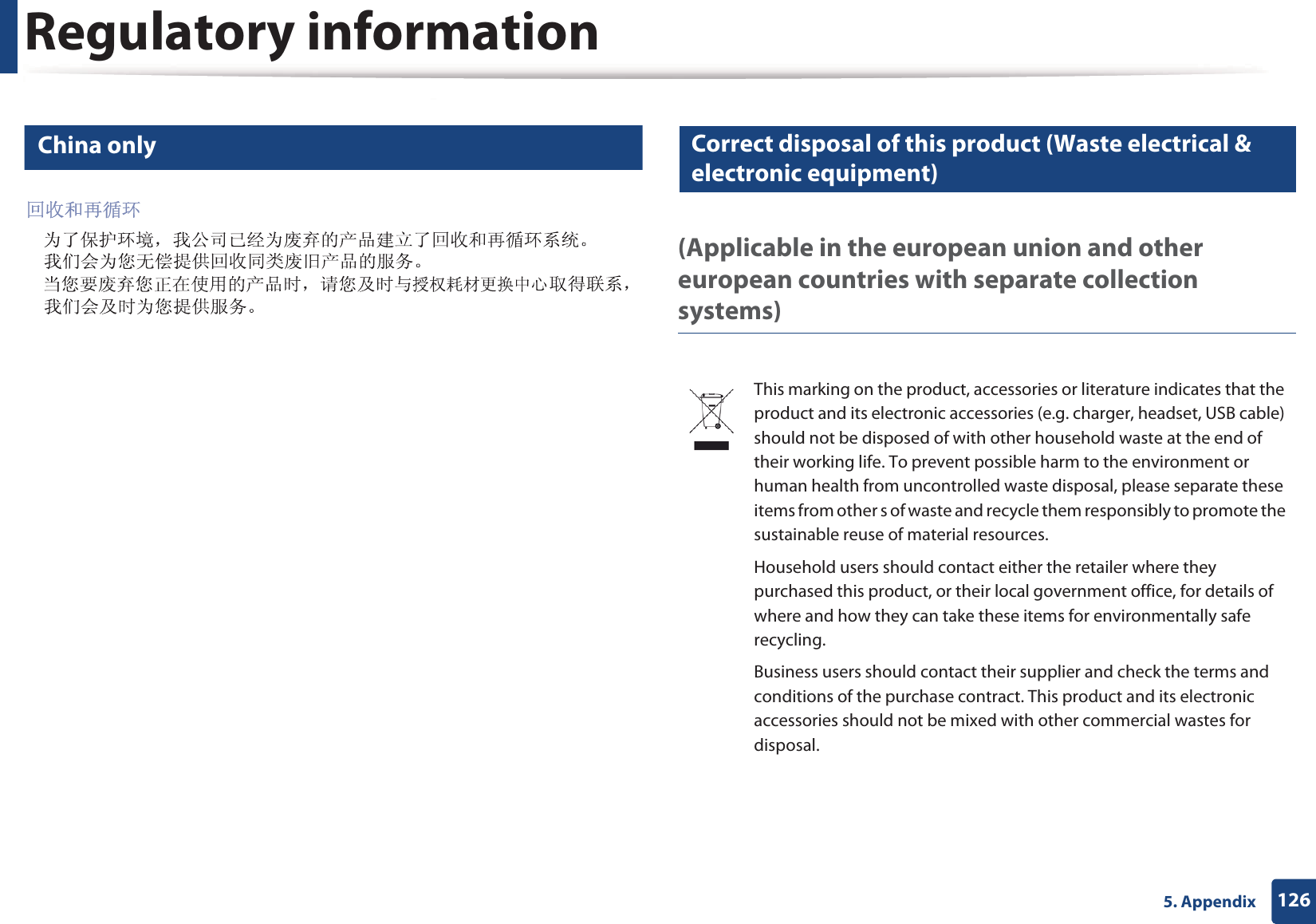

Regulatory information1265. Appendix10 China only11 Correct disposal of this product (Waste electrical & electronic equipment)(Applicable in the european union and other european countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other s of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

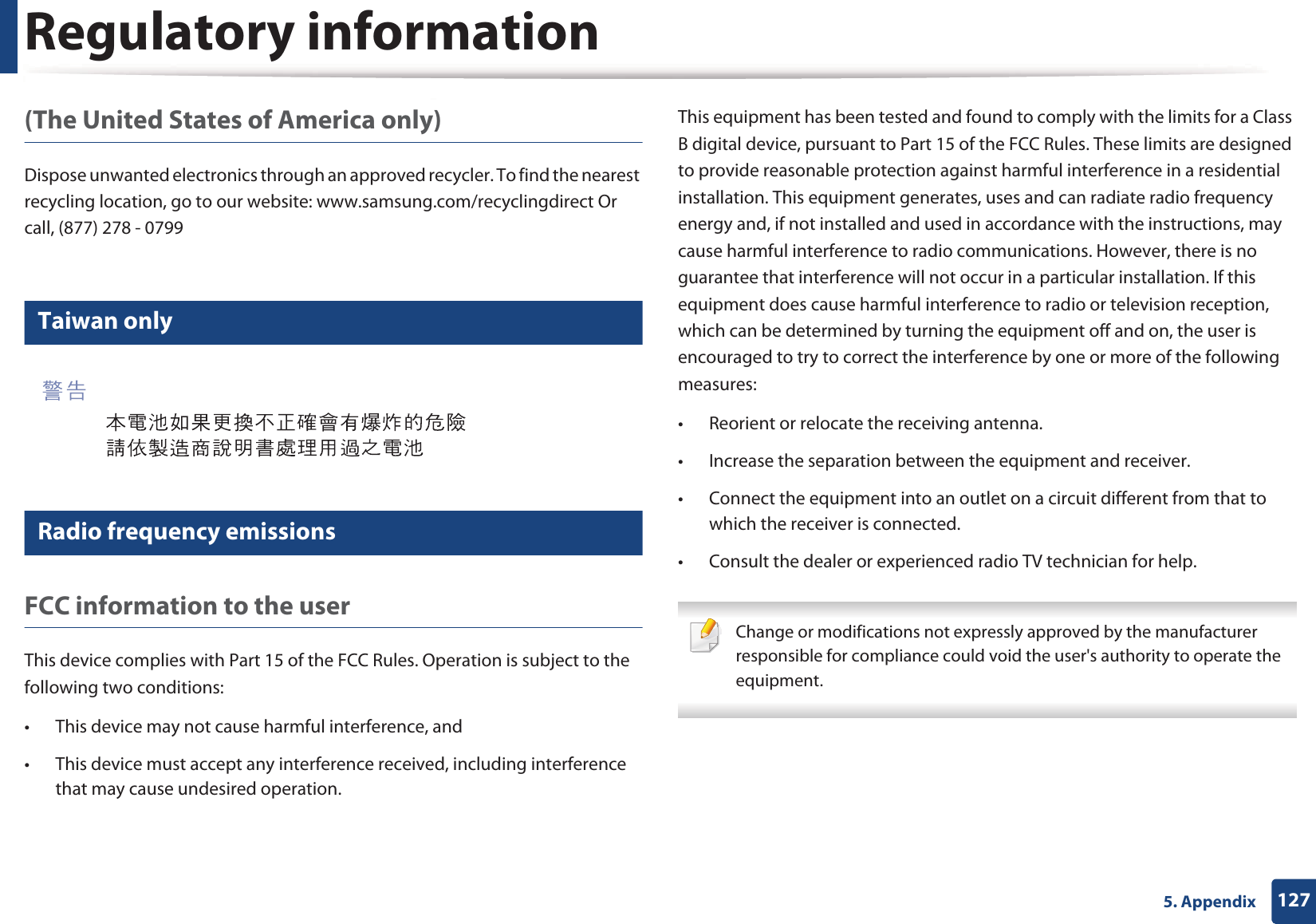

Regulatory information1275. Appendix(The United States of America only)Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 079912 Taiwan only13 Radio frequency emissionsFCC information to the userThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and• This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or experienced radio TV technician for help. Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

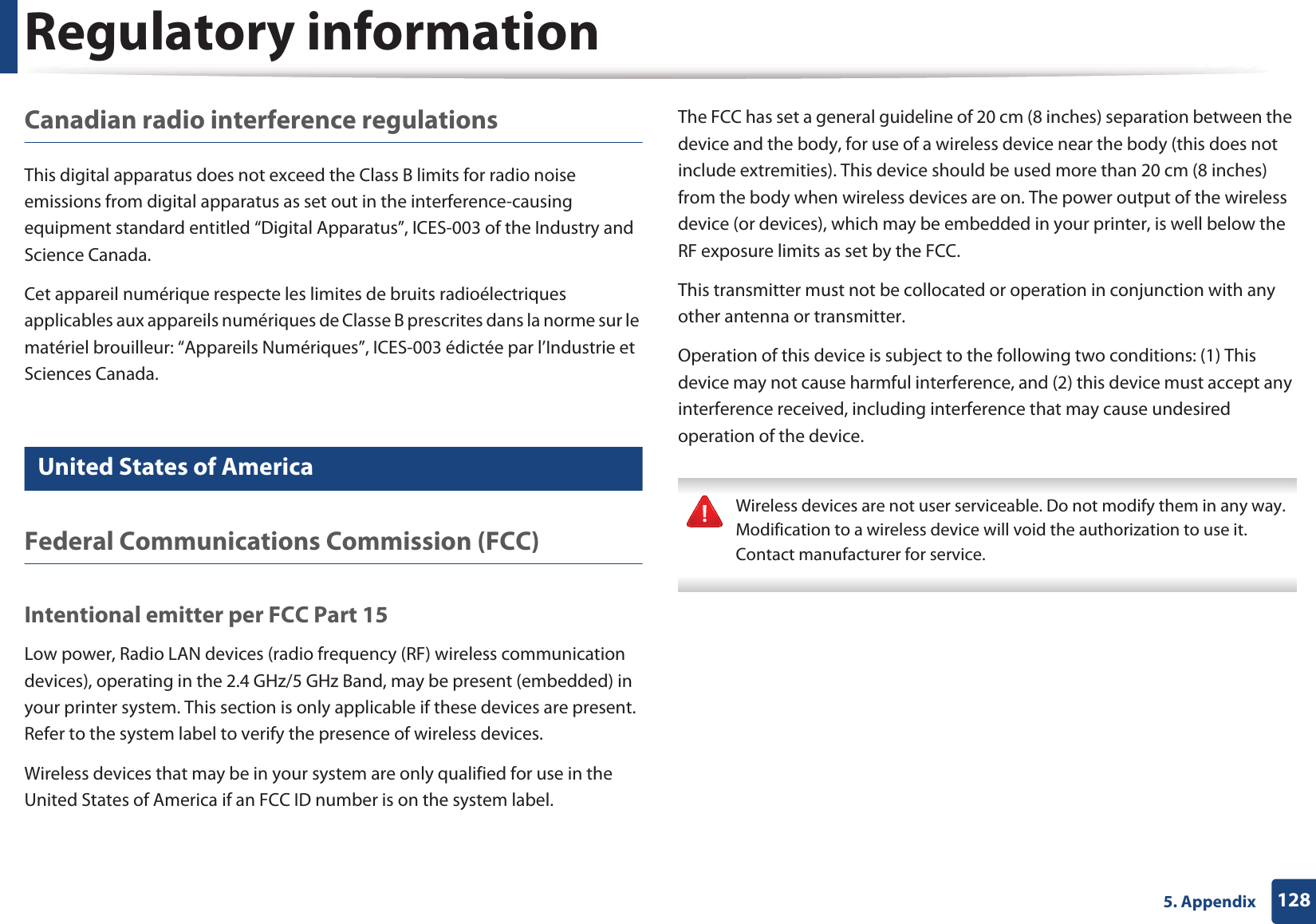

Regulatory information1285. AppendixCanadian radio interference regulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.14 United States of AmericaFederal Communications Commission (FCC)Intentional emitter per FCC Part 15Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

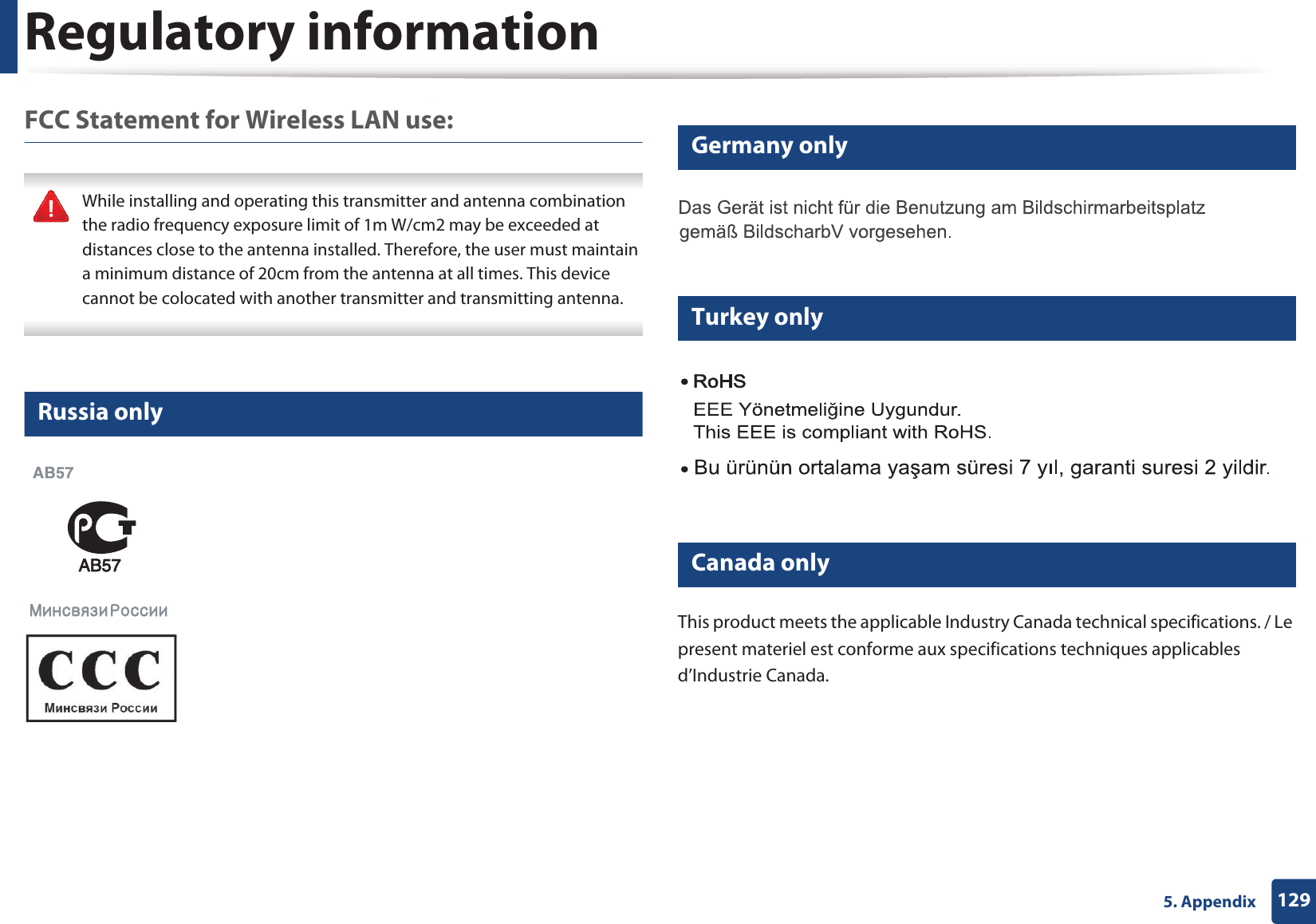

Regulatory information1295. AppendixFCC Statement for Wireless LAN use: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna. 15 Russia only16 Germany only17 Turkey only18 Canada onlyThis product meets the applicable Industry Canada technical specifications. / Le present materiel est conforme aux specifications techniques applicables d’Industrie Canada.

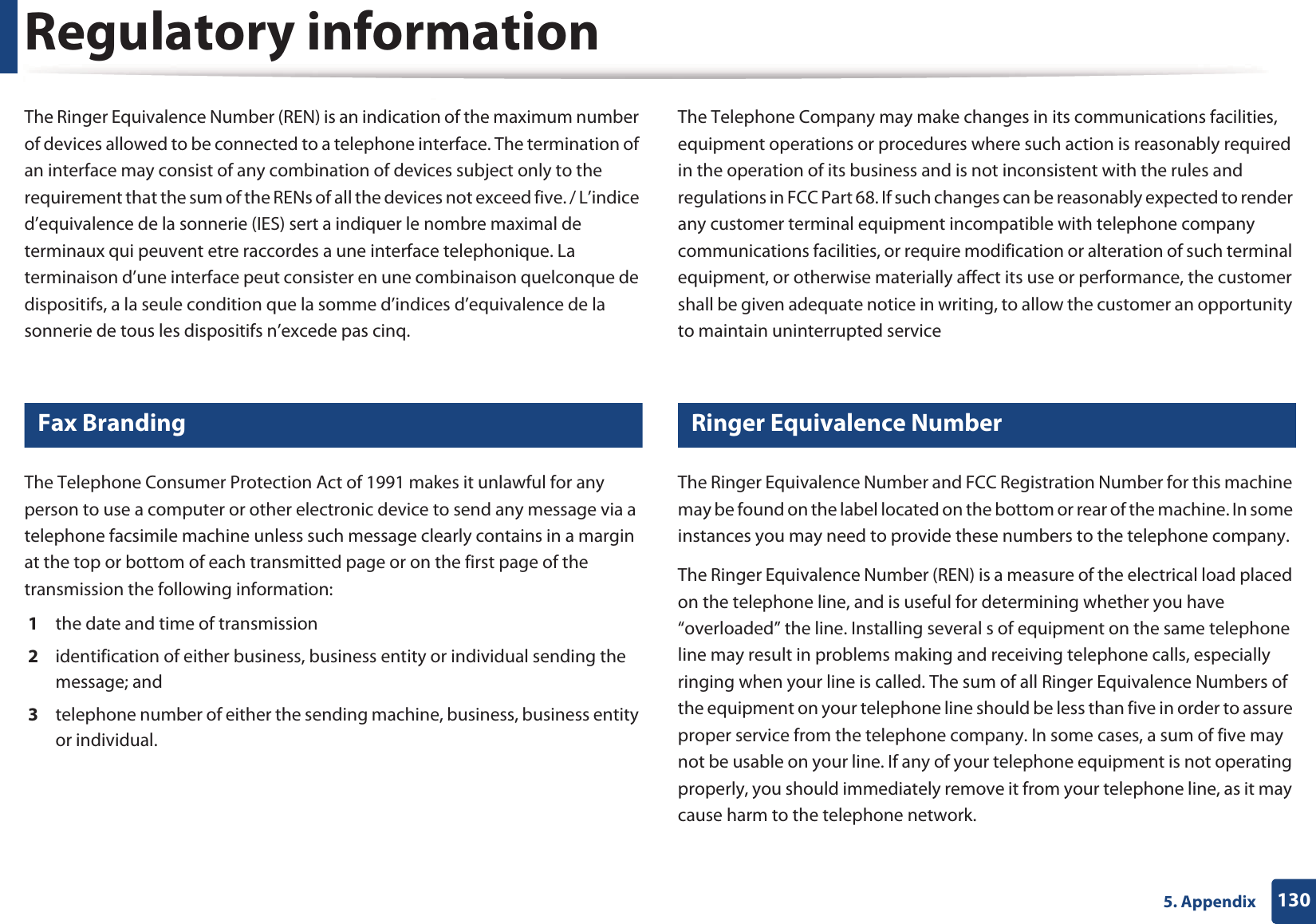

Regulatory information1305. AppendixThe Ringer Equivalence Number (REN) is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five. / L’indice d’equivalence de la sonnerie (IES) sert a indiquer le nombre maximal de terminaux qui peuvent etre raccordes a une interface telephonique. La terminaison d’une interface peut consister en une combinaison quelconque de dispositifs, a la seule condition que la somme d’indices d’equivalence de la sonnerie de tous les dispositifs n’excede pas cinq.19 Fax BrandingThe Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone facsimile machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission the following information:1 the date and time of transmission2 identification of either business, business entity or individual sending the message; and3 telephone number of either the sending machine, business, business entity or individual.The Telephone Company may make changes in its communications facilities, equipment operations or procedures where such action is reasonably required in the operation of its business and is not inconsistent with the rules and regulations in FCC Part 68. If such changes can be reasonably expected to render any customer terminal equipment incompatible with telephone company communications facilities, or require modification or alteration of such terminal equipment, or otherwise materially affect its use or performance, the customer shall be given adequate notice in writing, to allow the customer an opportunity to maintain uninterrupted service20 Ringer Equivalence NumberThe Ringer Equivalence Number and FCC Registration Number for this machine may be found on the label located on the bottom or rear of the machine. In some instances you may need to provide these numbers to the telephone company.The Ringer Equivalence Number (REN) is a measure of the electrical load placed on the telephone line, and is useful for determining whether you have “overloaded” the line. Installing several s of equipment on the same telephone line may result in problems making and receiving telephone calls, especially ringing when your line is called. The sum of all Ringer Equivalence Numbers of the equipment on your telephone line should be less than five in order to assure proper service from the telephone company. In some cases, a sum of five may not be usable on your line. If any of your telephone equipment is not operating properly, you should immediately remove it from your telephone line, as it may cause harm to the telephone network.

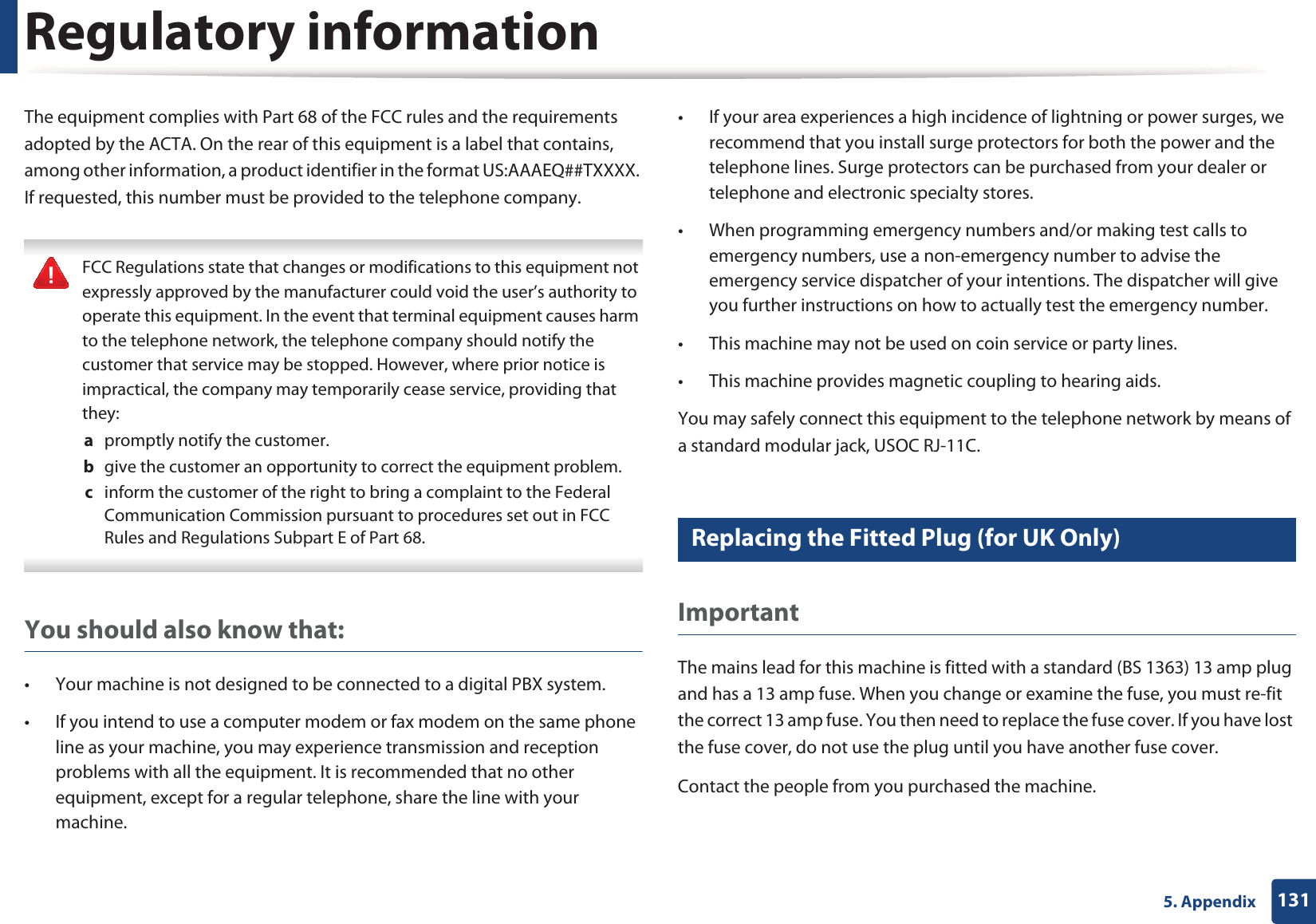

Regulatory information1315. AppendixThe equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the rear of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. FCC Regulations state that changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. In the event that terminal equipment causes harm to the telephone network, the telephone company should notify the customer that service may be stopped. However, where prior notice is impractical, the company may temporarily cease service, providing that they:a promptly notify the customer.b give the customer an opportunity to correct the equipment problem.c inform the customer of the right to bring a complaint to the Federal Communication Commission pursuant to procedures set out in FCC Rules and Regulations Subpart E of Part 68. You should also know that:• Your machine is not designed to be connected to a digital PBX system.• If you intend to use a computer modem or fax modem on the same phone line as your machine, you may experience transmission and reception problems with all the equipment. It is recommended that no other equipment, except for a regular telephone, share the line with your machine.• If your area experiences a high incidence of lightning or power surges, we recommend that you install surge protectors for both the power and the telephone lines. Surge protectors can be purchased from your dealer or telephone and electronic specialty stores.• When programming emergency numbers and/or making test calls to emergency numbers, use a non-emergency number to advise the emergency service dispatcher of your intentions. The dispatcher will give you further instructions on how to actually test the emergency number.• This machine may not be used on coin service or party lines.• This machine provides magnetic coupling to hearing aids.You may safely connect this equipment to the telephone network by means of a standard modular jack, USOC RJ-11C.21 Replacing the Fitted Plug (for UK Only)ImportantThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Contact the people from you purchased the machine.

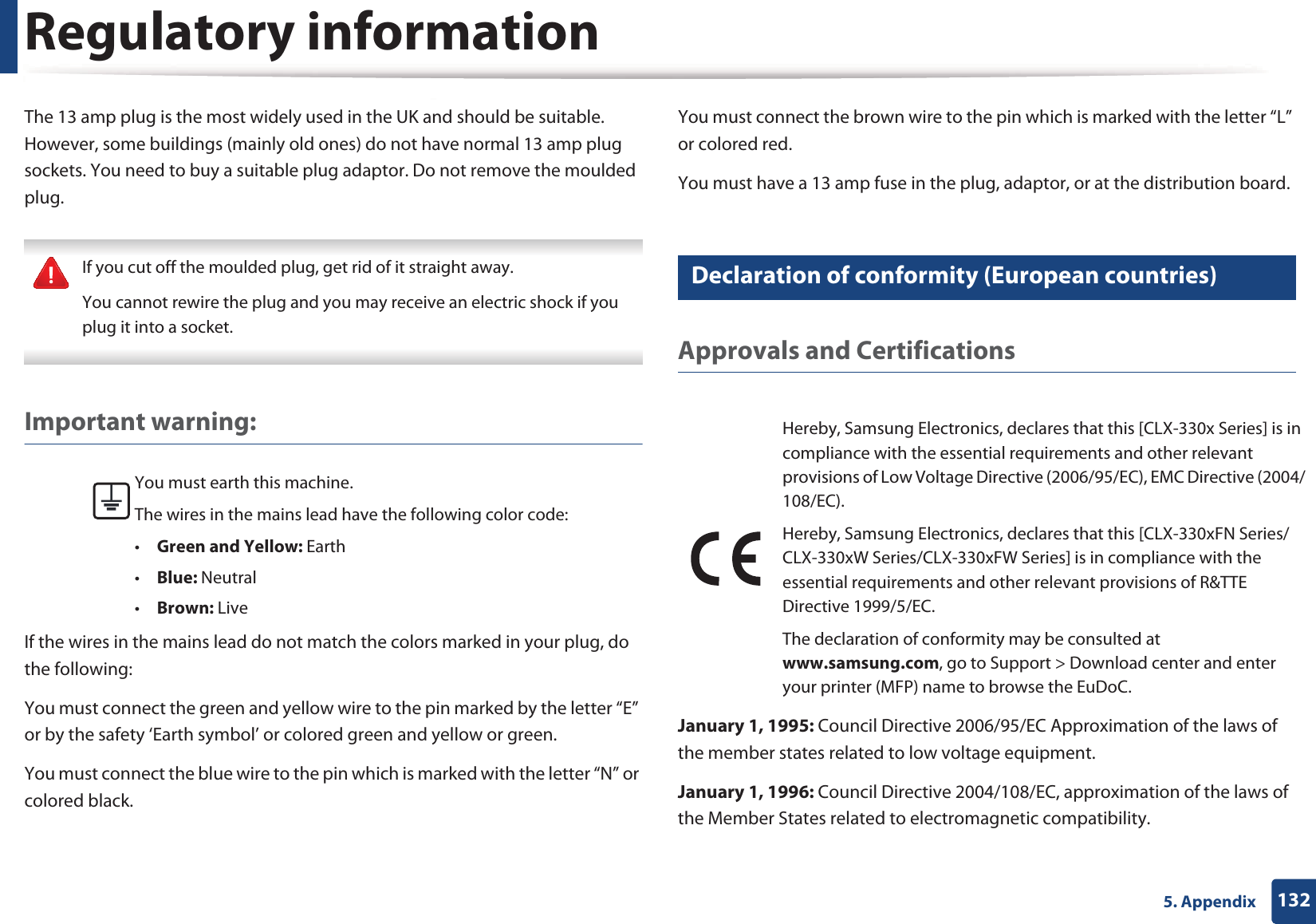

Regulatory information1325. AppendixThe 13 amp plug is the most widely used in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug. If you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket. Important warning: If the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.You must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red.You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.22 Declaration of conformity (European countries)Approvals and CertificationsJanuary 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of the Member States related to electromagnetic compatibility.You must earth this machine.The wires in the mains lead have the following color code:•Green and Yellow: Earth•Blue: Neutral•Brown: LiveHereby, Samsung Electronics, declares that this [CLX-330x Series] is in compliance with the essential requirements and other relevant provisions of Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC).Hereby, Samsung Electronics, declares that this [CLX-330xFN Series/CLX-330xW Series/CLX-330xFW Series] is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.The declaration of conformity may be consulted at www.samsung.com, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC.

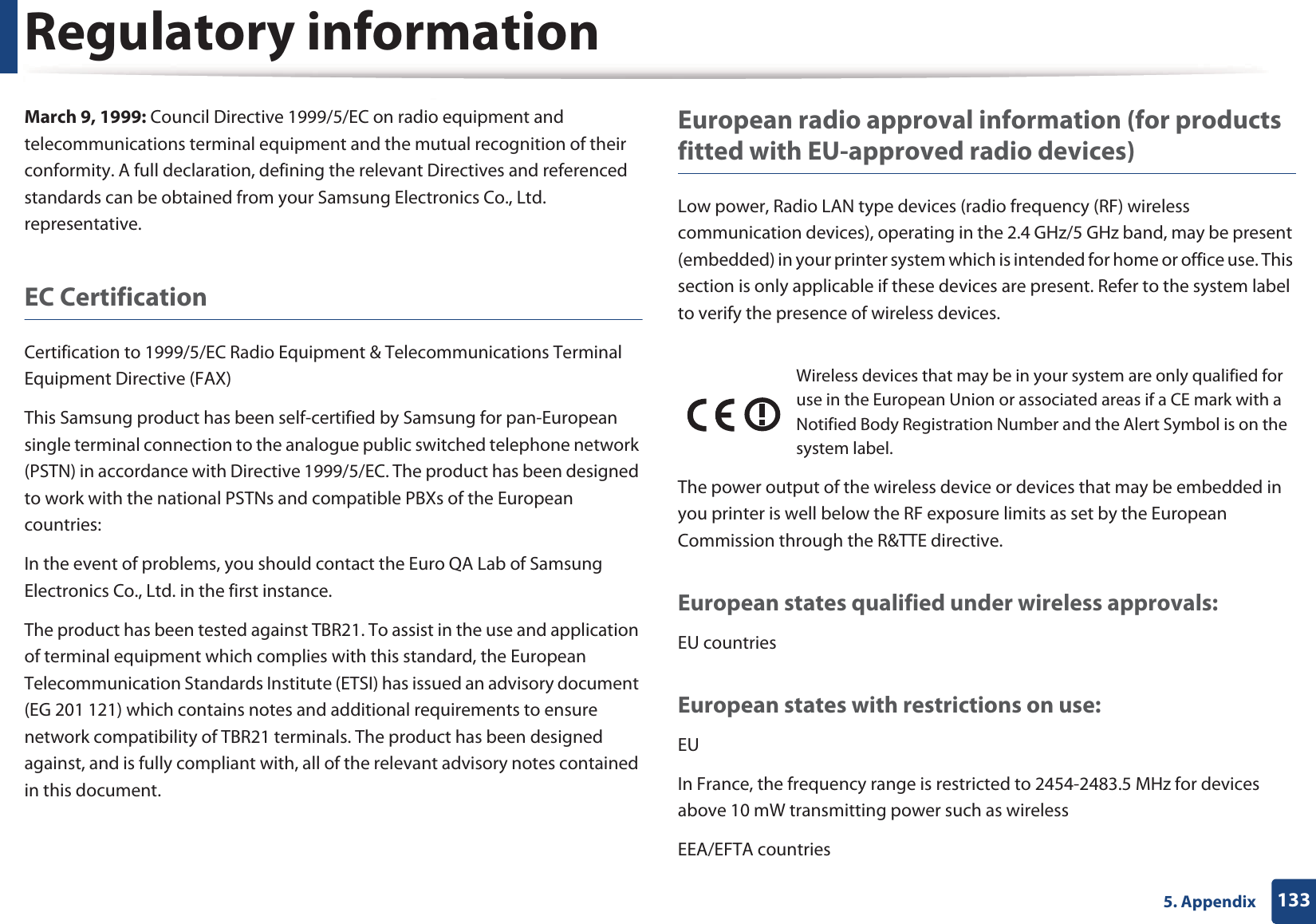

Regulatory information1335. AppendixMarch 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.EC CertificationCertification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.European radio approval information (for products fitted with EU-approved radio devices)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.European states qualified under wireless approvals:EU countriesEuropean states with restrictions on use:EUIn France, the frequency range is restricted to 2454-2483.5 MHz for devices above 10 mW transmitting power such as wirelessEEA/EFTA countriesWireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.

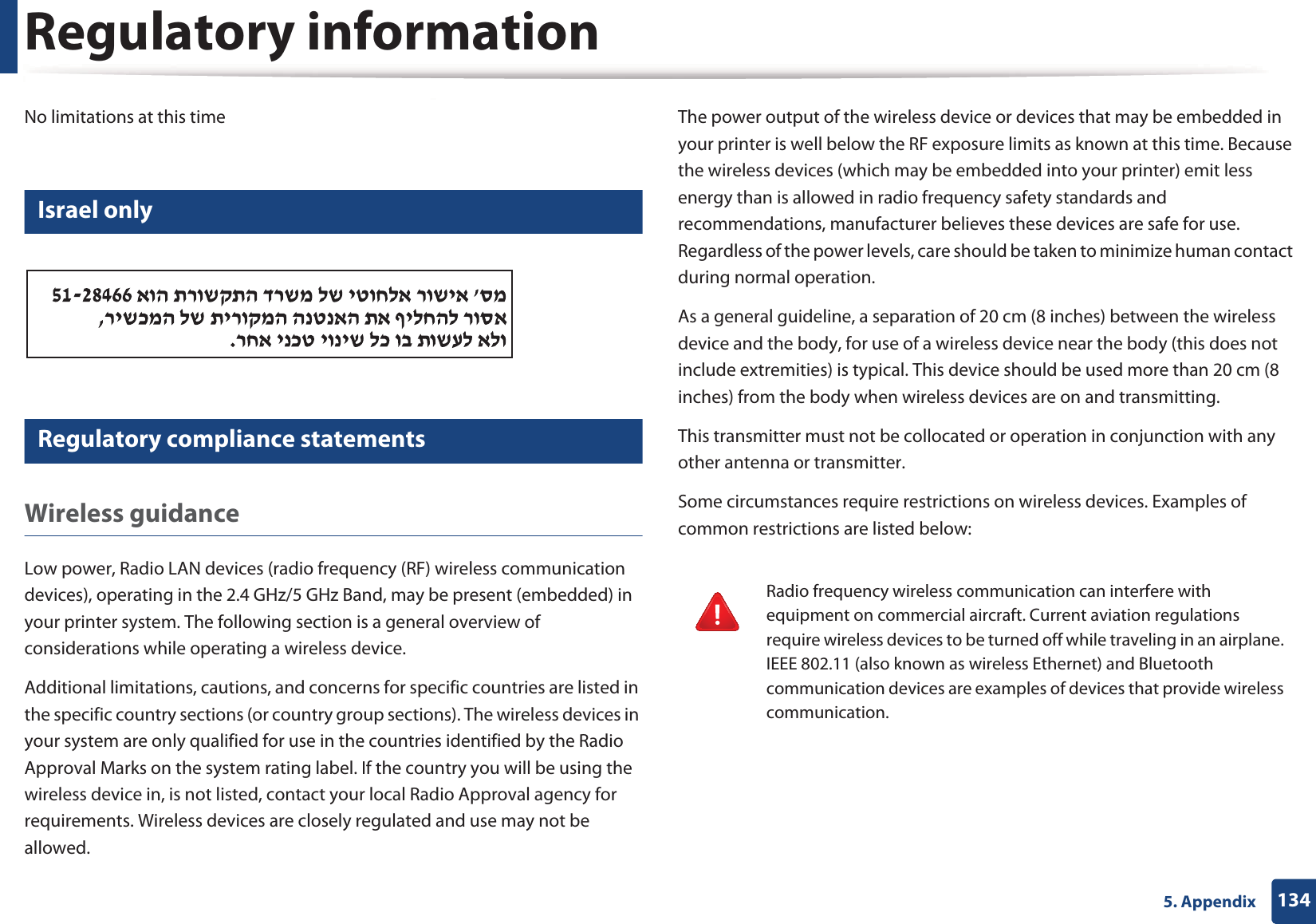

Regulatory information1345. AppendixNo limitations at this time23 Israel only24 Regulatory compliance statementsWireless guidanceLow power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

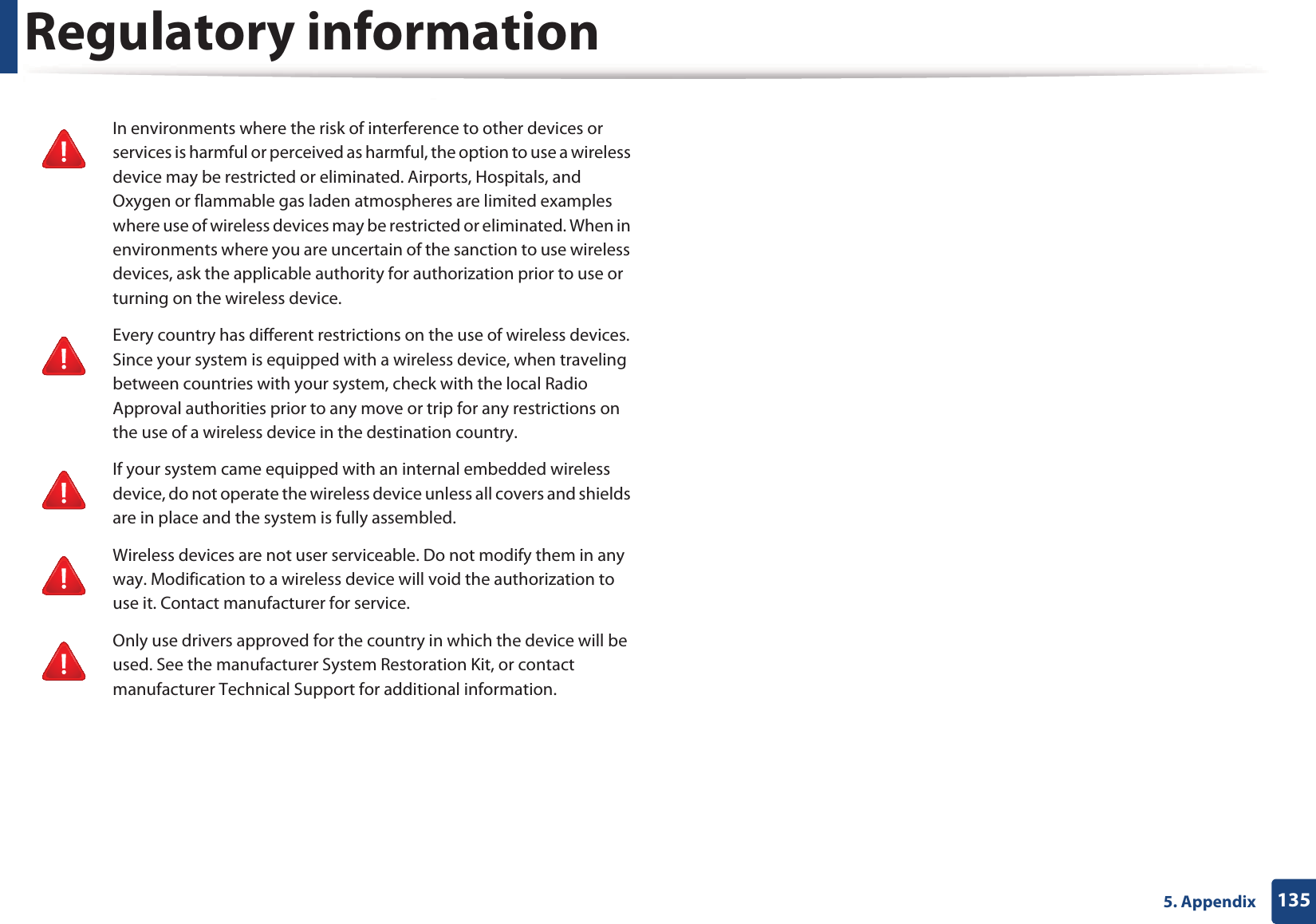

Regulatory information1355. AppendixIn environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

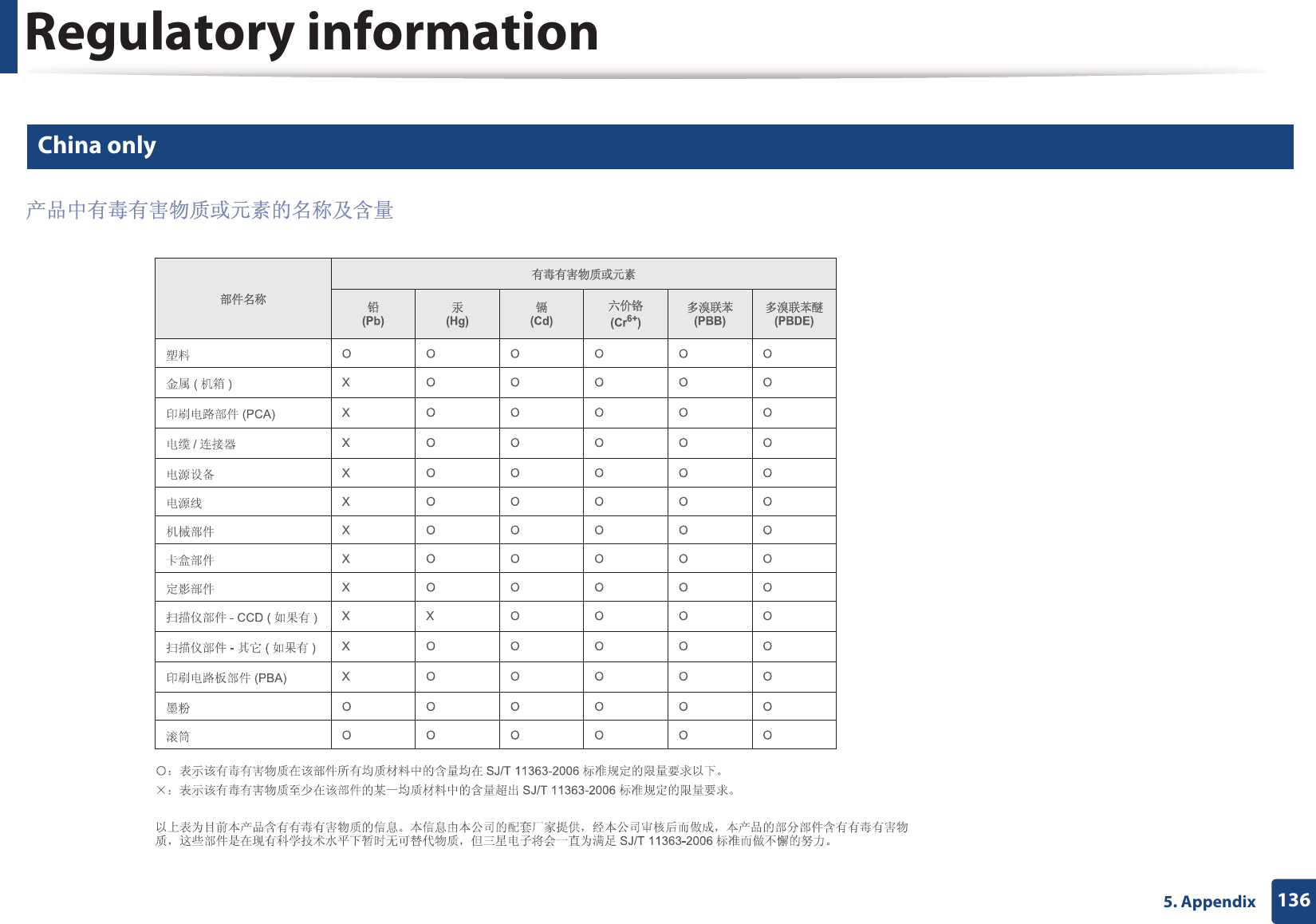

Regulatory information1365. Appendix25 China only

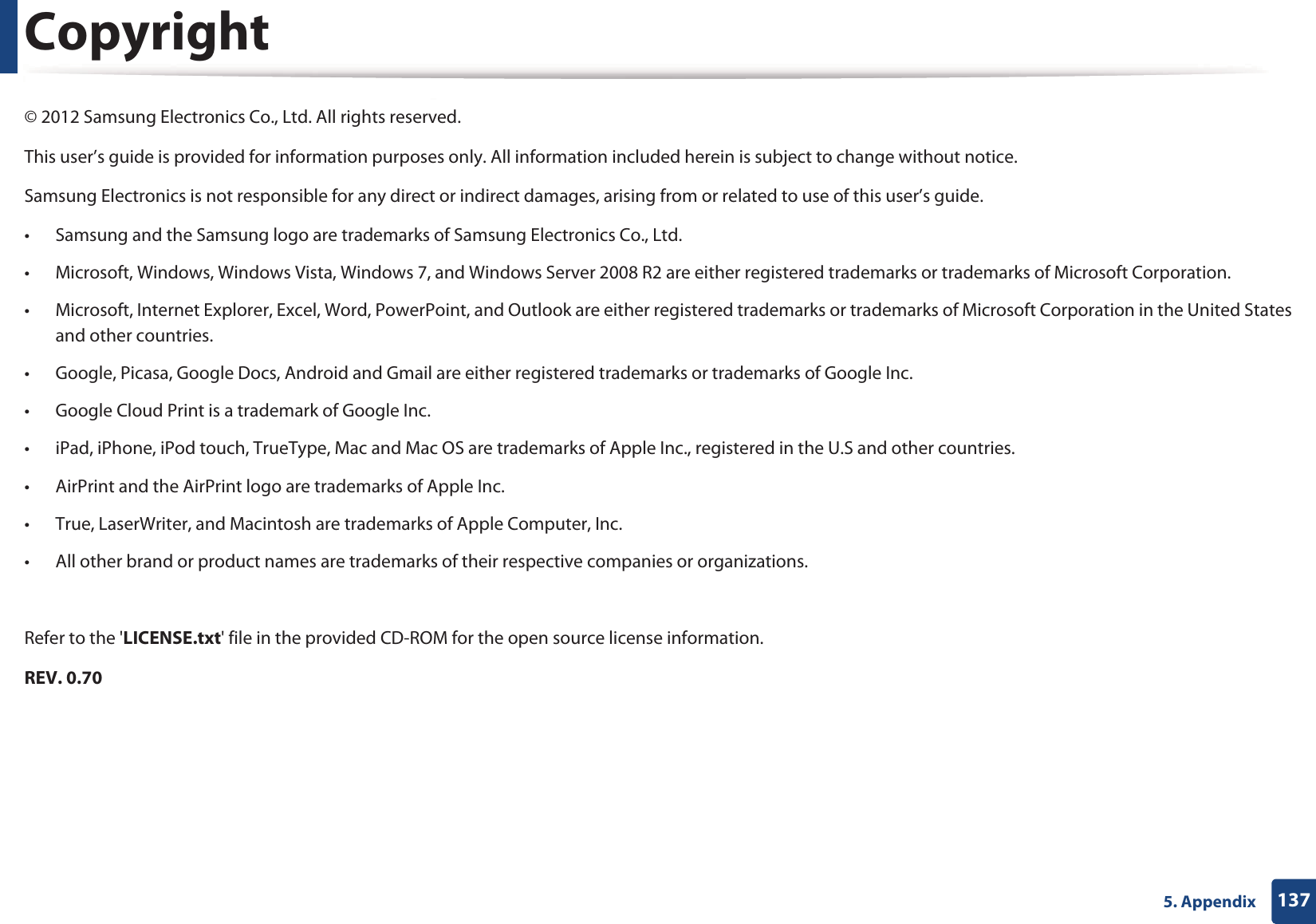

1375. AppendixCopyright© 2012 Samsung Electronics Co., Ltd. All rights reserved.This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.• Microsoft, Windows, Windows Vista, Windows 7, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.• Microsoft, Internet Explorer, Excel, Word, PowerPoint, and Outlook are either registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.• Google, Picasa, Google Docs, Android and Gmail are either registered trademarks or trademarks of Google Inc.• Google Cloud Print is a trademark of Google Inc.• iPad, iPhone, iPod touch, TrueType, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S and other countries.• AirPrint and the AirPrint logo are trademarks of Apple Inc.• True, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.• All other brand or product names are trademarks of their respective companies or organizations.Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.REV. 0.70
