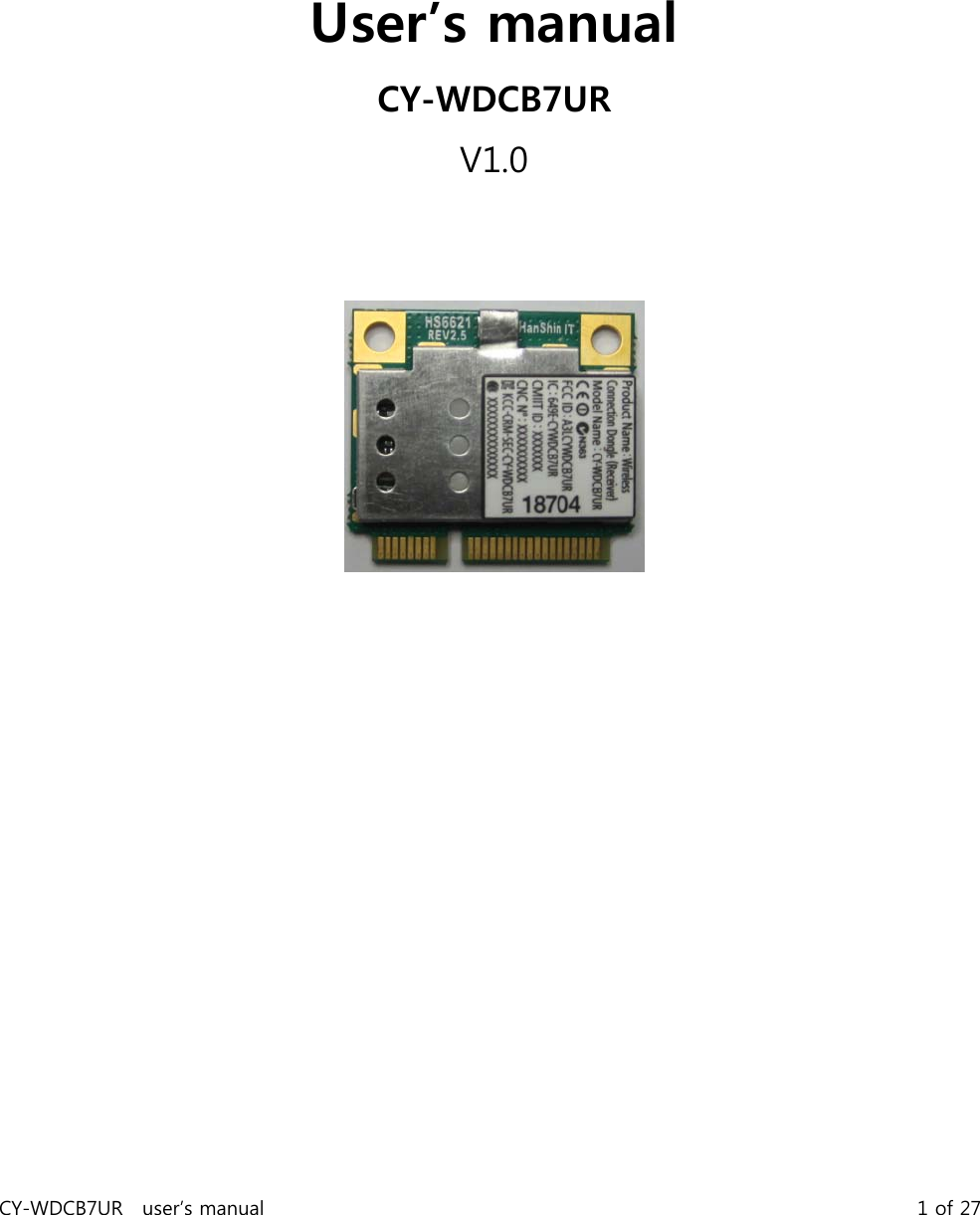

CY-WDCB7UR user’s manual 1 of 27 User’s manual CY-WDCB7UR V1.0

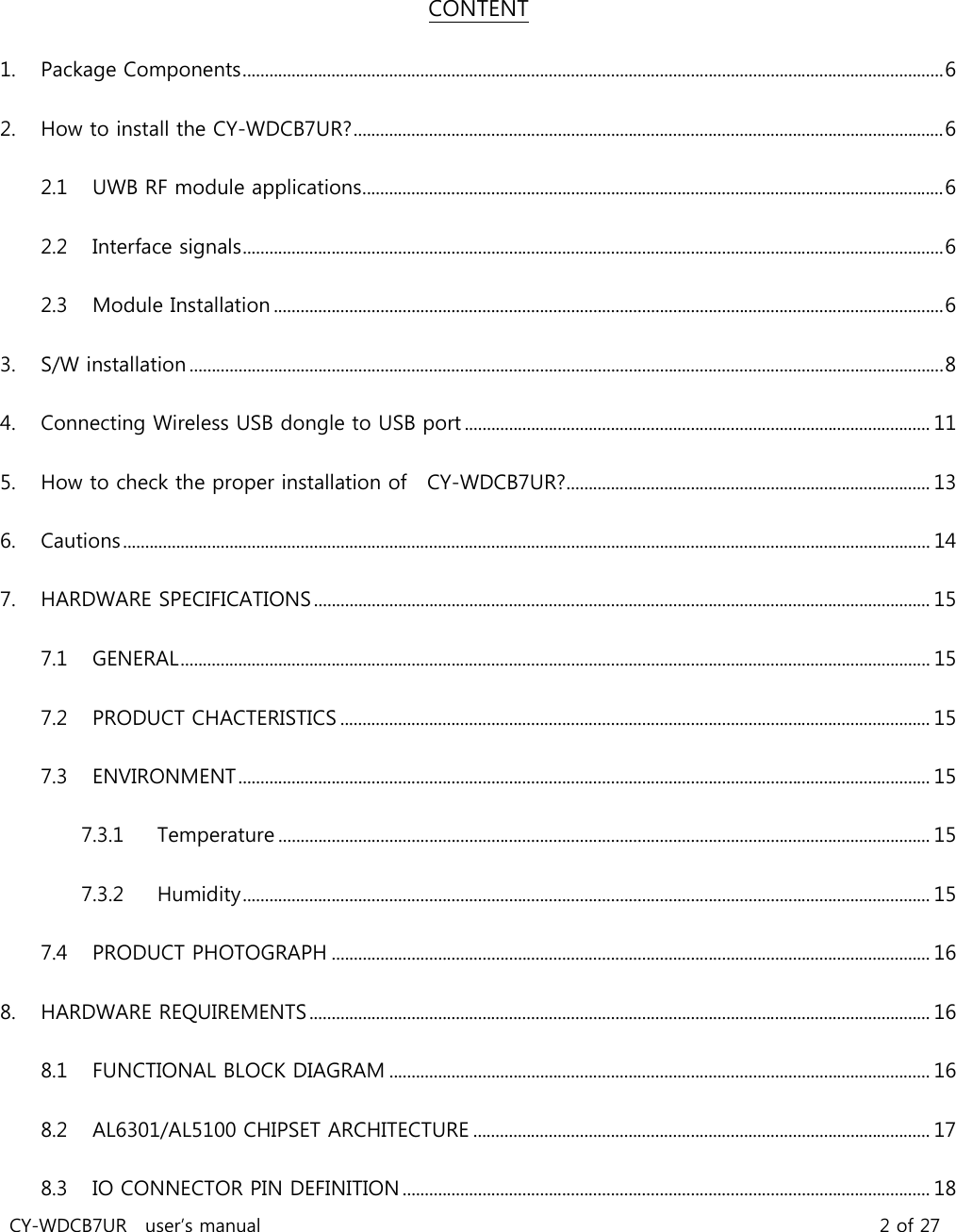

CY-WDCB7UR user’s manual 2 of 27 CONTENT 1. Package Components .............................................................................................................................................................. 6 2. How to install the CY-WDCB7UR? ..................................................................................................................................... 6 2.1 UWB RF module applications ................................................................................................................................... 6 2.2 Interface signals .............................................................................................................................................................. 6 2.3 Module Installation ....................................................................................................................................................... 6 3. S/W installation .......................................................................................................................................................................... 8 4. Connecting Wireless USB dongle to USB port ......................................................................................................... 11 5. How to check the proper installation of CY-WDCB7UR? .................................................................................. 13 6. Cautions ...................................................................................................................................................................................... 14 7. HARDWARE SPECIFICATIONS ........................................................................................................................................... 15 7.1 GENERAL ......................................................................................................................................................................... 15 7.2 PRODUCT CHACTERISTICS ..................................................................................................................................... 15 7.3 ENVIRONMENT ............................................................................................................................................................ 15 7.3.1 Temperature ................................................................................................................................................... 15 7.3.2 Humidity ........................................................................................................................................................... 15 7.4 PRODUCT PHOTOGRAPH ....................................................................................................................................... 16 8. HARDWARE REQUIREMENTS ............................................................................................................................................ 16 8.1 FUNCTIONAL BLOCK DIAGRAM .......................................................................................................................... 16 8.2 AL6301/AL5100 CHIPSET ARCHITECTURE ....................................................................................................... 17 8.3 IO CONNECTOR PIN DEFINITION ....................................................................................................................... 18
CY-WDCB7UR user’s manual 3 of 27 8.4 PERFORMANCE TEST RESULTS ............................................................................................................................. 19 8.4.1 Current Consumption ................................................................................................................................. 19 8.4.2 Indoor Range Throughput ....................................................................................................................... 19 9. DIMENSION INFORMATION .............................................................................................................................................. 20 9.1 PCB DIMENSION ......................................................................................................................................................... 20 9.2 ASSEMBLY DIMENSION ........................................................................................................................................... 21 10. PACKAGE DIMENSION ................................................................................................................................................. 22 10.1 LABEL DIMENSION ..................................................................................................................................................... 22 10.2 LABEL STICK .................................................................................................................................................................. 22 11. ANTENNA SPECIFICATIONS ...................................................................................................................................... 23 11.1 Summaries ...................................................................................................................................................................... 23 11.1.1 Function and Features ............................................................................................................................... 23 11.2 Specification .................................................................................................................................................................. 23 11.2.1 Applicable Boundary ................................................................................................................................... 23 11.2.2 Electrical Specification ................................................................................................................................ 23 11.3 Results of Antenna Measurement ....................................................................................................................... 24 11.3.1 Antenna Peak Gain ...................................................................................................................................... 24 12. HANSHIN IT CONTACT INFORMATION .............................................................................................................. 25 13. IC Statement..................................................................................................................................................................... 26
CY-WDCB7UR user’s manual 4 of 27
CY-WDCB7UR user’s manual 5 of 27 FCC information The following information must be included in the User Manual for the Final End Product (Host Product): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is authorized under Title 47 CFR 15.519 (the FCC Rules and Regulations). The operation of this device is subject to the following restriction: Changes or modifications made to this equipment not expressly approved by SAMSUNG or parties authorized by SAMSUNG could void the user's authority to operate the device under the FCC Equipment Authorization. This includes changes or substitutions of the antennas which are furnished with the device. UWB devices may not be employed for the operation of toys. Operation onboard an aircraft, a ship or satellite is prohibited. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following Contains FCC ID: A3LCYWDCB7UR This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

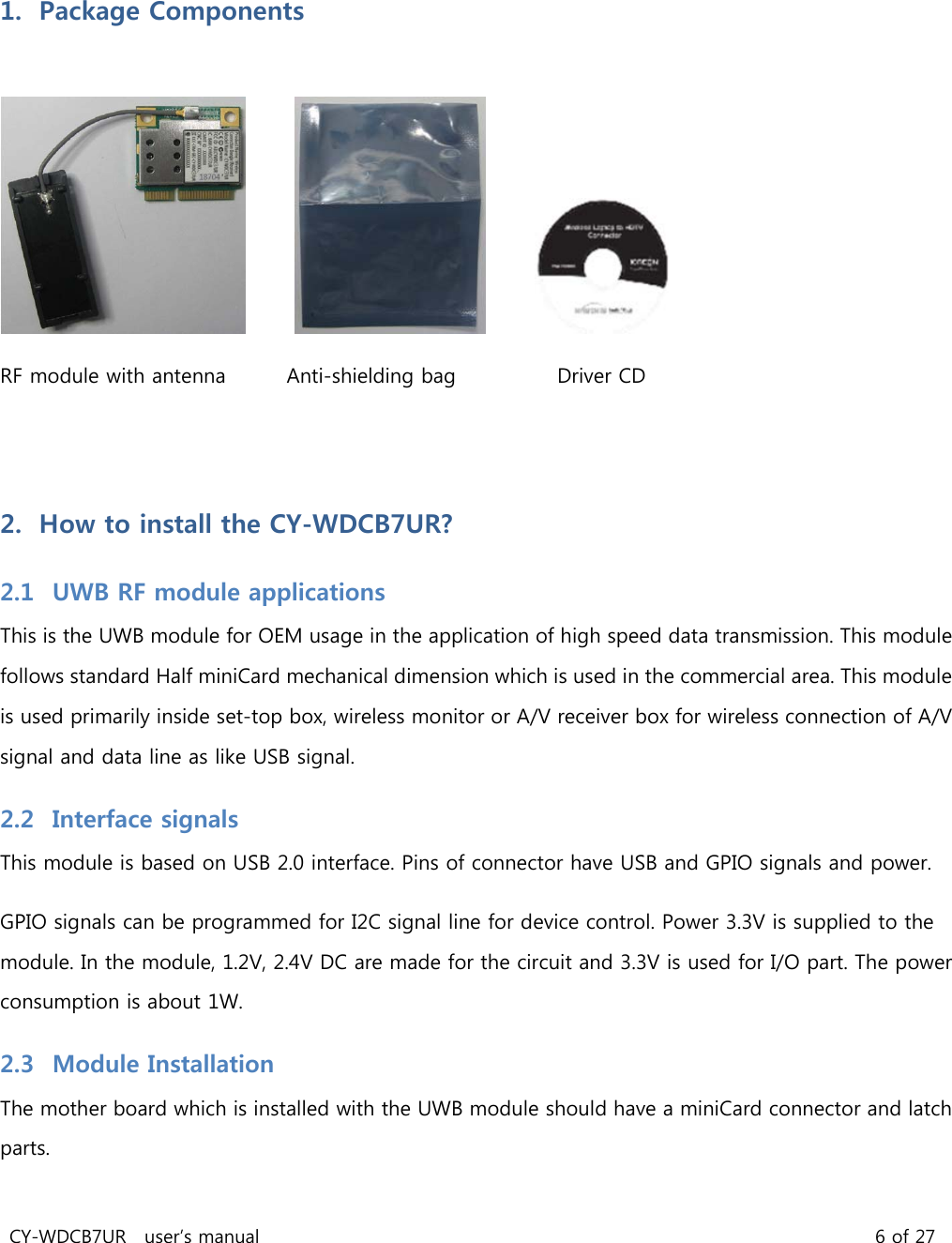

CY-WDCB7UR user’s manual 6 of 27 1. Package Components RF module with antenna Anti-shielding bag Driver CD 2. How to install the CY-WDCB7UR? 2.1 UWB RF module applications This is the UWB module for OEM usage in the application of high speed data transmission. This module follows standard Half miniCard mechanical dimension which is used in the commercial area. This module is used primarily inside set-top box, wireless monitor or A/V receiver box for wireless connection of A/V signal and data line as like USB signal. 2.2 Interface signals This module is based on USB 2.0 interface. Pins of connector have USB and GPIO signals and power. GPIO signals can be programmed for I2C signal line for device control. Power 3.3V is supplied to the module. In the module, 1.2V, 2.4V DC are made for the circuit and 3.3V is used for I/O part. The power consumption is about 1W. 2.3 Module Installation The mother board which is installed with the UWB module should have a miniCard connector and latch parts.

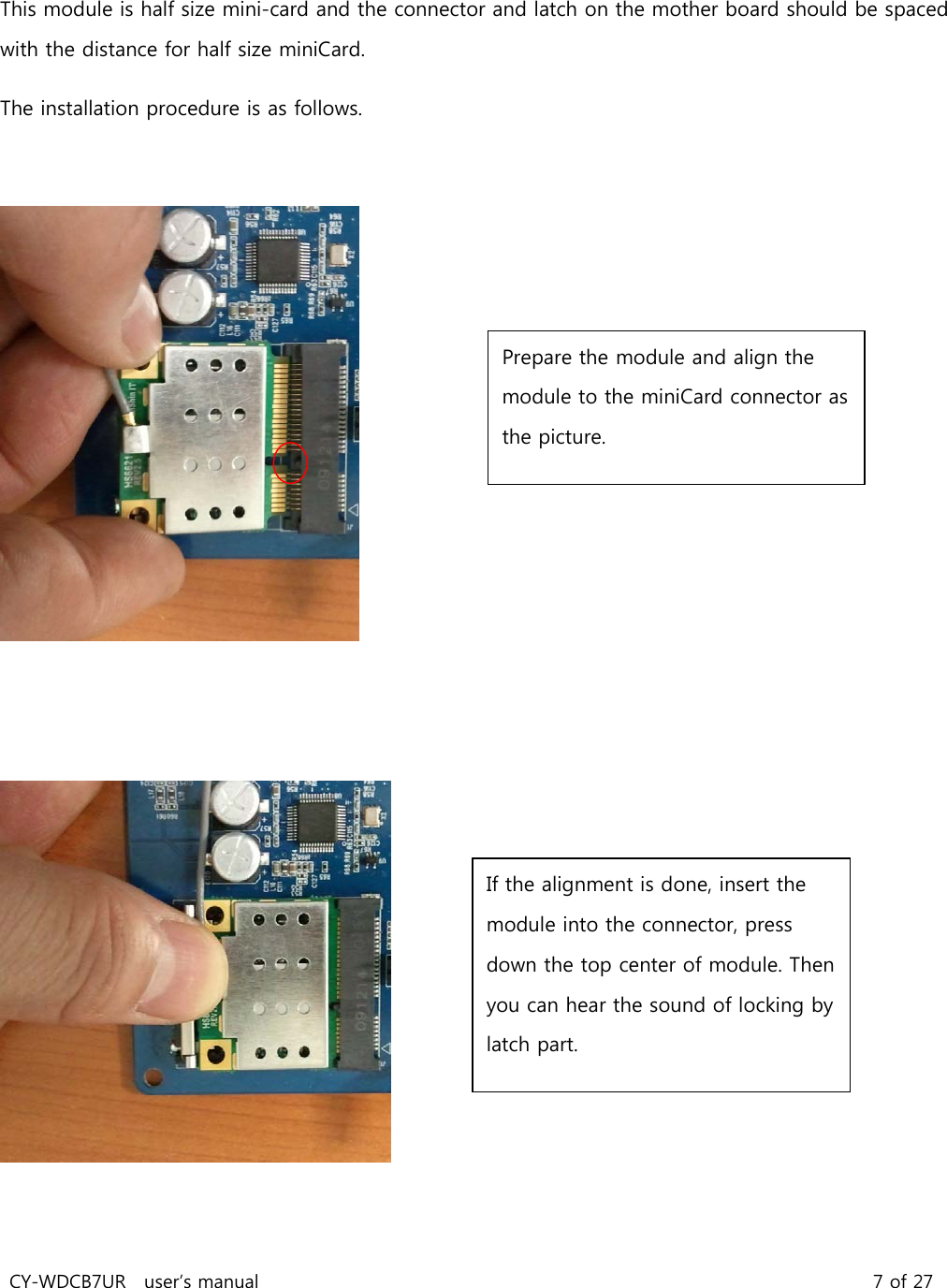

CY-WDCB7UR user’s manual 7 of 27 This module is half size mini-card and the connector and latch on the mother board should be spaced with the distance for half size miniCard. The installation procedure is as follows. Prepare the module and align the module to the miniCard connector as the picture. If the alignment is done, insert the module into the connector, press down the top center of module. Then you can hear the sound of locking by latch part.

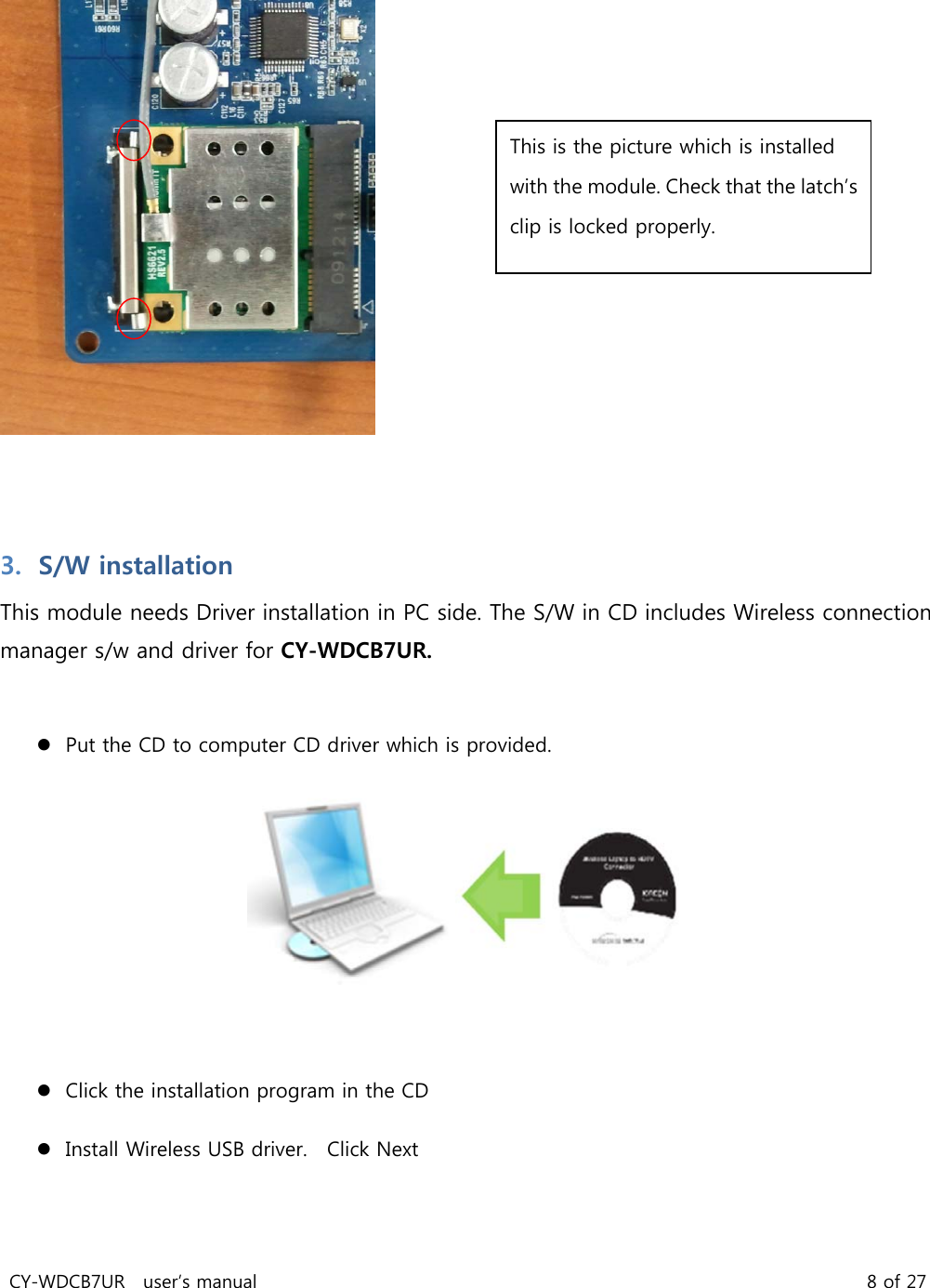

CY-WDCB7UR user’s manual 8 of 27 3. S/W installation This module needs Driver installation in PC side. The S/W in CD includes Wireless connection manager s/w and driver for CY-WDCB7UR.  Put the CD to computer CD driver which is provided.  Click the installation program in the CD  Install Wireless USB driver. Click Next This is the picture which is installed with the module. Check that the latch’s clip is locked properly.

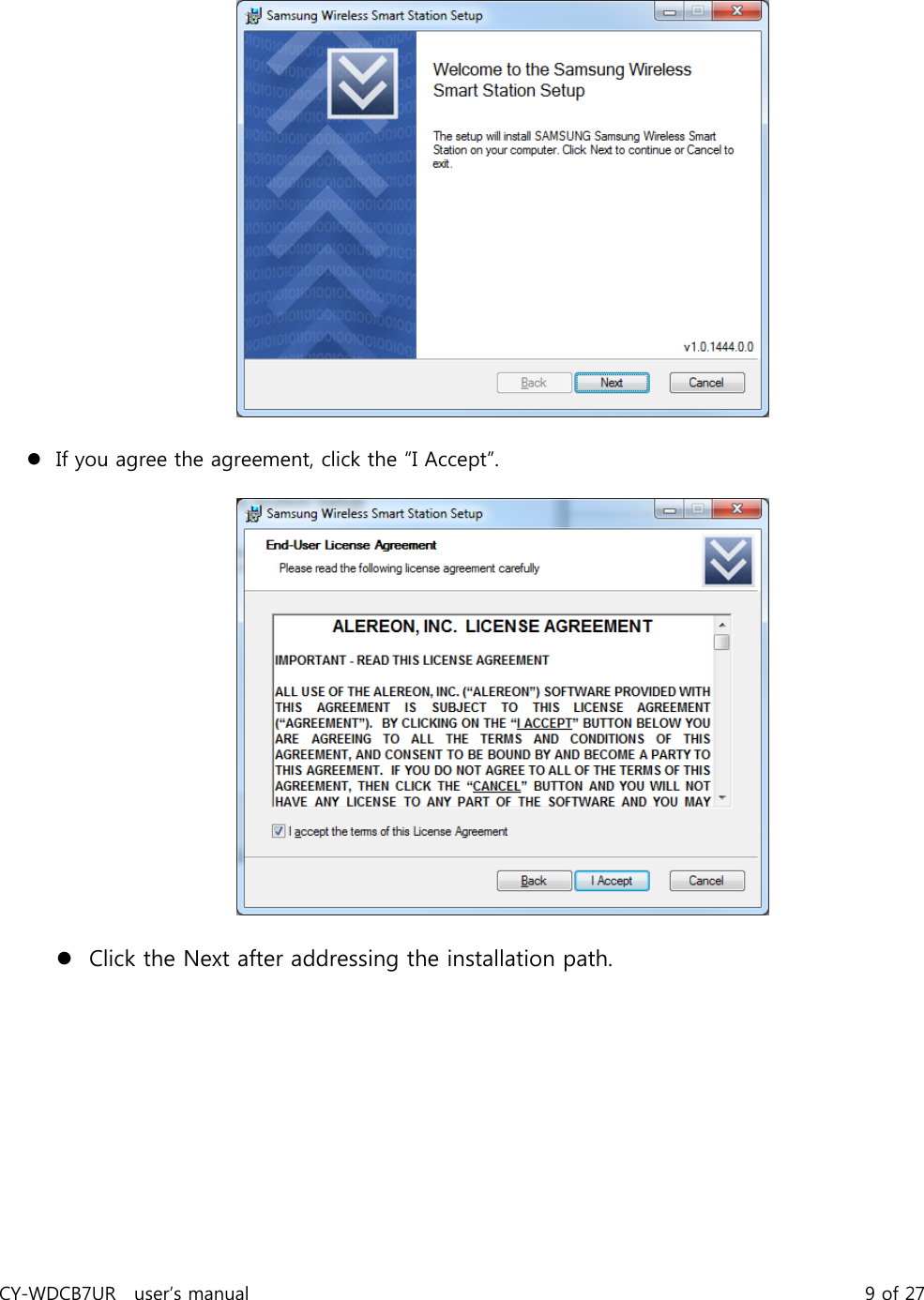

CY-WDCB7UR user’s manual 9 of 27  If you agree the agreement, click the “I Accept”.  Click the Next after addressing the installation path.

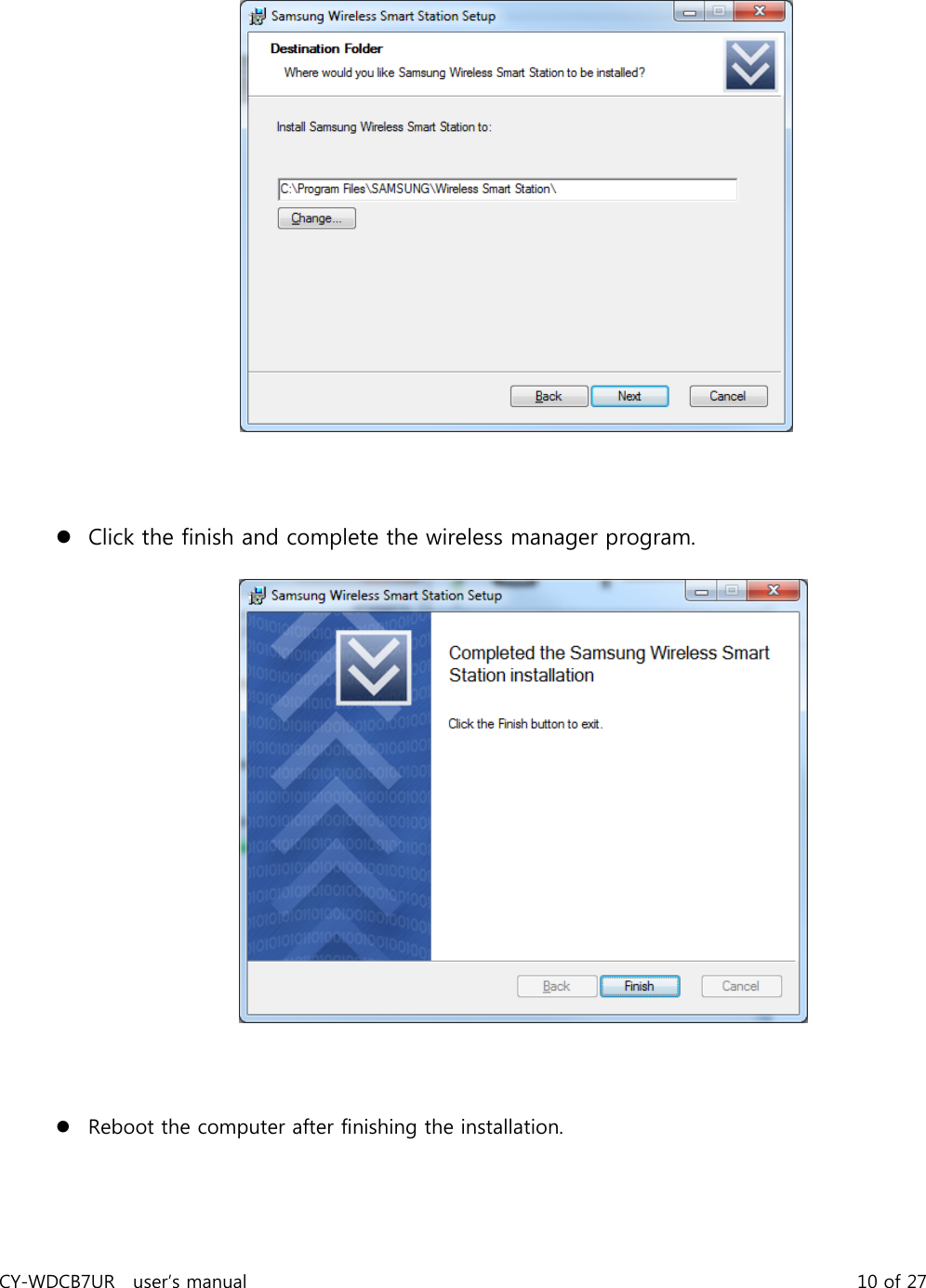

CY-WDCB7UR user’s manual 10 of 27  Click the finish and complete the wireless manager program.  Reboot the computer after finishing the installation.
CY-WDCB7UR user’s manual 11 of 27 4. Connecting Wireless USB dongle to USB port You need to use Wireless USB dongle to run CY-WDCB7UR. ● Plug the USB dongle to the USB port in computer. NOTE: you can use USB extension cable if your computer is desktop PC. Be careful there is no object between USB dongle and receiver.  New hardware device installation message is showed in the tray. Please wait until completing of the installation.  If new device installation is completed, click the “wireless Connection Manager” for running the program. Then you can see the connectable monitors. ( Wireless Connection Manager icon)
CY-WDCB7UR user’s manual 12 of 27 If you select and click the monitor device and it becomes Connected Monitor. If you want automatic connection, click the right button of mouse and select ”Set as default”.
CY-WDCB7UR user’s manual 13 of 27 5. How to check the proper installation of CY-WDCB7UR? When you complete the s/w installation and connect the monitor device which CY-WDCB7UR is included, you can check whether the driver is properly installed or not in the device manager in PC. You can find “Samsung Smart Station” device in USB device list if it is installed without problem.

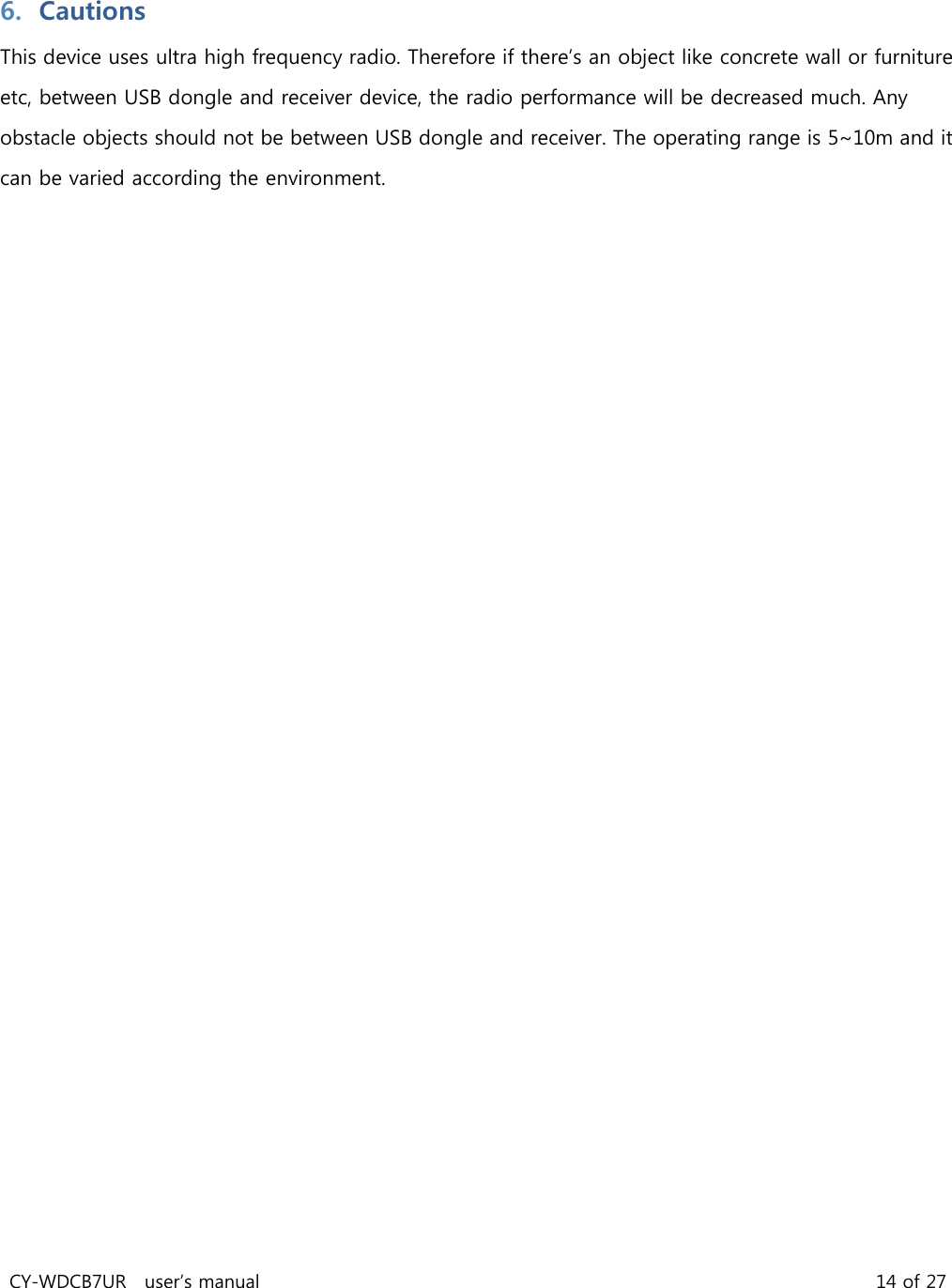

CY-WDCB7UR user’s manual 14 of 27 6. Cautions This device uses ultra high frequency radio. Therefore if there’s an object like concrete wall or furniture etc, between USB dongle and receiver device, the radio performance will be decreased much. Any obstacle objects should not be between USB dongle and receiver. The operating range is 5~10m and it can be varied according the environment.

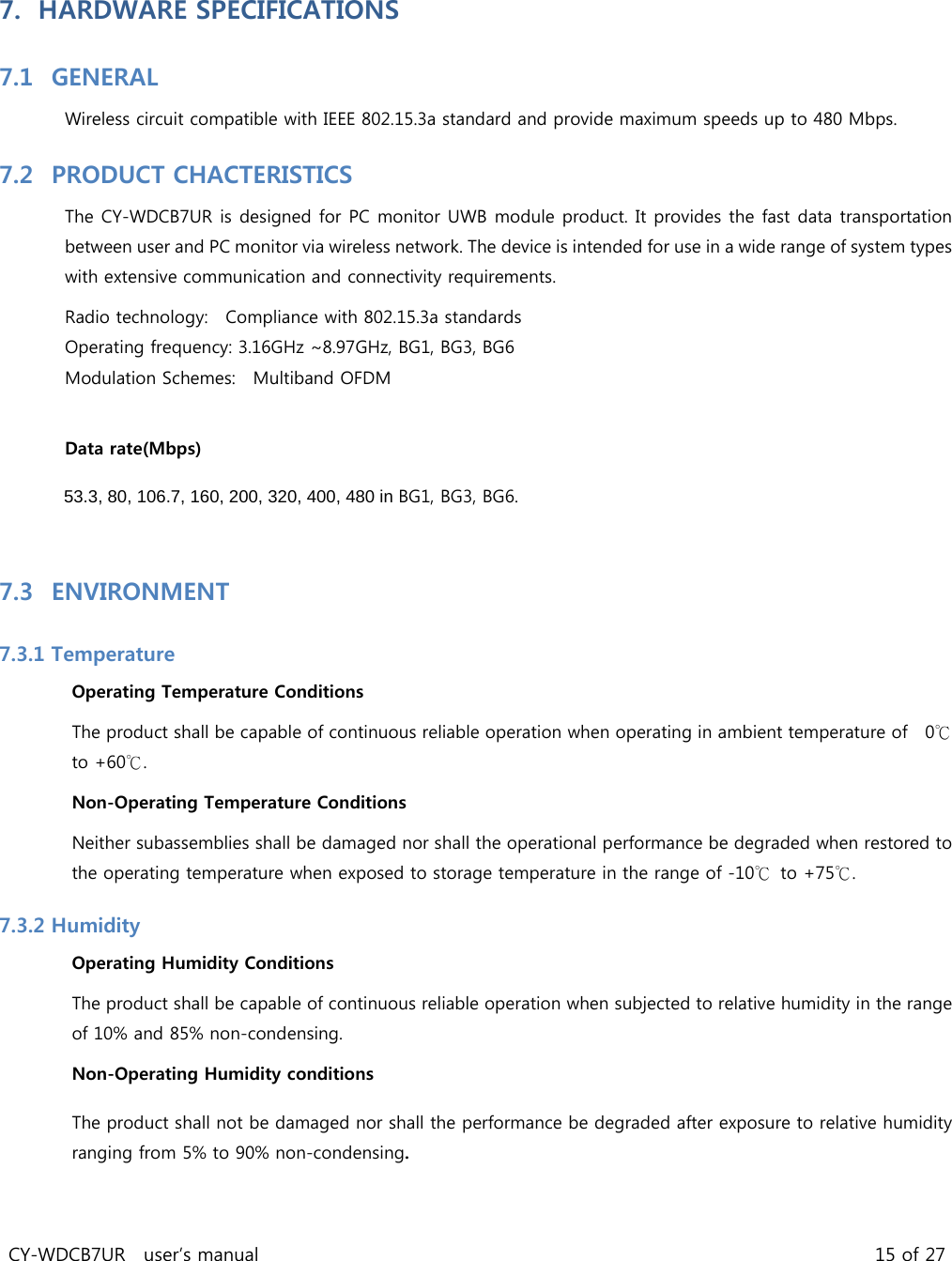

CY-WDCB7UR user’s manual 15 of 27 7. HARDWARE SPECIFICATIONS 7.1 GENERAL Wireless circuit compatible with IEEE 802.15.3a standard and provide maximum speeds up to 480 Mbps. 7.2 PRODUCT CHACTERISTICS The CY-WDCB7UR is designed for PC monitor UWB module product. It provides the fast data transportation between user and PC monitor via wireless network. The device is intended for use in a wide range of system types with extensive communication and connectivity requirements. Radio technology: Compliance with 802.15.3a standards Operating frequency: 3.16GHz ~8.97GHz, BG1, BG3, BG6 Modulation Schemes: Multiband OFDM Data rate(Mbps) 53.3, 80, 106.7, 160, 200, 320, 400, 480 in BG1, BG3, BG6. 7.3 ENVIRONMENT 7.3.1 Temperature Operating Temperature Conditions The product shall be capable of continuous reliable operation when operating in ambient temperature of 0℃ to +60℃. Non-Operating Temperature Conditions Neither subassemblies shall be damaged nor shall the operational performance be degraded when restored to the operating temperature when exposed to storage temperature in the range of -10℃ to +75℃. 7.3.2 Humidity Operating Humidity Conditions The product shall be capable of continuous reliable operation when subjected to relative humidity in the range of 10% and 85% non-condensing. Non-Operating Humidity conditions The product shall not be damaged nor shall the performance be degraded after exposure to relative humidity ranging from 5% to 90% non-condensing.

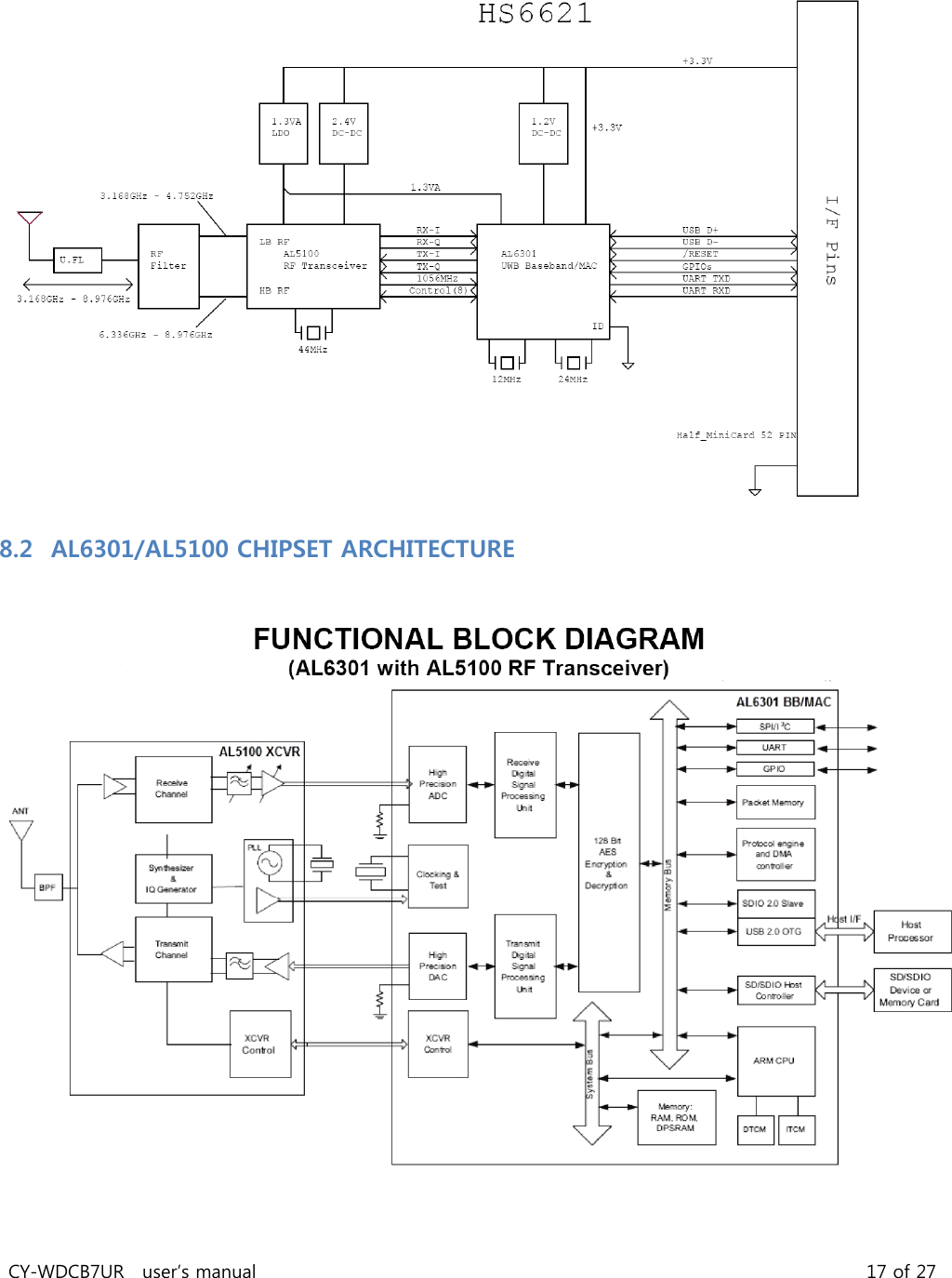

CY-WDCB7UR user’s manual 16 of 27 7.4 PRODUCT PHOTOGRAPH PCB TOP and BOTTOM SIDE 8. HARDWARE REQUIREMENTS 8.1 FUNCTIONAL BLOCK DIAGRAM The hardware design of CY-WDCB7UR is based on AL6301/AL5100 reference circuit.
CY-WDCB7UR user’s manual 17 of 27 8.2 AL6301/AL5100 CHIPSET ARCHITECTURE

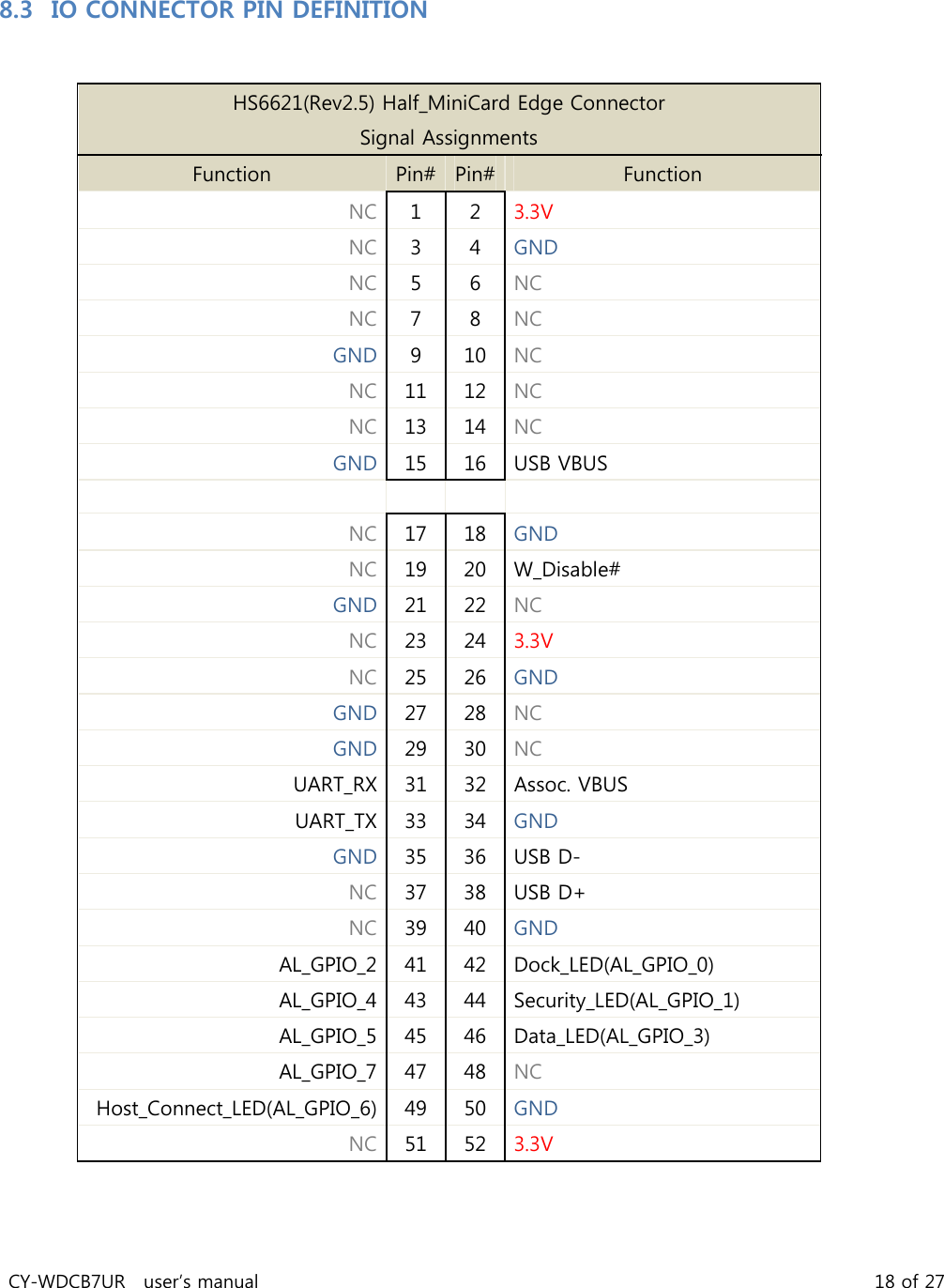

CY-WDCB7UR user’s manual 18 of 27 8.3 IO CONNECTOR PIN DEFINITION HS6621(Rev2.5) Half_MiniCard Edge Connector Signal Assignments Function Pin# Pin# Function NC 1 2 3.3V NC 3 4 GND NC 5 6 NC NC 7 8 NC GND 9 10 NC NC 11 12 NC NC 13 14 NC GND 15 16 USB VBUS NC 17 18 GND NC 19 20 W_Disable# GND 21 22 NC NC 23 24 3.3V NC 25 26 GND GND 27 28 NC GND 29 30 NC UART_RX 31 32 Assoc. VBUS UART_TX 33 34 GND GND 35 36 USB D- NC 37 38 USB D+ NC 39 40 GND AL_GPIO_2 41 42 Dock_LED(AL_GPIO_0) AL_GPIO_4 43 44 Security_LED(AL_GPIO_1) AL_GPIO_5 45 46 Data_LED(AL_GPIO_3) AL_GPIO_7 47 48 NC Host_Connect_LED(AL_GPIO_6) 49 50 GND NC 51 52 3.3V

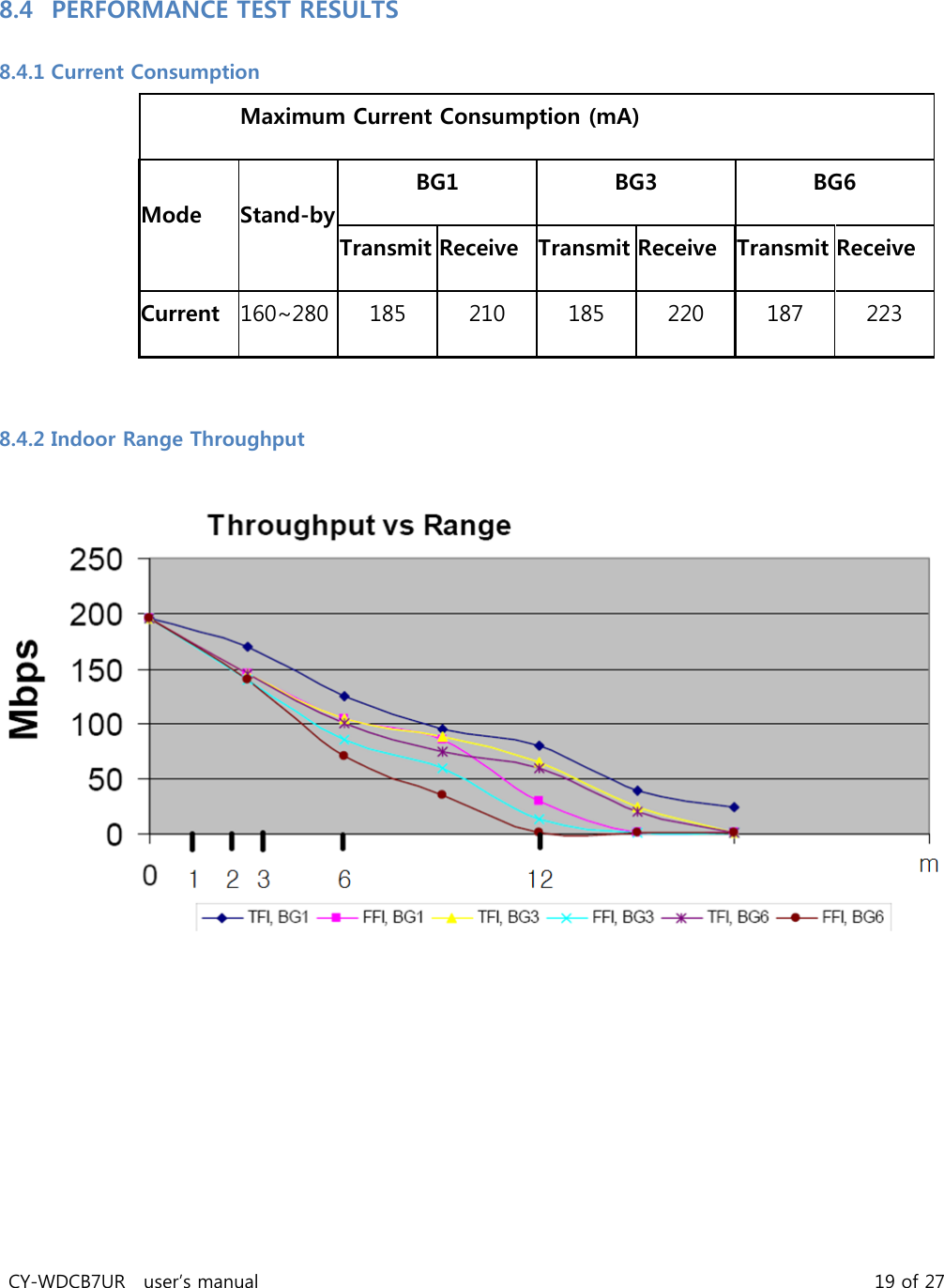

CY-WDCB7UR user’s manual 19 of 27 8.4 PERFORMANCE TEST RESULTS 8.4.1 Current Consumption Maximum Current Consumption (mA) Mode Stand-by BG1 BG3 BG6 Transmit Receive Transmit Receive Transmit Receive Current 160~280 185 210 185 220 187 223 8.4.2 Indoor Range Throughput
CY-WDCB7UR user’s manual 20 of 27 9. DIMENSION INFORMATION 9.1 PCB DIMENSION PCB Dimension (W x L): 30 x 26.8mm, Thickness 1.0mm ±0.1mm
CY-WDCB7UR user’s manual 21 of 27 9.2 ASSEMBLY DIMENSION Array number : 3 x 2 pcs Cutting type : Routing Array Size : 118.0mm X 55.6mm
CY-WDCB7UR user’s manual 22 of 27 10. PACKAGE DIMENSION 10.1 LABEL DIMENSION Label, pasted on the bottom of cover Material: PP MATIC/S692N/GB 10.2 LABEL STICK Regulation Label
CY-WDCB7UR user’s manual 23 of 27 11. ANTENNA SPECIFICATIONS 11.1 Summaries 11.1.1 Function and Features This specification of approval is explained information of UWB(Ultra Wide Band) Antenna (BWT-UWB/HSM-L001/IN) including general information, general specification, result of examination, examination procedure and assembling. 11.2 Specification 11.2.1 Applicable Boundary This specification data is applicable to define the patch antenna’s specification of Ultra Wide Band Antenna for Video data transmitting and receiving. 11.2.2 Electrical Specification Model BWT-UWB/HSM-L001/IN Type Micro-strip Patch Type Characteristic Electrical Char. Frequency Range 3.1GHz ~ 10.6GHz Polarization Linear (Vertical) Gain 3.1 dBi (max.) V. S. W. R 1 : 3.3 Power Capability ≤5 Watt Impedance 50 

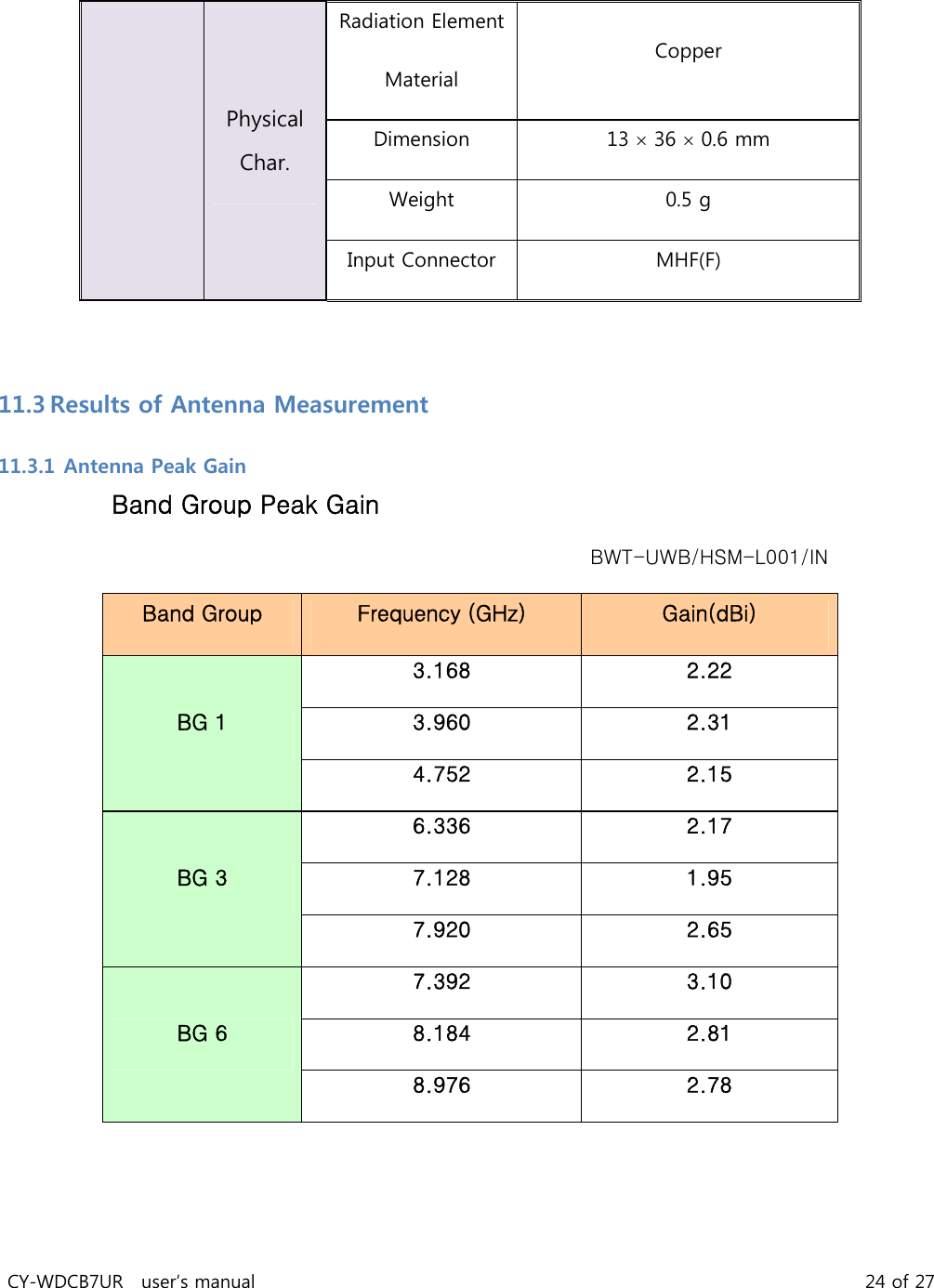

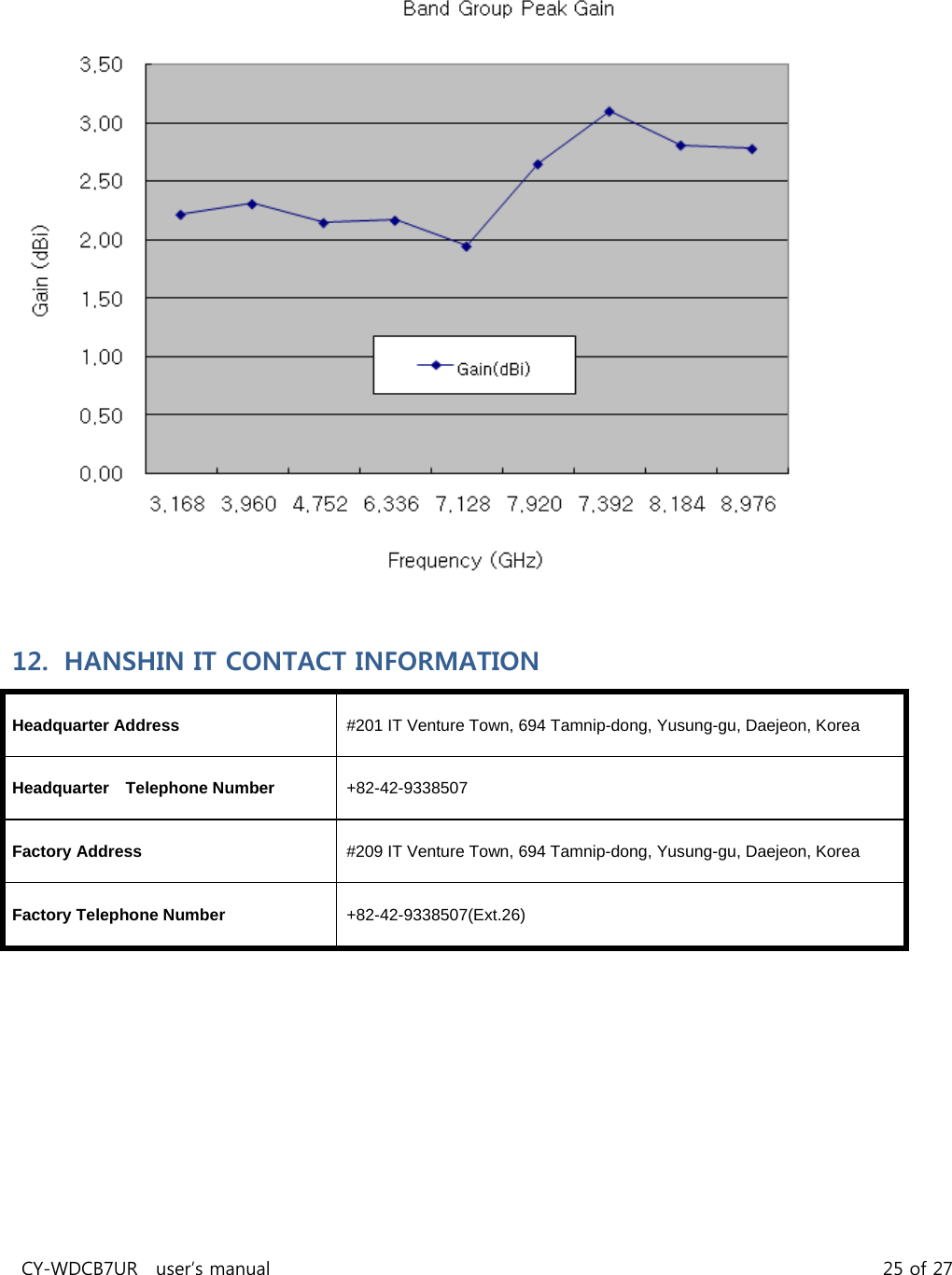

CY-WDCB7UR user’s manual 24 of 27 11.3 Results of Antenna Measurement 11.3.1 Antenna Peak Gain Band Group Peak Gain BWT-UWB/HSM-L001/IN Band Group Frequency (GHz) Gain(dBi) BG 1 3.168 2.22 3.960 2.31 4.752 2.15 BG 3 6.336 2.17 7.128 1.95 7.920 2.65 BG 6 7.392 3.10 8.184 2.81 8.976 2.78 Physical Char. Radiation Element Material Copper Dimension 13  36  0.6 mm Weight 0.5 g Input Connector MHF(F)
CY-WDCB7UR user’s manual 25 of 27 12. HANSHIN IT CONTACT INFORMATION Headquarter Address #201 IT Venture Town, 694 Tamnip-dong, Yusung-gu, Daejeon, Korea Headquarter Telephone Number +82-42-9338507 Factory Address #209 IT Venture Town, 694 Tamnip-dong, Yusung-gu, Daejeon, Korea Factory Telephone Number +82-42-9338507(Ext.26)

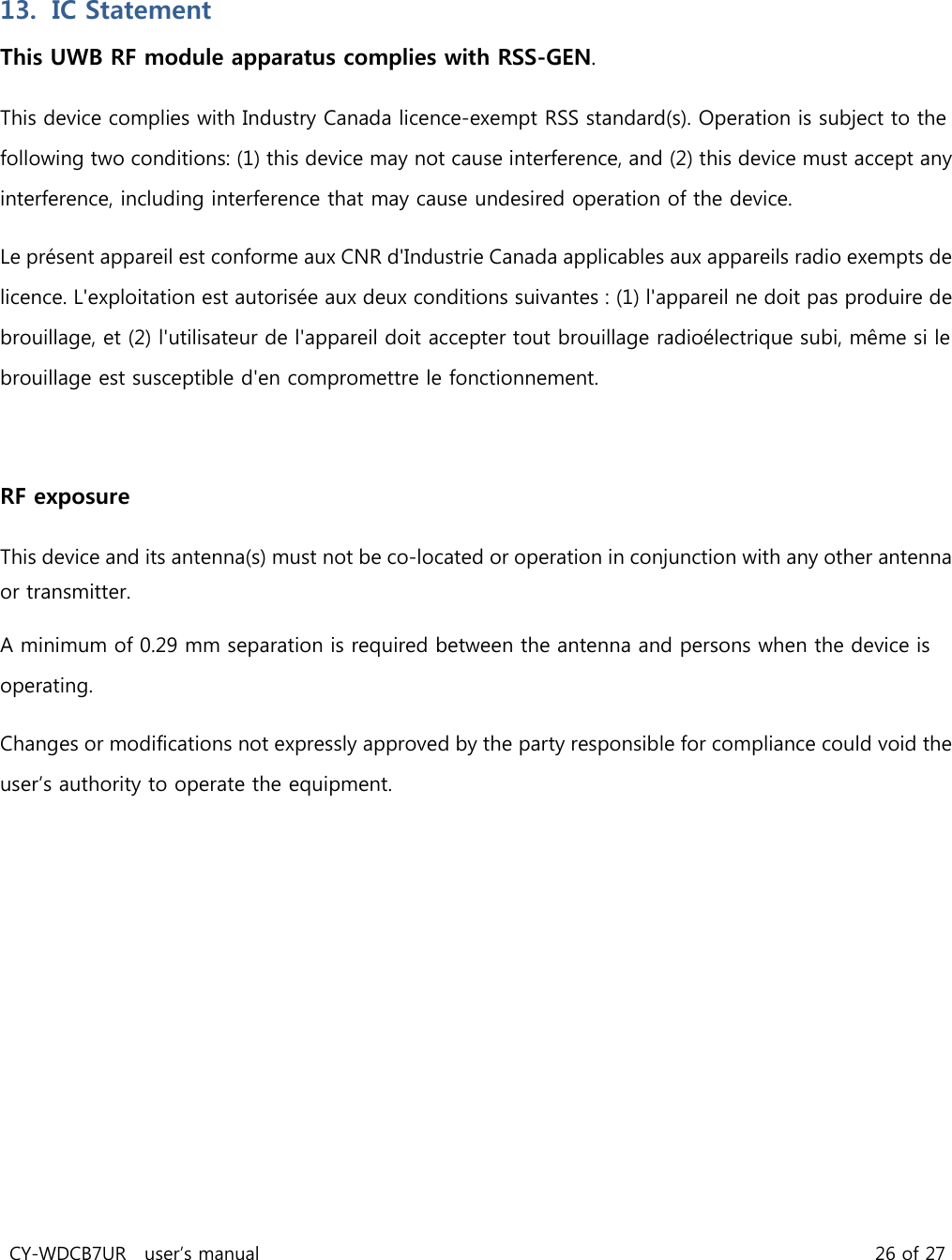

CY-WDCB7UR user’s manual 26 of 27 13. IC Statement This UWB RF module apparatus complies with RSS-GEN. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RF exposure This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum of 0.29 mm separation is required between the antenna and persons when the device is operating. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
