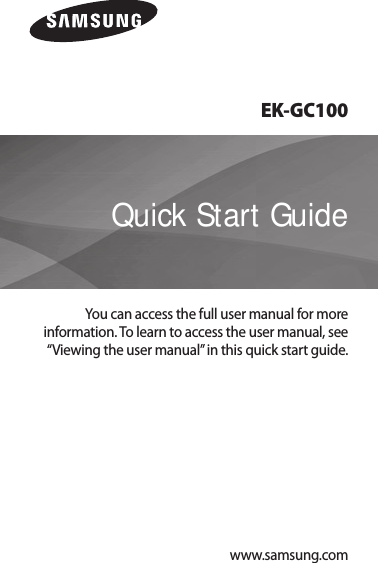

www.samsung.comEK-GC100You can access the full user manual for more information. To learn to access the user manual, see “Viewing the user manual” in this quick start guide.Quick Start Guide

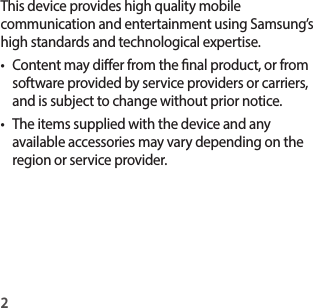

2This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise.• Content may dier from the nal product, or from software provided by service providers or carriers, and is subject to change without prior notice.• The items supplied with the device and any available accessories may vary depending on the region or service provider.

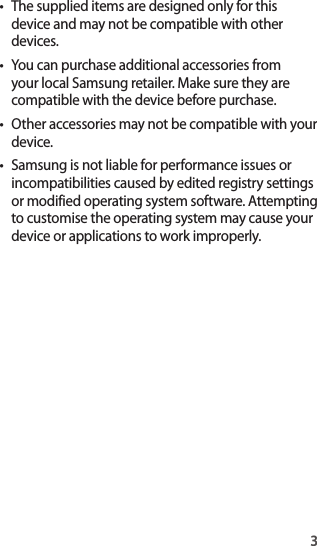

3• The supplied items are designed only for this device and may not be compatible with other devices.• You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.• Other accessories may not be compatible with your device.• Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause your device or applications to work improperly.

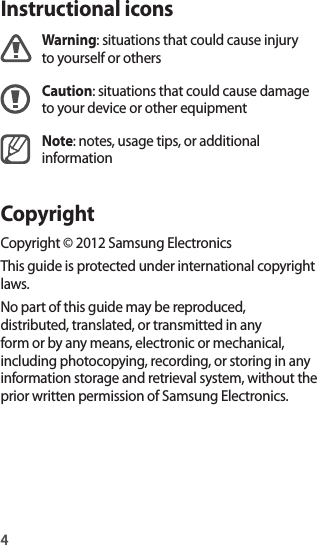

4Instructional iconsWarning: situations that could cause injury to yourself or othersCaution: situations that could cause damage to your device or other equipmentNote: notes, usage tips, or additional informationCopyrightCopyright © 2012 Samsung ElectronicsThis guide is protected under international copyright laws.No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.

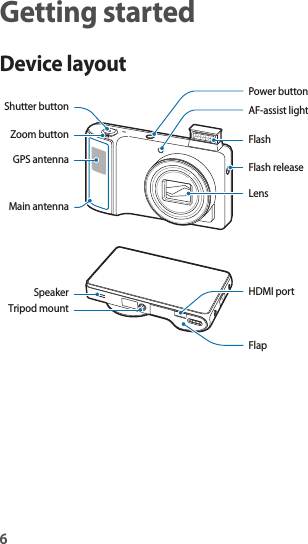

6Getting startedDevice layoutPower buttonAF-assist lightFlashFlash releaseLens Shutter buttonZoom buttonGPS antennaMain antennaHDMI portFlapSpeakerTripod mount

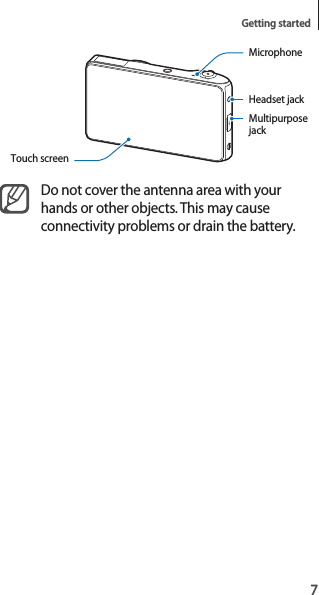

7Getting startedMicrophoneHeadset jackMultipurpose jackTouch screenDo not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery.

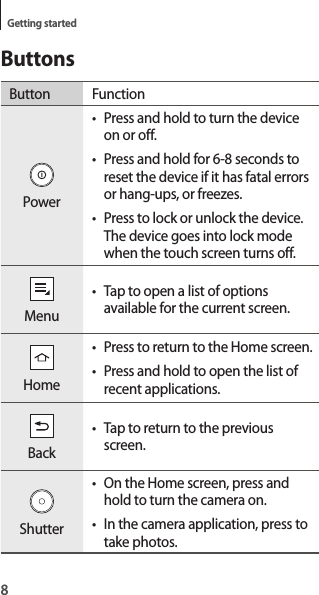

8Getting startedButtonsButton FunctionPower• Press and hold to turn the device on or off.• Press and hold for 6-8 seconds to reset the device if it has fatal errors or hang-ups, or freezes.• Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off.Menu• Tap to open a list of options available for the current screen.Home• Press to return to the Home screen.• Press and hold to open the list of recent applications.Back• Tap to return to the previous screen.Shutter• On the Home screen, press and hold to turn the camera on.• In the camera application, press to take photos.

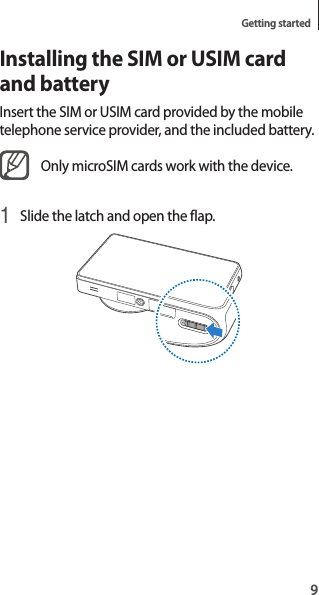

9Getting startedInstalling the SIM or USIM card and batteryInsert the SIM or USIM card provided by the mobile telephone service provider, and the included battery.Only microSIM cards work with the device.1 Slide the latch and open the flap.

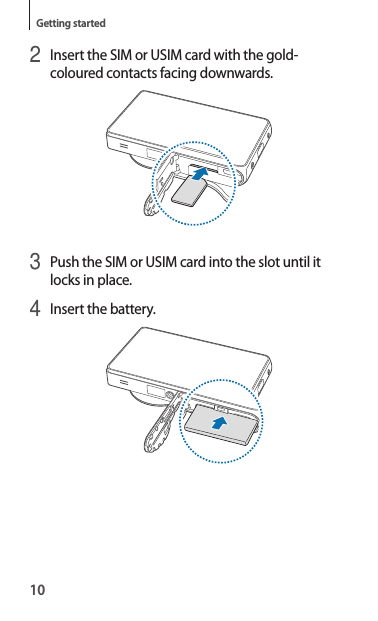

10Getting started2 Insert the SIM or USIM card with the gold-coloured contacts facing downwards.3 Push the SIM or USIM card into the slot until it locks in place.4 Insert the battery.

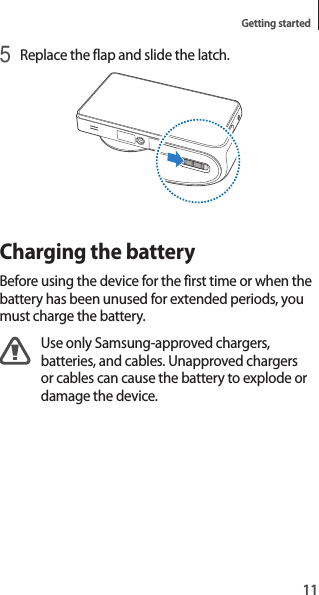

11Getting started5 Replace the flap and slide the latch.Charging the batteryBefore using the device for the first time or when the battery has been unused for extended periods, you must charge the battery.Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.

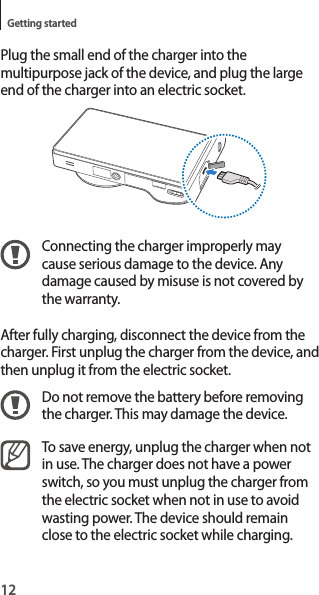

12Getting startedPlug the small end of the charger into the multipurpose jack of the device, and plug the large end of the charger into an electric socket.Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket.Do not remove the battery before removing the charger. This may damage the device.To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The device should remain close to the electric socket while charging.

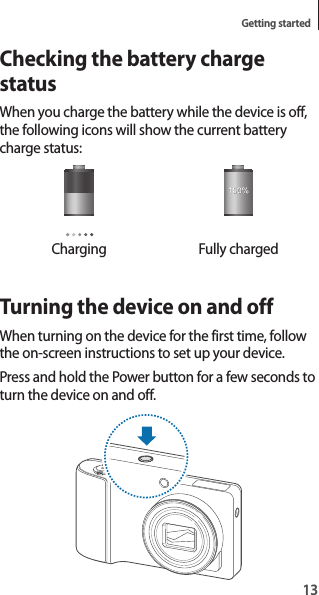

13Getting startedChecking the battery charge statusWhen you charge the battery while the device is off, the following icons will show the current battery charge status:Charging Fully chargedTurning the device on and offWhen turning on the device for the first time, follow the on-screen instructions to set up your device.Press and hold the Power button for a few seconds to turn the device on and off.

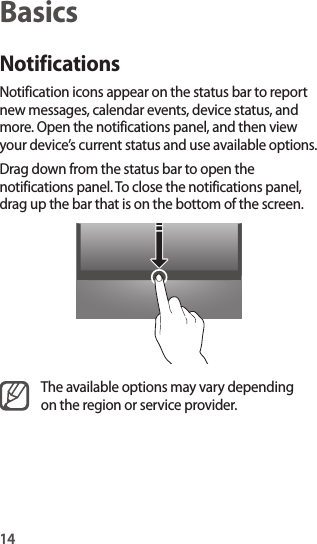

14BasicsNotificationsNotification icons appear on the status bar to report new messages, calendar events, device status, and more. Open the notifications panel, and then view your device’s current status and use available options.Drag down from the status bar to open the notifications panel. To close the notifications panel, drag up the bar that is on the bottom of the screen.The available options may vary depending on the region or service provider.

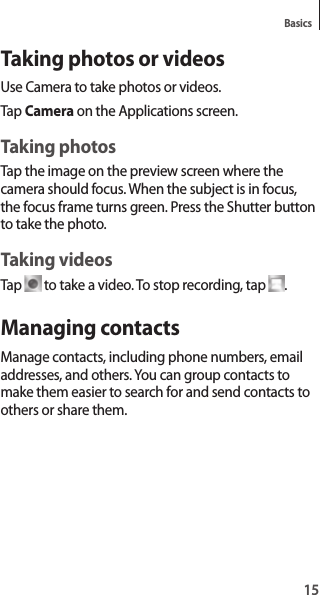

15BasicsTaking photos or videosUse Camera to take photos or videos.Tap Camera on the Applications screen.Taking photosTap the image on the preview screen where the camera should focus. When the subject is in focus, the focus frame turns green. Press the Shutter button to take the photo.Taking videosTap to take a video. To stop recording, tap .Managing contactsManage contacts, including phone numbers, email addresses, and others. You can group contacts to make them easier to search for and send contacts to others or share them.

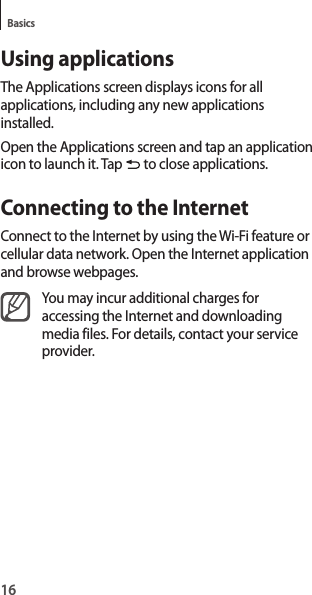

16BasicsUsing applicationsThe Applications screen displays icons for all applications, including any new applications installed.Open the Applications screen and tap an application icon to launch it. Tap to close applications.Connecting to the InternetConnect to the Internet by using the Wi-Fi feature or cellular data network. Open the Internet application and browse webpages.You may incur additional charges for accessing the Internet and downloading media files. For details, contact your service provider.

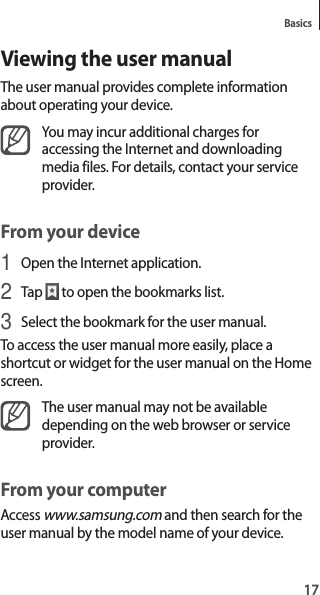

17BasicsViewing the user manualThe user manual provides complete information about operating your device.You may incur additional charges for accessing the Internet and downloading media files. For details, contact your service provider.From your device1 Open the Internet application.2 Tap to open the bookmarks list.3 Select the bookmark for the user manual.To access the user manual more easily, place a shortcut or widget for the user manual on the Home screen.The user manual may not be available depending on the web browser or service provider.From your computerAccess www.samsung.com and then search for the user manual by the model name of your device.

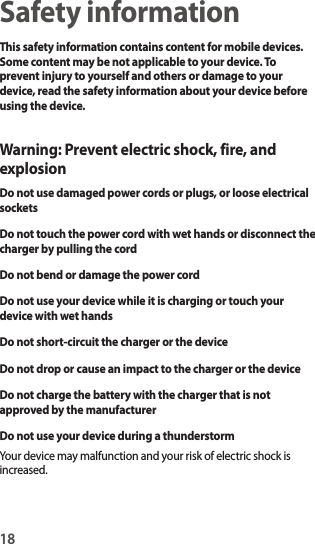

18Safety informationThis safety information contains content for mobile devices. Some content may be not applicable to your device. To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device.Warning: Prevent electric shock, fire, and explosionDo not use damaged power cords or plugs, or loose electrical socketsDo not touch the power cord with wet hands or disconnect the charger by pulling the cordDo not bend or damage the power cordDo not use your device while it is charging or touch your device with wet handsDo not short-circuit the charger or the deviceDo not drop or cause an impact to the charger or the deviceDo not charge the battery with the charger that is not approved by the manufacturerDo not use your device during a thunderstormYour device may malfunction and your risk of electric shock is increased.

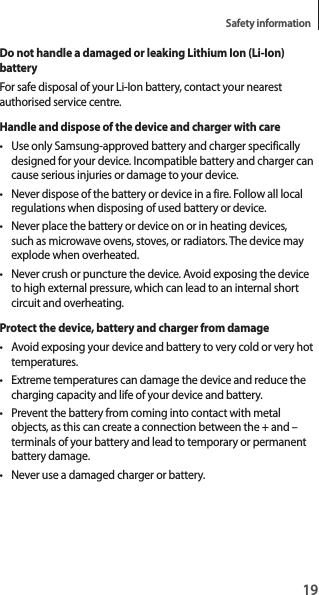

19Safety informationDo not handle a damaged or leaking Lithium Ion (Li-Ion) batteryFor safe disposal of your Li-Ion battery, contact your nearest authorised service centre.Handle and dispose of the device and charger with care• Use only Samsung-approved battery and charger specifically designed for your device. Incompatible battery and charger can cause serious injuries or damage to your device.• Never dispose of the battery or device in a fire. Follow all local regulations when disposing of used battery or device.• Never place the battery or device on or in heating devices, such as microwave ovens, stoves, or radiators. The device may explode when overheated.• Never crush or puncture the device. Avoid exposing the device to high external pressure, which can lead to an internal short circuit and overheating.Protect the device, battery and charger from damage• Avoid exposing your device and battery to very cold or very hot temperatures.• Extreme temperatures can damage the device and reduce the charging capacity and life of your device and battery.• Prevent the battery from coming into contact with metal objects, as this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage.• Never use a damaged charger or battery.

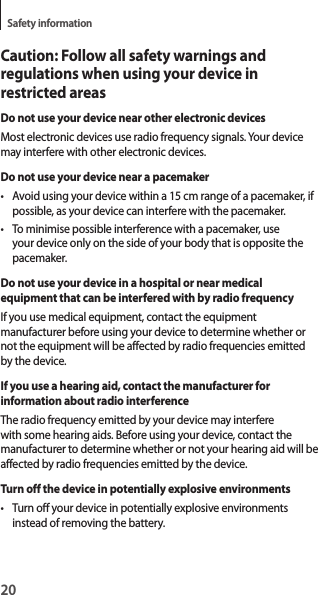

20Safety informationCaution: Follow all safety warnings and regulations when using your device in restricted areasDo not use your device near other electronic devicesMost electronic devices use radio frequency signals. Your device may interfere with other electronic devices.Do not use your device near a pacemaker• Avoid using your device within a 15 cm range of a pacemaker, if possible, as your device can interfere with the pacemaker.• To minimise possible interference with a pacemaker, use your device only on the side of your body that is opposite the pacemaker.Do not use your device in a hospital or near medical equipment that can be interfered with by radio frequencyIf you use medical equipment, contact the equipment manufacturer before using your device to determine whether or not the equipment will be affected by radio frequencies emitted by the device.If you use a hearing aid, contact the manufacturer for information about radio interferenceThe radio frequency emitted by your device may interfere with some hearing aids. Before using your device, contact the manufacturer to determine whether or not your hearing aid will be affected by radio frequencies emitted by the device.Turn off the device in potentially explosive environments• Turn off your device in potentially explosive environments instead of removing the battery.

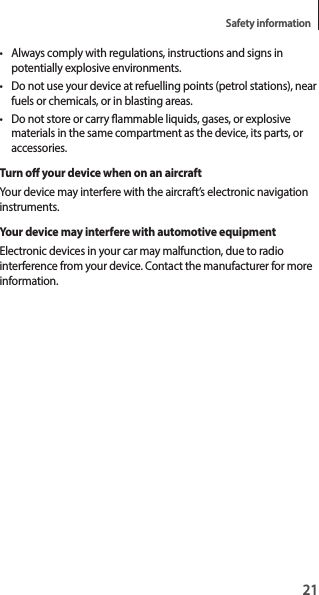

21Safety information• Always comply with regulations, instructions and signs in potentially explosive environments.• Do not use your device at refuelling points (petrol stations), near fuels or chemicals, or in blasting areas.• Do not store or carry ammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or accessories.Turn o your device when on an aircraftYour device may interfere with the aircraft’s electronic navigation instruments.Your device may interfere with automotive equipmentElectronic devices in your car may malfunction, due to radio interference from your device. Contact the manufacturer for more information.

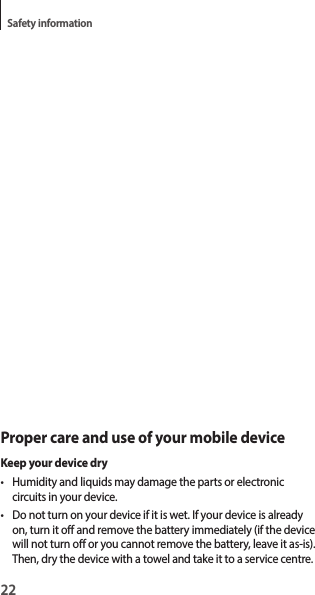

22Safety informationProper care and use of your mobile deviceKeep your device dry• Humidity and liquids may damage the parts or electronic circuits in your device.• Do not turn on your device if it is wet. If your device is already on, turn it o and remove the battery immediately (if the device will not turn o or you cannot remove the battery, leave it as-is). Then, dry the device with a towel and take it to a service centre.

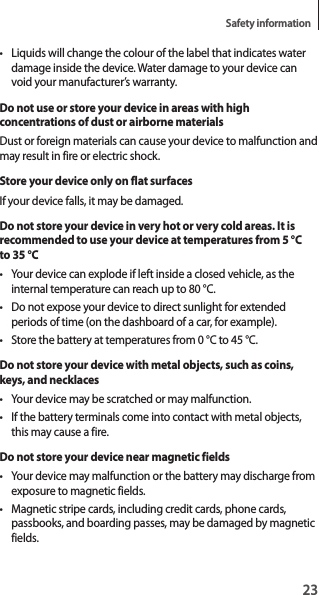

23Safety information• Liquids will change the colour of the label that indicates water damage inside the device. Water damage to your device can void your manufacturer’s warranty.Do not use or store your device in areas with high concentrations of dust or airborne materialsDust or foreign materials can cause your device to malfunction and may result in fire or electric shock.Store your device only on flat surfacesIf your device falls, it may be damaged.Do not store your device in very hot or very cold areas. It is recommended to use your device at temperatures from 5 °C to 35 °C• Your device can explode if left inside a closed vehicle, as the internal temperature can reach up to 80 °C.• Do not expose your device to direct sunlight for extended periods of time (on the dashboard of a car, for example).• Store the battery at temperatures from 0 °C to 45 °C.Do not store your device with metal objects, such as coins, keys, and necklaces• Your device may be scratched or may malfunction.• If the battery terminals come into contact with metal objects, this may cause a fire.Do not store your device near magnetic fields• Your device may malfunction or the battery may discharge from exposure to magnetic fields.• Magnetic stripe cards, including credit cards, phone cards, passbooks, and boarding passes, may be damaged by magnetic fields.

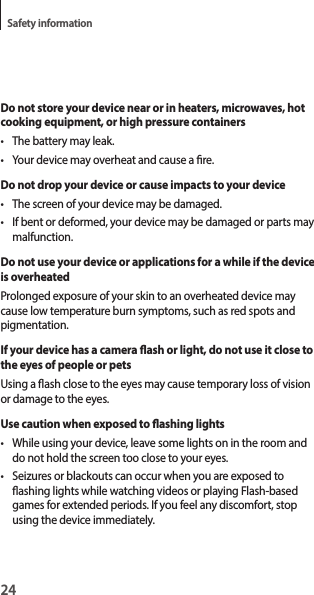

24Safety informationDo not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers• The battery may leak.• Your device may overheat and cause a re.Do not drop your device or cause impacts to your device• The screen of your device may be damaged.• If bent or deformed, your device may be damaged or parts may malfunction.Do not use your device or applications for a while if the device is overheatedProlonged exposure of your skin to an overheated device may cause low temperature burn symptoms, such as red spots and pigmentation.If your device has a camera ash or light, do not use it close to the eyes of people or petsUsing a ash close to the eyes may cause temporary loss of vision or damage to the eyes.Use caution when exposed to ashing lights• While using your device, leave some lights on in the room and do not hold the screen too close to your eyes.• Seizures or blackouts can occur when you are exposed to ashing lights while watching videos or playing Flash-based games for extended periods. If you feel any discomfort, stop using the device immediately.

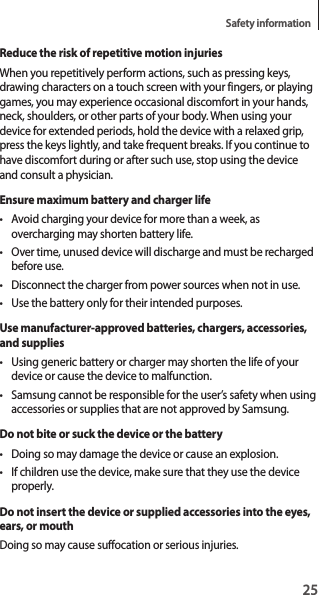

25Safety informationReduce the risk of repetitive motion injuriesWhen you repetitively perform actions, such as pressing keys, drawing characters on a touch screen with your fingers, or playing games, you may experience occasional discomfort in your hands, neck, shoulders, or other parts of your body. When using your device for extended periods, hold the device with a relaxed grip, press the keys lightly, and take frequent breaks. If you continue to have discomfort during or after such use, stop using the device and consult a physician.Ensure maximum battery and charger life• Avoid charging your device for more than a week, as overcharging may shorten battery life.• Over time, unused device will discharge and must be recharged before use.• Disconnect the charger from power sources when not in use.• Use the battery only for their intended purposes.Use manufacturer-approved batteries, chargers, accessories, and supplies• Using generic battery or charger may shorten the life of your device or cause the device to malfunction.• Samsung cannot be responsible for the user’s safety when using accessories or supplies that are not approved by Samsung.Do not bite or suck the device or the battery• Doing so may damage the device or cause an explosion.• If children use the device, make sure that they use the device properly.Do not insert the device or supplied accessories into the eyes, ears, or mouthDoing so may cause suffocation or serious injuries.

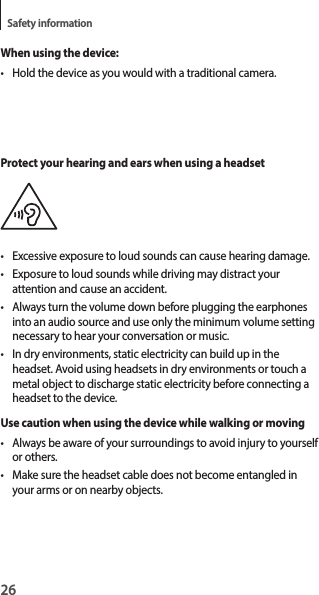

26Safety informationWhen using the device:• Hold the device as you would with a traditional camera.Protect your hearing and ears when using a headset• Excessive exposure to loud sounds can cause hearing damage.• Exposure to loud sounds while driving may distract your attention and cause an accident.• Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music.• In dry environments, static electricity can build up in the headset. Avoid using headsets in dry environments or touch a metal object to discharge static electricity before connecting a headset to the device.Use caution when using the device while walking or moving• Always be aware of your surroundings to avoid injury to yourself or others.• Make sure the headset cable does not become entangled in your arms or on nearby objects.

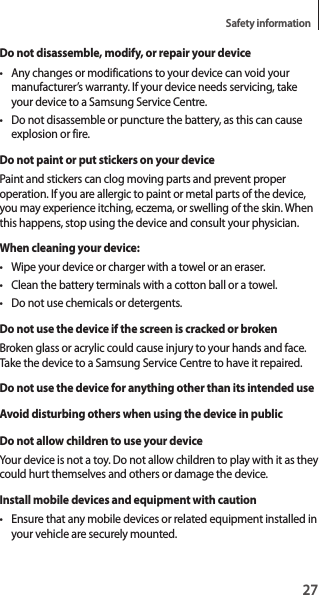

27Safety informationDo not disassemble, modify, or repair your device• Any changes or modifications to your device can void your manufacturer’s warranty. If your device needs servicing, take your device to a Samsung Service Centre.• Do not disassemble or puncture the battery, as this can cause explosion or fire.Do not paint or put stickers on your devicePaint and stickers can clog moving parts and prevent proper operation. If you are allergic to paint or metal parts of the device, you may experience itching, eczema, or swelling of the skin. When this happens, stop using the device and consult your physician.When cleaning your device:• Wipe your device or charger with a towel or an eraser.• Clean the battery terminals with a cotton ball or a towel.• Do not use chemicals or detergents.Do not use the device if the screen is cracked or brokenBroken glass or acrylic could cause injury to your hands and face. Take the device to a Samsung Service Centre to have it repaired.Do not use the device for anything other than its intended useAvoid disturbing others when using the device in publicDo not allow children to use your deviceYour device is not a toy. Do not allow children to play with it as they could hurt themselves and others or damage the device.Install mobile devices and equipment with caution• Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted.

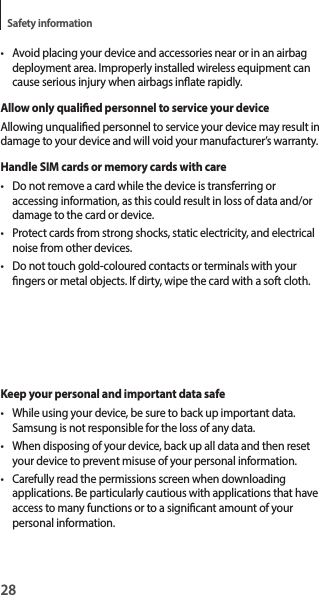

28Safety information• Avoid placing your device and accessories near or in an airbag deployment area. Improperly installed wireless equipment can cause serious injury when airbags inate rapidly.Allow only qualied personnel to service your deviceAllowing unqualied personnel to service your device may result in damage to your device and will void your manufacturer’s warranty.Handle SIM cards or memory cards with care• Do not remove a card while the device is transferring or accessing information, as this could result in loss of data and/or damage to the card or device.• Protect cards from strong shocks, static electricity, and electrical noise from other devices.• Do not touch gold-coloured contacts or terminals with your ngers or metal objects. If dirty, wipe the card with a soft cloth.Keep your personal and important data safe• While using your device, be sure to back up important data. Samsung is not responsible for the loss of any data.• When disposing of your device, back up all data and then reset your device to prevent misuse of your personal information.• Carefully read the permissions screen when downloading applications. Be particularly cautious with applications that have access to many functions or to a signicant amount of your personal information.

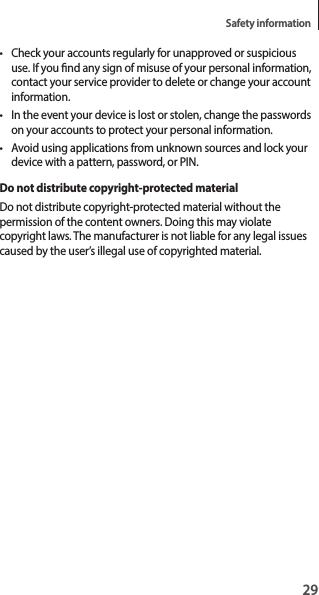

29Safety information• Check your accounts regularly for unapproved or suspicious use. If you nd any sign of misuse of your personal information, contact your service provider to delete or change your account information.• In the event your device is lost or stolen, change the passwords on your accounts to protect your personal information.• Avoid using applications from unknown sources and lock your device with a pattern, password, or PIN.Do not distribute copyright-protected materialDo not distribute copyright-protected material without the permission of the content owners. Doing this may violate copyright laws. The manufacturer is not liable for any legal issues caused by the user’s illegal use of copyrighted material.

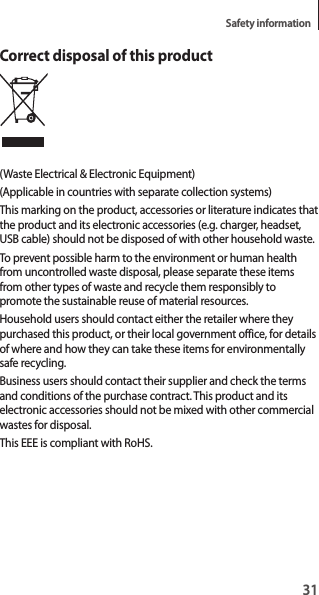

31Safety informationCorrect disposal of this product(Waste Electrical & Electronic Equipment)(Applicable in countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste.To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.This EEE is compliant with RoHS.

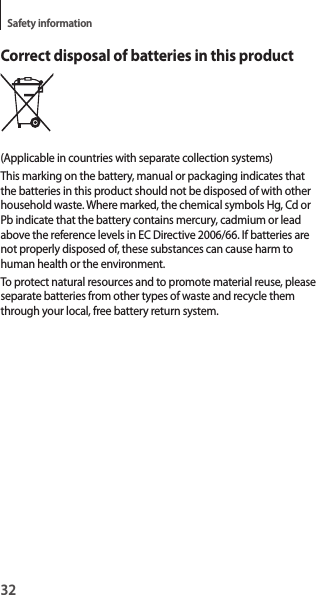

32Safety informationCorrect disposal of batteries in this product(Applicable in countries with separate collection systems)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

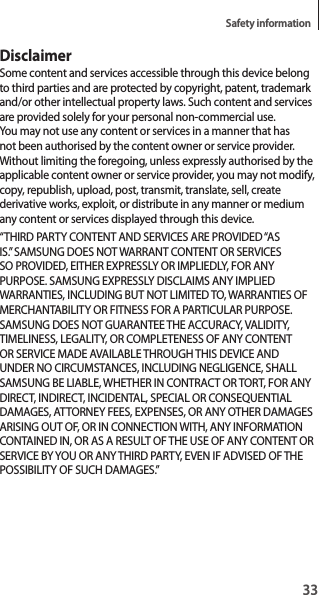

33Safety informationDisclaimerSome content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal non-commercial use. You may not use any content or services in a manner that has not been authorised by the content owner or service provider. Without limiting the foregoing, unless expressly authorised by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device.“THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS IS.” SAMSUNG DOES NOT WARRANT CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE. SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.”

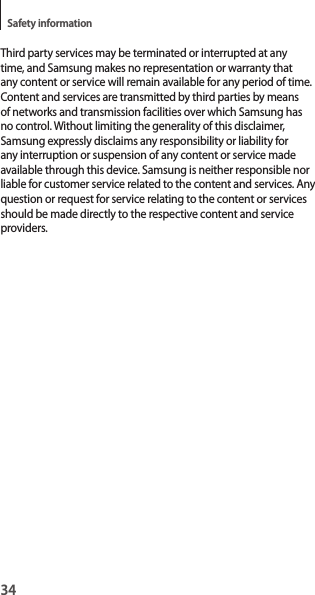

34Safety informationThird party services may be terminated or interrupted at any time, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any interruption or suspension of any content or service made available through this device. Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.

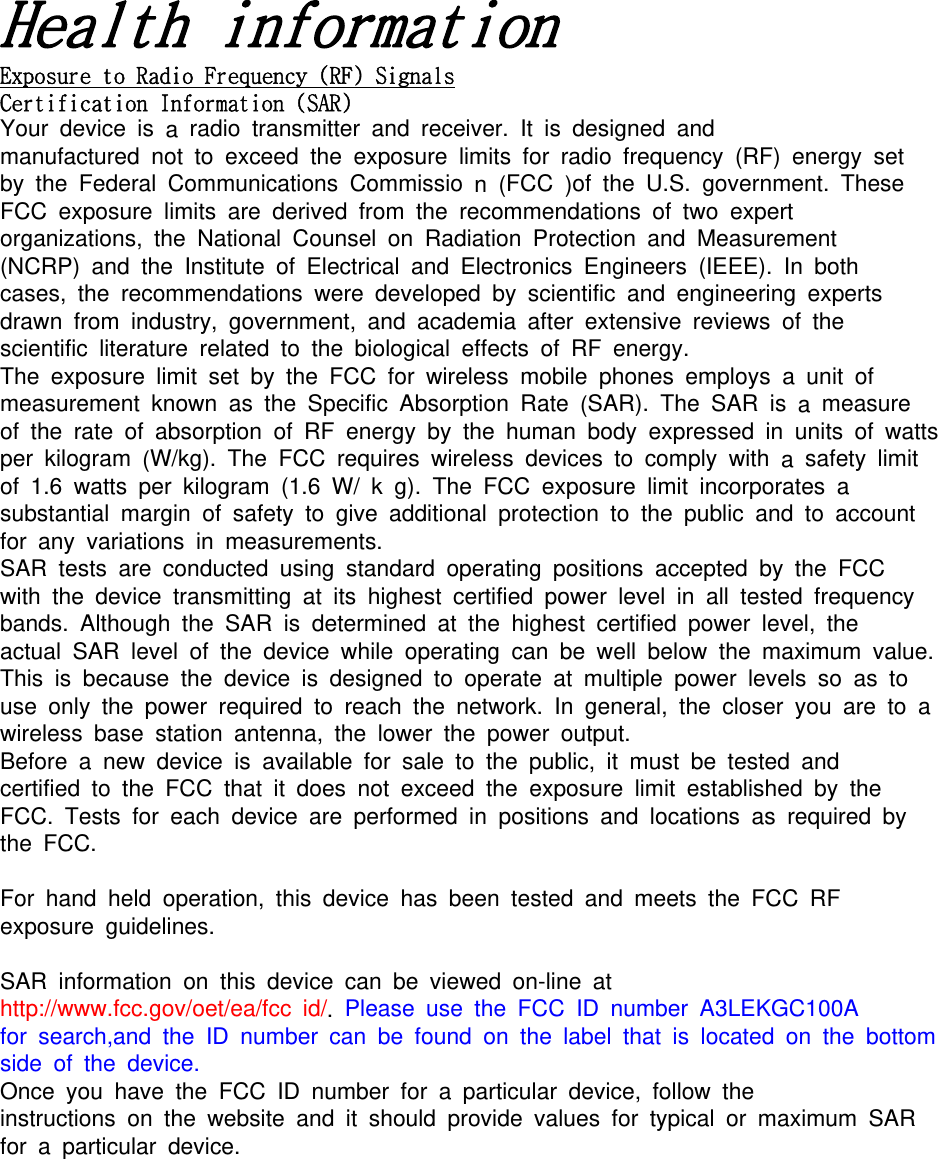

a a  a   aCa a AYour device is aradio transmitter and receiver. It is designed andmanufactured not to exceed the exposure limits for radio frequency (RF) energy setby the Federal Communications Commissio n(FCC )of the U.S. government. TheseFCC exposure limits are derived from the recommendations of two expertorganizations, the National Counsel on Radiation Protection and Measurement(NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In bothcases, the recommendations were developed by scientific and engineering expertsdrawn from industry, government, and academia after extensive reviews of thescientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs aunit ofmeasurement known as the Specific Absorption Rate (SAR). The SAR is ameasureof the rate of absorption of RF energy by the human body expressed in units of wattsper kilogram (W/kg). The FCC requires wireless devices to comply with asafety limitof 1.6 watts per kilogram (1.6 W/ kg). The FCC exposure limit incorporates asubstantial margin of safety to give additional protection to the public and to accountfor any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCCwith the device transmitting at its highest certified power level in all tested frequencybands. Although the SAR is determined at the highest certified power level, theactual SAR level of the device while operating can be well below the maximum value.This is because the device is designed to operate at multiple power levels so as touse only the power required to reach the network. In general, the closer you are to awireless base station antenna, the lower the power output.Before anew device is available for sale to the public, it must be tested andcertified to the FCC that it does not exceed the exposure limit established by theFCC. Tests for each device are performed in positions and locations as required bythe FCC.For hand held operation, this device has been tested and meets the FCC RFexposure guidelines.SAR information on this device can be viewed on-line athttp://www.fcc.gov/oet/ea/fcc id/.Please use the FCC ID number A3LEKGC100Afor search,and the ID number can be found on the label that is located on the bottomside of the device.Once you have the FCC ID number for aparticular device, follow theinstructions on the website and it should provide values for typical or maximum SARfor aparticular device.

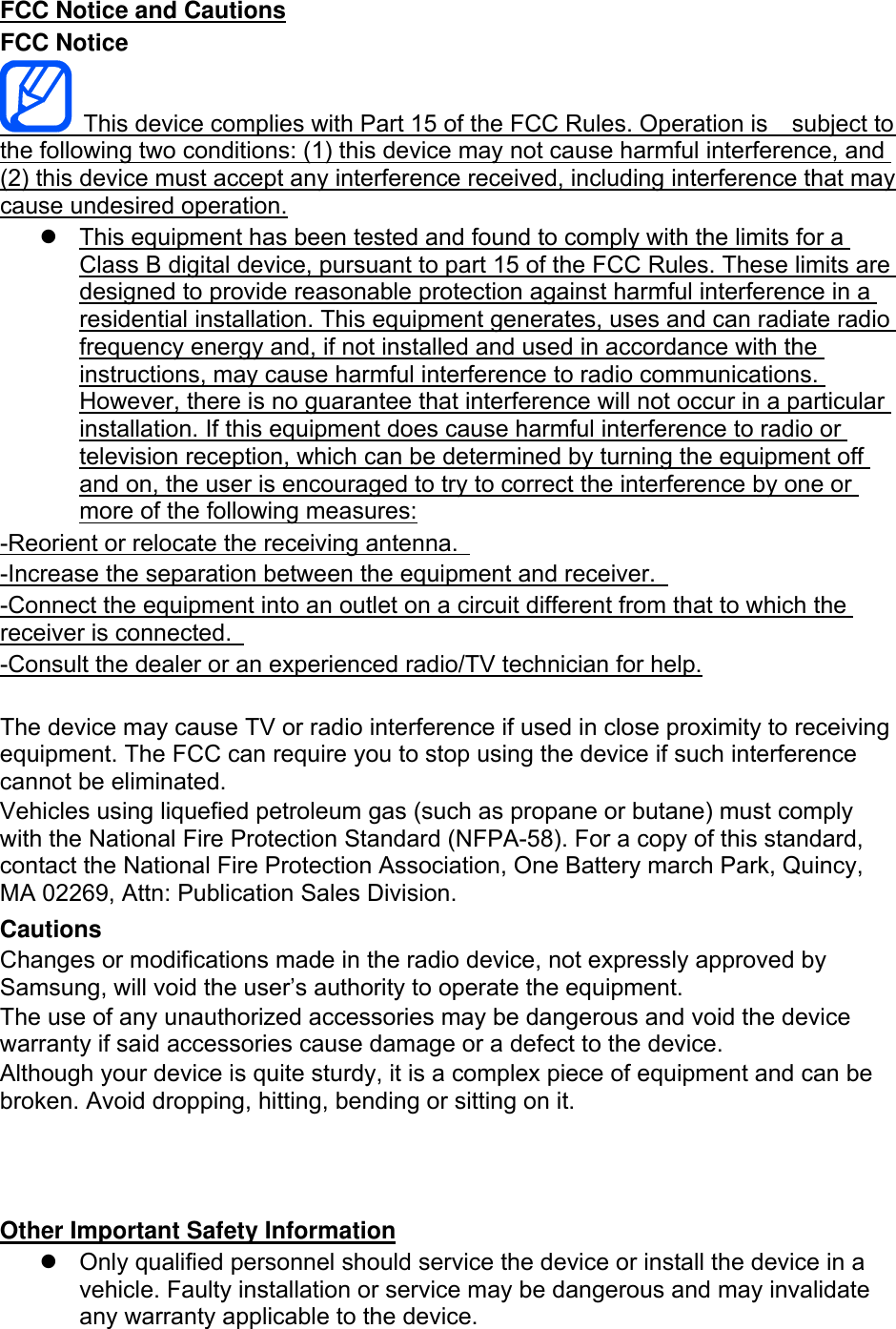

FCC Notice and Cautions FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. z This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the device if such interference cannot be eliminated. Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division. Cautions Changes or modifications made in the radio device, not expressly approved by Samsung, will void the user’s authority to operate the equipment. The use of any unauthorized accessories may be dangerous and void the device warranty if said accessories cause damage or a defect to the device. Although your device is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it. Other Important Safety Information z Only qualified personnel should service the device or install the device in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.

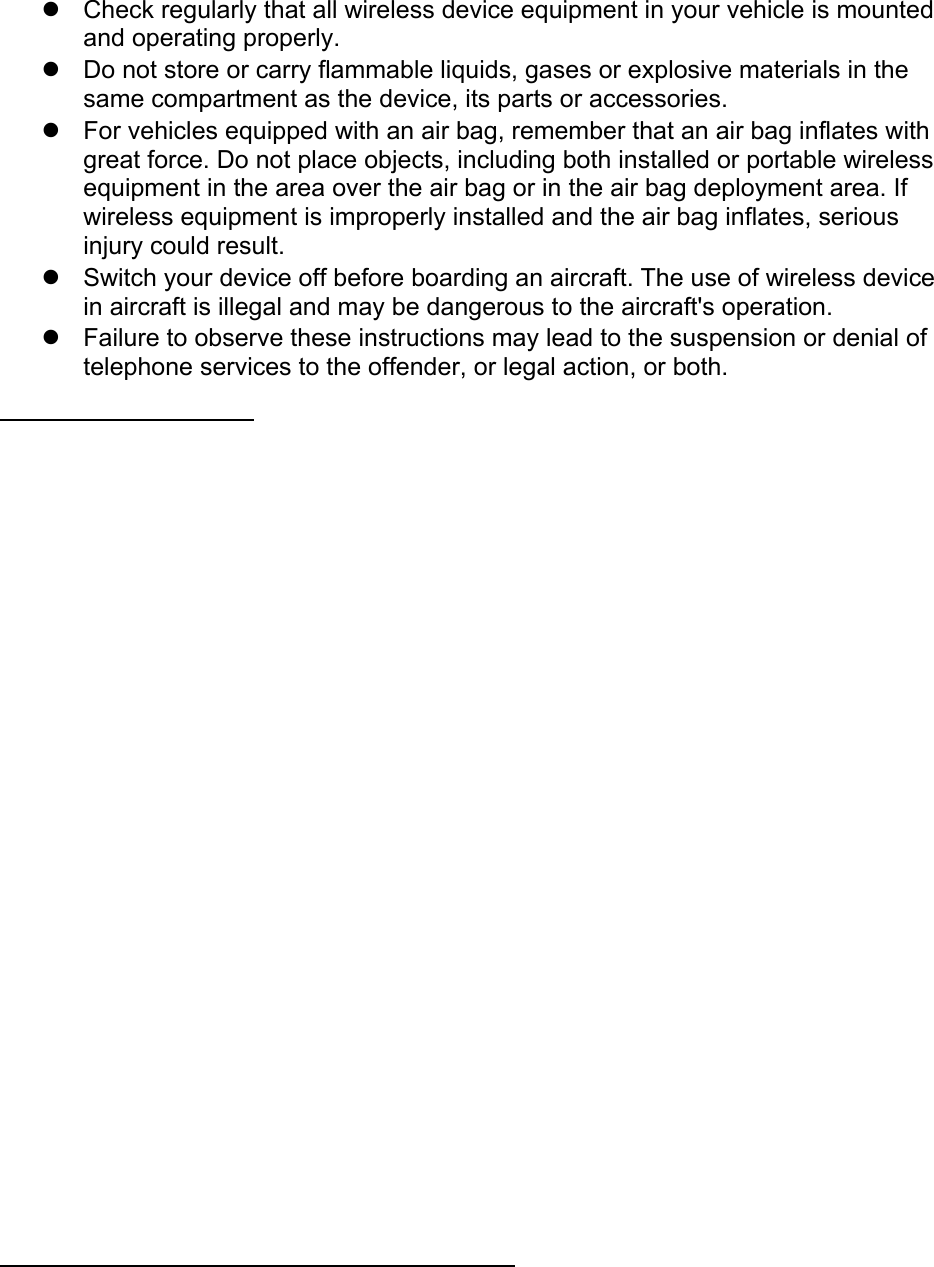

z Check regularly that all wireless device equipment in your vehicle is mounted and operating properly. z Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the device, its parts or accessories. z For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result. z Switch your device off before boarding an aircraft. The use of wireless device in aircraft is illegal and may be dangerous to the aircraft's operation. z Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.
