Chapter 3Playback/EditingLearn about how to play back and edit photos and videos. Refer to chapter 6 for editing les on a PC.

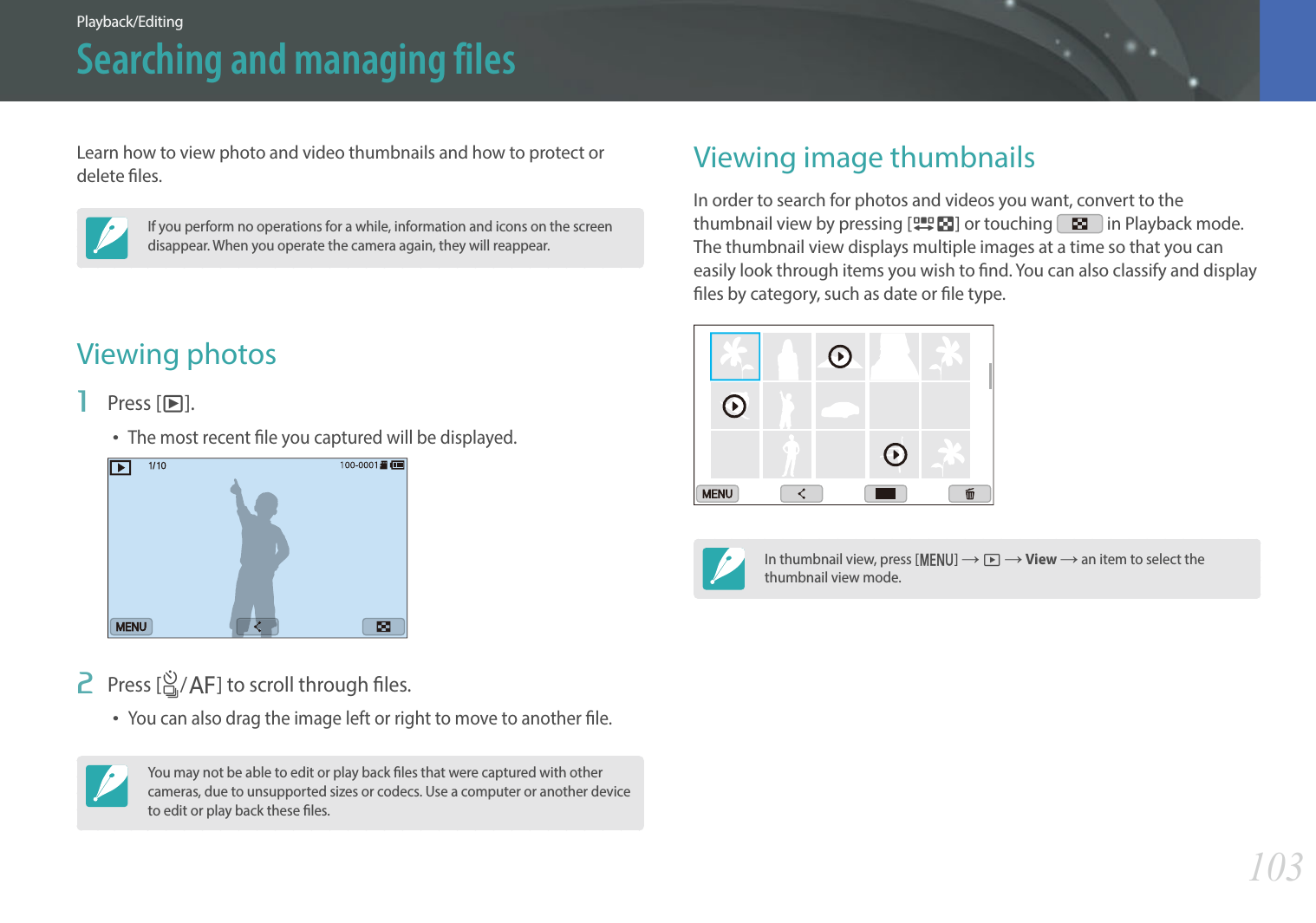

103Playback/EditingLearn how to view photo and video thumbnails and how to protect or delete les.If you perform no operations for a while, information and icons on the screen disappear. When you operate the camera again, they will reappear.Viewing photos1 Press [y].The most recent le you captured will be displayed.2 Press [C/F] to scroll through les.You can also drag the image left or right to move to another le.You may not be able to edit or play back les that were captured with other cameras, due to unsupported sizes or codecs. Use a computer or another device to edit or play back these les.Viewing image thumbnailsIn order to search for photos and videos you want, convert to the thumbnail view by pressing [I] or touching in Playback mode. The thumbnail view displays multiple images at a time so that you can easily look through items you wish to nd. You can also classify and display les by category, such as date or le type.In thumbnail view, press [m] ĺ z ĺ View ĺ an item to select the thumbnail view mode. Searching and managing files
104Playback/Editing > Searching and managing lesViewing les by category1 In the thumbnail view, press [m] ĺ z ĺ Filter ĺa category.* DefaultOption DescriptionAll*View les normally.DateView les by the date they were saved.File TypeView les by the le type.2 Select a list to open it.3 Select a le to view it.Viewing les as a folderContinuous and burst shots appear as a folder. Selecting a folder will play back all photos automatically. Deleting a folder will delete all photos in the folder.1 In Playback mode, press [C/F] to move to a desired folder.You can also drag the image left or right to move to a desired folder.The camera will automatically play back photos in the folder.2 Press [o] to open the folder.You can also touch the folder on the screen to open the folder.
105Playback/Editing > Searching and managing les3 Press [C/F] to move to another le.You can also drag the image left or right to move to another le.4 Press [o] to return to Playback mode.You can also touch to return to Playback mode.Protecting lesProtect your les from accidental deletion.1 In Playback mode, scroll to a le.2 Press [m] ĺ z ĺ Protect ĺ On.You cannot delete or rotate a protected le.

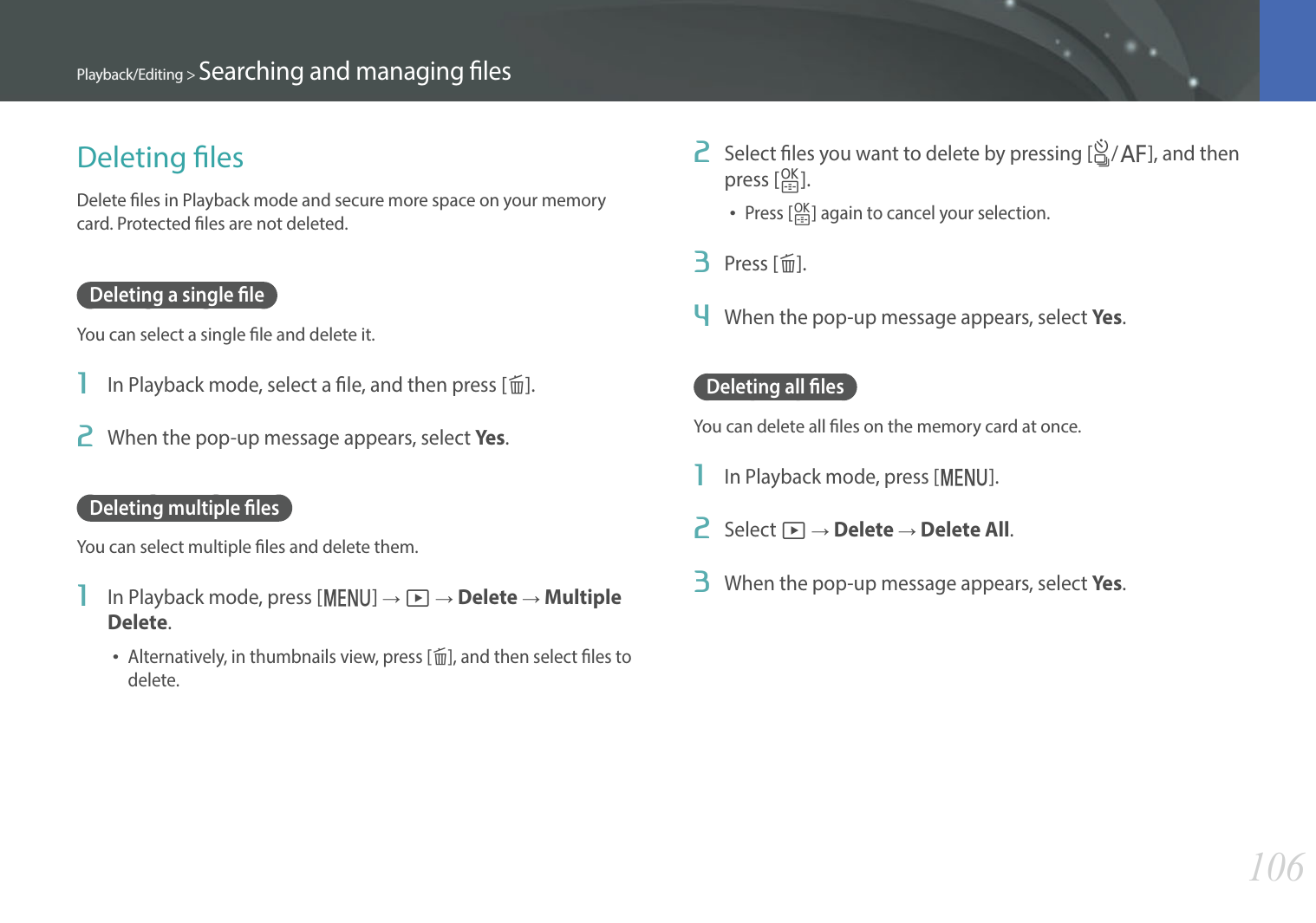

106Playback/Editing > Searching and managing lesDeleting lesDelete les in Playback mode and secure more space on your memory card. Protected les are not deleted.Deleting a single leYou can select a single le and delete it.1 In Playback mode, select a le, and then press [n].2 When the pop-up message appears, select Ye s.Deleting multiple lesYou can select multiple les and delete them.1 In Playback mode, press [m] ĺ z ĺ Delete ĺ Multiple Delete.Alternatively, in thumbnails view, press [n], and then select les to delete.2 Select les you want to delete by pressing [C/F], and then press [o].Press [o] again to cancel your selection.3 Press [n].4 When the pop-up message appears, select Ye s.Deleting all lesYou can delete all les on the memory card at once.1 In Playback mode, press [m].2 Select z ĺ Delete ĺ Delete All.3 When the pop-up message appears, select Yes.

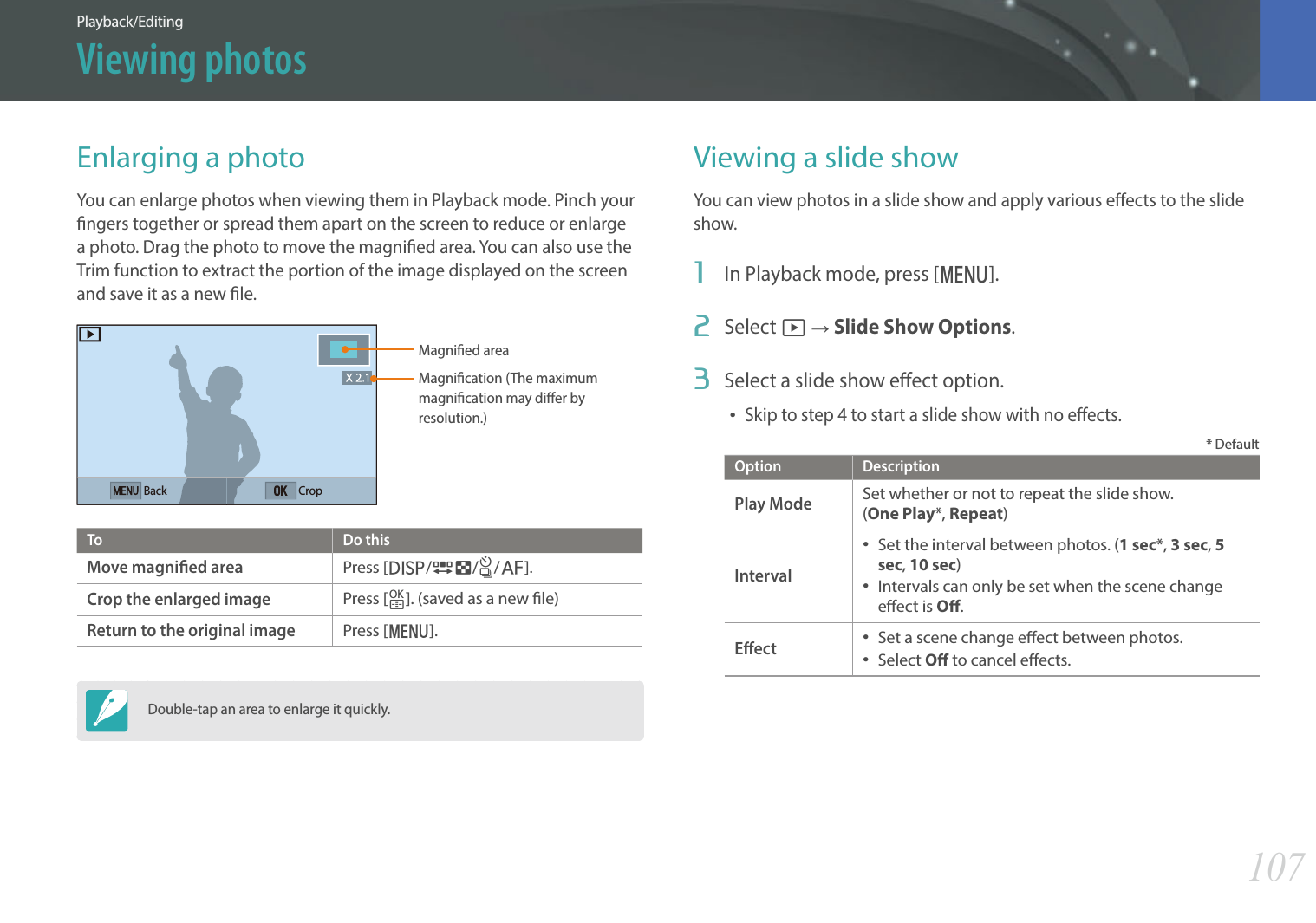

107Playback/EditingEnlarging a photoYou can enlarge photos when viewing them in Playback mode. Pinch your ngers together or spread them apart on the screen to reduce or enlarge a photo. Drag the photo to move the magnied area. You can also use the Trim function to extract the portion of the image displayed on the screen and save it as a new le.Magnied areaMagnication (The maximum magnication may dier by resolution.) Back CropTo Do thisMove magnied areaPress [D/I/C/F].Crop the enlarged imagePress [o]. (saved as a new le)Return to the original imagePress [m].Double-tap an area to enlarge it quickly.Viewing a slide showYou can view photos in a slide show and apply various eects to the slide show.1 In Playback mode, press [m].2 Select z ĺ Slide Show Options.3 Select a slide show eect option.Skip to step 4 to start a slide show with no eects.* DefaultOption DescriptionPlay ModeSet whether or not to repeat the slide show. (One Play*, Repeat)Interval Set the interval between photos. (1 sec*, 3 sec, 5 sec, 10 sec) Intervals can only be set when the scene change eect is O.Eect Set a scene change eect between photos. Select O to cancel eects.Viewing photos

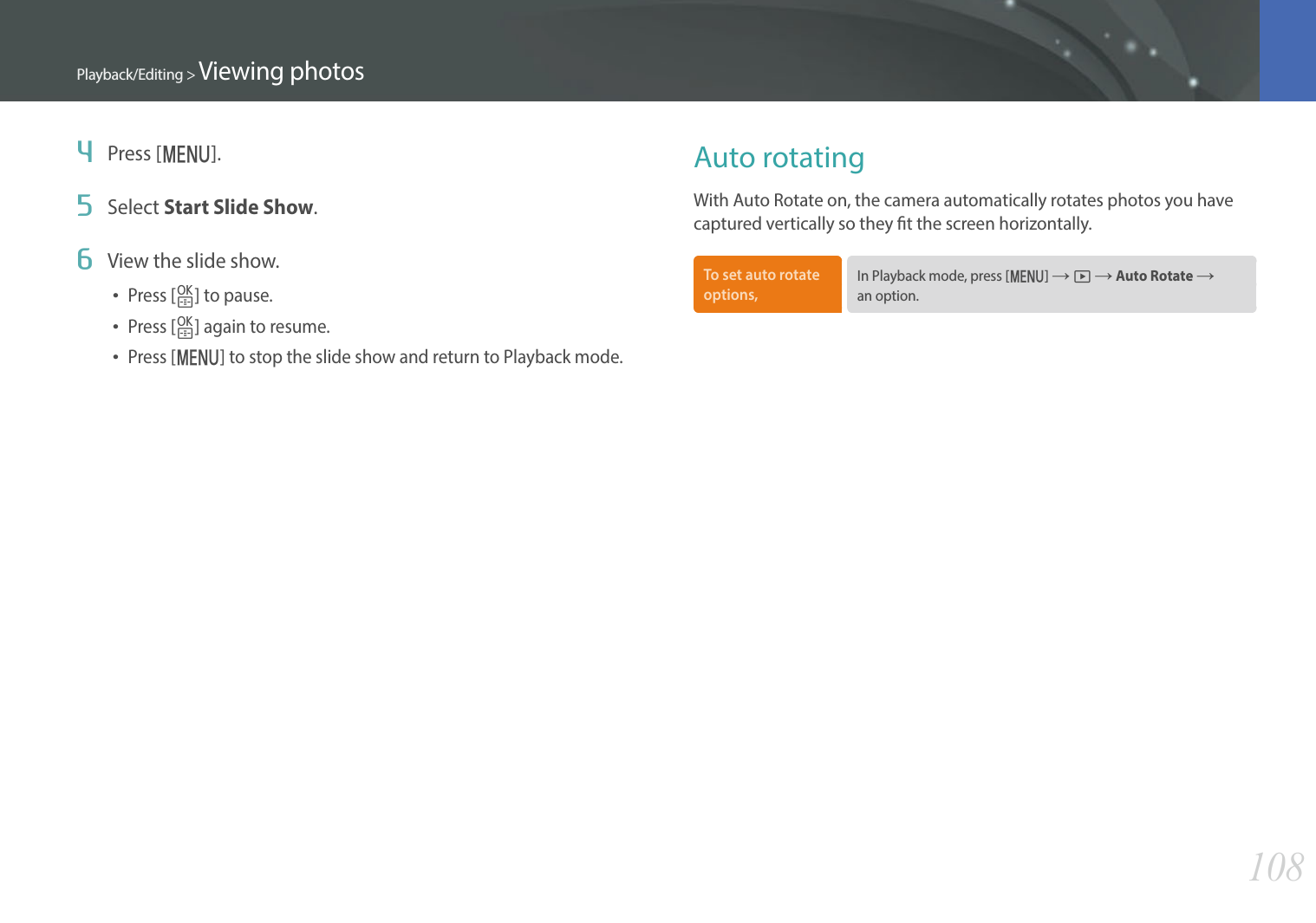

108Playback/Editing > Viewing photos4 Press [m].5 Select Start Slide Show.6 View the slide show.Press [o] to pause.Press [o] again to resume. Press [m] to stop the slide show and return to Playback mode.Auto rotatingWith Auto Rotate on, the camera automatically rotates photos you have captured vertically so they t the screen horizontally.To set auto rotate options, In Playback mode, press [m] ĺ z ĺ Auto Rotate ĺ an option.

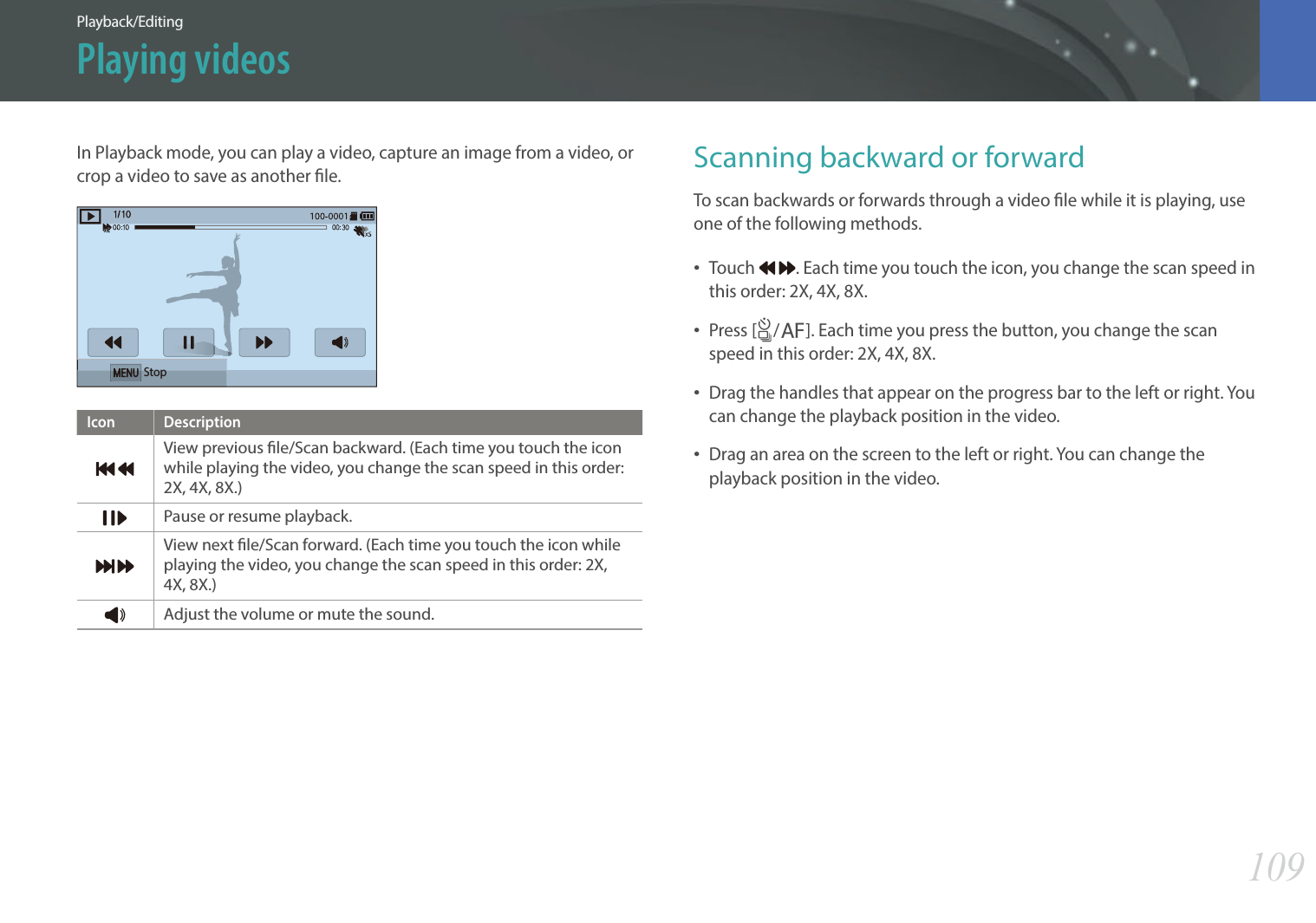

109Playback/EditingIn Playback mode, you can play a video, capture an image from a video, or crop a video to save as another le.StopIcon Description View previous le/Scan backward. (Each time you touch the icon while playing the video, you change the scan speed in this order: 2X, 4X, 8X.) Pause or resume playback. View next le/Scan forward. (Each time you touch the icon while playing the video, you change the scan speed in this order: 2X, 4X, 8X.)Adjust the volume or mute the sound. Scanning backward or forwardTo scan backwards or forwards through a video le while it is playing, use one of the following methods.Touch . Each time you touch the icon, you change the scan speed in this order: 2X, 4X, 8X.Press [C/F]. Each time you press the button, you change the scan speed in this order: 2X, 4X, 8X.Drag the handles that appear on the progress bar to the left or right. You can change the playback position in the video.Drag an area on the screen to the left or right. You can change the playback position in the video.Playing videos

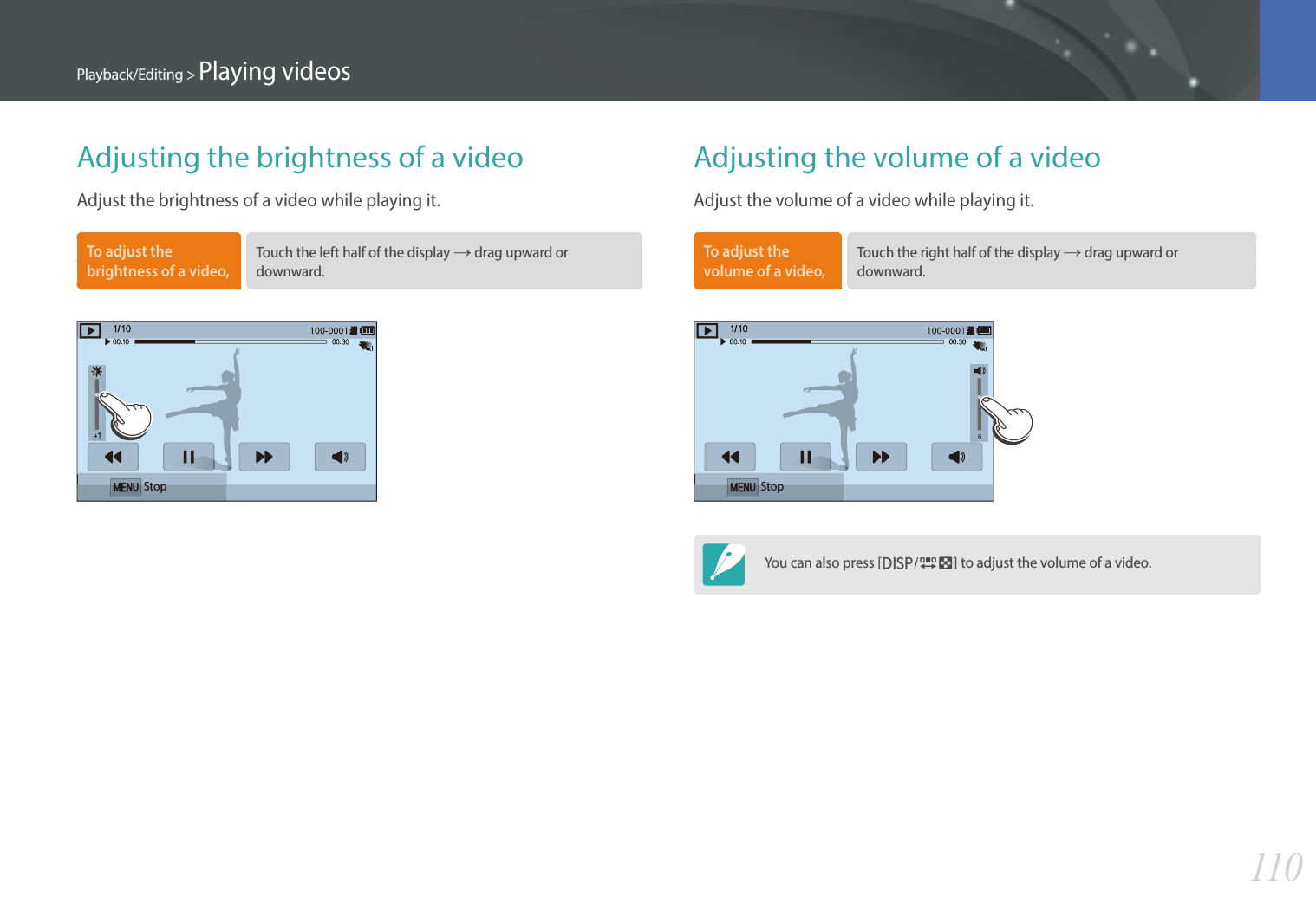

110Playback/Editing > Playing videosAdjusting the brightness of a videoAdjust the brightness of a video while playing it.To adjust the brightness of a video, Touch the left half of the display ĺ drag upward or downward. StopAdjusting the volume of a videoAdjust the volume of a video while playing it.To adjust the volume of a video, Touch the right half of the display ĺ drag upward or downward.StopYou can also press [D/I] to adjust the volume of a video.

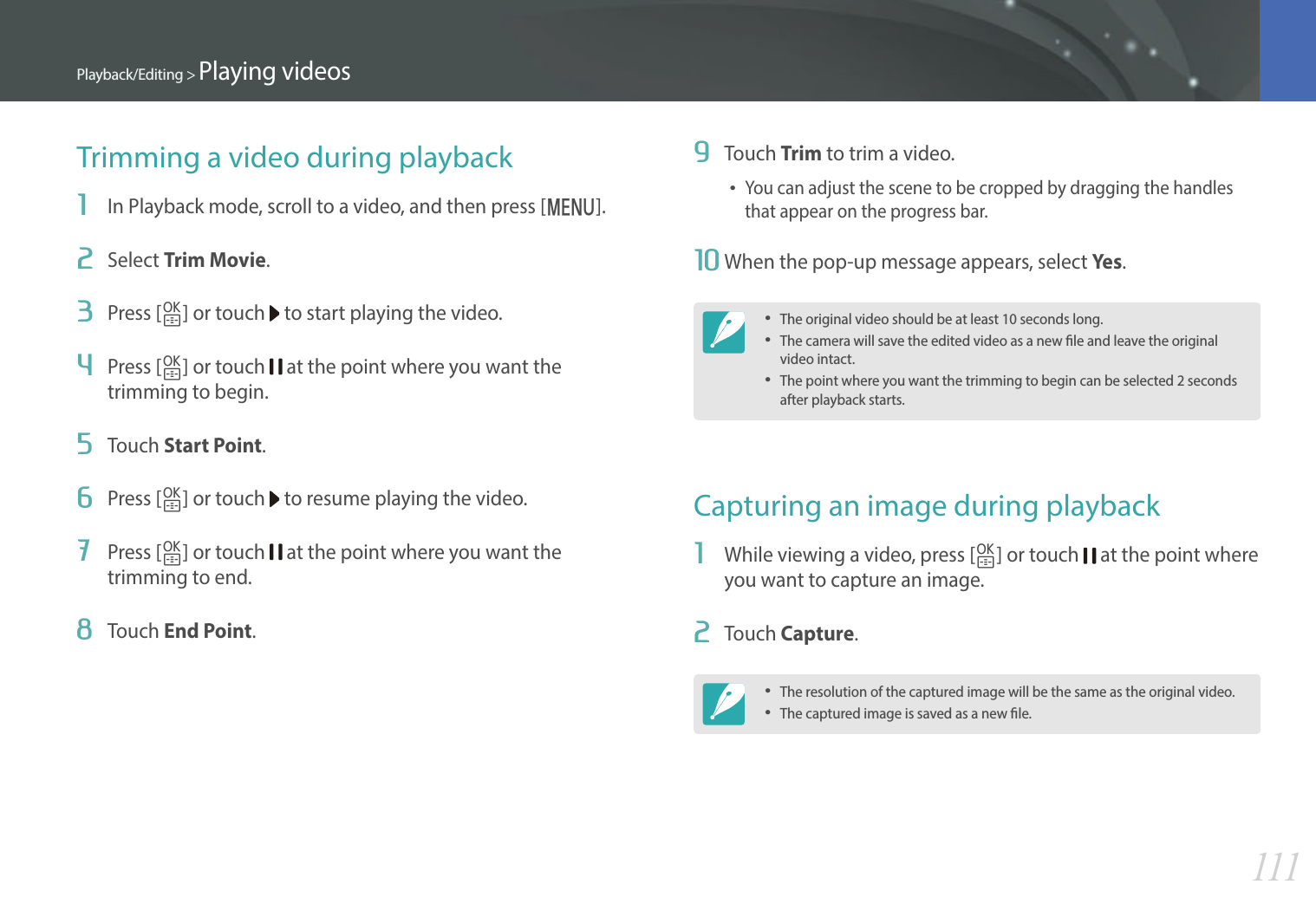

111Playback/Editing > Playing videos9 Touch Trim to trim a video.You can adjust the scene to be cropped by dragging the handles that appear on the progress bar.10 When the pop-up message appears, select Ye s.The original video should be at least 10 seconds long.The camera will save the edited video as a new le and leave the original video intact.The point where you want the trimming to begin can be selected 2 seconds after playback starts.Capturing an image during playback1 While viewing a video, press [o] or touch at the point where you want to capture an image.2 Touch Capture.The resolution of the captured image will be the same as the original video.The captured image is saved as a new le.Trimming a video during playback1 In Playback mode, scroll to a video, and then press [m].2 Select Trim Movie.3 Press [o] or touch to start playing the video.4 Press [o] or touch at the point where you want the trimming to begin.5 Touch Start Point.6 Press [o] or touch to resume playing the video.7 Press [o] or touch at the point where you want the trimming to end.8 Touch End Point.

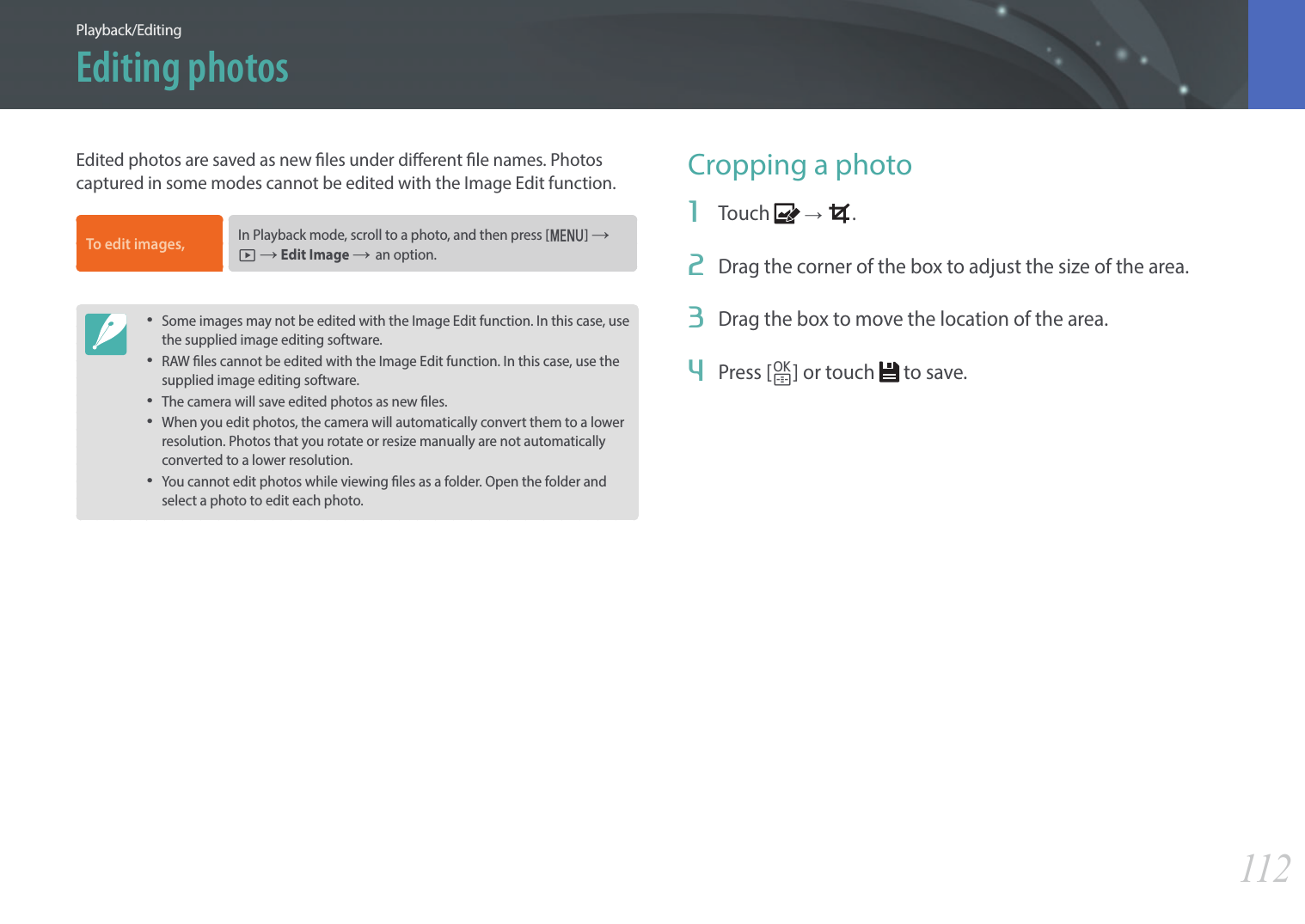

112Playback/EditingEdited photos are saved as new les under dierent le names. Photos captured in some modes cannot be edited with the Image Edit function.To edit images, In Playback mode, scroll to a photo, and then press [m] ĺ z ĺ Edit Image ĺan option.Some images may not be edited with the Image Edit function. In this case, use the supplied image editing software.RAW les cannot be edited with the Image Edit function. In this case, use the supplied image editing software.The camera will save edited photos as new les.When you edit photos, the camera will automatically convert them to a lower resolution. Photos that you rotate or resize manually are not automatically converted to a lower resolution.You cannot edit photos while viewing les as a folder. Open the folder and select a photo to edit each photo.Cropping a photo1 Touch ĺ .2 Drag the corner of the box to adjust the size of the area.3 Drag the box to move the location of the area.4 Press [o] or touch to save.Editing photos

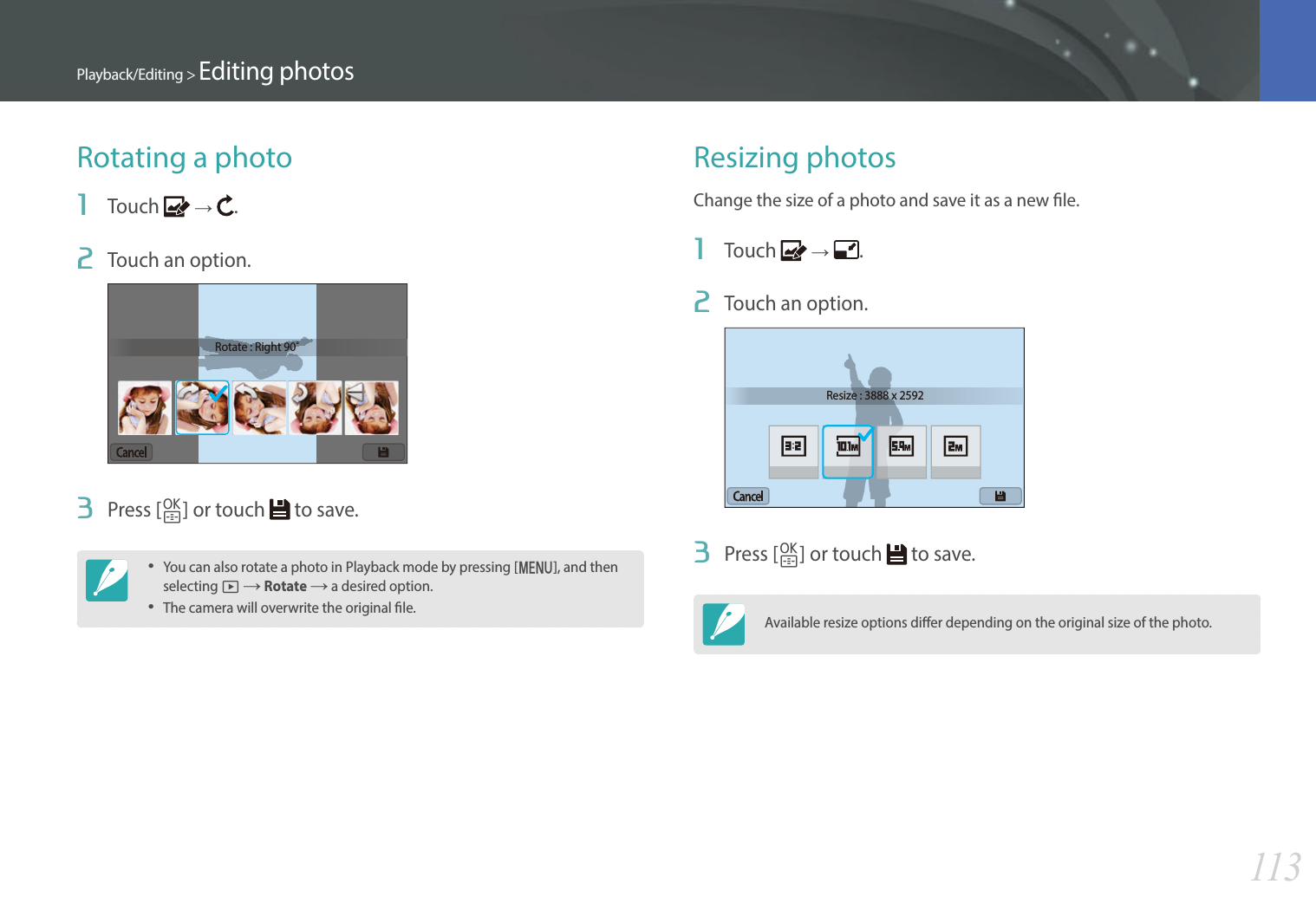

113Playback/Editing > Editing photosRotating a photo1 Touch ĺ .2 Touch an option.Rotate : Right 90˚3 Press [o] or touch to save.You can also rotate a photo in Playback mode by pressing [m], and then selecting z ĺ Rotate ĺ a desired option.The camera will overwrite the original le.Resizing photosChange the size of a photo and save it as a new le.1 Touch ĺ .2 Touch an option.Resize : 3888 x 25923 Press [o] or touch to save.Available resize options dier depending on the original size of the photo.

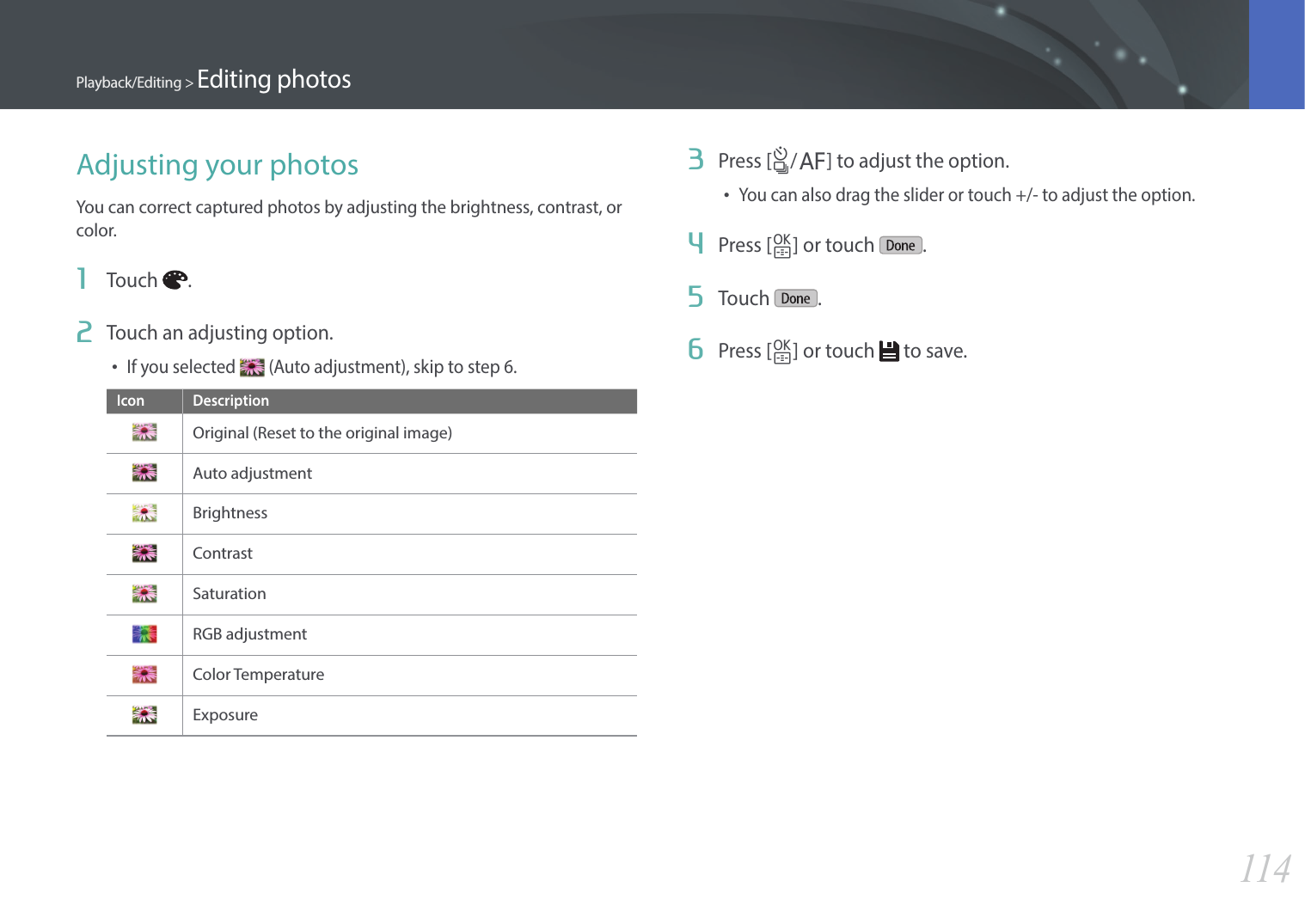

114Playback/Editing > Editing photosAdjusting your photosYou can correct captured photos by adjusting the brightness, contrast, or color. 1 Touch .2 Touch an adjusting option.•If you selected (Auto adjustment), skip to step 6.Icon DescriptionOriginal (Reset to the original image)Auto adjustmentBrightnessContrastSaturationRGB adjustmentColor TemperatureExposure3 Press [C/F] to adjust the option.•You can also drag the slider or touch +/- to adjust the option.4 Press [o] or touch .5 Touch .6 Press [o] or touch to save.

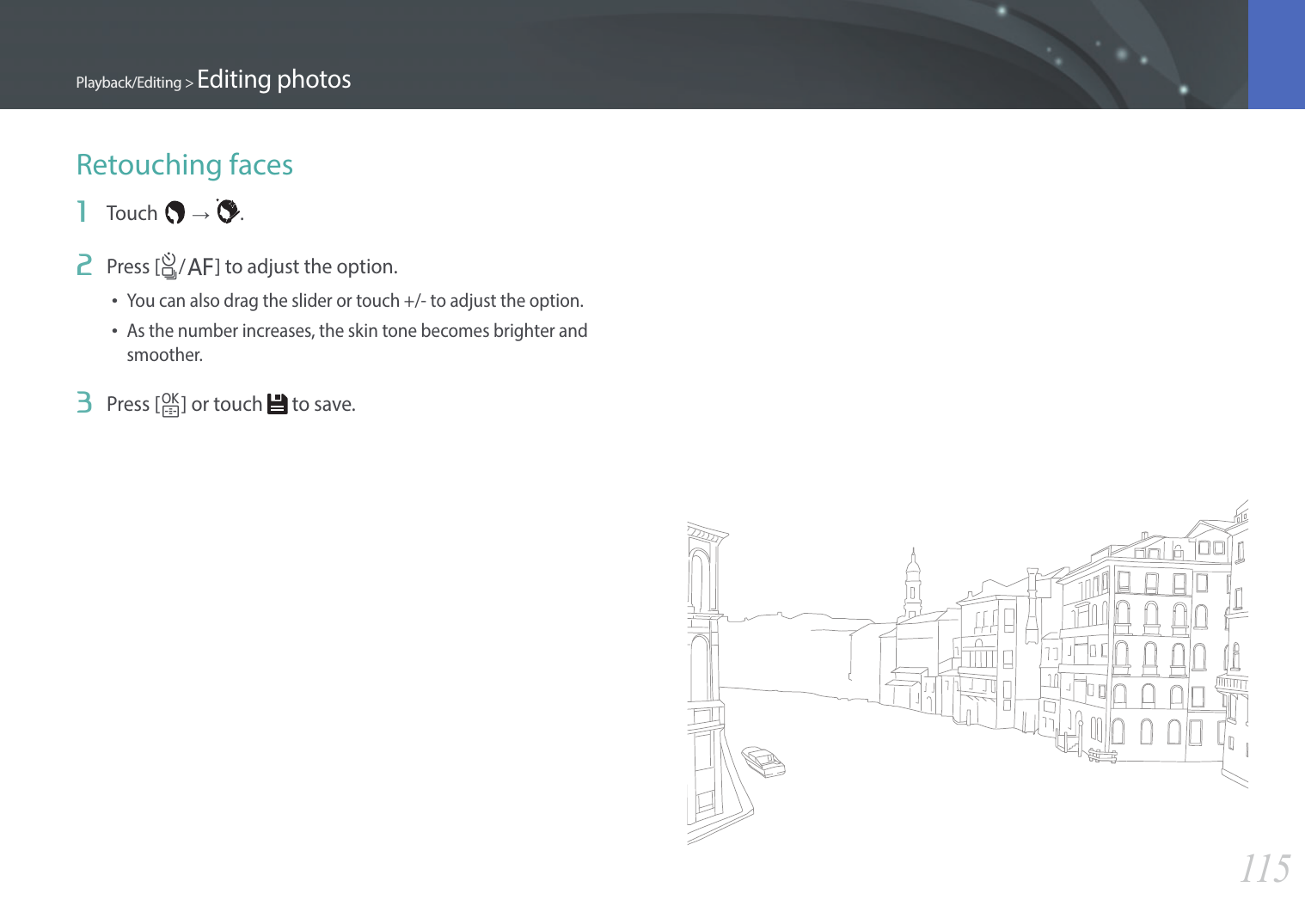

115Playback/Editing > Editing photosRetouching faces1 Touch ĺ .2 Press [C/F] to adjust the option.You can also drag the slider or touch +/- to adjust the option.As the number increases, the skin tone becomes brighter and smoother.3 Press [o] or touch to save.

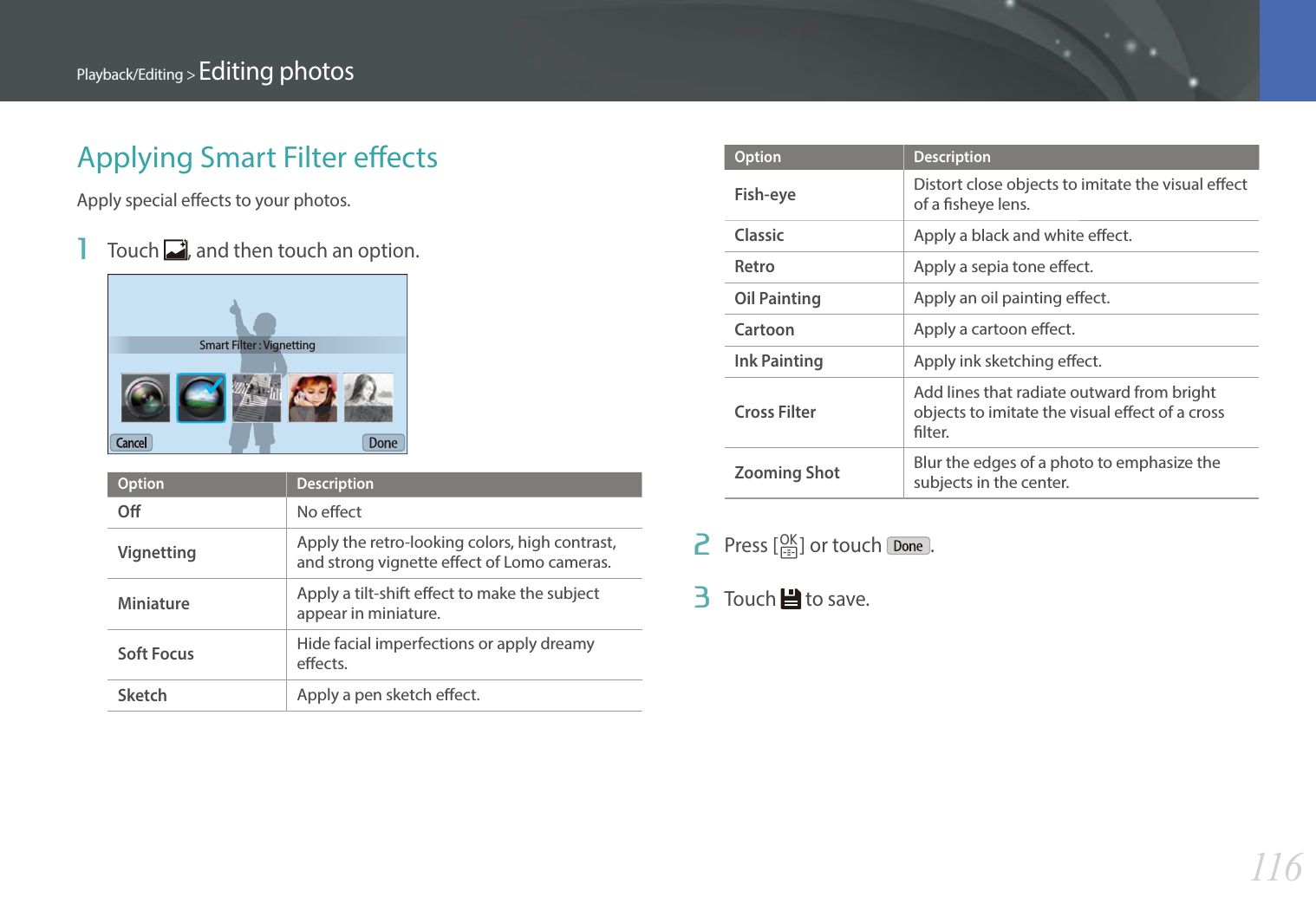

116Playback/Editing > Editing photosApplying Smart Filter eectsApply special eects to your photos.1 Touch , and then touch an option.Smart Filter : VignettingOption DescriptionONo eectVignettingApply the retro-looking colors, high contrast, and strong vignette eect of Lomo cameras.MiniatureApply a tilt-shift eect to make the subject appear in miniature.Soft FocusHide facial imperfections or apply dreamy eects.SketchApply a pen sketch eect.Option DescriptionFish-eyeDistort close objects to imitate the visual eect of a sheye lens.Classic Apply a black and white eect. RetroApply a sepia tone eect.Oil PaintingApply an oil painting eect.CartoonApply a cartoon eect.Ink PaintingApply ink sketching eect.Cross Filter Add lines that radiate outward from bright objects to imitate the visual eect of a cross lter.Zooming Shot Blur the edges of a photo to emphasize the subjects in the center.2 Press [o] or touch .3 Touch to save.
Chapter 4Wireless networkLearn how to connect to wireless local area networks (WLANs) and use functions.

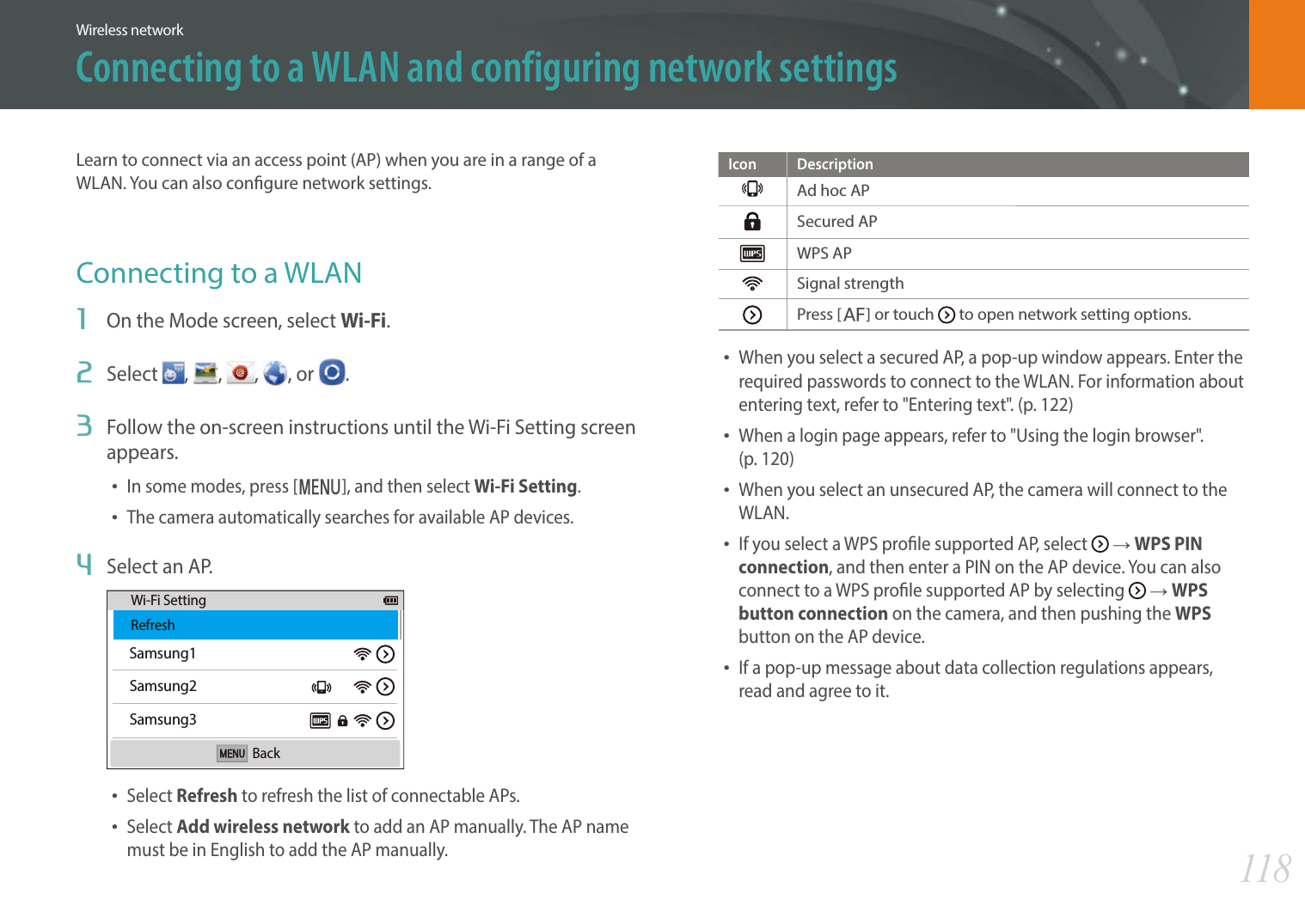

118Wireless networkConnecting to a WLAN and configuring network settingsLearn to connect via an access point (AP) when you are in a range of a WLAN. You can also congure network settings.Connecting to a WLAN1 On the Mode screen, select Wi-Fi.2 Select , , , , or .3 Follow the on-screen instructions until the Wi-Fi Setting screen appears.In some modes, press [m], and then select Wi-Fi Setting.The camera automatically searches for available AP devices.4 Select an AP.Samsung1Samsung2Samsung3Wi-Fi SettingRefreshBackSelect Refresh to refresh the list of connectable APs.Select Add wireless network to add an AP manually. The AP name must be in English to add the AP manually.Icon DescriptionAd hoc APSecured APWPS APSignal strengthPress [F] or touch to open network setting options.When you select a secured AP, a pop-up window appears. Enter the required passwords to connect to the WLAN. For information about entering text, refer to "Entering text". (p. 122)When a login page appears, refer to "Using the login browser". (p. 120)When you select an unsecured AP, the camera will connect to the WLAN.If you select a WPS prole supported AP, select ĺ WPS PIN connection, and then enter a PIN on the AP device. You can also connect to a WPS prole supported AP by selecting ĺ WPS button connection on the camera, and then pushing the WPS button on the AP device.If a pop-up message about data collection regulations appears, read and agree to it.

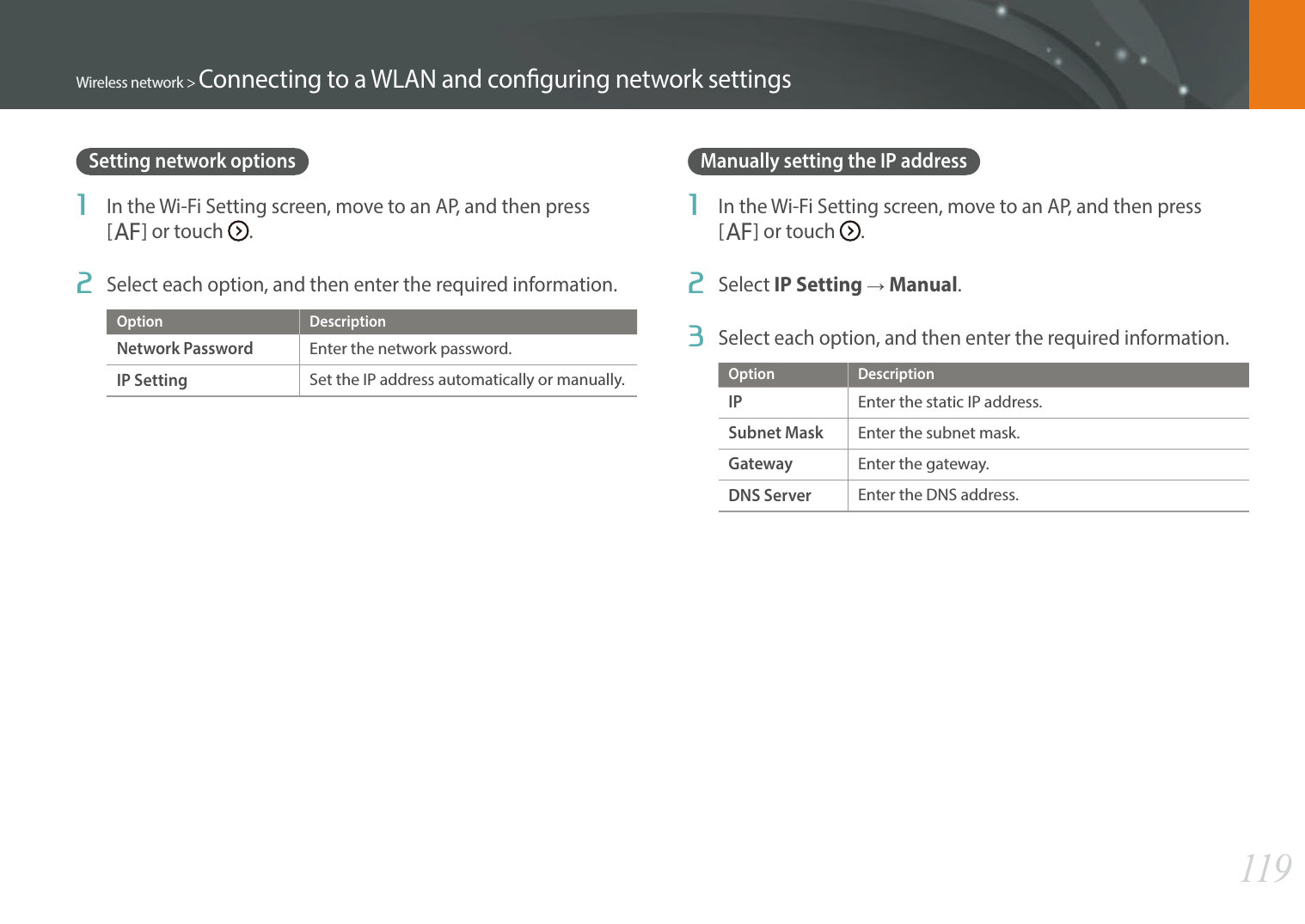

119Wireless network > Connecting to a WLAN and conguring network settingsSetting network options1 In the Wi-Fi Setting screen, move to an AP, and then press [F] or touch .2 Select each option, and then enter the required information.Option DescriptionNetwork PasswordEnter the network password.IP SettingSet the IP address automatically or manually.Manually setting the IP address1 In the Wi-Fi Setting screen, move to an AP, and then press [F] or touch .2 Select IP Setting ĺ Manual.3 Select each option, and then enter the required information.Option DescriptionIPEnter the static IP address.Subnet MaskEnter the subnet mask.GatewayEnter the gateway.DNS ServerEnter the DNS address.

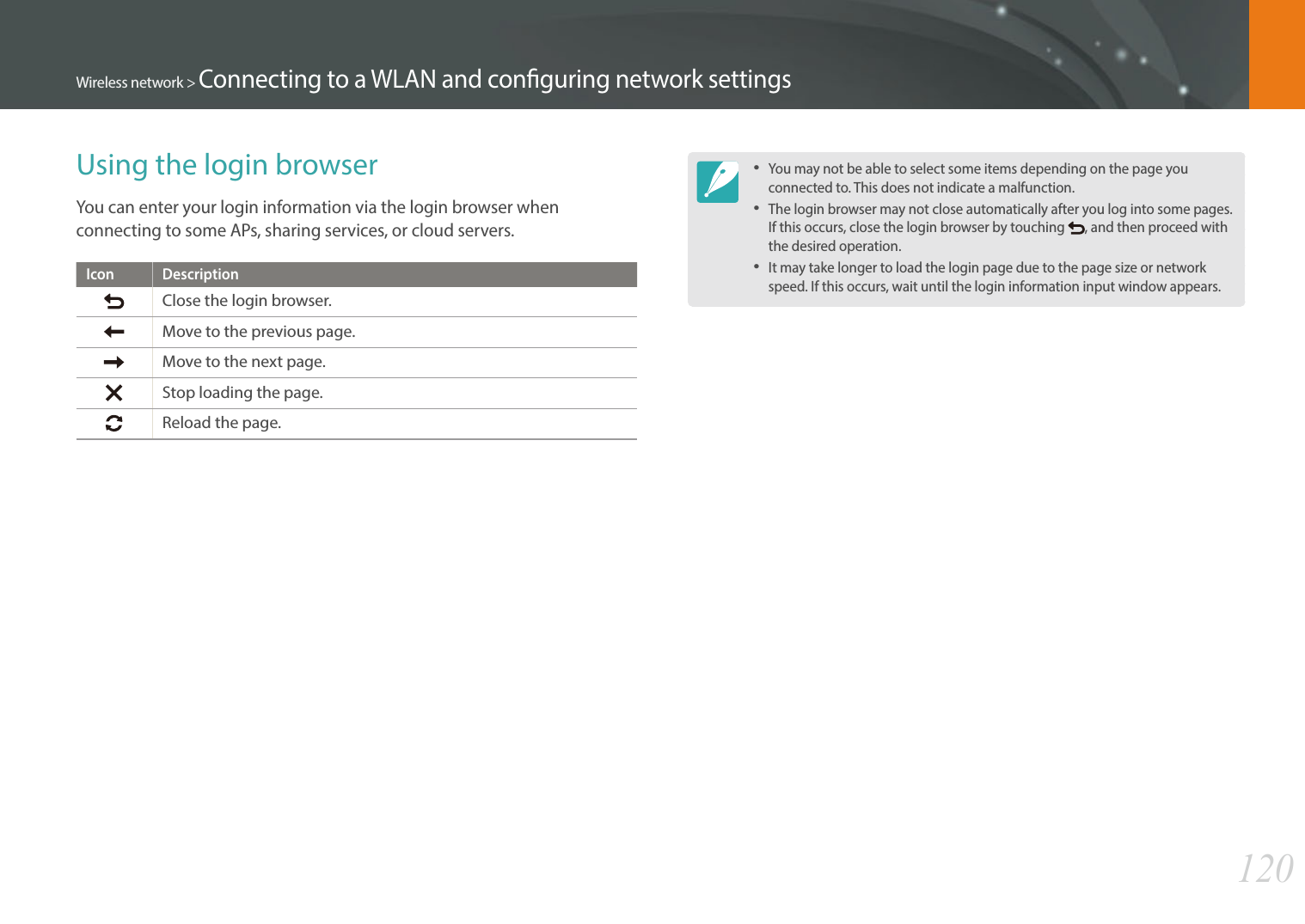

120Wireless network > Connecting to a WLAN and conguring network settingsUsing the login browserYou can enter your login information via the login browser when connecting to some APs, sharing services, or cloud servers.Icon DescriptionClose the login browser.Move to the previous page.Move to the next page.Stop loading the page.Reload the page.You may not be able to select some items depending on the page you connected to. This does not indicate a malfunction.The login browser may not close automatically after you log into some pages. If this occurs, close the login browser by touching , and then proceed with the desired operation.It may take longer to load the login page due to the page size or network speed. If this occurs, wait until the login information input window appears.

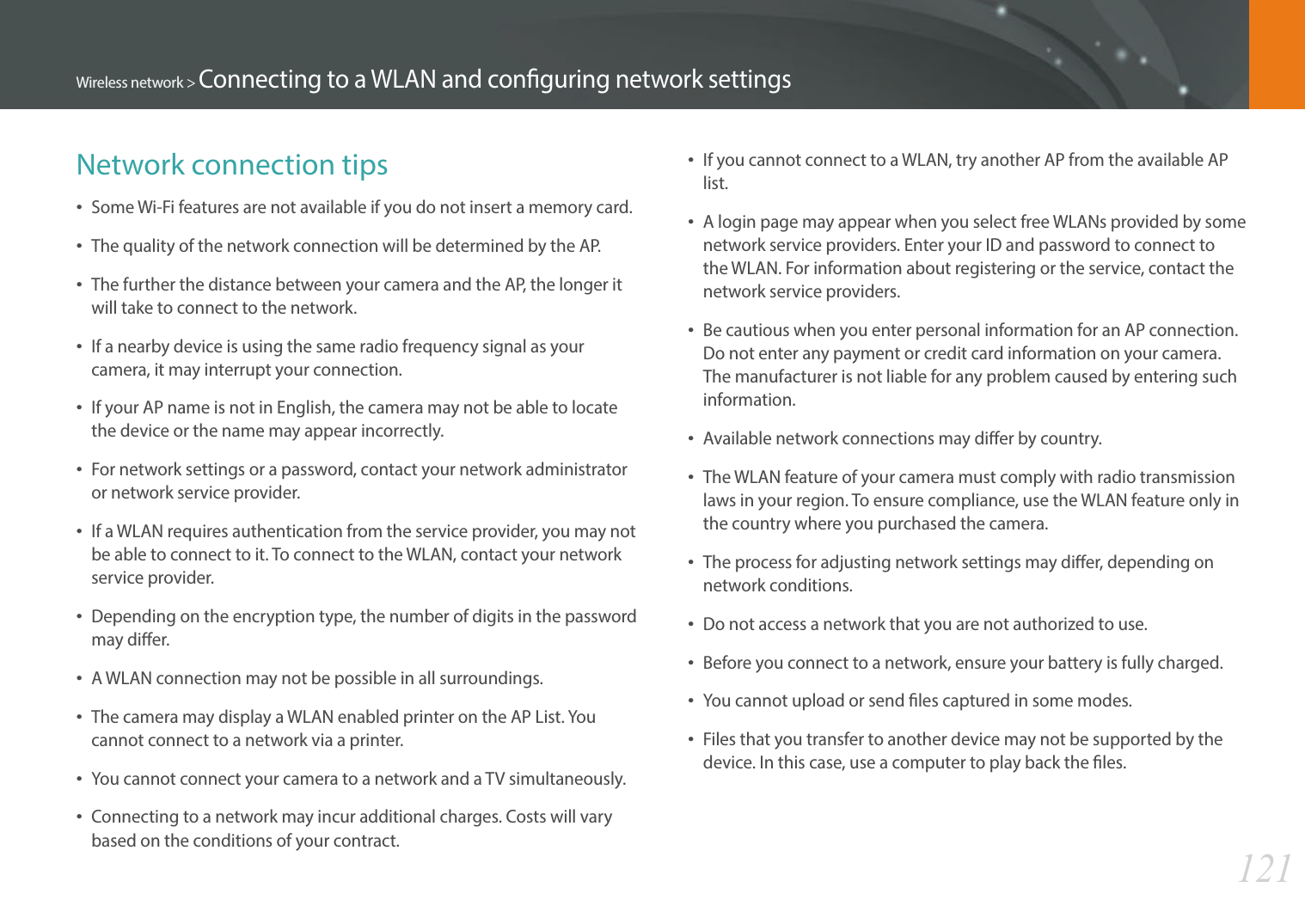

121Wireless network > Connecting to a WLAN and conguring network settingsNetwork connection tipsSome Wi-Fi features are not available if you do not insert a memory card. The quality of the network connection will be determined by the AP.The further the distance between your camera and the AP, the longer it will take to connect to the network.If a nearby device is using the same radio frequency signal as your camera, it may interrupt your connection.If your AP name is not in English, the camera may not be able to locate the device or the name may appear incorrectly.For network settings or a password, contact your network administrator or network service provider.If a WLAN requires authentication from the service provider, you may not be able to connect to it. To connect to the WLAN, contact your network service provider.Depending on the encryption type, the number of digits in the password may dier.A WLAN connection may not be possible in all surroundings.The camera may display a WLAN enabled printer on the AP List. You cannot connect to a network via a printer.You cannot connect your camera to a network and a TV simultaneously.Connecting to a network may incur additional charges. Costs will vary based on the conditions of your contract.If you cannot connect to a WLAN, try another AP from the available AP list.A login page may appear when you select free WLANs provided by some network service providers. Enter your ID and password to connect to the WLAN. For information about registering or the service, contact the network service providers.Be cautious when you enter personal information for an AP connection. Do not enter any payment or credit card information on your camera. The manufacturer is not liable for any problem caused by entering such information.Available network connections may dier by country.The WLAN feature of your camera must comply with radio transmission laws in your region. To ensure compliance, use the WLAN feature only in the country where you purchased the camera.The process for adjusting network settings may dier, depending on network conditions.Do not access a network that you are not authorized to use.Before you connect to a network, ensure your battery is fully charged.You cannot upload or send les captured in some modes.Files that you transfer to another device may not be supported by the device. In this case, use a computer to play back the les.

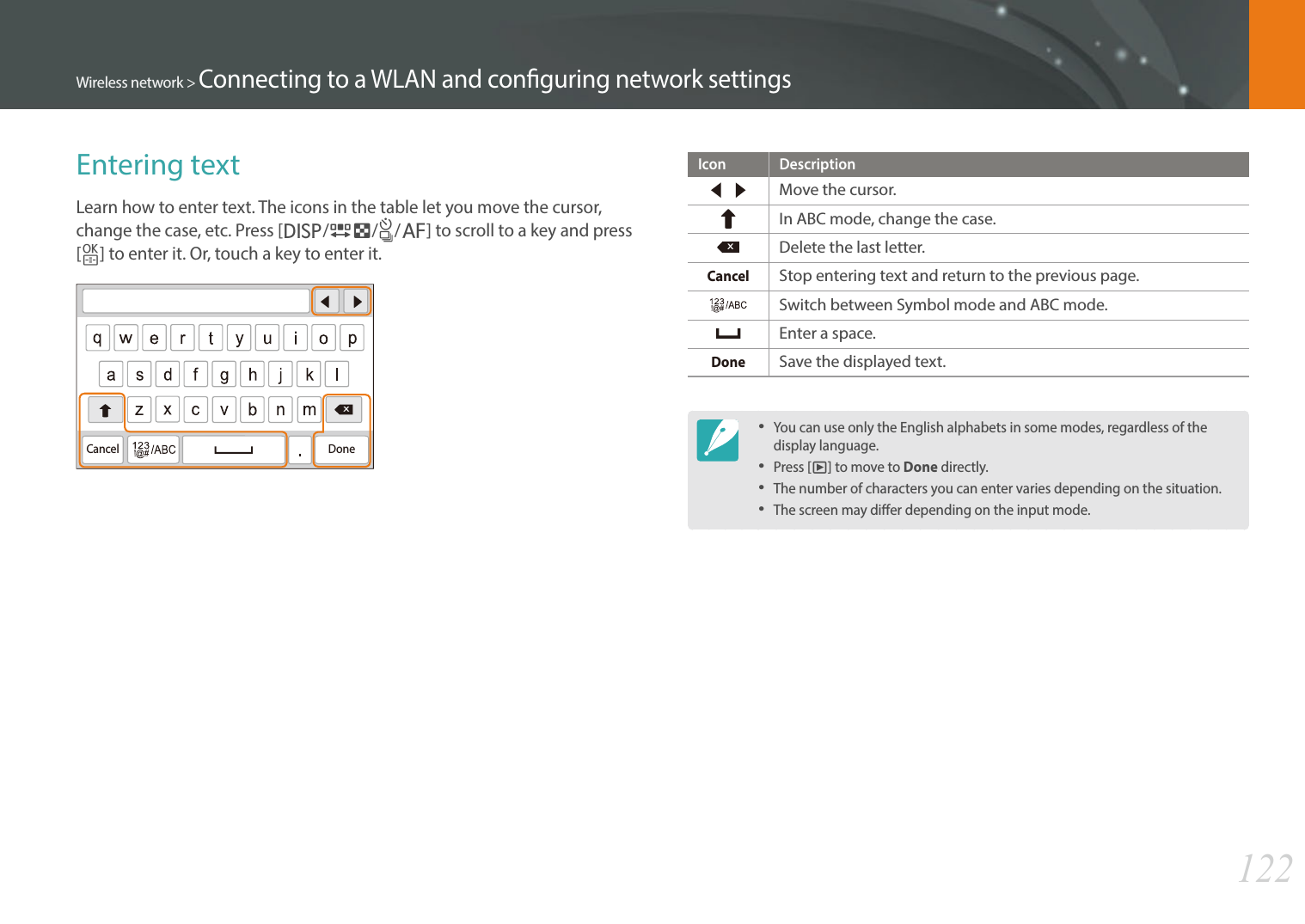

122Wireless network > Connecting to a WLAN and conguring network settingsEntering textLearn how to enter text. The icons in the table let you move the cursor, change the case, etc. Press [D/I/C/F] to scroll to a key and press [o] to enter it. Or, touch a key to enter it.XDoneCancelIcon DescriptionMove the cursor.In ABC mode, change the case.XDelete the last letter.CancelStop entering text and return to the previous page.Switch between Symbol mode and ABC mode.Enter a space.DoneSave the displayed text.You can use only the English alphabets in some modes, regardless of the display language.Press [y] to move to Done directly.The number of characters you can enter varies depending on the situation.The screen may dier depending on the input mode.

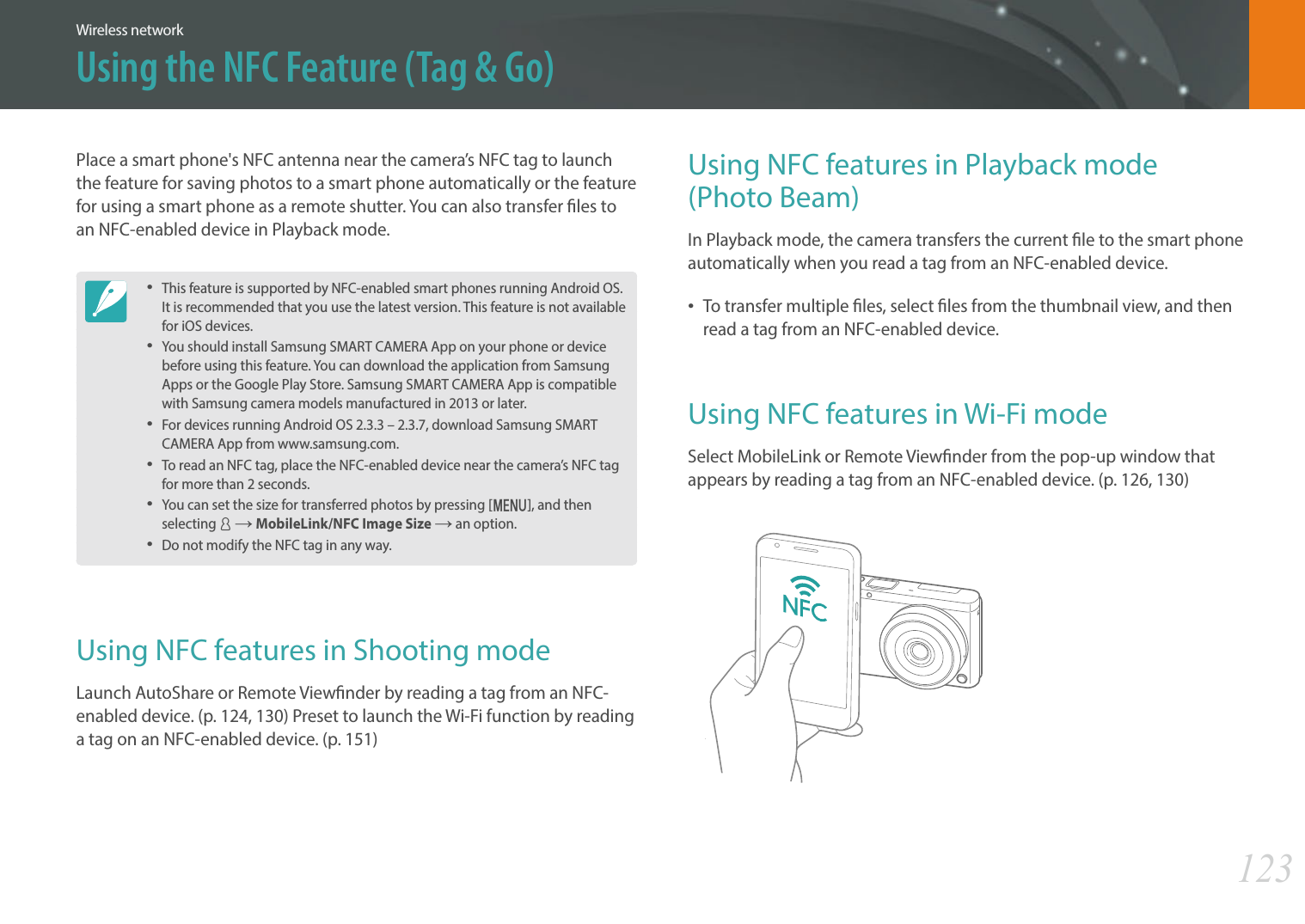

123Wireless networkUsing the NFC Feature (Tag & Go)Using NFC features in Playback mode (Photo Beam)In Playback mode, the camera transfers the current le to the smart phone automatically when you read a tag from an NFC-enabled device.To transfer multiple les, select les from the thumbnail view, and then read a tag from an NFC-enabled device.Using NFC features in Wi-Fi modeSelect MobileLink or Remote Viewnder from the pop-up window that appears by reading a tag from an NFC-enabled device. (p. 126, 130)Place a smart phone's NFC antenna near the camera’s NFC tag to launch the feature for saving photos to a smart phone automatically or the feature for using a smart phone as a remote shutter. You can also transfer les to an NFC-enabled device in Playback mode. This feature is supported by NFC-enabled smart phones running Android OS. It is recommended that you use the latest version. This feature is not available for iOS devices.You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps or the Google Play Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.For devices running Android OS 2.3.3 – 2.3.7, download Samsung SMART CAMERA App from www.samsung.com.To read an NFC tag, place the NFC-enabled device near the camera’s NFC tag for more than 2 seconds.You can set the size for transferred photos by pressing [m], and then selecting d ĺ MobileLink/NFC Image Size ĺ an option. Do not modify the NFC tag in any way.Using NFC features in Shooting modeLaunch AutoShare or Remote Viewnder by reading a tag from an NFC-enabled device. (p. 124, 130) Preset to launch the Wi-Fi function by reading a tag on an NFC-enabled device. (p. 151)

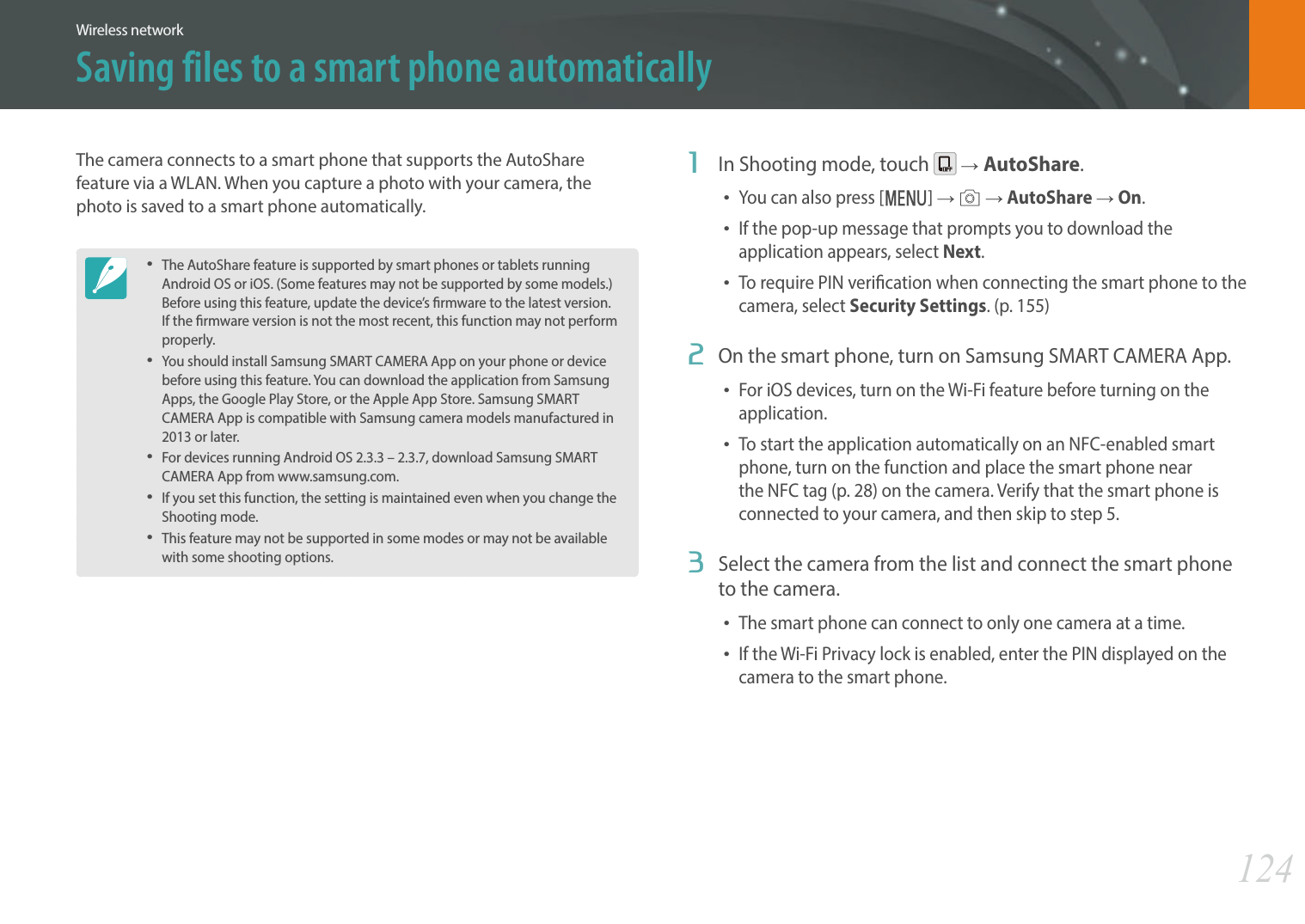

124Wireless networkSaving files to a smart phone automaticallyThe camera connects to a smart phone that supports the AutoShare feature via a WLAN. When you capture a photo with your camera, the photo is saved to a smart phone automatically.The AutoShare feature is supported by smart phones or tablets running Android OS or iOS. (Some features may not be supported by some models.) Before using this feature, update the device’s rmware to the latest version. If the rmware version is not the most recent, this function may not perform properly. You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later. For devices running Android OS 2.3.3 – 2.3.7, download Samsung SMART CAMERA App from www.samsung.com.If you set this function, the setting is maintained even when you change the Shooting mode.This feature may not be supported in some modes or may not be available with some shooting options.1 In Shooting mode, touch ĺAutoShare.You can also press [m] ĺ b ĺ AutoShare ĺ On.If the pop-up message that prompts you to download the application appears, select Next.To require PIN verication when connecting the smart phone to the camera, select Security Settings. (p. 155)2 On the smart phone, turn on Samsung SMART CAMERA App.For iOS devices, turn on the Wi-Fi feature before turning on the application.To start the application automatically on an NFC-enabled smart phone, turn on the function and place the smart phone near the NFC tag (p. 28) on the camera. Verify that the smart phone is connected to your camera, and then skip to step 5.3 Select the camera from the list and connect the smart phone to the camera.The smart phone can connect to only one camera at a time.If the Wi-Fi Privacy lock is enabled, enter the PIN displayed on the camera to the smart phone.

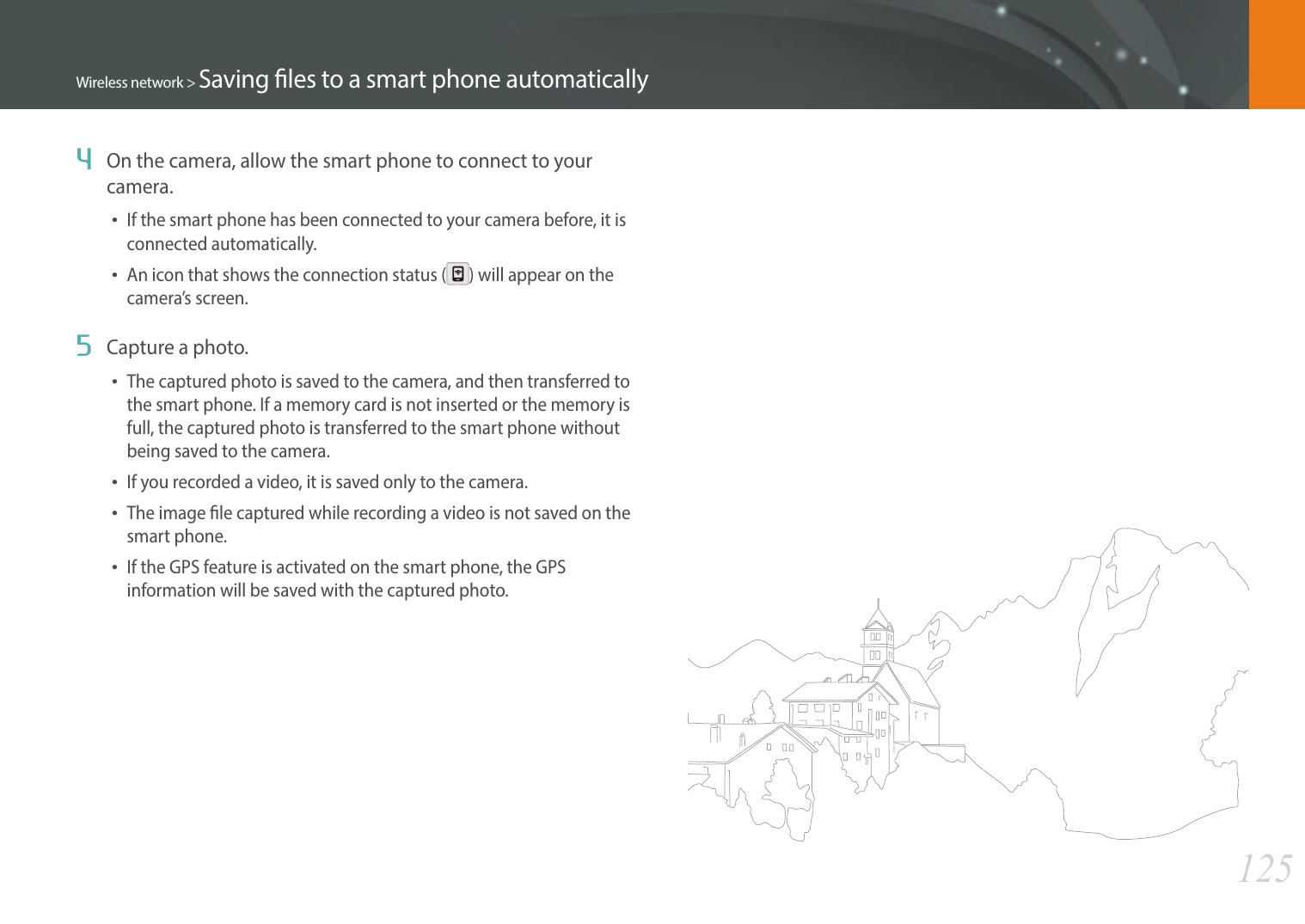

125Wireless network > Saving les to a smart phone automatically4 On the camera, allow the smart phone to connect to your camera.If the smart phone has been connected to your camera before, it is connected automatically.An icon that shows the connection status ( ) will appear on the camera’s screen.5 Capture a photo.The captured photo is saved to the camera, and then transferred to the smart phone. If a memory card is not inserted or the memory is full, the captured photo is transferred to the smart phone without being saved to the camera.If you recorded a video, it is saved only to the camera.The image le captured while recording a video is not saved on the smart phone. If the GPS feature is activated on the smart phone, the GPS information will be saved with the captured photo.
126Wireless networkThe camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your smart phone.The MobileLink feature is supported by smart phones or tablets running Android OS or iOS. (Some features may not be supported by some models.) Before using this feature, update the device’s rmware to the latest version. If the rmware version is not the most recent, this function may not perform properly. You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later. For devices running Android OS 2.3.3 – 2.3.7, download Samsung SMART CAMERA App from www.samsung.com.When there are no les in the camera memory, you cannot use this feature.You can view up to 1,000 recent les and send up to 1,000 les at a time.When you send Full HD videos using MobileLink feature, you may not be able to play back les on some devices.When using this feature on an iOS device, the device may lose its Wi-Fi connection.You cannot send RAW les. You can set the size for transferred photos by pressing [m], and then selecting d ĺ MobileLink/NFC Image Size ĺ an option. You can also touch ĺ MobileLink on the screen in Shooting mode.You can also send les in Playback mode by pressing [m], and then selecting Share(Wi-Fi) ĺ MobileLink or by selecting ĺ MobileLink.The screen turns o if you perform no operations on the camera for 30 seconds.1 On the Mode screen, select Wi-Fi.2 On the camera, select .If the pop-up message that prompts you to download the application appears, select Next.To require PIN verication when connecting the smart phone to the camera, select Security Settings. (p. 155)3 On the camera, select a sending option. If you select Select Files from Smartphone, you can use your smart phone to view and share les stored on the camera. The screen turns o if you perform no operations on the smart phone for 30 seconds. If you select Select Files from Camera, you can select les to send from the camera. 4 On the smart phone, turn on Samsung SMART CAMERA App.For iOS devices, turn on the Wi-Fi feature before turning on the application.To start the application automatically on an NFC-enabled smart phone, turn on the function and place the smart phone near the NFC tag (p. 28) on the camera. Verify that the smart phone is connected to your camera, and then skip to step 7.Sending photos or videos to a smart phone

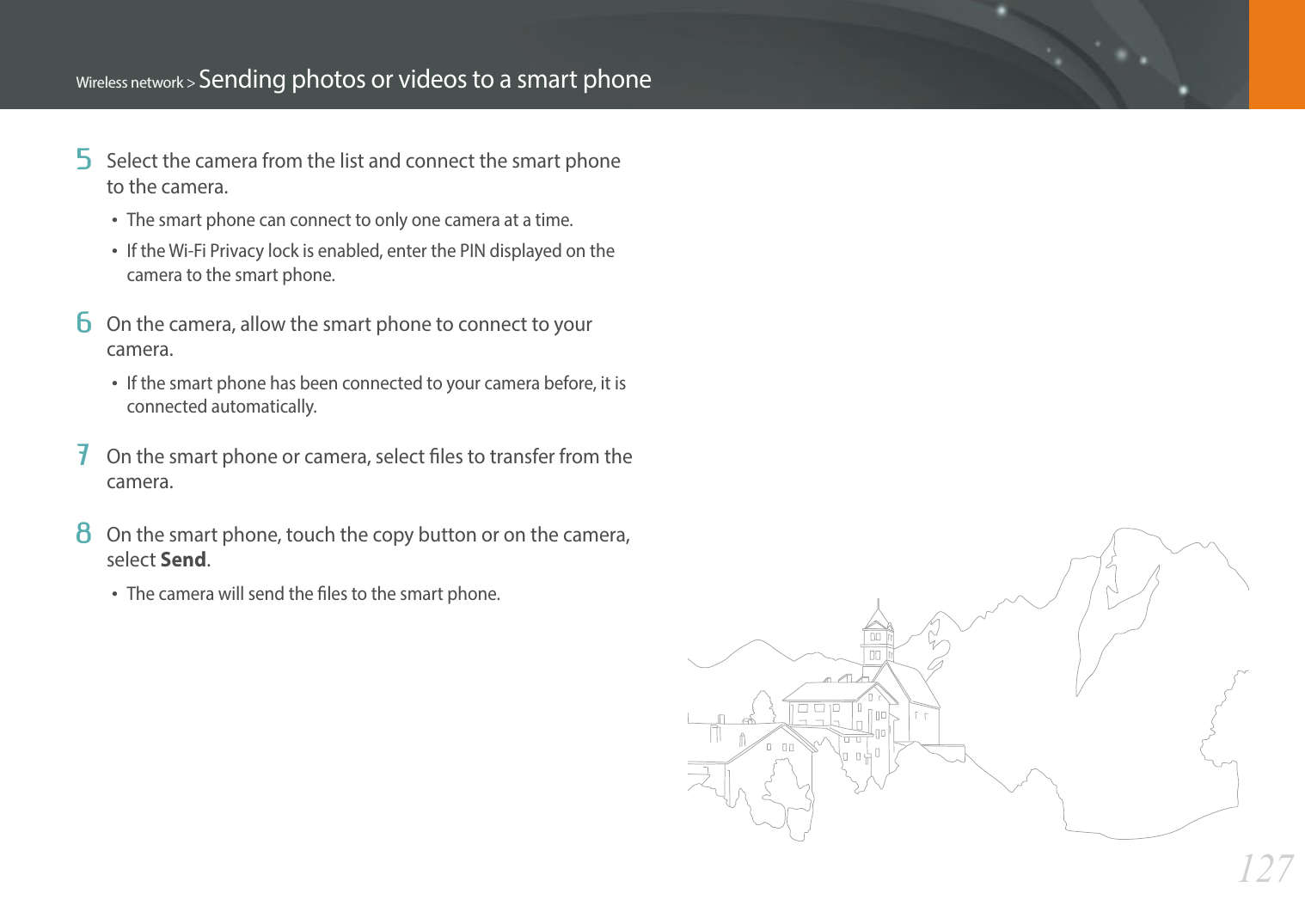

127Wireless network > Sending photos or videos to a smart phone5 Select the camera from the list and connect the smart phone to the camera.The smart phone can connect to only one camera at a time.If the Wi-Fi Privacy lock is enabled, enter the PIN displayed on the camera to the smart phone.6 On the camera, allow the smart phone to connect to your camera.If the smart phone has been connected to your camera before, it is connected automatically.7 On the smart phone or camera, select les to transfer from the camera.8 On the smart phone, touch the copy button or on the camera, select Send.The camera will send the les to the smart phone.

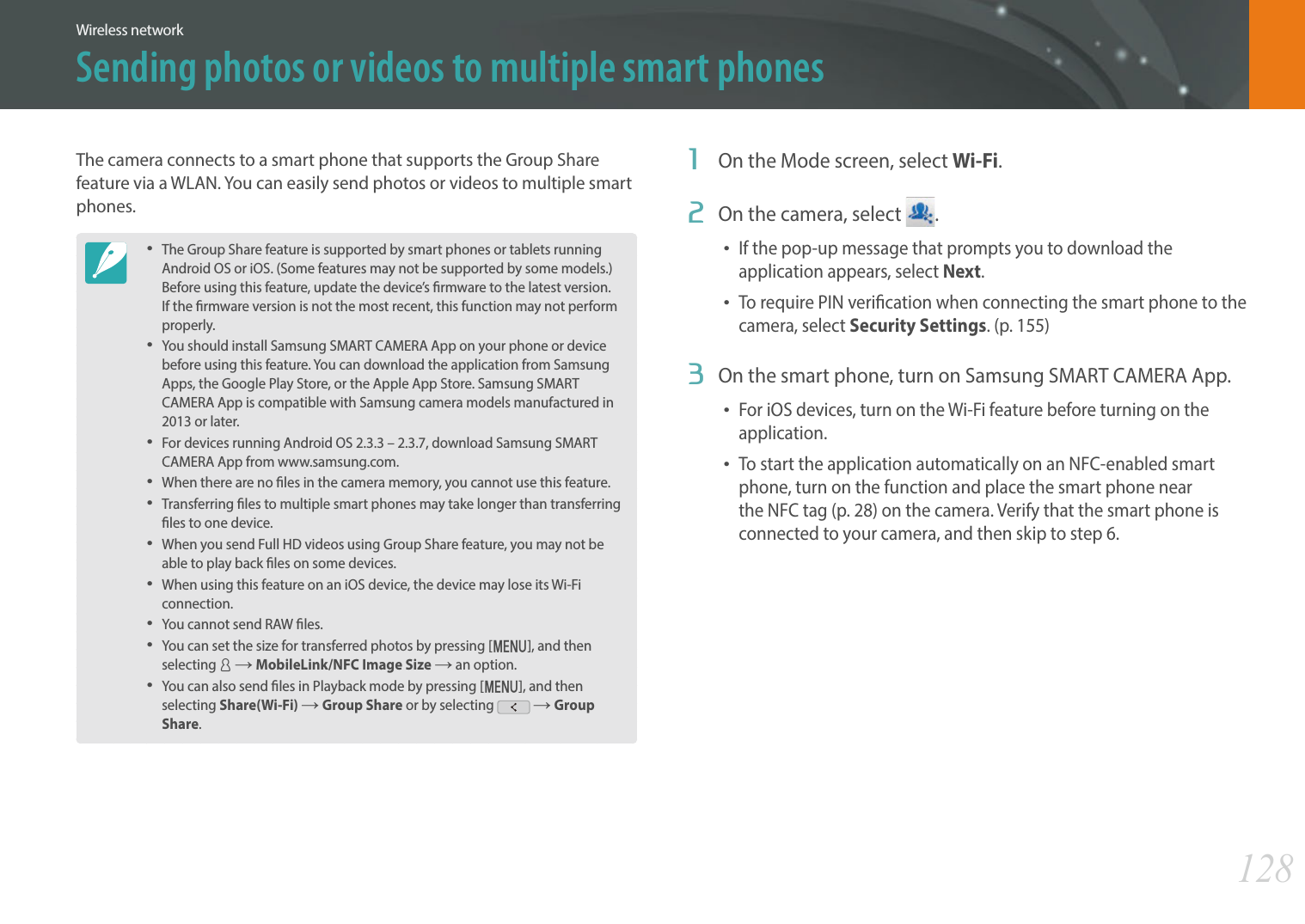

128Wireless networkSending photos or videos to multiple smart phonesThe camera connects to a smart phone that supports the Group Share feature via a WLAN. You can easily send photos or videos to multiple smart phones.The Group Share feature is supported by smart phones or tablets running Android OS or iOS. (Some features may not be supported by some models.) Before using this feature, update the device’s rmware to the latest version. If the rmware version is not the most recent, this function may not perform properly. You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later. For devices running Android OS 2.3.3 – 2.3.7, download Samsung SMART CAMERA App from www.samsung.com.When there are no les in the camera memory, you cannot use this feature.Transferring les to multiple smart phones may take longer than transferring les to one device. When you send Full HD videos using Group Share feature, you may not be able to play back les on some devices.When using this feature on an iOS device, the device may lose its Wi-Fi connection.You cannot send RAW les. You can set the size for transferred photos by pressing [m], and then selecting d ĺ MobileLink/NFC Image Size ĺ an option. You can also send les in Playback mode by pressing [m], and then selecting Share(Wi-Fi) ĺ Group Share or by selecting ĺ Group Share.1 On the Mode screen, select Wi-Fi.2 On the camera, select .If the pop-up message that prompts you to download the application appears, select Next.To require PIN verication when connecting the smart phone to the camera, select Security Settings. (p. 155)3 On the smart phone, turn on Samsung SMART CAMERA App.For iOS devices, turn on the Wi-Fi feature before turning on the application.To start the application automatically on an NFC-enabled smart phone, turn on the function and place the smart phone near the NFC tag (p. 28) on the camera. Verify that the smart phone is connected to your camera, and then skip to step 6.

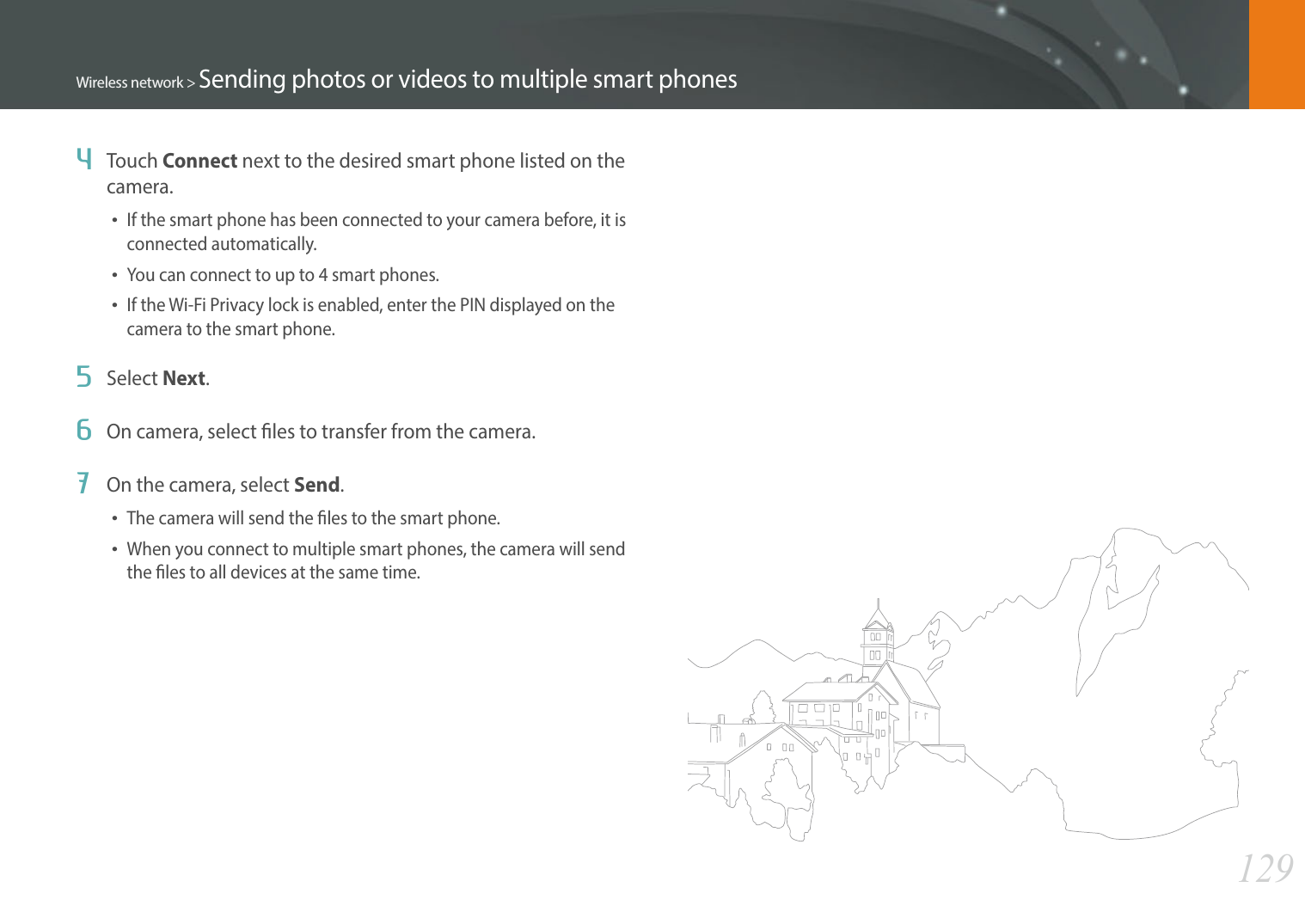

129Wireless network > Sending photos or videos to multiple smart phones4 Touch Connect next to the desired smart phone listed on the camera.If the smart phone has been connected to your camera before, it is connected automatically.You can connect to up to 4 smart phones.If the Wi-Fi Privacy lock is enabled, enter the PIN displayed on the camera to the smart phone.5 Select Next.6 On camera, select les to transfer from the camera.7 On the camera, select Send. The camera will send the les to the smart phone. When you connect to multiple smart phones, the camera will send the les to all devices at the same time.

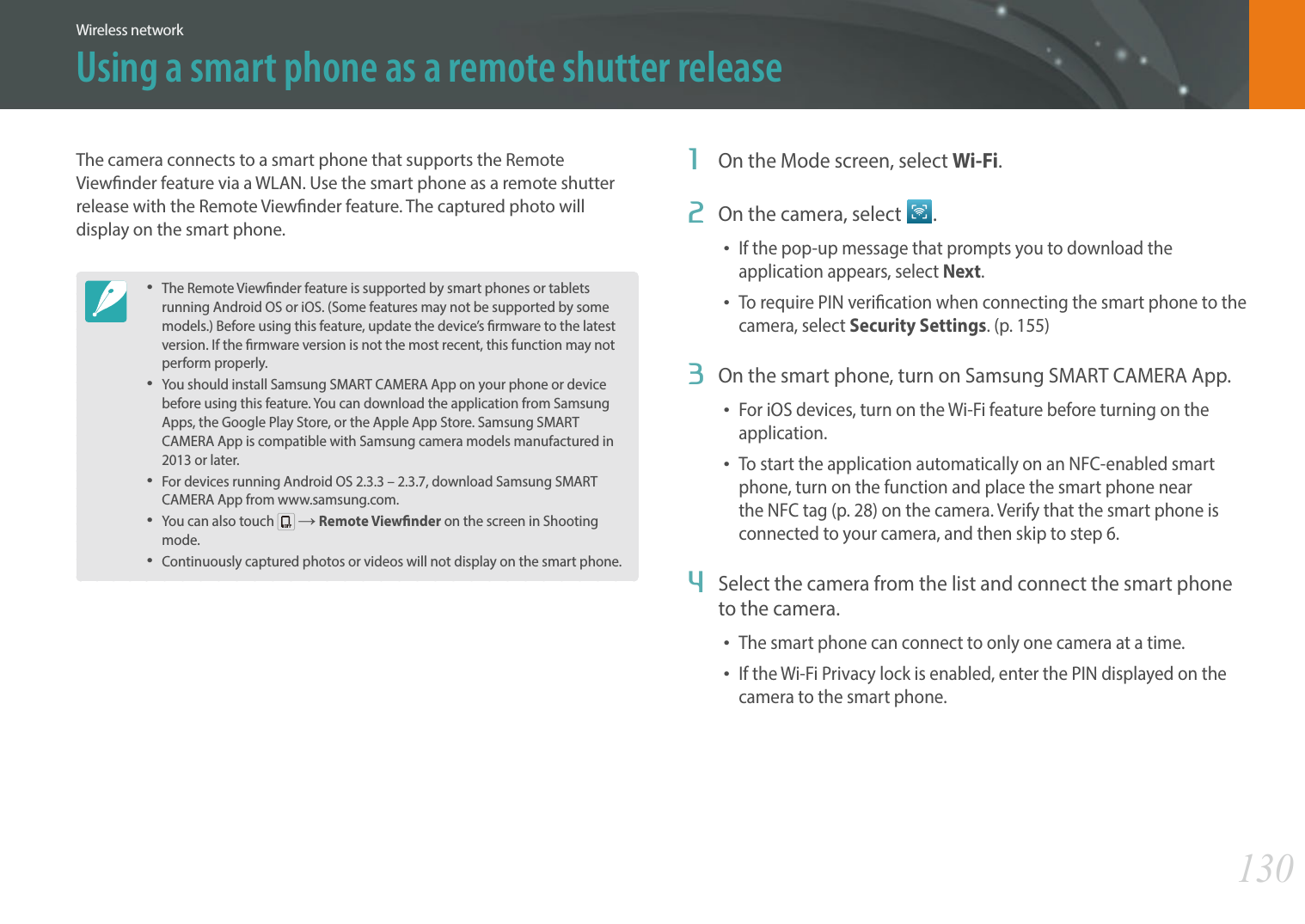

130Wireless networkThe camera connects to a smart phone that supports the Remote Viewnder feature via a WLAN. Use the smart phone as a remote shutter release with the Remote Viewnder feature. The captured photo will display on the smart phone.The Remote Viewnder feature is supported by smart phones or tablets running Android OS or iOS. (Some features may not be supported by some models.) Before using this feature, update the device’s rmware to the latest version. If the rmware version is not the most recent, this function may not perform properly. You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.For devices running Android OS 2.3.3 – 2.3.7, download Samsung SMART CAMERA App from www.samsung.com.You can also touch ĺ Remote Viewnder on the screen in Shooting mode.Continuously captured photos or videos will not display on the smart phone.1 On the Mode screen, select Wi-Fi.2 On the camera, select .If the pop-up message that prompts you to download the application appears, select Next.To require PIN verication when connecting the smart phone to the camera, select Security Settings. (p. 155)3 On the smart phone, turn on Samsung SMART CAMERA App.For iOS devices, turn on the Wi-Fi feature before turning on the application.To start the application automatically on an NFC-enabled smart phone, turn on the function and place the smart phone near the NFC tag (p. 28) on the camera. Verify that the smart phone is connected to your camera, and then skip to step 6.4 Select the camera from the list and connect the smart phone to the camera.The smart phone can connect to only one camera at a time.If the Wi-Fi Privacy lock is enabled, enter the PIN displayed on the camera to the smart phone.Using a smart phone as a remote shutter release

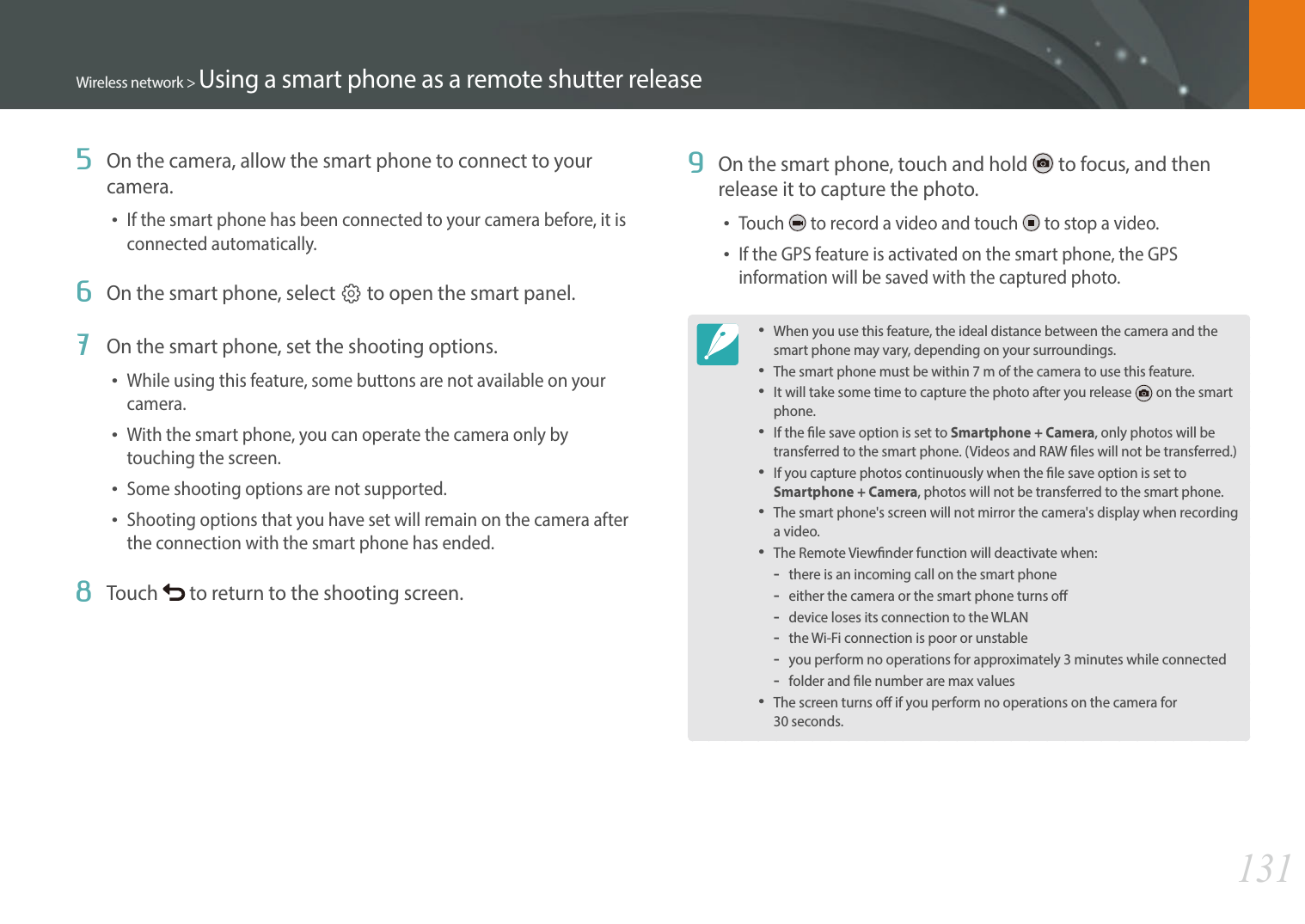

131Wireless network > Using a smart phone as a remote shutter release5 On the camera, allow the smart phone to connect to your camera.If the smart phone has been connected to your camera before, it is connected automatically.6 On the smart phone, select q to open the smart panel.7 On the smart phone, set the shooting options.While using this feature, some buttons are not available on your camera.With the smart phone, you can operate the camera only by touching the screen.Some shooting options are not supported.Shooting options that you have set will remain on the camera after the connection with the smart phone has ended.8 Touch to return to the shooting screen. 9 On the smart phone, touch and hold to focus, and then release it to capture the photo.Touch to record a video and touch to stop a video. If the GPS feature is activated on the smart phone, the GPS information will be saved with the captured photo. When you use this feature, the ideal distance between the camera and the smart phone may vary, depending on your surroundings.The smart phone must be within 7 m of the camera to use this feature.It will take some time to capture the photo after you release on the smart phone.If the le save option is set to Smartphone + Camera, only photos will be transferred to the smart phone. (Videos and RAW les will not be transferred.)If you capture photos continuously when the le save option is set to Smartphone + Camera, photos will not be transferred to the smart phone. The smart phone's screen will not mirror the camera's display when recording a video.The Remote Viewnder function will deactivate when:-there is an incoming call on the smart phone-either the camera or the smart phone turns o-device loses its connection to the WLAN-the Wi-Fi connection is poor or unstable-you perform no operations for approximately 3 minutes while connected-folder and le number are max valuesThe screen turns o if you perform no operations on the camera for 30 seconds.

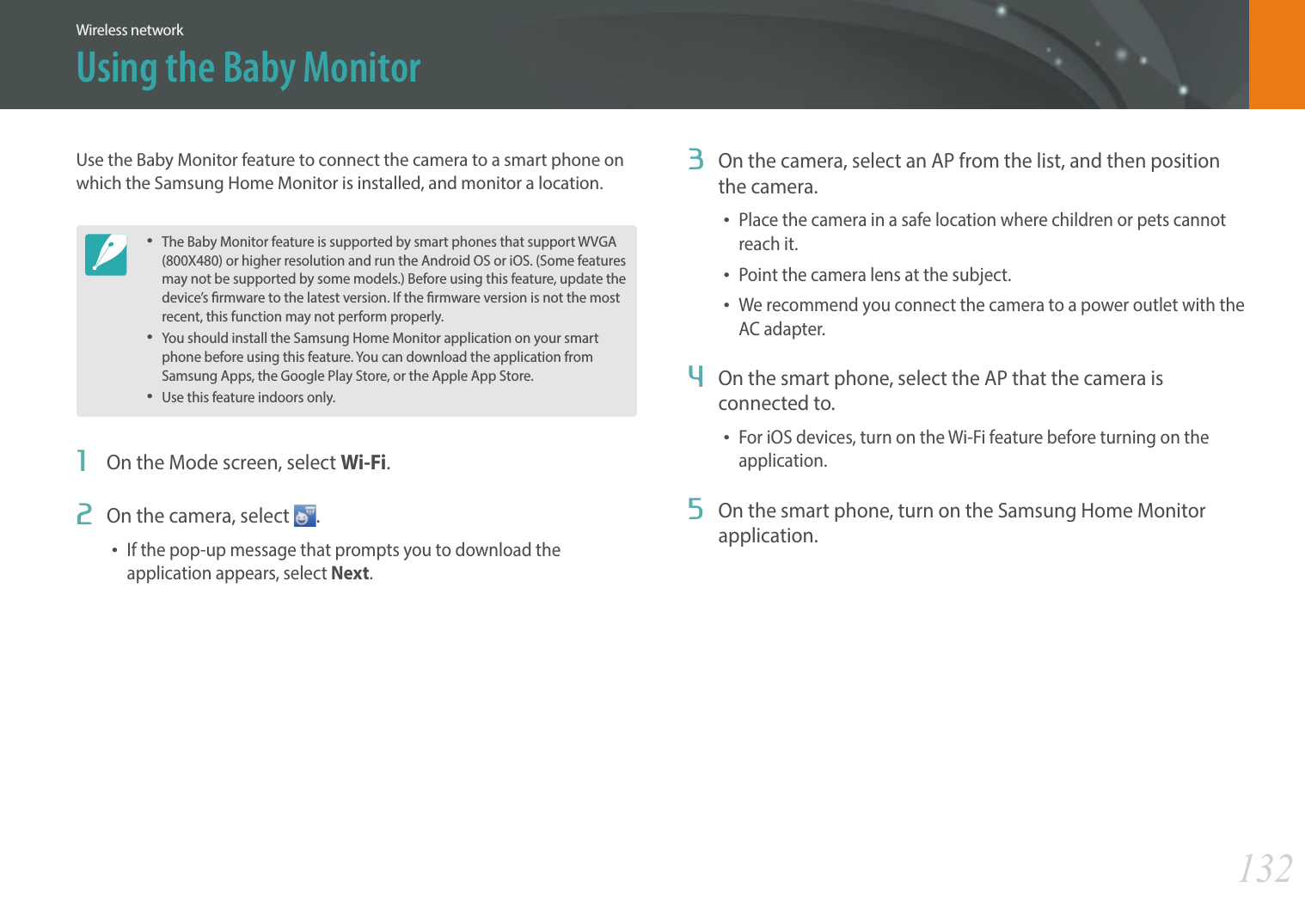

132Wireless networkUsing the Baby Monitor3 On the camera, select an AP from the list, and then position the camera.Place the camera in a safe location where children or pets cannot reach it.Point the camera lens at the subject.We recommend you connect the camera to a power outlet with the AC adapter.4 On the smart phone, select the AP that the camera is connected to.For iOS devices, turn on the Wi-Fi feature before turning on the application.5 On the smart phone, turn on the Samsung Home Monitor application.Use the Baby Monitor feature to connect the camera to a smart phone on which the Samsung Home Monitor is installed, and monitor a location.The Baby Monitor feature is supported by smart phones that support WVGA (800X480) or higher resolution and run the Android OS or iOS. (Some features may not be supported by some models.) Before using this feature, update the device’s rmware to the latest version. If the rmware version is not the most recent, this function may not perform properly. You should install the Samsung Home Monitor application on your smart phone before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store.Use this feature indoors only.1 On the Mode screen, select Wi-Fi.2 On the camera, select .If the pop-up message that prompts you to download the application appears, select Next.
133Wireless network > Using the Baby Monitor6 Start live video or sound monitoring.Watch live video from the camera on your smart phone. During video monitoring, touch the Sound Monitoring Mode button on the smart phone to stop the video stream. If the camera detects noise, an alarm will notify you on the smart phone.During live video monitoring via the smart phone, video is not saved on the camera.If the monitored location is dark, touch to turn on the AF-assist light.During sound monitoring, alarms will sound on the smart phone if the camera detects noise for a short period at a volume that is higher than the designated level. During live video monitoring, alarms will not sound on the smart phone even if the camera detects noise.7 Touch to exit the Samsung Home Monitor application.Adjusting the noise level for alarm activationYou can set the level of noise that will activate an alarm while using sound monitoring. Press [D/I] to adjust the noise level.Noise level for alarm activation:When the camera detects noise that exceeds the designated level for a short period, an alarm will sound.Back Wi-Fi SettingSensor sensitivityDo not use this feature for illegal purposes.

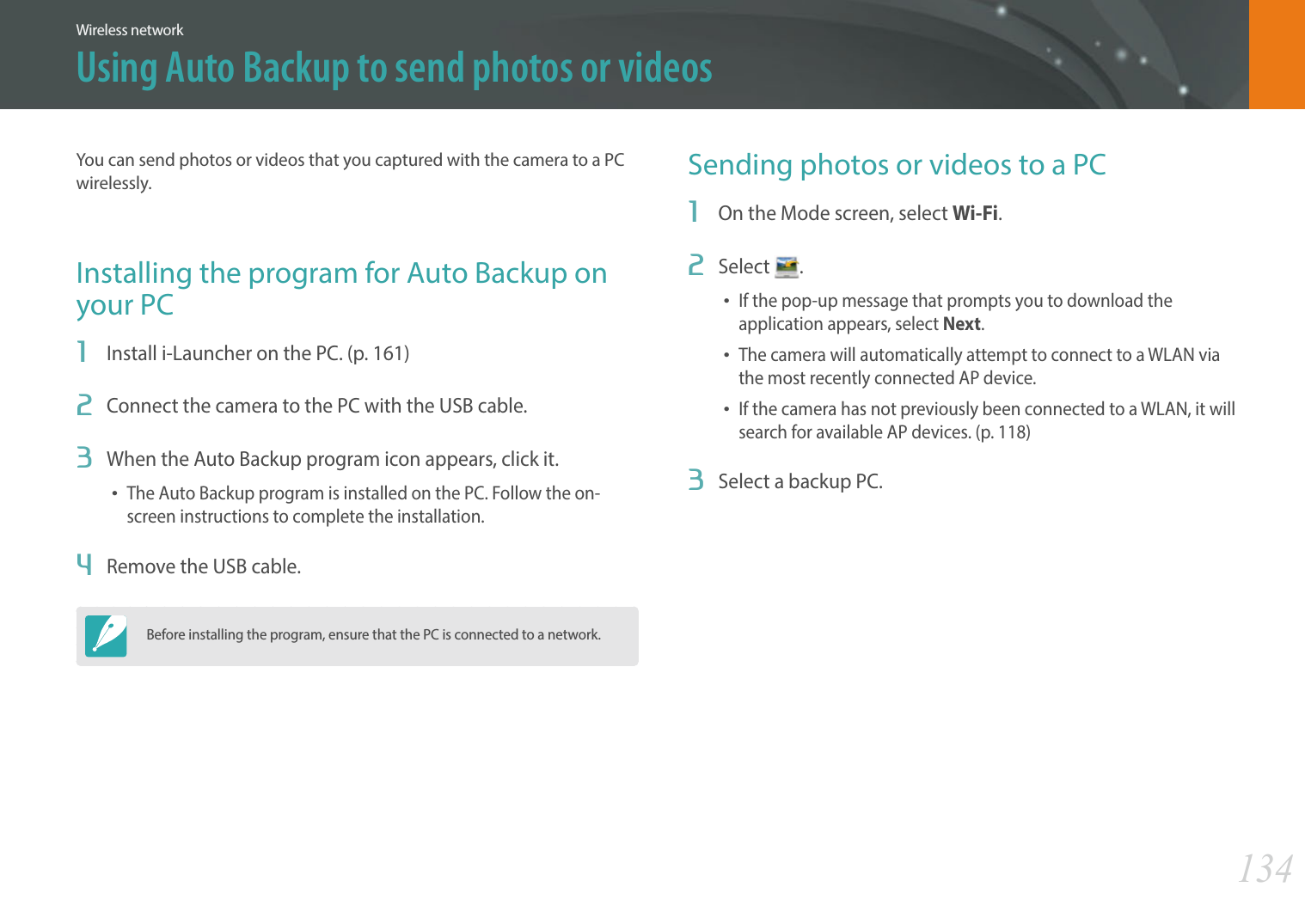

134Wireless networkUsing Auto Backup to send photos or videosYou can send photos or videos that you captured with the camera to a PC wirelessly.Installing the program for Auto Backup on your PC1 Install i-Launcher on the PC. (p. 161)2 Connect the camera to the PC with the USB cable.3 When the Auto Backup program icon appears, click it.The Auto Backup program is installed on the PC. Follow the on-screen instructions to complete the installation.4 Remove the USB cable.Before installing the program, ensure that the PC is connected to a network.Sending photos or videos to a PC1 On the Mode screen, select Wi-Fi.2 Select .If the pop-up message that prompts you to download the application appears, select Next.The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 118)3 Select a backup PC.
135Wireless network > Using Auto Backup to send photos or videos4 Select OK.To cancel sending, select Cancel.You cannot select individual les to backup. This function backs up only new les on the camera.The backup's progress will be shown on the PC monitor.When the transfer is completed, the camera will turn o automatically in approximately 30 seconds. Select Cancel to return to the previous screen and prevent the camera from turning o automatically.To turn o your PC automatically after the transfer is complete, select Shut down PC after backup.To change the backup PC, select Change PC.When you connect the camera to the WLAN, select the AP that is connected to the PC.The camera will search for available access points even if you are connecting to the same access point again.If you turn o the camera or remove the battery while sending les, the le transfer will be interrupted.While you are using this feature, the shutter control is disabled on your camera.You can connect only one camera to the PC at a time for sending les.The backup may be canceled due to network conditions.When there are no les in the camera memory, you cannot use this feature.You must turn o Windows Firewall and any other rewalls before using this feature.You can send up to 1,000 recent les.On the PC software, the server name must be entered in the Latin alphabet and can contain no more than 48 characters.
136Wireless network5 Select the Name box, enter your name, and then touch Done.Sender SettingNameSaveEmailReset6 Select the Email box, enter your email address, and then touch Done.7 Select Save to save your changes.To delete your information, select Reset.You can change settings in the email menu and send photos or videos stored on the camera via email.Changing email settingsIn the email menu, you can change settings for storing your information. You can also set or change the email password. For information about entering text, refer to "Entering text". (p. 122)Storing your information1 On the Mode screen, select Wi-Fi.2 Select .The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 118)3 Press [m].4 Select Sender Setting.Sending photos or videos via email

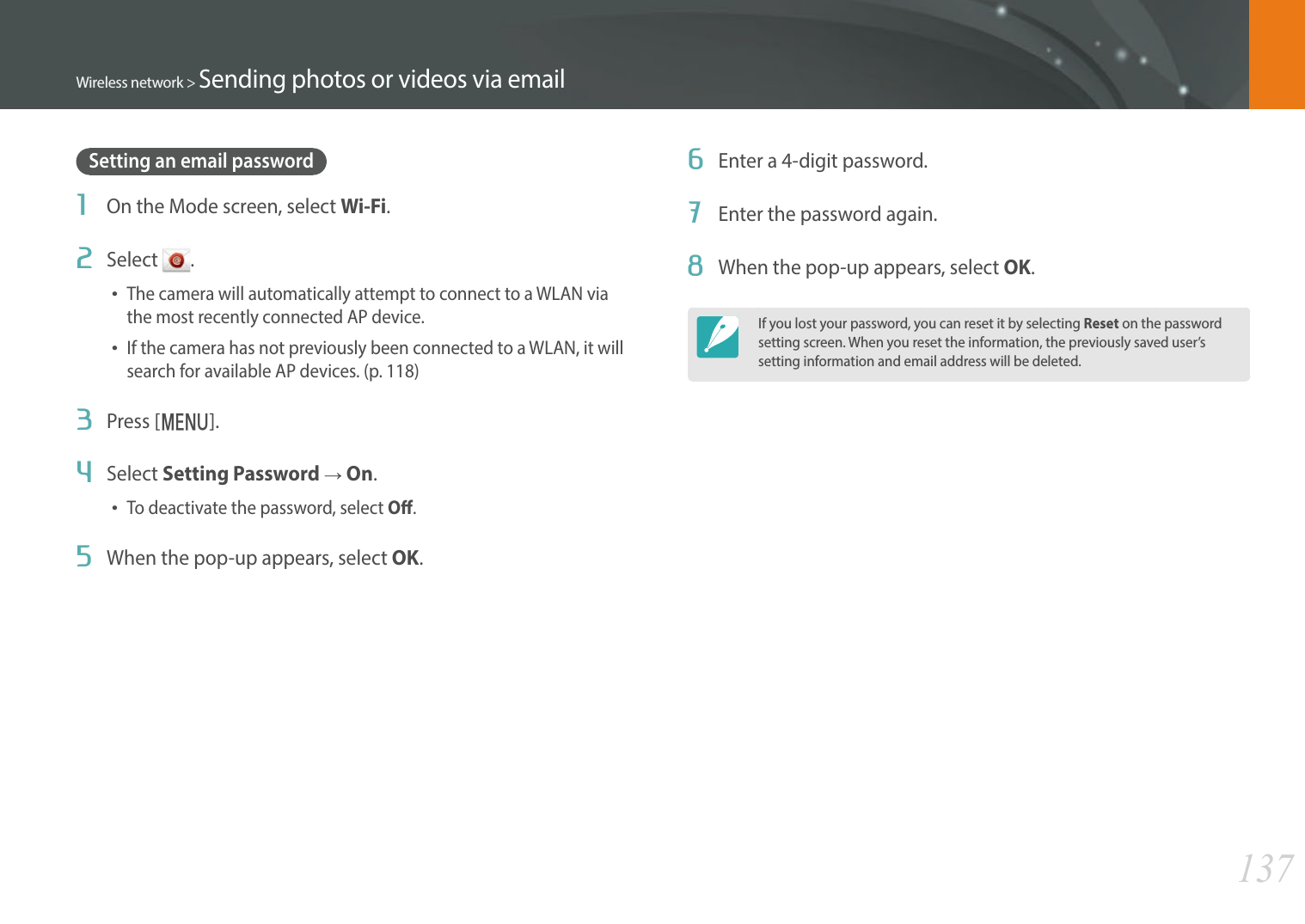

137Wireless network > Sending photos or videos via emailSetting an email password1 On the Mode screen, select Wi-Fi.2 Select .The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 118)3 Press [m].4 Select Setting Password ĺ On.To deactivate the password, select O.5 When the pop-up appears, select OK.6 Enter a 4-digit password.7 Enter the password again.8 When the pop-up appears, select OK.If you lost your password, you can reset it by selecting Reset on the password setting screen. When you reset the information, the previously saved user’s setting information and email address will be deleted.
138Wireless network > Sending photos or videos via emailChanging the email password1 On the Mode screen, select Wi-Fi.2 Select .The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 118)3 Press [m].4 Select Change Password.5 Enter your current 4-digit password.6 Enter a new 4-digit password.7 Enter the new password again.8 When the pop-up appears, select OK.Sending photos or videos via emailYou can send photos or videos stored on the camera via email. For information about entering text, refer to "Entering text". (p. 122)1 On the Mode screen, select Wi-Fi.2 Select .3 Connect to a WLAN. (p. 118)4 Select the Sender box, enter your email address, and then touch Done.If you have previously saved your information, it will be inserted automatically. (p. 136)To use an address from the list of previous senders, select ĺ an address.

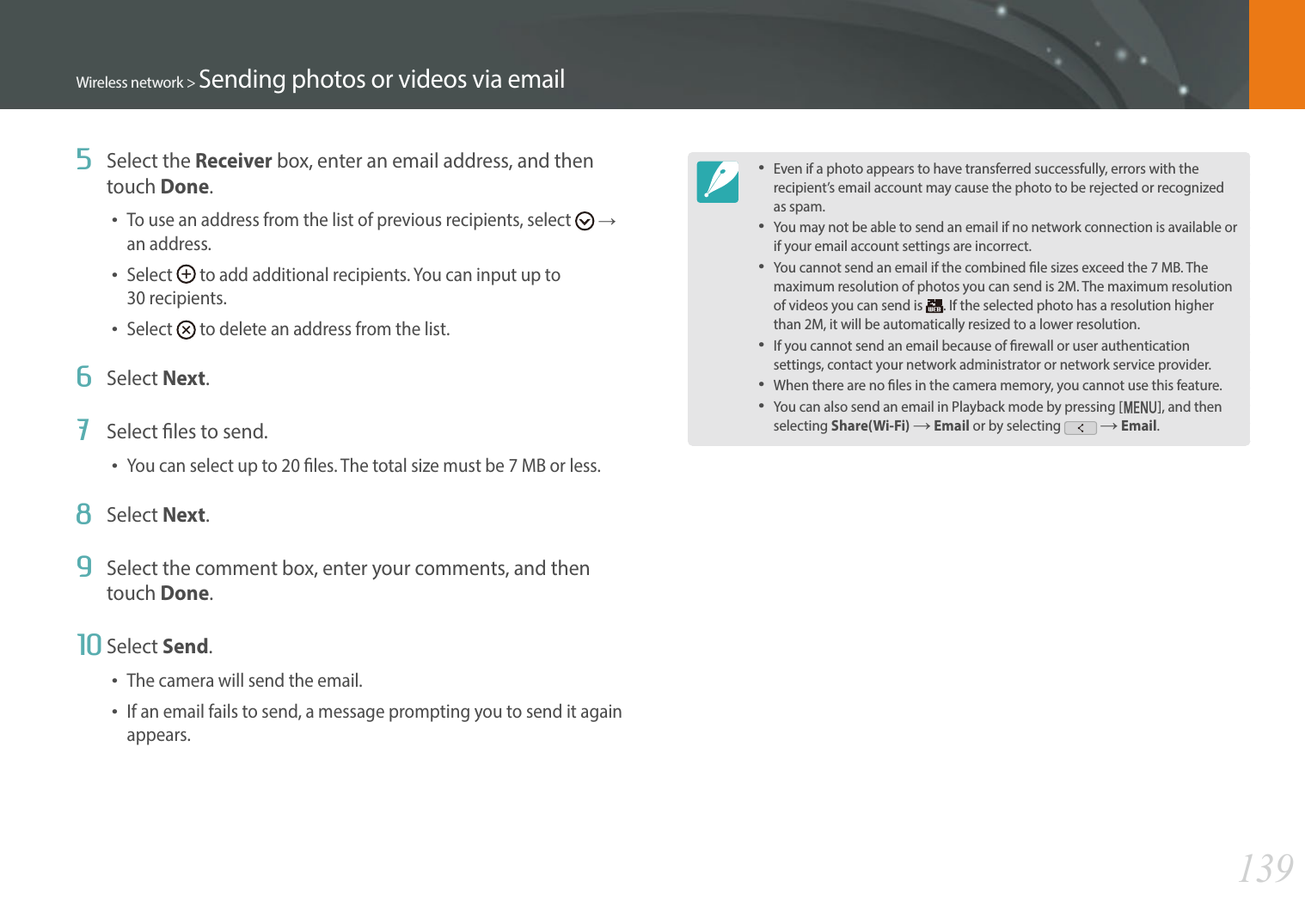

139Wireless network > Sending photos or videos via email5 Select the Receiver box, enter an email address, and then touch Done.To use an address from the list of previous recipients, select ĺ an address.Select to add additional recipients. You can input up to 30 recipients.Select to delete an address from the list.6 Select Next.7 Select les to send.You can select up to 20 les. The total size must be 7 MB or less.8 Select Next.9 Select the comment box, enter your comments, and then touch Done.10 Select Send.The camera will send the email.If an email fails to send, a message prompting you to send it again appears.Even if a photo appears to have transferred successfully, errors with the recipient’s email account may cause the photo to be rejected or recognized as spam.You may not be able to send an email if no network connection is available or if your email account settings are incorrect.You cannot send an email if the combined le sizes exceed the 7 MB. The maximum resolution of photos you can send is 2M. The maximum resolution of videos you can send is . If the selected photo has a resolution higher than 2M, it will be automatically resized to a lower resolution.If you cannot send an email because of rewall or user authentication settings, contact your network administrator or network service provider.When there are no les in the camera memory, you cannot use this feature.You can also send an email in Playback mode by pressing [m], and then selecting Share(Wi-Fi) ĺ Email or by selecting ĺ Email.

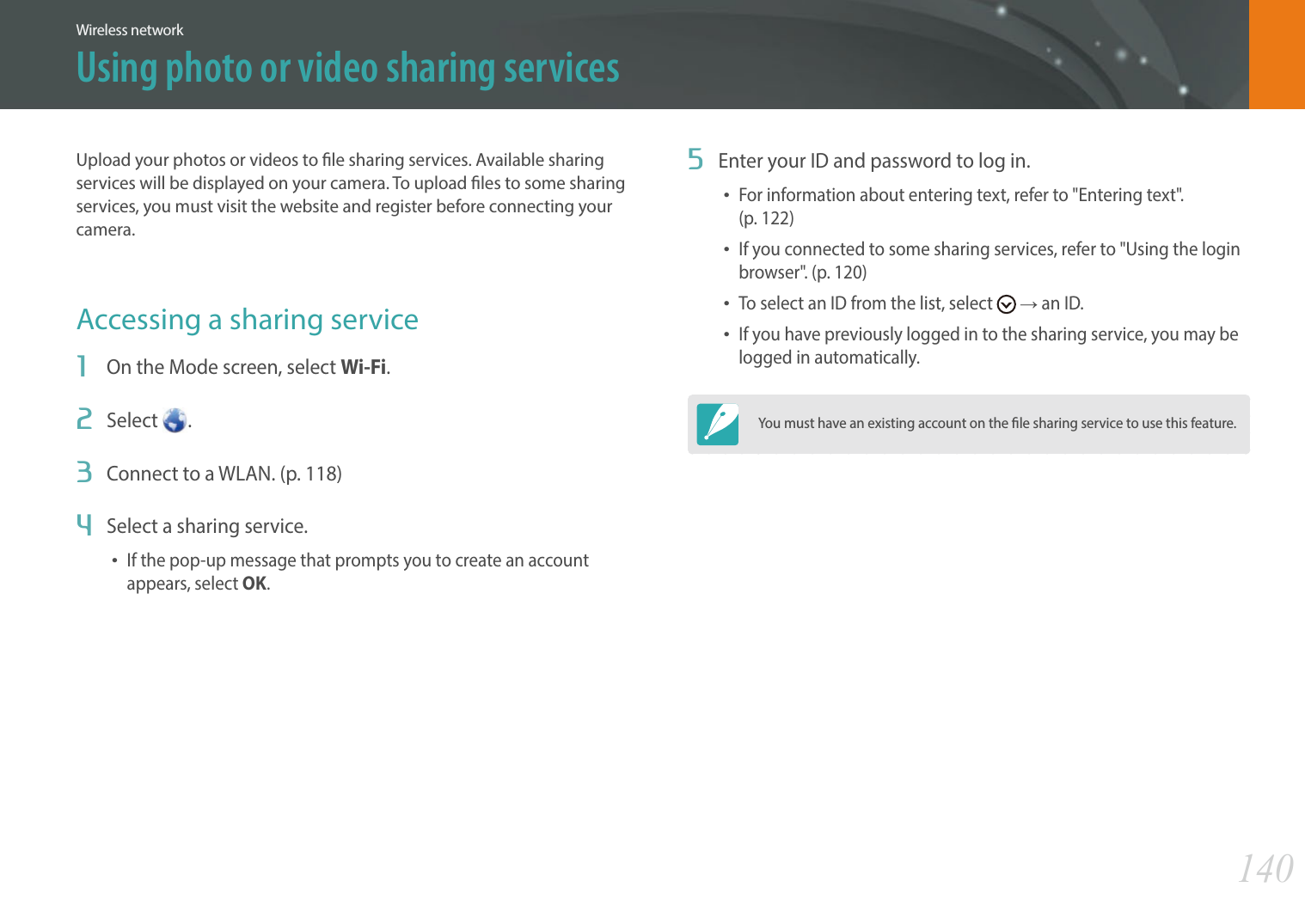

140Wireless networkUpload your photos or videos to le sharing services. Available sharing services will be displayed on your camera. To upload les to some sharing services, you must visit the website and register before connecting your camera.Accessing a sharing service1 On the Mode screen, select Wi-Fi.2 Select .3 Connect to a WLAN. (p. 118)4 Select a sharing service.If the pop-up message that prompts you to create an account appears, select OK.5 Enter your ID and password to log in.For information about entering text, refer to "Entering text". (p. 122)If you connected to some sharing services, refer to "Using the login browser". (p. 120)To select an ID from the list, select ĺ an ID.If you have previously logged in to the sharing service, you may be logged in automatically.You must have an existing account on the le sharing service to use this feature.Using photo or video sharing services

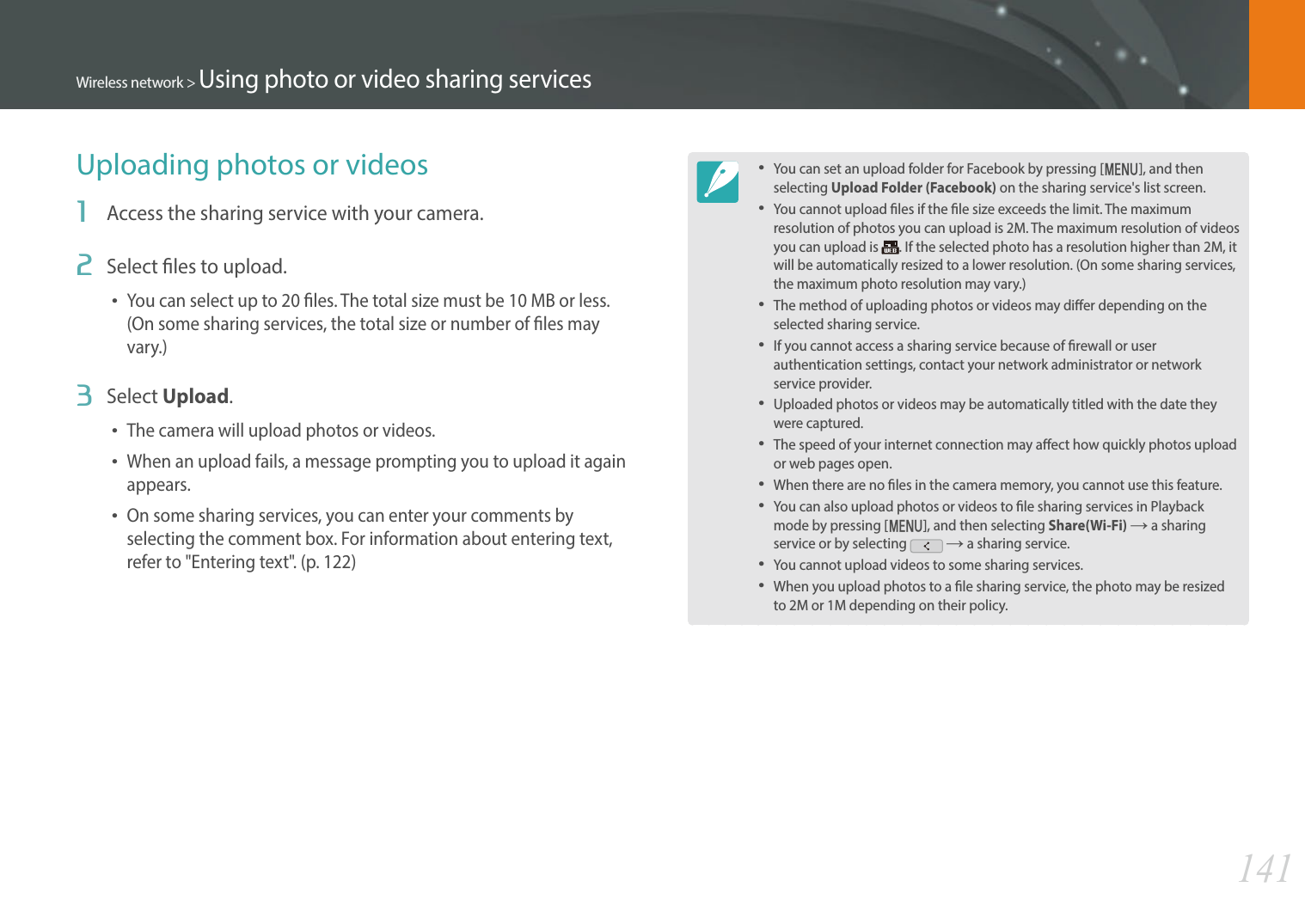

141Wireless network > Using photo or video sharing servicesUploading photos or videos1 Access the sharing service with your camera.2 Select les to upload.You can select up to 20 les. The total size must be 10 MB or less. (On some sharing services, the total size or number of les may vary.)3 Select Upload.The camera will upload photos or videos. When an upload fails, a message prompting you to upload it again appears. On some sharing services, you can enter your comments by selecting the comment box. For information about entering text, refer to "Entering text". (p. 122)You can set an upload folder for Facebook by pressing [m], and then selecting Upload Folder (Facebook) on the sharing service's list screen.You cannot upload les if the le size exceeds the limit. The maximum resolution of photos you can upload is 2M. The maximum resolution of videos you can upload is . If the selected photo has a resolution higher than 2M, it will be automatically resized to a lower resolution. (On some sharing services, the maximum photo resolution may vary.)The method of uploading photos or videos may dier depending on the selected sharing service.If you cannot access a sharing service because of rewall or user authentication settings, contact your network administrator or network service provider.Uploaded photos or videos may be automatically titled with the date they were captured.The speed of your internet connection may aect how quickly photos upload or web pages open.When there are no les in the camera memory, you cannot use this feature.You can also upload photos or videos to le sharing services in Playback mode by pressing [m], and then selecting Share(Wi-Fi) ĺ a sharing service or by selecting ĺ a sharing service.You cannot upload videos to some sharing services.When you upload photos to a le sharing service, the photo may be resized to 2M or 1M depending on their policy.

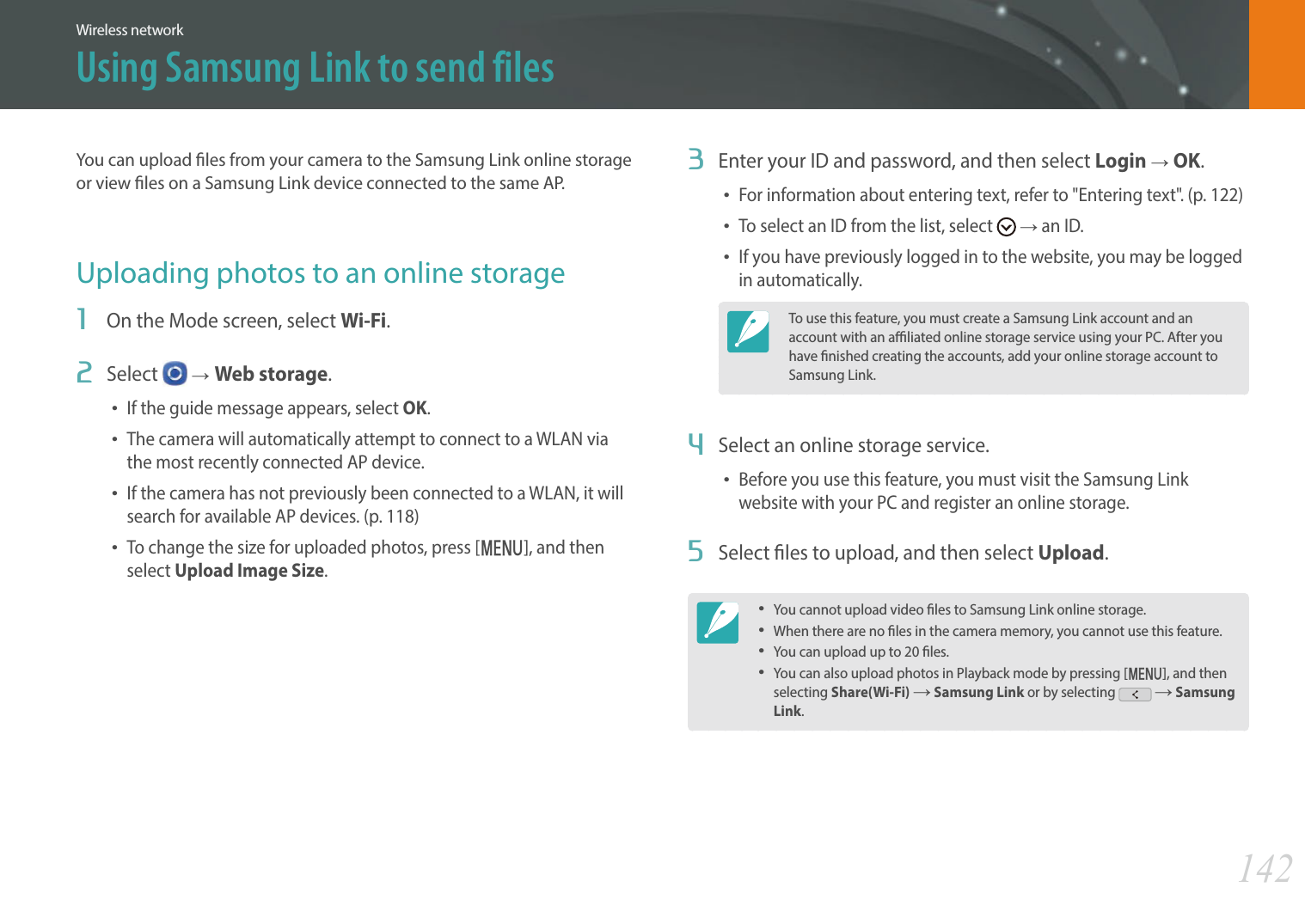

142Wireless networkUsing Samsung Link to send filesYou can upload les from your camera to the Samsung Link online storage or view les on a Samsung Link device connected to the same AP.Uploading photos to an online storage1 On the Mode screen, select Wi-Fi.2 Select ĺWeb storage.If the guide message appears, select OK.The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 118)To change the size for uploaded photos, press [m], and then select Upload Image Size.3 Enter your ID and password, and then select Login ĺ OK.For information about entering text, refer to "Entering text". (p. 122)To select an ID from the list, select ĺ an ID.If you have previously logged in to the website, you may be logged in automatically.To use this feature, you must create a Samsung Link account and an account with an aliated online storage service using your PC. After you have nished creating the accounts, add your online storage account to Samsung Link.4 Select an online storage service.Before you use this feature, you must visit the Samsung Link website with your PC and register an online storage. 5 Select les to upload, and then select Upload. You cannot upload video les to Samsung Link online storage.When there are no les in the camera memory, you cannot use this feature.You can upload up to 20 les.You can also upload photos in Playback mode by pressing [m], and then selecting Share(Wi-Fi) ĺ Samsung Link or by selecting ĺ Samsung Link.

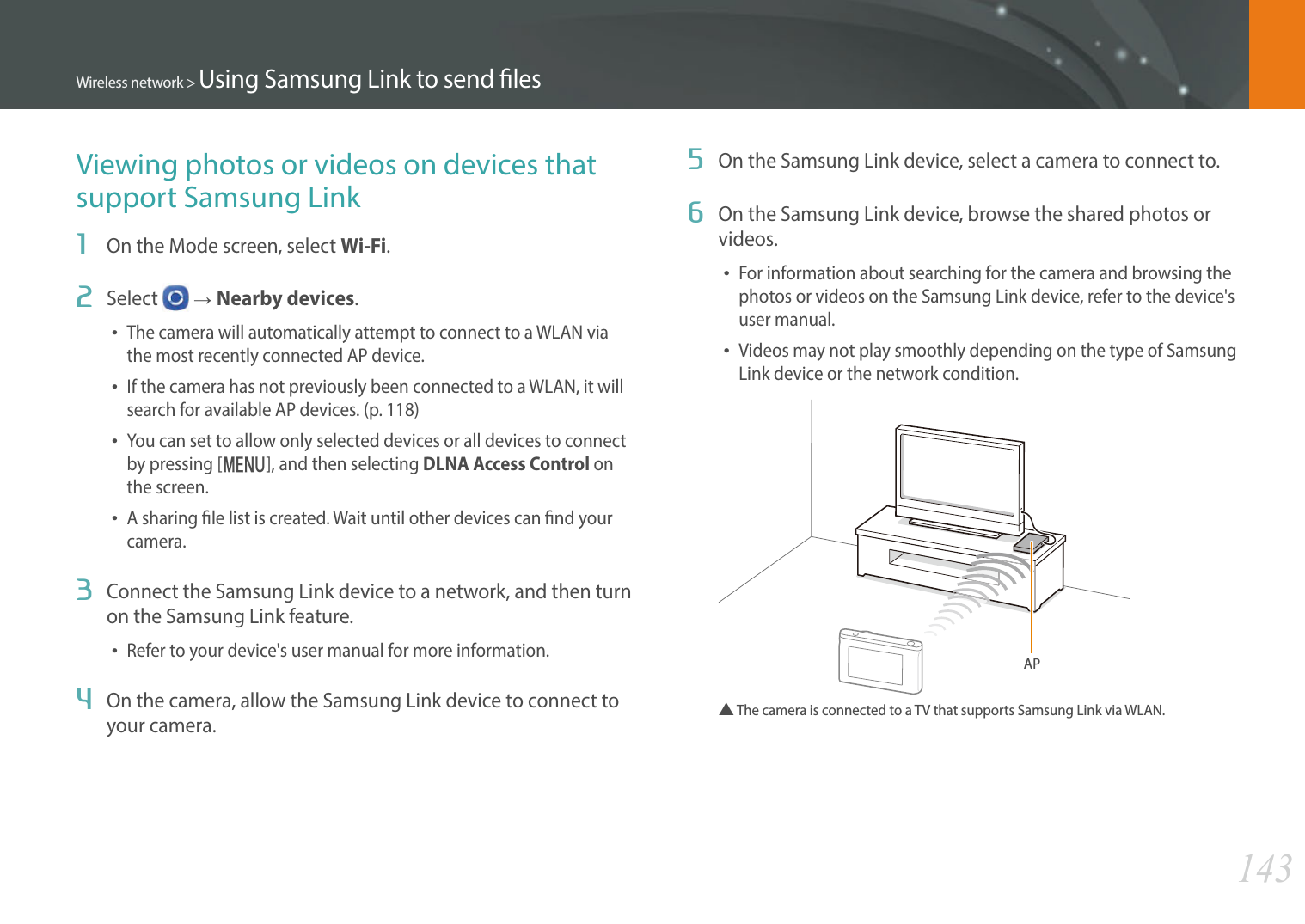

143Wireless network > Using Samsung Link to send lesViewing photos or videos on devices that support Samsung Link1 On the Mode screen, select Wi-Fi.2 Select ĺNearby devices.The camera will automatically attempt to connect to a WLAN via the most recently connected AP device. If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 118)You can set to allow only selected devices or all devices to connect by pressing [m], and then selecting DLNA Access Control on the screen.A sharing le list is created. Wait until other devices can nd your camera.3 Connect the Samsung Link device to a network, and then turn on the Samsung Link feature.Refer to your device's user manual for more information.4 On the camera, allow the Samsung Link device to connect to your camera.5 On the Samsung Link device, select a camera to connect to.6 On the Samsung Link device, browse the shared photos or videos.For information about searching for the camera and browsing the photos or videos on the Samsung Link device, refer to the device's user manual.Videos may not play smoothly depending on the type of Samsung Link device or the network condition.AP▲ The camera is connected to a TV that supports Samsung Link via WLAN.

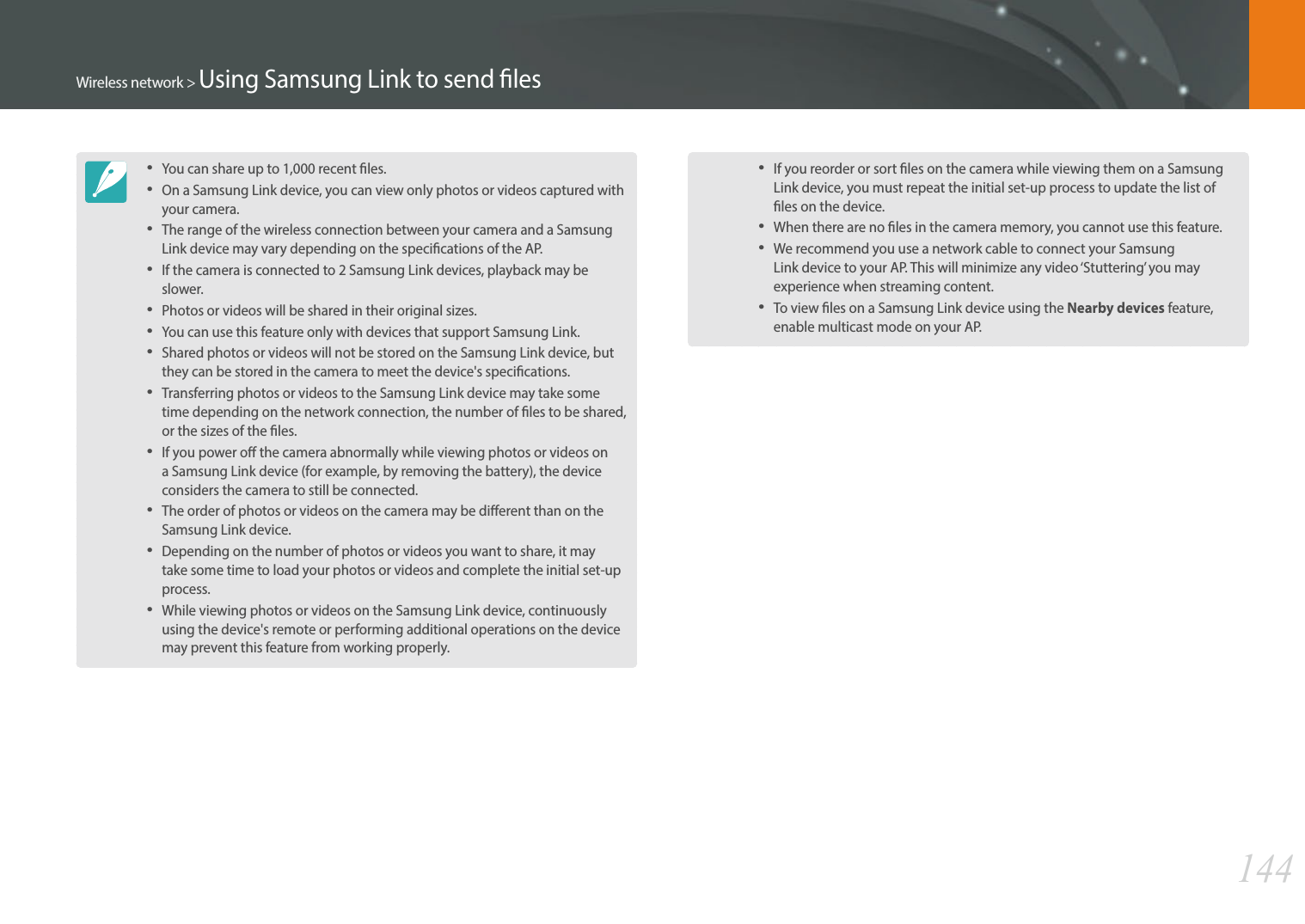

144Wireless network > Using Samsung Link to send lesYou can share up to 1,000 recent les.On a Samsung Link device, you can view only photos or videos captured with your camera.The range of the wireless connection between your camera and a Samsung Link device may vary depending on the specications of the AP.If the camera is connected to 2 Samsung Link devices, playback may be slower.Photos or videos will be shared in their original sizes.You can use this feature only with devices that support Samsung Link.Shared photos or videos will not be stored on the Samsung Link device, but they can be stored in the camera to meet the device's specications.Transferring photos or videos to the Samsung Link device may take some time depending on the network connection, the number of les to be shared, or the sizes of the les.If you power o the camera abnormally while viewing photos or videos on a Samsung Link device (for example, by removing the battery), the device considers the camera to still be connected.The order of photos or videos on the camera may be dierent than on the Samsung Link device.Depending on the number of photos or videos you want to share, it may take some time to load your photos or videos and complete the initial set-up process.While viewing photos or videos on the Samsung Link device, continuously using the device's remote or performing additional operations on the device may prevent this feature from working properly.If you reorder or sort les on the camera while viewing them on a Samsung Link device, you must repeat the initial set-up process to update the list of les on the device.When there are no les in the camera memory, you cannot use this feature.We recommend you use a network cable to connect your Samsung Link device to your AP. This will minimize any video ‘Stuttering’ you may experience when streaming content.To view les on a Samsung Link device using the Nearby devices feature, enable multicast mode on your AP.

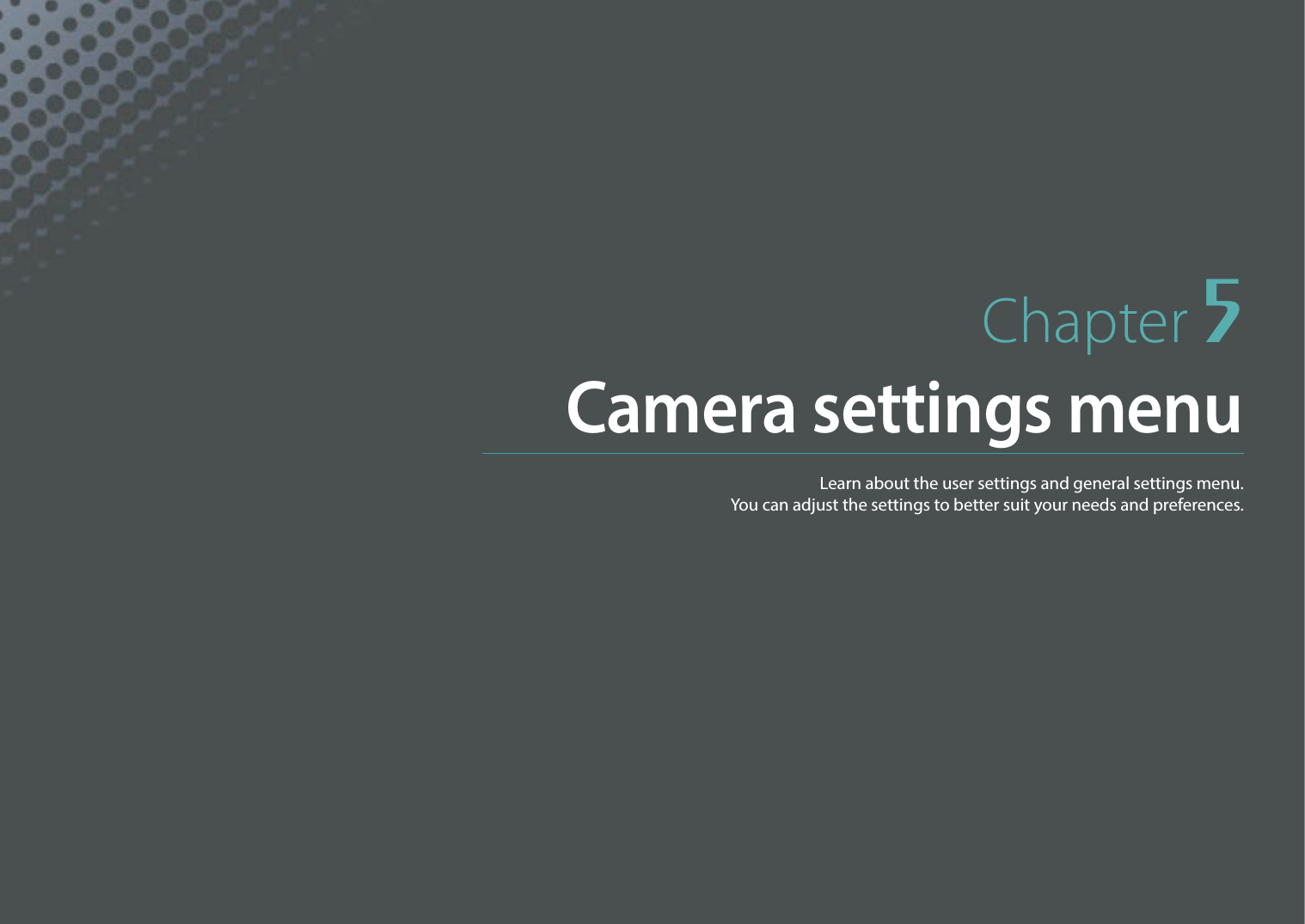

Chapter 5Camera settings menuLearn about the user settings and general settings menu. You can adjust the settings to better suit your needs and preferences.

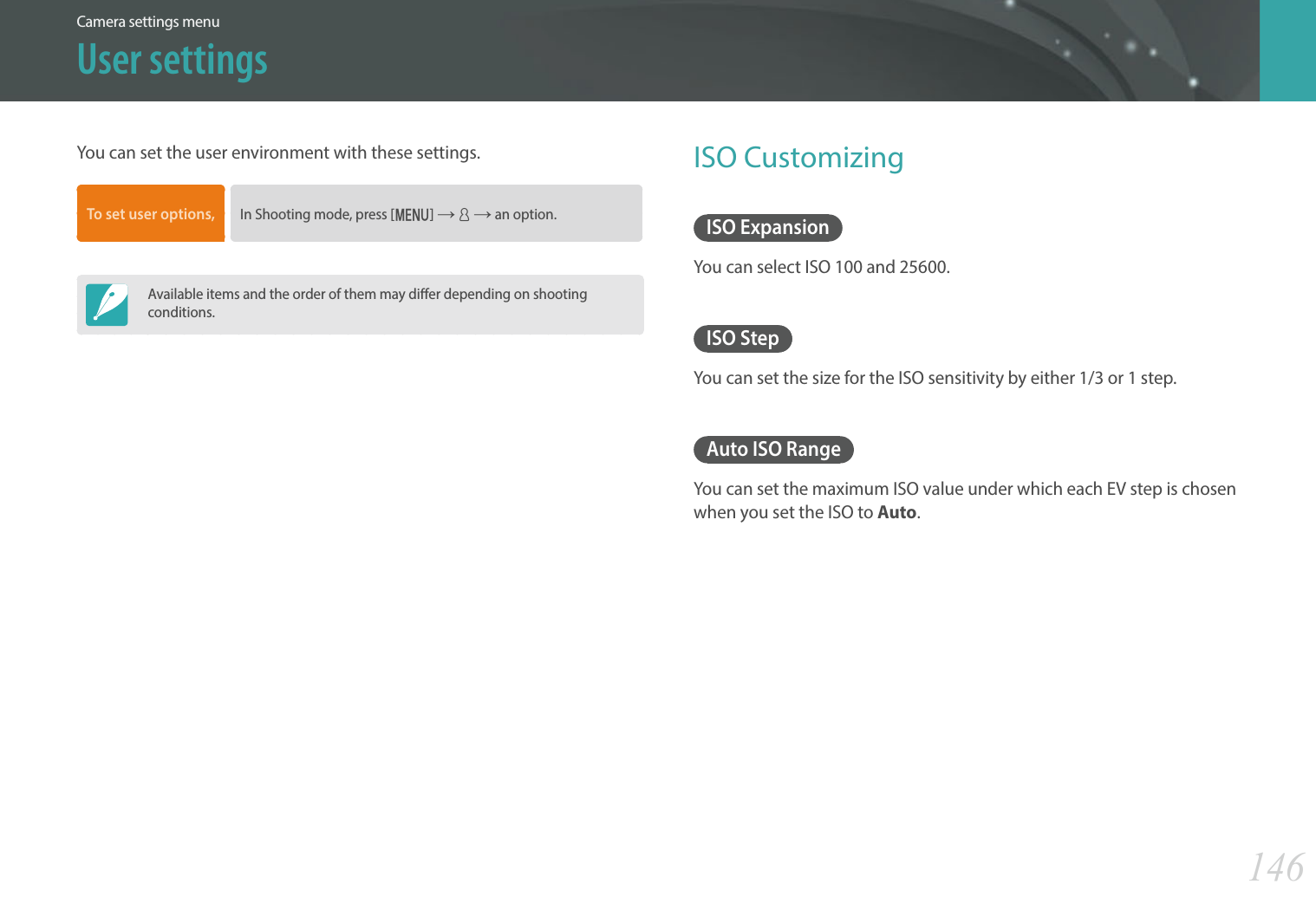

146Camera settings menuYou can set the user environment with these settings.To set user options, In Shooting mode, press [m] ĺ d ĺ an option.Available items and the order of them may dier depending on shooting conditions.ISO CustomizingISO ExpansionYou can select ISO 100 and 25600.ISO StepYou can set the size for the ISO sensitivity by either 1/3 or 1 step.Auto ISO RangeYou can set the maximum ISO value under which each EV step is chosen when you set the ISO to Auto.User settings

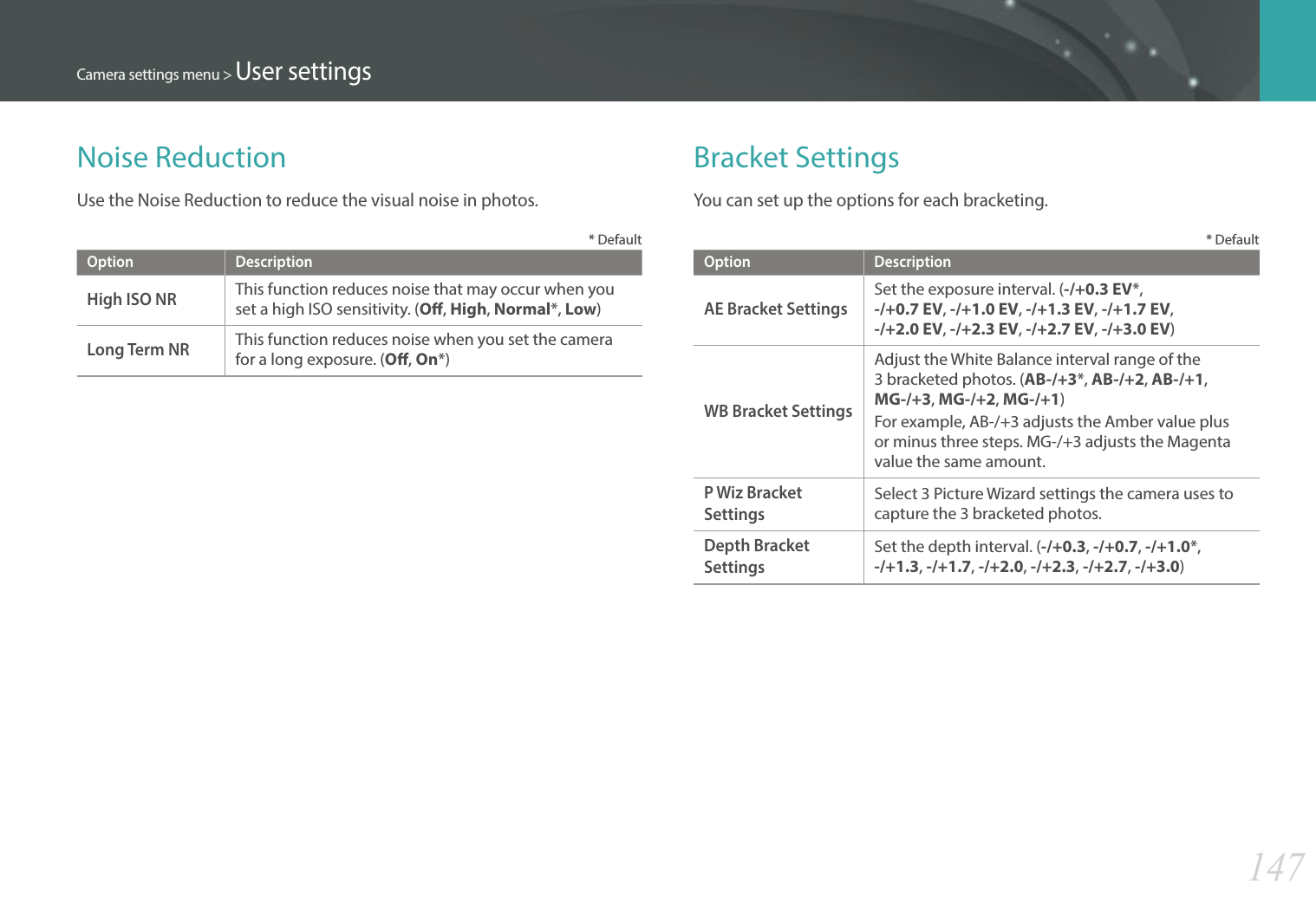

147Camera settings menu > User settingsNoise ReductionUse the Noise Reduction to reduce the visual noise in photos.* DefaultOption DescriptionHigh ISO NRThis function reduces noise that may occur when you set a high ISO sensitivity. (O, High, Normal*, Low)Long Term NRThis function reduces noise when you set the camera for a long exposure. (O, On*)Bracket SettingsYou can set up the options for each bracketing.* DefaultOption DescriptionAE Bracket SettingsSet the exposure interval. (-/+0.3 EV*, -/+0.7 EV, -/+1.0 EV, -/+1.3 EV, -/+1.7 EV, -/+2.0 EV, -/+2.3 EV, -/+2.7 EV, -/+3.0 EV)WB Bracket SettingsAdjust the White Balance interval range of the 3 bracketed photos. (AB-/+3*, AB-/+2, AB-/+1, MG-/+3, MG-/+2, MG-/+1)For example, AB-/+3 adjusts the Amber value plus or minus three steps. MG-/+3 adjusts the Magenta value the same amount.P Wiz Bracket SettingsSelect 3 Picture Wizard settings the camera uses to capture the 3 bracketed photos.Depth Bracket SettingsSet the depth interval. (-/+0.3, -/+0.7, -/+1.0*, -/+1.3, -/+1.7, -/+2.0, -/+2.3, -/+2.7, -/+3.0)

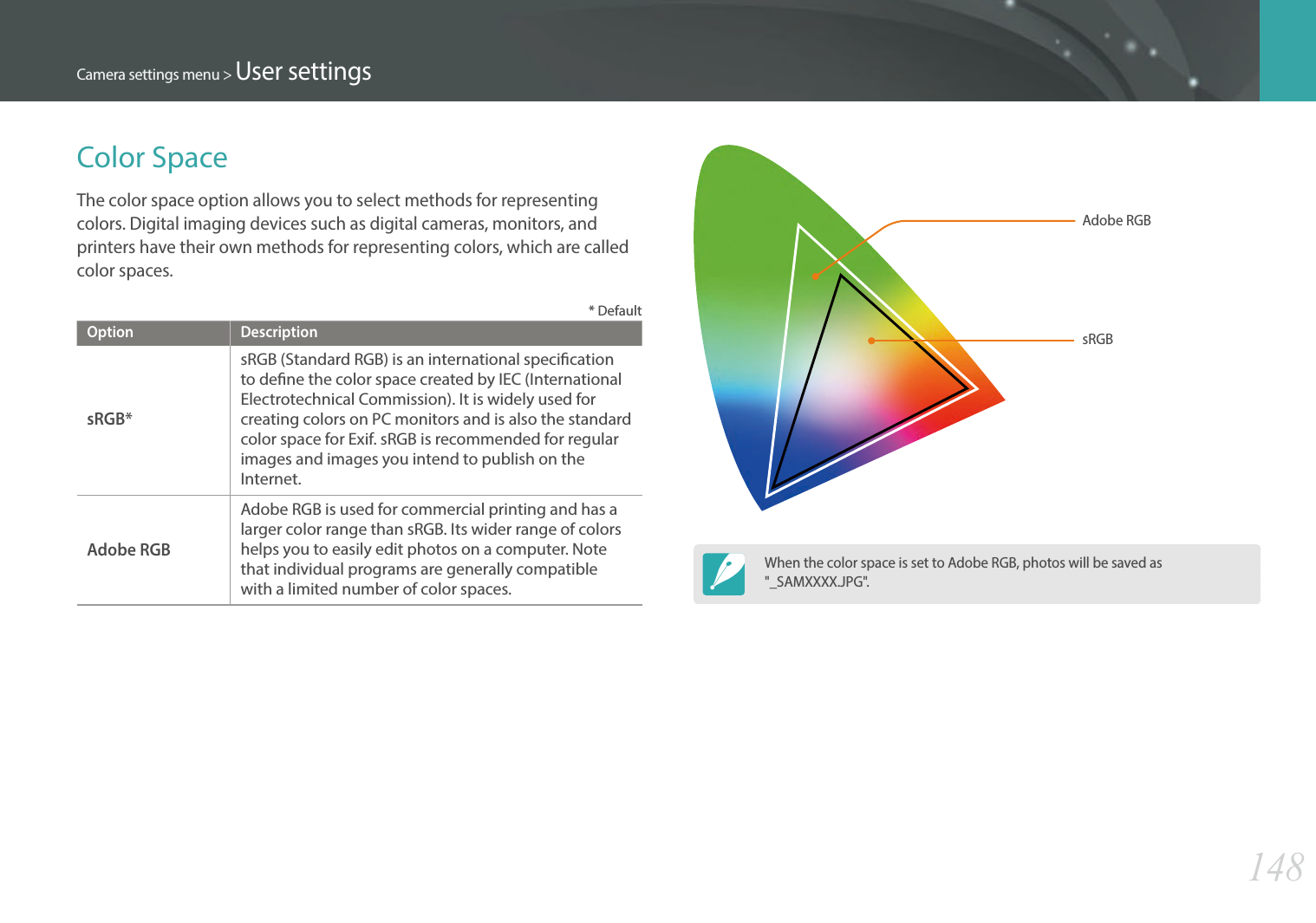

148Camera settings menu > User settingsColor SpaceThe color space option allows you to select methods for representing colors. Digital imaging devices such as digital cameras, monitors, and printers have their own methods for representing colors, which are called color spaces.* DefaultOption DescriptionsRGB* sRGB (Standard RGB) is an international specication to dene the color space created by IEC (International Electrotechnical Commission). It is widely used for creating colors on PC monitors and is also the standard color space for Exif. sRGB is recommended for regular images and images you intend to publish on the Internet.Adobe RGBAdobe RGB is used for commercial printing and has a larger color range than sRGB. Its wider range of colors helps you to easily edit photos on a computer. Note that individual programs are generally compatible with a limited number of color spaces.Adobe RGBsRGBWhen the color space is set to Adobe RGB, photos will be saved as "_SAMXXXX.JPG".

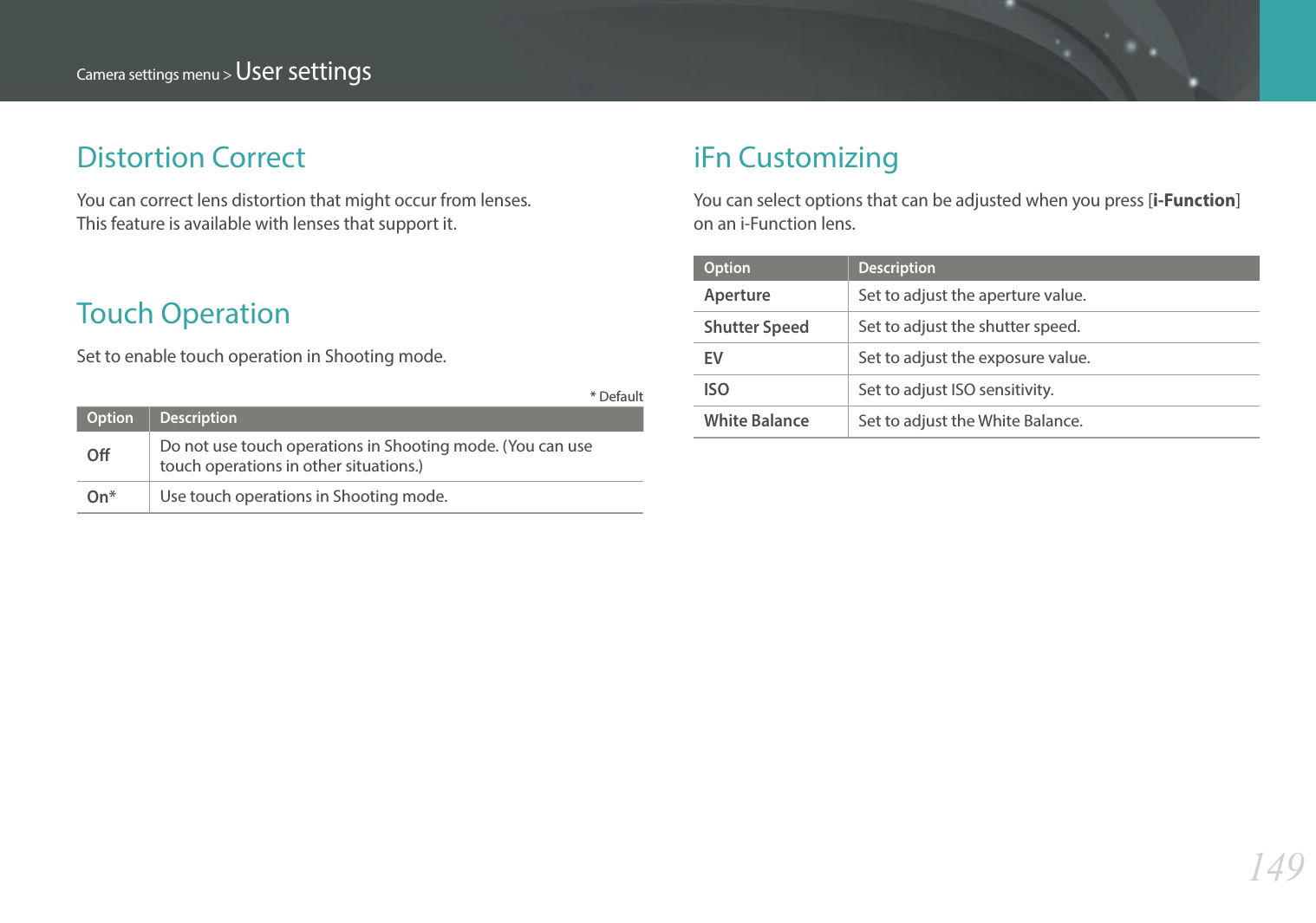

149Camera settings menu > User settingsDistortion CorrectYou can correct lens distortion that might occur from lenses. This feature is available with lenses that support it.Touch OperationSet to enable touch operation in Shooting mode.* DefaultOption DescriptionODo not use touch operations in Shooting mode. (You can use touch operations in other situations.)On*Use touch operations in Shooting mode.iFn CustomizingYou can select options that can be adjusted when you press [i-Function] on an i-Function lens. Option DescriptionApertureSet to adjust the aperture value.Shutter SpeedSet to adjust the shutter speed. EVSet to adjust the exposure value.ISOSet to adjust ISO sensitivity.White Balance Set to adjust the White Balance.

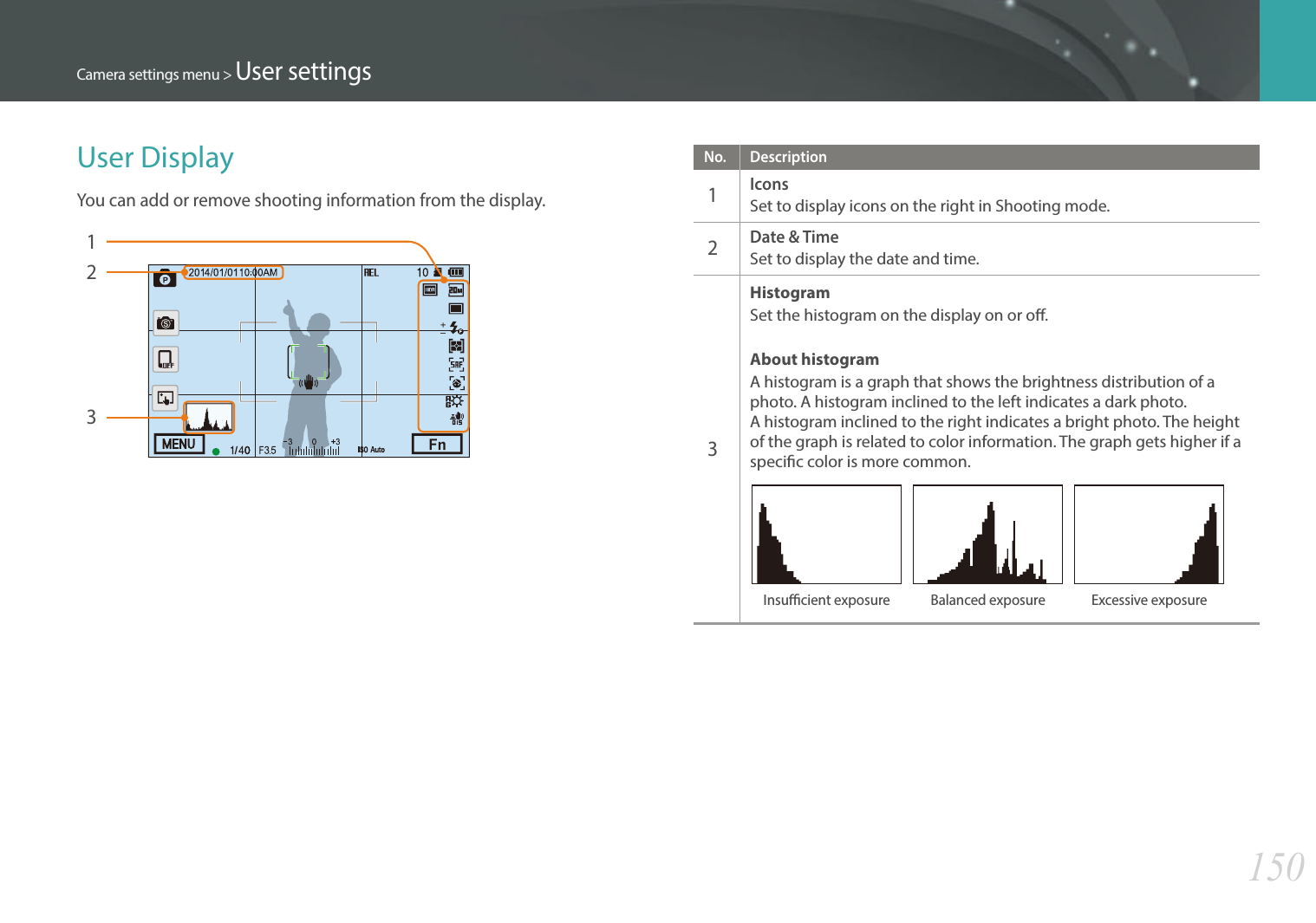

150Camera settings menu > User settingsUser DisplayYou can add or remove shooting information from the display.123No. Description1 IconsSet to display icons on the right in Shooting mode.2 Date & TimeSet to display the date and time.3 HistogramSet the histogram on the display on or o.About histogramA histogram is a graph that shows the brightness distribution of a photo. A histogram inclined to the left indicates a dark photo. A histogram inclined to the right indicates a bright photo. The height of the graph is related to color information. The graph gets higher if a specic color is more common.Insucient exposure Balanced exposure Excessive exposure

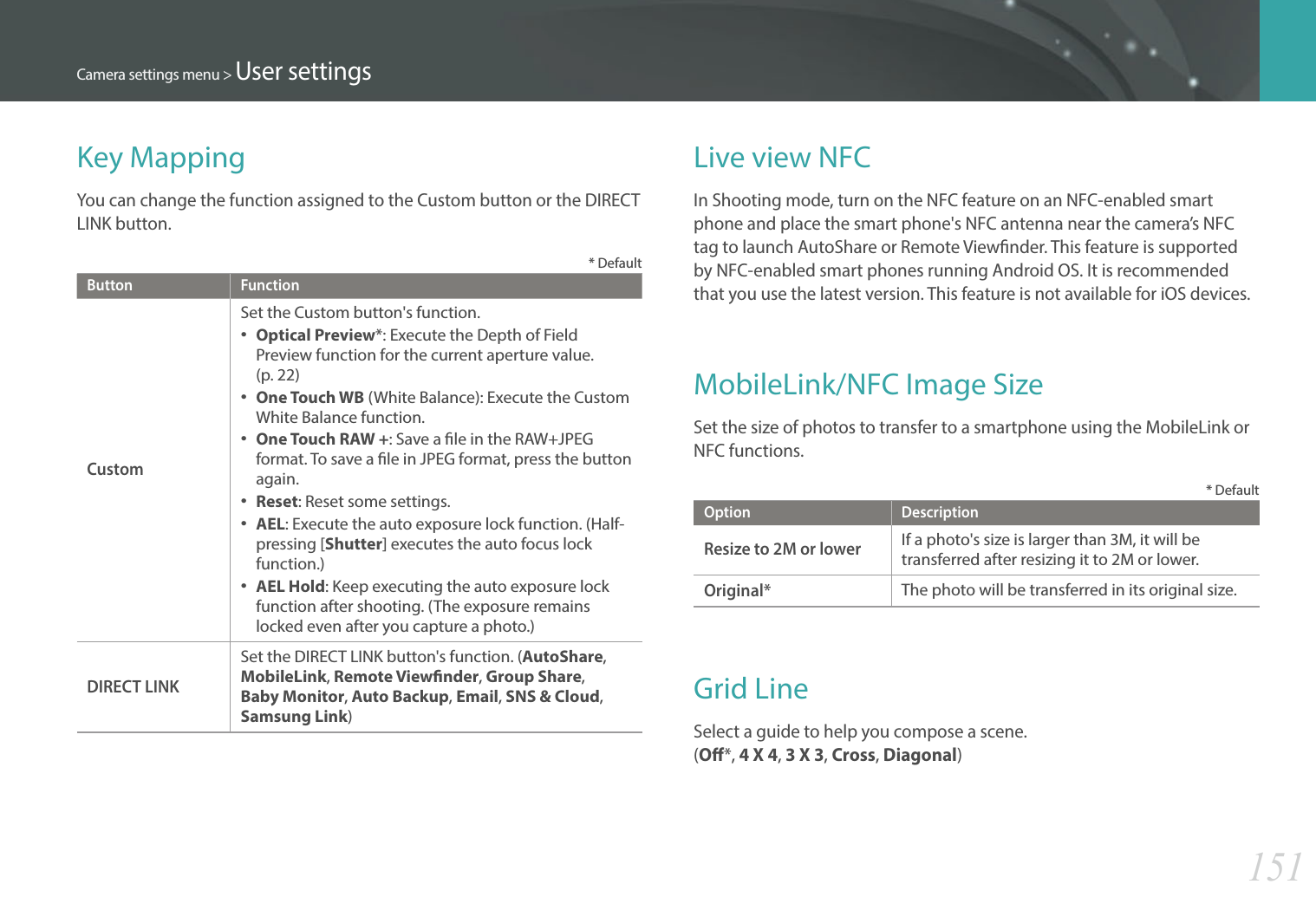

151Camera settings menu > User settingsKey MappingYou can change the function assigned to the Custom button or the DIRECT LINK button.* DefaultButton FunctionCustomSet the Custom button's function. Optical Preview*: Execute the Depth of Field Preview function for the current aperture value. (p. 22) One Touch WB (White Balance): Execute the Custom White Balance function. One Touch RAW +: Save a le in the RAW+JPEG format. To save a le in JPEG format, press the button again. Reset: Reset some settings. AEL: Execute the auto exposure lock function. (Half-pressing [Shutter] executes the auto focus lock function.) AEL Hold: Keep executing the auto exposure lock function after shooting. (The exposure remains locked even after you capture a photo.)DIRECT LINKSet the DIRECT LINK button's function. (AutoShare, MobileLink, Remote Viewnder, Group Share, Baby Monitor, Auto Backup, Email, SNS & Cloud, Samsung Link)Live view NFCIn Shooting mode, turn on the NFC feature on an NFC-enabled smart phone and place the smart phone's NFC antenna near the camera’s NFC tag to launch AutoShare or Remote Viewnder. This feature is supported by NFC-enabled smart phones running Android OS. It is recommended that you use the latest version. This feature is not available for iOS devices. MobileLink/NFC Image Size Set the size of photos to transfer to a smartphone using the MobileLink or NFC functions. * DefaultOption DescriptionResize to 2M or lowerIf a photo's size is larger than 3M, it will be transferred after resizing it to 2M or lower. Original* The photo will be transferred in its original size.Grid LineSelect a guide to help you compose a scene. (O*, 4 X 4, 3 X 3, Cross, Diagonal)

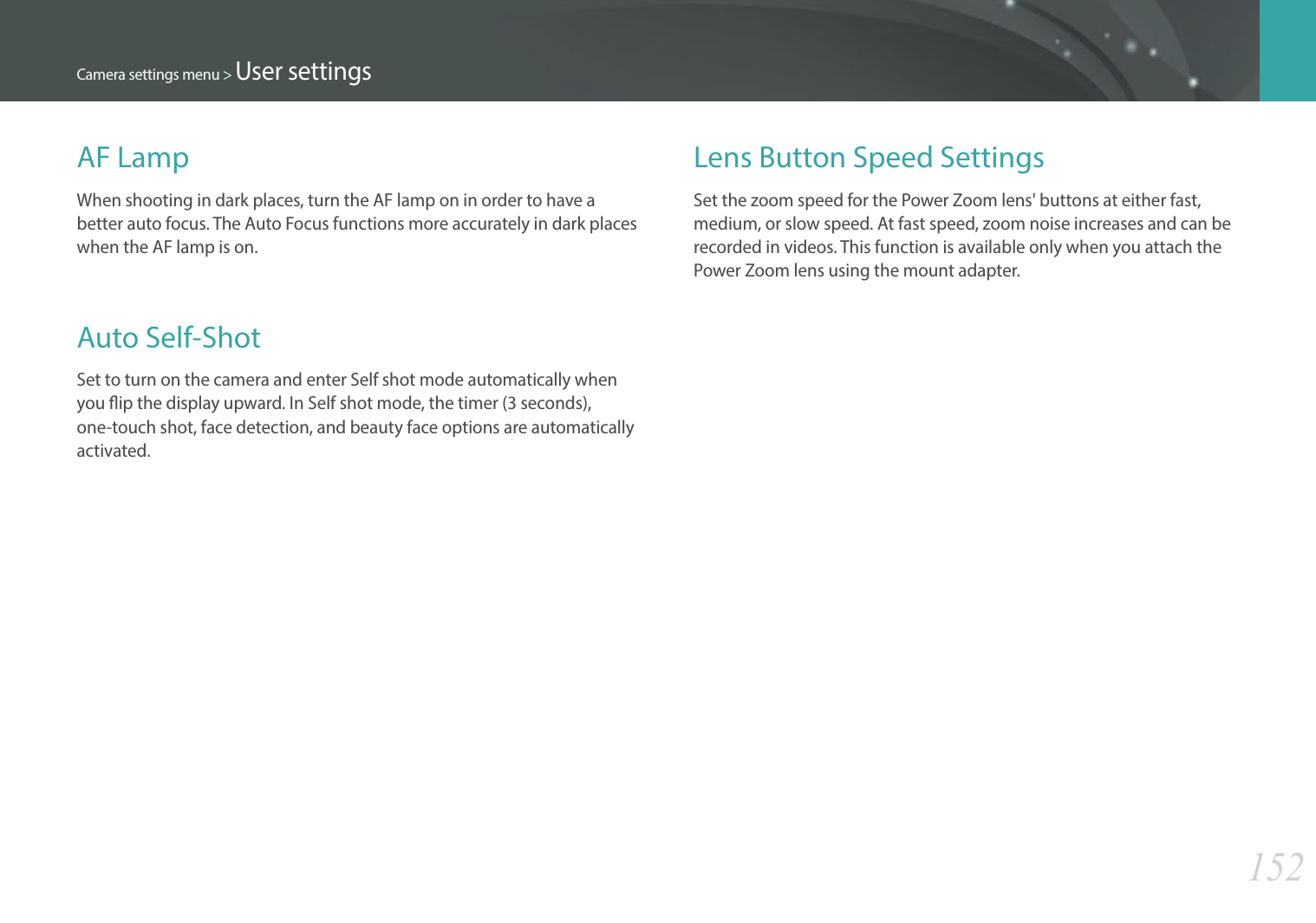

152Camera settings menu > User settingsLens Button Speed SettingsSet the zoom speed for the Power Zoom lens' buttons at either fast, medium, or slow speed. At fast speed, zoom noise increases and can be recorded in videos. This function is available only when you attach the Power Zoom lens using the mount adapter.AF LampWhen shooting in dark places, turn the AF lamp on in order to have a better auto focus. The Auto Focus functions more accurately in dark places when the AF lamp is on.Auto Self-ShotSet to turn on the camera and enter Self shot mode automatically when you ip the display upward. In Self shot mode, the timer (3 seconds), one-touch shot, face detection, and beauty face options are automatically activated.

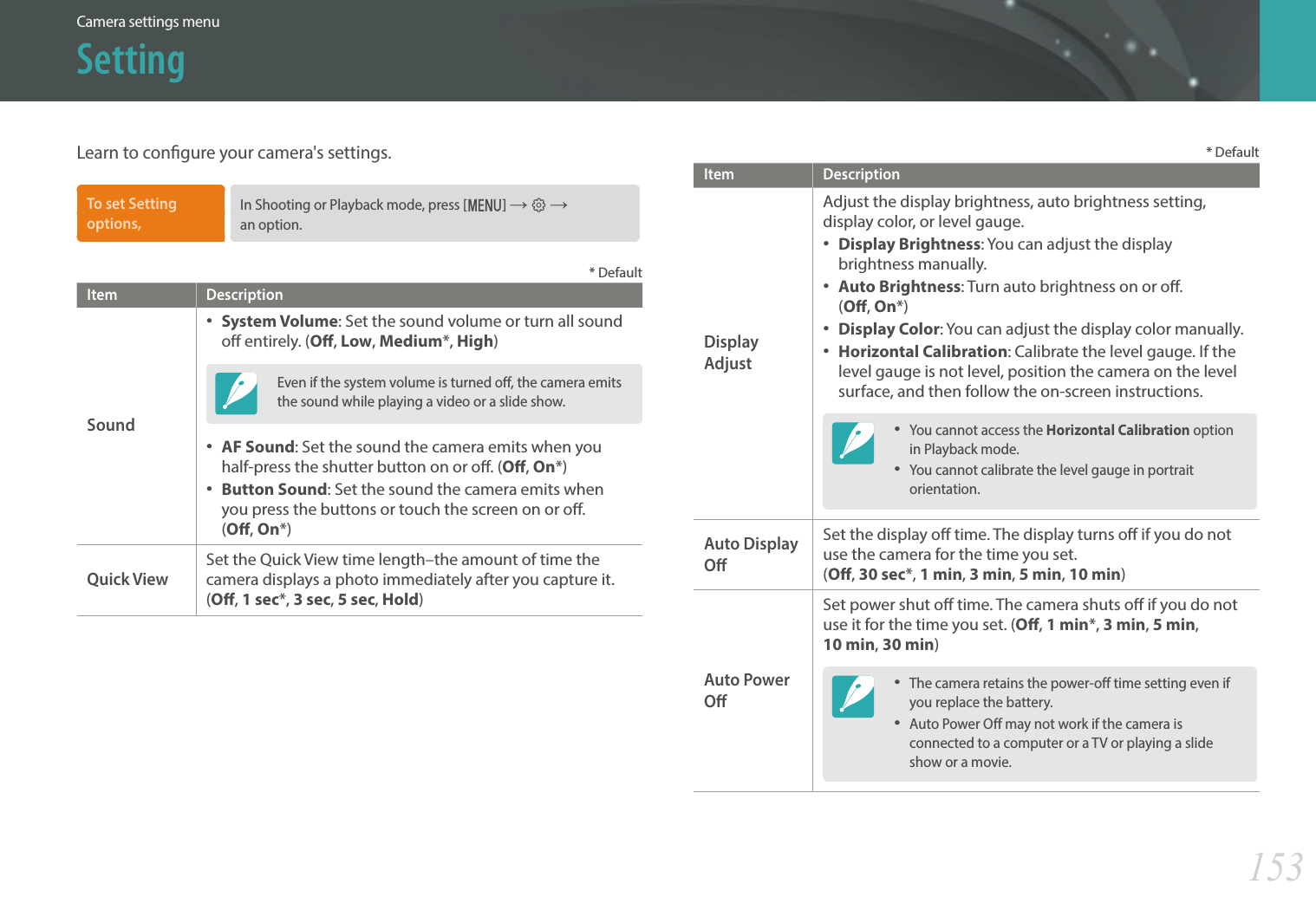

153Camera settings menuLearn to congure your camera's settings.To set Setting options, In Shooting or Playback mode, press [m] ĺ q ĺ an option.* DefaultItem DescriptionSound System Volume: Set the sound volume or turn all sound o entirely. (O, Low, Medium*, High)Even if the system volume is turned o, the camera emits the sound while playing a video or a slide show. AF Sound: Set the sound the camera emits when you half-press the shutter button on or o. (O, On*) Button Sound: Set the sound the camera emits when you press the buttons or touch the screen on or o. (O, On*)Quick ViewSet the Quick View time length–the amount of time the camera displays a photo immediately after you capture it. (O, 1 sec*, 3 sec, 5 sec, Hold)* DefaultItem DescriptionDisplay AdjustAdjust the display brightness, auto brightness setting, display color, or level gauge. Display Brightness: You can adjust the display brightness manually. Auto Brightness: Turn auto brightness on or o. (O, On*) Display Color: You can adjust the display color manually. Horizontal Calibration: Calibrate the level gauge. If the level gauge is not level, position the camera on the level surface, and then follow the on-screen instructions.You cannot access the Horizontal Calibration option in Playback mode.You cannot calibrate the level gauge in portrait orientation.Auto Display OSet the display o time. The display turns o if you do not use the camera for the time you set. (O, 30 sec*, 1 min, 3 min, 5 min, 10 min)Auto Power OSet power shut o time. The camera shuts o if you do not use it for the time you set. (O, 1 min*, 3 min, 5 min, 10 min, 30 min)The camera retains the power-o time setting even if you replace the battery.Auto Power O may not work if the camera is connected to a computer or a TV or playing a slide show or a movie.Setting

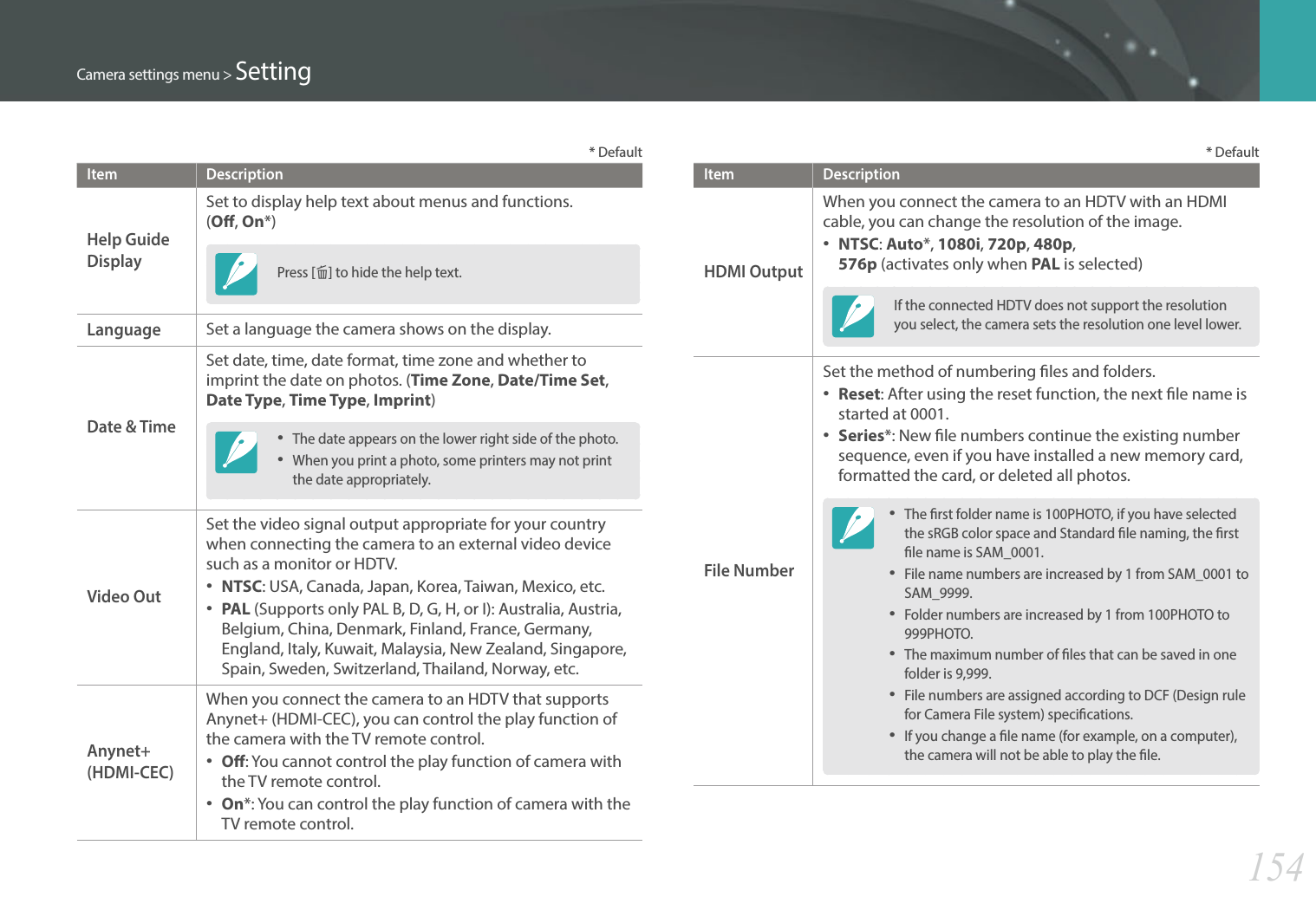

154Camera settings menu > Setting* DefaultItem DescriptionHelp Guide DisplaySet to display help text about menus and functions. (O, On*)Press [n] to hide the help text.LanguageSet a language the camera shows on the display.Date & TimeSet date, time, date format, time zone and whether to imprint the date on photos. (Time Zone, Date/Time Set, Date Type, Time Type, Imprint)The date appears on the lower right side of the photo.When you print a photo, some printers may not print the date appropriately. Video OutSet the video signal output appropriate for your country when connecting the camera to an external video device such as a monitor or HDTV. NTSC: USA, Canada, Japan, Korea, Taiwan, Mexico, etc. PAL (Supports only PAL B, D, G, H, or I): Australia, Austria, Belgium, China, Denmark, Finland, France, Germany, England, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway, etc.Anynet+ (HDMI-CEC)When you connect the camera to an HDTV that supports Anynet+ (HDMI-CEC), you can control the play function of the camera with the TV remote control. O: You cannot control the play function of camera with the TV remote control. On*: You can control the play function of camera with the TV remote control.* DefaultItem DescriptionHDMI OutputWhen you connect the camera to an HDTV with an HDMI cable, you can change the resolution of the image. NTSC: Auto*, 1080i, 720p, 480p, 576p (activates only when PAL is selected)If the connected HDTV does not support the resolution you select, the camera sets the resolution one level lower.File NumberSet the method of numbering les and folders. Reset: After using the reset function, the next le name is started at 0001. Series*: New le numbers continue the existing number sequence, even if you have installed a new memory card, formatted the card, or deleted all photos.The rst folder name is 100PHOTO, if you have selected the sRGB color space and Standard le naming, the rst le name is SAM_0001.File name numbers are increased by 1 from SAM_0001 to SAM_9999.Folder numbers are increased by 1 from 100PHOTO to 999PHOTO.The maximum number of les that can be saved in one folder is 9,999.File numbers are assigned according to DCF (Design rule for Camera File system) specications.If you change a le name (for example, on a computer), the camera will not be able to play the le.
155Camera settings menu > Setting* DefaultItem DescriptionFormatFormat the memory card. Formatting deletes all existing les including protected les. (No*, Yes)Errors can occur if you use a memory card formatted by another brand of camera, a memory card reader, or a computer. Please format memory cards in the camera before using them to capture photos.Device InformationView the rmware version of the body and the lens, Mac address, and network certication number, or update the rmware. Firmware Update: Update the rmware of the camera body or lens. (Body Firmware, Lens Firmware)You can update the rmware by connecting the camera to the computer and starting i-Launcher. For more details, refer to page 177. You cannot run a rmware upgrade without a fully charged battery. Recharge the battery fully before running a rmware upgrade.If you update the rmware, user settings and values will be reset. (Date, time, language, and video out will not change.)Do not turn the camera o while the update is in progress.* DefaultItem DescriptionWi-Fi Privacy lockSet to require a PIN when connecting the camera and a smart phone. PIN: Enter a PIN before connecting. None*: Allow a connection without requiring a PIN.Connections will automatically be made without requiring a PIN when using the NFC function.PINs are automatically generated and renewed only when you reset the camera settings or update the rmware.If you have previously connected your camera to a smart phone via a PIN, they will connect automatically.ResetReset the setup menu and shooting options to the factory defaults. (Date, time, language, and video output settings do not change.) (No*, Yes)Open Source LicenseView open source licenses.

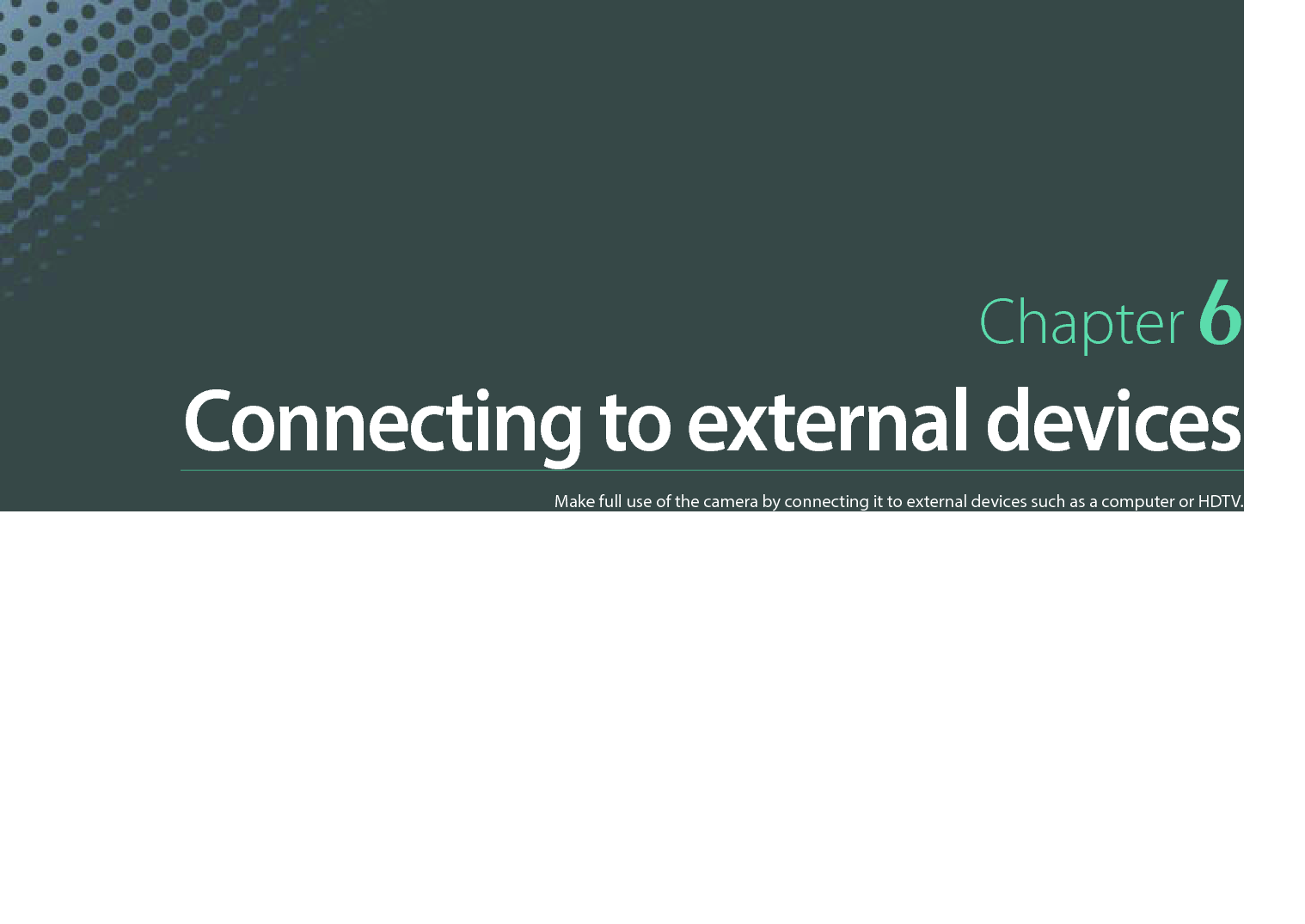

Chapter 6Connecting to external devicesMake full use of the camera by connecting it to external devices such as a computer or HDTV.

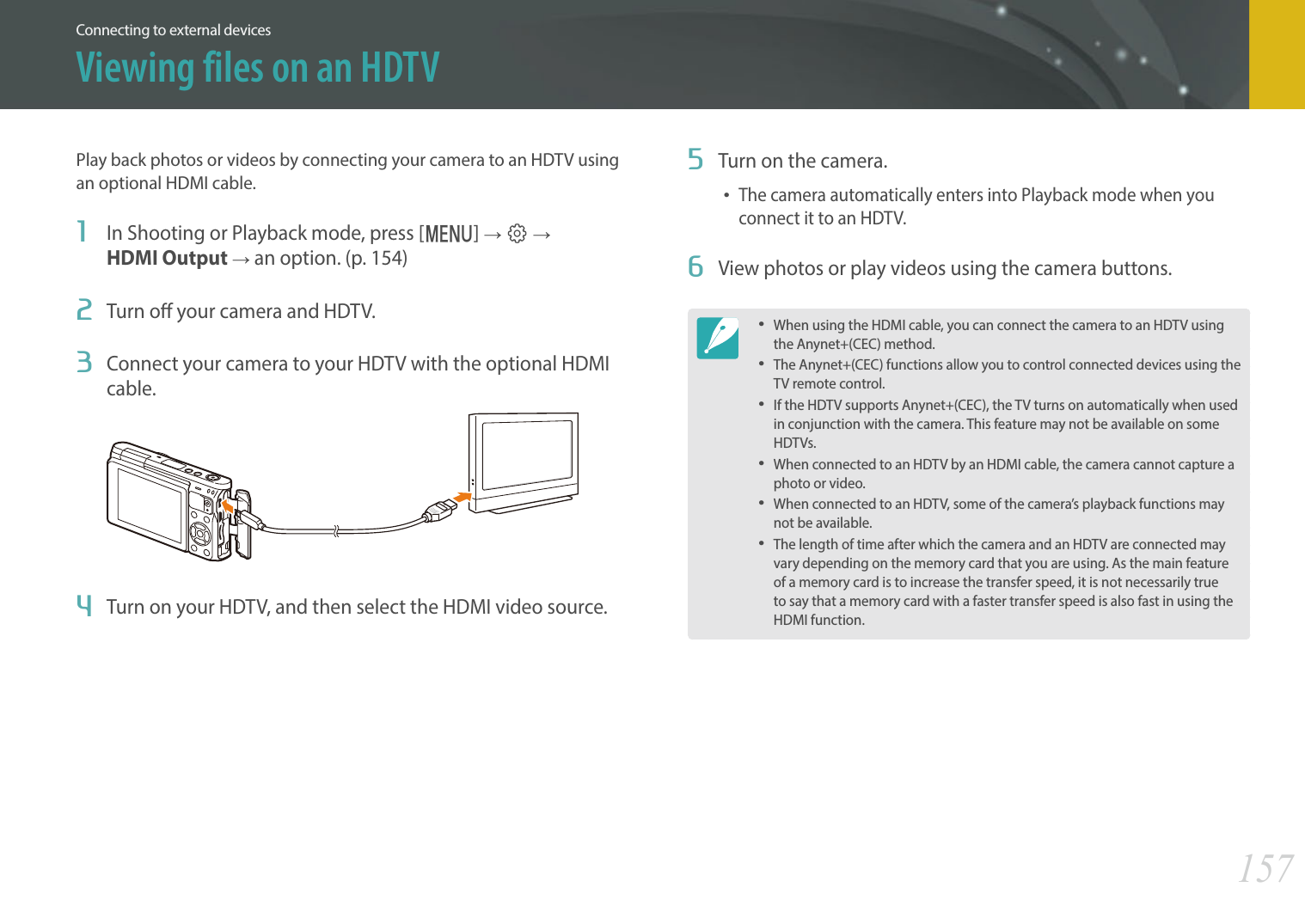

157Connecting to external devicesPlay back photos or videos by connecting your camera to an HDTV using an optional HDMI cable.1 In Shooting or Playback mode, press [m] ĺ q ĺ HDMI Output ĺ an option. (p. 154)2 Turn o your camera and HDTV.3 Connect your camera to your HDTV with the optional HDMI cable.4 Turn on your HDTV, and then select the HDMI video source.5 Turn on the camera.The camera automatically enters into Playback mode when you connect it to an HDTV. 6 View photos or play videos using the camera buttons.When using the HDMI cable, you can connect the camera to an HDTV using the Anynet+(CEC) method. The Anynet+(CEC) functions allow you to control connected devices using the TV remote control.If the HDTV supports Anynet+(CEC), the TV turns on automatically when used in conjunction with the camera. This feature may not be available on some HDTVs.When connected to an HDTV by an HDMI cable, the camera cannot capture a photo or video. When connected to an HDTV, some of the camera’s playback functions may not be available.The length of time after which the camera and an HDTV are connected may vary depending on the memory card that you are using. As the main feature of a memory card is to increase the transfer speed, it is not necessarily true to say that a memory card with a faster transfer speed is also fast in using the HDMI function.Viewing files on an HDTV

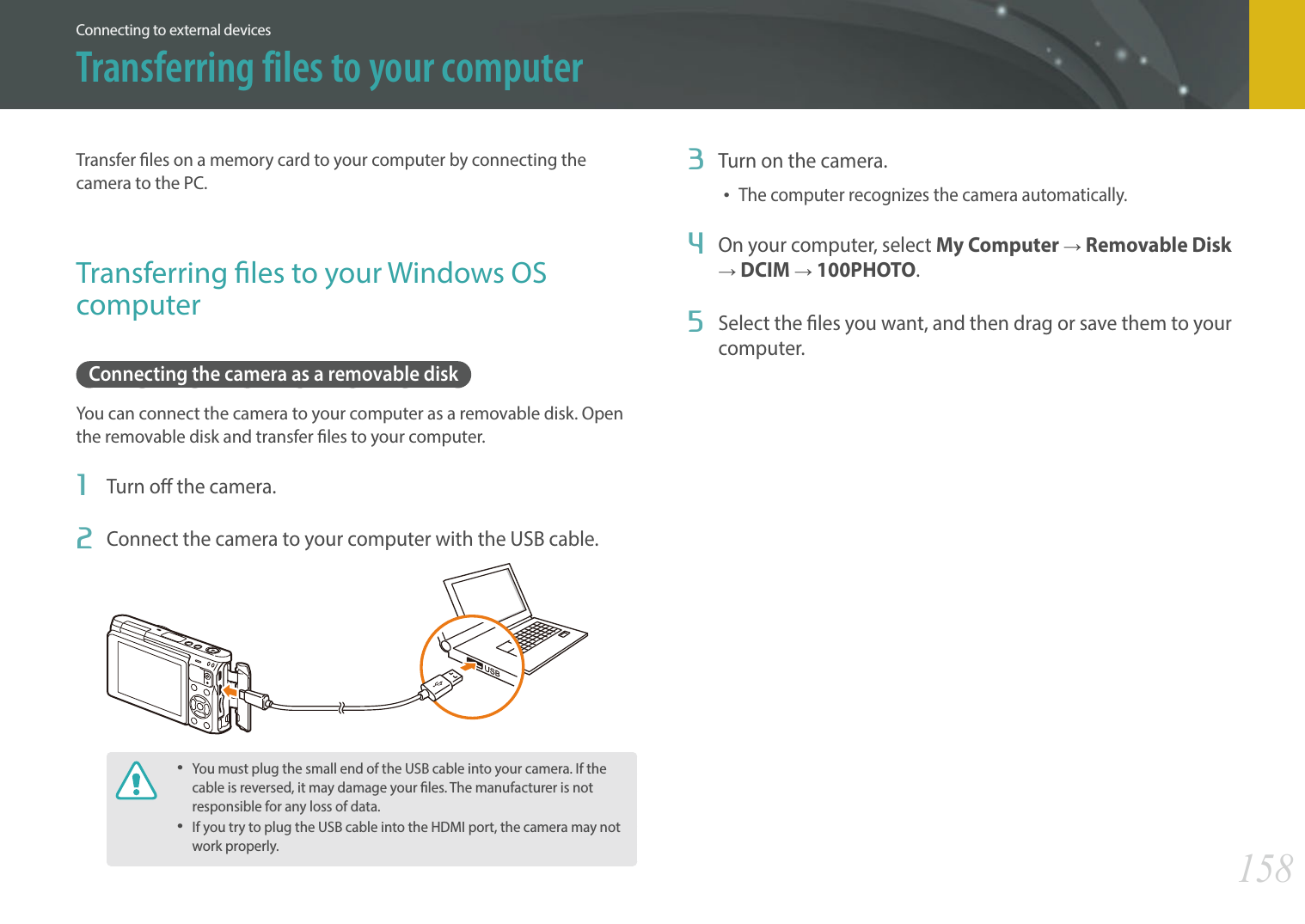

158Connecting to external devicesTransfer les on a memory card to your computer by connecting the camera to the PC.Transferring les to your Windows OS computerConnecting the camera as a removable diskYou can connect the camera to your computer as a removable disk. Open the removable disk and transfer les to your computer. 1 Turn o the camera.2 Connect the camera to your computer with the USB cable.You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data.If you try to plug the USB cable into the HDMI port, the camera may not work properly.3 Turn on the camera.The computer recognizes the camera automatically.4 On your computer, select My Computer ĺ Removable Disk ĺ DCIM ĺ 100PHOTO.5 Select the les you want, and then drag or save them to your computer.Transferring files to your computer

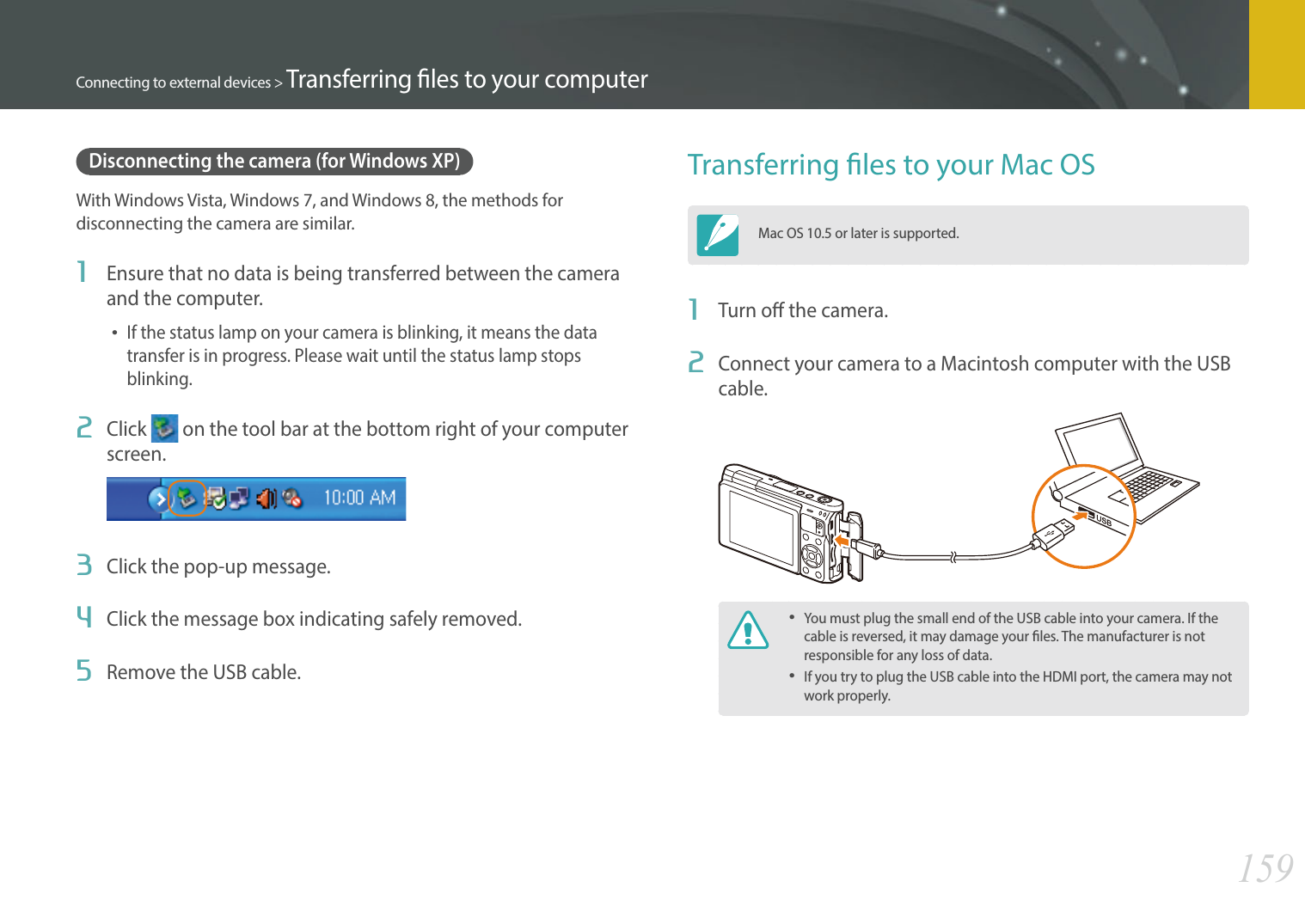

159Connecting to external devices > Transferring les to your computerDisconnecting the camera (for Windows XP)With Windows Vista, Windows 7, and Windows 8, the methods for disconnecting the camera are similar.1 Ensure that no data is being transferred between the camera and the computer.If the status lamp on your camera is blinking, it means the data transfer is in progress. Please wait until the status lamp stops blinking.2 Click on the tool bar at the bottom right of your computer screen.3 Click the pop-up message.4 Click the message box indicating safely removed.5 Remove the USB cable.Transferring les to your Mac OSMac OS 10.5 or later is supported.1 Turn o the camera.2 Connect your camera to a Macintosh computer with the USB cable.You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data.If you try to plug the USB cable into the HDMI port, the camera may not work properly.

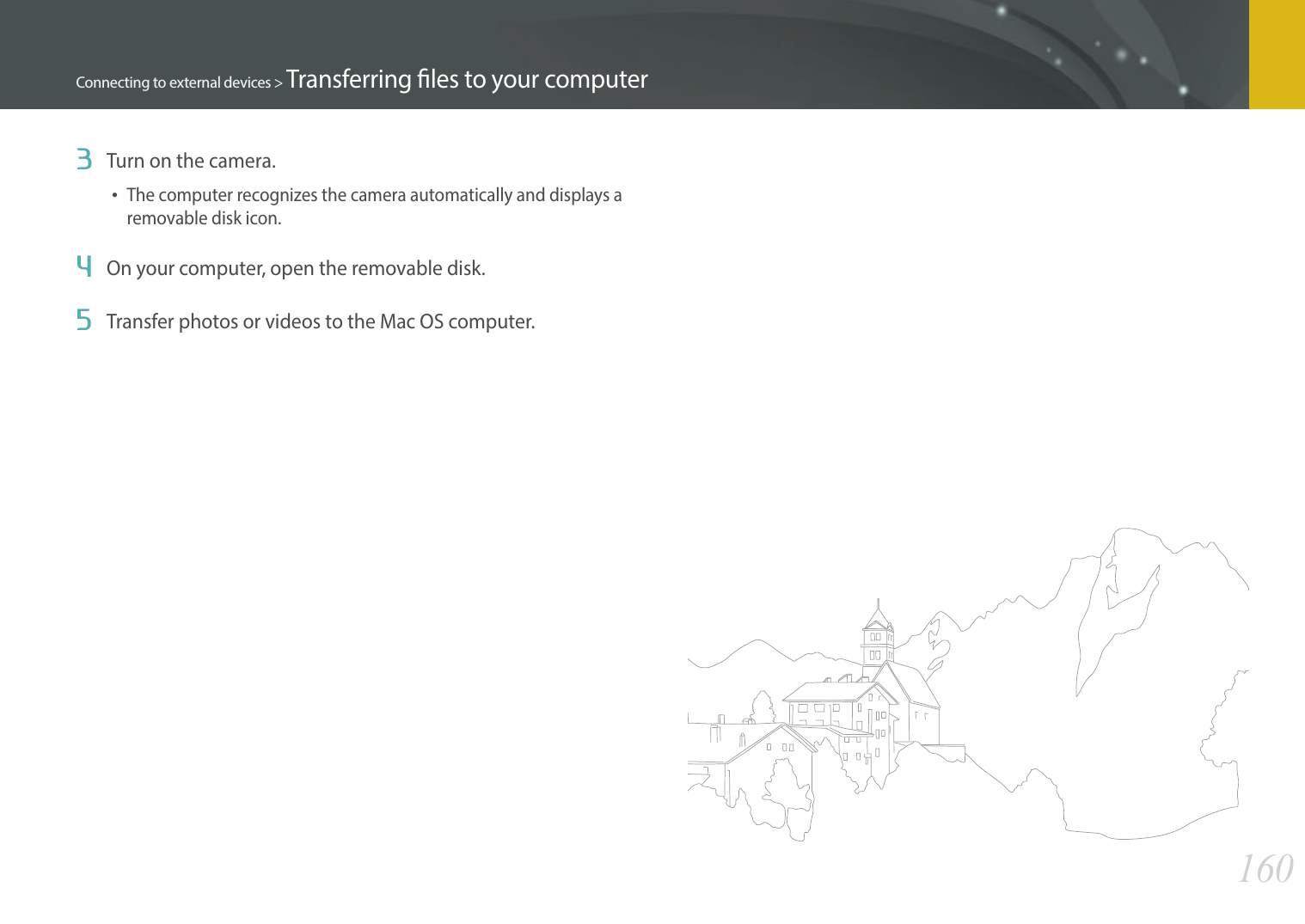

160Connecting to external devices > Transferring les to your computer3 Turn on the camera.The computer recognizes the camera automatically and displays a removable disk icon.4 On your computer, open the removable disk.5 Transfer photos or videos to the Mac OS computer.

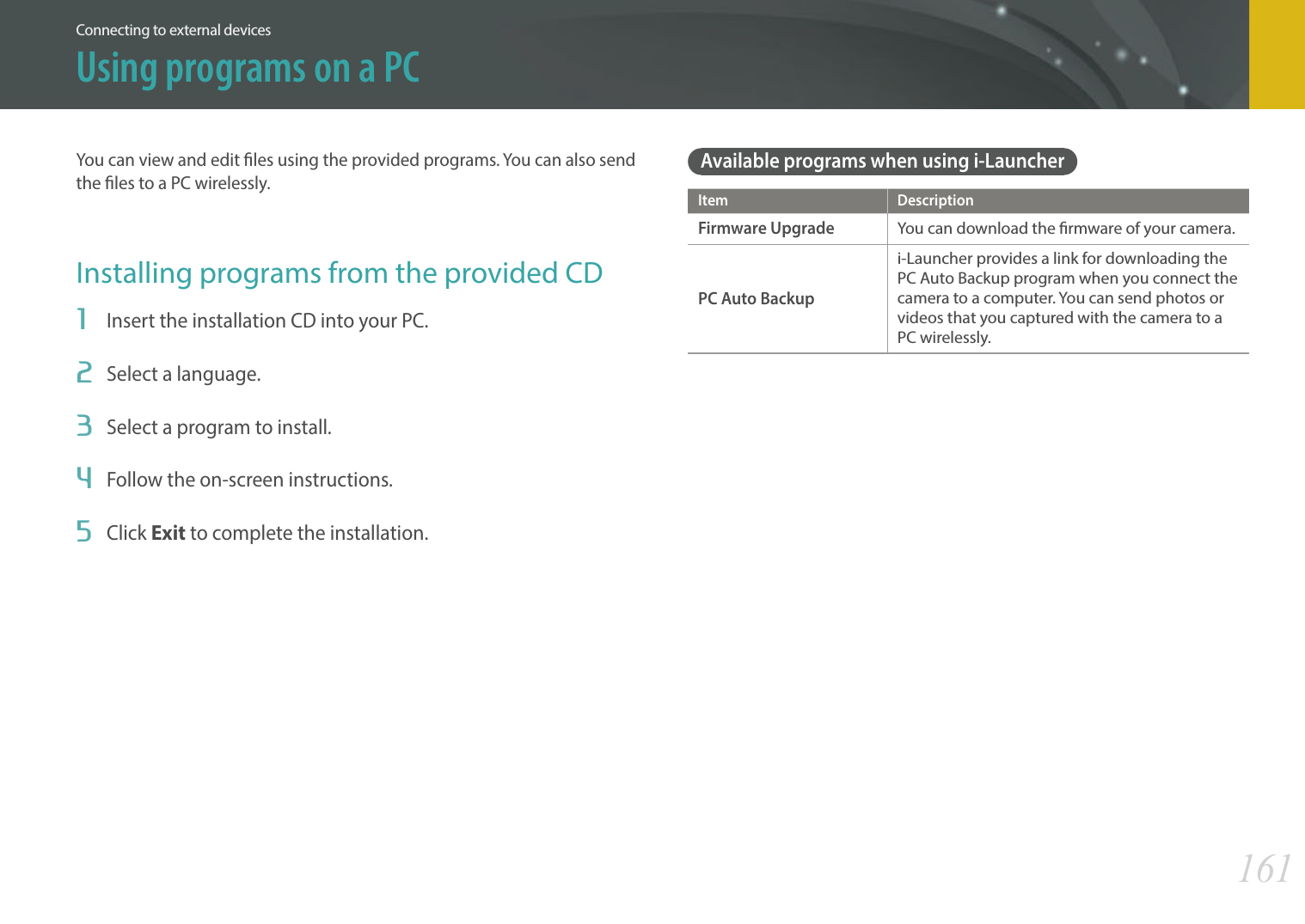

161Connecting to external devicesYou can view and edit les using the provided programs. You can also send the les to a PC wirelessly.Installing programs from the provided CD1 Insert the installation CD into your PC.2 Select a language.3 Select a program to install.4 Follow the on-screen instructions.5 Click Exit to complete the installation.Available programs when using i-LauncherItem DescriptionFirmware UpgradeYou can download the rmware of your camera.PC Auto Backupi-Launcher provides a link for downloading the PC Auto Backup program when you connect the camera to a computer. You can send photos or videos that you captured with the camera to a PC wirelessly. Using programs on a PC

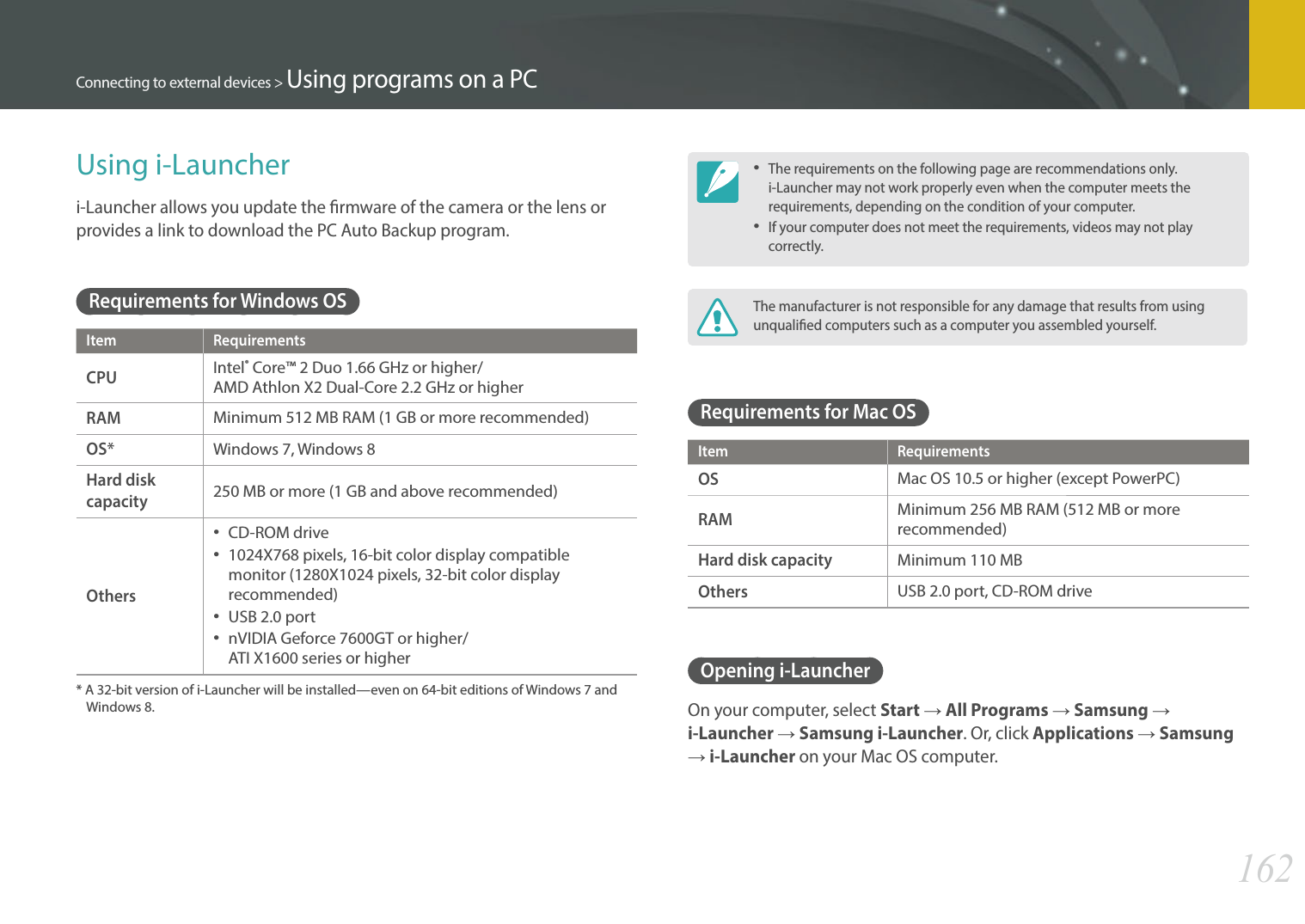

162Connecting to external devices > Using programs on a PCUsing i-Launcheri-Launcher allows you update the rmware of the camera or the lens or provides a link to download the PC Auto Backup program. Requirements for Windows OSItem RequirementsCPUIntel® Core™ 2 Duo 1.66 GHz or higher/ AMD Athlon X2 Dual-Core 2.2 GHz or higherRAMMinimum 512 MB RAM (1 GB or more recommended)OS*Windows 7, Windows 8Hard disk capacity250 MB or more (1 GB and above recommended)Others CD-ROM drive 1024X768 pixels, 16-bit color display compatible monitor (1280X1024 pixels, 32-bit color display recommended) USB 2.0 port nVIDIA Geforce 7600GT or higher/ ATI X1600 series or higher* A 32-bit version of i-Launcher will be installed—even on 64-bit editions of Windows 7 and Windows 8. The requirements on the following page are recommendations only. i-Launcher may not work properly even when the computer meets the requirements, depending on the condition of your computer.If your computer does not meet the requirements, videos may not play correctly.The manufacturer is not responsible for any damage that results from using unqualied computers such as a computer you assembled yourself.Requirements for Mac OSItem RequirementsOSMac OS 10.5 or higher (except PowerPC)RAMMinimum 256 MB RAM (512 MB or more recommended)Hard disk capacityMinimum 110 MBOthersUSB 2.0 port, CD-ROM driveOpening i-LauncherOn your computer, select Start ĺ All Programs ĺ Samsung ĺ i-Launcher ĺ Samsung i-Launcher. Or, click Applications ĺ Samsung ĺ i-Launcher on your Mac OS computer.

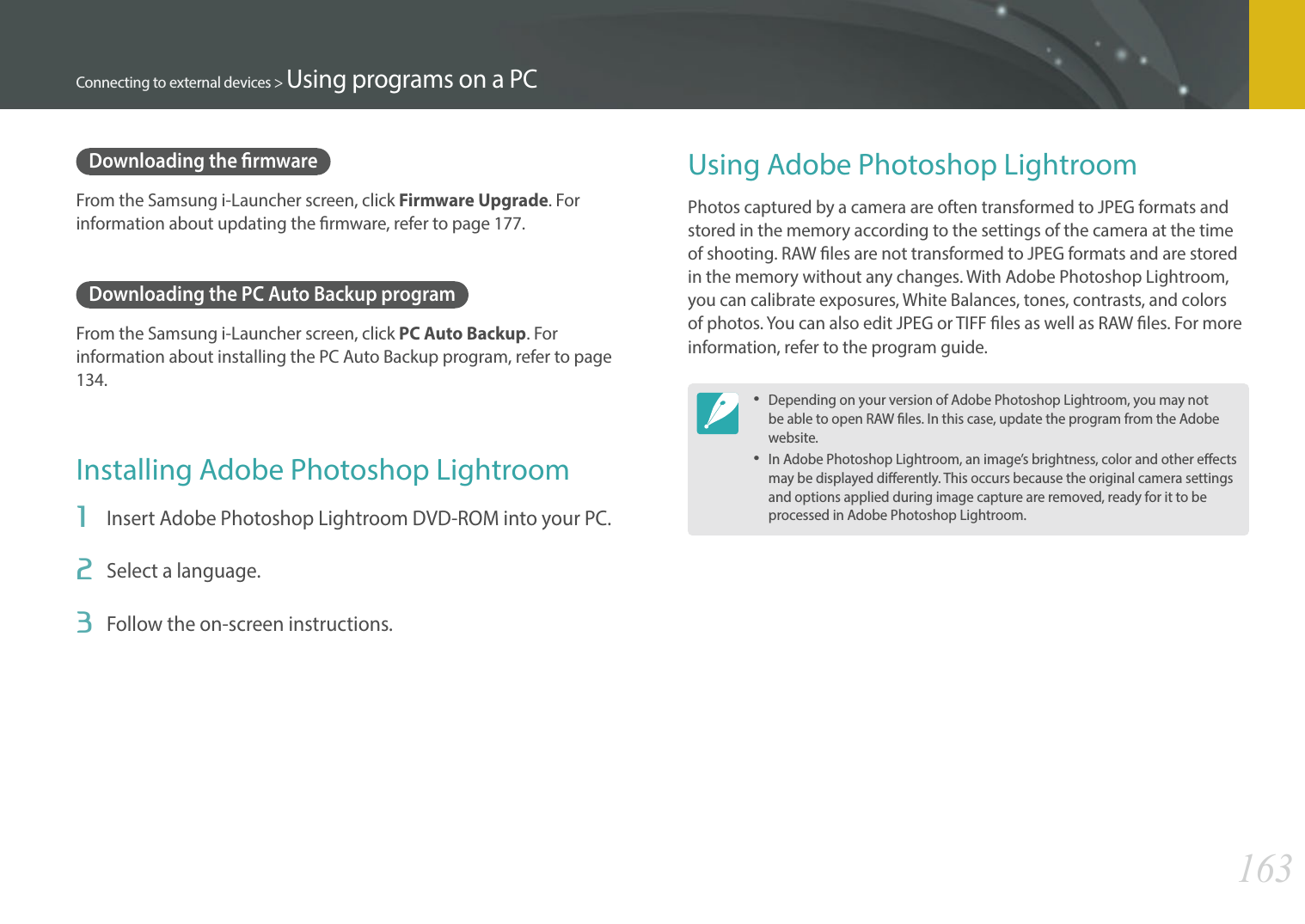

163Connecting to external devices > Using programs on a PCDownloading the rmwareFrom the Samsung i-Launcher screen, click Firmware Upgrade. For information about updating the rmware, refer to page 177.Downloading the PC Auto Backup programFrom the Samsung i-Launcher screen, click PC Auto Backup. For information about installing the PC Auto Backup program, refer to page 134.Installing Adobe Photoshop Lightroom1 Insert Adobe Photoshop Lightroom DVD-ROM into your PC. 2 Select a language. 3 Follow the on-screen instructions. Using Adobe Photoshop LightroomPhotos captured by a camera are often transformed to JPEG formats and stored in the memory according to the settings of the camera at the time of shooting. RAW files are not transformed to JPEG formats and are stored in the memory without any changes. With Adobe Photoshop Lightroom, you can calibrate exposures, White Balances, tones, contrasts, and colors of photos. You can also edit JPEG or TIFF les as well as RAW les. For more information, refer to the program guide.Depending on your version of Adobe Photoshop Lightroom, you may not be able to open RAW les. In this case, update the program from the Adobe website. In Adobe Photoshop Lightroom, an image’s brightness, color and other eects may be displayed dierently. This occurs because the original camera settings and options applied during image capture are removed, ready for it to be processed in Adobe Photoshop Lightroom.

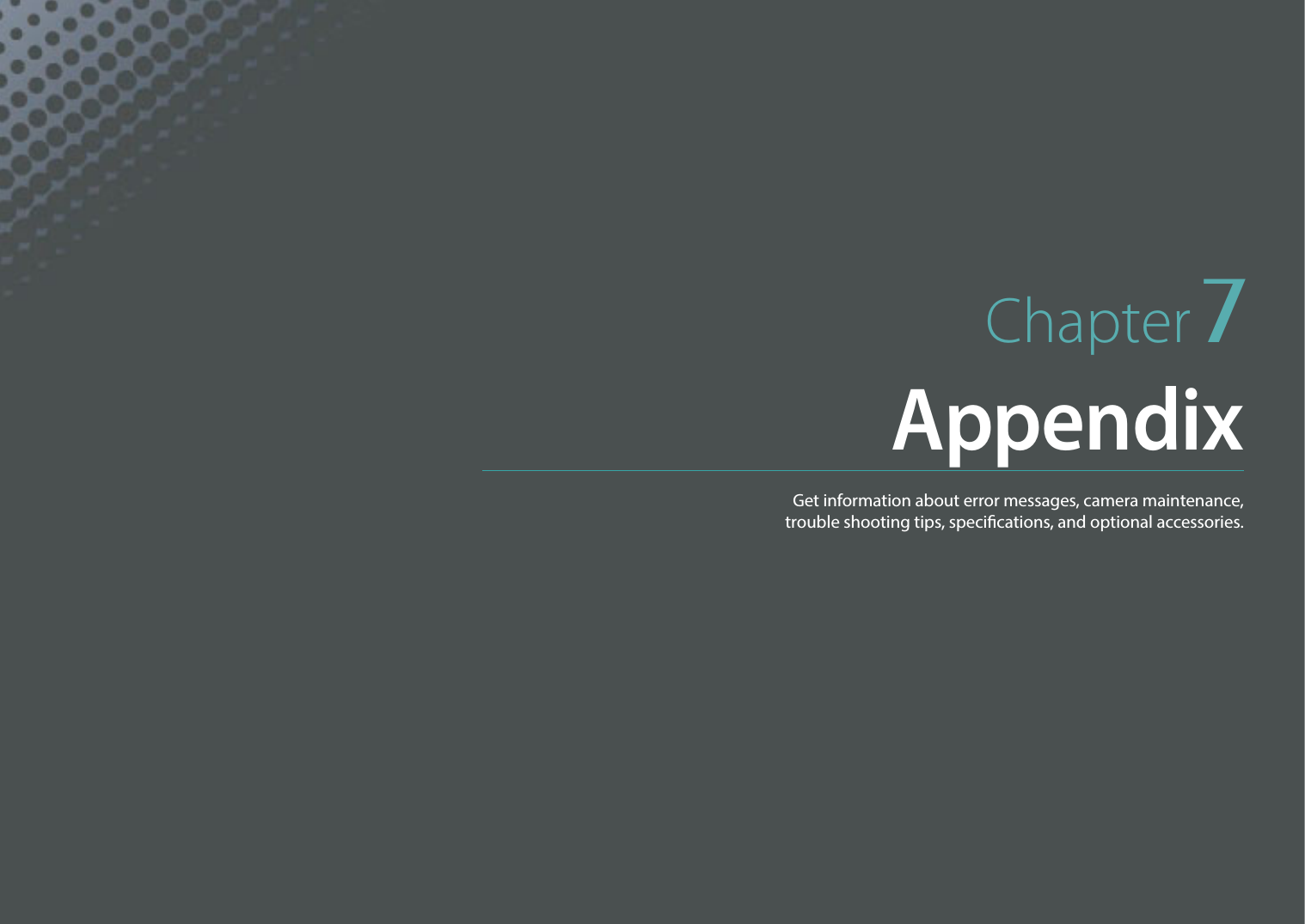

Chapter 7AppendixGet information about error messages, camera maintenance, trouble shooting tips, specications, and optional accessories.

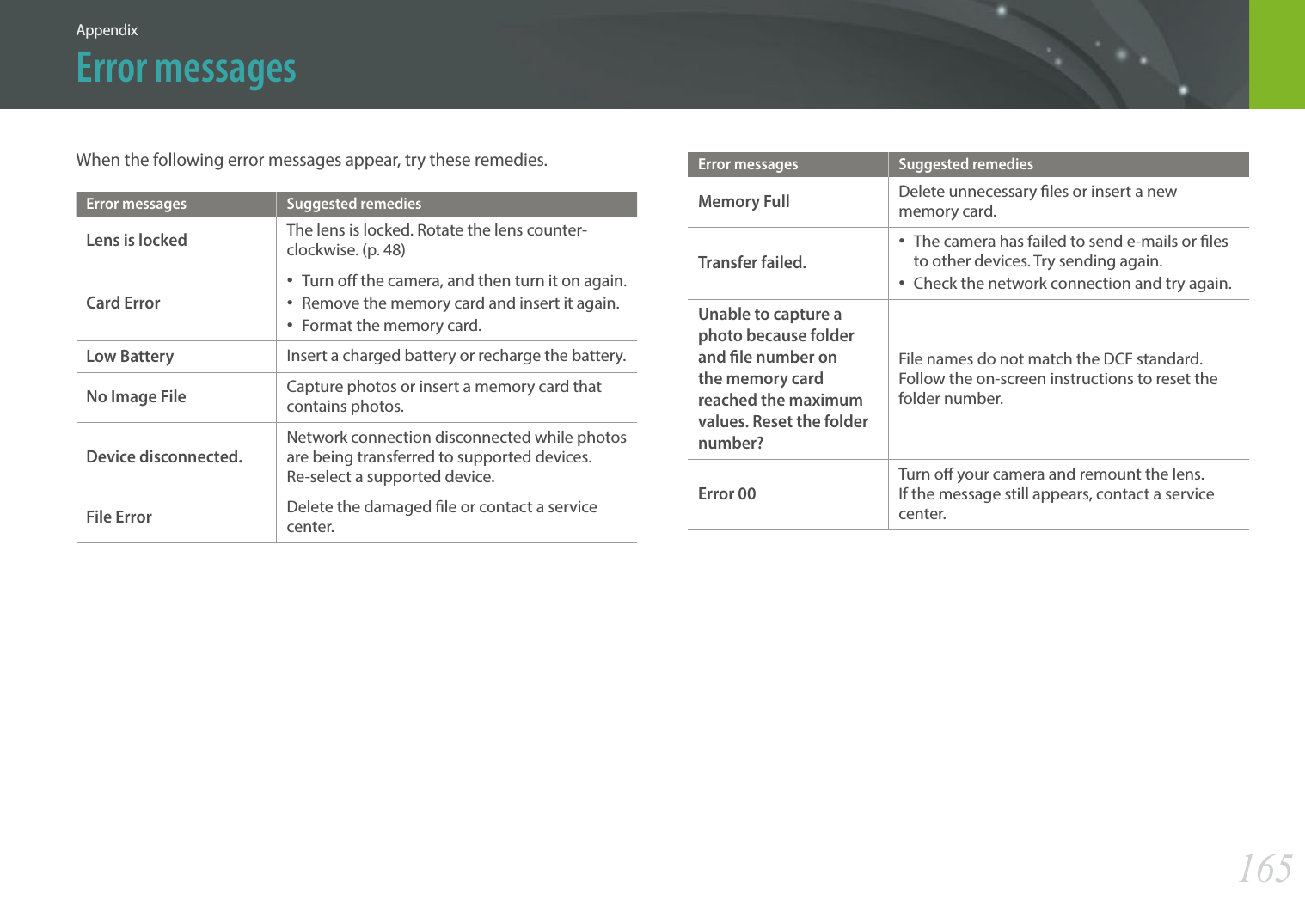

165AppendixWhen the following error messages appear, try these remedies.Error messages Suggested remediesLens is lockedThe lens is locked. Rotate the lens counter-clockwise. (p. 48)Card Error Turn o the camera, and then turn it on again. Remove the memory card and insert it again. Format the memory card.Low BatteryInsert a charged battery or recharge the battery.No Image FileCapture photos or insert a memory card that contains photos.Device disconnected.Network connection disconnected while photos are being transferred to supported devices. Re-select a supported device.File ErrorDelete the damaged le or contact a service center.Error messages Suggested remediesMemory FullDelete unnecessary les or insert a new memory card.Transfer failed. The camera has failed to send e-mails or les to other devices. Try sending again.  Check the network connection and try again. Unable to capture a photo because folder and le number on the memory card reached the maximum values. Reset the folder number?File names do not match the DCF standard. Follow the on-screen instructions to reset the folder number.Error 00Turn o your camera and remount the lens. If the message still appears, contact a service center.Error messages

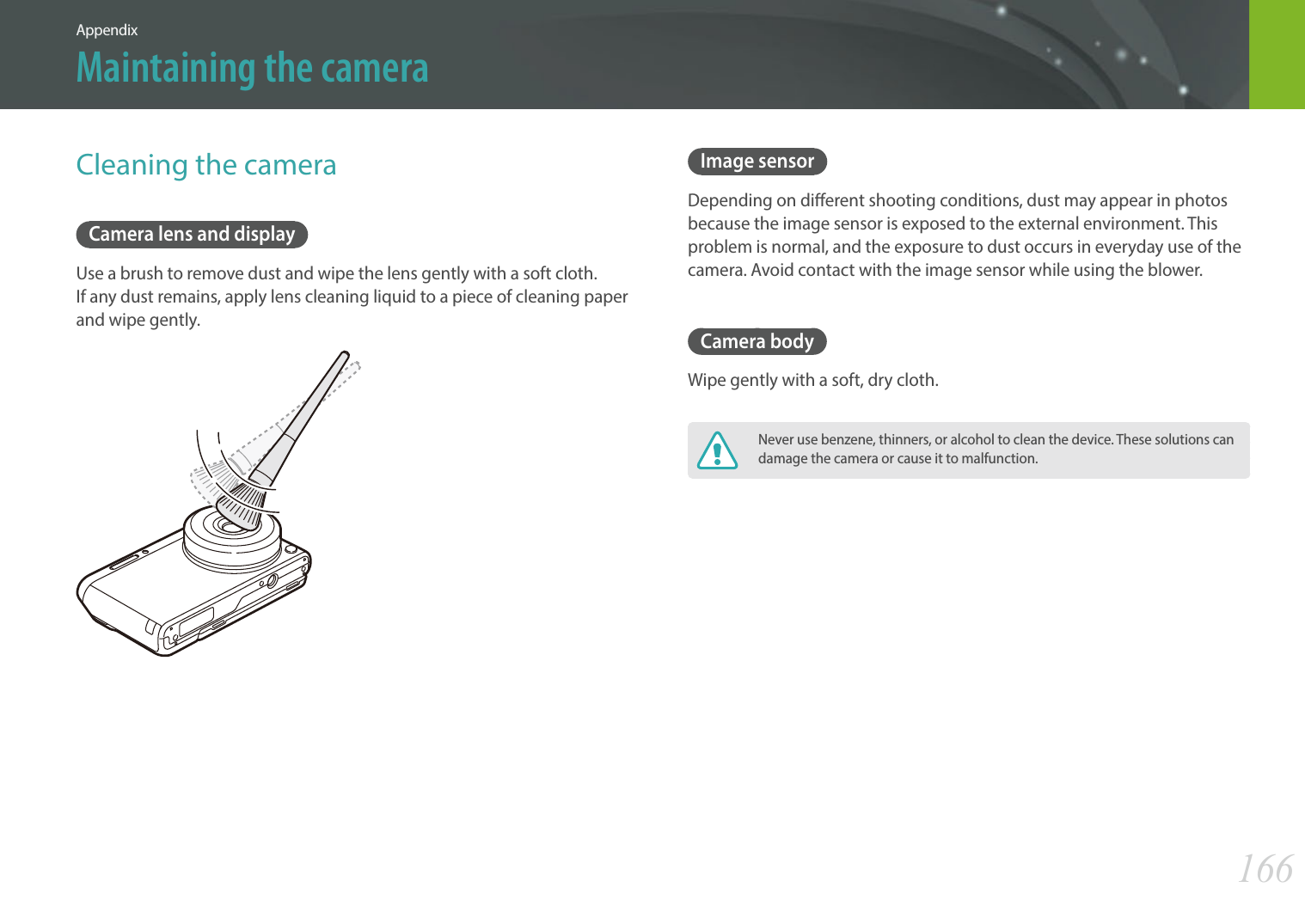

166AppendixCleaning the cameraCamera lens and displayUse a brush to remove dust and wipe the lens gently with a soft cloth. If any dust remains, apply lens cleaning liquid to a piece of cleaning paper and wipe gently.Image sensorDepending on dierent shooting conditions, dust may appear in photos because the image sensor is exposed to the external environment. This problem is normal, and the exposure to dust occurs in everyday use of the camera. Avoid contact with the image sensor while using the blower.Camera bodyWipe gently with a soft, dry cloth.Never use benzene, thinners, or alcohol to clean the device. These solutions can damage the camera or cause it to malfunction.Maintaining the camera

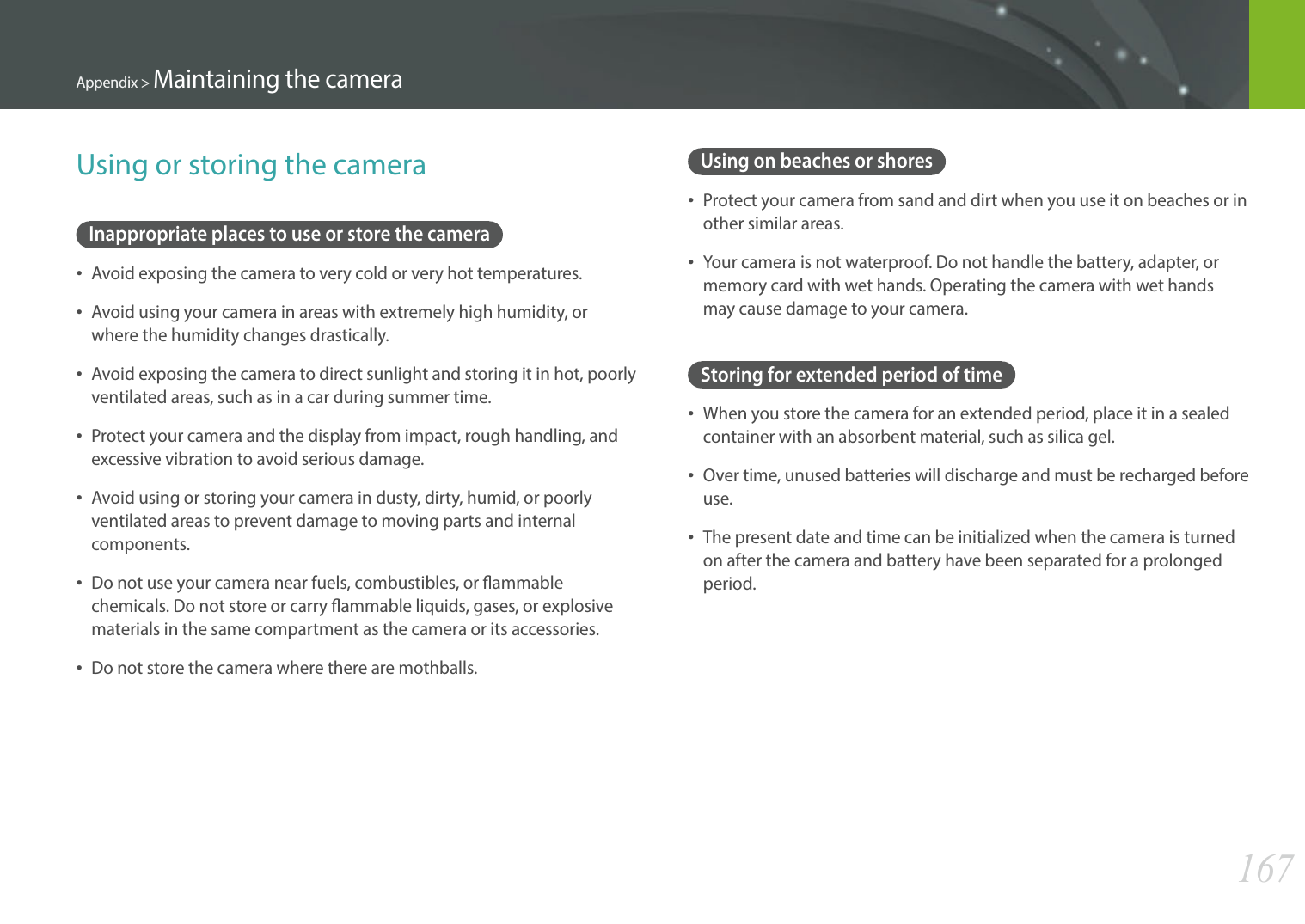

167Appendix > Maintaining the cameraUsing on beaches or shoresProtect your camera from sand and dirt when you use it on beaches or in other similar areas.Your camera is not waterproof. Do not handle the battery, adapter, or memory card with wet hands. Operating the camera with wet hands may cause damage to your camera.Storing for extended period of timeWhen you store the camera for an extended period, place it in a sealed container with an absorbent material, such as silica gel.Over time, unused batteries will discharge and must be recharged before use.The present date and time can be initialized when the camera is turned on after the camera and battery have been separated for a prolonged period.Using or storing the cameraInappropriate places to use or store the cameraAvoid exposing the camera to very cold or very hot temperatures.Avoid using your camera in areas with extremely high humidity, or where the humidity changes drastically.Avoid exposing the camera to direct sunlight and storing it in hot, poorly ventilated areas, such as in a car during summer time.Protect your camera and the display from impact, rough handling, and excessive vibration to avoid serious damage.Avoid using or storing your camera in dusty, dirty, humid, or poorly ventilated areas to prevent damage to moving parts and internal components.Do not use your camera near fuels, combustibles, or ammable chemicals. Do not store or carry ammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.Do not store the camera where there are mothballs.

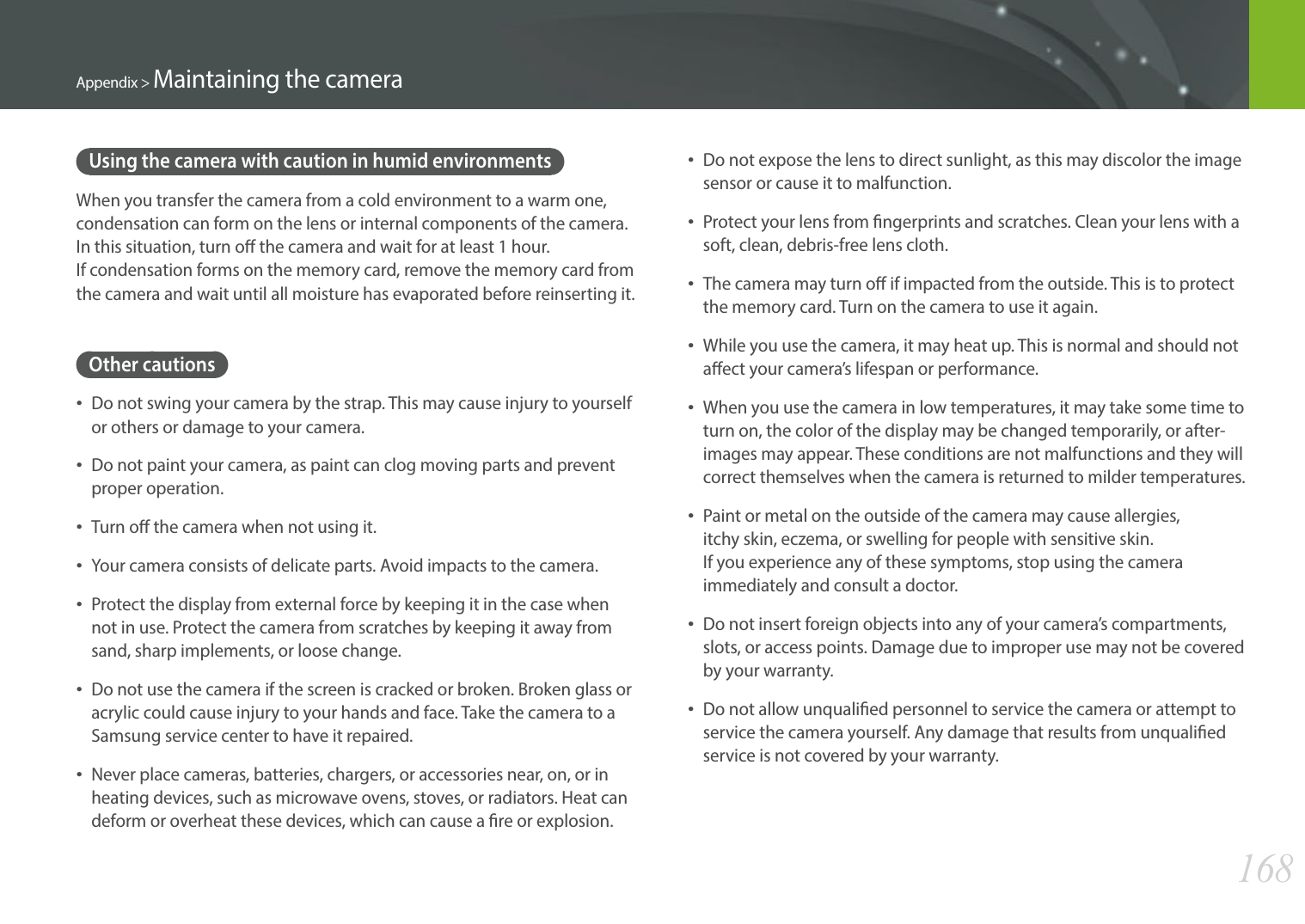

168Appendix > Maintaining the cameraUsing the camera with caution in humid environmentsWhen you transfer the camera from a cold environment to a warm one, condensation can form on the lens or internal components of the camera. In this situation, turn o the camera and wait for at least 1 hour. If condensation forms on the memory card, remove the memory card from the camera and wait until all moisture has evaporated before reinserting it.Other cautionsDo not swing your camera by the strap. This may cause injury to yourself or others or damage to your camera.Do not paint your camera, as paint can clog moving parts and prevent proper operation.Turn o the camera when not using it.Your camera consists of delicate parts. Avoid impacts to the camera.Protect the display from external force by keeping it in the case when not in use. Protect the camera from scratches by keeping it away from sand, sharp implements, or loose change.Do not use the camera if the screen is cracked or broken. Broken glass or acrylic could cause injury to your hands and face. Take the camera to a Samsung service center to have it repaired.Never place cameras, batteries, chargers, or accessories near, on, or in heating devices, such as microwave ovens, stoves, or radiators. Heat can deform or overheat these devices, which can cause a re or explosion.Do not expose the lens to direct sunlight, as this may discolor the image sensor or cause it to malfunction.Protect your lens from ngerprints and scratches. Clean your lens with a soft, clean, debris-free lens cloth.The camera may turn o if impacted from the outside. This is to protect the memory card. Turn on the camera to use it again.While you use the camera, it may heat up. This is normal and should not aect your camera’s lifespan or performance.When you use the camera in low temperatures, it may take some time to turn on, the color of the display may be changed temporarily, or after-images may appear. These conditions are not malfunctions and they will correct themselves when the camera is returned to milder temperatures.Paint or metal on the outside of the camera may cause allergies, itchy skin, eczema, or swelling for people with sensitive skin. If you experience any of these symptoms, stop using the camera immediately and consult a doctor.Do not insert foreign objects into any of your camera’s compartments, slots, or access points. Damage due to improper use may not be covered by your warranty.Do not allow unqualied personnel to service the camera or attempt to service the camera yourself. Any damage that results from unqualied service is not covered by your warranty.

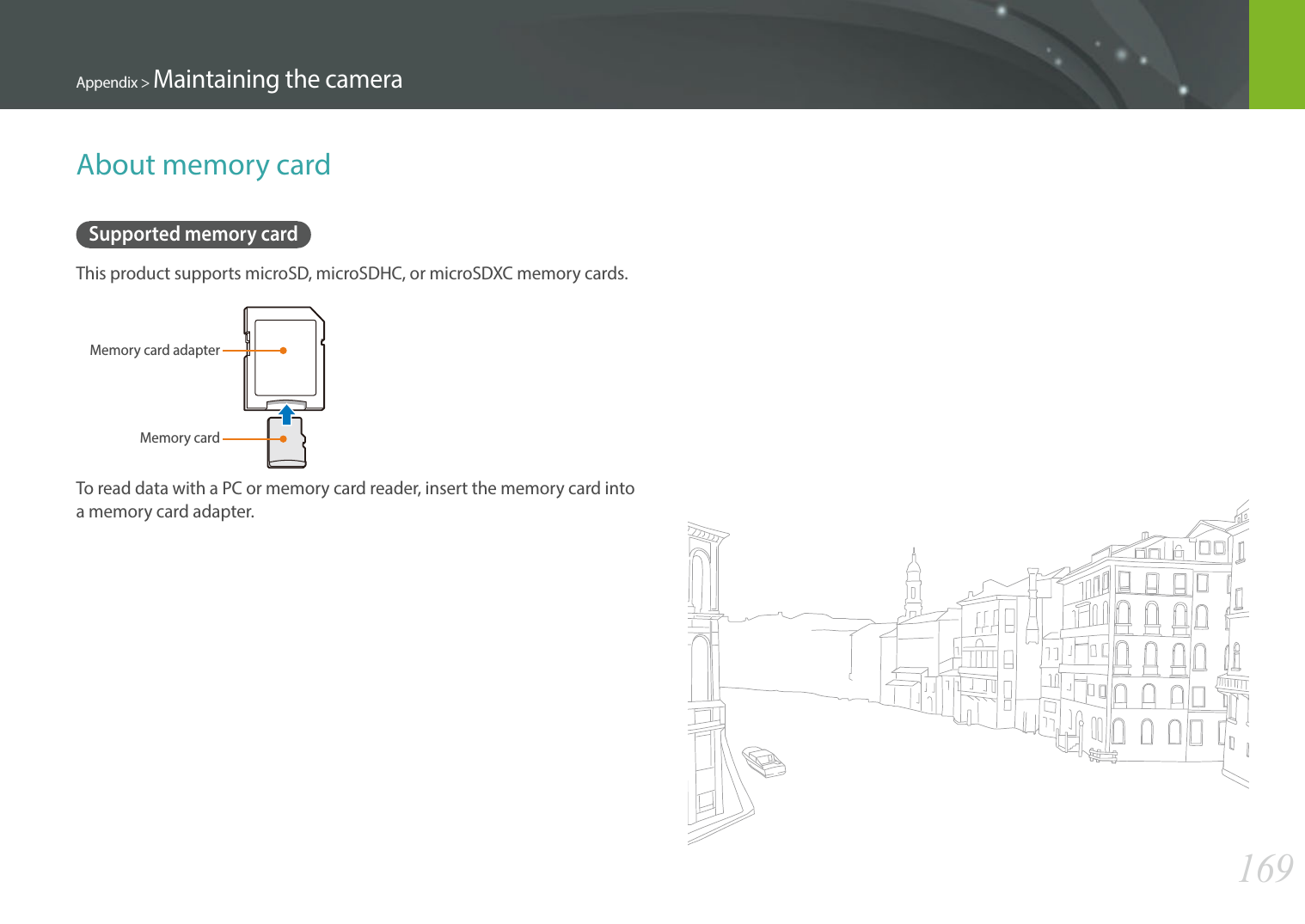

169Appendix > Maintaining the cameraAbout memory cardSupported memory cardThis product supports microSD, microSDHC, or microSDXC memory cards.Memory card adapterMemory cardTo read data with a PC or memory card reader, insert the memory card into a memory card adapter.

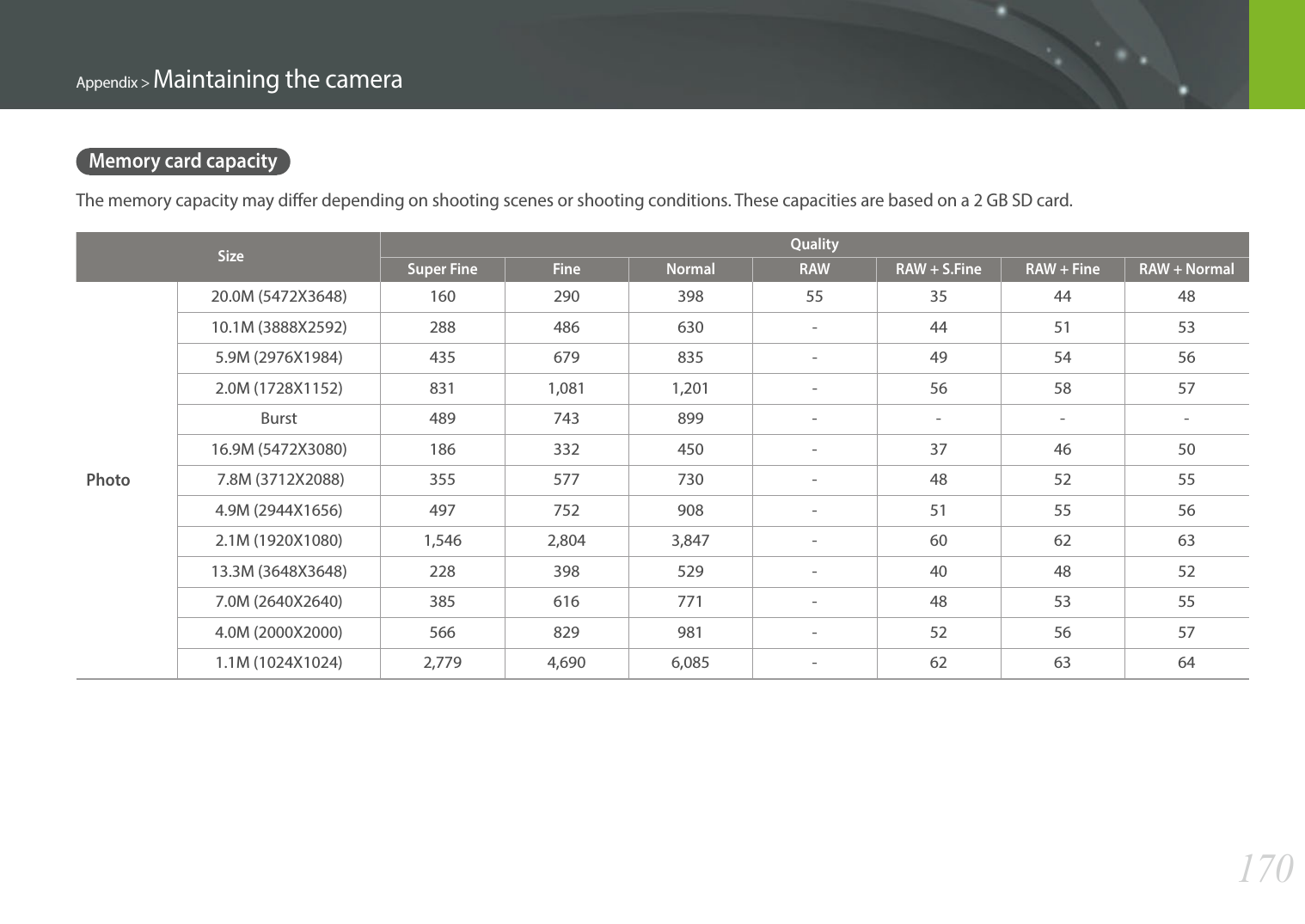

170Appendix > Maintaining the cameraMemory card capacityThe memory capacity may dier depending on shooting scenes or shooting conditions. These capacities are based on a 2 GB SD card.Size QualitySuper Fine Fine Normal RAW RAW + S.Fine RAW + Fine RAW + NormalPhoto20.0M (5472X3648) 160 290 398 55 35 44 4810.1M (3888X2592) 288 486 630 - 44 51 535.9M (2976X1984) 435 679 835 - 49 54 562.0M (1728X1152) 831 1,081 1,201 - 56 58 57Burst 489 743 899 - - - -16.9M (5472X3080) 186 332 450 - 37 46 507.8M (3712X2088) 355 577 730 - 48 52 554.9M (2944X1656) 497 752 908 - 51 55 562.1M (1920X1080) 1,546 2,804 3,847 - 60 62 6313.3M (3648X3648) 228 398 529 - 40 48 527.0M (2640X2640) 385 616 771 - 48 53 554.0M (2000X2000) 566 829 981 - 52 56 571.1M (1024X1024) 2,779 4,690 6,085 - 62 63 64

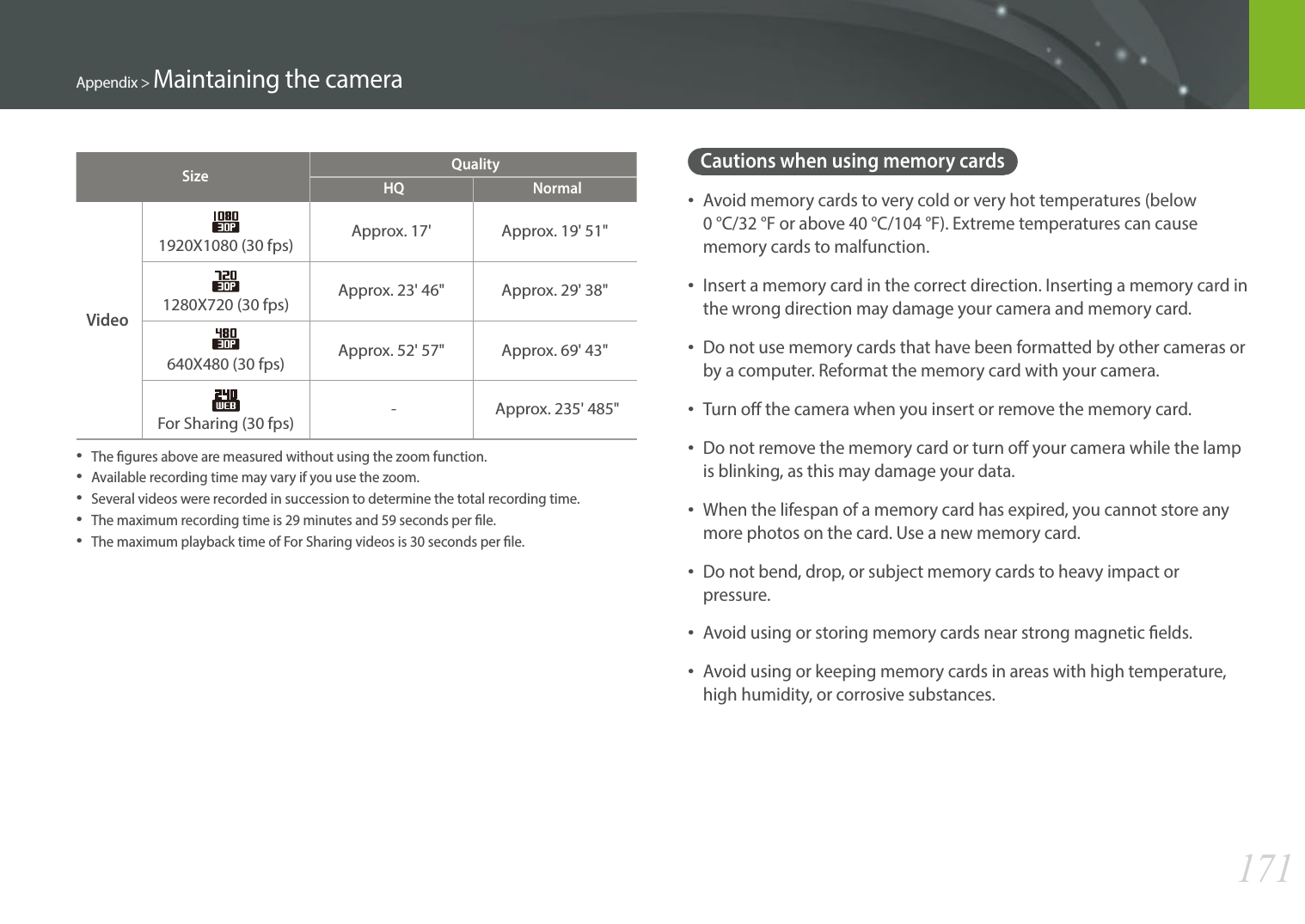

171Appendix > Maintaining the cameraCautions when using memory cardsAvoid memory cards to very cold or very hot temperatures (below 0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can cause memory cards to malfunction.Insert a memory card in the correct direction. Inserting a memory card in the wrong direction may damage your camera and memory card.Do not use memory cards that have been formatted by other cameras or by a computer. Reformat the memory card with your camera.Turn o the camera when you insert or remove the memory card.Do not remove the memory card or turn o your camera while the lamp is blinking, as this may damage your data.When the lifespan of a memory card has expired, you cannot store any more photos on the card. Use a new memory card.Do not bend, drop, or subject memory cards to heavy impact or pressure.Avoid using or storing memory cards near strong magnetic elds.Avoid using or keeping memory cards in areas with high temperature, high humidity, or corrosive substances.Size QualityHQ NormalVideo 1920X1080 (30 fps) Approx. 17' Approx. 19' 51" 1280X720 (30 fps) Approx. 23' 46" Approx. 29' 38" 640X480 (30 fps) Approx. 52' 57" Approx. 69' 43" For Sharing (30 fps) - Approx. 235' 485"The gures above are measured without using the zoom function. Available recording time may vary if you use the zoom. Several videos were recorded in succession to determine the total recording time.The maximum recording time is 29 minutes and 59 seconds per le.The maximum playback time ofFor Sharing videos is 30 seconds perle.

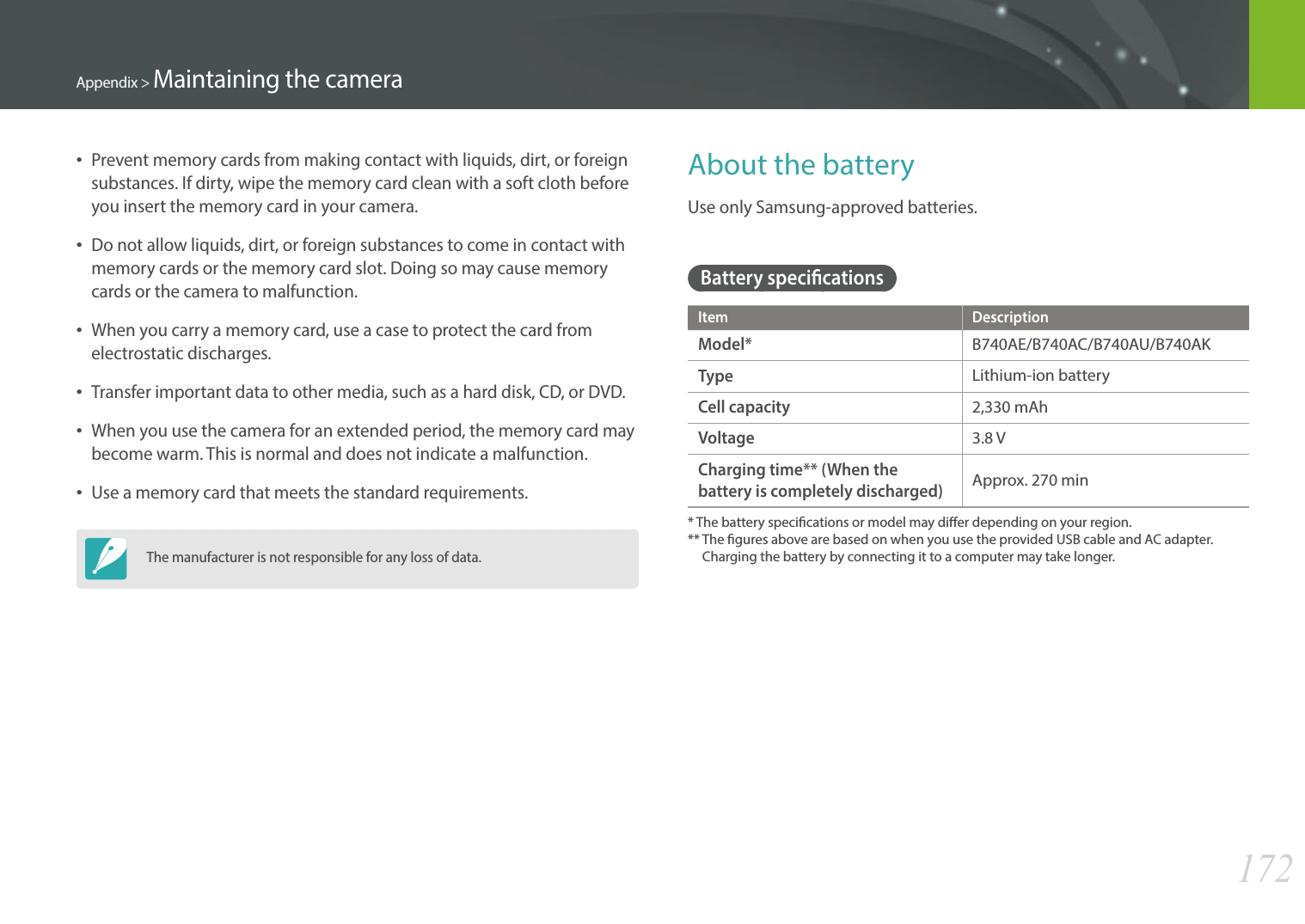

172Appendix > Maintaining the cameraAbout the batteryUse only Samsung-approved batteries.Battery specicationsItem DescriptionModel*B740AE/B740AC/B740AU/B740AKTypeLithium-ion batteryCell capacity2,330 mAhVoltage3.8 VCharging time** (When the battery is completely discharged)Approx. 270 min* The battery specications or model may dier depending on your region.** The gures above are based on when you use the provided USB cable and AC adapter. Charging the battery by connecting it to a computer may take longer.Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before you insert the memory card in your camera.Do not allow liquids, dirt, or foreign substances to come in contact with memory cards or the memory card slot. Doing so may cause memory cards or the camera to malfunction.When you carry a memory card, use a case to protect the card from electrostatic discharges.Transfer important data to other media, such as a hard disk, CD, or DVD.When you use the camera for an extended period, the memory card may become warm. This is normal and does not indicate a malfunction.Use a memory card that meets the standard requirements.The manufacturer is not responsible for any loss of data.

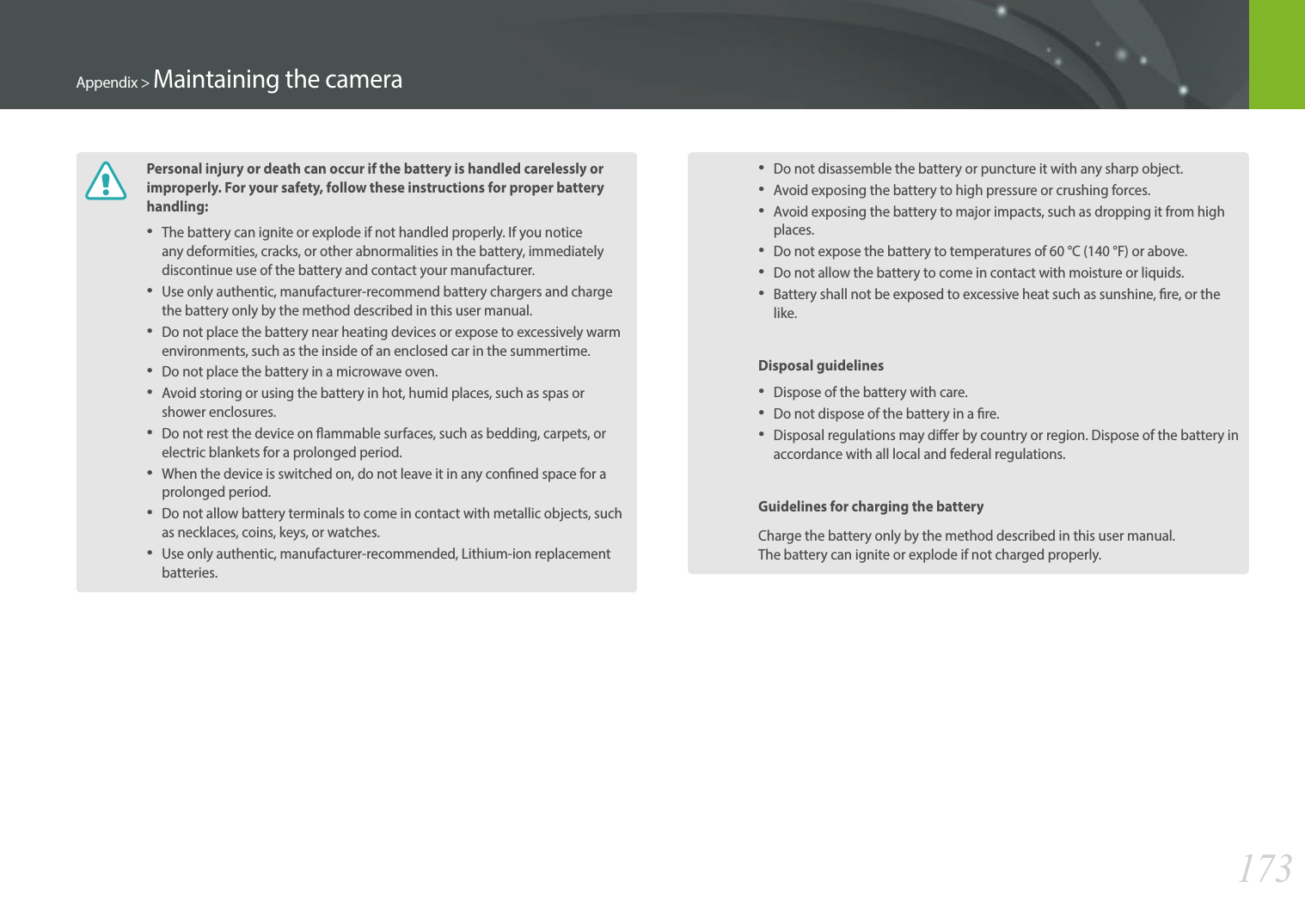

173Appendix > Maintaining the cameraPersonal injury or death can occur if the battery is handled carelessly or improperly. For your safety, follow these instructions for proper battery handling:The battery can ignite or explode if not handled properly. If you notice any deformities, cracks, or other abnormalities in the battery, immediately discontinue use of the battery and contact your manufacturer.Use only authentic, manufacturer-recommend battery chargers and charge the battery only by the method described in this user manual.Do not place the battery near heating devices or expose to excessively warm environments, such as the inside of an enclosed car in the summertime.Do not place the battery in a microwave oven.Avoid storing or using the battery in hot, humid places, such as spas or shower enclosures.Do not rest the device on ammable surfaces, such as bedding, carpets, or electric blankets for a prolonged period.When the device is switched on, do not leave it in any conned space for a prolonged period.Do not allow battery terminals to come in contact with metallic objects, such as necklaces, coins, keys, or watches.Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries.Do not disassemble the battery or puncture it with any sharp object.Avoid exposing the battery to high pressure or crushing forces.Avoid exposing the battery to major impacts, such as dropping it from high places.Do not expose the battery to temperatures of 60 °C (140 °F) or above.Do not allow the battery to come in contact with moisture or liquids.Battery shall not be exposed to excessive heat such as sunshine, re, or the like.Disposal guidelinesDispose of the battery with care.Do not dispose of the battery in a re.Disposal regulations may dier by country or region. Dispose of the battery in accordance with all local and federal regulations.Guidelines for charging the batteryCharge the battery only by the method described in this user manual. The battery can ignite or explode if not charged properly.

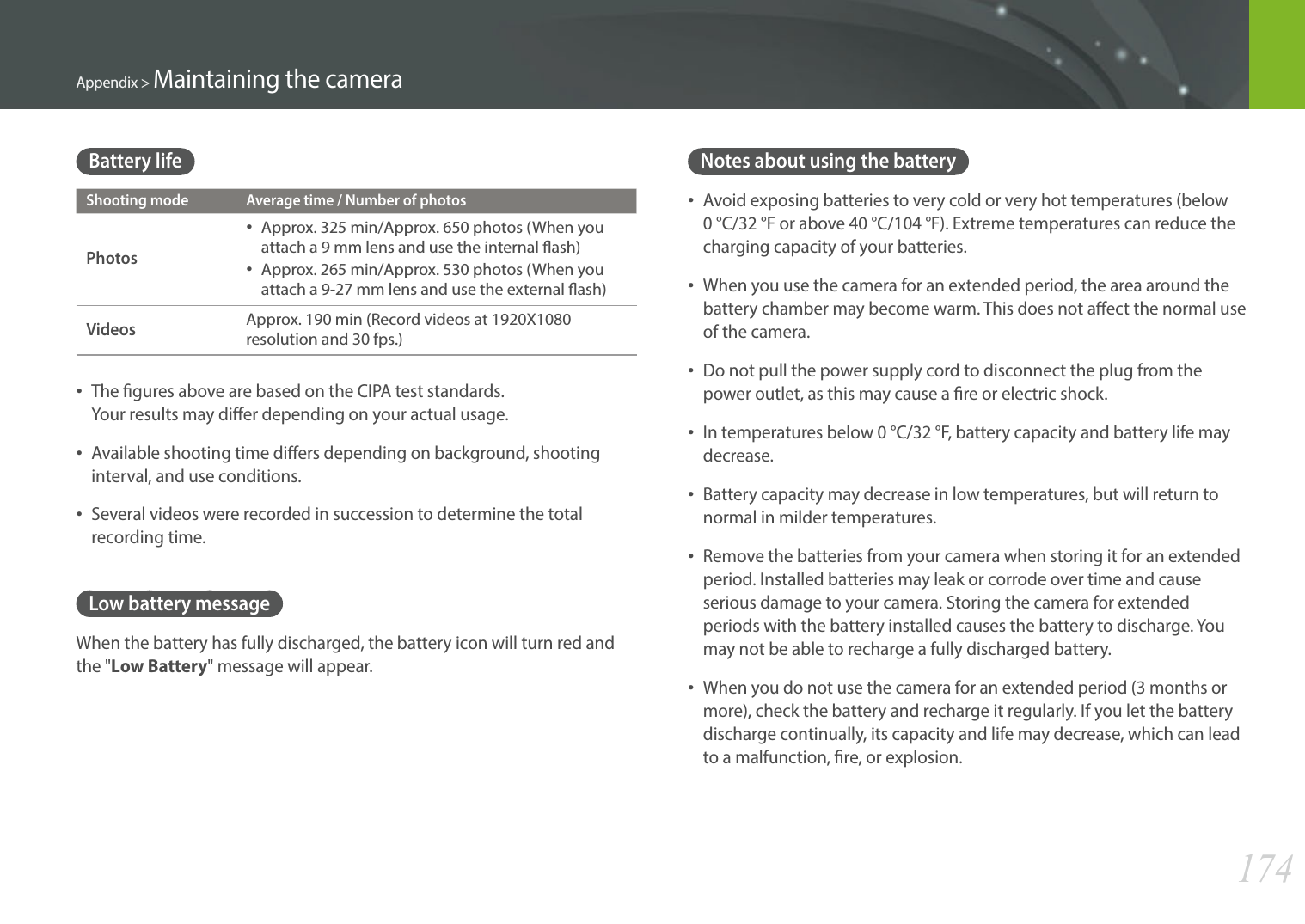

174Appendix > Maintaining the cameraBattery lifeShooting mode Average time / Number of photosPhotos Approx. 325 min/Approx. 650 photos (When you attach a 9 mm lens and use the internal ash) Approx. 265 min/Approx. 530 photos (When you attach a 9-27 mm lens and use the external ash)VideosApprox. 190 min (Record videos at 1920X1080 resolution and 30 fps.)The gures above are based on the CIPA test standards. Your results may dier depending on your actual usage.Available shooting time diers depending on background, shooting interval, and use conditions.Several videos were recorded in succession to determine the total recording time.Low battery messageWhen the battery has fully discharged, the battery icon will turn red and the "Low Battery" message will appear.Notes about using the batteryAvoid exposing batteries to very cold or very hot temperatures (below 0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can reduce the charging capacity of your batteries.When you use the camera for an extended period, the area around the battery chamber may become warm. This does not aect the normal use of the camera.Do not pull the power supply cord to disconnect the plug from the power outlet, as this may cause a re or electric shock.In temperatures below 0 °C/32 °F, battery capacity and battery life may decrease.Battery capacity may decrease in low temperatures, but will return to normal in milder temperatures.Remove the batteries from your camera when storing it for an extended period. Installed batteries may leak or corrode over time and cause serious damage to your camera. Storing the camera for extended periods with the battery installed causes the battery to discharge. You may not be able to recharge a fully discharged battery.When you do not use the camera for an extended period (3 months or more), check the battery and recharge it regularly. If you let the battery discharge continually, its capacity and life may decrease, which can lead to a malfunction, re, or explosion.

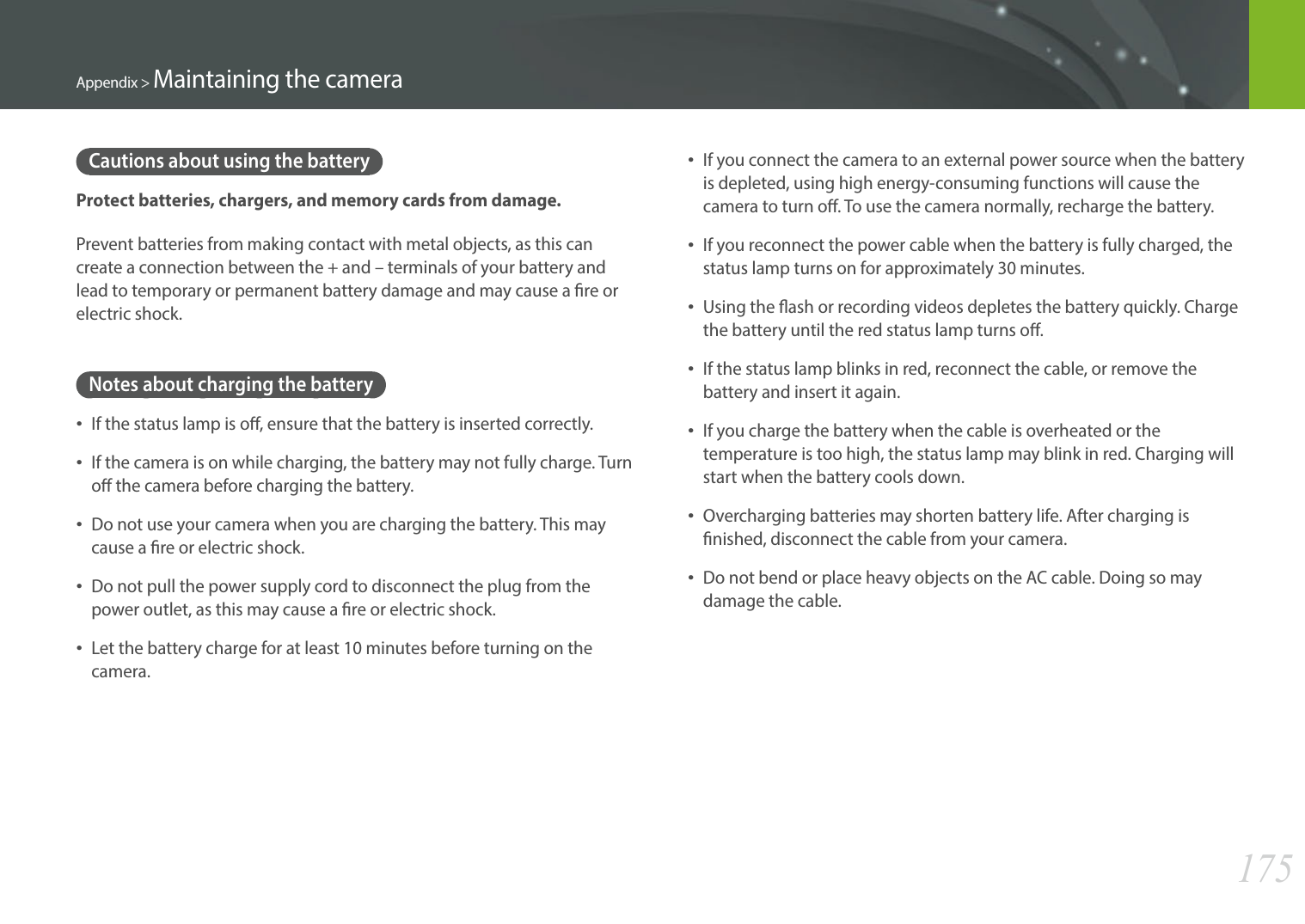

175Appendix > Maintaining the cameraCautions about using the batteryProtect batteries, chargers, and memory cards from damage.Prevent batteries from making contact with metal objects, as this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage and may cause a re or electric shock.Notes about charging the batteryIf the status lamp is o, ensure that the battery is inserted correctly.If the camera is on while charging, the battery may not fully charge. Turn o the camera before charging the battery.Do not use your camera when you are charging the battery. This may cause a re or electric shock.Do not pull the power supply cord to disconnect the plug from the power outlet, as this may cause a re or electric shock.Let the battery charge for at least 10 minutes before turning on the camera.If you connect the camera to an external power source when the battery is depleted, using high energy-consuming functions will cause the camera to turn o. To use the camera normally, recharge the battery.If you reconnect the power cable when the battery is fully charged, the status lamp turns on for approximately 30 minutes.Using the ash or recording videos depletes the battery quickly. Charge the battery until the red status lamp turns o.If the status lamp blinks in red, reconnect the cable, or remove the battery and insert it again.If you charge the battery when the cable is overheated or the temperature is too high, the status lamp may blink in red. Charging will start when the battery cools down.Overcharging batteries may shorten battery life. After charging is nished, disconnect the cable from your camera.Do not bend or place heavy objects on the AC cable. Doing so may damage the cable.

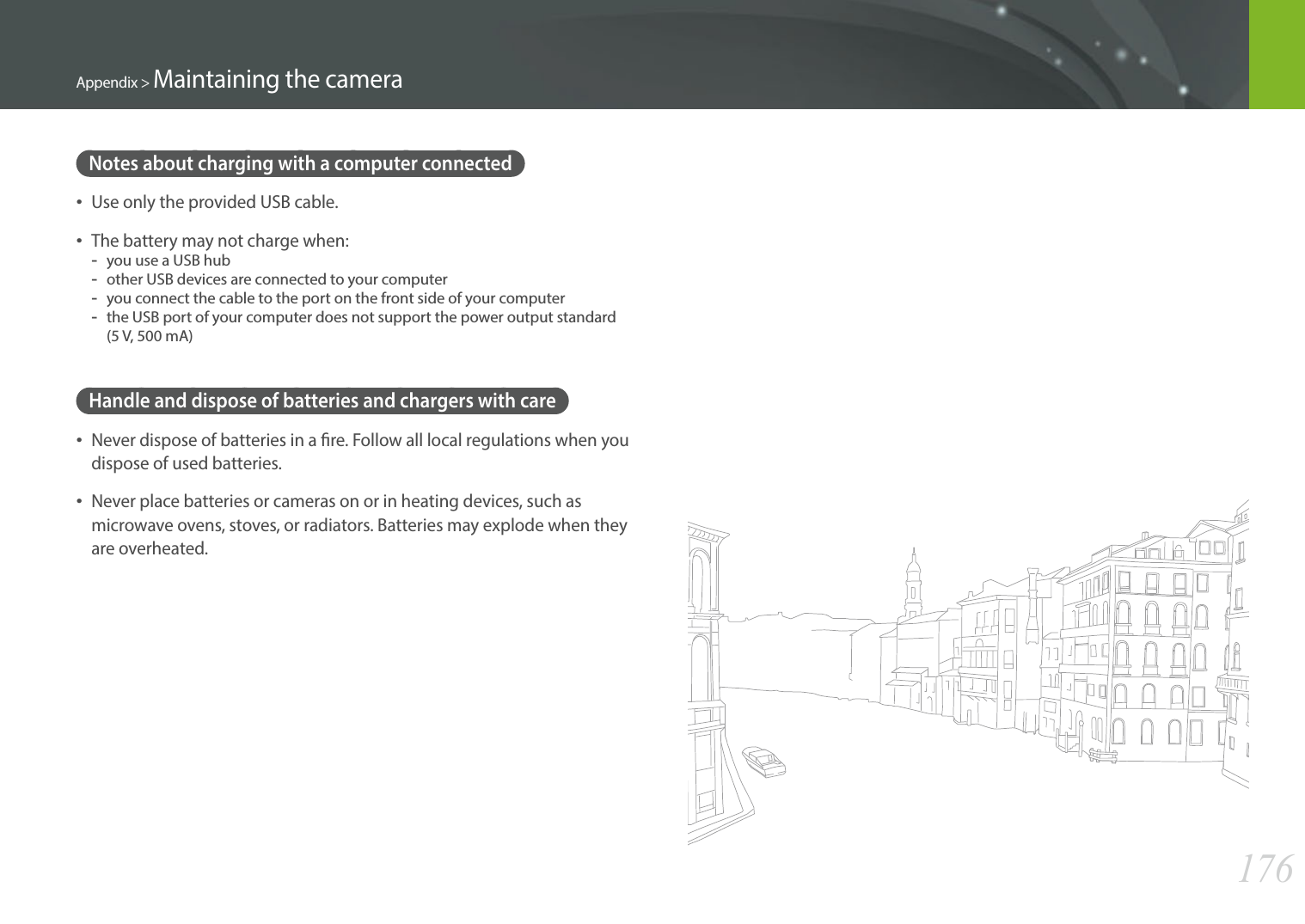

176Appendix > Maintaining the cameraNotes about charging with a computer connectedUse only the provided USB cable.The battery may not charge when:-you use a USB hub-other USB devices are connected to your computer-you connect the cable to the port on the front side of your computer-the USB port of your computer does not support the power output standard (5 V, 500 mA)Handle and dispose of batteries and chargers with careNever dispose of batteries in a re. Follow all local regulations when you dispose of used batteries.Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when they are overheated.

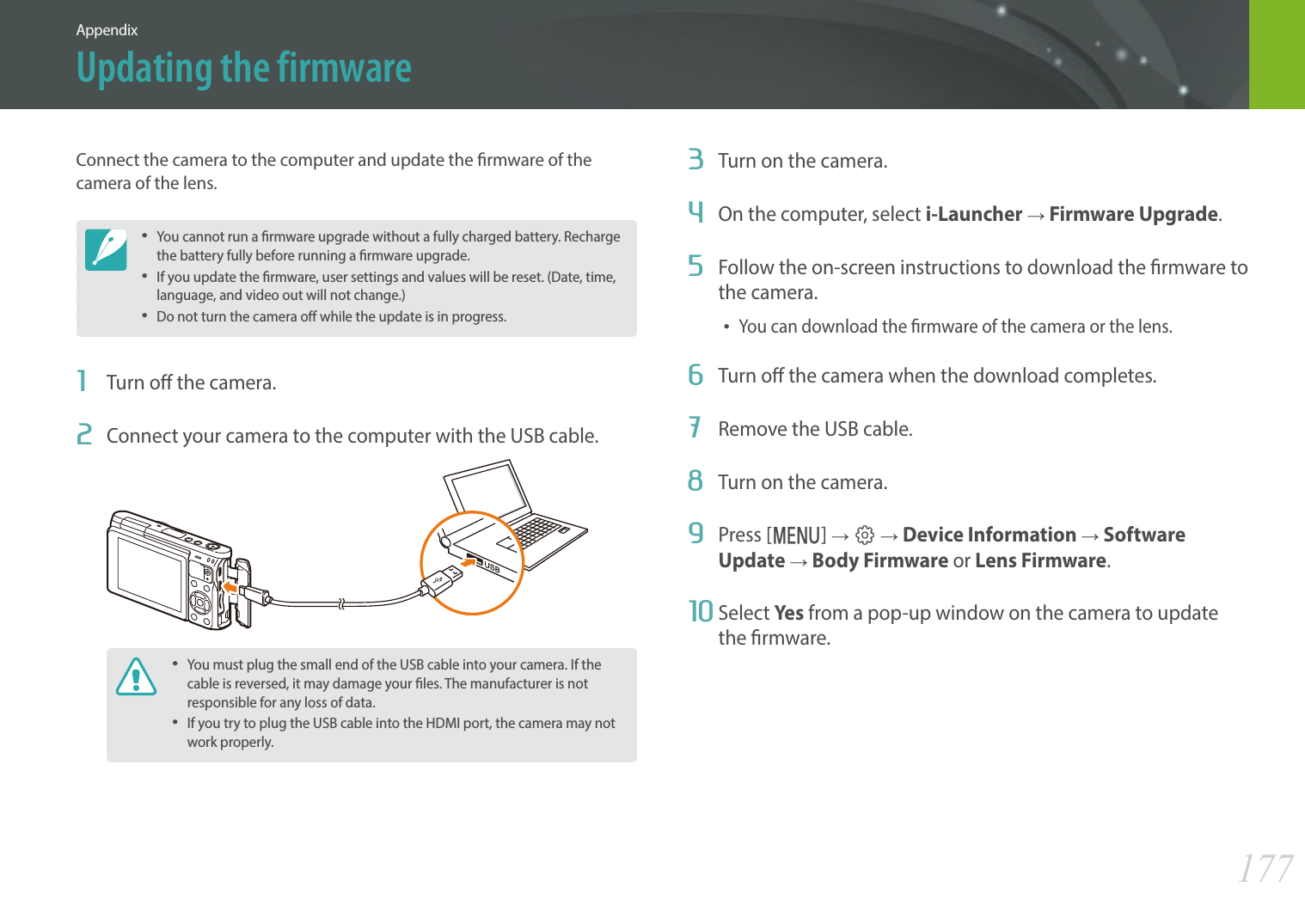

177AppendixUpdating the firmwareConnect the camera to the computer and update the rmware of the camera of the lens.You cannot run a rmware upgrade without a fully charged battery. Recharge the battery fully before running a rmware upgrade. If you update the rmware, user settings and values will be reset. (Date, time, language, and video out will not change.) Do not turn the camera o while the update is in progress. 1 Turn o the camera.2 Connect your camera to the computer with the USB cable.You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data. If you try to plug the USB cable into the HDMI port, the camera may not work properly.3 Turn on the camera. 4 On the computer, select i-Launcher ĺ Firmware Upgrade.5 Follow the on-screen instructions to download the rmware to the camera.You can download the rmware of the camera or the lens.6 Turn o the camera when the download completes.7 Remove the USB cable.8 Turn on the camera.9 Press [m] ĺ q ĺ Device Information ĺ Software Update ĺ Body Firmware or Lens Firmware. 10 Select Ye s from a pop-up window on the camera to update the rmware.

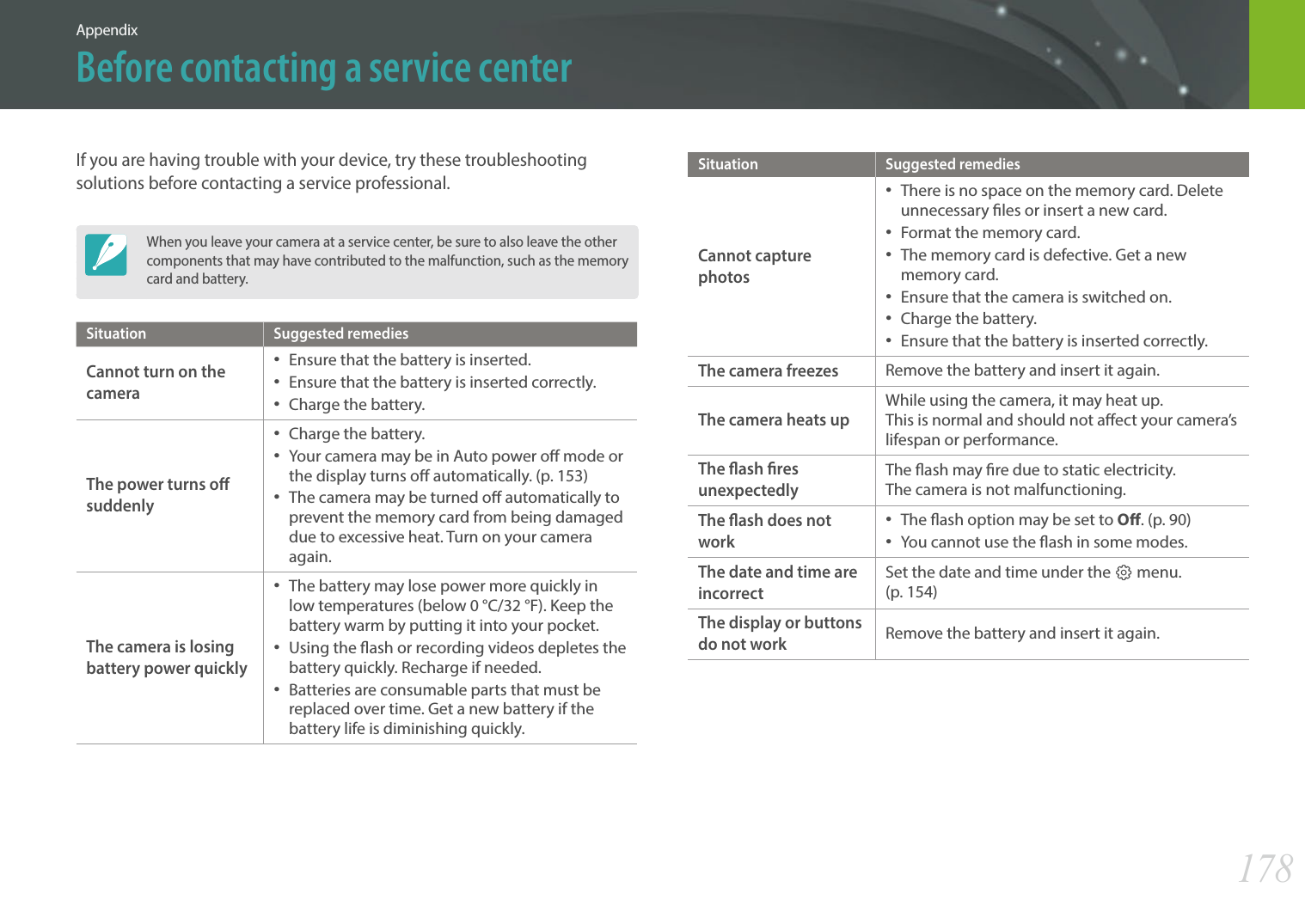

178AppendixBefore contacting a service centerIf you are having trouble with your device, try these troubleshooting solutions before contacting a service professional.When you leave your camera at a service center, be sure to also leave the other components that may have contributed to the malfunction, such as the memory card and battery. Situation Suggested remediesCannot turn on the camera Ensure that the battery is inserted. Ensure that the battery is inserted correctly. Charge the battery.The power turns o suddenly Charge the battery. Your camera may be in Auto power o mode or the display turns o automatically. (p. 153) The camera may be turned o automatically to prevent the memory card from being damaged due to excessive heat. Turn on your camera again.The camera is losing battery power quickly The battery may lose power more quickly in low temperatures (below 0 °C/32 °F). Keep the battery warm by putting it into your pocket.  Using the ash or recording videos depletes the battery quickly. Recharge if needed. Batteries are consumable parts that must be replaced over time. Get a new battery if the battery life is diminishing quickly.Situation Suggested remediesCannot capture photos There is no space on the memory card. Delete unnecessary les or insert a new card. Format the memory card. The memory card is defective. Get a new memory card. Ensure that the camera is switched on. Charge the battery. Ensure that the battery is inserted correctly.The camera freezesRemove the battery and insert it again.The camera heats upWhile using the camera, it may heat up. This is normal and should not aect your camera’s lifespan or performance.The ash res unexpectedlyThe ash may re due to static electricity. The camera is not malfunctioning. The ash does not work The ash option may be set to O. (p. 90) You cannot use the ash in some modes.The date and time are incorrectSet the date and time under the q menu. (p. 154)The display or buttons do not workRemove the battery and insert it again.
179Appendix > Before contacting a service centerSituation Suggested remediesThe memory card has an error Turn o the camera, and then turn it on again. Remove the memory card, and then insert it again. Format the memory card.See "Cautions when using memory cards" for more details. (p. 171)Your TV or computer cannot display photos and videos that are stored on a microSDXC memory cardmicroSDXC memory cards use the exFAT le system. Ensure that the external device is compatible with the exFAT le system before connecting the camera to the device. Your computer does not recognize a microSDXC memory cardmicroSDXC memory cards use the exFAT le system. To use microSDXC memory cards on a Windows XP computer, download and update the exFAT le system driver from the Microsoft website.Cannot display lesIf you change the name of a le, your camera may not play the le (the name of the le should meet the DCF standard). If you encounter this situation, display les on your computer.Situation Suggested remediesThe photo is blurry Ensure that the focus option you set is suitable for the kind of shot you are capturing. Use a tripod to prevent your camera from shaking. Ensure that the lens is clean. If not, clean the lens. (p. 166)The colors in the photo do not match the actual sceneAn incorrect White Balance can create unrealistic color. Select the proper White Balance option to suit the light source. (p. 72)The photo is too bright or too darkYour photo is overexposed or underexposed. Adjust the aperture value or the shutter speed. Adjust the ISO sensitivity. (p. 71) Turn the ash o or on. (p. 90) Adjust the exposure value. (p. 97)Photos are distortedThis camera can have minute distortion when using a wide-angle lens that enables shooting with a wide angle of view. This is normal, and does not cause malfunction.Horizontal lines appear on the photoThis may occur when the subject is exposed to a uorescent or mercury-vapor light source. Select a slow shutter speed or set the shooting mode to Auto.

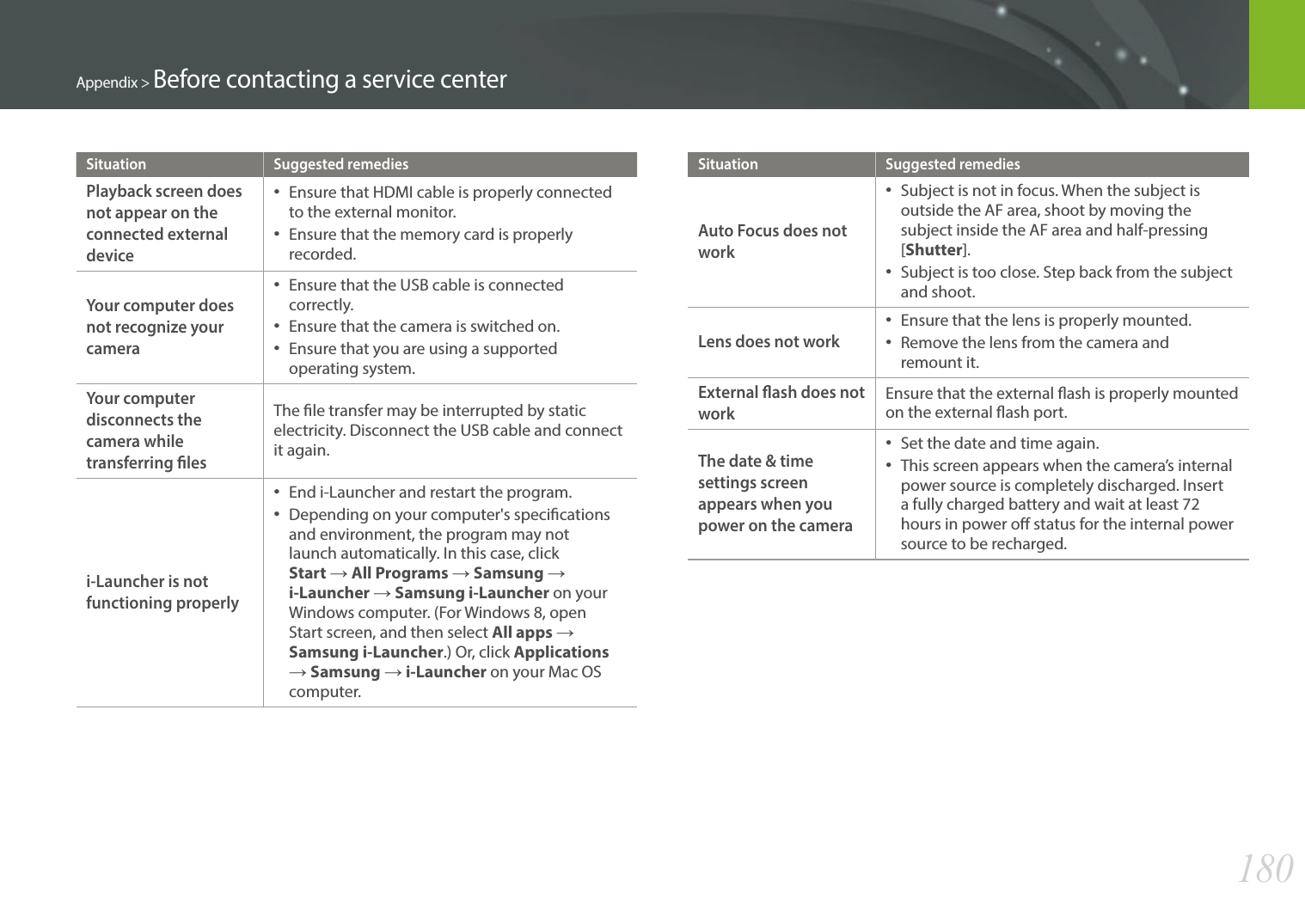

180Appendix > Before contacting a service centerSituation Suggested remediesPlayback screen does not appear on the connected external device Ensure that HDMI cable is properly connected to the external monitor. Ensure that the memory card is properly recorded.Your computer does not recognize your camera Ensure that the USB cable is connected correctly. Ensure that the camera is switched on. Ensure that you are using a supported operating system.Your computer disconnects the camera while transferring lesThe le transfer may be interrupted by static electricity. Disconnect the USB cable and connect it again. i-Launcher is not functioning properly End i-Launcher and restart the program. Depending on your computer's specications and environment, the program may not launch automatically. In this case, click Start ĺ All Programs ĺ Samsung ĺ i-Launcher ĺ Samsung i-Launcher on your Windows computer. (For Windows 8, open Start screen, and then select All apps ĺ Samsung i-Launcher.) Or, click Applications ĺ Samsung ĺ i-Launcher on your Mac OS computer.Situation Suggested remediesAuto Focus does not work Subject is not in focus. When the subject is outside the AF area, shoot by moving the subject inside the AF area and half-pressing [Shutter]. Subject is too close. Step back from the subject and shoot.Lens does not work Ensure that the lens is properly mounted.  Remove the lens from the camera and remount it.External ash does not workEnsure that the external ash is properly mounted on the external ash port.The date & time settings screen appears when you power on the camera Set the date and time again. This screen appears when the camera’s internal power source is completely discharged. Insert a fully charged battery and wait at least 72 hours in power o status for the internal power source to be recharged.

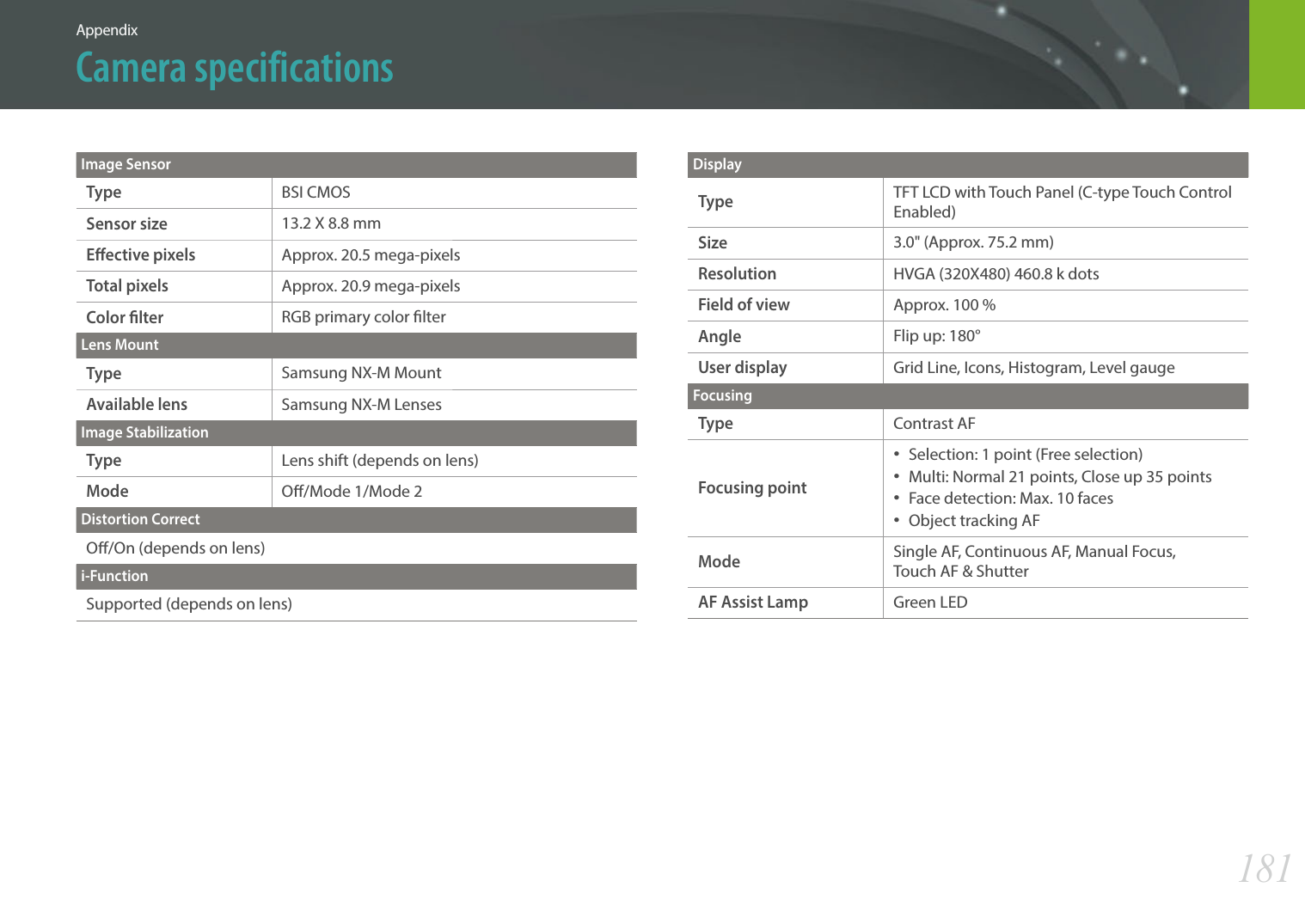

181AppendixCamera specificationsImage SensorTypeBSI CMOSSensor size13.2 X 8.8 mmEective pixels Approx. 20.5 mega-pixelsTotal pixels Approx. 20.9 mega-pixelsColor lter RGB primary color lterLens MountTypeSamsung NX-M MountAvailable lensSamsung NX-M LensesImage StabilizationTypeLens shift (depends on lens)ModeO/Mode 1/Mode 2Distortion CorrectO/On (depends on lens)i-FunctionSupported (depends on lens)DisplayTypeTFT LCD with Touch Panel (C-type Touch Control Enabled)Size3.0" (Approx. 75.2 mm)ResolutionHVGA (320X480) 460.8 k dotsField of viewApprox. 100 %AngleFlip up: 180° User displayGrid Line, Icons, Histogram, Level gaugeFocusingType Contrast AFFocusing point Selection: 1 point (Free selection) Multi: Normal 21 points, Close up 35 points Face detection: Max. 10 faces  Object tracking AFMode Single AF, Continuous AF, Manual Focus, Touch AF & ShutterAF Assist LampGreen LED

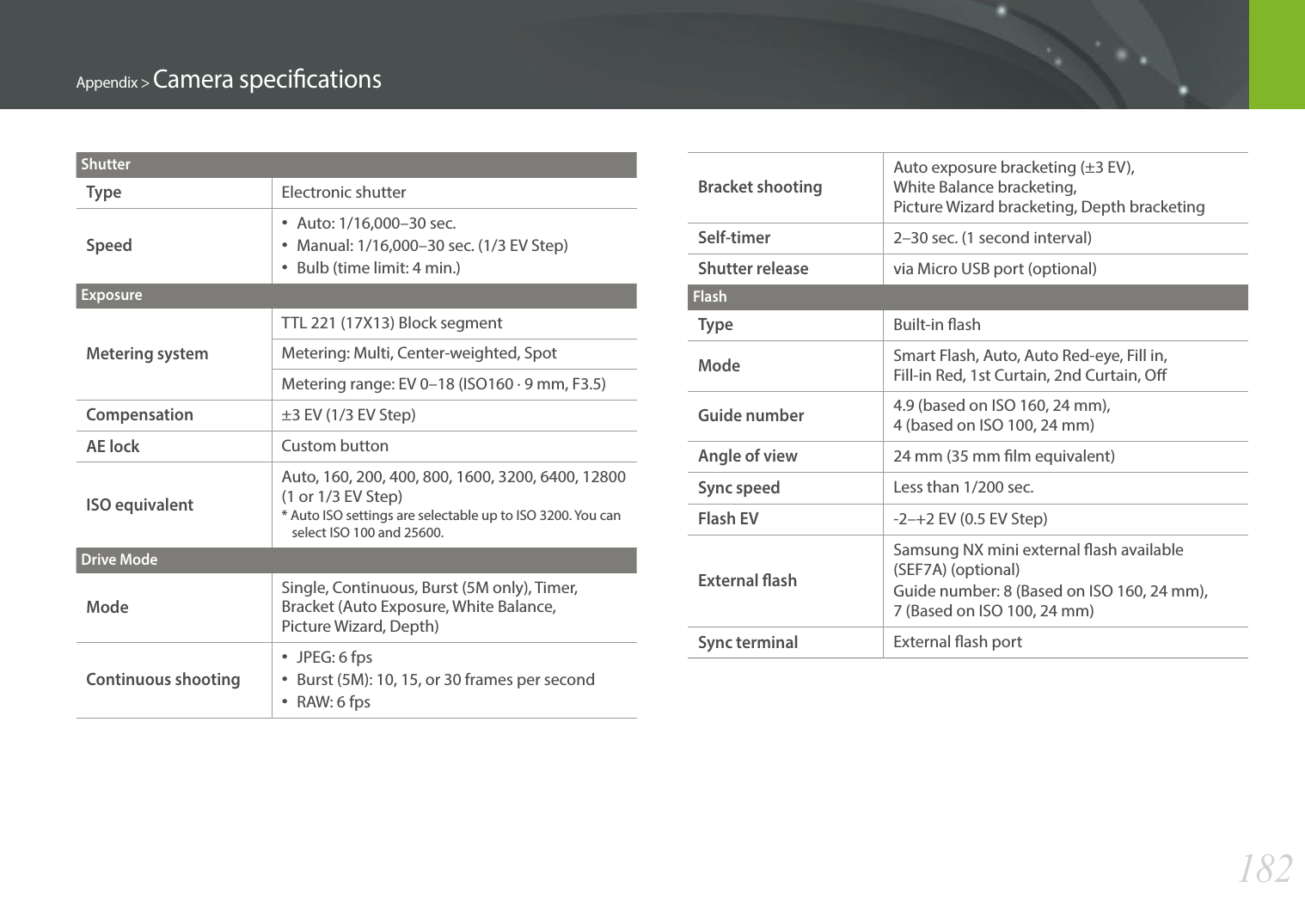

182Appendix > Camera specicationsShutterType Electronic shutterSpeed Auto: 1/16,000–30 sec. Manual: 1/16,000–30 sec. (1/3 EV Step) Bulb (time limit: 4 min.)ExposureMetering systemTTL 221 (17X13) Block segmentMetering: Multi, Center-weighted, SpotMetering range: EV 0–18 (ISO160 · 9 mm, F3.5)Compensation±3 EV (1/3 EV Step)AE lockCustom buttonISO equivalentAuto, 160, 200, 400, 800, 1600, 3200, 6400, 12800 (1 or 1/3 EV Step)* Auto ISO settings are selectable up to ISO 3200. You can select ISO 100 and 25600. Drive ModeModeSingle, Continuous, Burst (5M only), Timer, Bracket (Auto Exposure, White Balance, Picture Wizard, Depth) Continuous shooting JPEG: 6 fps Burst (5M): 10, 15, or 30 frames per second RAW: 6 fpsBracket shootingAuto exposure bracketing (±3 EV), White Balance bracketing, Picture Wizard bracketing, Depth bracketing Self-timer2–30 sec. (1 second interval)Shutter releasevia Micro USB port (optional)FlashTypeBuilt-in ashModeSmart Flash, Auto, Auto Red-eye, Fill in, Fill-in Red, 1st Curtain, 2nd Curtain, OGuide number4.9 (based on ISO 160, 24 mm), 4 (based on ISO 100, 24 mm)Angle of view24 mm (35 mm lm equivalent)Sync speedLess than 1/200 sec.Flash EV-2–+2 EV (0.5 EV Step)External ashSamsung NX mini external ash available (SEF7A) (optional) Guide number: 8 (Based on ISO 160, 24 mm), 7 (Based on ISO 100, 24 mm)Sync terminalExternal ash port
183Appendix > Camera specicationsWhite BalanceModeAuto WB, Daylight, Cloudy, Fluorescent White, Fluorescent NW, Fluorescent Daylight, Tungsten, Flash WB, Custom Set, Color Temperature (Manual)Micro adjustmentAmber/Blue/Green/Magenta 7 steps respectivelyDynamic RangeO/Smart Range+/HDRPicture WizardModeStandard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom1, Custom2, Custom3ParameterColor, Saturation, Sharpness, ContrastShootingModeAuto, Smart, Program, Aperture Priority, Shutter Priority, ManualSmart modeBeauty Face, Best Face, Continuous Shot, Kids Shot, Landscape, Macro, Food, Parties and Indoors, Action Freeze, Rich Tones, Panorama, Waterfall, Silhouette, Sunset, Night, Fireworks, Light TraceSmart lter Vignetting, Miniature, Sketch, Fish EyeSize JPEG (3:2): 20.0M (5472X3648), 10.1M (3888X2592), 5.9M (2976X1984), 5.0M (2736X1824) (Burst mode only), 2.0M (1728X1152) JPEG (16:9): 16.9M (5472X3080), 7.8M (3712X2088), 4.9M (2944X1656), 2.1M (1920X1080) JPEG (1:1): 13.3M (3648X3648), 7.0M (2640X2640), 4.0M (2000X2000), 1.1M (1024X1024) RAW: 20.0M (5472X3648)QualitySuper Fine, Fine, Normal, RAW, RAW + S.Fine, RAW + Fine, RAW + NormalRAW standardSRW (ver.3.0.0)Color spacesRGB, Adobe RGBVideoTypeMP4 (H.264)FormatMovie: H.264, Sound: AACMovie AE modeProgram, Aperture Priority, Shutter Priority, Manual Movie clipAudio on/o (Shooting time: Max. 29' 59'')Smart lter Vignetting, Miniature, Sketch, Fish Eye
184Appendix > Camera specicationsSize1920X1080, 1280X720, 640X480, 320X240 (For Sharing)Frame rate30 fpsMulti Motionx0.25 (640X480, 320X240 only), x1, x5, x10, x20QualityHQ, NormalSoundMonoEditStill image capture, Time trimmingPlaybackTypeSingle image, Thumbnails (15/28), Slide show, MovieEditSmart Filter, Crop, Resize, Rotate, Face Retouch, Brightness, Contrast, Auto adjustment, Saturation, RGB adjustment, Color Temperature, ExposureSmart lterVignetting, Miniature, Soft Focus, Sketch, Fish Eye, Classic, Retro, Oil Painting, Cartoon, Ink Painting, Cross Filter, Zooming ShotStorageMediaExternal memory (optional)*: microSD card (2 GB guaranteed), microSDHC card (up to 32 GB guaranteed), microSDXC card (up to 64 GB guaranteed)* Class 6 and above recommendedFile formatRAW (SRW (ver.3.0.0)), JPEG (EXIF 2.3), MP4 (Movie), DCFWireless networkTypeIEEE 802.11b/g/nFunctionAutoShare, Remote Viewnder, MobileLink, Photo Beam, Auto Backup, Samsung Link, SNS & Cloud, Email, Baby Monitor, Group ShareNFCYesInterfaceDigital outputUSB 2.0 (micro USB jack)Video output NTSC, PAL (selectable) HDMIExternal release YesDC power inputDC 5.0 V, 0.55 A via micro USB

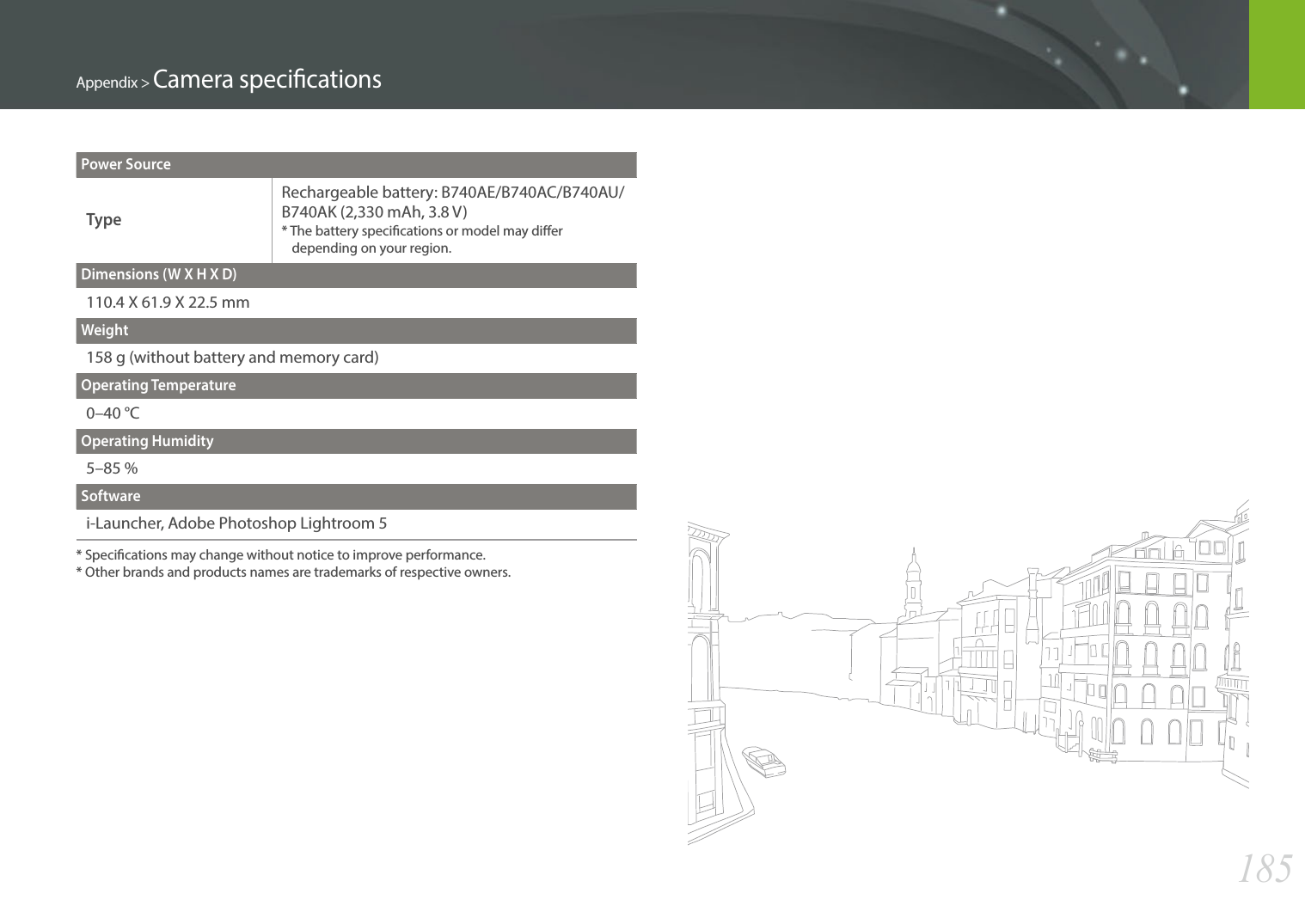

185Appendix > Camera specicationsPower SourceTypeRechargeable battery: B740AE/B740AC/B740AU/ B740AK (2,330 mAh, 3.8 V)* The battery specications or model may dier depending on your region.Dimensions (W X H X D)110.4 X 61.9 X 22.5 mmWeight158 g (without battery and memory card)Operating Temperature0–40 °COperating Humidity5–85 %Softwarei-Launcher, Adobe Photoshop Lightroom 5* Specications may change without notice to improve performance.* Other brands and products names are trademarks of respective owners.

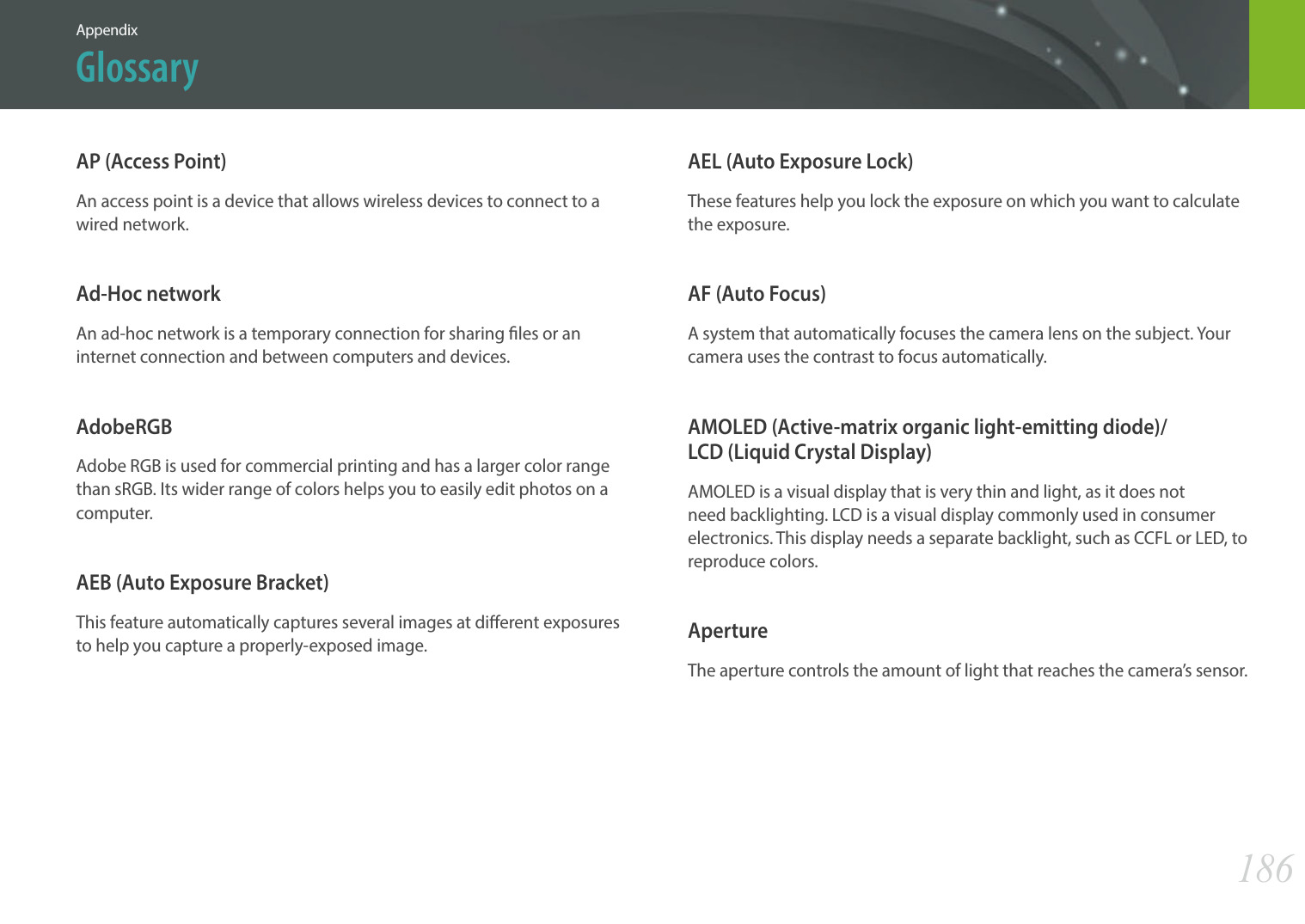

186AppendixGlossaryAP (Access Point)An access point is a device that allows wireless devices to connect to a wired network.Ad-Hoc networkAn ad-hoc network is a temporary connection for sharing les or an internet connection and between computers and devices.AdobeRGBAdobe RGB is used for commercial printing and has a larger color range than sRGB. Its wider range of colors helps you to easily edit photos on a computer.AEB (Auto Exposure Bracket)This feature automatically captures several images at dierent exposures to help you capture a properly-exposed image.AEL (Auto Exposure Lock)These features help you lock the exposure on which you want to calculate the exposure.AF (Auto Focus)A system that automatically focuses the camera lens on the subject. Your camera uses the contrast to focus automatically.AMOLED (Active-matrix organic light-emitting diode)/ LCD (Liquid Crystal Display)AMOLED is a visual display that is very thin and light, as it does not need backlighting. LCD is a visual display commonly used in consumer electronics. This display needs a separate backlight, such as CCFL or LED, to reproduce colors.ApertureThe aperture controls the amount of light that reaches the camera’s sensor.
187Appendix > GlossaryCompositionComposition in photography means arranging objects in a photo. Usually, abiding by the rule of thirds leads to a good composition.DCF (Design rule for Camera File system)A specication to dene a le format and le system for digital cameras created by the Japan Electronics and Information Technology Industries Association (JEITA). Depth of eldThe distance between the nearest and farthest points that can be acceptably focused in a photograph. Depth of eld varies with lens aperture, focal length, and distance from the camera to the subject. Selecting a smaller aperture, for example, will increase the depth of eld and blur the background of a composition.Camera shake (Blur)If the camera is moved while the shutter is open, the entire image may appear blurred. This occurs more often when the shutter speed is slow. Prevent camera shake by raising the sensitivity, using the ash, or using a faster shutter speed. Alternatively, use a tripod or the OIS function to stabilize the camera.Cloud ComputingCloud computing is a technology that allows you to store data on remote servers and to use them from a device with internet access. Color spaceThe range of colors that the camera can see.Color temperatureColor Temperature is a measurement in degrees Kelvin (K) that indicates the hue of a specic type of light source. As the color temperature increases, the color of the light source has a more bluish quality. As the color temperature decreases, the color of the light source has a more reddish quality. At 5,500 degrees Kelvin, the color of the light source is similar to the sun at midday.

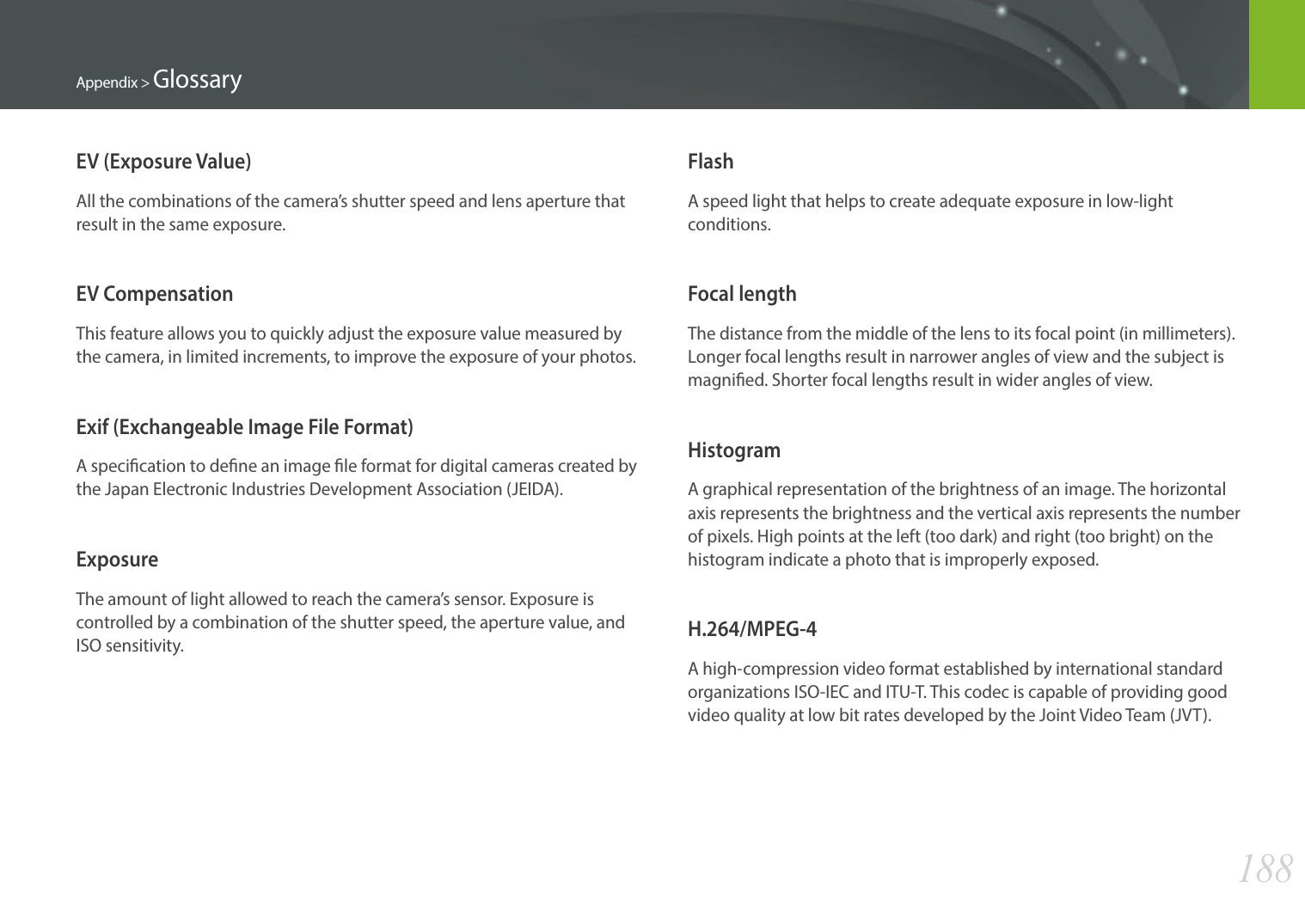

188Appendix > GlossaryFlashA speed light that helps to create adequate exposure in low-light conditions.Focal lengthThe distance from the middle of the lens to its focal point (in millimeters). Longer focal lengths result in narrower angles of view and the subject is magnied. Shorter focal lengths result in wider angles of view.HistogramA graphical representation of the brightness of an image. The horizontal axis represents the brightness and the vertical axis represents the number of pixels. High points at the left (too dark) and right (too bright) on the histogram indicate a photo that is improperly exposed.H.264/MPEG-4A high-compression video format established by international standard organizations ISO-IEC and ITU-T. This codec is capable of providing good video quality at low bit rates developed by the Joint Video Team (JVT).EV (Exposure Value)All the combinations of the camera’s shutter speed and lens aperture that result in the same exposure. EV CompensationThis feature allows you to quickly adjust the exposure value measured by the camera, in limited increments, to improve the exposure of your photos.Exif (Exchangeable Image File Format)A specication to dene an image le format for digital cameras created by the Japan Electronic Industries Development Association (JEIDA).ExposureThe amount of light allowed to reach the camera’s sensor. Exposure is controlled by a combination of the shutter speed, the aperture value, and ISO sensitivity.
189Appendix > GlossaryMeteringThe metering refers to the way in which the camera measures the quantity of light to set the exposure.MF (Manual Focus)A system that manually focuses the camera lens on the subject. You can use the focus ring to focus on a subject.MJPEG (Motion JPEG)A video format which is compressed as a JPEG image.Image sensorThe physical part of a digital camera that contains a photosite for each pixel in the image. Each photosite records the brightness of the light that strikes it during an exposure. Common sensor types are CCD (Charge-coupled Device) and CMOS (Complementary Metal Oxide Semiconductor).IP (Internet protocol) addressAn IP address is a unique number that is assigned to every device that is connected to the internet.ISO sensitivityThe sensitivity of the camera to light, based on the equivalent lm speed used in a lm camera. At higher ISO sensitivity settings, the camera uses a higher shutter speed, which can reduce blur caused by camera shake and low light. However, images with high sensitivity are more susceptible to noise.JPEG (Joint Photographic Experts Group)A lossy method of compression for digital images. JPEG images are compressed to reduce their overall le size with minimal deterioration of the image resolution.
190Appendix > GlossaryPAL (Phase Alternate Line)A video color encoding standard used in numerous countries throughout Africa, Asia, Europe, and the Middle East.QualityAn expression of the rate of compression used in a digital image. Higher quality images have a lower rate of compression, which usually results in a larger le size.RAW (CCD raw data) The original, unprocessed data, collected directly from the camera’s image sensor. White Balance, contrast, saturation, sharpness, and other data can be manipulated with editing software before the image is compressed into a standard le format. ResolutionThe number of pixels present in a digital image. High resolution images contain more pixels and typically show more detail than low resolution images.NoiseMisinterpreted pixels in a digital image that may appear as misplaced or random, bright pixels. Noise usually occurs when photos are shot with a high sensitivity or when a sensitivity is automatically set in a dark place.NFC (Near Field Communication)NFC is a set of standards for radio communication at very close proximity. You can use NFC-enabled devices to activate features or exchange data with other devices.NTSC (National Television System Committee) A video color encoding standard used most commonly in Japan, North America, the Philippines, South America, South Korea, and Taiwan.Optical zoomThis is a general zoom which can enlarge images with a lens and does not deteriorate quality of images.

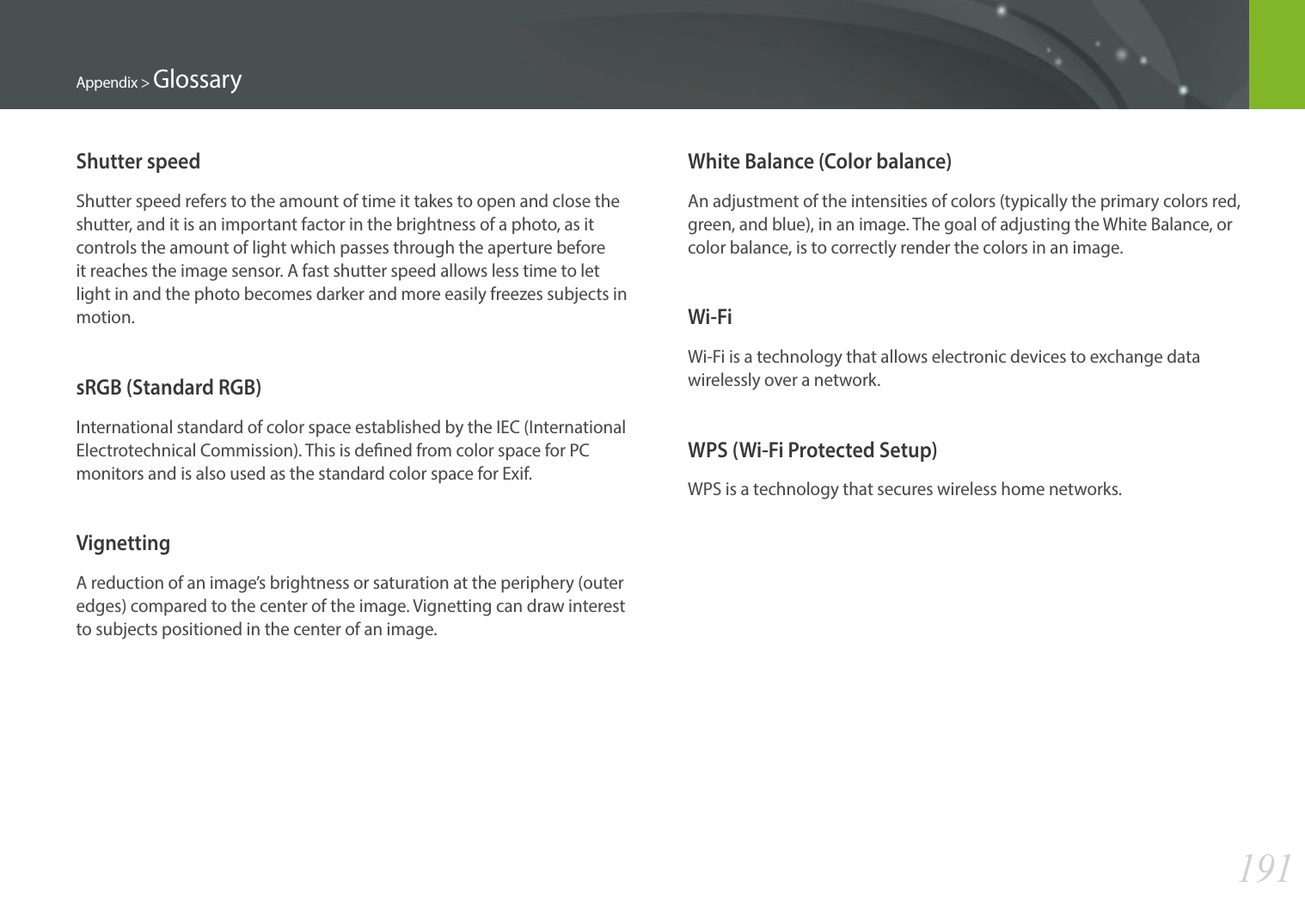

191Appendix > GlossaryShutter speedShutter speed refers to the amount of time it takes to open and close the shutter, and it is an important factor in the brightness of a photo, as it controls the amount of light which passes through the aperture before it reaches the image sensor. A fast shutter speed allows less time to let light in and the photo becomes darker and more easily freezes subjects in motion.sRGB (Standard RGB)International standard of color space established by the IEC (International Electrotechnical Commission). This is dened from color space for PC monitors and is also used as the standard color space for Exif.VignettingA reduction of an image’s brightness or saturation at the periphery (outer edges) compared to the center of the image. Vignetting can draw interest to subjects positioned in the center of an image.White Balance (Color balance)An adjustment of the intensities of colors (typically the primary colors red, green, and blue), in an image. The goal of adjusting the White Balance, or color balance, is to correctly render the colors in an image.Wi-FiWi-Fi is a technology that allows electronic devices to exchange data wirelessly over a network.WPS (Wi-Fi Protected Setup)WPS is a technology that secures wireless home networks.

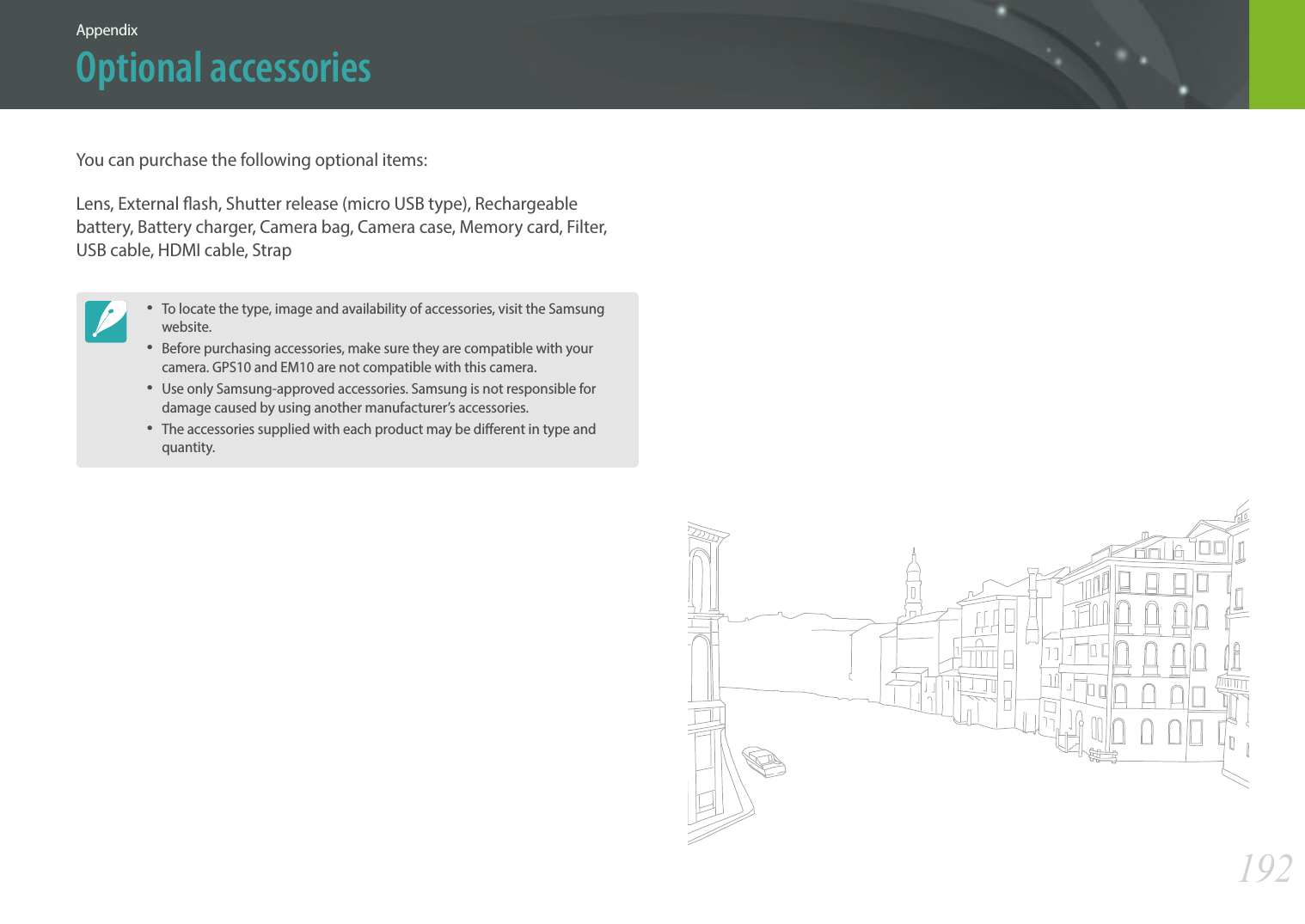

192AppendixOptional accessoriesYou can purchase the following optional items:Lens, External ash, Shutter release (micro USB type), Rechargeable battery, Battery charger, Camera bag, Camera case, Memory card, Filter, USB cable, HDMI cable, StrapTo locate the type, image and availability of accessories, visit the Samsung website.Before purchasing accessories, make sure they are compatible with your camera. GPS10 and EM10 are not compatible with this camera.Use only Samsung-approved accessories. Samsung is not responsible for damage caused by using another manufacturer’s accessories.The accessories supplied with each product may be dierent in type and quantity.

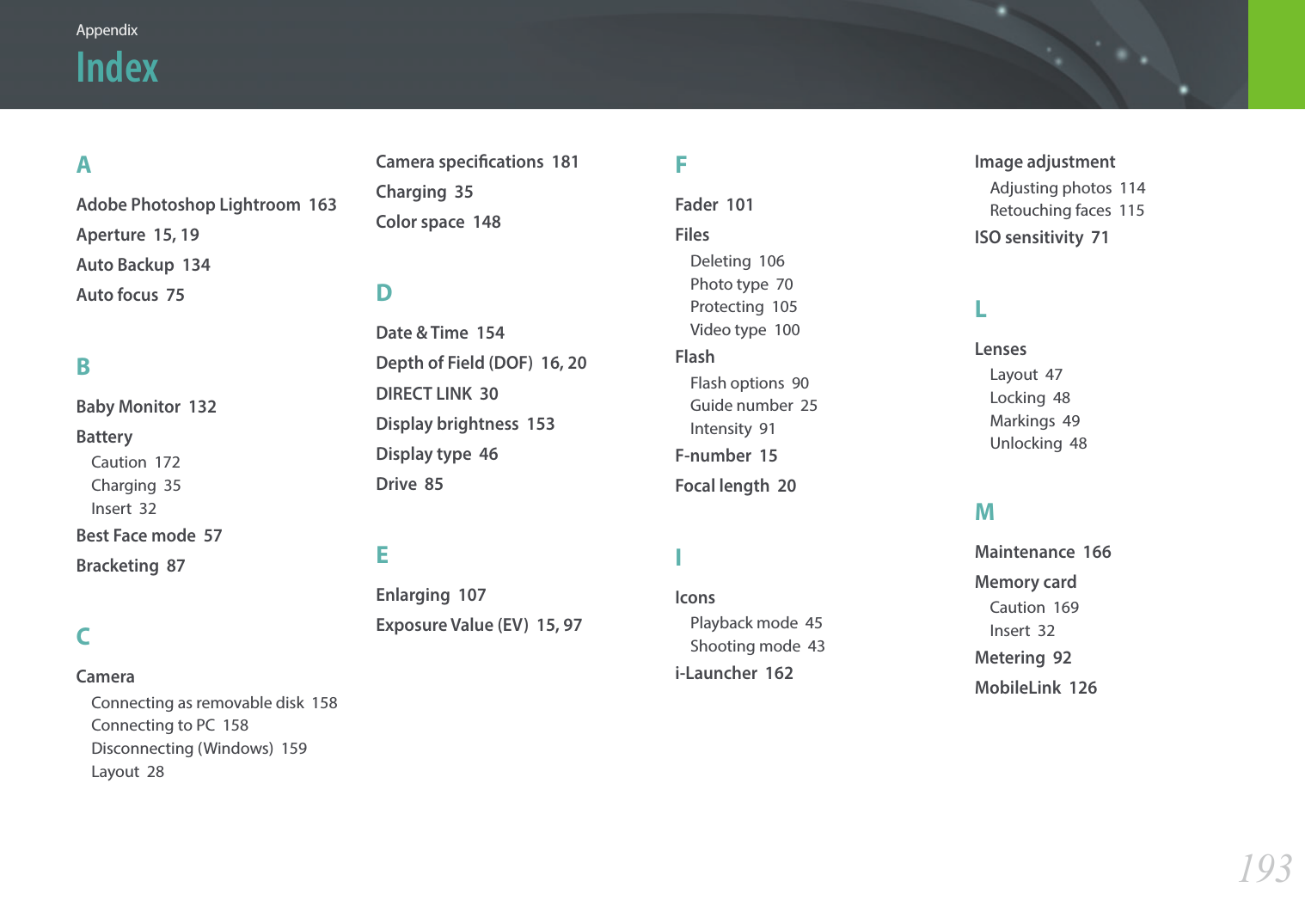

193AppendixAAdobe Photoshop Lightroom 163Aperture 15, 19Auto Backup 134Auto focus 75BBaby Monitor 132BatteryCaution 172Charging 35Insert 32Best Face mode 57Bracketing 87CCameraConnecting as removable disk 158Connecting to PC 158Disconnecting (Windows) 159Layout 28Camera specications 181Charging 35Color space 148DDate & Time 154Depth of Field (DOF) 16, 20DIRECT LINK 30Display brightness 153Display type 46Drive 85EEnlarging 107Exposure Value (EV) 15, 97FFader 101FilesDeleting 106Photo type 70Protecting 105Video type 100FlashFlash options 90Guide number 25Intensity 91F-number 15Focal length 20IIconsPlayback mode 45Shooting mode 43i-Launcher 162Image adjustmentAdjusting photos 114Retouching faces 115ISO sensitivity 71LLensesLayout 47Locking 48Markings 49Unlocking 48MMaintenance 166Memory cardCaution 169Insert 32Metering 92MobileLink 126Index
194Appendix > IndexNNFC (Tag & Go) 123OOne touch shot 82Optical Image Stabilization (OIS) 84Optional accessoriesAttach the mount adapter 52Connect the ash 51Flash layout 50Mount adapter layout 52PPanorama mode 58PhotosEditing 112Enlarging 107Shooting options 69Viewing on camera 103Picture Wizard 74Posture 13Power save mode 153RRed-eye eect 91Remote Viewnder 130ResolutionPlayback mode 113Shooting mode (Movie) 99Shooting mode (Photo) 69Retouching faces 115Rotating 113Rule of thirds 23SSamsung Link 142Service center 178Settings 153Shooting modesAperture Priority 61Auto 54Manual 63Program 59Recording 65Shutter Priority 62Smart 56Shutter speed 17, 19Slide show 107Smart lterPlayback mode 116Shooting mode 96Smart panel 40TThumbnails 103Timer 87Touch AF 81Touch screen 38Tracking AF 81Transferring lesMac 159Windows 158TV 157UUnpacking 27VVideo Out 154VideosCapturing 111Options 99Recording 65Viewing 109WWhite balance 72Wireless network 118

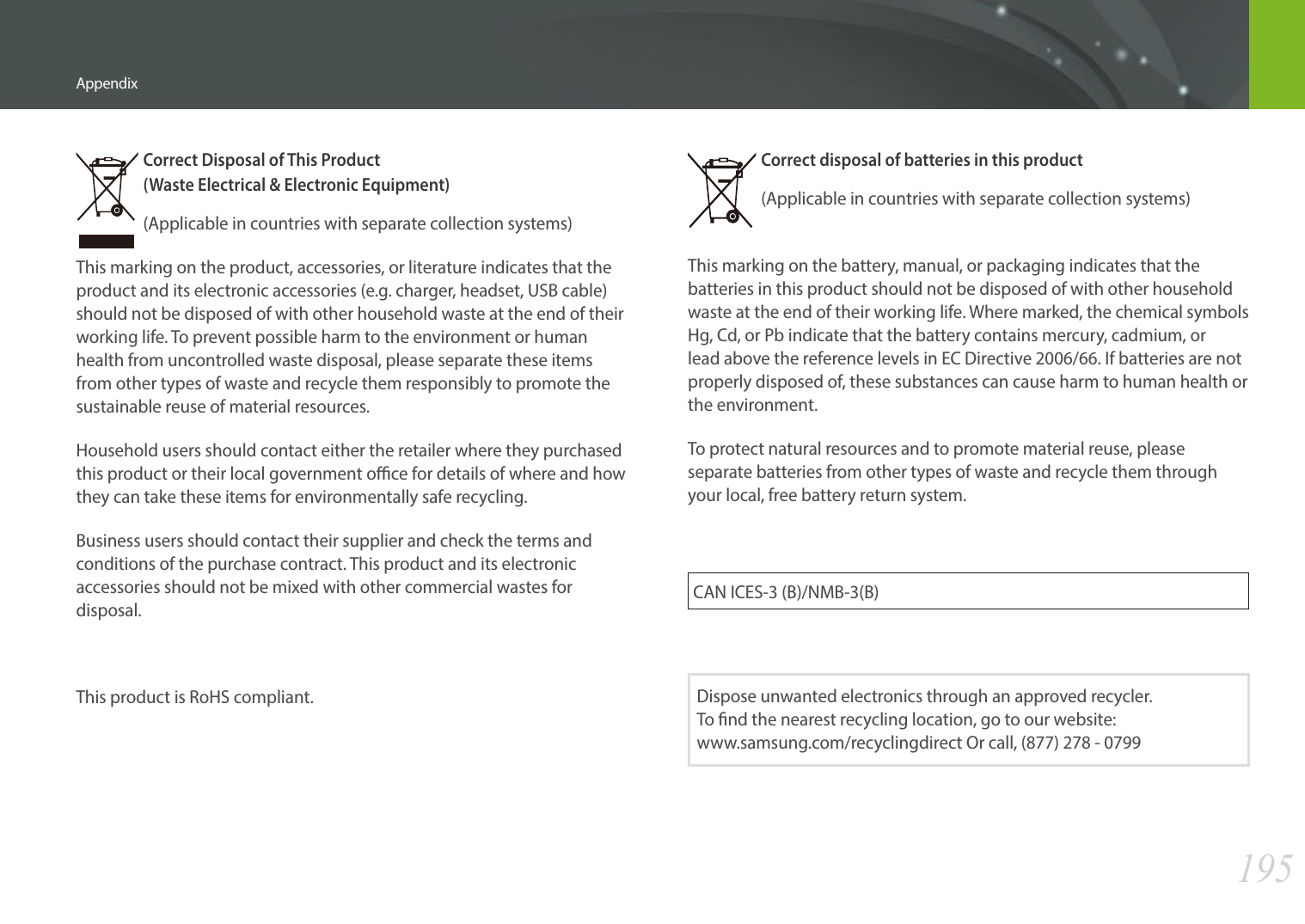

195Correct Disposal of This Product (Waste Electrical & Electronic Equipment)(Applicable in countries with separate collection systems)This marking on the product, accessories, or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product or their local government oce for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.This product is RoHS compliant.Correct disposal of batteries in this product(Applicable in countries with separate collection systems) This marking on the battery, manual, or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd, or Pb indicate that the battery contains mercury, cadmium, or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.CAN ICES-3 (B)/NMB-3(B)Dispose unwanted electronics through an approved recycler. To nd the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 0799Appendix

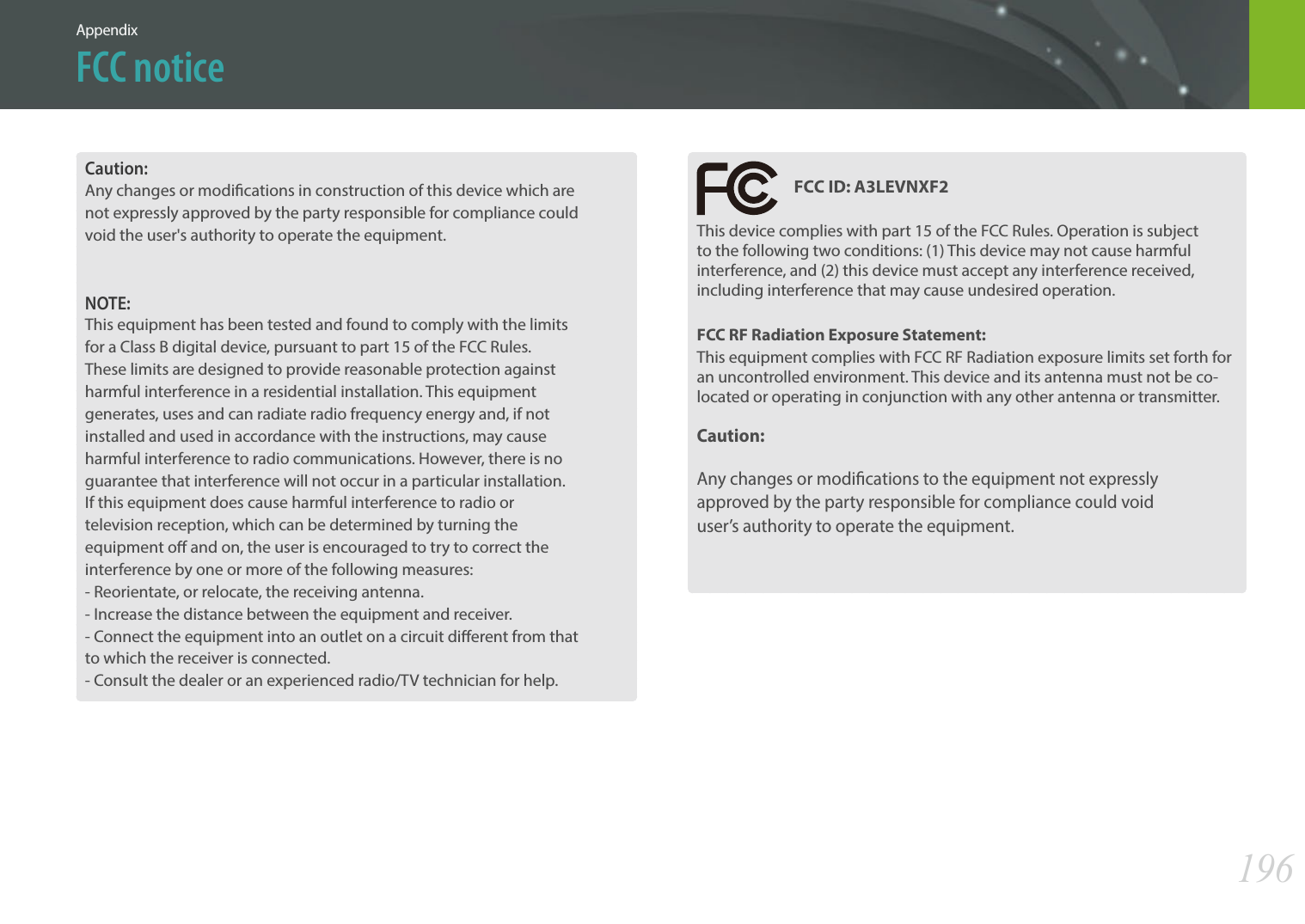

196AppendixFCC noticeCaution:Any changes or modications in construction of this device which arenot expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.NOTE:This equipment has been tested and found to comply with the limitsfor a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipmentgenerates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning theequipment o and on, the user is encouraged to try to correct theinterference by one or more of the following measures:- Reorientate, or relocate, the receiving antenna.- Increase the distance between the equipment and receiver.- Connect the equipment into an outlet on a circuit dierent from thatto which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.FCC RF Radiation Exposure Statement:This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.Caution:Any changes or modications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. FCC ID: A3LEVNXF2
