Users Manual part2

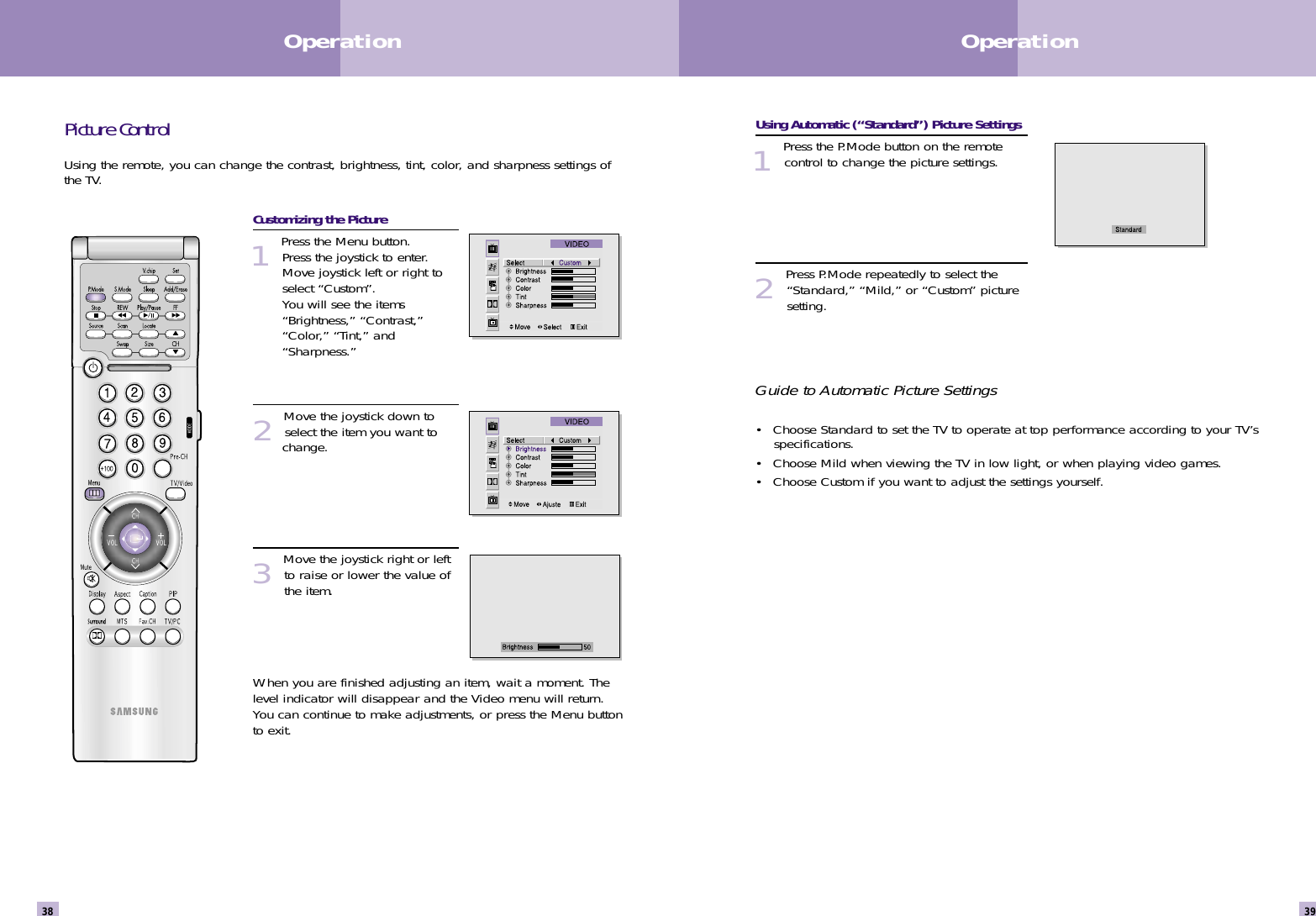

Using Automatic (“Standard”) Picture Settings1 Press the P.Mode button on the remotecontrol to change the picture settings.2Press P.Mode repeatedly to select the“Standard,” “Mild,” or “Custom” picturesetting. Guide to Automatic Picture Settings• Choose Standard to set the TV to operate at top performance according to your TV’s specifications.• Choose Mild when viewing the TV in low light, or when playing video games.• Choose Custom if you want to adjust the settings yourself.Picture ControlUsing the remote, you can change the contrast, brightness, tint, color, and sharpness settings ofthe TV.Customizing the Picture1Press the Menu button. Press the joystick to enter.Move joystick left or right toselect “Custom”. You will see the items“Brightness,” “Contrast,”“Color,” “Tint,” and“Sharpness.” 2Move the joystick down toselect the item you want to change. 3Move the joystick right or leftto raise or lower the value ofthe item. When you are finished adjusting an item, wait a moment. Thelevel indicator will disappear and the Video menu will return.You can continue to make adjustments, or press the Menu buttonto exit.39Operation38Operation

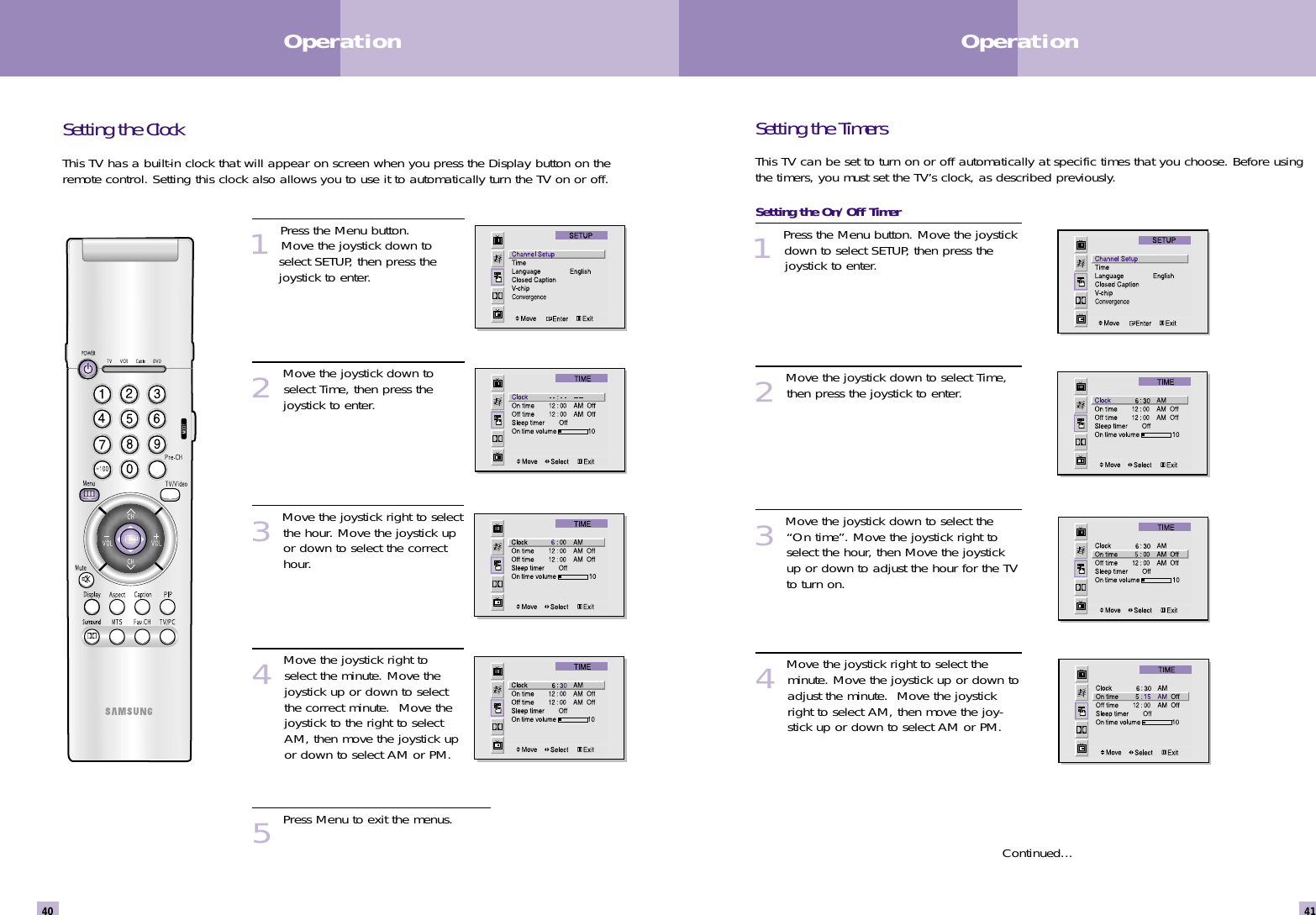

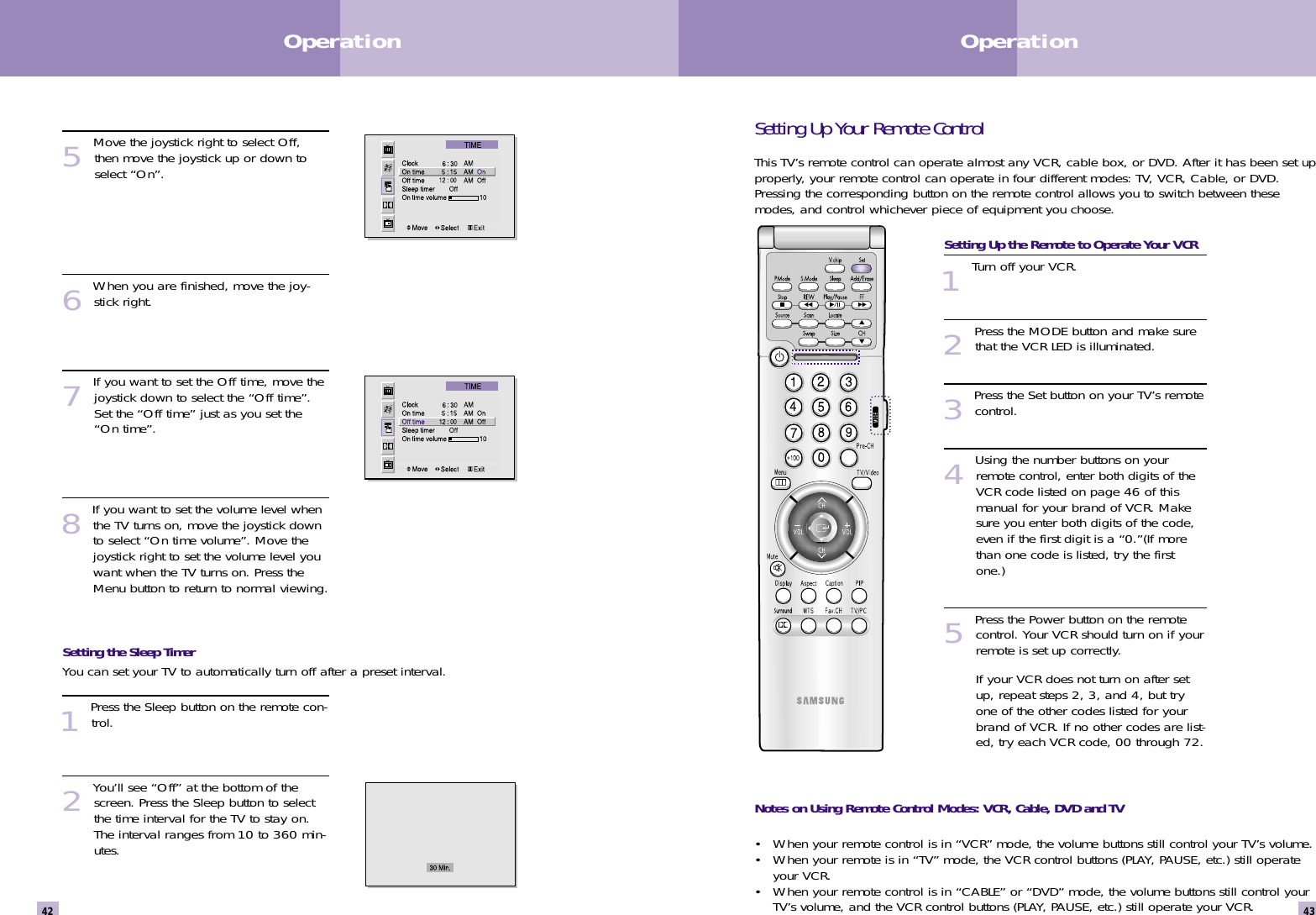

Setting the TimersThis TV can be set to turn on or off automatically at specific times that you choose. Before usingthe timers, you must set the TV’s clock, as described previously.Setting the On/Off Timer1 Press the Menu button. Move the joystickdown to select SETUP, then press the joystick to enter.2Move the joystick down to select Time,then press the joystick to enter.3Move the joystick down to select the“On time”. Move the joystick right toselect the hour, then Move the joystickup or down to adjust the hour for the TVto turn on. 4Move the joystick right to select theminute. Move the joystick up or down toadjust the minute. Move the joystickright to select AM, then move the joy-stick up or down to select AM or PM.Continued...41Operation40OperationSetting the ClockThis TV has a built-in clock that will appear on screen when you press the Display button on theremote control. Setting this clock also allows you to use it to automatically turn the TV on or off. 1Press the Menu button. Move the joystick down to select SETUP, then press the joystick to enter.2Move the joystick down toselect Time, then press the joystick to enter. 3Move the joystick right to selectthe hour. Move the joystick upor down to select the correcthour. 4Move the joystick right toselect the minute. Move thejoystick up or down to selectthe correct minute. Move thejoystick to the right to selectAM, then move the joystick upor down to select AM or PM.5Press Menu to exit the menus.

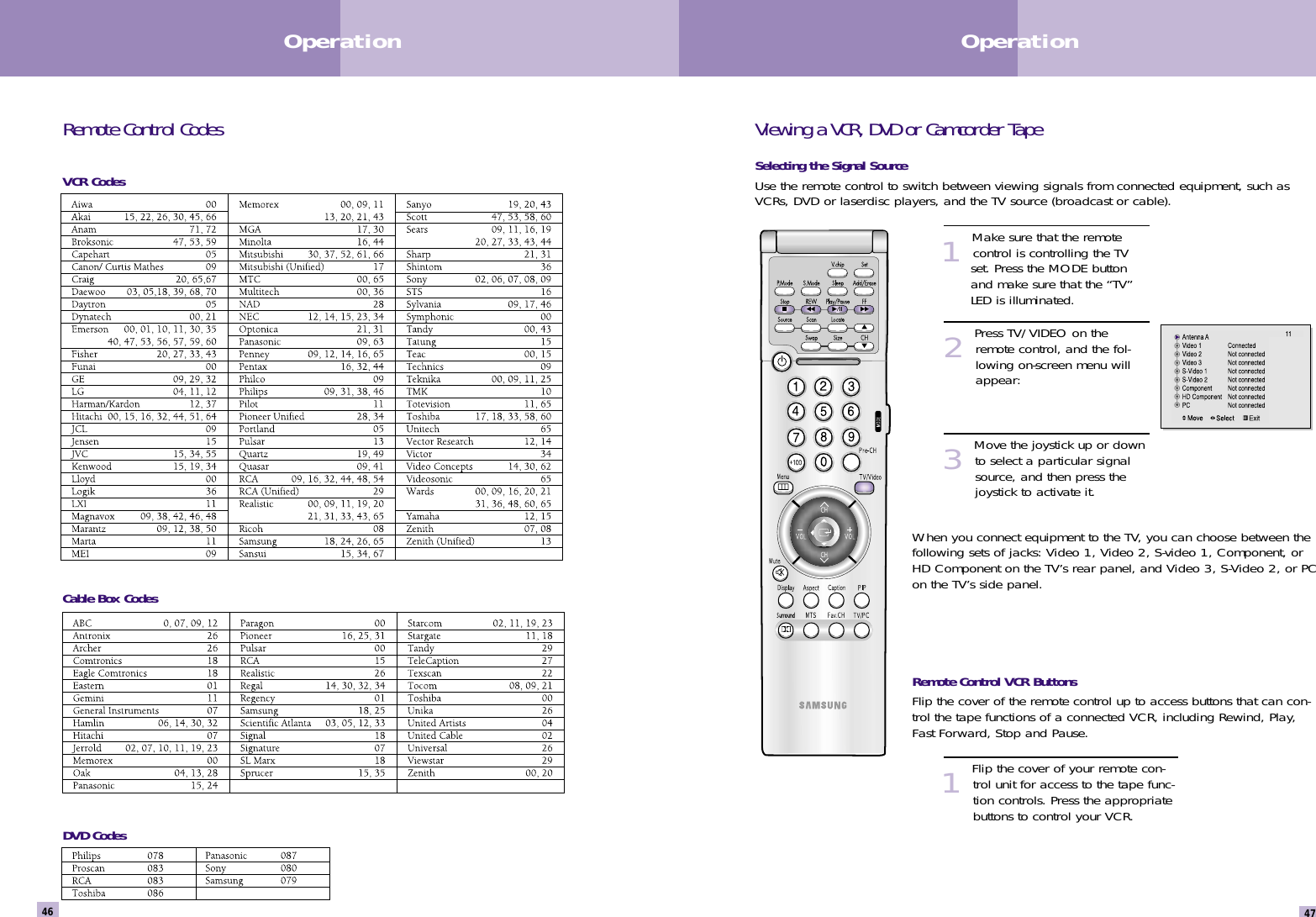

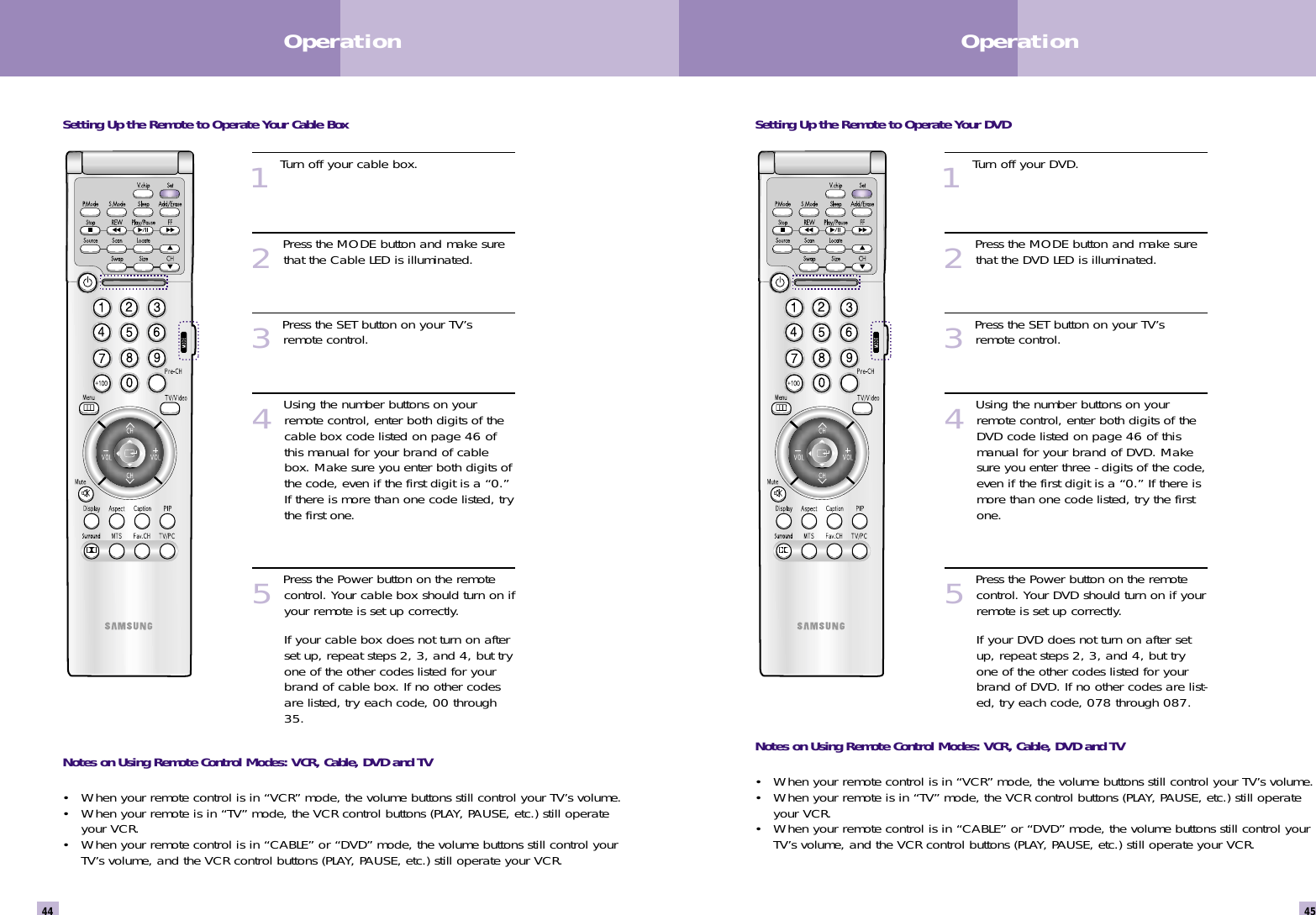

47Operation46OperationRemote Control CodesVCR CodesCable Box CodesDVD CodesViewing a VCR, DVD or Camcorder TapeSelecting the Signal SourceUse the remote control to switch between viewing signals from connected equipment, such asVCRs, DVD or laserdisc players, and the TV source (broadcast or cable). 1Make sure that the remotecontrol is controlling the TV set. Press the MODE button and make sure that the “TV” LED is illuminated.2Press TV/VIDEO on theremote control, and the fol-lowing on-screen menu willappear: 3Move the joystick up or downto select a particular signalsource, and then press thejoystick to activate it. When you connect equipment to the TV, you can choose between thefollowing sets of jacks: Video 1, Video 2, S-video 1, Component, orHD Component on the TV’s rear panel, and Video 3, S-Video 2, or PCon the TV’s side panel.Remote Control VCR ButtonsFlip the cover of the remote control up to access buttons that can con-trol the tape functions of a connected VCR, including Rewind, Play,Fast Forward, Stop and Pause. 1Flip the cover of your remote con-trol unit for access to the tape func-tion controls. Press the appropriatebuttons to control your VCR.

Special FeaturesSAMSUNG

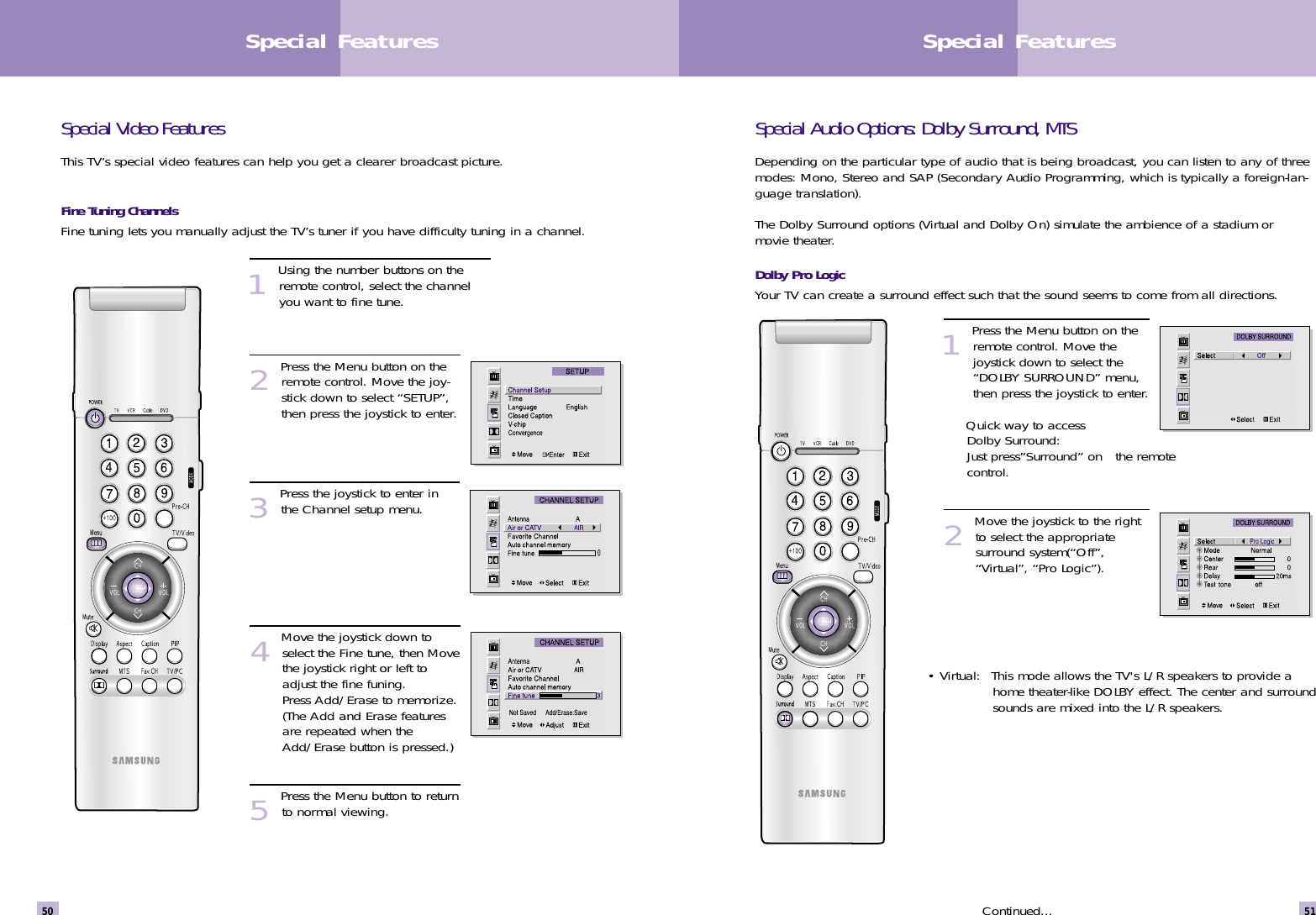

Special Audio Options: Dolby Surround, MTSDepending on the particular type of audio that is being broadcast, you can listen to any of threemodes: Mono, Stereo and SAP (Secondary Audio Programming, which is typically a foreign-lan-guage translation).The Dolby Surround options (Virtual and Dolby On) simulate the ambience of a stadium ormovie theater.Dolby Pro LogicYour TV can create a surround effect such that the sound seems to come from all directions.1Press the Menu button on the remote control. Move thejoystick down to select the“DOLBY SURROUND” menu,then press the joystick to enter. Quick way to accessDolby Surround: Just press”Surround” on the remotecontrol.2Move the joystick to the rightto select the appropriate surround system(“Off”,“Virtual”, “Pro Logic”).• Virtual: This mode allows the TV's L/R speakers to provide a home theater-like DOLBY effect. The center and surroundsounds are mixed into the L/R speakers.Special Features Special Features50 51Special Video FeaturesThis TV’s special video features can help you get a clearer broadcast picture.Fine Tuning ChannelsFine tuning lets you manually adjust the TV’s tuner if you have difficulty tuning in a channel. 1Using the number buttons on theremote control, select the channelyou want to fine tune.2Press the Menu button on theremote control. Move the joy-stick down to select “SETUP”,then press the joystick to enter.3Press the joystick to enter inthe Channel setup menu. 4Move the joystick down toselect the Fine tune, then Movethe joystick right or left toadjust the fine funing.Press Add/Erase to memorize.(The Add and Erase featuresare repeated when theAdd/Erase button is pressed.)5Press the Menu button to returnto normal viewing.Continued...

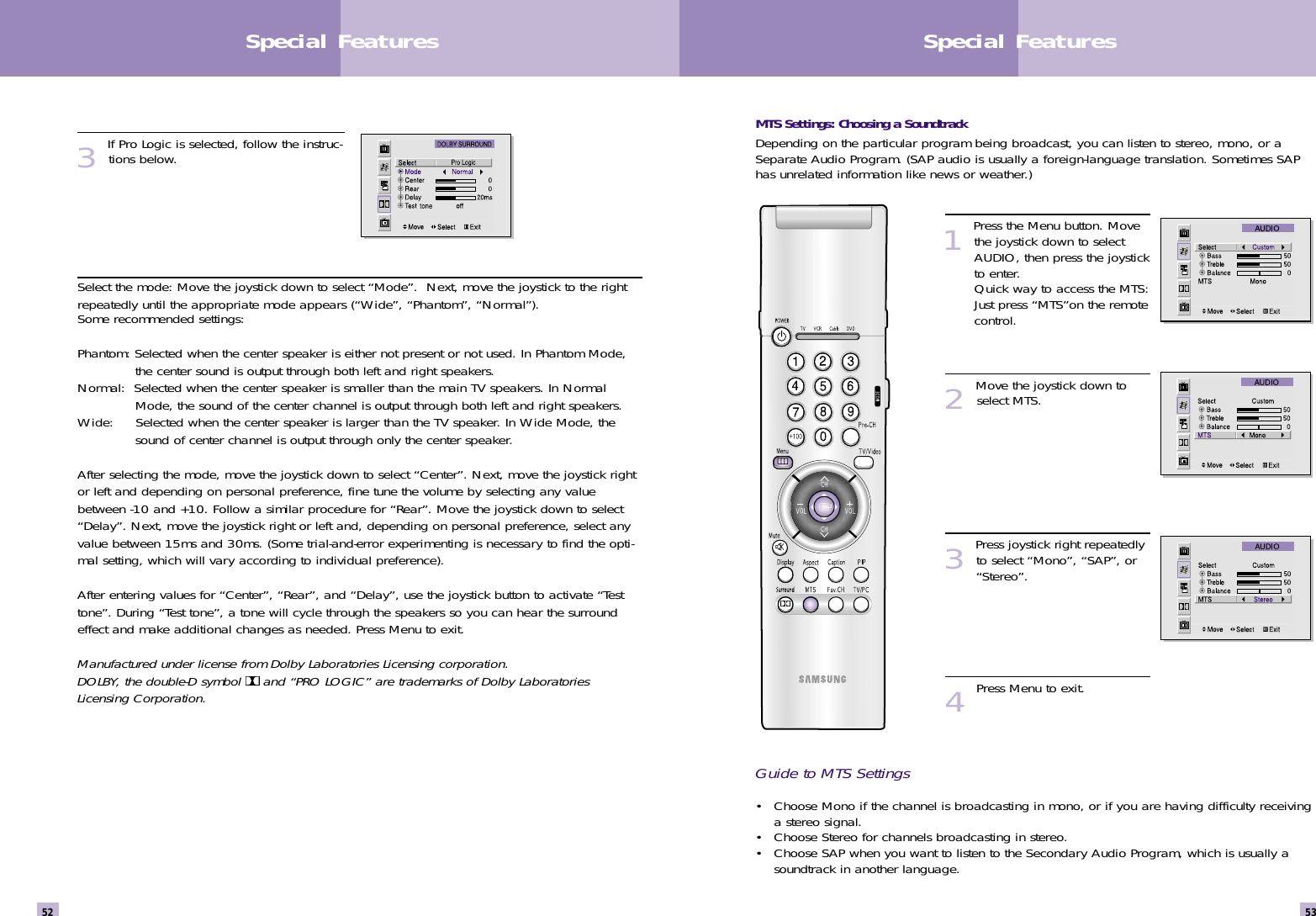

Special Features Special Features52 53MTS Settings: Choosing a SoundtrackDepending on the particular program being broadcast, you can listen to stereo, mono, or aSeparate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAPhas unrelated information like news or weather.)1Press the Menu button. Movethe joystick down to selectAUDIO, then press the joystickto enter.Quick way to access the MTS:Just press “MTS”on the remotecontrol. 2Move the joystick down toselect MTS.3Press joystick right repeatedlyto select “Mono”, “SAP”, or “Stereo”.4Press Menu to exit.Guide to MTS Settings• Choose Mono if the channel is broadcasting in mono, or if you are having difficulty receivinga stereo signal.• Choose Stereo for channels broadcasting in stereo.• Choose SAP when you want to listen to the Secondary Audio Program, which is usually asoundtrack in another language. 3If Pro Logic is selected, follow the instruc-tions below.Select the mode: Move the joystick down to select “Mode”. Next, move the joystick to the rightrepeatedly until the appropriate mode appears (“Wide”, “Phantom”, “Normal”).Some recommended settings: Phantom: Selected when the center speaker is either not present or not used. In Phantom Mode, the center sound is output through both left and right speakers.Normal: Selected when the center speaker is smaller than the main TV speakers. In Normal Mode, the sound of the center channel is output through both left and right speakers.Wide: Selected when the center speaker is larger than the TV speaker. In Wide Mode, thesound of center channel is output through only the center speaker.After selecting the mode, move the joystick down to select “Center”. Next, move the joystick rightor left and depending on personal preference, fine tune the volume by selecting any valuebetween -10 and +10. Follow a similar procedure for “Rear”. Move the joystick down to select“Delay”. Next, move the joystick right or left and, depending on personal preference, select anyvalue between 15ms and 30ms. (Some trial-and-error experimenting is necessary to find the opti-mal setting, which will vary according to individual preference).After entering values for “Center”, “Rear”, and “Delay”, use the joystick button to activate “Testtone”. During “Test tone”, a tone will cycle through the speakers so you can hear the surroundeffect and make additional changes as needed. Press Menu to exit.Manufactured under license from Dolby Laboratories Licensing corporation.DOLBY, the double-D symbol and “PRO LOGIC” are trademarks of Dolby LaboratoriesLicensing Corporation.

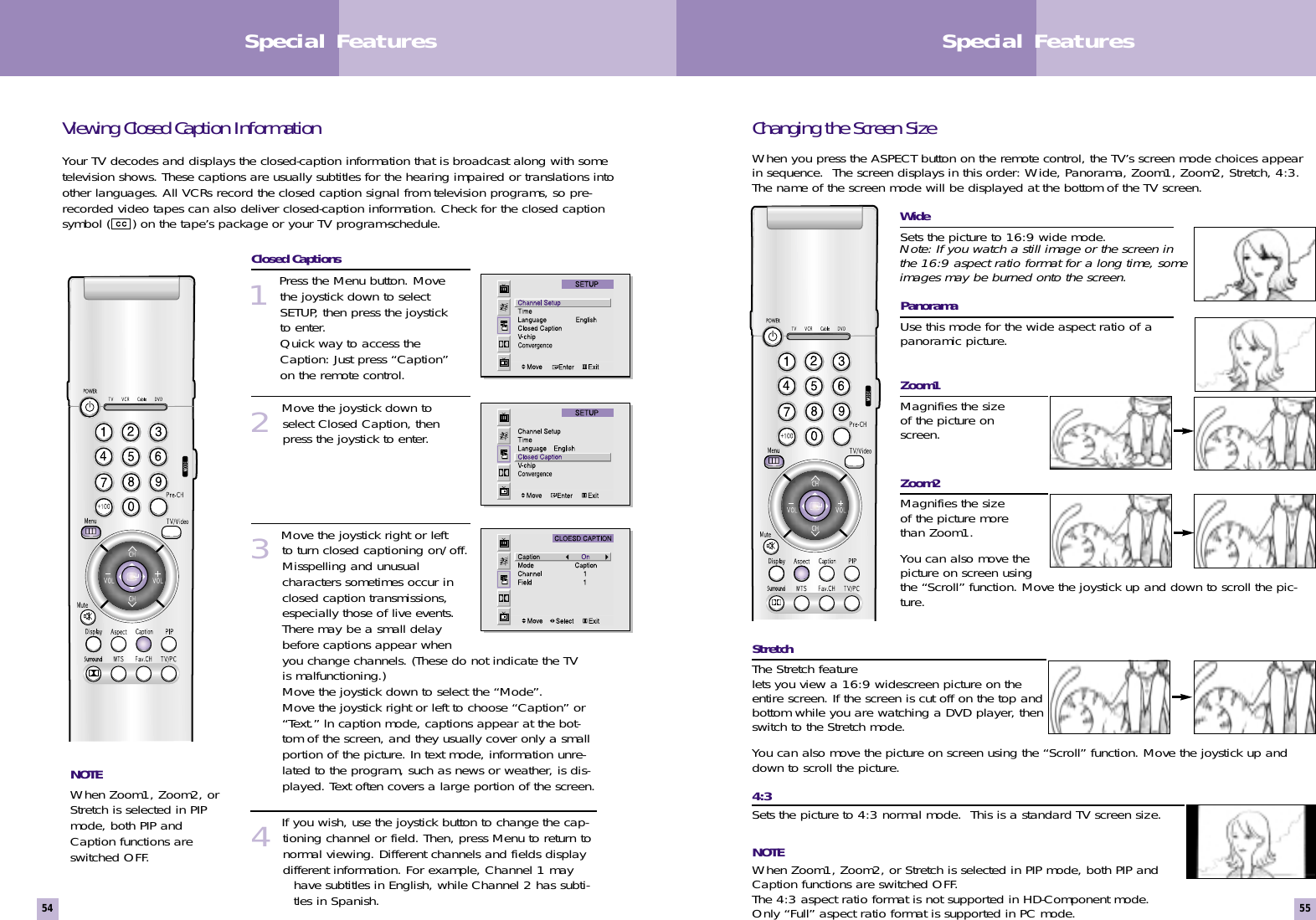

55Changing the Screen SizeWhen you press the ASPECT button on the remote control, the TV’s screen mode choices appearin sequence. The screen displays in this order: Wide, Panorama, Zoom1, Zoom2, Stretch, 4:3. The name of the screen mode will be displayed at the bottom of the TV screen.WideSets the picture to 16:9 wide mode. Note: If you watch a still image or the screen inthe 16:9 aspect ratio format for a long time, someimages may be burned onto the screen.PanoramaUse this mode for the wide aspect ratio of apanoramic picture. Zoom1Magnifies the sizeof the picture onscreen.Zoom2Magnifies the sizeof the picture morethan Zoom1. You can also move thepicture on screen usingthe “Scroll” function. Move the joystick up and down to scroll the pic-ture.StretchThe Stretch feature lets you view a 16:9 widescreen picture on theentire screen. If the screen is cut off on the top andbottom while you are watching a DVD player, thenswitch to the Stretch mode.You can also move the picture on screen using the “Scroll” function. Move the joystick up anddown to scroll the picture.4:3Sets the picture to 4:3 normal mode. This is a standard TV screen size.Special Features54Viewing Closed Caption InformationYour TV decodes and displays the closed-caption information that is broadcast along with sometelevision shows. These captions are usually subtitles for the hearing impaired or translations intoother languages. All VCRs record the closed caption signal from television programs, so pre-recorded video tapes can also deliver closed-caption information. Check for the closed captionsymbol ( ) on the tape’s package or your TV program-schedule.Closed Captions1Press the Menu button. Movethe joystick down to selectSETUP, then press the joystickto enter.Quick way to access theCaption: Just press “Caption”on the remote control.2Move the joystick down toselect Closed Caption, thenpress the joystick to enter.3Move the joystick right or leftto turn closed captioning on/off.Misspelling and unusualcharacters sometimes occur inclosed caption transmissions,especially those of live events.There may be a small delaybefore captions appear whenyou change channels. (These do not indicate the TVis malfunctioning.)Move the joystick down to select the “Mode”. Move the joystick right or left to choose “Caption” or“Text.” ln caption mode, captions appear at the bot-tom of the screen, and they usually cover only a smallportion of the picture. In text mode, information unre-lated to the program, such as news or weather, is dis-played. Text often covers a large portion of the screen.4If you wish, use the joystick button to change the cap-tioning channel or field. Then, press Menu to return tonormal viewing. Different channels and fields displaydifferent information. For example, Channel 1 mayhave subtitles in English, while Channel 2 has subti-tles in Spanish.Special FeaturesNOTEWhen Zoom1, Zoom2, orStretch is selected in PIPmode, both PIP andCaption functions areswitched OFF. NOTEWhen Zoom1, Zoom2, or Stretch is selected in PIP mode, both PIP andCaption functions are switched OFF.The 4:3 aspect ratio format is not supported in HD-Component mode.Only “Full” aspect ratio format is supported in PC mode.

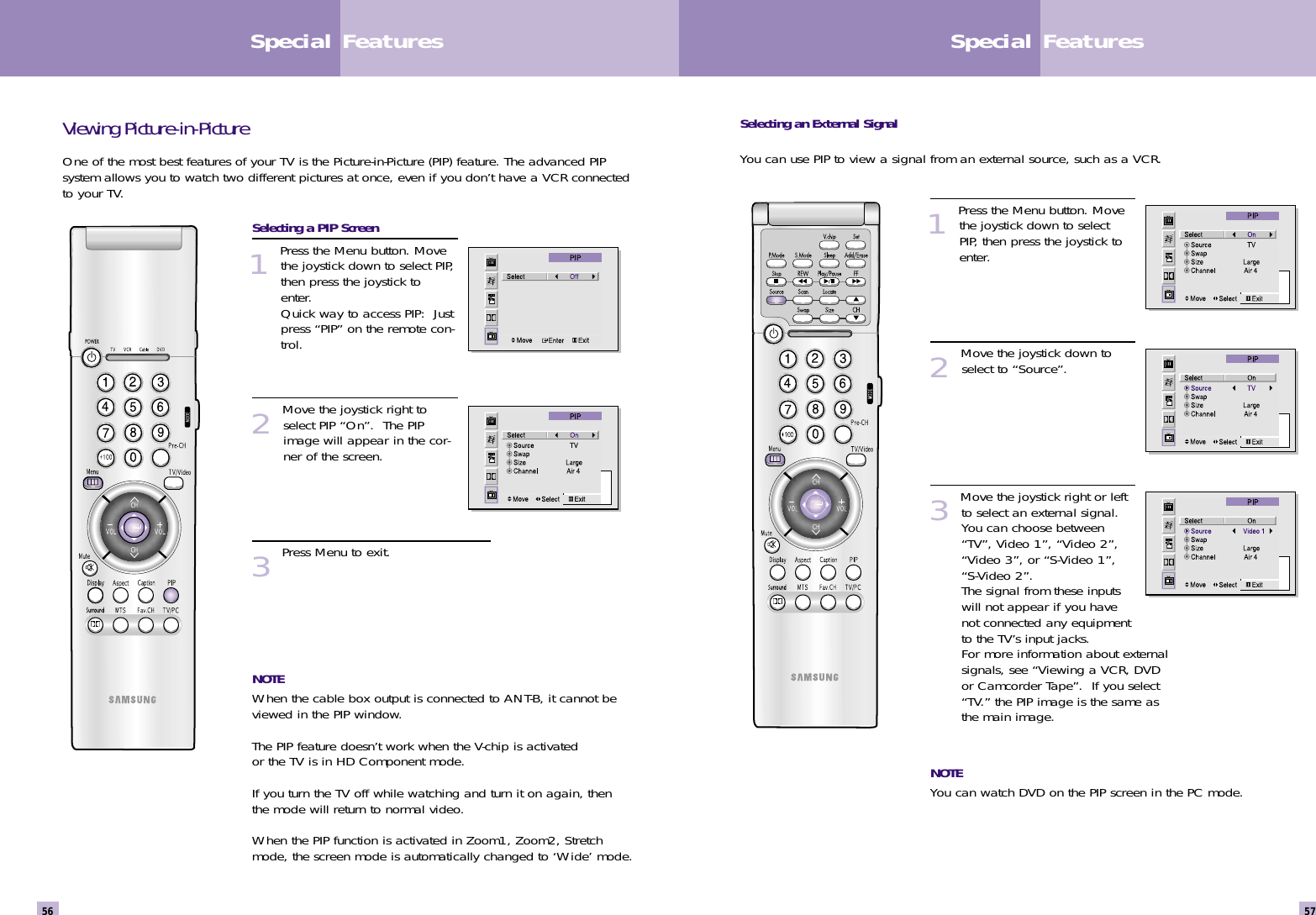

57Special FeaturesSelecting an External SignalYou can use PIP to view a signal from an external source, such as a VCR.1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. 2Move the joystick down toselect to “Source”.3Move the joystick right or leftto select an external signal.You can choose between“TV”, Video 1”, “Video 2”,“Video 3”, or “S-Video 1”,“S-Video 2”.The signal from these inputswill not appear if you havenot connected any equipmentto the TV’s input jacks.For more information about externalsignals, see “Viewing a VCR, DVDor Camcorder Tape”. If you select“TV.” the PIP image is the same asthe main image.NOTEYou can watch DVD on the PIP screen in the PC mode.Special Features56Viewing Picture-in-PictureOne of the most best features of your TV is the Picture-in-Picture (PIP) feature. The advanced PIPsystem allows you to watch two different pictures at once, even if you don’t have a VCR connectedto your TV.Selecting a PIP Screen1Press the Menu button. Movethe joystick down to select PIP,then press the joystick toenter.Quick way to access PIP: Justpress “PIP” on the remote con-trol. 2Move the joystick right toselect PIP “On”. The PIPimage will appear in the cor-ner of the screen. 3Press Menu to exit.NOTEWhen the cable box output is connected to ANT-B, it cannot beviewed in the PIP window.The PIP feature doesn’t work when the V-chip is activatedor the TV is in HD Component mode. If you turn the TV off while watching and turn it on again, thenthe mode will return to normal video.When the PIP function is activated in Zoom1, Zoom2, Stretchmode, the screen mode is automatically changed to ‘Wide’ mode.

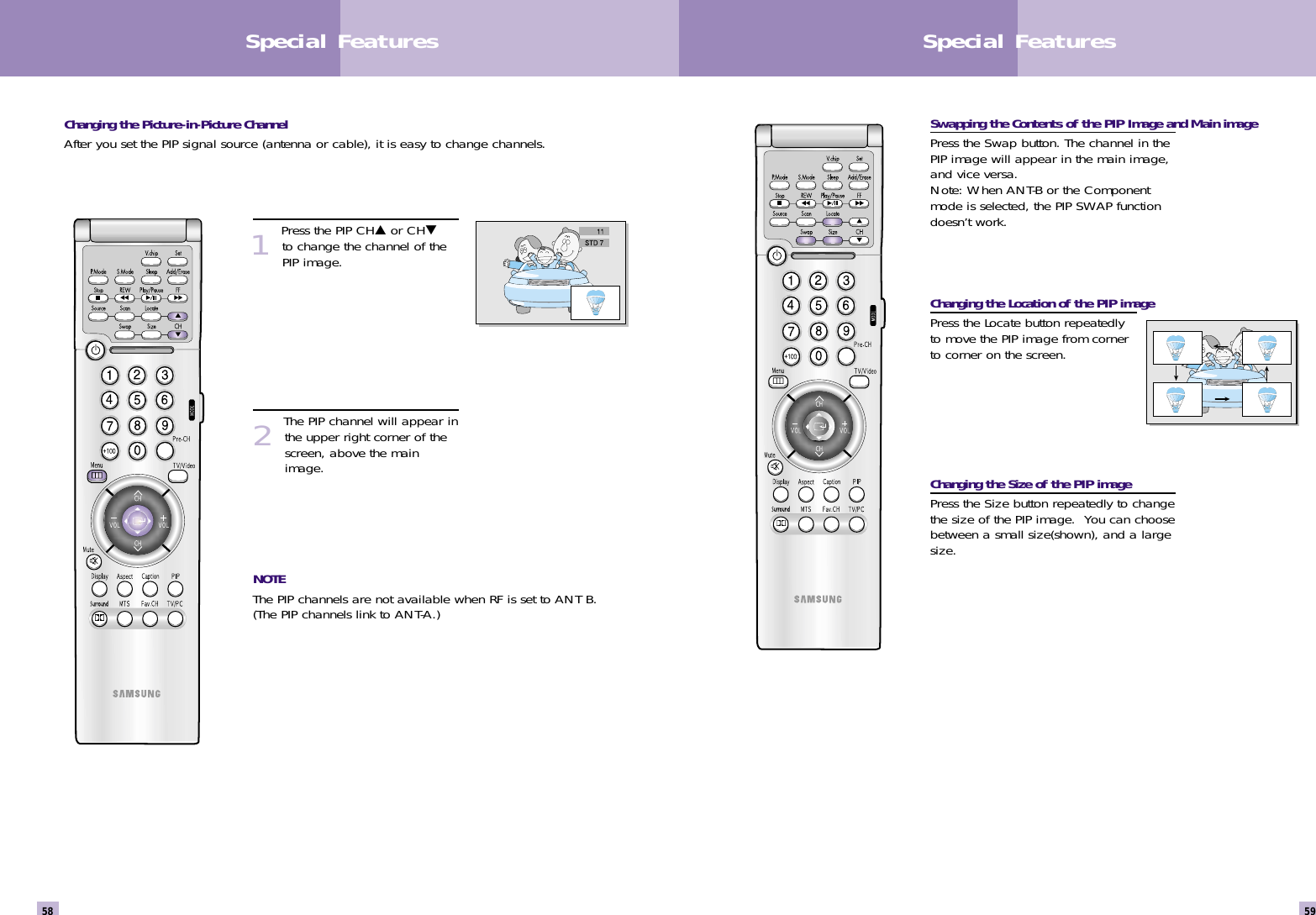

Changing the Picture-in-Picture ChannelAfter you set the PIP signal source (antenna or cable), it is easy to change channels.1Press the PIP CH▲ or CH▼to change the channel of thePIP image. 2The PIP channel will appear inthe upper right corner of thescreen, above the mainimage.NOTEThe PIP channels are not available when RF is set to ANT B.(The PIP channels link to ANT-A.)59Special Features58Special FeaturesSwapping the Contents of the PIP Image and Main imagePress the Swap button. The channel in thePIP image will appear in the main image,and vice versa.Note: When ANT-B or the Componentmode is selected, the PIP SWAP functiondoesn’t work.Changing the Location of the PIP imagePress the Locate button repeatedlyto move the PIP image from corner to corner on the screen.Changing the Size of the PIP imagePress the Size button repeatedly to change the size of the PIP image. You can choosebetween a small size(shown), and a largesize.

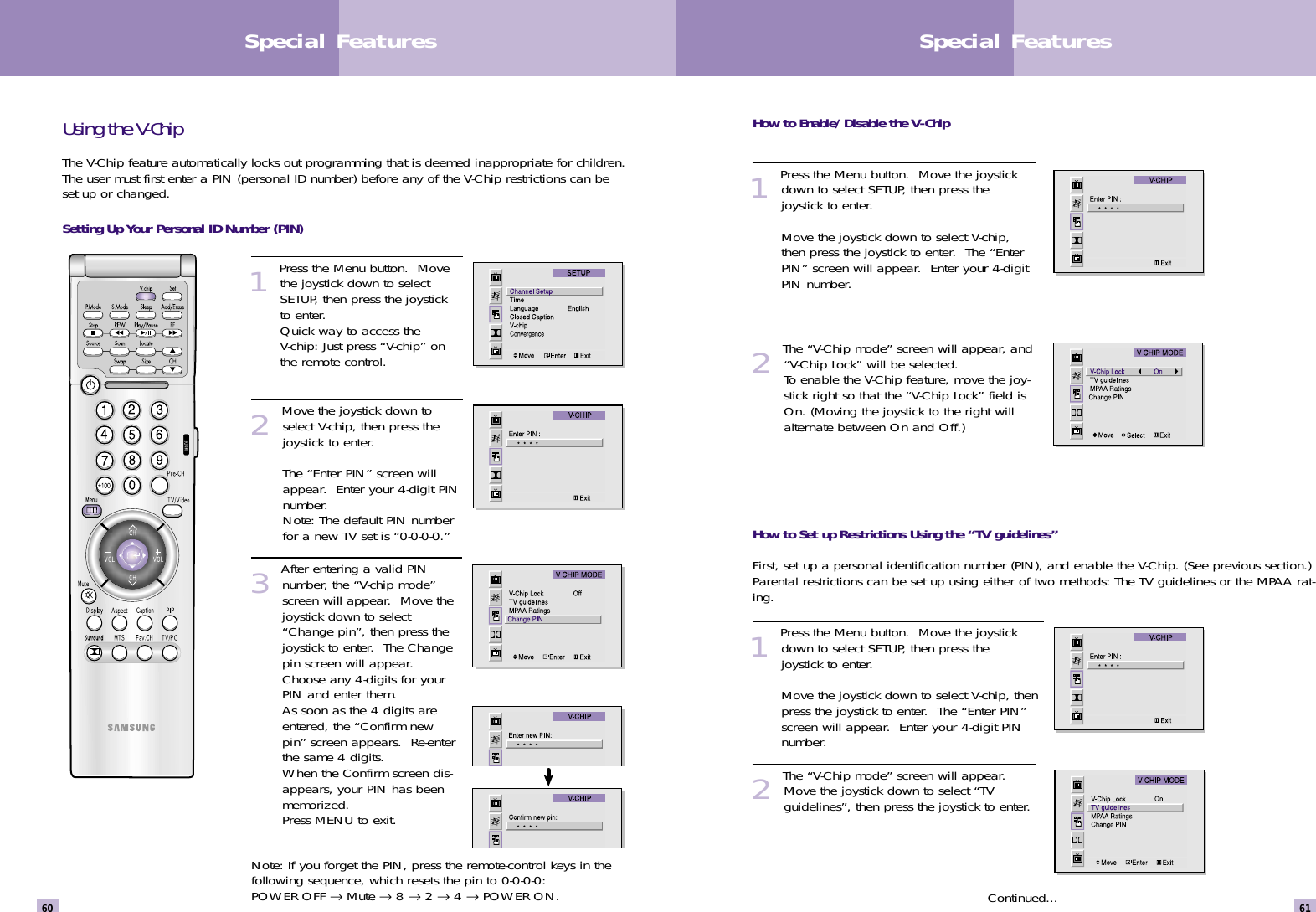

How to Enable/Disable the V-Chip1 Press the Menu button. Move the joystickdown to select SETUP, then press thejoystick to enter. Move the joystick down to select V-chip,then press the joystick to enter. The “EnterPIN” screen will appear. Enter your 4-digitPIN number. 2 The “V-Chip mode” screen will appear, and“V-Chip Lock” will be selected.To enable the V-Chip feature, move the joy-stick right so that the “V-Chip Lock” field isOn. (Moving the joystick to the right willalternate between On and Off.)How to Set up Restrictions Using the “TV guidelines”First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.)Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rat-ing.1 Press the Menu button. Move the joystickdown to select SETUP, then press thejoystick to enter. Move the joystick down to select V-chip, thenpress the joystick to enter. The “Enter PIN”screen will appear. Enter your 4-digit PINnumber. 2 The “V-Chip mode” screen will appear.Move the joystick down to select “TVguidelines”, then press the joystick to enter.Continued...61Special Features60Special FeaturesUsing the V-ChipThe V-Chip feature automatically locks out programming that is deemed inappropriate for children.The user must first enter a PIN (personal ID number) before any of the V-Chip restrictions can beset up or changed. Setting Up Your Personal ID Number (PIN)1Press the Menu button. Movethe joystick down to selectSETUP, then press the joystickto enter.Quick way to access theV-chip: Just press “V-chip” onthe remote control. 2Move the joystick down toselect V-chip, then press thejoystick to enter. The “Enter PIN” screen willappear. Enter your 4-digit PINnumber.Note: The default PIN numberfor a new TV set is “0-0-0-0.”3After entering a valid PINnumber, the “V-chip mode”screen will appear. Move thejoystick down to select“Change pin”, then press thejoystick to enter. The Changepin screen will appear.Choose any 4-digits for yourPIN and enter them.As soon as the 4 digits areentered, the “Confirm newpin” screen appears. Re-enterthe same 4 digits.When the Confirm screen dis-appears, your PIN has beenmemorized.Press MENU to exit.Note: If you forget the PIN, press the remote-control keys in thefollowing sequence, which resets the pin to 0-0-0-0:POWER OFF → Mute → 8 → 2 → 4 → POWER ON.

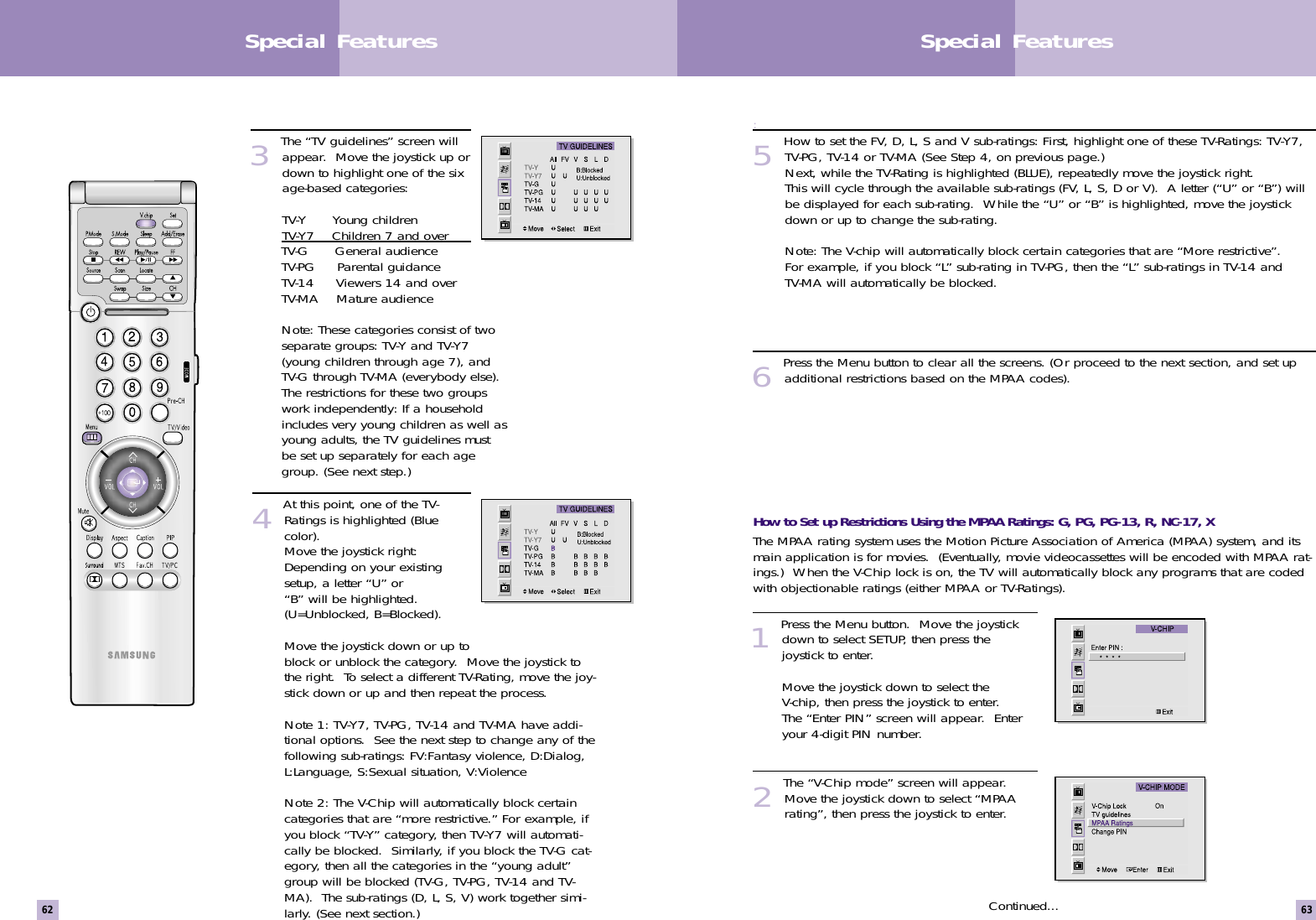

:5 How to set the FV, D, L, S and V sub-ratings: First, highlight one of these TV-Ratings: TV-Y7,TV-PG, TV-14 or TV-MA (See Step 4, on previous page.)Next, while the TV-Rating is highlighted (BLUE), repeatedly move the joystick right.This will cycle through the available sub-ratings (FV, L, S, D or V). A letter (“U” or “B”) willbe displayed for each sub-rating. While the “U” or “B” is highlighted, move the joystickdown or up to change the sub-rating. Note: The V-chip will automatically block certain categories that are “More restrictive”.For example, if you block “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 andTV-MA will automatically be blocked. 6 Press the Menu button to clear all the screens. (Or proceed to the next section, and set upadditional restrictions based on the MPAA codes).How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, XThe MPAA rating system uses the Motion Picture Association of America (MPAA) system, and itsmain application is for movies. (Eventually, movie videocassettes will be encoded with MPAA rat-ings.) When the V-Chip lock is on, the TV will automatically block any programs that are codedwith objectionable ratings (either MPAA or TV-Ratings). 1 Press the Menu button. Move the joystickdown to select SETUP, then press thejoystick to enter. Move the joystick down to select theV-chip, then press the joystick to enter.The “Enter PIN” screen will appear. Enteryour 4-digit PIN number. 2 The “V-Chip mode” screen will appear.Move the joystick down to select “MPAArating”, then press the joystick to enter.Continued...63Special Features62Special Features3The “TV guidelines” screen willappear. Move the joystick up ordown to highlight one of the sixage-based categories:TV-Y Young childrenTV-Y7 Children 7 and over TV-G General audienceTV-PG Parental guidanceTV-14 Viewers 14 and overTV-MA Mature audience Note: These categories consist of twoseparate groups: TV-Y and TV-Y7(young children through age 7), andTV-G through TV-MA (everybody else).The restrictions for these two groupswork independently: If a householdincludes very young children as well asyoung adults, the TV guidelines mustbe set up separately for each agegroup. (See next step.) 4At this point, one of the TV-Ratings is highlighted (Bluecolor). Move the joystick right:Depending on your existingsetup, a letter “U” or“B” will be highlighted.(U=Unblocked, B=Blocked). Move the joystick down or up toblock or unblock the category. Move the joystick tothe right. To select a different TV-Rating, move the joy-stick down or up and then repeat the process. Note 1: TV-Y7, TV-PG, TV-14 and TV-MA have addi-tional options. See the next step to change any of thefollowing sub-ratings: FV:Fantasy violence, D:Dialog,L:Language, S:Sexual situation, V:Violence Note 2: The V-Chip will automatically block certaincategories that are “more restrictive.” For example, ifyou block “TV-Y” category, then TV-Y7 will automati-cally be blocked. Similarly, if you block the TV-G cat-egory, then all the categories in the “young adult”group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work together simi-larly. (See next section.)

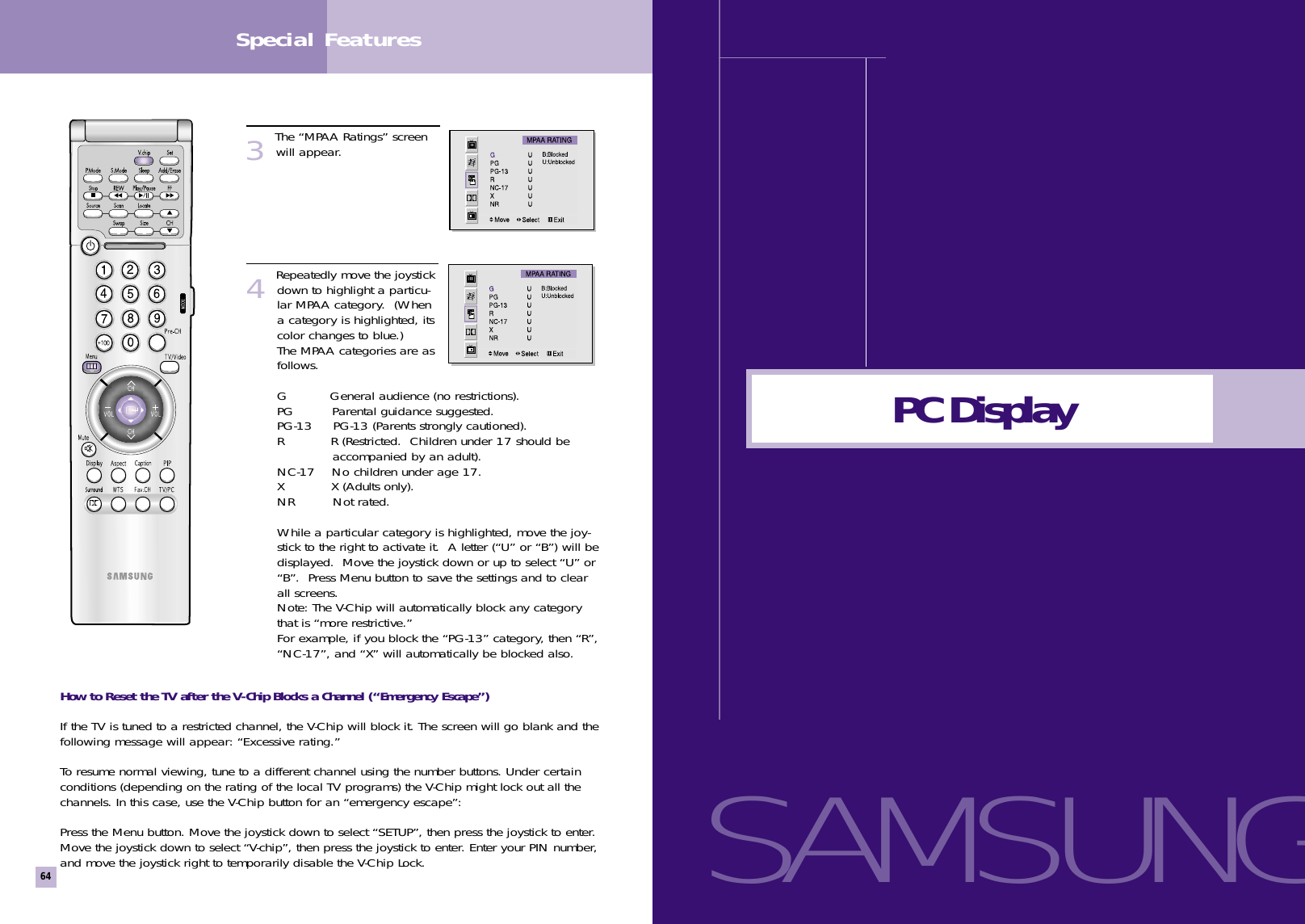

Special Features643The “MPAA Ratings” screenwill appear.4Repeatedly move the joystickdown to highlight a particu-lar MPAA category. (Whena category is highlighted, itscolor changes to blue.)The MPAA categories are asfollows.G General audience (no restrictions).PG Parental guidance suggested. PG-13 PG-13 (Parents strongly cautioned). R R (Restricted. Children under 17 should be accompanied by an adult).NC-17 No children under age 17. X X (Adults only).NR Not rated. While a particular category is highlighted, move the joy-stick to the right to activate it. A letter (“U” or “B”) will bedisplayed. Move the joystick down or up to select “U” or“B”. Press Menu button to save the settings and to clearall screens. Note: The V-Chip will automatically block any categorythat is “more restrictive.” For example, if you block the “PG-13” category, then “R”,“NC-17”, and “X” will automatically be blocked also. How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and thefollowing message will appear: “Excessive rating.”To resume normal viewing, tune to a different channel using the number buttons. Under certainconditions (depending on the rating of the local TV programs) the V-Chip might lock out all thechannels. In this case, use the V-Chip button for an “emergency escape”:Press the Menu button. Move the joystick down to select “SETUP”, then press the joystick to enter.Move the joystick down to select “V-chip”, then press the joystick to enter. Enter your PIN number,and move the joystick right to temporarily disable the V-Chip Lock.SAMSUNGPC Display

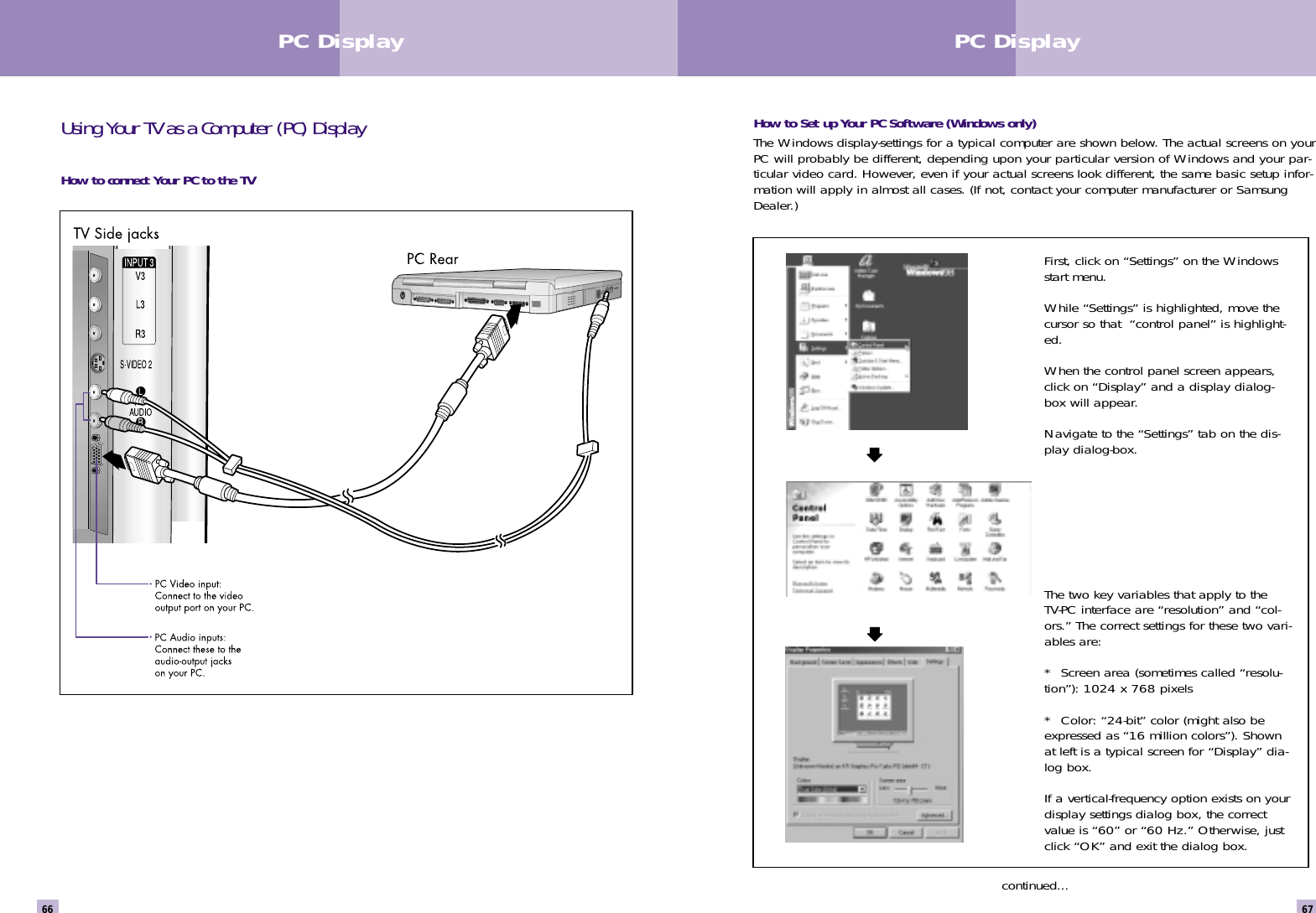

67PC Display66How to Set up Your PC Software (Windows only)The Windows display-settings for a typical computer are shown below. The actual screens on yourPC will probably be different, depending upon your particular version of Windows and your par-ticular video card. However, even if your actual screens look different, the same basic setup infor-mation will apply in almost all cases. (If not, contact your computer manufacturer or SamsungDealer.)continued...Using Your TV as a Computer (PC) DisplayHow to connect Your PC to the TVPC DisplayFirst, click on “Settings” on the Windowsstart menu.While “Settings” is highlighted, move thecursor so that “control panel” is highlight-ed. When the control panel screen appears,click on “Display” and a display dialog-box will appear. Navigate to the “Settings” tab on the dis-play dialog-box. The two key variables that apply to theTV-PC interface are “resolution” and “col-ors.” The correct settings for these two vari-ables are:* Screen area (sometimes called “resolu-tion”): 1024 x 768 pixels* Color: “24-bit” color (might also beexpressed as “16 million colors”). Shownat left is a typical screen for “Display” dia-log box. If a vertical-frequency option exists on yourdisplay settings dialog box, the correctvalue is “60” or “60 Hz.” Otherwise, justclick “OK” and exit the dialog box.

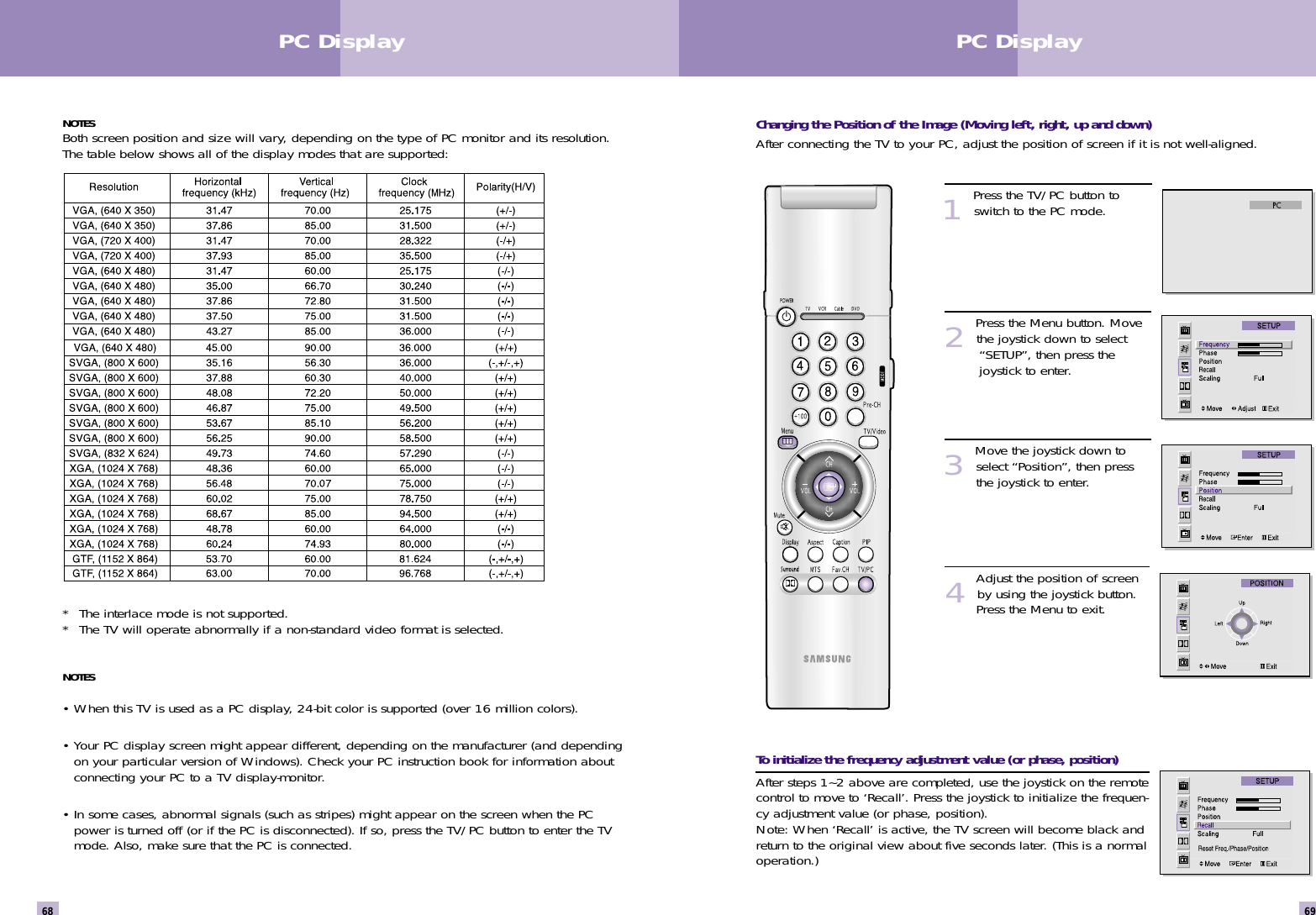

Changing the Position of the Image (Moving left, right, up and down)After connecting the TV to your PC, adjust the position of screen if it is not well-aligned.1Press the TV/PC button toswitch to the PC mode.2Press the Menu button. Movethe joystick down to select “SETUP”, then press the joystick to enter.3Move the joystick down toselect “Position”, then pressthe joystick to enter.4Adjust the position of screenby using the joystick button.Press the Menu to exit. To initialize the frequency adjustment value (or phase, position)After steps 1~2 above are completed, use the joystick on the remotecontrol to move to ‘Recall’. Press the joystick to initialize the frequen-cy adjustment value (or phase, position). Note: When ‘Recall’ is active, the TV screen will become black andreturn to the original view about five seconds later. (This is a normaloperation.)69PC Display68NOTES Both screen position and size will vary, depending on the type of PC monitor and its resolution.The table below shows all of the display modes that are supported:* The interlace mode is not supported.* The TV will operate abnormally if a non-standard video format is selected.NOTES • When this TV is used as a PC display, 24-bit color is supported (over 16 million colors).• Your PC display screen might appear different, depending on the manufacturer (and dependingon your particular version of Windows). Check your PC instruction book for information aboutconnecting your PC to a TV display-monitor.• In some cases, abnormal signals (such as stripes) might appear on the screen when the PCpower is turned off (or if the PC is disconnected). If so, press the TV/PC button to enter the TVmode. Also, make sure that the PC is connected.PC Display

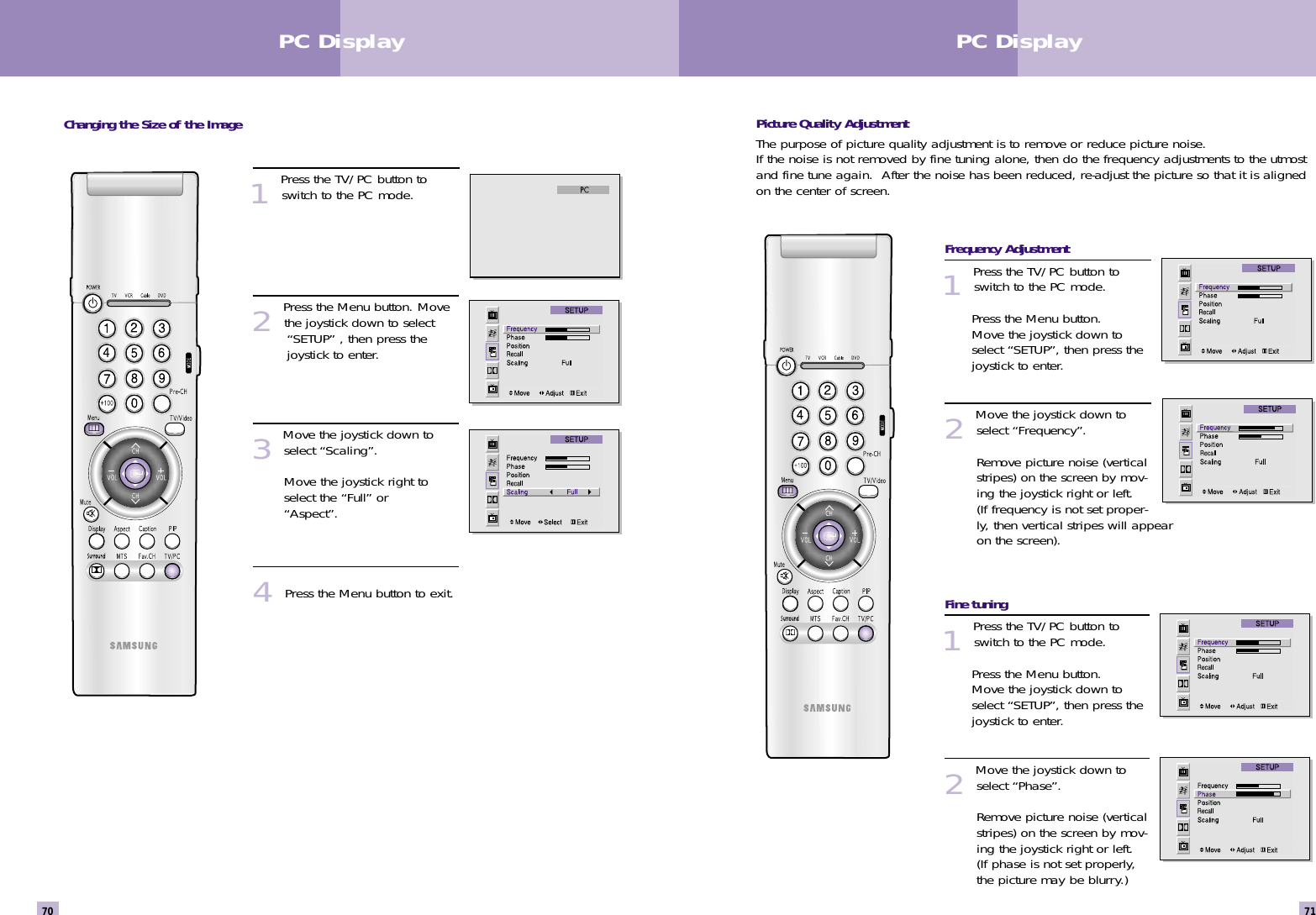

Picture Quality AdjustmentThe purpose of picture quality adjustment is to remove or reduce picture noise.If the noise is not removed by fine tuning alone, then do the frequency adjustments to the utmostand fine tune again. After the noise has been reduced, re-adjust the picture so that it is alignedon the center of screen.Frequency Adjustment1Press the TV/PC button toswitch to the PC mode. Press the Menu button. Move the joystick down to select “SETUP”, then press the joystick to enter.2Move the joystick down toselect “Frequency”. Remove picture noise (verticalstripes) on the screen by mov-ing the joystick right or left. (If frequency is not set proper-ly, then vertical stripes will appearon the screen). Fine tuning1Press the TV/PC button toswitch to the PC mode. Press the Menu button. Move the joystick down to select “SETUP”, then press the joystick to enter.2Move the joystick down toselect “Phase”. Remove picture noise (verticalstripes) on the screen by mov-ing the joystick right or left. (If phase is not set properly,the picture may be blurry.) 71PC Display70Changing the Size of the Image1Press the TV/PC button toswitch to the PC mode.2Press the Menu button. Movethe joystick down to select “SETUP” , then press the joystick to enter.3Move the joystick down toselect “Scaling”. Move the joystick right toselect the “Full” or “Aspect”. 4Press the Menu button to exit. PC Display

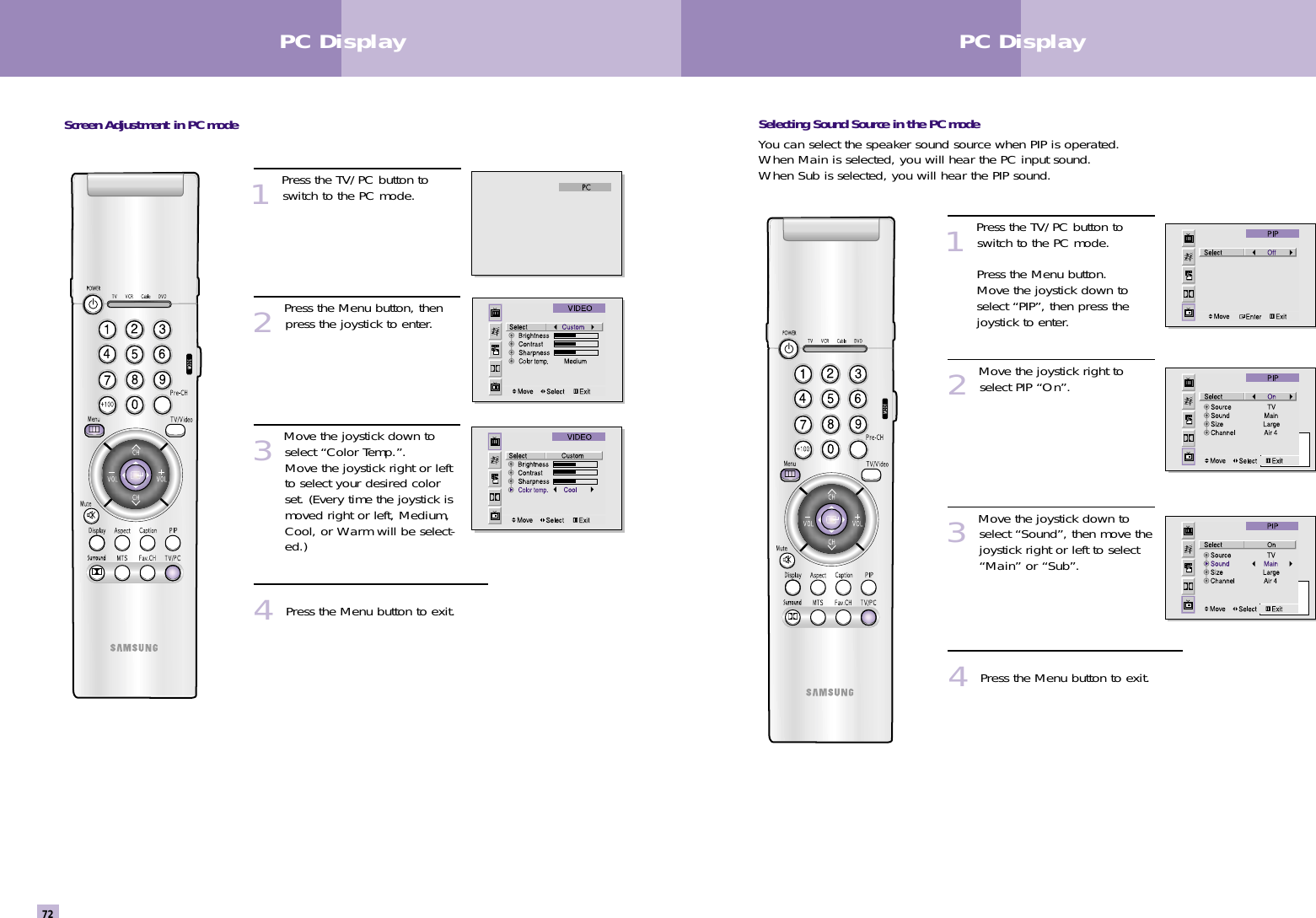

Screen Adjustment in PC mode1Press the TV/PC button toswitch to the PC mode.2Press the Menu button, thenpress the joystick to enter.3Move the joystick down toselect “Color Temp.”. Move the joystick right or leftto select your desired colorset. (Every time the joystick ismoved right or left, Medium,Cool, or Warm will be select-ed.)4Press the Menu button to exit. PC Display72PC DisplaySelecting Sound Source in the PC modeYou can select the speaker sound source when PIP is operated.When Main is selected, you will hear the PC input sound.When Sub is selected, you will hear the PIP sound.1Press the TV/PC button toswitch to the PC mode. Press the Menu button. Move the joystick down to select “PIP”, then press the joystick to enter.2Move the joystick right toselect PIP “On”. 3Move the joystick down toselect “Sound”, then move thejoystick right or left to select“Main” or “Sub”. 4Press the Menu button to exit.

SAMSUNGAppendix

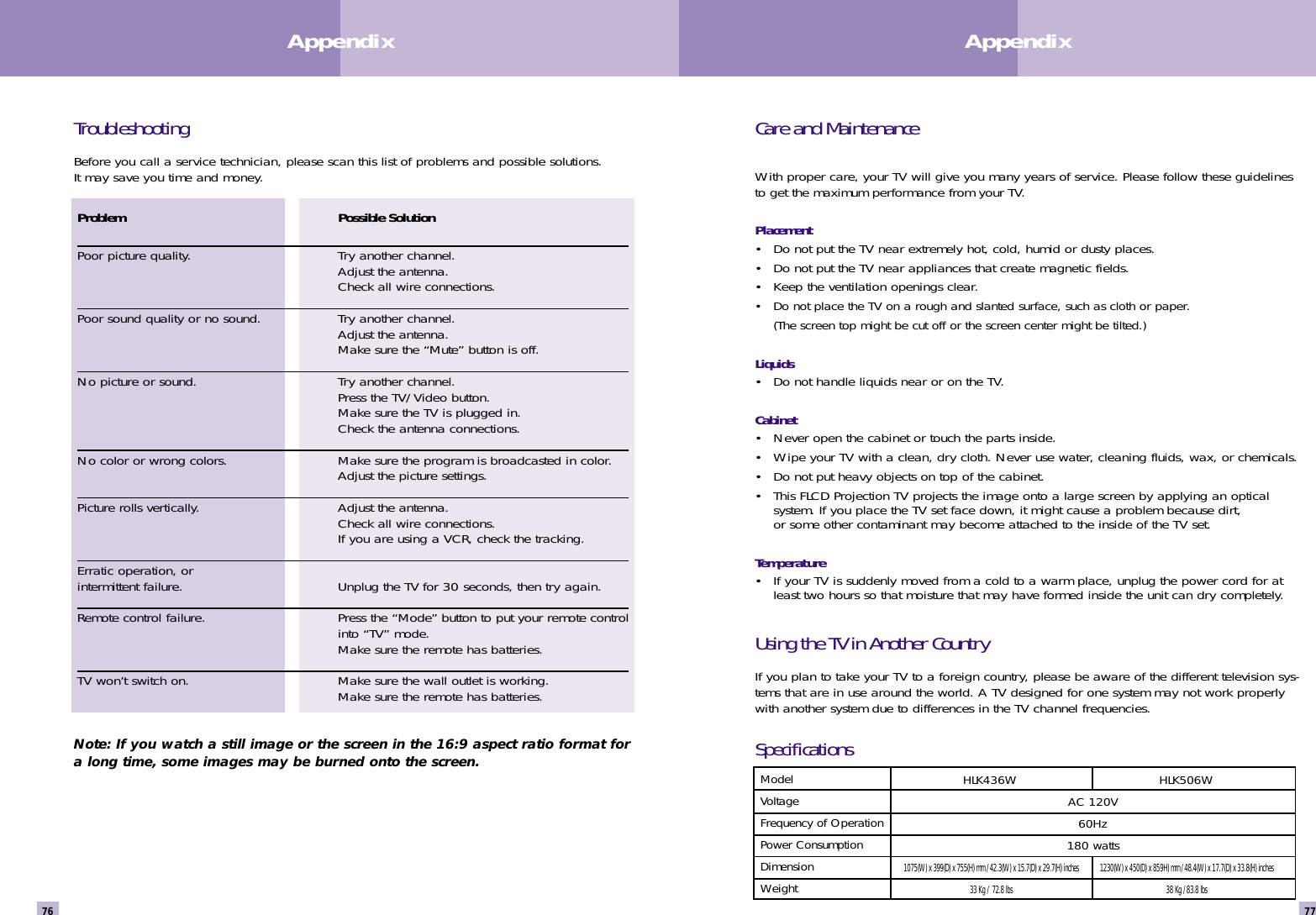

77Appendix76AppendixTroubleshooting Before you call a service technician, please scan this list of problems and possible solutions. It may save you time and money. Note: If you watch a still image or the screen in the 16:9 aspect ratio format fora long time, some images may be burned onto the screen.Problem Possible SolutionPoor picture quality. Try another channel.Adjust the antenna.Check all wire connections.Poor sound quality or no sound. Try another channel.Adjust the antenna.Make sure the “Mute” button is off.No picture or sound. Try another channel.Press the TV/Video button.Make sure the TV is plugged in.Check the antenna connections.No color or wrong colors. Make sure the program is broadcasted in color.Adjust the picture settings.Picture rolls vertically. Adjust the antenna.Check all wire connections.If you are using a VCR, check the tracking.Erratic operation, or intermittent failure. Unplug the TV for 30 seconds, then try again.Remote control failure. Press the “Mode” button to put your remote controlinto “TV” mode. Make sure the remote has batteries.TV won’t switch on. Make sure the wall outlet is working.Make sure the remote has batteries.Care and MaintenanceWith proper care, your TV will give you many years of service. Please follow these guidelinesto get the maximum performance from your TV.Placement• Do not put the TV near extremely hot, cold, humid or dusty places.• Do not put the TV near appliances that create magnetic fields.• Keep the ventilation openings clear.• Do not place the TV on a rough and slanted surface, such as cloth or paper.(The screen top might be cut off or the screen center might be tilted.)Liquids• Do not handle liquids near or on the TV. Cabinet• Never open the cabinet or touch the parts inside.• Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.• Do not put heavy objects on top of the cabinet.• This FLCD Projection TV projects the image onto a large screen by applying an optical system. If you place the TV set face down, it might cause a problem because dirt, or some other contaminant may become attached to the inside of the TV set. Temperature• If your TV is suddenly moved from a cold to a warm place, unplug the power cord for atleast two hours so that moisture that may have formed inside the unit can dry completely.Using the TV in Another CountryIf you plan to take your TV to a foreign country, please be aware of the different television sys-tems that are in use around the world. A TV designed for one system may not work properlywith another system due to differences in the TV channel frequencies.SpecificationsModelVoltageFrequency of OperationPower ConsumptionDimensionWeightHLK436W HLK506WAC 120V 60Hz180 watts1075(W) x 399(D) x 755(H) mm /42.3(W) x 15.7(D) x 29.7(H) inches 1230(W) x 450(D) x 859H) mm /48.4(W) x 17.7(D) x 33.8(H) inches33 Kg / 72.8 lbs 38 Kg /83.8 lbs

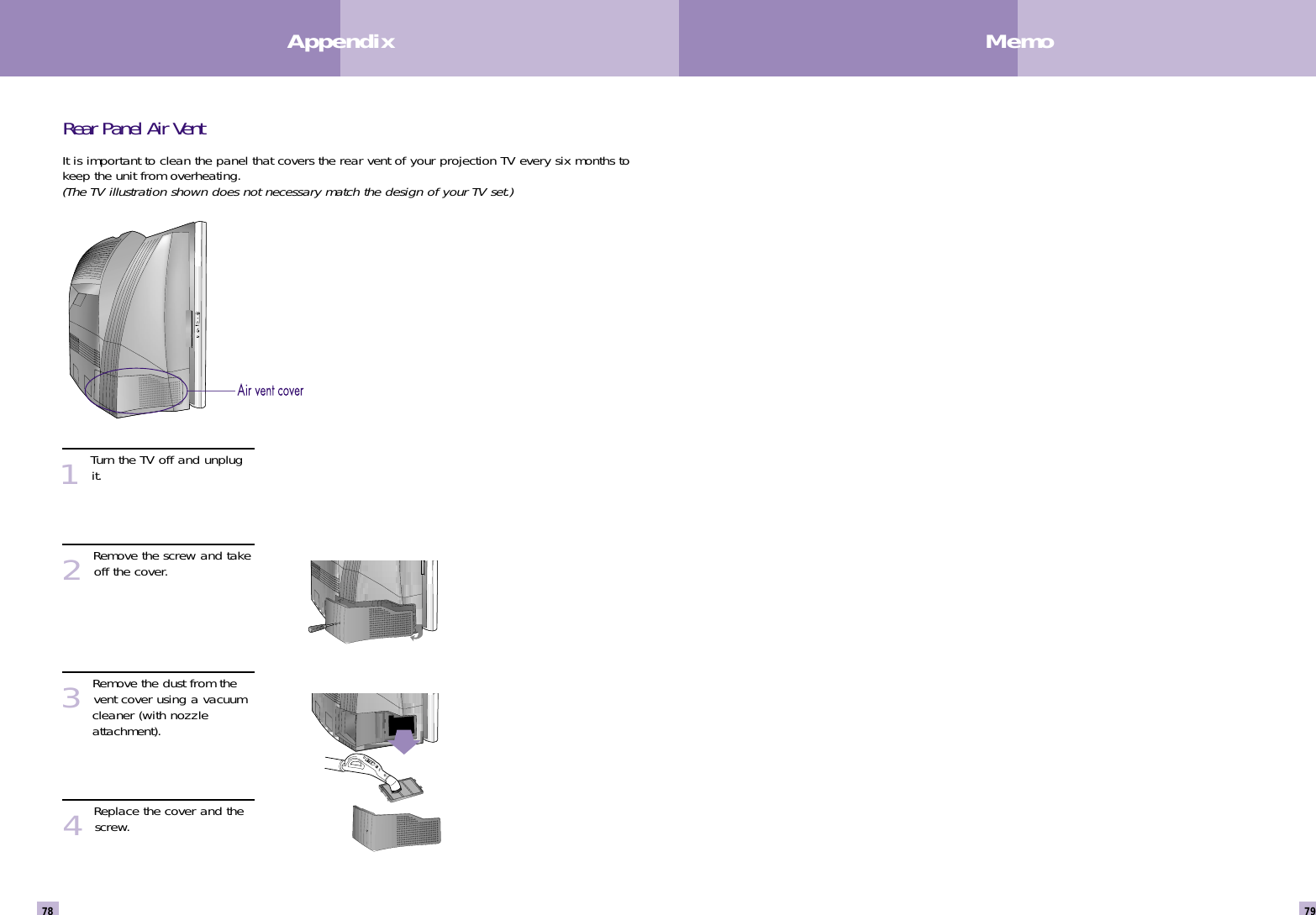

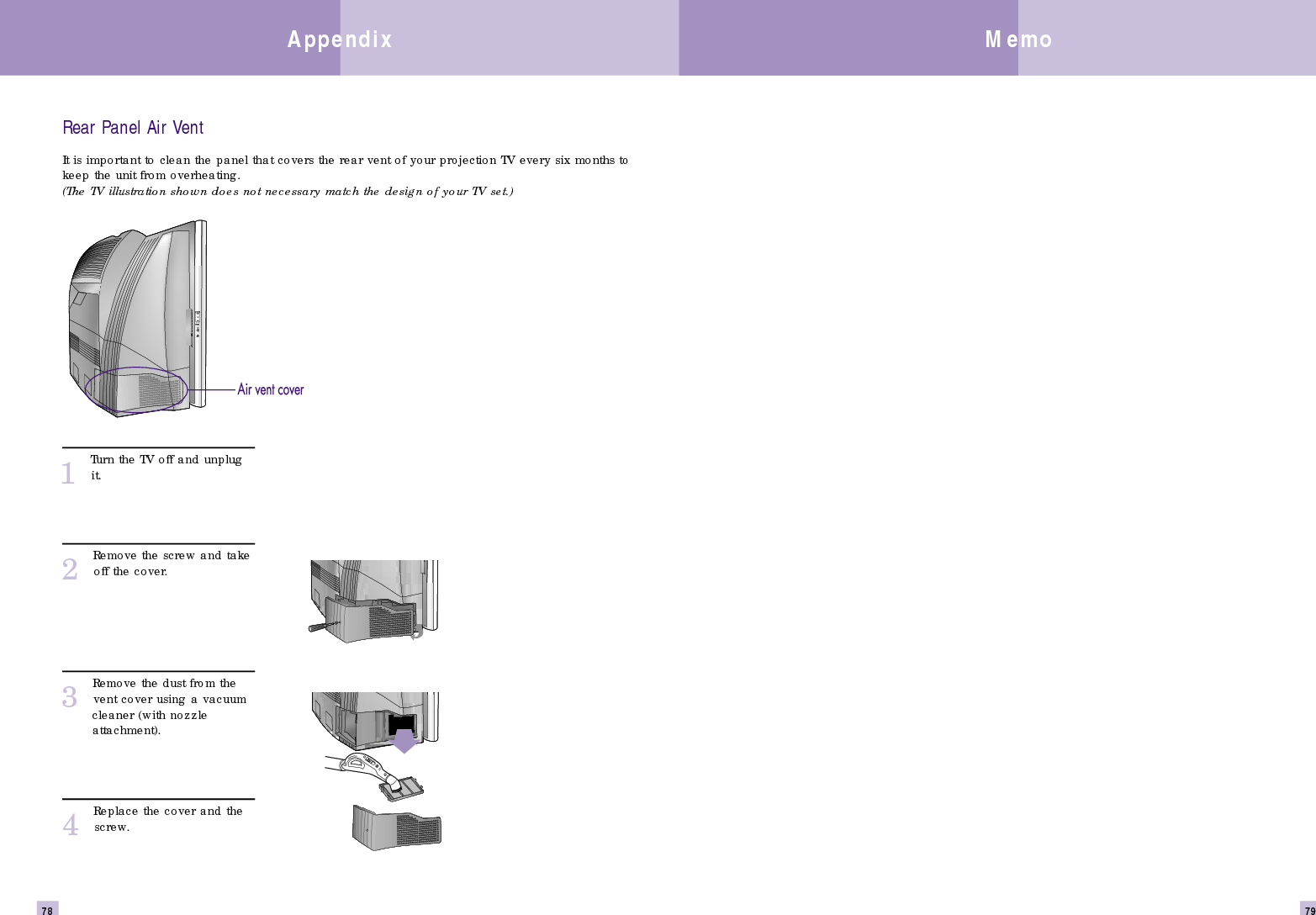

79Appendix78MemoRear Panel Air Vent It is important to clean the panel that covers the rear vent of your projection TV every six months tokeep the unit from overheating. (The TV illustration shown does not necessary match the design of your TV set.)1Turn the TV off and unplugit.2Remove the screw and takeoff the cover.3Remove the dust from thevent cover using a vacuum cleaner (with nozzle attachment).4Replace the cover and thescrew.

Memo Memo
