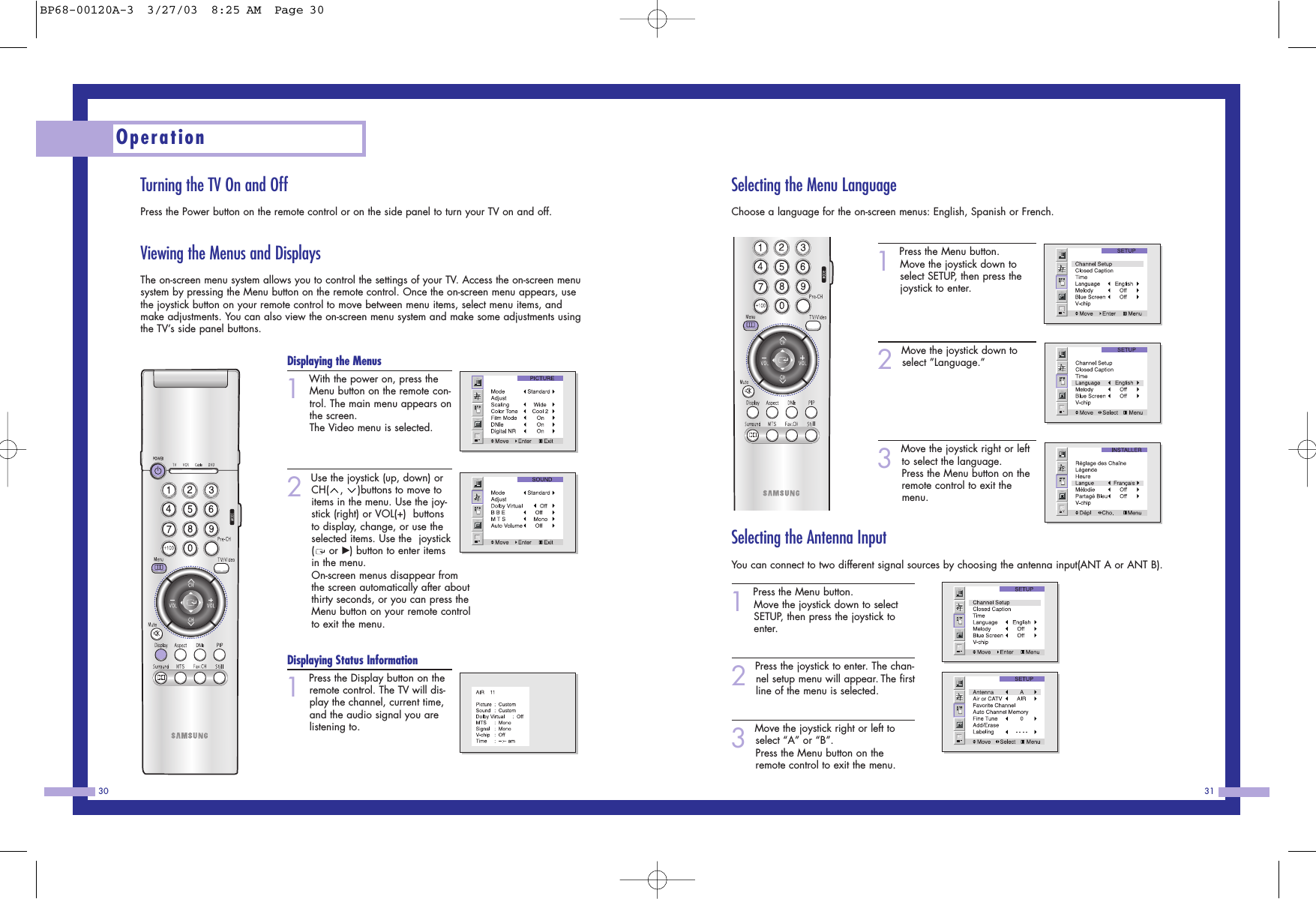

Operation30 31Turning the TV On and OffPress the Power button on the remote control or on the side panel to turn your TV on and off. Viewing the Menus and DisplaysThe on-screen menu system allows you to control the settings of your TV. Access the on-screen menusystem by pressing the Menu button on the remote control. Once the on-screen menu appears, usethe joystick button on your remote control to move between menu items, select menu items, andmake adjustments. You can also view the on-screen menu system and make some adjustments usingthe TV’s side panel buttons. Displaying the Menus1With the power on, press theMenu button on the remote con-trol. The main menu appears onthe screen. The Video menu is selected.2Use the joystick (up, down) orCH( , )buttons to move toitems in the menu. Use the joy-stick (right) or VOL(+) buttonsto display, change, or use theselected items. Use the joystick(or √) button to enter itemsin the menu. On-screen menus disappear fromthe screen automatically after aboutthirty seconds, or you can press theMenu button on your remote controlto exit the menu. Displaying Status Information1Press the Display button on theremote control. The TV will dis-play the channel, current time,and the audio signal you arelistening to.Selecting the Menu LanguageChoose a language for the on-screen menus: English, Spanish or French.1Press the Menu button. Move the joystick down toselect SETUP, then press the joystick to enter. 2Move the joystick down toselect ”Language.” 3Move the joystick right or leftto select the language. Press the Menu button on the remote control to exit the menu. Selecting the Antenna InputYou can connect to two different signal sources by choosing the antenna input(ANT A or ANT B).1Press the Menu button. Move the joystick down to selectSETUP, then press the joystick toenter. 2Press the joystick to enter. The chan-nel setup menu will appear. The firstline of the menu is selected. 3Move the joystick right or left toselect “A” or “B”. Press the Menu button on the remote control to exit the menu. BP68-00120A-3 3/27/03 8:25 AM Page 30

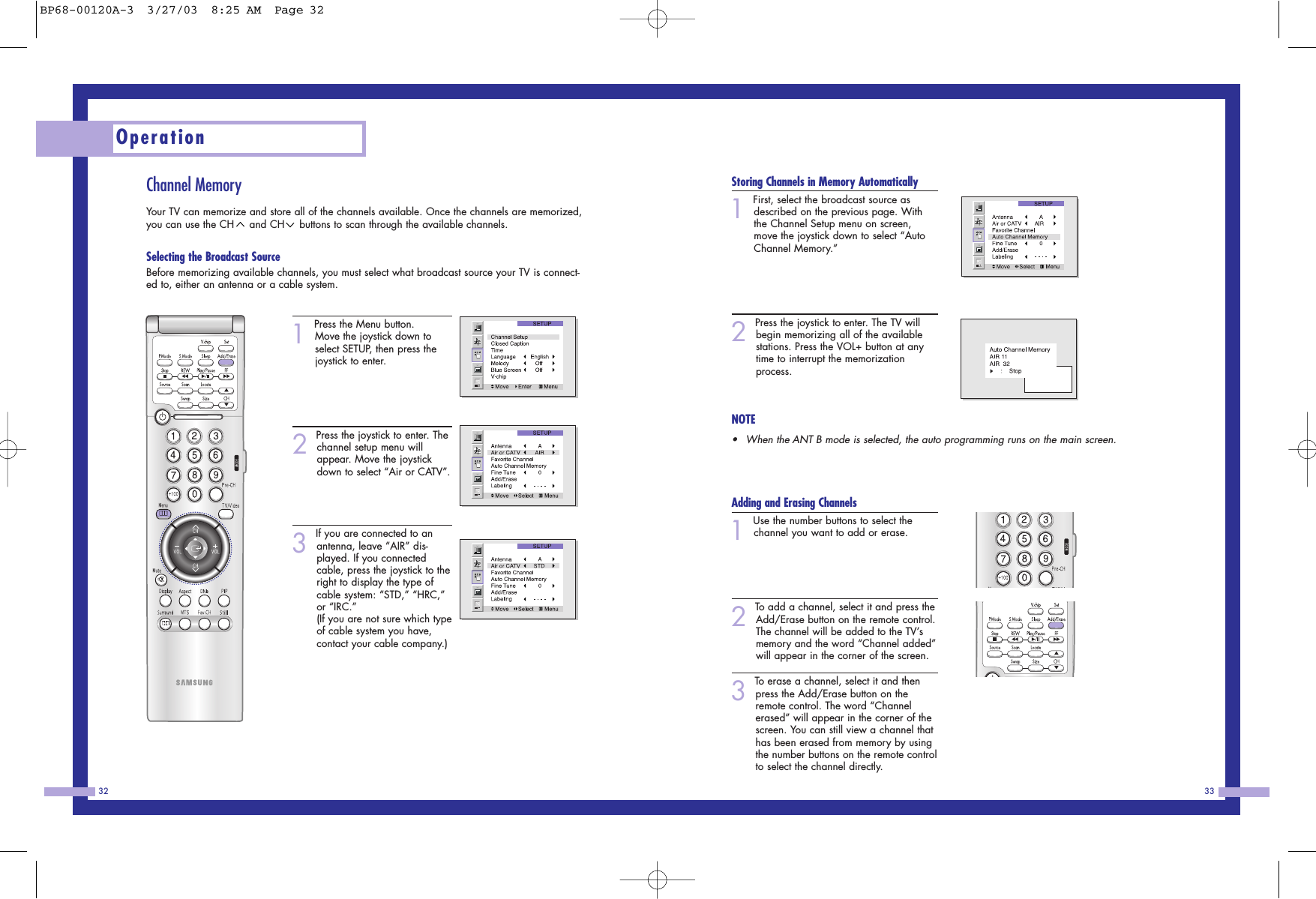

33Operation32Channel MemoryYour TV can memorize and store all of the channels available. Once the channels are memorized,you can use the CH and CH buttons to scan through the available channels. Selecting the Broadcast SourceBefore memorizing available channels, you must select what broadcast source your TV is connect-ed to, either an antenna or a cable system.1Press the Menu button. Move the joystick down toselect SETUP, then press the joystick to enter. 2Press the joystick to enter. Thechannel setup menu willappear. Move the joystickdown to select “Air or CATV”.3If you are connected to anantenna, leave “AIR” dis-played. If you connectedcable, press the joystick to theright to display the type ofcable system: “STD,” “HRC,”or “IRC.” (If you are not sure which typeof cable system you have,contact your cable company.) Storing Channels in Memory Automatically1First, select the broadcast source asdescribed on the previous page. Withthe Channel Setup menu on screen,move the joystick down to select “AutoChannel Memory.”2Press the joystick to enter. The TV willbegin memorizing all of the available stations. Press the VOL+ button at anytime to interrupt the memorizationprocess.NOTE•When the ANT B mode is selected, the auto programming runs on the main screen.Adding and Erasing Channels1Use the number buttons to select thechannel you want to add or erase.2To add a channel, select it and press theAdd/Erase button on the remote control.The channel will be added to the TV’smemory and the word “Channel added”will appear in the corner of the screen.3To erase a channel, select it and thenpress the Add/Erase button on theremote control. The word “Channelerased” will appear in the corner of thescreen. You can still view a channel thathas been erased from memory by usingthe number buttons on the remote controlto select the channel directly.BP68-00120A-3 3/27/03 8:25 AM Page 32

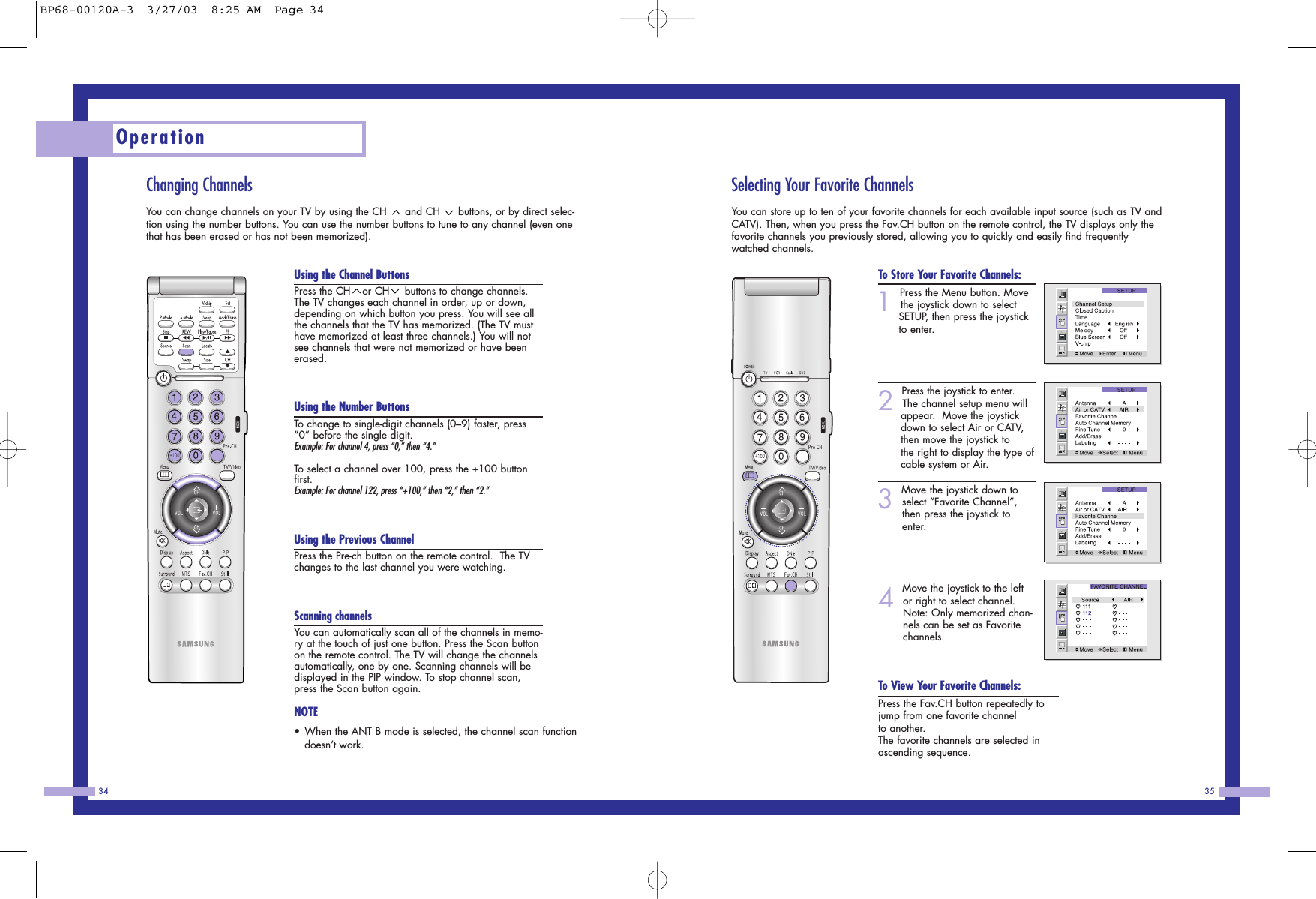

Selecting Your Favorite ChannelsYou can store up to ten of your favorite channels for each available input source (such as TV andCATV). Then, when you press the Fav.CH button on the remote control, the TV displays only thefavorite channels you previously stored, allowing you to quickly and easily find frequentlywatched channels. To Store Your Favorite Channels:1Press the Menu button. Movethe joystick down to select SETUP, then press the joystick to enter.2Press the joystick to enter.The channel setup menu will appear. Move the joystick down to select Air or CATV, then move the joystick to the right to display the type ofcable system or Air.3Move the joystick down toselect “Favorite Channel”,then press the joystick toenter.4Move the joystick to the leftor right to select channel.Note: Only memorized chan-nels can be set as Favoritechannels.To View Your Favorite Channels:Press the Fav.CH button repeatedly tojump from one favorite channel to another.The favorite channels are selected inascending sequence.35Changing ChannelsYou can change channels on your TV by using the CH and CH buttons, or by direct selec-tion using the number buttons. You can use the number buttons to tune to any channel (even onethat has been erased or has not been memorized). Using the Channel ButtonsPress the CH or CH buttons to change channels.The TV changes each channel in order, up or down,depending on which button you press. You will see allthe channels that the TV has memorized. (The TV musthave memorized at least three channels.) You will notsee channels that were not memorized or have beenerased.Using the Number ButtonsTo change to single-digit channels (0–9) faster, press“0” before the single digit. Example: For channel 4, press “0,” then “4.” To select a channel over 100, press the +100 buttonfirst. Example: For channel 122, press “+100,” then “2,” then “2.” Using the Previous ChannelPress the Pre-ch button on the remote control. The TVchanges to the last channel you were watching.Scanning channelsYou can automatically scan all of the channels in memo-ry at the touch of just one button. Press the Scan buttonon the remote control. The TV will change the channelsautomatically, one by one. Scanning channels will bedisplayed in the PIP window. To stop channel scan,press the Scan button again. NOTE•When the ANT B mode is selected, the channel scan functiondoesn’t work.Operation34BP68-00120A-3 3/27/03 8:25 AM Page 34

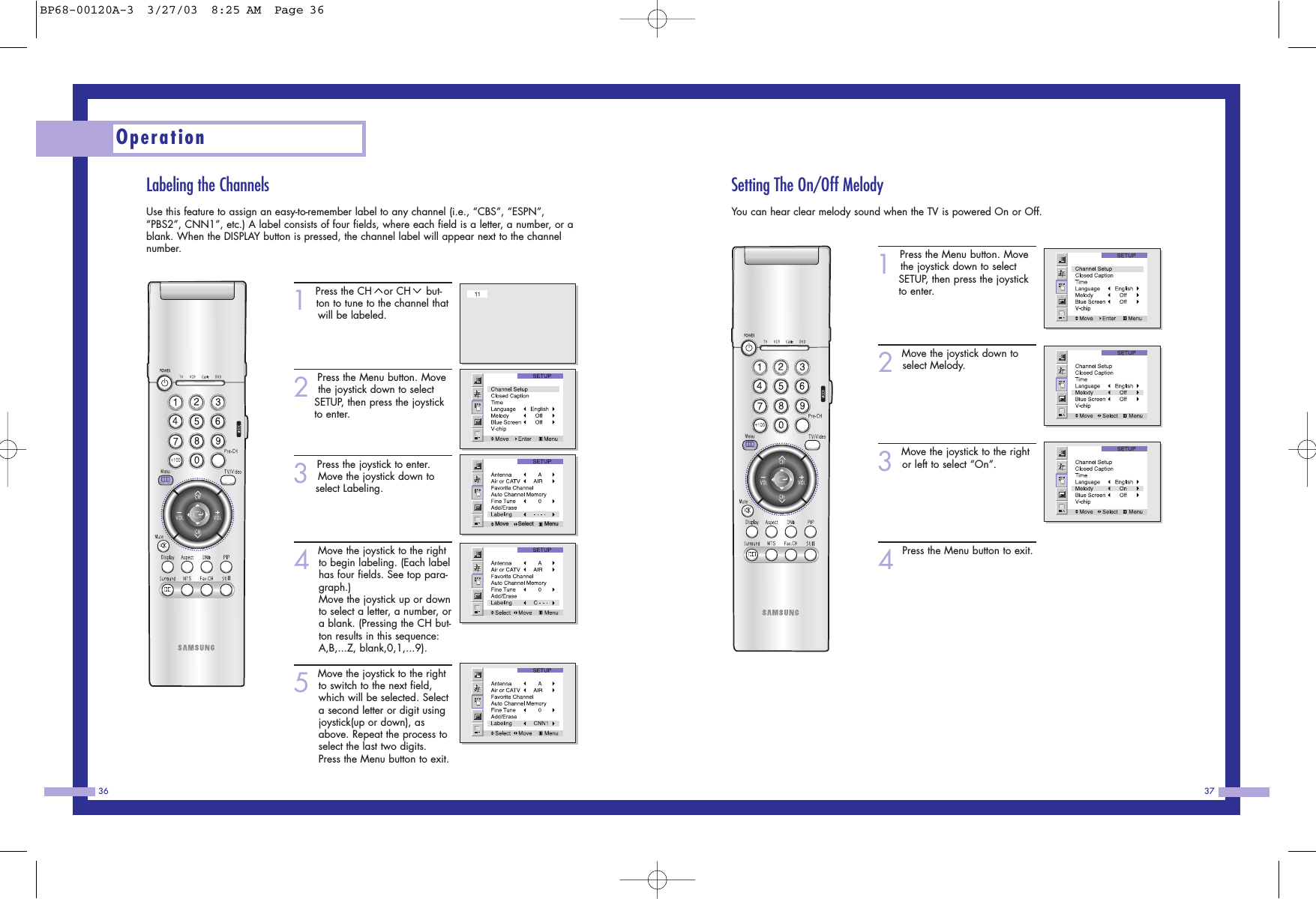

Setting The On/Off MelodyYou can hear clear melody sound when the TV is powered On or Off.1Press the Menu button. Movethe joystick down to select SETUP, then press the joystick to enter.2Move the joystick down toselect Melody.3Move the joystick to the rightor left to select “On”.4Press the Menu button to exit.37Labeling the ChannelsUse this feature to assign an easy-to-remember label to any channel (i.e., “CBS”, “ESPN”,“PBS2”, CNN1”, etc.) A label consists of four fields, where each field is a letter, a number, or ablank. When the DISPLAY button is pressed, the channel label will appear next to the channelnumber.1Press the CH or CH but-ton to tune to the channel that will be labeled.2Press the Menu button. Movethe joystick down to select SETUP, then press the joystick to enter.3Press the joystick to enter.Move the joystick down to select Labeling.4Move the joystick to the rightto begin labeling. (Each labelhas four fields. See top para-graph.)Move the joystick up or downto select a letter, a number, ora blank. (Pressing the CH but-ton results in this sequence:A,B,...Z, blank,0,1,...9).5Move the joystick to the rightto switch to the next field,which will be selected. Selecta second letter or digit usingjoystick(up or down), asabove. Repeat the process toselect the last two digits.Press the Menu button to exit.Operation36Move Select MenuBP68-00120A-3 3/27/03 8:25 AM Page 36

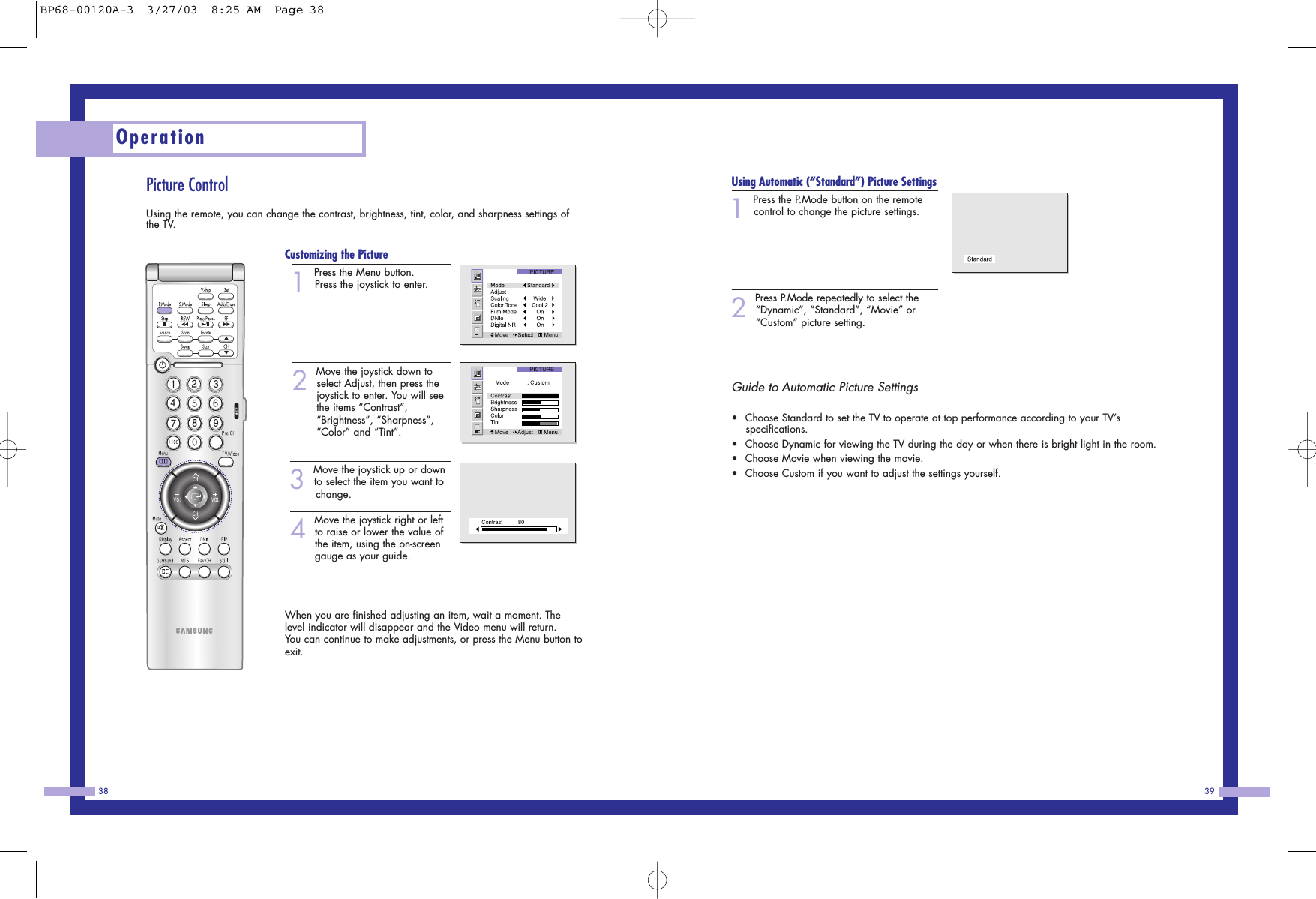

Picture ControlUsing the remote, you can change the contrast, brightness, tint, color, and sharpness settings ofthe TV.Customizing the Picture1Press the Menu button. Press the joystick to enter. 2Move the joystick down toselect Adjust, then press the joystick to enter. You will see the items “Contrast”, “Brightness”, “Sharpness”, “Color” and “Tint”. 3Move the joystick up or downto select the item you want to change. 4Move the joystick right or leftto raise or lower the value ofthe item, using the on-screengauge as your guide. When you are finished adjusting an item, wait a moment. Thelevel indicator will disappear and the Video menu will return.You can continue to make adjustments, or press the Menu button toexit.Using Automatic (“Standard”) Picture Settings1 Press the P.Mode button on the remotecontrol to change the picture settings.2Press P.Mode repeatedly to select the“Dynamic”, “Standard”, “Movie” or“Custom” picture setting. Guide to Automatic Picture Settings•Choose Standard to set the TV to operate at top performance according to your TV’s specifications.•Choose Dynamic for viewing the TV during the day or when there is bright light in the room.•Choose Movie when viewing the movie.•Choose Custom if you want to adjust the settings yourself.39Operation38BP68-00120A-3 3/27/03 8:25 AM Page 38

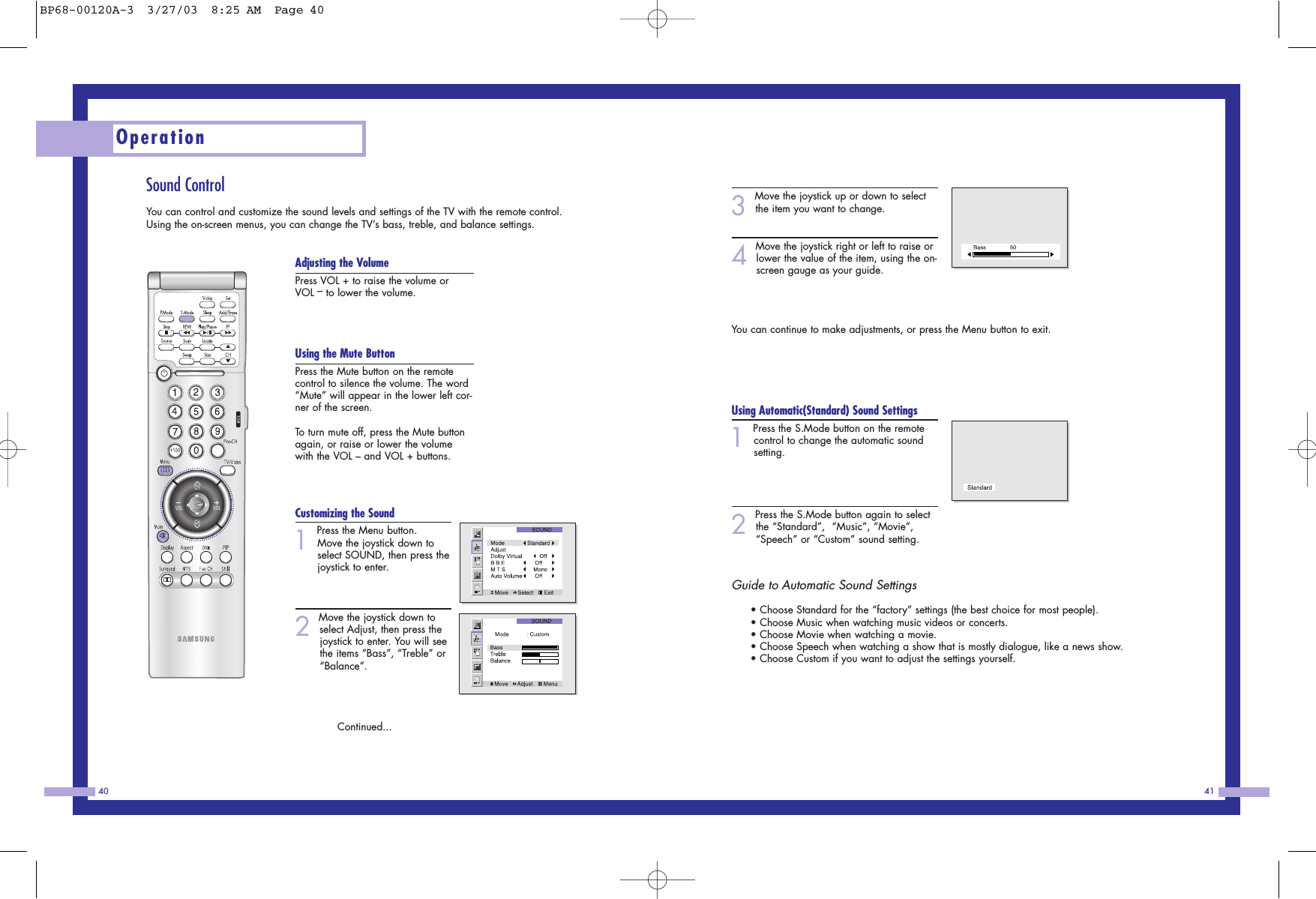

3Move the joystick up or down to selectthe item you want to change. 4Move the joystick right or left to raise orlower the value of the item, using the on-screen gauge as your guide. You can continue to make adjustments, or press the Menu button to exit. Using Automatic(Standard) Sound Settings1Press the S.Mode button on the remotecontrol to change the automatic soundsetting.2Press the S.Mode button again to selectthe “Standard”, “Music”, “Movie”,“Speech” or “Custom” sound setting. Guide to Automatic Sound Settings• Choose Standard for the “factory” settings (the best choice for most people).• Choose Music when watching music videos or concerts.• Choose Movie when watching a movie.• Choose Speech when watching a show that is mostly dialogue, like a news show.• Choose Custom if you want to adjust the settings yourself.41Sound ControlYou can control and customize the sound levels and settings of the TV with the remote control.Using the on-screen menus, you can change the TV’s bass, treble, and balance settings.Adjusting the VolumePress VOL + to raise the volume or VOL –to lower the volume. Using the Mute ButtonPress the Mute button on the remotecontrol to silence the volume. The word“Mute” will appear in the lower left cor-ner of the screen.To turn mute off, press the Mute buttonagain, or raise or lower the volumewith the VOL – and VOL + buttons.Customizing the Sound1Press the Menu button. Move the joystick down toselect SOUND, then press thejoystick to enter.2Move the joystick down toselect Adjust, then press the joystick to enter. You will see the items “Bass”, “Treble” or “Balance”.Continued...Operation40BP68-00120A-3 3/27/03 8:25 AM Page 40

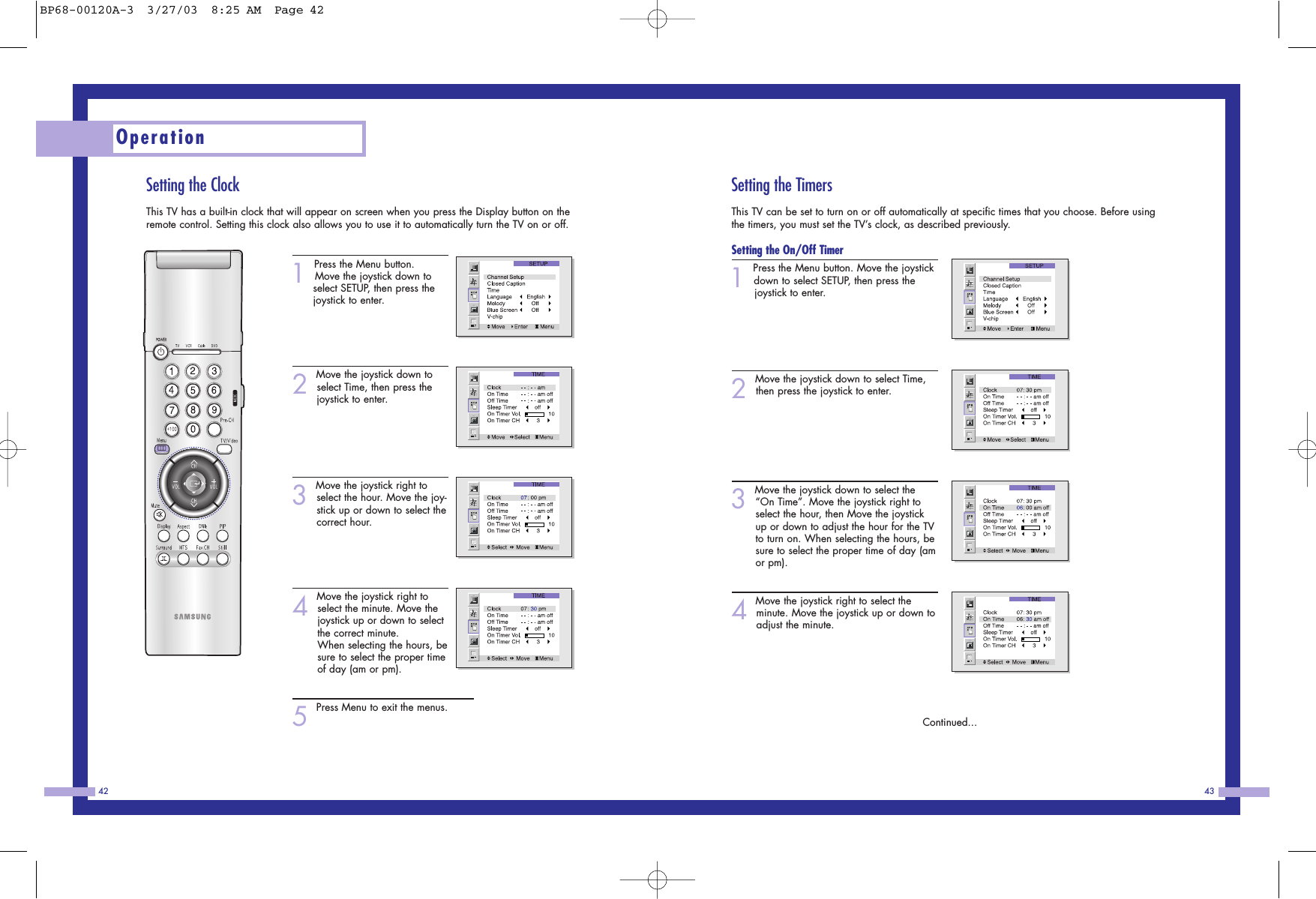

Setting the TimersThis TV can be set to turn on or off automatically at specific times that you choose. Before usingthe timers, you must set the TV’s clock, as described previously.Setting the On/Off Timer1 Press the Menu button. Move the joystickdown to select SETUP, then press the joystick to enter.2Move the joystick down to select Time,then press the joystick to enter.3Move the joystick down to select the“On Time”. Move the joystick right toselect the hour, then Move the joystickup or down to adjust the hour for the TVto turn on. When selecting the hours, besure to select the proper time of day (amor pm). 4Move the joystick right to select theminute. Move the joystick up or down toadjust the minute. Continued...43Setting the ClockThis TV has a built-in clock that will appear on screen when you press the Display button on theremote control. Setting this clock also allows you to use it to automatically turn the TV on or off. 1Press the Menu button. Move the joystick down to select SETUP, then press the joystick to enter.2Move the joystick down toselect Time, then press the joystick to enter. 3Move the joystick right toselect the hour. Move the joy-stick up or down to select thecorrect hour. 4Move the joystick right toselect the minute. Move thejoystick up or down to selectthe correct minute. When selecting the hours, besure to select the proper timeof day (am or pm). 5Press Menu to exit the menus.Operation42BP68-00120A-3 3/27/03 8:25 AM Page 42

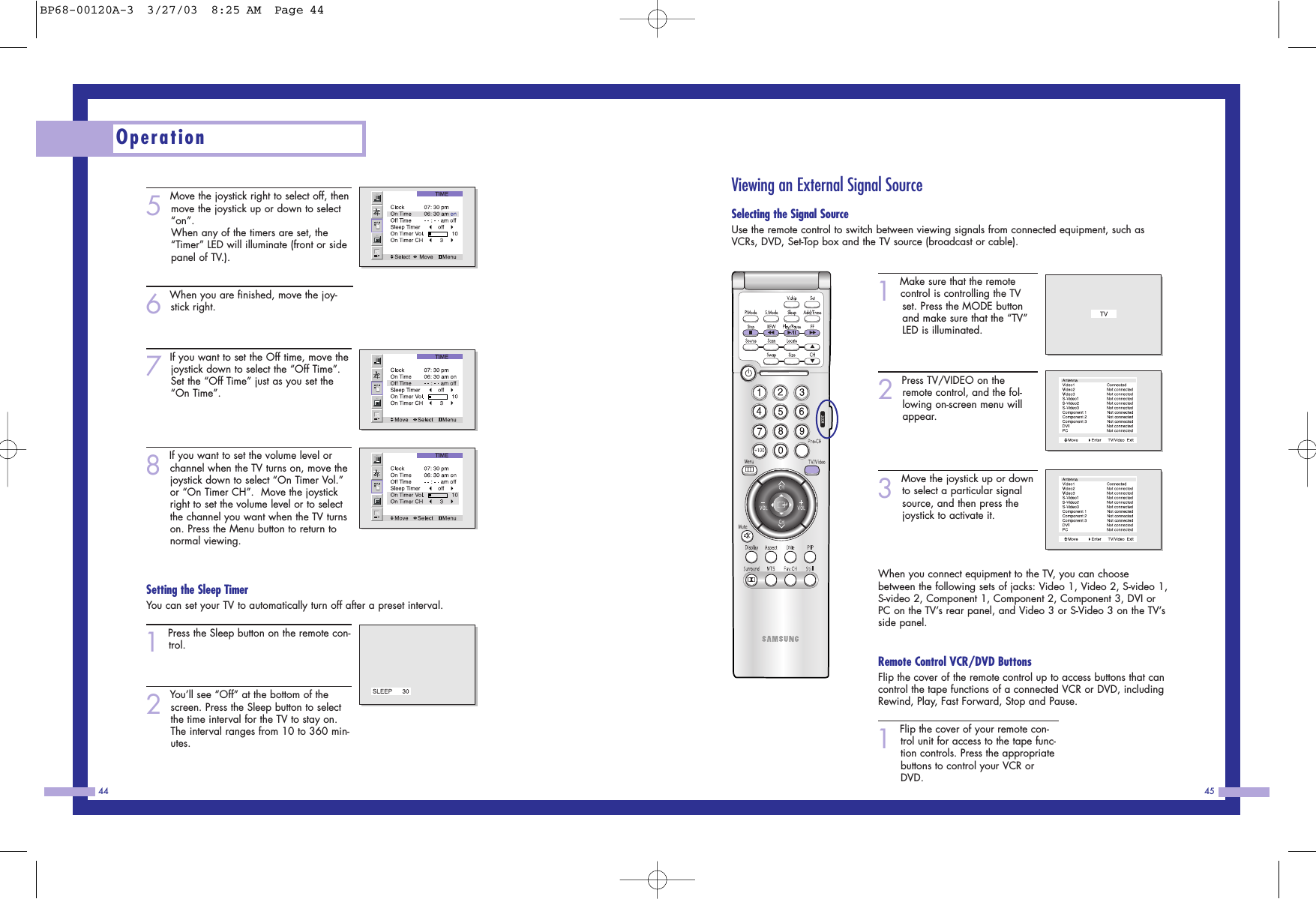

Viewing an External Signal SourceSelecting the Signal SourceUse the remote control to switch between viewing signals from connected equipment, such asVCRs, DVD, Set-Top box and the TV source (broadcast or cable). 1Make sure that the remotecontrol is controlling the TV set. Press the MODE button and make sure that the “TV” LED is illuminated.2Press TV/VIDEO on theremote control, and the fol-lowing on-screen menu willappear. 3Move the joystick up or downto select a particular signalsource, and then press thejoystick to activate it. When you connect equipment to the TV, you can choosebetween the following sets of jacks: Video 1, Video 2, S-video 1,S-video 2, Component 1, Component 2, Component 3, DVI orPC on the TV’s rear panel, and Video 3 or S-Video 3 on the TV’sside panel.Remote Control VCR/DVD ButtonsFlip the cover of the remote control up to access buttons that cancontrol the tape functions of a connected VCR or DVD, includingRewind, Play, Fast Forward, Stop and Pause. 1Flip the cover of your remote con-trol unit for access to the tape func-tion controls. Press the appropriatebuttons to control your VCR orDVD. 455Move the joystick right to select off, thenmove the joystick up or down to select“on”.When any of the timers are set, the“Timer” LED will illuminate (front or sidepanel of TV.).6When you are finished, move the joy-stick right.7If you want to set the Off time, move thejoystick down to select the “Off Time”.Set the “Off Time” just as you set the“On Time”.8If you want to set the volume level orchannel when the TV turns on, move thejoystick down to select “On Timer Vol.”or “On Timer CH”. Move the joystickright to set the volume level or to selectthe channel you want when the TV turnson. Press the Menu button to return tonormal viewing.Setting the Sleep TimerYou can set your TV to automatically turn off after a preset interval. 1Press the Sleep button on the remote con-trol.2You’ll see “Off” at the bottom of thescreen. Press the Sleep button to selectthe time interval for the TV to stay on.The interval ranges from 10 to 360 min-utes. Operation44BP68-00120A-3 3/27/03 8:25 AM Page 44

Special FeaturesSAMSUNGBP68-00120A-4 3/27/03 8:28 AM Page 46

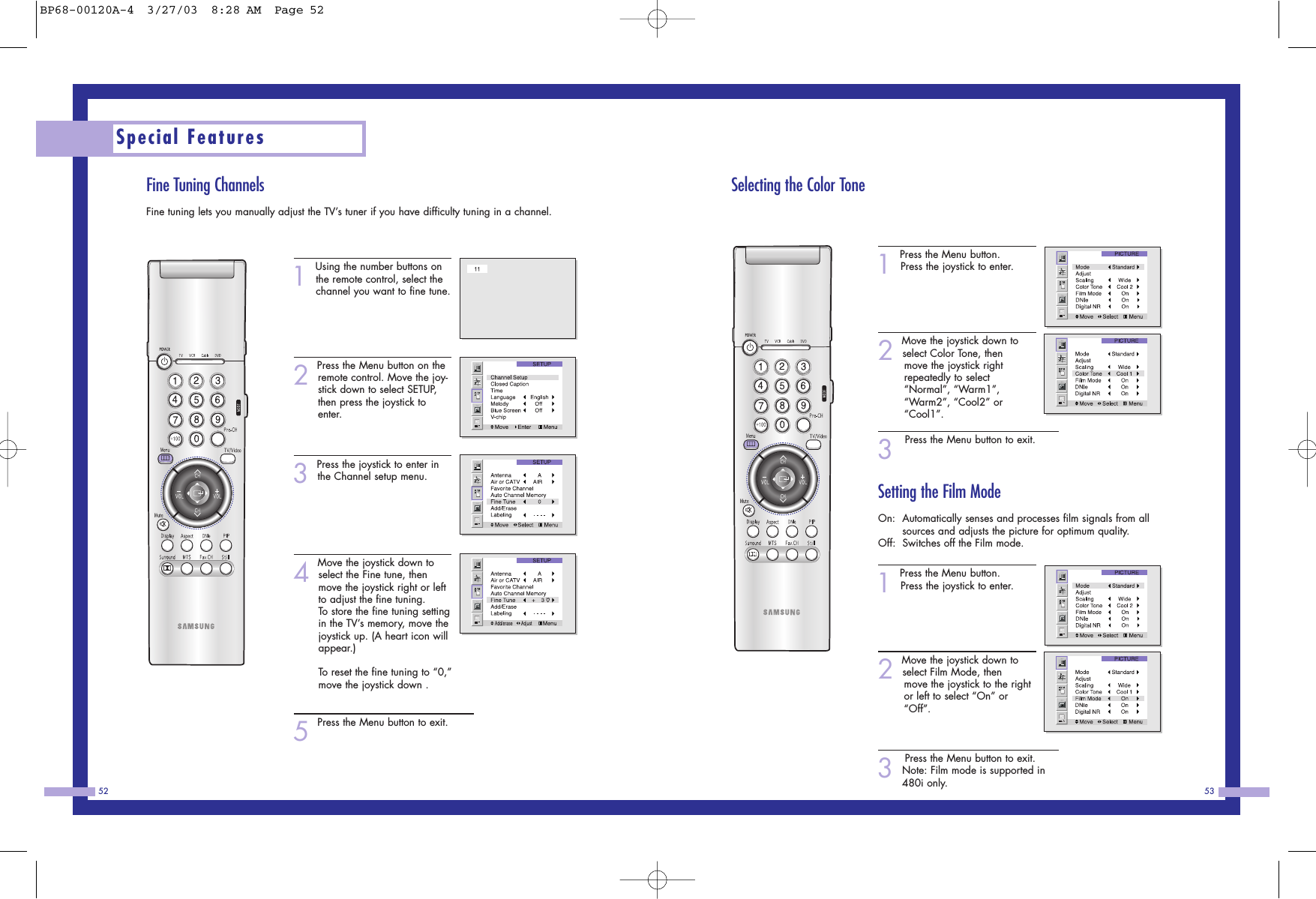

Selecting the Color Tone1Press the Menu button. Press the joystick to enter. 2Move the joystick down toselect Color Tone, then move the joystick right repeatedly to select “Normal”, “Warm1”, “Warm2”, “Cool2” or “Cool1”.3Press the Menu button to exit.Setting the Film ModeOn: Automatically senses and processes film signals from allsources and adjusts the picture for optimum quality.Off: Switches off the Film mode.1Press the Menu button. Press the joystick to enter. 2Move the joystick down toselect Film Mode, then move the joystick to the rightor left to select “On” or“Off”.3Press the Menu button to exit.Note: Film mode is supported in480i only. 53Fine Tuning ChannelsFine tuning lets you manually adjust the TV’s tuner if you have difficulty tuning in a channel. 1Using the number buttons onthe remote control, select thechannel you want to fine tune.2Press the Menu button on theremote control. Move the joy-stick down to select SETUP,then press the joystick toenter.3Press the joystick to enter inthe Channel setup menu.4Move the joystick down toselect the Fine tune, thenmove the joystick right or leftto adjust the fine tuning.To store the fine tuning settingin the TV’s memory, move thejoystick up. (A heart icon willappear.) To reset the fine tuning to “0,”move the joystick down .5Press the Menu button to exit.Special Features52BP68-00120A-4 3/27/03 8:28 AM Page 52

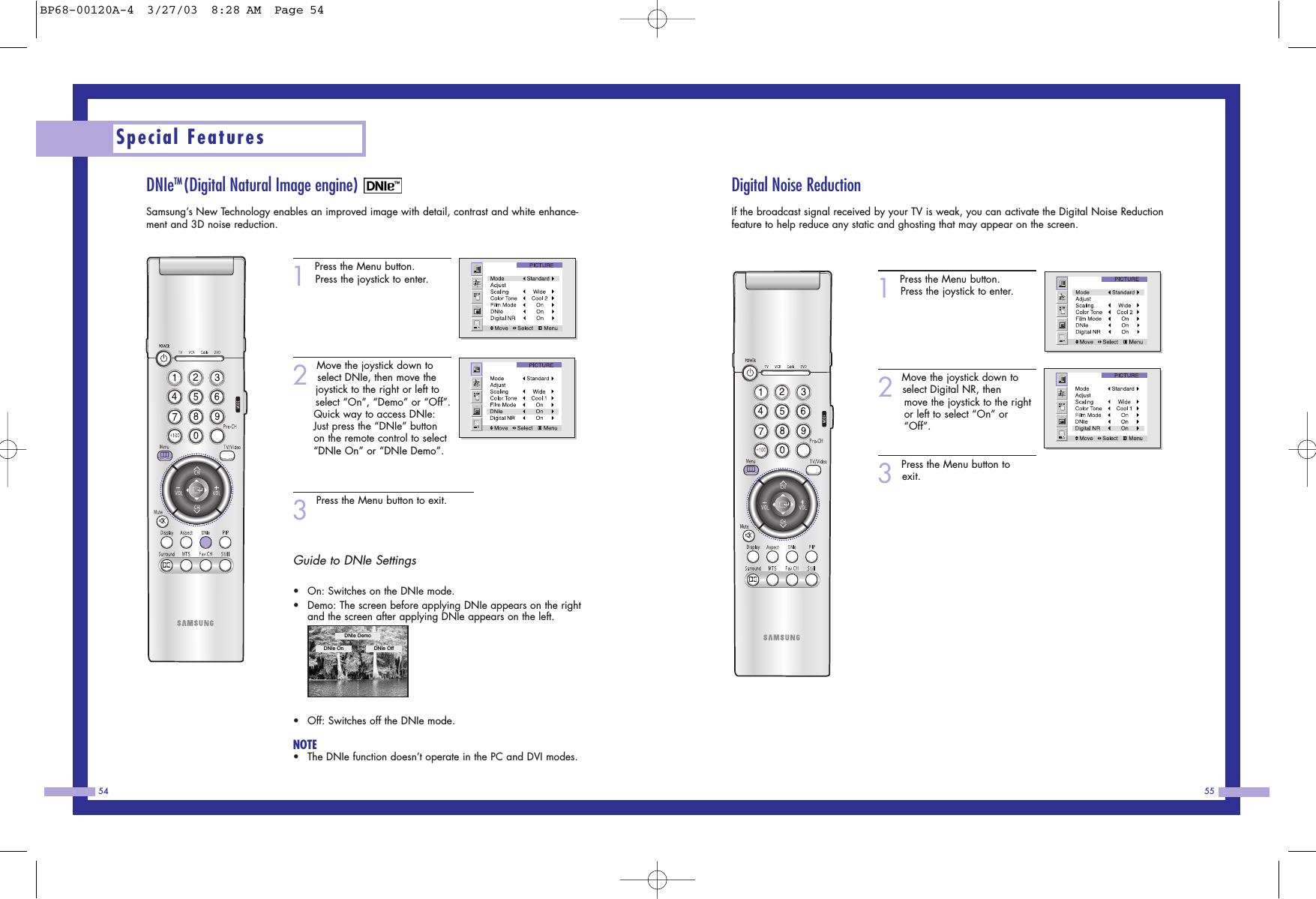

54 55Special FeaturesDNIeTM (Digital Natural Image engine) Samsung’s New Technology enables an improved image with detail, contrast and white enhance-ment and 3D noise reduction.1Press the Menu button. Press the joystick to enter. 2Move the joystick down toselect DNIe, then move the joystick to the right or left to select “On”, “Demo” or “Off”.Quick way to access DNIe: Just press the “DNIe” button on the remote control to select “DNIe On” or “DNIe Demo”.3Press the Menu button to exit.Guide to DNIe Settings•On: Switches on the DNIe mode. •Demo: The screen before applying DNIe appears on the rightand the screen after applying DNIe appears on the left.•Off: Switches off the DNIe mode.NOTE•The DNIe function doesn’t operate in the PC and DVI modes.Digital Noise ReductionIf the broadcast signal received by your TV is weak, you can activate the Digital Noise Reductionfeature to help reduce any static and ghosting that may appear on the screen.1Press the Menu button. Press the joystick to enter. 2Move the joystick down toselect Digital NR, then move the joystick to the right or left to select “On” or “Off”.3Press the Menu button toexit.DNIe DemoDNIe On DNIe OffBP68-00120A-4 3/27/03 8:28 AM Page 54

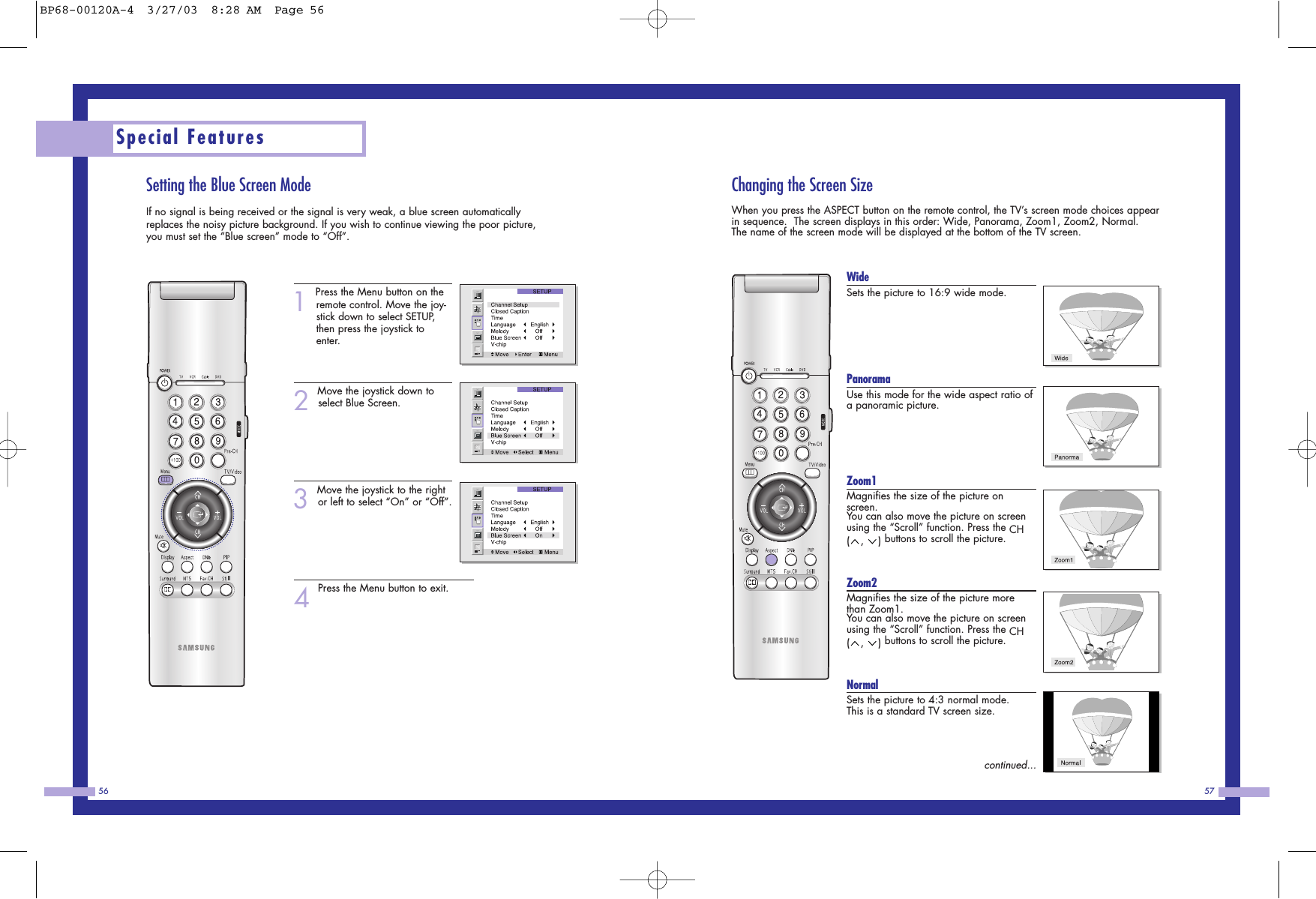

Changing the Screen SizeWhen you press the ASPECT button on the remote control, the TV’s screen mode choices appearin sequence. The screen displays in this order: Wide, Panorama, Zoom1, Zoom2, Normal. The name of the screen mode will be displayed at the bottom of the TV screen.WideSets the picture to 16:9 wide mode. PanoramaUse this mode for the wide aspect ratio ofa panoramic picture. Zoom1Magnifies the size of the picture onscreen.You can also move the picture on screenusing the “Scroll” function. Press the CH(, ) buttons to scroll the picture.Zoom2Magnifies the size of the picture morethan Zoom1. You can also move the picture on screenusing the “Scroll” function. Press the CH(, ) buttons to scroll the picture.NormalSets the picture to 4:3 normal mode. This is a standard TV screen size. continued...57Setting the Blue Screen ModeIf no signal is being received or the signal is very weak, a blue screen automaticallyreplaces the noisy picture background. If you wish to continue viewing the poor picture,you must set the “Blue screen” mode to “Off”.1Press the Menu button on theremote control. Move the joy-stick down to select SETUP,then press the joystick toenter.2Move the joystick down toselect Blue Screen.3Move the joystick to the rightor left to select “On” or “Off”.4Press the Menu button to exit.Special Features56BP68-00120A-4 3/27/03 8:28 AM Page 56

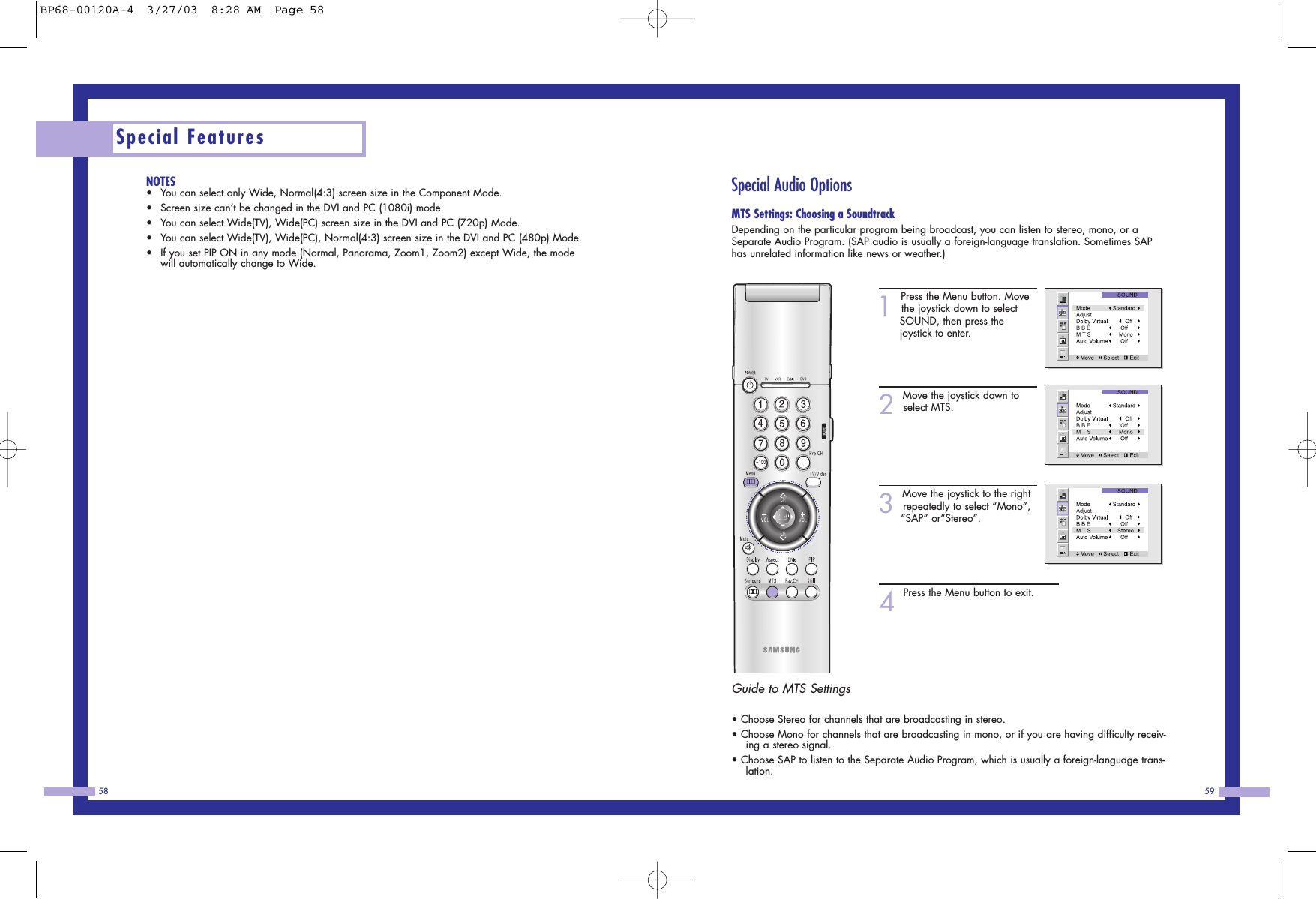

59NOTES•You can select only Wide, Normal(4:3) screen size in the Component Mode.•Screen size can’t be changed in the DVI and PC (1080i) mode.•You can select Wide(TV), Wide(PC) screen size in the DVI and PC (720p) Mode.•You can select Wide(TV), Wide(PC), Normal(4:3) screen size in the DVI and PC (480p) Mode.•If you set PIP ON in any mode (Normal, Panorama, Zoom1, Zoom2) except Wide, the modewill automatically change to Wide.Special Features58Special Audio OptionsMTS Settings: Choosing a SoundtrackDepending on the particular program being broadcast, you can listen to stereo, mono, or aSeparate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAPhas unrelated information like news or weather.)1Press the Menu button. Movethe joystick down to select SOUND, then press the joystick to enter.2Move the joystick down toselect MTS.3Move the joystick to the rightrepeatedly to select “Mono”, “SAP” or“Stereo”.4Press the Menu button to exit.Guide to MTS Settings• Choose Stereo for channels that are broadcasting in stereo.• Choose Mono for channels that are broadcasting in mono, or if you are having difficulty receiv-ing a stereo signal.• Choose SAP to listen to the Separate Audio Program, which is usually a foreign-language trans-lation.BP68-00120A-4 3/27/03 8:28 AM Page 58
