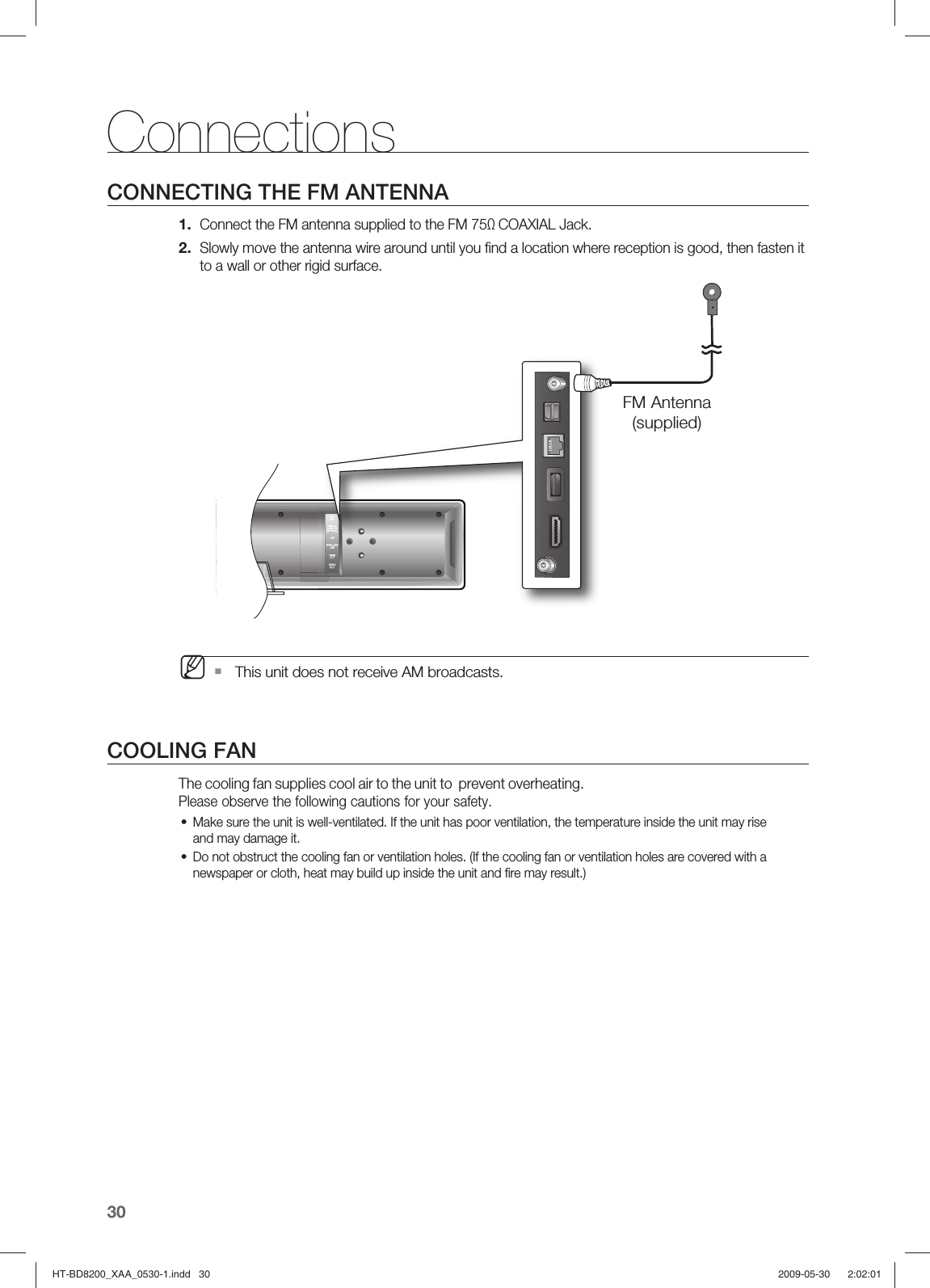

30ConnectionsCONNECTING THE FM ANTENNA Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack. Slowly move the antenna wire around until you fi nd a location where reception is good, then fasten it to a wall or other rigid surface. This unit does not receive AM broadcasts.COOLING FANThe cooling fan supplies cool air to the unit to prevent overheating.Please observe the following cautions for your safety.Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise and may damage it.Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fi re may result.)1.2.M••FM Antenna(supplied)HT-BD8200_XAA_0530-1.indd 30HT-BD8200_XAA_0530-1.indd 30 2009-05-30  2:02:012009-05-30  2:02:01

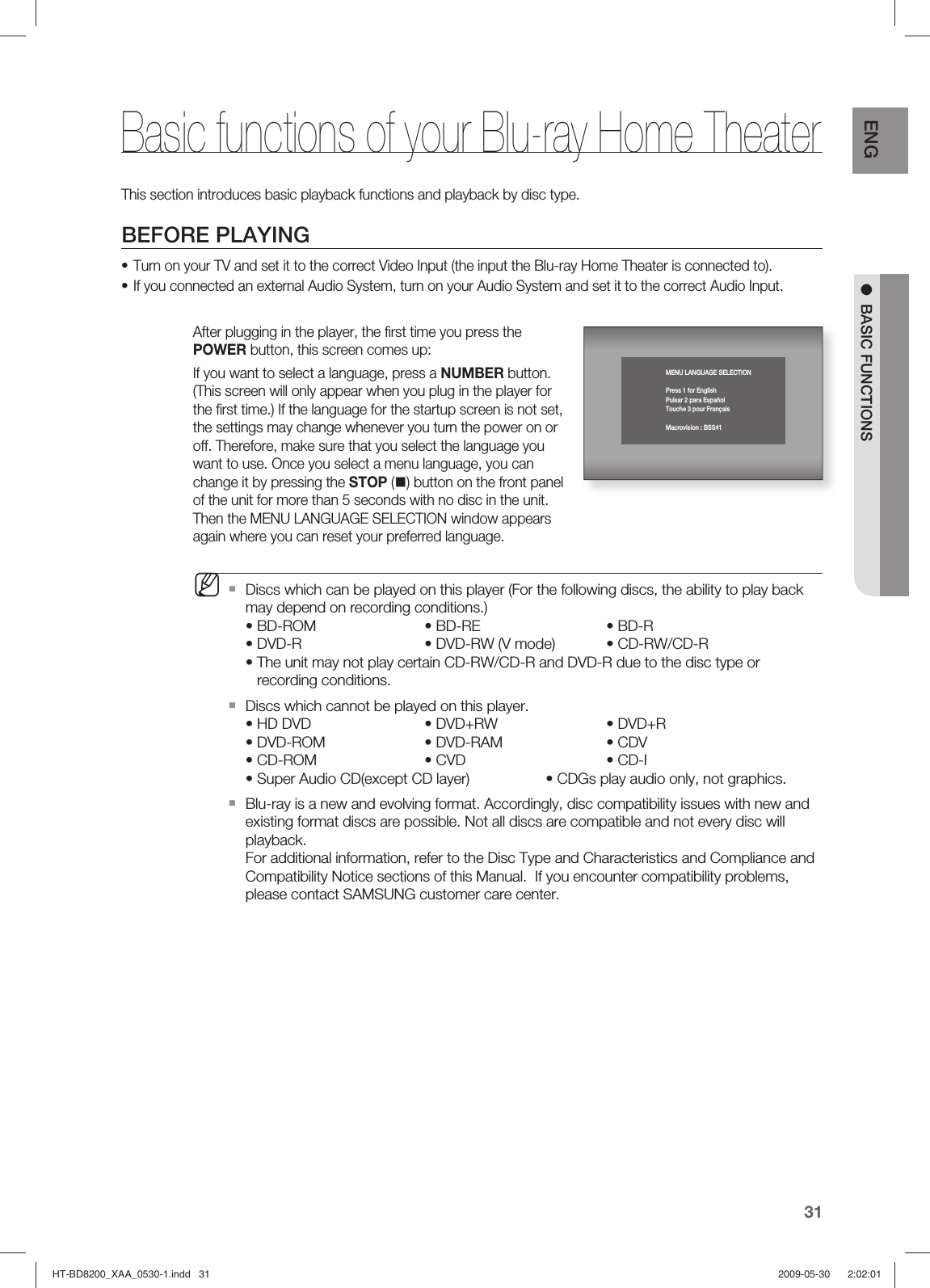

31ENG ● BASIC FUNCTIONSThis section introduces basic playback functions and playback by disc type.BEFORE PLAYINGTurn on your TV and set it to the correct Video Input (the input the Blu-ray Home Theater is connected to).If you connected an external Audio System, turn on your Audio System and set it to the correct Audio Input.After plugging in the player, the fi rst time you press the POWER button, this screen comes up: If you want to select a language, press a NUMBER button. (This screen will only appear when you plug in the player for the fi rst time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Once you select a menu language, you can change it by pressing the STOP () button on the front panel of the unit for more than 5 seconds with no disc in the unit. Then the MENU LANGUAGE SELECTION window appears again where you can reset your preferred language.Discs which can be played on this player (For the following discs, the ability to play back may depend on recording conditions.)• BD-ROM • BD-RE • BD-R• DVD-R • DVD-RW (V mode) • CD-RW/CD-R• The unit may not play certain CD-RW/CD-R and DVD-R due to the disc type or recording conditions.Discs which cannot be played on this player.• HD DVD • DVD+RW • DVD+R • DVD-ROM • DVD-RAM • CDV • CD-ROM • CVD • CD-I • Super Audio CD(except CD layer) • CDGs play audio only, not graphics.Blu-ray is a new and evolving format. Accordingly, disc compatibility issues with new and existing format discs are possible. Not all discs are compatible and not every disc will playback. For additional information, refer to the Disc Type and Characteristics and Compliance and Compatibility Notice sections of this Manual. If you encounter compatibility problems, please contact SAMSUNG customer care center.••MBasic functions of your Blu-ray Home TheaterMENU LANGUAGE SELECTIONPress 1 for EnglishPulsar 2 para EspañolTouche 3 pour FrançaisMacrovision : BSS41HT-BD8200_XAA_0530-1.indd 31HT-BD8200_XAA_0530-1.indd 31 2009-05-30  2:02:012009-05-30  2:02:01

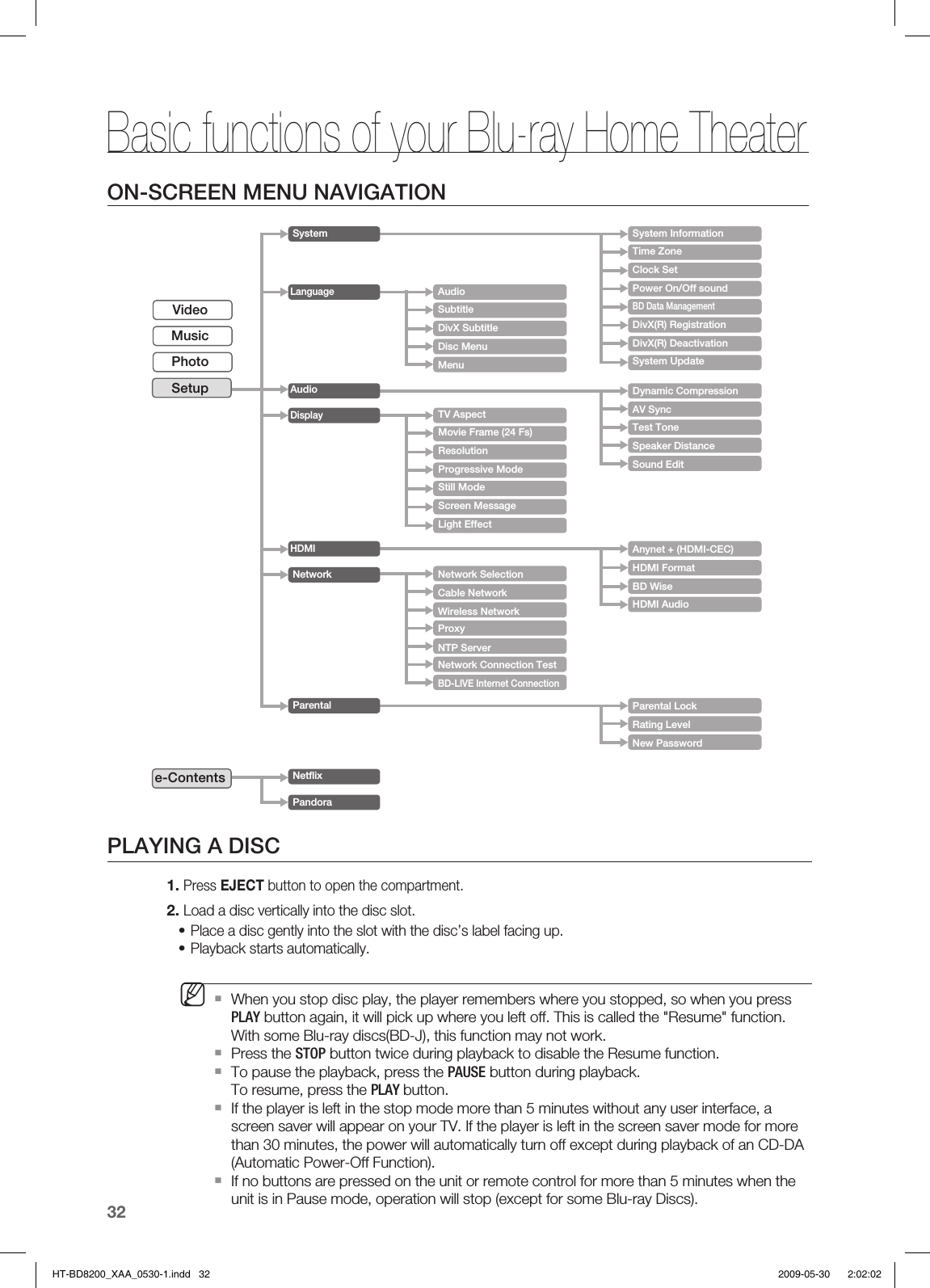

Basic functions of your Blu-ray Home Theater32ON-SCREEN MENU NAVIGATIONPLAYING A DISCPress EJECT button to open the compartment.Load a disc vertically into the disc slot.Place a disc gently into the slot with the disc’s label facing up.Playback starts automatically.When you stop disc play, the player remembers where you stopped, so when you press PLAY button again, it will pick up where you left off. This is called the "Resume" function.With some Blu-ray discs(BD-J), this function may not work.Press the STOP button twice during playback to disable the Resume function.To pause the playback, press the PAUSE button during playback. To resume, press the PLAY button.If the player is left in the stop mode more than 5 minutes without any user interface, a screen saver will appear on your TV. If the player is left in the screen saver mode for more than 30 minutes, the power will automatically turn off except during playback of an CD-DA (Automatic Power-Off Function).If no buttons are pressed on the unit or remote control for more than 5 minutes when the unit is in Pause mode, operation will stop (except for some Blu-ray Discs).1.2.••MAudioSubtitleDivX SubtitleDisc MenuMenuTV AspectMovie Frame (24 Fs)ResolutionProgressive ModeStill ModeScreen MessageLight EffectNetwork SelectionCable NetworkWireless NetworkProxyNTP ServerNetwork Connection TestBD-LIVE Internet ConnectionVideoMusicPhotoSetupSystemLanguageAudioDisplayHDMINetworkParentalSystem InformationTime ZoneClock SetPower On/Off soundBD Data ManagementDivX(R) RegistrationDivX(R) DeactivationSystem UpdateDynamic CompressionAV SyncTest ToneSpeaker DistanceSound EditAnynet + (HDMI-CEC)HDMI FormatBD WiseHDMI AudioParental LockRating LevelNew Password e-Contents Netfl ixPandoraHT-BD8200_XAA_0530-1.indd 32HT-BD8200_XAA_0530-1.indd 32 2009-05-30  2:02:022009-05-30  2:02:02

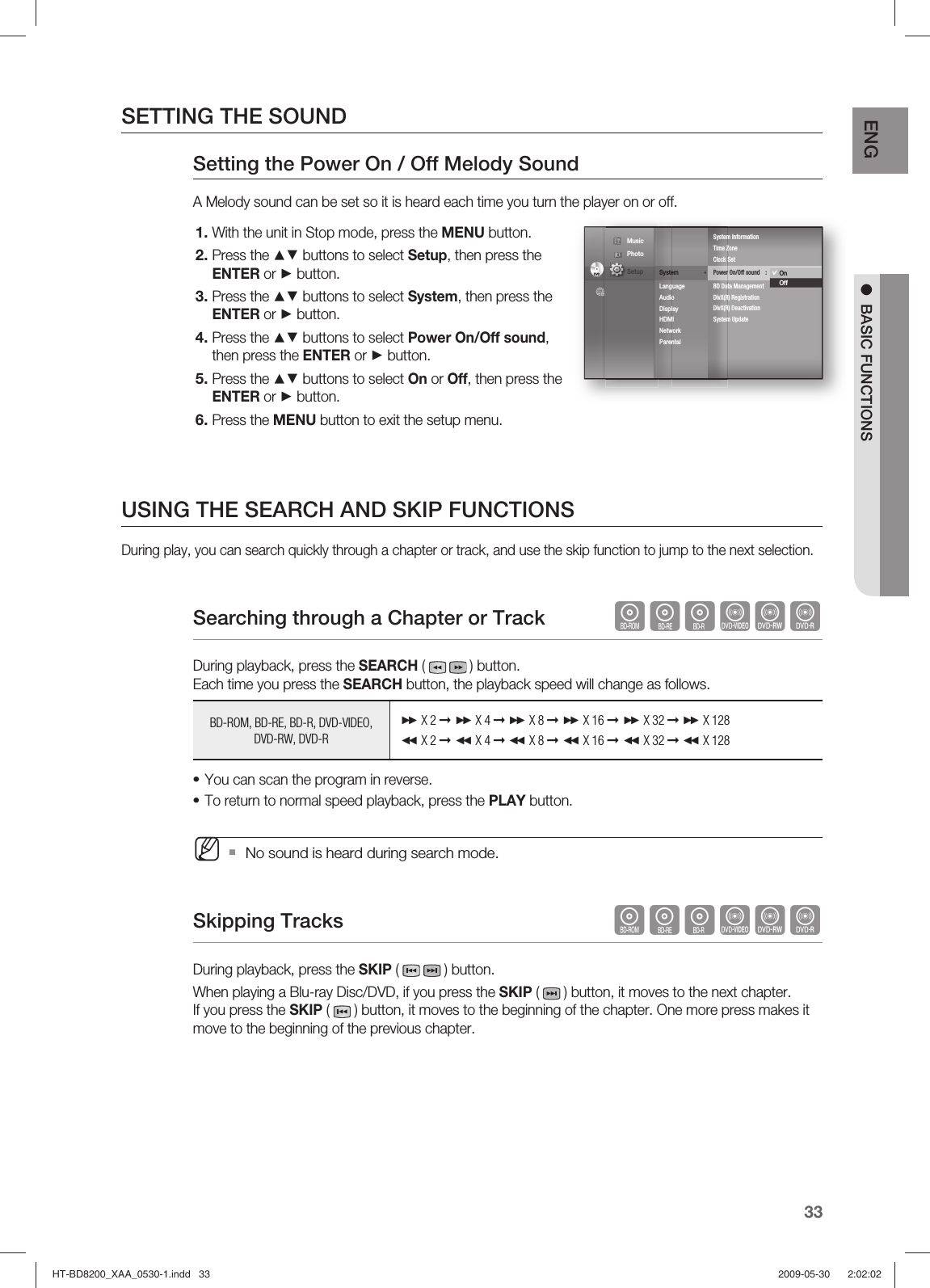

33ENG ● BASIC FUNCTIONSSETTING THE SOUNDSetting the Power On / Off Melody Sound A Melody sound can be set so it is heard each time you turn the player on or off.With the unit in Stop mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.Press the ▲▼ buttons to select System, then press the ENTER or ► button.Press the ▲▼ buttons to select Power On/Off sound, then press the ENTER or ► button.Press the ▲▼ buttons to select On or Off, then press the ENTER or ► button.Press the MENU button to exit the setup menu.USING THE SEARCH AND SKIP FUNCTIONSDuring play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.Searching through a Chapter or Track hgfZCVDuring playback, press the SEARCH ( ) button. Each time you press the SEARCH button, the playback speed will change as follows.BD-ROM, BD-RE, BD-R, DVD-VIDEO, DVD-RW, DVD-R X 2 ➞  X 4 ➞  X 8 ➞  X 16 ➞  X 32 ➞  X 128 X 2 ➞  X 4 ➞  X 8 ➞  X 16 ➞  X 32 ➞  X 128You can scan the program in reverse.To return to normal speed playback, press the PLAY button.No sound is heard during search mode.Skipping Tracks hgfZCVDuring playback, press the SKIP ( ) button. When playing a Blu-ray Disc/DVD, if you press the SKIP ( ) button, it moves to the next chapter. If you press the SKIP ( ) button, it moves to the beginning of the chapter. One more press makes it move to the beginning of the previous chapter.1.2.3.4.5.6.••MDVDDVDSystem ◄Language Audio Display HDMI Network Parental System InformationTime Zone Clock SetPower On/Off sound : On ►BD Data ManagementDivX(R) RegistrationDivX(R) DeactivationSystem UpdateOnOff Music Photo Setup HT-BD8200_XAA_0530-1.indd 33HT-BD8200_XAA_0530-1.indd 33 2009-05-30  2:02:022009-05-30  2:02:02

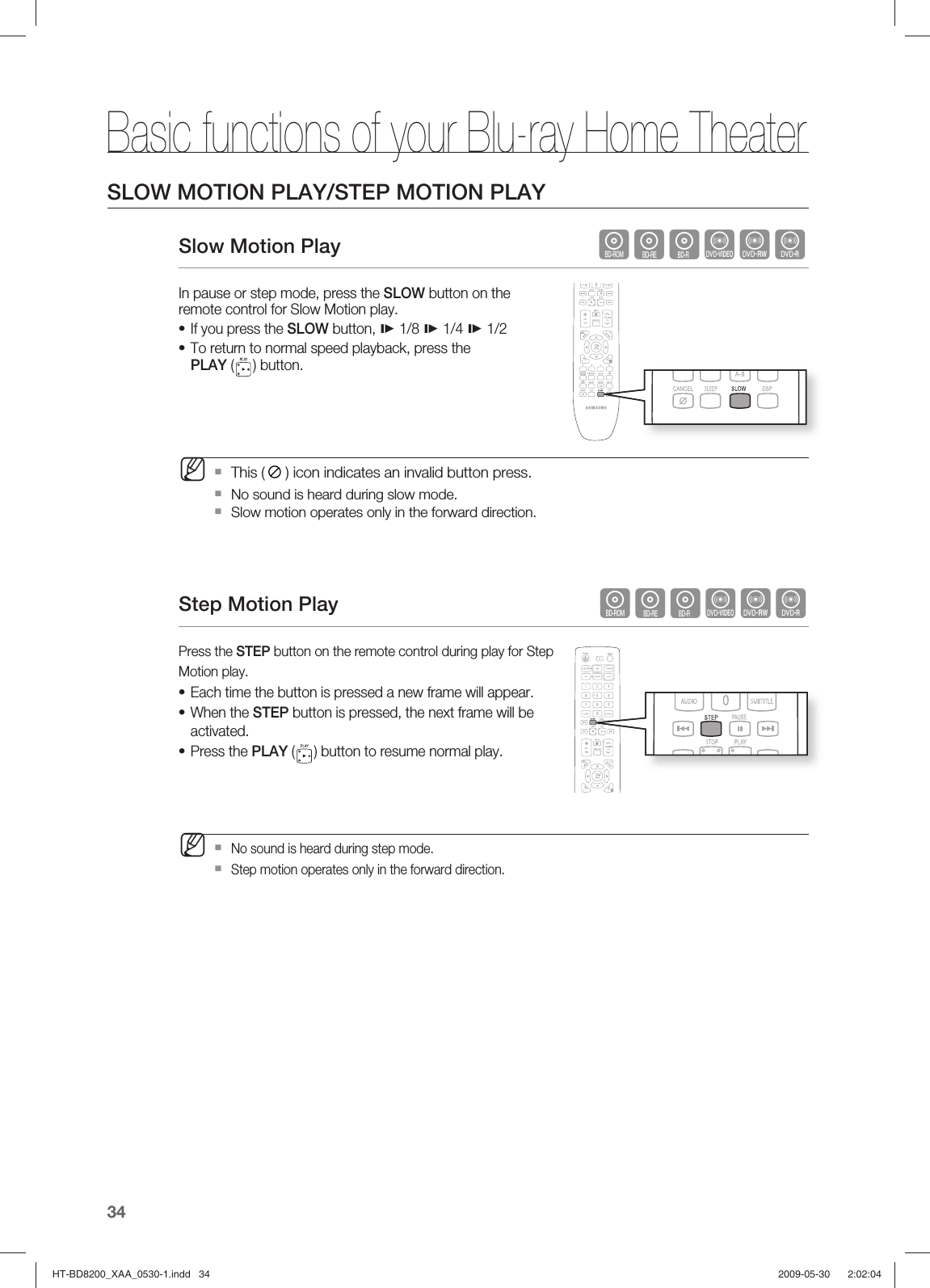

Basic functions of your Blu-ray Home Theater34SLOW MOTION PLAY/STEP MOTION PLAYSlow Motion Play hgfZCVIn pause or step mode, press the SLOW button on the remote control for Slow Motion play.If you press the SLOW button,  1/8  1/4  1/2To return to normal speed playback, press the PLAY ( ) button.This ( ) icon indicates an invalid button press. No sound is heard during slow mode. Slow motion operates only in the forward direction.Step Motion Play hgfZCVPress the STEP button on the remote control during play for Step Motion play.Each time the button is pressed a new frame will appear.When the STEP button is pressed, the next frame will be activated.Press the PLAY ( ) button to resume normal play. No sound is heard during step mode. Step motion operates only in the forward direction.••M•••MHT-BD8200_XAA_0530-1.indd 34HT-BD8200_XAA_0530-1.indd 34 2009-05-30  2:02:042009-05-30  2:02:04

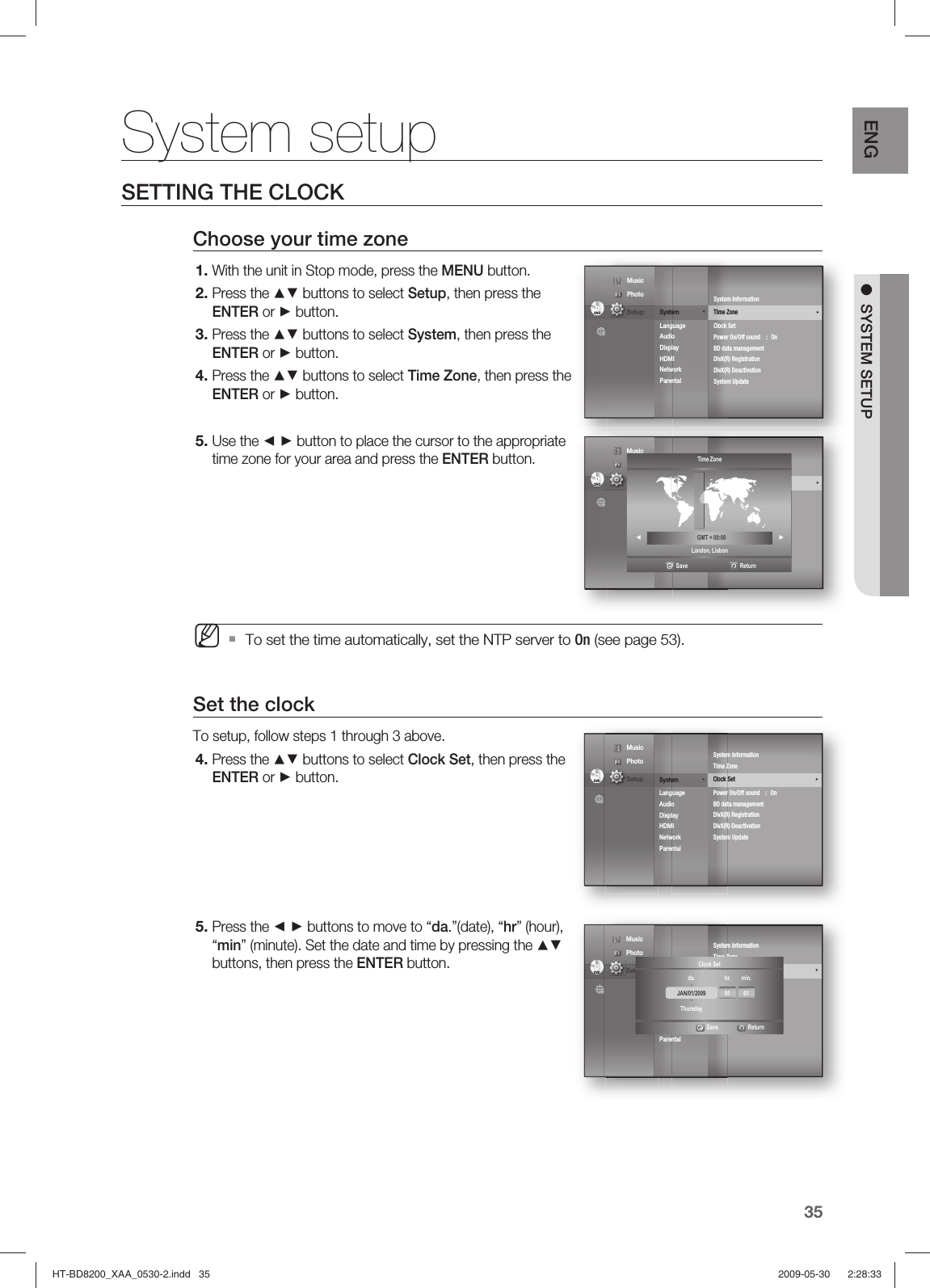

35ENG ● SYSTEM SETUPSETTING THE CLOCKChoose your time zoneWith the unit in Stop mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.Press the ▲▼ buttons to select System, then press the ENTER or ► button.Press the ▲▼ buttons to select Time Zone, then press the ENTER or ► button.Use the ◄ ► button to place the cursor to the appropriate time zone for your area and press the ENTER button.To set the time automatically, set the NTP server to On (see page 53).Set the clockTo setup, follow steps 1 through 3 above.Press the ▲▼ buttons to select Clock Set, then press the ENTER or ► button.Press the ◄ ► buttons to move to “da.”(date), “hr” (hour), “min” (minute). Set the date and time by pressing the ▲▼ buttons, then press the ENTER button.1.2.3.4.5.M4.5.System setupDVDDVDSystem ◄Language Audio Display HDMI Network Parental System InformationTime Zone ►Clock SetPower On/Off sound : OnBD data managementDivX(R) RegistrationDivX(R) DeactivationSystem Update Music Photo Setup DVDDVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental SetupSystem InformationTime Zone ►Clock SetPower On/Off sound : OnBD data managementDivX(R) RegistrationDivX(R) DeactivationSystem Update Music Photo Setup Time ZoneLondon, Lisbon ◄ GMT + 00:00 ► Save ReturnDVDDVDSystem ◄Language Audio Display HDMI Network Parental System InformationTime Zone Clock Set ►Power On/Off sound : OnBD data managementDivX(R) RegistrationDivX(R) DeactivationSystem Update Music Photo Setup DVDDVDSystem ◄Language Audio Display HDMI Network Parental System InformationTime Zone Clock Set ►Power On/Off sound : OnBD data managementDivX(R) RegistrationDivX(R) DeactivationSystem Update Music Photo Setup JAN/01/2009 01 01da. hr. min.ThursdayClock Set Save ReturnHT-BD8200_XAA_0530-2.indd 35HT-BD8200_XAA_0530-2.indd 35 2009-05-30  2:28:332009-05-30  2:28:33

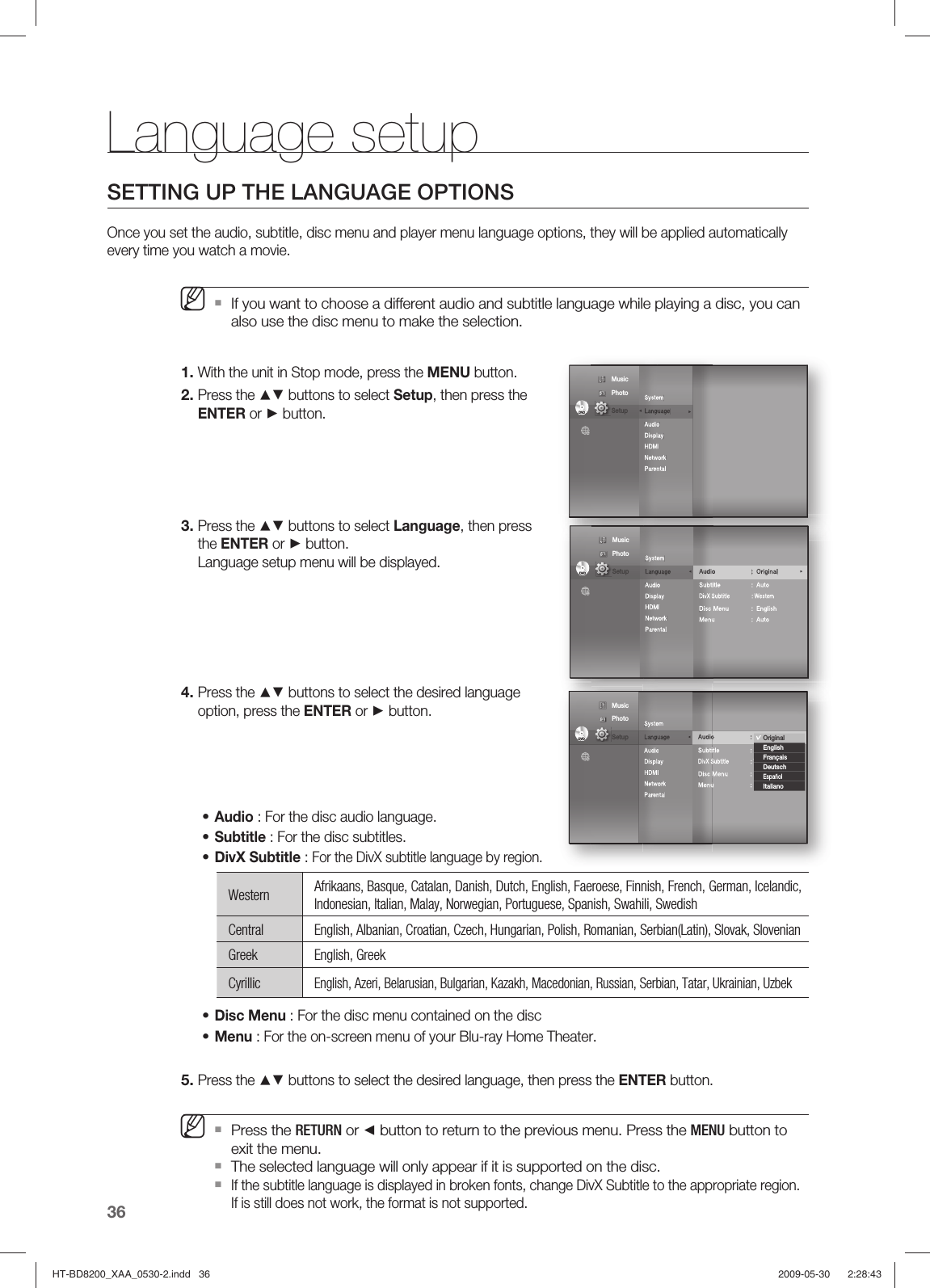

Language setup36SETTING UP THE LANGUAGE OPTIONSOnce you set the audio, subtitle, disc menu and player menu language options, they will be applied automatically every time you watch a movie.If you want to choose a different audio and subtitle language while playing a disc, you can also use the disc menu to make the selection.With the unit in Stop mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button. Press the ▲▼ buttons to select Language, then press the ENTER or ► button. Language setup menu will be displayed.Press the ▲▼ buttons to select the desired language option, press the ENTER or ► button.Audio : For the disc audio language.Subtitle : For the disc subtitles.DivX Subtitle : For the DivX subtitle language by region.Western Afrikaans, Basque, Catalan, Danish, Dutch, English, Faeroese, Finnish, French, German, Icelandic, Indonesian, Italian, Malay, Norwegian, Portuguese, Spanish, Swahili, SwedishCentral English, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Serbian(Latin), Slovak, SlovenianGreek English, GreekCyrillicEnglish, Azeri, Belarusian, Bulgarian, Kazakh, Macedonian, Russian, Serbian, Tatar, Ukrainian, UzbekDisc Menu : For the disc menu contained on the discMenu : For the on-screen menu of your Blu-ray Home Theater.Press the ▲▼ buttons to select the desired language, then press the ENTER button.Press the RETURN or ◄ button to return to the previous menu. Press the MENU button to exit the menu.The selected language will only appear if it is supported on the disc.If the subtitle language is displayed in broken fonts, change DivX Subtitle to the appropriate region. If is still does not work, the format is not supported.M1.2.3.4.•••••5.MSystem Language Audio Display HDMI Network Parental DVDDVD◄◄ Music Photo Setup System Language ◄Audio Display HDMI Network Parental Audio : Original ►Subtitle : AutoDivX Subtitle : WesternDisc Menu : EnglishMenu : AutoDVDDVD Music Photo Setup System Language ◄Audio Display HDMI Network Parental Audio : Original ►Subtitle : AutoDivX Subtitle : WesternDisc Menu : EnglishMenu : AutoOriginalEnglishFrançaisDeutschEspañolItalianoDVDDVD Music Photo Setup HT-BD8200_XAA_0530-2.indd 36HT-BD8200_XAA_0530-2.indd 36 2009-05-30  2:28:432009-05-30  2:28:43

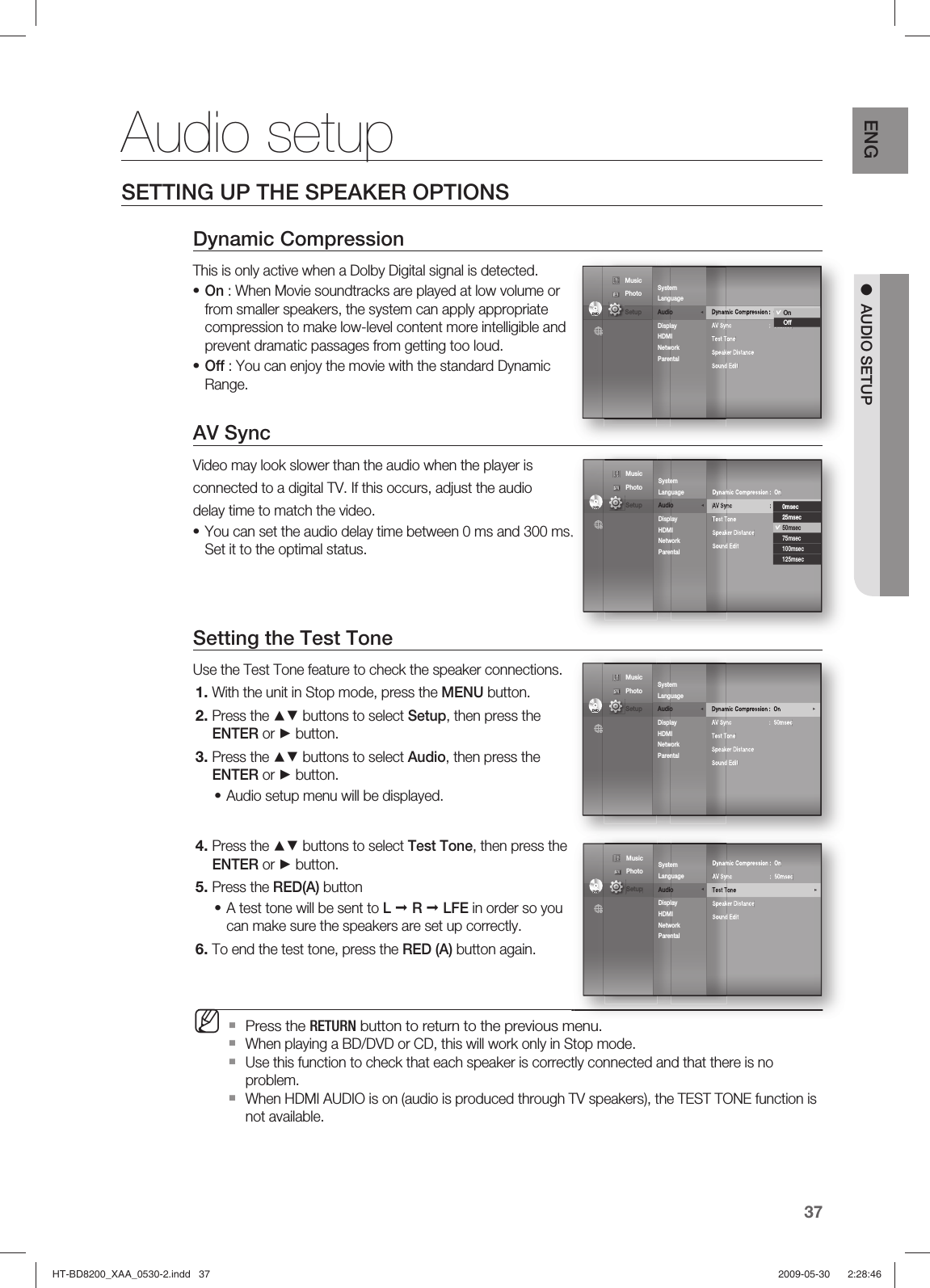

37ENG ● AUDIO SETUPSETTING UP THE SPEAKER OPTIONSDynamic CompressionThis is only active when a Dolby Digital signal is detected. On : When Movie soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.Off : You can enjoy the movie with the standard Dynamic Range. AV SyncVideo may look slower than the audio when the player isconnected to a digital TV. If this occurs, adjust the audiodelay time to match the video. You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.•••Audio setupSetting the Test ToneUse the Test Tone feature to check the speaker connections.With the unit in Stop mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button. Press the ▲▼ buttons to select Audio, then press the ENTER or ► button.Audio setup menu will be displayed.Press the ▲▼ buttons to select Test Tone, then press the ENTER or ► button.Press the RED(A) buttonA test tone will be sent to L  R  LFE in order so you can make sure the speakers are set up correctly.To end the test tone, press the RED (A) button again. Press the RETURN button to return to the previous menu. When playing a BD/DVD or CD, this will work only in Stop mode.Use this function to check that each speaker is correctly connected and that there is no problem.When HDMI AUDIO is on (audio is produced through TV speakers), the TEST TONE function is not available.1.2.3.•4.5.•6.MDynamic Compression : On ►AV Sync : 50msecTest Tone Speaker DistanceSound EditSystem Language Audio ◄Display HDMI Network Parental DVDDVDOnOff Music Photo Setup DVDDynamic Compression : On AV Sync : 50msecTest Tone Speaker DistanceSound EditSystem Language Audio ◄Display HDMI Network Parental 0msec25msec50msec75msec100msec125msec Music Photo Setup Dynamic Compression : On ►AV Sync : 50msecTest Tone Speaker DistanceSound EditSystem Language Audio ◄Display HDMI Network Parental DVDDVD Music Photo Setup DVDDynamic Compression : On AV Sync : 50msecTest Tone ►Speaker DistanceSound EditSystem Language Audio ◄Display HDMI Network Parental Music Photo Setup HT-BD8200_XAA_0530-2.indd 37HT-BD8200_XAA_0530-2.indd 37 2009-05-30  2:28:462009-05-30  2:28:46

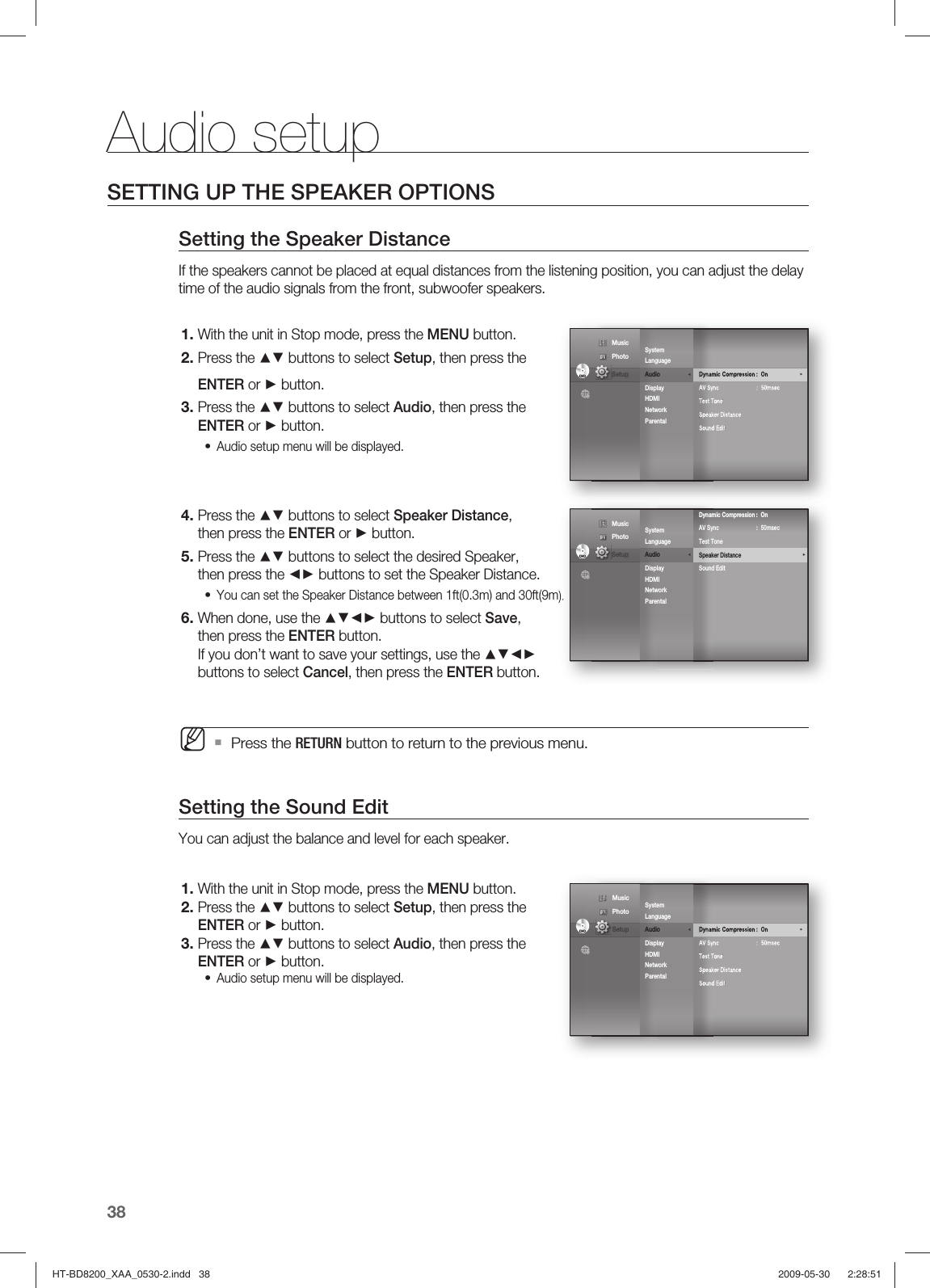

Audio setup38SETTING UP THE SPEAKER OPTIONSSetting the Speaker DistanceIf the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the front, subwoofer speakers.With the unit in Stop mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button. Press the ▲▼ buttons to select Audio, then press the ENTER or ► button.Audio setup menu will be displayed.Press the ▲▼ buttons to select Speaker Distance, then press the ENTER or ► button.Press the ▲▼ buttons to select the desired Speaker, then press the ◄► buttons to set the Speaker Distance.You can set the Speaker Distance between 1ft(0.3m) and 30ft(9m).When done, use the ▲▼◄► buttons to select Save, then press the ENTER button.If you don’t want to save your settings, use the ▲▼◄► buttons to select Cancel, then press the ENTER button.Press the RETURN button to return to the previous menu. Setting the Sound EditYou can adjust the balance and level for each speaker.With the unit in Stop mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.Press the ▲▼ buttons to select Audio, then press the ENTER or ► button.Audio setup menu will be displayed.1.2.3.•4.5.•6.M1.2.3.•Dynamic Compression : On ►AV Sync : 50msecTest Tone Speaker DistanceSound EditSystem Language Audio ◄Display HDMI Network Parental DVDDVD Music Photo Setup System Language Audio ◄Display HDMI Network Parental DVDDVDDynamic Compression : On AV Sync : 50msecTest Tone Speaker Distance ►Sound Edit Music Photo Setup Dynamic Compression : On ►AV Sync : 50msecTest Tone Speaker DistanceSound EditSystem Language Audio ◄Display HDMI Network Parental DVDDVD Music Photo Setup HT-BD8200_XAA_0530-2.indd 38HT-BD8200_XAA_0530-2.indd 38 2009-05-30  2:28:512009-05-30  2:28:51

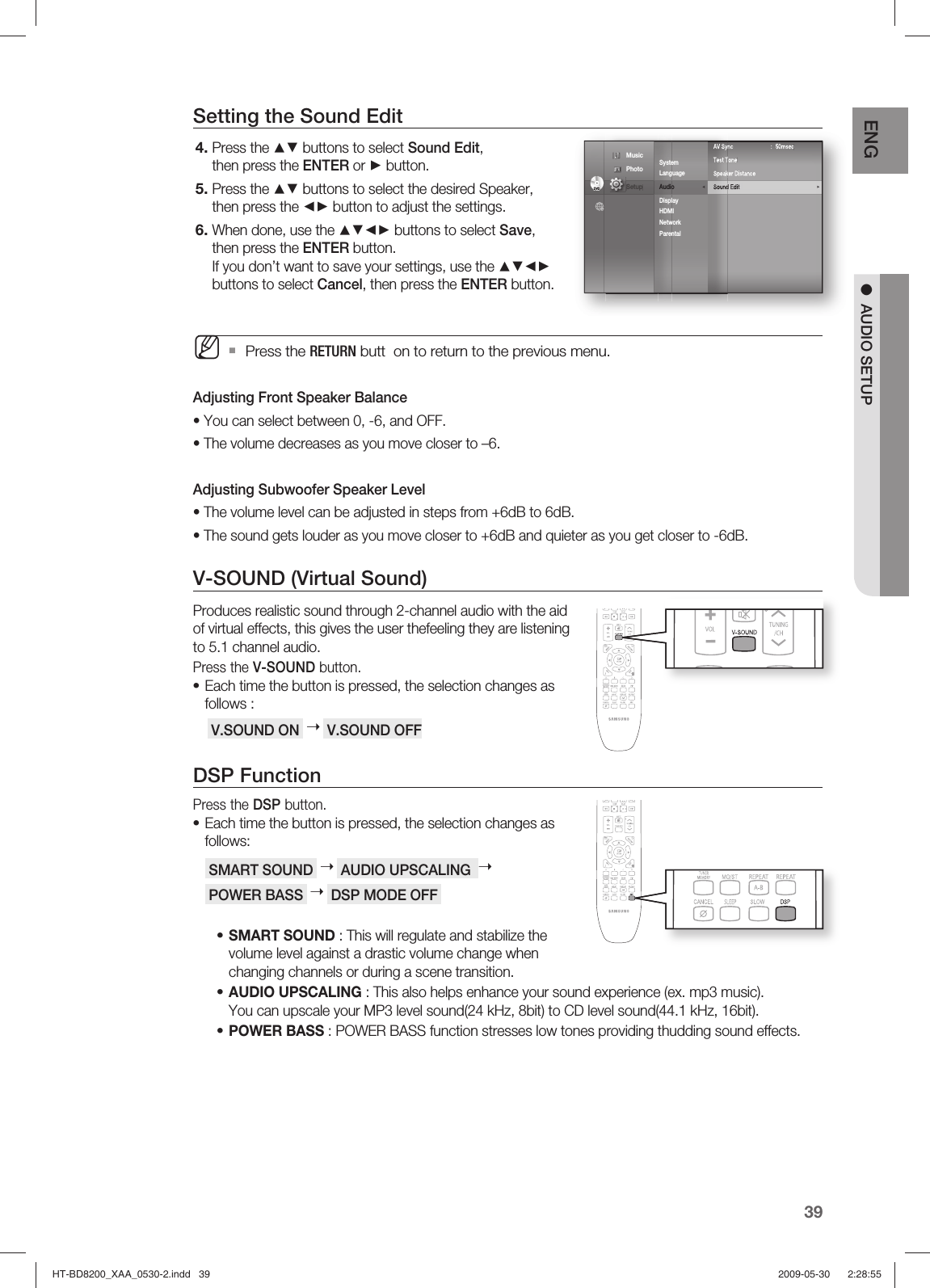

39ENG ● AUDIO SETUPV-SOUND (Virtual Sound)Produces realistic sound through 2-channel audio with the aid of virtual effects, this gives the user thefeeling they are listening to 5.1 channel audio.Press the V-SOUND button.Each time the button is pressed, the selection changes as follows : V.SOUND ON ➝ V.SOUND OFFDSP FunctionPress the DSP button.Each time the button is pressed, the selection changes as follows: SMART SOUND ➝ AUDIO UPSCALING ➝ POWER BASS ➝ DSP MODE OFF SMART SOUND : This will regulate and stabilize the volume level against a drastic volume change when changing channels or during a scene transition.AUDIO UPSCALING : This also helps enhance your sound experience (ex. mp3 music). You can upscale your MP3 level sound(24 kHz, 8bit) to CD level sound(44.1 kHz, 16bit).POWER BASS : POWER BASS function stresses low tones providing thudding sound effects.•••••Setting the Sound EditPress the ▲▼ buttons to select Sound Edit, then press the ENTER or ► button.Press the ▲▼ buttons to select the desired Speaker, then press the ◄► button to adjust the settings.When done, use the ▲▼◄► buttons to select Save, then press the ENTER button.If you don’t want to save your settings, use the ▲▼◄► buttons to select Cancel, then press the ENTER button.Press the RETURN butt on to return to the previous menu. Adjusting Front Speaker Balance• You can select between 0, -6, and OFF.• The volume decreases as you move closer to –6.Adjusting Subwoofer Speaker Level• The volume level can be adjusted in steps from +6dB to 6dB.• The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.4.5.6.MAV Sync : 50msecTest Tone Speaker DistanceSound Edit ►System Language Audio ◄Display HDMI Network Parental DVDDVD Music Photo Setup HT-BD8200_XAA_0530-2.indd 39HT-BD8200_XAA_0530-2.indd 39 2009-05-30  2:28:552009-05-30  2:28:55

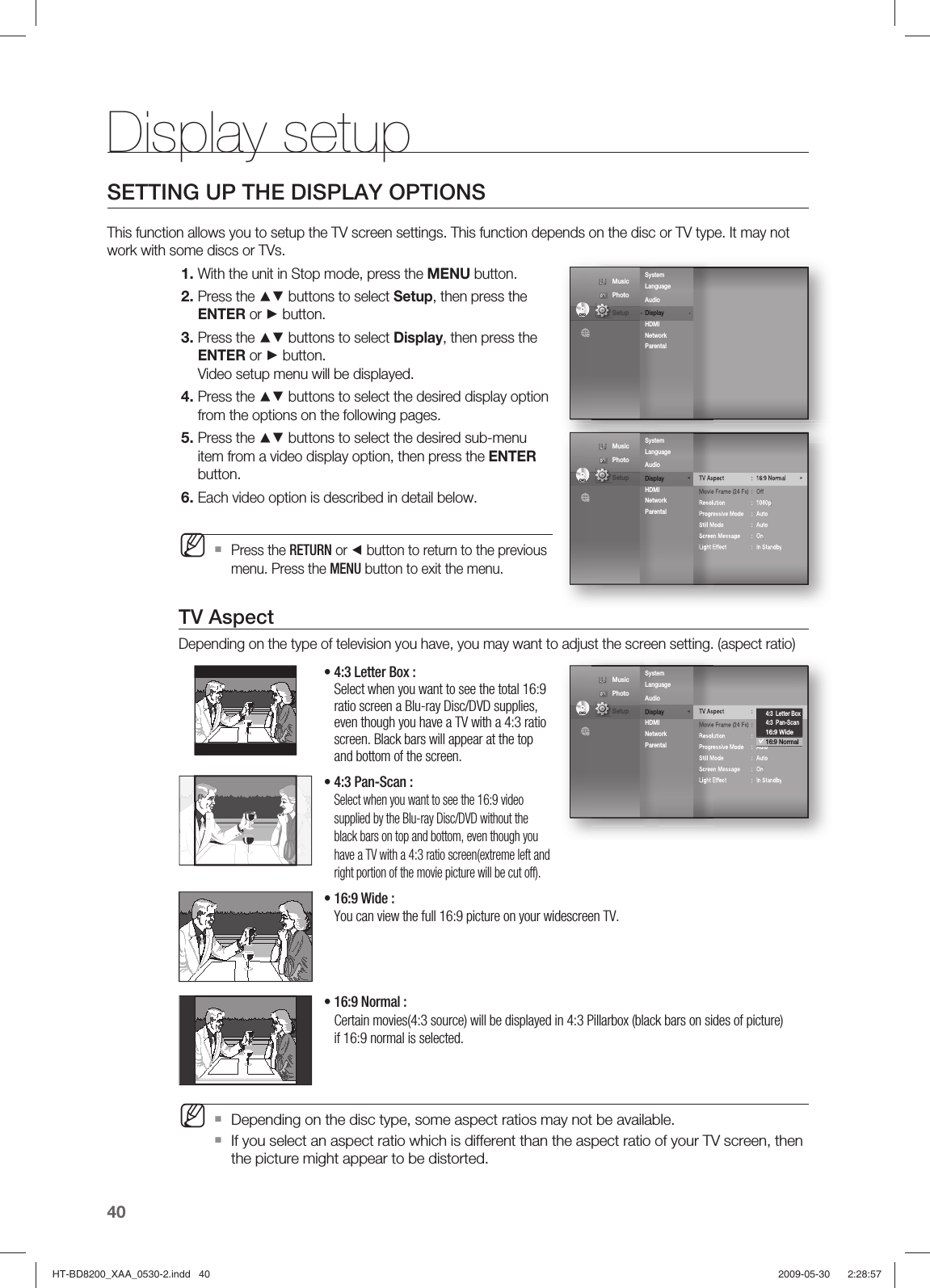

Display setup40SETTING UP THE DISPLAY OPTIONSThis function allows you to setup the TV screen settings. This function depends on the disc or TV type. It may not work with some discs or TVs.With the unit in Stop mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.Press the ▲▼ buttons to select Display, then press the ENTER or ► button.Video setup menu will be displayed.Press the ▲▼ buttons to select the desired display option from the options on the following pages.Press the ▲▼ buttons to select the desired sub-menu item from a video display option, then press the ENTER button.Each video option is described in detail below.Press the RETURN or ◄ button to return to the previous menu. Press the MENU button to exit the menu.TV AspectDepending on the type of television you have, you may want to adjust the screen setting. (aspect ratio)• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen a Blu-ray Disc/DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.• 4:3 Pan-Scan : Select when you want to see the 16:9 video supplied by the Blu-ray Disc/DVD without the black bars on top and bottom, even though you have a TV with a 4:3 ratio screen(extreme left and right portion of the movie picture will be cut off).• 16:9 Wide : You can view the full 16:9 picture on your widescreen TV. • 16:9 Normal : Certain movies(4:3 source) will be displayed in 4:3 Pillarbox (black bars on sides of picture) if 16:9 normal is selected. Depending on the disc type, some aspect ratios may not be available.If you select an aspect ratio which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted.1.2.3.4.5.6.MMDVDDVDSystem Language Audio Display ► HDMI Network Parental ◄ Music Photo Setup TV Aspect : 16:9 Normal ►Movie Frame (24 Fs) : OffResolution : 1080pProgressive Mode : AutoStill Mode : AutoScreen Message : OnLight Effect : In StandbySystem Language Audio Display ◄ HDMI Network Parental DVDDVD Music Photo Setup TV Aspect : 16:9 Normal ►Movie Frame (24 Fs) : OffResolution : 1080pProgressive Mode : AutoStill Mode : AutoScreen Message : OnLight Effect : In StandbySystem Language Audio Display ◄ HDMI Network Parental DVDDVD4:3 Letter Box4:3 Pan-Scan16:9 Wide16:9 Normal Music Photo Setup HT-BD8200_XAA_0530-2.indd 40HT-BD8200_XAA_0530-2.indd 40 2009-05-30  2:28:572009-05-30  2:28:57

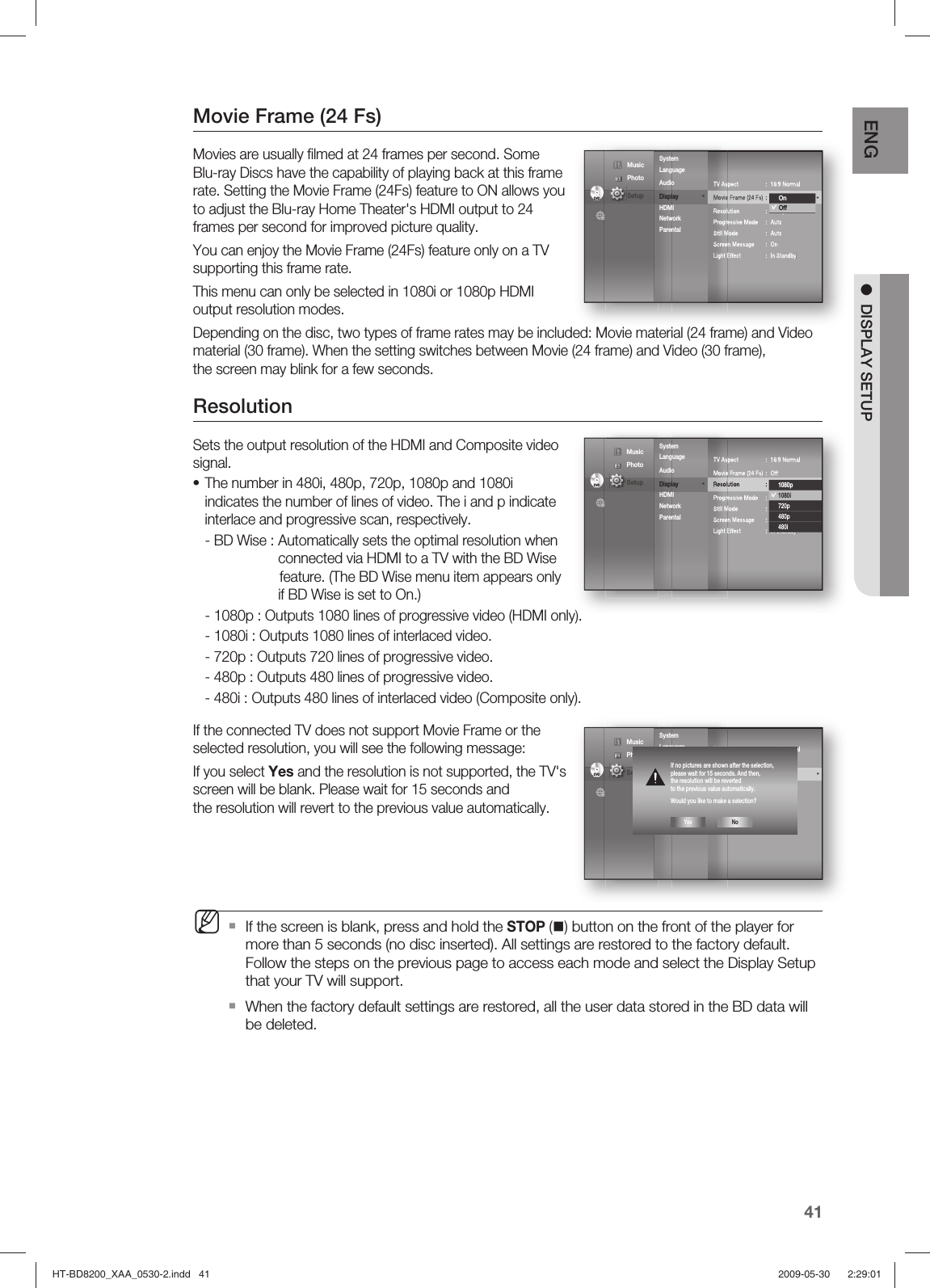

41ENG ● DISPLAY SETUPMovie Frame (24 Fs)Movies are usually fi lmed at 24 frames per second. Some Blu-ray Discs have the capability of playing back at this frame rate. Setting the Movie Frame (24Fs) feature to ON allows you to adjust the Blu-ray Home Theater's HDMI output to 24 frames per second for improved picture quality.You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate.This menu can only be selected in 1080i or 1080p HDMI output resolution modes.Depending on the disc, two types of frame rates may be included: Movie material (24 frame) and Video material (30 frame). When the setting switches between Movie (24 frame) and Video (30 frame), the screen may blink for a few seconds.Resolution Sets the output resolution of the HDMI and Composite video signal.The number in 480i, 480p, 720p, 1080p and 1080i indicates the number of lines of video. The i and p indicate interlace and progressive scan, respectively.- BD Wise : Automatically sets the optimal resolution when connected via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On.)- 1080p : Outputs 1080 lines of progressive video (HDMI only).- 1080i : Outputs 1080 lines of interlaced video.- 720p : Outputs 720 lines of progressive video.- 480p : Outputs 480 lines of progressive video.- 480i : Outputs 480 lines of interlaced video (Composite only).If the connected TV does not support Movie Frame or the selected resolution, you will see the following message:If you select Yes and the resolution is not supported, the TV's screen will be blank. Please wait for 15 seconds and the resolution will revert to the previous value automatically.If the screen is blank, press and hold the STOP () button on the front of the player for more than 5 seconds (no disc inserted). All settings are restored to the factory default. Follow the steps on the previous page to access each mode and select the Display Setup that your TV will support.When the factory default settings are restored, all the user data stored in the BD data will be deleted.•MTV Aspect : 16:9 Normal Movie Frame (24 Fs) : Off ►Resolution : 1080pProgressive Mode : AutoStill Mode : AutoScreen Message : OnLight Effect : In StandbySystem Language Audio Display ◄ HDMI Network Parental DVDDVDOnOff Music Photo Setup TV Aspect : 16:9 Normal Movie Frame (24 Fs) : OffResolution : 1080pProgressive Mode : AutoStill Mode : AutoScreen Message : OnLight Effect : In StandbySystem Language Audio Display ◄ HDMI Network Parental DVDDVD1080p1080i720p480p480i Music Photo Setup TV Aspect : 16:9 Normal Movie Frame (24 Fs) : OffResolution : 1080p ►Progressive Mode : AutoStill Mode : AutoScreen Message : OnLight Effect : In StandbySystem Language Audio Display ◄ HDMI Network Parental DVDDVD Music Photo Setup If no pictures are shown after the selection, please wait for 15 seconds. And then, the resolution will be reverted to the previous value automatically.Would you like to make a selection?Yes NoHT-BD8200_XAA_0530-2.indd 41HT-BD8200_XAA_0530-2.indd 41 2009-05-30  2:29:012009-05-30  2:29:01

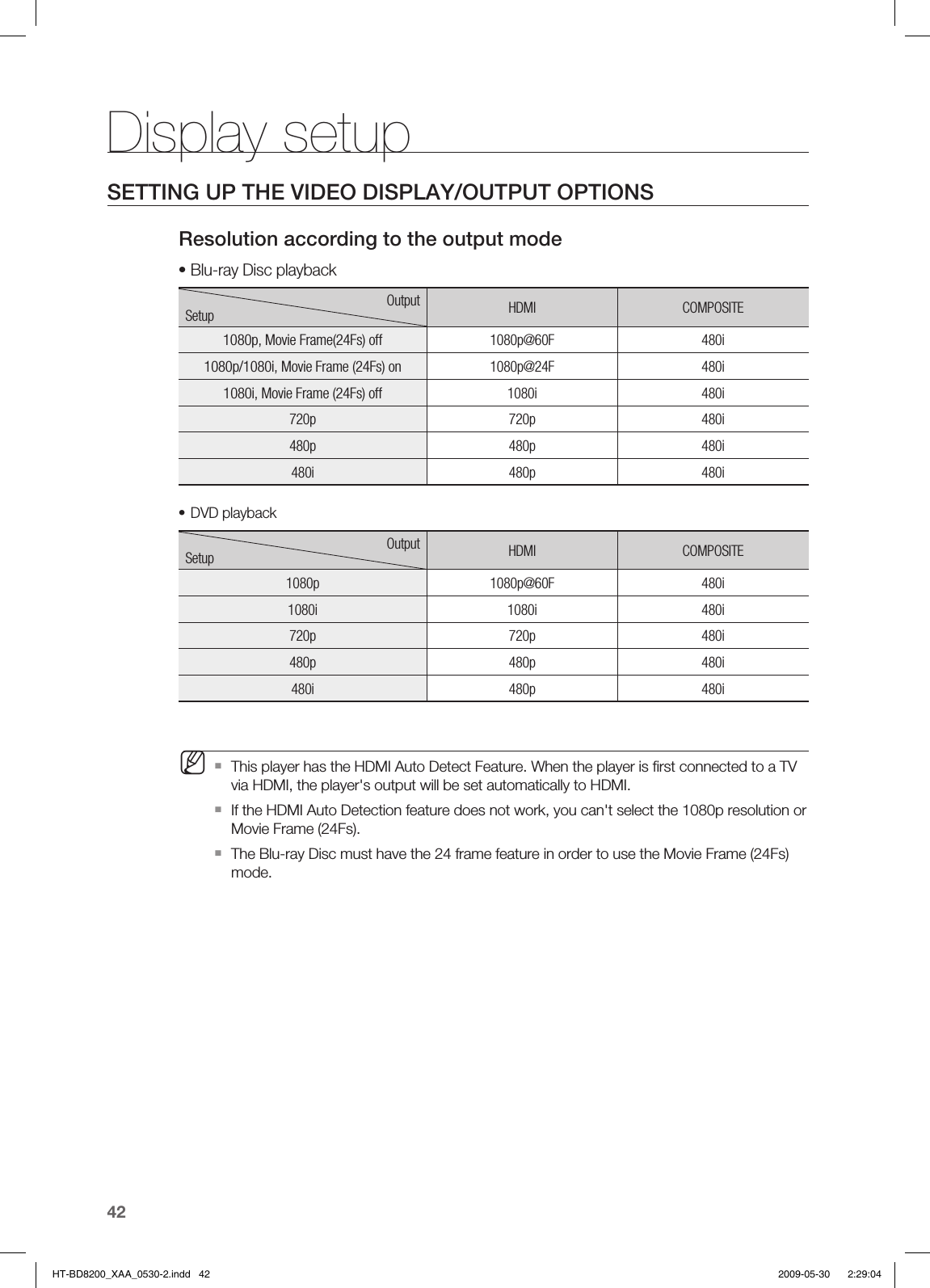

Display setup42SETTING UP THE VIDEO DISPLAY/OUTPUT OPTIONSResolution according to the output modeBlu-ray Disc playbackOutputSetup HDMI COMPOSITE1080p, Movie Frame(24Fs) off1080p@60F 480i1080p/1080i, Movie Frame (24Fs) on1080p@24F 480i1080i, Movie Frame (24Fs) off1080i 480i720p 720p 480i480p 480p 480i480i 480p 480iDVD playbackOutputSetup HDMI COMPOSITE1080p 1080p@60F 480i1080i 1080i 480i720p 720p 480i480p 480p 480i480i 480p 480iThis player has the HDMI Auto Detect Feature. When the player is fi rst connected to a TV via HDMI, the player's output will be set automatically to HDMI.If the HDMI Auto Detection feature does not work, you can't select the 1080p resolution or Movie Frame (24Fs).The Blu-ray Disc must have the 24 frame feature in order to use the Movie Frame (24Fs) mode.••MHT-BD8200_XAA_0530-2.indd 42HT-BD8200_XAA_0530-2.indd 42 2009-05-30  2:29:042009-05-30  2:29:04

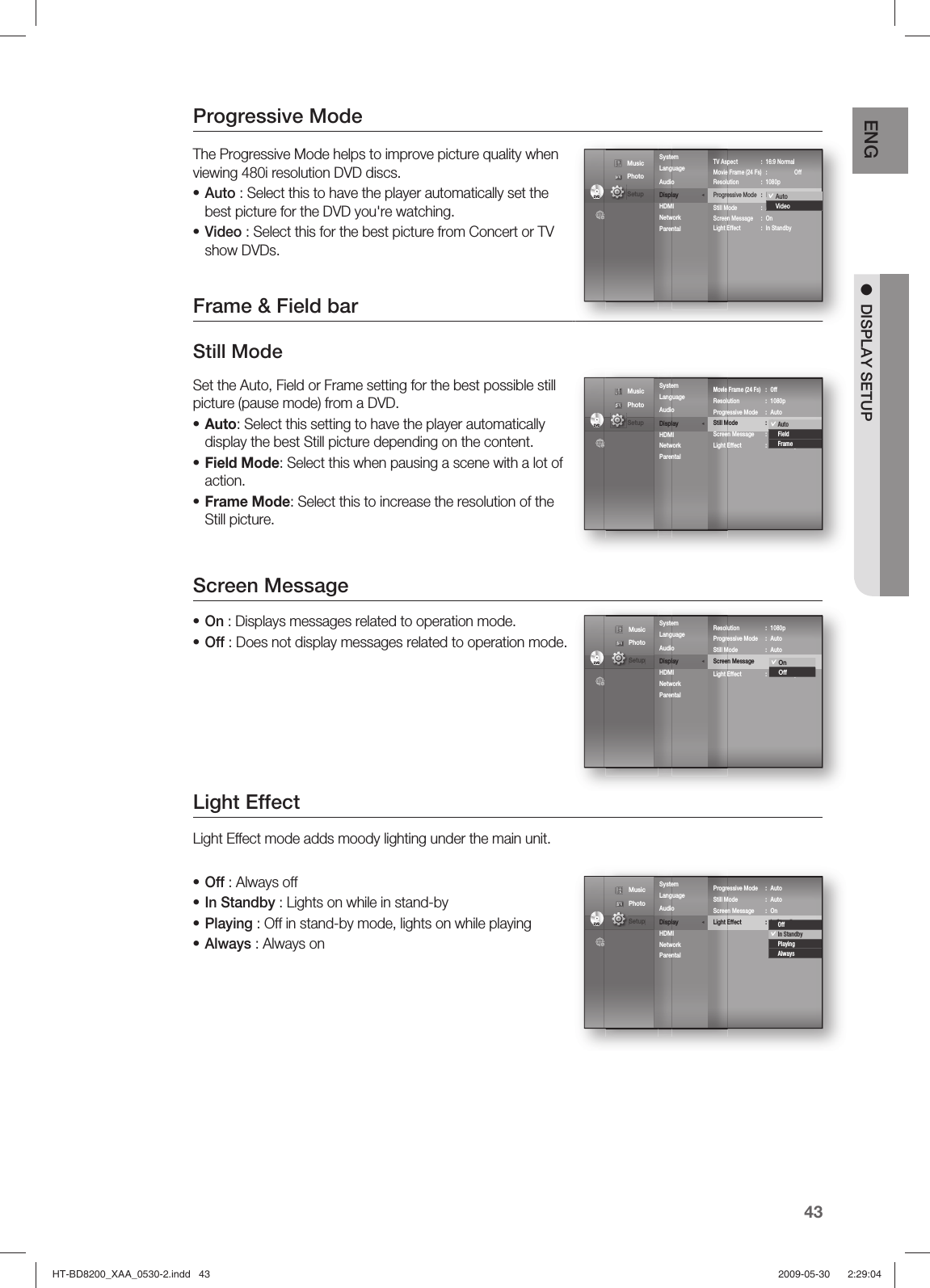

43ENG ● DISPLAY SETUPProgressive Mode The Progressive Mode helps to improve picture quality when viewing 480i resolution DVD discs. Auto : Select this to have the player automatically set the best picture for the DVD you're watching.Video : Select this for the best picture from Concert or TV show DVDs.Frame & Field barStill ModeSet the Auto, Field or Frame setting for the best possible still picture (pause mode) from a DVD.Auto: Select this setting to have the player automatically display the best Still picture depending on the content.Field Mode: Select this when pausing a scene with a lot of action.Frame Mode: Select this to increase the resolution of the Still picture. Screen MessageOn : Displays messages related to operation mode.Off : Does not display messages related to operation mode.Light EffectLight Effect mode adds moody lighting under the main unit.Off : Always offIn Standby : Lights on while in stand-byPlaying : Off in stand-by mode, lights on while playingAlways : Always on•••••••••••System Language Audio Display ◄ HDMI Network Parental DVDDVDTV Aspect : 16:9 NormalMovie Frame (24 Fs) : OffResolution : 1080pProgressive Mode : PCM ►Still Mode : AutoScreen Message : OnLight Effect : In StandbyAutoVideo Music Photo Setup System Language Audio Display ◄ HDMI Network Parental DVDDVDMovie Frame (24 Fs) : OffResolution : 1080pProgressive Mode : AutoStill Mode : AutoScreen Message : OnLight Effect : In StandbyAutoFieldFrame Music Photo Setup System Language Audio Display ◄ HDMI Network Parental DVDDVDResolution : 1080pProgressive Mode : AutoStill Mode : AutoScreen MessageLight Effect : In StandbyOnOff Music Photo Setup System Language Audio Display ◄ HDMI Network Parental DVDDVDProgressive Mode : AutoStill Mode : AutoScreen Message : OnLight Effect : In Standby Music Photo Setup OffIn StandbyPlayingAlwaysHT-BD8200_XAA_0530-2.indd 43HT-BD8200_XAA_0530-2.indd 43 2009-05-30  2:29:042009-05-30  2:29:04

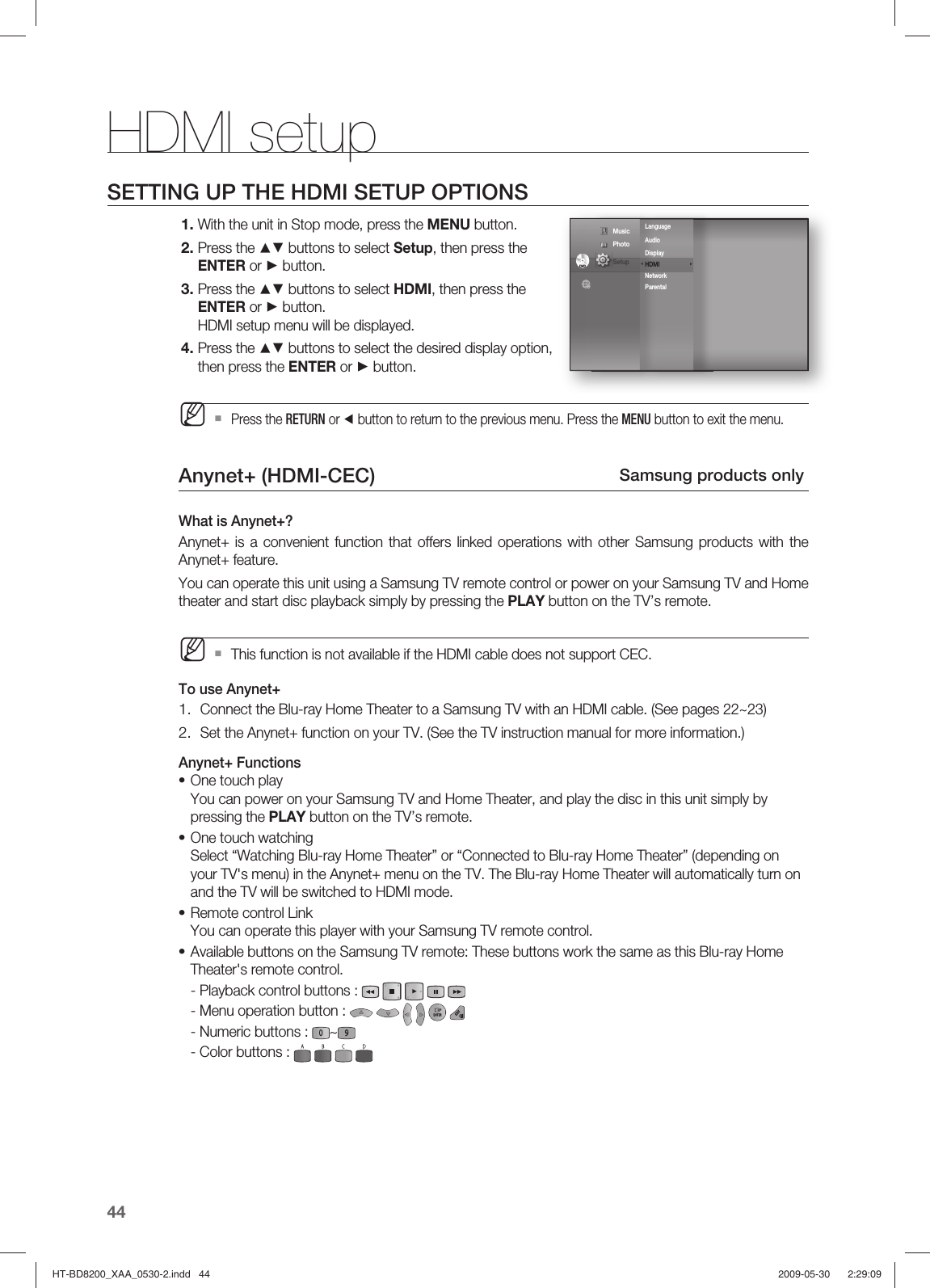

HDMI setup44SETTING UP THE HDMI SETUP OPTIONSWith the unit in Stop mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.Press the ▲▼ buttons to select HDMI, then press the ENTER or ► button.HDMI setup menu will be displayed.Press the ▲▼ buttons to select the desired display option, then press the ENTER or ► button.Press the RETURN or ◄ button to return to the previous menu. Press the MENU button to exit the menu.Anynet+ (HDMI-CEC) Samsung products onlyWhat is Anynet+?Anynet+ is a convenient function that offers linked operations with other Samsung products with the Anynet+ feature.You can operate this unit using a Samsung TV remote control or power on your Samsung TV and Home theater and start disc playback simply by pressing the PLAY button on the TV’s remote.This function is not available if the HDMI cable does not support CEC.To use Anynet+Connect the Blu-ray Home Theater to a Samsung TV with an HDMI cable. (See pages 22~23)Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)Anynet+ FunctionsOne touch playYou can power on your Samsung TV and Home Theater, and play the disc in this unit simply by pressing the PLAY button on the TV’s remote.One touch watching Select “Watching Blu-ray Home Theater” or “Connected to Blu-ray Home Theater” (depending on your TV's menu) in the Anynet+ menu on the TV. The Blu-ray Home Theater will automatically turn on and the TV will be switched to HDMI mode.Remote control LinkYou can operate this player with your Samsung TV remote control.Available buttons on the Samsung TV remote: These buttons work the same as this Blu-ray Home Theater's remote control.- Playback control buttons : - Menu operation button : - Numeric buttons : ~- Color buttons : 1.2.3.4.MM1.2.••••Language Audio Display HDMI Network Parental DVDDVD◄◄ Music Photo Setup HT-BD8200_XAA_0530-2.indd 44HT-BD8200_XAA_0530-2.indd 44 2009-05-30  2:29:092009-05-30  2:29:09

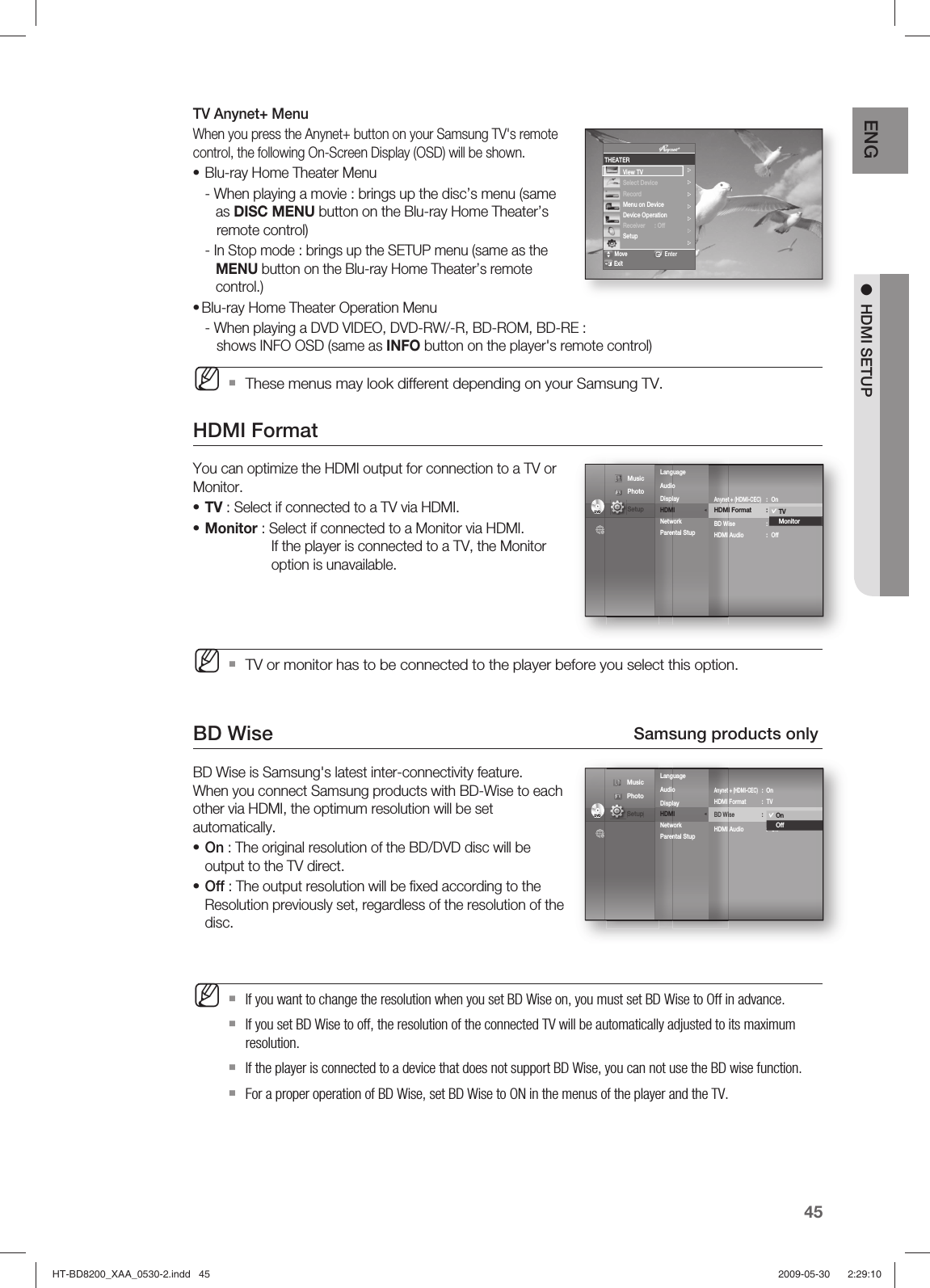

45ENG ● HDMI SETUPTV Anynet+ MenuWhen you press the Anynet+ button on your Samsung TV's remote control, the following On-Screen Display (OSD) will be shown.Blu-ray Home Theater Menu- When playing a movie : brings up the disc’s menu (same as DISC MENU button on the Blu-ray Home Theater’s remote control)- In Stop mode : brings up the SETUP menu (same as the MENU button on the Blu-ray Home Theater’s remote control.) Blu-ray Home Theater Operation Menu- When playing a DVD VIDEO, DVD-RW/-R, BD-ROM, BD-RE : shows INFO OSD (same as INFO button on the player's remote control)These menus may look different depending on your Samsung TV.HDMI FormatYou can optimize the HDMI output for connection to a TV or Monitor.TV : Select if connected to a TV via HDMI. Monitor : Select if connected to a Monitor via HDMI. If the player is connected to a TV, the Monitor option is unavailable.TV or monitor has to be connected to the player before you select this option.••M••MTHEATERnView TVSelect DeviceRecordMenu on DeviceDevice OperationReceiver : OffSetup Move Enter ExitBD Wise Samsung products onlyBD Wise is Samsung's latest inter-connectivity feature.When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically.On : The original resolution of the BD/DVD disc will be output to the TV direct.Off : The output resolution will be fi xed according to the Resolution previously set, regardless of the resolution of the disc. If you want to change the resolution when you set BD Wise on, you must set BD Wise to Off in advance.If you set BD Wise to off, the resolution of the connected TV will be automatically adjusted to its maximum resolution.If the player is connected to a device that does not support BD Wise, you can not use the BD wise function.For a proper operation of BD Wise, set BD Wise to ON in the menus of the player and the TV.••MLanguage Audio Display HDMI ◄Network Parental StupDVDDVDAnynet + (HDMI-CEC) : OnHDMI Format : TvBD Wise : OnHDMI Audio : OffTVMonitor Music Photo Setup Language Audio Display HDMI ◄Network Parental StupDVDDVDAnynet + (HDMI-CEC) : OnHDMI Format : TVBD Wise : PCM ►HDMI Audio : OffOnOff Music Photo Setup HT-BD8200_XAA_0530-2.indd 45HT-BD8200_XAA_0530-2.indd 45 2009-05-30  2:29:102009-05-30  2:29:10

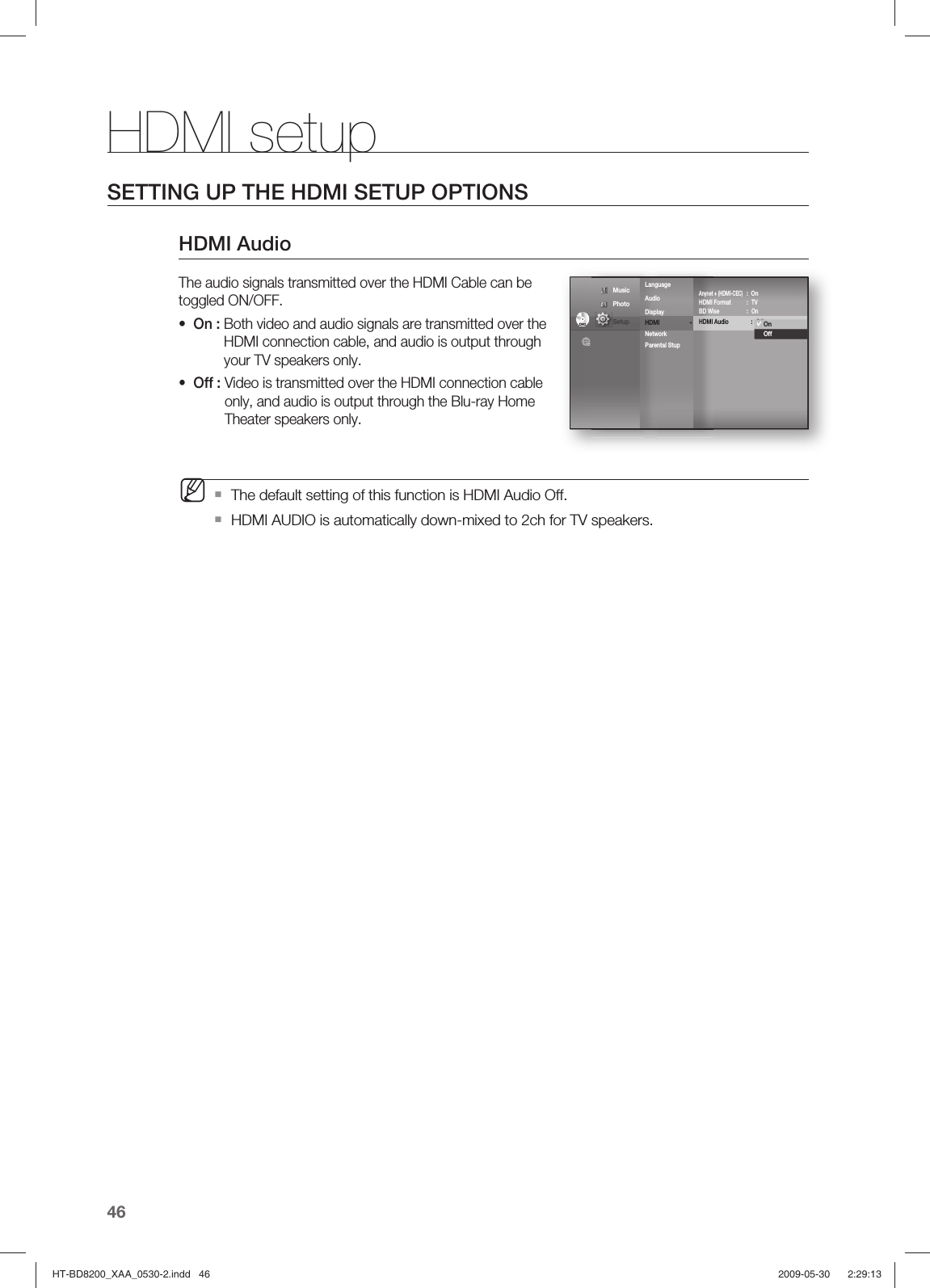

HDMI setup46SETTING UP THE HDMI SETUP OPTIONSHDMI AudioThe audio signals transmitted over the HDMI Cable can be toggled ON/OFF.• On : Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only.• Off : Video is transmitted over the HDMI connection cable only, and audio is output through the Blu-ray Home Theater speakers only. The default setting of this function is HDMI Audio Off. HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.MLanguage Audio Display HDMI ◄Network Parental StupDVDDVDAnynet + (HDMI-CEC) : OnHDMI Format : TVBD Wise : On HDMI Audio : OffOnOff Music Photo Setup HT-BD8200_XAA_0530-2.indd 46HT-BD8200_XAA_0530-2.indd 46 2009-05-30  2:29:132009-05-30  2:29:13

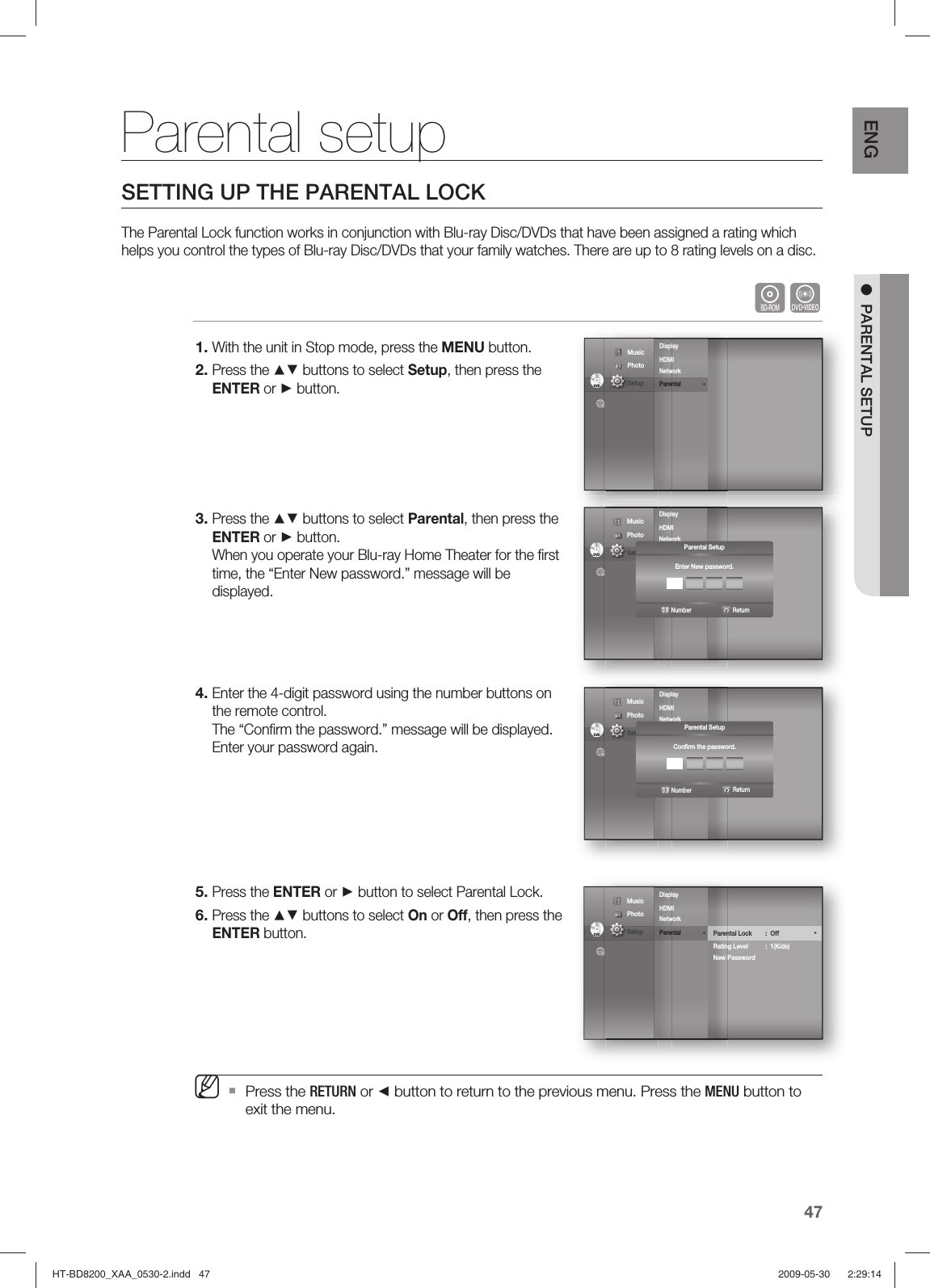

47ENG ● PARENTAL SETUPParental setupSETTING UP THE PARENTAL LOCKThe Parental Lock function works in conjunction with Blu-ray Disc/DVDs that have been assigned a rating which helps you control the types of Blu-ray Disc/DVDs that your family watches. There are up to 8 rating levels on a disc.hZWith the unit in Stop mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.Press the ▲▼ buttons to select Parental, then press the ENTER or ► button.When you operate your Blu-ray Home Theater for the fi rst time, the “Enter New password.” message will be displayed.Enter the 4-digit password using the number buttons on the remote control.The “Confi rm the password.” message will be displayed. Enter your password again.Press the ENTER or ► button to select Parental Lock.Press the ▲▼ buttons to select On or Off, then press the ENTER button.Press the RETURN or ◄ button to return to the previous menu. Press the MENU button to exit the menu.1.2.3.4.5.6.MDisplay HDMI Network Parental ◄DVDDVD Music Photo Setup Display HDMI Network Parental DVDDVD Music Photo Setup Parental SetupEnter New password.ReturnNumber0.9Display HDMI Network Parental DVDDVD Music Photo Setup Parental SetupConfi rm the password.ReturnNumber0.9Display HDMI Network Parental ◄DVDDVDParental Lock : Off ►Rating Level : 1(Kids)New Password Music Photo Setup HT-BD8200_XAA_0530-2.indd 47HT-BD8200_XAA_0530-2.indd 47 2009-05-30  2:29:142009-05-30  2:29:14

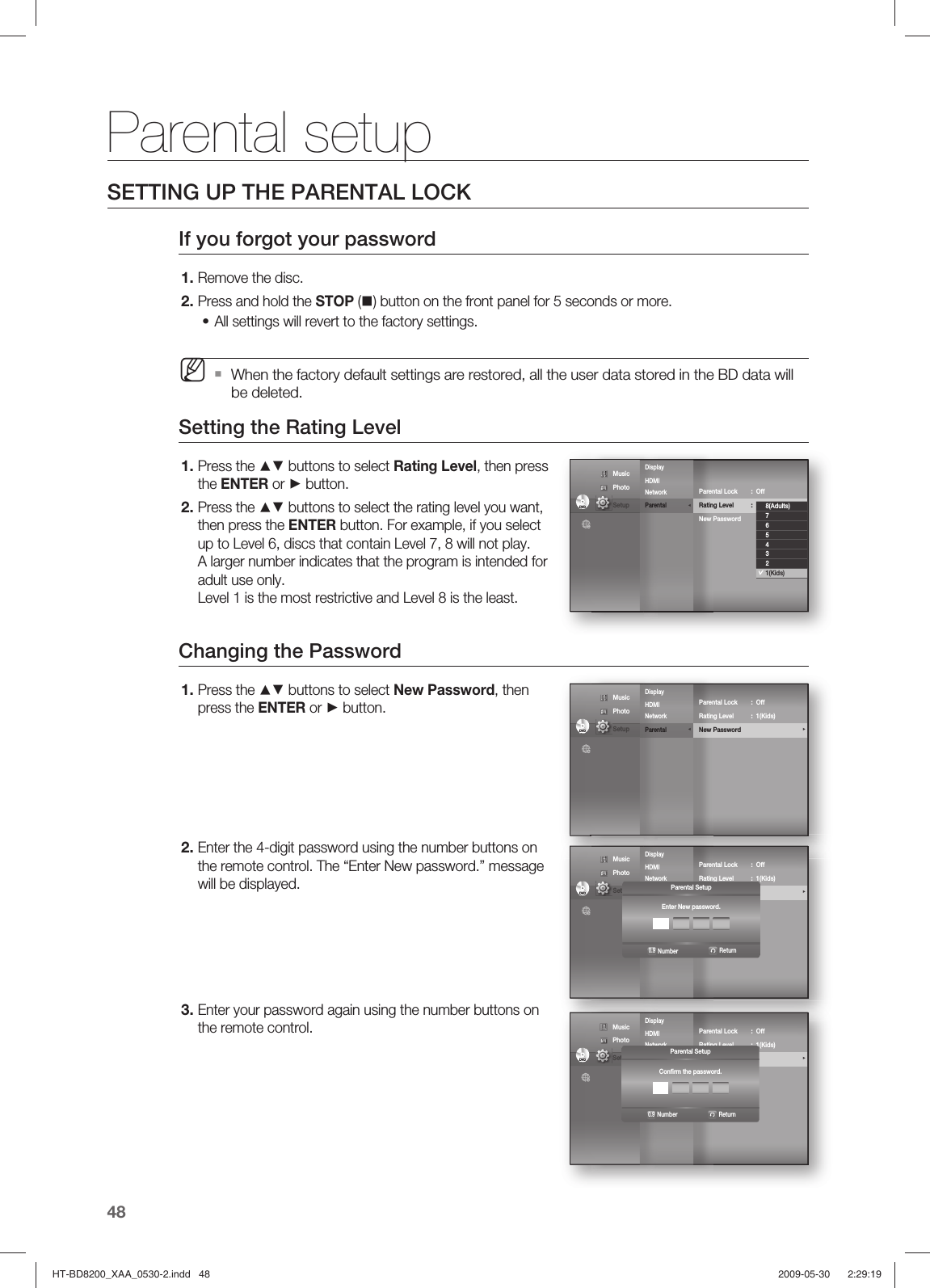

Parental setup48SETTING UP THE PARENTAL LOCKIf you forgot your passwordRemove the disc.Press and hold the STOP () button on the front panel for 5 seconds or more.All settings will revert to the factory settings.When the factory default settings are restored, all the user data stored in the BD data will be deleted.Setting the Rating LevelPress the ▲▼ buttons to select Rating Level, then press the ENTER or ► button.Press the ▲▼ buttons to select the rating level you want, then press the ENTER button. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the program is intended for adult use only.Level 1 is the most restrictive and Level 8 is the least.Changing the PasswordPress the ▲▼ buttons to select New Password, then press the ENTER or ► button.Enter the 4-digit password using the number buttons on the remote control. The “Enter New password.” message will be displayed.Enter your password again using the number buttons on the remote control.1.2.•M1.2.1.2.3.Display HDMI Network Parental ◄DVDDVDParental Lock : Off Rating Level : 1(Kids) ►New Password8(Adults)7654321(Kids) Music Photo Setup Display HDMI Network Parental ◄DVDDVDParental Lock : Off Rating Level : 1(Kids) New Password ► Music Photo Setup Display HDMI Network Parental ◄DVDDVDParental Lock : Off Rating Level : 1(Kids) New Password ► Music Photo Setup Parental SetupEnter New password.ReturnNumber0.9Display HDMI Network Parental ◄DVDDVDParental Lock : Off Rating Level : 1(Kids) New Password ► Music Photo Setup Parental SetupConfi rm the password.ReturnNumber0.9HT-BD8200_XAA_0530-2.indd 48HT-BD8200_XAA_0530-2.indd 48 2009-05-30  2:29:192009-05-30  2:29:19

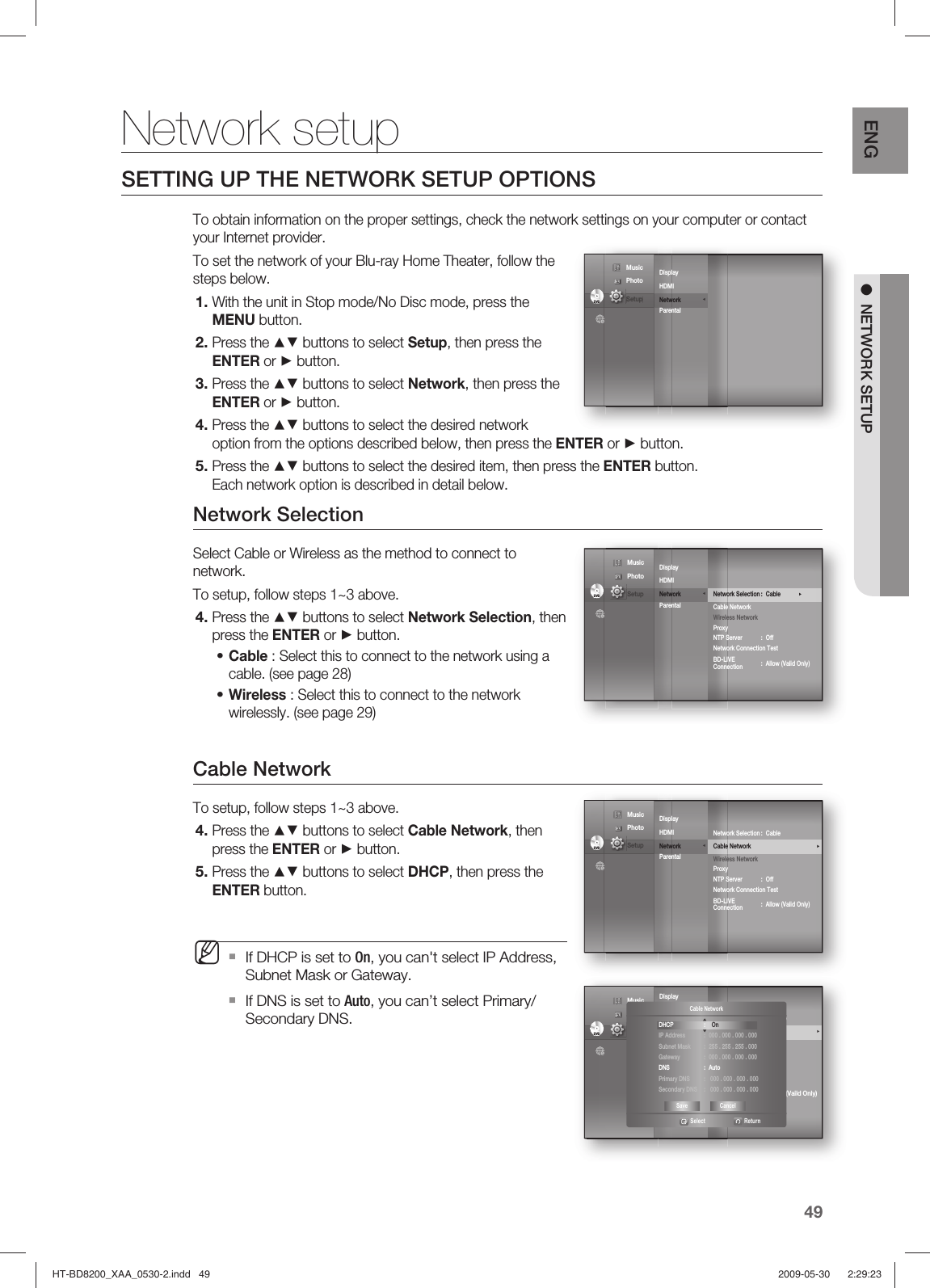

49ENG ● NETWORK SETUPNetwork setupSETTING UP THE NETWORK SETUP OPTIONSTo obtain information on the proper settings, check the network settings on your computer or contact your Internet provider.To set the network of your Blu-ray Home Theater, follow the steps below.With the unit in Stop mode/No Disc mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.Press the ▲▼ buttons to select Network, then press the ENTER or ► button.Press the ▲▼ buttons to select the desired network option from the options described below, then press the ENTER or ► button.Press the ▲▼ buttons to select the desired item, then press the ENTER button.Each network option is described in detail below.Network Selection Select Cable or Wireless as the method to connect to network.To setup, follow steps 1~3 above.Press the ▲▼ buttons to select Network Selection, then press the ENTER or ► button.Cable : Select this to connect to the network using a cable. (see page 28)Wireless : Select this to connect to the network wirelessly. (see page 29)Cable NetworkTo setup, follow steps 1~3 above.Press the ▲▼ buttons to select Cable Network, then press the ENTER or ► button.Press the ▲▼ buttons to select DHCP, then press the ENTER button.If DHCP is set to On, you can't select IP Address, Subnet Mask or Gateway.If DNS is set to Auto, you can’t select Primary/ Secondary DNS.1.2.3.4.5.4.••4.5.MDisplay HDMI Network ◄ Parental DVDDVDNetwork Selection : Cable Cable Network ►Wireless NetworkProxyNTP Server : OffNetwork Connection TestBD-LIVE Connection : Allow (Valid Only) Music Photo Setup DVDDVDDisplay HDMI Network ◄ Parental Music Photo Setup Display HDMI Network ◄ Parental DVDDVDNetwork Selection : Cable ►Cable NetworkWireless NetworkProxyNTP Server : OffNetwork Connection TestBD-LIVE Connection : Allow (Valid Only) Music Photo Setup Display HDMI Network ◄ Parental Network Selection : Cable Cable Network ►Wireless NetworkProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup ◄Cable Network Select ReturnDHCP : OnIP Address : 000 . 000 . 000 . 000 Subnet Mask : 255 . 255 . 255 . 000 Gateway : 000 . 000 . 000 . 000DNS : AutoPrimary DNS : 000 . 000 . 000 . 000 Secondary DNS : 000 . 000 . 000 . 000 Save CancelHT-BD8200_XAA_0530-2.indd 49HT-BD8200_XAA_0530-2.indd 49 2009-05-30  2:29:232009-05-30  2:29:23

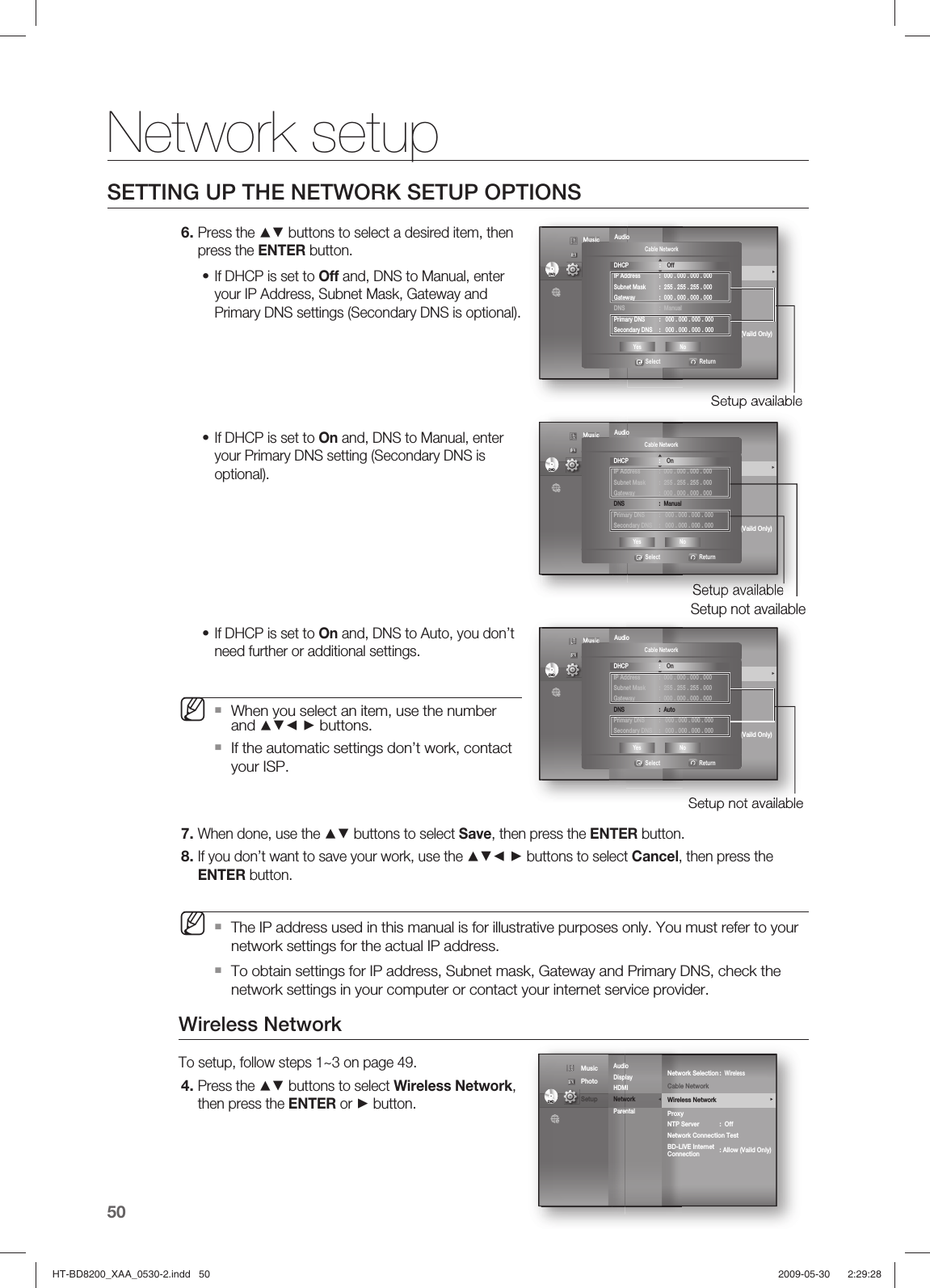

Network setup50SETTING UP THE NETWORK SETUP OPTIONSPress the ▲▼ buttons to select a desired item, then press the ENTER button.If DHCP is set to Off and, DNS to Manual, enter your IP Address, Subnet Mask, Gateway and Primary DNS settings (Secondary DNS is optional).If DHCP is set to On and, DNS to Manual, enter your Primary DNS setting (Secondary DNS is optional).If DHCP is set to On and, DNS to Auto, you don’t need further or additional settings. When you select an item, use the number and ▲▼◄ ► buttons.If the automatic settings don’t work, contact your ISP.When done, use the ▲▼ buttons to select Save, then press the ENTER button.If you don’t want to save your work, use the ▲▼◄ ► buttons to select Cancel, then press the ENTER button.The IP address used in this manual is for illustrative purposes only. You must refer to your network settings for the actual IP address.To obtain settings for IP address, Subnet mask, Gateway and Primary DNS, check the network settings in your computer or contact your internet service provider.Wireless NetworkTo setup, follow steps 1~3 on page 49.Press the ▲▼ buttons to select Wireless Network, then press the ENTER or ► button.6.•••M7.8.M4.Setup available Music Photo Setup AudioDisplay HDMI Network ◄ Parental Network Selection : Cable Cable Network ►Wireless NetworkProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)Connection◄DVDDVDCable Network Select ReturnDHCP : OffIP Address : 000 . 000 . 000 . 000 Subnet Mask : 255 . 255 . 255 . 000 Gateway : 000 . 000 . 000 . 000DNS : ManualPrimary DNS : 000 . 000 . 000 . 000 Secondary DNS : 000 . 000 . 000 . 000 Yes NoSetup not availableSetup available Music Photo Setup AudioDisplay HDMI Network ◄ Parental Network Selection : Cable Cable Network ►Wireless NetworkProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)Connection◄DVDDVDCable Network Select ReturnDHCP : OnIP Address : 000 . 000 . 000 . 000 Subnet Mask : 255 . 255 . 255 . 000 Gateway : 000 . 000 . 000 . 000DNS : ManualPrimary DNS : 000 . 000 . 000 . 000 Secondary DNS : 000 . 000 . 000 . 000 Yes NoSetup not available Music Photo Setup AudioDisplay HDMI Network ◄ Parental Network Selection : Cable Cable Network ►Wireless NetworkProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)Connection◄DVDDVDCable Network Select ReturnDHCP : OnIP Address : 000 . 000 . 000 . 000 Subnet Mask : 255 . 255 . 255 . 000 Gateway : 000 . 000 . 000 . 000DNS : AutoPrimary DNS : 000 . 000 . 000 . 000 Secondary DNS : 000 . 000 . 000 . 000 Yes NoAudioDisplay HDMI Network ◄ Parental Network Selection : Wireless Cable Network Wireless Network ►ProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup HT-BD8200_XAA_0530-2.indd 50HT-BD8200_XAA_0530-2.indd 50 2009-05-30  2:29:282009-05-30  2:29:28

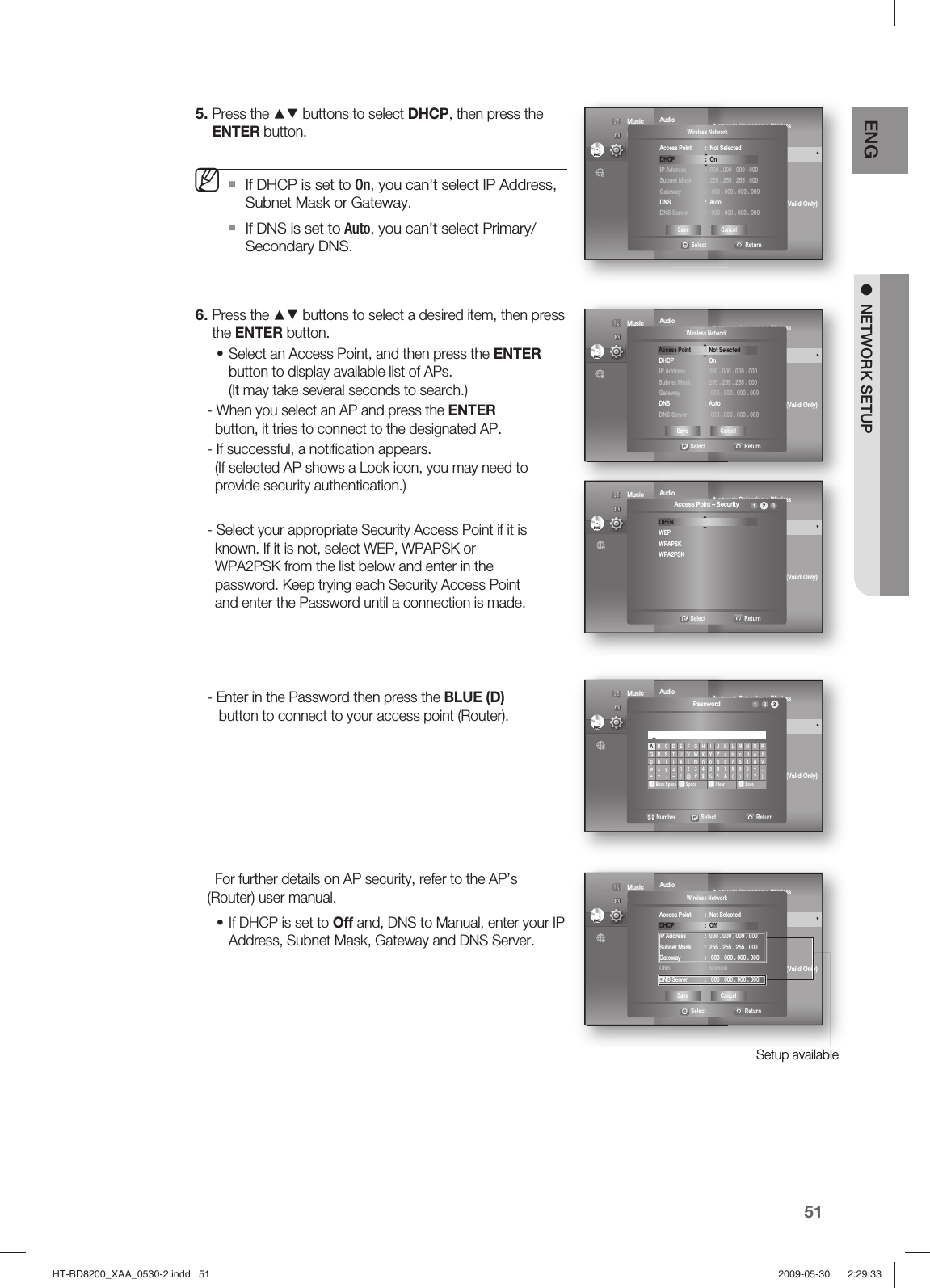

51ENG ● NETWORK SETUPPress the ▲▼ buttons to select DHCP, then press the ENTER button.If DHCP is set to On, you can't select IP Address, Subnet Mask or Gateway.If DNS is set to Auto, you can’t select Primary/ Secondary DNS.Press the ▲▼ buttons to select a desired item, then press the ENTER button.Select an Access Point, and then press the ENTER button to display available list of APs.(It may take several seconds to search.)- When you select an AP and press the ENTER button, it tries to connect to the designated AP.- If successful, a notifi cation appears. (If selected AP shows a Lock icon, you may need to provide security authentication.) - Select your appropriate Security Access Point if it is known. If it is not, select WEP, WPAPSK or WPA2PSK from the list below and enter in the password. Keep trying each Security Access Point and enter the Password until a connection is made.- Enter in the Password then press the BLUE (D) button to connect to your access point (Router). For further details on AP security, refer to the AP’s (Router) user manual.If DHCP is set to Off and, DNS to Manual, enter your IP Address, Subnet Mask, Gateway and DNS Server.5.M6.••AudioDisplay HDMI Network ◄ Parental Network Selection : Wireless Cable Network Wireless Network ►ProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup ◄Wireless Network Select ReturnAccess Point : Not SelectedDHCP : On IP Address : 000 . 000 . 000 . 000 Subnet Mask : 255 . 255 . 255 . 000 Gateway : 000 . 000 . 000 . 000DNS : AutoDNS Server : 000 . 000 . 000 . 000Save CancelAudioDisplay HDMI Network ◄ Parental Network Selection : Wireless Cable Network Wireless Network ►ProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup ◄Wireless Network Select ReturnAccess Point : Not SelectedDHCP : On IP Address : 000 . 000 . 000 . 000 Subnet Mask : 255 . 255 . 255 . 000 Gateway : 000 . 000 . 000 . 000DNS : AutoDNS Server : 000 . 000 . 000 . 000Save CancelAudioDisplay HDMI Network ◄ Parental Network Selection : Wireless Cable Network Wireless Network ►ProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup ◄Access Point – Security Select ReturnOPENWEPWPAPSKWPA2PSK123AudioDisplay HDMI Network ◄ Parental Network Selection : Wireless Cable Network Wireless Network ►ProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup ◄Password 0-9Number Select Return123ABCDEFGH I JK LMNOPQRSTUVWXYZabcde fgh i j k lmnopqr s tuvwxyz1234567890−_+=.~!@#$%^&( ) /? |a Back Spaceb Spacec Cleard Save_AudioDisplay HDMI Network ◄ Parental Network Selection : Wireless Cable Network Wireless Network ►ProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup Setup available◄Wireless Network Select ReturnAccess Point : Not SelectedDHCP : Off IP Address : 000 . 000 . 000 . 000 Subnet Mask : 255 . 255 . 255 . 000 Gateway : 000 . 000 . 000 . 000DNS : ManualDNS Server : 000 . 000 . 000 . 000Save CancelHT-BD8200_XAA_0530-2.indd 51HT-BD8200_XAA_0530-2.indd 51 2009-05-30  2:29:332009-05-30  2:29:33

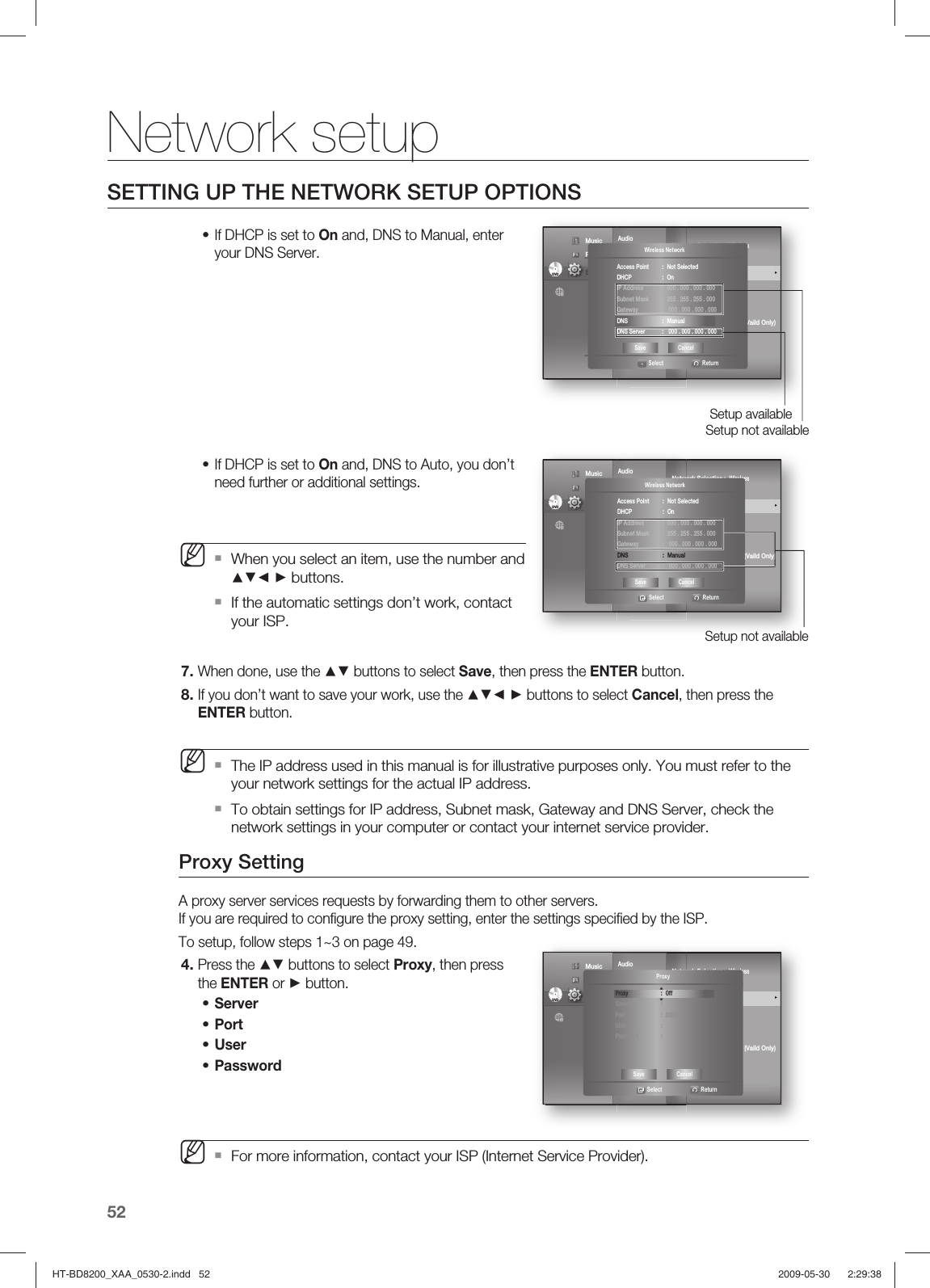

Network setup52SETTING UP THE NETWORK SETUP OPTIONSIf DHCP is set to On and, DNS to Manual, enter your DNS Server.If DHCP is set to On and, DNS to Auto, you don’t need further or additional settings. When you select an item, use the number and ▲▼◄ ► buttons.If the automatic settings don’t work, contact your ISP.When done, use the ▲▼ buttons to select Save, then press the ENTER button.If you don’t want to save your work, use the ▲▼◄ ► buttons to select Cancel, then press the ENTER button.The IP address used in this manual is for illustrative purposes only. You must refer to the your network settings for the actual IP address.To obtain settings for IP address, Subnet mask, Gateway and DNS Server, check the network settings in your computer or contact your internet service provider.Proxy SettingA proxy server services requests by forwarding them to other servers.If you are required to confi gure the proxy setting, enter the settings specifi ed by the ISP.To setup, follow steps 1~3 on page 49.Press the ▲▼ buttons to select Proxy, then press the ENTER or ► button.Server Port User Password For more information, contact your ISP (Internet Service Provider).••M7.8.M4.••••MAudioDisplay HDMI Network ◄ Parental Network Selection : Wireless Cable Network Wireless Network ►ProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup Setup not availableSetup available◄Wireless Network Select ReturnAccess Point : Not SelectedDHCP : OnIP Address : 000 . 000 . 000 . 000 Subnet Mask : 255 . 255 . 255 . 000 Gateway : 000 . 000 . 000 . 000DNS : ManualDNS Server : 000 . 000 . 000 . 000Save CancelAudioDisplay HDMI Network ◄ Parental Network Selection : Wireless Cable Network Wireless Network ►ProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup Setup not available◄Wireless Network Select ReturnAccess Point : Not SelectedDHCP : On IP Address : 000 . 000 . 000 . 000 Subnet Mask : 255 . 255 . 255 . 000 Gateway : 000 . 000 . 000 . 000DNS : ManualDNS Server : 000 . 000 . 000 . 000Save CancelAudioDisplay HDMI Network ◄ Parental Network Selection : Wireless Cable Network Wireless Network ►ProxyNTP Server : OffNetwork Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup ◄Proxy Select ReturnProxy : OffServer : Port : 8080User : Password : Save CancelHT-BD8200_XAA_0530-2.indd 52HT-BD8200_XAA_0530-2.indd 52 2009-05-30  2:29:382009-05-30  2:29:38

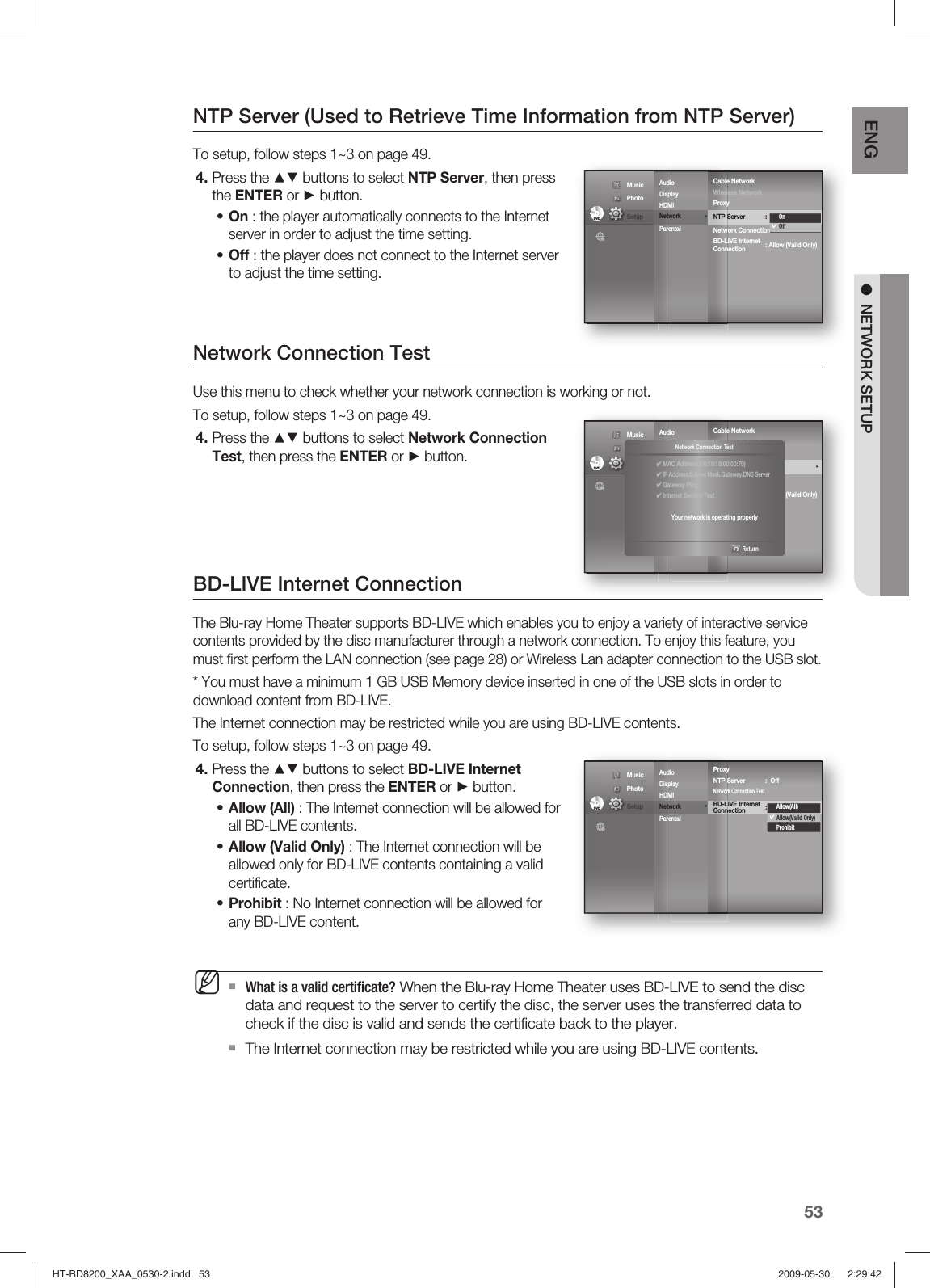

53ENG ● NETWORK SETUPNTP Server (Used to Retrieve Time Information from NTP Server)To setup, follow steps 1~3 on page 49.Press the ▲▼ buttons to select NTP Server, then press the ENTER or ► button.On : the player automatically connects to the Internet server in order to adjust the time setting.Off : the player does not connect to the Internet server to adjust the time setting.Network Connection TestUse this menu to check whether your network connection is working or not.To setup, follow steps 1~3 on page 49.Press the ▲▼ buttons to select Network Connection Test, then press the ENTER or ► button.BD-LIVE Internet ConnectionThe Blu-ray Home Theater supports BD-LIVE which enables you to enjoy a variety of interactive service contents provided by the disc manufacturer through a network connection. To enjoy this feature, you must fi rst perform the LAN connection (see page 28) or Wireless Lan adapter connection to the USB slot.* You must have a minimum 1 GB USB Memory device inserted in one of the USB slots in order to download content from BD-LIVE.The Internet connection may be restricted while you are using BD-LIVE contents.To setup, follow steps 1~3 on page 49.Press the ▲▼ buttons to select BD-LIVE Internet Connection, then press the ENTER or ► button.Allow (All) : The Internet connection will be allowed for all BD-LIVE contents.Allow (Valid Only) : The Internet connection will be allowed only for BD-LIVE contents containing a valid certifi cate.Prohibit : No Internet connection will be allowed for any BD-LIVE content.What is a valid certifi cate? When the Blu-ray Home Theater uses BD-LIVE to send the disc data and request to the server to certify the disc, the server uses the transferred data to check if the disc is valid and sends the certifi cate back to the player.The Internet connection may be restricted while you are using BD-LIVE contents.4.••4.4.•••MAudioDisplay HDMI Network ◄ Parental Cable Network Wireless NetworkProxyNTP Server : Off ►Network Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup OnOffAudioDisplay HDMI Network ◄ Parental Cable Network Wireless NetworkProxyNTP Server : Off ►Network Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup ◄Network Connection Test Return✔ MAC Address (00:10:18:00:00:70)✔ IP Address.Subnet Mask.Gateway.DNS Server✔ Gateway Ping✔ Internet Service TestYour network is operating properlyAudioDisplay HDMI Network ◄ Parental ProxyNTP Server : Off Network Connection TestBD-LIVE Internet : Allow (Vaild Only)ConnectionDVDDVD Music Photo Setup Allow(All)Allow(Valid Only)ProhibitHT-BD8200_XAA_0530-2.indd 53HT-BD8200_XAA_0530-2.indd 53 2009-05-30  2:29:422009-05-30  2:29:42

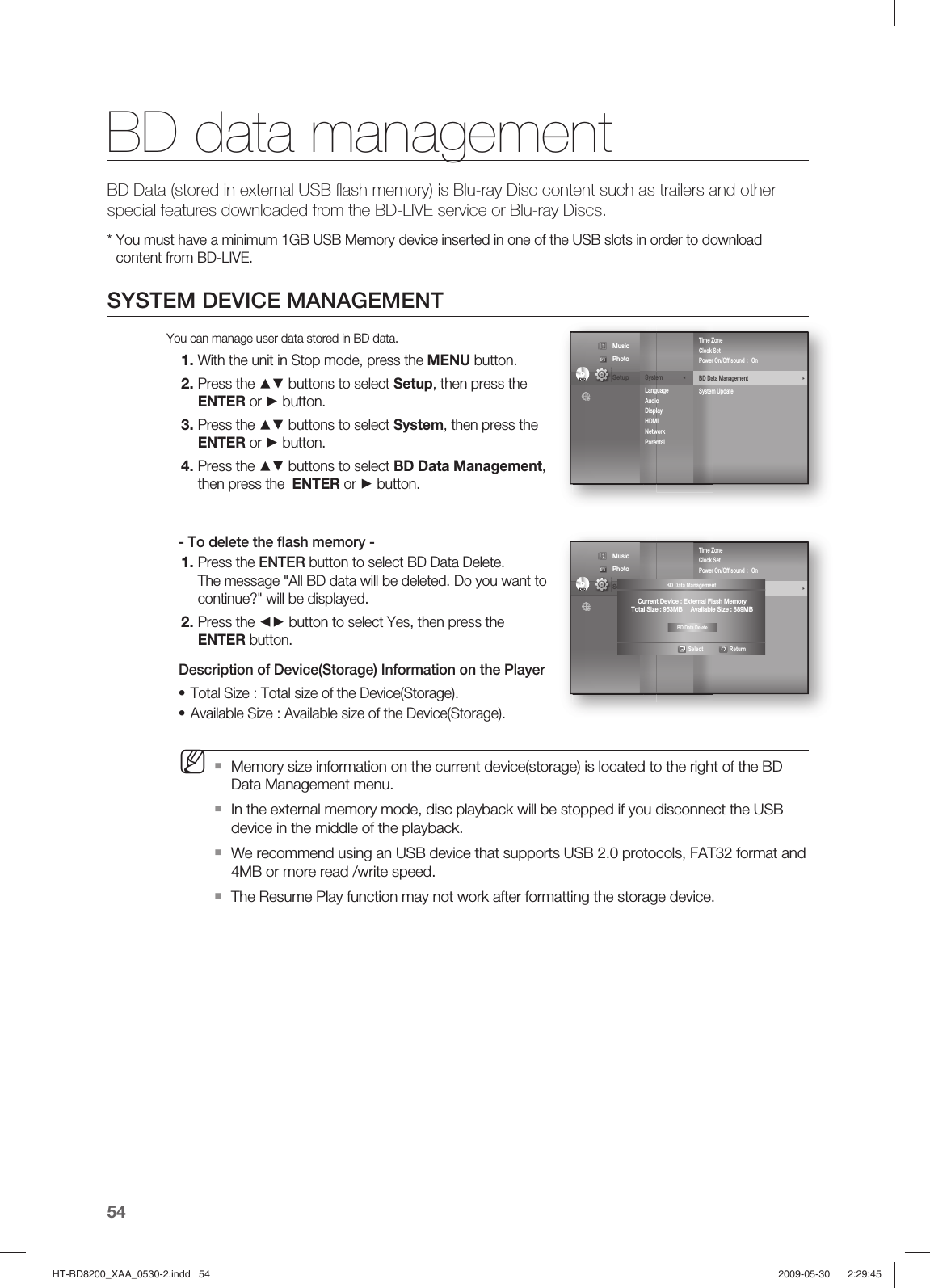

BD data management54BD Data (stored in external USB fl ash memory) is Blu-ray Disc content such as trailers and other special features downloaded from the BD-LIVE service or Blu-ray Discs.* You must have a minimum 1GB USB Memory device inserted in one of the USB slots in order to downloadcontent from BD-LIVE.SYSTEM DEVICE MANAGEMENTYou can manage user data stored in BD data.With the unit in Stop mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.Press the ▲▼ buttons to select System, then press the ENTER or ► button.Press the ▲▼ buttons to select BD Data Management, then press the ENTER or ► button.- To delete the fl ash memory -Press the ENTER button to select BD Data Delete.The message "All BD data will be deleted. Do you want to continue?" will be displayed.Press the ◄► button to select Yes, then press the ENTER button.Description of Device(Storage) Information on the PlayerTotal Size : Total size of the Device(Storage).Available Size : Available size of the Device(Storage).Memory size information on the current device(storage) is located to the right of the BD Data Management menu.In the external memory mode, disc playback will be stopped if you disconnect the USB device in the middle of the playback.We recommend using an USB device that supports USB 2.0 protocols, FAT32 format and 4MB or more read /write speed.The Resume Play function may not work after formatting the storage device.1.2.3.4.1.2.••MSystem ◄Language Audio Display HDMI Network Parental Time ZoneClock SetPower On/Off sound : OnBD Data Management ►System UpdateDVDDVD Music Photo Setup System ◄Language Audio Display HDMI Network Parental Time ZoneClock SetPower On/Off sound : OnBD Data Management ►System UpdateDVDDVD Music Photo Setup BD Data Management Select ReturnCurrent Device : External Flash MemoryTotal Size : 953MB Available Size : 889MBBD Data DeleteHT-BD8200_XAA_0530-2.indd 54HT-BD8200_XAA_0530-2.indd 54 2009-05-30  2:29:452009-05-30  2:29:45
55ENG ● SYSTEM UPGRADESystem upgradeSamsung may offer upgrades to your Blu-ray Home Theater's fi rmware in the future. To upgrade this fi rmware you must :Go to samsung.com and refer to the ‘SUPPORT’ page to download the latest fi rmware.You can use a CD-R or a USB fl ash drive to perform the fi rmware upgrade. For more information, see “Upgrade Manual” at the website mentioned above.orConnect the network (see pages 28~29) and follow the steps below.FIRMWARE UPGRADEWith the unit in Stop mode/No Disc mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.Press the ▲▼ buttons to select System, then press the ENTER or ► button.Press the ▲▼ buttons to select System Update, then press the ENTER or ► button.The player will check the cable or network connection status automatically. The connection checking window will be displayed.If the upgrade is possible : You will see information on the current and new versions of fi rmware in a message box.If the upgrade is not possible : You will see the following description in the message box.If the cable is not connected :“Ethernet cable is not connected. Please, check the Ethernet cable”If the network connection has failed :“This system can not connect to internet for update. Please, check the network setup”If no latest version is released (the latest version has been already installed) : "The latest version of the fi rmware is already installed. There is no need to update."If there is a disc in the player :"Please maintain "No Disc" state for network update."This indicates that you must remove all discs from the unit to perform the update.If the server service is not available :“ Update Server is under maintenance. Please try again later.”1.2.1.2.3.4.5.•••••DVDSystem ◄Language Audio Display HDMI Network Parental ◄ Music Photo Setup DVDSystem ◄Language Audio Display HDMI Network Parental BD Data MenagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update ► Music Photo Setup DVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental Setup BD Data MenagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update ► Music Photo Setup System UpdateNow, Checking.Please wait...1234DVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental SetupBD Data MenagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update ► Music Photo Setup System UpdateThe new update data was found.Current Version : XXXXXNew Version : XXXXX1234CancelStartDVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental SetupBD Data MenagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update ► Music Photo Setup System UpdateThis system can not connectto internet for update.Please, check the network setup.OK1234HT-BD8200_XAA_0528-3.indd 55HT-BD8200_XAA_0528-3.indd 55 2009-05-30  2:58:432009-05-30  2:58:43

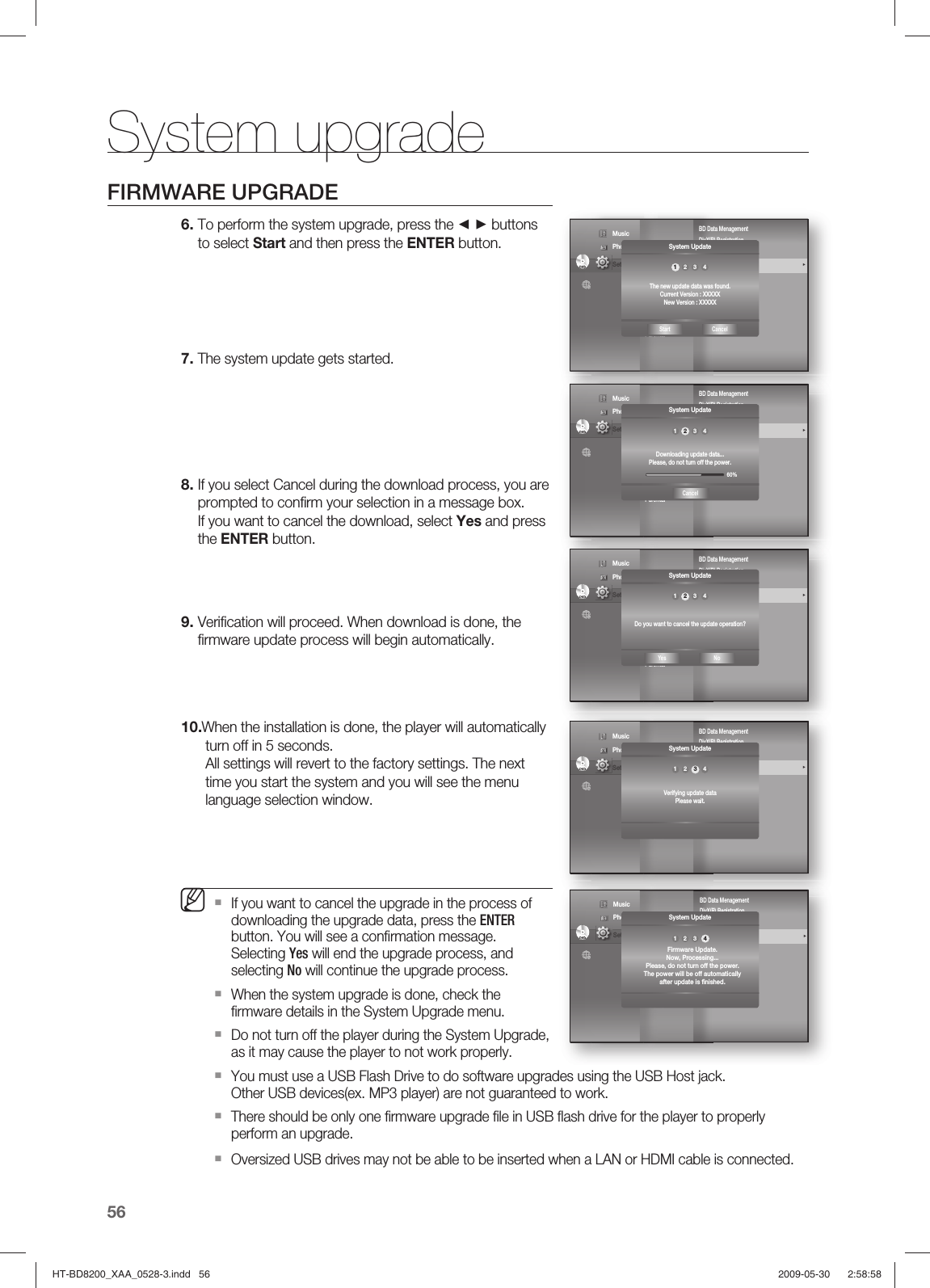

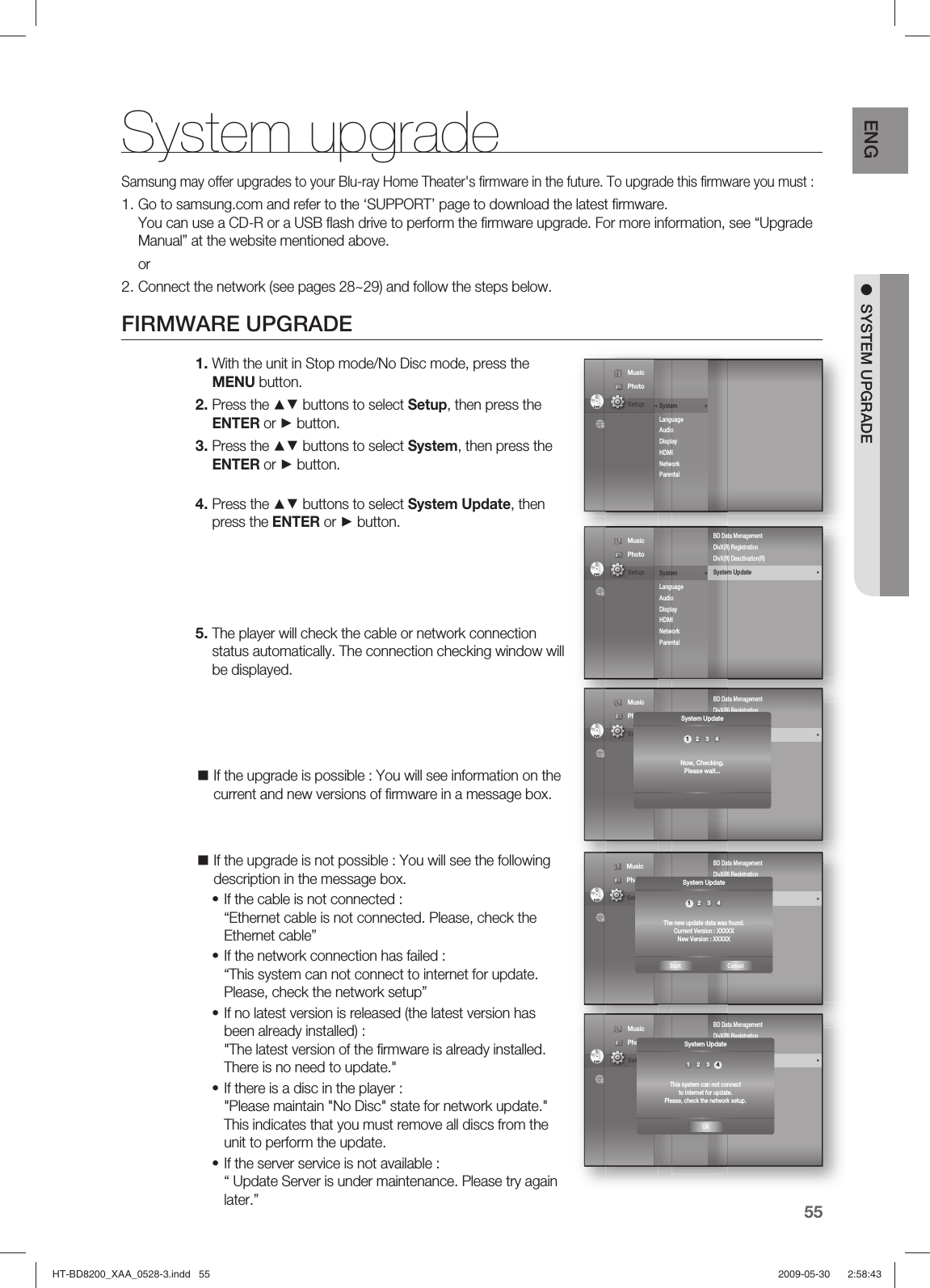

System upgrade56FIRMWARE UPGRADETo perform the system upgrade, press the ◄ ► buttons to select Start and then press the ENTER button.The system update gets started.If you select Cancel during the download process, you are prompted to confi rm your selection in a message box.If you want to cancel the download, select Yes and press the ENTER button. Verifi cation will proceed. When download is done, the fi rmware update process will begin automatically. When the installation is done, the player will automatically turn off in 5 seconds. All settings will revert to the factory settings. The next time you start the system and you will see the menu language selection window.If you want to cancel the upgrade in the process of downloading the upgrade data, press the ENTER button. You will see a confi rmation message.Selecting Yes will end the upgrade process, and selecting No will continue the upgrade process.When the system upgrade is done, check the fi rmware details in the System Upgrade menu. Do not turn off the player during the System Upgrade, as it may cause the player to not work properly.You must use a USB Flash Drive to do software upgrades using the USB Host jack.Other USB devices(ex. MP3 player) are not guaranteed to work.There should be only one fi rmware upgrade fi le in USB fl ash drive for the player to properly perform an upgrade.Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected. 6.7.8.9.10.MDVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental BD Data MenagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update ► Music Photo Setup System UpdateThe new update data was found.Current Version : XXXXXNew Version : XXXXX1234Start CancelDVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental BD Data MenagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update ► Music Photo Setup System UpdateDownloading update data...Please, do not turn off the power.34Cancel1260%DVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental BD Data MenagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update ► Music Photo Setup System UpdateDo you want to cancel the update operation?3412Yes NoDVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental BD Data MenagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update ► Music Photo Setup System UpdateVerifying update dataPlease wait.41 32DVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental BD Data MenagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update ► Music Photo Setup System UpdateFirmware Update.Now, Processing...Please, do not turn off the power.The power will be off automatically after update is fi nished.31 42HT-BD8200_XAA_0528-3.indd 56HT-BD8200_XAA_0528-3.indd 56 2009-05-30  2:58:582009-05-30  2:58:58

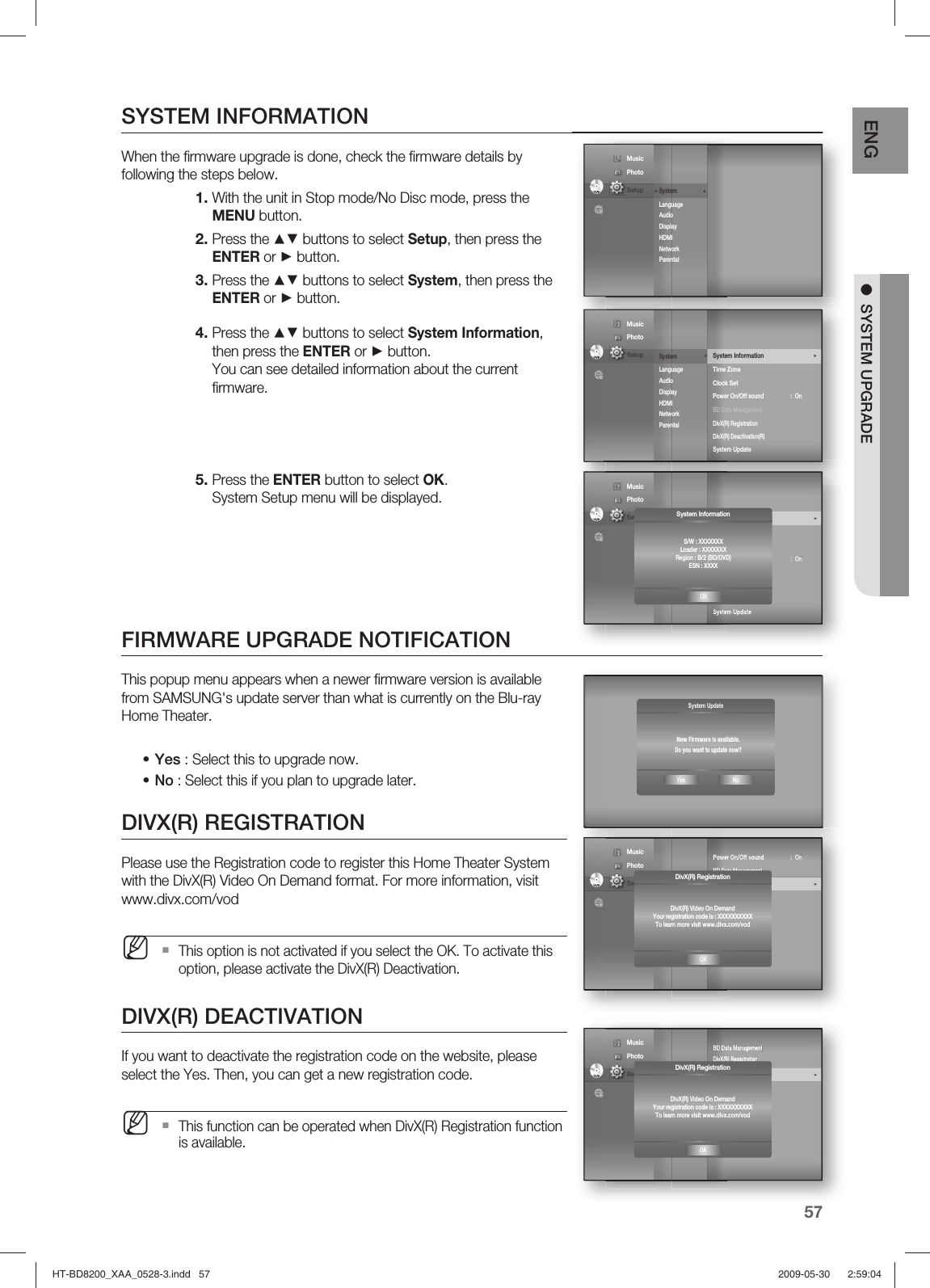

57ENG ● SYSTEM UPGRADESYSTEM INFORMATIONWhen the fi rmware upgrade is done, check the fi rmware details by following the steps below. With the unit in Stop mode/No Disc mode, press the MENU button.Press the ▲▼ buttons to select Setup, then press the ENTER or ► button.Press the ▲▼ buttons to select System, then press the ENTER or ► button.Press the ▲▼ buttons to select System Information, then press the ENTER or ► button.You can see detailed information about the current fi rmware. Press the ENTER button to select OK. System Setup menu will be displayed.FIRMWARE UPGRADE NOTIFICATIONThis popup menu appears when a newer fi rmware version is available from SAMSUNG's update server than what is currently on the Blu-ray Home Theater.Yes : Select this to upgrade now.No : Select this if you plan to upgrade later.DIVX(R) REGISTRATIONPlease use the Registration code to register this Home Theater System with the DivX(R) Video On Demand format. For more information, visit www.divx.com/vodThis option is not activated if you select the OK. To activate this option, please activate the DivX(R) Deactivation.DIVX(R) DEACTIVATIONIf you want to deactivate the registration code on the website, please select the Yes. Then, you can get a new registration code.This function can be operated when DivX(R) Registration function is available.1.2.3.4.5.••MMSystem UpdateNew Firmware is available.Do you want to update now?Yes NoDVDSystem Language Audio Display HDMI Network Parental ◄◄ Music Photo Setup DVDSystem ◄Language Audio Display HDMI Network Parental System Information ►Time ZoneClock SetPower On/Off sound : On BD Data ManagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update Music Photo Setup DVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental SetupSystem Information ►Time ZoneClock SetPower On/Off sound : On BD Data ManagementDivX(R) RegistrationDivX(R) Deactivation(R)System Update Music Photo Setup System InformationS/W : XXXXXXXLoader : XXXXXXXRegion : B/2 (BD/DVD)ESN : XXXXOKDVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental SetupPower On/Off sound : On BD Data ManagementDivX(R) Registration ►DivX(R) Deactivation(R)System Update Music Photo Setup DivX(R) RegistrationDivX(R) Video On DemandYour registration code is : XXXXXXXXXXTo learn more visit www.divx.com/vodOKDVDSystem Setup ◄Language SetupAudio SetupDisplay SetupHDMI SetupNetwork SetupParental SetupBD Data ManagementDivX(R) Registration DivX(R) Deactivation(R) ►System Update Music Photo Setup DivX(R) RegistrationDivX(R) Video On DemandYour registration code is : XXXXXXXXXXTo learn more visit www.divx.com/vodOKHT-BD8200_XAA_0528-3.indd 57HT-BD8200_XAA_0528-3.indd 57 2009-05-30  2:59:042009-05-30  2:59:04
