Samsung Electronics Co HTDB390 DVD Receiver User Manual 1p 32p DB390 GBR

Samsung Electronics Co Ltd DVD Receiver 1p 32p DB390 GBR

manual 2

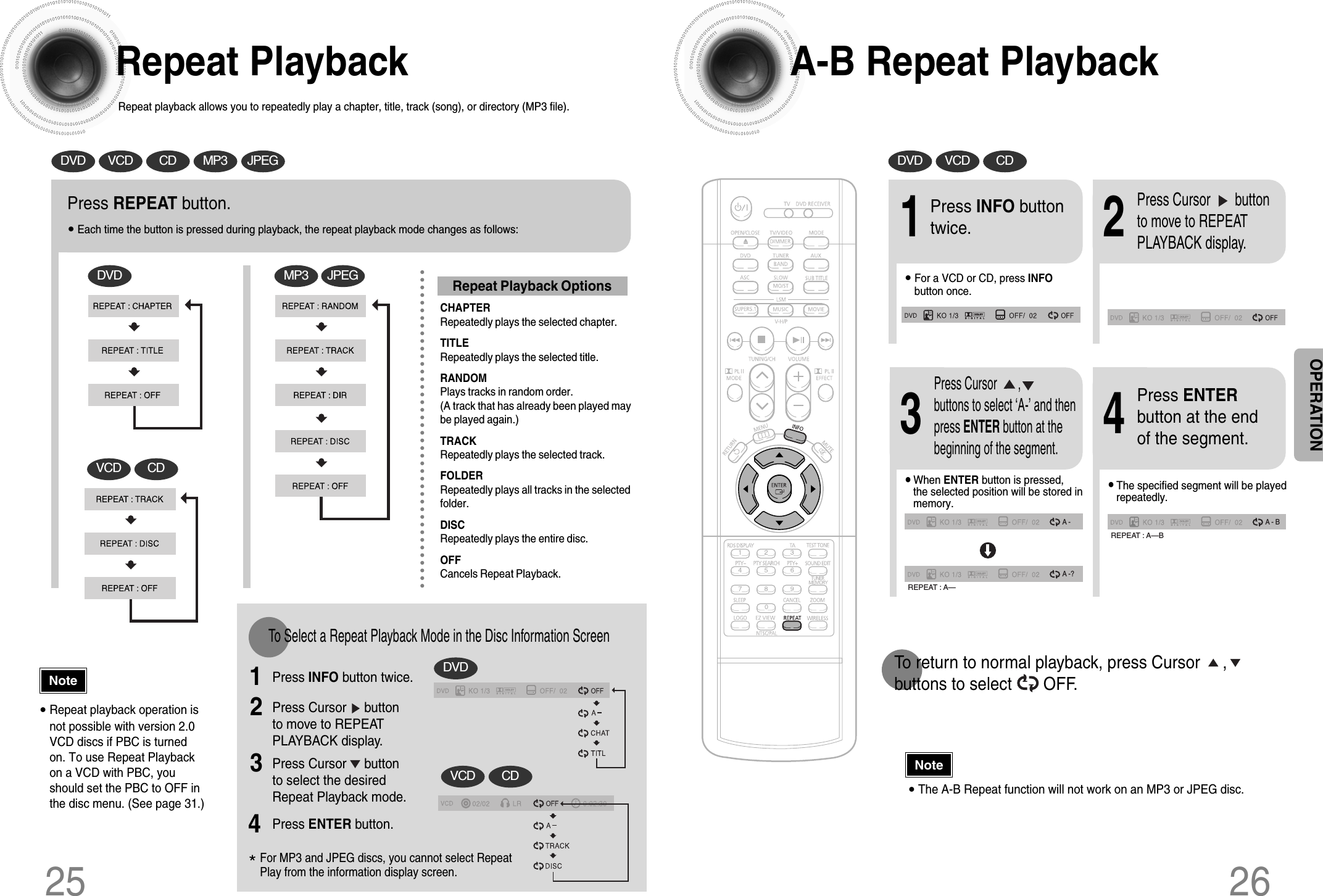

A-B Repeat Playback26•The A-B Repeat function will not work on an MP3 or JPEG disc.2Press Cursor buttonto move to REPEATPLAYBACK display.•For a VCD or CD, press INFObutton once.1Press INFO buttontwice.A -A -?REPEAT : A—A - BREPEAT : A—B•The specified segment will be playedrepeatedly.4Press ENTERbutton at the endof the segment.•When ENTER button is pressed,the selected position will be stored inmemory.3Press Cursor ,buttons to select ‘A-’ and thenpress ENTER button at thebeginning of the segment.To return to normal playback, press Cursor , buttons to select OFF.DVD VCD CDRepeat PlaybackRepeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).25Press REPEAT button.•Each time the button is pressed during playback, the repeat playback mode changes as follows:DVDVCD CDMP3 JPEG•Repeat playback operation isnot possible with version 2.0VCD discs if PBC is turnedon. To use Repeat Playbackon a VCD with PBC, youshould set the PBC to OFF inthe disc menu. (See page 31.)CHAPTERRepeatedly plays the selected chapter.TITLERepeatedly plays the selected title.RANDOMPlays tracks in random order.(A track that has already been played maybe played again.)TRACKRepeatedly plays the selected track.FOLDERRepeatedly plays all tracks in the selectedfolder.DISCRepeatedly plays the entire disc.OFFCancels Repeat Playback.To Select a Repeat Playback Mode in the Disc Information ScreenPress INFO button twice.1Press Cursor buttonto move to REPEATPLAYBACK display.2Press Cursor buttonto select the desiredRepeat Playback mode.3DVDVCD CD*For MP3 and JPEG discs, you cannot select RepeatPlay from the information display screen.Press ENTER button. 4DVD VCD CD MP3 JPEGRepeat Playback OptionsNoteNoteOPERATION

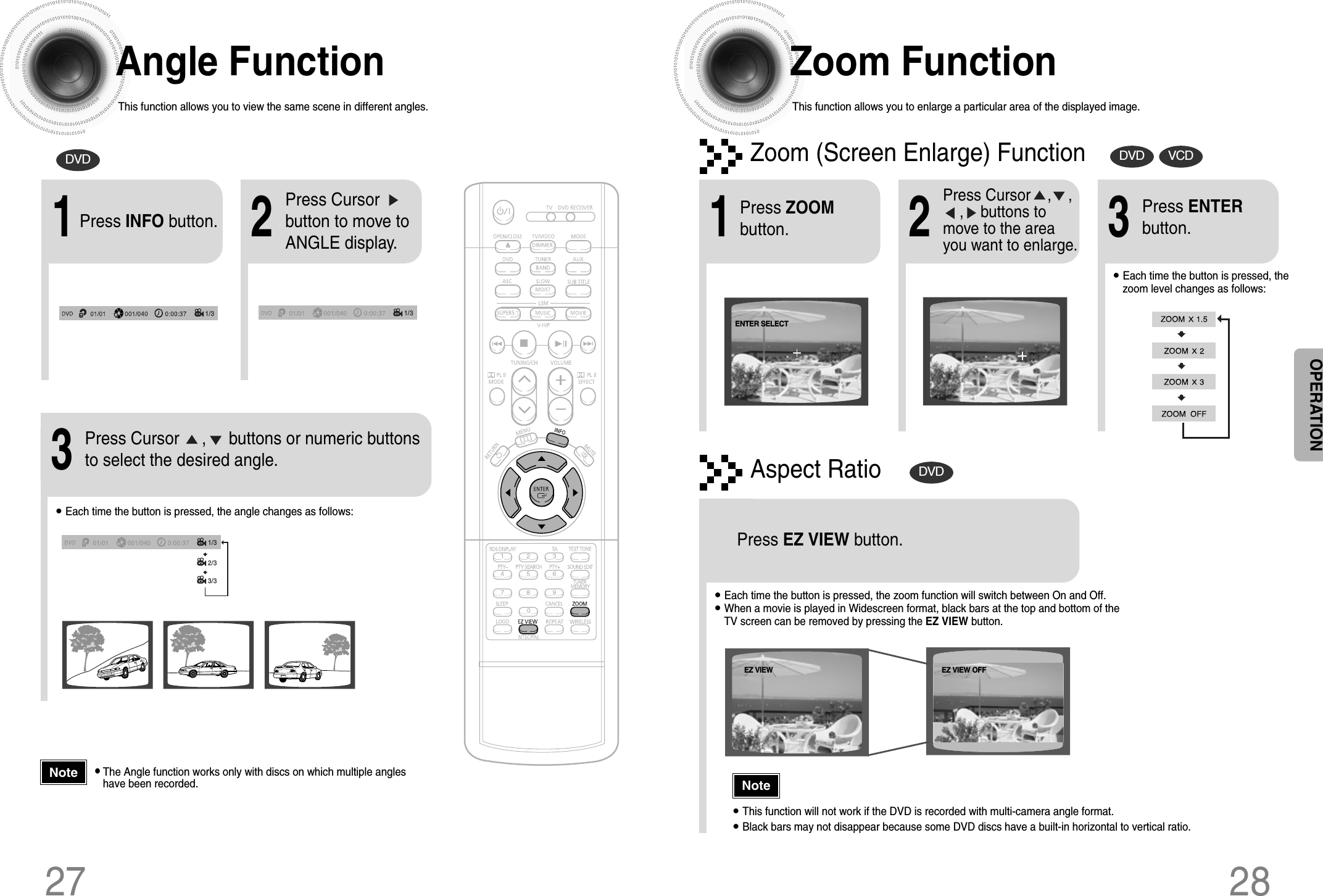

28Zoom FunctionThis function allows you to enlarge a particular area of the displayed image.Zoom (Screen Enlarge) FunctionDVD VCDAspect RatioDVD2Press Cursor , , , buttons tomove to the areayou want to enlarge.1Press ZOOMbutton.•Each time the button is pressed, thezoom level changes as follows:3Press ENTERbutton.Press EZ VIEW button.•Each time the button is pressed, the zoom function will switch between On and Off.•When a movie is played in Widescreen format, black bars at the top and bottom of theTV screen can be removed by pressing the EZ VIEW button.•This function will not work if the DVD is recorded with multi-camera angle format.•Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.27Angle FunctionThis function allows you to view the same scene in different angles.DVD2Press Cursorbutton to move toANGLE display.1Press INFO button.1/3•Each time the button is pressed, the angle changes as follows:3Press Cursor , buttons or numeric buttonsto select the desired angle.2/33/31/31/3•The Angle function works only with discs on which multiple angleshave been recorded.NoteNoteOPERATIONEZ VIEW OFFEZ VIEWENTER SELECT

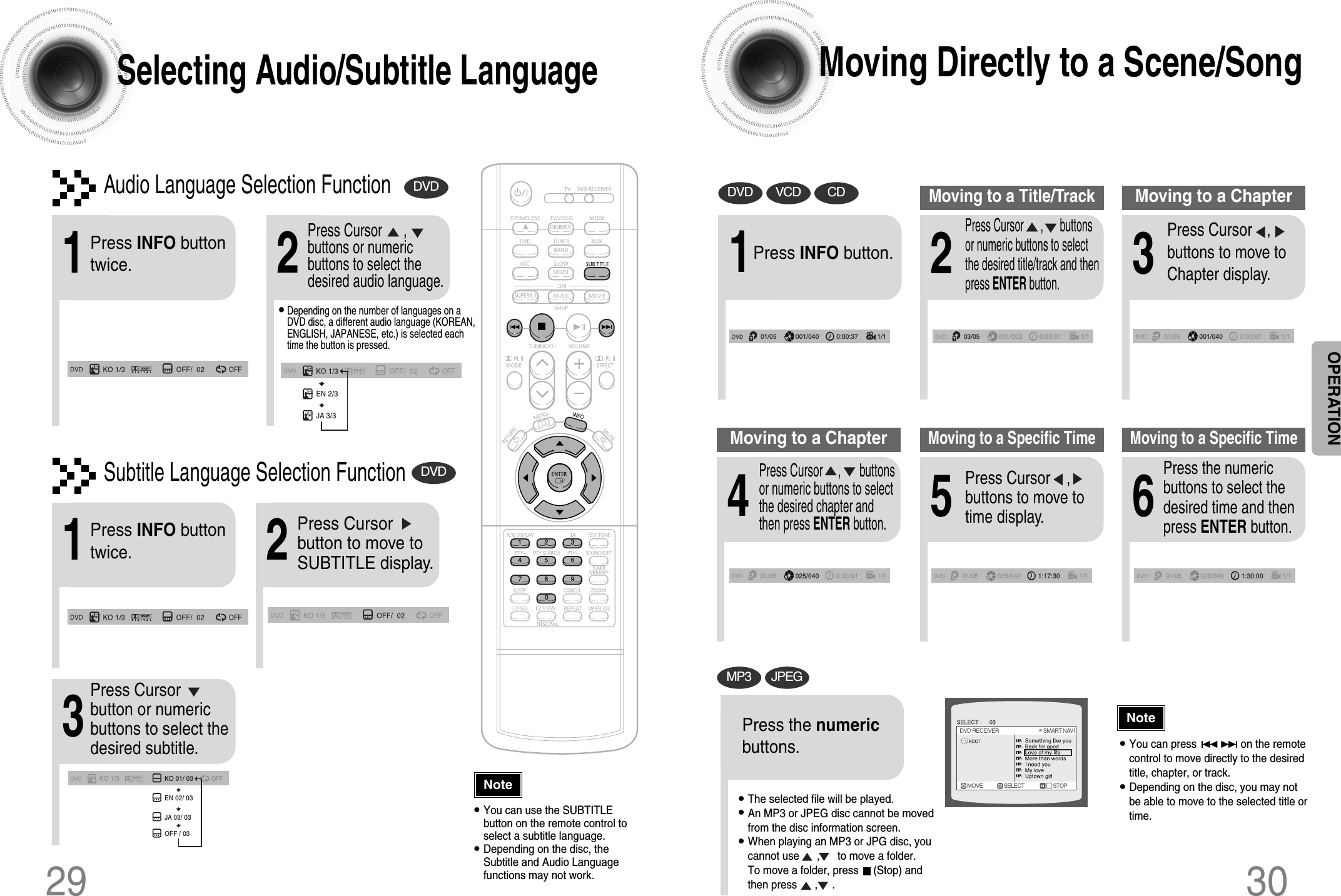

30Moving Directly to a Scene/Song•The selected file will be played.•An MP3 or JPEG disc cannot be movedfrom the disc information screen.•When playing an MP3 or JPG disc, youcannot use , to move a folder. To move a folder, press (Stop) andthen press , .DVD VCD CDMP3 JPEG2Press Cursor , buttonsor numeric buttons to selectthe desired title/track and thenpress ENTER button.1Press INFO button.01/05001/040 0:00:37 1/103/05001/002 0:00:01 1/101/05001/040 0:00:01 1/1Moving to a Title/Track4Press Cursor , buttonsor numeric buttons to selectthe desired chapter andthen press ENTER button.01/05025/040 0:00:01 1/1Moving to a Chapter6Press the numericbuttons to select thedesired time and thenpress ENTER button.01/05028/040 1:30:00 1/1Moving to a Specific Time3Press Cursor , buttons to move toChapter display.Moving to a Chapter01/05025/040 1:17:30 1/15Press Cursor , buttons to move totime display.Moving to a Specific TimePress the numericbuttons.•You can press on the remotecontrol to move directly to the desiredtitle, chapter, or track.•Depending on the disc, you may notbe able to move to the selected title ortime.29Selecting Audio/Subtitle Language•Depending on the number of languages on aDVD disc, a different audio language (KOREAN,ENGLISH, JAPANESE, etc.) is selected eachtime the button is pressed.2Press Cursor ,buttons or numericbuttons to select thedesired audio language.1Press INFO buttontwice.EN 2/3JA 3/3•You can use the SUBTITLEbutton on the remote control toselect a subtitle language.•Depending on the disc, theSubtitle and Audio Languagefunctions may not work.Audio Language Selection FunctionDVDSubtitle Language Selection FunctionDVDNoteNoteOPERATIONKO 1/3 KO 01/ 03OFFEN 02/ 03JA 03/ 03OFF / 032Press Cursorbutton to move toSUBTITLE display.1Press INFO buttontwice.3Press Cursorbutton or numericbuttons to select thedesired subtitle.

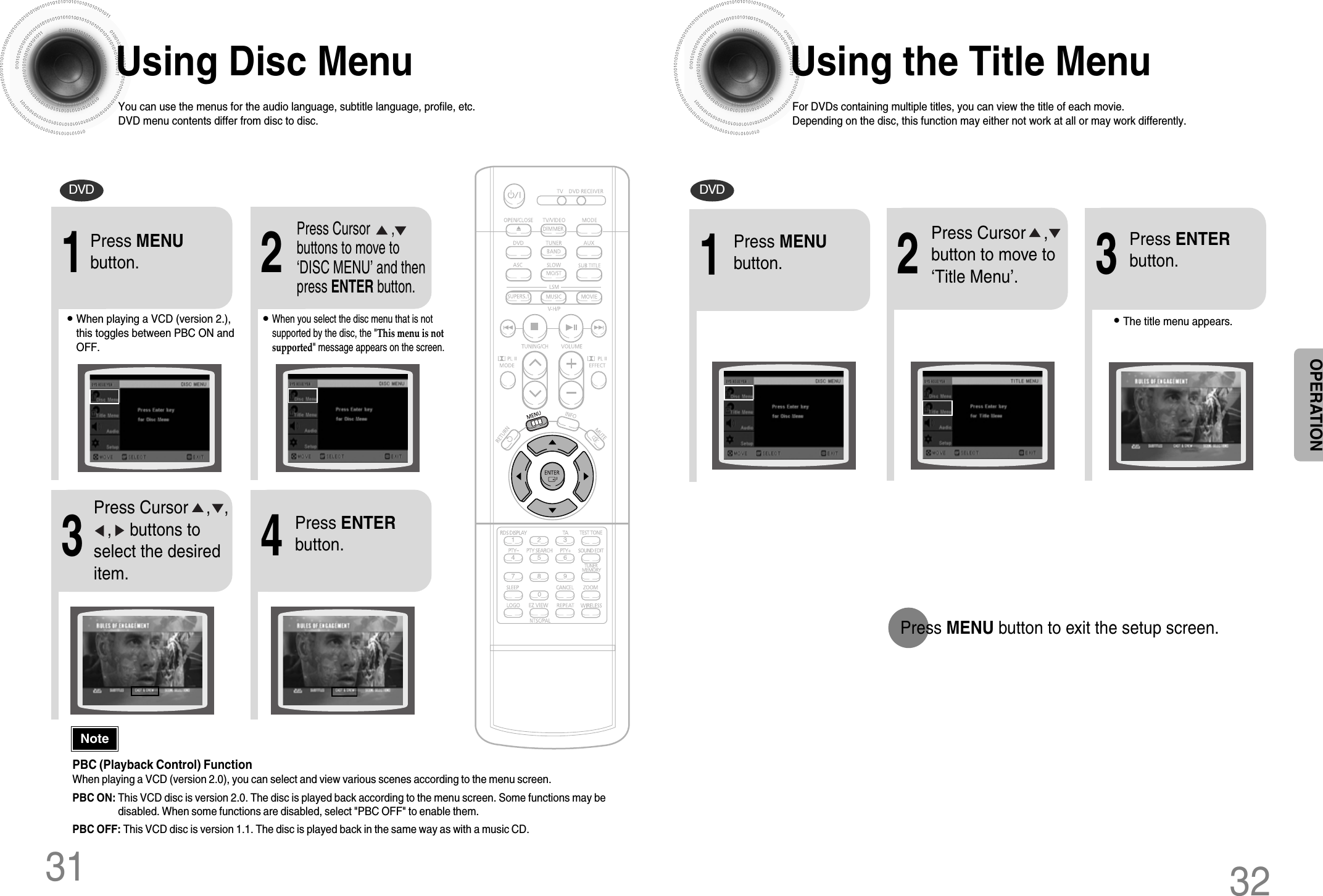

Using the Title MenuFor DVDs containing multiple titles, you can view the title of each movie.Depending on the disc, this function may either not work at all or may work differently.2Press Cursor ,button to move to‘Title Menu’.DVD1Press MENUbutton.3Press ENTERbutton.•The title menu appears.32Press MENU button to exit the setup screen.Using Disc MenuYou can use the menus for the audio language, subtitle language, profile, etc.DVD menu contents differ from disc to disc.DVD312•When playing a VCD (version 2.),this toggles between PBC ON andOFF.•When you select the disc menu that is notsupported by the disc, the "This menu is notsupported" message appears on the screen.1Press MENUbutton.Press Cursor ,buttons to move to‘DISC MENU’ and thenpress ENTER button.4Press ENTERbutton.3Press Cursor , , , buttons toselect the desireditem.PBC (Playback Control) FunctionWhen playing a VCD (version 2.0), you can select and view various scenes according to the menu screen.PBC ON: This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions may bedisabled. When some functions are disabled, select "PBC OFF" to enable them.PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.NoteOPERATION

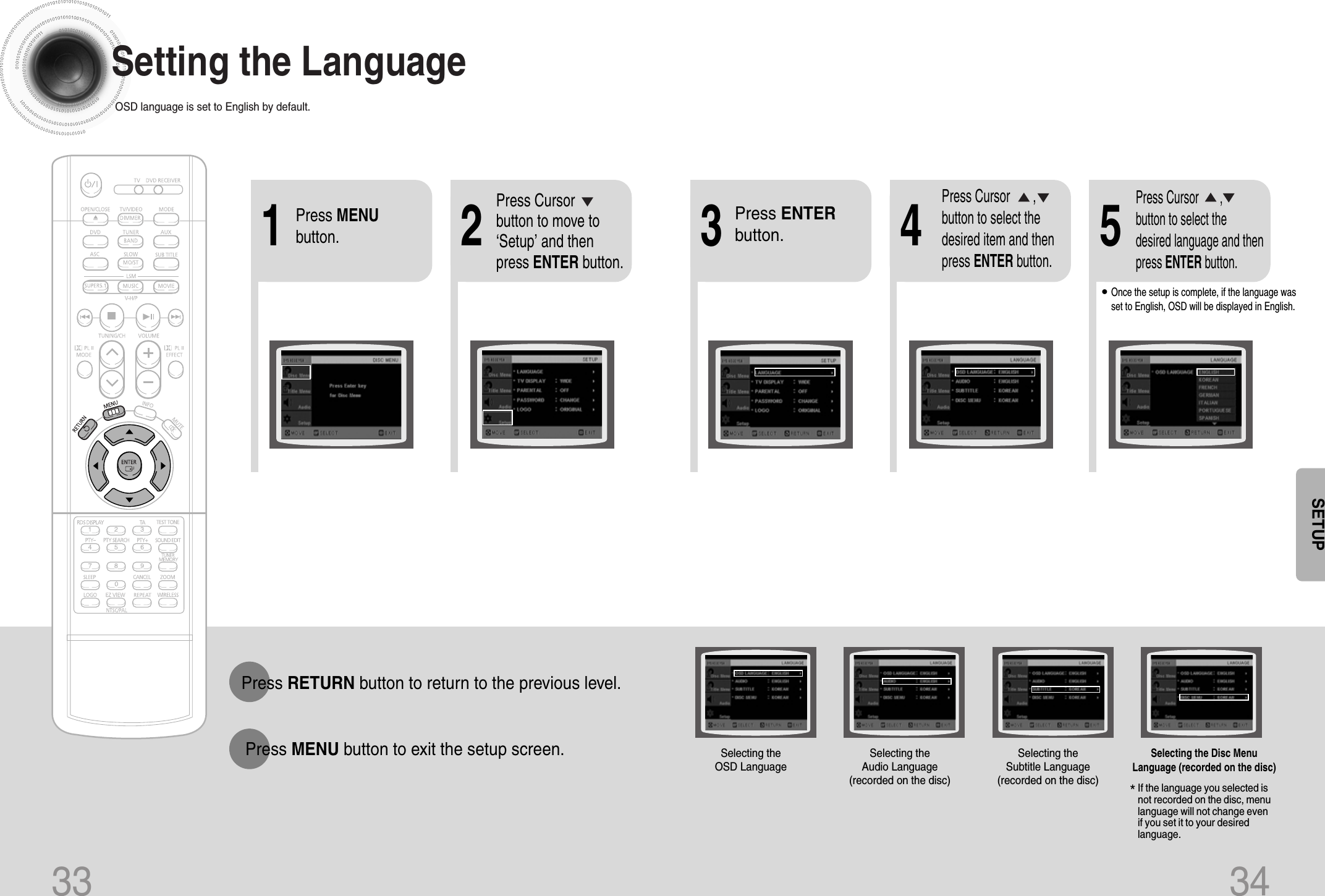

33 34*If the language you selected isnot recorded on the disc, menulanguage will not change evenif you set it to your desiredlanguage.Selecting the OSD LanguageSelecting the Audio Language(recorded on the disc)Setting the LanguageOSD language is set to English by default.21Press MENUbutton.Press Cursorbutton to move to‘Setup’ and thenpress ENTER button.4•Once the setup is complete, if the language wasset to English, OSD will be displayed in English.3Selecting the Subtitle Language(recorded on the disc)Selecting the Disc MenuLanguage (recorded on the disc)Press ENTERbutton.5Press Cursor ,button to select thedesired item and thenpress ENTER button.Press Cursor ,button to select thedesired language and thenpress ENTER button.Press RETURN button to return to the previous level.Press MENU button to exit the setup screen.SETUP

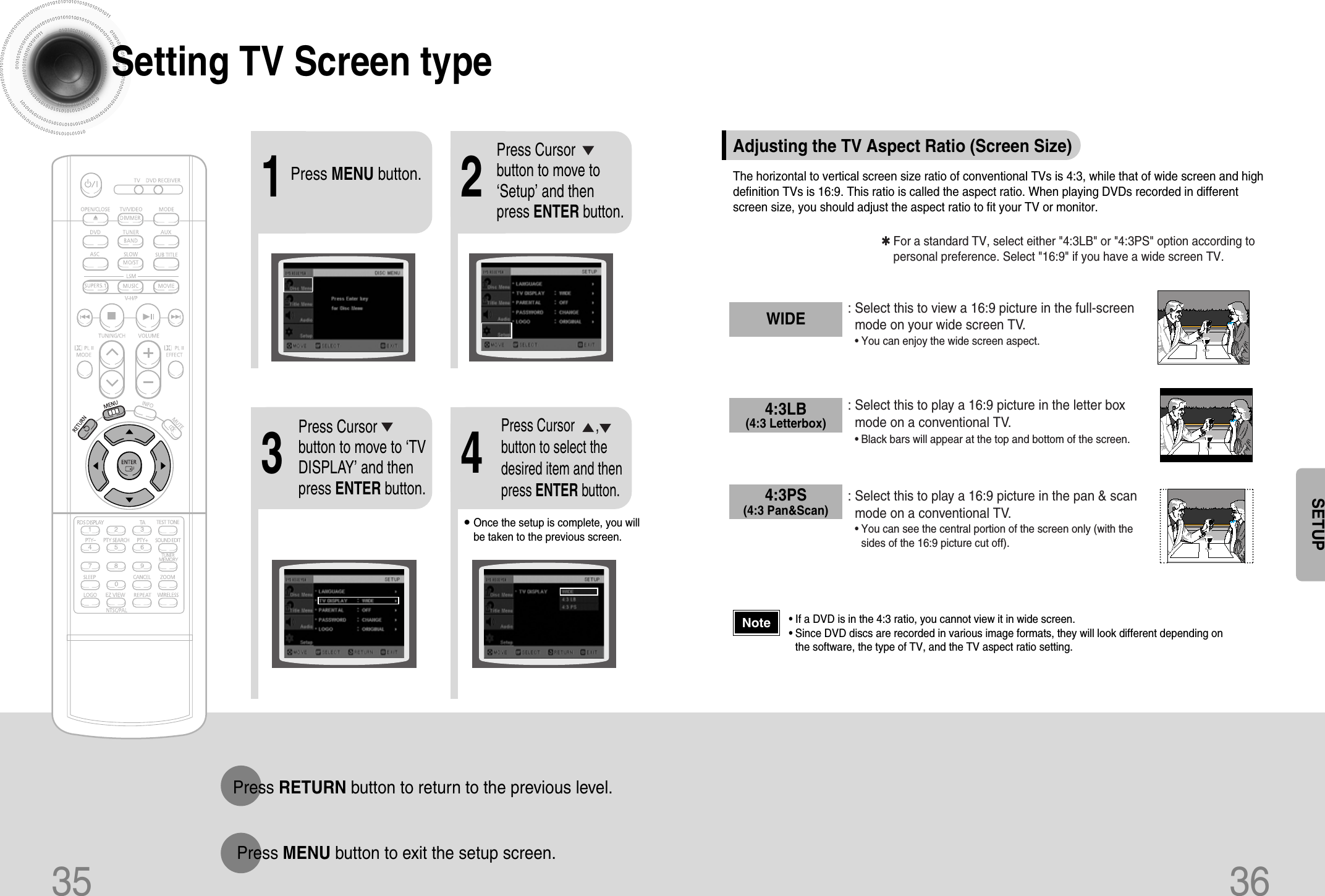

35 36Setting TV Screen type2143Press MENU button.Press Cursorbutton to move to‘Setup’ and thenpress ENTER button.•Once the setup is complete, you willbe taken to the previous screen.Press Cursorbutton to move to ‘TVDISPLAY’ and thenpress ENTER button.Press Cursor ,button to select thedesired item and thenpress ENTER button.Press RETURN button to return to the previous level.Press MENU button to exit the setup screen.SETUPThe horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and highdefinition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in differentscreen size, you should adjust the aspect ratio to fit your TV or monitor.✱ For a standard TV, select either "4:3LB" or "4:3PS" option according topersonal preference. Select "16:9" if you have a wide screen TV.: Select this to view a 16:9 picture in the full-screenmode on your wide screen TV.• You can enjoy the wide screen aspect.: Select this to play a 16:9 picture in the letter boxmode on a conventional TV.• Black bars will appear at the top and bottom of the screen.: Select this to play a 16:9 picture in the pan & scanmode on a conventional TV.•You can see the central portion of the screen only (with thesides of the 16:9 picture cut off).4:3LB(4:3 Letterbox)WIDE4:3PS(4:3 Pan&Scan)• If a DVD is in the 4:3 ratio, you cannot view it in wide screen.• Since DVD discs are recorded in various image formats, they will look different depending onthe software, the type of TV, and the TV aspect ratio setting.NoteAdjusting the TV Aspect Ratio (Screen Size)

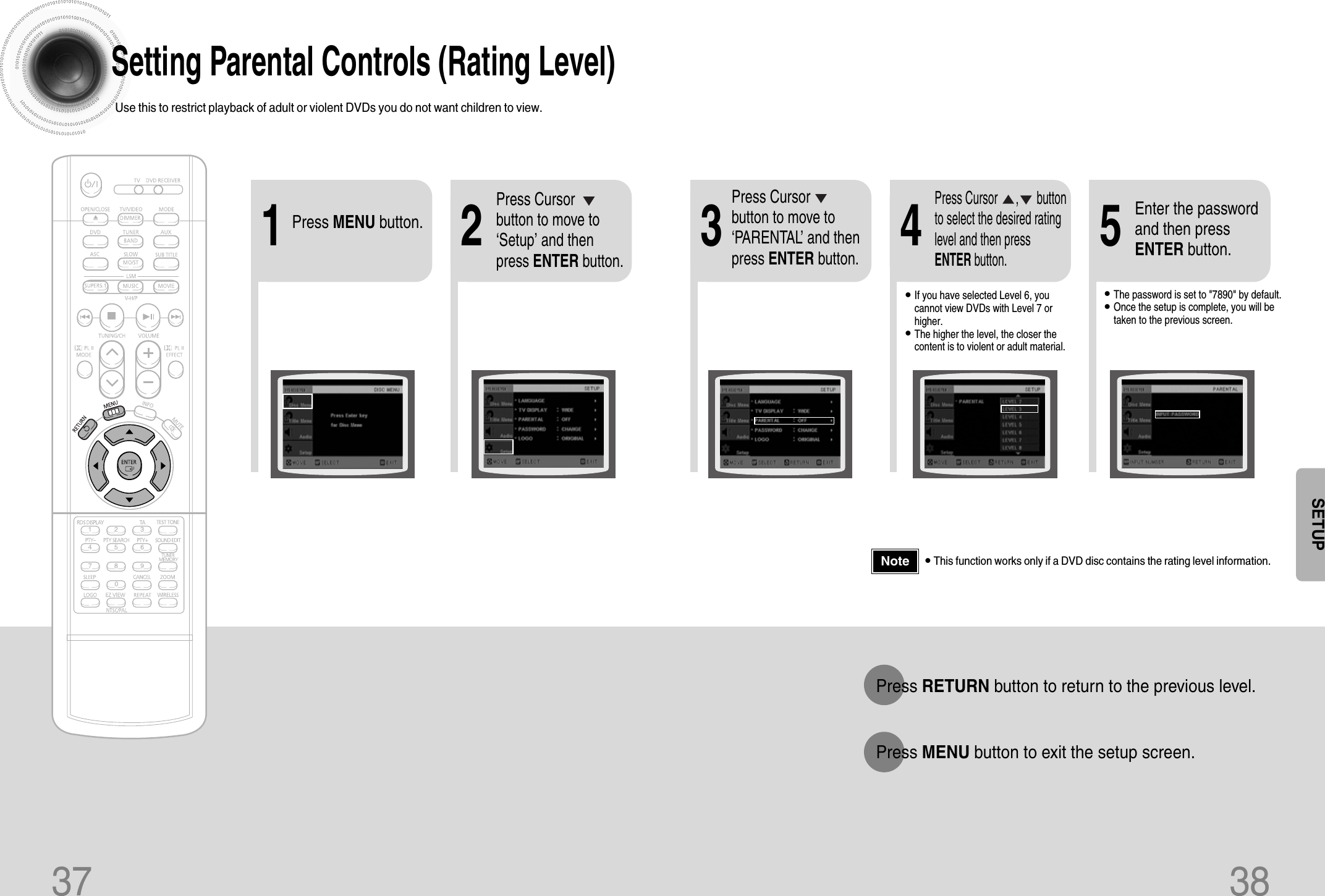

37 38Setting Parental Controls (Rating Level)Use this to restrict playback of adult or violent DVDs you do not want children to view.•This function works only if a DVD disc contains the rating level information.Press RETURN button to return to the previous level.Press MENU button to exit the setup screen.21Press MENU button.Press Cursorbutton to move to‘Setup’ and thenpress ENTER button.4•The password is set to "7890" by default.•Once the setup is complete, you will betaken to the previous screen.•If you have selected Level 6, youcannot view DVDs with Level 7 orhigher.•The higher the level, the closer thecontent is to violent or adult material.3 5Press Cursorbutton to move to‘PARENTAL’ and thenpress ENTER button.Press Cursor , buttonto select the desired ratinglevel and then pressENTER button.Enter the passwordand then pressENTER button.NoteSETUP

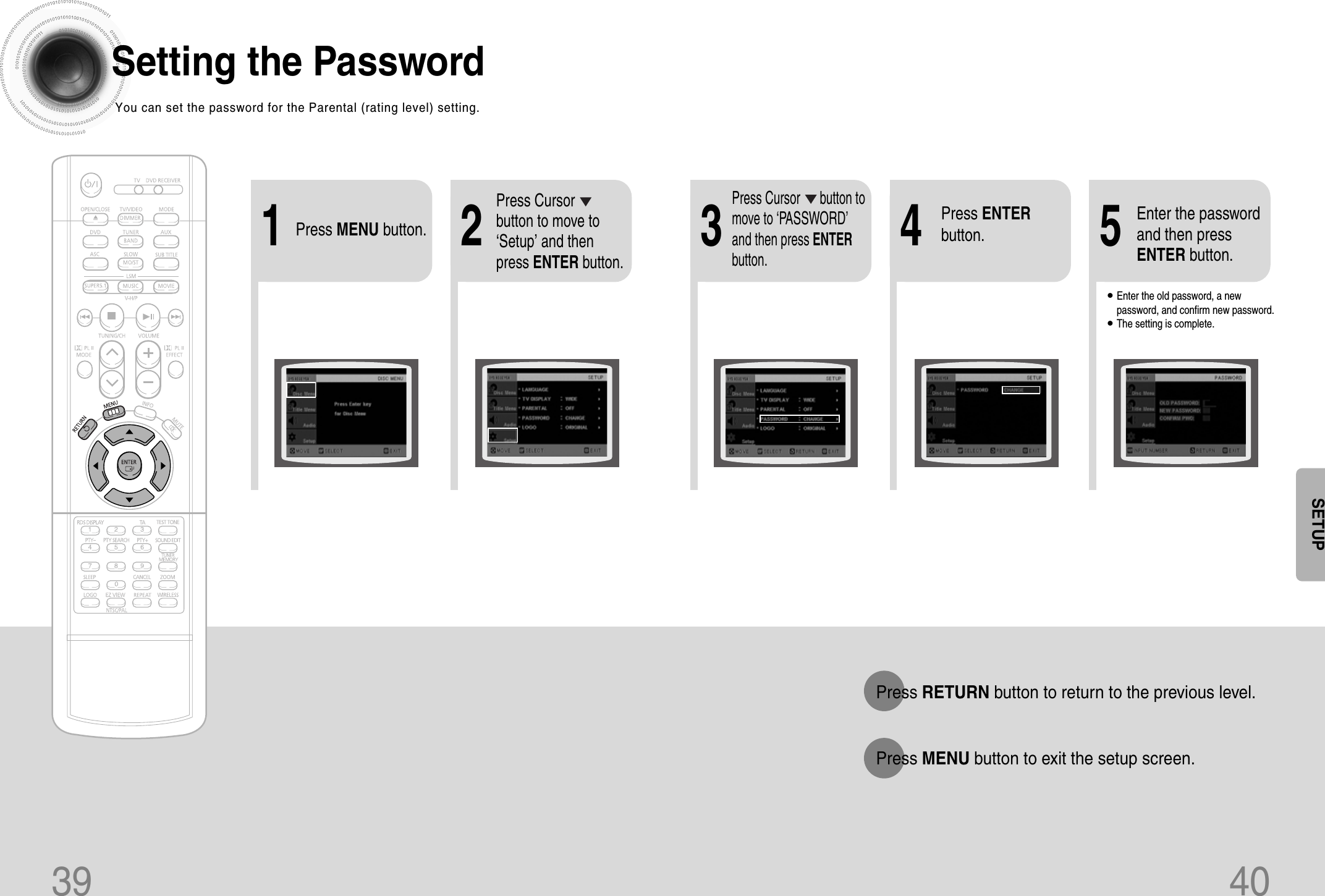

21Press MENU button.Press Cursorbutton to move to‘Setup’ and thenpress ENTER button.4•Enter the old password, a newpassword, and confirm new password.•The setting is complete.3 5Press RETURN button to return to the previous level.Press MENU button to exit the setup screen.39 40Press Cursor button tomove to ‘PASSWORD’and then press ENTERbutton.Press ENTERbutton.Enter the passwordand then pressENTER button.SETUPSetting the PasswordYou can set the password for the Parental (rating level) setting.
