manual 3

21Press MENU button.Press Cursorbutton to move to‘Setup’ and thenpress ENTER button.4•Enter the old password, a newpassword, and confirm new password.•The setting is complete.3 5Press RETURN button to return to the previous level.Press MENU button to exit the setup screen.39 40Press Cursor button tomove to ‘PASSWORD’and then press ENTERbutton.Press ENTERbutton.Enter the passwordand then pressENTER button.SETUPSetting the PasswordYou can set the password for the Parental (rating level) setting.

2143Setting the Speaker Mode Setting the Test TonePress MENU button.Press Cursorbutton to move to‘Audio’ and thenpress ENTER button.In the SpeakerSetup, press theENTER button again.L: Front Speaker (L) C: Center Speaker SW: Subwoofer R: Front Speaker (R) LS: Rear Speaker (L) RS: Rear Speaker (R)Press Cursor , , , buttons to moveto the desiredspeaker and thenpress ENTER button.•For C, LS, and RS, each time the buttonis pressed, the mode switchesalternately as follows: SMALL ➝ NONE.•For L and R, the mode is set to SMALL.•With (Dolby Pro Logic II), the delay time may be different for eachmode.•With AC-3 and DTS, the delay time is set between 00 and 15mSEC.•Depending on PRO LOGIC and STEREO, the speaker mode may vary.Press RETURN button to return to the previous level.Press MENU button to exit the setup screen.43 44NoteSETUPSMALL: Select this when using the speakers.NONE : Select this when no speakers are installed.21Press MENU button.Press Cursorbutton to move to‘Audio’ and thenpress ENTER button.3Press Cursor buttonto move to ‘TESTTONE’ and then pressENTER button.•The test tone will be sent to L ➝ C ➝R ➝ RS ➝ LS ➝ SW in that order. If the button is pressed again at thistime, the test tone will stop.To end the test tone, press TEST TONE button.Press TEST TONE button.•Test tone will be produced as follows:When playing a DVD or CD, this will work only in Stop mode.•Use this function to check that each speaker iscorrectly connected and that there is no problem.When manually testing using the TEST TONE buttonMulti-Channel Pro Logic ModeStart

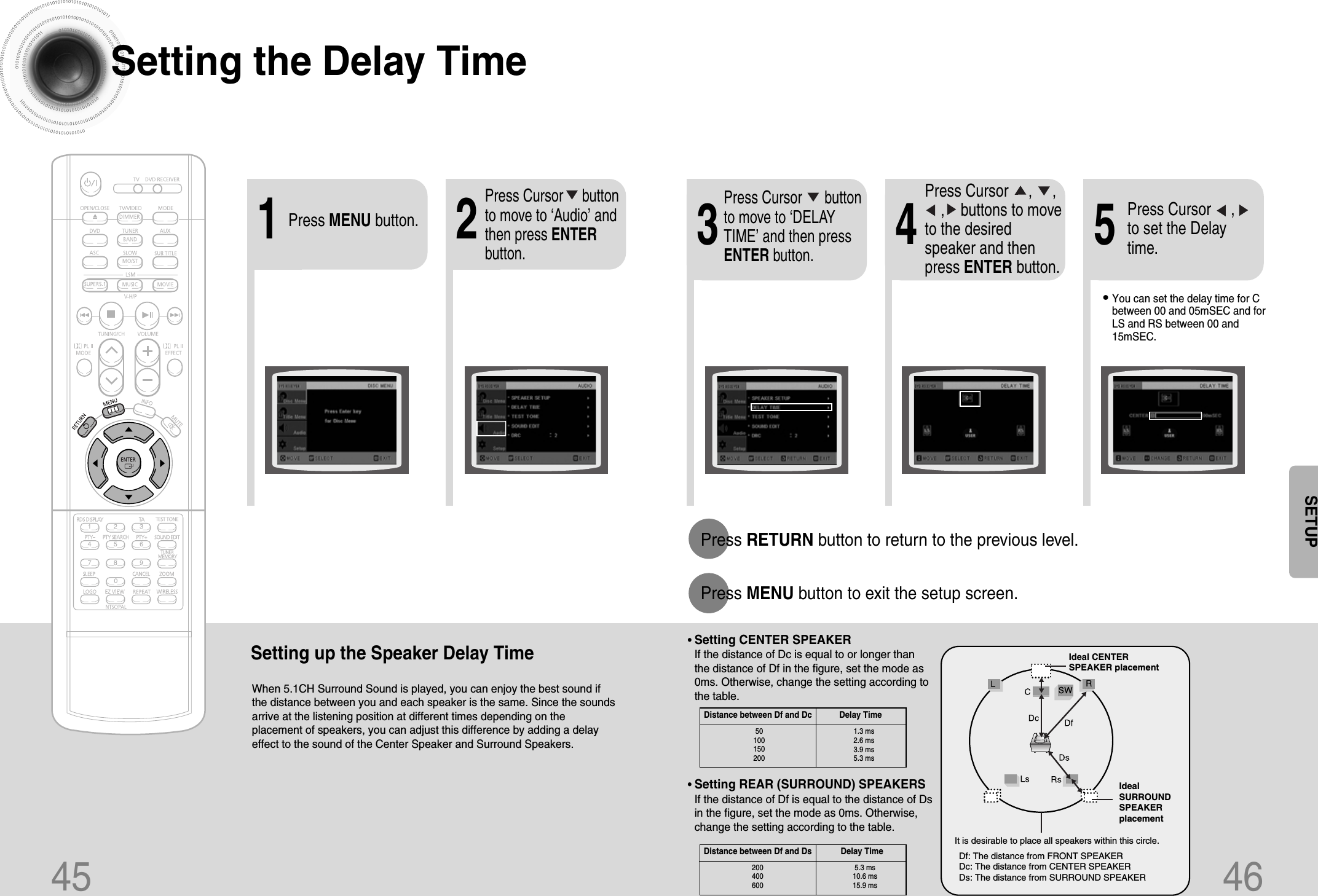

Setting the Delay Time45 465.3 ms10.6 ms 15.9 ms• Setting REAR (SURROUND) SPEAKERSIf the distance of Df is equal to the distance of Dsin the figure, set the mode as 0ms. Otherwise,change the setting according to the table.• Setting CENTER SPEAKERIf the distance of Dc is equal to or longer thanthe distance of Df in the figure, set the mode as0ms. Otherwise, change the setting according tothe table.Distance between Df and Dc Delay TimeDelay Time1.3 ms2.6 ms 3.9 ms5.3 msDistance between Df and Ds50100150200200400600Setting up the Speaker Delay TimeWhen 5.1CH Surround Sound is played, you can enjoy the best sound ifthe distance between you and each speaker is the same. Since the soundsarrive at the listening position at different times depending on theplacement of speakers, you can adjust this difference by adding a delayeffect to the sound of the Center Speaker and Surround Speakers.Df: The distance from FRONT SPEAKERDc: The distance from CENTER SPEAKERDs: The distance from SURROUND SPEAKERIdeal CENTERSPEAKER placementIt is desirable to place all speakers within this circle.IdealSURROUNDSPEAKERplacementSETUP21Press MENU button.Press Cursor buttonto move to ‘Audio’ andthen press ENTERbutton.•You can set the delay time for Cbetween 00 and 05mSEC and forLS and RS between 00 and15mSEC.43 5Press Cursor buttonto move to ‘DELAYTIME’ and then pressENTER button.Press Cursor , , , buttons to moveto the desiredspeaker and thenpress ENTER button.Press Cursor ,to set the Delaytime.Press RETURN button to return to the previous level.Press MENU button to exit the setup screen.

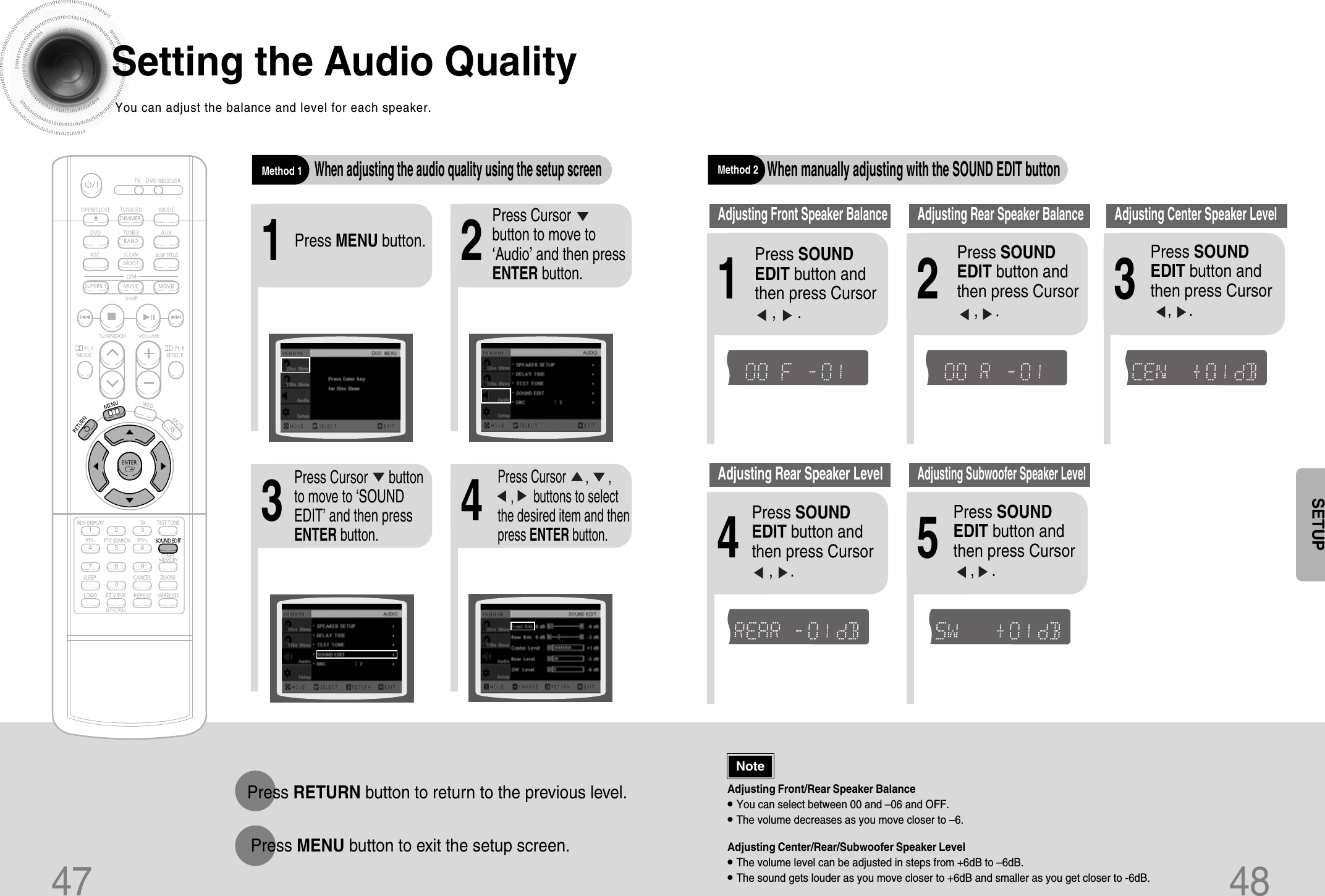

47Setting the Audio QualityYou can adjust the balance and level for each speaker.2143Press MENU button.Press Cursor button to move to‘Audio’ and then pressENTER button.Press Cursor buttonto move to ‘SOUNDEDIT’ and then pressENTER button.Press Cursor , , , buttons to selectthe desired item and thenpress ENTER button.Adjusting Front/Rear Speaker Balance•You can select between 00 and –06 and OFF.•The volume decreases as you move closer to –6.Adjusting Center/Rear/Subwoofer Speaker Level•The volume level can be adjusted in steps from +6dB to –6dB.•The sound gets louder as you move closer to +6dB and smaller as you get closer to -6dB.Method 1When adjusting the audio quality using the setup screenMethod 2When manually adjusting with the SOUND EDIT button21Adjusting Front Speaker Balance Adjusting Rear Speaker BalancePress SOUNDEDIT button andthen press Cursor , .3Adjusting Center Speaker Level4 5Adjusting Rear Speaker LevelAdjusting Subwoofer Speaker LevelPress RETURN button to return to the previous level.Press MENU button to exit the setup screen.48Press SOUNDEDIT button andthen press Cursor , .Press SOUNDEDIT button andthen press Cursor , .Press SOUNDEDIT button andthen press Cursor , .Press SOUNDEDIT button andthen press Cursor , .NoteSETUPTITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHz

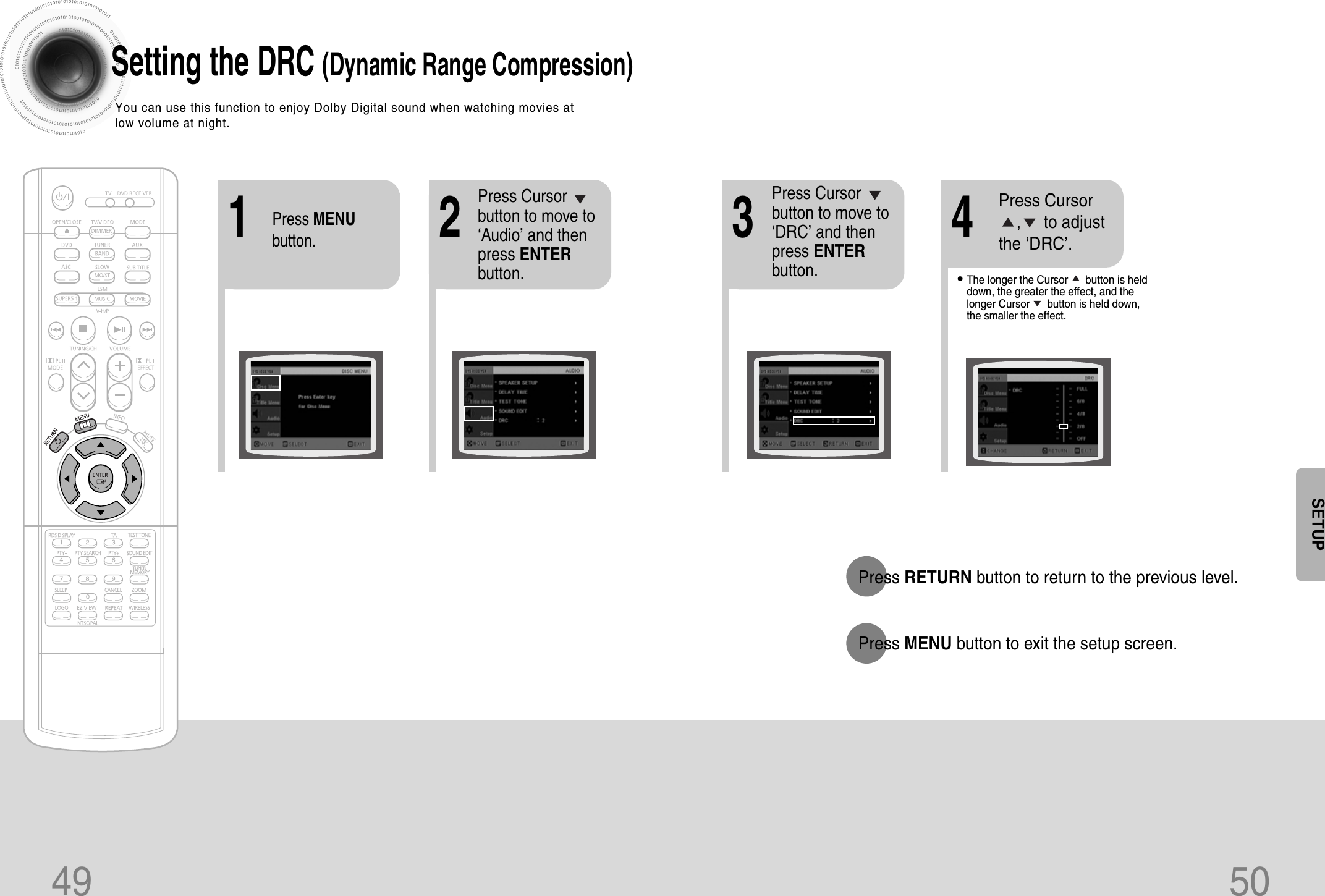

49 50Setting the DRC (Dynamic Range Compression)You can use this function to enjoy Dolby Digital sound when watching movies atlow volume at night.12Press MENUbutton.Press Cursorbutton to move to‘Audio’ and thenpress ENTERbutton.•The longer the Cursor button is helddown, the greater the effect, and thelonger Cursor button is held down,the smaller the effect.34Press Cursorbutton to move to‘DRC’ and thenpress ENTERbutton.Press Cursor , to adjustthe ‘DRC’.Press RETURN button to return to the previous level.Press MENU button to exit the setup screen.SETUP

5453DSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLEPBC CHAP PRGM RDS RT TATUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSRTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGLCRSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLEPBC CHAP PRGM TATUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLEPBC CHAP PRGM RDS RT TATUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLEPBC CHAP PRGM RDS RT TATUNEDkHzMHzSTCMXLINEAR PCMMPEG-2 AAC MPEGLCRSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTMagic Sound Field ModeYou can reproduce a 2-channel sound source, suchas VCD, CD, and radio broadcast, in 5.1-channelsurround sound.Super 5.1 Function•Each time the button is pressed, theselection alternates between SUPER5.1 and SUPER OFF.•Select "SUPER 5.1" to play 2-channelsound in 5.1 channel.Press SUPER5.1button.DSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLEPBC CHAP PRGM RDS RT TATUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGLCRSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTIf you select Music Sound Field when listening to a2-channel sound source, it will be reproduced in5.1-channel surround sound so that you can enjoy adynamic sound with a sense of presence.Music Sound Field Function•Each time the button is pressed,the selection changes as follows:Press MUSIC button.You select from 3 different modes of sound fieldfor movies.Movie Sound Field Function•Each time the button is pressed,the selection changes as follows:When watchingan action movieWhen watching adramaWhen watching amusicalPress MOVIEbutton.Magic Headphone FunctionUse headphones (not supplied) for private listening pleasure.You can enjoy a dynamic sound effects similar to that of 5.1 channelsurround sound using a conventional stereo headphone.ASC LSM V-H/P•To purchase headphones, pleasecontact the nearest SamsungElectronics Customer Center.12•Each time the button is pressed, theselection alternates betweenVIRTUAL ON and VIRTUAL OFF.Plug theheadphones into theheadphone jack.Press V-H/Pbutton.•VIRTUAL ON: Select to enjoy a 5.1-channel surround sound that gives thefeeling of being in a baseball park or concert hall.•VIRTUAL OFF: Select to listen to a standard 2-channel stereo sound.SETUP•When you insert a DVD recorded in 2-channel or multi-channel format and press theSUPER 5.1 button, the message "THIS FUNCTION APPLIES ONLY 2CH SOURCE"appears in the display and it will not work.Note•Do not listen at extremely high volume levels when using headphones.Extended, high-volume listening can lead to permanent hearing loss.Note

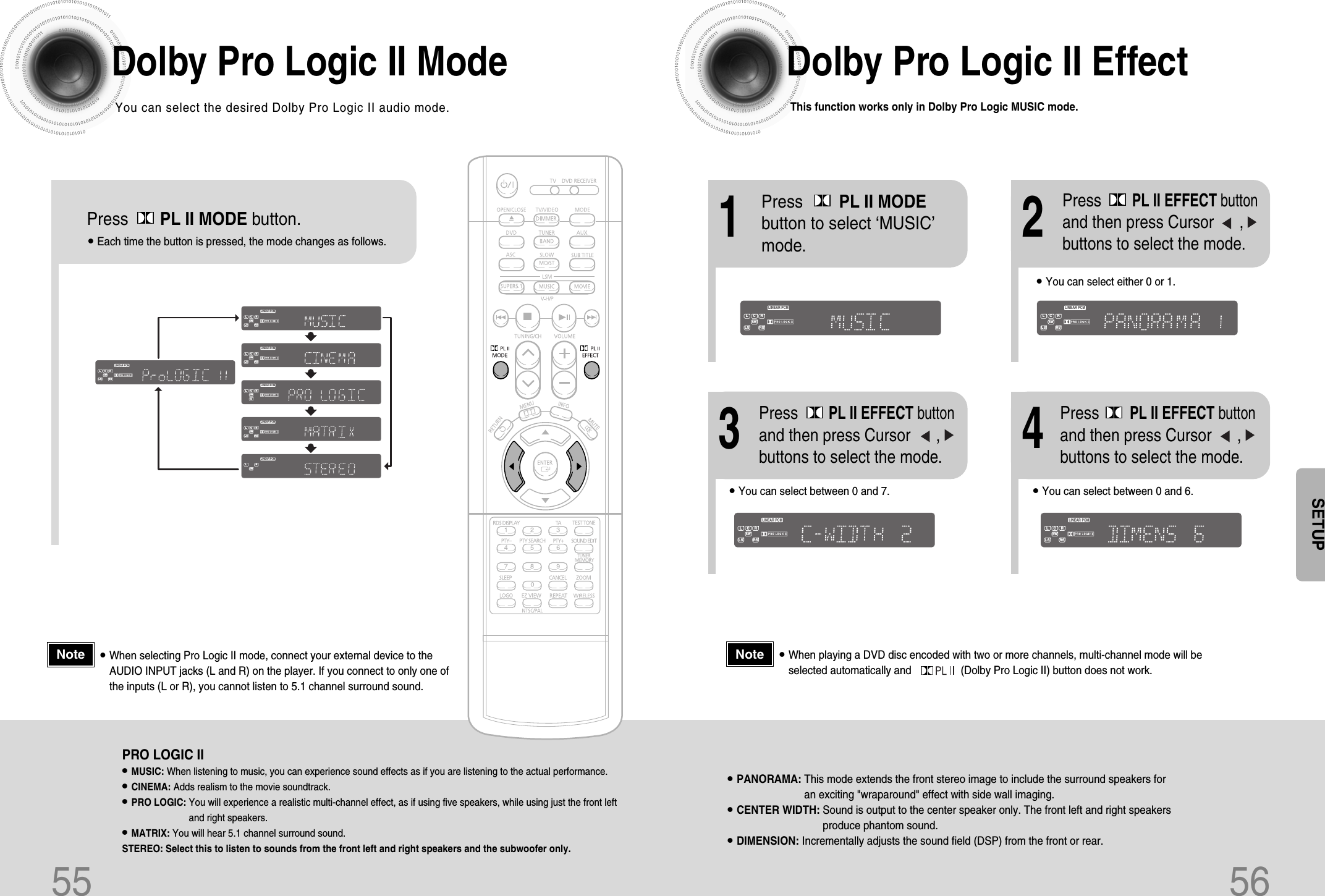

55 56Dolby Pro Logic II ModeYou can select the desired Dolby Pro Logic II audio mode.Dolby Pro Logic II EffectThis function works only in Dolby Pro Logic MUSIC mode.Press PL II MODE button.DSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGLCRSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTSPRO LOGIC II•MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.•CINEMA: Adds realism to the movie soundtrack.•PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front leftand right speakers.•MATRIX: You will hear 5.1 channel surround sound.STEREO: Select this to listen to sounds from the front left and right speakers and the subwoofer only.•Each time the button is pressed, the mode changes as follows.12•You can select between 0 and 7.•You can select between 0 and 6.34•PANORAMA: This mode extends the front stereo image to include the surround speakers foran exciting "wraparound" effect with side wall imaging.•CENTER WIDTH: Sound is output to the center speaker only. The front left and right speakersproduce phantom sound. •DIMENSION: Incrementally adjusts the sound field (DSP) from the front or rear.•When playing a DVD disc encoded with two or more channels, multi-channel mode will beselected automatically and (Dolby Pro Logic II) button does not work.•You can select either 0 or 1.Press PL II MODEbutton to select ‘MUSIC’mode.Press PL II EFFECT buttonand then press Cursor ,buttons to select the mode.DSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTDSPCMXLINEAR PCMMPEG-2 AAC MPEGL C RSWLS RSTITLE PBCCHAPPRGM RDS RTTA TUNEDkHzMHzSTPress PL II EFFECT buttonand then press Cursor ,buttons to select the mode.Press PL II EFFECT buttonand then press Cursor ,buttons to select the mode.NoteSETUP•When selecting Pro Logic II mode, connect your external device to theAUDIO INPUT jacks (L and R) on the player. If you connect to only one ofthe inputs (L or R), you cannot listen to 5.1 channel surround sound.Note

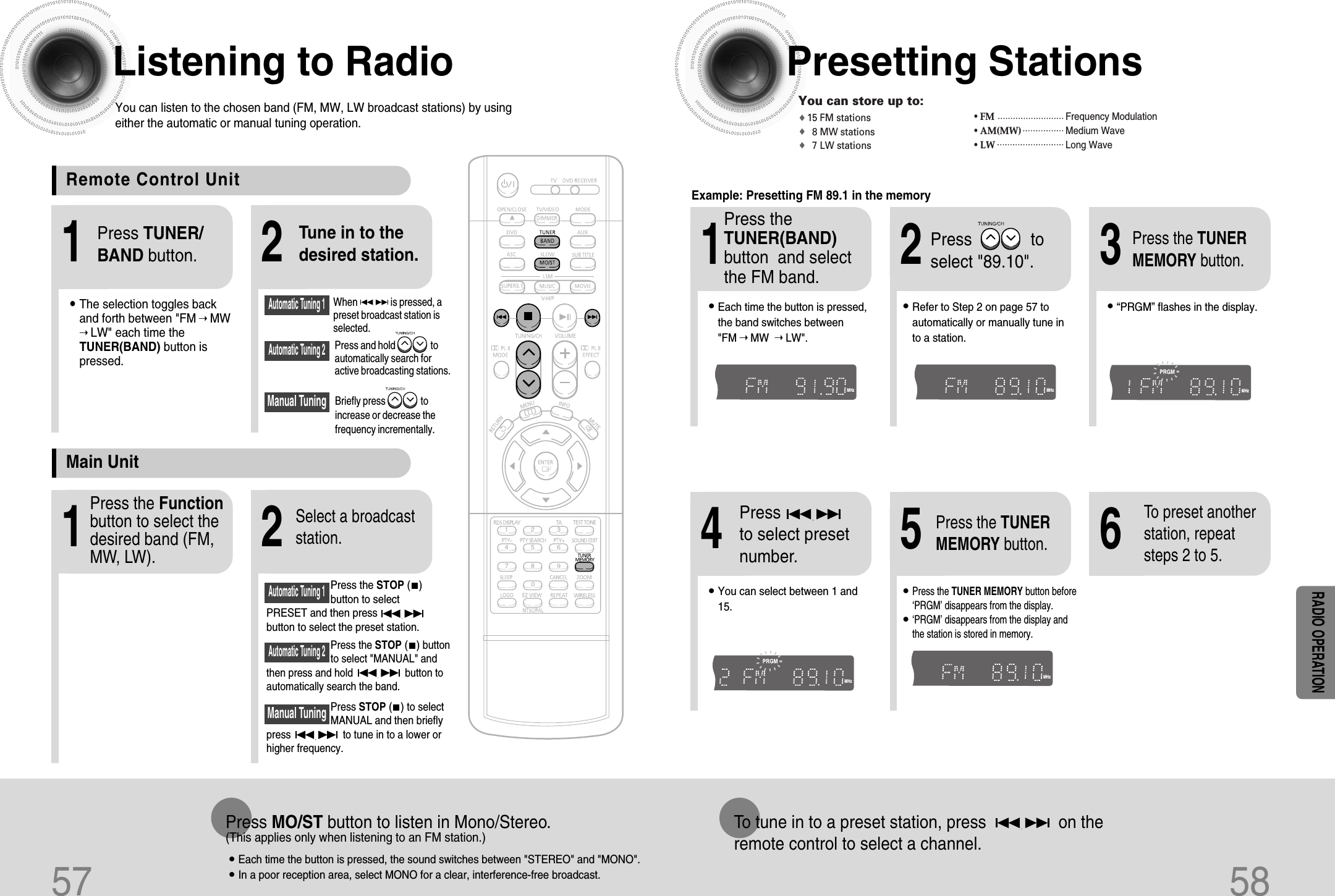

57 58Listening to RadioYou can listen to the chosen band (FM, MW, LW broadcast stations) by usingeither the automatic or manual tuning operation.Presetting Stations21• The selection toggles backand forth between "FM➝ MW➝ LW" each time theTUNER(BAND) button ispressed.Tune in to thedesired station.Press TUNER/BAND button.Automatic Tuning 2Manual Tuning21Select a broadcaststation.Press the STOP ( )button to selectPRESET and then pressbutton to select the preset station.Automatic Tuning 1Press the Functionbutton to select thedesired band (FM,MW, LW).Press the STOP( ) buttonto select "MANUAL" andthen press and hold button toautomatically search the band.Automatic Tuning 2Press STOP( ) to selectMANUAL and then brieflypress to tune in to a lower orhigher frequency.Manual Tuning•Each time the button is pressed, the sound switches between "STEREO" and "MONO".•In a poor reception area, select MONO for a clear, interference-free broadcast.Press MO/ST button to listen in Mono/Stereo. (This applies only when listening to an FM station.)To tune in to a preset station, press on the remote control to select a channel.•Refer to Step 2 on page 57 toautomatically or manually tune into a station.21•Each time the button is pressed,the band switches between "FM➝ MW ➝ LW".TITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLERDS RTSTTUNEDkHzMHz•“PRGM” flashes in the display. 3Example: Presetting FM 89.1 in the memory Press toselect "89.10".Press theTUNER(BAND)button and selectthe FM band.•Press the TUNER MEMORY button before‘PRGM’ disappears from the display.•‘PRGM’ disappears from the display andthe station is stored in memory.54•You can select between 1 and15.TITLERDS RTSTTUNEDkHzMHzTITLECHAPRDS RTSTTUNEDkHzMHzPress the TUNERMEMORY button.Press the TUNERMEMORY button.6To preset anotherstation, repeatsteps 2 to 5.Pressto select presetnumber.When is pressed, apreset broadcast station isselected.Press and hold toautomatically search foractive broadcasting stations.Briefly press toincrease or decrease thefrequency incrementally.Automatic Tuning 1Remote Control UnitMain UnitRADIO OPERATIONYou can store up to:15 FM stations8 MW stations 7 LW stations• FM Frequency Modulation• AM(MW) Medium Wave• LW Long Wave

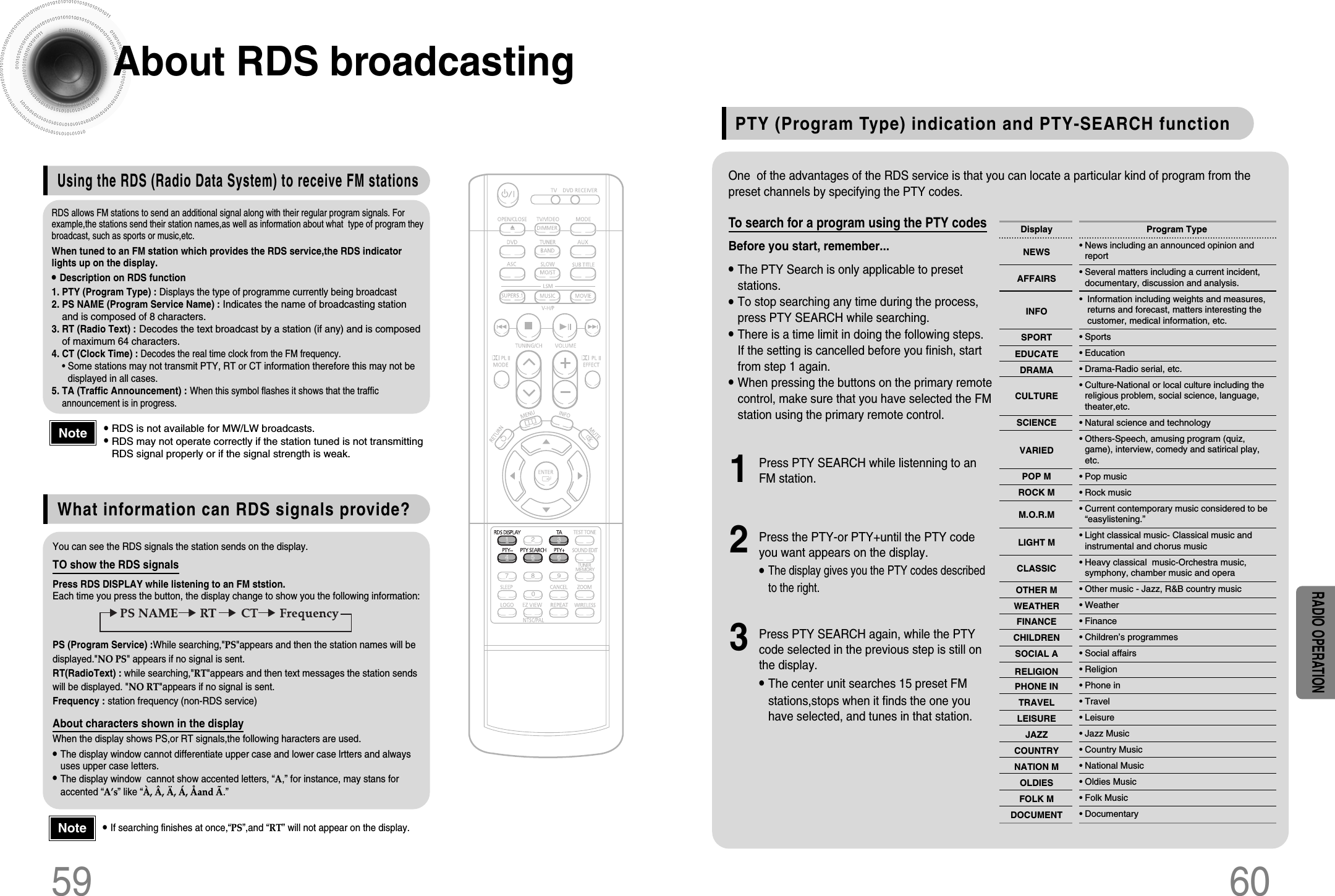

About RDS broadcasting• RDS is not available for MW/LW broadcasts.• RDS may not operate correctly if the station tuned is not transmittingRDS signal properly or if the signal strength is weak.• If searching finishes at once,“PS”,and “RT” will not appear on the display.Using the RDS (Radio Data System) to receive FM stationsPTY (Program Type) indication and PTY-SEARCH functionWhat information can RDS signals provide?RDS allows FM stations to send an additional signal along with their regular program signals. Forexample,the stations send their station names,as well as information about what type of program theybroadcast, such as sports or music,etc.When tuned to an FM station which provides the RDS service,the RDS indicatorlights up on the display.• Description on RDS function1. PTY (Program Type) : Displays the type of programme currently being broadcast2. PS NAME (Program Service Name) :Indicates the name of broadcasting stationand is composed of 8 characters.3. RT (Radio Text) :Decodes the text broadcast by a station (if any) and is composedof maximum 64 characters.4. CT (Clock Time) :Decodes the real time clock from the FM frequency.• Some stations may not transmit PTY, RT or CT information therefore this may not bedisplayed in all cases.5. TA (Traffic Announcement) :When this symbol flashes it shows that the trafficannouncement is in progress.NoteNoteYou can see the RDS signals the station sends on the display.TO show the RDS signalsPress RDS DISPLAY while listening to an FM ststion.Each time you press the button, the display change to show you the following information:PS (Program Service) :While searching,"PS"appears and then the station names will bedisplayed."NO PS" appears if no signal is sent.RT(RadioText) : while searching,"RT"appears and then text messages the station sendswill be displayed. "NO RT"appears if no signal is sent.Frequency : station frequency (non-RDS service)About characters shown in the displayWhen the display shows PS,or RT signals,the following haracters are used.• The display window cannot differentiate upper case and lower case lrtters and alwaysuses upper case letters.• The display window cannot show accented letters, “A,” for instance, may stans foraccented “A’s” like “À, Â, Ä, Á, Åand Ã.”59 60To search for a program using the PTY codesBefore you start, remember...• The PTY Search is only applicable to presetstations.• To stop searching any time during the process,press PTY SEARCH while searching.• There is a time limit in doing the following steps. If the setting is cancelled before you finish, startfrom step 1 again.• When pressing the buttons on the primary remotecontrol, make sure that you have selected the FMstation using the primary remote control.One of the advantages of the RDS service is that you can locate a particular kind of program from thepreset channels by specifying the PTY codes.Press PTY SEARCH while listenning to anFM station.1Press the PTY-or PTY+until the PTY codeyou want appears on the display.• The display gives you the PTY codes describedto the right.2Press PTY SEARCH again, while the PTYcode selected in the previous step is still onthe display.• The center unit searches 15 preset FMstations,stops when it finds the one youhave selected, and tunes in that station.3DisplayNEWSAFFAIRSINFOSPORTEDUCATEDRAMACULTURESCIENCEVARIEDPOP MROCK MM.O.R.MLIGHT MCLASSICOTHER MWEATHERFINANCECHILDRENSOCIAL ARELIGIONPHONE INTRAVELLEISUREJAZZCOUNTRYNATION MOLDIESFOLK MDOCUMENTProgram Type• News including an announced opinion andreport• Several matters including a current incident,documentary, discussion and analysis.• Information including weights and measures,returns and forecast, matters interesting thecustomer, medical information, etc.• Sports• Education• Drama-Radio serial, etc.• Culture-National or local culture including thereligious problem, social science, language,theater,etc.• Natural science and technology• Others-Speech, amusing program (quiz,game), interview, comedy and satirical play,etc.• Pop music• Rock music• Current contemporary music considered to be“easylistening.”• Light classical music- Classical music andinstrumental and chorus music• Heavy classical music-Orchestra music,symphony, chamber music and opera• Other music - Jazz, R&B country music• Weather• Finance• Children’s programmes• Social affairs• Religion• Phone in• Travel• Leisure• Jazz Music• Country Music• National Music• Oldies Music• Folk Music• DocumentaryRADIO OPERATION

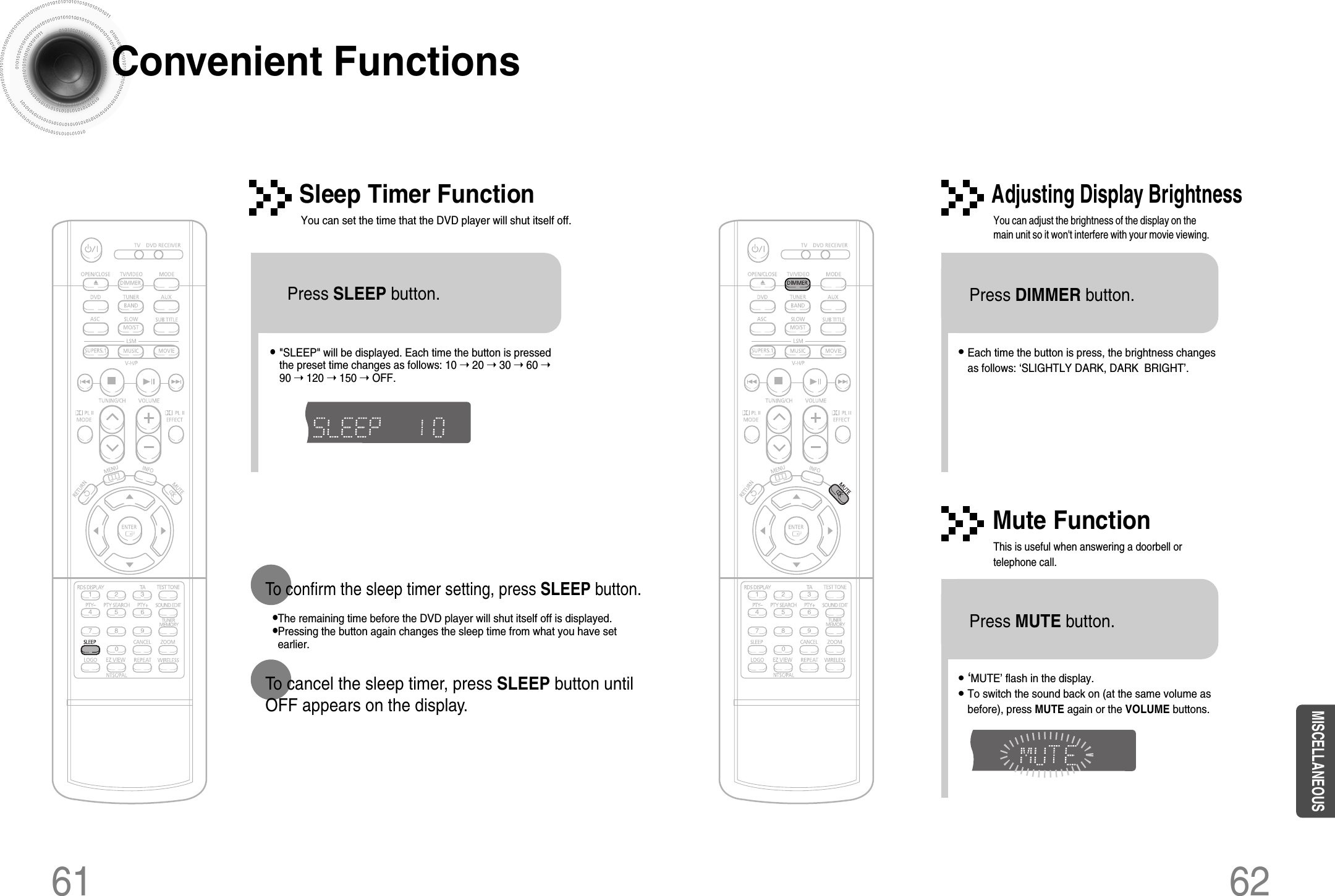

61 62Convenient Functions•The remaining time before the DVD player will shut itself off is displayed.•Pressing the button again changes the sleep time from what you have setearlier.To confirm the sleep timer setting, press SLEEP button.•Each time the button is press, the brightness changesas follows: ‘SLIGHTLY DARK, DARK BRIGHT’.• "SLEEP" will be displayed. Each time the button is pressedthe preset time changes as follows: 10 ➝ 20 ➝ 30 ➝ 60 ➝90 ➝ 120 ➝ 150 ➝ OFF.TITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHzPress SLEEP button.Sleep Timer FunctionYou can set the time that the DVD player will shut itself off.Adjusting Display BrightnessYou can adjust the brightness of the display on themain unit so it won't interfere with your movie viewing.To cancel the sleep timer, press SLEEP button untilOFF appears on the display.Press DIMMER button.•‘MUTE’ flash in the display.•To switch the sound back on (at the same volume asbefore), press MUTE again or the VOLUME buttons.Mute FunctionThis is useful when answering a doorbell ortelephone call.Press MUTE button.MISCELLANEOUS

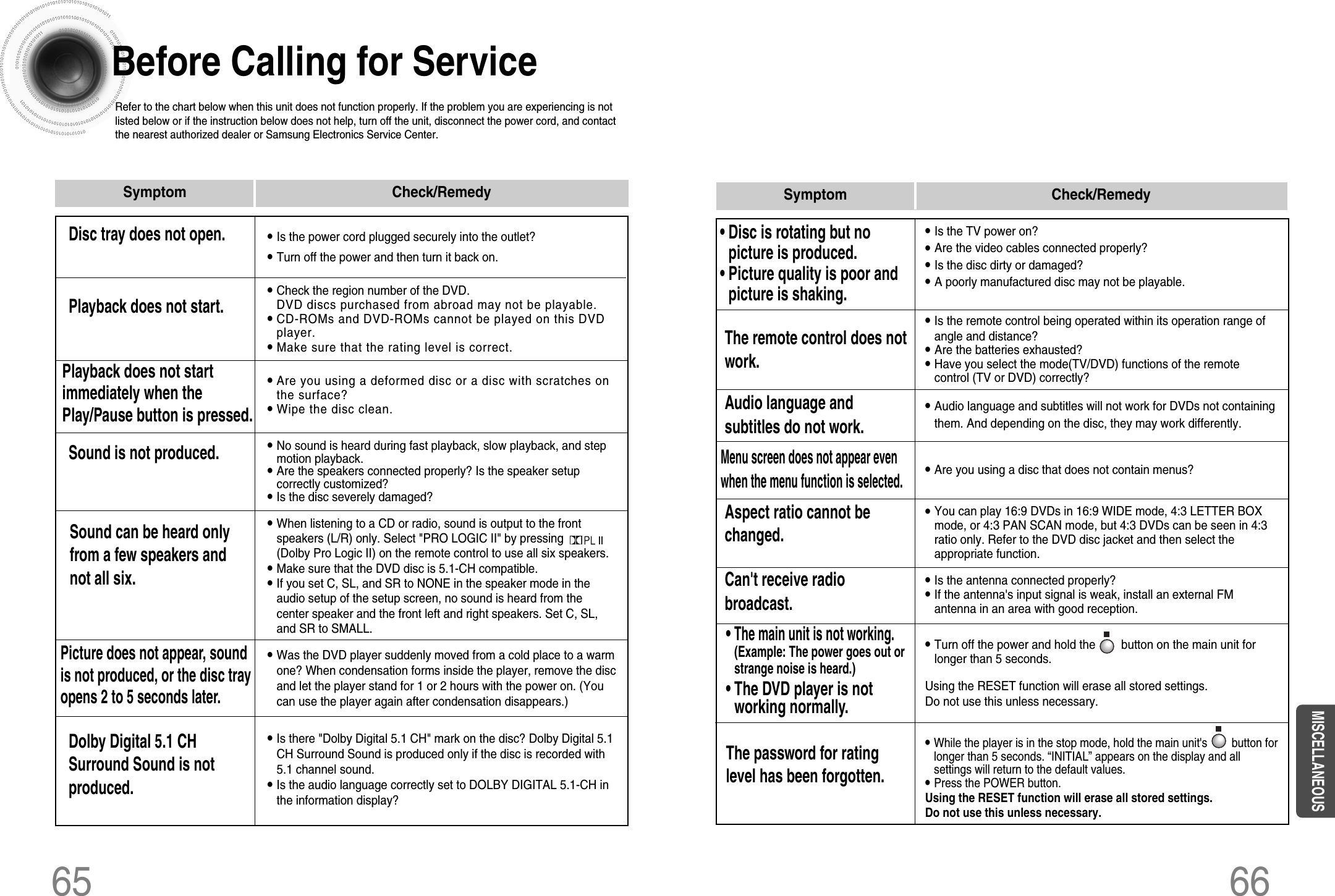

6665Before Calling for ServiceRefer to the chart below when this unit does not function properly. If the problem you are experiencing is notlisted below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contactthe nearest authorized dealer or Samsung Electronics Service Center.• Is the power cord plugged securely into the outlet?• Turn off the power and then turn it back on.• Check the region number of the DVD.DVD discs purchased from abroad may not be playable.• CD-ROMs and DVD-ROMs cannot be played on this DVDplayer.• Make sure that the rating level is correct.• Are you using a deformed disc or a disc with scratches onthe surface?• Wipe the disc clean.Disc tray does not open.Playback does not start.Playback does not startimmediately when thePlay/Pause button is pressed.• No sound is heard during fast playback, slow playback, and stepmotion playback.• Are the speakers connected properly? Is the speaker setupcorrectly customized?• Is the disc severely damaged?Sound is not produced.Sound can be heard onlyfrom a few speakers andnot all six.• Was the DVD player suddenly moved from a cold place to a warmone? When condensation forms inside the player, remove the discand let the player stand for 1 or 2 hours with the power on. (Youcan use the player again after condensation disappears.)• When listening to a CD or radio, sound is output to the frontspeakers (L/R) only. Select "PRO LOGIC II" by pressing(Dolby Pro Logic II) on the remote control to use all six speakers.• Make sure that the DVD disc is 5.1-CH compatible.• If you set C, SL, and SR to NONE in the speaker mode in theaudio setup of the setup screen, no sound is heard from thecenter speaker and the front left and right speakers. Set C, SL,and SR to SMALL.Picture does not appear, soundis not produced, or the disc trayopens 2 to 5 seconds later.• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1CH Surround Sound is produced only if the disc is recorded with5.1 channel sound.• Is the audio language correctly set to DOLBY DIGITAL 5.1-CH inthe information display?Dolby Digital 5.1 CHSurround Sound is notproduced.Symptom Check/Remedy• Is the TV power on?• Are the video cables connected properly?• Is the disc dirty or damaged?• A poorly manufactured disc may not be playable.• Disc is rotating but nopicture is produced.• Picture quality is poor andpicture is shaking.• Is the remote control being operated within its operation range ofangle and distance?• Are the batteries exhausted?• Have you select the mode(TV/DVD) functions of the remotecontrol (TV or DVD) correctly?The remote control does notwork.• Audio language and subtitles will not work for DVDs not containingthem. And depending on the disc, they may work differently.Audio language andsubtitles do not work.• Are you using a disc that does not contain menus?Menu screen does not appear evenwhen the menu function is selected.• While the player is in the stop mode, hold the main unit's button forlonger than 5 seconds. “INITIAL” appears on the display and allsettings will return to the default values.• Press the POWER button.Using the RESET function will erase all stored settings. Do not use this unless necessary.• Turn off the power and hold the button on the main unit forlonger than 5 seconds.Using the RESET function will erase all stored settings. Do not use this unless necessary.The password for ratinglevel has been forgotten.• The main unit is not working. (Example: The power goes out orstrange noise is heard.)• The DVD player is notworking normally.• Is the antenna connected properly?• If the antenna's input signal is weak, install an external FMantenna in an area with good reception.Can't receive radiobroadcast.Symptom Check/Remedy• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOXmode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3ratio only. Refer to the DVD disc jacket and then select theappropriate function.Aspect ratio cannot bechanged.MISCELLANEOUS

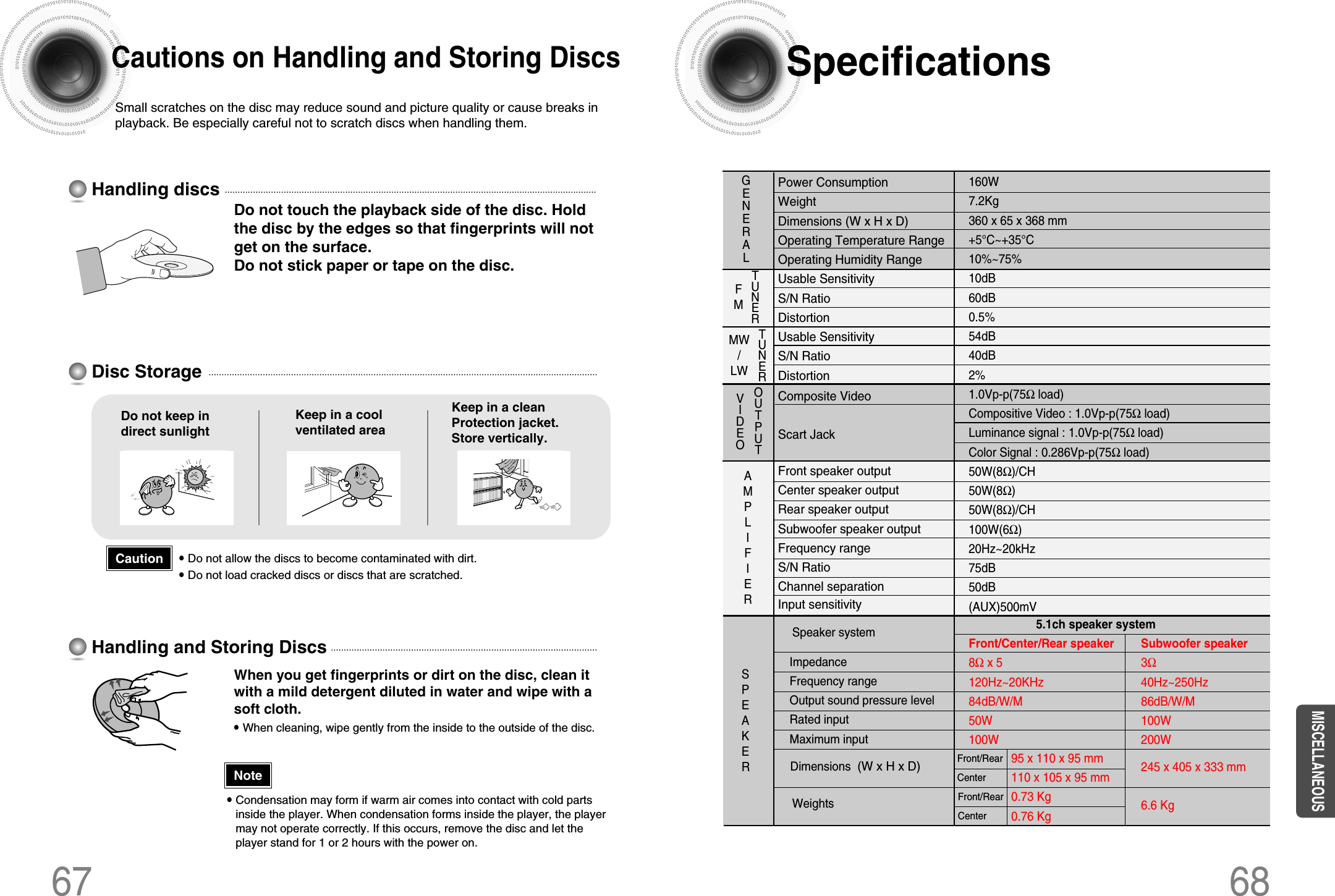

ImpedanceFrequency range Output sound pressure levelRated inputMaximum inputSPEAKER5.1ch speaker systemFront/Center/Rear speaker8Ωx 5120Hz~20KHz84dB/W/M50W100WSubwoofer speaker3Ω40Hz~250Hz86dB/W/M100W200W245 x 405 x 333 mm6.6 KgSpeaker systemDimensions (W x H x D)Front/RearCenter95 x 110 x 95 mm110 x 105 x 95 mm0.73 Kg0.76 KgFront/RearCenterWeights68Specifications67Do not touch the playback side of the disc. Holdthe disc by the edges so that fingerprints will notget on the surface.Do not stick paper or tape on the disc.Do not keep indirect sunlightKeep in a coolventilated areaKeep in a cleanProtection jacket.Store vertically.When you get fingerprints or dirt on the disc, clean itwith a mild detergent diluted in water and wipe with asoft cloth.• When cleaning, wipe gently from the inside to the outside of the disc.Handling discsDisc StorageHandling and Storing DiscsCautions on Handling and Storing DiscsSmall scratches on the disc may reduce sound and picture quality or cause breaks inplayback. Be especially careful not to scratch discs when handling them.• Do not allow the discs to become contaminated with dirt.• Do not load cracked discs or discs that are scratched.Caution• Condensation may form if warm air comes into contact with cold partsinside the player. When condensation forms inside the player, the playermay not operate correctly. If this occurs, remove the disc and let theplayer stand for 1 or 2 hours with the power on.NoteMISCELLANEOUSPower Consumption Weight Dimensions (W x H x D)Operating Temperature Range Operating Humidity Range Usable Sensitivity S/N Ratio Distortion Usable Sensitivity S/N Ratio Distortion Composite VideoScart Jack Front speaker outputCenter speaker outputRear speaker outputSubwoofer speaker outputFrequency range S/N Ratio Channel separationInput sensitivityGENERALTUNERFMTUNERMW/LWOUTPUTVIDEOAMPLIFIER160W7.2Kg360 x 65 x 368 mm+5°C~+35°C10%~75%10dB60dB0.5%54dB40dB2%1.0Vp-p(75Ωload) Compositive Video : 1.0Vp-p(75Ωload) Luminance signal : 1.0Vp-p(75Ωload) Color Signal : 0.286Vp-p(75Ωload) 50W(8Ω)/CH50W(8Ω)50W(8Ω)/CH100W(6Ω)20Hz~20kHz75dB50dB(AUX)500mV

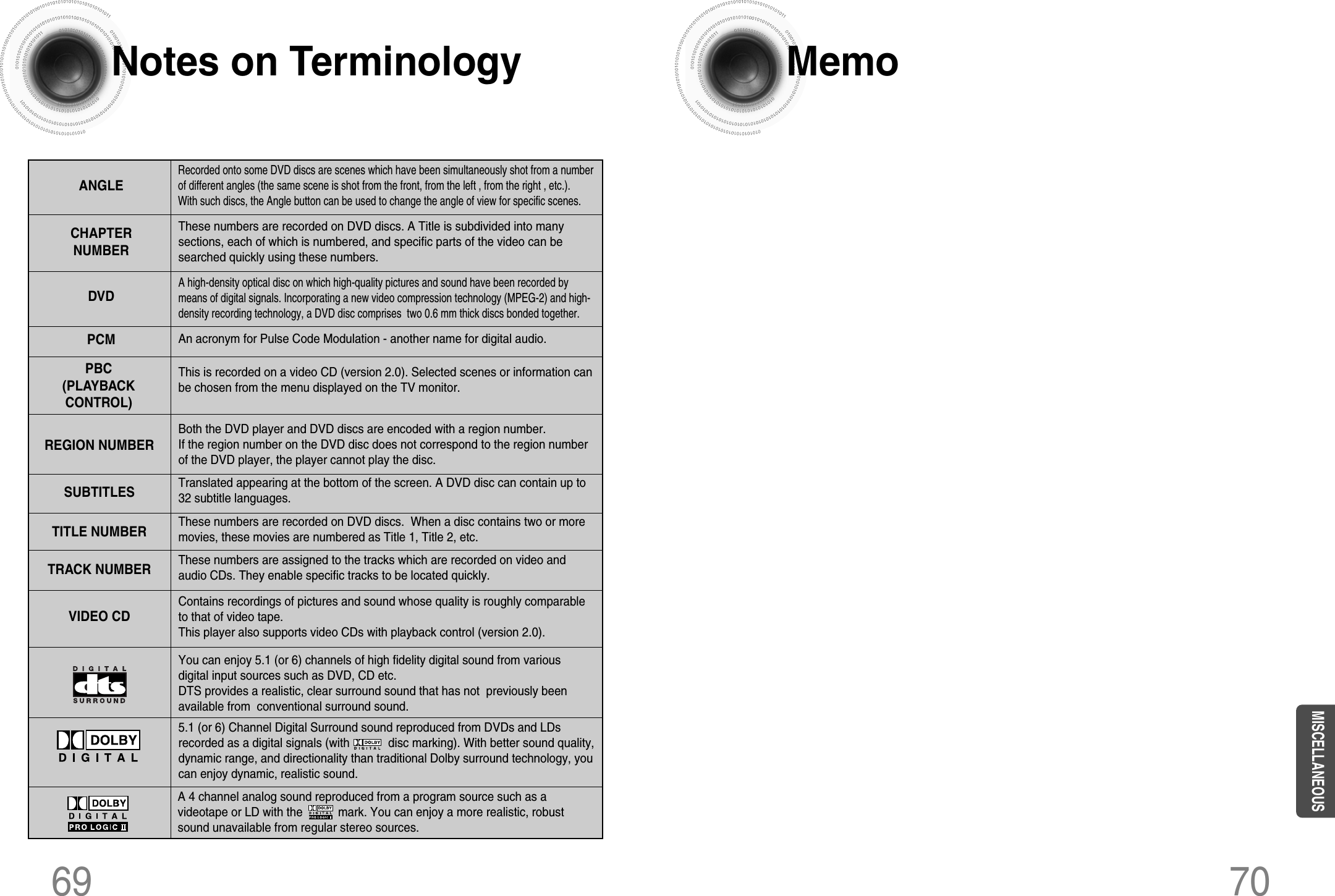

70Notes on Terminology Memo69Recorded onto some DVD discs are scenes which have been simultaneously shot from a numberof different angles (the same scene is shot from the front, from the left , from the right , etc.). With such discs, the Angle button can be used to change the angle of view for specific scenes.ANGLEThese numbers are recorded on DVD discs. A Title is subdivided into manysections, each of which is numbered, and specific parts of the video can besearched quickly using these numbers.A high-density optical disc on which high-quality pictures and sound have been recorded bymeans of digital signals. Incorporating a new video compression technology (MPEG-2) and high-density recording technology, a DVD disc comprises two 0.6 mm thick discs bonded together.An acronym for Pulse Code Modulation - another name for digital audio.This is recorded on a video CD (version 2.0). Selected scenes or information canbe chosen from the menu displayed on the TV monitor.Both the DVD player and DVD discs are encoded with a region number. If the region number on the DVD disc does not correspond to the region numberof the DVD player, the player cannot play the disc.Translated appearing at the bottom of the screen. A DVD disc can contain up to32 subtitle languages.These numbers are recorded on DVD discs. When a disc contains two or moremovies, these movies are numbered as Title 1, Title 2, etc.These numbers are assigned to the tracks which are recorded on video andaudio CDs. They enable specific tracks to be located quickly.Contains recordings of pictures and sound whose quality is roughly comparableto that of video tape.This player also supports video CDs with playback control (version 2.0).You can enjoy 5.1 (or 6) channels of high fidelity digital sound from variousdigital input sources such as DVD, CD etc.DTS provides a realistic, clear surround sound that has not previously beenavailable from conventional surround sound.5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDsrecorded as a digital signals (with disc marking). With better sound quality,dynamic range, and directionality than traditional Dolby surround technology, youcan enjoy dynamic, realistic sound.CHAPTER NUMBERDVDPCMPBC(PLAYBACKCONTROL)REGION NUMBERSUBTITLESTITLE NUMBERTRACK NUMBERVIDEO CDA 4 channel analog sound reproduced from a program source such as avideotape or LD with the mark. You can enjoy a more realistic, robustsound unavailable from regular stereo sources.MISCELLANEOUS
