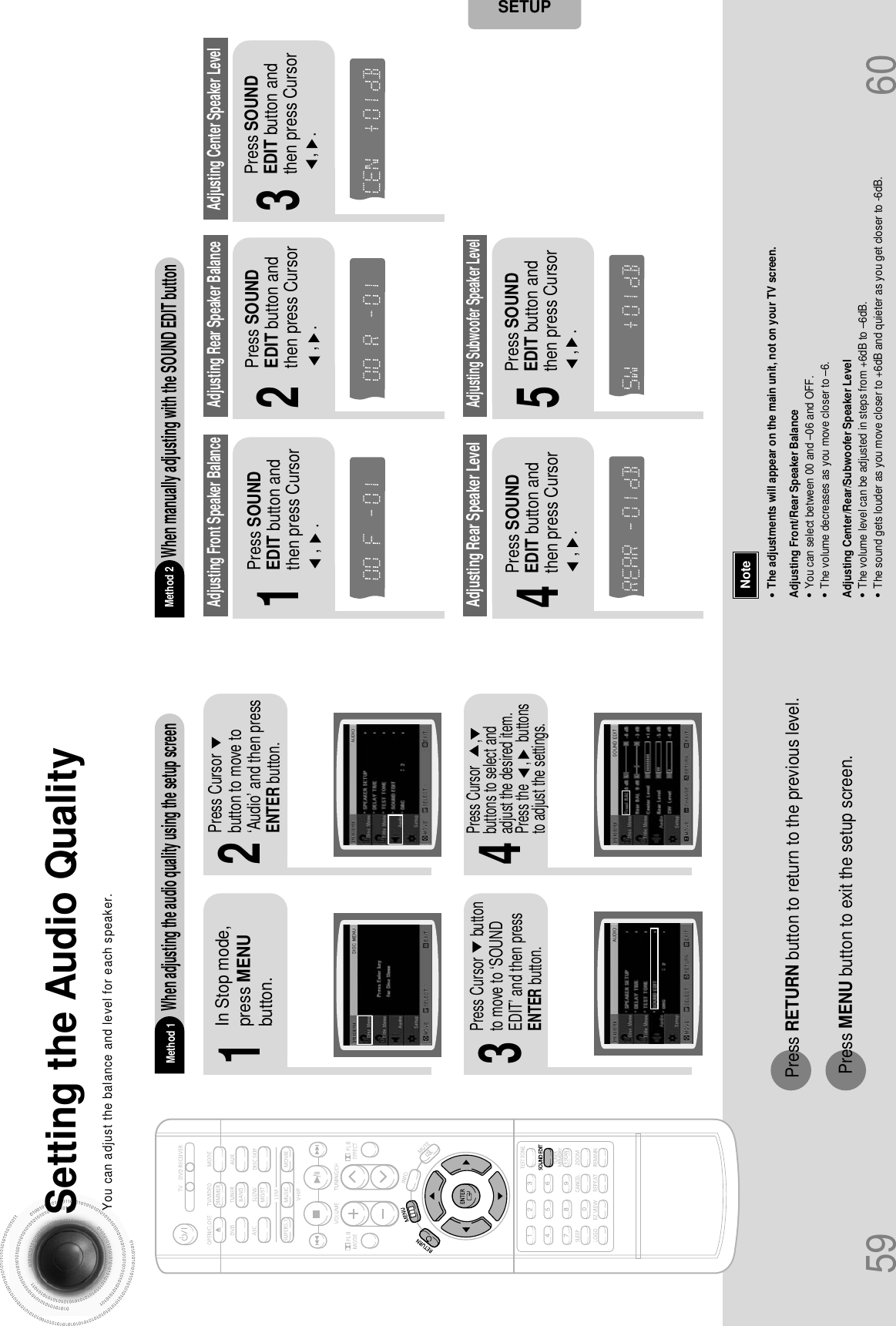

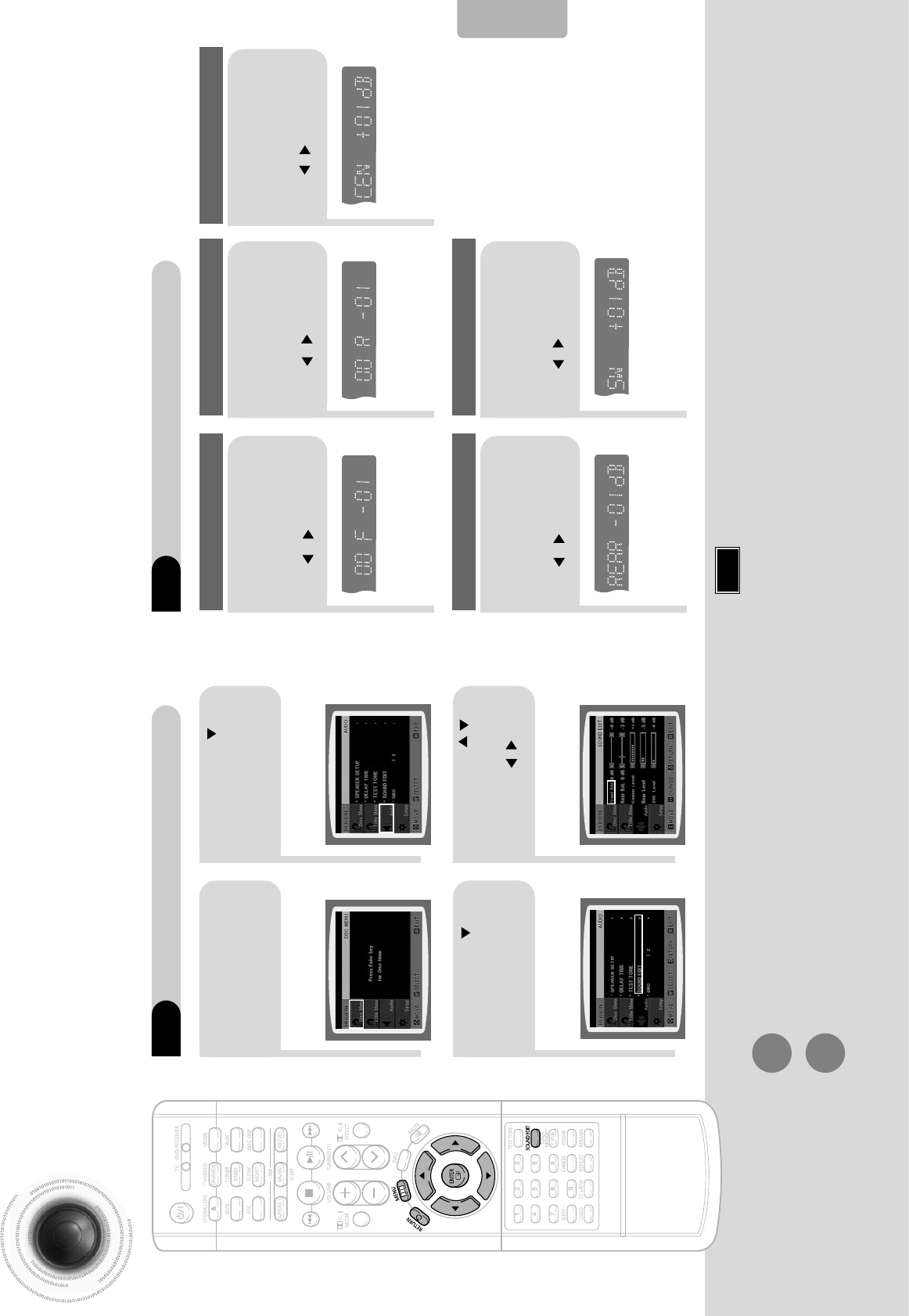

59Setting the Audio QualityYou can adjust the balance and level for each speaker.2143In Stop mode,press MENUbutton.Press Cursorbutton to move to‘Audio’ and then pressENTER button.Press Cursor buttonto move to ‘SOUNDEDIT’ and then pressENTER button.•The adjustments will appear on the main unit, not on your TV screen.Adjusting Front/Rear Speaker Balance•You can select between 00 and –06 and OFF.•The volume decreases as you move closer to –6.Adjusting Center/Rear/Subwoofer Speaker Level•The volume level can be adjusted in steps from +6dB to –6dB.•The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.Method 1When adjusting the audio quality using the setup screenMethod 2When manually adjusting with the SOUND EDIT button21Adjusting Front Speaker Balance Adjusting Rear Speaker BalancePress SOUNDEDIT button andthen press Cursor, .3Adjusting Center Speaker Level4 5Adjusting Rear Speaker LevelAdjusting Subwoofer Speaker LevelPress RETURN button to return to the previous level.Press MENU button to exit the setup screen.60Press SOUNDEDIT button andthen press Cursor, .Press SOUNDEDIT button andthen press Cursor, .Press SOUNDEDIT button andthen press Cursor, .Press SOUNDEDIT button andthen press Cursor, .NoteSETUPTITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHzPress Cursor ,buttons to select andadjust the desired item.Press the , buttonsto adjust the settings.

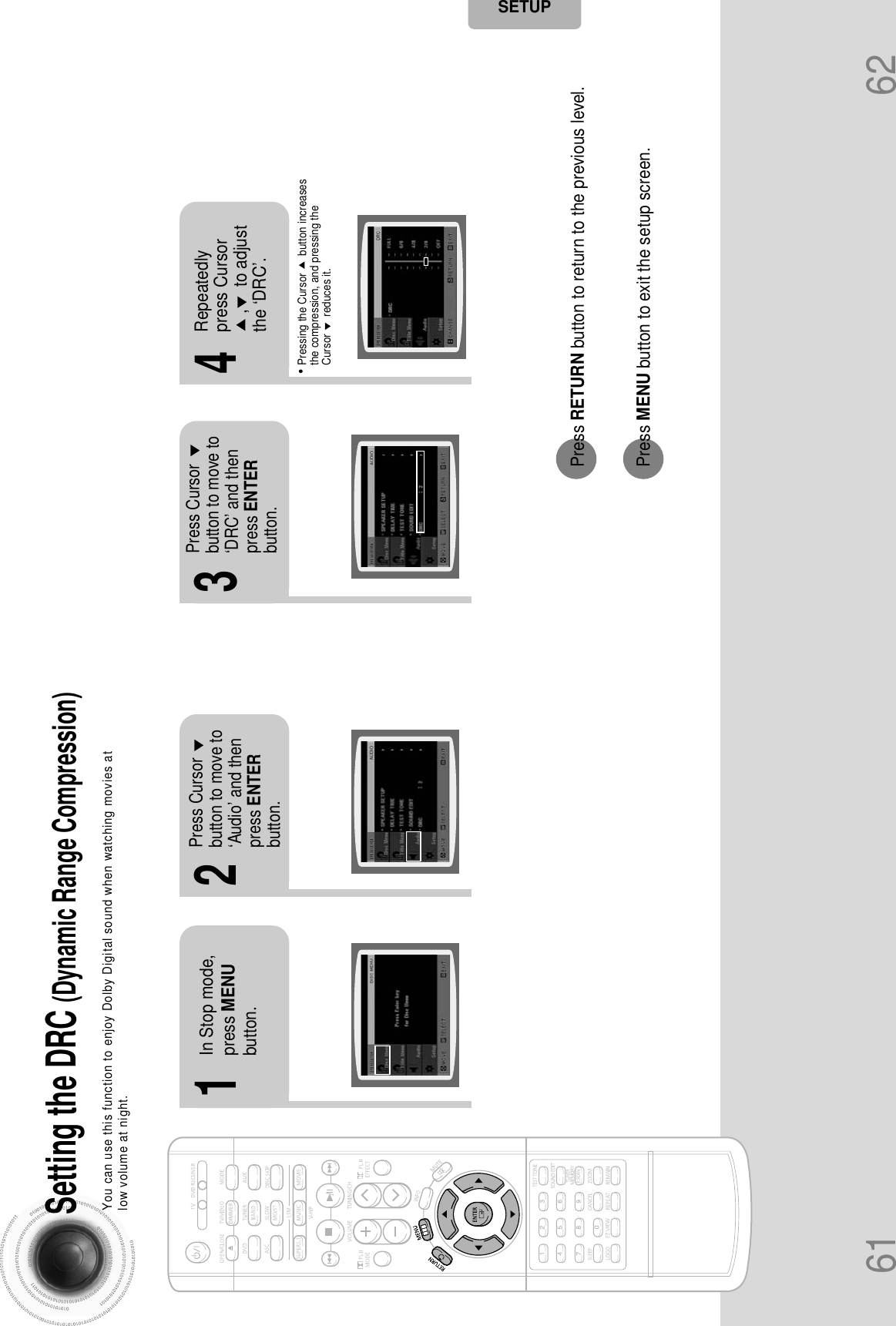

61 62Setting the DRC (Dynamic Range Compression)You can use this function to enjoy Dolby Digital sound when watching movies atlow volume at night.12In Stop mode,press MENUbutton.Press Cursorbutton to move to‘Audio’ and thenpress ENTERbutton.•Pressing the Cursor button increasesthe compression, and pressing the Cursor reduces it.34Press Cursorbutton to move to‘DRC’ and thenpress ENTERbutton.Repeatedlypress Cursor, to adjustthe ‘DRC’.Press RETURN button to return to the previous level.Press MENU button to exit the setup screen.SETUP

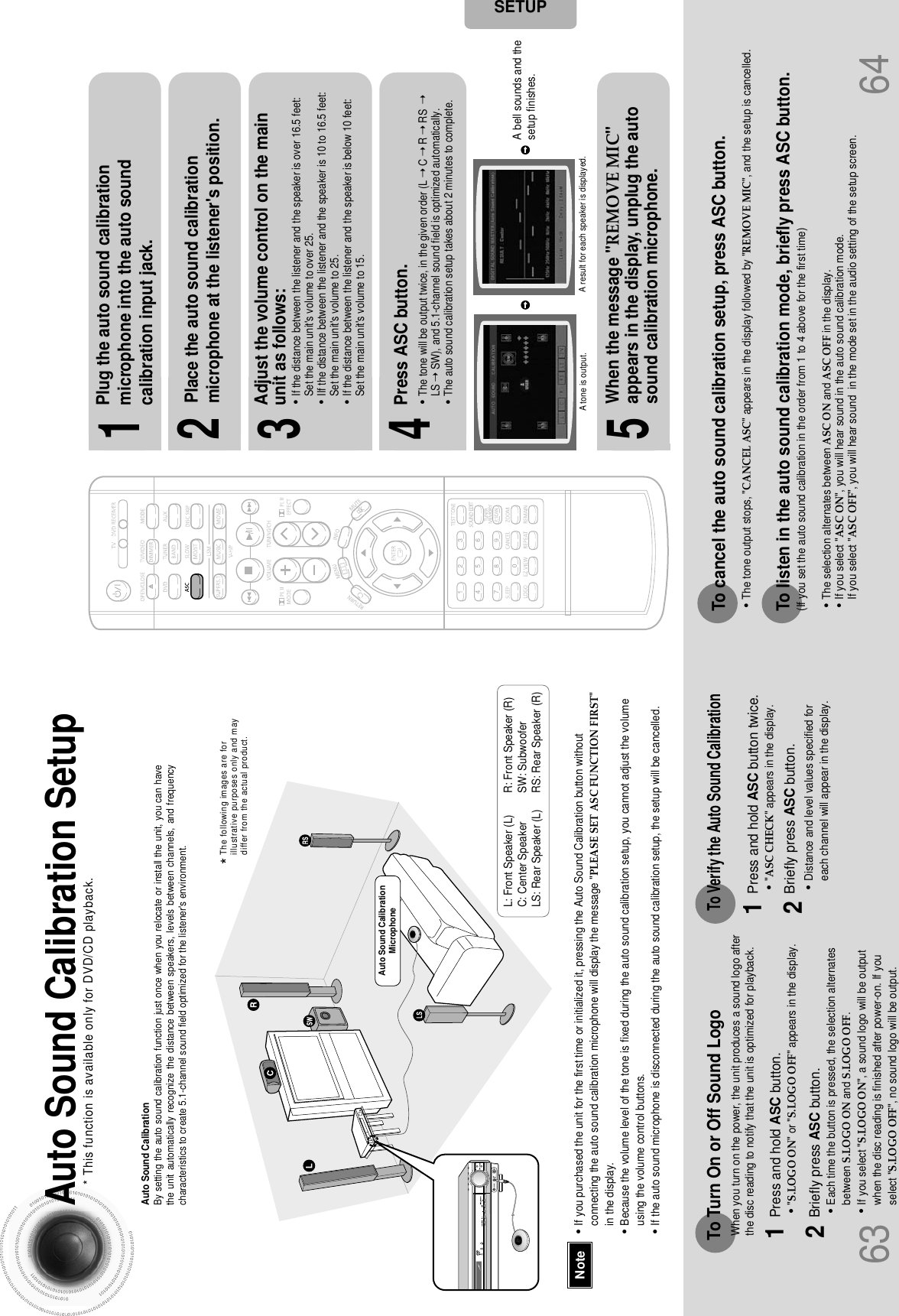

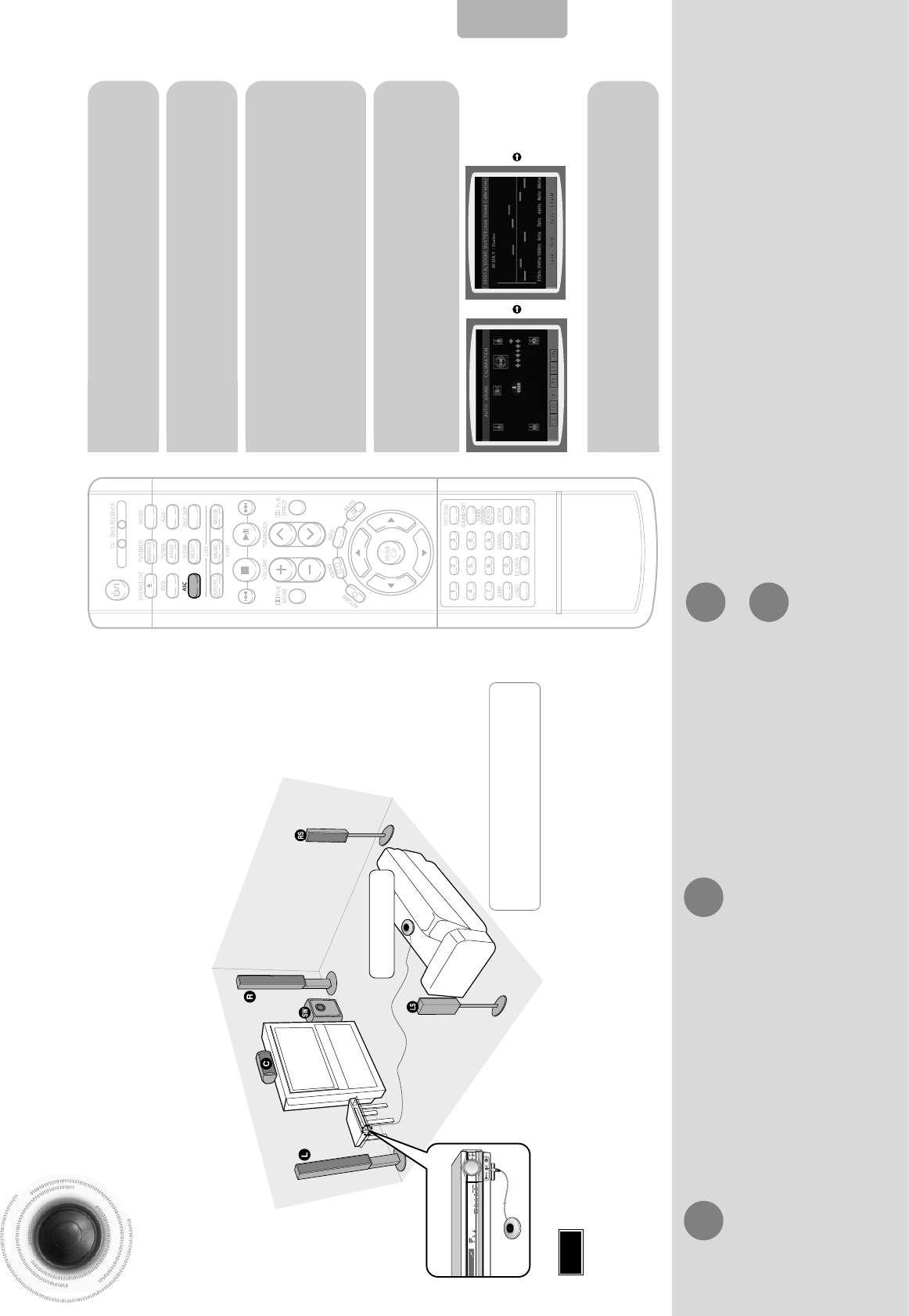

6463Auto Sound Calibration SetupAuto Sound CalibrationBy setting the auto sound calibration function just once when you relocate or install the unit, you can havethe unit automatically recognize the distance between speakers, levels between channels, and frequencycharacteristics to create 5.1-channel sound field optimized for the listener's environment.L: Front Speaker (L) R: Front Speaker (R)C: Center Speaker SW: SubwooferLS: Rear Speaker (L) RS: Rear Speaker (R)To listen in the auto sound calibration mode, briefly press ASC button.(If you set the auto sound calibration in the order from 1 to 4 above for the first time)•The selection alternates between ASC ON and ASC OFF in the display.•If you select "ASC ON", you will hear sound in the auto sound calibration mode.If you select "ASC OFF", you will hear sound in the mode set in the audio setting of the setup screen.•"S.LOGO ON" or "S.LOGO OFF" appears in the display.•Each time the button is pressed, the selection alternatesbetween S.LOGO ON and S.LOGO OFF.•If you select "S.LOGO ON", a sound logo will be outputwhen the disc reading is finished after power-on. If youselect "S.LOGO OFF", no sound logo will be output.1Plug the auto sound calibrationmicrophone into the auto soundcalibration input jack.2Place the auto sound calibrationmicrophone at the listener's position.45Press ASC button.When the message "REMOVE MIC"appears in the display, unplug the autosound calibration microphone.A bell sounds and thesetup finishes.•The tone will be output twice, in the given order (L ➝ C➝ R➝ RS ➝LS ➝ SW), and 5.1-channel sound field is optimized automatically.•The auto sound calibration setup takes about 2 minutes to complete.3Adjust the volume control on the mainunit as follows:•If the distance between the listener and the speaker is over 16.5 feet:Set the main unit's volume to over 25.•IIf the distance between the listener and the speaker is 10 to 16.5 feet:Set the main unit's volume to 25.•If the distance between the listener and the speaker is below 10 feet: Set the main unit's volume to 15.To Turn On or Off Sound LogoPress and hold ASC button.Briefly press ASC button.12•"ASC CHECK" appears in the display.•Distance and level values specified foreach channel will appear in the display.Press and hold ASC button twice.Briefly press ASC button.12When you turn on the power, the unit produces a sound logo afterthe disc reading to notify that the unit is optimized for playback.To Verify the Auto Sound CalibrationTo cancel the auto sound calibration setup, press ASC button.•The tone output stops, "CANCEL ASC" appears in the display followed by "REMOVE MIC", and the setup is cancelled.* This function is available only for DVD/CD playback.A tone is output. A result for each speaker is displayed.SETUP•If you purchased the unit for the first time or initialized it, pressing the Auto Sound Calibration button withoutconnecting the auto sound calibration microphone will display the message "PLEASE SET ASC FUNCTION FIRST"in the display.•Because the volume level of the tone is fixed during the auto sound calibration setup, you cannot adjust the volumeusing the volume control buttons.•If the auto sound microphone is disconnected during the auto sound calibration setup, the setup will be cancelled.NoteAuto Sound CalibrationMicrophone*The following images are forillustrative purposes only and maydiffer from the actual product.

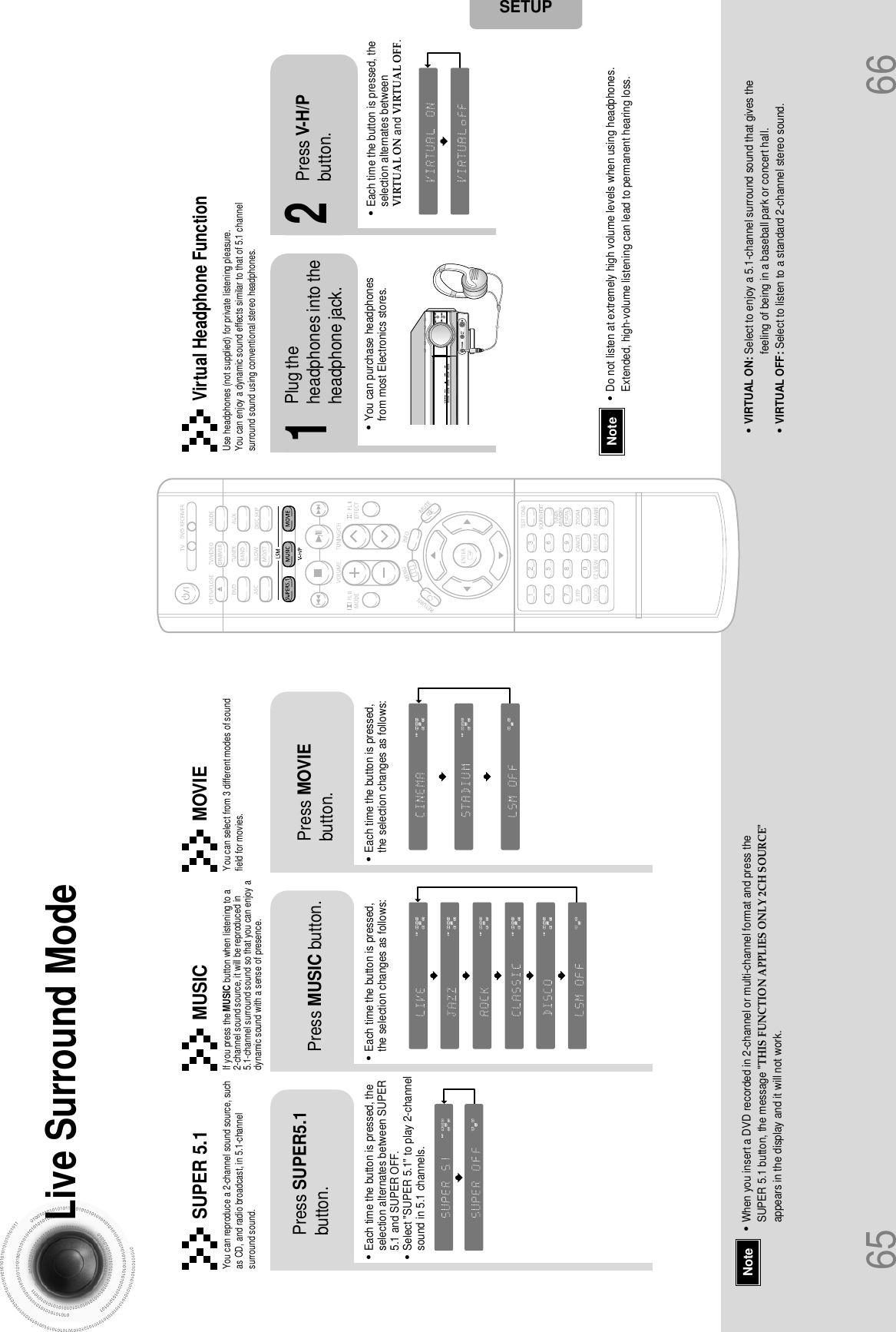

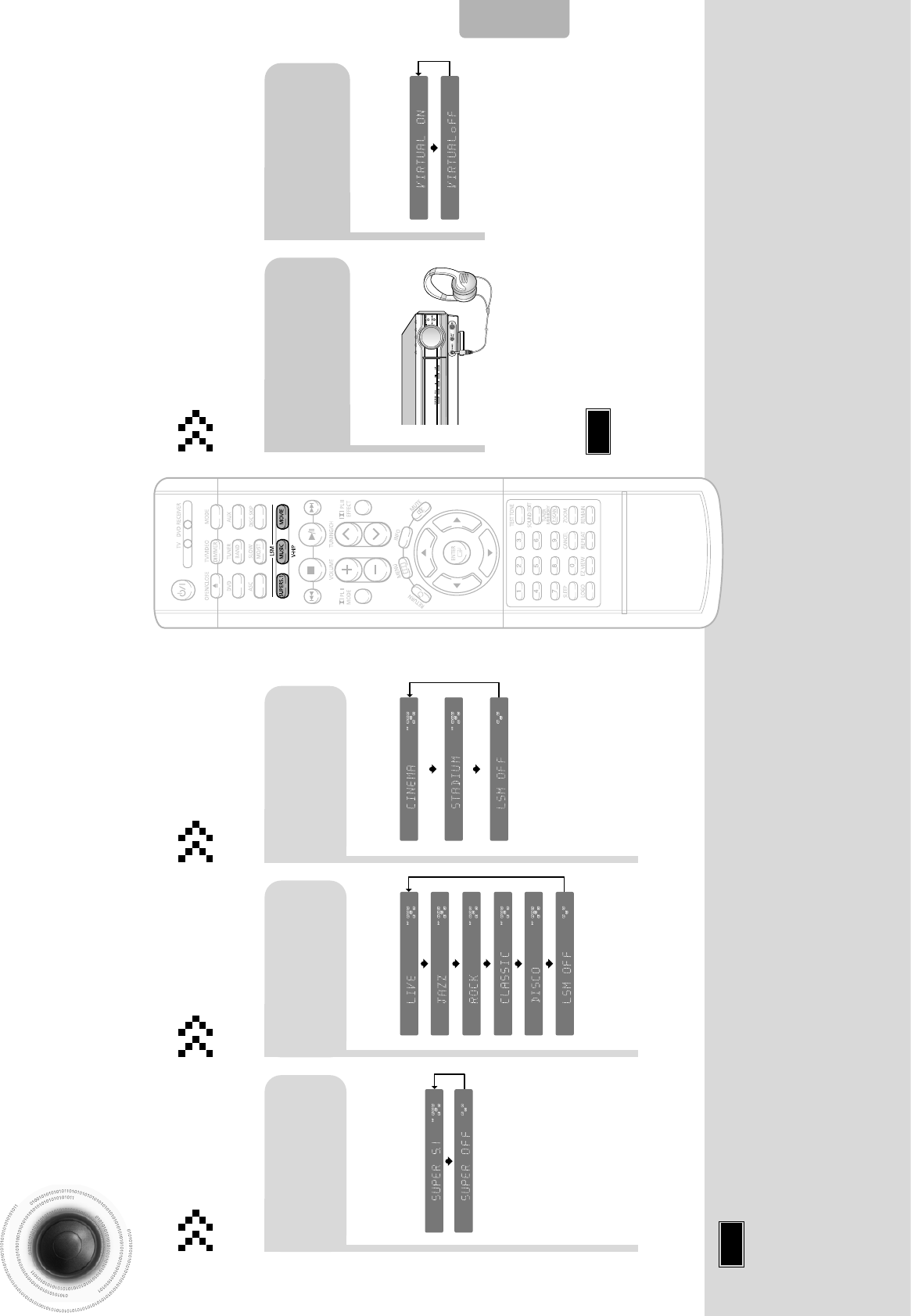

6665Live Surround ModeYou can reproduce a 2-channel sound source, suchas CD, and radio broadcast, in 5.1-channelsurround sound.SUPER 5.1•Each time the button is pressed, theselection alternates between SUPER5.1 and SUPER OFF.•Select "SUPER 5.1" to play 2-channelsound in 5.1 channels.Press SUPER5.1button.If you press the MUSIC button when listening to a2-channel sound source, it will be reproduced in5.1-channel surround sound so that you can enjoy adynamic sound with a sense of presence.MUSIC•Each time the button is pressed,the selection changes as follows:Press MUSIC button.You can select from 3 different modes of soundfield for movies.MOVIE•Each time the button is pressed,the selection changes as follows:Press MOVIEbutton.Virtual Headphone FunctionUse headphones (not supplied) for private listening pleasure.You can enjoy a dynamic sound effects similar to that of 5.1 channelsurround sound using conventional stereo headphones.•You can purchase headphones from most Electronics stores.12•Each time the button is pressed, theselection alternates betweenVIRTUAL ON and VIRTUAL OFF.Plug theheadphones into theheadphone jack.Press V-H/Pbutton.•VIRTUAL ON: Select to enjoy a 5.1-channel surround sound that gives thefeeling of being in a baseball park or concert hall.•VIRTUAL OFF: Select to listen to a standard 2-channel stereo sound.SETUP•When you insert a DVD recorded in 2-channel or multi-channel format and press theSUPER 5.1 button, the message "THIS FUNCTION APPLIES ONLY 2CH SOURCE"appears in the display and it will not work.Note•Do not listen at extremely high volume levels when using headphones.Extended, high-volume listening can lead to permanent hearing loss.Note

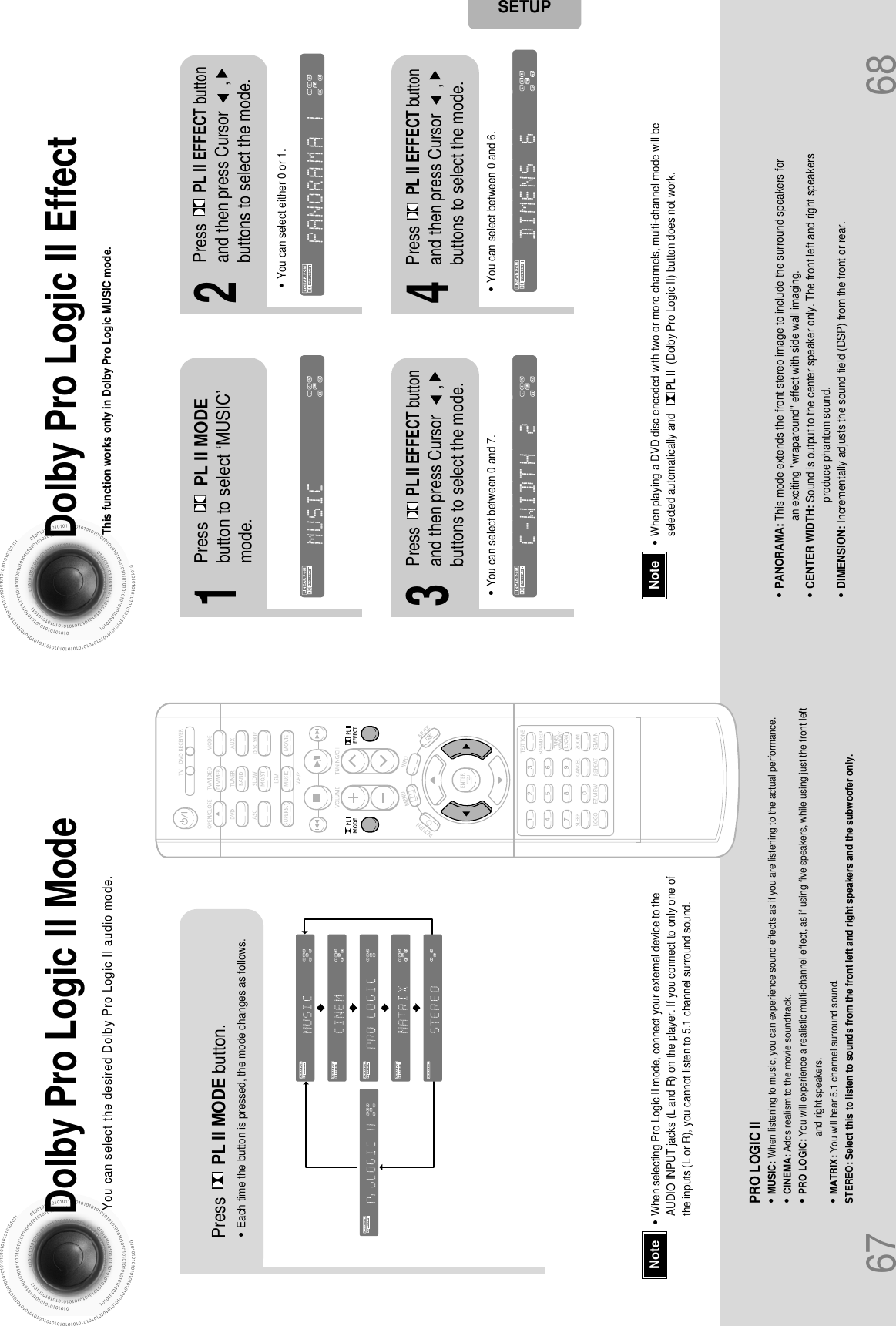

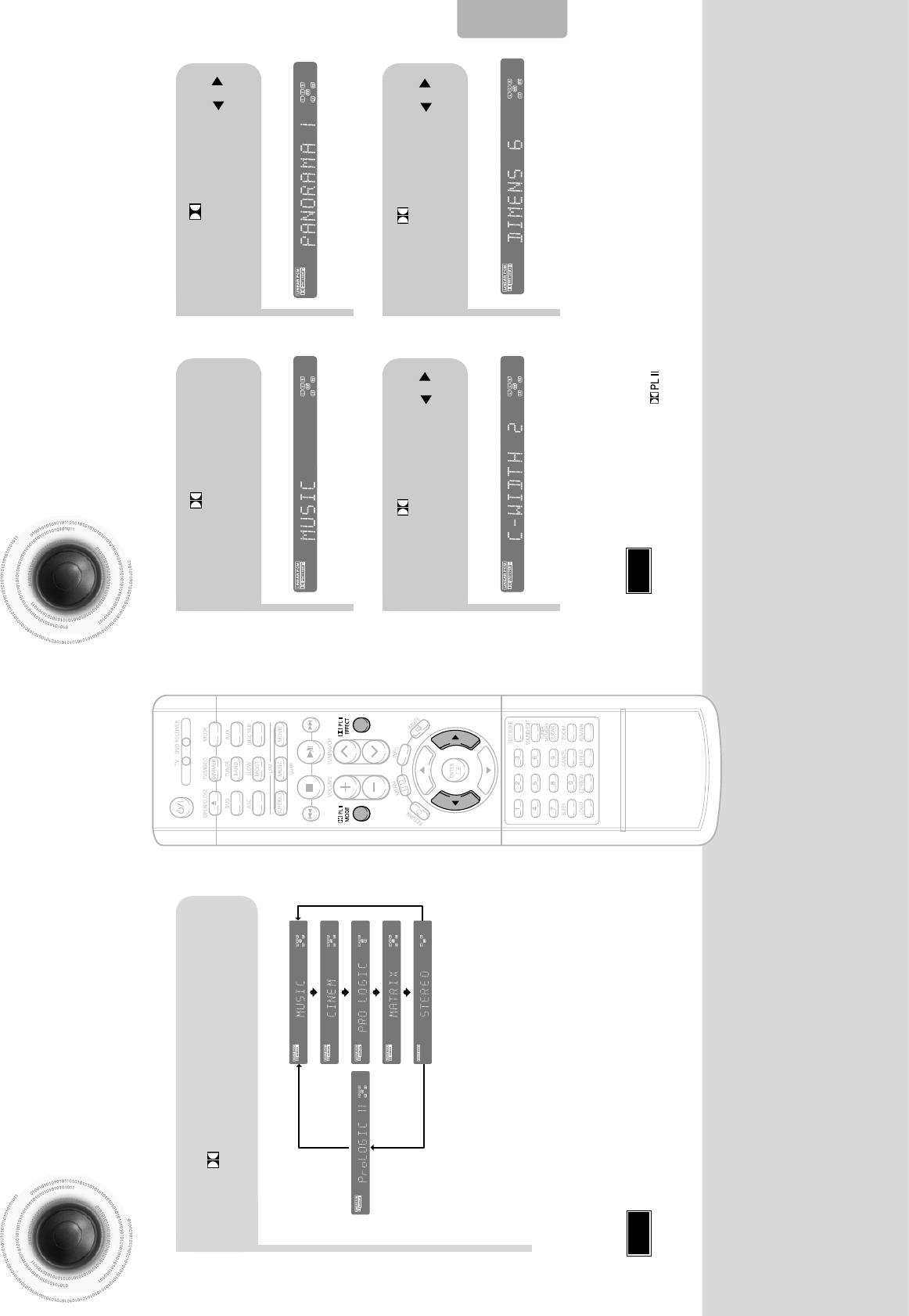

67 68Dolby Pro Logic II ModeYou can select the desired Dolby Pro Logic II audio mode.Dolby Pro Logic II EffectThis function works only in Dolby Pro Logic MUSIC mode.Press PL II MODE button.PRO LOGIC II•MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.•CINEMA: Adds realism to the movie soundtrack.•PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front leftand right speakers.•MATRIX: You will hear 5.1 channel surround sound.STEREO: Select this to listen to sounds from the front left and right speakers and the subwoofer only.•Each time the button is pressed, the mode changes as follows.12•You can select between 0 and 7.•You can select between 0 and 6.34•PANORAMA: This mode extends the front stereo image to include the surround speakers foran exciting "wraparound" effect with side wall imaging.•CENTER WIDTH: Sound is output to the center speaker only. The front left and right speakersproduce phantom sound. •DIMENSION: Incrementally adjusts the sound field (DSP) from the front or rear.•When playing a DVD disc encoded with two or more channels, multi-channel mode will beselected automatically and (Dolby Pro Logic II) button does not work.•You can select either 0 or 1.Press PL II MODEbutton to select ‘MUSIC’mode.PressPL II EFFECT buttonand then press Cursor ,buttons to select the mode.PressPL II EFFECT buttonand then press Cursor ,buttons to select the mode.PressPL II EFFECT buttonand then press Cursor ,buttons to select the mode.NoteSETUP•When selecting Pro Logic II mode, connect your external device to theAUDIO INPUT jacks (L and R) on the player. If you connect to only one ofthe inputs (L or R), you cannot listen to 5.1 channel surround sound.Note

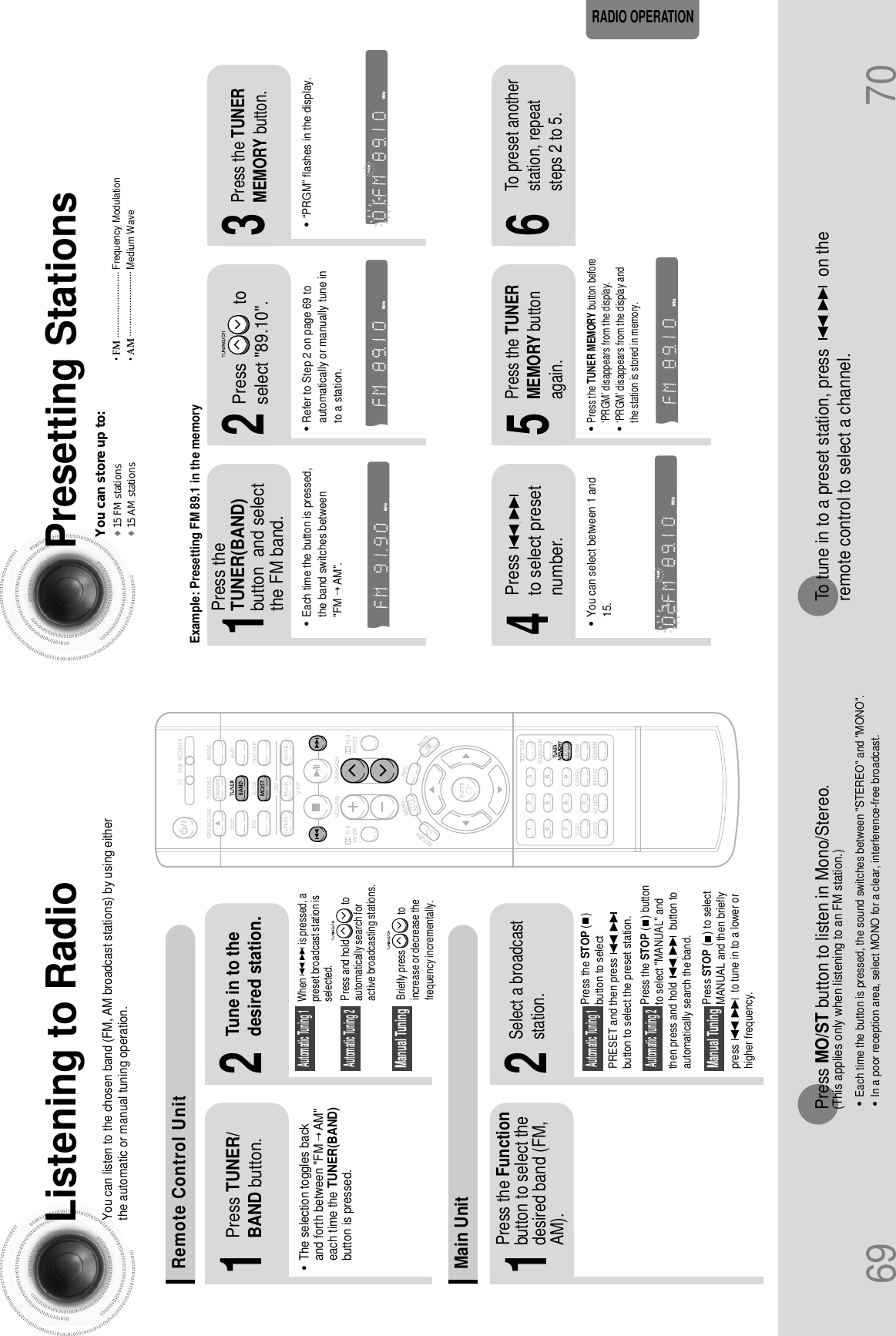

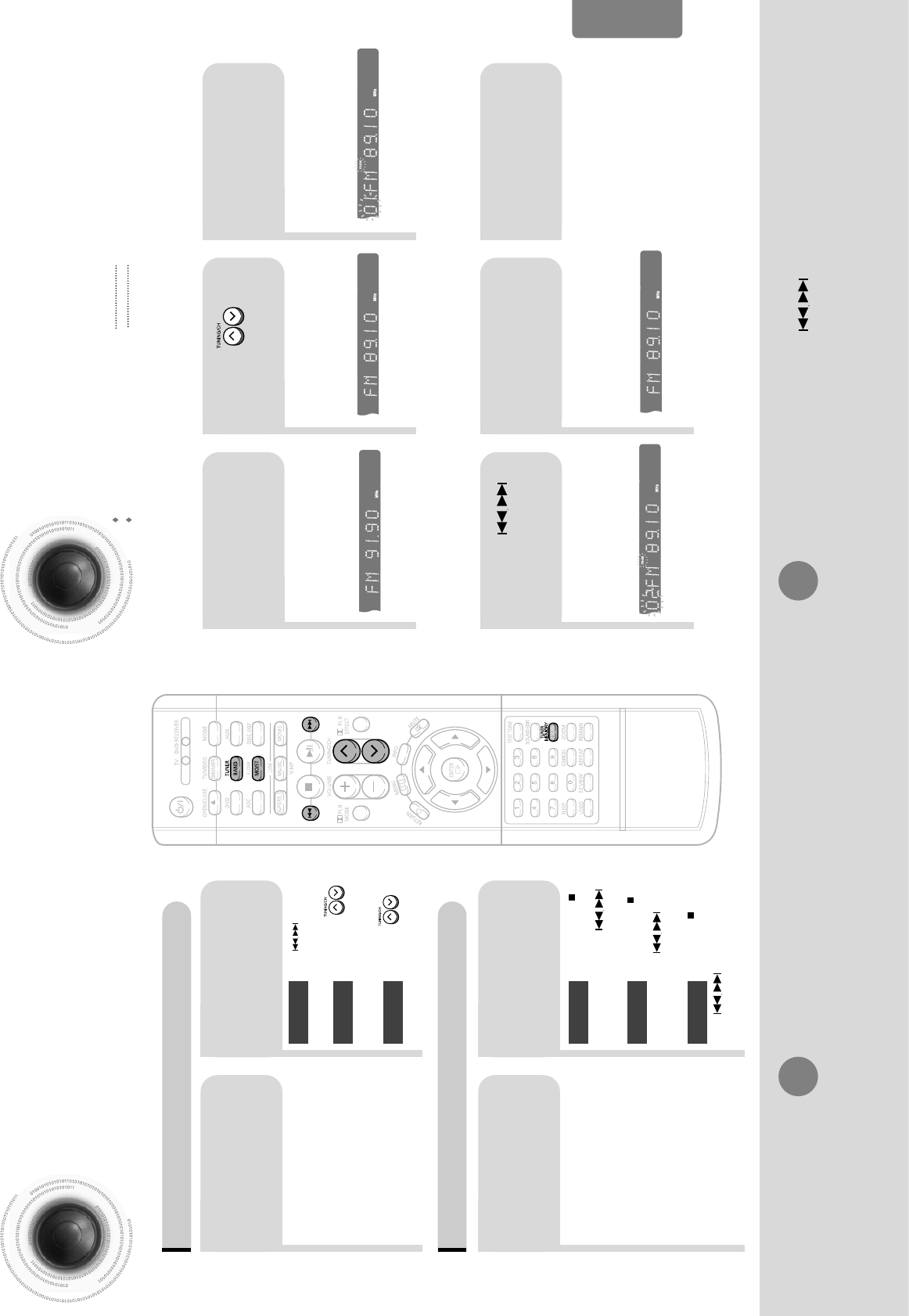

69 70Listening to RadioYou can listen to the chosen band (FM, AM broadcast stations) by using eitherthe automatic or manual tuning operation.Presetting Stations21•The selection toggles backand forth between "FM➝ AM"each time the TUNER(BAND)button is pressed.Tune in to thedesired station.Press TUNER/BAND button.Automatic Tuning 2Manual Tuning21Select a broadcaststation.Press the STOP ( )button to selectPRESET and then pressbutton to select the preset station.Automatic Tuning 1Press the Functionbutton to select thedesired band (FM,AM).Press the STOP( ) buttonto select "MANUAL" andthen press and hold button toautomatically search the band.Automatic Tuning 2Press STOP( ) to selectMANUAL and then brieflypress to tune in to a lower orhigher frequency.Manual Tuning•Each time the button is pressed, the sound switches between "STEREO" and "MONO".•In a poor reception area, select MONO for a clear, interference-free broadcast.Press MO/ST button to listen in Mono/Stereo. (This applies only when listening to an FM station.)To tune in to a preset station, press on the remote control to select a channel.•Refer to Step 2 on page 69 toautomatically or manually tune into a station.21•Each time the button is pressed,the band switches between "FM➝ AM".•“PRGM” flashes in the display. 3Example: Presetting FM 89.1 in the memory Press toselect "89.10".Press theTUNER(BAND)button and selectthe FM band.•Press the TUNER MEMORY button before‘PRGM’ disappears from the display.•‘PRGM’ disappears from the display andthe station is stored in memory.54•You can select between 1 and15.Press the TUNERMEMORY button.Press the TUNERMEMORY buttonagain.6To preset anotherstation, repeatsteps 2 to 5.Pressto select presetnumber.When is pressed, apreset broadcast station isselected.Press and hold toautomatically search foractive broadcasting stations.Briefly press toincrease or decrease thefrequency incrementally.Automatic Tuning 1Remote Control UnitMain UnitRADIO OPERATIONYou can store up to:15 FM stations15 AM stations•FM Frequency Modulation•AM Medium Wave

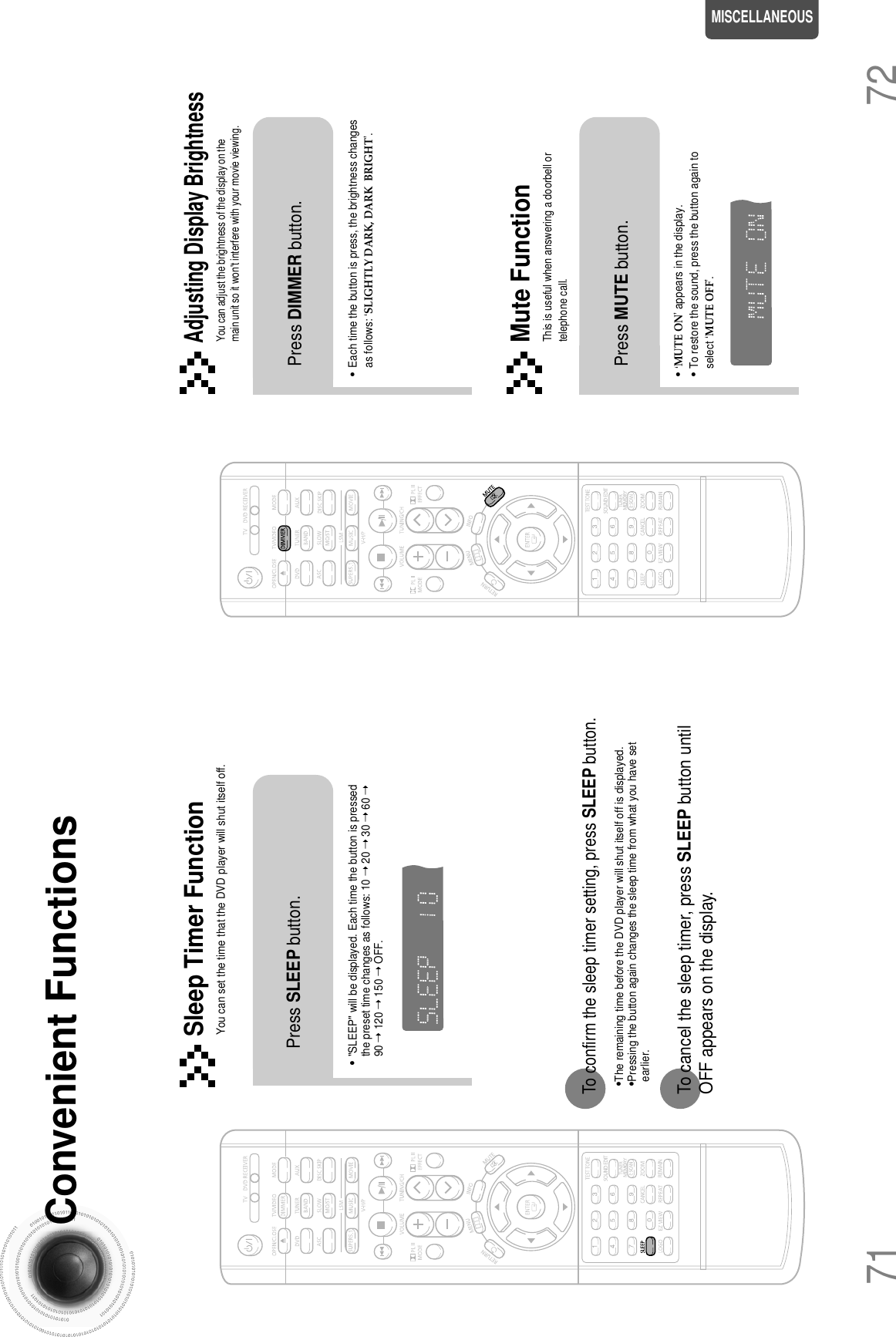

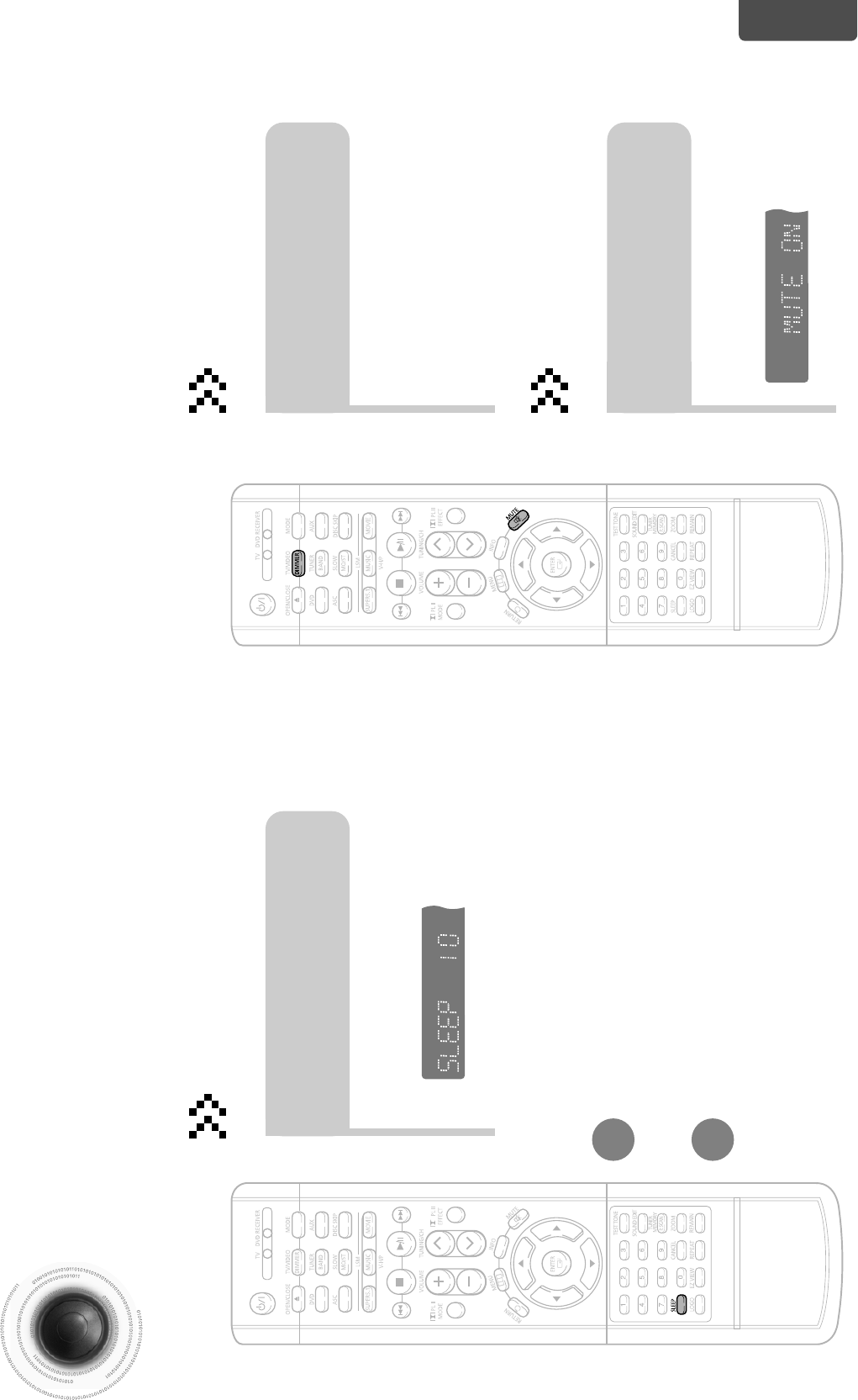

71 72Convenient Functions•The remaining time before the DVD player will shut itself off is displayed.•Pressing the button again changes the sleep time from what you have setearlier.To confirm the sleep timer setting, press SLEEP button.•Each time the button is press, the brightness changesas follows: ‘SLIGHTLY DARK, DARK BRIGHT’.•"SLEEP" will be displayed. Each time the button is pressedthe preset time changes as follows: 10 ➝ 20 ➝ 30 ➝ 60 ➝90 ➝ 120 ➝ 150 ➝ OFF.TITLECHAPPRGM RDS RTSTTUNEDkHzMHzTITLECHAPPRGM RDS RTSTTUNEDkHzMHzPress SLEEP button.Sleep Timer FunctionYou can set the time that the DVD player will shut itself off.Adjusting Display BrightnessYou can adjust the brightness of the display on themain unit so it won't interfere with your movie viewing.To cancel the sleep timer, press SLEEP button untilOFF appears on the display.Press DIMMER button.•‘MUTE ON’ appears in the display.•To restore the sound, press the button again to select ‘MUTE OFF’.Mute FunctionThis is useful when answering a doorbell ortelephone call.Press MUTE button.MISCELLANEOUS

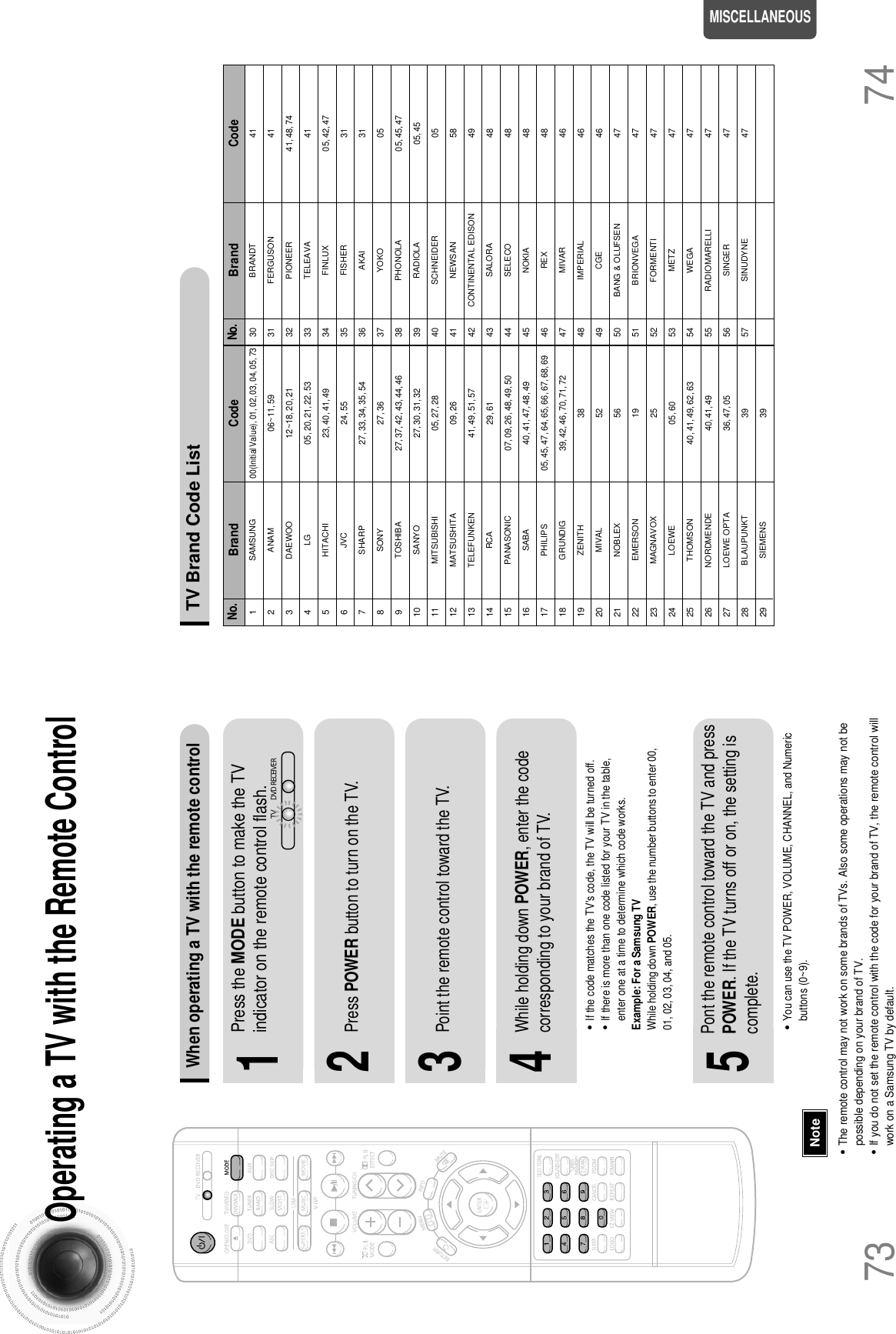

73 74Operating a TV with the Remote Control•The remote control may not work on some brands of TVs. Also some operations may not bepossible depending on your brand of TV.•If you do not set the remote control with the code for your brand of TV, the remote control willwork on a Samsung TV by default.When operating a TV with the remote control1Press the MODE button to make the TVindicator on the remote control flash.2Press POWER button to turn on the TV.3Point the remote control toward the TV.4While holding down POWER, enter the codecorresponding to your brand of TV.•If the code matches the TV's code, the TV will be turned off.•If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.Example: For a Samsung TVWhile holding down POWER, use the number buttons to enter 00,01, 02, 03, 04, and 05.•You can use the TV POWER, VOLUME, CHANNEL, and Numericbuttons (0~9).5Pont the remote control toward the TV and pressPOWER. If the TV turns off or on, the setting iscomplete.TVDVD RECEIVERNoteMISCELLANEOUS1234567891011121314151617181920212223242526272829SAMSUNGANAMDAEWOOLGHITACHIJVCSHARPSONYTOSHIBASANYOMITSUBISHIMATSUSHITATELEFUNKENRCAPANASONICSABAPHILIPSGRUNDIGZENITHMIVALNOBLEXEMERSONMAGNAVOXLOEWETHOMSONNORDMENDELOEWE OPTABLAUPUNKTSIEMENSTV Brand Code ListNo.BrandCode00(Initial Value), 01, 02, 03, 04, 05, 7306~11, 5912~18, 20, 2105, 20, 21, 22, 5323, 40, 41, 4924, 5527, 33, 34, 35, 5427, 3627, 37, 42, 43, 44, 4627, 30, 31, 3205, 27, 2809, 2641, 49, 51, 5729, 6107, 09, 26, 48, 49, 5040, 41, 47, 48, 4905, 45, 47, 64, 65, 66, 67, 68, 6939, 42, 46, 70, 71, 72385256192505, 6040, 41, 49, 62, 6340, 41, 4936, 47, 05393930313233343536373839404142434445464748495051525354555657BRANDTFERGUSONPIONEERTELEAVAFINLUXFISHERAKAIYOKOPHONOLARADIOLASCHNEIDERNEWSANCONTINENTAL EDISONSALORASELECONOKIAREXMIVARIMPERIALCGEBANG & OLUFSENBRIONVEGAFORMENTIMETZWEGARADIOMARELLISINGERSINUDYNENo.BrandCode414141, 48, 744105, 42, 4731310505, 45, 4705, 45055849484848484646464747474747474747

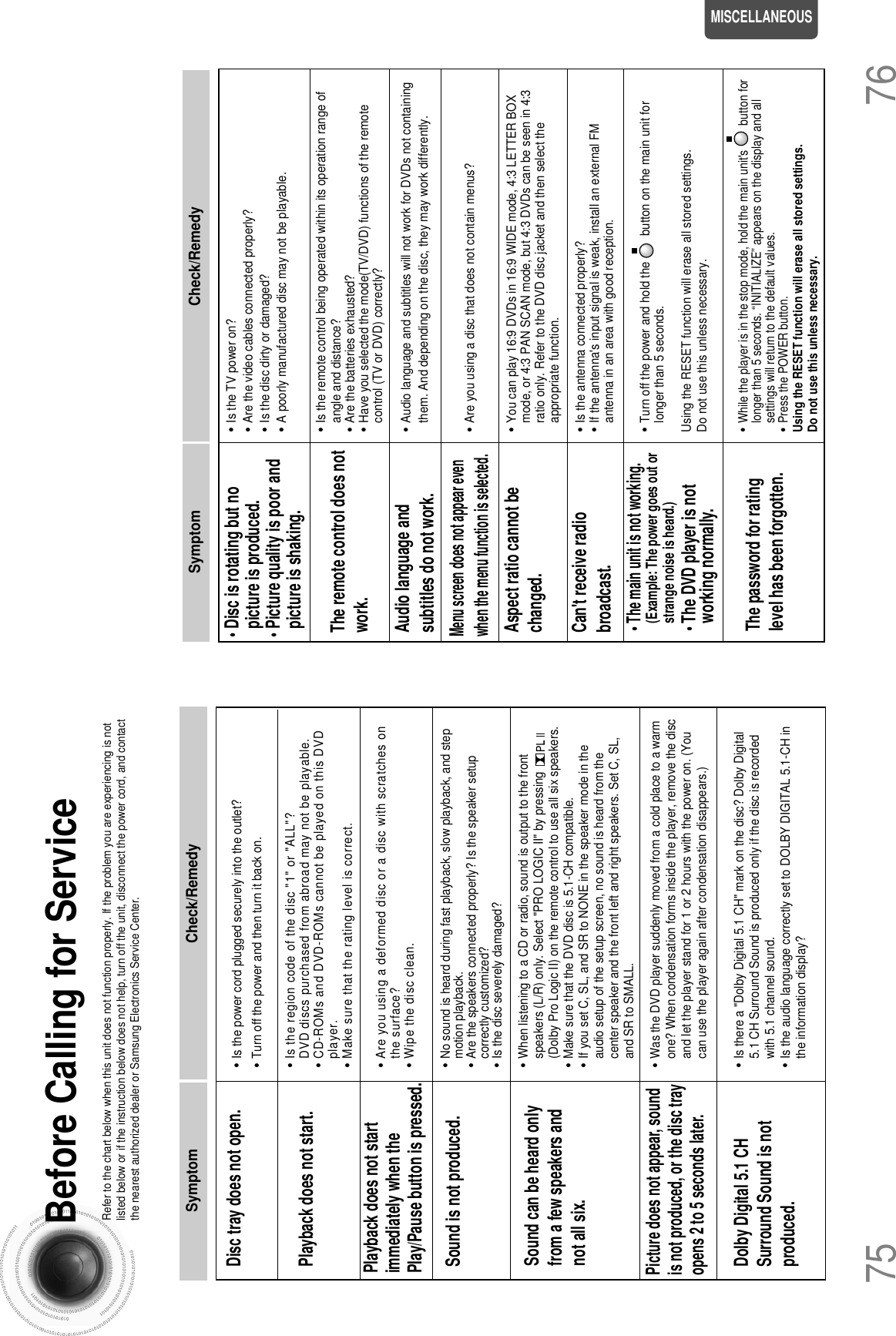

7675Before Calling for ServiceRefer to the chart below when this unit does not function properly. If the problem you are experiencing is notlisted below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contactthe nearest authorized dealer or Samsung Electronics Service Center.•Is the power cord plugged securely into the outlet?•Turn off the power and then turn it back on.•Is the region code of the disc "1" or "ALL"?DVD discs purchased from abroad may not be playable.•CD-ROMs and DVD-ROMs cannot be played on this DVDplayer.•Make sure that the rating level is correct.•Are you using a deformed disc or a disc with scratches onthe surface?•Wipe the disc clean.Disc tray does not open.Playback does not start.Playback does not startimmediately when thePlay/Pause button is pressed.•No sound is heard during fast playback, slow playback, and stepmotion playback.•Are the speakers connected properly? Is the speaker setupcorrectly customized?•Is the disc severely damaged?Sound is not produced.Sound can be heard onlyfrom a few speakers andnot all six.•Was the DVD player suddenly moved from a cold place to a warmone? When condensation forms inside the player, remove the discand let the player stand for 1 or 2 hours with the power on. (Youcan use the player again after condensation disappears.)•When listening to a CD or radio, sound is output to the frontspeakers (L/R) only. Select "PRO LOGIC II" by pressing(Dolby Pro Logic II) on the remote control to use all six speakers.•Make sure that the DVD disc is 5.1-CH compatible.•If you set C, SL, and SR to NONE in the speaker mode in theaudio setup of the setup screen, no sound is heard from thecenter speaker and the front left and right speakers. Set C, SL,and SR to SMALL.Picture does not appear, soundis not produced, or the disc trayopens 2 to 5 seconds later.•Is there a "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital5.1 CH Surround Sound is produced only if the disc is recordedwith 5.1 channel sound.•Is the audio language correctly set to DOLBY DIGITAL 5.1-CH inthe information display?Dolby Digital 5.1 CHSurround Sound is notproduced.Symptom Check/Remedy•Is the TV power on?•Are the video cables connected properly?•Is the disc dirty or damaged?•A poorly manufactured disc may not be playable.• Disc is rotating but nopicture is produced.• Picture quality is poor andpicture is shaking.•Is the remote control being operated within its operation range ofangle and distance?•Are the batteries exhausted?•Have you selected the mode(TV/DVD) functions of the remotecontrol (TV or DVD) correctly?The remote control does notwork.•Audio language and subtitles will not work for DVDs not containingthem. And depending on the disc, they may work differently.Audio language andsubtitles do not work.•Are you using a disc that does not contain menus?Menu screen does not appear evenwhen the menu function is selected.•While the player is in the stop mode, hold the main unit's button forlonger than 5 seconds. “INITIALIZE” appears on the display and allsettings will return to the default values.•Press the POWER button.Using the RESET function will erase all stored settings. Do not use this unless necessary.•Turn off the power and hold the button on the main unit forlonger than 5 seconds.Using the RESET function will erase all stored settings. Do not use this unless necessary.The password for ratinglevel has been forgotten.•The main unit is not working. (Example: The power goes out orstrange noise is heard.)• The DVD player is notworking normally.•Is the antenna connected properly?•If the antenna's input signal is weak, install an external FMantenna in an area with good reception.Can't receive radiobroadcast.Symptom Check/Remedy•You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOXmode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3ratio only. Refer to the DVD disc jacket and then select theappropriate function.Aspect ratio cannot bechanged.MISCELLANEOUS

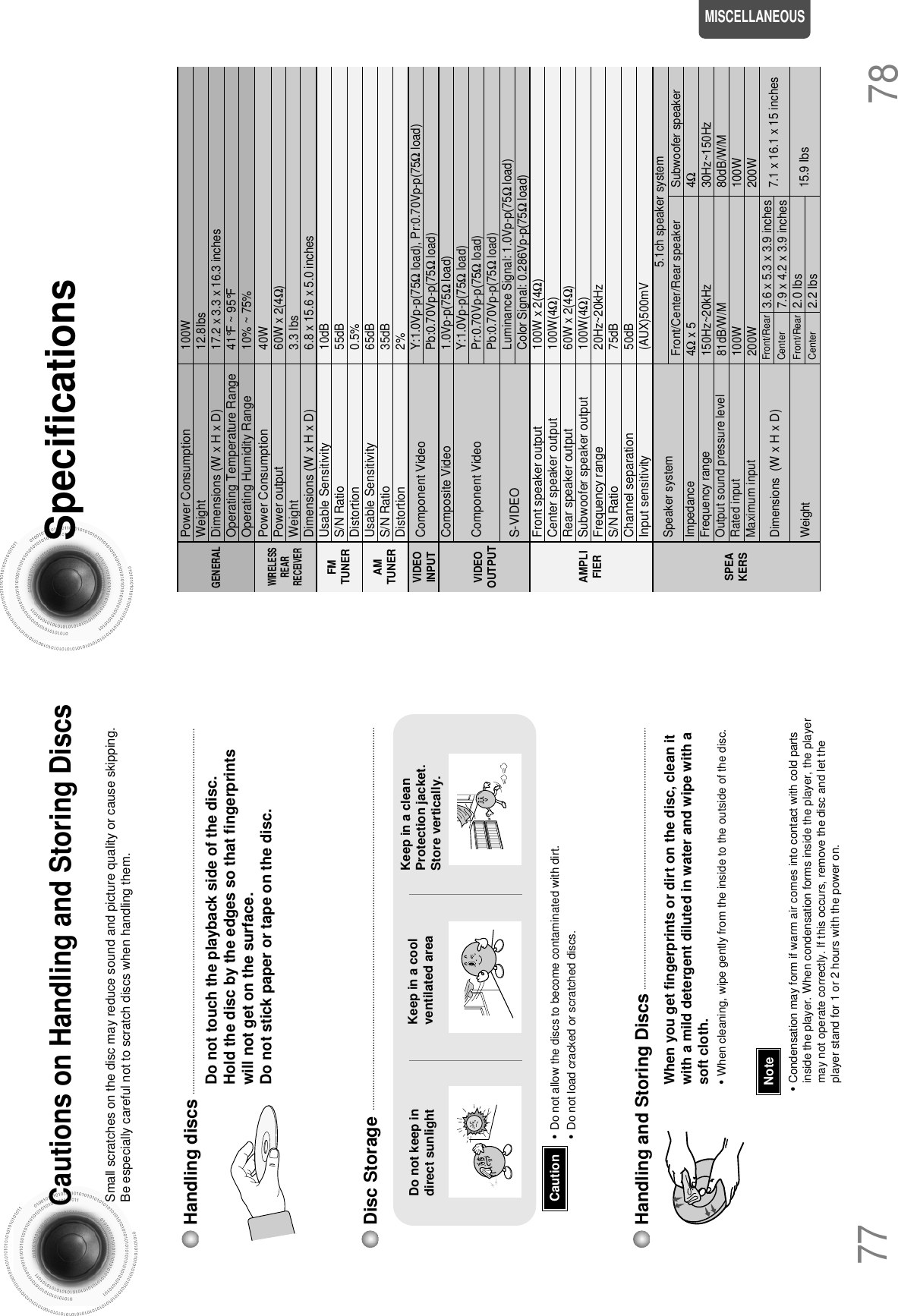

SPEAKERSSubwoofer speaker4Ω30Hz~150Hz80dB/W/M100W200W7.1 x 16.1 x 15 inches15.9 IbsFront/RearCenter3.6 x 5.3 x 3.9 inches7.9 x 4.2 x 3.9 inches2.0 Ibs2.2 IbsFront/RearCenterFront/Center/Rear speaker4Ωx 5150Hz~20kHz81dB/W/M100W200W78Specifications77Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprintswill not get on the surface.Do not stick paper or tape on the disc.Do not keep indirect sunlightKeep in a coolventilated areaKeep in a cleanProtection jacket.Store vertically.When you get fingerprints or dirt on the disc, clean itwith a mild detergent diluted in water and wipe with asoft cloth.•When cleaning, wipe gently from the inside to the outside of the disc.Handling discsDisc StorageHandling and Storing DiscsCautions on Handling and Storing DiscsSmall scratches on the disc may reduce sound and picture quality or cause skipping.Be especially careful not to scratch discs when handling them.•Do not allow the discs to become contaminated with dirt.•Do not load cracked or scratched discs.Caution•Condensation may form if warm air comes into contact with cold partsinside the player. When condensation forms inside the player, the playermay not operate correctly. If this occurs, remove the disc and let theplayer stand for 1 or 2 hours with the power on.NoteMISCELLANEOUSPower Consumption Power outputWeightDimensions (W x H x D) Usable Sensitivity S/N Ratio DistortionUsable Sensitivity S/N Ratio DistortionComponent Video Composite VideoComponent Video S-VIDEOFront speaker outputCenter speaker outputRear speaker outputSubwoofer speaker outputFrequency range S/N Ratio Channel separationInput sensitivitySpeaker systemImpedanceFrequency range Output sound pressure levelRated inputMaximum inputDimensions(W x H x D) WeightPower Consumption WeightDimensions (W x H x D) Operating Temperature Range Operating Humidity Range GENERALWIRELESSREARRECEIVERFMTUNERAMTUNERVIDEOINPUTVIDEOOUTPUTAMPLIFIER40W60W x 2(4Ω)3.3 Ibs6.8 x 15.6 x 5.0 inches10dB55dB0.5%65dB35dB2%Y:1.0Vp-p(75Ωload), Pr:0.70Vp-p(75Ωload)Pb:0.70Vp-p(75Ωload)1.0Vp-p(75Ωload)Y:1.0Vp-p(75Ωload)Pr:0.70Vp-p(75Ωload)Pb:0.70Vp-p(75Ωload)Luminance Signal: 1.0Vp-p(75Ωload)Color Signal: 0.286Vp-p(75Ωload)100W x 2(4Ω)100W(4Ω)60W x 2(4Ω)100W(4Ω)20Hz~20kHz75dB50dB(AUX)500mV5.1ch speaker system100W12.8Ibs17.2 x 3.3 x 16.3 inches41°F ~ 95°F10% ~ 75%

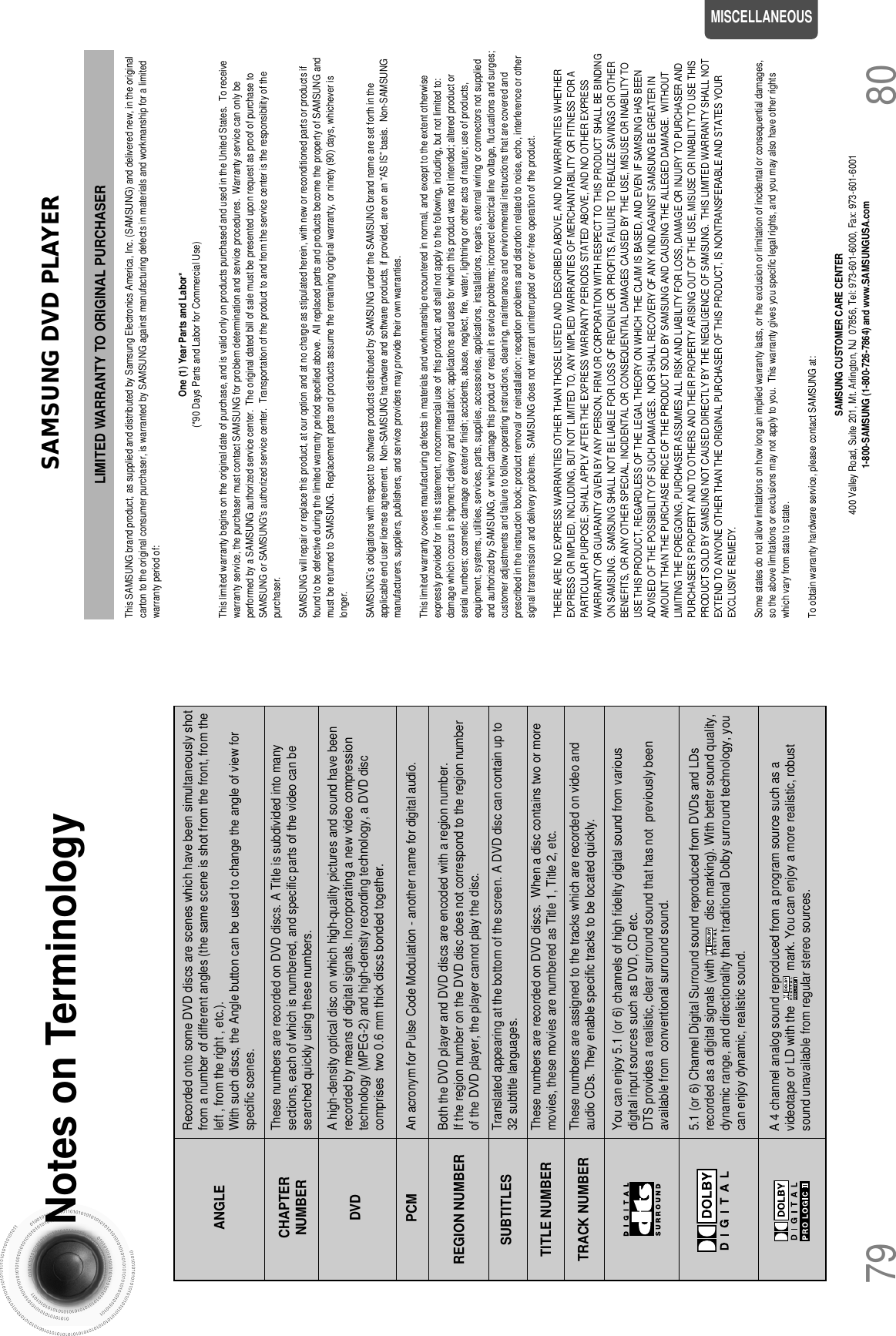

SAMSUNG DVD PLAYERLIMITED WARRANTY TO ORIGINAL PURCHASERThis SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the originalcarton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limitedwarranty period of:One (1) Year Parts and Labor*(*90 Days Parts and Labor for Commercial Use)This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receivewarranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only beperformed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase toSAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the service center is the responsibility of thepurchaser.SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products iffound to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG andmust be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever islonger.SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in theapplicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis. Non-SAMSUNGmanufacturers, suppliers, publishers, and service providers may provide their own warranties.This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwiseexpressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to:damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product orserial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products,equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not suppliedand authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges;customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered andprescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or othersignal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHEREXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESSWARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDINGON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHERBENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TOUSE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEENADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER INAMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUTLIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER ANDPURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THISPRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOTEXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUREXCLUSIVE REMEDY.Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages,so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rightswhich vary from state to state.To obtain warranty hardware service, please contact SAMSUNG at:SAMSUNG CUSTOMER CARE CENTER400 Valley Road, Suite 201, Mt. Arlington, NJ 07856, Tel: 973-601-6000, Fax: 973-601-60011-800-SAMSUNG (1-800-726-7864) and www.SAMSUNGUSA.com80Notes on Terminology79MISCELLANEOUSRecorded onto some DVD discs are scenes which have been simultaneously shotfrom a number of different angles (the same scene is shot from the front, from theleft , from the right , etc.). With such discs, the Angle button can be used to change the angle of view forspecific scenes.ANGLEThese numbers are recorded on DVD discs. A Title is subdivided into manysections, each of which is numbered, and specific parts of the video can besearched quickly using these numbers.A high-density optical disc on which high-quality pictures and sound have beenrecorded by means of digital signals. Incorporating a new video compressiontechnology (MPEG-2) and high-density recording technology, a DVD disccomprises two 0.6 mm thick discs bonded together.An acronym for Pulse Code Modulation - another name for digital audio.Both the DVD player and DVD discs are encoded with a region number. If the region number on the DVD disc does not correspond to the region numberof the DVD player, the player cannot play the disc.Translated appearing at the bottom of the screen. A DVD disc can contain up to32 subtitle languages.These numbers are recorded on DVD discs. When a disc contains two or moremovies, these movies are numbered as Title 1, Title 2, etc.These numbers are assigned to the tracks which are recorded on video andaudio CDs. They enable specific tracks to be located quickly.You can enjoy 5.1 (or 6) channels of high fidelity digital sound from variousdigital input sources such as DVD, CD etc.DTS provides a realistic, clear surround sound that has not previously beenavailable from conventional surround sound.5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDsrecorded as a digital signals (with disc marking). With better sound quality,dynamic range, and directionality than traditional Dolby surround technology, youcan enjoy dynamic, realistic sound.CHAPTERNUMBERDVDPCMREGION NUMBERSUBTITLESTITLE NUMBERTRACK NUMBERA 4 channel analog sound reproduced from a program source such as avideotape or LD with the mark. You can enjoy a more realistic, robustsound unavailable from regular stereo sources.

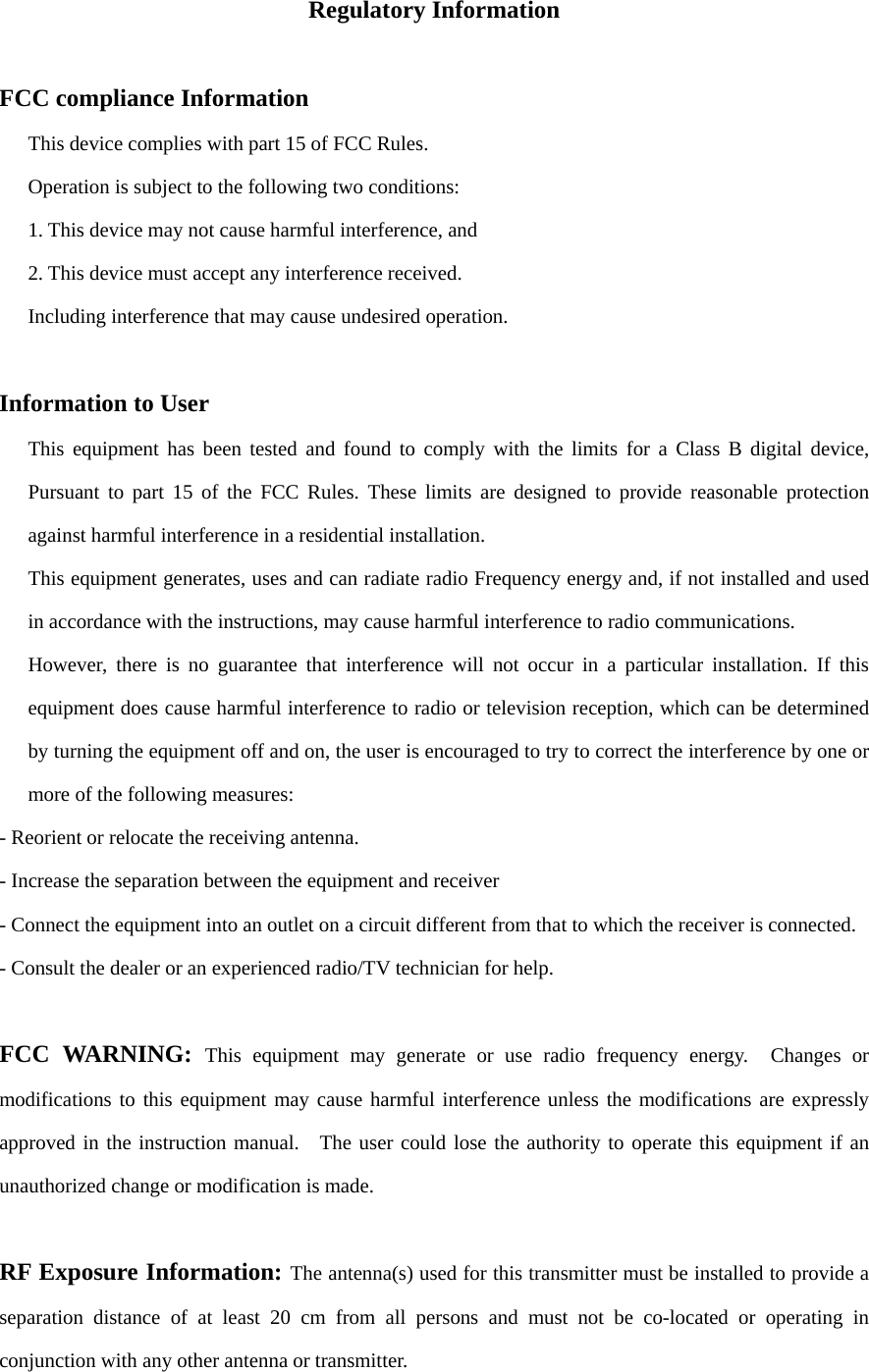

Regulatory Information FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. RF Exposure Information: The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
