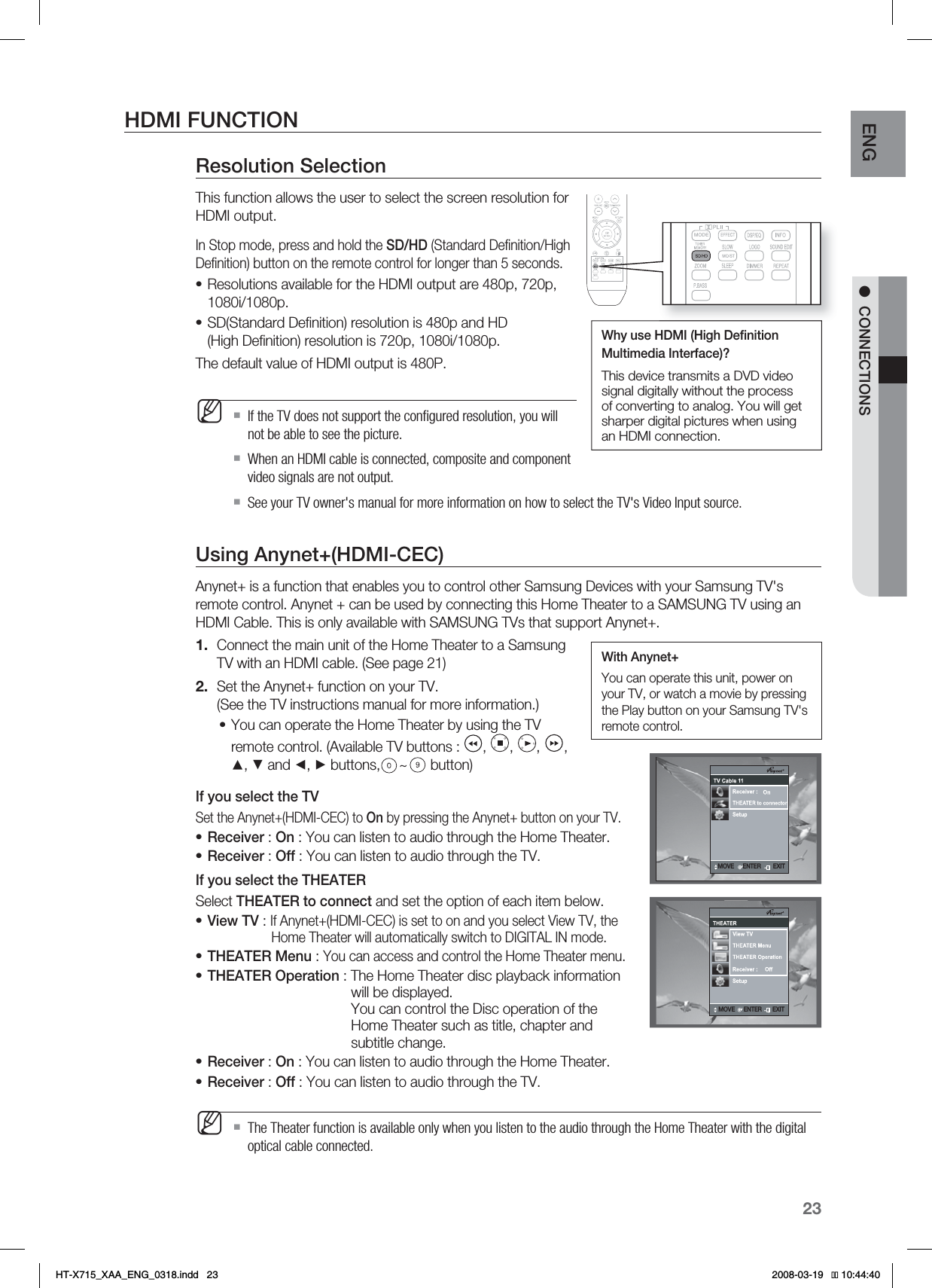

23ENG ●CONNECTIONSHDMI FUNCTIONResolution SelectionThis function allows the user to select the screen resolution for HDMI output.In Stop mode, press and hold the SD/HD (Standard Deﬁ nition/High Deﬁ nition) button on the remote control for longer than 5 seconds.Resolutions available for the HDMI output are 480p, 720p, 1080i/1080p.SD(Standard Deﬁ nition) resolution is 480p and HD(High Deﬁ nition) resolution is 720p, 1080i/1080p.The default value of HDMI output is 480P.If the TV does not support the conﬁ gured resolution, you will not be able to see the picture.When an HDMI cable is connected, composite and component video signals are not output.See your TV owner's manual for more information on how to select the TV's Video Input source.Using Anynet+(HDMI-CEC)Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+.Connect the main unit of the Home Theater to a Samsung TV with an HDMI cable. (See page 21)Set the Anynet+ function on your TV.(See the TV instructions manual for more information.)You can operate the Home Theater by using the TV remote control. (Available TV buttons : , , , ,▲, ▼ and ◄, ► buttons, ~ button)If you select the TVSet the Anynet+(HDMI-CEC) to On by pressing the Anynet+ button on your TV.Receiver : On : You can listen to audio through the Home Theater.Receiver : Off : You can listen to audio through the TV.If you select the THEATERSelect THEATER to connect and set the option of each item below.View TV : If Anynet+(HDMI-CEC) is set to on and you select View TV, the Home Theater will automatically switch to DIGITAL IN mode.THEATER Menu : You can access and control the Home Theater menu.THEATER Operation : The Home Theater disc playback information will be displayed.You can control the Disc operation of the Home Theater such as title, chapter and subtitle change.Receiver : On : You can listen to audio through the Home Theater.Receiver : Off : You can listen to audio through the TV.The Theater function is available only when you listen to the audio through the Home Theater with the digital optical cable connected.••M1.2.••••••••MWhy use HDMI (High Deﬁ nition Multimedia Interface)? This device transmits a DVD video signal digitally without the process of converting to analog. You will get sharper digital pictures when using an HDMI connection..07&&/5&3&9*5.07&&/5&3&9*5.07&&/5&3&9*5With Anynet+You can operate this unit, power on your TV, or watch a movie by pressing the Play button on your Samsung TV's remote control.HT-X715_XAA_ENG_0318.indd 23 

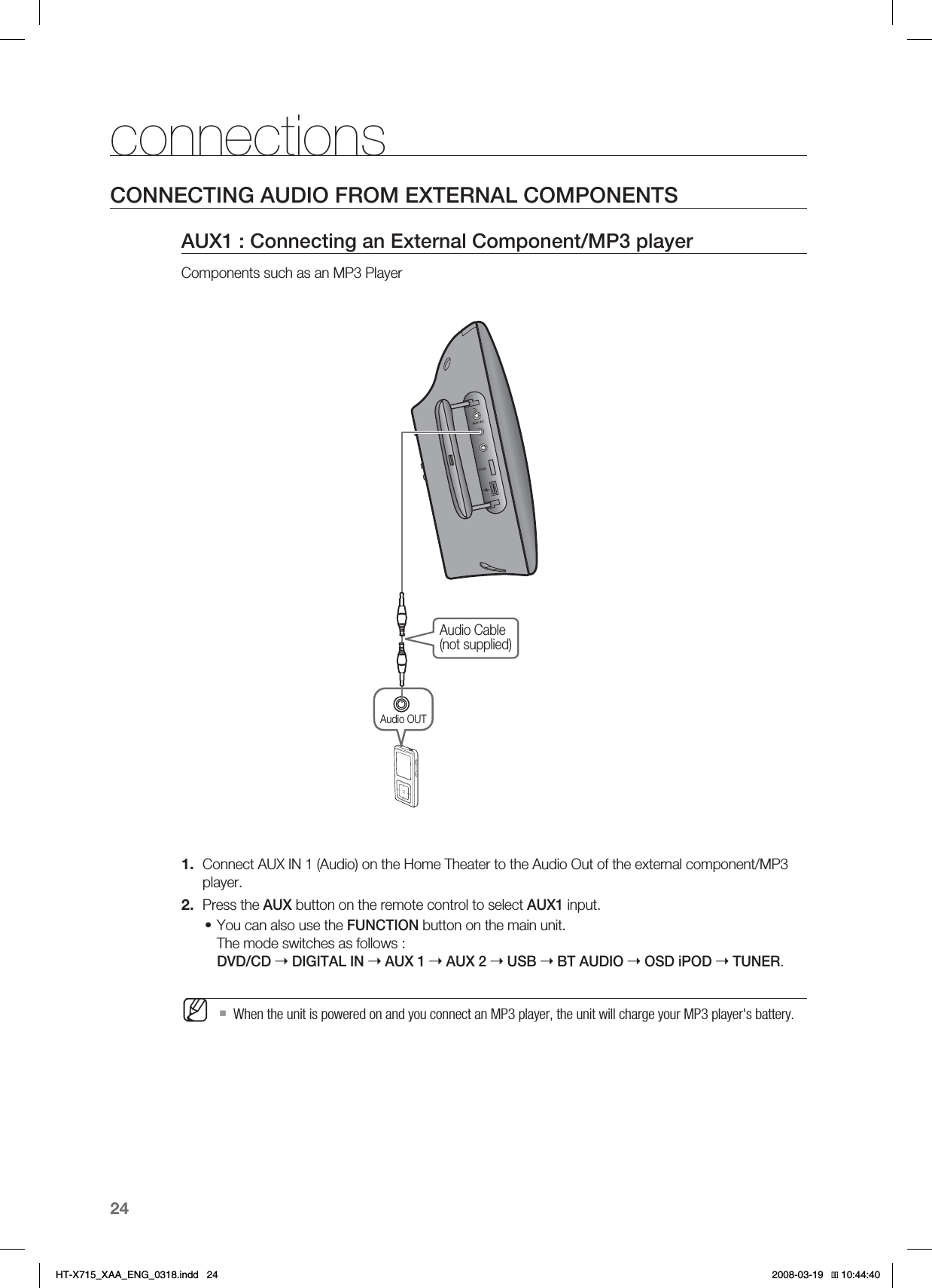

24connectionsCONNECTING AUDIO FROM EXTERNAL COMPONENTSAUX1 : Connecting an External Component/MP3 playerComponents such as an MP3 PlayerAudio Cable(not supplied)Audio OUTConnect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3 player.Press the AUX button on the remote control to select AUX1 input.You can also use the FUNCTION button on the main unit.The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝AUX 1 ➝AUX 2 ➝USB ➝BT AUDIO ➝OSD iPOD ➝TUNER. When the unit is powered on and you connect an MP3 player, the unit will charge your MP3 player's battery.1.2.•M*6:A:##A'0)AKPFF 

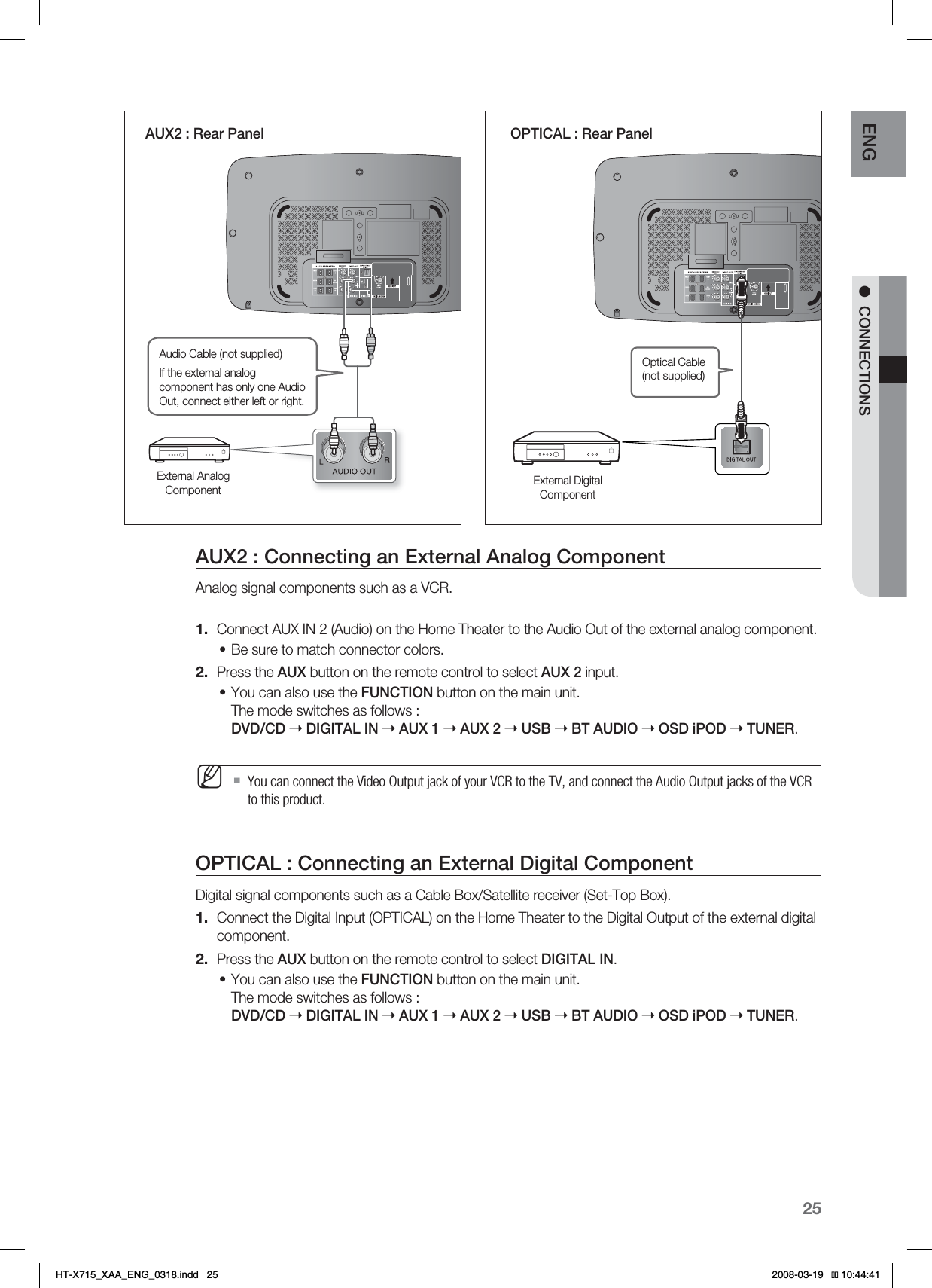

25ENG ●CONNECTIONSAUX2 : Connecting an External Analog ComponentAnalog signal components such as a VCR.Connect AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component.Be sure to match connector colors.Press the AUX button on the remote control to select AUX 2 input. You can also use the FUNCTION button on the main unit.The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝AUX 1 ➝AUX 2 ➝USB ➝BT AUDIO ➝OSD iPOD ➝TUNER. You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product.OPTICAL : Connecting an External Digital ComponentDigital signal components such as a Cable Box/Satellite receiver (Set-Top Box).Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital component.Press the AUX button on the remote control to select DIGITAL IN.You can also use the FUNCTION button on the main unit.The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝AUX 1 ➝AUX 2 ➝USB ➝BT AUDIO ➝OSD iPOD ➝TUNER.1.•2.•M1.2.•Optical Cable(not supplied)AUX2 : Rear Panel OPTICAL : Rear PanelAudio Cable (not supplied)If the external analog component has only one Audio Out, connect either left or right.External Analog Component External Digital ComponentHT-X715_XAA_ENG_0318.indd 25 

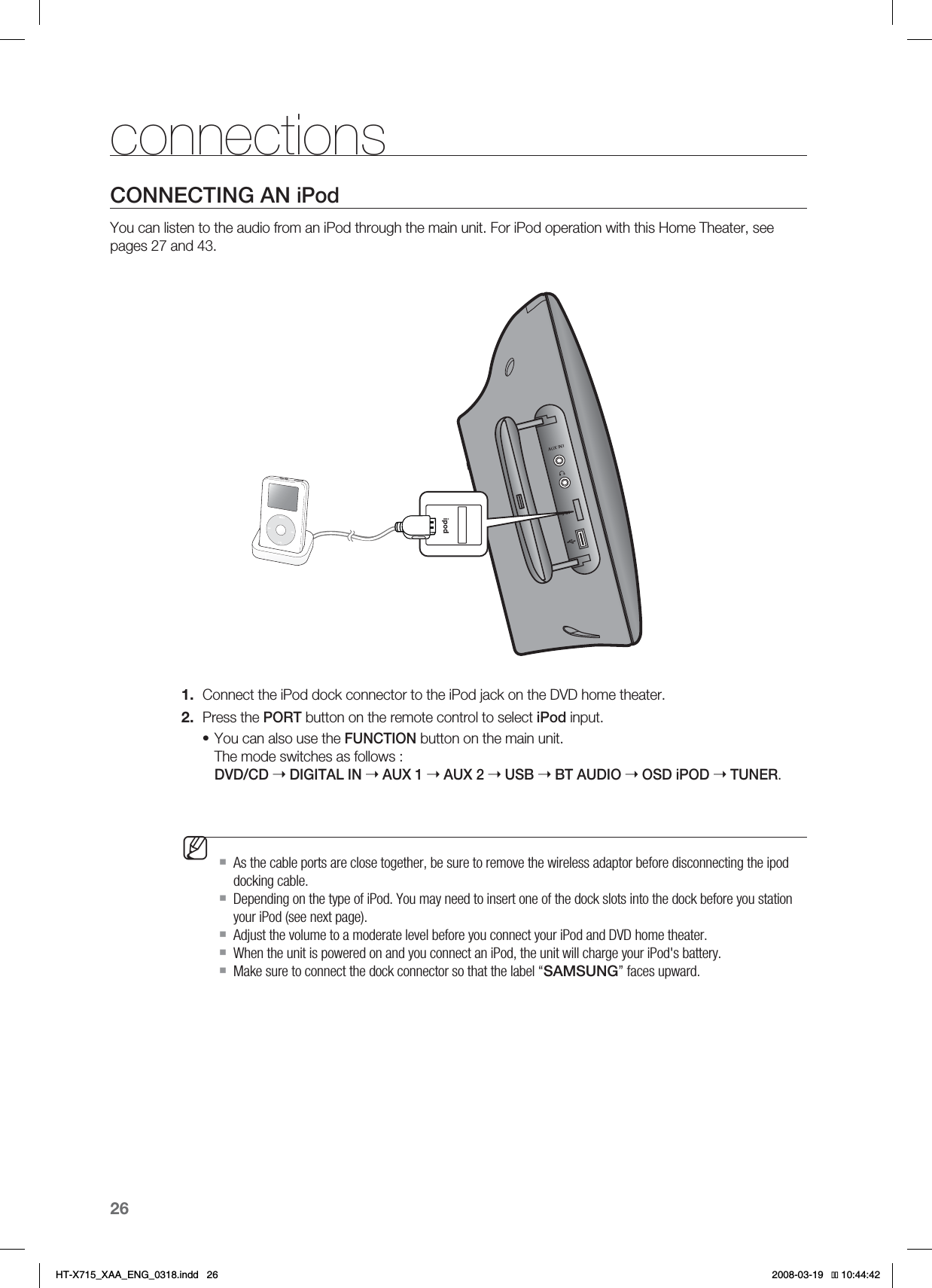

26connectionsCONNECTING AN iPodYou can listen to the audio from an iPod through the main unit. For iPod operation with this Home Theater, see pages 27 and 43.Connect the iPod dock connector to the iPod jack on the DVD home theater.Press the PORT button on the remote control to select iPod input.You can also use the FUNCTION button on the main unit.The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝AUX 1 ➝AUX 2 ➝USB ➝BT AUDIO ➝OSD iPOD ➝TUNER.As the cable ports are close together, be sure to remove the wireless adaptor before disconnecting the ipod docking cable.Depending on the type of iPod. You may need to insert one of the dock slots into the dock before you station your iPod (see next page).Adjust the volume to a moderate level before you connect your iPod and DVD home theater.When the unit is powered on and you connect an iPod, the unit will charge your iPod's battery.Make sure to connect the dock connector so that the label “SAMSUNG” faces upward.1.2.•MHT-X715_XAA_ENG_0318.indd 26 

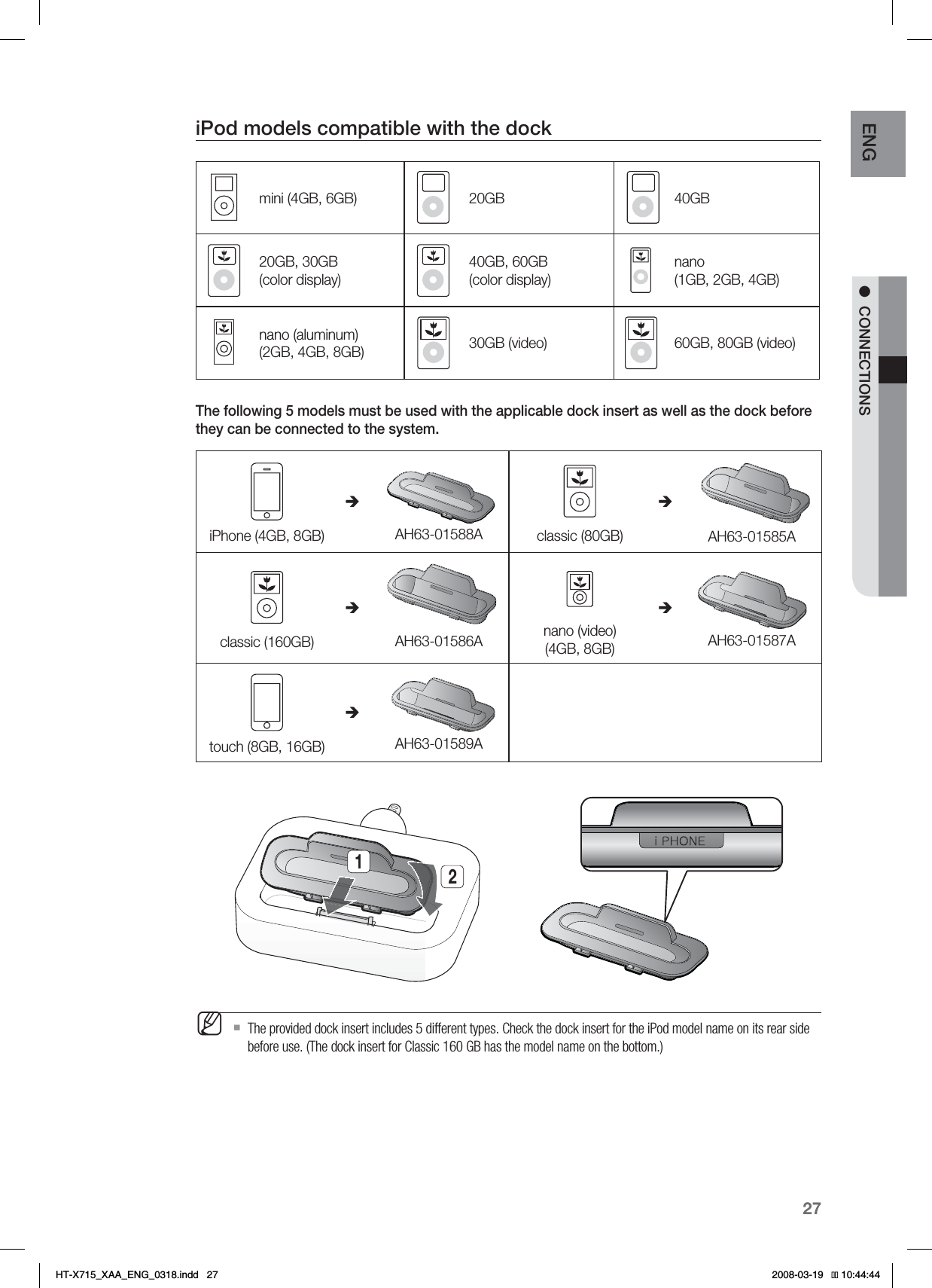

27ENG ●CONNECTIONSiPod models compatible with the dockmini (4GB, 6GB) 20GB 40GB20GB, 30GB(color display)40GB, 60GB(color display)nano (1GB, 2GB, 4GB)nano (aluminum) (2GB, 4GB, 8GB) 30GB (video) 60GB, 80GB (video)The following 5 models must be used with the applicable dock insert as well as the dock before they can be connected to the system.iPhone (4GB, 8GB)ÎAH63-01588A classic (80GB)ÎAH63-01585Aclassic (160GB)ÎAH63-01586A nano (video)(4GB, 8GB)ÎAH63-01587Atouch (8GB, 16GB)ÎAH63-01589AThe provided dock insert includes 5 different types. Check the dock insert for the iPod model name on its rear side before use. (The dock insert for Classic 160 GB has the model name on the bottom.)M21HT-X715_XAA_ENG_0318.indd 27 

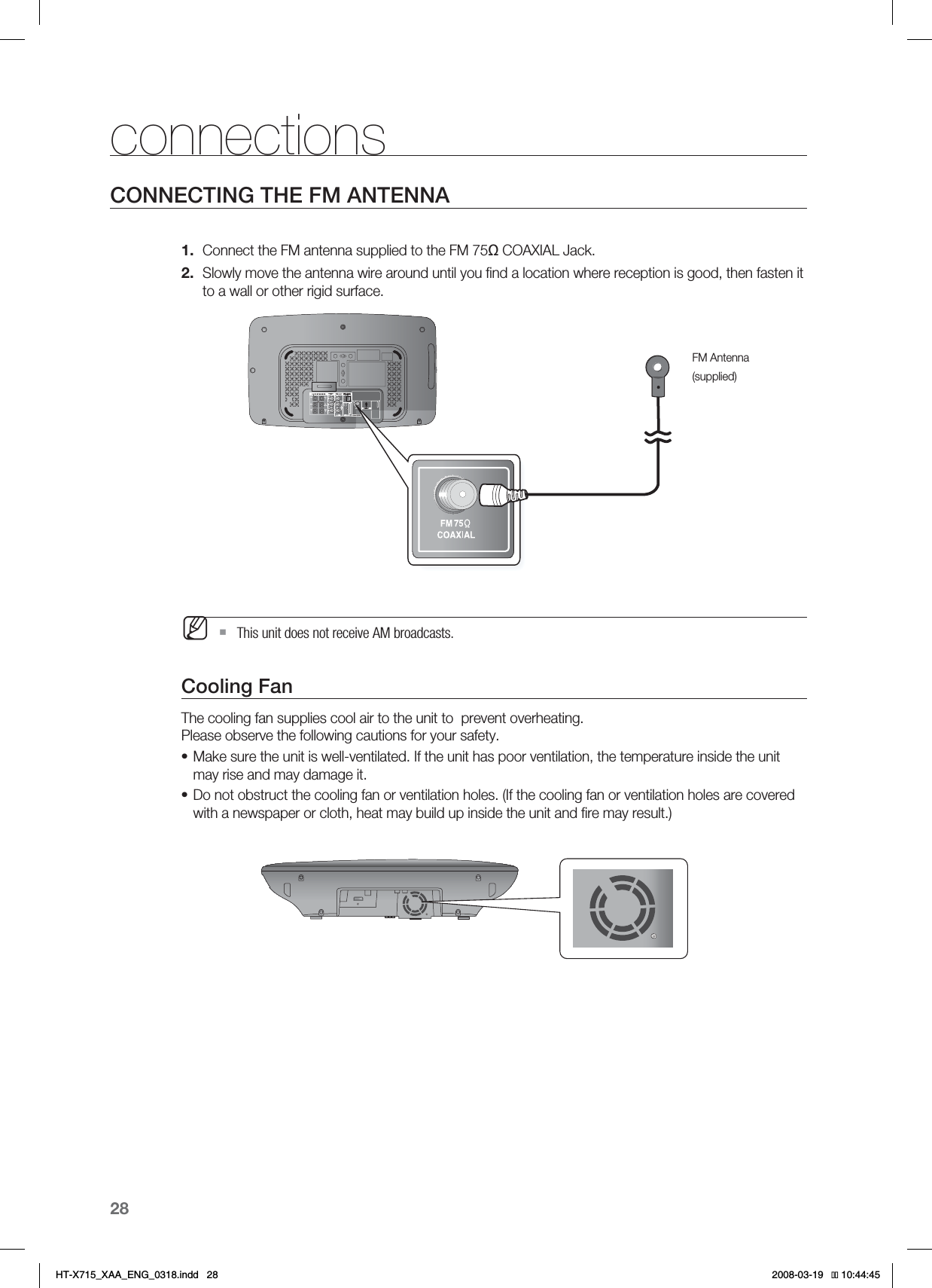

28connectionsCONNECTING THE FM ANTENNAConnect the FM antenna supplied to the FM 75ȍ COAXIAL Jack.Slowly move the antenna wire around until you ﬁ nd a location where reception is good, then fasten it to a wall or other rigid surface. This unit does not receive AM broadcasts.Cooling FanThe cooling fan supplies cool air to the unit to prevent overheating.Please observe the following cautions for your safety.Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise and may damage it.Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and ﬁ re may result.)1.2.M••FM Antenna(supplied)HT-X715_XAA_ENG_0318.indd 28 

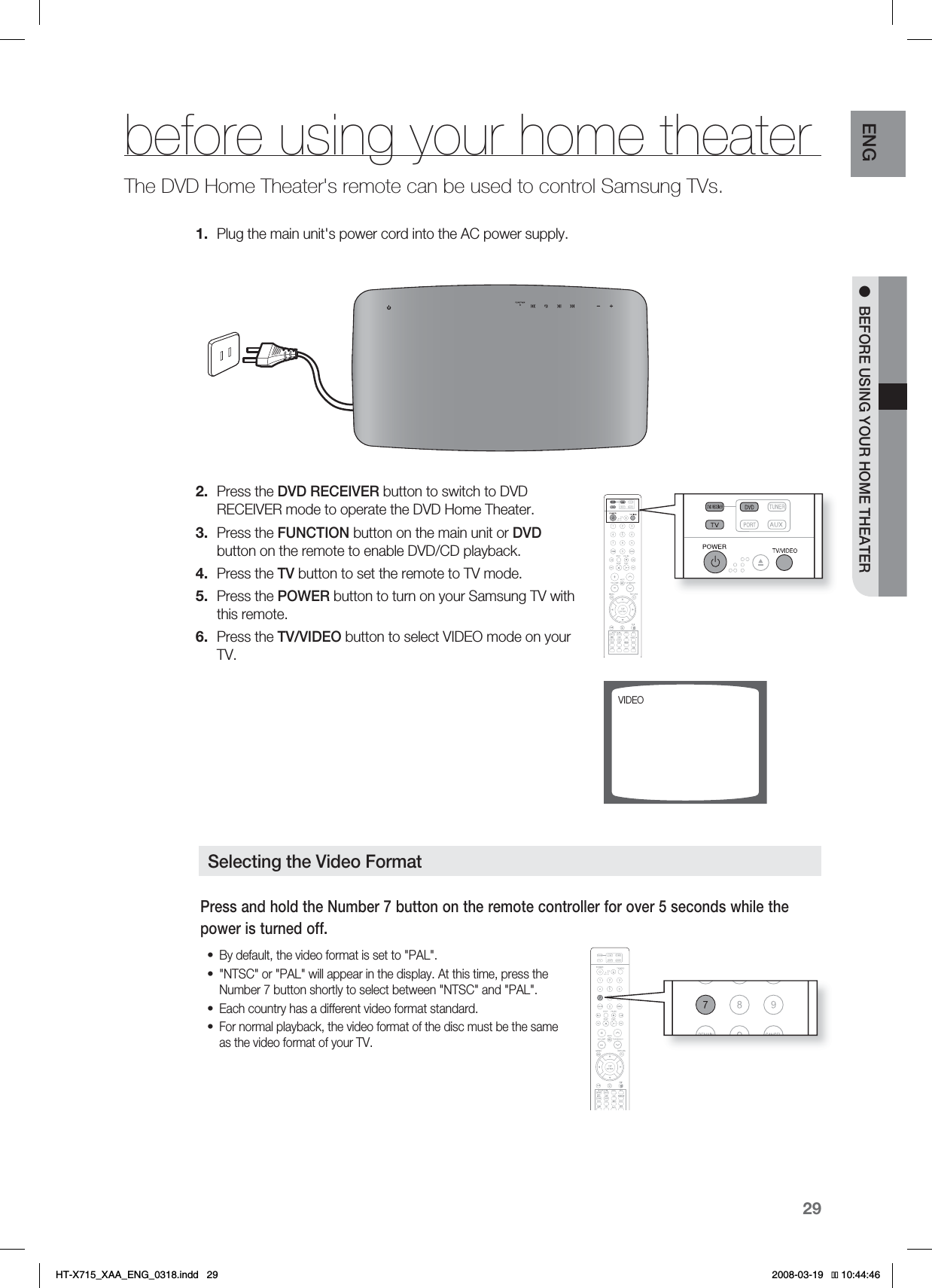

29ENG ●BEFORE USING YOUR HOME THEATERbefore using your home theaterThe DVD Home Theater's remote can be used to control Samsung TVs.Plug the main unit's power cord into the AC power supply.Press the DVD RECEIVER button to switch to DVD RECEIVER mode to operate the DVD Home Theater.Press the FUNCTION button on the main unit or DVDbutton on the remote to enable DVD/CD playback.Press the TV button to set the remote to TV mode.Press the POWER button to turn on your Samsung TV with this remote. Press the TV/VIDEO button to select VIDEO mode on your TV. 1.2.3.4.5.6.7*%&0Selecting the Video Format1SFTTBOEIPMEUIF/VNCFSCVUUPOPOUIFSFNPUFDPOUSPMMFSGPSPWFSTFDPOETXIJMFUIFQPXFSJTUVSOFEPGG#ZEFGBVMUUIFWJEFPGPSNBUJTTFUUP1"-/54$PS1"-XJMMBQQFBSJOUIFEJTQMBZ"UUIJTUJNFQSFTTUIF/VNCFSCVUUPOTIPSUMZUPTFMFDUCFUXFFO/54$BOE1"-&BDIDPVOUSZIBTBEJGGFSFOUWJEFPGPSNBUTUBOEBSE'PSOPSNBMQMBZCBDLUIFWJEFPGPSNBUPGUIFEJTDNVTUCFUIFTBNFBTUIFWJEFPGPSNBUPGZPVS57••••HT-X715_XAA_ENG_0318.indd 29 

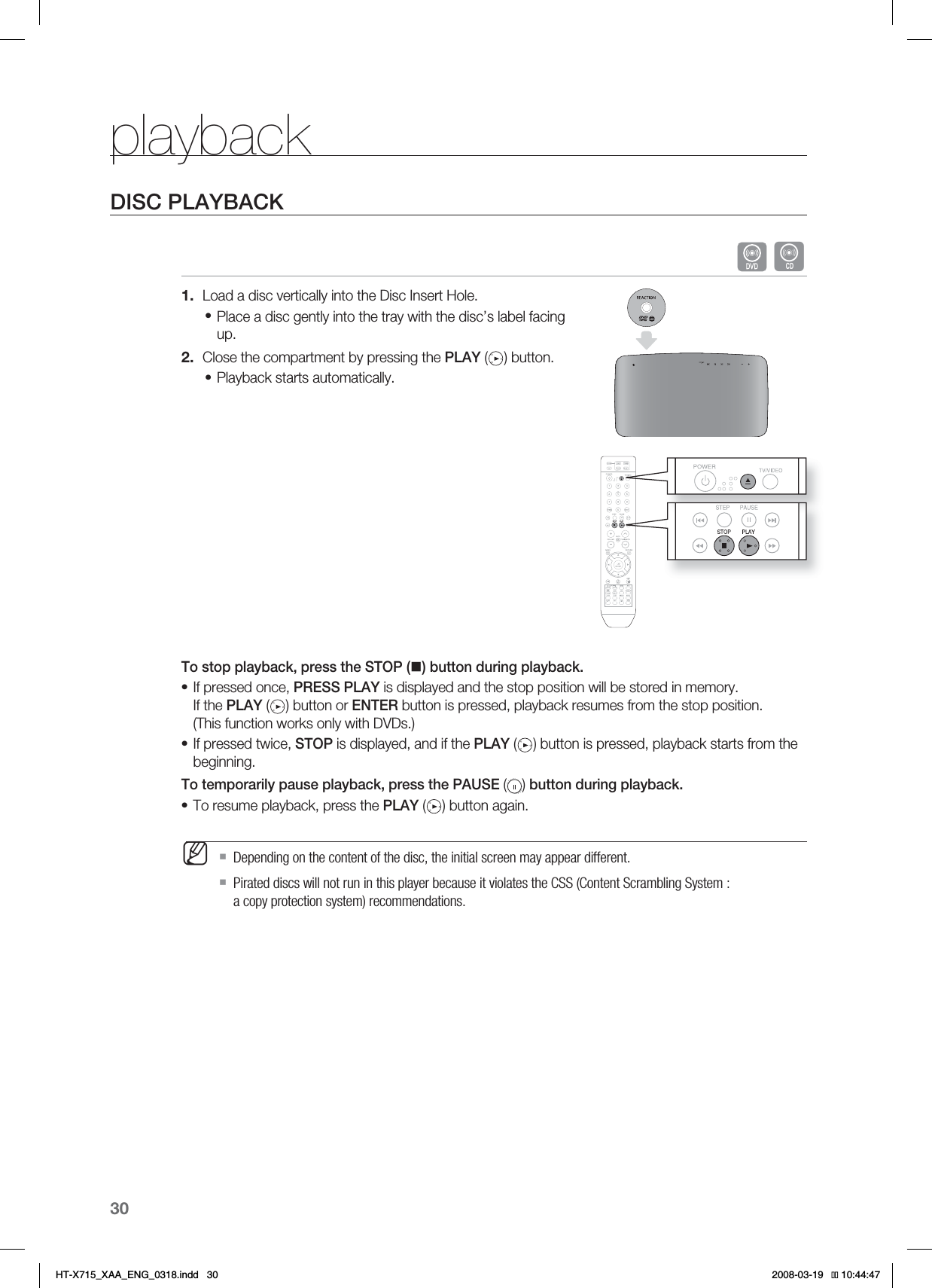

30playbackDISC PLAYBACKBLoad a disc vertically into the Disc Insert Hole.Place a disc gently into the tray with the disc’s label facing up.Close the compartment by pressing the PLAY ( ) button.Playback starts automatically.To stop playback, press the STOP () button during playback.If pressed once, PRESS PLAY is displayed and the stop position will be stored in memory. If the PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.)If pressed twice, STOP is displayed, and if the PLAY ( ) button is pressed, playback starts from the beginning.To temporarily pause playback, press the PAUSE ( ) button during playback.To resume playback, press the PLAY ( ) button again.Depending on the content of the disc, the initial screen may appear different.Pirated discs will not run in this player because it violates the CSS (Content Scrambling System : a copy protection system) recommendations.1.•2.••••MHT-X715_XAA_ENG_0318.indd 30 

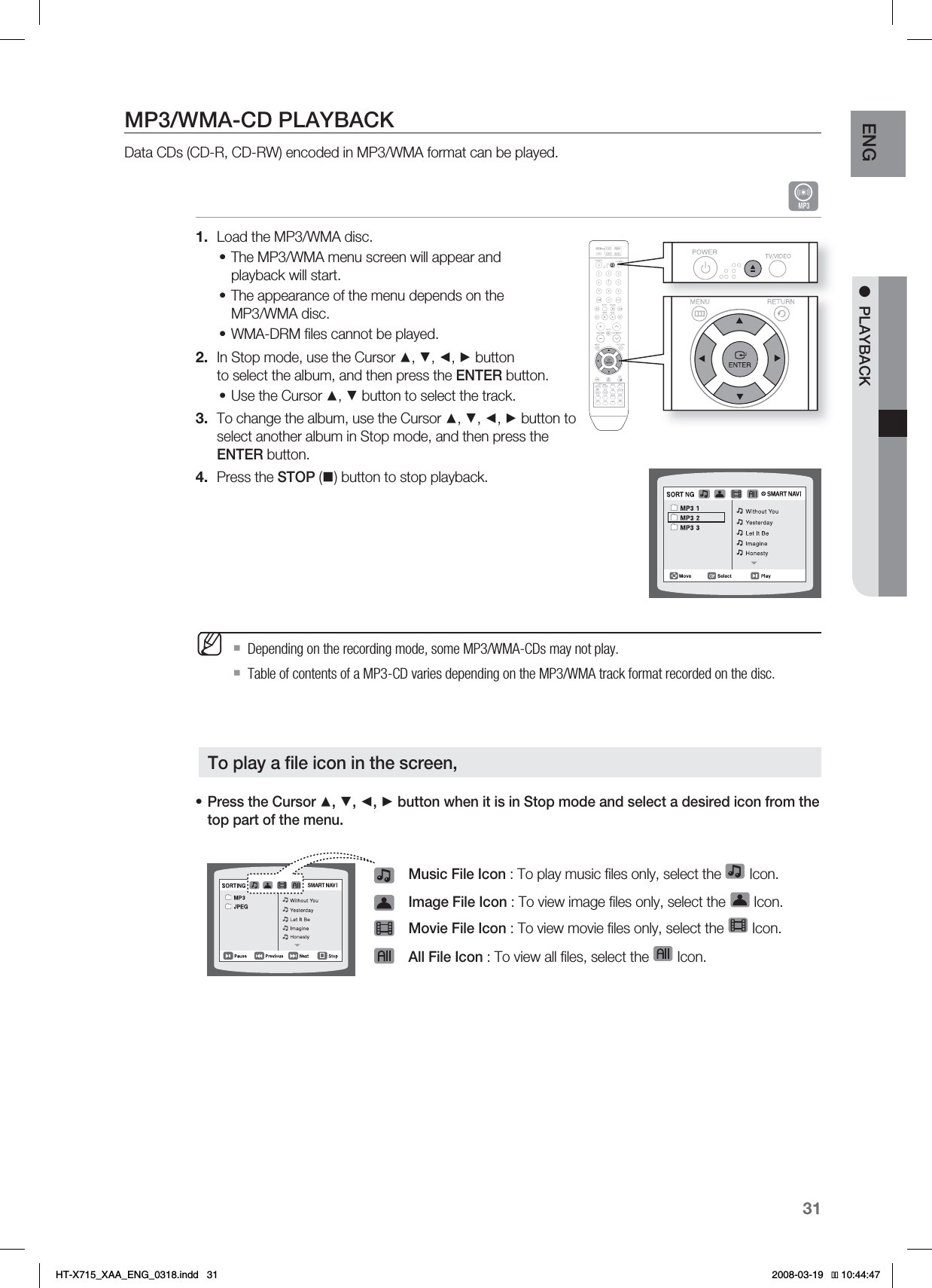

31ENG ●PLAYBACKMP3/WMA-CD PLAYBACKData CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.ALoad the MP3/WMA disc.The MP3/WMA menu screen will appear and playback will start.The appearance of the menu depends on the MP3/WMA disc.WMA-DRM ﬁ les cannot be played.In Stop mode, use the Cursor ▲, ▼, ◄, ► button to select the album, and then press the ENTER button.Use the Cursor ▲, ▼ button to select the track.To change the album, use the Cursor ▲, ▼, ◄, ► button to select another album in Stop mode, and then press the ENTER button.Press the STOP () button to stop playback.Depending on the recording mode, some MP3/WMA-CDs may not play.Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.Press the Cursor ▲, ▼, ◄, ► button when it is in Stop mode and select a desired icon from the top part of the menu.Music File Icon : To play music ﬁ les only, select the Icon.Image File Icon : To view image ﬁ les only, select the Icon.Movie File Icon : To view movie ﬁ les only, select the Icon.All File Icon : To view all ﬁ les, select the Icon.1.•••2.•3.4.M•To play a ﬁ le icon in the screen,HT-X715_XAA_ENG_0318.indd 31 

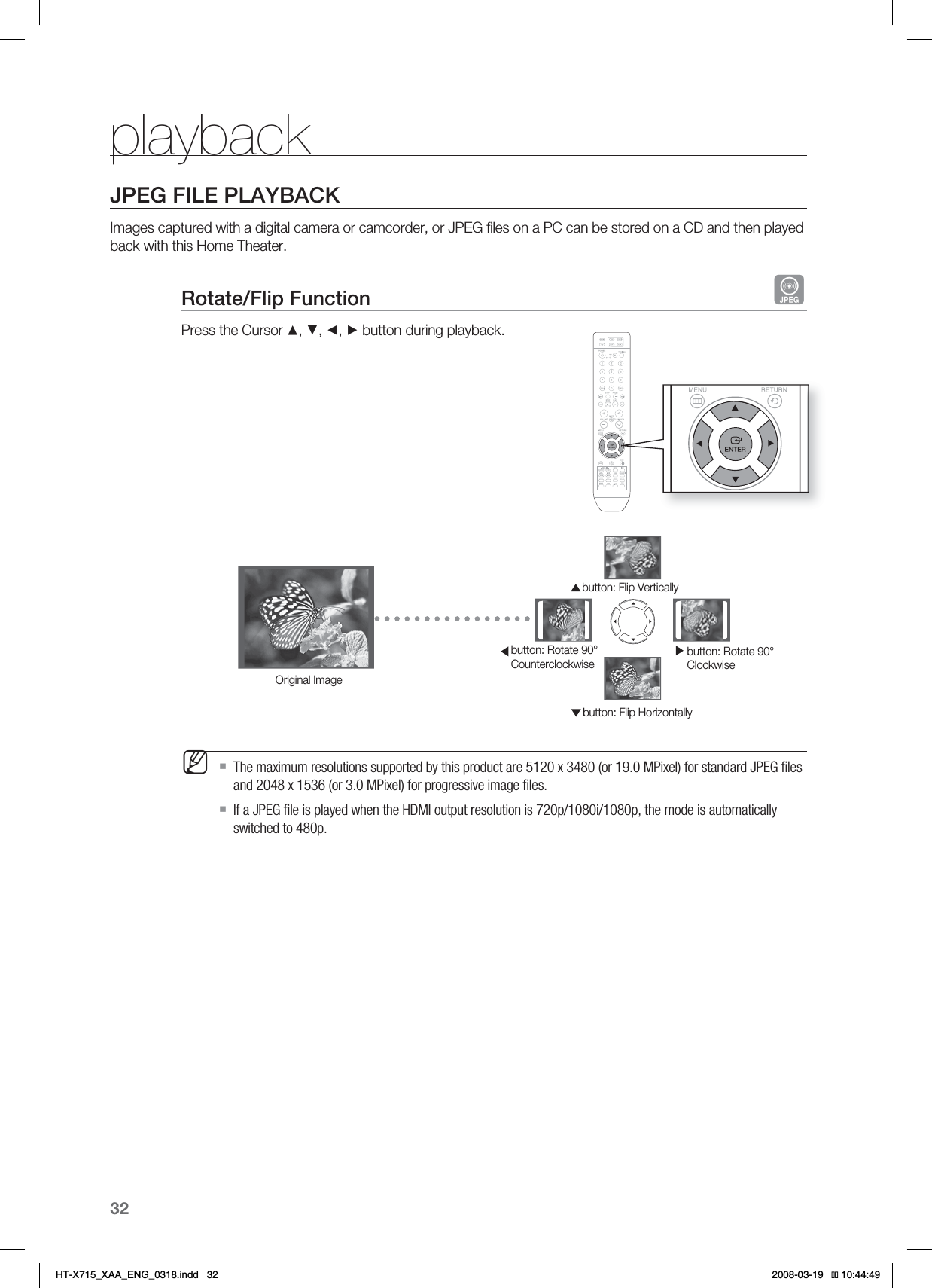

32playbackJPEG FILE PLAYBACKImages captured with a digital camera or camcorder, or JPEG ﬁ les on a PC can be stored on a CD and then played back with this Home Theater.Rotate/Flip Function GPress the Cursor ▲, ▼, ◄, ► button during playback.The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG ﬁ les and 2048 x 1536 (or 3.0 MPixel) for progressive image ﬁ les. If a JPEG ﬁ le is played when the HDMI output resolution is 720p/1080i/1080p, the mode is automatically switched to 480p.Mbutton: Rotate 90° Clockwisebutton: Rotate 90° Counterclockwisebutton: Flip Verticallybutton: Flip HorizontallyOriginal ImageHT-X715_XAA_ENG_0318.indd 32 

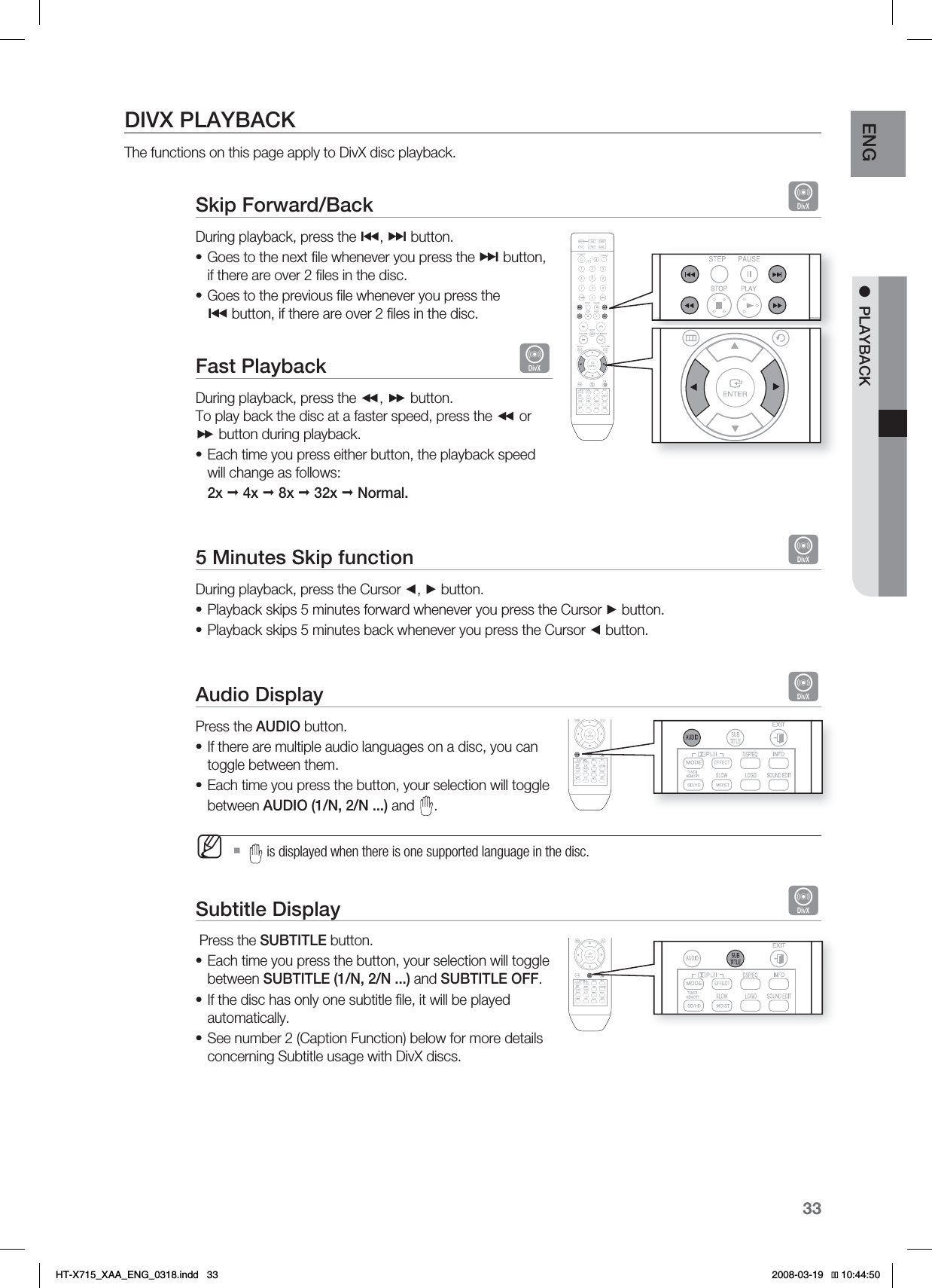

33ENG ●PLAYBACKDIVX PLAYBACKThe functions on this page apply to DivX disc playback.Skip Forward/Back DDuring playback, press the #, $ button.Goes to the next ﬁ le whenever you press the $ button, if there are over 2 ﬁ les in the disc. Goes to the previous ﬁ le whenever you press the # button, if there are over 2 ﬁ les in the disc.Fast Playback DDuring playback, press the ,  button.To play back the disc at a faster speed, press the  or  button during playback.Each time you press either button, the playback speed will change as follows: 2x  4x  8x  32x  Normal.5 Minutes Skip function DDuring playback, press the Cursor ◄, ► button.Playback skips 5 minutes forward whenever you press the Cursor ► button.Playback skips 5 minutes back whenever you press the Cursor ◄ button.Audio Display DPress the AUDIO button.If there are multiple audio languages on a disc, you can toggle between them.Each time you press the button, your selection will toggle between AUDIO (1/N, 2/N ...) and . is displayed when there is one supported language in the disc.Subtitle Display D Press the SUBTITLE button.Each time you press the button, your selection will toggle between SUBTITLE (1/N, 2/N ...) and SUBTITLE OFF.If the disc has only one subtitle ﬁ le, it will be played automatically.See number 2 (Caption Function) below for more details concerning Subtitle usage with DivX discs.•••••••M•••HT-X715_XAA_ENG_0318.indd 33 

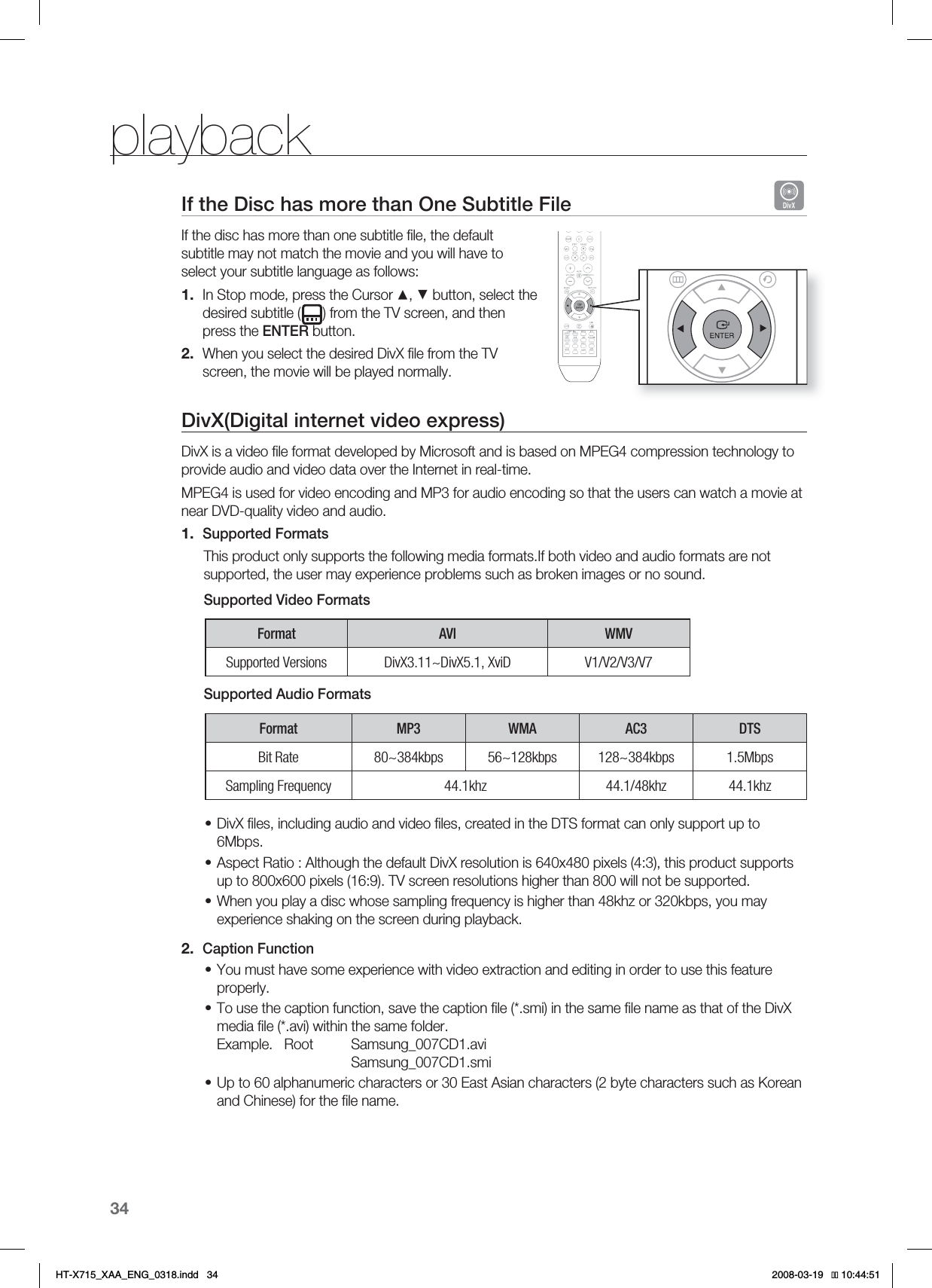

34playbackIf the Disc has more than One Subtitle File DIf the disc has more than one subtitle ﬁ le, the default subtitle may not match the movie and you will have to select your subtitle language as follows:In Stop mode, press the Cursor ▲, ▼ button, select the desired subtitle ( ) from the TV screen, and then press the ENTER button.When you select the desired DivX ﬁ le from the TV screen, the movie will be played normally.DivX(Digital internet video express) DivX is a video ﬁ le format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time. MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.Supported FormatsThis product only supports the following media formats.If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.Supported Video FormatsFormat AVI WMVSupported Versions DivX3.11~DivX5.1, XviD V1/V2/V3/V7Supported Audio FormatsFormat MP3 WMA AC3 DTSBit Rate 80~384kbps 56~128kbps 128~384kbps 1.5MbpsSampling Frequency 44.1khz 44.1/48khz 44.1khzDivX ﬁ les, including audio and video ﬁ les, created in the DTS format can only support up to 6Mbps.Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.Caption FunctionYou must have some experience with video extraction and editing in order to use this feature properly.To use the caption function, save the caption ﬁ le (*.smi) in the same ﬁ le name as that of the DivX media ﬁ le (*.avi) within the same folder. Example. Root Samsung_007CD1.aviSamsung_007CD1.smiUp to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the ﬁ le name. 1.2.1.•••2.•••*6:A:##A'0)AKPFF 

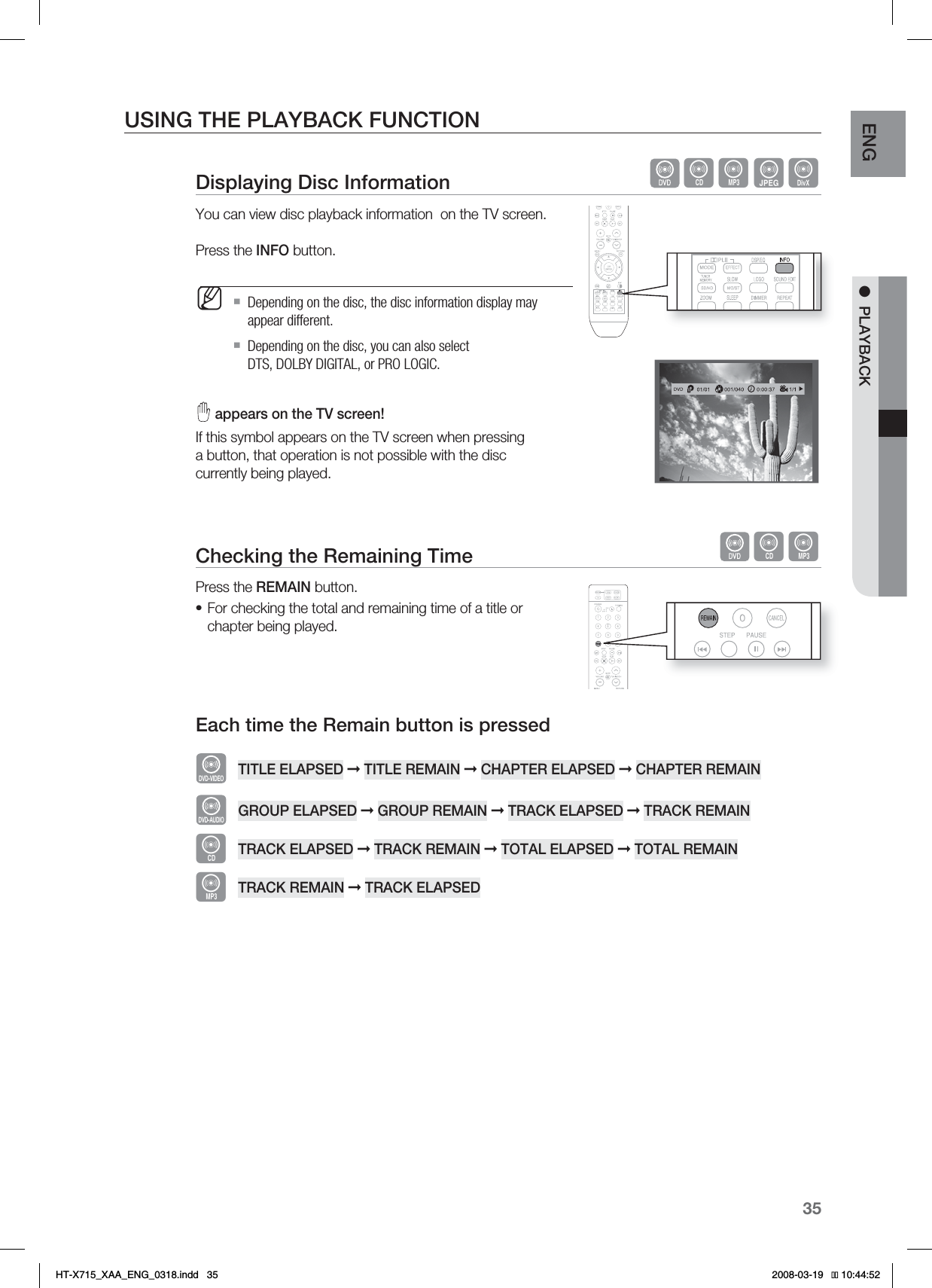

35ENG ●PLAYBACKUSING THE PLAYBACK FUNCTIONDisplaying Disc Information BAGDYou can view disc playback information on the TV screen.Press the INFO button.Depending on the disc, the disc information display may appear different.Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC. appears on the TV screen! If this symbol appears on the TV screen when pressing a button, that operation is not possible with the disc currently being played.Checking the Remaining Time BAPress the REMAIN button.For checking the total and remaining time of a title or chapter being played.Each time the Remain button is pressed%7%7*%&0TITLE ELAPSED ➞TITLE REMAIN ➞CHAPTER ELAPSED ➞CHAPTER REMAIN%7%"6%*0GROUP ELAPSED ➞GROUP REMAIN ➞TRACK ELAPSED ➞TRACK REMAINBTRACK ELAPSED ➞TRACK REMAIN ➞TOTAL ELAPSED ➞TOTAL REMAINATRACK REMAIN ➞TRACK ELAPSEDM•HT-X715_XAA_ENG_0318.indd 35 

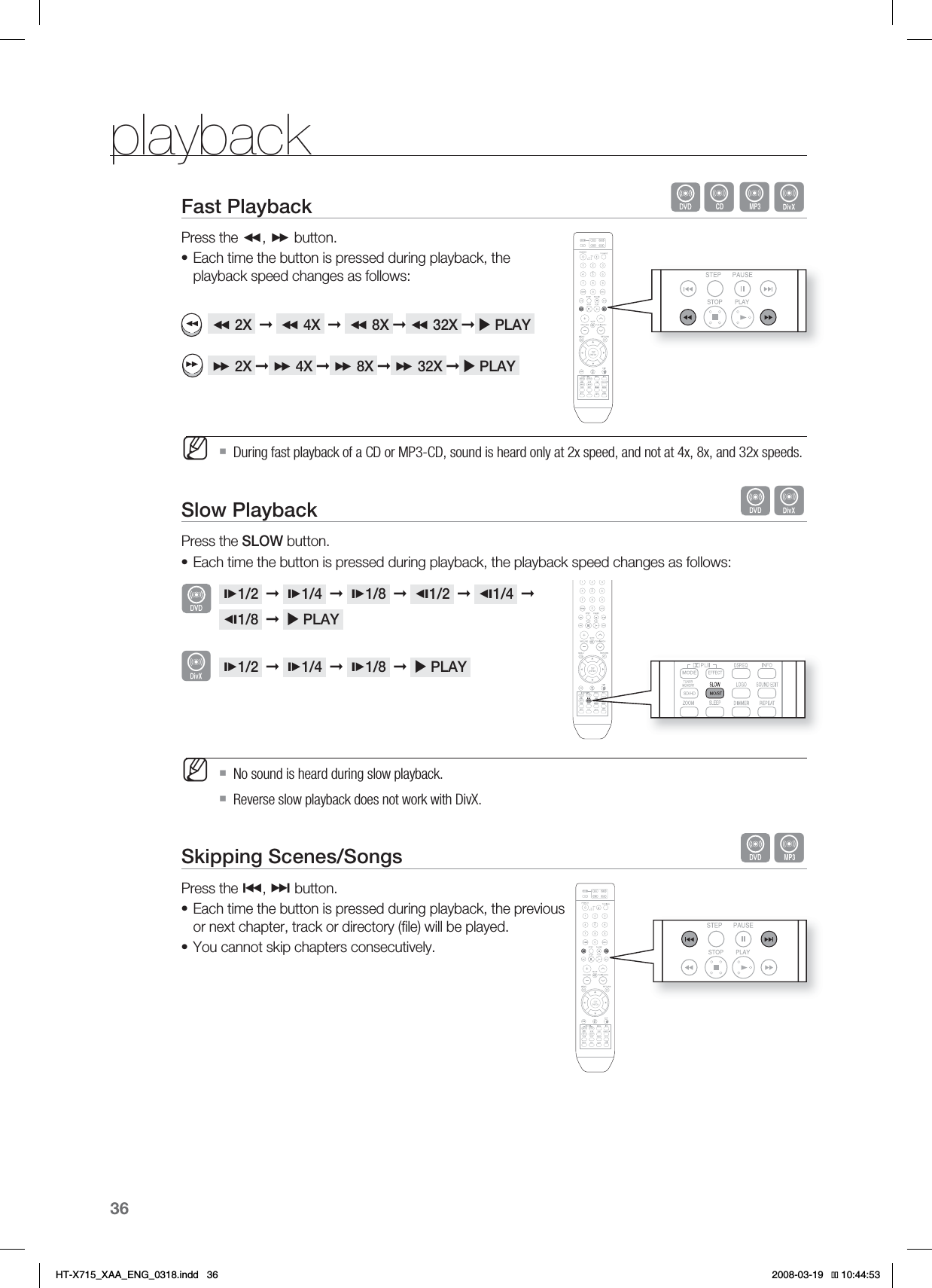

36playbackFast Playback BADPress the ,  button.Each time the button is pressed during playback, the playback speed changes as follows:  2X ➞  4X ➞  8X ➞32X ➞XPLAY 2X ➞4X ➞8X ➞32X ➞XPLAY During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.Slow Playback DPress the SLOW button.Each time the button is pressed during playback, the playback speed changes as follows:1/2 ➞ 1/4 ➞ 1/8 ➞ 1/2 ➞ 1/4 ➞1/8 ➞ X PLAY 1/2 ➞ 1/4 ➞ 1/8 ➞ X PLAY No sound is heard during slow playback.Reverse slow playback does not work with DivX.Skipping Scenes/Songs APress the #, $ button.Each time the button is pressed during playback, the previous or next chapter, track or directory (ﬁ le) will be played.You cannot skip chapters consecutively.•M•M••DHT-X715_XAA_ENG_0318.indd 36 

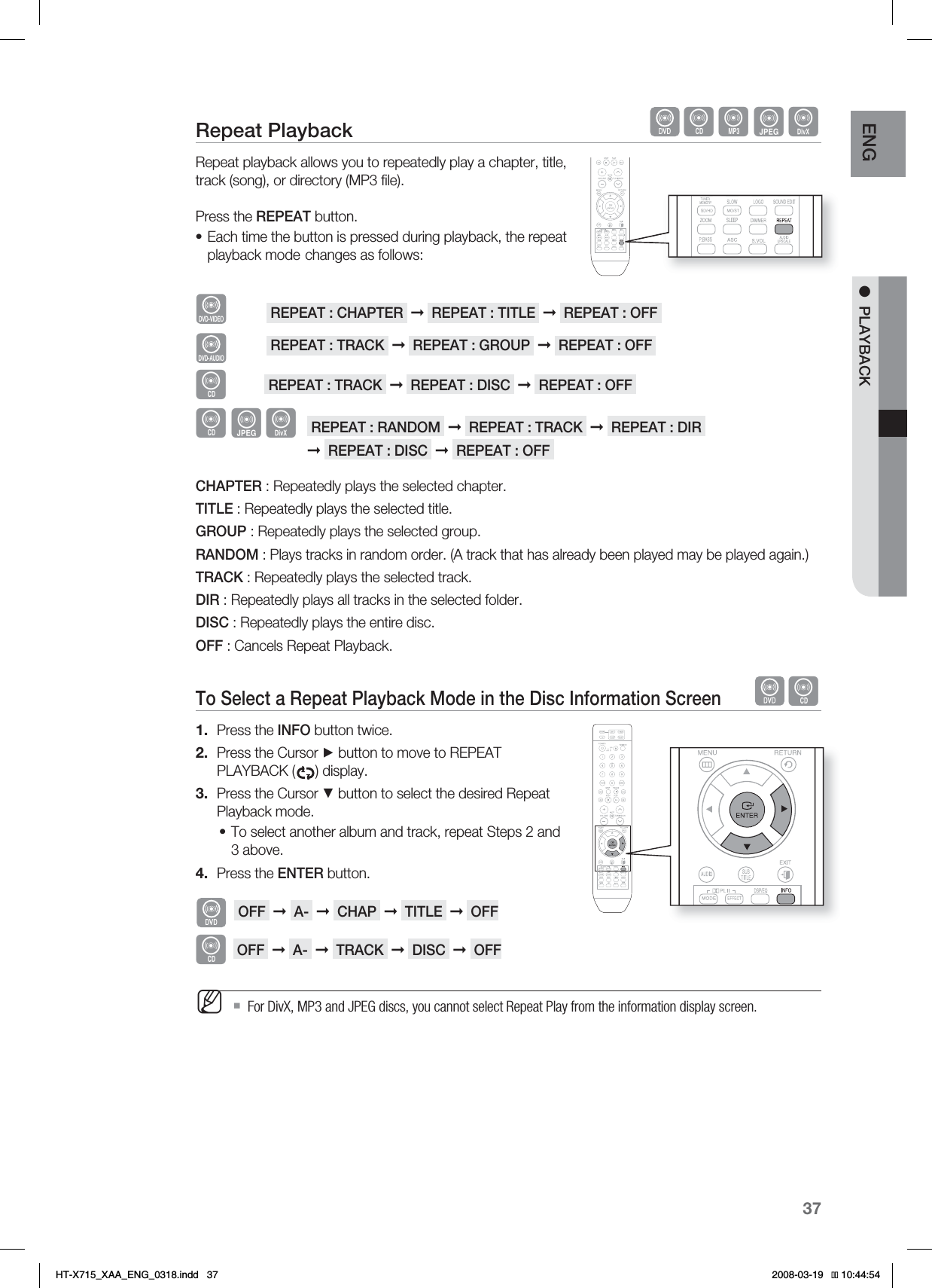

37ENG ●PLAYBACKRepeat Playback BAGDRepeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 ﬁ le).Press the REPEAT button.Each time the button is pressed during playback, the repeat playback mode changes as follows:%7%7*%&0 REPEAT : CHAPTER ➞ REPEAT : TITLE ➞ REPEAT : OFF %7%"6%*0 REPEAT : TRACK ➞ REPEAT : GROUP ➞ REPEAT : OFF B REPEAT : TRACK ➞ REPEAT : DISC ➞ REPEAT : OFF BGD REPEAT : RANDOM ➞ REPEAT : TRACK ➞ REPEAT : DIR ➞ REPEAT : DISC ➞ REPEAT : OFF CHAPTER : Repeatedly plays the selected chapter.TITLE : Repeatedly plays the selected title.GROUP : Repeatedly plays the selected group.RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)TRACK : Repeatedly plays the selected track.DIR : Repeatedly plays all tracks in the selected folder.DISC : Repeatedly plays the entire disc.OFF : Cancels Repeat Playback.To Select a Repeat Playback Mode in the Disc Information ScreenBPress the INFO button twice.Press the Cursor ► button to move to REPEAT PLAYBACK ( ) display.Press the Cursor ▼ button to select the desired Repeat Playback mode.To select another album and track, repeat Steps 2 and 3 above. Press the ENTER button.OFF ➞ A- ➞ CHAP ➞ TITLE ➞ OFFB OFF ➞ A- ➞ TRACK ➞ DISC ➞ OFF For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.•1.2.3.•4.MHT-X715_XAA_ENG_0318.indd 37 

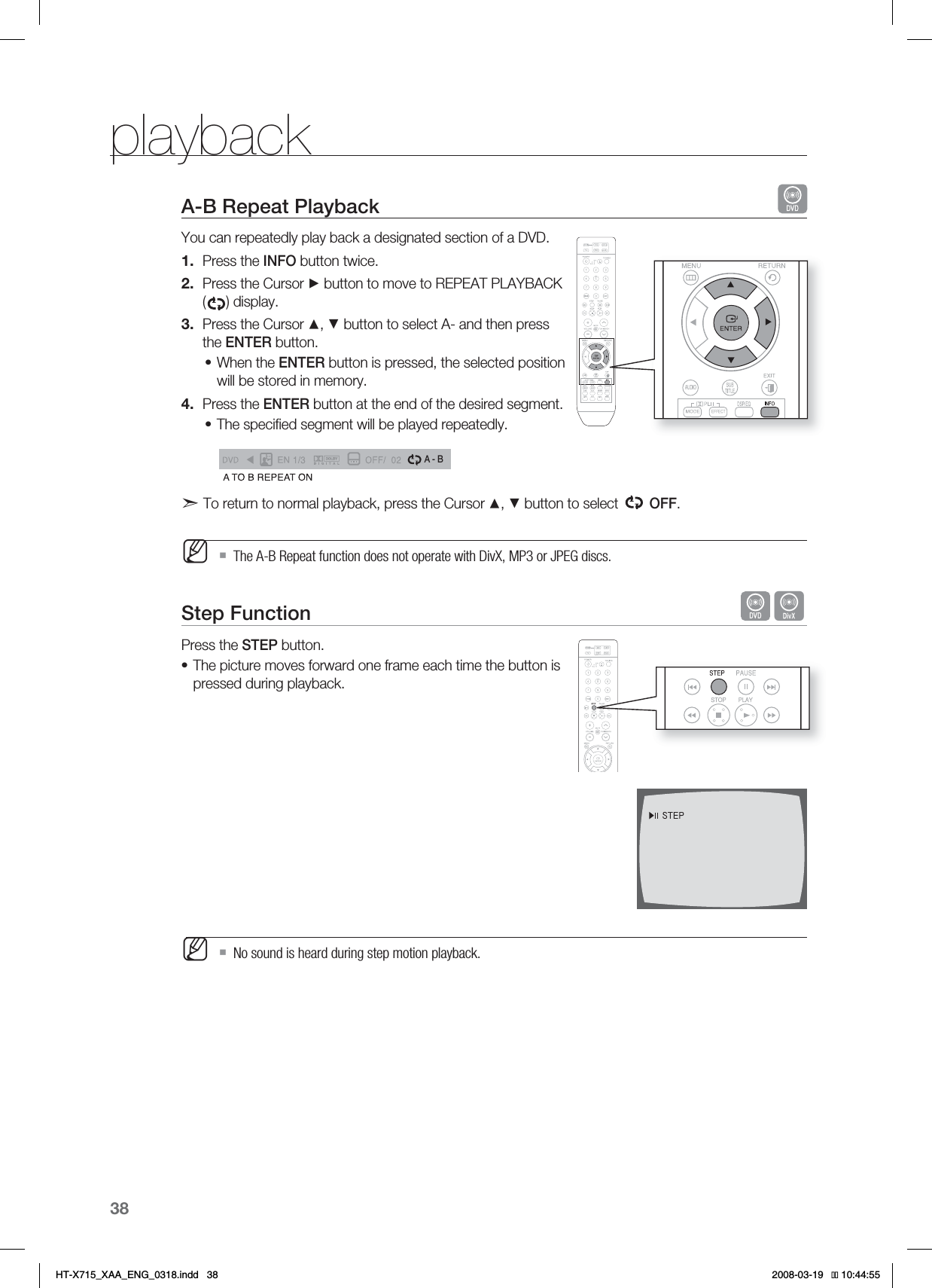

38playbackA-B Repeat Playback You can repeatedly play back a designated section of a DVD.Press the INFO button twice.Press the Cursor ► button to move to REPEAT PLAYBACK () display.Press the Cursor ▲, ▼ button to select A- and then press the ENTER button.When the ENTER button is pressed, the selected position will be stored in memory.Press the ENTER button at the end of the desired segment.The speciﬁ ed segment will be played repeatedly.A - B To return to normal playback, press the Cursor ▲, ▼ button to select OFF. The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.Step Function DPress the STEP button.The picture moves forward one frame each time the button is pressed during playback.No sound is heard during step motion playback.1.2.3.•4.•M•MHT-X715_XAA_ENG_0318.indd 38 

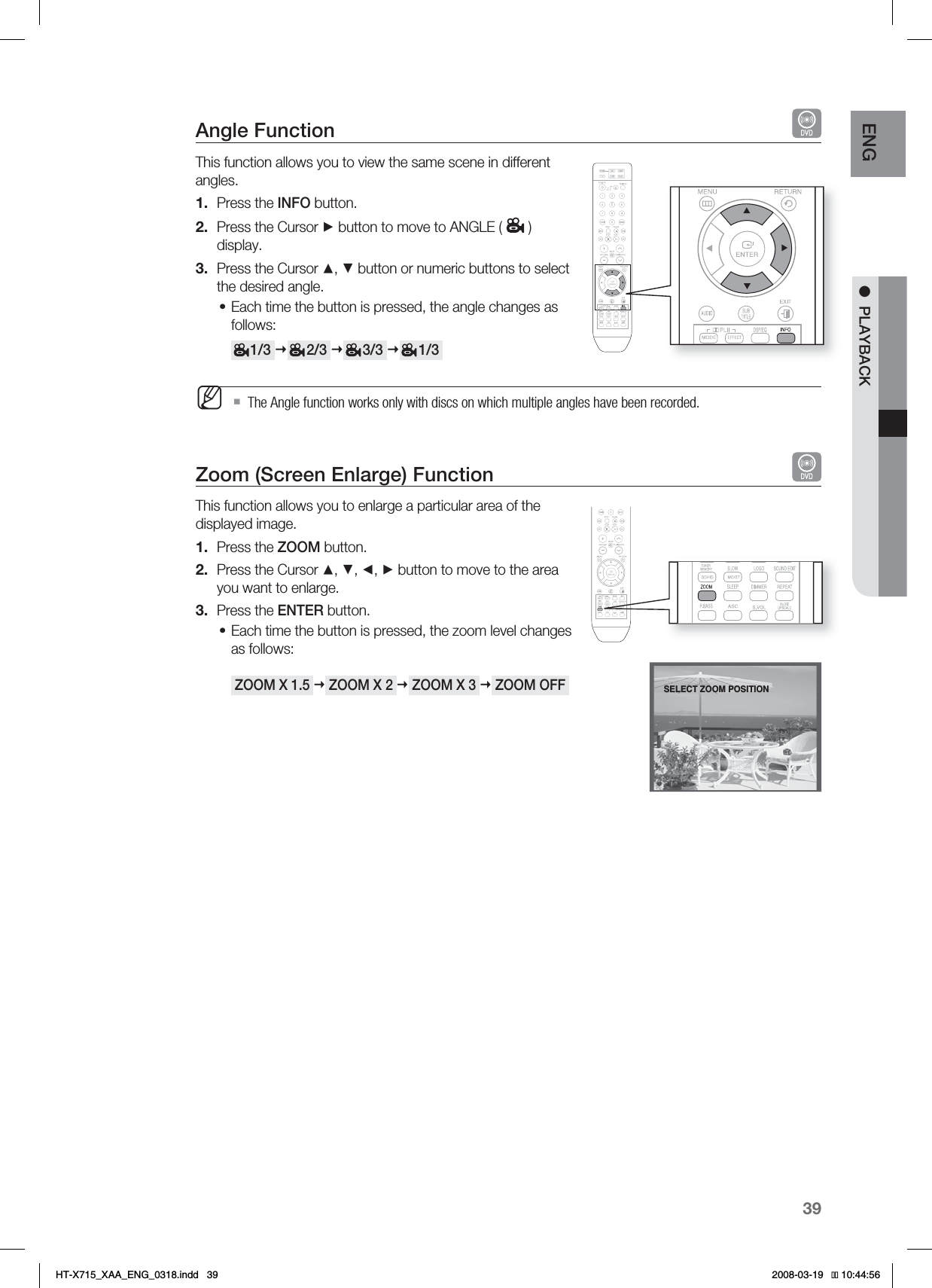

39ENG ●PLAYBACKAngle Function This function allows you to view the same scene in different angles.Press the INFO button.Press the Cursor ► button to move to ANGLE ( )display.Press the Cursor ▲, ▼ button or numeric buttons to select the desired angle.Each time the button is pressed, the angle changes as follows: 1/3  2/3  3/3  1/3 The Angle function works only with discs on which multiple angles have been recorded.Zoom (Screen Enlarge) Function This function allows you to enlarge a particular area of the displayed image.Press the ZOOM button.Press the Cursor ▲, ▼, ◄, ► button to move to the area you want to enlarge.Press the ENTER button.Each time the button is pressed, the zoom level changes as follows: ZOOM X 1.5  ZOOM X 2  ZOOM X 3  ZOOM OFF 1.2.3.•M1.2.3.•SELECT ZOOM POSITIONHT-X715_XAA_ENG_0318.indd 39 

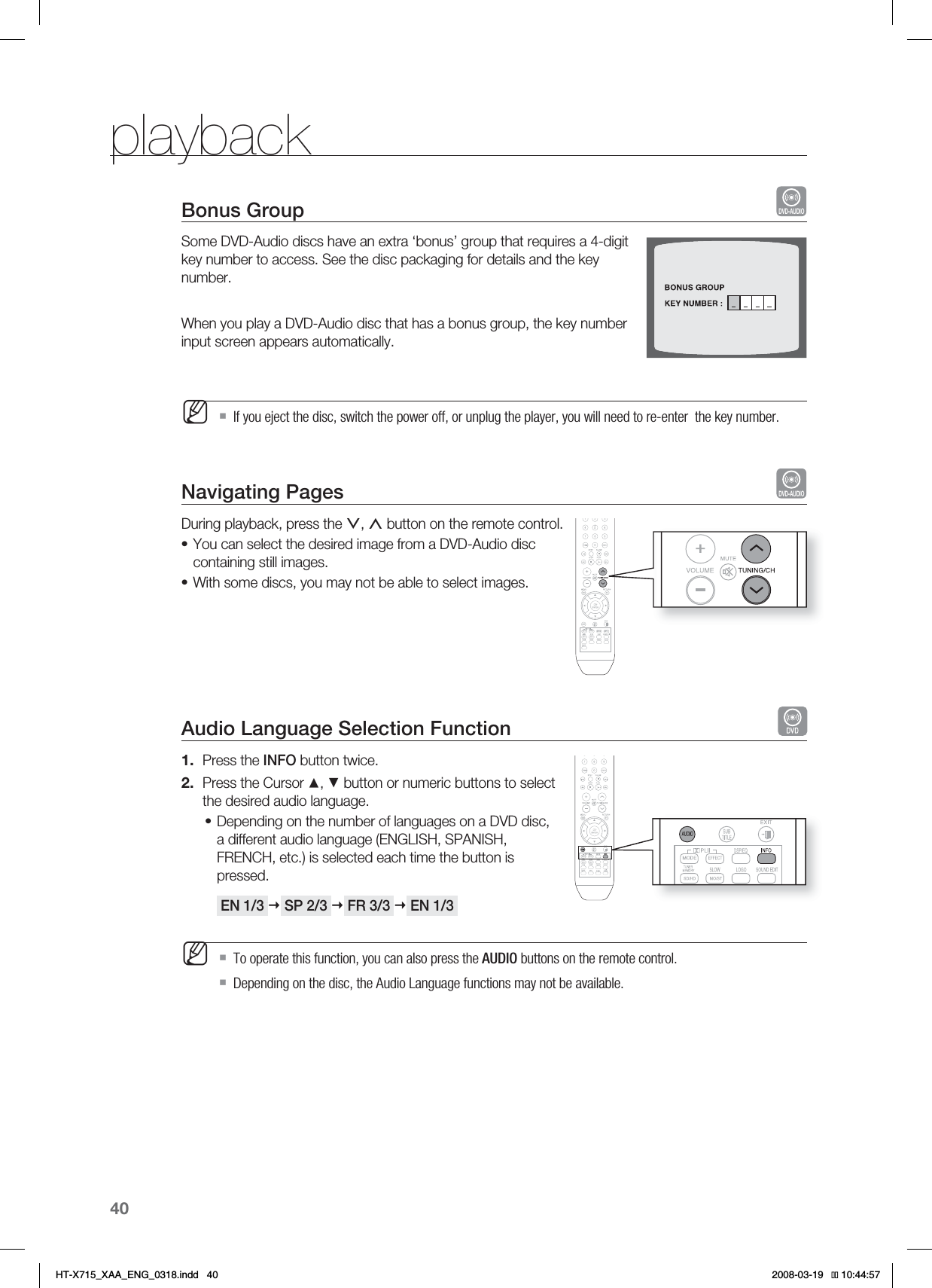

40playbackBonus Group %7%"6%*0Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the key number.When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically. If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number.Navigating Pages %7%"6%*0During playback, press the ., , button on the remote control. You can select the desired image from a DVD-Audio disc containing still images.With some discs, you may not be able to select images.Audio Language Selection Function Press the INFO button twice.Press the Cursor ▲, ▼ button or numeric buttons to select the desired audio language.Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed. EN 1/3  SP 2/3  FR 3/3  EN 1/3 To operate this function, you can also press the AUDIO buttons on the remote control.Depending on the disc, the Audio Language functions may not be available.M••1.2.•M*6:A:##A'0)AKPFF 

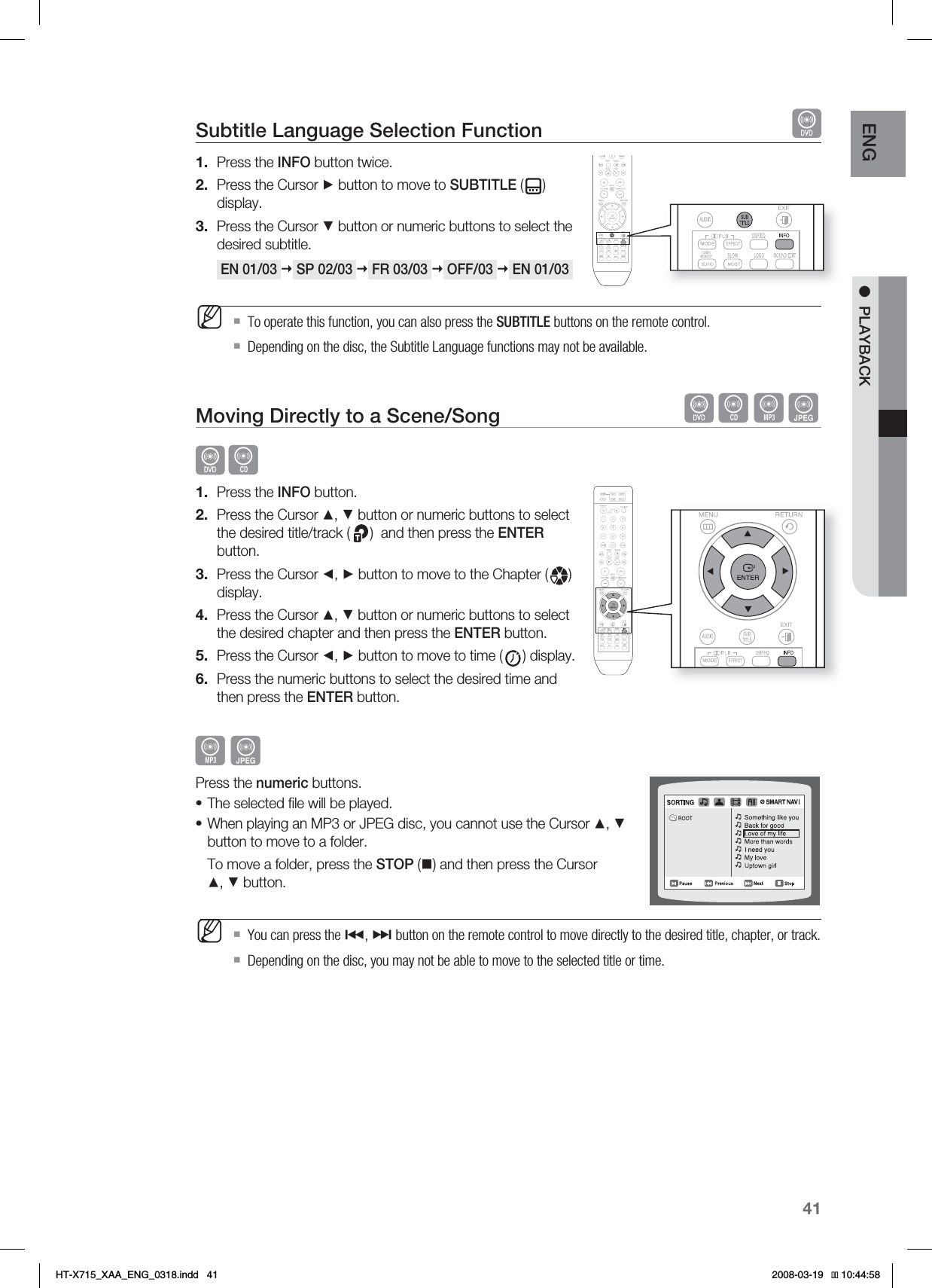

41ENG ●PLAYBACKSubtitle Language Selection Function Press the INFO button twice.Press the Cursor ► button to move to SUBTITLE ( )display.Press the Cursor ▼ button or numeric buttons to select the desired subtitle. EN 01/03  SP 02/03  FR 03/03  OFF/03  EN 01/03 To operate this function, you can also press the SUBTITLE buttons on the remote control.Depending on the disc, the Subtitle Language functions may not be available.Moving Directly to a Scene/Song BAGBPress the INFO button.Press the Cursor ▲, ▼ button or numeric buttons to select the desired title/track ( ) and then press the ENTERbutton.Press the Cursor ◄, ► button to move to the Chapter ( )display.Press the Cursor ▲, ▼ button or numeric buttons to select the desired chapter and then press the ENTER button.Press the Cursor ◄, ► button to move to time ( ) display.Press the numeric buttons to select the desired time and then press the ENTER button.AGPress the numeric buttons.The selected ﬁ le will be played.When playing an MP3 or JPEG disc, you cannot use the Cursor ▲, ▼button to move to a folder. To move a folder, press the STOP () and then press the Cursor ▲, ▼ button.You can press the #, $ button on the remote control to move directly to the desired title, chapter, or track.Depending on the disc, you may not be able to move to the selected title or time.1.2.3.M1.2.3.4.5.6.••M*6:A:##A'0)AKPFF 

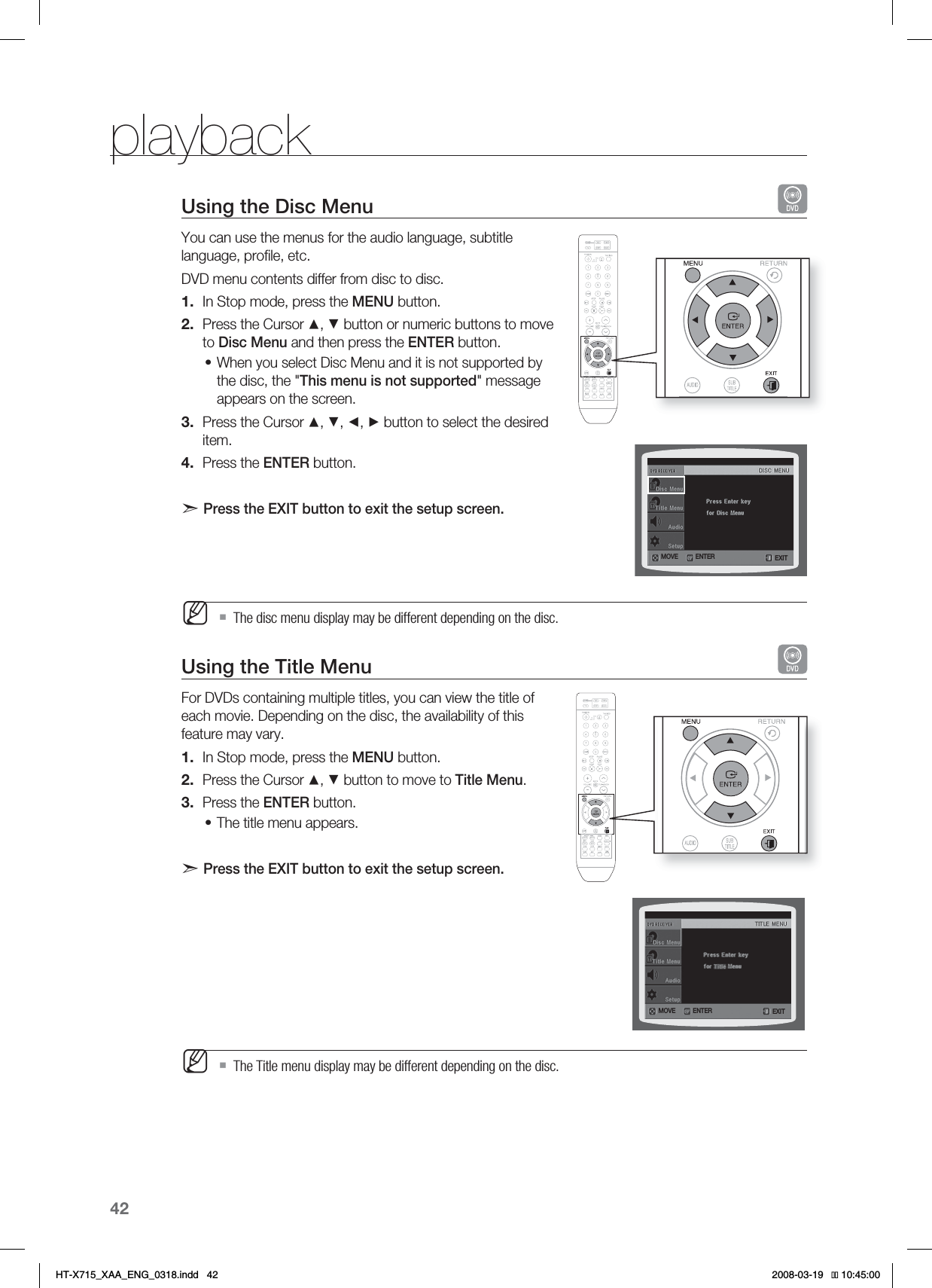

42playbackUsing the Disc Menu You can use the menus for the audio language, subtitle language, proﬁ le, etc. DVD menu contents differ from disc to disc.In Stop mode, press the MENU button.Press the Cursor ▲, ▼ button or numeric buttons to move to Disc Menu and then press the ENTER button.When you select Disc Menu and it is not supported by the disc, the "This menu is not supported" message appears on the screen.Press the Cursor ▲, ▼, ◄, ► button to select the desired item.Press the ENTER button.Press the EXIT button to exit the setup screen.The disc menu display may be different depending on the disc.Using the Title Menu For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary.In Stop mode, press the MENU button.Press the Cursor ▲, ▼ button to move to Title Menu.Press the ENTER button.The title menu appears.Press the EXIT button to exit the setup screen.The Title menu display may be different depending on the disc.1.2.•3.4.M1.2.3.•M&/5&3.07& &9*5&/5&3.07& &9*5*6:A:##A'0)AKPFF 

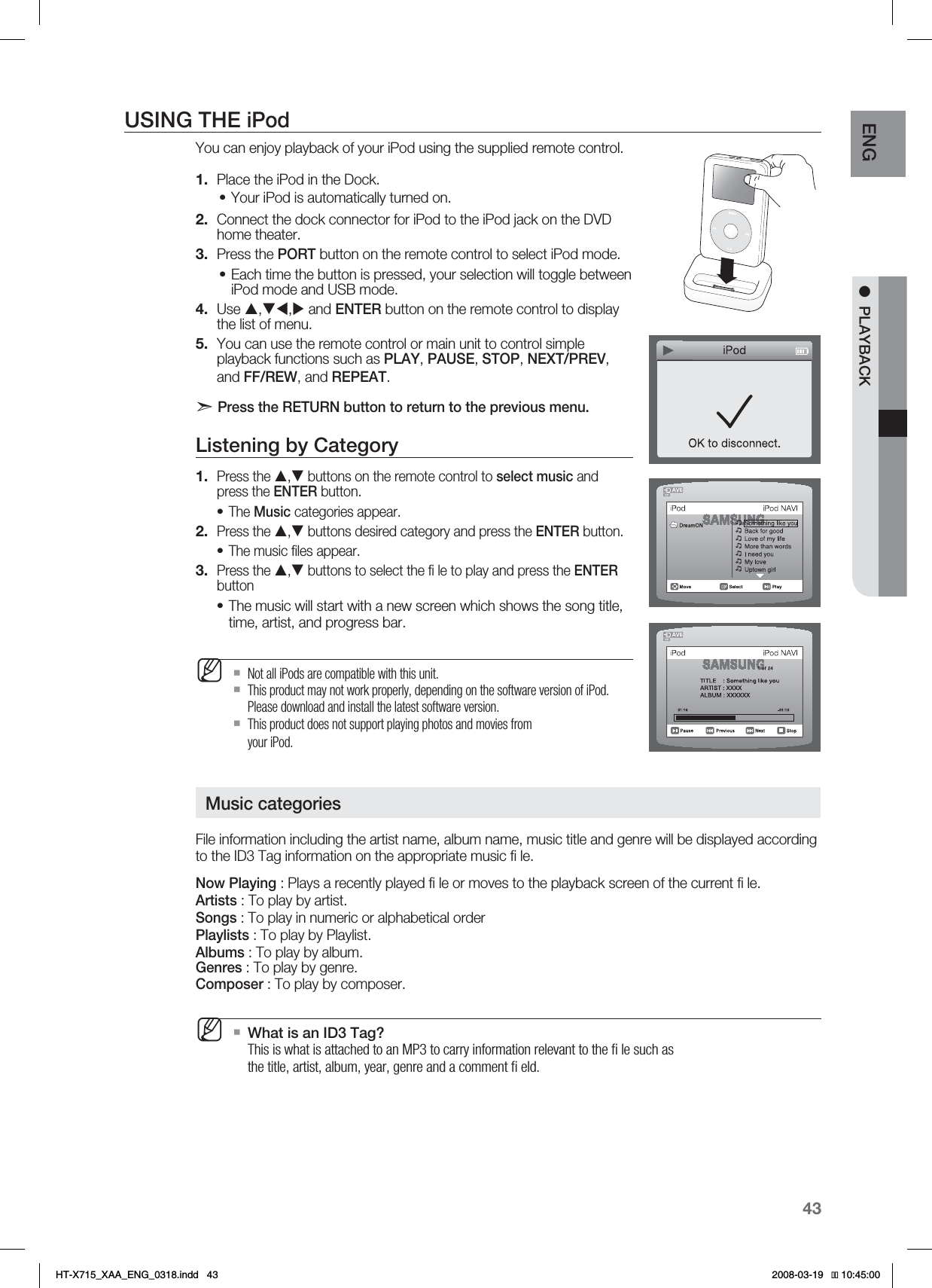

43ENG ●PLAYBACKUSING THE iPodYou can enjoy playback of your iPod using the supplied remote control.Place the iPod in the Dock.Your iPod is automatically turned on.Connect the dock connector for iPod to the iPod jack on the DVD home theater.Press the PORT button on the remote control to select iPod mode.Each time the button is pressed, your selection will toggle between iPod mode and USB mode.Use S,TW,X and ENTER button on the remote control to display the list of menu.You can use the remote control or main unit to control simple playback functions such as PLAY, PAUSE, STOP, NEXT/PREV,and FF/REW, and REPEAT. Press the RETURN button to return to the previous menu.Listening by CategoryPress the S,T buttons on the remote control to select music and press the ENTER button.The Music categories appear.Press the S,T buttons desired category and press the ENTER button.The music ﬁ les appear.Press the S,T buttons to select the ﬁ le to play and press the ENTERbuttonThe music will start with a new screen which shows the song title, time, artist, and progress bar.Not all iPods are compatible with this unit.This product may not work properly, depending on the software version of iPod. Please download and install the latest software version.This product does not support playing photos and movies fromyour iPod.Music categoriesFile information including the artist name, album name, music title and genre will be displayed according to the ID3 Tag information on the appropriate music ﬁ le.Now Playing : Plays a recently played ﬁ le or moves to the playback screen of the current ﬁ le.Artists : To play by artist.Songs : To play in numeric or alphabetical orderPlaylists : To play by Playlist.Albums : To play by album.Genres : To play by genre.Composer : To play by composer.What is an ID3 Tag?This is what is attached to an MP3 to carry information relevant to the ﬁ le such asthe title, artist, album, year, genre and a comment ﬁ eld.1.•2.3.•4.5.1.•2.•3.•MM*6:A:##A'0)AKPFF 

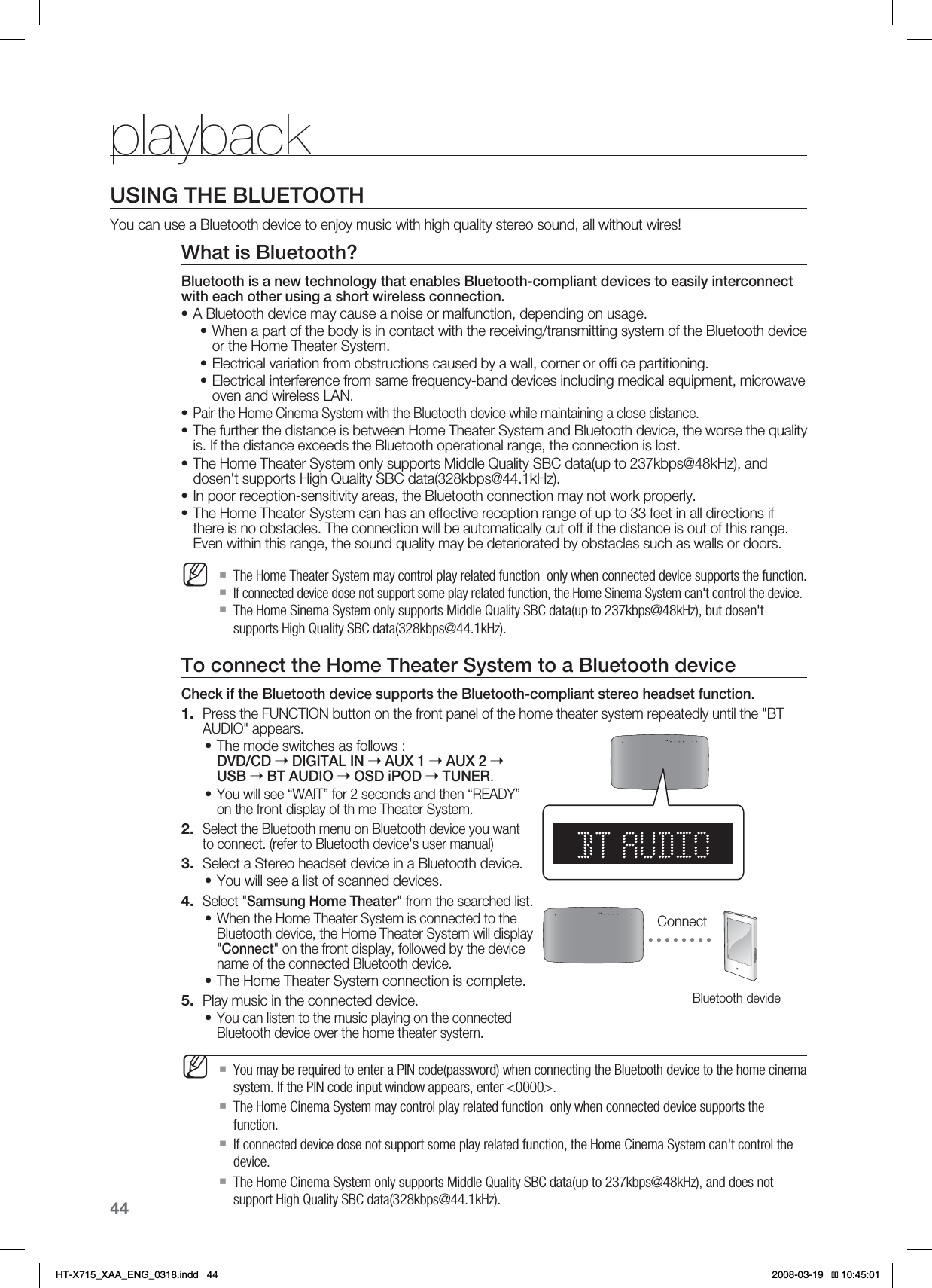

44playbackUSING THE BLUETOOTHYou can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!What is Bluetooth?Bluetooth is a new technology that enables Bluetooth-compliant devices to easily interconnect with each other using a short wireless connection.A Bluetooth device may cause a noise or malfunction, depending on usage.When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device or the Home Theater System.Electrical variation from obstructions caused by a wall, corner or ofﬁ ce partitioning.Electrical interference from same frequency-band devices including medical equipment, microwave oven and wireless LAN.Pair the Home Cinema System with the Bluetooth device while maintaining a close distance.The further the distance is between Home Theater System and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.The Home Theater System only supports Middle Quality SBC data(up to 237kbps@48kHz), and dosen't supports High Quality SBC data(328kbps@44.1kHz).In poor reception-sensitivity areas, the Bluetooth connection may not work properly.The Home Theater System can has an effective reception range of up to 33 feet in all directions if there is no obstacles. The connection will be automatically cut off if the distance is out of this range. Even within this range, the sound quality may be deteriorated by obstacles such as walls or doors.The Home Theater System may control play related function only when connected device supports the function.If connected device dose not support some play related function, the Home Sinema System can't control the device.The Home Sinema System only supports Middle Quality SBC data(up to 237kbps@48kHz), but dosen't supports High Quality SBC data(328kbps@44.1kHz).To connect the Home Theater System to a Bluetooth deviceCheck if the Bluetooth device supports the Bluetooth-compliant stereo headset function.Press the FUNCTION button on the front panel of the home theater system repeatedly until the "BT AUDIO" appears.The mode switches as follows : DVD/CD ➝ DIGITAL IN ➝AUX 1 ➝AUX 2 ➝USB ➝BT AUDIO ➝OSD iPOD ➝TUNER.You will see “WAIT” for 2 seconds and then “READY” on the front display of th me Theater System.Select the Bluetooth menu on Bluetooth device you want to connect. (refer to Bluetooth device's user manual)Select a Stereo headset device in a Bluetooth device.You will see a list of scanned devices.Select "Samsung Home Theater" from the searched list.When the Home Theater System is connected to the Bluetooth device, the Home Theater System will display "Connect" on the front display, followed by the device name of the connected Bluetooth device.The Home Theater System connection is complete.Play music in the connected device.You can listen to the music playing on the connected Bluetooth device over the home theater system.You may be required to enter a PIN code(password) when connecting the Bluetooth device to the home cinema system. If the PIN code input window appears, enter <0000>.The Home Cinema System may control play related function only when connected device supports the function.If connected device dose not support some play related function, the Home Cinema System can't control the device.The Home Cinema System only supports Middle Quality SBC data(up to 237kbps@48kHz), and does not support High Quality SBC data(328kbps@44.1kHz).•••••••••M1.••2.3.•4.••5.•MConnectBluetooth devide*6:A:##A'0)AKPFF 

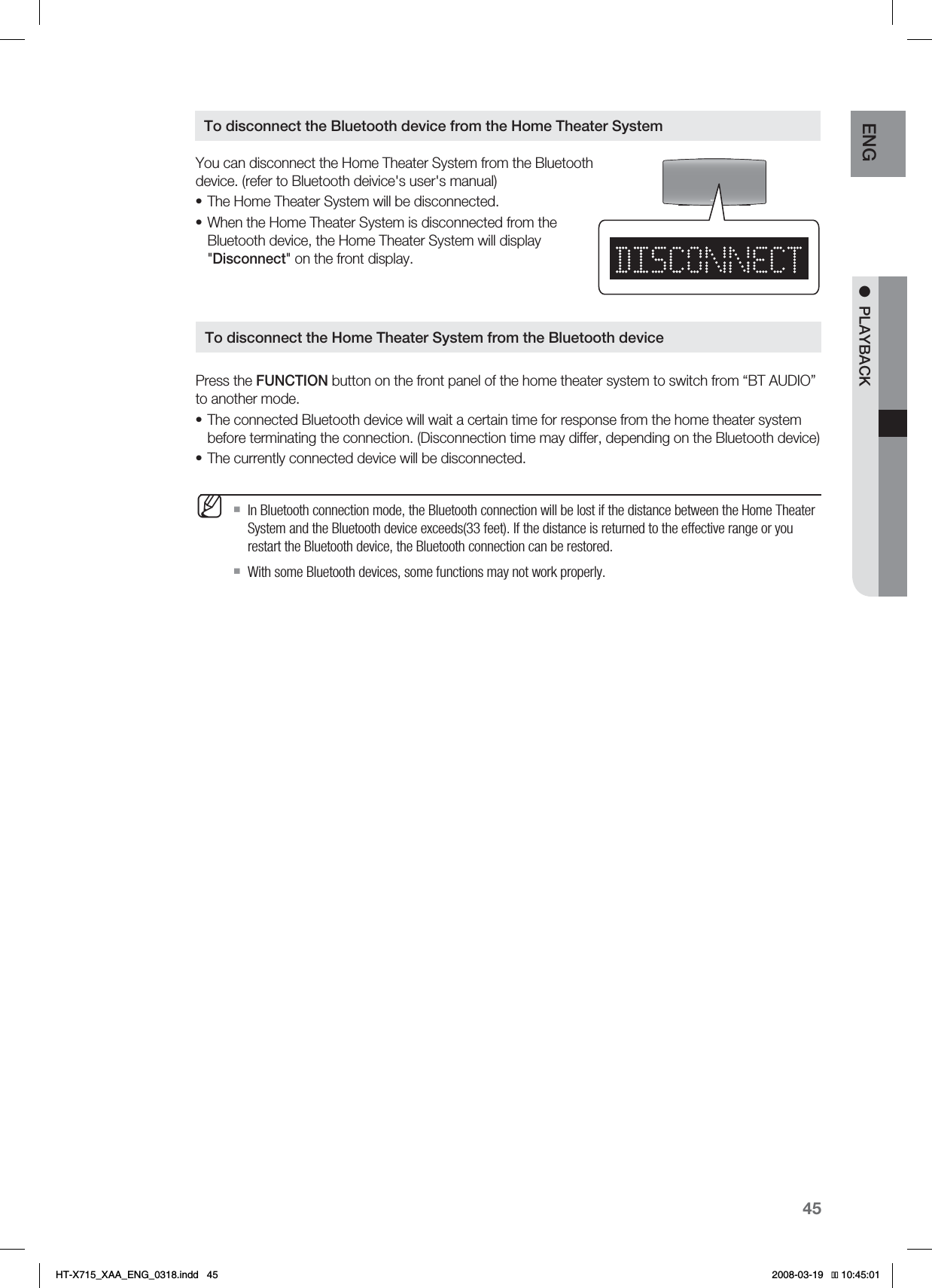

45ENG ●PLAYBACKYou can disconnect the Home Theater System from the Bluetooth device. (refer to Bluetooth deivice's user's manual)The Home Theater System will be disconnected.When the Home Theater System is disconnected from the Bluetooth device, the Home Theater System will display "Disconnect" on the front display.Press the FUNCTION button on the front panel of the home theater system to switch from “BT AUDIO” to another mode.The connected Bluetooth device will wait a certain time for response from the home theater system before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)The currently connected device will be disconnected.In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Home Theater System and the Bluetooth device exceeds(33 feet). If the distance is returned to the effective range or you restart the Bluetooth device, the Bluetooth connection can be restored.With some Bluetooth devices, some functions may not work properly.••••MTo disconnect the Bluetooth device from the Home Theater SystemTo disconnect the Home Theater System from the Bluetooth device*6:A:##A'0)AKPFF 
