Contents

Users Manual 2

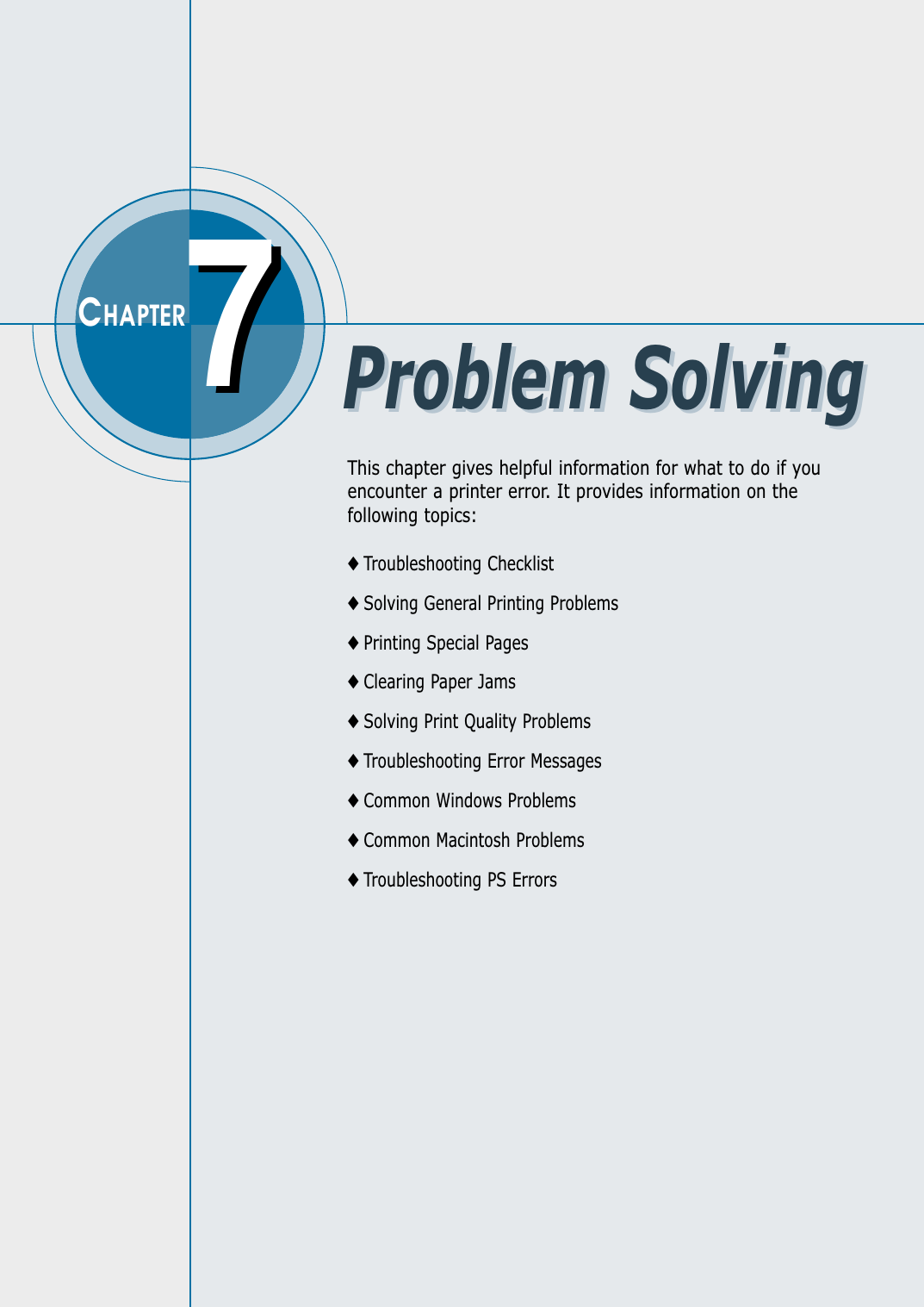

This chapter gives helpful information for what to do if youencounter a printer error. It provides information on thefollowing topics:◆ Troubleshooting Checklist◆ Solving General Printing Problems◆ Printing Special Pages◆ Clearing Paper Jams◆ Solving Print Quality Problems◆ Troubleshooting Error Messages◆ Common Windows Problems◆ Common Macintosh Problems◆ Troubleshooting PS Errors77CHAPTERProblem SolvingProblem Solving

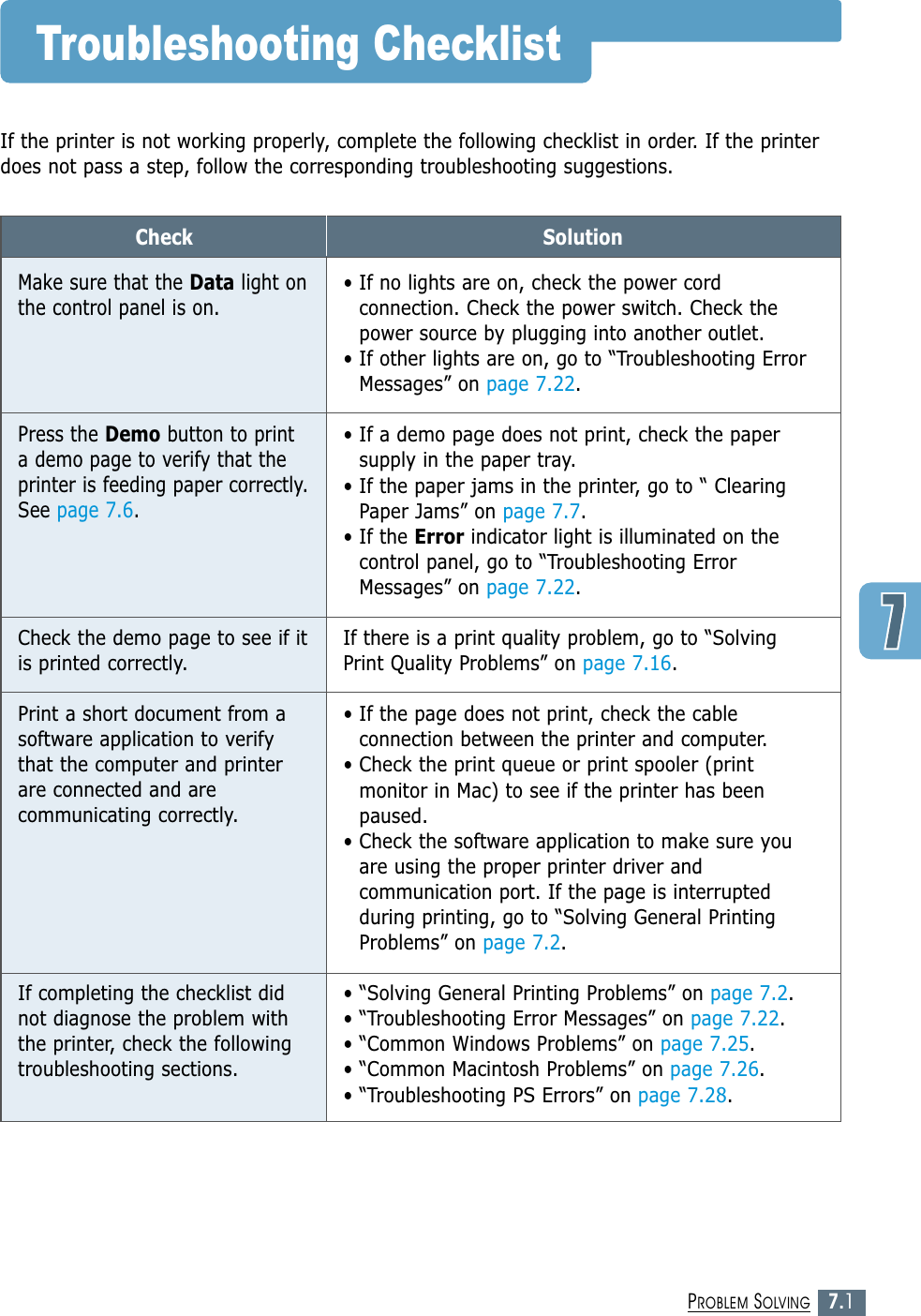

7.1PROBLEM SOLVINGTroubleshooting ChecklistIf the printer is not working properly, complete the following checklist in order. If the printerdoes not pass a step, follow the corresponding troubleshooting suggestions.CheckMake sure that the Data light onthe control panel is on.Press the Demo button to printa demo page to verify that theprinter is feeding paper correctly.See page 7.6.Check the demo page to see if itis printed correctly.Print a short document from asoftware application to verifythat the computer and printerare connected and arecommunicating correctly.If completing the checklist didnot diagnose the problem withthe printer, check the followingtroubleshooting sections.Solution• If no lights are on, check the power cordconnection. Check the power switch. Check thepower source by plugging into another outlet.• If other lights are on, go to “Troubleshooting ErrorMessages” on page 7.22.• If a demo page does not print, check the papersupply in the paper tray.• If the paper jams in the printer, go to “ ClearingPaper Jams” on page 7.7.• If the Error indicator light is illuminated on thecontrol panel, go to “Troubleshooting ErrorMessages” on page 7.22.If there is a print quality problem, go to “SolvingPrint Quality Problems” on page 7.16.• If the page does not print, check the cableconnection between the printer and computer. • Check the print queue or print spooler (printmonitor in Mac) to see if the printer has beenpaused.• Check the software application to make sure youare using the proper printer driver andcommunication port. If the page is interruptedduring printing, go to “Solving General PrintingProblems” on page 7.2.• “Solving General Printing Problems” on page 7.2.• “Troubleshooting Error Messages” on page 7.22.• “Common Windows Problems” on page 7.25.• “Common Macintosh Problems” on page 7.26.• “Troubleshooting PS Errors” on page 7.28.

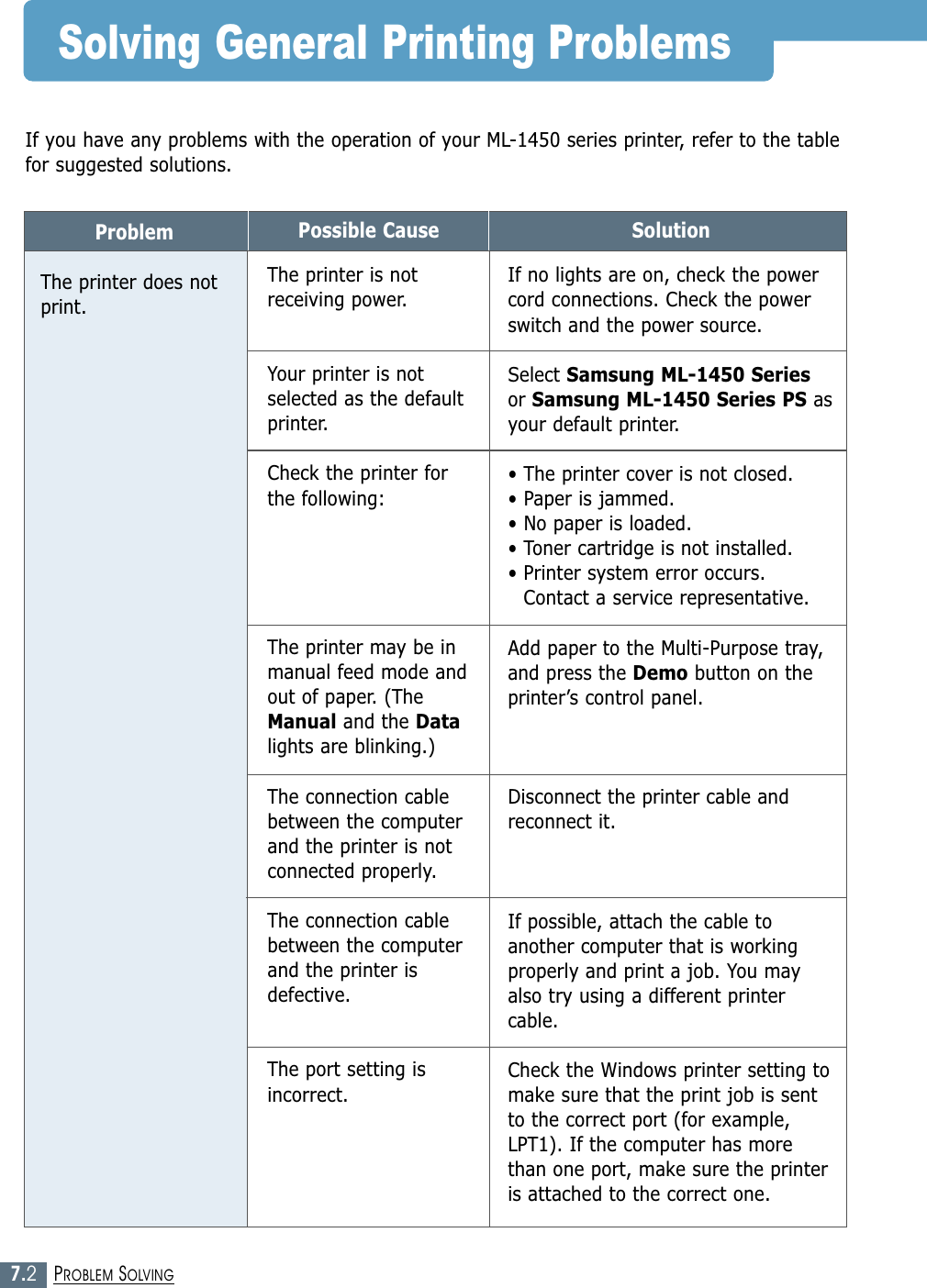

7.2PROBLEM SOLVINGSolving General Printing ProblemsProblemThe printer does notprint.Possible CauseThe printer is notreceiving power.Your printer is notselected as the defaultprinter.Check the printer forthe following: The printer may be inmanual feed mode andout of paper. (TheManual and the Datalights are blinking.)The connection cablebetween the computerand the printer is notconnected properly.The connection cablebetween the computerand the printer isdefective.The port setting isincorrect.SolutionIf no lights are on, check the powercord connections. Check the powerswitch and the power source.Select Samsung ML-1450 Seriesor Samsung ML-1450 Series PS asyour default printer. • The printer cover is not closed.• Paper is jammed.• No paper is loaded.• Toner cartridge is not installed.• Printer system error occurs.Contact a service representative.Add paper to the Multi-Purpose tray,and press the Demo button on theprinter’s control panel.Disconnect the printer cable andreconnect it.If possible, attach the cable toanother computer that is workingproperly and print a job. You mayalso try using a different printercable.Check the Windows printer setting tomake sure that the print job is sentto the correct port (for example,LPT1). If the computer has morethan one port, make sure the printeris attached to the correct one.If you have any problems with the operation of your ML-1450 series printer, refer to the tablefor suggested solutions.

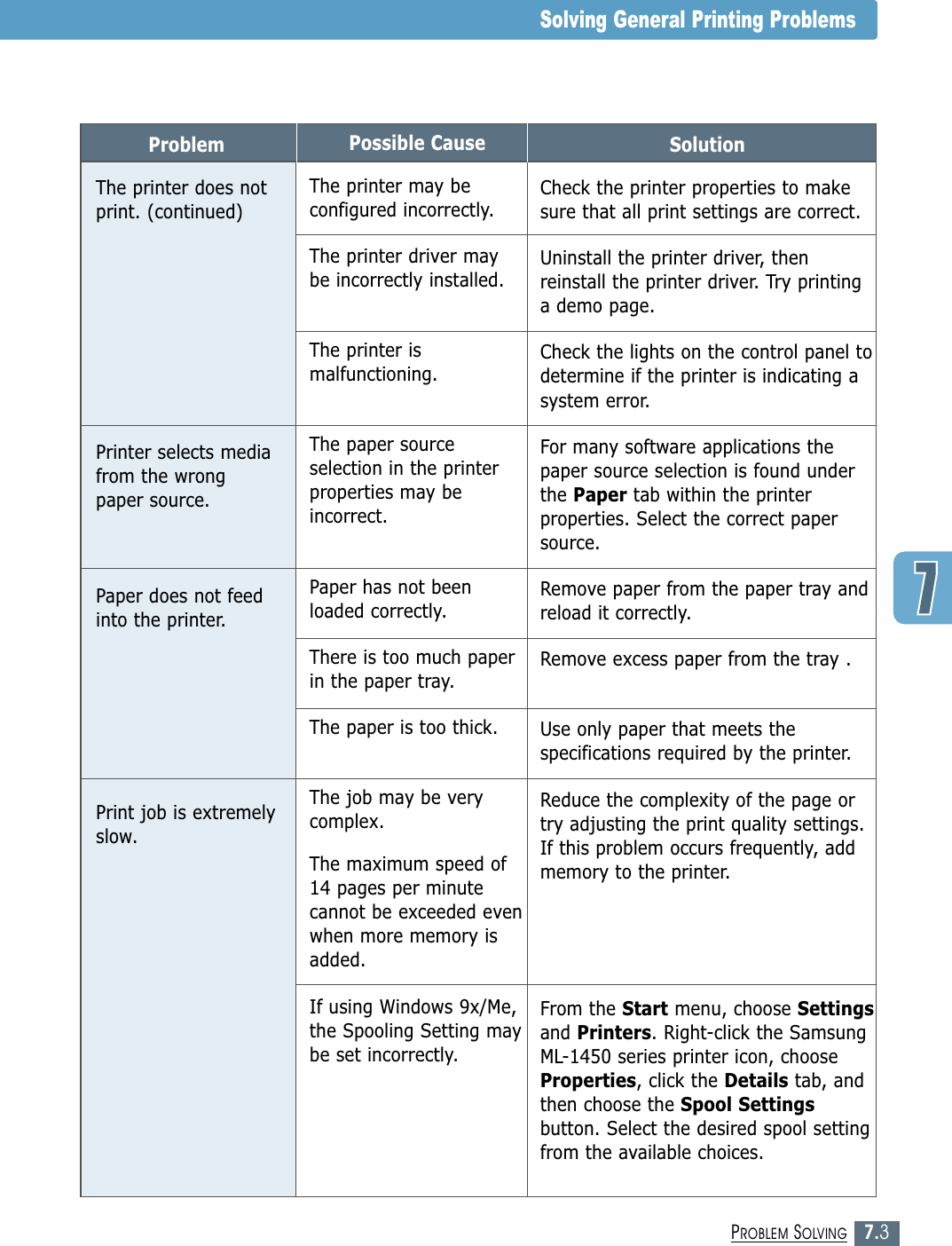

7.3PROBLEM SOLVINGSolving General Printing ProblemsProblemThe printer does notprint. (continued)Printer selects mediafrom the wrongpaper source.Paper does not feedinto the printer.Print job is extremelyslow.Possible CauseThe printer may beconfigured incorrectly.The printer driver maybe incorrectly installed.The printer ismalfunctioning.The paper sourceselection in the printerproperties may beincorrect.Paper has not beenloaded correctly.There is too much paperin the paper tray.The paper is too thick.The job may be verycomplex.The maximum speed of14 pages per minutecannot be exceeded evenwhen more memory isadded.If using Windows 9x/Me,the Spooling Setting maybe set incorrectly. SolutionCheck the printer properties to makesure that all print settings are correct.Uninstall the printer driver, thenreinstall the printer driver. Try printinga demo page.Check the lights on the control panel todetermine if the printer is indicating asystem error.For many software applications thepaper source selection is found underthe Paper tab within the printerproperties. Select the correct papersource.Remove paper from the paper tray andreload it correctly.Remove excess paper from the tray .Use only paper that meets thespecifications required by the printer.Reduce the complexity of the page ortry adjusting the print quality settings.If this problem occurs frequently, addmemory to the printer.From the Start menu, choose Settingsand Printers. Right-click the SamsungML-1450 series printer icon, chooseProperties, click the Details tab, andthen choose the Spool Settingsbutton. Select the desired spool settingfrom the available choices.

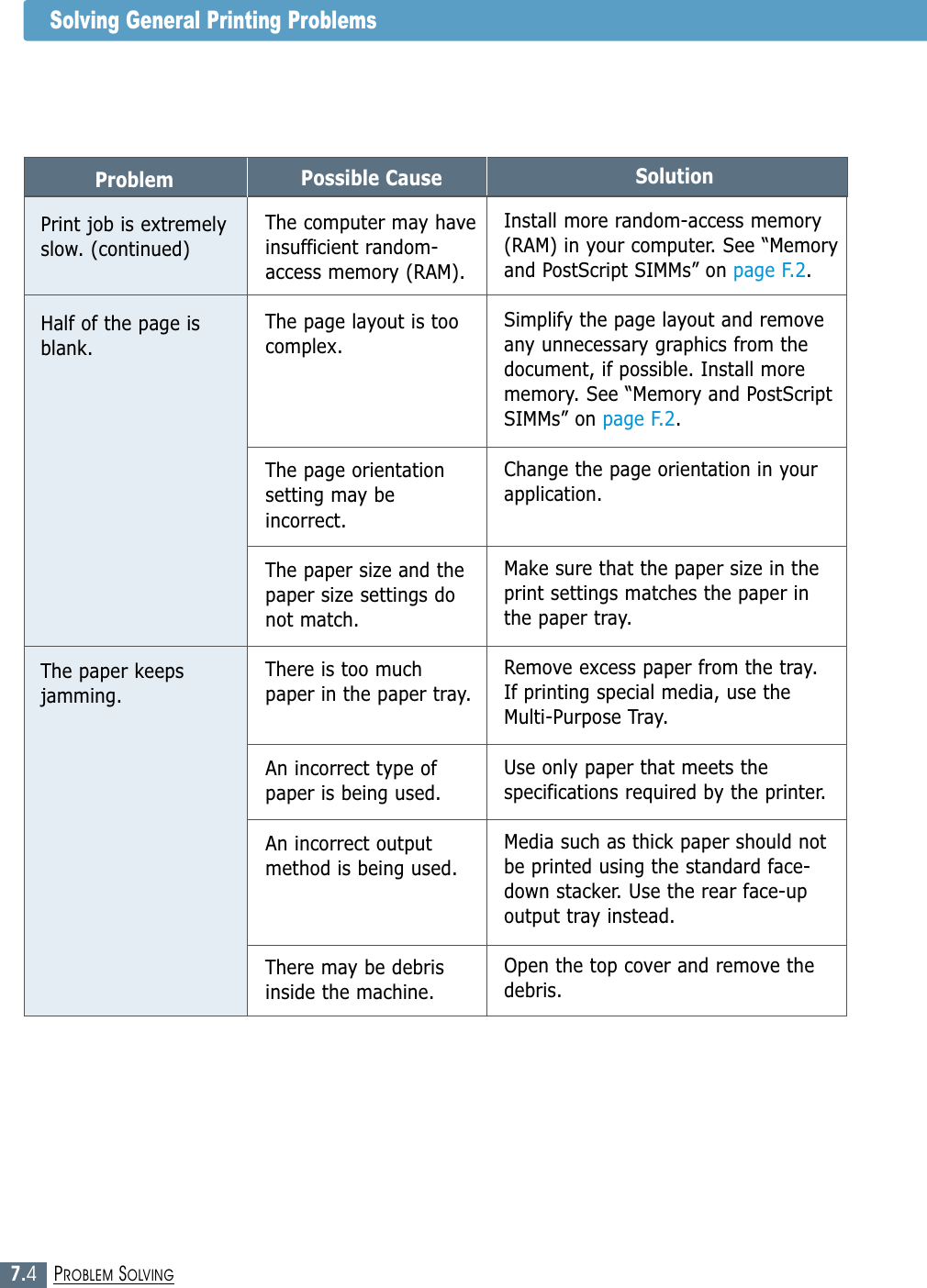

7.4PROBLEM SOLVINGSolving General Printing ProblemsProblemPrint job is extremelyslow. (continued)Half of the page isblank.The paper keepsjamming.Possible CauseThe computer may haveinsufficient random-access memory (RAM). The page layout is toocomplex.The page orientationsetting may beincorrect.The paper size and thepaper size settings donot match.There is too muchpaper in the paper tray.An incorrect type ofpaper is being used.An incorrect outputmethod is being used.There may be debrisinside the machine.SolutionInstall more random-access memory(RAM) in your computer. See “Memoryand PostScript SIMMs” on page F.2.Simplify the page layout and removeany unnecessary graphics from thedocument, if possible. Install morememory. See “Memory and PostScriptSIMMs” on page F.2.Change the page orientation in yourapplication.Make sure that the paper size in theprint settings matches the paper in the paper tray.Remove excess paper from the tray. If printing special media, use theMulti-Purpose Tray.Use only paper that meets thespecifications required by the printer.Media such as thick paper should notbe printed using the standard face-down stacker. Use the rear face-upoutput tray instead.Open the top cover and remove thedebris.

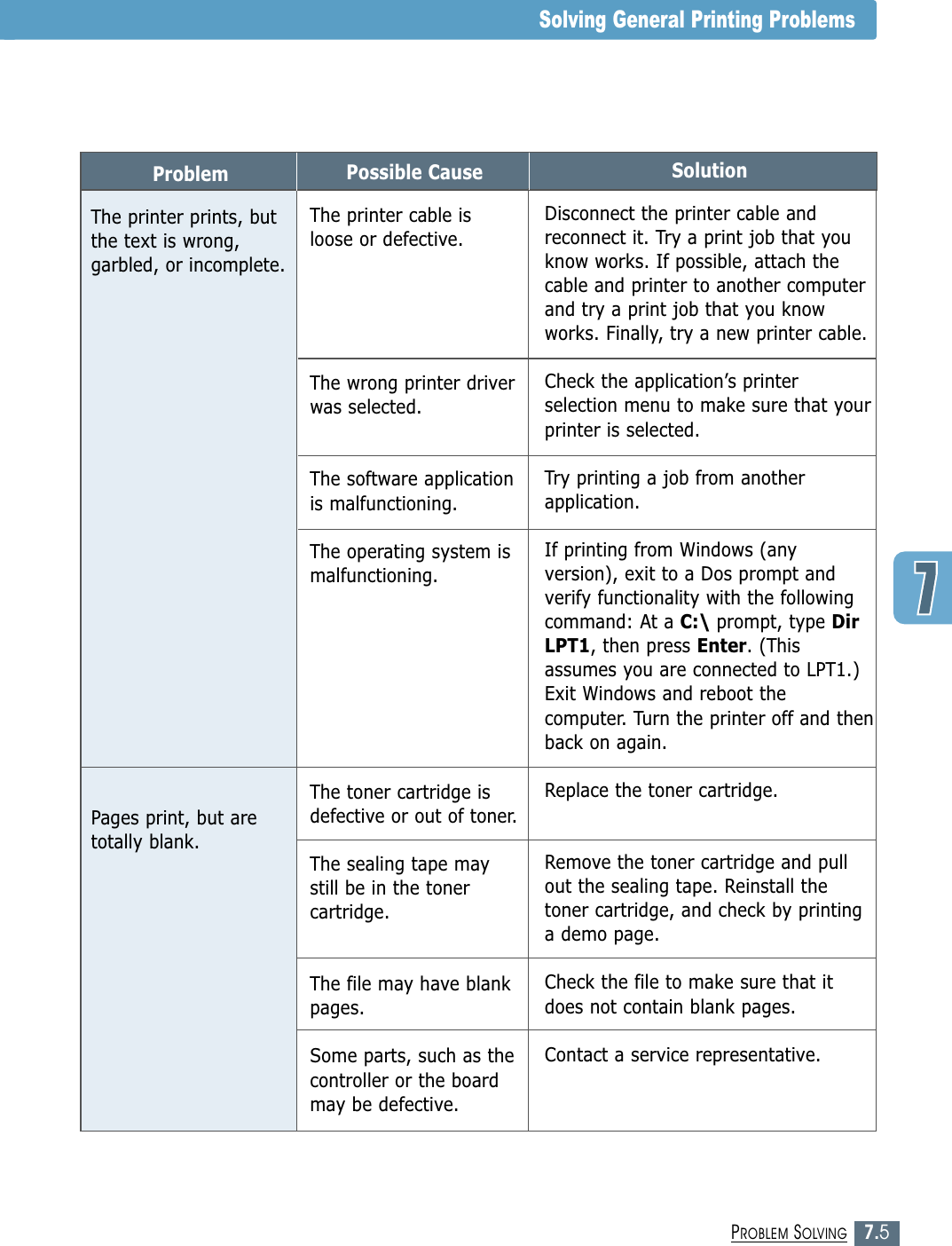

7.5PROBLEM SOLVINGSolving General Printing ProblemsProblemThe printer prints, butthe text is wrong,garbled, or incomplete. Pages print, but aretotally blank.Possible CauseThe printer cable isloose or defective.The wrong printer driverwas selected.The software applicationis malfunctioning.The operating system ismalfunctioning.The toner cartridge isdefective or out of toner.The sealing tape maystill be in the tonercartridge.The file may have blankpages.Some parts, such as thecontroller or the boardmay be defective.SolutionDisconnect the printer cable andreconnect it. Try a print job that youknow works. If possible, attach thecable and printer to another computerand try a print job that you knowworks. Finally, try a new printer cable.Check the application’s printerselection menu to make sure that yourprinter is selected.Try printing a job from anotherapplication.If printing from Windows (anyversion), exit to a Dos prompt andverify functionality with the followingcommand: At a C:\ prompt, type DirLPT1, then press Enter. (Thisassumes you are connected to LPT1.)Exit Windows and reboot thecomputer. Turn the printer off and thenback on again.Replace the toner cartridge.Remove the toner cartridge and pullout the sealing tape. Reinstall thetoner cartridge, and check by printinga demo page.Check the file to make sure that itdoes not contain blank pages.Contact a service representative.

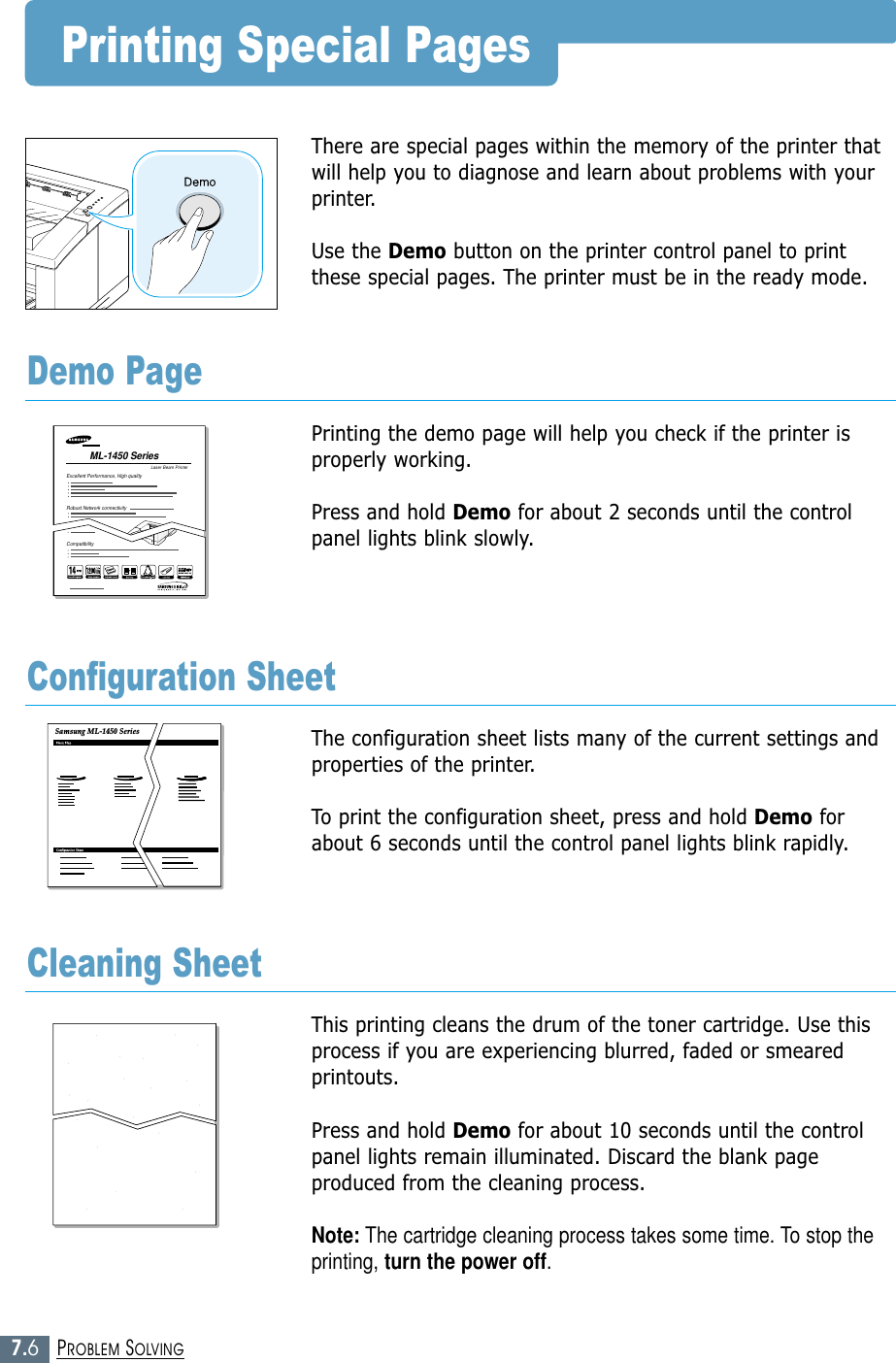

7.6PROBLEM SOLVINGPrinting Special PagesThere are special pages within the memory of the printer thatwill help you to diagnose and learn about problems with yourprinter.Use the Demo button on the printer control panel to printthese special pages. The printer must be in the ready mode.Printing the demo page will help you check if the printer isproperly working. Press and hold Demo for about 2 seconds until the controlpanel lights blink slowly.Demo PageThe configuration sheet lists many of the current settings andproperties of the printer. To print the configuration sheet, press and hold Demo forabout 6 seconds until the control panel lights blink rapidly. Configuration SheetThis printing cleans the drum of the toner cartridge. Use thisprocess if you are experiencing blurred, faded or smearedprintouts. Press and hold Demo for about 10 seconds until the controlpanel lights remain illuminated. Discard the blank pageproduced from the cleaning process.Note: The cartridge cleaning process takes some time. To stop theprinting, turn the power off.Cleaning SheetLaser Beam PrinterML-1450 Series Excellent Performance, High qualityRobust Network connectivityCompatibilitySamsung ML-1450 Series

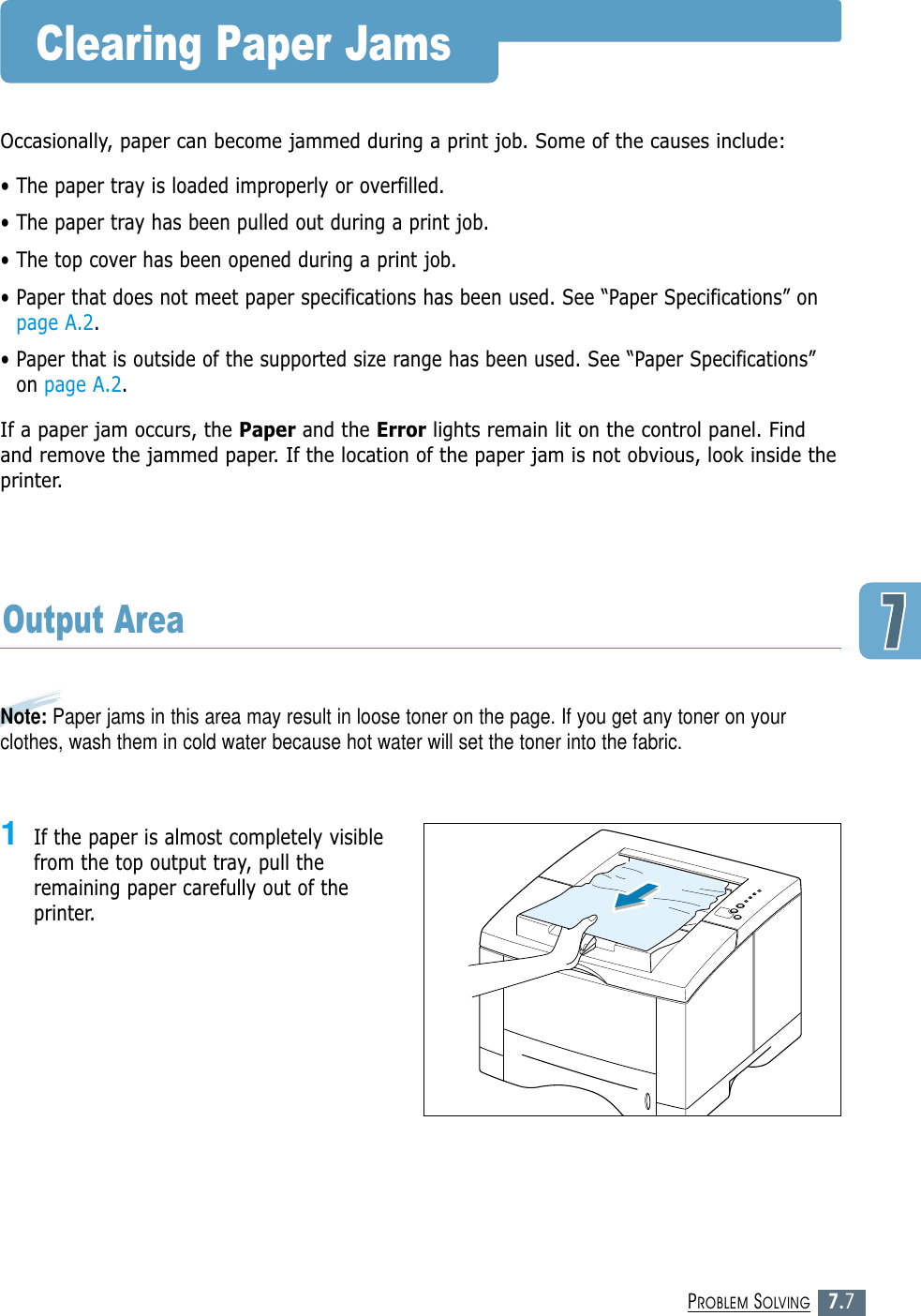

7.7PROBLEM SOLVINGClearing Paper JamsOccasionally, paper can become jammed during a print job. Some of the causes include:• The paper tray is loaded improperly or overfilled.• The paper tray has been pulled out during a print job.• The top cover has been opened during a print job.• Paper that does not meet paper specifications has been used. See “Paper Specifications” onpage A.2.• Paper that is outside of the supported size range has been used. See “Paper Specifications”on page A.2.If a paper jam occurs, the Paper and the Error lights remain lit on the control panel. Findand remove the jammed paper. If the location of the paper jam is not obvious, look inside theprinter.Note: Paper jams in this area may result in loose toner on the page. If you get any toner on yourclothes, wash them in cold water because hot water will set the toner into the fabric.Output Area1If the paper is almost completely visiblefrom the top output tray, pull theremaining paper carefully out of theprinter.

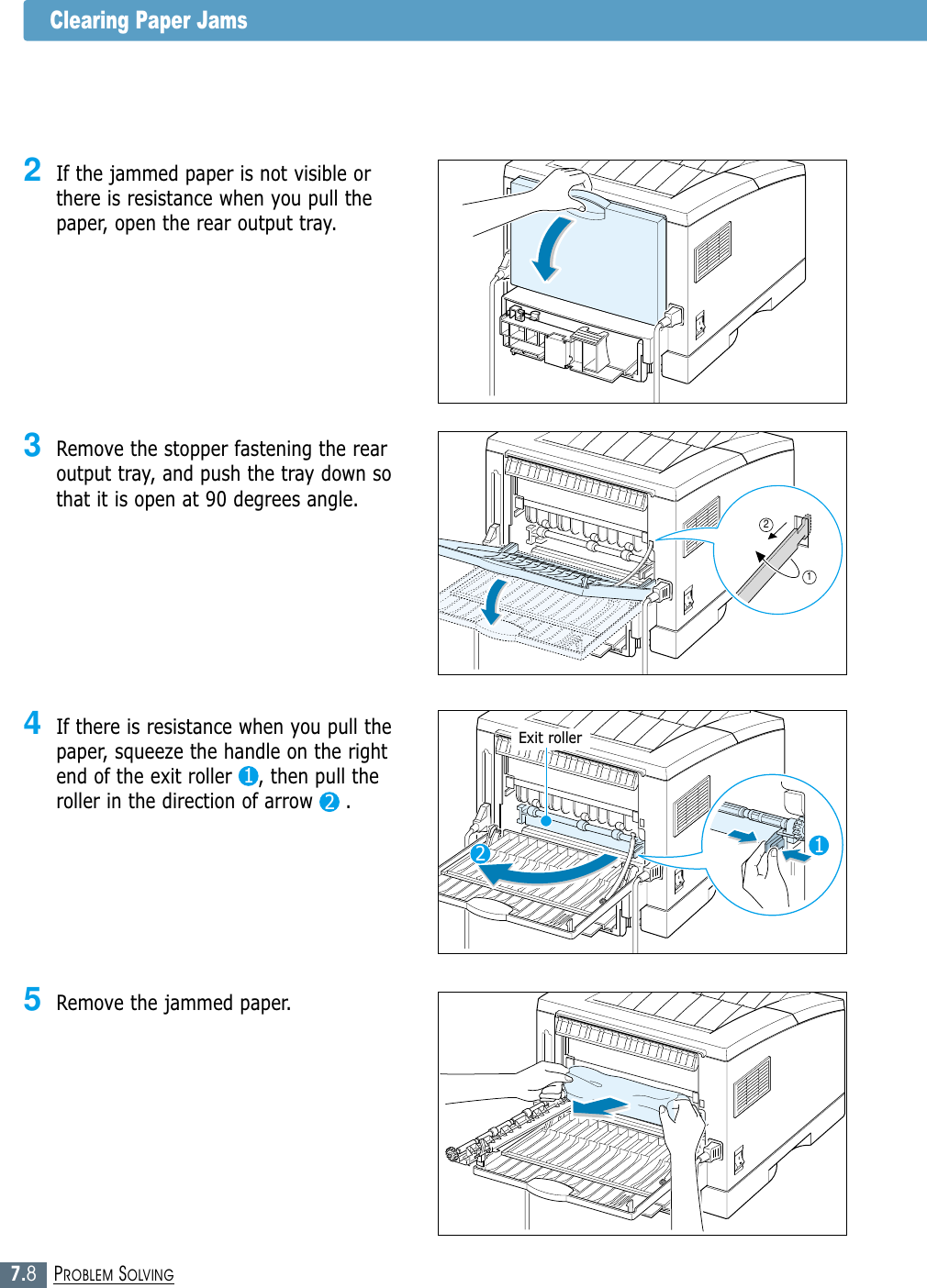

7.8PROBLEM SOLVINGClearing Paper Jams4If there is resistance when you pull thepaper, squeeze the handle on the rightend of the exit roller , then pull theroller in the direction of arrow .3Remove the stopper fastening the rearoutput tray, and push the tray down sothat it is open at 90 degrees angle.2If the jammed paper is not visible orthere is resistance when you pull thepaper, open the rear output tray.121122Exit roller5Remove the jammed paper.

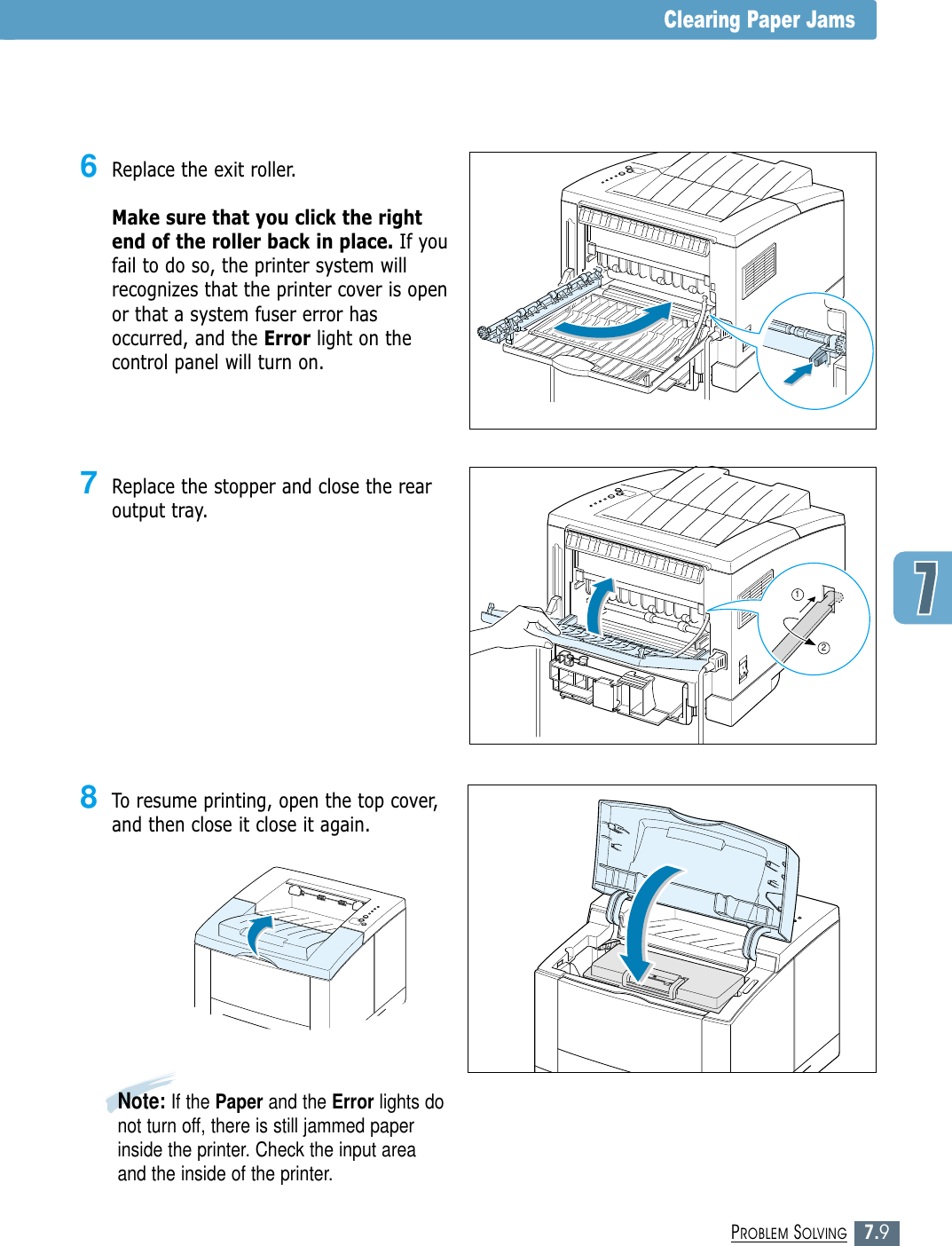

7.9PROBLEM SOLVINGClearing Paper Jams7Replace the stopper and close the rearoutput tray.126Replace the exit roller. Make sure that you click the rightend of the roller back in place. If youfail to do so, the printer system willrecognizes that the printer cover is openor that a system fuser error hasoccurred, and the Error light on thecontrol panel will turn on.8To resume printing, open the top cover,and then close it close it again.Note: If the Paper and the Error lights donot turn off, there is still jammed paperinside the printer. Check the input areaand the inside of the printer.

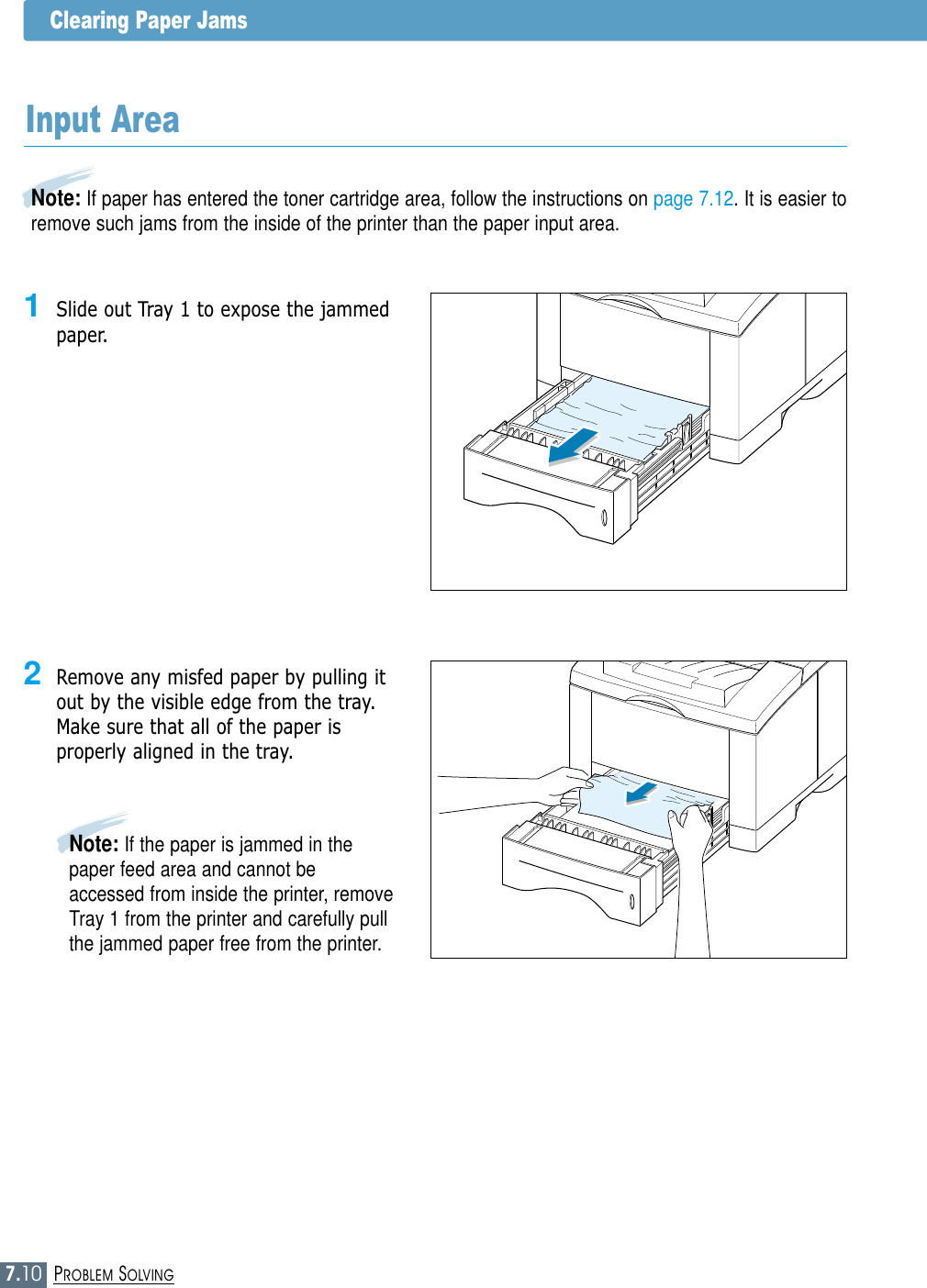

7.10PROBLEM SOLVINGClearing Paper Jams2Remove any misfed paper by pulling itout by the visible edge from the tray.Make sure that all of the paper isproperly aligned in the tray.Note: If paper has entered the toner cartridge area, follow the instructions on page 7.12. It is easier toremove such jams from the inside of the printer than the paper input area.Input Area1Slide out Tray 1 to expose the jammedpaper.Note: If the paper is jammed in thepaper feed area and cannot beaccessed from inside the printer, removeTray 1 from the printer and carefully pullthe jammed paper free from the printer.
7.11PROBLEM SOLVINGClearing Paper Jams3Slide the tray back into the printer.4To resume printing, open the top cover,and then close in again.Note: If the Paper and the Error lightsdo not turn off, there is still jammed paperinside the printer. Check the inside of theprinter.
7.12PROBLEM SOLVINGClearing Paper Jams2Carefully lift up the guide feed.3Gently pull the paper toward you toremove it from the printer.CAUTION: To prevent damage to thetoner cartridge, do not expose it to lightfor more than a few minutes. Place apiece of paper over the top of the tonercartridge to shield it while it is out of theprinter.Inside the Printer1Open the top cover and remove thetoner cartridge.Guide feedNote: Paper jams in this area may result in loose toner on the page. If you get any toner on yourclothes, wash them in cold water because hot water will set the toner into the fabric.

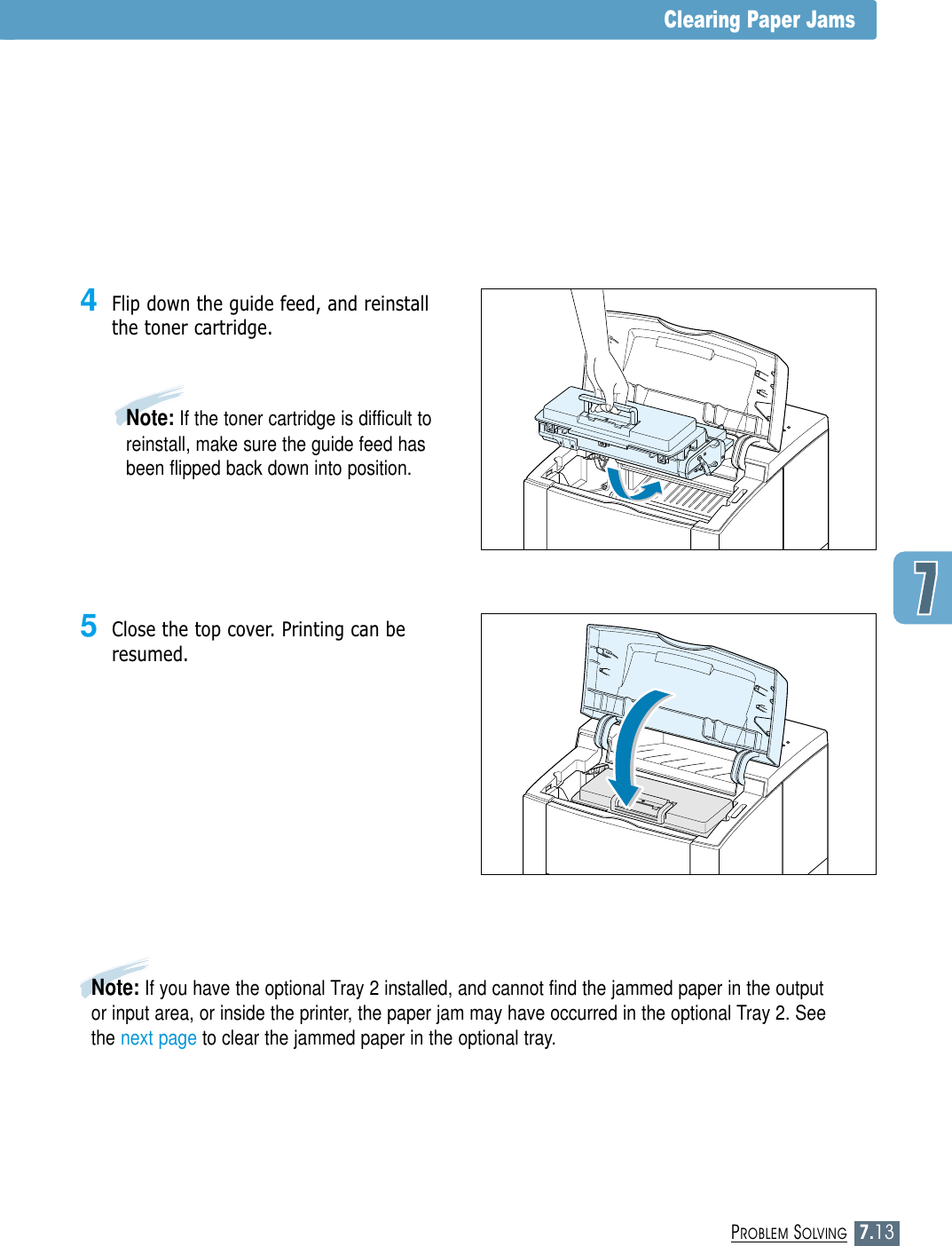

7.13PROBLEM SOLVINGClearing Paper Jams5Close the top cover. Printing can beresumed.4Flip down the guide feed, and reinstallthe toner cartridge.Note: If the toner cartridge is difficult toreinstall, make sure the guide feed hasbeen flipped back down into position.Note: If you have the optional Tray 2 installed, and cannot find the jammed paper in the outputor input area, or inside the printer, the paper jam may have occurred in the optional Tray 2. Seethe next page to clear the jammed paper in the optional tray.

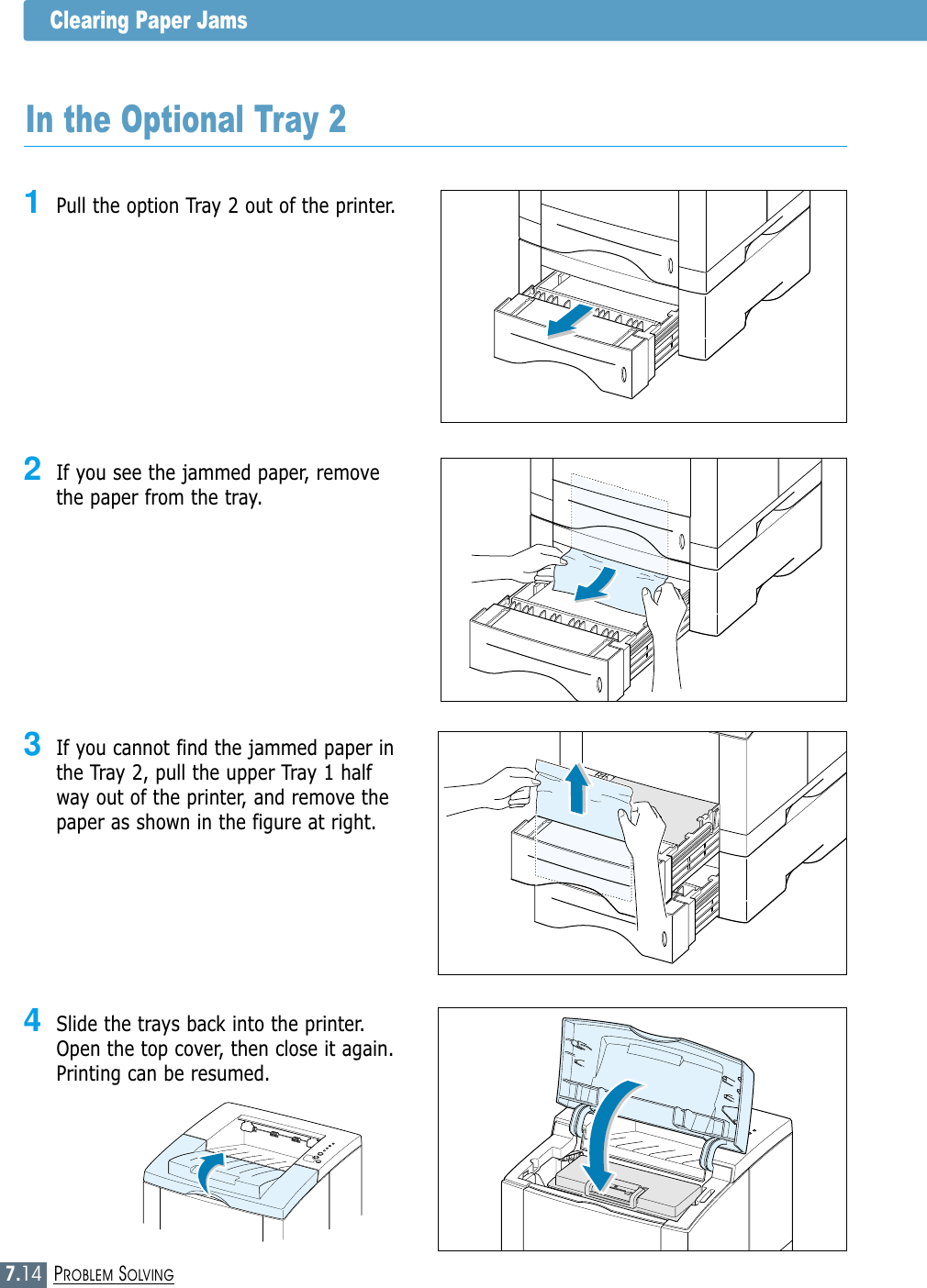

7.14PROBLEM SOLVINGClearing Paper Jams3If you cannot find the jammed paper inthe Tray 2, pull the upper Tray 1 halfway out of the printer, and remove thepaper as shown in the figure at right.In the Optional Tray 21Pull the option Tray 2 out of the printer.2If you see the jammed paper, removethe paper from the tray.4Slide the trays back into the printer.Open the top cover, then close it again.Printing can be resumed.

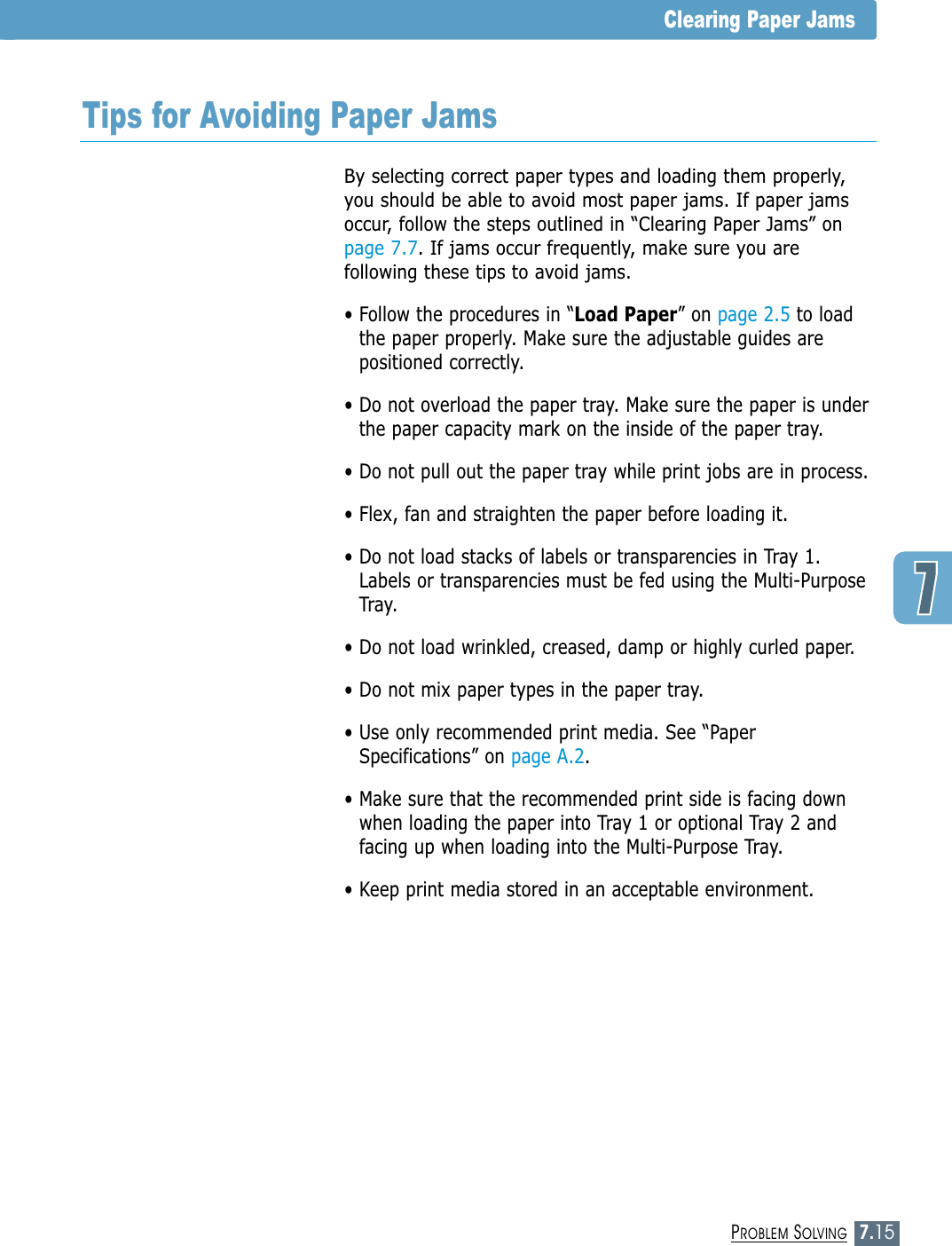

7.15PROBLEM SOLVINGClearing Paper JamsTips for Avoiding Paper JamsBy selecting correct paper types and loading them properly,you should be able to avoid most paper jams. If paper jamsoccur, follow the steps outlined in “Clearing Paper Jams” onpage 7.7. If jams occur frequently, make sure you arefollowing these tips to avoid jams.• Follow the procedures in “Load Paper” on page 2.5 to loadthe paper properly. Make sure the adjustable guides arepositioned correctly.• Do not overload the paper tray. Make sure the paper is underthe paper capacity mark on the inside of the paper tray.• Do not pull out the paper tray while print jobs are in process.• Flex, fan and straighten the paper before loading it. • Do not load stacks of labels or transparencies in Tray 1.Labels or transparencies must be fed using the Multi-PurposeTray.• Do not load wrinkled, creased, damp or highly curled paper.• Do not mix paper types in the paper tray.• Use only recommended print media. See “PaperSpecifications” on page A.2.• Make sure that the recommended print side is facing downwhen loading the paper into Tray 1 or optional Tray 2 andfacing up when loading into the Multi-Purpose Tray.• Keep print media stored in an acceptable environment.

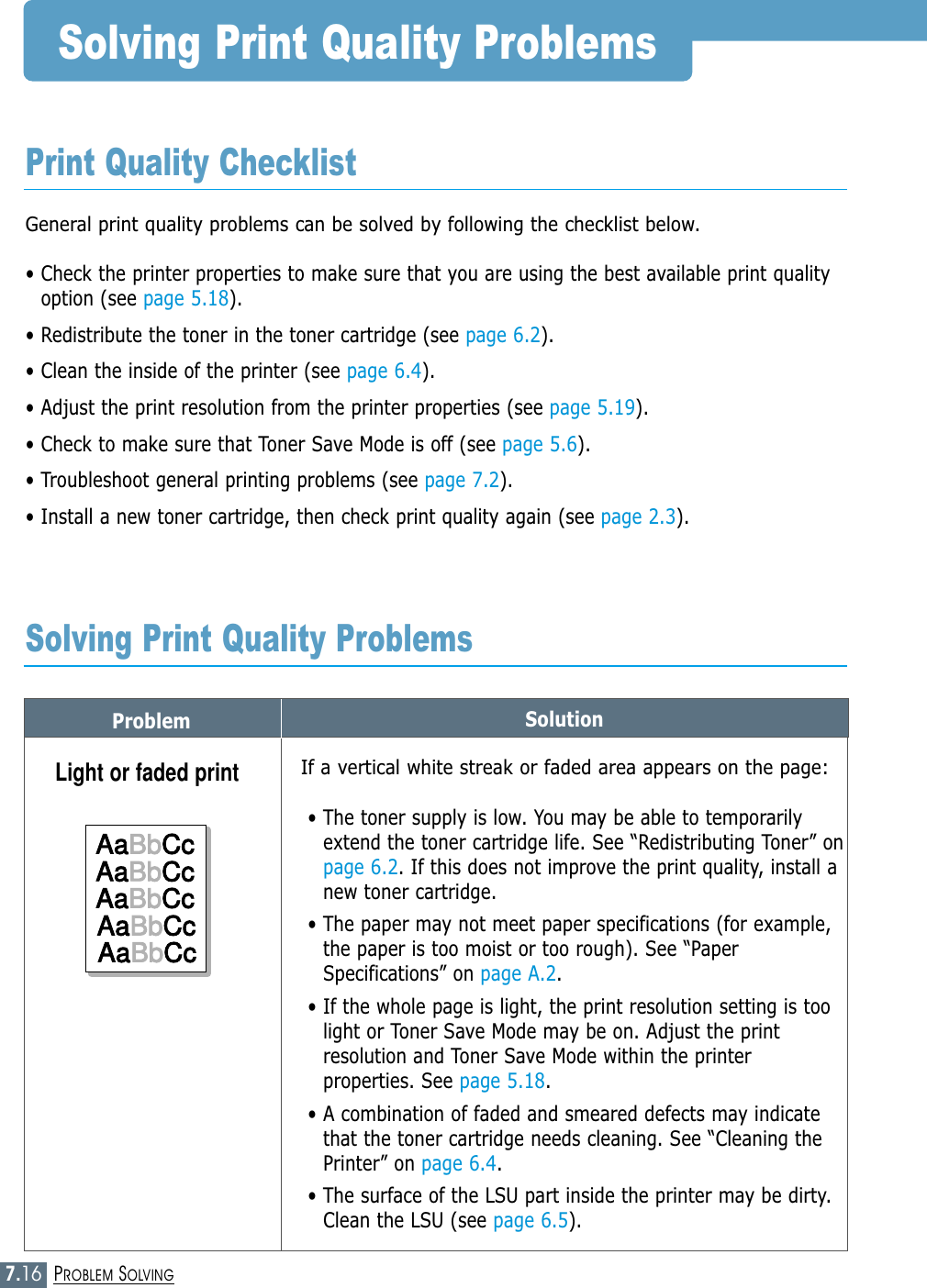

7.16PROBLEM SOLVINGProblem SolutionSolving Print Quality ProblemsGeneral print quality problems can be solved by following the checklist below.• Check the printer properties to make sure that you are using the best available print qualityoption (see page 5.18).• Redistribute the toner in the toner cartridge (see page 6.2).• Clean the inside of the printer (see page 6.4).• Adjust the print resolution from the printer properties (see page 5.19).• Check to make sure that Toner Save Mode is off (see page 5.6).• Troubleshoot general printing problems (see page 7.2).• Install a new toner cartridge, then check print quality again (see page 2.3). Print Quality ChecklistSolving Print Quality ProblemsIf a vertical white streak or faded area appears on the page:• The toner supply is low. You may be able to temporarilyextend the toner cartridge life. See “Redistributing Toner” onpage 6.2. If this does not improve the print quality, install anew toner cartridge.• The paper may not meet paper specifications (for example,the paper is too moist or too rough). See “PaperSpecifications” on page A.2.• If the whole page is light, the print resolution setting is toolight or Toner Save Mode may be on. Adjust the printresolution and Toner Save Mode within the printerproperties. See page 5.18.• A combination of faded and smeared defects may indicatethat the toner cartridge needs cleaning. See “Cleaning thePrinter” on page 6.4.• The surface of the LSU part inside the printer may be dirty.Clean the LSU (see page 6.5).Light or faded printAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc

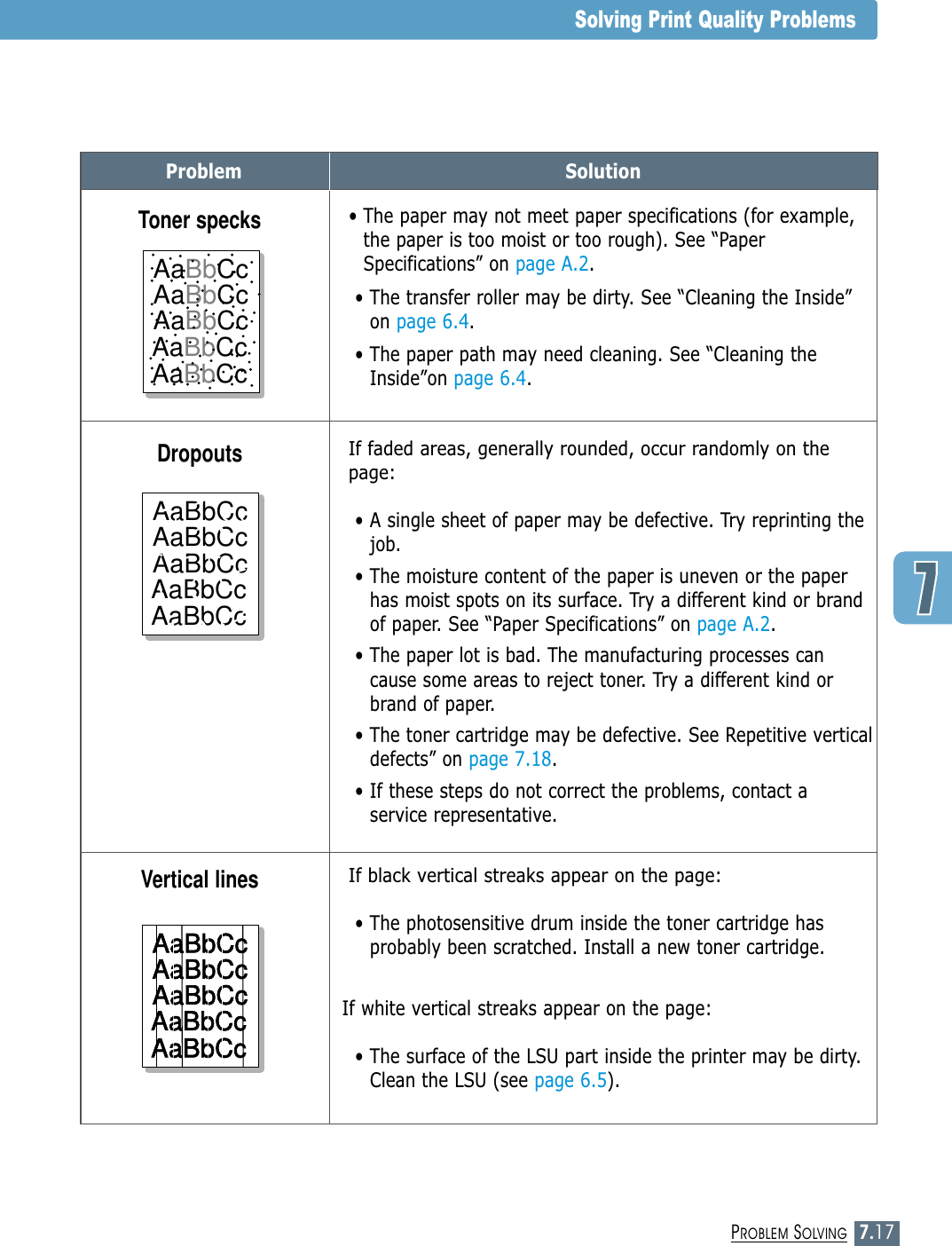

7.17PROBLEM SOLVINGProblem SolutionSolving Print Quality Problems• The paper may not meet paper specifications (for example,the paper is too moist or too rough). See “PaperSpecifications” on page A.2.• The transfer roller may be dirty. See “Cleaning the Inside”on page 6.4.• The paper path may need cleaning. See “Cleaning theInside”on page 6.4.Toner specksIf faded areas, generally rounded, occur randomly on thepage:• A single sheet of paper may be defective. Try reprinting thejob.• The moisture content of the paper is uneven or the paperhas moist spots on its surface. Try a different kind or brandof paper. See “Paper Specifications” on page A.2.• The paper lot is bad. The manufacturing processes cancause some areas to reject toner. Try a different kind orbrand of paper.• The toner cartridge may be defective. See Repetitive verticaldefects” on page 7.18.• If these steps do not correct the problems, contact aservice representative.DropoutsIf black vertical streaks appear on the page:• The photosensitive drum inside the toner cartridge hasprobably been scratched. Install a new toner cartridge. If white vertical streaks appear on the page:• The surface of the LSU part inside the printer may be dirty.Clean the LSU (see page 6.5).Vertical linesAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc
7.18PROBLEM SOLVINGProblem SolutionIf the amount of background toner shading becomesunacceptable, the procedures below may help to clear thecondition:• Change the paper to a lighter basis weight. See “PaperSpecifications” on page A.2.• Check the printer’s environment; very dry (low humidity)or high humidity (higher than 80 % RH) conditions canincrease the amount of background shading.• Install a new toner cartridge.Gray background• Clean the inside of the printer. See “Cleaning the Inside” onpage 6.4.• Check the paper type and quality. See “PaperSpecifications” on page A.2.• Try installing a new toner cartridge.Toner smearIf marks repeatedly appear on the printed side of the pageat even intervals:• The toner cartridge may be damaged. If a repetitive markoccurs every 95 mm or 38 mm on the page, print thecleaning sheet several times to clean the cartridge (seepage 6.5). If you still have the same problems, install anew toner cartridge.• Parts in the printer may have toner on them. If the defectsoccur on the back of the page, the problem will likelycorrect itself after a few more pages.• The fusing assembly may be damaged. Contact a servicerepresentative.Repetitive verticaldefectsSolving Print Quality ProblemsAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc
7.19PROBLEM SOLVINGProblem Solution• If characters are improperly formed, producing hollowimages, the paper stock may be too slick. Try a differentpaper. See “Paper Specifications” on page A.2.• If characters are improperly formed, producing a wavyeffect, the scanner unit may need service. Check to see if italso occurs on a demo page by pressing the Demo buttonon the control panel when the printer is ready. If you needservice, contact a service representative.Misformed characters• Check the paper type and quality. See “PaperSpecifications” on page A.2.• Make sure that the paper or other media is loaded correctlyand the guides are not too tight or too loose against thepaper stack.Page skewSolving Print Quality ProblemsBackground scatter results from bits of toner distributed onthe printed page. • The paper may be too damp. Try printing with a differentbatch of paper. Do not open packages of paper untilnecessary so that the paper does not absorb too muchmoisture from the air.• If background scatter occurs on an envelope, change yourprinting layout to avoid printing over areas that haveoverlapping seams on the reverse side. Printing on seamscan cause this problem.• If background scatter covers the entire surface of a printedpage, adjust the print resolution through your softwareapplication or the printer properties.Background scatterAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc

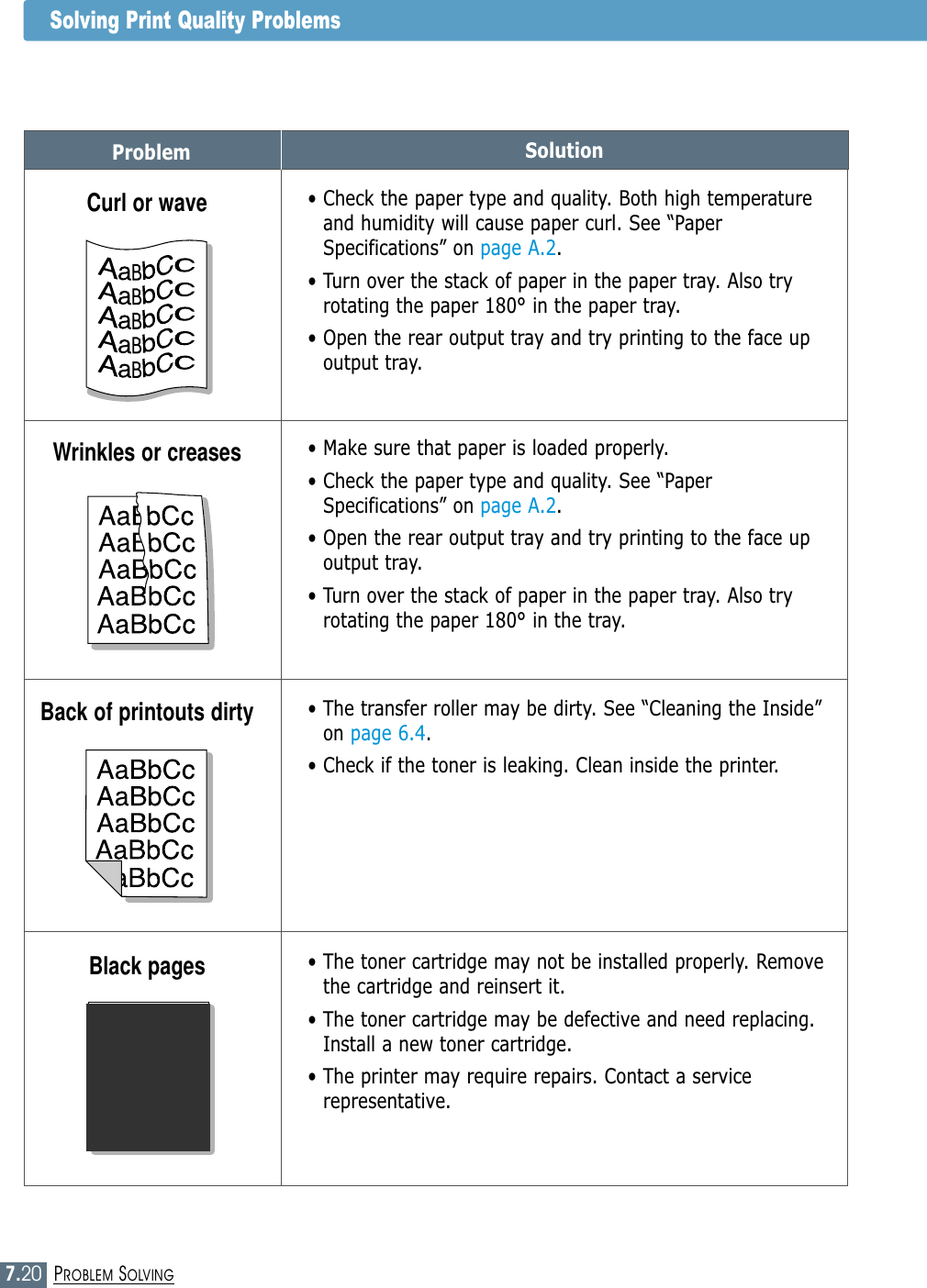

7.20PROBLEM SOLVINGProblem SolutionSolving Print Quality Problems• Check the paper type and quality. Both high temperatureand humidity will cause paper curl. See “PaperSpecifications” on page A.2.• Turn over the stack of paper in the paper tray. Also tryrotating the paper 180° in the paper tray.• Open the rear output tray and try printing to the face upoutput tray.Curl or wave• Make sure that paper is loaded properly.• Check the paper type and quality. See “PaperSpecifications” on page A.2.• Open the rear output tray and try printing to the face upoutput tray.• Turn over the stack of paper in the paper tray. Also tryrotating the paper 180° in the tray.Wrinkles or creases• The transfer roller may be dirty. See “Cleaning the Inside”on page 6.4.• Check if the toner is leaking. Clean inside the printer. Back of printouts dirty• The toner cartridge may not be installed properly. Removethe cartridge and reinsert it.• The toner cartridge may be defective and need replacing.Install a new toner cartridge.• The printer may require repairs. Contact a servicerepresentative.AaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcBlack pages

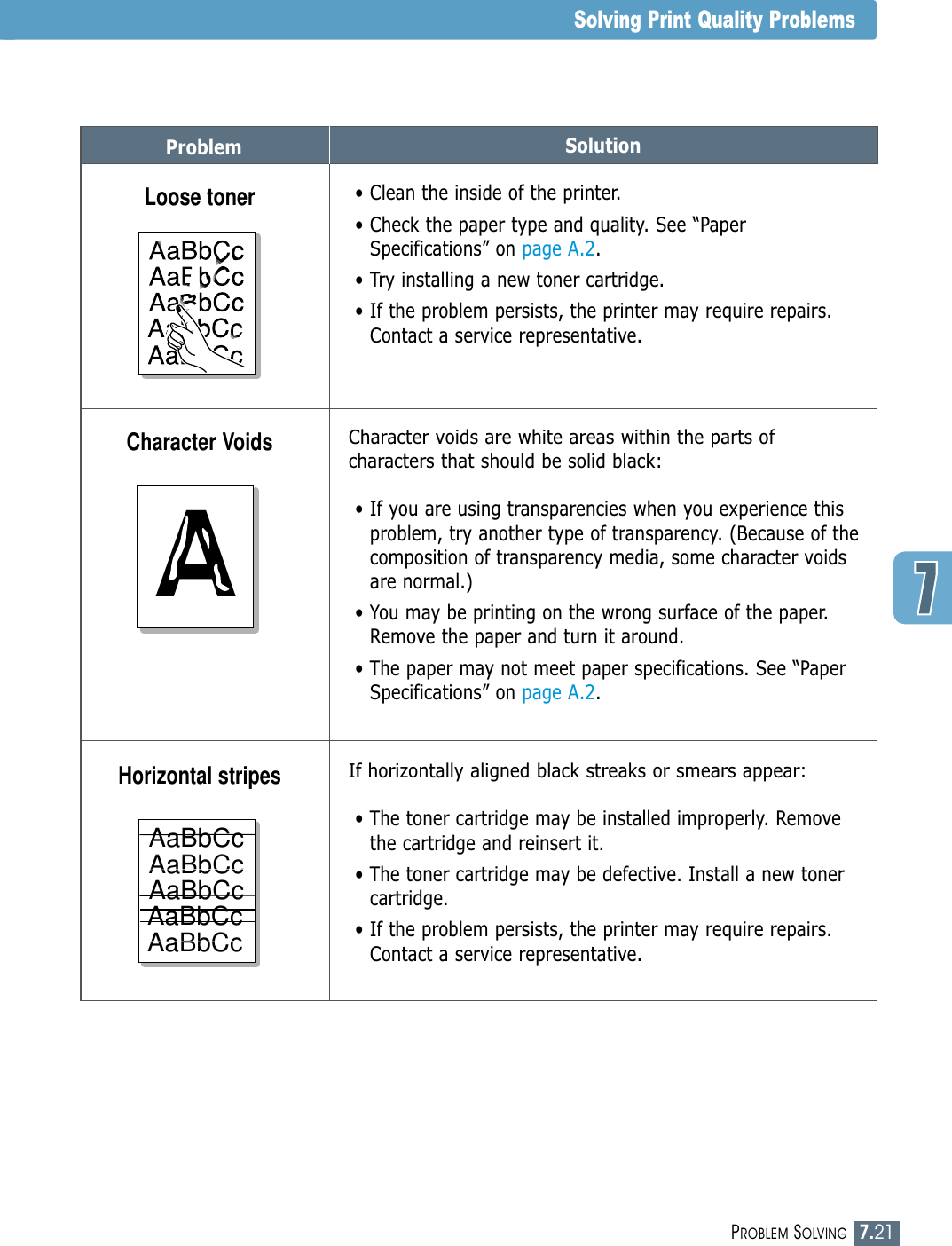

7.21PROBLEM SOLVINGProblem SolutionSolving Print Quality ProblemsCharacter voids are white areas within the parts ofcharacters that should be solid black:• If you are using transparencies when you experience thisproblem, try another type of transparency. (Because of thecomposition of transparency media, some character voidsare normal.) • You may be printing on the wrong surface of the paper.Remove the paper and turn it around. • The paper may not meet paper specifications. See “PaperSpecifications” on page A.2.Character Voids• Clean the inside of the printer. • Check the paper type and quality. See “PaperSpecifications” on page A.2.• Try installing a new toner cartridge.• If the problem persists, the printer may require repairs.Contact a service representative.Loose tonerIf horizontally aligned black streaks or smears appear:• The toner cartridge may be installed improperly. Removethe cartridge and reinsert it.• The toner cartridge may be defective. Install a new tonercartridge.• If the problem persists, the printer may require repairs.Contact a service representative.Horizontal stripesAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc

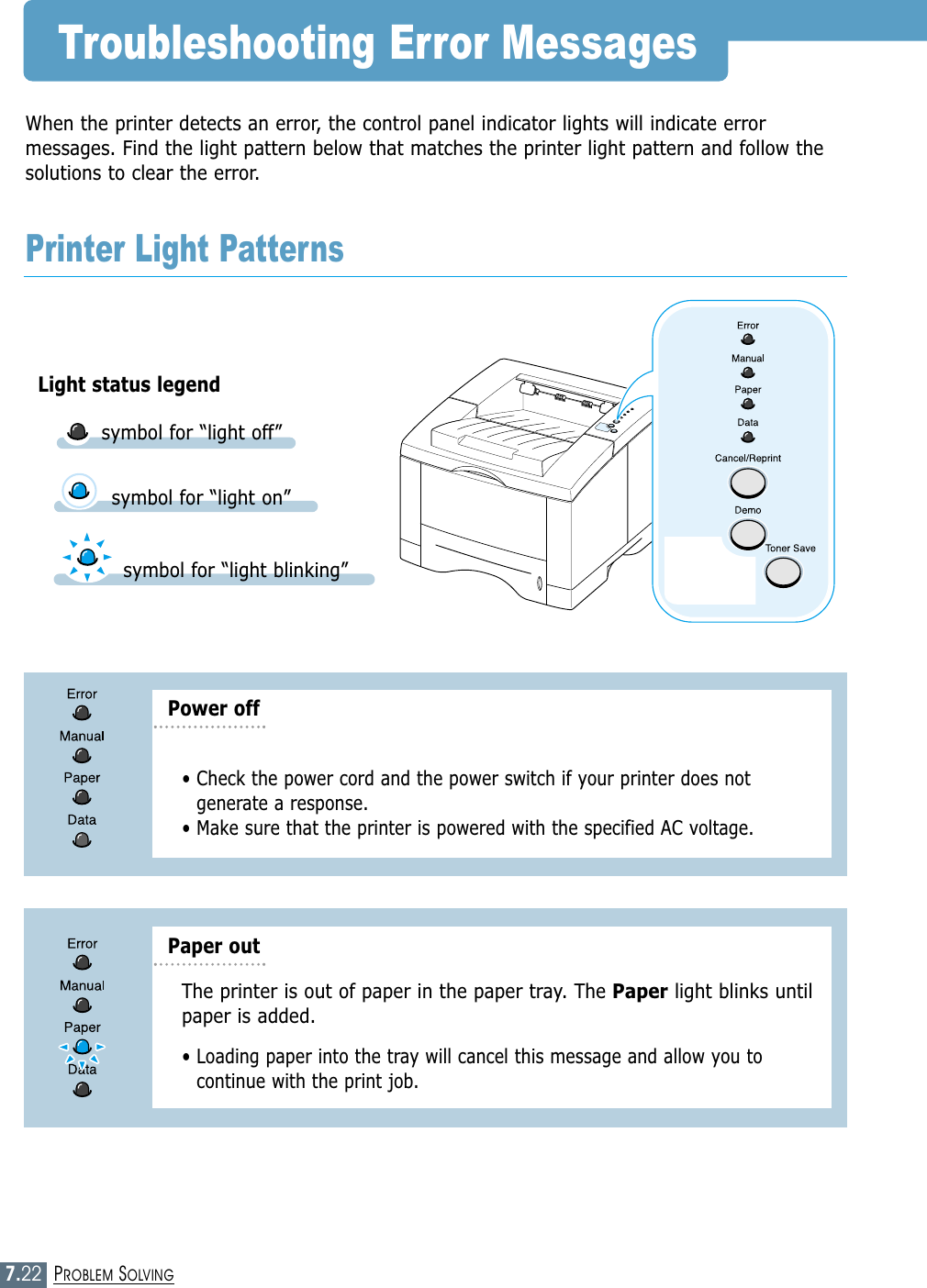

7.22PROBLEM SOLVINGWhen the printer detects an error, the control panel indicator lights will indicate errormessages. Find the light pattern below that matches the printer light pattern and follow thesolutions to clear the error.Troubleshooting Error MessagesPrinter Light PatternsLight status legendsymbol for “light on”• Check the power cord and the power switch if your printer does notgenerate a response.• Make sure that the printer is powered with the specified AC voltage.Power offThe printer is out of paper in the paper tray. The Paper light blinks untilpaper is added.• Loading paper into the tray will cancel this message and allow you tocontinue with the print job. Paper out symbol for “light blinking”symbol for “light off”

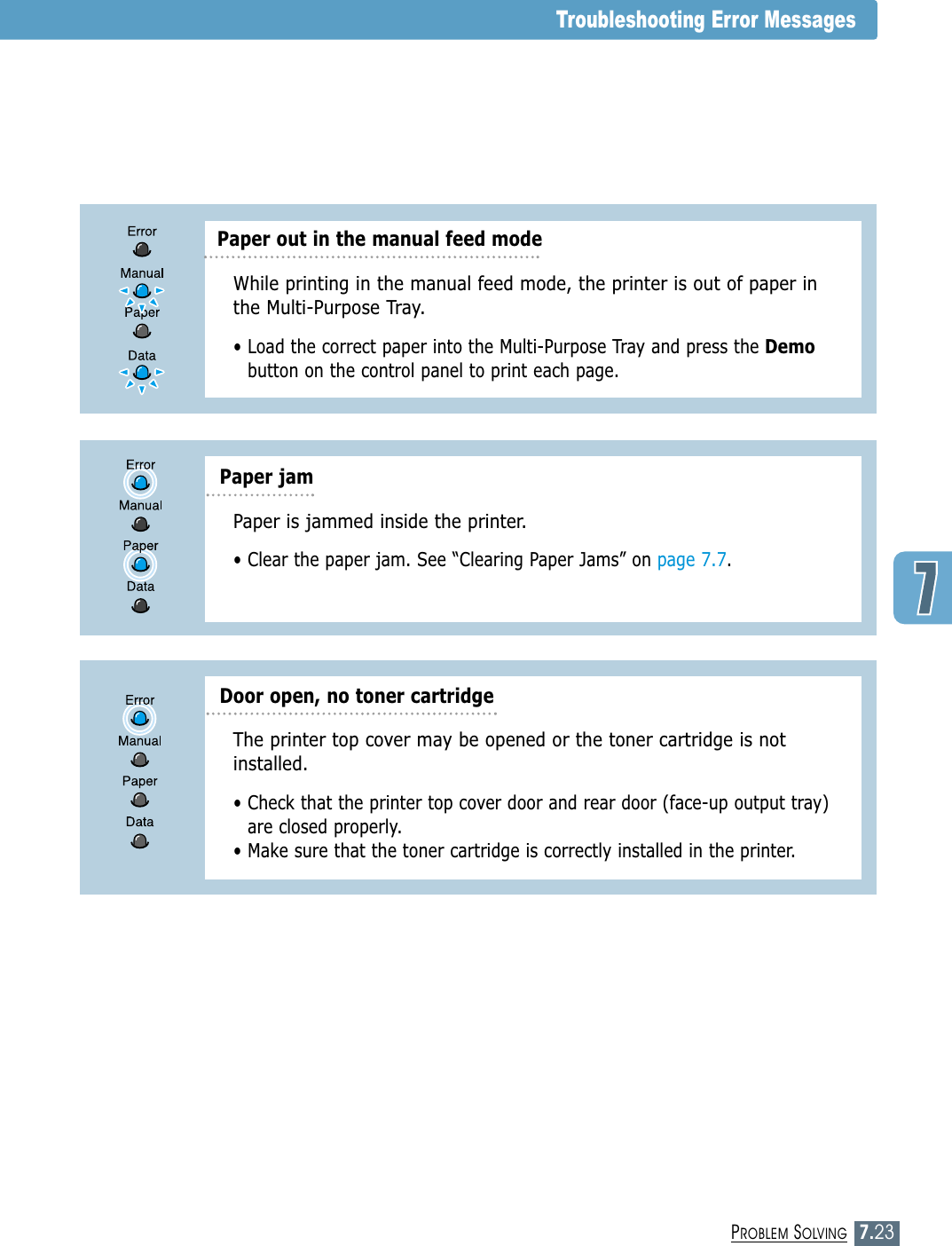

7.23PROBLEM SOLVINGTroubleshooting Error MessagesPaper is jammed inside the printer. • Clear the paper jam. See “Clearing Paper Jams” on page 7.7.Paper jamThe printer top cover may be opened or the toner cartridge is notinstalled. • Check that the printer top cover door and rear door (face-up output tray)are closed properly. • Make sure that the toner cartridge is correctly installed in the printer.Door open, no toner cartridgeWhile printing in the manual feed mode, the printer is out of paper inthe Multi-Purpose Tray. • Load the correct paper into the Multi-Purpose Tray and press the Demobutton on the control panel to print each page.Paper out in the manual feed mode

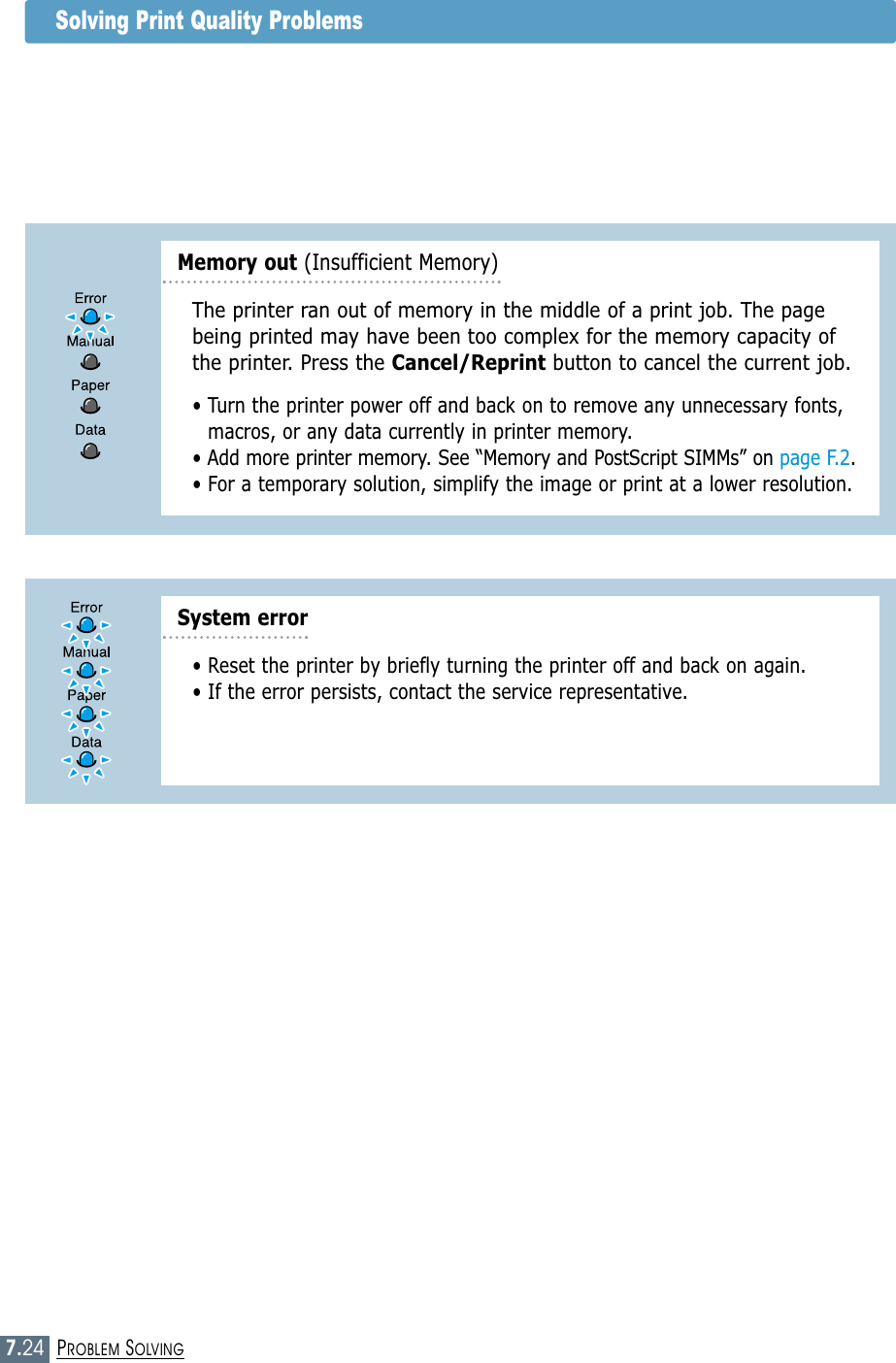

7.24PROBLEM SOLVINGSolving Print Quality Problems• Reset the printer by briefly turning the printer off and back on again.• If the error persists, contact the service representative.System errorThe printer ran out of memory in the middle of a print job. The pagebeing printed may have been too complex for the memory capacity ofthe printer. Press the Cancel/Reprint button to cancel the current job.• Turn the printer power off and back on to remove any unnecessary fonts,macros, or any data currently in printer memory.• Add more printer memory. See “Memory and PostScript SIMMs” on page F.2.• For a temporary solution, simplify the image or print at a lower resolution.Memory out (Insufficient Memory)

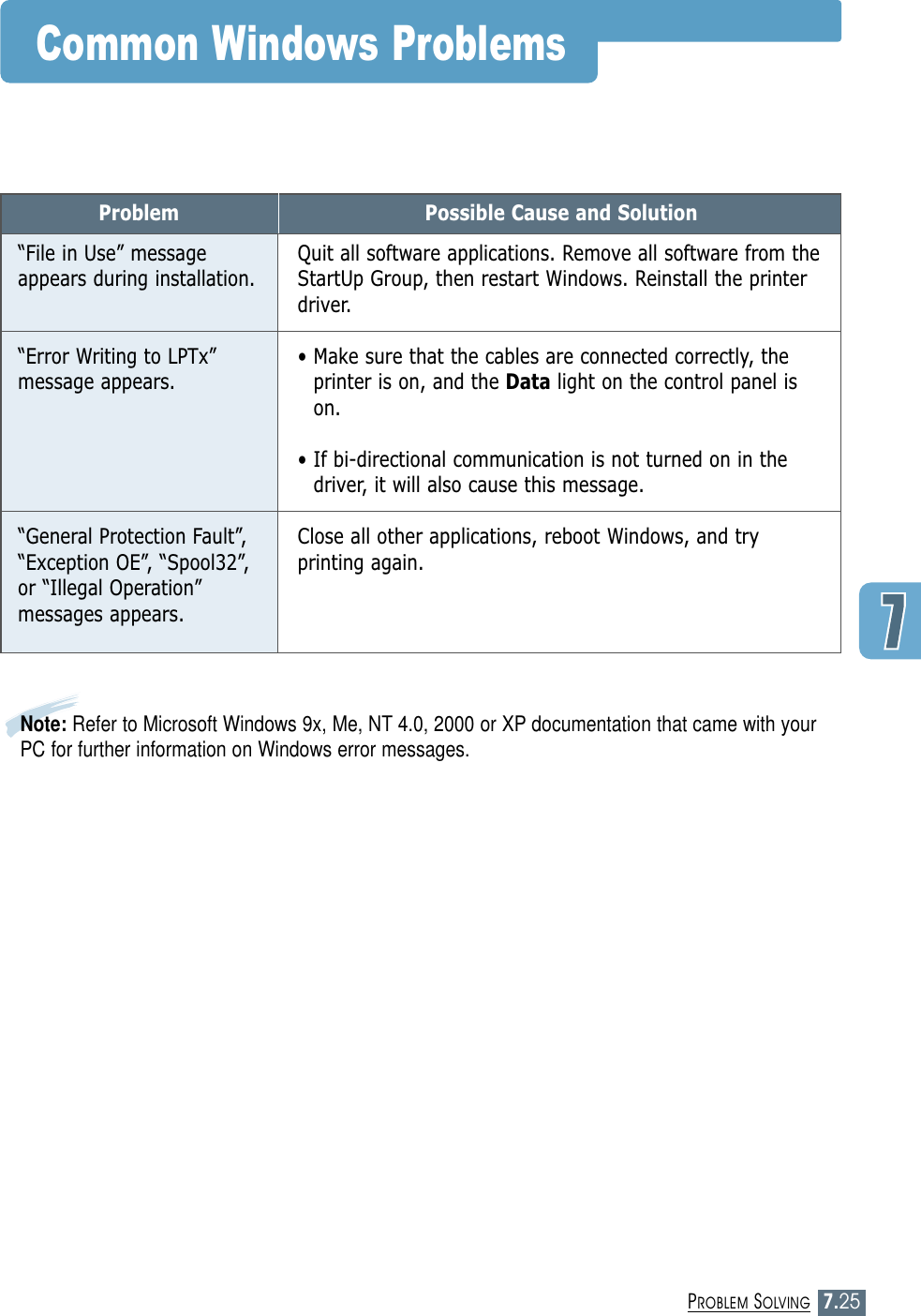

7.25PROBLEM SOLVINGCommon Windows ProblemsNote: Refer to Microsoft Windows 9x, Me, NT 4.0, 2000 or XP documentation that came with yourPC for further information on Windows error messages.Problem“File in Use” messageappears during installation.“Error Writing to LPTx”message appears.“General Protection Fault”,“Exception OE”, “Spool32”,or “Illegal Operation”messages appears.Possible Cause and SolutionQuit all software applications. Remove all software from theStartUp Group, then restart Windows. Reinstall the printerdriver.• Make sure that the cables are connected correctly, theprinter is on, and the Data light on the control panel ison.• If bi-directional communication is not turned on in thedriver, it will also cause this message.Close all other applications, reboot Windows, and tryprinting again.

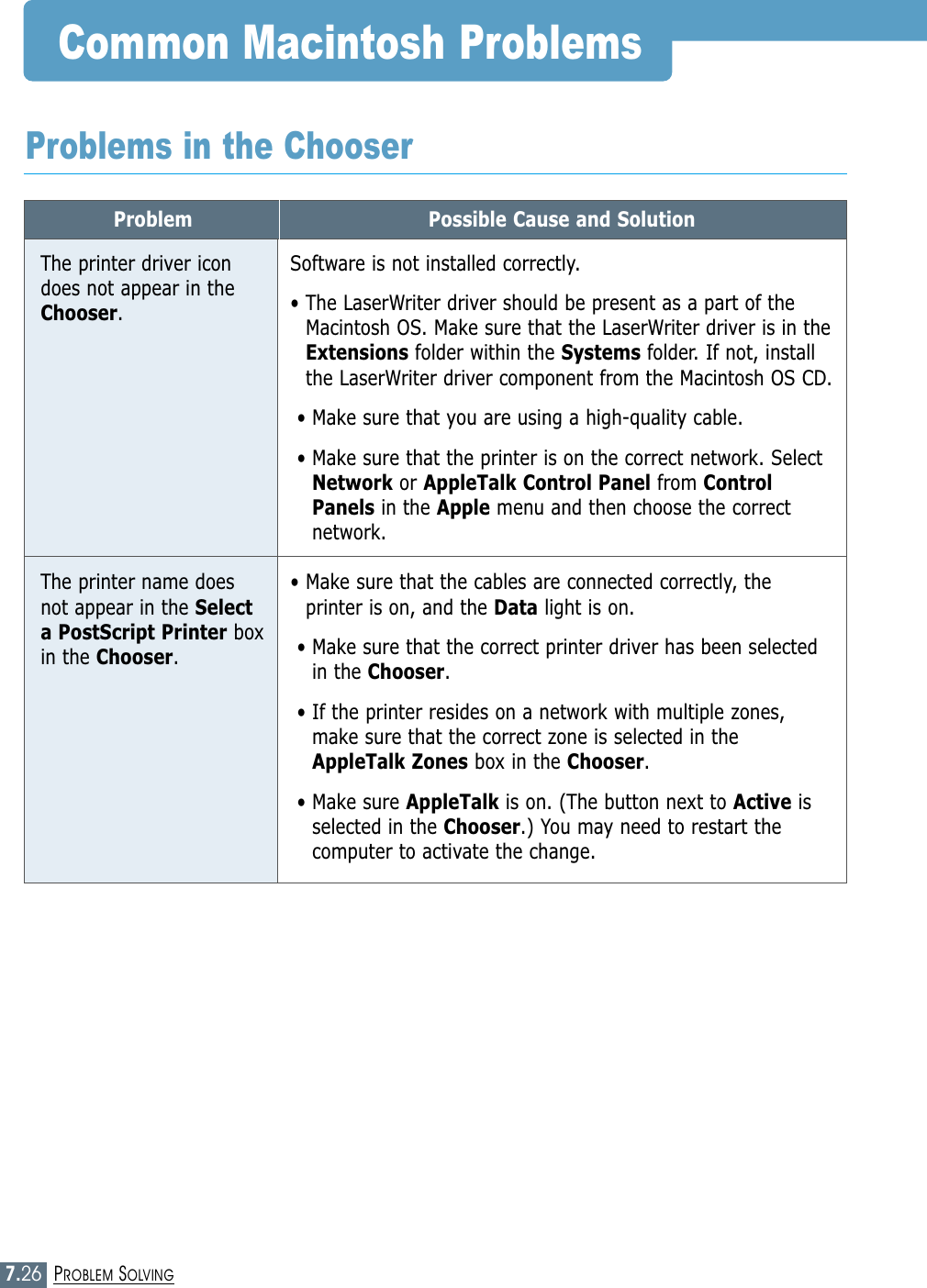

7.26PROBLEM SOLVINGProblemThe printer driver icondoes not appear in theChooser.The printer name doesnot appear in the Selecta PostScript Printer boxin the Chooser.Possible Cause and SolutionSoftware is not installed correctly.• The LaserWriter driver should be present as a part of theMacintosh OS. Make sure that the LaserWriter driver is in theExtensions folder within the Systems folder. If not, installthe LaserWriter driver component from the Macintosh OS CD.• Make sure that you are using a high-quality cable.• Make sure that the printer is on the correct network. SelectNetwork or AppleTalk Control Panel from ControlPanels in the Apple menu and then choose the correctnetwork.• Make sure that the cables are connected correctly, theprinter is on, and the Data light is on.• Make sure that the correct printer driver has been selectedin the Chooser.• If the printer resides on a network with multiple zones,make sure that the correct zone is selected in theAppleTalk Zones box in the Chooser.• Make sure AppleTalk is on. (The button next to Active isselected in the Chooser.) You may need to restart thecomputer to activate the change.Common Macintosh ProblemsProblems in the Chooser

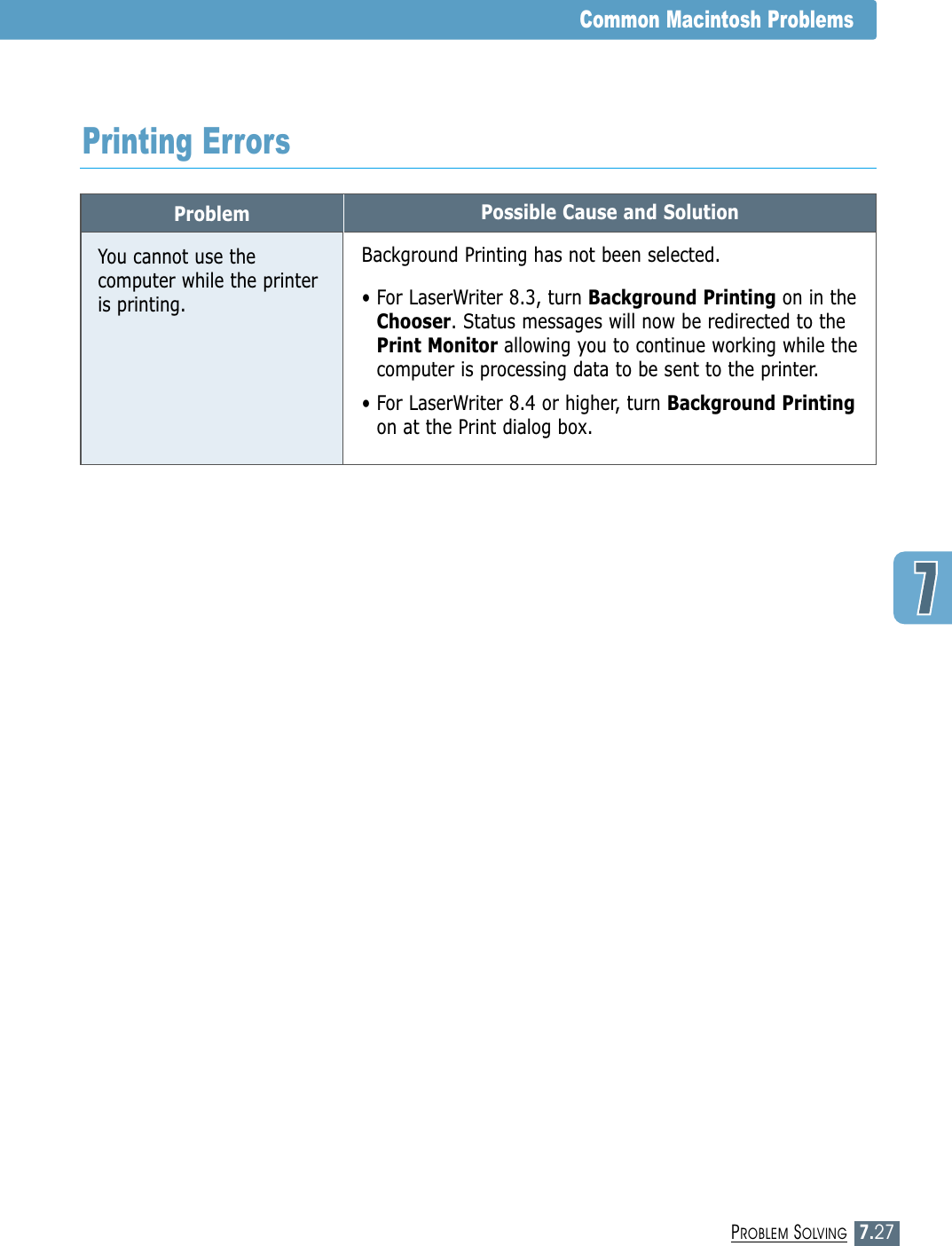

7.27PROBLEM SOLVINGProblemYou cannot use thecomputer while the printeris printing.Possible Cause and SolutionBackground Printing has not been selected.• For LaserWriter 8.3, turn Background Printing on in theChooser. Status messages will now be redirected to thePrint Monitor allowing you to continue working while thecomputer is processing data to be sent to the printer.• For LaserWriter 8.4 or higher, turn Background Printingon at the Print dialog box.Printing ErrorsCommon Macintosh Problems

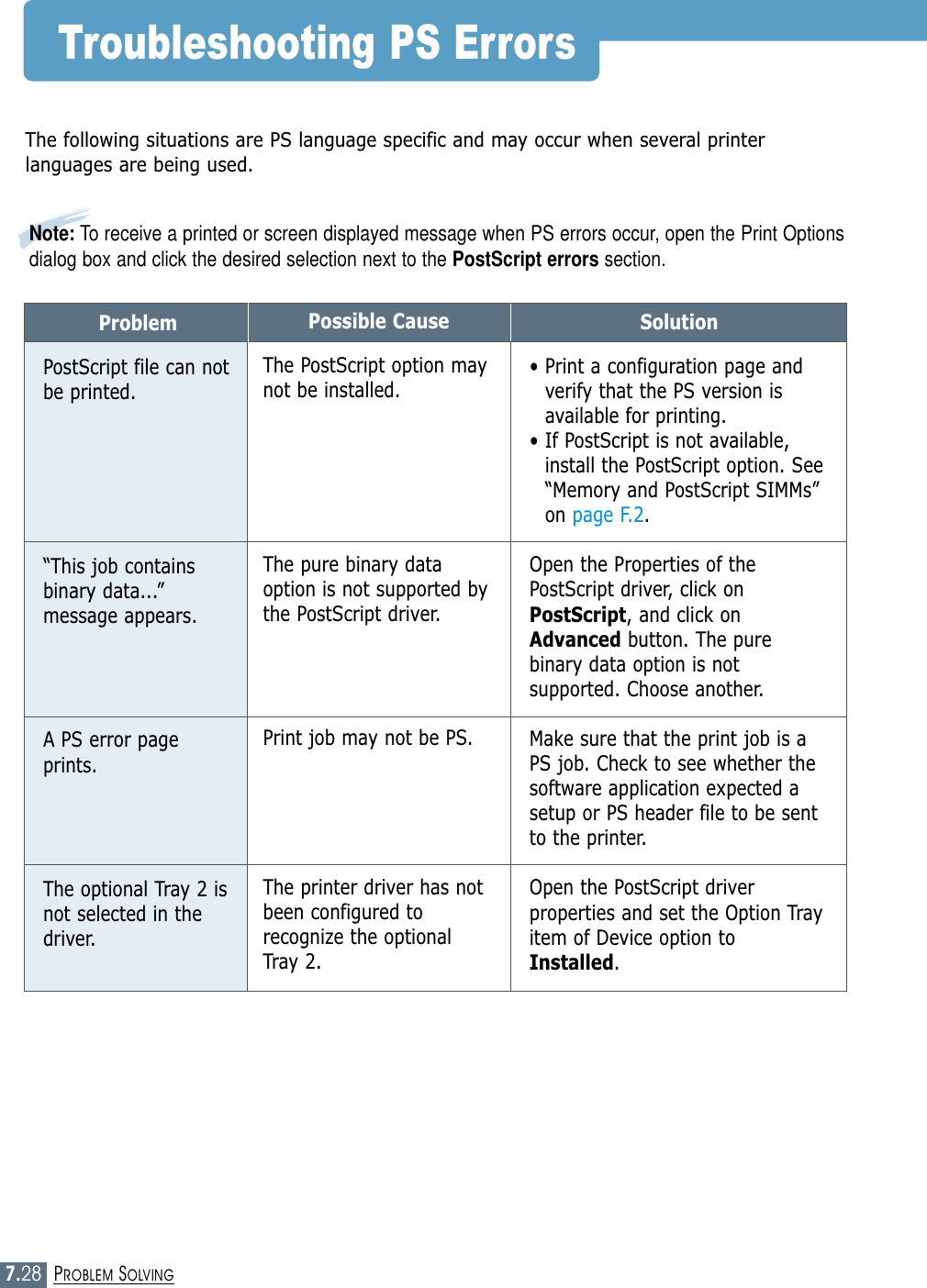

7.28PROBLEM SOLVINGThe following situations are PS language specific and may occur when several printerlanguages are being used.Note: To receive a printed or screen displayed message when PS errors occur, open the Print Optionsdialog box and click the desired selection next to the PostScript errors section.ProblemPostScript file can notbe printed.“This job containsbinary data...”message appears.A PS error pageprints.The optional Tray 2 isnot selected in thedriver.Possible CauseThe PostScript option maynot be installed.The pure binary dataoption is not supported bythe PostScript driver.Print job may not be PS.The printer driver has notbeen configured torecognize the optional Tray 2.Solution• Print a configuration page andverify that the PS version isavailable for printing.• If PostScript is not available,install the PostScript option. See“Memory and PostScript SIMMs”on page F.2.Open the Properties of thePostScript driver, click onPostScript, and click onAdvanced button. The purebinary data option is notsupported. Choose another.Make sure that the print job is aPS job. Check to see whether thesoftware application expected asetup or PS header file to be sentto the printer.Open the PostScript driverproperties and set the Option Trayitem of Device option toInstalled.Troubleshooting PS Errors

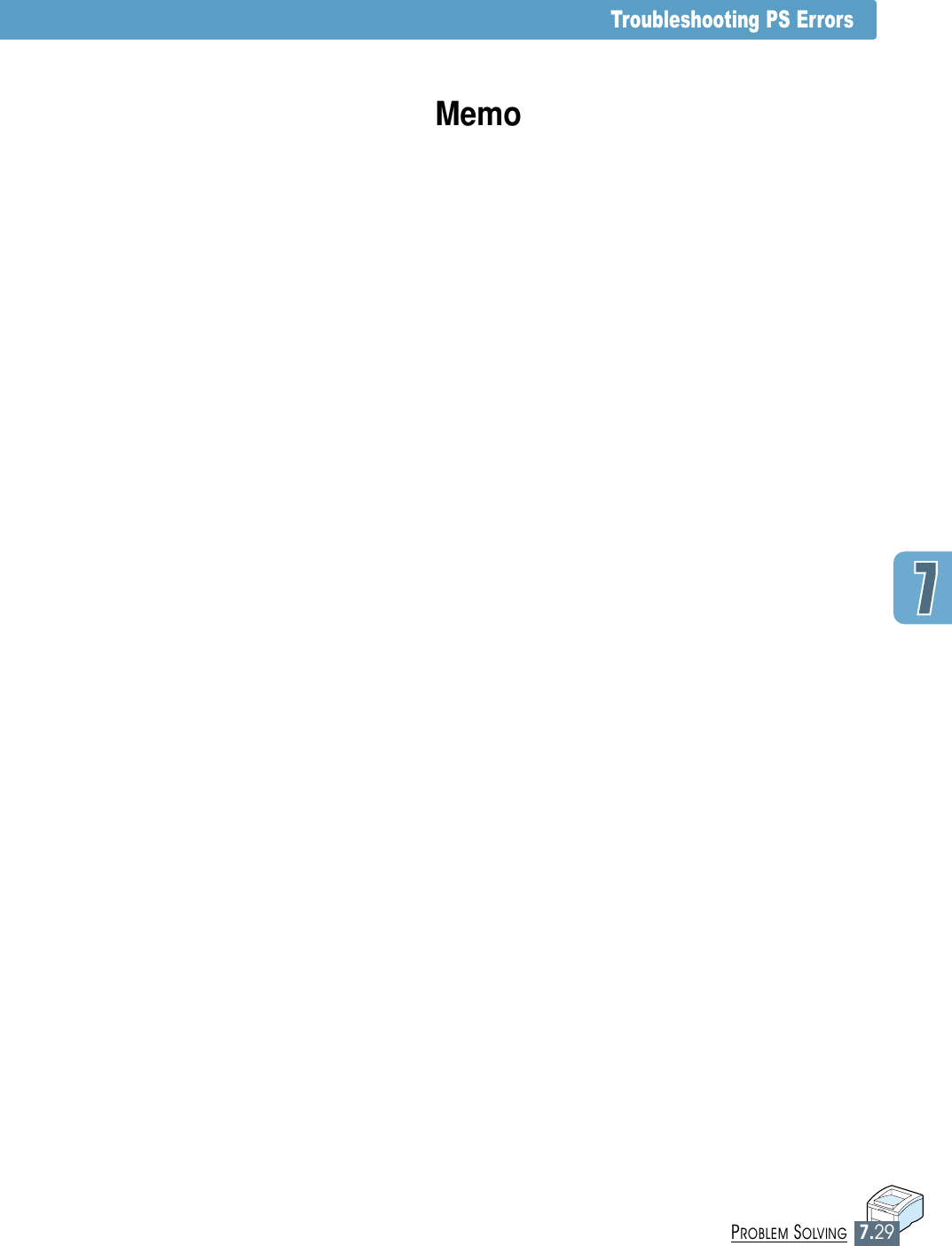

7.29PROBLEM SOLVINGTroubleshooting PS ErrorsMemo

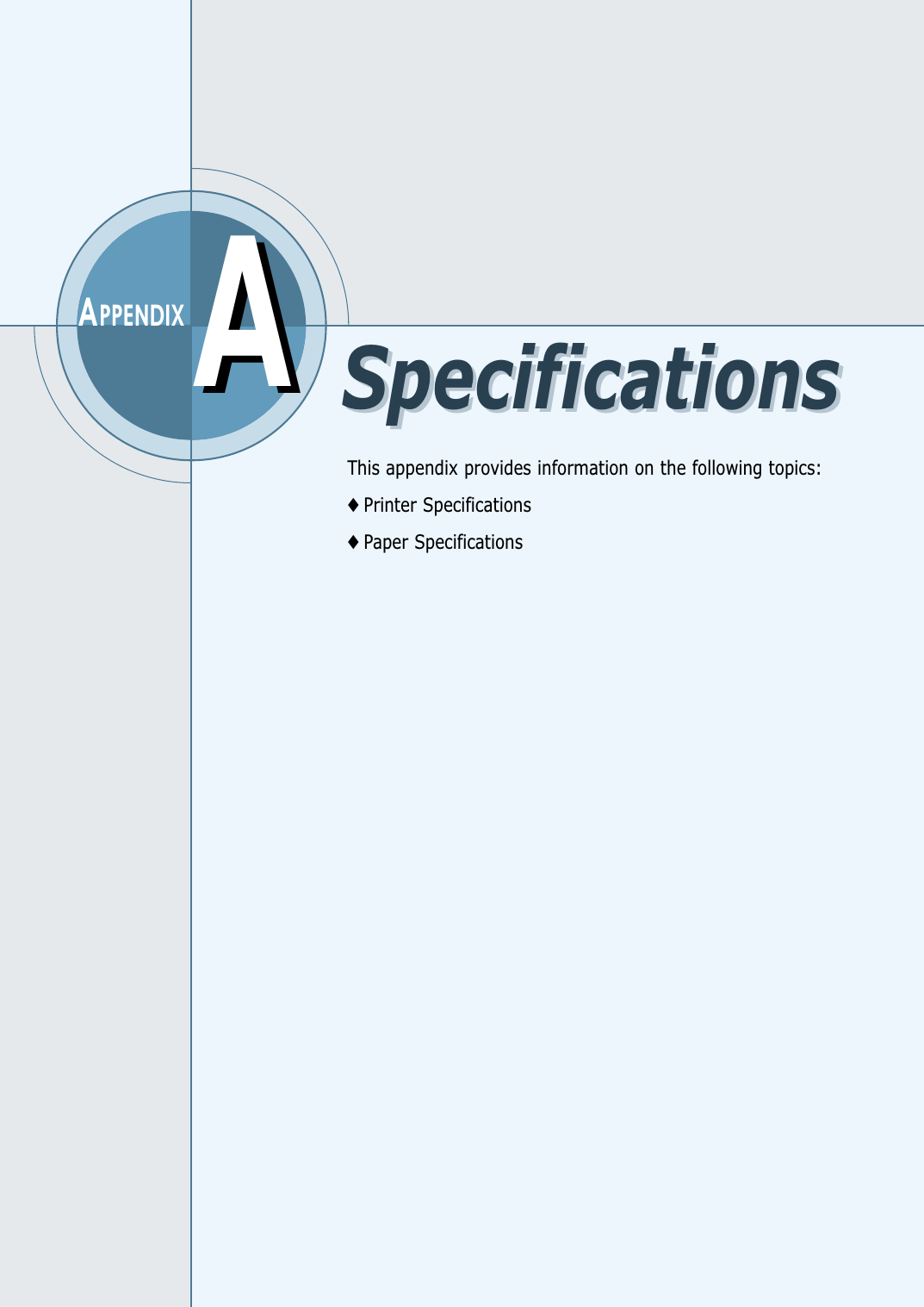

This appendix provides information on the following topics:◆ Printer Specifications◆ Paper SpecificationsAAAPPENDIXSpecificationsSpecifications

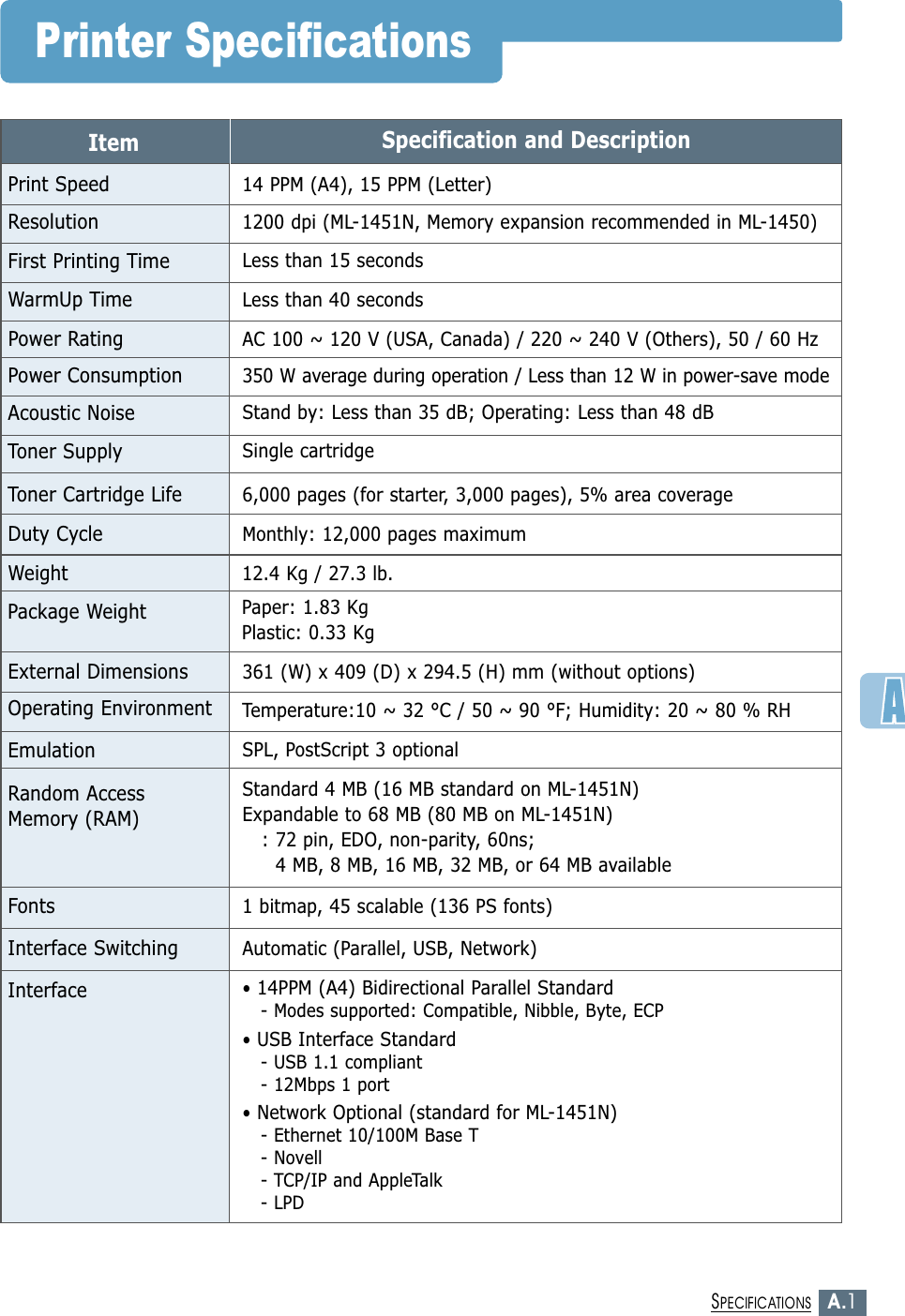

A.1SPECIFICATIONSPrinter SpecificationsItem Specification and DescriptionPrint Speed14 PPM (A4), 15 PPM (Letter)Resolution 1200 dpi (ML-1451N, Memory expansion recommended in ML-1450)First Printing TimeWarmUp TimeLess than 15 secondsPower Consumption350 W average during operation / Less than 12 W in power-save modePower RatingAC 100 ~ 120 V (USA, Canada) / 220 ~ 240 V (Others), 50 / 60 HzAcoustic NoiseStand by: Less than 35 dB; Operating: Less than 48 dBToner SupplySingle cartridgeToner Cartridge Life6,000 pages (for starter, 3,000 pages), 5% area coverageEmulation SPL, PostScript 3 optionalRandom AccessMemory (RAM)Interface SwitchingStandard 4 MB (16 MB standard on ML-1451N)Expandable to 68 MB (80 MB on ML-1451N): 72 pin, EDO, non-parity, 60ns;4 MB, 8 MB, 16 MB, 32 MB, or 64 MB availableLess than 40 secondsAutomatic (Parallel, USB, Network)Interface• 14PPM (A4) Bidirectional Parallel Standard- Modes supported: Compatible, Nibble, Byte, ECP• USB Interface Standard- USB 1.1 compliant- 12Mbps 1 port• Network Optional (standard for ML-1451N)- Ethernet 10/100M Base T- Novell- TCP/IP and AppleTalk- LPDWeight 12.4 Kg / 27.3 lb.External Dimensions361 (W) x 409 (D) x 294.5 (H) mm (without options)Temperature:10 ~ 32 °C / 50 ~ 90 °F; Humidity: 20 ~ 80 % RHPackage WeightPaper: 1.83 KgPlastic: 0.33 KgDuty CycleMonthly: 12,000 pages maximumOperating Environment Fonts1 bitmap, 45 scalable (136 PS fonts)

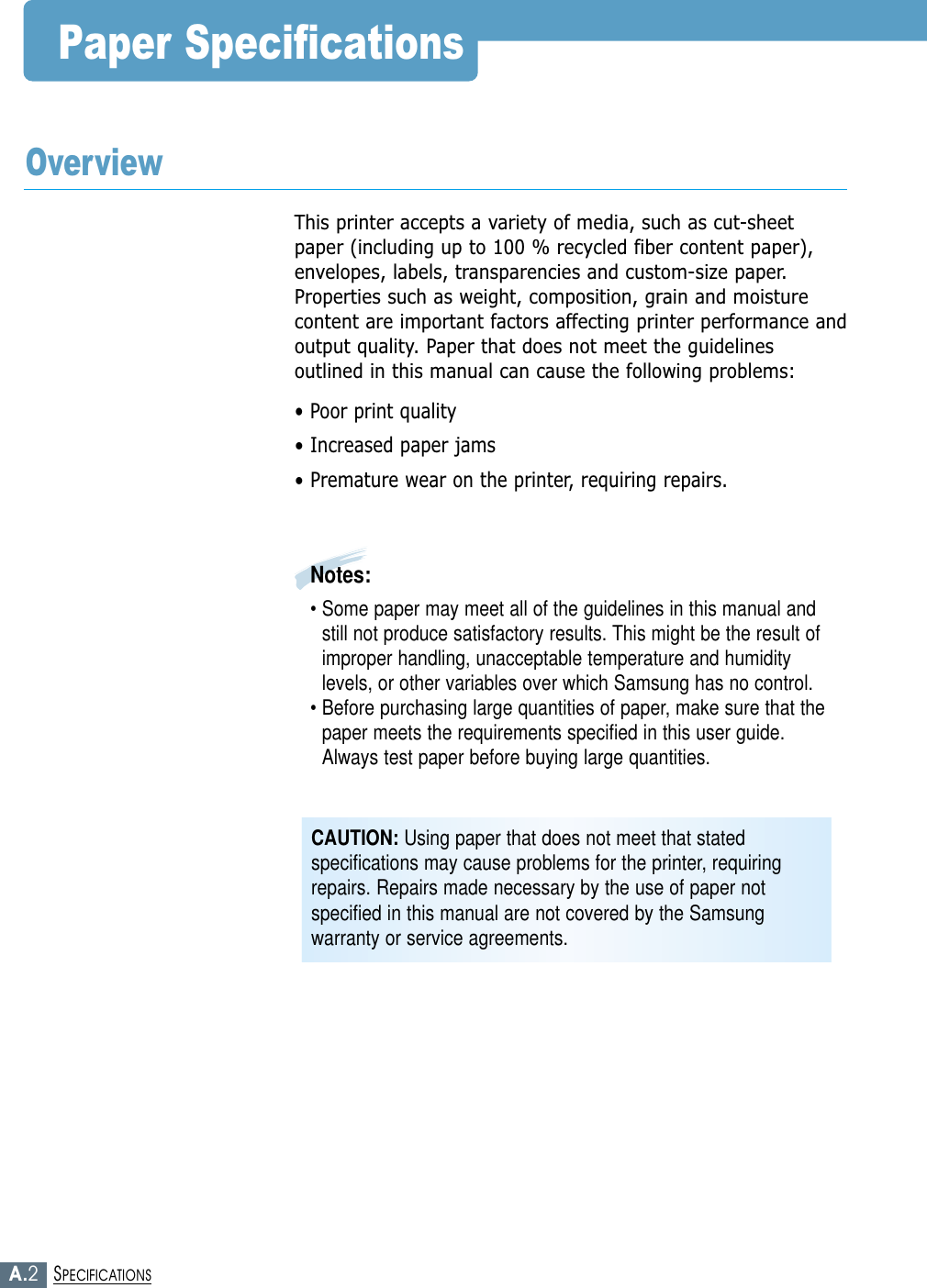

A.2SPECIFICATIONSPaper SpecificationsThis printer accepts a variety of media, such as cut-sheetpaper (including up to 100 % recycled fiber content paper),envelopes, labels, transparencies and custom-size paper.Properties such as weight, composition, grain and moisturecontent are important factors affecting printer performance andoutput quality. Paper that does not meet the guidelinesoutlined in this manual can cause the following problems:• Poor print quality• Increased paper jams• Premature wear on the printer, requiring repairs.OverviewNotes: • Some paper may meet all of the guidelines in this manual andstill not produce satisfactory results. This might be the result ofimproper handling, unacceptable temperature and humiditylevels, or other variables over which Samsung has no control.• Before purchasing large quantities of paper, make sure that thepaper meets the requirements specified in this user guide.Always test paper before buying large quantities.CAUTION: Using paper that does not meet that statedspecifications may cause problems for the printer, requiringrepairs. Repairs made necessary by the use of paper notspecified in this manual are not covered by the Samsungwarranty or service agreements.

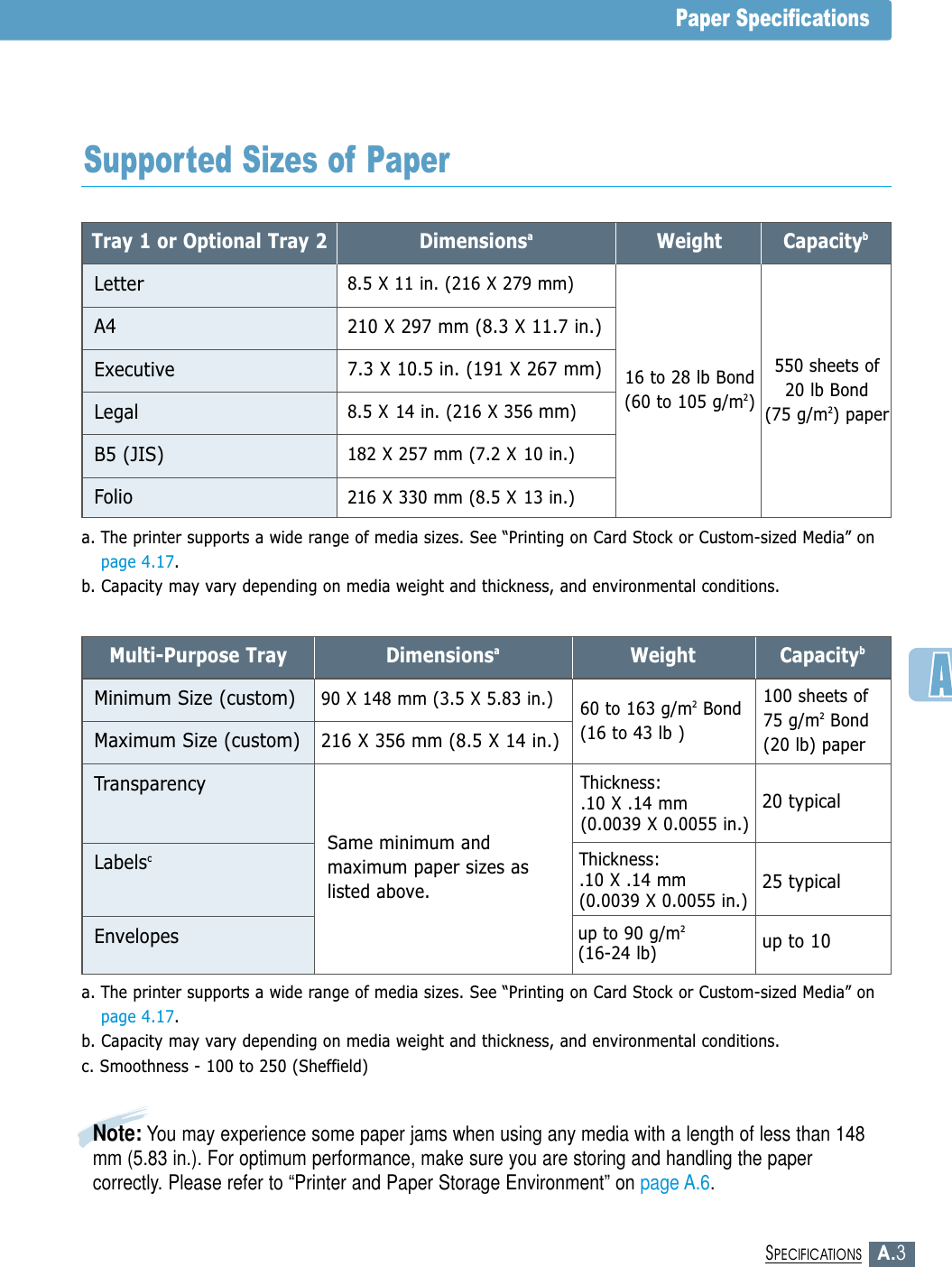

A.3SPECIFICATIONSTray 1 or Optional Tray 2LetterDimensionsa8.5 X 11 in. (216 X 279 mm)16 to 28 lb Bond (60 to 105 g/m2)550 sheets of20 lb Bond (75 g/m2) paperWeight CapacitybA4210 X 297 mm (8.3 X 11.7 in.)ExecutiveLegalB5 (JIS)Folio7.3 X 10.5 in. (191 X 267 mm)8.5 X 14 in. (216 X 356 mm)182 X 257 mm (7.2 X 10 in.)216 X 330 mm (8.5 X 13 in.)Multi-Purpose TrayMinimum Size (custom)Dimensionsa90 X 148 mm (3.5 X 5.83 in.) 60 to 163 g/m2Bond (16 to 43 lb )100 sheets of 75 g/m2Bond (20 lb) paperWeight CapacitybMaximum Size (custom)216 X 356 mm (8.5 X 14 in.)TransparencyLabelscEnvelopesSame minimum andmaximum paper sizes aslisted above.Thickness:.10 X .14 mm(0.0039 X 0.0055 in.)Thickness:.10 X .14 mm(0.0039 X 0.0055 in.)up to 90 g/m2(16-24 lb)20 typical25 typicalup to 10a. The printer supports a wide range of media sizes. See “Printing on Card Stock or Custom-sized Media” onpage 4.17.b. Capacity may vary depending on media weight and thickness, and environmental conditions.a. The printer supports a wide range of media sizes. See “Printing on Card Stock or Custom-sized Media” onpage 4.17.b. Capacity may vary depending on media weight and thickness, and environmental conditions.c. Smoothness - 100 to 250 (Sheffield)Supported Sizes of PaperNote: You may experience some paper jams when using any media with a length of less than 148mm (5.83 in.). For optimum performance, make sure you are storing and handling the papercorrectly. Please refer to “Printer and Paper Storage Environment” on page A.6.Paper Specifications

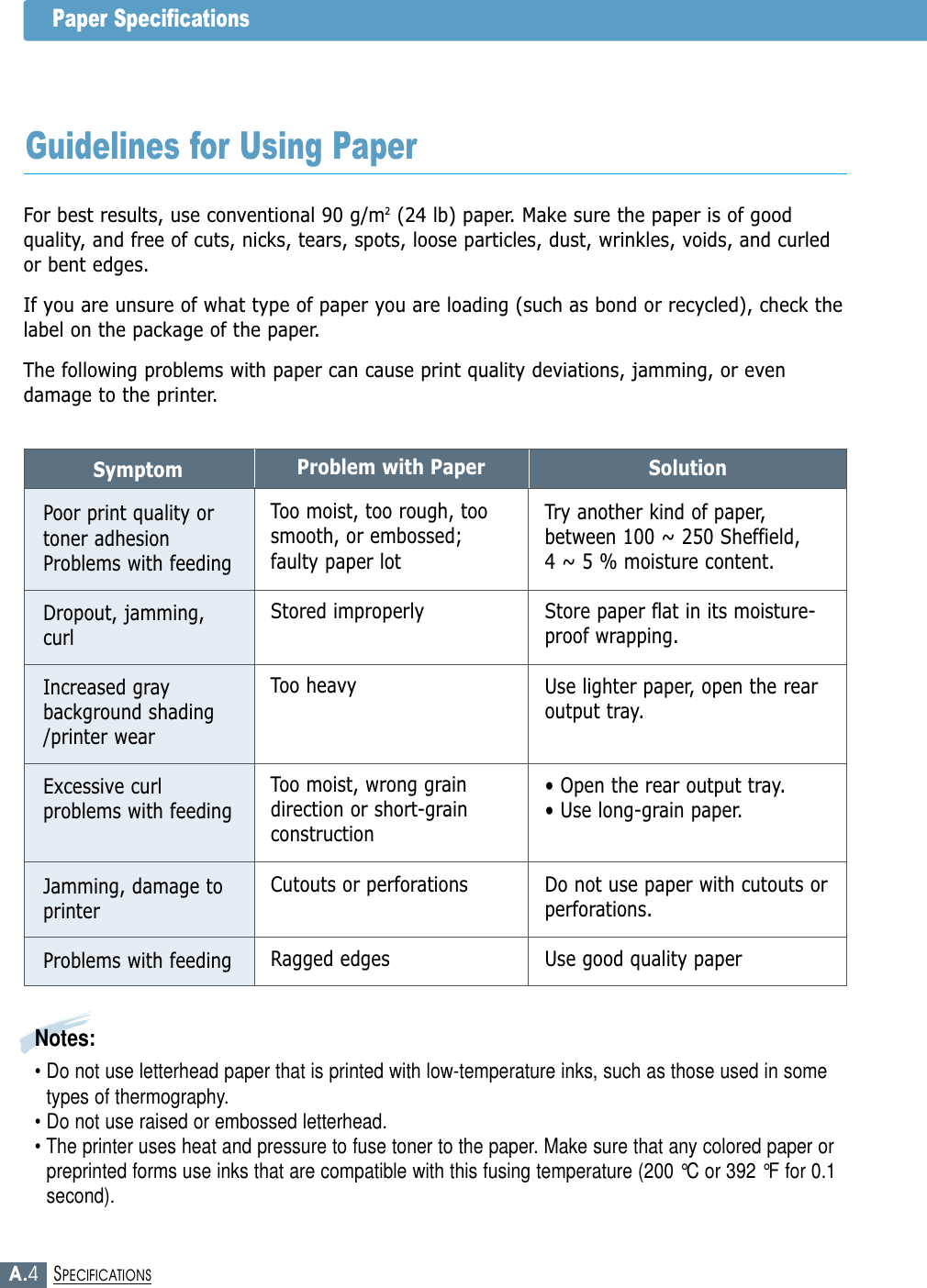

A.4SPECIFICATIONSPaper SpecificationsFor best results, use conventional 90 g/m2(24 lb) paper. Make sure the paper is of goodquality, and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curledor bent edges.If you are unsure of what type of paper you are loading (such as bond or recycled), check thelabel on the package of the paper.The following problems with paper can cause print quality deviations, jamming, or evendamage to the printer.SymptomPoor print quality ortoner adhesionProblems with feedingDropout, jamming,curlIncreased graybackground shading/printer wearExcessive curlproblems with feedingJamming, damage toprinterProblems with feedingProblem with PaperToo moist, too rough, toosmooth, or embossed;faulty paper lotStored improperlyToo heavyToo moist, wrong graindirection or short-grainconstructionCutouts or perforationsRagged edgesSolutionTry another kind of paper,between 100 ~ 250 Sheffield, 4 ~ 5 % moisture content.Store paper flat in its moisture-proof wrapping.Use lighter paper, open the rearoutput tray.• Open the rear output tray.• Use long-grain paper.Do not use paper with cutouts orperforations.Use good quality paperNotes: • Do not use letterhead paper that is printed with low-temperature inks, such as those used in sometypes of thermography.• Do not use raised or embossed letterhead.• The printer uses heat and pressure to fuse toner to the paper. Make sure that any colored paper orpreprinted forms use inks that are compatible with this fusing temperature (200 °C or 392 °F for 0.1second).Guidelines for Using Paper

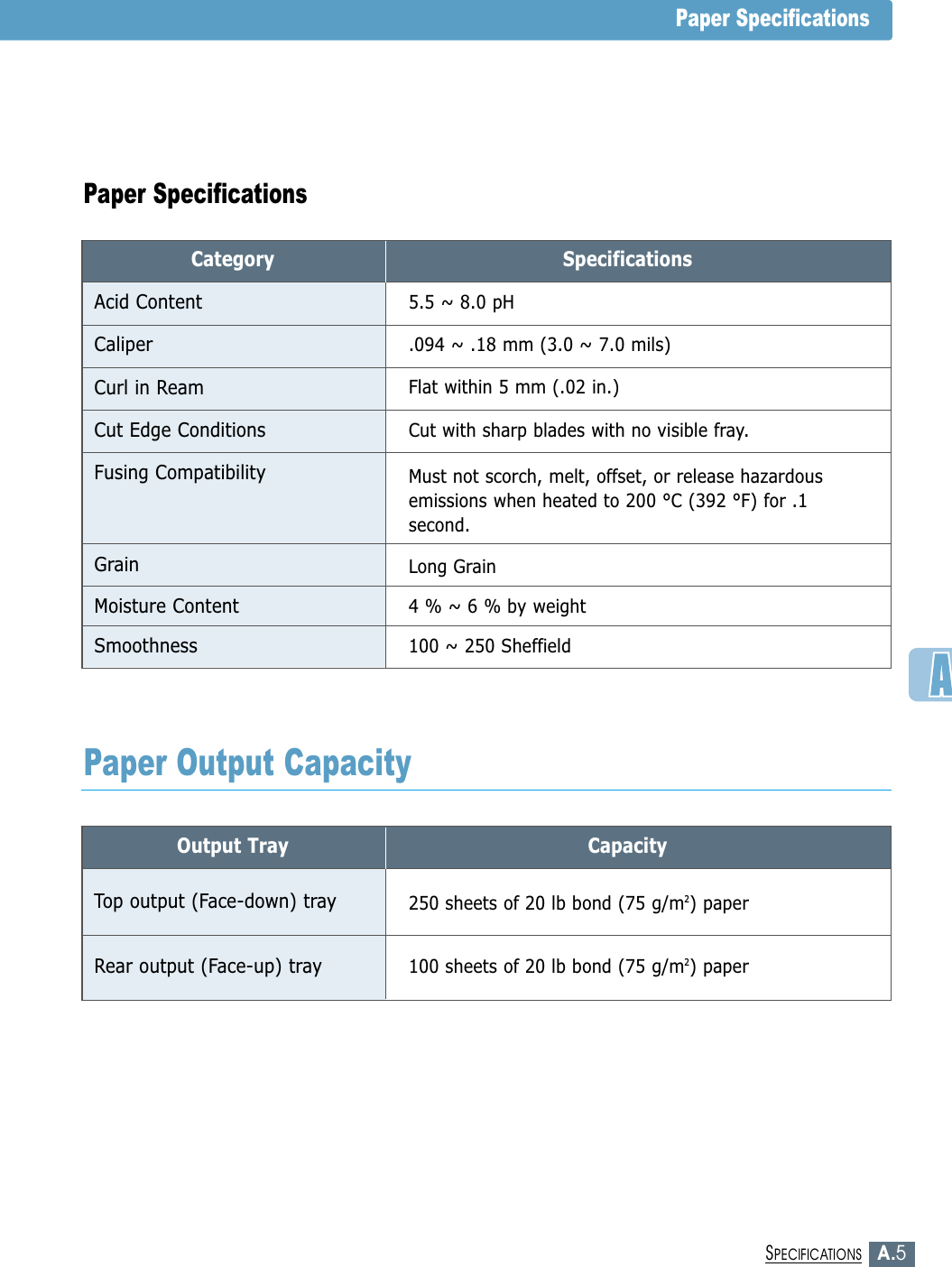

A.5SPECIFICATIONSPaper SpecificationsCategoryAcid ContentSpecifications5.5 ~ 8.0 pHCaliper.094 ~ .18 mm (3.0 ~ 7.0 mils)Curl in ReamCut Edge ConditionsFusing CompatibilityGrainFlat within 5 mm (.02 in.)Cut with sharp blades with no visible fray.Moisture Content4 % ~ 6 % by weightSmoothness100 ~ 250 SheffieldMust not scorch, melt, offset, or release hazardousemissions when heated to 200 °C (392 °F) for .1second.Long GrainPaper SpecificationsOutput TrayTop output (Face-down) trayCapacity250 sheets of 20 lb bond (75 g/m2) paperRear output (Face-up) tray100 sheets of 20 lb bond (75 g/m2) paperPaper Output Capacity

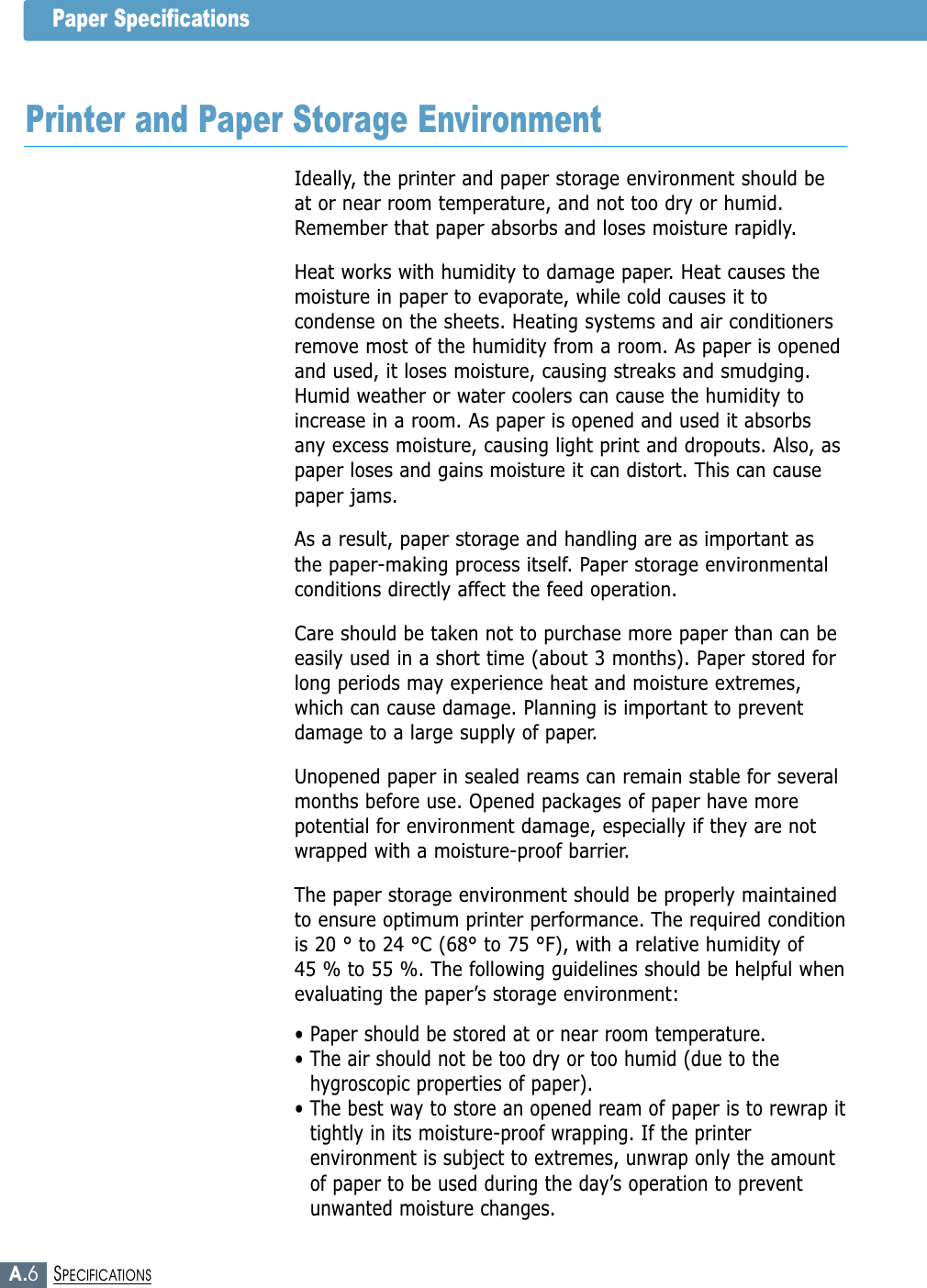

A.6SPECIFICATIONSIdeally, the printer and paper storage environment should beat or near room temperature, and not too dry or humid.Remember that paper absorbs and loses moisture rapidly.Heat works with humidity to damage paper. Heat causes themoisture in paper to evaporate, while cold causes it tocondense on the sheets. Heating systems and air conditionersremove most of the humidity from a room. As paper is openedand used, it loses moisture, causing streaks and smudging.Humid weather or water coolers can cause the humidity toincrease in a room. As paper is opened and used it absorbsany excess moisture, causing light print and dropouts. Also, aspaper loses and gains moisture it can distort. This can causepaper jams.As a result, paper storage and handling are as important asthe paper-making process itself. Paper storage environmentalconditions directly affect the feed operation.Care should be taken not to purchase more paper than can beeasily used in a short time (about 3 months). Paper stored forlong periods may experience heat and moisture extremes,which can cause damage. Planning is important to preventdamage to a large supply of paper.Unopened paper in sealed reams can remain stable for severalmonths before use. Opened packages of paper have morepotential for environment damage, especially if they are notwrapped with a moisture-proof barrier.The paper storage environment should be properly maintainedto ensure optimum printer performance. The required conditionis 20 ° to 24 °C (68° to 75 °F), with a relative humidity of 45 % to 55 %. The following guidelines should be helpful whenevaluating the paper’s storage environment:• Paper should be stored at or near room temperature.• The air should not be too dry or too humid (due to thehygroscopic properties of paper).• The best way to store an opened ream of paper is to rewrap ittightly in its moisture-proof wrapping. If the printerenvironment is subject to extremes, unwrap only the amountof paper to be used during the day’s operation to preventunwanted moisture changes.Paper SpecificationsPrinter and Paper Storage Environment

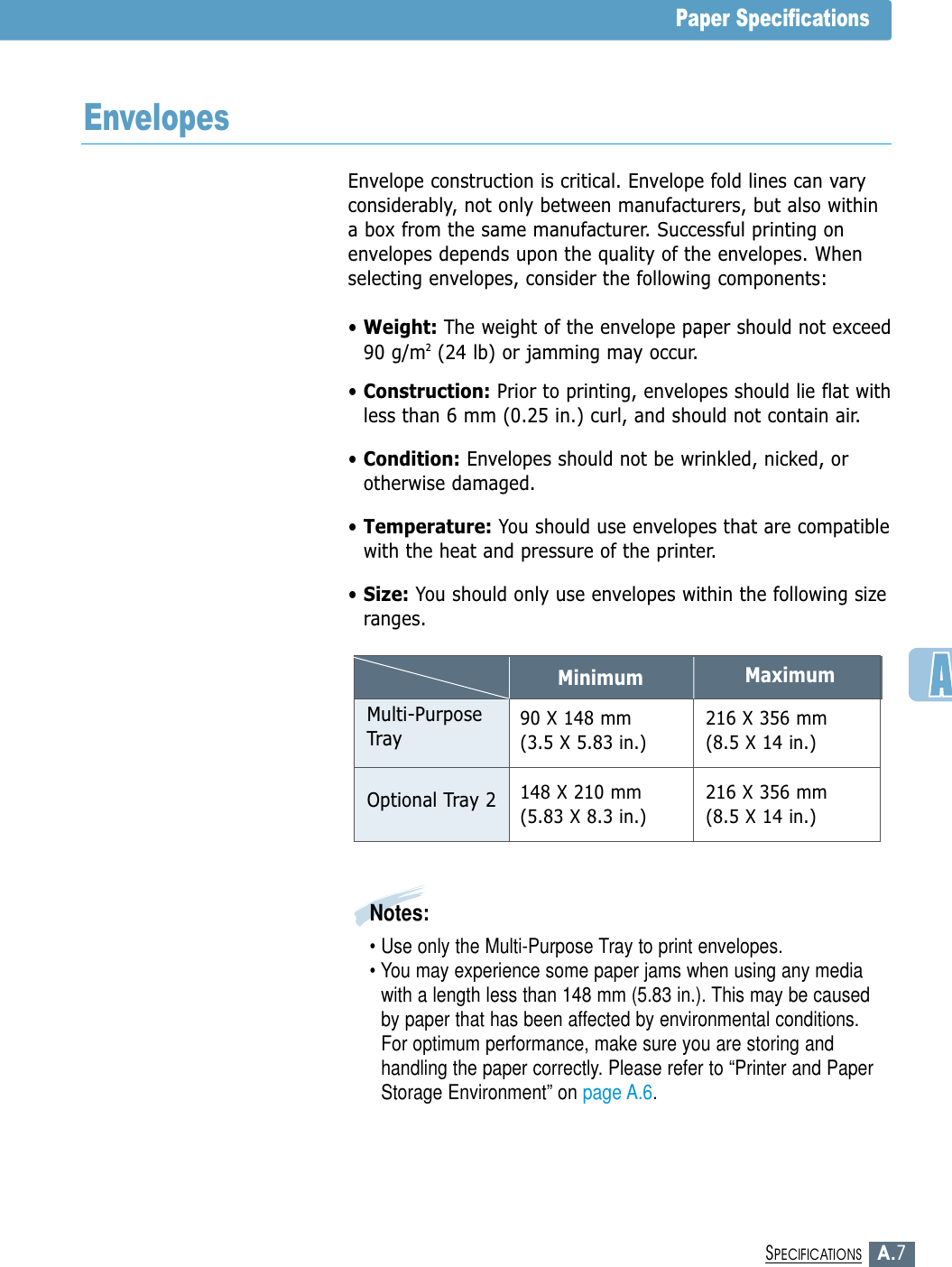

A.7SPECIFICATIONSEnvelope construction is critical. Envelope fold lines can varyconsiderably, not only between manufacturers, but also withina box from the same manufacturer. Successful printing onenvelopes depends upon the quality of the envelopes. Whenselecting envelopes, consider the following components:• Weight: The weight of the envelope paper should not exceed90 g/m2(24 lb) or jamming may occur.• Construction: Prior to printing, envelopes should lie flat withless than 6 mm (0.25 in.) curl, and should not contain air.• Condition: Envelopes should not be wrinkled, nicked, orotherwise damaged.• Temperature: You should use envelopes that are compatiblewith the heat and pressure of the printer.• Size: You should only use envelopes within the following sizeranges.MinimumMulti-PurposeTrayMaximum216 X 356 mm(8.5 X 14 in.)90 X 148 mm(3.5 X 5.83 in.)Optional Tray 2216 X 356 mm(8.5 X 14 in.)148 X 210 mm(5.83 X 8.3 in.)Notes: • Use only the Multi-Purpose Tray to print envelopes.• You may experience some paper jams when using any mediawith a length less than 148 mm (5.83 in.). This may be causedby paper that has been affected by environmental conditions.For optimum performance, make sure you are storing andhandling the paper correctly. Please refer to “Printer and PaperStorage Environment” on page A.6.Paper SpecificationsEnvelopes

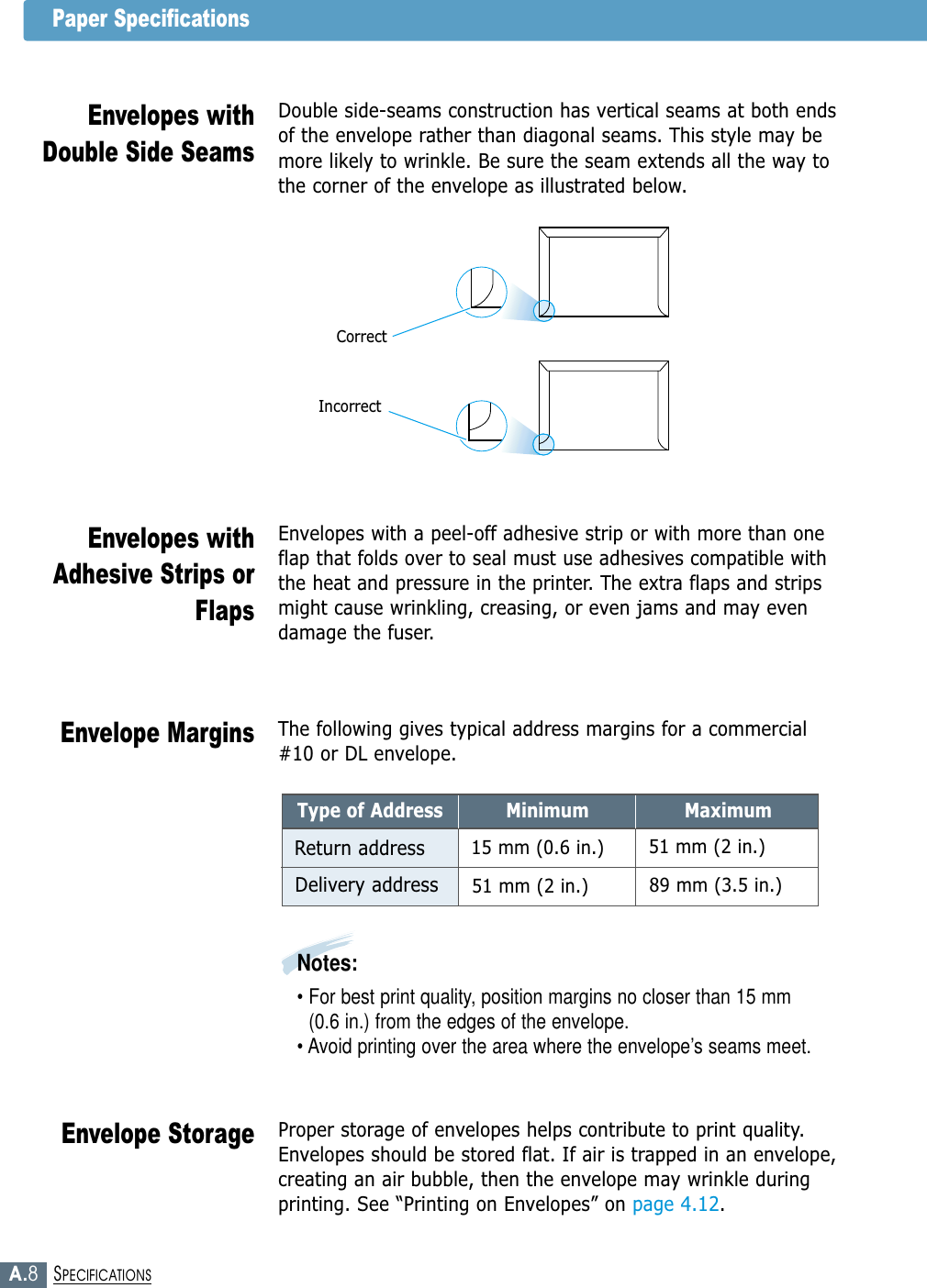

A.8SPECIFICATIONSDouble side-seams construction has vertical seams at both endsof the envelope rather than diagonal seams. This style may bemore likely to wrinkle. Be sure the seam extends all the way tothe corner of the envelope as illustrated below.Envelopes withDouble Side SeamsEnvelopes with a peel-off adhesive strip or with more than oneflap that folds over to seal must use adhesives compatible withthe heat and pressure in the printer. The extra flaps and stripsmight cause wrinkling, creasing, or even jams and may evendamage the fuser.Envelopes withAdhesive Strips orFlapsThe following gives typical address margins for a commercial#10 or DL envelope.Envelope MarginsEnvelope StorageCorrectIncorrectMinimumType of AddressReturn addressDelivery addressMaximum51 mm (2 in.)15 mm (0.6 in.)89 mm (3.5 in.)51 mm (2 in.)Notes: • For best print quality, position margins no closer than 15 mm(0.6 in.) from the edges of the envelope.• Avoid printing over the area where the envelope’s seams meet.Paper SpecificationsProper storage of envelopes helps contribute to print quality.Envelopes should be stored flat. If air is trapped in an envelope,creating an air bubble, then the envelope may wrinkle duringprinting. See “Printing on Envelopes” on page 4.12.

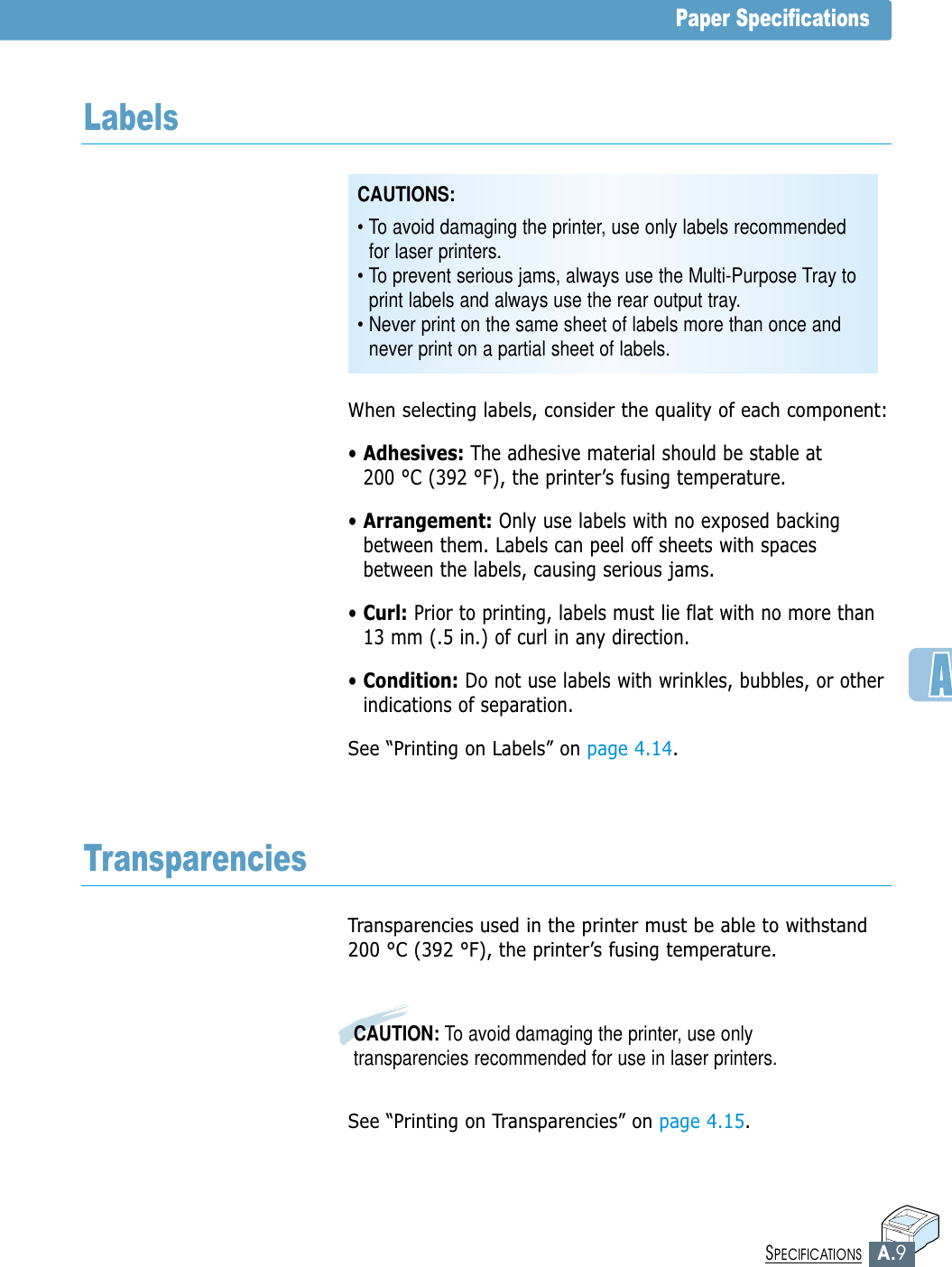

A.9SPECIFICATIONSWhen selecting labels, consider the quality of each component:• Adhesives: The adhesive material should be stable at 200 °C (392 °F), the printer’s fusing temperature.• Arrangement: Only use labels with no exposed backingbetween them. Labels can peel off sheets with spacesbetween the labels, causing serious jams.• Curl: Prior to printing, labels must lie flat with no more than13 mm (.5 in.) of curl in any direction.• Condition: Do not use labels with wrinkles, bubbles, or otherindications of separation.See “Printing on Labels” on page 4.14.Transparencies used in the printer must be able to withstand200 °C (392 °F), the printer’s fusing temperature.See “Printing on Transparencies” on page 4.15.CAUTION: To avoid damaging the printer, use onlytransparencies recommended for use in laser printers.CAUTIONS: • To avoid damaging the printer, use only labels recommendedfor laser printers.• To prevent serious jams, always use the Multi-Purpose Tray toprint labels and always use the rear output tray.• Never print on the same sheet of labels more than once andnever print on a partial sheet of labels.Paper SpecificationsLabelsTransparencies

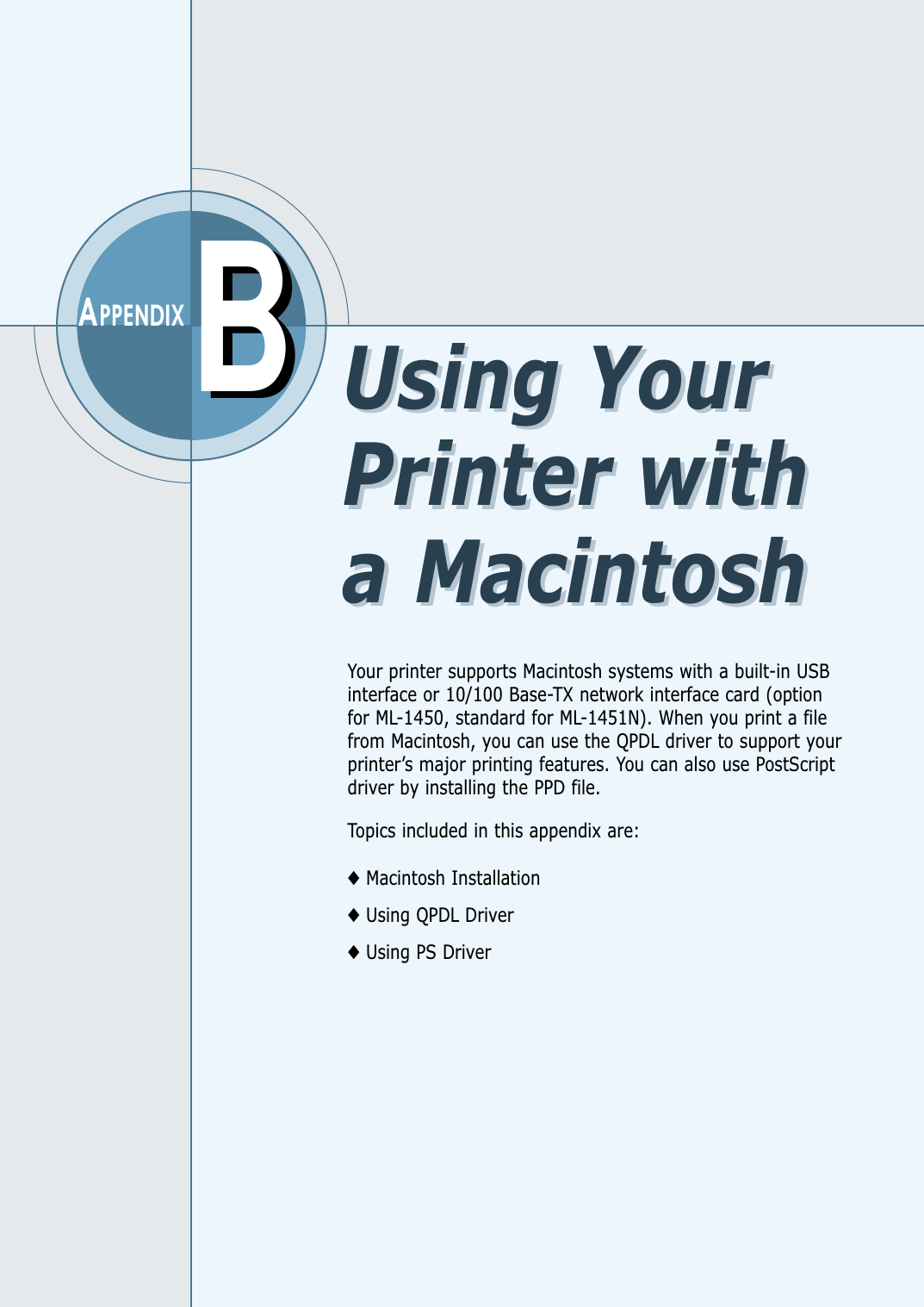

APPENDIXUsing YourPrinter witha MacintoshUsing YourPrinter witha MacintoshBBYour printer supports Macintosh systems with a built-in USBinterface or 10/100 Base-TX network interface card (optionfor ML-1450, standard for ML-1451N). When you print a filefrom Macintosh, you can use the QPDL driver to support yourprinter’s major printing features. You can also use PostScriptdriver by installing the PPD file. Topics included in this appendix are:◆Macintosh Installation◆Using QPDL Driver◆Using PS Driver

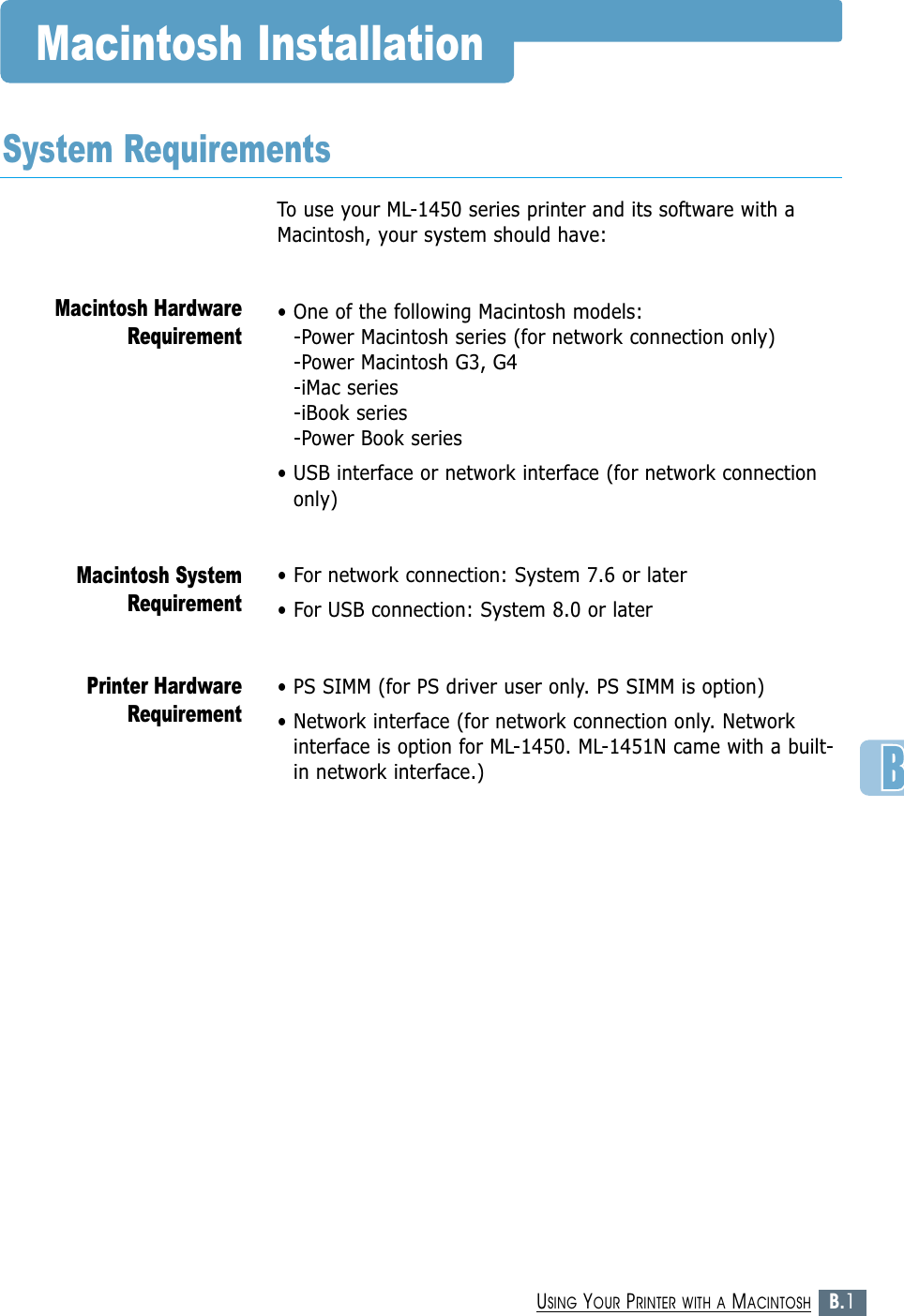

B.1USING YOUR PRINTER WITH A MACINTOSHMacintosh InstallationTo use your ML-1450 series printer and its software with aMacintosh, your system should have:• One of the following Macintosh models:-Power Macintosh series (for network connection only)-Power Macintosh G3, G4-iMac series-iBook series-Power Book series• USB interface or network interface (for network connectiononly)• For network connection: System 7.6 or later• For USB connection: System 8.0 or later• PS SIMM (for PS driver user only. PS SIMM is option)• Network interface (for network connection only. Networkinterface is option for ML-1450. ML-1451N came with a built-in network interface.)System RequirementsMacintosh HardwareRequirementMacintosh SystemRequirementPrinter HardwareRequirement

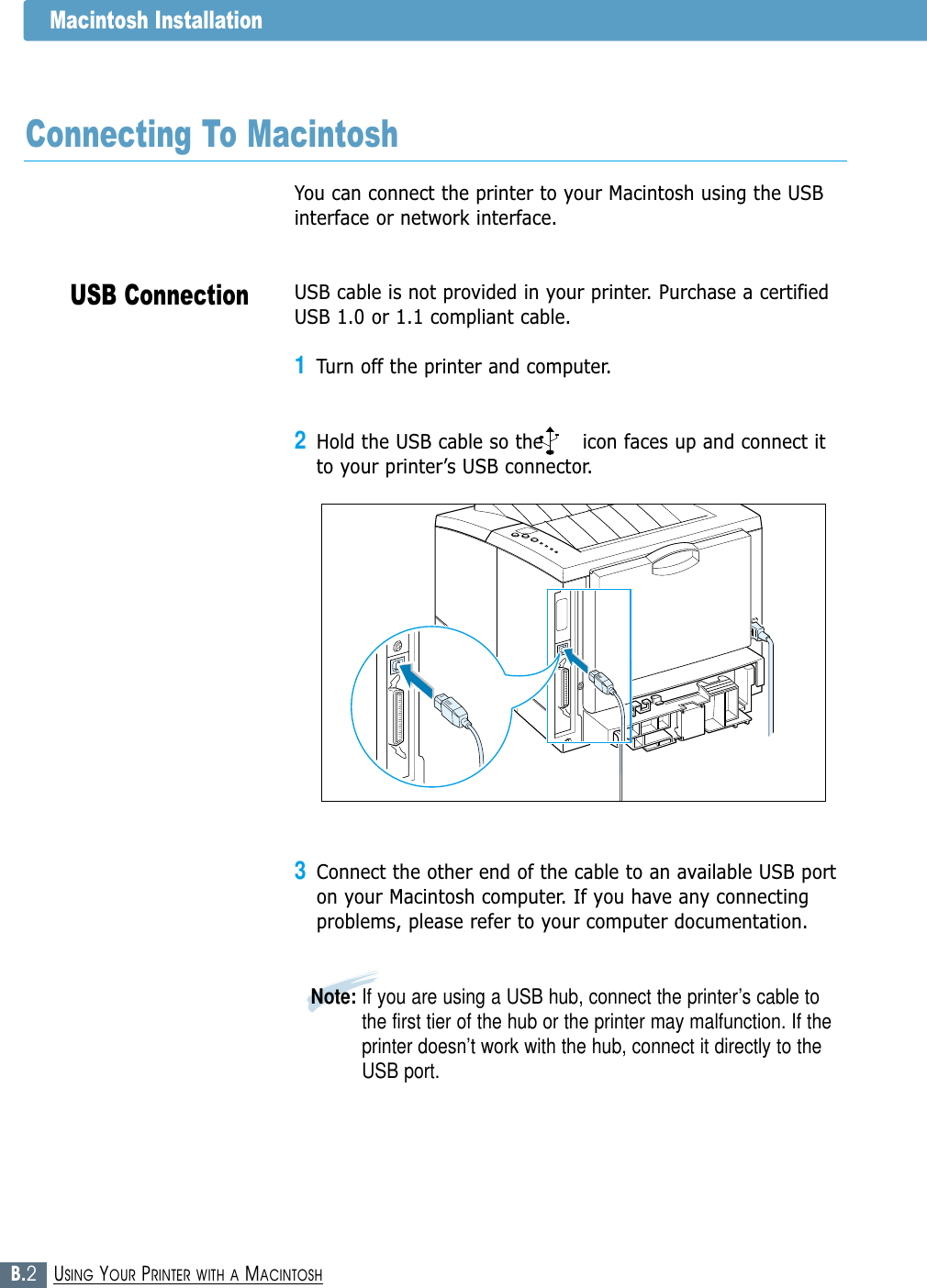

B.2USING YOUR PRINTER WITH A MACINTOSHUSB ConnectionMacintosh InstallationYou can connect the printer to your Macintosh using the USBinterface or network interface. USB cable is not provided in your printer. Purchase a certifiedUSB 1.0 or 1.1 compliant cable. 1Turn off the printer and computer.2Hold the USB cable so the icon faces up and connect itto your printer’s USB connector.3Connect the other end of the cable to an available USB porton your Macintosh computer. If you have any connectingproblems, please refer to your computer documentation.Note: If you are using a USB hub, connect the printer’s cable tothe first tier of the hub or the printer may malfunction. If theprinter doesn’t work with the hub, connect it directly to theUSB port. Connecting To Macintosh
B.3USING YOUR PRINTER WITH A MACINTOSHIf you have a printer with 10/100Base-TX network interfacecard installed (standard for ML-1451N, option for ML-1450),you can connect to an Ethernet network. Use a Category 5twisted pair cable with RJ-45 connectors for 10/100Base-TEthernet. 1Plug one end of the network cable into the twisted-pairconnector on the back of the printer.2Connect the other end to the network hub. Network ConnectionMacintosh InstallationNote: You must configure your printer for the network. For information about configuring your printer, refer tothe Network User’s Guide.

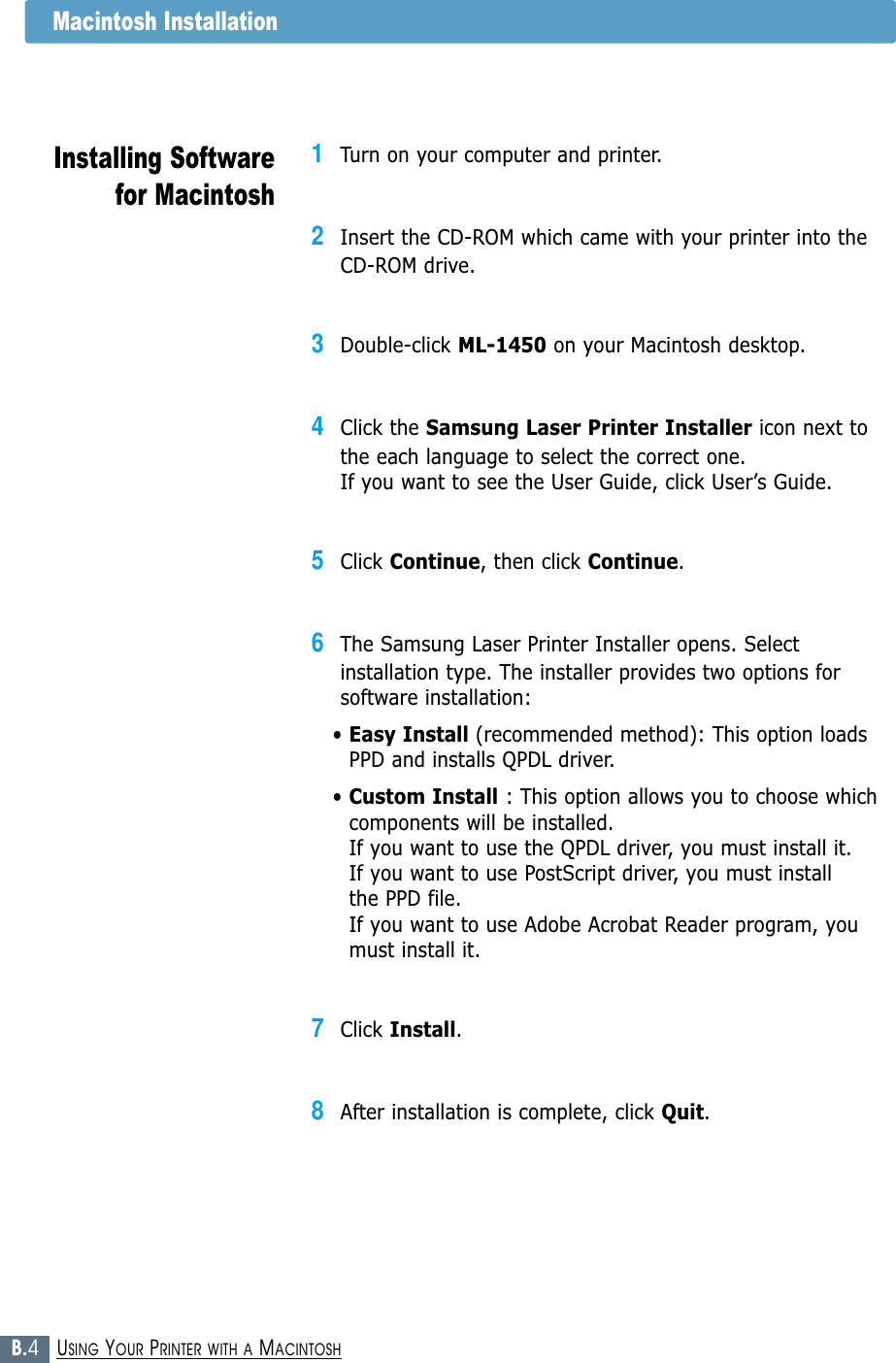

B.4USING YOUR PRINTER WITH A MACINTOSHMacintosh InstallationInstalling Softwarefor Macintosh1Turn on your computer and printer.2Insert the CD-ROM which came with your printer into the CD-ROM drive.3Double-click ML-1450 on your Macintosh desktop.4Click the Samsung Laser Printer Installer icon next tothe each language to select the correct one. If you want to see the User Guide, click User’s Guide.5Click Continue, then click Continue.6The Samsung Laser Printer Installer opens. Selectinstallation type. The installer provides two options forsoftware installation:• Easy Install (recommended method): This option loadsPPD and installs QPDL driver. • Custom Install : This option allows you to choose whichcomponents will be installed. If you want to use the QPDL driver, you must install it. If you want to use PostScript driver, you must install the PPD file. If you want to use Adobe Acrobat Reader program, youmust install it.7Click Install.8After installation is complete, click Quit.

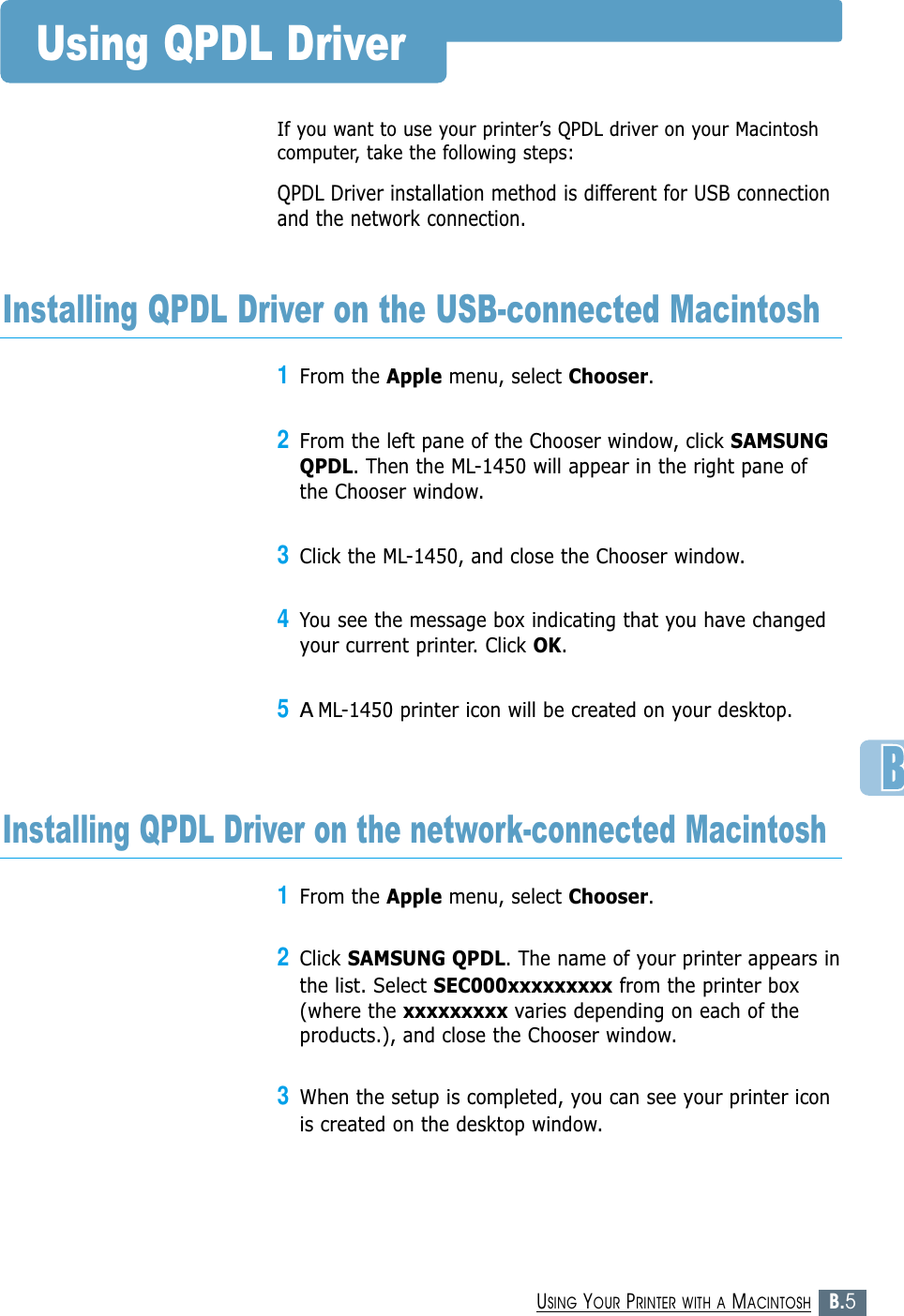

B.5USING YOUR PRINTER WITH A MACINTOSHIf you want to use your printer’s QPDL driver on your Macintoshcomputer, take the following steps:QPDL Driver installation method is different for USB connectionand the network connection.Using QPDL Driver1From the Apple menu, select Chooser.2From the left pane of the Chooser window, click SAMSUNGQPDL. Then the ML-1450 will appear in the right pane ofthe Chooser window.3Click the ML-1450, and close the Chooser window.4You see the message box indicating that you have changedyour current printer. Click OK. 5AML-1450 printer icon will be created on your desktop. Installing QPDL Driver on the USB-connected Macintosh1From the Apple menu, select Chooser.2Click SAMSUNG QPDL. The name of your printer appears inthe list. Select SEC000xxxxxxxxx from the printer box(where the xxxxxxxxx varies depending on each of theproducts.), and close the Chooser window.3When the setup is completed, you can see your printer iconis created on the desktop window.Installing QPDL Driver on the network-connected Macintosh

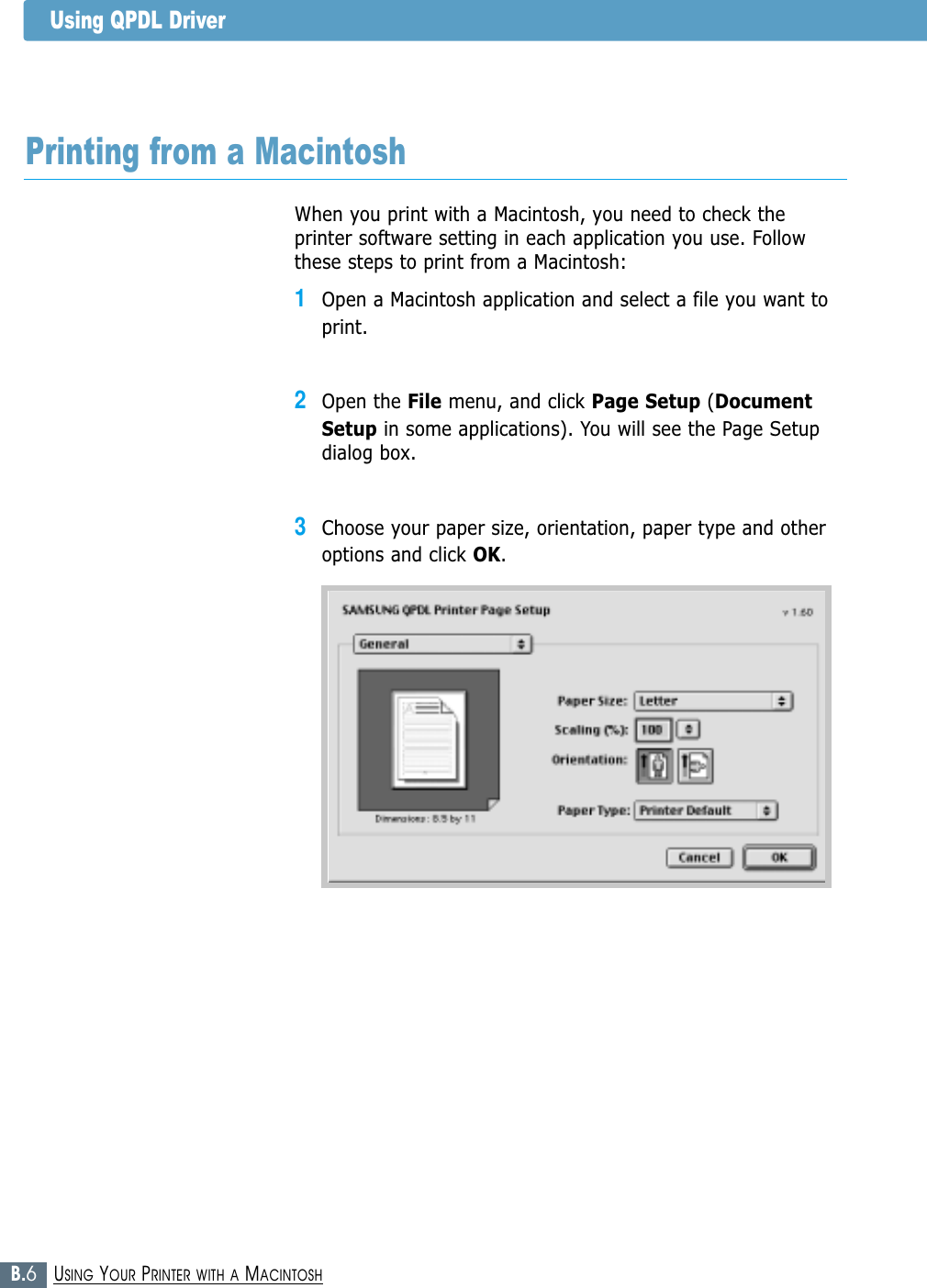

B.6USING YOUR PRINTER WITH A MACINTOSHWhen you print with a Macintosh, you need to check theprinter software setting in each application you use. Followthese steps to print from a Macintosh:1Open a Macintosh application and select a file you want toprint.2Open the File menu, and click Page Setup (DocumentSetup in some applications). You will see the Page Setupdialog box.3Choose your paper size, orientation, paper type and otheroptions and click OK.Printing from a MacintoshUsing QPDL Driver

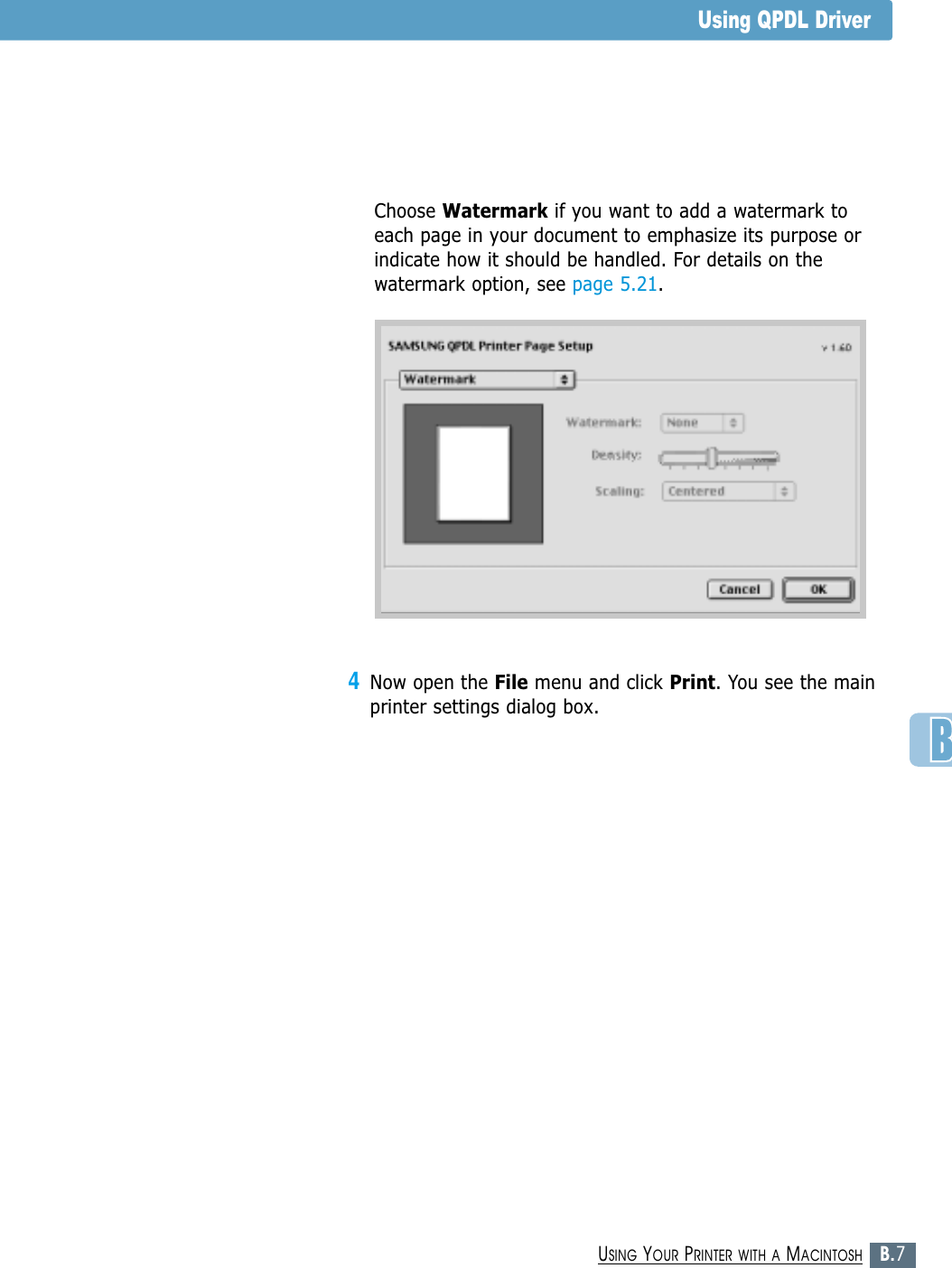

B.7USING YOUR PRINTER WITH A MACINTOSHUsing QPDL DriverChoose Watermark if you want to add a watermark toeach page in your document to emphasize its purpose orindicate how it should be handled. For details on thewatermark option, see page 5.21.4Now open the File menu and click Print. You see the mainprinter settings dialog box.

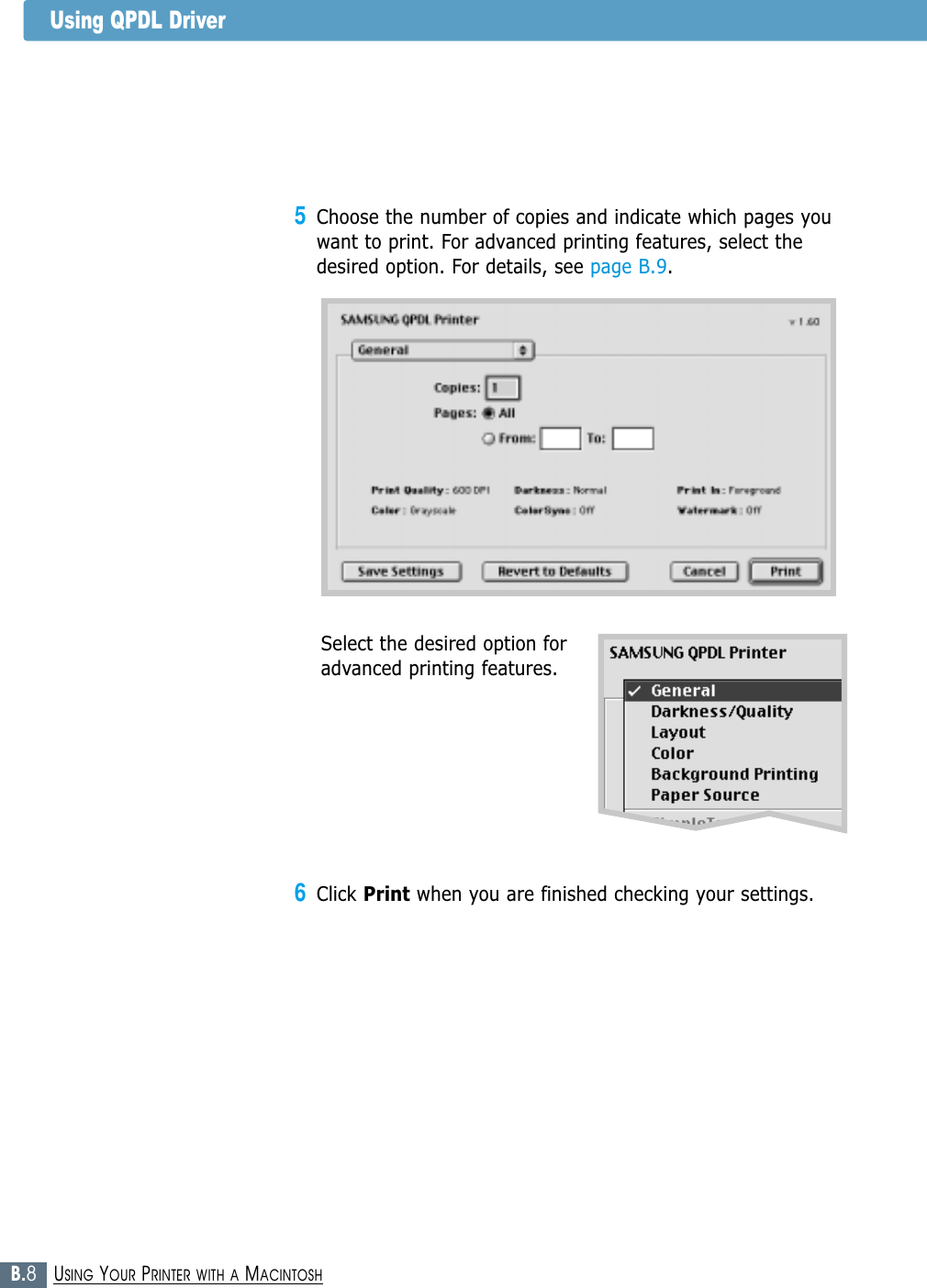

B.8USING YOUR PRINTER WITH A MACINTOSHUsing QPDL Driver6Click Print when you are finished checking your settings.Select the desired option foradvanced printing features.5Choose the number of copies and indicate which pages youwant to print. For advanced printing features, select thedesired option. For details, see page B.9.

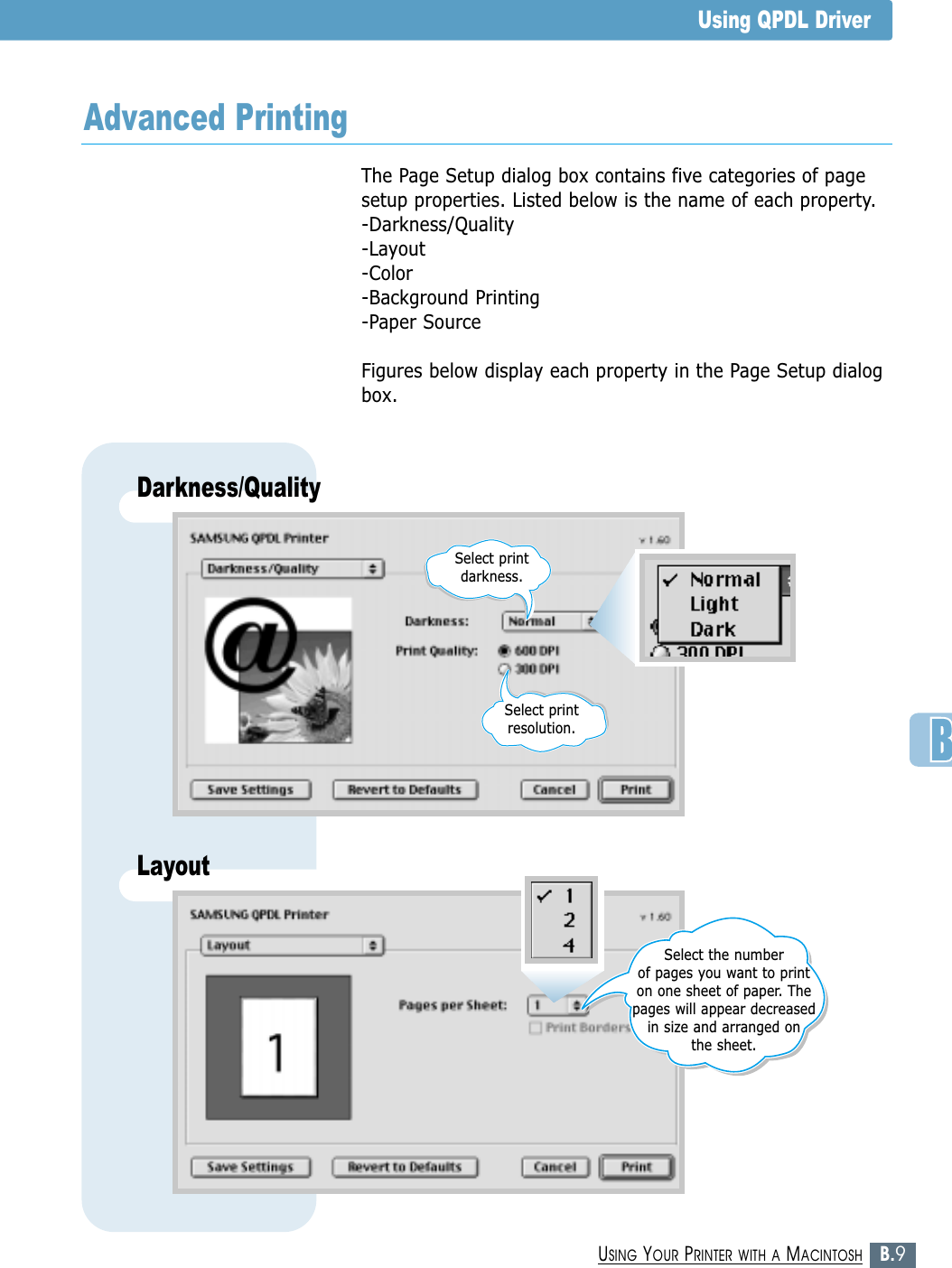

B.9USING YOUR PRINTER WITH A MACINTOSHUsing QPDL DriverThe Page Setup dialog box contains five categories of pagesetup properties. Listed below is the name of each property.-Darkness/Quality-Layout-Color-Background Printing-Paper SourceFigures below display each property in the Page Setup dialogbox.Advanced PrintingDarkness/QualitySelect print darkness.Select print resolution.LayoutSelect the number of pages you want to printon one sheet of paper. Thepages will appear decreasedin size and arranged on the sheet.

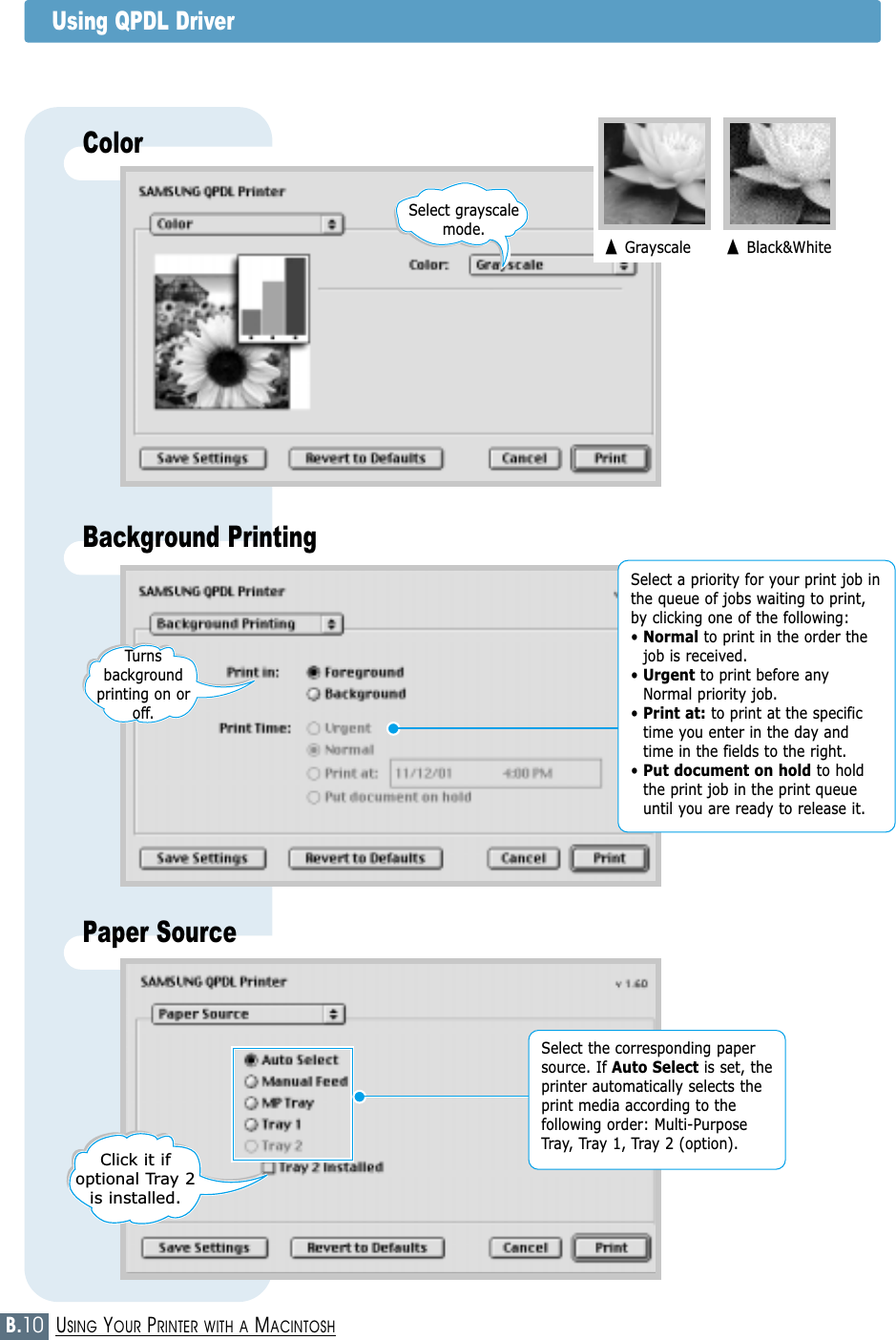

B.10USING YOUR PRINTER WITH A MACINTOSHUsing QPDL DriverColorBackground PrintingPaper SourceSelect grayscalemode. ➐Grayscale ➐Black&WhiteTurns backgroundprinting on oroff.Select a priority for your print job inthe queue of jobs waiting to print,by clicking one of the following:• Normal to print in the order thejob is received.• Urgent to print before anyNormal priority job.• Print at: to print at the specifictime you enter in the day andtime in the fields to the right.• Put document on hold to holdthe print job in the print queueuntil you are ready to release it.Click it ifoptional Tray 2is installed.Select the corresponding papersource. If Auto Select is set, theprinter automatically selects theprint media according to thefollowing order: Multi-PurposeTray, Tray 1, Tray 2 (option).

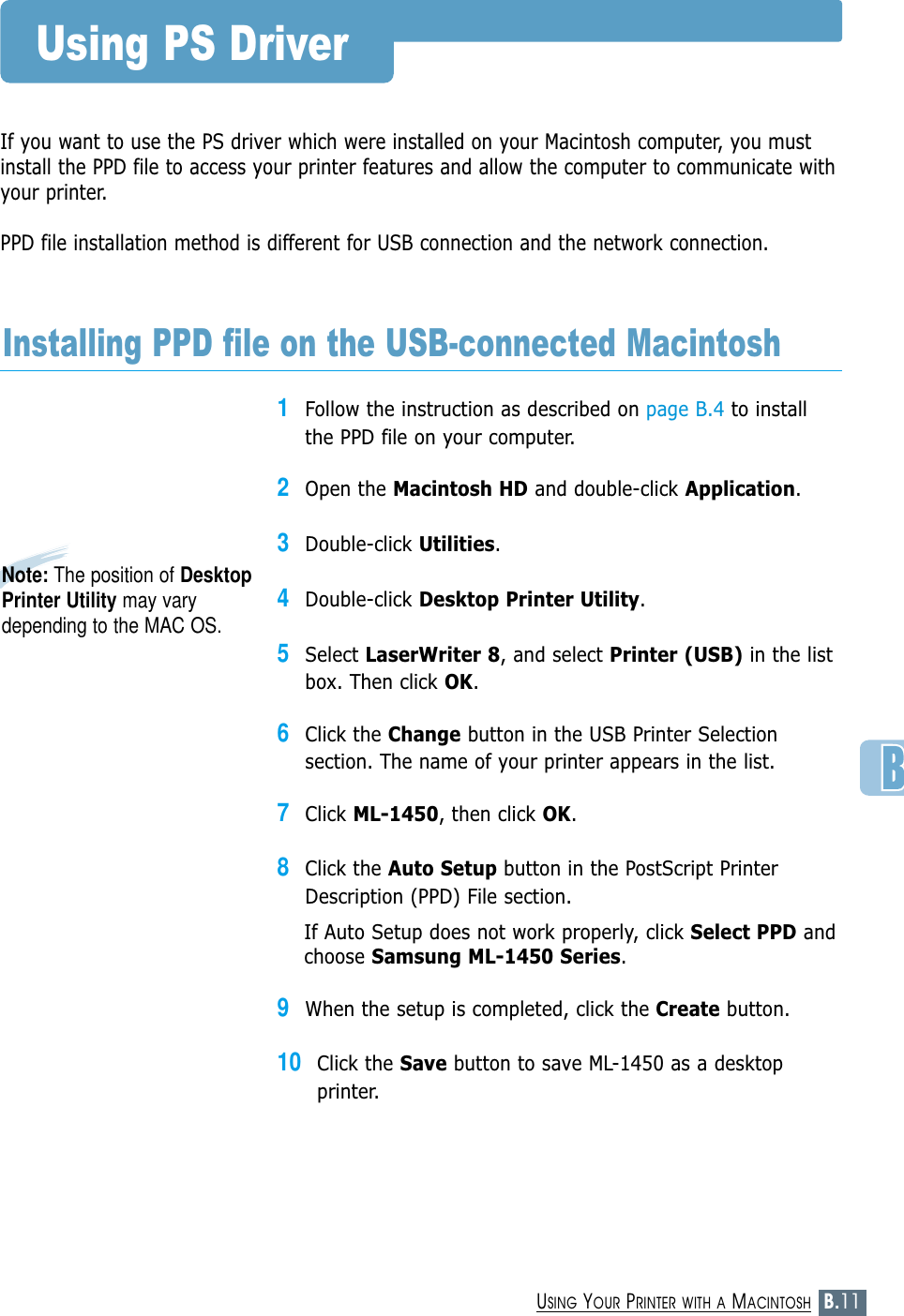

B.11USING YOUR PRINTER WITH A MACINTOSHIf you want to use the PS driver which were installed on your Macintosh computer, you mustinstall the PPD file to access your printer features and allow the computer to communicate withyour printer.PPD file installation method is different for USB connection and the network connection.Using PS Driver1Follow the instruction as described on page B.4 to installthe PPD file on your computer.2Open the Macintosh HD and double-click Application.3Double-click Utilities.4Double-click Desktop Printer Utility.5Select LaserWriter 8, and select Printer (USB) in the listbox. Then click OK.6Click the Change button in the USB Printer Selectionsection. The name of your printer appears in the list.7Click ML-1450, then click OK.8Click the Auto Setup button in the PostScript PrinterDescription (PPD) File section.If Auto Setup does not work properly, click Select PPD andchoose Samsung ML-1450 Series.9When the setup is completed, click the Create button. 10Click the Save button to save ML-1450 as a desktopprinter. Installing PPD file on the USB-connected MacintoshNote: The position of DesktopPrinter Utility may varydepending to the MAC OS.

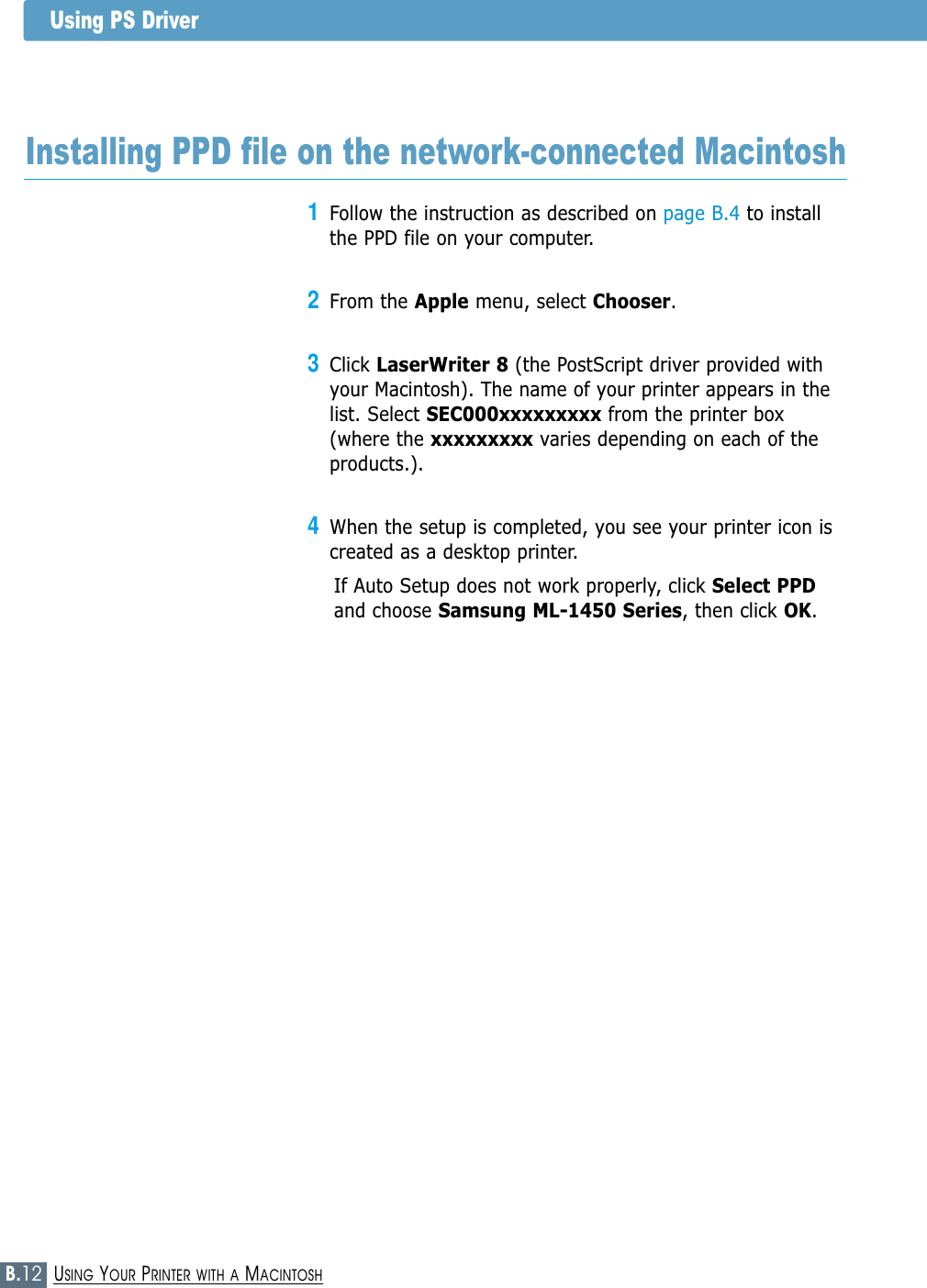

B.12USING YOUR PRINTER WITH A MACINTOSH1Follow the instruction as described on page B.4 to installthe PPD file on your computer.2From the Apple menu, select Chooser.3Click LaserWriter 8 (the PostScript driver provided withyour Macintosh). The name of your printer appears in thelist. Select SEC000xxxxxxxxx from the printer box(where the xxxxxxxxx varies depending on each of theproducts.).4When the setup is completed, you see your printer icon iscreated as a desktop printer.If Auto Setup does not work properly, click Select PPDand choose Samsung ML-1450 Series, then click OK.Installing PPD file on the network-connected MacintoshUsing PS Driver
B.13USING YOUR PRINTER WITH A MACINTOSHFollow these steps to print from a Macintosh:1Open a Macintosh application and select a file you want toprint.2Open the File menu, and click Print. You see the mainprinter settings dialog box.3Choose the number of copies and indicate which pages youwant to print. For advanced printing features, select thedesired option. 4Click Print when you are finished checking your settings.Printing from a MacintoshUsing PS Driver

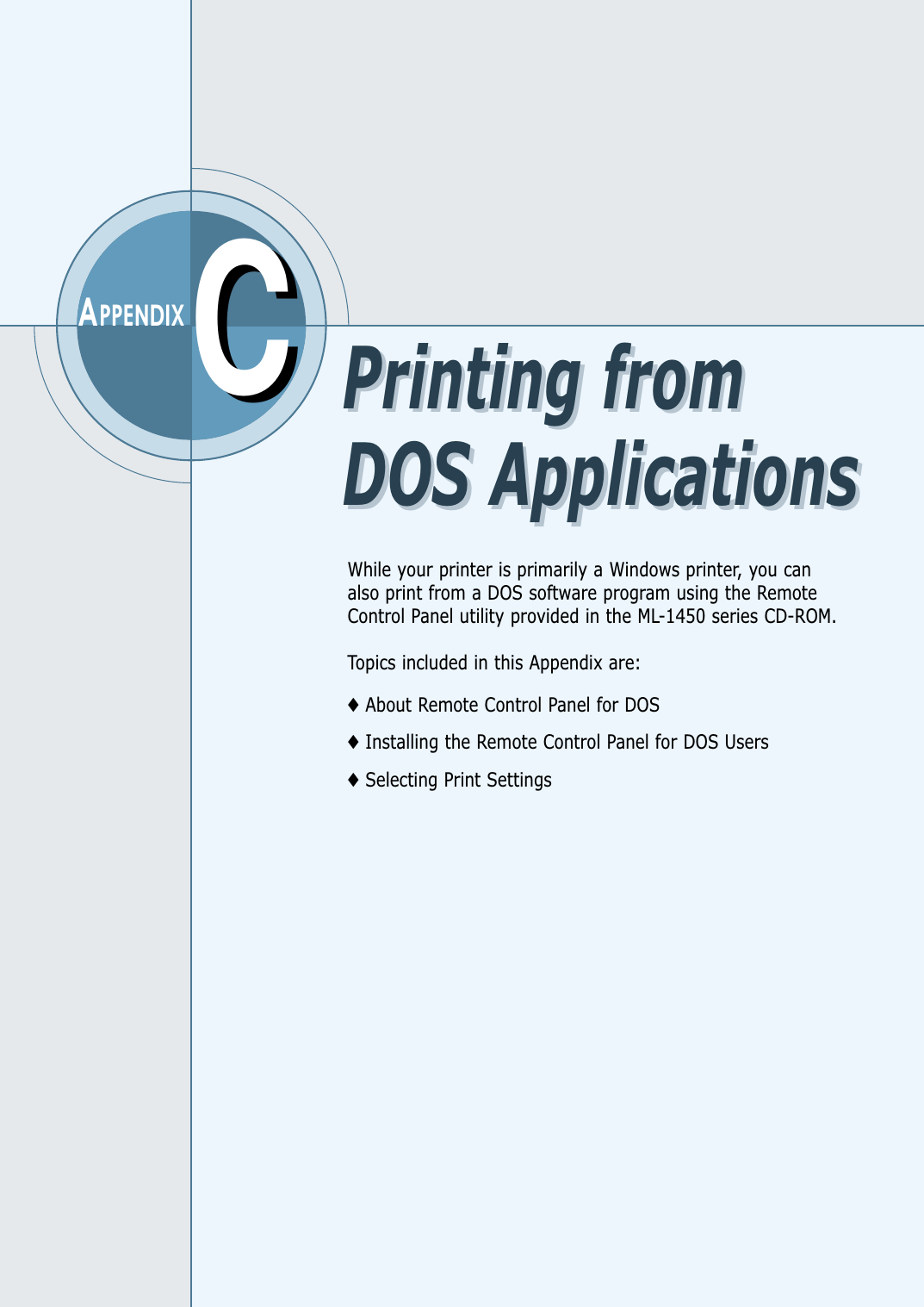

CCAPPENDIXWhile your printer is primarily a Windows printer, you canalso print from a DOS software program using the RemoteControl Panel utility provided in the ML-1450 series CD-ROM.Topics included in this Appendix are:◆About Remote Control Panel for DOS◆Installing the Remote Control Panel for DOS Users◆Selecting Print SettingsPrinting fromDOS ApplicationsPrinting fromDOS Applications

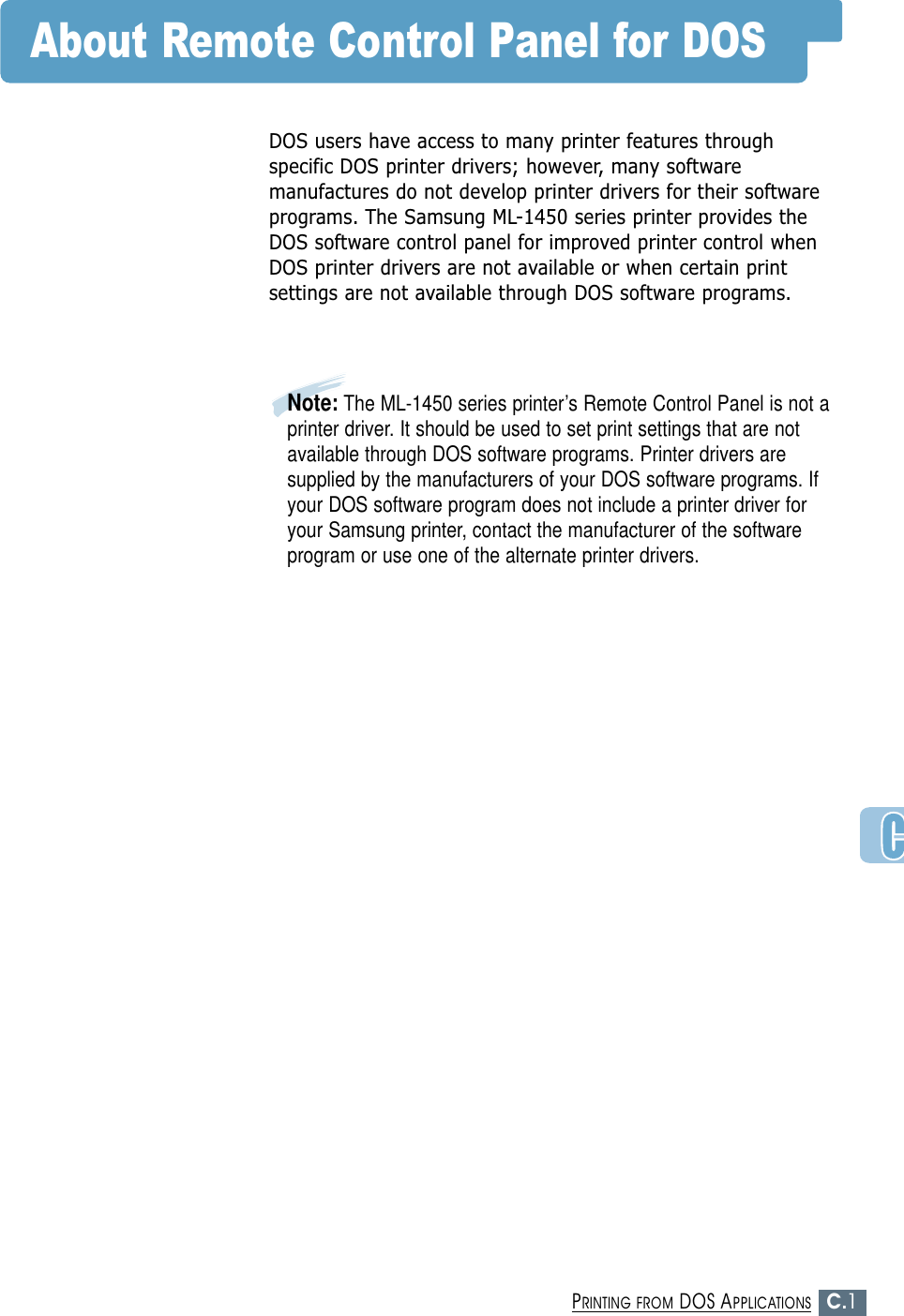

C.1PRINTING FROM DOS APPLICATIONSAbout Remote Control Panel for DOSDOS users have access to many printer features throughspecific DOS printer drivers; however, many softwaremanufactures do not develop printer drivers for their softwareprograms. The Samsung ML-1450 series printer provides theDOS software control panel for improved printer control whenDOS printer drivers are not available or when certain printsettings are not available through DOS software programs. Note: The ML-1450 series printer’s Remote Control Panel is not aprinter driver. It should be used to set print settings that are notavailable through DOS software programs. Printer drivers aresupplied by the manufacturers of your DOS software programs. Ifyour DOS software program does not include a printer driver foryour Samsung printer, contact the manufacturer of the softwareprogram or use one of the alternate printer drivers.

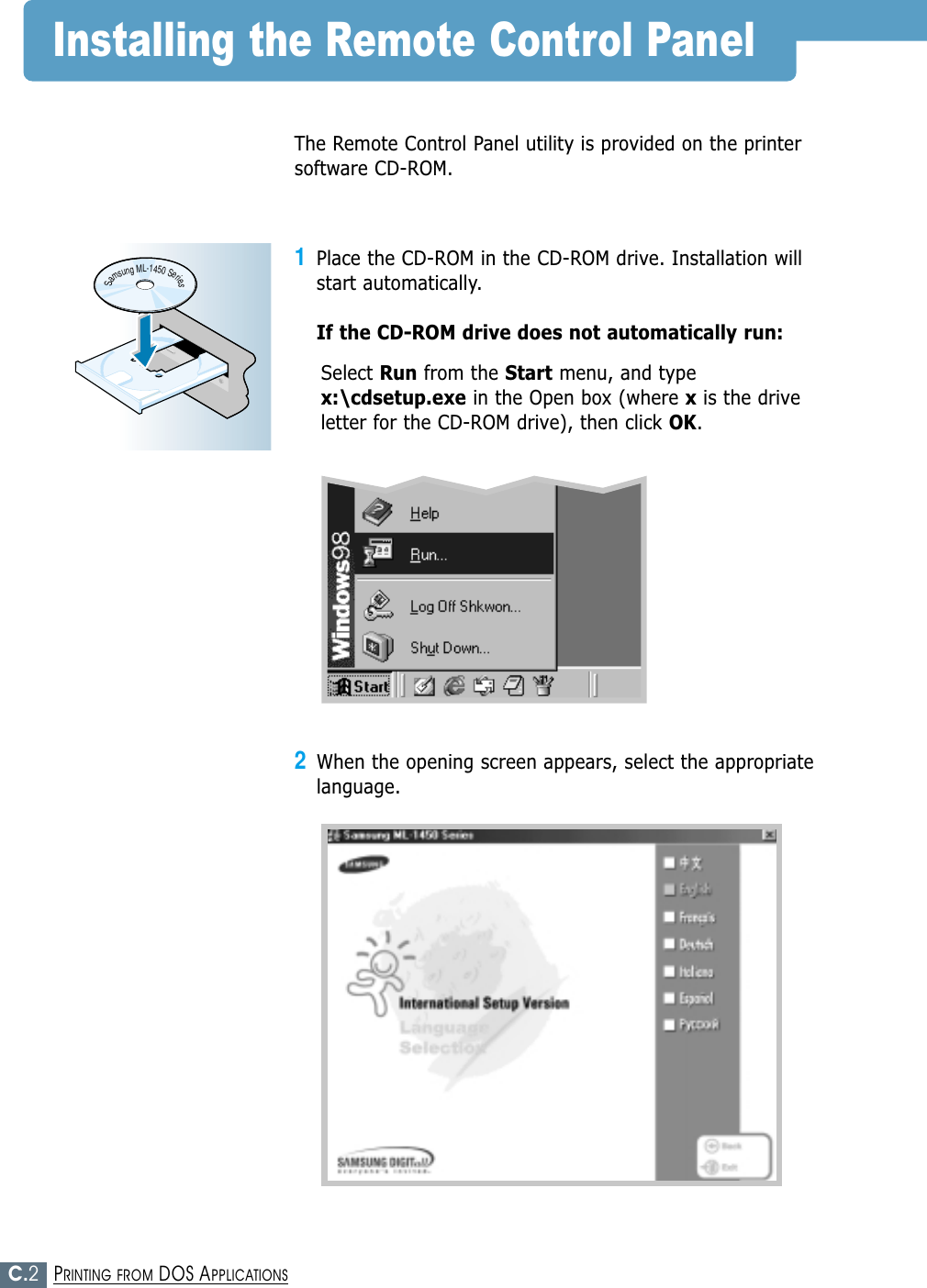

C.2PRINTING FROM DOS APPLICATIONSInstalling the Remote Control PanelThe Remote Control Panel utility is provided on the printersoftware CD-ROM.1Place the CD-ROM in the CD-ROM drive. Installation willstart automatically.If the CD-ROM drive does not automatically run:Select Run from the Start menu, and typex:\cdsetup.exe in the Open box (where xis the driveletter for the CD-ROM drive), then click OK.SamsungML-1450Series2When the opening screen appears, select the appropriatelanguage.

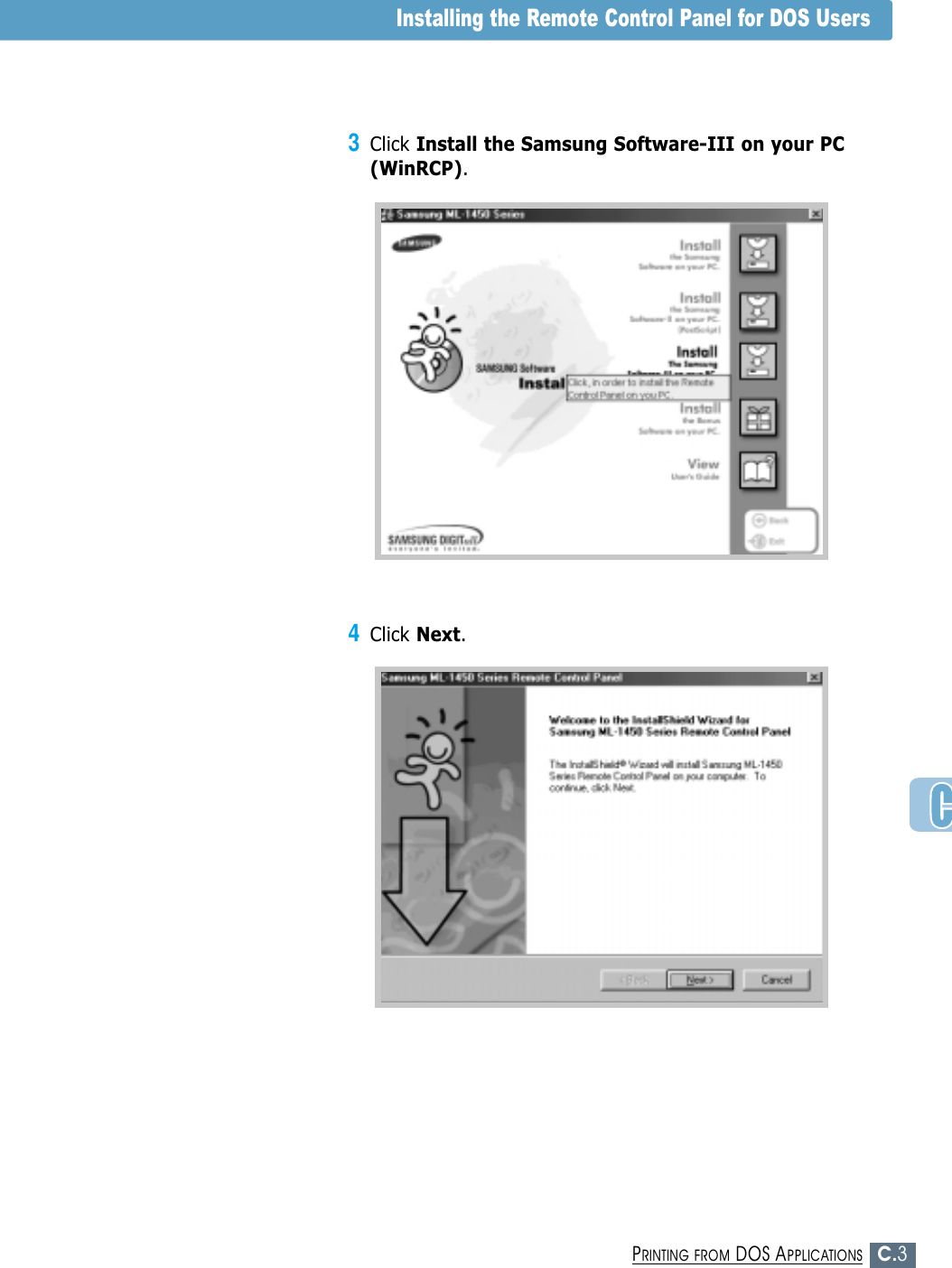

C.3PRINTING FROM DOS APPLICATIONSInstalling the Remote Control Panel for DOS Users3Click Install the Samsung Software-III on your PC(WinRCP).4Click Next.

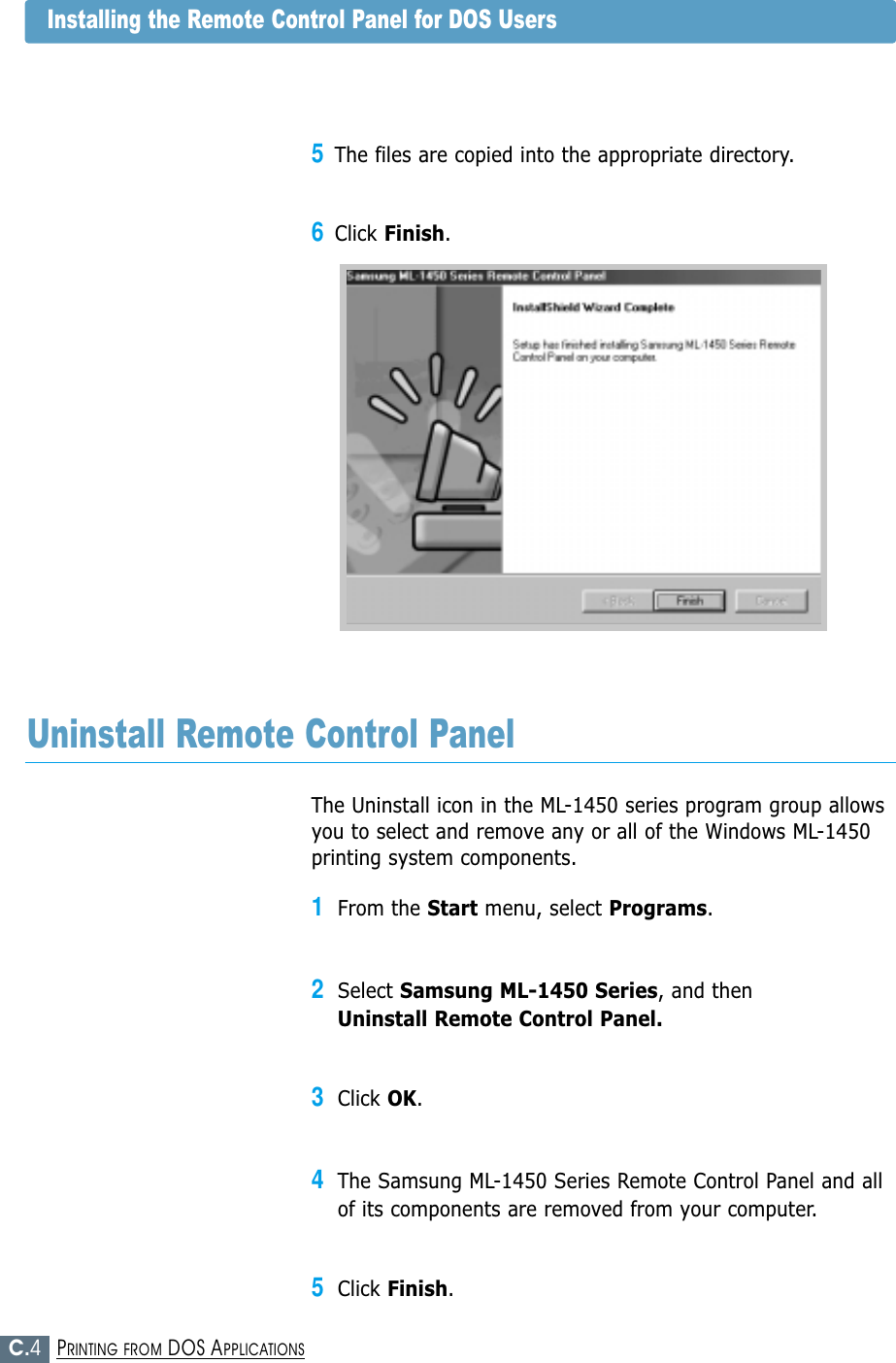

C.4PRINTING FROM DOS APPLICATIONSInstalling the Remote Control Panel for DOS UsersThe Uninstall icon in the ML-1450 series program group allowsyou to select and remove any or all of the Windows ML-1450printing system components.1From the Start menu, select Programs.2Select Samsung ML-1450 Series, and then Uninstall Remote Control Panel.3Click OK.4The Samsung ML-1450 Series Remote Control Panel and allof its components are removed from your computer.5Click Finish.Uninstall Remote Control Panel5The files are copied into the appropriate directory.6Click Finish.

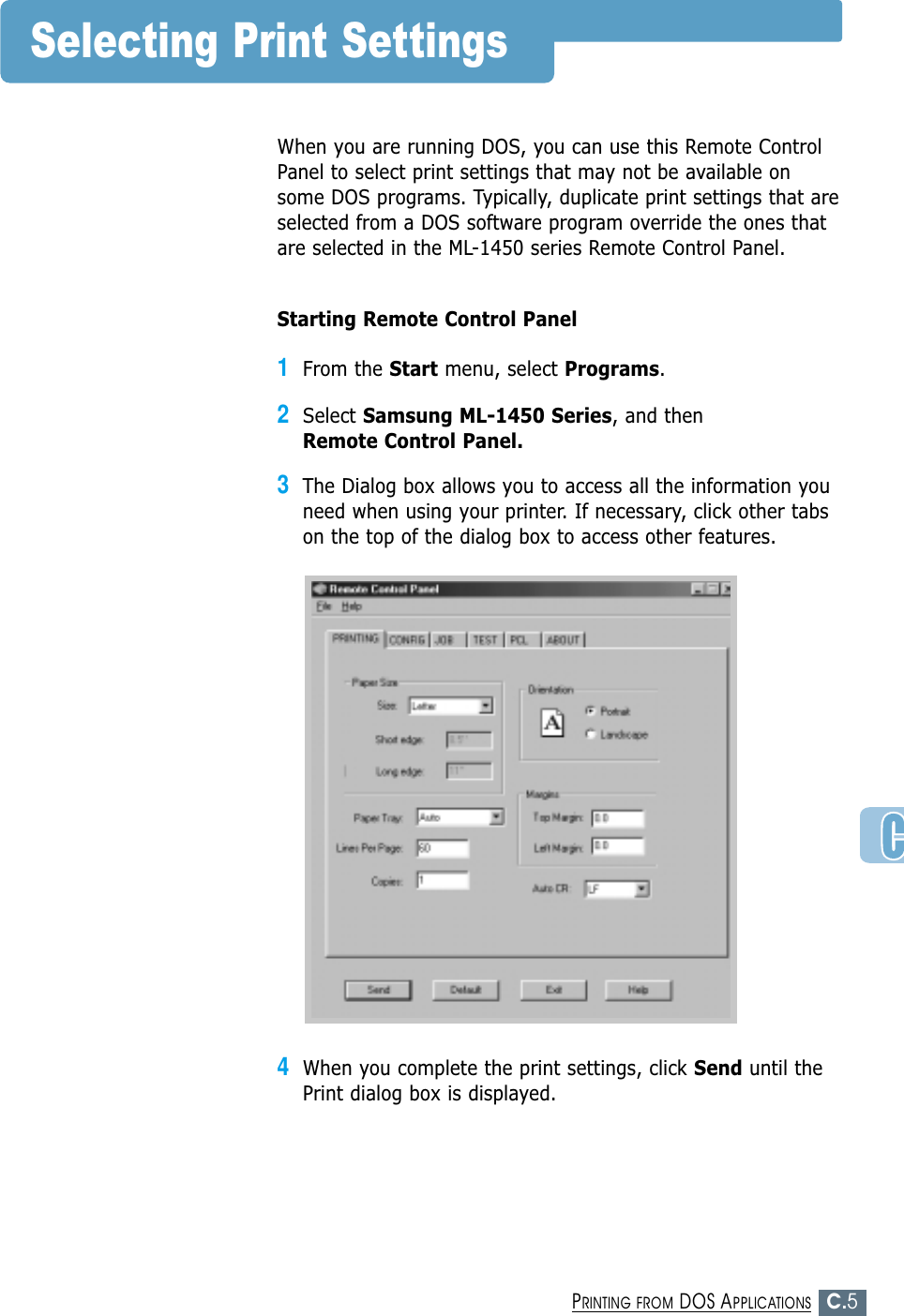

C.5PRINTING FROM DOS APPLICATIONSSelecting Print SettingsWhen you are running DOS, you can use this Remote ControlPanel to select print settings that may not be available onsome DOS programs. Typically, duplicate print settings that areselected from a DOS software program override the ones thatare selected in the ML-1450 series Remote Control Panel.Starting Remote Control Panel1From the Start menu, select Programs.2Select Samsung ML-1450 Series, and then Remote Control Panel.3The Dialog box allows you to access all the information youneed when using your printer. If necessary, click other tabson the top of the dialog box to access other features.4When you complete the print settings, click Send until thePrint dialog box is displayed.

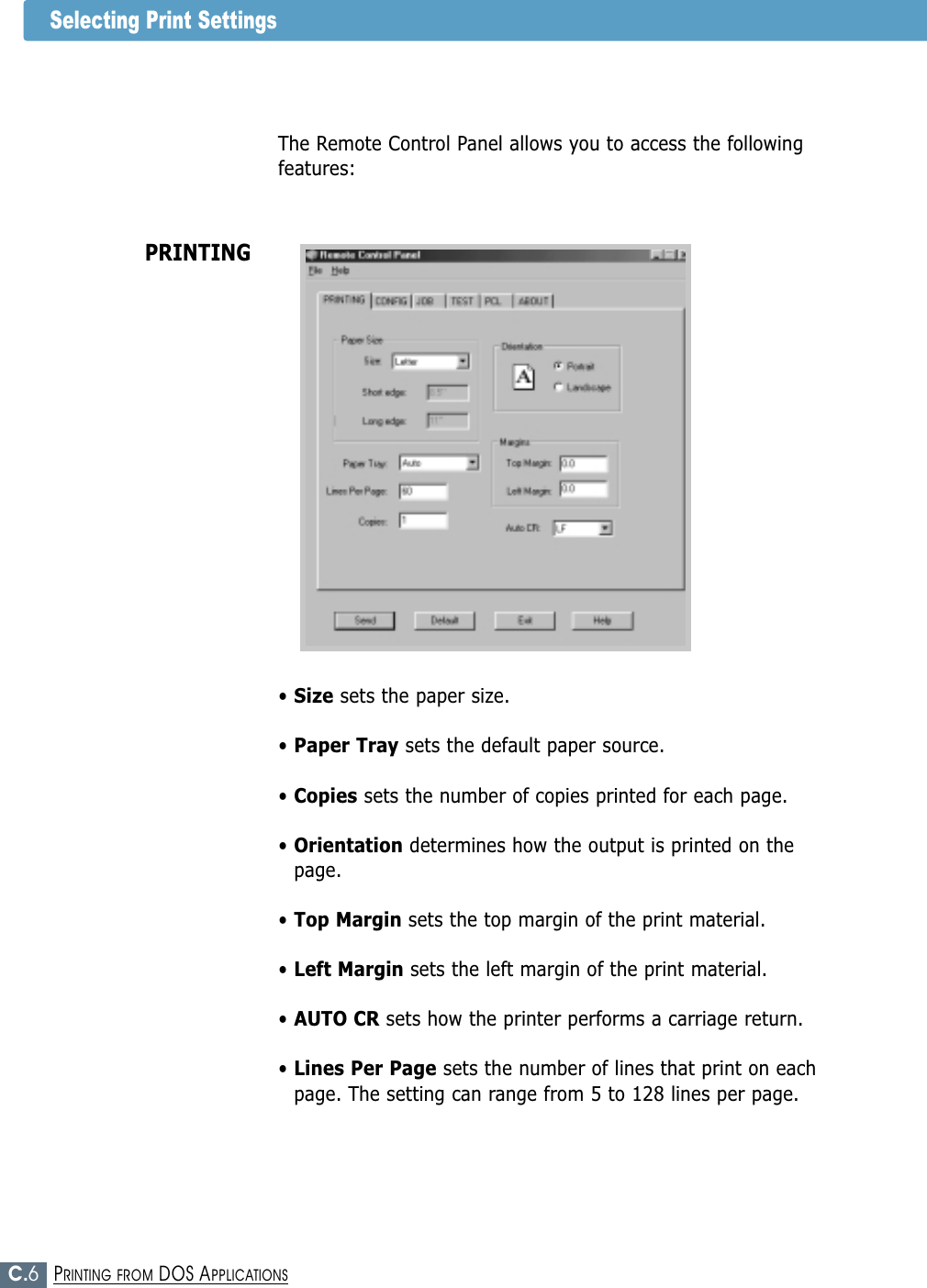

C.6PRINTING FROM DOS APPLICATIONSSelecting Print SettingsThe Remote Control Panel allows you to access the followingfeatures:PRINTING• Size sets the paper size.• Paper Tray sets the default paper source.• Copies sets the number of copies printed for each page.• Orientation determines how the output is printed on thepage.• Top Margin sets the top margin of the print material.• Left Margin sets the left margin of the print material.• AUTO CR sets how the printer performs a carriage return.• Lines Per Page sets the number of lines that print on eachpage. The setting can range from 5 to 128 lines per page.

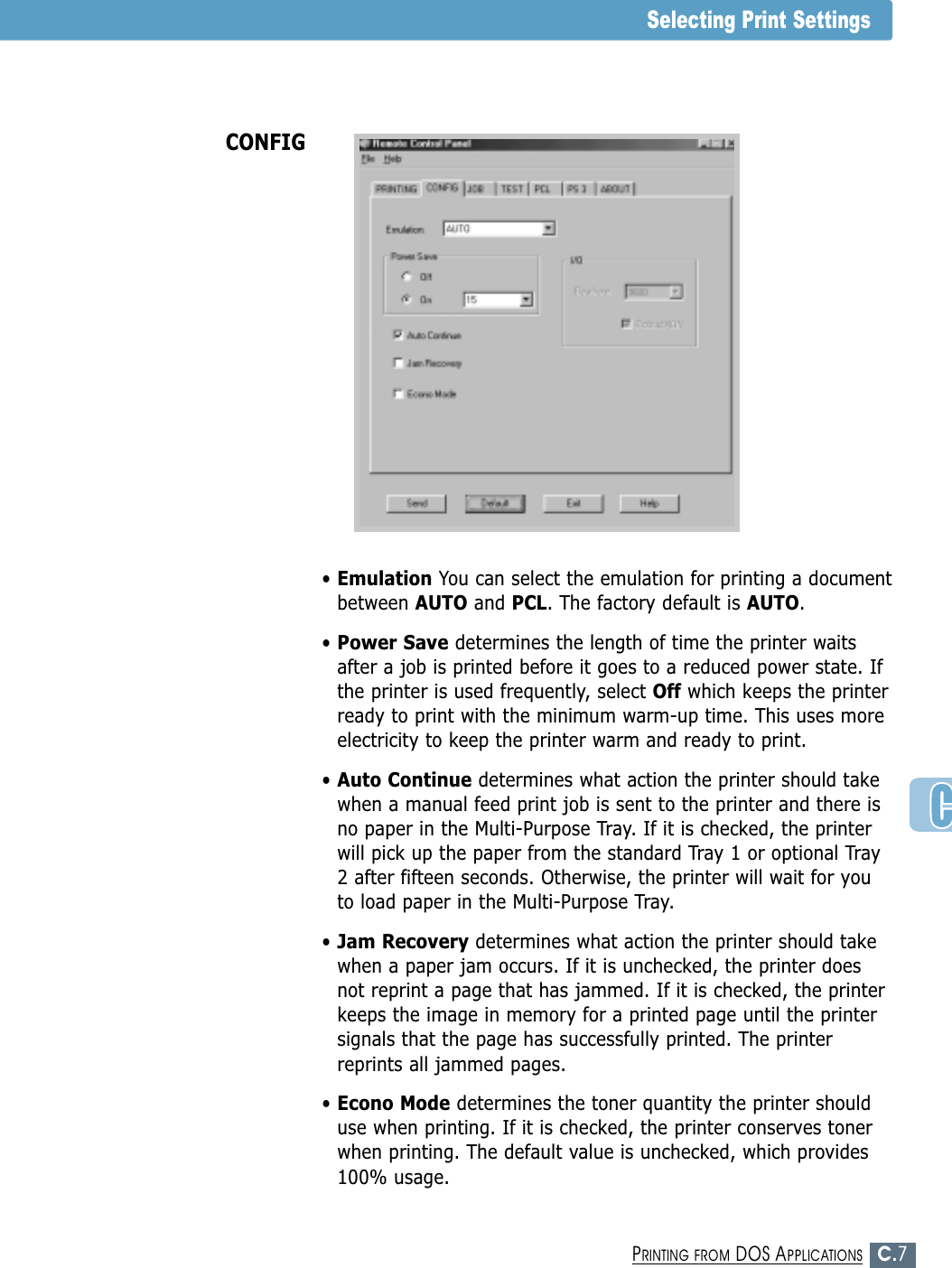

C.7PRINTING FROM DOS APPLICATIONS• Emulation You can select the emulation for printing a documentbetween AUTO and PCL. The factory default is AUTO.• Power Save determines the length of time the printer waitsafter a job is printed before it goes to a reduced power state. Ifthe printer is used frequently, select Off which keeps the printerready to print with the minimum warm-up time. This uses moreelectricity to keep the printer warm and ready to print.• Auto Continue determines what action the printer should takewhen a manual feed print job is sent to the printer and there isno paper in the Multi-Purpose Tray. If it is checked, the printerwill pick up the paper from the standard Tray 1 or optional Tray2 after fifteen seconds. Otherwise, the printer will wait for youto load paper in the Multi-Purpose Tray.• Jam Recovery determines what action the printer should takewhen a paper jam occurs. If it is unchecked, the printer doesnot reprint a page that has jammed. If it is checked, the printerkeeps the image in memory for a printed page until the printersignals that the page has successfully printed. The printerreprints all jammed pages.• Econo Mode determines the toner quantity the printer shoulduse when printing. If it is checked, the printer conserves tonerwhen printing. The default value is unchecked, which provides100% usage.CONFIGSelecting Print Settings

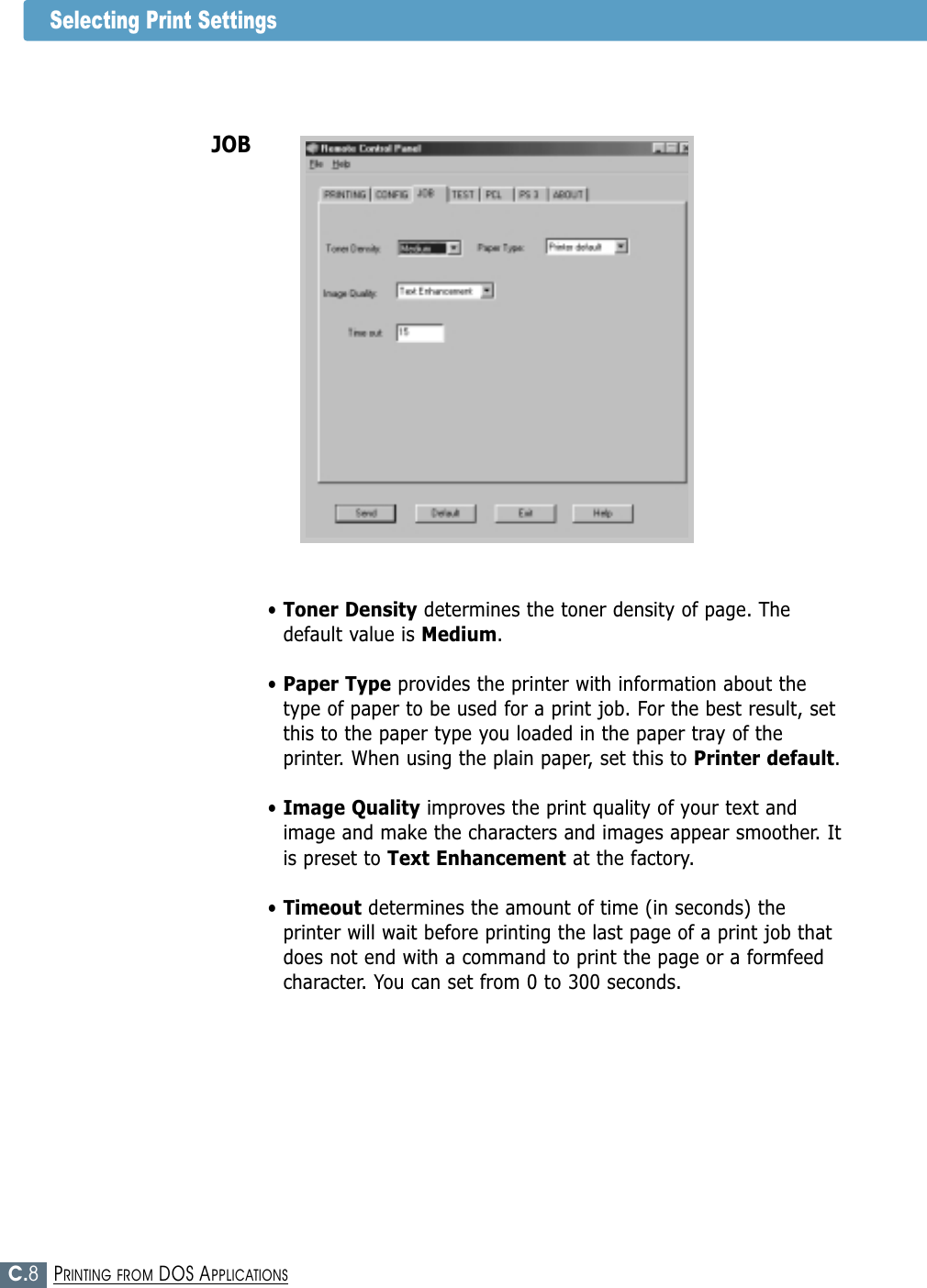

C.8PRINTING FROM DOS APPLICATIONSSelecting Print Settings• Toner Density determines the toner density of page. Thedefault value is Medium.• Paper Type provides the printer with information about thetype of paper to be used for a print job. For the best result, setthis to the paper type you loaded in the paper tray of theprinter. When using the plain paper, set this to Printer default.• Image Quality improves the print quality of your text andimage and make the characters and images appear smoother. Itis preset to Text Enhancement at the factory. • Timeout determines the amount of time (in seconds) theprinter will wait before printing the last page of a print job thatdoes not end with a command to print the page or a formfeedcharacter. You can set from 0 to 300 seconds. JOB

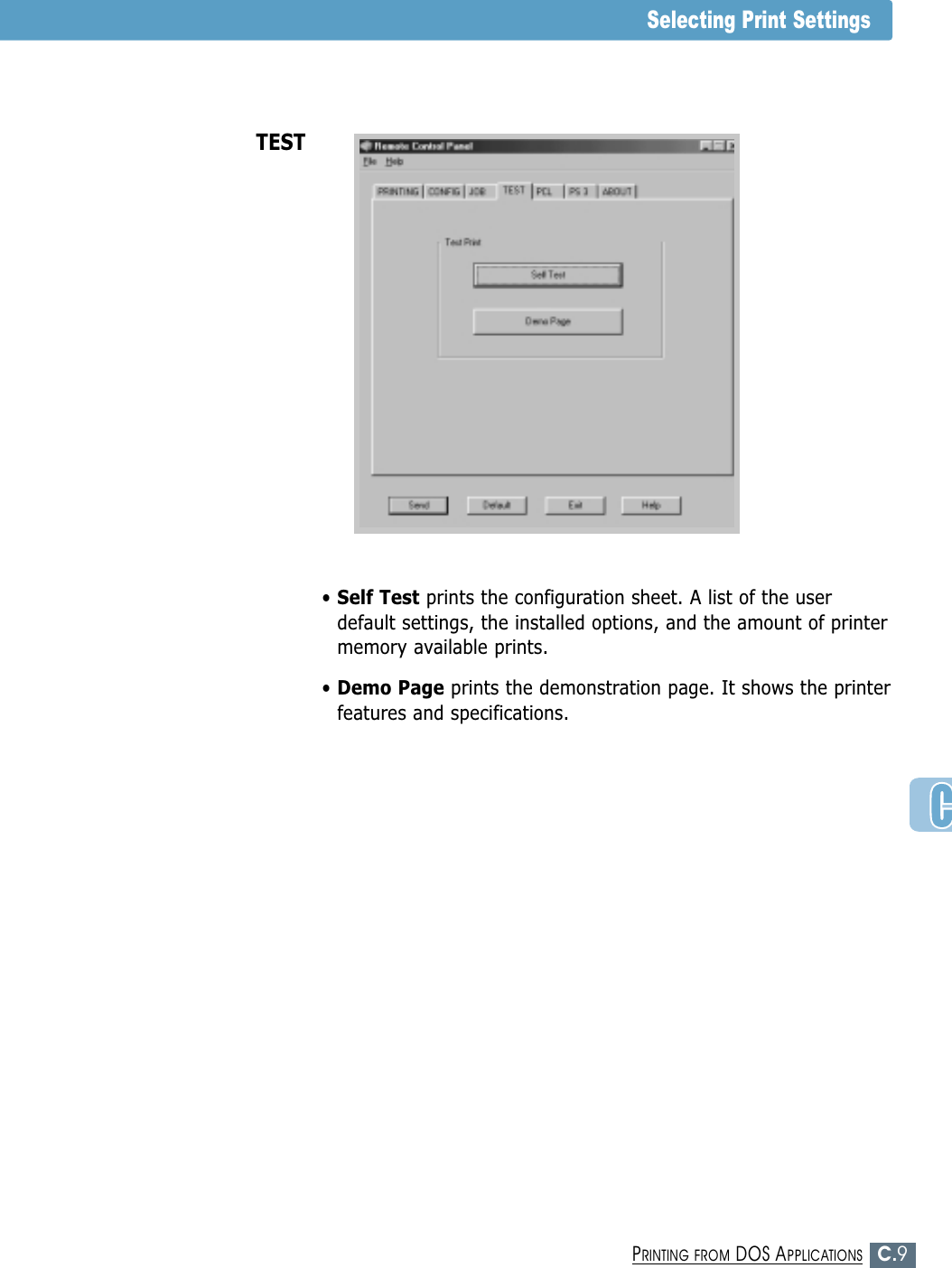

C.9PRINTING FROM DOS APPLICATIONSSelecting Print Settings• Self Test prints the configuration sheet. A list of the userdefault settings, the installed options, and the amount of printermemory available prints.• Demo Page prints the demonstration page. It shows the printerfeatures and specifications.TEST

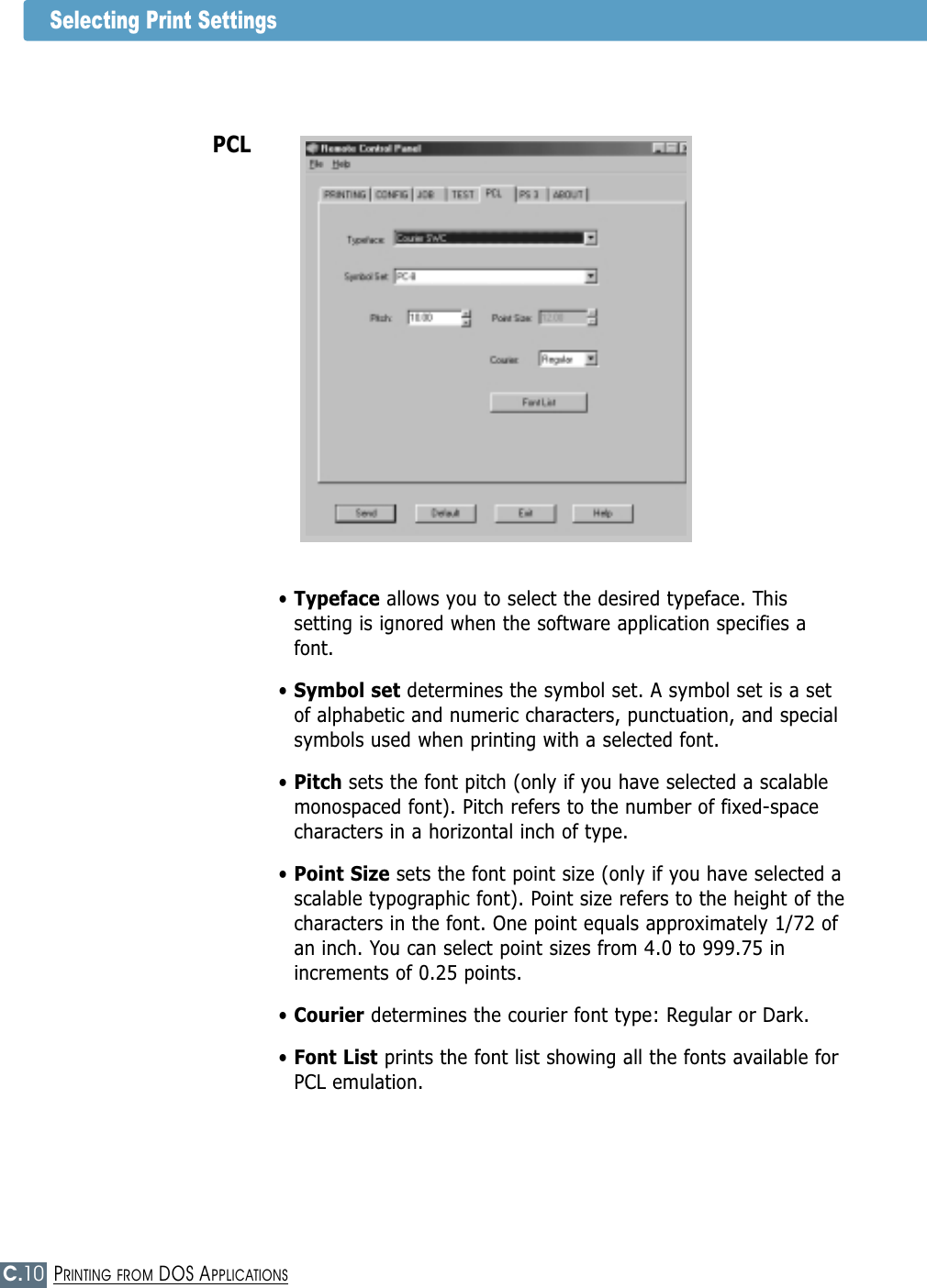

C.10PRINTING FROM DOS APPLICATIONSSelecting Print SettingsPCL• Typeface allows you to select the desired typeface. Thissetting is ignored when the software application specifies afont.• Symbol set determines the symbol set. A symbol set is a setof alphabetic and numeric characters, punctuation, and specialsymbols used when printing with a selected font.• Pitch sets the font pitch (only if you have selected a scalablemonospaced font). Pitch refers to the number of fixed-spacecharacters in a horizontal inch of type.• Point Size sets the font point size (only if you have selected ascalable typographic font). Point size refers to the height of thecharacters in the font. One point equals approximately 1/72 ofan inch. You can select point sizes from 4.0 to 999.75 inincrements of 0.25 points.• Courier determines the courier font type: Regular or Dark.• Font List prints the font list showing all the fonts available forPCL emulation.

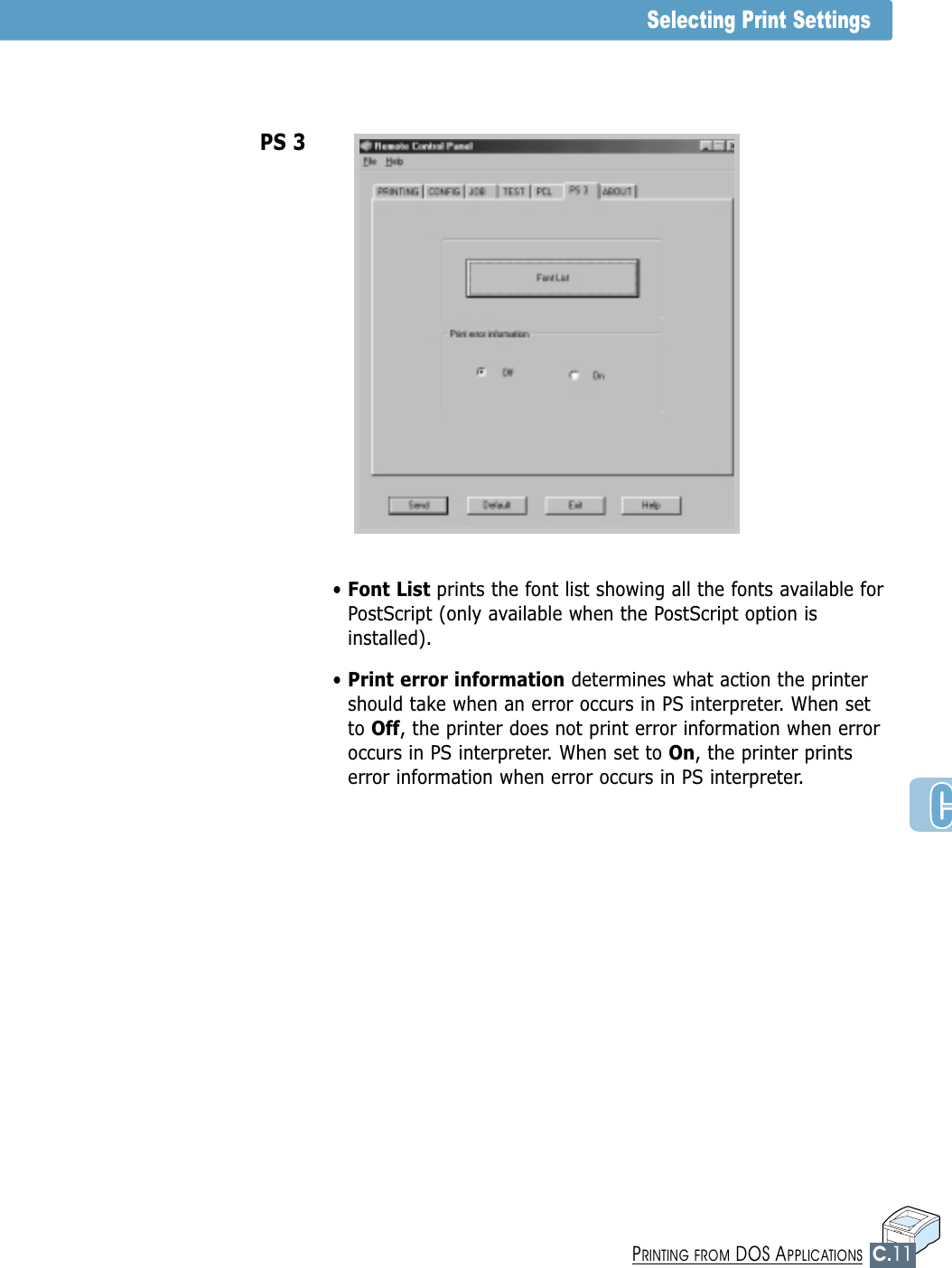

C.11PRINTING FROM DOS APPLICATIONSSelecting Print Settings• Font List prints the font list showing all the fonts available forPostScript (only available when the PostScript option isinstalled).• Print error information determines what action the printershould take when an error occurs in PS interpreter. When setto Off, the printer does not print error information when erroroccurs in PS interpreter. When set to On, the printer printserror information when error occurs in PS interpreter. PS 3

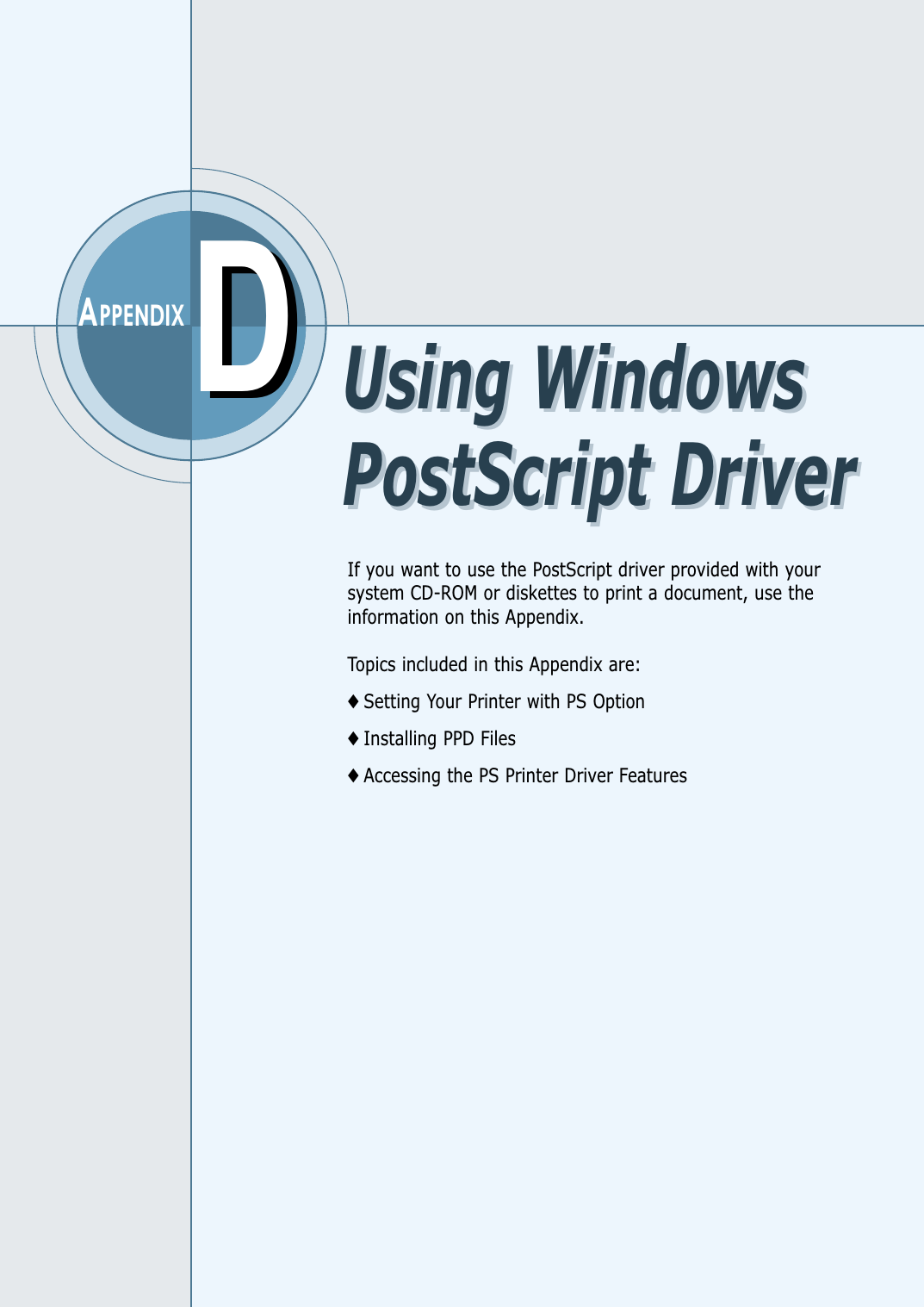

DDAPPENDIXIf you want to use the PostScript driver provided with yoursystem CD-ROM or diskettes to print a document, use theinformation on this Appendix. Topics included in this Appendix are:◆ Setting Your Printer with PS Option◆ Installing PPD Files◆ Accessing the PS Printer Driver FeaturesUsing WindowsPostScript DriverUsing WindowsPostScript Driver

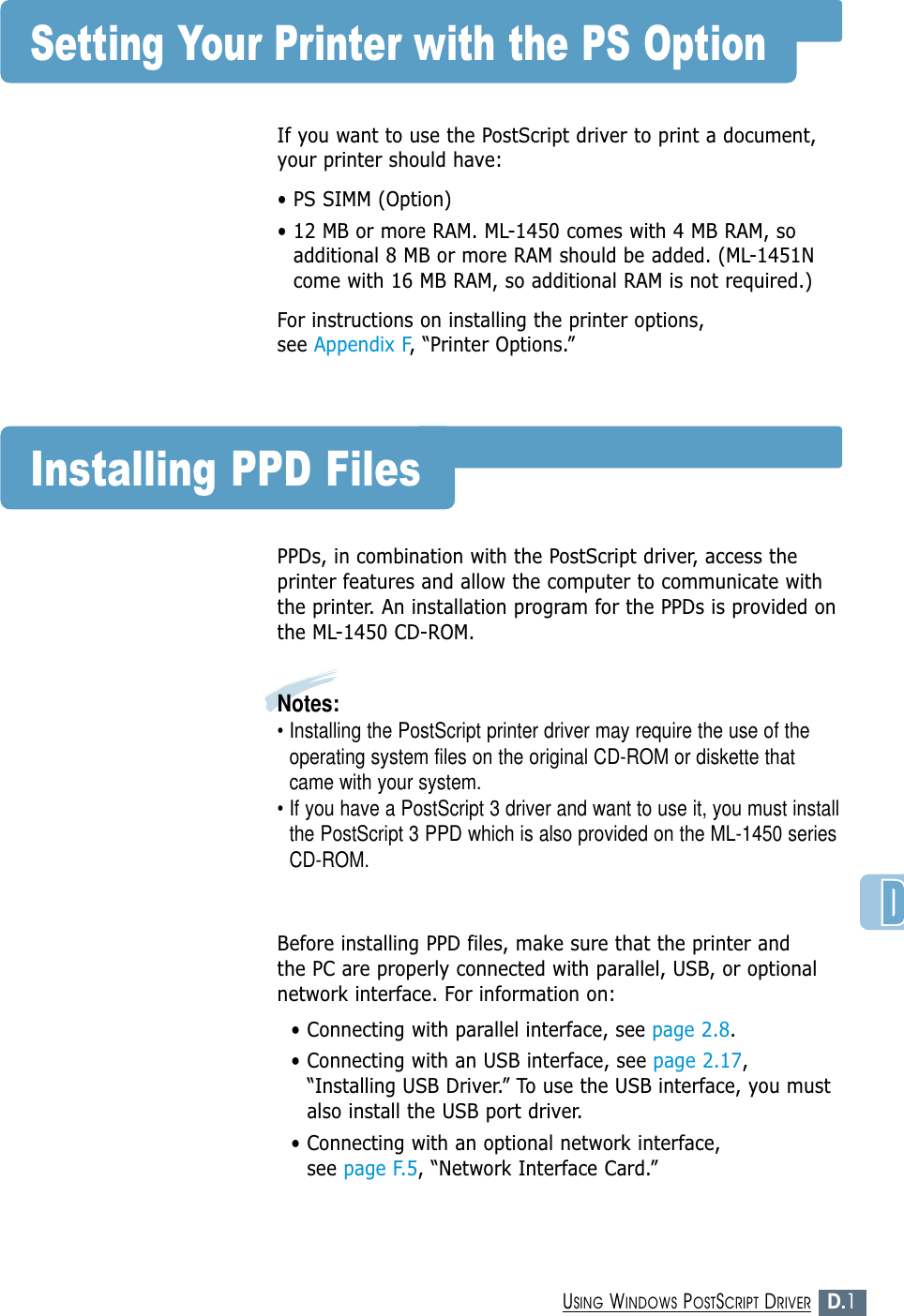

D.1USING WINDOWS POSTSCRIPT DRIVERSetting Your Printer with the PS OptionIf you want to use the PostScript driver to print a document,your printer should have:• PS SIMM (Option)• 12 MB or more RAM. ML-1450 comes with 4 MB RAM, soadditional 8 MB or more RAM should be added. (ML-1451Ncome with 16 MB RAM, so additional RAM is not required.)For instructions on installing the printer options, see Appendix F, “Printer Options.”Installing PPD FilesPPDs, in combination with the PostScript driver, access theprinter features and allow the computer to communicate withthe printer. An installation program for the PPDs is provided onthe ML-1450 CD-ROM. Notes: • Installing the PostScript printer driver may require the use of theoperating system files on the original CD-ROM or diskette thatcame with your system.• If you have a PostScript 3 driver and want to use it, you must installthe PostScript 3 PPD which is also provided on the ML-1450 seriesCD-ROM.Before installing PPD files, make sure that the printer and the PC are properly connected with parallel, USB, or optionalnetwork interface. For information on:• Connecting with parallel interface, see page 2.8.• Connecting with an USB interface, see page 2.17,“Installing USB Driver.” To use the USB interface, you mustalso install the USB port driver.• Connecting with an optional network interface, see page F.5, “Network Interface Card.”

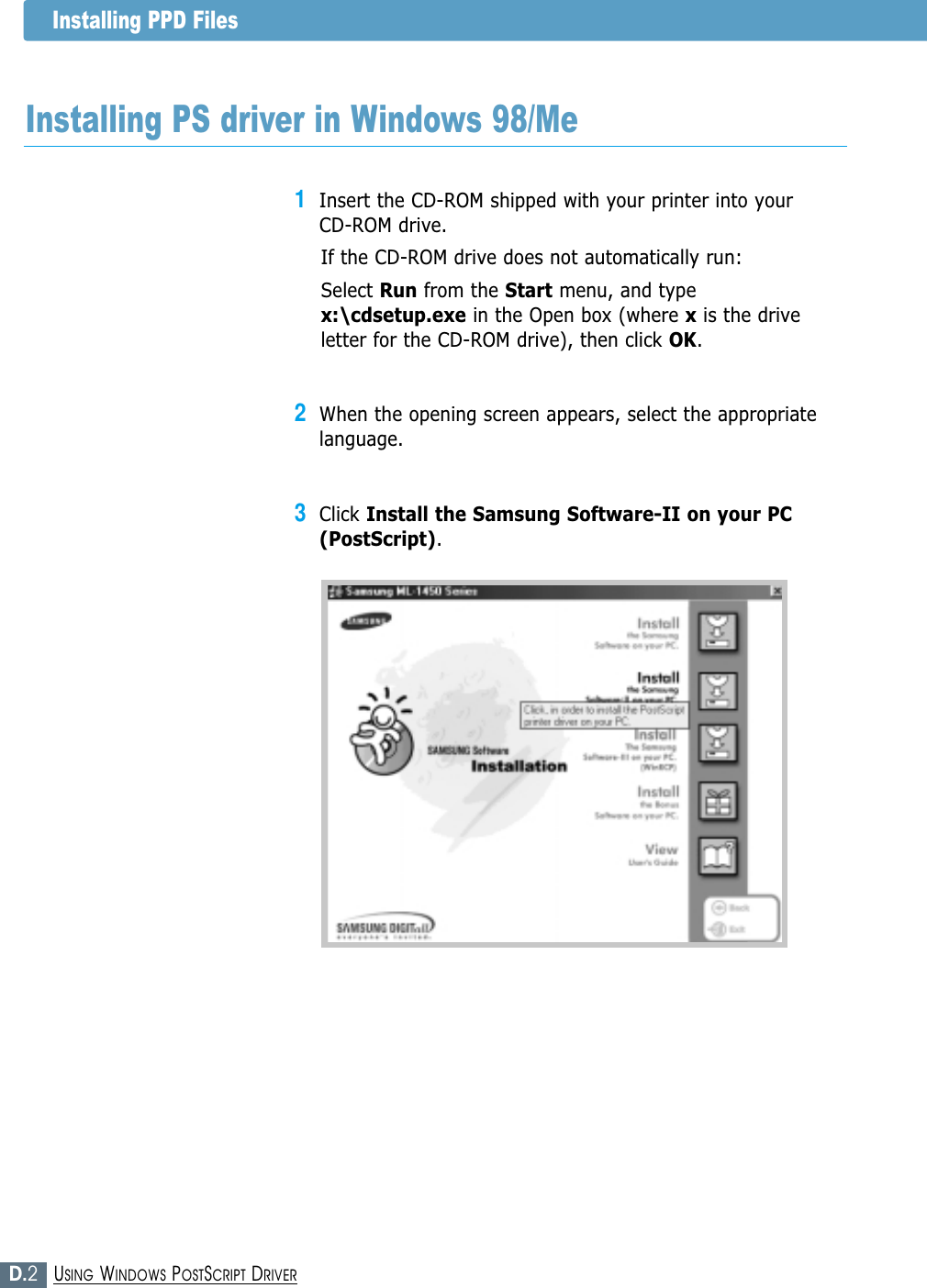

D.2USING WINDOWS POSTSCRIPT DRIVER1Insert the CD-ROM shipped with your printer into your CD-ROM drive.If the CD-ROM drive does not automatically run:Select Run from the Start menu, and typex:\cdsetup.exe in the Open box (where xis the driveletter for the CD-ROM drive), then click OK.2When the opening screen appears, select the appropriatelanguage. 3Click Install the Samsung Software-II on your PC(PostScript).Installing PPD FilesInstalling PS driver in Windows 98/Me

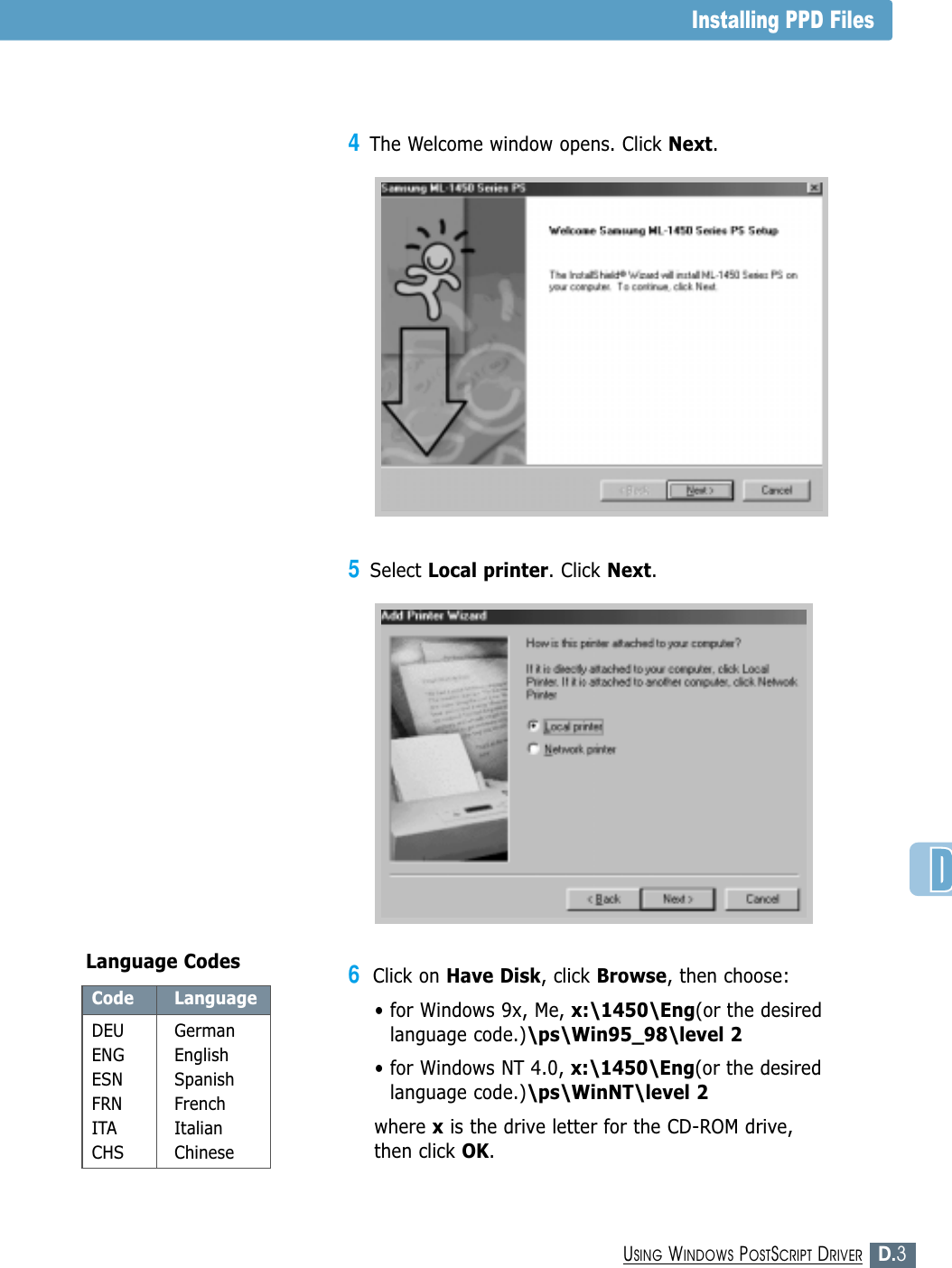

D.3USING WINDOWS POSTSCRIPT DRIVERInstalling PPD Files6Click on Have Disk, click Browse, then choose:• for Windows 9x, Me, x:\1450\Eng(or the desiredlanguage code.)\ps\Win95_98\level 2• for Windows NT 4.0, x:\1450\Eng(or the desiredlanguage code.)\ps\WinNT\level 2where xis the drive letter for the CD-ROM drive, then click OK.4The Welcome window opens. Click Next.Code LanguageDEU GermanENG EnglishESN SpanishFRN FrenchITA ItalianCHS ChineseLanguage Codes5Select Local printer. Click Next.

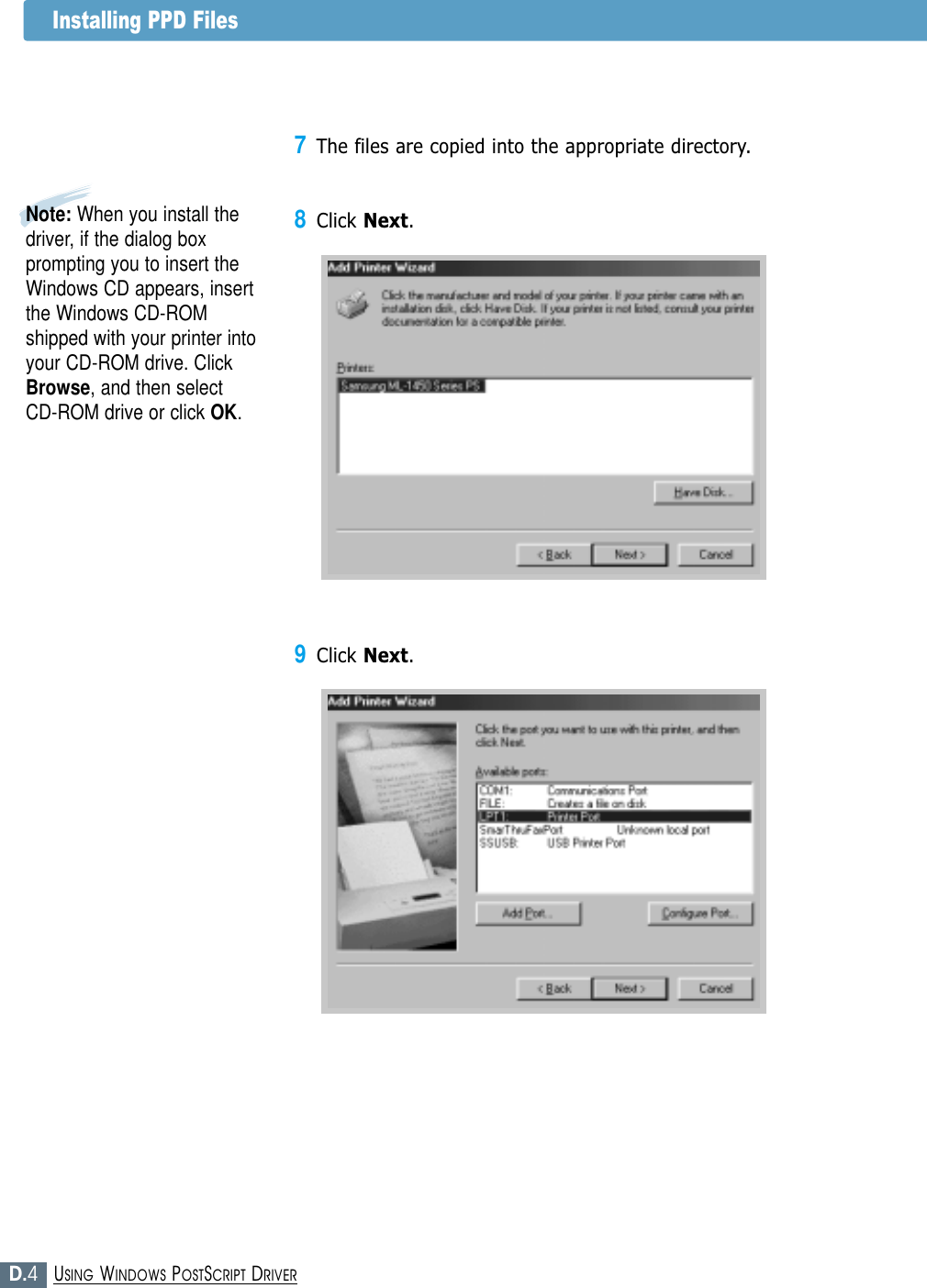

D.4USING WINDOWS POSTSCRIPT DRIVERInstalling PPD Files9Click Next.7The files are copied into the appropriate directory.8Click Next.Note: When you install thedriver, if the dialog boxprompting you to insert theWindows CD appears, insertthe Windows CD-ROMshipped with your printer intoyour CD-ROM drive. ClickBrowse, and then select CD-ROM drive or click OK.

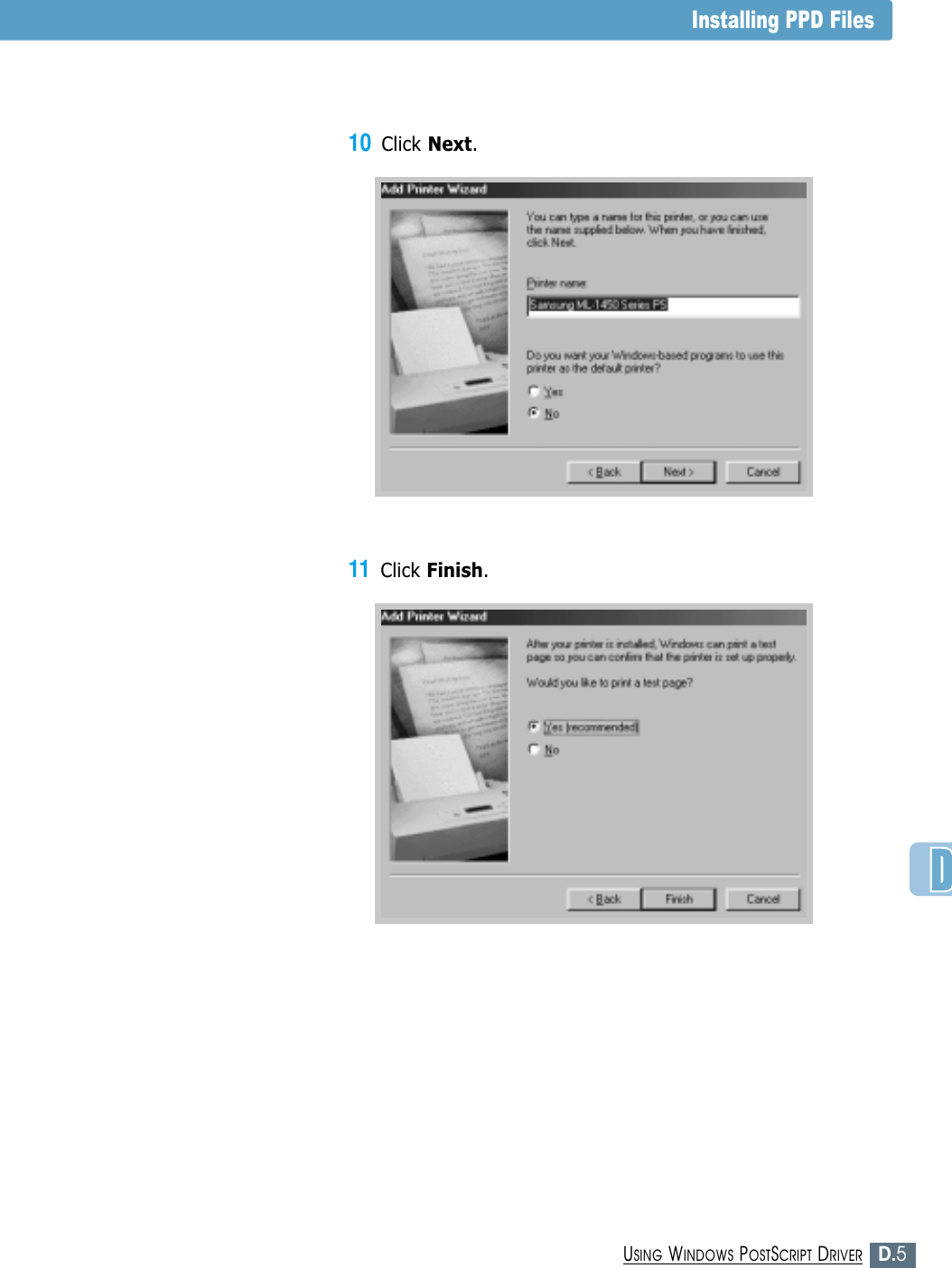

D.5USING WINDOWS POSTSCRIPT DRIVERInstalling PPD Files10Click Next.11Click Finish.

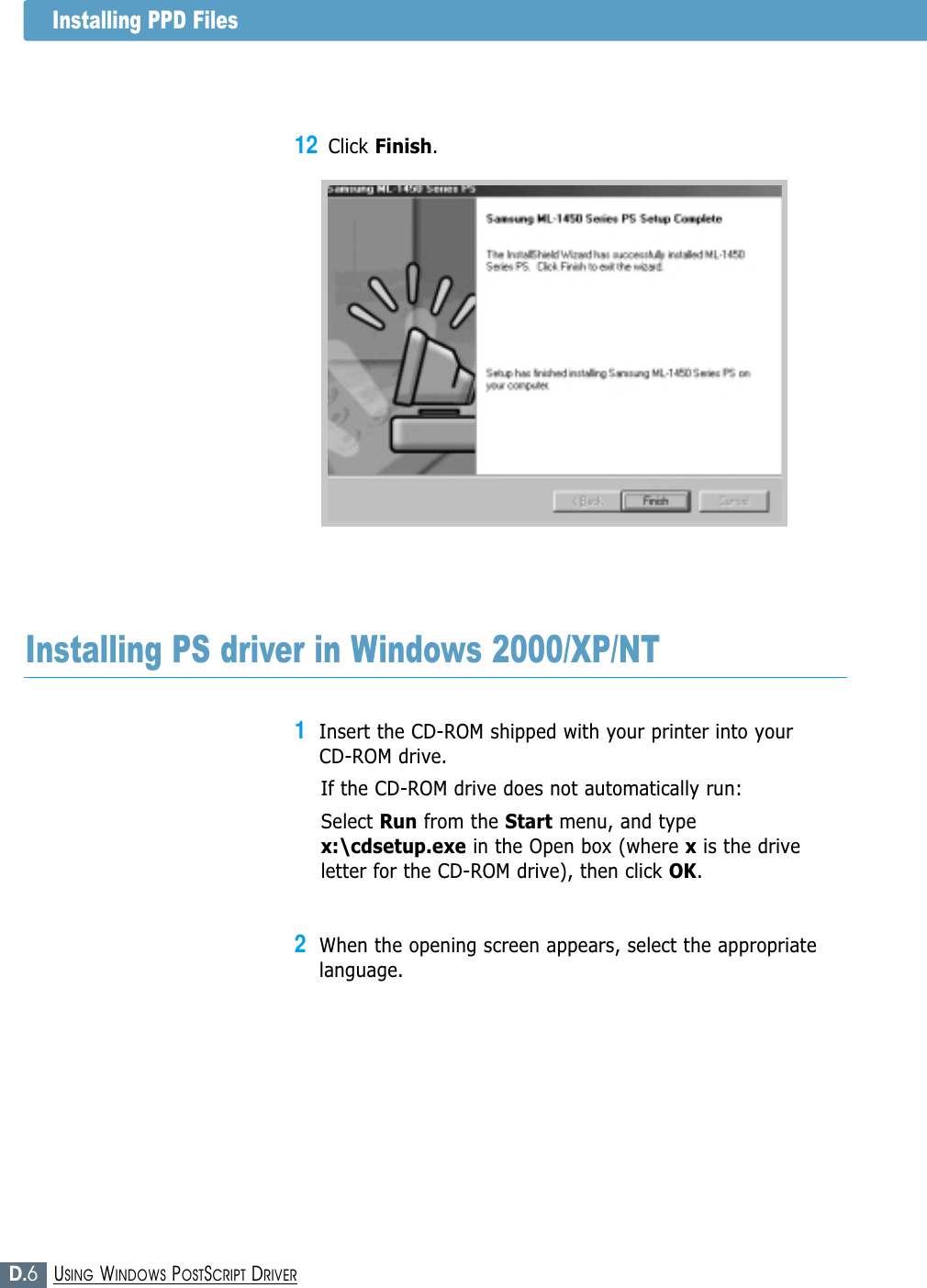

D.6USING WINDOWS POSTSCRIPT DRIVERInstalling PPD Files12Click Finish.Installing PS driver in Windows 2000/XP/NT1Insert the CD-ROM shipped with your printer into your CD-ROM drive.If the CD-ROM drive does not automatically run:Select Run from the Start menu, and typex:\cdsetup.exe in the Open box (where xis the driveletter for the CD-ROM drive), then click OK.2When the opening screen appears, select the appropriatelanguage.

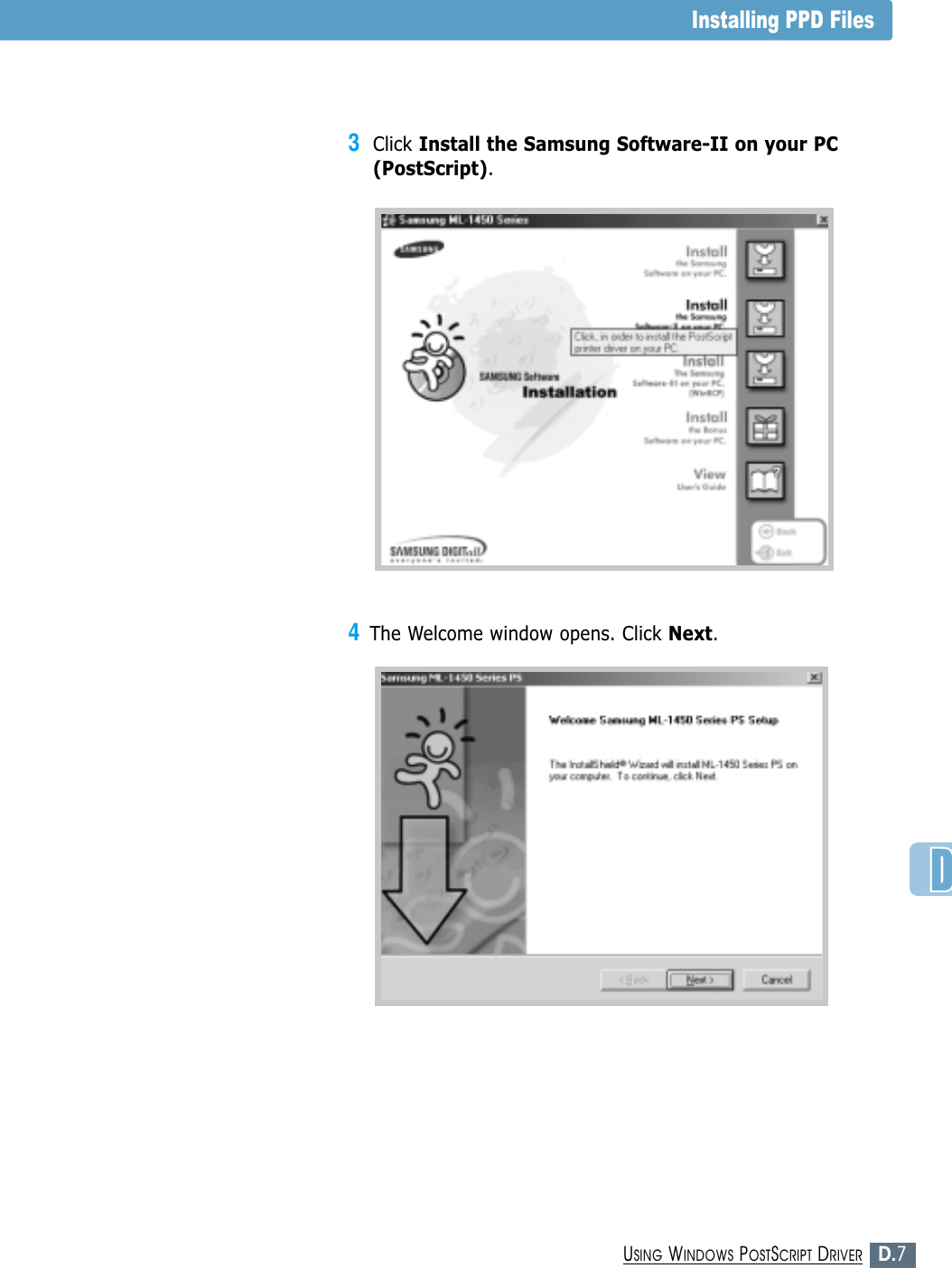

D.7USING WINDOWS POSTSCRIPT DRIVERInstalling PPD Files3Click Install the Samsung Software-II on your PC(PostScript).4The Welcome window opens. Click Next.

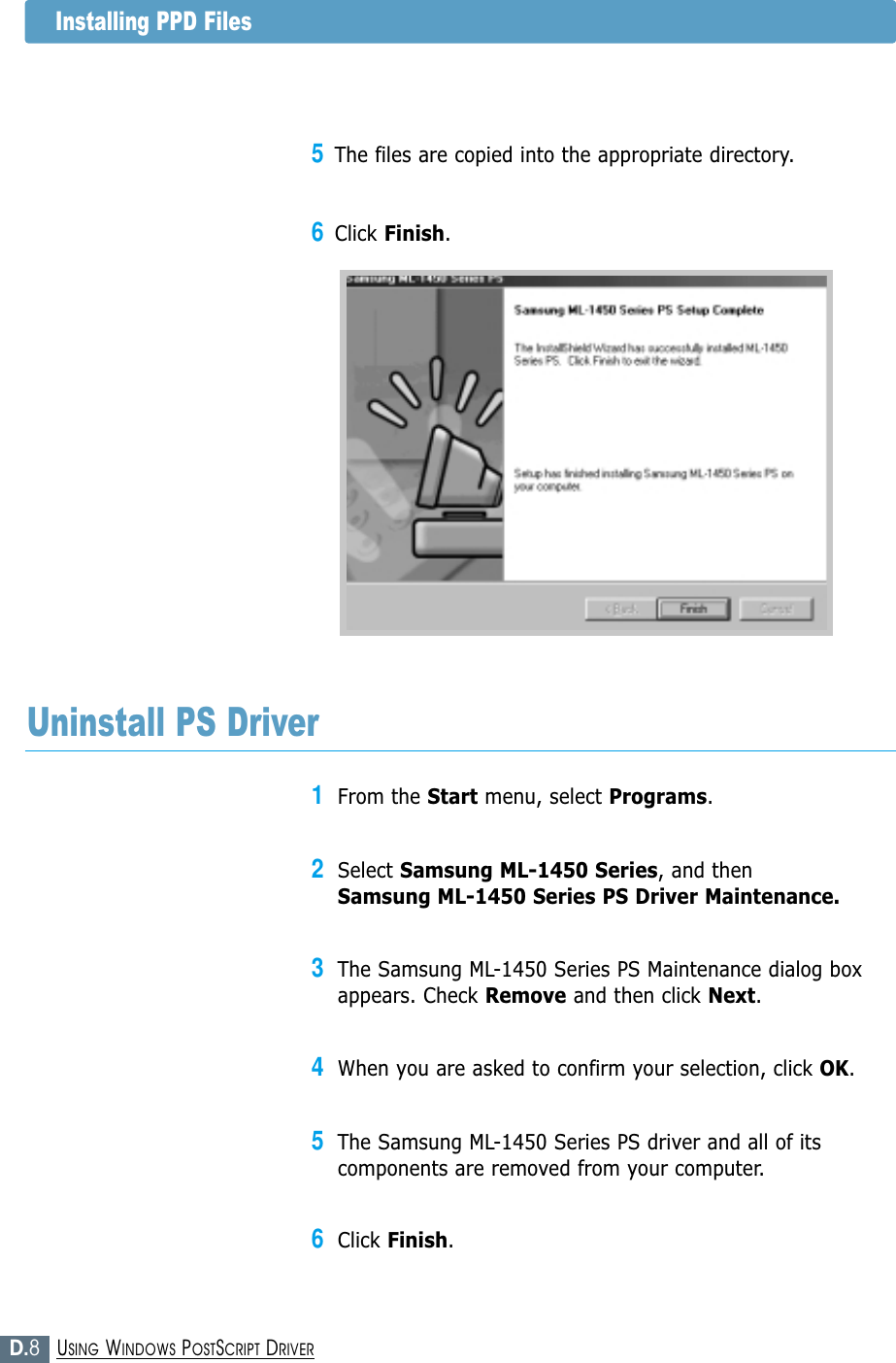

D.8USING WINDOWS POSTSCRIPT DRIVER1From the Start menu, select Programs.2Select Samsung ML-1450 Series, and then Samsung ML-1450 Series PS Driver Maintenance.3The Samsung ML-1450 Series PS Maintenance dialog boxappears. Check Remove and then click Next.4When you are asked to confirm your selection, click OK.5The Samsung ML-1450 Series PS driver and all of itscomponents are removed from your computer.6Click Finish.Uninstall PS DriverInstalling PPD Files5The files are copied into the appropriate directory.6Click Finish.

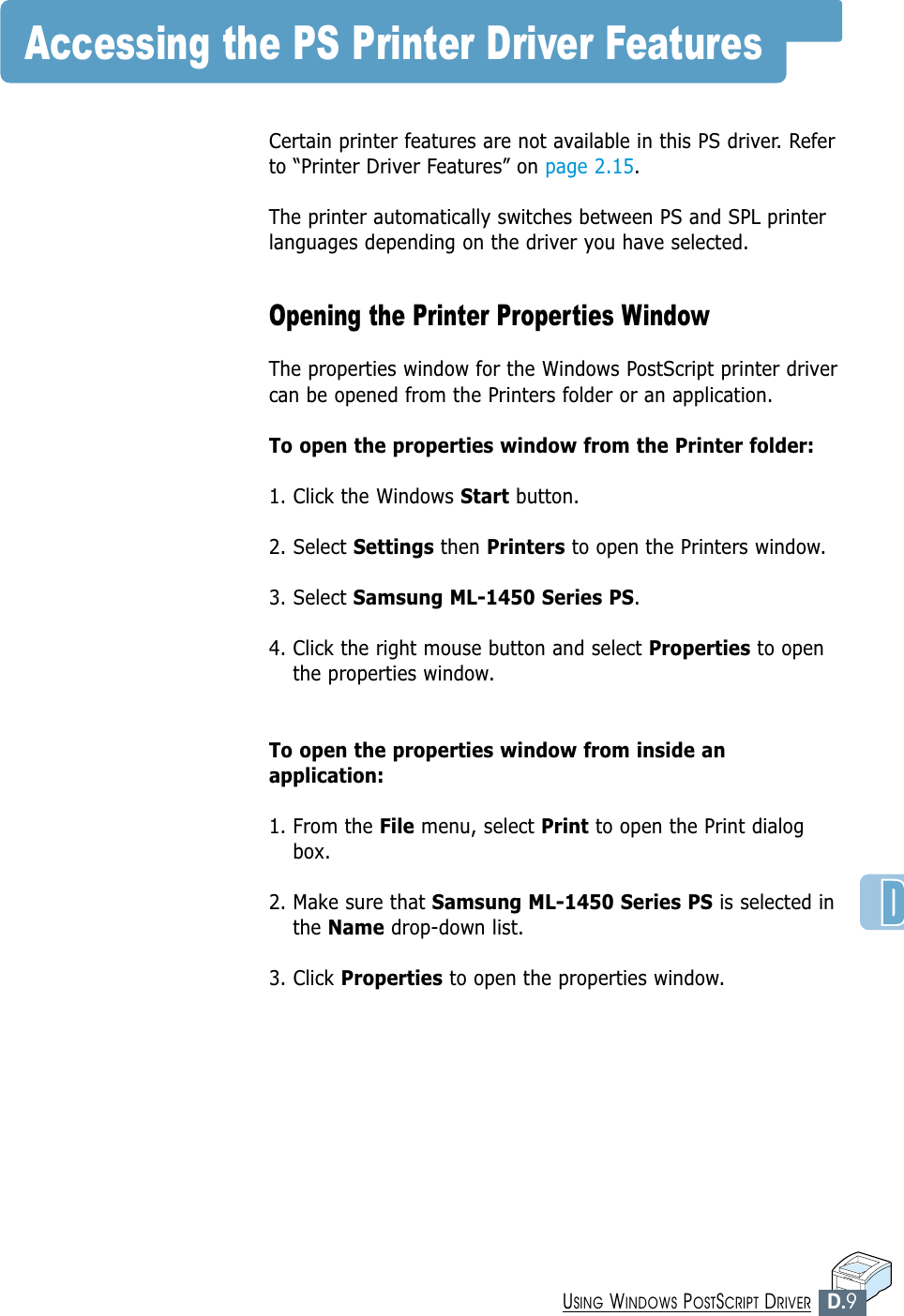

D.9USING WINDOWS POSTSCRIPT DRIVERAccessing the PS Printer Driver FeaturesCertain printer features are not available in this PS driver. Referto “Printer Driver Features” on page 2.15.The printer automatically switches between PS and SPL printerlanguages depending on the driver you have selected. Opening the Printer Properties WindowThe properties window for the Windows PostScript printer drivercan be opened from the Printers folder or an application.To open the properties window from the Printer folder:1. Click the Windows Start button.2. Select Settings then Printers to open the Printers window.3. Select Samsung ML-1450 Series PS. 4. Click the right mouse button and select Properties to openthe properties window.To open the properties window from inside anapplication:1. From the File menu, select Print to open the Print dialogbox.2. Make sure that Samsung ML-1450 Series PS is selected inthe Name drop-down list. 3. Click Properties to open the properties window.

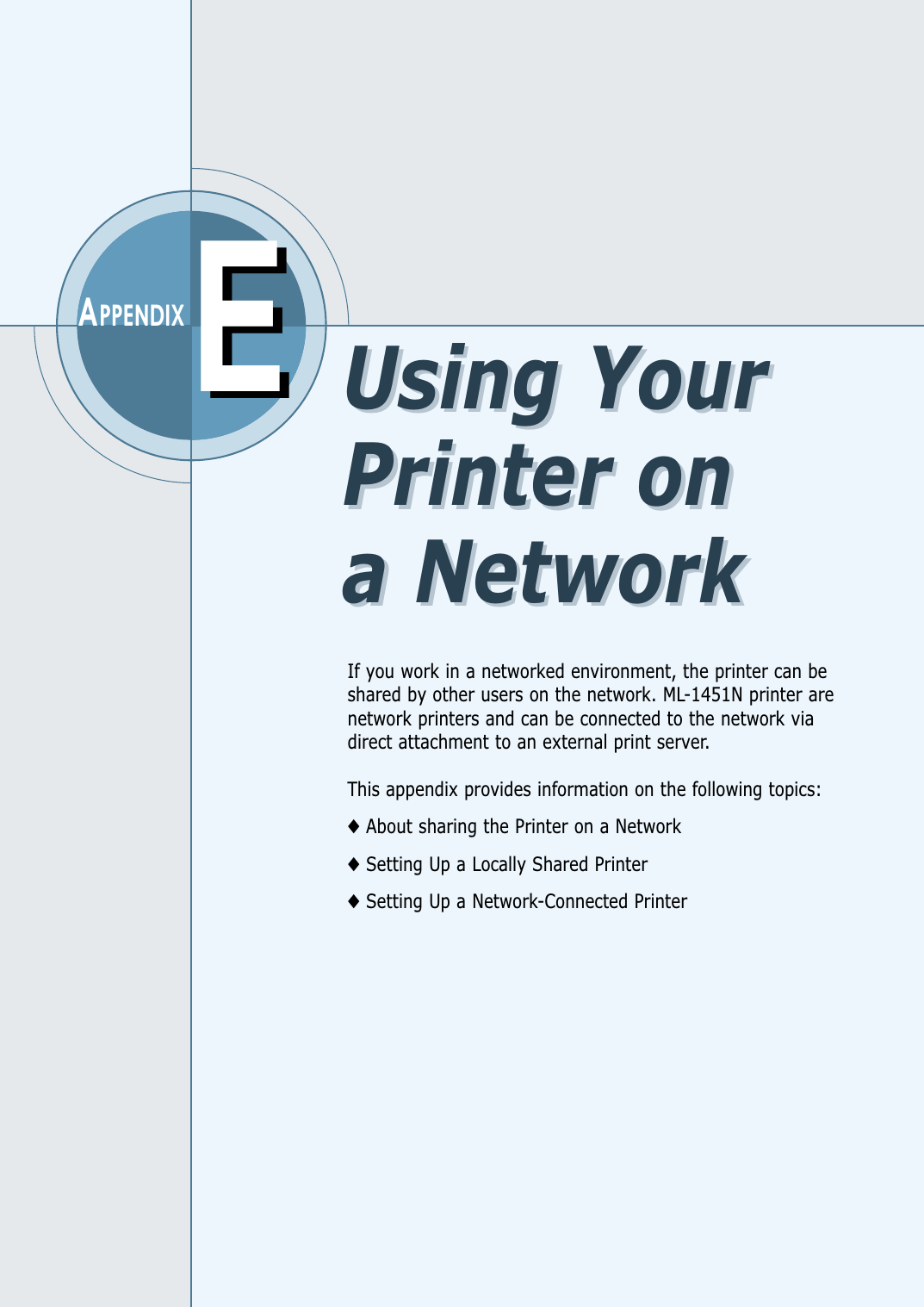

EEAPPENDIXIf you work in a networked environment, the printer can beshared by other users on the network. ML-1451N printer arenetwork printers and can be connected to the network viadirect attachment to an external print server. This appendix provides information on the following topics:◆About sharing the Printer on a Network◆Setting Up a Locally Shared Printer◆Setting Up a Network-Connected PrinterUsing YourPrinter on a NetworkUsing YourPrinter on a Network

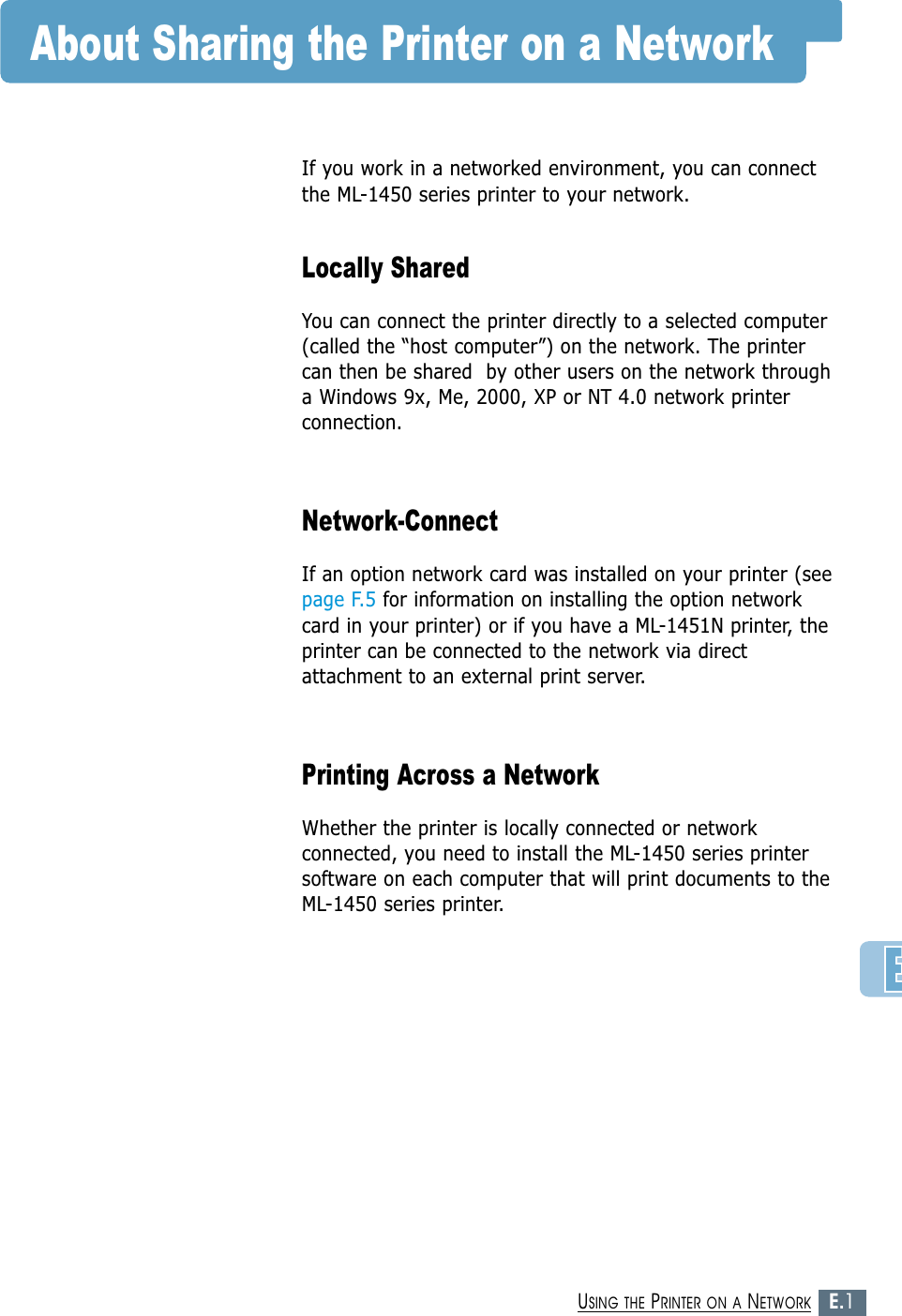

E.1USING THE PRINTER ON A NETWORKAbout Sharing the Printer on a NetworkIf you work in a networked environment, you can connectthe ML-1450 series printer to your network. Locally SharedYou can connect the printer directly to a selected computer(called the “host computer”) on the network. The printercan then be shared by other users on the network througha Windows 9x, Me, 2000, XP or NT 4.0 network printerconnection.Network-ConnectIf an option network card was installed on your printer (seepage F.5 for information on installing the option networkcard in your printer) or if you have a ML-1451N printer, theprinter can be connected to the network via directattachment to an external print server. Printing Across a NetworkWhether the printer is locally connected or networkconnected, you need to install the ML-1450 series printersoftware on each computer that will print documents to theML-1450 series printer.

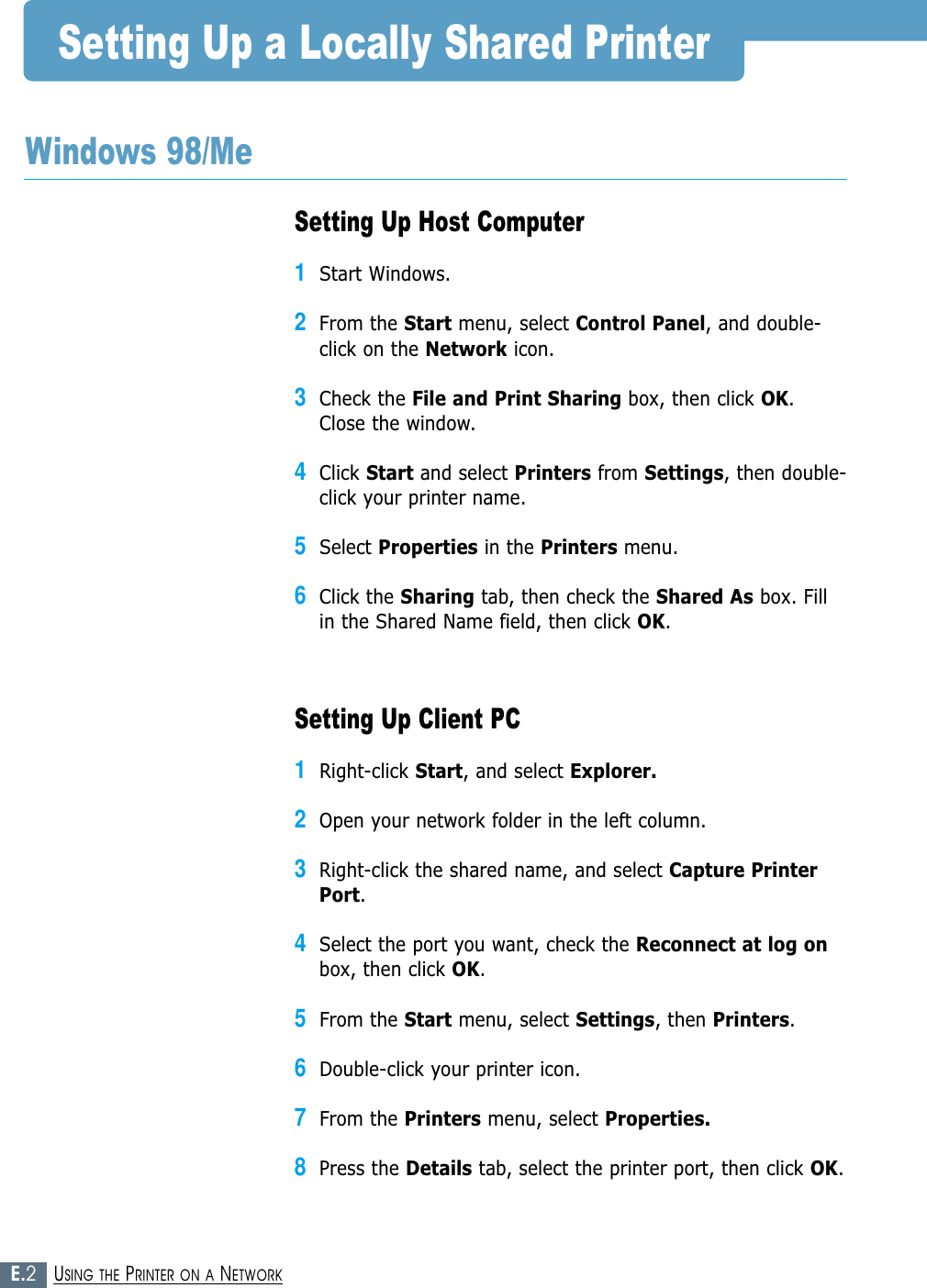

E.2USING THE PRINTER ON A NETWORKSetting Up Host Computer1Start Windows.2From the Start menu, select Control Panel, and double-click on the Network icon.3Check the File and Print Sharing box, then click OK.Close the window.4Click Start and select Printers from Settings, then double-click your printer name.5Select Properties in the Printers menu.6Click the Sharing tab, then check the Shared As box. Fillin the Shared Name field, then click OK.Setting Up Client PC1Right-click Start, and select Explorer.2Open your network folder in the left column.3Right-click the shared name, and select Capture PrinterPort.4Select the port you want, check the Reconnect at log onbox, then click OK.5From the Start menu, select Settings, then Printers.6Double-click your printer icon.7From the Printers menu, select Properties.8Press the Details tab, select the printer port, then click OK.Setting Up a Locally Shared PrinterWindows 98/Me

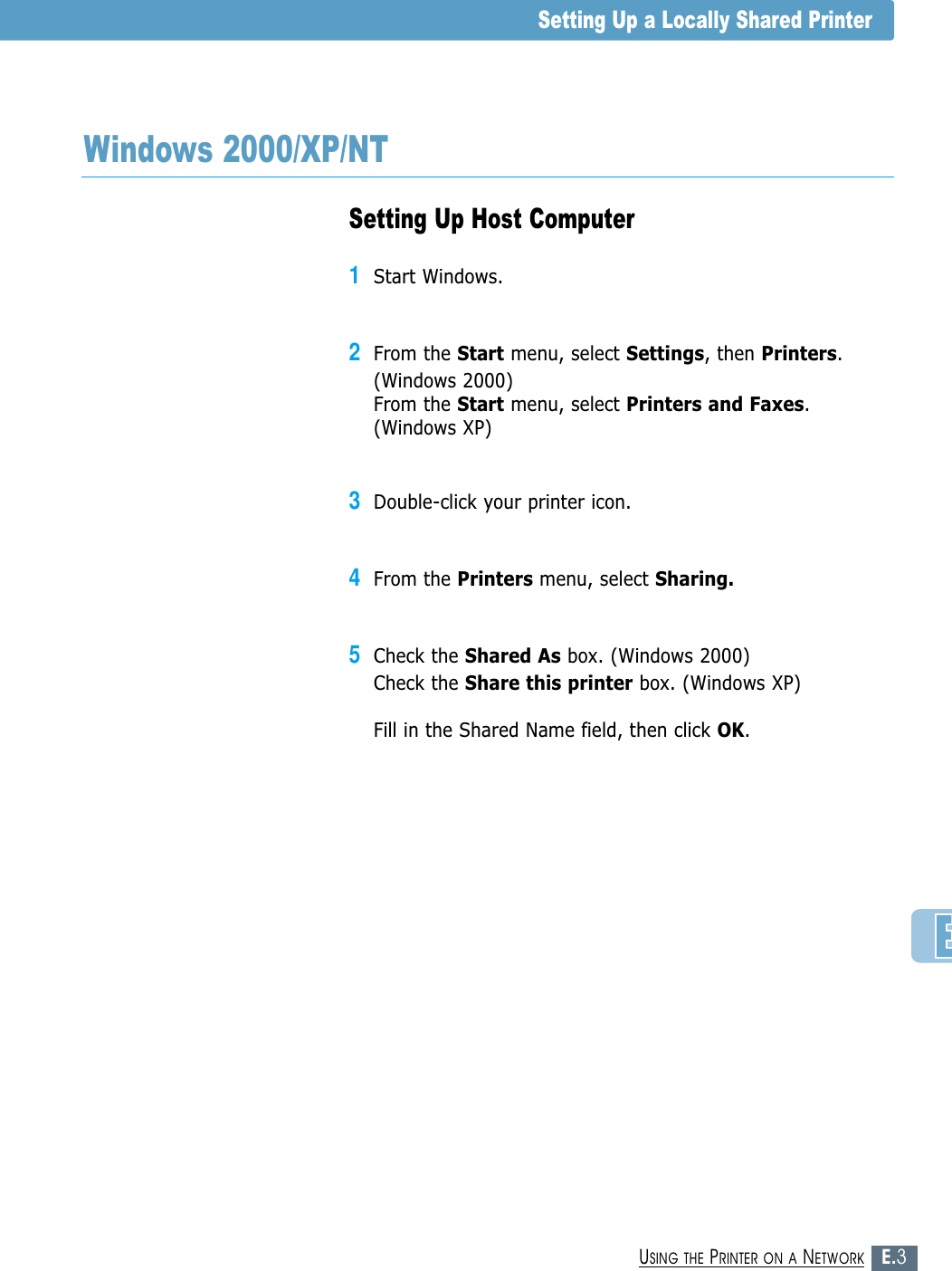

E.3USING THE PRINTER ON A NETWORKSetting Up Host Computer1Start Windows.2From the Start menu, select Settings, then Printers.(Windows 2000)From the Start menu, select Printers and Faxes.(Windows XP)3Double-click your printer icon.4From the Printers menu, select Sharing.5Check the Shared As box. (Windows 2000)Check the Share this printer box. (Windows XP)Fill in the Shared Name field, then click OK.Windows 2000/XP/NTSetting Up a Locally Shared Printer

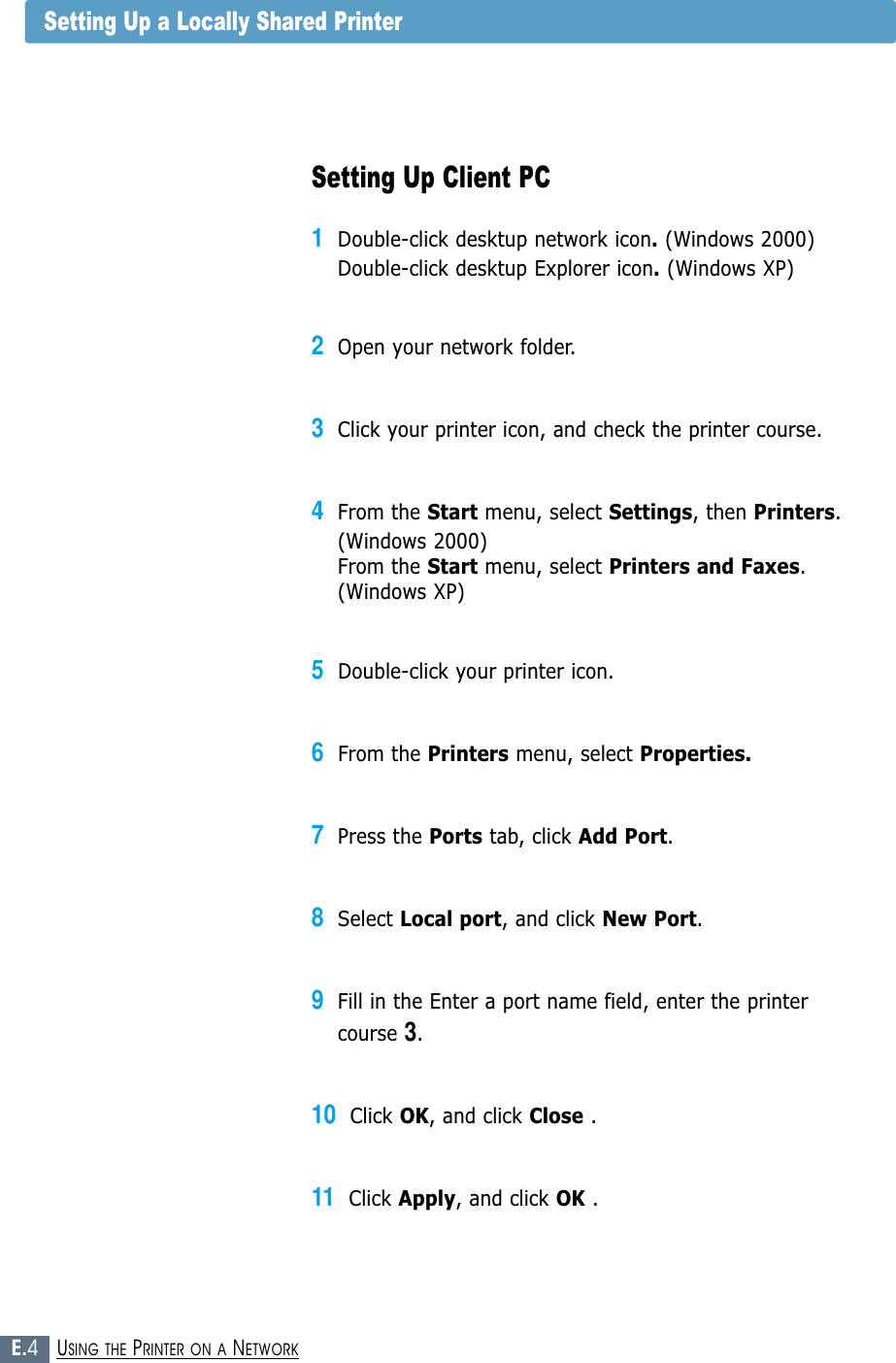

E.4USING THE PRINTER ON A NETWORKSetting Up Client PC1Double-click desktup network icon.(Windows 2000)Double-click desktup Explorer icon.(Windows XP)2Open your network folder.3Click your printer icon, and check the printer course.4From the Start menu, select Settings, then Printers.(Windows 2000)From the Start menu, select Printers and Faxes.(Windows XP)5Double-click your printer icon.6From the Printers menu, select Properties.7Press the Ports tab, click Add Port.8Select Local port, and click New Port.9Fill in the Enter a port name field, enter the printer course 3.10Click OK, and click Close .11Click Apply, and click OK .Setting Up a Locally Shared Printer

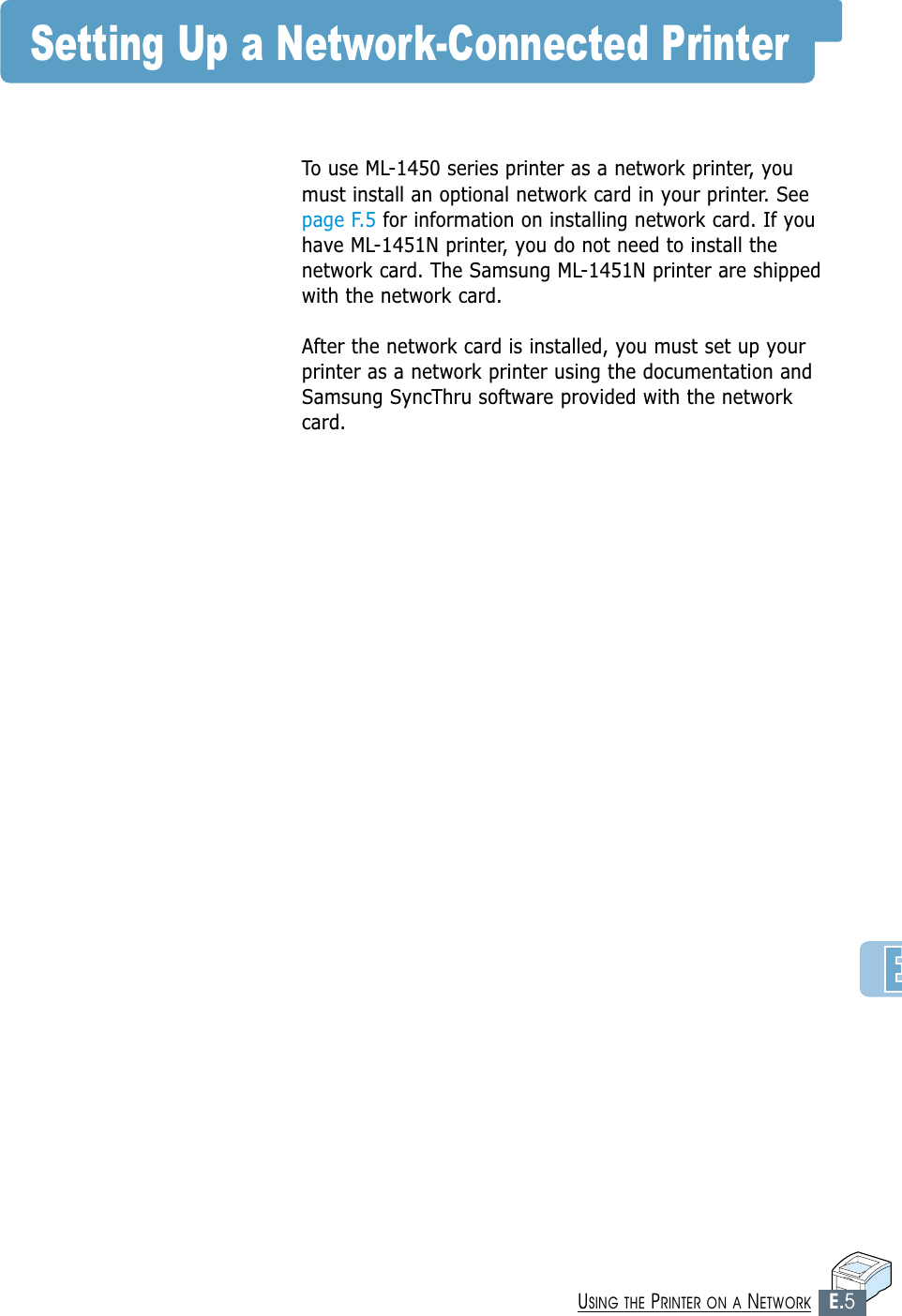

E.5USING THE PRINTER ON A NETWORKSetting Up a Network-Connected PrinterTo use ML-1450 series printer as a network printer, youmust install an optional network card in your printer. Seepage F.5 for information on installing network card. If youhave ML-1451N printer, you do not need to install thenetwork card. The Samsung ML-1451N printer are shippedwith the network card.After the network card is installed, you must set up yourprinter as a network printer using the documentation andSamsung SyncThru software provided with the networkcard.

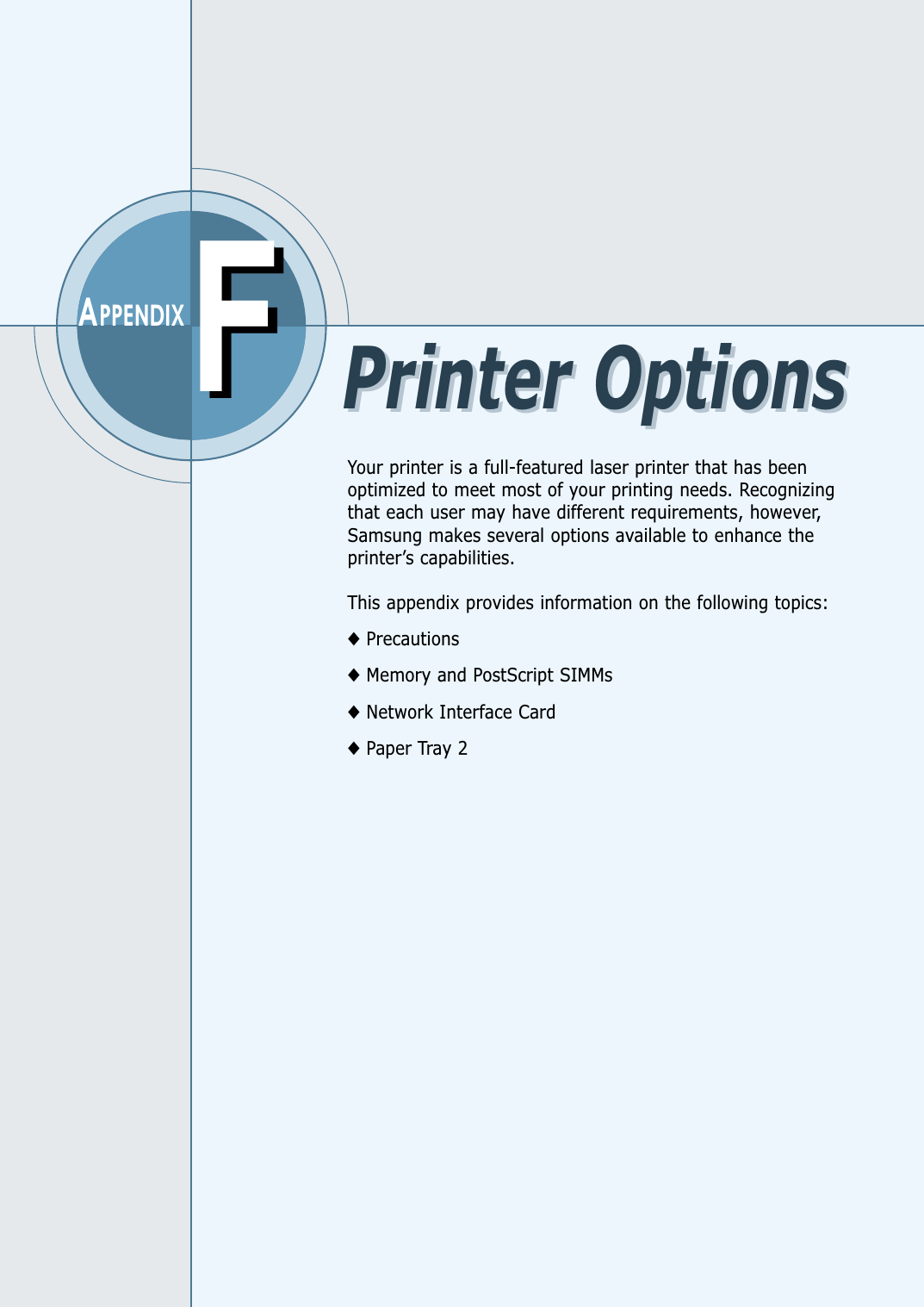

FFAPPENDIXYour printer is a full-featured laser printer that has beenoptimized to meet most of your printing needs. Recognizingthat each user may have different requirements, however,Samsung makes several options available to enhance theprinter’s capabilities.This appendix provides information on the following topics:◆Precautions◆Memory and PostScript SIMMs◆Network Interface Card◆Paper Tray 2Printer OptionsPrinter Options

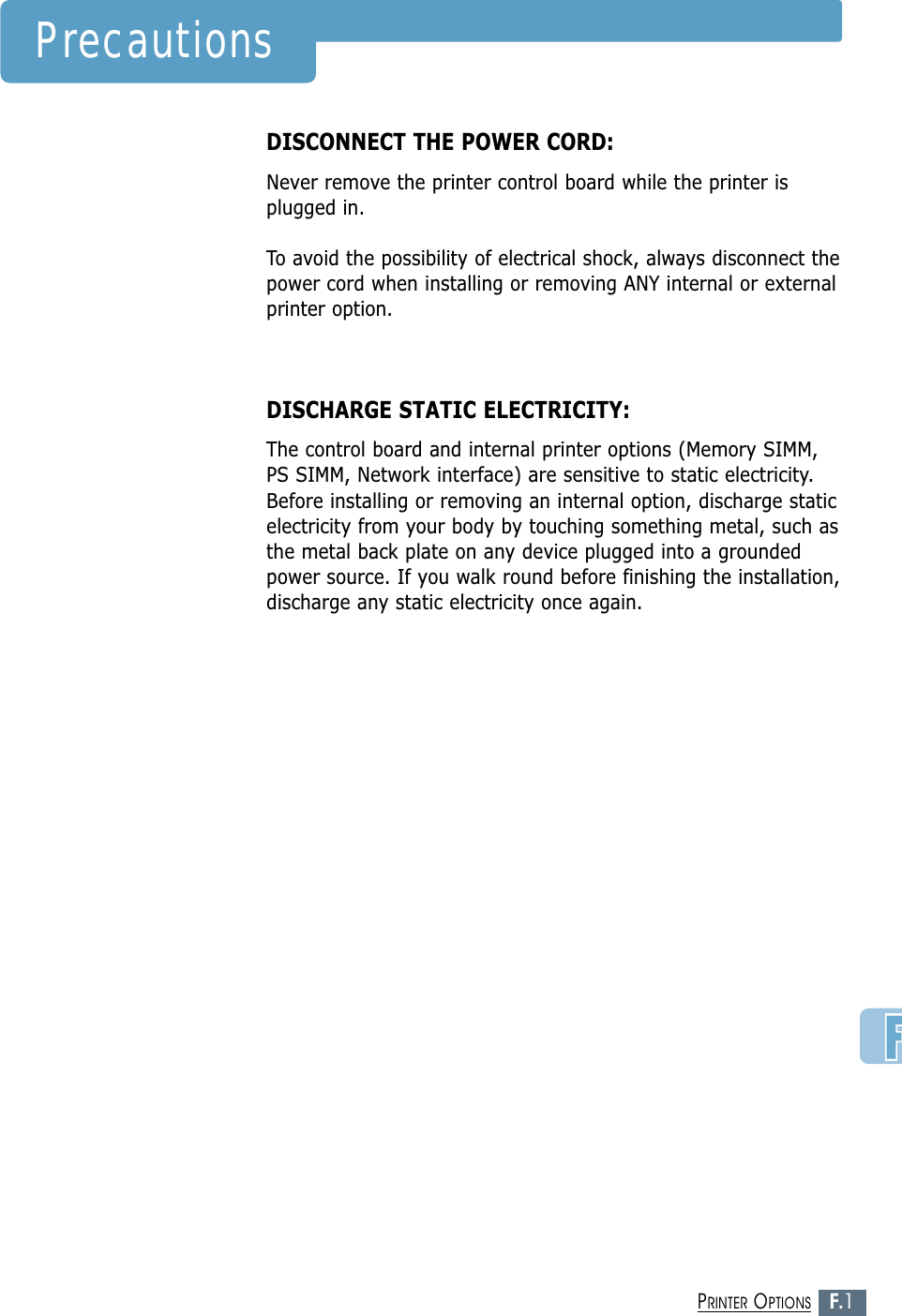

F.1PRINTER OPTIONSPrecautionsDISCONNECT THE POWER CORD: Never remove the printer control board while the printer isplugged in.To avoid the possibility of electrical shock, always disconnect thepower cord when installing or removing ANY internal or externalprinter option.DISCHARGE STATIC ELECTRICITY: The control board and internal printer options (Memory SIMM,PS SIMM, Network interface) are sensitive to static electricity.Before installing or removing an internal option, discharge staticelectricity from your body by touching something metal, such asthe metal back plate on any device plugged into a groundedpower source. If you walk round before finishing the installation,discharge any static electricity once again.

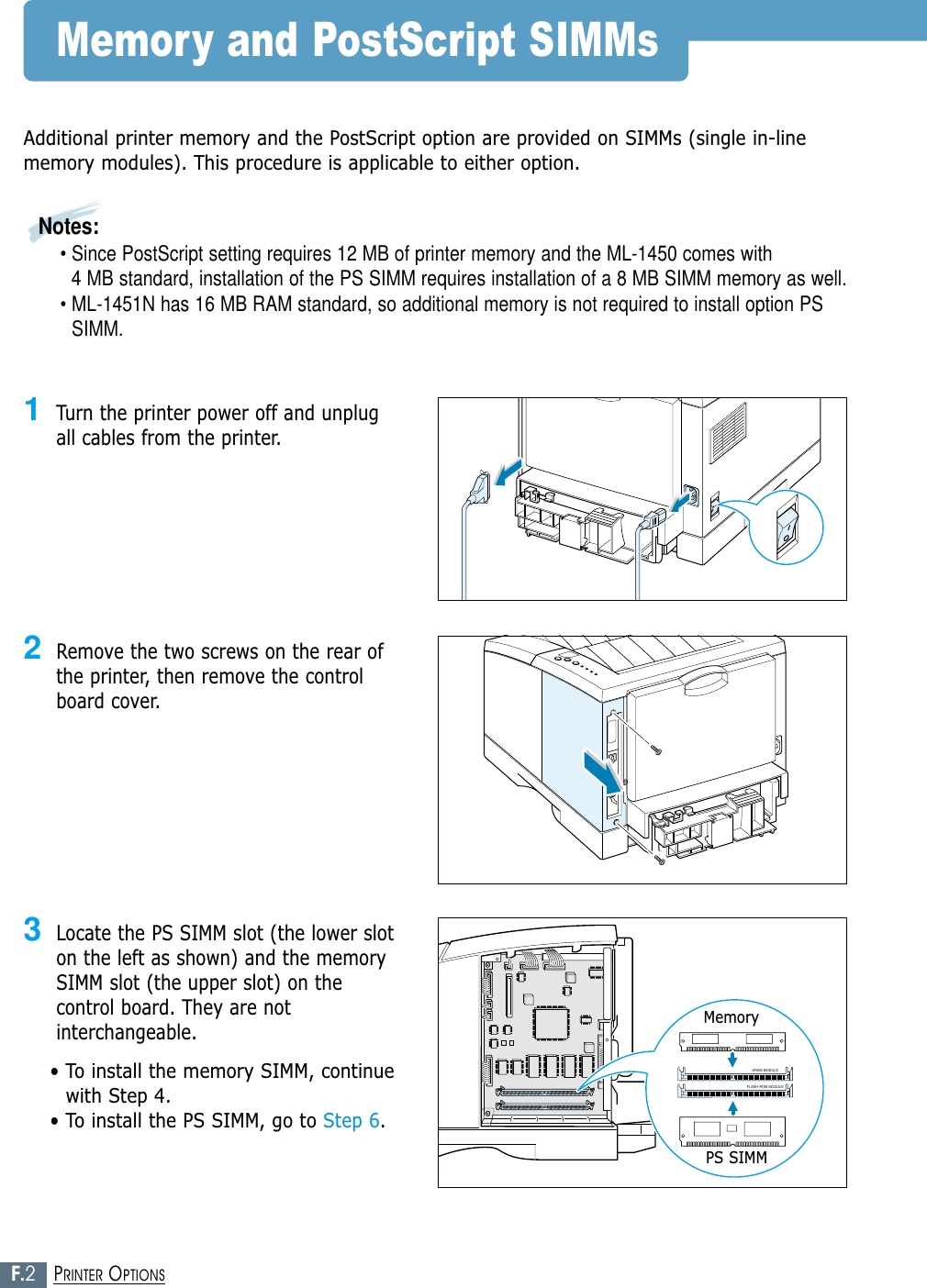

F.2PRINTER OPTIONSMemory and PostScript SIMMsAdditional printer memory and the PostScript option are provided on SIMMs (single in-linememory modules). This procedure is applicable to either option.1Turn the printer power off and unplugall cables from the printer.2Remove the two screws on the rear ofthe printer, then remove the controlboard cover.3Locate the PS SIMM slot (the lower sloton the left as shown) and the memorySIMM slot (the upper slot) on thecontrol board. They are notinterchangeable.• To install the memory SIMM, continuewith Step 4.• To install the PS SIMM, go to Step 6.FLASH-ROM MODULEDRAM MODULEMemoryPS SIMMNotes:• Since PostScript setting requires 12 MB of printer memory and the ML-1450 comes with 4 MB standard, installation of the PS SIMM requires installation of a 8 MB SIMM memory as well.• ML-1451N has 16 MB RAM standard, so additional memory is not required to install option PSSIMM.

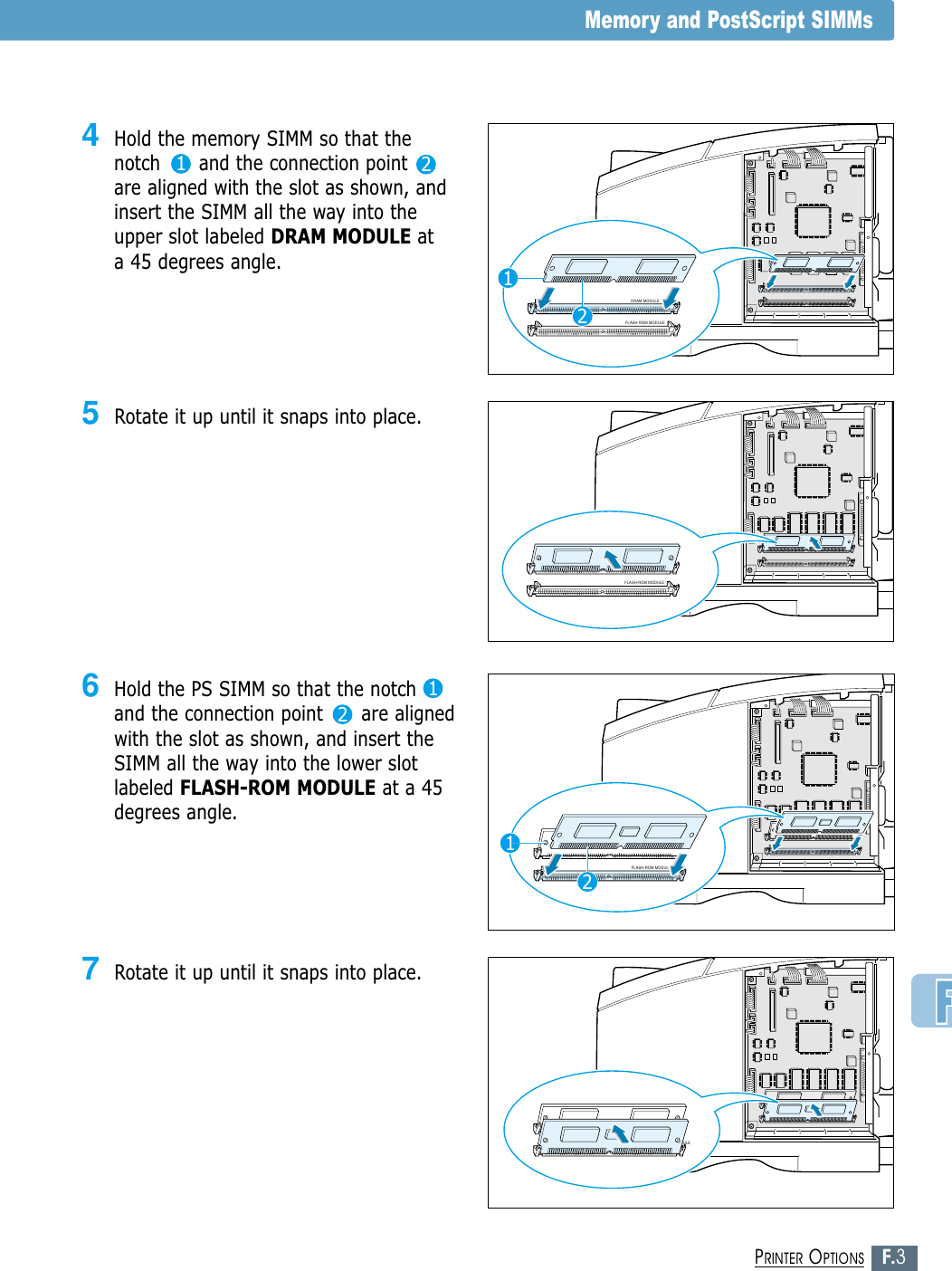

F.3PRINTER OPTIONS6Hold the PS SIMM so that the notchand the connection point are alignedwith the slot as shown, and insert theSIMM all the way into the lower slotlabeled FLASH-ROM MODULE at a 45degrees angle. FLASH-ROM MODULEDRAM MODULEMemory and PostScript SIMMs12124Hold the memory SIMM so that thenotch and the connection pointare aligned with the slot as shown, andinsert the SIMM all the way into theupper slot labeled DRAM MODULE at a 45 degrees angle. FLASH-ROM MODULEDRAM MODULE5Rotate it up until it snaps into place.FLASH-ROM MODULEDRAM MODULE1212FLASH-ROM MODULEDRAM MODULE7Rotate it up until it snaps into place.

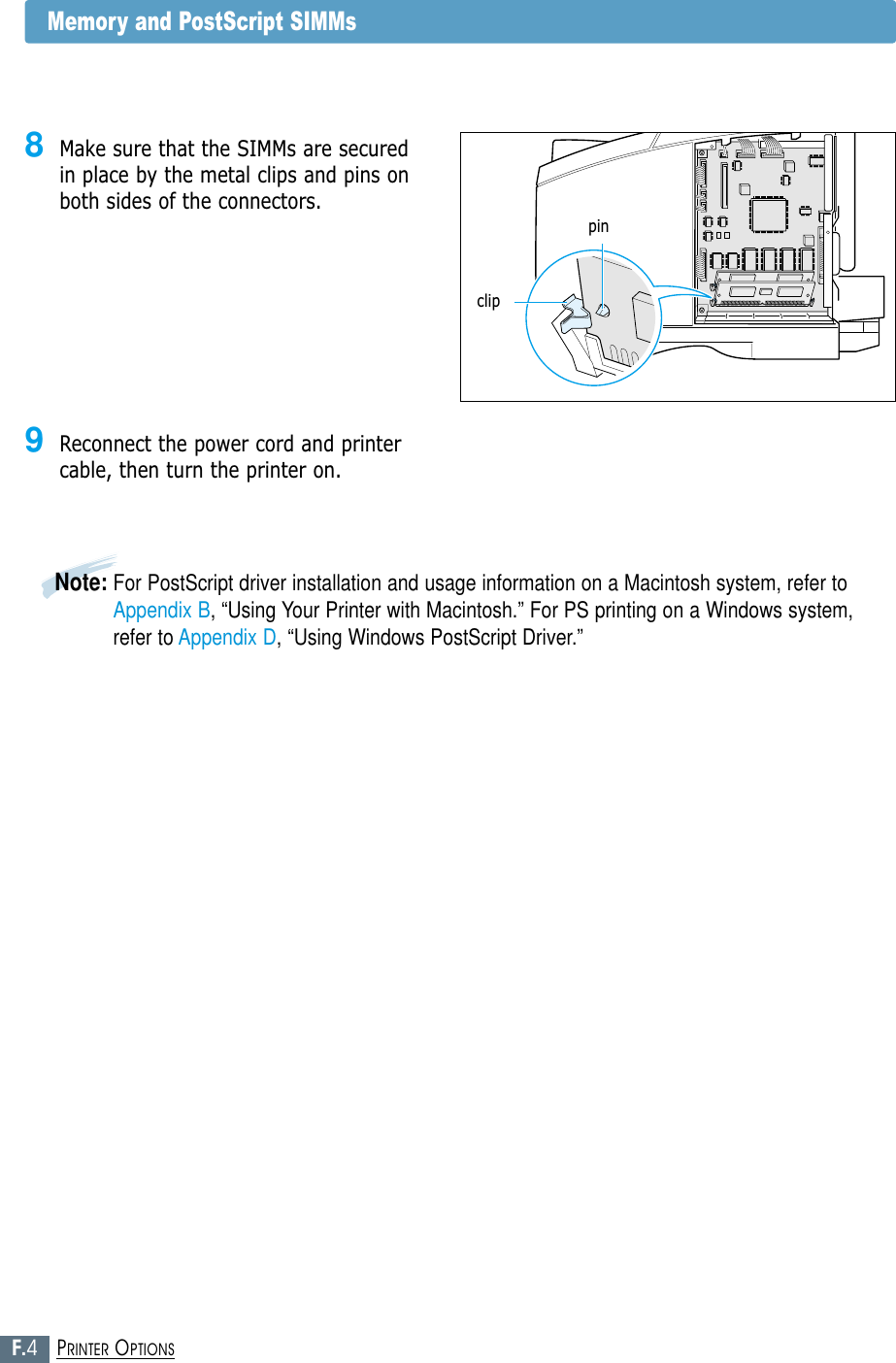

F.4PRINTER OPTIONSMemory and PostScript SIMMs9Reconnect the power cord and printercable, then turn the printer on.Note: For PostScript driver installation and usage information on a Macintosh system, refer toAppendix B, “Using Your Printer with Macintosh.” For PS printing on a Windows system,refer to Appendix D, “Using Windows PostScript Driver.”8Make sure that the SIMMs are securedin place by the metal clips and pins onboth sides of the connectors.pinclip
F.5PRINTER OPTIONSNetwork Interface CardReview the precautions on page F.1 and then follow this procedure to install the Network cardoption in your printer.1Unpack the network printer card. Youshould find the following items.3Turn the printer power off and unplug allcables from the printer.4Remove the two screws on the back ofthe printer, then remove the controlboard cover. See the figure on page F.2.5Remove the two screws, then removethe plate.Network card(PortThru) User’s guide CD-ROM(SyncThru)Brackets Screws2Two brackets come with the networkcard. Select the long bracket and attachit to the network card with two screwsprovided.

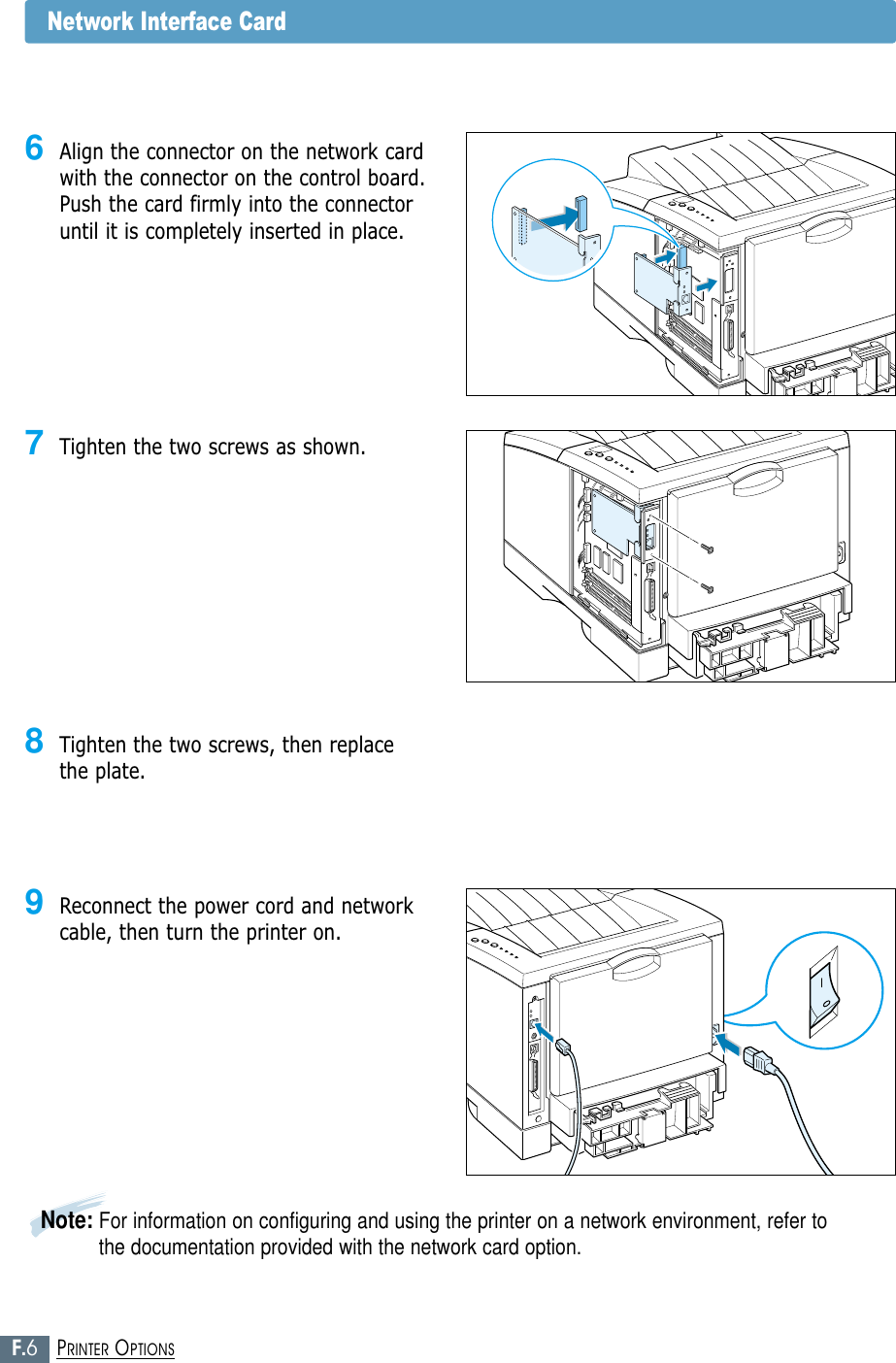

F.6PRINTER OPTIONS7Tighten the two screws as shown.8Tighten the two screws, then replacethe plate.9Reconnect the power cord and networkcable, then turn the printer on.Note: For information on configuring and using the printer on a network environment, refer tothe documentation provided with the network card option.Network Interface Card6Align the connector on the network cardwith the connector on the control board.Push the card firmly into the connectoruntil it is completely inserted in place.

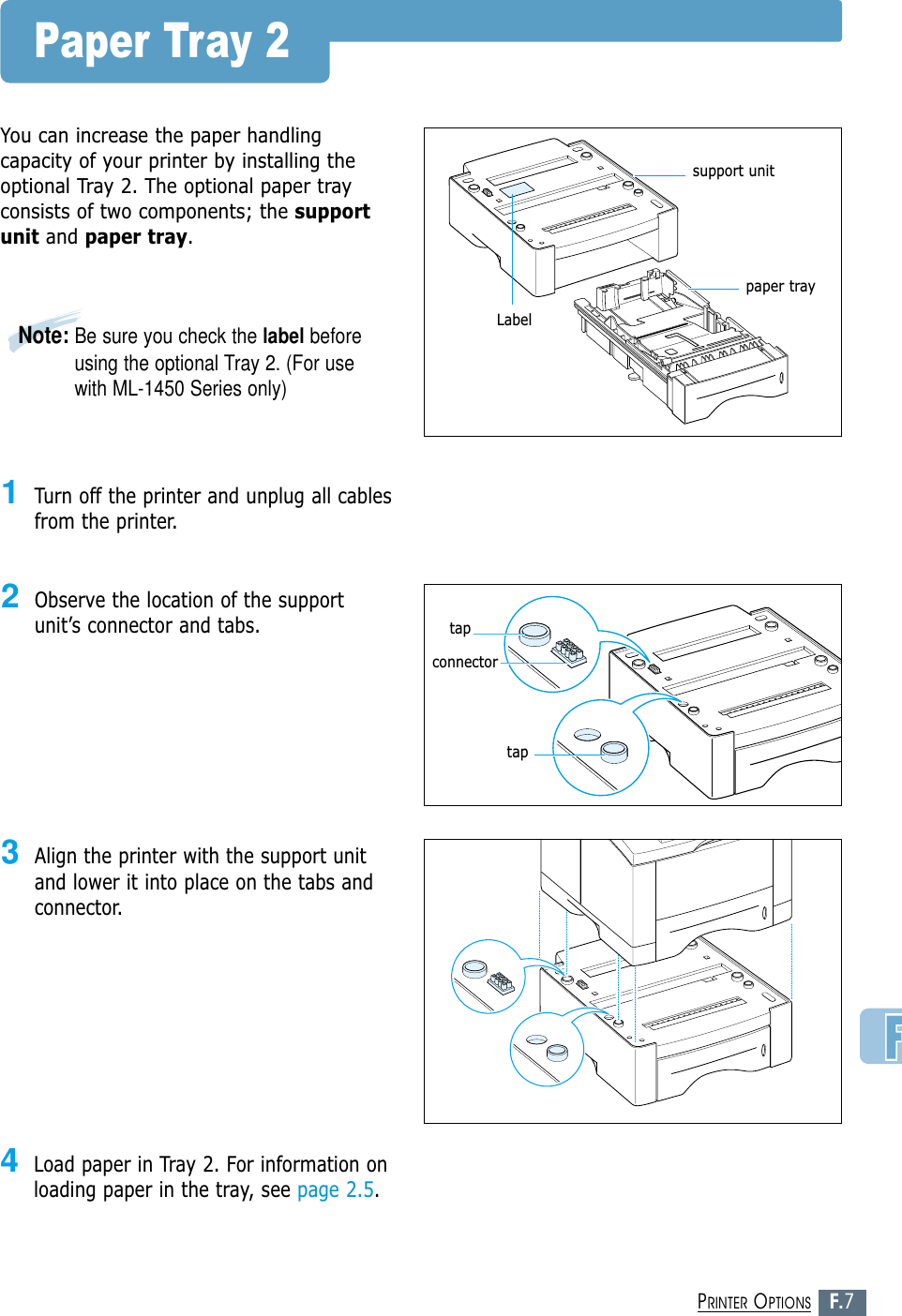

F.7PRINTER OPTIONSPaper Tray 2You can increase the paper handlingcapacity of your printer by installing theoptional Tray 2. The optional paper trayconsists of two components; the supportunit and paper tray.1Turn off the printer and unplug all cablesfrom the printer.2Observe the location of the supportunit’s connector and tabs.3Align the printer with the support unitand lower it into place on the tabs andconnector.4Load paper in Tray 2. For information onloading paper in the tray, see page 2.5.support unitLabeltaptapconnectorNote: Be sure you check the label beforeusing the optional Tray 2. (For usewith ML-1450 Series only)paper tray

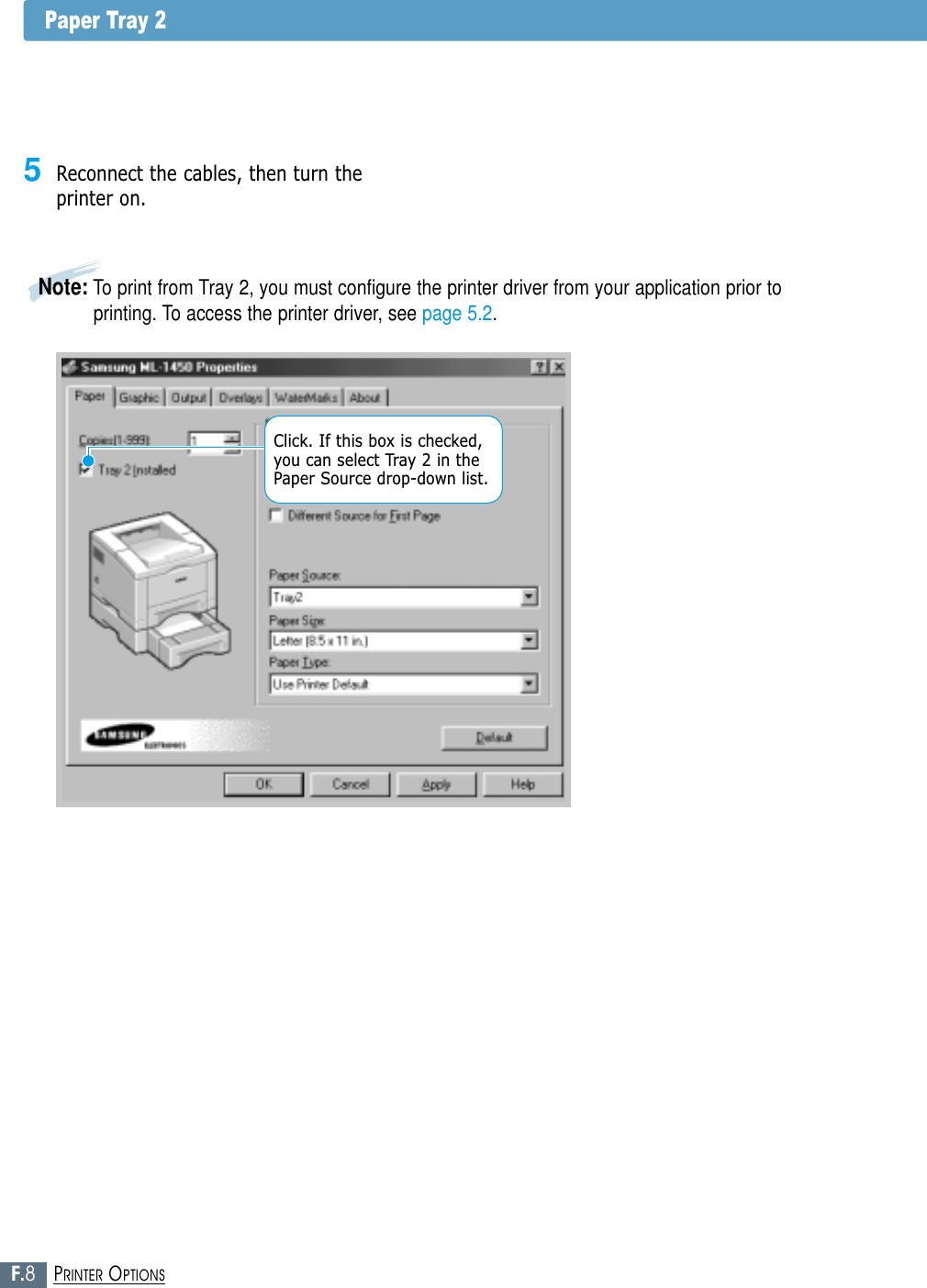

F.8PRINTER OPTIONSPaper Tray 2Note: To print from Tray 2, you must configure the printer driver from your application prior toprinting. To access the printer driver, see page 5.2.5Reconnect the cables, then turn theprinter on.Click. If this box is checked,you can select Tray 2 in thePaper Source drop-down list.

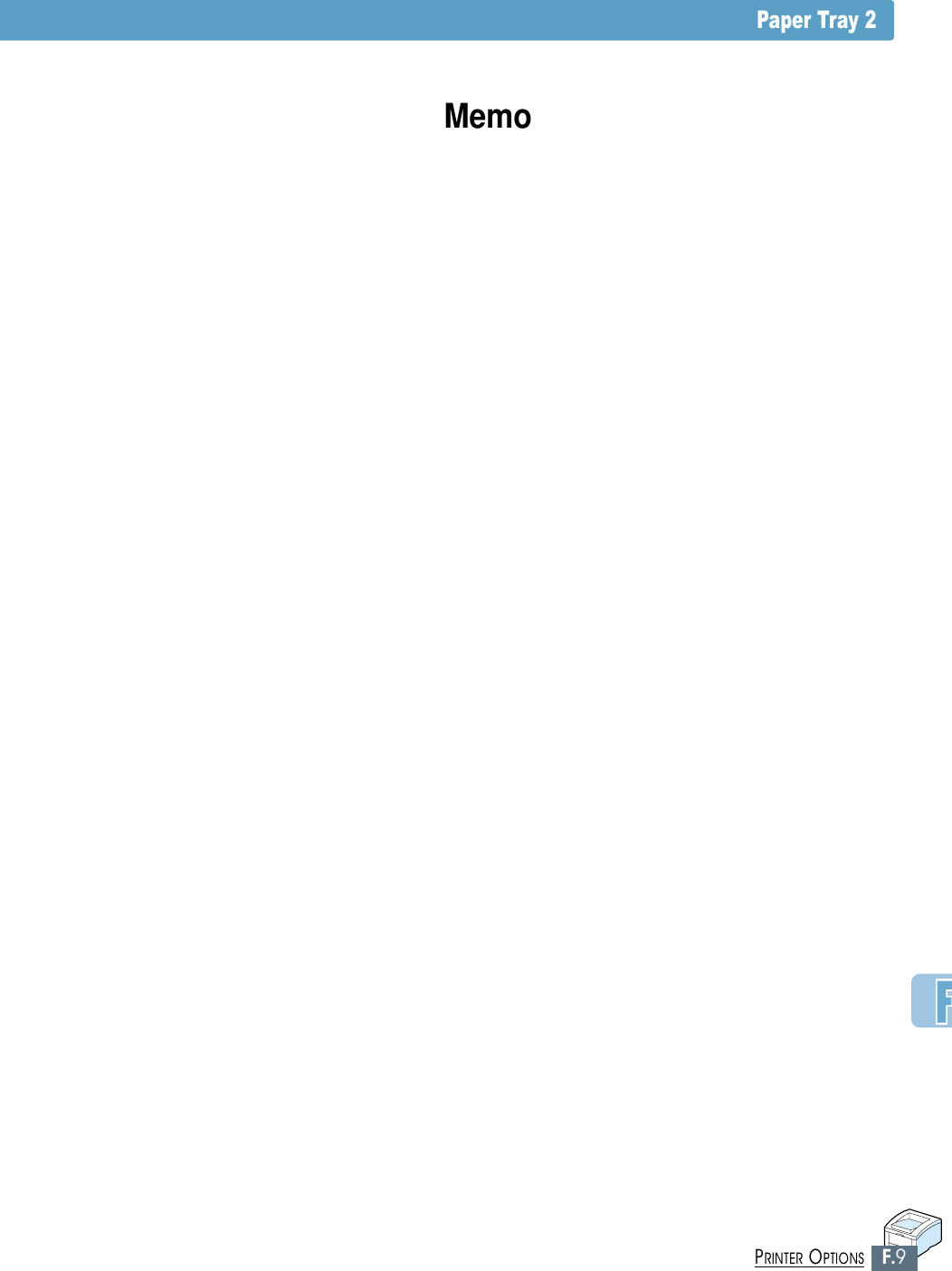

F.9PRINTER OPTIONSPaper Tray 2Memo

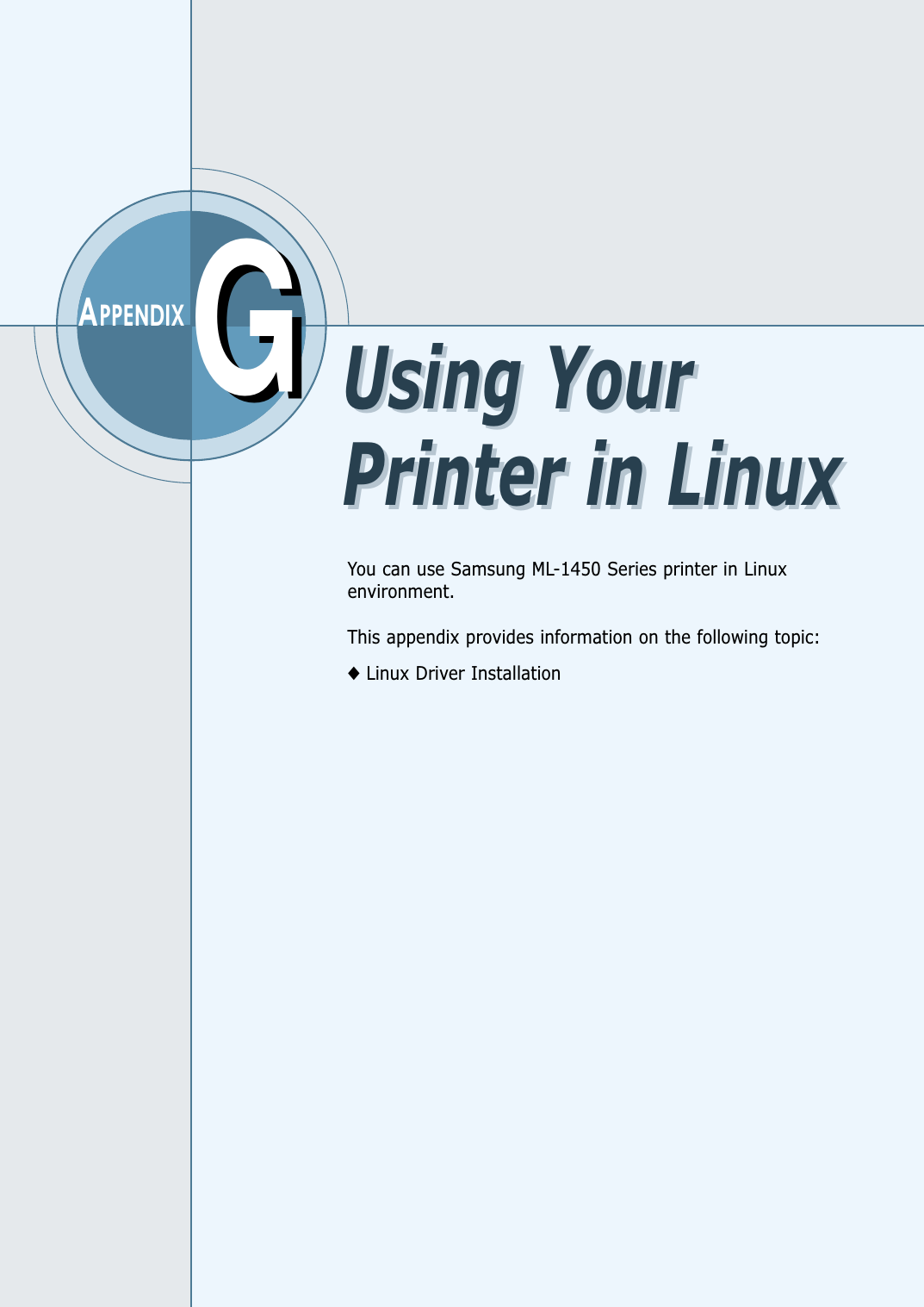

GGAPPENDIXYou can use Samsung ML-1450 Series printer in Linuxenvironment.This appendix provides information on the following topic:◆Linux Driver InstallationUsing YourPrinter in LinuxUsing YourPrinter in Linux

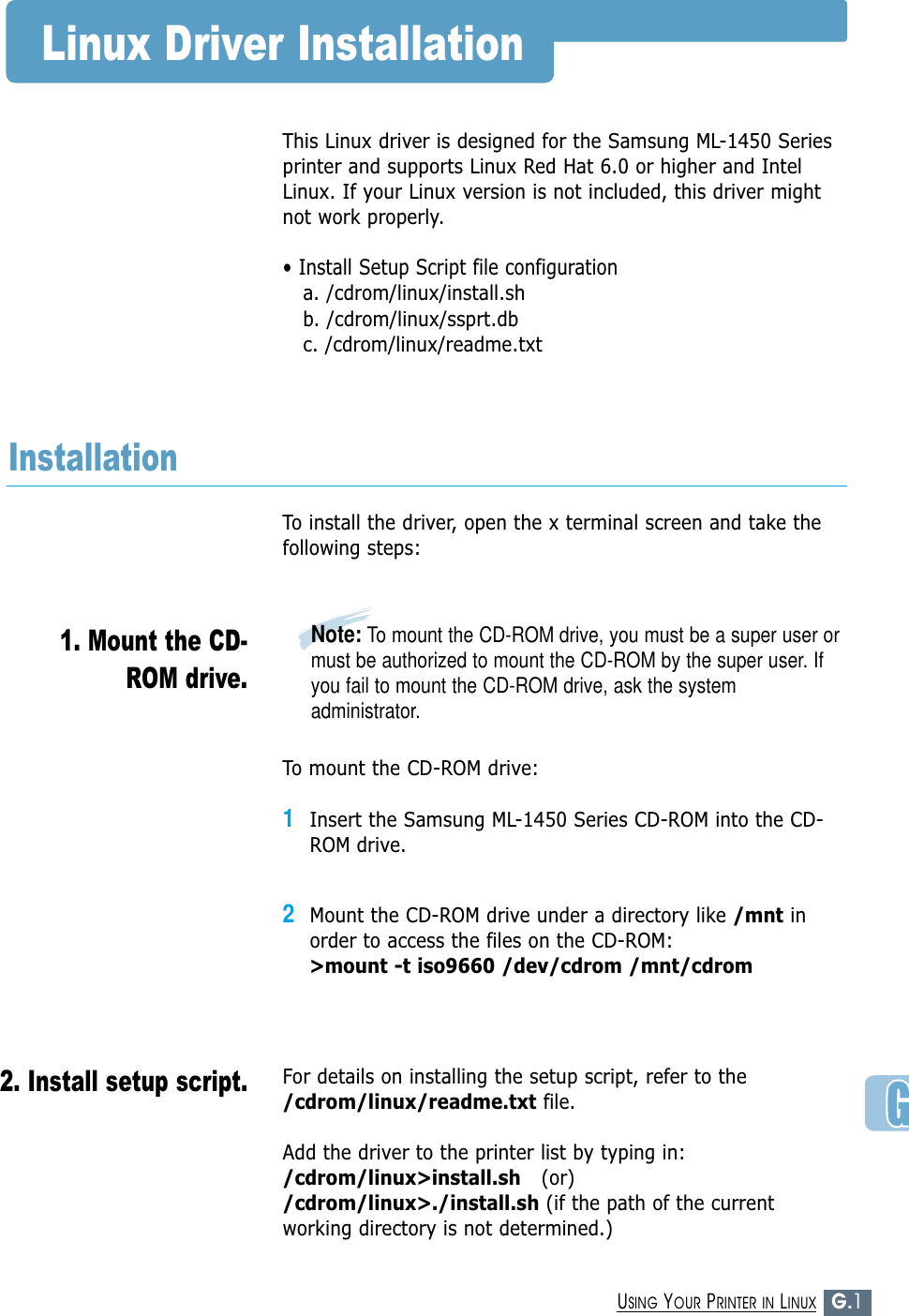

G.1USING YOUR PRINTER IN LINUXLinux Driver InstallationThis Linux driver is designed for the Samsung ML-1450 Seriesprinter and supports Linux Red Hat 6.0 or higher and IntelLinux. If your Linux version is not included, this driver mightnot work properly.• Install Setup Script file configurationa. /cdrom/linux/install.shb. /cdrom/linux/ssprt.dbc. /cdrom/linux/readme.txtTo install the driver, open the x terminal screen and take thefollowing steps:InstallationTo mount the CD-ROM drive:1Insert the Samsung ML-1450 Series CD-ROM into the CD-ROM drive.2Mount the CD-ROM drive under a directory like /mnt inorder to access the files on the CD-ROM: >mount -t iso9660 /dev/cdrom /mnt/cdromNote: To mount the CD-ROM drive, you must be a super user ormust be authorized to mount the CD-ROM by the super user. Ifyou fail to mount the CD-ROM drive, ask the systemadministrator.1. Mount the CD-ROM drive.2. Install setup script.For details on installing the setup script, refer to the/cdrom/linux/readme.txt file.Add the driver to the printer list by typing in:/cdrom/linux>install.sh (or)/cdrom/linux>./install.sh (if the path of the currentworking directory is not determined.)

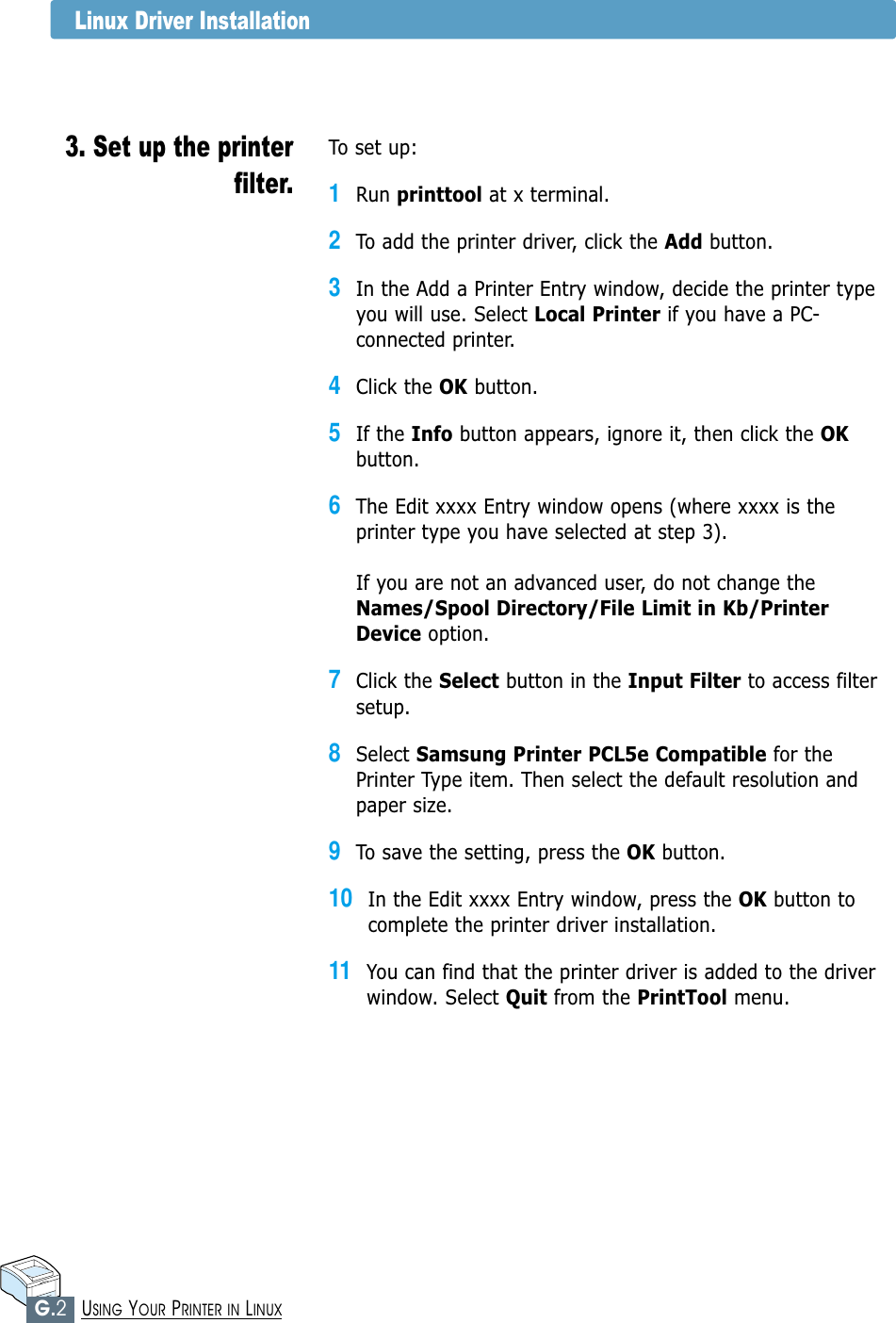

G.2USING YOUR PRINTER IN LINUXLinux Driver Installation3. Set up the printerfilter.To set up:1Run printtool at x terminal.2To add the printer driver, click the Add button.3In the Add a Printer Entry window, decide the printer typeyou will use. Select Local Printer if you have a PC-connected printer.4Click the OK button.5If the Info button appears, ignore it, then click the OKbutton.6The Edit xxxx Entry window opens (where xxxx is theprinter type you have selected at step 3).If you are not an advanced user, do not change theNames/Spool Directory/File Limit in Kb/PrinterDevice option.7Click the Select button in the Input Filter to access filtersetup.8Select Samsung Printer PCL5e Compatible for thePrinter Type item. Then select the default resolution andpaper size.9To save the setting, press the OK button.10In the Edit xxxx Entry window, press the OK button tocomplete the printer driver installation.11You can find that the printer driver is added to the driverwindow. Select Quit from the PrintTool menu.

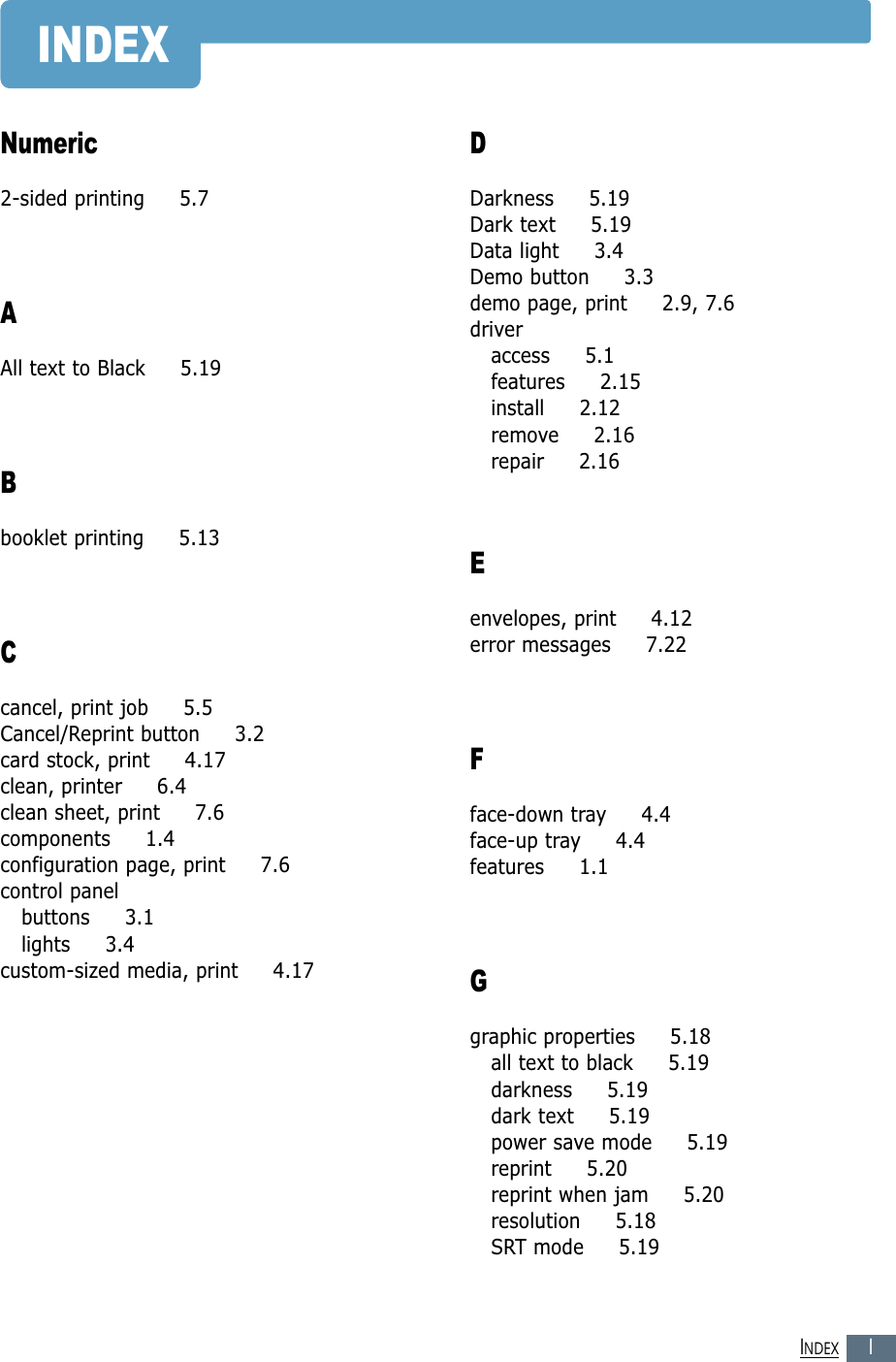

IINDEXINDEXNumeric2-sided printing 5.7AAll text to Black 5.19Bbooklet printing 5.13Ccancel, print job 5.5Cancel/Reprint button 3.2card stock, print 4.17clean, printer 6.4clean sheet, print 7.6components 1.4configuration page, print 7.6control panelbuttons 3.1lights 3.4custom-sized media, print 4.17DDarkness 5.19Dark text 5.19Data light 3.4Demo button 3.3demo page, print 2.9, 7.6driveraccess 5.1features 2.15install 2.12remove 2.16repair 2.16Eenvelopes, print 4.12error messages 7.22Fface-down tray 4.4face-up tray 4.4features 1.1Ggraphic properties 5.18all text to black 5.19darkness 5.19dark text 5.19power save mode 5.19reprint 5.20reprint when jam 5.20resolution 5.18SRT mode 5.19

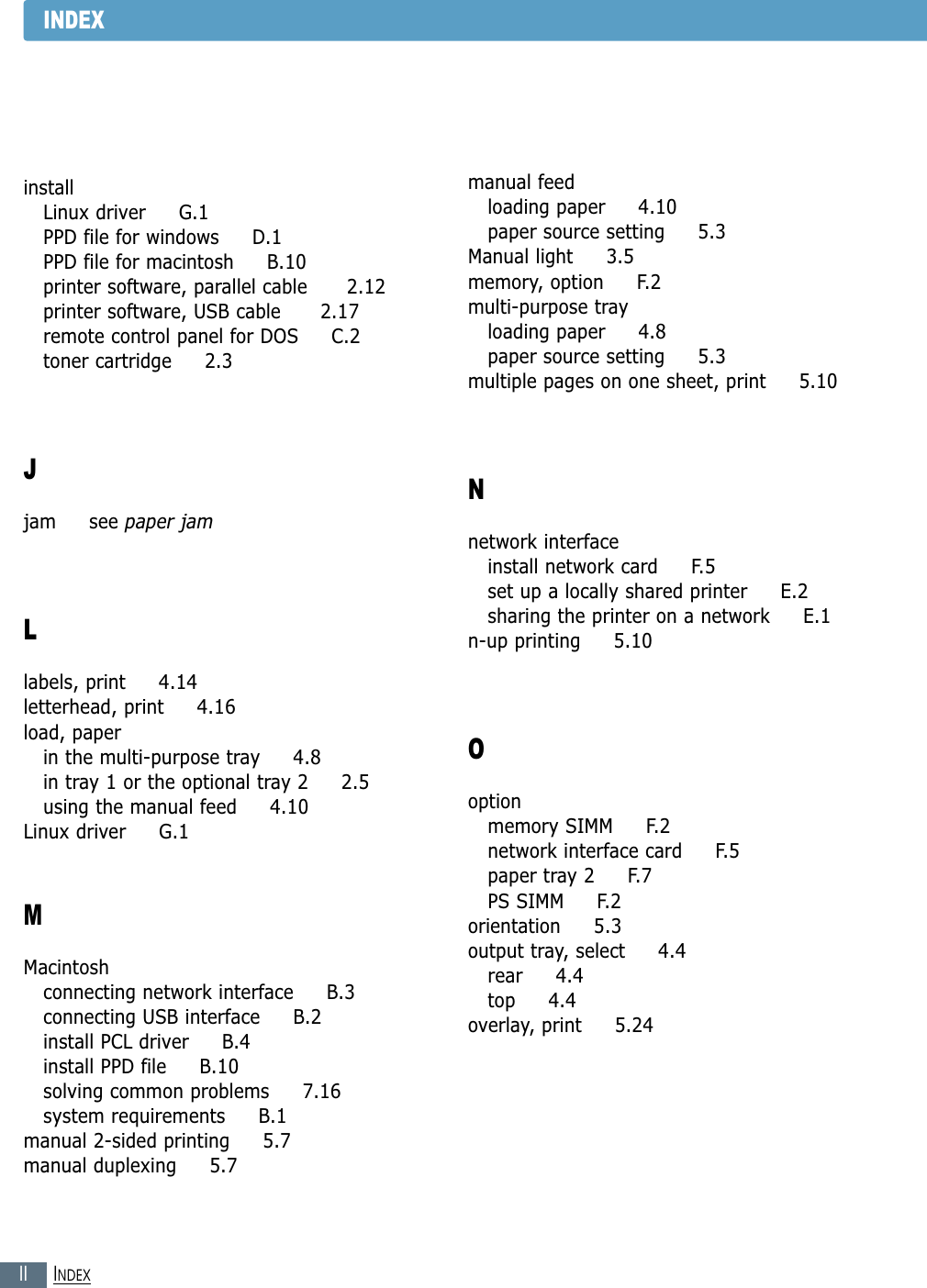

IIINDEXINDEXinstallLinux driver G.1PPD file for windows D.1PPD file for macintosh B.10printer software, parallel cable 2.12printer software, USB cable 2.17remote control panel for DOS C.2toner cartridge 2.3Jjam see paper jamLlabels, print 4.14letterhead, print 4.16load, paperin the multi-purpose tray 4.8in tray 1 or the optional tray 2 2.5using the manual feed 4.10Linux driver G.1MMacintoshconnecting network interface B.3connecting USB interface B.2install PCL driver B.4install PPD file B.10solving common problems 7.16system requirements B.1manual 2-sided printing 5.7manual duplexing 5.7manual feedloading paper 4.10paper source setting 5.3Manual light 3.5memory, option F.2multi-purpose trayloading paper 4.8paper source setting 5.3multiple pages on one sheet, print 5.10Nnetwork interfaceinstall network card F.5set up a locally shared printer E.2sharing the printer on a network E.1n-up printing 5.10Ooptionmemory SIMM F.2network interface card F.5paper tray 2 F.7PS SIMM F.2orientation 5.3output tray, select 4.4rear 4.4top 4.4overlay, print 5.24

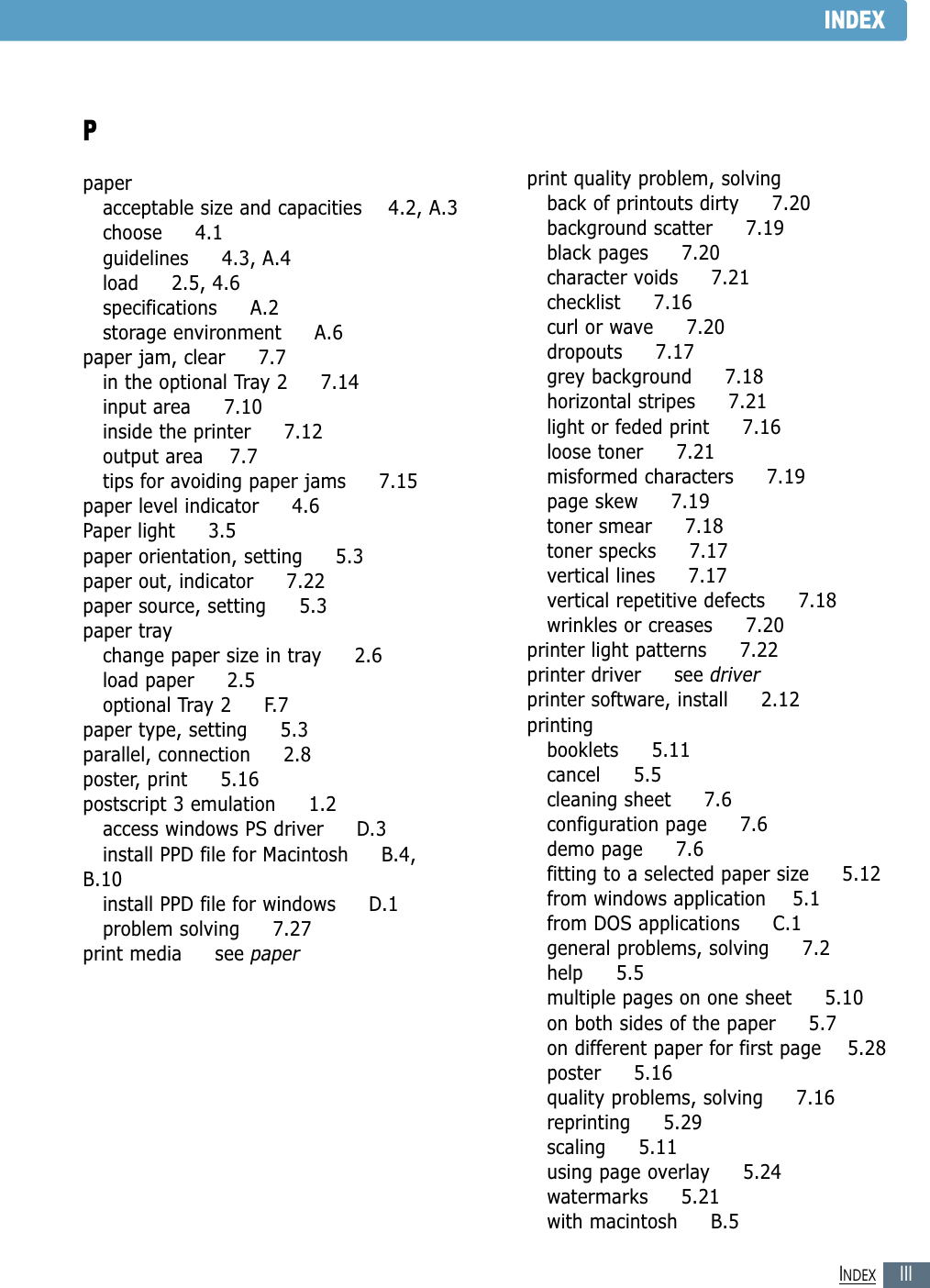

IIIINDEXINDEXPpaperacceptable size and capacities 4.2, A.3choose 4.1guidelines 4.3, A.4load 2.5, 4.6specifications A.2storage environment A.6paper jam, clear 7.7in the optional Tray 2 7.14input area 7.10inside the printer 7.12output area 7.7tips for avoiding paper jams 7.15paper level indicator 4.6Paper light 3.5paper orientation, setting 5.3paper out, indicator 7.22paper source, setting 5.3paper traychange paper size in tray 2.6load paper 2.5optional Tray 2 F.7paper type, setting 5.3parallel, connection 2.8poster, print 5.16postscript 3 emulation 1.2access windows PS driver D.3install PPD file for Macintosh B.4,B.10install PPD file for windows D.1problem solving 7.27print media see paperprint quality problem, solvingback of printouts dirty 7.20background scatter 7.19black pages 7.20character voids 7.21checklist 7.16curl or wave 7.20dropouts 7.17grey background 7.18horizontal stripes 7.21light or feded print 7.16loose toner 7.21misformed characters 7.19page skew 7.19toner smear 7.18toner specks 7.17vertical lines 7.17vertical repetitive defects 7.18wrinkles or creases 7.20printer light patterns 7.22printer driver see driverprinter software, install 2.12printingbooklets 5.11cancel 5.5cleaning sheet 7.6configuration page 7.6demo page 7.6fitting to a selected paper size 5.12from windows application 5.1from DOS applications C.1general problems, solving 7.2help 5.5multiple pages on one sheet 5.10on both sides of the paper 5.7on different paper for first page 5.28poster 5.16quality problems, solving 7.16reprinting 5.29scaling 5.11using page overlay 5.24watermarks 5.21with macintosh B.5

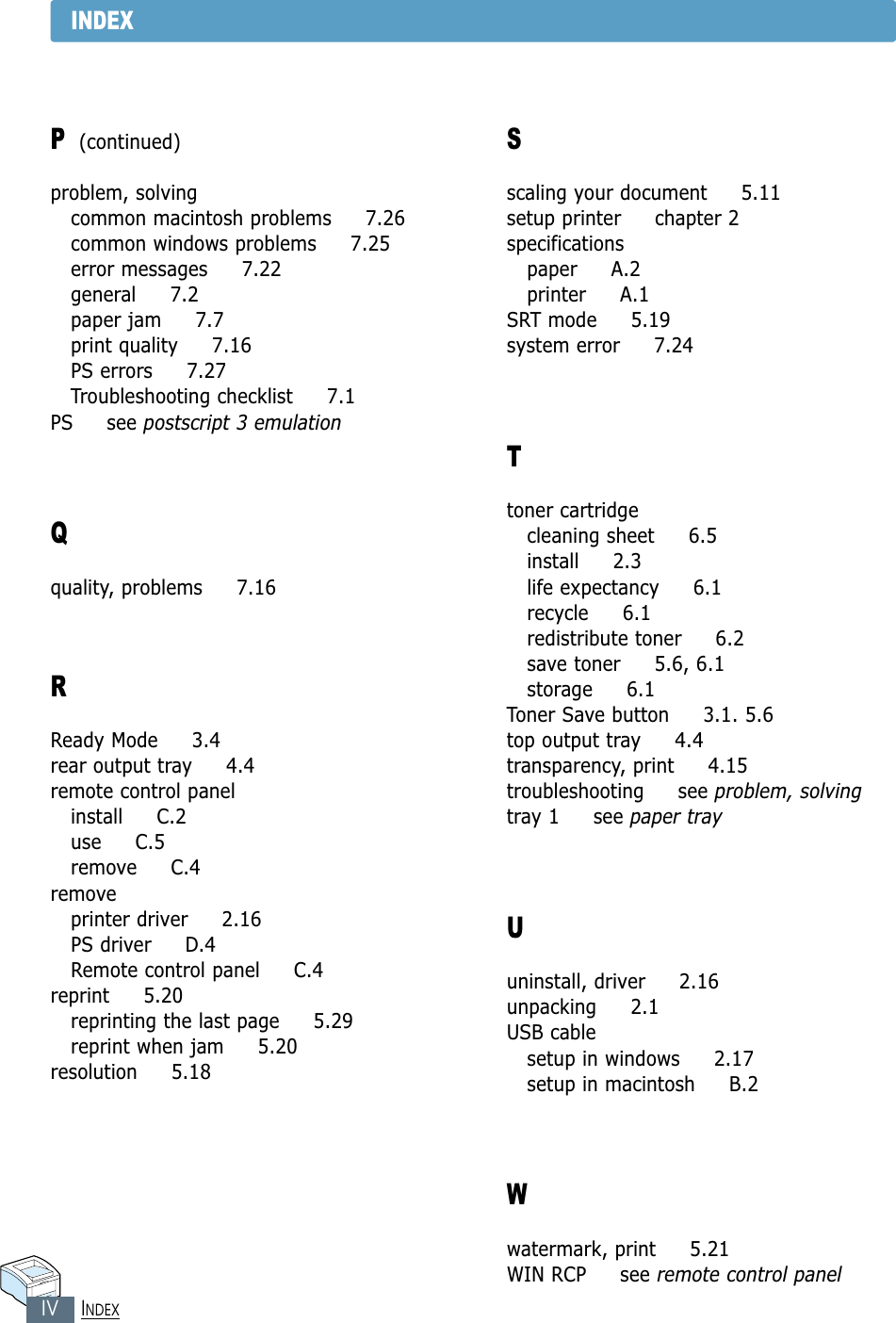

IVINDEXP(continued)problem, solvingcommon macintosh problems 7.26common windows problems 7.25error messages 7.22general 7.2paper jam 7.7print quality 7.16PS errors 7.27Troubleshooting checklist 7.1PS see postscript 3 emulationQquality, problems 7.16RReady Mode 3.4rear output tray 4.4remote control panelinstall C.2use C.5remove C.4removeprinter driver 2.16PS driver D.4Remote control panel C.4reprint 5.20reprinting the last page 5.29reprint when jam 5.20resolution 5.18Sscaling your document 5.11setup printer chapter 2specificationspaper A.2printer A.1SRT mode 5.19system error 7.24Ttoner cartridgecleaning sheet 6.5install 2.3life expectancy 6.1recycle 6.1redistribute toner 6.2save toner 5.6, 6.1storage 6.1Toner Save button 3.1. 5.6top output tray 4.4transparency, print 4.15troubleshooting see problem, solvingtray 1 see paper trayUuninstall, driver 2.16unpacking 2.1USB cablesetup in windows 2.17setup in macintosh B.2Wwatermark, print 5.21WIN RCP see remote control panelINDEX
