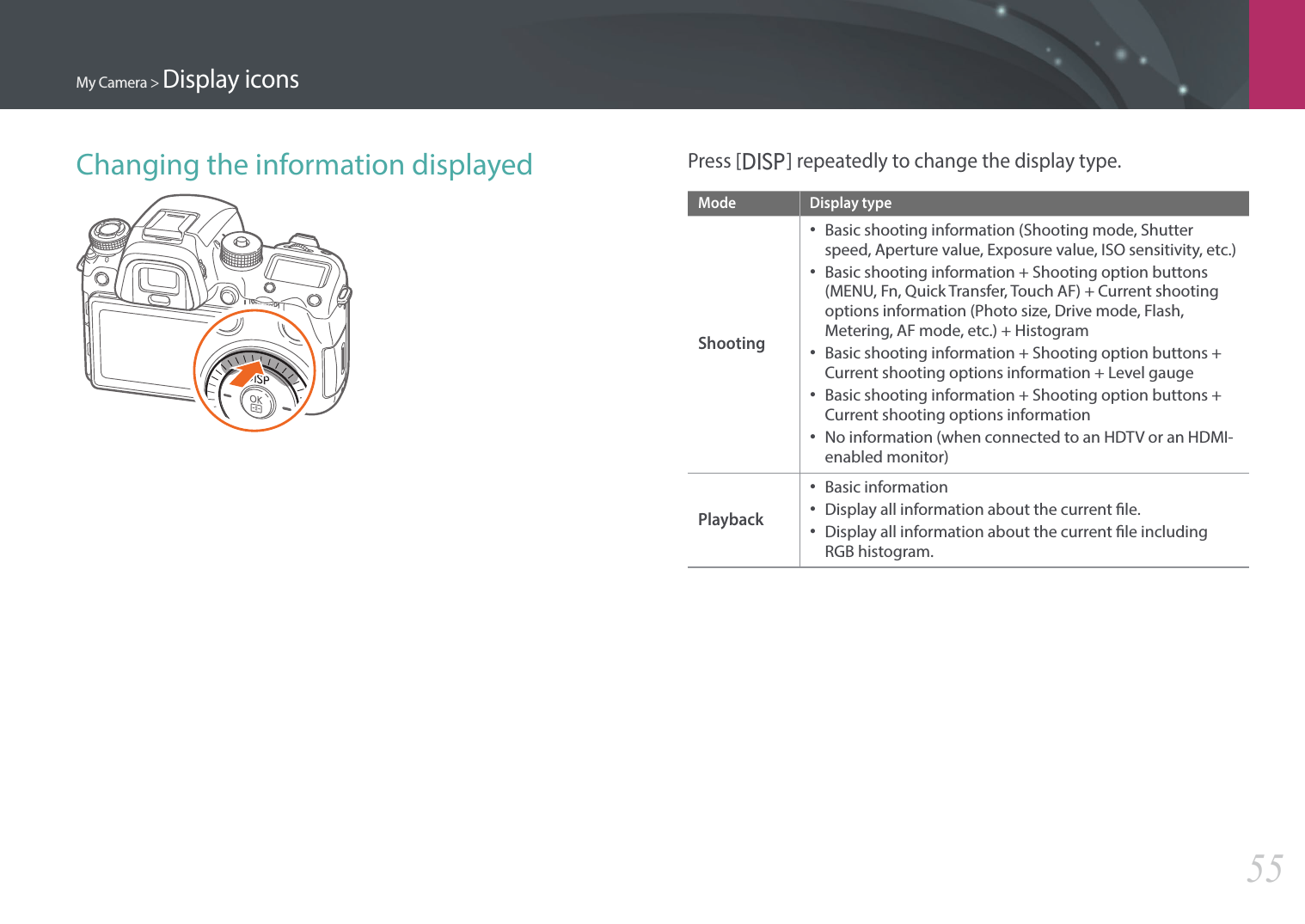

![My Camera > Display icons55Changing the information displayedPress [D] repeatedly to change the display type.Mode Display typeShooting• Basic shooting information (Shooting mode, Shutter speed, Aperture value, Exposure value, ISO sensitivity, etc.)• Basic shooting information + Shooting option buttons (MENU, Fn, Quick Transfer, Touch AF) + Current shooting options information (Photo size, Drive mode, Flash, Metering, AF mode, etc.) + Histogram• Basic shooting information + Shooting option buttons + Current shooting options information + Level gauge• Basic shooting information + Shooting option buttons + Current shooting options information• No information (when connected to an HDTV or an HDMI- enabled monitor) Playback• Basic information• Display all information about the current le.• Display all information about the current le including RGB histogram.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-5.png)

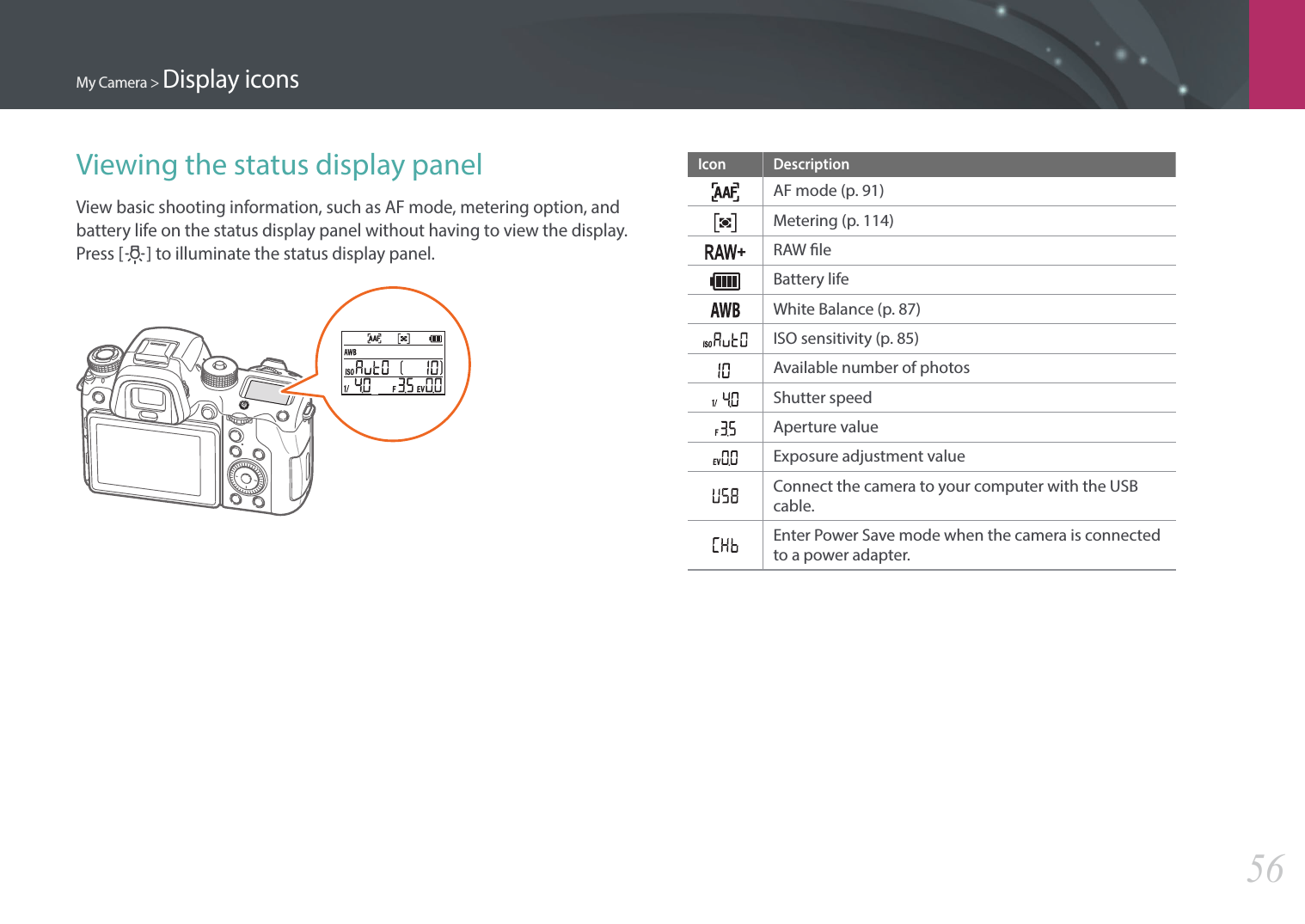

![My Camera > Display icons56Viewing the status display panelView basic shooting information, such as AF mode, metering option, and battery life on the status display panel without having to view the display. Press [O] to illuminate the status display panel.Icon DescriptionAF mode (p. 91)Metering (p. 114)RAW leBattery lifeWhite Balance (p. 87)ISO sensitivity (p. 85)Available number of photosShutter speedAperture valueExposure adjustment value Connect the camera to your computer with the USB cable.Enter Power Save mode when the camera is connected to a power adapter.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-6.png)

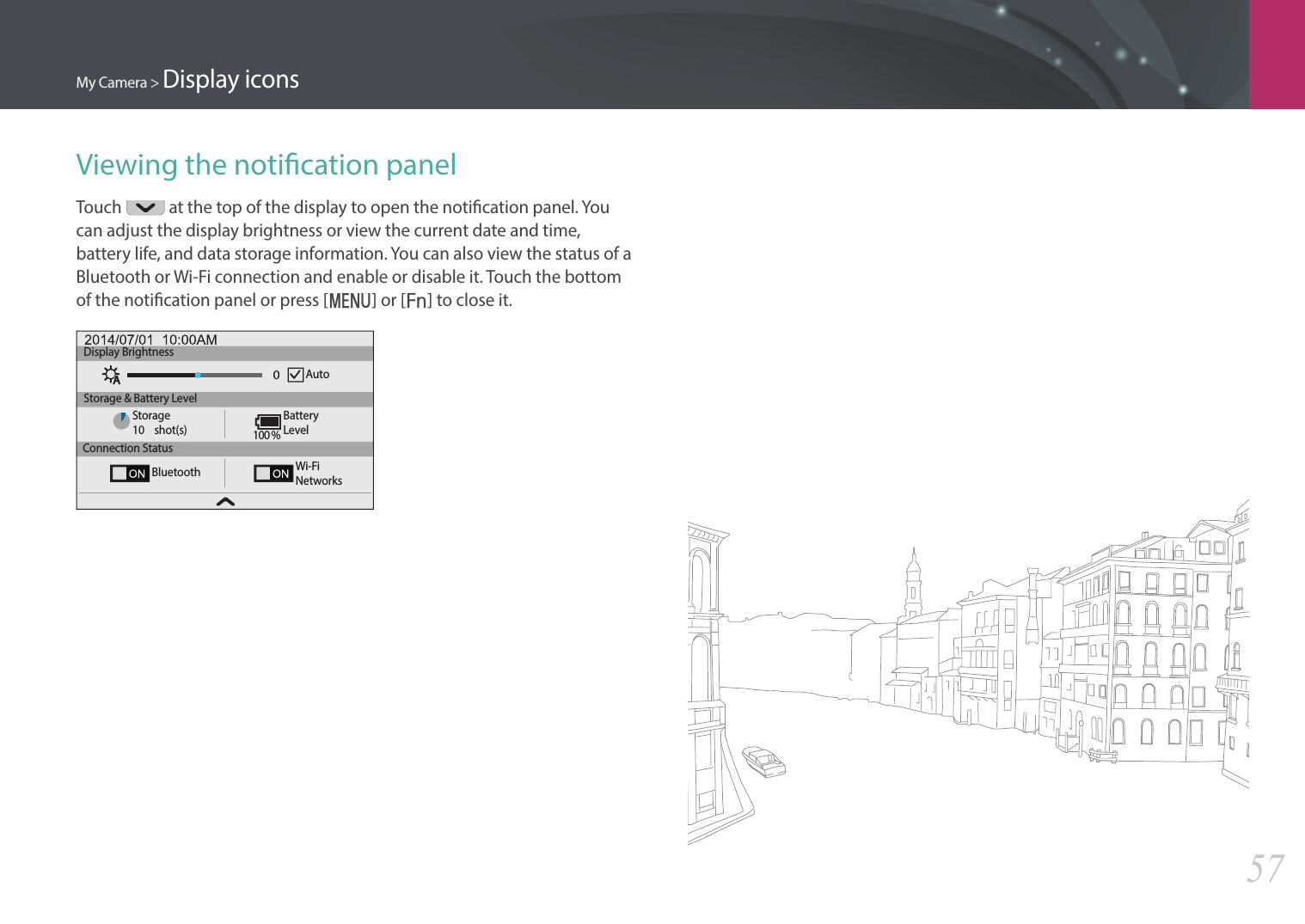

![My Camera > Display icons57Viewing the notication panelTouch at the top of the display to open the notication panel. You can adjust the display brightness or view the current date and time, battery life, and data storage information. You can also view the status of a Bluetooth or Wi-Fi connection and enable or disable it. Touch the bottom of the notication panel or press [m] or [f] to close it.AutoStorage10 shot(s)Battery LevelBluetooth Wi-Fi Networks100 %Connection StatusStorage & Battery LevelDisplay Brightness](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-7.png)

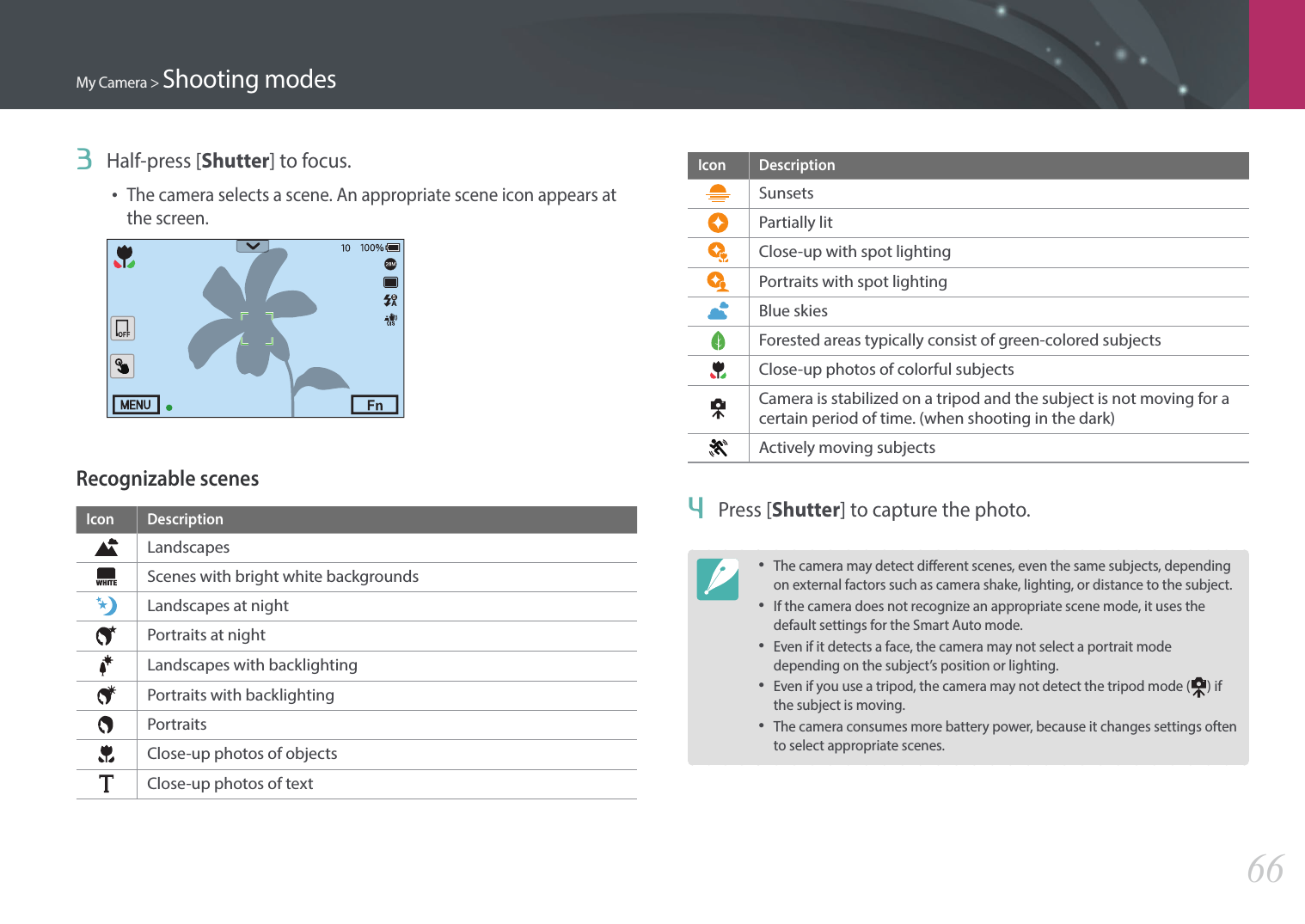

![My Camera > Shooting modes663 Half-press [Shutter] to focus.•The camera selects a scene. An appropriate scene icon appears at the screen.ASRecognizable scenesIcon DescriptionLandscapesScenes with bright white backgroundsLandscapes at nightPortraits at nightLandscapes with backlightingPortraits with backlightingPortraitsClose-up photos of objectsClose-up photos of textIcon DescriptionSunsetsPartially litClose-up with spot lightingPortraits with spot lightingBlue skiesForested areas typically consist of green-colored subjectsClose-up photos of colorful subjectsCamera is stabilized on a tripod and the subject is not moving for a certain period of time. (when shooting in the dark)Actively moving subjects4 Press [Shutter] to capture the photo.•The camera may detect dierent scenes, even the same subjects, depending on external factors such as camera shake, lighting, or distance to the subject.•If the camera does not recognize an appropriate scene mode, it uses the default settings for the Smart Auto mode.•Even if it detects a face, the camera may not select a portrait mode depending on the subject’s position or lighting.•Even if you use a tripod, the camera may not detect the tripod mode ( ) if the subject is moving.•The camera consumes more battery power, because it changes settings often to select appropriate scenes.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-16.png)

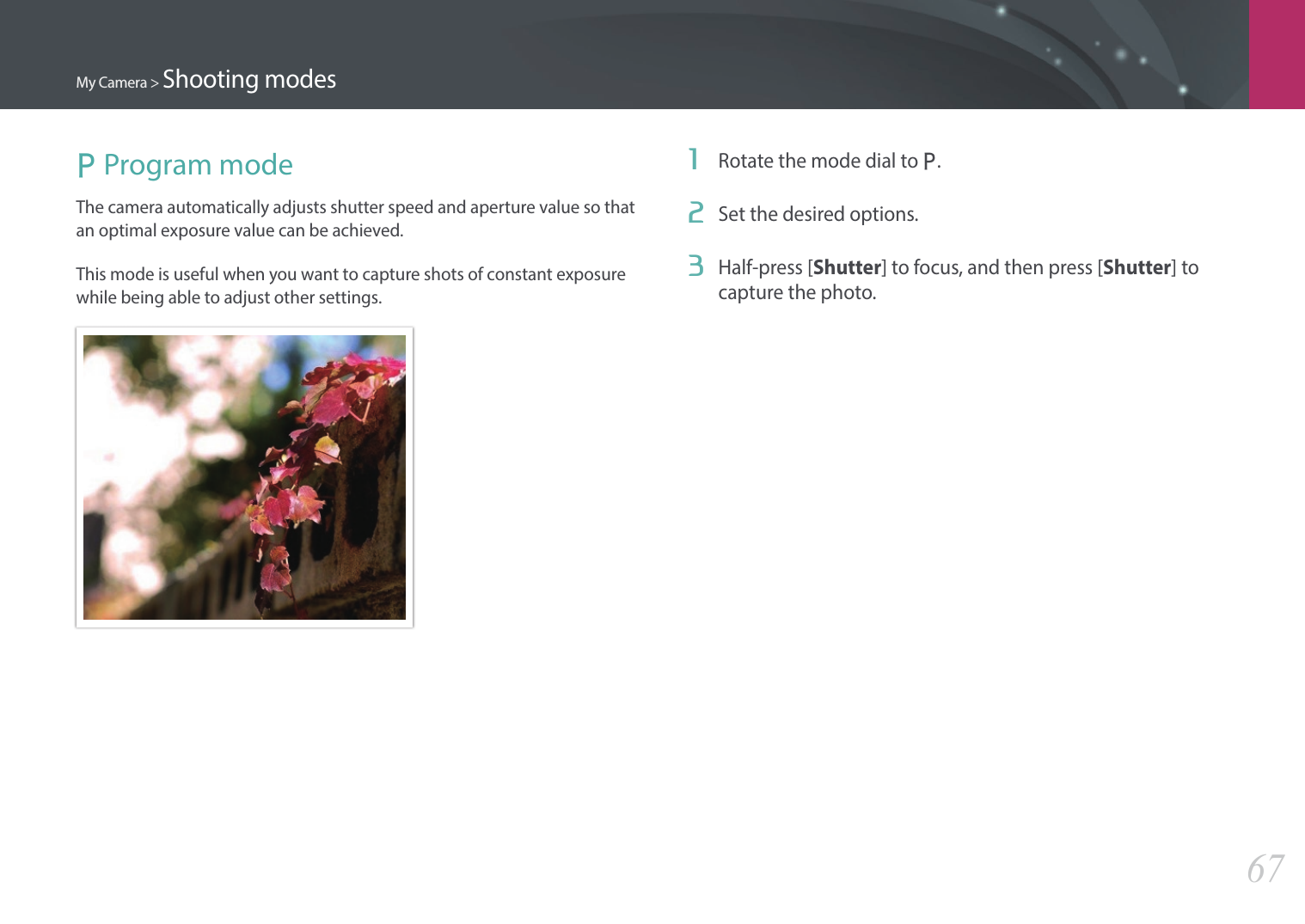

![My Camera > Shooting modes67P Program modeThe camera automatically adjusts shutter speed and aperture value so that an optimal exposure value can be achieved.This mode is useful when you want to capture shots of constant exposure while being able to adjust other settings.1 Rotate the mode dial to P.2 Set the desired options.3 Half-press [Shutter] to focus, and then press [Shutter] to capture the photo.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-17.png)

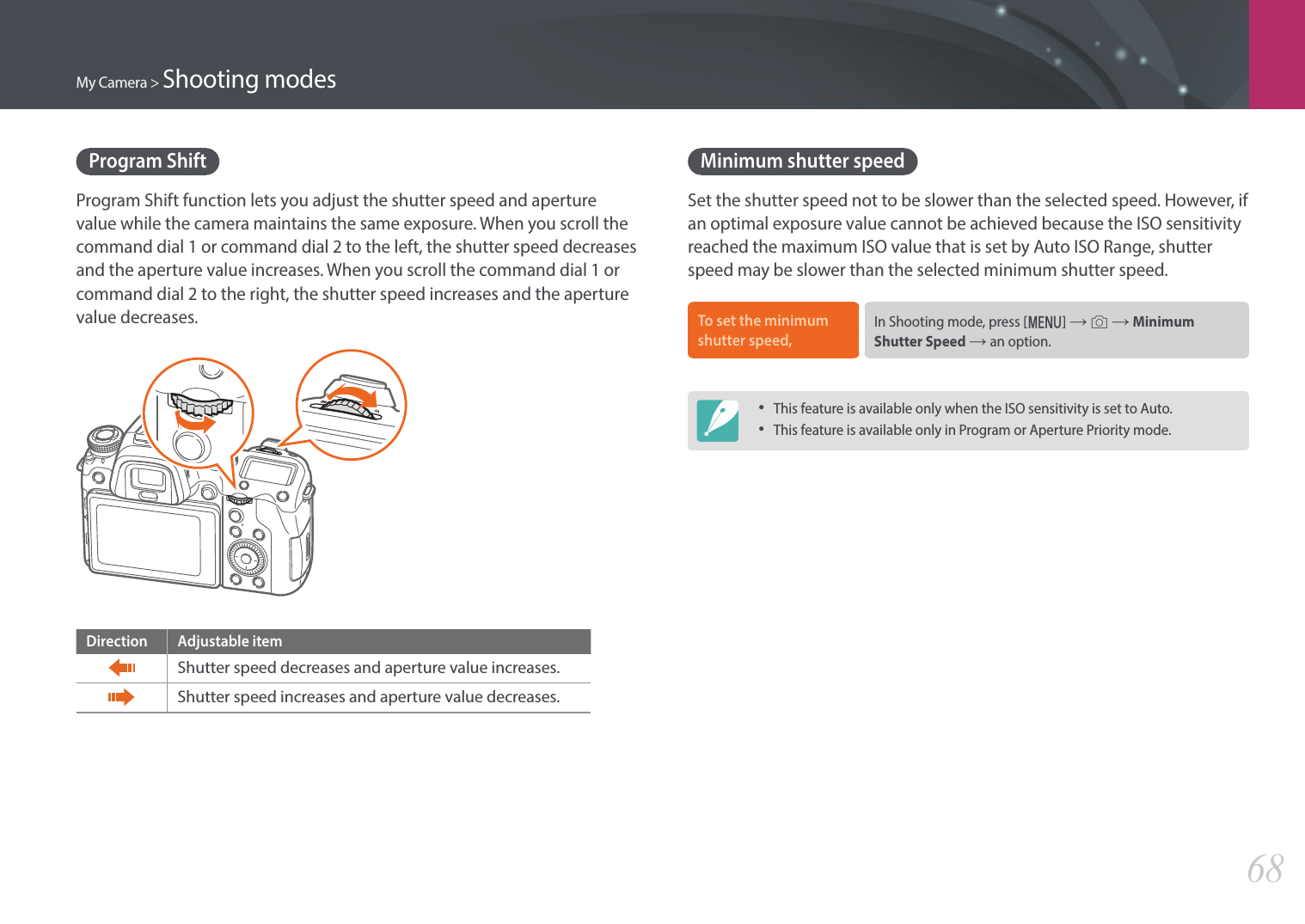

![My Camera > Shooting modes68Program ShiftProgram Shift function lets you adjust the shutter speed and aperture value while the camera maintains the same exposure. When you scroll the command dial 1 or command dial 2 to the left, the shutter speed decreases and the aperture value increases. When you scroll the command dial 1 or command dial 2 to the right, the shutter speed increases and the aperture value decreases.Direction Adjustable itemShutter speed decreases and aperture value increases.Shutter speed increases and aperture value decreases.Minimum shutter speedSet the shutter speed not to be slower than the selected speed. However, if an optimal exposure value cannot be achieved because the ISO sensitivity reached the maximum ISO value that is set by Auto ISO Range, shutter speed may be slower than the selected minimum shutter speed.To set the minimum shutter speed, In Shooting mode, press [m] → b → Minimum Shutter Speed → an option.•This feature is available only when the ISO sensitivity is set to Auto.•This feature is available only in Program or Aperture Priority mode.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-18.png)

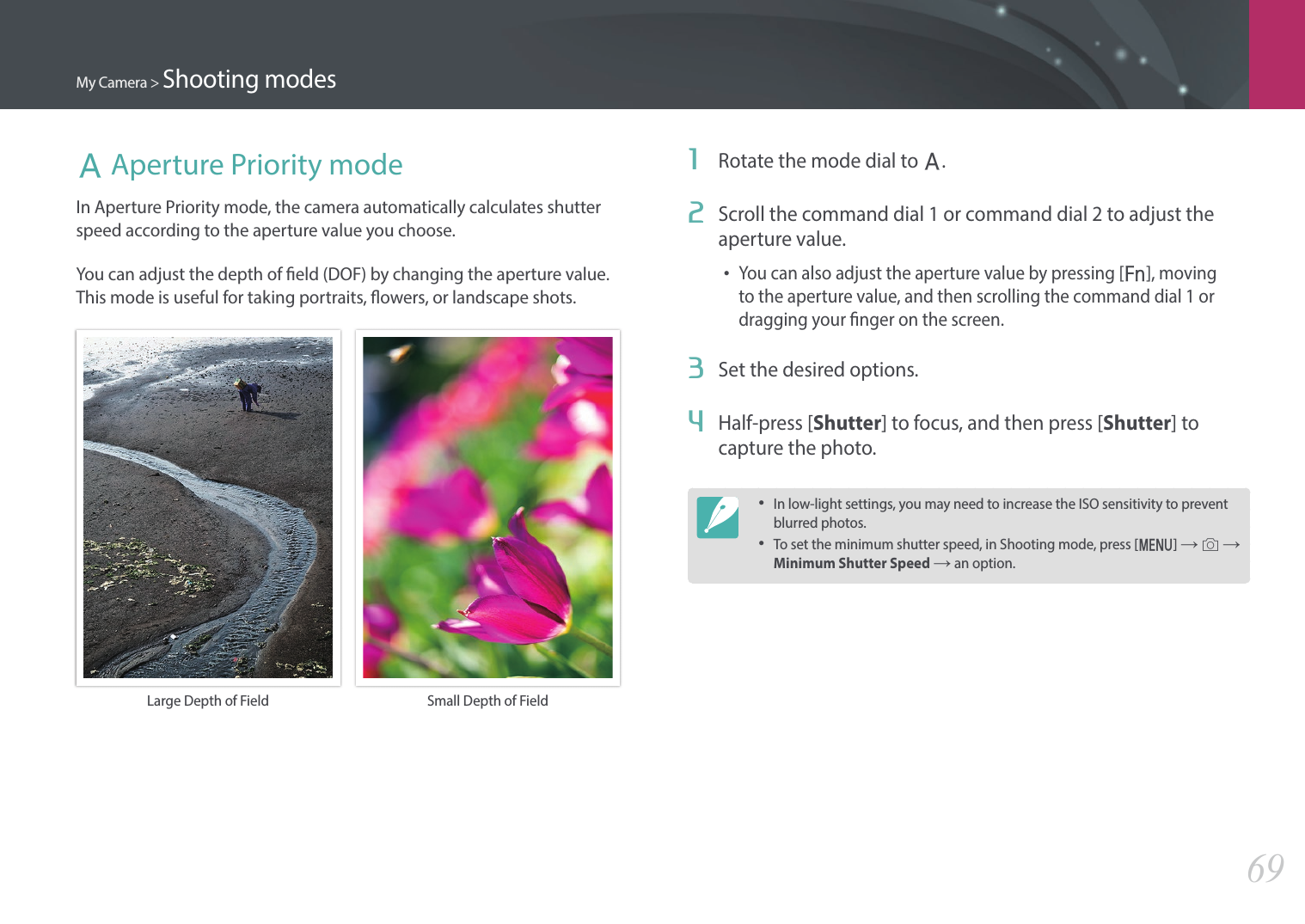

![My Camera > Shooting modes69A Aperture Priority modeIn Aperture Priority mode, the camera automatically calculates shutter speed according to the aperture value you choose.You can adjust the depth of eld (DOF) by changing the aperture value. This mode is useful for taking portraits, owers, or landscape shots.Large Depth of Field Small Depth of Field1 Rotate the mode dial to A.2 Scroll the command dial 1 or command dial 2 to adjust the aperture value.•You can also adjust the aperture value by pressing [f], moving to the aperture value, and then scrolling the command dial 1 or dragging your nger on the screen.3 Set the desired options.4 Half-press [Shutter] to focus, and then press [Shutter] to capture the photo.•In low-light settings, you may need to increase the ISO sensitivity to prevent blurred photos.•To set the minimum shutter speed, in Shooting mode, press [m] → b → Minimum Shutter Speed → an option.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-19.png)

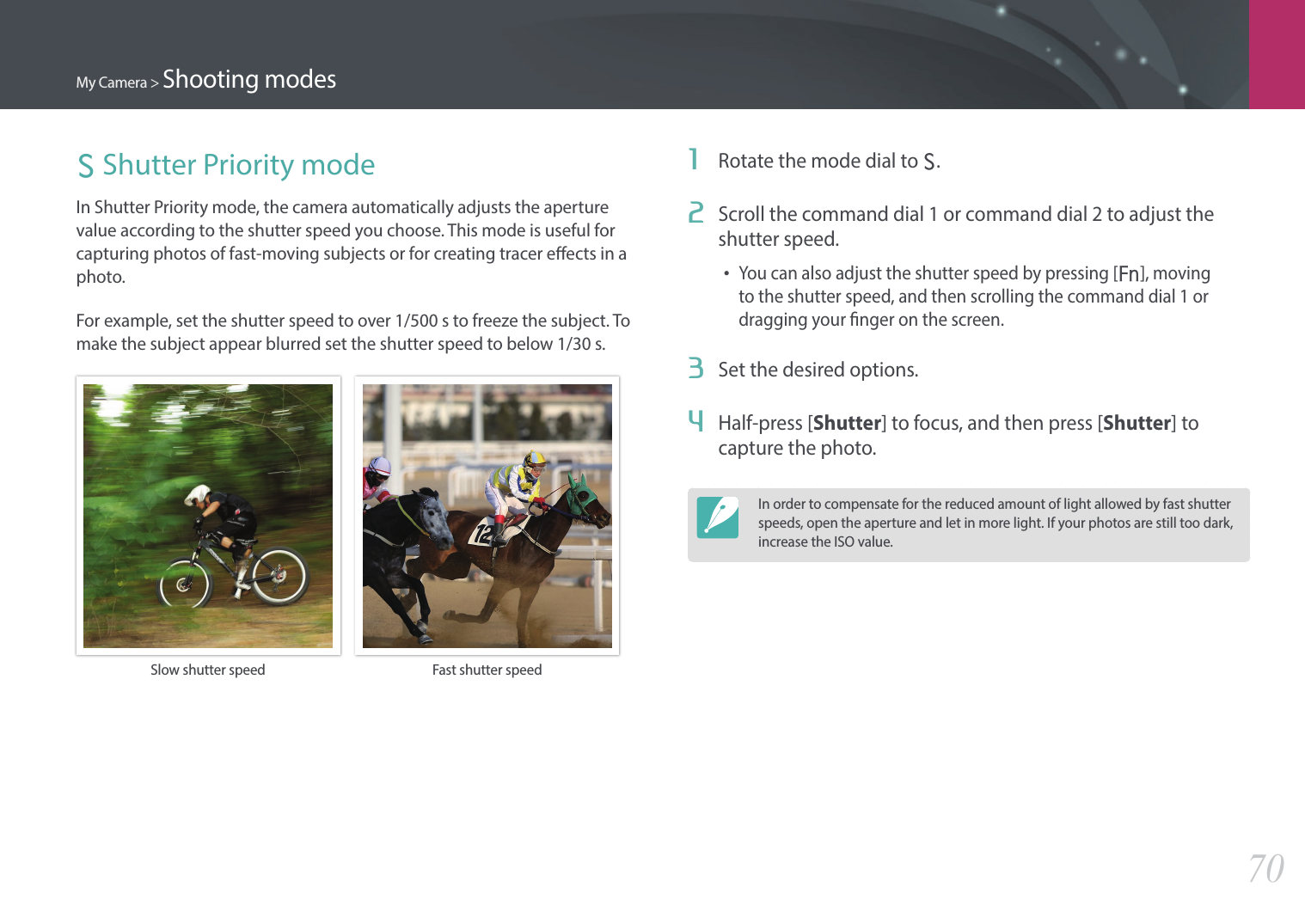

![My Camera > Shooting modes70S Shutter Priority modeIn Shutter Priority mode, the camera automatically adjusts the aperture value according to the shutter speed you choose. This mode is useful for capturing photos of fast-moving subjects or for creating tracer eects in a photo.For example, set the shutter speed to over 1/500 s to freeze the subject. To make the subject appear blurred set the shutter speed to below 1/30 s.Slow shutter speed Fast shutter speed1 Rotate the mode dial to S.2 Scroll the command dial 1 or command dial 2 to adjust the shutter speed.•You can also adjust the shutter speed by pressing [f], moving to the shutter speed, and then scrolling the command dial 1 or dragging your nger on the screen.3 Set the desired options.4 Half-press [Shutter] to focus, and then press [Shutter] to capture the photo.In order to compensate for the reduced amount of light allowed by fast shutter speeds, open the aperture and let in more light. If your photos are still too dark, increase the ISO value.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-20.png)

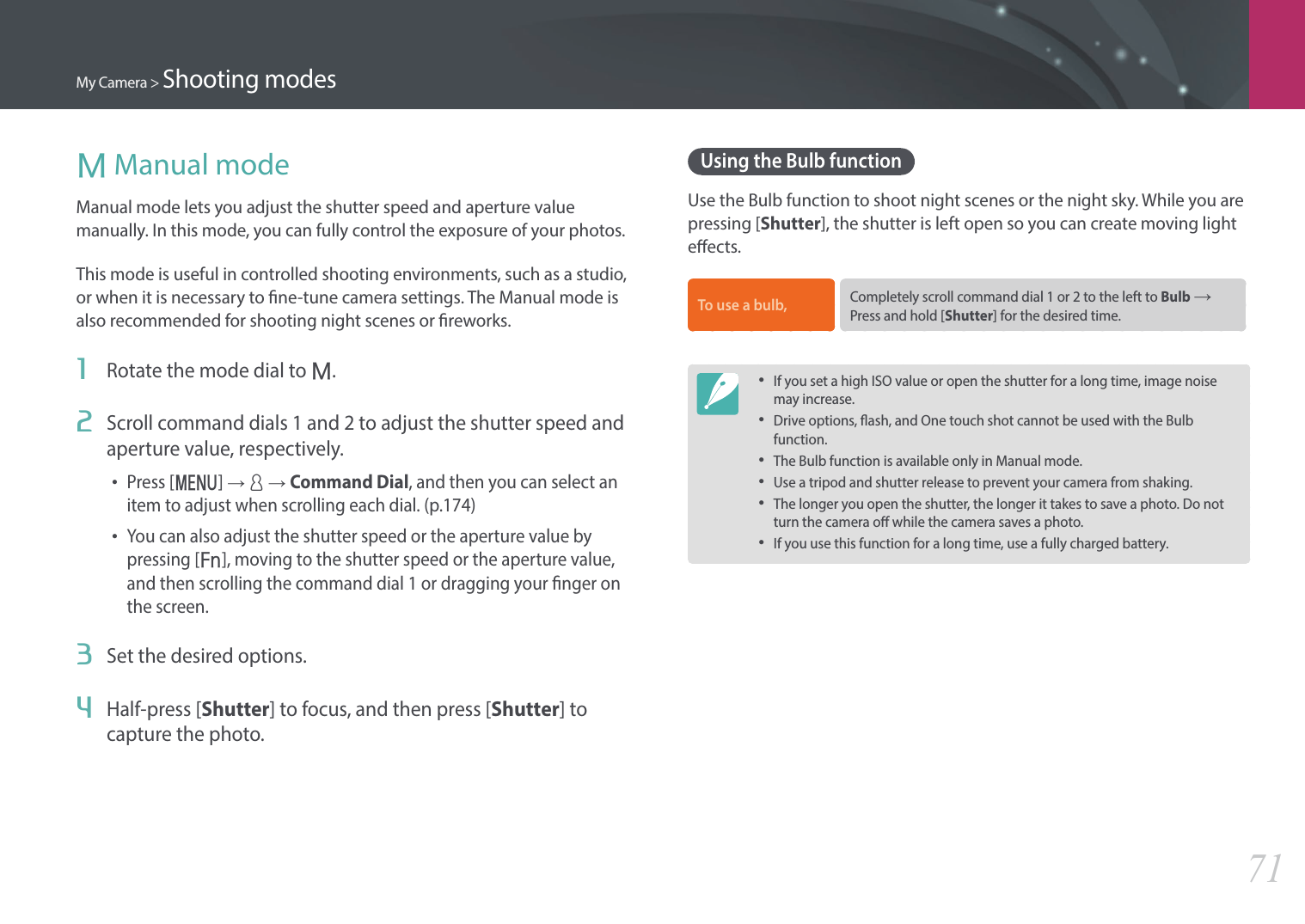

![My Camera > Shooting modes71M Manual modeManual mode lets you adjust the shutter speed and aperture value manually. In this mode, you can fully control the exposure of your photos.This mode is useful in controlled shooting environments, such as a studio, or when it is necessary to ne-tune camera settings. The Manual mode is also recommended for shooting night scenes or reworks.1 Rotate the mode dial to M.2 Scroll command dials 1 and 2 to adjust the shutter speed and aperture value, respectively.•Press [m] → d → Command Dial, and then you can select an item to adjust when scrolling each dial. (p.174)•You can also adjust the shutter speed or the aperture value by pressing [f], moving to the shutter speed or the aperture value, and then scrolling the command dial 1 or dragging your nger on the screen.3 Set the desired options.4 Half-press [Shutter] to focus, and then press [Shutter] to capture the photo.Using the Bulb functionUse the Bulb function to shoot night scenes or the night sky. While you are pressing [Shutter], the shutter is left open so you can create moving light eects.To use a bulb, Completely scroll command dial 1 or 2 to the left to Bulb → Press and hold [Shutter] for the desired time. •If you set a high ISO value or open the shutter for a long time, image noise may increase.•Drive options, ash, and One touch shot cannot be used with the Bulb function.•The Bulb function is available only in Manual mode.•Use a tripod and shutter release to prevent your camera from shaking.•The longer you open the shutter, the longer it takes to save a photo. Do not turn the camera o while the camera saves a photo.•If you use this function for a long time, use a fully charged battery.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-21.png)

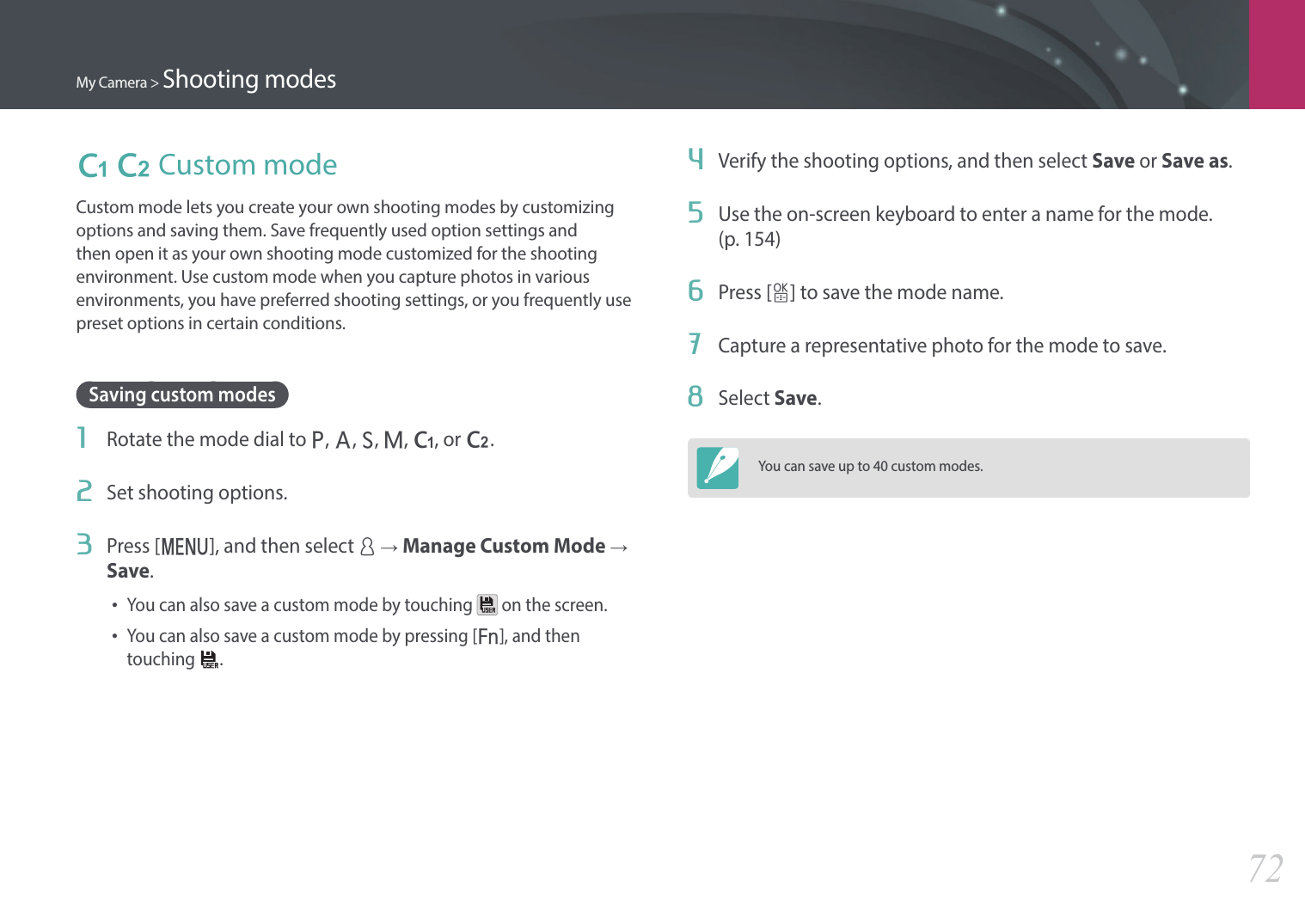

![My Camera > Shooting modes72T U Custom modeCustom mode lets you create your own shooting modes by customizing options and saving them. Save frequently used option settings and then open it as your own shooting mode customized for the shooting environment. Use custom mode when you capture photos in various environments, you have preferred shooting settings, or you frequently use preset options in certain conditions.Saving custom modes1 Rotate the mode dial to P, A, S, M, T, or U.2 Set shooting options.3 Press [m], and then select d → Manage Custom Mode → Save.•You can also save a custom mode by touching on the screen.•You can also save a custom mode by pressing [f], and then touching .4 Verify the shooting options, and then select Save or Save as.5 Use the on-screen keyboard to enter a name for the mode. (p. 154)6 Press [o] to save the mode name.7 Capture a representative photo for the mode to save.8 Select Save.You can save up to 40 custom modes.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-22.png)

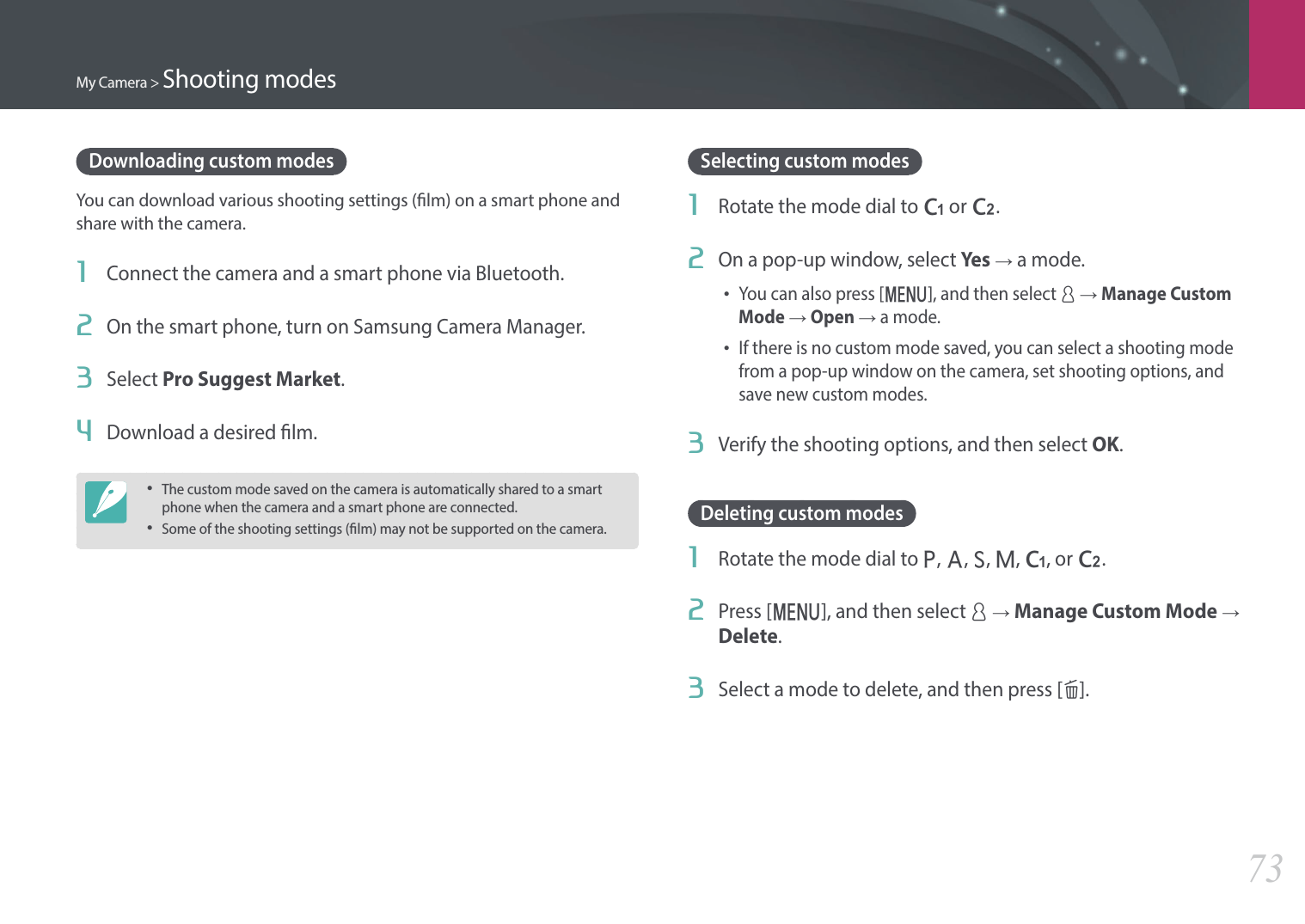

![My Camera > Shooting modes73Downloading custom modesYou can download various shooting settings (lm) on a smart phone and share with the camera.1 Connect the camera and a smart phone via Bluetooth.2 On the smart phone, turn on Samsung Camera Manager.3 Select Pro Suggest Market.4 Download a desired lm.•The custom mode saved on the camera is automatically shared to a smart phone when the camera and a smart phone are connected.•Some of the shooting settings (lm) may not be supported on the camera.Selecting custom modes1 Rotate the mode dial to T or U.2 On a pop-up window, select Yes → a mode.•You can also press [m], and then select d → Manage Custom Mode → Open → a mode.•If there is no custom mode saved, you can select a shooting mode from a pop-up window on the camera, set shooting options, and save new custom modes.3 Verify the shooting options, and then select OK.Deleting custom modes1 Rotate the mode dial to P, A, S, M, T, or U.2 Press [m], and then select d → Manage Custom Mode → Delete.3 Select a mode to delete, and then press [n].](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-23.png)

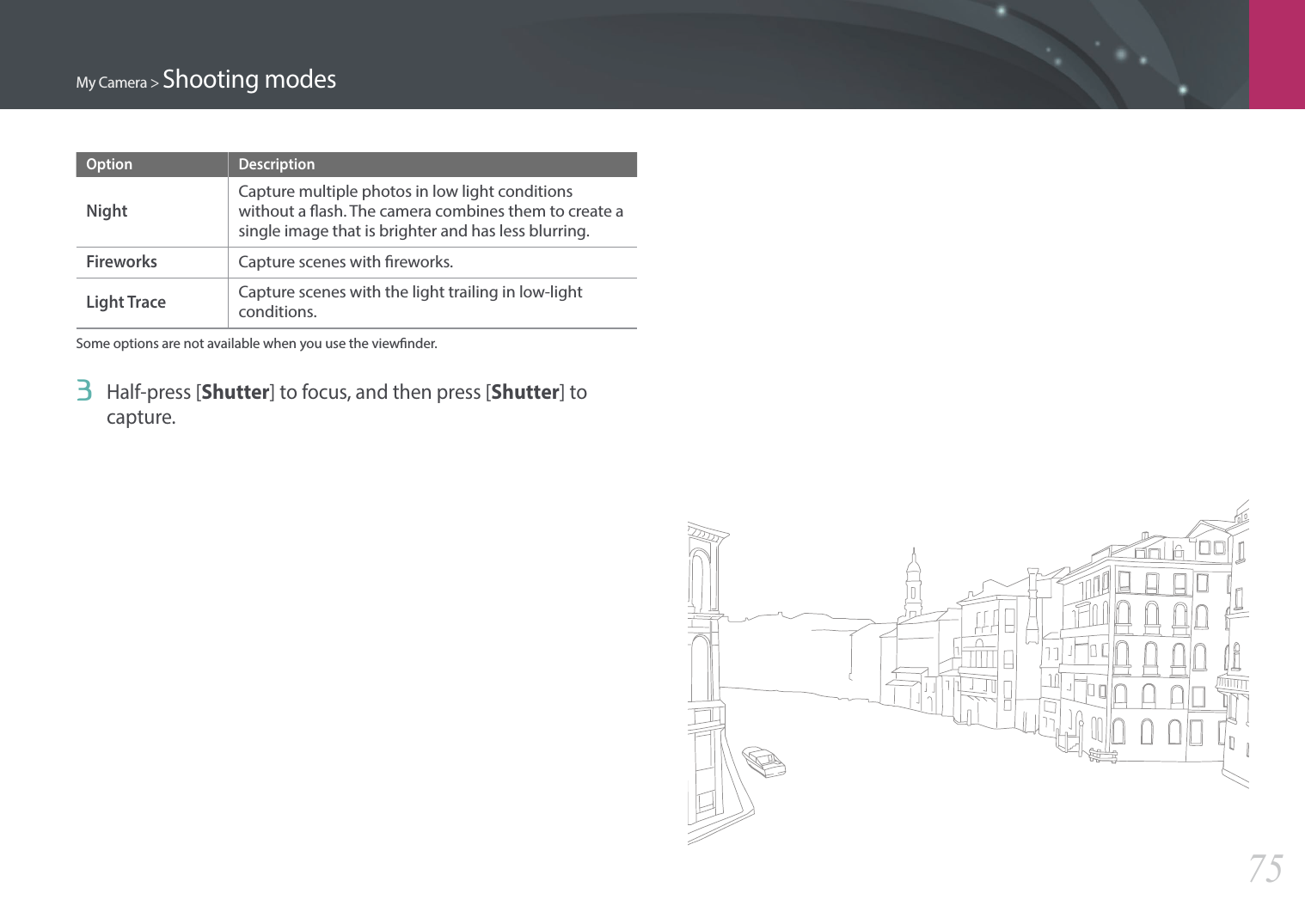

![My Camera > Shooting modes75Option DescriptionNightCapture multiple photos in low light conditions without a ash. The camera combines them to create a single image that is brighter and has less blurring.FireworksCapture scenes with reworks.Light TraceCapture scenes with the light trailing in low-light conditions.Some options are not available when you use the viewnder.3 Half-press [Shutter] to focus, and then press [Shutter] to capture.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-25.png)
![My Camera > Shooting modes764 When you are nished, release [Shutter].•The camera will automatically save the shots into one photo.•If you release [Shutter] while shooting, the panoramic shooting stops and photos that have been captured are saved.•The resolution varies depending on the panoramic photo you captured.•In Panorama mode, some shooting options are not available.•The camera may stop shooting due to the shooting composition or the subject’s movement.•In Panorama mode, your camera may not capture the entire last scene if you stop moving the camera to improve the photo quality. To capture the entire scene, move your camera slightly beyond the point where you want the scene to end.•For best results when capturing panoramic photos, avoid the following:-moving the camera too quickly or too slowly-moving the camera too little to capture the next image-moving the camera at irregular speeds-shaking the camera-shooting in dark places-capturing moving subjects nearby-shooting conditions where the brightness or color of light is changing•Photos taken are automatically saved, and shooting is stopped under the following conditions:-if you change the shooting direction while shooting-if you move the camera too rapidly-if you do not move the cameraCapturing panoramic photosIn Panorama mode, you can capture a wide panoramic scene in a single photo. Panorama mode captures and combines a series of photos to create a panoramic image.1 Rotate the mode dial to s, and then select Panorama.2 Press and hold [Shutter] to start shooting.3 With [Shutter] pressed, slowly move the camera in the direction you selected.•An arrow toward the direction of motion is displayed, and the entire shooting image is displayed in the preview box.•When the scenes are aligned, the camera captures the next photo automatically.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-26.png)

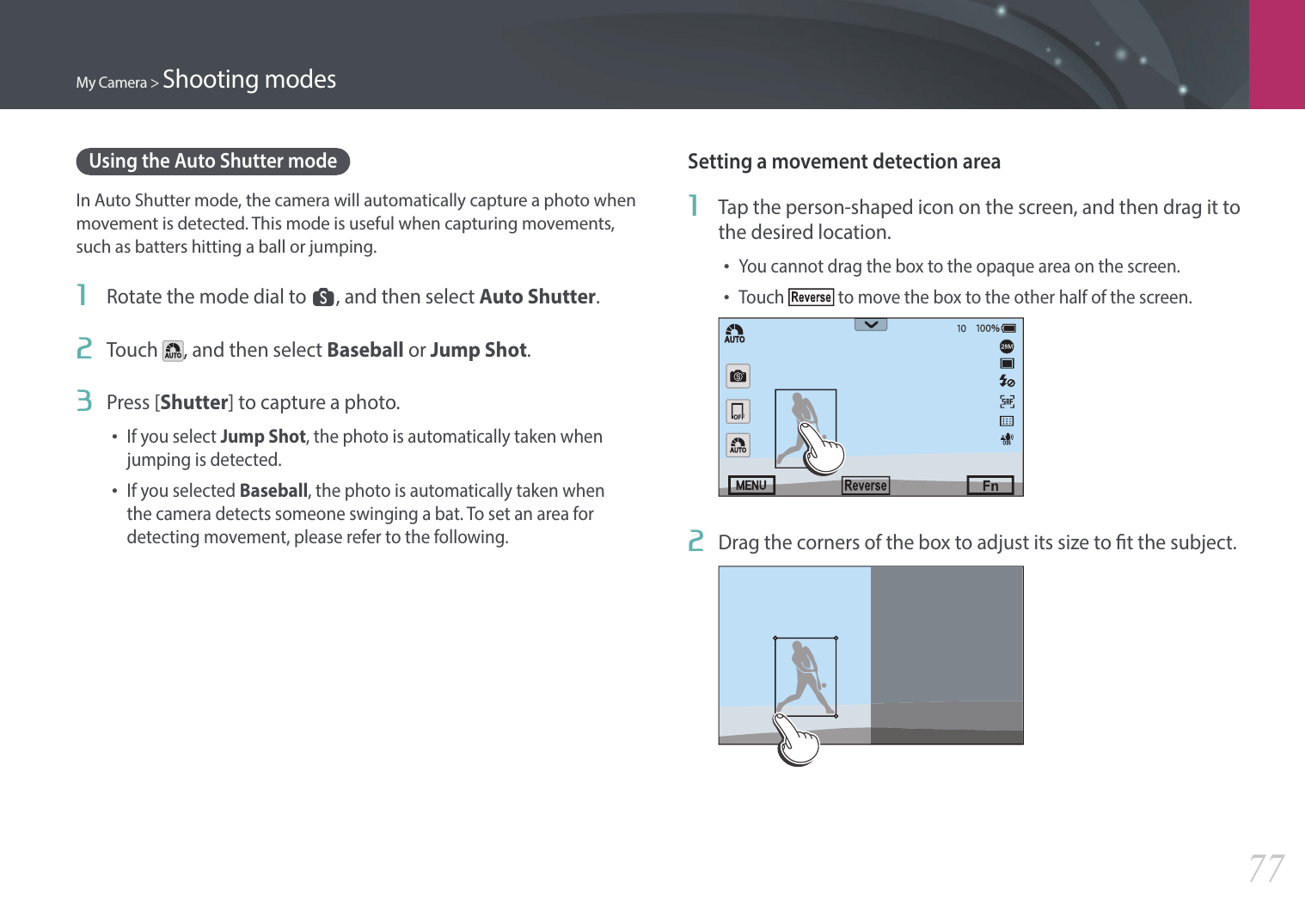

![My Camera > Shooting modes77Using the Auto Shutter modeIn Auto Shutter mode, the camera will automatically capture a photo when movement is detected. This mode is useful when capturing movements, such as batters hitting a ball or jumping.1 Rotate the mode dial to s, and then select Auto Shutter.2 Touch , and then select Baseball or Jump Shot.3 Press [Shutter] to capture a photo.•If you select Jump Shot, the photo is automatically taken when jumping is detected.•If you selected Baseball, the photo is automatically taken when the camera detects someone swinging a bat. To set an area for detecting movement, please refer to the following.Setting a movement detection area1 Tap the person-shaped icon on the screen, and then drag it to the desired location.•You cannot drag the box to the opaque area on the screen.•Touch to move the box to the other half of the screen.2 Drag the corners of the box to adjust its size to t the subject.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-27.png)

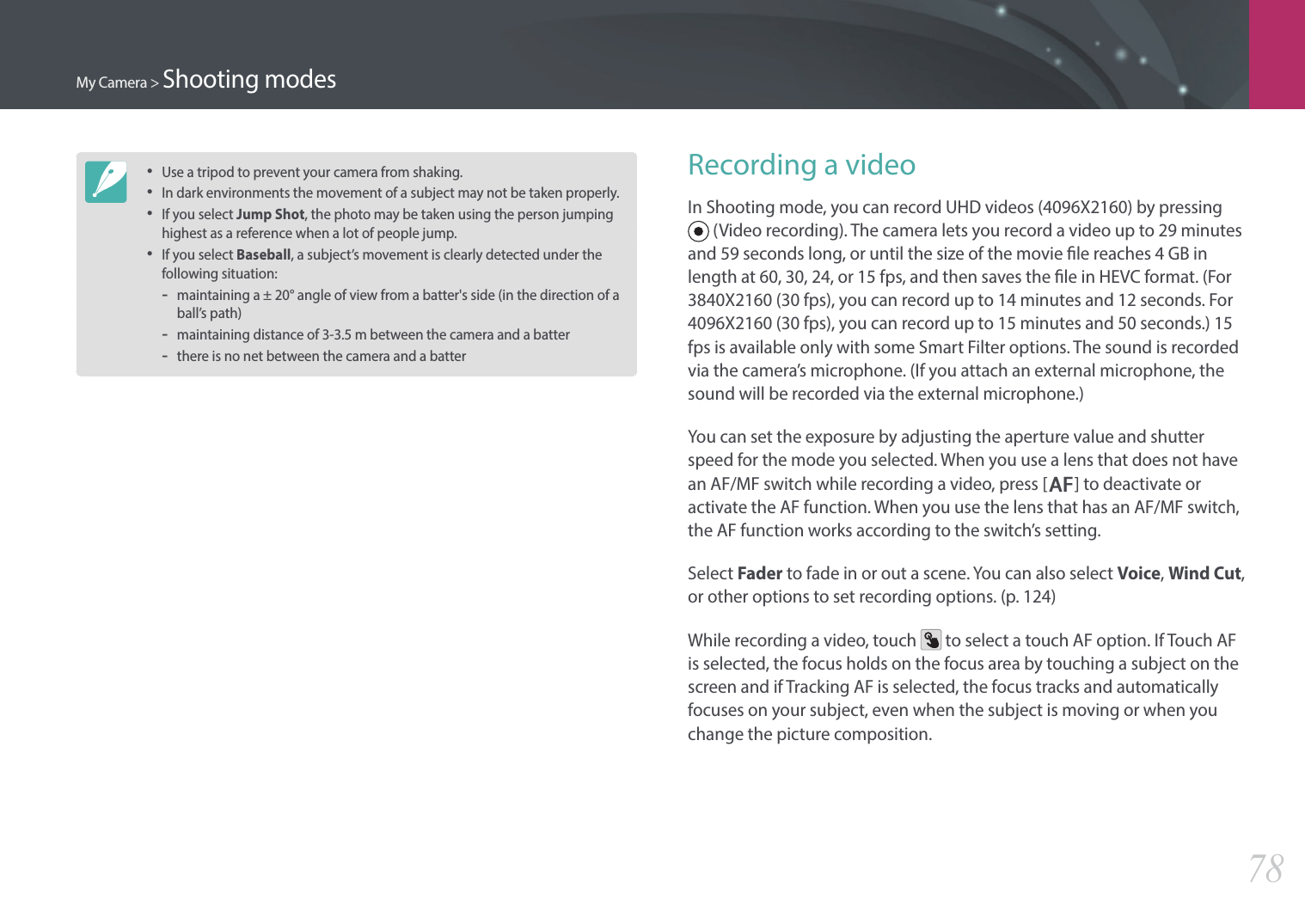

![My Camera > Shooting modes78Recording a videoIn Shooting mode, you can record UHD videos (4096X2160) by pressing (Video recording). The camera lets you record a video up to 29 minutes and 59 seconds long, or until the size of the movie le reaches 4 GB in length at 60, 30, 24, or 15 fps, and then saves the le in HEVC format. (For 3840X2160 (30 fps), you can record up to 14 minutes and 12 seconds. For 4096X2160 (30 fps), you can record up to 15 minutes and 50 seconds.) 15 fps is available only with some Smart Filter options. The sound is recorded via the camera’s microphone. (If you attach an external microphone, the sound will be recorded via the external microphone.)You can set the exposure by adjusting the aperture value and shutter speed for the mode you selected. When you use a lens that does not have an AF/MF switch while recording a video, press [F] to deactivate or activate the AF function. When you use the lens that has an AF/MF switch, the AF function works according to the switch’s setting.Select Fader to fade in or out a scene. You can also select Voice, Wind Cut, or other options to set recording options. (p. 124)While recording a video, touch to select a touch AF option. If Touch AF is selected, the focus holds on the focus area by touching a subject on the screen and if Tracking AF is selected, the focus tracks and automatically focuses on your subject, even when the subject is moving or when you change the picture composition.•Use a tripod to prevent your camera from shaking.•In dark environments the movement of a subject may not be taken properly.•If you select Jump Shot, the photo may be taken using the person jumping highest as a reference when a lot of people jump.•If you select Baseball, a subject’s movement is clearly detected under the following situation:-maintaining a ± 20° angle of view from a batter's side (in the direction of a ball’s path)-maintaining distance of 3-3.5 m between the camera and a batter-there is no net between the camera and a batter](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-28.png)

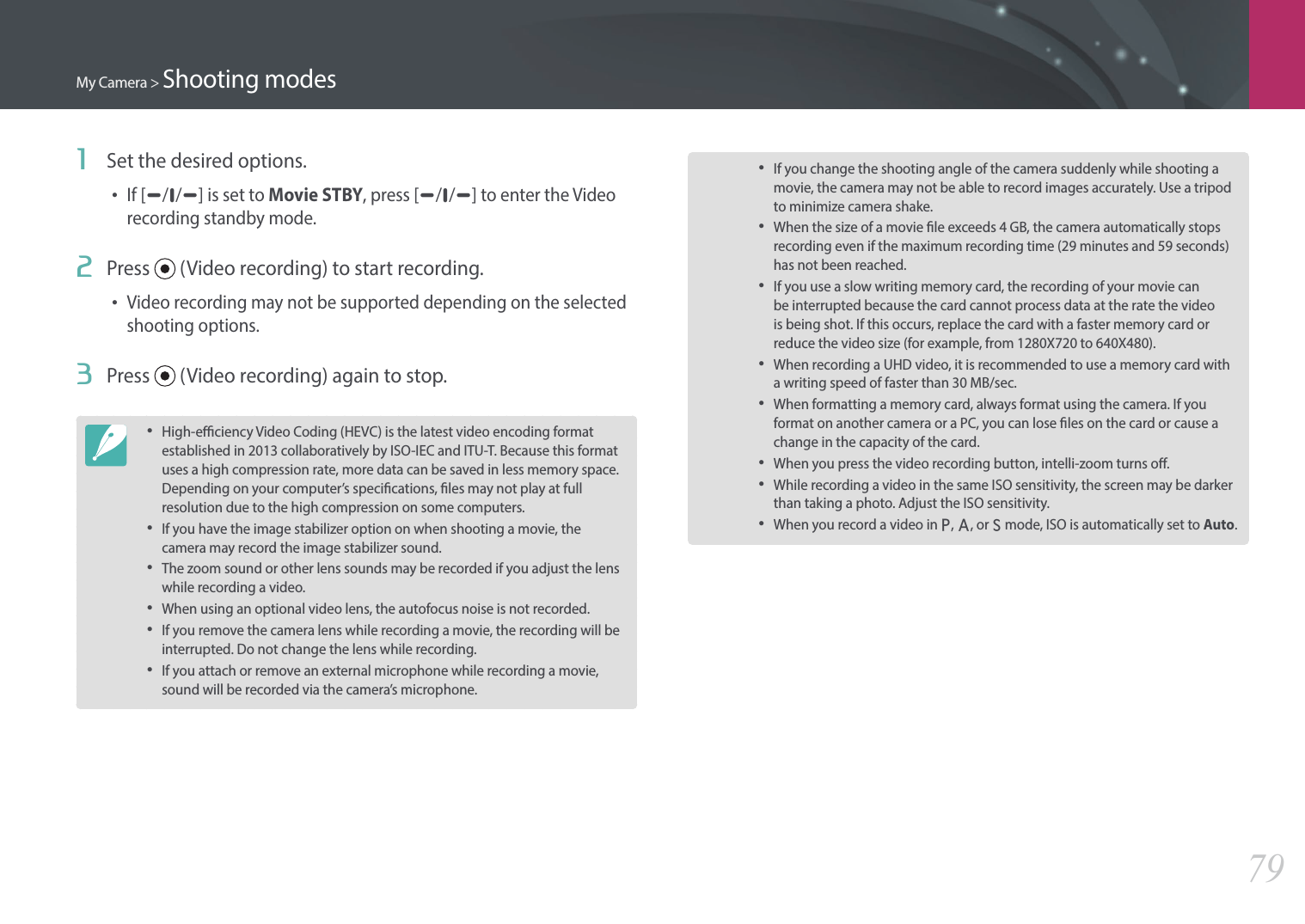

![My Camera > Shooting modes791 Set the desired options.•If [e/h/e] is set to Movie STBY, press [e/h/e] to enter the Video recording standby mode.2 Press (Video recording) to start recording.•Video recording may not be supported depending on the selected shooting options.3 Press (Video recording) again to stop.•High-eciency Video Coding (HEVC) is the latest video encoding format established in 2013 collaboratively by ISO-IEC and ITU-T. Because this format uses a high compression rate, more data can be saved in less memory space. Depending on your computer’s specications, les may not play at full resolution due to the high compression on some computers.•If you have the image stabilizer option on when shooting a movie, the camera may record the image stabilizer sound.•The zoom sound or other lens sounds may be recorded if you adjust the lens while recording a video.•When using an optional video lens, the autofocus noise is not recorded.•If you remove the camera lens while recording a movie, the recording will be interrupted. Do not change the lens while recording.•If you attach or remove an external microphone while recording a movie, sound will be recorded via the camera’s microphone.•If you change the shooting angle of the camera suddenly while shooting a movie, the camera may not be able to record images accurately. Use a tripod to minimize camera shake.•When the size of a movie le exceeds 4 GB, the camera automatically stops recording even if the maximum recording time (29 minutes and 59 seconds) has not been reached.•If you use a slow writing memory card, the recording of your movie can be interrupted because the card cannot process data at the rate the video is being shot. If this occurs, replace the card with a faster memory card or reduce the video size (for example, from 1280X720 to 640X480).•When recording a UHD video, it is recommended to use a memory card with a writing speed of faster than 30 MB/sec.•When formatting a memory card, always format using the camera. If you format on another camera or a PC, you can lose les on the card or cause a change in the capacity of the card.•When you press the video recording button, intelli-zoom turns o.•While recording a video in the same ISO sensitivity, the screen may be darker than taking a photo. Adjust the ISO sensitivity.•When you record a video in P, A, or S mode, ISO is automatically set to Auto.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-29.png)

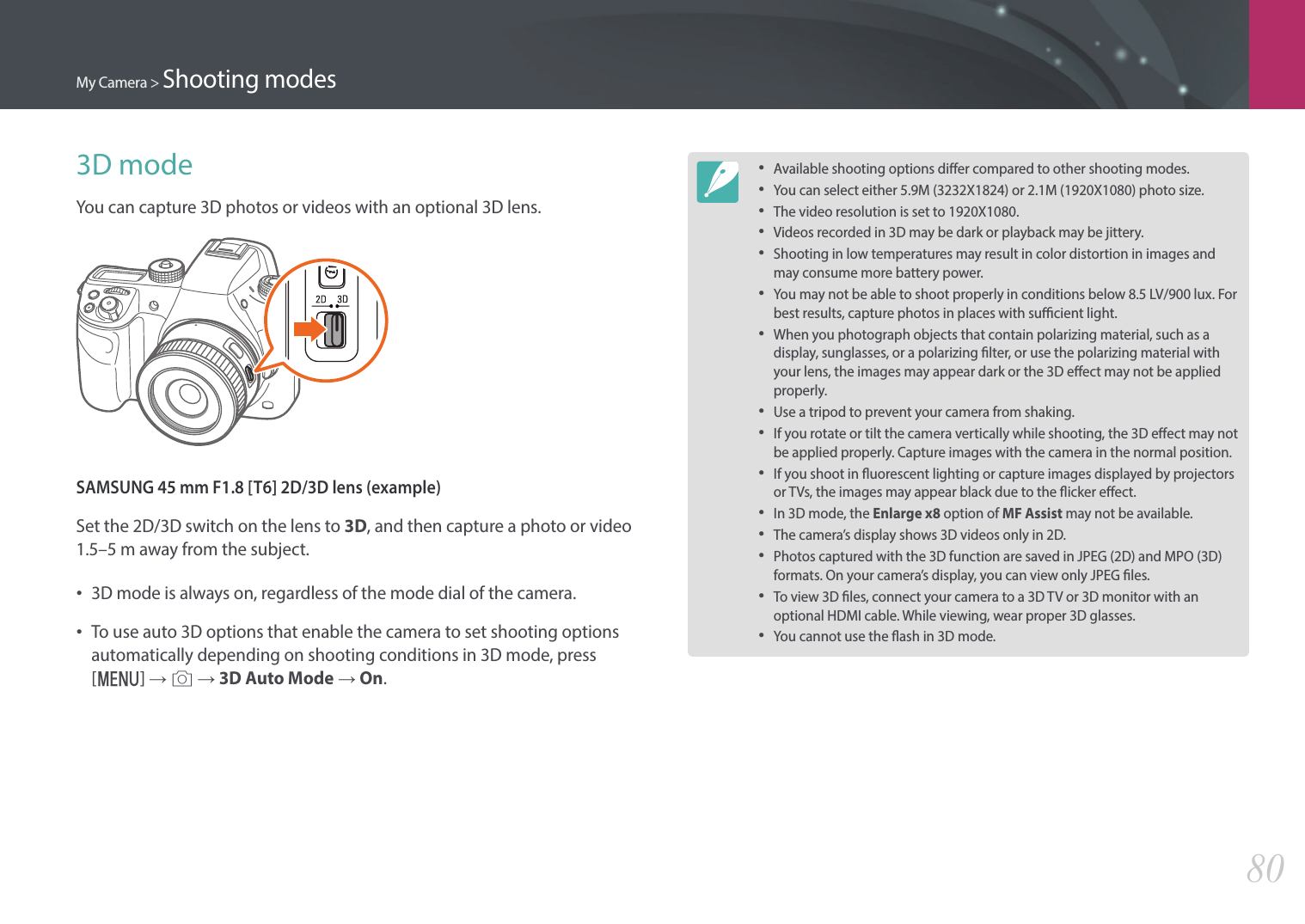

![My Camera > Shooting modes803D modeYou can capture 3D photos or videos with an optional 3D lens.SAMSUNG 45 mm F1.8 [T6] 2D/3D lens (example)Set the 2D/3D switch on the lens to 3D, and then capture a photo or video 1.5–5 m away from the subject.•3D mode is always on, regardless of the mode dial of the camera.•To use auto 3D options that enable the camera to set shooting options automatically depending on shooting conditions in 3D mode, press [m] → b → 3D Auto Mode → On.•Available shooting options dier compared to other shooting modes.•You can select either 5.9M (3232X1824) or 2.1M (1920X1080) photo size.•The video resolution is set to 1920X1080.•Videos recorded in 3D may be dark or playback may be jittery.•Shooting in low temperatures may result in color distortion in images and may consume more battery power.•You may not be able to shoot properly in conditions below 8.5 LV/900 lux. For best results, capture photos in places with sucient light.•When you photograph objects that contain polarizing material, such as a display, sunglasses, or a polarizing lter, or use the polarizing material with your lens, the images may appear dark or the 3D eect may not be applied properly.•Use a tripod to prevent your camera from shaking.•If you rotate or tilt the camera vertically while shooting, the 3D eect may not be applied properly. Capture images with the camera in the normal position.•If you shoot in uorescent lighting or capture images displayed by projectors or TVs, the images may appear black due to the icker eect.•In 3D mode, the Enlarge x8 option of MF Assist may not be available.•The camera’s display shows 3D videos only in 2D.•Photos captured with the 3D function are saved in JPEG (2D) and MPO (3D) formats. On your camera’s display, you can view only JPEG les.•To view 3D les, connect your camera to a 3D TV or 3D monitor with an optional HDMI cable. While viewing, wear proper 3D glasses.•You cannot use the ash in 3D mode.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-30.png)

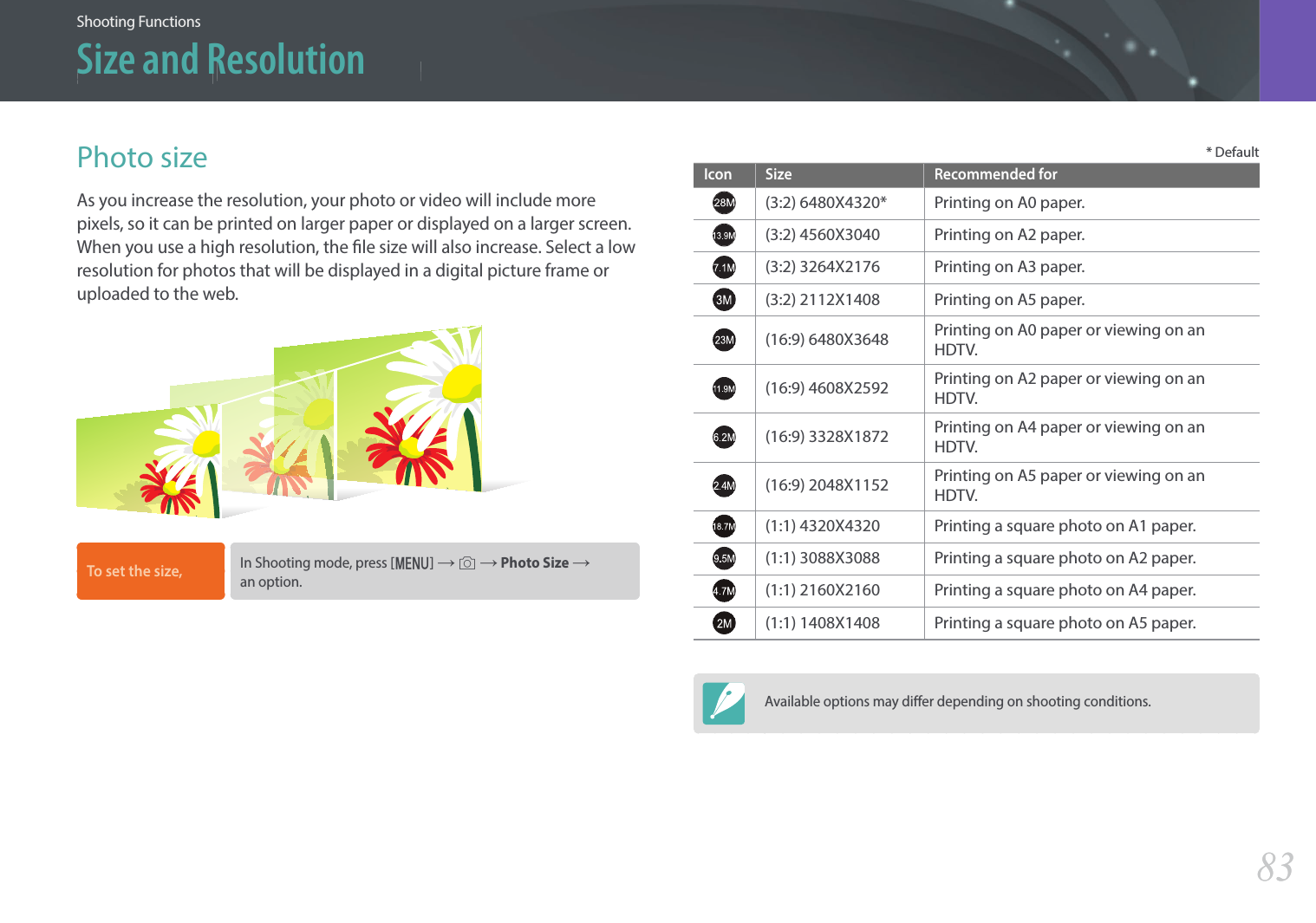

![83Shooting Functions > Size and Resolution83Shooting Functions > Size and ResolutionShooting FunctionsPhoto sizeAs you increase the resolution, your photo or video will include more pixels, so it can be printed on larger paper or displayed on a larger screen. When you use a high resolution, the le size will also increase. Select a low resolution for photos that will be displayed in a digital picture frame or uploaded to the web.To set the size, In Shooting mode, press [m] → b → Photo Size → an option.* DefaultIcon Size Recommended for(3:2) 6480X4320* Printing on A0 paper.(3:2) 4560X3040 Printing on A2 paper.(3:2) 3264X2176 Printing on A3 paper.(3:2) 2112X1408 Printing on A5 paper.(16:9) 6480X3648 Printing on A0 paper or viewing on an HDTV.(16:9) 4608X2592 Printing on A2 paper or viewing on an HDTV.(16:9) 3328X1872 Printing on A4 paper or viewing on an HDTV.(16:9) 2048X1152 Printing on A5 paper or viewing on an HDTV.(1:1) 4320X4320 Printing a square photo on A1 paper.(1:1) 3088X3088 Printing a square photo on A2 paper.(1:1) 2160X2160 Printing a square photo on A4 paper.(1:1) 1408X1408 Printing a square photo on A5 paper.Available options may dier depending on shooting conditions.Size and Resolution](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-33.png)

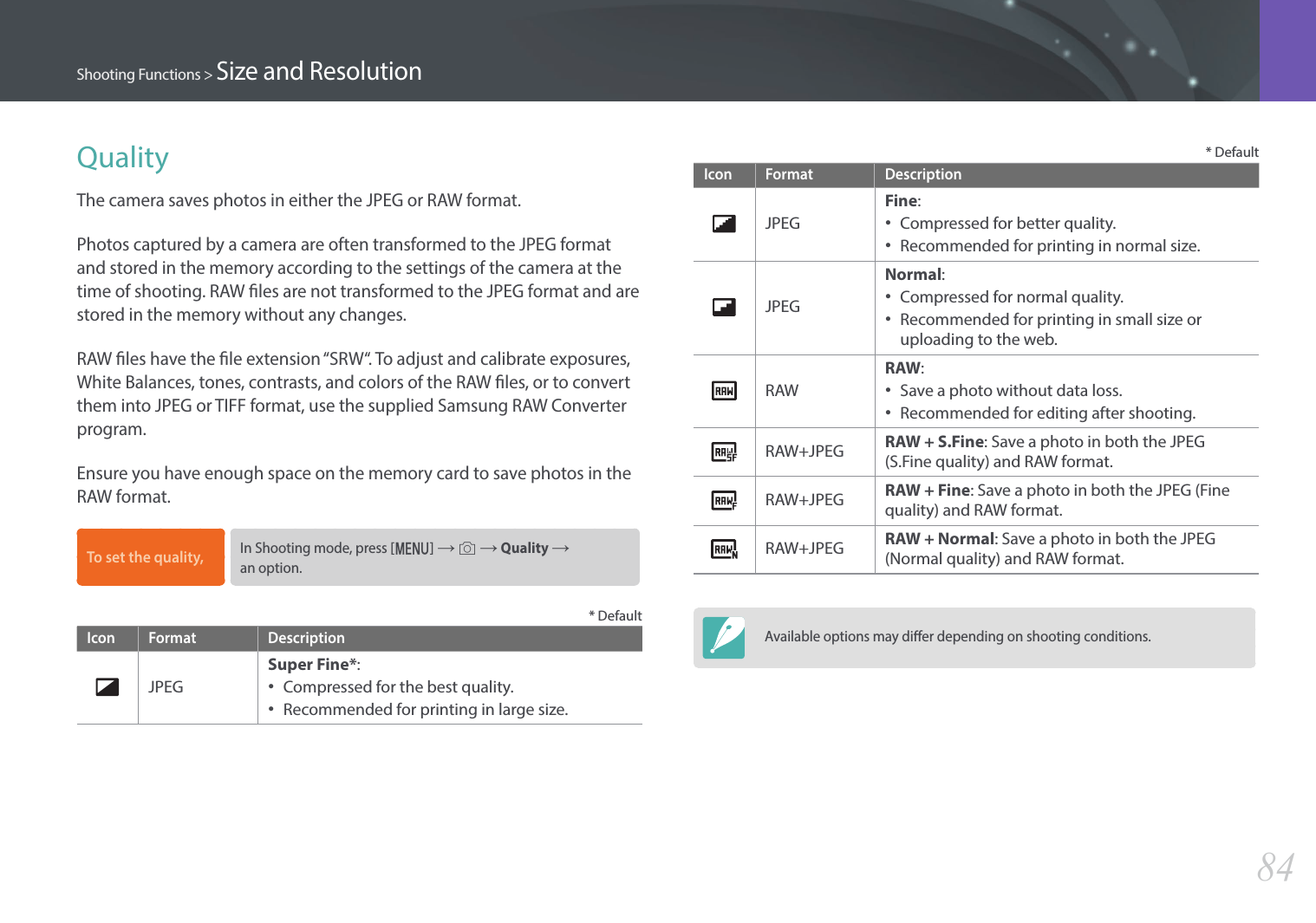

![84Shooting Functions > Size and ResolutionQualityThe camera saves photos in either the JPEG or RAW format.Photos captured by a camera are often transformed to the JPEG format and stored in the memory according to the settings of the camera at the time of shooting. RAW les are not transformed to the JPEG format and are stored in the memory without any changes.RAW les have the le extension “SRW“. To adjust and calibrate exposures, White Balances, tones, contrasts, and colors of the RAW les, or to convert them into JPEG or TIFF format, use the supplied Samsung RAW Converter program.Ensure you have enough space on the memory card to save photos in the RAW format.To set the quality, In Shooting mode, press [m] → b → Quality → an option.* DefaultIcon Format DescriptionJPEGSuper Fine*:• Compressed for the best quality.• Recommended for printing in large size.* DefaultIcon Format DescriptionJPEGFine:• Compressed for better quality.• Recommended for printing in normal size.JPEGNormal:• Compressed for normal quality.• Recommended for printing in small size or uploading to the web.RAWRAW:• Save a photo without data loss.• Recommended for editing after shooting.RAW+JPEG RAW + S.Fine: Save a photo in both the JPEG (S.Fine quality) and RAW format.RAW+JPEG RAW + Fine: Save a photo in both the JPEG (Fine quality) and RAW format.RAW+JPEG RAW + Normal: Save a photo in both the JPEG (Normal quality) and RAW format.Available options may dier depending on shooting conditions.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-34.png)

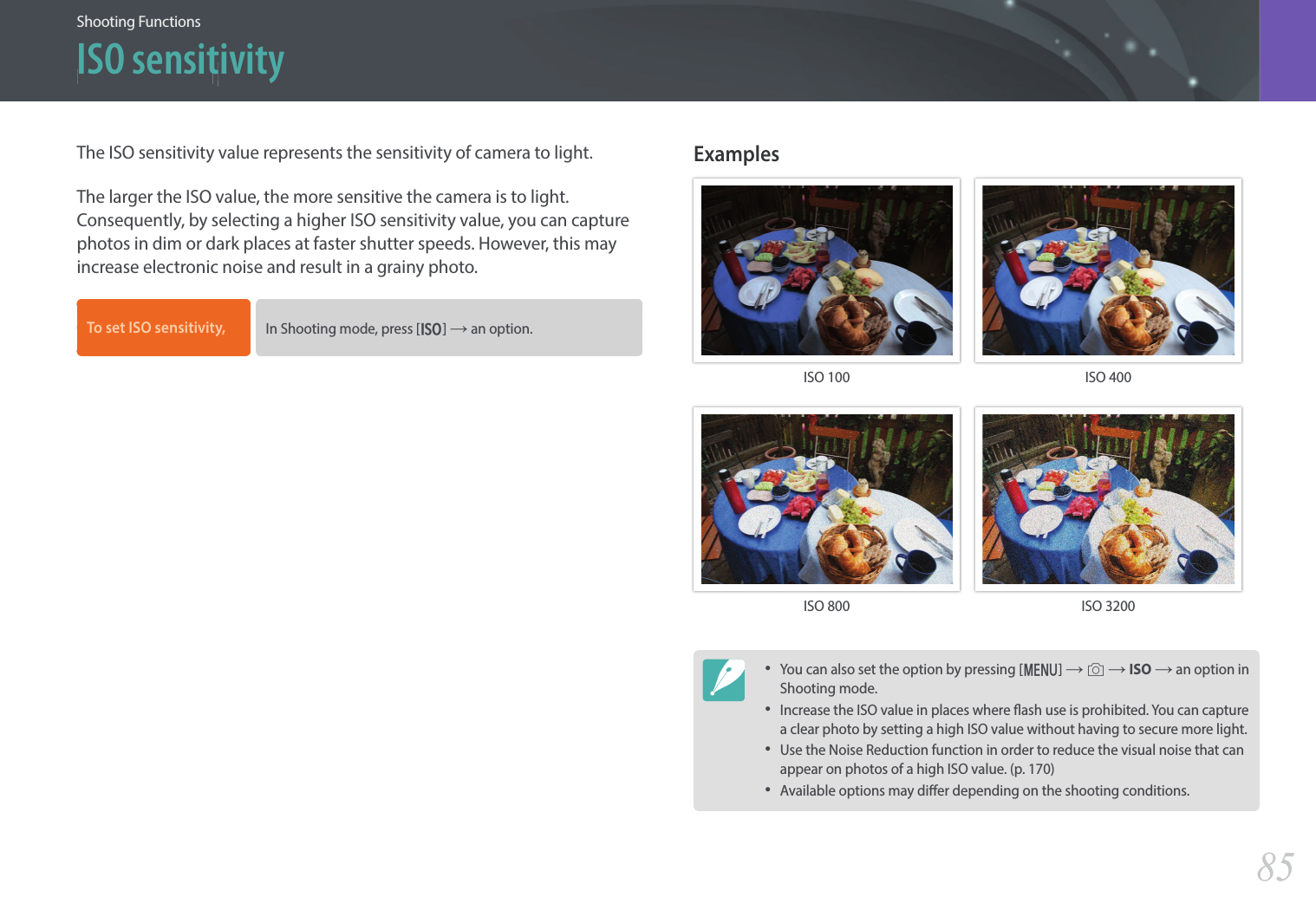

![85Shooting Functions > ISO sensitivity85Shooting Functions > ISO sensitivityShooting FunctionsThe ISO sensitivity value represents the sensitivity of camera to light.The larger the ISO value, the more sensitive the camera is to light. Consequently, by selecting a higher ISO sensitivity value, you can capture photos in dim or dark places at faster shutter speeds. However, this may increase electronic noise and result in a grainy photo.To set ISO sensitivity, In Shooting mode, press [I] → an option.ExamplesISO 100 ISO 400ISO 800 ISO 3200•You can also set the option by pressing [m] → b → ISO → an option in Shooting mode.•Increase the ISO value in places where ash use is prohibited. You can capture a clear photo by setting a high ISO value without having to secure more light.•Use the Noise Reduction function in order to reduce the visual noise that can appear on photos of a high ISO value. (p. 170)•Available options may dier depending on the shooting conditions.ISO sensitivity](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-35.png)

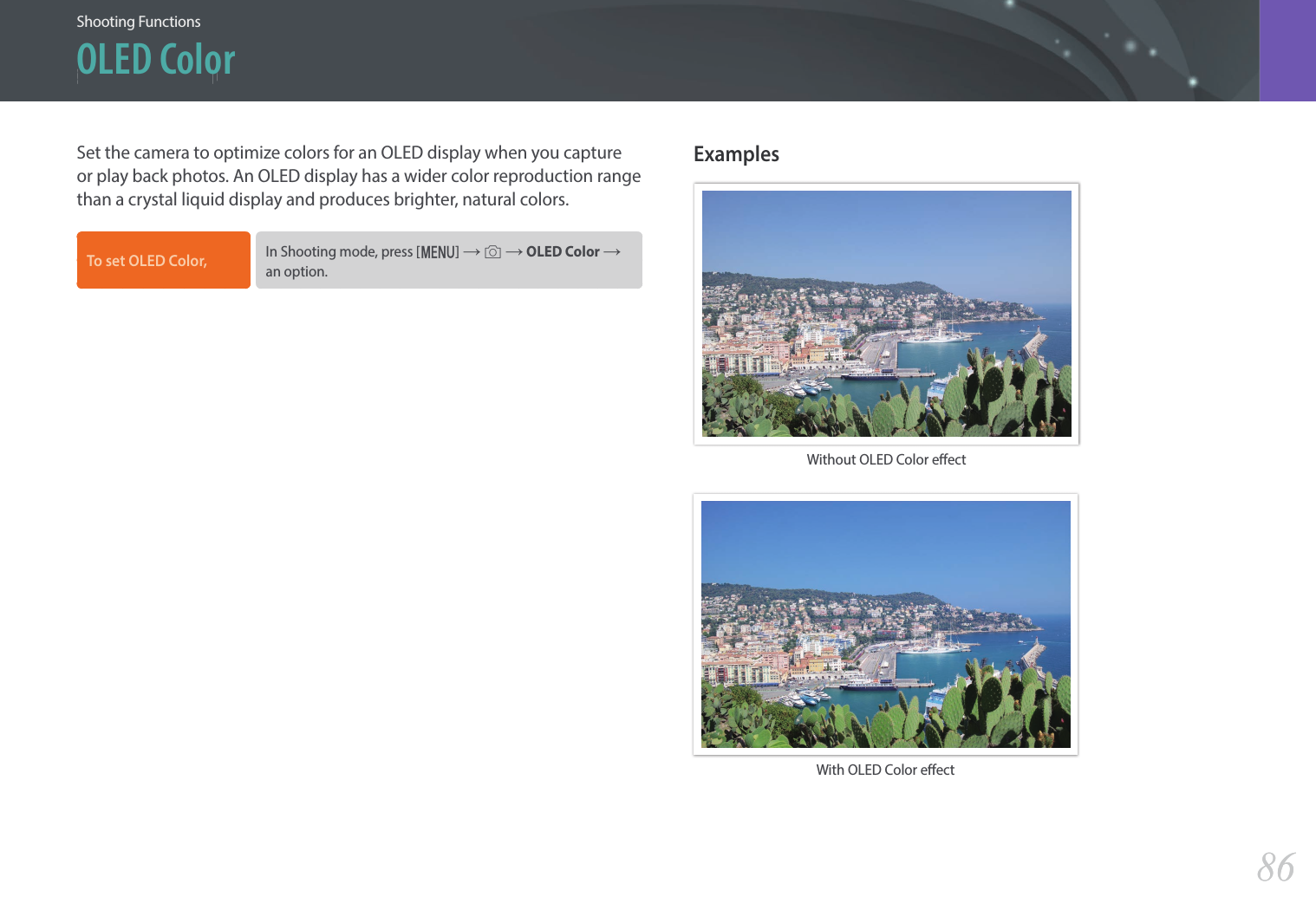

![86Shooting Functions > OLED Color86Shooting Functions > OLED ColorShooting FunctionsSet the camera to optimize colors for an OLED display when you capture or play back photos. An OLED display has a wider color reproduction range than a crystal liquid display and produces brighter, natural colors.To set OLED Color, In Shooting mode, press [m] → b → OLED Color → an option.ExamplesWithout OLED Color eectWith OLED Color eectOLED Color](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-36.png)

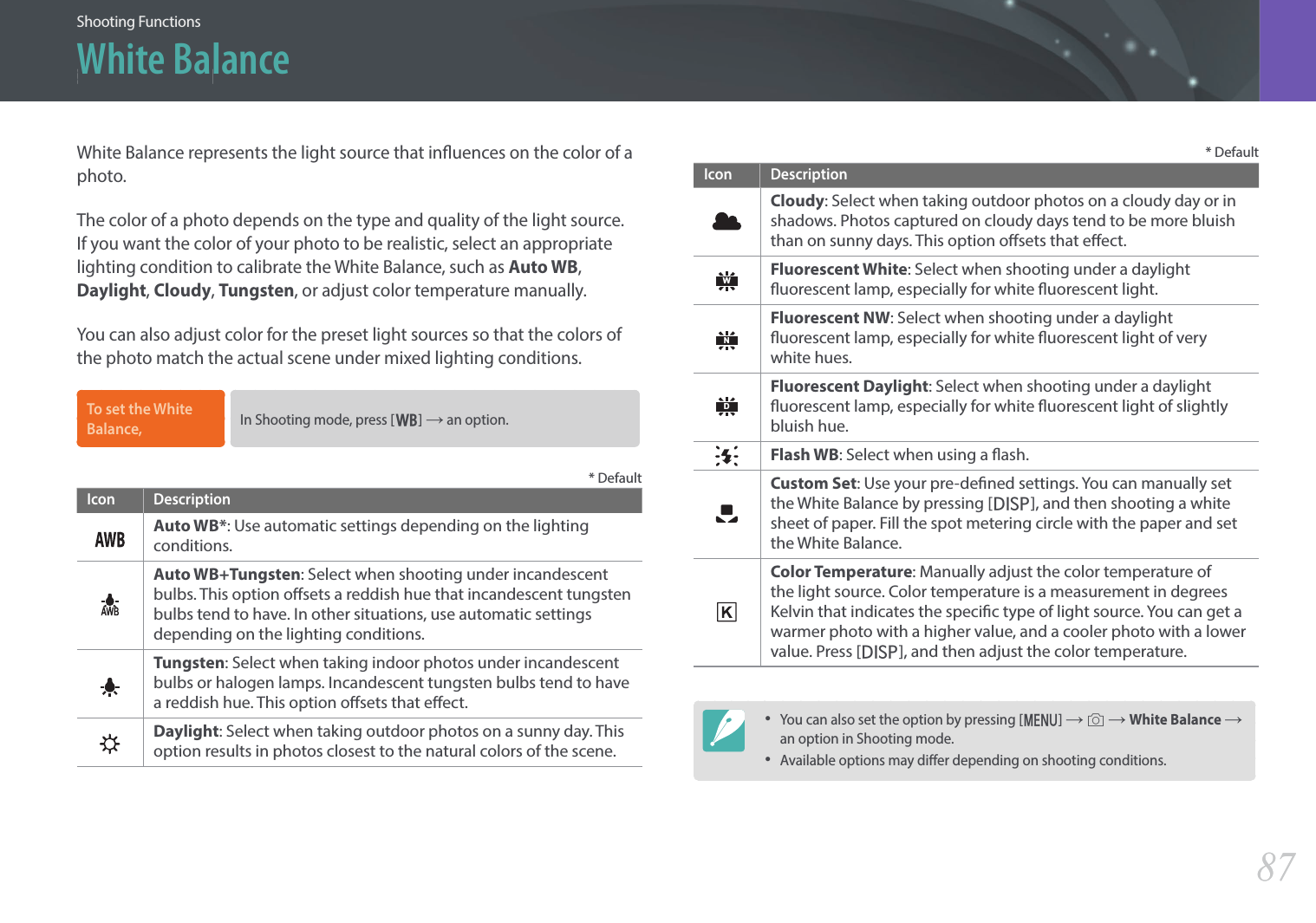

![87Shooting Functions > White Balance87Shooting Functions > White BalanceShooting FunctionsWhite Balance represents the light source that inuences on the color of a photo.The color of a photo depends on the type and quality of the light source. If you want the color of your photo to be realistic, select an appropriate lighting condition to calibrate the White Balance, such as Auto WB, Daylight, Cloudy, Tungsten, or adjust color temperature manually.You can also adjust color for the preset light sources so that the colors of the photo match the actual scene under mixed lighting conditions.To set the White Balance, In Shooting mode, press [C] → an option.* DefaultIcon DescriptionAuto WB*: Use automatic settings depending on the lighting conditions.Auto WB+Tungsten: Select when shooting under incandescent bulbs. This option osets a reddish hue that incandescent tungsten bulbs tend to have. In other situations, use automatic settings depending on the lighting conditions.Tungsten: Select when taking indoor photos under incandescent bulbs or halogen lamps. Incandescent tungsten bulbs tend to have a reddish hue. This option osets that eect.Daylight: Select when taking outdoor photos on a sunny day. This option results in photos closest to the natural colors of the scene.* DefaultIcon DescriptionCloudy: Select when taking outdoor photos on a cloudy day or in shadows. Photos captured on cloudy days tend to be more bluish than on sunny days. This option osets that eect.WFluorescent White: Select when shooting under a daylight uorescent lamp, especially for white uorescent light.NFluorescent NW: Select when shooting under a daylight uorescent lamp, especially for white uorescent light of very white hues.DFluorescent Daylight: Select when shooting under a daylight uorescent lamp, especially for white uorescent light of slightly bluish hue.Flash WB: Select when using a ash.Custom Set: Use your pre-dened settings. You can manually set the White Balance by pressing [D], and then shooting a white sheet of paper. Fill the spot metering circle with the paper and set the White Balance.Color Temperature: Manually adjust the color temperature of the light source. Color temperature is a measurement in degrees Kelvin that indicates the specic type of light source. You can get a warmer photo with a higher value, and a cooler photo with a lower value. Press [D], and then adjust the color temperature.•You can also set the option by pressing [m] → b → White Balance → an option in Shooting mode.•Available options may dier depending on shooting conditions.White Balance](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-37.png)

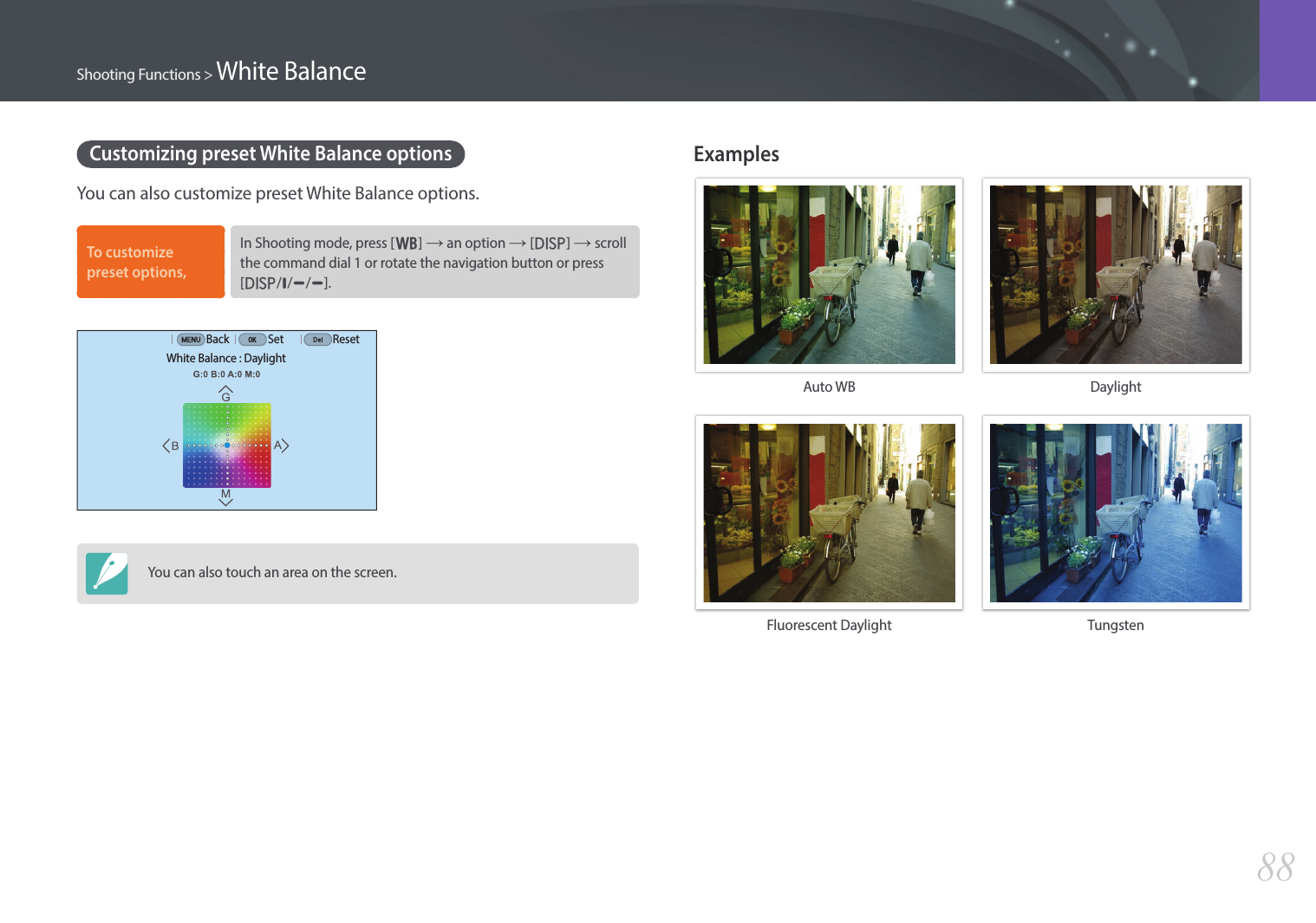

![88Shooting Functions > White BalanceCustomizing preset White Balance optionsYou can also customize preset White Balance options.To customize preset options,In Shooting mode, press [C] → an option → [D] → scroll the command dial 1 or rotate the navigation button or press [D/h/e/e].White Balance : DaylightBack Set ResetYou can also touch an area on the screen.ExamplesAuto WB DaylightFluorescent Daylight Tungsten](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-38.png)

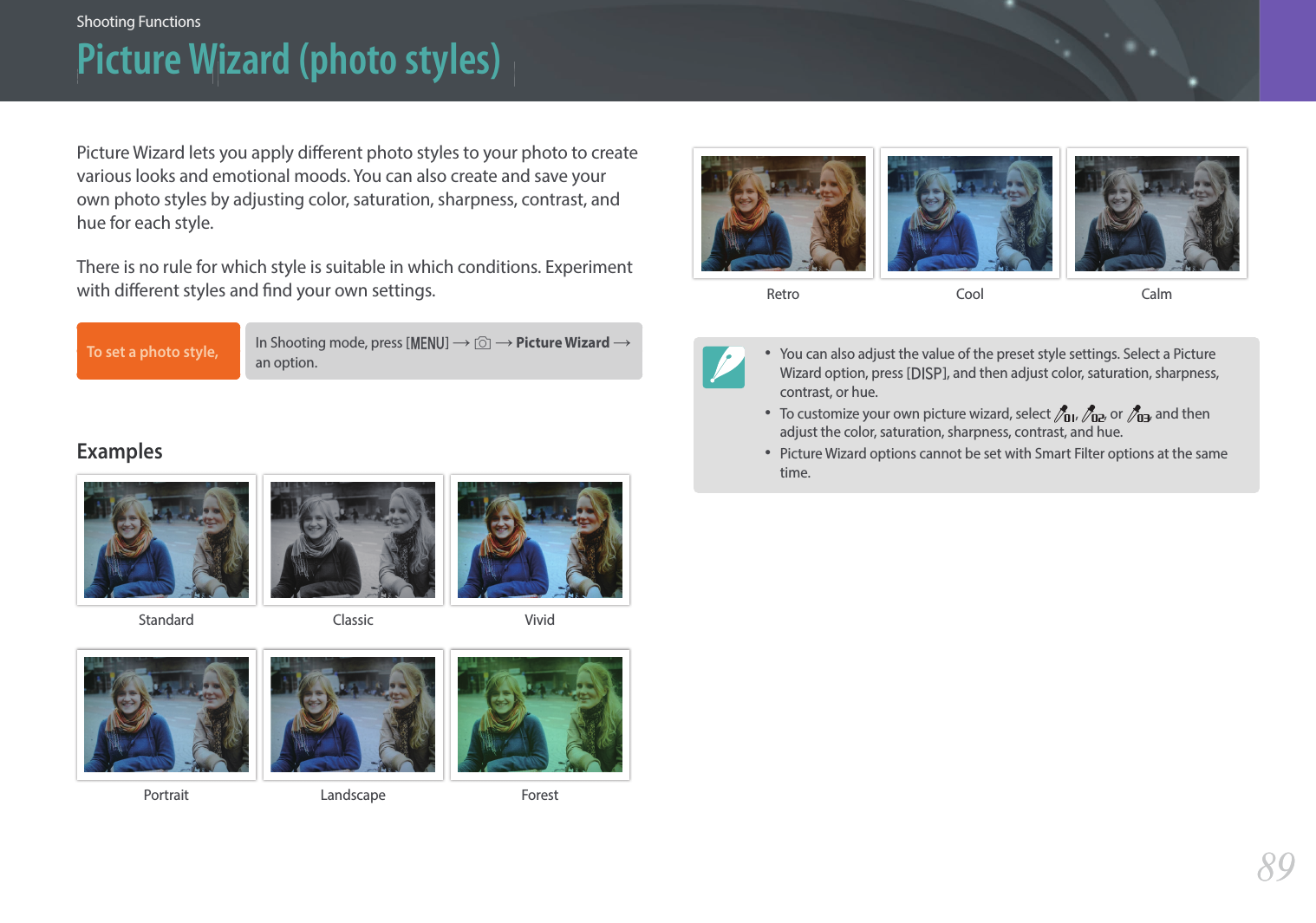

![89Shooting Functions > Picture Wizard (photo styles)89Shooting Functions > Picture Wizard (photo styles)Shooting FunctionsPicture Wizard lets you apply dierent photo styles to your photo to create various looks and emotional moods. You can also create and save your own photo styles by adjusting color, saturation, sharpness, contrast, and hue for each style.There is no rule for which style is suitable in which conditions. Experiment with dierent styles and nd your own settings.To set a photo style, In Shooting mode, press [m] → b → Picture Wizard → an option.ExamplesStandard Classic VividPortrait Landscape ForestRetro Cool Calm•You can also adjust the value of the preset style settings. Select a Picture Wizard option, press [D], and then adjust color, saturation, sharpness, contrast, or hue.•To customize your own picture wizard, select , , or , and then adjust the color, saturation, sharpness, contrast, and hue.•Picture Wizard options cannot be set with Smart Filter options at the same time.Picture Wizard (photo styles)](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-39.png)

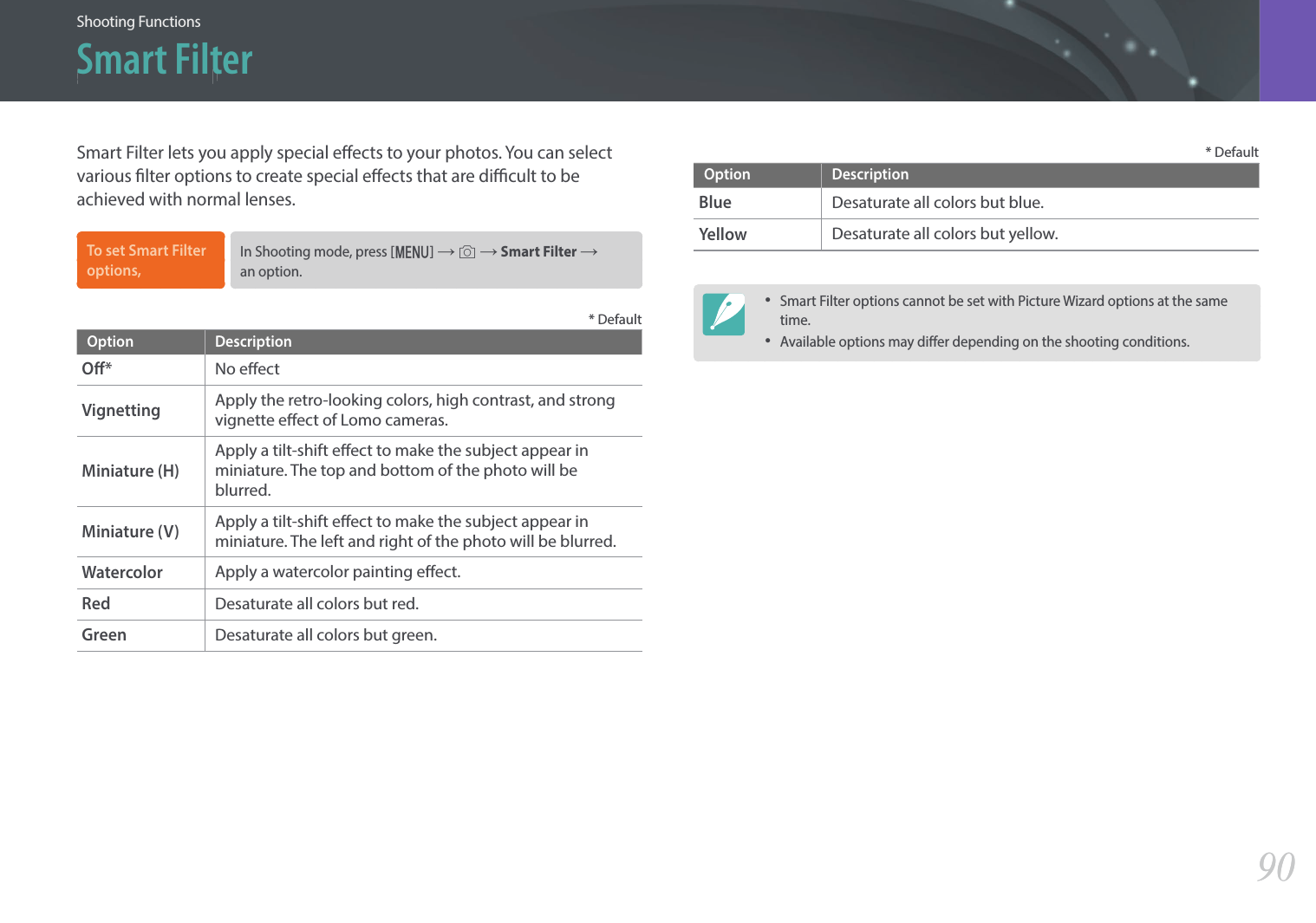

![90Shooting Functions > Smart Filter90Shooting Functions > Smart FilterShooting FunctionsSmart Filter lets you apply special eects to your photos. You can select various lter options to create special eects that are dicult to be achieved with normal lenses.To set Smart Filter options,In Shooting mode, press [m] → b → Smart Filter → an option.* DefaultOption DescriptionO*No eectVignettingApply the retro-looking colors, high contrast, and strong vignette eect of Lomo cameras.Miniature (H)Apply a tilt-shift eect to make the subject appear in miniature. The top and bottom of the photo will be blurred.Miniature (V)Apply a tilt-shift eect to make the subject appear in miniature. The left and right of the photo will be blurred.WatercolorApply a watercolor painting eect.RedDesaturate all colors but red.GreenDesaturate all colors but green.* DefaultOption DescriptionBlueDesaturate all colors but blue.YellowDesaturate all colors but yellow. •Smart Filter options cannot be set with Picture Wizard options at the same time.•Available options may dier depending on the shooting conditions.Smart Filter](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-40.png)

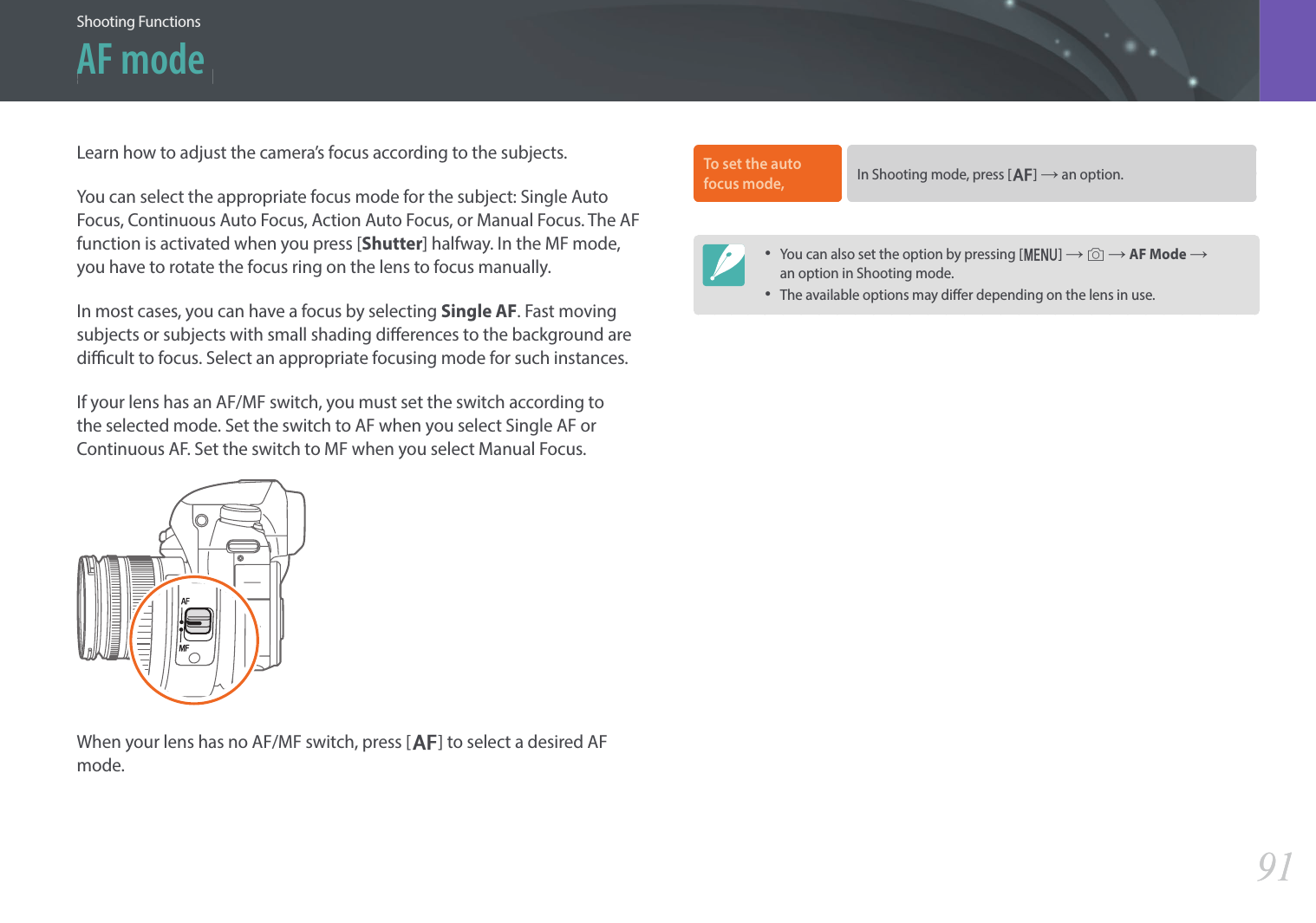

![91Shooting Functions > AF mode91Shooting Functions > AF modeShooting FunctionsAF modeLearn how to adjust the camera’s focus according to the subjects.You can select the appropriate focus mode for the subject: Single Auto Focus, Continuous Auto Focus, Action Auto Focus, or Manual Focus. The AF function is activated when you press [Shutter] halfway. In the MF mode, you have to rotate the focus ring on the lens to focus manually.In most cases, you can have a focus by selecting Single AF. Fast moving subjects or subjects with small shading dierences to the background are dicult to focus. Select an appropriate focusing mode for such instances.If your lens has an AF/MF switch, you must set the switch according to the selected mode. Set the switch to AF when you select Single AF or Continuous AF. Set the switch to MF when you select Manual Focus.When your lens has no AF/MF switch, press [F] to select a desired AF mode.To set the auto focus mode, In Shooting mode, press [F] → an option.•You can also set the option by pressing [m] → b → AF Mode → an option in Shooting mode.•The available options may dier depending on the lens in use.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-41.png)

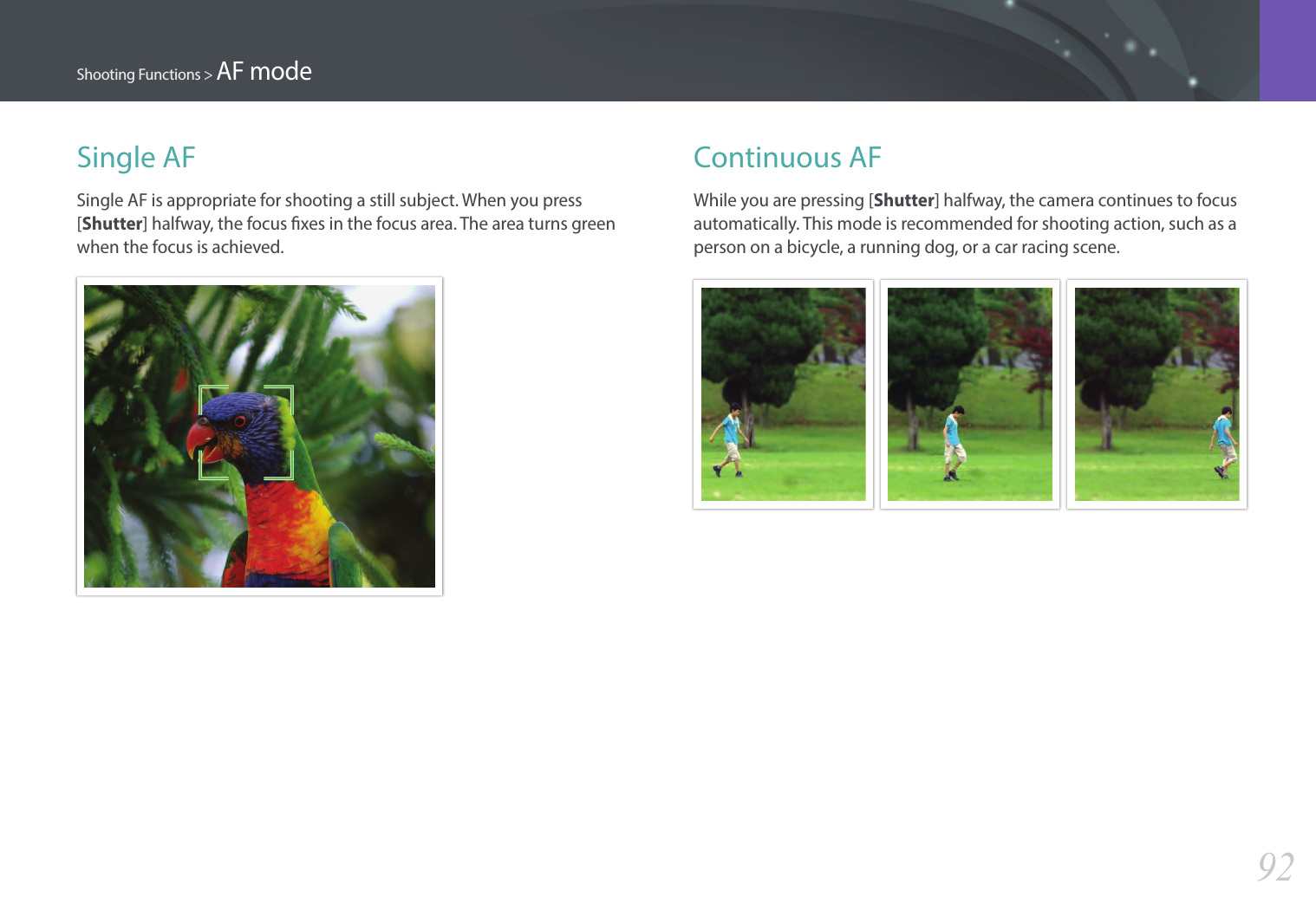

![92Shooting Functions > AF modeSingle AFSingle AF is appropriate for shooting a still subject. When you press [Shutter] halfway, the focus xes in the focus area. The area turns green when the focus is achieved.Continuous AFWhile you are pressing [Shutter] halfway, the camera continues to focus automatically. This mode is recommended for shooting action, such as a person on a bicycle, a running dog, or a car racing scene.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-42.png)

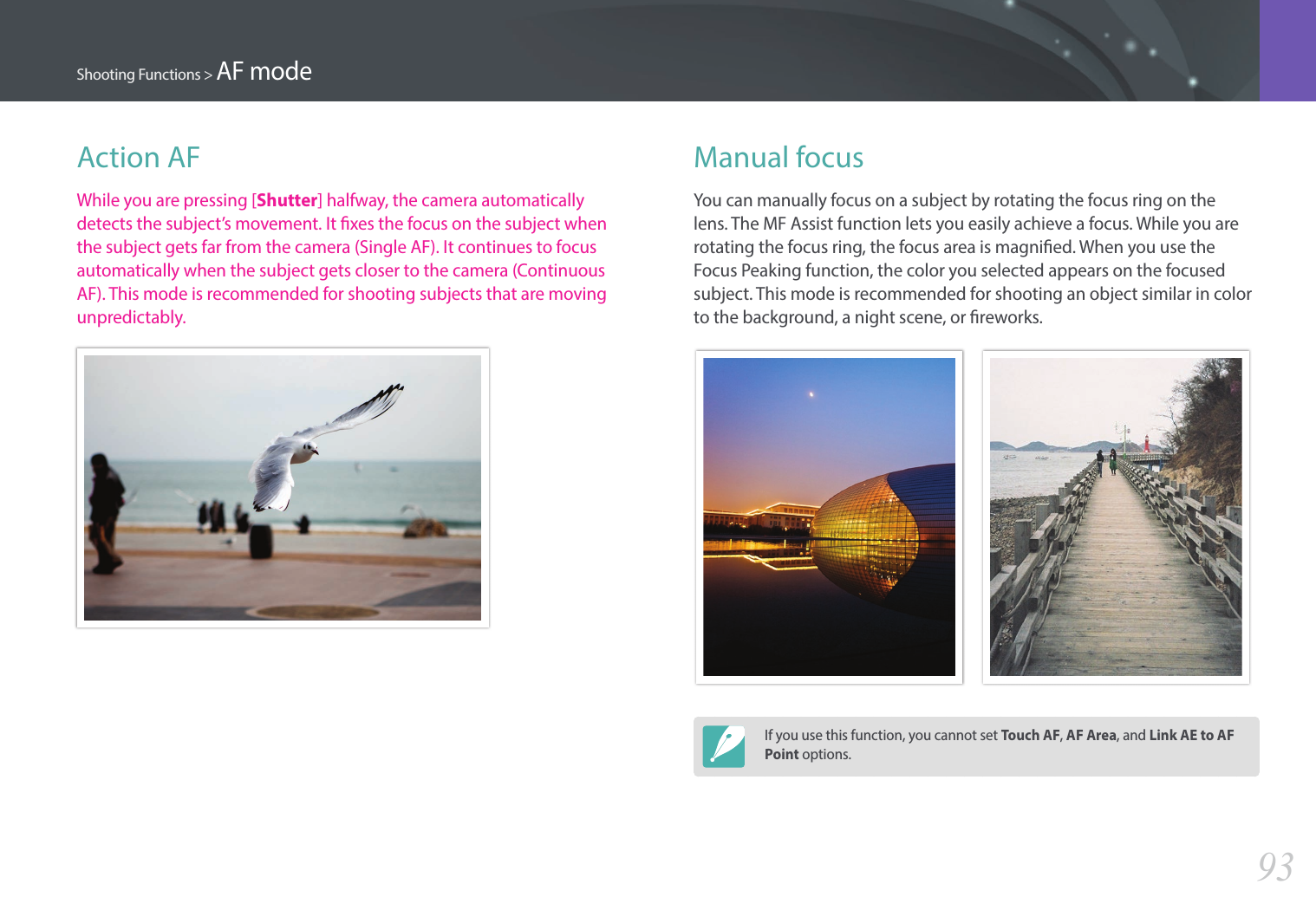

![93Shooting Functions > AF modeAction AFWhile you are pressing [Shutter] halfway, the camera automatically detects the subject’s movement. It xes the focus on the subject when the subject gets far from the camera (Single AF). It continues to focus automatically when the subject gets closer to the camera (Continuous AF). This mode is recommended for shooting subjects that are moving unpredictably.Manual focusYou can manually focus on a subject by rotating the focus ring on the lens. The MF Assist function lets you easily achieve a focus. While you are rotating the focus ring, the focus area is magnied. When you use the Focus Peaking function, the color you selected appears on the focused subject. This mode is recommended for shooting an object similar in color to the background, a night scene, or reworks.If you use this function, you cannot set Touch AF, AF Area, and Link AE to AF Point options.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-43.png)

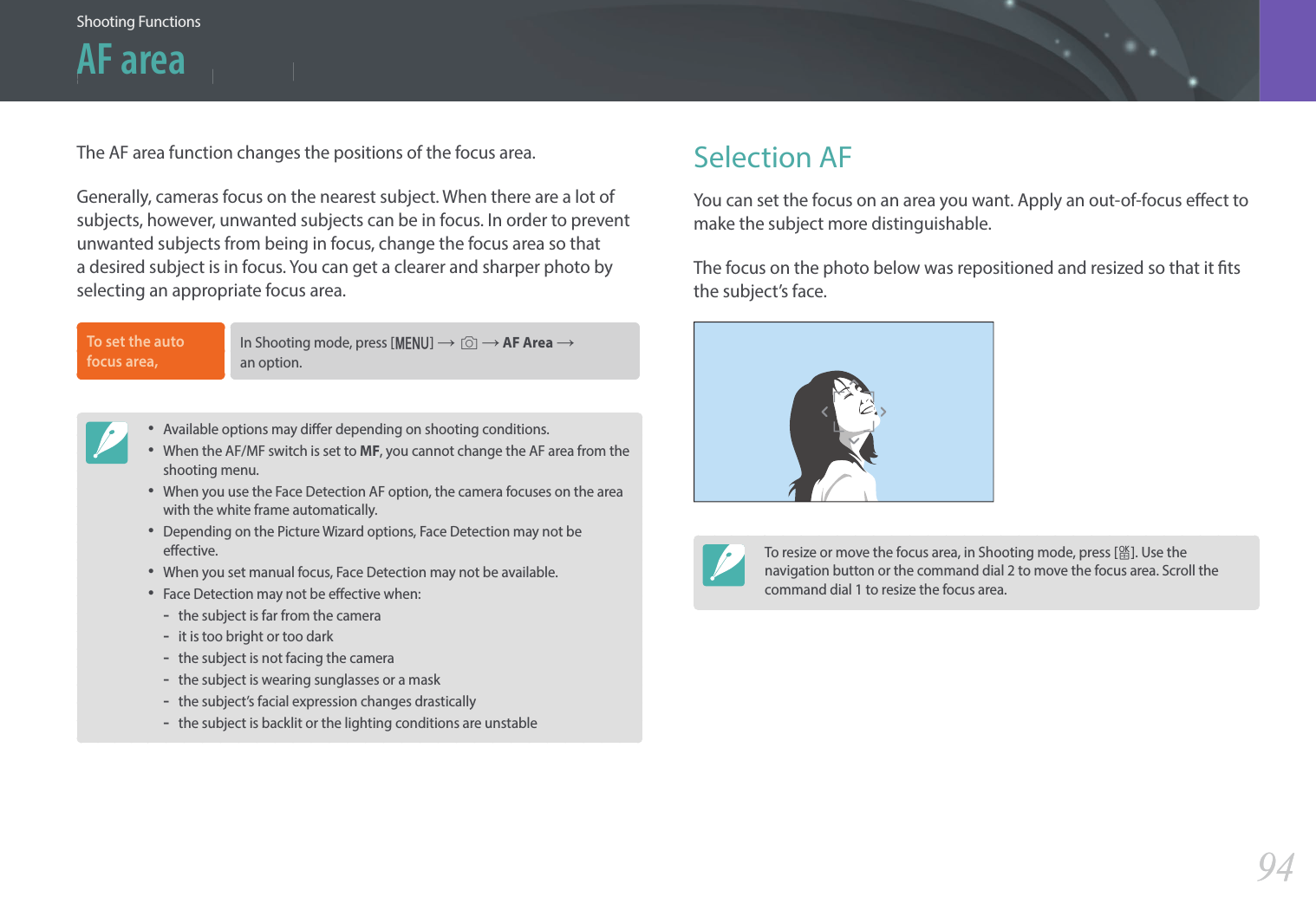

![94Shooting Functions > AF area94Shooting Functions > AF areaShooting FunctionsThe AF area function changes the positions of the focus area.Generally, cameras focus on the nearest subject. When there are a lot of subjects, however, unwanted subjects can be in focus. In order to prevent unwanted subjects from being in focus, change the focus area so that a desired subject is in focus. You can get a clearer and sharper photo by selecting an appropriate focus area.To set the auto focus area, In Shooting mode, press [m] →b → AF Area → an option.•Available options may dier depending on shooting conditions.•When the AF/MF switch is set to MF, you cannot change the AF area from the shooting menu.•When you use the Face Detection AF option, the camera focuses on the area with the white frame automatically.•Depending on the Picture Wizard options, Face Detection may not be eective.•When you set manual focus, Face Detection may not be available.•Face Detection may not be eective when:-the subject is far from the camera-it is too bright or too dark-the subject is not facing the camera-the subject is wearing sunglasses or a mask-the subject’s facial expression changes drastically-the subject is backlit or the lighting conditions are unstableSelection AFYou can set the focus on an area you want. Apply an out-of-focus eect to make the subject more distinguishable.The focus on the photo below was repositioned and resized so that it ts the subject’s face.To resize or move the focus area, in Shooting mode, press [o]. Use the navigation button or the command dial 2 to move the focus area. Scroll the command dial 1 to resize the focus area.AF area](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-44.png)

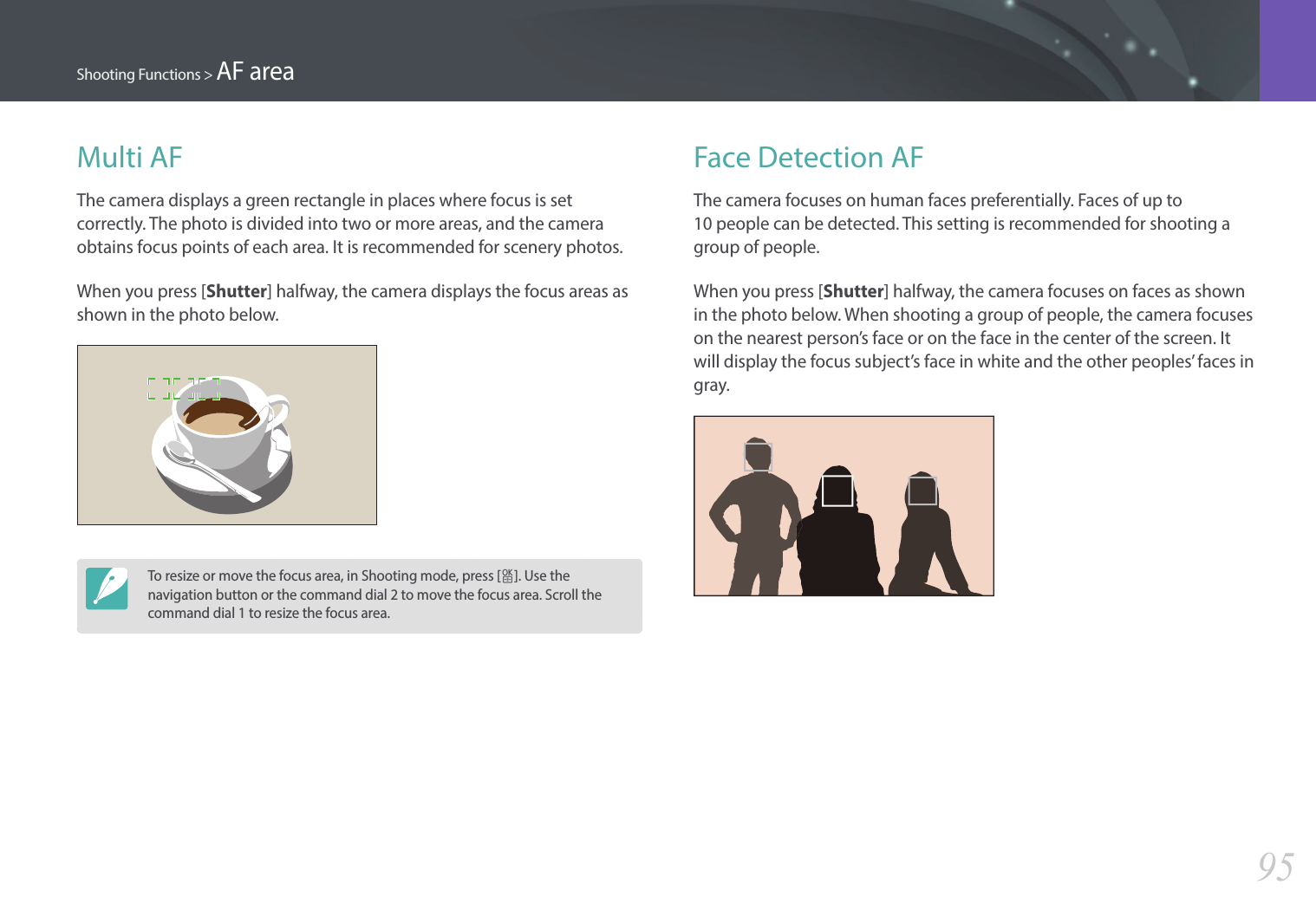

![95Shooting Functions > AF areaMulti AFThe camera displays a green rectangle in places where focus is set correctly. The photo is divided into two or more areas, and the camera obtains focus points of each area. It is recommended for scenery photos.When you press [Shutter] halfway, the camera displays the focus areas as shown in the photo below.To resize or move the focus area, in Shooting mode, press [o]. Use the navigation button or the command dial 2 to move the focus area. Scroll the command dial 1 to resize the focus area.Face Detection AFThe camera focuses on human faces preferentially. Faces of up to 10 people can be detected. This setting is recommended for shooting a group of people.When you press [Shutter] halfway, the camera focuses on faces as shown in the photo below. When shooting a group of people, the camera focuses on the nearest person’s face or on the face in the center of the screen. It will display the focus subject’s face in white and the other peoples’ faces in gray.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-45.png)

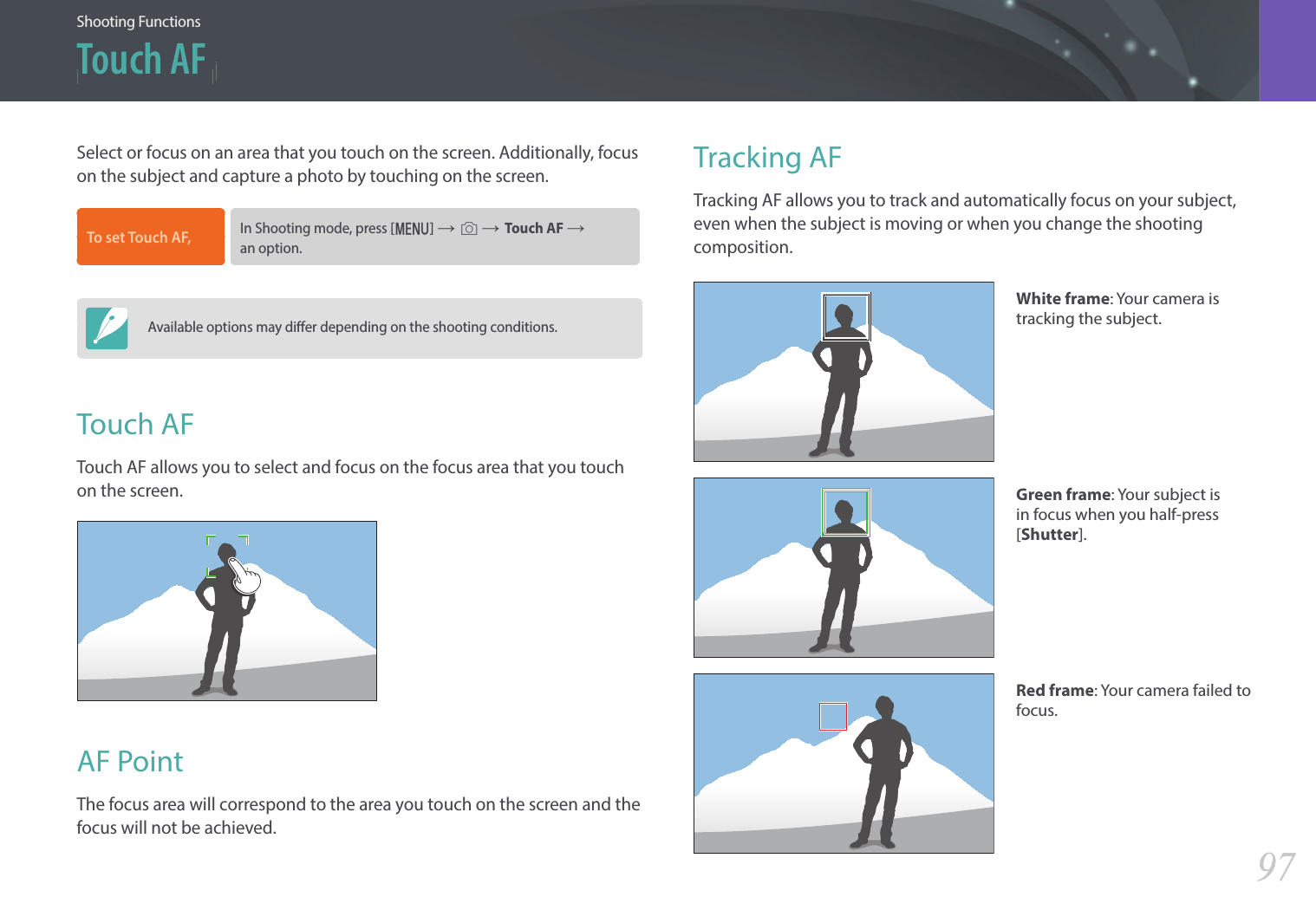

![97Shooting Functions > Touch AF97Shooting Functions > Touch AFShooting FunctionsTracking AFTracking AF allows you to track and automatically focus on your subject, even when the subject is moving or when you change the shooting composition.White frame: Your camera is tracking the subject.Green frame: Your subject is in focus when you half-press [Shutter].Red frame: Your camera failed to focus. Select or focus on an area that you touch on the screen. Additionally, focus on the subject and capture a photo by touching on the screen.To set Touch AF, In Shooting mode, press [m] →b →Touch AF → an option.Available options may dier depending on the shooting conditions.Touch AFTouch AF allows you to select and focus on the focus area that you touch on the screen.AF PointThe focus area will correspond to the area you touch on the screen and the focus will not be achieved.Touch AF](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-47.png)

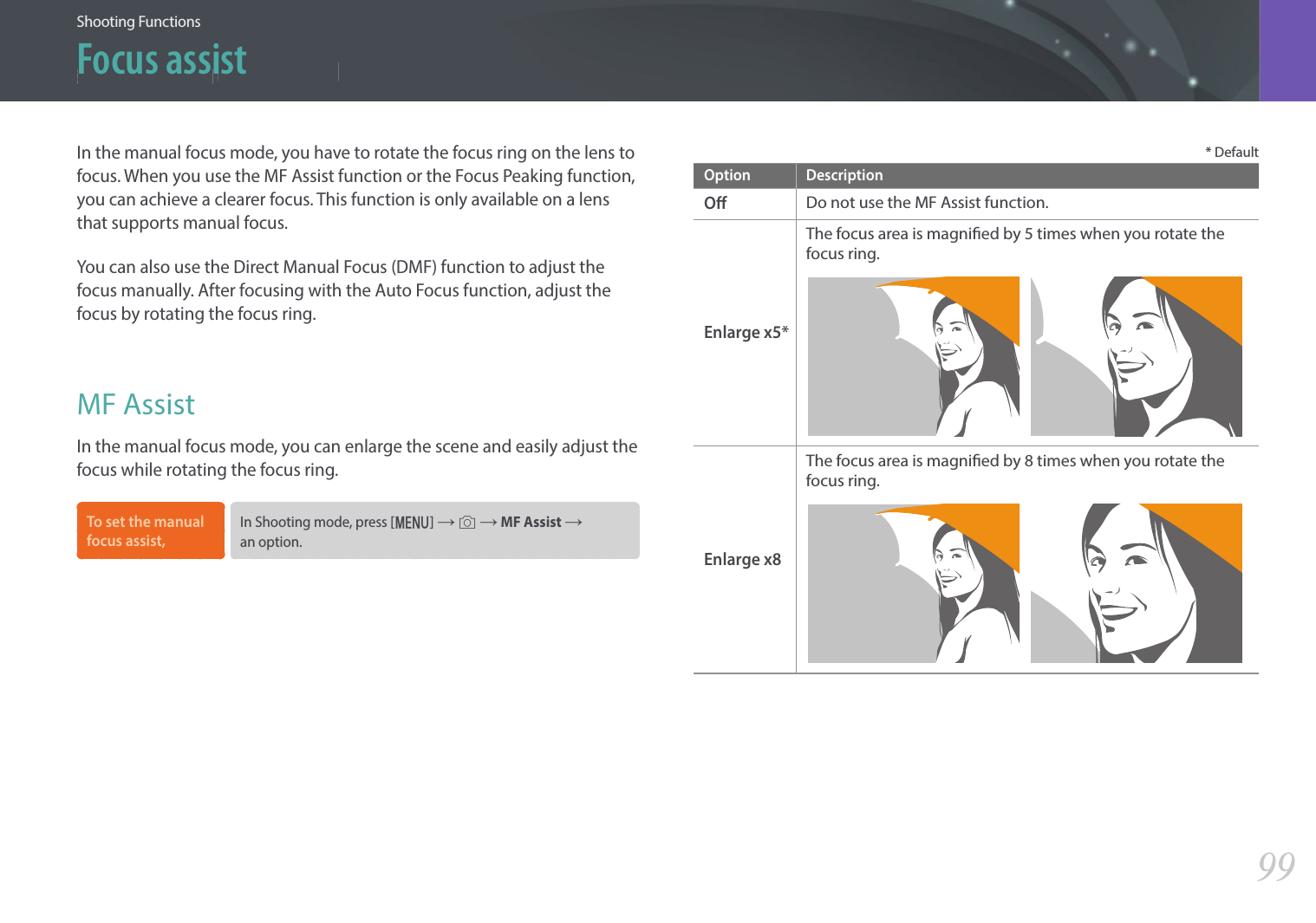

![99Shooting Functions > Focus assist99Shooting Functions > Focus assistShooting FunctionsIn the manual focus mode, you have to rotate the focus ring on the lens to focus. When you use the MF Assist function or the Focus Peaking function, you can achieve a clearer focus. This function is only available on a lens that supports manual focus.You can also use the Direct Manual Focus (DMF) function to adjust the focus manually. After focusing with the Auto Focus function, adjust the focus by rotating the focus ring.MF AssistIn the manual focus mode, you can enlarge the scene and easily adjust the focus while rotating the focus ring.To set the manual focus assist, In Shooting mode, press [m] → b → MF Assist → an option.* DefaultOption DescriptionODo not use the MF Assist function.Enlarge x5*The focus area is magnied by 5 times when you rotate the focus ring.Enlarge x8The focus area is magnied by 8 times when you rotate the focus ring.Focus assist](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-49.png)

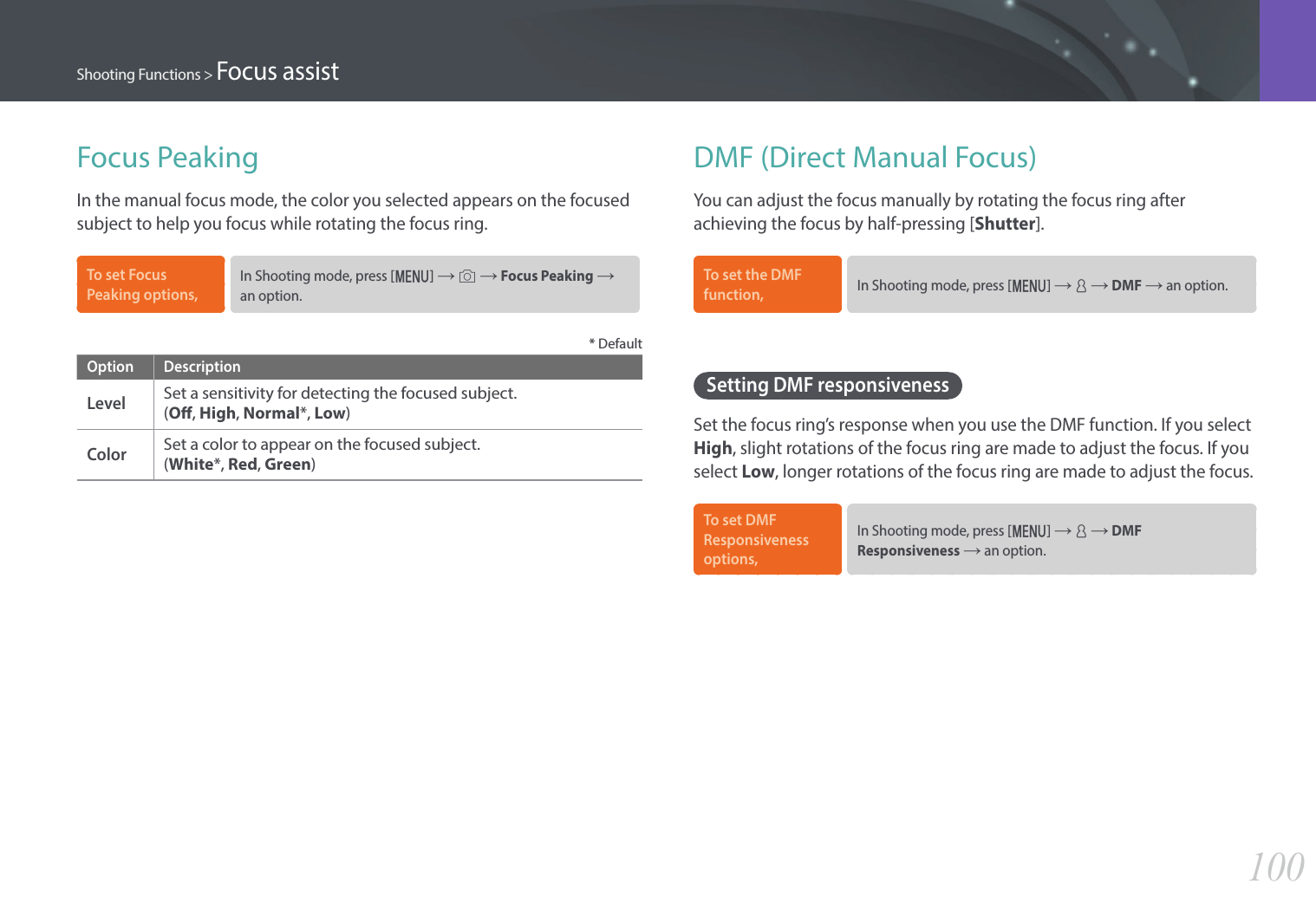

![100Shooting Functions > Focus assistFocus PeakingIn the manual focus mode, the color you selected appears on the focused subject to help you focus while rotating the focus ring.To set Focus Peaking options, In Shooting mode, press [m] → b → Focus Peaking → an option.* DefaultOption DescriptionLevelSet a sensitivity for detecting the focused subject. (O, High, Normal*, Low)ColorSet a color to appear on the focused subject. (White*, Red, Green)DMF (Direct Manual Focus)You can adjust the focus manually by rotating the focus ring after achieving the focus by half-pressing [Shutter].To set the DMF function, In Shooting mode, press [m] → d → DMF → an option.Setting DMF responsivenessSet the focus ring’s response when you use the DMF function. If you select High, slight rotations of the focus ring are made to adjust the focus. If you select Low, longer rotations of the focus ring are made to adjust the focus.To set DMF Responsiveness options, In Shooting mode, press [m] → d → DMF Responsiveness → an option.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-50.png)

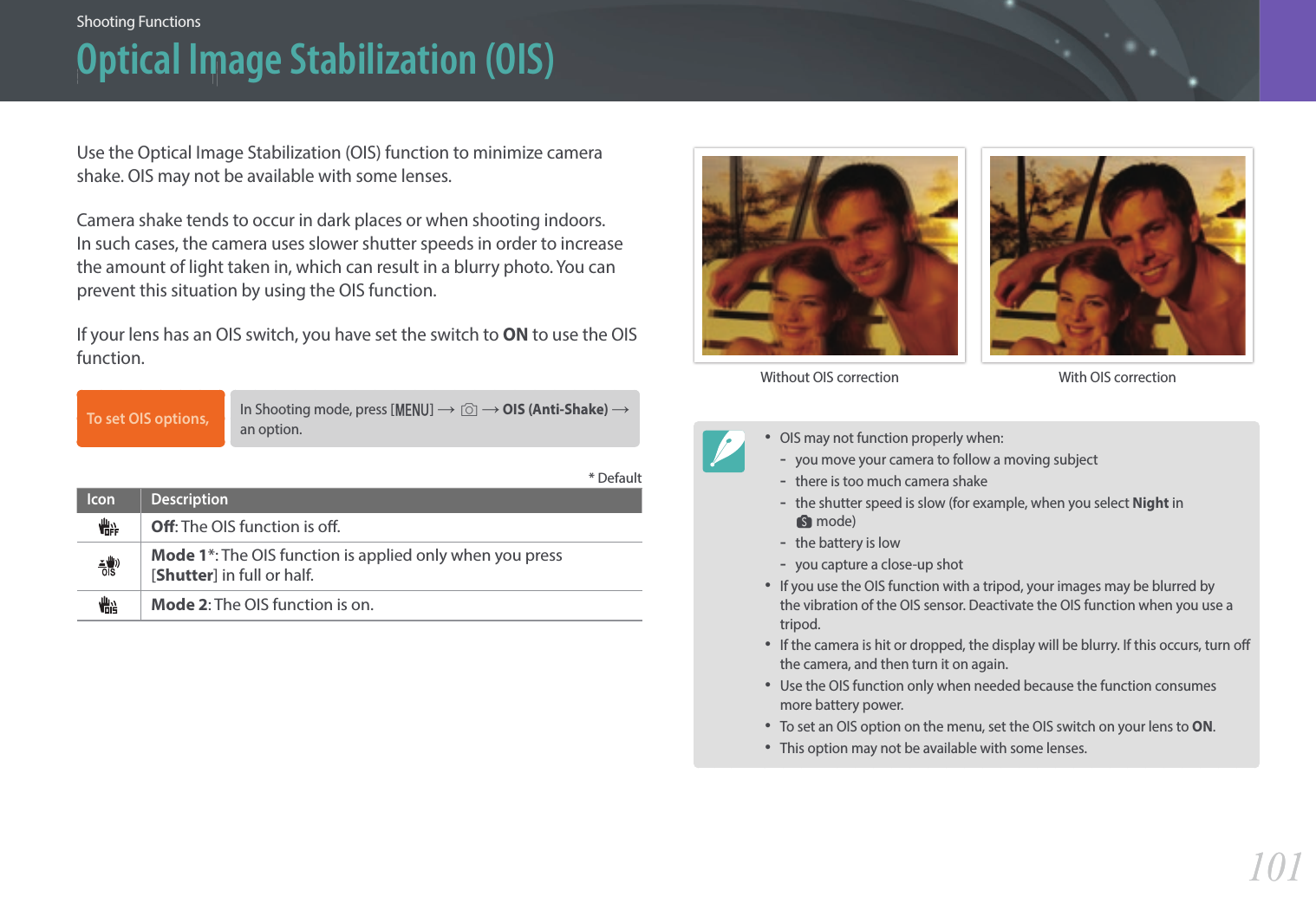

![101Shooting Functions > Optical Image Stabilization (OIS)101Shooting Functions > Optical Image Stabilization (OIS)Shooting FunctionsUse the Optical Image Stabilization (OIS) function to minimize camera shake. OIS may not be available with some lenses.Camera shake tends to occur in dark places or when shooting indoors. In such cases, the camera uses slower shutter speeds in order to increase the amount of light taken in, which can result in a blurry photo. You can prevent this situation by using the OIS function.If your lens has an OIS switch, you have set the switch to ON to use the OIS function.To set OIS options, In Shooting mode, press [m] →b → OIS (Anti-Shake) → an option.* DefaultIcon DescriptionO: The OIS function is o.Mode 1*: The OIS function is applied only when you press [Shutter] in full or half.Mode 2: The OIS function is on.Optical Image Stabilization (OIS)Without OIS correction With OIS correction•OIS may not function properly when:-you move your camera to follow a moving subject-there is too much camera shake-the shutter speed is slow (for example, when you select Night in s mode)-the battery is low-you capture a close-up shot•If you use the OIS function with a tripod, your images may be blurred by the vibration of the OIS sensor. Deactivate the OIS function when you use a tripod.•If the camera is hit or dropped, the display will be blurry. If this occurs, turn o the camera, and then turn it on again.•Use the OIS function only when needed because the function consumes more battery power.•To set an OIS option on the menu, set the OIS switch on your lens to ON.•This option may not be available with some lenses.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-51.png)

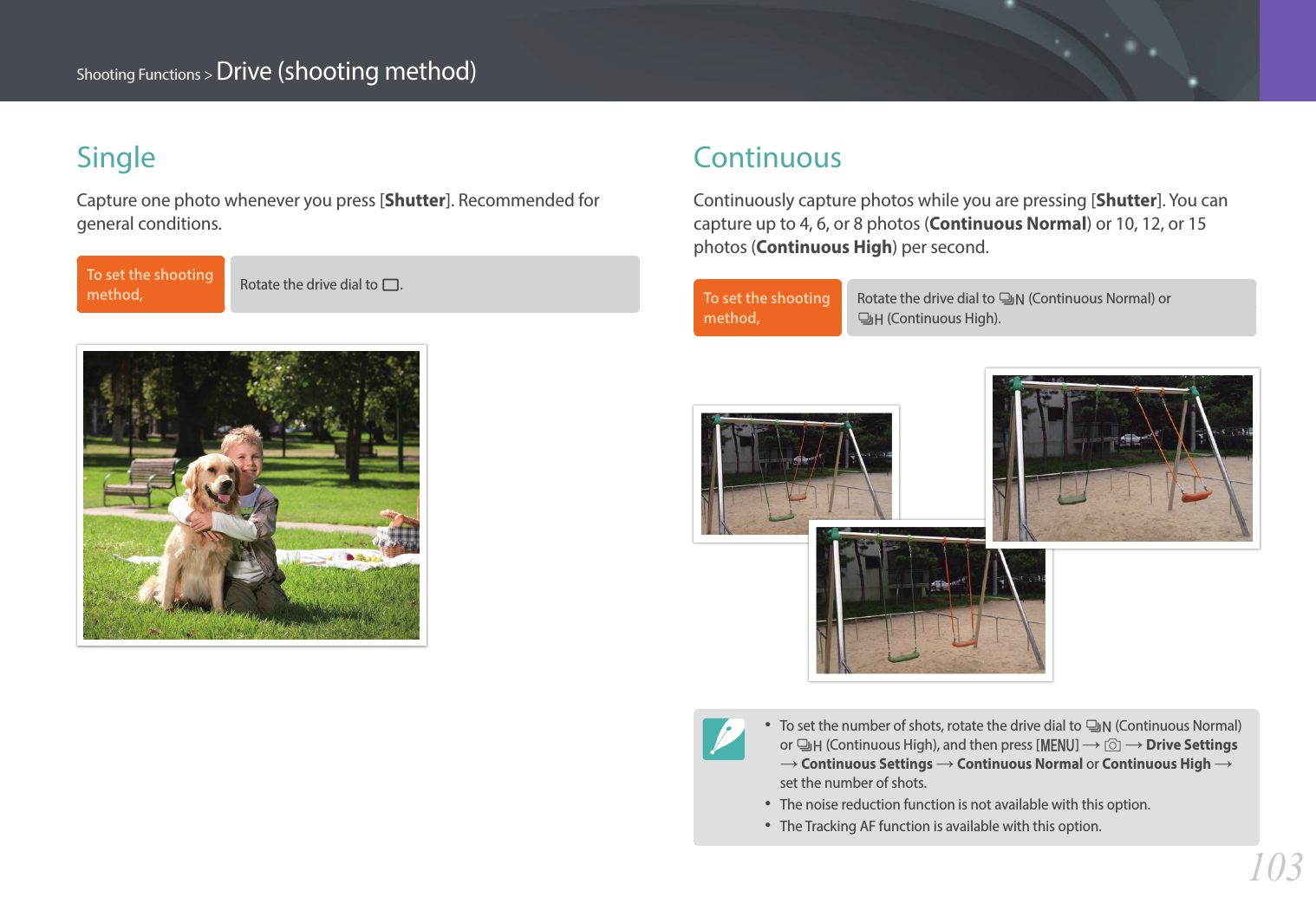

![103Shooting Functions > Drive (shooting method)SingleCapture one photo whenever you press [Shutter]. Recommended for general conditions.To set the shooting method, Rotate the drive dial to H.ContinuousContinuously capture photos while you are pressing [Shutter]. You can capture up to 4, 6, or 8 photos (Continuous Normal) or 10, 12, or 15 photos (Continuous High) per second.To set the shooting method, Rotate the drive dial to i (Continuous Normal) or W (Continuous High).•To set the number of shots, rotate the drive dial to i (Continuous Normal) or W (Continuous High), and then press [m] → b → Drive Settings → Continuous Settings → Continuous Normal or Continuous High → set the number of shots.•The noise reduction function is not available with this option.•The Tracking AF function is available with this option.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-53.png)

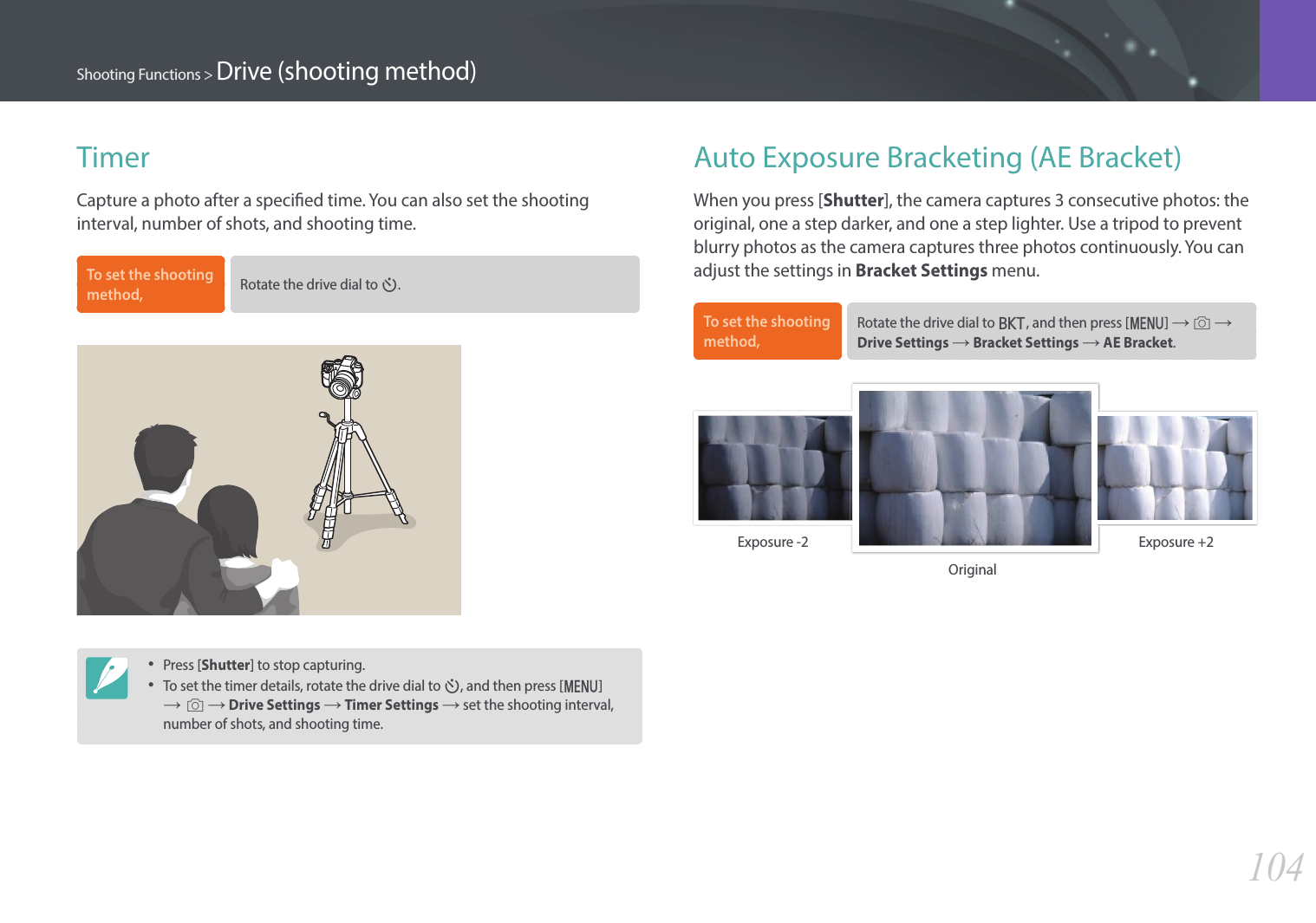

![104Shooting Functions > Drive (shooting method)TimerCapture a photo after a specied time. You can also set the shooting interval, number of shots, and shooting time.To set the shooting method, Rotate the drive dial to K.•Press [Shutter] to stop capturing.•To set the timer details, rotate the drive dial to K, and then press [m] →b → Drive Settings → Timer Settings → set the shooting interval, number of shots, and shooting time.Auto Exposure Bracketing (AE Bracket)When you press [Shutter], the camera captures 3 consecutive photos: the original, one a step darker, and one a step lighter. Use a tripod to prevent blurry photos as the camera captures three photos continuously. You can adjust the settings in Bracket Settings menu.To set the shooting method, Rotate the drive dial to L, and then press [m] → b → Drive Settings → Bracket Settings → AE Bracket.Exposure -2OriginalExposure +2](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-54.png)

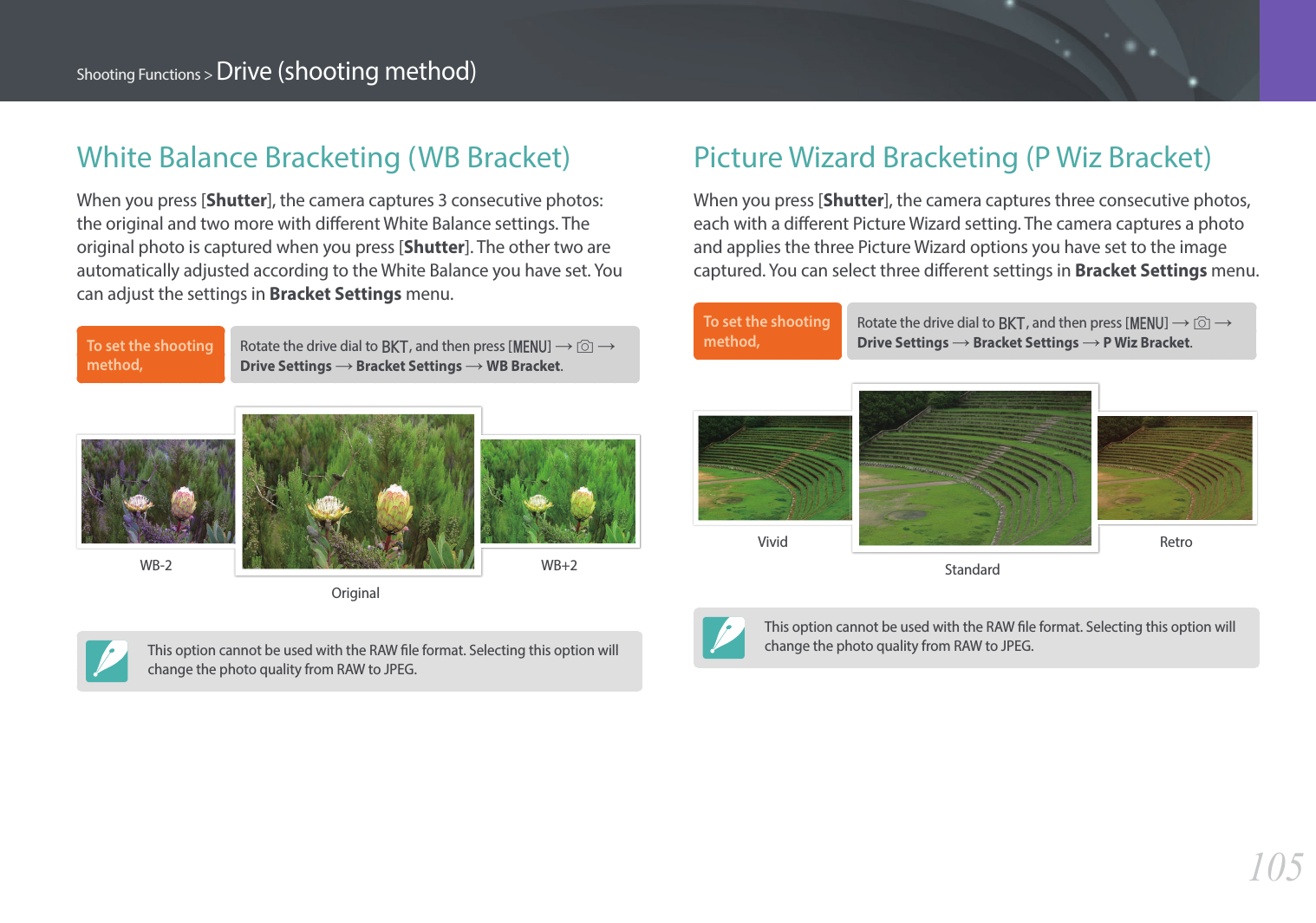

![105Shooting Functions > Drive (shooting method)White Balance Bracketing (WB Bracket)When you press [Shutter], the camera captures 3 consecutive photos: the original and two more with dierent White Balance settings. The original photo is captured when you press [Shutter]. The other two are automatically adjusted according to the White Balance you have set. You can adjust the settings in Bracket Settings menu.To set the shooting method, Rotate the drive dial to L, and then press [m] → b → Drive Settings → Bracket Settings → WB Bracket.WB-2OriginalWB+2This option cannot be used with the RAW le format. Selecting this option will change the photo quality from RAW to JPEG.Picture Wizard Bracketing (P Wiz Bracket)When you press [Shutter], the camera captures three consecutive photos, each with a dierent Picture Wizard setting. The camera captures a photo and applies the three Picture Wizard options you have set to the image captured. You can select three dierent settings in Bracket Settings menu.To set the shooting method, Rotate the drive dial to L, and then press [m] → b → Drive Settings → Bracket Settings → P Wiz Bracket.VividStandardRetroThis option cannot be used with the RAW le format. Selecting this option will change the photo quality from RAW to JPEG.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-55.png)

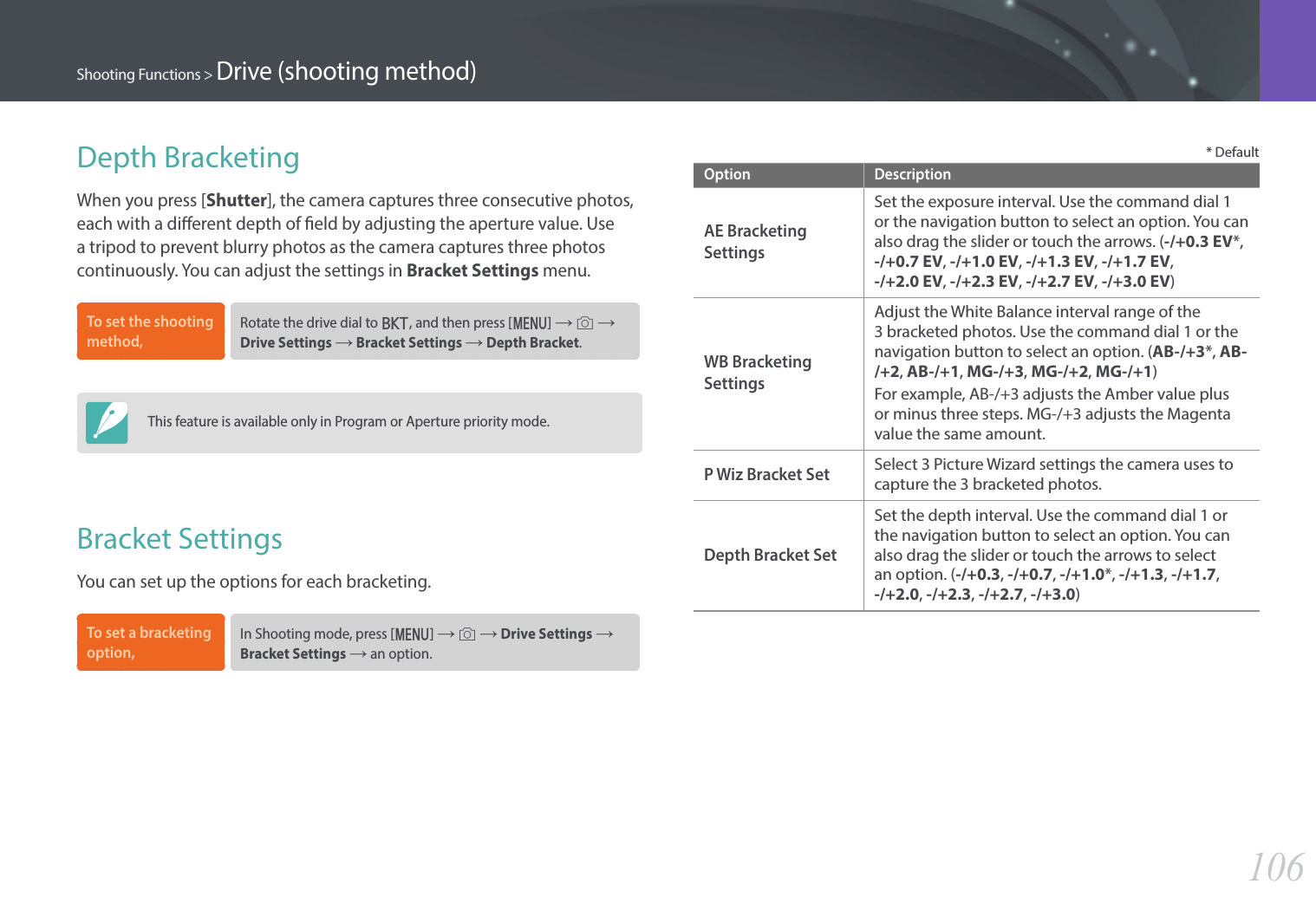

![106Shooting Functions > Drive (shooting method)Depth BracketingWhen you press [Shutter], the camera captures three consecutive photos, each with a dierent depth of eld by adjusting the aperture value. Use a tripod to prevent blurry photos as the camera captures three photos continuously. You can adjust the settings in Bracket Settings menu.To set the shooting method, Rotate the drive dial to L, and then press [m] → b → Drive Settings → Bracket Settings → Depth Bracket.This feature is available only in Program or Aperture priority mode.Bracket SettingsYou can set up the options for each bracketing.To set a bracketing option, In Shooting mode, press [m] → b → Drive Settings → Bracket Settings → an option.* DefaultOption DescriptionAE Bracketing SettingsSet the exposure interval. Use the command dial 1 or the navigation button to select an option. You can also drag the slider or touch the arrows. (-/+0.3 EV*, -/+0.7 EV, -/+1.0 EV, -/+1.3 EV, -/+1.7 EV, -/+2.0 EV, -/+2.3 EV, -/+2.7 EV, -/+3.0 EV)WB Bracketing SettingsAdjust the White Balance interval range of the 3 bracketed photos. Use the command dial 1 or the navigation button to select an option. (AB-/+3*, AB-/+2, AB-/+1, MG-/+3, MG-/+2, MG-/+1)For example, AB-/+3 adjusts the Amber value plus or minus three steps. MG-/+3 adjusts the Magenta value the same amount.P Wiz Bracket SetSelect 3 Picture Wizard settings the camera uses to capture the 3 bracketed photos.Depth Bracket SetSet the depth interval. Use the command dial 1 or the navigation button to select an option. You can also drag the slider or touch the arrows to select an option. (-/+0.3, -/+0.7, -/+1.0*, -/+1.3, -/+1.7, -/+2.0, -/+2.3, -/+2.7, -/+3.0)](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-56.png)

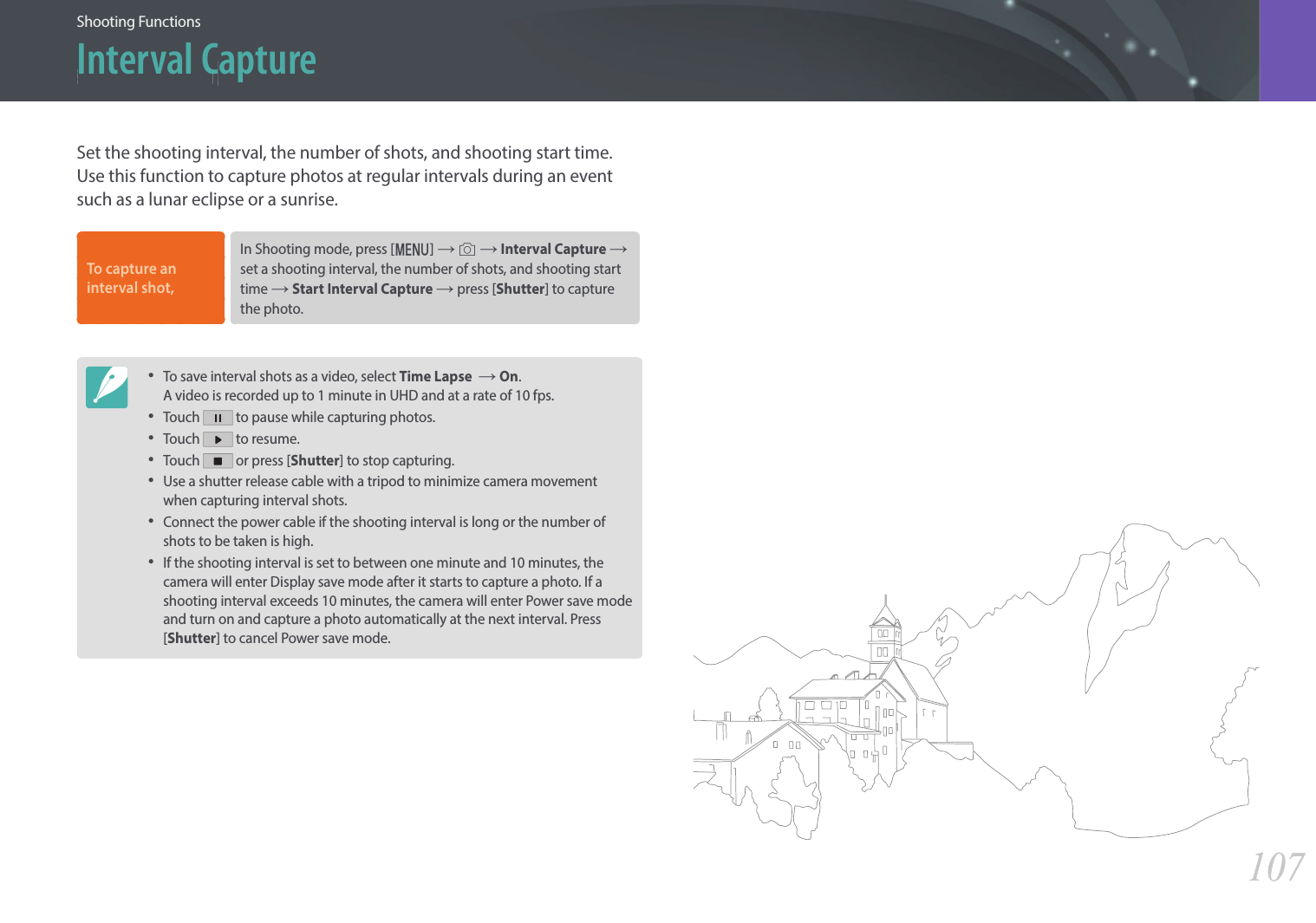

![107Shooting Functions > Interval Capture107Shooting Functions > Interval CaptureShooting FunctionsSet the shooting interval, the number of shots, and shooting start time. Use this function to capture photos at regular intervals during an event such as a lunar eclipse or a sunrise.To capture an interval shot, In Shooting mode, press [m] → b → Interval Capture → set a shooting interval, the number of shots, and shooting start time → Start Interval Capture → press [Shutter] to capture the photo.•To save interval shots as a video, select Time Lapse → On. A video is recorded up to 1 minute in UHD and at a rate of 10 fps.•Touch to pause while capturing photos.•Touch to resume.•Touch or press [Shutter] to stop capturing.•Use a shutter release cable with a tripod to minimize camera movement when capturing interval shots.•Connect the power cable if the shooting interval is long or the number of shots to be taken is high.•If the shooting interval is set to between one minute and 10 minutes, the camera will enter Display save mode after it starts to capture a photo. If a shooting interval exceeds 10 minutes, the camera will enter Power save mode and turn on and capture a photo automatically at the next interval. Press [Shutter] to cancel Power save mode.Interval Capture](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-57.png)

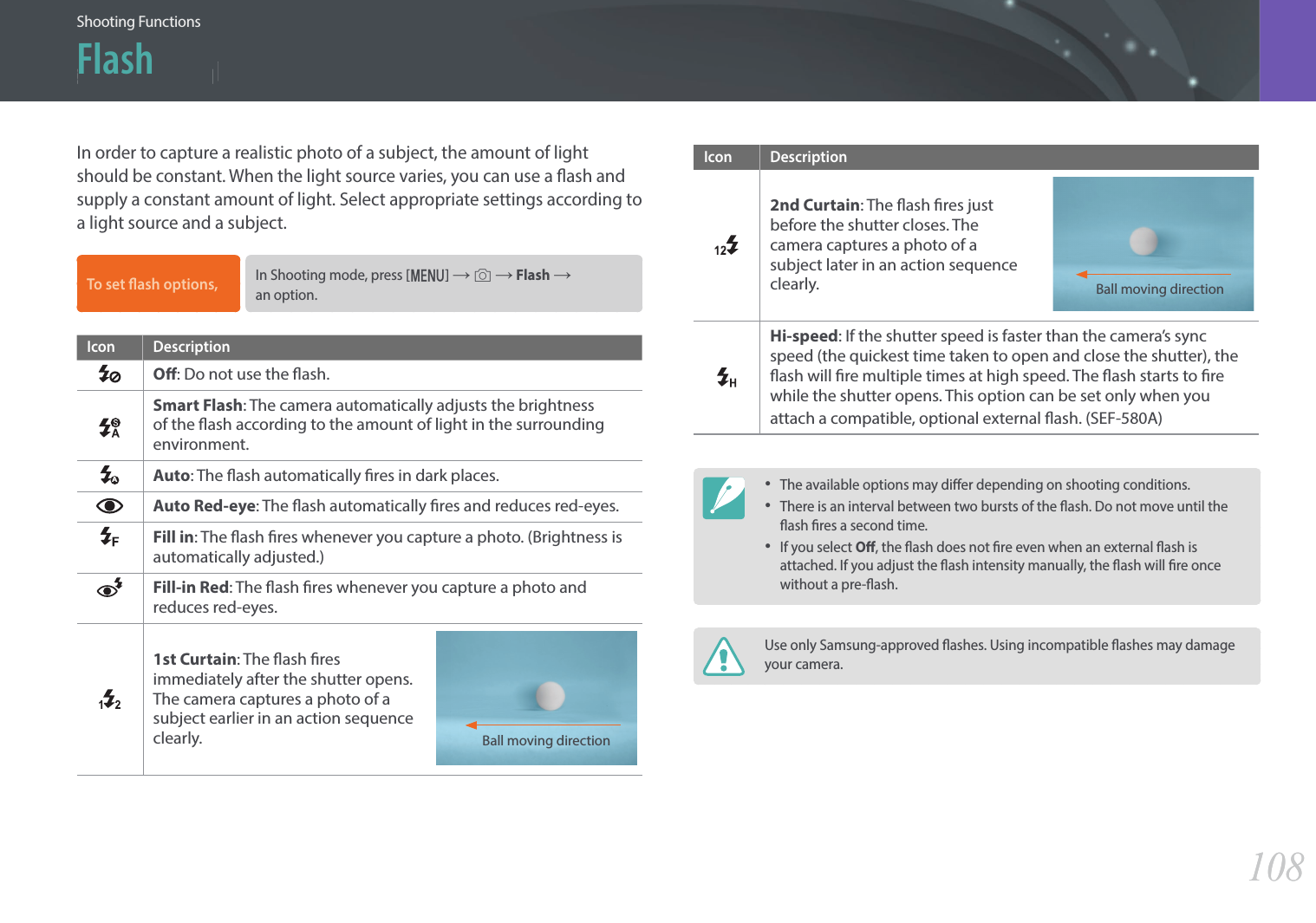

![108Shooting Functions > Flash108Shooting Functions > FlashShooting FunctionsIn order to capture a realistic photo of a subject, the amount of light should be constant. When the light source varies, you can use a ash and supply a constant amount of light. Select appropriate settings according to a light source and a subject.To set ash options, In Shooting mode, press [m] → b → Flash →an option.Icon DescriptionO: Do not use the ash.Smart Flash: The camera automatically adjusts the brightness of the ash according to the amount of light in the surrounding environment.AAuto: The ash automatically res in dark places.Auto Red-eye: The ash automatically res and reduces red-eyes.Fill in: The ash res whenever you capture a photo. (Brightness is automatically adjusted.)Fill-in Red: The ash res whenever you capture a photo and reduces red-eyes.1st Curtain: The ash res immediately after the shutter opens. The camera captures a photo of a subject earlier in an action sequence clearly. Ball moving directionIcon Description2nd Curtain: The ash res just before the shutter closes. The camera captures a photo of a subject later in an action sequence clearly. Ball moving directionHi-speed: If the shutter speed is faster than the camera’s sync speed (the quickest time taken to open and close the shutter), the ash will re multiple times at high speed. The ash starts to re while the shutter opens. This option can be set only when youattach a compatible, optional external ash. (SEF-580A)•The available options may dier depending on shooting conditions.•There is an interval between two bursts of the ash. Do not move until the ash res a second time.•If you select O, the ash does not re even when an external ash is attached. If you adjust the ash intensity manually, the ash will re once without a pre-ash.Use only Samsung-approved ashes. Using incompatible ashes may damage your camera. Flash](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-58.png)

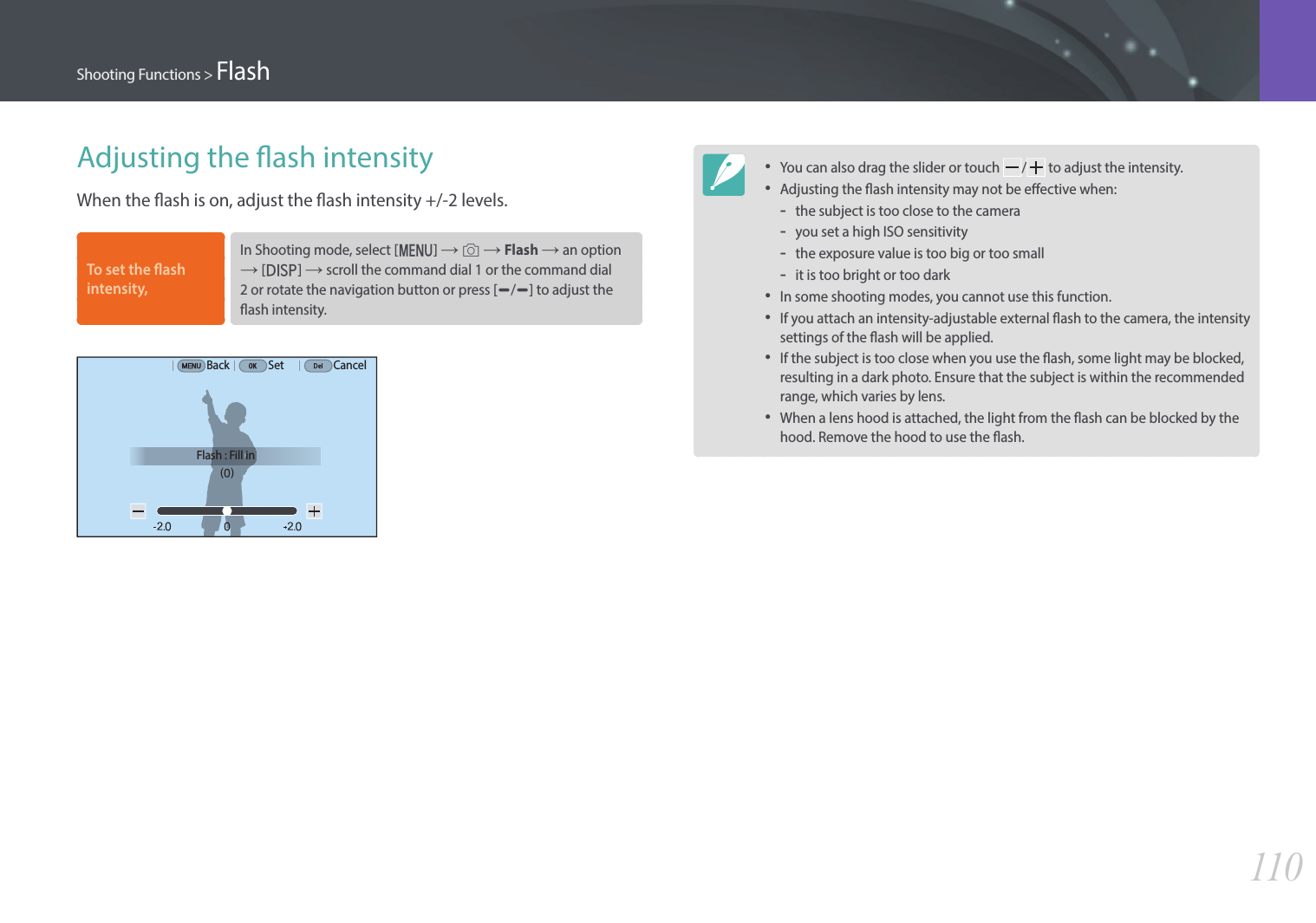

![110Shooting Functions > FlashAdjusting the ash intensityWhen the ash is on, adjust the ash intensity +/-2 levels.To set the ash intensity, In Shooting mode, select [m] → b → Flash → an option → [D] → scroll the command dial 1 or the command dial 2 or rotate the navigation button or press [e/e] to adjust the ash intensity.Back Set CancelFlash : Fill in•You can also drag the slider or touch / to adjust the intensity.•Adjusting the flash intensity may not be eective when:-the subject is too close to the camera-you set a high ISO sensitivity-the exposure value is too big or too small-it is too bright or too dark•In some shooting modes, you cannot use this function.•If you attach an intensity-adjustable external ash to the camera, the intensity settings of the ash will be applied.•If the subject is too close when you use the ash, some light may be blocked, resulting in a dark photo. Ensure that the subject is within the recommended range, which varies by lens.•When a lens hood is attached, the light from the ash can be blocked by the hood. Remove the hood to use the ash.](https://usermanual.wiki/Samsung-Electronics-Co/NX1.User-manual-2-of-3/User-Guide-2394047-Page-60.png)
