Samsung Electronics Co SGHX495H Single-Band PCS GSM Phone User Manual SGH X497 FCC

Samsung Electronics Co Ltd Single-Band PCS GSM Phone SGH X497 FCC

Contents

Users Manual 2

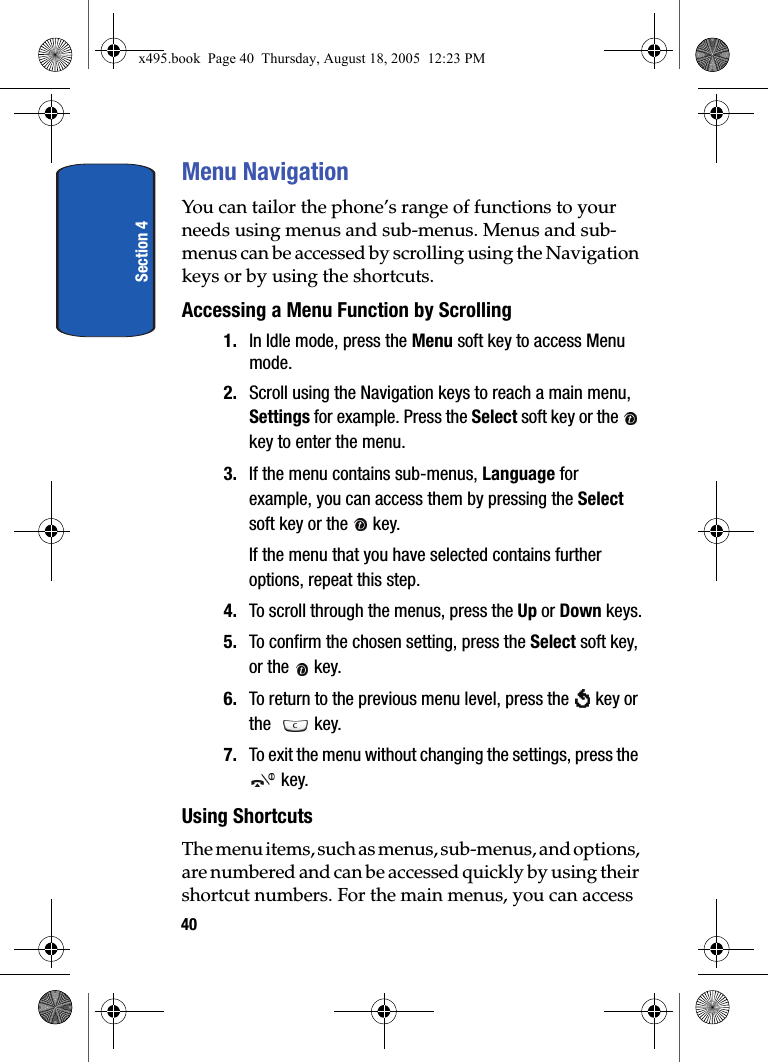

Section 440Menu NavigationYou can tailor the phone’s range of functions to your needs using menus and sub-menus. Menus and sub-menus can be accessed by scrolling using the Navigation keys or by using the shortcuts.Accessing a Menu Function by Scrolling1. In Idle mode, press the Menu soft key to access Menu mode.2. Scroll using the Navigation keys to reach a main menu, Settings for example. Press the Select soft key or the key to enter the menu. 3. If the menu contains sub-menus, Language for example, you can access them by pressing the Select soft key or the key.If the menu that you have selected contains further options, repeat this step.4. To scroll through the menus, press the Up or Down keys.5. To confirm the chosen setting, press the Select soft key, or the key.6. To return to the previous menu level, press the key or the key.7. To exit the menu without changing the settings, press the key.Using ShortcutsThe menu items, such as menus, sub-menus, and options, are numbered and can be accessed quickly by using their shortcut numbers. For the main menus, you can access x495.book Page 40 Thursday, August 18, 2005 12:23 PM

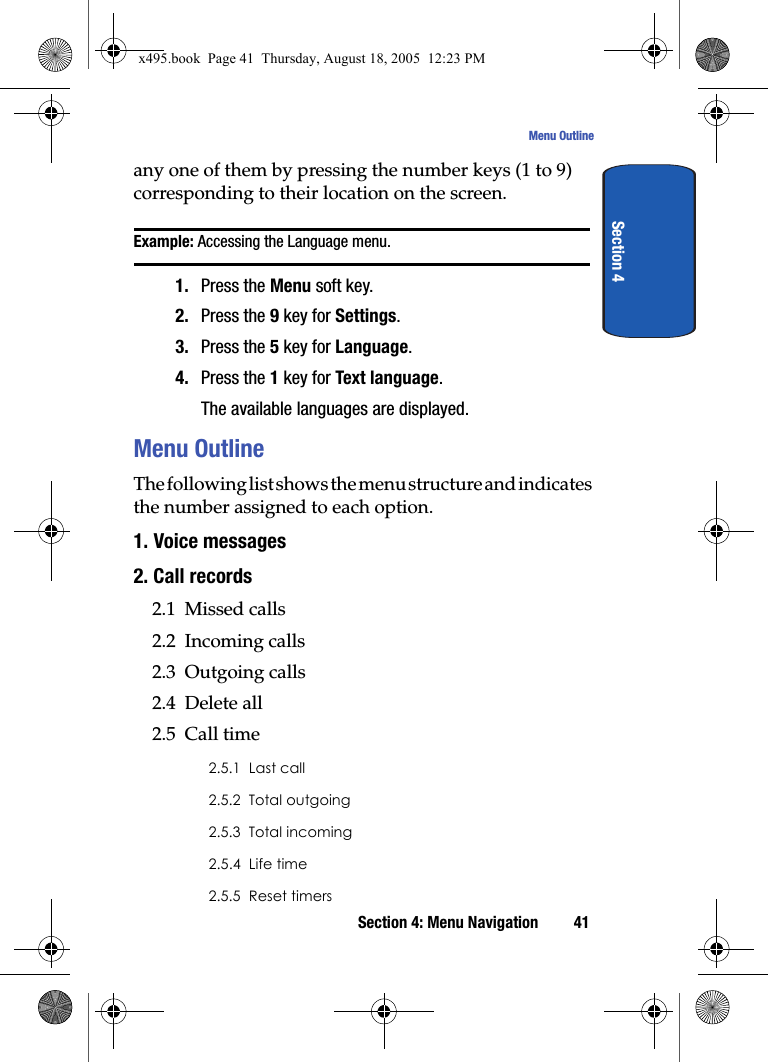

Section 4: Menu Navigation 41Menu OutlineSection 4any one of them by pressing the number keys (1 to 9) corresponding to their location on the screen.Example: Accessing the Language menu.1. Press the Menu soft key.2. Press the 9 key for Settings.3. Press the 5 key for Language.4. Press the 1 key for Text language.The available languages are displayed. Menu OutlineThe following list shows the menu structure and indicates the number assigned to each option.1. Voice messages2. Call records2.1 Missed calls2.2 Incoming calls2.3 Outgoing calls2.4 Delete all2.5 Call time2.5.1 Last call2.5.2 Total outgoing2.5.3 Total incoming2.5.4 Life time2.5.5 Reset timersx495.book Page 41 Thursday, August 18, 2005 12:23 PM

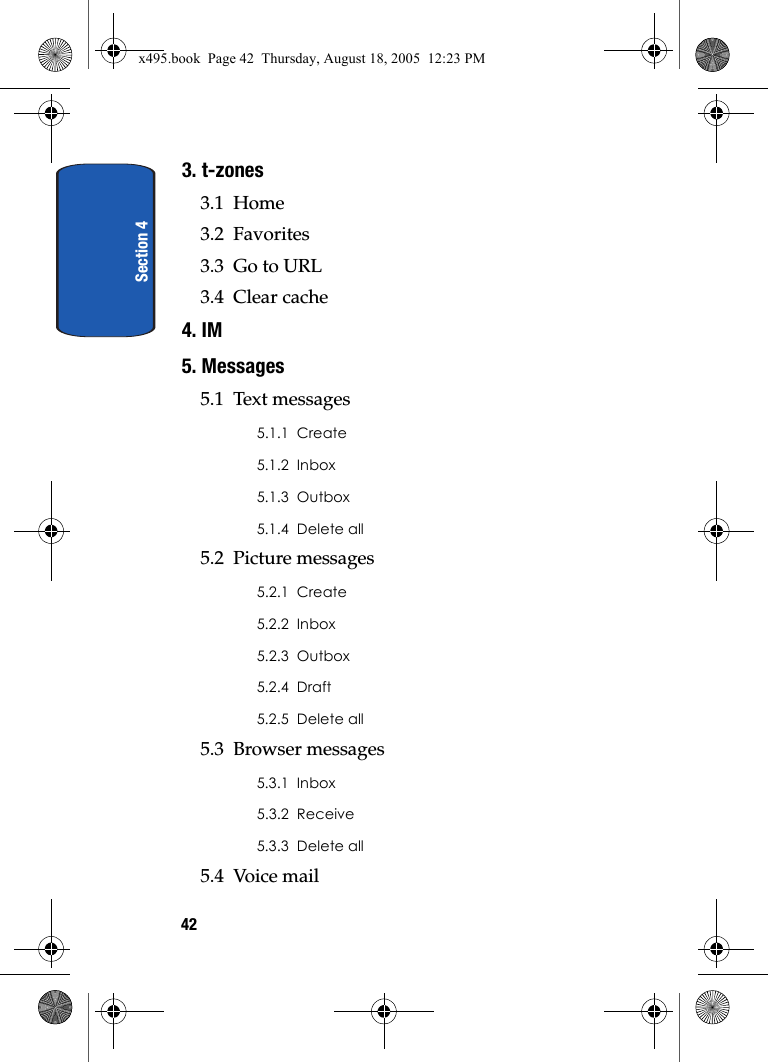

Section 4423. t-zones3.1 Home3.2 Favorites3.3 Go to URL3.4 Clear cache4. IM5. Messages5.1 Text messages5.1.1 Create5.1.2 Inbox5.1.3 Outbox5.1.4 Delete all5.2 Picture messages5.2.1 Create5.2.2 Inbox5.2.3 Outbox5.2.4 Draft5.2.5 Delete all5.3 Browser messages5.3.1 Inbox5.3.2 Receive5.3.3 Delete all5.4 Voice mailx495.book Page 42 Thursday, August 18, 2005 12:23 PM

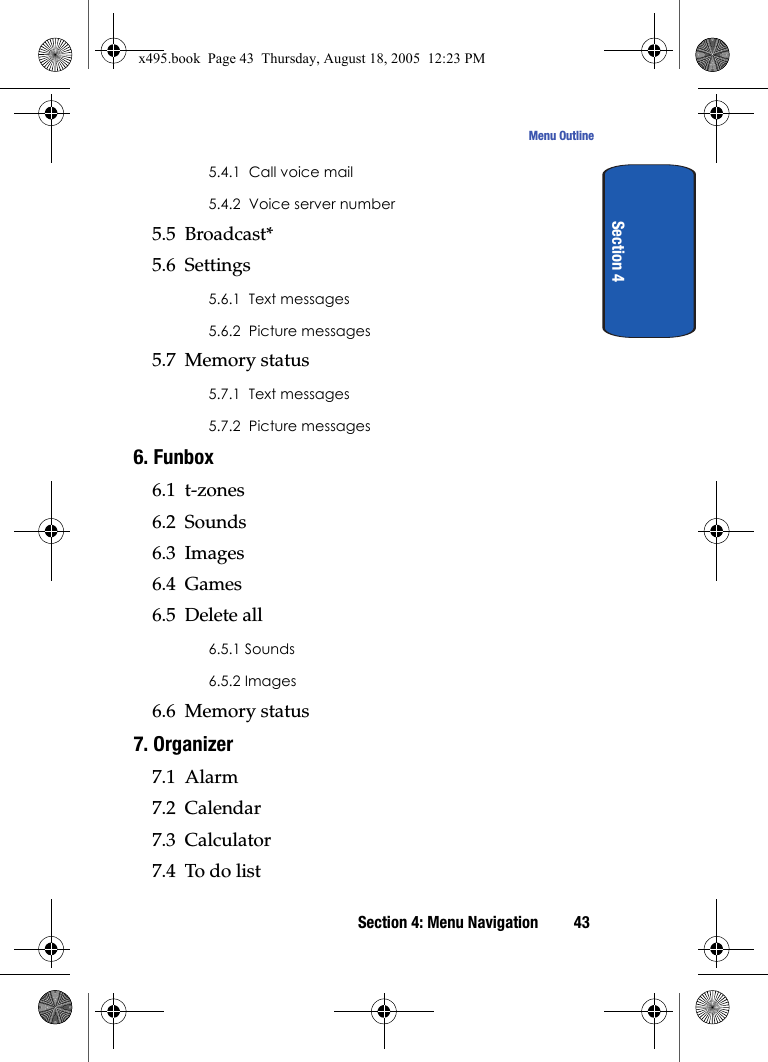

Section 4: Menu Navigation 43Menu OutlineSection 45.4.1 Call voice mail5.4.2 Voice server number5.5 Broadcast*5.6 Settings5.6.1 Text messages5.6.2 Picture messages5.7 Memory status5.7.1 Text messages5.7.2 Picture messages6. Funbox 6.1 t-zones6.2 Sounds6.3 Images6.4 Games6.5 Delete all6.5.1 Sounds6.5.2 Images6.6 Memory status7. Organizer7.1 Alarm7.2 Calendar7.3 Calculator7.4 To do listx495.book Page 43 Thursday, August 18, 2005 12:23 PM

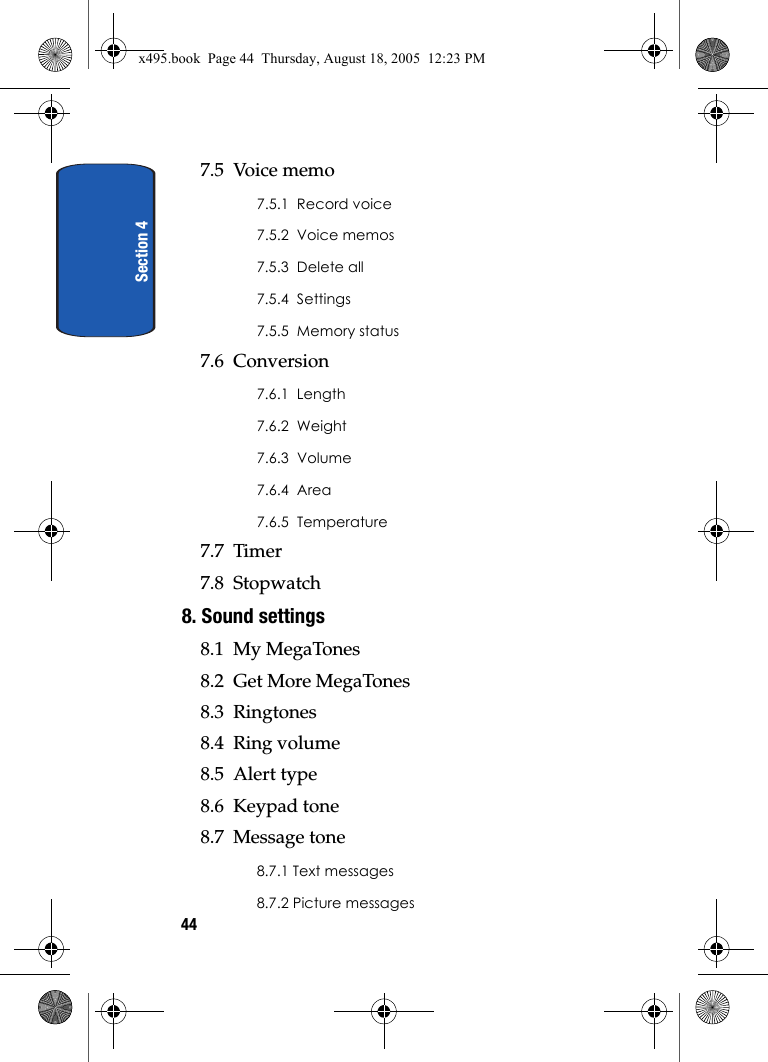

Section 4447.5 Voice memo7.5.1 Record voice7.5.2 Voice memos7.5.3 Delete all7.5.4 Settings7.5.5 Memory status7.6 Conversion7.6.1 Length7.6.2 Weight7.6.3 Volume7.6.4 Area7.6.5 Temperature7.7 Timer7.8 Stopwatch8. Sound settings8.1 My MegaTones8.2 Get More MegaTones8.3 Ringtones8.4 Ring volume8.5 Alert type8.6 Keypad tone8.7 Message tone8.7.1 Text messages8.7.2 Picture messagesx495.book Page 44 Thursday, August 18, 2005 12:23 PM

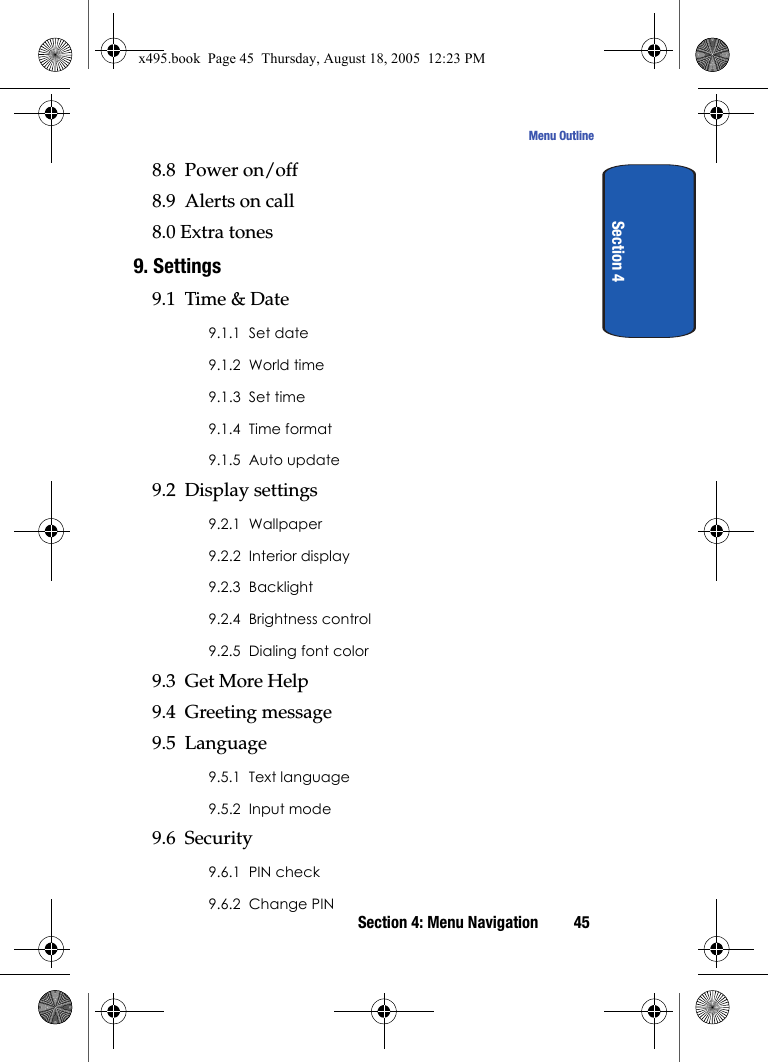

Section 4: Menu Navigation 45Menu OutlineSection 48.8 Power on/off8.9 Alerts on call8.0 Extra tones9. Settings9.1 Time & Date9.1.1 Set date9.1.2 World time9.1.3 Set time9.1.4 Time format9.1.5 Auto update9.2 Display settings9.2.1 Wallpaper9.2.2 Interior display9.2.3 Backlight9.2.4 Brightness control9.2.5 Dialing font color9.3 Get More Help9.4 Greeting message9.5 Language9.5.1 Text language9.5.2 Input mode9.6 Security9.6.1 PIN check9.6.2 Change PINx495.book Page 45 Thursday, August 18, 2005 12:23 PM

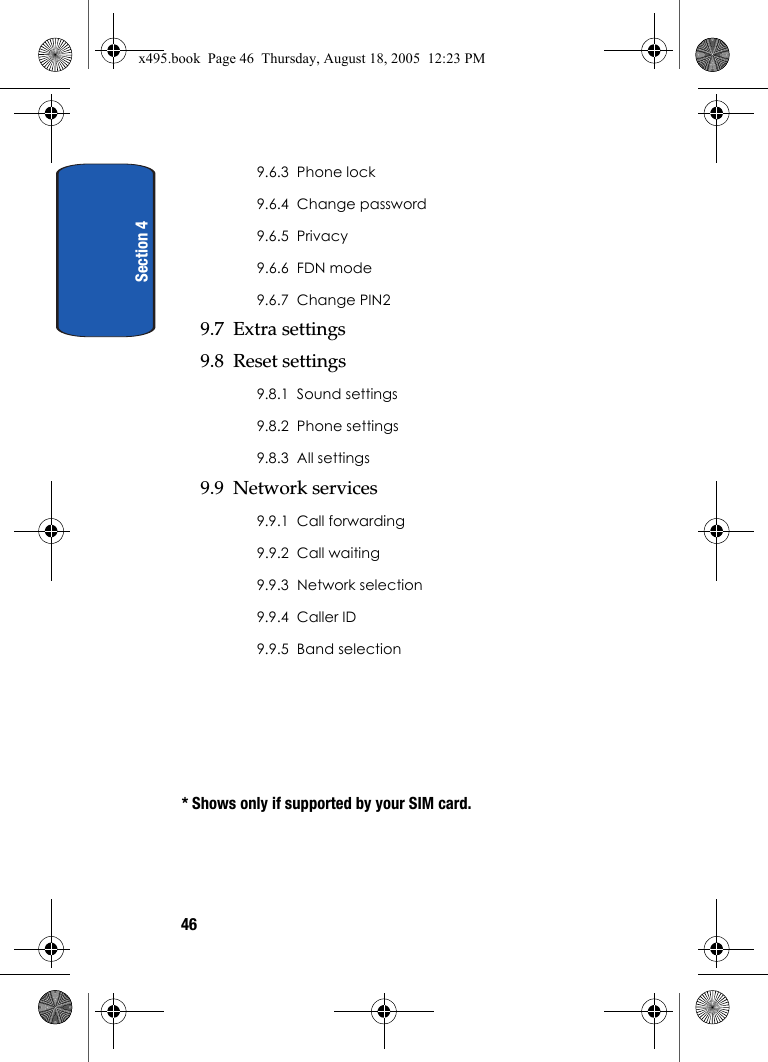

Section 4469.6.3 Phone lock9.6.4 Change password9.6.5 Privacy9.6.6 FDN mode9.6.7 Change PIN29.7 Extra settings9.8 Reset settings9.8.1 Sound settings9.8.2 Phone settings9.8.3 All settings9.9 Network services9.9.1 Call forwarding9.9.2 Call waiting9.9.3 Network selection9.9.4 Caller ID9.9.5 Band selection* Shows only if supported by your SIM card.x495.book Page 46 Thursday, August 18, 2005 12:23 PM

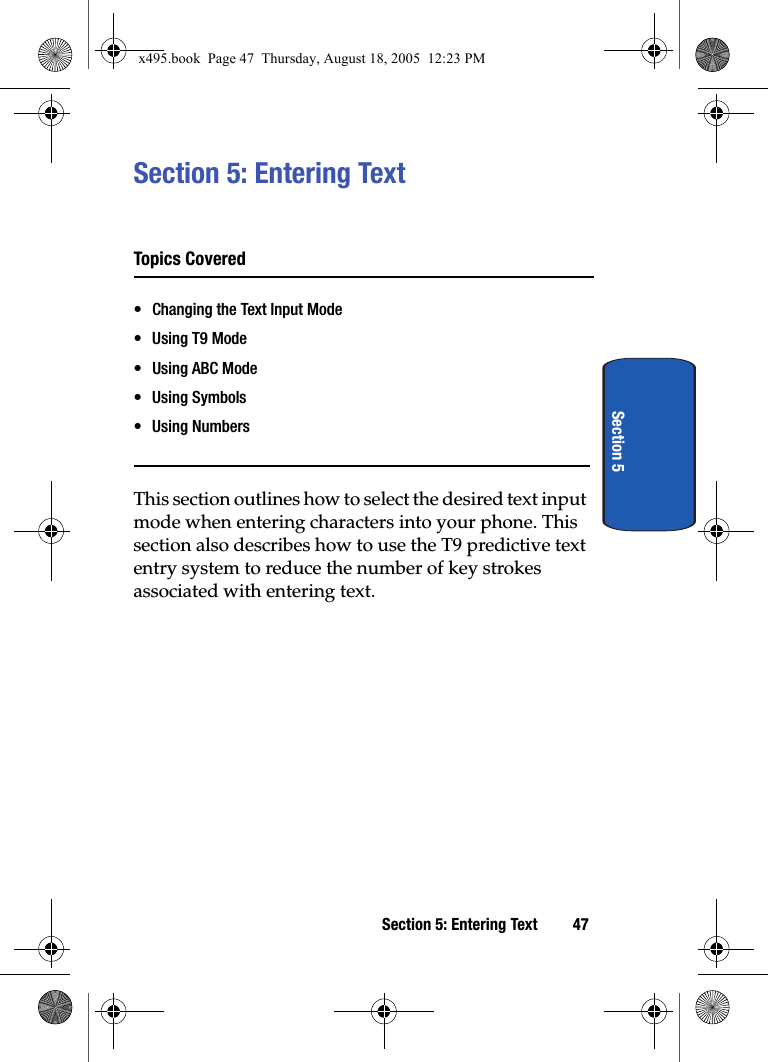

Section 5: Entering Text 47Section 5Section 5: Entering TextTopics Covered• Changing the Text Input Mode• Using T9 Mode• Using ABC Mode• Using Symbols• Using NumbersThis section outlines how to select the desired text input mode when entering characters into your phone. This section also describes how to use the T9 predictive text entry system to reduce the number of key strokes associated with entering text.x495.book Page 47 Thursday, August 18, 2005 12:23 PM

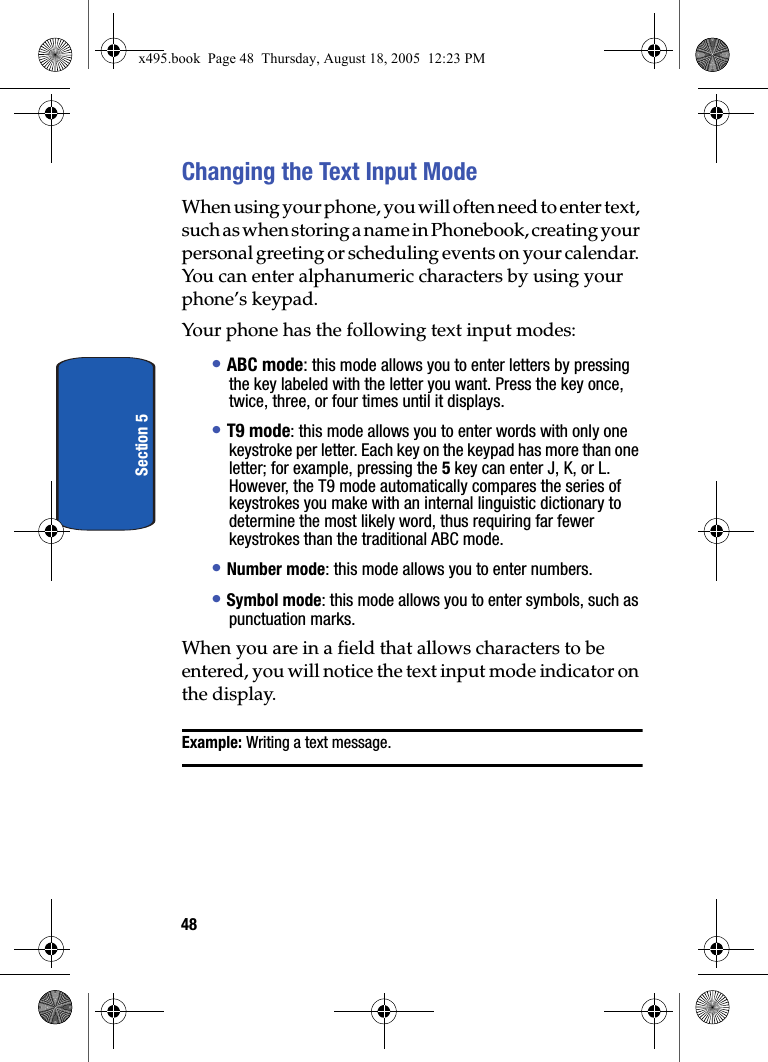

48Section 5Changing the Text Input ModeWhen using your phone, you will often need to enter text, such as when storing a name in Phonebook, creating your personal greeting or scheduling events on your calendar. You can enter alphanumeric characters by using your phone’s keypad.Your phone has the following text input modes:• ABC mode: this mode allows you to enter letters by pressing the key labeled with the letter you want. Press the key once, twice, three, or four times until it displays.• T9 mode: this mode allows you to enter words with only one keystroke per letter. Each key on the keypad has more than one letter; for example, pressing the 5 key can enter J, K, or L. However, the T9 mode automatically compares the series of keystrokes you make with an internal linguistic dictionary to determine the most likely word, thus requiring far fewer keystrokes than the traditional ABC mode.• Number mode: this mode allows you to enter numbers.• Symbol mode: this mode allows you to enter symbols, such as punctuation marks.When you are in a field that allows characters to be entered, you will notice the text input mode indicator on the display.Example: Writing a text message.x495.book Page 48 Thursday, August 18, 2005 12:23 PM

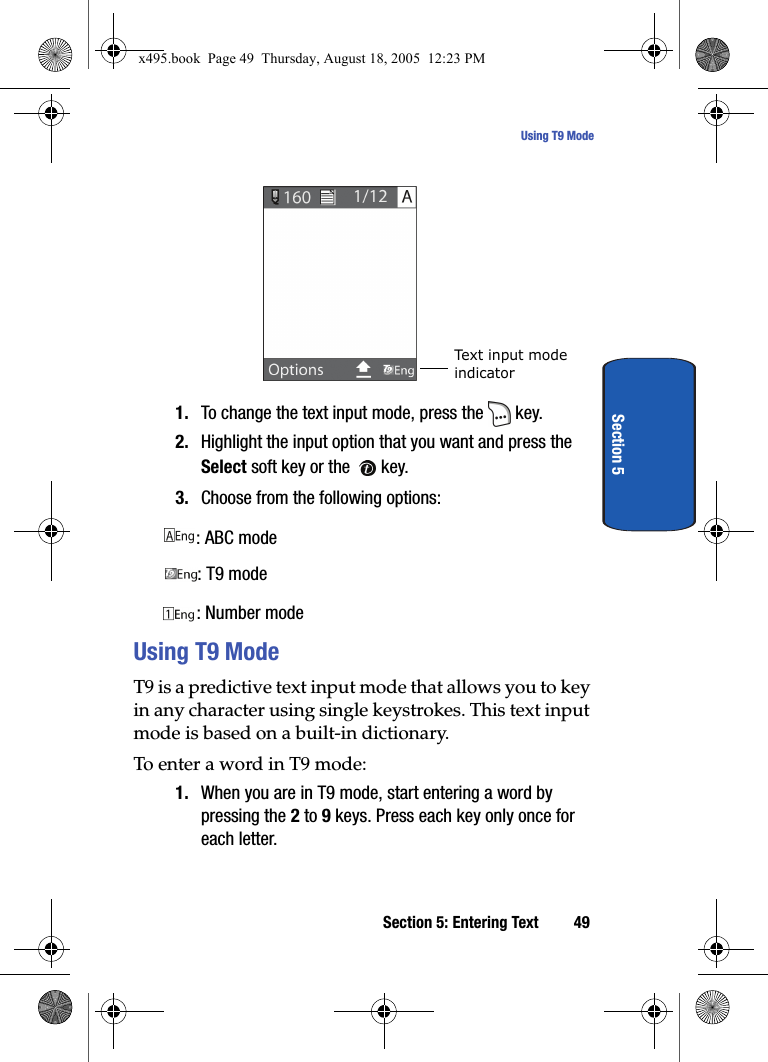

Section 5: Entering Text 49Using T9 ModeSection 51. To change the text input mode, press the key. 2. Highlight the input option that you want and press the Select soft key or the key.3. Choose from the following options:: ABC mode : T9 mode : Number modeUsing T9 ModeT9 is a predictive text input mode that allows you to key in any character using single keystrokes. This text input mode is based on a built-in dictionary.To enter a word in T9 mode:1. When you are in T9 mode, start entering a word by pressing the 2 to 9 keys. Press each key only once for each letter. Text input mode indicatorx495.book Page 49 Thursday, August 18, 2005 12:23 PM

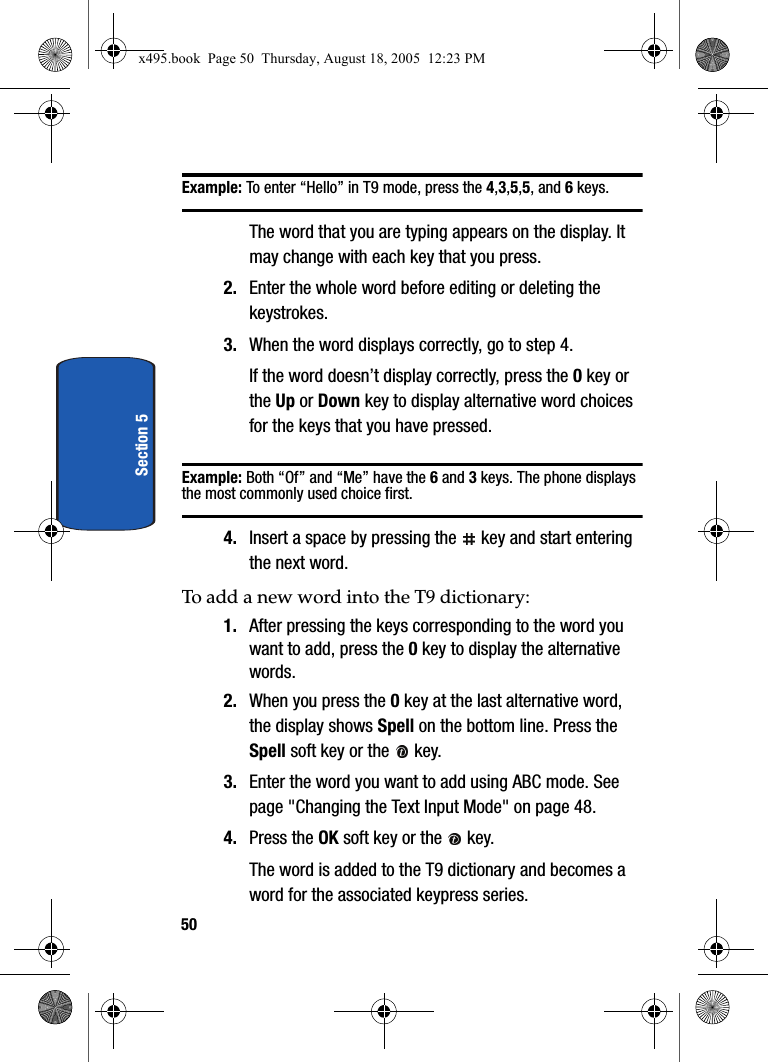

50Section 5Example: To enter “Hello” in T9 mode, press the 4,3,5,5, and 6 keys.The word that you are typing appears on the display. It may change with each key that you press.2. Enter the whole word before editing or deleting the keystrokes.3. When the word displays correctly, go to step 4.If the word doesn’t display correctly, press the 0 key or the Up or Down key to display alternative word choices for the keys that you have pressed. Example: Both “Of” and “Me” have the 6 and 3 keys. The phone displays the most commonly used choice first.4. Insert a space by pressing the key and start entering the next word.To add a new word into the T9 dictionary:1. After pressing the keys corresponding to the word you want to add, press the 0 key to display the alternative words.2. When you press the 0 key at the last alternative word, the display shows Spell on the bottom line. Press the Spell soft key or the key.3. Enter the word you want to add using ABC mode. See page "Changing the Text Input Mode" on page 48.4. Press the OK soft key or the key.The word is added to the T9 dictionary and becomes a word for the associated keypress series.x495.book Page 50 Thursday, August 18, 2005 12:23 PM

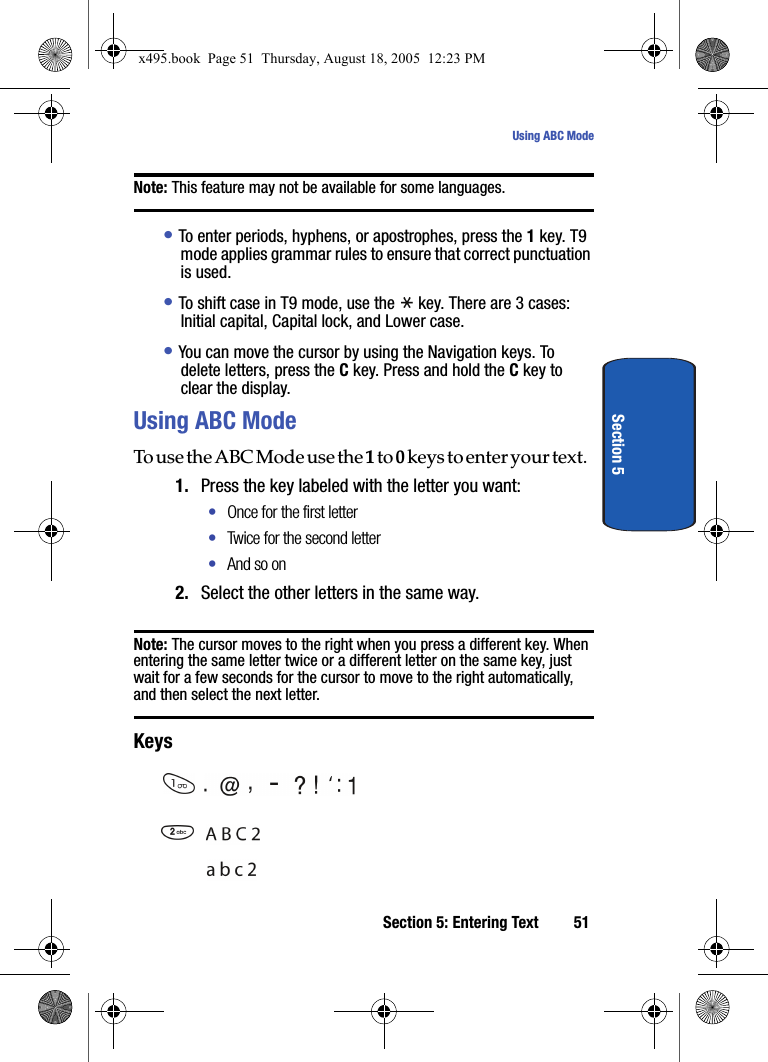

Section 5: Entering Text 51Using ABC ModeSection 5Note: This feature may not be available for some languages.• To enter periods, hyphens, or apostrophes, press the 1 key. T9 mode applies grammar rules to ensure that correct punctuation is used. • To shift case in T9 mode, use the key. There are 3 cases: Initial capital, Capital lock, and Lower case.• You can move the cursor by using the Navigation keys. To delete letters, press the C key. Press and hold the C key to clear the display.Using ABC ModeTo use the ABC Mode use the 1 to 0 keys to enter your text. 1. Press the key labeled with the letter you want:•Once for the first letter•Twice for the second letter•And so on2. Select the other letters in the same way.Note: The cursor moves to the right when you press a different key. When entering the same letter twice or a different letter on the same key, just wait for a few seconds for the cursor to move to the right automatically, and then select the next letter.Keys x495.book Page 51 Thursday, August 18, 2005 12:23 PM
52Section 5 x495.book Page 52 Thursday, August 18, 2005 12:23 PM

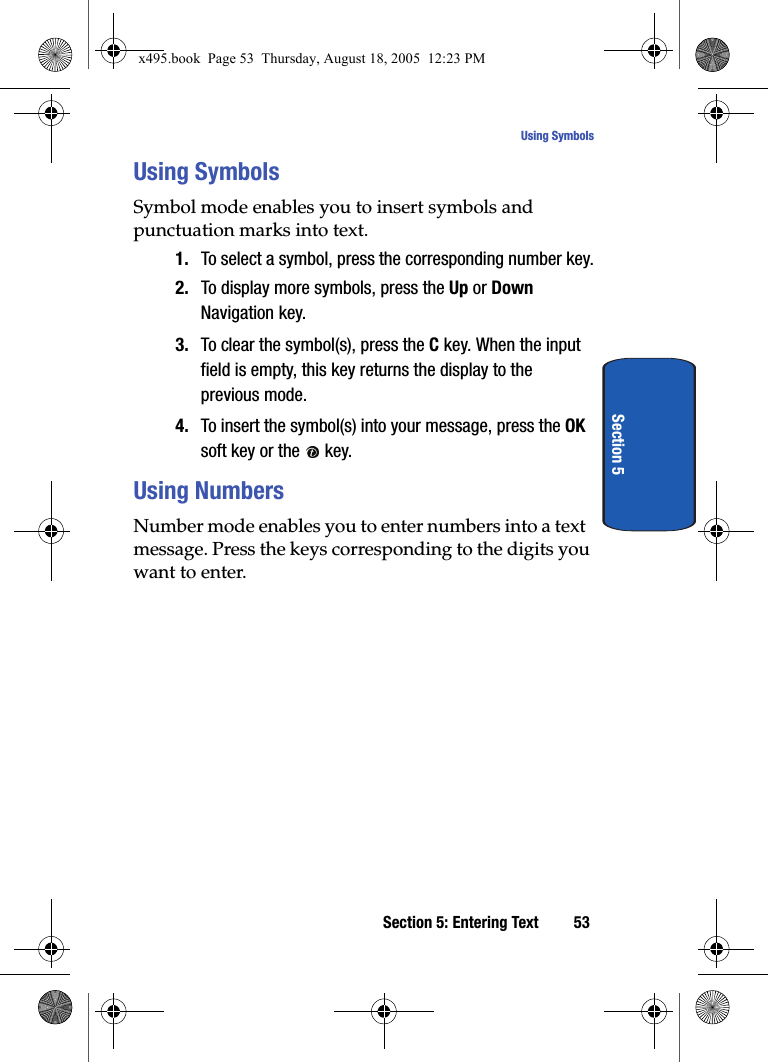

Section 5: Entering Text 53Using SymbolsSection 5Using SymbolsSymbol mode enables you to insert symbols and punctuation marks into text.1. To select a symbol, press the corresponding number key.2. To display more symbols, press the Up or Down Navigation key.3. To clear the symbol(s), press the C key. When the input field is empty, this key returns the display to the previous mode.4. To insert the symbol(s) into your message, press the OK soft key or the key.Using NumbersNumber mode enables you to enter numbers into a text message. Press the keys corresponding to the digits you want to enter.x495.book Page 53 Thursday, August 18, 2005 12:23 PM

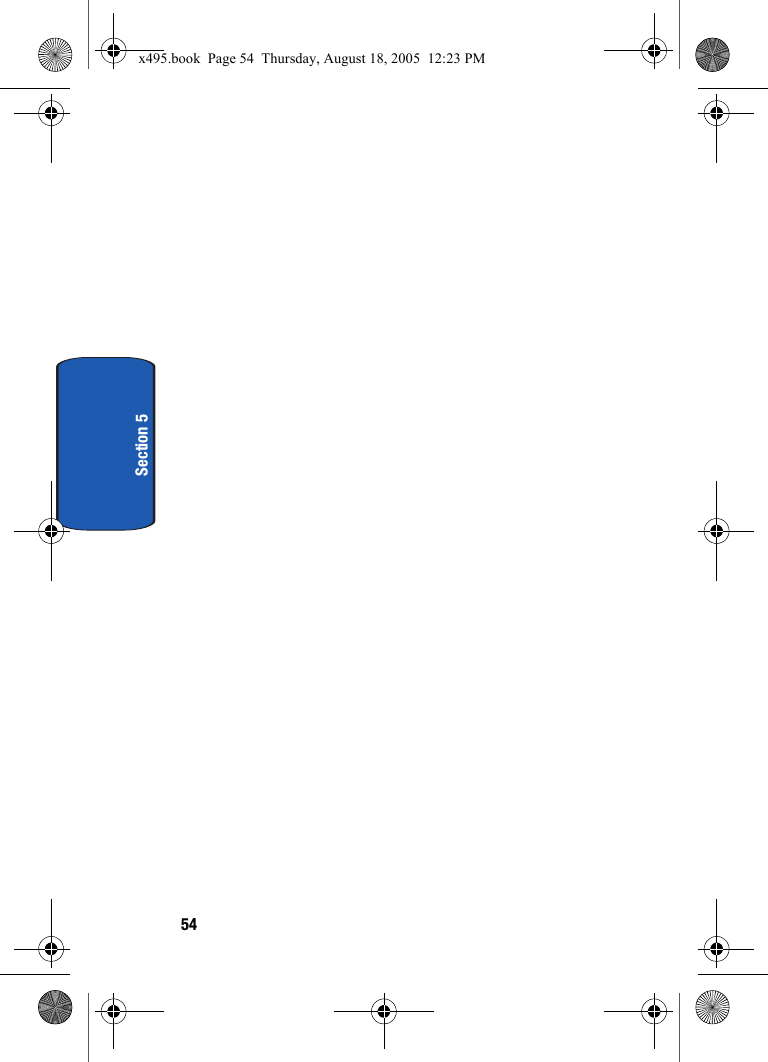

54Section 5x495.book Page 54 Thursday, August 18, 2005 12:23 PM

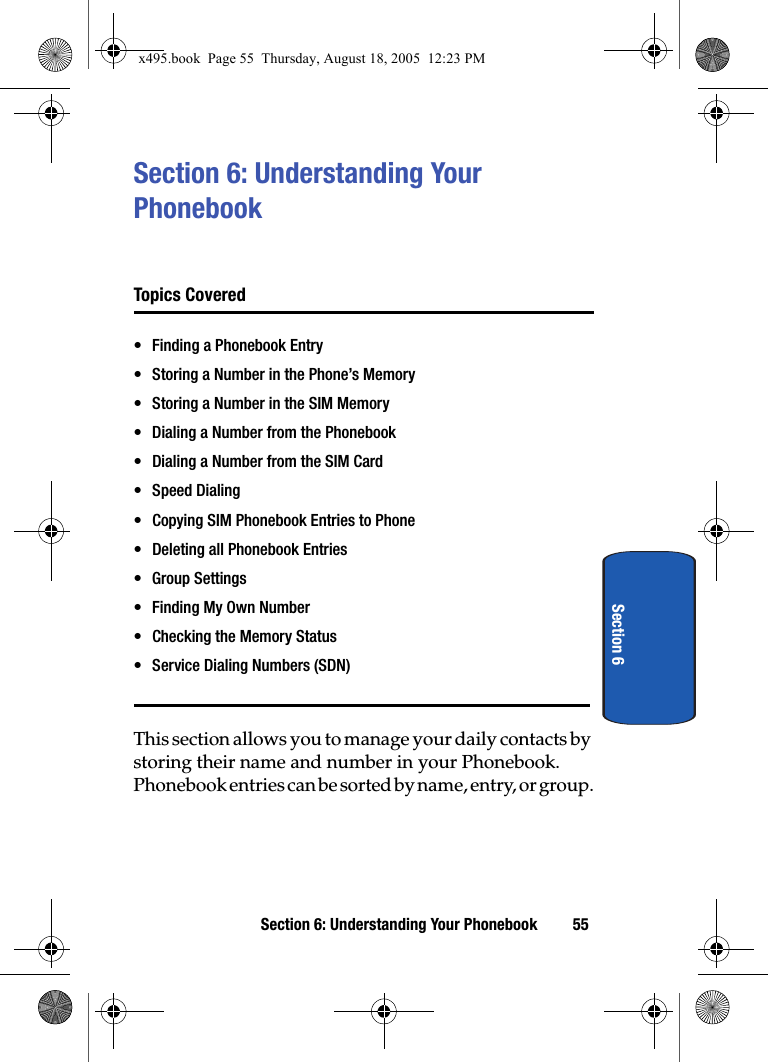

Section 6: Understanding Your Phonebook 55Section 6Section 6: Understanding Your PhonebookTopics Covered• Finding a Phonebook Entry• Storing a Number in the Phone’s Memory• Storing a Number in the SIM Memory• Dialing a Number from the Phonebook• Dialing a Number from the SIM Card• Speed Dialing• Copying SIM Phonebook Entries to Phone• Deleting all Phonebook Entries• Group Settings• Finding My Own Number• Checking the Memory Status• Service Dialing Numbers (SDN)This section allows you to manage your daily contacts by storing their name and number in your Phonebook. Phonebook entries can be sorted by name, entry, or group.x495.book Page 55 Thursday, August 18, 2005 12:23 PM

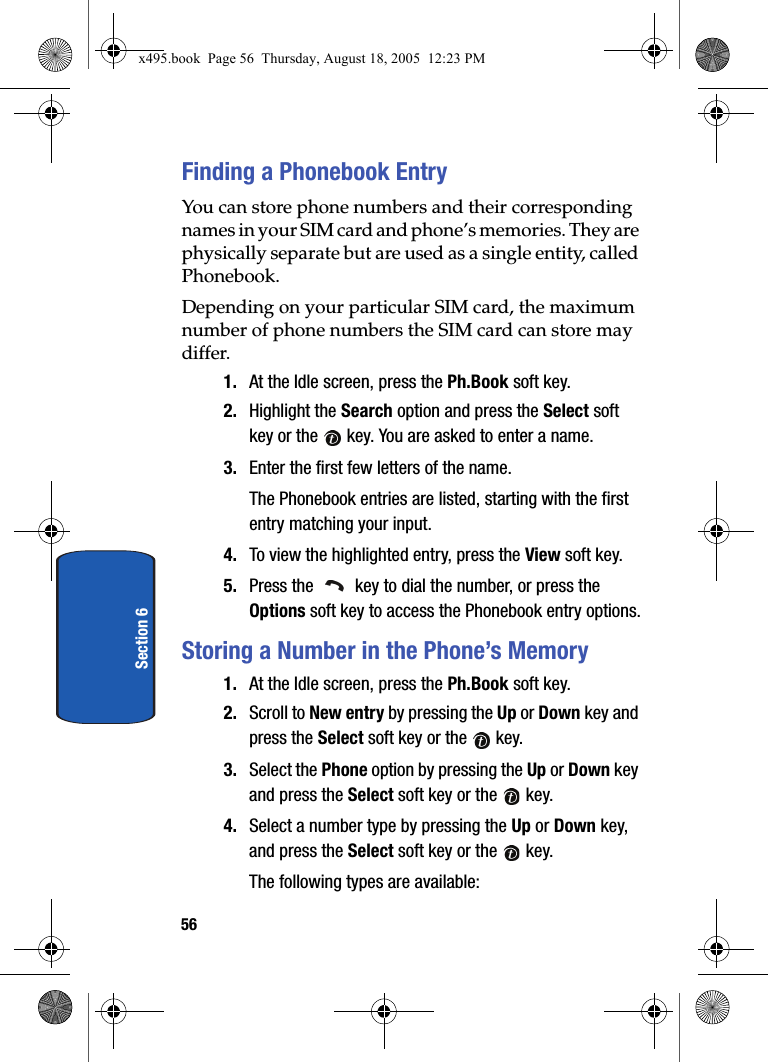

56Section 6Finding a Phonebook EntryYou can store phone numbers and their corresponding names in your SIM card and phone’s memories. They are physically separate but are used as a single entity, called Phonebook.Depending on your particular SIM card, the maximum number of phone numbers the SIM card can store may differ.1. At the Idle screen, press the Ph.Book soft key. 2. Highlight the Search option and press the Select soft key or the key. You are asked to enter a name.3. Enter the first few letters of the name.The Phonebook entries are listed, starting with the first entry matching your input.4. To view the highlighted entry, press the View soft key.5. Press the key to dial the number, or press the Options soft key to access the Phonebook entry options.Storing a Number in the Phone’s Memory1. At the Idle screen, press the Ph.Book soft key.2. Scroll to New entry by pressing the Up or Down key and press the Select soft key or the key.3. Select the Phone option by pressing the Up or Down key and press the Select soft key or the key.4. Select a number type by pressing the Up or Down key, and press the Select soft key or the key.The following types are available:x495.book Page 56 Thursday, August 18, 2005 12:23 PM

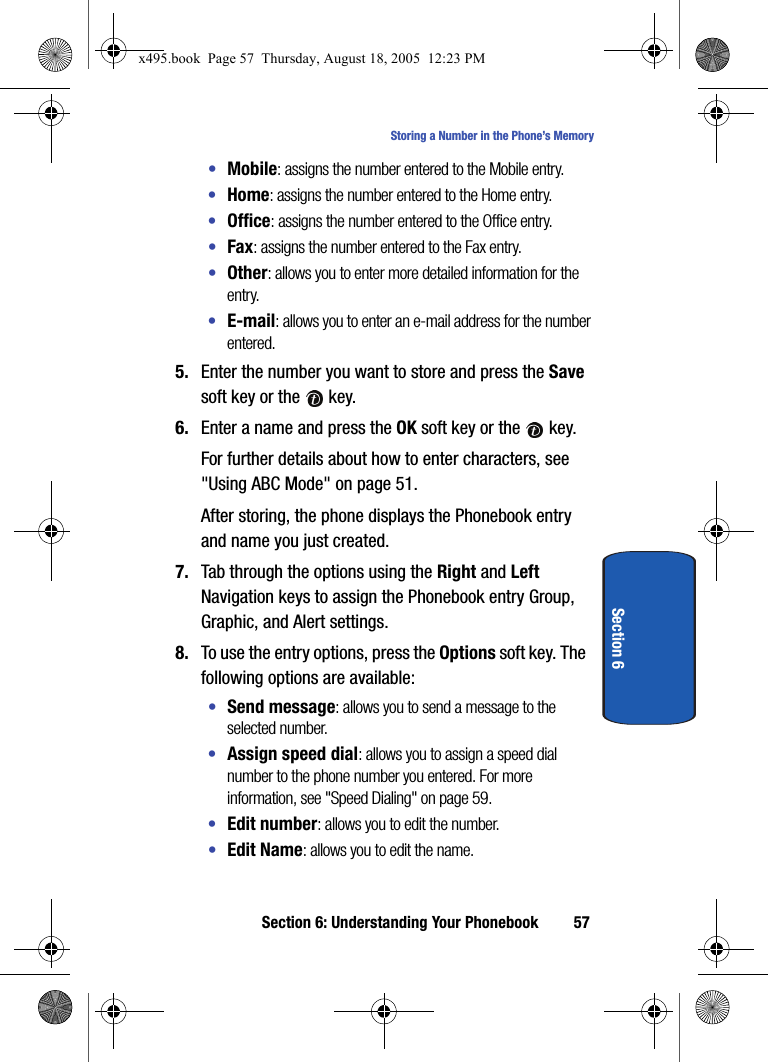

Section 6: Understanding Your Phonebook 57Storing a Number in the Phone’s MemorySection 6•Mobile: assigns the number entered to the Mobile entry.•Home: assigns the number entered to the Home entry.•Office: assigns the number entered to the Office entry.•Fax: assigns the number entered to the Fax entry.•Other: allows you to enter more detailed information for the entry. •E-mail: allows you to enter an e-mail address for the number entered.5. Enter the number you want to store and press the Save soft key or the key.6. Enter a name and press the OK soft key or the key. For further details about how to enter characters, see "Using ABC Mode" on page 51.After storing, the phone displays the Phonebook entry and name you just created.7. Tab through the options using the Right and Left Navigation keys to assign the Phonebook entry Group, Graphic, and Alert settings.8. To use the entry options, press the Options soft key. The following options are available:•Send message: allows you to send a message to the selected number.•Assign speed dial: allows you to assign a speed dial number to the phone number you entered. For more information, see "Speed Dialing" on page 59.•Edit number: allows you to edit the number. •Edit Name: allows you to edit the name.x495.book Page 57 Thursday, August 18, 2005 12:23 PM

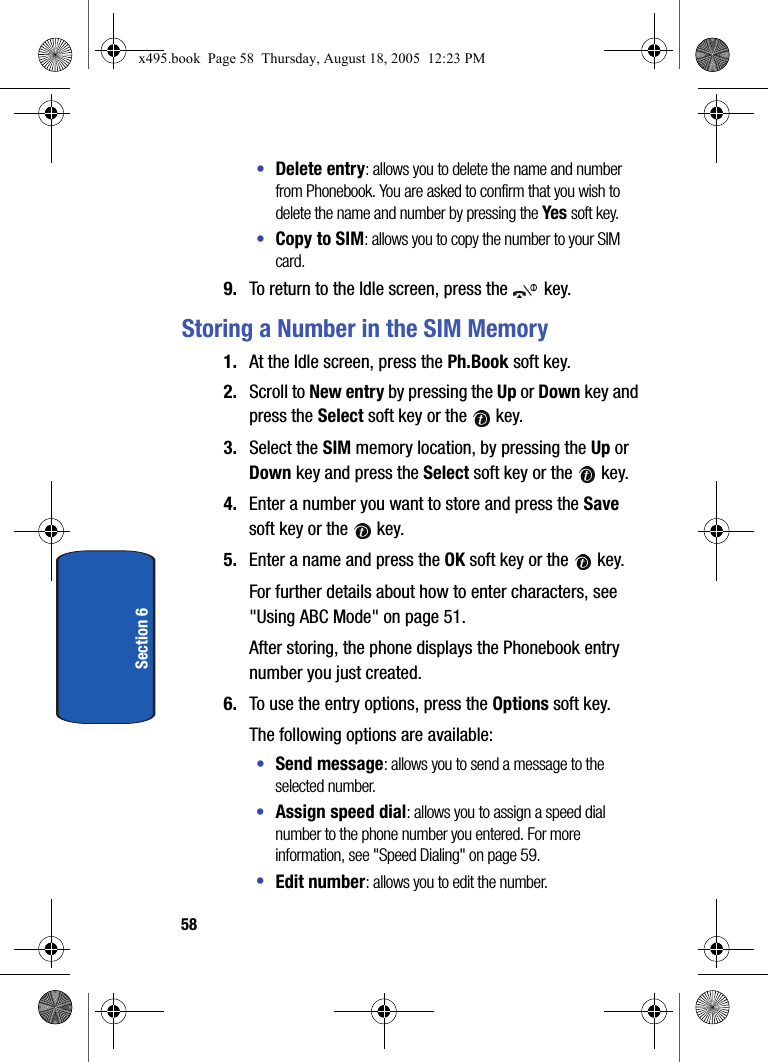

58Section 6•Delete entry: allows you to delete the name and number from Phonebook. You are asked to confirm that you wish to delete the name and number by pressing the Yes soft key.•Copy to SIM: allows you to copy the number to your SIM card.9. To return to the Idle screen, press the key.Storing a Number in the SIM Memory1. At the Idle screen, press the Ph.Book soft key. 2. Scroll to New entry by pressing the Up or Down key and press the Select soft key or the key.3. Select the SIM memory location, by pressing the Up or Down key and press the Select soft key or the key.4. Enter a number you want to store and press the Save soft key or the key.5. Enter a name and press the OK soft key or the key. For further details about how to enter characters, see "Using ABC Mode" on page 51.After storing, the phone displays the Phonebook entry number you just created.6. To use the entry options, press the Options soft key. The following options are available:•Send message: allows you to send a message to the selected number.•Assign speed dial: allows you to assign a speed dial number to the phone number you entered. For more information, see "Speed Dialing" on page 59.•Edit number: allows you to edit the number. x495.book Page 58 Thursday, August 18, 2005 12:23 PM

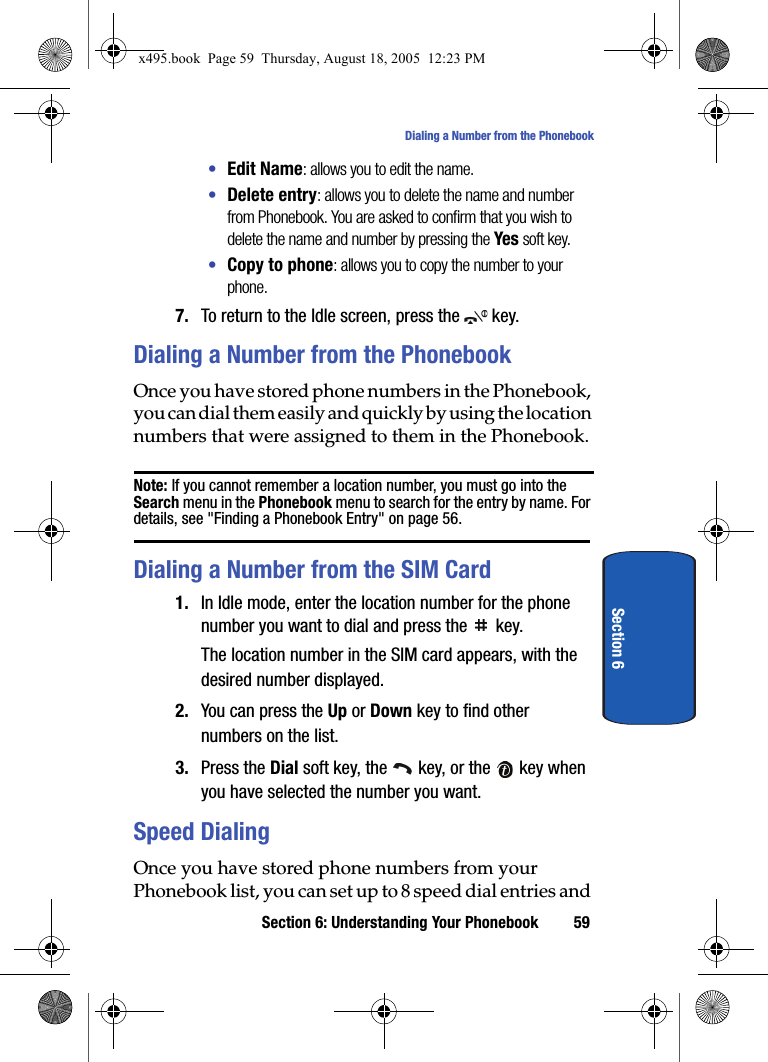

Section 6: Understanding Your Phonebook 59Dialing a Number from the PhonebookSection 6•Edit Name: allows you to edit the name.•Delete entry: allows you to delete the name and number from Phonebook. You are asked to confirm that you wish to delete the name and number by pressing the Yes soft key.•Copy to phone: allows you to copy the number to your phone.7. To return to the Idle screen, press the key.Dialing a Number from the PhonebookOnce you have stored phone numbers in the Phonebook, you can dial them easily and quickly by using the location numbers that were assigned to them in the Phonebook. Note: If you cannot remember a location number, you must go into the Search menu in the Phonebook menu to search for the entry by name. For details, see "Finding a Phonebook Entry" on page 56.Dialing a Number from the SIM Card1. In Idle mode, enter the location number for the phone number you want to dial and press the key.The location number in the SIM card appears, with the desired number displayed.2. You can press the Up or Down key to find other numbers on the list.3. Press the Dial soft key, the key, or the key when you have selected the number you want.Speed DialingOnce you have stored phone numbers from your Phonebook list, you can set up to 8 speed dial entries and x495.book Page 59 Thursday, August 18, 2005 12:23 PM

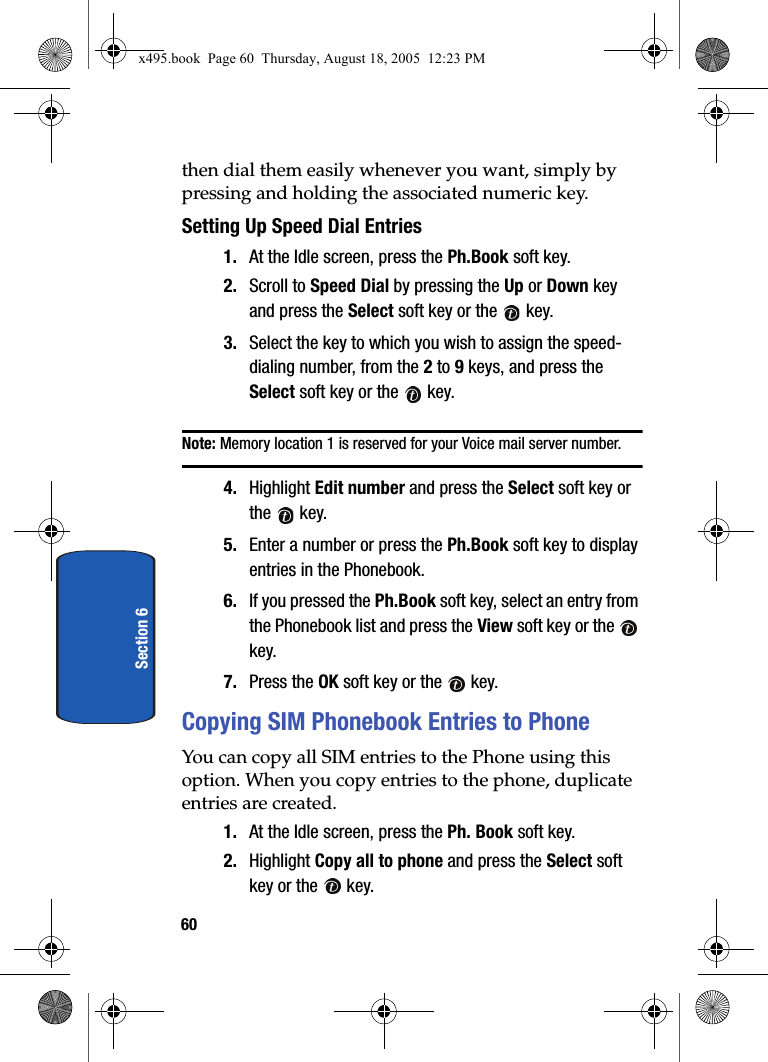

60Section 6then dial them easily whenever you want, simply by pressing and holding the associated numeric key.Setting Up Speed Dial Entries1. At the Idle screen, press the Ph.Book soft key.2. Scroll to Speed Dial by pressing the Up or Down key and press the Select soft key or the key.3. Select the key to which you wish to assign the speed-dialing number, from the 2 to 9 keys, and press the Select soft key or the key.Note: Memory location 1 is reserved for your Voice mail server number. 4. Highlight Edit number and press the Select soft key or the key. 5. Enter a number or press the Ph.Book soft key to display entries in the Phonebook.6. If you pressed the Ph.Book soft key, select an entry from the Phonebook list and press the View soft key or the key.7. Press the OK soft key or the key.Copying SIM Phonebook Entries to PhoneYou can copy all SIM entries to the Phone using this option. When you copy entries to the phone, duplicate entries are created. 1. At the Idle screen, press the Ph. Book soft key.2. Highlight Copy all to phone and press the Select soft key or the key.x495.book Page 60 Thursday, August 18, 2005 12:23 PM
Section 6: Understanding Your Phonebook 61Deleting all Phonebook EntriesSection 63. When you receive the Sure to copy all? message, press the Yes soft key or the key.Note: Options are available for phone entries that are not available when stored to the SIM card. For details, see "Storing a Number in the Phone’s Memory" on page 56. Deleting all Phonebook EntriesYou can delete all of your entries from your phone’s memory, your SIM card, or both. 1. At the Idle screen, press the Ph.Book soft key.2. Scroll to Delete all by pressing the Up or Down key and press the Select soft key or the key.3. To place a check mark by the memory location you want to empty, All, SIM, or Phone, press the Select soft key or the key. You can remove the check mark by pressing the Select soft key or the key.4. Press the Delete soft key to delete the entries in the selected memory location. A confirmation “Sure to delete?” displays. Press Yes to delete or No to cancel.Group Settings1. At the Idle screen, press the Ph.Book soft key.2. Scroll to Group settings by pressing the Up or Down key and press the Select soft key or the key.3. Scroll through the group list by pressing the Up or Down key.x495.book Page 61 Thursday, August 18, 2005 12:23 PM

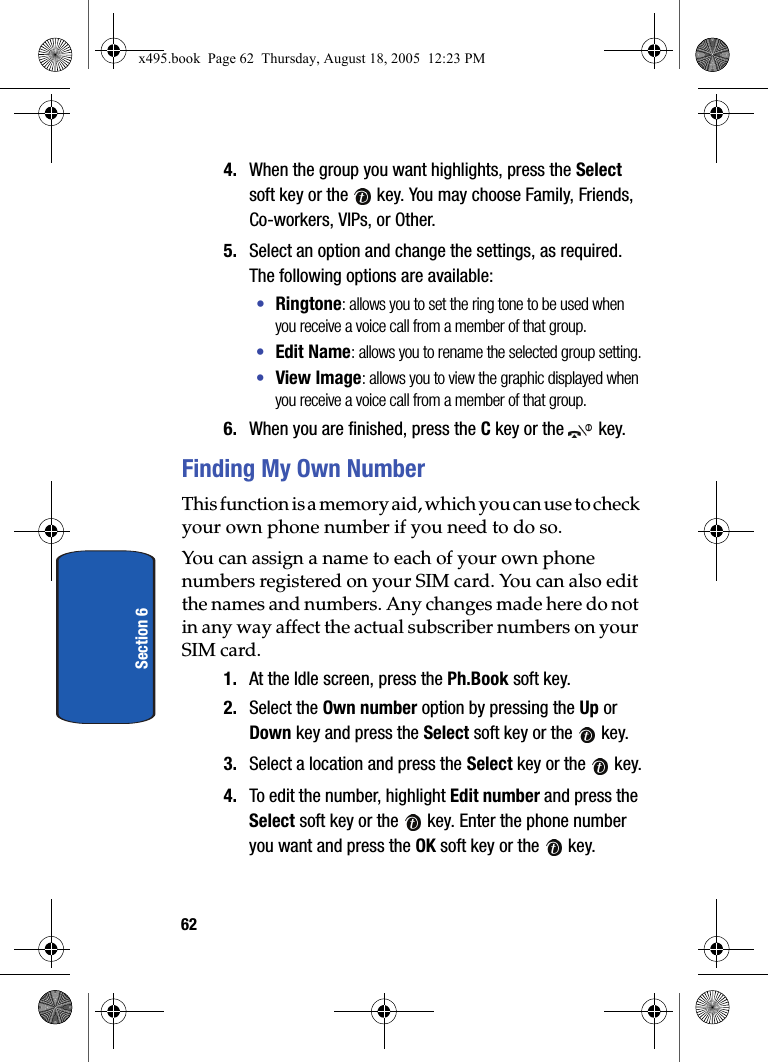

62Section 64. When the group you want highlights, press the Select soft key or the key. You may choose Family, Friends, Co-workers, VIPs, or Other.5. Select an option and change the settings, as required. The following options are available:•Ringtone: allows you to set the ring tone to be used when you receive a voice call from a member of that group.•Edit Name: allows you to rename the selected group setting.•View Image: allows you to view the graphic displayed when you receive a voice call from a member of that group.6. When you are finished, press the C key or the key.Finding My Own NumberThis function is a memory aid, which you can use to check your own phone number if you need to do so.You can assign a name to each of your own phone numbers registered on your SIM card. You can also edit the names and numbers. Any changes made here do not in any way affect the actual subscriber numbers on your SIM card.1. At the Idle screen, press the Ph.Book soft key.2. Select the Own number option by pressing the Up or Down key and press the Select soft key or the key.3. Select a location and press the Select key or the key.4. To edit the number, highlight Edit number and press the Select soft key or the key. Enter the phone number you want and press the OK soft key or the key.x495.book Page 62 Thursday, August 18, 2005 12:23 PM

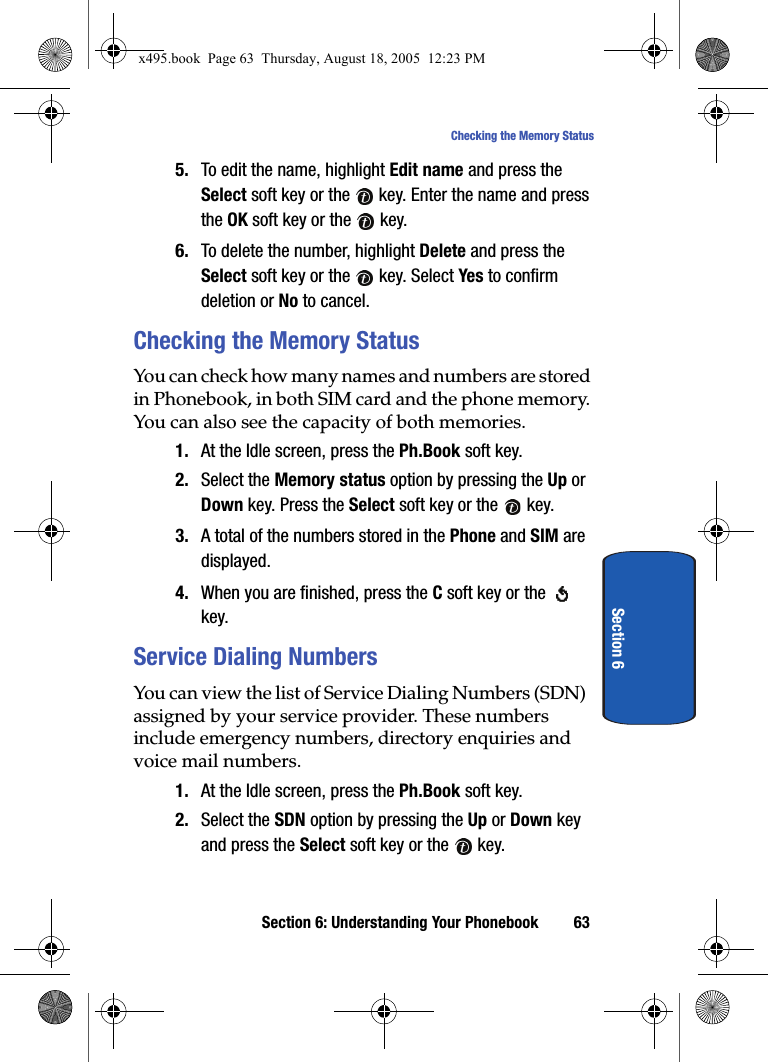

Section 6: Understanding Your Phonebook 63Checking the Memory StatusSection 65. To edit the name, highlight Edit name and press the Select soft key or the key. Enter the name and press the OK soft key or the key.6. To delete the number, highlight Delete and press the Select soft key or the key. Select Yes to confirm deletion or No to cancel. Checking the Memory StatusYou can check how many names and numbers are stored in Phonebook, in both SIM card and the phone memory. You can also see the capacity of both memories.1. At the Idle screen, press the Ph.Book soft key.2. Select the Memory status option by pressing the Up or Down key. Press the Select soft key or the key.3. A total of the numbers stored in the Phone and SIM are displayed. 4. When you are finished, press the C soft key or the key.Service Dialing NumbersYou can view the list of Service Dialing Numbers (SDN) assigned by your service provider. These numbers include emergency numbers, directory enquiries and voice mail numbers.1. At the Idle screen, press the Ph.Book soft key.2. Select the SDN option by pressing the Up or Down key and press the Select soft key or the key.x495.book Page 63 Thursday, August 18, 2005 12:23 PM
64Section 63. Scroll through the numbers by using the Up or Down key.4. To dial the number displayed, press the Select soft key or the key.Note: This function is available only if it is supported by your service provider.x495.book Page 64 Thursday, August 18, 2005 12:23 PM

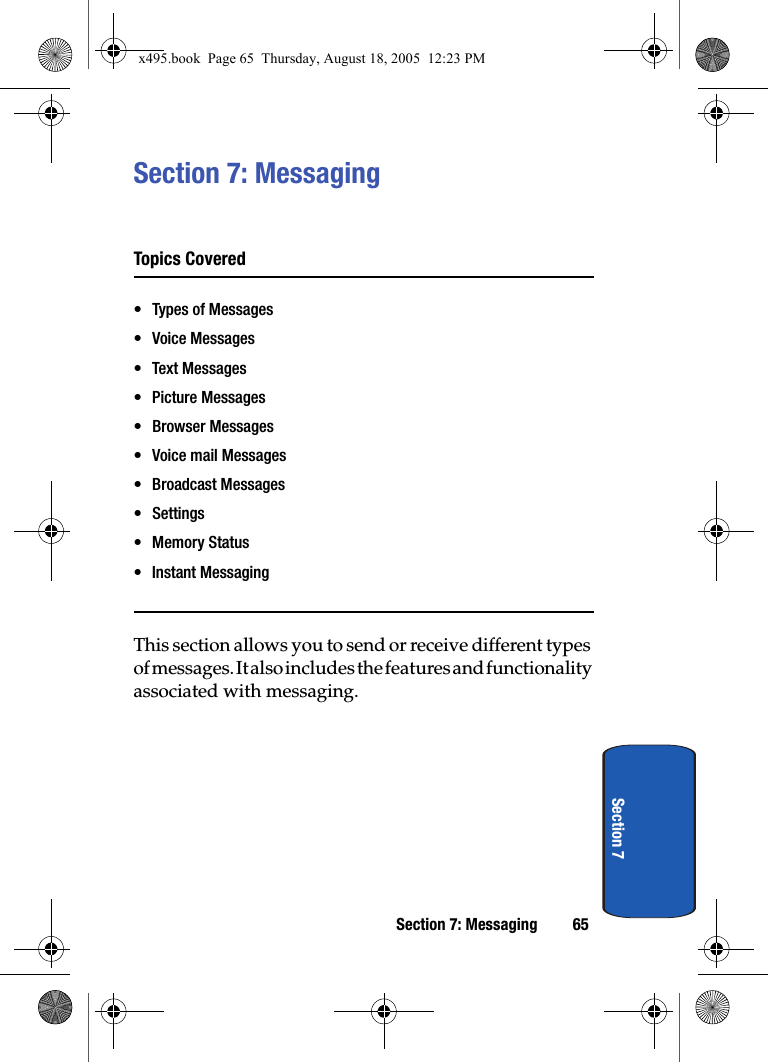

Section 7: Messaging 65Section 7Section 7: MessagingTopics Covered• Types of Messages• Voice Messages• Text Messages• Picture Messages• Browser Messages• Voice mail Messages• Broadcast Messages• Settings• Memory Status• Instant MessagingThis section allows you to send or receive different types of messages. It also includes the features and functionality associated with messaging.x495.book Page 65 Thursday, August 18, 2005 12:23 PM

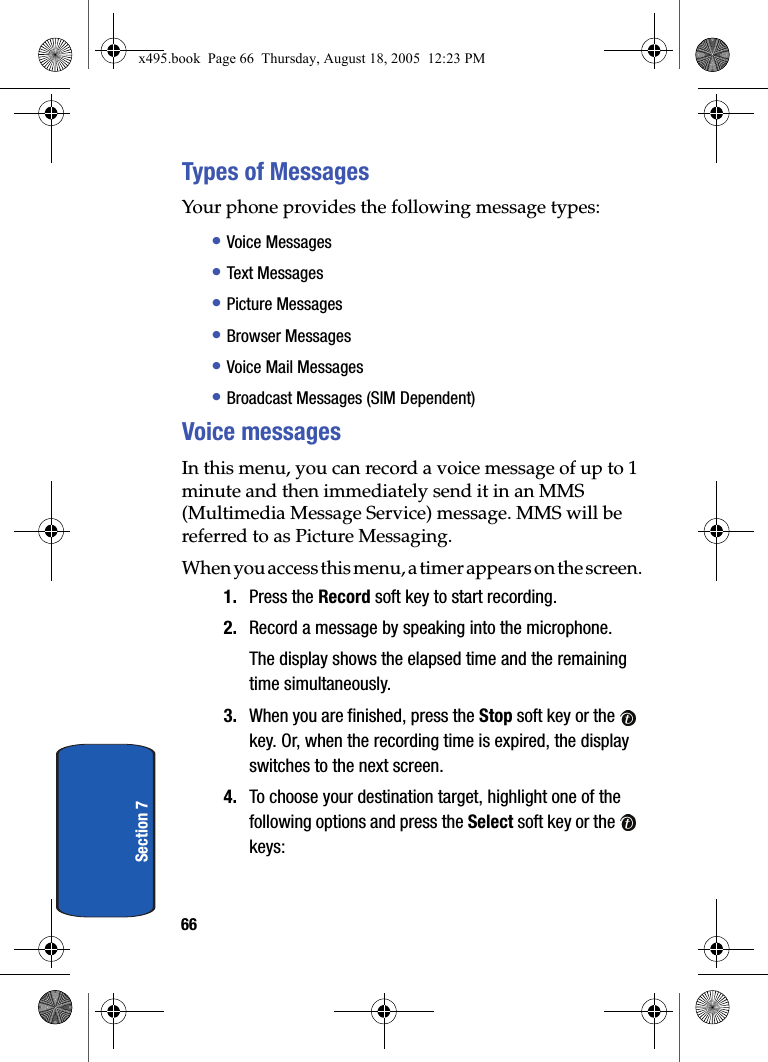

66Section 7Types of MessagesYour phone provides the following message types:• Voice Messages• Text Messages• Picture Messages• Browser Messages• Voice Mail Messages• Broadcast Messages (SIM Dependent)Voice messagesIn this menu, you can record a voice message of up to 1 minute and then immediately send it in an MMS (Multimedia Message Service) message. MMS will be referred to as Picture Messaging.When you access this menu, a timer appears on the screen.1. Press the Record soft key to start recording.2. Record a message by speaking into the microphone.The display shows the elapsed time and the remaining time simultaneously.3. When you are finished, press the Stop soft key or the key. Or, when the recording time is expired, the display switches to the next screen.4. To choose your destination target, highlight one of the following options and press the Select soft key or the keys:x495.book Page 66 Thursday, August 18, 2005 12:23 PM
Section 7: Messaging 67Voice messagesSection 7•Recent log: allows you to select a number or an address from the 5 last destinations you entered for sending the last messages.•Phonebook: allows you to retrieve a number from your Phonebook.•Phone number: allows you to enter the phone number you want.•E-mail address: allows you to enter the e-mail address of the recipient.Note: You can access the following options by pressing the Options soft key:•Replay: plays back your voice message.•Re-record: discards the voice message and enables you to record another one.•Send: allows you to send the voice message.•Default destination: allows you to send the voice message directly without entering another destination. To select a default destination, press the Select soft key and select from the available options.•Save: saves the voice message and continues to the send options.5. Enter a number or an e-mail address and press the OK soft key, or select a destination from the Phonebook.6. To select a destination from the Phonebook, highlight the desired number and press the Select soft key or the key. Press the Send soft key or the key to send the message.After your message is sent, it is saved in the Outbox in the Picture messages menu.x495.book Page 67 Thursday, August 18, 2005 12:23 PM

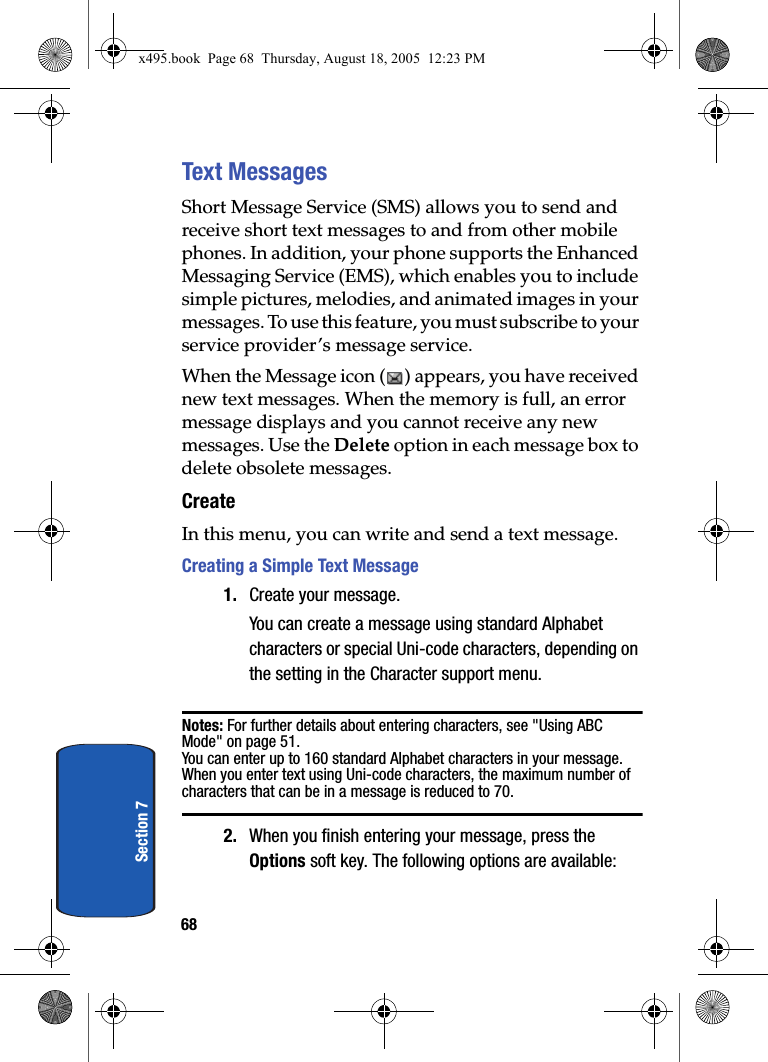

68Section 7Text MessagesShort Message Service (SMS) allows you to send and receive short text messages to and from other mobile phones. In addition, your phone supports the Enhanced Messaging Service (EMS), which enables you to include simple pictures, melodies, and animated images in your messages. To use this feature, you must subscribe to your service provider’s message service.When the Message icon ( ) appears, you have received new text messages. When the memory is full, an error message displays and you cannot receive any new messages. Use the Delete option in each message box to delete obsolete messages.CreateIn this menu, you can write and send a text message.Creating a Simple Text Message1. Create your message.You can create a message using standard Alphabet characters or special Uni-code characters, depending on the setting in the Character support menu.Notes: For further details about entering characters, see "Using ABC Mode" on page 51. You can enter up to 160 standard Alphabet characters in your message. When you enter text using Uni-code characters, the maximum number of characters that can be in a message is reduced to 70.2. When you finish entering your message, press the Options soft key. The following options are available:x495.book Page 68 Thursday, August 18, 2005 12:23 PM

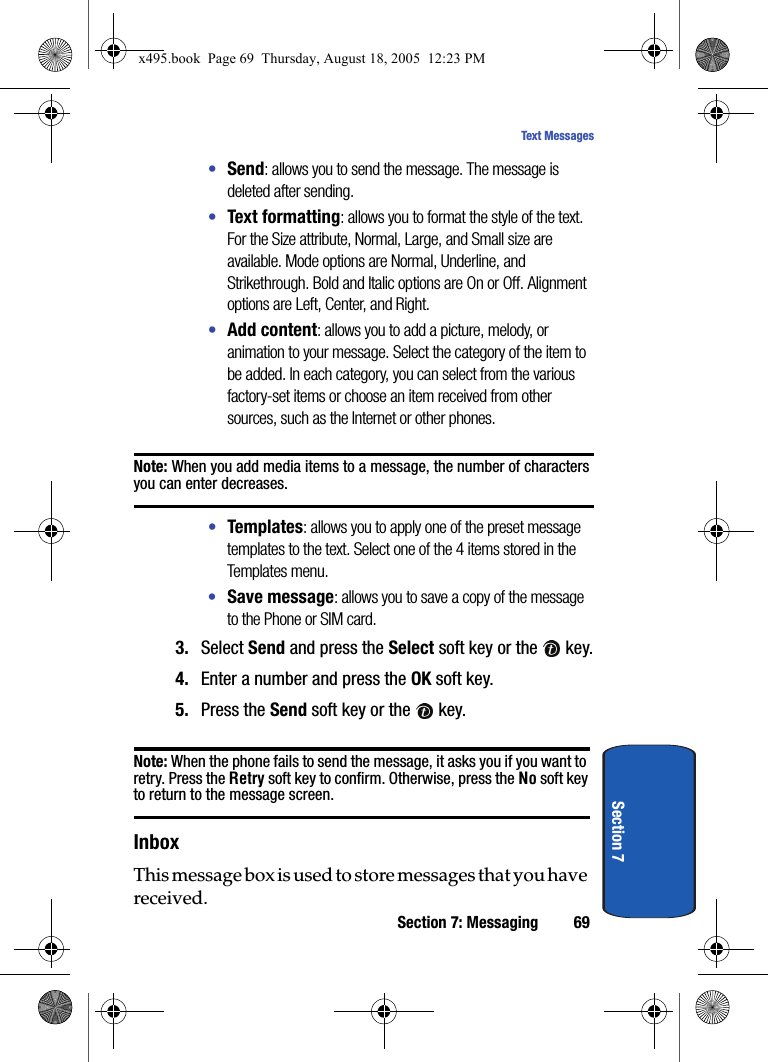

Section 7: Messaging 69Text MessagesSection 7•Send: allows you to send the message. The message is deleted after sending.•Text formatting: allows you to format the style of the text. For the Size attribute, Normal, Large, and Small size are available. Mode options are Normal, Underline, and Strikethrough. Bold and Italic options are On or Off. Alignment options are Left, Center, and Right. •Add content: allows you to add a picture, melody, or animation to your message. Select the category of the item to be added. In each category, you can select from the various factory-set items or choose an item received from other sources, such as the Internet or other phones.Note: When you add media items to a message, the number of characters you can enter decreases.•Templates: allows you to apply one of the preset message templates to the text. Select one of the 4 items stored in the Templates menu.•Save message: allows you to save a copy of the message to the Phone or SIM card. 3. Select Send and press the Select soft key or the key.4. Enter a number and press the OK soft key.5. Press the Send soft key or the key.Note: When the phone fails to send the message, it asks you if you want to retry. Press the Retry soft key to confirm. Otherwise, press the No soft key to return to the message screen.InboxThis message box is used to store messages that you have received.x495.book Page 69 Thursday, August 18, 2005 12:23 PM

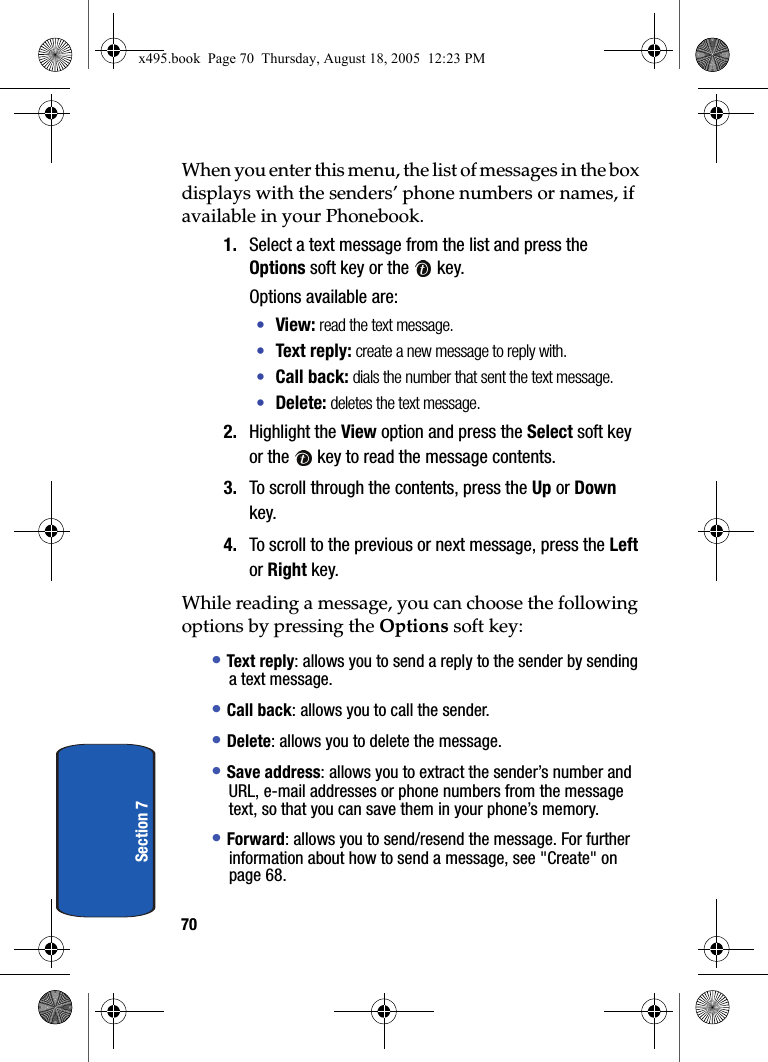

70Section 7When you enter this menu, the list of messages in the box displays with the senders’ phone numbers or names, if available in your Phonebook.1. Select a text message from the list and press the Options soft key or the key. Options available are:•View: read the text message.•Text reply: create a new message to reply with.•Call back: dials the number that sent the text message.•Delete: deletes the text message.2. Highlight the View option and press the Select soft key or the key to read the message contents.3. To scroll through the contents, press the Up or Down key.4. To scroll to the previous or next message, press the Left or Right key. While reading a message, you can choose the following options by pressing the Options soft key:• Text reply: allows you to send a reply to the sender by sending a text message.• Call back: allows you to call the sender.• Delete: allows you to delete the message.• Save address: allows you to extract the sender’s number and URL, e-mail addresses or phone numbers from the message text, so that you can save them in your phone’s memory.• Forward: allows you to send/resend the message. For further information about how to send a message, see "Create" on page 68.x495.book Page 70 Thursday, August 18, 2005 12:23 PM

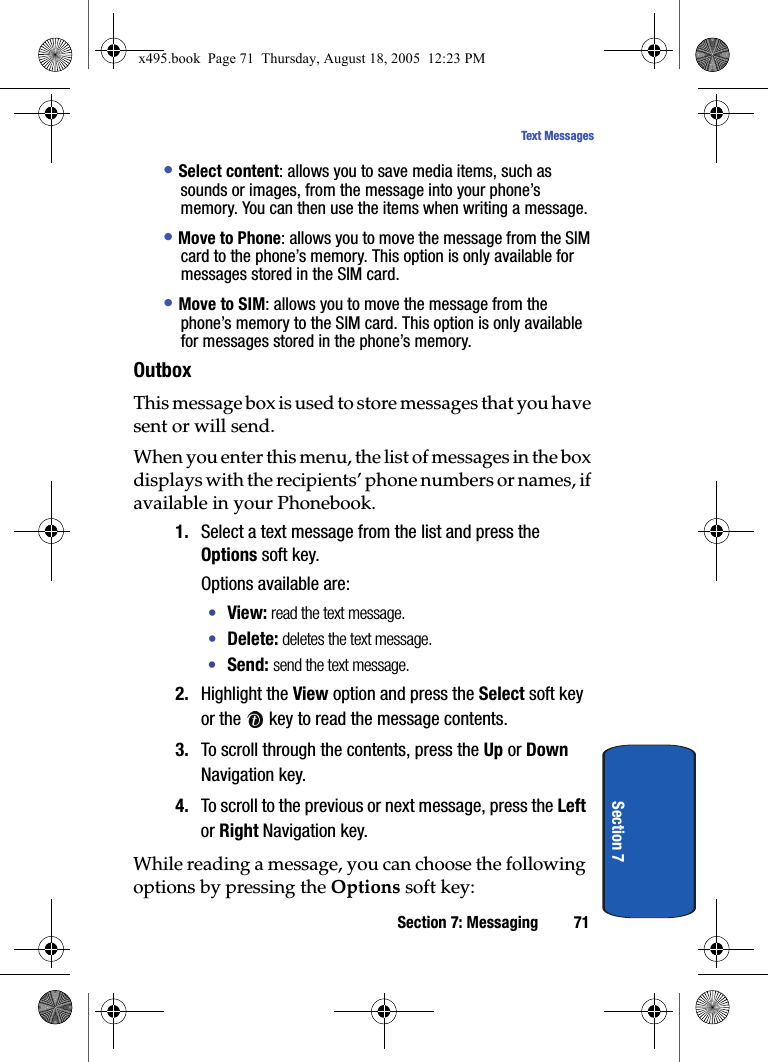

Section 7: Messaging 71Text MessagesSection 7• Select content: allows you to save media items, such as sounds or images, from the message into your phone’s memory. You can then use the items when writing a message.• Move to Phone: allows you to move the message from the SIM card to the phone’s memory. This option is only available for messages stored in the SIM card.• Move to SIM: allows you to move the message from the phone’s memory to the SIM card. This option is only available for messages stored in the phone’s memory.OutboxThis message box is used to store messages that you have sent or will send.When you enter this menu, the list of messages in the box displays with the recipients’ phone numbers or names, if available in your Phonebook.1. Select a text message from the list and press the Options soft key.Options available are:•View: read the text message.•Delete: deletes the text message.•Send: send the text message.2. Highlight the View option and press the Select soft key or the key to read the message contents.3. To scroll through the contents, press the Up or Down Navigation key.4. To scroll to the previous or next message, press the Left or Right Navigation key.While reading a message, you can choose the following options by pressing the Options soft key:x495.book Page 71 Thursday, August 18, 2005 12:23 PM

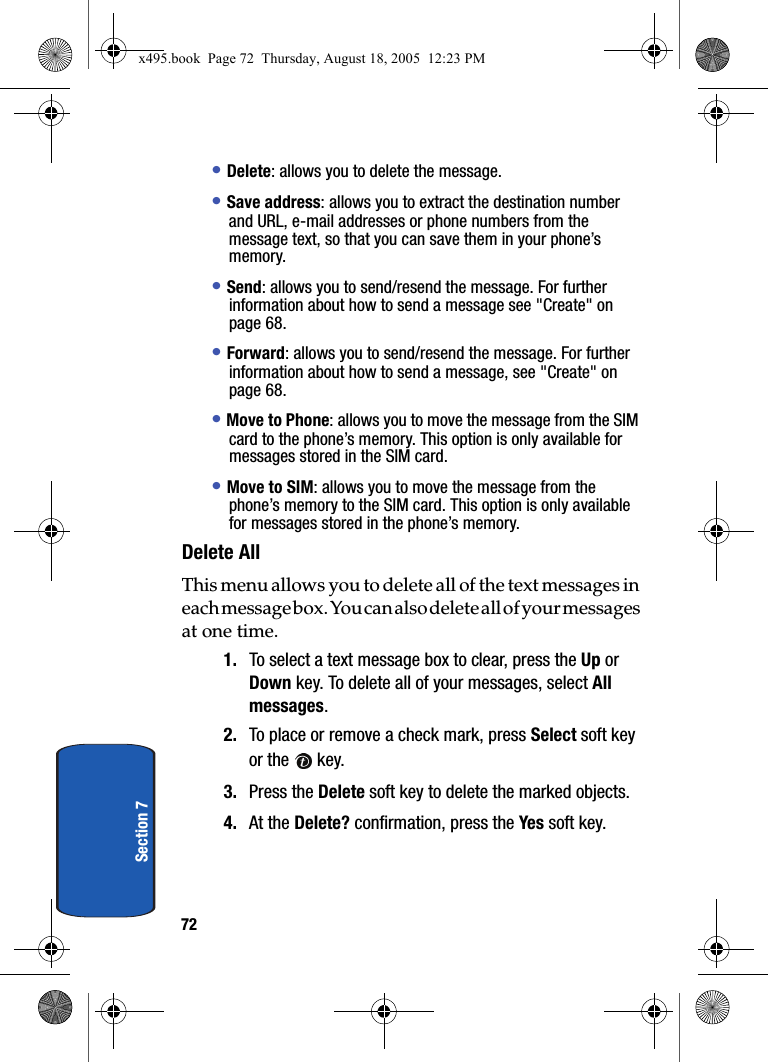

72Section 7• Delete: allows you to delete the message.• Save address: allows you to extract the destination number and URL, e-mail addresses or phone numbers from the message text, so that you can save them in your phone’s memory.• Send: allows you to send/resend the message. For further information about how to send a message see "Create" on page 68.• Forward: allows you to send/resend the message. For further information about how to send a message, see "Create" on page 68.• Move to Phone: allows you to move the message from the SIM card to the phone’s memory. This option is only available for messages stored in the SIM card.• Move to SIM: allows you to move the message from the phone’s memory to the SIM card. This option is only available for messages stored in the phone’s memory.Delete AllThis menu allows you to delete all of the text messages in each message box. You can also delete all of your messages at one time.1. To select a text message box to clear, press the Up or Down key. To delete all of your messages, select All messages.2. To place or remove a check mark, press Select soft key or the key.3. Press the Delete soft key to delete the marked objects. 4. At the Delete? confirmation, press the Yes soft key.x495.book Page 72 Thursday, August 18, 2005 12:23 PM

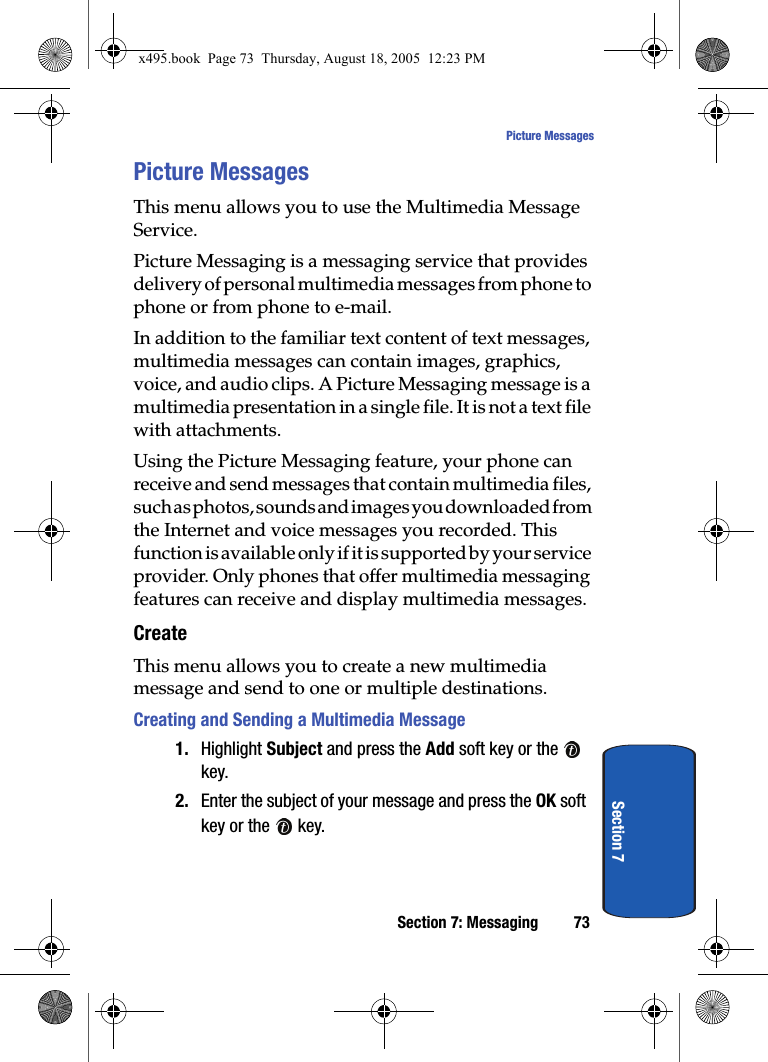

Section 7: Messaging 73Picture MessagesSection 7Picture MessagesThis menu allows you to use the Multimedia Message Service.Picture Messaging is a messaging service that provides delivery of personal multimedia messages from phone to phone or from phone to e-mail.In addition to the familiar text content of text messages, multimedia messages can contain images, graphics, voice, and audio clips. A Picture Messaging message is a multimedia presentation in a single file. It is not a text file with attachments.Using the Picture Messaging feature, your phone can receive and send messages that contain multimedia files, such as photos, sounds and images you downloaded from the Internet and voice messages you recorded. This function is available only if it is supported by your service provider. Only phones that offer multimedia messaging features can receive and display multimedia messages.Create This menu allows you to create a new multimedia message and send to one or multiple destinations.Creating and Sending a Multimedia Message1. Highlight Subject and press the Add soft key or the key.2. Enter the subject of your message and press the OK soft key or the key.x495.book Page 73 Thursday, August 18, 2005 12:23 PM

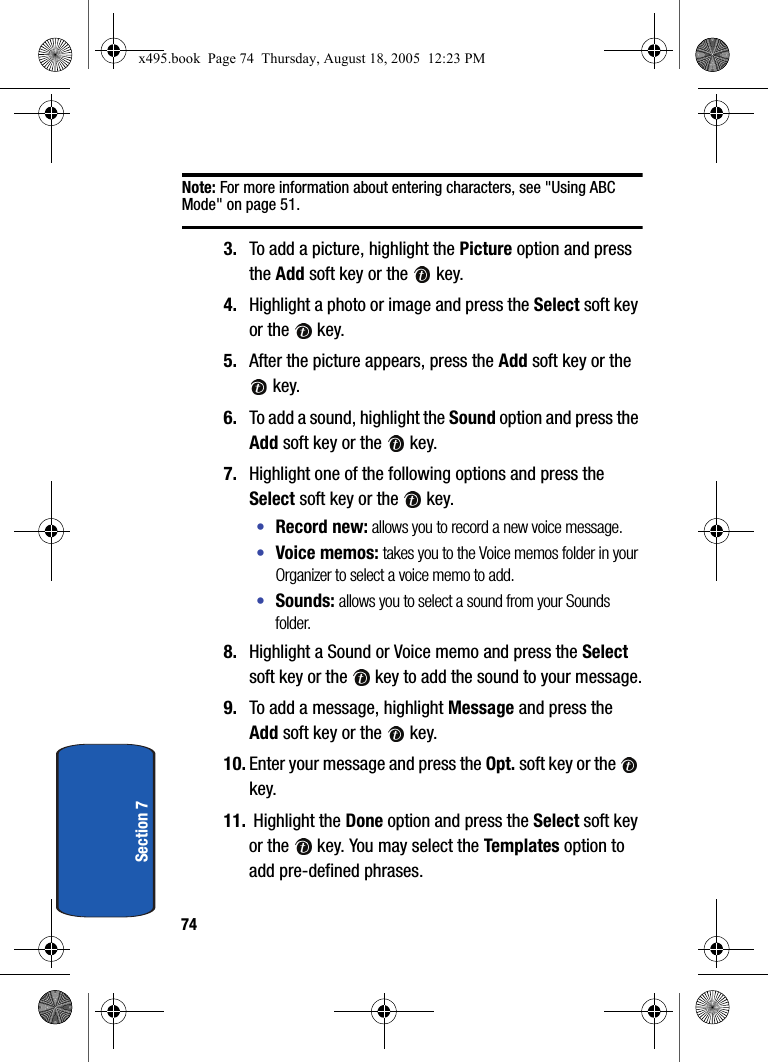

74Section 7Note: For more information about entering characters, see "Using ABC Mode" on page 51.3. To add a picture, highlight the Picture option and press the Add soft key or the key. 4. Highlight a photo or image and press the Select soft key or the key.5. After the picture appears, press the Add soft key or the key.6. To add a sound, highlight the Sound option and press the Add soft key or the key. 7. Highlight one of the following options and press the Select soft key or the key.•Record new: allows you to record a new voice message.•Voice memos: takes you to the Voice memos folder in your Organizer to select a voice memo to add.•Sounds: allows you to select a sound from your Sounds folder.8. Highlight a Sound or Voice memo and press the Select soft key or the key to add the sound to your message.9. To add a message, highlight Message and press the Add soft key or the key.10. Enter your message and press the Opt. soft key or the key.11. Highlight the Done option and press the Select soft key or the key. You may select the Templates option to add pre-defined phrases.x495.book Page 74 Thursday, August 18, 2005 12:23 PM

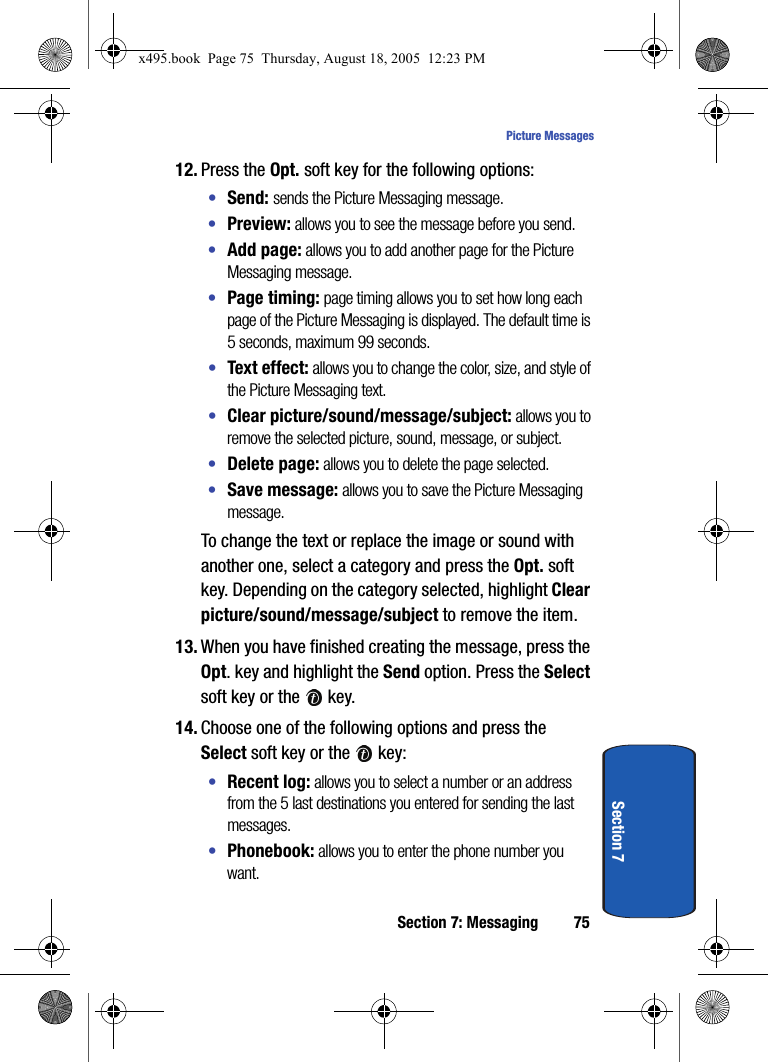

Section 7: Messaging 75Picture MessagesSection 712. Press the Opt. soft key for the following options:•Send: sends the Picture Messaging message.•Preview: allows you to see the message before you send.•Add page: allows you to add another page for the Picture Messaging message.•Page timing: page timing allows you to set how long each page of the Picture Messaging is displayed. The default time is 5 seconds, maximum 99 seconds.•Text effect: allows you to change the color, size, and style of the Picture Messaging text.•Clear picture/sound/message/subject: allows you to remove the selected picture, sound, message, or subject.•Delete page: allows you to delete the page selected.•Save message: allows you to save the Picture Messaging message.To change the text or replace the image or sound with another one, select a category and press the Opt. soft key. Depending on the category selected, highlight Clear picture/sound/message/subject to remove the item.13. When you have finished creating the message, press the Opt. key and highlight the Send option. Press the Select soft key or the key.14. Choose one of the following options and press the Select soft key or the key:•Recent log: allows you to select a number or an address from the 5 last destinations you entered for sending the last messages.•Phonebook: allows you to enter the phone number you want.x495.book Page 75 Thursday, August 18, 2005 12:23 PM

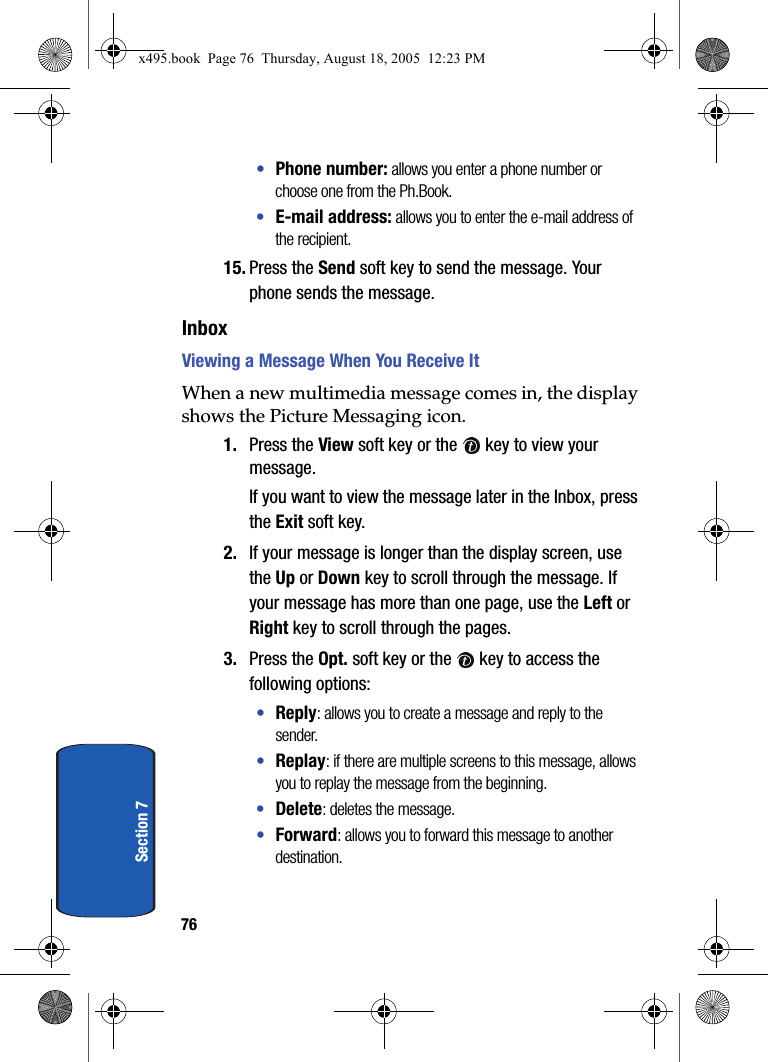

76Section 7•Phone number: allows you enter a phone number or choose one from the Ph.Book.•E-mail address: allows you to enter the e-mail address of the recipient.15. Press the Send soft key to send the message. Your phone sends the message.InboxViewing a Message When You Receive ItWhen a new multimedia message comes in, the display shows the Picture Messaging icon.1. Press the View soft key or the key to view your message.If you want to view the message later in the Inbox, press the Exit soft key.2. If your message is longer than the display screen, use the Up or Down key to scroll through the message. If your message has more than one page, use the Left or Right key to scroll through the pages.3. Press the Opt. soft key or the key to access the following options:•Reply: allows you to create a message and reply to the sender.•Replay: if there are multiple screens to this message, allows you to replay the message from the beginning.•Delete: deletes the message.•Forward: allows you to forward this message to another destination.x495.book Page 76 Thursday, August 18, 2005 12:23 PM

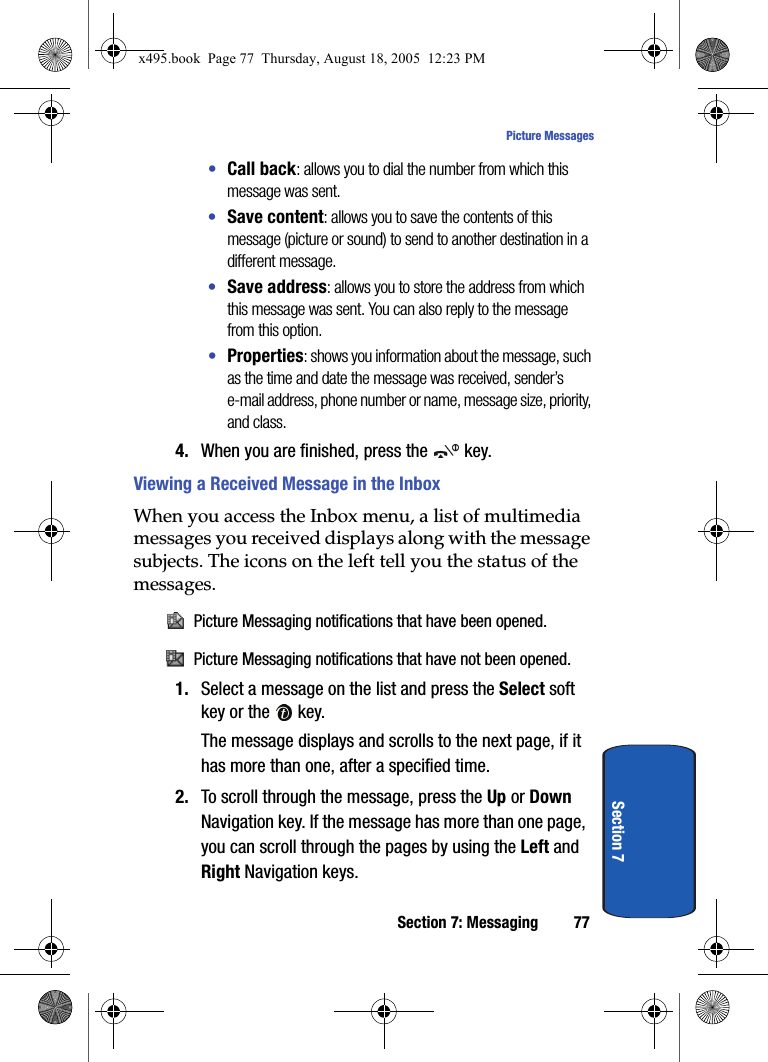

Section 7: Messaging 77Picture MessagesSection 7•Call back: allows you to dial the number from which this message was sent.•Save content: allows you to save the contents of this message (picture or sound) to send to another destination in a different message. •Save address: allows you to store the address from which this message was sent. You can also reply to the message from this option.•Properties: shows you information about the message, such as the time and date the message was received, sender’s e-mail address, phone number or name, message size, priority, and class.4. When you are finished, press the key.Viewing a Received Message in the InboxWhen you access the Inbox menu, a list of multimedia messages you received displays along with the message subjects. The icons on the left tell you the status of the messages. Picture Messaging notifications that have been opened. Picture Messaging notifications that have not been opened.1. Select a message on the list and press the Select soft key or the key. The message displays and scrolls to the next page, if it has more than one, after a specified time.2. To scroll through the message, press the Up or Down Navigation key. If the message has more than one page, you can scroll through the pages by using the Left and Right Navigation keys.x495.book Page 77 Thursday, August 18, 2005 12:23 PM

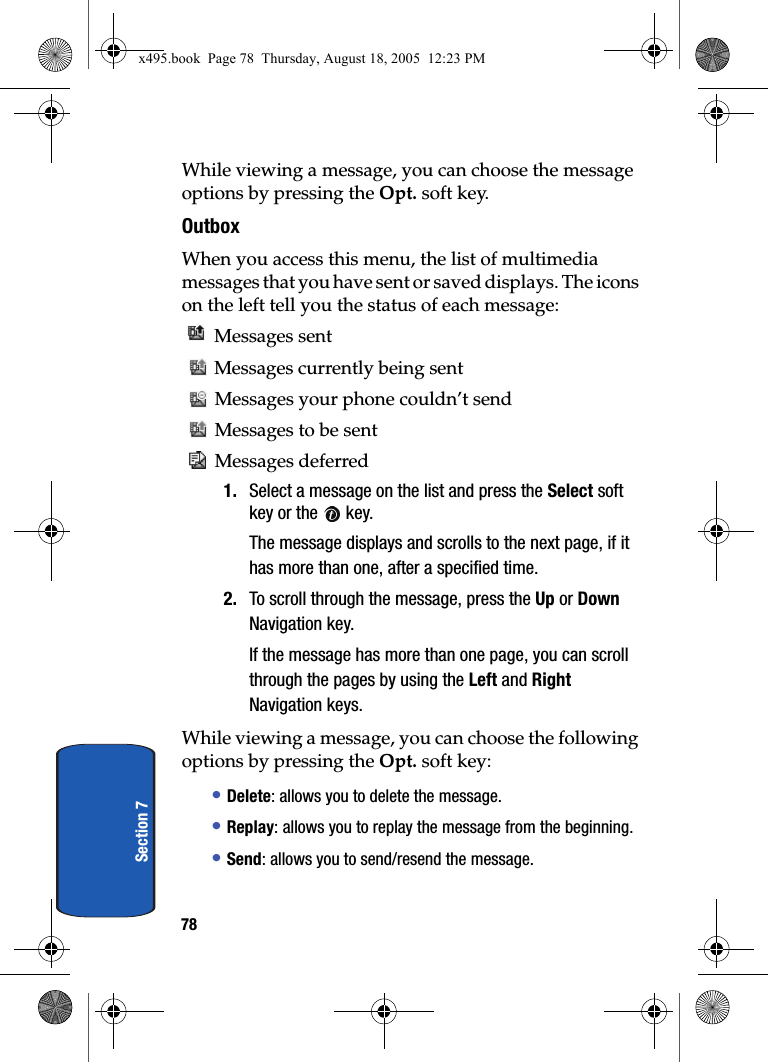

78Section 7While viewing a message, you can choose the message options by pressing the Opt. soft key. OutboxWhen you access this menu, the list of multimedia messages that you have sent or saved displays. The icons on the left tell you the status of each message: Messages sent Messages currently being sent Messages your phone couldn’t send Messages to be sent Messages deferred1. Select a message on the list and press the Select soft key or the key. The message displays and scrolls to the next page, if it has more than one, after a specified time.2. To scroll through the message, press the Up or Down Navigation key.If the message has more than one page, you can scroll through the pages by using the Left and Right Navigation keys.While viewing a message, you can choose the following options by pressing the Opt. soft key:• Delete: allows you to delete the message.• Replay: allows you to replay the message from the beginning.• Send: allows you to send/resend the message.x495.book Page 78 Thursday, August 18, 2005 12:23 PM

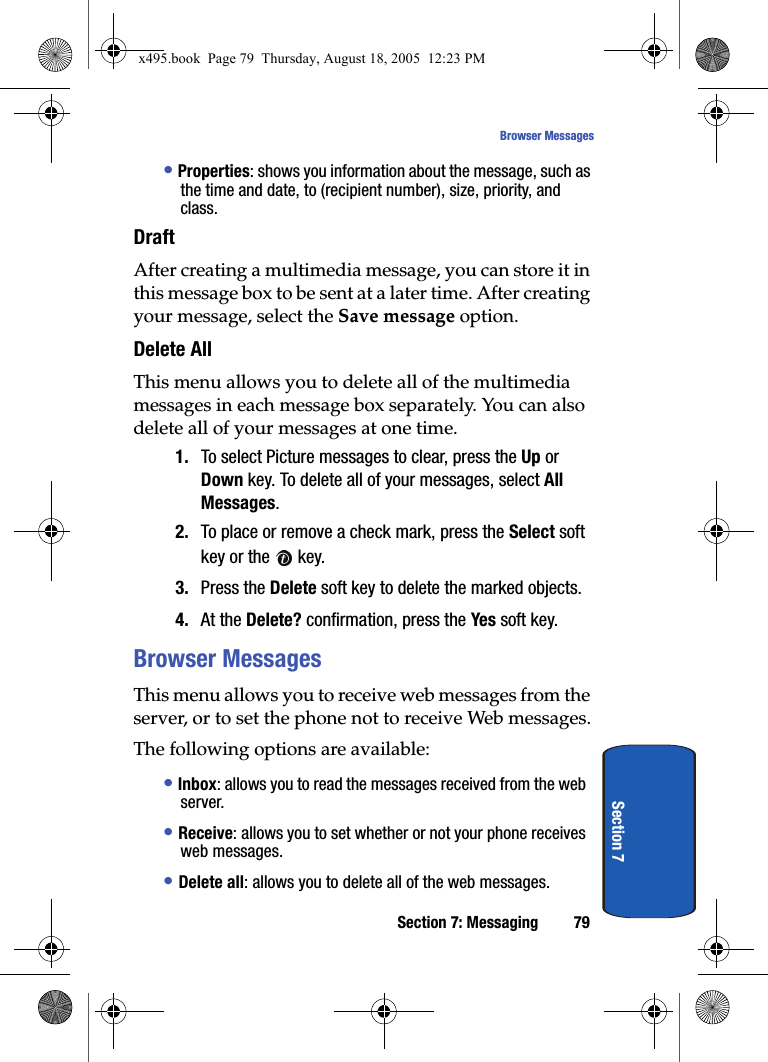

Section 7: Messaging 79Browser MessagesSection 7• Properties: shows you information about the message, such as the time and date, to (recipient number), size, priority, and class.DraftAfter creating a multimedia message, you can store it in this message box to be sent at a later time. After creating your message, select the Save message option.Delete AllThis menu allows you to delete all of the multimedia messages in each message box separately. You can also delete all of your messages at one time.1. To select Picture messages to clear, press the Up or Down key. To delete all of your messages, select All Messages.2. To place or remove a check mark, press the Select soft key or the key.3. Press the Delete soft key to delete the marked objects. 4. At the Delete? confirmation, press the Yes soft key.Browser MessagesThis menu allows you to receive web messages from the server, or to set the phone not to receive Web messages.The following options are available:• Inbox: allows you to read the messages received from the web server. • Receive: allows you to set whether or not your phone receives web messages.• Delete all: allows you to delete all of the web messages.x495.book Page 79 Thursday, August 18, 2005 12:23 PM

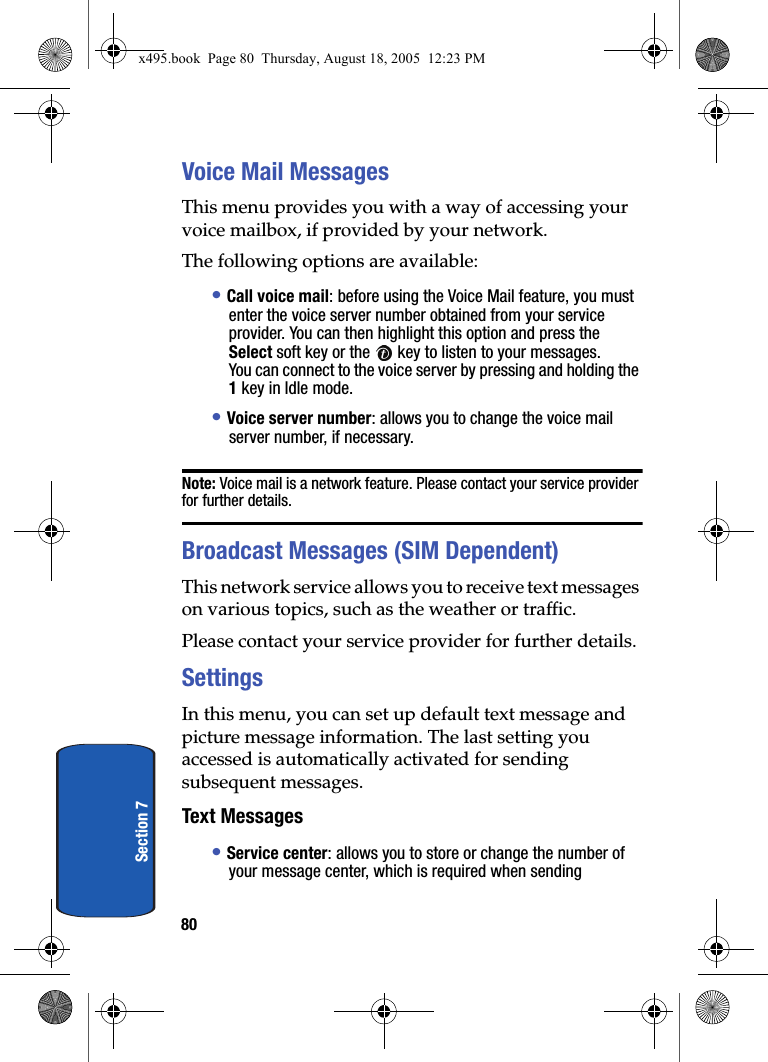

80Section 7Voice Mail MessagesThis menu provides you with a way of accessing your voice mailbox, if provided by your network. The following options are available:• Call voice mail: before using the Voice Mail feature, you must enter the voice server number obtained from your service provider. You can then highlight this option and press the Select soft key or the key to listen to your messages. You can connect to the voice server by pressing and holding the 1 key in Idle mode.• Voice server number: allows you to change the voice mail server number, if necessary.Note: Voice mail is a network feature. Please contact your service provider for further details.Broadcast Messages (SIM Dependent)This network service allows you to receive text messages on various topics, such as the weather or traffic. Please contact your service provider for further details.SettingsIn this menu, you can set up default text message and picture message information. The last setting you accessed is automatically activated for sending subsequent messages.Text Messages• Service center: allows you to store or change the number of your message center, which is required when sending x495.book Page 80 Thursday, August 18, 2005 12:23 PM

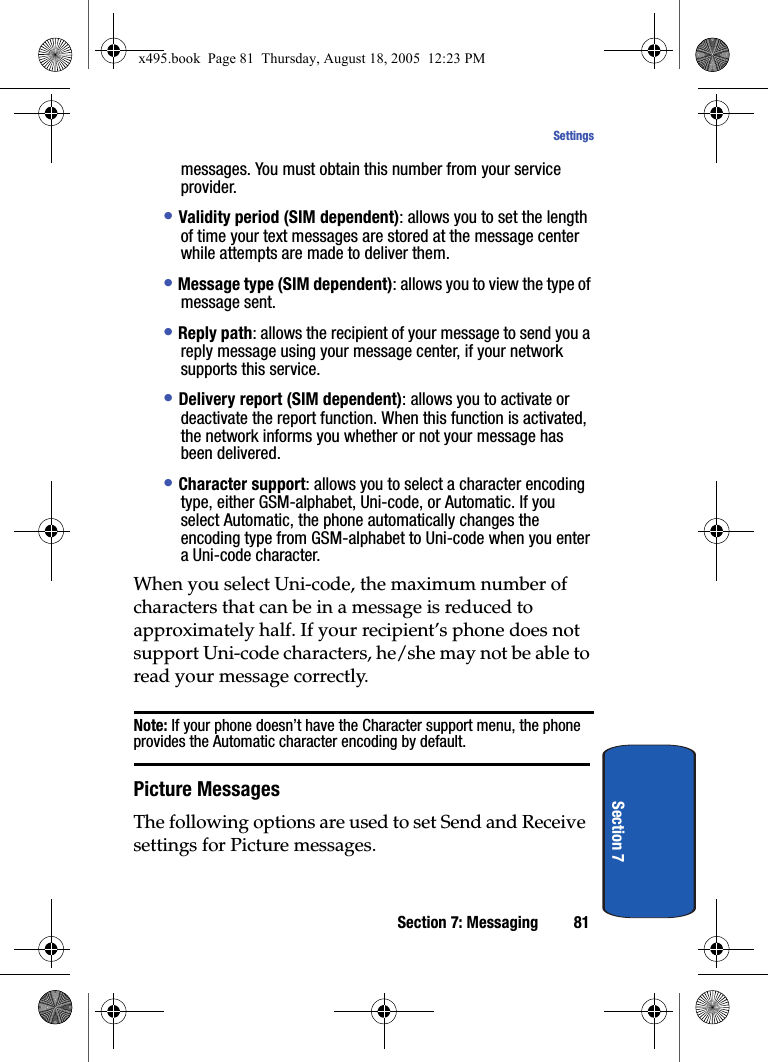

Section 7: Messaging 81SettingsSection 7messages. You must obtain this number from your service provider.• Validity period (SIM dependent): allows you to set the length of time your text messages are stored at the message center while attempts are made to deliver them.• Message type (SIM dependent): allows you to view the type of message sent.• Reply path: allows the recipient of your message to send you a reply message using your message center, if your network supports this service.• Delivery report (SIM dependent): allows you to activate or deactivate the report function. When this function is activated, the network informs you whether or not your message has been delivered.• Character support: allows you to select a character encoding type, either GSM-alphabet, Uni-code, or Automatic. If you select Automatic, the phone automatically changes the encoding type from GSM-alphabet to Uni-code when you enter a Uni-code character.When you select Uni-code, the maximum number of characters that can be in a message is reduced to approximately half. If your recipient’s phone does not support Uni-code characters, he/she may not be able to read your message correctly. Note: If your phone doesn’t have the Character support menu, the phone provides the Automatic character encoding by default.Picture MessagesThe following options are used to set Send and Receive settings for Picture messages.x495.book Page 81 Thursday, August 18, 2005 12:23 PM

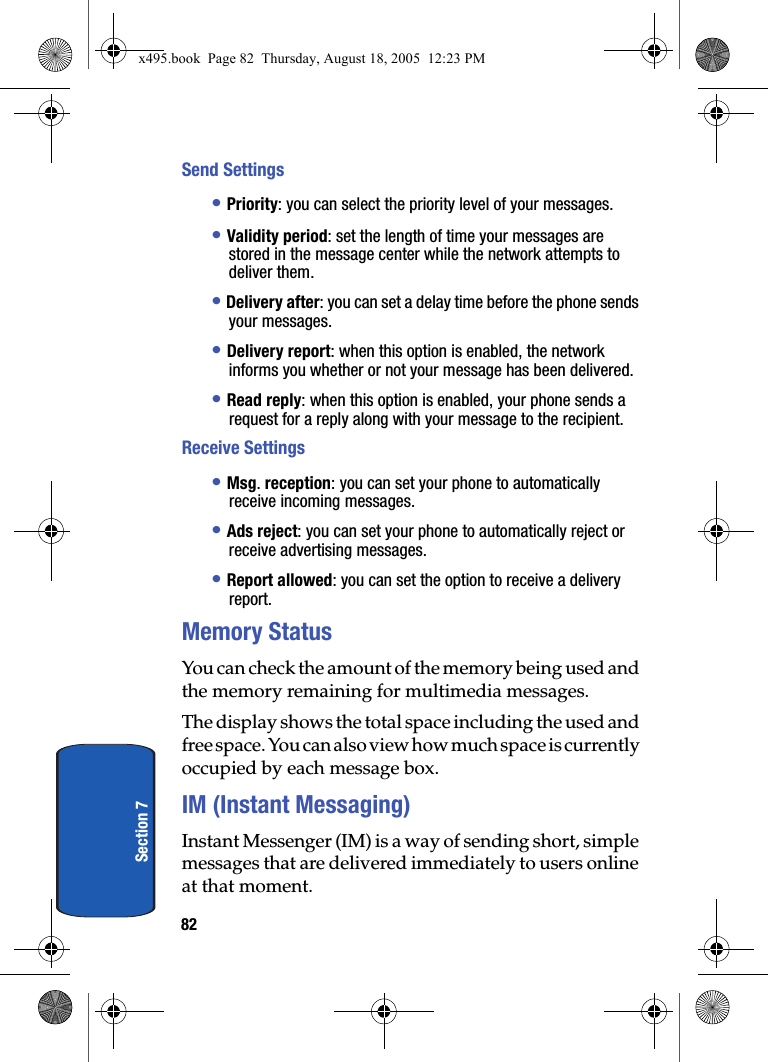

82Section 7Send Settings• Priority: you can select the priority level of your messages.• Validity period: set the length of time your messages are stored in the message center while the network attempts to deliver them.• Delivery after: you can set a delay time before the phone sends your messages.• Delivery report: when this option is enabled, the network informs you whether or not your message has been delivered.• Read reply: when this option is enabled, your phone sends a request for a reply along with your message to the recipient.Receive Settings• Msg. reception: you can set your phone to automatically receive incoming messages.• Ads reject: you can set your phone to automatically reject or receive advertising messages.• Report allowed: you can set the option to receive a delivery report.Memory StatusYou can check the amount of the memory being used and the memory remaining for multimedia messages.The display shows the total space including the used and free space. You can also view how much space is currently occupied by each message box.IM (Instant Messaging)Instant Messenger (IM) is a way of sending short, simple messages that are delivered immediately to users online at that moment.x495.book Page 82 Thursday, August 18, 2005 12:23 PM

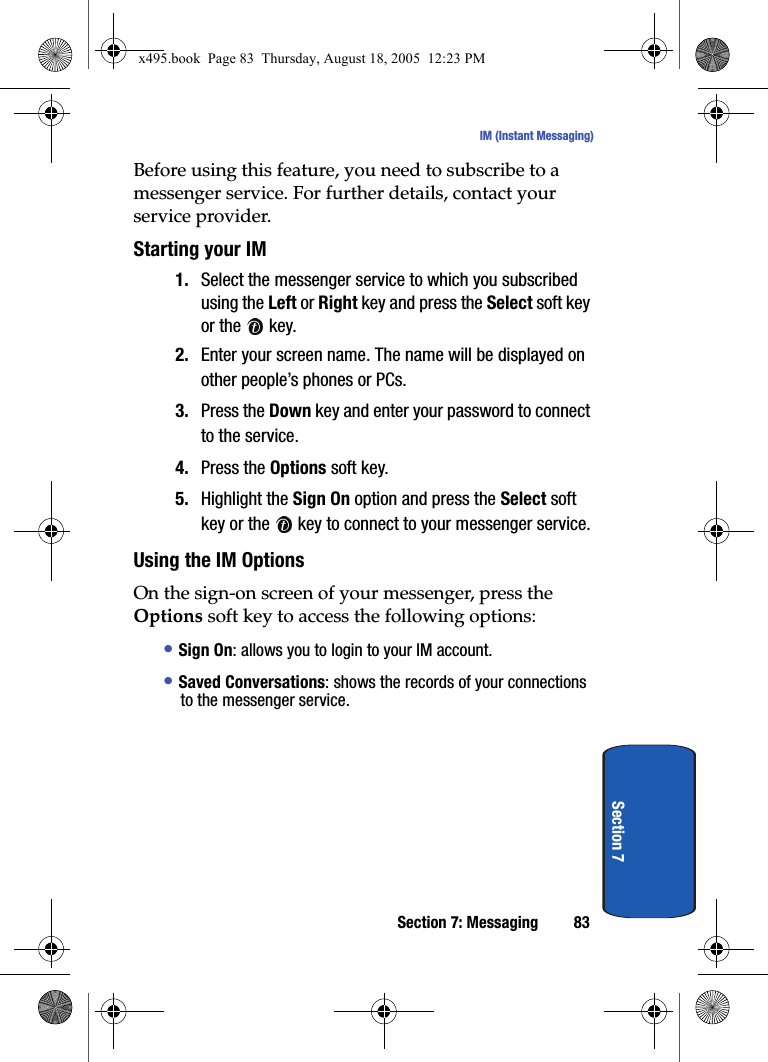

Section 7: Messaging 83IM (Instant Messaging)Section 7Before using this feature, you need to subscribe to a messenger service. For further details, contact your service provider.Starting your IM1. Select the messenger service to which you subscribed using the Left or Right key and press the Select soft key or the key.2. Enter your screen name. The name will be displayed on other people’s phones or PCs.3. Press the Down key and enter your password to connect to the service.4. Press the Options soft key.5. Highlight the Sign On option and press the Select soft key or the key to connect to your messenger service.Using the IM OptionsOn the sign-on screen of your messenger, press the Options soft key to access the following options:• Sign On: allows you to login to your IM account.• Saved Conversations: shows the records of your connections to the messenger service.x495.book Page 83 Thursday, August 18, 2005 12:23 PM
