Samsung Electronics Co SLC2670FW Printer User Manual

Samsung Electronics Co Ltd Printer

Users Manual 3

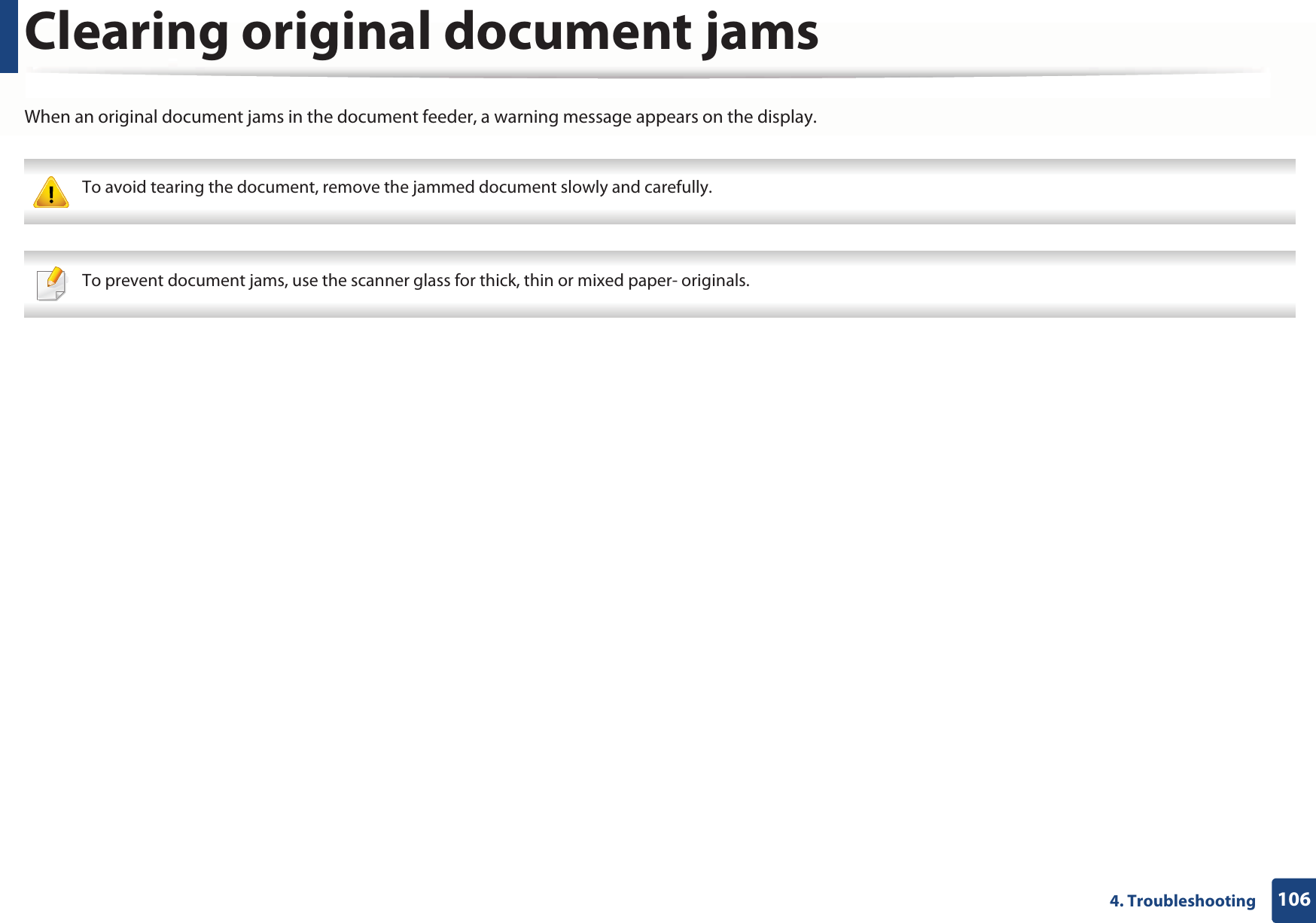

1064. TroubleshootingClearing original document jamsWhen an original document jams in the document feeder, a warning message appears on the display. To avoid tearing the document, remove the jammed document slowly and carefully. To prevent document jams, use the scanner glass for thick, thin or mixed paper- originals.

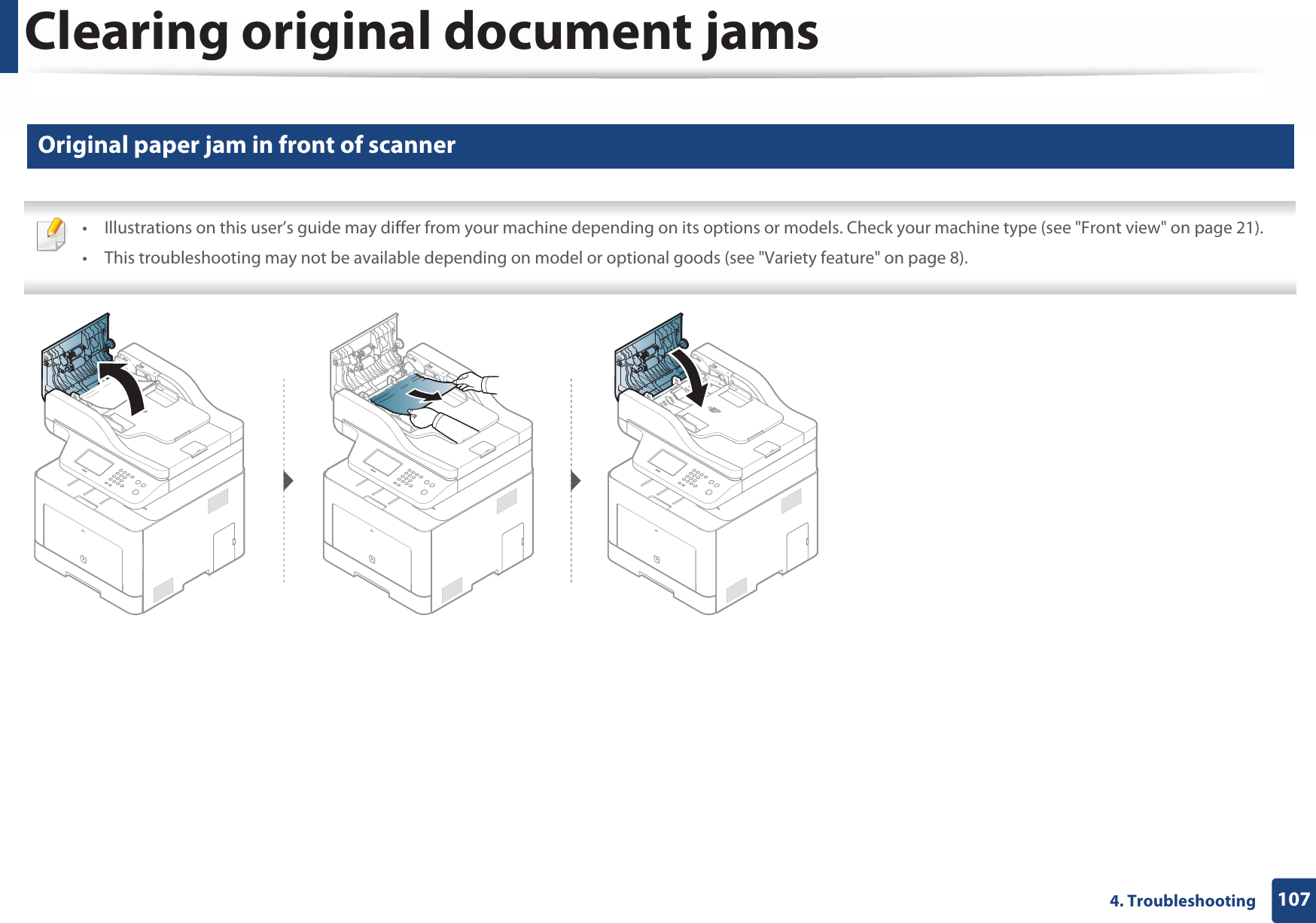

Clearing original document jams1074. Troubleshooting1 Original paper jam in front of scanner • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).• This troubleshooting may not be available depending on model or optional goods (see "Variety feature" on page 8).

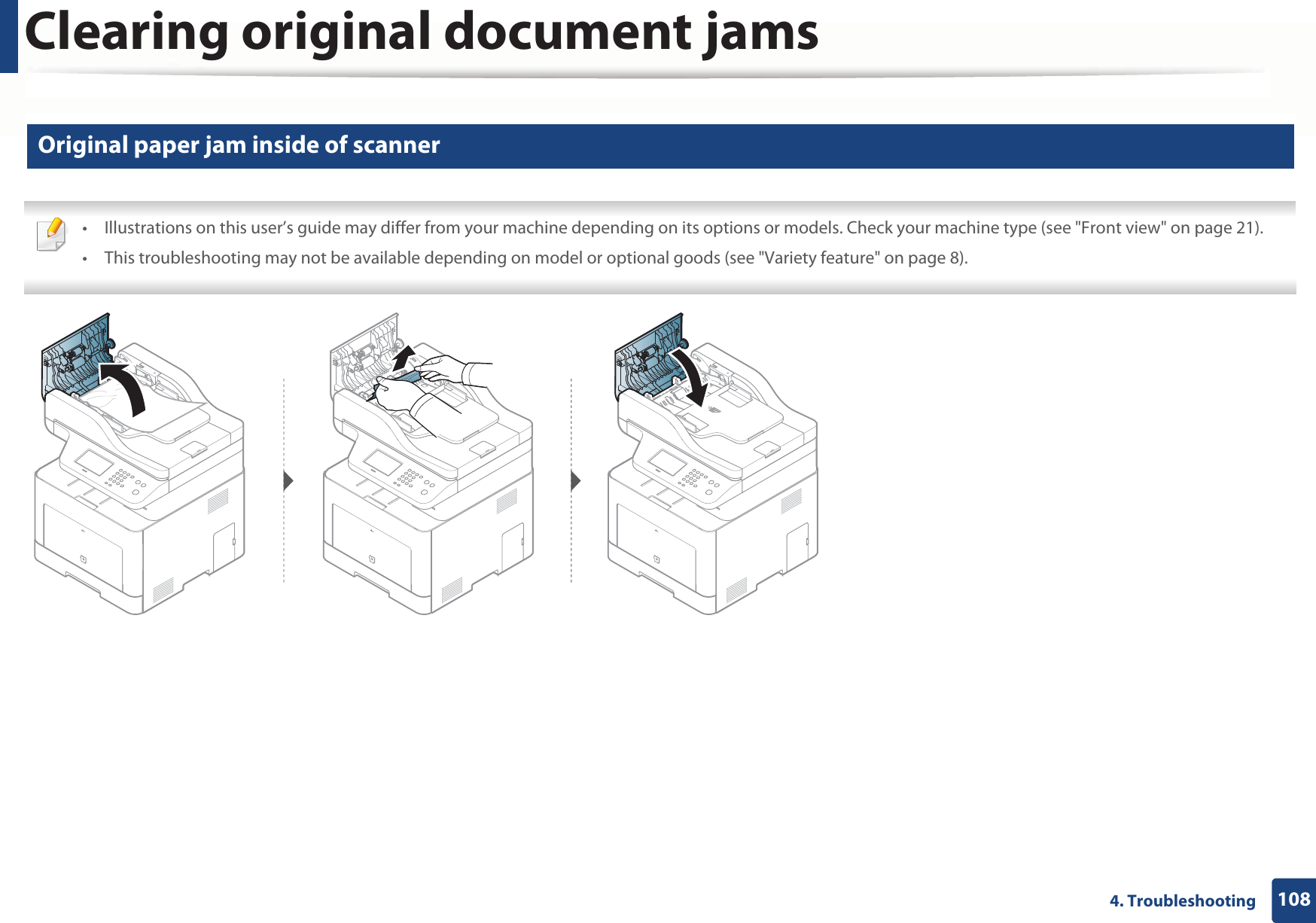

Clearing original document jams1084. Troubleshooting2 Original paper jam inside of scanner • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).• This troubleshooting may not be available depending on model or optional goods (see "Variety feature" on page 8).

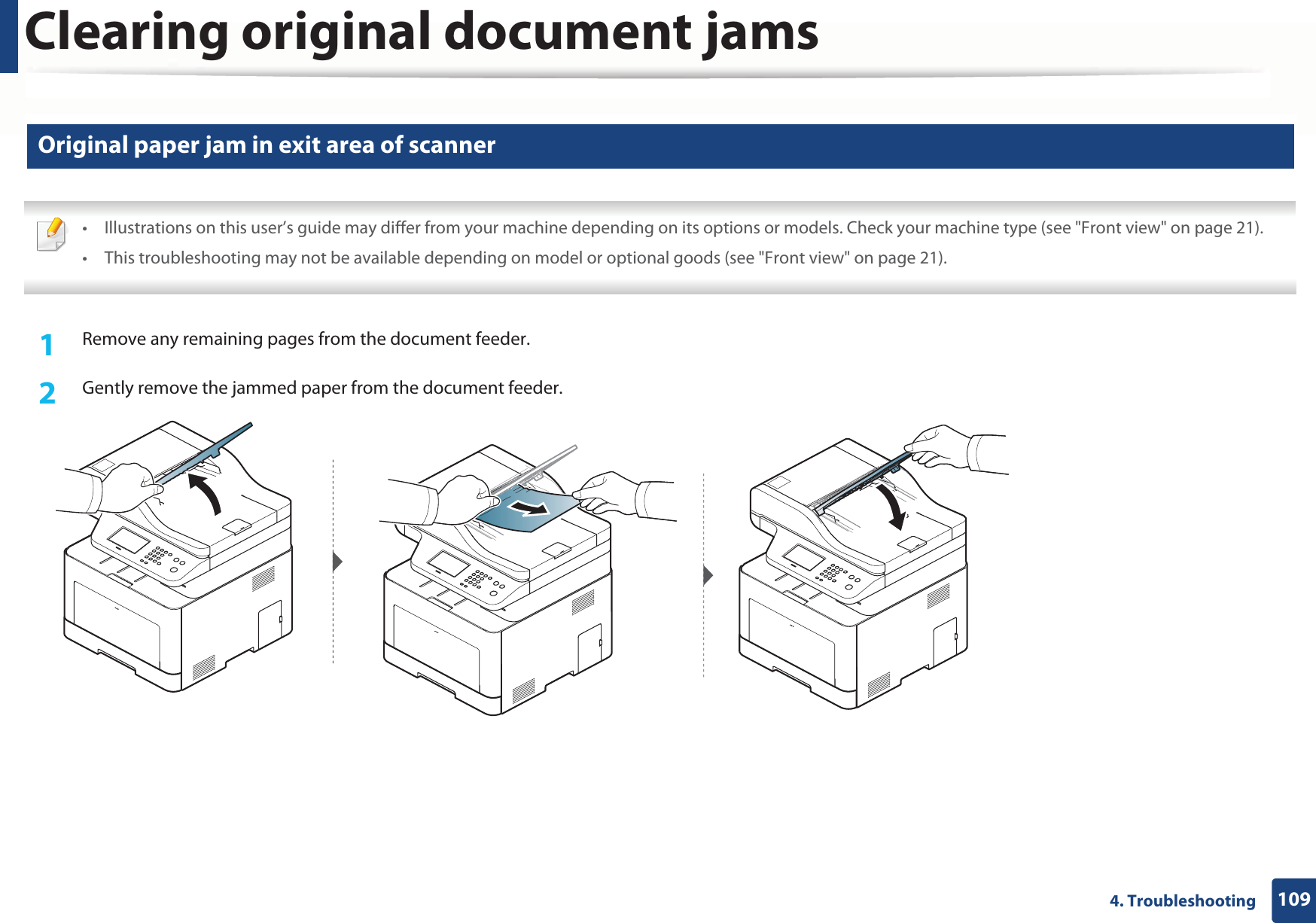

Clearing original document jams1094. Troubleshooting3 Original paper jam in exit area of scanner • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).• This troubleshooting may not be available depending on model or optional goods (see "Front view" on page 21). 1Remove any remaining pages from the document feeder.2 Gently remove the jammed paper from the document feeder.

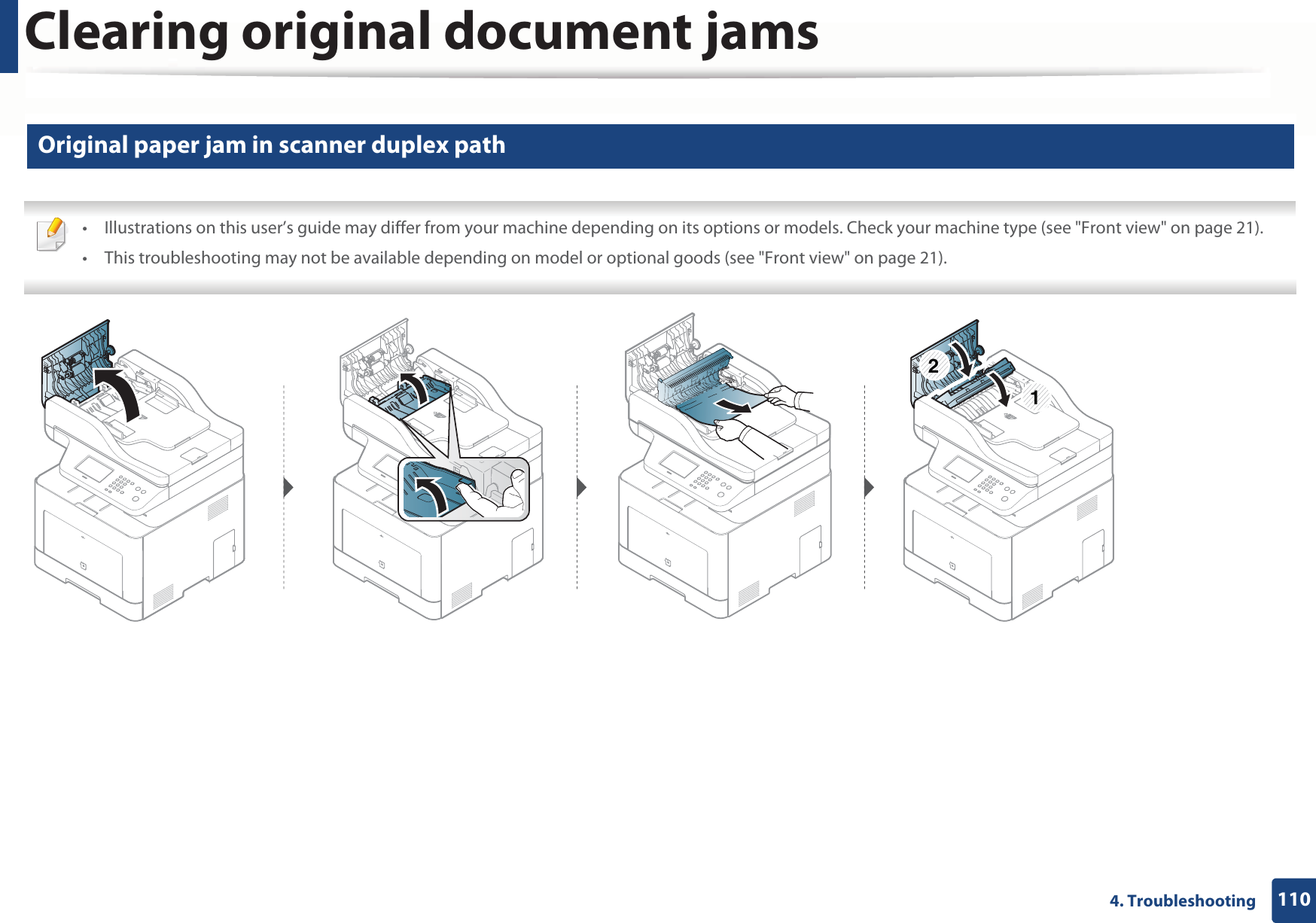

Clearing original document jams1104. Troubleshooting4 Original paper jam in scanner duplex path • Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).• This troubleshooting may not be available depending on model or optional goods (see "Front view" on page 21). 21

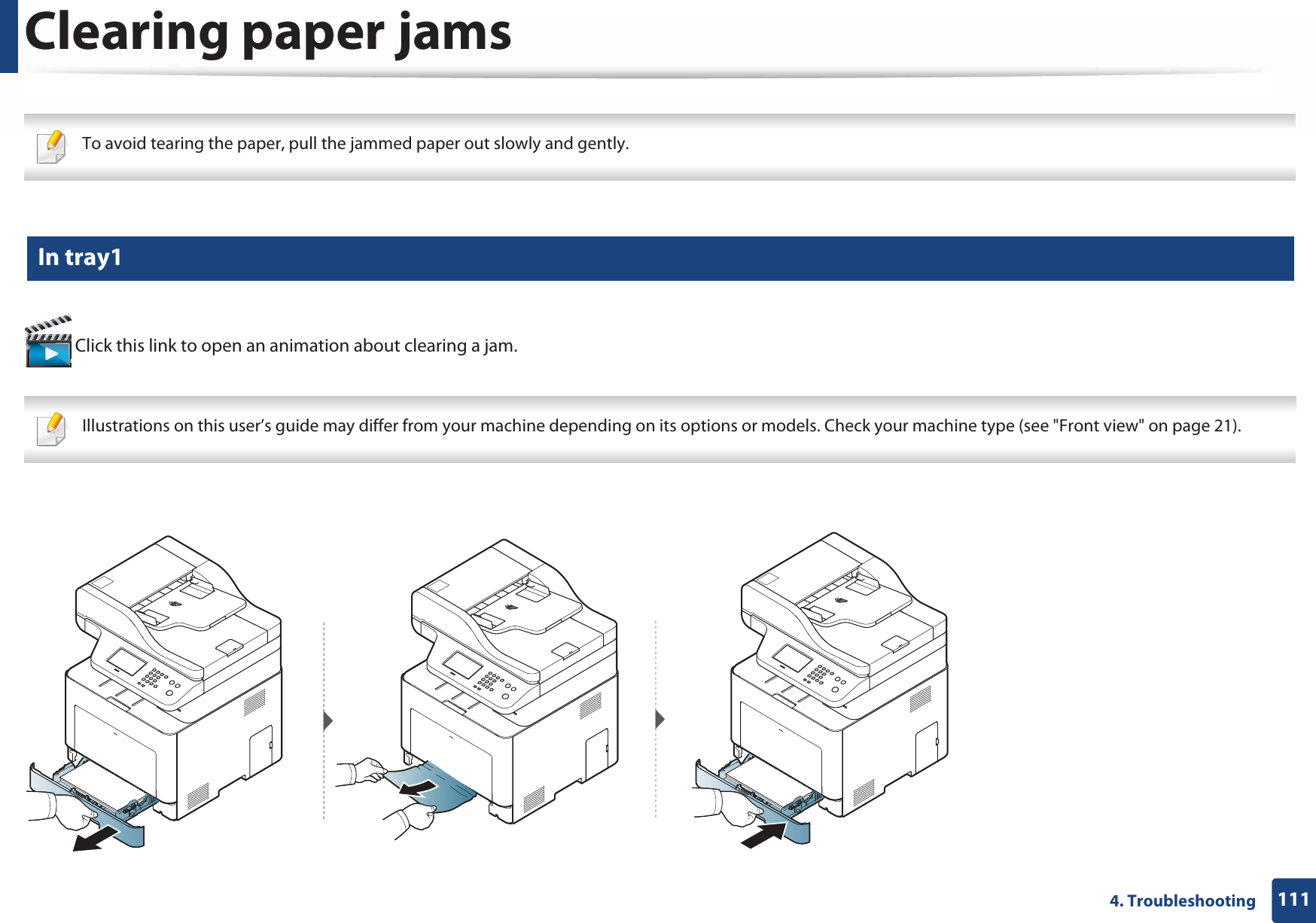

1114. TroubleshootingClearing paper jams To avoid tearing the paper, pull the jammed paper out slowly and gently. 5 In tray1 Click this link to open an animation about clearing a jam. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

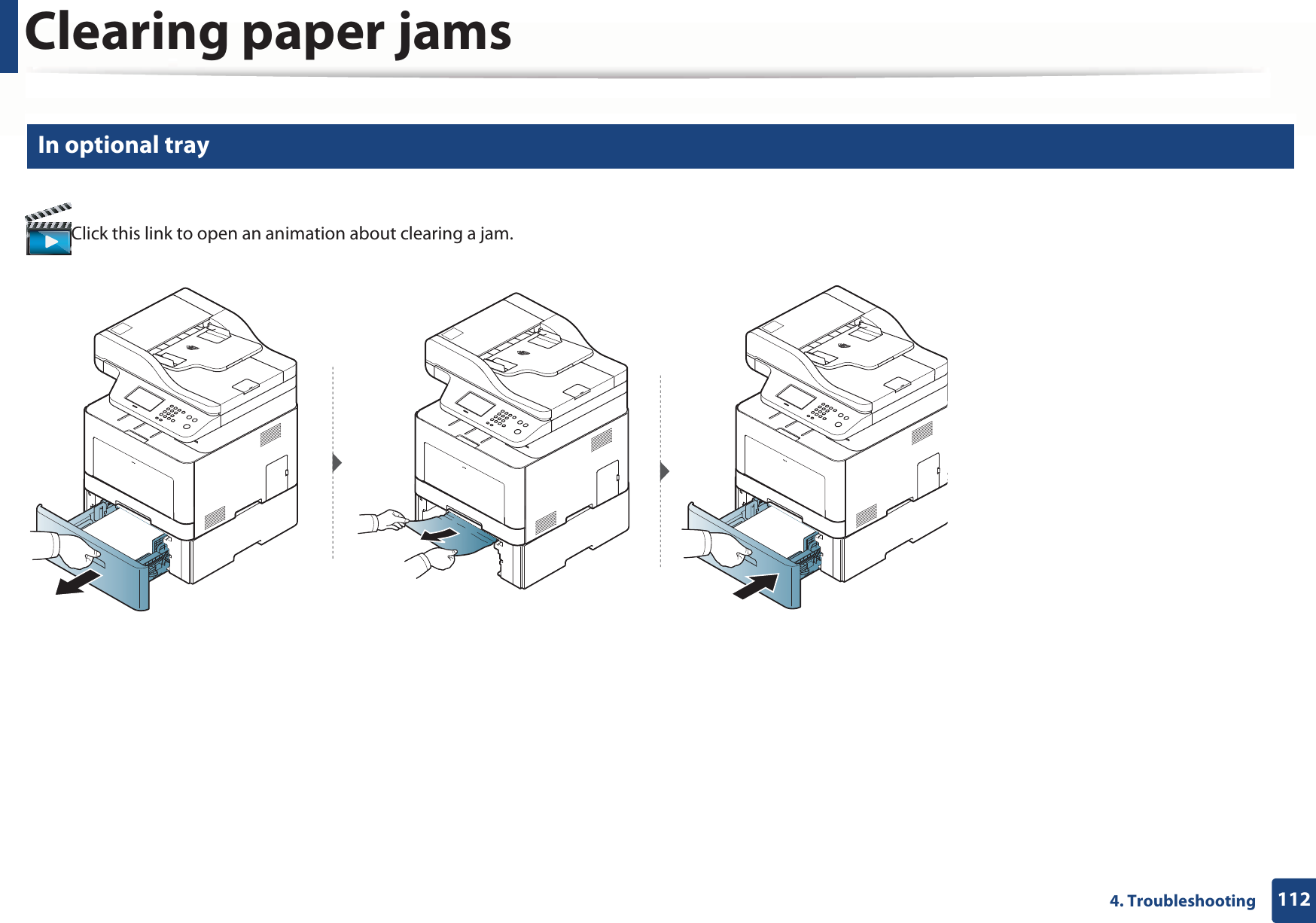

Clearing paper jams1124. Troubleshooting6 In optional trayClick this link to open an animation about clearing a jam.
Clearing paper jams1134. TroubleshootingIf you do not see the paper in this area, stop and go to next step:

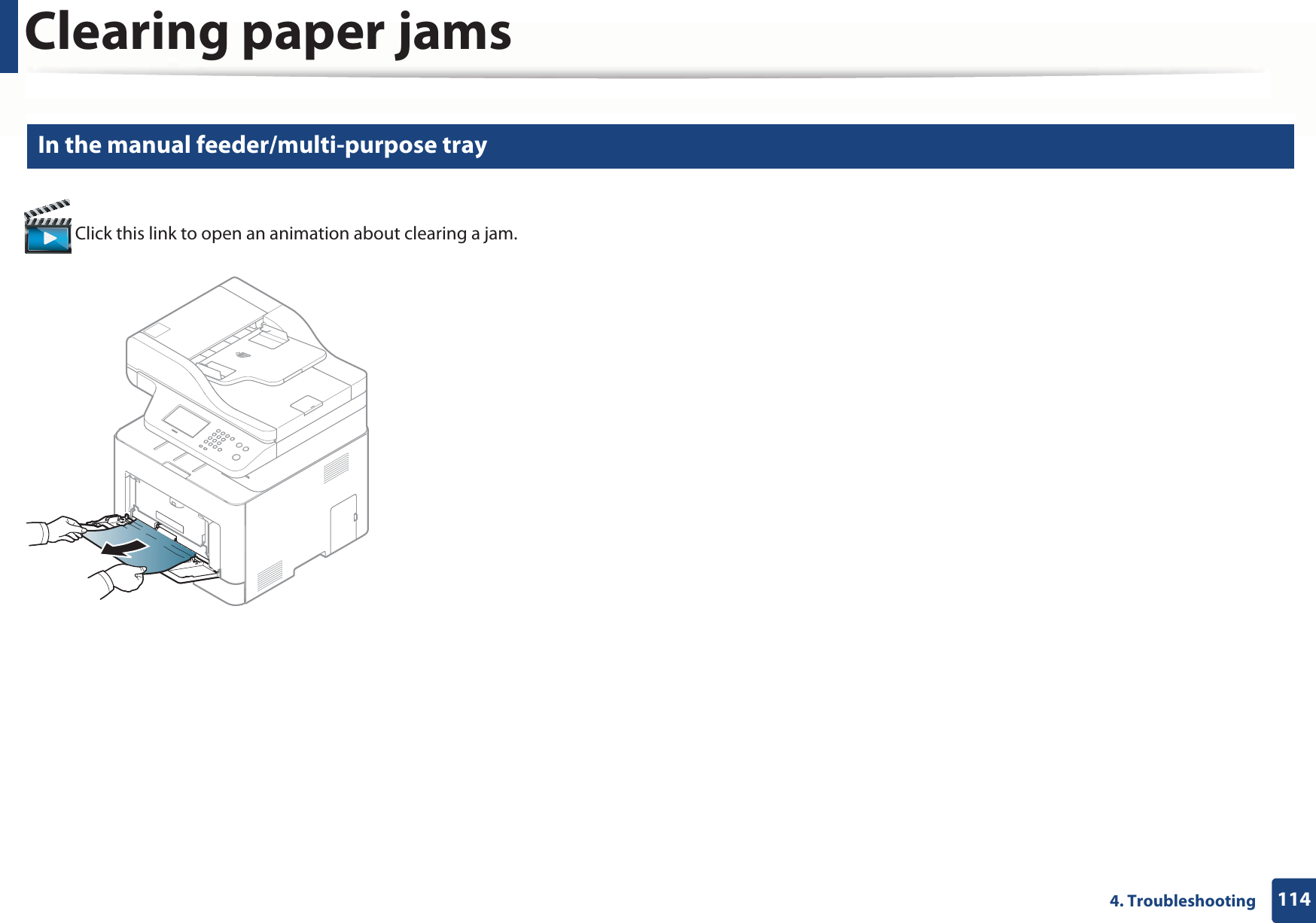

Clearing paper jams1144. Troubleshooting7 In the manual feeder/multi-purpose tray Click this link to open an animation about clearing a jam.

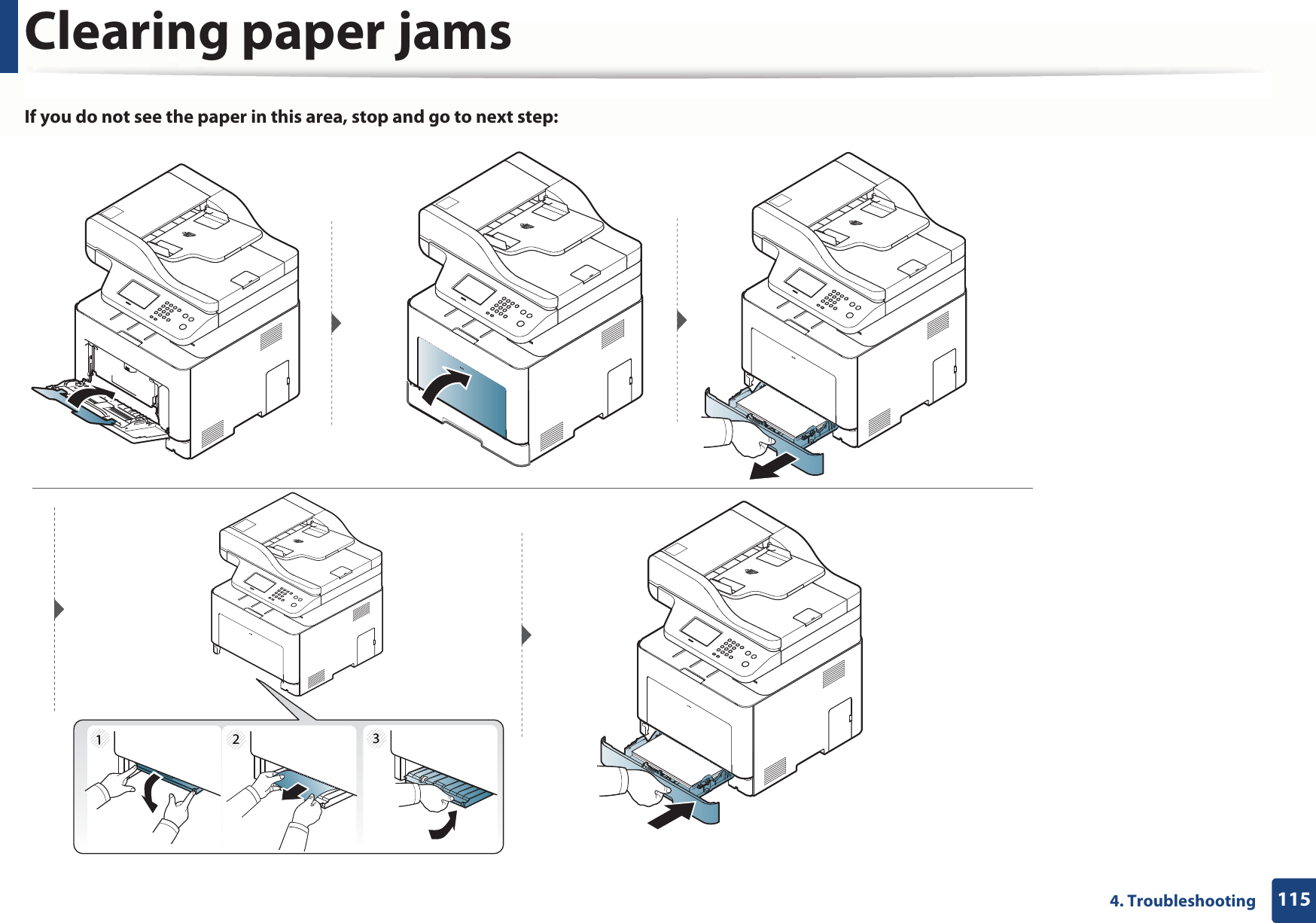

Clearing paper jams1154. TroubleshootingIf you do not see the paper in this area, stop and go to next step:123

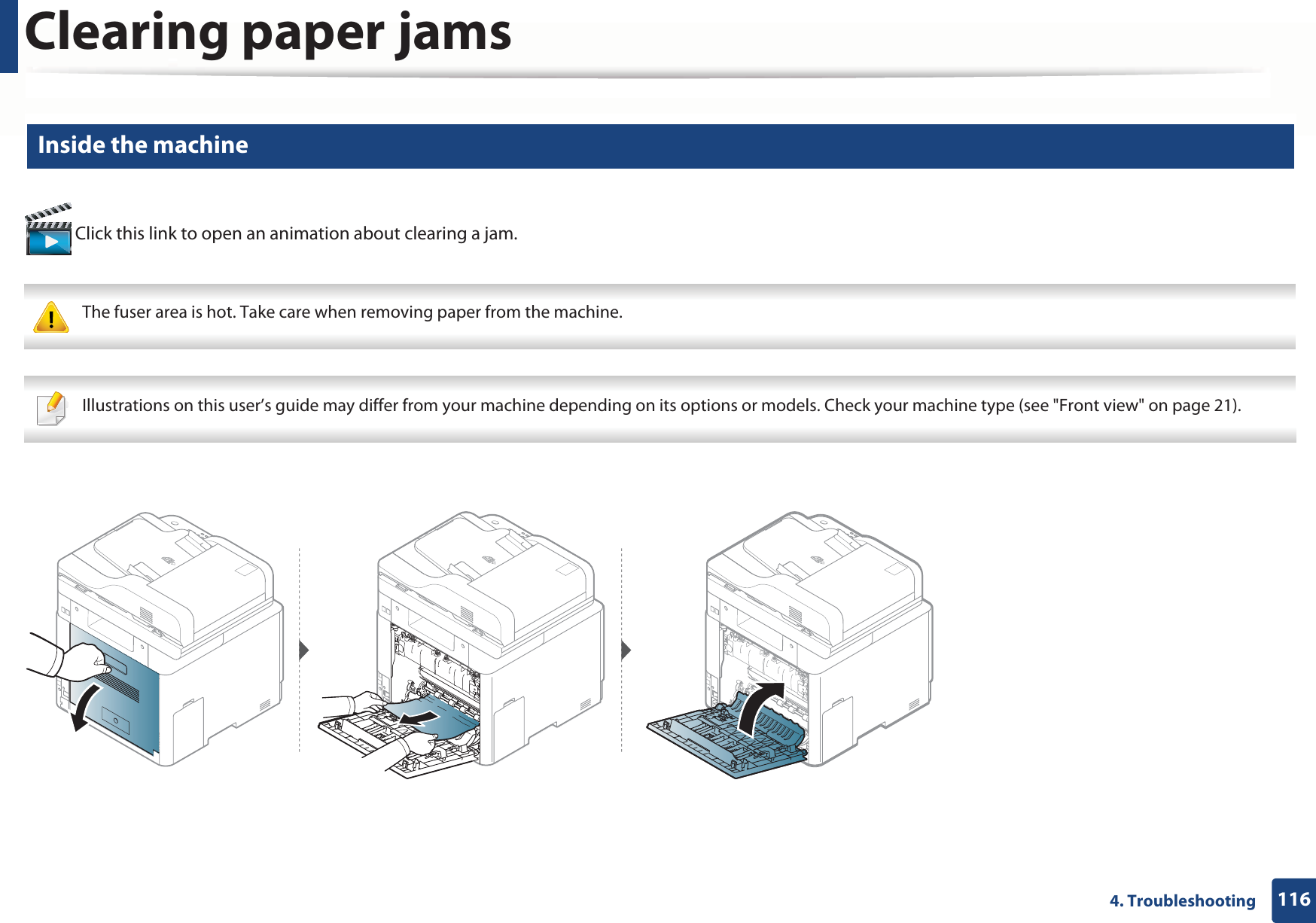

Clearing paper jams1164. Troubleshooting8 Inside the machine Click this link to open an animation about clearing a jam. The fuser area is hot. Take care when removing paper from the machine. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

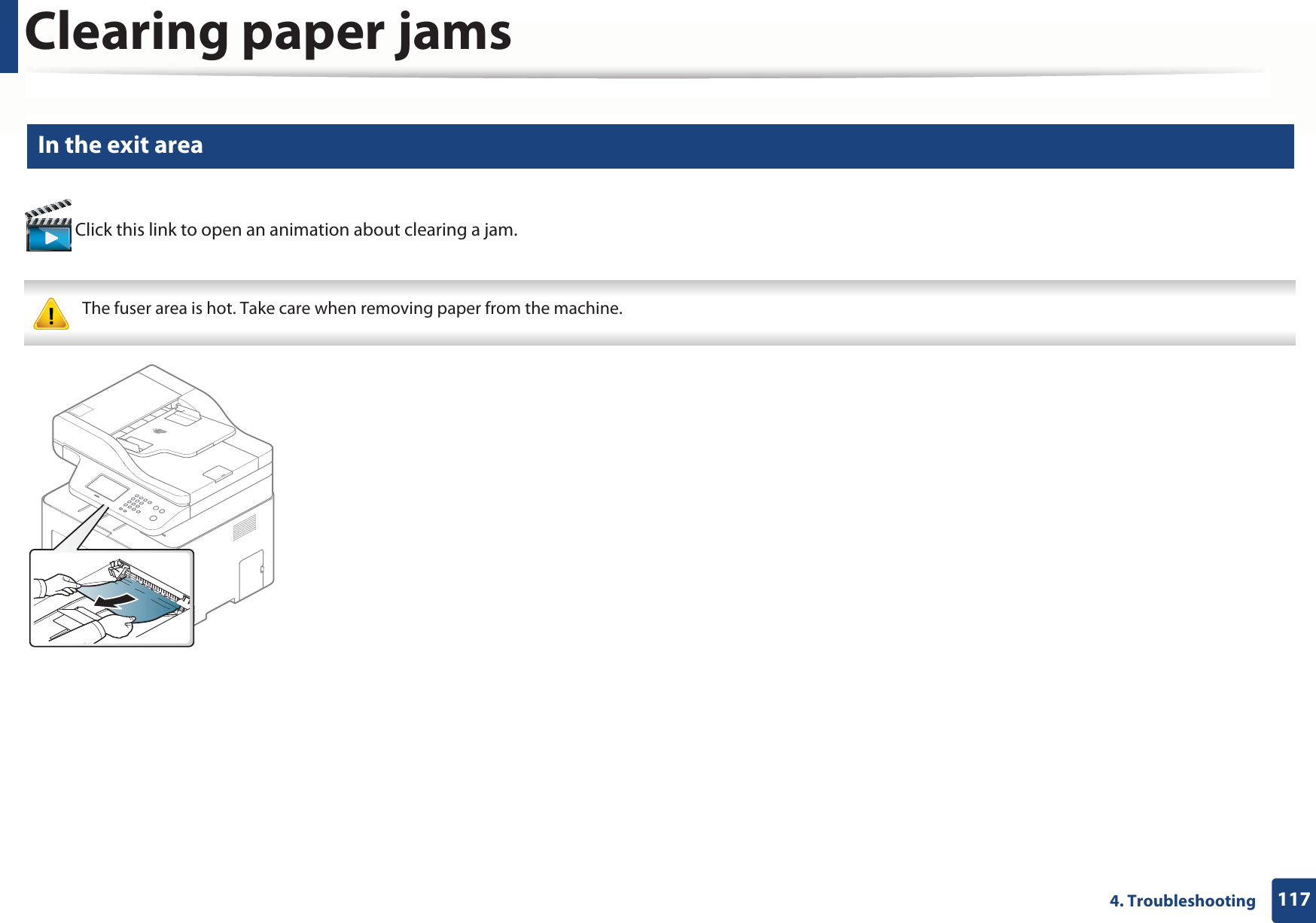

Clearing paper jams1174. Troubleshooting9 In the exit area Click this link to open an animation about clearing a jam. The fuser area is hot. Take care when removing paper from the machine.

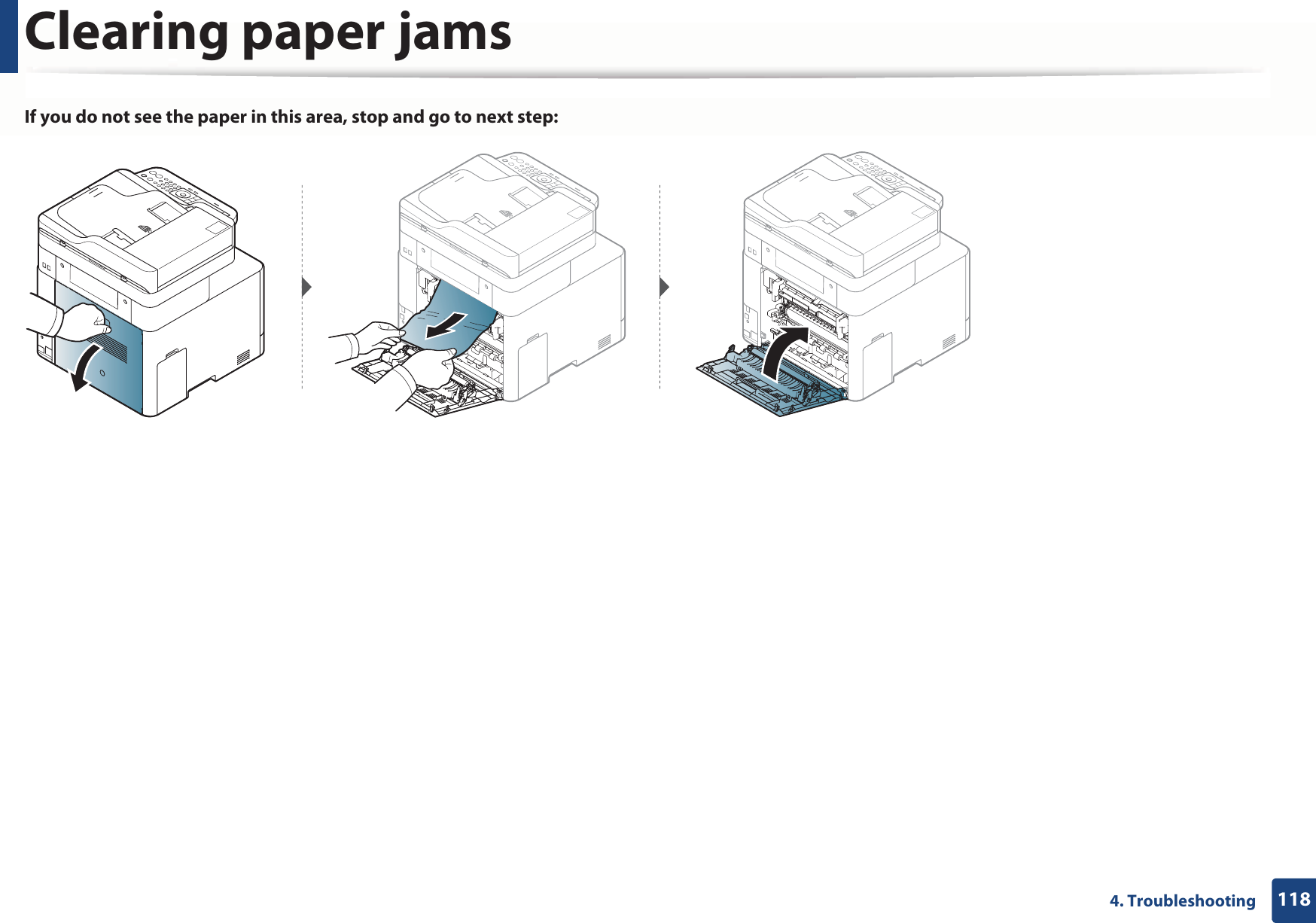

Clearing paper jams1184. TroubleshootingIf you do not see the paper in this area, stop and go to next step:

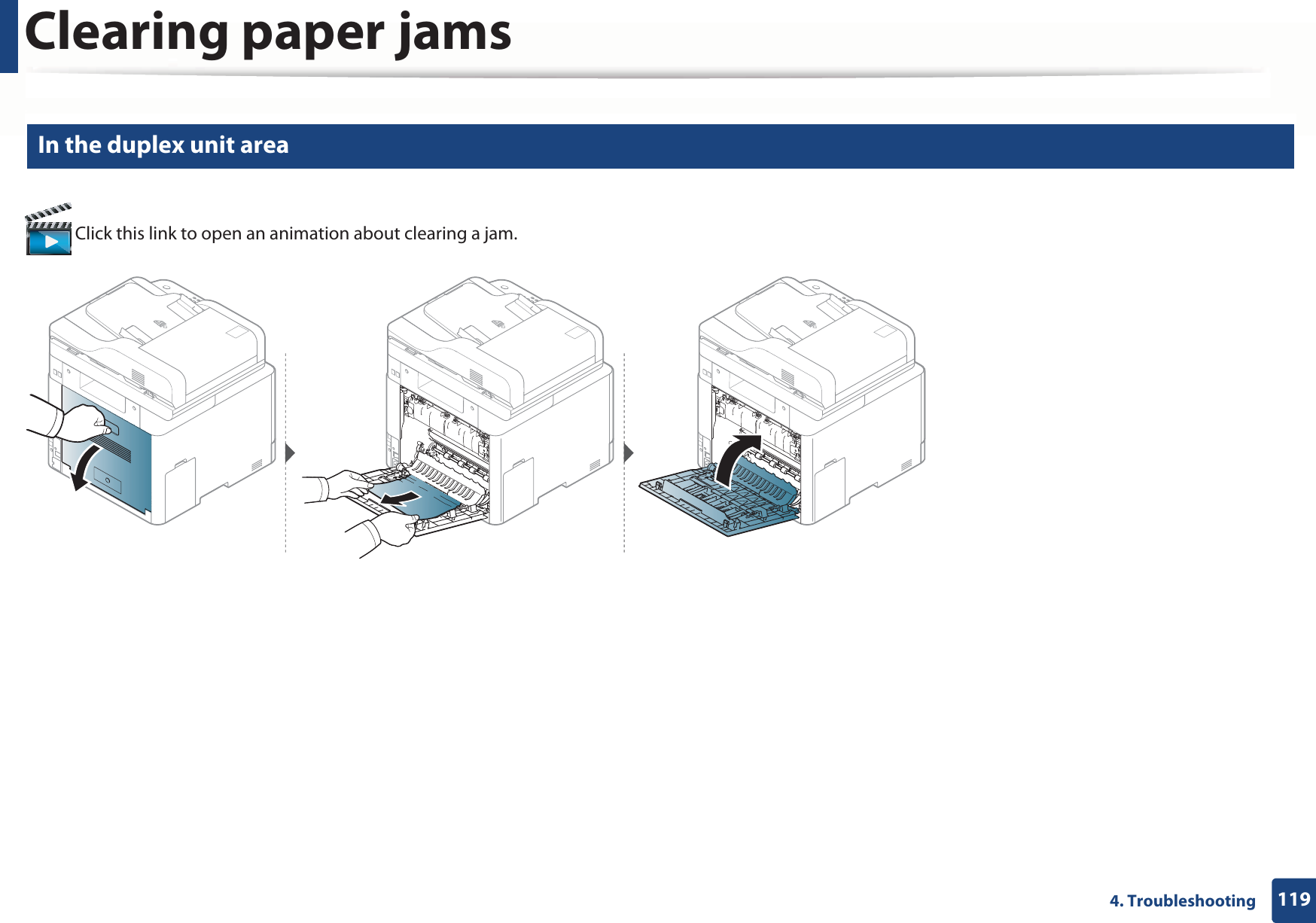

Clearing paper jams1194. Troubleshooting10 In the duplex unit area Click this link to open an animation about clearing a jam.

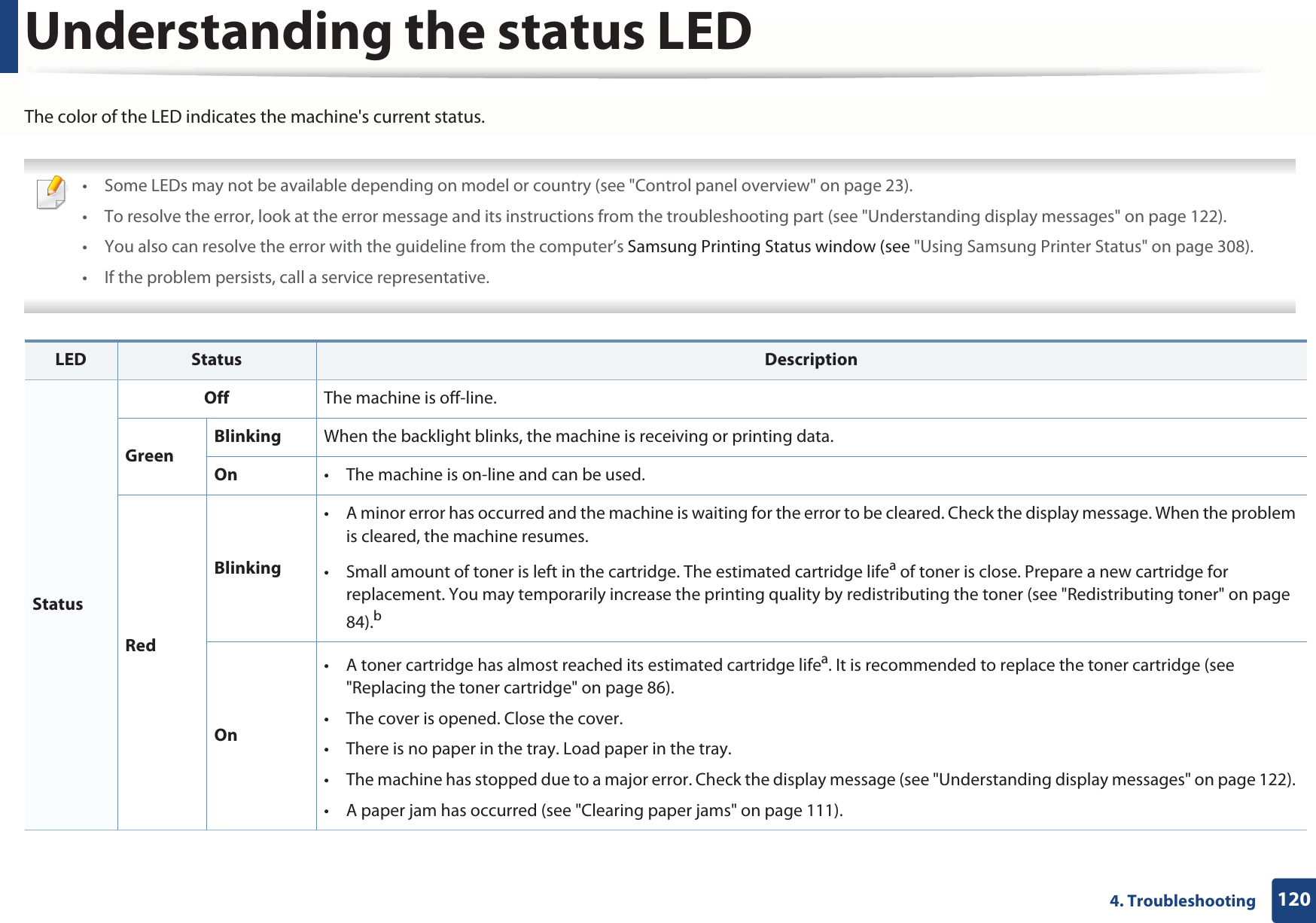

1204. TroubleshootingUnderstanding the status LEDThe color of the LED indicates the machine's current status. • Some LEDs may not be available depending on model or country (see "Control panel overview" on page 23).• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Understanding display messages" on page 122).• You also can resolve the error with the guideline from the computer’s Samsung Printing Status window (see "Using Samsung Printer Status" on page 308).• If the problem persists, call a service representative. LED Status DescriptionStatusOff The machine is off-line.GreenBlinking When the backlight blinks, the machine is receiving or printing data.On • The machine is on-line and can be used.RedBlinking• A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message. When the problem is cleared, the machine resumes.• Small amount of toner is left in the cartridge. The estimated cartridge lifea of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 84).bOn• A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 86).• The cover is opened. Close the cover.• There is no paper in the tray. Load paper in the tray. • The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 122). • A paper jam has occurred (see "Clearing paper jams" on page 111).

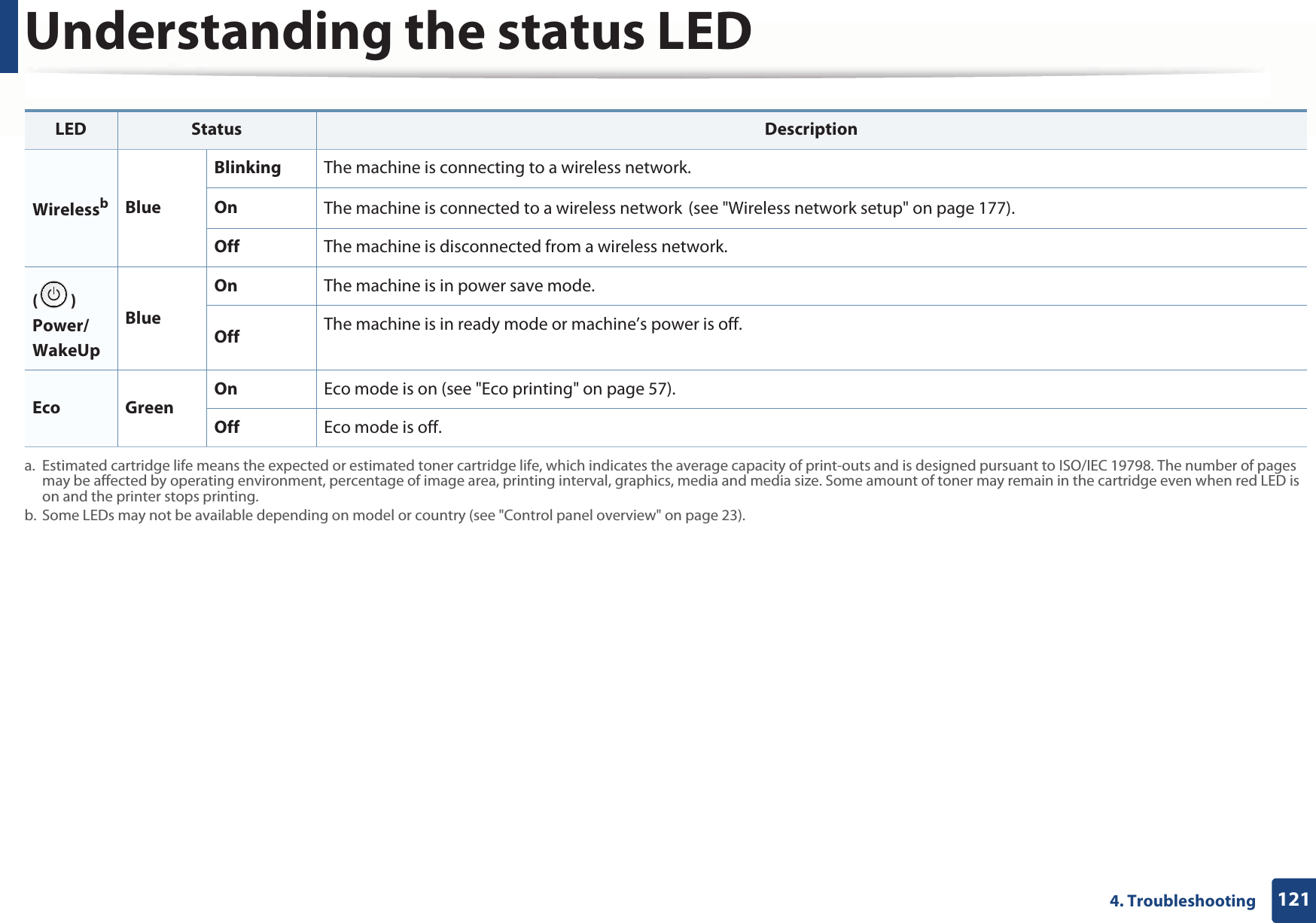

Understanding the status LED1214. Troubleshooting WirelessbBlueBlinking The machine is connecting to a wireless network.On The machine is connected to a wireless networkG(see "Wireless network setup" on page 177).Off The machine is disconnected from a wireless network.() Power/WakeUp BlueOn The machine is in power save mode.Off The machine is in ready mode or machine’s power is off.Eco GreenOn Eco mode is on (see "Eco printing" on page 57).Off Eco mode is off. a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19798. The number of pages may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.b. Some LEDs may not be available depending on model or country (see "Control panel overview" on page 23).LED Status Description

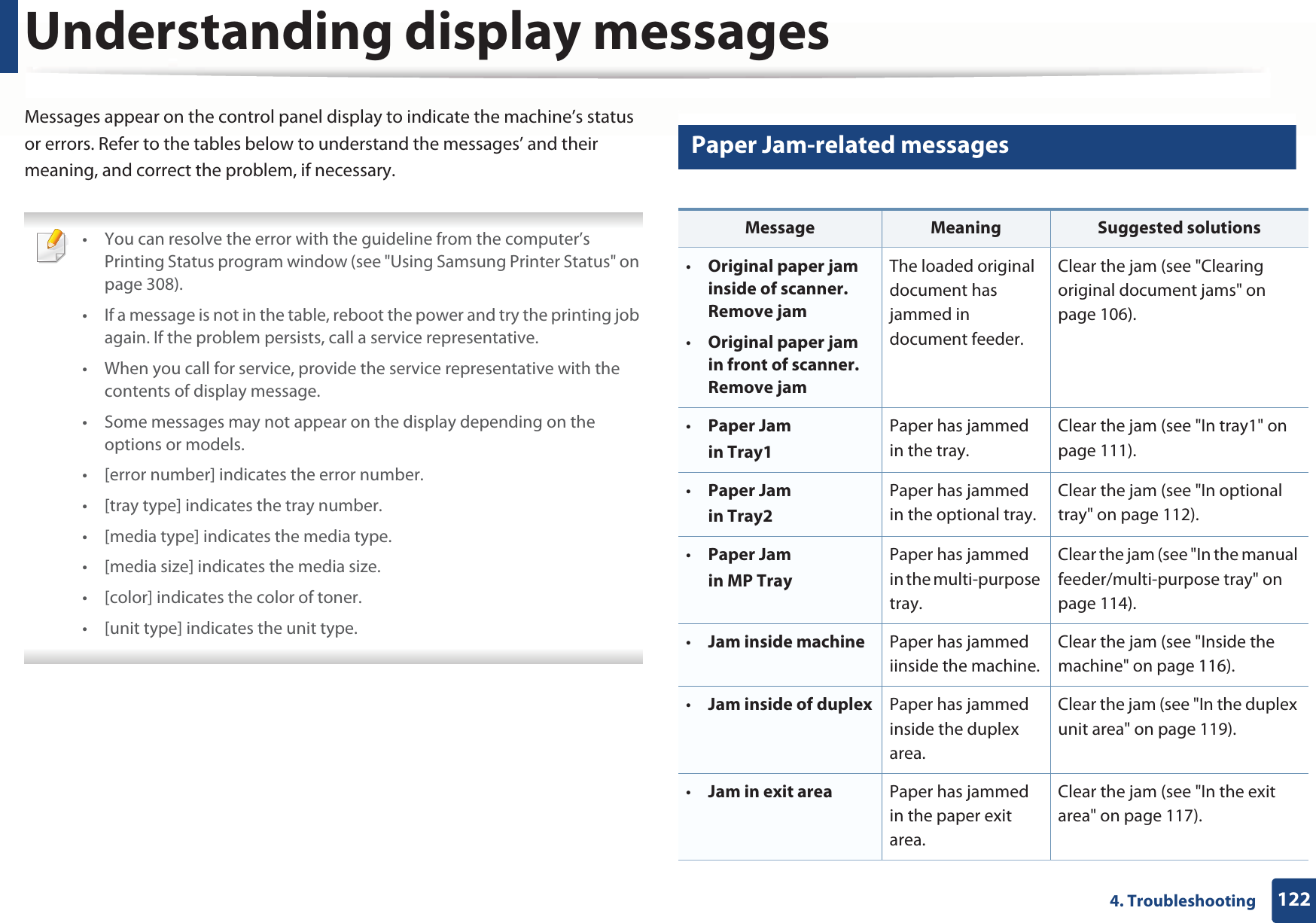

1224. TroubleshootingUnderstanding display messagesMessages appear on the control panel display to indicate the machine’s status or errors. Refer to the tables below to understand the messages’ and their meaning, and correct the problem, if necessary. • You can resolve the error with the guideline from the computer’s Printing Status program window (see "Using Samsung Printer Status" on page 308).• If a message is not in the table, reboot the power and try the printing job again. If the problem persists, call a service representative.• When you call for service, provide the service representative with the contents of display message.• Some messages may not appear on the display depending on the options or models.• [error number] indicates the error number. • [tray type] indicates the tray number. • [media type] indicates the media type.• [media size] indicates the media size.• [color] indicates the color of toner.• [unit type] indicates the unit type. 11 Paper Jam-related messagesMessage Meaning Suggested solutions•Original paper jam inside of scanner. Remove jam•Original paper jam in front of scanner. Remove jamThe loaded original document has jammed in document feeder.Clear the jam (see "Clearing original document jams" on page 106).•Paper Jamin Tray1Paper has jammed in the tray.Clear the jam (see "In tray1" on page 111).•Paper Jamin Tray2Paper has jammed in the optional tray.Clear the jam (see "In optional tray" on page 112).•Paper Jamin MP TrayPaper has jammed in the multi-purpose tray.Clear the jam (see "In the manual feeder/multi-purpose tray" on page 114).•Jam inside machine Paper has jammed iinside the machine.Clear the jam (see "Inside the machine" on page 116).•Jam inside of duplex Paper has jammed inside the duplex area.Clear the jam (see "In the duplex unit area" on page 119).•Jam in exit area Paper has jammed in the paper exit area.Clear the jam (see "In the exit area" on page 117).

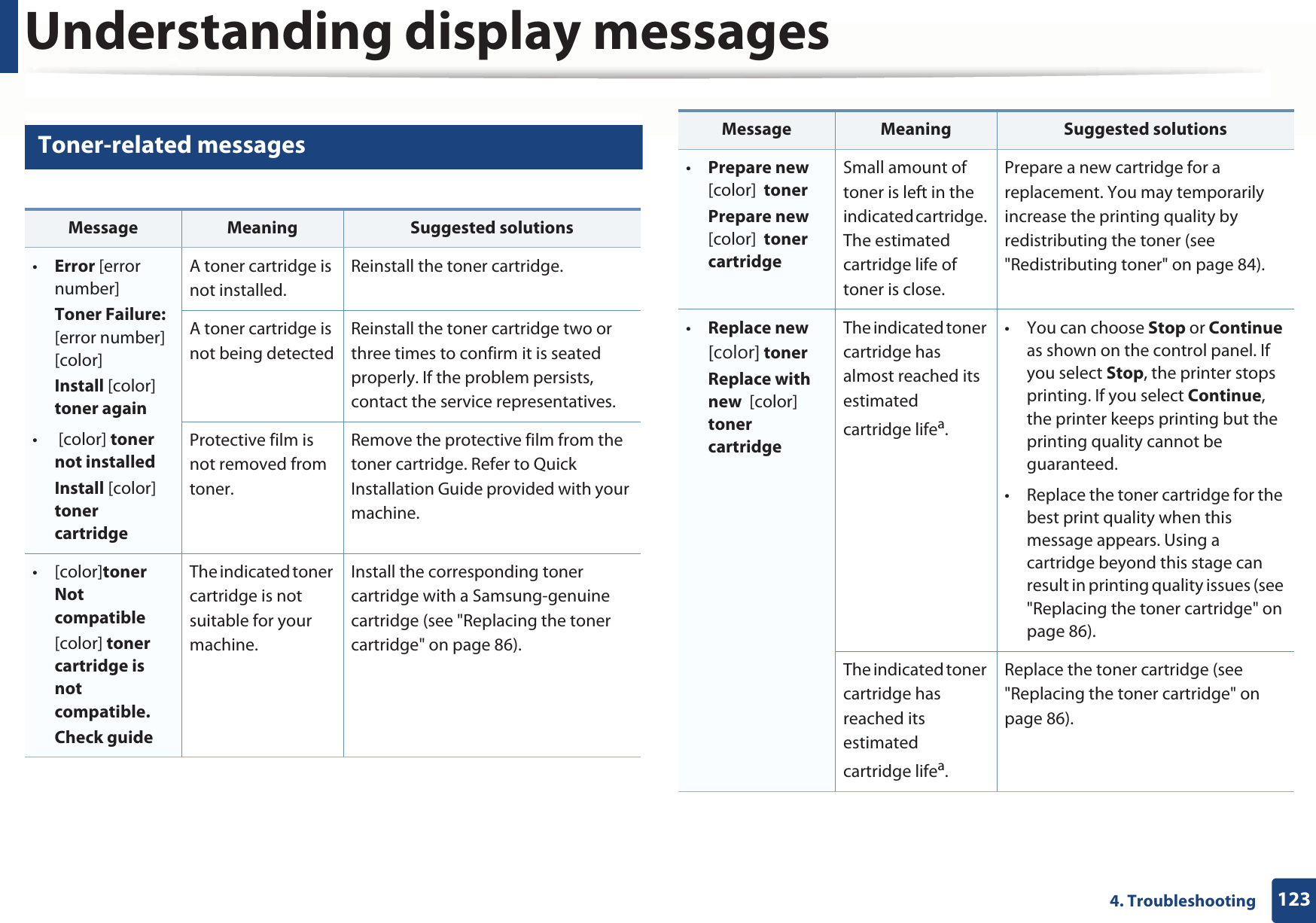

Understanding display messages1234. Troubleshooting12 Toner-related messagesMessage Meaning Suggested solutions•Error [error number]Toner Failure: [error number] [color]Install [color] toner again• [color] toner not installedInstall [color] toner cartridgeA toner cartridge is not installed.Reinstall the toner cartridge.A toner cartridge is not being detectedReinstall the toner cartridge two or three times to confirm it is seated properly. If the problem persists, contact the service representatives.Protective film is not removed from toner.Remove the protective film from the toner cartridge. Refer to Quick Installation Guide provided with your machine.•[color]toner Not compatible[color] toner cartridge is not compatible.Check guideThe indicated toner cartridge is not suitable for your machine.Install the corresponding toner cartridge with a Samsung-genuine cartridge (see "Replacing the toner cartridge" on page 86).•Prepare new [color] tonerPrepare new [color] toner cartridgeSmall amount of toner is left in the indicated cartridge. The estimated cartridge life of toner is close.Prepare a new cartridge for a replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 84).•Replace new >FRORU@ toner Replace with new [color] toner cartridgeThe indicated toner cartridge has almost reached its estimated cartridge lifea. • You can choose Stop or Continue as shown on the control panel. If you select Stop, the printer stops printing. If you select Continue, the printer keeps printing but the printing quality cannot be guaranteed.• Replace the toner cartridge for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the toner cartridge" on page 86).The indicated toner cartridge has reached its estimated cartridge lifea.Replace the toner cartridge (see "Replacing the toner cartridge" on page 86).Message Meaning Suggested solutions

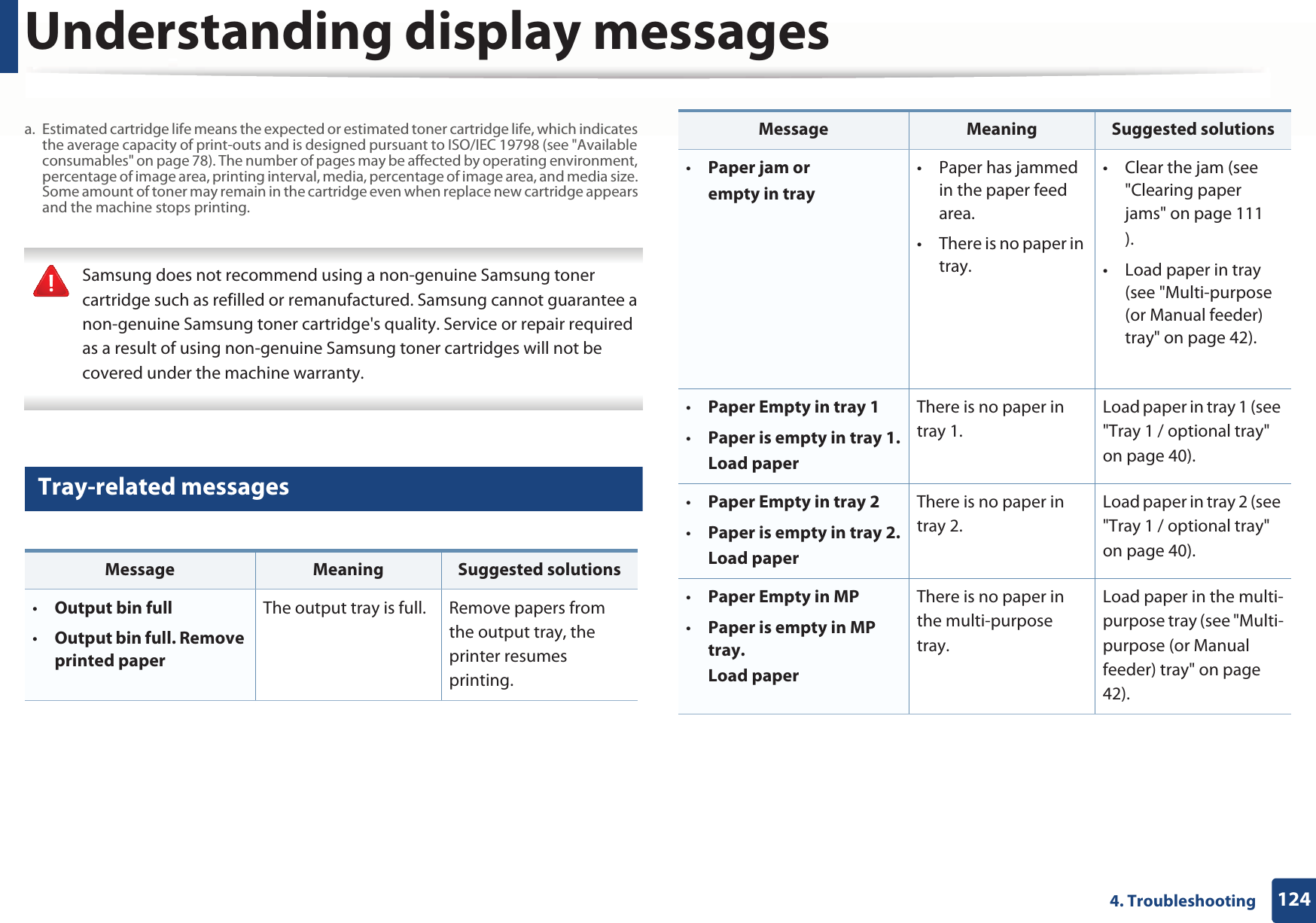

Understanding display messages1244. Troubleshooting Samsung does not recommend using a non-genuine Samsung toner cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty. 13 Tray-related messagesa. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19798 (see "Available consumables" on page 78). The number of pages may be affected by operating environment, percentage of image area, printing interval, media, percentage of image area, and media size. Some amount of toner may remain in the cartridge even when replace new cartridge appears and the machine stops printing.Message Meaning Suggested solutions•Output bin full•Output bin full. Remove printed paperThe output tray is full. Remove papers from the output tray, the printer resumes printing. •Paper jam orempty in tray• Paper has jammed in the paper feed area.• There is no paper in tray.•Clear the jam (see "Clearing paper jams" on page 111).• Load paper in tray (see "Multi-purpose (or Manual feeder) tray" on page 42).•Paper Empty in tray 1•Paper is empty in tray 1.Load paperThere is no paper in tray 1. Load paper in tray 1 (see "Tray 1 / optional tray" on page 40).•Paper Empty in tray 2•Paper is empty in tray 2.Load paperThere is no paper in tray 2. Load paper in tray 2 (see "Tray 1 / optional tray" on page 40).•Paper Empty in MP•Paper is empty in MP tray.Load paperThere is no paper in the multi-purpose tray. Load paper in the multi-purpose tray (see "Multi-purpose (or Manual feeder) tray" on page 42).Message Meaning Suggested solutions

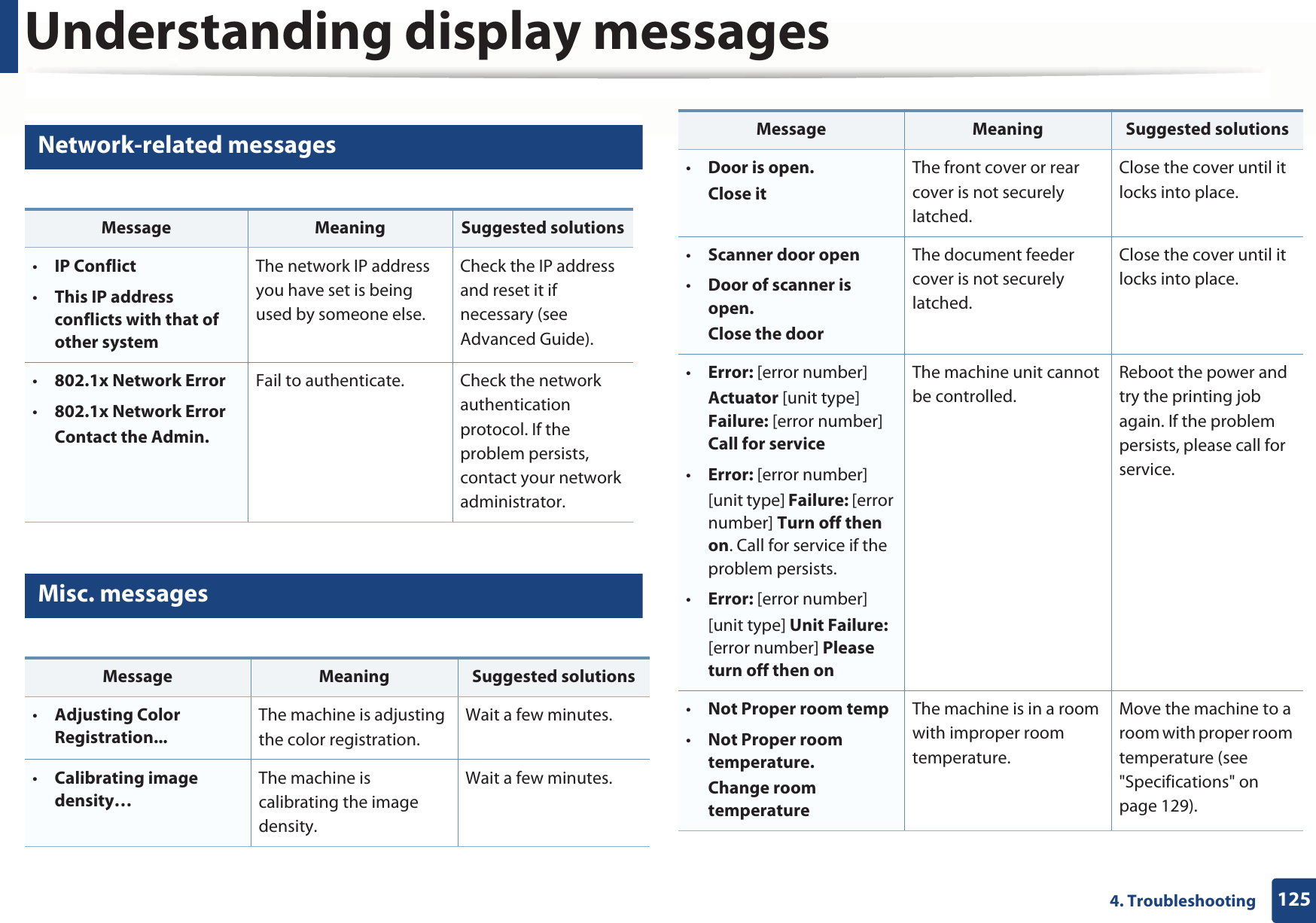

Understanding display messages1254. Troubleshooting14 Network-related messages15 Misc. messagesMessage Meaning Suggested solutions•IP Conflict•This IP address conflicts with that of other systemThe network IP address you have set is being used by someone else. Check the IP address and reset it if necessary (see Advanced Guide).•802.1x Network Error•802.1x Network ErrorContact the Admin.Fail to authenticate. Check the network authentication protocol. If the problem persists, contact your network administrator.Message Meaning Suggested solutions•Adjusting Color Registration...The machine is adjusting the color registration.Wait a few minutes.•Calibrating image density…The machine is calibrating the image density. Wait a few minutes.•Door is open. Close itThe front cover or rear cover is not securely latched.Close the cover until it locks into place. •Scanner door open•Door of scanner is open.Close the doorThe document feeder cover is not securely latched.Close the cover until it locks into place. •Error: [error number]Actuator [unit type] Failure: [error number] Call for service•Error: [error number][unit type] Failure: [error number] Turn off then on. Call for service if the problem persists.•Error: [error number][unit type] Unit Failure: [error number] Please turn off then onThe machine unit cannot be controlled.Reboot the power and try the printing job again. If the problem persists, please call for service. •Not Proper room temp•Not Proper room temperature.Change room temperatureThe machine is in a room with improper room temperature.Move the machine to a room with proper room temperature (see "Specifications" on page 129).Message Meaning Suggested solutions

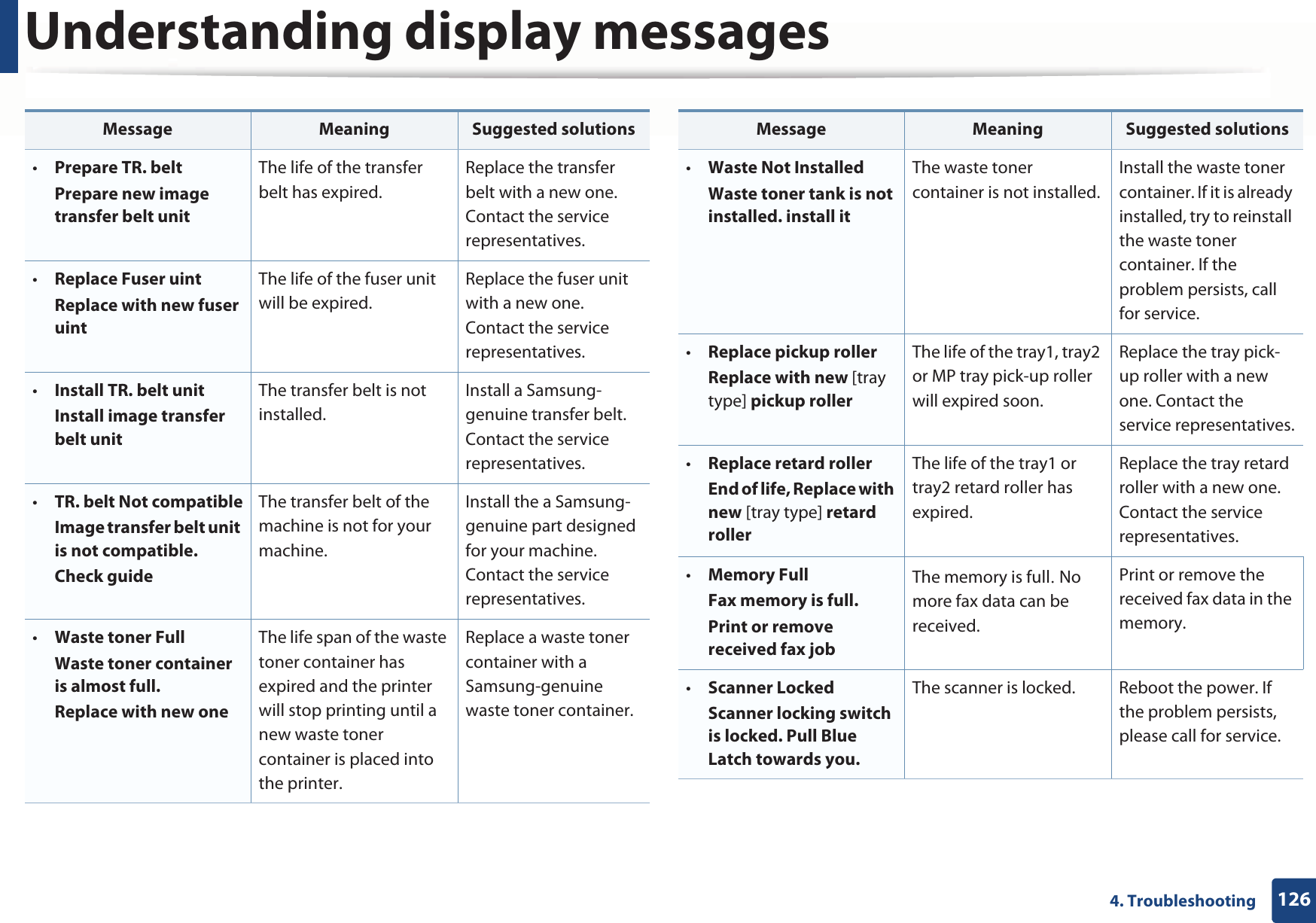

Understanding display messages1264. Troubleshooting•Prepare TR. beltPrepare new image transfer belt unitThe life of the transfer belt has expired.Replace the transfer belt with a new one. Contact the service representatives.•Replace Fuser uintReplace with new fuser uintThe life of the fuser unit will be expired.Replace the fuser unit with a new one. Contact the service representatives.•Install TR. belt unitInstall image transfer belt unitThe transfer belt is not installed.Install a Samsung-genuine transfer belt. Contact the service representatives.•TR. belt Not compatibleImage transfer belt unit is not compatible.Check guideThe transfer belt of the machine is not for your machine.Install the a Samsung-genuine part designed for your machine. Contact the service representatives.•Waste toner FullWaste toner container is almost full.Replace with new oneThe life span of the waste toner container has expired and the printer will stop printing until a new waste toner container is placed into the printer.Replace a waste toner container with a Samsung-genuine waste toner container.Message Meaning Suggested solutions•Waste Not InstalledWaste toner tank is not installed. install itThe waste toner container is not installed.Install the waste toner container. If it is already installed, try to reinstall the waste toner container. If the problem persists, call for service.•Replace pickup rollerReplace with new [tray type] pickup rollerThe life of the tray1, tray2 or MP tray pick-up roller will expired soon.Replace the tray pick-up roller with a new one. Contact the service representatives.•Replace retard rollerEnd of life, Replace with new [tray type] retard rollerThe life of the tray1 or tray2 retard roller has expired.Replace the tray retard roller with a new one. Contact the service representatives.•Memory FullFax memory is full.Print or remove received fax jobThe memory is fullU No more fax data can be received. Print or remove the received fax data in the memory.•Scanner LockedScanner locking switch is locked. Pull Blue Latch towards you.The scanner is locked. Reboot the power. If the problem persists, please call for service.Message Meaning Suggested solutions

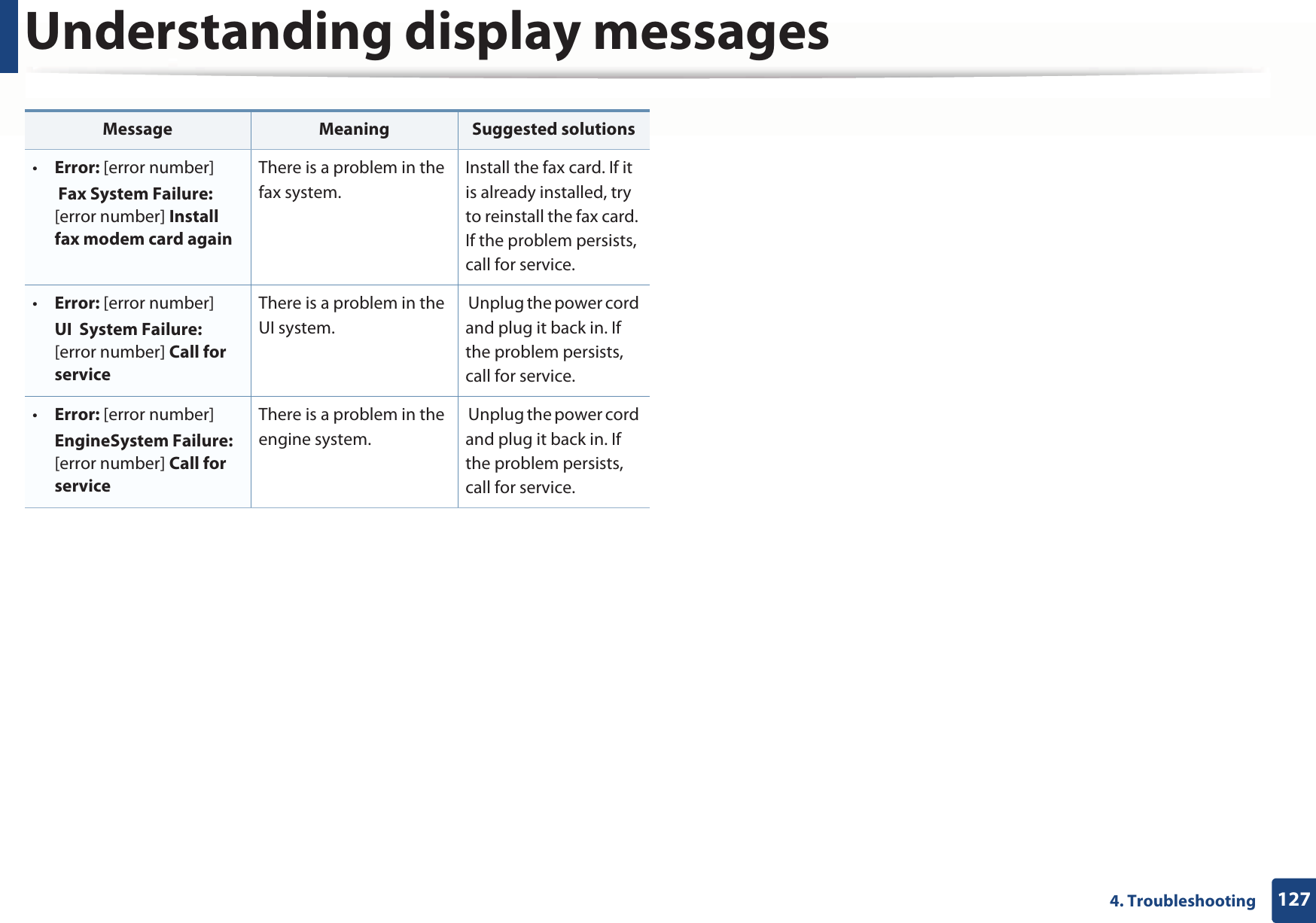

Understanding display messages1274. Troubleshooting•Error: [error number] Fax System Failure: [error number] Install fax modem card againThere is a problem in the fax system.Install the fax card. If it is already installed, try to reinstall the fax card. If the problem persists, call for service.•Error: [error number]UI System Failure: [error number] Call for serviceThere is a problem in the UI system. Unplug the power cord and plug it back in. If the problem persists, call for service.•Error: [error number]EngineSystem Failure: [error number] Call for serviceThere is a problem in the engine system. Unplug the power cord and plug it back in. If the problem persists, call for service.Message Meaning Suggested solutions

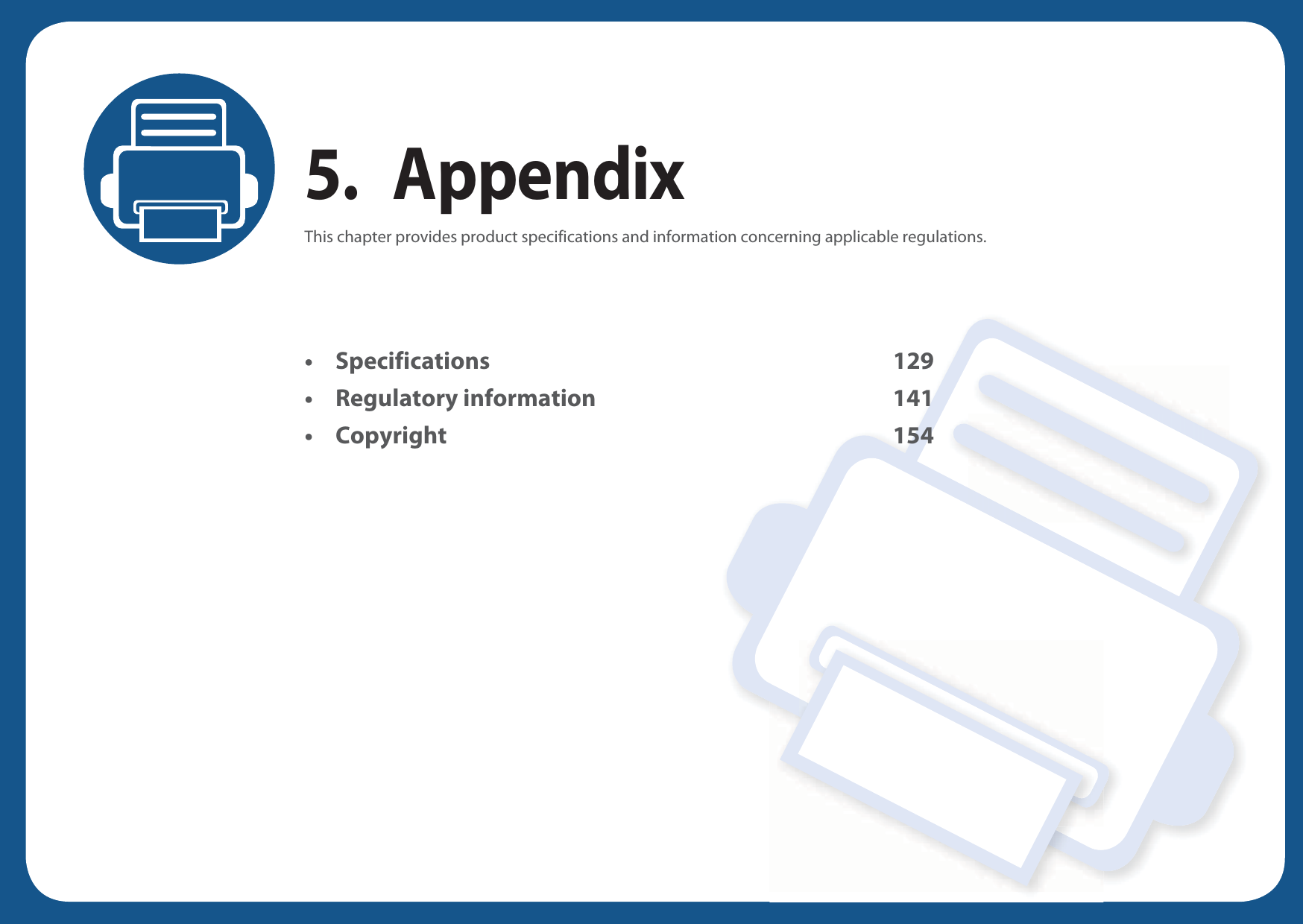

5. AppendixThis chapter provides product specifications and information concerning applicable regulations.• Specifications 129• Regulatory information 141• Copyright 154

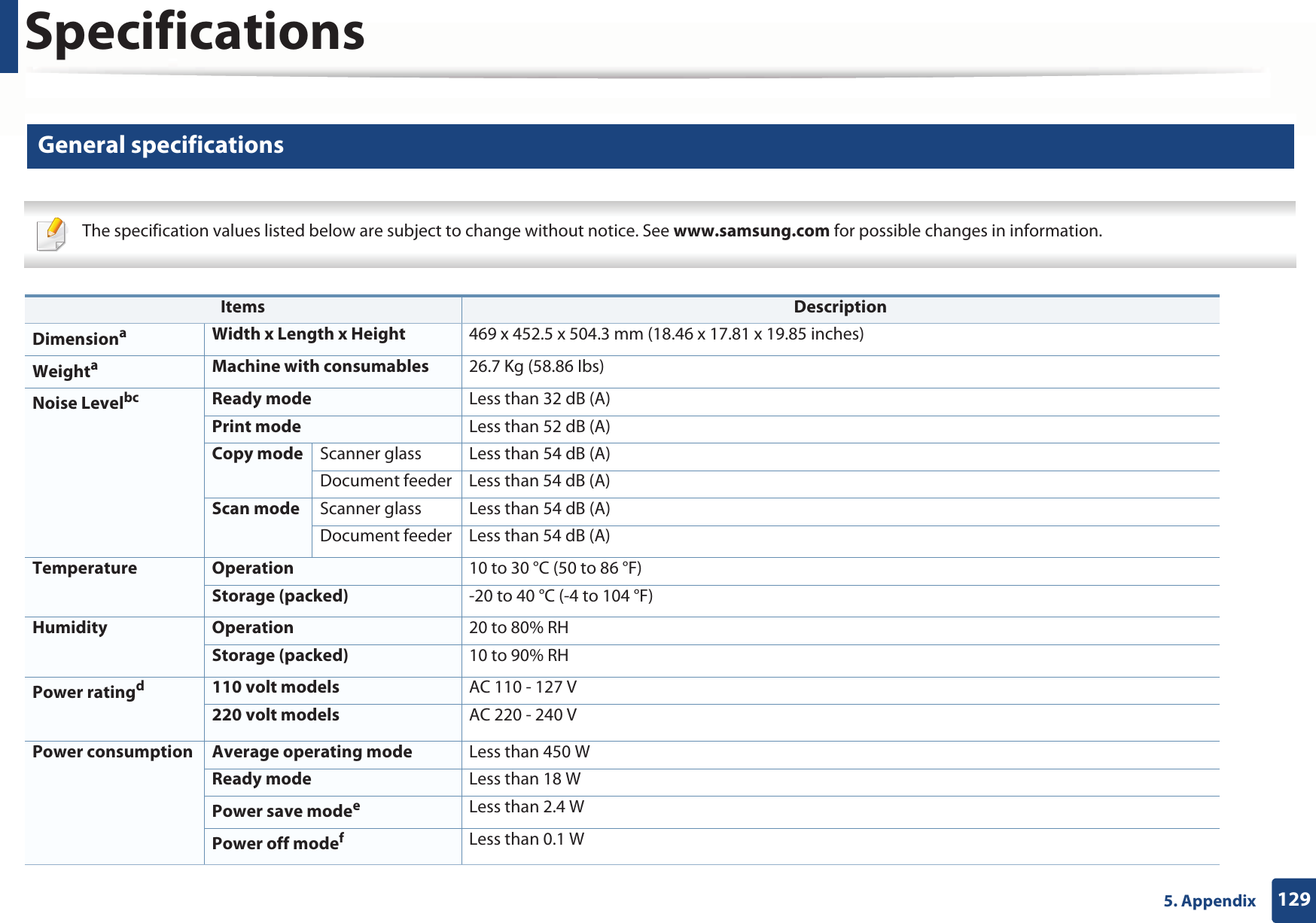

1295. AppendixSpecifications1 General specifications The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information. Items DescriptionDimensionaWidth x Length x Height 469 x 452.5 x 504.3 mm (18.46 x 17.81 x 19.85 inches)WeightaMachine with consumables 26.7 Kg (58.86 Ibs)Noise Levelbc Ready mode Less than 32 dB (A)Print mode Less than 52 dB (A)Copy mode Scanner glass Less than 54 dB (A)Document feeder Less than 54 dB (A)Scan mode Scanner glass Less than 54 dB (A)Document feeder Less than 54 dB (A)Temperature Operation 10 to 30 °C (50 to 86 °F)Storage (packed) -20 to 40 °C (-4 to 104 °F)Humidity Operation 20 to 80% RHStorage (packed) 10 to 90% RHPower ratingd110 volt models AC 110 - 127 V220 volt models AC 220 - 240 VPower consumption Average operating mode Less than 450 WReady mode Less than 18 WPower save modeeLess than 2.4 WPower off modefLess than 0.1 W

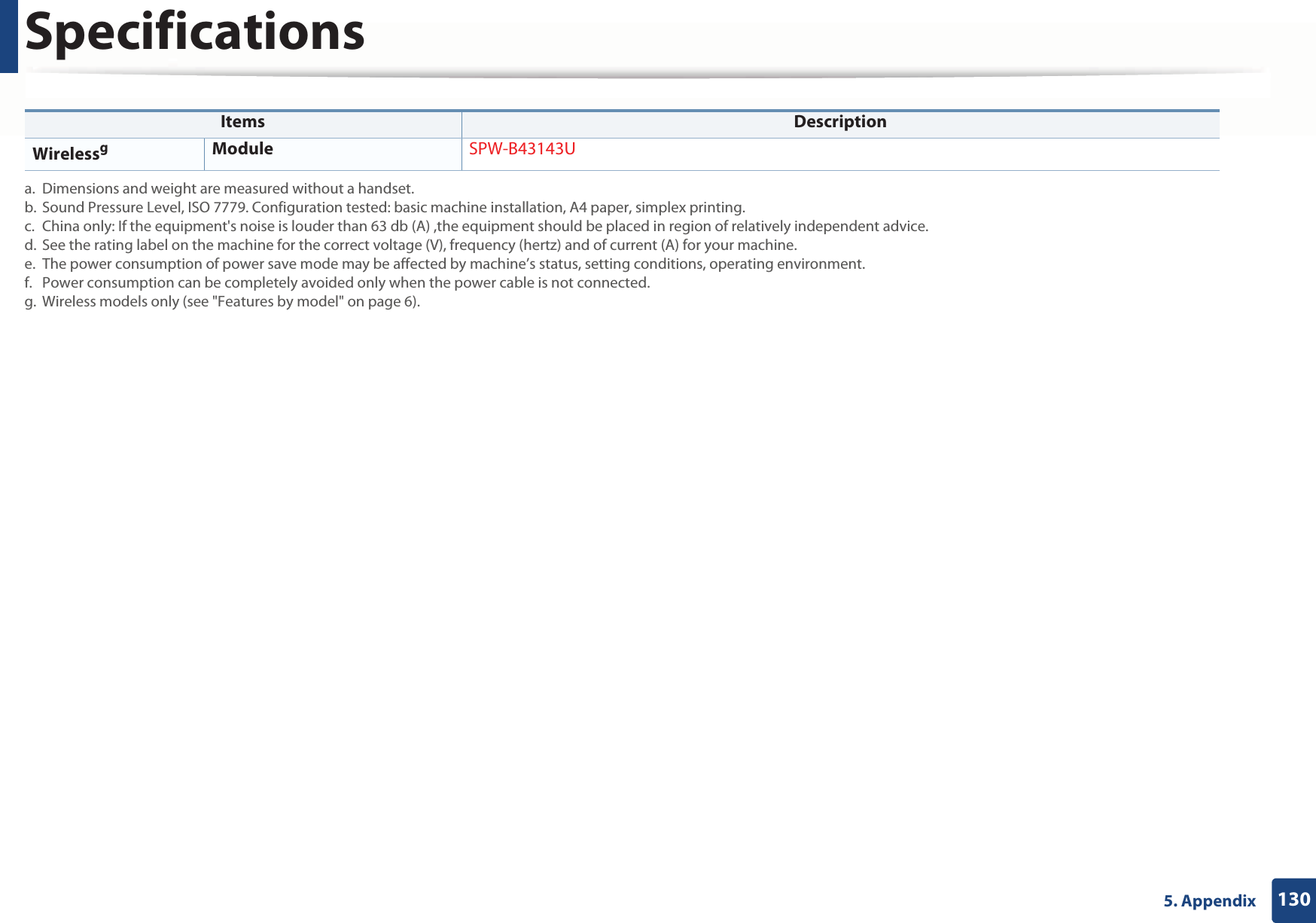

Specifications1305. Appendix WirelessgModule SPW-B43143Ua. Dimensions and weight are measured without a handset.b. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.c. China only: If the equipment's noise is louder than 63 db (A) ,the equipment should be placed in region of relatively independent advice.d. See the rating label on the machine for the correct voltage (V), frequency (hertz) and of current (A) for your machine.e. The power consumption of power save mode may be affected by machine’s status, setting conditions, operating environment.f. Power consumption can be completely avoided only when the power cable is not connected.g. Wireless models only (see "Features by model" on page 6).Items Description

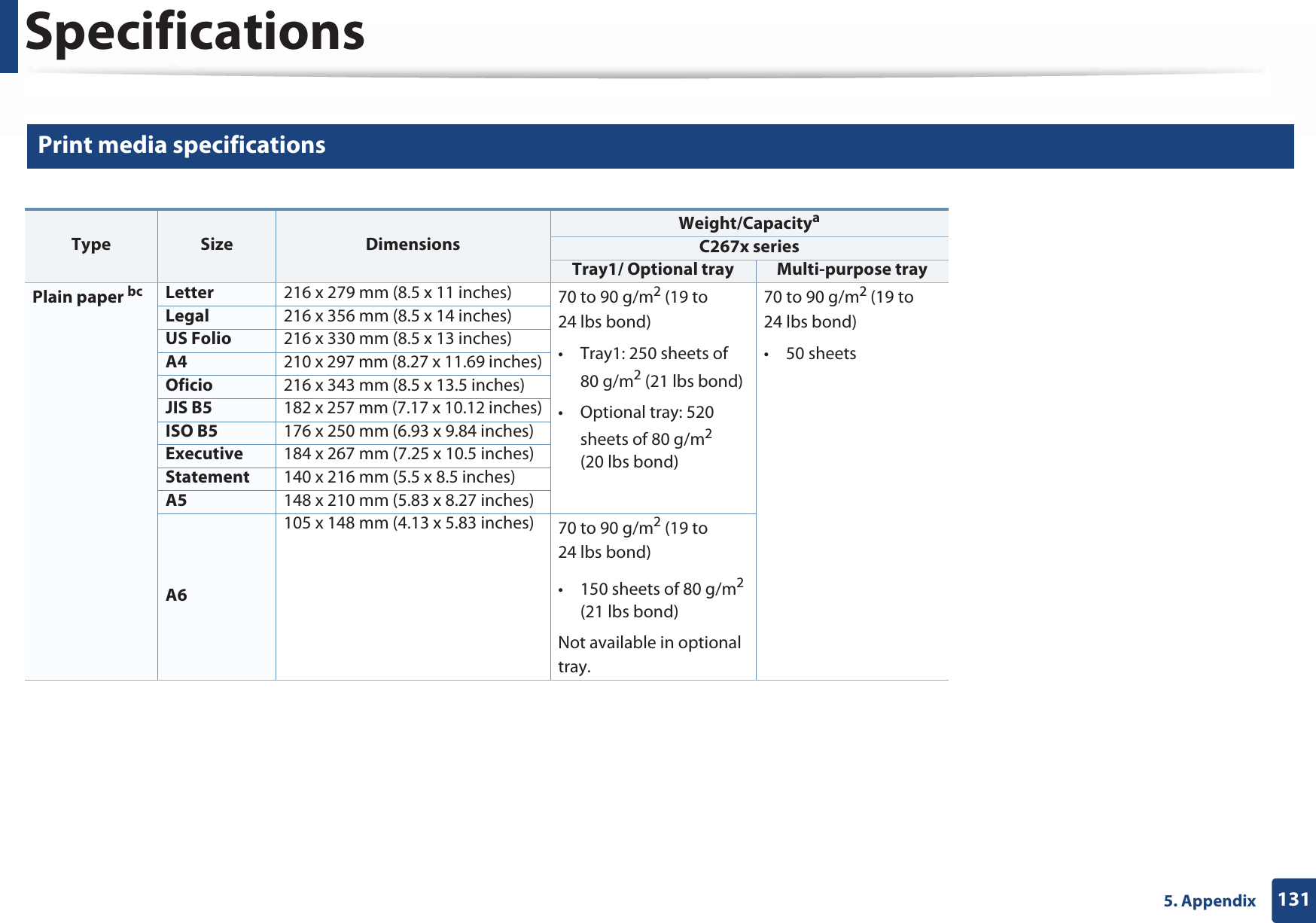

Specifications1315. Appendix2 Print media specifications Type Size DimensionsWeight/CapacityaC267x seriesTray1/ Optional tray Multi-purpose trayPlain paper bc Letter 216 x 279 mm (8.5 x 11 inches) 70 to 90 g/m2 (19 to 24 lbs bond)• Tray1: 250 sheets of 80 g/m2 (21 lbs bond)• Optional tray: 520 sheets of 80 g/m2 (20 lbs bond)70 to 90 g/m2 (19 to 24 lbs bond)• 50 sheetsLegal 216 x 356 mm (8.5 x 14 inches)US Folio 216 x 330 mm (8.5 x 13 inches)A4 210 x 297 mm (8.27 x 11.69 inches)Oficio 216 x 343 mm (8.5 x 13.5 inches)JIS B5 182 x 257 mm (7.17 x 10.12 inches)ISO B5 176 x 250 mm (6.93 x 9.84 inches) Executive 184 x 267 mm (7.25 x 10.5 inches)Statement 140 x 216 mm (5.5 x 8.5 inches)A5 148 x 210 mm (5.83 x 8.27 inches)A6105 x 148 mm (4.13 x 5.83 inches) 70 to 90 g/m2 (19 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)Not available in optional tray.

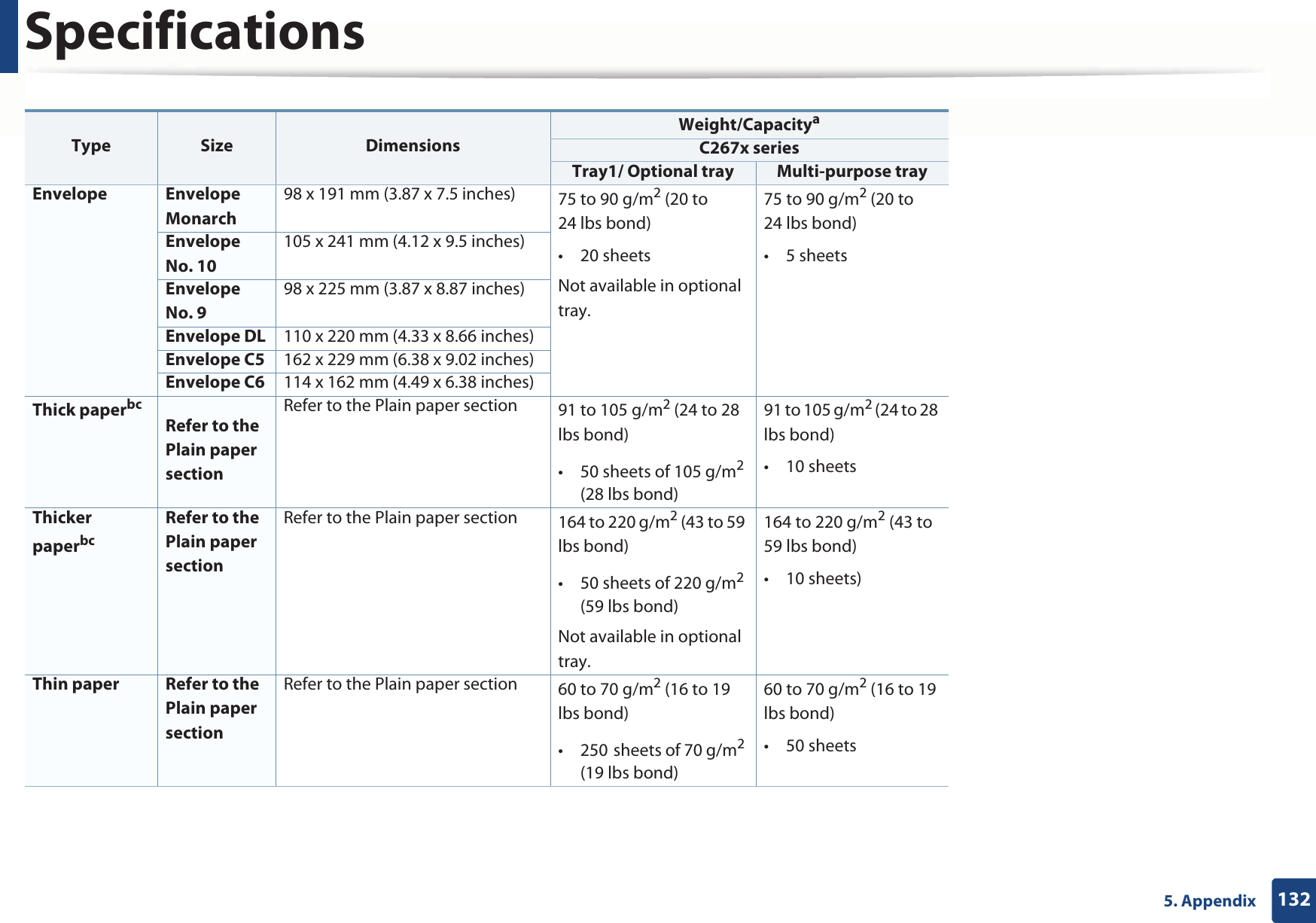

Specifications1325. AppendixEnvelope Envelope Monarch98 x 191 mm (3.87 x 7.5 inches) 75 to 90 g/m2 (20 to 24 lbs bond)• 20 sheetsNot available in optional tray.75 to 90 g/m2 (20 to 24 lbs bond)• 5 sheetsEnvelope No. 10105 x 241 mm (4.12 x 9.5 inches)Envelope No. 998 x 225 mm (3.87 x 8.87 inches)Envelope DL 110 x 220 mm (4.33 x 8.66 inches)Envelope C5 162 x 229 mm (6.38 x 9.02 inches)Envelope C6 114 x 162 mm (4.49 x 6.38 inches)Thick paperbc Refer to the Plain paper section Refer to the Plain paper section 91 to 105 g/m2 (24 to 28 lbs bond)• 50 sheets of 105 g/m2 (28 lbs bond)91 to 105 g/m2 (24 to 28 lbs bond)• 10 sheetsThicker paperbcRefer to the Plain paper section Refer to the Plain paper section 164 to 220 g/m2 (43 to 59 lbs bond)• 50 sheets of 220 g/m2 (59 lbs bond)Not available in optional tray.164 to 220 g/m2 (43 to 59 lbs bond)• 10 sheets)Thin paper Refer to the Plain paper section Refer to the Plain paper section 60 to 70 g/m2 (16 to 19 lbs bond)•250Gsheets of 70 g/m2 (19 lbs bond)60 to 70 g/m2 (16 to 19 lbs bond)• 50 sheetsType Size DimensionsWeight/CapacityaC267x seriesTray1/ Optional tray Multi-purpose tray

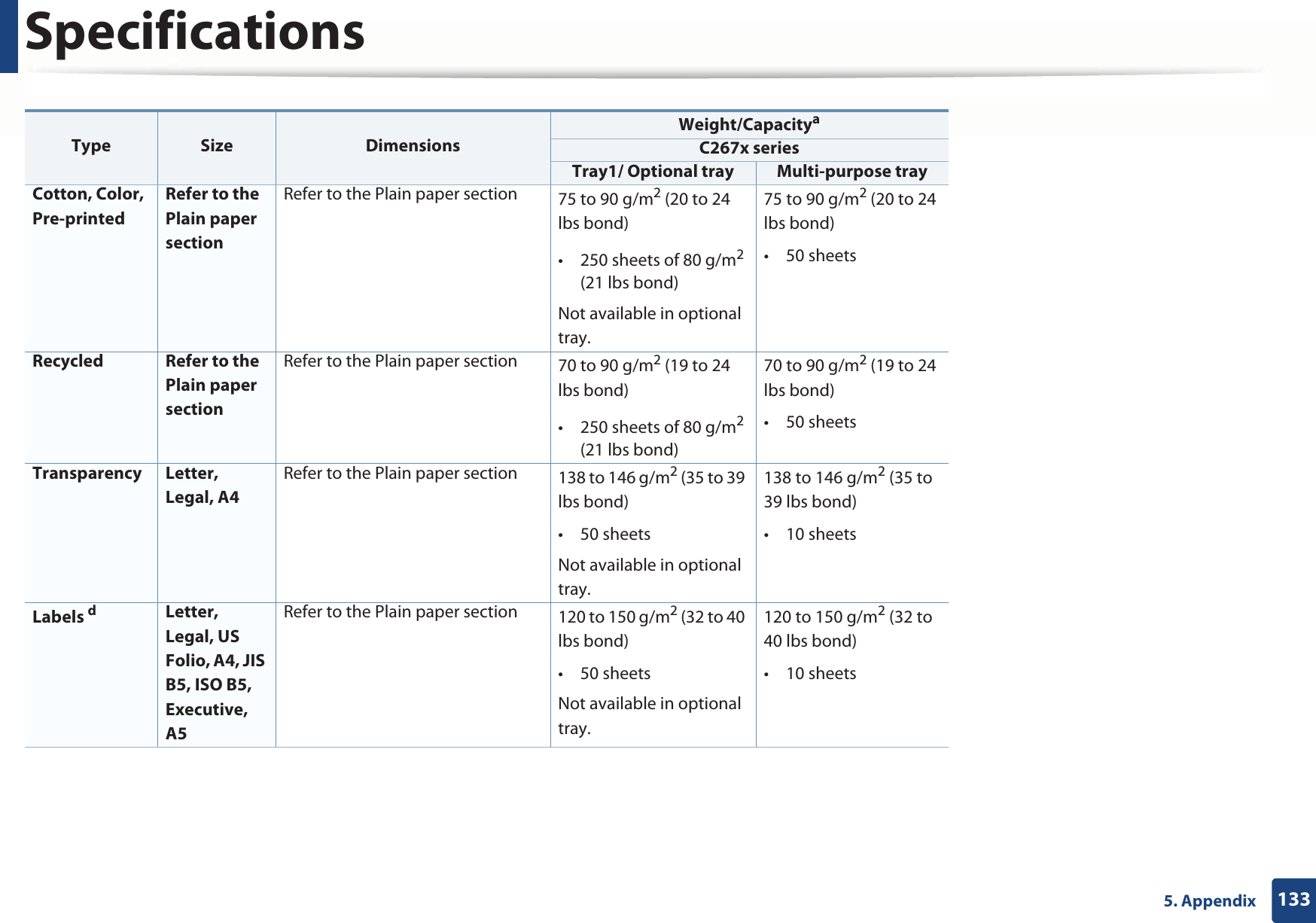

Specifications1335. AppendixCotton, Color, Pre-printedRefer to the Plain paper section Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)• 250 sheets of 80 g/m2 (21 lbs bond)Not available in optional tray.75 to 90 g/m2 (20 to 24 lbs bond)• 50 sheetsRecycled Refer to the Plain paper section Refer to the Plain paper section 70 to 90 g/m2 (19 to 24 lbs bond)• 250 sheets of 80 g/m2 (21 lbs bond)70 to 90 g/m2 (19 to 24 lbs bond)• 50 sheetsTransparency Letter, Legal, A4Refer to the Plain paper section 138 to 146 g/m2 (35 to 39 lbs bond)• 50 sheetsNot available in optional tray.138 to 146 g/m2 (35 to 39 lbs bond)• 10 sheetsLabels dLetter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lbs bond)• 50 sheetsNot available in optional tray.120 to 150 g/m2 (32 to 40 lbs bond)• 10 sheetsType Size DimensionsWeight/CapacityaC267x seriesTray1/ Optional tray Multi-purpose tray

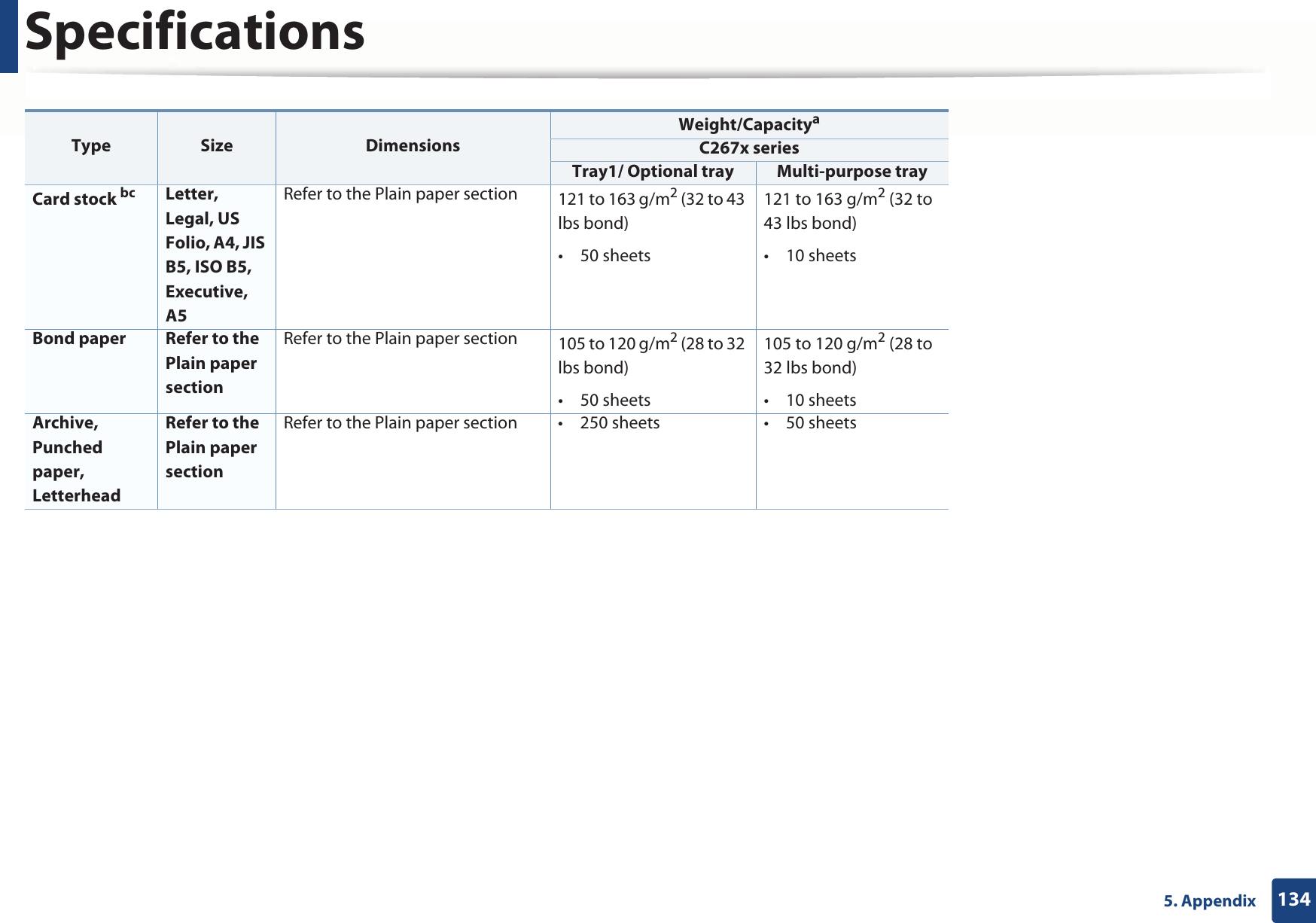

Specifications1345. AppendixCard stock bc Letter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 121 to 163 g/m2 (32 to 43 lbs bond)• 50 sheets121 to 163 g/m2 (32 to 43 lbs bond)• 10 sheetsBond paper Refer to the Plain paper section Refer to the Plain paper section 105 to 120 g/m2 (28 to 32 lbs bond)• 50 sheets105 to 120 g/m2 (28 to 32 lbs bond)• 10 sheetsArchive, Punched paper, LetterheadRefer to the Plain paper section Refer to the Plain paper section • 250 sheets • 50 sheetsType Size DimensionsWeight/CapacityaC267x seriesTray1/ Optional tray Multi-purpose tray

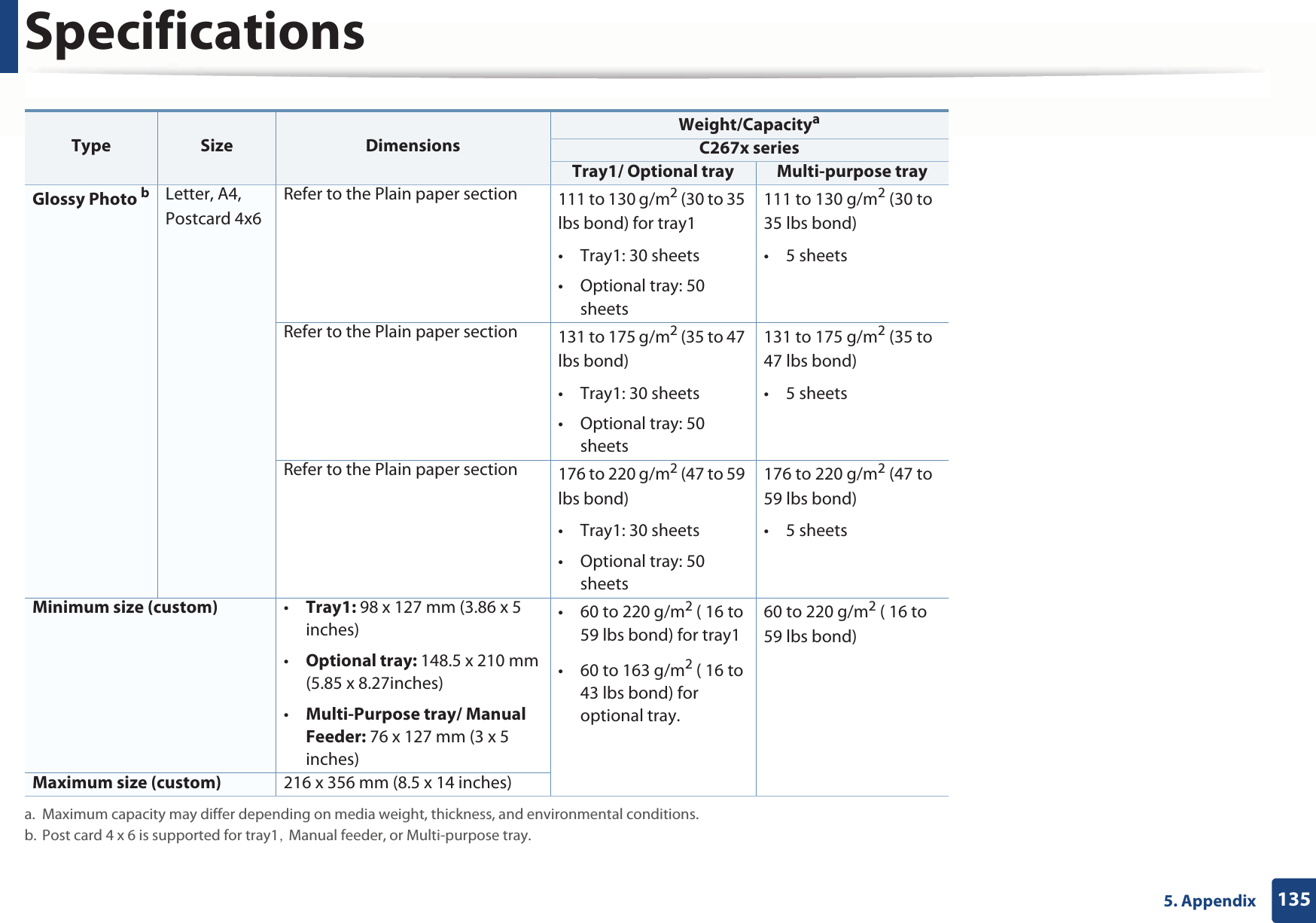

Specifications1355. AppendixGlossy Photo bLetter, A4, Postcard 4x6Refer to the Plain paper section 111 to 130 g/m2 (30 to 35 lbs bond) for tray1• Tray1: 30 sheets• Optional tray: 50 sheets111 to 130 g/m2 (30 to 35 lbs bond)• 5 sheetsRefer to the Plain paper section 131 to 175 g/m2 (35 to 47 lbs bond)• Tray1: 30 sheets• Optional tray: 50 sheets131 to 175 g/m2 (35 to 47 lbs bond)• 5 sheetsRefer to the Plain paper section 176 to 220 g/m2 (47 to 59 lbs bond)• Tray1: 30 sheets• Optional tray: 50 sheets176 to 220 g/m2 (47 to 59 lbs bond)• 5 sheetsMinimum size (custom) •Tray1: 98 x 127 mm (3.86 x 5 inches)•Optional tray: 148.5 x 210 mm (5.85 x 8.27inches)•Multi-Purpose tray/ Manual Feeder: 76 x 127 mm (3 x 5 inches)• 60 to 220 g/m2 ( 16 to 59 lbs bond) for tray1• 60 to 163 g/m2 ( 16 to 43 lbs bond) for optional tray.60 to 220 g/m2 ( 16 to 59 lbs bond)Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions. b. Post card 4 x 6 is supported for tray1SGManual feeder, or Multi-purpose tray.Type Size DimensionsWeight/CapacityaC267x seriesTray1/ Optional tray Multi-purpose tray

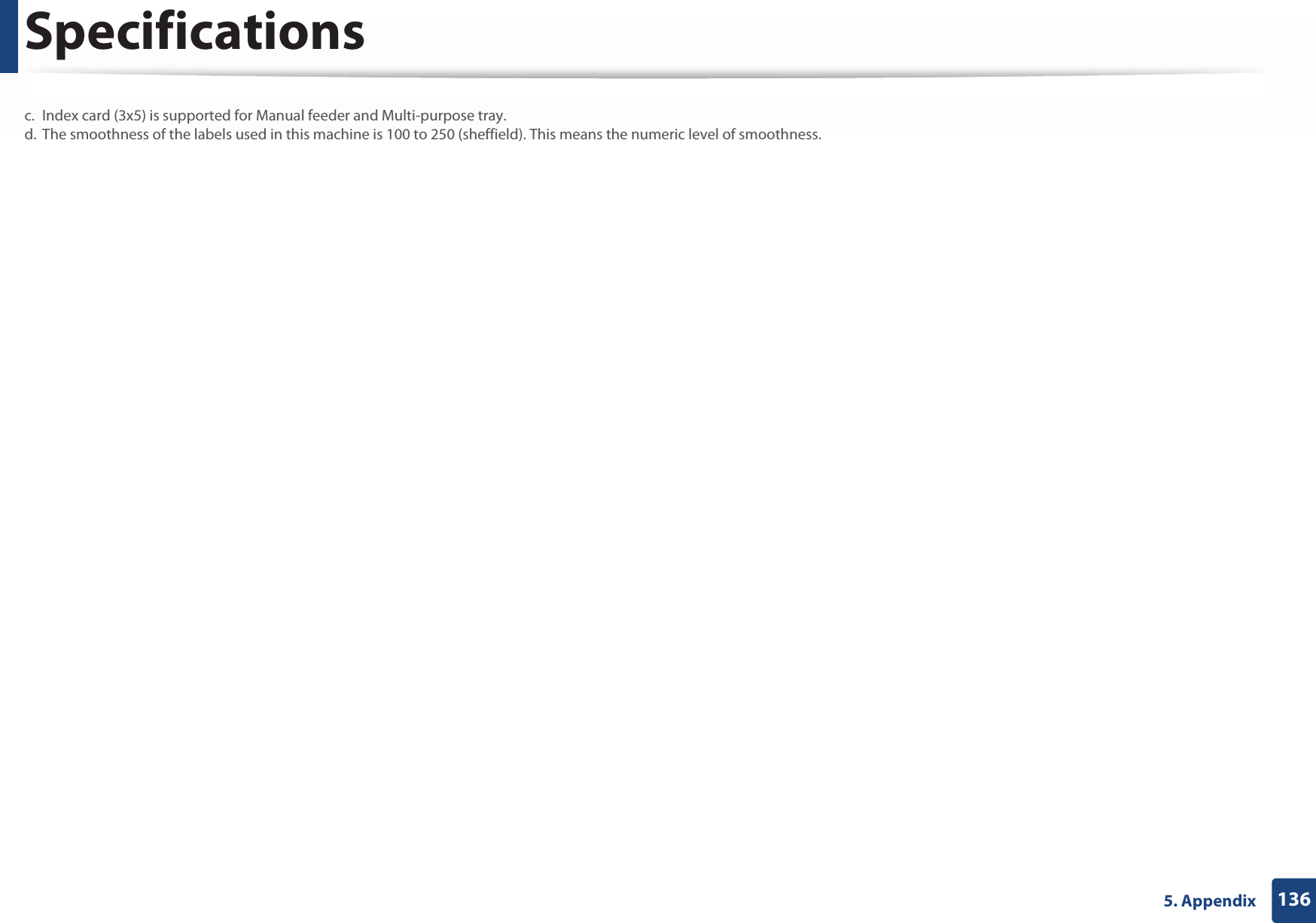

Specifications1365. Appendix c. Index card (3x5) is supported for Manual feeder and Multi-purpose tray.d. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.

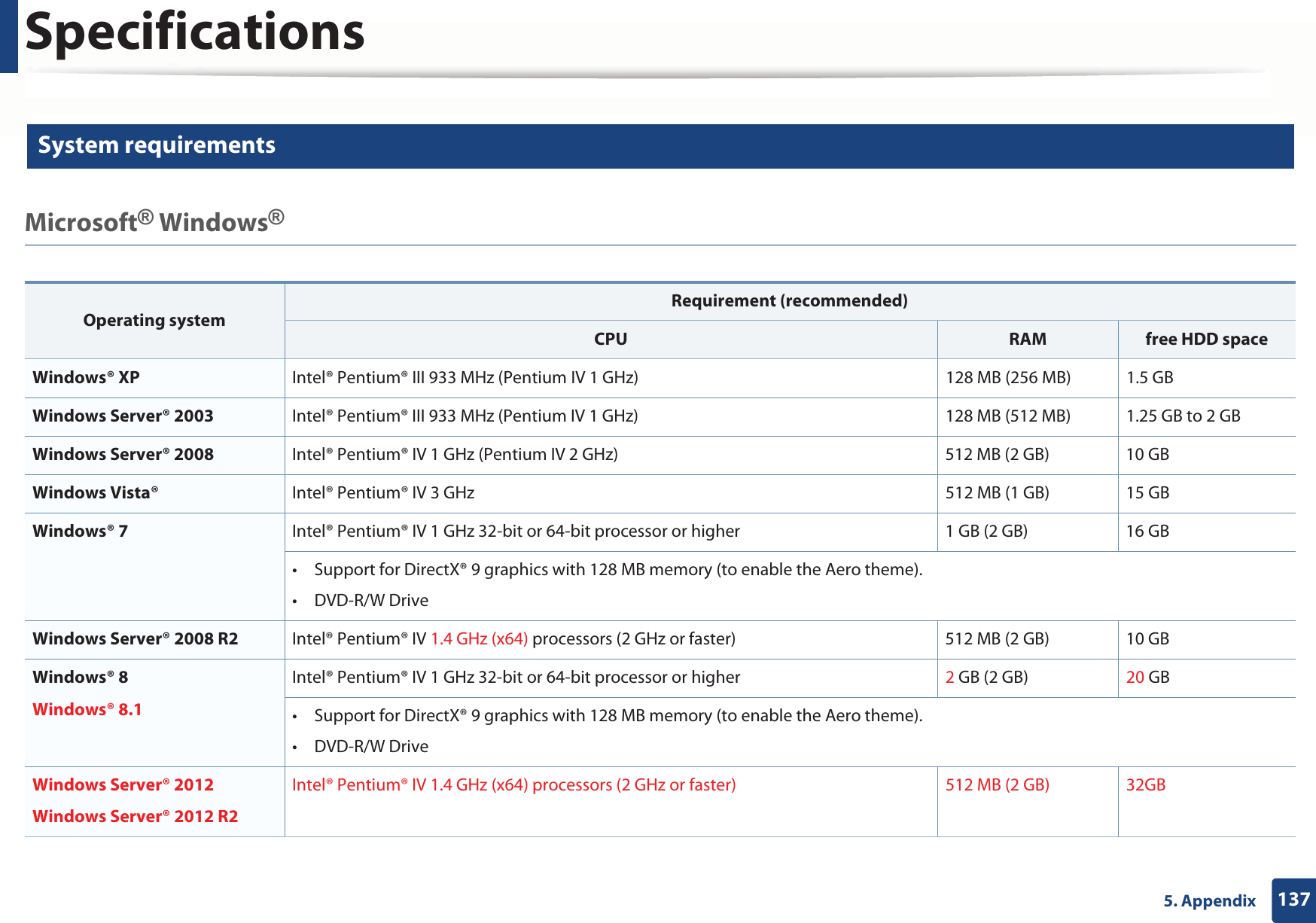

Specifications1375. Appendix3 System requirementsMicrosoft® Windows® Operating systemRequirement (recommended)CPU RAM free HDD spaceWindows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (256 MB) 1.5 GBWindows Server® 2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (512 MB) 1.25 GB to 2 GBWindows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GBWindows Vista® Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GBWindows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).•DVD-R/W DriveWindows Server® 2008 R2 Intel® Pentium® IV 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GBWindows® 8Windows® 8.1Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 2 GB (2 GB) 20 GB• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).•DVD-R/W DriveWindows Server® 2012Windows Server® 2012 R2Intel® Pentium® IV 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 32GB

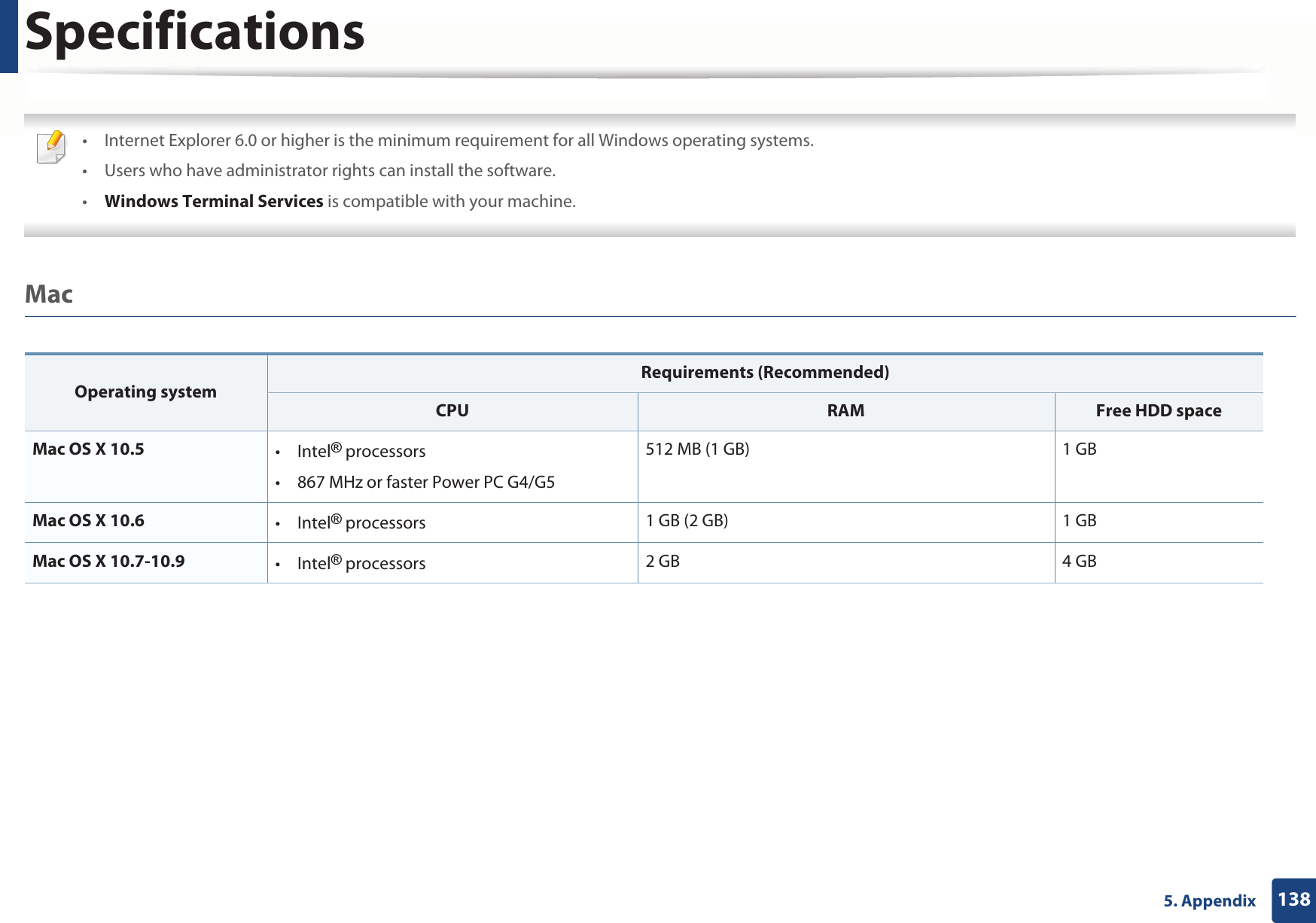

Specifications1385. Appendix • Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.• Users who have administrator rights can install the software.•Windows Terminal Services is compatible with your machine. Mac Operating systemRequirements (Recommended)CPU RAM Free HDD spaceMac OS X 10.5 •Intel® processors• 867 MHz or faster Power PC G4/G5512 MB (1 GB) 1 GBMac OS X 10.6 •Intel® processors 1 GB (2 GB) 1 GBMac OS X 10.7-10.9 •Intel® processors 2 GB 4 GB

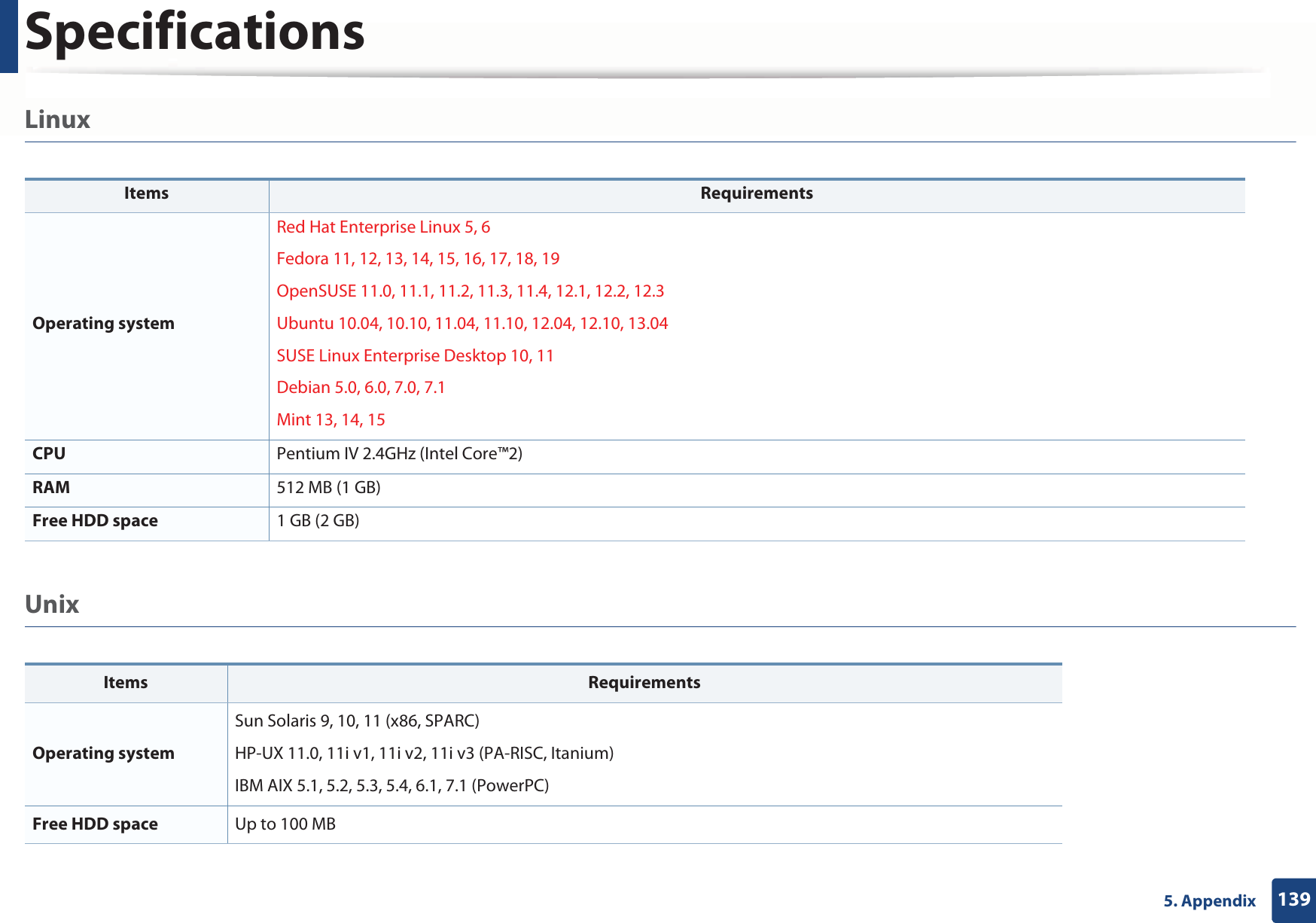

Specifications1395. AppendixLinux Unix Items RequirementsOperating systemRed Hat Enterprise Linux 5, 6Fedora 11, 12, 13, 14, 15, 16, 17, 18, 19OpenSUSE 11.0, 11.1, 11.2, 11.3, 11.4, 12.1, 12.2, 12.3Ubuntu 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04SUSE Linux Enterprise Desktop 10, 11Debian 5.0, 6.0, 7.0, 7.1Mint 13, 14, 15CPU Pentium IV 2.4GHz (Intel Core™2)RAM 512 MB (1 GB)Free HDD space 1 GB (2 GB)Items RequirementsOperating systemSun Solaris 9, 10, 11 (x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium)IBM AIX 5.1, 5.2, 5.3, 5.4, 6.1, 7.1 (PowerPC)Free HDD space Up to 100 MB

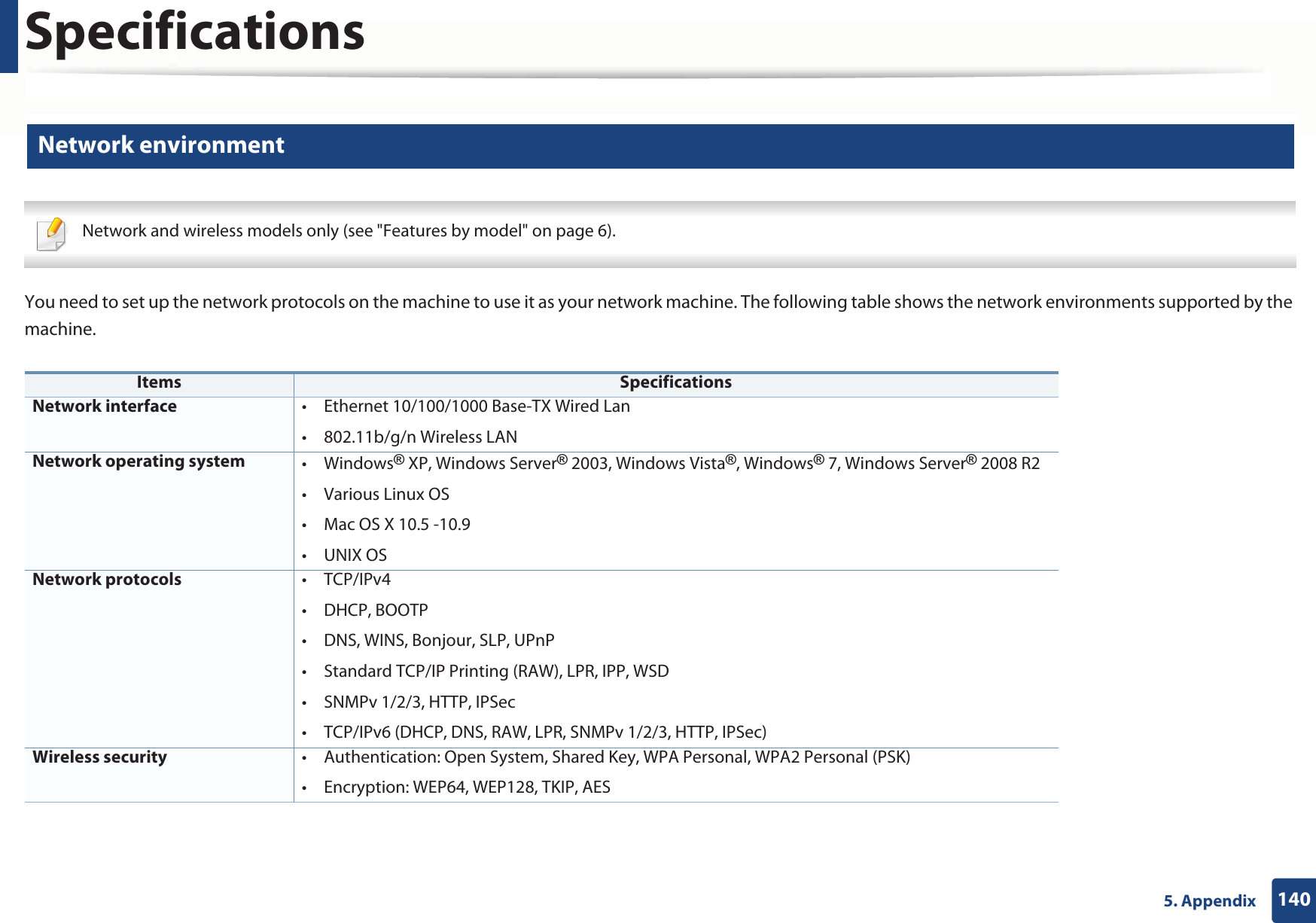

Specifications1405. Appendix4 Network environment Network and wireless models only (see "Features by model" on page 6). You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine. Items SpecificationsNetwork interface • Ethernet 10/100/1000 Base-TX Wired Lan•802.11b/g/n Wireless LANNetwork operating system •Windows® XP, Windows Server® 2003, Windows Vista®, Windows® 7, Windows Server® 2008 R2•Various Linux OS• Mac OS X 10.5 -10.9•UNIX OSNetwork protocols •TCP/IPv4• DHCP, BOOTP• DNS, WINS, Bonjour, SLP, UPnP• Standard TCP/IP Printing (RAW), LPR, IPP, WSD• SNMPv 1/2/3, HTTP, IPSec• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)• Encryption: WEP64, WEP128, TKIP, AES

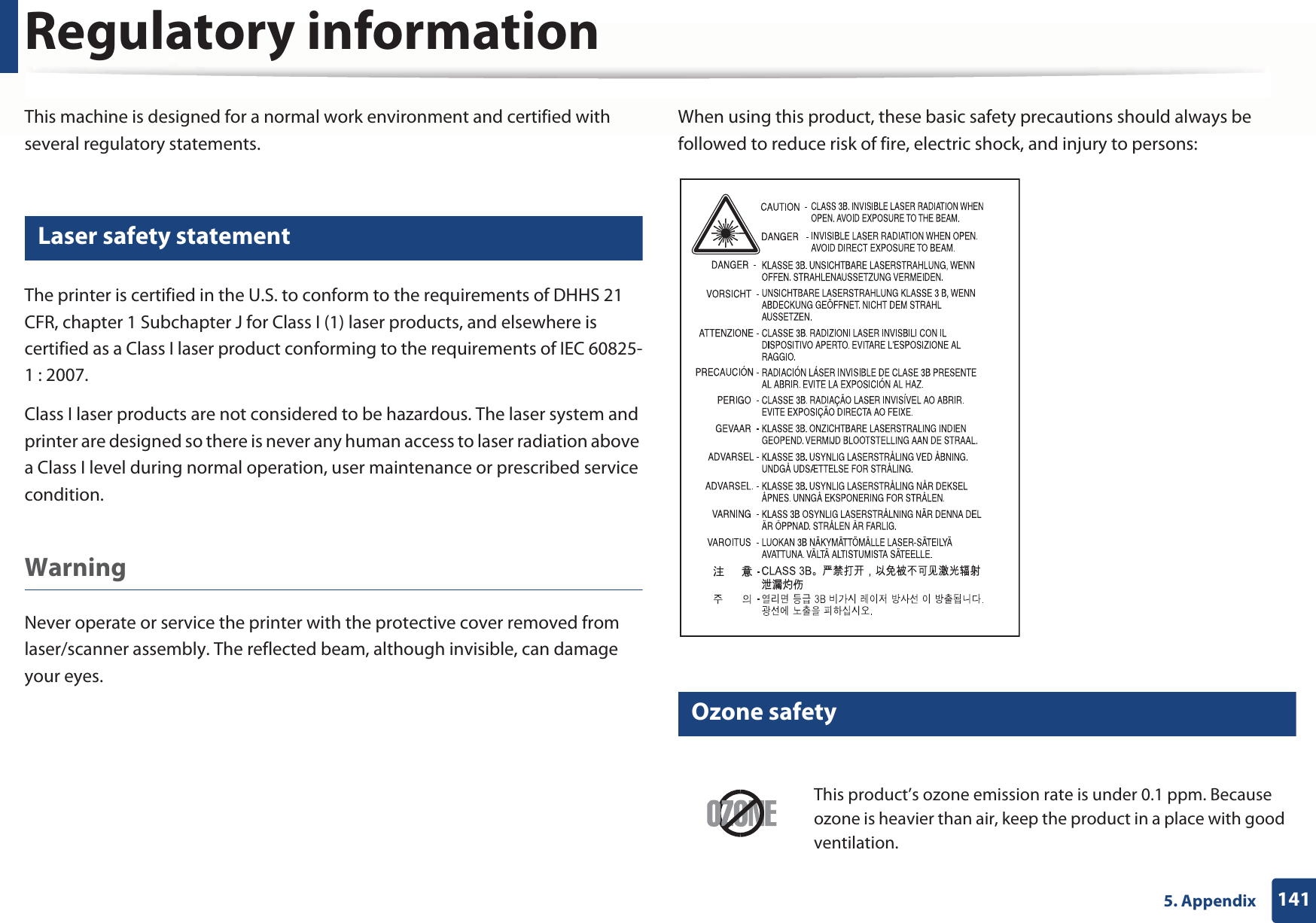

1415. AppendixRegulatory informationThis machine is designed for a normal work environment and certified with several regulatory statements.5 Laser safety statementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I (1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1 : 2007.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.Warning Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:6 Ozone safetyThis product’s ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.

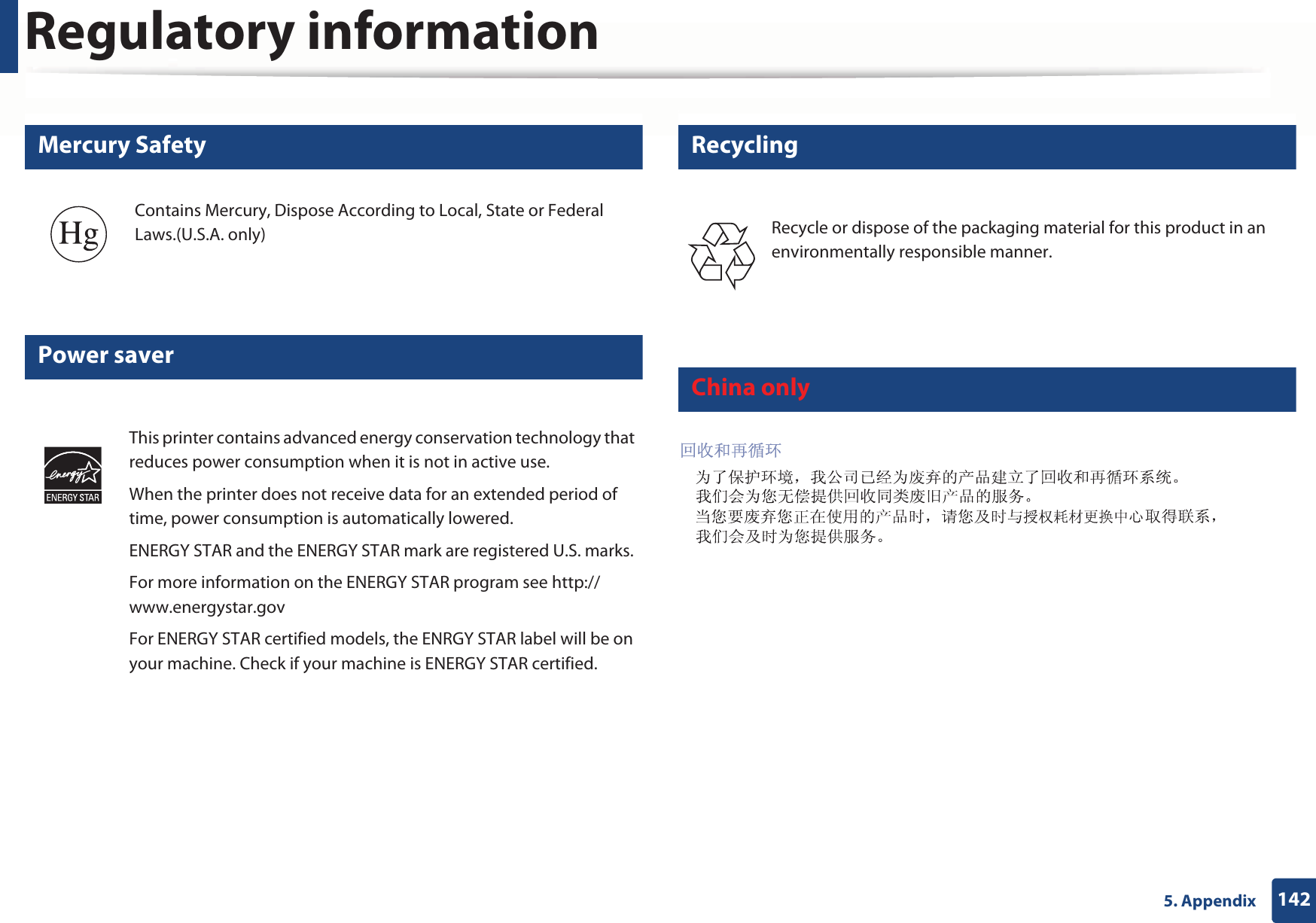

Regulatory information1425. Appendix7 Mercury Safety8 Power saver9 Recycling10 China onlyContains Mercury, Dispose According to Local, State or Federal Laws.(U.S.A. only)This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.govFor ENERGY STAR certified models, the ENRGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified.Recycle or dispose of the packaging material for this product in an environmentally responsible manner.

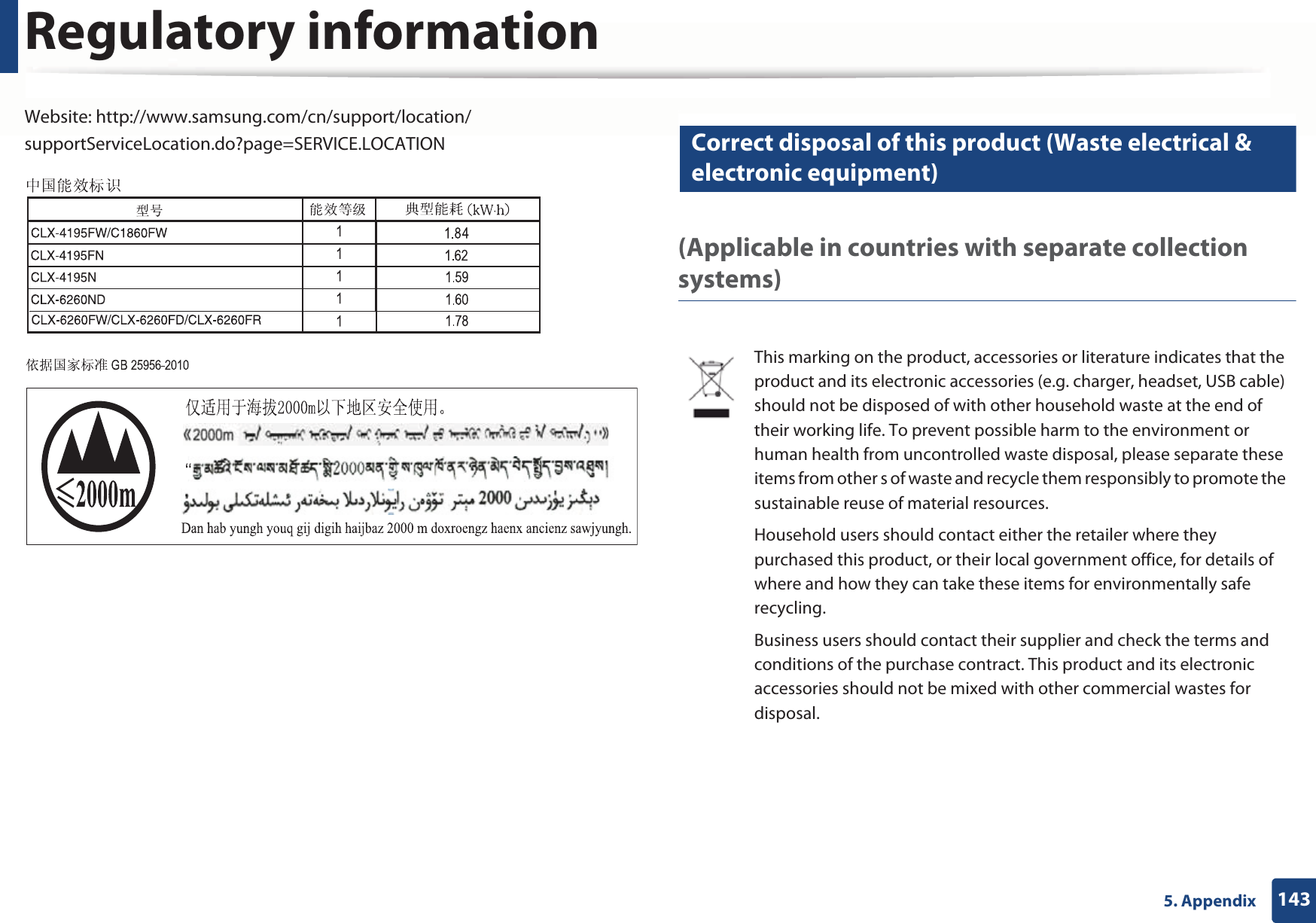

Regulatory information1435. AppendixWebsite: http://www.samsung.com/cn/support/location/supportServiceLocation.do?page=SERVICE.LOCATION11 Correct disposal of this product (Waste electrical & electronic equipment)(Applicable in countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other s of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

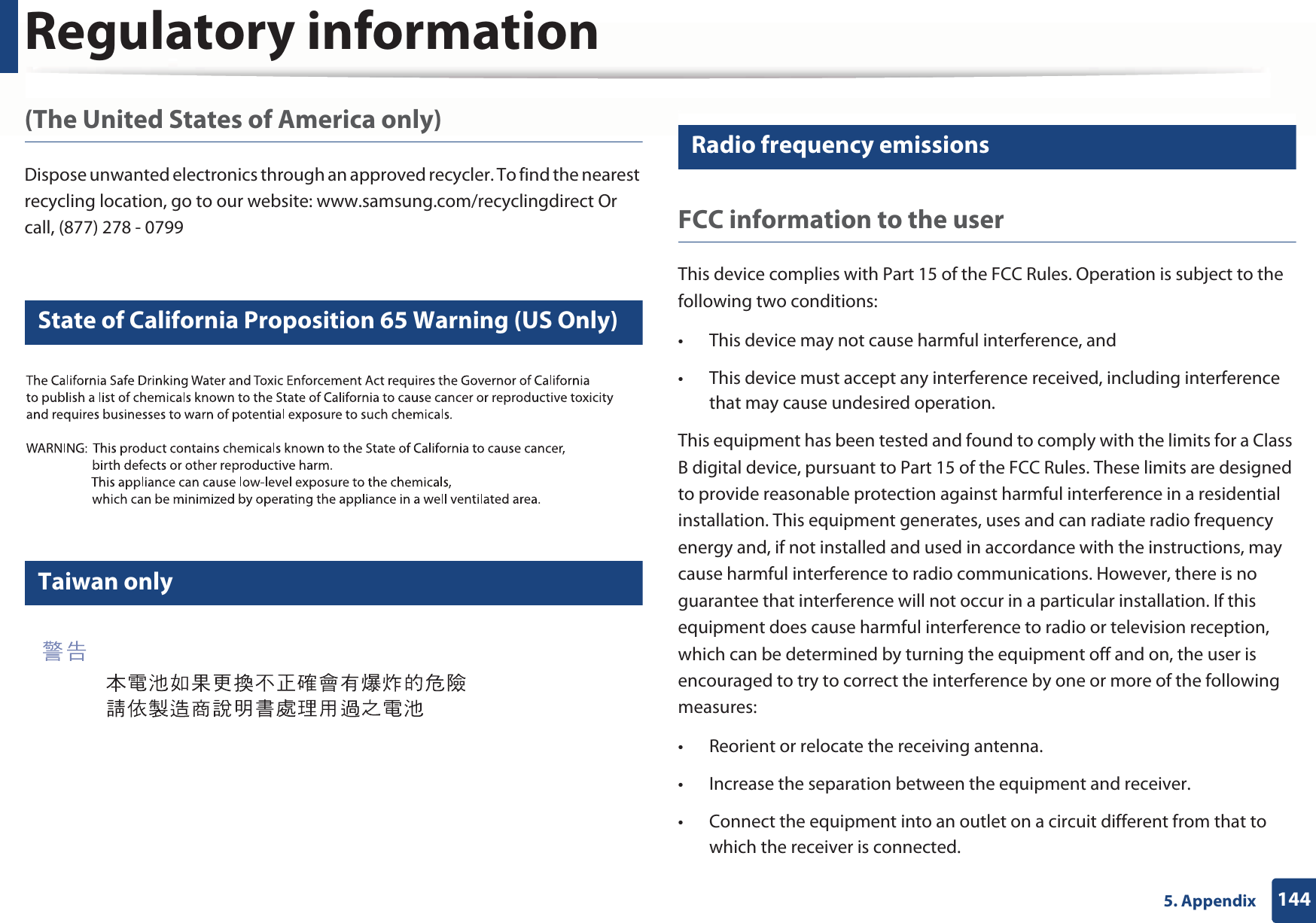

Regulatory information1445. Appendix(The United States of America only)Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 079912 State of California Proposition 65 Warning (US Only)13 Taiwan only14 Radio frequency emissionsFCC information to the userThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and• This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

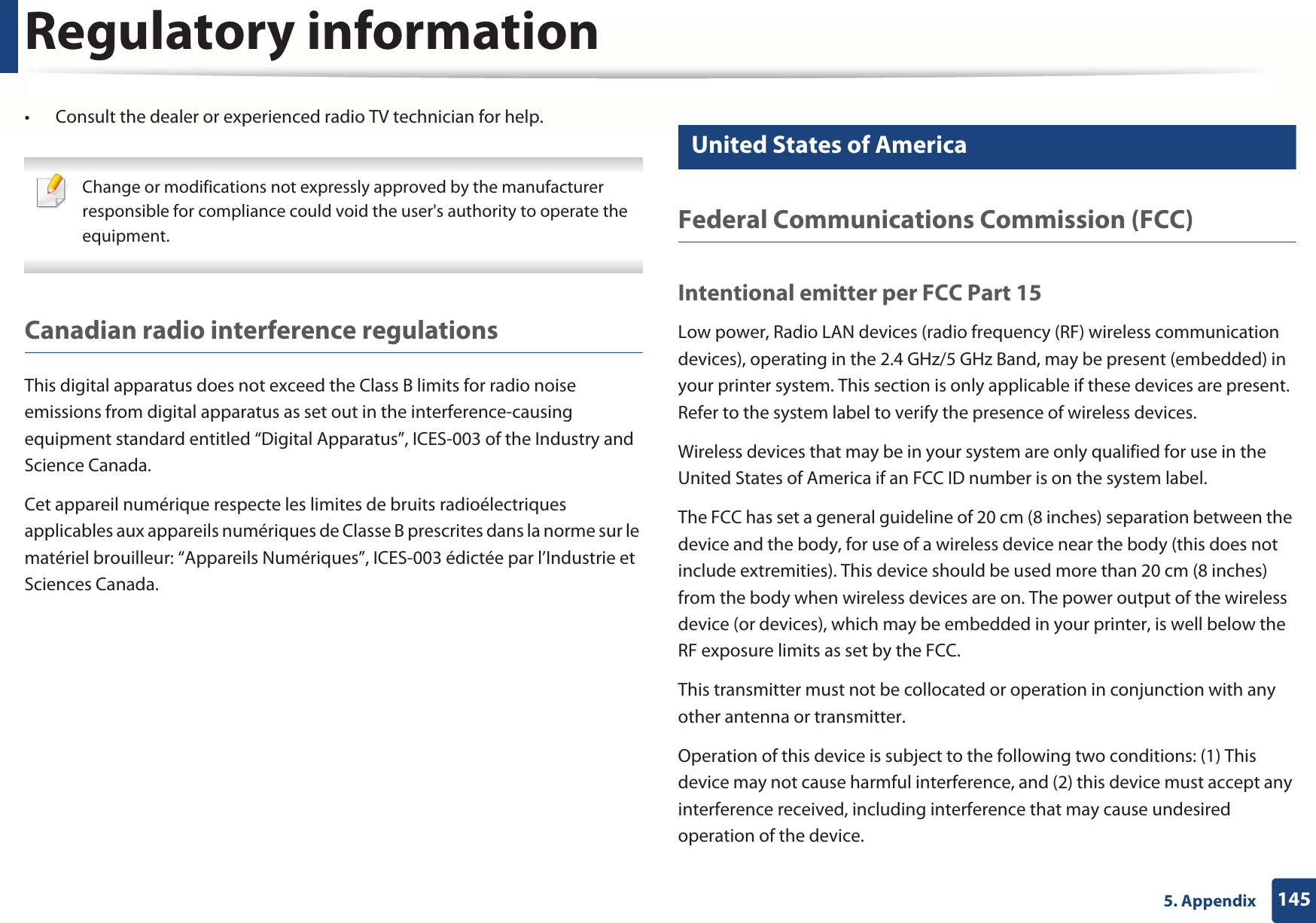

Regulatory information1455. Appendix• Consult the dealer or experienced radio TV technician for help. Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Canadian radio interference regulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.15 United States of AmericaFederal Communications Commission (FCC)Intentional emitter per FCC Part 15Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

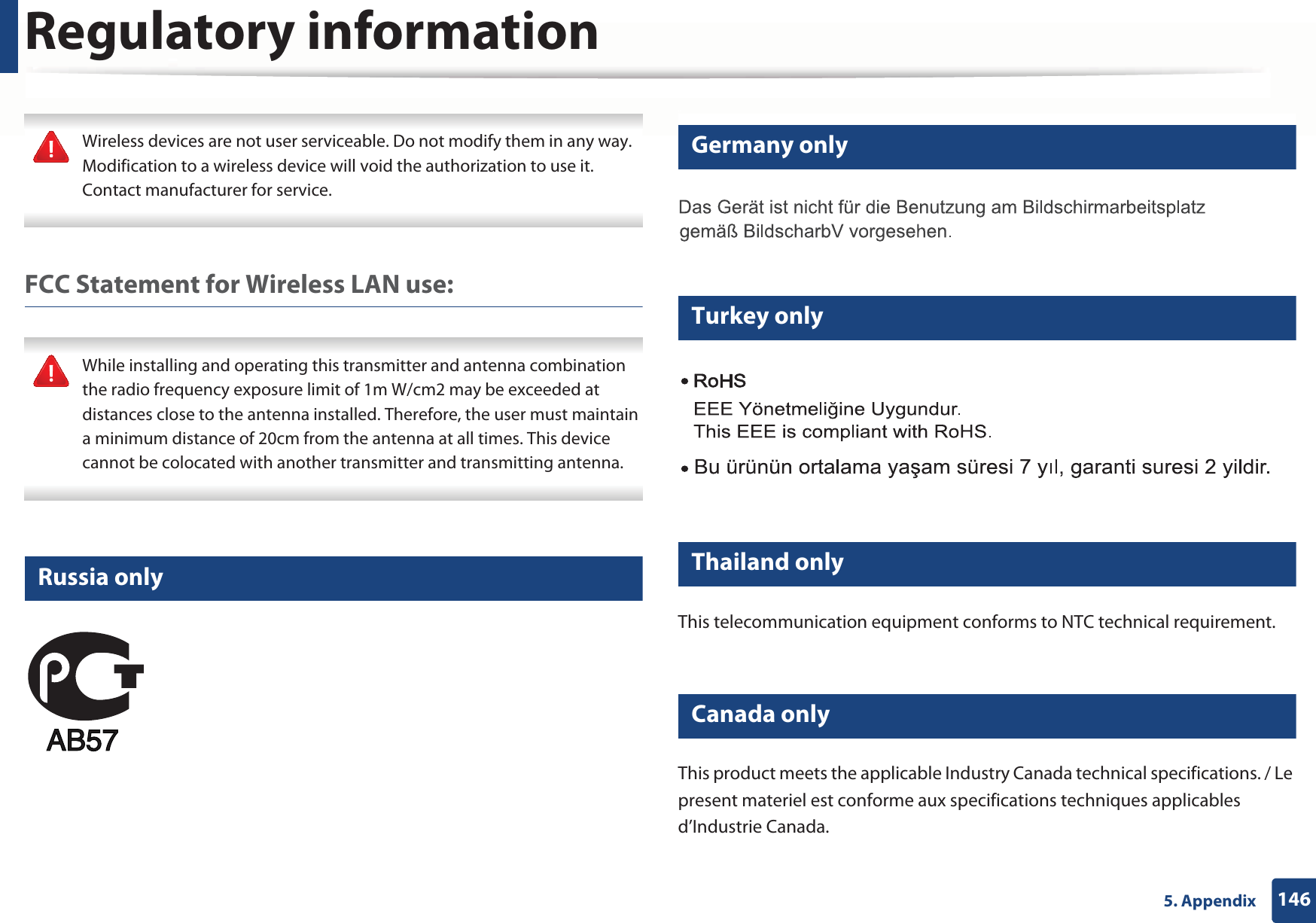

Regulatory information1465. Appendix Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service. FCC Statement for Wireless LAN use: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna. 16 Russia only17 Germany only18 Turkey only19 Thailand onlyThis telecommunication equipment conforms to NTC technical requirement.20 Canada onlyThis product meets the applicable Industry Canada technical specifications. / Le present materiel est conforme aux specifications techniques applicables d’Industrie Canada.

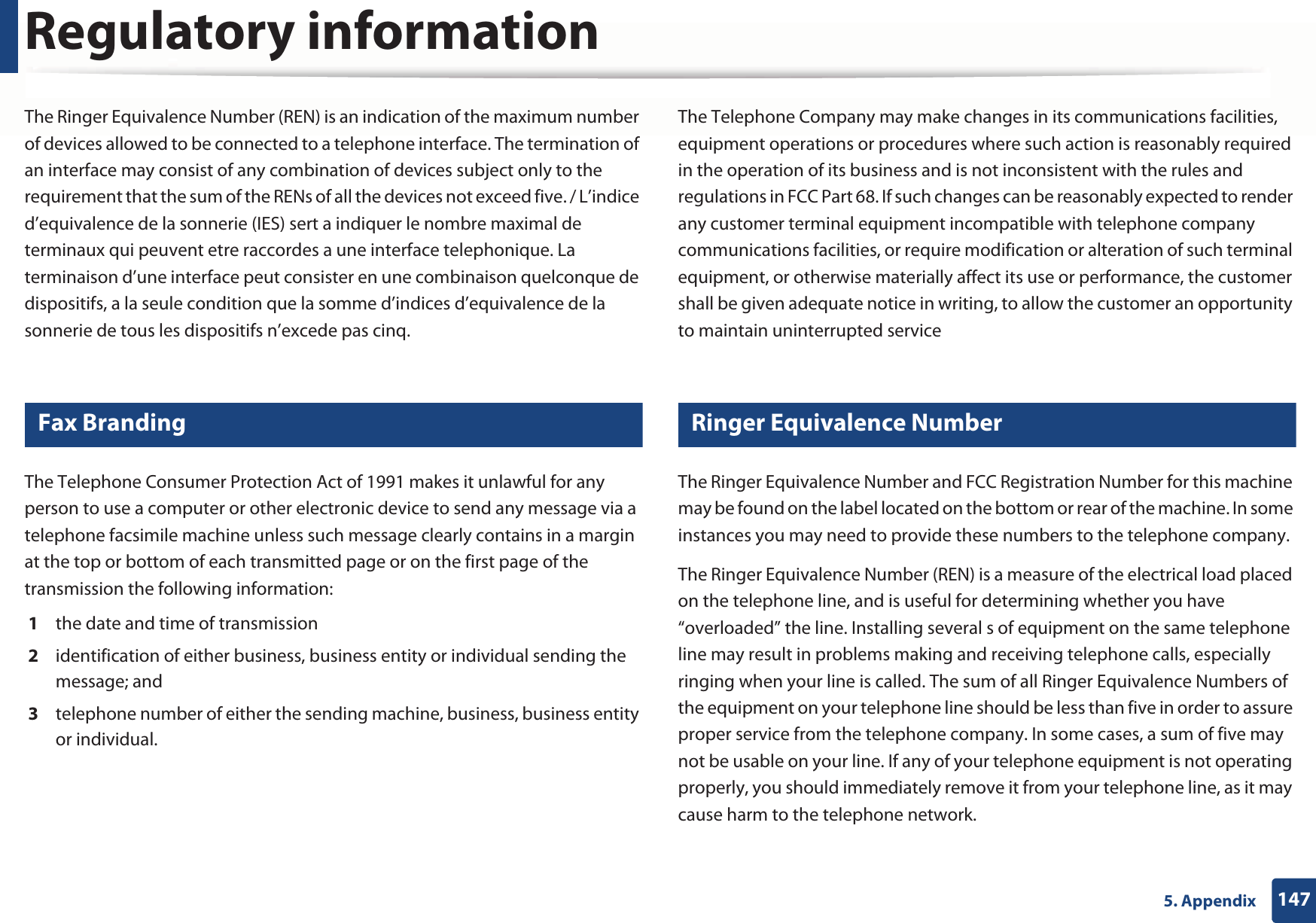

Regulatory information1475. AppendixThe Ringer Equivalence Number (REN) is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five. / L’indice d’equivalence de la sonnerie (IES) sert a indiquer le nombre maximal de terminaux qui peuvent etre raccordes a une interface telephonique. La terminaison d’une interface peut consister en une combinaison quelconque de dispositifs, a la seule condition que la somme d’indices d’equivalence de la sonnerie de tous les dispositifs n’excede pas cinq.21 Fax BrandingThe Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone facsimile machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission the following information:1 the date and time of transmission2 identification of either business, business entity or individual sending the message; and3 telephone number of either the sending machine, business, business entity or individual.The Telephone Company may make changes in its communications facilities, equipment operations or procedures where such action is reasonably required in the operation of its business and is not inconsistent with the rules and regulations in FCC Part 68. If such changes can be reasonably expected to render any customer terminal equipment incompatible with telephone company communications facilities, or require modification or alteration of such terminal equipment, or otherwise materially affect its use or performance, the customer shall be given adequate notice in writing, to allow the customer an opportunity to maintain uninterrupted service22 Ringer Equivalence NumberThe Ringer Equivalence Number and FCC Registration Number for this machine may be found on the label located on the bottom or rear of the machine. In some instances you may need to provide these numbers to the telephone company.The Ringer Equivalence Number (REN) is a measure of the electrical load placed on the telephone line, and is useful for determining whether you have “overloaded” the line. Installing several s of equipment on the same telephone line may result in problems making and receiving telephone calls, especially ringing when your line is called. The sum of all Ringer Equivalence Numbers of the equipment on your telephone line should be less than five in order to assure proper service from the telephone company. In some cases, a sum of five may not be usable on your line. If any of your telephone equipment is not operating properly, you should immediately remove it from your telephone line, as it may cause harm to the telephone network.

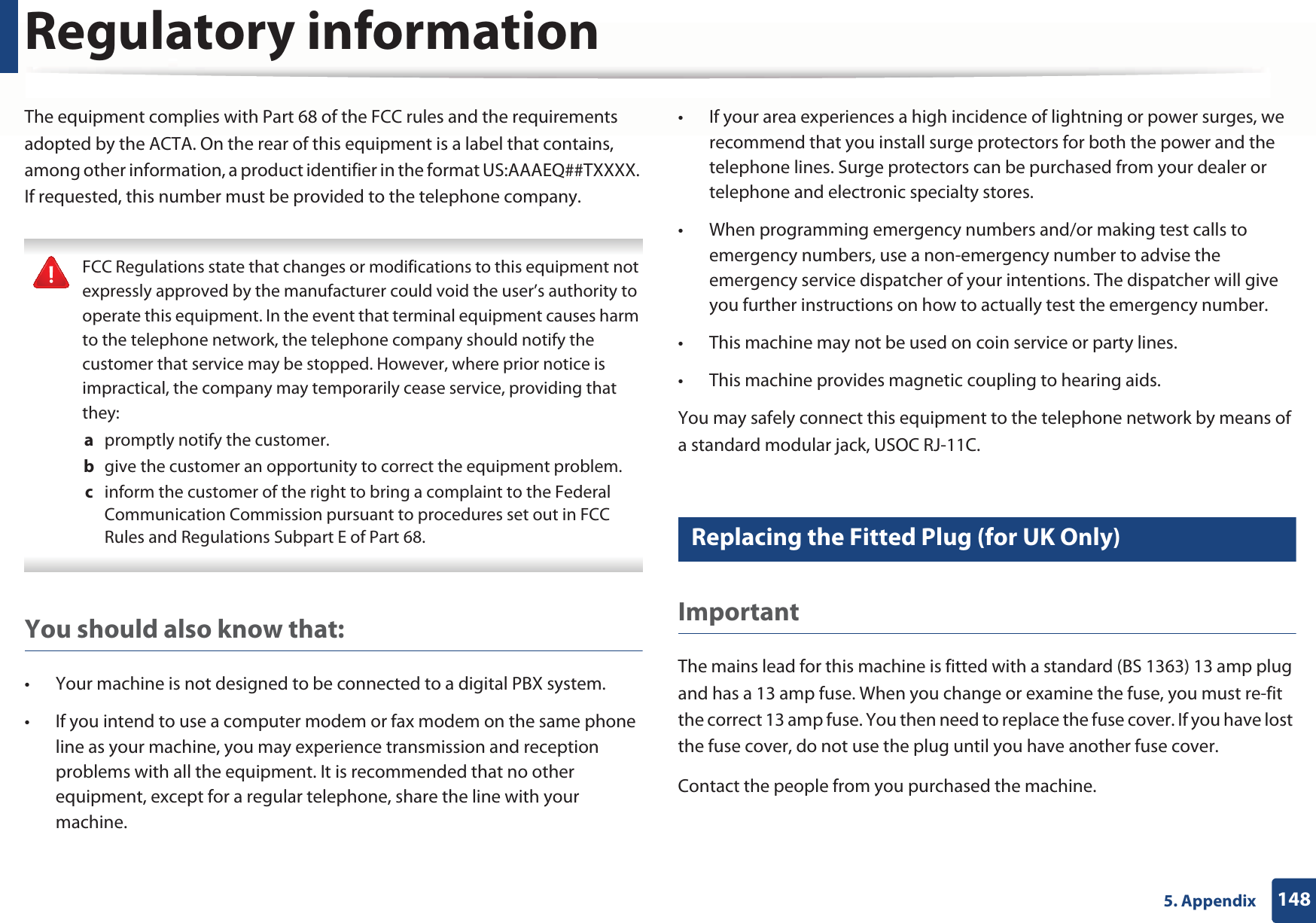

Regulatory information1485. AppendixThe equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the rear of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. FCC Regulations state that changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. In the event that terminal equipment causes harm to the telephone network, the telephone company should notify the customer that service may be stopped. However, where prior notice is impractical, the company may temporarily cease service, providing that they:a promptly notify the customer.b give the customer an opportunity to correct the equipment problem.c inform the customer of the right to bring a complaint to the Federal Communication Commission pursuant to procedures set out in FCC Rules and Regulations Subpart E of Part 68. You should also know that:• Your machine is not designed to be connected to a digital PBX system.• If you intend to use a computer modem or fax modem on the same phone line as your machine, you may experience transmission and reception problems with all the equipment. It is recommended that no other equipment, except for a regular telephone, share the line with your machine.• If your area experiences a high incidence of lightning or power surges, we recommend that you install surge protectors for both the power and the telephone lines. Surge protectors can be purchased from your dealer or telephone and electronic specialty stores.• When programming emergency numbers and/or making test calls to emergency numbers, use a non-emergency number to advise the emergency service dispatcher of your intentions. The dispatcher will give you further instructions on how to actually test the emergency number.• This machine may not be used on coin service or party lines.• This machine provides magnetic coupling to hearing aids.You may safely connect this equipment to the telephone network by means of a standard modular jack, USOC RJ-11C.23 Replacing the Fitted Plug (for UK Only)ImportantThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Contact the people from you purchased the machine.

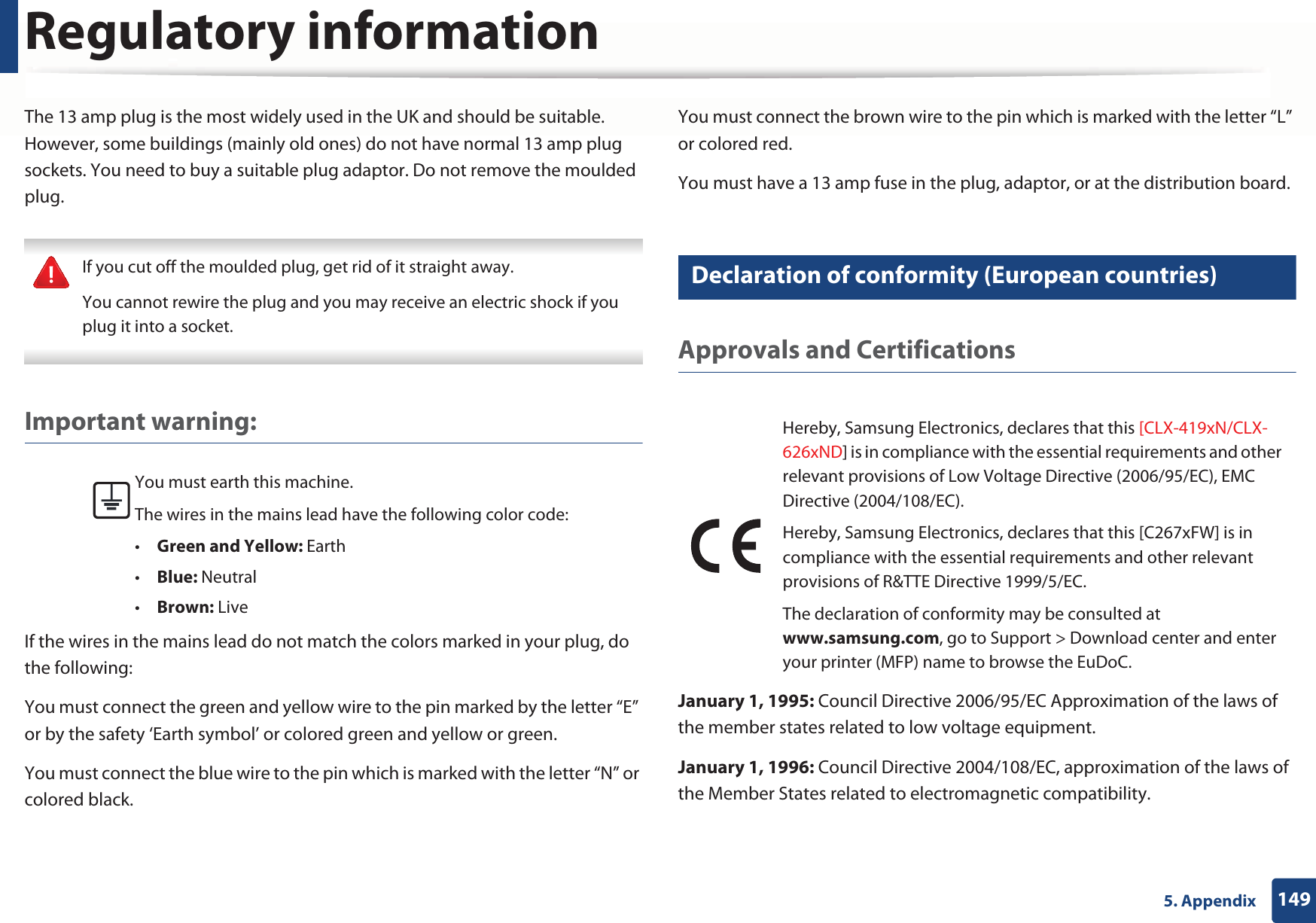

Regulatory information1495. AppendixThe 13 amp plug is the most widely used in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug. If you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket. Important warning: If the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.You must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red.You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.24 Declaration of conformity (European countries)Approvals and CertificationsJanuary 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of the Member States related to electromagnetic compatibility.You must earth this machine.The wires in the mains lead have the following color code:•Green and Yellow: Earth•Blue: Neutral•Brown: LiveHereby, Samsung Electronics, declares that this [CLX-419xN/CLX-626xND] is in compliance with the essential requirements and other relevant provisions of Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC).Hereby, Samsung Electronics, declares that this [C267xFW] is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.The declaration of conformity may be consulted at www.samsung.com, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC.

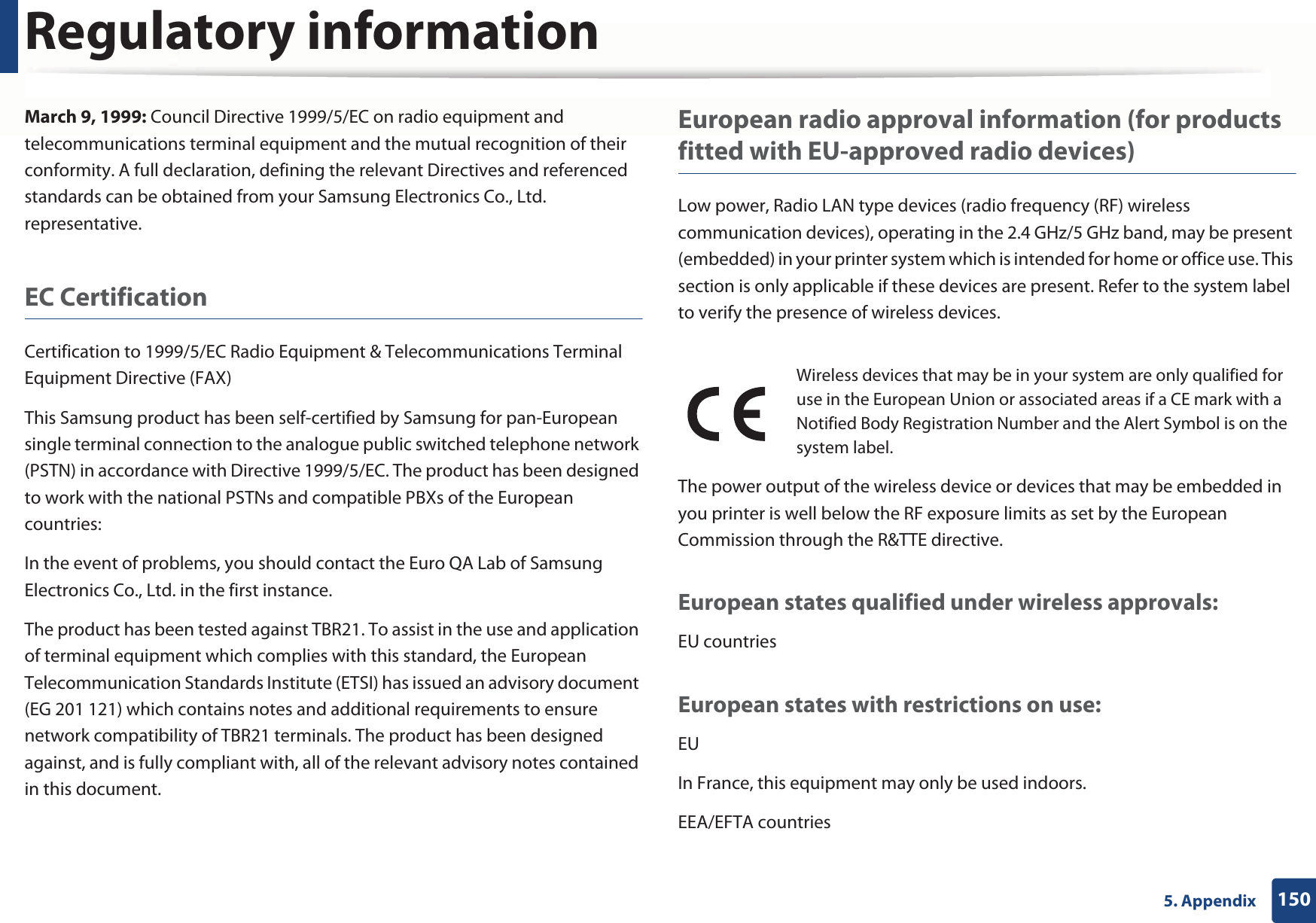

Regulatory information1505. AppendixMarch 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.EC CertificationCertification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.European radio approval information (for products fitted with EU-approved radio devices)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.European states qualified under wireless approvals:EU countriesEuropean states with restrictions on use:EUIn France, this equipment may only be used indoors.EEA/EFTA countriesWireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.
