Samsung Electronics Co SONYKAISER DVD Player/ Video Cassette Recorder User Manual SLV D550P D350P

Samsung Electronics Co Ltd DVD Player/ Video Cassette Recorder SLV D550P D350P

1. Users Manual 1
2. Users Manual 2

Users Manual 2

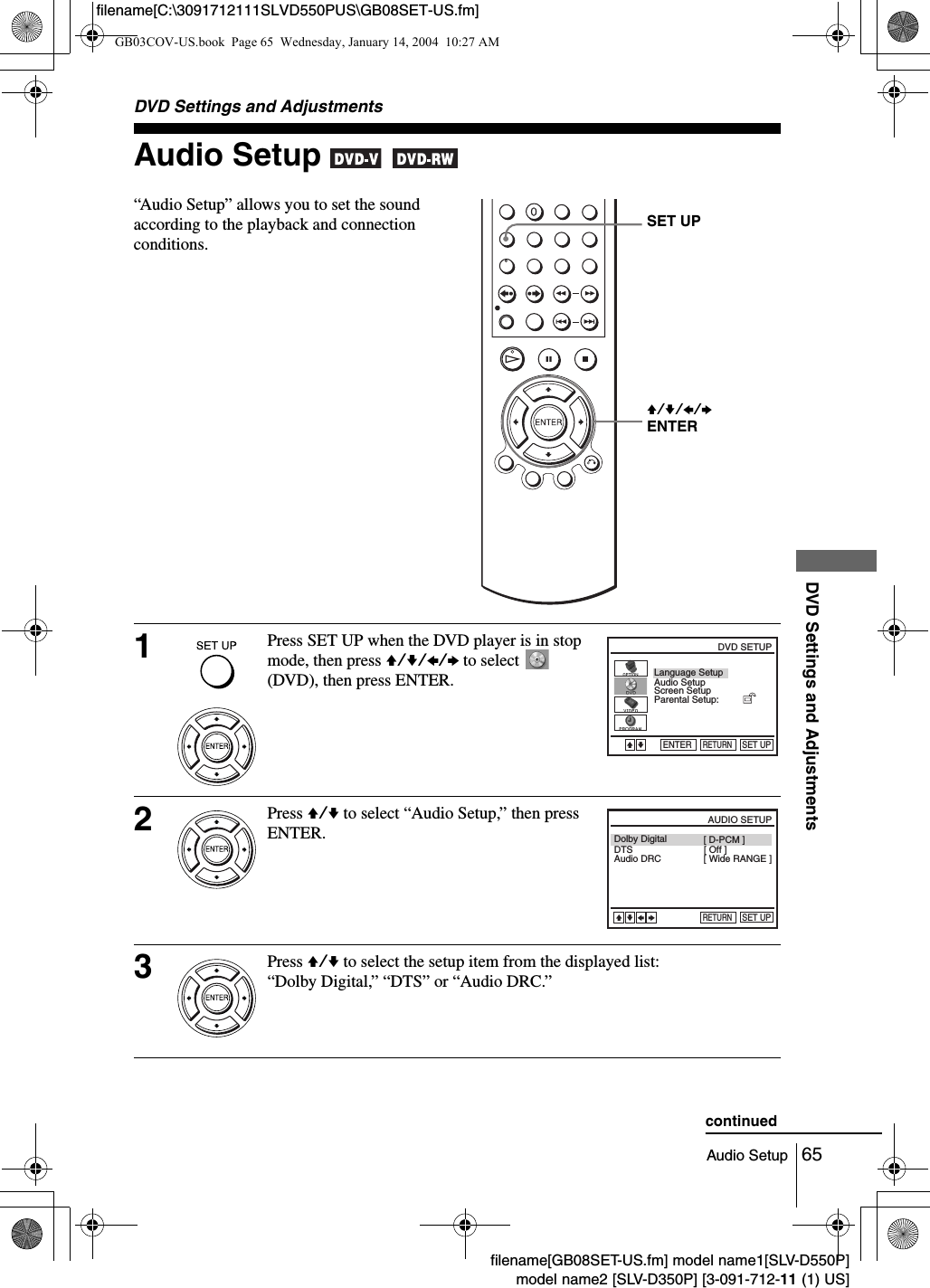

$65Audio SetupDVD Settings and Adjustmentsfilename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]DVD Settings and AdjustmentsAudio Setup “Audio Setup” allows you to set the sound according to the playback and connection conditions.1Press SET UP when the DVD player is in stop mode, then press V/v/B/b to select (DVD), then press ENTER.2Press V/v to select “Audio Setup,” then press ENTER.3Press V/v to select the setup item from the displayed list:“Dolby Digital,” “DTS” or “Audio DRC.” V/v/B/b ENTERSET UPLanguage SetupScreen SetupParental Setup:Audio SetupRETURNDVD SETUPSET UPENTERVvDolby DigitalDTSAudio DRCRETURNAUDIO SETUPSET UPvVbB[ Off ][ Wide RANGE ][ D-PCM ]continuedGB03COV-US.book Page 65 Wednesday, January 14, 2004 10:27 AM$

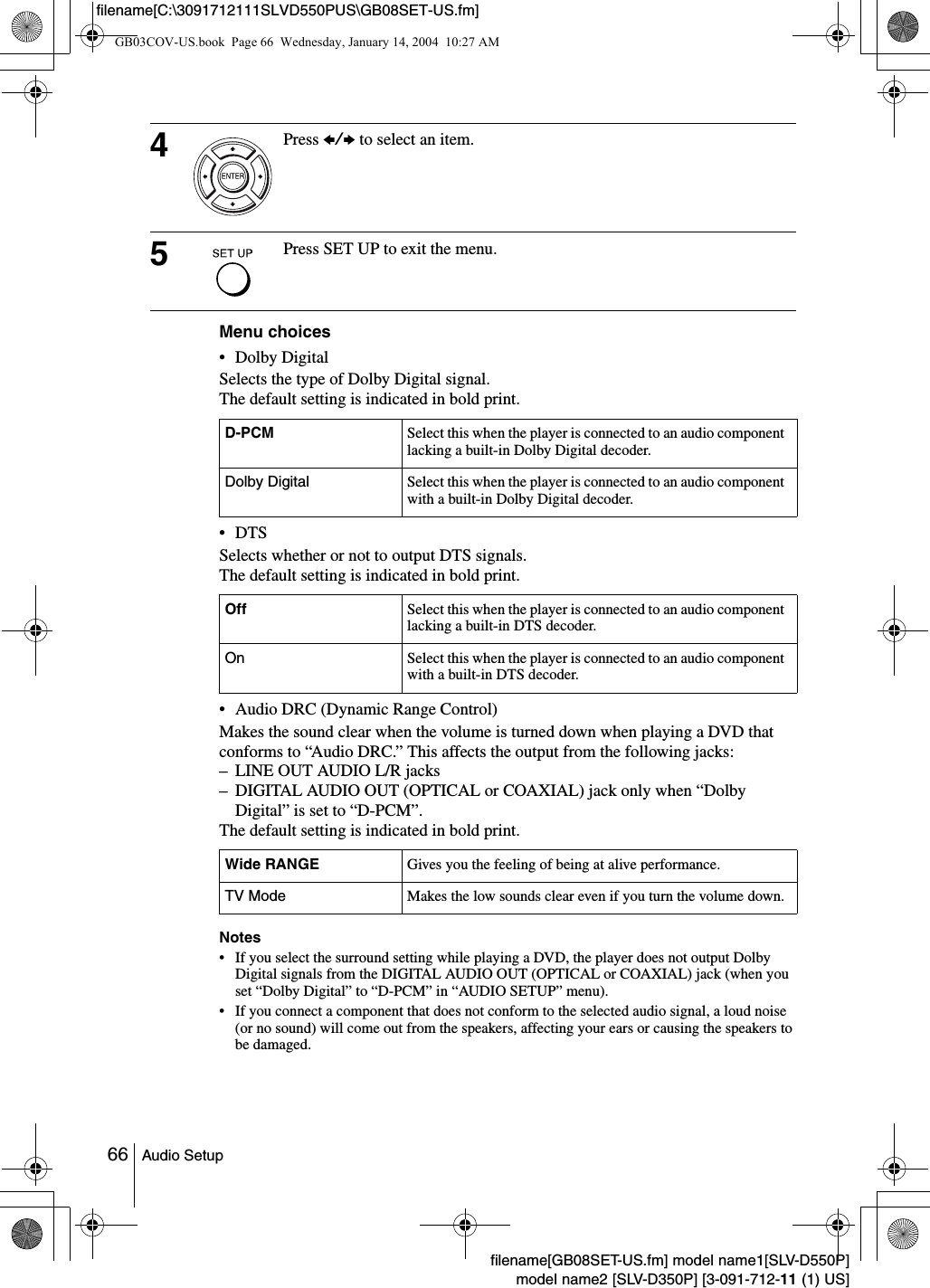

$66 Audio Setupfilename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]Menu choices• Dolby DigitalSelects the type of Dolby Digital signal. The default setting is indicated in bold print. •DTSSelects whether or not to output DTS signals. The default setting is indicated in bold print.• Audio DRC (Dynamic Range Control)Makes the sound clear when the volume is turned down when playing a DVD that conforms to “Audio DRC.” This affects the output from the following jacks:– LINE OUT AUDIO L/R jacks– DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack only when “Dolby Digital” is set to “D-PCM”. The default setting is indicated in bold print.Notes• If you select the surround setting while playing a DVD, the player does not output Dolby Digital signals from the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack (when you set “Dolby Digital” to “D-PCM” in “AUDIO SETUP” menu).• If you connect a component that does not conform to the selected audio signal, a loud noise (or no sound) will come out from the speakers, affecting your ears or causing the speakers to be damaged.4Press B/b to select an item.5Press SET UP to exit the menu.D-PCM Select this when the player is connected to an audio component lacking a built-in Dolby Digital decoder. Dolby Digital Select this when the player is connected to an audio component with a built-in Dolby Digital decoder.Off Select this when the player is connected to an audio component lacking a built-in DTS decoder.On Select this when the player is connected to an audio component with a built-in DTS decoder.Wide RANGE Gives you the feeling of being at alive performance.TV Mode Makes the low sounds clear even if you turn the volume down.GB03COV-US.book Page 66 Wednesday, January 14, 2004 10:27 AM$

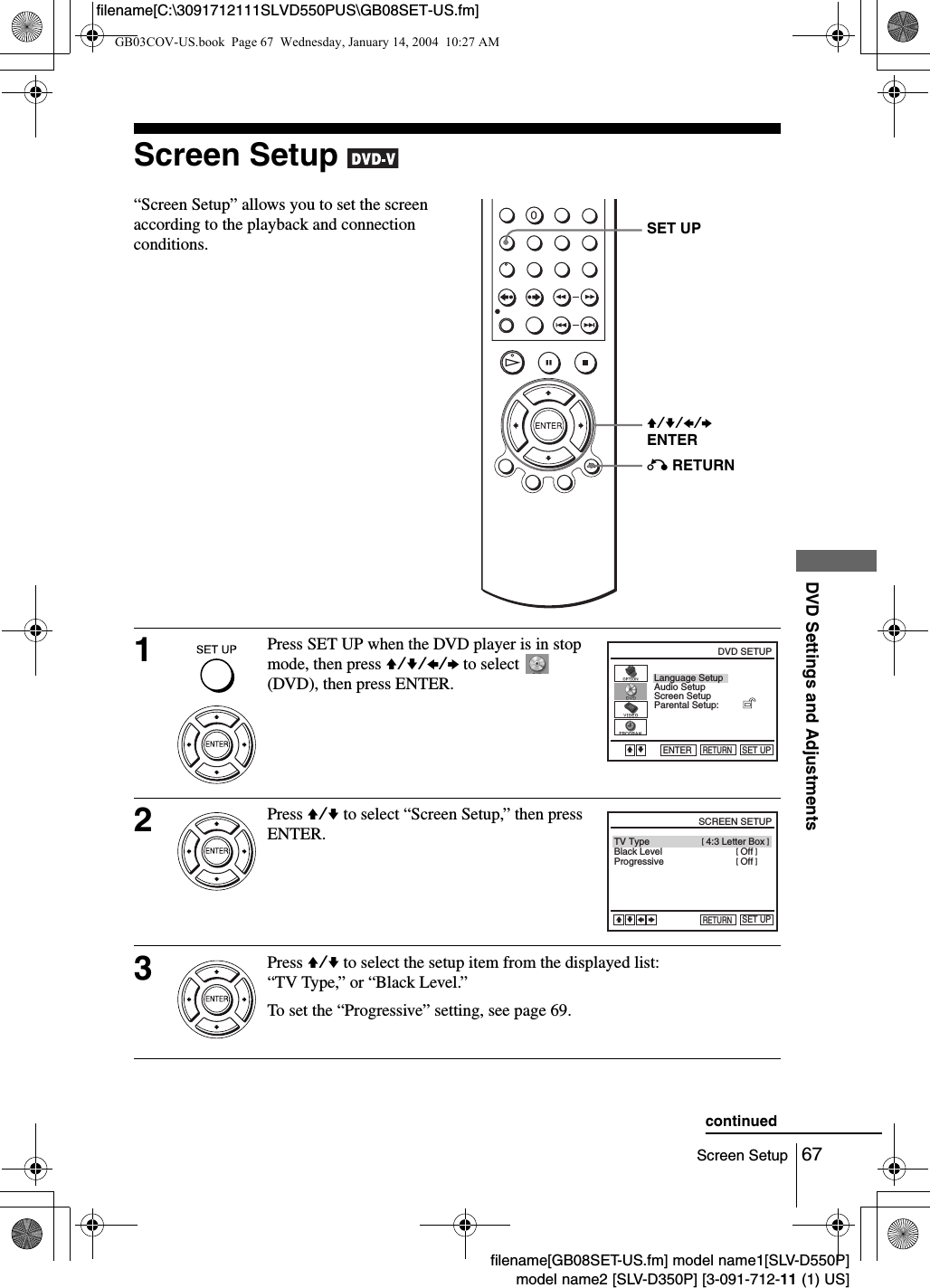

$67Screen SetupDVD Settings and Adjustmentsfilename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]Screen Setup “Screen Setup” allows you to set the screen according to the playback and connection conditions.1Press SET UP when the DVD player is in stop mode, then press V/v/B/b to select (DVD), then press ENTER.2Press V/v to select “Screen Setup,” then press ENTER.3Press V/v to select the setup item from the displayed list:“TV Type,” or “Black Level.”To set the “Progressive” setting, see page 69.V/v/B/bENTERSET UPO RETURNLanguage SetupScreen SetupParental Setup:Audio SetupRETURNDVD SETUPSET UPENTERVvBlack LevelTV TypeProgressiveRETURNSCREEN SETUPSET UPvVbB[ Off ][ Off ] [ 4:3 Letter Box ]continuedGB03COV-US.book Page 67 Wednesday, January 14, 2004 10:27 AM$

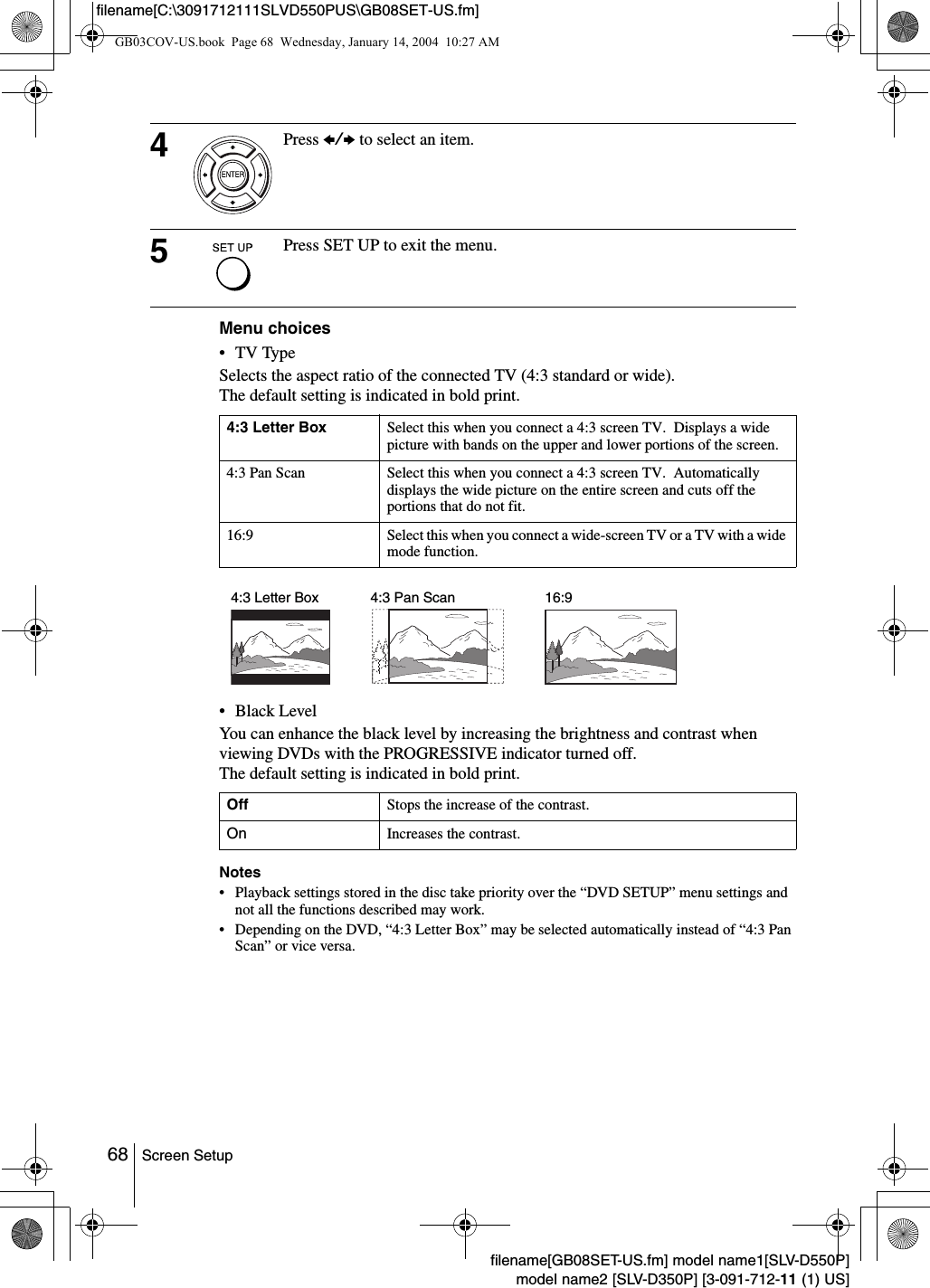

$68 Screen Setupfilename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]Menu choices• TV Type Selects the aspect ratio of the connected TV (4:3 standard or wide).The default setting is indicated in bold print.•Black LevelYou can enhance the black level by increasing the brightness and contrast when viewing DVDs with the PROGRESSIVE indicator turned off.The default setting is indicated in bold print.Notes• Playback settings stored in the disc take priority over the “DVD SETUP” menu settings and not all the functions described may work.• Depending on the DVD, “4:3 Letter Box” may be selected automatically instead of “4:3 Pan Scan” or vice versa.4Press B/b to select an item.5Press SET UP to exit the menu.4:3 Letter Box Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.4:3 Pan Scan Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.16:9 Select this when you connect a wide-screen TV or a TV with a wide mode function.Off Stops the increase of the contrast.On Increases the contrast.4:3 Pan Scan4:3 Letter Box 16:9GB03COV-US.book Page 68 Wednesday, January 14, 2004 10:27 AM$

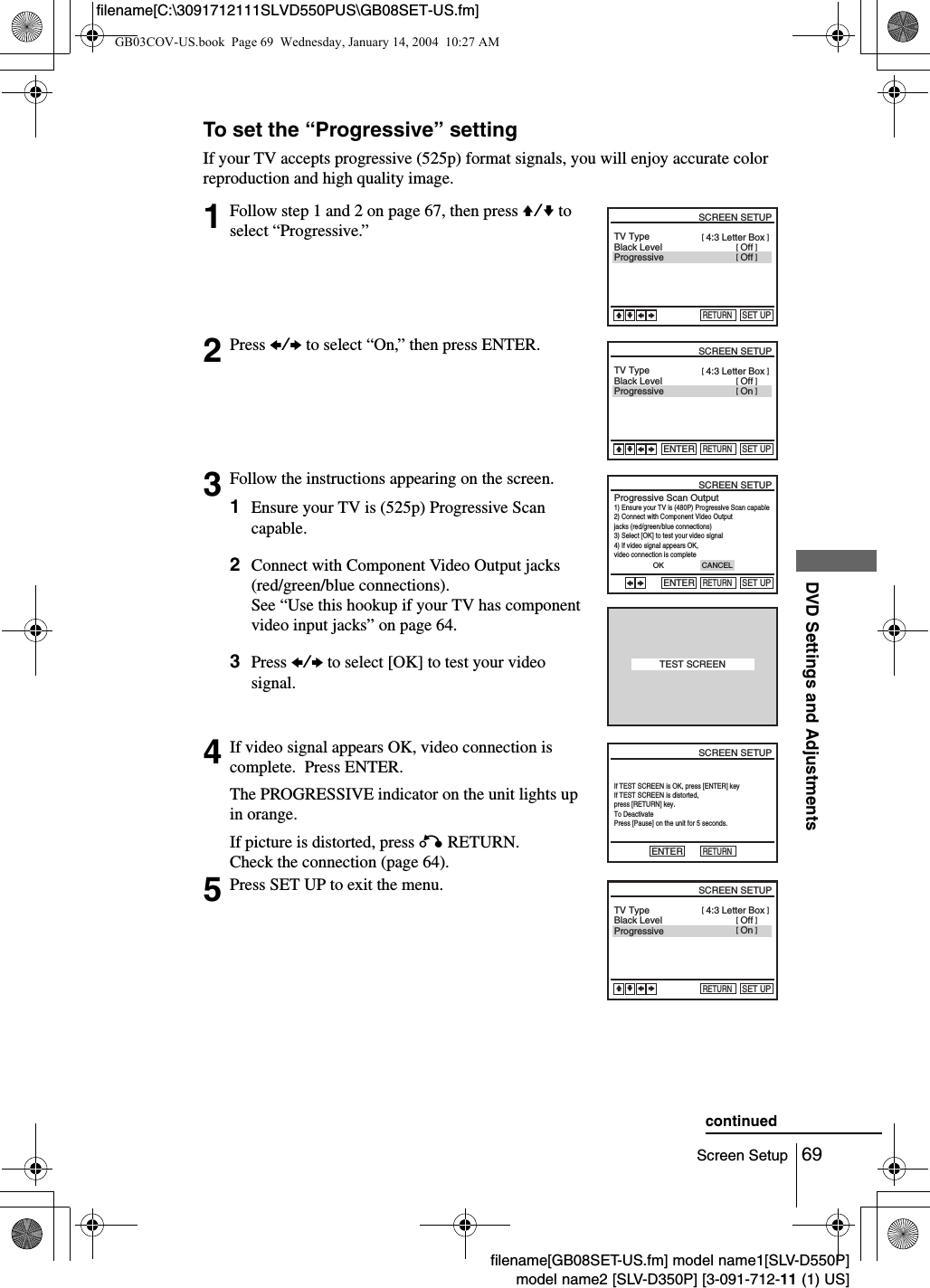

$69Screen SetupDVD Settings and Adjustmentsfilename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]To set the “Progressive” settingIf your TV accepts progressive (525p) format signals, you will enjoy accurate color reproduction and high quality image.1Follow step 1 and 2 on page 67, then press V/v to select “Progressive.”2Press B/b to select “On,” then press ENTER.3Follow the instructions appearing on the screen.1Ensure your TV is (525p) Progressive Scan capable.2Connect with Component Video Output jacks (red/green/blue connections).See “Use this hookup if your TV has component video input jacks” on page 64.3Press B/b to select [OK] to test your video signal.4If video signal appears OK, video connection is complete. Press ENTER.The PROGRESSIVE indicator on the unit lights up in orange.If picture is distorted, press O RETURN.Check the connection (page 64).5Press SET UP to exit the menu.Black LevelTV TypeProgressiveRETURNSCREEN SETUPSET UPvVbB[ Off ][ Off ] [ 4:3 Letter Box ]Black LevelTV TypeProgressiveRETURNSCREEN SETUPENTERSET UPvVbB[ On ][ Off ] [ 4:3 Letter Box ]Progressive Scan Output1) Ensure your TV is (480P) Progressive Scan capable2) Connect with Component Video Output jacks (red/green/blue connections)3) Select [OK] to test your video signal4) If video signal appears OK, video connection is completeRETURNSCREEN SETUPENTERSET UPbBCANCELOKTEST SCREENIf TEST SCREEN is OK, press [ENTER] keyIf TEST SCREEN is distorted, press [RETURN] key.To DeactivatePress [Pause] on the unit for 5 seconds.RETURNSCREEN SETUPENTERBlack LevelTV TypeProgressiveRETURNSCREEN SETUPSET UPvVbB[ On ][ Off ] [ 4:3 Letter Box ]continuedGB03COV-US.book Page 69 Wednesday, January 14, 2004 10:27 AM$

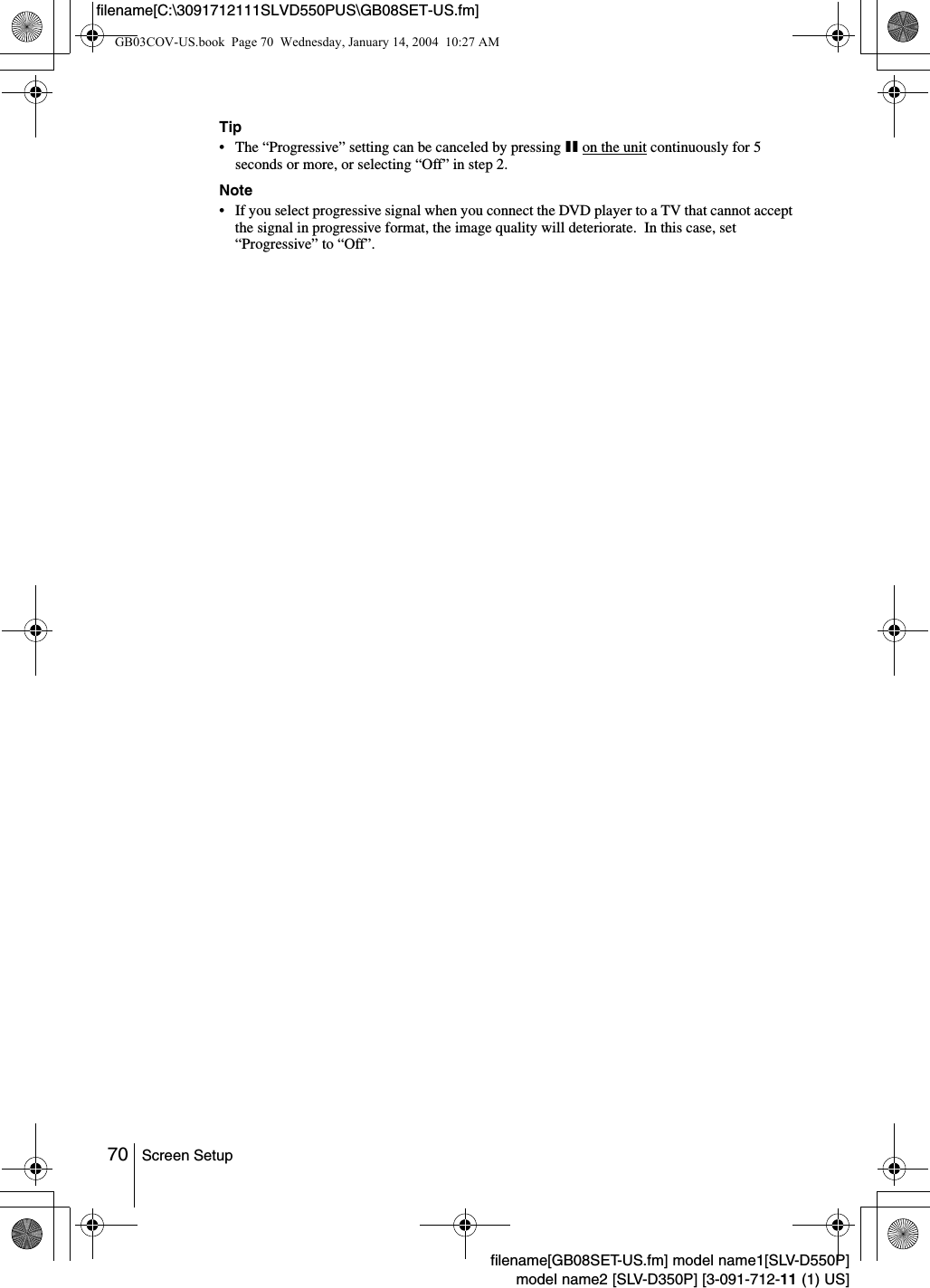

$70 Screen Setupfilename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]Tip• The “Progressive” setting can be canceled by pressing X on the unit continuously for 5 seconds or more, or selecting “Off” in step 2.Note• If you select progressive signal when you connect the DVD player to a TV that cannot accept the signal in progressive format, the image quality will deteriorate. In this case, set “Progressive” to “Off”.GB03COV-US.book Page 70 Wednesday, January 14, 2004 10:27 AM$

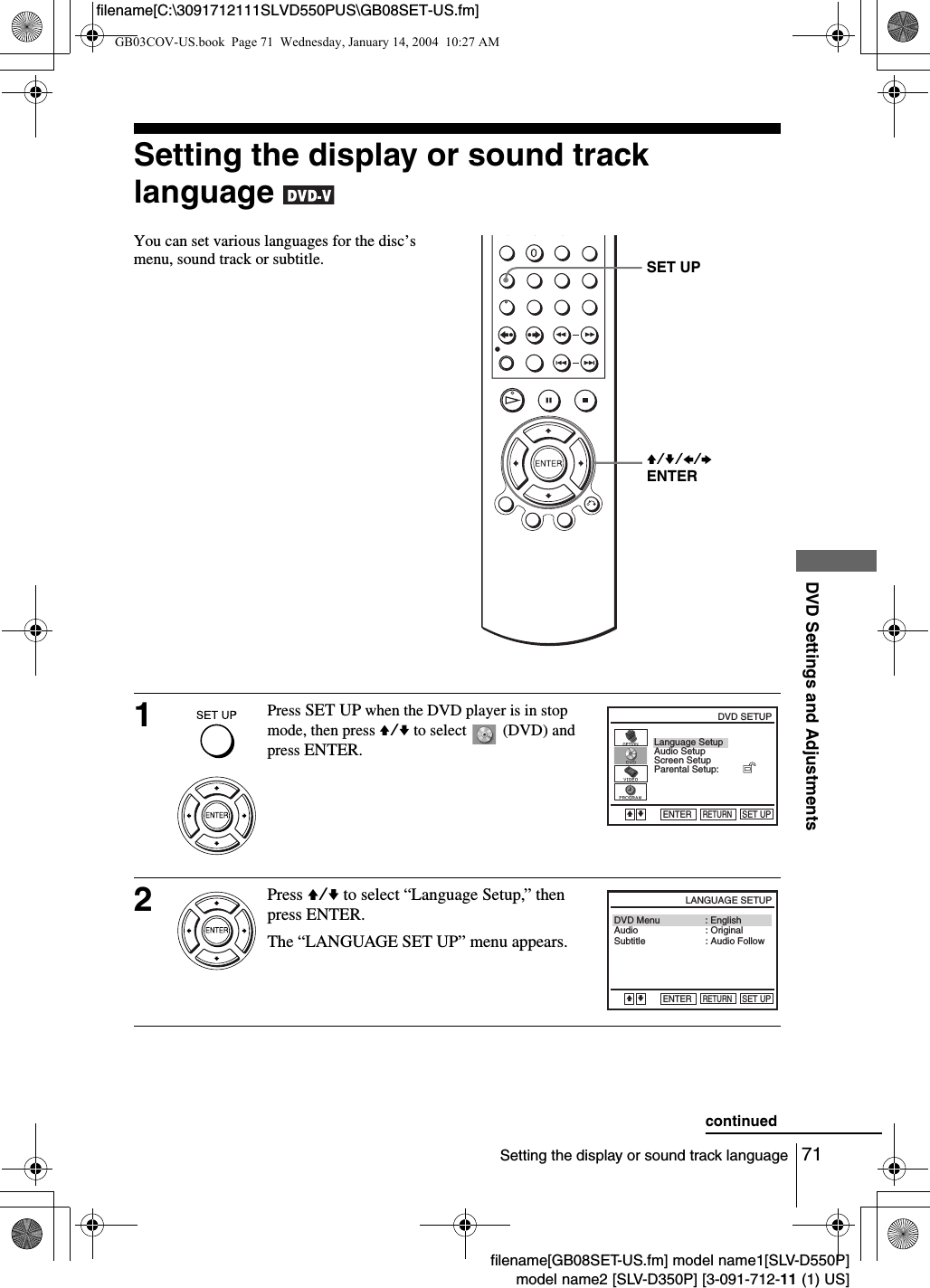

$71Setting the display or sound track languageDVD Settings and Adjustmentsfilename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]Setting the display or sound track language You can set various languages for the disc’s menu, sound track or subtitle.1Press SET UP when the DVD player is in stop mode, then press V/v to select (DVD) and press ENTER.2Press V/v to select “Language Setup,” then press ENTER.The “LANGUAGE SET UP” menu appears.V/v/B/bENTERSET UPLanguage SetupScreen SetupParental Setup:Audio SetupRETURNDVD SETUPSET UPENTERVvAudioDVD MenuSubtitleRETURNLANGUAGE SETUPSET UP: Audio Follow: Original: EnglishVvENTERcontinuedGB03COV-US.book Page 71 Wednesday, January 14, 2004 10:27 AM$

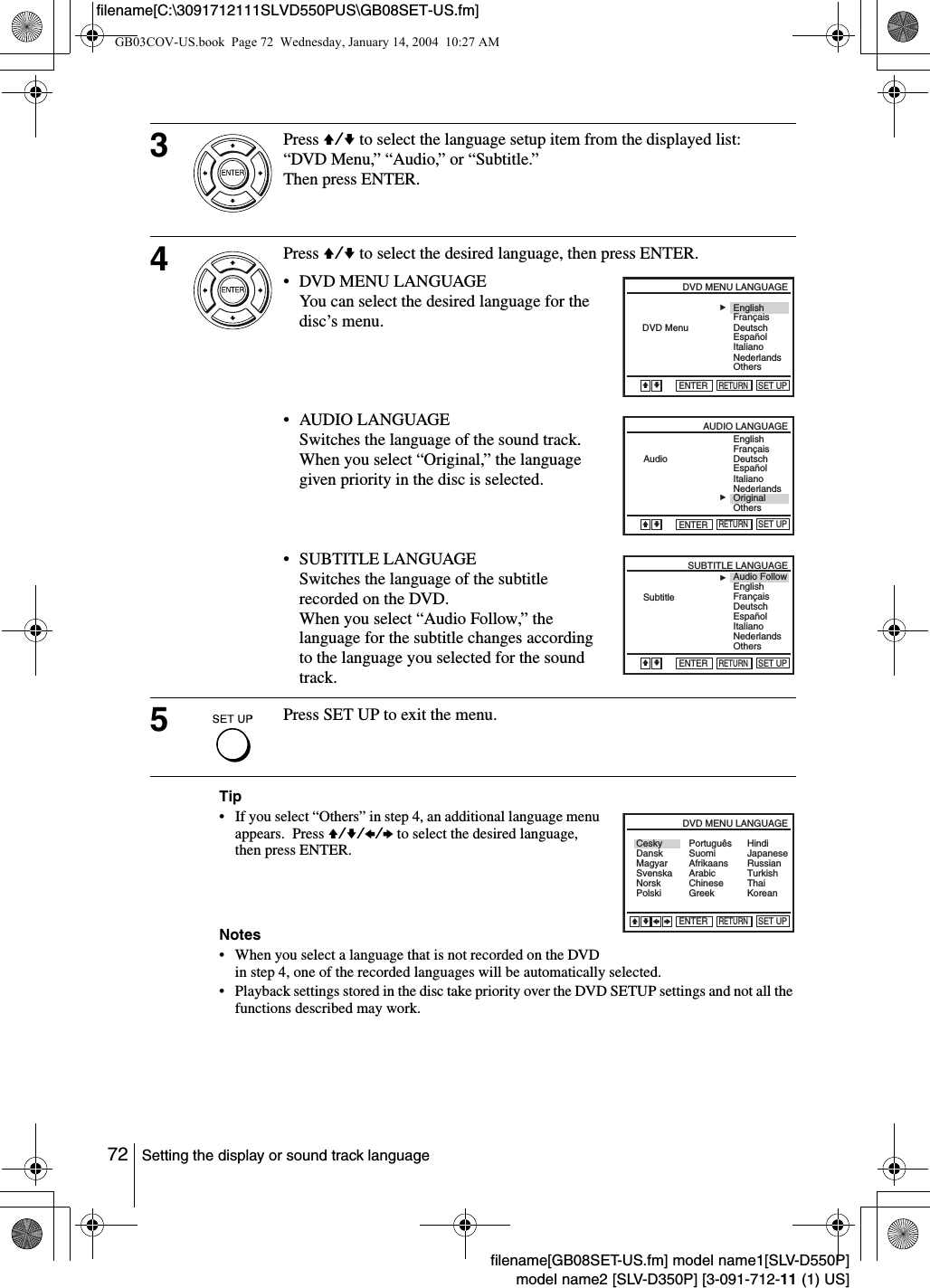

$72 Setting the display or sound track languagefilename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]Tip• If you select “Others” in step 4, an additional language menu appears. Press V/v/B/b to select the desired language, then press ENTER.Notes• When you select a language that is not recorded on the DVD in step 4, one of the recorded languages will be automatically selected.• Playback settings stored in the disc take priority over the DVD SETUP settings and not all the functions described may work.3Press V/v to select the language setup item from the displayed list: “DVD Menu,” “Audio,” or “Subtitle.”Then press ENTER.4Press V/v to select the desired language, then press ENTER.• DVD MENU LANGUAGEYou can select the desired language for the disc’s menu.• AUDIO LANGUAGESwitches the language of the sound track. When you select “Original,” the language given priority in the disc is selected.• SUBTITLE LANGUAGESwitches the language of the subtitle recorded on the DVD.When you select “Audio Follow,” the language for the subtitle changes according to the language you selected for the sound track.5Press SET UP to exit the menu.RETURNDVD MENU LANGUAGESET UPENTERVEnglishFrançaisDeutschBEspañolItalianoNederlandsOthersDVD MenuvRETURNAUDIO LANGUAGESET UPENTEREnglishFrançaisDeutschBEspañolItalianoNederlandsOriginalAudioOthersVvRETURNSUBTITLE LANGUAGESET UPENTEREnglishAudio FollowFrançaisDeutschBEspañolItalianoNederlandsOthersSubtitleVvRETURNDVD MENU LANGUAGESET UPENTERvVCeskyDanskMagyarSvenskaNorskPolskiSuomiAfrikaansArabicChineseGreekHindiJapaneseRussianTurkishThaiKoreanPortuguêsBbGB03COV-US.book Page 72 Wednesday, January 14, 2004 10:27 AM$

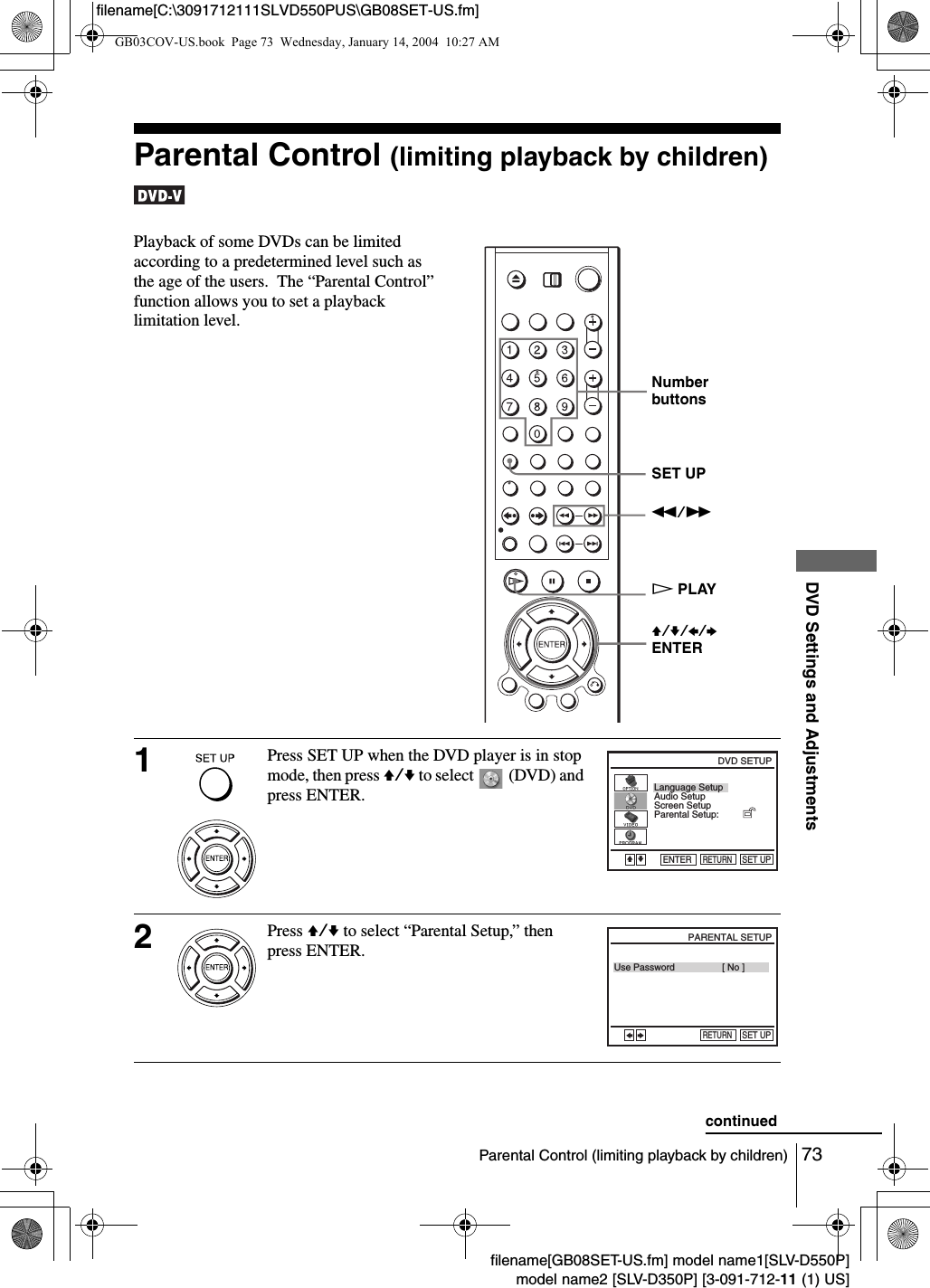

$73Parental Control (limiting playback by children)DVD Settings and Adjustmentsfilename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]Parental Control (limiting playback by children) Playback of some DVDs can be limited according to a predetermined level such as the age of the users. The “Parental Control” function allows you to set a playback limitation level.1Press SET UP when the DVD player is in stop mode, then press V/v to select (DVD) and press ENTER.2Press V/v to select “Parental Setup,” then press ENTER.Number buttonsV/v/B/bENTERSET UPm/MHPLAYLanguage SetupScreen SetupParental Setup:Audio SetupRETURNDVD SETUPSET UPENTERVvUse PasswordRETURNPARENTAL SETUPSET UP[ No ]BbcontinuedGB03COV-US.book Page 73 Wednesday, January 14, 2004 10:27 AM$

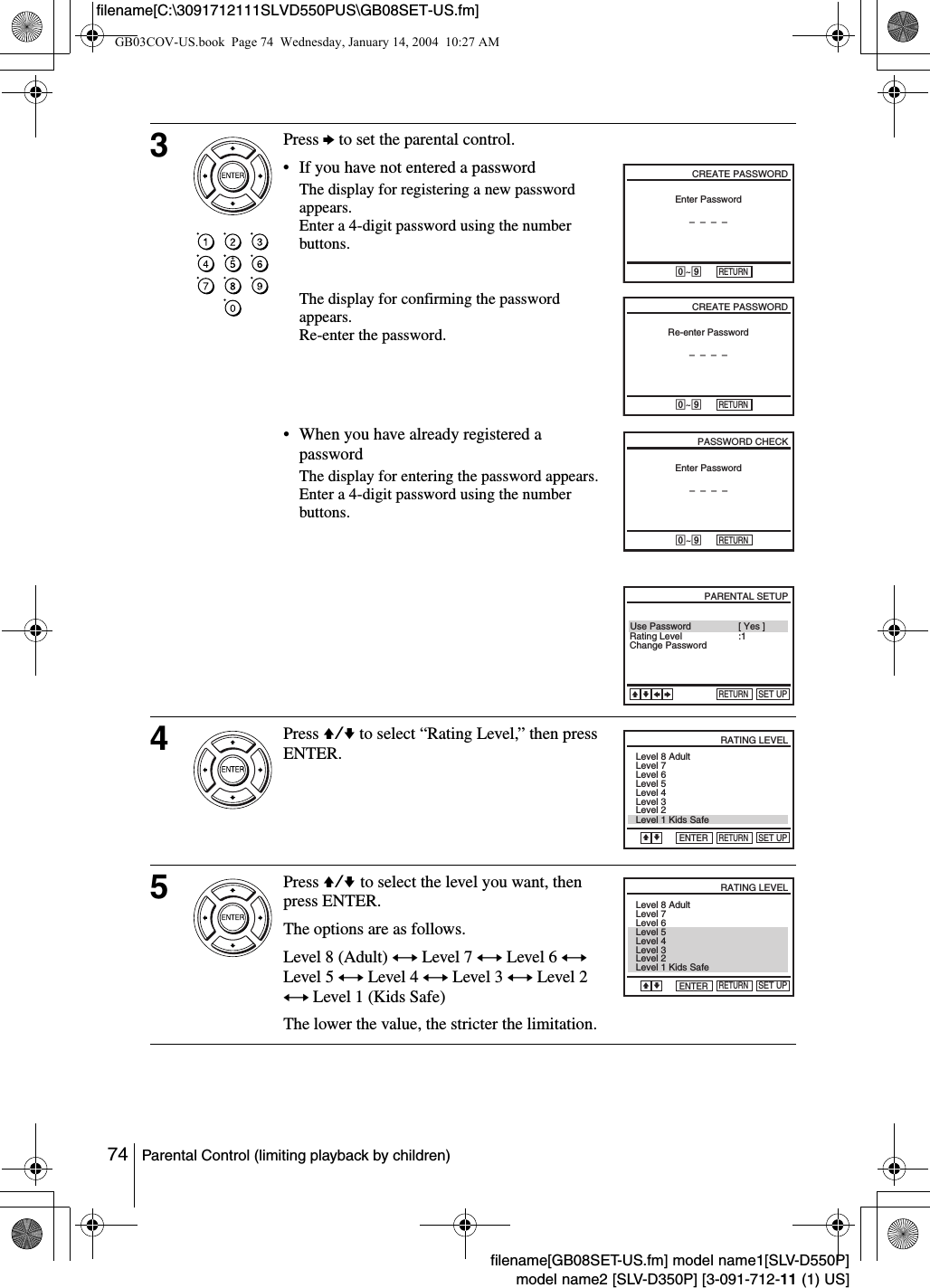

$74 Parental Control (limiting playback by children)filename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]3Press b to set the parental control.• If you have not entered a passwordThe display for registering a new password appears.Enter a 4-digit password using the number buttons.The display for confirming the password appears.Re-enter the password.• When you have already registered a passwordThe display for entering the password appears.Enter a 4-digit password using the number buttons.4Press V/v to select “Rating Level,” then press ENTER.5Press V/v to select the level you want, then press ENTER.The options are as follows.Level 8 (Adult) y Level 7 y Level 6 y Level 5 y Level 4 y Level 3 y Level 2 y Level 1 (Kids Safe)The lower the value, the stricter the limitation.Enter Password––––CREATE PASSWORD-~9RETURNCREATE PASSWORD-~9RETURNRe-enter Password––––PASSWORD CHECK-~9RETURNEnter Password––––Use PasswordRETURNPARENTAL SETUPSET UP[ Yes ]vVbBRating LevelChange Password :1RETURNRATING LEVELSET UPENTERVLevel 8 AdultLevel 7Level 6Level 5Level 4Level 3Level 2Level 1 Kids SafevRETURNRATING LEVELSET UPENTERLevel 8 AdultLevel 7Level 6Level 5Level 4Level 3Level 2Level 1 Kids SafeVvGB03COV-US.book Page 74 Wednesday, January 14, 2004 10:27 AM$

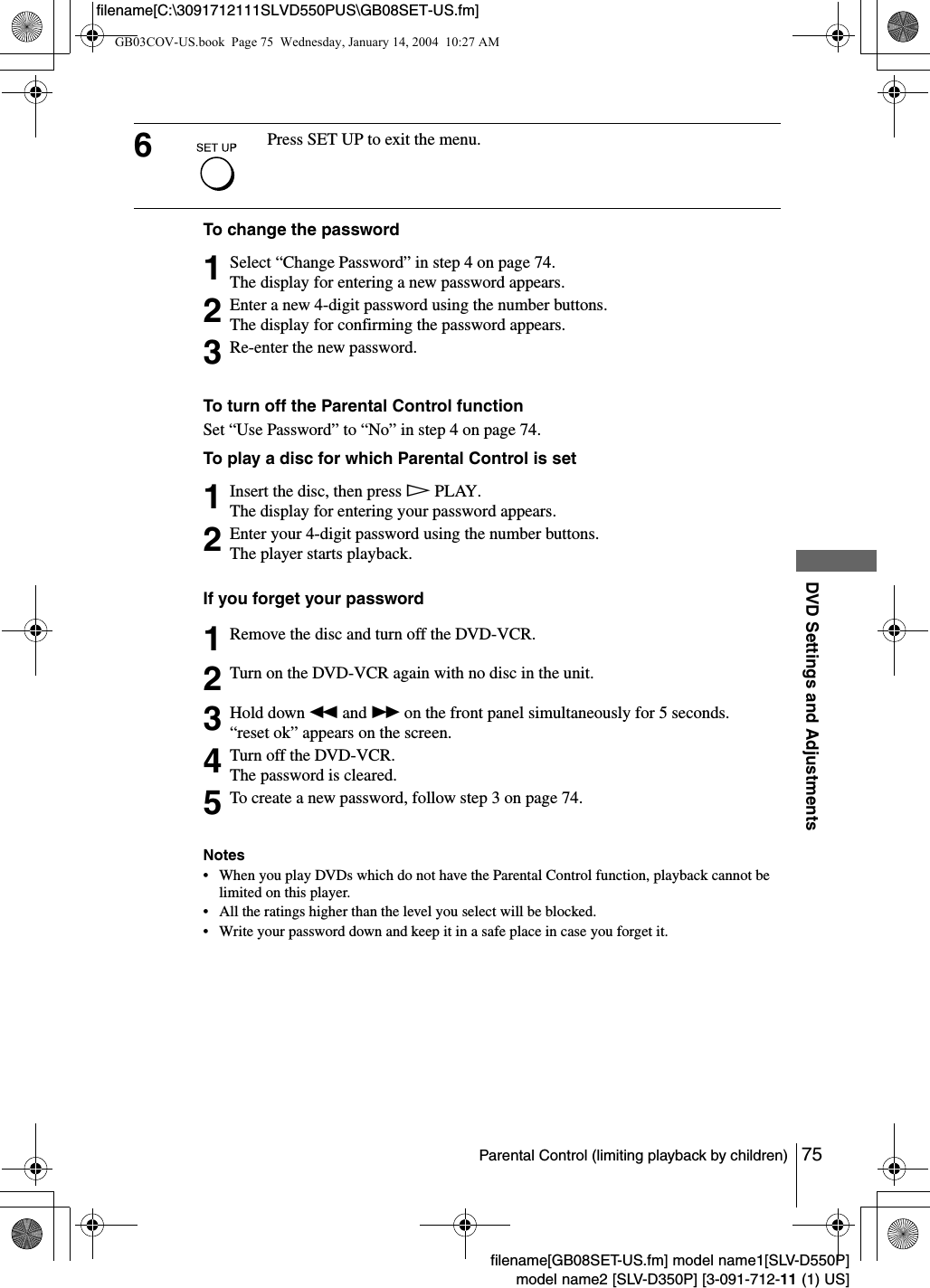

$75Parental Control (limiting playback by children)DVD Settings and Adjustmentsfilename[GB08SET-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB08SET-US.fm]To change the passwordTo turn off the Parental Control functionSet “Use Password” to “No” in step 4 on page 74.To play a disc for which Parental Control is setIf you forget your passwordNotes• When you play DVDs which do not have the Parental Control function, playback cannot be limited on this player.• All the ratings higher than the level you select will be blocked.• Write your password down and keep it in a safe place in case you forget it.6Press SET UP to exit the menu.1Select “Change Password” in step 4 on page 74.The display for entering a new password appears. 2Enter a new 4-digit password using the number buttons.The display for confirming the password appears.3Re-enter the new password.1Insert the disc, then press HPLAY.The display for entering your password appears.2Enter your 4-digit password using the number buttons.The player starts playback.1Remove the disc and turn off the DVD-VCR.2Turn on the DVD-VCR again with no disc in the unit.3Hold down m and M on the front panel simultaneously for 5 seconds.“reset ok” appears on the screen.4Turn off the DVD-VCR.The password is cleared.5To create a new password, follow step 3 on page 74.GB03COV-US.book Page 75 Wednesday, January 14, 2004 10:27 AM$

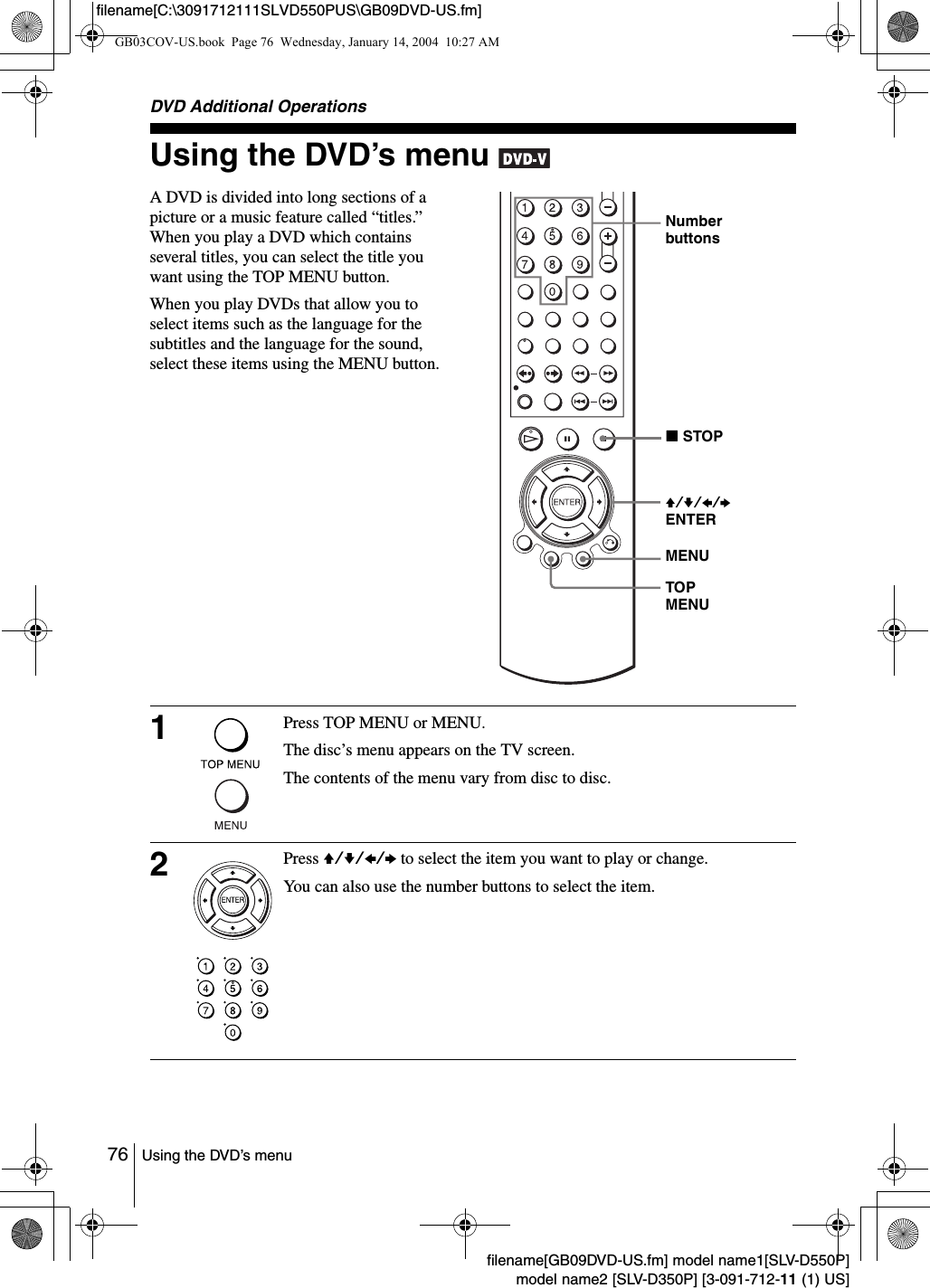

$76 Using the DVD’s menufilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]DVD Additional OperationsUsing the DVD’s menu A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the TOP MENU button.When you play DVDs that allow you to select items such as the language for the subtitles and the language for the sound, select these items using the MENU button.1Press TOP MENU or MENU.The disc’s menu appears on the TV screen.The contents of the menu vary from disc to disc.2Press V/v/B/b to select the item you want to play or change.You can also use the number buttons to select the item.Number buttonsV/v/B/b ENTERMENUTOP MENUxSTOPGB03COV-US.book Page 76 Wednesday, January 14, 2004 10:27 AM$

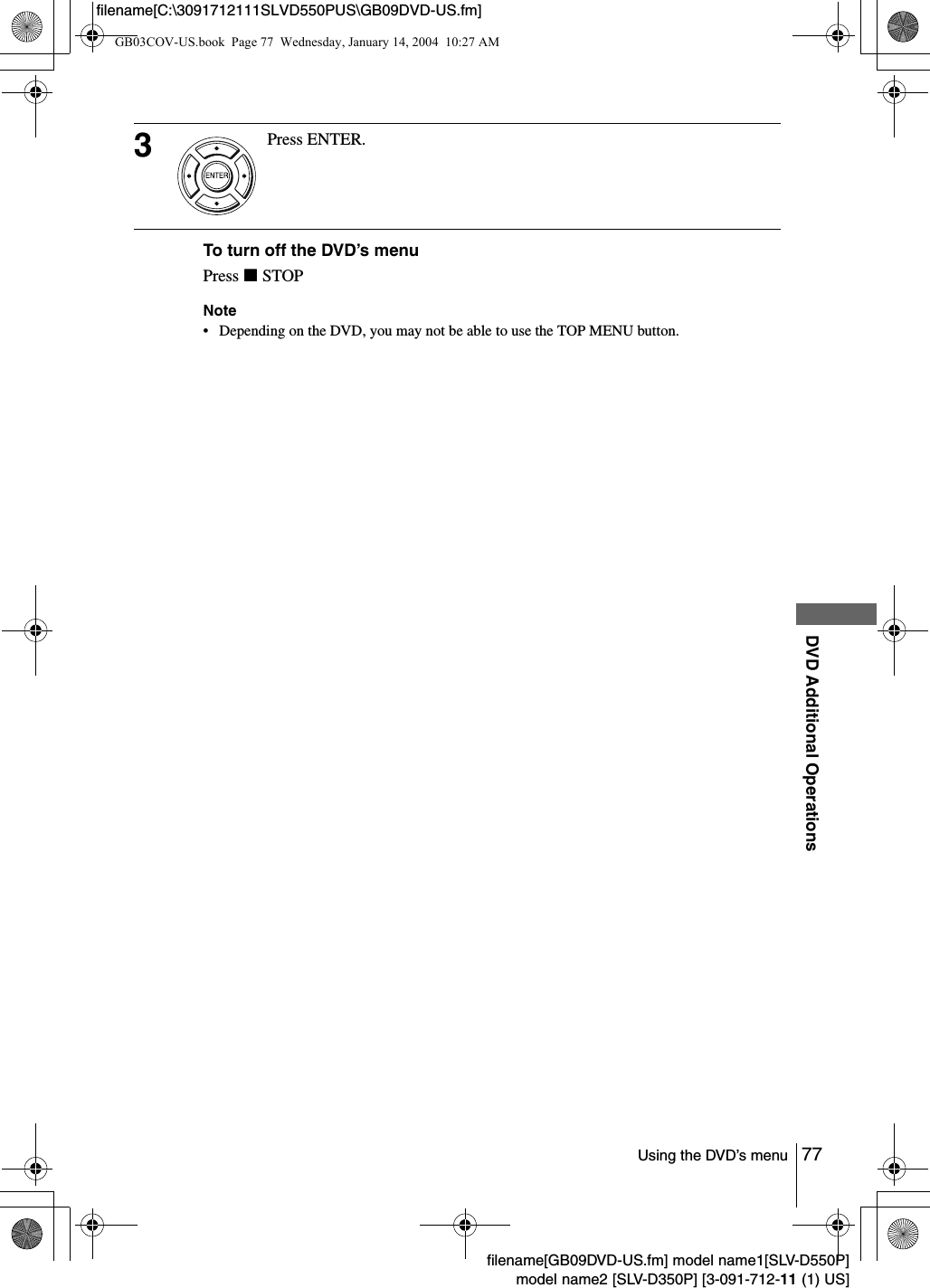

$77Using the DVD’s menuDVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]To turn off the DVD’s menuPress xSTOPNote• Depending on the DVD, you may not be able to use the TOP MENU button.3Press ENTER.GB03COV-US.book Page 77 Wednesday, January 14, 2004 10:27 AM$

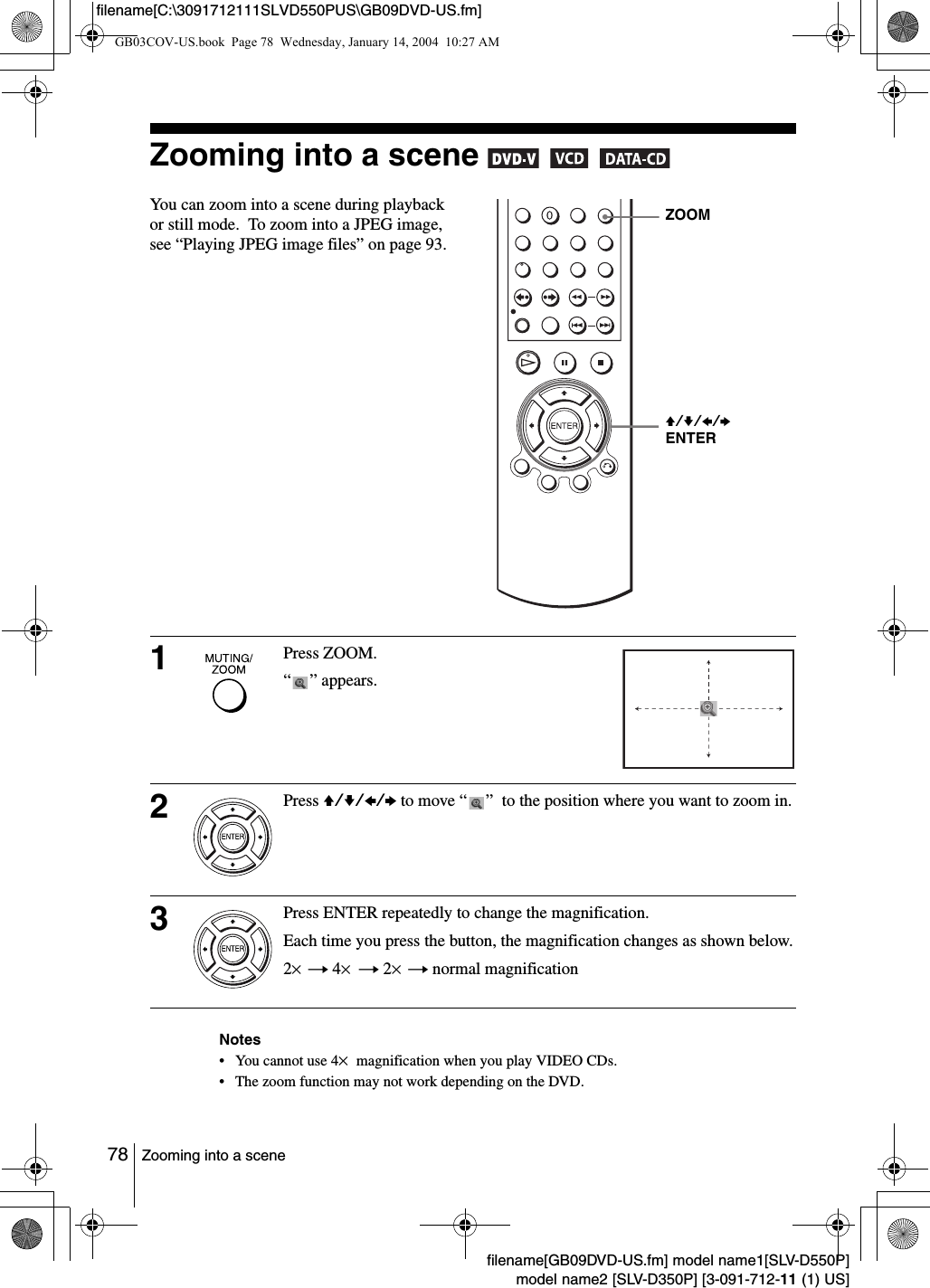

$78 Zooming into a scenefilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Zooming into a scene Notes• You cannot use 4× magnification when you play VIDEO CDs. • The zoom function may not work depending on the DVD.You can zoom into a scene during playback or still mode. To zoom into a JPEG image, see “Playing JPEG image files” on page 93.1Press ZOOM.“ ” appears.2Press V/v/B/b to move “ ” to the position where you want to zoom in.3Press ENTER repeatedly to change the magnification.Each time you press the button, the magnification changes as shown below.2× t 4× t 2× t normal magnificationZOOMV/v/B/b ENTERGB03COV-US.book Page 78 Wednesday, January 14, 2004 10:27 AM$

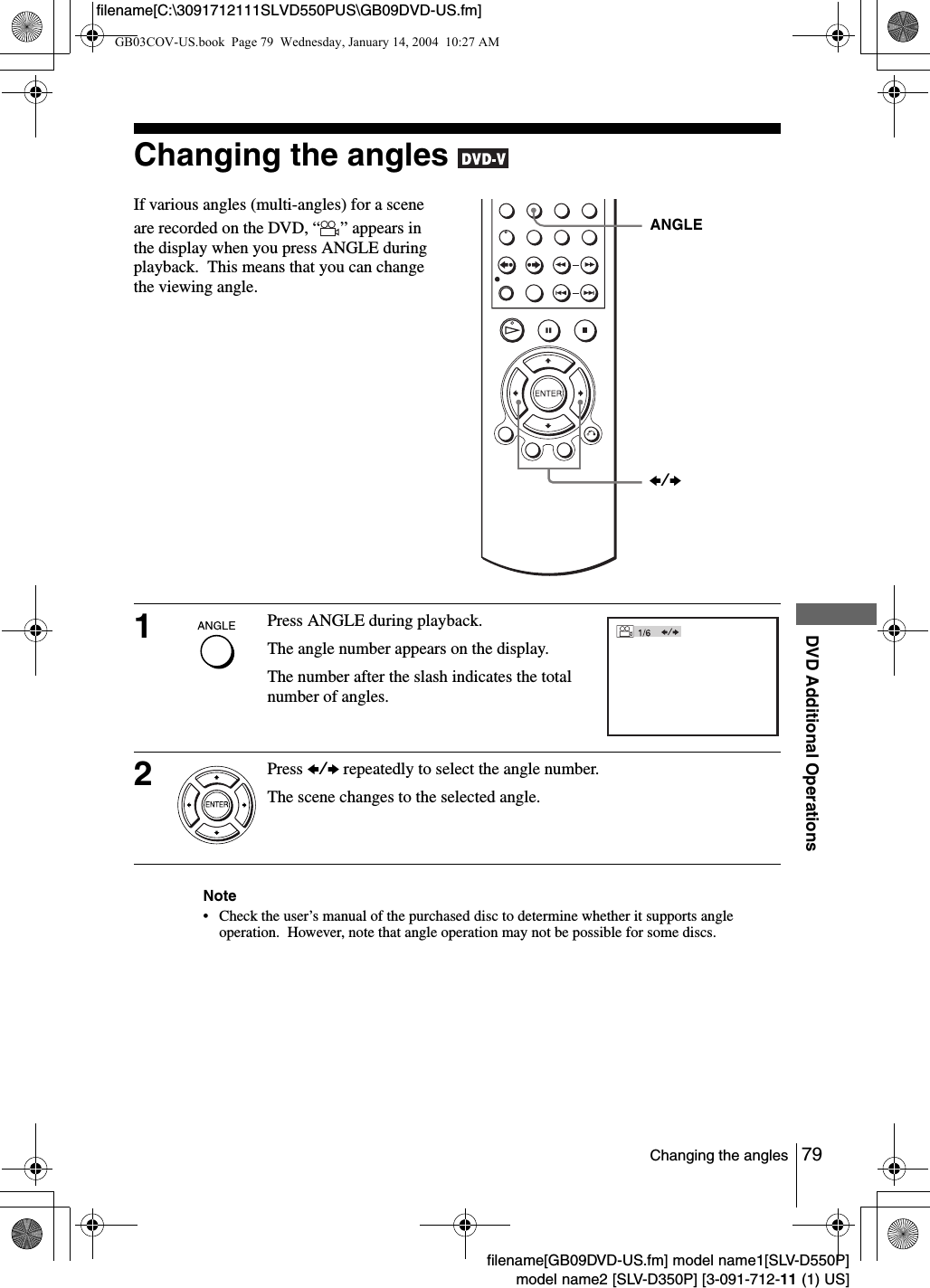

$79Changing the anglesDVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Changing the angles Note• Check the user’s manual of the purchased disc to determine whether it supports angle operation. However, note that angle operation may not be possible for some discs.If various angles (multi-angles) for a scene are recorded on the DVD, “ ” appears in the display when you press ANGLE during playback. This means that you can change the viewing angle.1Press ANGLE during playback.The angle number appears on the display.The number after the slash indicates the total number of angles.2Press B/b repeatedly to select the angle number.The scene changes to the selected angle.ANGLEB/bGB03COV-US.book Page 79 Wednesday, January 14, 2004 10:27 AM$

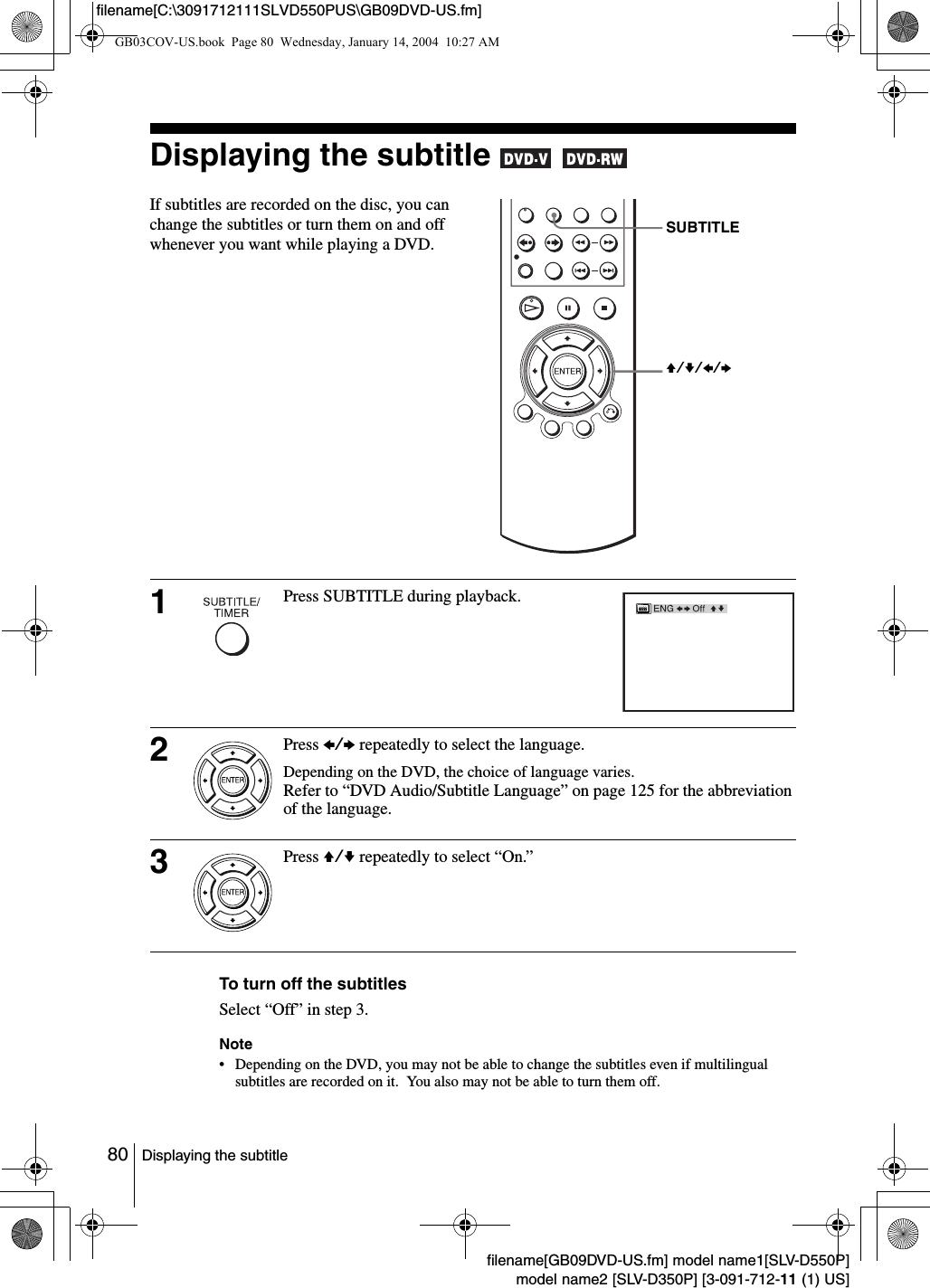

$80 Displaying the subtitlefilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Displaying the subtitle To turn off the subtitlesSelect “Off” in step 3.Note• Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off.If subtitles are recorded on the disc, you can change the subtitles or turn them on and off whenever you want while playing a DVD.1Press SUBTITLE during playback.2Press B/b repeatedly to select the language.Depending on the DVD, the choice of language varies.Refer to “DVD Audio/Subtitle Language” on page 125 for the abbreviation of the language.3Press V/v repeatedly to select “On.”SUBTITLEV/v/B/b GB03COV-US.book Page 80 Wednesday, January 14, 2004 10:27 AM$

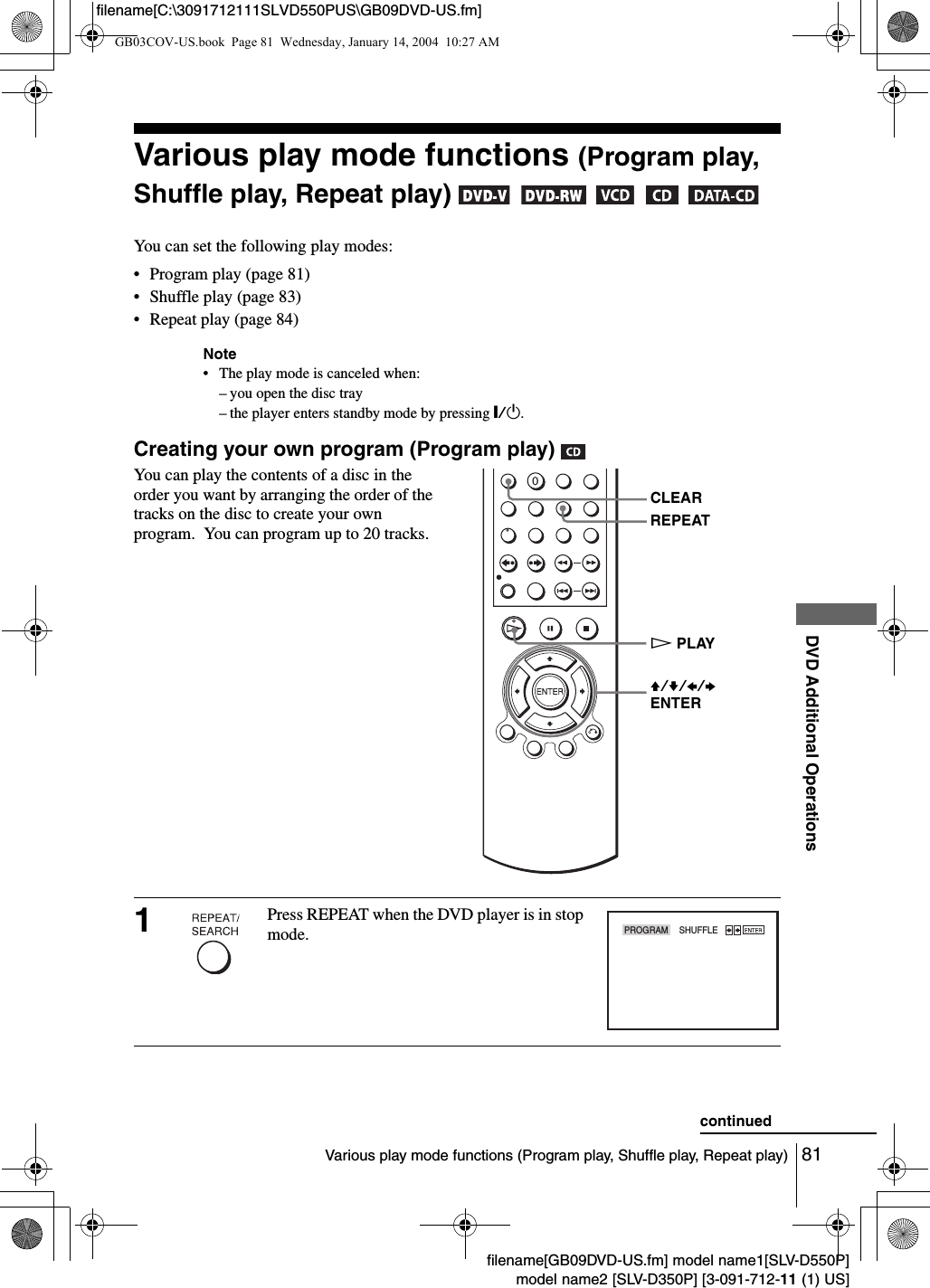

$81Various play mode functions (Program play, Shuffle play, Repeat play)DVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Various play mode functions (Program play, Shuffle play, Repeat play) You can set the following play modes:• Program play (page 81)• Shuffle play (page 83)• Repeat play (page 84)Note• The play mode is canceled when:– you open the disc tray– the player enters standby mode by pressing [/1.Creating your own program (Program play) You can play the contents of a disc in the order you want by arranging the order of the tracks on the disc to create your own program. You can program up to 20 tracks.1Press REPEAT when the DVD player is in stop mode. HPLAYV/v/B/bENTERCLEARREPEATPROGRAM SHUFFLEcontinuedGB03COV-US.book Page 81 Wednesday, January 14, 2004 10:27 AM$

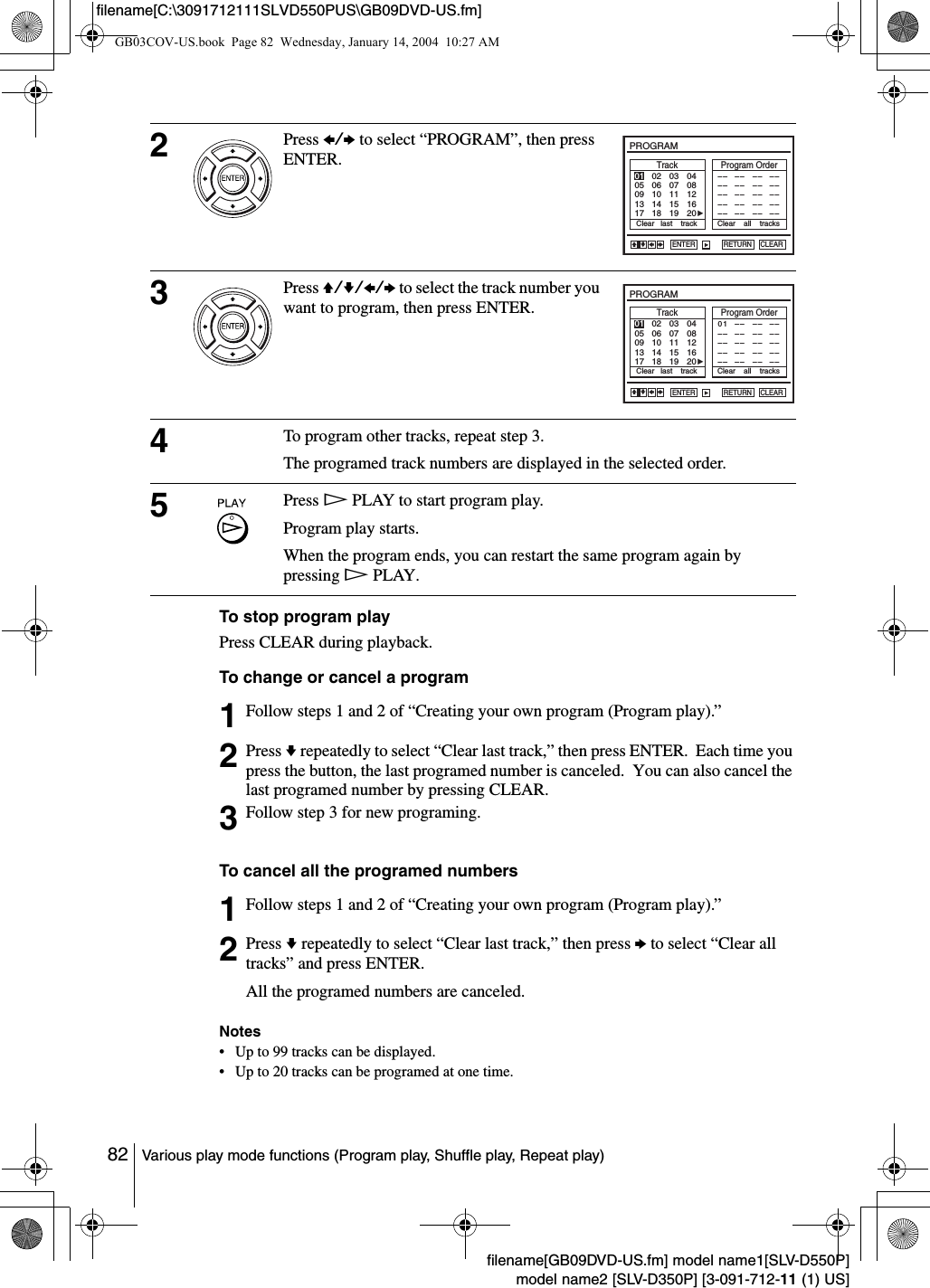

$82 Various play mode functions (Program play, Shuffle play, Repeat play)filename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]To stop program playPress CLEAR during playback.To change or cancel a programTo cancel all the programed numbersNotes• Up to 99 tracks can be displayed.• Up to 20 tracks can be programed at one time.2Press B/b to select “PROGRAM”, then press ENTER.3Press V/v/B/b to select the track number you want to program, then press ENTER.4To program other tracks, repeat step 3.The programed track numbers are displayed in the selected order.5Press HPLAY to start program play.Program play starts.When the program ends, you can restart the same program again by pressing HPLAY.1Follow steps 1 and 2 of “Creating your own program (Program play).”2Press v repeatedly to select “Clear last track,” then press ENTER. Each time you press the button, the last programed number is canceled. You can also cancel the last programed number by pressing CLEAR. 3Follow step 3 for new programing.1Follow steps 1 and 2 of “Creating your own program (Program play).”2Press v repeatedly to select “Clear last track,” then press b to select “Clear all tracks” and press ENTER. All the programed numbers are canceled.0105 0913170206 1014180307 1115190408 121620–––– –––––––––– –––––––––– –––––––––– ––––––Track Program OrderENTERPROGRAMRETURN CLEARClear last track Clear all tracksvVbBB0105 0913170206 1014180307 1115190408 12162001–– –––––––––– –––––––––– –––––––––– ––––––Track Program OrderENTERPROGRAMRETURN CLEARvVbBClear last track Clear all tracksBGB03COV-US.book Page 82 Wednesday, January 14, 2004 10:27 AM$

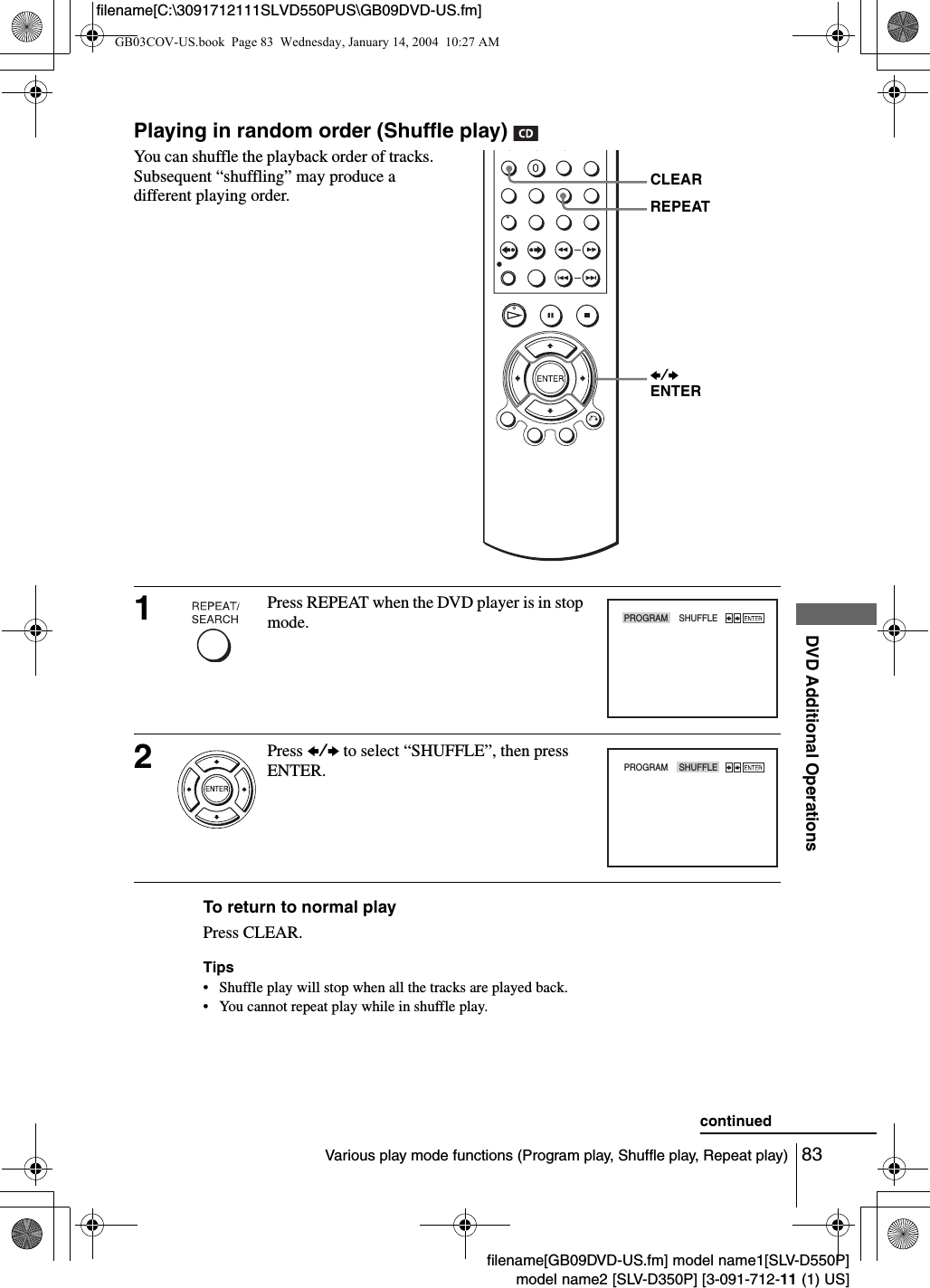

$83Various play mode functions (Program play, Shuffle play, Repeat play)DVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Playing in random order (Shuffle play) To return to normal playPress CLEAR.Tips• Shuffle play will stop when all the tracks are played back.• You cannot repeat play while in shuffle play.You can shuffle the playback order of tracks. Subsequent “shuffling” may produce a different playing order.1Press REPEAT when the DVD player is in stop mode.2Press B/b to select “SHUFFLE”, then press ENTER.B/bENTERREPEATCLEARPROGRAM SHUFFLEPROGRAM SHUFFLEcontinuedGB03COV-US.book Page 83 Wednesday, January 14, 2004 10:27 AM$

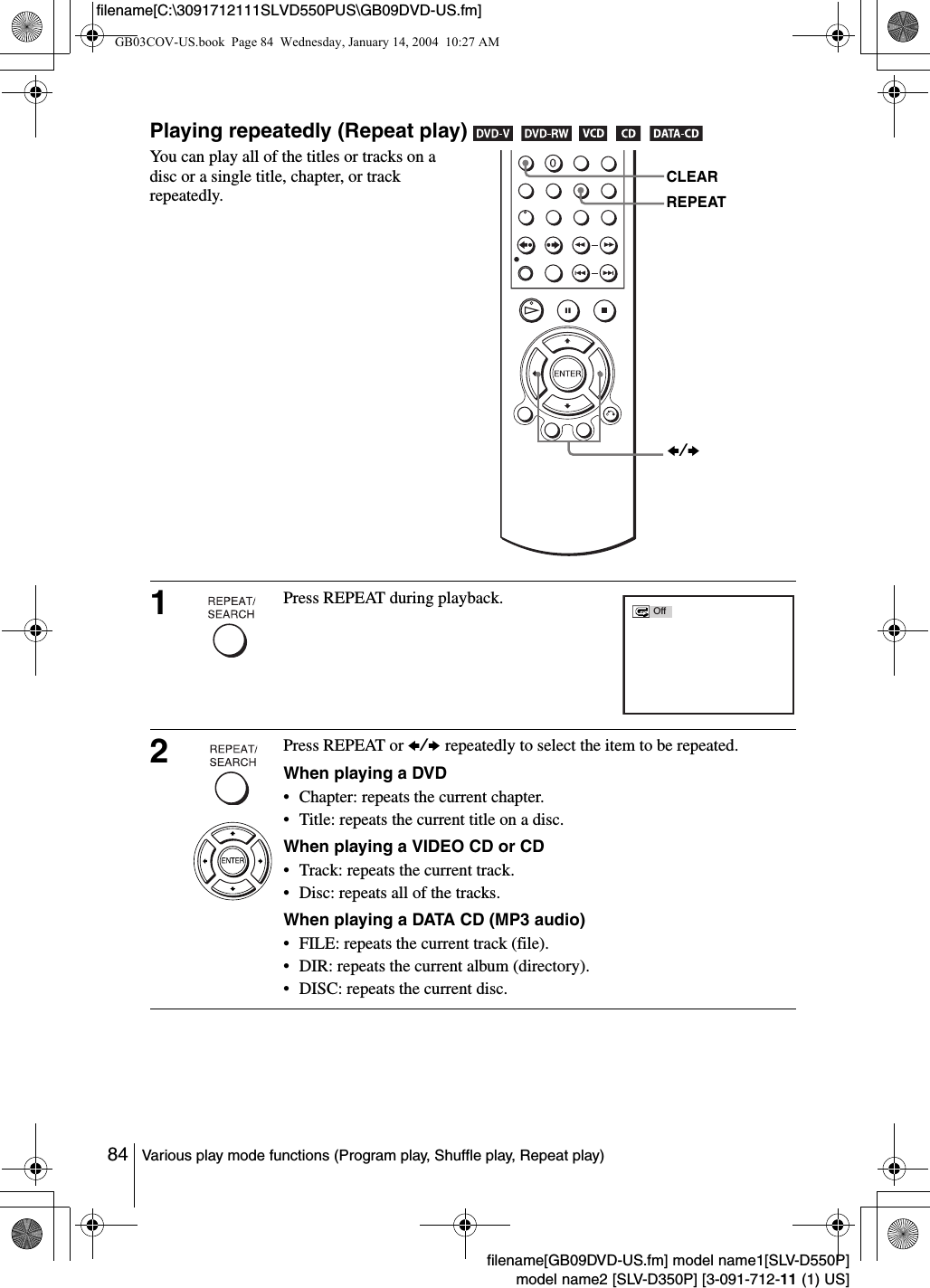

$84 Various play mode functions (Program play, Shuffle play, Repeat play)filename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Playing repeatedly (Repeat play) You can play all of the titles or tracks on a disc or a single title, chapter, or track repeatedly.1Press REPEAT during playback. 2Press REPEAT or B/b repeatedly to select the item to be repeated.When playing a DVD• Chapter: repeats the current chapter.• Title: repeats the current title on a disc.When playing a VIDEO CD or CD• Track: repeats the current track.• Disc: repeats all of the tracks.When playing a DATA CD (MP3 audio)• FILE: repeats the current track (file).• DIR: repeats the current album (directory).• DISC: repeats the current disc.REPEATCLEARB/bOffGB03COV-US.book Page 84 Wednesday, January 14, 2004 10:27 AM$

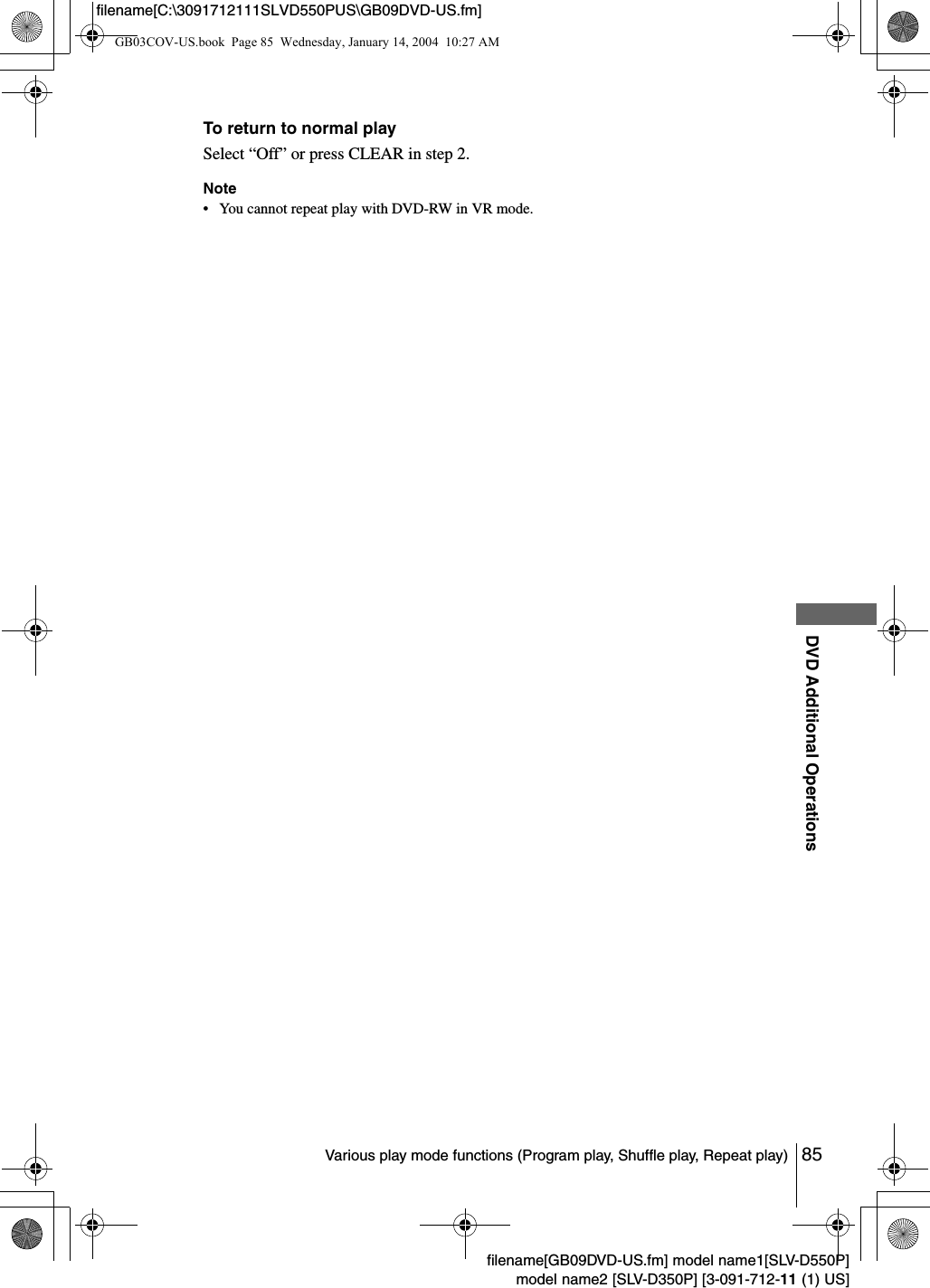

$85Various play mode functions (Program play, Shuffle play, Repeat play)DVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]To return to normal playSelect “Off” or press CLEAR in step 2.Note• You cannot repeat play with DVD-RW in VR mode.GB03COV-US.book Page 85 Wednesday, January 14, 2004 10:27 AM$

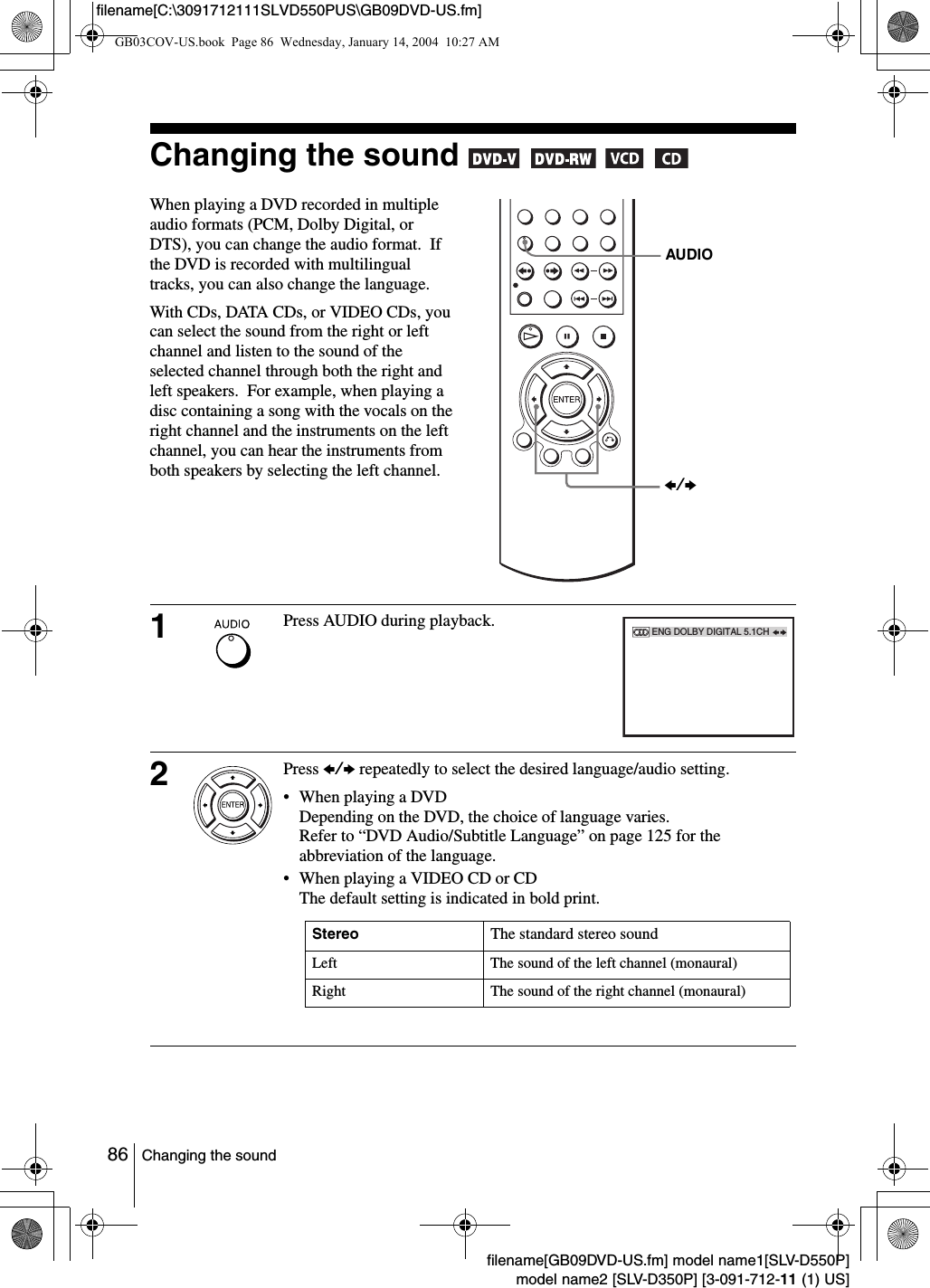

$86 Changing the soundfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Changing the sound When playing a DVD recorded in multiple audio formats (PCM, Dolby Digital, or DTS), you can change the audio format. If the DVD is recorded with multilingual tracks, you can also change the language.With CDs, DATA CDs, or VIDEO CDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel.1Press AUDIO during playback. 2Press B/b repeatedly to select the desired language/audio setting.• When playing a DVDDepending on the DVD, the choice of language varies.Refer to “DVD Audio/Subtitle Language” on page 125 for the abbreviation of the language.• When playing a VIDEO CD or CDThe default setting is indicated in bold print.AUDIOB/bENG DOLBY DIGITAL 5.1CHStereo The standard stereo soundLeft The sound of the left channel (monaural)Right The sound of the right channel (monaural)GB03COV-US.book Page 86 Wednesday, January 14, 2004 10:27 AM$

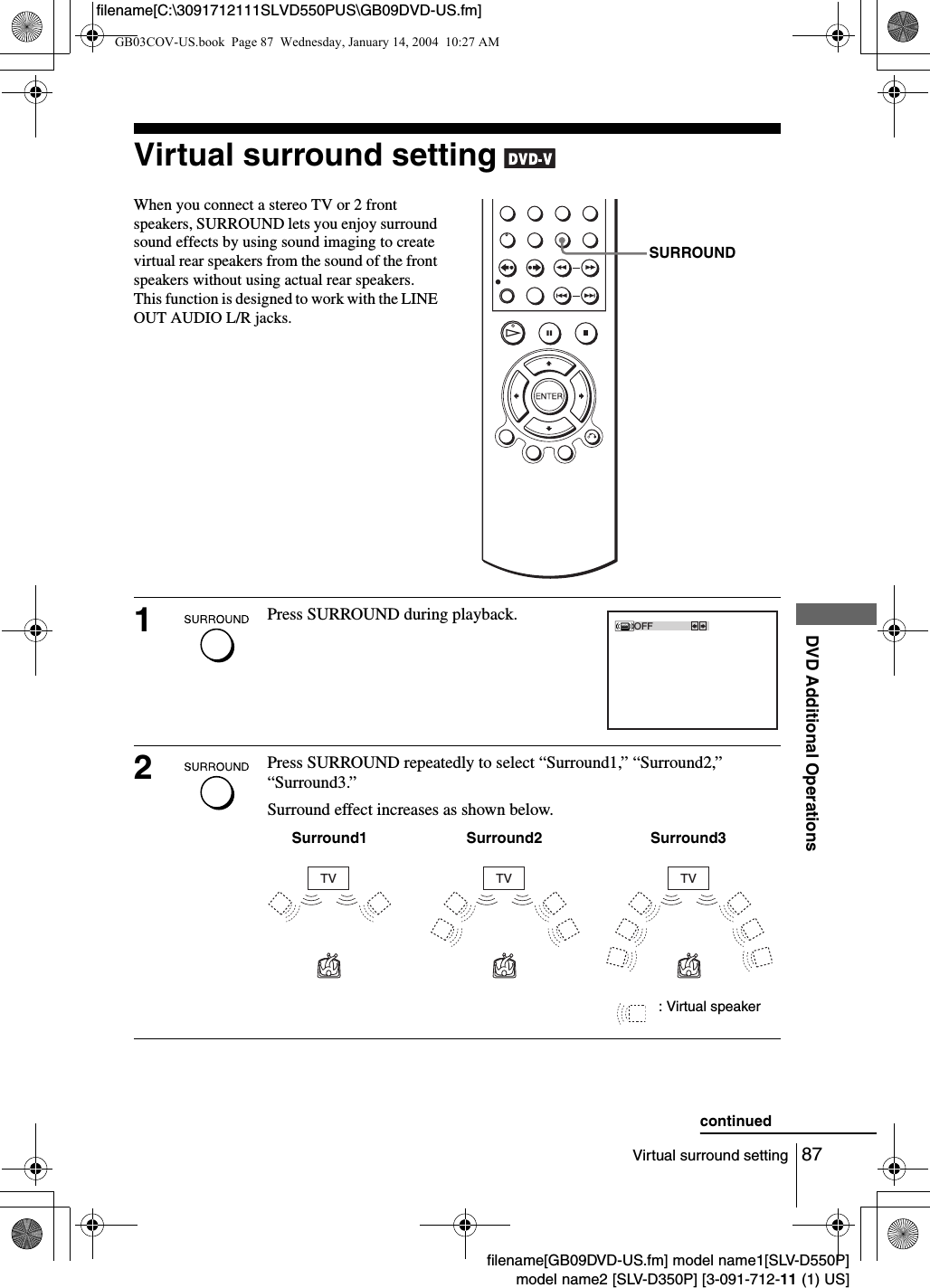

$87Virtual surround settingDVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Virtual surround setting When you connect a stereo TV or 2 front speakers, SURROUND lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers without using actual rear speakers. This function is designed to work with the LINE OUT AUDIO L/R jacks.1Press SURROUND during playback. 2Press SURROUND repeatedly to select “Surround1,” “Surround2,” “Surround3.”Surround effect increases as shown below.SURROUNDOFFTV TV TVSurround1 Surround2 Surround3: Virtual speakercontinuedGB03COV-US.book Page 87 Wednesday, January 14, 2004 10:27 AM$

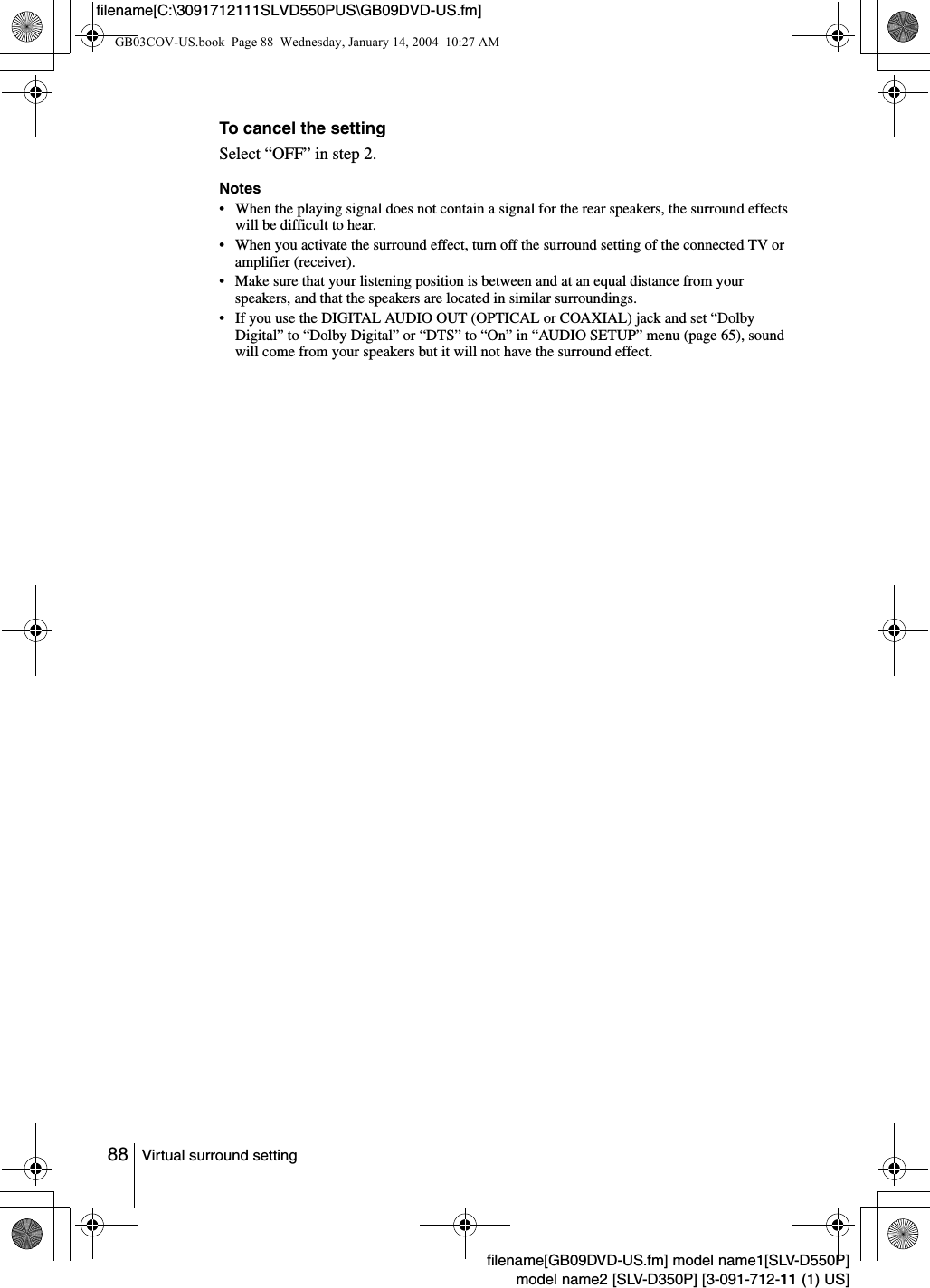

$88 Virtual surround settingfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]To cancel the settingSelect “OFF” in step 2.Notes• When the playing signal does not contain a signal for the rear speakers, the surround effects will be difficult to hear.• When you activate the surround effect, turn off the surround setting of the connected TV or amplifier (receiver).• Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings.• If you use the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack and set “Dolby Digital” to “Dolby Digital” or “DTS” to “On” in “AUDIO SETUP” menu (page 65), sound will come from your speakers but it will not have the surround effect.GB03COV-US.book Page 88 Wednesday, January 14, 2004 10:27 AM$

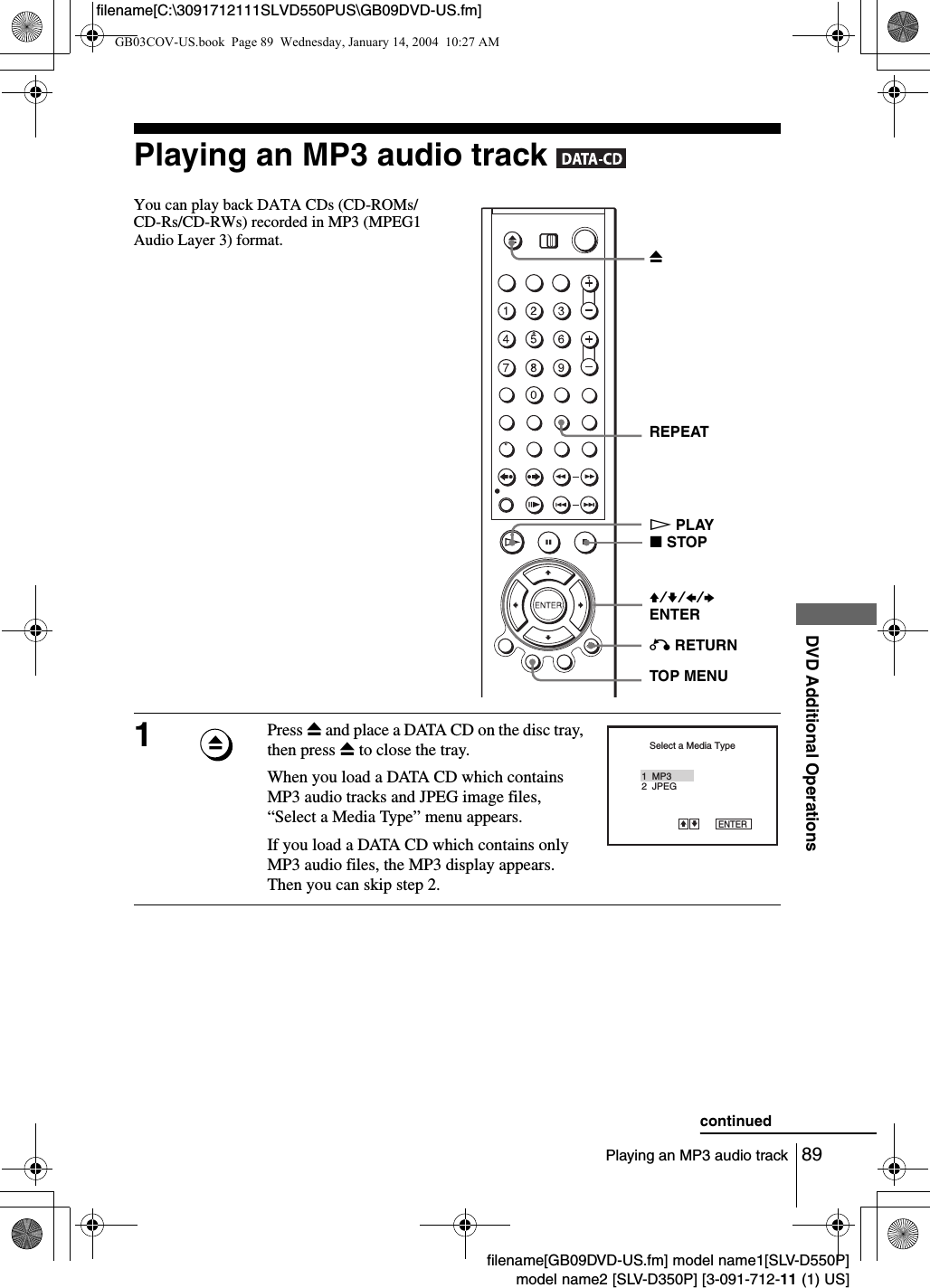

$89Playing an MP3 audio trackDVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Playing an MP3 audio track You can play back DATA CDs (CD-ROMs/CD-Rs/CD-RWs) recorded in MP3 (MPEG1 Audio Layer 3) format.1Press Z and place a DATA CD on the disc tray, then press Z to close the tray.When you load a DATA CD which contains MP3 audio tracks and JPEG image files, “Select a Media Type” menu appears.If you load a DATA CD which contains only MP3 audio files, the MP3 display appears. Then you can skip step 2.V/v/B/b ENTERHPLAYO RETURNZREPEATxSTOPTOP MENUSelect a Media Type2 JPEG1 MP3ENTERvVcontinuedGB03COV-US.book Page 89 Wednesday, January 14, 2004 10:27 AM$

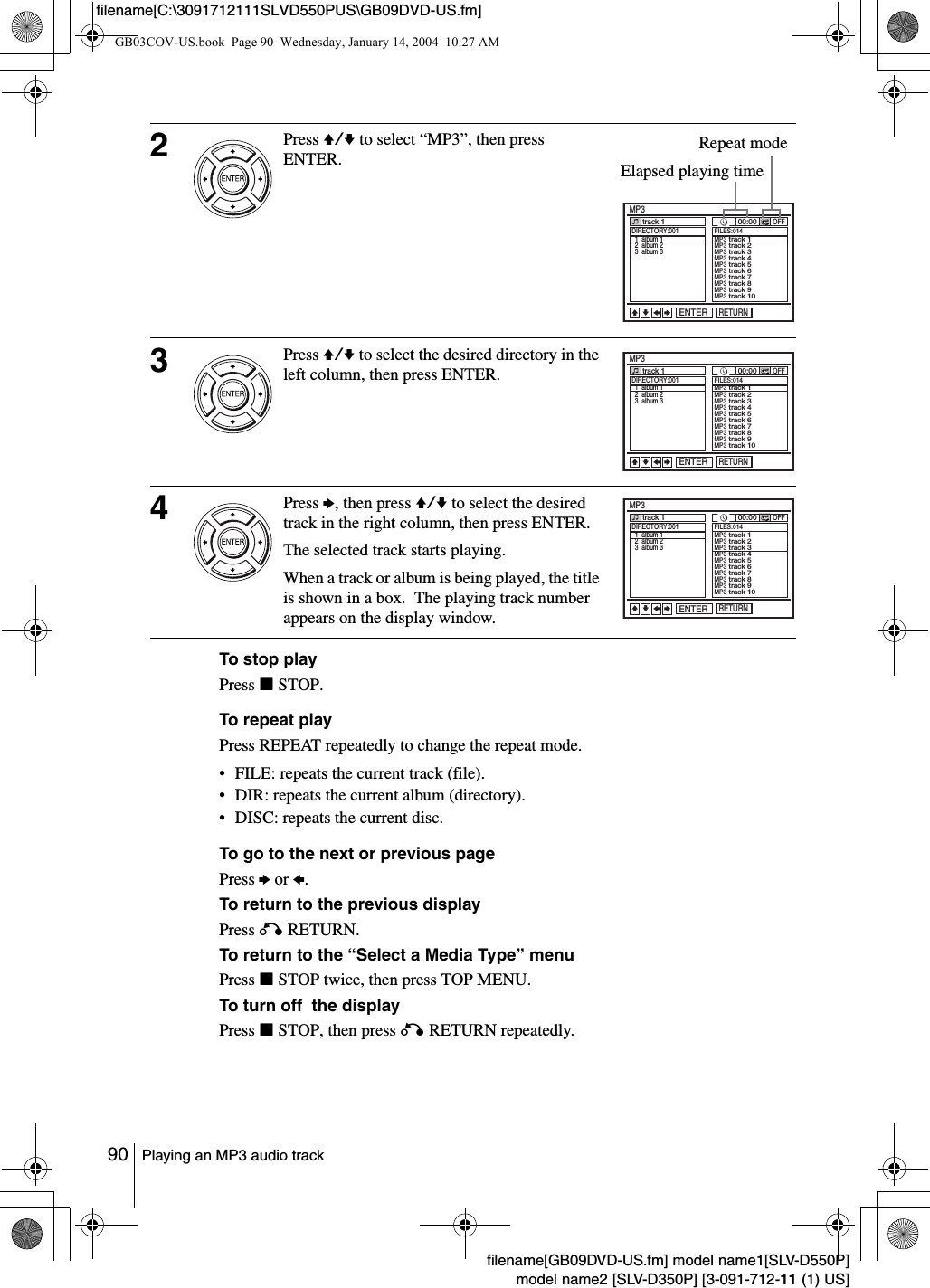

$90 Playing an MP3 audio trackfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]To stop playPress xSTOP.To repeat playPress REPEAT repeatedly to change the repeat mode.• FILE: repeats the current track (file).• DIR: repeats the current album (directory).• DISC: repeats the current disc.To go to the next or previous pagePress b or B.To return to the previous displayPress O RETURN.To return to the “Select a Media Type” menuPress xSTOP twice, then press TOP MENU.To turn off the displayPress xSTOP, then press O RETURN repeatedly.2Press V/v to select “MP3”, then press ENTER.3Press V/v to select the desired directory in the left column, then press ENTER.4Press b, then press V/v to select the desired track in the right column, then press ENTER.The selected track starts playing.When a track or album is being played, the title is shown in a box. The playing track number appears on the display window.RETURNMP3ENTERDIRECTORY:001 1 album 1 2 album 2 3 album 3track 1 00:00OFFFILES:014MP3 track 1MP3 track 2MP3 track 3MP3 track 4MP3 track 5MP3 track 6MP3 track 7MP3 track 8MP3 track 9MP3 track 10vVbBElapsed playing timeRepeat modeRETURNMP3ENTERtrack 1 00:00OFFvVbBDIRECTORY:001 1 album 1 2 album 2 3 album 3FILES:014MP3 track 1MP3 track 2MP3 track 3MP3 track 4MP3 track 5MP3 track 6MP3 track 7MP3 track 8MP3 track 9MP3 track 10RETURNMP3ENTERtrack 1 00:00OFFvVbBDIRECTORY:001 1 album 1 2 album 2 3 album 3FILES:014MP3 track 1MP3 track 2MP3 track 3MP3 track 4MP3 track 5MP3 track 6MP3 track 7MP3 track 8MP3 track 9MP3 track 10GB03COV-US.book Page 90 Wednesday, January 14, 2004 10:27 AM$

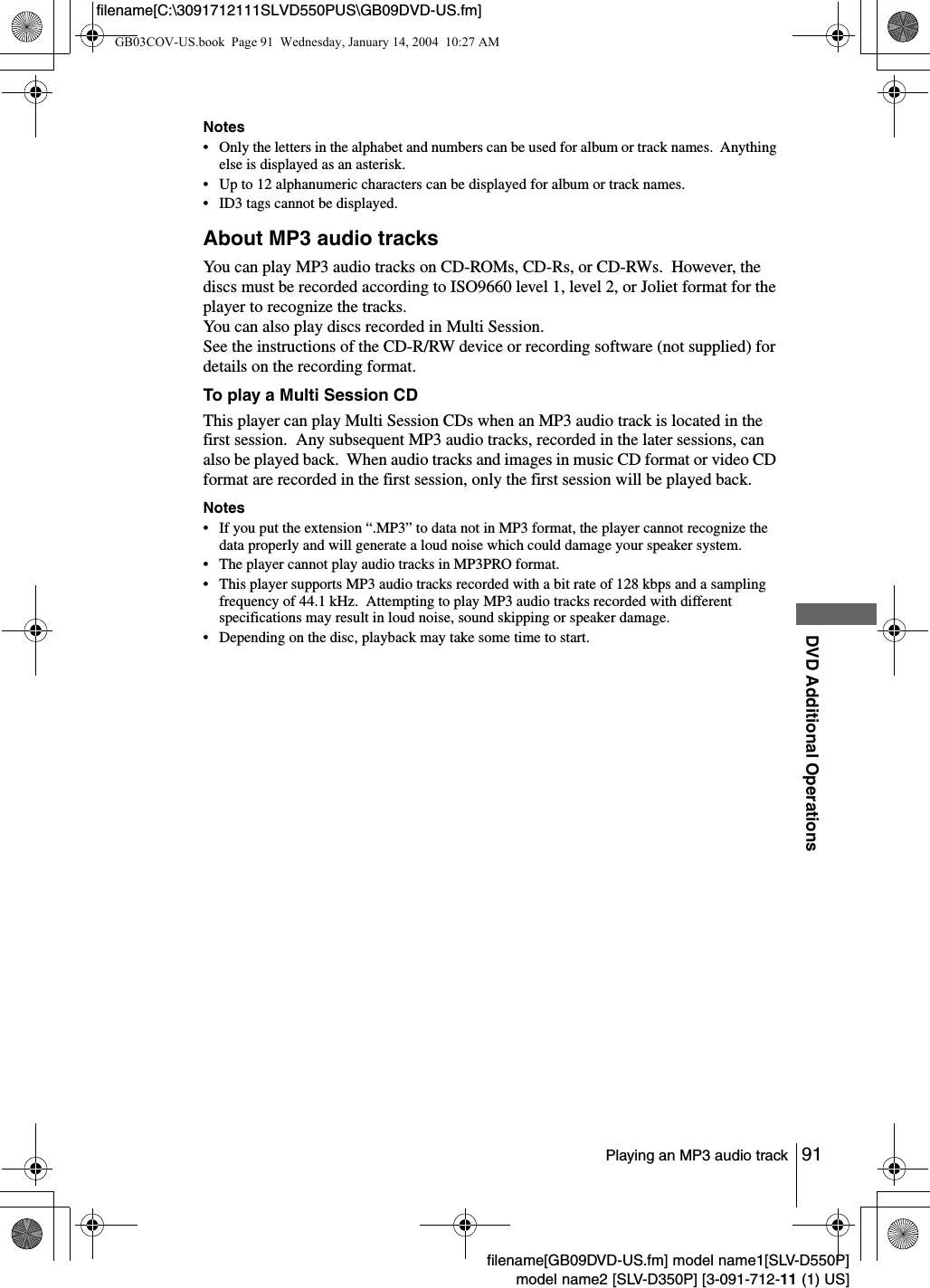

$91Playing an MP3 audio trackDVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Notes• Only the letters in the alphabet and numbers can be used for album or track names. Anything else is displayed as an asterisk.• Up to 12 alphanumeric characters can be displayed for album or track names.• ID3 tags cannot be displayed.About MP3 audio tracksYou can play MP3 audio tracks on CD-ROMs, CD-Rs, or CD-RWs. However, the discs must be recorded according to ISO9660 level 1, level 2, or Joliet format for the player to recognize the tracks.You can also play discs recorded in Multi Session.See the instructions of the CD-R/RW device or recording software (not supplied) for details on the recording format.To play a Multi Session CDThis player can play Multi Session CDs when an MP3 audio track is located in the first session. Any subsequent MP3 audio tracks, recorded in the later sessions, can also be played back. When audio tracks and images in music CD format or video CD format are recorded in the first session, only the first session will be played back.Notes• If you put the extension “.MP3” to data not in MP3 format, the player cannot recognize the data properly and will generate a loud noise which could damage your speaker system.• The player cannot play audio tracks in MP3PRO format.• This player supports MP3 audio tracks recorded with a bit rate of 128 kbps and a sampling frequency of 44.1 kHz. Attempting to play MP3 audio tracks recorded with different specifications may result in loud noise, sound skipping or speaker damage.• Depending on the disc, playback may take some time to start.GB03COV-US.book Page 91 Wednesday, January 14, 2004 10:27 AM$

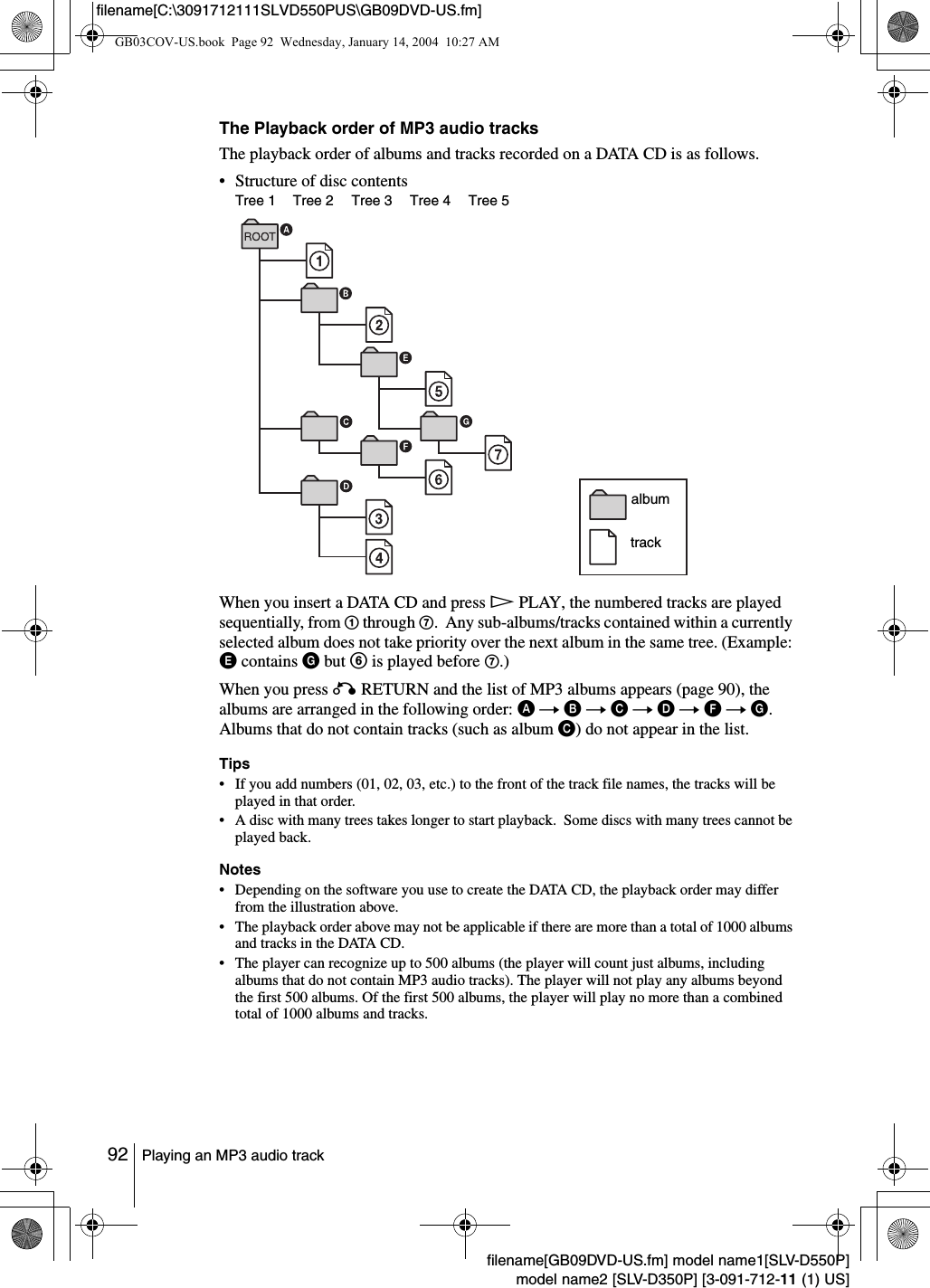

$92 Playing an MP3 audio trackfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]The Playback order of MP3 audio tracksThe playback order of albums and tracks recorded on a DATA CD is as follows.• Structure of disc contentsWhen you insert a DATA CD and press HPLAY, the numbered tracks are played sequentially, from 1 through 7. Any sub-albums/tracks contained within a currently selected album does not take priority over the next album in the same tree. (Example: E contains G but 6 is played before 7.)When you press O RETURN and the list of MP3 albums appears (page 90), the albums are arranged in the following order: A t B t C t D t F t G. Albums that do not contain tracks (such as album C) do not appear in the list.Tips• If you add numbers (01, 02, 03, etc.) to the front of the track file names, the tracks will be played in that order.• A disc with many trees takes longer to start playback. Some discs with many trees cannot be played back.Notes• Depending on the software you use to create the DATA CD, the playback order may differ from the illustration above.• The playback order above may not be applicable if there are more than a total of 1000 albums and tracks in the DATA CD.• The player can recognize up to 500 albums (the player will count just albums, including albums that do not contain MP3 audio tracks). The player will not play any albums beyond the first 500 albums. Of the first 500 albums, the player will play no more than a combined total of 1000 albums and tracks.Tree 1 Tree 2 Tree 3 Tree 4 Tree 5albumtrackGB03COV-US.book Page 92 Wednesday, January 14, 2004 10:27 AM$

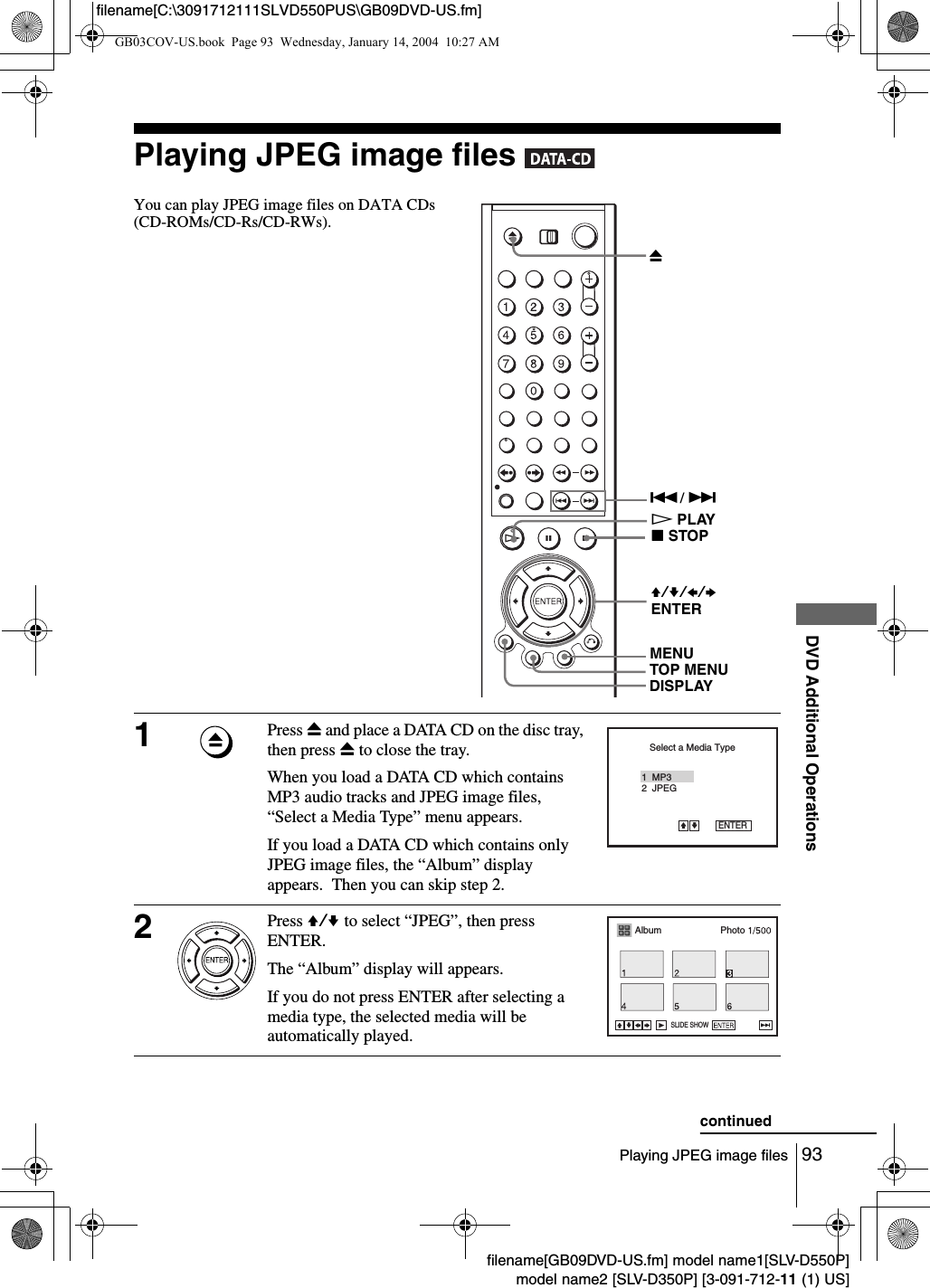

$93Playing JPEG image filesDVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Playing JPEG image files You can play JPEG image files on DATA CDs (CD-ROMs/CD-Rs/CD-RWs). 1Press Z and place a DATA CD on the disc tray, then press Z to close the tray.When you load a DATA CD which contains MP3 audio tracks and JPEG image files, “Select a Media Type” menu appears.If you load a DATA CD which contains only JPEG image files, the “Album” display appears. Then you can skip step 2.2Press V/v to select “JPEG”, then press ENTER.The “Album” display will appears.If you do not press ENTER after selecting a media type, the selected media will be automatically played.V/v/B/b ENTERHPLAYZTOP MENU./ > DISPLAYxSTOPMENUSelect a Media Type2 JPEG1 MP3ENTERvVAlbum PhotoSLIDE SHOWcontinuedGB03COV-US.book Page 93 Wednesday, January 14, 2004 10:27 AM$

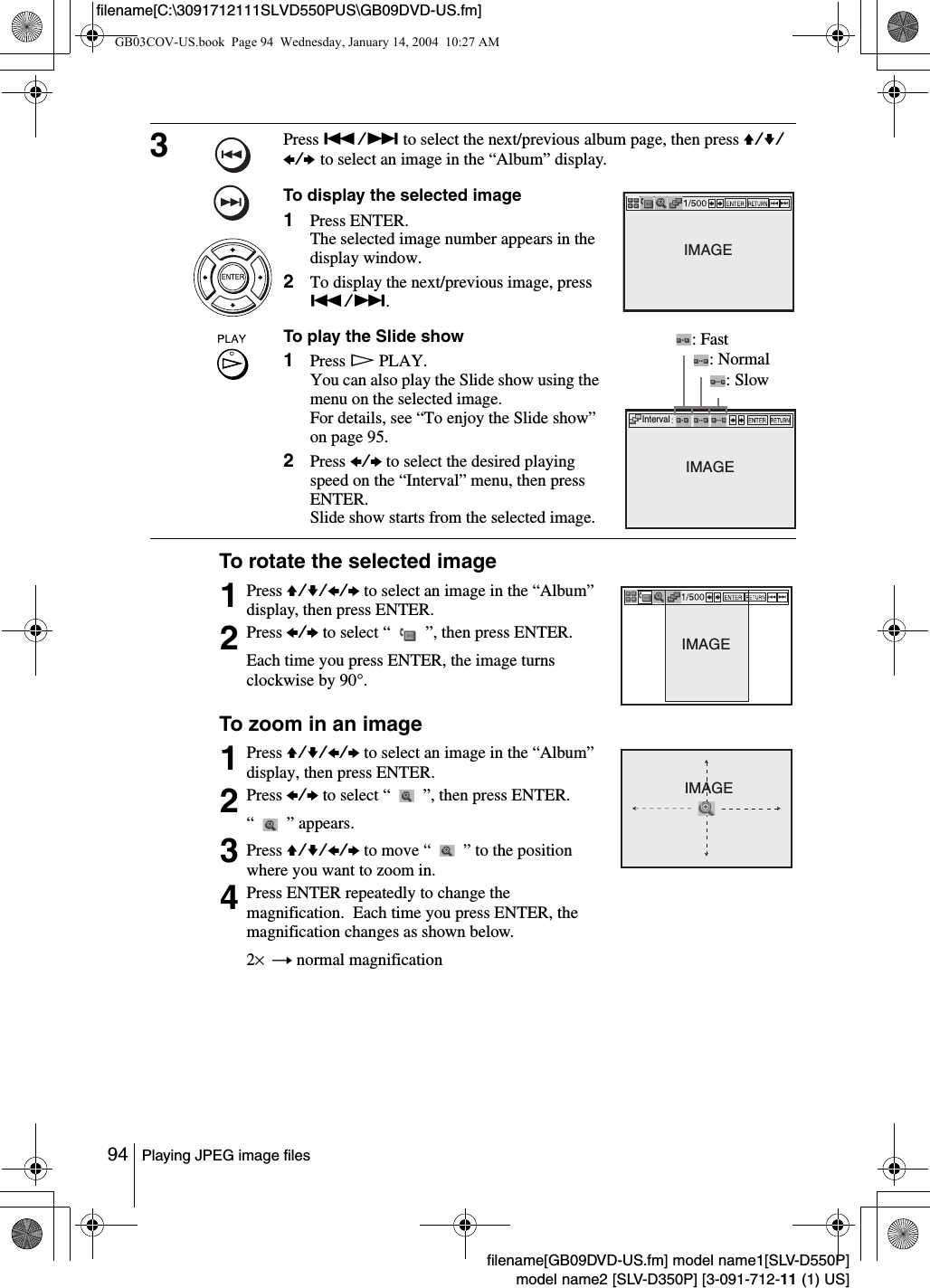

$94 Playing JPEG image filesfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]To rotate the selected imageTo zoom in an image3Press ./> to select the next/previous album page, then press V/v/B/b to select an image in the “Album” display.To display the selected image1Press ENTER.The selected image number appears in the display window.2To display the next/previous image, press ./>.To play the Slide show1Press HPLAY.You can also play the Slide show using the menu on the selected image.For details, see “To enjoy the Slide show” on page 95.2Press B/b to select the desired playing speed on the “Interval” menu, then press ENTER.Slide show starts from the selected image.1Press V/v/B/b to select an image in the “Album” display, then press ENTER.2Press B/b to select “ ”, then press ENTER.Each time you press ENTER, the image turns clockwise by 90°.1Press V/v/B/b to select an image in the “Album” display, then press ENTER.2Press B/b to select “ ”, then press ENTER.“ ” appears. 3Press V/v/B/b to move “ ” to the position where you want to zoom in.4Press ENTER repeatedly to change the magnification. Each time you press ENTER, the magnification changes as shown below.2× t normal magnificationIMAGEIntervalIMAGE: Fast: Normal: SlowIMAGEIMAGEGB03COV-US.book Page 94 Wednesday, January 14, 2004 10:27 AM$

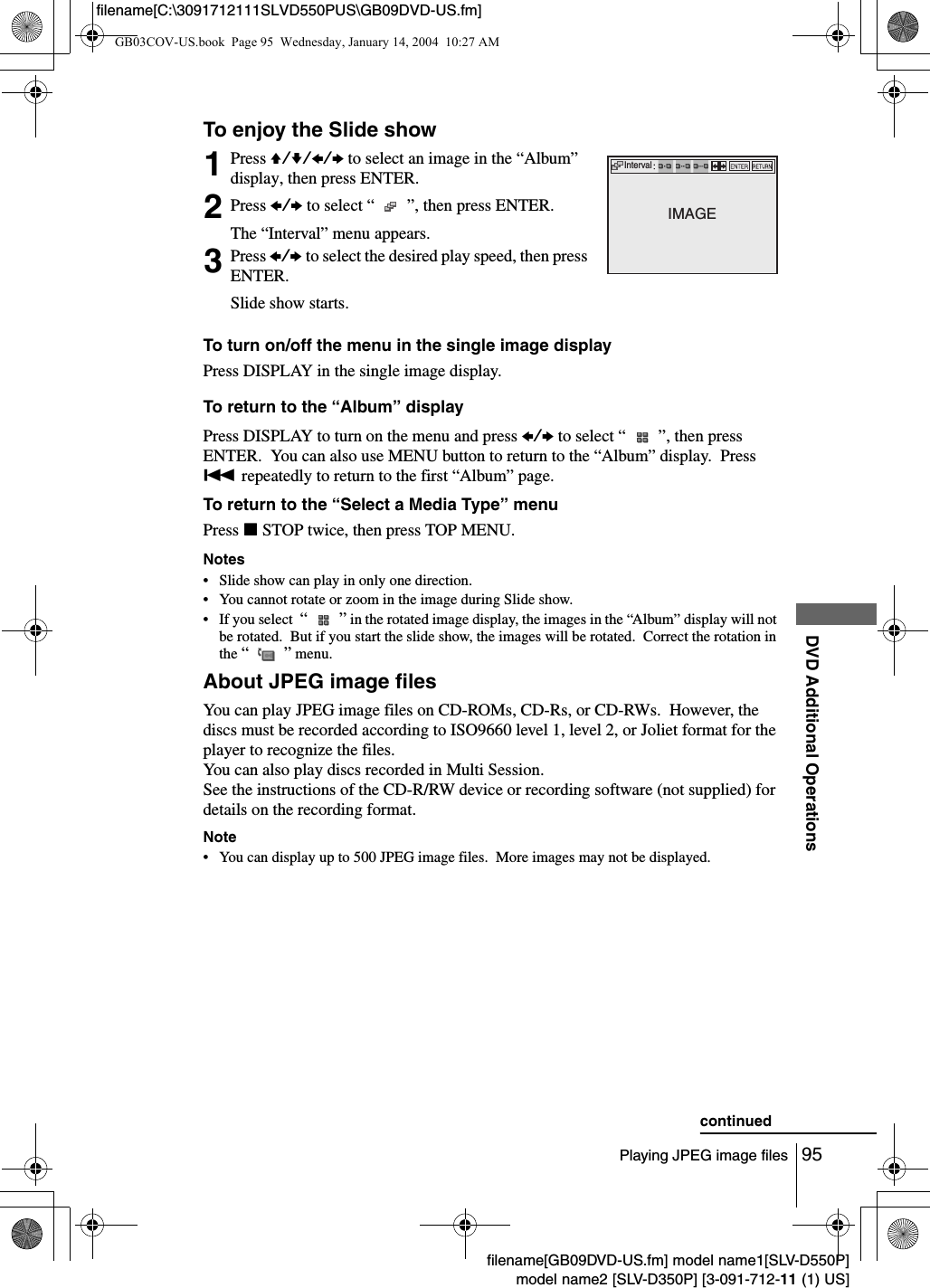

$95Playing JPEG image filesDVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]To enjoy the Slide showTo turn on/off the menu in the single image displayPress DISPLAY in the single image display.To return to the “Album” displayPress DISPLAY to turn on the menu and press B/b to select “ ”, then press ENTER. You can also use MENU button to return to the “Album” display. Press . repeatedly to return to the first “Album” page.To return to the “Select a Media Type” menuPress xSTOP twice, then press TOP MENU.Notes• Slide show can play in only one direction.• You cannot rotate or zoom in the image during Slide show.• If you select “ ” in the rotated image display, the images in the “Album” display will not be rotated. But if you start the slide show, the images will be rotated. Correct the rotation in the “ ” menu.About JPEG image filesYou can play JPEG image files on CD-ROMs, CD-Rs, or CD-RWs. However, the discs must be recorded according to ISO9660 level 1, level 2, or Joliet format for the player to recognize the files.You can also play discs recorded in Multi Session.See the instructions of the CD-R/RW device or recording software (not supplied) for details on the recording format.Note• You can display up to 500 JPEG image files. More images may not be displayed.1Press V/v/B/b to select an image in the “Album” display, then press ENTER.2Press B/b to select “ ”, then press ENTER.The “Interval” menu appears.3Press B/b to select the desired play speed, then press ENTER.Slide show starts.IntervalIMAGEcontinuedGB03COV-US.book Page 95 Wednesday, January 14, 2004 10:27 AM$

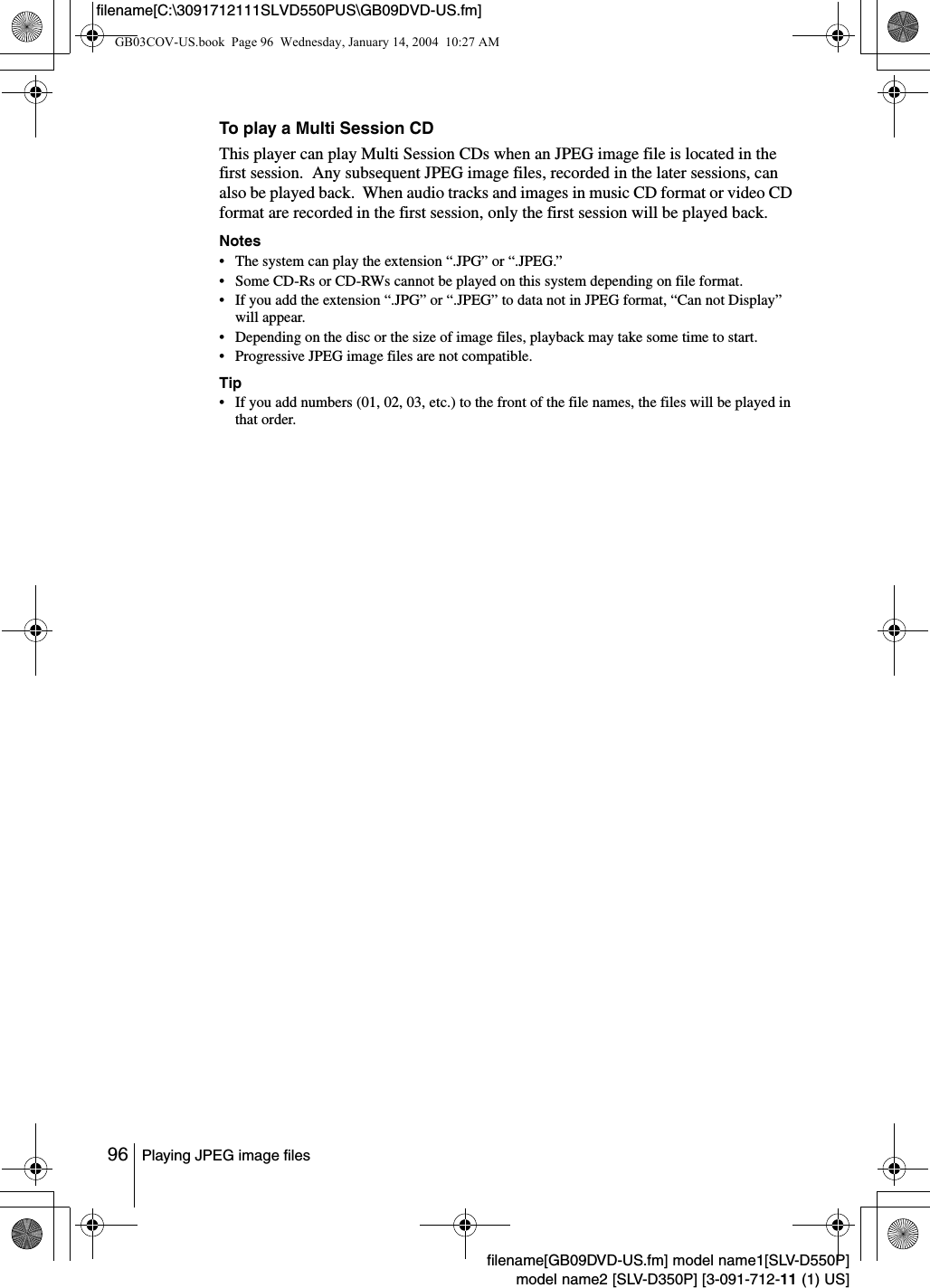

$96 Playing JPEG image filesfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]To play a Multi Session CDThis player can play Multi Session CDs when an JPEG image file is located in the first session. Any subsequent JPEG image files, recorded in the later sessions, can also be played back. When audio tracks and images in music CD format or video CD format are recorded in the first session, only the first session will be played back.Notes• The system can play the extension “.JPG” or “.JPEG.”• Some CD-Rs or CD-RWs cannot be played on this system depending on file format.• If you add the extension “.JPG” or “.JPEG” to data not in JPEG format, “Can not Display” will appear.• Depending on the disc or the size of image files, playback may take some time to start.• Progressive JPEG image files are not compatible.Tip• If you add numbers (01, 02, 03, etc.) to the front of the file names, the files will be played in that order.GB03COV-US.book Page 96 Wednesday, January 14, 2004 10:27 AM$

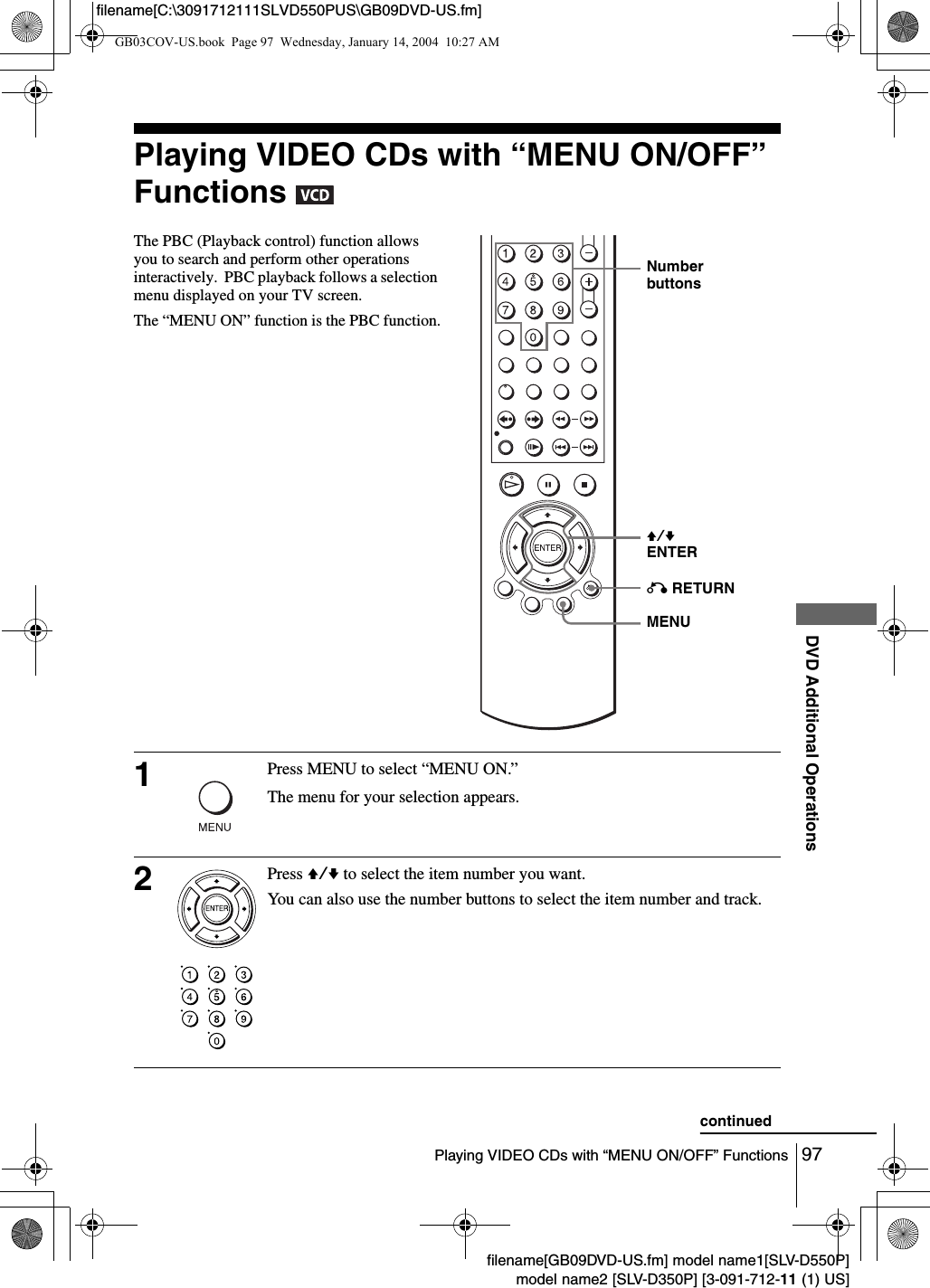

$97Playing VIDEO CDs with “MENU ON/OFF” FunctionsDVD Additional Operationsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]Playing VIDEO CDs with “MENU ON/OFF” Functions The PBC (Playback control) function allows you to search and perform other operations interactively. PBC playback follows a selection menu displayed on your TV screen.The “MENU ON” function is the PBC function.1Press MENU to select “MENU ON.”The menu for your selection appears.2Press V/v to select the item number you want.You can also use the number buttons to select the item number and track.V/vENTERNumber buttonsO RETURNMENUcontinuedGB03COV-US.book Page 97 Wednesday, January 14, 2004 10:27 AM$

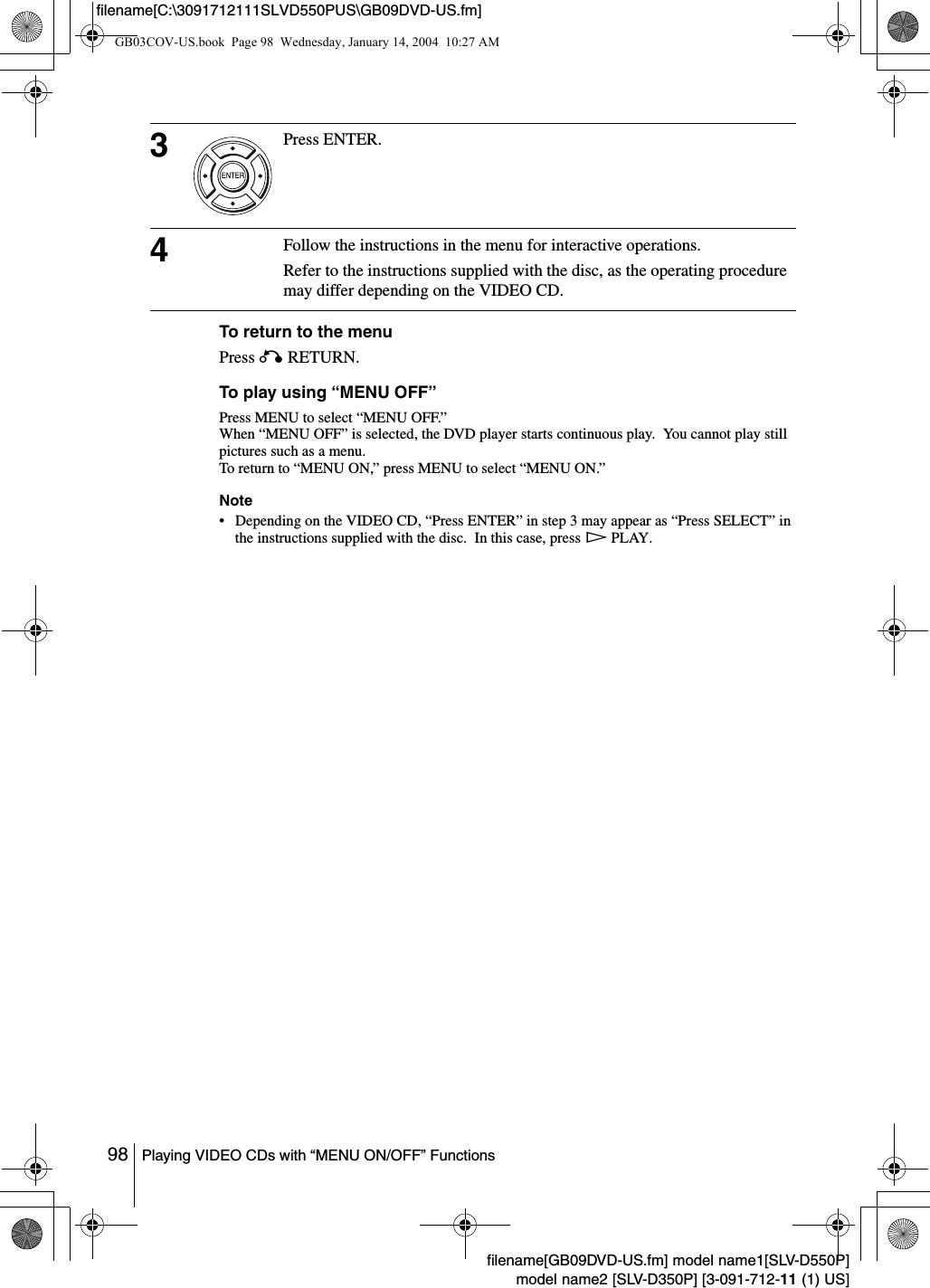

$98 Playing VIDEO CDs with “MENU ON/OFF” Functionsfilename[GB09DVD-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB09DVD-US.fm]To return to the menuPress O RETURN.To play using “MENU OFF”Press MENU to select “MENU OFF.”When “MENU OFF” is selected, the DVD player starts continuous play. You cannot play still pictures such as a menu. To return to “MENU ON,” press MENU to select “MENU ON.”Note• Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H PLAY.3Press ENTER.4Follow the instructions in the menu for interactive operations.Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD.GB03COV-US.book Page 98 Wednesday, January 14, 2004 10:27 AM$

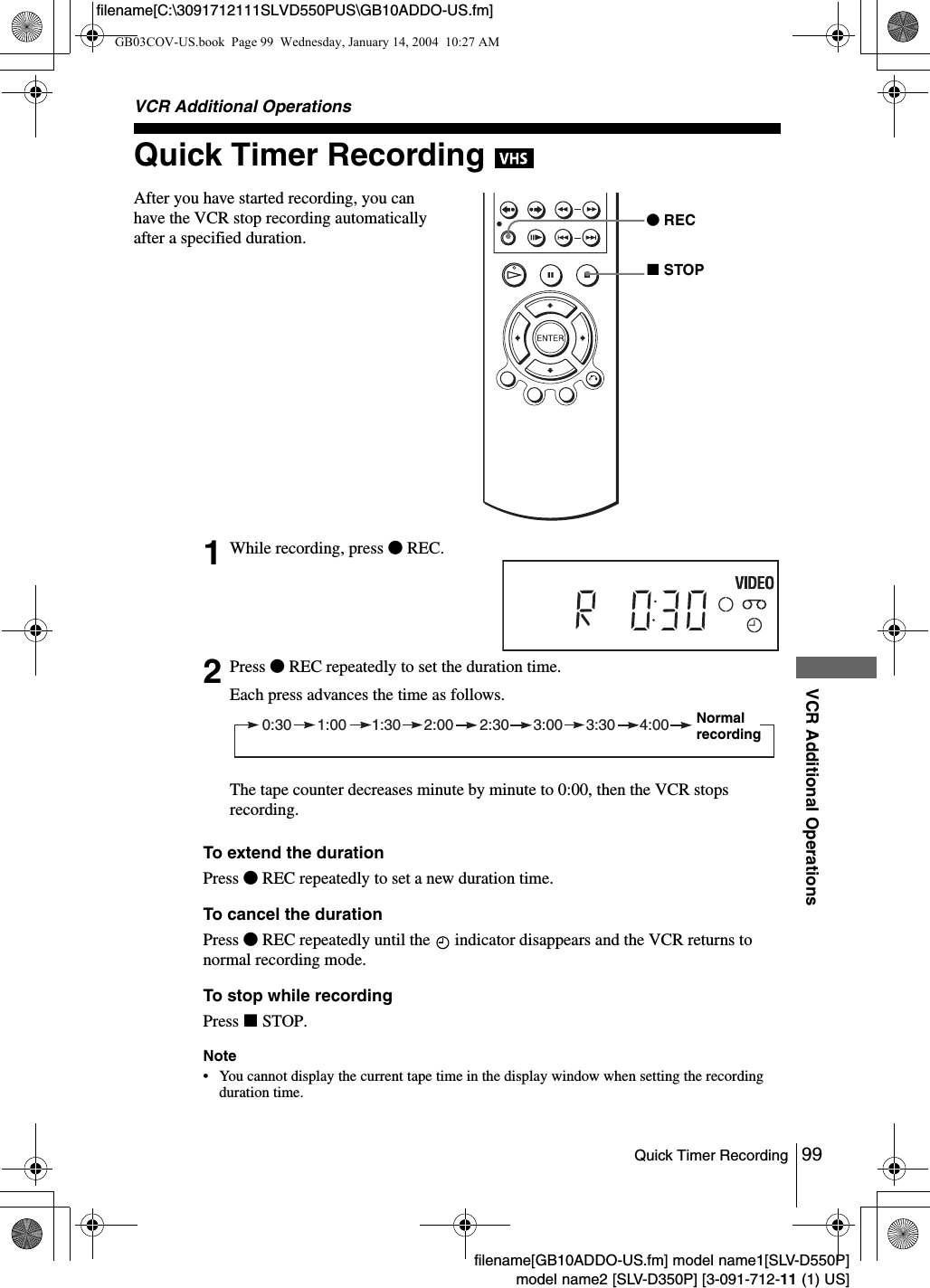

$99Quick Timer RecordingVCR Additional Operationsfilename[GB10ADDO-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB10ADDO-US.fm]VCR Additional OperationsQuick Timer Recording To extend the durationPress zREC repeatedly to set a new duration time.To cancel the durationPress zREC repeatedly until the indicator disappears and the VCR returns to normal recording mode.To stop while recordingPress xSTOP.Note• You cannot display the current tape time in the display window when setting the recording duration time.After you have started recording, you can have the VCR stop recording automatically after a specified duration.1While recording, press zREC.2Press zREC repeatedly to set the duration time.Each press advances the time as follows.The tape counter decreases minute by minute to 0:00, then the VCR stops recording.zRECxSTOP0:30 1:00 1:30 2:00 2:30 3:00 3:30 4:00 Normal recordingGB03COV-US.book Page 99 Wednesday, January 14, 2004 10:27 AM$

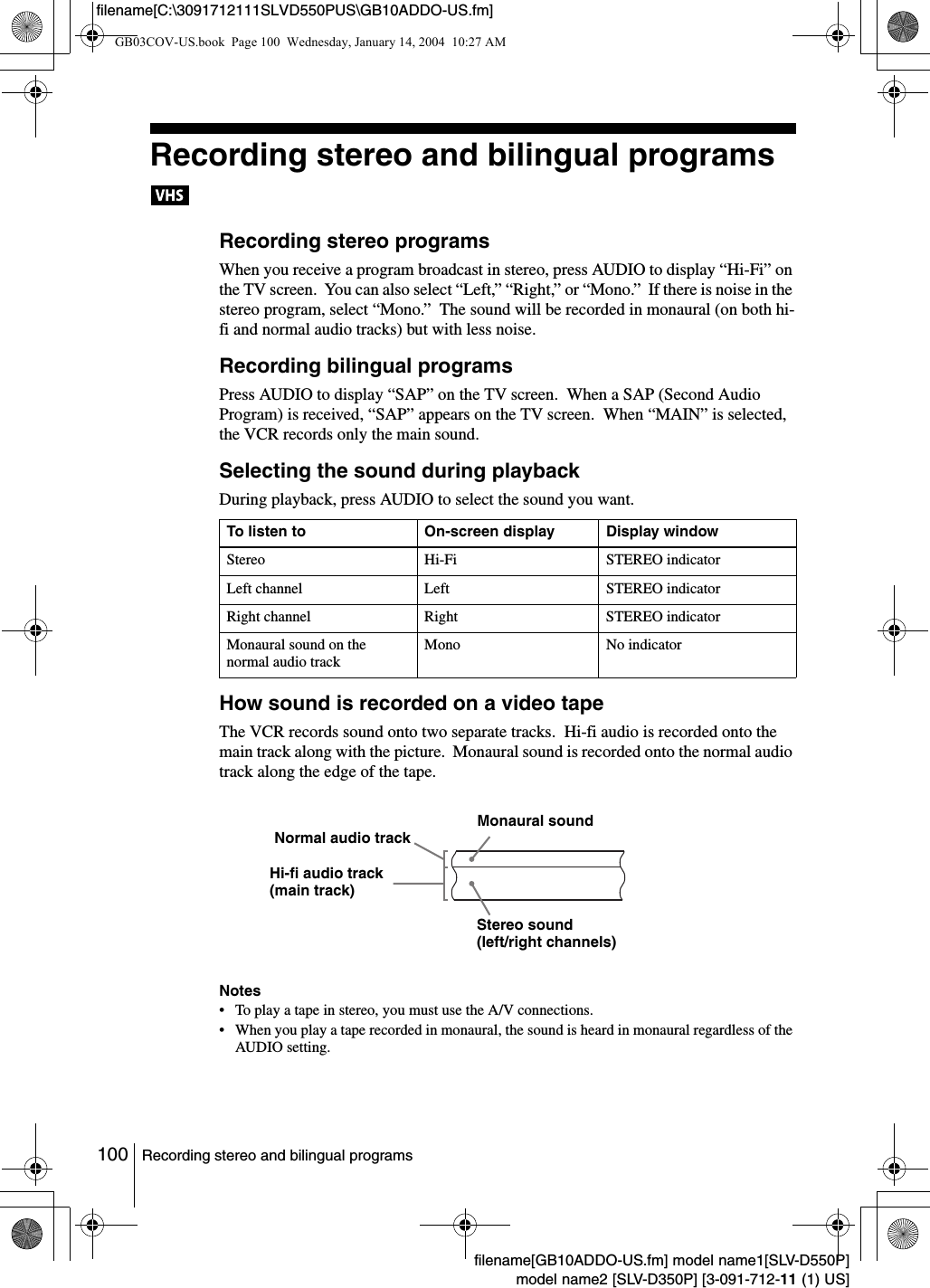

$100 Recording stereo and bilingual programsfilename[GB10ADDO-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB10ADDO-US.fm]Recording stereo and bilingual programs Recording stereo programsWhen you receive a program broadcast in stereo, press AUDIO to display “Hi-Fi” on the TV screen. You can also select “Left,” “Right,” or “Mono.” If there is noise in the stereo program, select “Mono.” The sound will be recorded in monaural (on both hi-fi and normal audio tracks) but with less noise.Recording bilingual programsPress AUDIO to display “SAP” on the TV screen. When a SAP (Second Audio Program) is received, “SAP” appears on the TV screen. When “MAIN” is selected, the VCR records only the main sound.Selecting the sound during playbackDuring playback, press AUDIO to select the sound you want.How sound is recorded on a video tapeThe VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the main track along with the picture. Monaural sound is recorded onto the normal audio track along the edge of the tape.Notes• To play a tape in stereo, you must use the A/V connections.• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the AUDIO setting.To listen to On-screen display Display windowStereo Hi-Fi STEREO indicatorLeft channel Left STEREO indicatorRight channel Right STEREO indicatorMonaural sound on the normal audio trackMono No indicatorNormal audio trackHi-fi audio track(main track)Monaural soundStereo sound(left/right channels)GB03COV-US.book Page 100 Wednesday, January 14, 2004 10:27 AM$

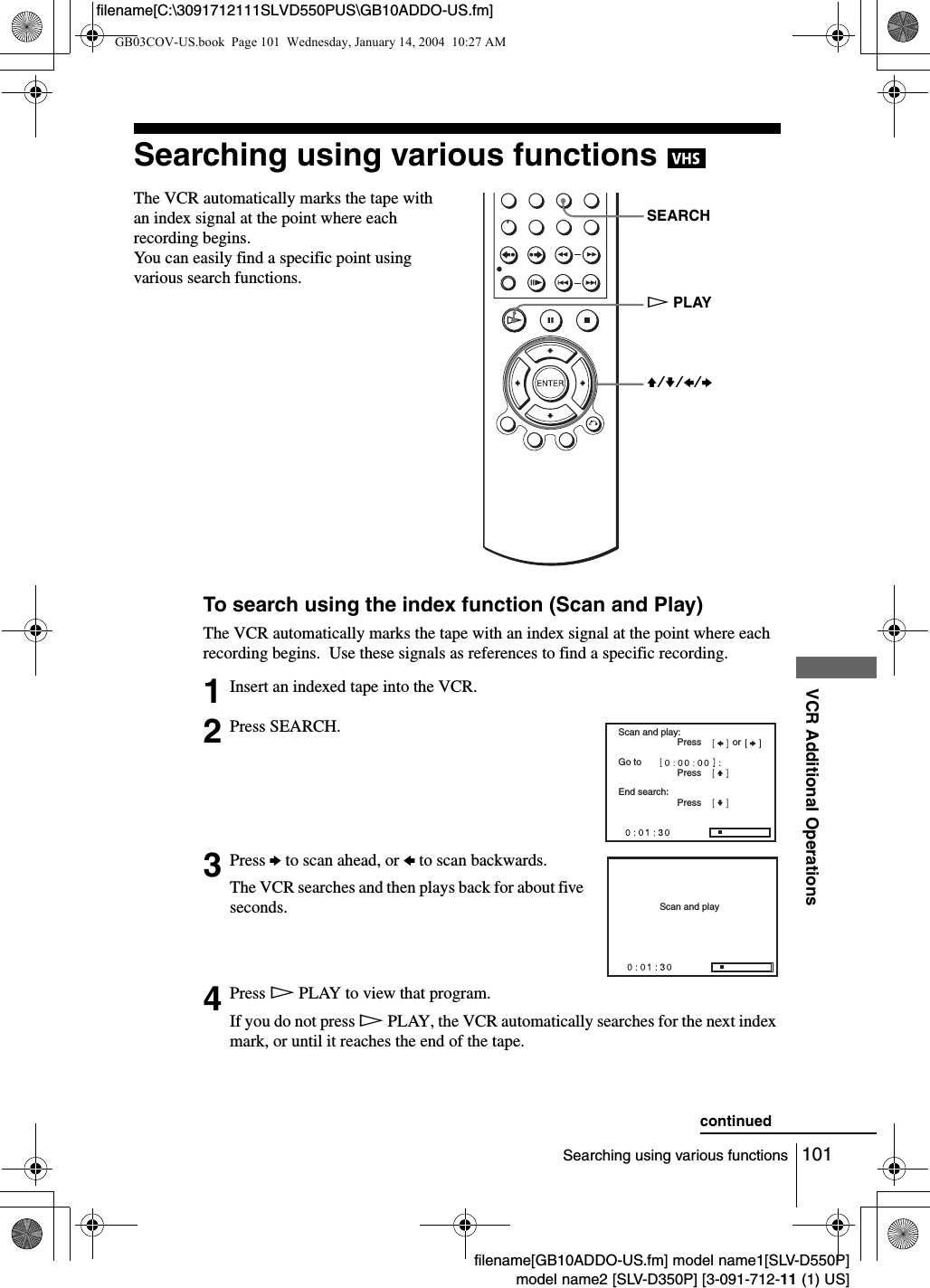

$101Searching using various functionsVCR Additional Operationsfilename[GB10ADDO-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB10ADDO-US.fm]Searching using various functions To search using the index function (Scan and Play)The VCR automatically marks the tape with an index signal at the point where each recording begins. Use these signals as references to find a specific recording.The VCR automatically marks the tape with an index signal at the point where each recording begins. You can easily find a specific point using various search functions. 1Insert an indexed tape into the VCR.2Press SEARCH.3Press b to scan ahead, or B to scan backwards.The VCR searches and then plays back for about five seconds.4Press HPLAY to view that program.If you do not press HPLAY, the VCR automatically searches for the next index mark, or until it reaches the end of the tape.SEARCHV/v/B/bHPLAYScan and play:Go toEnd search:PressPressPressorScan and playcontinuedGB03COV-US.book Page 101 Wednesday, January 14, 2004 10:27 AM$

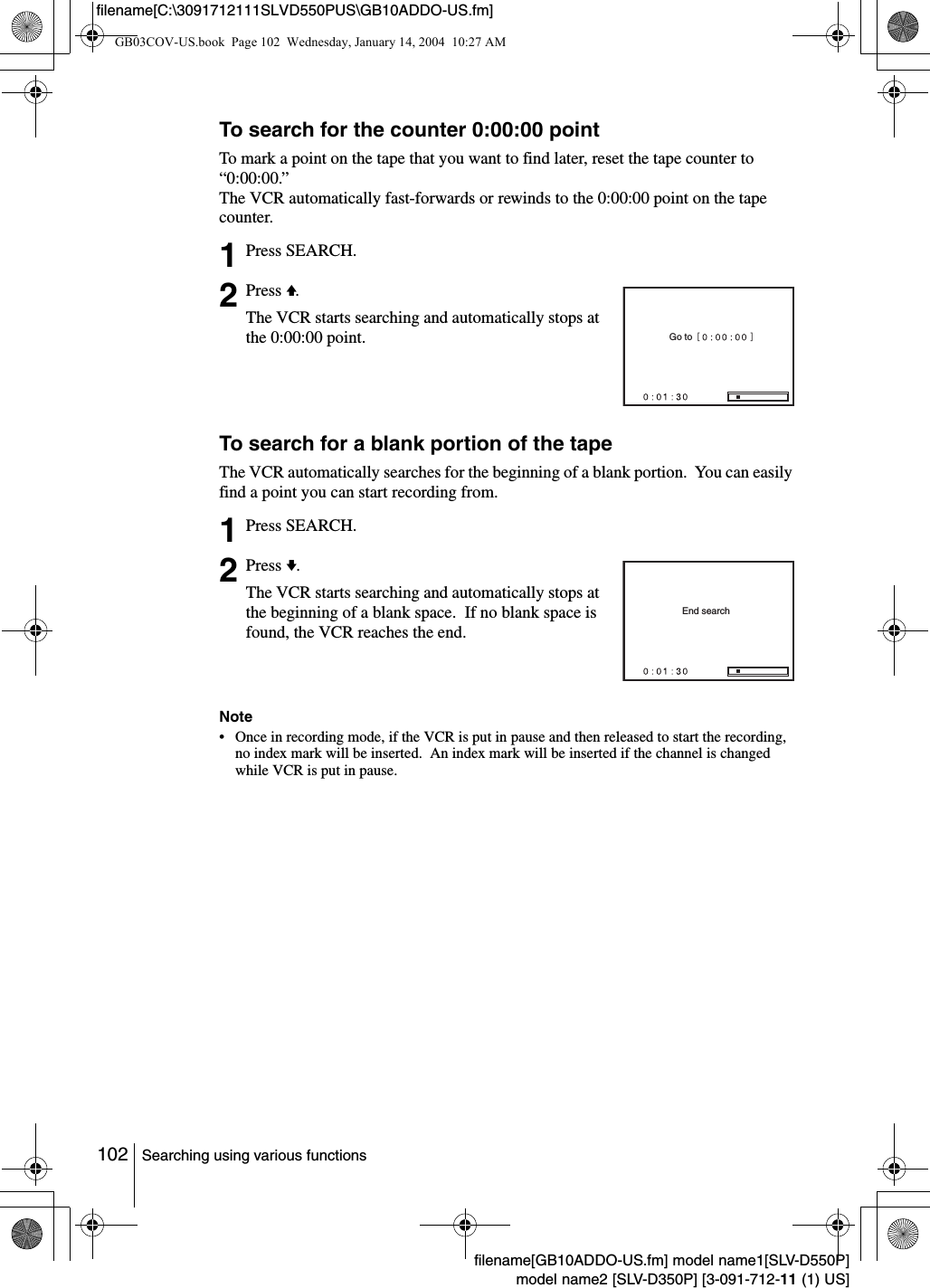

$102 Searching using various functionsfilename[GB10ADDO-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB10ADDO-US.fm]To search for the counter 0:00:00 pointTo mark a point on the tape that you want to find later, reset the tape counter to “0:00:00.”The VCR automatically fast-forwards or rewinds to the 0:00:00 point on the tape counter.To search for a blank portion of the tapeThe VCR automatically searches for the beginning of a blank portion. You can easily find a point you can start recording from.Note• Once in recording mode, if the VCR is put in pause and then released to start the recording, no index mark will be inserted. An index mark will be inserted if the channel is changed while VCR is put in pause.1Press SEARCH.2Press V.The VCR starts searching and automatically stops at the 0:00:00 point.1Press SEARCH.2Press v.The VCR starts searching and automatically stops at the beginning of a blank space. If no blank space is found, the VCR reaches the end.Go toEnd searchGB03COV-US.book Page 102 Wednesday, January 14, 2004 10:27 AM$

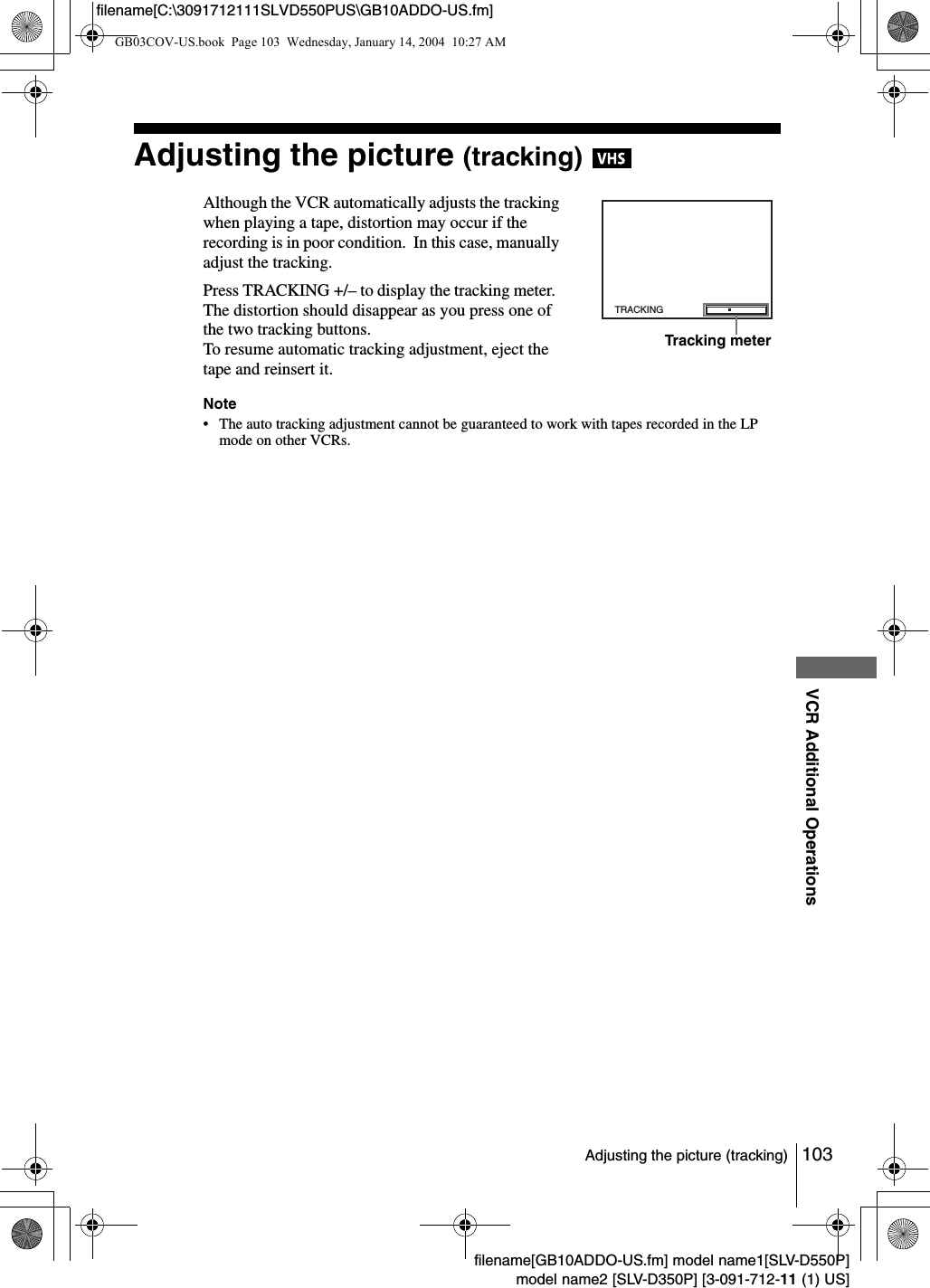

$103Adjusting the picture (tracking)VCR Additional Operationsfilename[GB10ADDO-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB10ADDO-US.fm]Adjusting the picture (tracking) Although the VCR automatically adjusts the tracking when playing a tape, distortion may occur if the recording is in poor condition. In this case, manually adjust the tracking.Press TRACKING +/– to display the tracking meter. The distortion should disappear as you press one of the two tracking buttons. To resume automatic tracking adjustment, eject the tape and reinsert it.Note• The auto tracking adjustment cannot be guaranteed to work with tapes recorded in the LP mode on other VCRs.TRACKINGTracking meterGB03COV-US.book Page 103 Wednesday, January 14, 2004 10:27 AM$

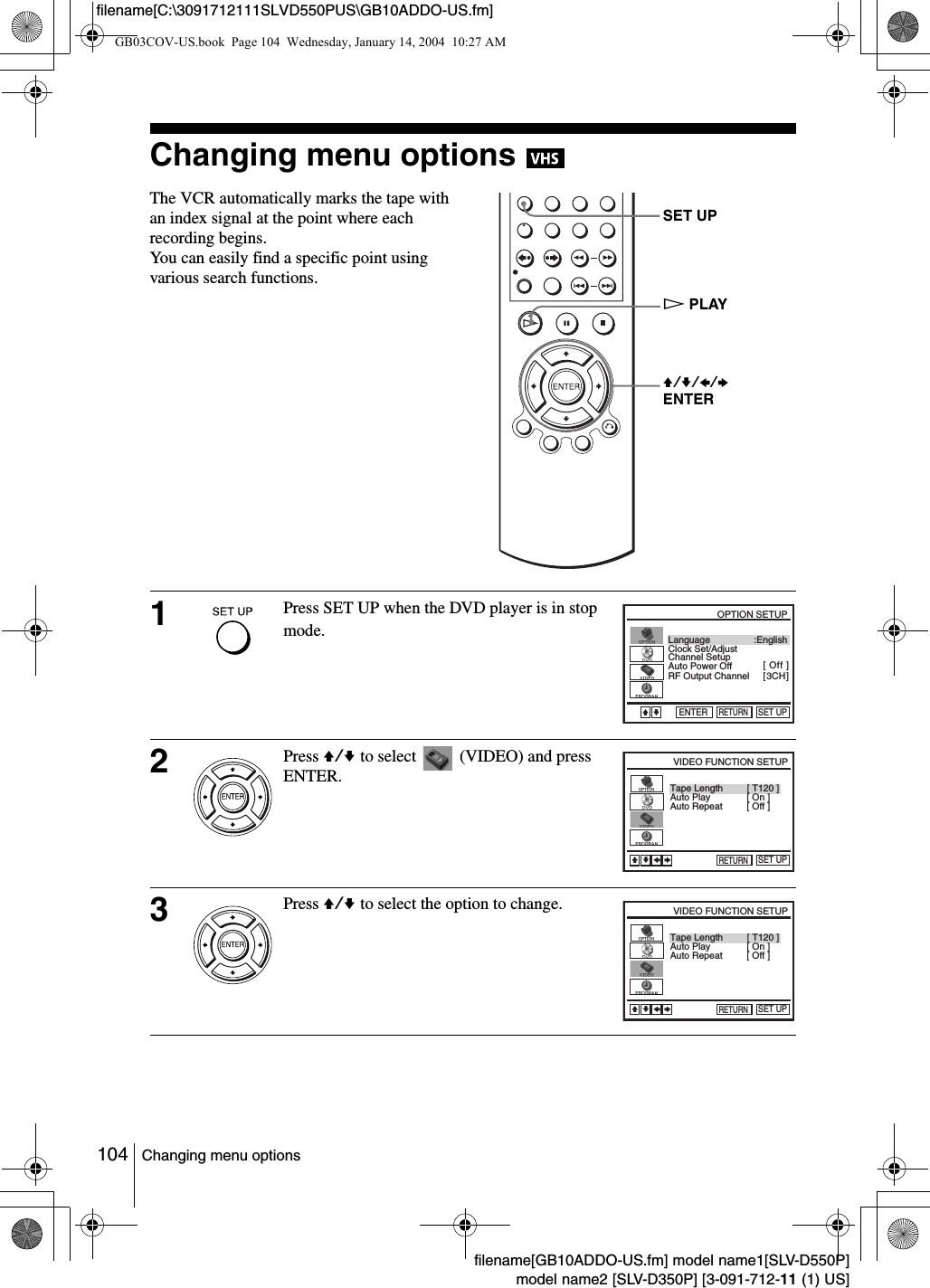

$104 Changing menu optionsfilename[GB10ADDO-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB10ADDO-US.fm]Changing menu options The VCR automatically marks the tape with an index signal at the point where each recording begins. You can easily find a specific point using various search functions. 1Press SET UP when the DVD player is in stop mode. 2Press V/v to select (VIDEO) and press ENTER.3Press V/v to select the option to change.SET UPV/v/B/bENTERHPLAYLanguageChannel SetupAuto Power OffRF Output ChannelClock Set/Adjust :English[ Off ][ 3CH ]RETURNOPTION SETUPSET UPENTERvVTape LengthAuto PlayRETURNVIDEO FUNCTION SETUPSET UPvVbB[ T120 ][ On ]Auto Repeat [ Off ]Tape LengthAuto PlayRETURNVIDEO FUNCTION SETUPSET UPvVbB[ T120 ][ On ]Auto Repeat [ Off ]GB03COV-US.book Page 104 Wednesday, January 14, 2004 10:27 AM$

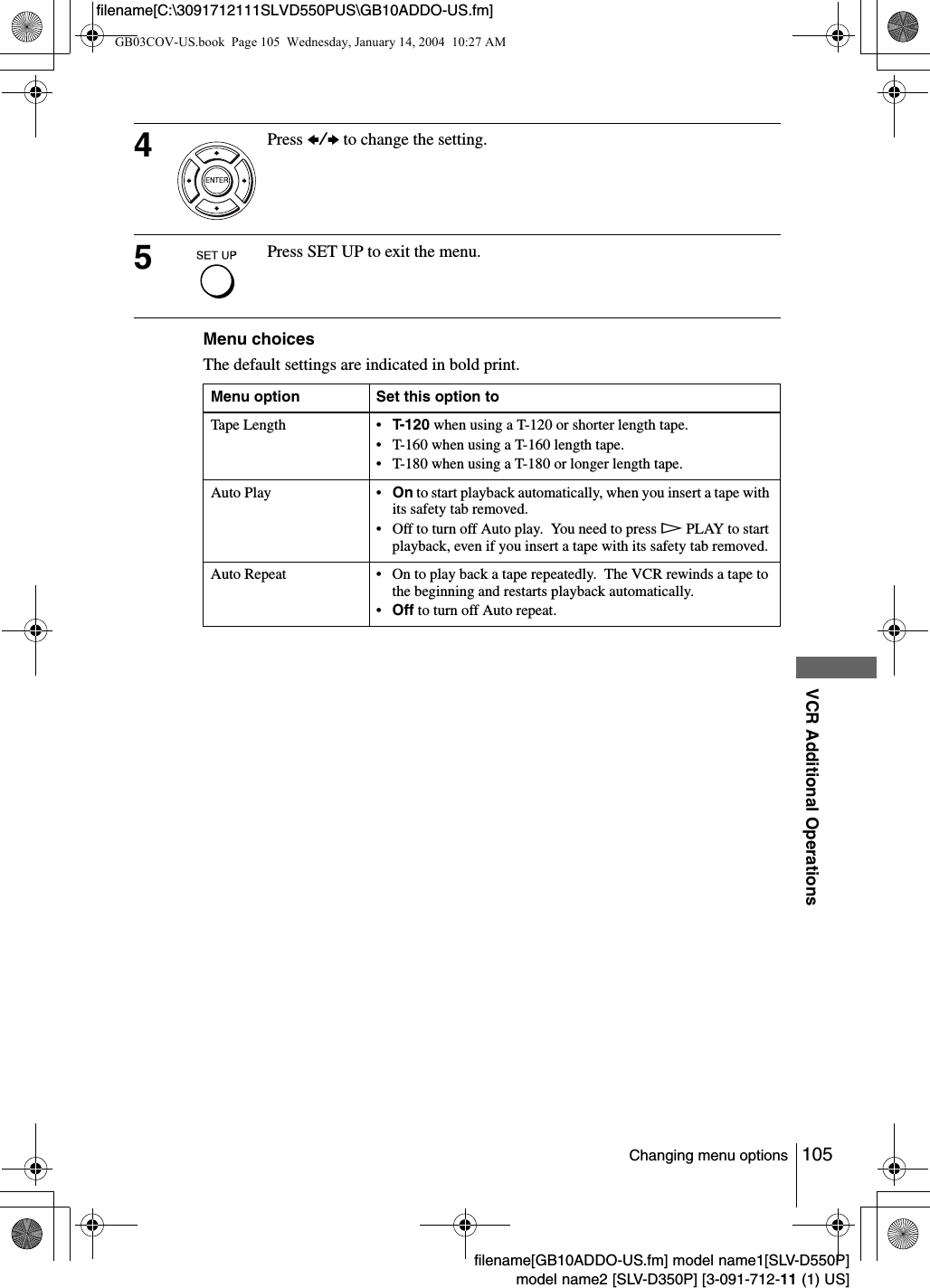

$105Changing menu optionsVCR Additional Operationsfilename[GB10ADDO-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB10ADDO-US.fm]Menu choicesThe default settings are indicated in bold print.4Press B/b to change the setting.5Press SET UP to exit the menu.Menu option Set this option toTape Length • T-120 when using a T-120 or shorter length tape.• T-160 when using a T-160 length tape.• T-180 when using a T-180 or longer length tape.Auto Play • On to start playback automatically, when you insert a tape with its safety tab removed.• Off to turn off Auto play. You need to press HPLAY to start playback, even if you insert a tape with its safety tab removed.Auto Repeat • On to play back a tape repeatedly. The VCR rewinds a tape to the beginning and restarts playback automatically.•Off to turn off Auto repeat.GB03COV-US.book Page 105 Wednesday, January 14, 2004 10:27 AM$

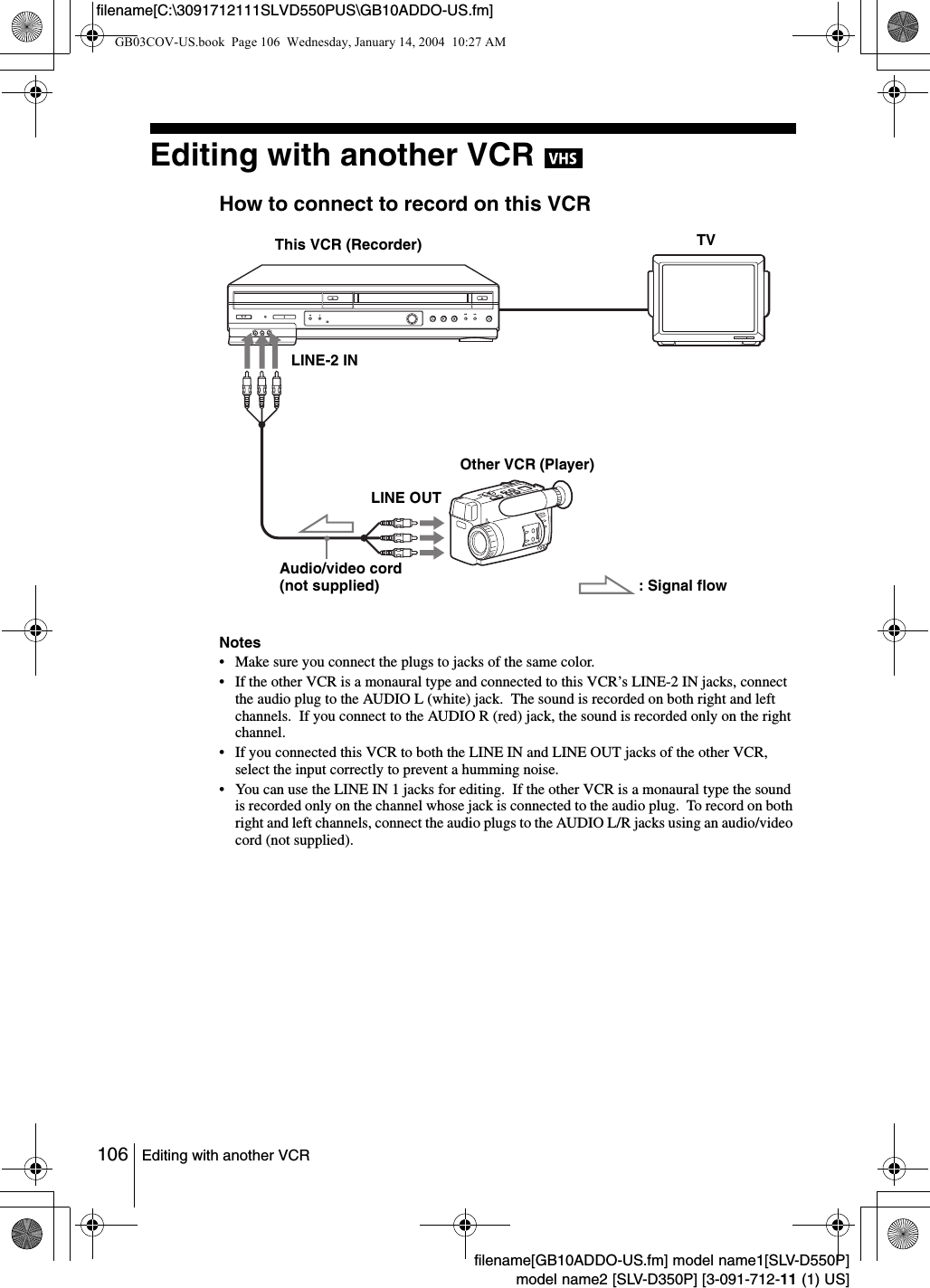

$106 Editing with another VCRfilename[GB10ADDO-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB10ADDO-US.fm]Editing with another VCR How to connect to record on this VCRNotes• Make sure you connect the plugs to jacks of the same color.• If the other VCR is a monaural type and connected to this VCR’s LINE-2 IN jacks, connect the audio plug to the AUDIO L (white) jack. The sound is recorded on both right and left channels. If you connect to the AUDIO R (red) jack, the sound is recorded only on the right channel.• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other VCR, select the input correctly to prevent a humming noise.• You can use the LINE IN 1 jacks for editing. If the other VCR is a monaural type the sound is recorded only on the channel whose jack is connected to the audio plug. To record on both right and left channels, connect the audio plugs to the AUDIO L/R jacks using an audio/video cord (not supplied).This VCR (Recorder)Other VCR (Player)LINE OUT: Signal flowLINE-2 INTVAudio/video cord (not supplied)GB03COV-US.book Page 106 Wednesday, January 14, 2004 10:27 AM$

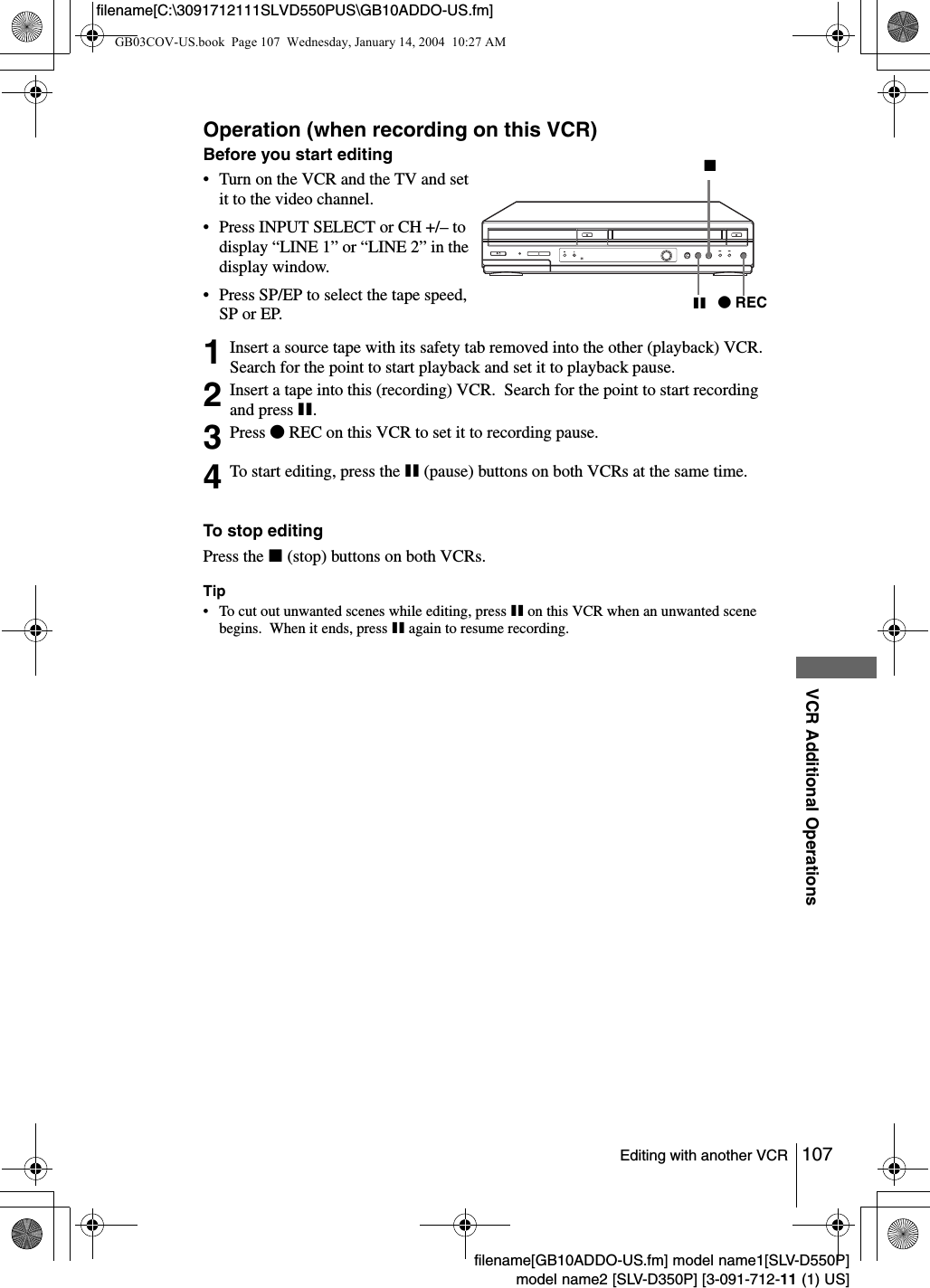

$107Editing with another VCRVCR Additional Operationsfilename[GB10ADDO-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB10ADDO-US.fm]Operation (when recording on this VCR)To stop editingPress the x (stop) buttons on both VCRs.Tip• To cut out unwanted scenes while editing, press X on this VCR when an unwanted scene begins. When it ends, press X again to resume recording.Before you start editing• Turn on the VCR and the TV and set it to the video channel.• Press INPUT SELECT or CH +/– to display “LINE 1” or “LINE 2” in the display window.• Press SP/EP to select the tape speed, SP or EP.1Insert a source tape with its safety tab removed into the other (playback) VCR. Search for the point to start playback and set it to playback pause.2Insert a tape into this (recording) VCR. Search for the point to start recording and press X.3Press zREC on this VCR to set it to recording pause.4To start editing, press the X (pause) buttons on both VCRs at the same time.zRECXxGB03COV-US.book Page 107 Wednesday, January 14, 2004 10:27 AM$

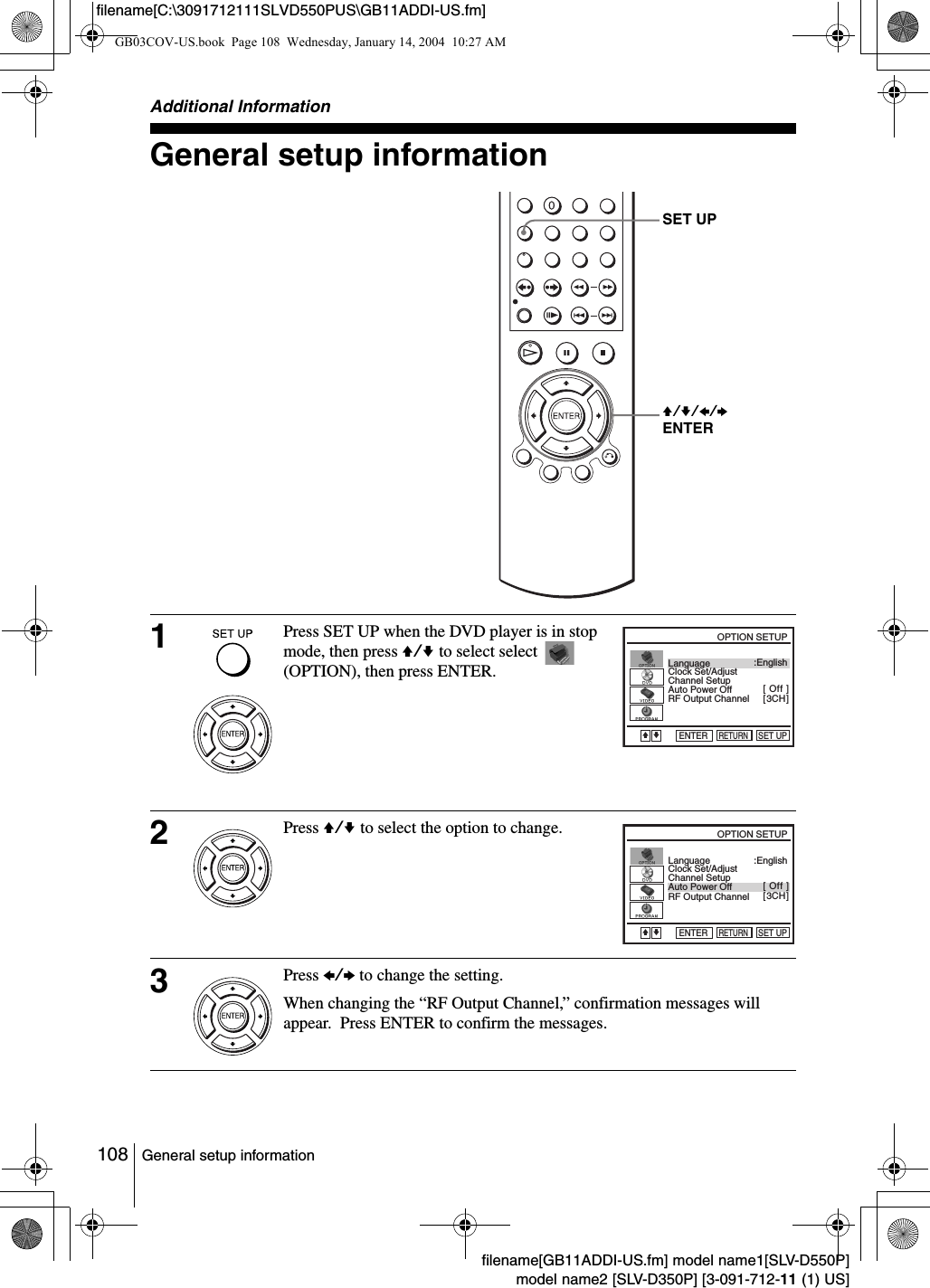

$108 General setup informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]Additional InformationGeneral setup information1Press SET UP when the DVD player is in stop mode, then press V/v to select select (OPTION), then press ENTER.2Press V/v to select the option to change.3Press B/b to change the setting.When changing the “RF Output Channel,” confirmation messages will appear. Press ENTER to confirm the messages.SET UPV/v/B/bENTERLanguageChannel SetupAuto Power OffRF Output ChannelClock Set/Adjust :English[ Off ][ 3CH ]RETURNOPTION SETUPSET UPENTERvVLanguageChannel SetupAuto Power OffRF Output ChannelClock Set/Adjust :English[ Off ][ 3CH ]RETURNOPTION SETUPSET UPENTERvVGB03COV-US.book Page 108 Wednesday, January 14, 2004 10:27 AM$

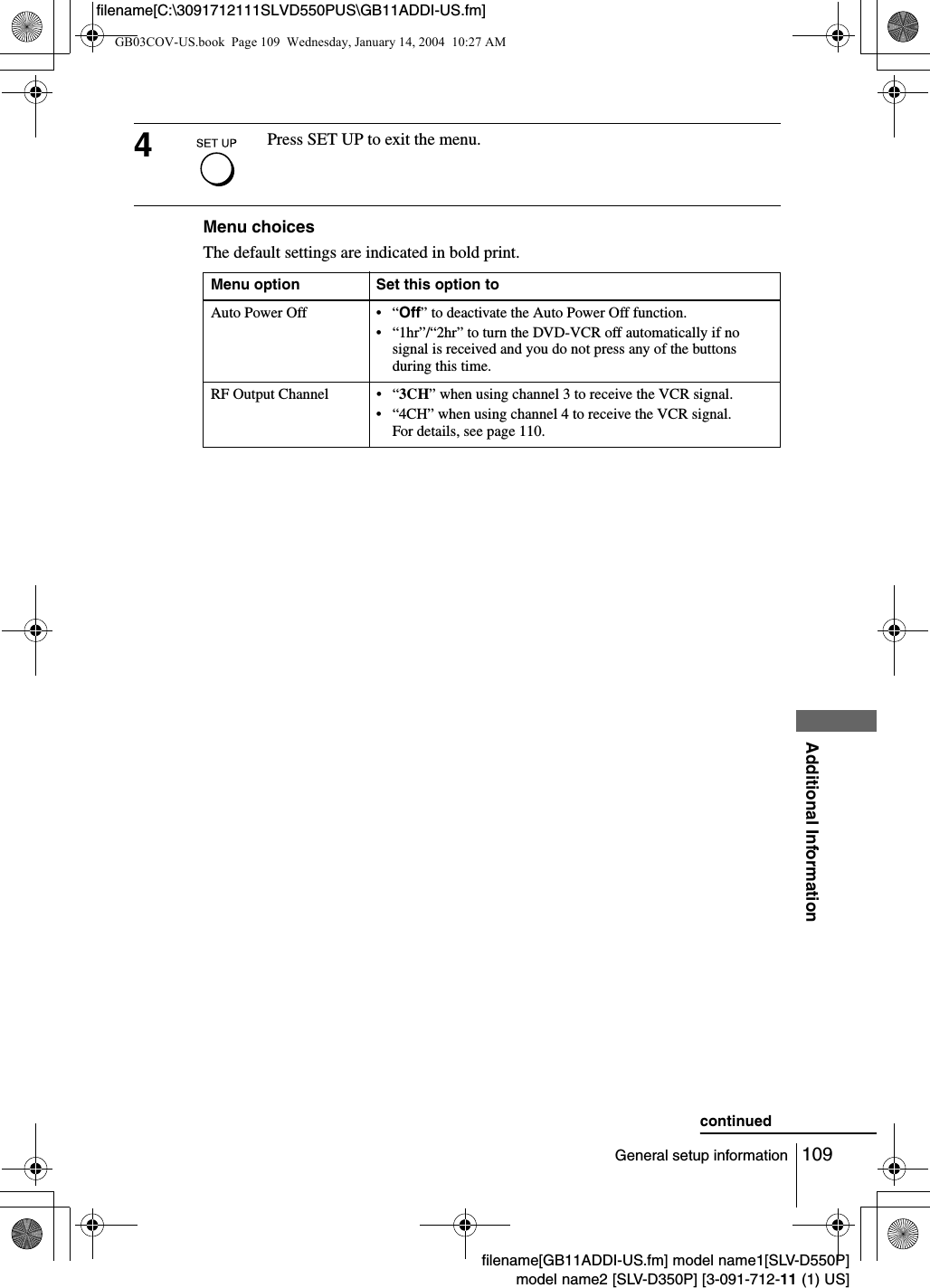

$109General setup informationAdditional Informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]Menu choicesThe default settings are indicated in bold print.4Press SET UP to exit the menu.Menu option Set this option toAuto Power Off • “Off” to deactivate the Auto Power Off function.• “1hr”/“2hr” to turn the DVD-VCR off automatically if no signal is received and you do not press any of the buttons during this time.RF Output Channel • “3CH” when using channel 3 to receive the VCR signal.• “4CH” when using channel 4 to receive the VCR signal.For details, see page 110.continuedGB03COV-US.book Page 109 Wednesday, January 14, 2004 10:27 AM$

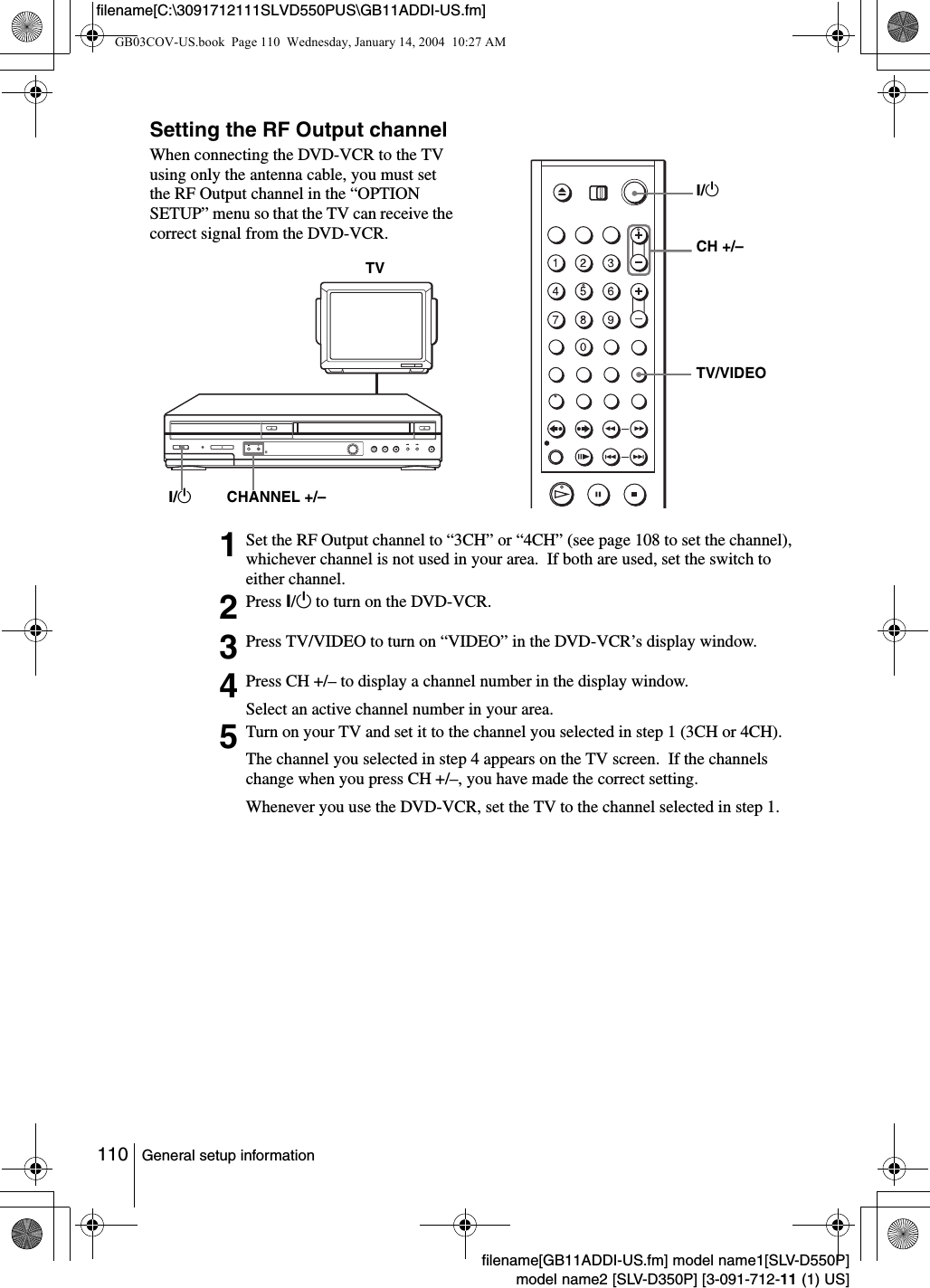

$110 General setup informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]Setting the RF Output channelWhen connecting the DVD-VCR to the TV using only the antenna cable, you must set the RF Output channel in the “OPTION SETUP” menu so that the TV can receive the correct signal from the DVD-VCR.1Set the RF Output channel to “3CH” or “4CH” (see page 108 to set the channel), whichever channel is not used in your area. If both are used, set the switch to either channel.2Press ?/1 to turn on the DVD-VCR.3Press TV/VIDEO to turn on “VIDEO” in the DVD-VCR’s display window.4Press CH +/– to display a channel number in the display window.Select an active channel number in your area.5Turn on your TV and set it to the channel you selected in step 1 (3CH or 4CH).The channel you selected in step 4 appears on the TV screen. If the channels change when you press CH +/–, you have made the correct setting.Whenever you use the DVD-VCR, set the TV to the channel selected in step 1.TVCHANNEL +/–?/1 TV/VIDEOCH +/–?/1GB03COV-US.book Page 110 Wednesday, January 14, 2004 10:27 AM$

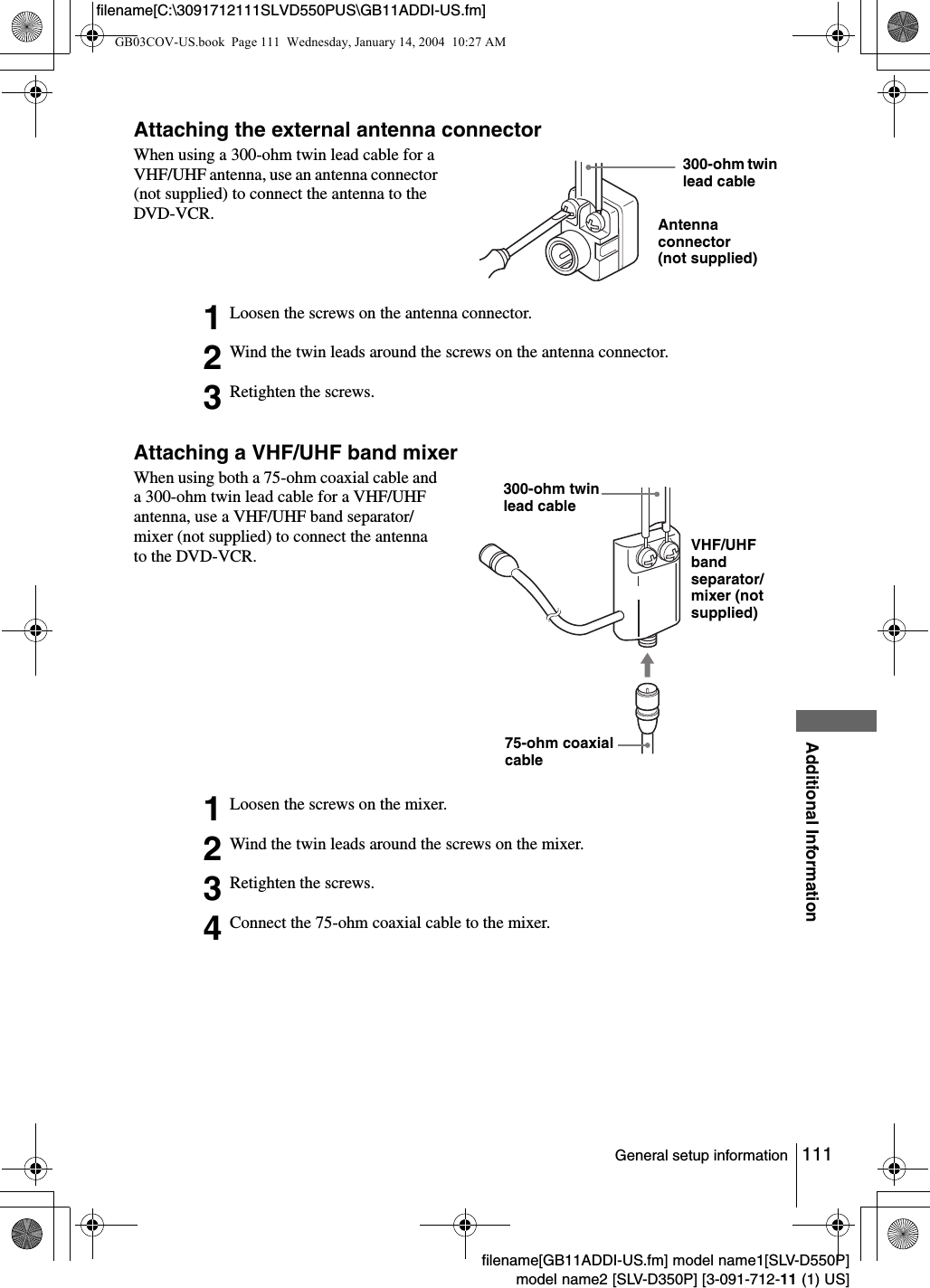

$111General setup informationAdditional Informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]Attaching the external antenna connectorAttaching a VHF/UHF band mixerWhen using a 300-ohm twin lead cable for a VHF/UHF antenna, use an antenna connector (not supplied) to connect the antenna to the DVD-VCR.1Loosen the screws on the antenna connector.2Wind the twin leads around the screws on the antenna connector.3Retighten the screws.When using both a 75-ohm coaxial cable and a 300-ohm twin lead cable for a VHF/UHF antenna, use a VHF/UHF band separator/mixer (not supplied) to connect the antenna to the DVD-VCR.1Loosen the screws on the mixer.2Wind the twin leads around the screws on the mixer.3Retighten the screws.4Connect the 75-ohm coaxial cable to the mixer.300-ohm twin lead cableAntenna connector(not supplied)300-ohm twin lead cableVHF/UHF band separator/mixer (not supplied)75-ohm coaxial cableGB03COV-US.book Page 111 Wednesday, January 14, 2004 10:27 AM$

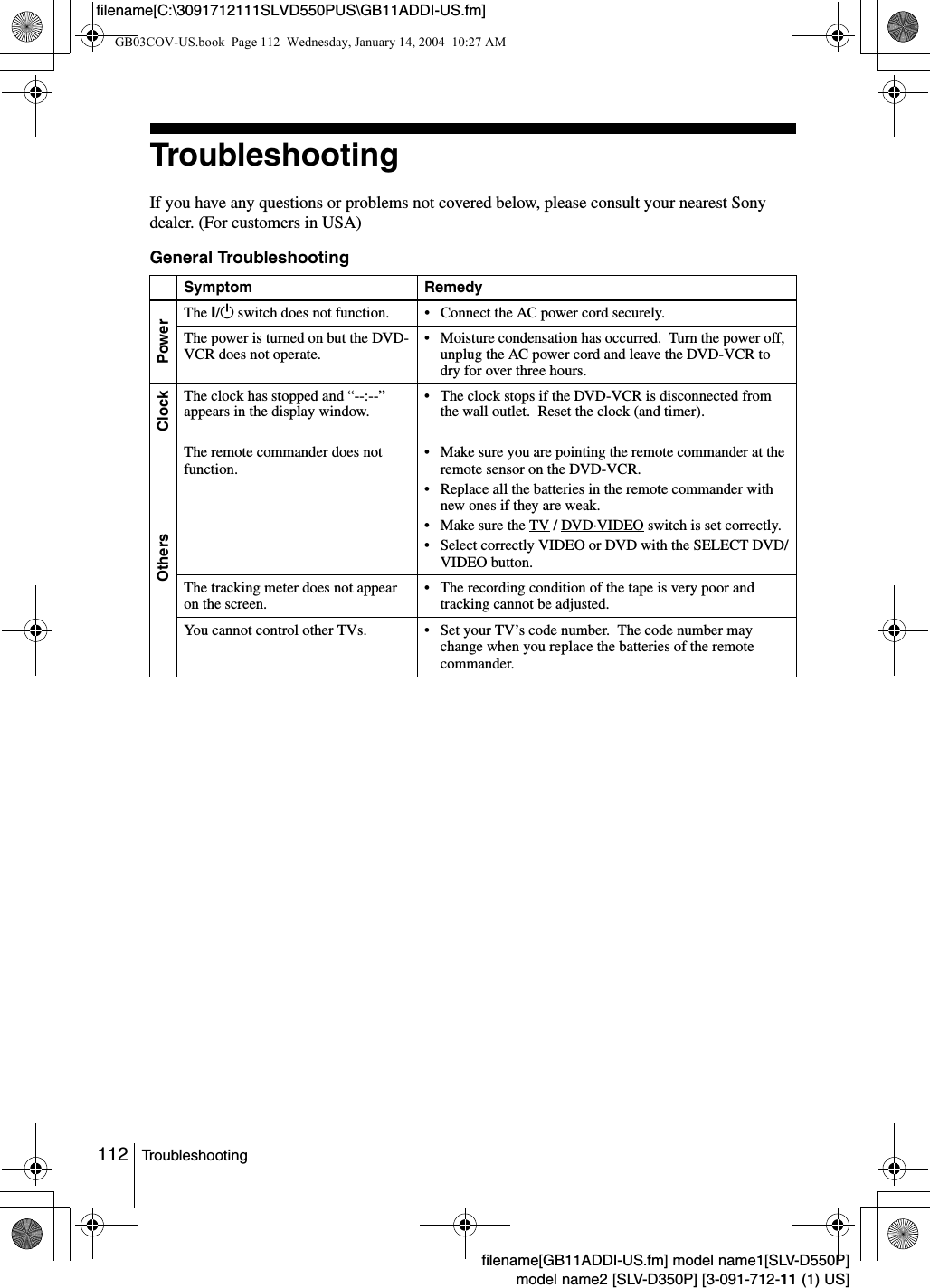

$112 Troubleshootingfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]TroubleshootingIf you have any questions or problems not covered below, please consult your nearest Sony dealer. (For customers in USA)General TroubleshootingSymptom RemedyPowerThe ?/1 switch does not function. • Connect the AC power cord securely.The power is turned on but the DVD-VCR does not operate. • Moisture condensation has occurred. Turn the power off, unplug the AC power cord and leave the DVD-VCR to dry for over three hours.ClockThe clock has stopped and “--:--” appears in the display window. • The clock stops if the DVD-VCR is disconnected from the wall outlet. Reset the clock (and timer).OthersThe remote commander does not function.• Make sure you are pointing the remote commander at the remote sensor on the DVD-VCR.• Replace all the batteries in the remote commander with new ones if they are weak.• Make sure the TV / DVD·VIDEO switch is set correctly.• Select correctly VIDEO or DVD with the SELECT DVD/VIDEO button.The tracking meter does not appear on the screen.• The recording condition of the tape is very poor and tracking cannot be adjusted.You cannot control other TVs. • Set your TV’s code number. The code number may change when you replace the batteries of the remote commander.GB03COV-US.book Page 112 Wednesday, January 14, 2004 10:27 AM$

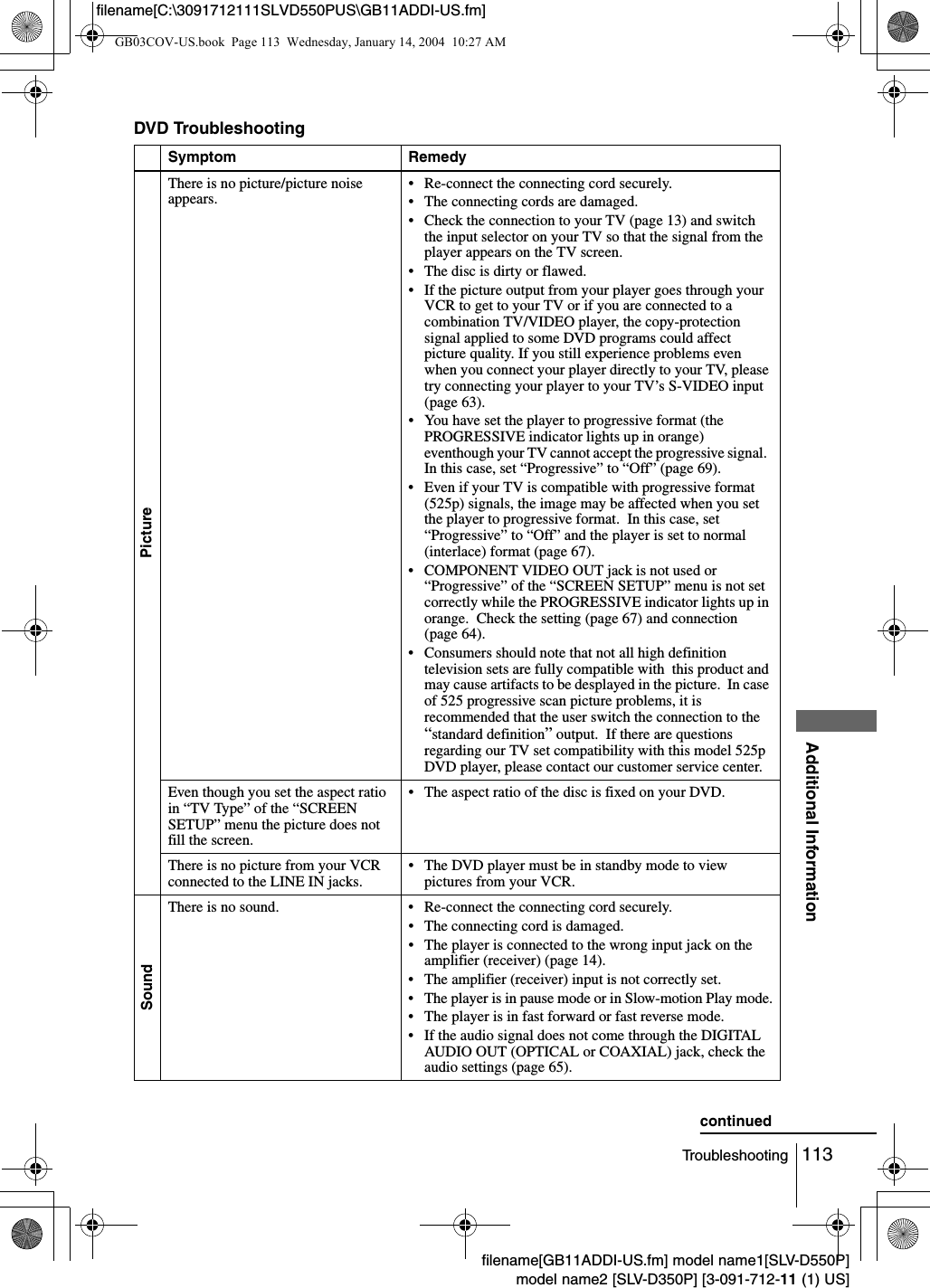

$113TroubleshootingAdditional Informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]DVD TroubleshootingSymptom RemedyPictureThere is no picture/picture noise appears. • Re-connect the connecting cord securely.• The connecting cords are damaged.• Check the connection to your TV (page 13) and switch the input selector on your TV so that the signal from the player appears on the TV screen.• The disc is dirty or flawed.• If the picture output from your player goes through your VCR to get to your TV or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programs could affect picture quality. If you still experience problems even when you connect your player directly to your TV, please try connecting your player to your TV’s S-VIDEO input (page 63).• You have set the player to progressive format (the PROGRESSIVE indicator lights up in orange) eventhough your TV cannot accept the progressive signal. In this case, set “Progressive” to “Off” (page 69).• Even if your TV is compatible with progressive format (525p) signals, the image may be affected when you set the player to progressive format. In this case, set “Progressive” to “Off” and the player is set to normal (interlace) format (page 67).• COMPONENT VIDEO OUT jack is not used or “Progressive” of the “SCREEN SETUP” menu is not set correctly while the PROGRESSIVE indicator lights up in orange. Check the setting (page 67) and connection (page 64). • Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be desplayed in the picture. In case of 525 progressive scan picture problems, it is recommended that the user switch the connection to the “standard definition” output. If there are questions regarding our TV set compatibility with this model 525p DVD player, please contact our customer service center. Even though you set the aspect ratio in “TV Type” of the “SCREEN SETUP” menu the picture does not fill the screen.• The aspect ratio of the disc is fixed on your DVD.There is no picture from your VCR connected to the LINE IN jacks. • The DVD player must be in standby mode to view pictures from your VCR.SoundThere is no sound. • Re-connect the connecting cord securely.• The connecting cord is damaged.• The player is connected to the wrong input jack on the amplifier (receiver) (page 14).• The amplifier (receiver) input is not correctly set.• The player is in pause mode or in Slow-motion Play mode.• The player is in fast forward or fast reverse mode.• If the audio signal does not come through the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack, check the audio settings (page 65).continuedGB03COV-US.book Page 113 Wednesday, January 14, 2004 10:27 AM$

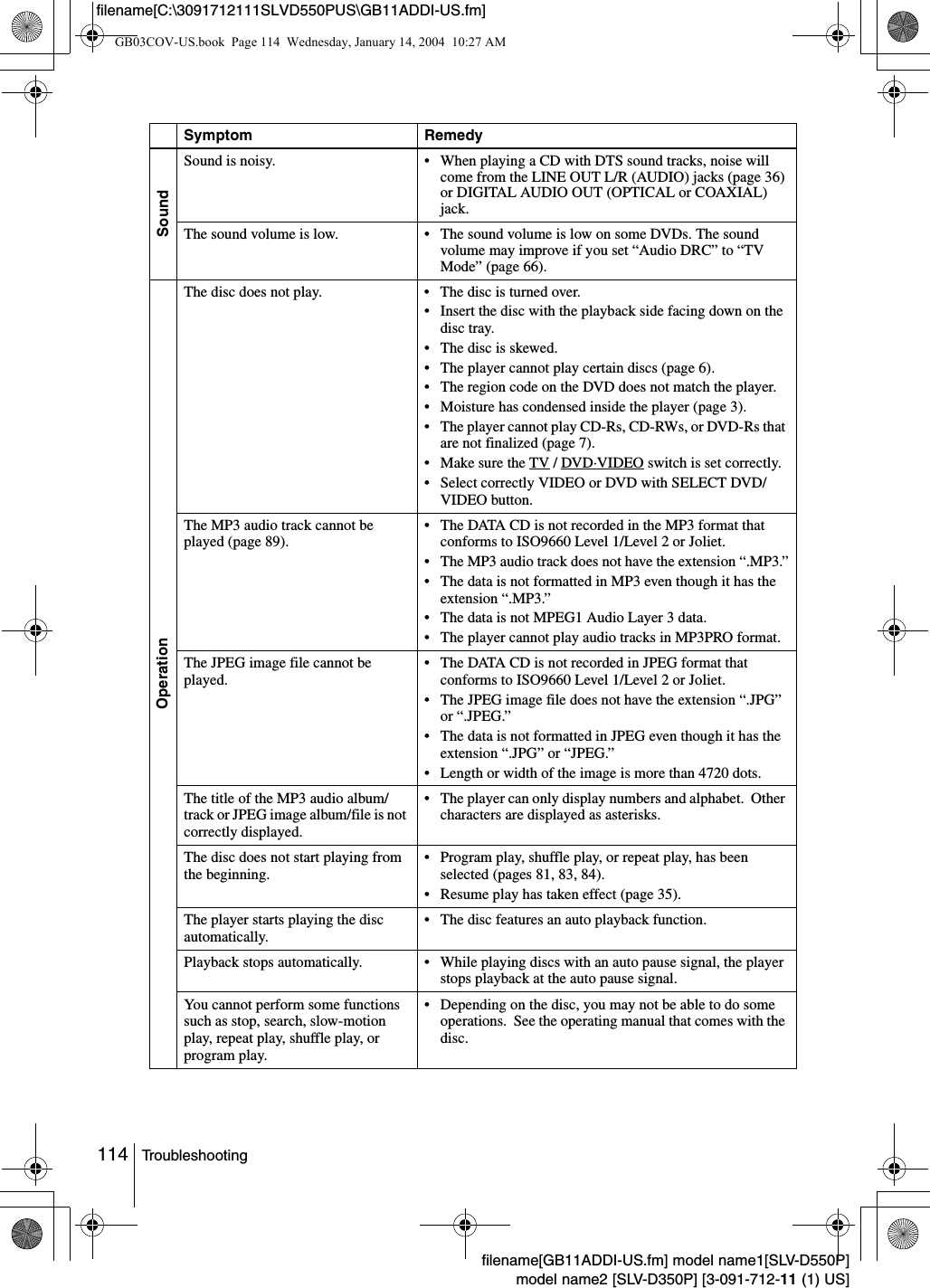

$114 Troubleshootingfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]SoundSound is noisy. • When playing a CD with DTS sound tracks, noise will come from the LINE OUT L/R (AUDIO) jacks (page 36) or DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack.The sound volume is low. • The sound volume is low on some DVDs. The sound volume may improve if you set “Audio DRC” to “TV Mode” (page 66).OperationThe disc does not play. • The disc is turned over.• Insert the disc with the playback side facing down on the disc tray.• The disc is skewed.• The player cannot play certain discs (page 6).• The region code on the DVD does not match the player.• Moisture has condensed inside the player (page 3).• The player cannot play CD-Rs, CD-RWs, or DVD-Rs that are not finalized (page 7).• Make sure the TV / DVD·VIDEO switch is set correctly.• Select correctly VIDEO or DVD with SELECT DVD/VIDEO button.The MP3 audio track cannot be played (page 89).• The DATA CD is not recorded in the MP3 format that conforms to ISO9660 Level 1/Level 2 or Joliet.• The MP3 audio track does not have the extension “.MP3.”• The data is not formatted in MP3 even though it has the extension “.MP3.”• The data is not MPEG1 Audio Layer 3 data.• The player cannot play audio tracks in MP3PRO format.The JPEG image file cannot be played.• The DATA CD is not recorded in JPEG format that conforms to ISO9660 Level 1/Level 2 or Joliet.• The JPEG image file does not have the extension “.JPG” or “.JPEG.”• The data is not formatted in JPEG even though it has the extension “.JPG” or “JPEG.”• Length or width of the image is more than 4720 dots.The title of the MP3 audio album/ track or JPEG image album/file is not correctly displayed.• The player can only display numbers and alphabet. Other characters are displayed as asterisks.The disc does not start playing from the beginning.• Program play, shuffle play, or repeat play, has been selected (pages 81, 83, 84).• Resume play has taken effect (page 35).The player starts playing the disc automatically.• The disc features an auto playback function.Playback stops automatically. • While playing discs with an auto pause signal, the player stops playback at the auto pause signal.You cannot perform some functions such as stop, search, slow-motion play, repeat play, shuffle play, or program play.• Depending on the disc, you may not be able to do some operations. See the operating manual that comes with the disc.Symptom RemedyGB03COV-US.book Page 114 Wednesday, January 14, 2004 10:27 AM$

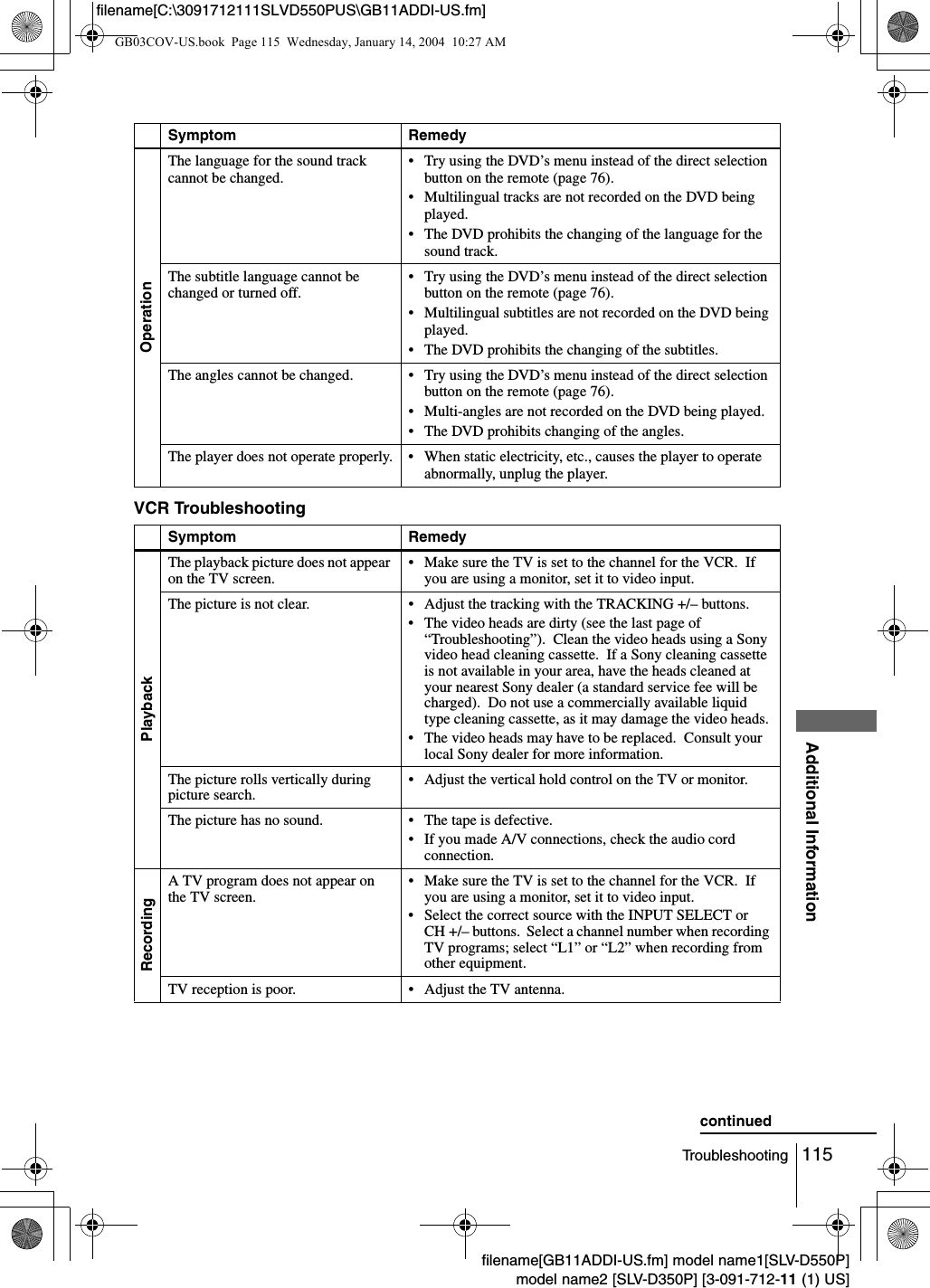

$115TroubleshootingAdditional Informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]VCR TroubleshootingOperationThe language for the sound track cannot be changed.• Try using the DVD’s menu instead of the direct selection button on the remote (page 76).• Multilingual tracks are not recorded on the DVD being played.• The DVD prohibits the changing of the language for the sound track.The subtitle language cannot be changed or turned off.• Try using the DVD’s menu instead of the direct selection button on the remote (page 76).• Multilingual subtitles are not recorded on the DVD being played.• The DVD prohibits the changing of the subtitles.The angles cannot be changed. • Try using the DVD’s menu instead of the direct selection button on the remote (page 76).• Multi-angles are not recorded on the DVD being played. • The DVD prohibits changing of the angles.The player does not operate properly. • When static electricity, etc., causes the player to operate abnormally, unplug the player.Symptom RemedyPlaybackThe playback picture does not appear on the TV screen. • Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input.The picture is not clear. • Adjust the tracking with the TRACKING +/– buttons.• The video heads are dirty (see the last page of “Troubleshooting”). Clean the video heads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the heads cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads. • The video heads may have to be replaced. Consult your local Sony dealer for more information.The picture rolls vertically during picture search. • Adjust the vertical hold control on the TV or monitor.The picture has no sound. • The tape is defective.• If you made A/V connections, check the audio cord connection.RecordingA TV program does not appear on the TV screen. • Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input.• Select the correct source with the INPUT SELECT or CH +/– buttons. Select a channel number when recording TV programs; select “L1” or “L2” when recording from other equipment.TV reception is poor. • Adjust the TV antenna.Symptom RemedycontinuedGB03COV-US.book Page 115 Wednesday, January 14, 2004 10:27 AM$

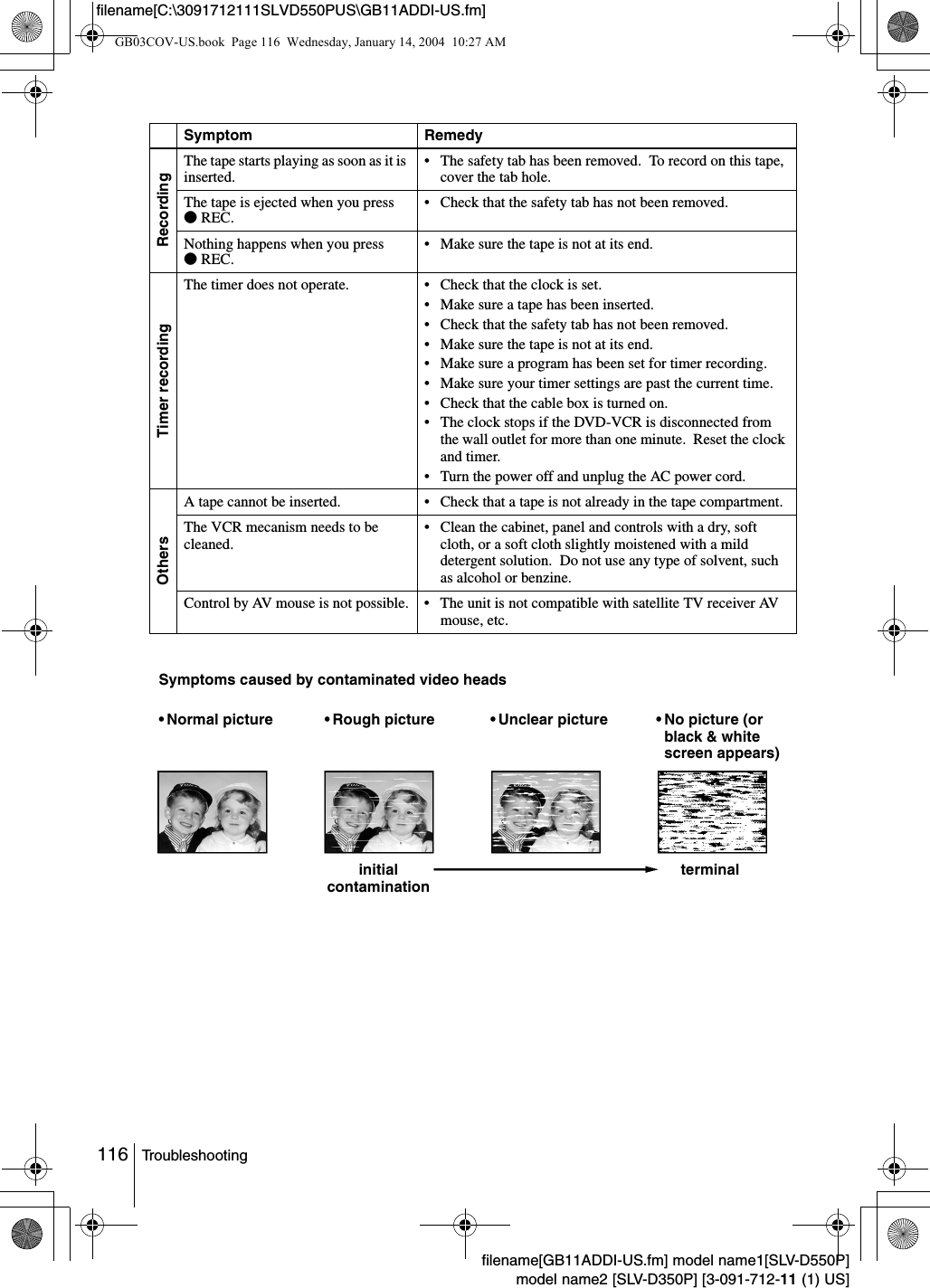

$116 Troubleshootingfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]RecordingThe tape starts playing as soon as it is inserted. • The safety tab has been removed. To record on this tape, cover the tab hole.The tape is ejected when you press zREC. • Check that the safety tab has not been removed.Nothing happens when you press zREC. • Make sure the tape is not at its end.Timer recordingThe timer does not operate. • Check that the clock is set.• Make sure a tape has been inserted.• Check that the safety tab has not been removed.• Make sure the tape is not at its end.• Make sure a program has been set for timer recording.• Make sure your timer settings are past the current time.• Check that the cable box is turned on.• The clock stops if the DVD-VCR is disconnected from the wall outlet for more than one minute. Reset the clock and timer.• Turn the power off and unplug the AC power cord.OthersA tape cannot be inserted. • Check that a tape is not already in the tape compartment.The VCR mecanism needs to be cleaned.• Clean the cabinet, panel and controls with a dry, soft cloth, or a soft cloth slightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine.Control by AV mouse is not possible. • The unit is not compatible with satellite TV receiver AV mouse, etc.Symptom RemedySymptoms caused by contaminated video heads• Normal picture • Unclear picture• Rough pictureinitial contamination terminal• No picture (or black & white screen appears)GB03COV-US.book Page 116 Wednesday, January 14, 2004 10:27 AM$

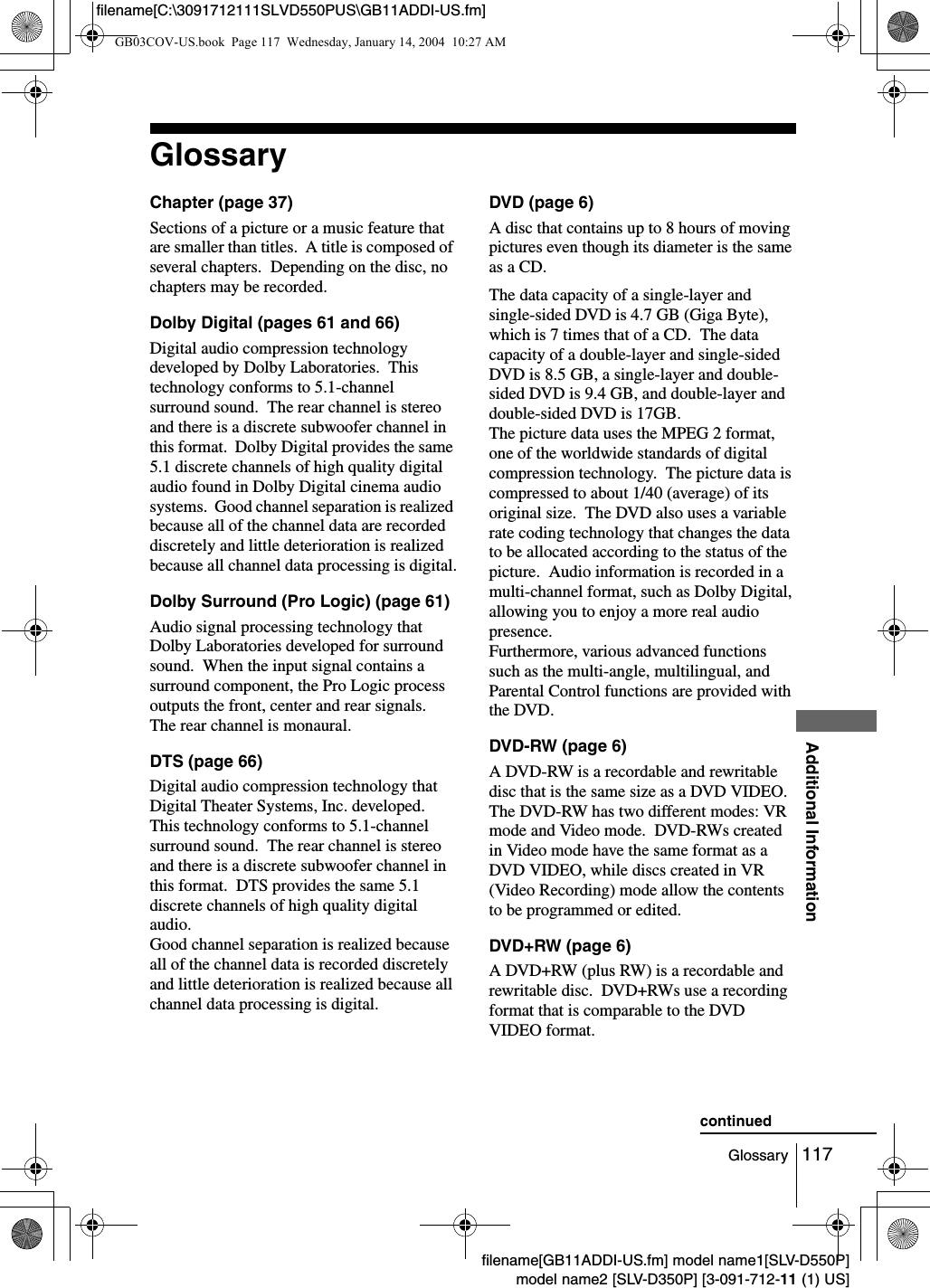

$117GlossaryAdditional Informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]GlossaryChapter (page 37)Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded.Dolby Digital (pages 61 and 66)Digital audio compression technology developed by Dolby Laboratories. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same 5.1 discrete channels of high quality digital audio found in Dolby Digital cinema audio systems. Good channel separation is realized because all of the channel data are recorded discretely and little deterioration is realized because all channel data processing is digital.Dolby Surround (Pro Logic) (page 61)Audio signal processing technology that Dolby Laboratories developed for surround sound. When the input signal contains a surround component, the Pro Logic process outputs the front, center and rear signals. The rear channel is monaural.DTS (page 66)Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio.Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital.DVD (page 6)A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD.The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17GB. The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more real audio presence.Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.DVD-RW (page 6)A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.DVD+RW (page 6)A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format. continuedGB03COV-US.book Page 117 Wednesday, January 14, 2004 10:27 AM$

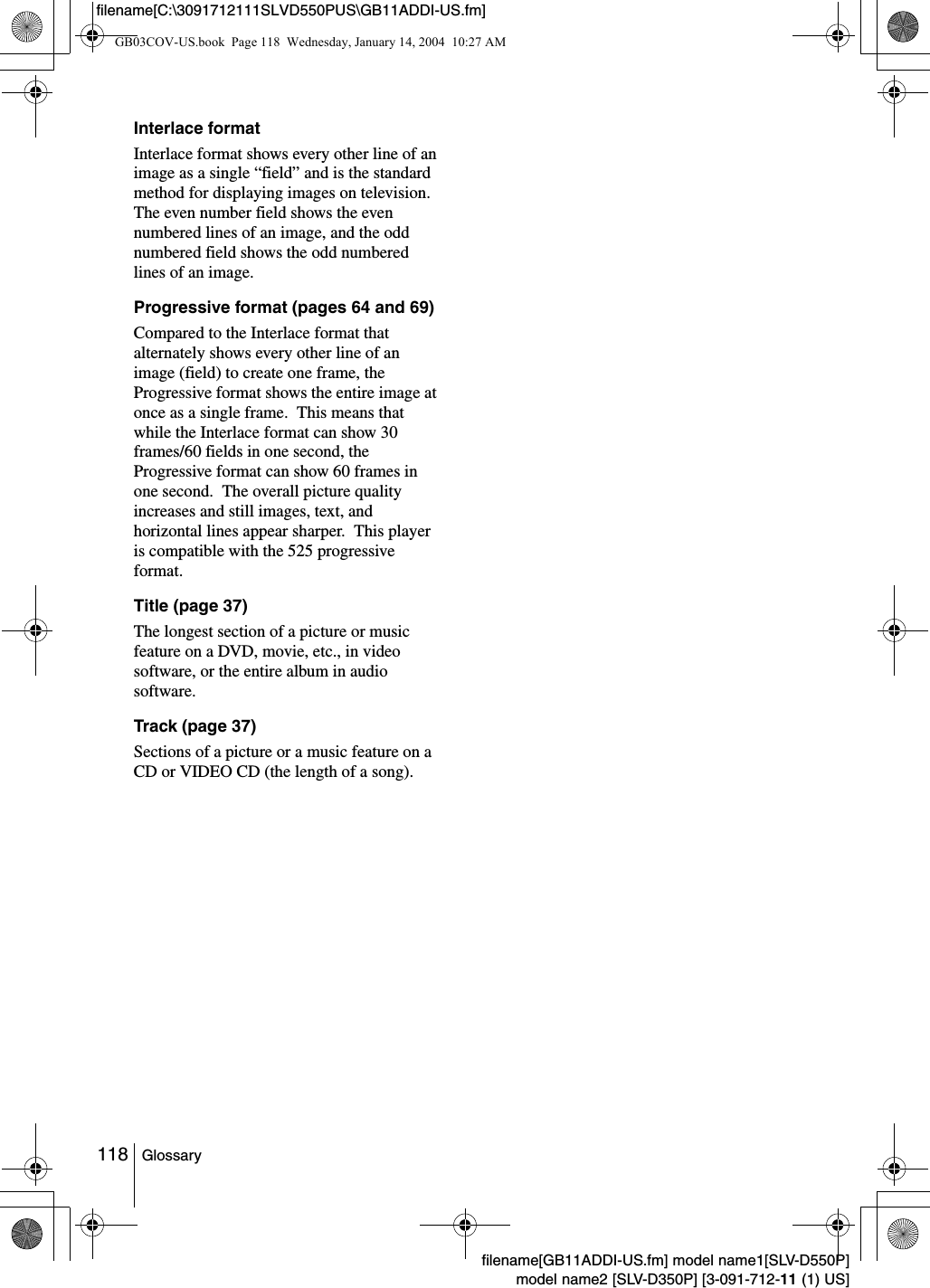

$118 Glossaryfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]Interlace formatInterlace format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image.Progressive format (pages 64 and 69)Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 30 frames/60 fields in one second, the Progressive format can show 60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper. This player is compatible with the 525 progressive format.Title (page 37)The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.Track (page 37)Sections of a picture or a music feature on a CD or VIDEO CD (the length of a song).GB03COV-US.book Page 118 Wednesday, January 14, 2004 10:27 AM$

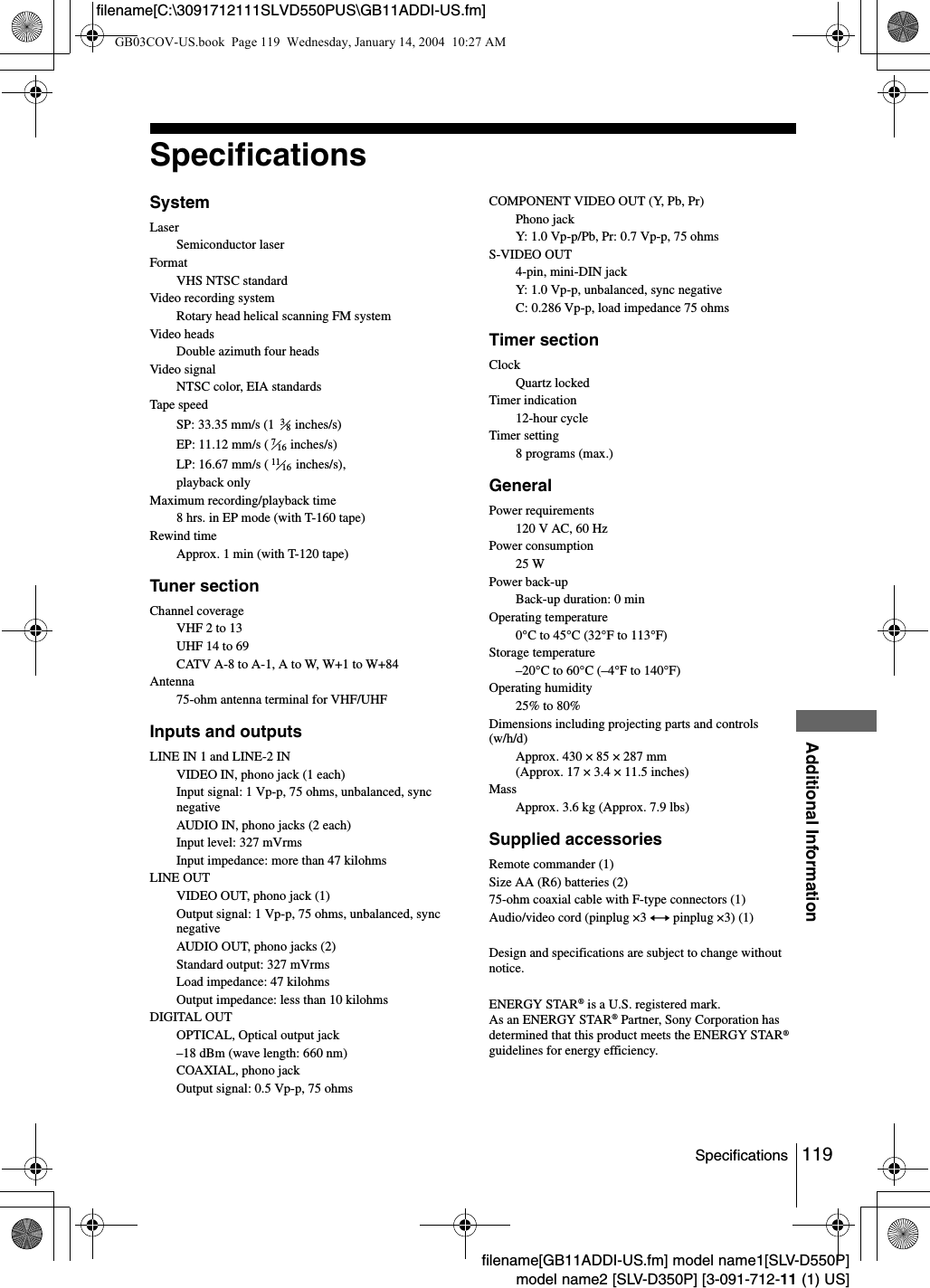

$119SpecificationsAdditional Informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]SpecificationsSystemLaserSemiconductor laserFormatVHS NTSC standardVideo recording systemRotary head helical scanning FM systemVideo headsDouble azimuth four headsVideo signalNTSC color, EIA standardsTape speedSP: 33.35 mm/s (1 inches/s)EP: 11.12 mm/s ( inches/s)LP: 16.67 mm/s ( inches/s),playback onlyMaximum recording/playback time8 hrs. in EP mode (with T-160 tape)Rewind timeApprox. 1 min (with T-120 tape)Tuner sectionChannel coverageVHF 2 to 13UHF 14 to 69CATV A-8 to A-1, A to W, W+1 to W+84Antenna75-ohm antenna terminal for VHF/UHFInputs and outputsLINE IN 1 and LINE-2 INVIDEO IN, phono jack (1 each)Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negativeAUDIO IN, phono jacks (2 each)Input level: 327 mVrmsInput impedance: more than 47 kilohmsLINE OUTVIDEO OUT, phono jack (1)Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negativeAUDIO OUT, phono jacks (2)Standard output: 327 mVrmsLoad impedance: 47 kilohmsOutput impedance: less than 10 kilohmsDIGITAL OUTOPTICAL, Optical output jack–18 dBm (wave length: 660 nm)COAXIAL, phono jackOutput signal: 0.5 Vp-p, 75 ohmsCOMPONENT VIDEO OUT (Y, Pb, Pr)Phono jackY: 1.0 Vp-p/Pb, Pr: 0.7 Vp-p, 75 ohmsS-VIDEO OUT4-pin, mini-DIN jackY: 1.0 Vp-p, unbalanced, sync negativeC: 0.286 Vp-p, load impedance 75 ohmsTimer sectionClockQuartz lockedTimer indication12-hour cycleTimer setting8 programs (max.)GeneralPower requirements120 V AC, 60 HzPower consumption25 WPower back-upBack-up duration: 0 minOperating temperature0°C to 45°C (32°F to 113°F)Storage temperature–20°C to 60°C (–4°F to 140°F)Operating humidity25% to 80%Dimensions including projecting parts and controls (w/h/d)Approx. 430 × 85 × 287 mm(Approx. 17 × 3.4 × 11.5 inches) MassApprox. 3.6 kg (Approx. 7.9 lbs)Supplied accessoriesRemote commander (1)Size AA (R6) batteries (2)75-ohm coaxial cable with F-type connectors (1)Audio/video cord (pinplug ×3 y pinplug ×3) (1)Design and specifications are subject to change without notice.ENERGY STAR® is a U.S. registered mark.As an ENERGY STAR® Partner, Sony Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.3871611 16GB03COV-US.book Page 119 Wednesday, January 14, 2004 10:27 AM$

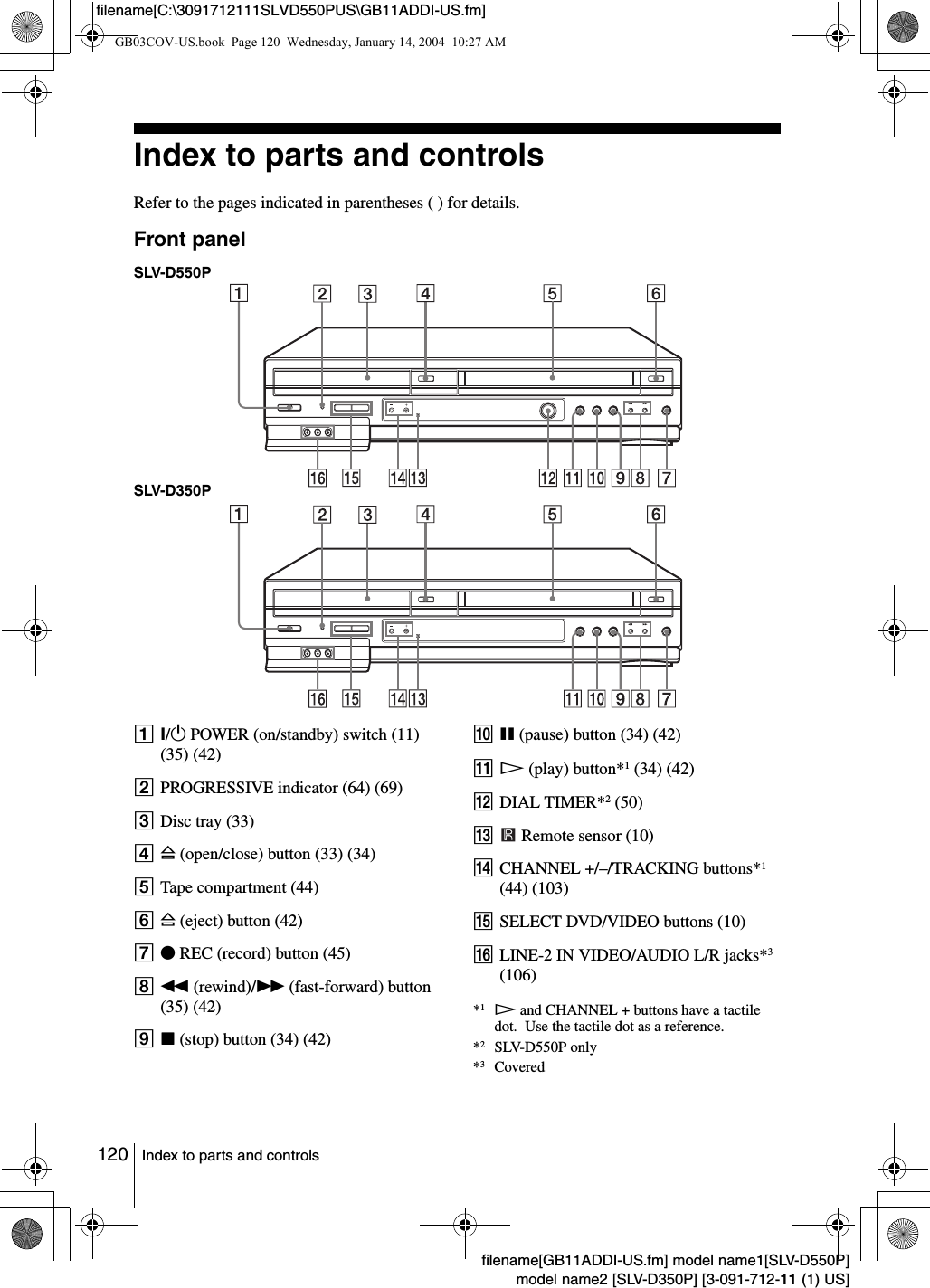

$120 Index to parts and controlsfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]Index to parts and controlsRefer to the pages indicated in parentheses ( ) for details.Front panelA?/1 POWER (on/standby) switch (11) (35) (42)BPROGRESSIVE indicator (64) (69)CDisc tray (33)DA(open/close) button (33) (34)ETape compartment (44)FA(eject) button (42)GzREC (record) button (45)Hm (rewind)/M (fast-forward) button (35) (42)Ix(stop) button (34) (42)JX(pause) button (34) (42)KH(play) button*1 (34) (42)LDIAL TIMER*2 (50)MRemote sensor (10)NCHANNEL +/–/TRACKING buttons*1 (44) (103)OSELECT DVD/VIDEO buttons (10)PLINE-2 IN VIDEO/AUDIO L/R jacks*3 (106)*1H and CHANNEL + buttons have a tactile dot. Use the tactile dot as a reference.*2SLV-D550P only*3CoveredSLV-D550PSLV-D350PGB03COV-US.book Page 120 Wednesday, January 14, 2004 10:27 AM$

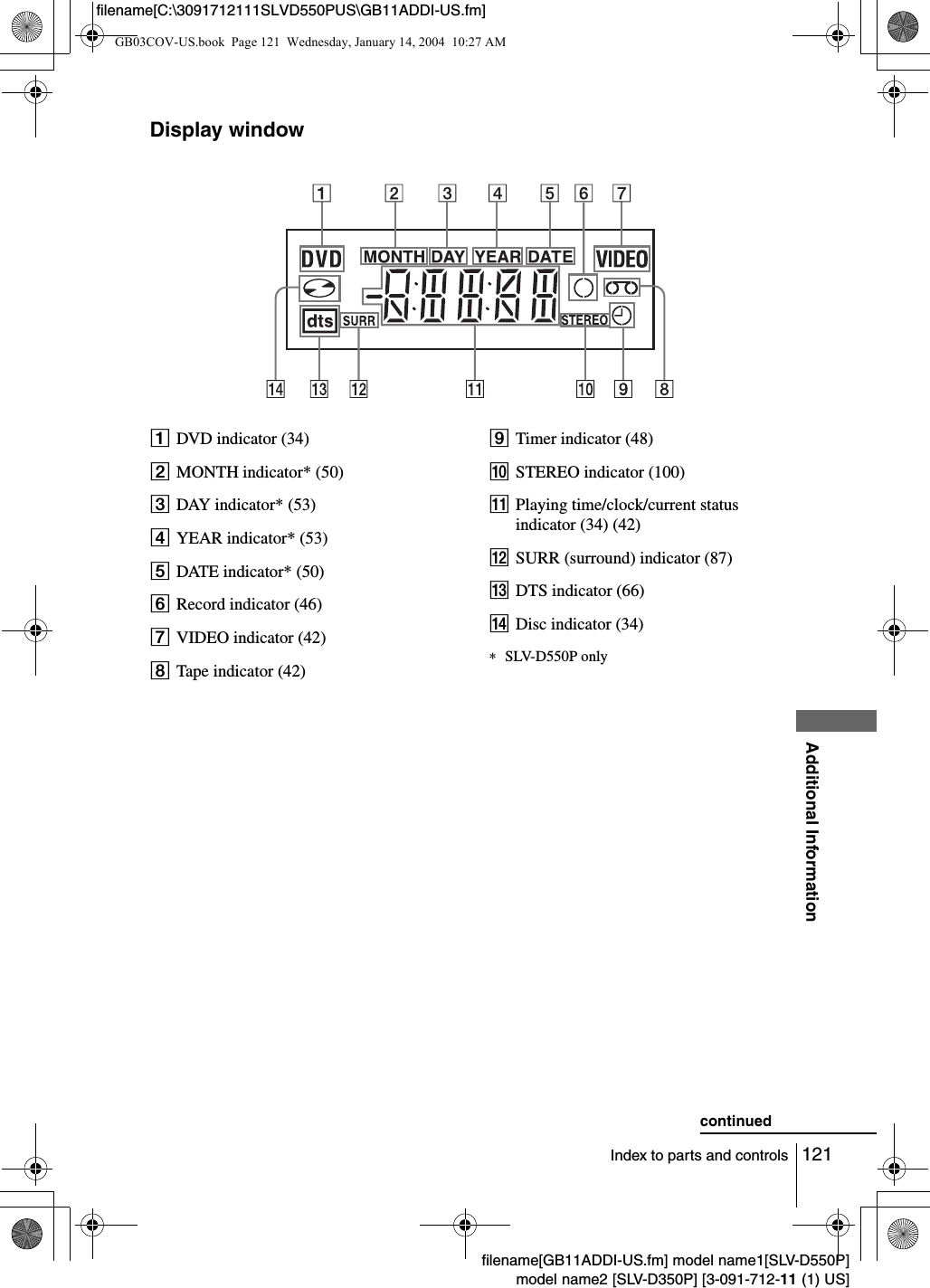

$121Index to parts and controlsAdditional Informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]Display windowADVD indicator (34)BMONTH indicator* (50) CDAY indicator* (53)DYEAR indicator* (53)EDATE indicator* (50)FRecord indicator (46)GVIDEO indicator (42)HTape indicator (42)ITimer indicator (48)JSTEREO indicator (100)KPlaying time/clock/current status indicator (34) (42)LSURR (surround) indicator (87)MDTS indicator (66)NDisc indicator (34)∗SLV-D550P onlycontinuedGB03COV-US.book Page 121 Wednesday, January 14, 2004 10:27 AM$

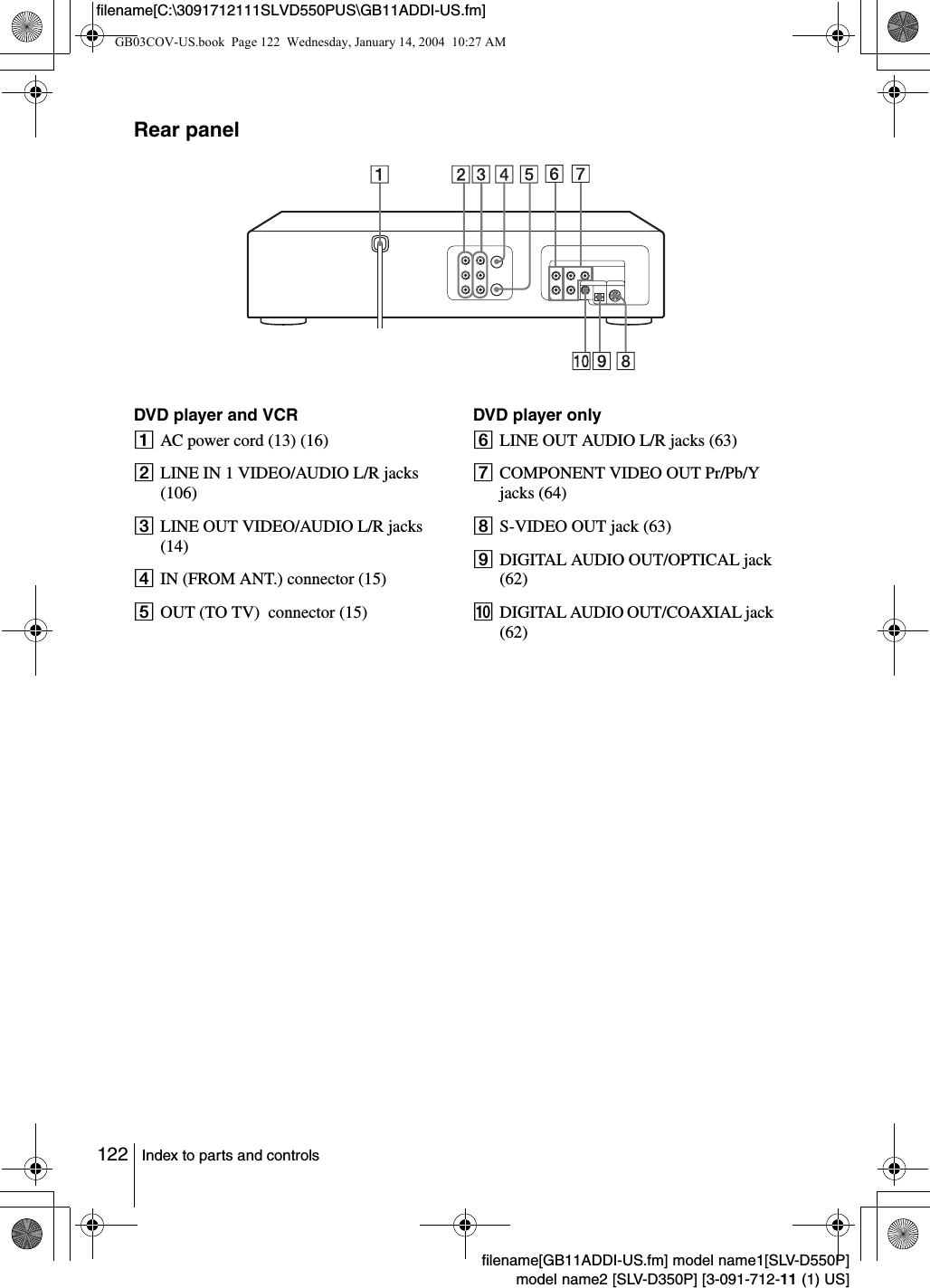

$122 Index to parts and controlsfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]Rear panelDVD player and VCRAAC power cord (13) (16)BLINE IN 1 VIDEO/AUDIO L/R jacks (106)CLINE OUT VIDEO/AUDIO L/R jacks (14)DIN (FROM ANT.) connector (15)EOUT (TO TV) connector (15)DVD player onlyFLINE OUT AUDIO L/R jacks (63)GCOMPONENT VIDEO OUT Pr/Pb/Y jacks (64)HS-VIDEO OUT jack (63)IDIGITAL AUDIO OUT/OPTICAL jack (62)JDIGITAL AUDIO OUT/COAXIAL jack (62)GB03COV-US.book Page 122 Wednesday, January 14, 2004 10:27 AM$

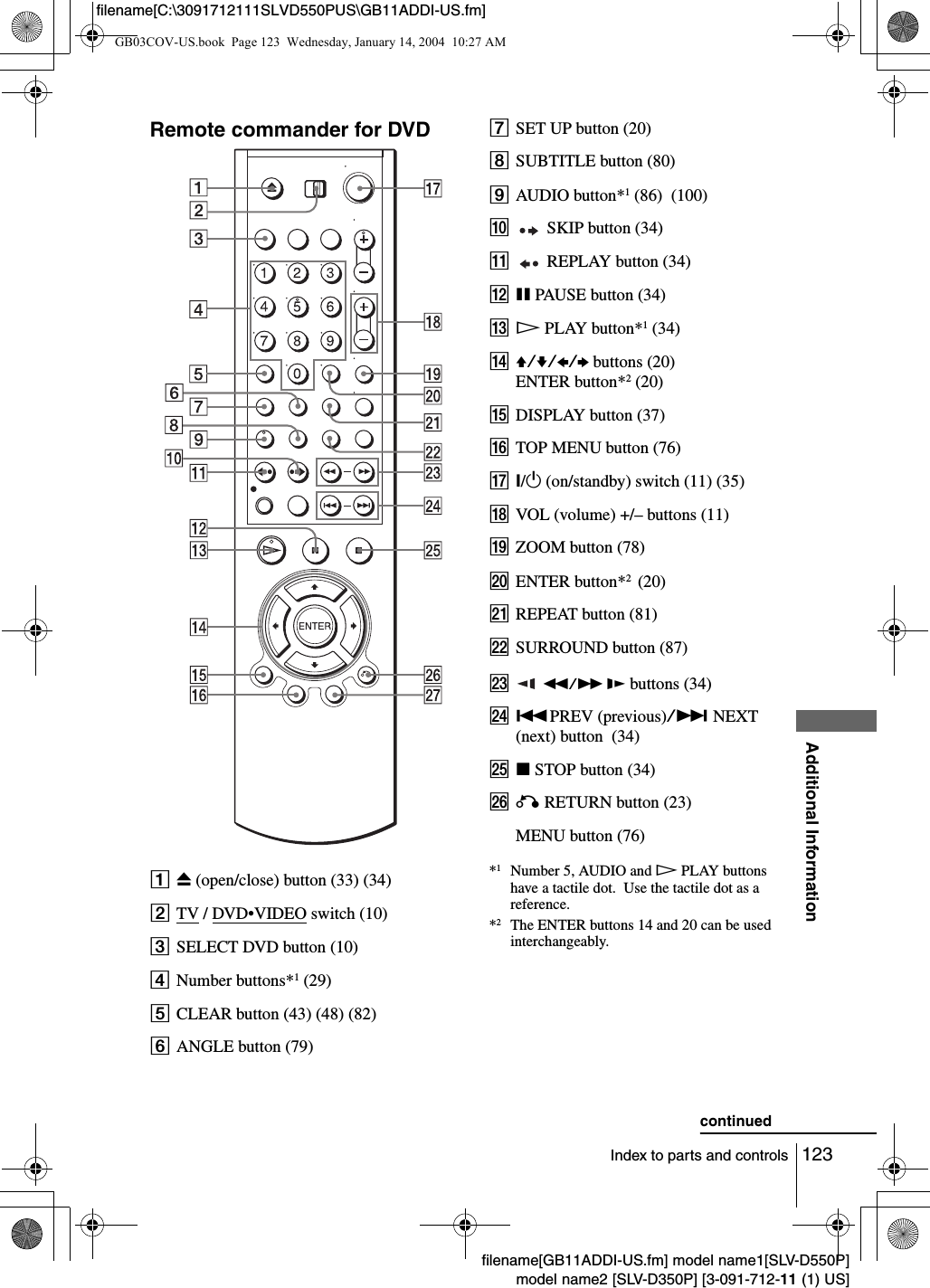

$123Index to parts and controlsAdditional Informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]Remote commander for DVDAZ (open/close) button (33) (34)BTV / DVD•VIDEO switch (10)CSELECT DVD button (10)DNumber buttons*1 (29)ECLEAR button (43) (48) (82)FANGLE button (79)GSET UP button (20)HSUBTITLE button (80)IAUDIO button*1 (86) (100)J SKIP button (34)K REPLAY button (34)LXPAUSE button (34)MHPLAY button*1 (34)NV/v/B/b buttons (20)ENTER button*2 (20)ODISPLAY button (37)PTOP MENU button (76)Q?/1 (on/standby) switch (11) (35)RVOL (volume) +/– buttons (11)SZOOM button (78)TENTER button*2 (20)UREPEAT button (81)VSURROUND button (87)Wm/M y buttons (34)X.PREV (previous)/> NEXT (next) button (34)YxSTOP button (34)ZO RETURN button (23)wj MENU button (76)*1Number 5, AUDIO and HPLAY buttons have a tactile dot. Use the tactile dot as a reference.*2The ENTER buttons 14 and 20 can be used interchangeably.continuedGB03COV-US.book Page 123 Wednesday, January 14, 2004 10:27 AM$

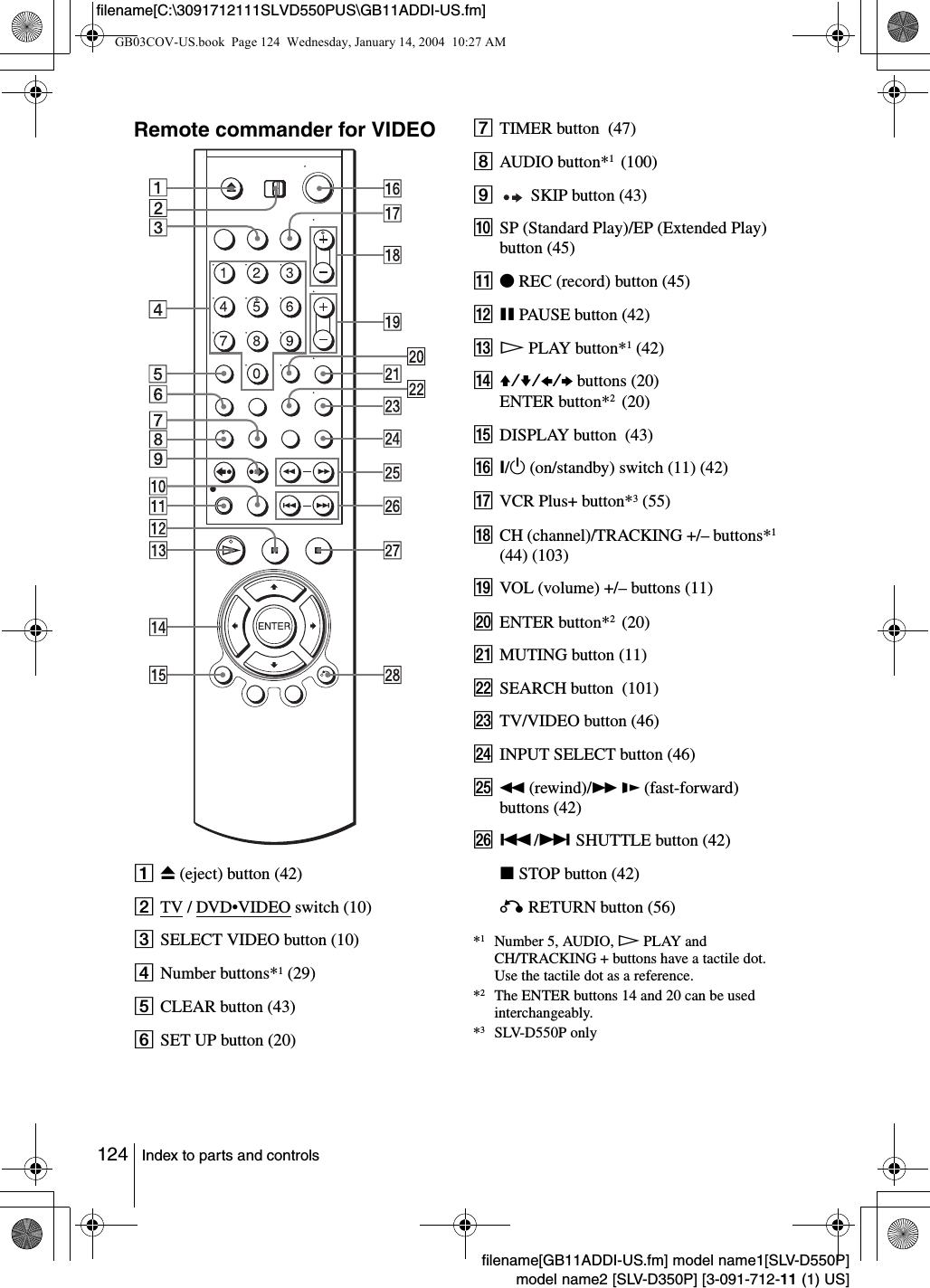

$124 Index to parts and controlsfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]Remote commander for VIDEOAZ (eject) button (42)BTV / DVD•VIDEO switch (10)CSELECT VIDEO button (10)DNumber buttons*1 (29)ECLEAR button (43)FSET UP button (20)GTIMER button (47)HAUDIO button*1 (100)I SKIP button (43)JSP (Standard Play)/EP (Extended Play) button (45)KzREC (record) button (45)LXPAUSE button (42)MHPLAY button*1 (42)NV/v/B/b buttons (20)ENTER button*2 (20)ODISPLAY button (43)P?/1 (on/standby) switch (11) (42)QVCR Plus+ button*3 (55)RCH (channel)/TRACKING +/– buttons*1 (44) (103)SVOL (volume) +/– buttons (11)TENTER button*2 (20)UMUTING button (11)VSEARCH button (101)WTV/VIDEO button (46)XINPUT SELECT button (46)Ym (rewind)/M y (fast-forward) buttons (42)Z./> SHUTTLE button (42)wj xSTOP button (42)wk O RETURN button (56)*1Number 5, AUDIO, HPLAY and CH/TRACKING + buttons have a tactile dot. Use the tactile dot as a reference.*2The ENTER buttons 14 and 20 can be used interchangeably.*3SLV-D550P onlyGB03COV-US.book Page 124 Wednesday, January 14, 2004 10:27 AM$

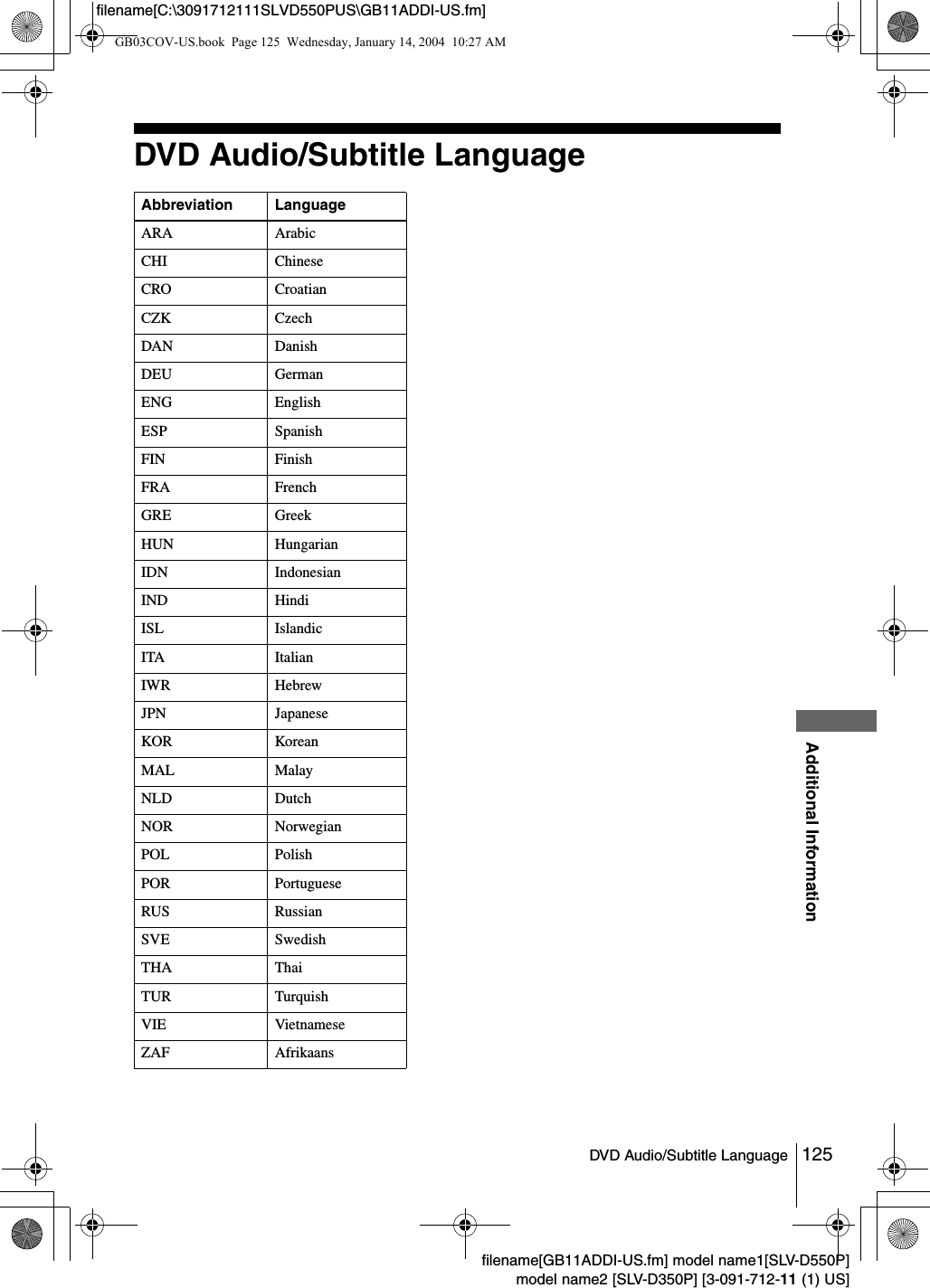

$125DVD Audio/Subtitle LanguageAdditional Informationfilename[GB11ADDI-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB11ADDI-US.fm]DVD Audio/Subtitle LanguageAbbreviation LanguageARA ArabicCHI ChineseCRO CroatianCZK CzechDAN DanishDEU GermanENG EnglishESP SpanishFIN FinishFRA FrenchGRE GreekHUN HungarianIDN IndonesianIND HindiISL IslandicITA ItalianIWR HebrewJPN JapaneseKOR KoreanMAL MalayNLD DutchNOR NorwegianPOL PolishPOR PortugueseRUS RussianSVE SwedishTHA ThaiTUR TurquishVIE VietnameseZAF AfrikaansGB03COV-US.book Page 125 Wednesday, January 14, 2004 10:27 AM$

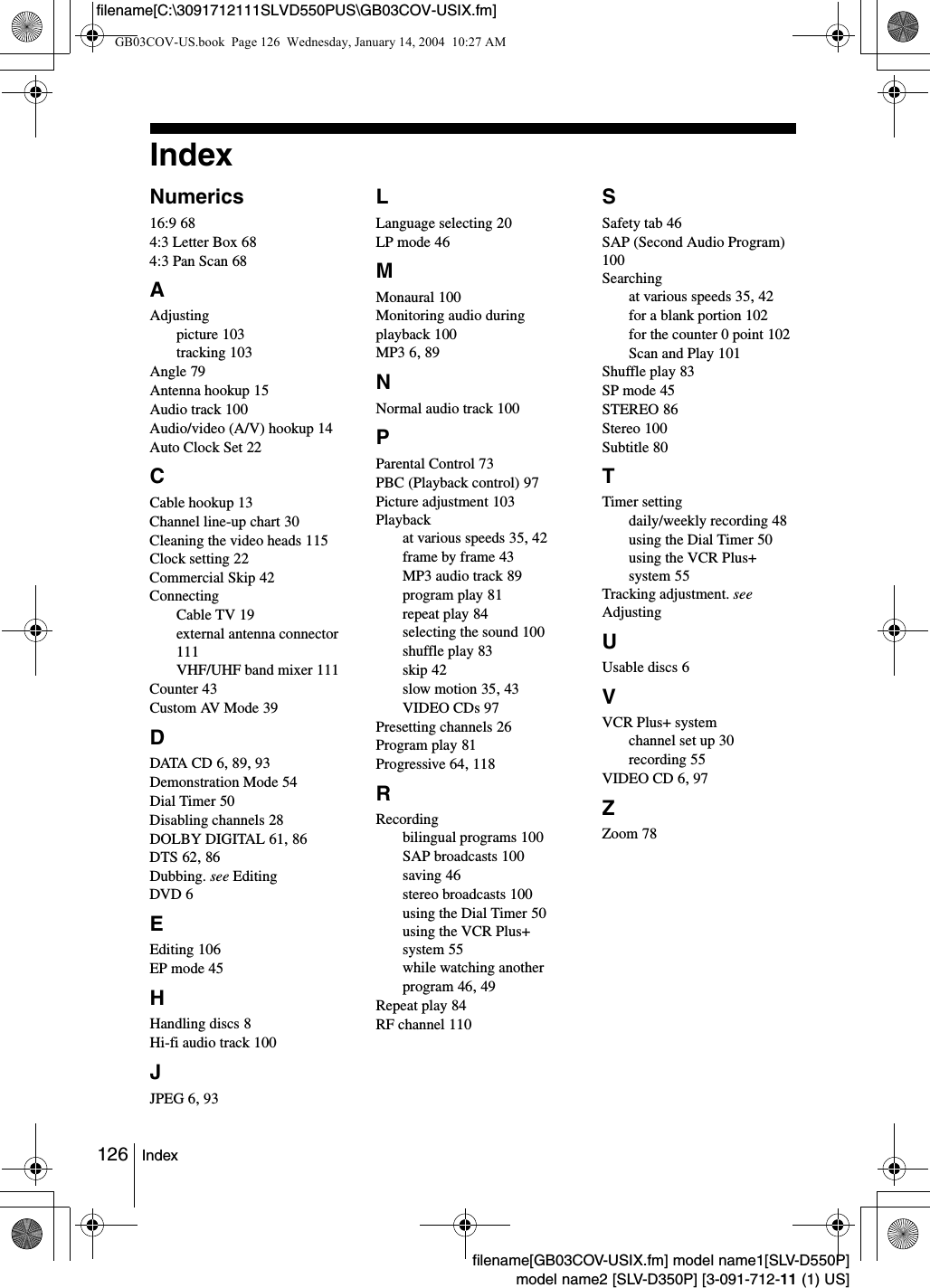

$126 Indexfilename[GB03COV-USIX.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB03COV-USIX.fm]IndexNumerics16:9 684:3 Letter Box 684:3 Pan Scan 68AAdjustingpicture 103tracking 103Angle 79Antenna hookup 15Audio track 100Audio/video (A/V) hookup 14Auto Clock Set 22CCable hookup 13Channel line-up chart 30Cleaning the video heads 115Clock setting 22Commercial Skip 42ConnectingCable TV 19external antenna connector 111VHF/UHF band mixer 111Counter 43Custom AV Mode 39DDATA CD 6, 89, 93Demonstration Mode 54Dial Timer 50Disabling channels 28DOLBY DIGITAL 61, 86DTS 62, 86Dubbing. see EditingDVD 6EEditing 106EP mode 45HHandling discs 8Hi-fi audio track 100JJPEG 6, 93LLanguage selecting 20LP mode 46MMonaural 100Monitoring audio during playback 100MP3 6, 89NNormal audio track 100PParental Control 73PBC (Playback control) 97Picture adjustment 103Playbackat various speeds 35, 42frame by frame 43MP3 audio track 89program play 81repeat play 84selecting the sound 100shuffle play 83skip 42slow motion 35, 43VIDEO CDs 97Presetting channels 26Program play 81Progressive 64, 118RRecordingbilingual programs 100SAP broadcasts 100saving 46stereo broadcasts 100using the Dial Timer 50using the VCR Plus+ system 55while watching another program 46, 49Repeat play 84RF channel 110SSafety tab 46SAP (Second Audio Program) 100Searchingat various speeds 35, 42for a blank portion 102for the counter 0 point 102Scan and Play 101Shuffle play 83SP mode 45STEREO 86Stereo 100Subtitle 80TTimer settingdaily/weekly recording 48using the Dial Timer 50using the VCR Plus+ system 55Tracking adjustment. see AdjustingUUsable discs 6VVCR Plus+ systemchannel set up 30recording 55VIDEO CD 6, 97ZZoom 78GB03COV-US.book Page 126 Wednesday, January 14, 2004 10:27 AM$

filename[GB03COV-USIX.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]GB03COV-US.book Page 127 Wednesday, January 14, 2004 10:27 AM

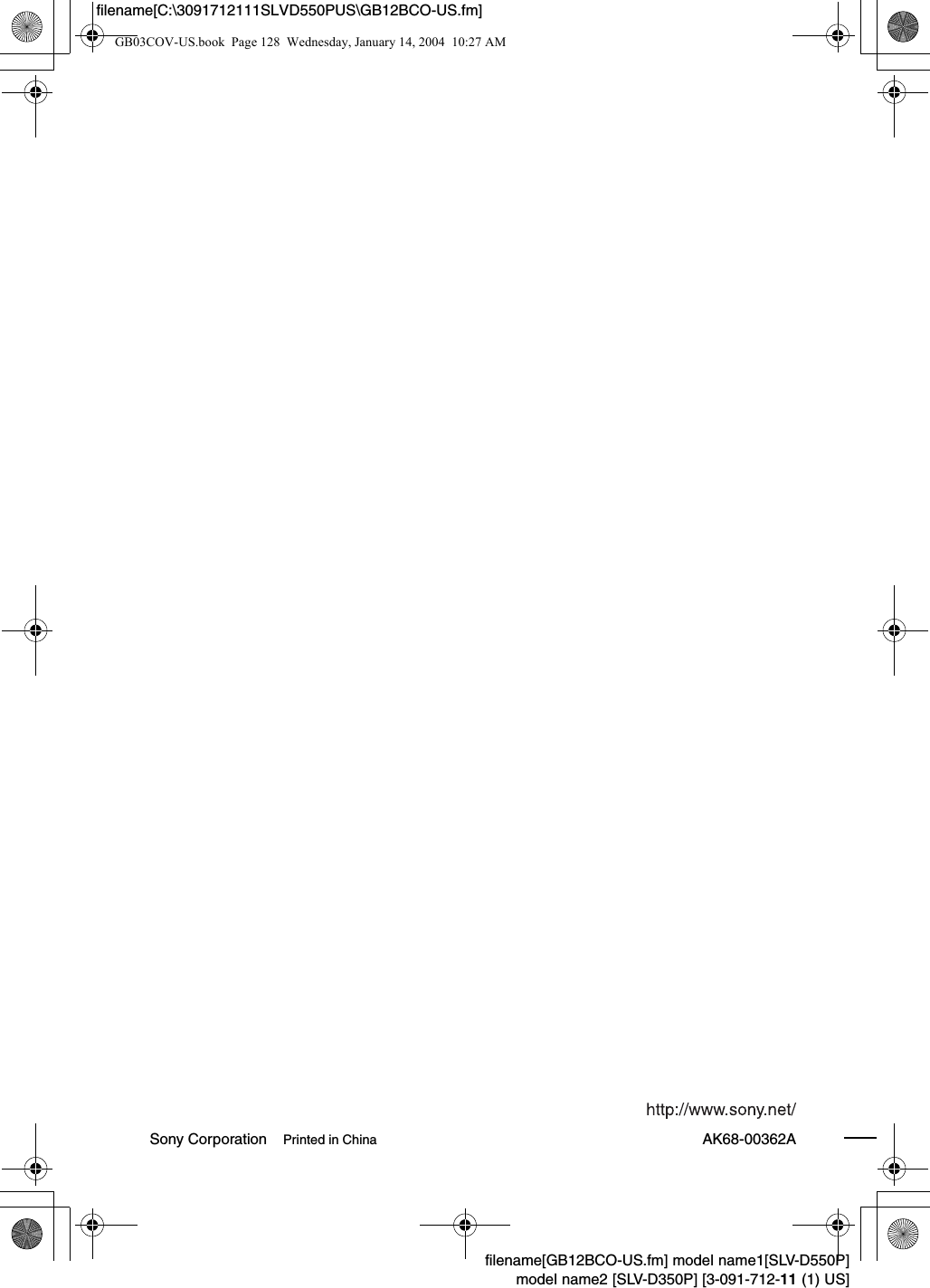

$Sony Corporation Printed in China AK68-00362Afilename[GB12BCO-US.fm] model name1[SLV-D550P]model name2 [SLV-D350P] [3-091-712-11 (1) US]filename[C:\3091712111SLVD550PUS\GB12BCO-US.fm]GB03COV-US.book Page 128 Wednesday, January 14, 2004 10:27 AM$
