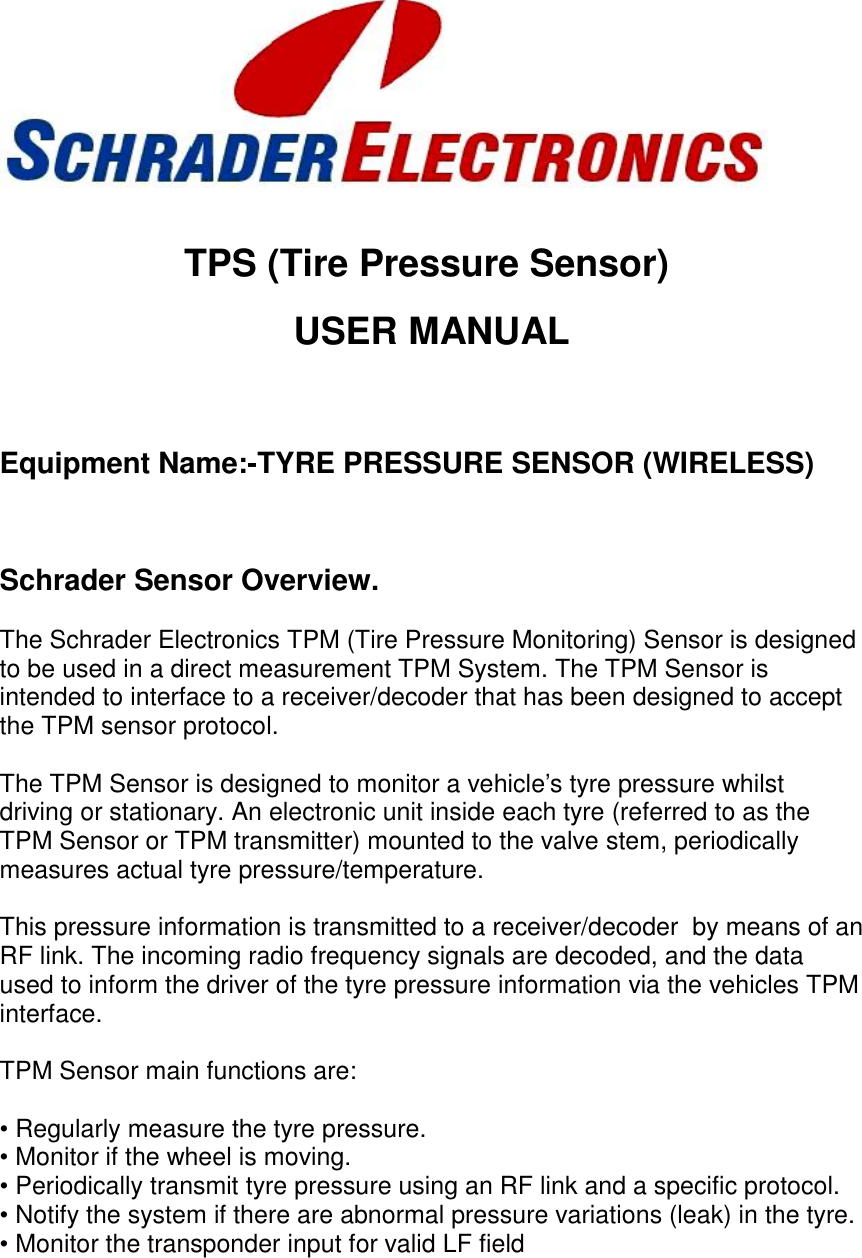

TPS (Tire Pressure Sensor)USER MANUALEquipment Name:-TYRE PRESSURE SENSOR (WIRELESS)Schrader Sensor Overview.The Schrader Electronics TPM (Tire Pressure Monitoring) Sensor is designedto be used in a direct measurement TPM System. The TPM Sensor isintended to interface to a receiver/decoder that has been designed to acceptthe TPM sensor protocol.The TPM Sensor is designed to monitor a vehicle's tyre pressure whilstdriving or stationary. An electronic unit inside each tyre (referred to as theTPM Sensor or TPM transmitter) mounted to the valve stem, periodicallymeasures actual tyre pressure/temperature.This pressure information is transmitted to a receiver/decoder by means of anRF link. The incoming radio frequency signals are decoded, and the dataused to inform the driver of the tyre pressure information via the vehicles TPMinterface.TPM Sensor main functions are:• Regularly measure the tyre pressure.• Monitor if the wheel is moving.• Periodically transmit tyre pressure using an RF link and a specific protocol.• Notify the system if there are abnormal pressure variations (leak) in the tyre.• Monitor the transponder input for valid LF field

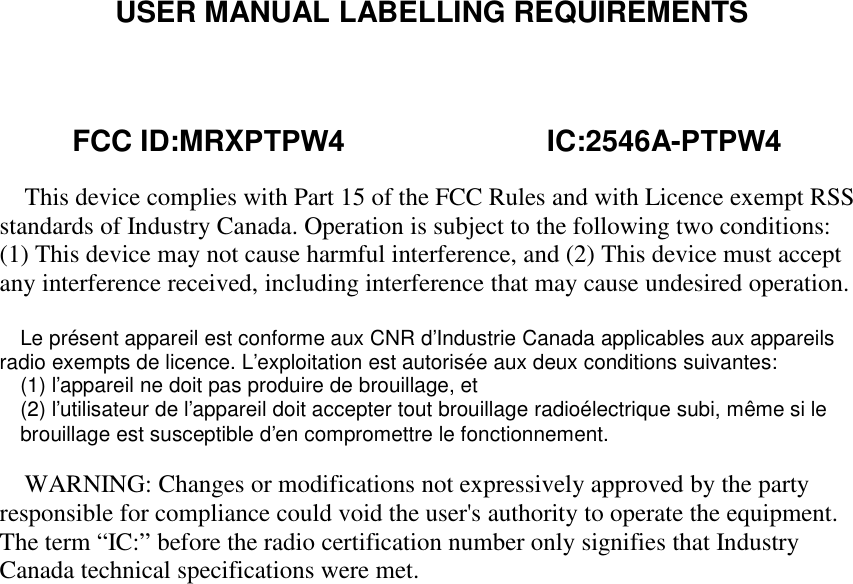

USER MANUAL LABELLING REQUIREMENTSThis device complies with Part 15 of the FCC Rules and with Licence exempt RSSstandards of Industry Canada. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must acceptany interference received, including interference that may cause undesired operation.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareilsradio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si lebrouillage est susceptible d'en compromettre le fonctionnement.WARNING: Changes or modifications not expressively approved by the partyresponsible for compliance could void the user's authority to operate the equipment.The term “IC:” before the radio certification number only signifies that IndustryCanada technical specifications were met. FCC ID:MRXPTPW4 IC:2546A-PTPW4
