Seba Dynatronic Mess und Ortungstechnik LOGRB3-1 Wireless reader for loggers User Manual part 2

Seba Dynatronic Mess- und Ortungstechnik GmbH Wireless reader for loggers part 2

Contents

User manual part 2

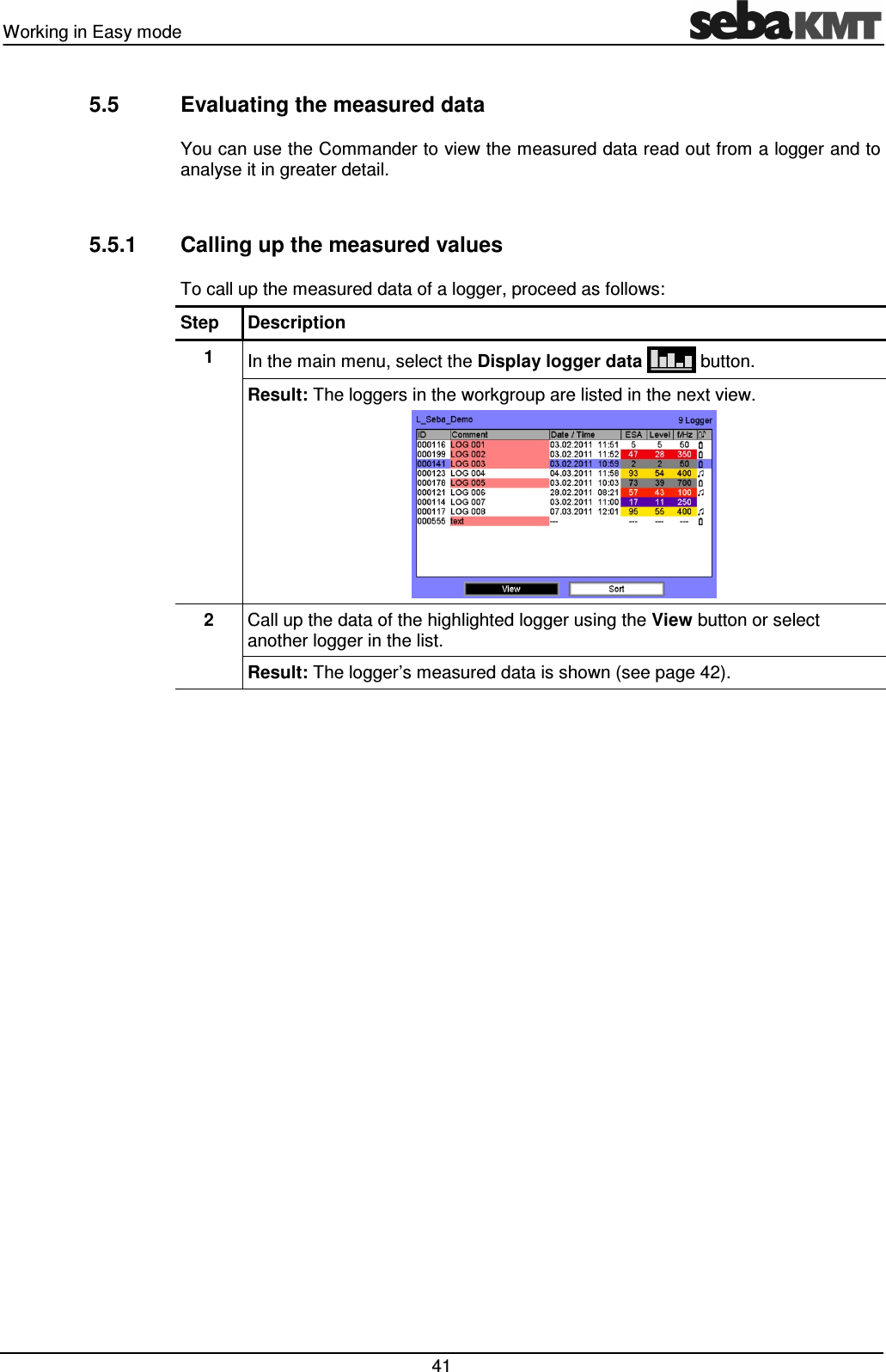

Working in Easy mode 41 5.5 Evaluating the measured data You can use the Commander to view the measured data read out from a logger and to analyse it in greater detail. 5.5.1 Calling up the measured values To call up the measured data of a logger, proceed as follows: Step Description 1 In the main menu, select the Display logger data button. Result: The loggers in the workgroup are listed in the next view. 2 Call up the data of the highlighted logger using the View button or select another logger in the list. Result: The logger’s measured data is shown (see page 42).
