Sensys Gatso Netherlands LTR-NID-0001 Loopless Trigger Radar User Manual LTRspecs gatso v11

Gatsometer BV Loopless Trigger Radar LTRspecs gatso v11

information to the user

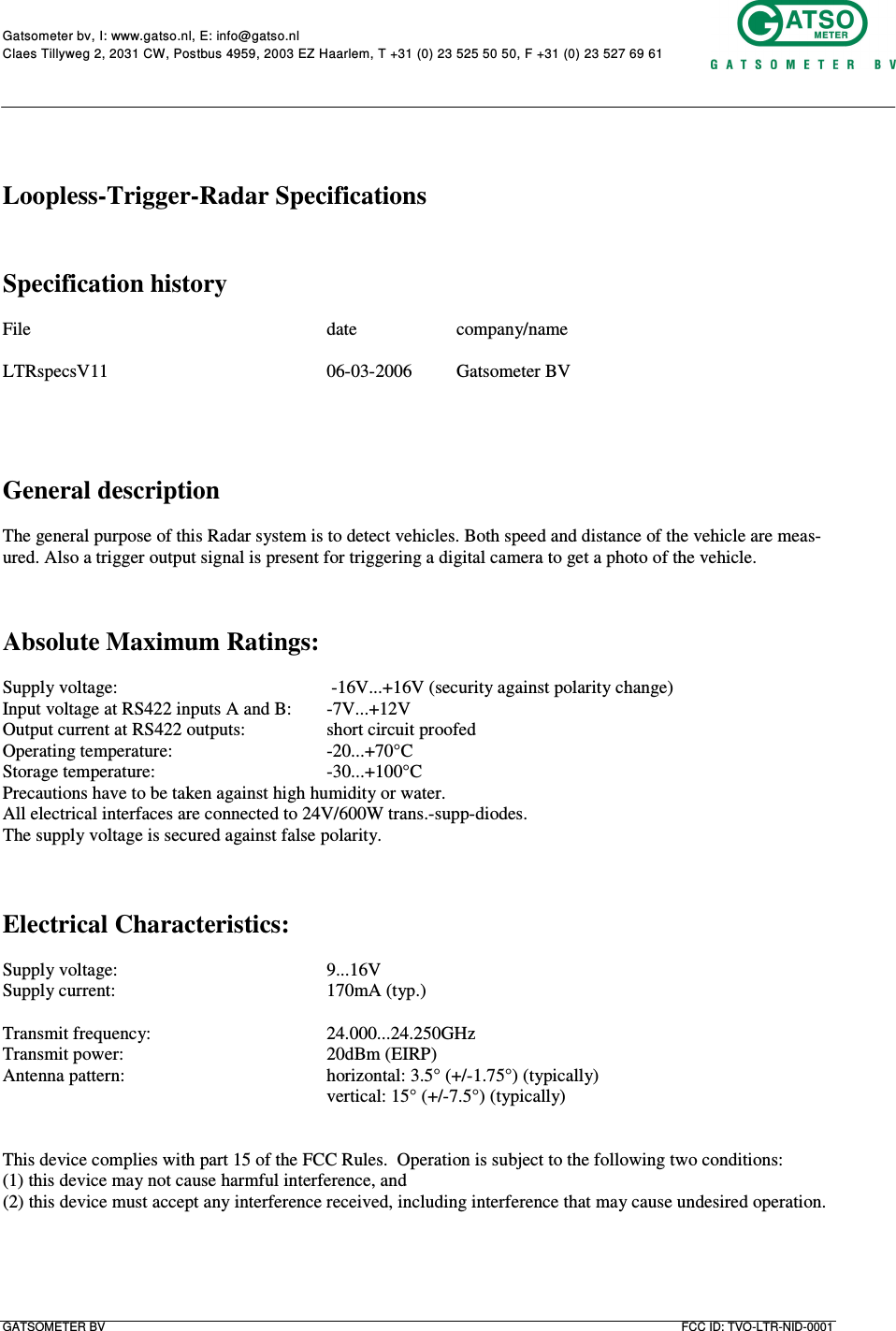

Gatsometer bv, I: www.gatso.nl, E: info@gatso.nl Claes Tillyweg 2, 2031 CW, Postbus 4959, 2003 EZ Haarlem, T +31 (0) 23 525 50 50, F +31 (0) 23 527 69 61 GATSOMETER BV FCC ID: TVO-LTR-NID-0001 Loopless-Trigger-Radar Specifications Specification history File date company/name LTRspecsV11 06-03-2006 Gatsometer BV General description The general purpose of this Radar system is to detect vehicles. Both speed and distance of the vehicle are meas-ured. Also a trigger output signal is present for triggering a digital camera to get a photo of the vehicle. Absolute Maximum Ratings: Supply voltage: -16V...+16V (security against polarity change) Input voltage at RS422 inputs A and B: -7V...+12V Output current at RS422 outputs: short circuit proofed Operating temperature: -20...+70°C Storage temperature: -30...+100°C Precautions have to be taken against high humidity or water. All electrical interfaces are connected to 24V/600W trans.-supp-diodes. The supply voltage is secured against false polarity. Electrical Characteristics: Supply voltage: 9...16V Supply current: 170mA (typ.) Transmit frequency: 24.000...24.250GHz Transmit power: 20dBm (EIRP) Antenna pattern: horizontal: 3.5° (+/-1.75°) (typically) vertical: 15° (+/-7.5°) (typically) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
