Shakespeare CA-NEX Single Channel Power Amplifier User Manual CA NEX instructionsheet

Shakespeare Company Single Channel Power Amplifier CA NEX instructionsheet

Users Manual

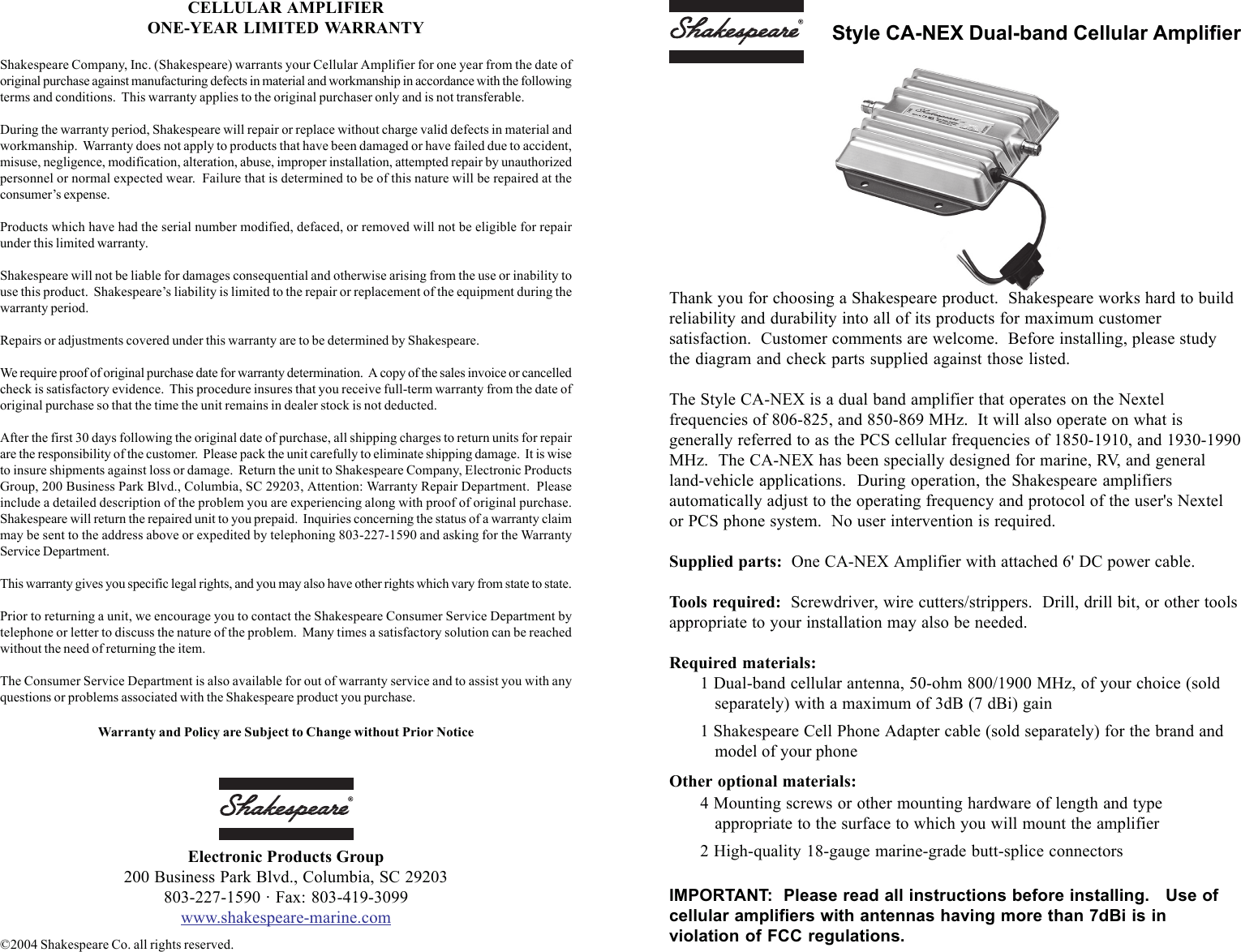

Thank you for choosing a Shakespeare product. Shakespeare works hard to buildreliability and durability into all of its products for maximum customersatisfaction. Customer comments are welcome. Before installing, please studythe diagram and check parts supplied against those listed.The Style CA-NEX is a dual band amplifier that operates on the Nextelfrequencies of 806-825, and 850-869 MHz. It will also operate on what isgenerally referred to as the PCS cellular frequencies of 1850-1910, and 1930-1990MHz. The CA-NEX has been specially designed for marine, RV, and generalland-vehicle applications. During operation, the Shakespeare amplifiersautomatically adjust to the operating frequency and protocol of the user's Nextelor PCS phone system. No user intervention is required.Supplied parts: One CA-NEX Amplifier with attached 6' DC power cable.Tools required: Screwdriver, wire cutters/strippers. Drill, drill bit, or other toolsappropriate to your installation may also be needed.Required materials:1 Dual-band cellular antenna, 50-ohm 800/1900 MHz, of your choice (soldseparately) with a maximum of 3dB (7 dBi) gain1 Shakespeare Cell Phone Adapter cable (sold separately) for the brand andmodel of your phoneOther optional materials:4 Mounting screws or other mounting hardware of length and typeappropriate to the surface to which you will mount the amplifier2 High-quality 18-gauge marine-grade butt-splice connectorsIMPORTANT: Please read all instructions before installing. Use ofcellular amplifiers with antennas having more than 7dBi is inviolation of FCC regulations.Style CA-NEX Dual-band Cellular AmplifierCELLULAR AMPLIFIERONE-YEAR LIMITED WARRANTYShakespeare Company, Inc. (Shakespeare) warrants your Cellular Amplifier for one year from the date oforiginal purchase against manufacturing defects in material and workmanship in accordance with the followingterms and conditions. This warranty applies to the original purchaser only and is not transferable.During the warranty period, Shakespeare will repair or replace without charge valid defects in material andworkmanship. Warranty does not apply to products that have been damaged or have failed due to accident,misuse, negligence, modification, alteration, abuse, improper installation, attempted repair by unauthorizedpersonnel or normal expected wear. Failure that is determined to be of this nature will be repaired at theconsumer’s expense.Products which have had the serial number modified, defaced, or removed will not be eligible for repairunder this limited warranty.Shakespeare will not be liable for damages consequential and otherwise arising from the use or inability touse this product. Shakespeare’s liability is limited to the repair or replacement of the equipment during thewarranty period.Repairs or adjustments covered under this warranty are to be determined by Shakespeare.We require proof of original purchase date for warranty determination. A copy of the sales invoice or cancelledcheck is satisfactory evidence. This procedure insures that you receive full-term warranty from the date oforiginal purchase so that the time the unit remains in dealer stock is not deducted.After the first 30 days following the original date of purchase, all shipping charges to return units for repairare the responsibility of the customer. Please pack the unit carefully to eliminate shipping damage. It is wiseto insure shipments against loss or damage. Return the unit to Shakespeare Company, Electronic ProductsGroup, 200 Business Park Blvd., Columbia, SC 29203, Attention: Warranty Repair Department. Pleaseinclude a detailed description of the problem you are experiencing along with proof of original purchase.Shakespeare will return the repaired unit to you prepaid. Inquiries concerning the status of a warranty claimmay be sent to the address above or expedited by telephoning 803-227-1590 and asking for the WarrantyService Department.This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.Prior to returning a unit, we encourage you to contact the Shakespeare Consumer Service Department bytelephone or letter to discuss the nature of the problem. Many times a satisfactory solution can be reachedwithout the need of returning the item.The Consumer Service Department is also available for out of warranty service and to assist you with anyquestions or problems associated with the Shakespeare product you purchase.Warranty and Policy are Subject to Change without Prior NoticeElectronic Products Group200 Business Park Blvd., Columbia, SC 29203803-227-1590 · Fax: 803-419-3099www.shakespeare-marine.com©2004 Shakespeare Co. all rights reserved.

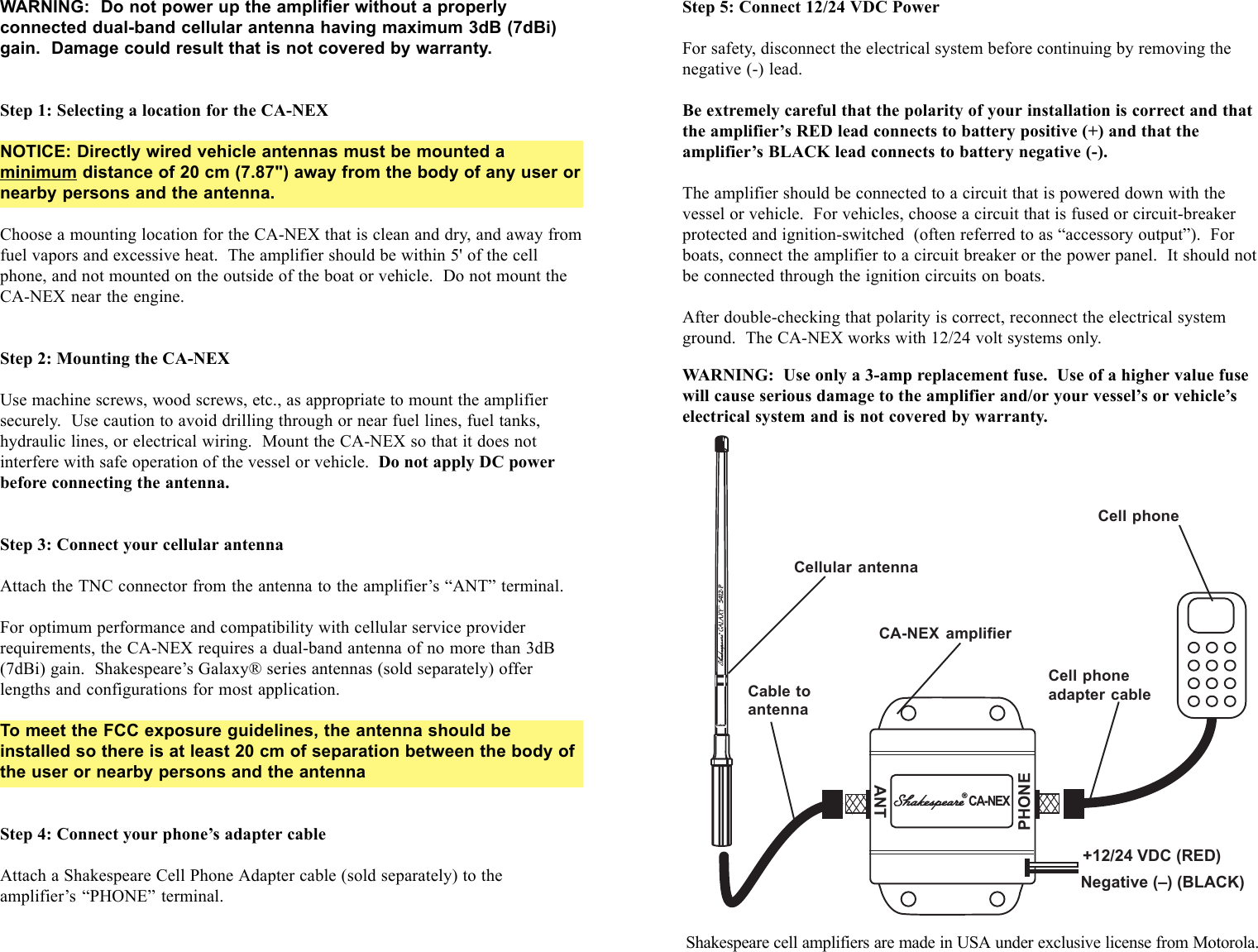

ANTPHONE+12/24 VDC (RED)Negative (–) (BLACK)Cellular5412-P®CA-NEXWARNING: Do not power up the amplifier without a properlyconnected dual-band cellular antenna having maximum 3dB (7dBi)gain. Damage could result that is not covered by warranty.Step 1: Selecting a location for the CA-NEXNOTICE: Directly wired vehicle antennas must be mounted aminimum distance of 20 cm (7.87") away from the body of any user ornearby persons and the antenna.Choose a mounting location for the CA-NEX that is clean and dry, and away fromfuel vapors and excessive heat. The amplifier should be within 5' of the cellphone, and not mounted on the outside of the boat or vehicle. Do not mount theCA-NEX near the engine.Step 2: Mounting the CA-NEXUse machine screws, wood screws, etc., as appropriate to mount the amplifiersecurely. Use caution to avoid drilling through or near fuel lines, fuel tanks,hydraulic lines, or electrical wiring. Mount the CA-NEX so that it does notinterfere with safe operation of the vessel or vehicle. Do not apply DC powerbefore connecting the antenna.Step 3: Connect your cellular antennaAttach the TNC connector from the antenna to the amplifier’s “ANT” terminal.For optimum performance and compatibility with cellular service providerrequirements, the CA-NEX requires a dual-band antenna of no more than 3dB(7dBi) gain. Shakespeare’s Galaxy® series antennas (sold separately) offerlengths and configurations for most application.To meet the FCC exposure guidelines, the antenna should beinstalled so there is at least 20 cm of separation between the body ofthe user or nearby persons and the antennaStep 4: Connect your phone’s adapter cableAttach a Shakespeare Cell Phone Adapter cable (sold separately) to theamplifier’s “PHONE” terminal.Step 5: Connect 12/24 VDC PowerFor safety, disconnect the electrical system before continuing by removing thenegative (-) lead.Be extremely careful that the polarity of your installation is correct and thatthe amplifier’s RED lead connects to battery positive (+) and that theamplifier’s BLACK lead connects to battery negative (-).The amplifier should be connected to a circuit that is powered down with thevessel or vehicle. For vehicles, choose a circuit that is fused or circuit-breakerprotected and ignition-switched (often referred to as “accessory output”). Forboats, connect the amplifier to a circuit breaker or the power panel. It should notbe connected through the ignition circuits on boats.After double-checking that polarity is correct, reconnect the electrical systemground. The CA-NEX works with 12/24 volt systems only.WARNING: Use only a 3-amp replacement fuse. Use of a higher value fusewill cause serious damage to the amplifier and/or your vessel’s or vehicle’selectrical system and is not covered by warranty.Cellular antennaCA-NEX amplifierCell phoneadapter cableCell phoneCable toantennaShakespeare cell amplifiers are made in USA under exclusive license from Motorola.
