ShenZhen ART TECH R C Hobby ETB 2.4GHz Radio Control system User Manual

ShenZhen ART-TECH R/C Hobby Co., Ltd 2.4GHz Radio Control system

User Manual

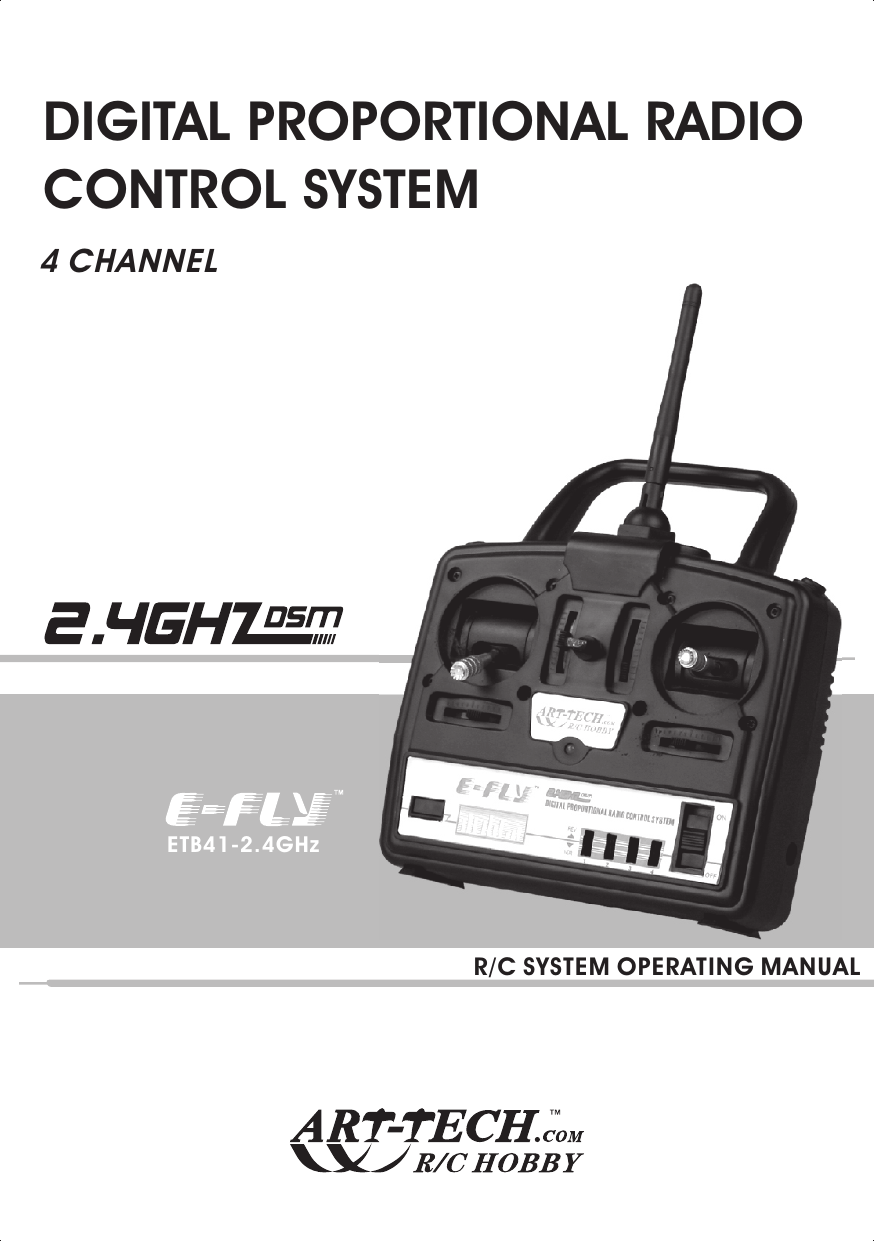

R/C SYSTEM OPERATING MANUALDIGITAL PROPORTIONAL RADIO CONTROL SYSTEM4 CHANNELETB41-2.4GHzCERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

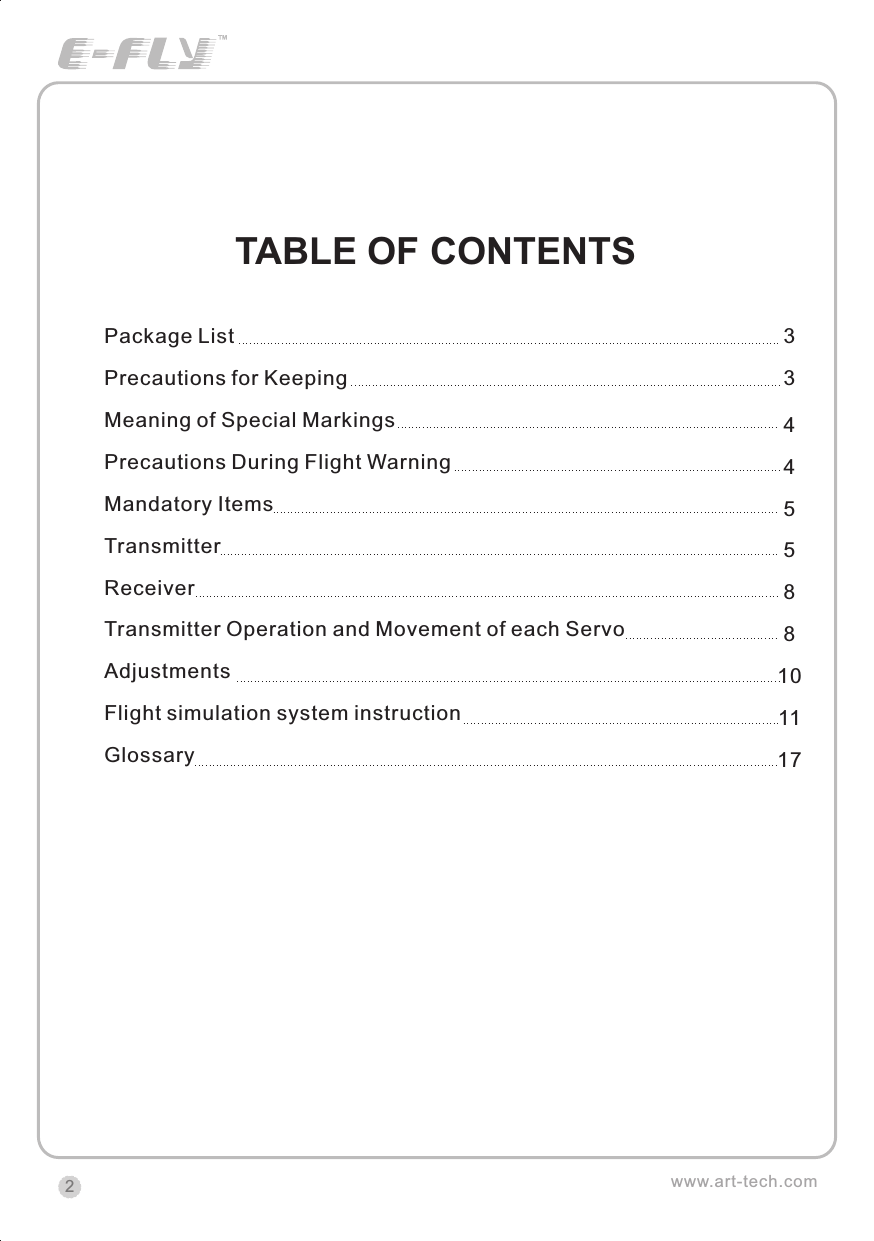

www.art-tech.comTABLE OF CONTENTSPackage ListPrecautions for KeepingMeaning of Special MarkingsPrecautions During Flight WarningMandatory ItemsTransmitterReceiverTransmitter Operation and Movement of each ServoAdjustmentsGlossaryFlight simulation system instruction334455881011172CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

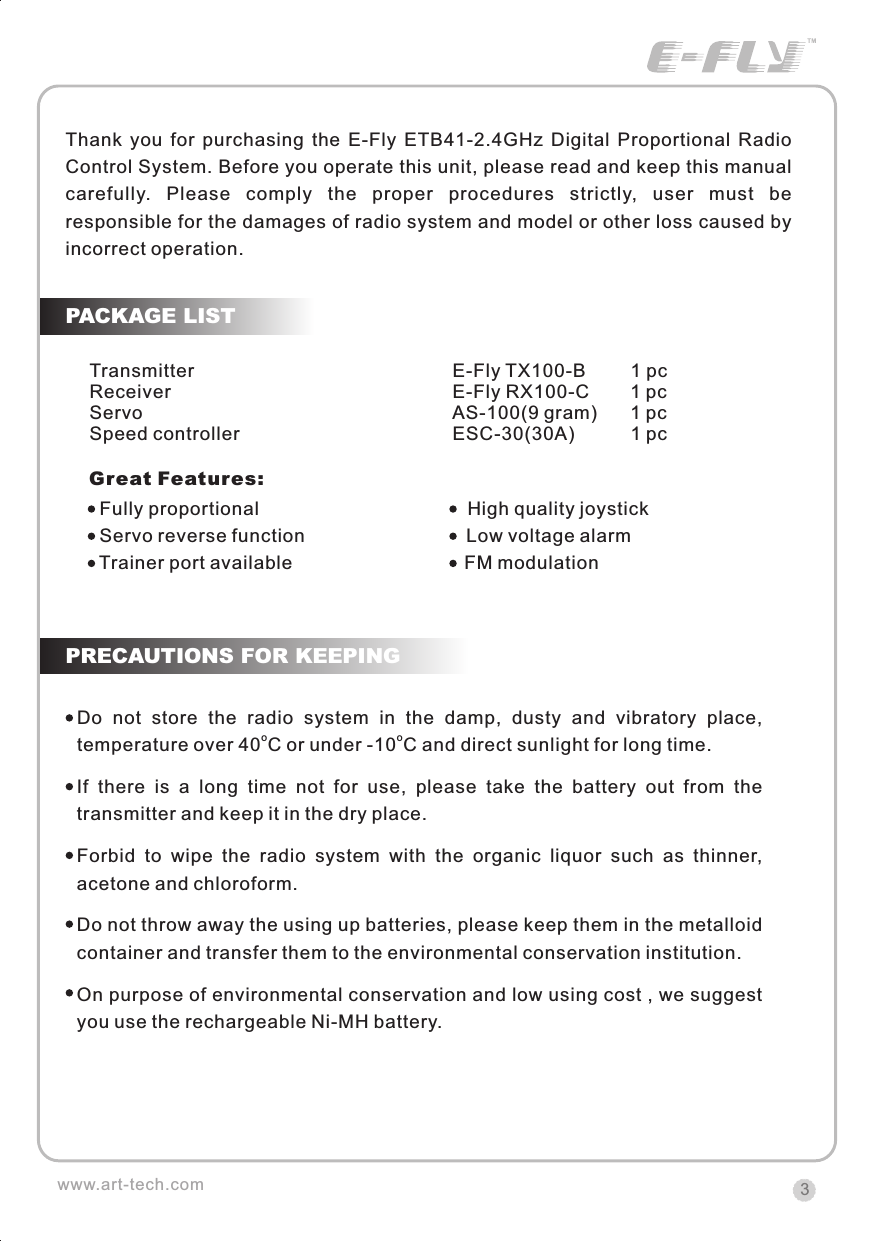

Thank  you  for  purchasing  the  E-Fly  ETB41-2.4GHz  Digital  Proportional  Radio Control System. Before you operate this unit, please read and keep this manual carefully.  Please  comply  the  proper  procedures  strictly,  user  must  be responsible for the damages of radio system and model or other loss caused by incorrect operation.3www.art-tech.comTransmitter                                                  E-Fly TX100-B        1 pcReceiver                                                      E-Fly RX100-C        1 pcServo                                                            AS-100(9 gram)      1 pcSpeed controller                                         ESC-30(30A)           1 pc PRECAUTIONS FOR KEEPINGPACKAGE LISTGreat Features:  Fully proportional                                        High quality joystick  Servo reverse function                               Low voltage alarm  Trainer port available                                 FM modulation Do  not  store  the  radio  system  in  the  damp,  dusty  and  vibratory  place, otemperature over 40 C or under -10 C and direct sunlight for long time.If  there  is  a  long  time  not  for  use,  please  take  the  battery  out  from  the transmitter and keep it in the dry place.Forbid  to  wipe  the  radio  system  with  the  organic  liquor  such  as  thinner, acetone and chloroform.Do not throw away the using up batteries, please keep them in the metalloid container and transfer them to the environmental conservation institution.On purpose of environmental conservation and low using cost , we suggest you use the rechargeable Ni-MH battery.oCERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

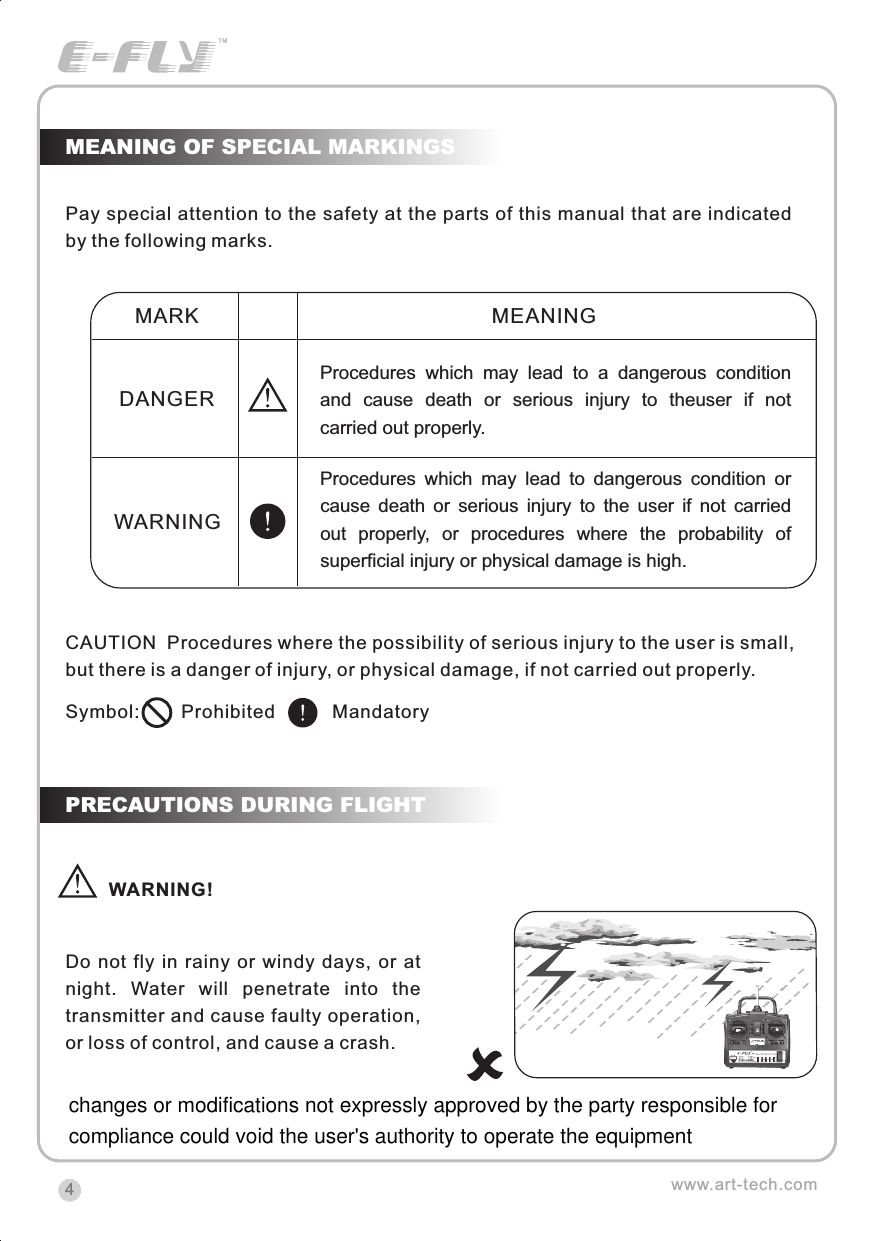

4Pay special attention to the safety at the parts of this manual that are indicated by the following marks.Do  not  fly  in  rainy  or windy  days, or at night.  Water  will  penetrate  into  the transmitter and cause faulty operation, or loss of control, and cause a crash.MEANING OF SPECIAL MARKINGSPRECAUTIONS DURING FLIGHTwww.art-tech.comCAUTION  Procedures where the possibility of serious injury to the user is small, but there is a danger of injury, or physical damage, if not carried out properly.Symbol:        Prohibited           MandatoryMARKDANGERWARNINGMEANINGProcedures  which  may  lead  to  a  dangerous  condition and  cause  death  or  serious  injury  to  theuser  if  not carried out properly.                                           Procedures  which  may  lead  to  dangerous  condition  or cause  death  or  serious  injury  to  the  user  if  not  carried out  properly,  or  procedures  where  the  probability  of superficial injury or physical damage is high.WARNING!CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15gchanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

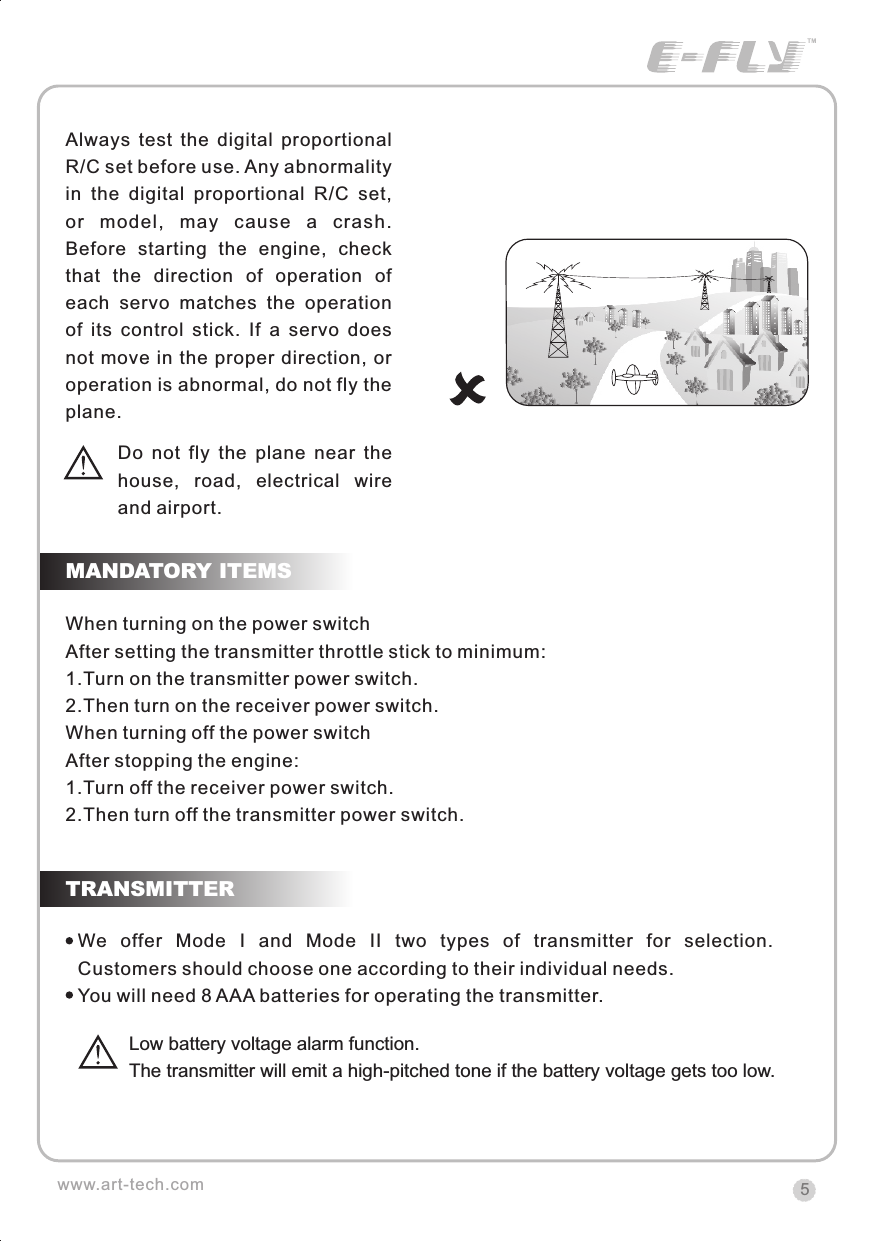

5When turning on the power switchAfter setting the transmitter throttle stick to minimum:1.Turn on the transmitter power switch.2.Then turn on the receiver power switch.When turning off the power switchAfter stopping the engine:1.Turn off the receiver power switch.2.Then turn off the transmitter power switch.MANDATORY ITEMSTRANSMITTERwww.art-tech.comAlways  test  the  digital  proportional R/C set before use. Any abnormality in  the  digital  proportional  R/C  set, or  model,  may  cause  a  crash. Before  starting  the  engine,  check that  the  direction  of  operation  of each  servo  matches  the  operation of  its  control  stick.  If  a  servo  does not move in the proper direction, or operation is abnormal, do not fly the plane.Do  not  fly  the  plane  near  thehouse,  road,  electrical  wireand airport.We  offer  Mode  I  and  Mode  II  two  types  of  transmitter  for  selection. Customers should choose one according to their individual needs. You will need 8 AAA batteries for operating the transmitter. Low battery voltage alarm function. The transmitter will emit a high-pitched tone if the battery voltage gets too low. CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

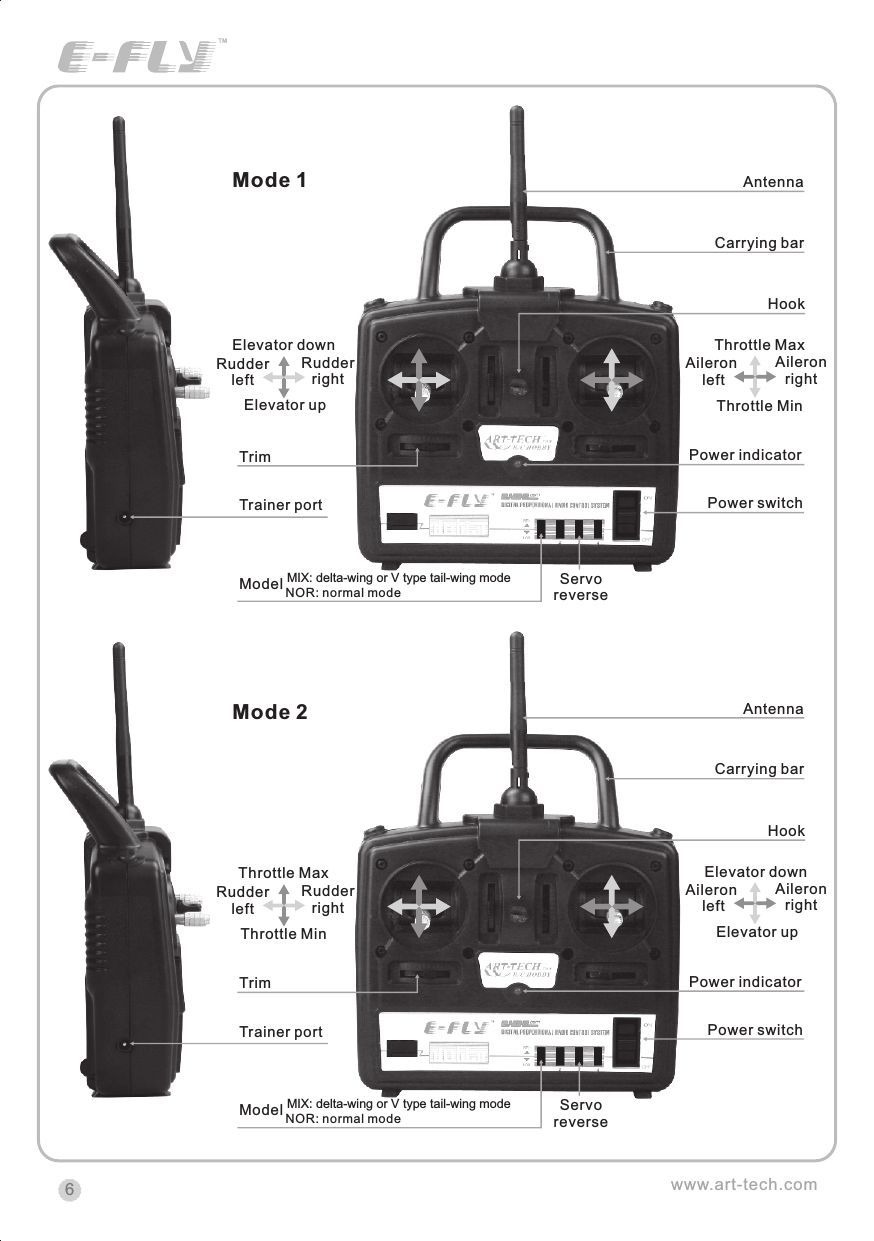

www.art-tech.com6TrimHookTrainer portServoreverse          Elevator down   Rudder left      Rudder right        Elevator up Power switchPower indicator        Throttle MaxAileron left      Aileronright              Throttle Min      Mode 1 AntennaCarrying barNOR: normal modeMIX: delta-wing or V type tail-wing modeModel TrimHookTrainer portServoreversePower switchPower indicatorAntennaCarrying barNOR: normal modeMIX: delta-wing or V type tail-wing modeModel Mode 2Rudder left      Rudder right        Throttle Max        Throttle Min                Elevator down           Elevator up Aileron left      Aileronright      CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

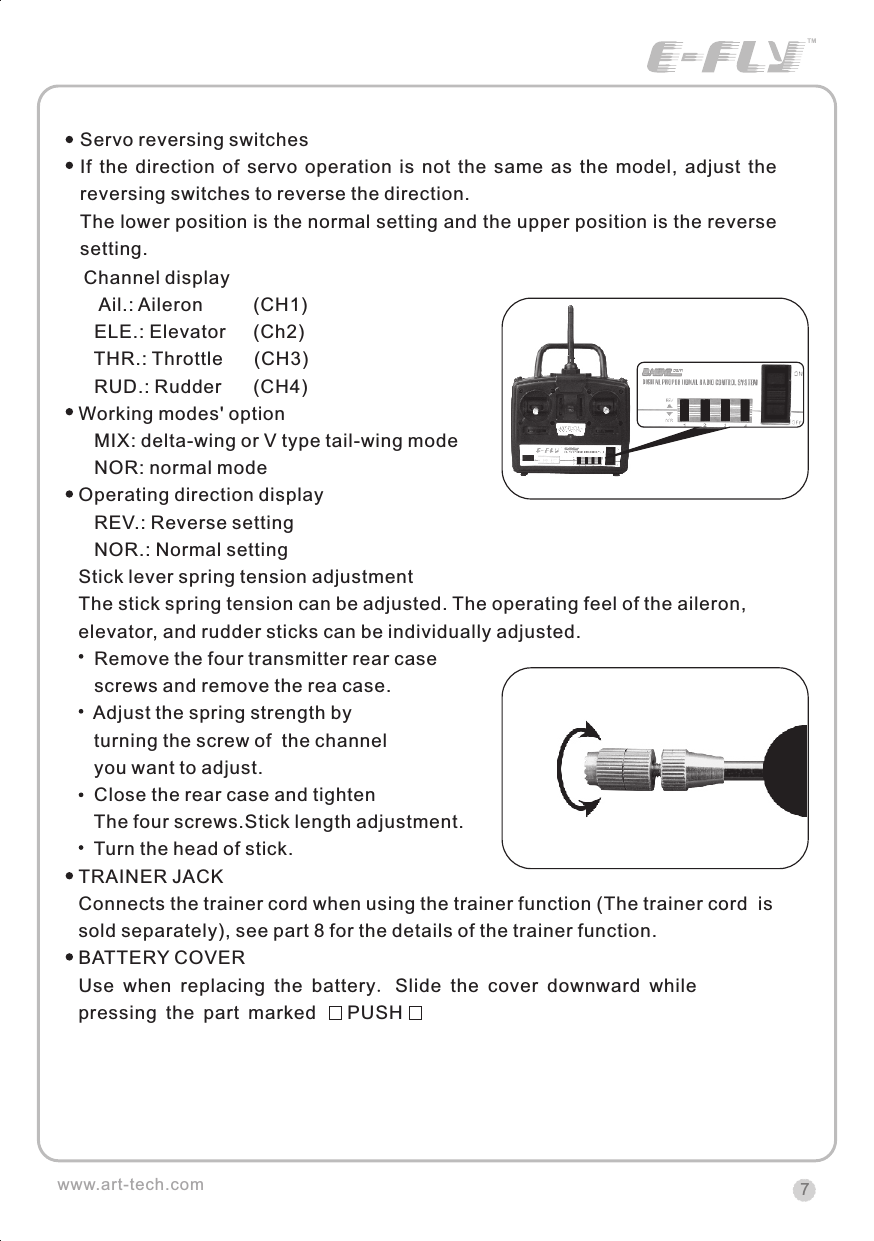

7www.art-tech.com Channel display    Ail.: Aileron          (CH1)   ELE.: Elevator      (Ch2)   THR.: Throttle      (CH3)   RUD.: Rudder      (CH4)Working modes' option   MIX: delta-wing or V type tail-wing mode   NOR: normal modeOperating direction display   REV.: Reverse setting   NOR.: Normal settingStick lever spring tension adjustmentThe stick spring tension can be adjusted. The operating feel of the aileron, elevator, and rudder sticks can be individually adjusted.   Remove the four transmitter rear case   screws and remove the rea case.   Adjust the spring strength by   turning the screw of  the channel   you want to adjust.   Close the rear case and tighten    The four screws.Stick length adjustment.   Turn the head of stick.TRAINER JACKConnects the trainer cord when using the trainer function (The trainer cord  is sold separately), see part 8 for the details of the trainer function.BATTERY COVERUse when replacing the battery. Slide the cover downward while pressing the part marked      PUSHServo reversing switchesIf  the  direction  of  servo  operation  is  not  the  same  as  the  model,  adjust  the reversing switches to reverse the direction.The lower position is the normal setting and the upper position is the reverse setting.CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

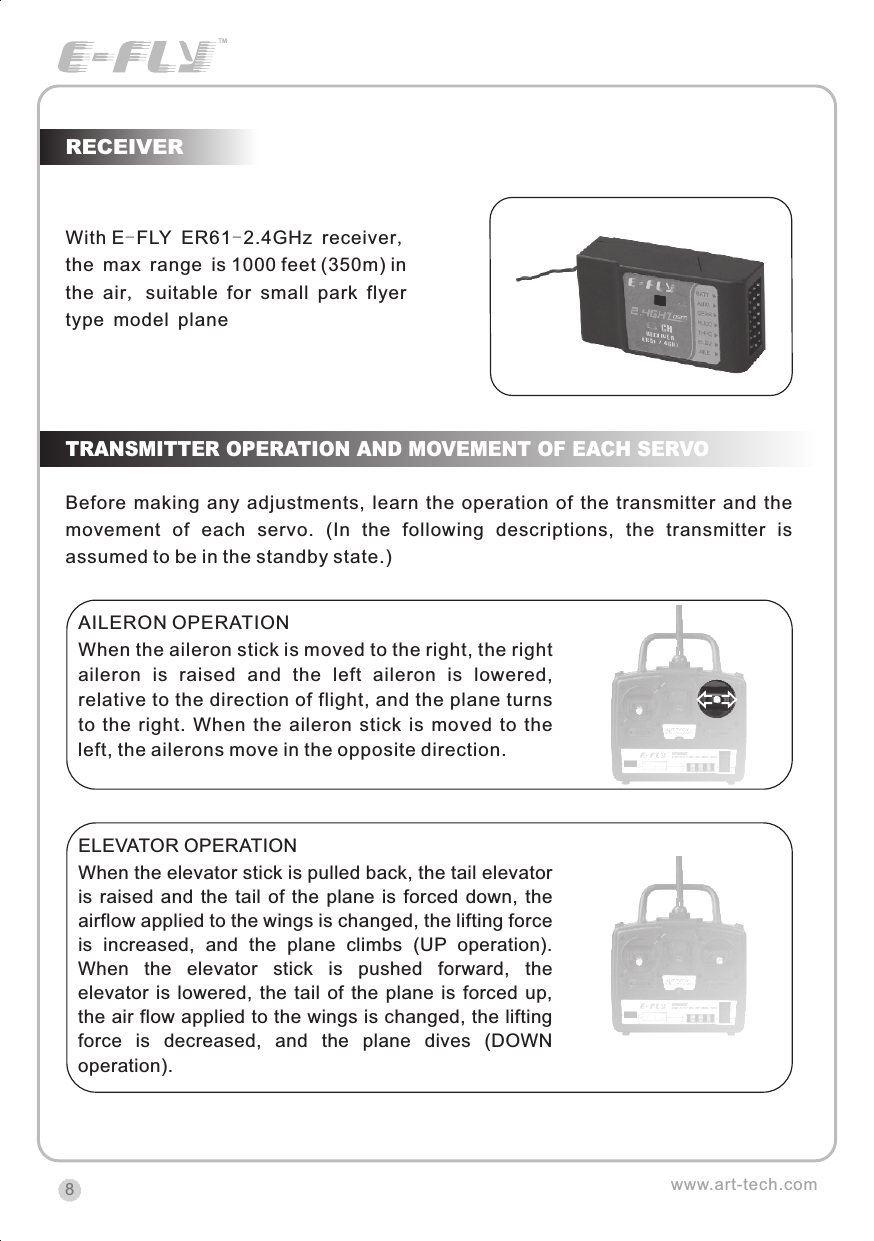

RECEIVERwww.art-tech.com8With E-FLY ER61-2.4GHz receiver, the max range is 1000 feet (350m) in the air, suitable for small park flyer type model planeTRANSMITTER OPERATION AND MOVEMENT OF EACH SERVOBefore making  any  adjustments,  learn  the  operation  of  the transmitter  and  the movement  of  each  servo.  (In  the  following  descriptions,  the  transmitter  is assumed to be in the standby state.)AILERON OPERATIONWhen the aileron stick is moved to the right, the right aileron  is  raised  and  the  left  aileron  is  lowered, relative to the direction of flight, and the plane turns to  the  right.  When  the  aileron  stick  is  moved  to  the left, the ailerons move in the opposite direction. ELEVATOR OPERATIONWhen the elevator stick is pulled back, the tail elevator is raised  and  the  tail  of the  plane  is  forced  down,  the airflow applied to the wings is changed, the lifting force is  increased,  and  the  plane  climbs  (UP  operation). When  the  elevator  stick  is  pushed  forward,  the elevator  is  lowered,  the  tail  of  the  plane  is  forced  up, the air flow applied to the wings is changed, the lifting force  is  decreased,  and  the  plane  dives  (DOWN operation).CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

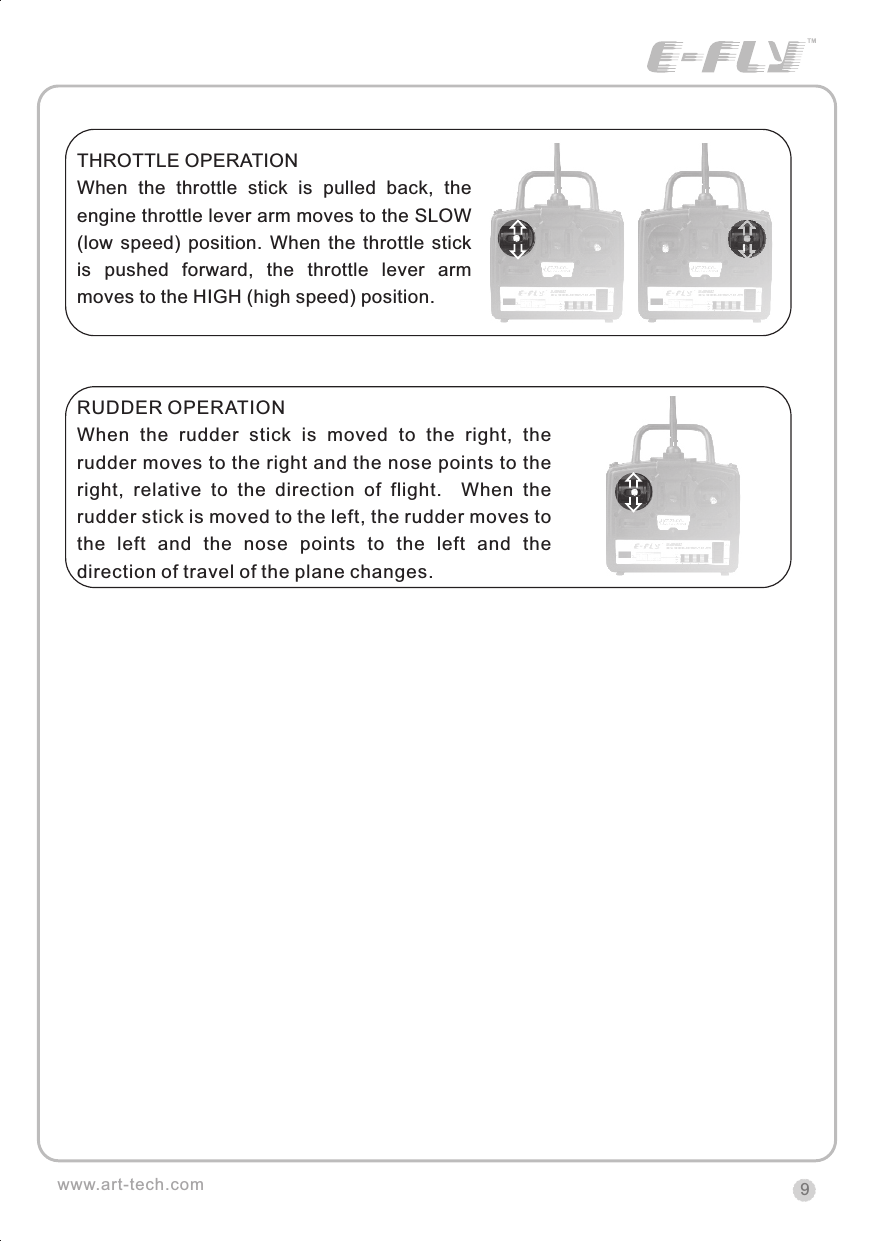

9www.art-tech.comTHROTTLE OPERATIONWhen  the  throttle  stick  is  pulled  back,  the engine throttle lever arm moves to the SLOW (low  speed)  position.  When  the  throttle  stick is  pushed  forward,  the  throttle  lever  arm moves to the HIGH (high speed) position.RUDDER OPERATIONWhen  the  rudder  stick  is  moved  to  the  right,  the rudder moves to the right and the nose points to the right,  relative  to  the  direction  of  flight.    When  the rudder stick is moved to the left, the rudder moves to the  left  and  the  nose  points  to  the  left  and  the direction of travel of the plane changes.CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

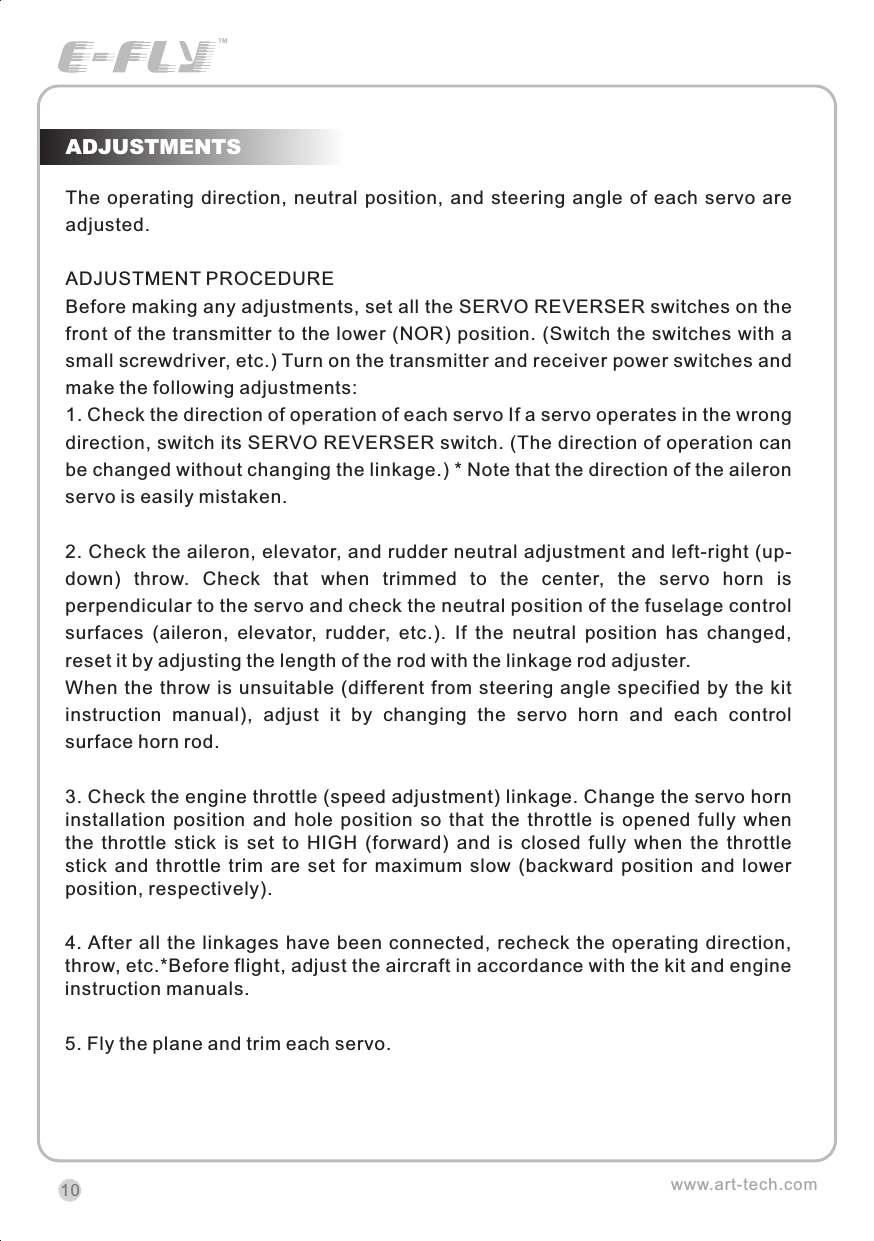

The operating  direction, neutral  position, and  steering  angle  of  each servo are adjusted.ADJUSTMENT PROCEDUREBefore making any adjustments, set all the SERVO REVERSER switches on the front of the transmitter to the lower (NOR) position. (Switch the switches with a small screwdriver, etc.) Turn on the transmitter and receiver power switches and make the following adjustments:1. Check the direction of operation of each servo If a servo operates in the wrong direction, switch its SERVO REVERSER switch. (The direction of operation can be changed without changing the linkage.) * Note that the direction of the aileron servo is easily mistaken.2. Check the aileron, elevator, and rudder neutral adjustment and left-right (up-down)  throw.  Check  that  when  trimmed  to  the  center,  the  servo  horn  is perpendicular to the servo and check the neutral position of the fuselage control surfaces  (aileron,  elevator,  rudder,  etc.).  If  the  neutral  position  has  changed, reset it by adjusting the length of the rod with the linkage rod adjuster.When  the throw is unsuitable  (different from steering angle specified  by  the  kit instruction  manual),  adjust  it  by  changing  the  servo  horn  and  each  control surface horn rod.3. Check the engine throttle (speed adjustment) linkage. Change the servo horn installation  position  and  hole  position  so  that  the  throttle  is  opened  fully  when the  throttle  stick  is  set  to  HIGH  (forward)  and  is  closed  fully  when  the  throttle stick  and  throttle  trim  are  set  for  maximum  slow  (backward  position  and  lower position, respectively).4. After all  the  linkages have been connected,  recheck  the operating  direction, throw, etc.*Before flight, adjust the aircraft in accordance with the kit and engine instruction manuals.5. Fly the plane and trim each servo.ADJUSTMENTSwww.art-tech.com10CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

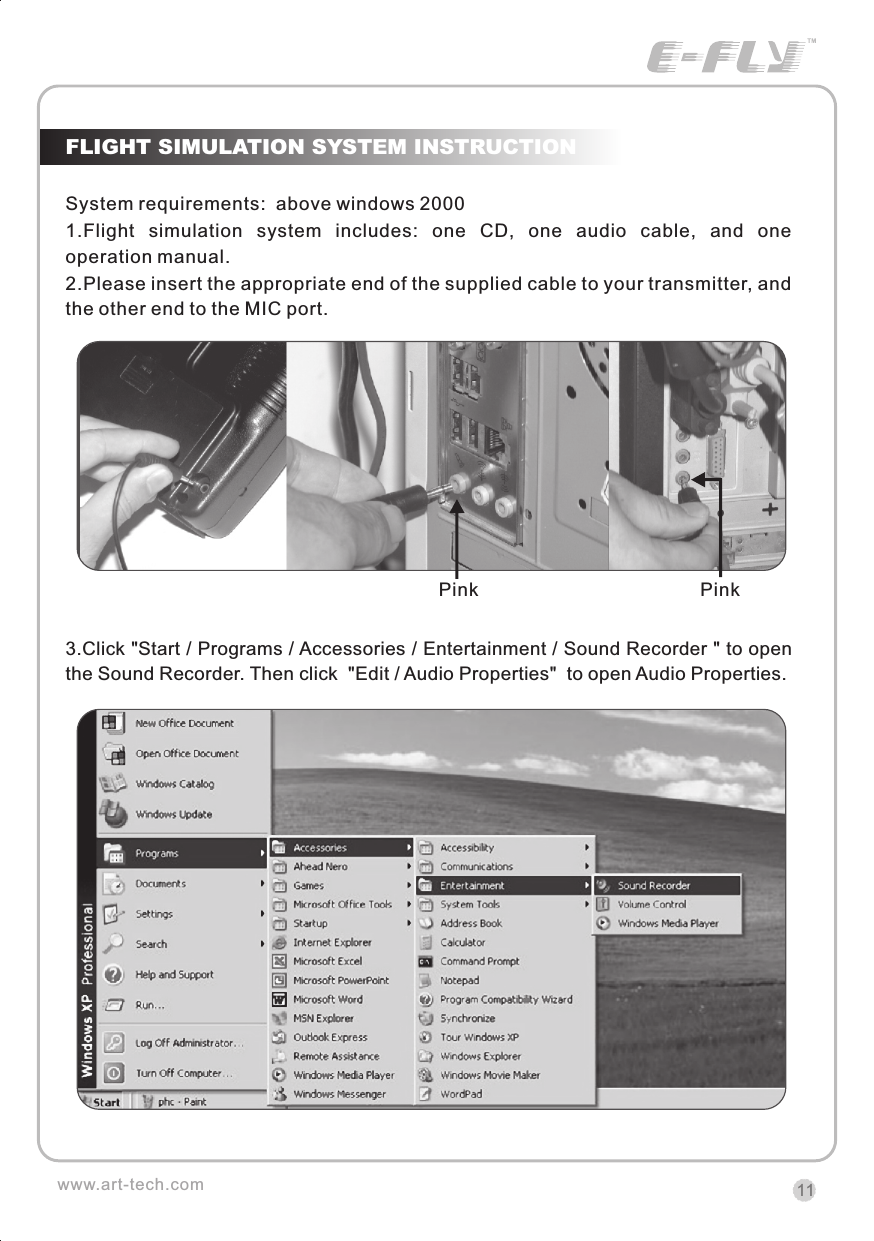

FLIGHT SIMULATION SYSTEM INSTRUCTIONSystem requirements:  above windows 20001.Flight  simulation  system  includes:  one  CD,  one  audio  cable,  and  one operation manual.2.Please insert the appropriate end of the supplied cable to your transmitter, and the other end to the MIC port.3.Click "Start / Programs / Accessories / Entertainment / Sound Recorder " to open the Sound Recorder. Then click  "Edit / Audio Properties"  to open Audio Properties.Pink Pink11www.art-tech.comCERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

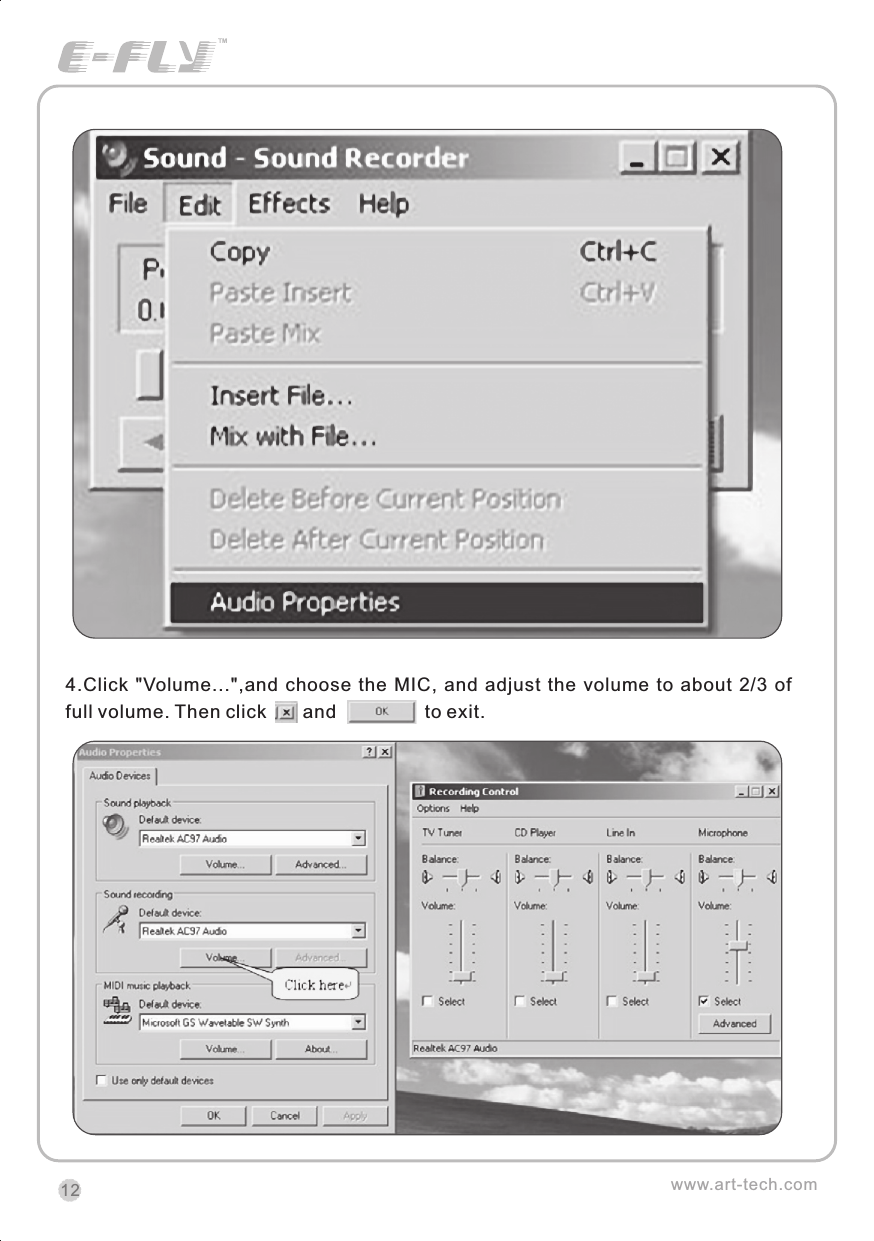

4.Click  "Volume...",and  choose the  MIC,  and  adjust the  volume  to  about  2/3  of full volume. Then click       and                 to exit.www.art-tech.com12CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

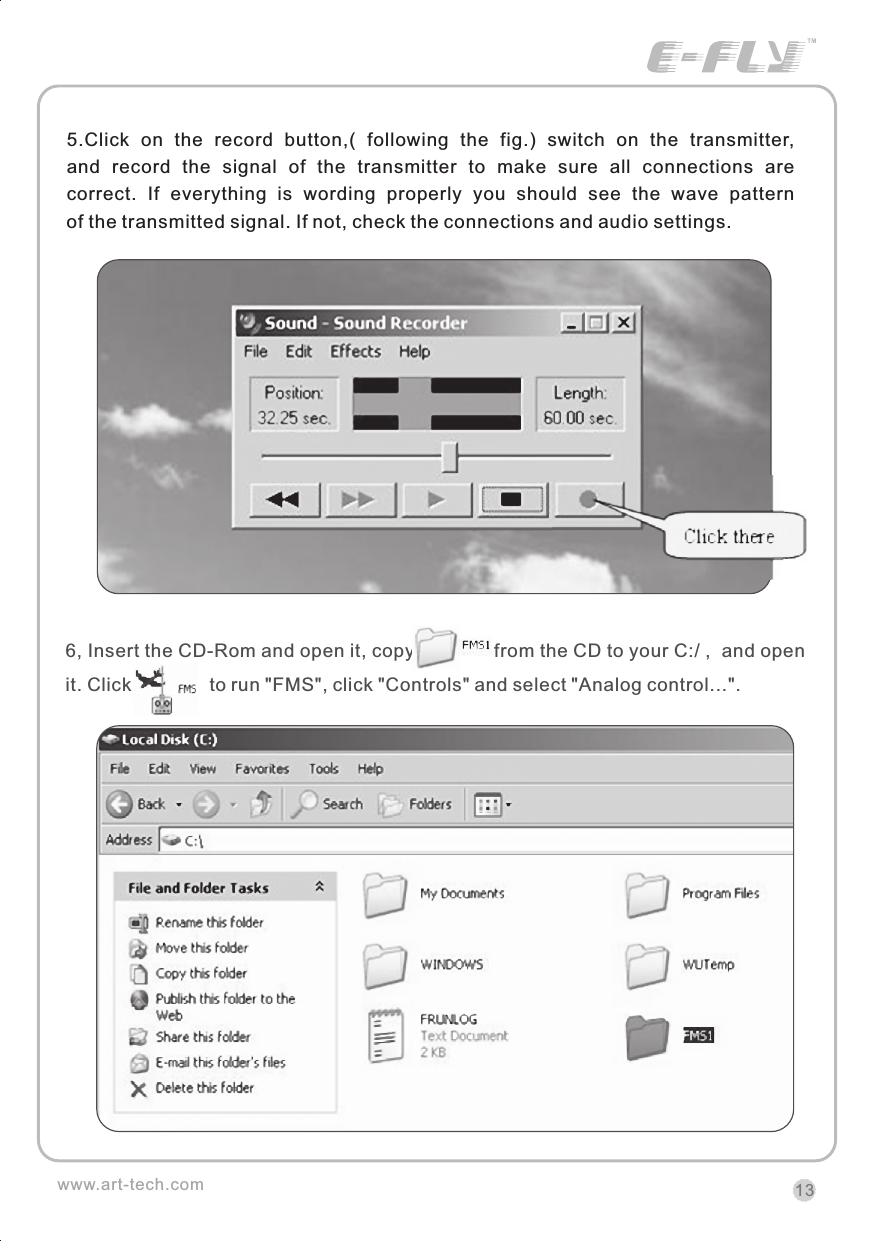

5.Click  on  the  record  button,(  following  the  fig.)  switch  on  the  transmitter, and  record  the  signal  of  the  transmitter  to  make  sure  all  connections  are correct.  If  everything  is  wording  properly  you  should  see  the  wave  pattern of the transmitted signal. If not, check the connections and audio settings.6, Insert the CD-Rom and open it, copy              from the CD to your C:/ ,  and open it. Click               to run "FMS", click "Controls" and select "Analog control...". 13www.art-tech.comCERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

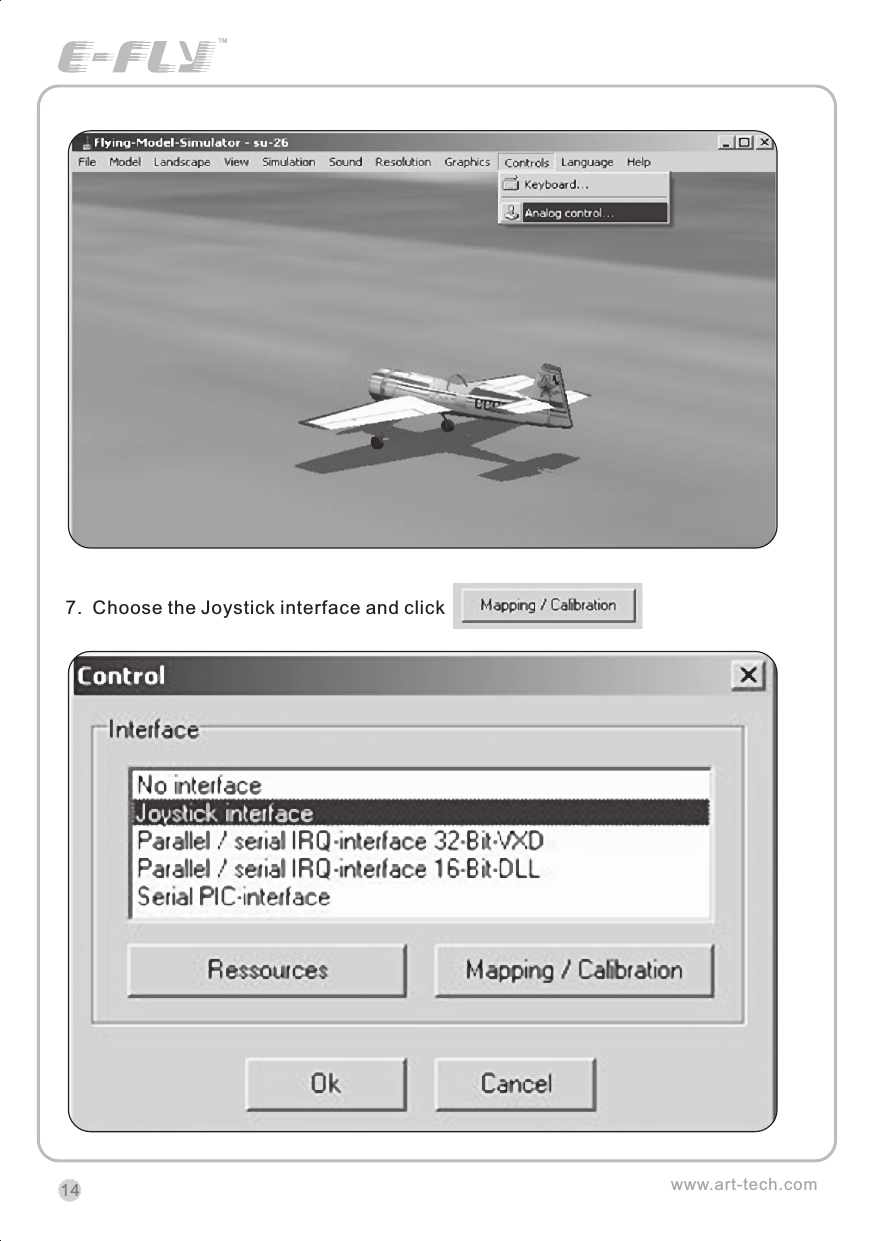

7.  Choose the Joystick interface and click                                 .www.art-tech.com14CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

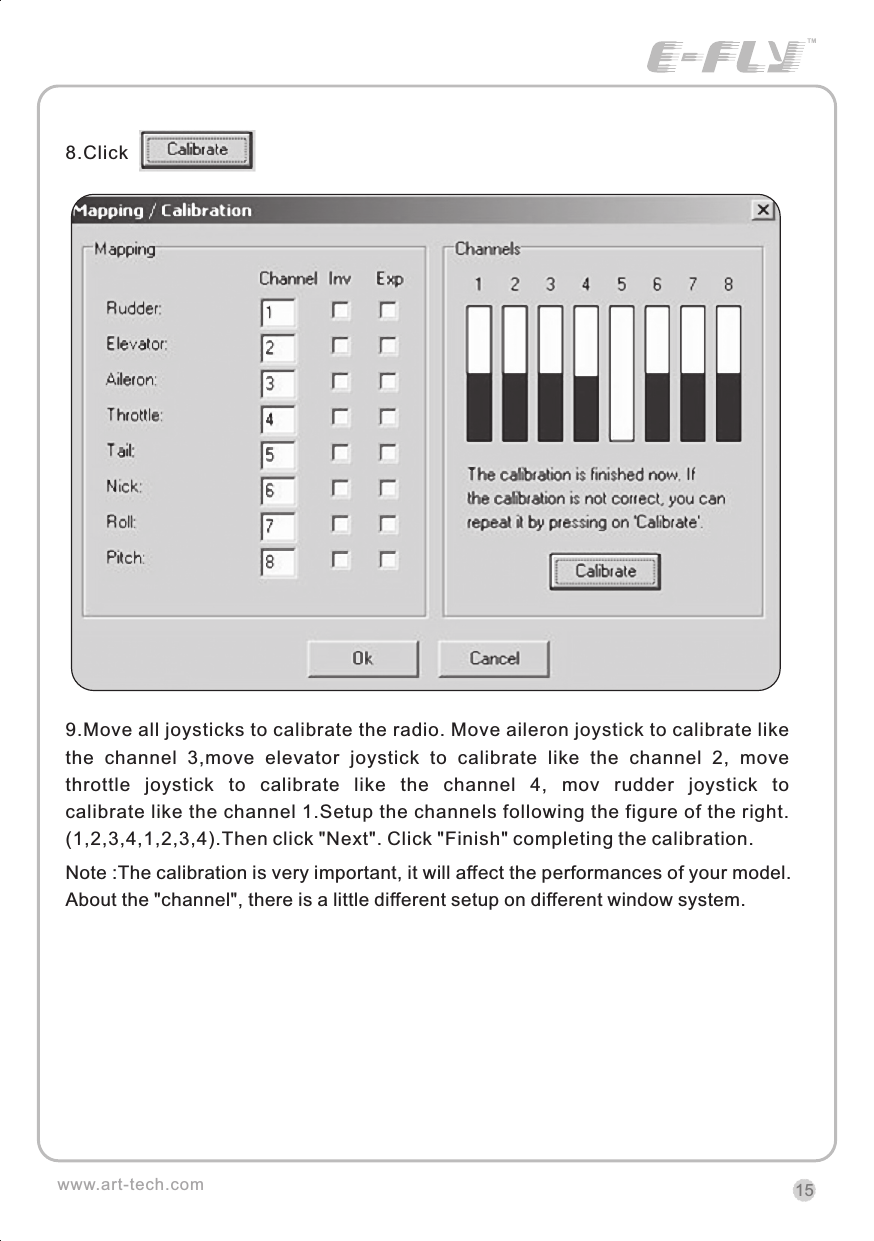

9.Move all joysticks to calibrate the radio. Move aileron joystick to calibrate like the  channel  3,move  elevator  joystick  to  calibrate  like  the  channel  2,  move throttle  joystick  to  calibrate  like  the  channel  4,  mov  rudder  joystick  tocalibrate like the channel 1.Setup the channels following the figure of the right. (1,2,3,4,1,2,3,4).Then click "Next". Click "Finish" completing the calibration.Note :The calibration is very important, it will affect the performances of your model. About the "channel", there is a little different setup on different window system.8.Click 15www.art-tech.comCERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

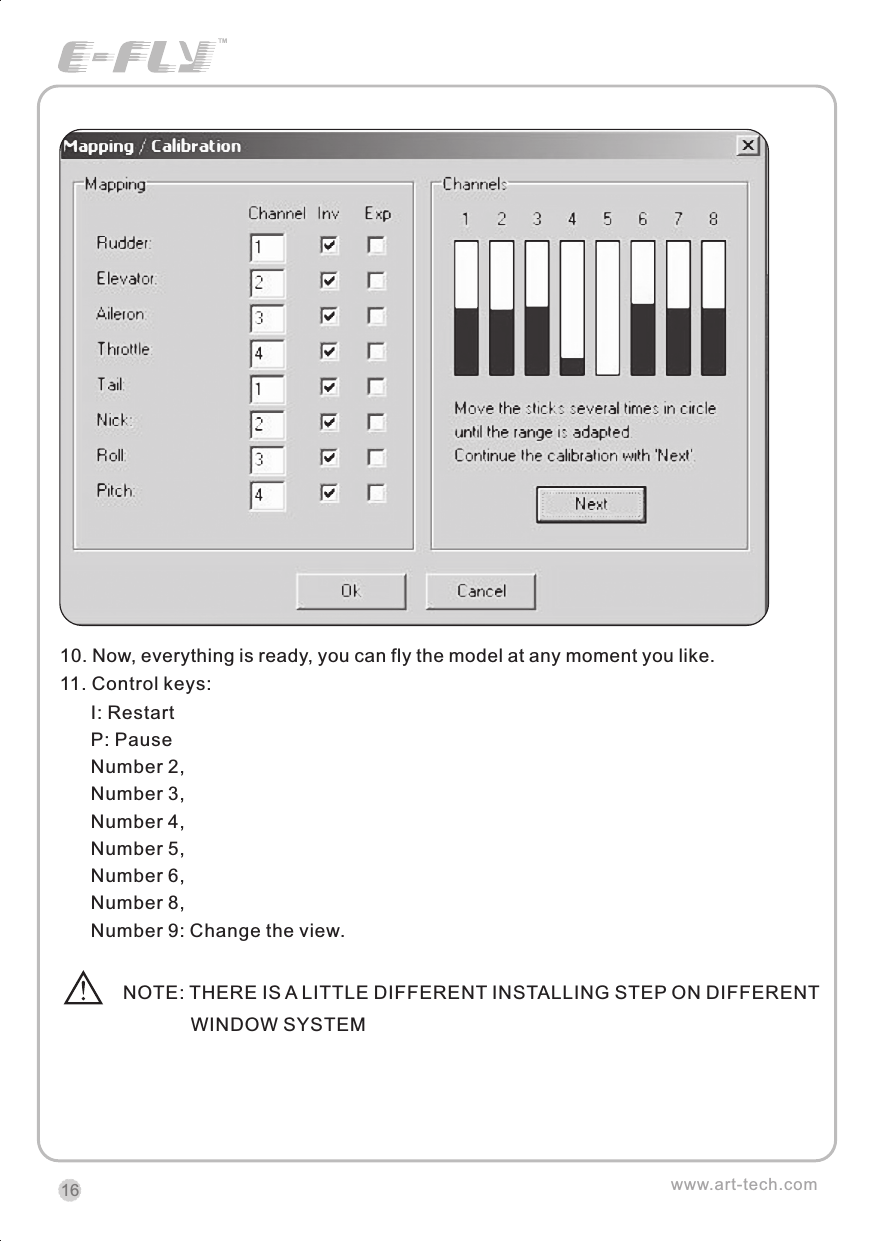

10. Now, everything is ready, you can fly the model at any moment you like.11. Control keys:              I: Restart  P: Pause  Number 2,Number 3,Number 4,Number 5,Number 6,Number 8,Number 9: Change the view.NOTE: THERE IS A LITTLE DIFFERENT INSTALLING STEP ON DIFFERENT              WINDOW SYSTEMwww.art-tech.com16CERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g

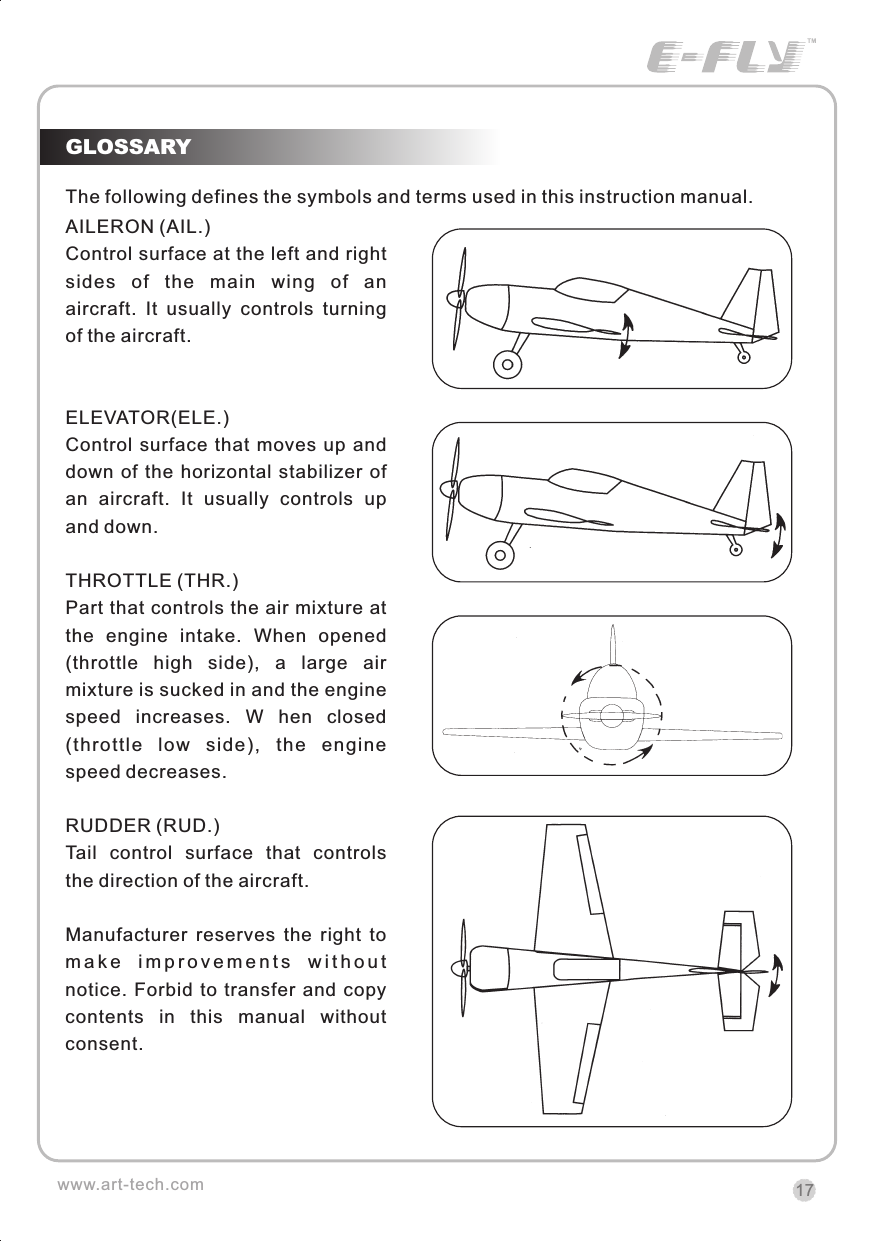

GLOSSARYThe following defines the symbols and terms used in this instruction manual.AILERON (AIL.)Control surface at the left and right sides  of  the  main  wing  of  an aircraft.  It  usually  controls  turning of the aircraft.ELEVATOR(ELE.)Control  surface that moves  up  and down  of the  horizontal stabilizer  of an  aircraft.  It  usually  controls  up and down.THROTTLE (THR.)Part that controls the air mixture at the  engine  intake.  When  opened (throttle  high  side),  a  large  air mixture is sucked in and the engine speed  increases.  W  hen  closed (throttle  low  side),  the  engine speed decreases.RUDDER (RUD.)Tail  control  surface  that  controls the direction of the aircraft.Manufacturer  reserves  the  right  to m a k e   i m p r o v e m e n t s  w i t h o u t notice.  Forbid  to  transfer  and copy contents  in  this  manual  without consent.17www.art-tech.comCERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g
SHENZHEN ART-TECH R/C HOBBY CO.,LTDCERTIFICATIONWe offer  35Mhz,  41Mhz  and  72Mhz  transmitter. The 40Mhz or 41Mhz transmitter has CE certification and the 72Mhz transmitter has FCC certification.36Mhz,  40Mhz,  35Mhz,  36Mhz, CERTIFICATION1.2.3.4.5.6. PitchUndercarriageRudderThrottleServos Black Red WhiteElevatorAileronOperating voltage: 4.5V-6.5VCurrent drain: 10mANumber of channels: 6CHSystem: FM(PPM) Single conversionSensitivity: 1VWeight: 15gSize(L x W x H): 47mm x 24mm x 12mmRange(Height): 500mRange(Distance): 400mAdjacent channel rejection: -65dBm 16kHzAvailable  35MHz  receiver  is  compatible  with  JR  transmitter,  40  Mhz receiver  is  compatible  with  JR  transmitter  72  Mhz  receiver  is  compatible Futaba transmitter.Caution: When you plug the servo cable into the receiver, the black wire of the servo cable should be nearest to the outside of the receiver box.SERVOWe offer 6gram, 9gram and 17gram servos for selection. We offer 3 servos in one package.CRYSTALThe crystal is located on the side of  the receiver.Output / battery connectorAileron servo (Ch1)    Elevator servo (Ch2)Throttle servo (Ch3)   Rudder servo (Ch4)MANUAL FOR BRUSHED ESCFeatures:   Can control the motor run deasil and anti-clockwise.   Full proportional liner.   Auto cut-off for low voltage.   Signal loss protection: while no signal received, the ESC will auto cut-off   In order not to hurt anyone due to out of control.Assembling:1.Turn the transmitter on and push the throttle into minimum.2.Plug the signal wire to the receiver and make sure all is correct.3.Connect  the  battery  and  ESC  and  pay  attention  to  the  polarity,  or  that  can cause  the  damage  to  ESC.  If  there  is  the  sound  like  “beep”,  that  means everything  is  ok.  If  not,  please  check  whether  is  ok,  like  the  wire  connection, battery and the position of throttle.4.After  the  Beep  sound  is over, you can  start  the  motor  by moving the throttle.5.If  the  motor  runs in the  opposite direction as what you want, you can change the connector of motor.6.The connections between motor and ESC should be well protected, or that can cause the damage to ESC7.Please use this ESC under the working currency.8.When the battery voltage is under the safety level or there is signal received, ESC will auto cut off the supply for motor.Signal connector for receiver:white:Signal wireRed: positiveBlack: negativeBattery connectorConnector for motorSpecifications:     30A     Input voltage:5V~14.4V     Output currency:30A/50A (Max)        BEC:5V/1A     Auto cut-off voltage:5V     Starting: throttle in min               (Starting point:1.0-1.5ms)     Dimension:21 x 32 x 10mm     Weight:15g
