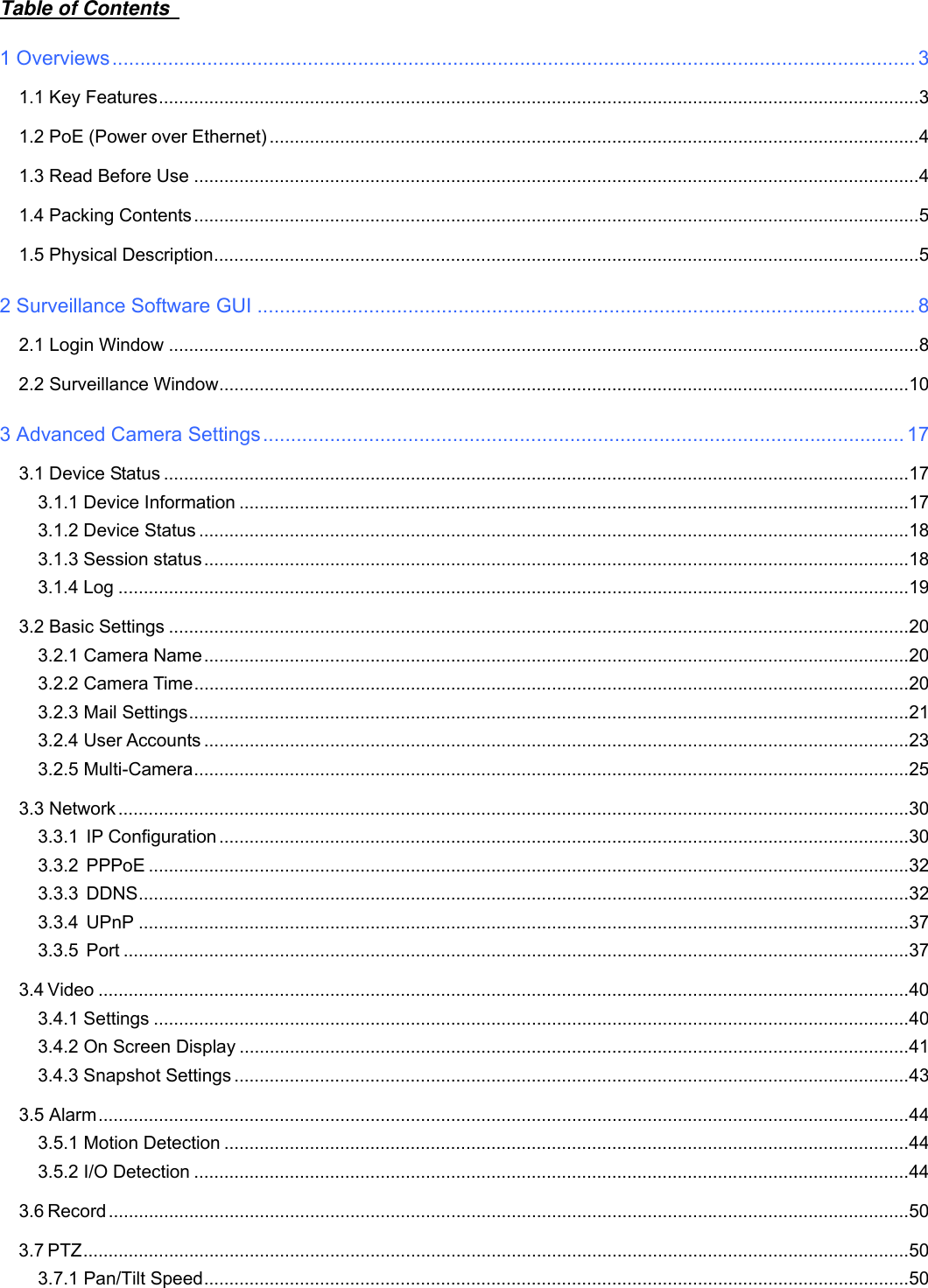

2wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 2 3.7.2 RS485 configuration ................................................................................................................................... 50 3.8 Path Settings ..................................................................................................................................................... 51 3.9 Firewall .............................................................................................................................................................. 53 3.10 System............................................................................................................................................................. 54 3.10.1 Back up& Restore settings ....................................................................................................................... 54 3.10.2 System upgrade ....................................................................................................................................... 54 3.10.3 Factory Reset ........................................................................................................................................... 56 3.10.4 Reboot System ......................................................................................................................................... 56 4 Phone APPs .......................................................................................................................................... 57 4.1 APP for Android cell phones ............................................................................................................................. 57 4.2 APP for iPhones ................................................................................................................................................ 65 5 APPENDIX ............................................................................................................................................ 60 5.1 Frequently Asked Questions ............................................................................................................................. 72 5.2 Default Parameters ........................................................................................................................................... 78 5.3 Specification ...................................................................................................................................................... 78 6 OBTAINING TECHNICAL SUPPORT ................................................................................................... 80

3wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 3 11 OOvveerrvviieewwss FOSCAM FI9805E is an integrated PoE Network Camera solution with a color CMOS sensor enabling viewing resolution 1280*720. It combines a high quality digital video camera, with a powerful web server, to bring clear video to your desktop from anywhere on your local network or over the Internet. FI9805E supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. This camera supports IR-CUT, when light conditions turns poor, the IR cut filter will be automatically removed to accept IR illumination. Meanwhile, the camera switches itself automatically from color to black and white, assuring optimal image quality at all times. The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support Internet Explore. Therefore the management and maintenance of your device is simplified by using the network to achieve the remote configuration and start-up. More advanced features including two-way audio, pan/ tilt controlled by RS485 protocol, and I/O alarm for external alarm. It is a best solution for outdoor surveillance applications such as courtyards, supermarket, and school. Controlling the IPCAM and managing images are simplified by using the provided web interface across the network. FOSCAM provides Phone APPs for Android and iPhone users, please search “Foscam ip cam viewer” and install it through APP Store, then you can view your camera directly as a computer. 11..11 KKeeyy FFeeaattuurreess  Standard H.264 video compression algorithm to satisfy the transmission of high definition video in narrow bandwidth network  High Definition Color CMOS Sensor  1.0 Mega-Pixel  Supports IE/Firefox/Google/Safari browser or any other standard browsers  Supports IR_CUT and the filter change automatically  PoE compliant with PoE standards IEEE 802.3af  Two-way audio  Provides RS485, various decoder protocols can be built in  IR night vision (Range:30m)  Supports external input/output alarm  Motion and I/O detection activates alarm  Supports image snapshot  Embedded FOSCAM DDNS(dynamic domain name service) Service  Supports remote viewing & record from anywhere anytime

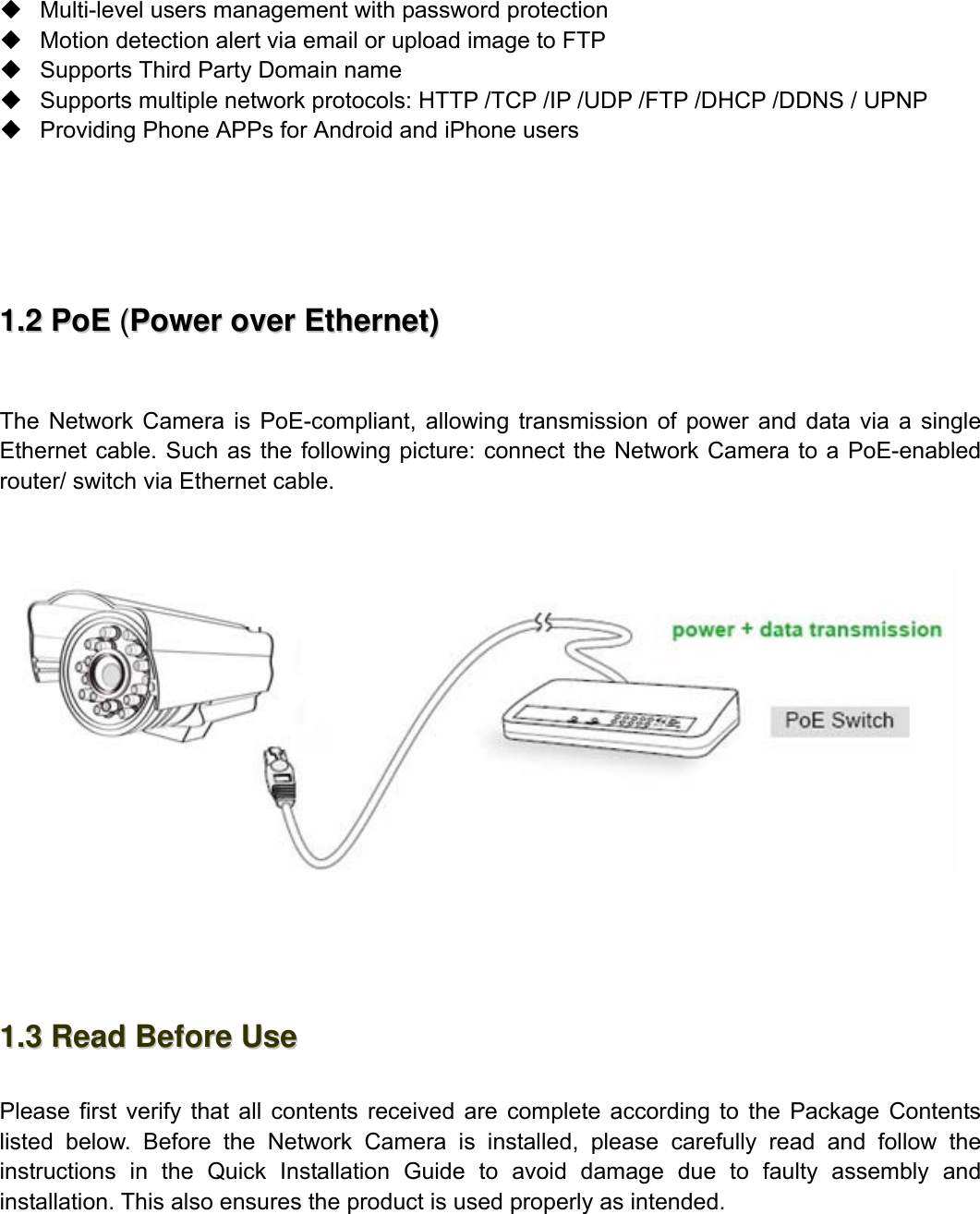

4wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 4  Multi-level users management with password protection  Motion detection alert via email or upload image to FTP  Supports Third Party Domain name  Supports multiple network protocols: HTTP /TCP /IP /UDP /FTP /DHCP /DDNS / UPNP  Providing Phone APPs for Android and iPhone users 11..22 PPooEE ((PPoowweerr oovveerr EEtthheerrnneett)) The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Such as the following picture: connect the Network Camera to a PoE-enabled router/ switch via Ethernet cable. 11..33 RReeaadd BBeeffoorree UUssee Please first verify that all contents received are complete according to the Package Contents listed below. Before the Network Camera is installed, please carefully read and follow the instructions in the Quick Installation Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

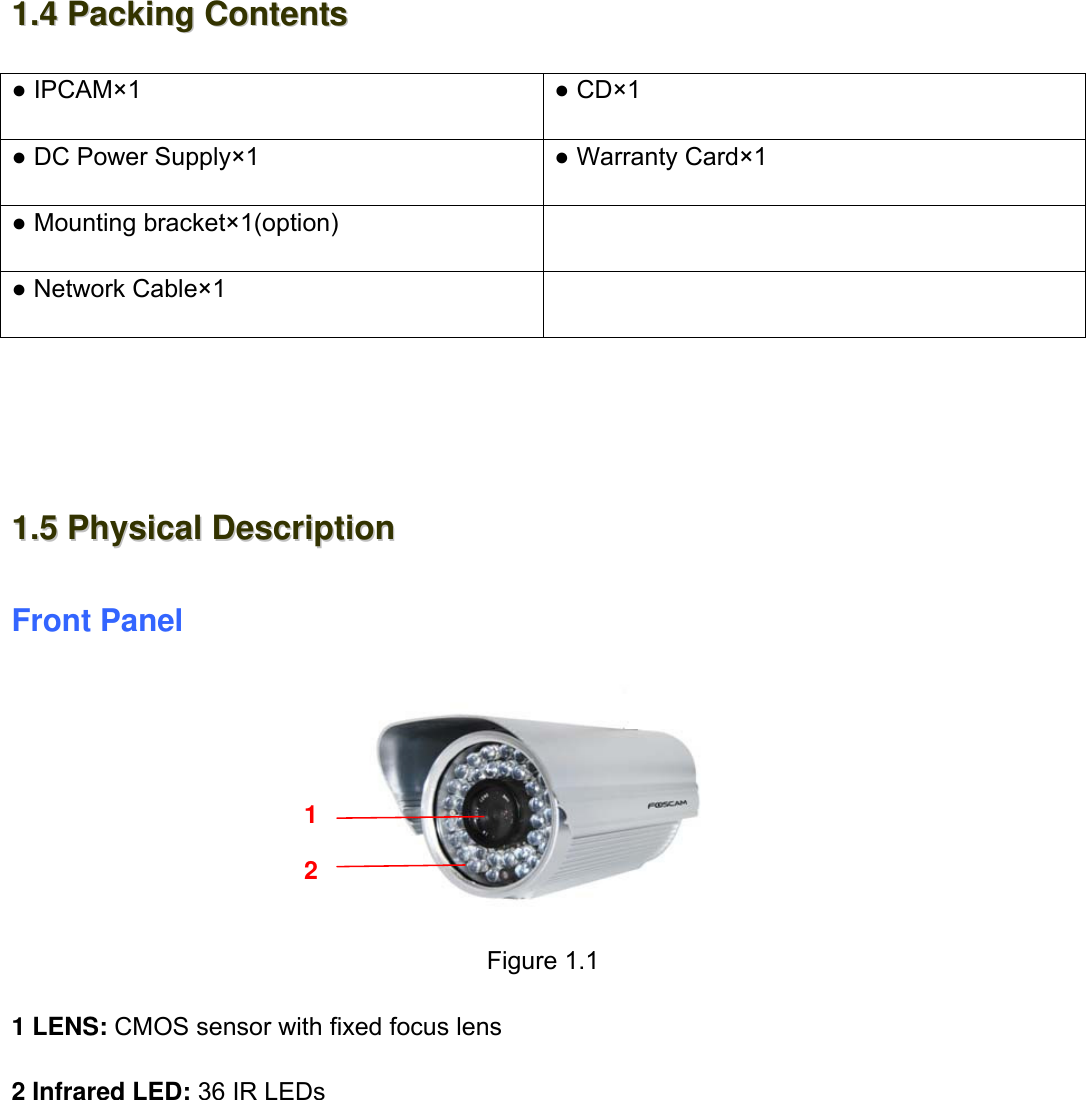

5wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 5 11..44 PPaacckkiinngg CCoonntteennttss ● IPCAM×1 ● CD×1 ● DC Power Supply×1 ● Warranty Card×1 ● Mounting bracket×1(option) ● Network Cable×1 11..55 PPhhyyssiiccaall DDeessccrriippttiioonn Front Panel Figure 1.1 1 LENS: CMOS sensor with fixed focus lens 2 Infrared LED: 36 IR LEDs 1 2

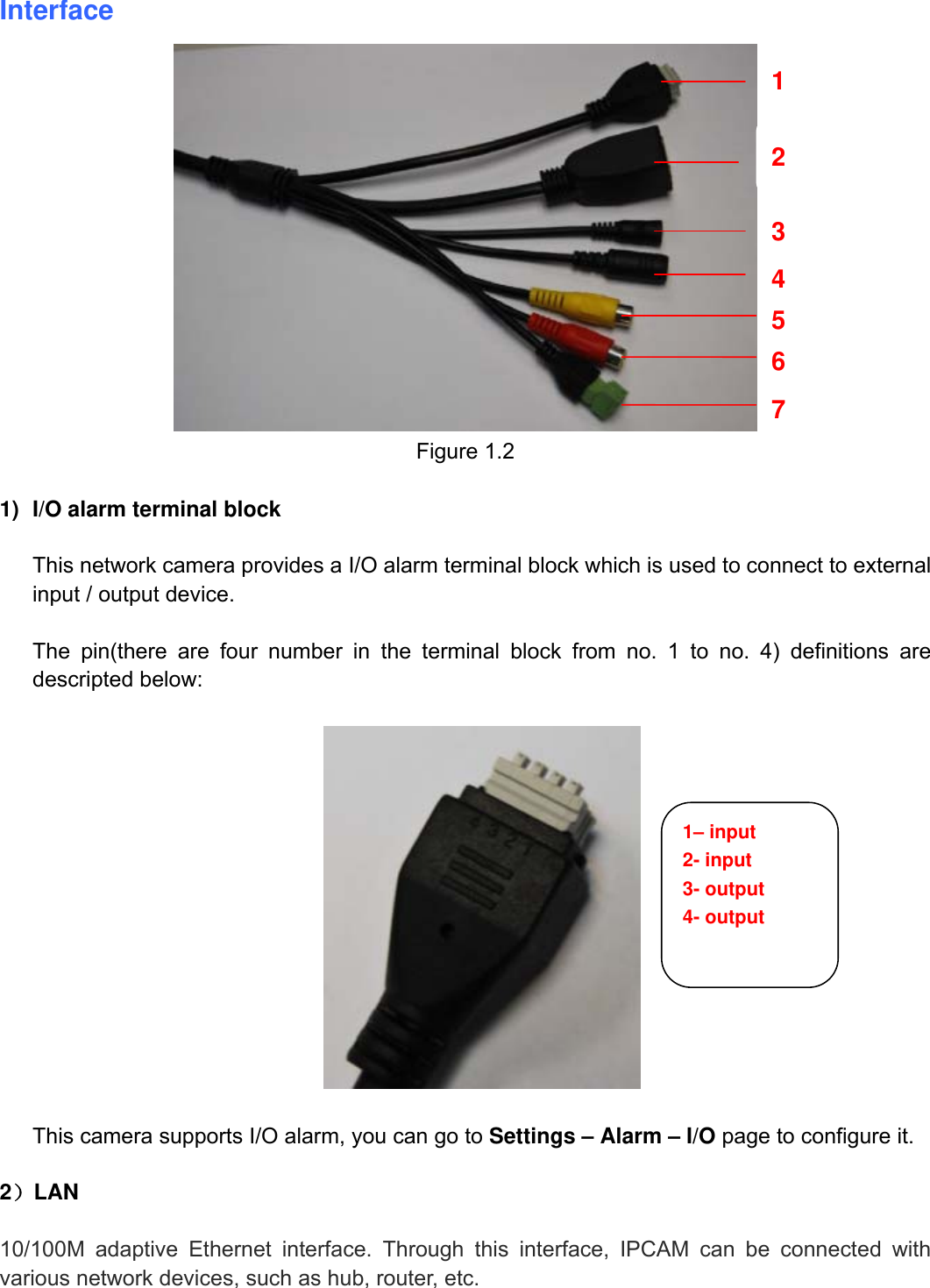

6wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 6 Interface Figure 1.2 1) I/O alarm terminal block This network camera provides a I/O alarm terminal block which is used to connect to external input / output device. The pin(there are four number in the terminal block from no. 1 to no. 4) definitions are descripted below: This camera supports I/O alarm, you can go to Settings – Alarm – I/O page to configure it. 2）LAN 10/100M adaptive Ethernet interface. Through this interface, IPCAM can be connected with various network devices, such as hub, router, etc. 1 2 3 4 5 6 7 1– input 2- input 3- output 4- output

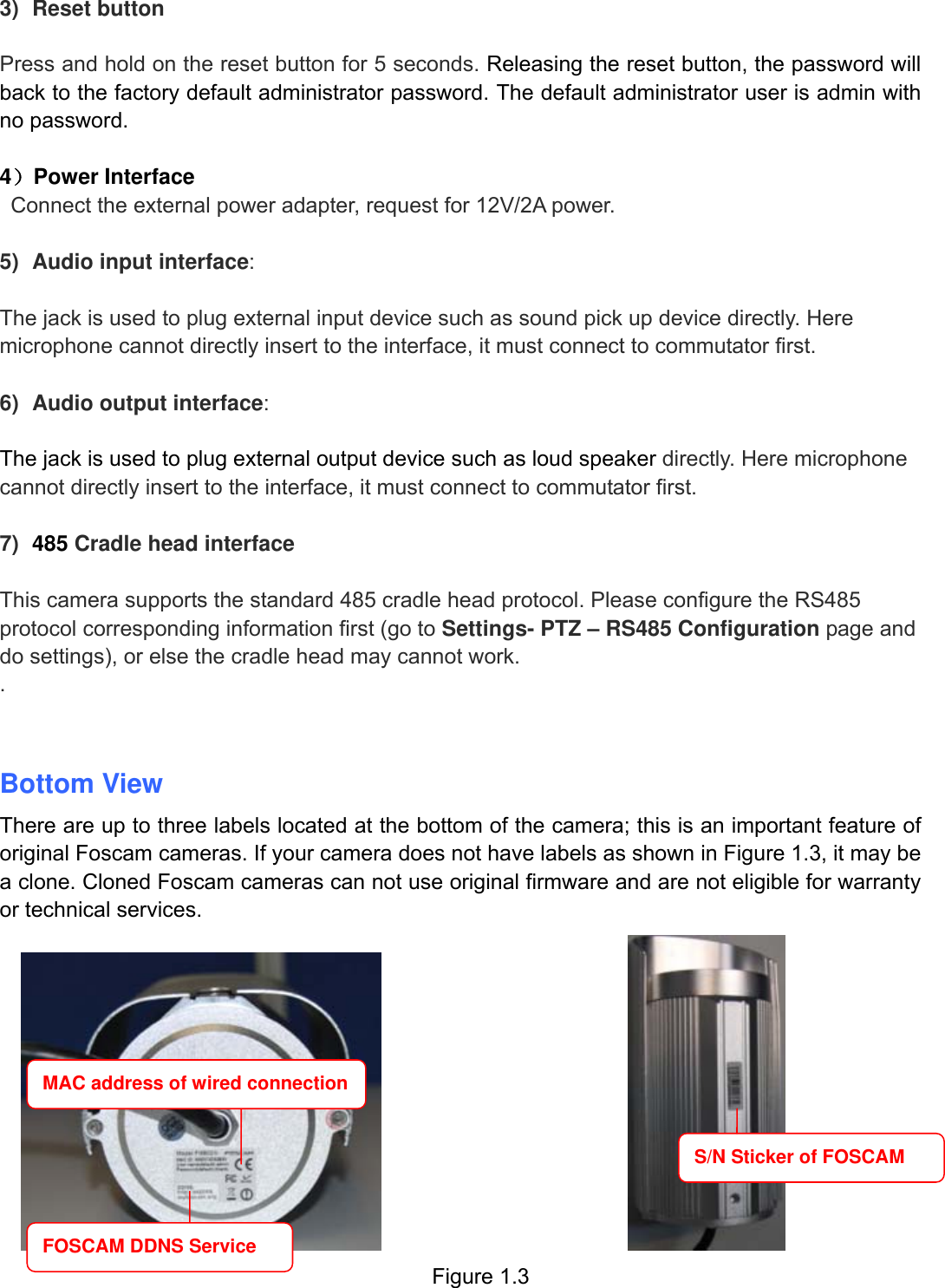

7wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 7 3) Reset button Press and hold on the reset button for 5 seconds. Releasing the reset button, the password will back to the factory default administrator password. The default administrator user is admin with no password. 4）Power Interface Connect the external power adapter, request for 12V/2A power. 5) Audio input interface: The jack is used to plug external input device such as sound pick up device directly. Here microphone cannot directly insert to the interface, it must connect to commutator first. 6) Audio output interface: The jack is used to plug external output device such as loud speaker directly. Here microphone cannot directly insert to the interface, it must connect to commutator first. 7) 485 Cradle head interface This camera supports the standard 485 cradle head protocol. Please configure the RS485 protocol corresponding information first (go to Settings- PTZ – RS485 Configuration page and do settings), or else the cradle head may cannot work. . Bottom View There are up to three labels located at the bottom of the camera; this is an important feature of original Foscam cameras. If your camera does not have labels as shown in Figure 1.3, it may be a clone. Cloned Foscam cameras can not use original firmware and are not eligible for warranty or technical services. Figure 1.3 MAC address of wired connection FOSCAM DDNS Service S/N Sticker of FOSCAM

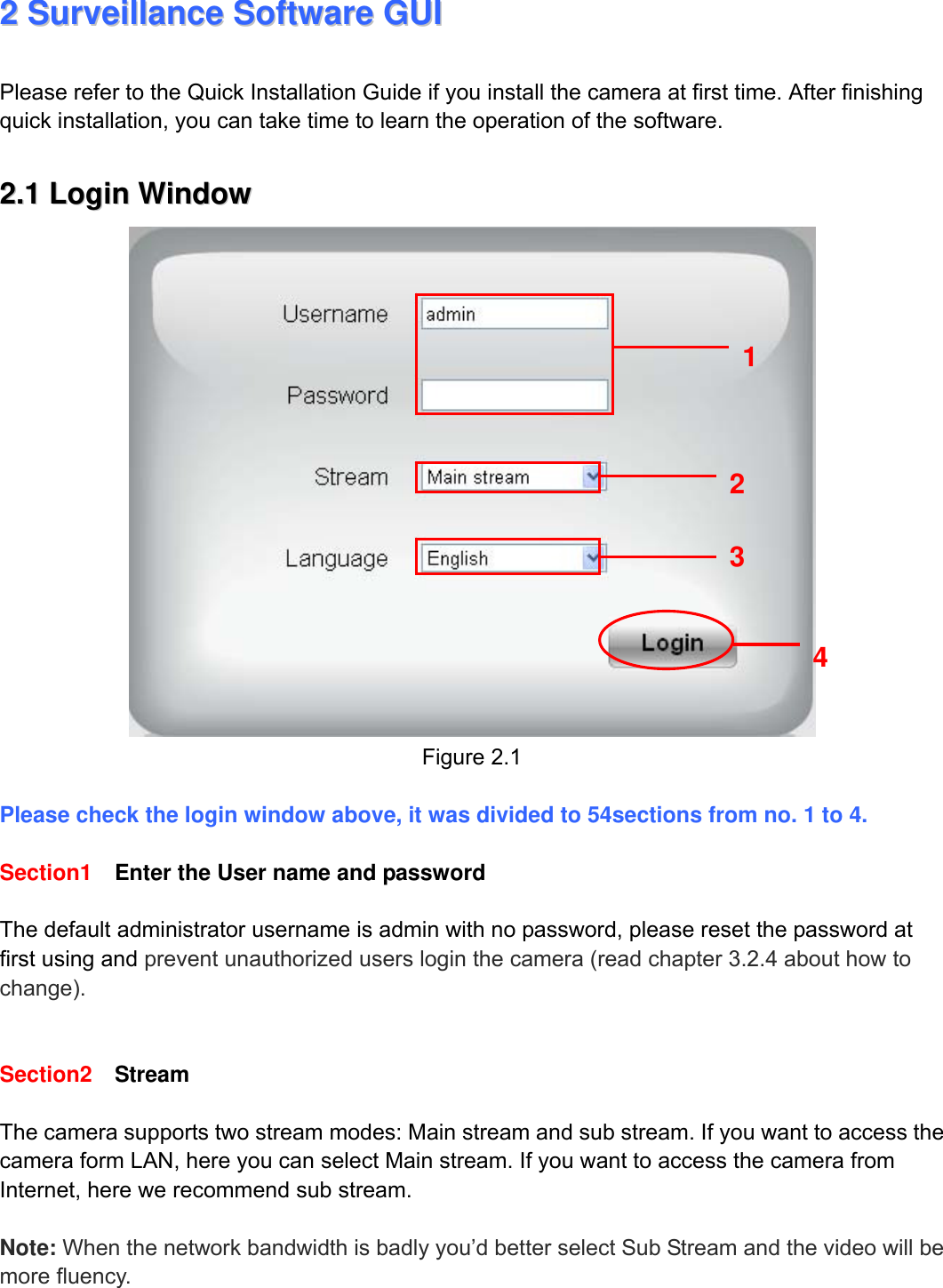

8wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 8 22 SSuurrvveeiillllaannccee SSooffttwwaarree GGUUII Please refer to the Quick Installation Guide if you install the camera at first time. After finishing quick installation, you can take time to learn the operation of the software. 22..11 LLooggiinn WWiinnddooww Figure 2.1 Please check the login window above, it was divided to 54sections from no. 1 to 4. Section1 Enter the User name and password The default administrator username is admin with no password, please reset the password at first using and prevent unauthorized users login the camera (read chapter 3.2.4 about how to change). Section2 Stream The camera supports two stream modes: Main stream and sub stream. If you want to access the camera form LAN, here you can select Main stream. If you want to access the camera from Internet, here we recommend sub stream. Note: When the network bandwidth is badly you’d better select Sub Stream and the video will be more fluency. 2 3 4 1

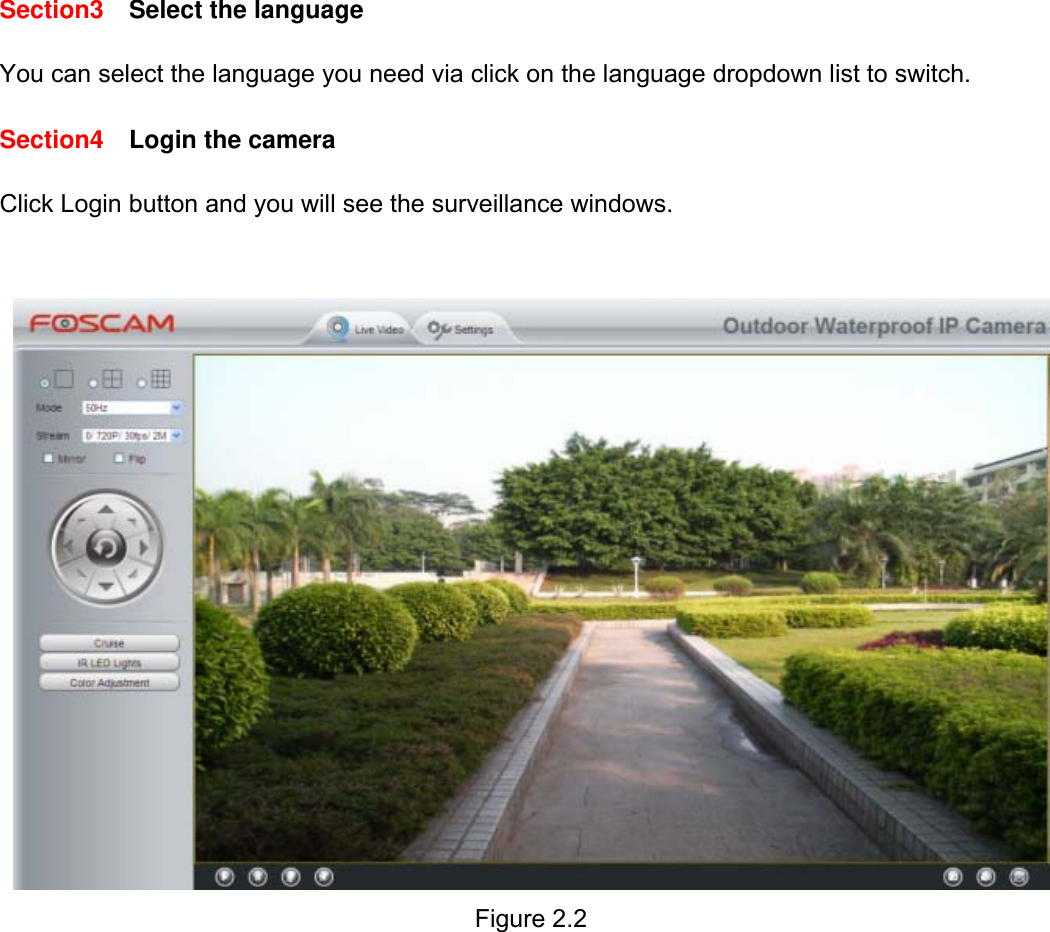

9wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 9 Section3 Select the language You can select the language you need via click on the language dropdown list to switch. Section4 Login the camera Click Login button and you will see the surveillance windows. Figure 2.2

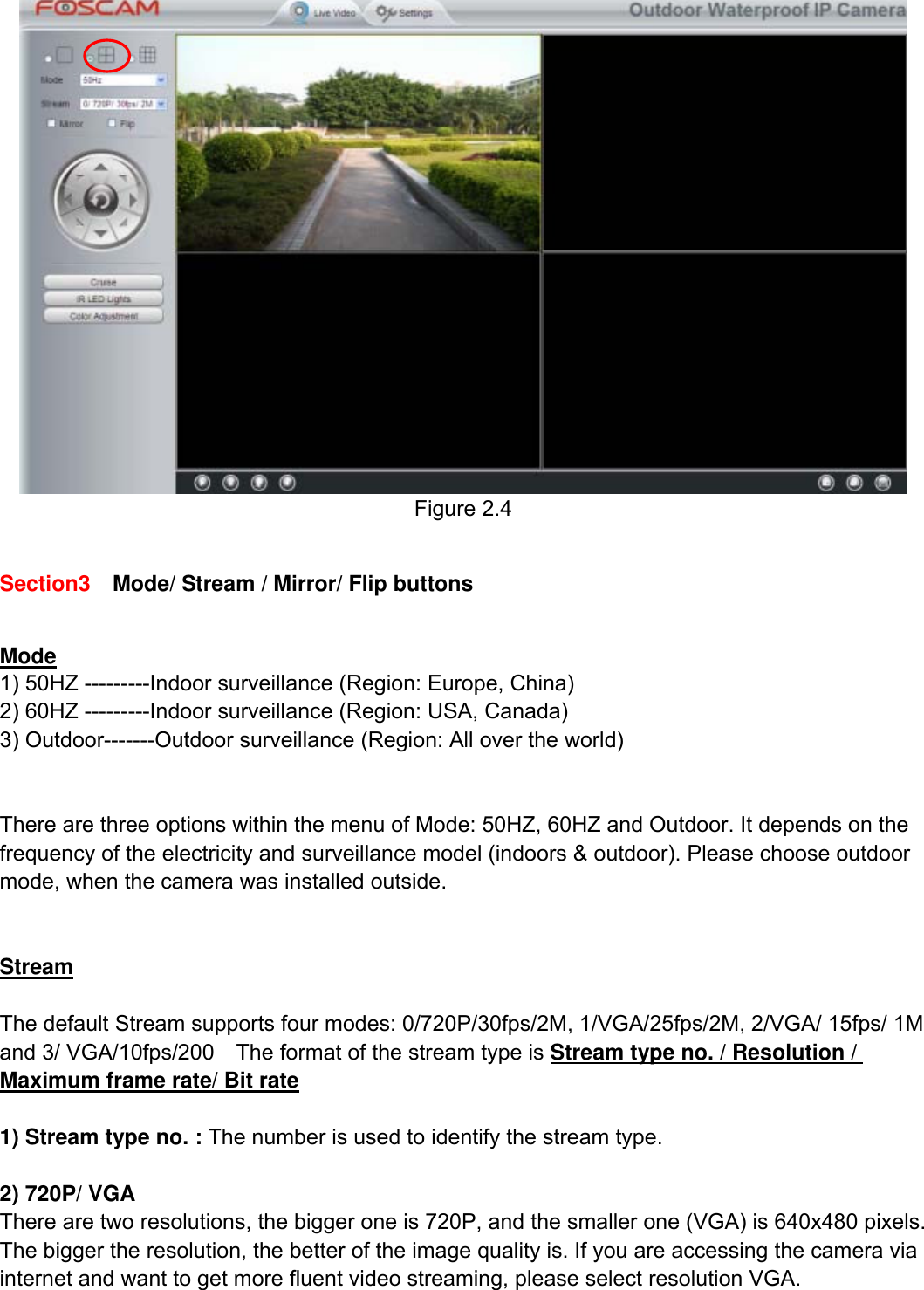

11wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 11 Figure 2.4 Section3 Mode/ Stream / Mirror/ Flip buttons Mode 1) 50HZ ---------Indoor surveillance (Region: Europe, China) 2) 60HZ ---------Indoor surveillance (Region: USA, Canada) 3) Outdoor-------Outdoor surveillance (Region: All over the world) There are three options within the menu of Mode: 50HZ, 60HZ and Outdoor. It depends on the frequency of the electricity and surveillance model (indoors & outdoor). Please choose outdoor mode, when the camera was installed outside. Stream The default Stream supports four modes: 0/720P/30fps/2M, 1/VGA/25fps/2M, 2/VGA/ 15fps/ 1M and 3/ VGA/10fps/200 The format of the stream type is Stream type no. / Resolution / Maximum frame rate/ Bit rate 1) Stream type no. : The number is used to identify the stream type. 2) 720P/ VGA There are two resolutions, the bigger one is 720P, and the smaller one (VGA) is 640x480 pixels. The bigger the resolution, the better of the image quality is. If you are accessing the camera via internet and want to get more fluent video streaming, please select resolution VGA.

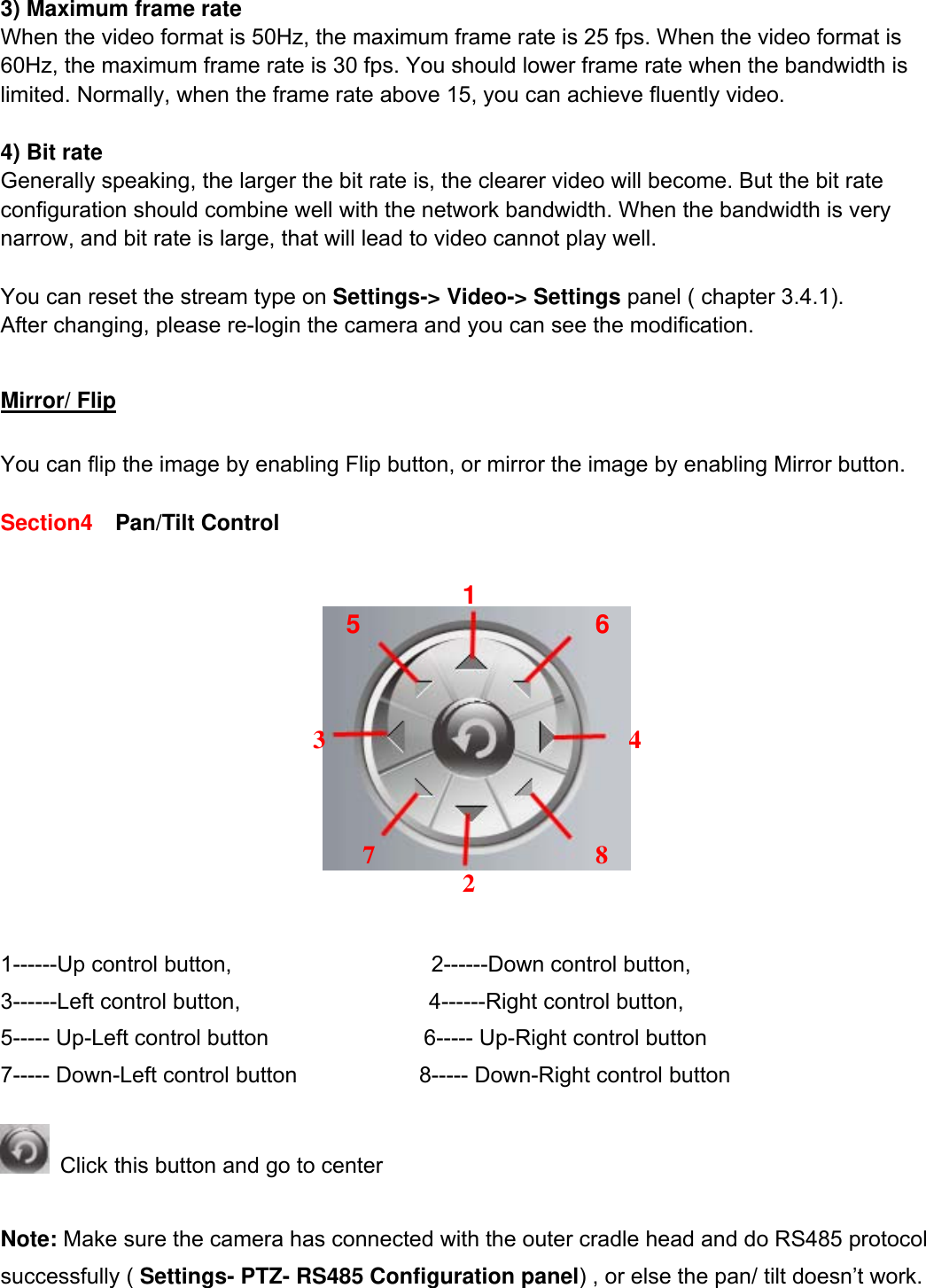

12wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 12 3) Maximum frame rate When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve fluently video. 4) Bit rate Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should combine well with the network bandwidth. When the bandwidth is very narrow, and bit rate is large, that will lead to video cannot play well. You can reset the stream type on Settings-> Video-> Settings panel ( chapter 3.4.1). After changing, please re-login the camera and you can see the modification. Mirror/ Flip You can flip the image by enabling Flip button, or mirror the image by enabling Mirror button. Section4 Pan/Tilt Control 1------Up control button, 2------Down control button, 3------Left control button, 4------Right control button, 5----- Up-Left control button 6----- Up-Right control button 7----- Down-Left control button 8----- Down-Right control button Click this button and go to center Note: Make sure the camera has connected with the outer cradle head and do RS485 protocol successfully ( Settings- PTZ- RS485 Configuration panel) , or else the pan/ tilt doesn’t work. 12345 67 8

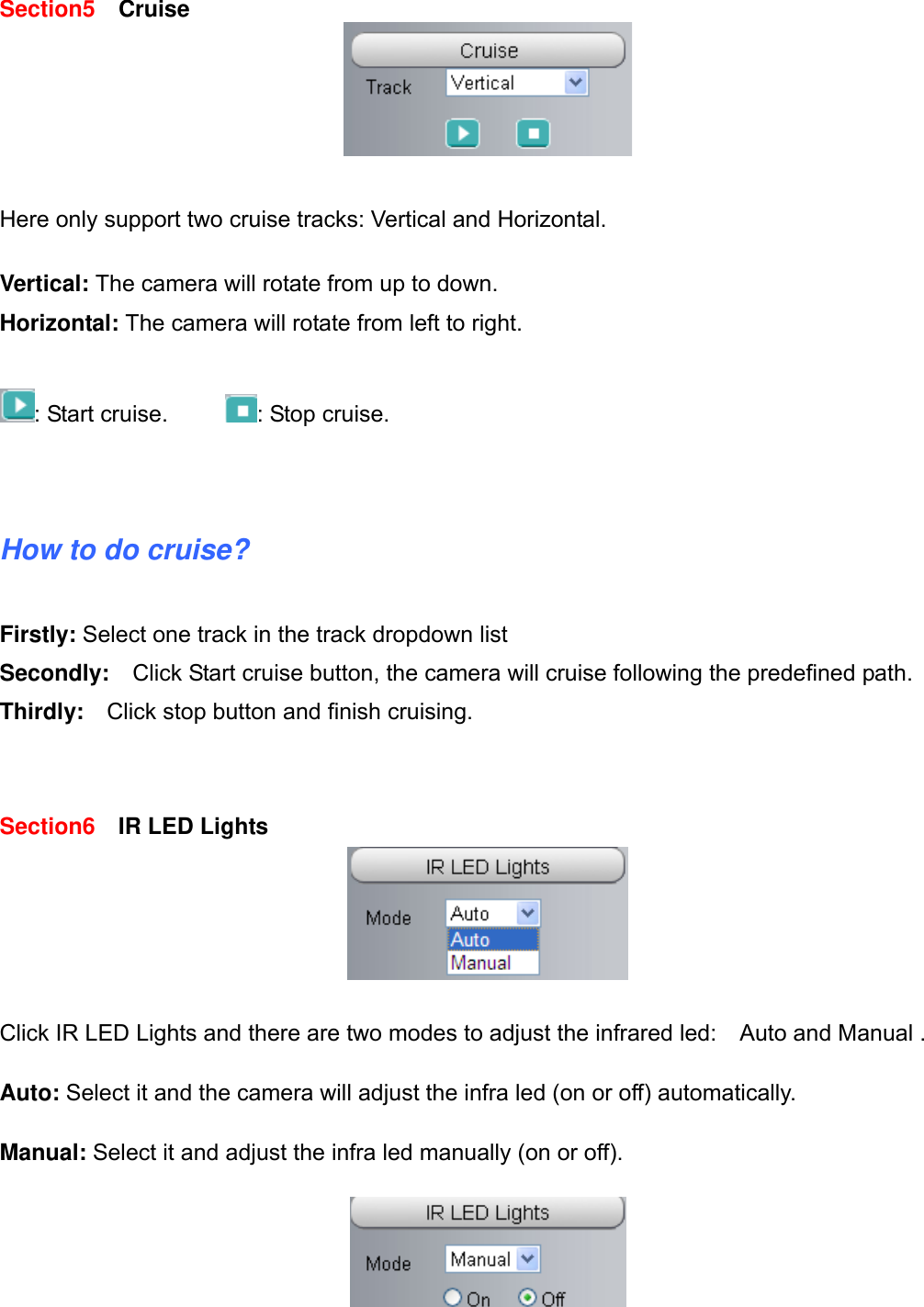

13wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 13 Section5 Cruise Here only support two cruise tracks: Vertical and Horizontal. Vertical: The camera will rotate from up to down. Horizontal: The camera will rotate from left to right. : Start cruise. : Stop cruise. How to do cruise? Firstly: Select one track in the track dropdown list Secondly: Click Start cruise button, the camera will cruise following the predefined path. Thirdly: Click stop button and finish cruising. Section6 IR LED Lights Click IR LED Lights and there are two modes to adjust the infrared led: Auto and Manual . Auto: Select it and the camera will adjust the infra led (on or off) automatically. Manual: Select it and adjust the infra led manually (on or off).

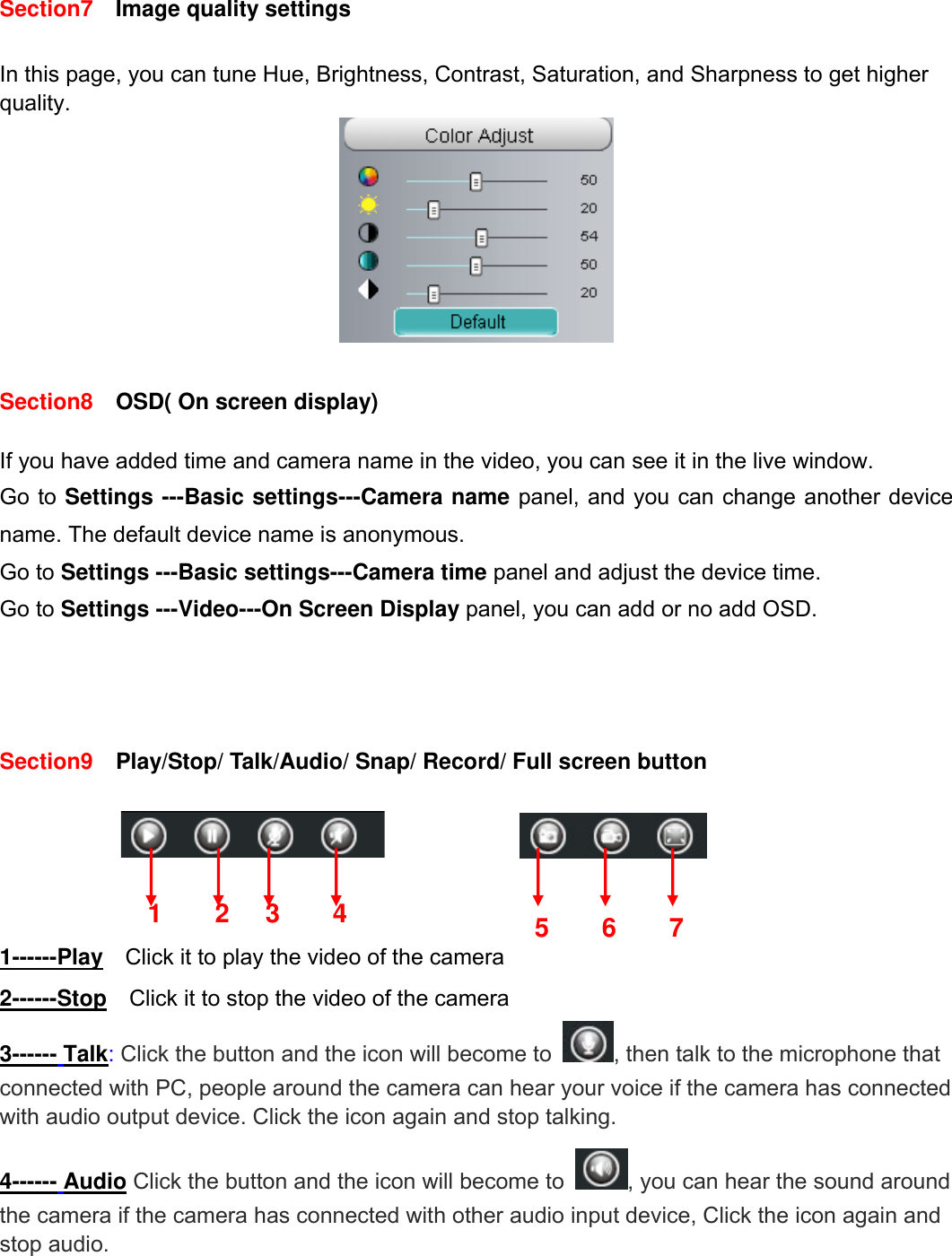

14wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 14 Section7 Image quality settings In this page, you can tune Hue, Brightness, Contrast, Saturation, and Sharpness to get higher quality. Section8 OSD( On screen display) If you have added time and camera name in the video, you can see it in the live window. Go to Settings ---Basic settings---Camera name panel, and you can change another device name. The default device name is anonymous. Go to Settings ---Basic settings---Camera time panel and adjust the device time. Go to Settings ---Video---On Screen Display panel, you can add or no add OSD. Section9 Play/Stop/ Talk/Audio/ Snap/ Record/ Full screen button 1------Play Click it to play the video of the camera 2------Stop Click it to stop the video of the camera 3------ Talk: Click the button and the icon will become to , then talk to the microphone that connected with PC, people around the camera can hear your voice if the camera has connected with audio output device. Click the icon again and stop talking. 4------ Audio Click the button and the icon will become to , you can hear the sound around the camera if the camera has connected with other audio input device, Click the icon again and stop audio. 1 2 3 5674

$15wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 15 5----- Snap: Click it to make snapshot and it pop up a window which picture you snapshot, right click in the window and save the picture to anywhere you want. 6----- Record: Click the icon and the camera start recording, you can see a green dot in the live window. Click again and stop recording. The default storage path is C:\IPCamRecord. You can change the storage path: Go to Settings- >Record-> Storage Location panel. 7------Full Screen Click it to make full-screen, or you can double click the surveillance screen to make full-screen. Double click again and exit full-screen. Onscreen Mouse Control Right click the mouse and you can adjust the screen ration, full screen and Zoom up. Figure 2.6 Keep ration: Select it and the camera will adjust the size of live window based on the computer monitor automatically. Sometimes there is a black border around the video (Figure 2.7), please select Keep ration to get a better visual quality (Figure2.3).$

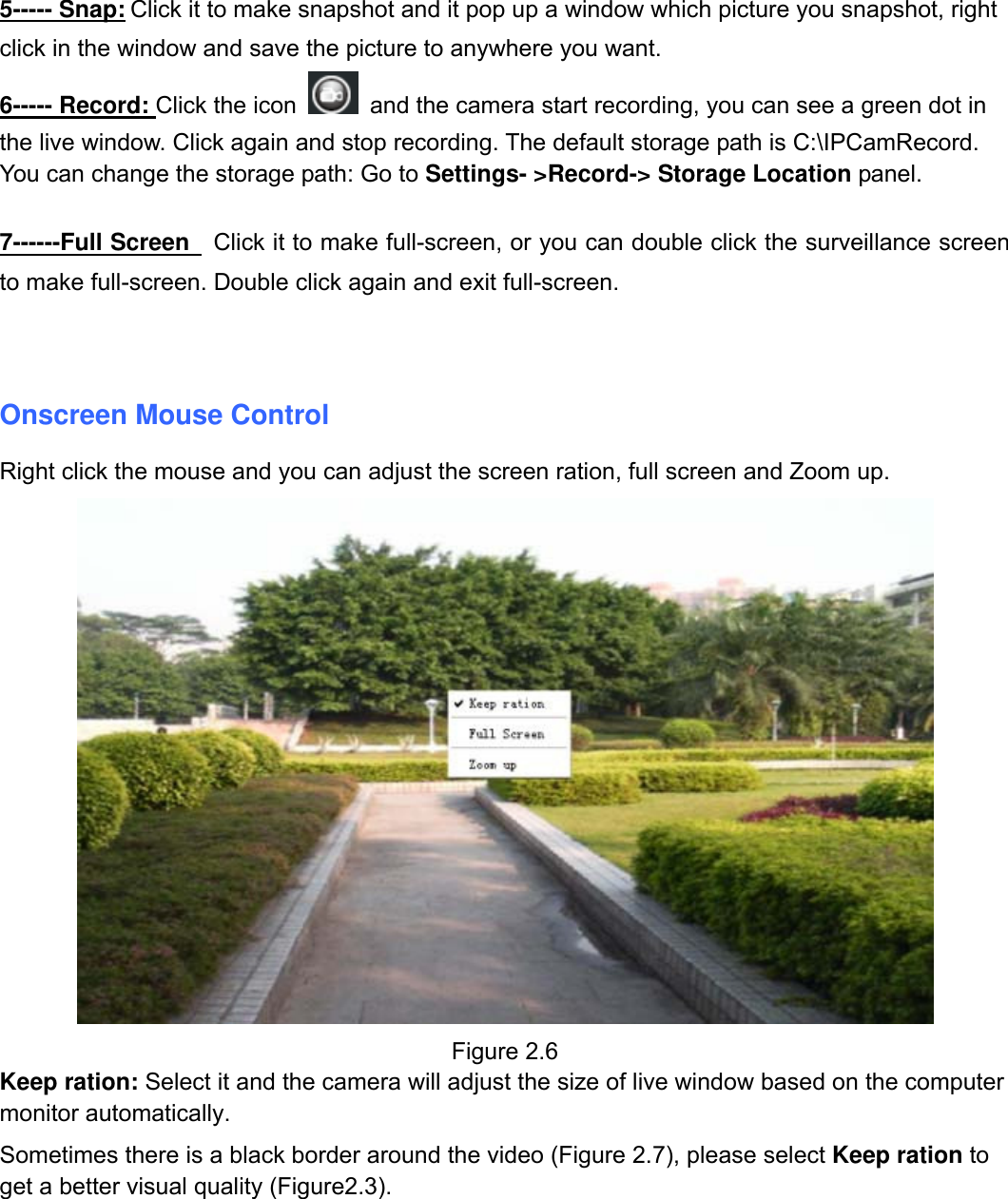

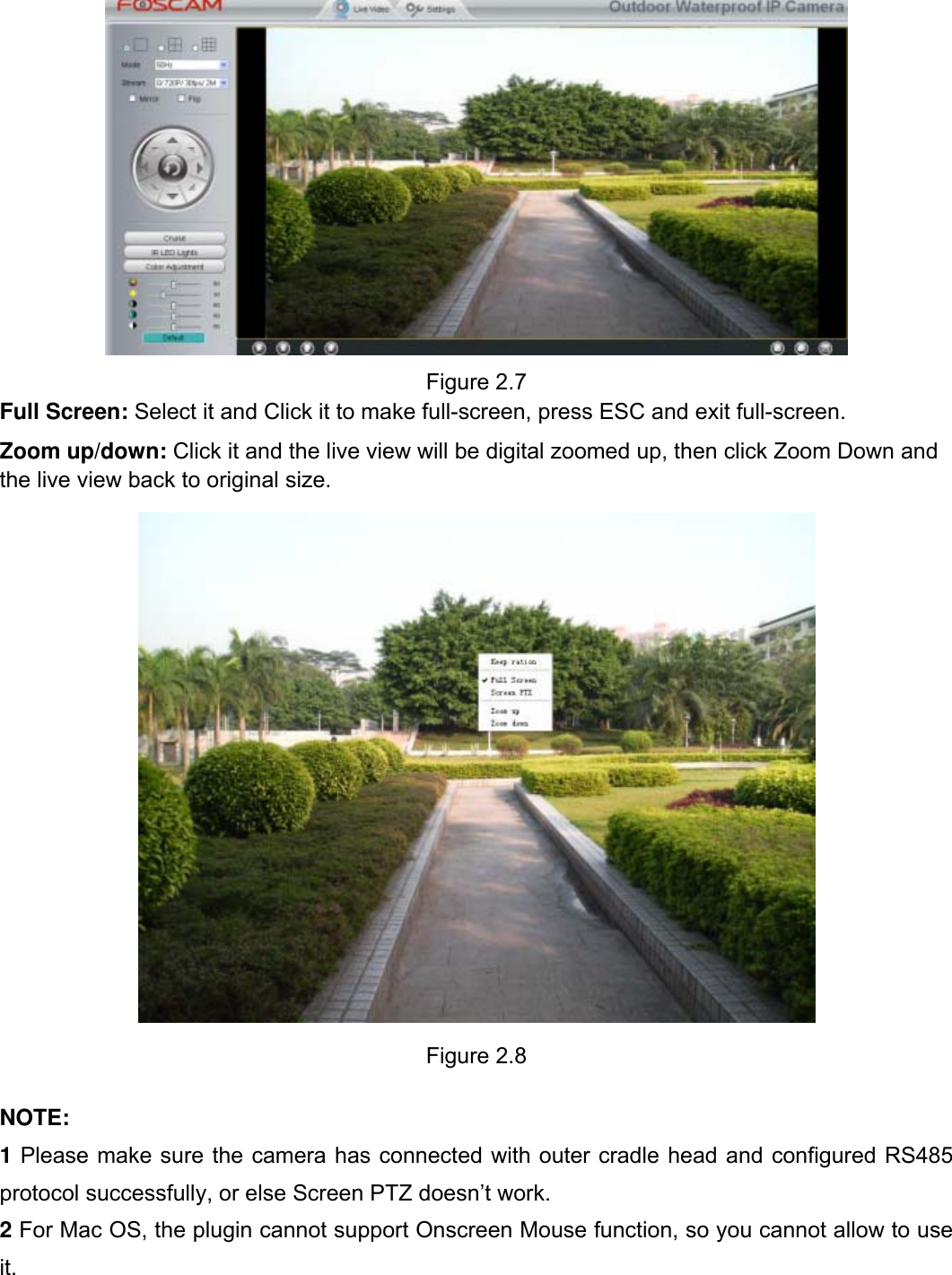

16wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 16 Figure 2.7 Full Screen: Select it and Click it to make full-screen, press ESC and exit full-screen. Zoom up/down: Click it and the live view will be digital zoomed up, then click Zoom Down and the live view back to original size. Figure 2.8 NOTE: 1 Please make sure the camera has connected with outer cradle head and configured RS485 protocol successfully, or else Screen PTZ doesn’t work. 2 For Mac OS, the plugin cannot support Onscreen Mouse function, so you cannot allow to use it.

17wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 17 33 AAddvvaanncceedd CCaammeerraa SSeettttiinnggss Click the button “Settings”, goes to Administrator Control Panel to make advanced camera settings. 3.1 Device Status Device Status contains four columns: Device Information, Device Status, Session Status and Log, it will show you various information about your camera. 3.1.1 Device Information Figure 3.1 Camera name: The Device Name is a unique name that you can give to your device to help you identify it. Click Basic Settings and go to Device Name panel where you can change your camera name. The default device name is anonymous. Camera ID: Display the MAC address of your camera. For example Device ID is 008414350787, the same MAC ID sticker is found at the bottom of the camera. Camera time: The system time of the device. Click Basic Settings and go to Camera Time panel and adjust the time. System Firmware version: Display the System Firmware version of your camera. App Firmware version: Display the application firmware version of your camera. Web version: Display the web UI version of your camera Plug-in version: Display the plug-in version of your camera

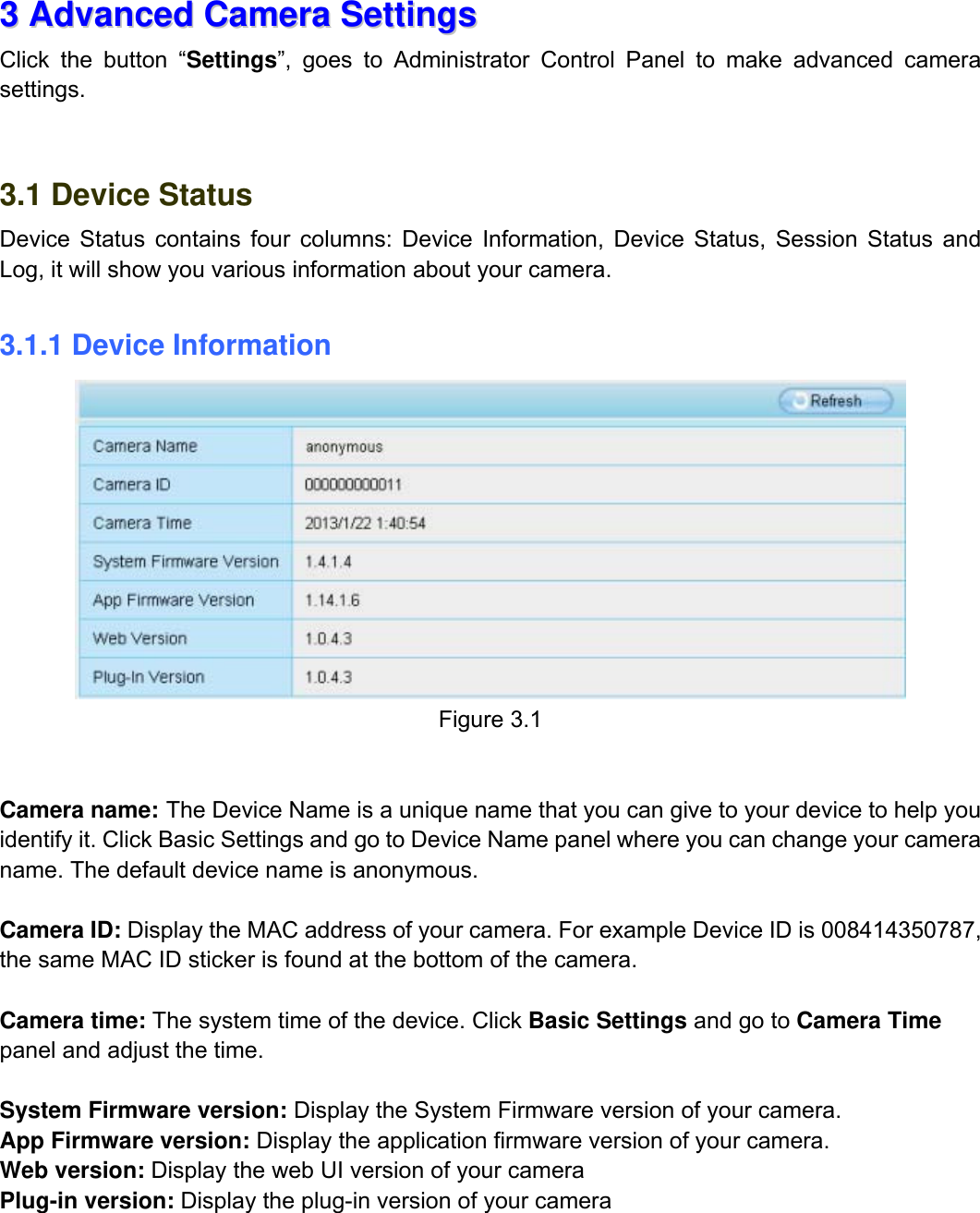

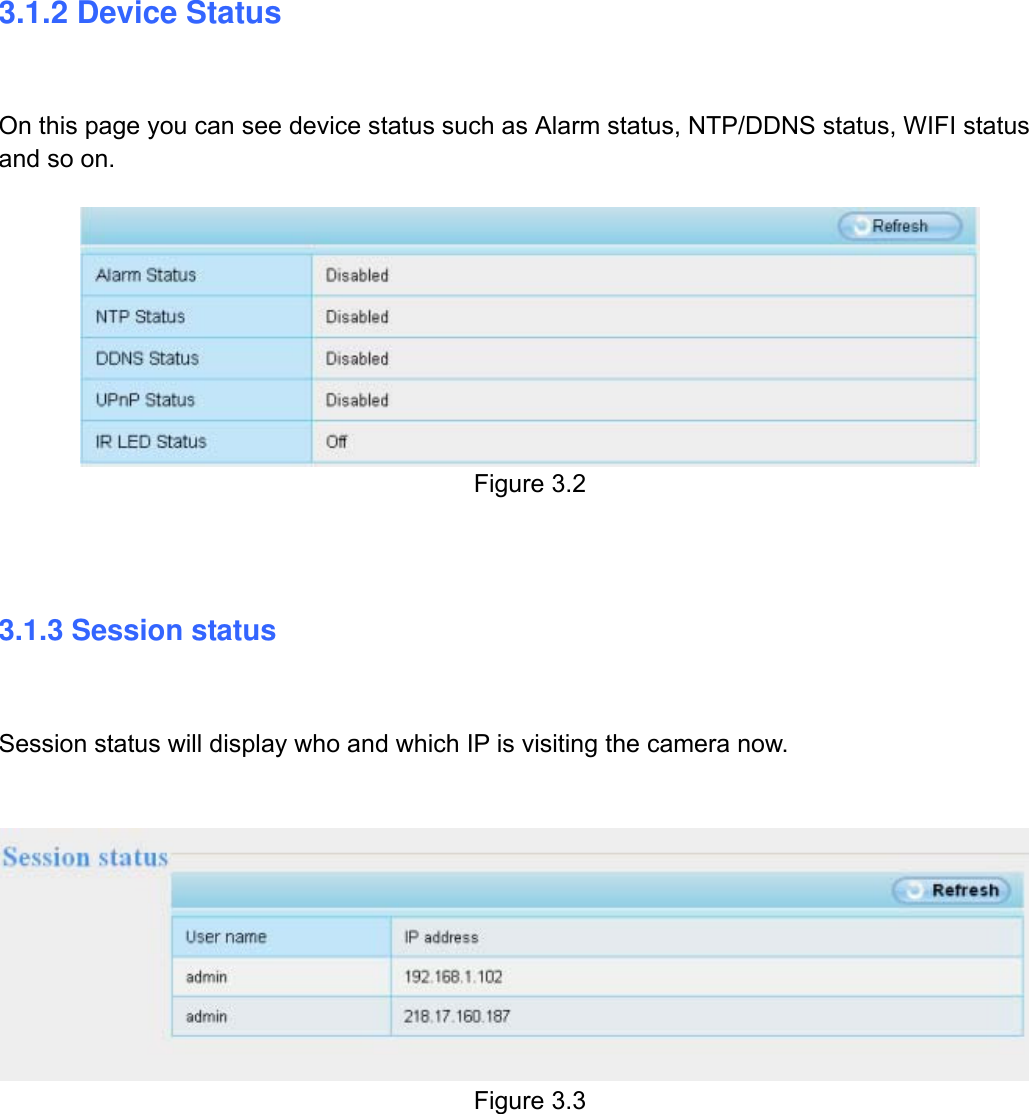

18wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 18 3.1.2 Device Status On this page you can see device status such as Alarm status, NTP/DDNS status, WIFI status and so on. Figure 3.2 3.1.3 Session status Session status will display who and which IP is visiting the camera now. Figure 3.3

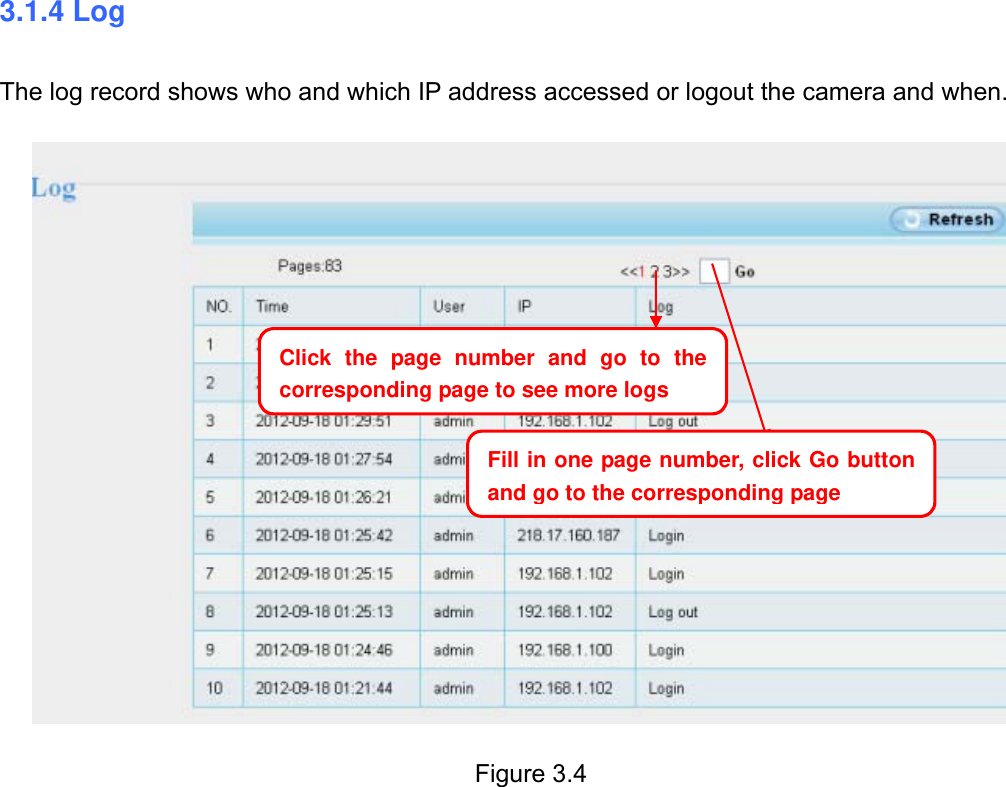

19wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 19 3.1.4 Log The log record shows who and which IP address accessed or logout the camera and when. Figure 3.4 Click the page number and go to the corresponding page to see more logsFill in one page number, click Go button and go to the correspondingpage

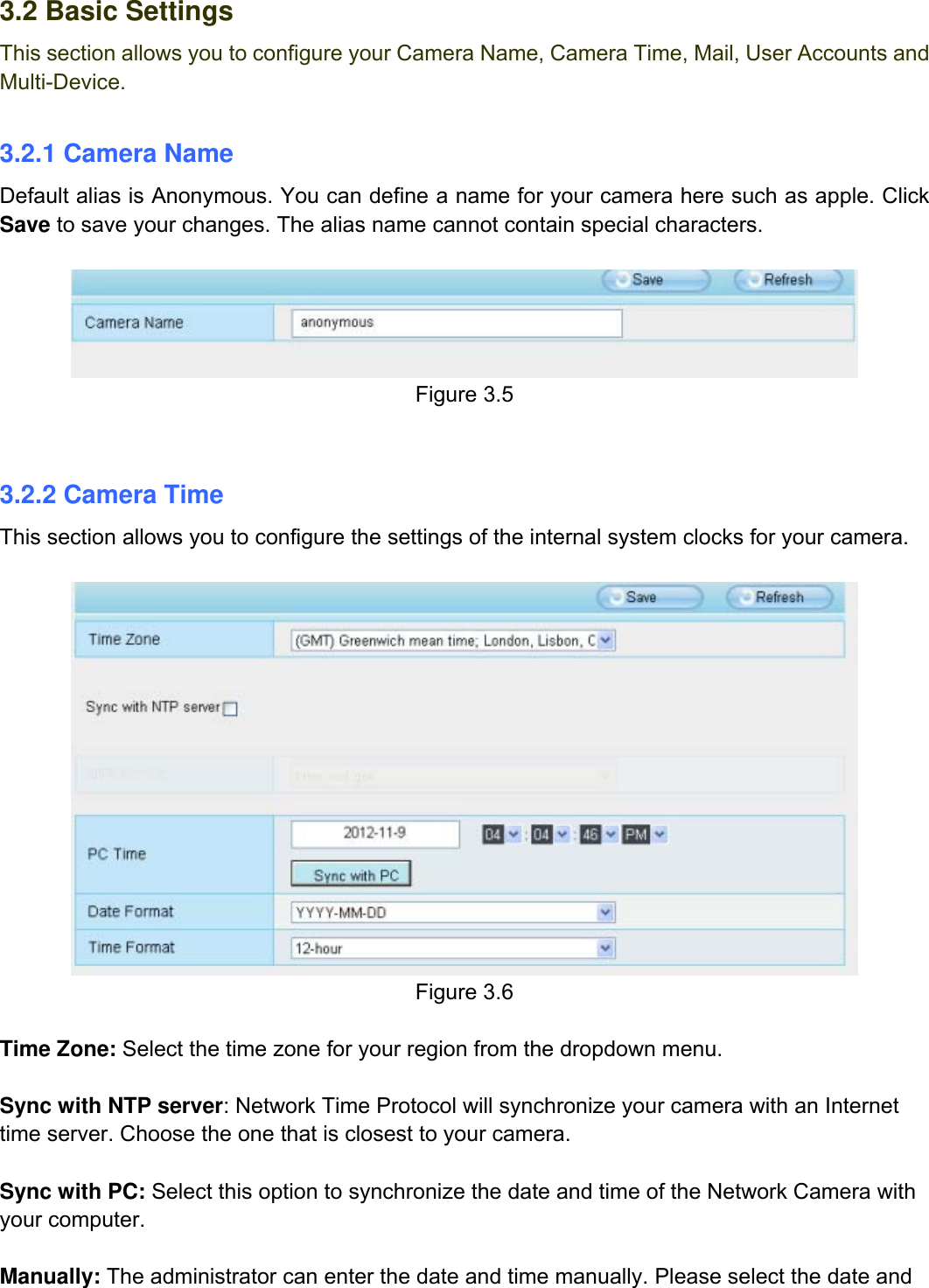

20wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 20 3.2 Basic Settings This section allows you to configure your Camera Name, Camera Time, Mail, User Accounts and Multi-Device. 3.2.1 Camera Name Default alias is Anonymous. You can define a name for your camera here such as apple. Click Save to save your changes. The alias name cannot contain special characters. Figure 3.5 3.2.2 Camera Time This section allows you to configure the settings of the internal system clocks for your camera. Figure 3.6 Time Zone: Select the time zone for your region from the dropdown menu. Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet time server. Choose the one that is closest to your camera. Sync with PC: Select this option to synchronize the date and time of the Network Camera with your computer. Manually: The administrator can enter the date and time manually. Please select the date and

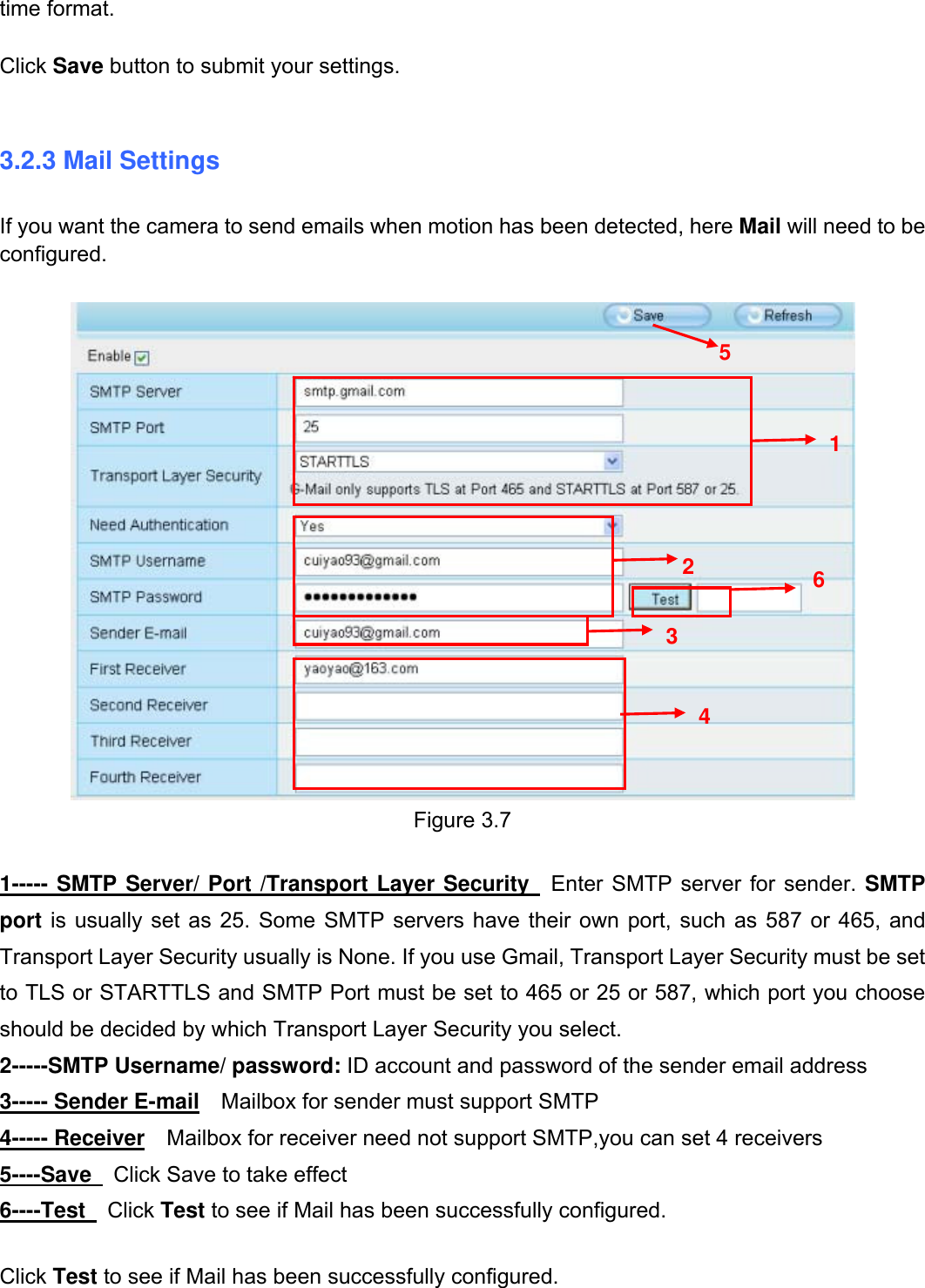

21wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 21 time format. Click Save button to submit your settings. 3.2.3 Mail Settings If you want the camera to send emails when motion has been detected, here Mail will need to be configured. Figure 3.7 1----- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you select. 2-----SMTP Username/ password: ID account and password of the sender email address 3----- Sender E-mail Mailbox for sender must support SMTP 4----- Receiver Mailbox for receiver need not support SMTP,you can set 4 receivers 5----Save Click Save to take effect 6----Test Click Test to see if Mail has been successfully configured. Click Test to see if Mail has been successfully configured. 1 2 3 4 5 6

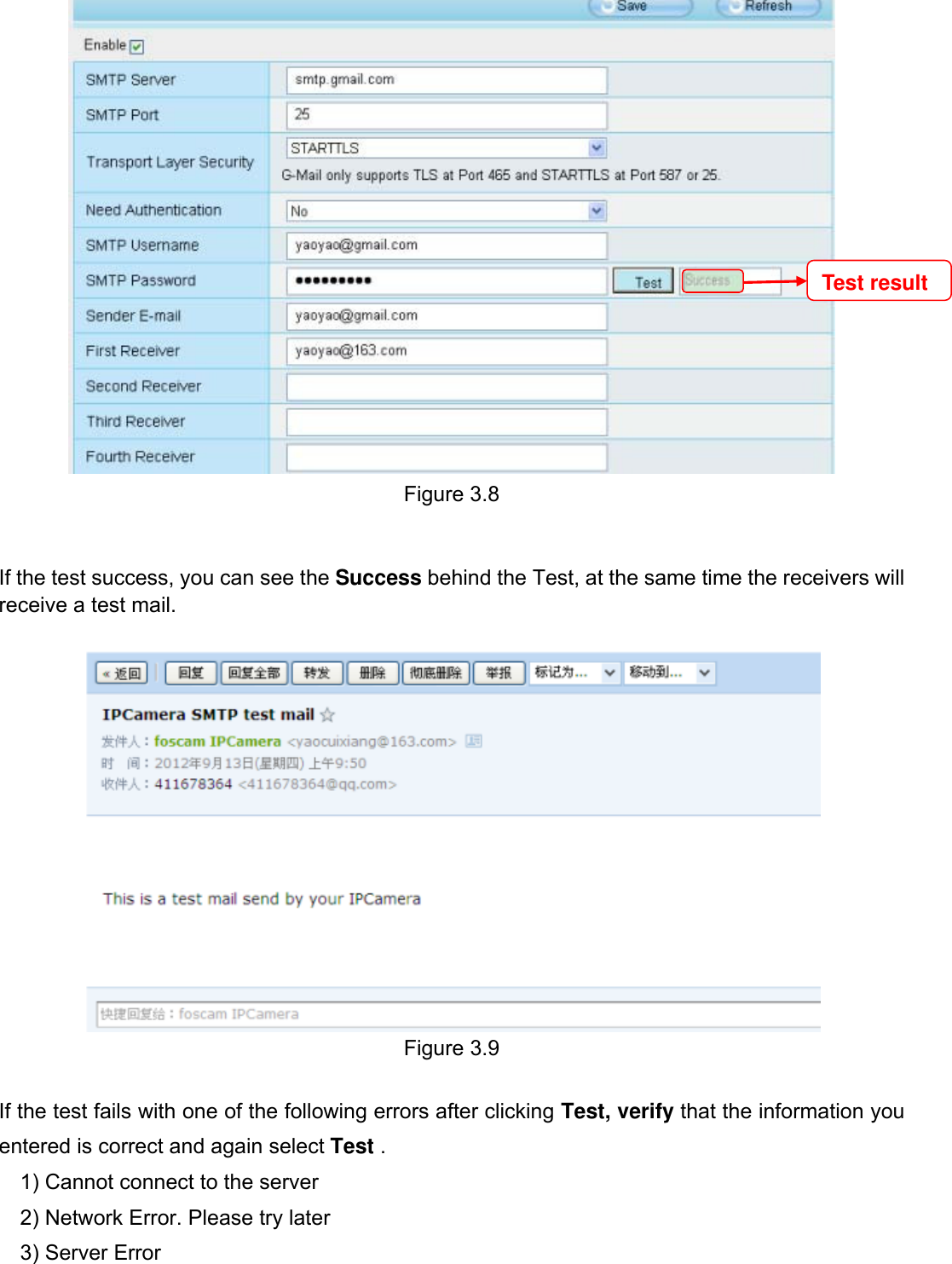

22wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 22 Figure 3.8 If the test success, you can see the Success behind the Test, at the same time the receivers will receive a test mail. Figure 3.9 If the test fails with one of the following errors after clicking Test, verify that the information you entered is correct and again select Test . 1) Cannot connect to the server 2) Network Error. Please try later 3) Server Error Test result

23wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 23 4) Incorrect user or password 5) The sender is denied by the server. Maybe the server need to authenticate the user, please check it and try again 6) The receiver is denied by the server. Maybe because of the anti-spam privacy of the server 7) The message is denied by the server. Maybe because of the anti-spam privacy of the server 8) The server does not support the authentication mode used by the device 3.2.4 User Accounts Here you can create users and set privilege, visitor, operator or administrator. The default user accounts are admin, operator and visitor, with a blank password. Figure 3.10 How to change the password? Firstly, select the account which you want to change the password, then select “Change password”, enter the old password and the new password, lastly click modify to take effect.

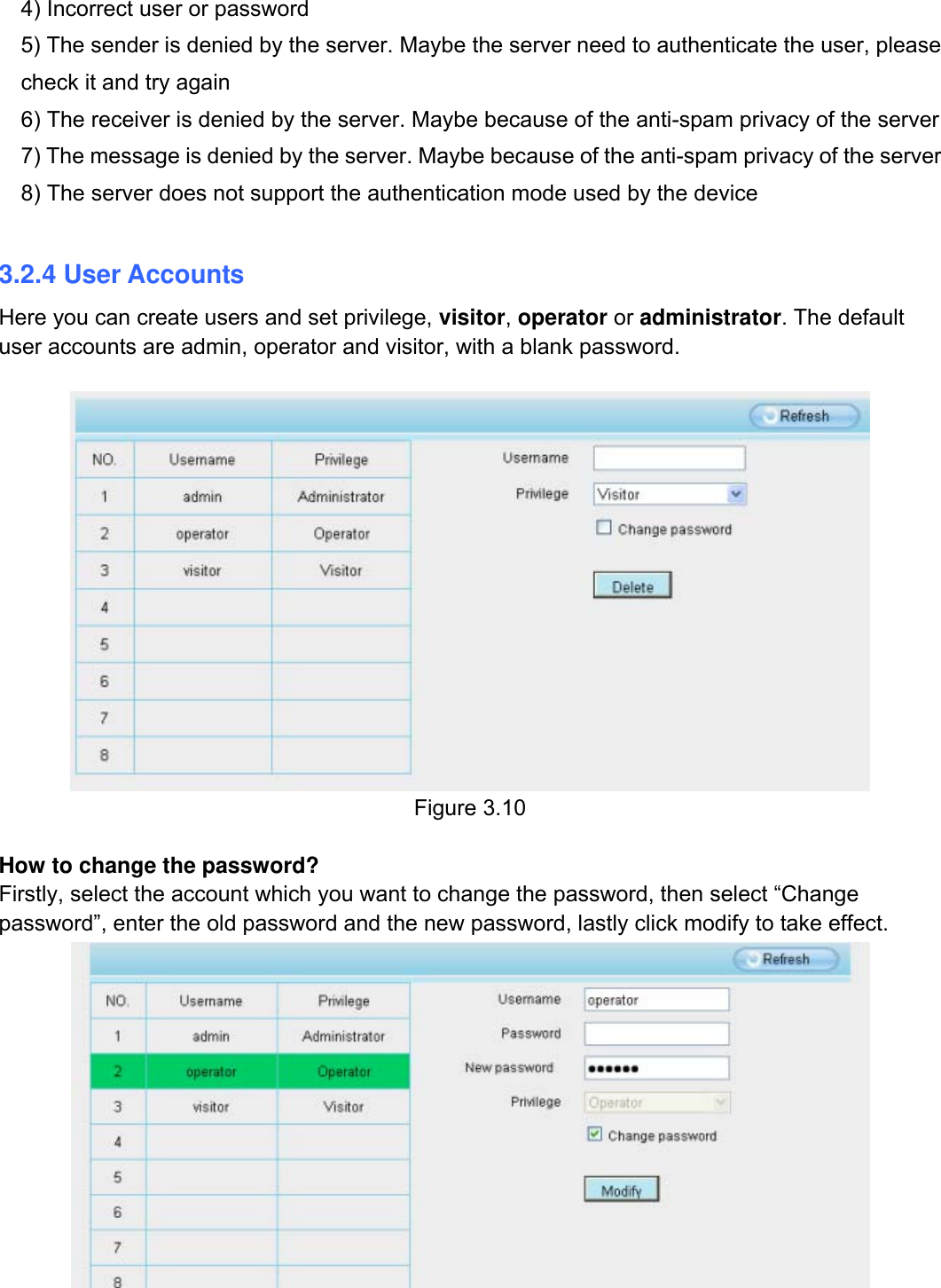

24wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 24 Figure 3.11 How to add account ? Select one blank column, then enter the new user name, password and privilege, last click Add to take effect. You can see the new added account on the Account list. Figure 3.12 Figure 3.13 Delete Select the account which you want to delete, then click Delete button to take effect. Note: The default administrator account cannot be deleted, but you can add other administrator users.

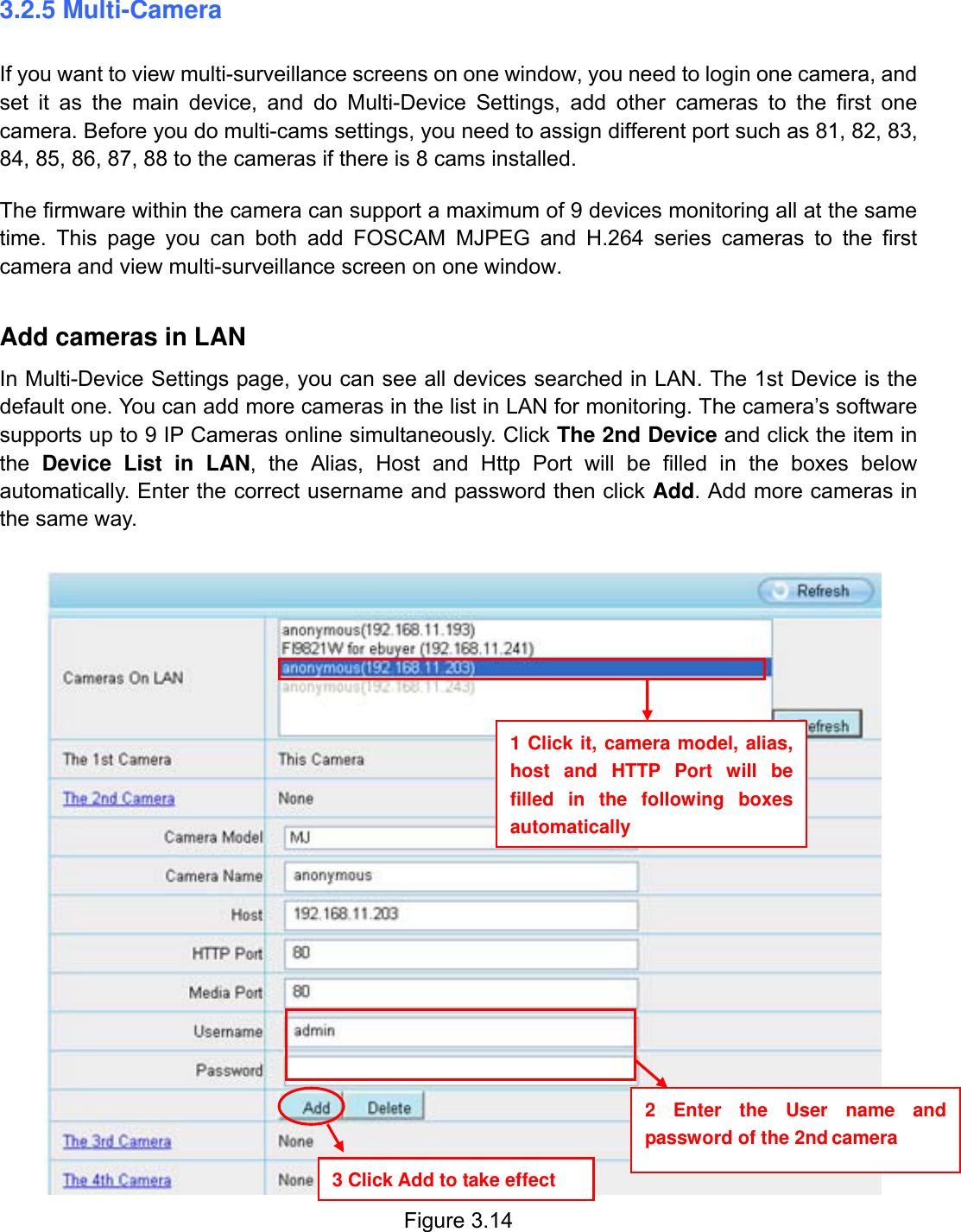

25wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 25 3.2.5 Multi-Camera If you want to view multi-surveillance screens on one window, you need to login one camera, and set it as the main device, and do Multi-Device Settings, add other cameras to the first one camera. Before you do multi-cams settings, you need to assign different port such as 81, 82, 83, 84, 85, 86, 87, 88 to the cameras if there is 8 cams installed. The firmware within the camera can support a maximum of 9 devices monitoring all at the same time. This page you can both add FOSCAM MJPEG and H.264 series cameras to the first camera and view multi-surveillance screen on one window. Add cameras in LAN In Multi-Device Settings page, you can see all devices searched in LAN. The 1st Device is the default one. You can add more cameras in the list in LAN for monitoring. The camera’s software supports up to 9 IP Cameras online simultaneously. Click The 2nd Device and click the item in the Device List in LAN, the Alias, Host and Http Port will be filled in the boxes below automatically. Enter the correct username and password then click Add. Add more cameras in the same way. Figure 3.14 1 Click it, camera model, alias, host and HTTP Port will be filled in the following boxes automatically 2 Enter the User name and password of the 2nd camera 3 Click Add to take effect

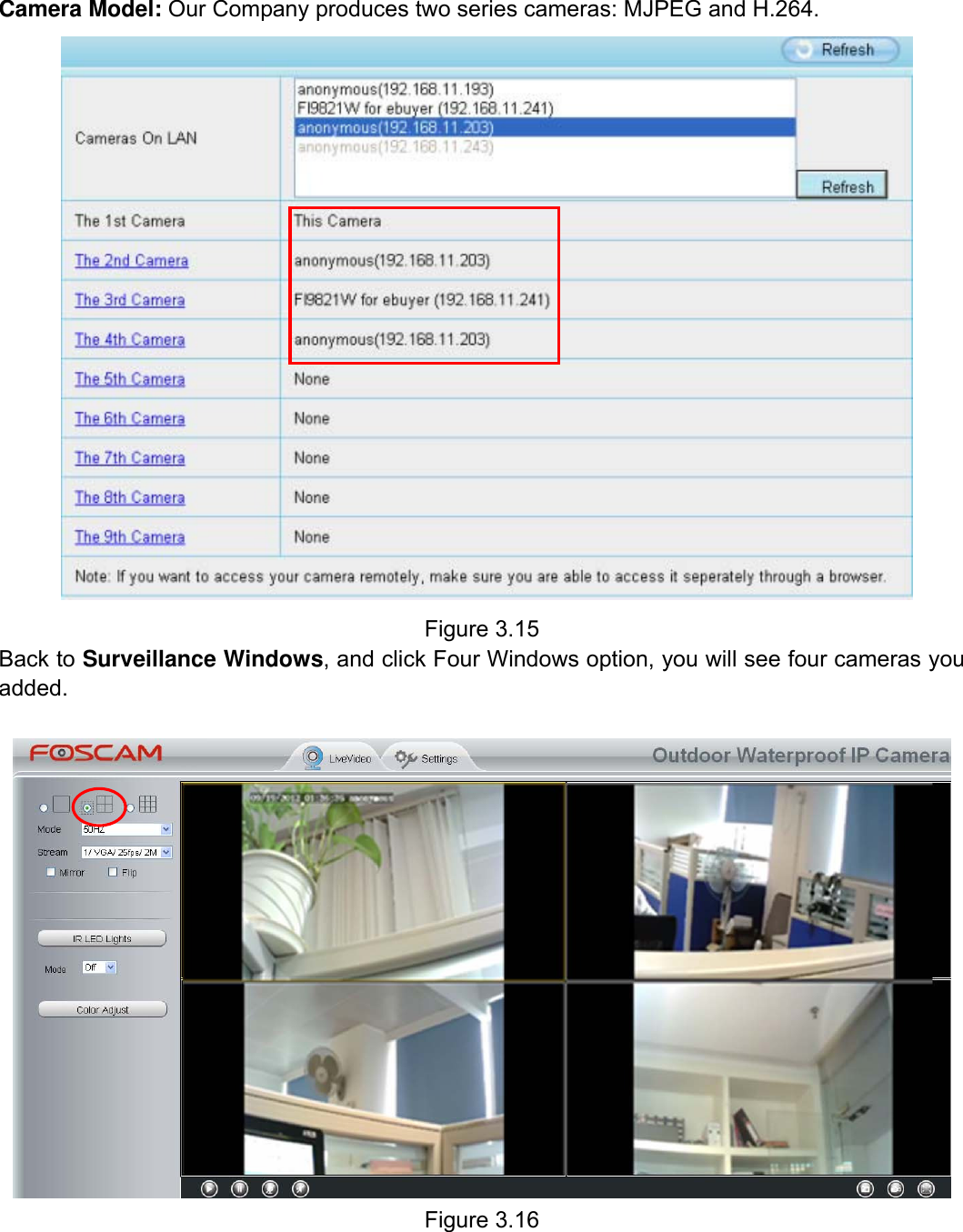

26wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 26 Camera Model: Our Company produces two series cameras: MJPEG and H.264. Figure 3.15 Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added. Figure 3.16

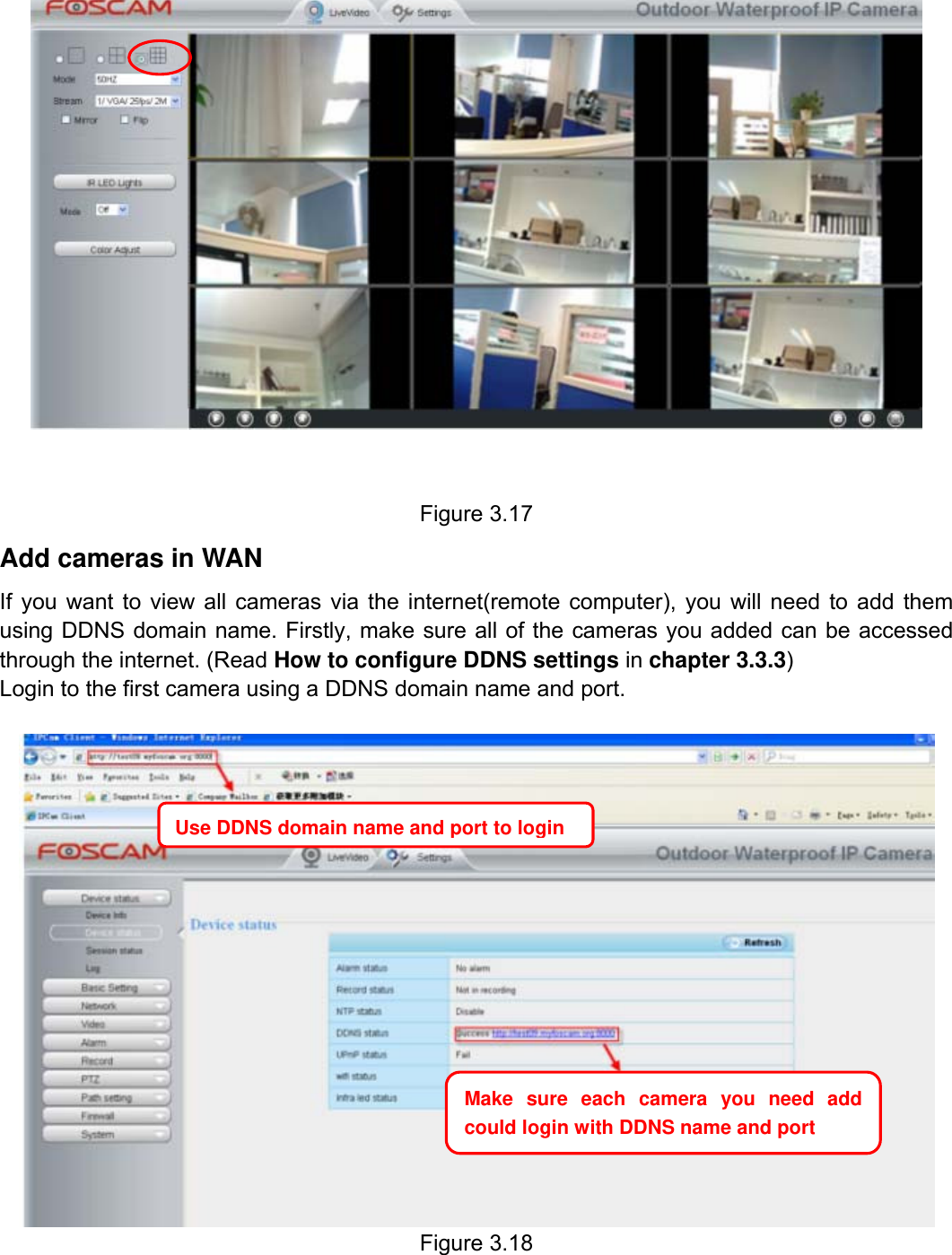

27wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 27 Figure 3.17 Add cameras in WAN If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS domain name. Firstly, make sure all of the cameras you added can be accessed through the internet. (Read How to configure DDNS settings in chapter 3.3.3) Login to the first camera using a DDNS domain name and port. Figure 3.18 Use DDNS domain name and port to loginMake sure each camera you need add could login with DDNS name and port

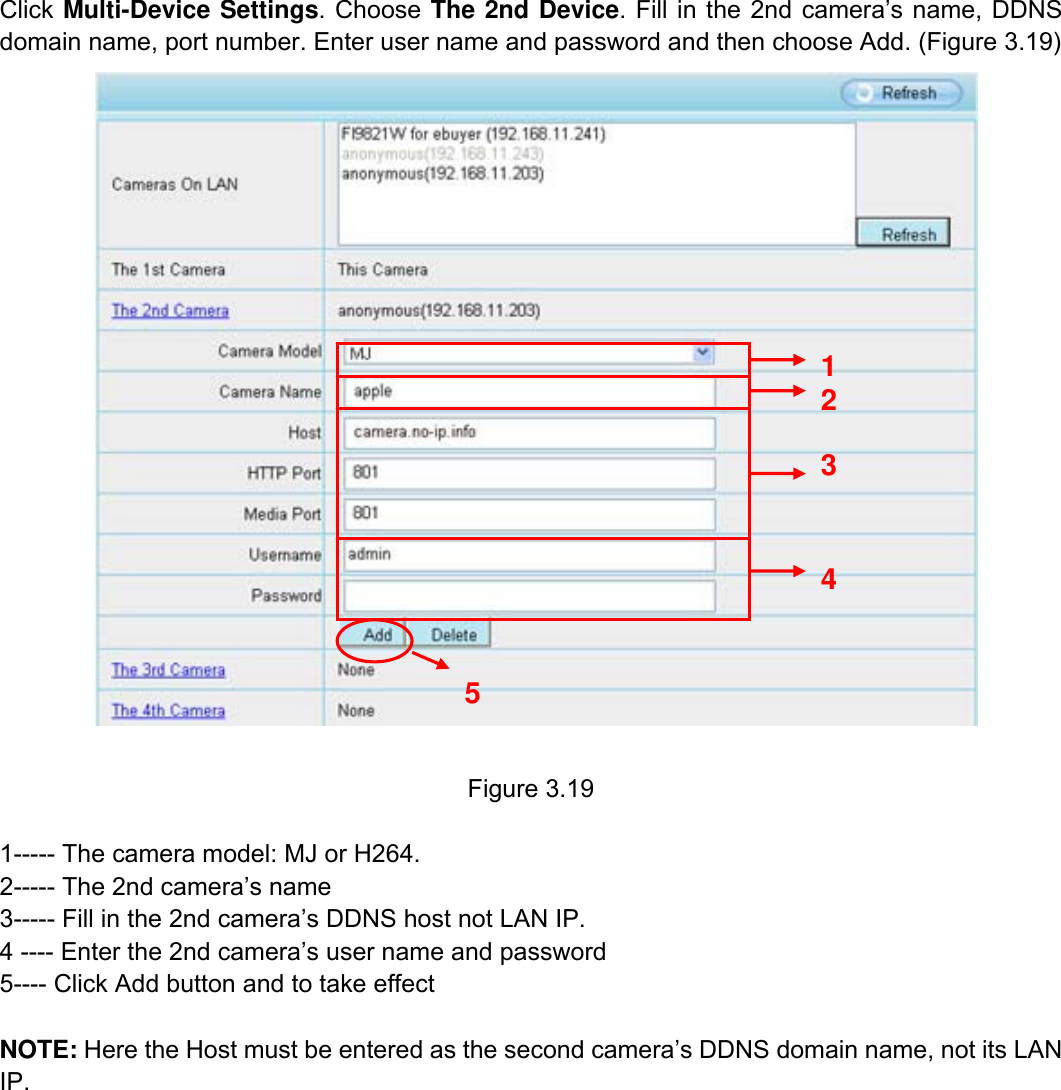

28wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 28 Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera’s name, DDNS domain name, port number. Enter user name and password and then choose Add. (Figure 3.19) Figure 3.19 1----- The camera model: MJ or H264. 2----- The 2nd camera’s name 3----- Fill in the 2nd camera’s DDNS host not LAN IP. 4 ---- Enter the 2nd camera’s user name and password 5---- Click Add button and to take effect NOTE: Here the Host must be entered as the second camera’s DDNS domain name, not its LAN IP. 2 3 4 5 1

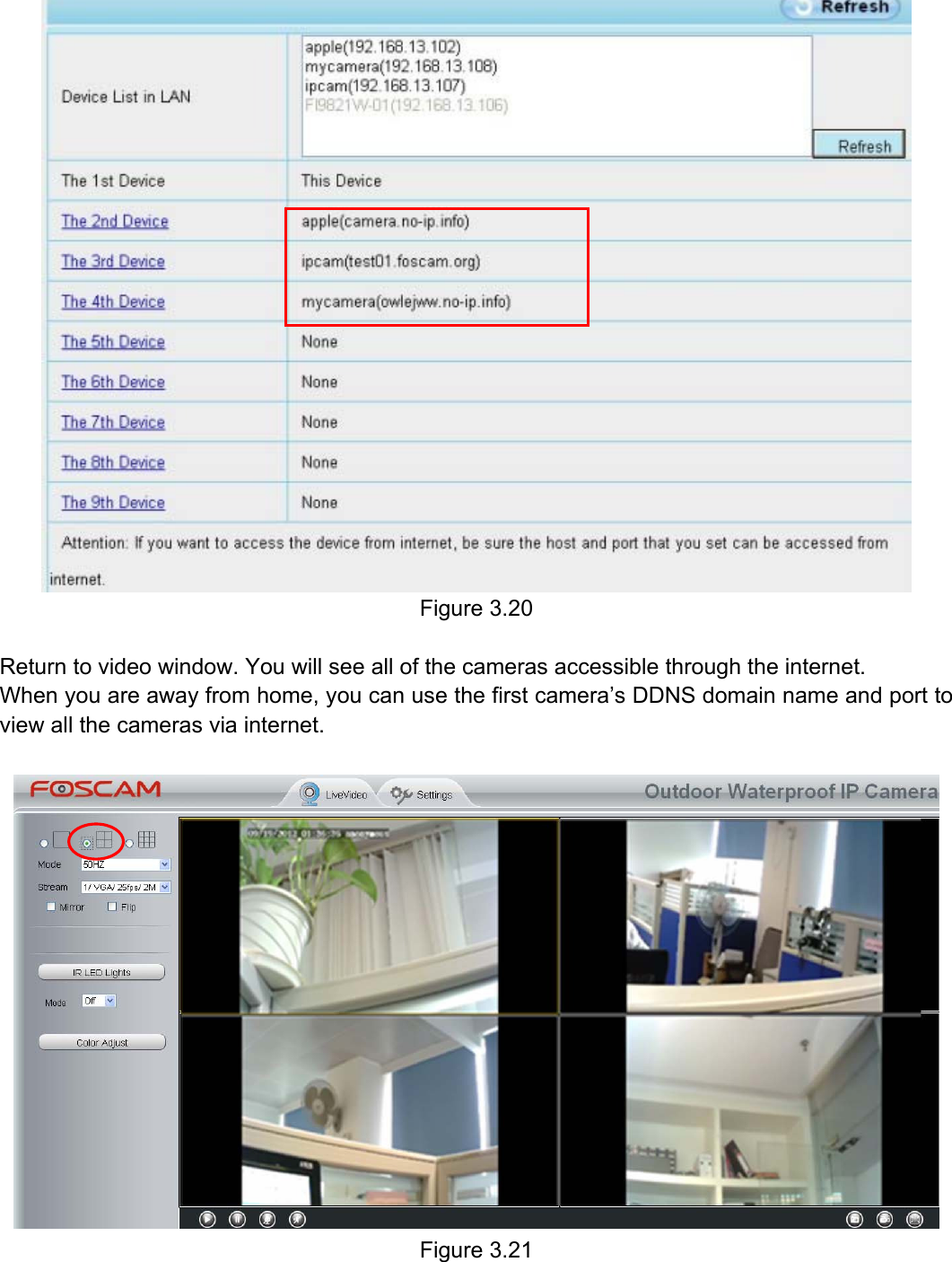

29wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 29 Figure 3.20 Return to video window. You will see all of the cameras accessible through the internet. When you are away from home, you can use the first camera’s DDNS domain name and port to view all the cameras via internet. Figure 3.21

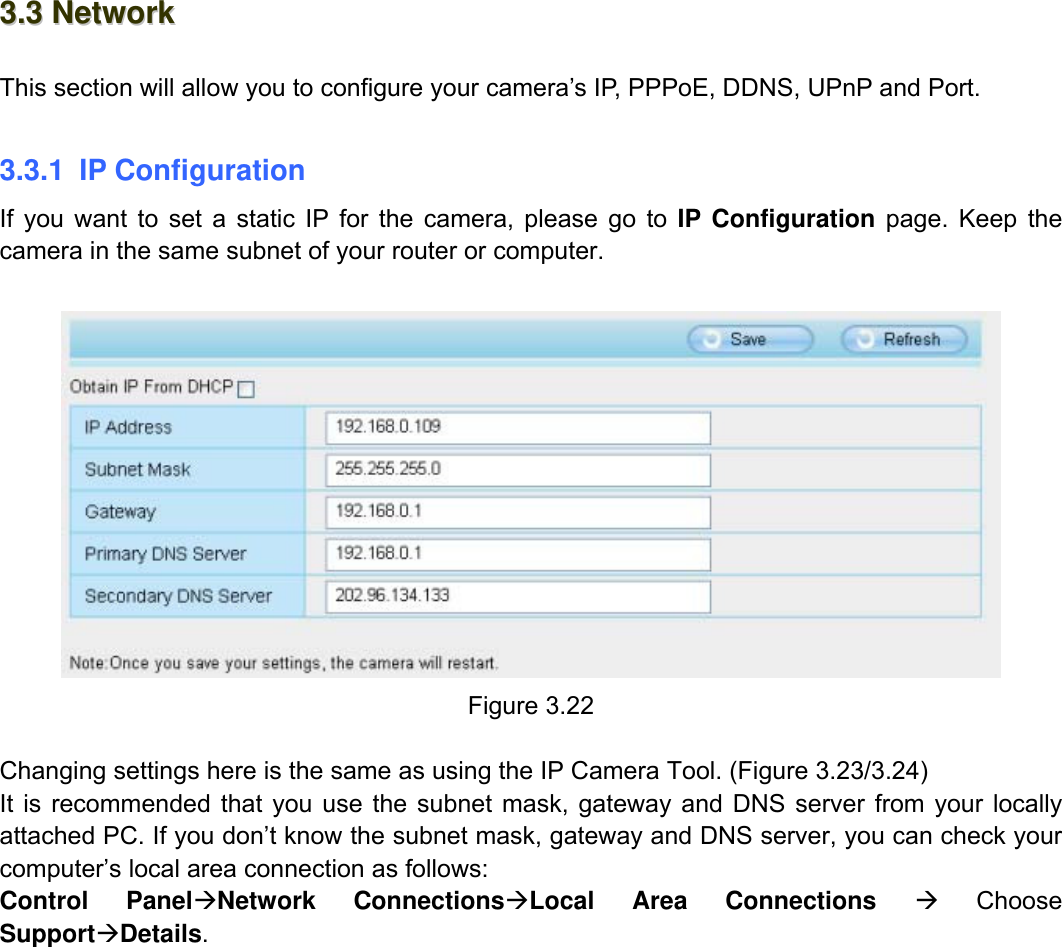

30wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 30 33..33 NNeettwwoorrkk This section will allow you to configure your camera’s IP, PPPoE, DDNS, UPnP and Port. 3.3.1 IP Configuration If you want to set a static IP for the camera, please go to IP Configuration page. Keep the camera in the same subnet of your router or computer. Figure 3.22 Changing settings here is the same as using the IP Camera Tool. (Figure 3.23/3.24) It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC. If you don’t know the subnet mask, gateway and DNS server, you can check your computer’s local area connection as follows: Control PanelÆNetwork ConnectionsÆLocal Area Connections Æ Choose SupportÆDetails.

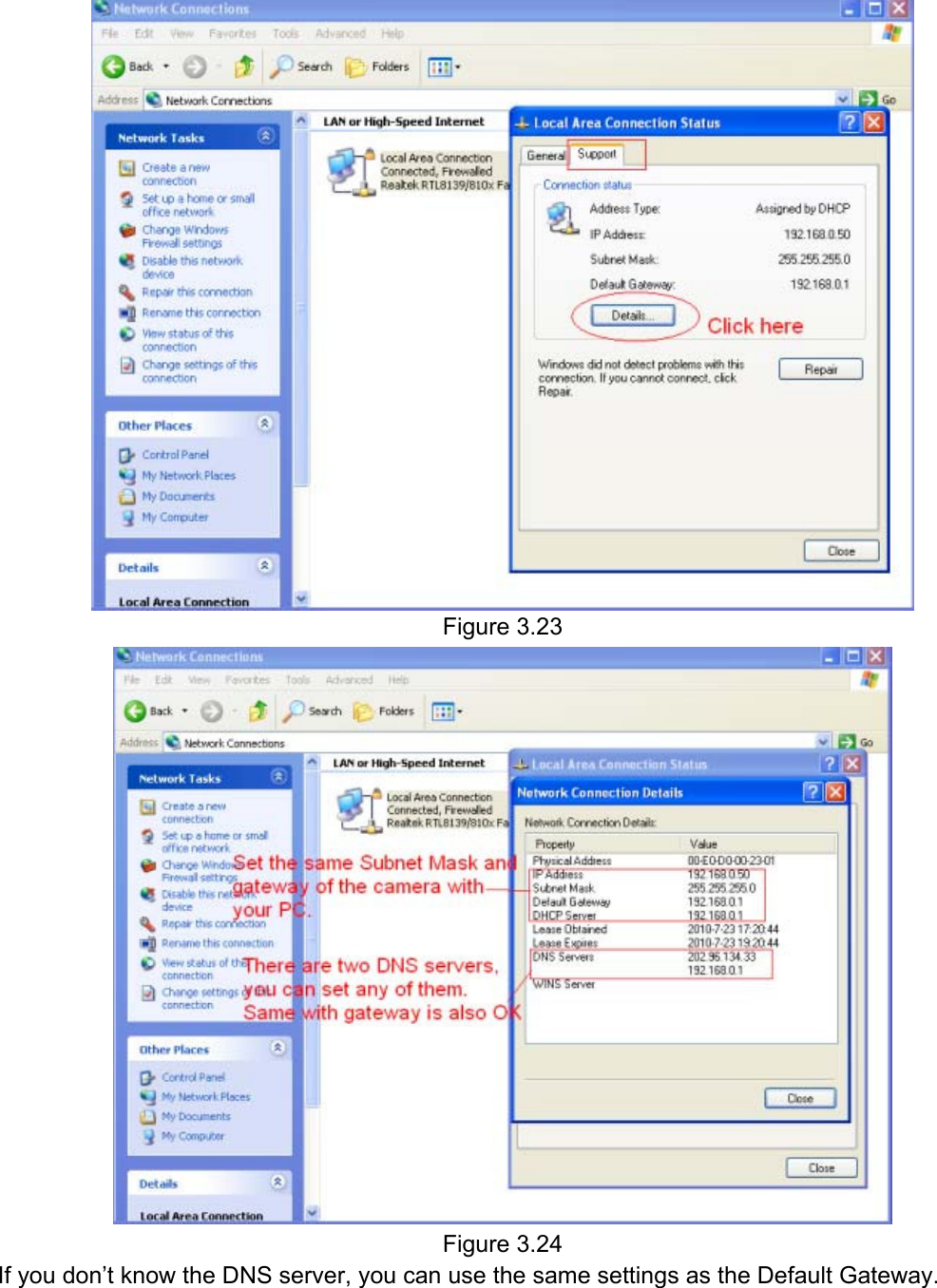

31wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 31 Figure 3.23 Figure 3.24 If you don’t know the DNS server, you can use the same settings as the Default Gateway.

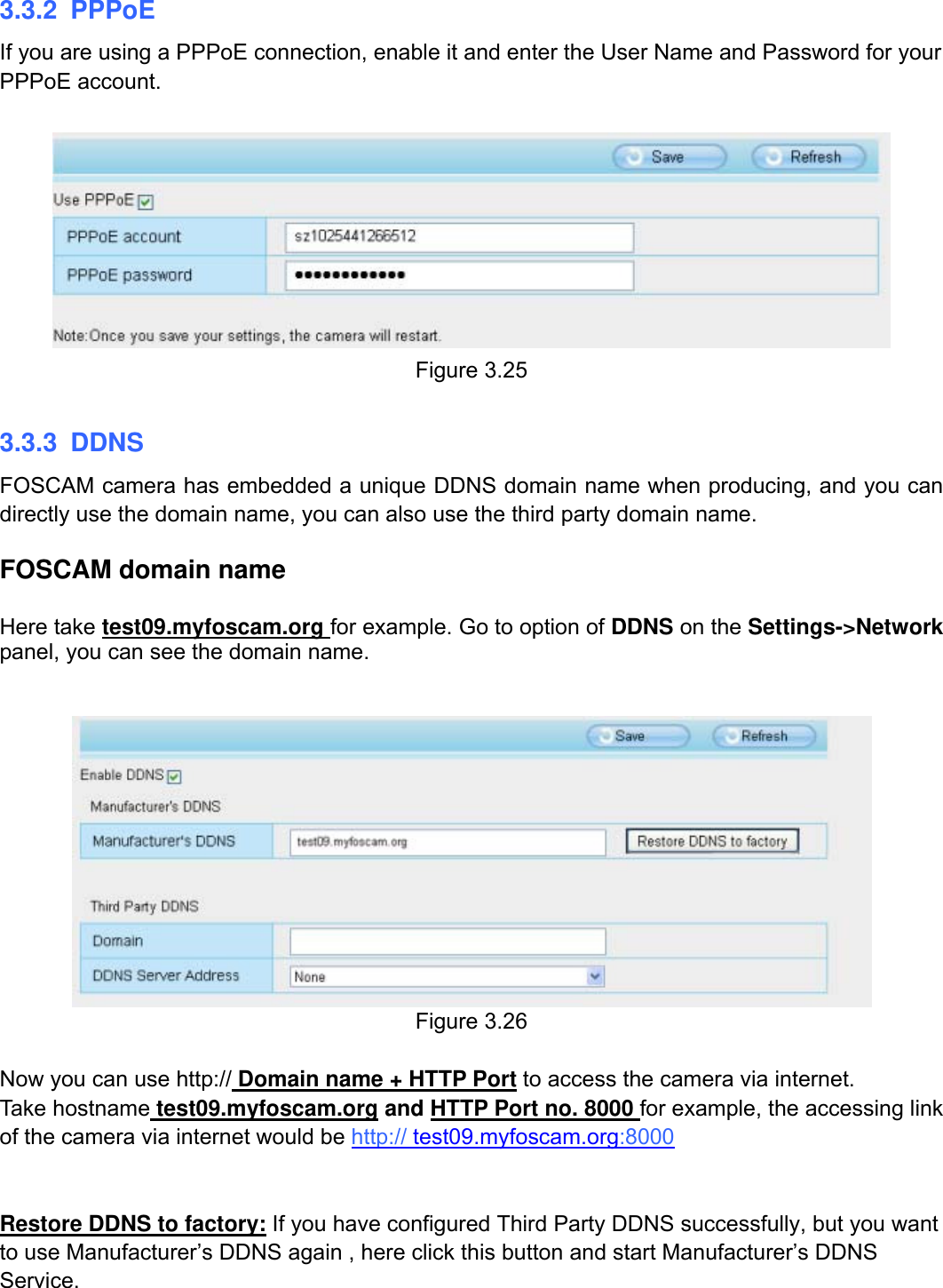

32wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 32 3.3.2 PPPoE If you are using a PPPoE connection, enable it and enter the User Name and Password for your PPPoE account. Figure 3.25 3.3.3 DDNS FOSCAM camera has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name. FOSCAM domain name Here take test09.myfoscam.org for example. Go to option of DDNS on the Settings->Network panel, you can see the domain name. Figure 3.26 Now you can use http:// Domain name + HTTP Port to access the camera via internet. Take hostname test09.myfoscam.org and HTTP Port no. 8000 for example, the accessing link of the camera via internet would be http:// test09.myfoscam.org:8000 Restore DDNS to factory: If you have configured Third Party DDNS successfully, but you want to use Manufacturer’s DDNS again , here click this button and start Manufacturer’s DDNS Service.

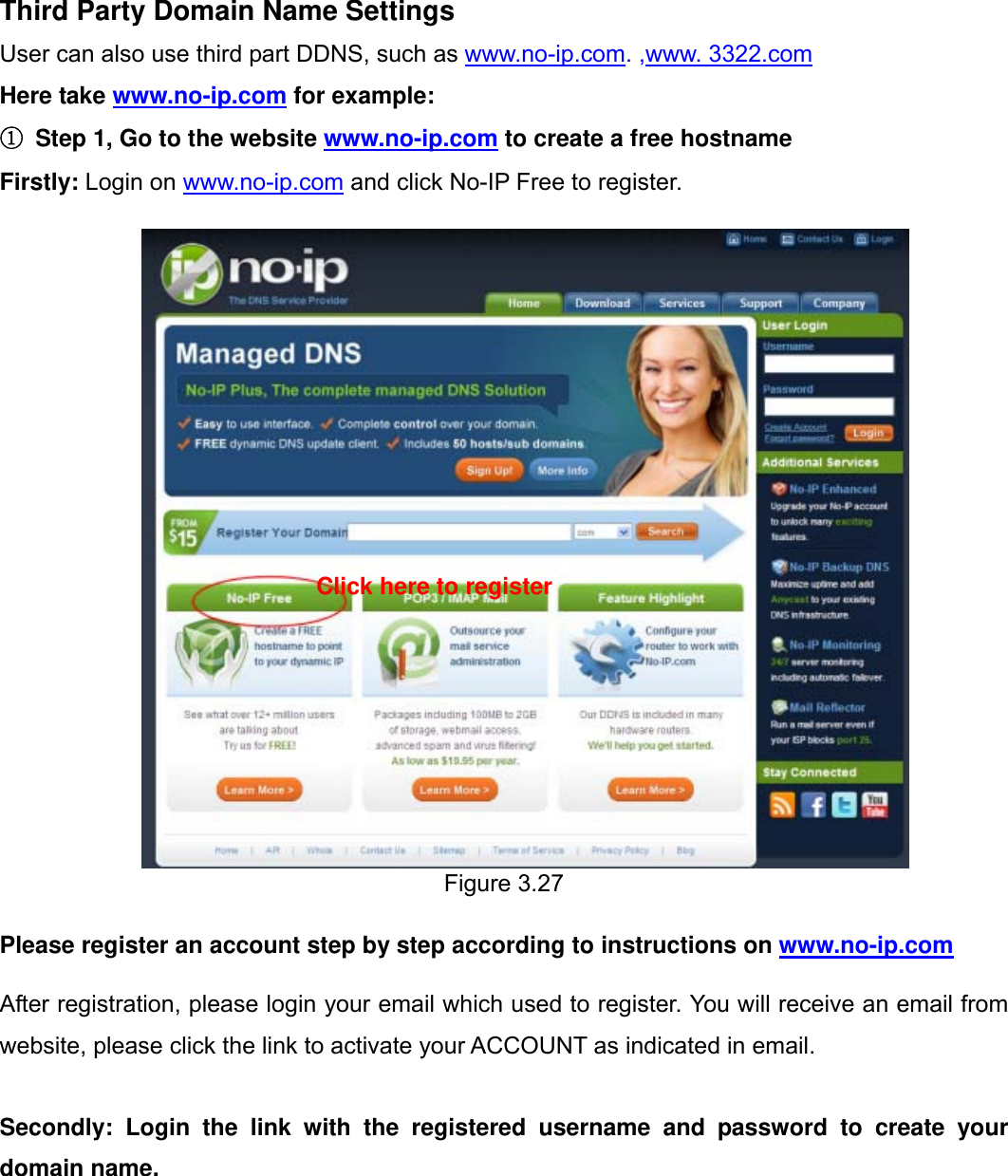

33wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 33 Third Party Domain Name Settings User can also use third part DDNS, such as www.no-ip.com. ,www. 3322.com Here take www.no-ip.com for example: ① Step 1, Go to the website www.no-ip.com to create a free hostname Firstly: Login on www.no-ip.com and click No-IP Free to register. Figure 3.27 Please register an account step by step according to instructions on www.no-ip.com After registration, please login your email which used to register. You will receive an email from website, please click the link to activate your ACCOUNT as indicated in email. Secondly: Login the link with the registered username and password to create your domain name. Click here to register

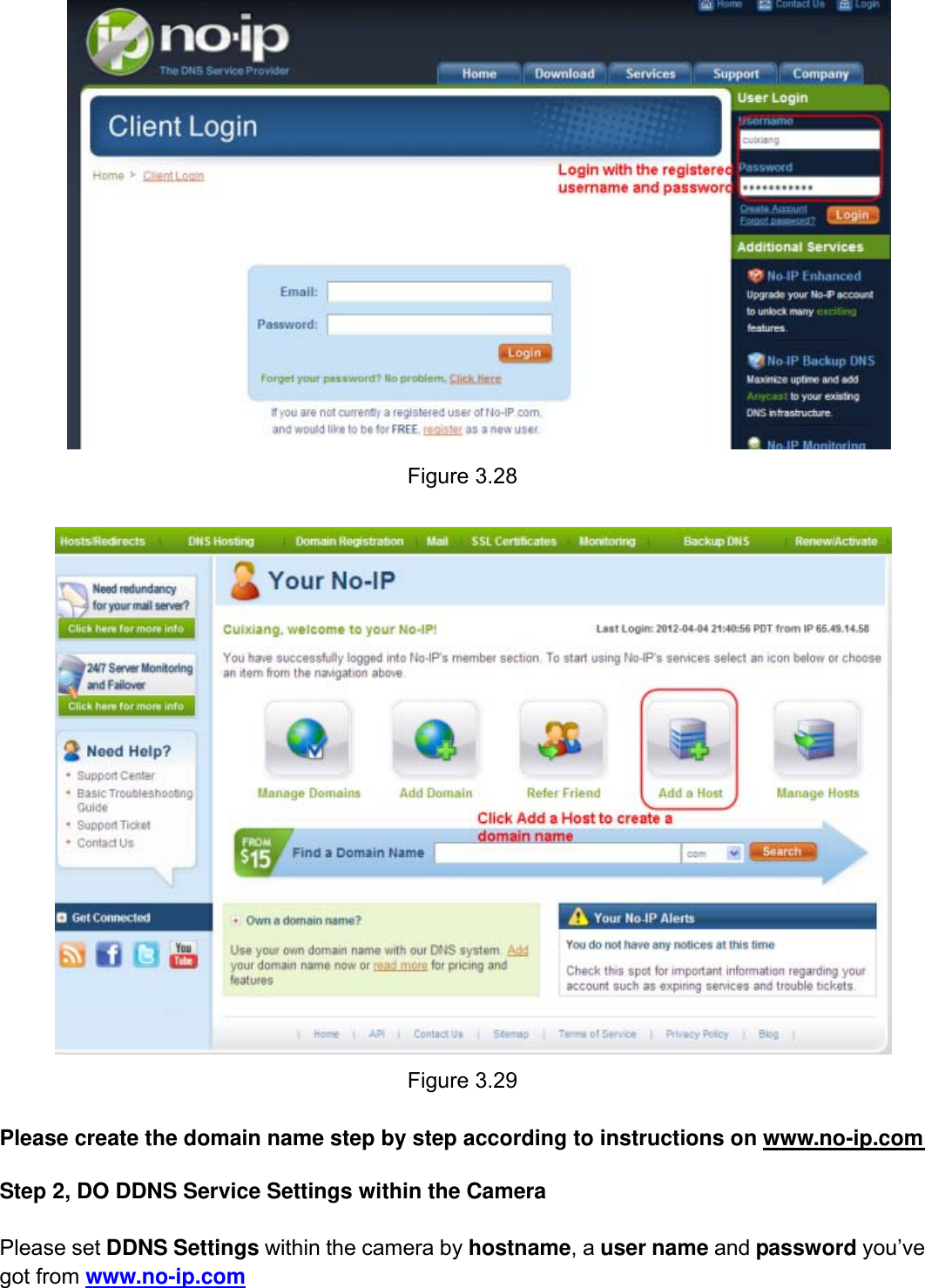

34wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 34 Figure 3.28 Figure 3.29 Please create the domain name step by step according to instructions on www.no-ip.com Step 2, DO DDNS Service Settings within the Camera Please set DDNS Settings within the camera by hostname, a user name and password you’ve got from www.no-ip.com

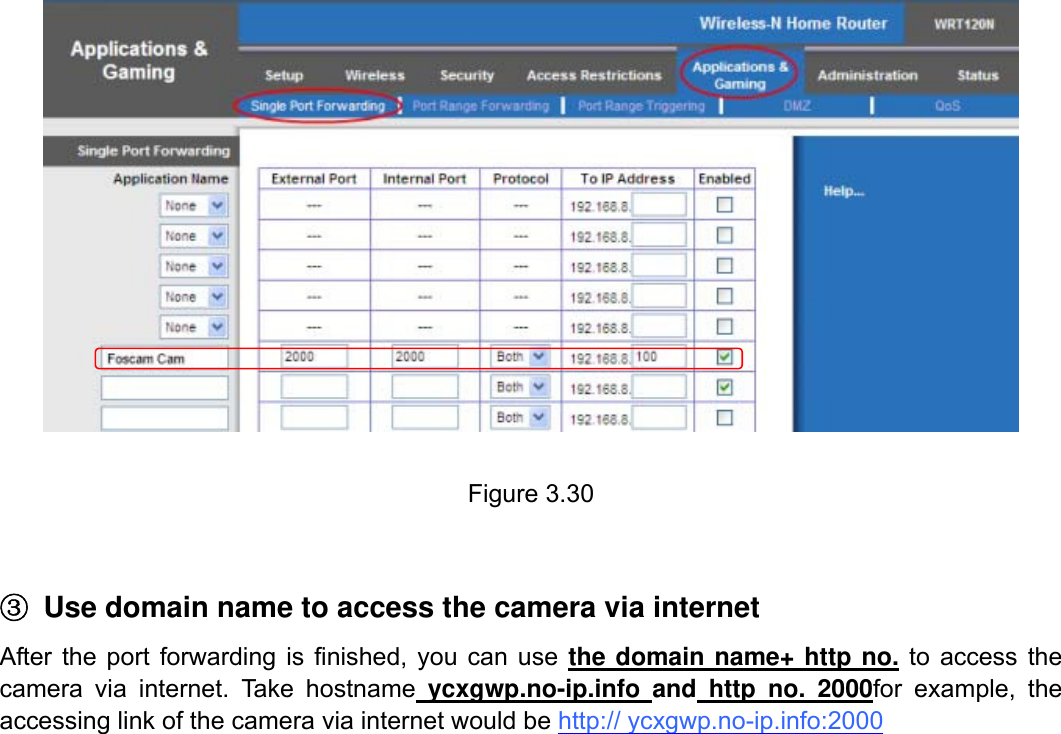

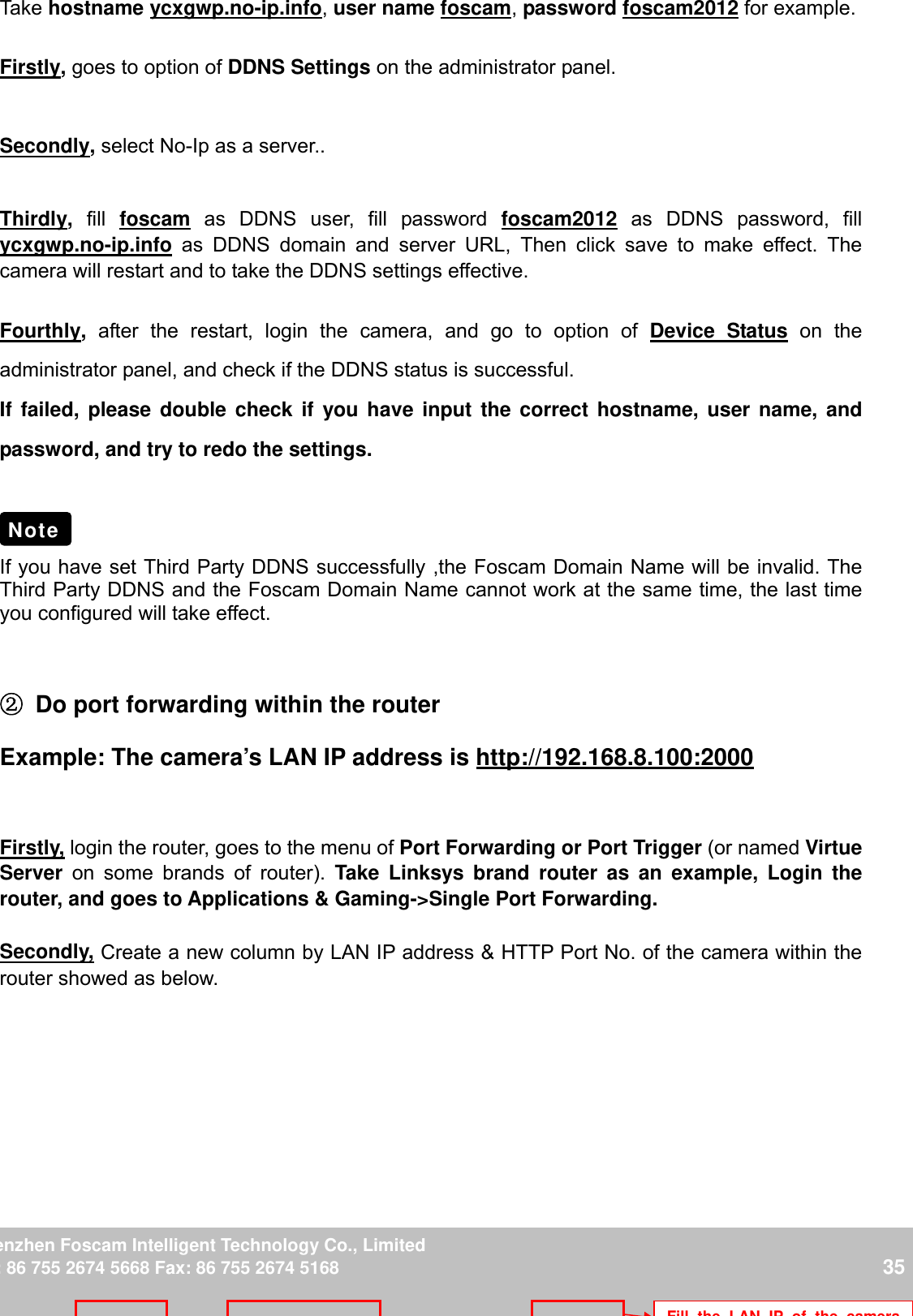

36wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 36 Figure 3.30 ③ Use domain name to access the camera via internet After the port forwarding is finished, you can use the domain name+ http no. to access the camera via internet. Take hostname ycxgwp.no-ip.info and http no. 2000for example, the accessing link of the camera via internet would be http:// ycxgwp.no-ip.info:2000

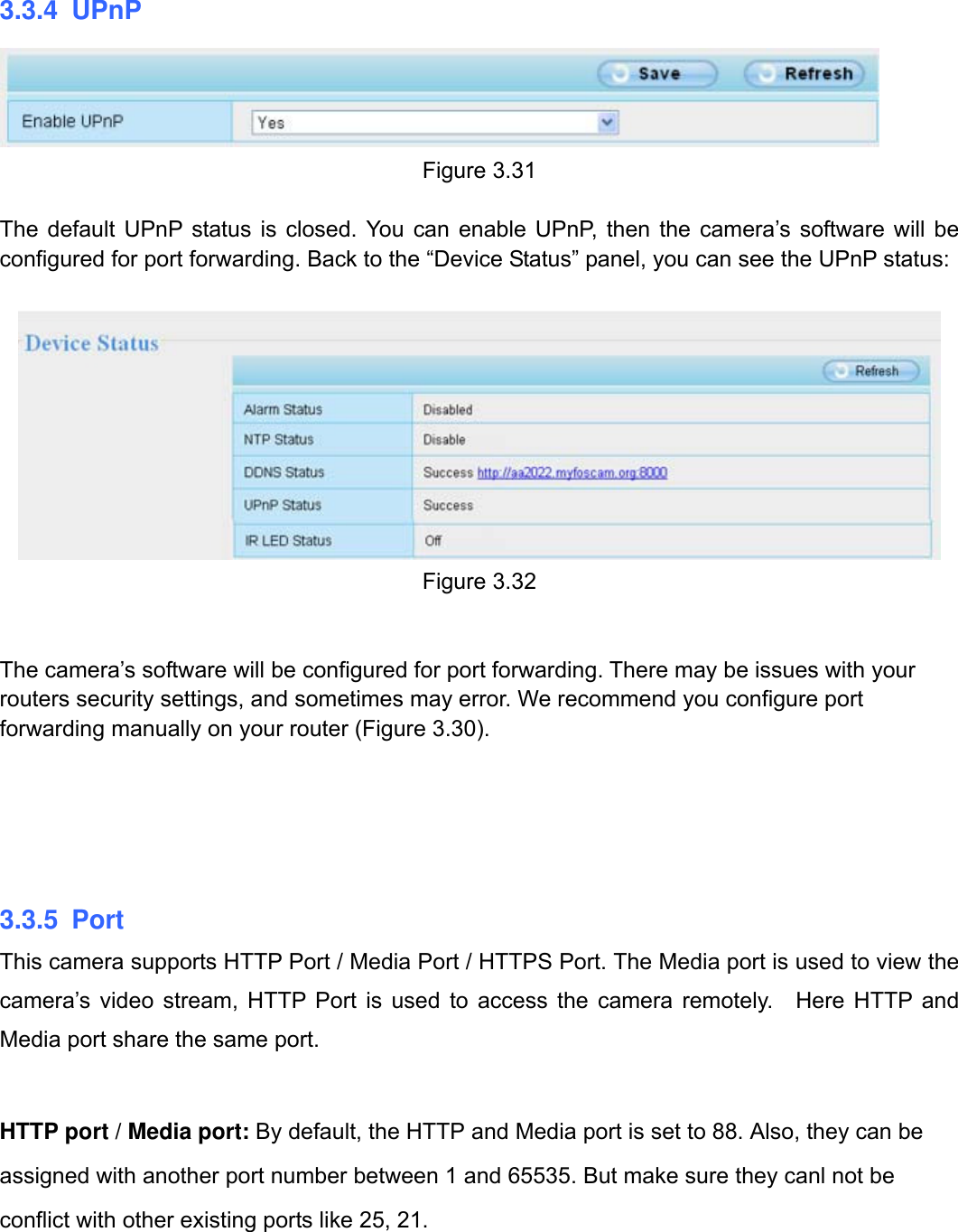

37wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 37 3.3.4 UPnP Figure 3.31 The default UPnP status is closed. You can enable UPnP, then the camera’s software will be configured for port forwarding. Back to the “Device Status” panel, you can see the UPnP status: Figure 3.32 The camera’s software will be configured for port forwarding. There may be issues with your routers security settings, and sometimes may error. We recommend you configure port forwarding manually on your router (Figure 3.30). 3.3.5 Port This camera supports HTTP Port / Media Port / HTTPS Port. The Media port is used to view the camera’s video stream, HTTP Port is used to access the camera remotely. Here HTTP and Media port share the same port. HTTP port / Media port: By default, the HTTP and Media port is set to 88. Also, they can be assigned with another port number between 1 and 65535. But make sure they canl not be conflict with other existing ports like 25, 21.

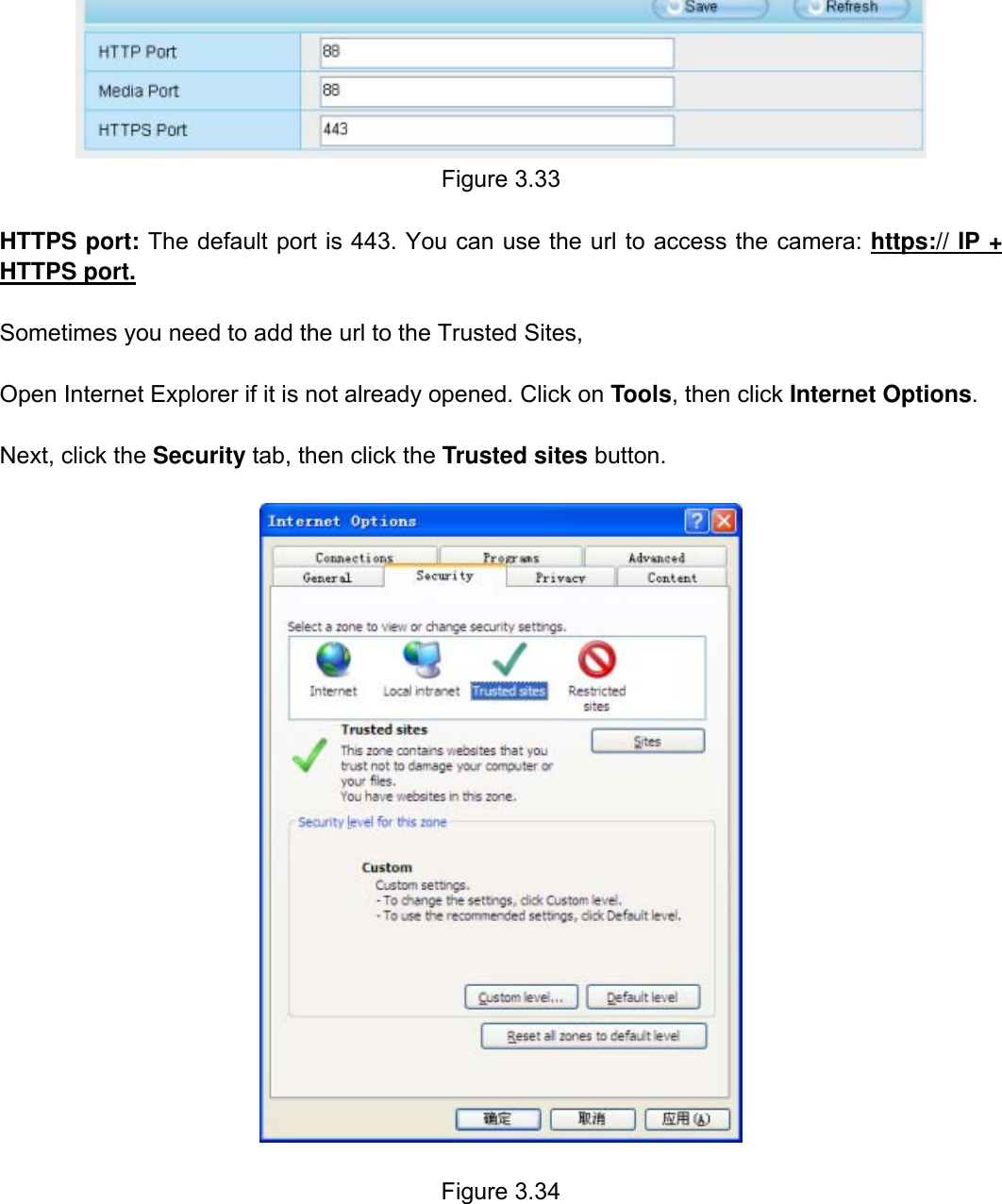

38wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 38 Figure 3.33 HTTPS port: The default port is 443. You can use the url to access the camera: https:// IP + HTTPS port. Sometimes you need to add the url to the Trusted Sites, Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options. Next, click the Security tab, then click the Trusted sites button. Figure 3.34

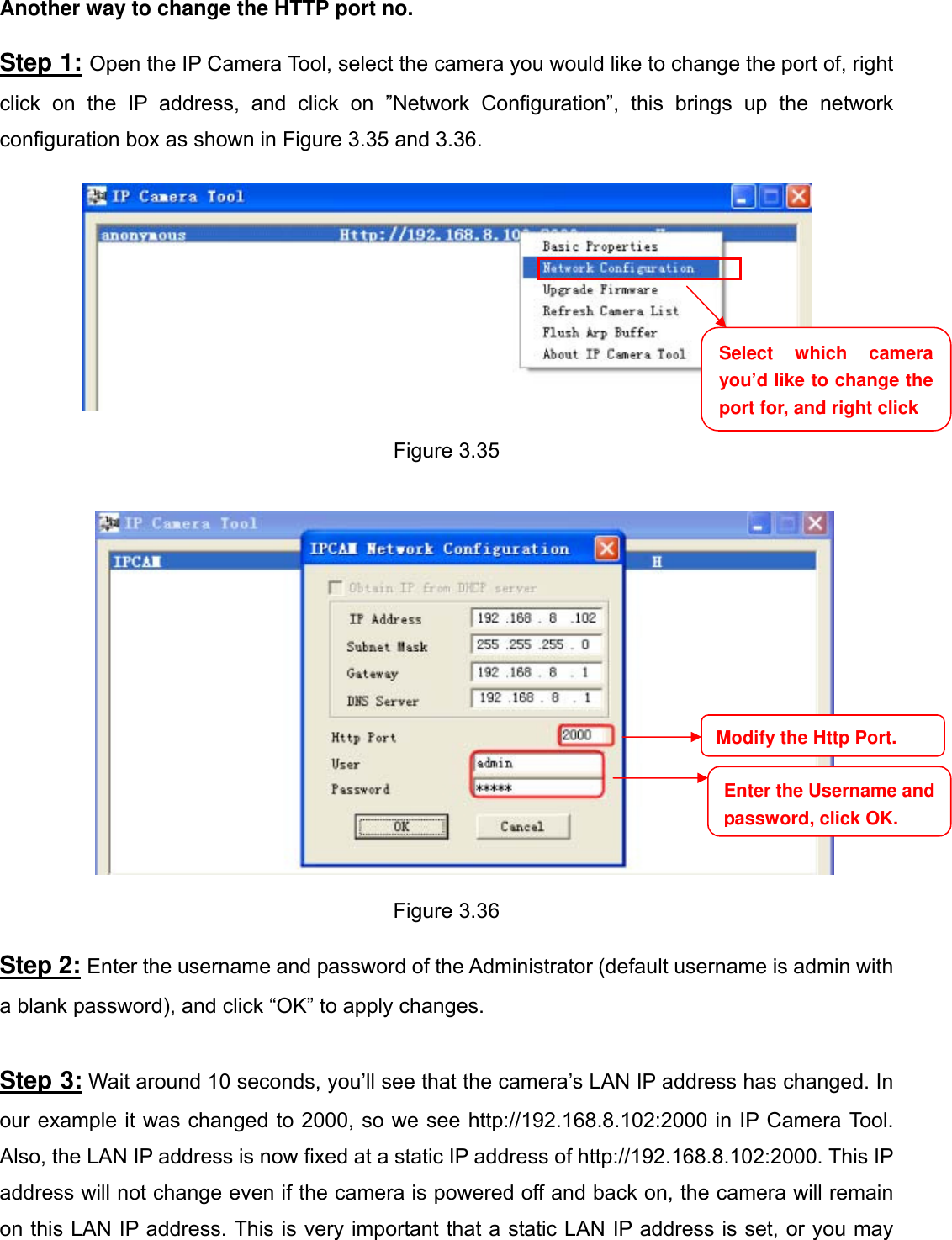

39wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 39 Another way to change the HTTP port no. Step 1: Open the IP Camera Tool, select the camera you would like to change the port of, right click on the IP address, and click on ”Network Configuration”, this brings up the network configuration box as shown in Figure 3.35 and 3.36. Figure 3.35 Figure 3.36 Step 2: Enter the username and password of the Administrator (default username is admin with a blank password), and click “OK” to apply changes. Step 3: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In our example it was changed to 2000, so we see http://192.168.8.102:2000 in IP Camera Tool. Also, the LAN IP address is now fixed at a static IP address of http://192.168.8.102:2000. This IP address will not change even if the camera is powered off and back on, the camera will remain on this LAN IP address. This is very important that a static LAN IP address is set, or you may Select which camera you’d like to change the port for, and right click Modify the Http Port.Enter the Username and password, click OK.

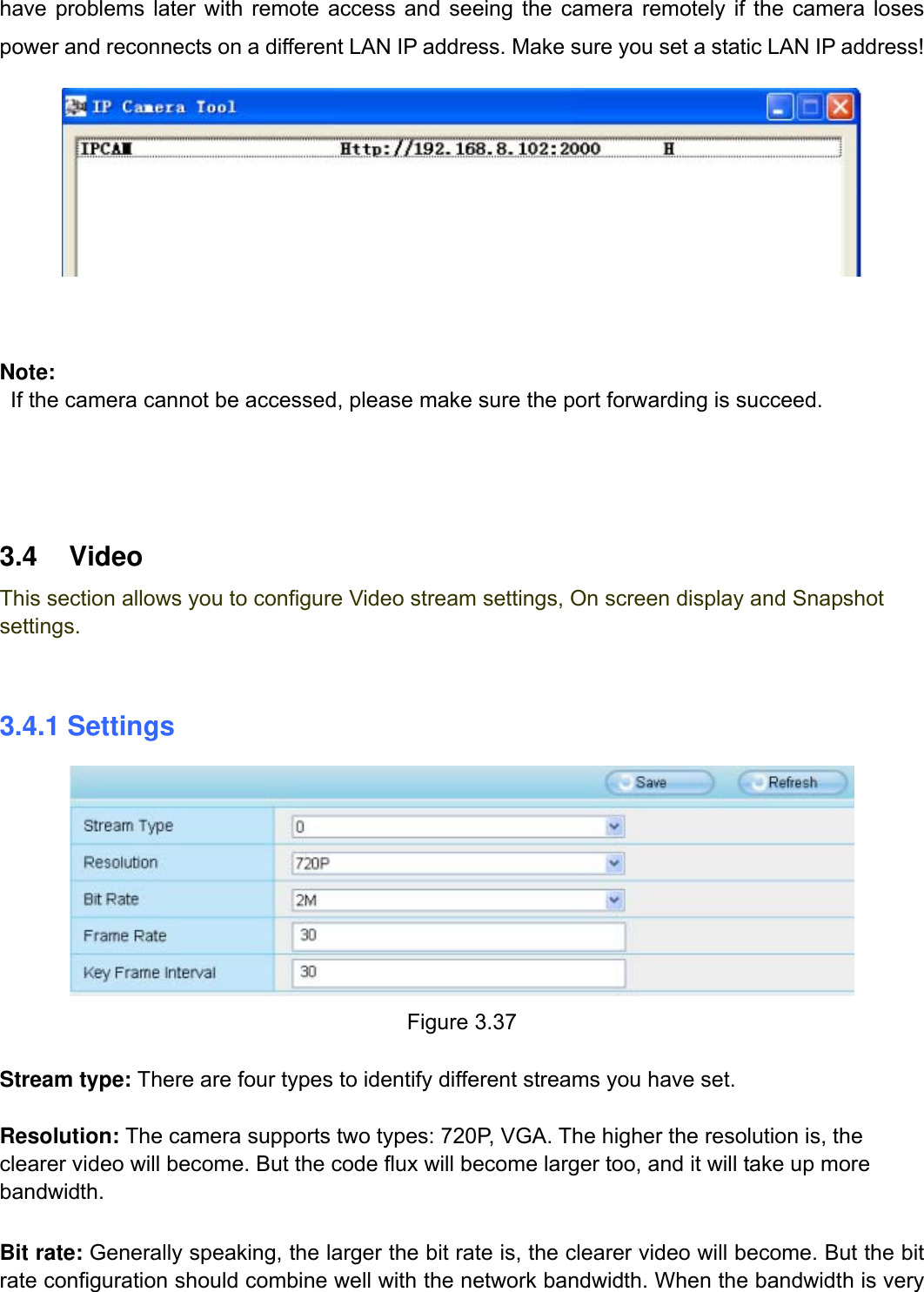

40wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 40 have problems later with remote access and seeing the camera remotely if the camera loses power and reconnects on a different LAN IP address. Make sure you set a static LAN IP address! Note: If the camera cannot be accessed, please make sure the port forwarding is succeed. 3.4 Video This section allows you to configure Video stream settings, On screen display and Snapshot settings. 3.4.1 Settings Figure 3.37 Stream type: There are four types to identify different streams you have set. Resolution: The camera supports two types: 720P, VGA. The higher the resolution is, the clearer video will become. But the code flux will become larger too, and it will take up more bandwidth. Bit rate: Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should combine well with the network bandwidth. When the bandwidth is very

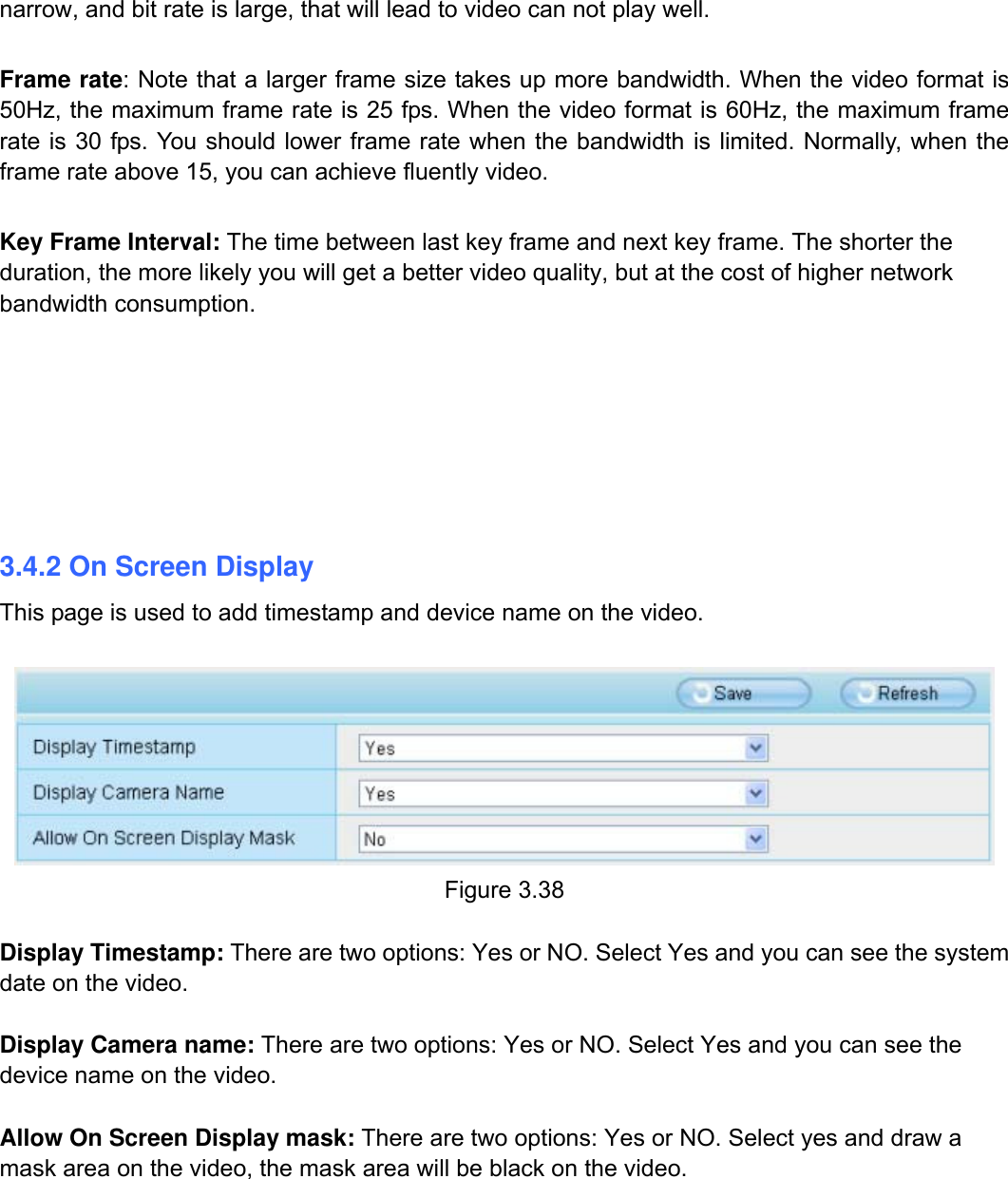

41wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 41 narrow, and bit rate is large, that will lead to video can not play well. Frame rate: Note that a larger frame size takes up more bandwidth. When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited. Normally, when the frame rate above 15, you can achieve fluently video. Key Frame Interval: The time between last key frame and next key frame. The shorter the duration, the more likely you will get a better video quality, but at the cost of higher network bandwidth consumption. 3.4.2 On Screen Display This page is used to add timestamp and device name on the video. Figure 3.38 Display Timestamp: There are two options: Yes or NO. Select Yes and you can see the system date on the video. Display Camera name: There are two options: Yes or NO. Select Yes and you can see the device name on the video. Allow On Screen Display mask: There are two options: Yes or NO. Select yes and draw a mask area on the video, the mask area will be black on the video.

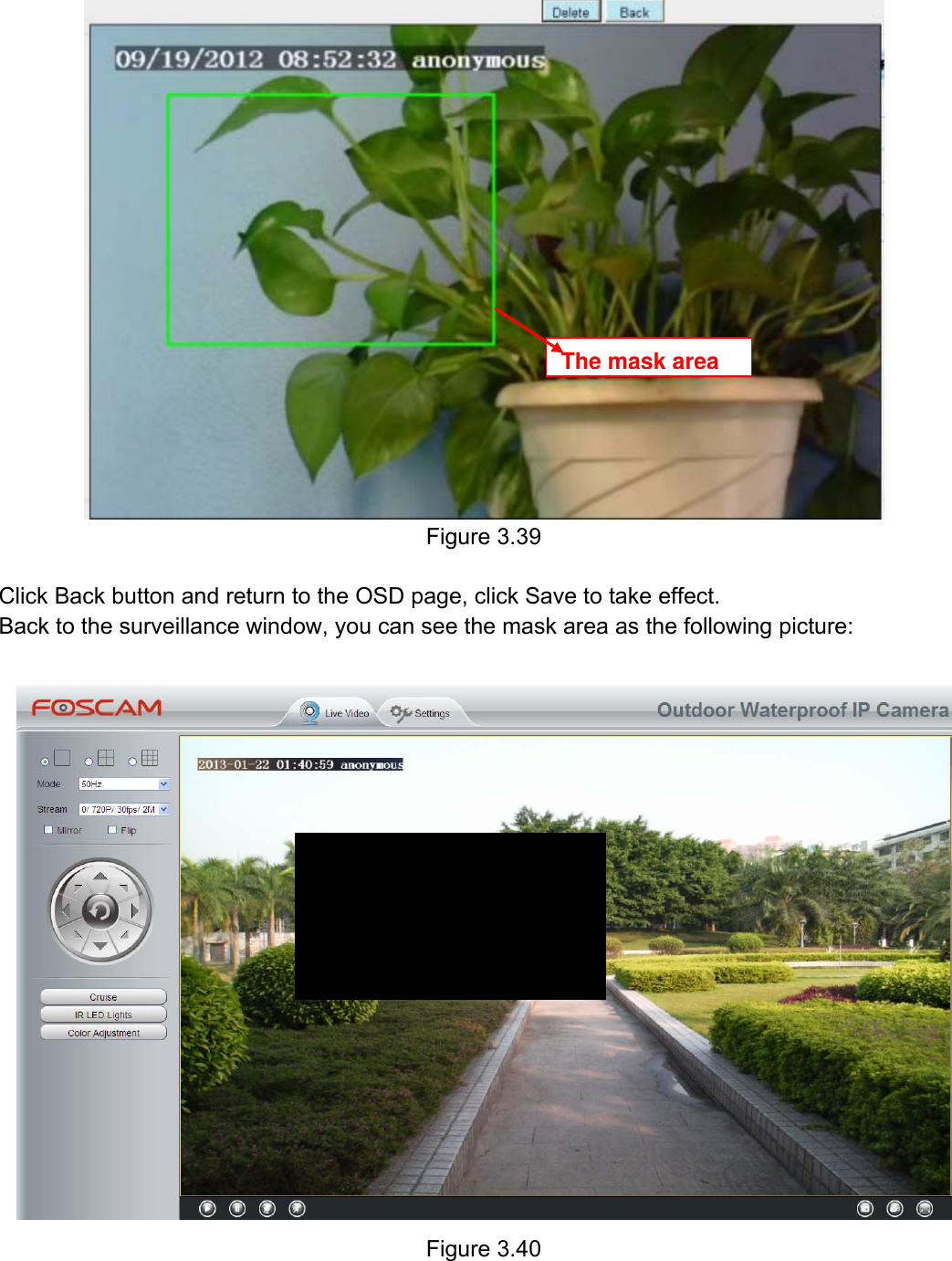

42wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 42 Figure 3.39 Click Back button and return to the OSD page, click Save to take effect. Back to the surveillance window, you can see the mask area as the following picture: Figure 3.40 The mask area

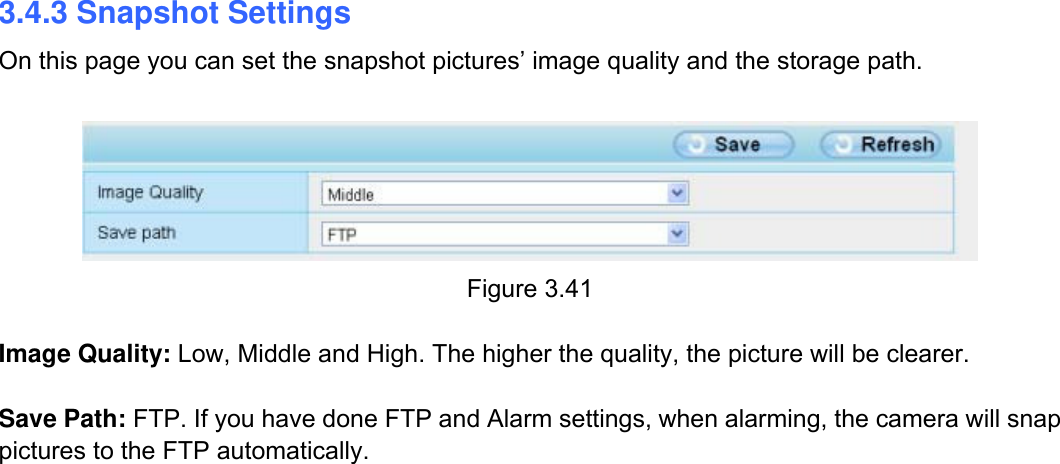

43wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 43 3.4.3 Snapshot Settings On this page you can set the snapshot pictures’ image quality and the storage path. Figure 3.41 Image Quality: Low, Middle and High. The higher the quality, the picture will be clearer. Save Path: FTP. If you have done FTP and Alarm settings, when alarming, the camera will snap pictures to the FTP automatically.

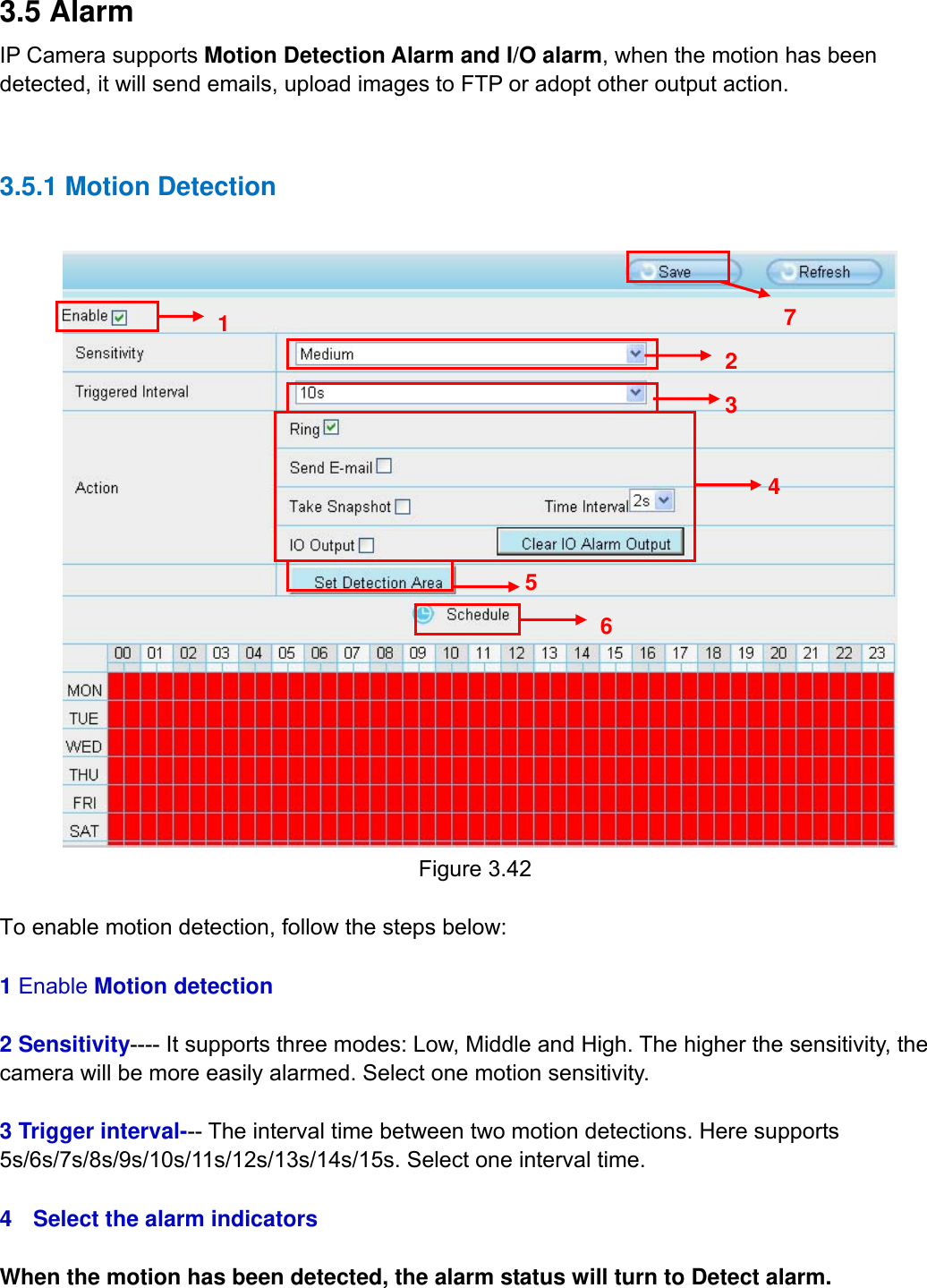

44wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 44 3.5 Alarm IP Camera supports Motion Detection Alarm and I/O alarm, when the motion has been detected, it will send emails, upload images to FTP or adopt other output action. 3.5.1 Motion Detection Figure 3.42 To enable motion detection, follow the steps below: 1 Enable Motion detection 2 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the camera will be more easily alarmed. Select one motion sensitivity. 3 Trigger interval--- The interval time between two motion detections. Here supports 5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s. Select one interval time. 4 Select the alarm indicators When the motion has been detected, the alarm status will turn to Detect alarm. 1 2 3 4 5 7 6

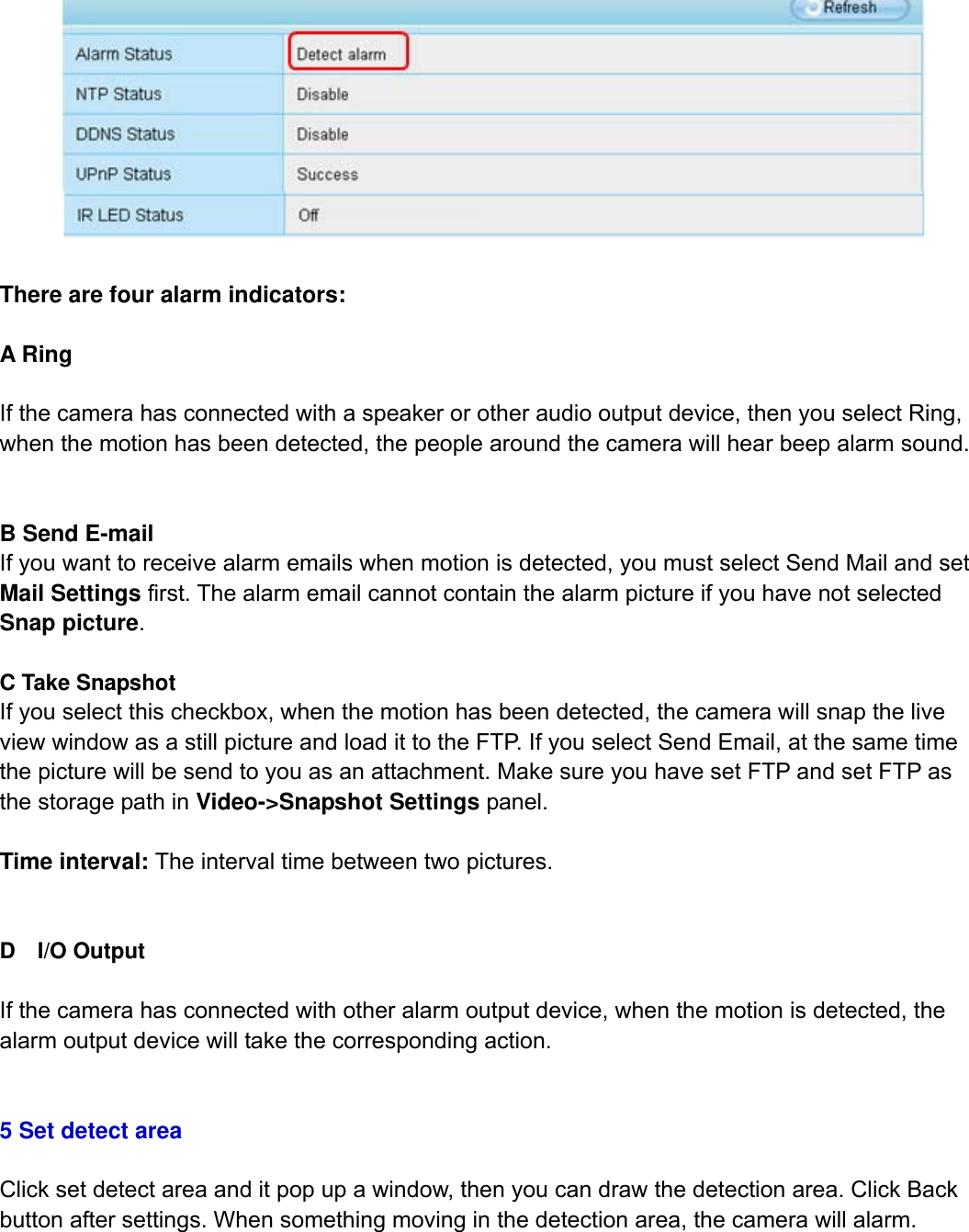

45wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 45 There are four alarm indicators: A Ring If the camera has connected with a speaker or other audio output device, then you select Ring, when the motion has been detected, the people around the camera will hear beep alarm sound. B Send E-mail If you want to receive alarm emails when motion is detected, you must select Send Mail and set Mail Settings first. The alarm email cannot contain the alarm picture if you have not selected Snap picture. C Take Snapshot If you select this checkbox, when the motion has been detected, the camera will snap the live view window as a still picture and load it to the FTP. If you select Send Email, at the same time the picture will be send to you as an attachment. Make sure you have set FTP and set FTP as the storage path in Video->Snapshot Settings panel. Time interval: The interval time between two pictures. D I/O Output If the camera has connected with other alarm output device, when the motion is detected, the alarm output device will take the corresponding action. 5 Set detect area Click set detect area and it pop up a window, then you can draw the detection area. Click Back button after settings. When something moving in the detection area, the camera will alarm.

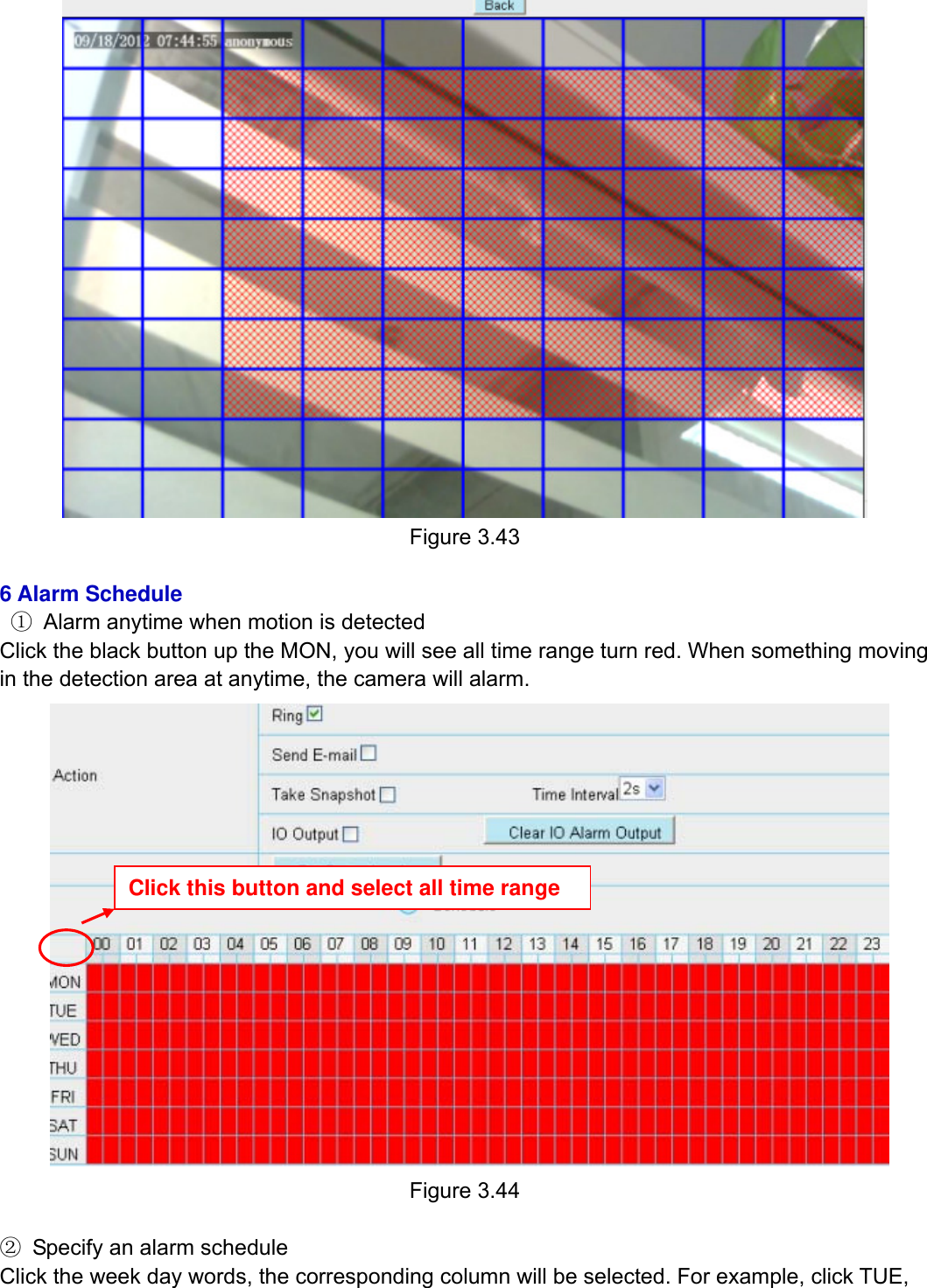

46wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 46 Figure 3.43 6 Alarm Schedule ① Alarm anytime when motion is detected Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at anytime, the camera will alarm. Figure 3.44 ② Specify an alarm schedule Click the week day words, the corresponding column will be selected. For example, click TUE, Click this button and select all time range

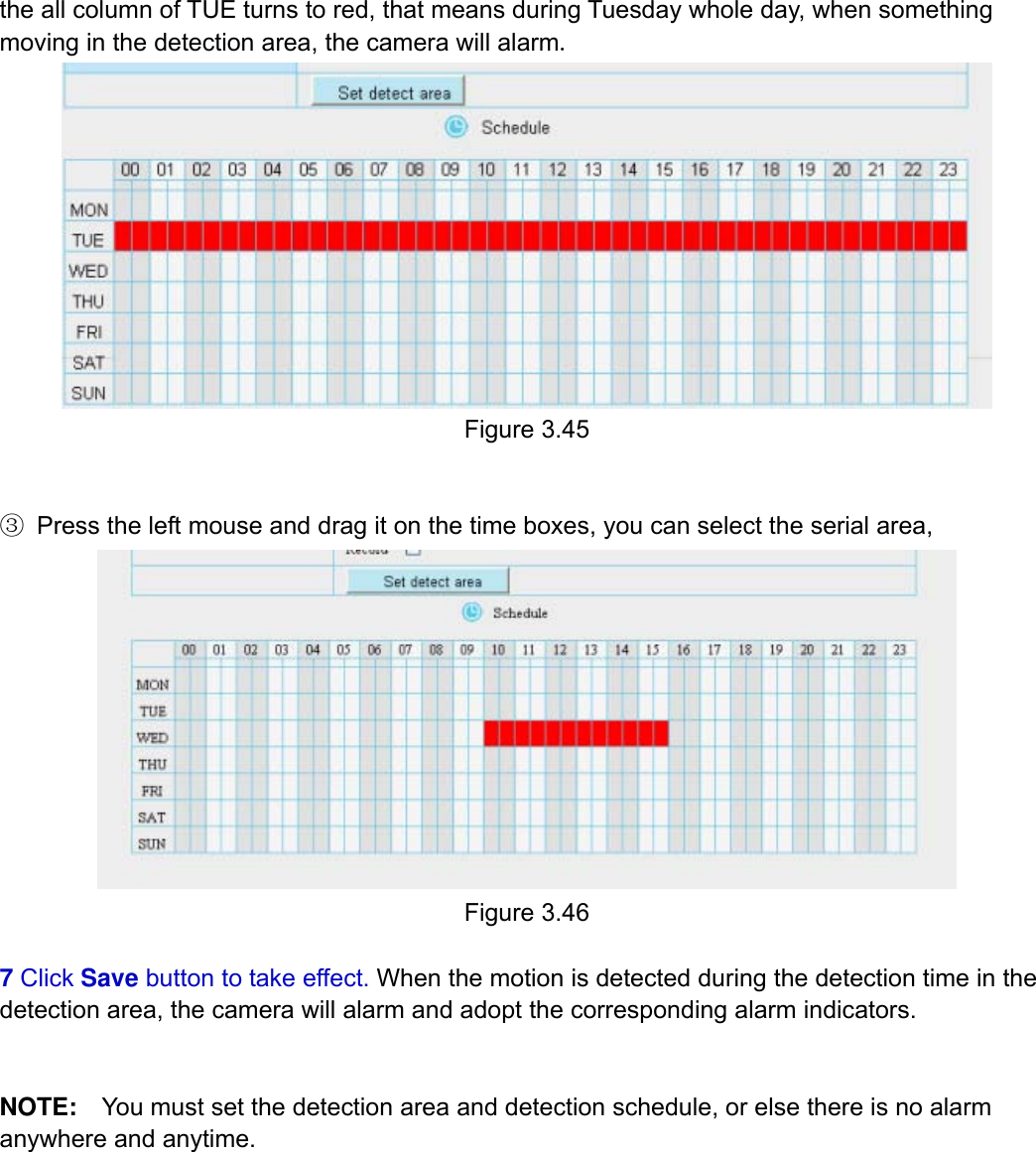

47wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 47 the all column of TUE turns to red, that means during Tuesday whole day, when something moving in the detection area, the camera will alarm. Figure 3.45 ③ Press the left mouse and drag it on the time boxes, you can select the serial area, Figure 3.46 7 Click Save button to take effect. When the motion is detected during the detection time in the detection area, the camera will alarm and adopt the corresponding alarm indicators. NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and anytime.

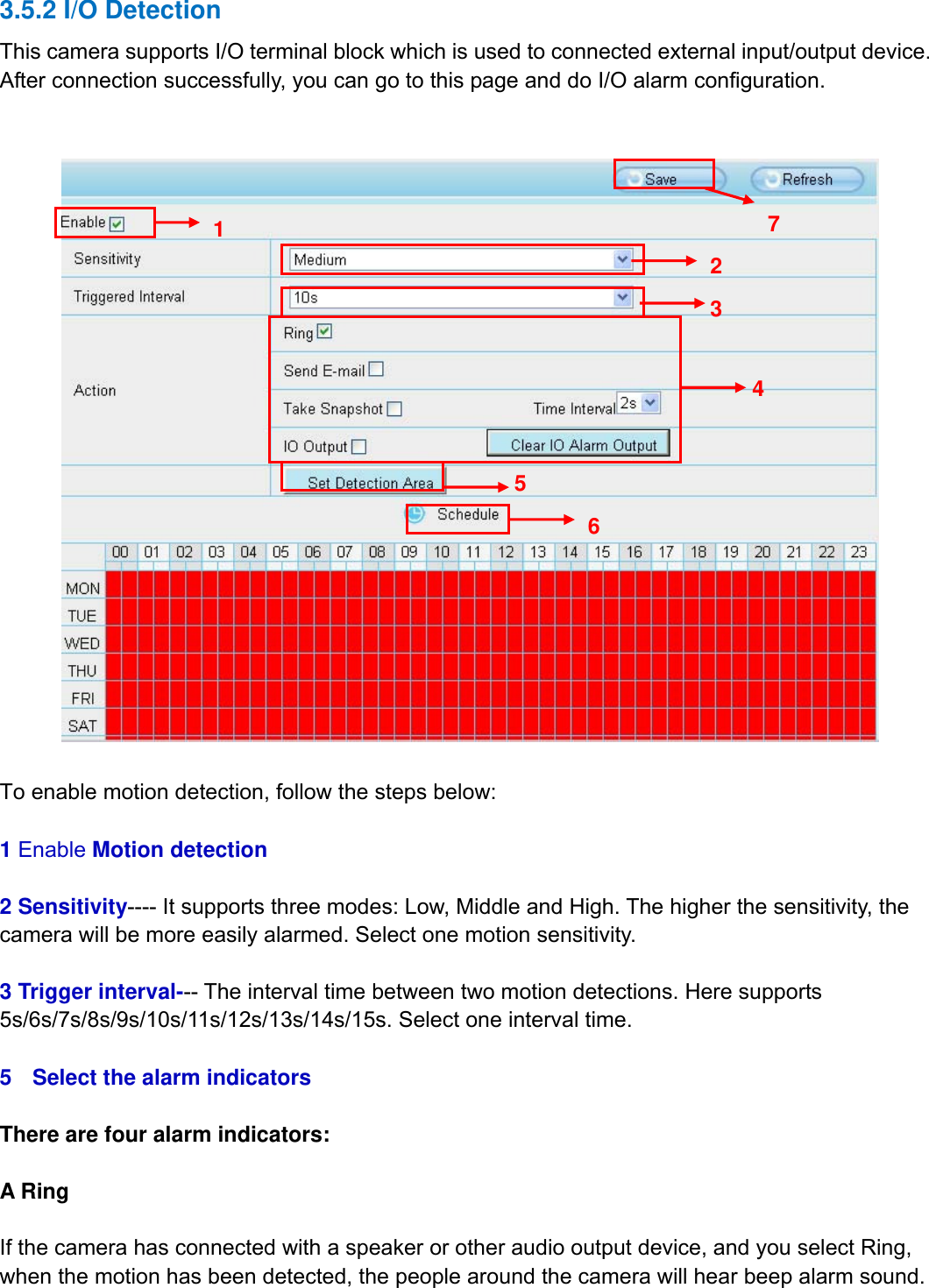

48wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 48 3.5.2 I/O Detection This camera supports I/O terminal block which is used to connected external input/output device. After connection successfully, you can go to this page and do I/O alarm configuration. To enable motion detection, follow the steps below: 1 Enable Motion detection 2 Sensitivity---- It supports three modes: Low, Middle and High. The higher the sensitivity, the camera will be more easily alarmed. Select one motion sensitivity. 3 Trigger interval--- The interval time between two motion detections. Here supports 5s/6s/7s/8s/9s/10s/11s/12s/13s/14s/15s. Select one interval time. 5 Select the alarm indicators There are four alarm indicators: A Ring If the camera has connected with a speaker or other audio output device, and you select Ring, when the motion has been detected, the people around the camera will hear beep alarm sound. 1 2 3 4 5 7 6

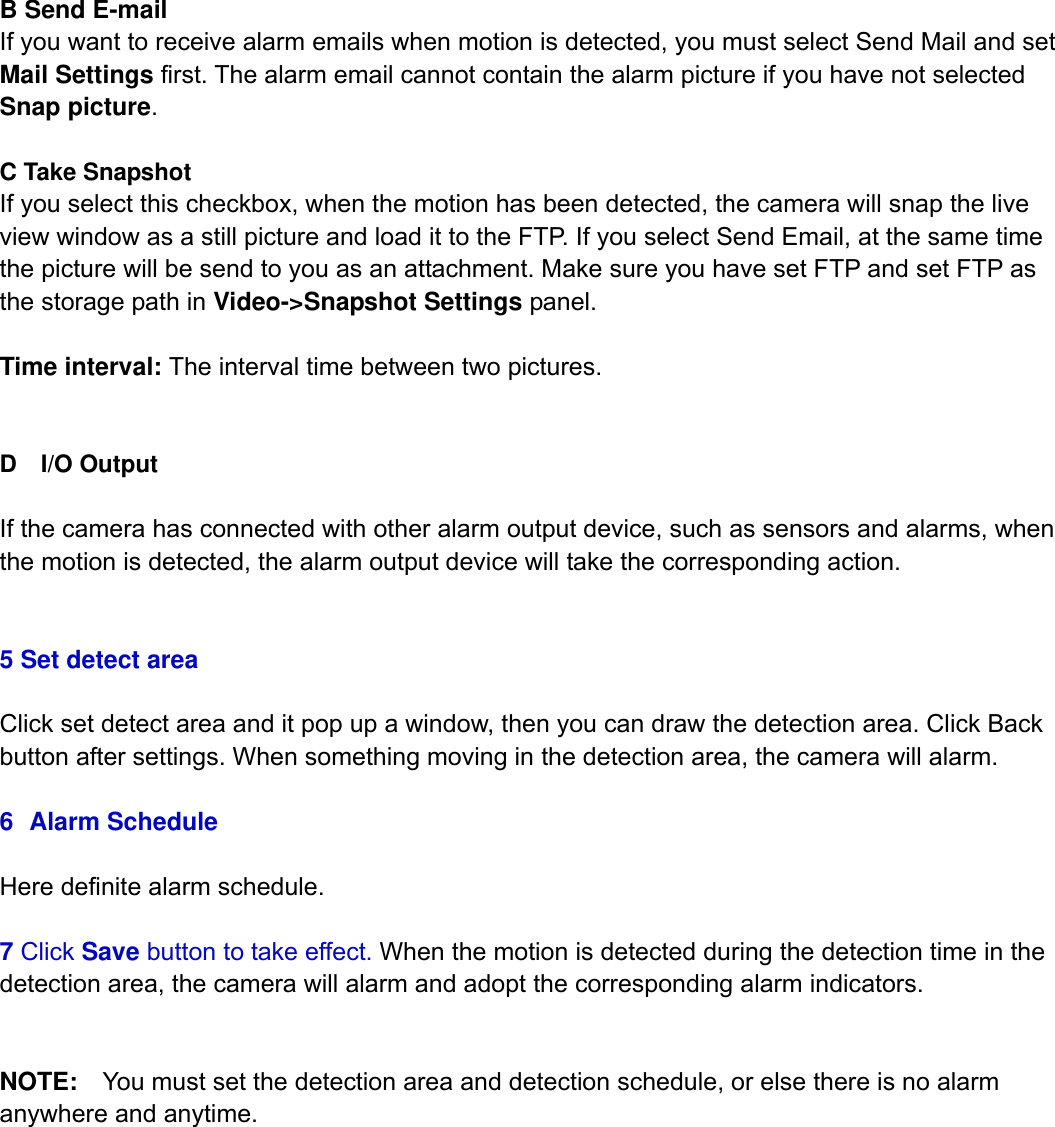

49wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 49 B Send E-mail If you want to receive alarm emails when motion is detected, you must select Send Mail and set Mail Settings first. The alarm email cannot contain the alarm picture if you have not selected Snap picture. C Take Snapshot If you select this checkbox, when the motion has been detected, the camera will snap the live view window as a still picture and load it to the FTP. If you select Send Email, at the same time the picture will be send to you as an attachment. Make sure you have set FTP and set FTP as the storage path in Video->Snapshot Settings panel. Time interval: The interval time between two pictures. D I/O Output If the camera has connected with other alarm output device, such as sensors and alarms, when the motion is detected, the alarm output device will take the corresponding action. 5 Set detect area Click set detect area and it pop up a window, then you can draw the detection area. Click Back button after settings. When something moving in the detection area, the camera will alarm. 6 Alarm Schedule Here definite alarm schedule. 7 Click Save button to take effect. When the motion is detected during the detection time in the detection area, the camera will alarm and adopt the corresponding alarm indicators. NOTE: You must set the detection area and detection schedule, or else there is no alarm anywhere and anytime.

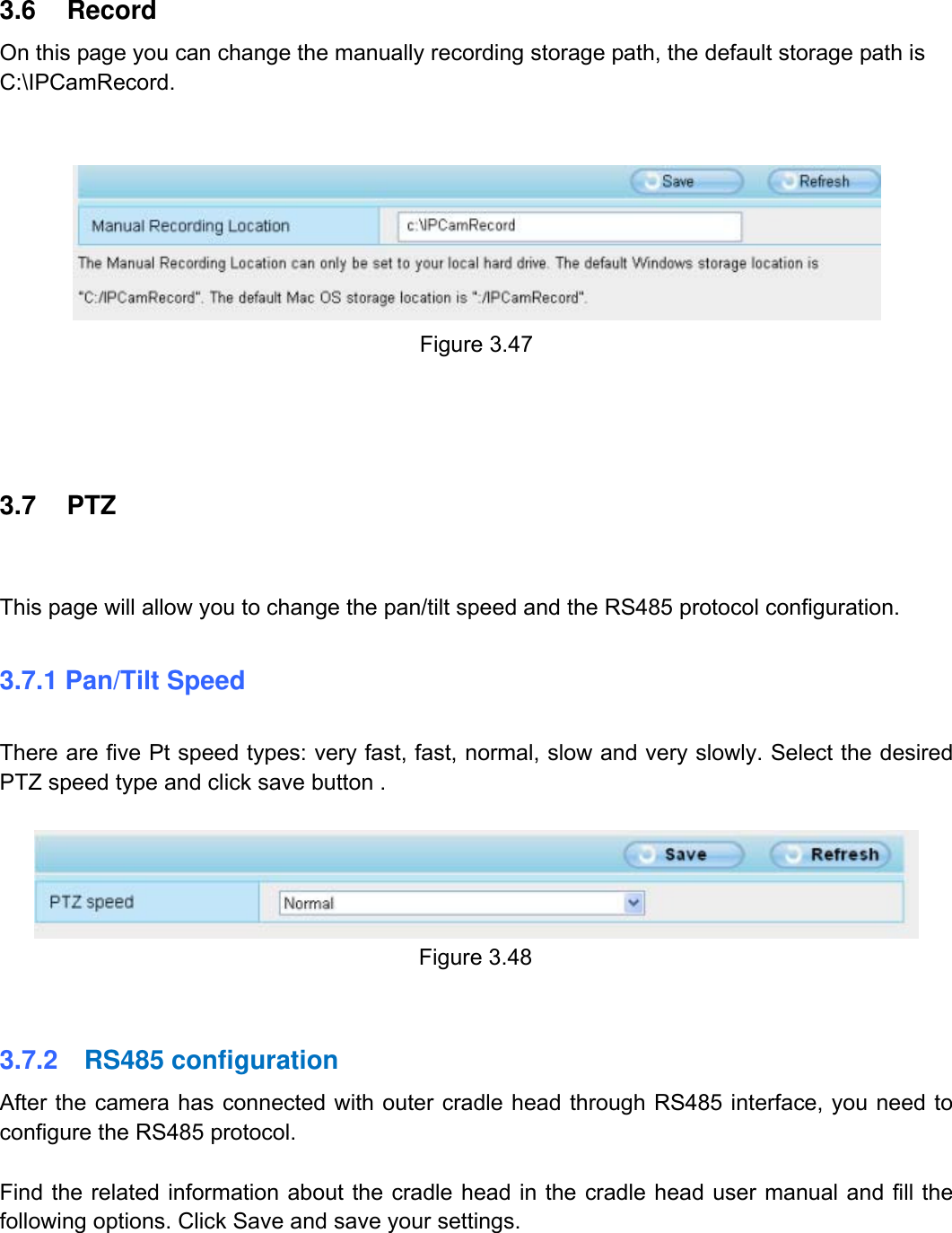

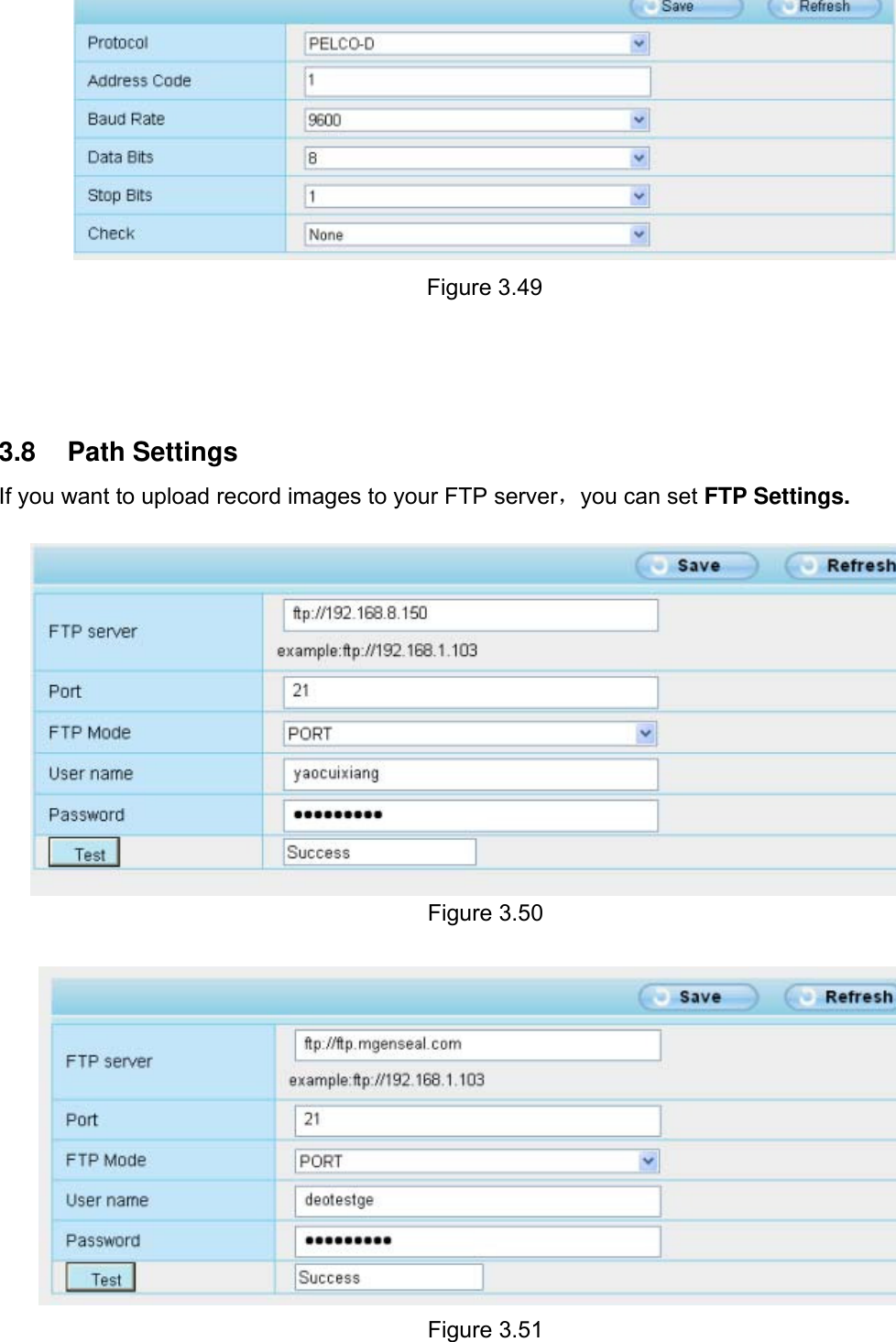

$50wwwwww..ffoossccaamm..ccoomm SShheennzzhheenn FFoossccaamm IInntteelllliiggeenntt TTeecchhnnoollooggyy CCoo..,, LLiimmiitteedd TTeell:: 8866 775555 22667744 55666688 FFaaxx:: 8866 775555 22667744 55116688 50 3.6 Record On this page you can change the manually recording storage path, the default storage path is C:\IPCamRecord. Figure 3.47 3.7 PTZ This page will allow you to change the pan/tilt speed and the RS485 protocol configuration. 3.7.1 Pan/Tilt Speed There are five Pt speed types: very fast, fast, normal, slow and very slowly. Select the desired PTZ speed type and click save button . Figure 3.48 3.7.2 RS485 configuration After the camera has connected with outer cradle head through RS485 interface, you need to configure the RS485 protocol. Find the related information about the cradle head in the cradle head user manual and fill the following options. Click Save and save your settings.$
